Polythese IC-3GL

VASCULAR GRAFTS

VASCULAR

IC-3GL

Woven Polyester

polythese®

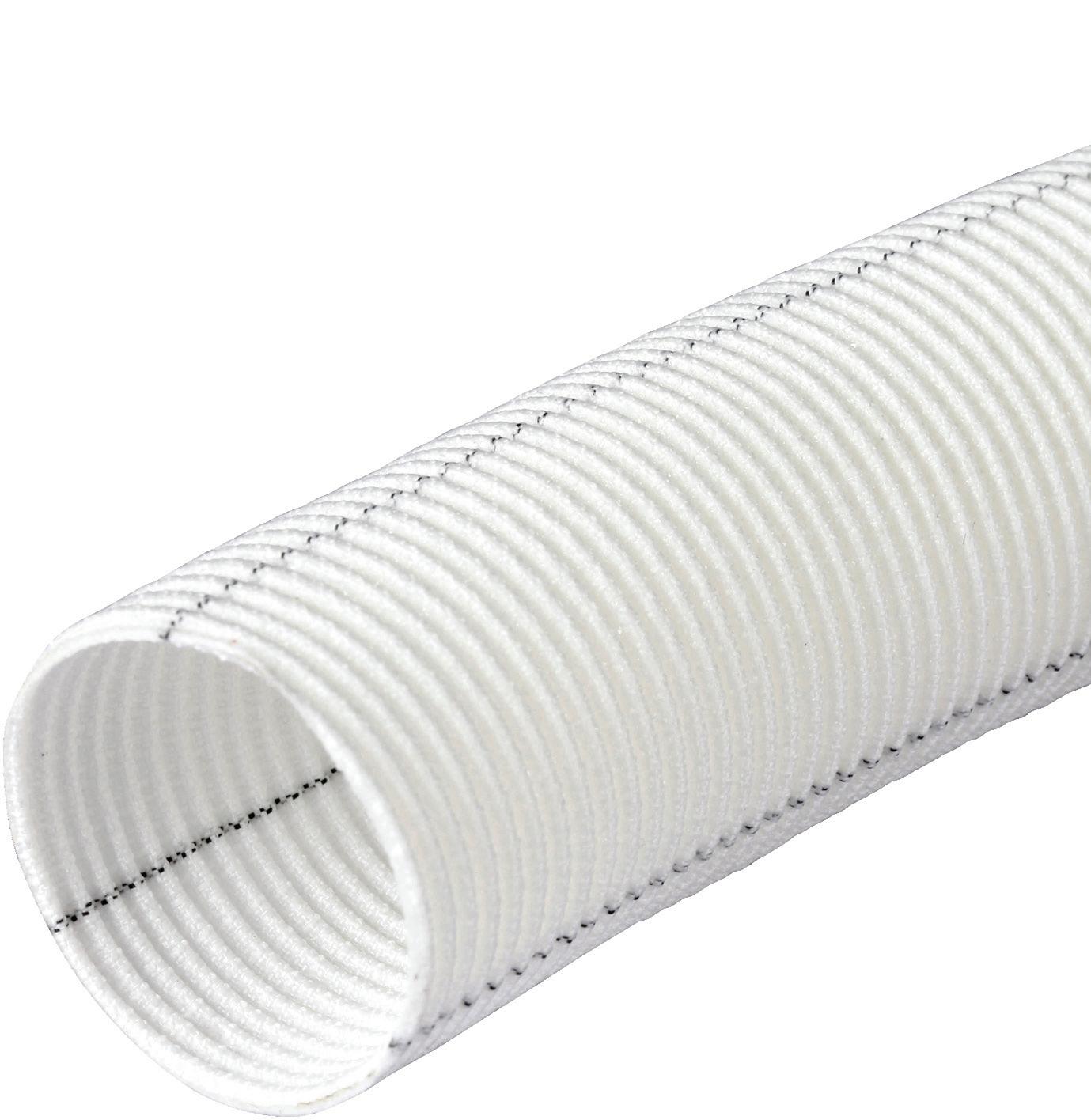

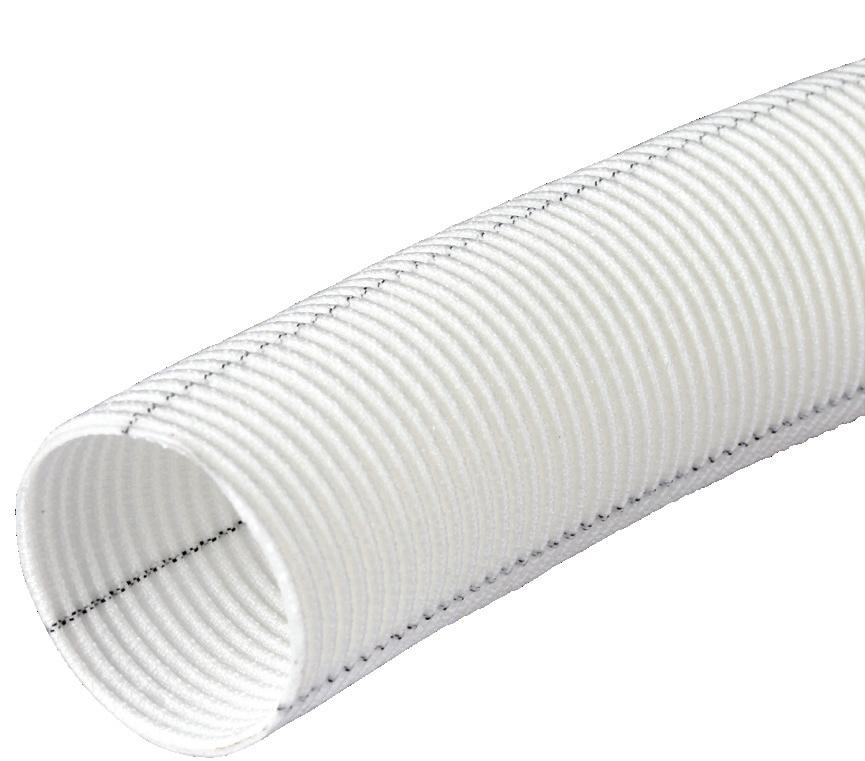

polythese® IC-3GL WOVEN POLYESTER…

… intended for replacement or bypass of arteries during open-surgical vascular repair procedures.

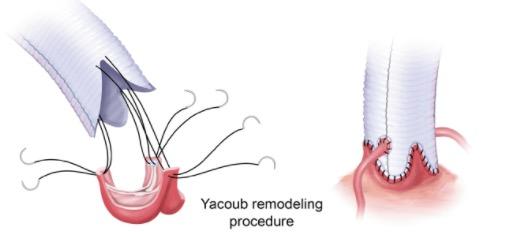

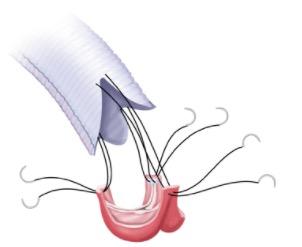

The polythese IC-3GL prosthesis is especially indicated in aortic root and ascending/descending thoracic aorta surgery.

Adapted for high pressure area!

DESIGNED FOR A BETTER POSITIONING…

Impregnated with type I bovine collagen on both side

Water permeability < 10 mL/min/cm²

3 black lines at an equal angle of 120° over the circonference

2

MAKE THE DIFFERENCE

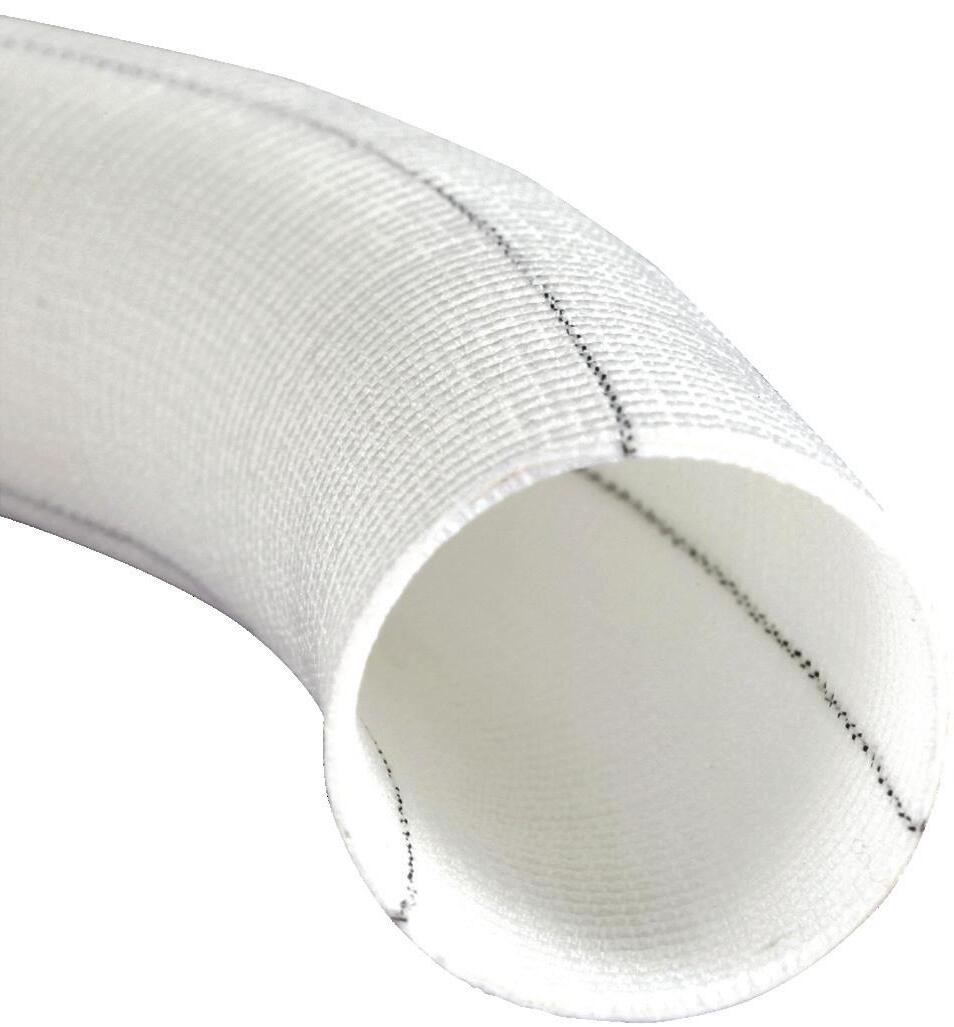

3 black guide lines at an equal angle of 120° over the circumference of the prosthesis.

 Make the positioning easier

No formaldehyde nor glutaraldehyde included during manufacturing

REFERENCES

polythese® IC-3GL 3

Minimum usable lengths (cm) 15 cm 30 cm 60 cm Nominal relaxed and pressurized internal diameters (mm) 20 mm PT3GL020015 PT3GL020030 PT3GL020060 22 mm PT3GL022015 PT3GL022030 PT3GL022060 24 mm PT3GL024015 PT3GL024030 PT3GL024060 26 mm PT3GL026015 PT3GL026030 PT3GL026060 28 mm PT3GL028015 PT3GL028030 PT3GL028060 30 mm PT3GL030015 PT3GL030030 PT3GL030060 32 mm PT3GL032015 PT3GL032030 PT3GL032060 34 mm PT3GL034015 PT3GL034030 PT3GL034060 36 mm PT3GL036015 PT3GL036030 PT3GL036060 38 mm PT3GL038015 PT3GL038030 PT3GL038060

FURTHER INFORMATION, PLEASE CONTACT: questions@vygon.com

specification shown in this leaflet are for information only and are not, under any circumstances, of a contractual nature. VYGON – 5, RUE ADELINE - 95440 ECOUEN - FRANCE RECEPTION: +33 (0)1 39 92 63 63 – SERVICE CLIENTS FRANCE: +33 (0)1 39 92 63 81 EXPORT CUSTOMER SERVICE: +33 (0)1 39 92 64 15 www.vygon.com 04/2023DB BU CS 18 449 E
