Polymaille C

Page 1

VASCULAR

VASCULAR GRAFTS polymaille® C

Knitted Polyester

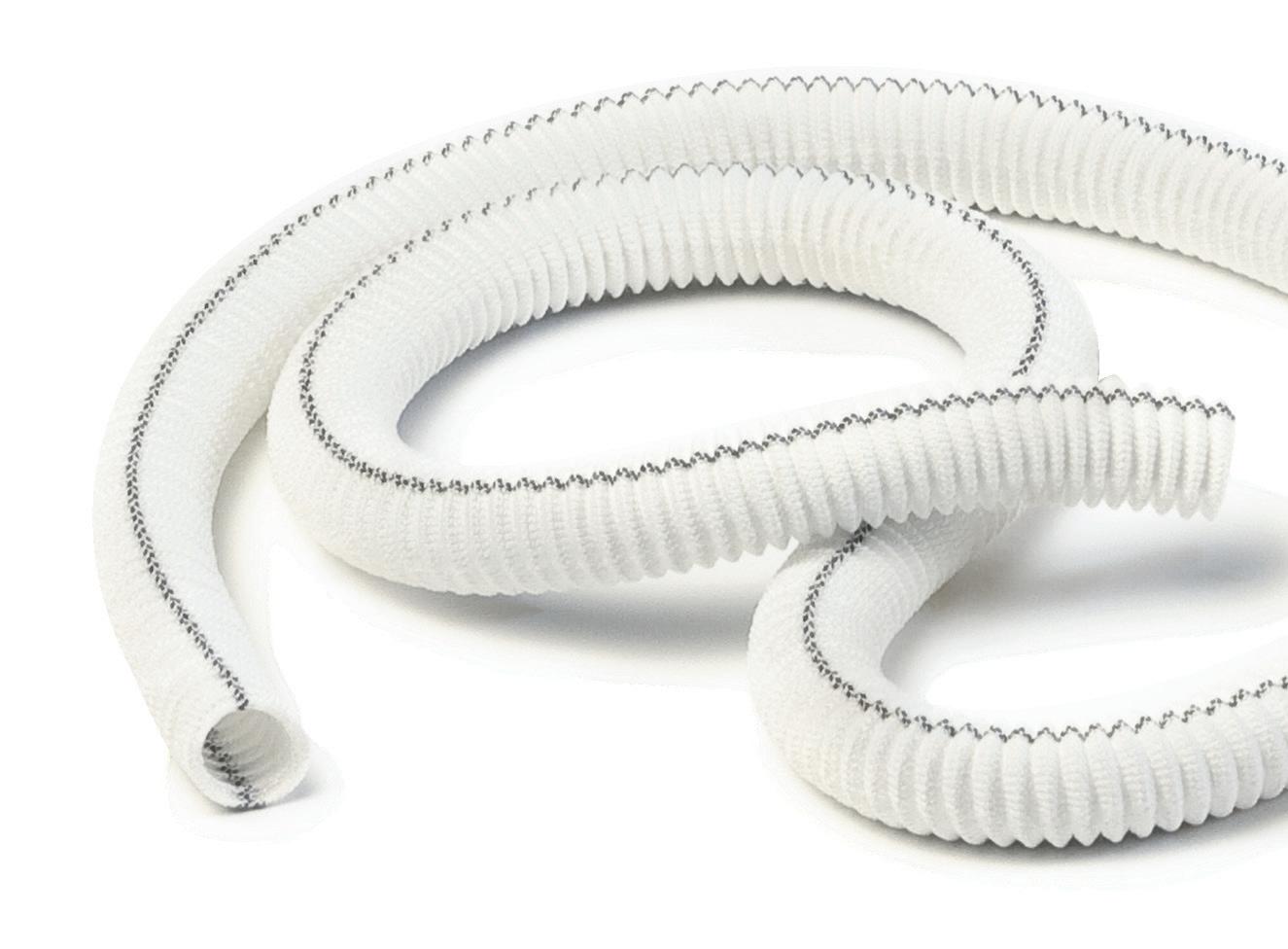

polymaille® C

KNITTED POLYESTER…

… intended for replacement or bypass of arteries presenting aneurysm or obliteratives arterial disease, restricted to abdominal and peripheral repair.

High porosity for a better suturability!

Warp locknit structure to avoid fraying when cutting.

OTHERS FEATURES

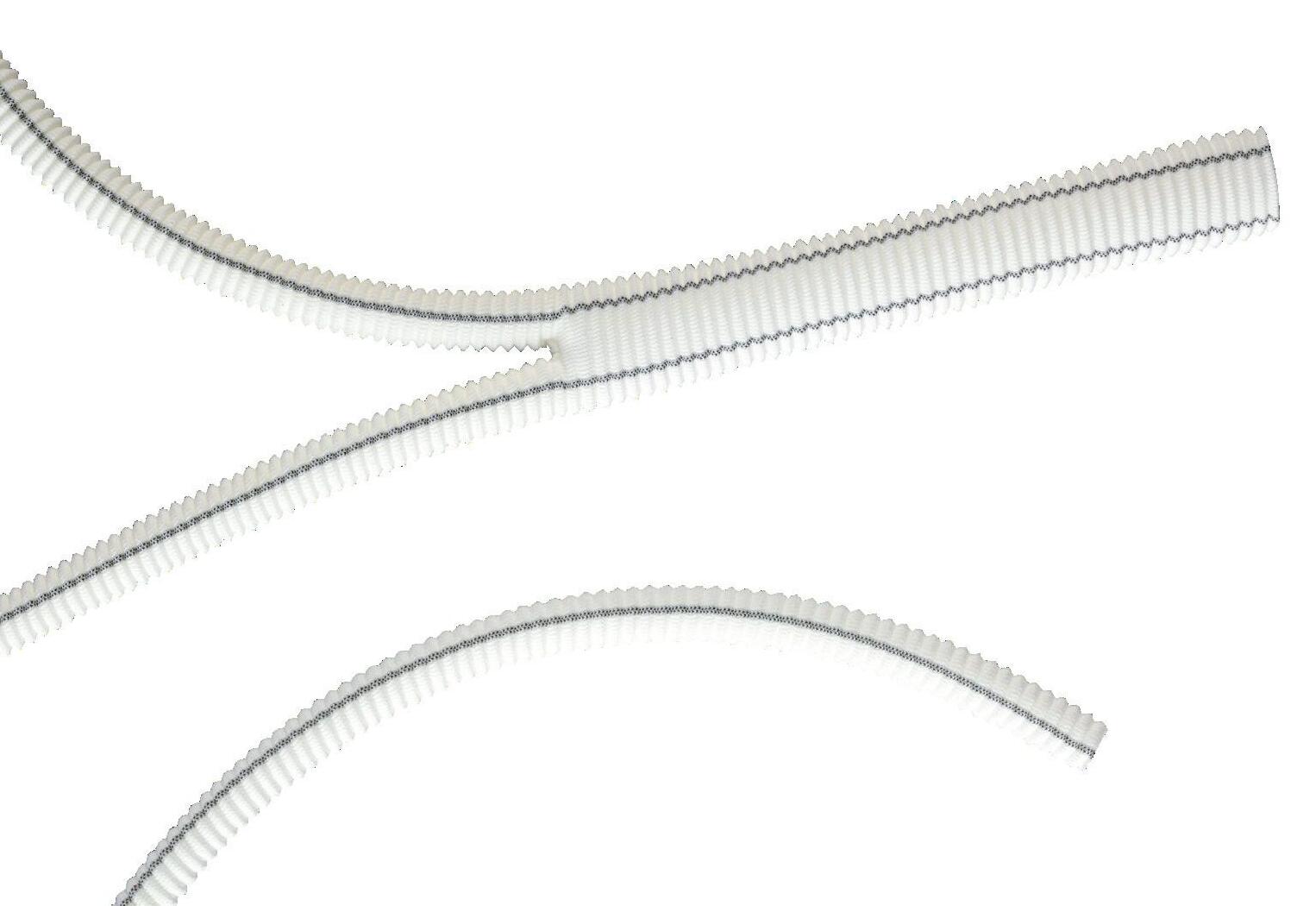

Available in straight or bifurcated tube.

Water permeability < 5 mL/min/cm²

Impregnated with type I bovine collagen.

No formaldehyde nor glutaraldehyde included during manufacturing

2

REFERENCES

polymaille® C straight

polymaille® C bifurcated

polymaille® C 3 Minimum usable lengths (cm) 15 cm 30 cm 40 cm 60 cm 70 cm 100 cm Nominal relaxed and pressurized internal diameters (mm) 6 mm - - PMC000640 PMC000660 PMC000670 PMC0006100 7 mm - - PMC000740 PMC000760 PMC000770 PMC0007100 8 mm - - PMC000840 PMC000860 PMC000870 PMC0008100 10 mm - - - PMC001060 PMC001070 PMC0010100 12 mm - PMC001230 - PMC001260 -14 mm PMC001415 PMC001430 - PMC001460 -16 mm PMC001615 PMC001630 - - -18 mm PMC001815 PMC001830 - - -20 mm PMC002015 PMC002030 - - -22 mm PMC002215 PMC002230 - - -24 mm PMC002415 PMC002430 - - -Reference Main tube nominal relaxed and pressurized inner diameter (mm) Branches nominal relaxed and pressurized inner diameter (mm) Minimum usable overall length (cm) PMC120650 12 6 50 PMC140750 14 7 50 PMC160850 16 8 50 PMC180950 18 9 50 PMC201050 20 10 50 PMC221150 22 11 50 PMC241250 24 12 50
FOR FURTHER INFORMATION, PLEASE CONTACT: questions@vygon.com The specification shown in this leaflet are for information only and are not, under any circumstances, of a contractual nature. VYGON – 5, RUE ADELINE - 95440 ECOUEN - FRANCE RECEPTION: +33 (0)1 39 92 63 63 – SERVICE CLIENTS FRANCE: +33 (0)1 39 92 63 81 EXPORT CUSTOMER SERVICE: +33 (0)1 39 92 64 15 www.vygon.com  04/2023DB BU CS 18 445 E
