MAN A G E M E N T
and
MostCareUp connection
MostCareUp is based on the analysis of the arterial blood pressure waveform. The signal is provided to the monitor following 4 different configurations:
•Stand alone connection
MostCare Up directly linked to the transducer via a direct cable.
• Analog connection
MostCareUp directly connected to the analog output of the bedside monitor via an input / output analog cable. By using this type of cable, there is no contact with the transducer nor with the patient.
•MostCareUp transducer
A simplified transducer placed between the standard blood pressure transducer (any brand) already in use and the patient arterial tubing, while the electrical extension is connected to MostCare Up with a direct transducer cable (03MUEDW).
• Y-shaped connection
MostCareUp and the bedside standard monitor connected to the transducer via a Y cable.
In order to choose the right cable for each configuration, please check the tables in the next pages and identify the right code.
Note: For both the Direct-to-Transducer Cable and the Y-Cable, the choice of the cable depends on the type (brand & model) of transducer in use, while for the analog connection, the choice of the analog cable depends wholly on the brand and model of the bedside standard monitor.
Example of standard monitor
Example of standard monitor

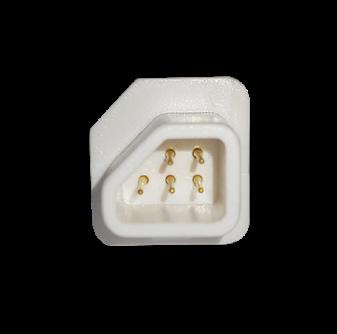

Direct to Transducer Cables (stand alone connection) & Y-Cables (Y-shaped connection)
03MUYBBR
03MUBBR
03MUYBBR1
03MUBD 03MUYBD
03MUBIO 03MUYBIO
03MUDPT 03MUYDPT
03MUEDW 03MUYEDW
03MUMED Not Available
03MUMED2 03MUYMED2
• B.BRAUN Transducer
• PHILIPS Transducer
• BD Transducer
• Argon / MeritMedical (DTXPlus® ) Transducer
• Transducer BIOSENSOR (Biotrans)
• Transducer UTAH MEDICAL (650211)
• CODAN PVB (BDPT) Transducer
• EDWARDS (TruWave) Transducer
• MEDEX (Logical) Transducer
• MEDEX (Transtar, MX981-15) Transducer
• ICU MEDICAL (Transpac) Transducer
• ABBOTT/HOSPIRA Transducer
Input / Output Analog Cables (Analog Connection)
MostCareUp activation
Flexibility of use Endless-On Demand
• HP Philips Monitor (IBP red module needed)
MUHEMO024
• Dräger-Siemens Monitor (i.e. Dräger Infinity Kappa) (i.e. Siemens SC7000)
MUHEMO031
MUHEMO033
• 7 pin: Compatible with Datex-Ohmeda Monitor
(i.e. Dash 3000, 4000, 5000)
MUHEMO034
• GE –Patient Data Module (PDM)
(i.e. Carescape-B850 or Solar 8000 monitor)
• Nihon Kohden Monitor
MUHEMO035
• Fukuda Denshi Monitor (i.e. Dynascope DS-7300)
MostCareUp guarantees the maximum flexibility and cost efficiency thanks to the various ways in which it can be used.
The On Demand version of the monitor can be activated for a single use or for periods of time to meet specific application needs. The Endless version allows an unlimited use of the system without additional cost.
Arterial Procedure Pack for
MostCareUp Activation
Vygon provides complete arterial procedure packs to support the practitioners on the hemodynamic management of critically ill patients.
- Fast: Reduced preparation time
- Complete: A single pack for both catheter insertion and activation of advanced hemodynamic monitoring with Mostcare Up On Demand monitor.
1 patient activation (72h) for MostcareUp On Demand hemodynamic monitoring
Sterile procedure pack including a leadercath polyethylene Seldinger arterial catheter
Grip-LokTM catheter fixation device
TegadermTM Dressing 10X12cm
Polyethylene Arterial leadercath PE 20G x 8cm Arterial peelable drape 50x100cm fenestrated 5,5x7,5cm
Outer Wrap 75x90 cm
10 x Non-woven swabs, 4 ply, 7,5x7,5cm
5 ml LS syringe
All the content listed above for V02770139 + A simplified blood pressure transducer for MostcareUp
VYSET
V02770139
V02770202
CRITICAL CARE
