Port for pain relief mini sitimplant ™

Vascular access range

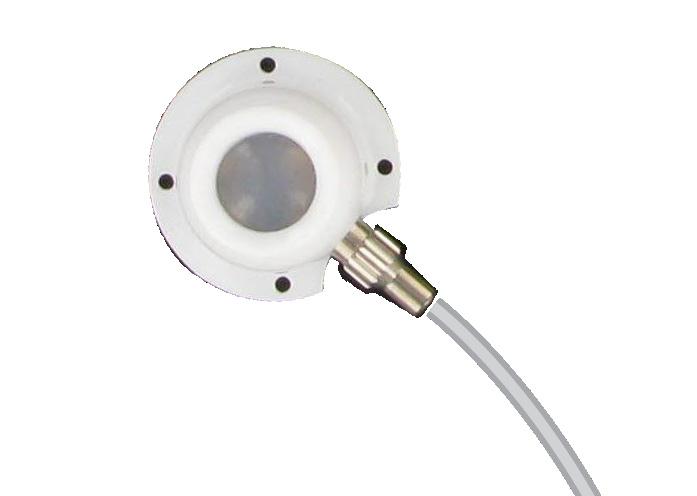

The mini sitimplant ™ , for pain relief is a completely implantable device featuring a Titanium reservoir enclosed in a Silicone casing. The distal tip of the catheter, which is placed in the epidural or intrathecal space has a closed tip with 3 lateral eyes.

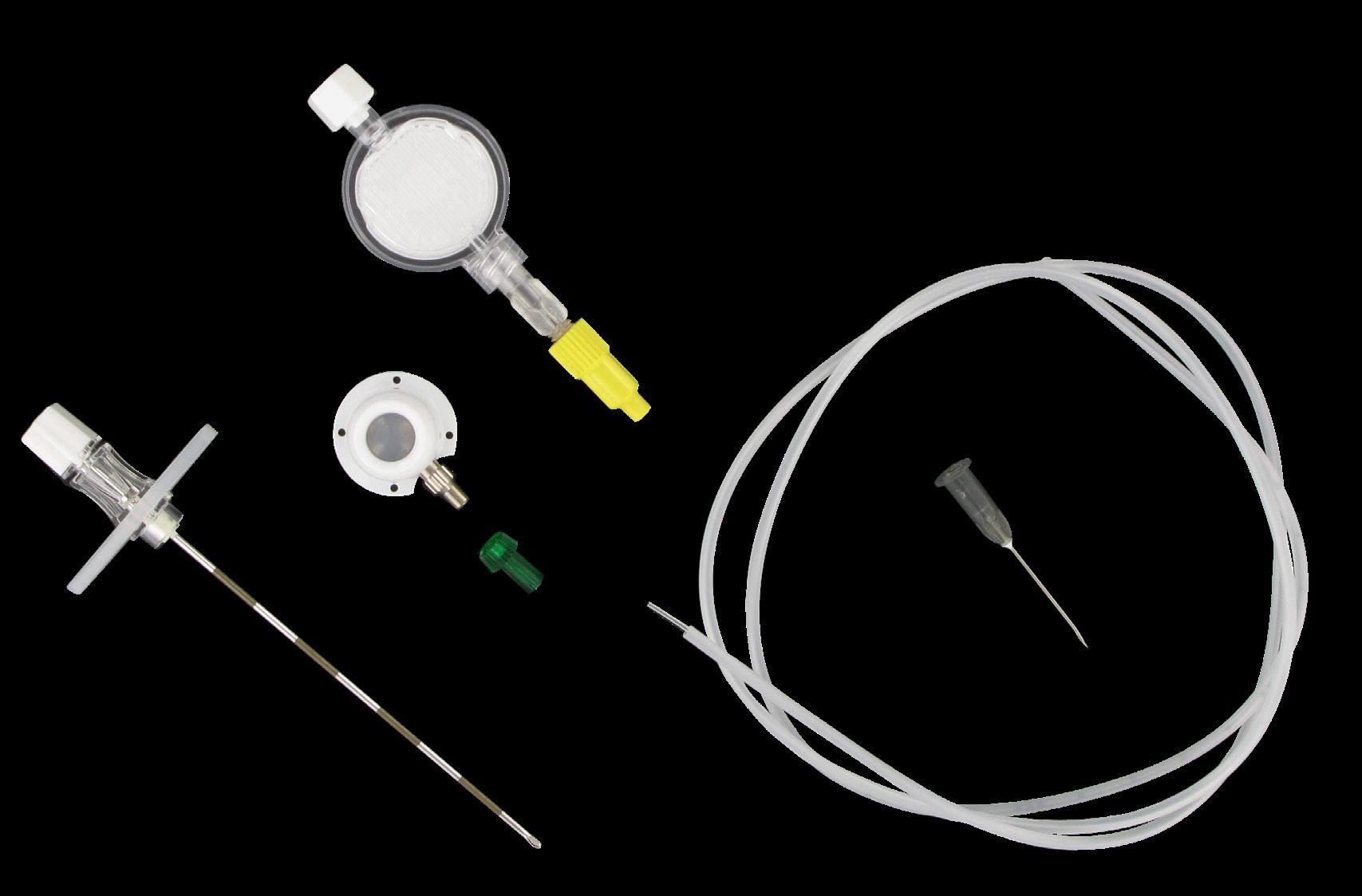

Contents of the tray:

• 1 implantable port, • 1 Polyurethane catheter (90cm long, int. Ø 0.5mm, ext. Ø 1.0mm; 20G), radiopaque, centimeter distance markings from 5 to 20cm. The catheter is attached to the connector on the port by a threaded Titanium collar. • 1 Tuohy needle (90mm long, int. Ø 1.2mm, ext. Ø 1.5mm, 17G) with centimeter distance markings and a winged, transparent hub, • 1 flat epidural bacterial filter 0.2µm fitted with a removable compression hub, • 1 needle with Huber bevel to access the septum of the port.

Code

2201.51 Weight (g)

4.3 Priming volume (mL)

0.29 Implantable port

Height (mm)

10.5 Diameter (mm)

23 Puncture area (cm²)

0.63 Int. Ø (mm)

0.5 Catheter

Ext. Ø (mm)

1.0 Length (cm)

90
