INTRAVASCULAR THERAPIES
Peripherally Inserted Central Venous Catheter
LONG TERM VASCULAR ACCESS
CT PICC maestro
Reverse-tapered construction to help reduce post-insertion bleeding

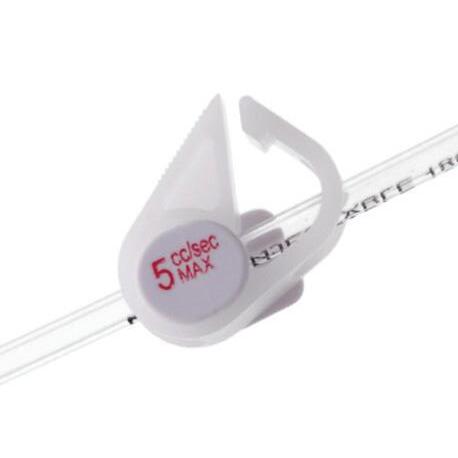

Power-injectable up to 5ml/s
Low-profile fixation wings for patient comfort
Highly resistant and radio-opaque polyurethane compatible with vesicant/irritant products and tissue adhesive

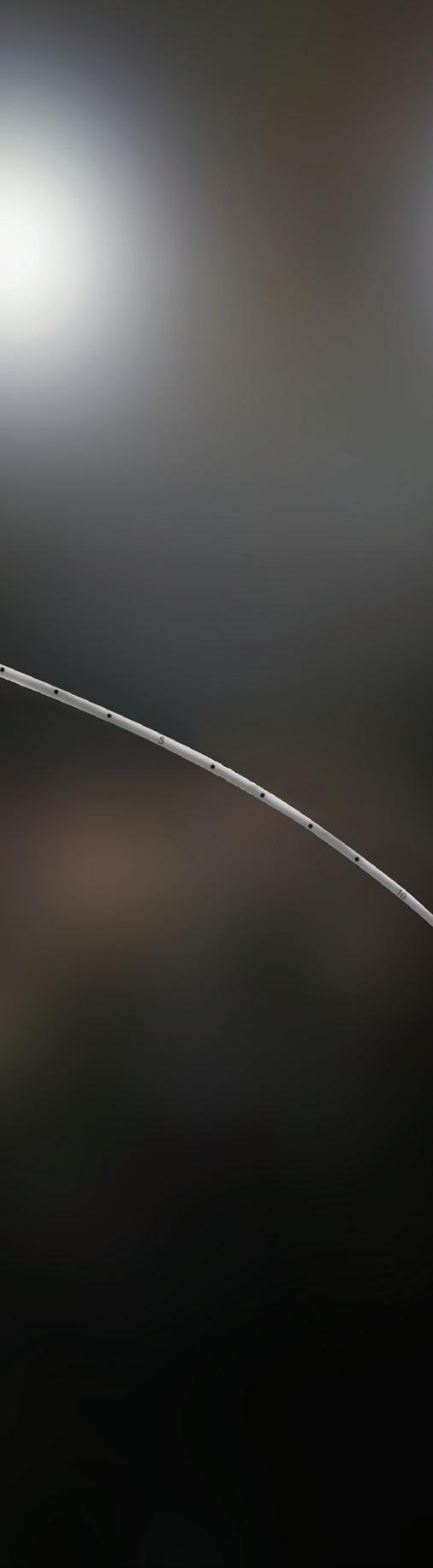

Markings every 5cm
Smooth and comfortable
2
COMPREHENSIVE RANGE
• Suitable for pediatric and adult populations (3F to 6F)
• Adapted to intensive care settings requiring multilumen PICCs (up to 3 lumen)
• Available in nursing, basic and IR kits
EASY AND QUICK INSERTION

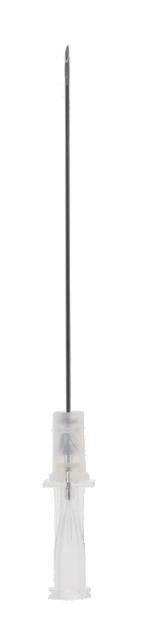

7 cm Safety Needle with Sharp Echogenic Tip
5 cm Non-Safety Needle (for pediatric and superficial veins)
Nitinol Guidewire with locking system (45, 70, 130cm).
Tungsten floppy tip for enhanced visibility under X-rays

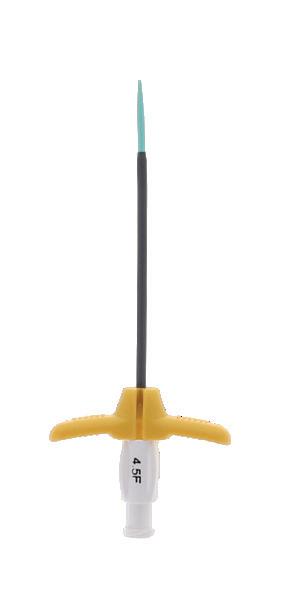

PTFE Introducer with smooth transition (5, 7, 10 cm)

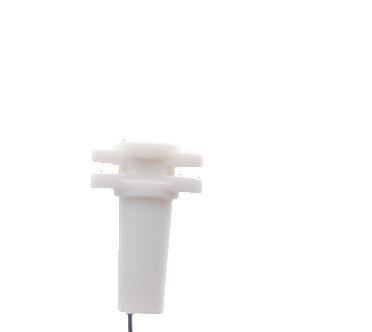

bionector Needle-free connector

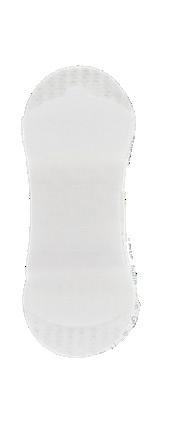

grip-lok Securement Device
CT PICC maestro 3
*available late 2022 5 kits per box

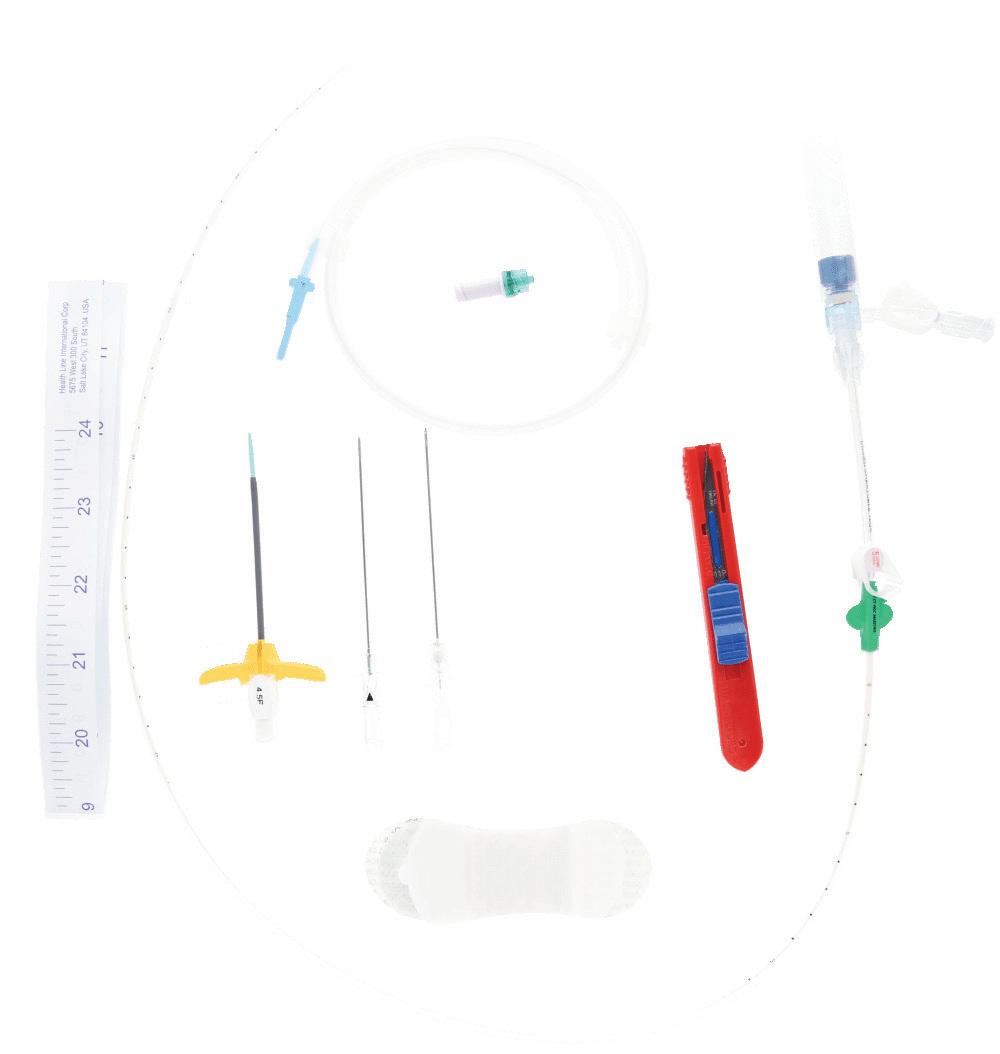

• CT PICC maestro catheter, 60cm long

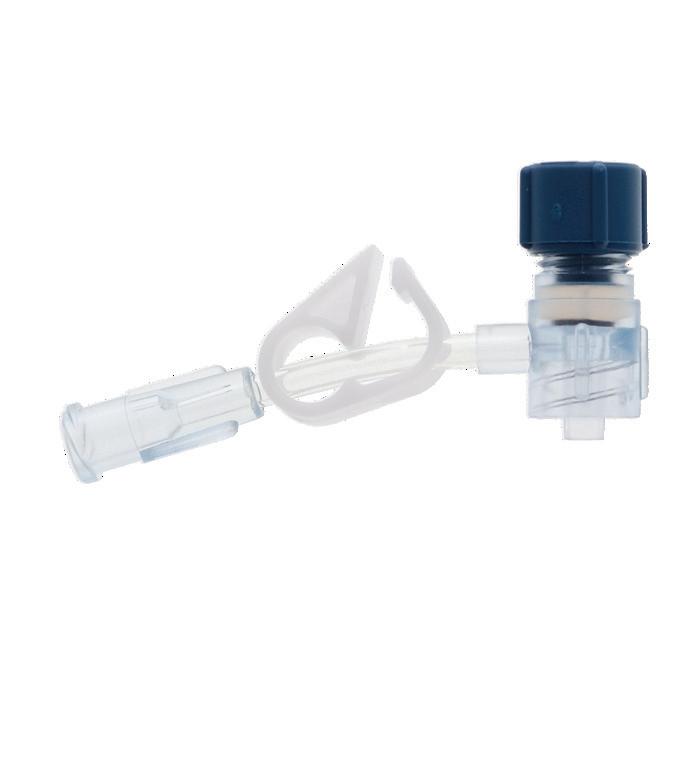

• Twisted Wire Stylet with Flushable T-Port
• 21G introducer needle (1-2)
• PTFE Peelaway Introducer
• Nitinol Straight Guidewire (45-70-130cm)
• 10cc Disposable Luer Lock Syringe
• #11 Safety Scalpel
• 24” Paper Tape Measure
• Bionector Needle-free connector (1-3)
• Grip-Lok Securement Device
FOR FURTHER INFORMATION, PLEASE CONTACT: questions@vygon.com
The specification shown in this leaflet are for information only and are not, under any circumstances, of a contractual nature.
VYGON – 5, RUE ADELINE
95440 ECOUEN - FRANCE RECEPTION: +33 (0)1 39 92 63 63 – SERVICE CLIENTS FRANCE: +33 (0)1 39 92 63 81 EXPORT CUSTOMER SERVICE: +33 (0)1 39 92 64 15 www.vygon.com DBCATH22612E12/22V1 Order number External Diameter (F) Number of Lumen Power injectable lumen flow rate Peelaway Introducer length 21G 7cm Echogenic Safety Needle 21G 5cm Non-safety Needle Guidewire length (cm) Nursing kit PM-03160N 3 1 0.5 ml/s 5cm • • 45 PM-04260N* 4 2 0.5 ml/s 5cm • • PM-04160N 4 1 5 ml/s 7cm • PM-05160N 5 1 5 ml/s 7cm • PM-05260N 5 2 5 ml/s 7cm • PM-06260N 6 2 5 ml/s 7cm • PM-06360N 6 3 5 ml/s 7cm • Basic kit PM-03160 3 1 0.5 ml/s 7cm • • 70 PM-04260* 4 2 0.5 ml/s 7cm • • PM-04160 4 1 5 ml/s 7cm • PM-05160 5 1 5 ml/s 7cm • PM-05260 5 2 5 ml/s 7cm • PM-06260 6 2 5 ml/s 7cm • PM-06360 6 3 5 ml/s 7cm • IR kit PM-03160IR 3 1 0.5 ml/s 7cm • • 130 PM-04260IR* 4 2 0.5 ml/s 7cm • • PM-04160IR 4 1 5 ml/s 10cm • PM-05160IR 5 1 5 ml/s 10cm • PM-05260IR 5 2 5 ml/s 10cm • PM-06260IR 6 2 5 ml/s 10cm • PM-06360IR 6 3 5 ml/s 10cm •
-
