PORTFOLIO

VARSHA VENKATESH

SELECTED WORKS

GOLDEN ABODE

Location: Gurugram, Haryana

Year: 2022

Category: Residence

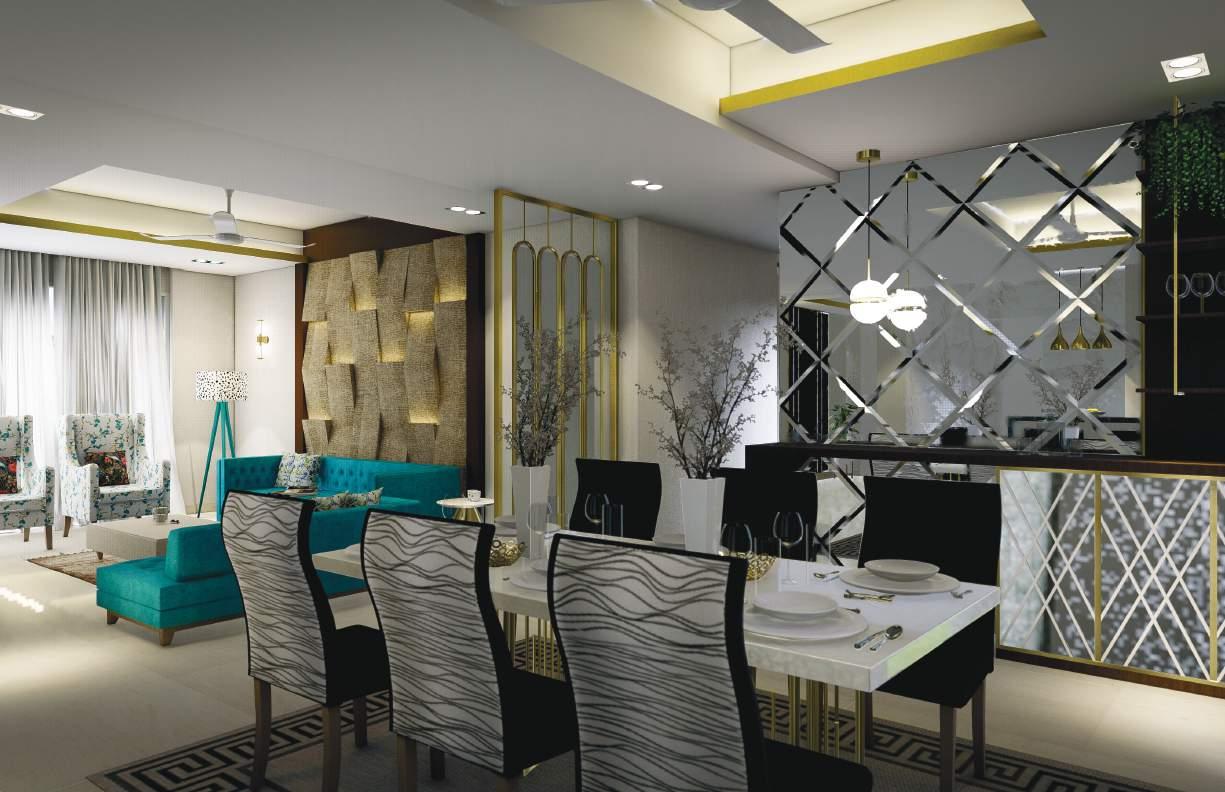

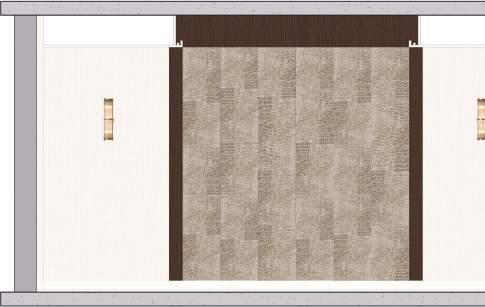

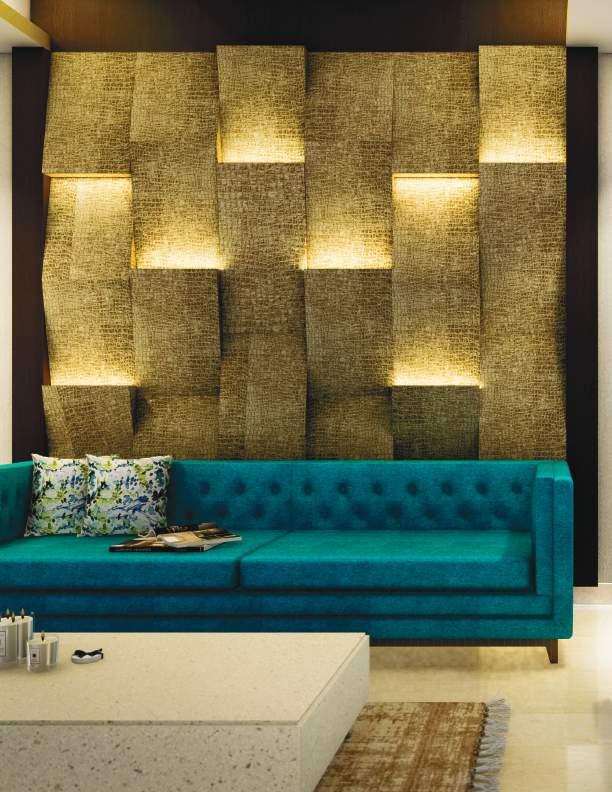

A home for a Doctor’s family in Gurugram. Brief was to design a home adorned with sumptuous interiors and refurbish the kitchen.The idea was to have the common area with a luxurious ambience that continues in the dining area.Emphasis was given to the back wall to the sofa as the main element of the room. The wall was covered with fabric panelling along with vertical wooden battens on the sides.

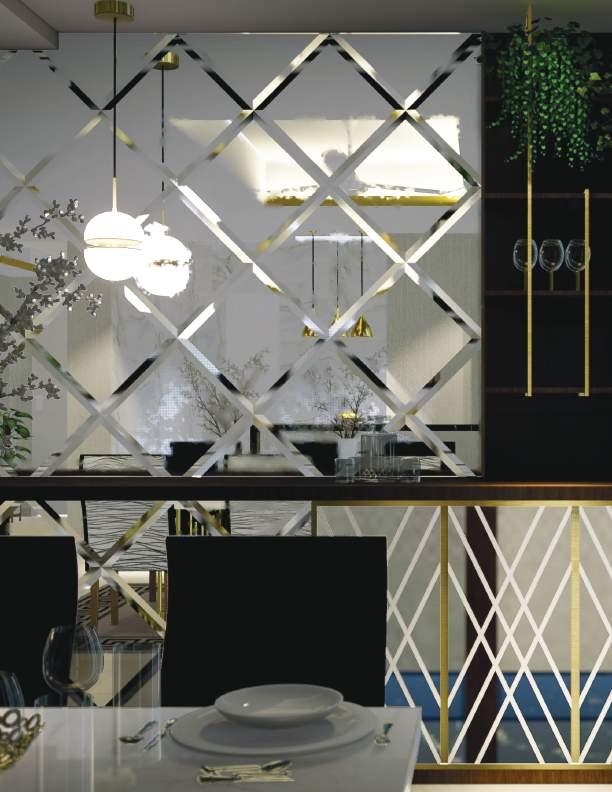

Lights throughout the living room and the dining space create a perfect evening setting for different moods. The bevelled mirror panels near the bar cabinet adds to the grandeur of the dining area. Elements of gold like the wall partition adds the opulence to the space.

pg.4 - Golden Abode| Haryana

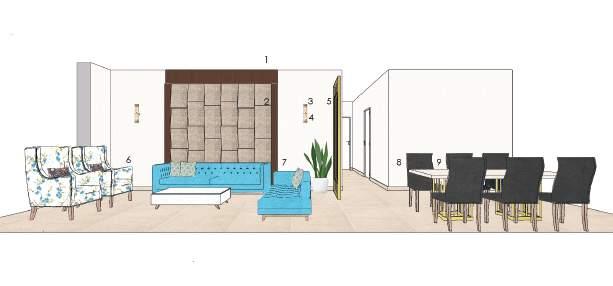

1.Natural Veneer with PU polish|2.Grey Color Animal Print Suede Fabric B1518500|3.Wolpin Beige Wallpaper H91|4. CITRA 32W 500MM Led Tube Glass Crystal Gold Metal Wall Light - Warm White M82533|5. Metallic Finish Gold Jaali Partition.

FOCUS

WALL

LIGHT

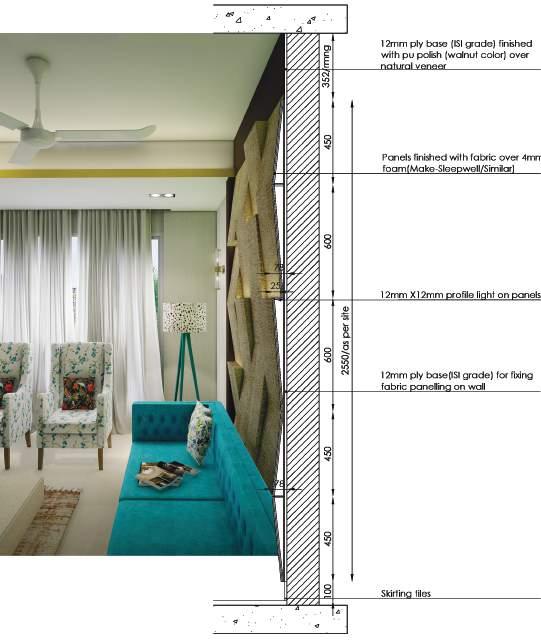

Living Room Section |Golden Abode

Open shelves finished with laminate (1077- choco walnut make-merino) on all sides

Bar table finished with laminate (1077- choco walnut make-merino) on sides and edges

2793/as per site 1650/as per site

12mm X25mm mdf strips finished with metallic finish gold duco paint(makeasian/similar)

18mm ply( ISI grade) pasted with 12mm mdf (make-action/green/similar) finished with laminate(1077choco walnut make-merino) on all sides screwed on with titan fittings

50X25mm ms plate with screws finished with gold duco paint to support ms pipe on wall

Bar table finished with laminate(1077- choco walnut make-merino)on all sides and edges

Hettich soft close ply shutters pasted with 5mm thk. mirror(make-saint gobain/similar)

Skirting finished with laminate(1077- choco walnut make-merino) with 6mm buffer

all sides

12mm ply base(ISI grade) pasted with 6mm mdf(make-action/green/similar) finished with black color pu finish paint( makeasian/duco/similar paint)

Outer band pasted with 4mm mdf(make-action/green/similar) finished with metallic finish gold duco paint(makeasian/ similar

Insides of closed storage finished with 0.8mm thk. laminate-acacia(make-merino) on all sides Insides of closed storage finished with laminate

THE PINE BOX

Location: New Delhi, Delhi

Year: 2020

Category: Retail

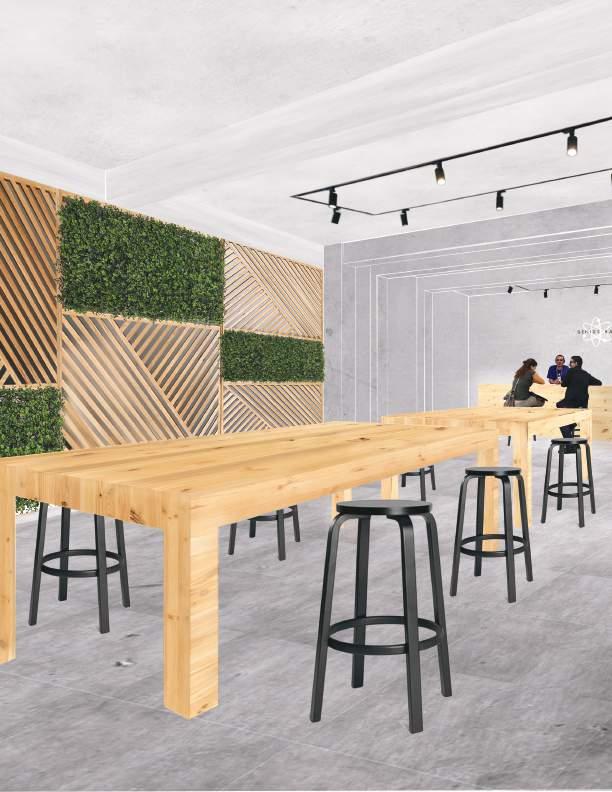

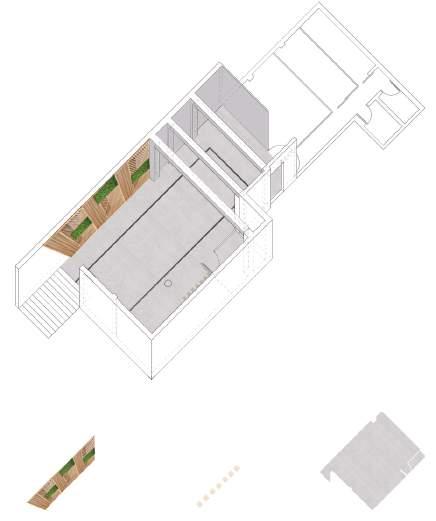

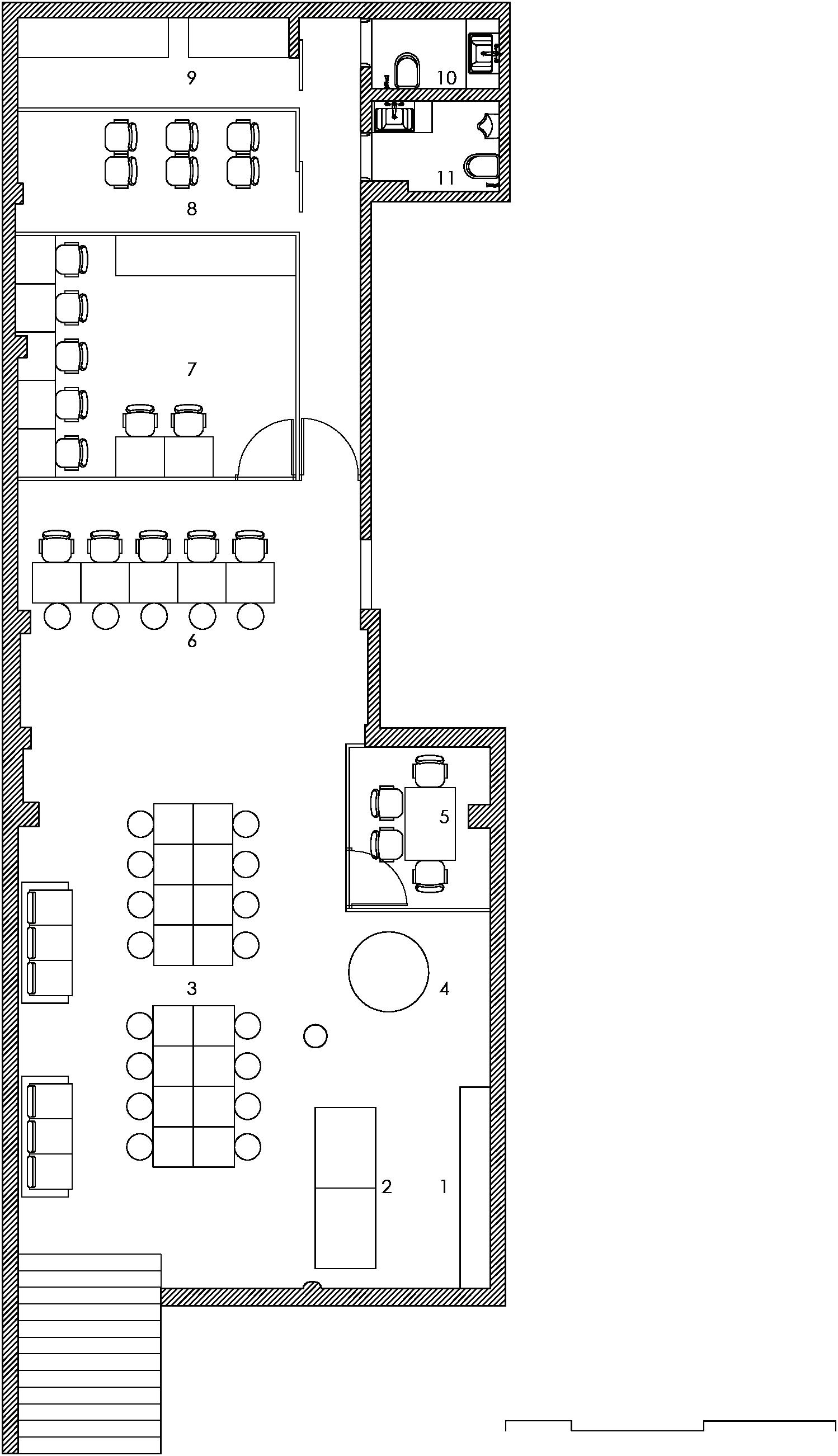

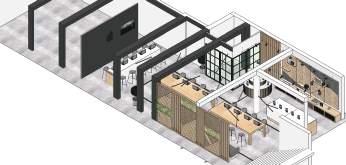

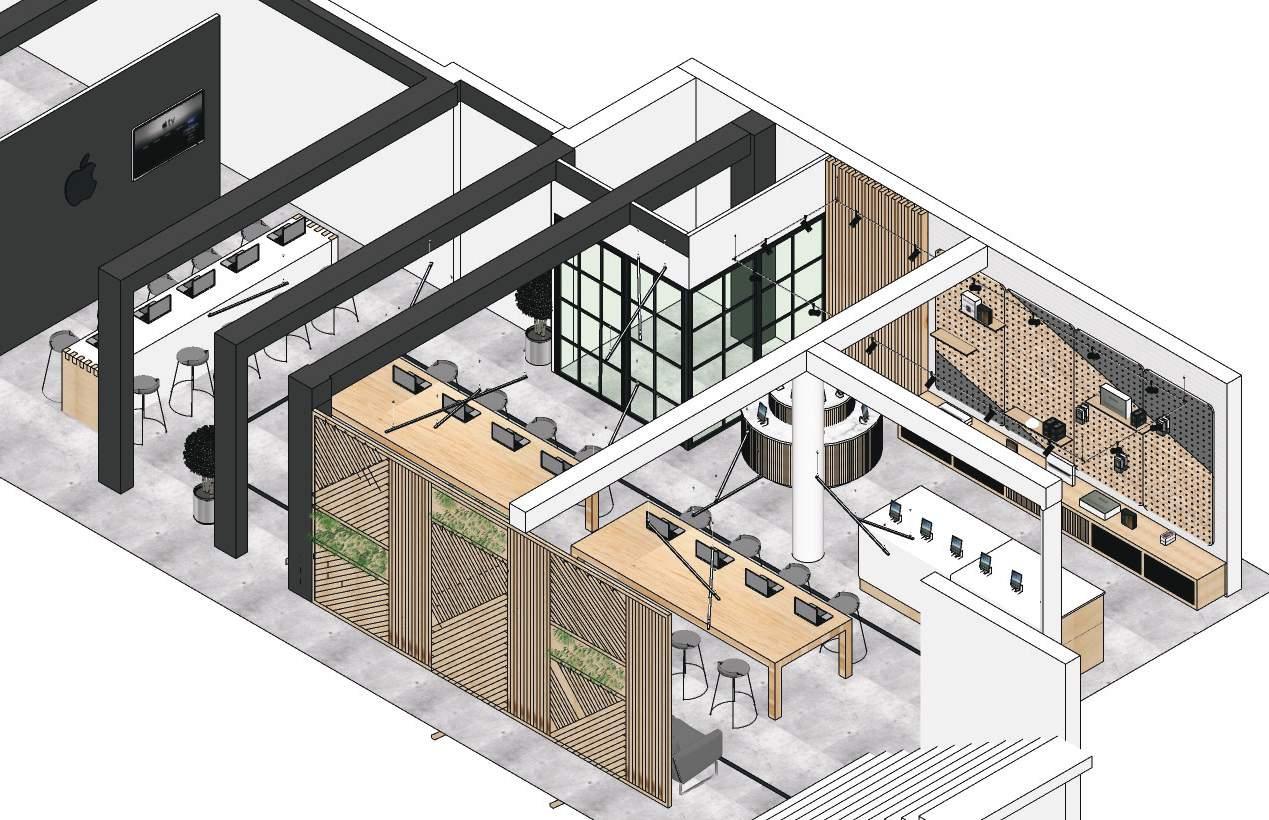

The brief was to refurnish the 1290 square feet store to house the client’s gadgets as well as support service area for customers. Designing a site with the consideration of customer experience at all points, to maximise the oppurtunity to test out the products. We designed areas including customer service area, workstation, display zone and created bespoke play tables. Specific materials and colours were chosen to ensure that the products stood out , while also ensuring that brand identity wasn’t compromised. We also specified several sustainable elements, such as cement floor tiles and LED lighting across the store.On close collaboration with our clients to truly capture their needs and brand to create the best possible consumer experience in-store ultimately led to the success of this project.

[1]

Pinewood

pinewood battens with polish screwed over plywood

[2]

Pinewood pinewood panels with polish screwed over plywood

[3]

Cement Floor Tiles dgvt smoky grey light

LOCURA

Location: South Ex 1,New Delhi

Year: 2020

Category: Hospitality

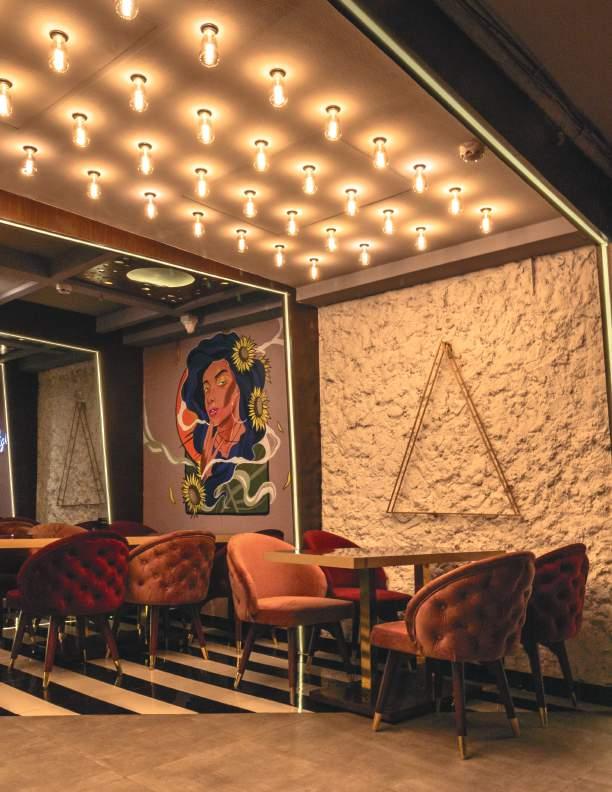

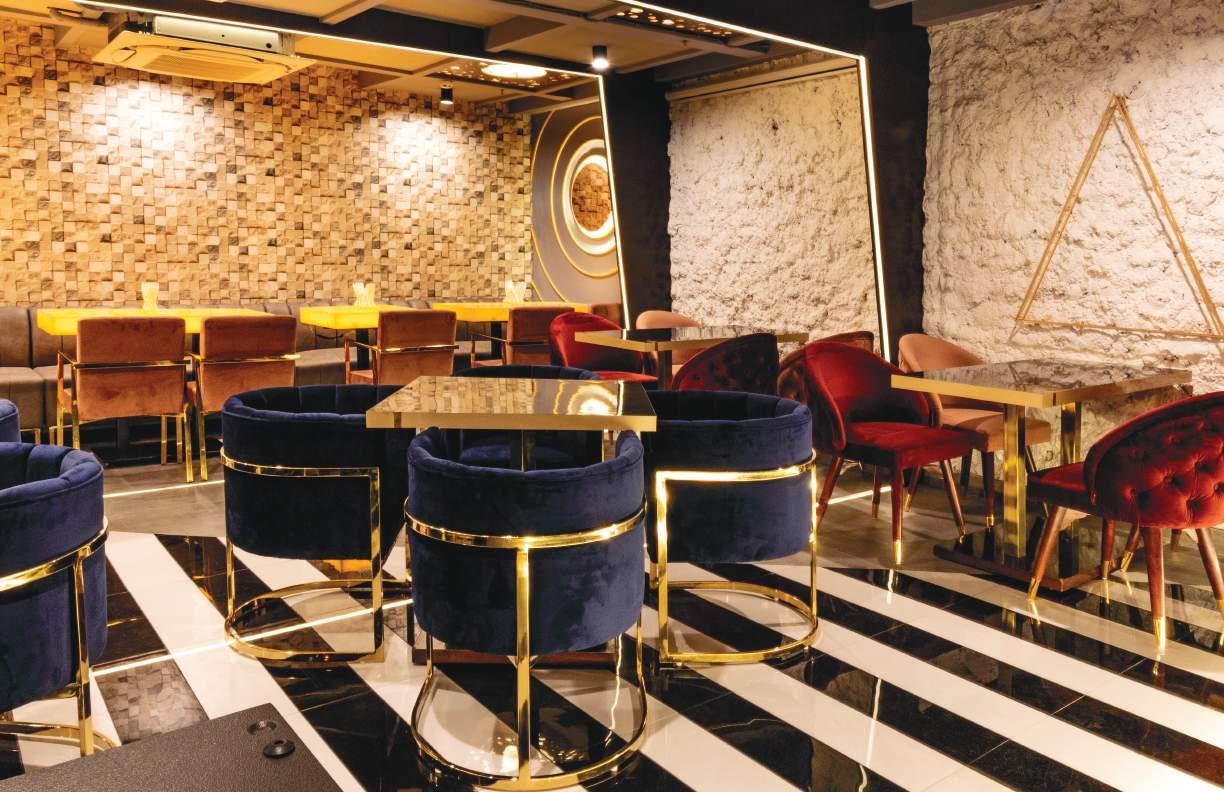

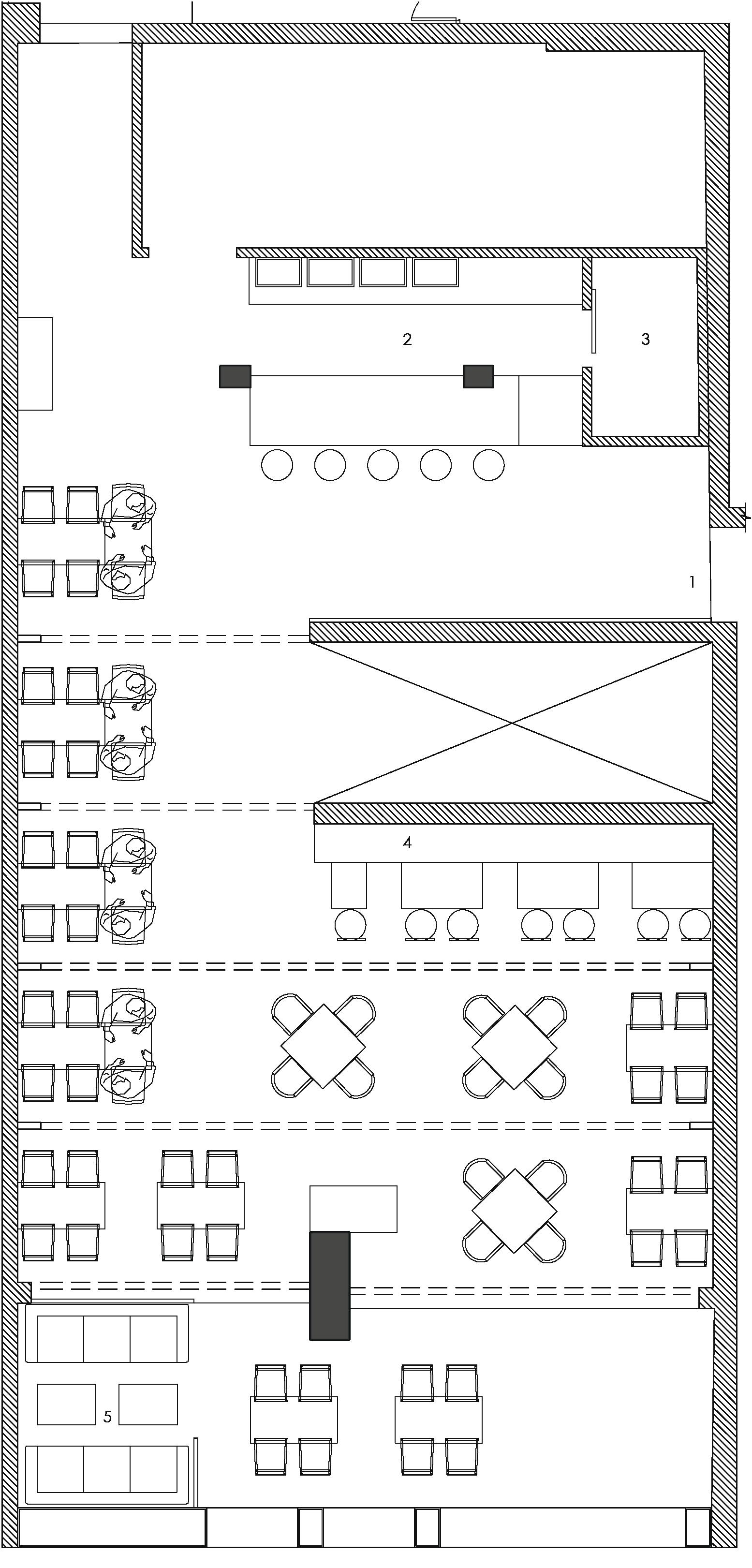

The lounge with 2 floors occupying an area of 1880 sqft. designed to have a seating capacity of 80 covers.The theme was very much encapsulating the brand of the lounge which revovled around a vibrant and colorful ambience with the inclusion of materials like mirror and lights to create a play of light creating the right atmosphere to hang out and relaxation.

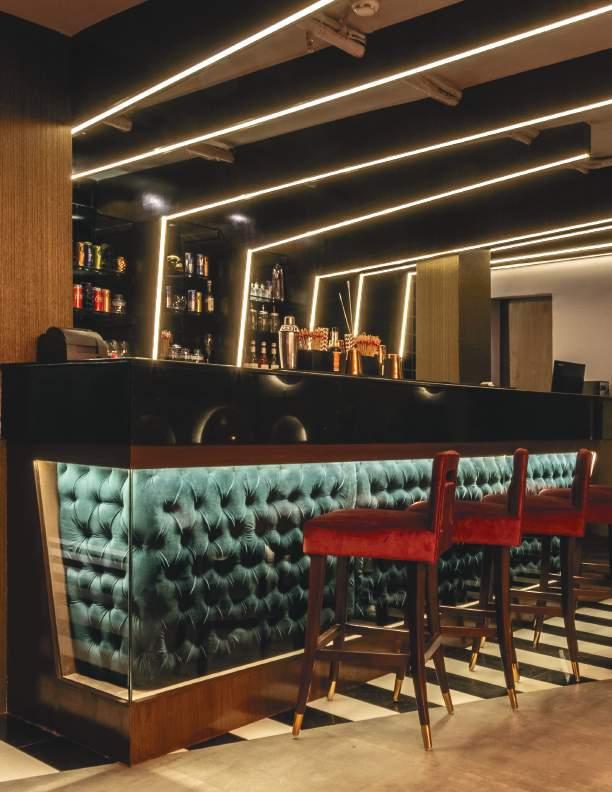

The use of bison board over metal frame as panels to break up the space and add dimensions to the space with the use of profile light running through thr ceiling and floor . The play of light plays an importance to create an vibrant and lit environment.

End to end Arch

Wall Surface finished with Horizontal & Vertical Wooden Louvers pasted over Ply as approved

Mirror (2' dia) pasted over MDF screwed over wall as approved

1" POP Molding finished in Rustic Grey Paint matching the wall surface as approved

Wall Surface finished with Rustic Grey Paint as approved

Wall Surface finished with Rustic White Paint as approved

Wall Surface finished with Texture Black Paint as approved

Windows border (2" thick) & insides finished with Gold Paint as approved

Wall Surface finished with Royal Blue Paint at -8" from existing column

Wall Surface finished with Veneer pasted 18mm ply at level at -2" from existing column

CASA DELUXE

Location: Gurugram, Haryana

Year: 2019

Category: Residence

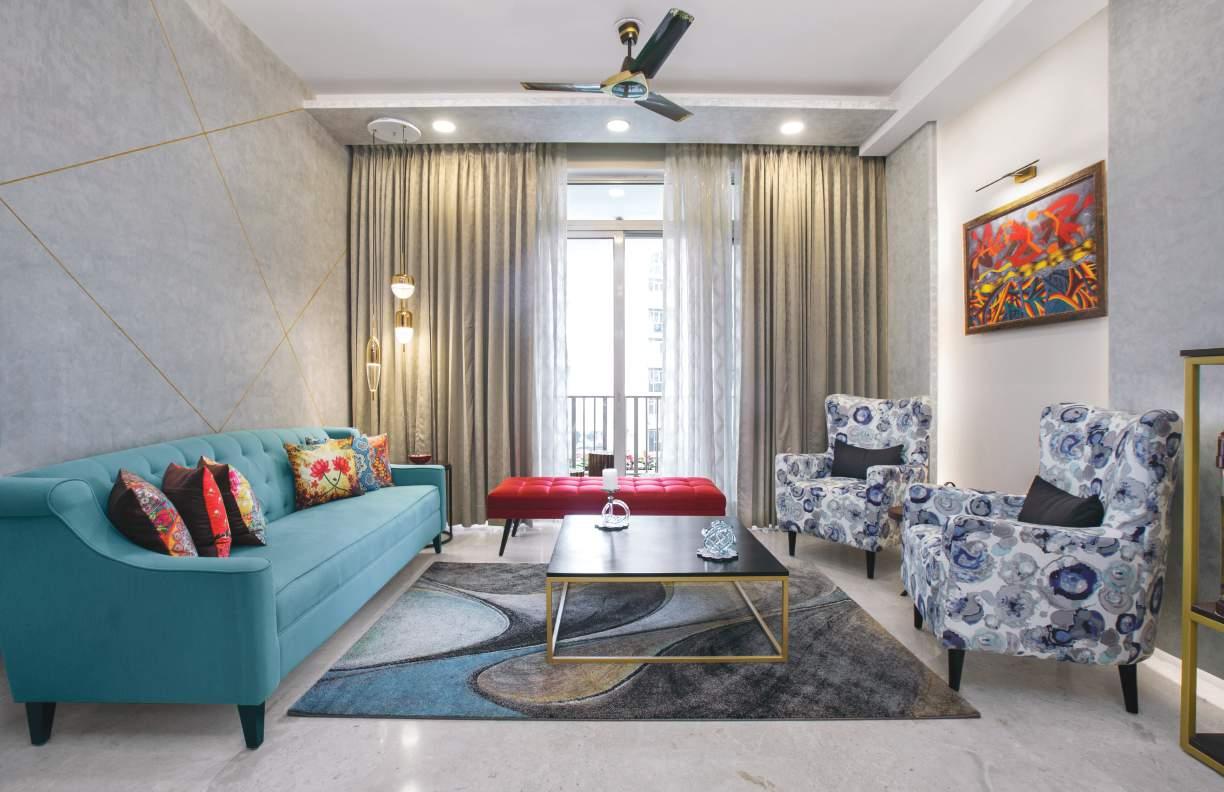

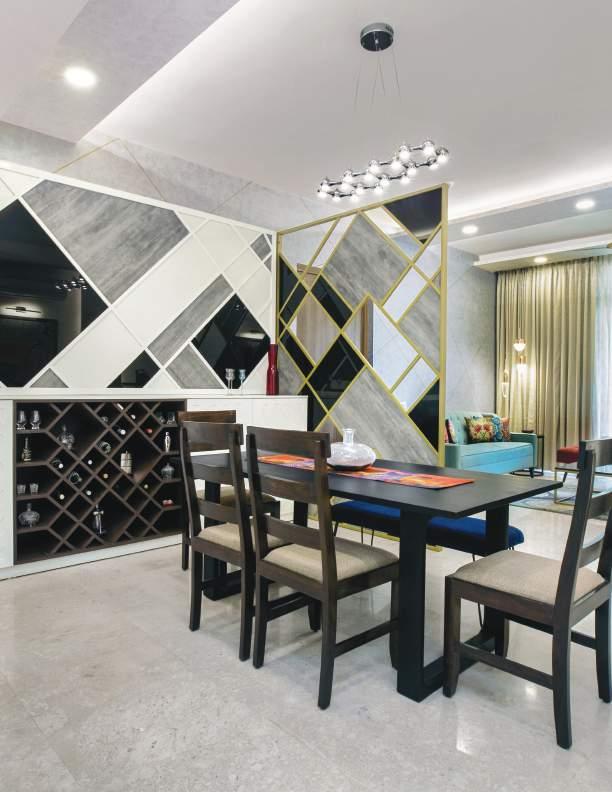

The concept for the interiors is bringing elegance, luxurious and attainable ambiance. The living area is designed as a space that is welcoming and with contemporary elements.The entire living area is lightened up with backlit panels running from walls to ceiling. The customized bar unit with the incorporation of black lacquered glass and laminate is a piece of customized product design for the space.

pg.32

Casa Deluxe| Haryana

False Ceiling in POP finished with Morning Glory 0765 paint as approved

Panels finished with 5mm thick Black Lacquered Glass

Panels finished with Laminate - 44279 CMT RH Ashen Krakato Make- Merino

Panels finished with 5mm thick Black Lacquered Glass

Wooden panels of cabinet finished with Duco paint (CS007 Bianco Alpino Make- Asian PU Palette)

Wooden racks for bottles finished with laminate (Chocolate- 21028 Make: Merino) and edges with Duco paint to match the laminate

2" thich MDF strip frame finished in Duco paint (CS007 Bianco Alpino Make- Asian PU Palette)

Panels finished with 5mm thick Black Lacquered Glass

Panels finished with Laminate - 44279 CMT RH Ashen Krakato MakeMerino

Counter top in 19mm thk. comm board finished with Duco paint (CS007 Bianco Alpino MakeAsian PU Palette)

with

19mm thk. comm board finished with duco (CS007 Bianco Alpino Make- Asian PU Palette) Inside of cupboard in laminate (Frosty White) 3" high skirting Wall paneling as per detail

Z Inside of cupboard in laminate (Frosty White)

False Ceiling in POP

finished with Morning Glory 0765 paint as approved

All edges finished in Duco paint (Black Color)

Back Panel finished with laminate (Ash Grey- 21089 Make- Merino)

Closed shelf finished with Laminate (Marigold 21057 Make- Merino)

Open shelf Partitions finished Laminate (Slate 22099, Make- Merino)

Closed Cabinet finished with 5mm thick Black Lacquered Glass as approved

Elevation -A (External)

Back Panel finished with laminate (Ash Grey- 21089 Make- Merino)

False Ceiling in POP

finished with Morning Glory 0765 paint as approved

All edges finished in Duco paint (Black Color)

Back Panel finished with laminate (Ash Grey- 21089 Make- Merino)

Shelf with spot light as per detail Y

Closed shelf finished with Laminate (Marigold 21057 Make- Merino)

Open shelf Partitions finished Laminate (Slate 22099, Make- Merino)

Shutter finished with Black Lacquered Glass as approved

Closed shelf finished with Laminate (Marigold 21057 Make- Merino)

TRANQUIL HOME

Location: Gurugram, Haryana

Year: 2019

Category: Residence

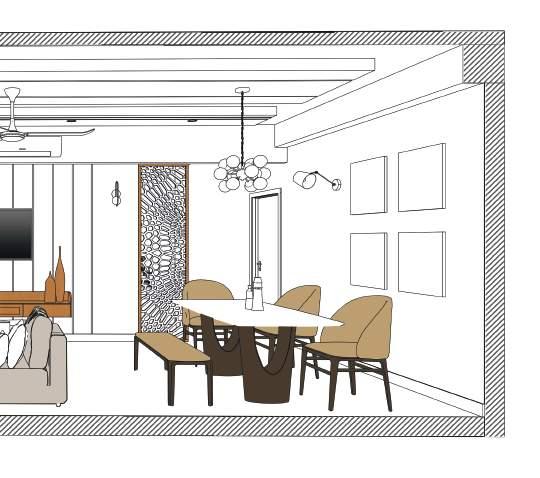

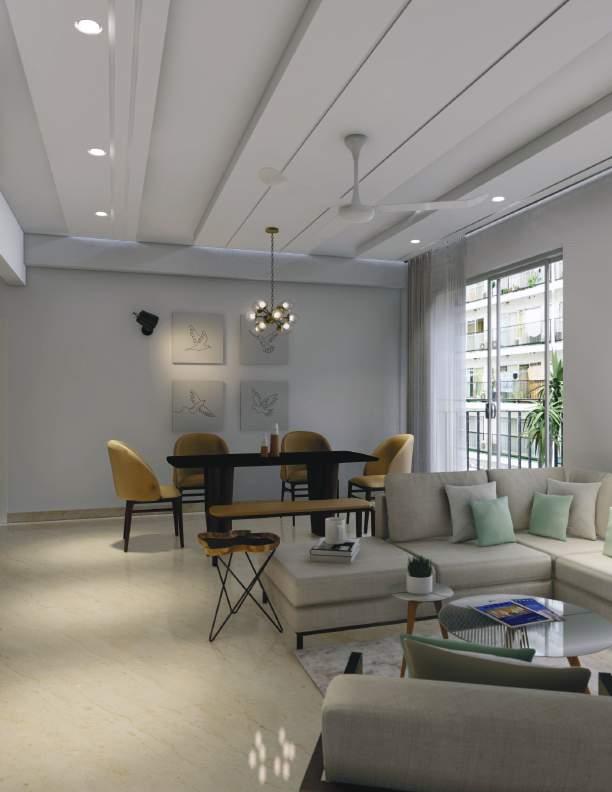

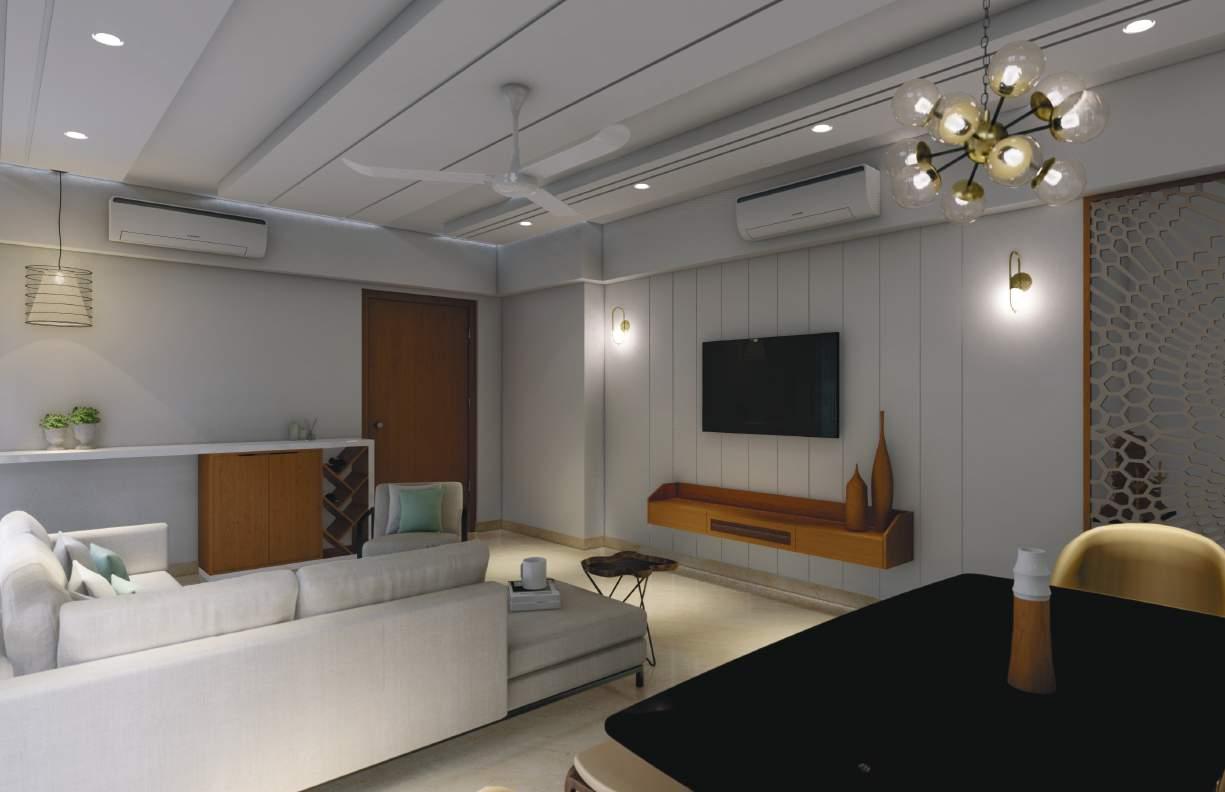

The design brief was subtle, and the requirement of retainment of the original spaces to its maximum .The home was imagined as having clean lines with light encapsulating the space. Extended false ceiling over the living and the dining areas having a linear layout further accentuated the spaciousness of the home.The accent wall on the TV wall has vertical grooves which resemble the grooves on the ceiling.

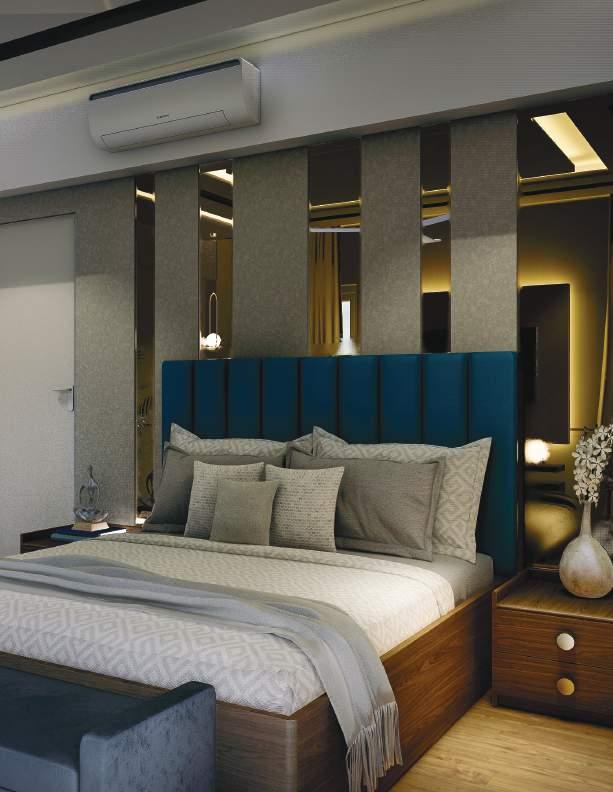

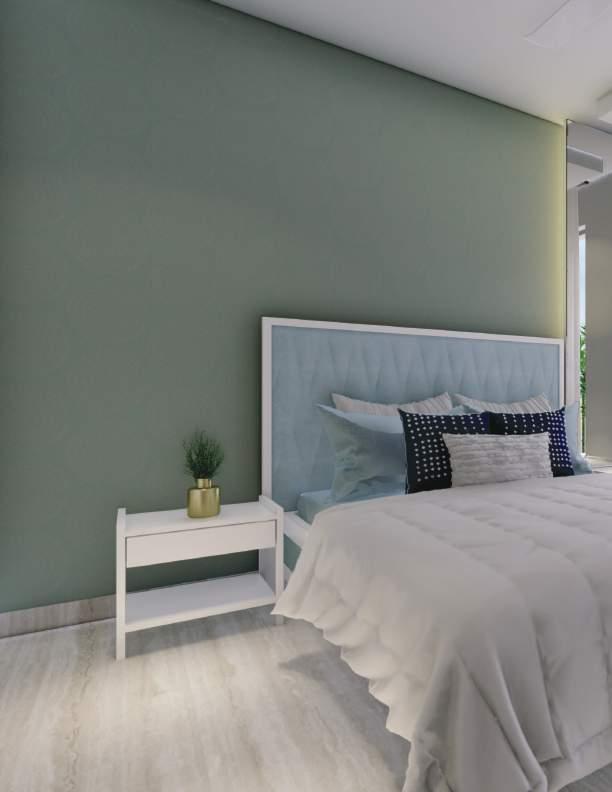

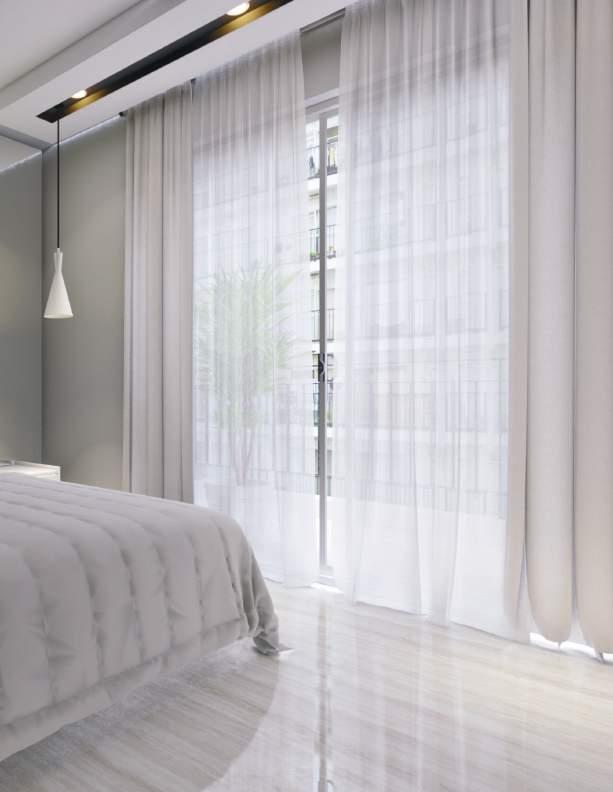

The master bedroom is simple, with clean shapes to bring in ample of natural light. The perfect composition of a teal blue headboard and the retro pendant lights against the full height mirror makes the attributes of the space.
