PORTFOLIO INTERIOR ARCHITECTURE

SELECTED WORKS 2020- 2023

VRUSHALI KAMDAR

CEPT UNIVERSITY

Since 2020

EDUCATION

CEPT University, Gujarat, India

Pursuing 5 years in Bachelors in Interior Design

2018-2020

Gyanmanjri School, Bhavnagar, Gujarat, India

VRUSHALI KAMDAR

2007-2018

K.P.E.S English School, Bhavnagar, Gujarat, India

2004-2007

CONTACT

D.O.B: 30-05-2003

vrushali.uir20160@cept.ac.in

vrushalikamdar3005@gmail.com

+91- 9313020567

Bhavnagar, Gujarat, India

English, Hindi, Gujarati

2022 1 month

K.H Modi School, Ahmedabad, Gujarat, India

WORK EXPERIENCE

Interned at Ar.Kalpana Salot & Associates, Bhavnagar, Gujarat, India

INTEREST/ HOBBIES

Reading Photography

Badminton

ADDITIONAL EXPERIENCE

Training Program on Earthern

Construction Techniques

Hunnarshala, Bhuj, Gujarat

Nest: Experimenting Design in Norway

Oslo/ Trondheim, Norway

Stairs- An Element of design statement

Elective, Cept

Traversing Ahmedabad

Elective, Cept

Ajrakh Blockprint Workshop

Kutch, Gujarat

Storytelling Workshop

Ahmedabad, Gujarat

Clay Pottery Workshop

Cept

Gond Art Workshop

Cept

Tie and Dye Workshop

SKILLS

Autocad

Sketchup

Rhino

Enscape

Twinmotion

Autodesk Sketchbook

Adobe Photoshop

Adobe Illustrator

Adobe Indesign

Hand Drafting

Sketching

Model Making

Hand Rendering

DESIGN SKILLS

Concept Development

Spatial Planning

Graphics and Representation

Design Writing

Design Research

Analysis and Diagramming

2021 2021 2022 2022 2021 2021 2021 2021 2021

TRAVELLER’S HOME

SPACE PLANNING | SEM 5

ECOSYSTEM OF WORK

SPACE PLANNING | SEM 4

REIMAGINING

VERNACULAR

VISUALIZATION

1 2

REIMAGINING THE VERNACULAR VISUALIZATION | SEM 3

EXPLORATION IN DESIGN

WORKING DRAWING | SEM 6

MISCELLANEOUS

3 4 5

A traveler’s home becomes a medium for the traveler to explore the ime, space and culture of the region. Carapace is the medium connecting the exquisite surroundings of Diu and a connection between the locals and the travelers coming to the space. The space located between caves, creates a lens overviewing the caves and the surrounding.

Site: DIU, GUJARAT, INDIA

Project Type: Residential

Softwares used: Autocad, Rhino, Sketchup, Enscape, Photoshop

01| CARAPACE

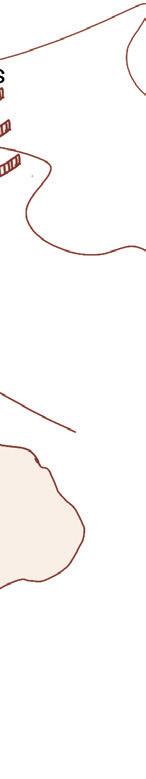

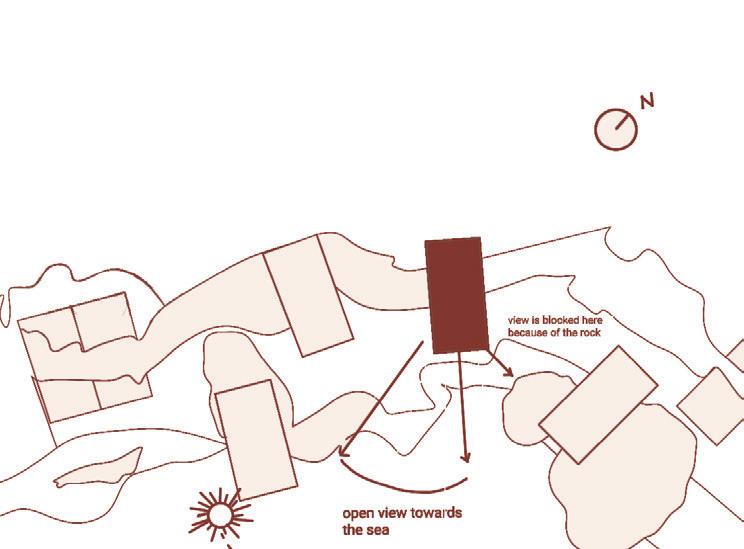

Site Study

Site Analysis

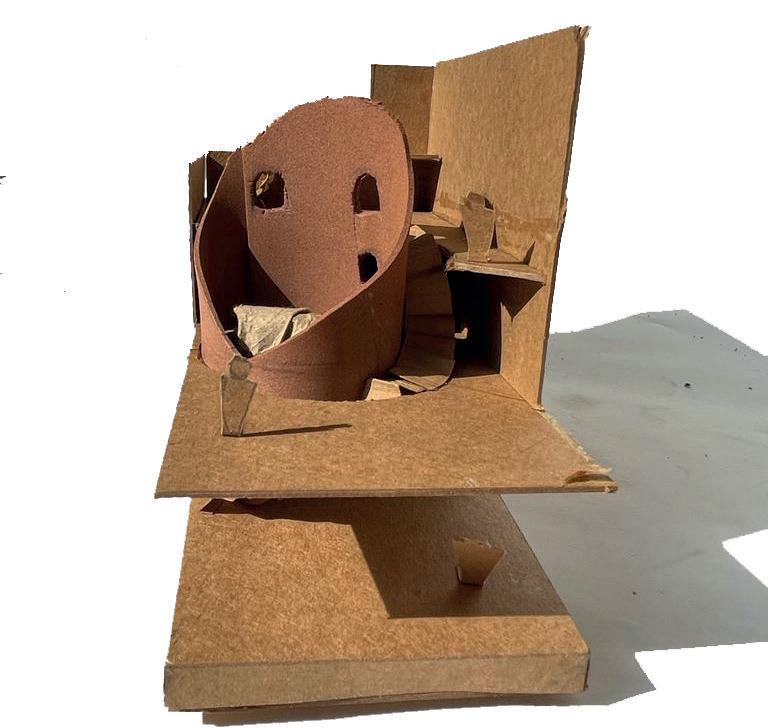

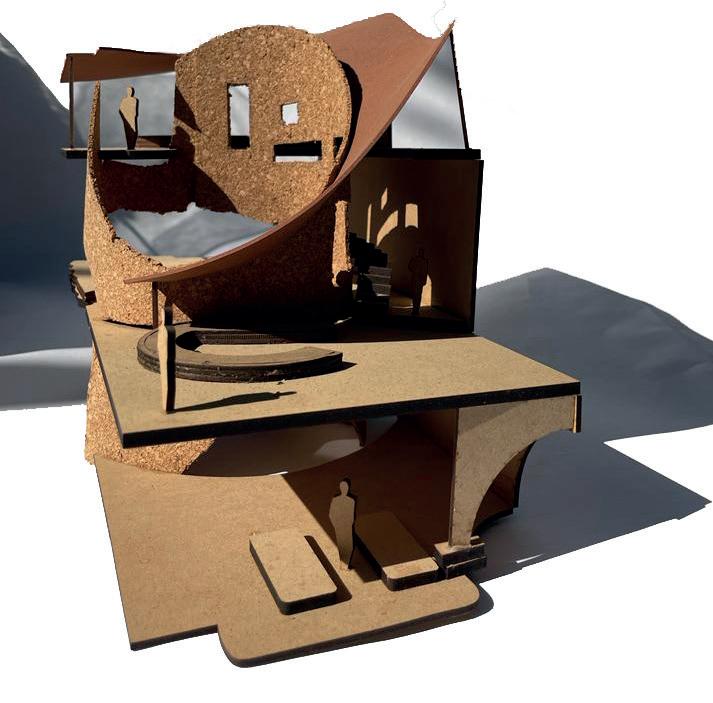

Models

DIU, GUJARAT

TEMPERATURE: 15C- 38C

RAINFALL: 2300- 4800 MM

WIND DIRECTION: SOUTH WEST TO NORTH EAST

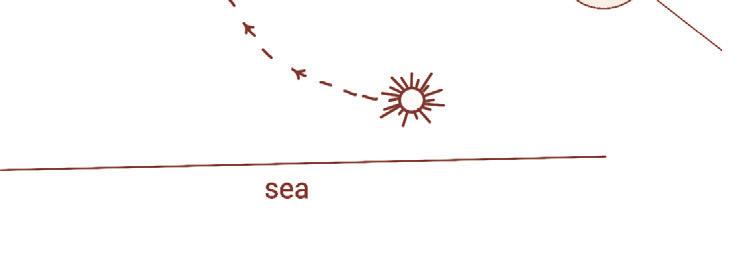

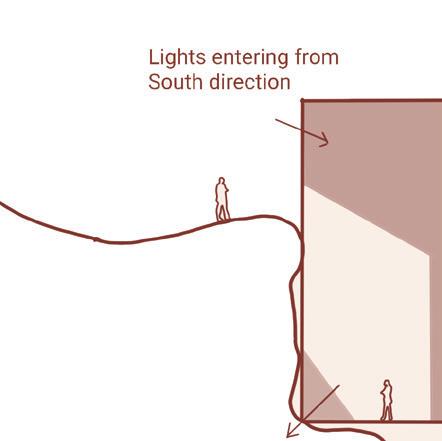

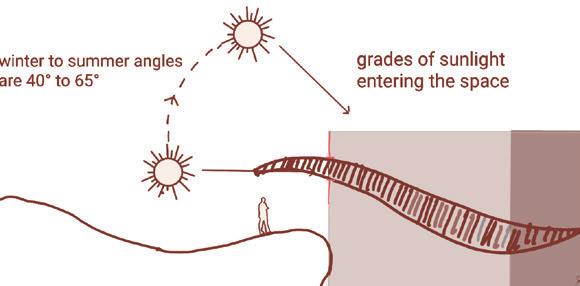

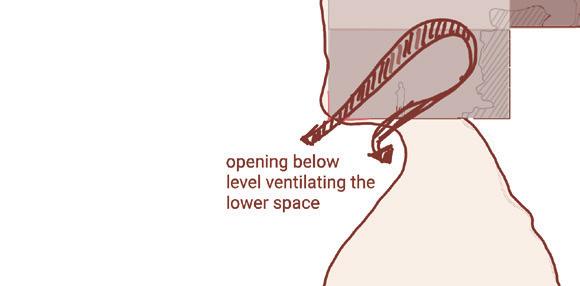

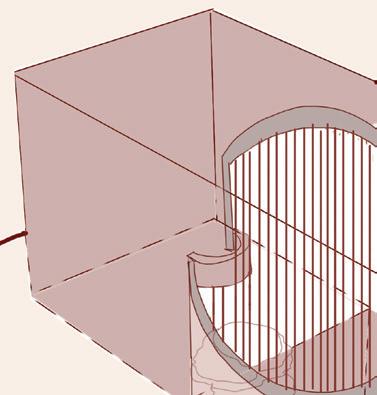

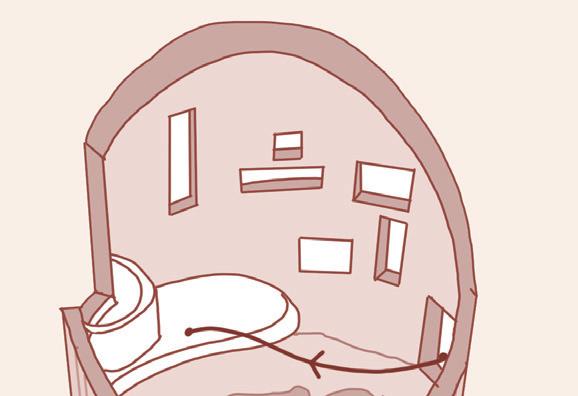

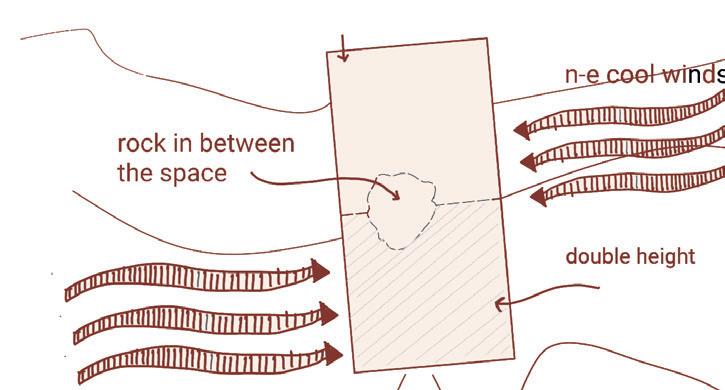

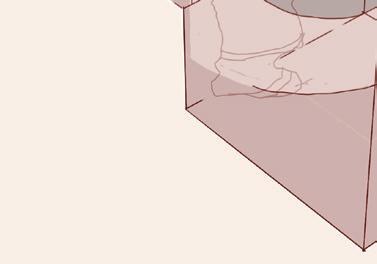

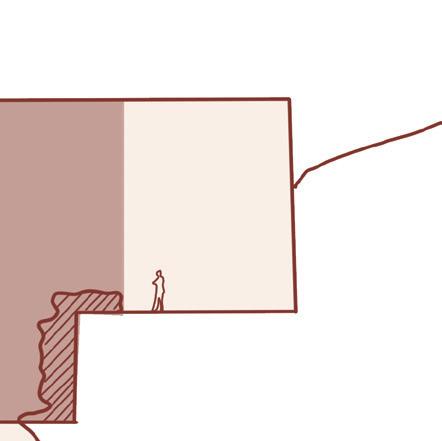

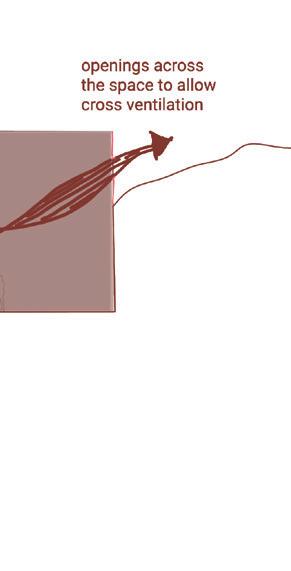

Diagrams

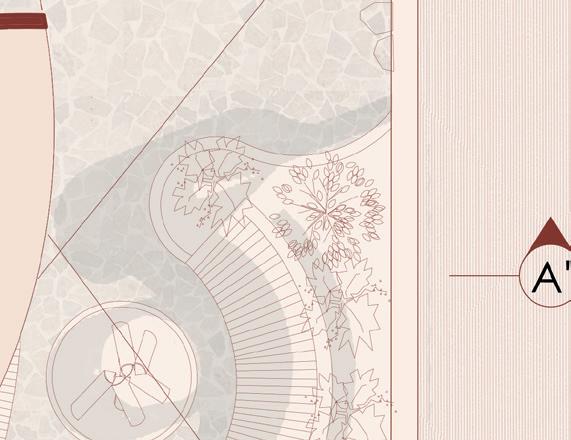

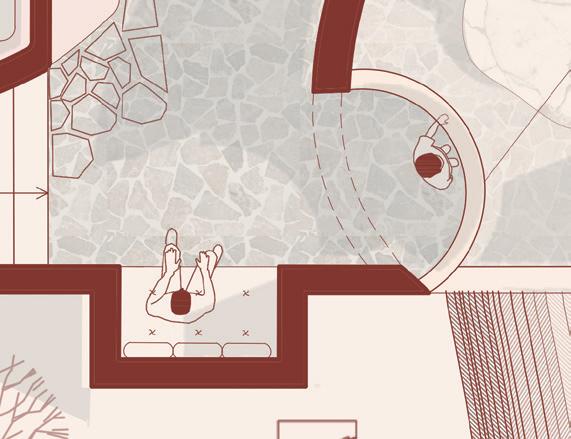

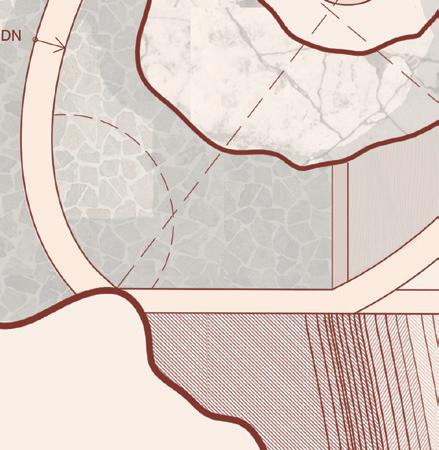

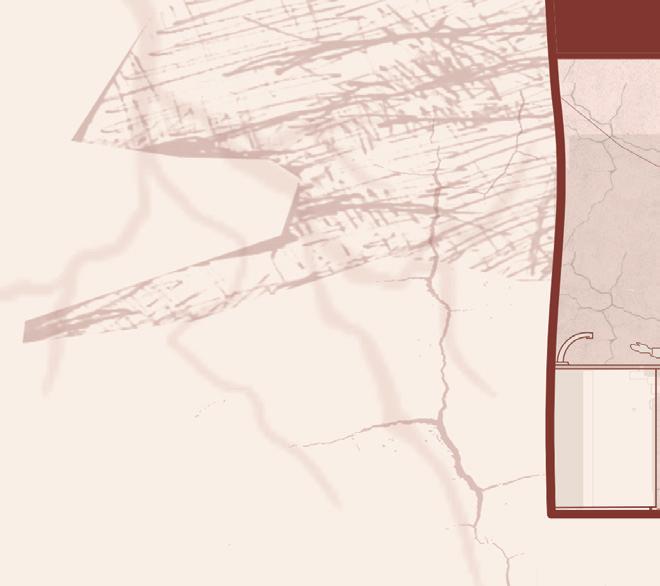

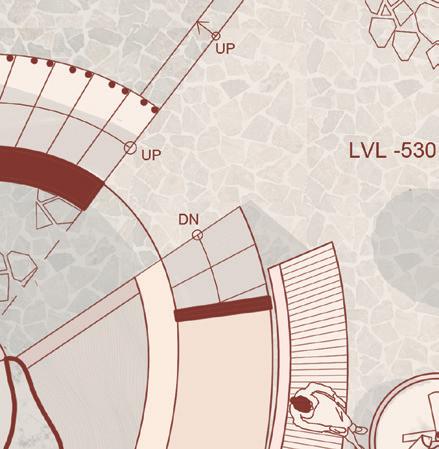

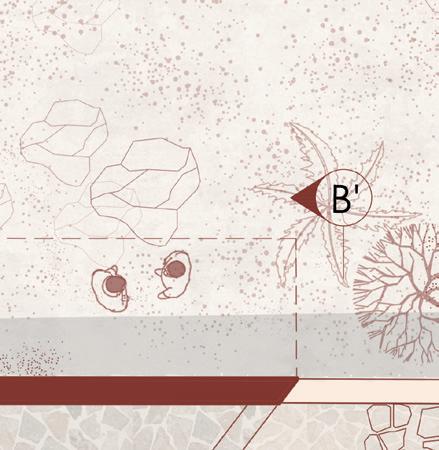

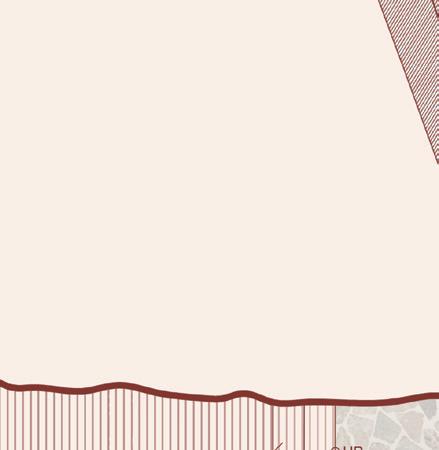

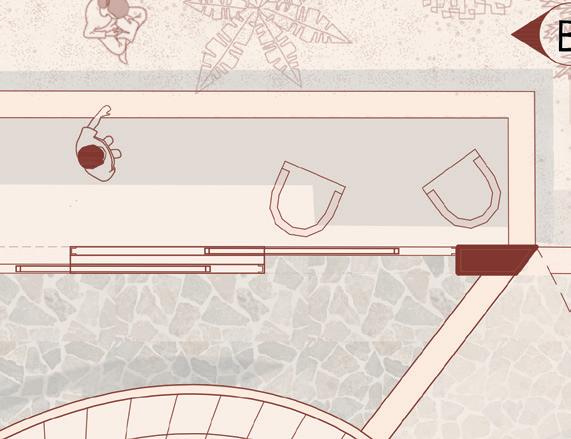

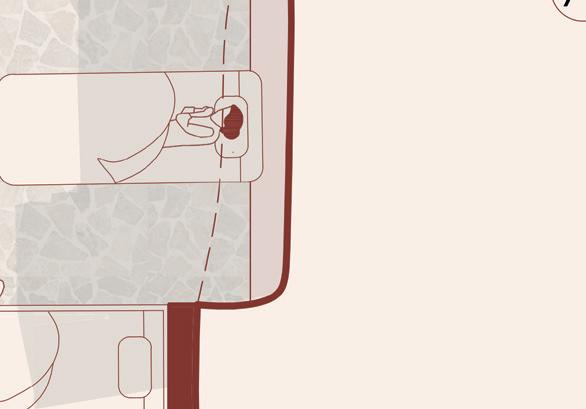

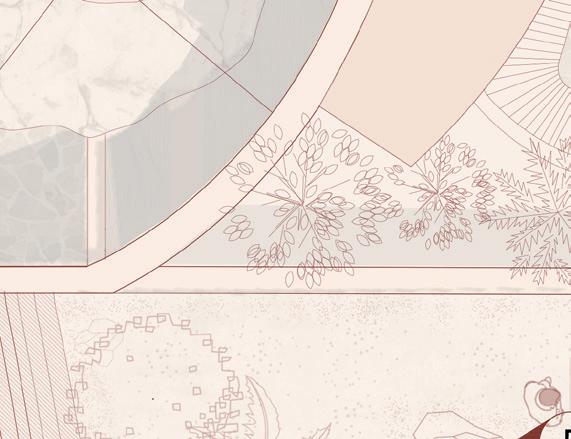

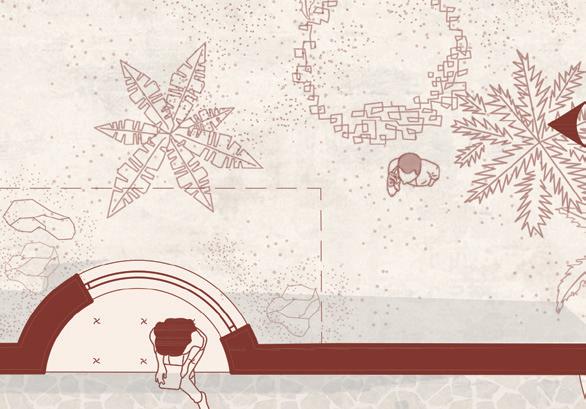

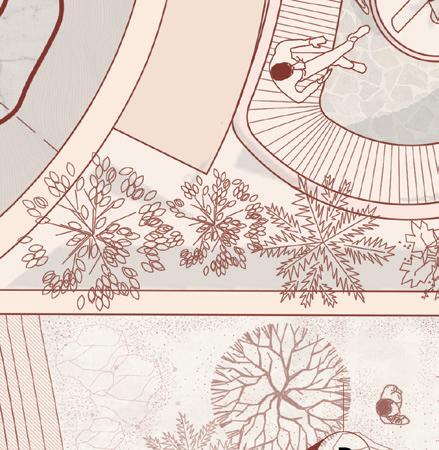

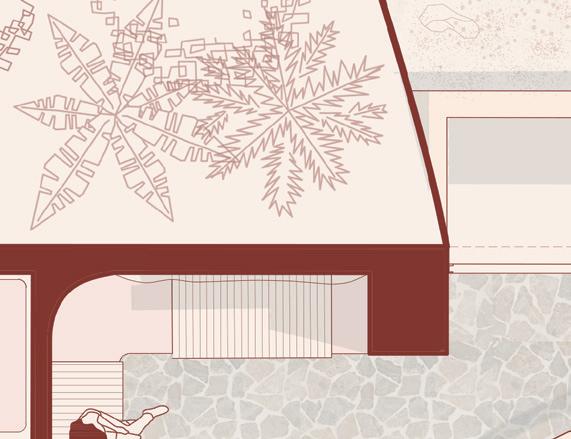

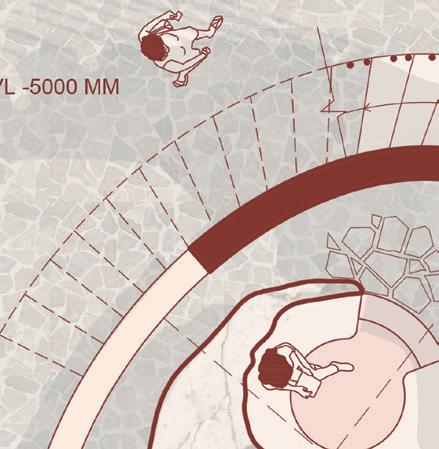

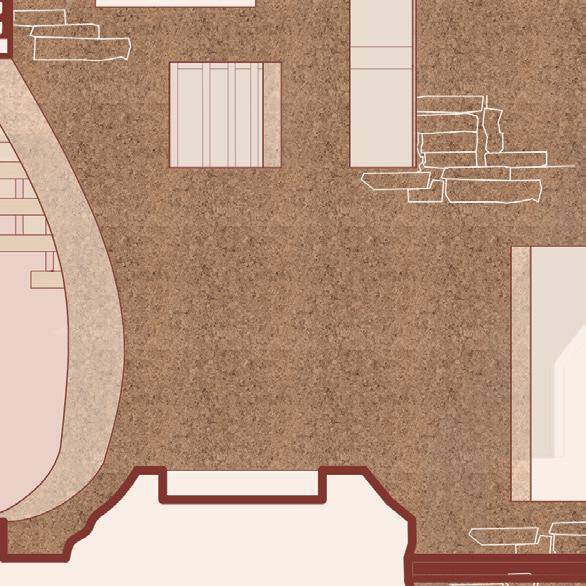

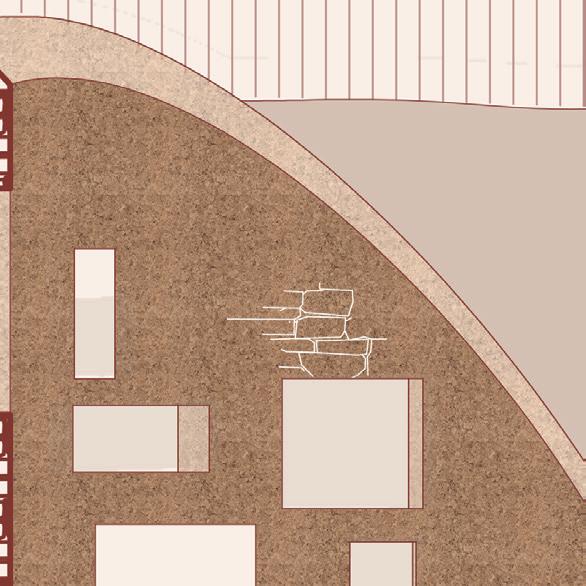

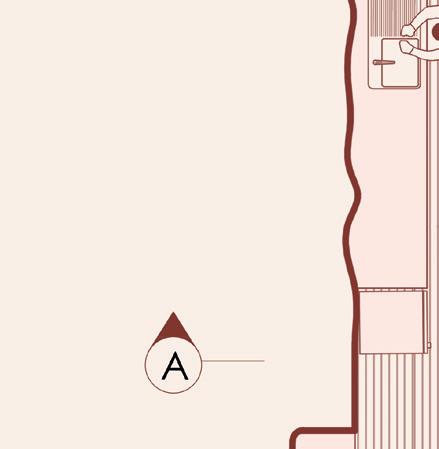

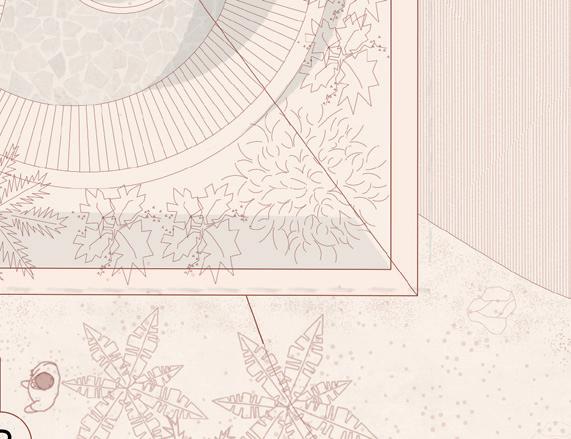

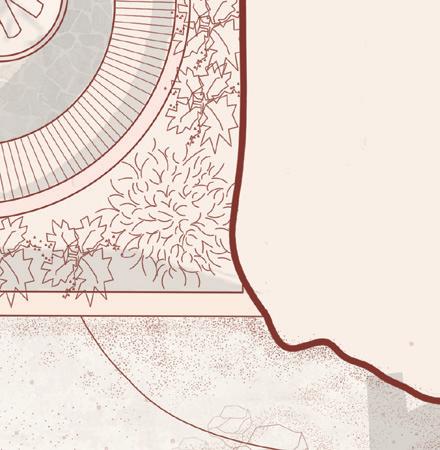

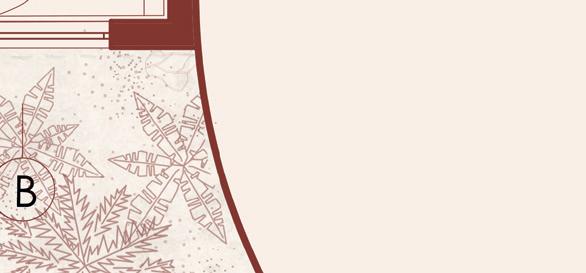

Plan

Upper level Floor

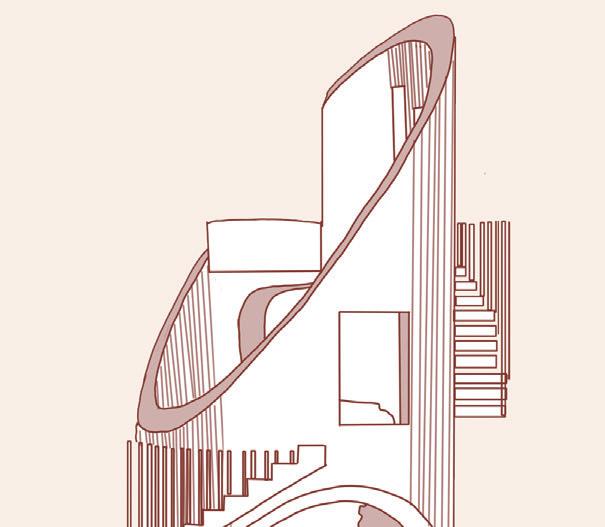

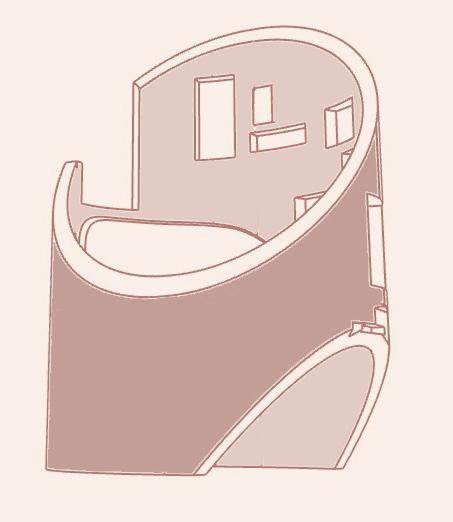

Movement along the funnel Physical and Visual connection Cylindrical volume intersecting with the site Openings based on penetration of light

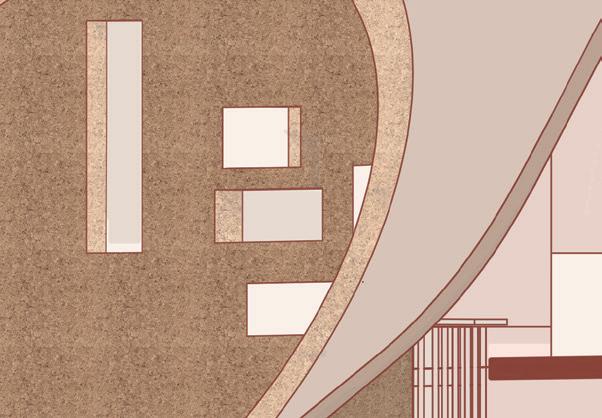

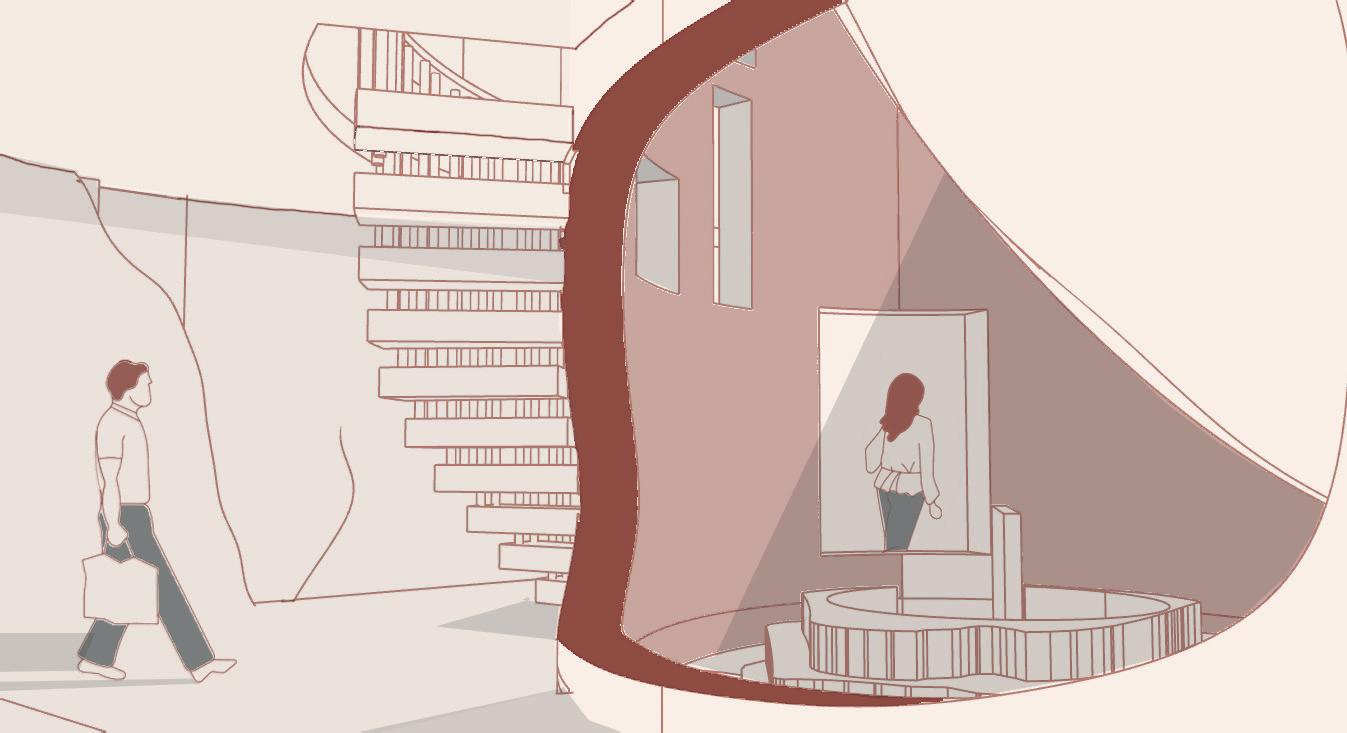

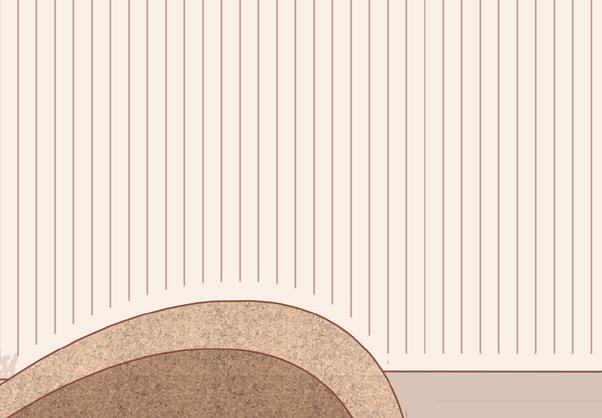

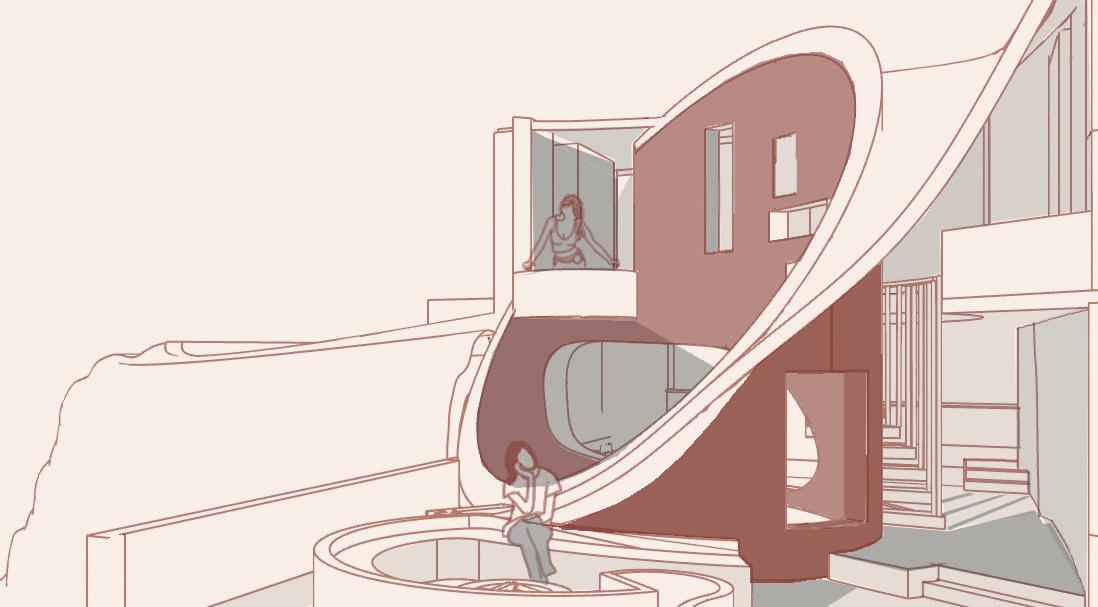

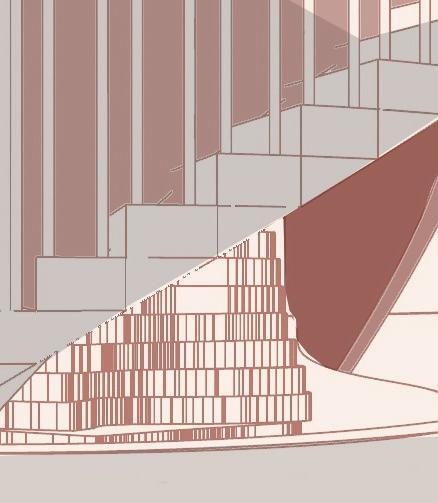

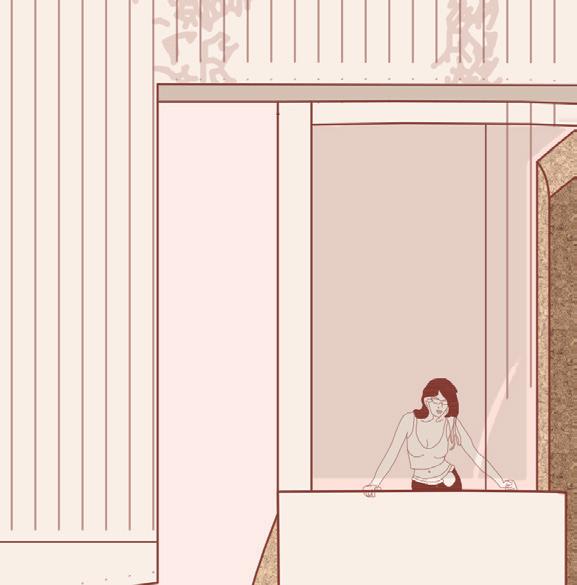

3D Illustrations/ Views

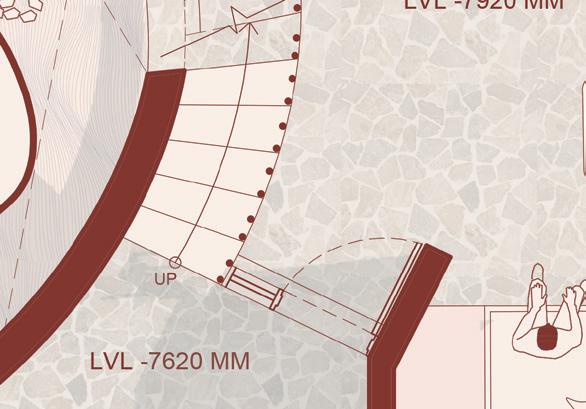

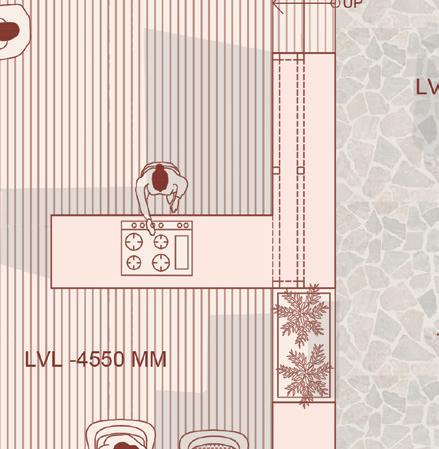

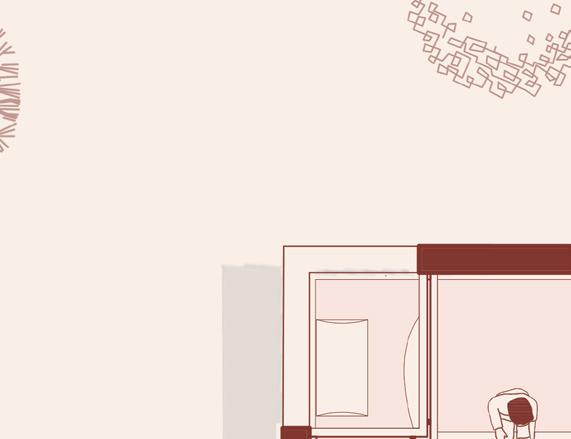

Mezzanine Floor Plan

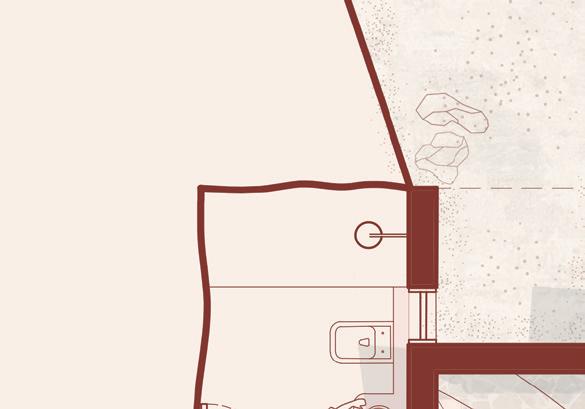

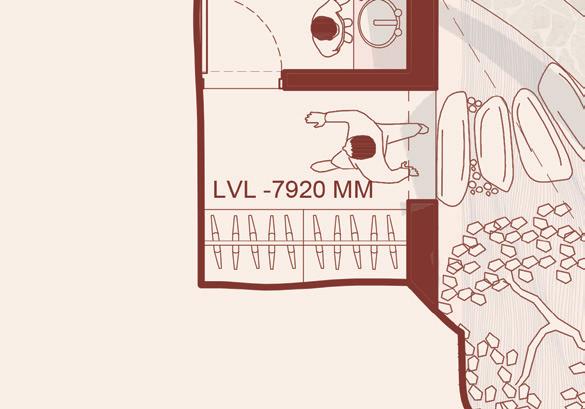

Lower level Floor Plan

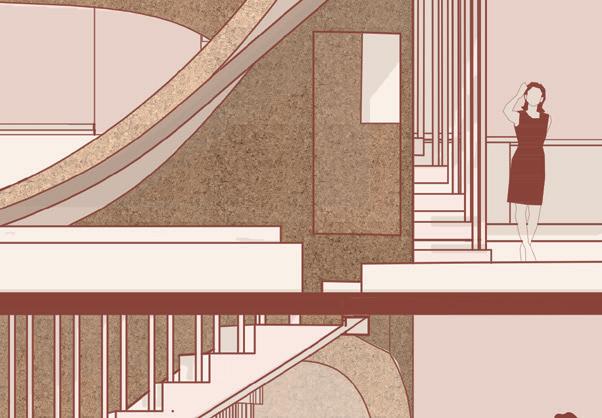

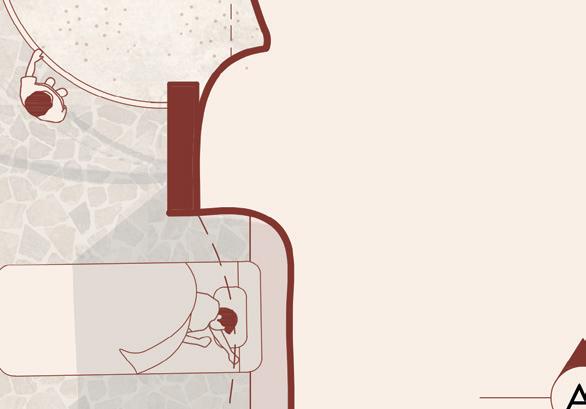

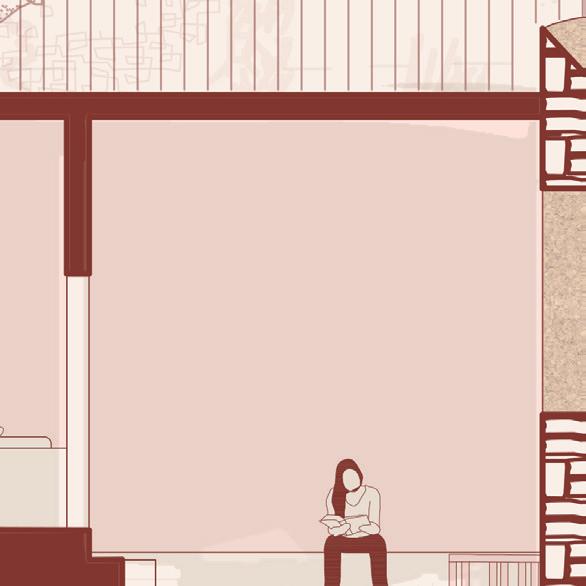

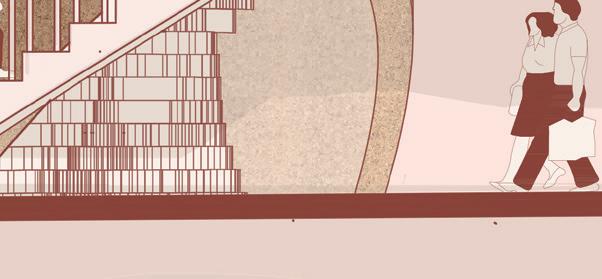

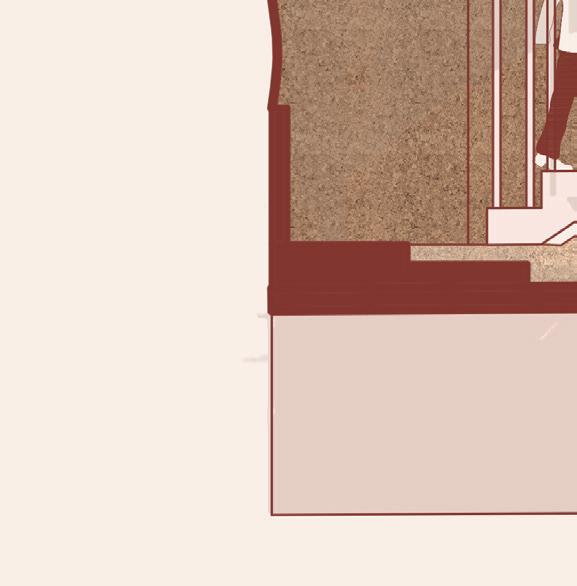

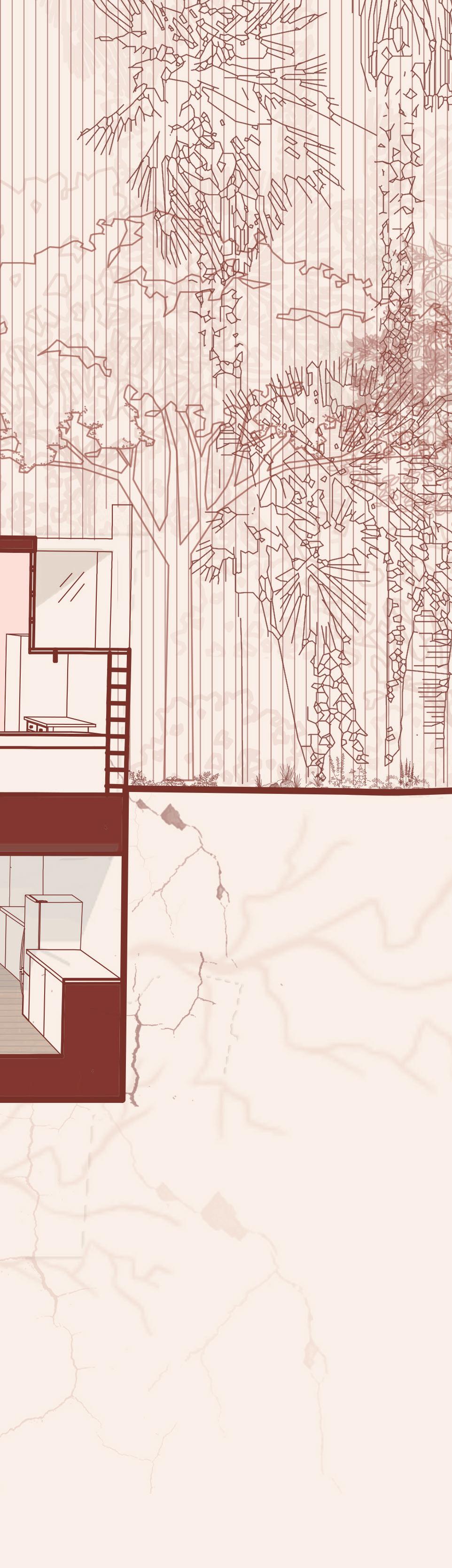

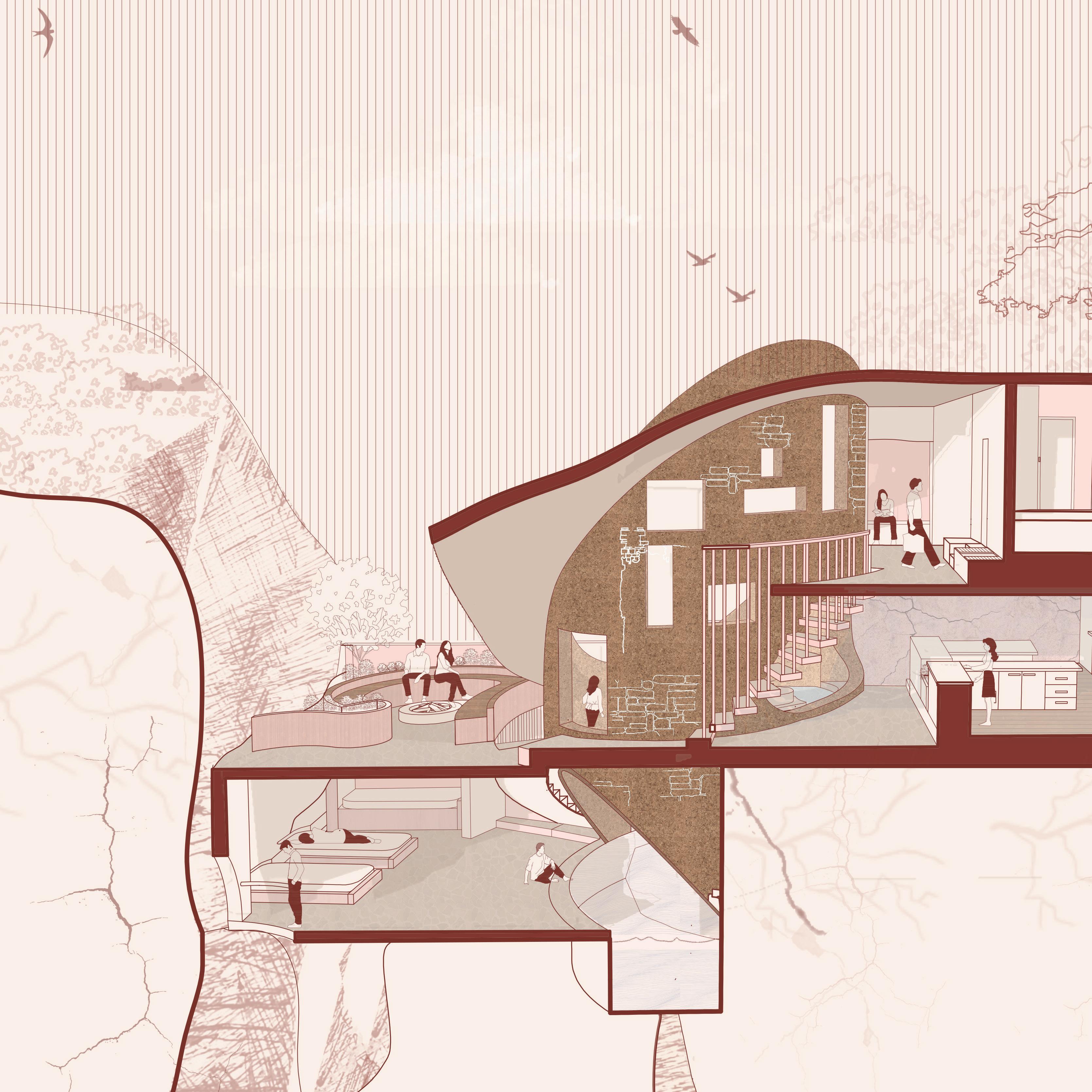

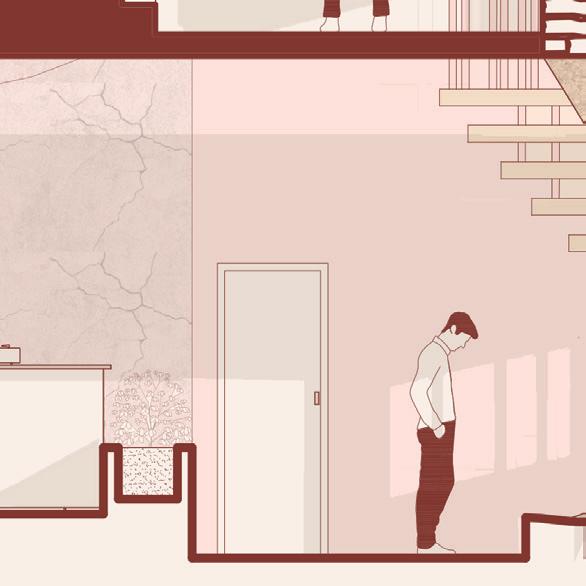

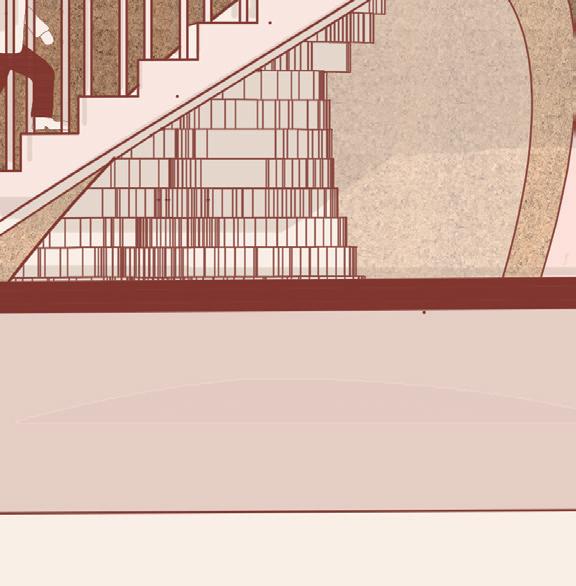

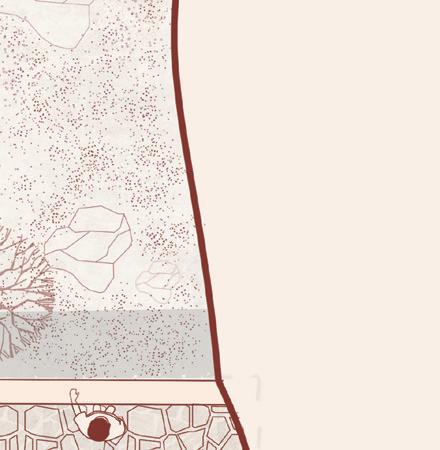

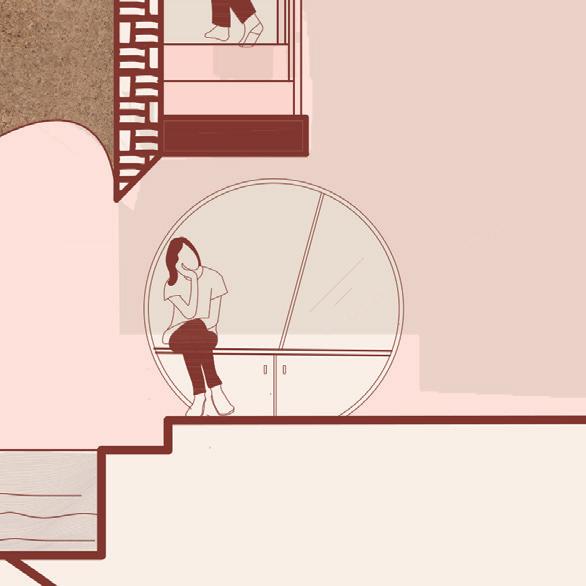

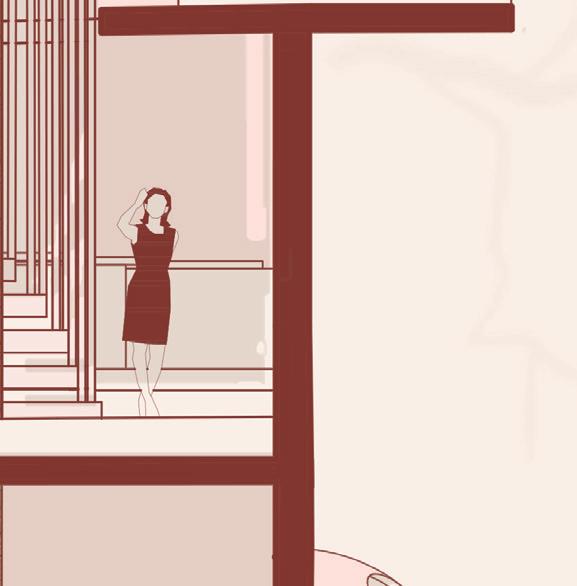

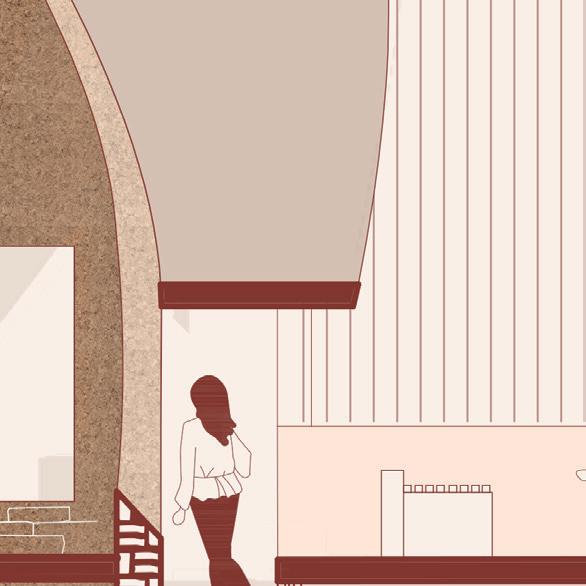

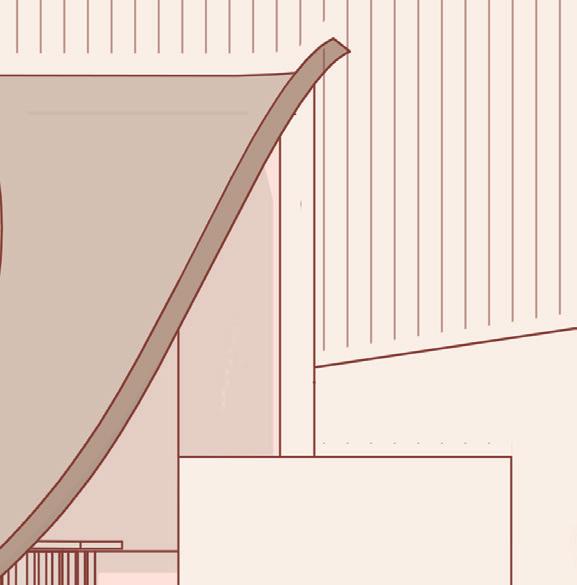

Sectional Perspective covering all the space

Sectional Perspective Overviewing

the Core Funnel

A material innovation centre

Connect is a Material Innovation Centre (MIC) located in Ahmedabad. It works and resolves problems related to material and materiability. Plywood and Steel are the main focus for the MIC. The organisation is driven by society, with social organisation as the metaphor for the same. Factors like openness, transparency, connection and hierarchy are the governing factors in the designing of the MIC.

Site: AHMEDABAD, GUJARAT, INDIA

Project Type: Office

Softwares used: Autocad, Sketchup, Enscape, Photoshop

02|

CONNECT

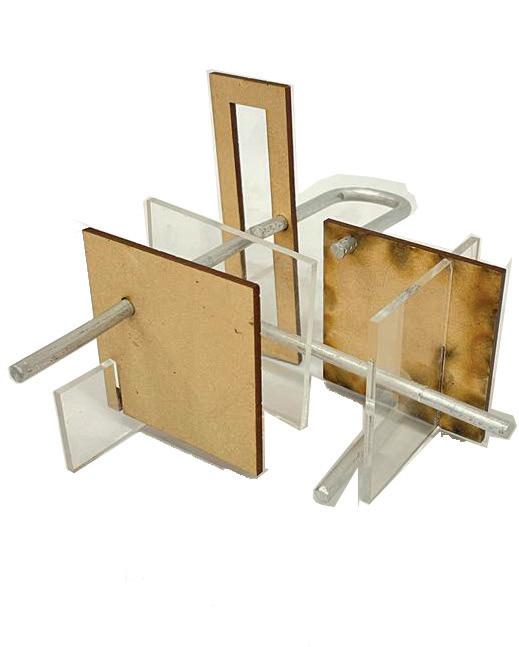

Physical Models

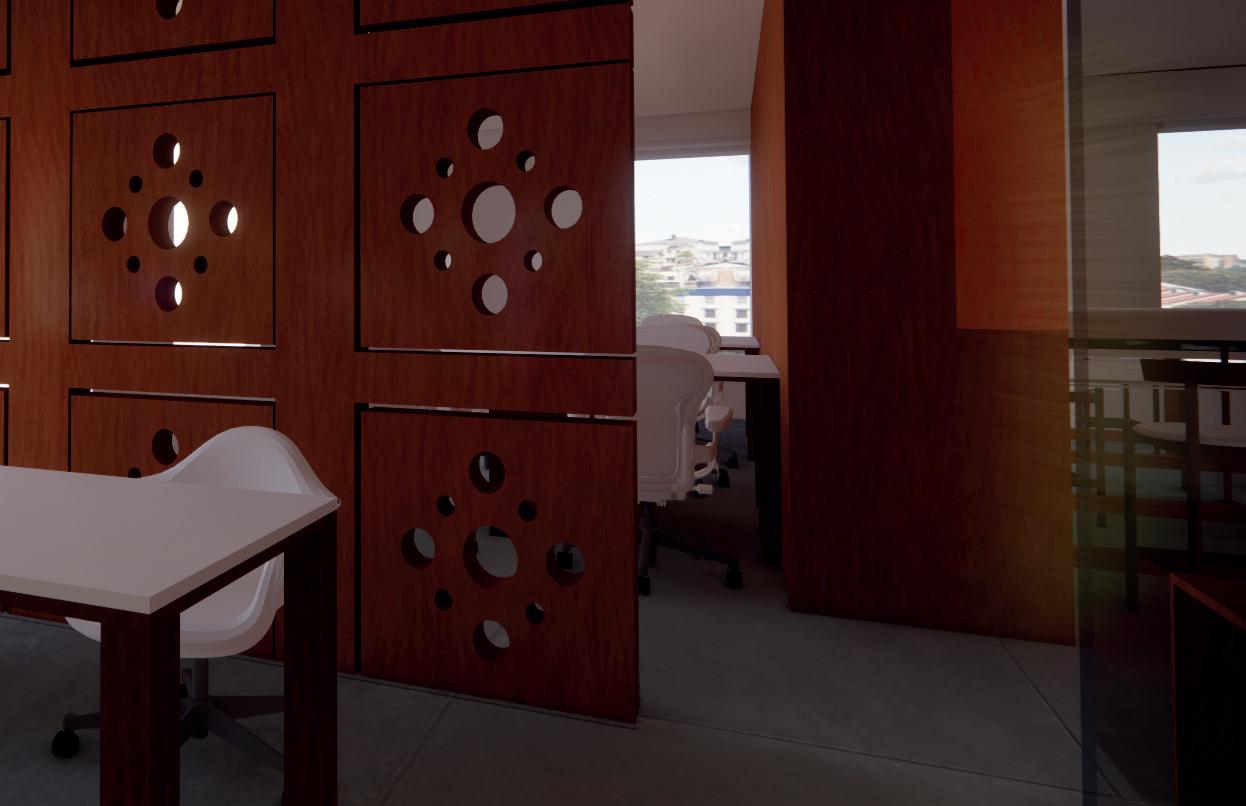

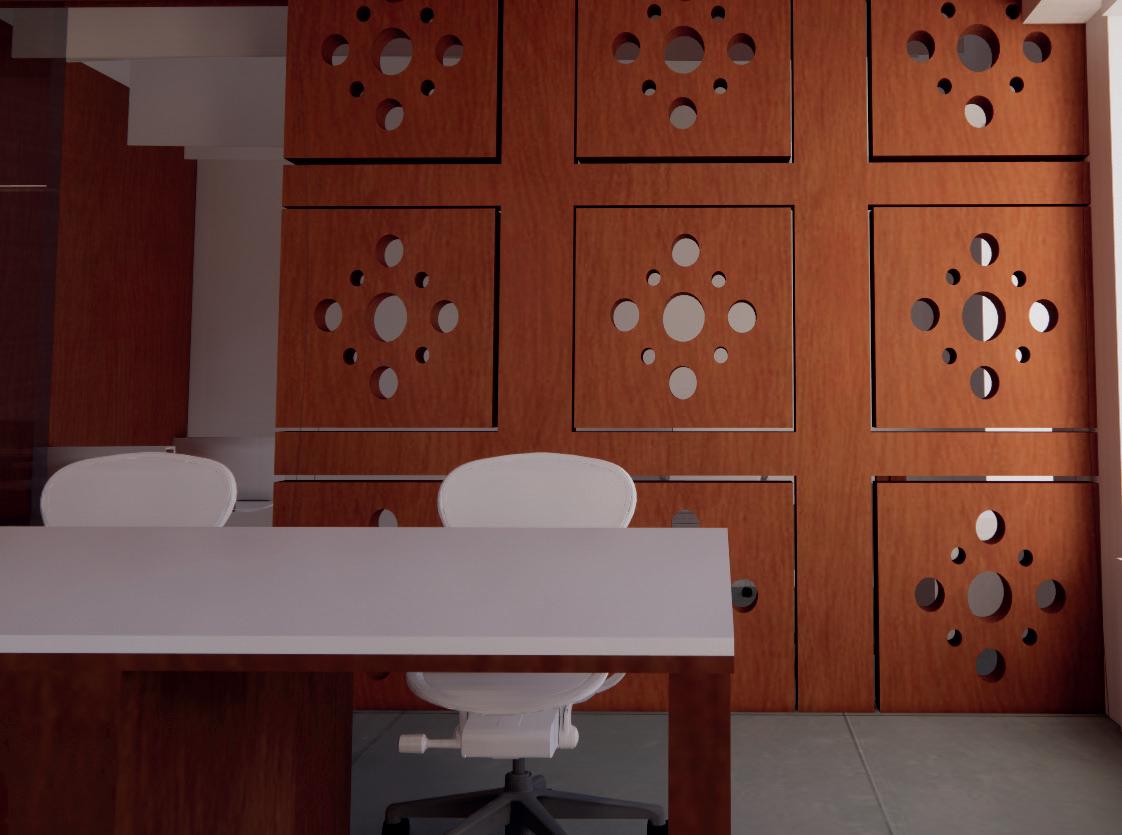

Sectional Perspective

Site Study and Initial Diagrams

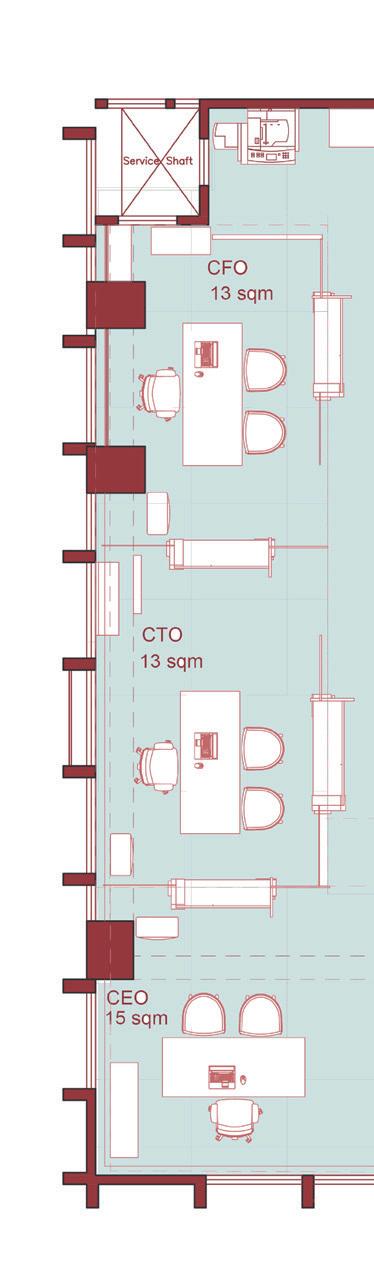

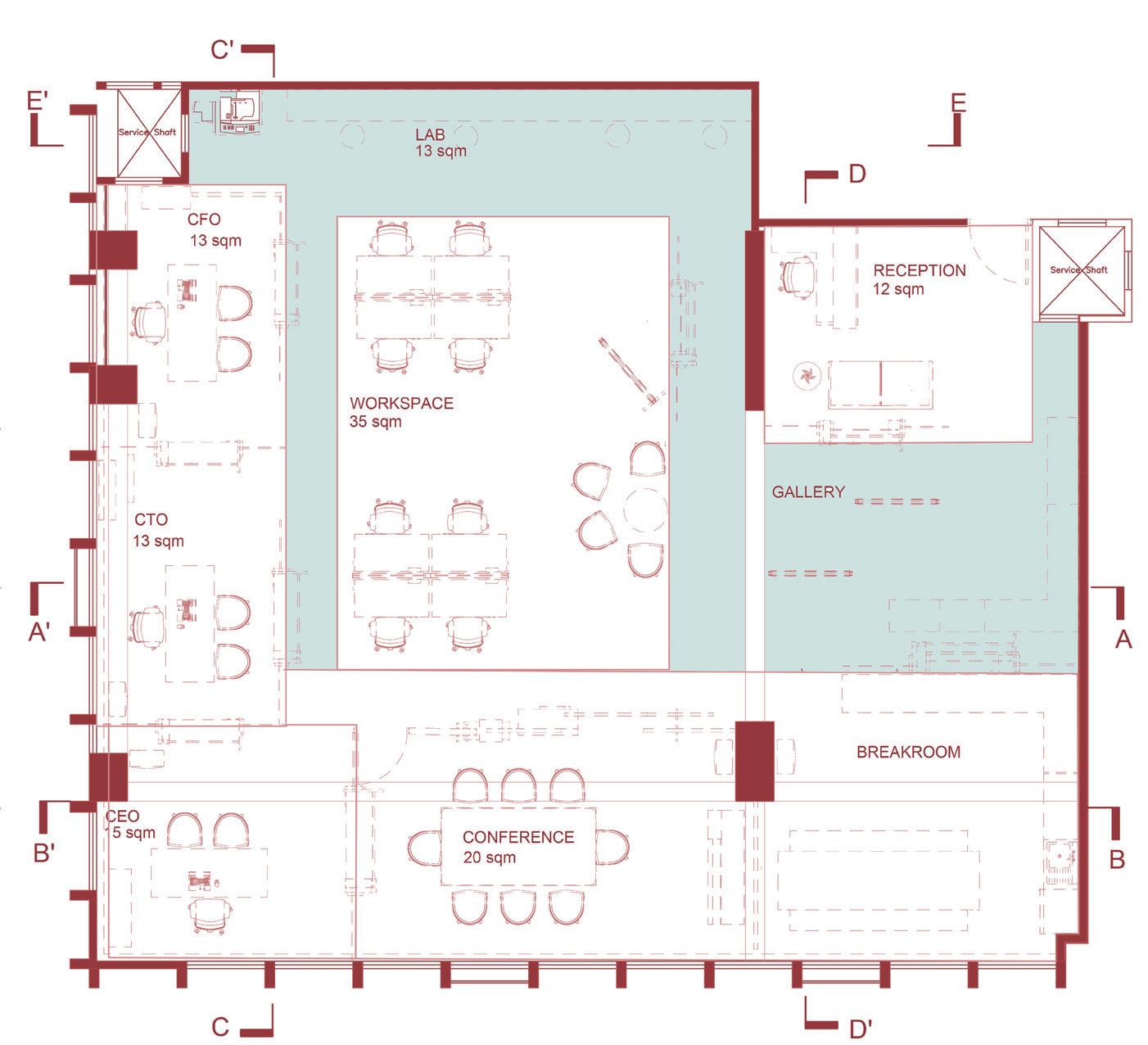

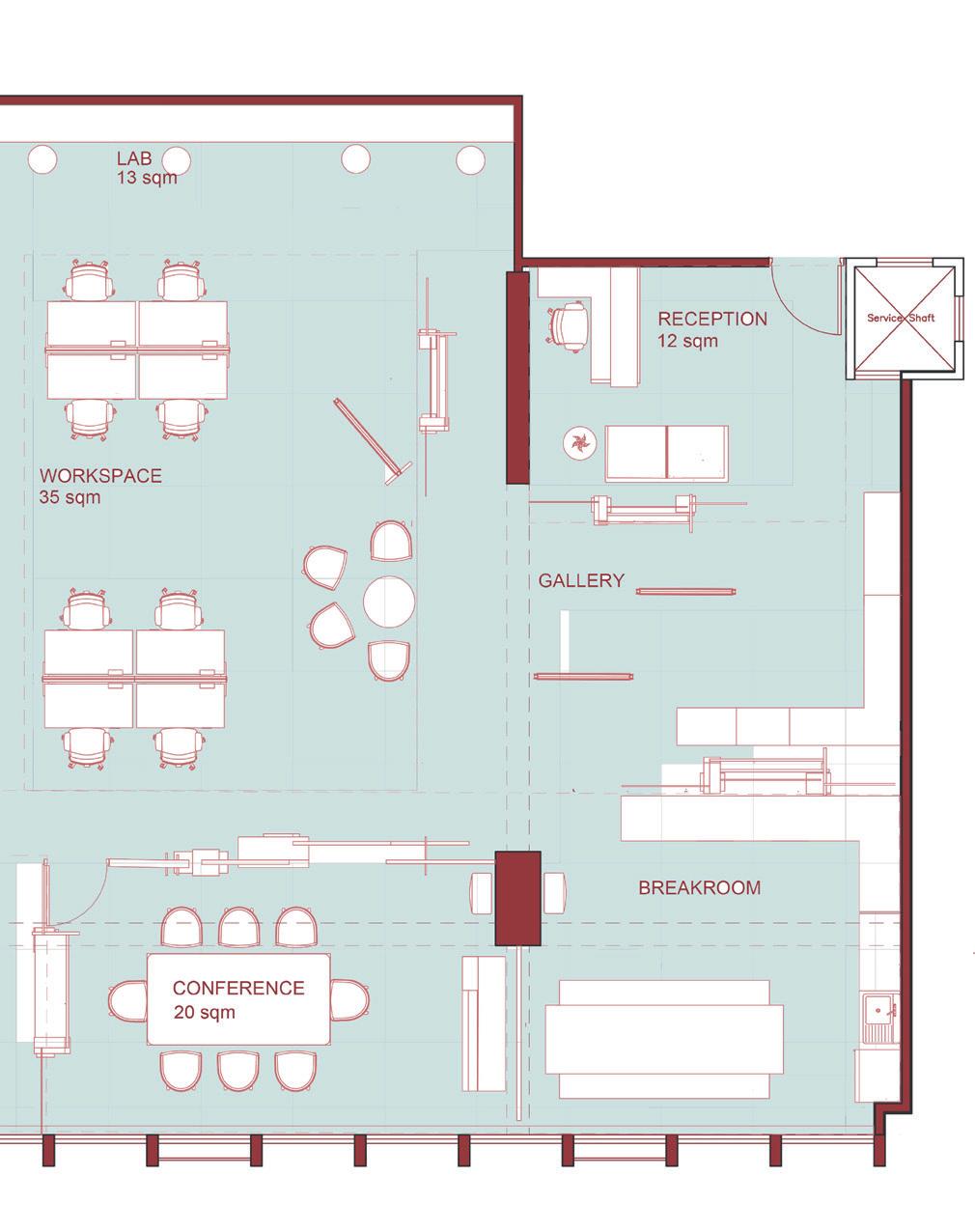

* * Plan At 1500 mm

(part of group work)

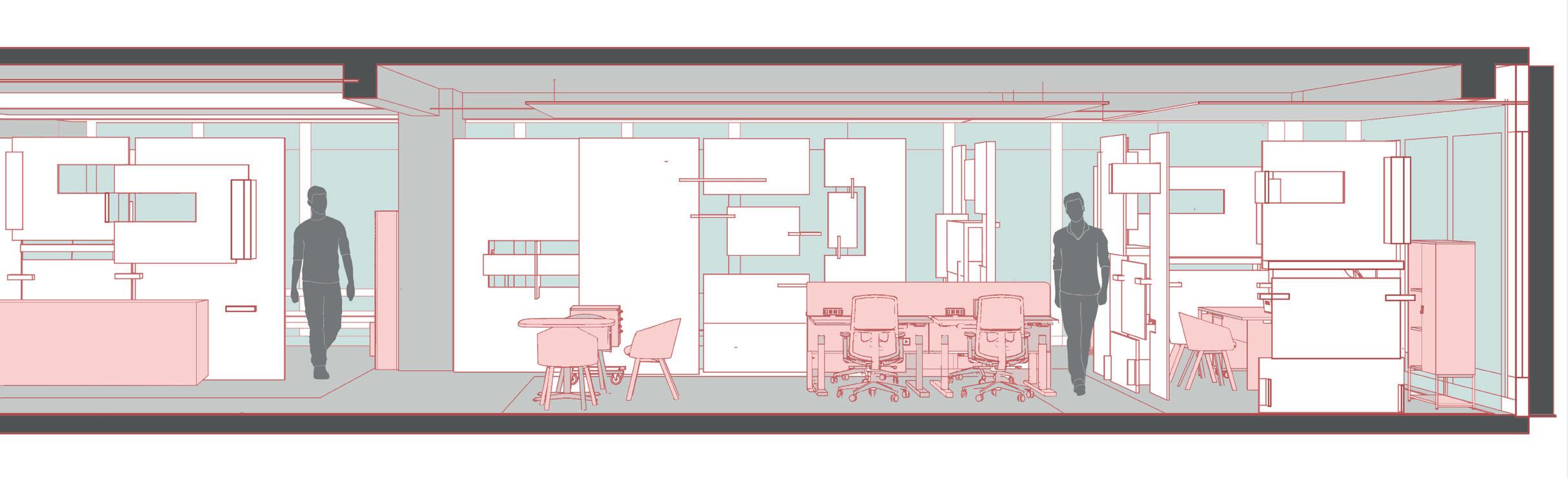

Perspective cutting through the space

Reflected Ceiling Plan

Sequential Diagrams showing the process of designing

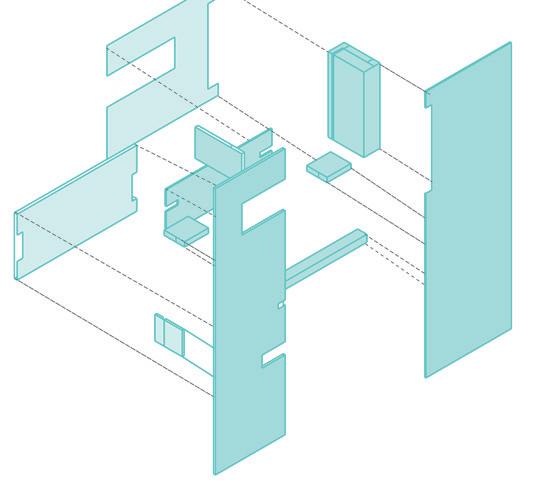

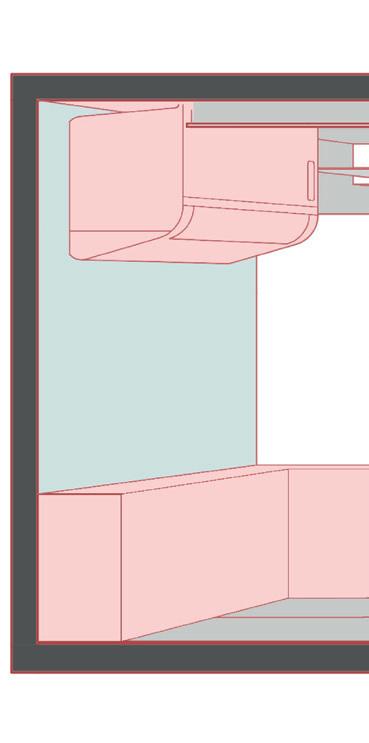

Exploded Isometric Views Through the workstation Area

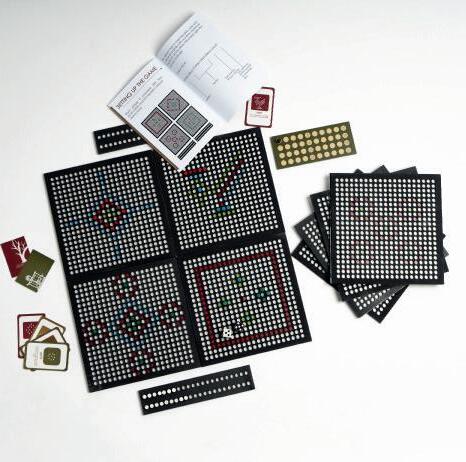

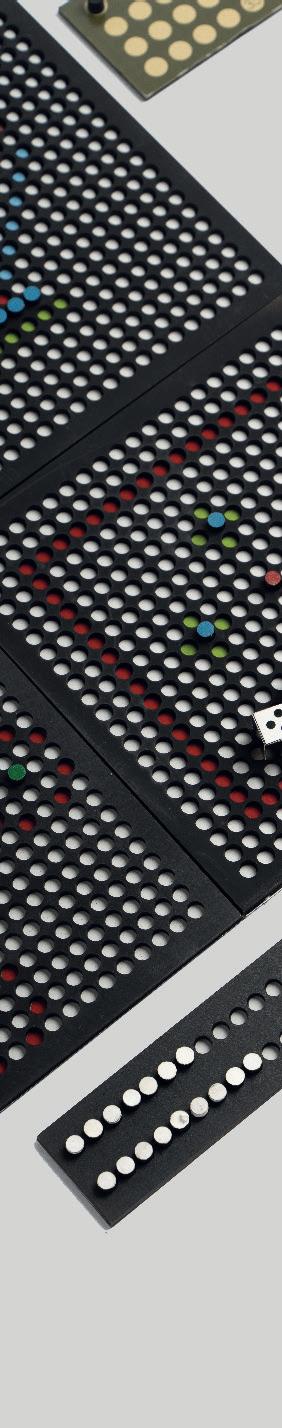

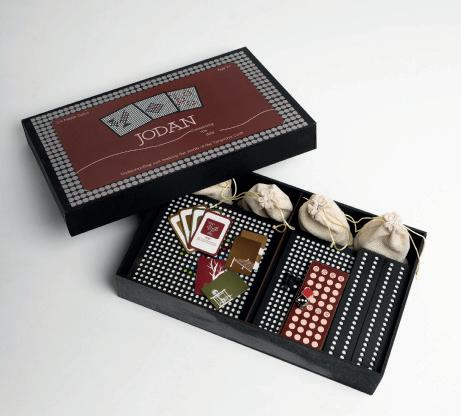

03| JODAN

A connection through threads and beads

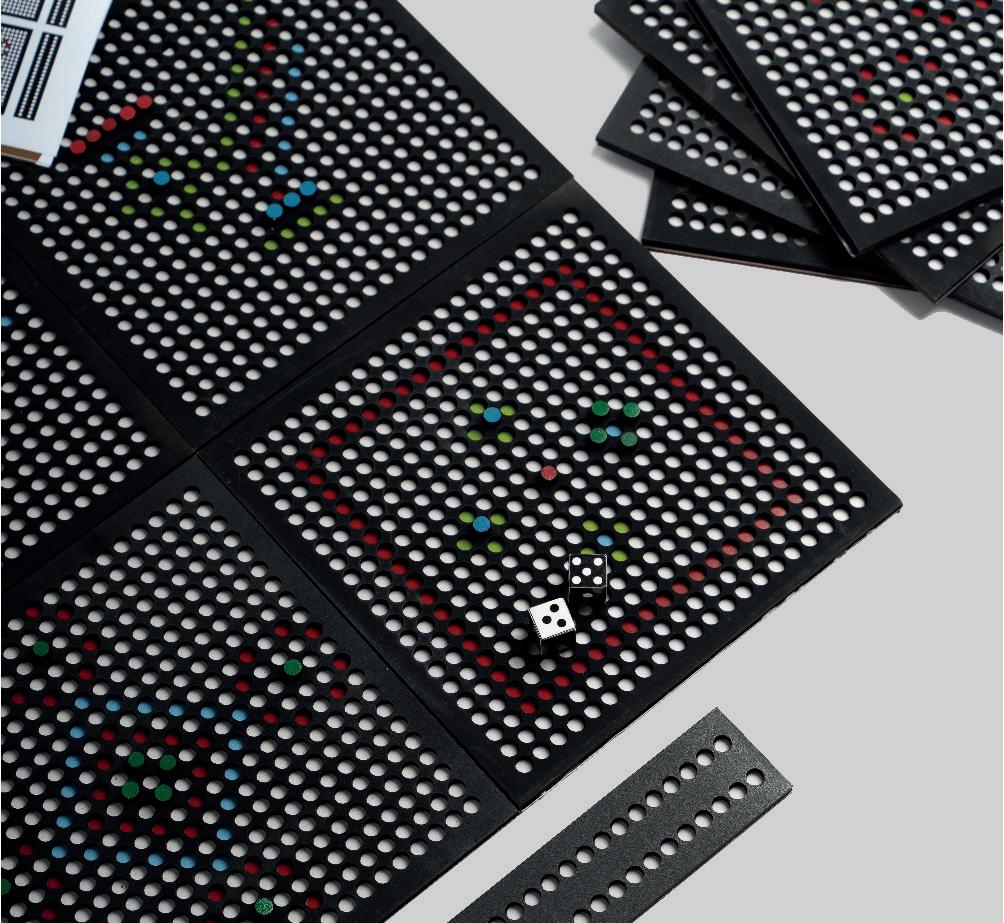

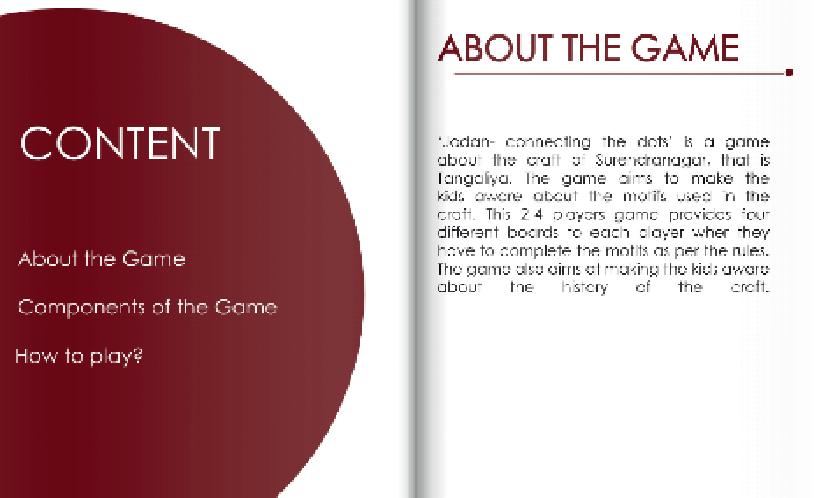

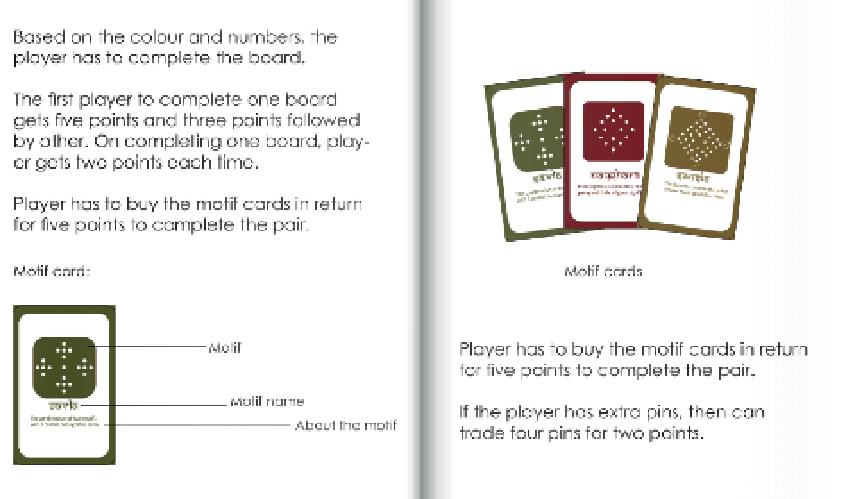

‘Connection of Stories’- through threads and dots details in about the crafts and narratives along with enlightening about my theme of connection in my work. ‘The Rolling Pumpkin’- is an illustrated storybook for children connects my memories to the field visit to Vastadi, postcards connecting the journey to kutch and establishing aconnection of threads, and ‘Jodan-a connection of dots’- a game that connects back to the Tangaliya craft in Vastadi is about the motifs of the craft.

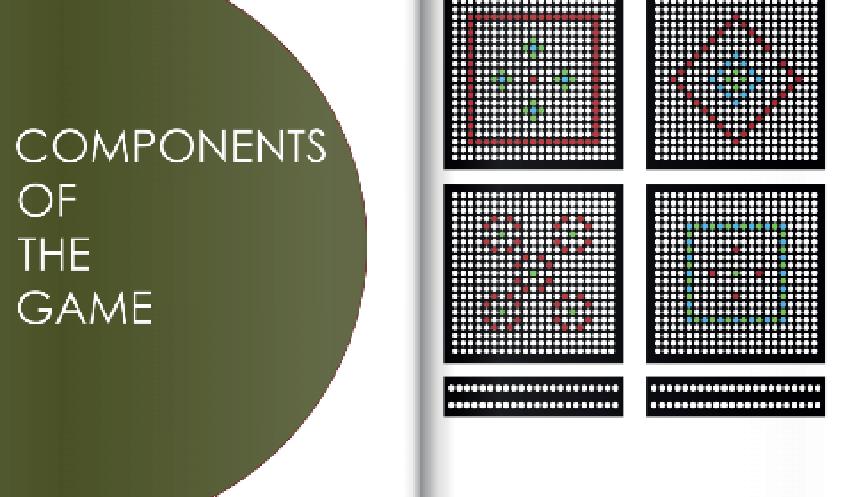

Selected pages Booklets Pattern Boards Motif Cards

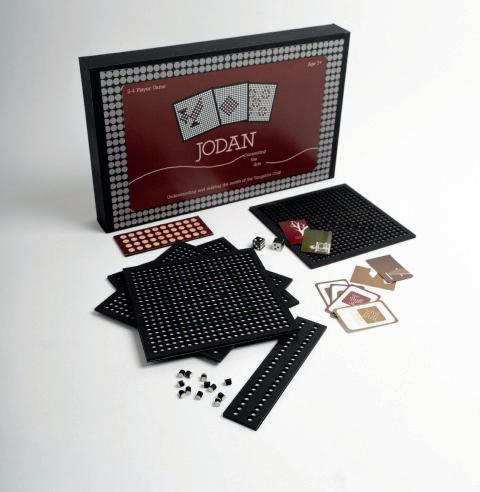

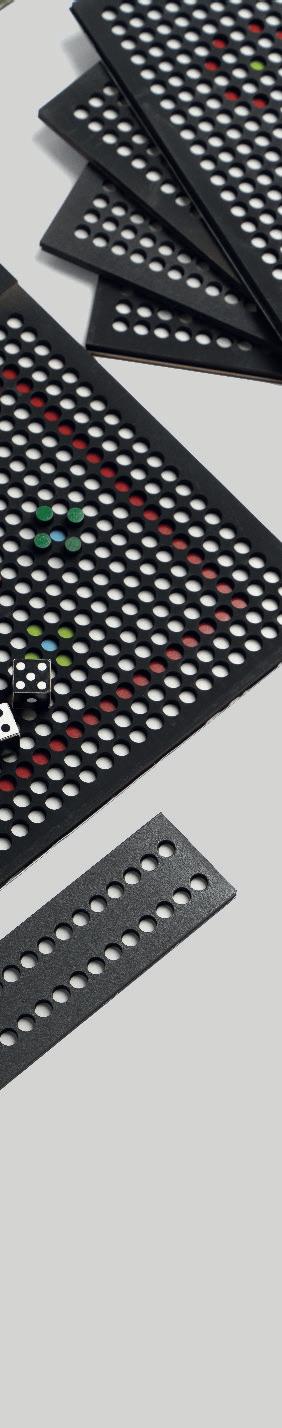

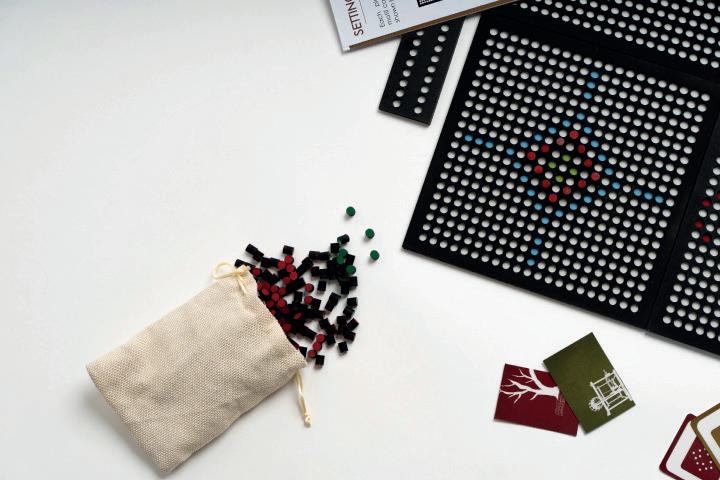

Bonus Cards Physical Game Documentation

TEXTILE DESIGNER’S OFFICE

SITE- As an understanding

Furniture Coding Layout at 1500 mm

Location: 7th ﬂoor, Colonade, Ahmedabad

Features:

• RCC columns and beams

• Beam bottom at 600 mm along the window and central ones at 300 mm

• Wet area and pantry located in the north west corner of the space.

• Sill at 550 mm

Profession - BLOCK PRINTING

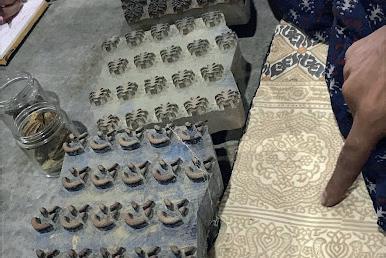

Block printing is a printing technique that uses a solid material to transfer ink into fabric. The block printing process involves engraving a design on the material, known as the block, inking the design, and then using the block as a stamp on the fabric.

ENTRY LVL +175 LVL +00 SPLIT CONCEALED 2 TR SPLIT CONCEALED 1.5 TR SPLIT CONCEALED 2.5 TR SPLIT CONCEALED 1 TR FALSE CEILING LVL +2550 MM FALSE CEILING LVL +2700 MM FALSE CEILING LVL +2700 MM FALSE CEILING LVL +2700 MM FALSE CEILING LVL +2700 MM FALSE CEILING LVL +2700 MM FALSE CEILING LVL +2550 MM LVL +00 LVL +175 HEAD DESIGNER MEETING PANTRY RECEPTION STORAGE FEMALE TOILET MALE TOILET LVL +90 WORKSPACE WORKSHOP A 04 A 04 B 04 B 04 B C C' A IR (MATERIAL SITE: CLIENT: PROJECT: DATE: SCALE: · · NO. Legend: DRAWN CODE ENTRY W1 V1 2 W2 1 W1 1 W3 1 W4 1 W3 2 W4 2 LVL +00 LVL +175 HEAD DESIGNER 4380 x 2660 MEETING 3475 x 2660 PANTRY 1380 x 4050 RECEPTION 3820 x 3080 STORAGE 1900 x 2070 FEMALE TOILET 1041 x 1533 MALE TOILET 1040 x 2428 LVL +90 WORKSPACE 3270 X 5475 WORKSHOP 3880 X 5475 A 04 A 04 B 04 B 04 T1 1 T3 1 T2 1 T4 4 T4 3 T4 2 T4 1 T5 1 T6 1 CH1 1 CH2 7 CH2 8 CH2 6 CH2 5 CH2 3 CH2 4 CH2 2 CH2 1 CH3 7 CH3 8 CH3 6 CH3 5 CH3 3 CH3 4 CH3 2 CH3 1 CH5 2 CH5 1 CH4 1 CH1 8 CH1 7 CH1 4 CH1 5 CH1 6 ST1 1 ST4 1 ST3 1 ST5 1 ST6 1 ST7 1 ST8 1 ST9 1 ST10 1 ST11 1 S3 1 S2 1 P1 1 P2 1 P3 1 P5 1 P7 1 P8 1 P9 1 BL1 7 BL1 3 ST2 1 BL1 6 BL1 5 BL1 4 BL1 2 BL1 1 MI1 1 MI1 2 P4 1 P6 1 S2 1 750 600 2000 1735 450 1160 600 450 700 1480 950 1000 1500 745 805 2000 600 600 1440 1200 1045 2000 1200 1440 1200 1045 2000 2400 600 1280 400 2200 700 800 970 450 690 300 685 1220 1305 1700 1270 260 270 330 360

B 1390 1070 1200 800 1220 800 1220 800 1220 800 8260 1630 750 900 6040 3280 9320 2070 385 1400 9990 ENTRY PLAN AT 1500 MM 4225 640 4060 D2 D1 W2 2 W3 W3 2 W3 3 04 B 04 D 04 D 04 04 A 04 A 04 04 LVL +00 1 LVL +90 LVL +175 A C 1

RCP

04|

HVAC Views

Flooring

Flooring Details

SPLIT CONCEALED 2 TR SPLIT CONCEALED 1.5 TR SPLIT CONCEALED 2.5 TR SPLIT CONCEALED TR ODU 10 TR ENTRY V1 LVL +00 LVL +175 HEAD DESIGNER MEETING PANTRY RECEPTION STORAGE FEMALE TOILET MALE TOILET LVL +90 WORKSPACE WORKSHOP A 04 A 04 B 04 DB IR 2024- EXPLORATION OF DESIGN (MATERIAL IN FOCUS) LEVEL- 2 STUDIO SPRING SEMESTER- 2023 SITE: COLONADE, SG HIGHWAY CLIENT: TEXTILE DESIGNER PROJECT: TEXTILE OFFICE DATE: 26-03-2023 SCALE: 1:50 HVAC PLAN ALL DIMENSIONS ARE IN MM. ALL DIMENSIONS ARE TO BE READ NOT TO BE MEASURE. THIS DRAWING IS PROPERTY OF VRUSHALI K. THE DRAWING SHOULD NOT BE COPIED OR USED WITHOUT THEIR PRIOR PERMISSION. NO. REVISION TYPE OF REVISION DATE Legend: DRAWN BY: VRUSHALI K. CODE NO: UIR20160 EXISTING STRUCTURE N INLET DRAIN PIPE OUTLET D5 CASETTE AC 1.5 TR EXHAUST SPLIT CONCEALED AC SPLIT CONCEALED AC 1 TR HVAC POWER CONNECTION 1655 1750 940 1655 3210 1655 3270 ENTRY LVL +00 LVL +175 HEAD DESIGNER MEETING PANTRY RECEPTION STORAGE FEMALE TOILET MALE TOILET LVL +90 WORKSPACE WORKSHOP A 04 A 04 B 04 A E B C D F IR 2024- EXPLORATION OF DESIGN (MATERIAL IN FOCUS) LEVEL- 2 STUDIO SPRING SEMESTER- 2023 SITE: COLONADE, SG HIGHWAY CLIENT: TEXTILE DESIGNER PROJECT: TEXTILE OFFICE DATE: 25-03-2023 SCALE: 1:50 FLOORING AT 1500 MM ALL DIMENSIONS ARE IN MM. ALL DIMENSIONS ARE TO BE READ NOT TO BE MEASURE. THIS DRAWING IS PROPERTY OF VRUSHALI K. THE DRAWING SHOULD NOT BE COPIED OR USED WITHOUT THEIR PRIOR PERMISSION. NO. REVISION TYPE OF REVISION DATE Legend: DRAWN BY: VRUSHALI K. CODE NO: UIR20160 EXISTING STRUCTURE 300 X 300 MM VITRIFIED TILES N PIGMENTED IPS Quantity: 10 Quantity: 19 MOSAIC- AJRAKH BLOCK PATTERN MOSAIC- AJRAKH BLOCK PATTERN 1430 925 690 635 3750 3050 MOLDINGS CH T P S ST BL MI CHAIR TABLE PARTITION SEATING STORAGE BLINDS MISCELLENEOUS EXISTING STRUCTURE CEILING POINTS SWITCH BOARD WALL POINT CENTER LINE UPS POINT DISTRIBUTION BOX TELEPHONE POINT TP INLET DRAIN PIPE OUTLET CASETTE AC 1.5 TR EXHAUST SPLIT CONCEALED AC SPLIT CONCEALED AC 1 TR HVAC POWER CONNECTION SITE: COLONADE, SG HIGHWAY CLIENT: TEXTILE DESIGNER PROJECT: TEXTILE OFFICE DATE: 26-03-2023 SCALE: 1:5 FLOORING DETAILS 2 ALL DIMENSIONS ARE TO BE READ NOT TO BE MEASURE. THE DRAWING SHOULD NOT BE COPIED OR USED WITHOUT THEIR PRIOR PERMISSION. NO. REVISION TYPE OF REVISION DATE Legend: TEAK WOOD PARTITION DETAIL SCALE- 1:5 D5 RCC SLAB 75 MM THICK PCC LAYER 50 MM THICK IPS LAYER RCC SLAB 75 MM THICK PCC LAYER 50 MM THICK IPS LAYER 75 MM THICK TEAK WOOD PARTITION TENON AND MORTISE JOINT L SECTION JOINING THE UPSTAND WITH FLOORING 50 MM THICK TEAK WOOD PARTITION 210 MM THICK FRAME L SECTION JOINING THE UPSTAND WITH FLOORING TENON AND MORTISE OF PARTITION AND FRAME FRAME SCREWED TO THE FLOORING STRETCHED FABRIC DETAIL E E E' DETAIL F F F' SLAB PCC BRICK WALL IPS TEAK WOOD GLASS PLASTER TILE TO IPS DETAIL SCALE- 1:5 D1 18 MM THICK BEADING 50 MM THICK IPS 50 X 50 MM THICK TEAK WOOD FRAME RCC SLAB 75 MM THICK PCC LAYER 30 MM THICK IPS LAYER 20 MM THICK MOSIAC TILE 8 MM THICK GLASS 25 MM HEIGHT IPS SKIRTING C CHANNEL GROOVE 230 MM THICK BRICK WALL 75 MM THICK PCC DETAIL A A A' FLOORING DETAILS 1 TILE TO IPS DETAIL SCALE- 1:5 D1 GLASS PARTITION TO IPS DETAIL SCALE- 1:5 D3 SKIRTING DETAIL SCALE- 1:5 D4 18 MM THICK BEADING RCC SLAB 75 MM THICK PCC LAYER 50 MM THICK IPS LAYER 50 X 50 MM THICK TEAK WOOD FRAME RCC SLAB 75 MM THICK PCC LAYER 30 MM THICK IPS LAYER 20 MM THICK MOSIAC TILE 8 MM THICK GLASS 75 MM THICK PCC LAYER 50 MM THICK IPS LAYER 25 MM HEIGHT IPS SKIRTING C CHANNEL GROOVE 230 MM THICK BRICK WALL 75 MM THICK PCC LAYER 50 MM THICK IPS 1.5 MM THICK ALUMINIUM STRIP DETAIL A A A' N IR 2024- EXPLORATION OF DESIGN (MATERIAL IN FOCUS) LEVEL- STUDIO SITE: COLONADE, SG HIGHWAY CLIENT: TEXTILE DESIGNER PROJECT: TEXTILE OFFICE DATE: 26-03-2023 SCALE: 1:5 FLOORING DETAILS 2 ALL DIMENSIONS ARE IN MM. THIS DRAWING IS PROPERTY OF VRUSHALI K. THE DRAWING SHOULD NOT BE COPIED OR USED Legend: DRAWN BY: VRUSHALI K. CODE NO: UIR20160 TEAK WOOD PARTITION DETAIL SCALE- 1:5 D5 TEAK WOOD PARTITION WITH FABRIC DETAIL D6 RCC SLAB 75 MM THICK PCC LAYER 50 MM THICK IPS LAYER RCC SLAB 75 MM THICK PCC LAYER 50 MM THICK IPS LAYER 75 MM THICK TEAK WOOD PARTITION TENON AND MORTISE JOINT L SECTION JOINING THE UPSTAND WITH FLOORING 50 MM THICK TEAK WOOD PARTITION 210 MM THICK FRAME L SECTION JOINING THE UPSTAND WITH FLOORING TENON AND MORTISE OF PARTITION AND FRAME FRAME SCREWED TO THE FLOORING STRETCHED FABRIC DETAIL E E E' DETAIL F F F' SLAB PCC BRICK WALL IPS TEAK WOOD GLASS PLASTER

Specific Storage in workshop Block printing table in workshop

Partition

Seating

N IR 2024- EXPLORATION OF DESIGN (MATERIAL IN FOCUS) LEVEL- 2 STUDIO SPRING SEMESTER- 2023 SITE: COLONADE, SG HIGHWAY CLIENT: TEXTILE DESIGNER PROJECT: TEXTILE OFFICE DATE: 03-03-2023 SCALE: 1:20 SPECIFIC STORAGE · ALL DIMENSIONS ARE IN MM. · ALL DIMENSIONS ARE TO BE READ NOT TO BE MEASURE. THIS DRAWING IS PROPERTY OF VRUSHALI K. THE DRAWING SHOULD NOT BE COPIED OR USED WITHOUT THEIR PRIOR PERMISSION. NO. REVISION TYPE OF REVISION DATE Legend: DRAWN BY: VRUSHALI K. CODE NO: UIR20160 2700 980 1647 915 1618 5494 5179 315 1858 1259 1868 647 1212 1453 1212 656 315 1838 PULL DOWN HANGING RAIL FOR PRINTED FABRICS STORAGE FOR INKS COVERED BY SHEER NET FABRIC DISPLAY FOR BLOCKS ON STRETCHED FABRIC STORAGE FOR TOOLS BLOCK CARVING TABLE RAW PRODUCTS STORAGE BLOCK PRINTING TABLE STORAGE OF FABRIC AND BLOCKS 600 450 FRONT ELEVATION PLAN 1001 265 70 50 SIDE ELEVATION · ALL DIMENSIONS ARE IN MM. · ALL DIMENSIONS ARE TO BE READ NOT TO BE MEASURE. · THIS DRAWING IS PROPERTY OF VRUSHALI K. THE DRAWING SHOULD NOT BE COPIED OR USED WITHOUT THEIR PRIOR PERMISSION. NO. REVISION TYPE OF REVISION DATE Legend: SECTION SECTION FRONT ELEVATION 2700 300 150 2800 300 210 70 MM WOOD BOX SECTION SUSPENDED FROM WALL STRETCHED FABRIC WOODEN RECTANGULAR BOX SUSPENDED FROM WALL FRONT ELEVATION

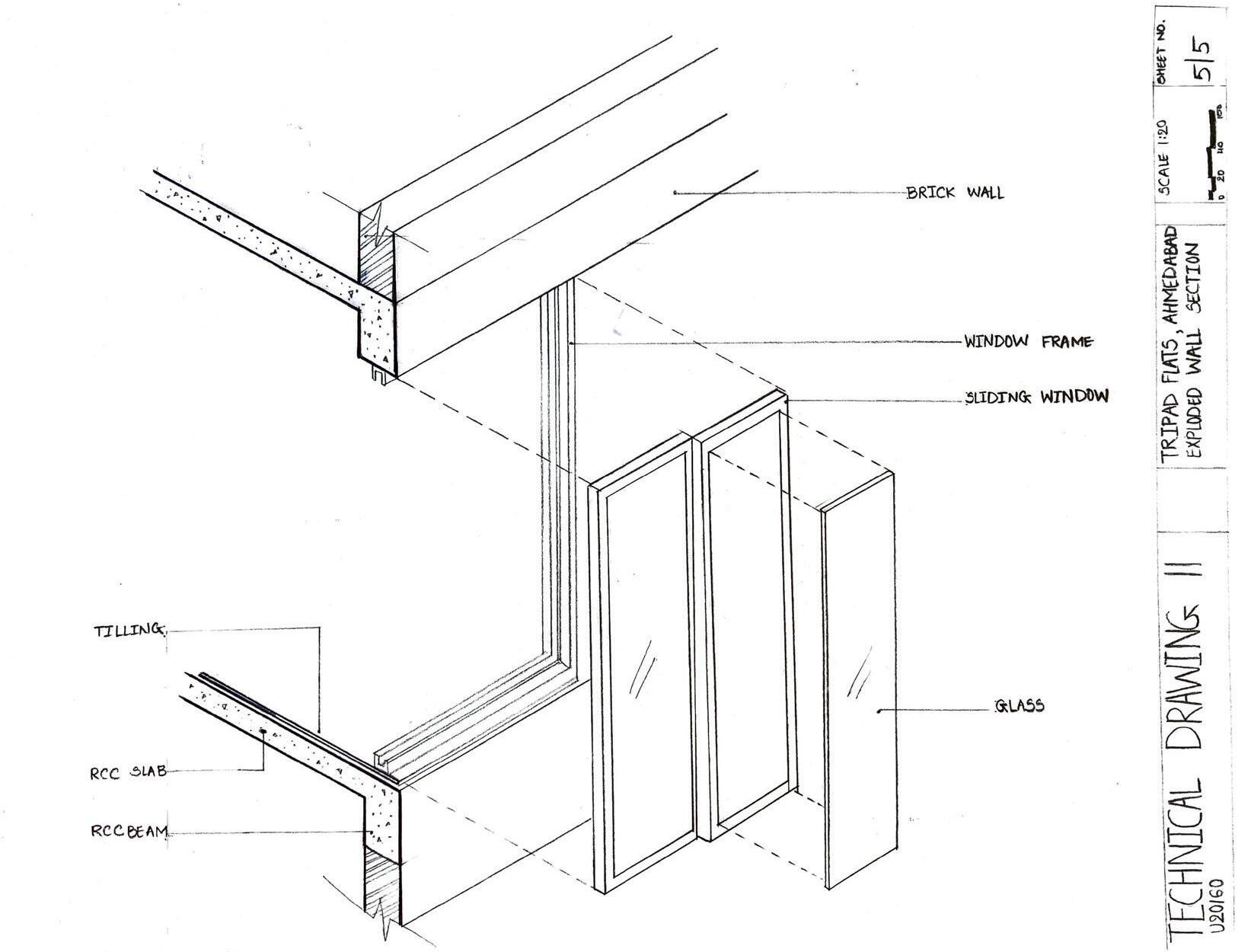

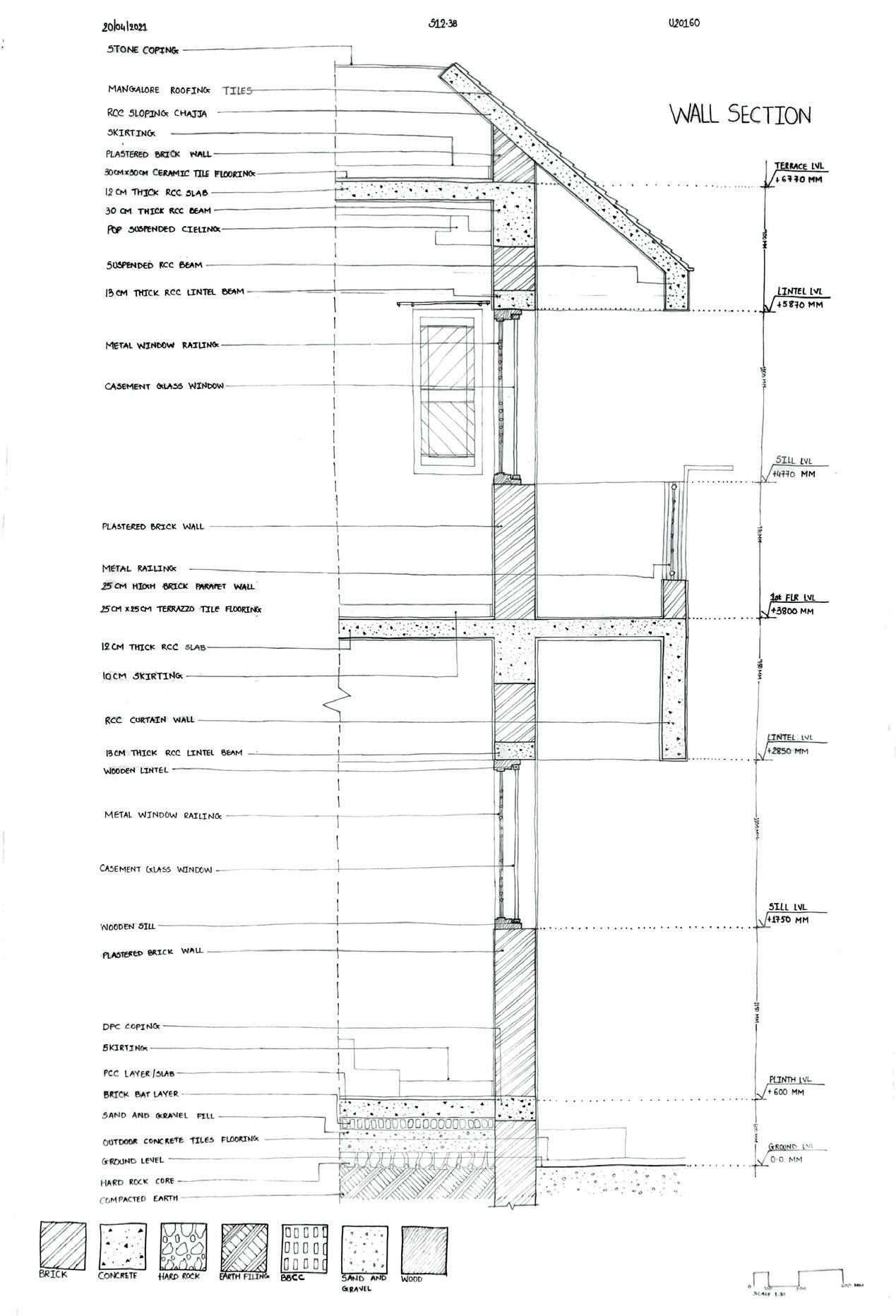

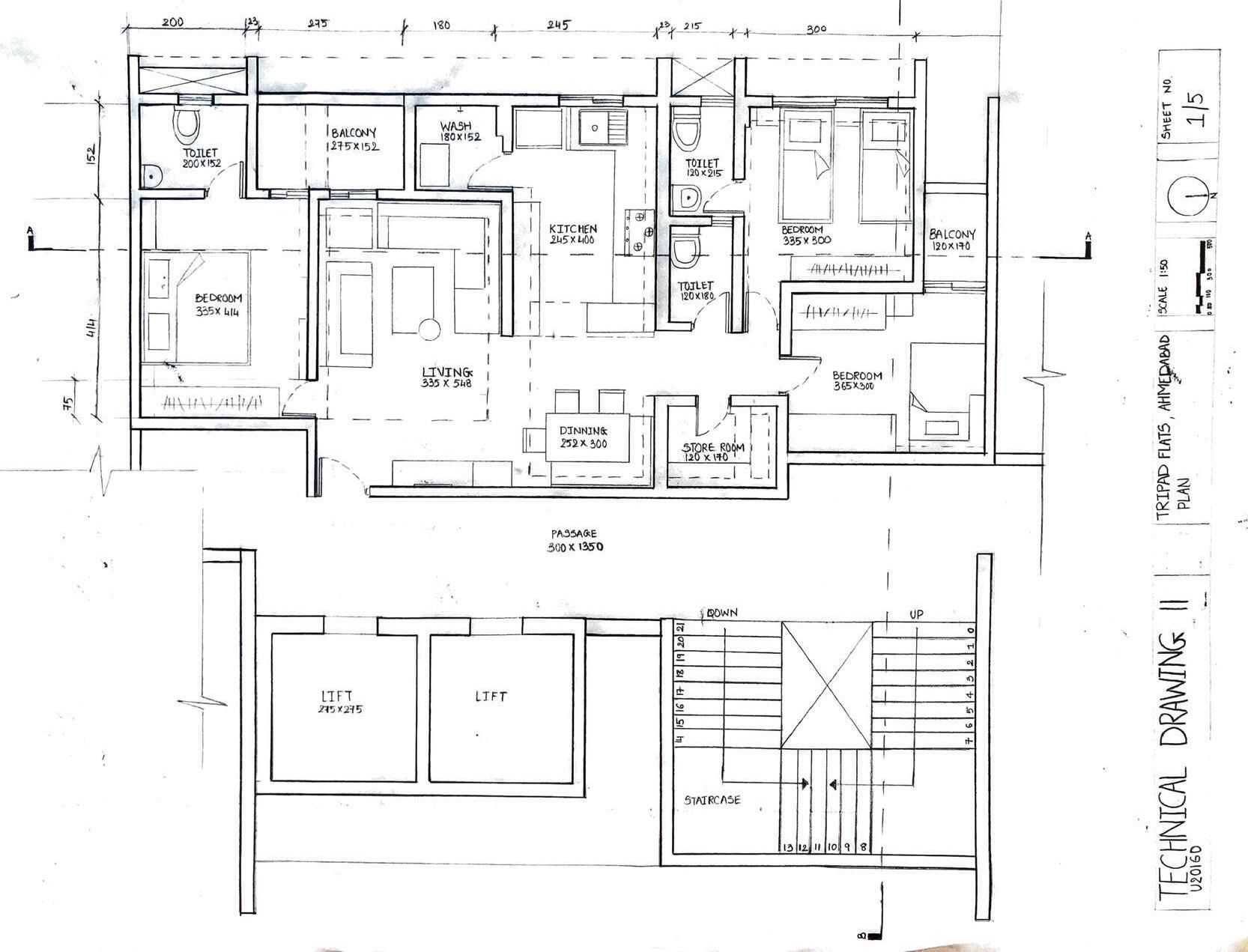

05| MISCELLANEOUS Wall Section Exploded Isometric of Window Hand Drafting Plan Foundation Year | Sem 2

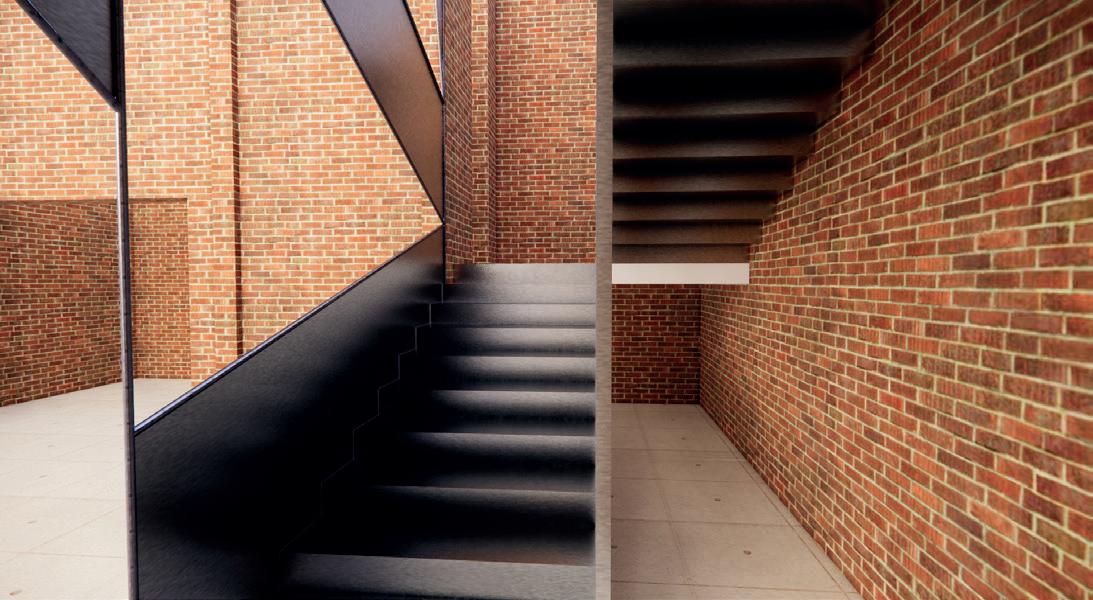

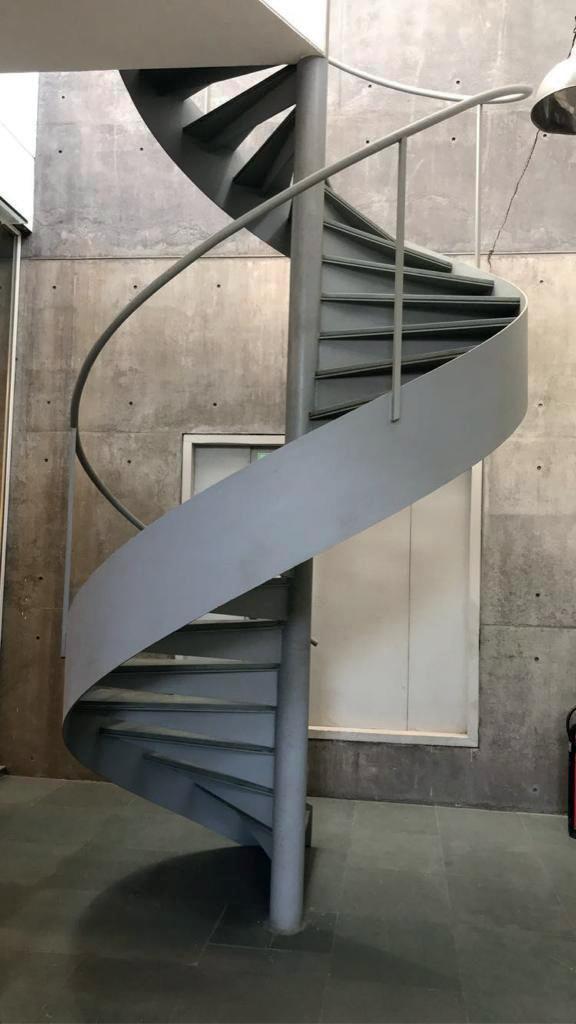

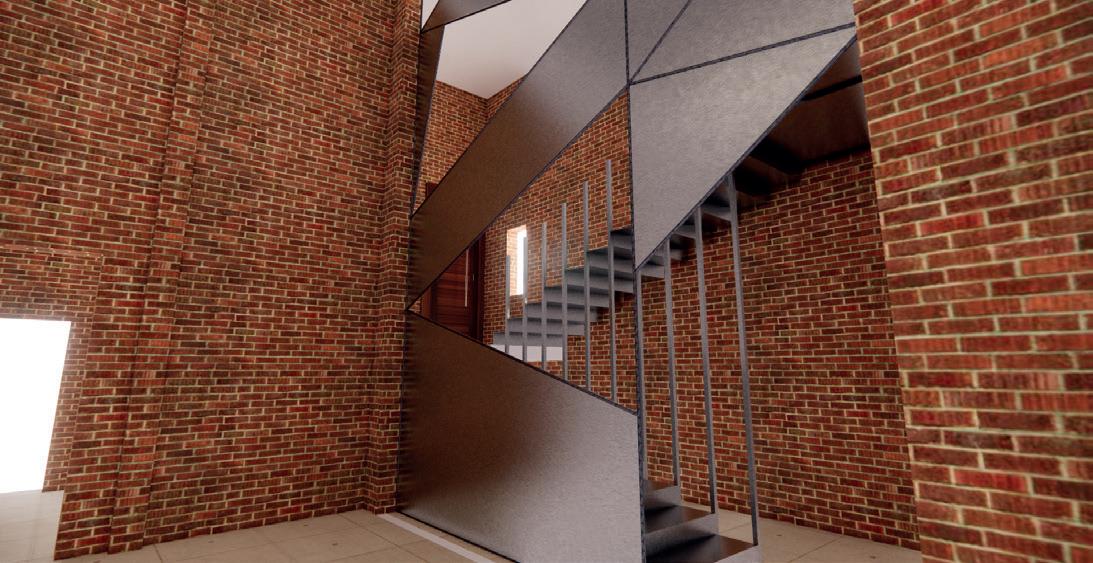

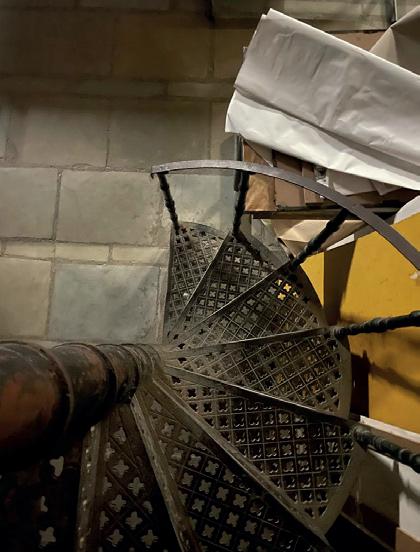

Staircase Design

SIDE ELEVATION

GROUND FLOOR PLAN

Plan Front Elevation

SECTION AA'

SIDE

ELEVATION

GROUND FLOOR PLAN

Section through the staircase

GROUND FLOOR PLAN

SIDE ELEVATION

SECTION AA'

GROUND FLOOR PLAN

Isometric of the staircase

· ALL DIMENSIONS ARE IN MM. · ALL DIMENSIONS ARE TO BE READ NOT TO BE MEASURE. · THIS DRAWING IS PROPERTY OF VRUSHALI KAMDAR. · THE DRAWING SHOULD NOT BE COPIED OR USED WITHOUT THEIR PRIOR PERMISSION.

+1644 MM +3300 MM SECOND MEZZANINE LVL DN DN 13 9 A A'

FIRST MEZZANINE LVL DN DN A A' N W22FD010 - STAIRS - AN ELEMENT OF DESIGN STATEMENT WINTER SCHOOL, 2022 SITE: CHENNAI CLIENT: VRUSHALI KAMDAR PROJECT:THE GULLY HOME DATE: 23/12/2022 SCALE: 1:100 DRAWING NO: 2 DRAWING NAME PLAN DRAWN BY: VRUSHALI KAMDAR CODE NO: UIR20160

UP DN DN DN 12 13 14 16 17 18 19 20 21 11 10 9 8 6 5 4 3 2 1 22 15 7 A A' A A' 350 1295

| 2022

Winter School

MISCELLANEOUS

Workshops

Installations

05|

* *

(part of group work)

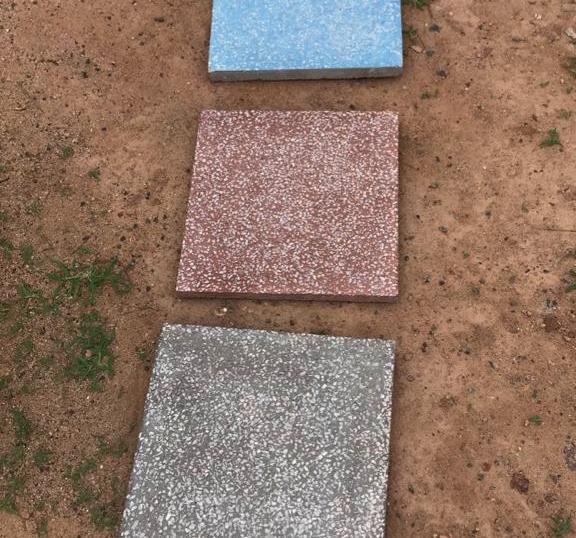

Gond Art Tie Dye- Kutch Installation representing the crafts of India- Norway Installation in the campus of NTNU- Norway Mata ni pachedi Terrazzo - Hunnarshala Wool spinning- Kutch Ajrakh- Ajrakhpur, Kutch Pottery- Gundiyali, Kutch
