VONN - LED Bathroom Mirrors and Cabinets Catalog

INTRODUCTION

VONN offers exceptional LED lighting creations, representing a fusion between innovative solutions and aesthetic vision.

CREATIVE LED INNOVATIONS

Vonn Lighting provides comprehensive so L utions for L ighting projects

We believe that it is in the pursuit of perfect form that we uncover the undercurrent of magic inherent to brilliant artistic expression. However, emphasis on design and function absolutely cannot stand short of quality. Simply stated – we pursue perfection and beauty while maintaining functionality and precision.

LED MIRRORS & CABINETS

LED MIRRORS FOR COMMERCIAL SPACE

Vonn offers ex C eptional led lighting C reations, representing a fusion between inno Vati V e solutions and aestheti C V ision

BRING OUT THE SEXY IN YOUR BATHROOM SPACE

Vonn presents

led bath mirrors

Explore our LED bath catalog for a

Mirrors

TUNABLE WHITE LED

VMRS2820 VMRS2820TW

24”W x 30”H x 1.75”D

Watts: Lighting: 7.98W /

Demist pad: 15W

Voltage: 120V

Amps: approx 0.22A

Lumens: 474Lvv

30”W x 36”H x 1.75”D

Watts: Lighting: 10.08W /

Demist pad: 24W

Voltage: 120V

Amps: approx 0.309A

Lumens: approx 599L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

24”W x 30”H x 1.75”D

Watts: Lighting: 11.4W /

Demist pad: 15W

Voltage: 120V

Amps: approx 0.245A

Lumens: approx 610L

30”W x 36”H x 1.75”D

Watts: Lighting: 14.4W /

Demist pad: 24W

Voltage: 120V

Amps: approx 0.345A

Lumens: approx 771L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

VMRS2820 VMRS2820TW

24”W x 30”H x 1.75”D

Watts: Lighting: 19.6W /

Demist pad: 15W

Voltage: 120V

Amps: approx 0.31A

Lumens: approx 1125L

30”W x 36”H x 1.75”D

Watts: Lighting: 23.94W /

Demist pad: 15W

Voltage: 120V

Amps: approx 0.42A

Lumens: approx 1423L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

24”W x 30”H x 1.75”D

Watts: Lighting: 28W /

Demist pad: 15W

Voltage: 120V

Amps: approx 0.38A

Lumens: approx 1499

30”W x 36”H x 1.75”D

Watts: Lighting: 34.2W /

Demist pad: 24W

Voltage: 120V

Amps: approx 0.51A

Lumens: approx 1830L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

24”W x 30”H x 1.75”D

Watts: Lighting: 35.28W /

Demist pad: 15W

Voltage: 120V

Amps: approx 0.44A

Lumens: approx 2097L

30”W x 36”H x 1.75”D

Watts: Lighting: 43.82W /

Demist pad: 24W

Voltage: 120V

Amps: approx 0.59A

Lumens: approx 2604L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

TUNABLE WHITE LED

24”W x 30”H x 1.75”D

Watts: Lighting: 11.4W /

Demist pad: 15W

Voltage: 120V

Amps: approx 0.245A

Lumens: approx 610L

30”W x 36”H x 1.75”D

Watts: Lighting: 14.4W /

Demist pad: 24W

Voltage: 120V

Amps: approx 0.345A

Lumens: approx 771L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

30”W x 24”H x 1.75”D

Watts: Lighting: 25.2W /

Demist pad: 15W

Voltage: 120V

Amps: about 0.36A

Lumens: about 830L

36”W x 30”H x 1.75”D

Watts: Lighting: 31.57W /

Demist pad: 24W

Voltage: 120V

Amps: about 0.49A

Lumens: about 1039L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

30”W x 24”H x 1.75”D

Watts: Lighting: 36W /

Demist pad: 15W

Voltage: 120V

Amps: about 0.45A

Lumens: about 1067L

36”W x 30”H x 1.75”D

Watts: Lighting: 45.1W /

Demist pad: 24W

Voltage: 120V

Amps: about 0.60A

Lumens: about 1337L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

TUNABLE WHITE LED

VMRS7130A VMRS7130ATW

48”W x 30”H x 1.75”D

Watts: Lighting: 31.92W /

Demist pad: 30W

Voltage: 120V

Amps: about 0.541A

Lumens: about 1898L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

48”W x 30”H x 1.75”D

Watts: Lighting: 45.6W /

Demist pad: 30W

Voltage: 120V

Amps: about 0.66A

Lumens: about 2441L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

VMRS6930A VMRS6930ATW

30”W x 24”H x 1.75”D

Watts: Lighting: 17.08W /

Demist pad: 15W

Voltage: 120V

Amps: about 0.29A

Lumens: about 922L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

30”W x 24”H x 1.75”D

Watts: Lighting: 28W /

Demist pad: 15W

Voltage: 120V

Amps: approx 0.38A

Lumens: approx 1499

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

VMRS1830A VMRS1830ATW

24”W x 30”H x 1.75”D

Watts: Lighting: 19.04W /

Demist pad: 15W

Voltage: 120V

Amps: about 0.31A

Lumens: about 1132L

30”W x 36”H x 1.75”D

Watts: Lighting: 23.38W /

Demist pad: 24W

Voltage: 120V

Amps: about 0.42A

Lumens: about 1390L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

24”W x 30”H x 1.75”D

Watts: Lighting: 27.2W /

Demist pad: 15W

Voltage: 120V

Amps: about 0.38A

Lumens: about 1456L

30”W x 36”H x 1.75”D

Watts: Lighting: 33.4W /

Demist pad: 24W

Voltage: 120V

Amps: about 0.50A

Lumens: about 1788L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

VMRS2640A VMRS2640ATW

30”W x 24”H x 1.75”D

Watts: Lighting: 19.04W /

Demist pad: 15W

Voltage: 120V

Amps: about 0.31A

Lumens: about 1132L

30”W x 36”H x 1.75”D

Watts: Lighting: 23.38W /

Demist pad: 24W

Voltage: 120V

Amps: about 0.42A

Lumens: about 1390L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

30”W x 24”H x 1.75”D

Watts: Lighting: 27.2W /

Demist pad: 15W

Voltage: 120V

Amps: about 0.38A

Lumens: about 1456L

30”W x 36”H x 1.75”D

Watts: Lighting: 33.4W /

Demist pad: 24W

Voltage: 120V

Amps: about 0.50A

Lumens: about 1788L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

24”W x 24”H x 1.75”D

Watts: Lighting: 25.48W /

Demist pad: 6W

Voltage: 120V

Amps: approx 0.287A

Lumens: approx 1515L

30”W x 30”H x 1.75”D

Watts: Lighting: 31.64W /

Demist pad: 11W

Voltage: 120V

Amps: approx 0.38A

Lumens: approx 1881L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

24”W x 24”H x 1.75”D

Watts: Lighting: 36.4W /

Demist pad: 6W

Voltage: 120V

Amps: approx 0.38A

Lumens: approx 1948L

30”W x 30”H x 1.75”D

Watts: Lighting: 45.2W /

Demist pad: 11W

Voltage: 120V

Amps: approx 0.49A

Lumens: approx 2419L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

VMRS2830A

24”W x 36”H x 1.75”D

Watts: Lighting: 35.42W /

Demist pad: 11W

Voltage: 120V

Amps: approx 0.42A

Lumens: approx 2105L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

VMRS2830ATW

24”W x 36”H x 1.75”D

Watts: Lighting: 50.6W /

Demist pad: 11W

Voltage: 120V

Amps: approx 0.54A

Lumens: approx 2708L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

TUNABLE WHITE LED

VMRS2620 VMRS2620TW

24”W x 36”H x 1.75”D

Watts: Lighting: 35.42W /

Demist pad: 11W

Voltage: 120V

Amps: approx 0.42A

Lumens: approx 2105L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

24”W x 36”H x 1.75”D

Watts: Lighting: 50.6W /

Demist pad: 11W

Voltage: 120V

Amps: approx 0.54A

Lumens: approx 2708L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

VMRS4120

30”W x 30”H x 1.75”D

Watts: Lighting: 30.8W /

Demist pad: 11W

Voltage: 120V

Amps: approx 0.37A

Lumens: approx 1830L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

VMRS4120TW

30”W x 30”H x 1.75”D

Watts: Lighting: 44W /

Demist pad: 11W

Voltage: 120V

Amps: approx 0.48A

Lumens: approx 2355L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

VMRS0430

16”W x 55”H x 1.75”D

Watts: Lighting: 49.7W /

Demist pad: 15W

Voltage: 120V

Amps: approx 0.57A

Lumens: approx 2951L

VMRS0430TW

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

16”W x 55”H x 1.75”D

Watts: Lighting: 70.92W /

Demist pad: 15W

Voltage: 120V

Amps: approx 0.7A

Lumens: approx 3796L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

VMRS0920A VMRS0920ATW

24”W x 30”H x 1.75”D

Watts: Lighting: 21.28W /

Demist pad: 15W

Voltage: 120V

Amps: about 0.33A

Lumens: about 1265L

30”W x 36”H x 1.75”D

Watts: Lighting: 25.62W /

Demist pad: 24W

Voltage: 120V

Amps: about 0.44A

Lumens: about 1523L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

24”W x 30”H x 1.75”D

Watts: Lighting: 30.4W /

Demist pad: 15W

Voltage: 120V

Amps: about 0.40A

Lumens: about 1627L

30”W x 36”H x 1.75”D

Watts: Lighting: 36.6W /

Demist pad: 24W

Voltage: 120V

Amps: about 0.53A

Lumens: about 1959L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

VMRJ0108A

24”W x 30”H x 1.75”D

Watts: Lighting: 42.7W /

Demist pad: 24W

Voltage: 120V

Amps: about 0.58A

Lumens: about 2538L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

TUNABLE WHITE LED

VMRJ0108ATW

24”W x 30”H x 1.75”D

Watts: Lighting: 61W /

Demist pad: 24W

Voltage: 120V

Amps: about 0.73A

Lumens: about 3265L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

VMRS3820A VMRS3820ATW

24”W x 30”H x 1.75”D

Watts: Lighting: 35.28W /

Demist pad: 15W

Voltage: 120V

Amps: about 0.44A

Lumens: about 2097L

30”W x 36”H x 1.75”D

Watts: Lighting: 43.82W /

Demist pad: 24W

Voltage: 120V

Amps: about 0.59A

Lumens: about 2604L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

24”W x 30”H x 1.75”D

Watts: Lighting: 50.4W /

Demist pad: 15W

Voltage: 120V

Amps: about 0.57A

Lumens: about 2697L

30”W x 36”H x 1.75”D

Watts: Lighting: 62.6W /

Demist pad: 24W

Voltage: 120V

Amps: about 0.75A

Lumens: about 3350L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

TUNABLE WHITE LED

VMRS7630 VMRS7630TW

30”W x 24”H x 1.75”D

Watts: Lighting: 32.2W /

Demist pad: 15W

Voltage: 120V

Amps: approx 0.42A

Lumens: approx 1060L

36”W x 30”H x 1.75”D

Watts: Lighting: 35.56W /

Demist pad: 24W

Voltage: 120V

Amps: approx 0.52A

Lumens: approx 1170L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

30”W x 24”H x 1.75”D

Watts: Lighting: 46W /

Demist pad: 15W

Voltage: 120V

Amps: approx 0.53A

Lumens: approx 1363L

36”W x 30”H x 1.75”D

Watts: Lighting: 50.8W /

Demist pad: 24W

Voltage: 120V

Amps: approx 0.65A

Lumens: approx 1506L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

TUNABLE WHITE LED

VMRS7730 VMRS7730TW

30”W x 24”H x 1.75”D

Watts: Lighting: 22.4W /

Demist pad: 15W

Voltage: 120V

Amps: approx 0.34A

Lumens: approx 932L

36”W x 30”H x 1.75”D

Watts: Lighting: 28W /

Demist pad: 24W

Voltage: 120V

Amps: approx 0.46A

Lumens: approx 1165L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

30”W x 24”H x 1.75”D

Watts: Lighting: 32W /

Demist pad: 15W

Voltage: 120V

Amps: approx 0.42A

Lumens: approx 1198L

36”W x 30”H x 1.75”D

Watts: Lighting: 40W /

Demist pad: 24W

Voltage: 120V

Amps: approx 0.56A

Lumens: approx 1498L

Product Characteristics:

 Corrision resistant mirror with backlight

 Andonized aluminum frame

 Color temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional time display

Vonn presents

led bath cabinets

Explore our LED bath catalog for a curated selection of unique bath mirrors and to find inspiration to distinguish your style.

Cabinets

19.5”W x 28”H x 4.75”D

Watts: Lighting: 19.88W /

Demist pad: 10W

Voltage: 120V

Amps: approx 0.274A

Lumens: approx 1182L

VC s 2 a 6 s 09201

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

19.5”W x 28”H x 4.75”D

Watts: Lighting: 28W / Demist pad: 10W

Voltage: 120V

Amps: approx 0.342A

Lumens: approx 1499L

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

VCS2A6S09202

24”W x 28”H x 4.75”D 30”W x 28”H x 4.75”D

Watts: Lighting: 39.76W /

Demist pad: 20W

Voltage: 120V

Amps: approx 0.523A

Lumens: approx 2364L

Watts: Lighting: 39.76W /

Demist pad: 20W

Voltage: 120V

Amps: approx 0.523A

Lumens: approx 2364L

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 2 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

VCS2A6S09202

24”W x 28”H x 4.75”D 30”W x 28”H x 4.75”D

Watts: Lighting: 58W /

Demist pad: 20W

Voltage: 120V

Amps: approx 0.665A

Lumens: approx 3040L

Watts: Lighting: 58W /

Demist pad: 20W

Voltage: 120V

Amps: approx 0.665A

Lumens: approx 3040L

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 2 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

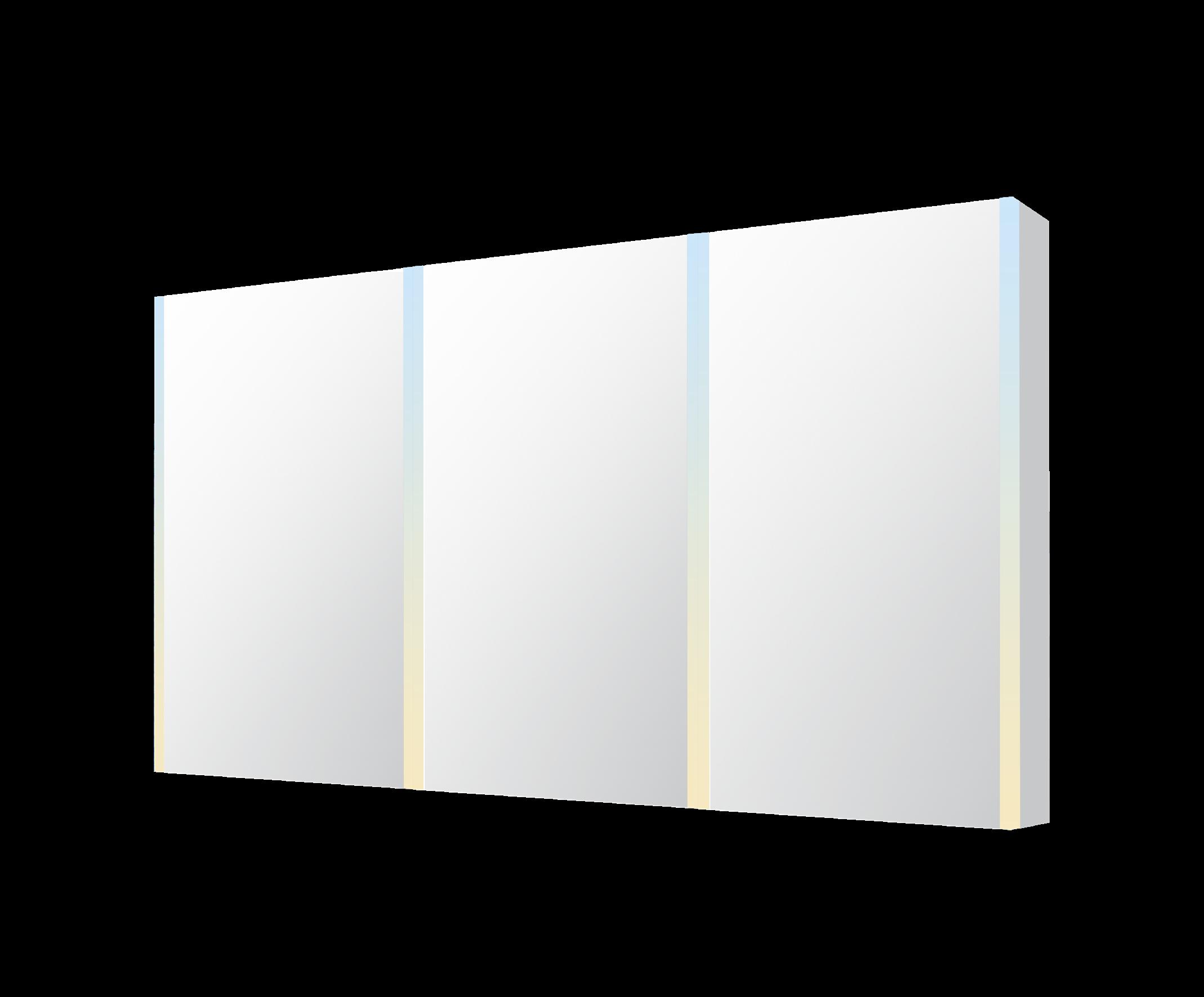

48”W x 28”H x 4.75”D

Watts: Lighting: 59.64W /

Demist pad: 10W

Voltage: 120V

Amps: approx 0.605A

Lumens: approx 3545L

VCS2A6S09203

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 3 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

48”W x 28”H x 4.75”D

Watts: Lighting: 85.2W /

Demist pad: 10W

Voltage: 120V

Amps: approx 0.818A

Lumens: approx 4560L

VCS2A6S09203

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 3 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

19.5”W x 28”H x 4.75”D

Watts: Lighting: 19.88W /

Demist pad: 10W

Voltage: 120V

Amps: approx 0.274A

Lumens: approx 1182L

VC s 2 a 6 s 09201

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

19.5”W x 28”H x 4.75”D

Watts: Lighting: 28W / Demist pad: 10W

Voltage: 120V

Amps: approx 0.342A

Lumens: approx 1499L

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

19.5”W x 28”H x 4.75”D

Watts: Lighting: 19.88W /

Demist pad: 10W

Voltage: 120V

Amps: approx 0.274A

Lumens: approx 1182L

VC s 2 a 6 s 09201

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

19.5”W x 28”H x 4.75”D

Watts: Lighting: 28W / Demist pad: 10W

Voltage: 120V

Amps: approx 0.342A

Lumens: approx 1499L

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

48”W x 28”H x 4.75”D

Watts: Lighting: 54.04W /

Demist pad: 10W

Voltage: 120V

Amps: approx 0.559A

Lumens: approx 3212L

VC s 2 a 6 s 08203

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

48”W x 28”H x 4.75”D

Watts: Lighting: 77.2W /

Demist pad: 10W

Voltage: 120V

Amps: approx 0.752A

Lumens: approx 4132L

VCs 2 a 6 s 08203 tw

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

19.5”W x 28”H x 4.75”D

Watts: Lighting: 19.88W / Demist pad: 10W

Voltage: 120V

Amps: approx 0.274A

Lumens: approx 1182L

VC s 2 a 3J02121

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

19.5”W x 28”H x 4.75”D

Watts: Lighting: 28W /

Demist pad: 10W

Voltage: 120V

Amps: approx 0.342A

Lumens: approx 1499L

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

24”W x 28”H x 4.75”D

Watts: Lighting: 7.42W /

Demist pad: 20W

Voltage: 120V

Amps: approx 0.254A

Lumens: approx 441L

VC s 2 a 3J02122

30”W x 28”H x 4.75”D

Watts: Lighting: 9.52W /

Demist pad: 20W

Voltage: 120V

Amps: approx 0.271A

Lumens: approx 566L

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 2 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

24”W x 28”H x 4.75”D

Watts: Lighting: 10.6W /

Demist pad: 20W

Voltage: 120V

Amps: approx 0.28A

Lumens: approx 567L

30”W x 28”H x 4.75”D

Watts: Lighting: 13.6W /

Demist pad: 20W

Voltage: 120V

Amps: approx 0.305A

Lumens: approx 728L

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 2 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

48”W x 28”H x 4.75”D

Watts: Lighting: 15.4W / Demist pad: 10W

Voltage: 120V

Amps: approx 0.237A

Lumens: approx 915L

VC s 2 a 3J02123

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 2 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

48”W x 28”H x 4.75”D

Watts: Lighting: 22W / Demist pad: 10W

Voltage: 120V

Amps: approx 0.292A

Lumens: approx 1177L

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 2 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

19.5”W x 28”H x 4.75”D

Watts: Lighting: 19.88W / Demist pad: 10W

Voltage: 120V

Amps: approx 0.274A

Lumens: approx 1082L

VC s 2 a 3 h 03201

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

19.5”W x 28”H x 4.75”D

Watts: Lighting: 28.4W /

Demist pad: 10W

Voltage: 120V

Amps: approx 0.345A

Lumens: approx 1520L

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

24”W x 28”H x 4.75”D

Watts: Lighting: 19.88W /

Demist pad: 20W

Voltage: 120V

Amps: approx 0.357A

Lumens: approx 1082L

VC s 2 a 3J02121

30”W x 28”H x 4.75”D

Watts: Lighting: 19.88W /

Demist pad: 20W

Voltage: 120V

Amps: approx 0.357A

Lumens: approx 1082L

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

24”W x 28”H x 4.75”D

Watts: Lighting: 28.4W /

Demist pad: 20W

Voltage: 120V

Amps: approx 0.428A

Lumens: approx 1520L

30”W x 28”H x 4.75”D

Watts: Lighting: 28.4W /

Demist pad: 20W

Voltage: 120V

Amps: approx 0.428A

Lumens: approx 1520L

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

48”W x 28”H x 4.75”D

Watts: Lighting: 19.88W / Demist pad: 10W

Voltage: 120V

Amps: approx 0.274A

Lumens: approx 1082L

VC s 2 a 3 h 03203

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 2 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

48”W x 28”H x 4.75”D

Watts: Lighting: 28.4W / Demist pad: 10W

Voltage: 120V

Amps: approx 0.345A

Lumens: approx 1520L

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 2 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

19.5”W x 28”H x 4.75”D

Watts: Lighting: 32.62W / Demist pad: 10W

Voltage: 120V

Amps: approx 0.38A

Lumens: approx 1939L

VC s 2 a 3 s 79201

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

19.5”W x 28”H x 4.75”D

Watts: Lighting: 4W / Demist pad: 10W

Voltage: 120V

Amps: approx 0.498A

Lumens: approx 2494L

VC s 2 a 3 s 79201 tw

Product Characteristics:

 Aluminum mirror cabinet with a single, soft-close door

 1 Adjustable tempered glass shelves

 Color Temperature: 3000K, 4000K, 5000K, 6000K

 2835 LED light strip

 Available in surface or recessed mounted models

 (Surface models include added aluminum side panels)

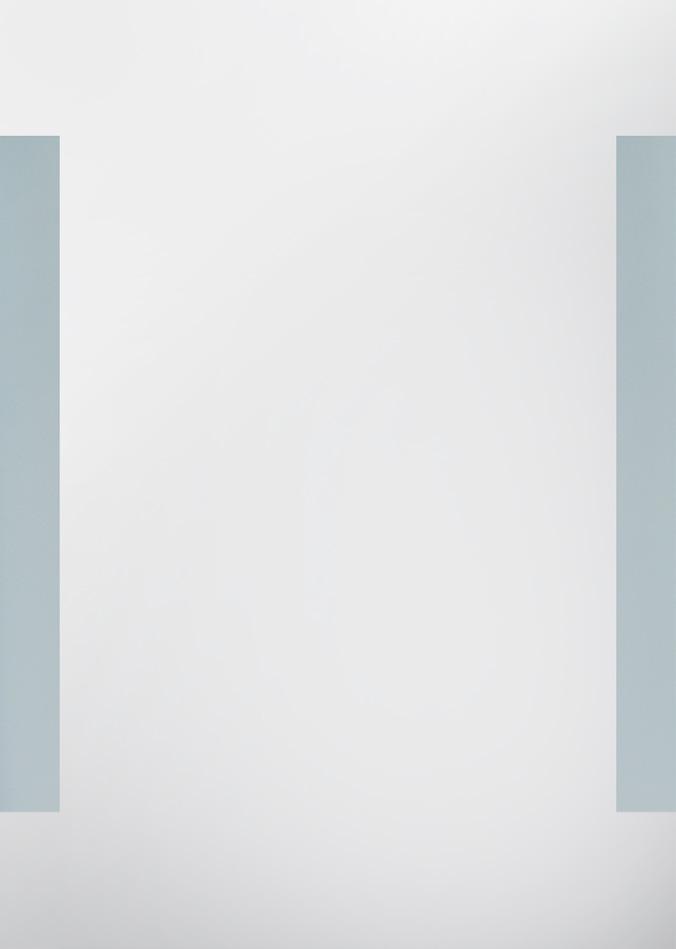

 Mirror inside cabinet

Specifications:

 Touch sensor on/off + dimming

 Demist panel

 Optional outlet

V onn

Vonn offers exceptional led lighting creations, representing a fusion between inno V ati V e solutions and aesthetic V ision

t hank you for experien C ing
