VLLS-C

series

Through the sublimation from straight lines to curves, linear lighting is brought to a new revolutionary experience with the VONN VLLS-C series. By combining straight and curved modules, various shapes and circular luminaires can be created. This flexibility of design allows lighting to be seamlessly integrated into architecture. Edges of ceilings, walls and floors, and ceilings can now be illuminated with limitless opportunity.

4 | VONN LightiNg

Highlight

Combine straight and curved modules to create a unique lighting experience. Limitless possibilities of design lead to limitless applications.

Curved luminaires can be mounted, hung, or recessed into walls. Multiple lighting directions are available.

Linear modules can be combined to span spaces along ceilings, walls and floors.

VONN LightiNg | 5

Modularized Design: 8 modules can be combined and interconnected freely.

6 | VONN LightiNg

Circular Application: Can be interconnected into cicular luminaires with different diameters.

Curve Application: Can be interconnected into curves with different radians.

Upward + Downward Light

VAH5060 series models can produce both upwards and downwards lighting.

Flexible Diffuser:

Ultra-long 20m flexible diffuser.

Can be used in dimensional spaces without connectors or light leakage. 8 modules can share the same diffuser.

Anti-leak Connection

Newly designed connectors are easy to install and prevent light leakage.

VONN LightiNg | 7

VAS3535 Product list CURVED LIGHTING MODULES Model


Size

Installation

35 × 35 × 2500mm (1.38" × 1.38" × 8.2')

VAS3535-2500

Lighting Direction

Coating

Downward

Silver, black, white

VAS3535-08A45

35 × 35, ∅800mm, 45° (1.38" × 1.38" × 2.6'), 45°

Downward

Silver, black, white

VAS3535-08A90

35 × 35, ∅800mm, 90° (1.38" × 1.38" × 2.6',) 90°

Downward

Silver, black, white

VAS3535-15A45

35 × 35, ∅1500mm, 45° (1.38" × 1.38" × 4.92'), 45°

Downward

Silver, black, white

VAS3535-15A90

35 × 35, ∅1500mm , 90° (1.38" × 1.38" × 4.92'), 90°

Downward

Silver, black, white

VAS3535-30A45

35 × 35, ∅3000mm, 45° (1.38" × 1.38" × 9.84') , 45°

Downward

Silver, b Silver, black, white lack, white

VAS3535-15N90

35 × 35, ∅1500mm , 90° (1.38" × 1.38" × 4.92'), 90°

Inward

Silver, black, white

VAS3535-15W90

35 × 35, ∅1500mm, 90° (1.38" × 1.38" × 4.92'), 90°

Outward

Silver, black, white

Lighting Direction

Coating

CIRCULAR LUMINAIRES Model


Size

Installation

VAS3535-15A360

35 × 35, ∅1500, 360° (1.38" × 1.38" × 4.92'), 360°

Downward

Silver, black, white

VAS3535-15N360

35 × 35, ∅1500, 360° (1.38" × 1.38" × 4.92'), 360°

Inward

Silver, black, white

VAS3535-15W360

35 × 35, ∅1500, 360° (1.38" × 1.38" × 4.92'), 360°

Outward

Silver, black, white

8 | VONN LightiNg

Surface Processing

Suitable Light Source

Spraying

Rigid module VDY8140-24V-20mm

Flexible Roll

Spraying

Rigid module VDY8140-24V-20mm-08A45

Flexible Roll

Spraying

Rigid module VDY8140-24V-20mm-08A45

Flexible Roll

Spraying

Rigid module VDY8140-24V-20mm-15A45

Flexible Roll

Spraying

Rigid module VDY8140-24V-20mm-15A45

Flexible Roll

Spraying

Rigid module VDY8140-24V-20mm-30A23

Flexible Roll

Spraying

Flexible strip VD8140-24V-20mm

Flexible Roll

Spraying

Flexible strip VD8140-24V-20mm

Flexible Roll

Surface Processing

Suitable Light Source

Spraying

Rigid module VDY8140-24V-20mm-15A45

Flexible Roll

Spraying

Flexible strip VD8140-24V-20mm

Flexible Roll

Spraying

Flexible strip VD8140-24V-20mm

Flexible Roll

CCT

CCT

Diffuser

Diffuser

VONN LightiNg | 9

VAS3535 Basic Modules ø800mm(31”), Curve 90° (Lighting Downward), 45° Rigid Module ø800mm(31”), Curve 45° (Lighting Downward), 45° Rigid Module

ø1500mm(60”), Curve 90° (Lighting Downward), 45° Rigid Module ø1500mm(60”), Curve 45° (Lighting Downward), 45° Rigid Module ø1500mm(60”), Curve 90° (Lighting Inward), Flexible Strip

ø1500mm(60”) Curve 90° (Lighting Outward), Flexible Strip

ø3000m(118”) Curve 45° (Lighting Downward), 22.5° Rigid Module

Straight Line (2500mm-98”), Rigid Module (499mm-20”)

10 | VONN LightiNg

Do w nw

Module Angles

d ar

g tin gh Li

t

iz

tw

ng

Ou ar d

L

ig

ht

in

Inw

a rd

Li

gh

g

VONN Lighting | 11

VAS3535 Series: lighting solution

PROFILE

CONNECTORS

Lighting Downward

Interior Connector

Lighting Inward

Lighting Outward

Curve

Straight Line

12 | VONN LightiNg

Exterior Connector

INSTALLATION ACCESSORIES

Pendant cable

Surface mounted (Lighting Inward/Outward)

LIGHT SOURCE CCT

Flexible strip Surface Mounted (Lighting Downward)

Recessed (Lighting Downward)

Rigid Module

DIFFUSER

20m/roll

Suitable for all series

VONN LightiNg | 13

14 | VONN LightiNg

VAS3535-2500 PROJECT:

TYPE:

• Connect in seconds with magnetic end cap.

• Endless possibilities of designs through OVERVIEW Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

CATALOG #:

DATE:

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

• Curved Linear LED, recessed, surface or

STANDARD pendant mounted.

FEATURES • Available in 3 different finishes • CRI 80

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­

FINISHES AVAILABLE

98.5” L /2500mm

MOUNTING ACCESSORIES .

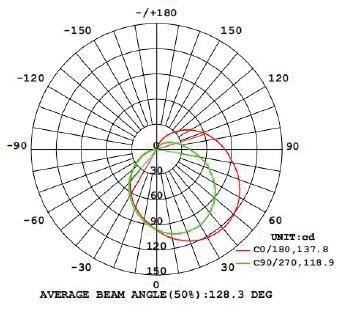

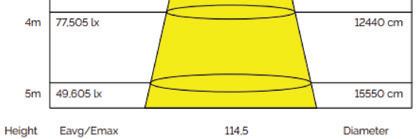

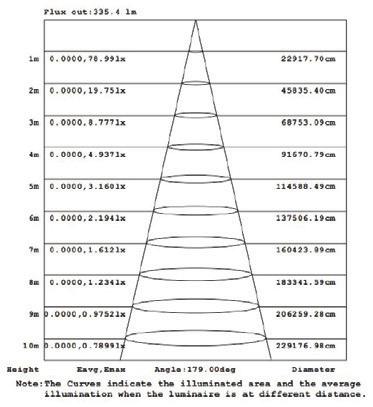

PHOTOMETRICS

LED SYSTEM INFORMATION

­

­ ­

­

Pendant cable without junction box

Pendant cable with junction box

Surface mounted buckle

Recessed buckle

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VONN LightiNg | 15

VAS3535-08A45 PROJECT:

TYPE:

OVERVIEW

STANDARD FEATURES

CATALOG #:

DATE:

• Connect in seconds with magnetic end cap.

• Endless possibilities of designs through Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

• Curved Linear LED recessed, surface or pendant mounted.

• Available in 3 different finishes • CRI 80

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­

FINISHES AVAILABLE

12.56” L / 319mm

Dia. 31.5” R45º

MOUNTING ACCESSORIES .

PHOTOMETRICS

LED SYSTEM INFORMATION

­

­ ­

­

Pendant cable without junction box

Pendant cable with junction box

Surface mounted buckle

Recessed buckle

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

16 | VONN Lighting

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VAS3535-08A90 PROJECT:

TYPE:

OVERVIEW

STANDARD FEATURES

CATALOG #:

DATE:

• Connect in seconds with magnetic end cap.

• Endless possibilities of designs through Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

• Curved Linear LED recessed, surface or pendant mounted.

• Available in 3 different finishes • CRI 80

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­

Dia. 31.5””

FINISHES AVAILABLE

23.24” L / 590mm

Dia. 31.5” R45º

MOUNTING ACCESSORIES .

PHOTOMETRICS

LED SYSTEM INFORMATION

­

­ ­

­

Pendant cable without junction box

Pendant cable with junction box

Surface mounted buckle

Recessed buckle

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VONN Lighting | 17

VAS3535-15A45 PROJECT:

TYPE:

OVERVIEW

STANDARD FEATURES

CATALOG #:

DATE:

• Connect in seconds with magnetic end cap.

• Endless possibilities of designs through Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

• Curved Linear LED recessed, surface or pendant mounted.

• Available in 3 different finishes • CRI 80

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­

FINISHES AVAILABLE

23.24” L / 590mm

Dia. 59” R45º

MOUNTING ACCESSORIES .

PHOTOMETRICS

LED SYSTEM INFORMATION

Pendant cable without junction box

Pendant cable with junction box

Surface mounted buckle

Recessed buckle

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

18 | VONN Lighting

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VAS3535-15A90 PROJECT:

TYPE:

OVERVIEW

STANDARD FEATURES

CATALOG #:

DATE:

• Connect in seconds with magnetic end cap.

• Endless possibilities of designs through Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

• Curved Linear LED recessed, surface or pendant mounted.

• Available in 3 different finishes • CRI 80

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­

Dia. 59”

FINISHES AVAILABLE

42.73” L / 1085mm

Dia. 59” R90º

MOUNTING ACCESSORIES .

PHOTOMETRICS

LED SYSTEM INFORMATION

­

­ ­

­

Pendant cable without junction box

Pendant cable with junction box

Surface mounted buckle

Recessed buckle

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VONN Lighting | 19

VAS3535-30A45 PROJECT:

TYPE:

CATALOG #:

DATE:

• Connect in seconds with magnetic end cap.

• Endless possibilities of designs through OVERVIEW Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

• Curved Linear LED, recessed, surface or pendant mounted.

STANDARD • Available in 3 different finishes FEATURES • CRI 80

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­

118”

FINISHES AVAILABLE

45.72” L / 1161mm

Dia. 118” R45º

MOUNTING ACCESSORIES .

PHOTOMETRICS

LED SYSTEM INFORMATION

Pendant cable without junction box

Pendant cable with junction box

Surface mounted buckle

Recessed buckle

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

20 | VONN Lighting

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VAS3535-15N90 PROJECT:

TYPE:

• Connect in seconds with magnetic end cap.

• Endless possibilities of designs through OVERVIEW Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

CATALOG #:

DATE:

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

• Curved Linear LED, surface or pendant mounted.

STANDARD • Available in 3 different finishes FEATURES • CRI 80

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­

FINISHES AVAILABLE

56.7” 59.5”

42” L / 1069mm Dia. 59” R90º

MOUNTING ACCESSORIES .

­

­ ­

­

Pendant cable without junction box

PHOTOMETRICS

LED SYSTEM INFORMATION

Pendant cable with junction box

Surface mounted buckle

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VONN Lighting | 21

VAS3535-15W90 PROJECT:

TYPE:

• Connect in seconds with magnetic end cap.

• Endless possibilities of designs through OVERVIEW Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

CATALOG #:

DATE:

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

• Curved Linear LED, surface or pendant mounted.

STANDARD • Available in 3 different finishes FEATURES • CRI 80

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­

FINISHES AVAILABLE

58.5” 61.3”

43.37” L / 1101mm

Dia. 59” R90º

MOUNTING ACCESSORIES .

­

­ ­

­

Pendant cable without junction box

PHOTOMETRICS

LED SYSTEM INFORMATION

Pendant cable with junction box

Surface mounted buckle

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

22 | VONN Lighting

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VAS3535-03A90 PROJECT:

TYPE:

OVERVIEW

STANDARD FEATURES

CATALOG #:

DATE:

• Connect in seconds with magnetic end cap.

• Endless possibilities of designs through Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

• Curved Linear LED recessed, surface or pendant mounted.

• Available in 3 different finishes • CRI 80

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­

FINISHES AVAILABLE

12.60”

10.85” L / 12.6” Dia. R90º

PHOTOMETRICS

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

MOUNTING ACCESSORIES

.

LED SYSTEM INFORMATION

4

5

6

Pendant cable without junction box

Pendant cable with junction box

Surface mounted buckle

Recessed buckle

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VONN Lighting | 23

VAS3535-03N90 PROJECT:

TYPE:

OVERVIEW

STANDARD FEATURES

CATALOG #:

DATE:

• Connect in seconds with magnetic end cap.

• Endless possibilities of designs through Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

• Curved Linear LED recessed, surface or pendant mounted.

• Available in 3 different finishes • CRI 80

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­

12.5”

FINISHES AVAILABLE

15.3”

10.85” L / 12.6” Dia. R90º

MOUNTING ACCESSORIES .

PHOTOMETRICS

LED SYSTEM INFORMATION

­

­ ­

­

Pendant cable without junction box

Pendant cable with junction box

Surface mounted buckle

Recessed buckle

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

24 | VONN Lighting

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VAS3535-03W90 PROJECT:

TYPE:

OVERVIEW

STANDARD FEATURES

CATALOG #:

DATE:

• Connect in seconds with magnetic end cap.

• Endless possibilities of designs through Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

• Curved Linear LED recessed, surface or pendant mounted.

• Available in 3 different finishes • CRI 80

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­

12.5”

FINISHES AVAILABLE

15.3”

10.85” L / 12.5” Dia. R90º

MOUNTING ACCESSORIES .

PHOTOMETRICS

LED SYSTEM INFORMATION

­

­ ­

­

Pendant cable without junction box

Pendant cable with junction box

Surface mounted buckle

Recessed buckle

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VONN Lighting | 25

VAS3535-04T90R PROJECT: TYPE:

CATALOG #:

DATE:

OVERVIEW

• Connect in seconds with magnetic end cap.

• Endless possibilities of designs through Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

STANDARD FEATURES

• Linear LED recessed with trim • Available in 3 different finishes • CRI 80

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

DIFFUSER/OPTICS AVAILABLE SD - Silicone Diffuser

NOMINAL EXTRUSION DIMENSIONS

FINISHES AVAILABLE

15.75"L 35 mm 1.38”

WHITE

SILVER

BLACK

MOUNTING ACCESSORIES

LED SYSTEM INFORMATION

Nominal System Watts *STANDARD

ELECTRICAL

PHOTOMETRICS

Nominal Delivered Lumens

5.82 w/ft

878 lm/ft

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

7

8

9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

VAS3535-04T90R

1- 15.75"L

S- 878 LMNS/FT (>80CRI, 5.82 w/ft)

SW -

2700K

WW -

3000K

PW -

3500K

NW -

4000K

CT - CUSTOM TEMP*

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

9 - OTHER OPTIONS

SD - Silicone Diffuser (VCVAS3535-2000)

P - PENDANT

D - 0-10V DIMMING

W - WHITE

EMD - EMERGENCY DRIVER

A - DALI

S - SILVER

EMC - EMERGENCY CIRCUIT

N - NON-DIMMING

B - BLACK C F - CUSTOM FINISH*

Lumens théoriques : XXX LM (sous réserve de modifications) Puissance théorique : XXX W (sous réserve de modifications) *** Veuillez noter que les lumens et la puissance sont sujets à changement et seront déterminés après la production des premiers articles. *Toute modification personnalisée est soumise à une quantité minimale de commande. (MOQ) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

26 | VONN Lighting

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

© VONN Lighting, 2022

VAS3535-04T90L PROJECT:

TYPE:

OVERVIEW

STANDARD FEATURES

CATALOG #:

DATE:

• Connect in seconds with magnetic end cap.

• Endless possibilities of designs through Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

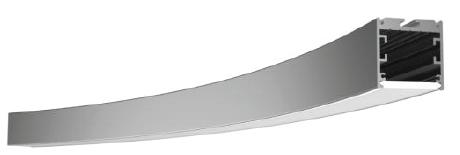

• Curved Linear LED pendant mounted.

• Available in 3 different finishes • CRI 80

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­

FINISHES AVAILABLE

15.75” L /

MOUNTING ACCESSORIES

­

­ ­

­

Pendant cable without junction box

PHOTOMETRICS

LED SYSTEM INFORMATION

Pendant cable with junction box

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VONN Lighting | 27

VAS3535-05T180 PROJECT:

TYPE: • Connect in seconds with magnetic end cap.

• Endless possibilities of designs through Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

OVERVIEW

DATE:

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

• Curved Linear LED pendant mounted.

• Available in 3 different finishes • CRI 80

STANDARD FEATURES

CATALOG #:

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­ ­ ­

FINISHES AVAILABLE

19.68” L /

MOUNTING ACCESSORIES

­

­ ­

Pendant cable without junction box

PHOTOMETRICS

LED SYSTEM INFORMATION

Pendant cable with junction box

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­ ­ ­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

28 | VONN Lighting

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VAS3535-15A360 PROJECT:

TYPE: • Connect in seconds with magnetic end cap.

• Endless possibilities of designs through Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

OVERVIEW

STANDARD FEATURES

CATALOG #:

DATE:

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

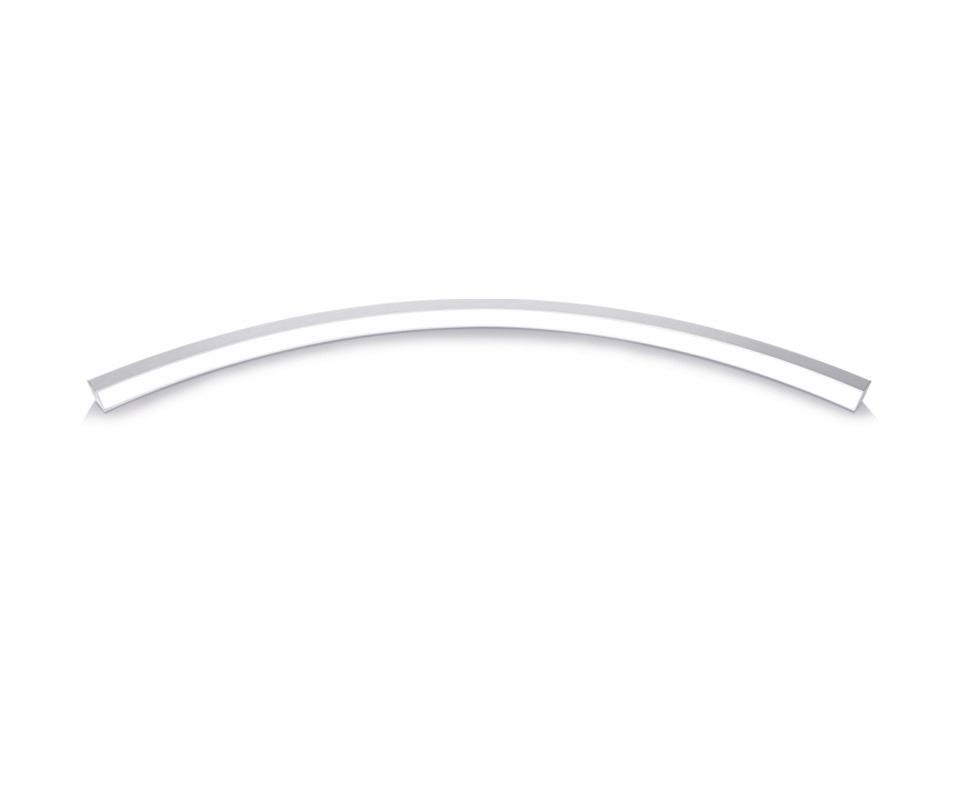

• Curved Linear LED pendant mounted.

• Available in 3 different finishes • CRI 80

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­

FINISHES AVAILABLE

­

­

MOUNTING ACCESSORIES Single canopy with adjustable pendant cables

PHOTOMETRICS

LED SYSTEM INFORMATION

Surface mounted buckle

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VONN Lighting | 29

VAS3535-15W360 PROJECT:

TYPE:

• Connect in seconds with magnetic end cap.

• Endless possibilities of designs through OVERVIEW Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

• Curved Linear LED, surface or pendant mounted.

STANDARD • Available in 3 different finishes FEATURES • CRI 80

CATALOG #:

DATE:

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­

13.78”

FINISHES AVAILABLE

98.48”

58.58”

MOUNTING ACCESSORIES 61.34”

­

­

Single canopy with adjustable pendant cables

PHOTOMETRICS

LED SYSTEM INFORMATION

Surface mounted buckle

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

30 | VONN Lighting

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VAS3535-15N360 PROJECT:

TYPE:

• Connect in seconds with magnetic end cap.

• Endless possibilities of designs through OVERVIEW Interconnection of arcs and curves.

• Flexible diffuser prevents light leakage and allows for easy installation.

• Curved Linear LED, surface or pendant mounted.

STANDARD • Available in 3 different finishes FEATURES • CRI 80

CATALOG #:

DATE:

• Aluminum profile with high quality surface treatment.

• Specially designed light source and diffusers produces soft & homogeneous lighting.

• Various installation methods.

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

NOMINAL EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE ­

13.78”

FINISHES AVAILABLE

98.48”

56.77”

MOUNTING ACCESSORIES 59.53”

­

­ ­

­

Single canopy with adjustable pendant cables

PHOTOMETRICS

LED SYSTEM INFORMATION

Surface mounted buckle

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

APPLICATIONS Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 7 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VONN Lighting | 31

Interconnection types

DIAGRAM Outward Lighting

OTHER CONNECTION TYPES Downward Lighting

Downward Lighting

Downward Lighting Downward Lighting

Straight + Curve Downward Lighting

Downward Lighting

Straight + Straight Inward Lighting

Curve + Curve (S-Type)

Outward Lighting

Downward Lighting

Downward Lighting

Curve + Curve (CIRCLE) Inward Lighting

Inward Lighting Downward Lighting

Downward Lighting

Straight + Curve

Inward Lighting

Outward Lighting

Curve + Curve (S-Type) 32 | VONN LightiNg

Curve + Curve (Circle)

Curve + Curve

Downward Lighting

Curve + Curve

Finished luminaries

∅3m (118") Downward Lighting

∅1.5m (59") Outward Lighting

∅1.5m (59") Inward Lighting

∅1.5m (59") Downward Lighting

∅0.8m (31") Downward Lighting VONN LightiNg | 33

Installation methods PENDANT

DOWNWARD LIGHTING

UPWARD LIGHTING

INWARD LIGHTING

OUTWARD LIGHTING

LIGHTING OUTWARD

LIGHTING INWARD

34 | VONN Lighting

WALL MOUNTED

WALL MOUNTED: DOWNWARD LIGHTING

WALL MOUNTED: OUTWARD LIGHTING

WALL MOUNTED: INWARD LIGHTING

AWAY FROM WALL: INDIRECT LIGHTING

SURFACE MOUNTED + RECESSED

RECESSED: DOWNWARD LIGHTING

SURFACE MOUNTED: DOWNWARD LIGHTING

MOUNTED: OUTWARD LIGHTING

SURFACE MOUNTED: INWARD LIGHTING

VONN Lighting | 35

Lighting Source

LIGHTING SOURCE Model VD8140-24V-20mm


24V+

24V+

24 V-

24 V-

LEDs

LEDs/Cut

140/m

14

Entry Cable

Voltage (DC)

24

LIGHTING SOURCE Model

LEDs

LEDs/Cut

VDY8140-24V-20mm

70/pcs

14

24

VDY8140-24V-20mm-08A45

42/pcs

14

24

VDY8140-24V-20mm-15A45

84/pcs

14

24

VDY8140-24V-20mm-30A23

84/pcs

14

24

36 | VONN Lighting


Entry Cable

Voltage (DC)

E: FLEXIBLE STRIP Wattage

CCT

CRI

Lumens

Size

Package Size

Suitable Profiles

19.2

1900K, 2300K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K

>80

2120Lm/m

15.46'×0.79"×0.06"

4.7M Roll

VAS3535-2500 VAS3535-15N90 VAS3535-15W90

E: RIGID MODULE Wattage

CCT

CRI

Lumens

Size

Package Size

Suitable Profiles

9.6W

1900K, 2300K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K

>80

1060Lm/m

19.65"×0.79"×0.23"

20pcs/Set

VAS3535-2500

5.8W

1900K, 2300K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K

>80

650Lm/m

8pcs/Set

VAS3535-08A45 VAS3535-08A90

11.6W

1900K, 2300K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K

>80

1300Lm/m

10pcs/Set

VAS3535-15A45 VAS3535-15A90

11.6W

1900K, 2300K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K

>80

1300Lm/m

10pcs/Set

VAS3535-30A45

VONN Lighting | 37

VONN LLC 3323 NE 163rd St, PH-706 North Miami Beach, FL 33160 United States Phone: 1-888-604-VONN Sales@vonn.com www.vonn.com
