VONN - VALS Series Catalog 2023

VALS SERIES CATALOG 2023

Contents Intro 3

About VALS

5

Highlight

Product Listing 7-11 12

Trimless Recessed Gypsum Lighting

13

Wall Lighting

14 15

Floor Lighting Skirting Board

Other Components

2 | VONN Lighting

16-17

Light Source and Drivers

18-26

Installation Instructions

About us

WHO WE ARE VONN offers exceptional LED lighting creations, representing a fusion between innovative solutions and aesthetic vision. We are proud to present you with a wide range of residential and commercial LED lighting products. Our commitment to form, technology and precision defines our brand; we love what we do, and we deeply value our leadership position within the lighting industry.

OUR INSPIRATION We believe that it is in the pursuit of perfect form that we uncover the undercurrent of magic inherent to brilliant artistic expression. As a distinguished watchmaker will say, “Behind accuracy, lies precision”.

We very much follow the same principle. Emphasis on design and function absolutely cannot stand short of quality. Simply stated- we pursue perfection and beauty while maintaining functionality and precision.

By its very nature, LED represents innovation. However, at VONN, we set the bar much higher. We see the prestige beholden to precision and we’ve aligned our brand to it.

Learn more about how we are defining new standards for the lighting industry at our website: VONN.com Thank you for taking the time to learn more about us.

One Canal Park, 3323 NE 163rd St PH-706, North Miami Beach, FL 33160 (888) 604-8666 VONN Lighting | 3

VALS

series

The VALS series fuses illumination, architecture and finishes to integrate space and lighting. By incorporating VALS models into skirting lines, plaster lines, material gaps and more- what were once function-less gaps can now become areas of radiance. The slim designs in the series allow for light to be shown without an obvious light source, giving users a more comfortable and harmonious lighting experience.

4 | VONN LightiNg

Highlight

Water and dust-proof silicone coated LED strip offers the ultimate in environmental protection.

Installation is easier than ever- just press into place.

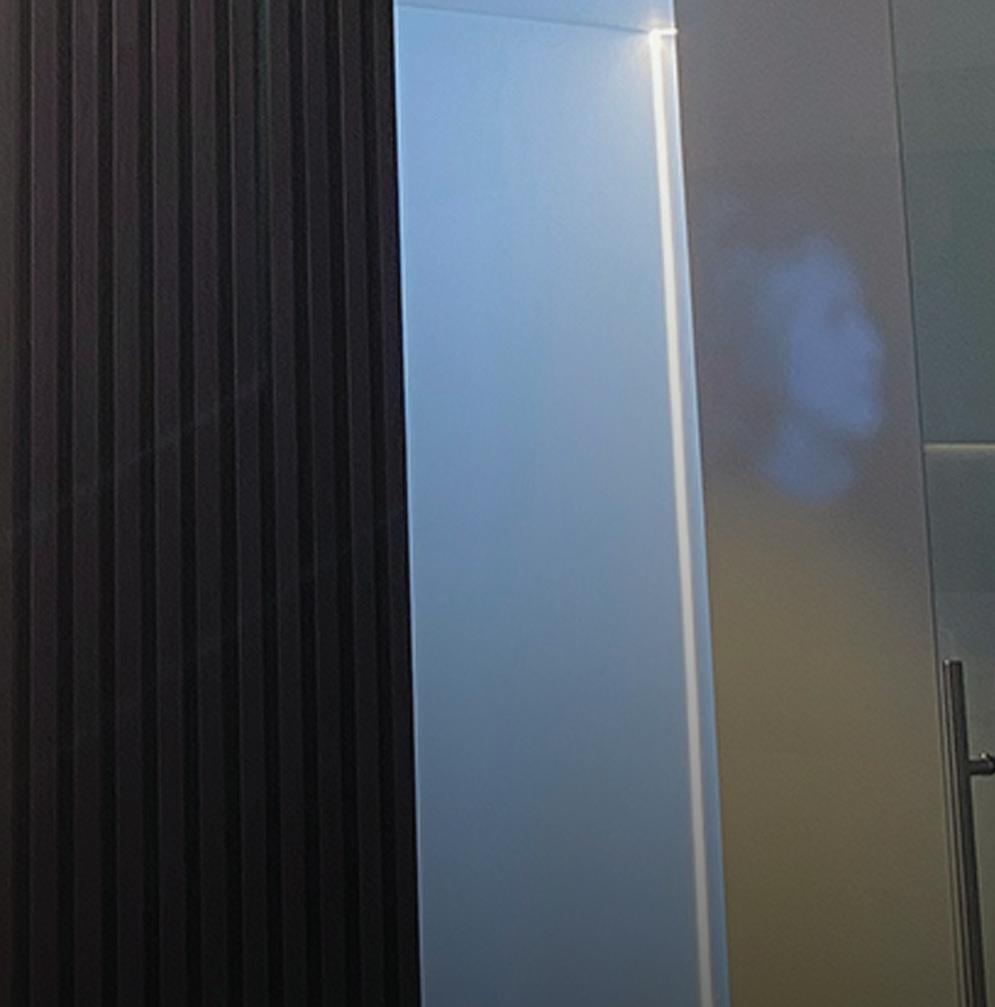

Trimless recessed models can be integrated into any wall or ceiling. With various widths and a flexible diffuser, models are highly adaptable.

28

Wall-lighting models can be used for decorative lighting in corridors and on walls.

www.colorsled.com | 29

34

Gypsum lighting models can be mounted on drywall for wall-washing and indirect lighting.

The clip-in mounting makes installation easy.

www.colorsled.com | 35

Skirting board models feature up/down lighting and are surface mounted. These models are perfect for decorative lighting.

VONN LightiNg | 5

Highlight CONT.

Floor lighting models can be used indoors and out.

Ideal for outlining spaces, they are also resistant to water and deterioration.

Corner lighting models can be installed on gypsum, cement or tile. Recessed design seamlessly incorporates with architecture.

Wall-washing models provide illumination without a visible light source; contributing to the atmosphere of interiors.

Gap-lighting models feature an ultra-narrow design that is also dust proof and waterproof even without a diffuser.

6 | VONN LightiNg

VLR1613 PROJECT:

TYPE: • Trimless recessed design, integrated with architecture

OVERVIEW • AL6063-T5 aluminum profile with excellent heat dissipation performance.

• Linear LED recess mount

CATALOG #:

DATE:

• PC diffuser imported from Germany.

• Close-fitting design without screws, optional end caps with or without holes.

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

STANDARD • Available in Silver finish FEATURES • CRI 90 + Standard; R9>50v

EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE

2.2”

0.511”

0.169”

0.385”

FINISHES AVAILABLE

0.629” 8’ NOMINAL 16mm 0.63''

MOUNTING ACCESSORIES

0.08''

PHOTOMETRICS

LED SYSTEM INFORMATION

End cap

Screws

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

APPLICATIONS

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

7

Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 8

9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

­

VONN Lighting | 7

VLR25 PROJECT:

TYPE: • Trimless recessed design, invisible and beautiful

OVERVIEW • AL6063-T5 aluminum profile with excellent heat dissipation performance.

• Linear LED recess mount

CATALOG #:

DATE:

• PC diffuser imported from Germany.

• Close-fitting design without screws, optional end caps with or without holes.

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

STANDARD • Available in 3 finishes FEATURES • CRI 90 + Standard; R9>50v

EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE

0.984”

0.885”

FINISHES AVAILABLE

2.55” 8.22” / 23.9” / 47.5” / 59.4” / 71.2” / 94.8” 0.866”

­

MOUNTING ACCESSORIES Screws

LED SYSTEM INFORMATION

PHOTOMETRICS

­ ­

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

APPLICATIONS

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

7

Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 8 9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­ ­

­

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

8 | VONN Lighting

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

­ ­ ­

VLR3924 PROJECT:

TYPE: • Trimless recessed design, integrated with architecture

OVERVIEW • AL6063-T5 aluminum profile with excellent heat dissipation performance.

• Linear LED recess mount

CATALOG #:

DATE:

• PC diffuser imported from Germany.

• Close-fitting design without screws, optional end caps with or without holes.

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

STANDARD • Available in Silver finish FEATURES • CRI 90 + Standard; R9>50v

EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE

1.51”

0.944”

0.807”

FINISHES AVAILABLE 3.346” 8’ NOMINAL 16mm 0.63''

MOUNTING ACCESSORIES

0.08''

PHOTOMETRICS

LED SYSTEM INFORMATION

End cap

Screws

*Standard is based on 90 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

APPLICATIONS

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

7

Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 8

9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

­

­

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VONN Lighting | 9

VLR3735 PROJECT:

TYPE: • Trimless recessed design, integrated with architecture

OVERVIEW • AL6063-T5 aluminum profile with excellent heat dissipation performance.

• Linear LED recess mount

CATALOG #:

DATE:

• PC diffuser imported from Germany.

• Close-fitting design without screws, optional end caps with or without holes.

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

STANDARD • Available in Silver finish FEATURES • CRI 90 + Standard; R9>50v

EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE

2”

0.

56 2”

1.377”

1.38”

FINISHES AVAILABLE

3.89”

8’ NOMINAL 16mm 0.63''

MOUNTING ACCESSORIES

0.08''

PHOTOMETRICS

LED SYSTEM INFORMATION

End cap

Screws

*Standard is based on 90 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

APPLICATIONS

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

7

Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 8

9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

9 - OTHER OPTIONS ­ ­

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

10 | VONN Lighting

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

­ ­

VLR3943 PROJECT:

TYPE: • Trimless recessed design, integrated with architecture

OVERVIEW • AL6063-T5 aluminum profile with excellent heat dissipation performance.

• Linear LED recess mount

CATALOG #:

DATE:

• PC diffuser imported from Germany.

• Close-fitting design without screws, optional end caps with or without holes.

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

STANDARD • Available in Silver finish FEATURES • CRI 90 + Standard; R9>50v EXTRUSION DIMENSIONS

2.322”

DIFFUSER/OPTICS AVAILABLE

2.28”

1.77”

0.9

05”

FINISHES AVAILABLE 0.511”

1.488”

8’ NOMINAL 16mm 0.63''

MOUNTING ACCESSORIES

0.08''

PHOTOMETRICS

LED SYSTEM INFORMATION

End cap

Screws

*Standard is based on 90 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

APPLICATIONS

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

7

Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 8

9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

­

­

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VONN Lighting | 11

VLG7043 PROJECT:

TYPE:

CATALOG #:

DATE:

• PC diffuser imported from Germany.

• Close-fitting design without screws, optional end caps with or without holes.

• Applied to gypsum lines, integrated with architecture

OVERVIEW • AL6063-T5 aluminum profile with excellent heat dissipation performance.

• Linear LED Surface mount

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

STANDARD • Available in Silver finish FEATURES • Surface mount.

• CRI 90 + Standard; R9>50v

1.692”

EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE

2.755”

FINISHES AVAILABLE

16mm 0.63''

8’ NOMINAL

MOUNTING ACCESSORIES

0.08''

PHOTOMETRICS

LED SYSTEM INFORMATION

End cap

Screws

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

APPLICATIONS

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

7

Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 8

9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

12 | VONN Lighting

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

­

VLC25 PROJECT:

TYPE:

OVERVIEW

STANDARD FEATURES

• Up and down lighting.

• AL6063-T5 aluminum profile with excellent heat dissipation performance.

• Linear LED wall mount • Available in 3 different finishes • CRI 90 + Standard; R9>50v

CATALOG #:

DATE:

• PC diffuser imported from Germany.

• Close-fitting design without screws, optional end caps with or without holes.

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE

0.082”

0.328”

FINISHES AVAILABLE

3.93”

24.1” / 47.7” / 59.56” / 71.3” / 95”

MOUNTING ACCESSORIES PHOTOMETRICS

LED SYSTEM INFORMATION

­

Screws

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

APPLICATIONS

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

7

Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 8

9

ORDERING GUIDE 1 - SKU

2 - FEET

­

5 - DIFFUSER/OPTICS

3 - LUMEN

4 - COLOR TEMP

­

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

9 - OTHER OPTIONS

­

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

­

VONN Lighting | 13

VLE2711 PROJECT:

TYPE:

OVERVIEW

STANDARD FEATURES

DATE:

• PC diffuser imported from Germany.

• Close-fitting design without screws, optional end caps with or without holes.

• Applied to the floor, integrated with architecture • AL6063-T5 aluminum profile with excellent heat dissipation performance.

• • • •

CATALOG #:

Linear LED recess mount Available in Silver finish Surface mount.

CRI 90 + Standard; R9>50v

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE

1.06”

0.433”

0.476”

FINISHES AVAILABLE

0.8425”

16mm 0.63''

8’ NOMINAL

­ MOUNTING ACCESSORIES

0.08''

PHOTOMETRICS

LED SYSTEM INFORMATION

End cap without hole

End cap with hole

*Standard is based on 80 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

APPLICATIONS

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

7

Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 8

9

ORDERING GUIDE 1 - SKU

2 - FEET

3 - LUMEN

4 - COLOR TEMP

­

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

­

­

9 - OTHER OPTIONS ­

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

14 | VONN Lighting

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VSK6013(A) PROJECT:

TYPE: • Apply to skirting board, integrated with architecture

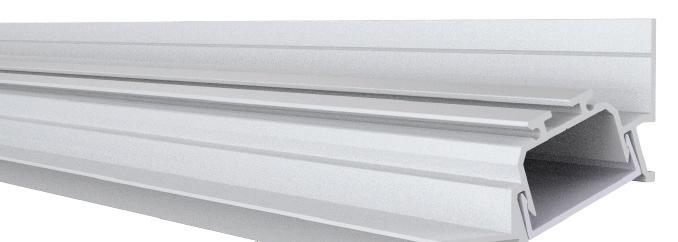

OVERVIEW • AL6063-T5 aluminum profile with excellent heat dissipation performance.

• Linear LED recess mount

CATALOG #:

DATE:

• PC diffuser imported from Germany.

• Close-fitting design without screws, optional end caps with or without holes.

• 3 year, 50,000 hour fixture warranty • 2700K, 3000K, 3500K, 4000K color temperatures available

STANDARD • Available in Silver finish FEATURES • CRI 90 + Standard; R9>50v

0.519”

EXTRUSION DIMENSIONS

DIFFUSER/OPTICS AVAILABLE

0.393”

2.36”

0.366”

FINISHES AVAILABLE

0.472”

8’ NOMINAL 16mm 0.63''

0.08''

MOUNTING ACCESSORIES

PHOTOMETRICS

LED SYSTEM INFORMATION

Screws

*Standard is based on 90 CRI/3000K Custom outputs available; specify below.

ELECTRICAL

APPLICATIONS

Integral Driver with 0-10V Dimming. Several Driver Options Available 1

2

3

4

5

6

7

Offices, Lobbies, Retail Stores,Classrooms, Reception Areas & Corridors 8

9

ORDERING GUIDE 1 - SKU ­

2 - FEET

3 - LUMEN

4 - COLOR TEMP

5 - DIFFUSER/OPTICS

6 - MOUNTING

7 - ELECTRICAL

8 - FINISH

9 - OTHER OPTIONS

Theoretical Lumens: XXX LM (subject to change) Theoretical Wattage: XXX W (subject to change) ***Please note lumens and wattage are subject to change and will be determined post production of the first articles. *Any custom modifications are subject to minimum order quantity. (M.O.Q.) VONN, LLC. 3323 NE 163rd St. PH-706 North Miami Beach, FL 33160 WWW.VONN.COM 888.604.8666

© VONN Lighting, 2022

VONN, LLC. reserves the right to make any design changes for continuous improvement which will not affect the overall appearance or performance.

VONN Lighting | 15

Light source

LIGHTING SOURCE Model


LEDs/m

Cutting Unit

120

6/50mm

24

120

6/50mm

24

VD8168-24V-10mm (617.3 Lm/ft)

168

7/42mm

24

VD8280-24V-20mm (823 Lm/ft)

280

14/50mm

24

VD6120-24V-8mm (216.5 Lm/ft)

VD8120-24V-8mm (456.9 Lm/ft)

Entry Cable

Voltage (DC)

24V+

DRIVERS

COMPATIBL Model

VBSD-V24-065S

16 | VONN Lighting


Size

Input Voltage

Input Current

346 × 30 × 23.5mm

100-277VAC 50/60Hz

0.8A Max

E: FLEXIBLE STRIP Wattage

CCT

CRI

Lumens

Size

8.6

2700K, 3000K, 4000K, 6000K

>90

710

16'5"×0.25"×0.125"

Suitable Profiles

VLG7043

13.5

1900K, 2300K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K

>80 >95

1499 1143

16'5"×0.25"×0.125"

16.2

1900K, 2300K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K

>80 >95

2025 1586

16'5"×0.5"×0.125"

VLE2711 VLR3735

20

1900K, 2300K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K

>80 >95

2700 2300

8'2.5"×0.75"×0.125"

VLR3924

LE DRIVERS Output Voltage

24VDC

Output Power

65W

Dimming Method PWM, 0-10V, Resistor

Power Factor

Compatible Models

>0.95

VLR3735 VLR3924 VLG7043 VLE2711

VONN Lighting | 17

Installation instruction Trimless Recessed Gypsum board Gypsum board

Plaster Plaster

Luminous Surface: 10mm Luminous Surface: 10mm

VLR1313(A)

Gypsum Board

Plaster

Luminous Surface: 20mm

VLR2514(A)

18 | VONN LightiNg

Gypsum Board

Plaster

Luminous Surface: 35mm

VLR3735

Gypsum Board

Plaster

Luminous Surface: 35mm

VLR3924

VONN LightiNg | 19

Installation instruction Trimless Recessed Gypsum Board

Plaster

Luminous Surface: 100mm

VLR10324

20 | VONN LightiNg

Installation instruction Gypsum Lighting

Wall

Plaster

VLG7043

VONN LightiNg | 21

Installation instruction Wall lighting Wall

24.5mm

Stone

VLC7042

22 | VONN LightiNg

Installation instruction Skirting board lighting Wall

Stone

15mm

Wood Substrate

Stone

VSK8231

VONN LightiNg | 23

Installation instruction Skirting board lighting Wall

Wood Substrate

15mm

VSK10016

Wall

Wood Substrate

15mm

VSK10816

24 | VONN LightiNg

Installation instruction Floor lighting

Tile

Cement Mortar

VLE2711

VONN LightiNg | 25

Installation instruction Wall-washing lighting Gypsum Board

Plaster

Wall

VLR3440

Wall

Stone

VLR3522 26 | VONN LightiNg

Cement Mortar

VONN LLC 3323 NE 163rd St, PH-706 North Miami Beach, FL 33160 United States Phone: 1-888-604-VONN Sales@vonn.com www.vonn.com
