VORTEX Product Data

VORTEX GLASS RAILING SYSTEM PRODUCT DATA ™

VORTEX - AVAILABLE INFILLS Glass

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

VORTEX GLASS RAILING SYSTEM ™

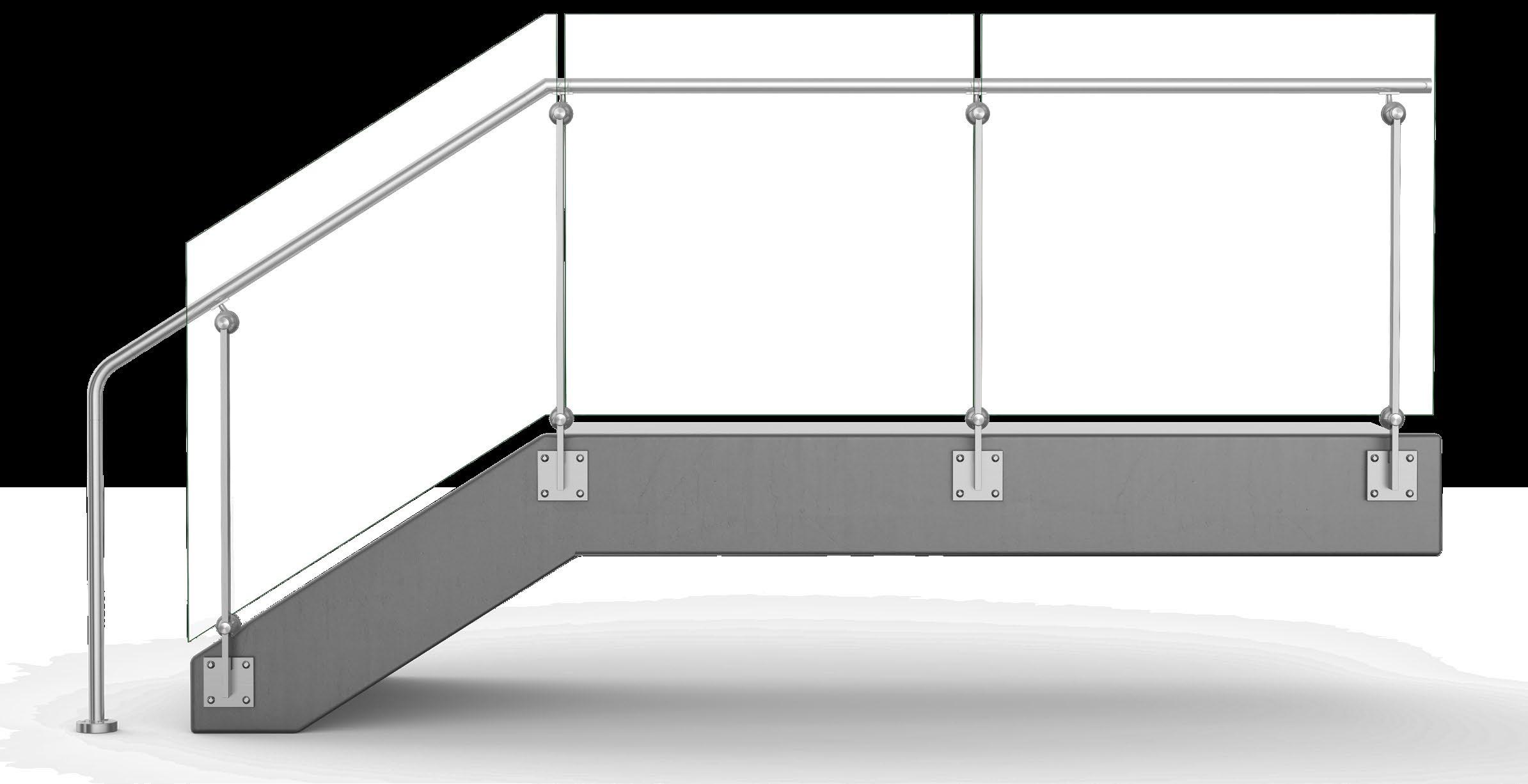

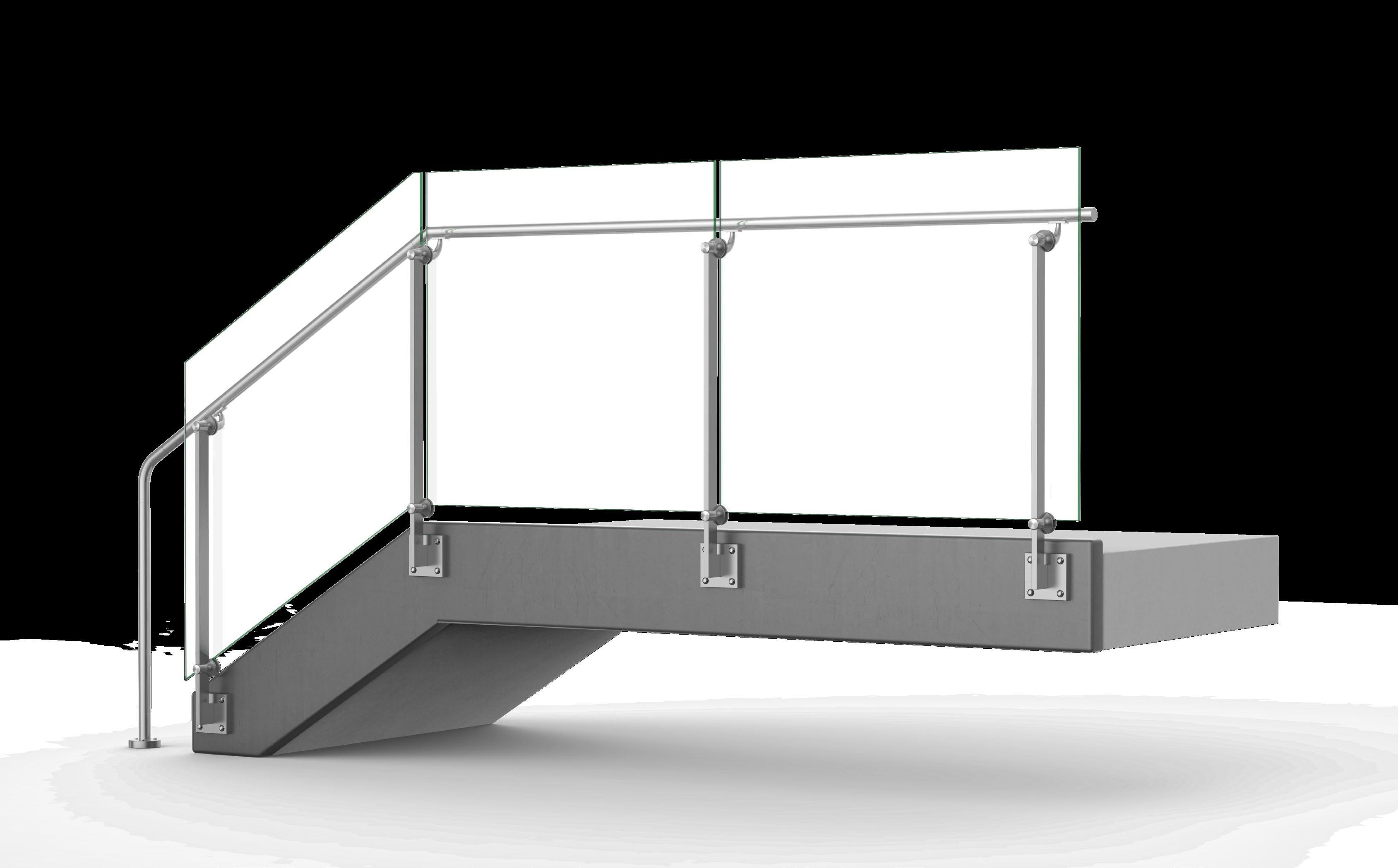

VORTEX glass panel railing system from Viva Railings offers a sleek and contemporary design that is perfect for modern architectural projects. The system features a minimalist design with a single bar post and a unique funnel or vortex-shaped conical bracket that sits between the glass panels.

This bracket serves a dual purpose, supporting the glass panels and providing a sturdy handrail.

VORTEX - AVAILABLE INFILLS Glass

Other mounting options available.

2

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

VORTEX GLASS SYSTEM - TECHNICAL DATA ™

MATERIAL

FINISH

SIZE/SPACING

#6 Satin, #8 Mirror

Stainless Steel (304 or 316)

ECM

POST

2” Flat bar @ 5’-0” max. O.C. for glass infill Stainless Steel (201)

INFILL OPTIONS

Powder Coat

Min. 3/8” laminated glass with PVB or SGP interlayer ¹ Glass standard thickness: 3/8”, 1/2” Glass with Cone Clamp

Clear, Tinted or Frit Interlayer standard thickness, SGP: 0.035” , 0.06”

PVB: 0.035”

Stainless Steel U-Cap

#6 Satin, Powder Coat

1” Height U-Cap for Glass Top Rail

Stainless Steel U-Cap with LED ³

#6 Satin

Ø1-1/2” with LED LINEAR, Ø1-1/2” or Ø2” with LED POD

Stainless Steel Tube

#6 Satin, Powder Coat

Ø1-1/2” or Ø2” for Hand Rail

TOP RAIL/HAND RAIL

ECM finish is not available for U-cap, top rail or hand rail.

Ø2” or 2”x1” Rectangular tube for Top Rail Stainless Steel Tube with LED

#6 Satin

Ø1-1/2” with LED LINEAR, Ø1-1/2” or Ø2” with LED POD

Wood (Red Oak, Cherry or Maple) ²

Unstained

Ø2”

Wood (Red Oak, Cherry or Maple) with LED

Unstained

Ø2” with LED LINEAR 1. IBC 2015 & newer requires railing glass to be laminated. VIVA recommends SGP for exterior applications.

2. Other species available upon request.

3. All LED LINEAR products are ETL certified; ETL mark is proof of product compliance to North American safety standard.

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

3

I V A

VIVA RAILINGS, LLC

VORTEX RAILING SYSTEM

1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

Page 2 of 4 12/4/2023

VORTEX RAILING SYSTEM Glass Infill GLASS INFILL

AVAILABLE AVAILABLE GLASS TYPES: GLASS TYPES Clear Monolithic

Clear Laminated (PVB or SGP)

Bent

Tinted

Satin Etched

Ceramic Frit

Colored Laminate (PVB only)

CONE TYPE OPTIONS

5'-0" MAX

CODE

POST

FITTING

BC-1

Stainless Steel, Satin

Stainless Steel Cone

BC-2

Stainless Steel, ECM

ECM Cone

BC-3

Powder Coated

Stainless Steel, Satin Cone

5'-0" MAX

LAMINATED GLASS

U-CAP

HAND RAIL

U-CAP G02

G03

2" NOM.

3'-0"

3 4" NOM. GAP

G01

3'-7"

HAND RAIL

R4"

FINISH FLOOR

1'-0"

BEACON POST

STRINGER

LAMINATED GLASS

TOP RAIL OPTIONS

LEVEL 1 0'-0"

1'-0" VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. ARE FOR INTENDED FOR INTEGRITY THE SOLE USE OF VIVA RAILINGS' THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED

BY VIVAORRAILINGS. VIVA RAILINGS REMAINS THEPRODUCTS SOLE OWNER ALL DESIGNS AND INTELLECTUAL CONTAINED WITHIN. VIVATHESE RAILINGSDRAWINGS IS NOT RESPONSIBLE THE STRUCTURAL OF ANY BUILDING SYSTEMS OR OTHERCUSTOMER MATERIALS NOT AND FURNISHED

BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ ARE TO BEOF ATTACHED ARE STRUCTURALLY SOUND OR DESIGNEDPROPERTY TO PROPERLY SUPPORT VIVAREPRODUCTION RAILINGS’S MATERIALS.AND ANY SUCH RESPONSIBILITY BELONGS TOANY OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDEDFOR FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THEAND INSTALLATION OF PRODUCTS FURNISHED

BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY USEDESIGN OF THESE DESIGNS FOR OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED REFERENCE ONLY. FOR PRODUCT INFORMATION TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

4

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

VORTEX GLASS RAILING SYSTEM

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

5

TM

V I V A

VIVA RAILINGS, LLC

VORTEX RAILING SYSTEM

1454 HALSEY WAY, CARROLLTON, TX 75007

VORTEX RAILING SYSTEM

P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

Page 3.1 of 4 12/4/2023

5" ⁴ MIN.

5" MIN.

Mounting Condition, TopPOST Mounted Post MOUNTING CONDITION, TOP MOUNTED

6" MIN.

6" MIN. 3" MIN.

Anchored to Concrete ¹ - $ ²

Cored into Concrete - $$

Welded @ Steel Channel - $

Detail# BE-T01 ³

Detail# BE-T02

Detail# BE-T03

6" MIN.

Welded @ Embed Plate - $

6" MIN.

5" MIN.

1" 34 MIN.

5" MIN.

Embed Plate (By others)

Anchored to Concrete Welded to Steel Plate - $

Anchored to Concrete Slab on Deck - $$

Detail# BE-T04 (1) Min. 4000 PSI concrete, Typ. (2) $ to $$$: Indicates mounting type comparative cost (3) Anchoring is not an available option for top mount with cable infill (4) 6 21" Min. for end post with cable infil

5" 28

3/8" BENT PLATE (BY OTHERS)

Detail# BE-T05

Detail# BE-T06

VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY THESE DRAWINGS ARE INTENDED FOR THE SOLE USE VIVA RAILINGS' CUSTOMER THEIR THEPRODUCT INSTALLATION FURNISHED

BY VIVA VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OF OTHER PURPOSE IS FORBIDDEN. SCALES AREAND PROVIDED FORAGENTS REFERENCEFOR ONLY. FOR INFORMATIONOF ANDPRODUCTS TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. RAILINGS. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

6

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

TM

V I V A

VIVA RAILINGS, LLC

VORTEX RAILING SYSTEM

1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

VORTEX RAILING SYSTEM

Page 3.2 of 4 12/4/2023

Mounting Condition, Fascia Mounted Post MOUNTING CONDITION, FASCIA MOUNTED POST

6"

6"

6" MIN.

6"

6"

6" MIN.

Embed Plate (By others)

Anchored to Concrete ¹ - $$$

Welded @ Embed Plate - $$

Welded @ Steel Channel - $$

Detail# BE-F01 ²

Detail# BE-F02

Detail# BE-F03

STUD or DEFORMED REBAR (BY OTHERS)

6"

3" MIN.

6"

3" MIN.

3/8" THICK POUR STOP (BY OTHERS)

Welded @ Steel Tube - $$

Welded @ Pour Stop - $$

Detail# BE-F04

Detail# BE-F05

(1) Min. 4000 PSI concrete, Typ. (2) Anchoring is not a recommended option for cable infill VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA

VIVARAILINGS' RAILINGS IS NOT RESPONSIBLEARE FOR THE INTEGRITY OF ANY BUILDING SYSTEMS SOUND OR OTHER OR MATERIALS NOT FURNISHED

BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDINGBELONGS SYSTEMS TO WHICH VIVA RAILINGS’ TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT PRODUCTS TOSTRUCTURAL BE ATTACHED ARE STRUCTURALLY DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY TO OTHERS FORPRODUCTS WHOMARE VIVA RAILINGS IS NOT RESPONSIBLE. VIVATHESE RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE AGENTS DRAWINGS ARE INTENDED FOR THE SOLE USE OFOF VIVAPRODUCTS RAILINGS’ CUSTOMER AND THEIRBY AGENTS FORRAILINGS. THE INSTALLATION OFRAILINGS PRODUCTS FURNISHED

BY VIVA RAILINGS. RAILINGS REMAINS THE SOLE OWNER ALL DESIGNS AND INTELLECTUAL PROPERTY DRAWINGS ARE INTENDED FOR THEBELONGS SOLE TO USE OF VIVA RAILINGS' CUSTOMER AND THEIR FOR THE INSTALLATION FURNISHED VIVA VIVA REMAINS THE SOLE VIVA OWNER OF ALL DESIGNS ANDOF INTELLECTUAL PROPERTY CONTAINED WITHIN. CONTAINED WITHIN. REPRODUCTION ANDOF USE THESE OF THESE DESIGNS DESIGNS FORFOR ANY OTHER FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE FOR PRODUCT INFORMATION AND TECHNICAL PLEASE CONTACT VIVA RAILINGS. AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. REPRODUCTION AND USE ANY PURPOSE OTHERISPURPOSE IS FORBIDDEN. SCALES AREONLY. PROVIDED FOR REFERENCE ONLY. SUPPORT, FOR PRODUCT INFORMATION

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

7

TM

V I V A

VIVA RAILINGS, LLC

VORTEX RAILING SYSTEM

1454 HALSEY WAY, CARROLLTON, TX 75007

VORTEX RAILING SYSTEM

P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

Page 4 of 4 12/4/2023

Illuminated Railing ILLUMINATED RAILING

30° ASYM. LINEAR

SYM. LINEAR

iRAIL Linear

36" TO FF

iRAIL LINEAR ORIENTATION OPTIONS

22° ASYM. POD

SYM. POD

18" 24" OR 36"

Illuminated Handrail Option

POD

iRAIL POD ORIENTATION OPTIONS

iRAIL POD SPACING OPTIONS

See Viva iRail Railing System for more info

iRAIL LIGHTED RAILING SYSTEM 8

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

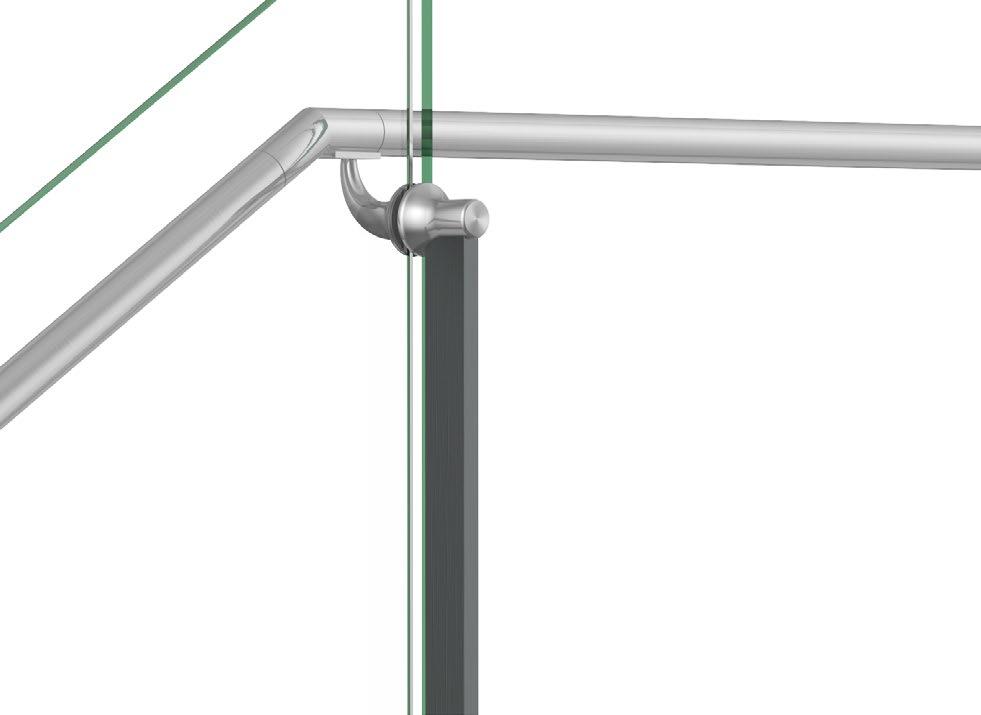

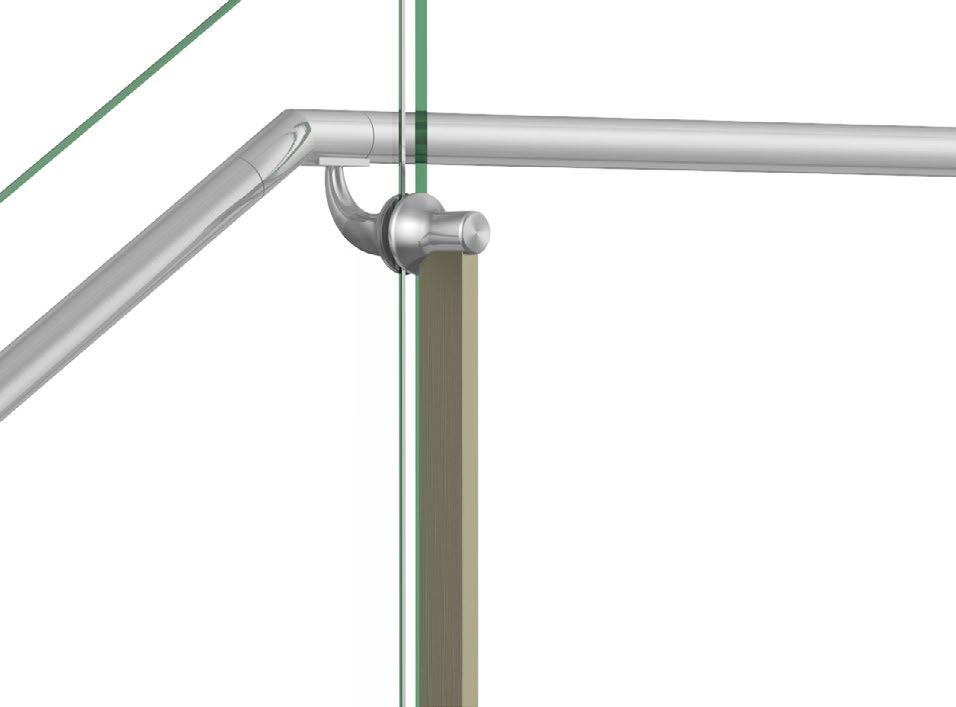

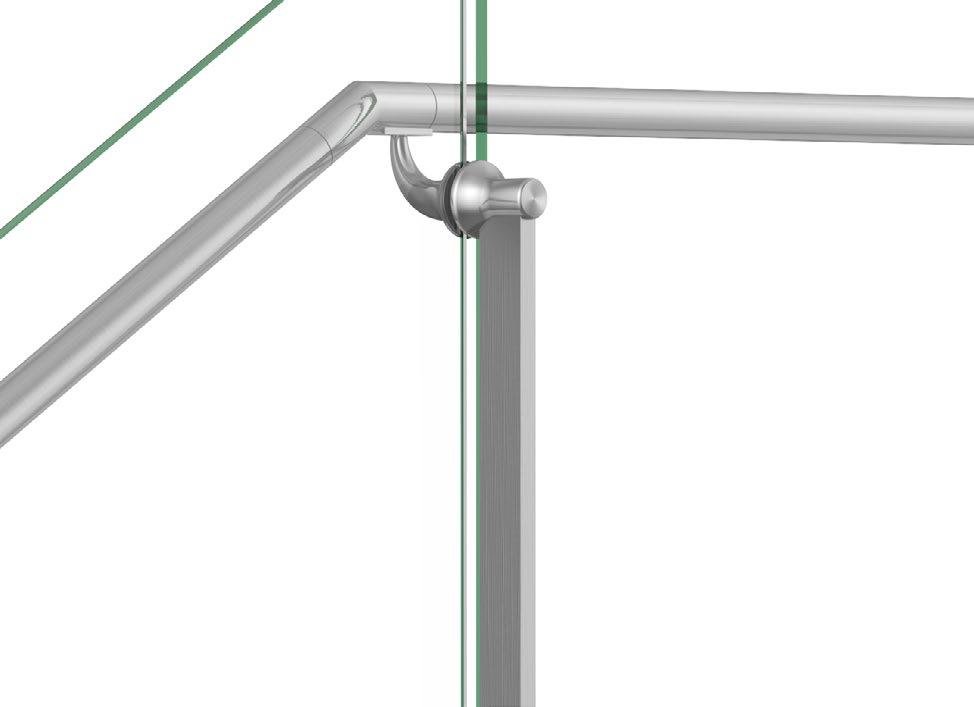

VORTEX GLASS RAILING SYSTEM FINISHING OPTIONS

#6 SATIN - #8 MIRROR

POWDER COAT

ECM

#8 Mirror Finish comes at an additional cost to our #6 Finish.

Available in Satin Black, Brass, Gold & Copper.

Available in Standard and Premium Colors

ECM finish is not available for U-cap, top rail or hand rail.

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

9

VORTEX GLASS RAILING SYSTEM VIVA RAILINGS HEADQUARTERS

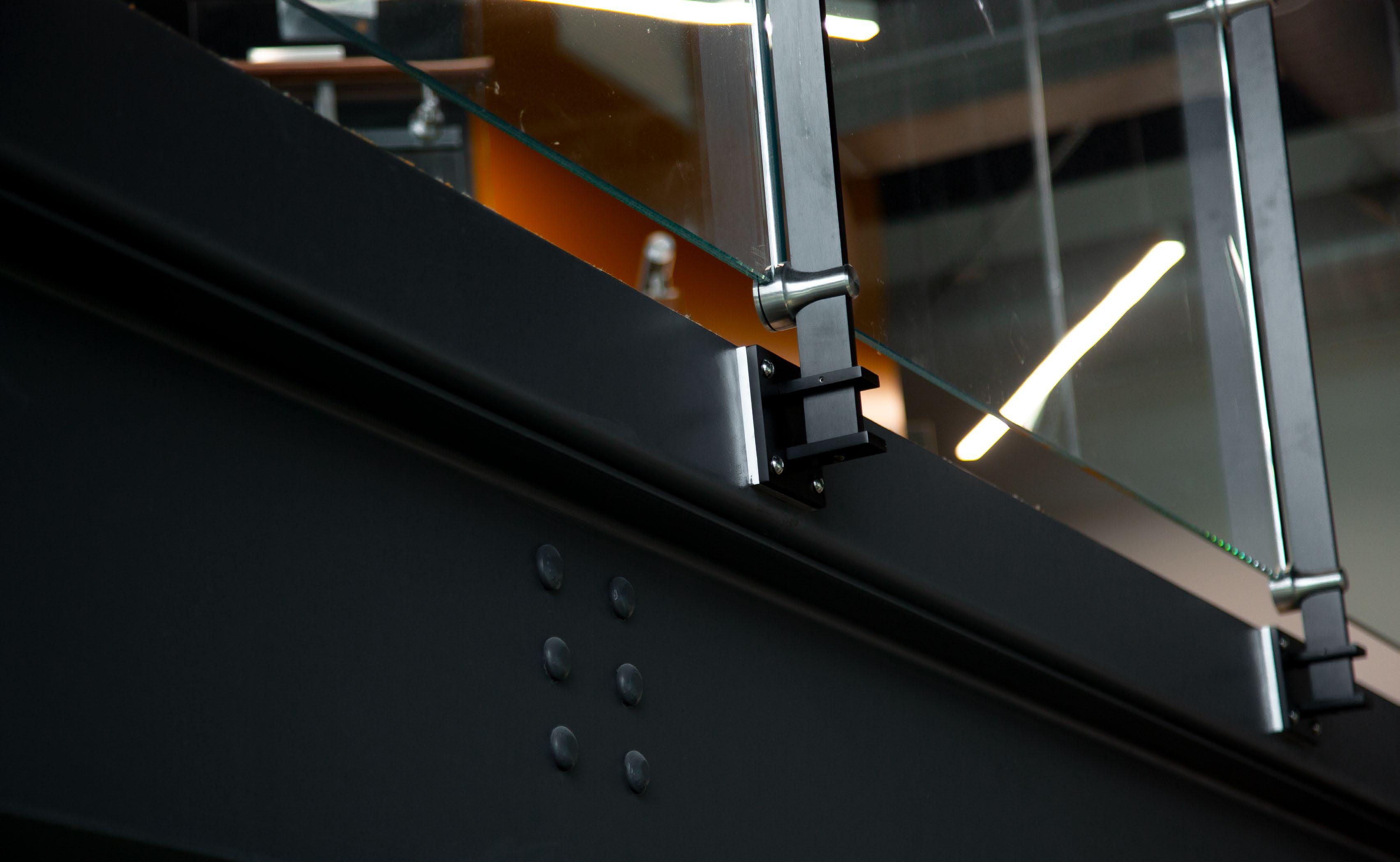

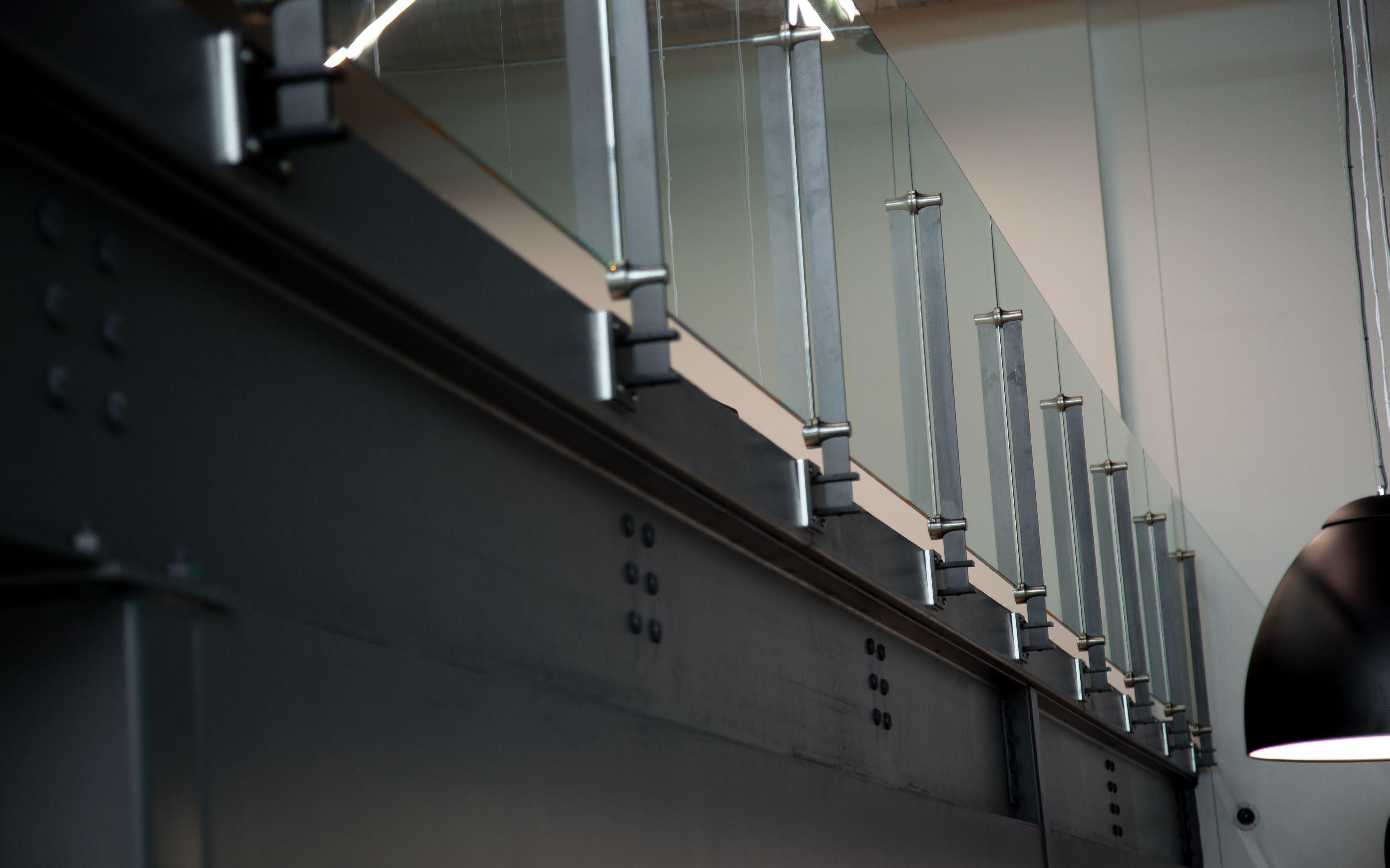

VIVA RAILINGS HEADQUARTERS - LEWISVILLE, TX General Contractor: VIVA RAILINGS

10

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

VORTEX GLASS RAILING SYSTEM VIVA RAILINGS HEADQUARTERS

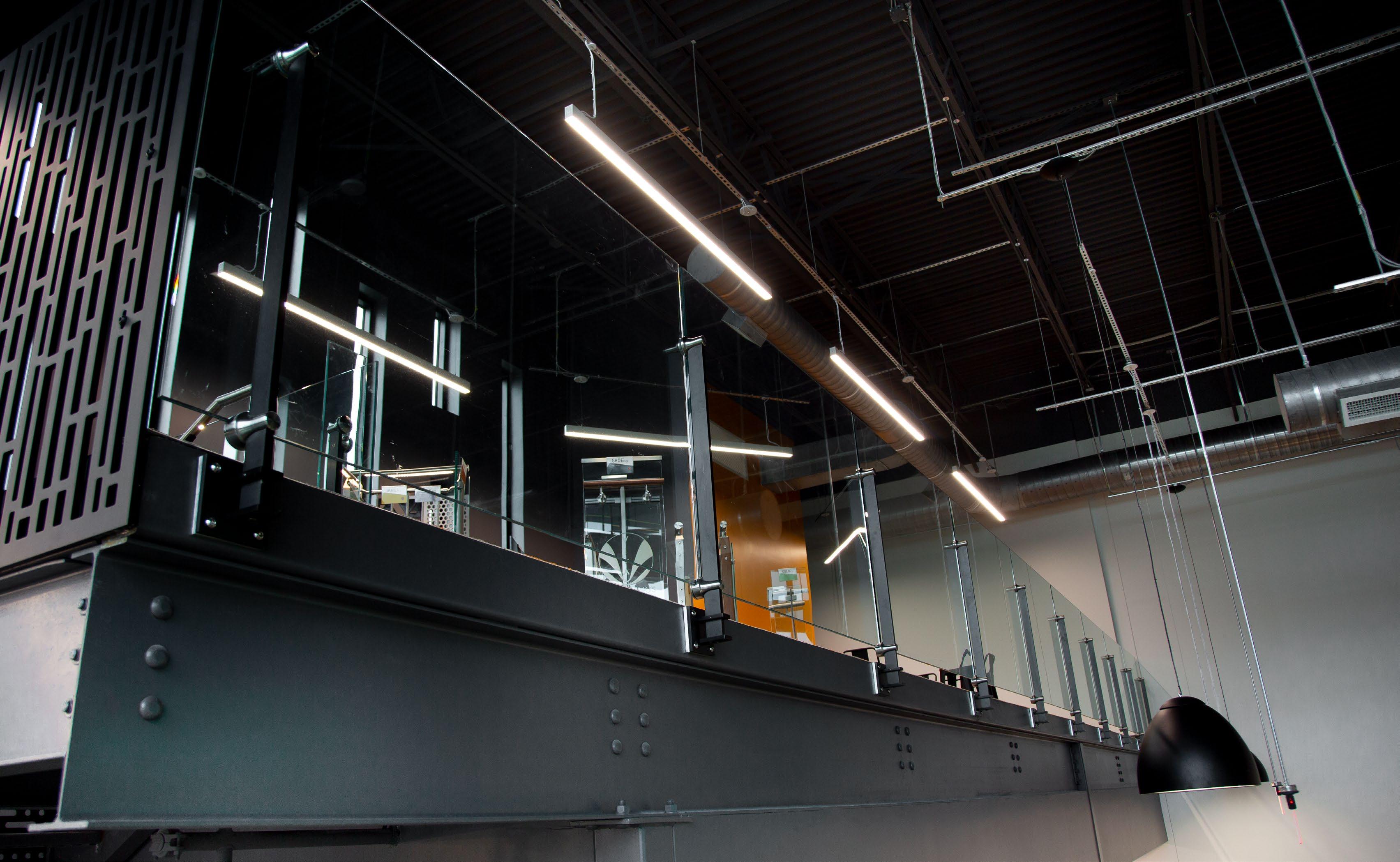

VIVA RAILINGS HEADQUARTERS - LEWISVILLE, TX General Contractor: VIVA RAILINGS

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

11

NORTH AMERICA OPERATIONS

New York, NY Washington DC Kansas City, KS

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

San Diego, CA

Atlanta, GA

(Dallas/Fort Worth Metroplex)

Dallas/Fort Worth, TX

PH: 972.353.8482 | info@vivarailings.com vivarailings.com

Orlando, FL Regional Locations

Inc. Magazine 500 | 5000 VIVA RAILINGS, LLC. Among The Fastest Growing US Companies Eight Years in a Row 2012-2019

Inc. Magazine 500 | 5000 VIVA RAILINGS, LLC. Among The Fastest Growing Texas Companies #211

ICC-ES 4405 Certified

SHOE™ Structural Glass Railing System

LEED Material & Resources Credits 4.1 and 4.2

The American Institute of Architects

The California Contractors State License Board Certified

Version:120423
