VISIO GLASS RAILING SYSTEM ™

VISIO glass panel railing system from Viva Railings offers a sleek and contemporary design that is perfect for modern architectural projects. The system features a minimalist design with a single bar post and a unique funnel or VISIO-shaped conical bracket that sits between the glass panels.

This bracket serves a dual purpose, supporting the glass panels and providing a sturdy handrail.

VISIO - AVAILABLE INFILLS

VISIO-11/11/22

Glass

Other mounting options available.

2

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

VISIO GLASS SYSTEM - TECHNICAL DATA ™

MATERIAL

FINISH

SIZE/SPACING

#6 Satin, #8 Mirror

Stainless Steel (304 or 316) ECM

CLAMP

INFILL OPTIONS

TOP RAIL

HAND RAIL ECM finish is not available for U-cap, top rail or hand rail.

Clamp @ 4’-0” max. O.C. Spacing for Glass Panels.

Fascia or Top mount.

Stainless Steel (201)

Powder Coat

Glass

Clear, Tinted or Frit

Min. 1/2” SGP laminated glass¹ Min. 5/8” PVB laminated glass

Stainless Steel U-Cap

#6 Satin, Powder Coat

1” Height U-Cap

Stainless Steel U-Cap with LED ³

#6 Satin

1” Height U-Cap with LED LINEAR

Stainless Steel Tube with LED

#6 Satin

Ø1-1/2” tube with LED LINEAR

Stainless Steel Tube

#6 Satin, Powder Coat

Ø1-1/2” or Ø2” tube

Wood (Red Oak, Cherry or Maple) ²

Unstained

Ø1-1/2” with LED LINEAR, Ø1-1/2” or Ø2” with LED POD

Unstained

Ø2” with LED LINEAR

Stainless Steel Tube with LED Wood (Red Oak, Cherry or Maple) with LED 1. IBC 2015 & newer requires railing glass to be laminated. VIVA recommends SGP for exterior applications.

2. All LED LINEAR products are ETL certified; ETL mark is proof of product compliance to North American safety standard.

3. Other species available upon request.

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

3

I V A

VIVA RAILINGS, LLC

VISIO RAILING SYSTEM

1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

Page 2 of 4 1/16/2024

VISIO RAILING SYSTEM Glass Infill / Top Mounted Clamp GLASS INFILL, TOP MOUNT AVAILABLE GLASS TYPES AVAILABLE GLASS TYPES:

Clear Monolithic

5'-0" MAX

Bent

Clear Laminated (PVB or SGP)

Tinted

Satin Etched

Ceramic Frit

5'-0" MAX

Colored Laminate (PVB only)

LAMINATED GLASS

U-CAP

HAND RAIL

U-CAP G02

G03

3'-0"

1 2" NOM. GAP G01

8"

3'-7"

HAND RAIL

3" 28 1" 716

2"

FINISH FLOOR

1'-0"

VISIO CLAMP

STRINGER

LAMINATED GLASS LEVEL 1 0'-0"

1'-0" VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. ARE FOR INTENDED FOR INTEGRITY THE SOLE USE OF VIVA RAILINGS' THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED

BY VIVAORRAILINGS. VIVA RAILINGS REMAINS THEPRODUCTS SOLE OWNER ALL DESIGNS AND INTELLECTUAL CONTAINED WITHIN. VIVATHESE RAILINGSDRAWINGS IS NOT RESPONSIBLE THE STRUCTURAL OF ANY BUILDING SYSTEMS OR OTHERCUSTOMER MATERIALS NOT AND FURNISHED

BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ ARE TO BEOF ATTACHED ARE STRUCTURALLY SOUND OR DESIGNEDPROPERTY TO PROPERLY SUPPORT VIVAREPRODUCTION RAILINGS’S MATERIALS.AND ANY SUCH RESPONSIBILITY BELONGS TOANY OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDEDFOR FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THEAND INSTALLATION OF PRODUCTS FURNISHED

BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY USEDESIGN OF THESE DESIGNS FOR OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED REFERENCE ONLY. FOR PRODUCT INFORMATION TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

4

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

I V A

VIVA RAILINGS, LLC

VISIO RAILING SYSTEM

1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

Page 2.1 of 4 1/16/2024

VISIO RAILING SYSTEM Glass Infill / Fascia Mounted Clamp GLASS INFILL, FASCIA MOUNT AVAILABLE GLASS TYPES AVAILABLE GLASS TYPES:

Clear Monolithic

4'-0" MAX

Bent

Clear Laminated (PVB or SGP)

Tinted

Satin Etched

Ceramic Frit

4'-0" MAX

Colored Laminate (PVB only)

LAMINATED GLASS

U-CAP

HAND RAIL

U-CAP G02

G03

3'-0"

1 2" NOM. GAP G01

8"

3'-7"

HAND RAIL

9" 116

2"

6"

6"

FINISH FLOOR

VISIO CLAMP

1'-0"

STRINGER

LAMINATED GLASS LEVEL 1 0'-0"

1'-0" VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. AREFOR INTENDED FORINTEGRITY THE SOLE USE OF VIVA RAILINGS' AND THEIR AGENTS THE INSTALLATION OF PRODUCTS FURNISHED

BY VIVA VIVA RAILINGS REMAINS THEPRODUCTS SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL CONTAINED WITHIN. VIVATHESE RAILINGS DRAWINGS IS NOT RESPONSIBLE THE STRUCTURAL OF ANY BUILDING SYSTEMS OR OTHER CUSTOMER MATERIALS NOT FURNISHED

BY VIVA RAILINGS.FOR VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER ORRAILINGS. NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED PROPERTY TO PROPERLY SUPPORT VIVAREPRODUCTION RAILINGS’S MATERIALS.AND ANY SUCH RESPONSIBILITY BELONGS TO ANY OTHERS FOR WHOM VIVA RAILINGS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDEDFOR FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THEAND INSTALLATION OF PRODUCTS FURNISHED

BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY USEDESIGN OF THESE DESIGNS FOR OTHER PURPOSE IS ISFORBIDDEN. SCALES ARE PROVIDED REFERENCE ONLY. FOR PRODUCT INFORMATION TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

5

TM

V I V A

VIVA RAILINGS, LLC

VISIO RAILING SYSTEM

1454 HALSEY WAY, CARROLLTON, TX 75007

VISIO RAILING SYSTEM

P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

Page 3.1 of 4 1/16/2024

5" MIN.

Mounting Condition, TopPOST Mounted Clamp MOUNTING CONDITION, TOP MOUNTED

6" MIN. 3" MIN.

Anchored to Concrete ¹ - $ ²

Welded @ Steel Channel - $

Detail# ZA-T01 ³

Detail# ZA-T03

5" MIN.

1" 62 MIN.

3" MIN.

5" MIN.

Embed Plate (By others)

Welded @ Embed Plate - $

Anchored to Concrete Slab on Deck - $$

Detail# ZA-T04

Detail# ZA-T05

(1) Min. 4000 PSI concrete, Typ. (2) $ to $$$: Indicates mounting type comparative cost VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT RAILINGS' PRODUCTS TODESIGN BE ATTACHED ARE STRUCTURALLY SOUND DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA IS NOT RESPONSIBLE. VIVA RAILINGS’S MATERIALS. ARE ANY SUCH RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA OR RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED

BY VIVA RAILINGS. VIVARAILINGS RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY THESE DRAWINGS ARE INTENDED FOR THE SOLE USE VIVA RAILINGS' CUSTOMER THEIR THEPRODUCT INSTALLATION FURNISHED

BY VIVA VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OF OTHER PURPOSE IS FORBIDDEN. SCALES AREAND PROVIDED FORAGENTS REFERENCEFOR ONLY. FOR INFORMATIONOF ANDPRODUCTS TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. RAILINGS. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

6

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

TM

V I V A

VIVA RAILINGS, LLC

VISIO RAILING SYSTEM

1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

VISIO RAILING SYSTEM

Page 3.2 of 4 1/16/2024

Mounting Condition, Fascia Mounted Clamp MOUNTING CONDITION, FASCIA MOUNTED POST

6"

6"

6"

6"

Embed Plate (By others)

Welded @ Embed Plate - $$

Welded @ Steel Tube - $$

Detail# ZA-F02

Detail# ZA-F04

(1) Min. 4000 PSI concrete, Typ. VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA

VIVA RAILINGS ISPRODUCTS NOT RESPONSIBLE FORTO THEBE STRUCTURAL INTEGRITY ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED

BY VIVA RAILINGS. VIVA RAILINGS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ ARE TORAILINGS BE ATTACHEDIS ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT RAILINGS' ARE ATTACHED AREOFSTRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA HAS RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR PRODUCTS WHOM VIVA NOT RESPONSIBLE. VIVA RAILINGS’S MATERIALS.ARE ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGSFOR ARE INTENDED FOR THE SOLE USEOF OF VIVA RAILINGS’ CUSTOMER AND THEIR THE INSTALLATION PRODUCTS REMAINS FURNISHED BYTHE VIVA RAILINGS. VIVA RAILINGS THE SOLE OWNER OF ALL DESIGNS ANDPROPERTY INTELLECTUAL PROPERTY THESE DRAWINGS INTENDED FOR THE SOLE USE OF VIVA RAILINGS' CUSTOMER AND THEIR AGENTS THE INSTALLATION PRODUCTS FURNISHED BYAGENTS VIVA FOR RAILINGS. VIVA OF RAILINGS SOLE OWNER OF REMAINS ALL DESIGNS AND INTELLECTUAL CONTAINED WITHIN. CONTAINED WITHIN. REPRODUCTION OF THESE DESIGNS FOR ANYANY OTHEROTHER PURPOSEPURPOSE IS FORBIDDEN.IS SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. REPRODUCTION AND USEAND OFUSE THESE DESIGNS FOR FORBIDDEN. SCALES ARE PROVIDED FORINFORMATION REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

7

TM

V I V A

VIVA RAILINGS, LLC

VISIO RAILING SYSTEM

1454 HALSEY WAY, CARROLLTON, TX 75007

VISIO RAILING SYSTEM

P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

Page 4 of 4 1/16/2024

Illuminated Railing ILLUMINATED RAILING

30° ASYM. LINEAR

SYM. LINEAR

U-CAP

LED

iRAIL Linear

SYM. POD

3" 28

ILLUMINATED HANDRAIL 36" TO FF

iRAIL LINEAR ORIENTATION OPTIONS

22° ASYM. POD

1" Ø12

Illuminated Handrail Option

18" 24" OR 36"

Illuminated Top rail Options

POD

iRAIL POD ORIENTATION OPTIONS

iRAIL POD SPACING OPTIONS

See Viva iRail Railing System for more info

iRAIL LIGHTED RAILING SYSTEM 8

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

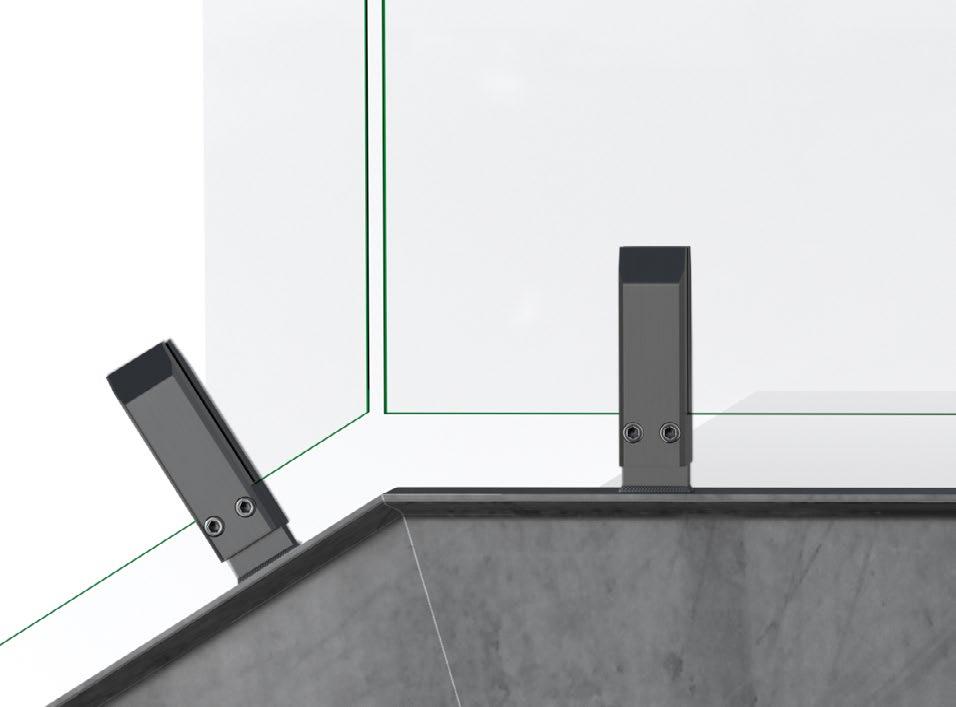

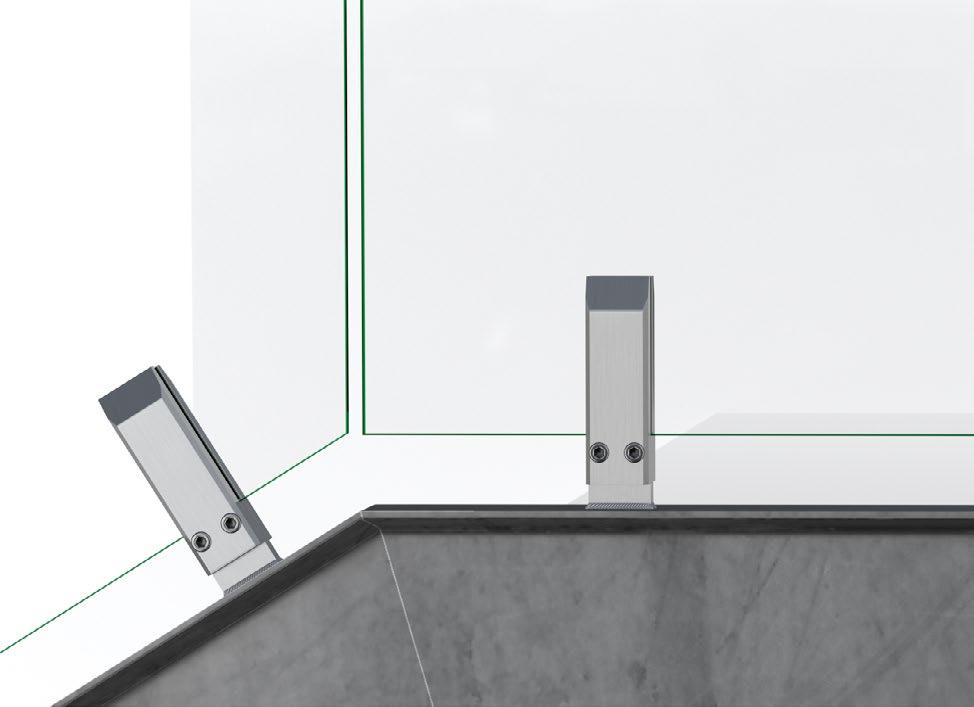

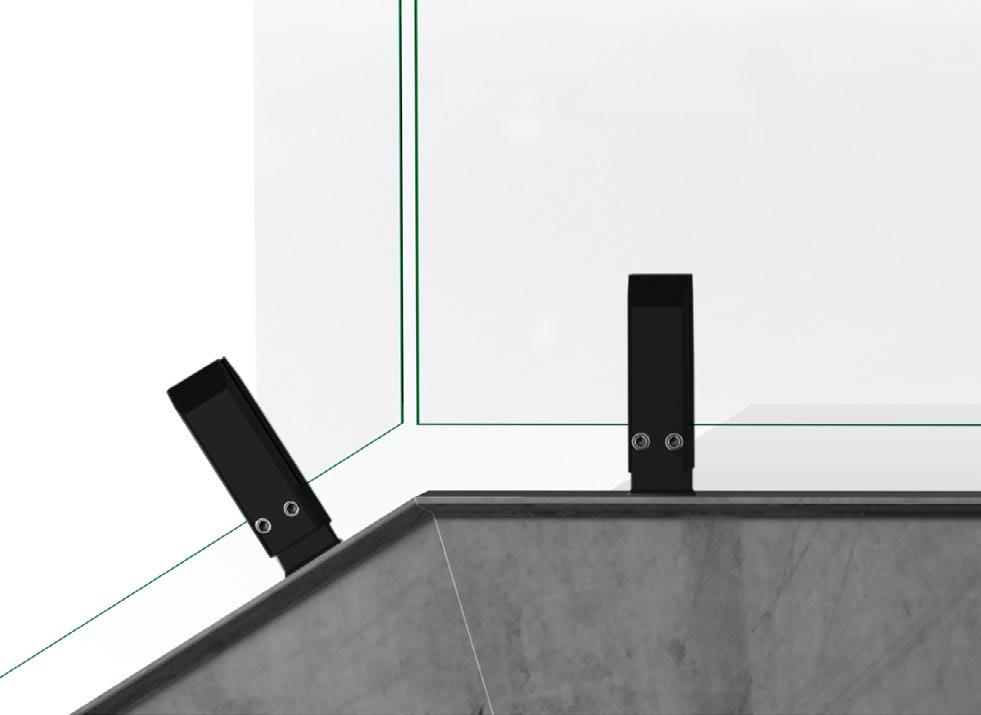

VISIO GLASS RAILING SYSTEM FINISHING OPTIONS

#6 SATIN - #8 MIRROR

ECM

#8 Mirror Finish comes at an additional cost to our #6 Finish.

POWDER COAT

Available in Satin Black, Brass, Gold & Copper.

Available in Standard and Premium Colors

ECM finish is not available for U-cap, top rail or hand rail.

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

9

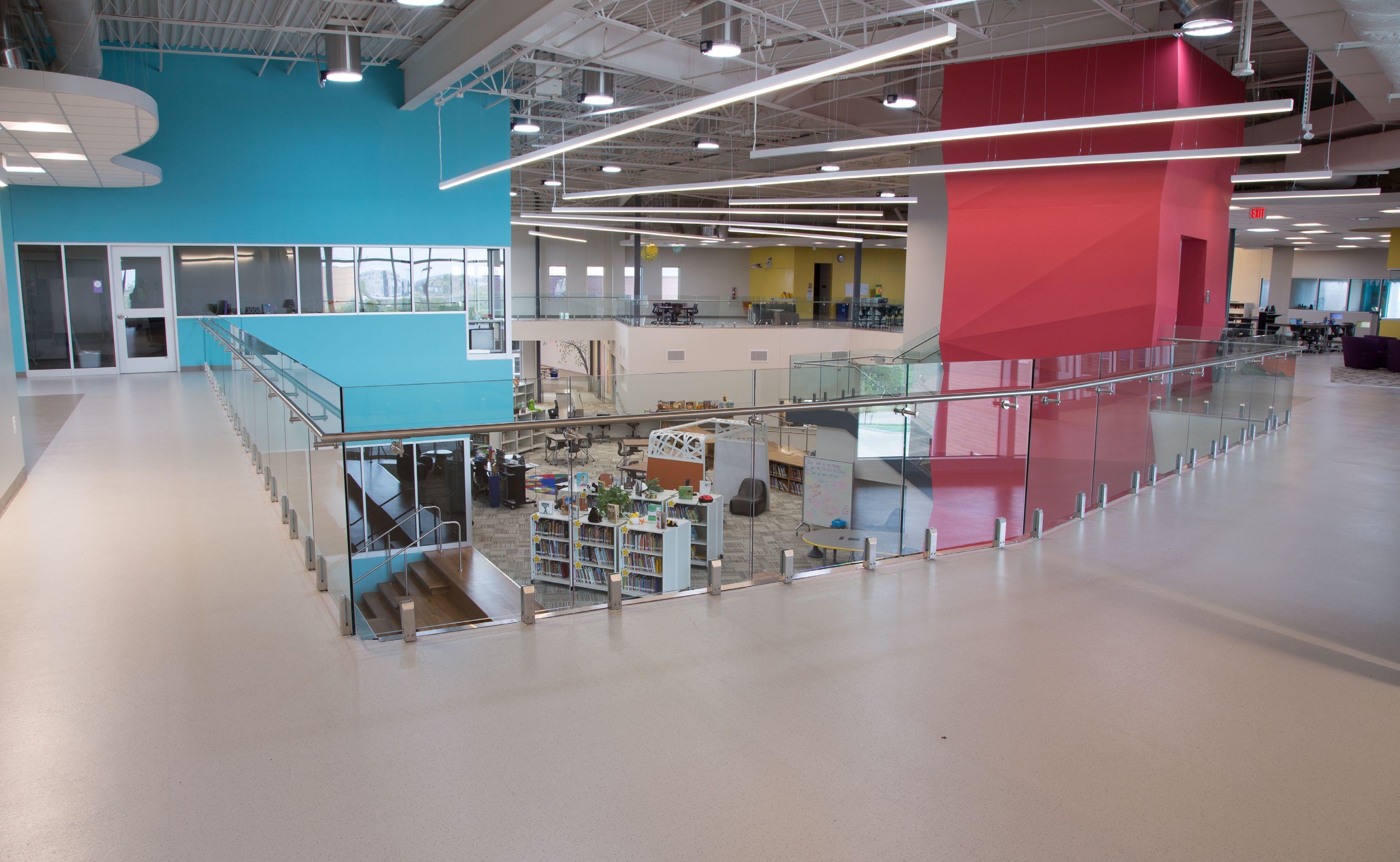

VISIO GLASS RAILING SYSTEM MANOR ISD NEW TECH MIDDLE SCHOOL

MANOR ISD NEW TECH MIDDLE SCHOOL - MANOR, TX General Contractor: Joeris General Contractors Architect: Stantec Corporation

10

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

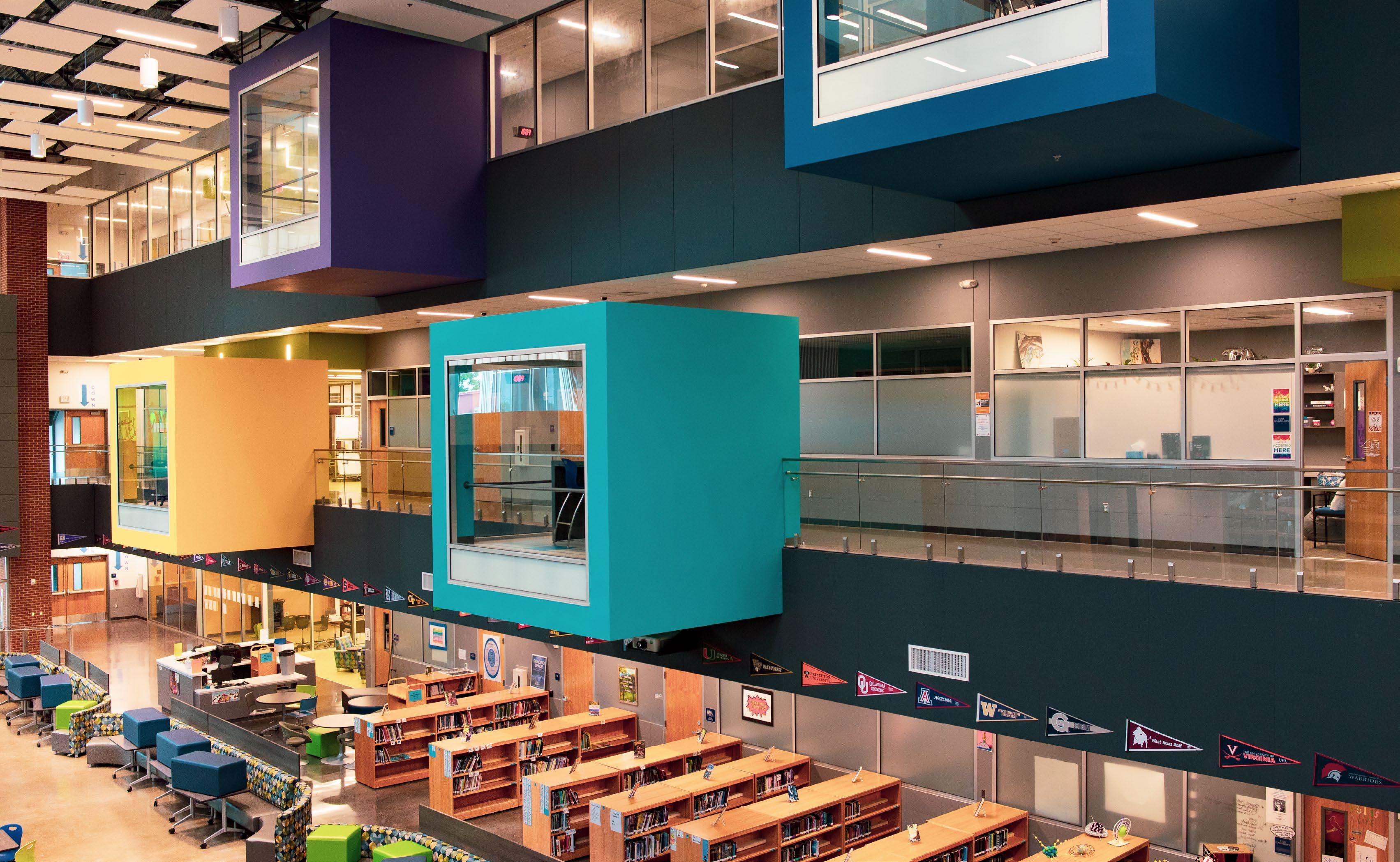

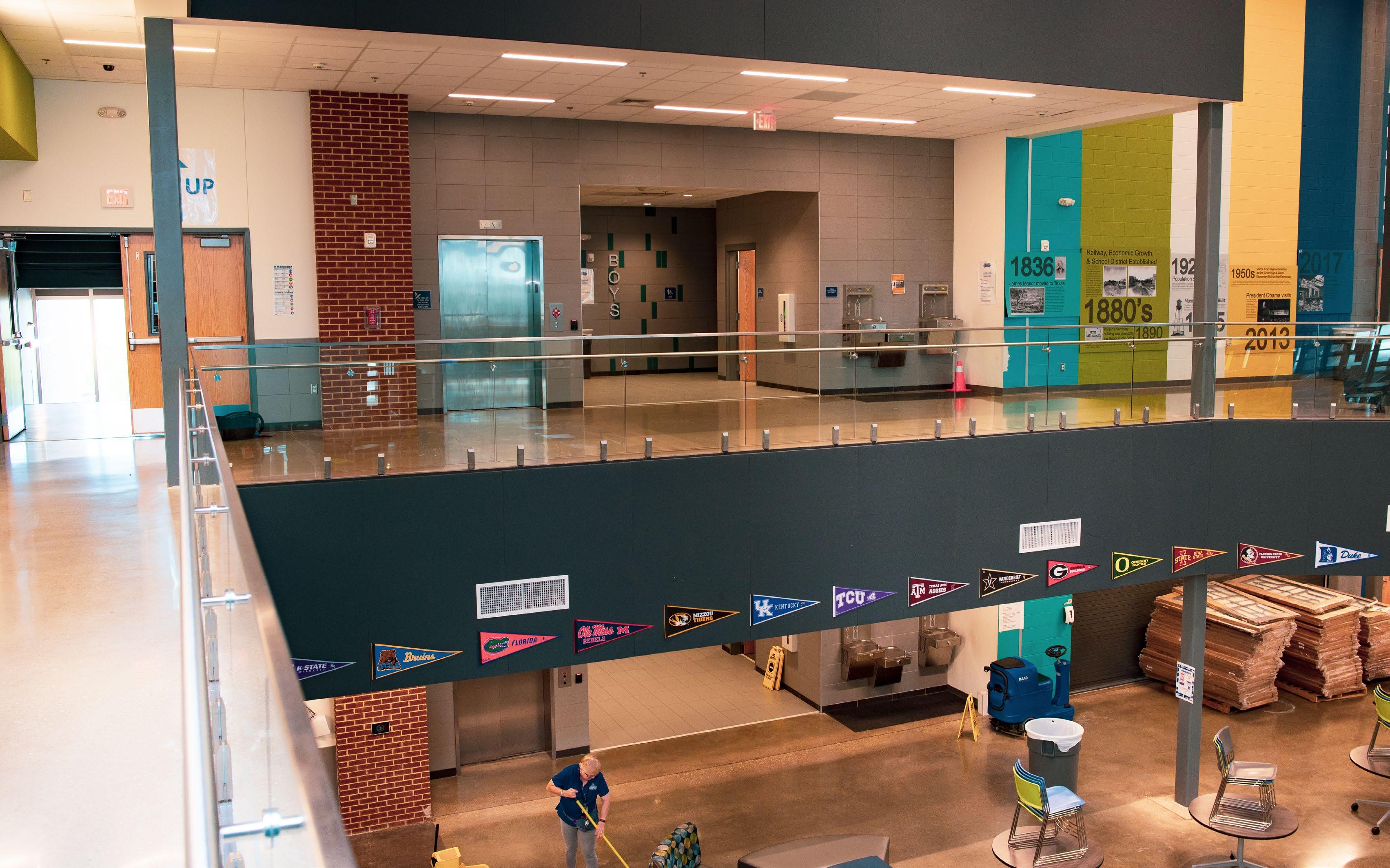

VISIO GLASS RAILING SYSTEM RICHARD J. LEE ELEMENTARY
