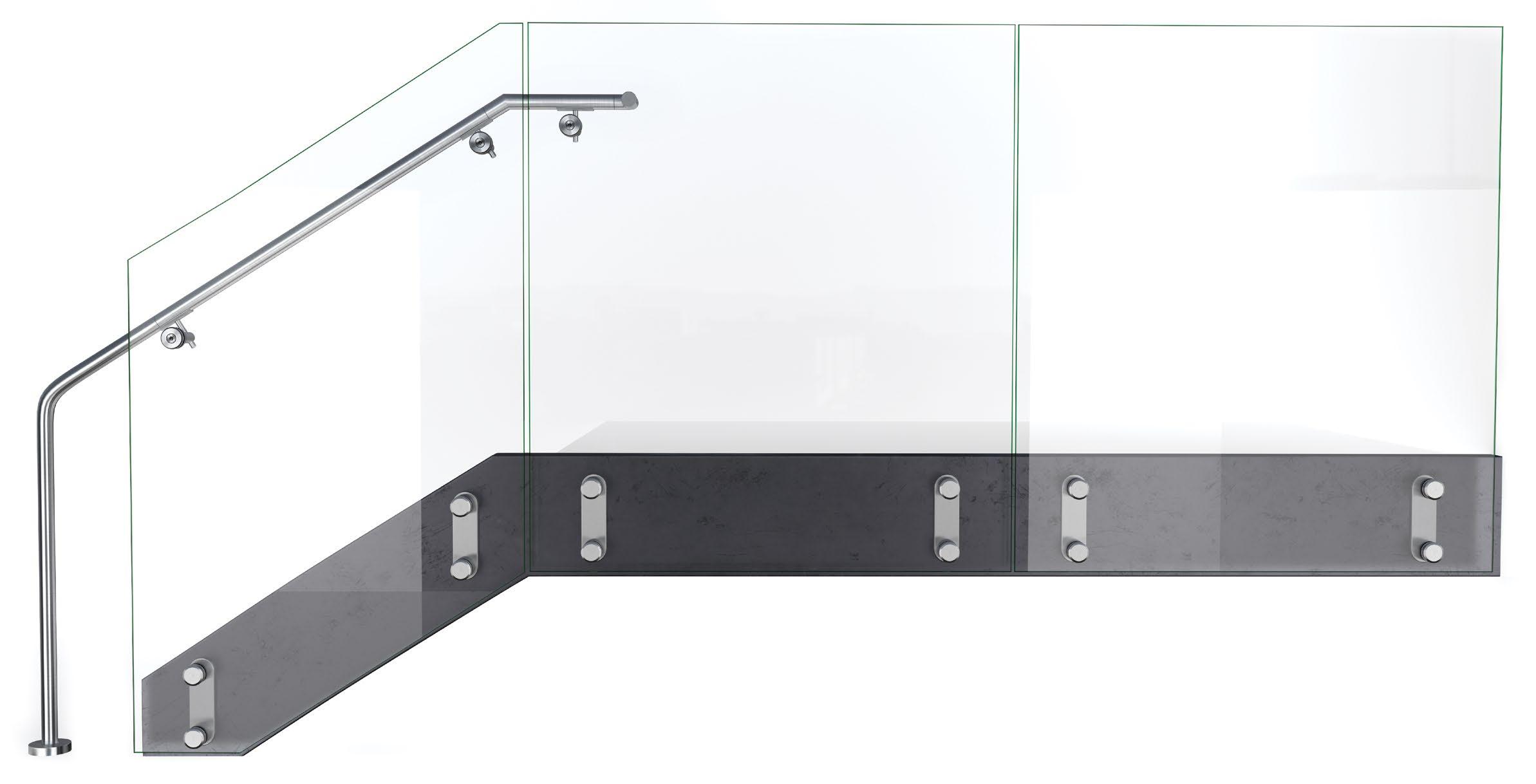

VIEW™ GLASS SYSTEM - TECHNICAL DATA
MATERIAL FINISH SIZE/SPACING
Stainless Steel (304 or 316)
STANDOFF
#6 Satin, #8 Mirror
ECM
Stainless Steel (201)
Powder Coat
INFILL OPTIONS
Glass Clear, Tinted or Frit
Ø2” Fascia mount, 4’-6” max.* Glass infill
* Max. spacing changes upon glass thickness
Min. 1/2” SGP laminated glass¹ or Min. 5/8” PVB laminated glass
TOP RAIL
Stainless Steel U-Cap
Stainless Steel U-Cap with LED 2
Stainless Steel Tube with LED
#6 Satin, Powder Coat
#6 Satin
1” Height U-Cap
1” Height U-Cap with LED LINEAR
Ø1-1/2” tube with LED LINEAR
HAND RAIL
ECM finish is not available for U-cap, top rail or hand rail.
Stainless Steel Tube
Stainless Steel Tube with LED
Wood (Red Oak, Cherry or Maple) 3
#6 Satin
#6 Satin, Powder Coat Unstained
Ø1-1/2” or Ø2” tube
Ø1-1/2” with LED LINEAR, Ø1-1/2” or Ø2” with LED POD
Ø2”
Wood (Red Oak, Cherry or Maple) with LED Ø2” with LED LINEAR
1. IBC 2015 & newer requires railing glass to be laminated. VIVA recommends SGP for exterior applications.
2. All LED LINEAR products are ETL certified; ETL mark is proof of product compliance to North American safety standard.
3. Other species available upon request.
3
info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com
VIEW RAILING SYSTEM
Glass Infill
LAMINATED GLASS
LAMINATED GLASS
* Max. spacing changes upon glass thickness.
VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS' CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.
4 G03 G02 G01
HAND RAIL
4'-6" MAX* 4'-6" MAX* 1'-0" 1'-0"
U-CAP
3'-0" 3'-7"
U-CAP
VIVA RAILINGS, LLC 1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com V A I
STRINGER STANDOFF
HAND RAIL
1 2 "
NOM. GAP
6" TYP. 21 8 "
Clear Monolithic Clear Laminated (PVB or SGP)
Colored Laminate (PVB only)
Page 2 of 4 12/6/2023
FLOOR LEVEL 1 0'-0" info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. AVAILABLE GLASS TYPES TOP RAIL OPTIONS VIEW RAILING SYSTEM GLASS INFILL
Bent Tinted Satin Etched Ceramic Frit
AVAILABLE GLASS TYPES:
FINISH
VIEW GLASS RAILING SYSTEM

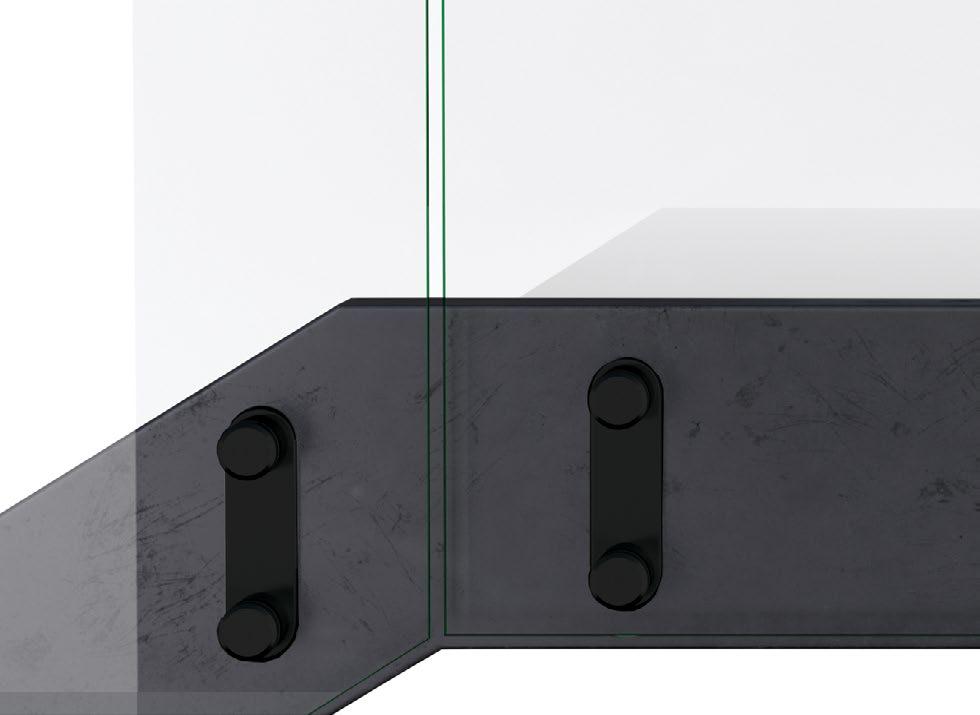

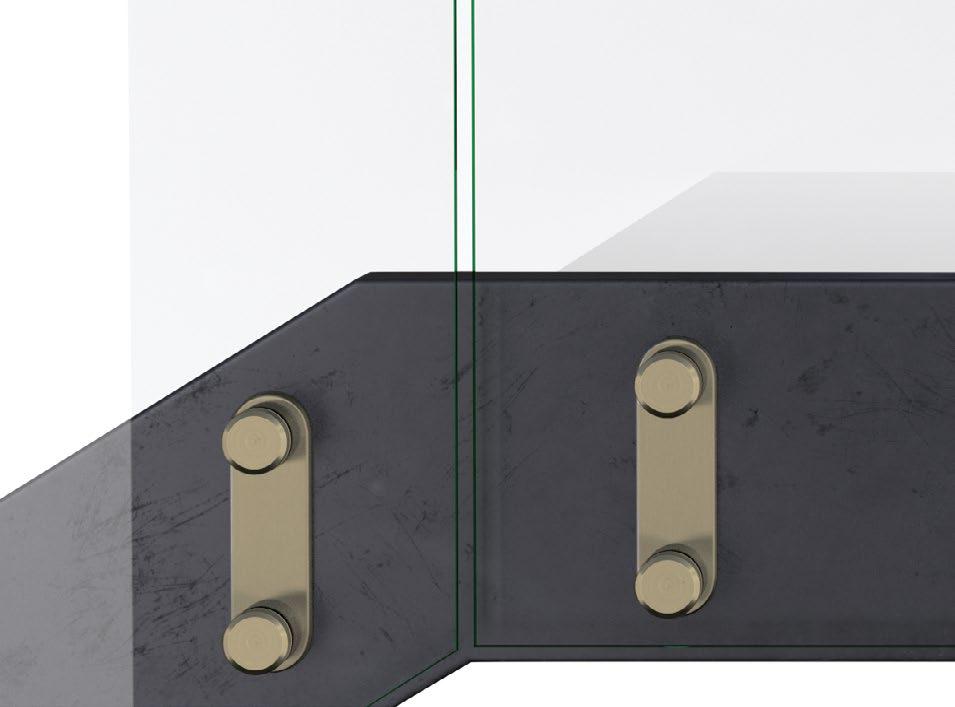

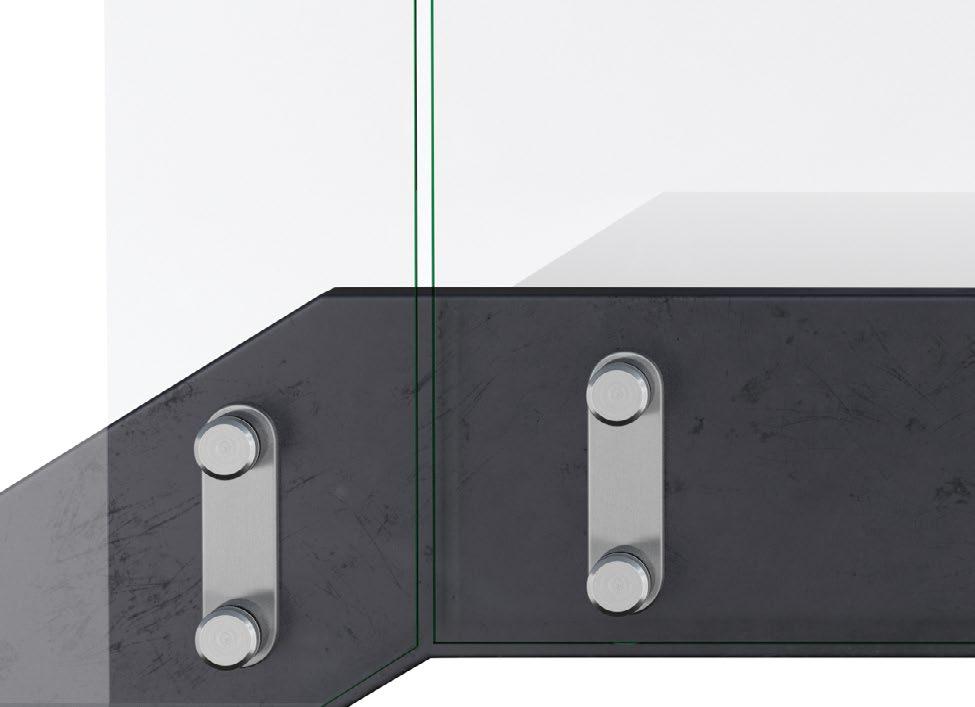

#6 SATIN - #8 MIRROR ECM
#8 Mirror Finish comes at an additional cost to our #6 Finish.
ECM finish is not available for U-cap, top rail or hand rail.
Available in Satin Black, Brass, Gold & Copper.
POWDER COAT
Available in Standard and Premium Colors
5
FINISHING OPTIONS
info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com
(1)
(2)
Mounting Condition
Anchored to Concrete ¹ - $$$ ²
Detail# VA-F01
Welded @ Embed Plate - $$
Detail# VA-F02
Embed Plate
(By others)
Welded @ Steel Tube - $$
Detail# VA-F03
6 6" 6"
6" MIN. 6" MIN. 6" VIVA RAILINGS, LLC 1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com V V A TM I VIEW RAILING SYSTEM 6"
Min. 4000 PSI concrete, Typ.
$ to $$$: Indicates mounting type comparative cost
RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS' CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. Page 3 of 4 12/6/2023 info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. VIEW RAILING SYSTEM MOUNTING CONDITION, TOP MOUNTED POST
VIVA
30° ASYM. LINEAR SYM. LINEAR
iRAIL LINEAR ORIENTATION OPTIONS
iRAIL POD ORIENTATION
22° ASYM. POD SYM. POD See Viva iRail Railing System for
Illuminated Top rail Options
7 VIVA RAILINGS, LLC 1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com V V A TM VIEW RAILING SYSTEM
Ø11 2 " 36 " TO FF U-CAP
23 8 "
Illuminated Railing
ILLUMINATED HANDRAIL
Illuminated Handrail Option
OPTIONS 18" 24"
36"
OR
iRAIL POD SPACING OPTIONS POD iRAIL Linear
more info LED
Page 4 of 4 12/6/2023 info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIEW RAILING SYSTEM iRAIL LIGHTED RAILING SYSTEM ILLUMINATED RAILING

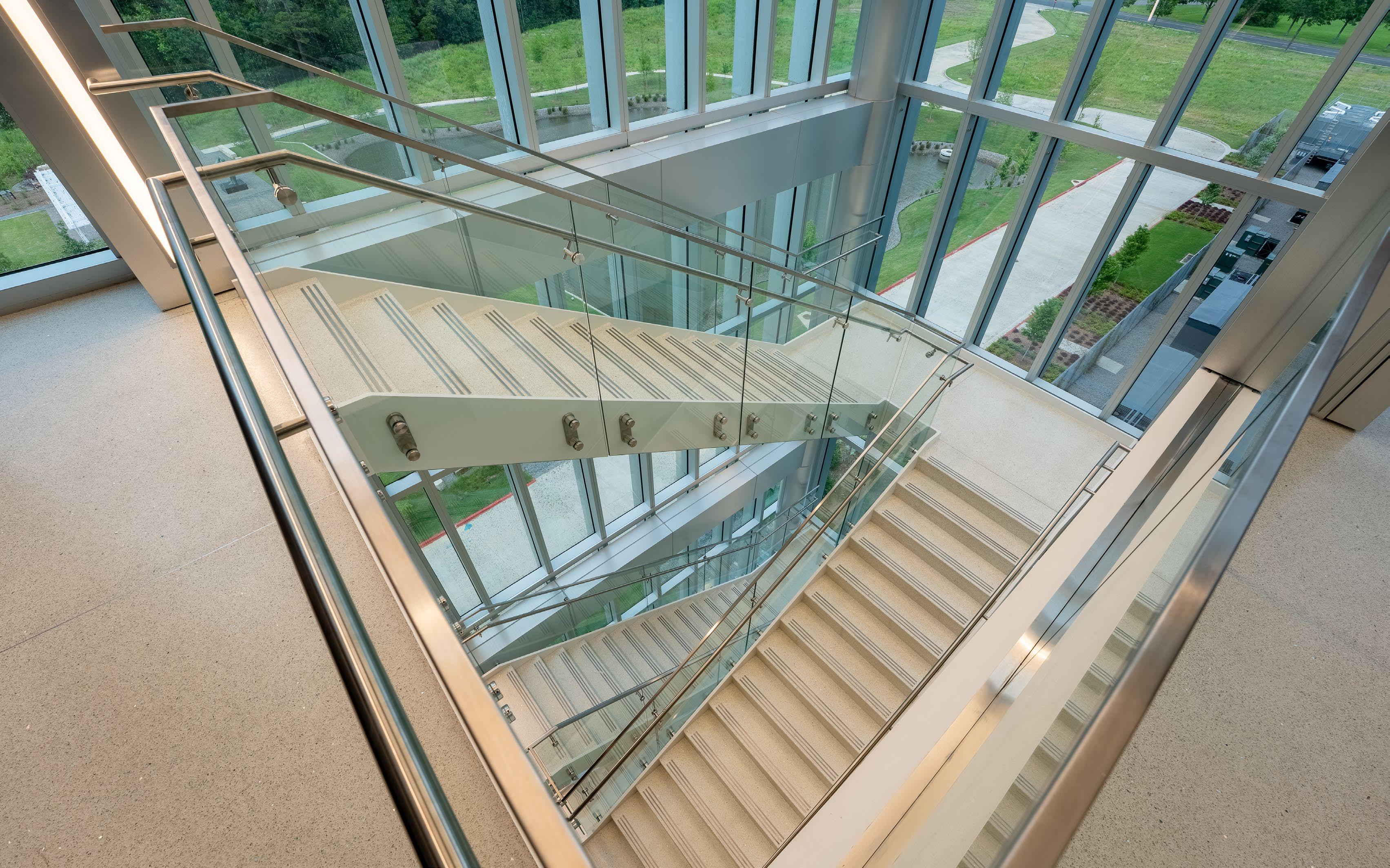

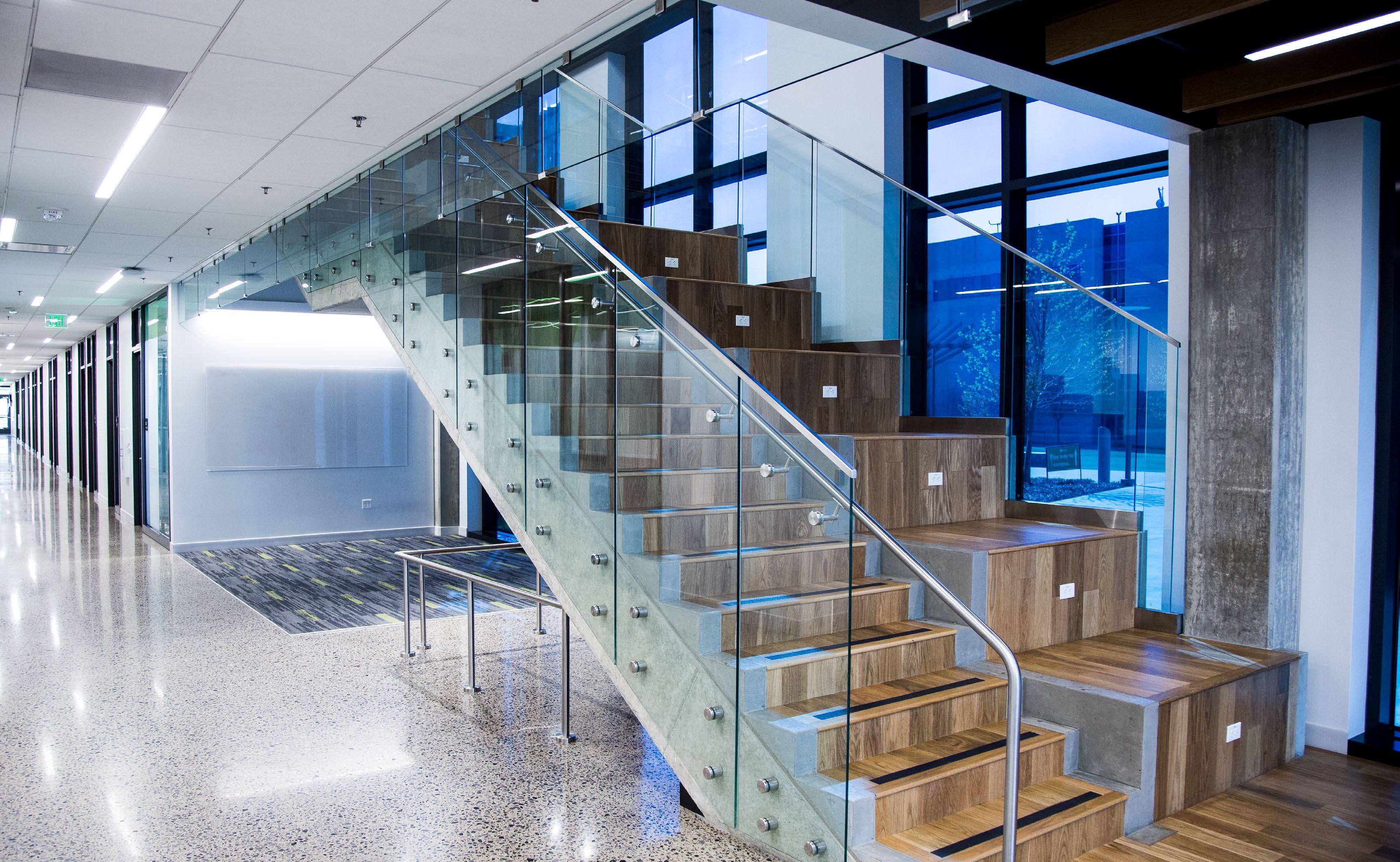

8 VIEW GLASS RAILING SYSTEM SMU FRANCES ANNE MOODY HALL General Contractor: The Beck Group Architect: Smithgroup Inc SMU FRANCES ANNE MOODY HALL - DALLAS, TX info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com

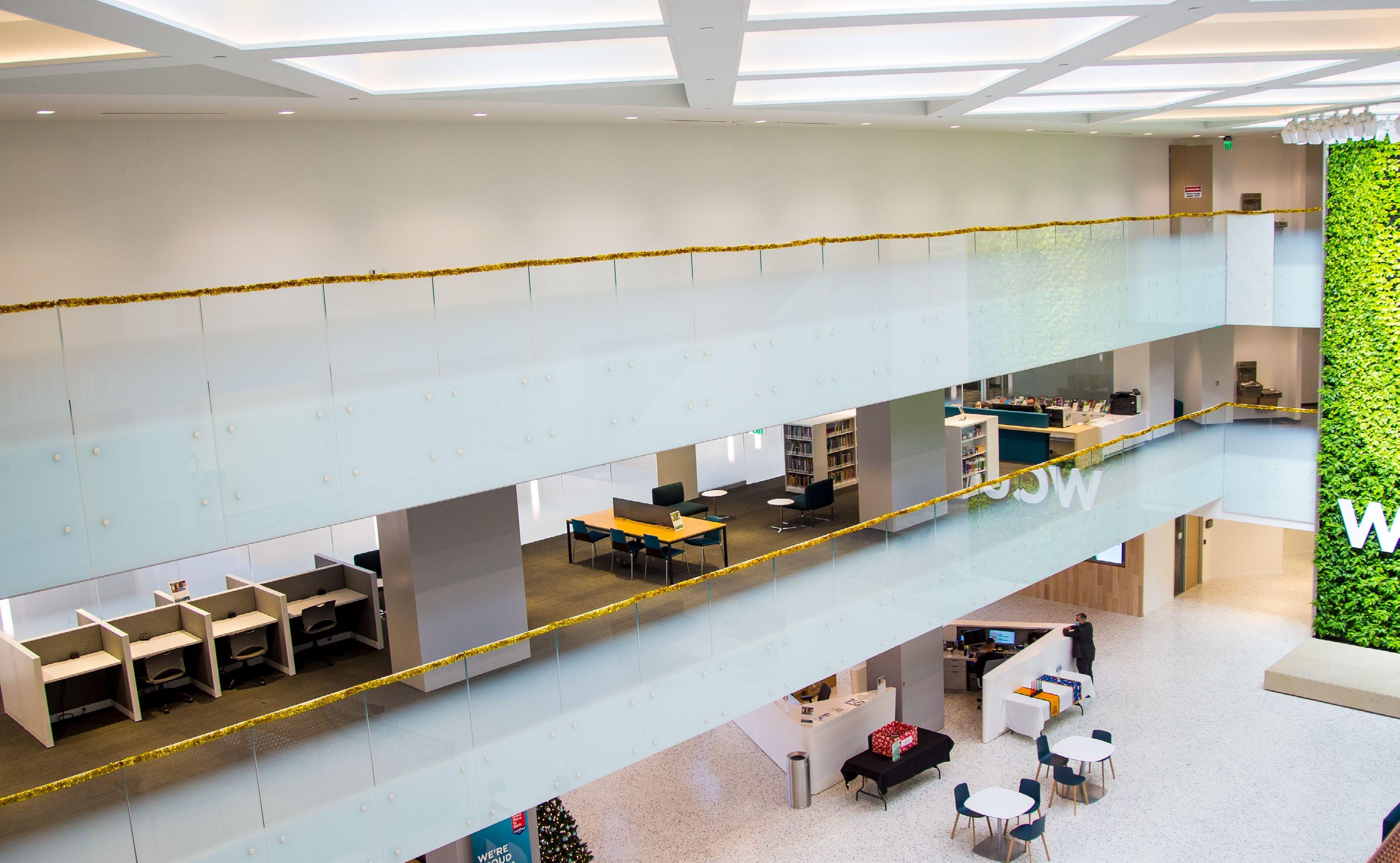

9 VIEW GLASS RAILING SYSTEM UT DALLAS SCIENCE CENTER General Contractor: Linbeck Group Architect: Stantec Corporation UNIV. OF TEXAS DALLAS SCIENCE EDUCAITON CENTER - DALLAS, TX info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com

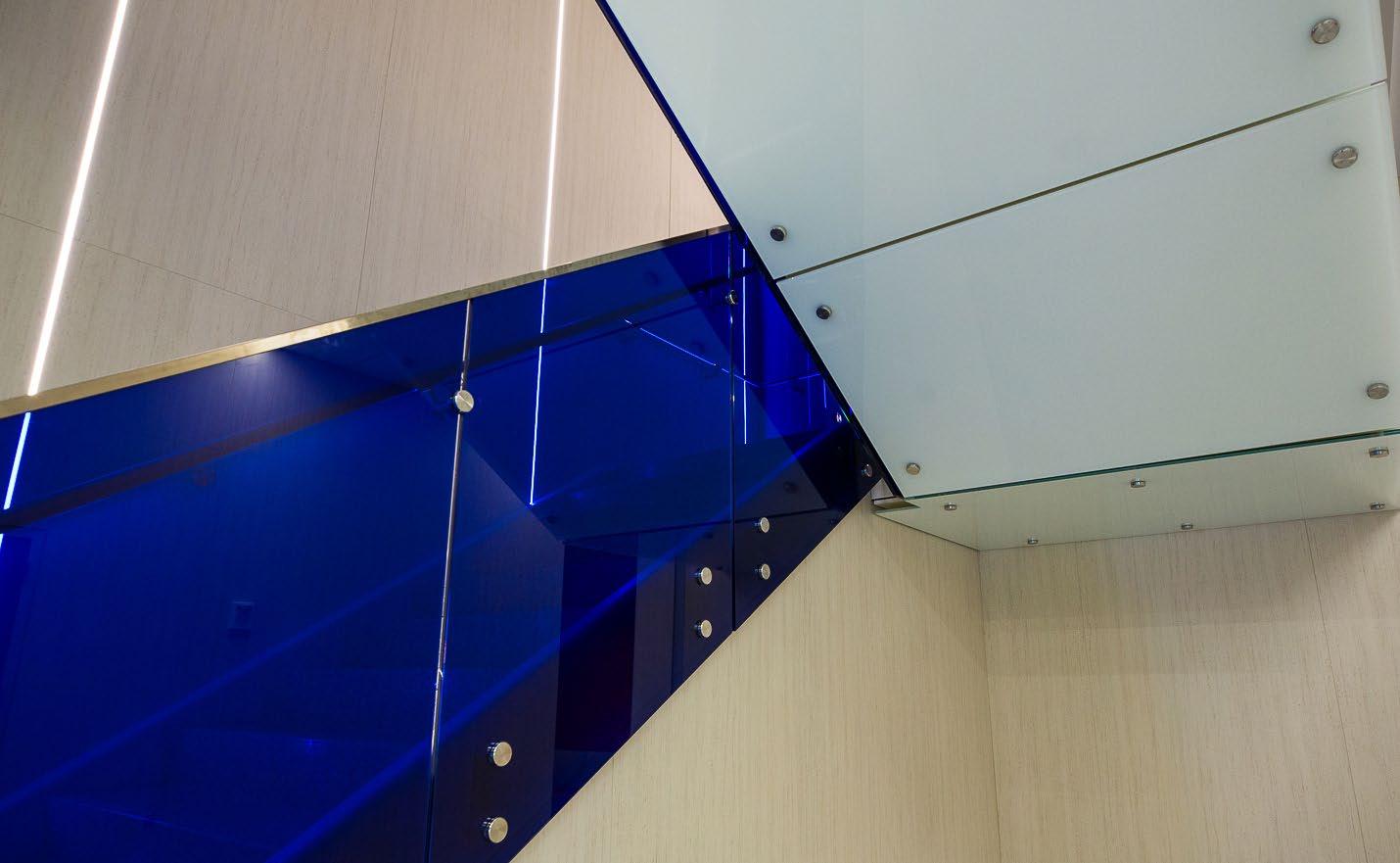

10 VIEW GLASS RAILING SYSTEM WEST COAST UNIVERSITY info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com General Contractor: Pogue Construction Architect: Huckabee Architects
COAST UNIVERSITY - RICHARDSON, TX
WEST

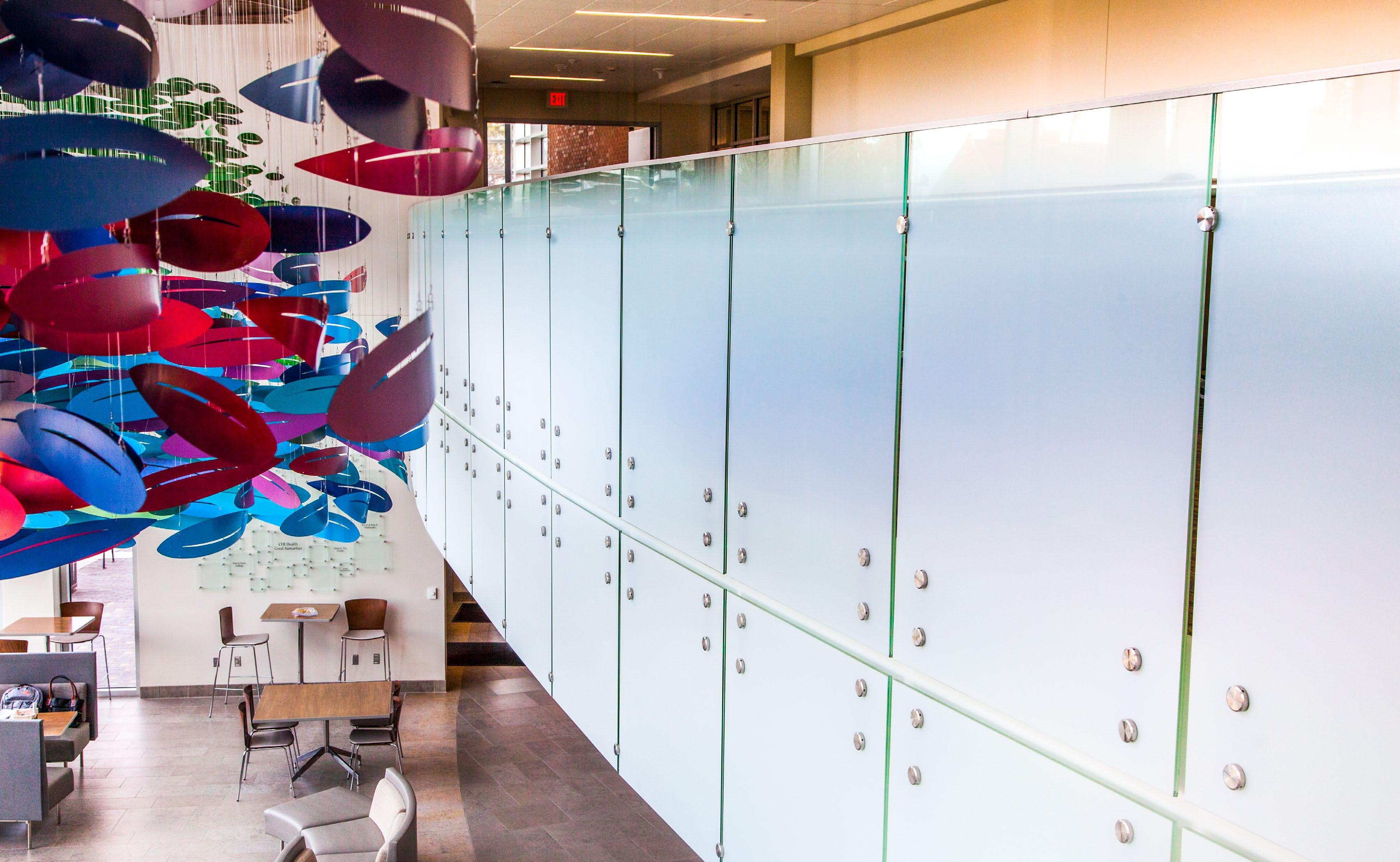

11 VIEW GLASS RAILING SYSTEM UNK SCIENCE EDCATION BUILDING info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com General Contractor: RDG USA Architect: Kearney Glass UNK SCIENCE & ENGINEERING BUILDING - KEARNEY NE
