SOLO GLASS Product Data

SOLO GLASS RAILING SYSTEM PRODUCT DATA ™

SOLO - AVAILABLE INFILLS Glass

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

SOLO GLASS RAILING SYSTEM ™

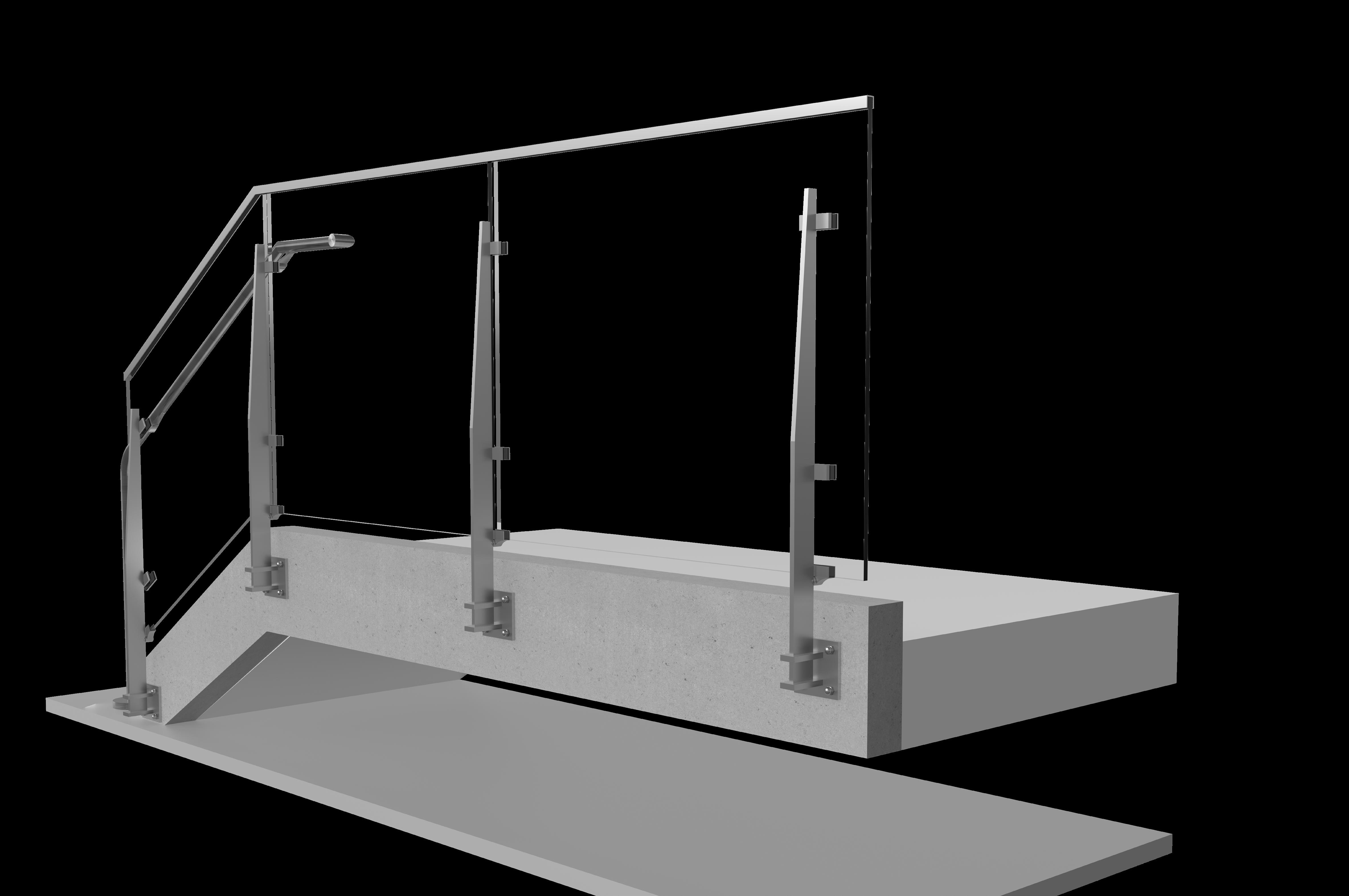

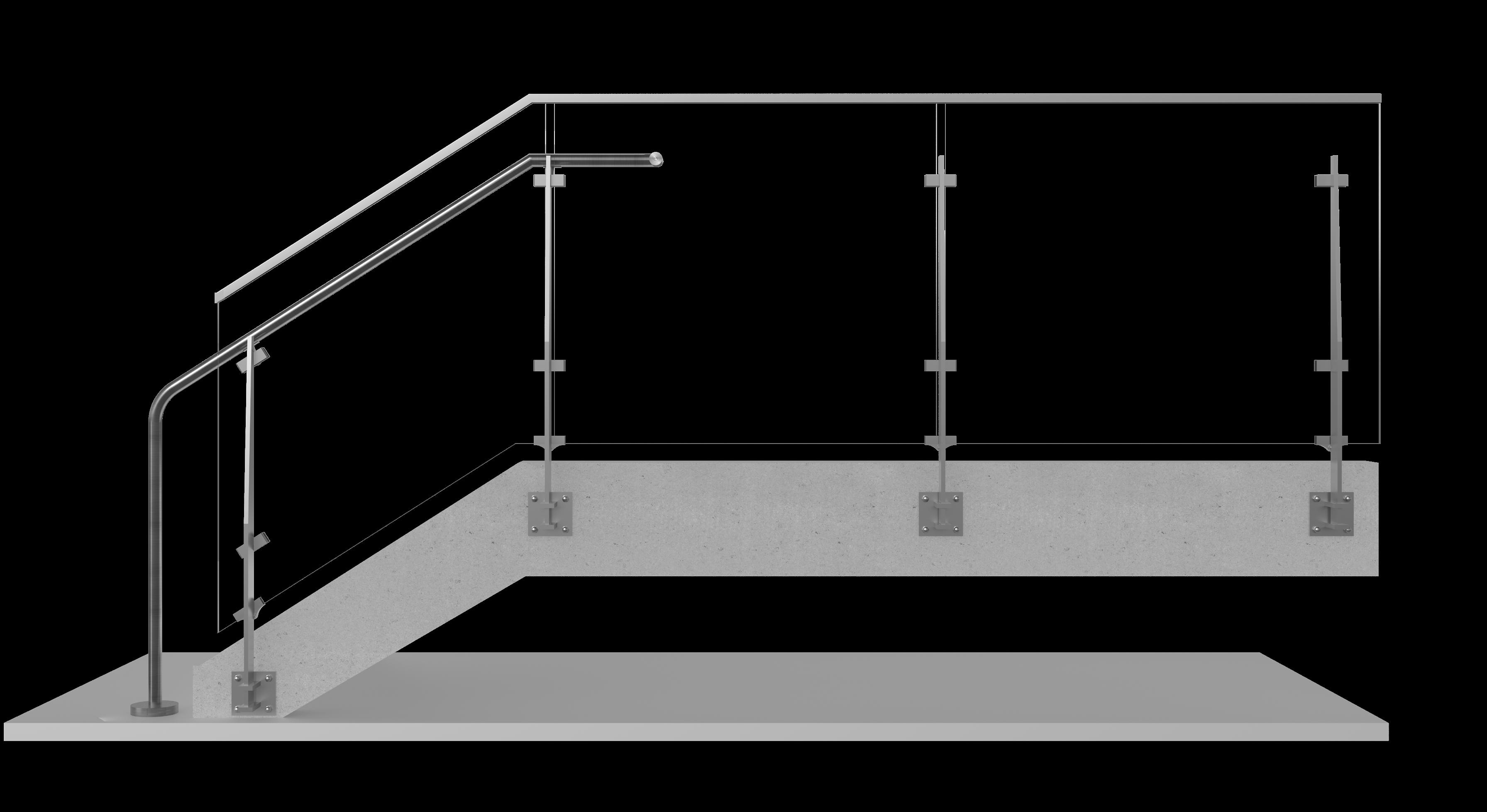

Our SOLO Ornamental Stainless Steel Glass Railing System exquisitely balances an unobstructed view with contemporary elegance. This railing system is ideal for balcony balustrades (as illustrated in the Toyota U.S. Headquarters stainless steel railings), commercial building atriums, and monumental stair railings. The variety of mounting options available (top, fascia, or core mount) means that whatever the demands of your design, VIVA will be able to provide the right solution.

SOLO - AVAILABLE INFILLS Glass

Other mounting options available.

2

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

SOLO GLASS SYSTEM - TECHNICAL DATA ™

MATERIAL

FINISH

SIZE/SPACING

#6 Satin, #8 Mirror Stainless Steel (304 or 316)

POST

ECM Stainless Steel (201)

2 1/2” Flat bar post @ 4’-6” max. at level and 4’-0” max. at stair.

Fascia, Top or Core mount.

Powder Coat

INFILL OPTIONS

Glass

Clear, Tinted or Frit

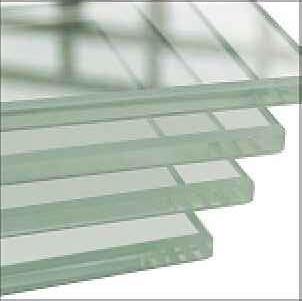

Min. 3/8” laminated glass with PVB or SGP interlayer ¹ Glass standard thickness: 3/8”, 1/2”, 5/8”, 3/4” Interlayer standard thickness, SGP: 0.035” , 0.06” PVB: 0.035

TOP RAIL

Stainless Steel (304 or 316)

#6 Satin, Powder Coat

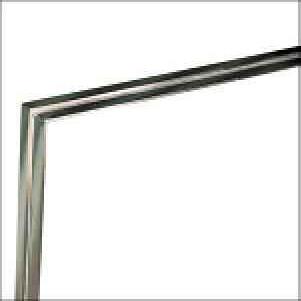

1” Height U channel or without Top Rail

Stainless Steel Tube

#6 Satin, Powder Coat

Ø1-1/2” or 2”

Stainless Steel Tube with LED 2

#6 Satin

Ø1-1/2” with LED LINEAR, Ø1-1/2” or Ø2” with LED POD

HAND RAIL ECM finish is not available for U-cap, top rail or hand rail.

Ø2”

Wood (Red Oak, Cherry or Maple) ³ Unstained Wood (Red Oak, Cherry or Maple) with LED

Ø2” with LED LINEAR

1. IBC 2015 & newer requires railing glass to be laminated. VIVA recommends SGP for exterior applications.

2. All LED LINEAR products are ETL certified; ETL mark is proof of product compliance to North American safety standard.

3. Other species available upon request.

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

3

I V A

VIVA RAILINGS, LLC

SOLO RAILING SYSTEM

1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

Page 2.1 of 4 1/30/2024

SOLO RAILING SYSTEM Type A1 - Glass in and above slab GLASS INFILL - TYPE A1 - GLASS IN AND ABOVE SLAB AVAILABLE GLASS TYPES

AVAILABLE GLASS TYPES: Clear Monolithic

4'-0" MAX

Clear Laminated (PVB or SGP)

Bent

Tinted

Satin Etched

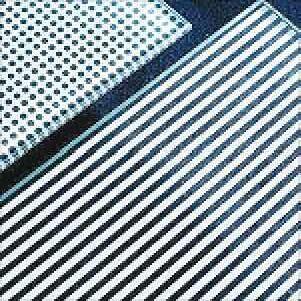

Ceramic Frit

4'-6" MAX

U-CAP

Colored Laminate (PVB only)

LAMINATED GLASS

HAND RAIL

U-CAP G02

G03

2" NOM.

3'-0"

1" NOM. GAP

G01

3'-7"

HAND RAIL

FINISH FLOOR

1'-0"

SOLO POST

STRINGER

LAMINATED GLASS

TOP RAIL OPTIONS

LEVEL 1 0'-0"

1'-0" VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. ARE FOR INTENDED FOR INTEGRITY THE SOLE USE OF VIVA RAILINGS' THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED

BY VIVAORRAILINGS. VIVA RAILINGS REMAINS THEPRODUCTS SOLE OWNER ALL DESIGNS AND INTELLECTUAL CONTAINED WITHIN. VIVATHESE RAILINGSDRAWINGS IS NOT RESPONSIBLE THE STRUCTURAL OF ANY BUILDING SYSTEMS OR OTHERCUSTOMER MATERIALS NOT AND FURNISHED

BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ ARE TO BEOF ATTACHED ARE STRUCTURALLY SOUND OR DESIGNEDPROPERTY TO PROPERLY SUPPORT VIVAREPRODUCTION RAILINGS’S MATERIALS.AND ANY SUCH RESPONSIBILITY BELONGS TOANY OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDEDFOR FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THEAND INSTALLATION OF PRODUCTS FURNISHED

BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY USEDESIGN OF THESE DESIGNS FOR OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED REFERENCE ONLY. FOR PRODUCT INFORMATION TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

4

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

I V A

VIVA RAILINGS, LLC

SOLO RAILING SYSTEM

1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

Page 2.2 of 4 1/30/2024

SOLO RAILING SYSTEM Type A2 - Glass in and slab cover GLASS INFILL - TYPE A2 - GLASS IN AND SLAB COVER AVAILABLE GLASS TYPES

AVAILABLE GLASS TYPES: Clear Monolithic

4'-0" MAX

Clear Laminated (PVB or SGP)

Bent

Tinted

Satin Etched

Ceramic Frit

4'-6" MAX

U-CAP

Colored Laminate (PVB only)

LAMINATED GLASS

HAND RAIL

U-CAP G02

G03

3'-0"

1" NOM. GAP

G01

3'-7"

HAND RAIL

FINISH FLOOR

1'-0"

SOLO POST

STRINGER

LAMINATED GLASS LEVEL 1 0'-0"

1'-0" VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. ARE FOR INTENDED FOR INTEGRITY THE SOLE USE OF VIVA RAILINGS' THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED

BY VIVAORRAILINGS. VIVA RAILINGS REMAINS THEPRODUCTS SOLE OWNER ALL DESIGNS AND INTELLECTUAL CONTAINED WITHIN. VIVATHESE RAILINGSDRAWINGS IS NOT RESPONSIBLE THE STRUCTURAL OF ANY BUILDING SYSTEMS OR OTHERCUSTOMER MATERIALS NOT AND FURNISHED

BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ ARE TO BEOF ATTACHED ARE STRUCTURALLY SOUND OR DESIGNEDPROPERTY TO PROPERLY SUPPORT VIVAREPRODUCTION RAILINGS’S MATERIALS.AND ANY SUCH RESPONSIBILITY BELONGS TOANY OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDEDFOR FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THEAND INSTALLATION OF PRODUCTS FURNISHED

BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY USEDESIGN OF THESE DESIGNS FOR OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED REFERENCE ONLY. FOR PRODUCT INFORMATION TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

5

I V A

VIVA RAILINGS, LLC

SOLO RAILING SYSTEM

1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

Page 2.3 of 4 1/30/2024

SOLO RAILING SYSTEM Type B1 - Glass out and slab cover GLASS INFILL - TYPE B1 - GLASS OUT AND SLAB COVER AVAILABLE

AVAILABLE GLASS GLASS TYPES TYPES: Clear Monolithic

4'-0" MAX

Clear Laminated (PVB or SGP)

Bent

Tinted

Satin Etched

Ceramic Frit

4'-6" MAX

U-CAP

Colored Laminate (PVB only)

LAMINATED GLASS

HAND RAIL

U-CAP G02

G03

3'-0"

1" NOM. GAP

G01

3'-7"

HAND RAIL

FINISH FLOOR

1'-0"

SOLO POST

STRINGER

LAMINATED GLASS LEVEL 1 0'-0"

1'-0" VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE INTEGRITY SOLE USE OFBUILDING VIVA RAILINGS' CUSTOMER THEIR AGENTS FOR THE INSTALLATION PRODUCTS FURNISHED

BY VIVA RAILINGS. RAILINGS REMAINS SOLE OWNER ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL OF ANY SYSTEMS OR OTHER MATERIALSAND NOT FURNISHED

BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAYOF OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THEVIVA BUILDING SYSTEMS TO WHICH VIVATHE RAILINGS’ PRODUCTS ARE OF TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE FOR PRODUCT INFORMATION AND PLEASE RAILINGS. VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHER OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USEONLY. OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THETECHNICAL INSTALLATION OFSUPPORT, PRODUCTS FURNISHED BYCONTACT VIVA RAILINGS.VIVA VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

6

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

SOLO RAILING SYSTEM

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

7

TM

V I V A

VIVA RAILINGS, LLC

SOLO RAILING SYSTEM

1454 HALSEY WAY, CARROLLTON, TX 75007

SOLO RAILING SYSTEM

P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

Page 3.1 of 4 1/30/2024

5" MIN.

5" MIN.

Mounted Post MOUNTINGMounting CONDITION, Condition, TOP MOUNTEDTop POST

6" MIN.

6" MIN. 3" MIN.

Anchored to Concrete ¹ - $ ²

Cored into Concrete - $$

Welded @ Steel Channel - $

Detail# SL-T01

Detail# SL-T02

Detail# SL-T03

Welded @ Embed Plate - $

Anchored to Concrete Slab on Deck - $$

Detail# SL-T04

Detail# SL-T05

6" MIN.

1" 62 MIN.

5" MIN.

3" MIN.

5" MIN.

Embed Plate (By others)

25" 8

3/8" BENT PLATE (BY OTHERS)

Anchored to Concrete Welded to Steel Plate - $$ Detail# SL-T06

(1) Min. 4000 PSI concrete, Typ. (2) $ to $$$: Indicates mounting type comparative cost VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA

VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT RAILINGS' PRODUCTS AREDESIGN TO BE ATTACHED ARE STRUCTURALLY OR ISDESIGNED TO PROPERLY SUPPORT VIVA ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS VIVA RAILINGS’S MATERIALS. ANY SUCH RESPONSIBILITY BELONGS TO OTHERS FOR WHOMSOUND VIVA RAILINGS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FORRAILINGS'S THE SOLE USE OFMATERIALS. VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED

BY VIVA RAILINGS. VIVA RAILINGS REMAINS IS THENOT SOLE RESPONSIBLE. OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY THESEWITHIN. DRAWINGS ARE INTENDED FOR THE SOLE OF VIVA RAILINGS' AND THEIR AGENTS THE INSTALLATION PRODUCTS BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. CONTAINED REPRODUCTION AND USE OF THESE DESIGNS FOR ANYUSE OTHER PURPOSE IS FORBIDDEN.CUSTOMER SCALES ARE PROVIDED FOR REFERENCE ONLY.FOR FOR PRODUCT INFORMATION ANDOF TECHNICAL SUPPORT,FURNISHED PLEASE CONTACT VIVA RAILINGS.

REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

8

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

TM

V I V A

VIVA RAILINGS, LLC

SOLO RAILING SYSTEM

SOLO RAILING SYSTEM

1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

Page 3.2 of 4 1/30/2024

Mounting Condition, Fascia POST Mounted Post MOUNTING CONDITION, FASCIA MOUNTED

6"

6"

6" MIN.

6"

6"

6" MIN.

Embed Plate (By others)

Anchored to Concrete ¹ - $$$

Welded @ Embed Plate - $$

Welded @ Steel Channel - $$

Detail# SL-F01

Detail# SL-F02

Detail# SL-F03

STUD or DEFORMED REBAR (BY OTHERS)

6"

3" MIN.

6"

3" MIN.

3/8" THICK POUR STOP (BY OTHERS)

Welded @ Steel Tube - $$

Welded @ Pour Stop - $$

Detail# SL-F04

Detail# SL-F05

(1) Min. 4000 PSI concrete, Typ.

iRAIL LIGHTED RAILING SYSTEM

VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER NOT FURNISHED

BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OFFURNISHED KNOWING AND SPECIFICALLY DISCLAIMS WHETHER NOT THE BUILDING SYSTEMS WHICH VIVA RAILINGS’ ARE TO BE ATTACHED ARE STRUCTURALLY OR DESIGNED TO PROPERLY SUPPORT TO WHICH VIVA VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OFMATERIALS ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT

BY VIVA RAILINGS. VIVA OR RAILINGS HAS NO WAYTO OF KNOWING ANDPRODUCTS SPECIFICALLY DISCLAIMS WHETHERSOUND OR NOT THE BUILDING SYSTEMS VIVA RAILINGS’S MATERIALS. ANY SUCH RESPONSIBILITY BELONGS TO OTHERS FOR WHOMSOUND VIVA RAILINGS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FORRAILINGS'S THE SOLE USE OFMATERIALS. VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED

BY VIVA RAILINGS. VIVA RAILINGS REMAINS IS THENOT SOLE RESPONSIBLE. OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY RAILINGS' PRODUCTS AREDESIGN TO BE ATTACHED ARE STRUCTURALLY OR ISDESIGNED TO PROPERLY SUPPORT VIVA ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS CONTAINED REPRODUCTION AND USE OF THESE DESIGNS FOR ANYUSE OTHER PURPOSE IS FORBIDDEN.CUSTOMER SCALES ARE PROVIDED FOR REFERENCE ONLY.FOR FOR PRODUCT INFORMATION ANDOF TECHNICAL SUPPORT,FURNISHED PLEASE CONTACT VIVA RAILINGS. THESEWITHIN. DRAWINGS ARE INTENDED FOR THE SOLE OF VIVA RAILINGS' AND THEIR AGENTS THE INSTALLATION PRODUCTS BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN.

REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

9

I V A

SOLO RAILING SYSTEM

1454 HALSEY WAY, CARROLLTON, TX 75007 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

Page 4 of 4 1/30/2024

SOLO Illuminated RAILING SYSTEM Railing ILLUMINATED RAILING

30° ASYM. LINEAR

SYM. LINEAR

U-CAP

LED

iRAIL Linear

SYM. POD

5" 216

ILLUMINATED HANDRAIL 36" TO FF

iRAIL LINEAR ORIENTATION OPTIONS

22° ASYM. POD

1" Ø12

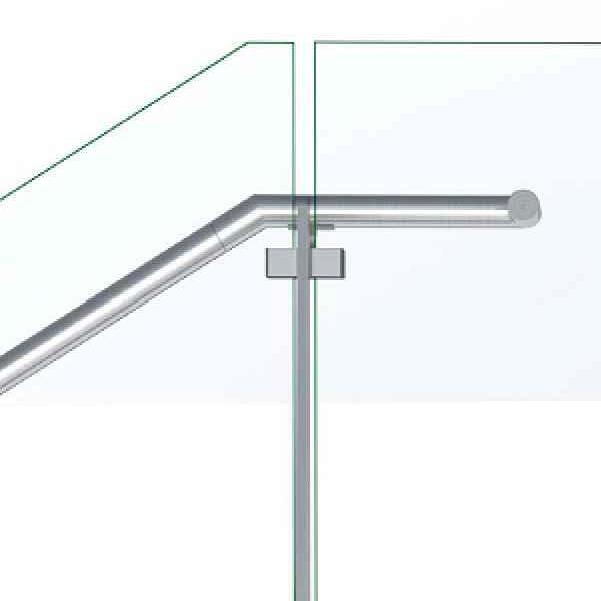

Illuminated Handrail Option

18" 24" OR 36"

Illuminated Top rail Options

POD

iRAIL POD ORIENTATION OPTIONS

iRAIL POD SPACING OPTIONS

See Viva iRail Railing System iRAIL RAILING SYSTEM for LIGHTED more info

VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

10

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

SOLO RAILING SYSTEM

#6 SATIN - #8 MIRROR

POWDER COAT

ECM

#8 Mirror Finish comes at an additional cost to our #6 Finish.

Available in Satin Black, Brass, Gold & Copper.

Available in Standard and Premium Colors

ECM finish is not available for U-cap, top rail or hand rail.

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

11

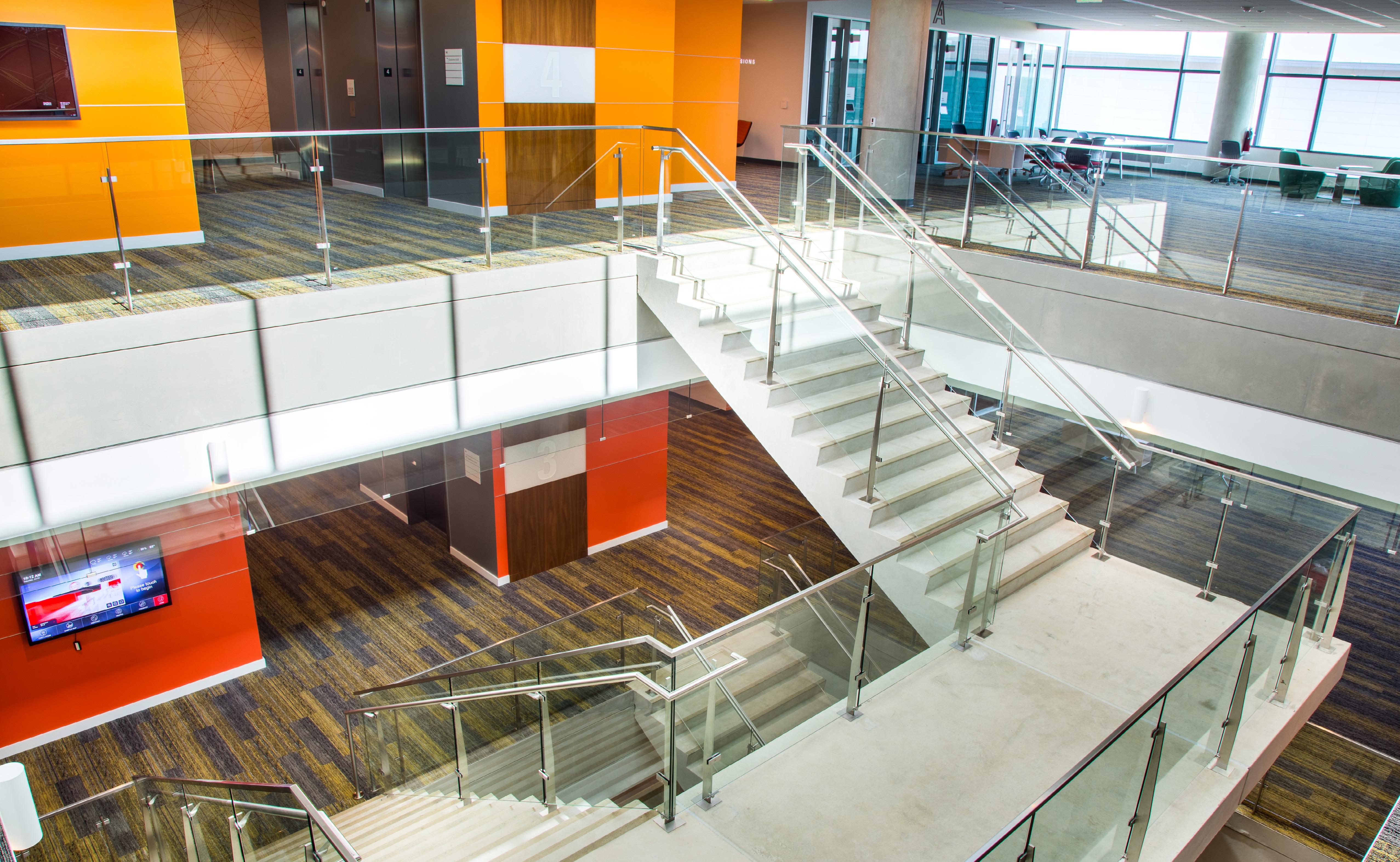

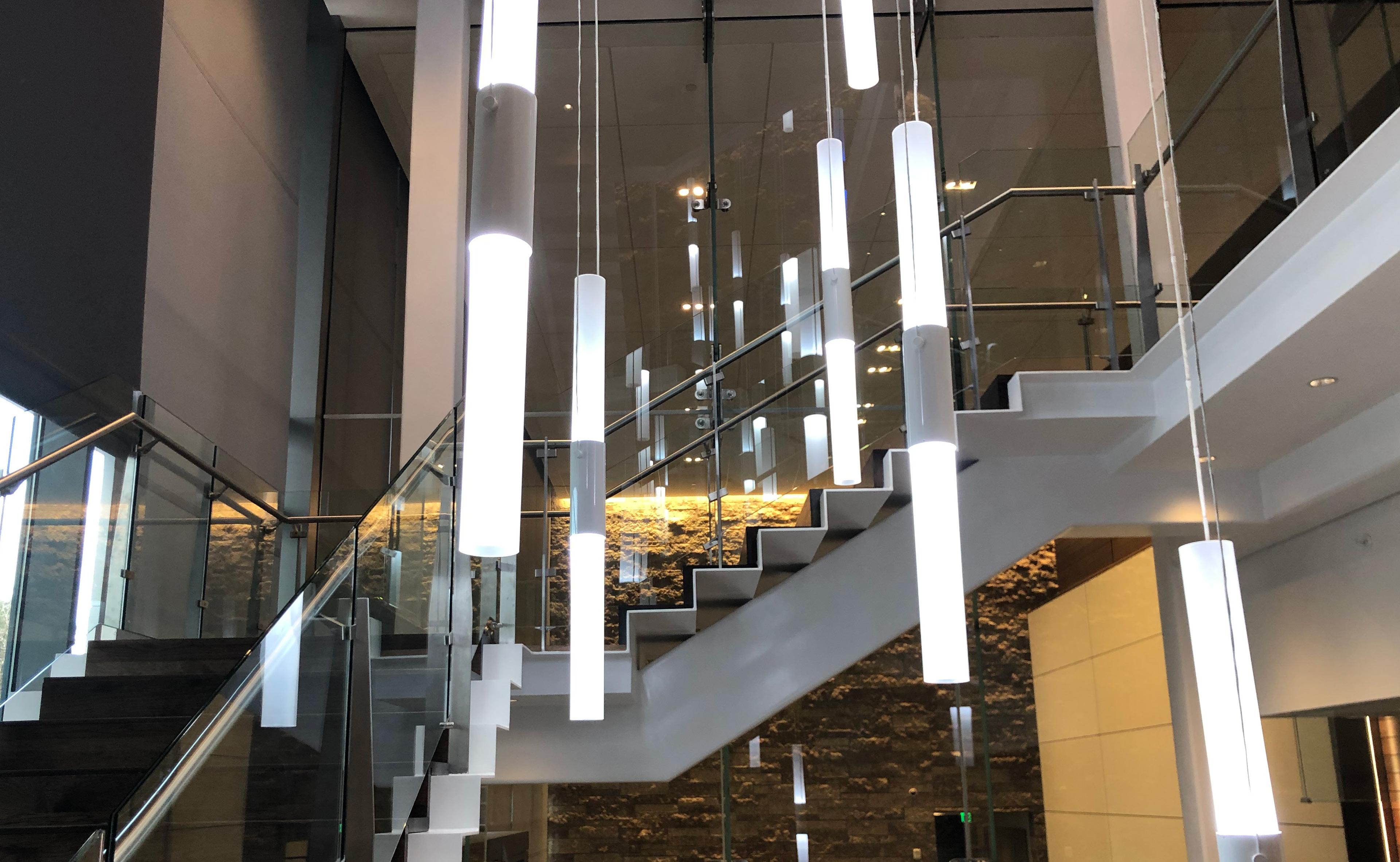

SOLO GLASS RAILING SYSTEM TOYOTA U.S. HEADQUARTERS

TOYOTA U.S. HEADQUARTERS - THE COLONY, TX General Contractor: Austin Commercial Architect: Corgan Associates

12

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

SOLO GLASS RAILING SYSTEM TD AMERITRADE DFW CAMPUS

TD AMEITRADE - DFW CAMPUS - SOUTHLAKE, TX General Contractor: Adolfson & Peterson Construction Architect: GFF Architects

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

13

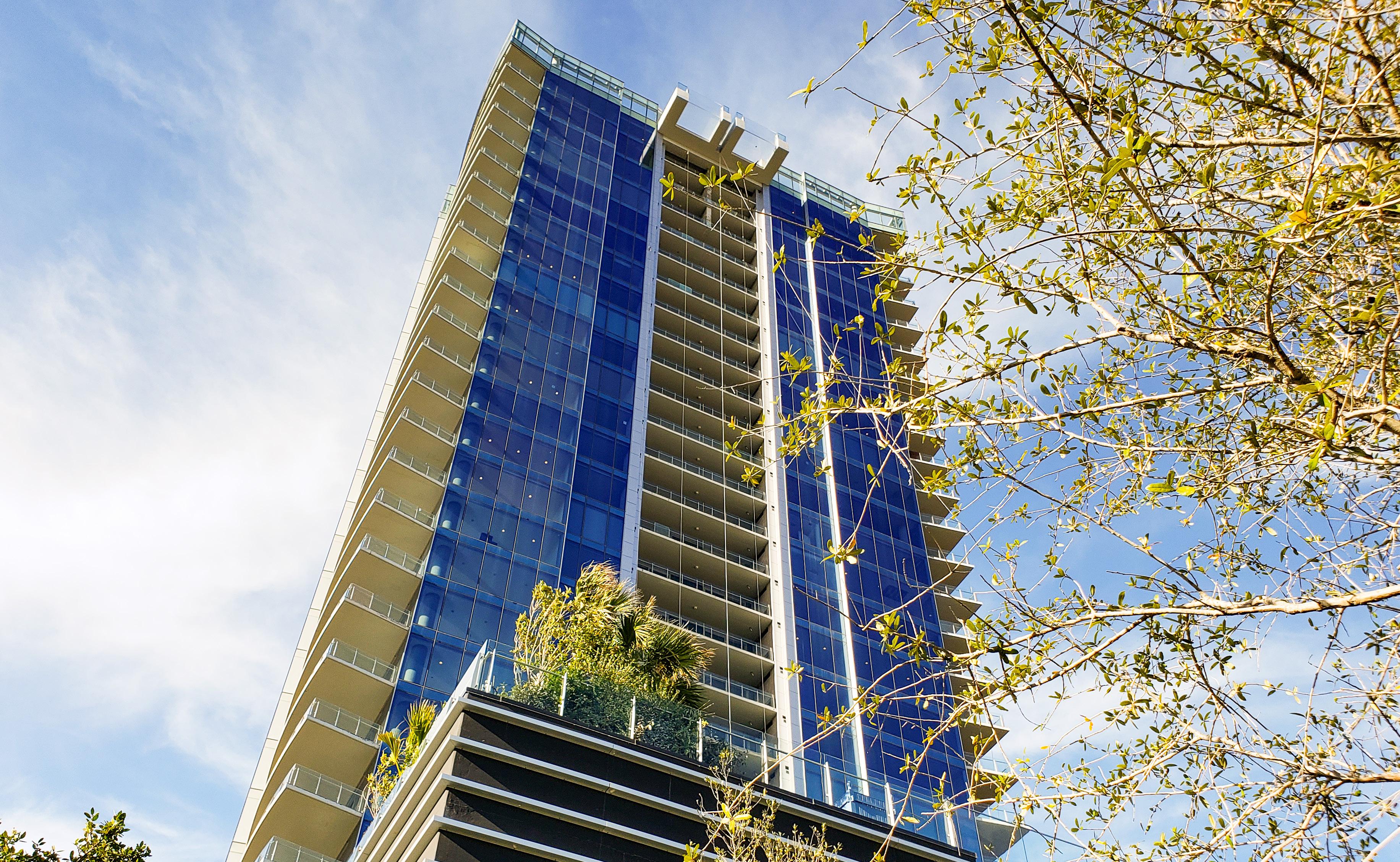

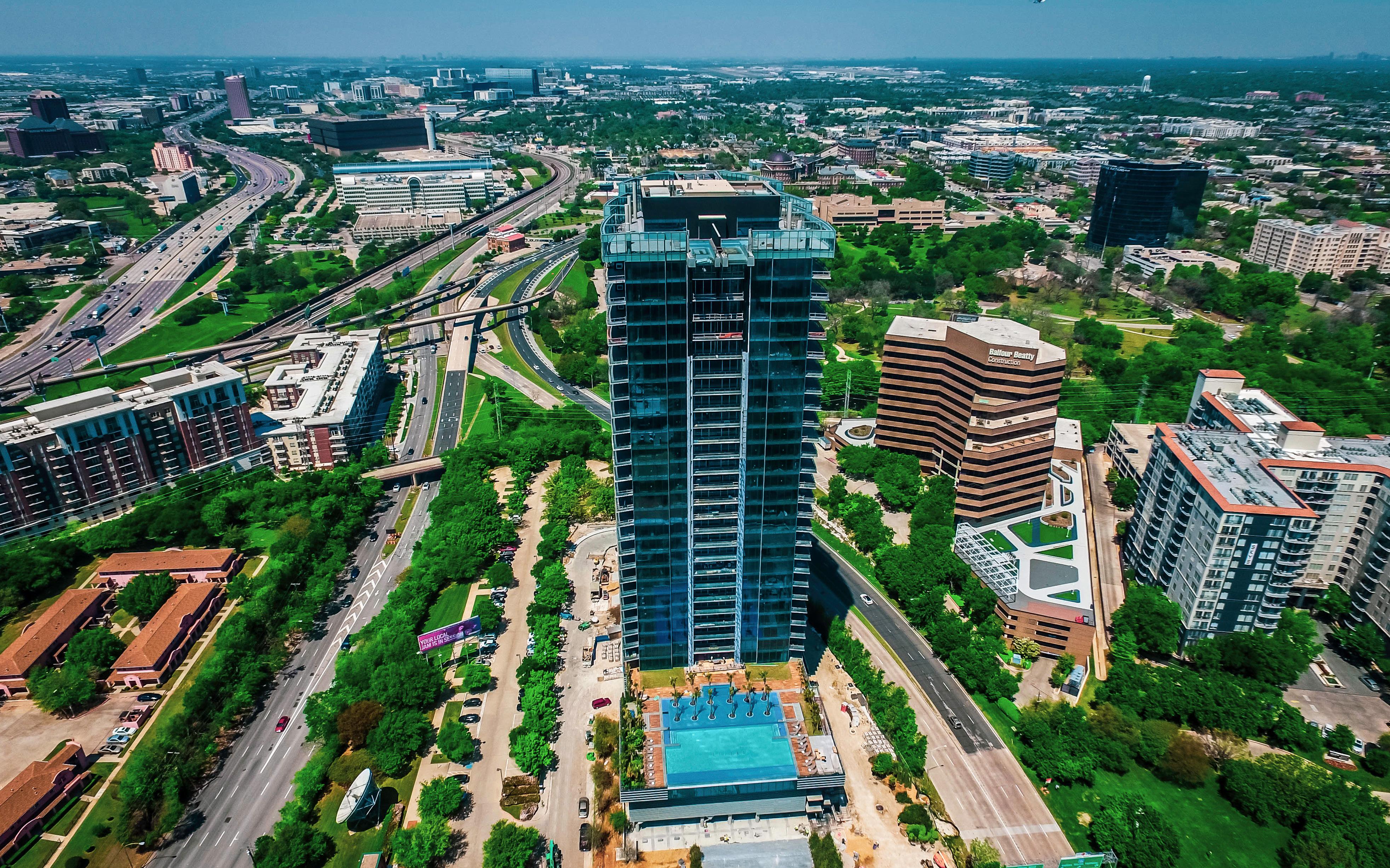

SOLO GLASS RAILING SYSTEM BLEU CEIL RESIDENCES

BLEU CIEL RESIDENCES - DALLAS, TX General Contractor: Hunt Construction Architect: Harwood International

14

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

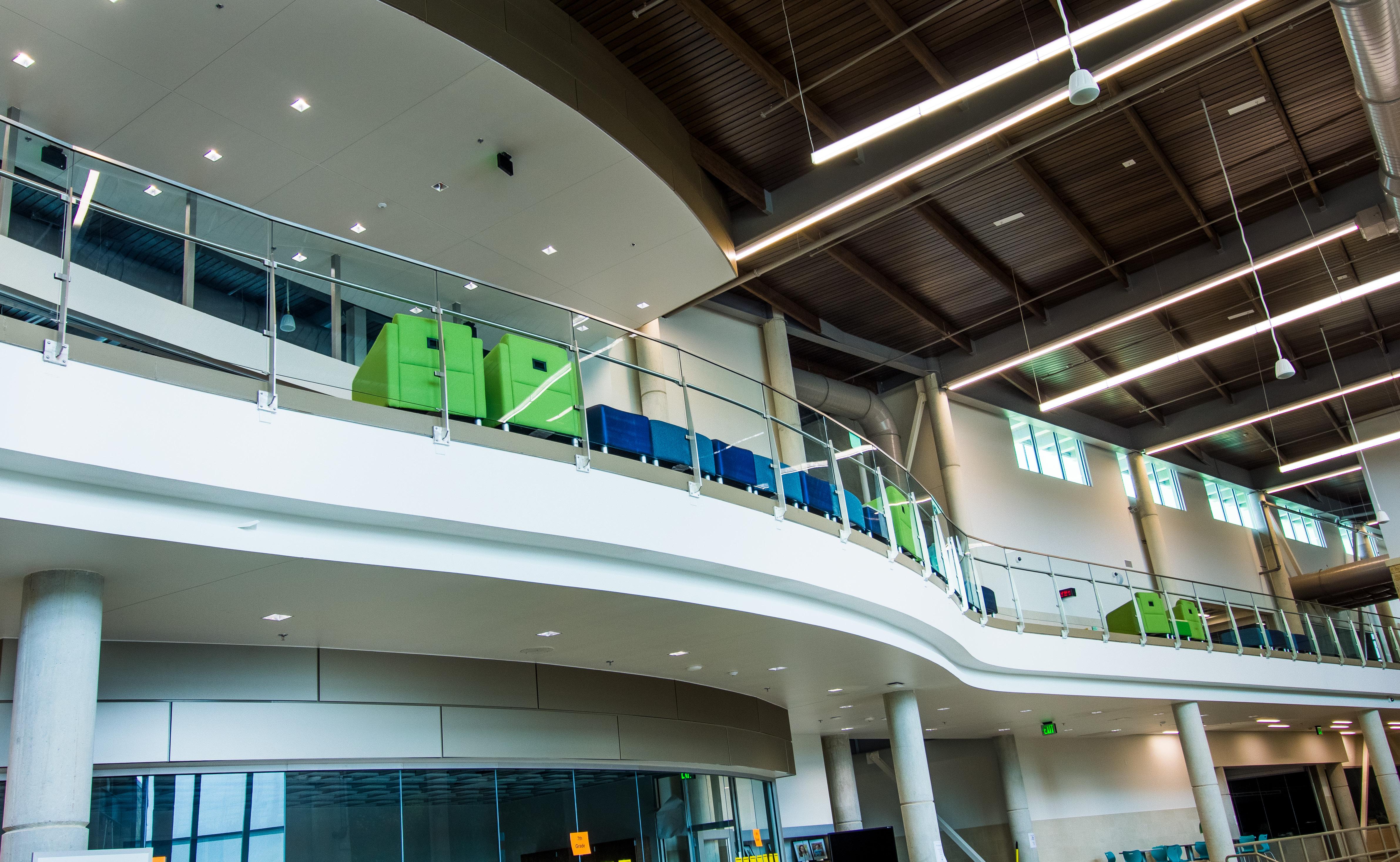

SOLO GLASS RAILING SYSTEM GEORGETOWN ISD MIDDLE SCHOOL

GEORGETOWN ISD NEW MIDDLE SCHOOL - GEORGETOWN, TX General Contractor: Lee Lewis Construction Architect: Huckabee, Inc.

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

972-353-8482

info@vivarailings.com

vivarailings.com

15

NORTH AMERICA OPERATIONS

New York, NY Washington DC Kansas City, KS

151 W. Vista Ridge Mall Dr. Lewisville, TX 75067

San Diego, CA

Atlanta, GA

(Dallas/Fort Worth Metroplex)

Dallas/Fort Worth, TX

PH: 972.353.8482 | info@vivarailings.com vivarailings.com

Orlando, FL Regional Locations

Inc. Magazine 500 | 5000 VIVA RAILINGS, LLC. Among The Fastest Growing US Companies Eight Years in a Row 2012-2019

Inc. Magazine 500 | 5000 VIVA RAILINGS, LLC. Among The Fastest Growing Texas Companies #211

ICC-ES 4405 Certified

SHOE™ Structural Glass Railing System

LEED Material & Resources Credits 4.1 and 4.2

The American Institute of Architects

The California Contractors State License Board Certified
