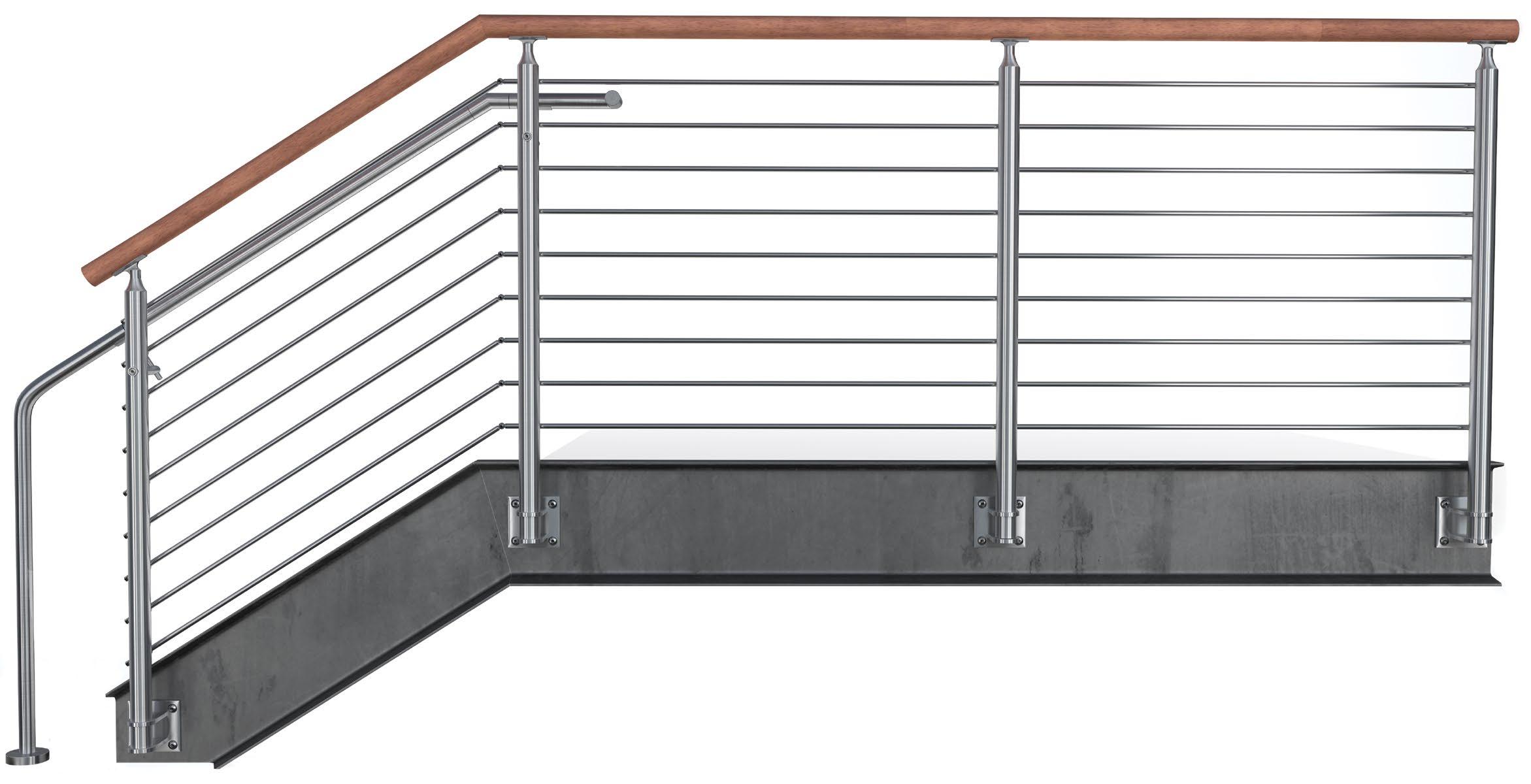

Multiline

Cable

Our CIRCA Stainless Steel Railing System provides a simple yet timeless look. The system consists of round tubular posts and the railing in-fill between the posts is mounted via fixed point holders.

2 CIRCA™ MULTILINE RAILING SYSTEM DATE DRAWN SHEET NUMBER DRAWN BY PART TYPE: PIECE MARK MATERIAL: FINISH: PASSIVATION: info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com

Other mounting options available.

Laser Cut Panel

MATERIAL FINISH SIZE/SPACING

Stainless Steel (304 or 316)

POST INFILL OPTIONS

#6 Satin, #8 Mirror

ECM

Powder Coat Stainless Steel (201)

TOP RAIL/HAND RAIL

ECM finish is not available for U-cap, top rail or hand rail.

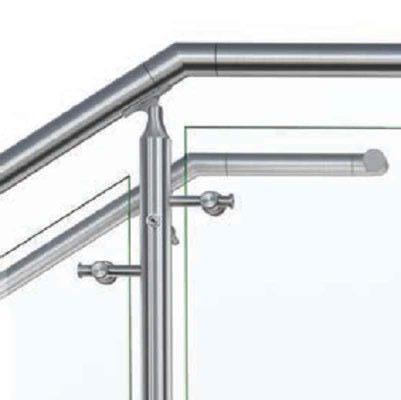

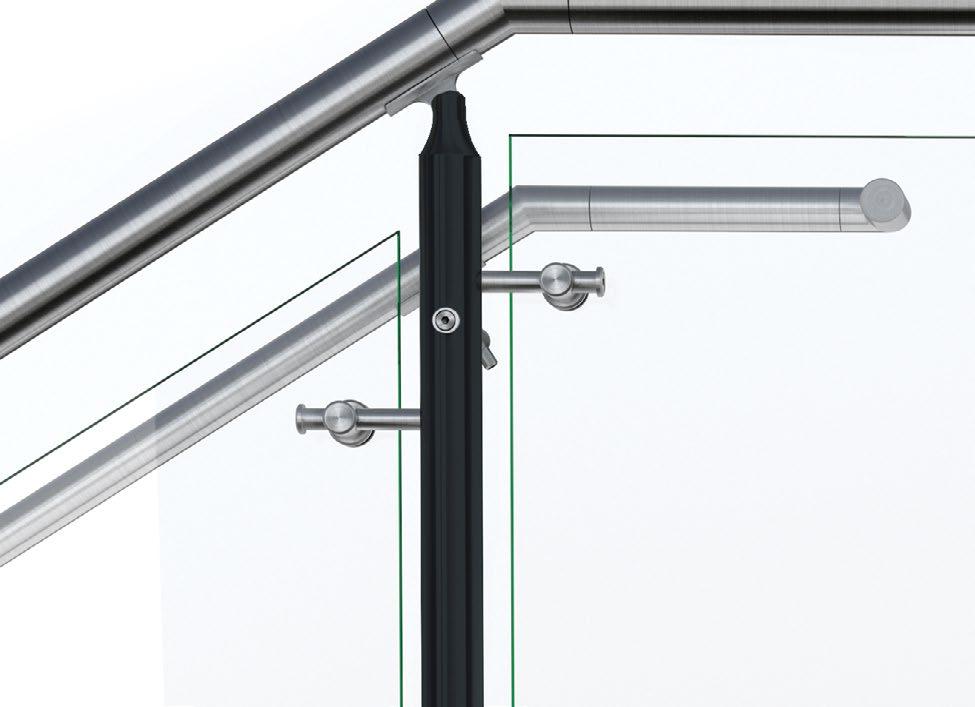

Glass Clear, Tinted or Frit

Perforated Metal

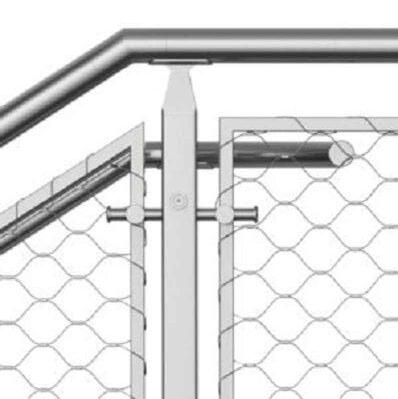

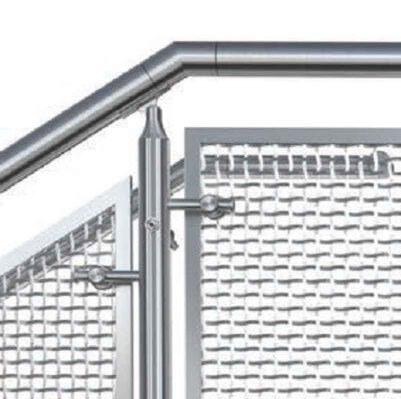

Wire Mesh

Ø2” @ 5’-0” max. O.C.

4’-6” max. for perforated and wire mesh infill.

4’-0” max. for Multiline and cable infill.

Fascia, Top or Core mount. Min. 3/8” laminated glass with PVB or SGP interlayer ¹

Glass standard thickness: 3/8”, 1/2”, 5/8”, 3/4”

Interlayer standard thickness: SGP: 0.035” 0.06” PVB: 0.035”

1” wide frame

#6 Satin

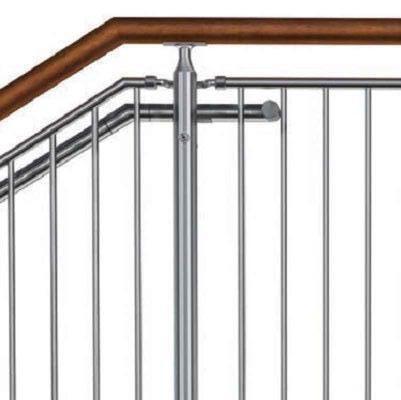

Picket Panel Ø1/2” picket Ø1/2” multiline

Multiline

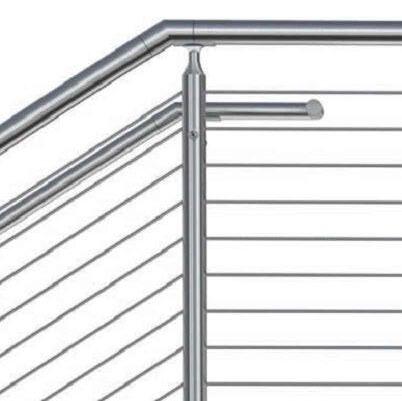

Cable

CableNet

Laser Cut

Powder Coat - Super Polyester (AAMA 2604) - $ 4

Powder Coat - PVDF (AAMA 2605) - $$

#6 Satin, Powder Coat Ø3/16” cable

Ø1” Wide frame, Ø1/16” (1.5mm) cable mesh

1/4” thick aluminum panel.

Stainless Steel Tube Ø1-1/2” or Ø2” for Hand Rail Ø1-1/2”, Ø2” or 2”x1” Rectangular tube for Top Rail

Stainless Steel Tube with LED ²

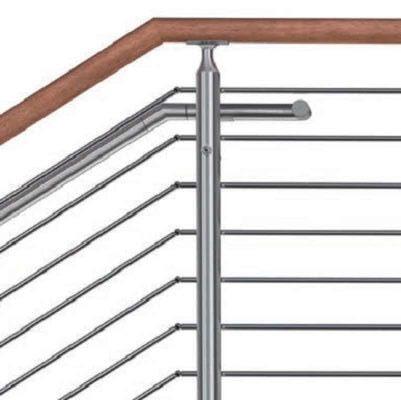

Wood (Red Oak, Cherry or Maple) ³

Wood (Red Oak, Cherry or Maple) with LED

#6 Satin Unstained Ø1-1/2” with LED LINEAR, Ø1-1/2” or Ø2” with LED POD

Ø2”

Ø2” with LED LINEAR

1. IBC 2015 & newer requires railing glass to be laminated. VIVA recommends SGP for exterior applications.

2. All LED LINEAR products are ETL certified; ETL mark is proof of product compliance to North American safety standard.

3. Other species available upon request.

4. $ to $$$: Indicates finish type comparative cost.

3 CIRCA

GLASS & METAL SYSTEM - TECHNICAL

info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com

™

DATA

CIRCA RAILING SYSTEM

Multiline Infill

MULTILINE

TOP RAIL

Ø2"

HAND RAIL

TOP RAIL

HAND RAIL

R4" LEVEL

CIRCA POST

MULTILINE

Ø1-1/2" iRAIL

STRINGER

TOP RAIL OPTIONS

VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS' CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY

4'-0"

4'-0" MAX 1'-0"

MAX

1'-0"

2" MAX. 4" MAX.

1 2 " TUBE 4" MAX. V V A TM I Page 2.5 OF 5

THESE

PRODUCT

CONTAINED WITHIN. REPRODUCTION AND USE OF

DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR

INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

1 0'-0"

FLOOR 3'-0" 3'-6"

FINISH

TUBE

Ø1-1/2" TUBE 2"x1" TUBE

VIVA RAILINGS, LLC 151 W. VISTA RIDGE MALL Dr. LEWISVILLE, TX 75067 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. MULTILINE INFILL CIRCA RAILING SYSTEM

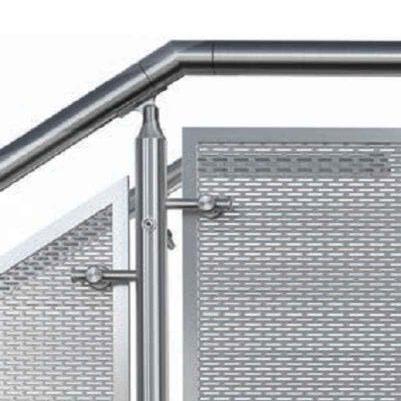

Perforated Metal Infill

TOP RAIL

HAND RAIL

PMRO-0610 PMRO-1014

CIRCA POST

PERFORATED METAL

PMSQ-1013 PMRO-1217 PMSL-1122

TOP RAIL

PMSL-0325

PERFORATED METAL

HAND RAIL

STRINGER

1'-0" 1'-0"

2" NOM. 3" NOM. 1" 13 4 " 5 16 " 1 8 " 9 16 " 11 16 " 3 8 " 5 8 " 7 16 13 16 " 7 8 1 1 16 9 16 1" 1 16 " (14 GA)

V V A TM Page 2.2 OF 5 CIRCA RAILING SYSTEM 3 1 2 "

MAX

NOM. GAP SECTION VIEW 4'-6"

4'-6"

SUPPORT, PLEASE CONTACT VIVA RAILINGS. R4" LEVEL 1 0'-0" FINISH FLOOR 3'-0" 3'-6" TOP RAIL OPTIONS Ø2" TUBE Ø1-1/2" TUBE 2"x1" TUBE Ø1-1/2" iRAIL VIVA RAILINGS, LLC 151 W. VISTA RIDGE MALL Dr. LEWISVILLE, TX 75067 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com SPIDER CLAMP AVAILABLE PERFORATED TYPES: Ø3 8 " Ø1 2 " Ø 1 4 " 3 8 " info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com CIRCA RAILING SYSTEM PERFORATED METAL INFILL VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. TOP RAIL OPTIONS AVAILABLE PERFORATED TYPES

CIRCA RAILING SYSTEM

Wire Mesh Infill

TOP

4'-6" MAX 4'-6" MAX 1'-0" 1'-0"

HAND RAIL WIRE MESH

RAIL

STRINGER

2" NOM. 3" NOM. WM-10 1 5 16 " 7 16 " WM-15 WM-13 WM-17

WM-21 9 16 " TYP. 1" TYP. V V A TM I Page 2.3 OF 5

WIRE MESH

CIRCA POST TOP RAIL HAND RAIL

WM-19 WM-20

3 1 2 " NOM. GAP WM-11 WM-12 WM-14 7 16 11 16 1 2 13116 33 4 " 7 16 21 8 " 7 8 1 7 8 1 7 8 " 5 8 " 9 16 " 1 1 16 " 13 16 " 15 16 " 3 8 "

FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

LEVEL 1 0'-0" FINISH FLOOR 3'-0" 3'-6" TOP RAIL OPTIONS Ø2" TUBE Ø1-1/2" TUBE

TUBE

iRAIL VIVA RAILINGS, LLC 151 W. VISTA RIDGE MALL Dr. LEWISVILLE, TX 75067 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com AVAILABLE WIREMESH TYPES: SPIDER CLAMP info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. WIRE MESH INFILL CIRCA RAILING SYSTEM AVAILABLE WIRE MESH TYPES TOP RAIL OPTIONS

R4"

2"x1"

Ø1-1/2"

R4"

TOP RAIL

HAND RAIL

LEVEL 1 0'-0"

CIRCA POST

PICKET

RAIL

PICKET

HAND RAIL

Ø2" TUBE

Ø1-1/2"

FINISH FLOOR

STRINGER

Ø1-1/2"

TOP RAIL OPTIONS

TOP

5'-0" MAX 5'-0" MAX 1'-0" 1'-0" Picket Infill

2 "

V A Page 2.4 OF 5

RAILING SYSTEM

2" NOM. 3" NOM. Ø1" TUBE Ø1

TUBE 4" MAX.

CIRCA

3'-0" 3'-6" TUBE 2"x1" TUBE

iRAIL 151 W. VISTA RIDGE MALL Dr. LEWISVILLE, TX 75067 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. CIRCA RAILING SYSTEM PICKET PANEL INFILL

RAIL OPTIONS

TOP

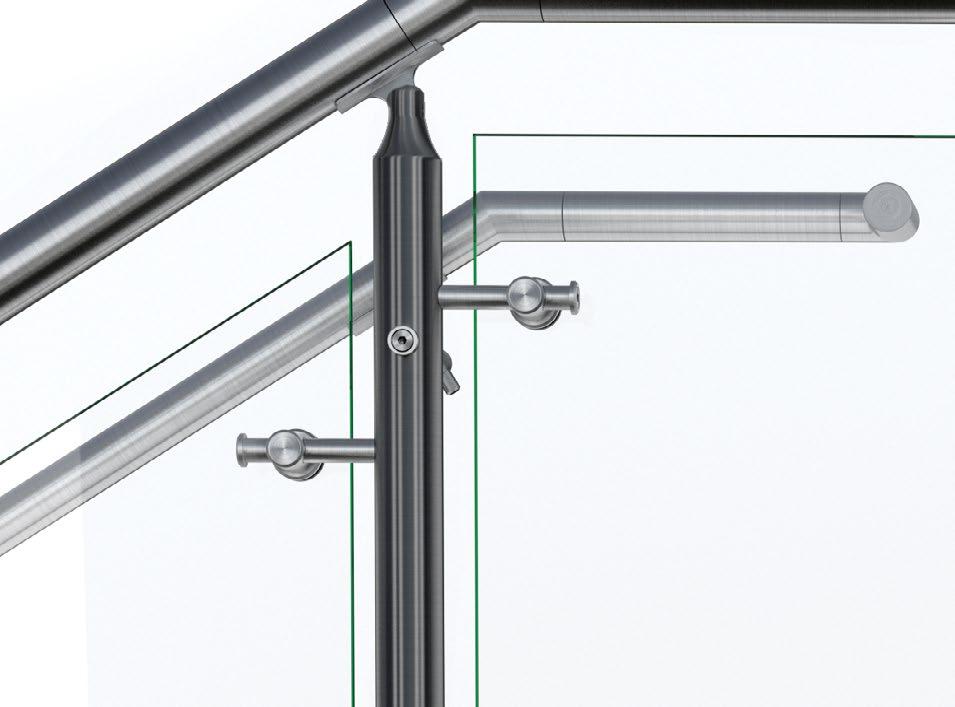

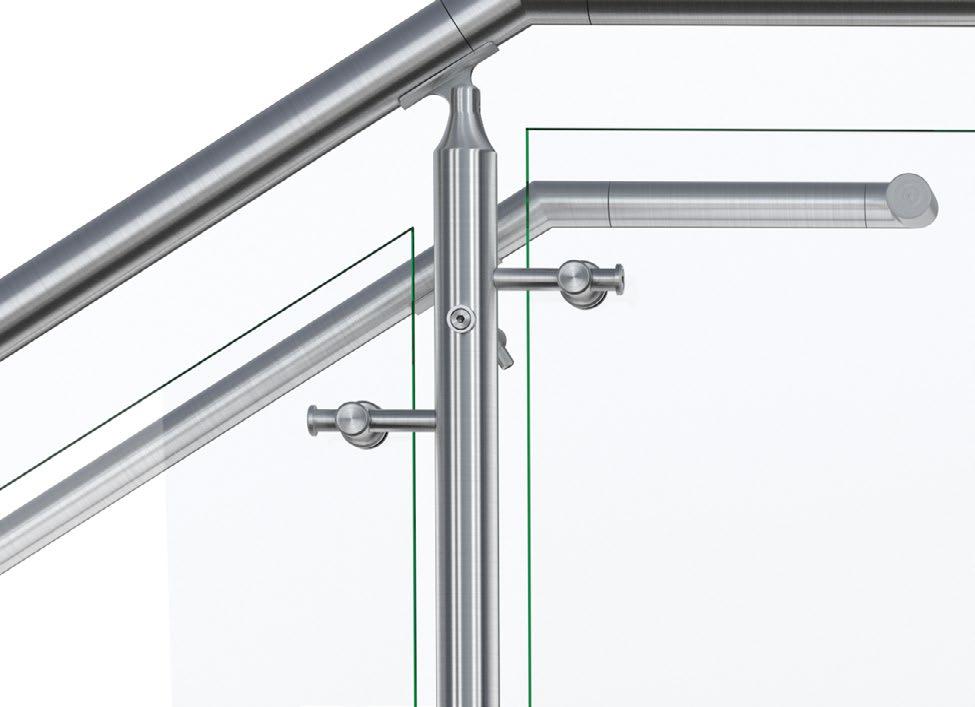

Glass Infill

SPIDER

AVAILABLE

Clear Laminated (PVB or SGP)

Clear Monolithic

Ceramic Frit

Colored Laminate (PVB only)

Bent Tinted Satin Etched

TOP RAIL

HAND RAIL 2" NOM. 3" NOM.

TOP RAIL 5'-0" MAX 5'-0" MAX 1'-0" 1'-0"

CIRCA POST

LAMINATED GLASS

LEVEL 1 0'-0"

LAMINATED GLASS

HAND RAIL

FINISH FLOOR

STRINGER

TOP RAIL

TOP RAIL OPTIONS

3'-0" 3'-6"

V V A I Page 2.1 OF 5

3 1 2 " NOM.

CIRCA RAILING SYSTEM

GAP

R4" Ø2" TUBE Ø1-1/2" TUBE 2"x1" TUBE Ø1-1/2" iRAIL

GLASS

TYPES:

CLAMP VIVA RAILINGS, LLC 151 W. VISTA RIDGE MALL Dr. LEWISVILLE, TX 75067 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com

GLASS

AVAILABLE

TYPES

OPTIONS CIRCA RAILING SYSTEM GLASS INFILL info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

CIRCA RAILING SYSTEM

DIMENSIONS ARE NOMINAL

CABLENET FRAME

TOP RAIL

CABLENET PANEL

HAND RAIL

Ø1/16" [Ø1.5mm]

R4"

TOP RAIL

HAND RAIL

FINISH FLOOR 3'-0"

7x7 CONSTRUCTION CABLE

CIRCA POST

CABLENET PANEL

LEVEL 1 0'-0"

STRINGER

1'-0" 1'-0" CableNet Infill

41 8 " V A Page 2.7 OF 5

2" NOM. 3" NOM.

4 1 4 " NOM. GAP

5'-0" MAX 5'-0" MAX

3 8 60°

3'-6"

RAIL OPTIONS

TUBE

TUBE Ø1-1/2" iRAIL 1"

TOP

Ø2"

Ø1-1/2"

2"x1"

151 W. VISTA RIDGE MALL Dr. LEWISVILLE, TX 75067 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. CIRCA RAILING SYSTEM CABLENET INFILL TOP RAIL OPTIONS

CONTINUOUS PANEL

CIRCA RAILING SYSTEM

R4"

TOP RAIL

HAND RAIL

CIRCA POST

CABLE

LEVEL 1 0'-0"

Stainless Steel 316 Cable Ø3/16", 1X19

RAIL

3'-0"

CABLE

HAND RAIL

Ø1-1/2" TUBE

FINISH FLOOR

STRINGER

Ø1-1/2" iRAIL

TOP RAIL OPTIONS

1'-0" 1'-0"

TOP

4'-0" MAX 4'-0" MAX

Cable Infill

V V A TM I Page 2.6 OF 5

MAX. 4" MAX.

3'-6"

Ø2" TUBE 2"x1" TUBE

3 1 4 " MAX.

Construction VIVA RAILINGS, LLC 151 W. VISTA RIDGE MALL Dr. LEWISVILLE, TX 75067 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. CABLE INFILL CIRCA RAILING SYSTEM

OPTIONS

TOP RAIL

CIRCA RAILING SYSTEM

Laser cut w/ spiders

SPIDER

https://vivarailings.com/ for range of design patterns

provide your custom pattern

TOP RAIL

HAND RAIL

5'-0" MAX 1'-0"

5'-0" MAX

TOP RAIL

ALUMINUM PANEL

HAND RAIL

CIRCA POST

LAMINATED GLASS

FINISH FLOOR

STRINGER

TOP RAIL OPTIONS

1'-0"

0'-0"

LEVEL 1

3'-0" 3'-6"

2" NOM. 3" NOM.

V V A TM I

3 1 2 "

NOM. GAP

R4" Ø2" TUBE Ø1-1/2" TUBE 2"x1" TUBE

VIVA RAILINGS, LLC 151 W. VISTA RIDGE MALL Dr. LEWISVILLE, TX 75067 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com Page 2.1B OF 5 12/4/2023 Visit

info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. LASER CUT INFILL CIRCA RAILING SYSTEM TOP RAIL OPTIONS

Ø1-1/2" iRAIL

Mounting Condition, Top Mounted Post

Anchored to Concrete ¹ - $ ²

Detail# CA-T01 ³

Welded @ Embed Plate - $

Detail# CA-T04

(1) Min. 4000 PSI concrete, Typ.

(2) $ to $$$: Indicates mounting type comparative cost

(3) Anchoring is not an available option for top mount with cable infill

(4) 6 1 2" Min. for end post with cable infil

Embed Plate (By others)

Cored into Concrete - $$

Detail# CA-T02

Welded @ Steel Channel - $

Detail# CA-T03

Anchored to Concrete Slab on Deck - $$

Detail# CA-T05

25 8 " 4" MIN.

Anchored to Concrete

Welded to Steel Plate - $

Detail# CA-T06

3/8" BENT

PLATE (BY OTHERS)

RAILINGS.

RAILINGS REMAINS

OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

12 6" MIN.

3" MIN. 5" MIN. 6" MIN. 5" ⁴ MIN. 5" MIN. 5" MIN.

6 1 2 " MIN. 3" MIN. V V A TM I Page 3.1 OF 5

VIVA

CIRCA RAILING SYSTEM VIVA

SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS' CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY

VIVA

THE SOLE

Mounting Condition, Fascia Mounted Post

6" MIN.

Anchored to Concrete ¹ - $$$

Detail# CA-F01 ²

Welded @ Embed Plate - $$

Detail# CA-F02

Embed Plate (By others)

Welded @ Steel Tube - $$

Detail# CA-F04

(1) Min. 4000 PSI concrete, Typ.

(2) Anchoring is not a recommended option for cable infill

VIVA

3" MIN.

Welded @ Steel Channel - $$

Detail# CA-F03

Welded @ Pour Stop - $$

Detail# CA-F05

AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS.

13 6" 6" 6"

6" MIN. 6" V V A TM Page 3.2 OF 5 CIRCA RAILING SYSTEM 6" 6"

RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS' PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS'S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS' CUSTOMER AND THEIR

3" MIN. STUD or DEFORMED REBAR (BY OTHERS) 3/8" THICK POUR STOP (BY OTHERS) VIVA RAILINGS, LLC 151 W. VISTA RIDGE MALL Dr. LEWISVILLE, TX 75067 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com VIVA RAILINGS IS NOT RESPONSIBLE FOR THE STRUCTURAL INTEGRITY OF ANY BUILDING SYSTEMS OR OTHER MATERIALS NOT FURNISHED BY VIVA RAILINGS. VIVA RAILINGS HAS NO WAY OF KNOWING AND SPECIFICALLY DISCLAIMS WHETHER OR NOT THE BUILDING SYSTEMS TO WHICH VIVA RAILINGS’ PRODUCTS ARE TO BE ATTACHED ARE STRUCTURALLY SOUND OR DESIGNED TO PROPERLY SUPPORT VIVA RAILINGS’S MATERIALS. ANY SUCH DESIGN RESPONSIBILITY BELONGS TO OTHERS FOR WHOM VIVA RAILINGS IS NOT RESPONSIBLE. THESE DRAWINGS ARE INTENDED FOR THE SOLE USE OF VIVA RAILINGS’ CUSTOMER AND THEIR AGENTS FOR THE INSTALLATION OF PRODUCTS FURNISHED BY VIVA RAILINGS. VIVA RAILINGS REMAINS THE SOLE OWNER OF ALL DESIGNS AND INTELLECTUAL PROPERTY CONTAINED WITHIN. REPRODUCTION AND USE OF THESE DESIGNS FOR ANY OTHER PURPOSE IS FORBIDDEN. SCALES ARE PROVIDED FOR REFERENCE ONLY. FOR PRODUCT INFORMATION AND TECHNICAL SUPPORT, PLEASE CONTACT VIVA RAILINGS. CIRCA RAILING SYSTEM MOUNTING CONDITION, FASCIA MOUNTED POST

14 V V A TM I Page 4 OF 5 CIRCA RAILING SYSTEM Illuminated Railing Ø1 1 2 " 36 " TO FF TOP RAIL ILLUMINATED HANDRAIL See Viva iRail Railing System for more info 215 16 " 4 2 " TO FF Illuminated Hand rail Option Illuminated Top rail Option iRAIL POD ORIENTATION OPTIONS 18" 24" OR 36" iRAIL POD SPACING OPTIONS POD iRAIL Linear 30° ASYM. LINEAR SYM. LINEAR iRAIL LINEAR ORIENTATION OPTIONS 22° ASYM. POD SYM. POD Ø11 2 " VIVA RAILINGS, LLC 151 W. VISTA RIDGE MALL Dr. LEWISVILLE, TX 75067 P: 972-353-8482 F: 972-353-0013 e: info@vivarailings.com www.vivarailings.com info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com CIRCA RAILING SYSTEM iRAIL LIGHTED RAILING SYSTEM ILLUMINATED RAILING

#6 SATIN - #8 MIRROR ECM

#8 Mirror Finish comes at an additional cost to our #6 Finish.

ECM finish is not available for U-cap, top rail or hand rail.

Available in Satin Black, Brass, Gold & Copper.

POWDER COAT

Available in Standard and Premium Colors

info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com

CIRCA MULTILINE RAILING SYSTEM

FINISHING OPTIONS

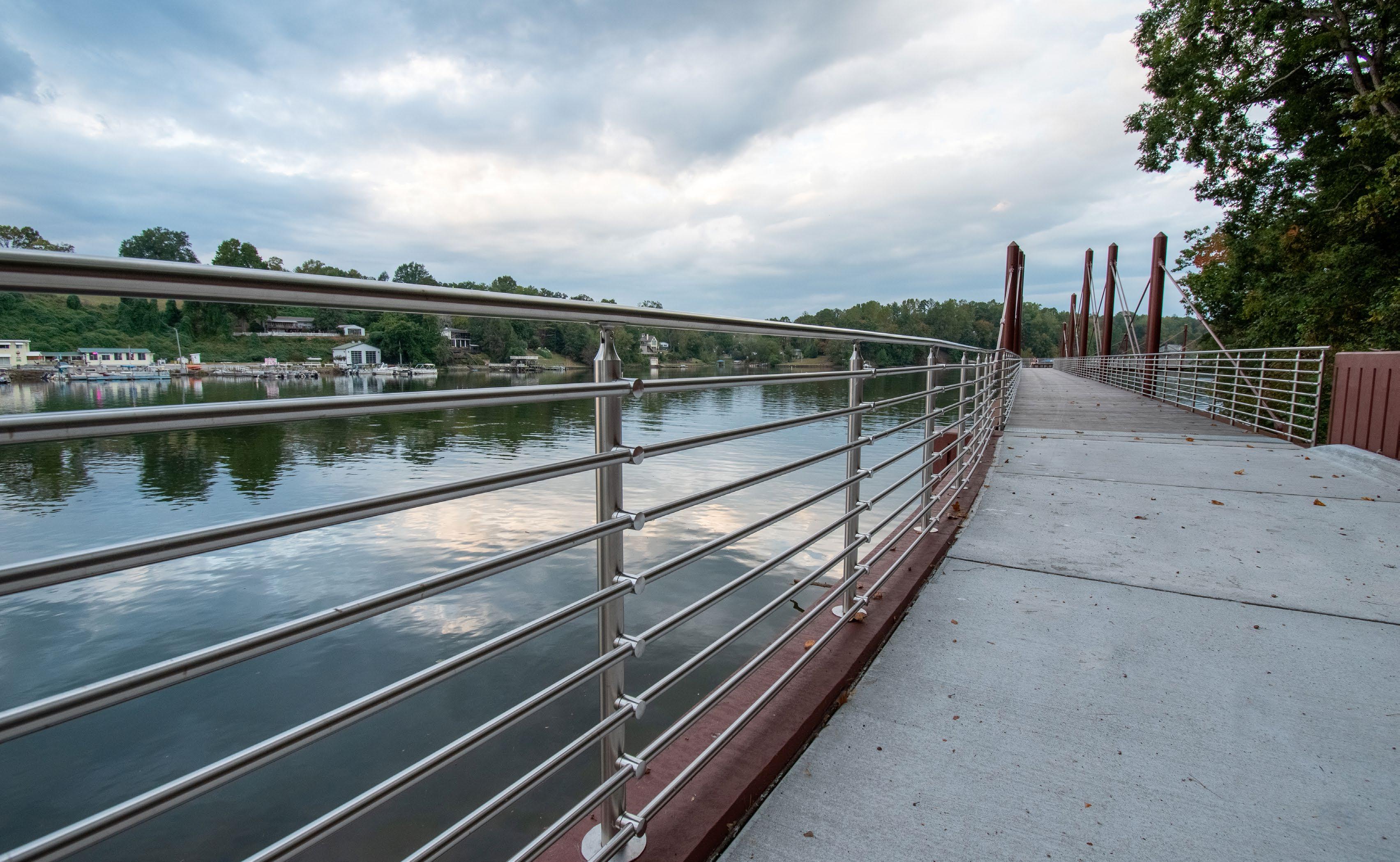

16 CIRCA MULTILINE RAILING SYSTEM HICKORY RIVERWALK info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com General Contractor: English Construction, Inc. Architect: Epstein Architecture

RIVERWALK

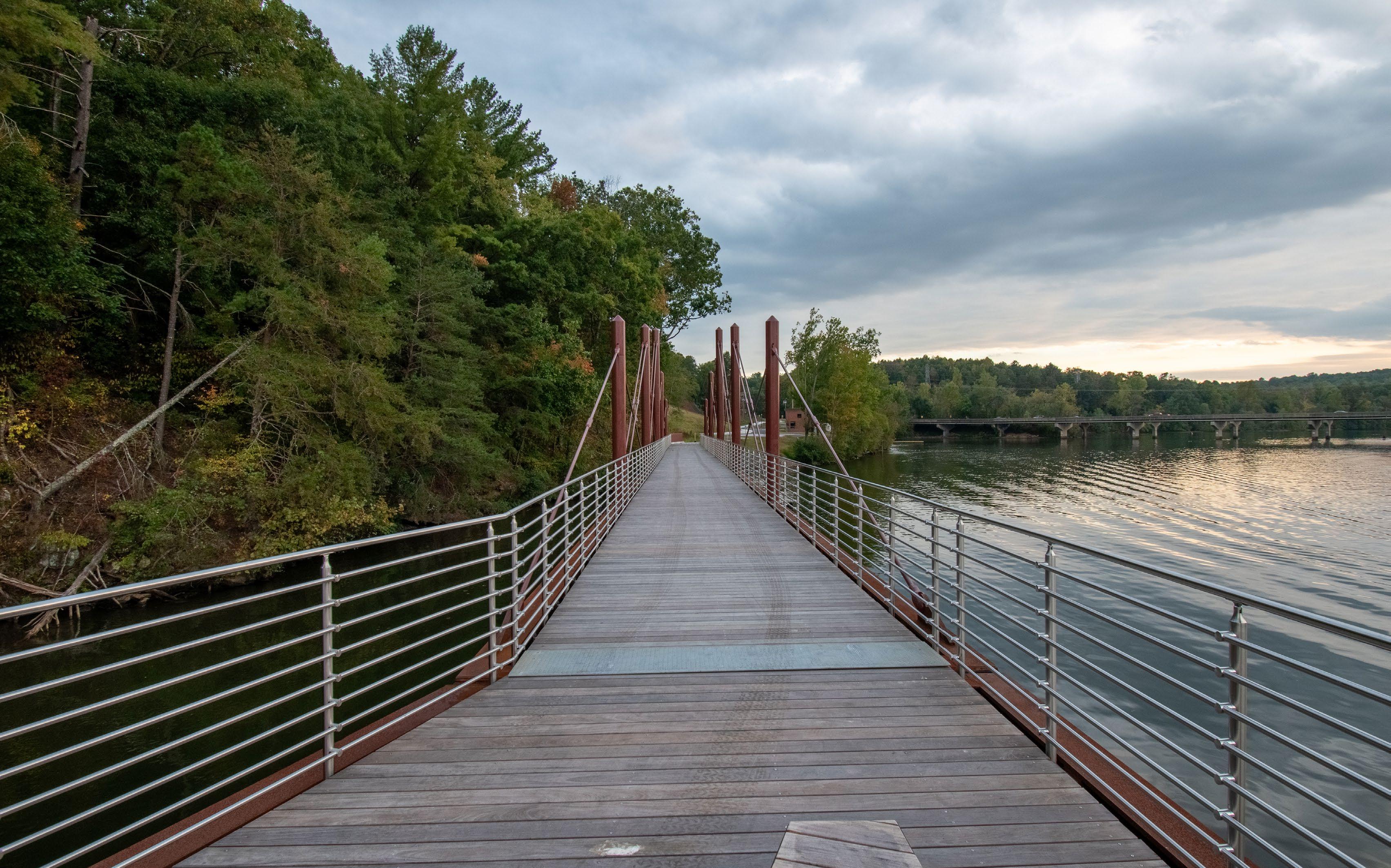

ROSALES BRIDGE

HICKORY, NC

HICKORY

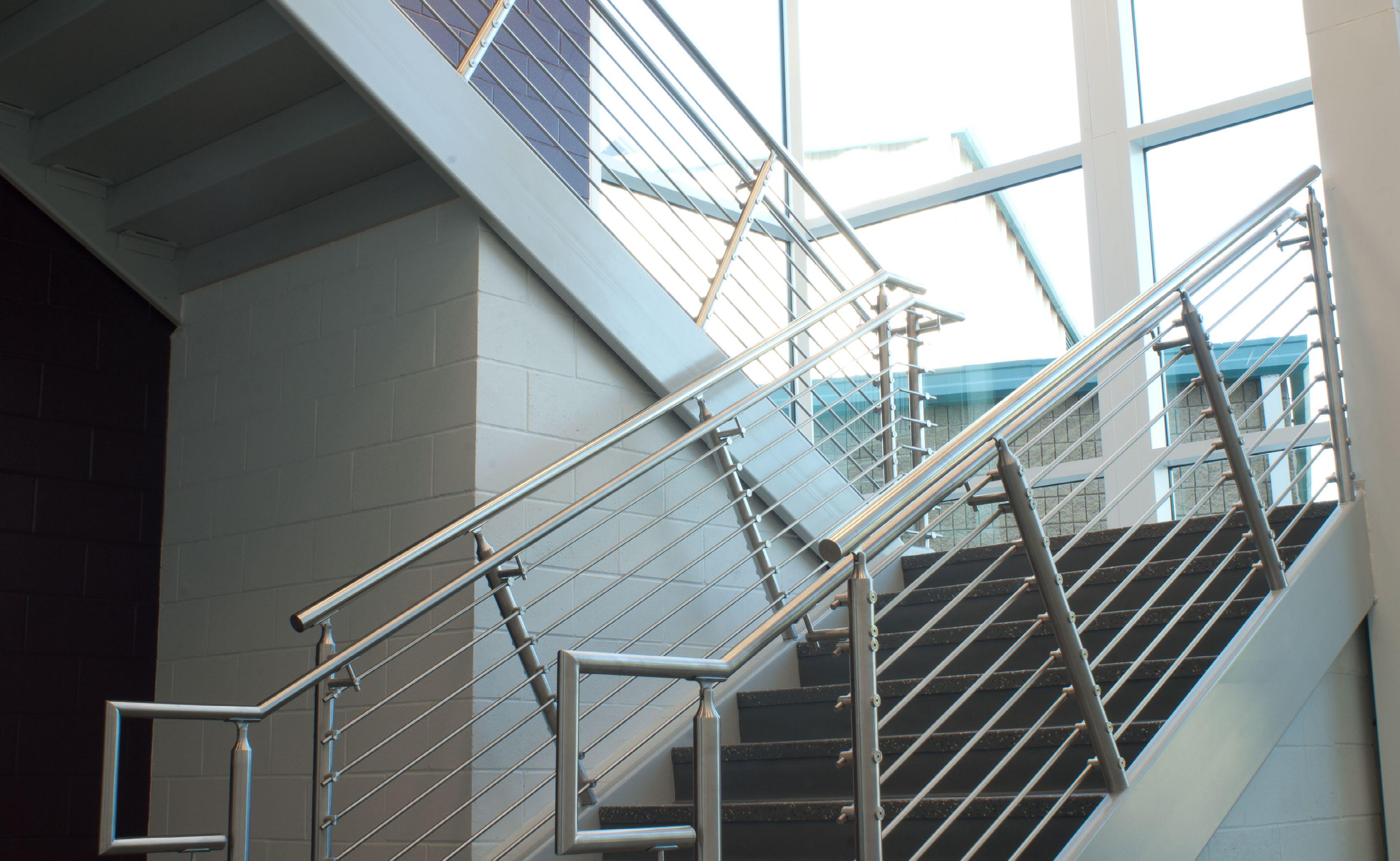

17 CIRCA MULTILINE RAILING SYSTEM HIGHLAND COLLEGE - GRANDVIEW CAMPUS info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com General Contractor: Johnson Kreis Partners Architect: Turner Batson Architects HIGHLAND COLLEGE GRANDVIEW CAMPUS - BIRMINGHAM, AL

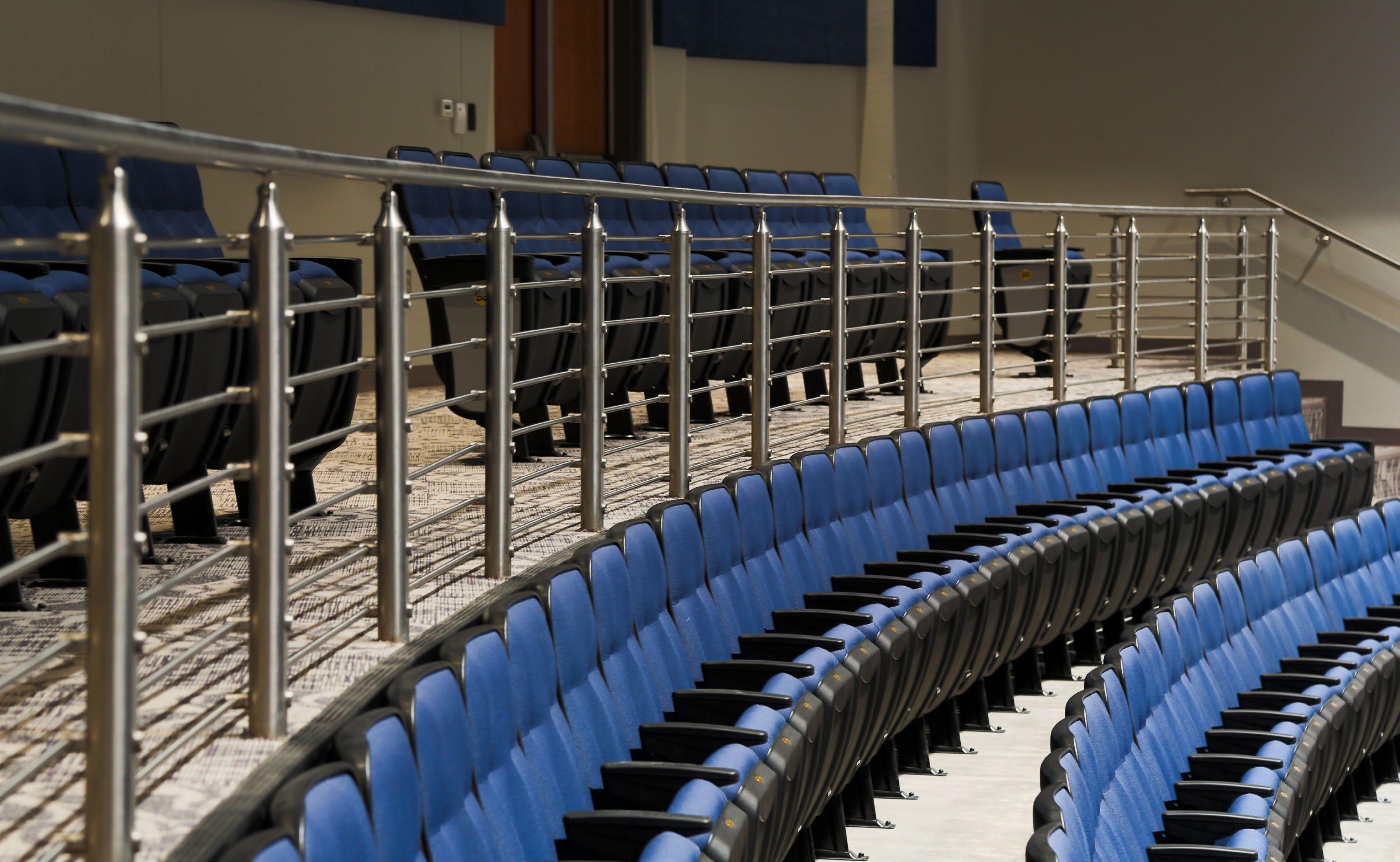

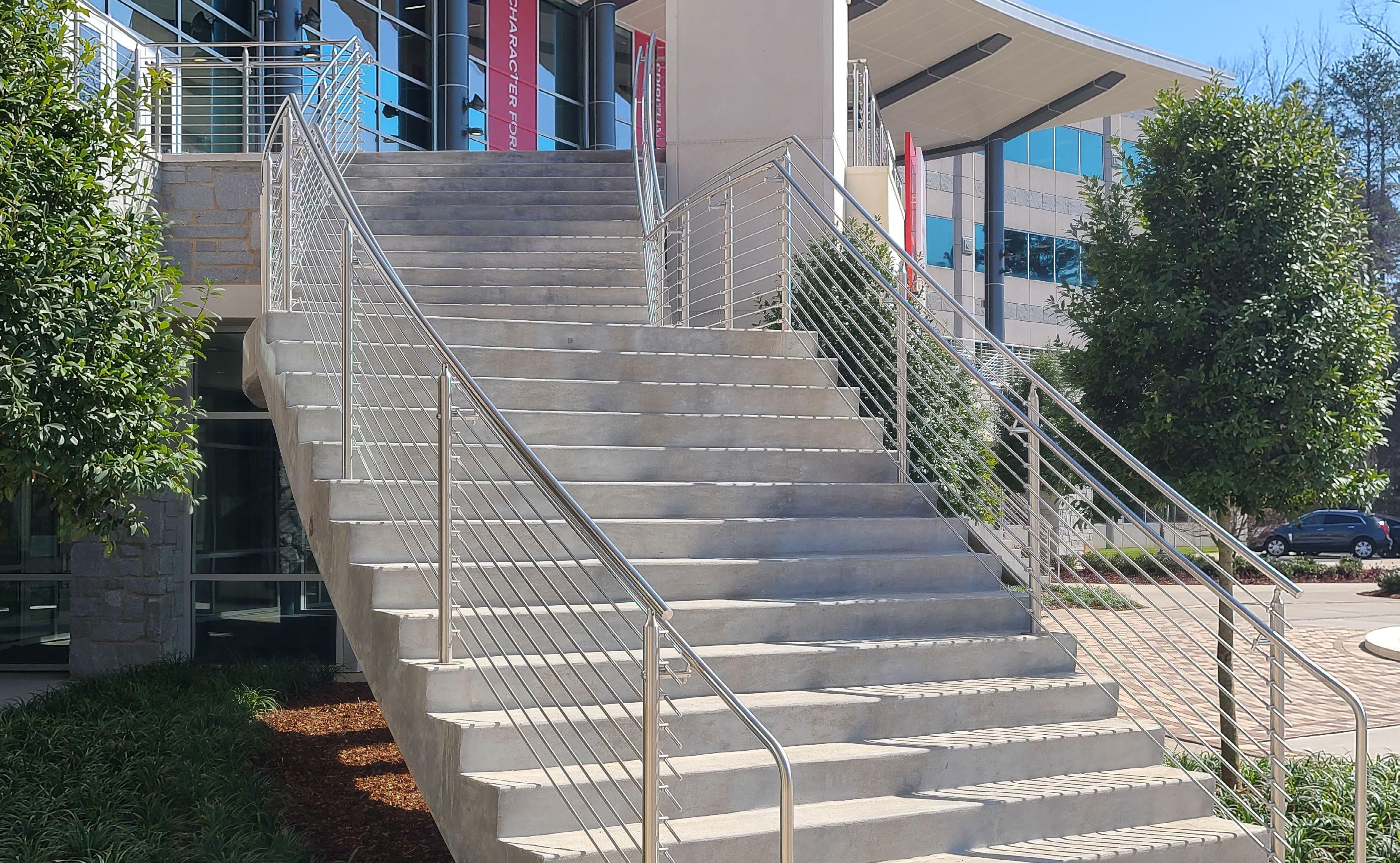

18 CIRCA MULTILINE RAILING SYSTEM MANSFIELD ISD PERFORMING ARTS CENTER info@vivarailings.com 151 W. Vista Ridge Mall Dr. Lewisville, TX 75067 972-353-8482 vivarailings.com General Contractor: Byrne Construction Architect: Huckabee, Inc. MANSFIELD ISD P.A.C. - MANSFIELD, TX
