ARCHITECTURE PORTFOLIO

VISWASREE K NAMBIAR

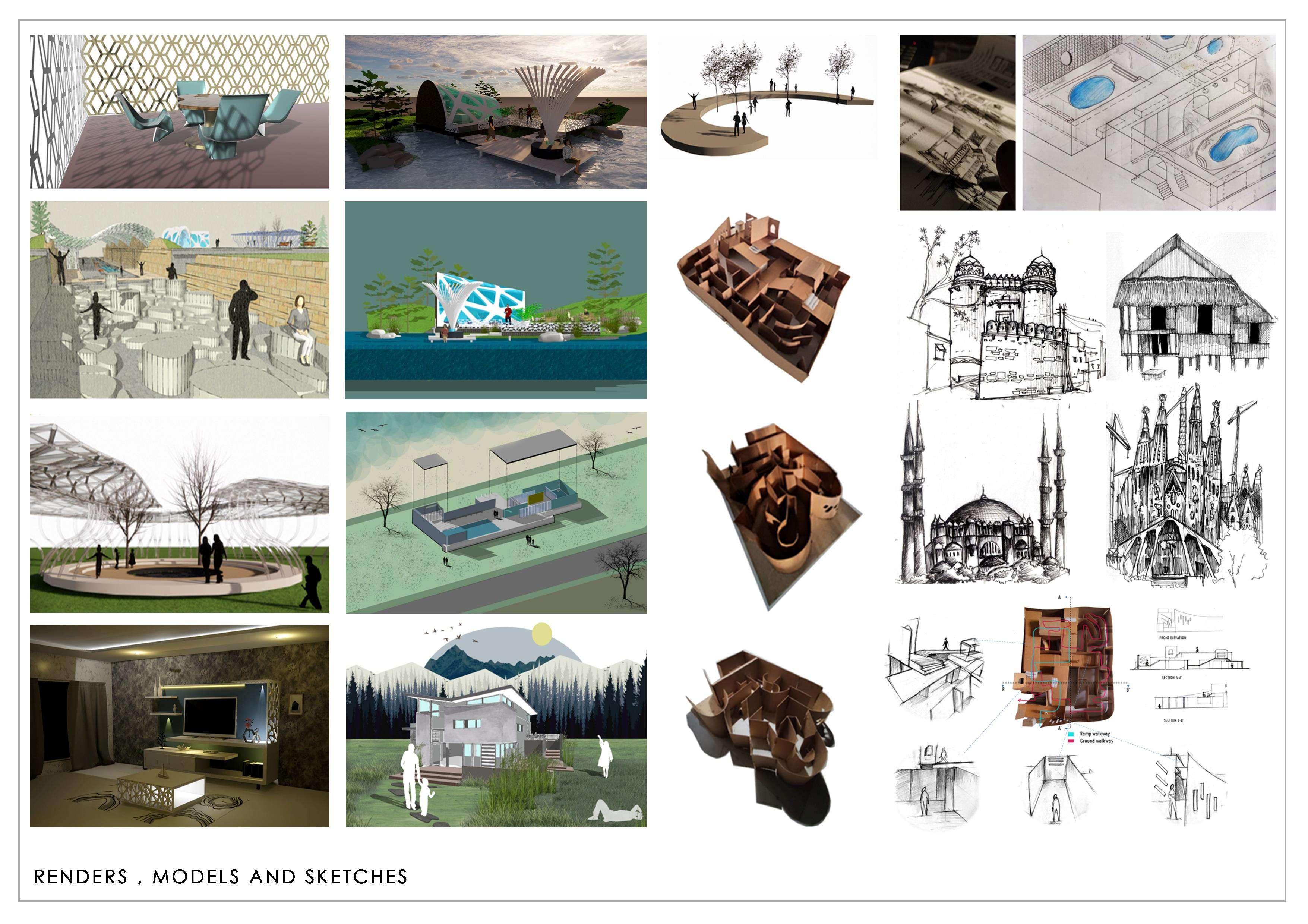

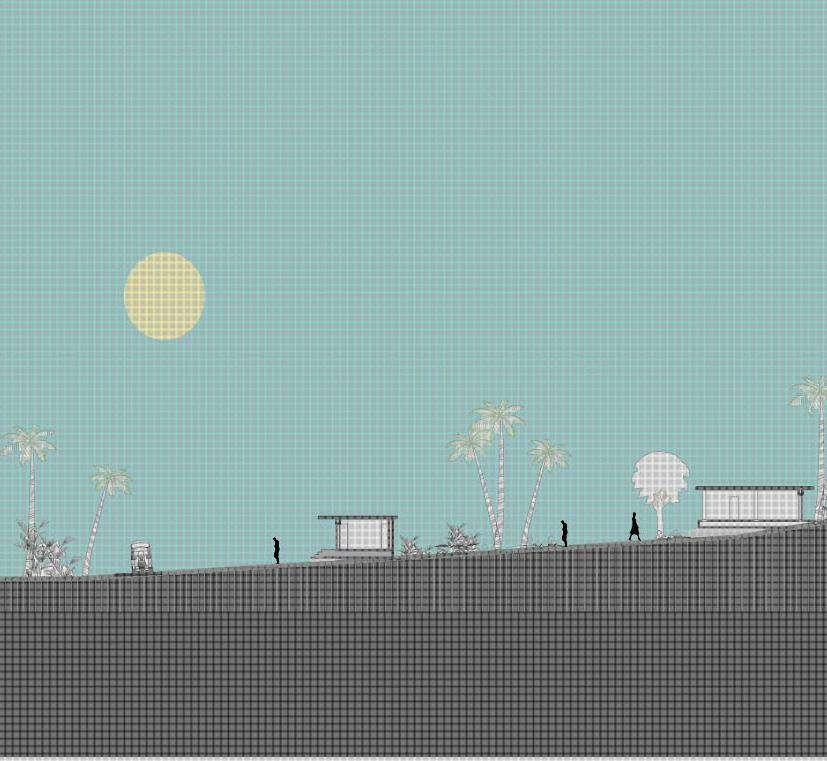

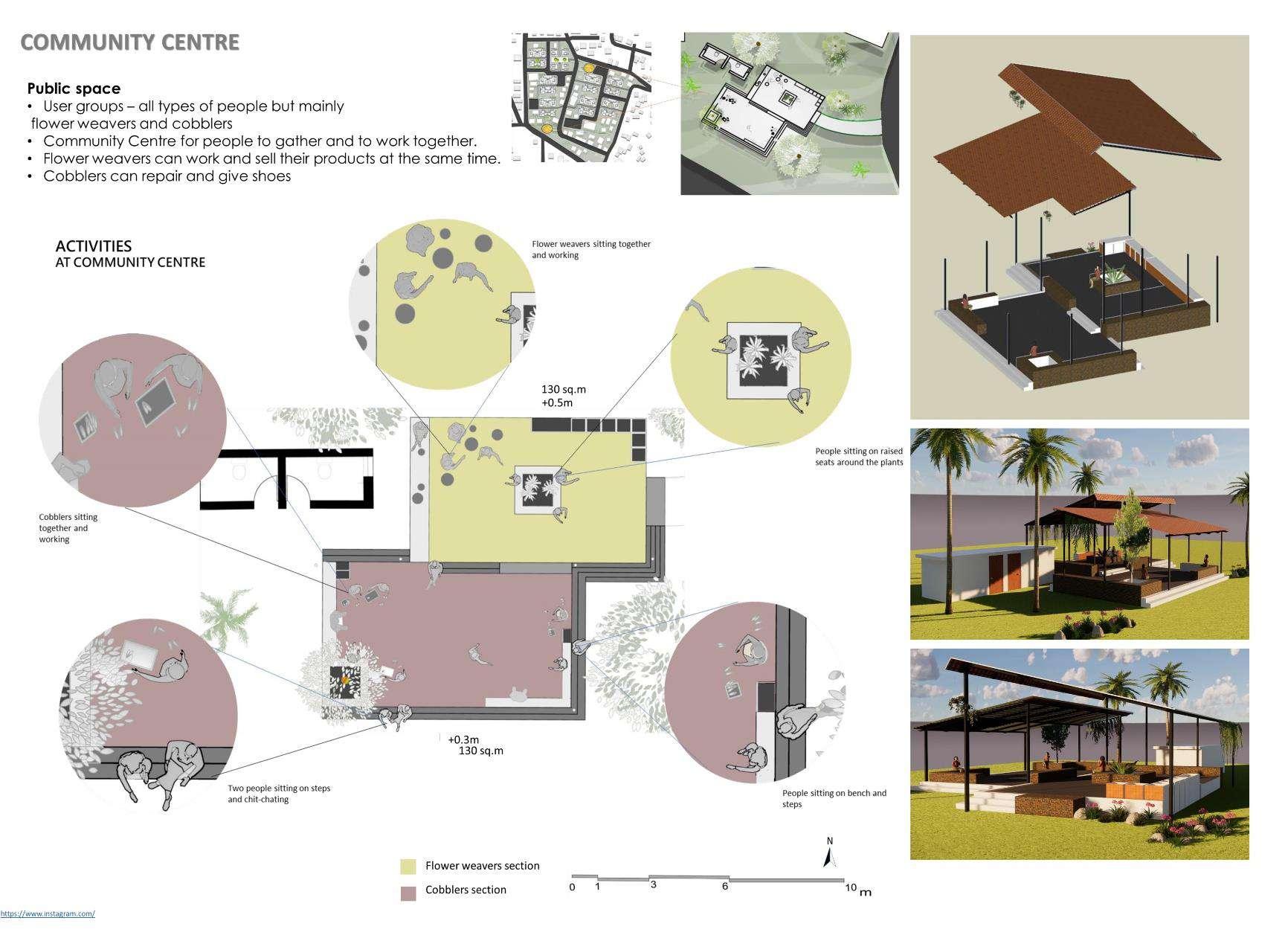

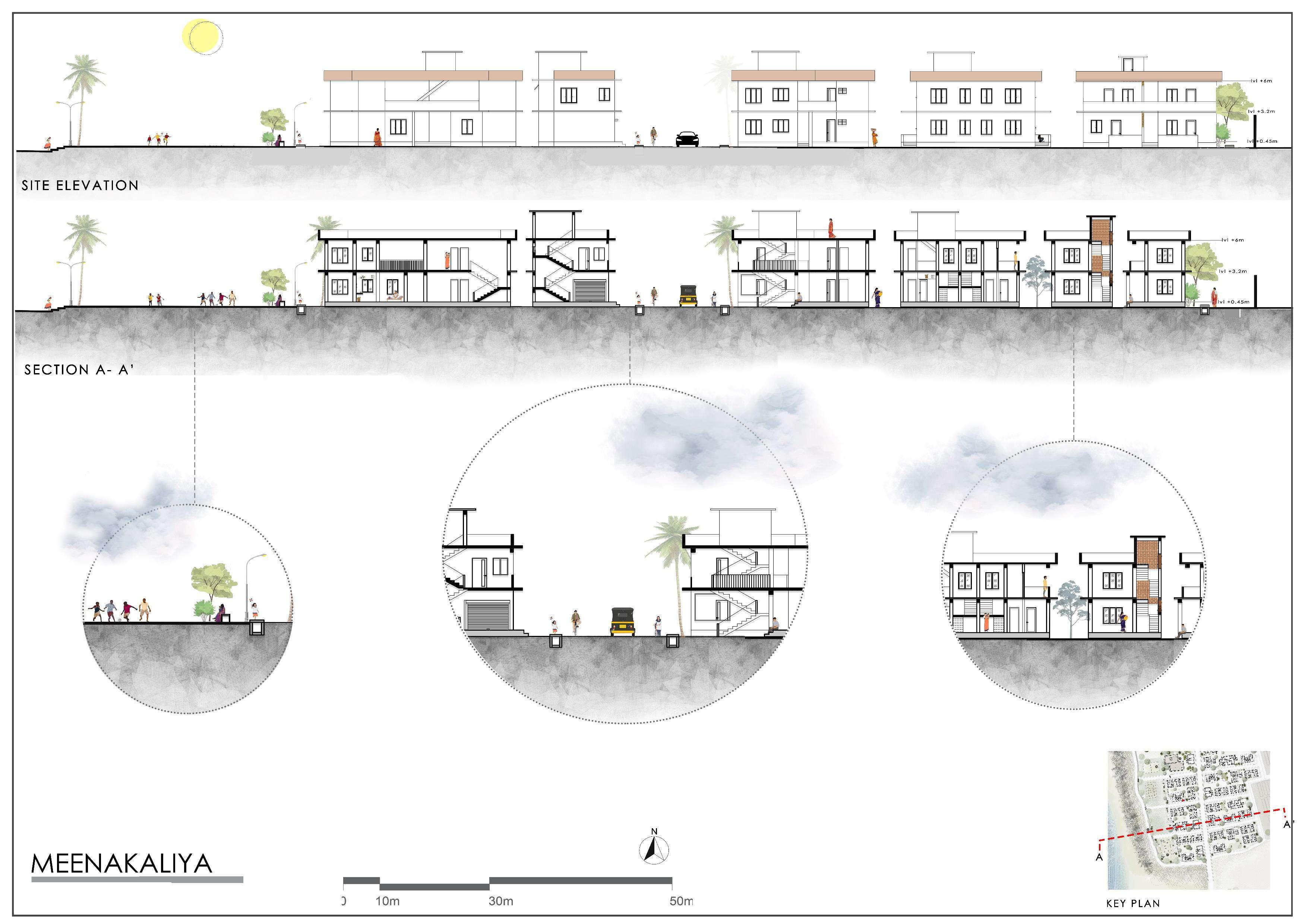

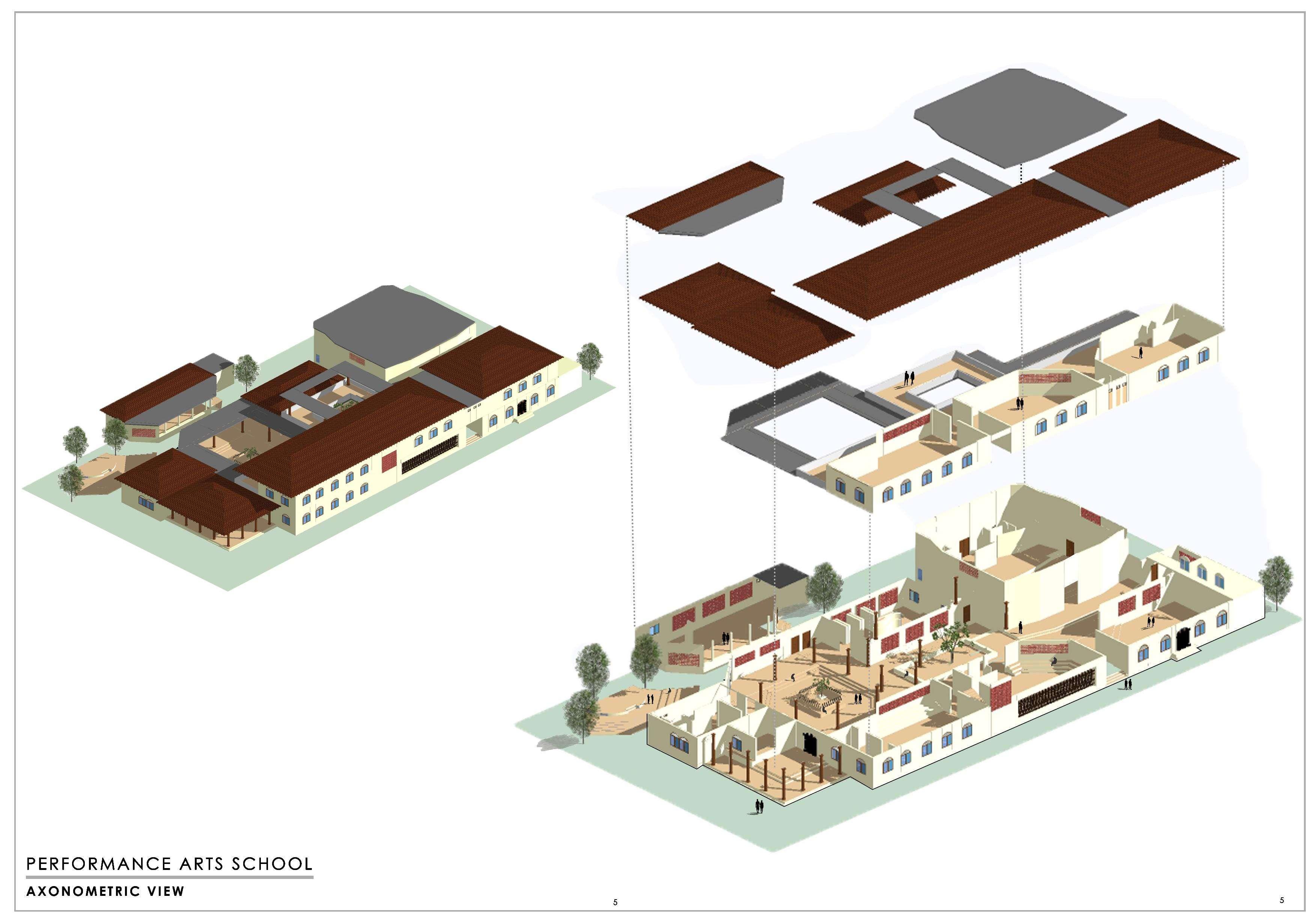

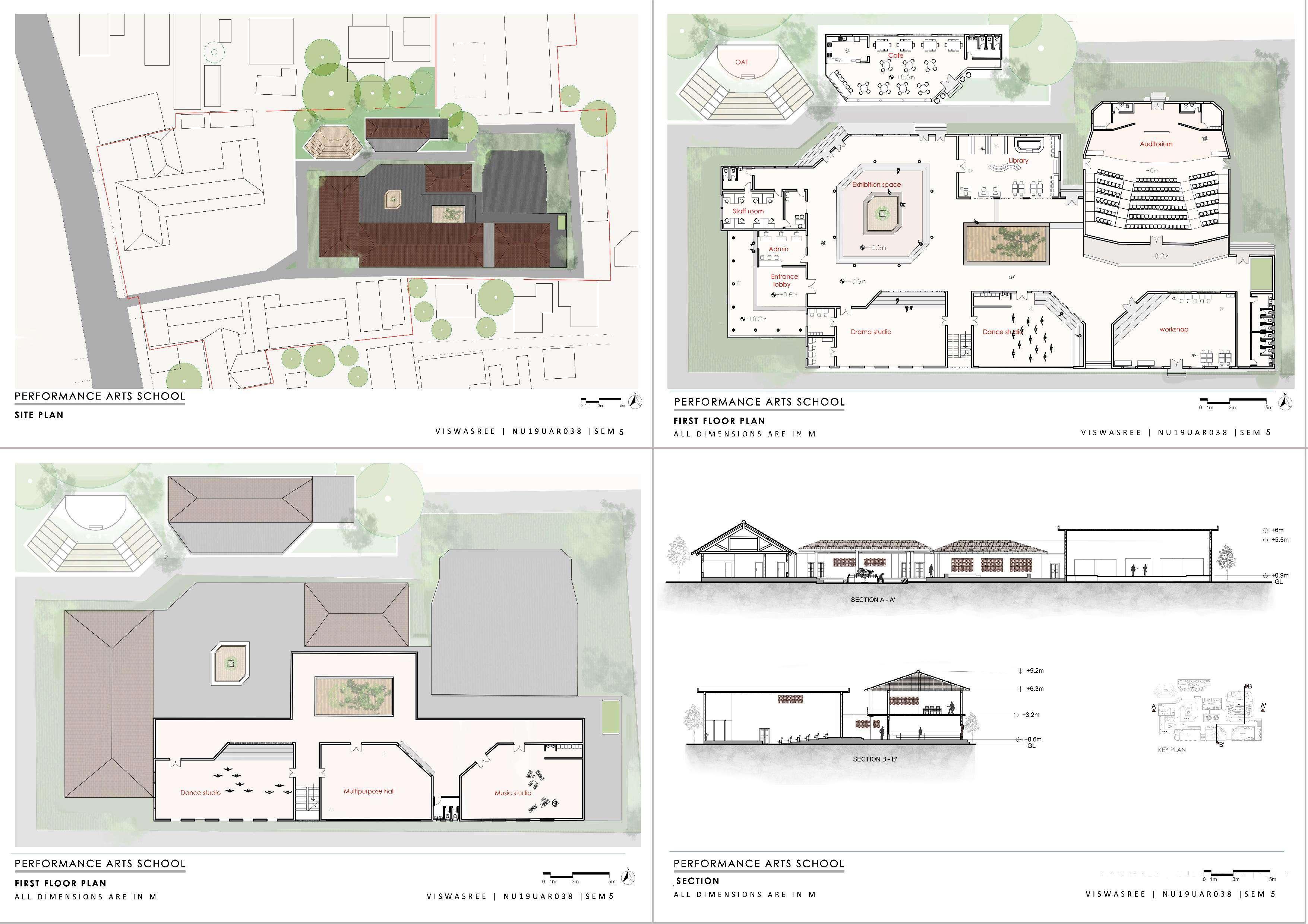

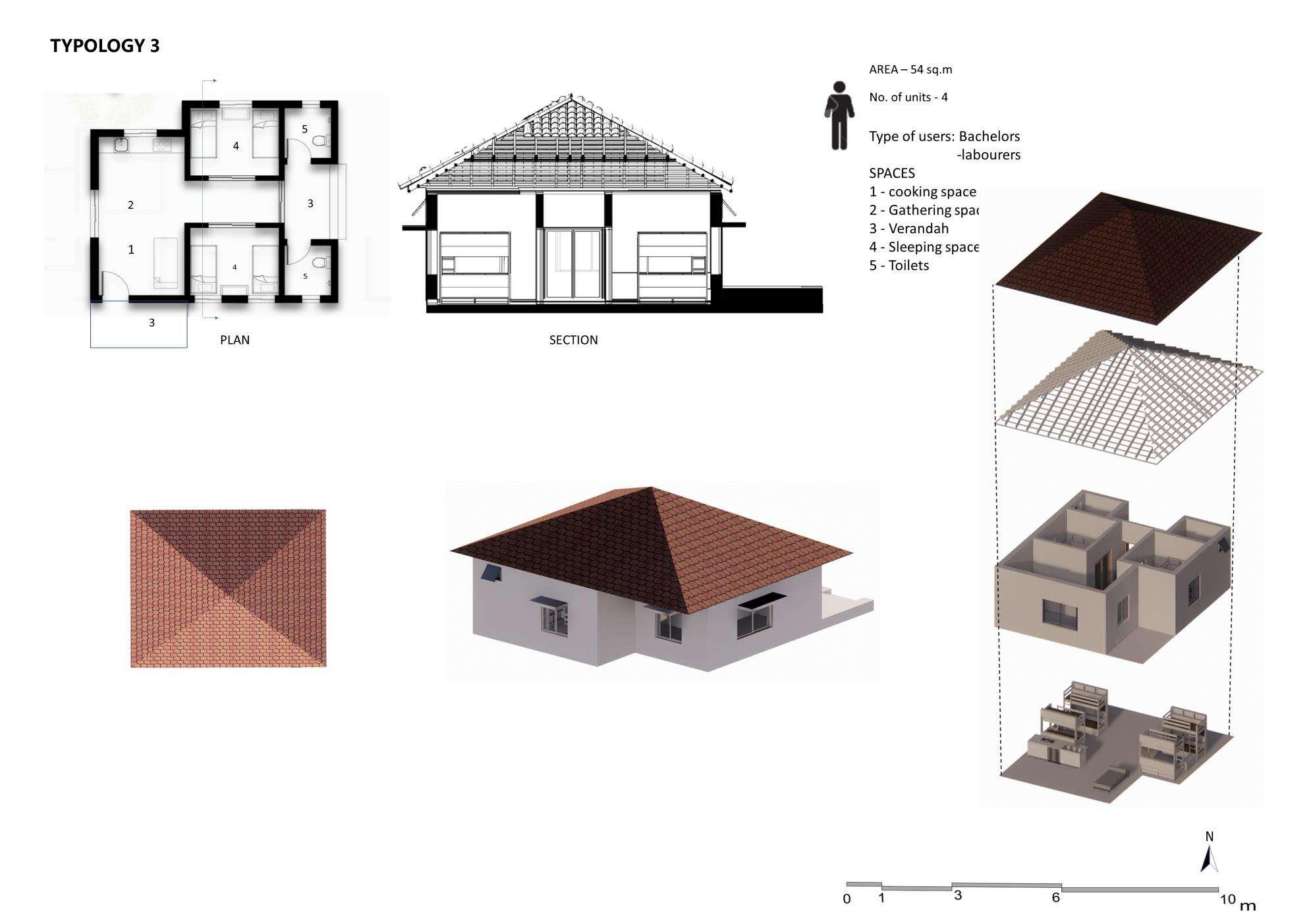

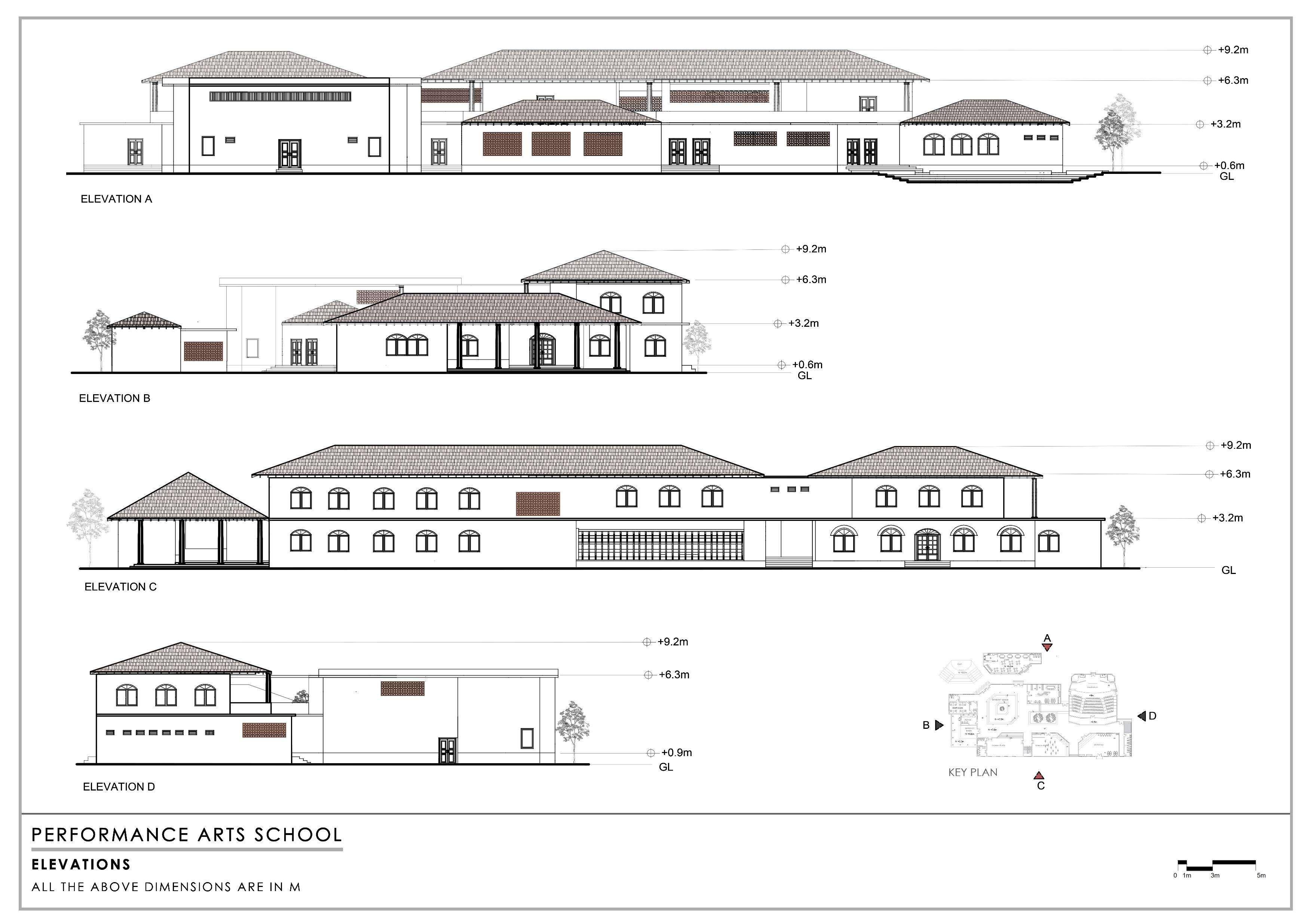

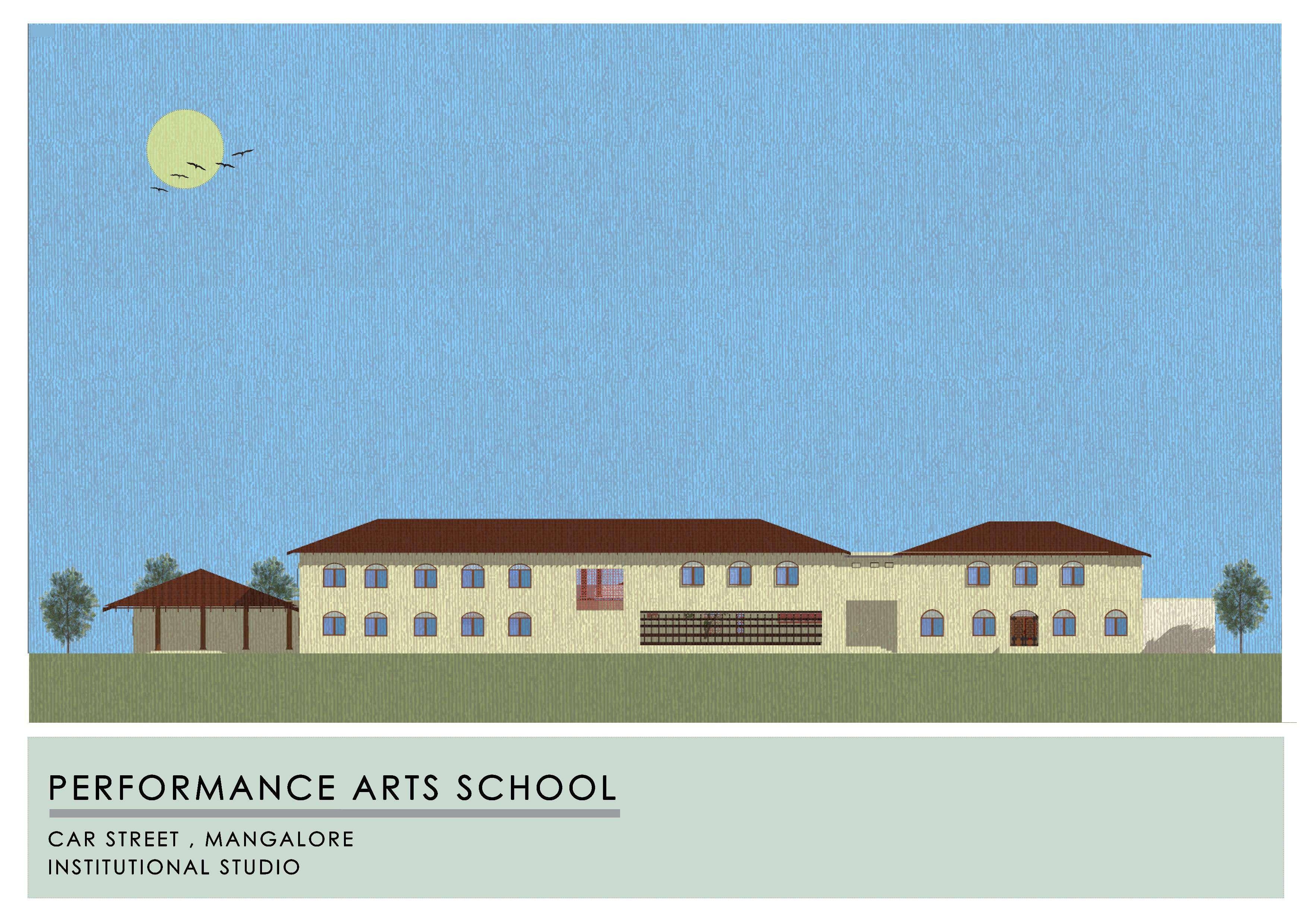

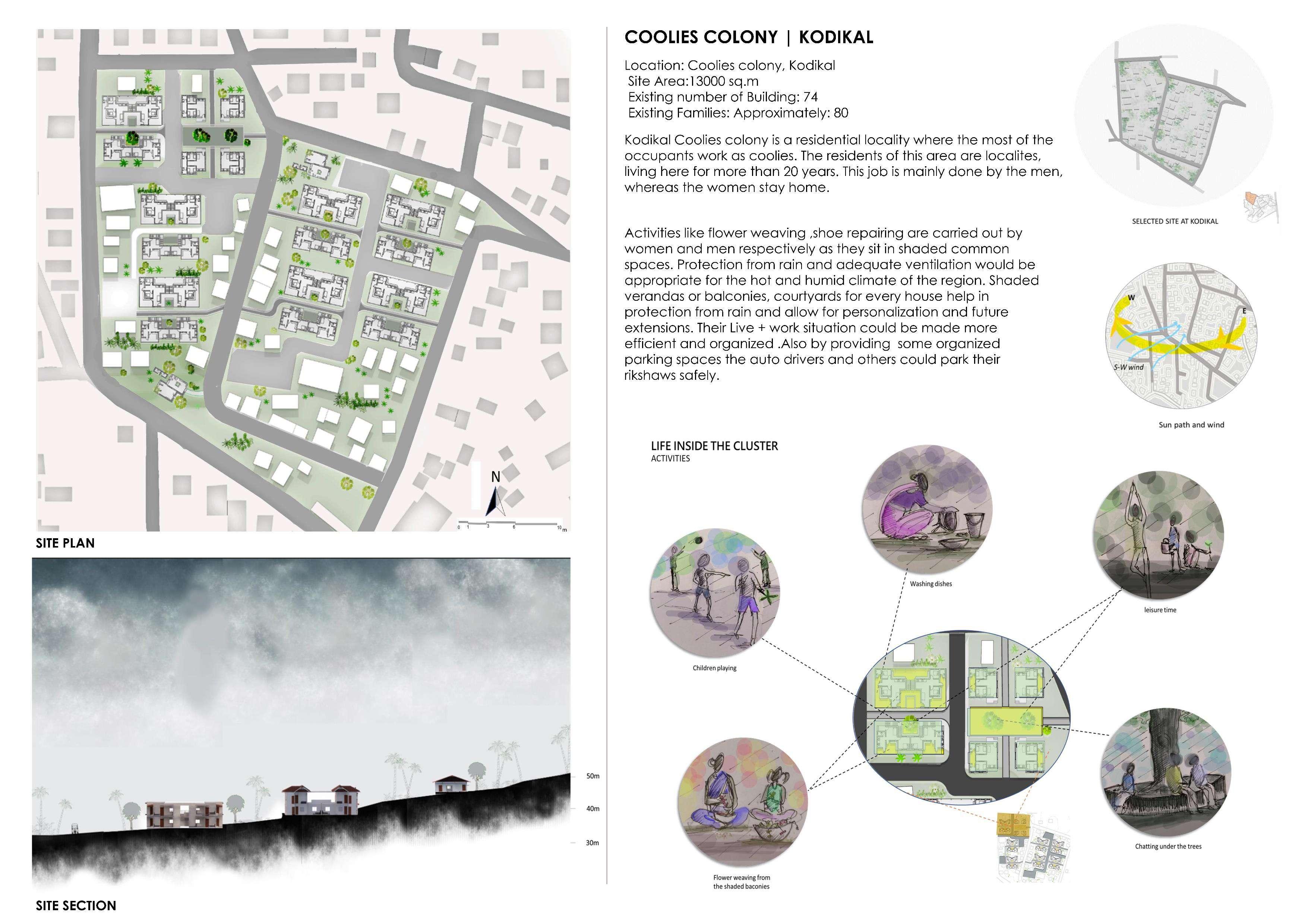

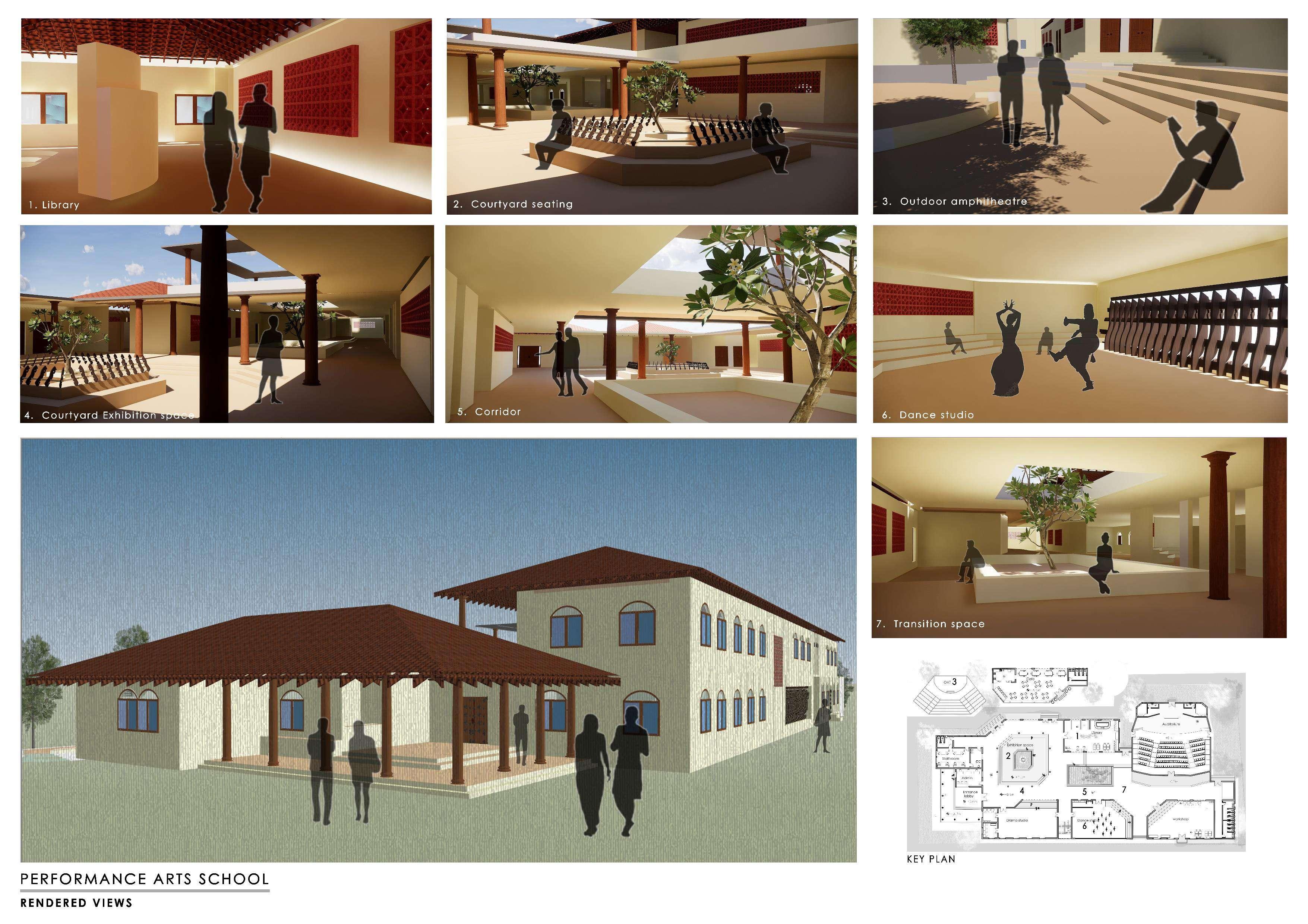

My main aim was to use traditional building methods and locally accessible materials in order to integrate in with the site's existing context. The spaces have been design to accommodate performing arts specific to the region.

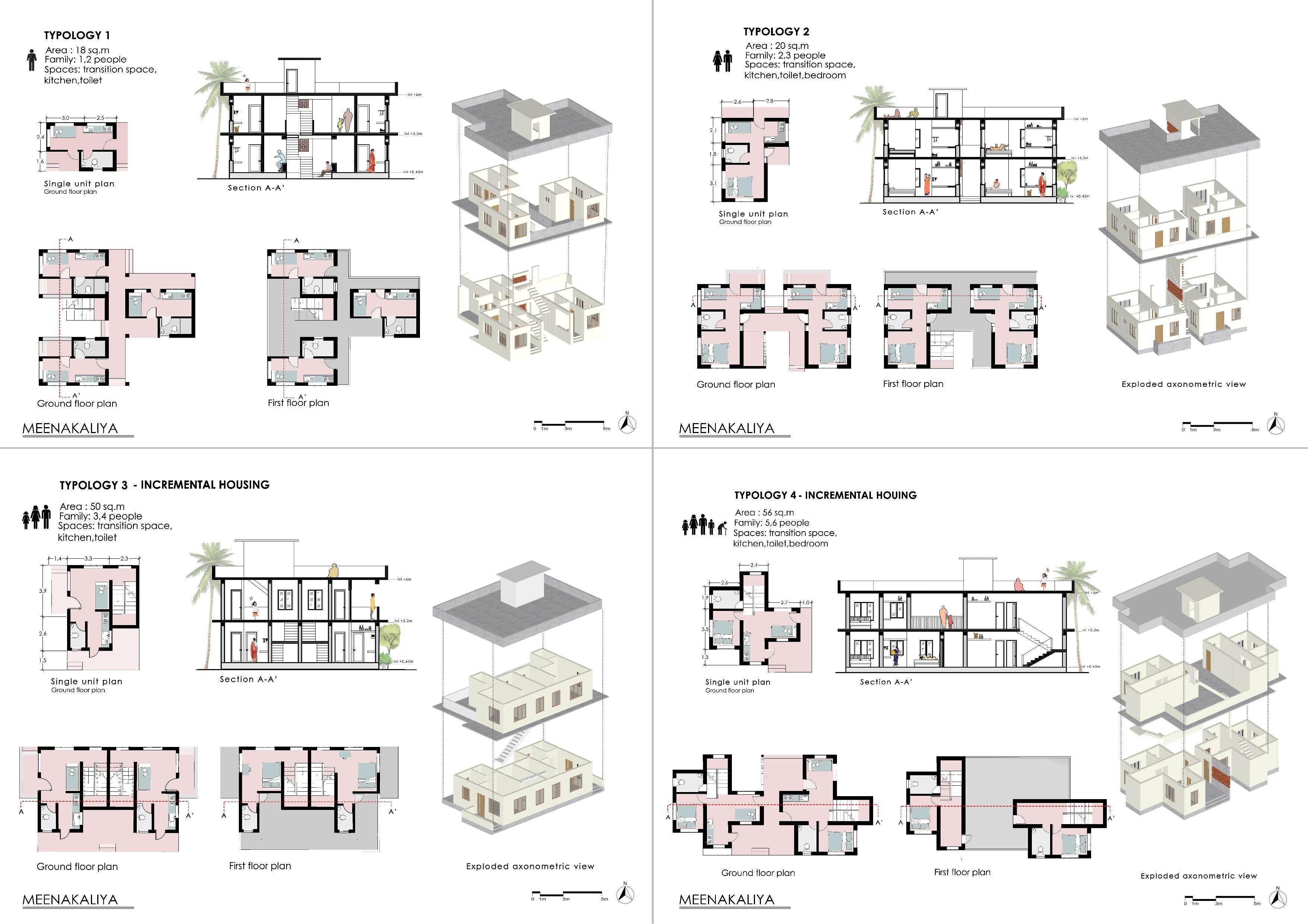

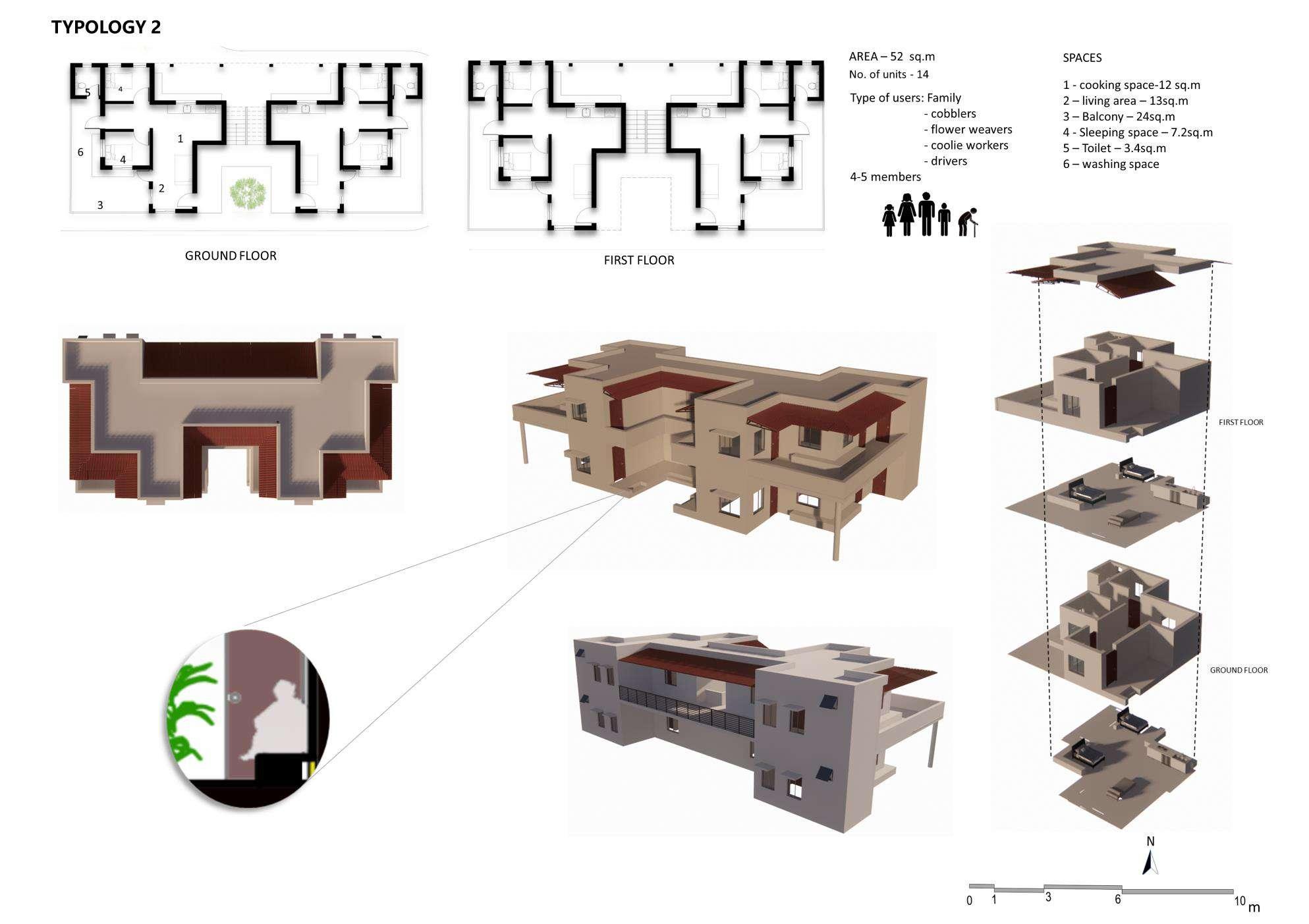

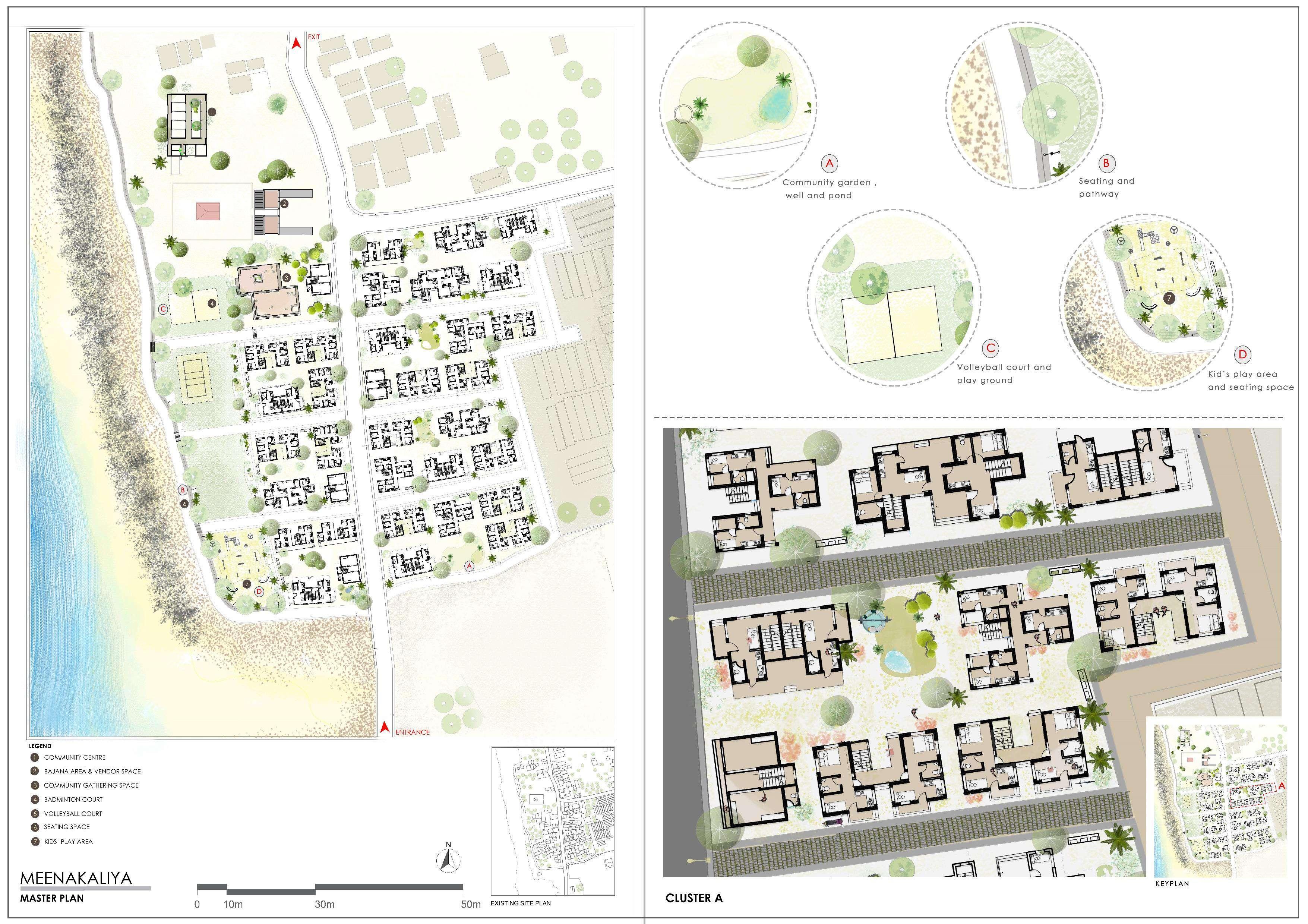

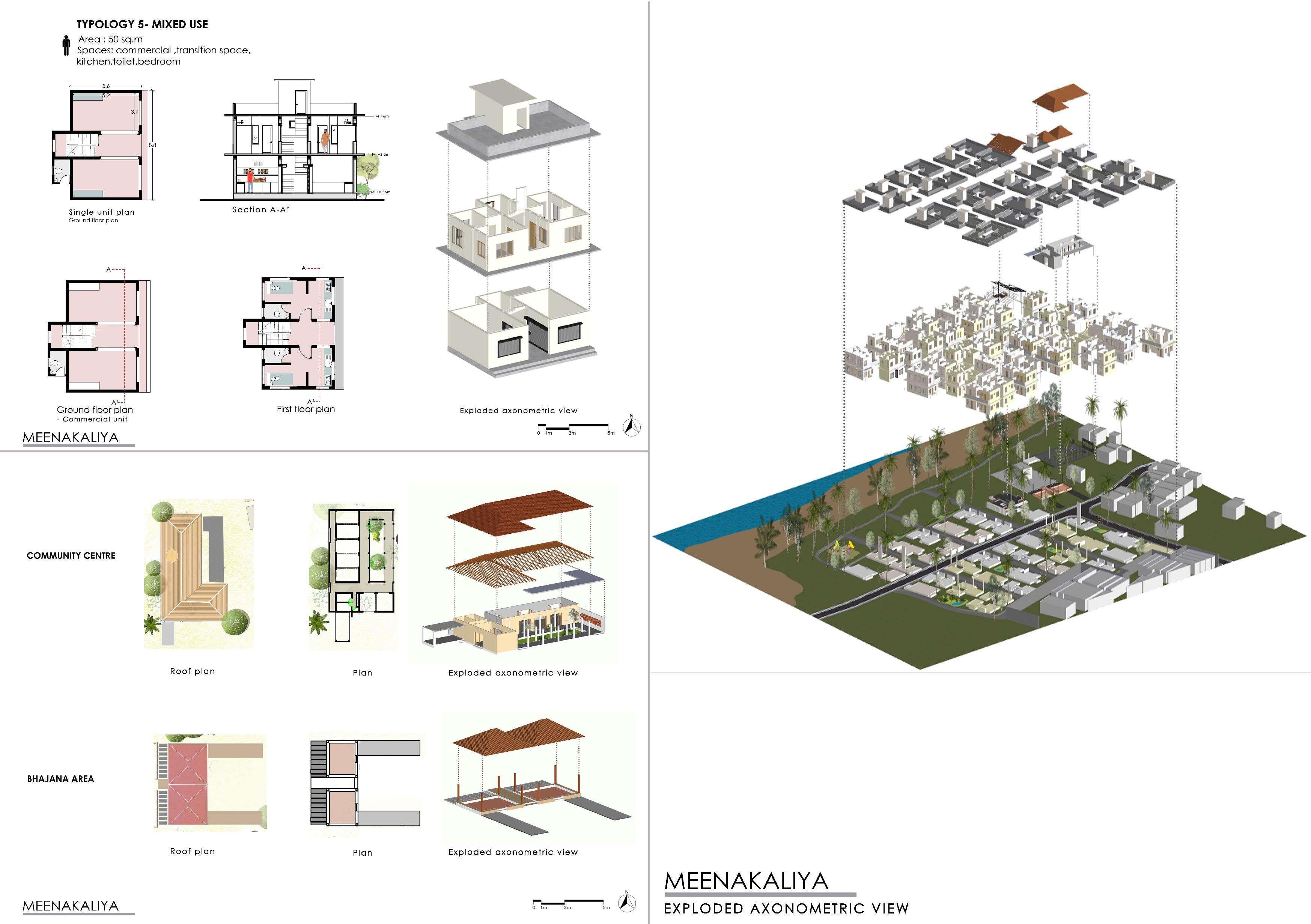

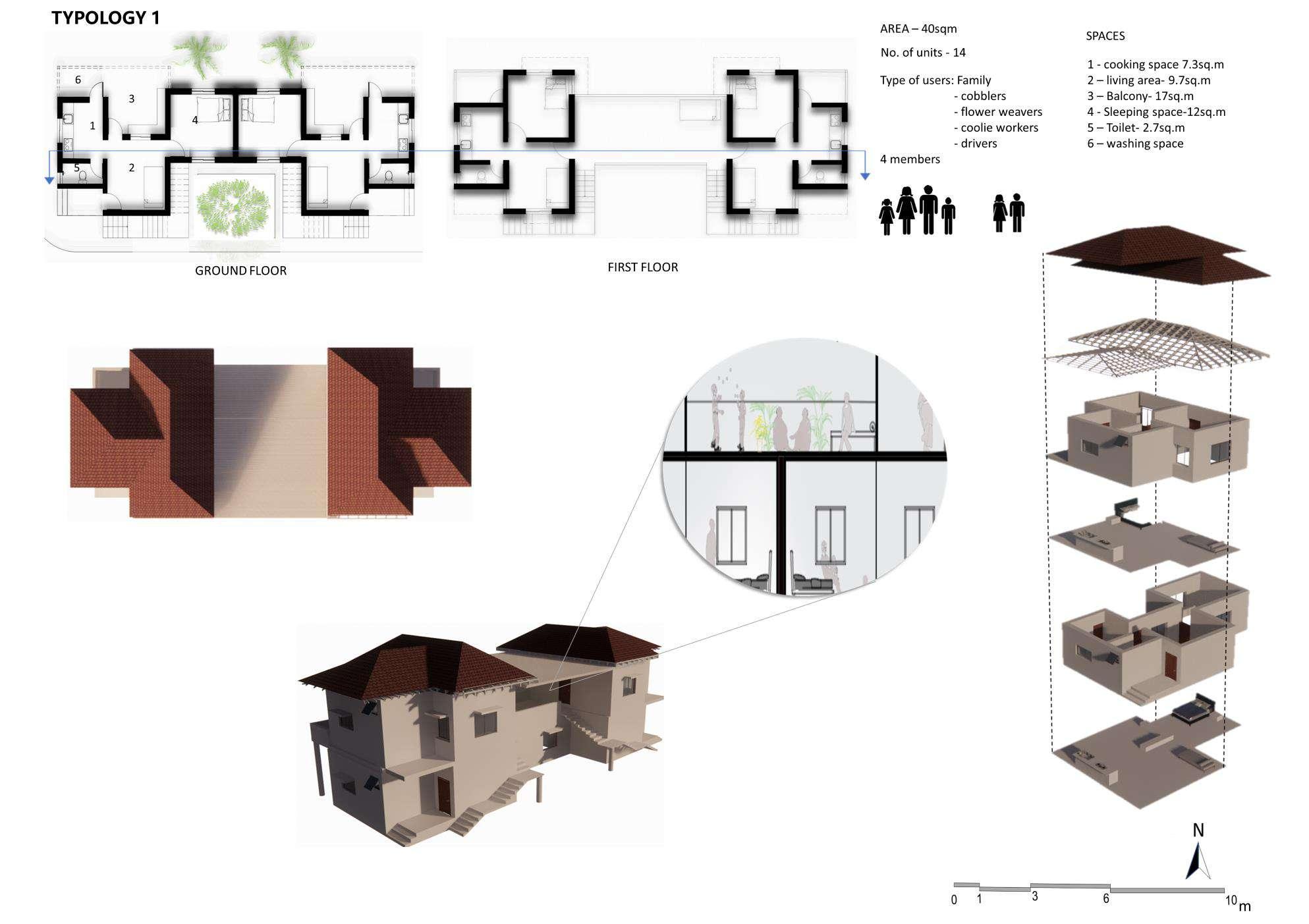

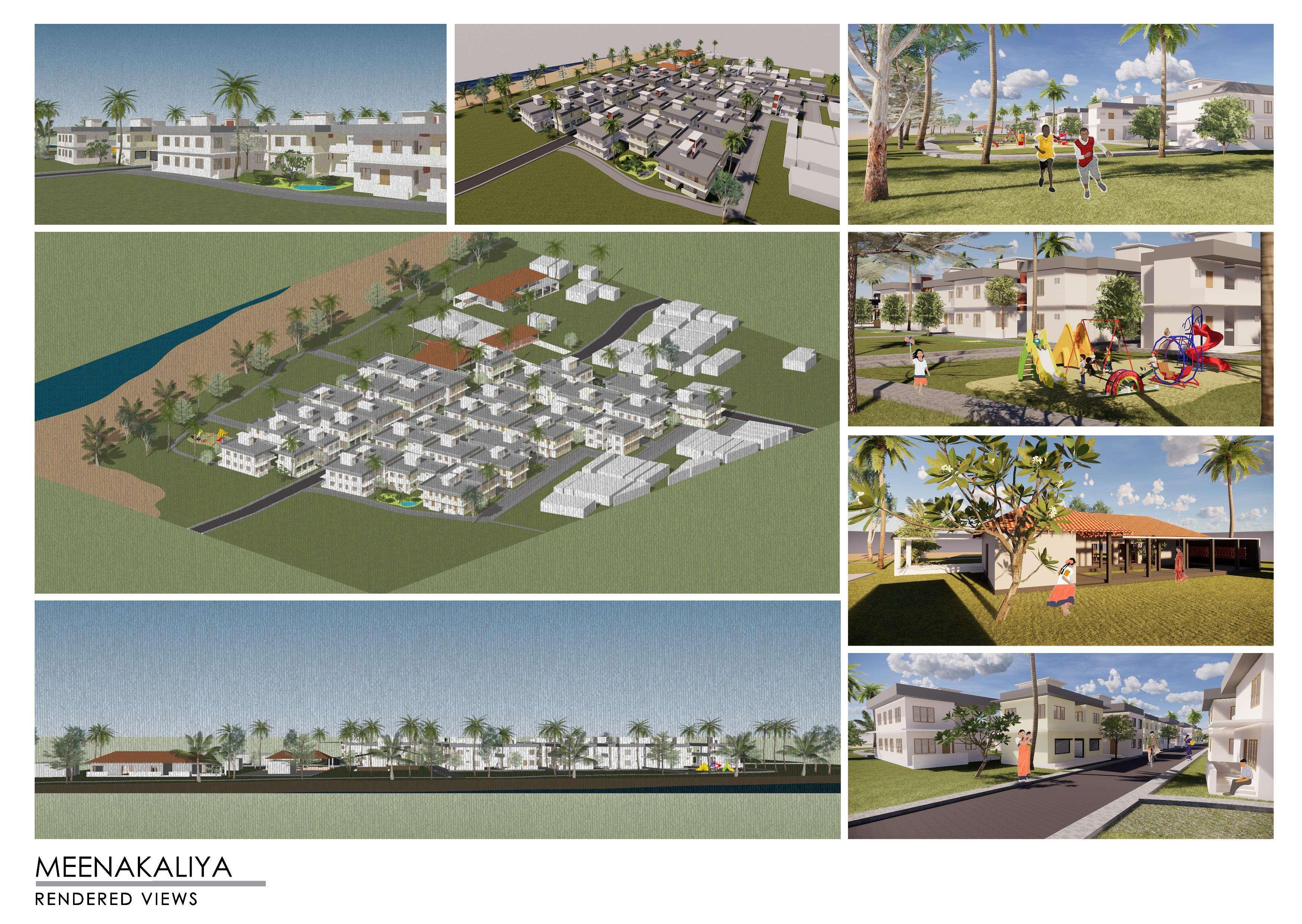

The design of the project follows sensitive approach by taking existing character which the people previously maintained and to make the dwellings sensitive to the lifestyle and daily needs of the people.

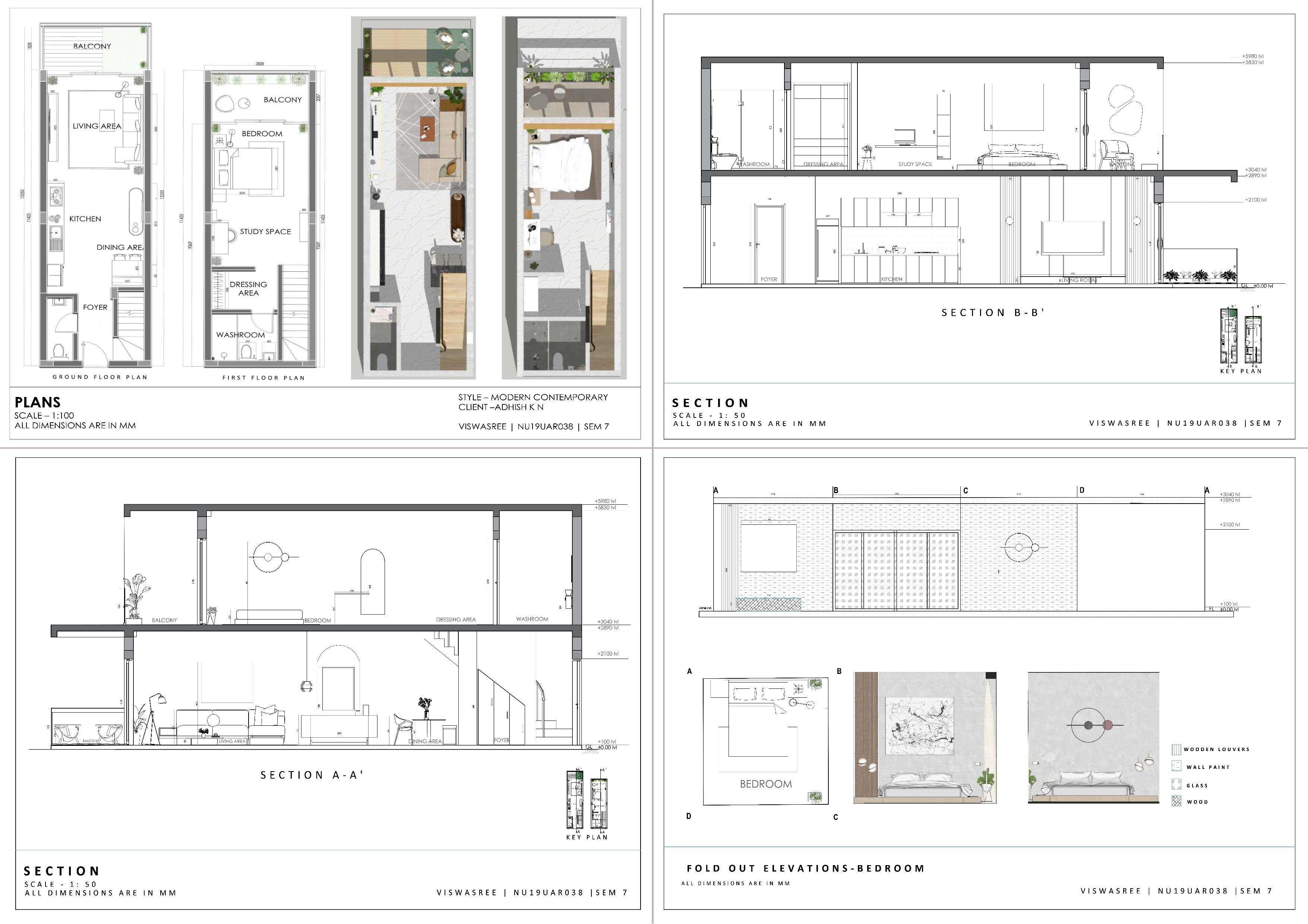

VISWASREE K NAMBIAR | NU19UAR038 | SEM 7 STUDIO APARTMENT

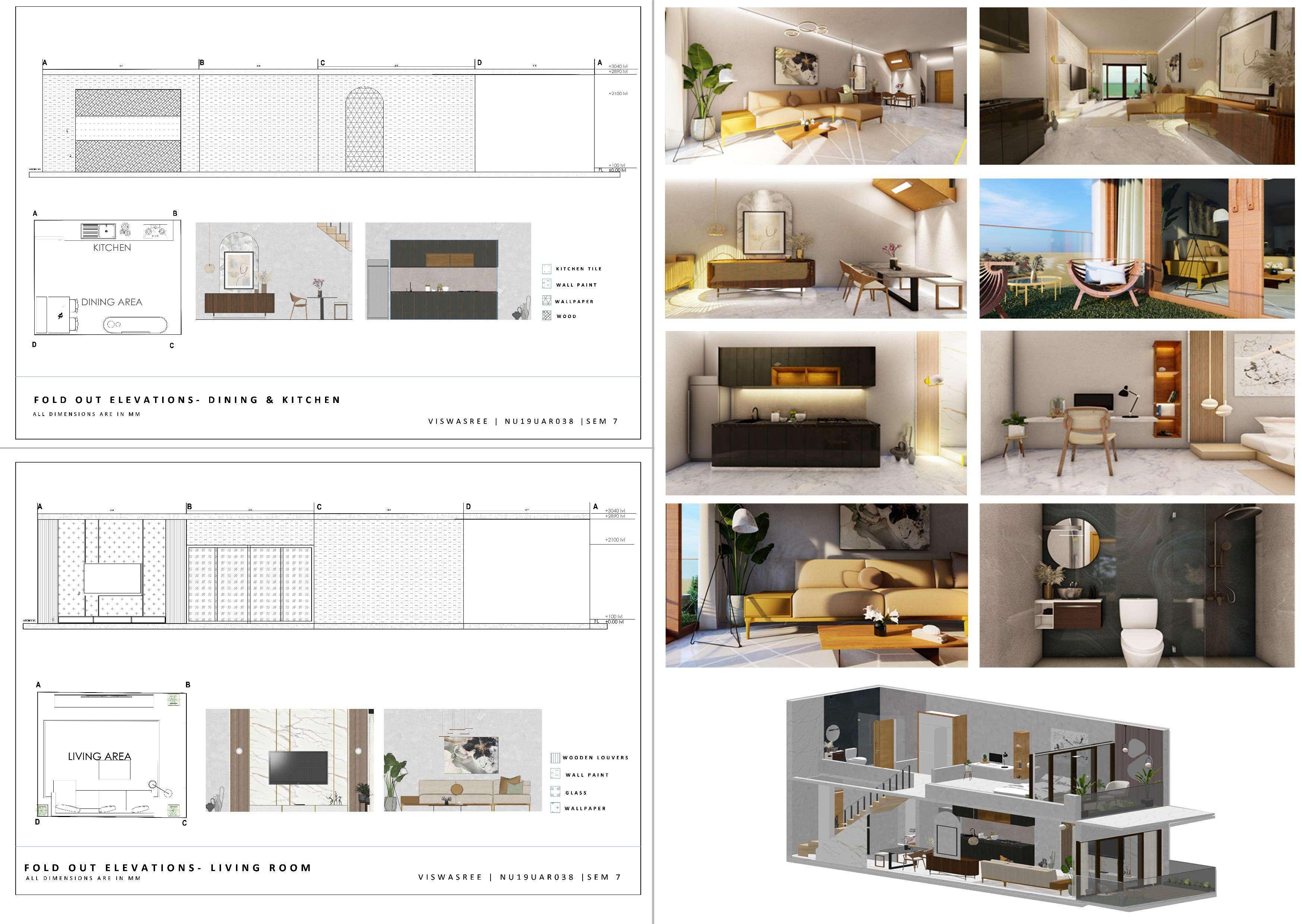

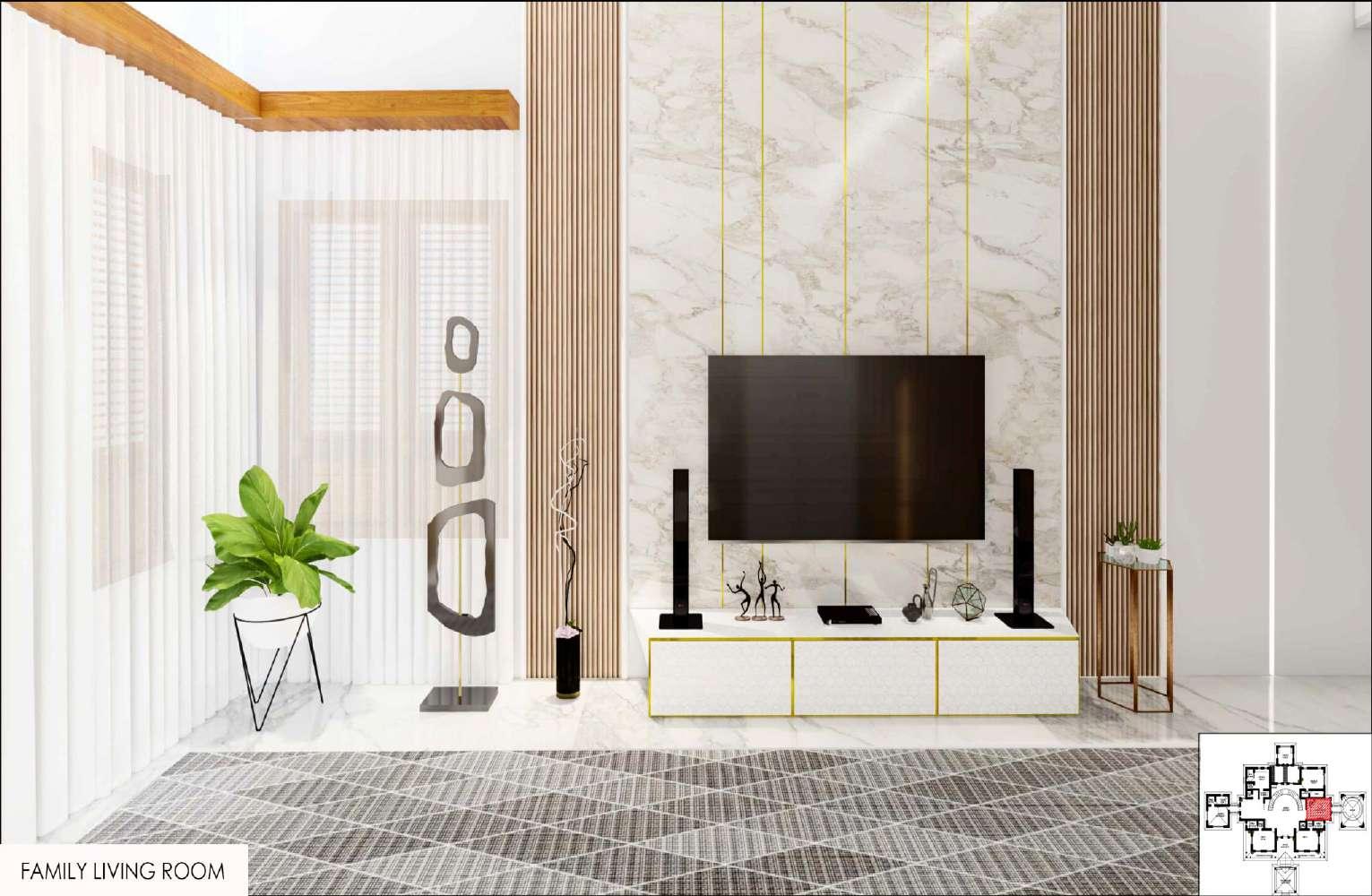

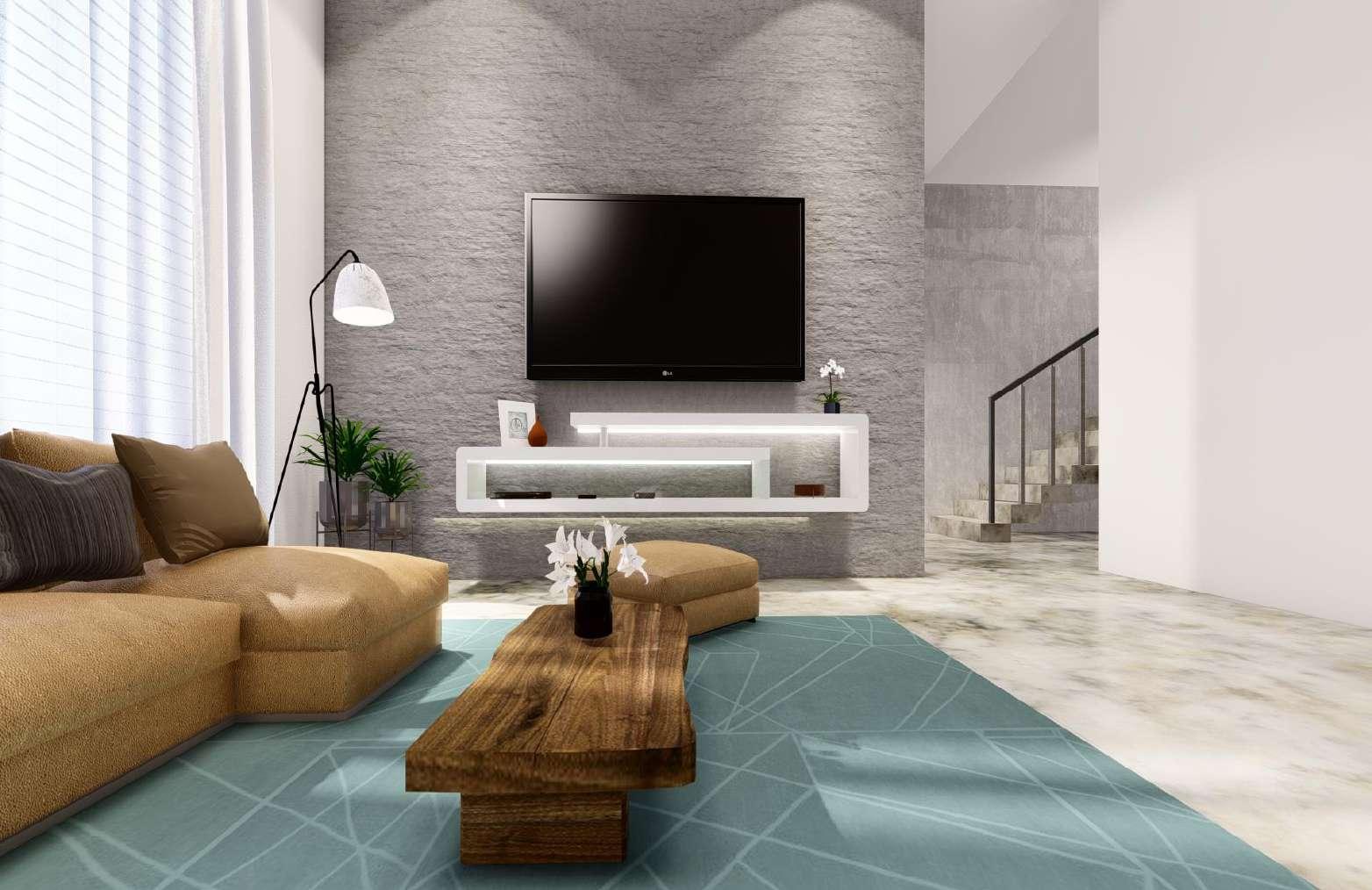

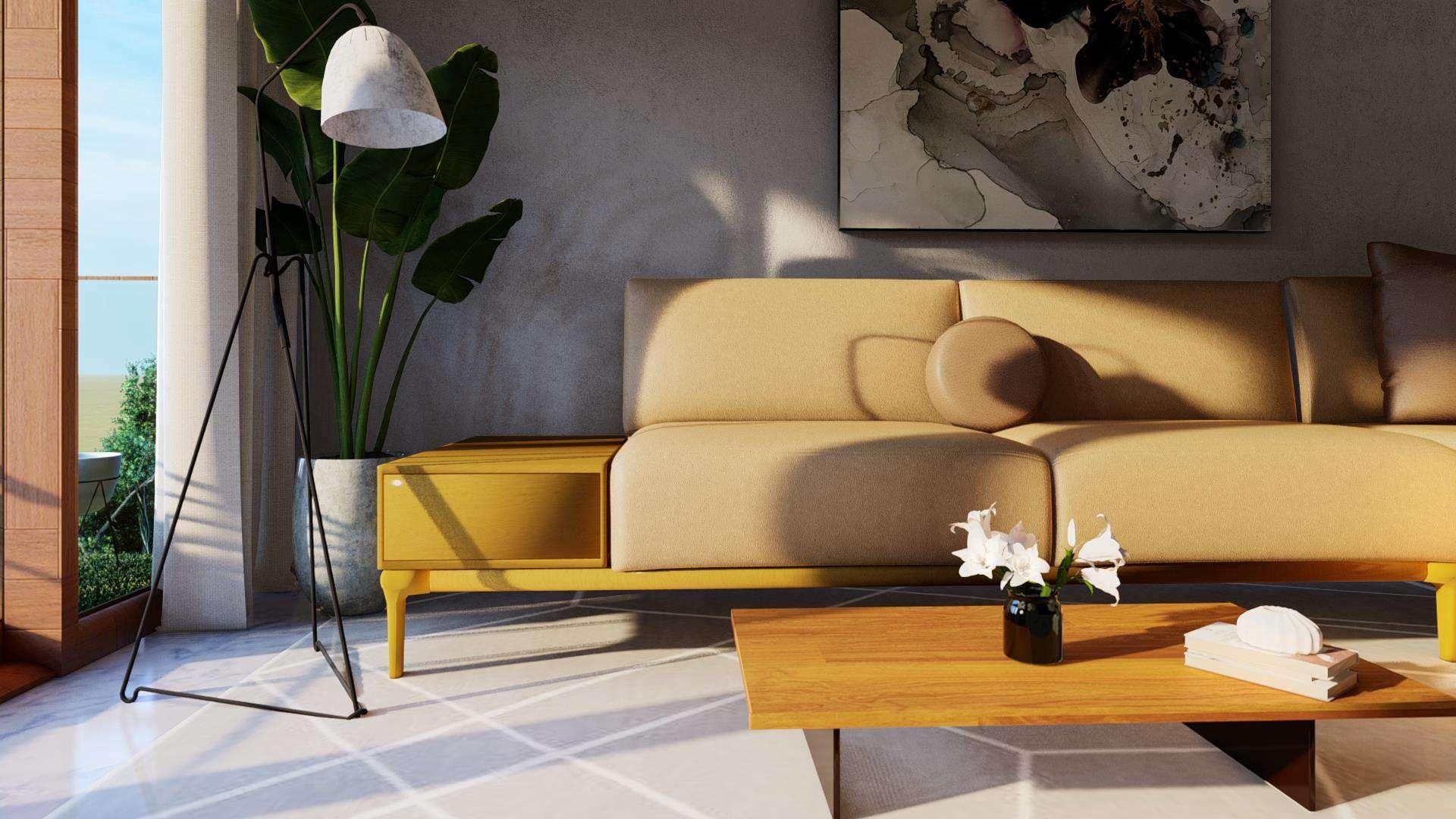

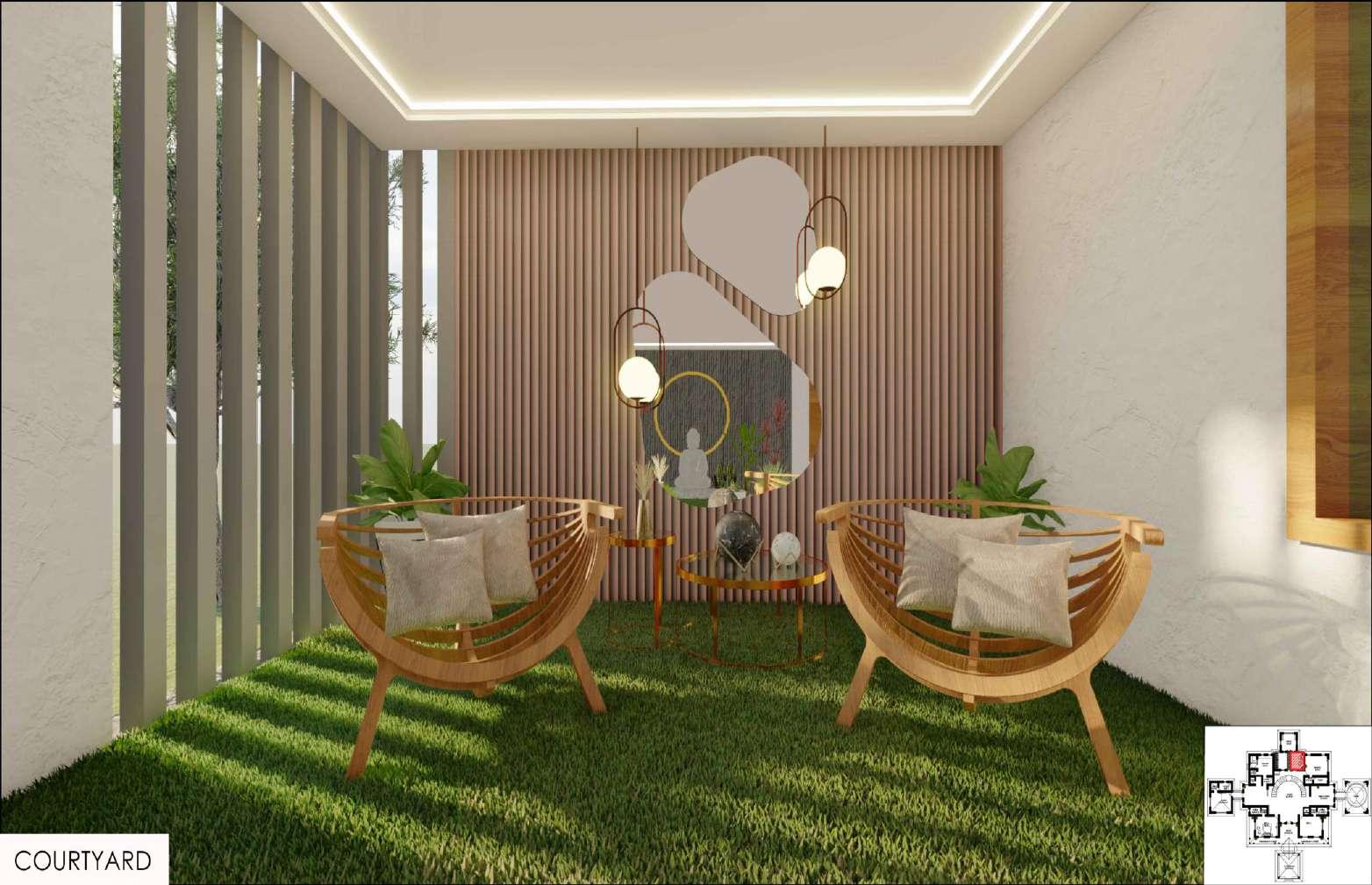

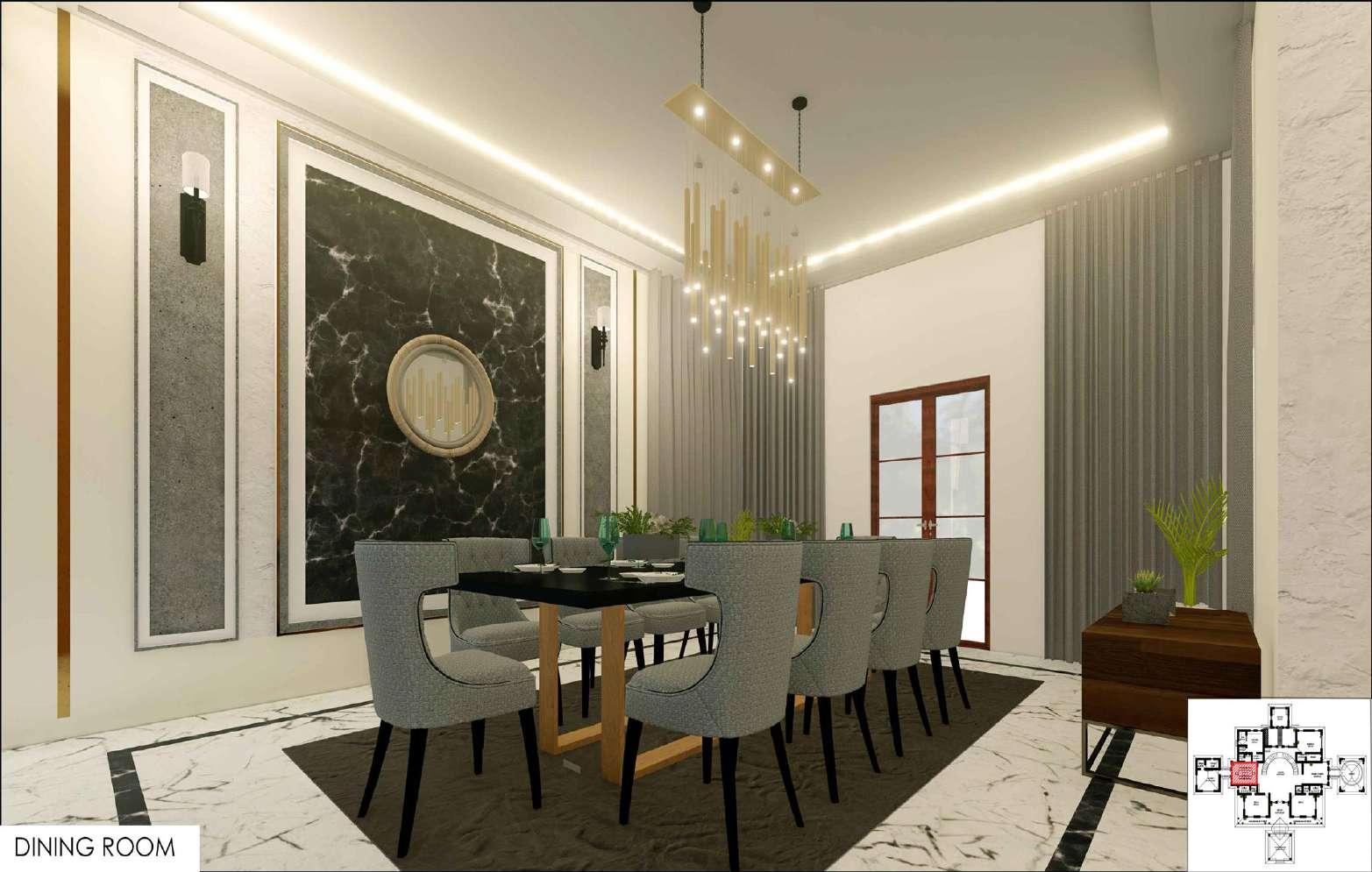

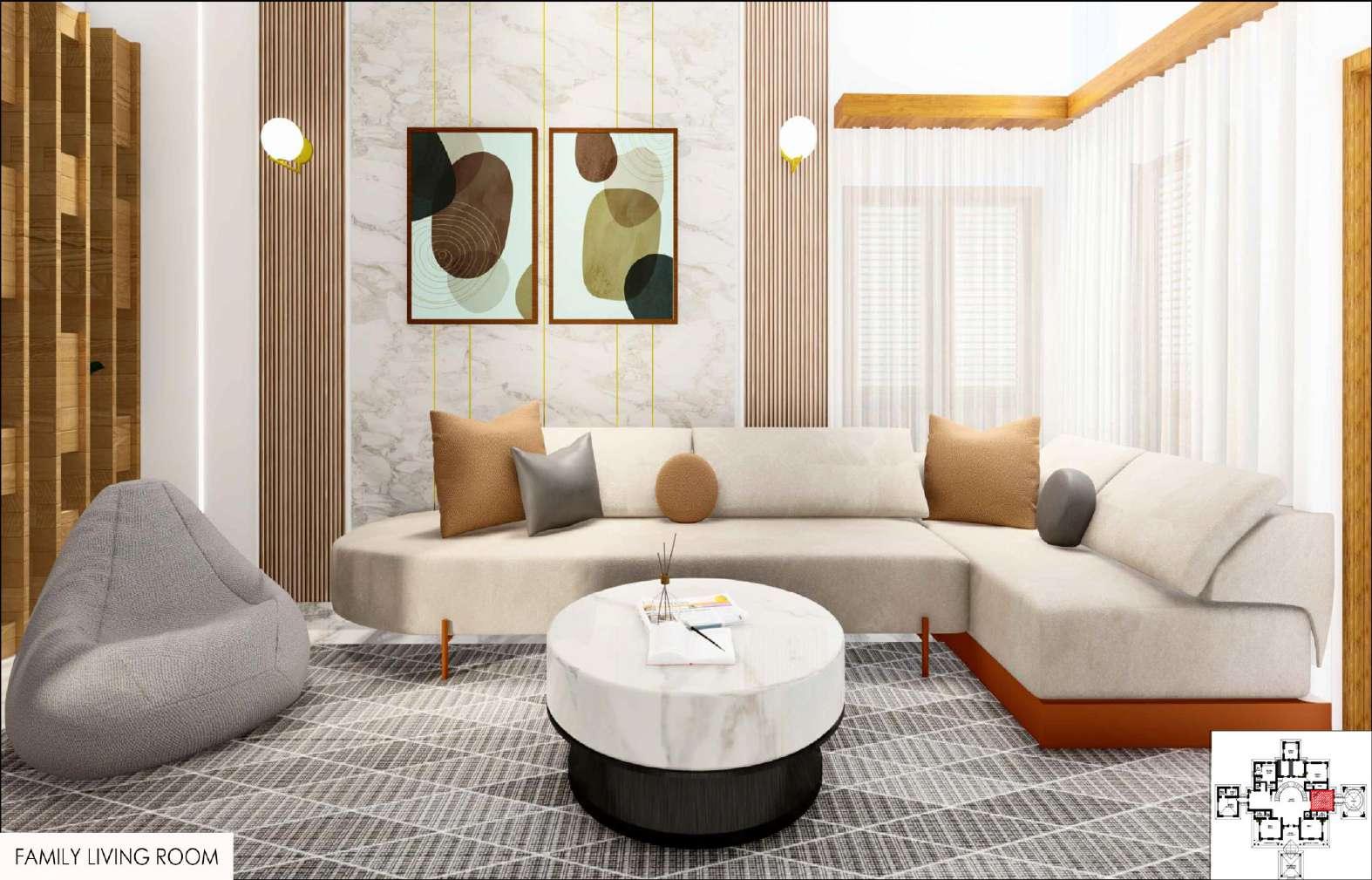

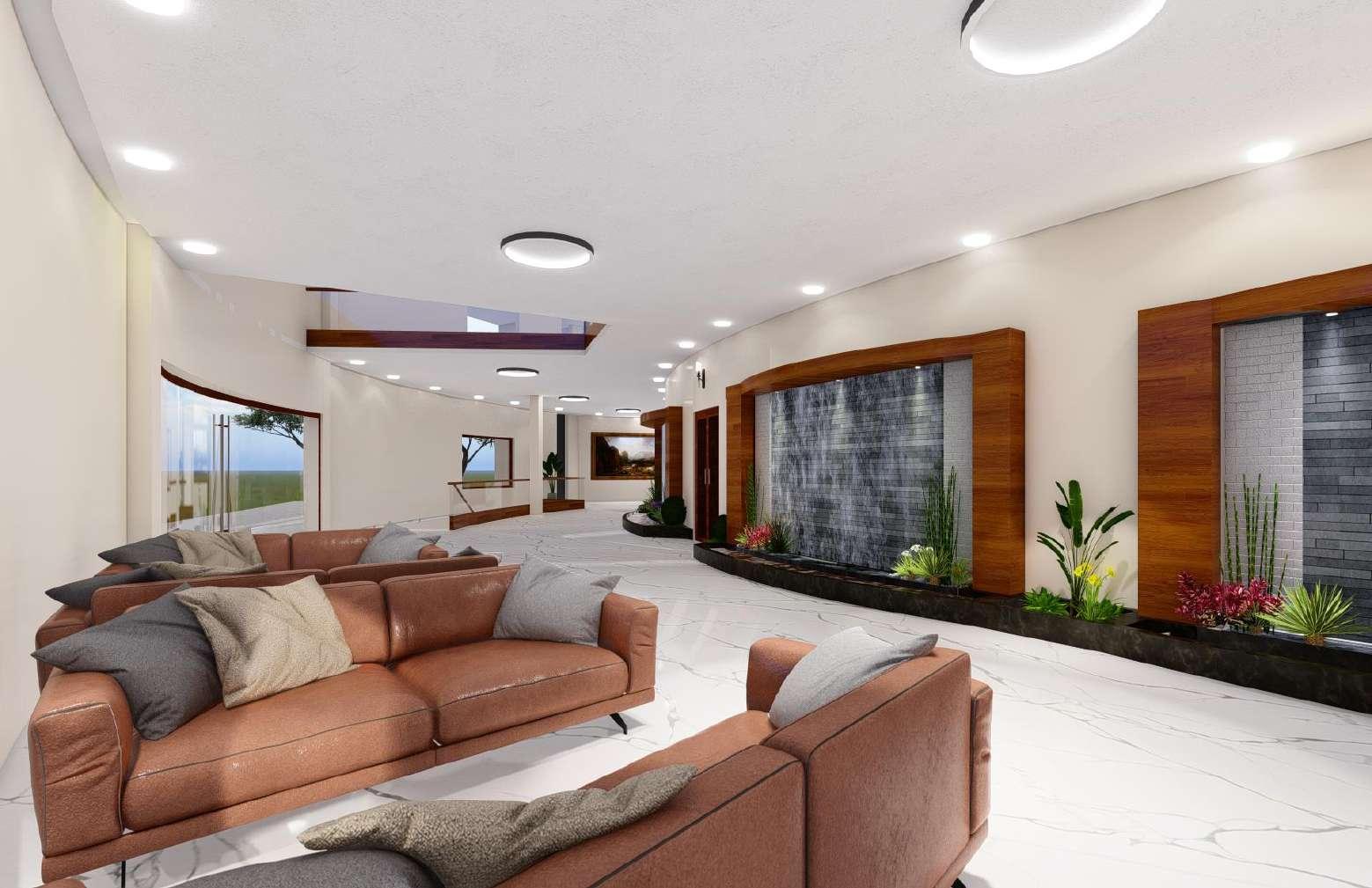

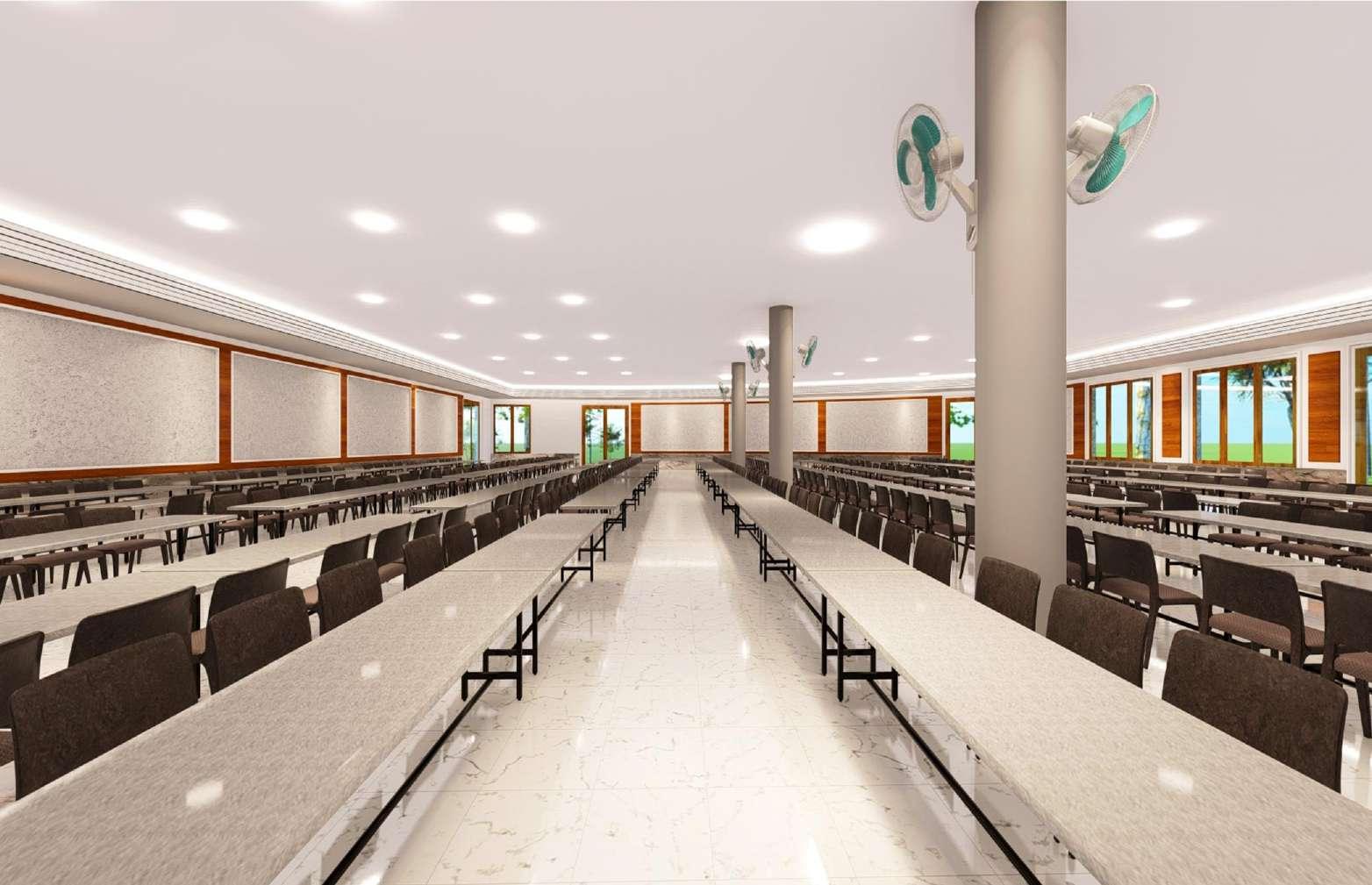

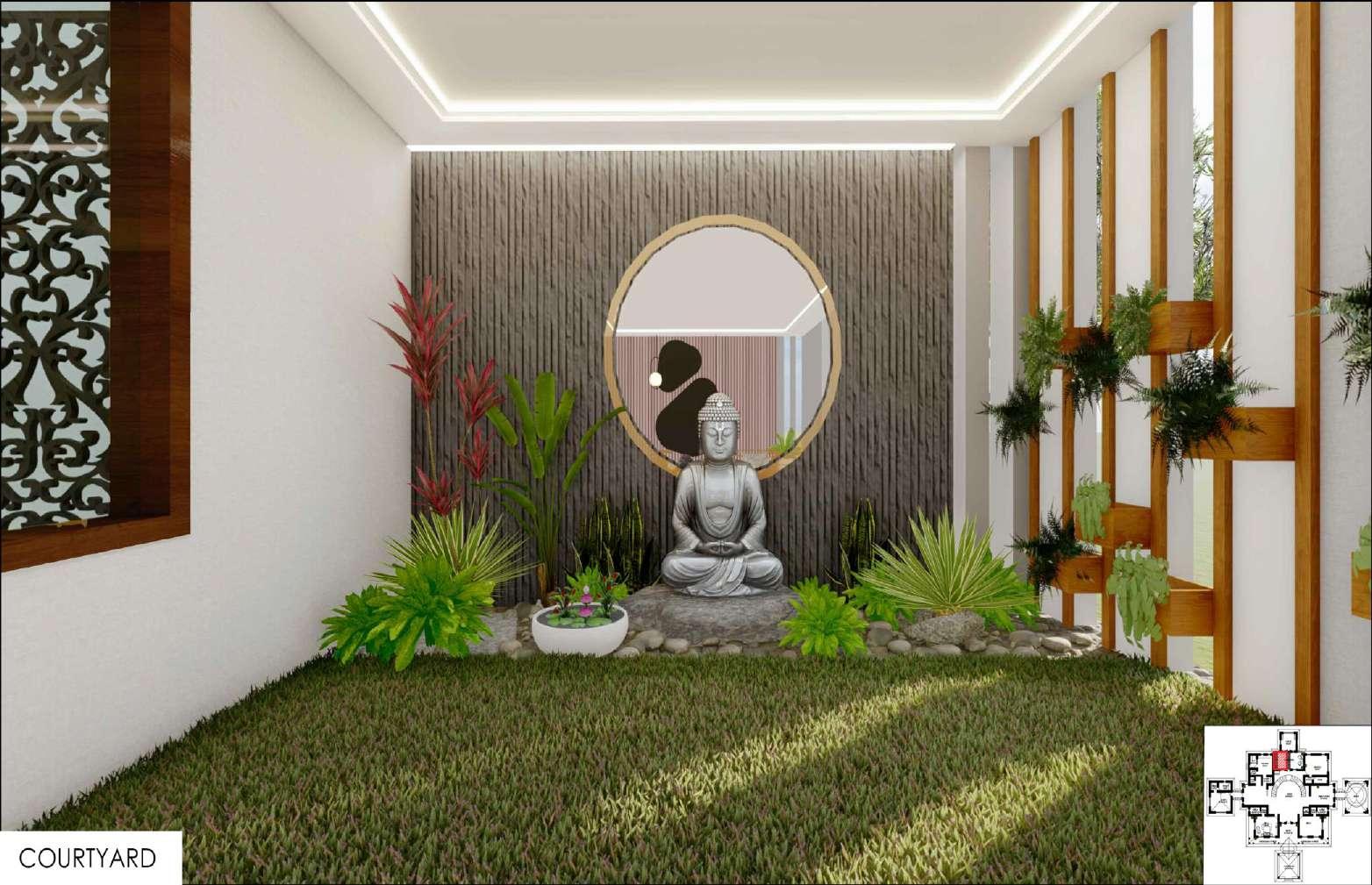

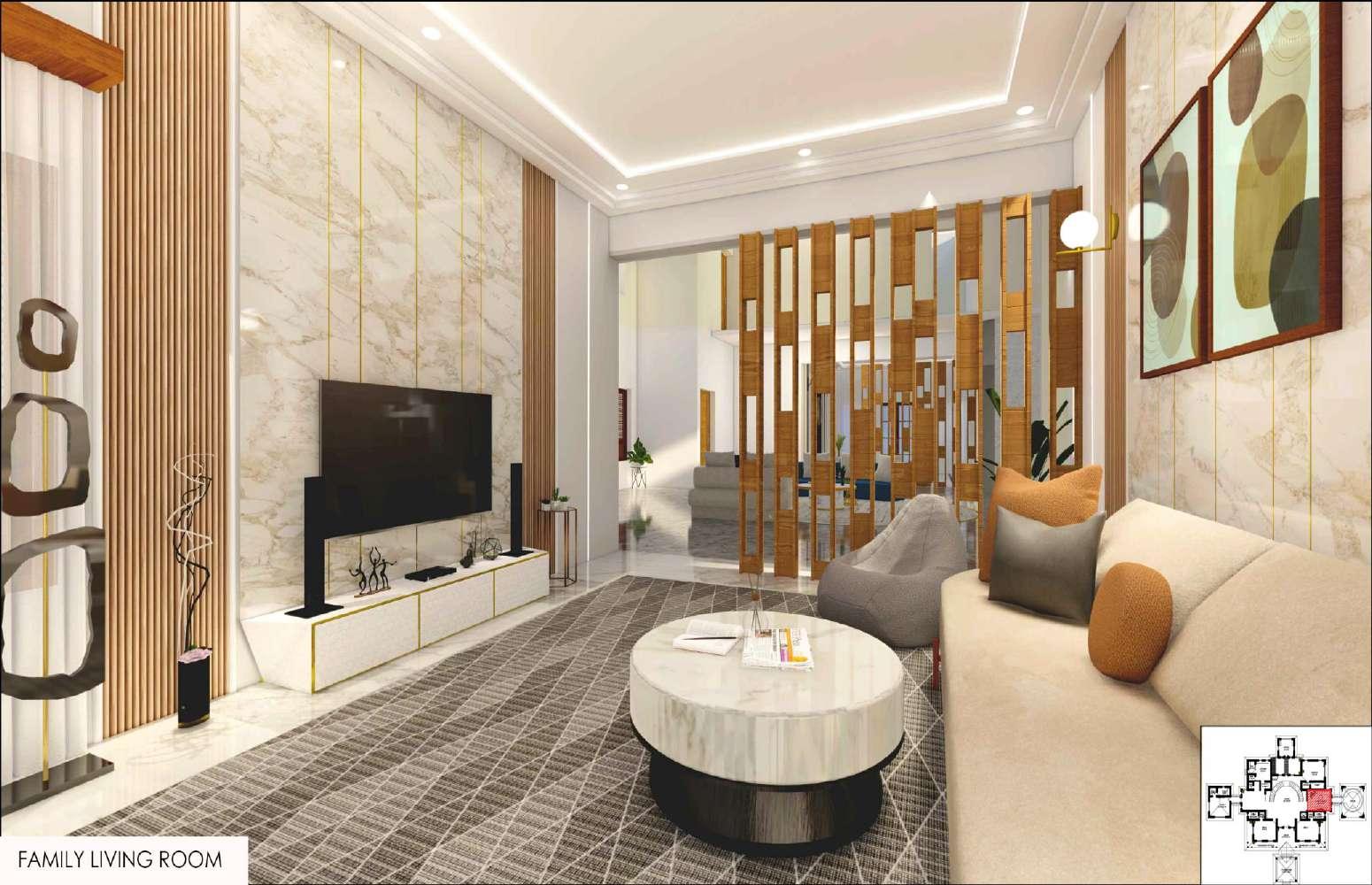

INTERIOR DESIGN

GROUNDFLOORPLAN FIRSTFLOORPLAN

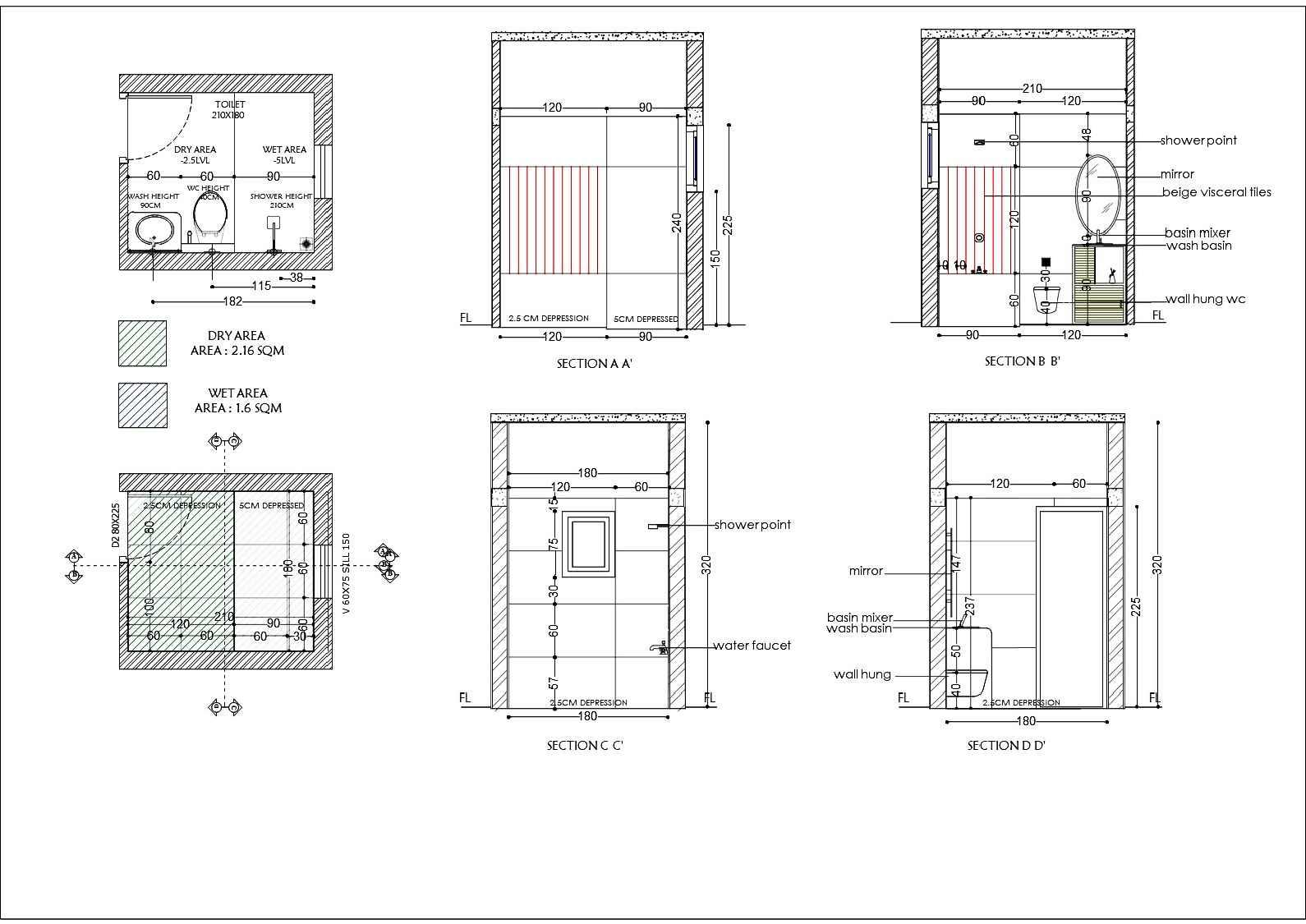

FLOORPLAN WORKINGDRAWING

NAME:VISWASREEKNAMBIAR

USNNO:NU19UAR038

B.ARCH.SEM8

NITTEINSTITUTEOFARCHITECTURE

SCALE:1:50

ALLDIMENSIONSAREINCM

SHEETNO.

LIVINGROOM 450X360 BEDROOM 360X410 M.BEDROOM 360X420 KITCHEN 300X330 DININGROOM 440x330 TOILET 130X100 TOILET 200X150 TOILET 200X150 DRESS 150X150 DRESS 150X150 POOJA 120x200 WA 130X278 SITOUT 610X170 UP MD 120X210 D1 90X210 D2' 80X210 W3180x190 Sill20 KW3180x90 Sill120 W4240x150 Sill60 FW2120X190 Sill20 W160x150 Sill60 V60x60 Sill150 UP 98 60 180 60 306030 60 240 156 90 50 60 197 75 90 180 90 170 32 52 30 120 300 60 240 60 6030 60 230 60 30 45 60 45 35 120 35 45 60 45 30 60 240 60 30 60 240 60 210 90 60 90 60 90 320 80 90 210 210 90 90 94 208020 1010 1420 400 1440 60 90 50 80 90 360 300 278 410 200 150 150 200 150 450 360 272 100 130 278 200 120 360 190 150 420 W160x150 Sill60 W160x150 Sill60 W160x150 Sill60 D1 90X210 D1 90X210 D2' 80X210 D2 90X210 D2 90X210 V60x60 Sill150 V60x60 Sill150 150 150 320 130 130 140 130 610 O O O 197 75 330 GD V60x60 Sill150 Tread=29cm Rise=15cm width=90cm 60 Tread=30cm Rise=15cm width=90cm 32 60 20 80 20 60 60 50 20 50 150 Sill 0 80 50 50 PORCH 410X450 50 50 60 34 KW1 60x90 Sill 120 Sill120 Sill 120 50 50 50 50 W4240x150 Sill60 32 W2 120x110 Sill30 from landing +165.00LVL 20 60 290 99 360 BEDROOM 360X420 TOILET 200X150 DRESS 150X150 UPPERLIVING 470X360 DN W2120X190 Sill60 170 400 870 1440 610 380 1010 840 600 1440 470 1010 90 180 50 120 280 60 120 6030 60 240 60 45 60 45 35 120 35 190 90 70 150 420 360 80D2 80X210 D1 90X210 W3'180x150 Sill60 200 150 290 W160x150 Sill60 W160x150 Sill60 V60x60 Sill150 150 330 90 470 120 210 80 90 O 360 450 70 W2120x150 Sill60 Tread=30cm Rise=15cm width=90cm 90 170 140 120 30 410 90 10 90 30 350 120 BALCONY 260X170 BALCONY 360X120 OPENTERRACE OPENTERRACE 470 260 170 170 D1 90X210

FLOORPLAN FURNITURELAYOUT

NAME:VISWASREEKNAMBIAR

USNNO:NU19UAR038

B.ARCH.SEM8

NITTEINSTITUTEOFARCHITECTURE

SCALE:1:50

ALLDIMENSIONSAREINCM SHEETNO.

LIVINGROOM 450X360 BEDROOM 360X420 M.BEDROOM 360X420 KITCHEN 300X330 DININGROOM 320x330 TOILET 130X100 TOILET 200X150 TOILET 200X150 DRESS 150X150 DRESS 150X150 POOJA 120x200 WA 130X278 SITOUT 610X170 ±0lvl PORCH 350X450 COURTYARD 470X150 BEDROOM 360X420 TOILET 200X150 DRESS 150X150 UPPERLIVING 470X360

GROUNDFLOORPLAN

SYMBOL

DESCRIPTION

WALLLIGHTING@225CM

FROMFLOORLVL

CEILINGLIGHT

WALLLIGHTING@260CM FROMFLOORLVL

LIGHTING

LIGHTINGAT2.5CM FROMFINISHEDLANDING

LEVEL

MIRROR/PICTURE

LIGHTING@200CM

KITCHENCOUNTER

FIRSTFLOORPLAN

OUTDOORLIGHTING @245CMFROMFLOOR

LIGHTING@200CM LEVEL

OUTDOORWALL

LIGHTING@40CM

ABOVELINTELBOTTOM

16ASOCKETWITH

SWITCH

16ASOCKETFORWATER

HEATER@200CMFROM

FINISHEDLANDINGLEVEL

BELLPOINT

BELLPUSHPOINT

MOTORPUMPSWITCH

POOJACOUNTER

LIGHTING@45CM FROMFFLFACING UPWARDS

TVBACKLIGHTING

FLOORPLAN ELECTRICALLAYOUT

NAME:VISWASREEKNAMBIAR

USNNO:NU19UAR038

B.ARCH.SEM8

NITTEINSTITUTEOFARCHITECTURE

SCALE:1:50

ALLDIMENSIONSAREINCM

SHEETNO. N

LIVINGROOM 450X360 BEDROOM 360X410 M.BEDROOM 360X420 KITCHEN 300X330 DININGROOM 440x330 TOILET 130X100 TOILET 200X150 TOILET 200X150 DRESS 150X150 DRESS 150X150 POOJA 120x200 WA 130X278 SITOUT 610X170 PORCH 360X450 265 220 70 65 76 75 65 140 200 O D U 76 75 80 65 220 265 135 O D U 75 100 265 200 80 85 100 100 160 160 160 160 160 100 60 160 455 60 220 200 45 55 65 55 155 160 85 95 60 90 125 175 150 160 30 30 30 130 130 240 200 320 435 457 200 180 75 95 75 180 60 70 250 230 60 210 100 100 180 250 60 65 190 220 145 30 30 75 235 85 85 280 235 45 95 70 135 65 150 85 140 TOILET 200X150 DRESS 150X150 UPPERLIVING 470X360 DN BALCONY 260X170 BALCONY 360X120 OPENTERRACE OPENTERRACE M.BEDROOM 360X420 75 80 65 221 265 135 75 100 457 60 75 O D U 457 265 200 80 85 100 100 110 225 190 175 235 235 110 95 45 160 160 60 100 90 60 70 70 220 140 60 60 80 80 200 55 60 60 60 75 75 75 85 235 215 155 CEILINGFAN 6AONEWAYSWITCH LEGEND RECESSEDFALSECEILING STAIRCASELANDING 6ASOCKETWITHSWITCH EXHAUSTFAN CONTROLPOINT ODU ACINDOORUNIT ACOUTDOORUNIT DISTRIBUTIONBOARD LANSOCKET MAINSWITCH CABLETVPOINT

NAME:VISWASREEKNAMBIAR

USNNO:NU19UAR038

B.ARCH.SEM8
