Product catalogue

Display stands

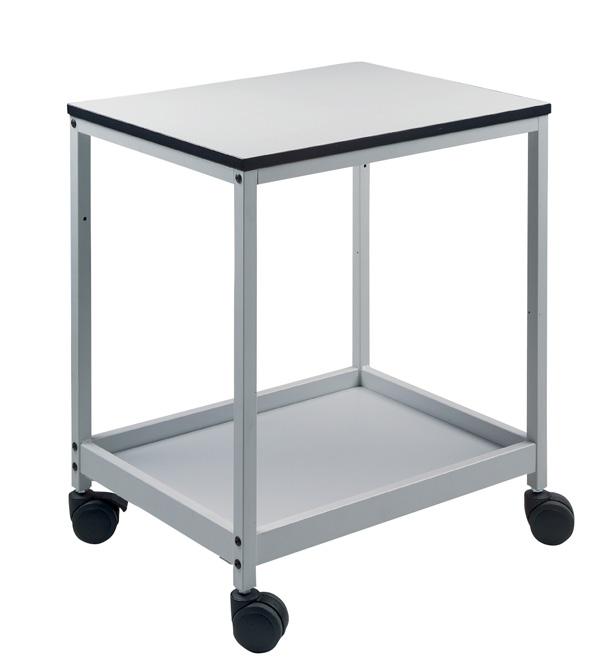

DISPLAY TROLLEYS

ST 70 MODELS

DISPLAY CABINETS

ST 200 MODELS

ST 100 MODELS

WM FLOAT

ST 300 MODELS

Display stands are needed more and more for mounting, moving and tilting of various LED or touch displays. Nowadays they present an indispensable accessory for presentation. Vega offers many diverse display stands suitable for various needs and purposes that may arise during a presentation.

WM 600 EL TS

WM 65

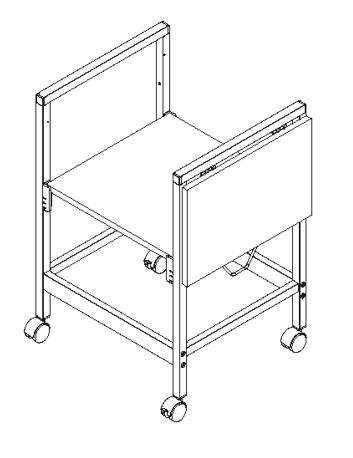

Trolley ST 51

ST 51 was developed for easy mounting and quick setup of any display measuring from 42” to 98”. Maximum load capacity is 130 kg. When needed four castors (two with brake) enable simple and effortless mobility of the whole unit. Light tubular construction ensures optimal stability. Mounting kit is included. Laptop shelf and Camera holder must be purchased separately. ST 51 is available in anthracite colour.

Specifications:

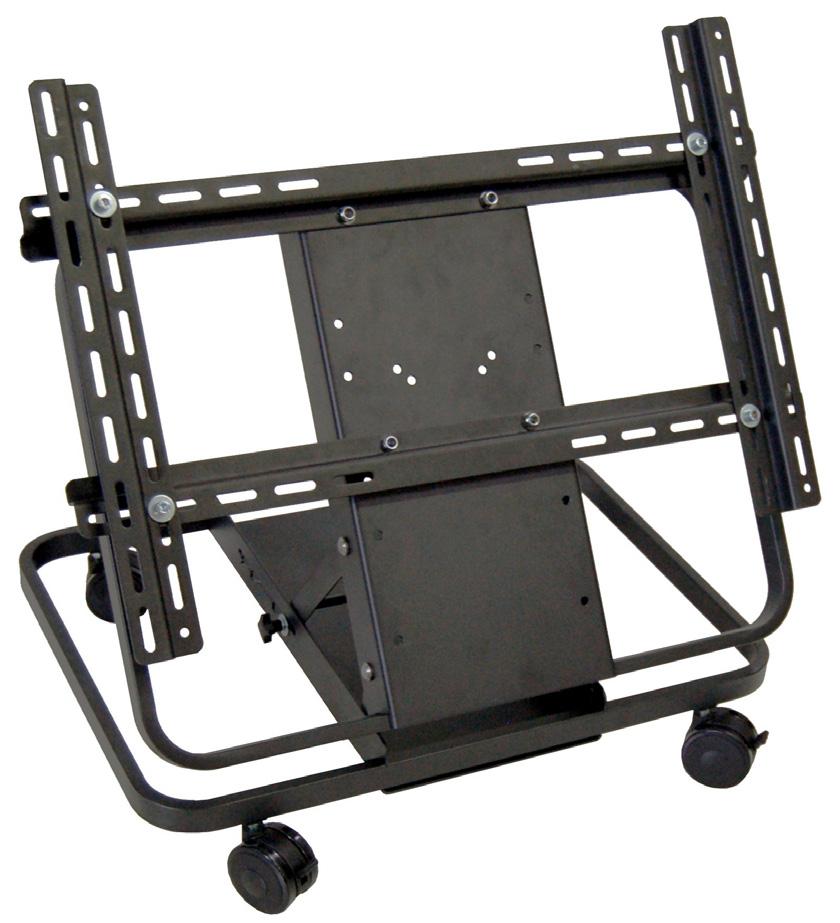

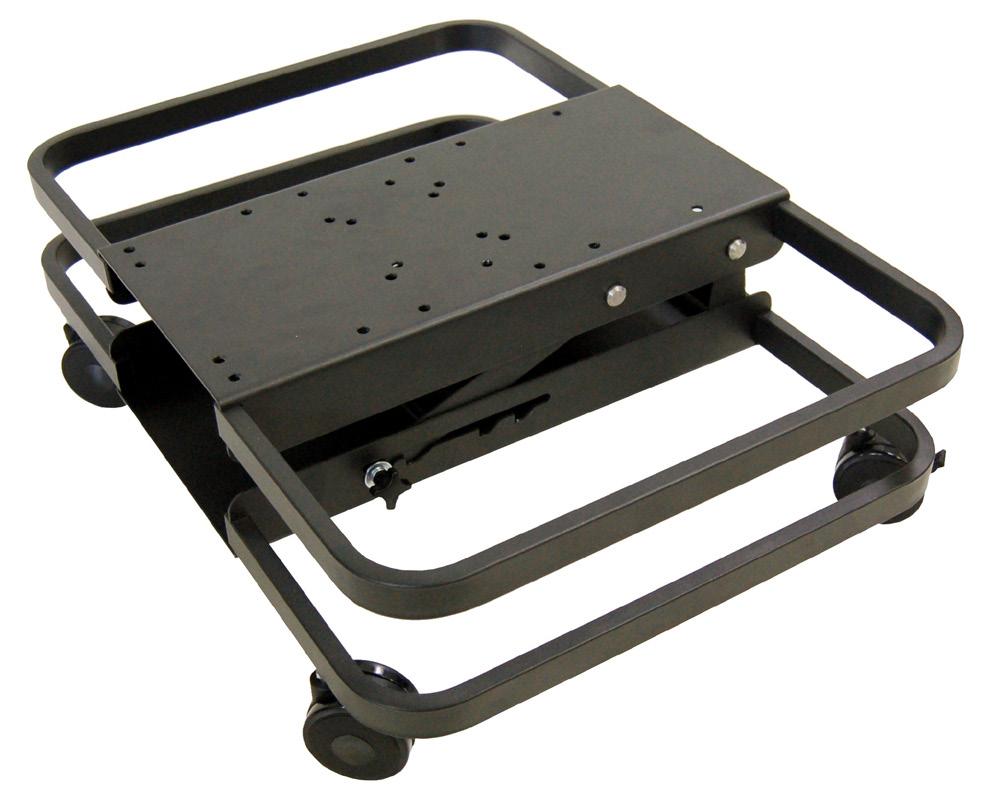

Display floor stand

Display Floor Stand is an excellent and secure device to tilt and move your display on stage, in cinemas, at exhibitions or places where a group of peoples is gathered. It is a very effective way to present your data or information in an area limited with space. Optionally it could be used for Digital Signage where displays cannot be positioned permanently. The adjustable Display Floor Stand has a tubular construction with four wheels (two with brake) and/or four metal feet. Load capacity is up to 80 kg.

Specifications:

For 40” to 55” displays, up to 80 kg

Fixing (VESA standard 75x75, 100x100, 100x200, 200x200, 400x200)

Bigger displays (more than 42”) are fixed with additional brackets (available as an accessory)

Manual positioning on 0°, 20°, 45° and 55°

Dimensions: 700 x 500 x 200 mm

Weight: 12 kg

Color: black (anthracite) – or any other color available

Floor stand can be on wheels (from which 2 with brakes) or on height adjustable feet

display floor stand collapsed stand

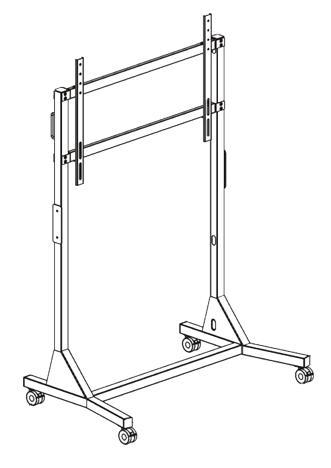

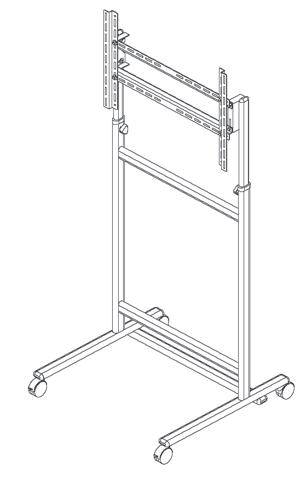

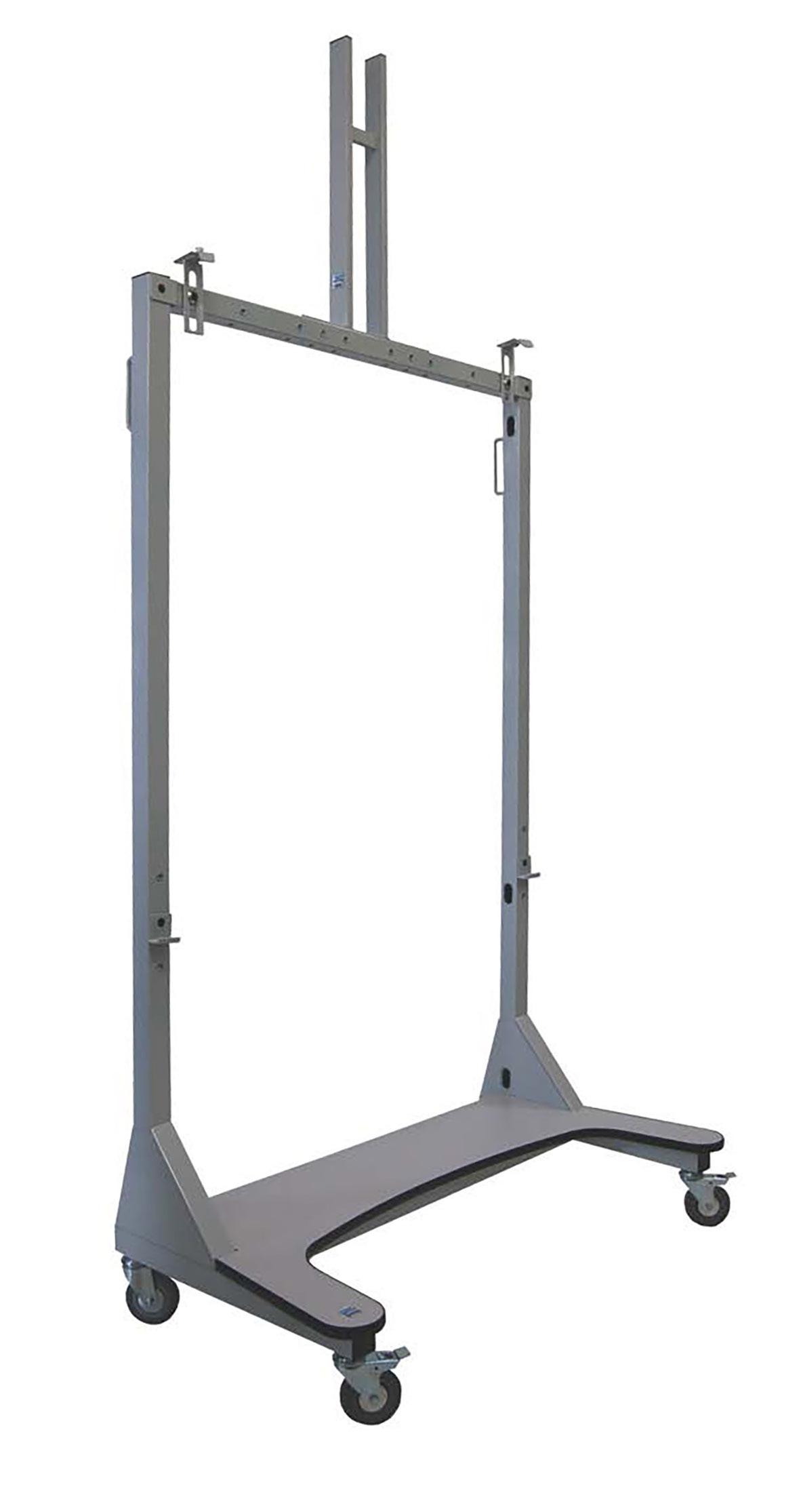

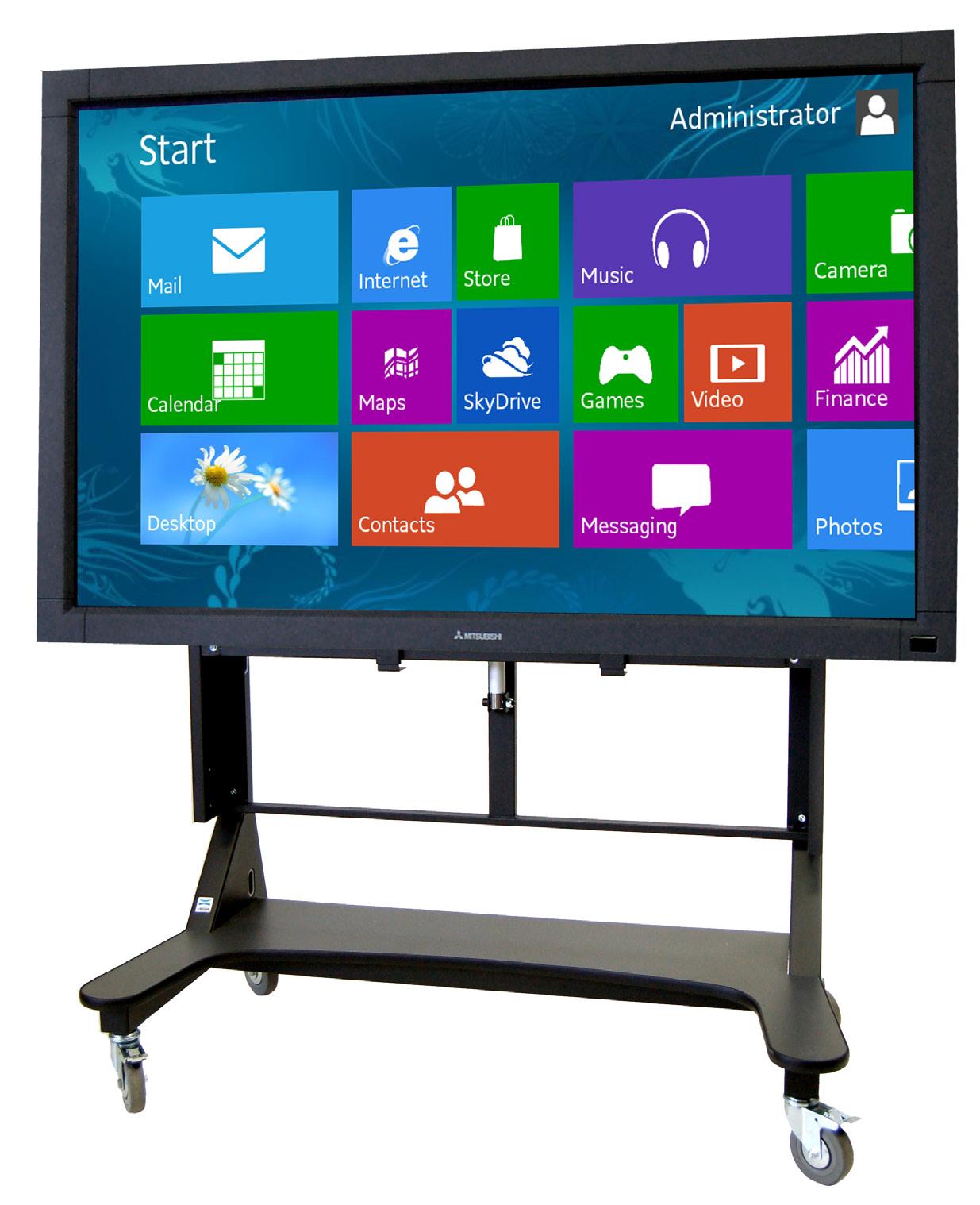

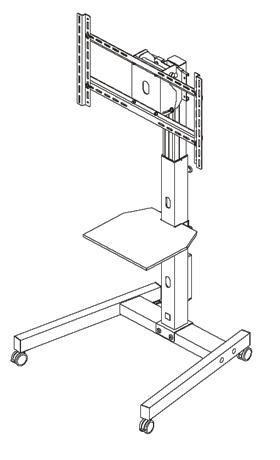

Trolley/stand ST 70

ST 70 trolley/stand is designed for LCD/Plasma or Touch screens displays. Made of solid steel framework it represents a unique tool for efficient presentation. ST 70 can be equipped with a single or double display mount often used for videoconferencing. Depending on a situation ST 70 can be used either as a trolley or a stand. It enables easy mounting of displays regardless of its brand. ST 70 incorporates a metal shelf and optionally an additional wooden bottom shelf. Its strong and wide metal frame enables easy cable management from within the frame itself. ST 70 is available in anthracite color.

Specifications:

Double display

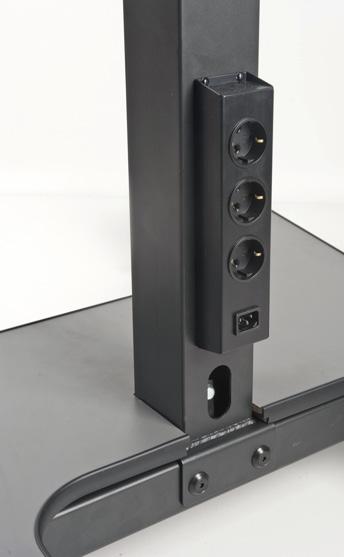

3 pole socket plug

Stand without display

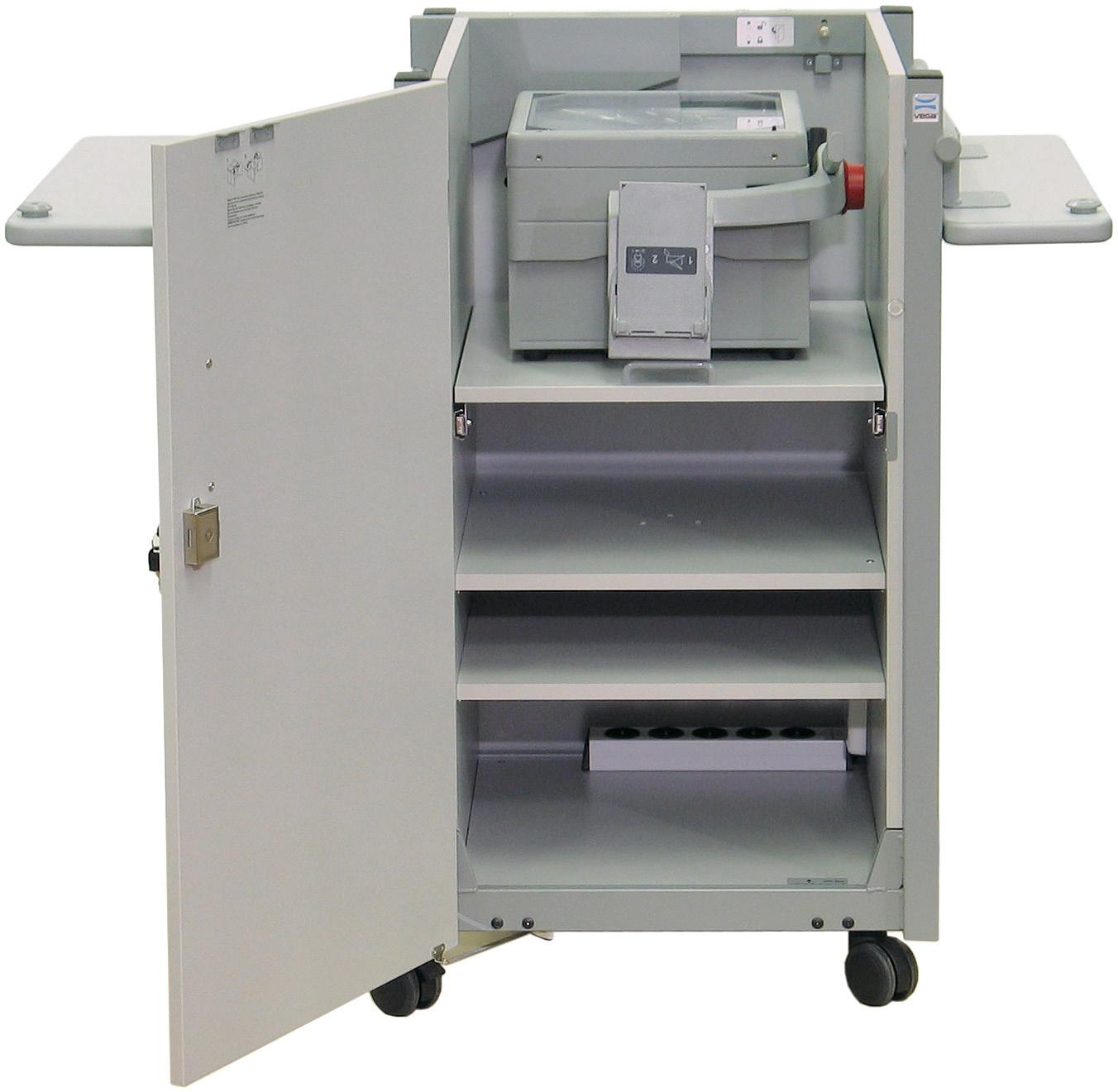

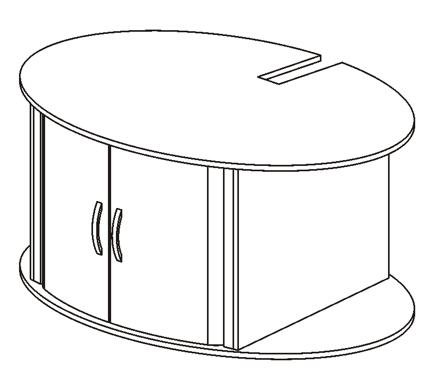

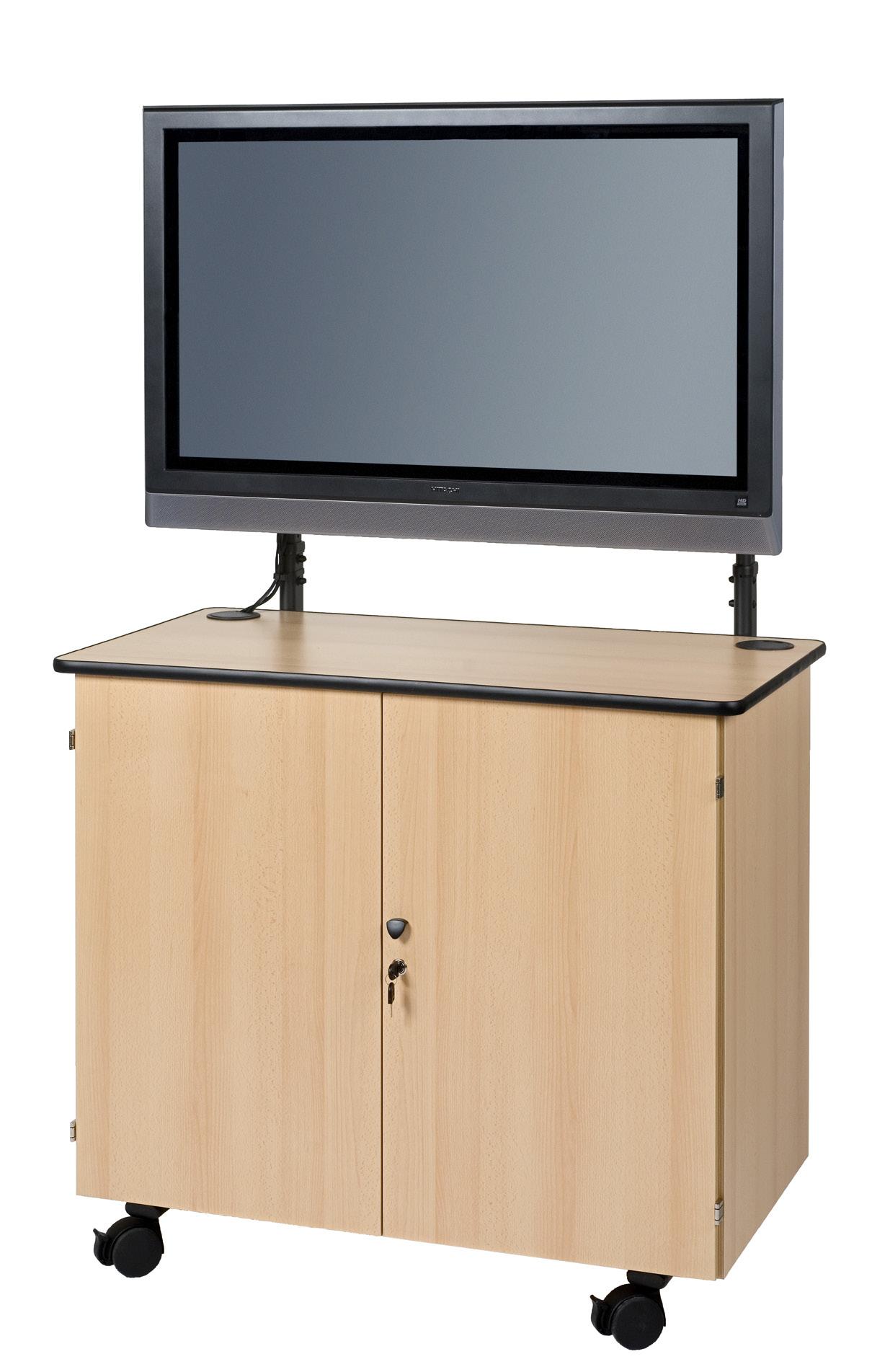

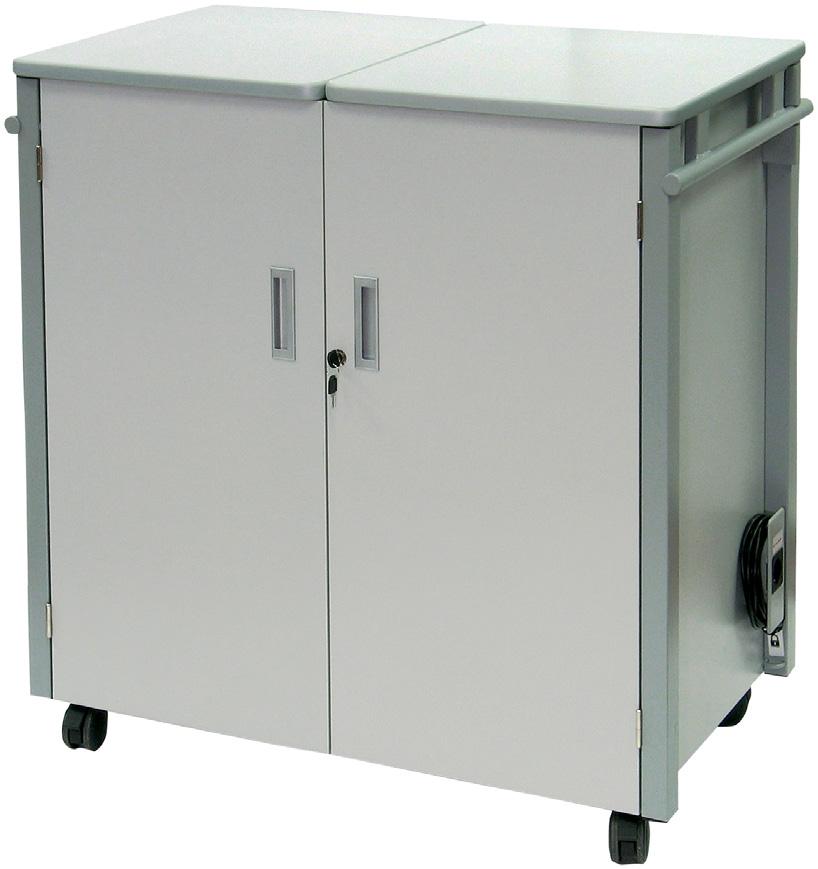

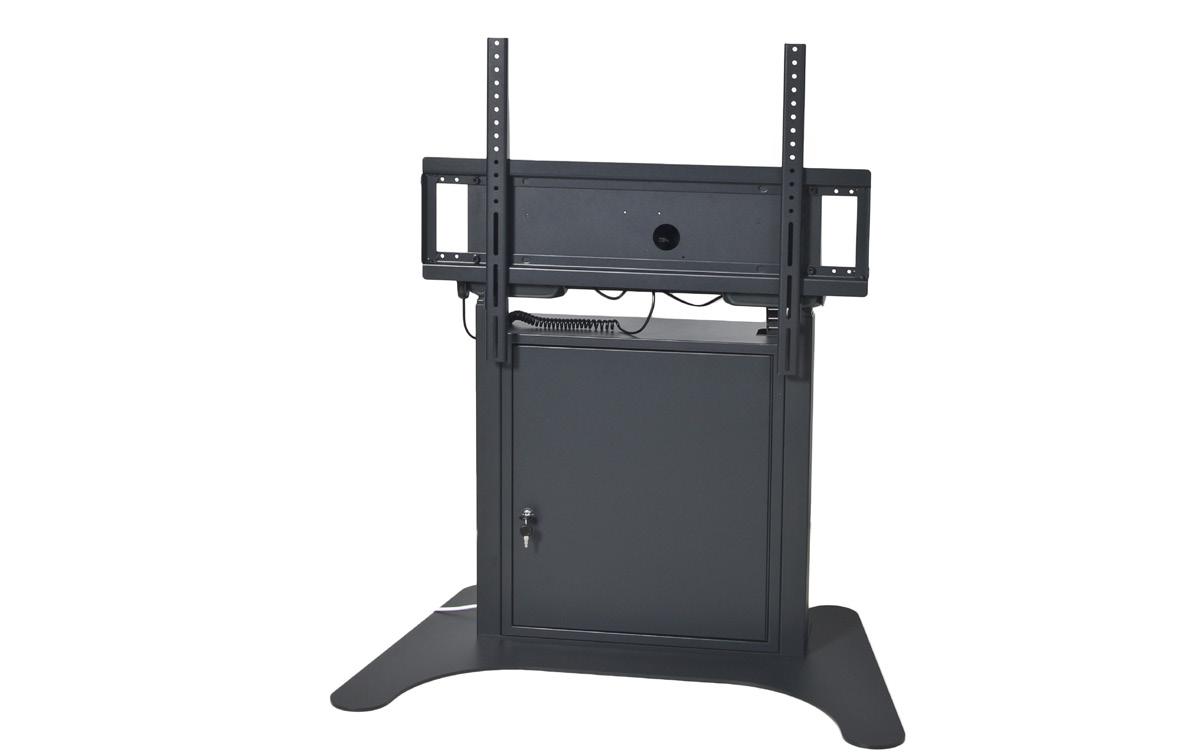

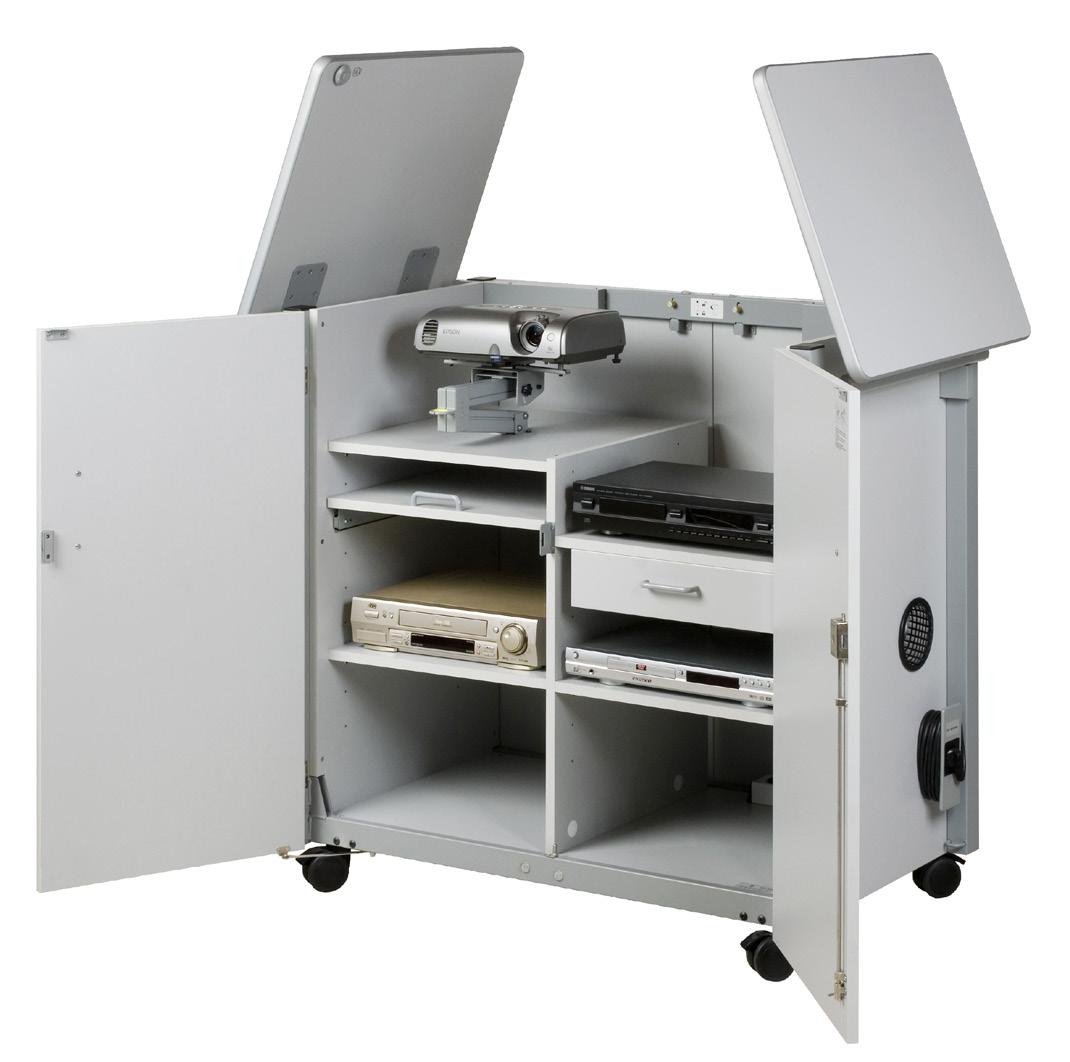

Cabinet ST 42

Cabinet for LCD/Plasma screen

LCD and plasma screens becoming popular instruments for presentation. Problems starts to occur when this screens must be set for use and at the same time be protected well enough. With our new cabinet ST-42 we solve your both difficulties – in build stand on cabinet protected with lock&keys which make possible to set screen up to to 65”. Maximal weight of screen is 70 kg.

Specifications:

ST-42 ensure careless storage of all devices used with screen in cabinet

It has special holes for cables on upper and back side

Cabinet is secured on steel frame made from quality oval tubes, easy movement is ensured with wheels Ø 80 mm (two with brakes)

It is constructed in a way that it can’t be easily dismantled, this partial prevent stealing

Height of the screen can easily be adjuste

Cable clamps ensure all wires and cables leading from devices to screen are elegantly installed

WM 600 EL TS

VEGA’s universal mount enables height adjustment of touch screens in the range of 50 centimeters from its basic position regardless of the screen’s brand. This product is suitable for touch screens from 42” up to 86” with maximum load capacity of up to 80 kg (160 kg with stronger motor). Together with our WMS 600 stand it ensures effortless movement between different locations. All additional devices can be placed on the multipurpose designed shelf.

Specifications:

Universal for any Touch screen from 42” to 86”

Maximum load capacity is 80 kg (160 kg with stronger motor)

Optional: without the trolley it can also be used for mounting on the wall

Wall mount WM 65

Vega Wall Mount WM 65 and electric driven WM 65 EL with ultra slim H-frame offers a height adjustable and secure mo

unting solution for interactive panel or LCD display. Despite its slim design, it provides sufficient strength, exibility and stability of the mounted device. The H-frame is fixed to the wall with four anchors (with adjustable distance to the wall) and fixed to the floor. WM 65 is equipped with a 3-pole socket and 5 meter long power cord. Its innovative design allows easy cable management. Metal construction is black, decorative front sheet metal is available in black, white and silver (further colour options are available upon request)

Specifications:

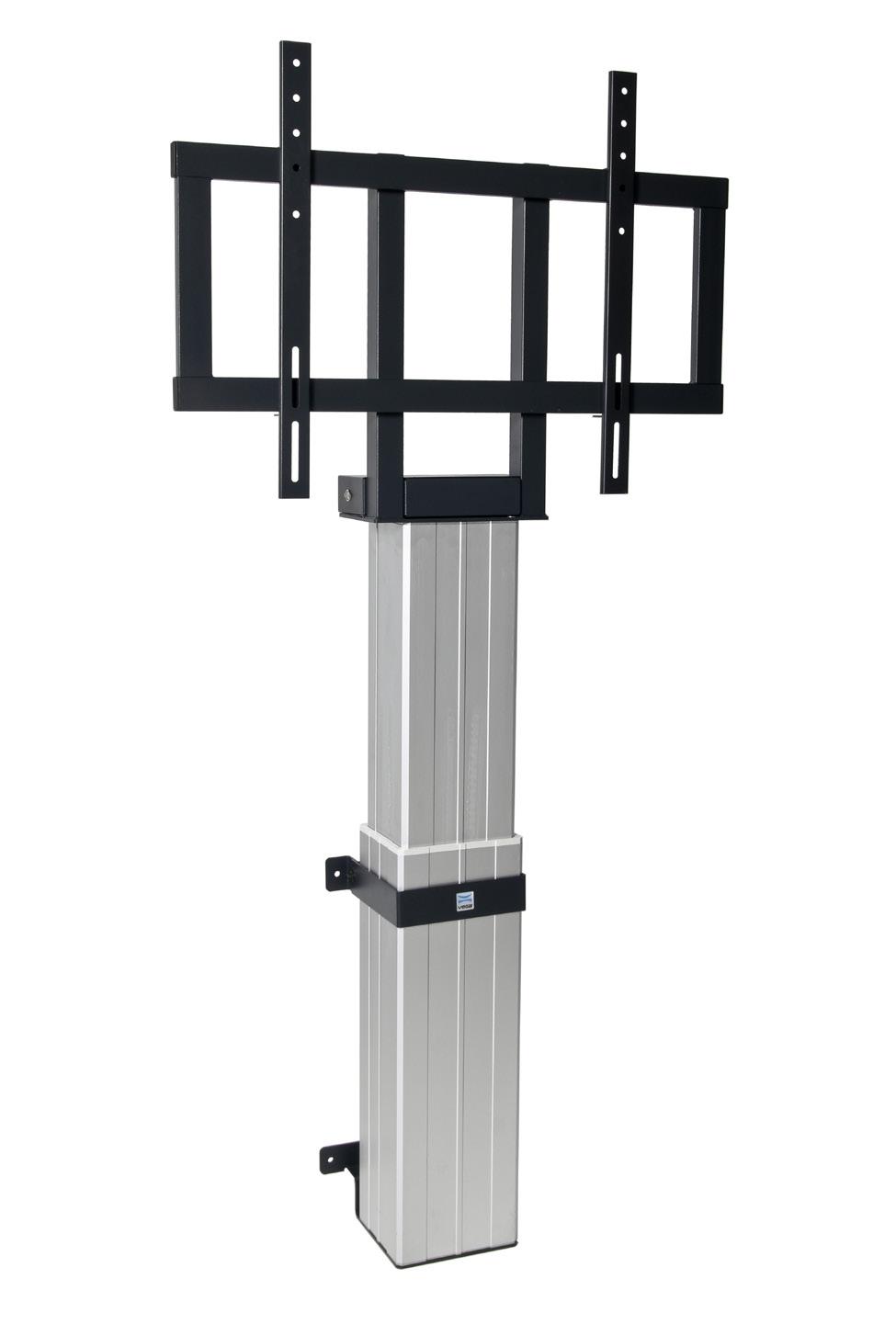

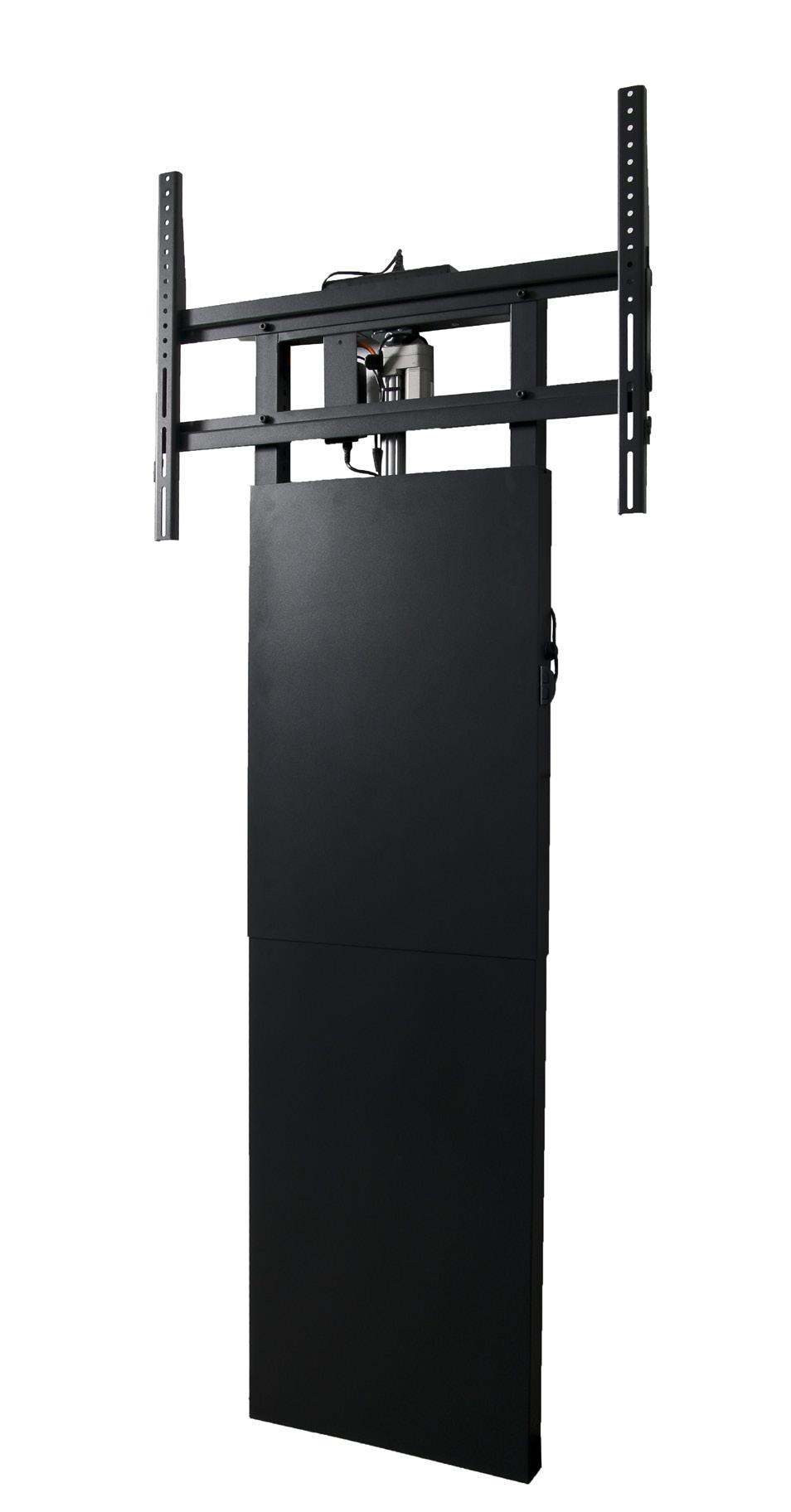

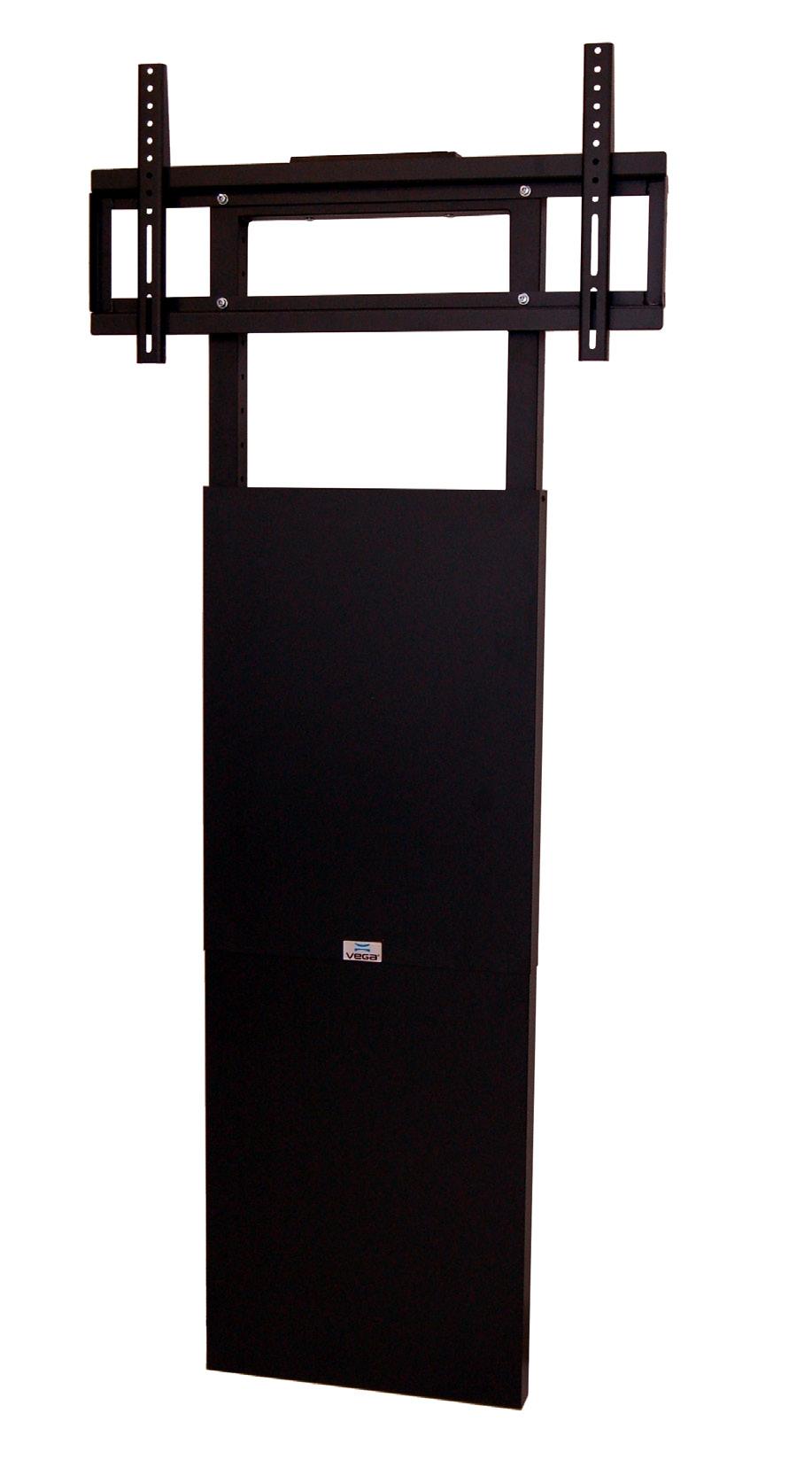

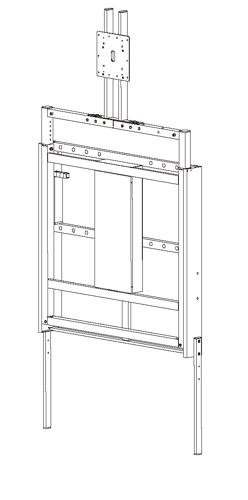

Stand ST 200 W

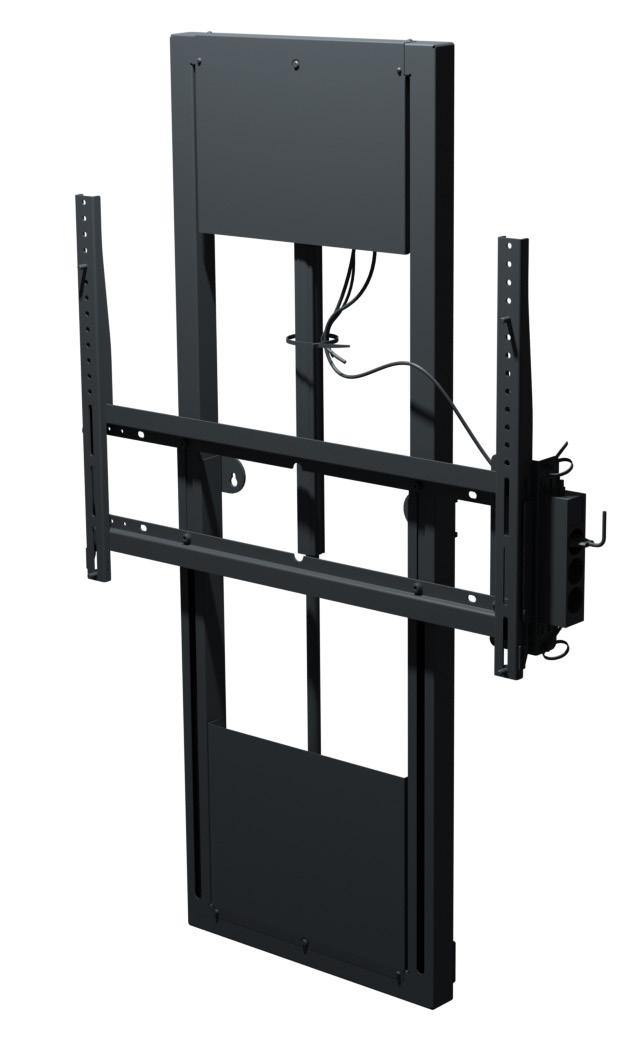

Vega stand ST 200 W is an electric driven wall stand for touch screens and displays alike intended for mounting on the wall. Its main function is height adjustment of touch screens in the range of 50 centimetres from its basic position. Everything is controlled at the touch of a button via single wired remote control. ST 200 W can additionally be equipped with a metal shelf for laptop and/or side shelf for Mini PC. This product is suitable for touch screens ranging from 42” up to 84” or larger with maximum load capacity of up to 160 kg. These features make it ideally suited for schools as well as for offices and conference rooms.

Specifications:

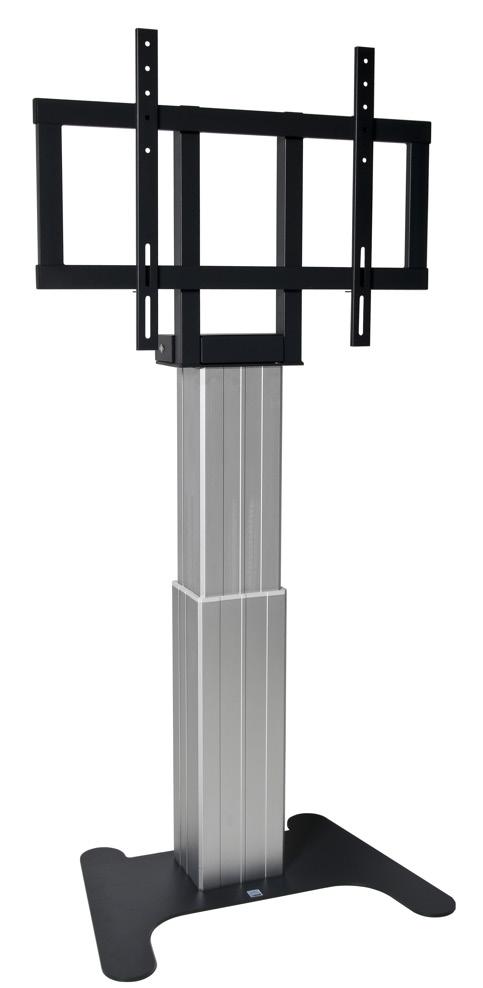

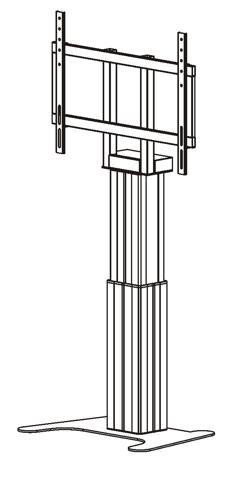

Stand ST 200 P

Vega ST 200 P stand is an electric driven stand supported by a base plate and intended for touch screens and displays alike which enables you to place the stand wherever at surface is available. Its main feature is height adjustment of touch screens in the range of 50 centimetres from its basic position. Everything is controlled at the touch of a button via single wired remote control. ST 200 P can additionally be equipped with a metal shelf for laptop and/or side shelf for Mini PC. This product is suitable for touch screens ranging from 42” up to 84” or larger with maximum load capacity of up to 160 kg. These features make it ideally suited for indoor corridors as well as any place where wall installation is not feasible.

Specifications:

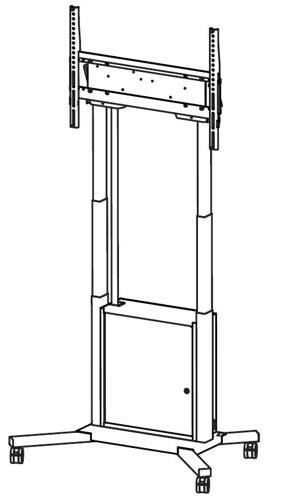

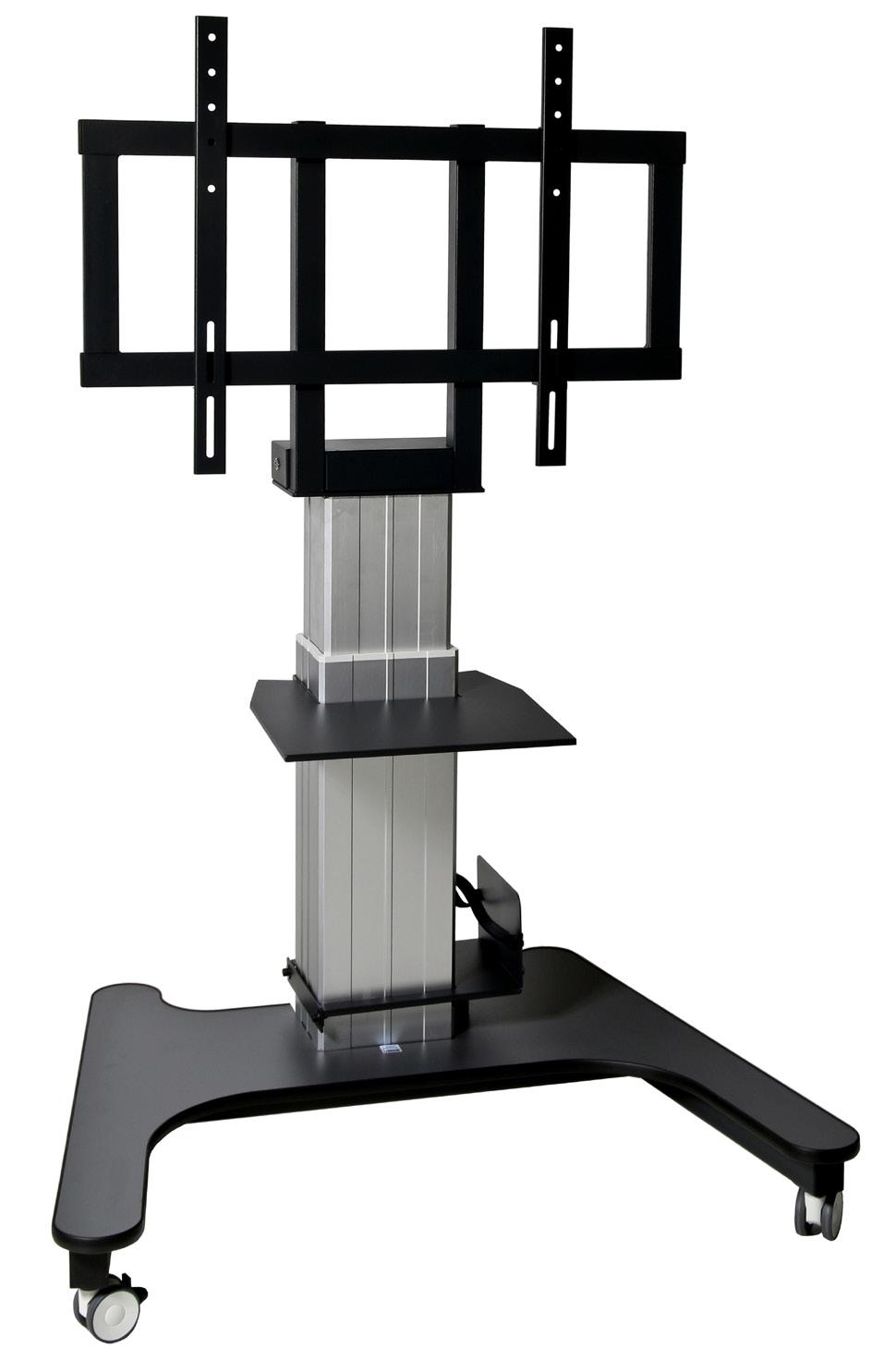

Stand ST 200 M

Vega mobile stand ST 200 M is an electric driven stand for touch screens and displays alike. Four wheels enable effortless mobility in the room or between rooms. Main feature is height adjustment of touch screens in the range of 50 centimetres from its basic position. Everything is controlled at the touch of a button via single wired remote control. ST 200 M can additionally be equipped with a metal shelf for laptop and/or side shelf for Mini PC. This product is suitable for touch screens ranging from 42” up to 84” or larger with maximum load capacity of up to 160 kg. These features make it ideally suited for schools as well as for offices and conference rooms where mobility is necessary

Specifications:

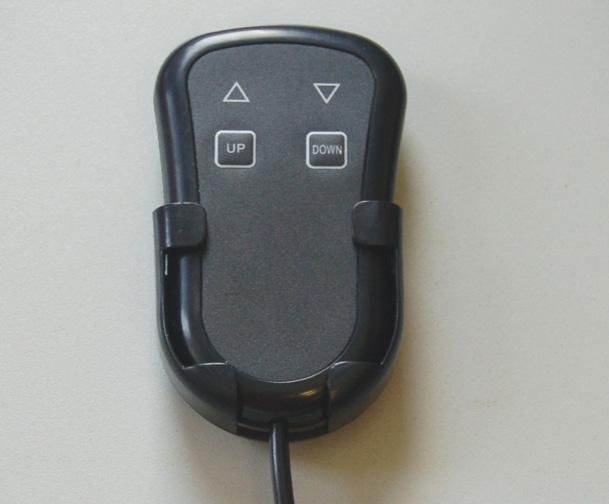

remote control

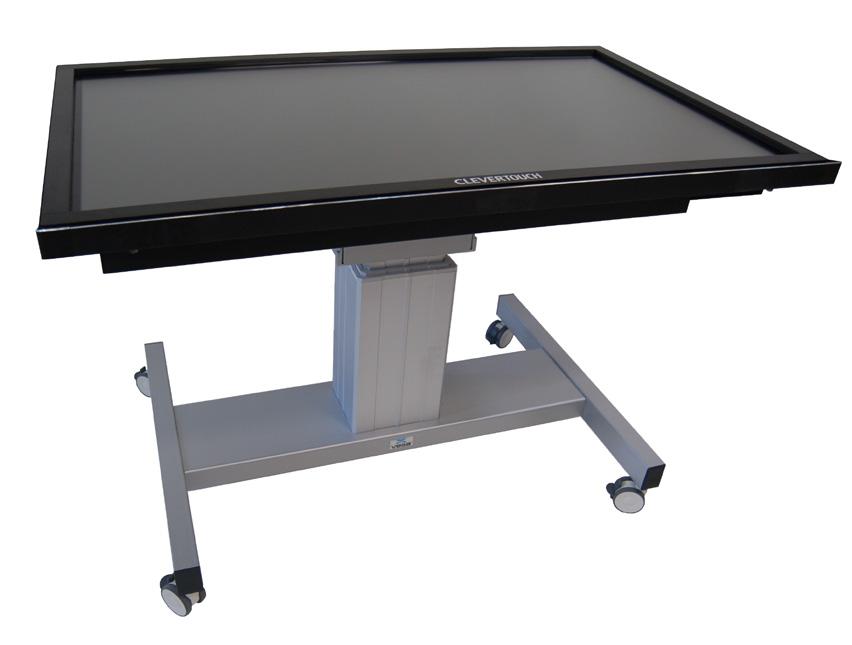

Stand ST 200 T

Vega stand ST 200 T is an electric driven mobile stand for touch screens and displays alike. Together with a touch screen it enables an interactive easel, table, or whiteboard. Transforming the Vega stand ST 200 T from one mode to another couldn't be easier. Everything is controlled at the touch of a button via single wired remote control. Our stand is also suitable for a group of young children as well as for disabled persons since its smart design enables access from different angles. These features make it ideally suited for kindergartens and schools as well as for offices and conference rooms.

Specifications:

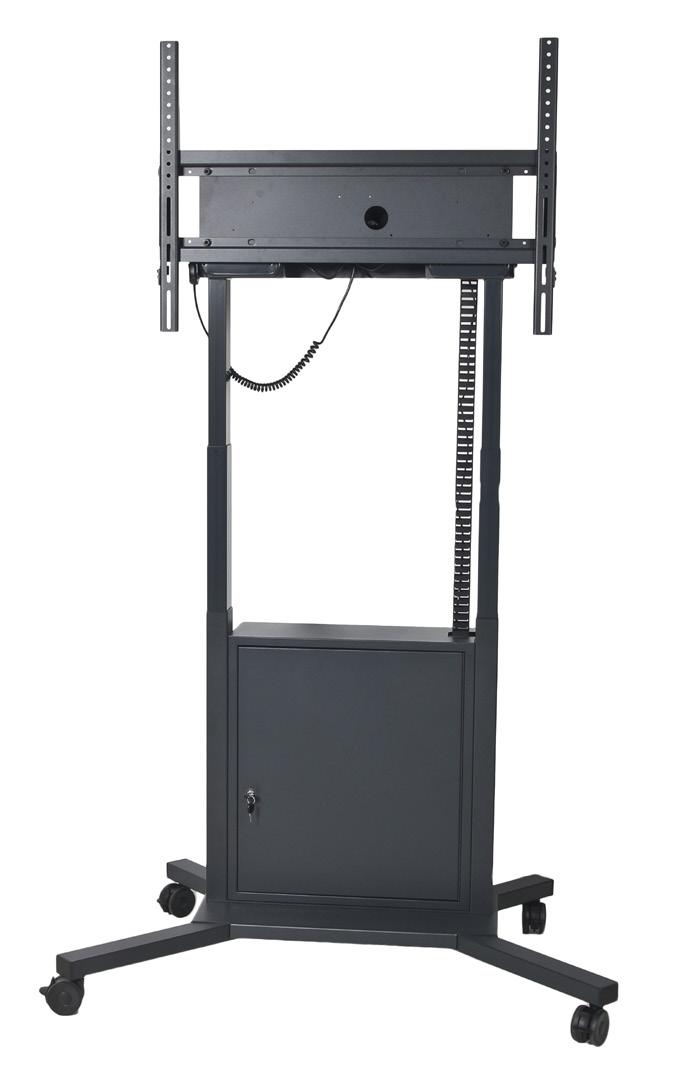

Stand ST 100

Vega ST-100 Display Stand efficiently combines two features crucial for any successful presentation: Its two column design offers an extremely stable and robust platform needed to mount and operate even large and heavy high-performance displays. Stroke of 100 cm and the speed of 36 mm/s ensure that virtually all possible height requirements are fulfilled and that the time needed to reach the desired position of the display is minimized. Three versions (wall, mobile and free-standing) with various degrees of mobility offer a comprehensive set of solutions to suit every possible need. In addition to these amazing characteristics the ST-100 incorporates an anti-collision feature which immediately stops the motor if and when it encounters an obstacle. Efficient cable management is implemented with the help of a robust plastic chain. Safety characteristics are complimented by ease of use (with programmable remote control that enables the user to set the maximum and minimum position of the mount) and practicality since mini PC and other devices can be safely stored inside the locker and easily connected to the TV.

Specifications:

Versions Mobile, wall, free-standing

Vertical travel (stroke)

Recommended Display Size

Cable Management Robust plastic chain

Locker dimensions (W x D x H): 340 mm x 150 mm x 610 mm

Weight Mobile 50 kg, wall 40 kg, free-standing 55 kg

Colour anthracite / white

Available accessories Camera holder, double display frame

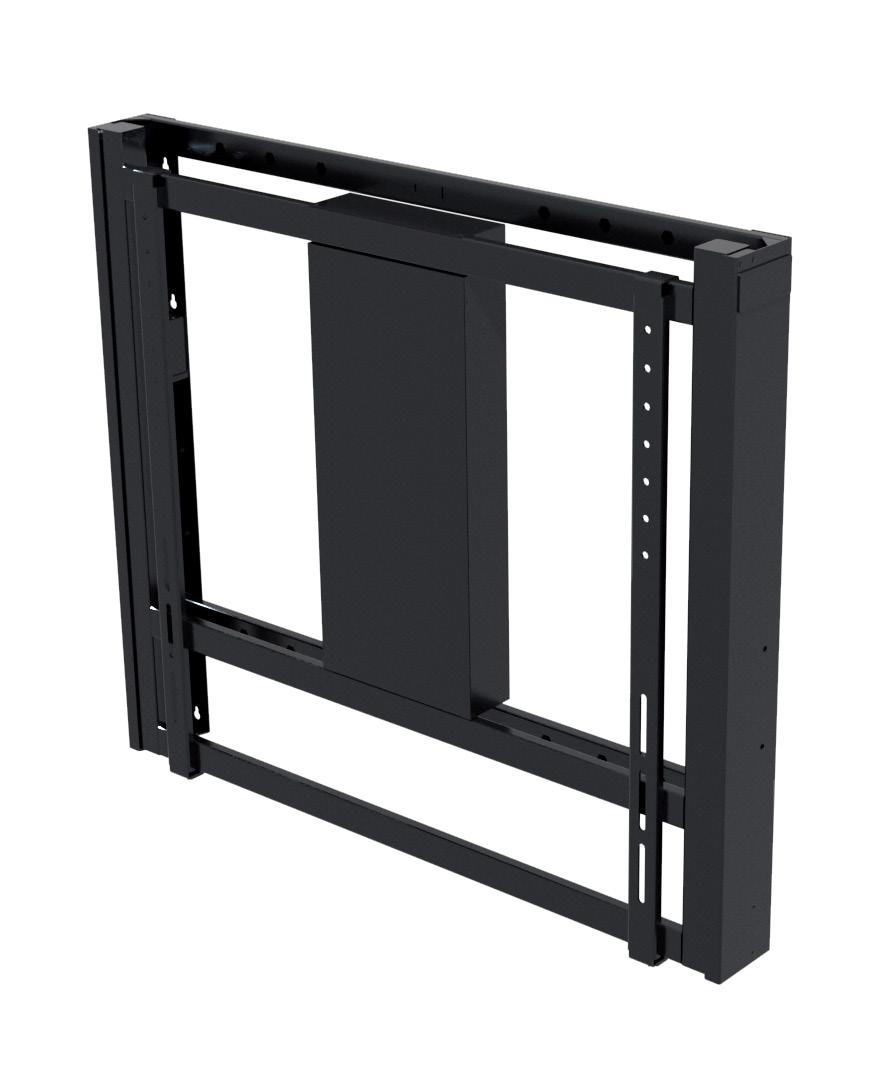

WM FLOAT

Vega electric driven mount WM Float with ultra slim frame offers a height adjustable and secure mounting solution for interactive panel or LCD display. Due to its design, it creates the illusion of the display floating. Despite its slim design, it provides sufficient strength, flexibility and stability of the mounted device. The frame is fixed to the wall with four anchors. Frame can be additionally equipped with support legs for walls with bad structure. WM Float is equipped with a 3-pole socket and 5-meter-long power cord. Its innovative design allows easy cable management. Metal construction is black, decorative front sheet metal of the support legs is available in black, white and silver (further colour options are available upon request).

Specifications:

Available accessories support legs, bracket for two screens

Stand ST 300

Vega's ST 300 is a video wall stand. The stand is suitable for wall mounting, but can also be equipped with a mobile base with four wheels. The main feature is the height adjustment of up to 70 centimetres. The movement is controlled by two synchronous electric motors via a wired remote control. The ST 300 can be optionally equipped with a VESA adapter, allowing larger screens from 98« (249 cm) upwards to be attached. The maximum load capacity of the stand is 300 kg. The stand is suitable for use in large meeting rooms, conference halls and event spaces such as trade fairs and the like.

Specifications:

wheels 2 with brake, 2 without

80 kg (mobile), 72.5 kg (wall-mounted)

Charging carts

METAL CHARGING CARTS

METAL USB CART

WOODEN CARTS

WOODEN USB CART

PORTABLE CHARGER

WALL USB CHARGER

Vega charging carts are universal chargers suitable for charging tablets, laptops, netbooks, smartphones regardless to its brand.

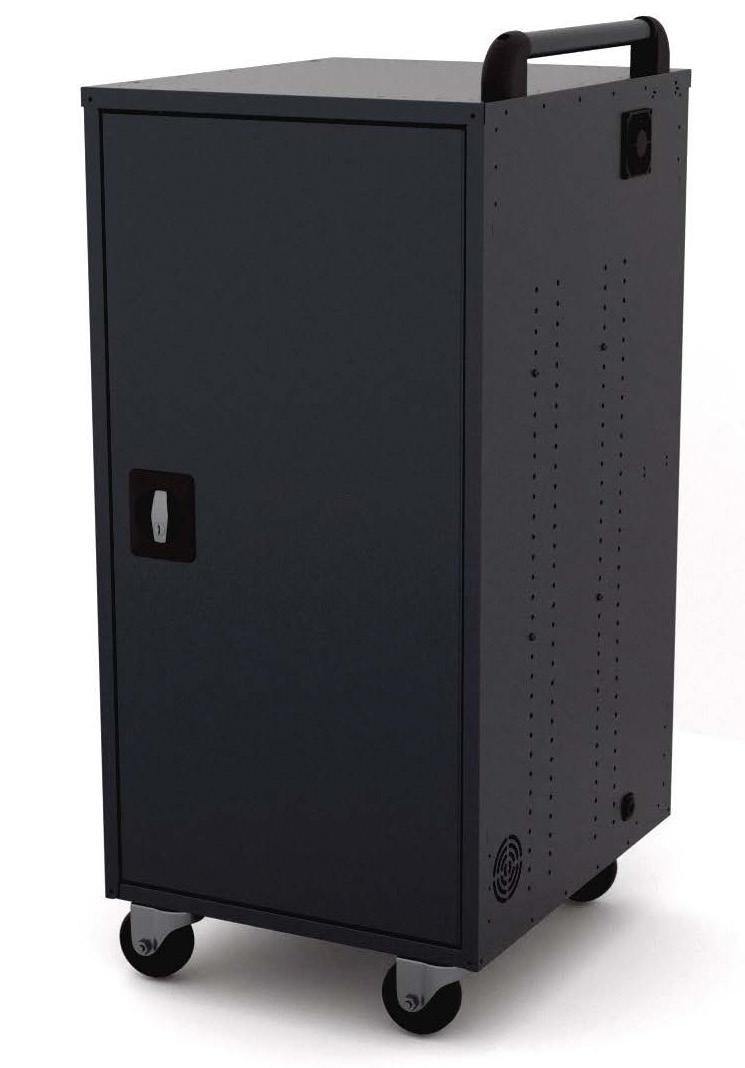

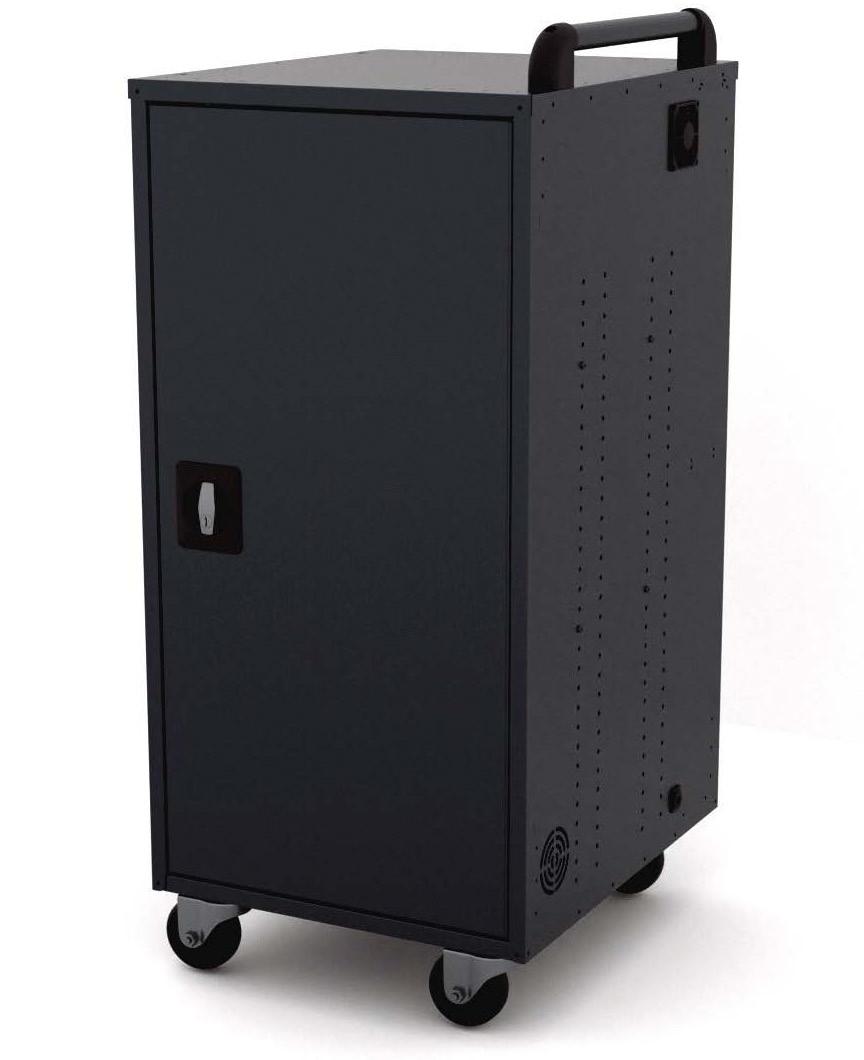

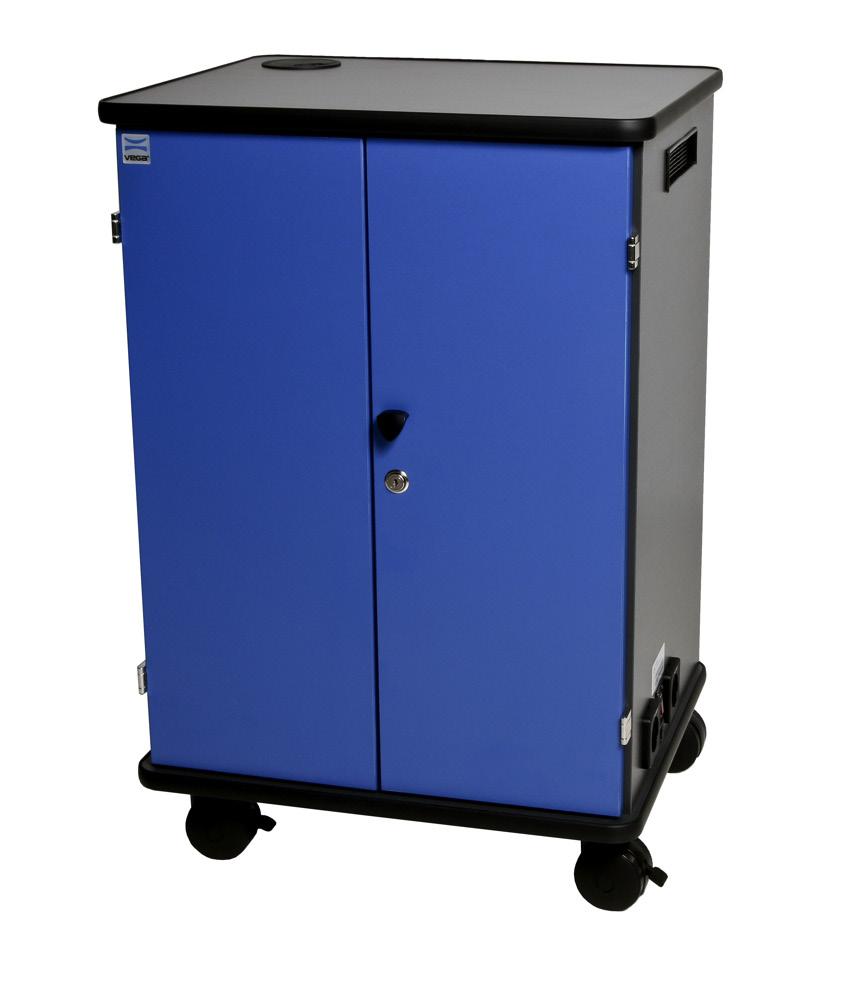

Vega charging cart

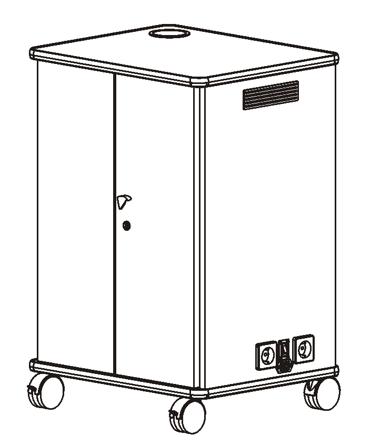

Vega Charging Cart was developed as a universal charging station for both tablets and notebooks/netbooks alike. Its innovative construction enables charging of both tablets and notebooks/netbooks at the same time. Simply turn on the switch and all appliances will start to charge via its original adaptors. Vega's charging module provides delayed charging of 6 or 8 units simultaneously that prevents electric surcharge. Once the cart is disconnected from the mains socket charging module prevents reverse electric shock. Due to its universal charging possibilities it presents a unique solution especially in classrooms or offices where you need to charge either tablets or laptops.

Specifications:

Capacity: max. 32 or 24 tablets or 16 notebooks 15” - vertical placement or 11 notebooks 17” horizontal placement (additional 9 shelves are needed)

32 or 24 sockets, located on four 6 or 8 outlet power strips, which can be switched by separate on/off switch

2 outside sockets for external use

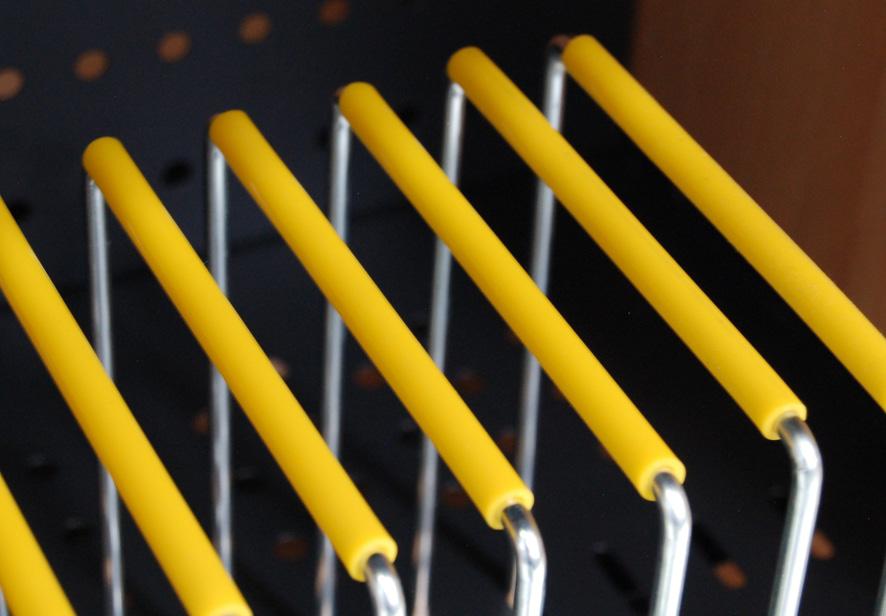

Two internal shelves, height adjustable, with separators for organized storing/charging

Compartment for storing other devices (printer, server, projector, etc.)- Electronic control unit (Vega's charging module) with integrated power switch, thermal fuse, and sequenced charge start – “soft start”

Cooling fans on both sides to assure controlled inner temperature and prevent overheating

2,5 m detachable power cord (main power cord)

4 wheels, 2 with brake

Front door with 3-point locking system

Rear (service) door with 1-point locking system

Handlebar for easy maneuvering (detachable)

Dimensions of the cart: (WxDxH) 515 mm x 605 mm x 1120 mm

Weight: 48 kg

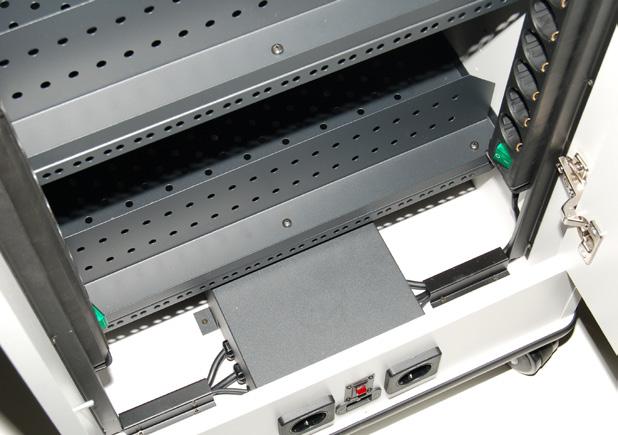

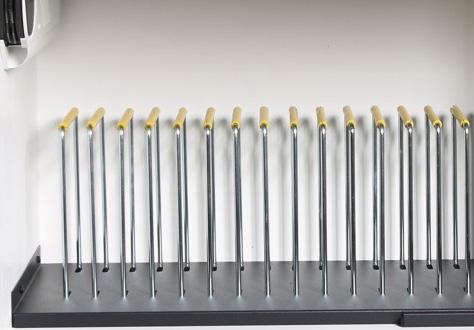

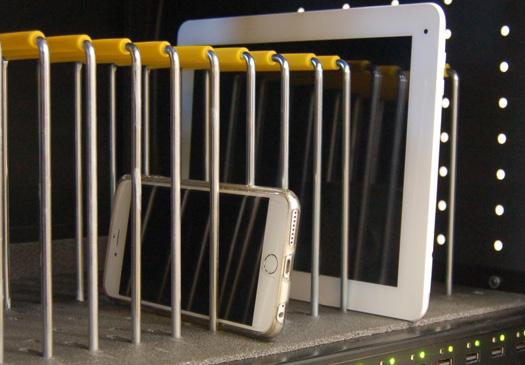

Separators for organized storing Control unit with 2 sockets

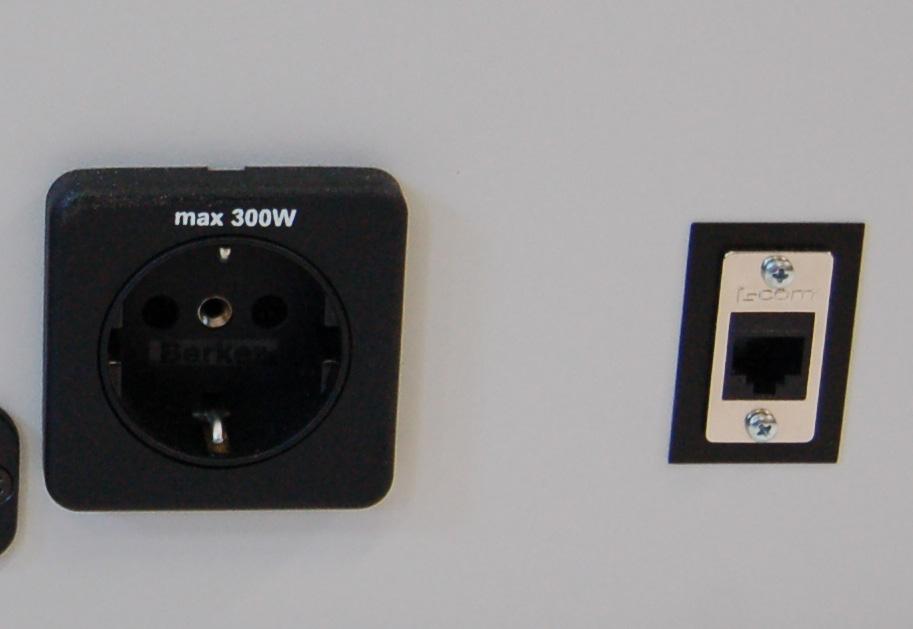

LAN connector

Vega charging cart 32NB

Vega Charging Cart-32NB was developed as a universal charging station for notebooks and netbooks alike. It’s innovative construction enables charging of all notebooks/netbooks at the same time. Simply turn on the switch and all appliances will start to charge via its original adaptors. Vega's charging module provides delayed charging of 8 units simultaneously that prevents electric surcharge. Once the cart is disconnected from the mains socket charging module prevents reverse electric shock. Due to its universal charging possibilities it presents a unique solution especially in classrooms or offices.

Specifications:

Capacity: 32 of 15” notebooks (vertical placement)

Sockets, located on 8 outlet power strips, which can be switched by separate on/off switch

2 outside sockets for external use and one inside socket for router or similar device

LAN connector RJ 45 on the right side as router access point

Internal shelves, height adjustable, with separators for organized storing/charging

Compartment for storing other devices (printer, server, projector, etc.)

Electronic control unit (Vega's charging module) with integrated power switch, thermal fuse, and sequenced charge start – “soft start”

Cooling fans on both sides to assure controlled inner temperature and prevent overheating

2,5 m detachable power cord (main power cord)

4 wheels, 2 with brake

Front doors and rear (service) door with lock

Two handles on the top plate

Security system – two security locks (optional)

Timer – controlled start of charging (optional)

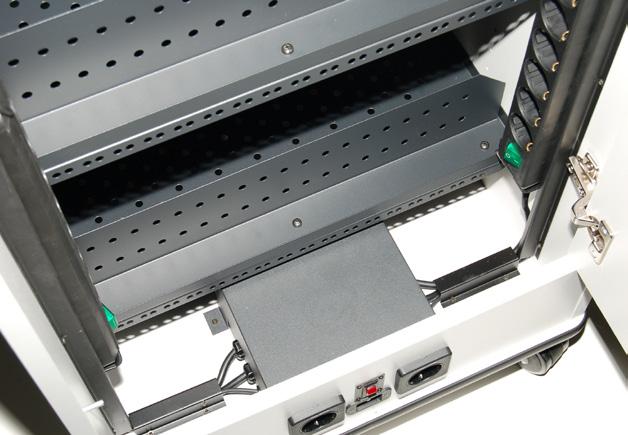

Separators for organized storing

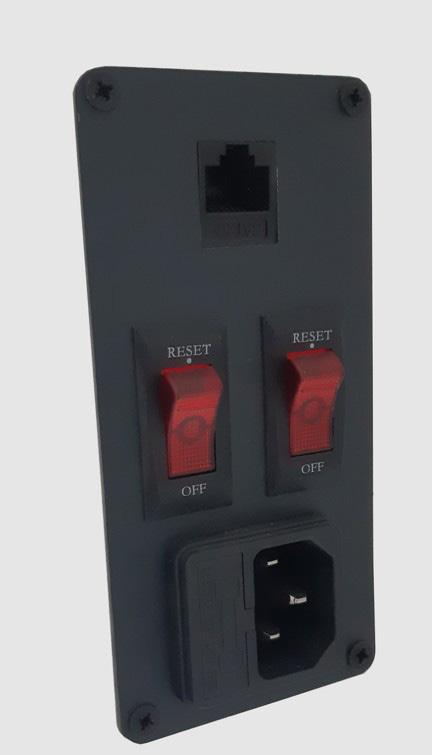

Control unit with 2 outside sockets and main switch

LAN connector as router access point

Vega USB charging cart

Vega USB Charging Cart was developed as a universal USB charging stations for 32 tablets and/or smart phones. Each USB port provides optimum charge level for each device (up to 2.4A as needed for quick-charging). Vega USB charger is also suitable for charging or supplying power to any other device that can be charged or powered through a USB port without a host connection (POS scanners, MP3 players, 3D glasses, Bluetooth headsets and more). Due to its universal charging possibilities it represents a unique solution especially in classrooms or offices where you need to charge tablets, smart phones or any other USB chargeable device.

Specifications:

Vega USB charger uses TI (Texas Instruments) Dedicated Charging Port Controller to control how much current is fed into your device. An auto-detect feature monitors USB data line voltage and automatically provides the correct electrical signatures on the data lines to charge compliant devices. You will always get the maximum current recommended by your device manufacturer. Charger is equipped with short-circuit, over-current, over-charge, under-voltage, current surge protection. The charger will automatically shut down in case of any hazardous current or surge is detected. Vega USB charger is equipped with port status LED indicator.

Functionality

Number

Supported Charging Schemes

Separators for organized storing Unit during charging LAN connector as router access point

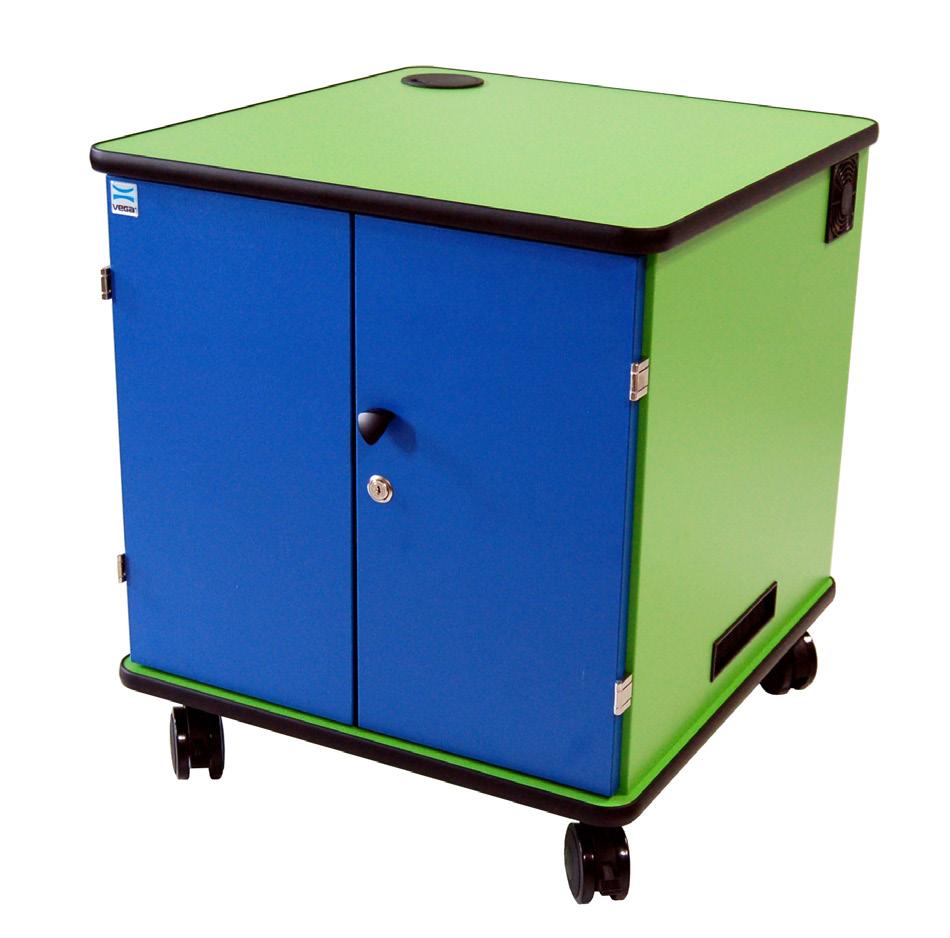

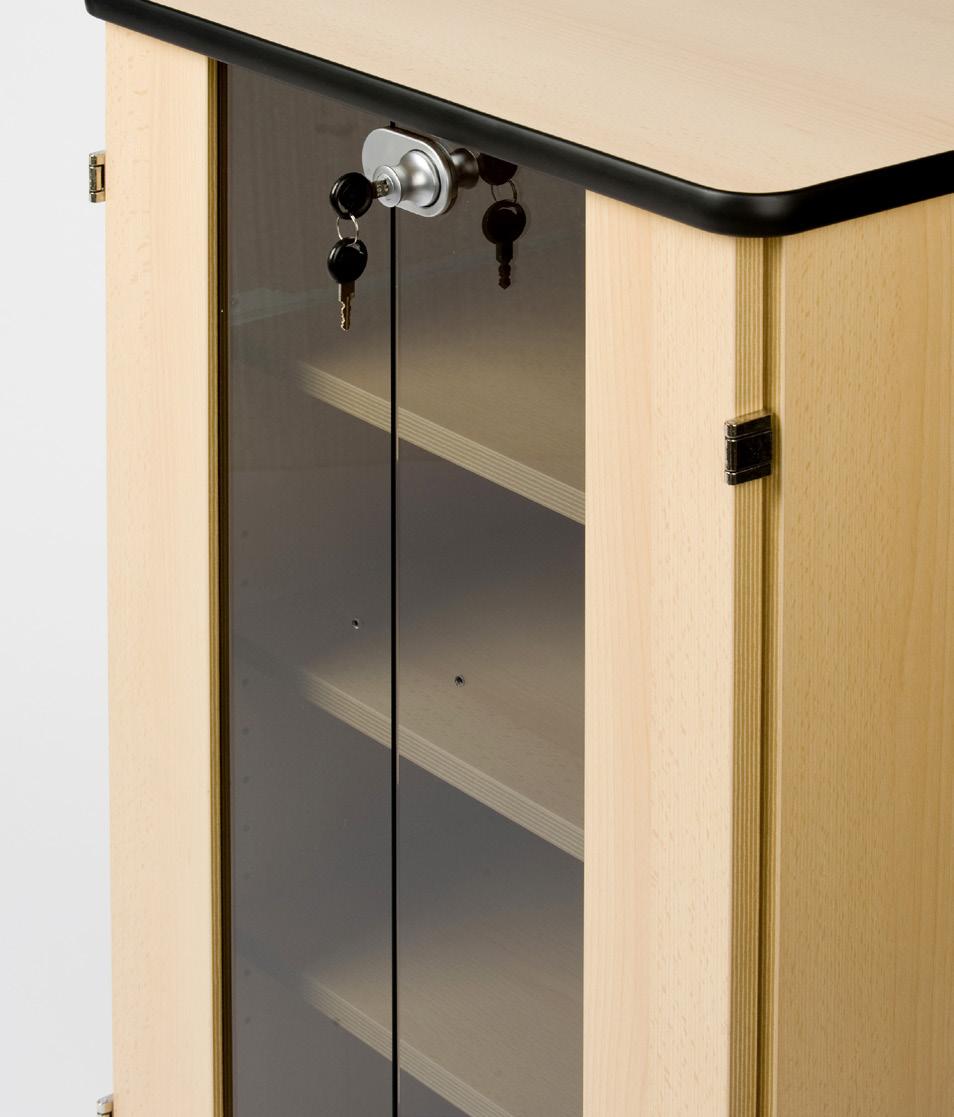

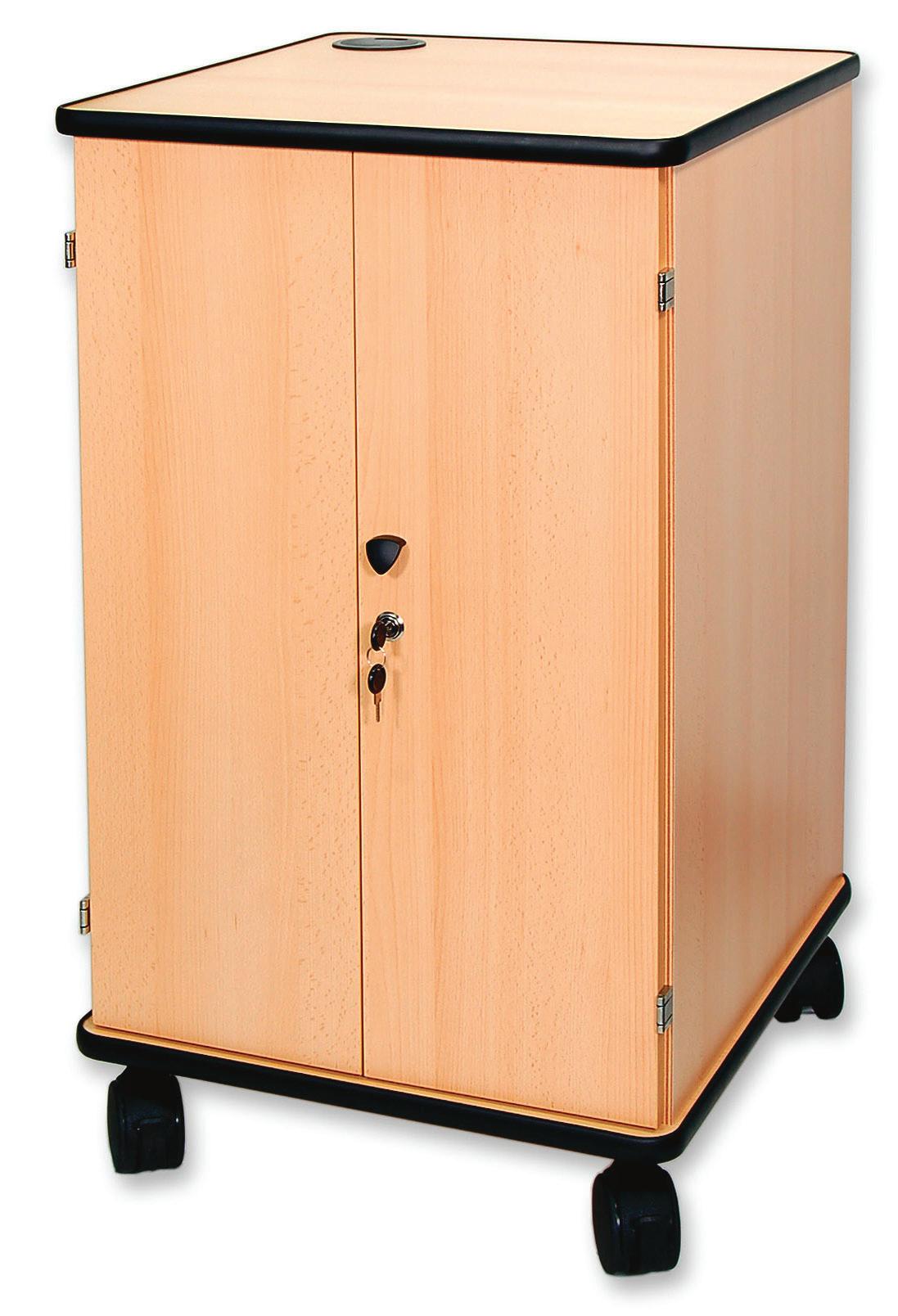

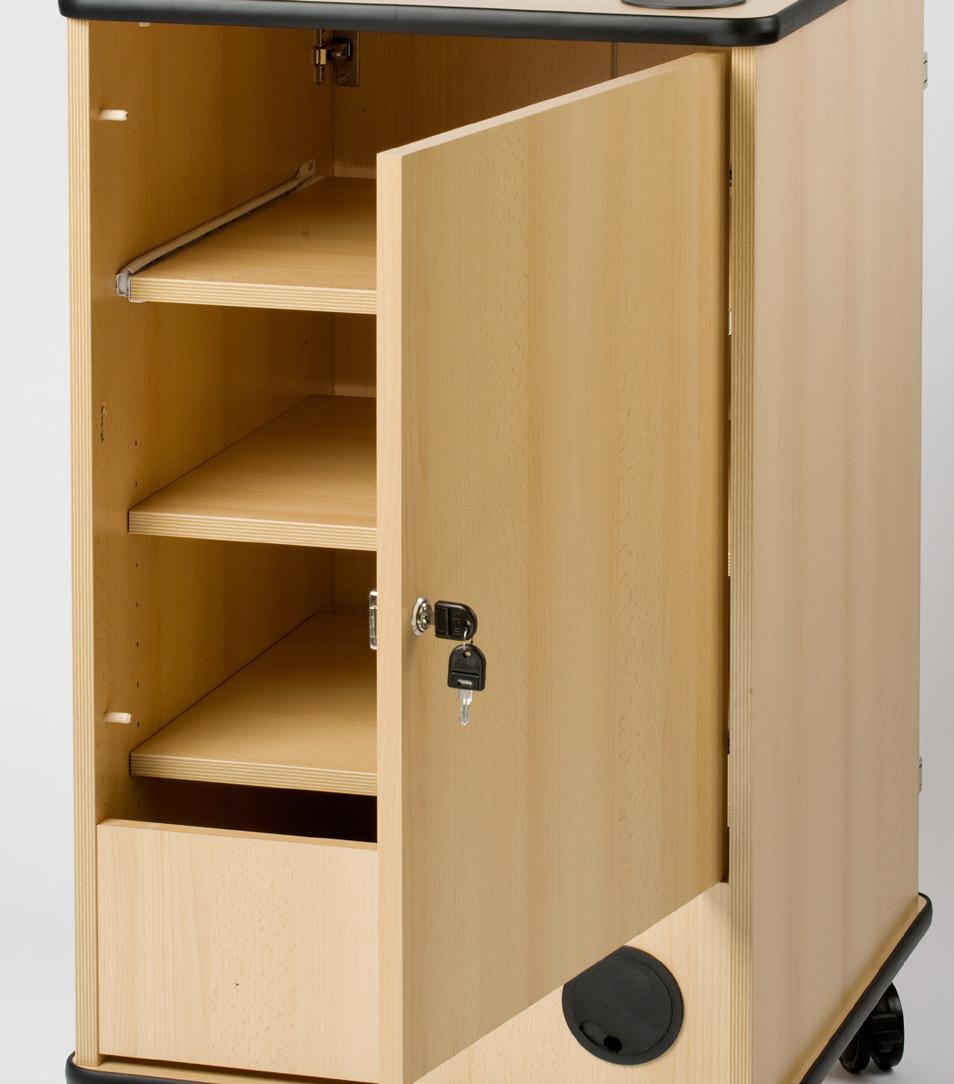

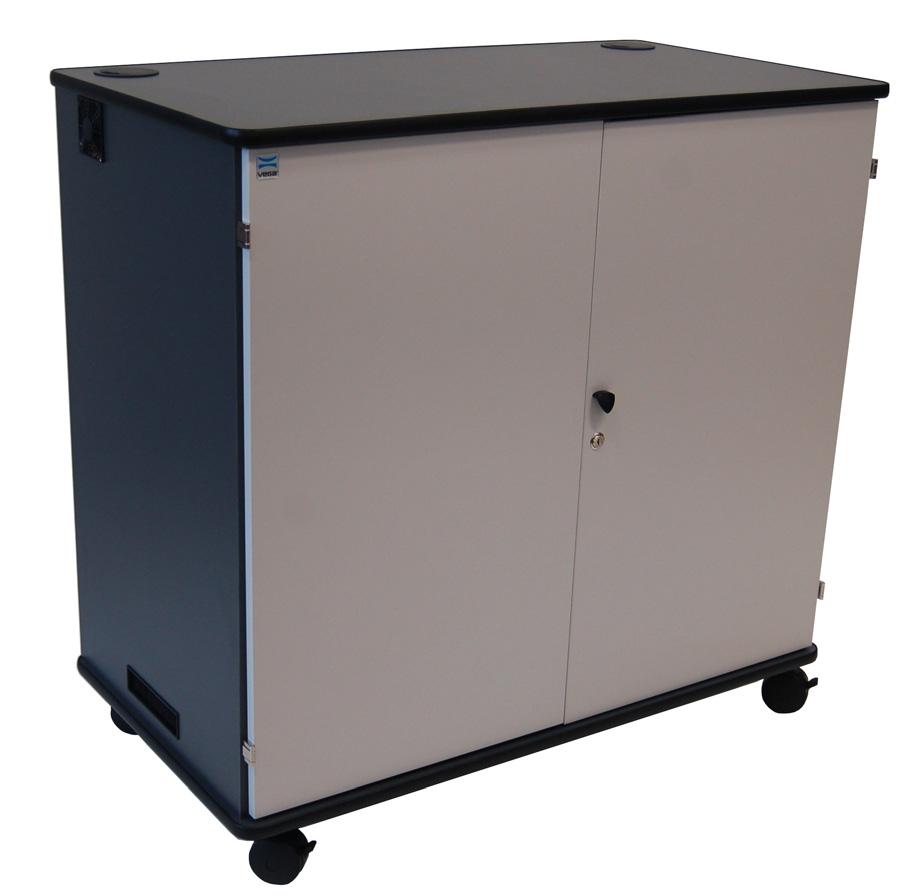

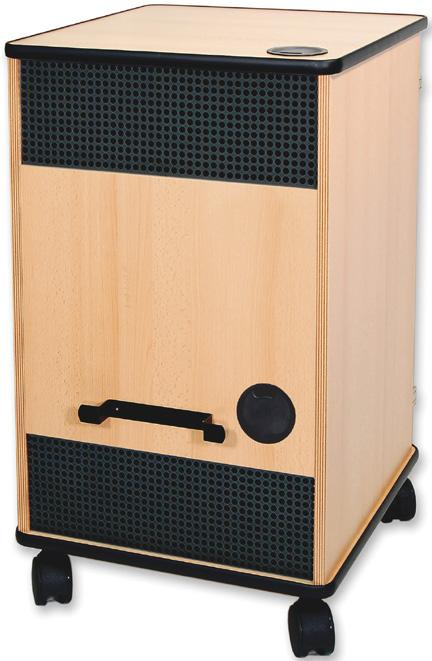

Wooden charging carts

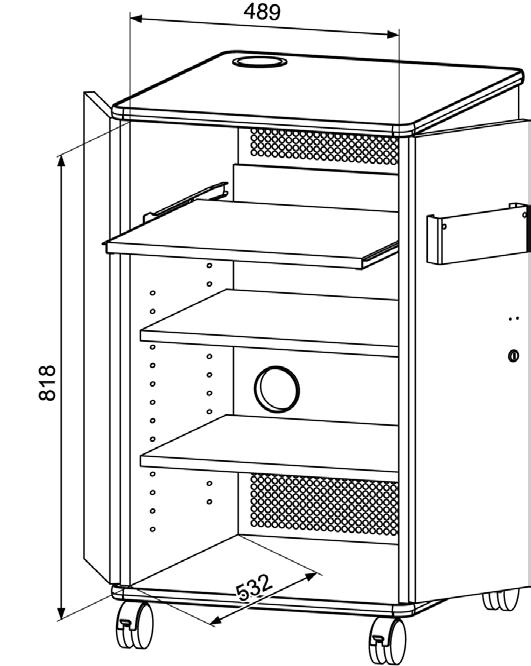

Vega Wooden Charging Carts were developed as a universal charging stations for both tablets and notebooks/ netbooks alike. Their innovative construction enables charging of both tablets and notebooks/netbooks at the same time. Simply turn on the switch and all appliances will start to charge via its original adaptors. Vega’s charging module provides delayed charging of 6 or 8 units simultaneously that prevents electric surcharge. Once the cart is disconnected from the mains socket charging module prevents reverse electric shock. Due to its universal charging possibilities it presents a unique solution especially in classrooms or offices where you need to charge either tablets or laptops.

Specifications:

Capacity: 3 sizes for 12/8, 24/16 or 32/24 - tablets / 15” notebooks (vertical placement

Sockets, located on 6 or 8 outlet power strips, which can be switched by separate on/off switch

2 outside sockets for external use and 1 inside socket for router or similar device

LAN connector RJ 45 on the back side as router access point

Internal shelves, height adjustable, with separators for organized storing/charging

Compartment for storing other devices (printer, server, projector, etc.)

Electronic control unit (Vega's charging module) with integrated power switch, thermal fuse, and sequenced charge start – “soft start”

Cooling fans on both sides to assure controlled inner temperature and prevent overheating

2,5 m detachable power cord (main power cord)

4 wheels, 2 with brake

Front doors and rear (service) door with lock

Two handles on the top plate (optional)

Security system – two security locks (optional)

Timer – controlled start of charging (optional)

Available colors beech, light grey and anthracite. Other color combinations available upon request

Separators for organized storing

Control unit with 2 outside sockets and main switch

LAN connector as router access point

Wooden charging cart - 32NB

Specifications:

Capacity: 32 of 15” notebooks (vertical placement)

Vega Wooden Charging Cart-32NB was developed as a universal charging station for notebooks and netbooks alike. It’s innovative construction enables charging of all notebooks/netbooks at the same time. Simply turn on the switch and all appliances will start to charge via its original adaptors. Vega’s charging module provides delayed charging of 8 units simultaneously that prevents electric surcharge. Once the cart is disconnected from the mains socket charging module prevents reverse electric shock. Due to its universal charging possibilities it presents a unique solution especially in classrooms or offices. Separators for organized storing

Sockets, located on 8 outlet power strips, which can be switched by separate on/off switch

2 outside sockets for external use and one inside socket for router or similar device

LAN connector RJ 45 on the back side as router access point

Internal shelves, height adjustable, with separators for organized storing/charging

Compartment for storing other devices (printer, server, projector, etc.)

Electronic control unit (Vega's charging module) with integrated power switch, thermal fuse, and sequenced charge start – “soft start”

Cooling fans on both sides to assure controlled inner temperature and prevent overheating

2,5 m detachable power cord (main power cord)

4 wheels, 2 with brake

Front doors and rear (service) door with lock

Two handles on the top plate (optional)

Security system – two security locks (optional)

Timer – controlled start of charging (optional)

Available colors beech, light grey and anthracite. Other color combinations available upon request

and

Wooden USB charging cart

Vega USB Charging Carts were developed as a universal USB charging stations for 16 or 32 tablets (depending on the model) and/or smart phones. Each USB port provides optimum charge level for each device (up to 2.4A as needed for quick-charging). Vega USB charger is also suitable for charging or supplying power to any other device that can be charged or powered through a USB port without a host connection (POS scanners, MP3 players, 3D glasses, Bluetooth headsets and more). Due to its universal charging possibilities it represents a unique solution especially in classrooms or offices where you need to charge tablets, smart phones or any other USB chargeable device.

Specifications:

Number

Connectors

Supported Charging Schemes

Type - A receptacle

DCP_AUTO Divider 3, 1.2V mode (D+/D- shorted and bias to 1.2V), BC1.2 DCP compliant devices, Chinese Telecom Standard YD/T 1591-2009 compliant devices.

Separators

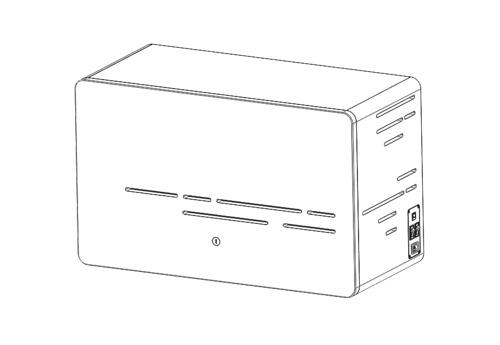

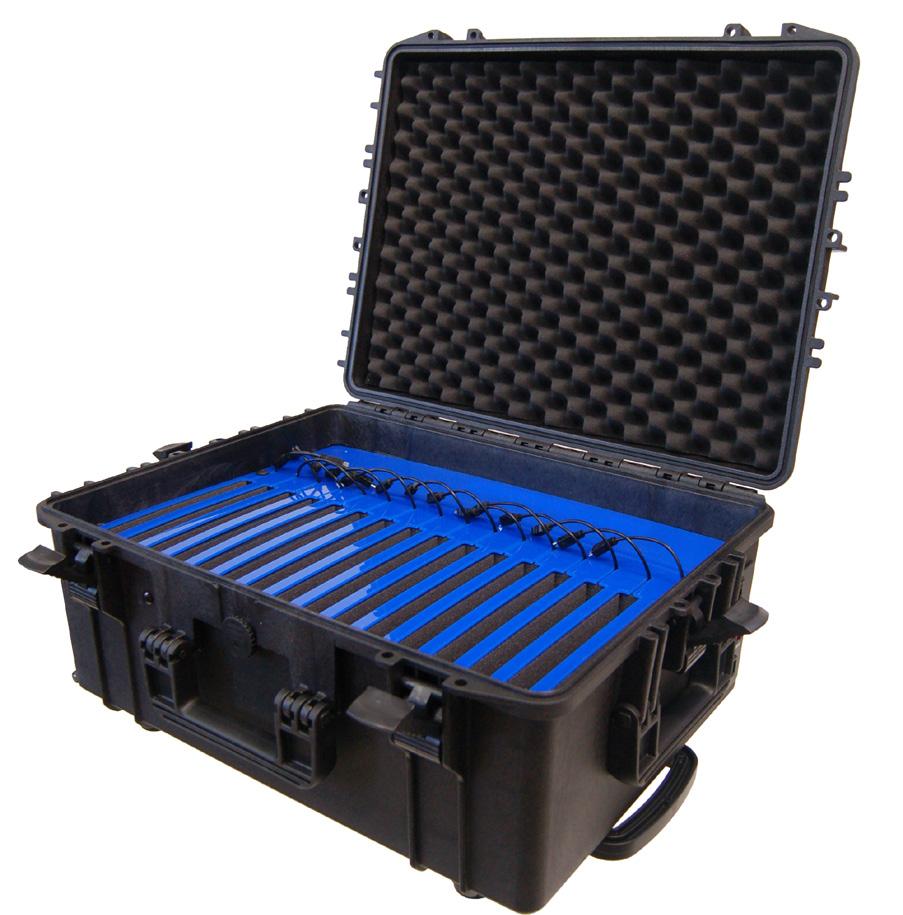

Portable charging case

Vega Charging Case is an ideal mobile container for charging, storing and transporting of up to 16 tablets safely and efficiently. Is compatible with many devices that require charging via USB cable. It uses TI (Texas Instruments) Dedicated Charging Port Controller to control how much current is fed into your device. An auto-detect feature monitors USB data line voltage and automatically provides the correct electrical signatures on the data lines to charge compliant devices. You will always get the maximum current recommended by your device manufacturer. Equipped with short-circuit, overcurrent, over-charge, under-voltage and current surge protection. The USB charger will automatically shut down in case any dangerous current or surge is detected. Inside the case there is an additional 220V socket and enough space for Wi-Fi router which enables synchronisation of all devices.

Specifications:

Case:

• Made of recyclable polypropylene, black, European origin

• Two wheels

• Extendable handle for transporting

• Three handles for carrying

• Waterproof & dustproof

• Strong surface

• Light weight

Outside connection:

• Socket for 230V detachable power cable

• ON/OFF switch for charging

• ON/OFF switch for Wi-Fi device

• RJ45 socket for network connection

Interior:

• Strong plexiglass cover protects electric parts against unauthorized access

• Soft lining for safe tablet storing

• Space for router provided (we recommend Mikrotik RB951G-2HnD or RB951Ui-2Hnd)

• Internal socket for router

Supported Charging Schemes

DCP-AUTO Divider 3, 1.2V mode (D+/D- shorted and bias to 1.2V), BC1.2 DCP compliant devices, Chinese Telecom Standard YD/T 1591-2009 compliant devices

Wall USB charger

Vega USB Wall Charger was developed as a universal USB charging station for 16 tablets and/or smart phones. Each USB port provides optimum charge level for each device (up to 2.4A as needed for quick-charging). Vega USB charger is also suitable for charging or supplying power to any other device that can be charged or powered through a USB port without a host connection (POS scanners, MP3 players, 3D glasses, Bluetooth headsets and more). Due to its universal charging possibilities it represents a unique solution especially in classrooms or offices where you need to charge tablets, smart phones or any other USB chargeable device.

Specifications:

Functionality

Charge Only Number

Output Connectors

Supported Charging Schemes

DCP_AUTO Divider 3, 1.2V mode (D+/D- shorted and bias to 1.2V), BC1.2 DCP compliant devices, Chinese Telecom Standard YD/T 15912009 compliant devices.

Wall/ceiling mounts

CEILING MOUNTS

WALL MOUNTS

WM CONSOLES

MOUNTS FOR IWB

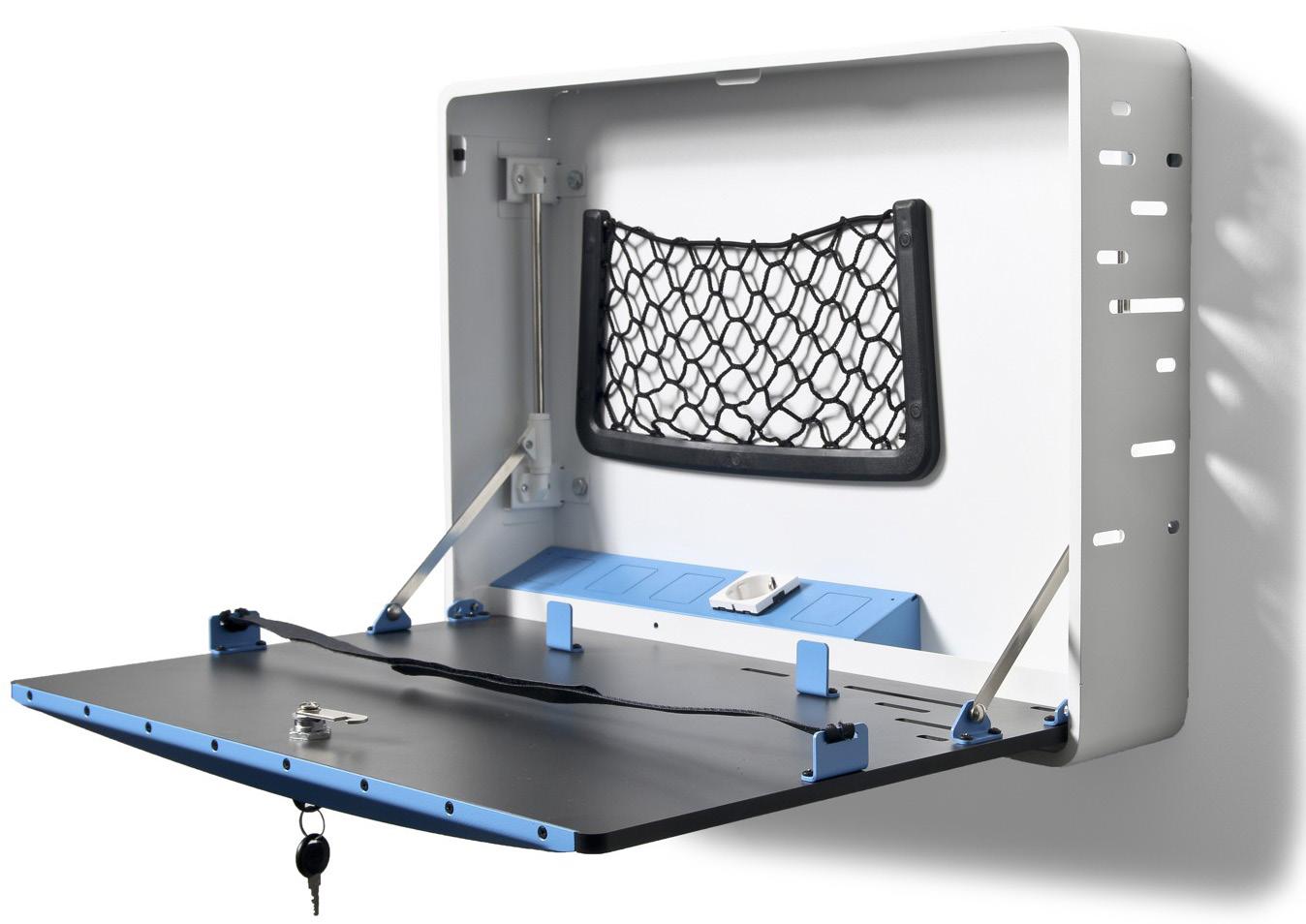

WALL/TABLE BOXES

Each presentation appliance needs support for more user friendly presentation. VEGA mounts are professional designed and made to meet users high expectations.

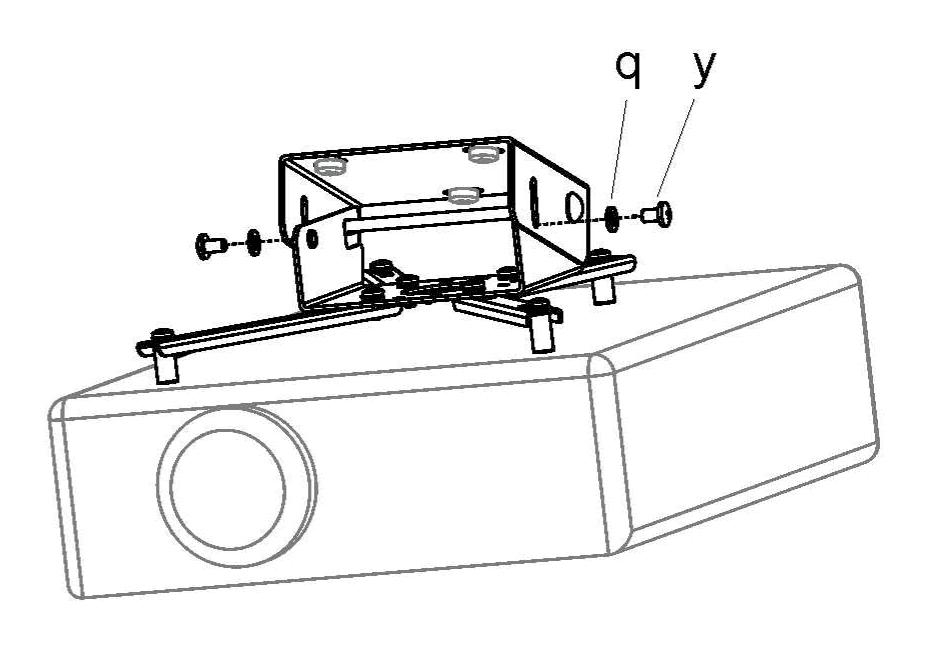

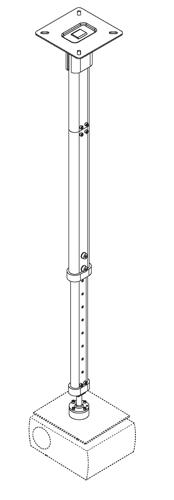

Ceiling mount CM

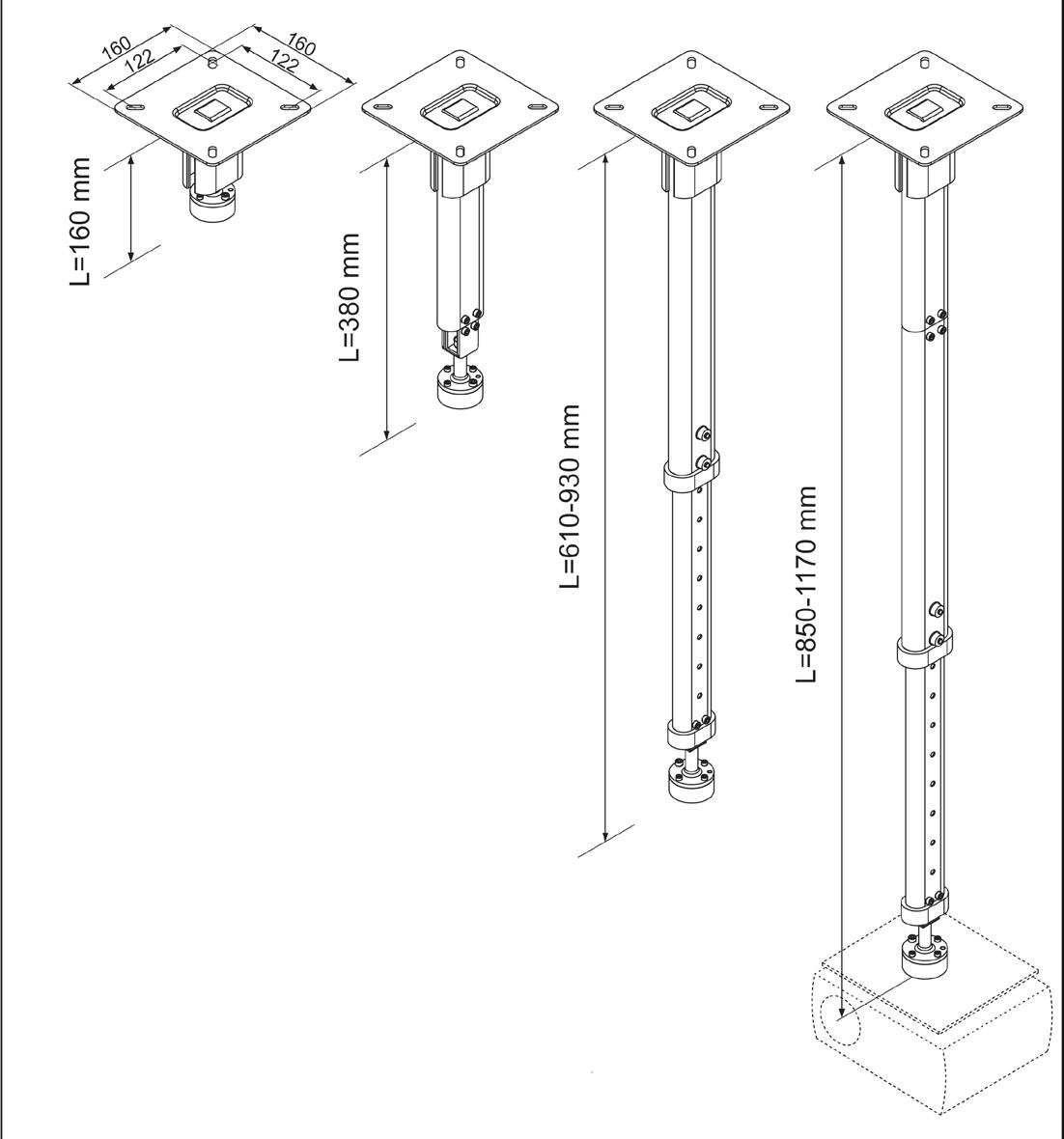

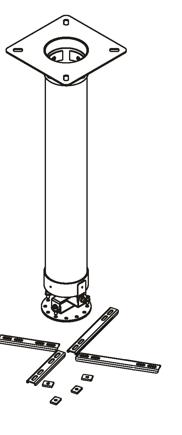

Ceiling mount CM25

CM 25 features professional design and easy installation, potential for easy changing of height and angle of projector. Ceiling mount is universal, max. weight of projector is 25 kg. Tool kit and screws for changing height are included.

Professional design and easy installation

Potential for easy changing of height (16 - 117 cm) and angle of projector

Ceiling mount for all types of projectors

Tool kit and screws for changing of height are included

Max. Weight of projector: 10 kg

Weight: 2-4 kg

Colour: matt silver

Ceiling mount CM

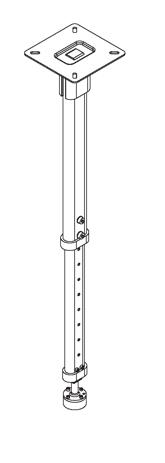

Ceiling mount CM6

Universal ceiling mount for data/video projectors with plastic pole which can be easily cut to required length. Cables can be hidden inside the pole. Includes all fixing to attach the projector to the mount. Maximum projector weight is 6 kg

Universal ceiling mount for data/video projectors

Plastic pole can be easily cut to required length

Cables can be hidden inside the pole

Includes all fixing to attach the projector to the mount

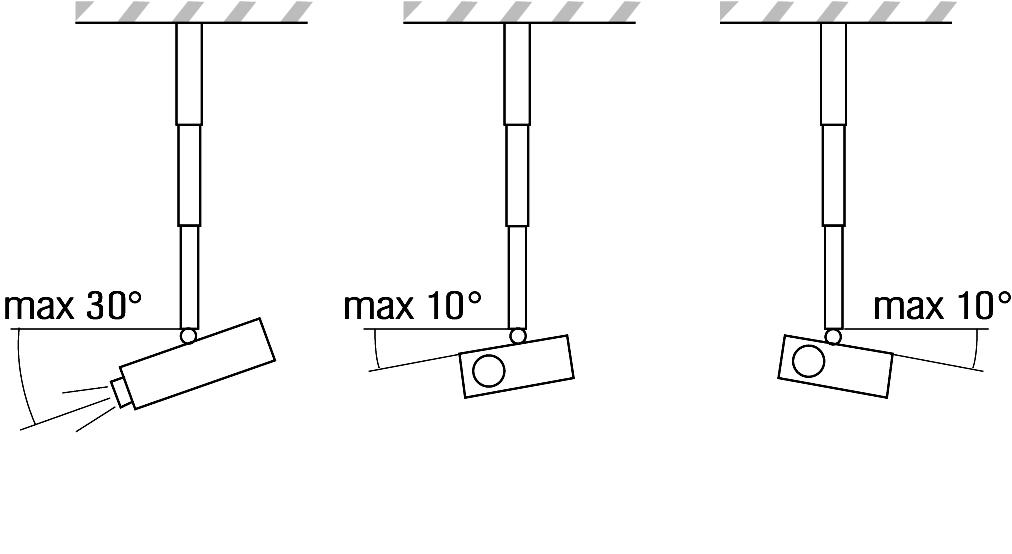

Tilt adjustment angle:

• Left/right +/- 15°

• Tilt 0° – 30°

Horizontal rotation +/- 10°

Maximum projector weight 6kg

Projector mount length adjustable between 150mm – 1100mm

Overall weight 1.7kg

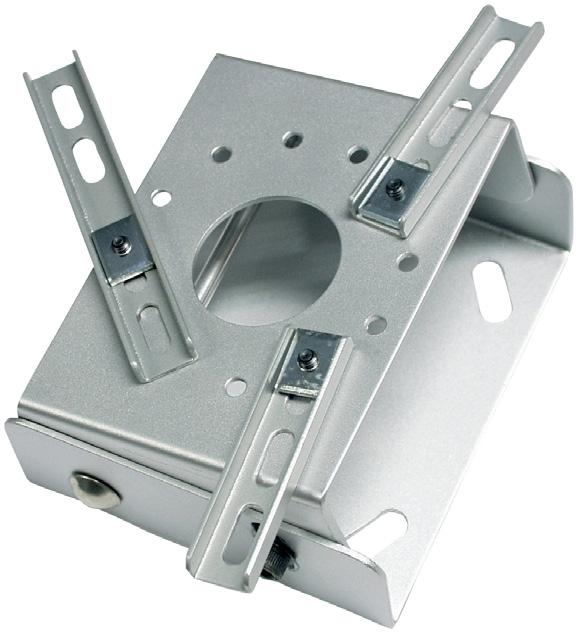

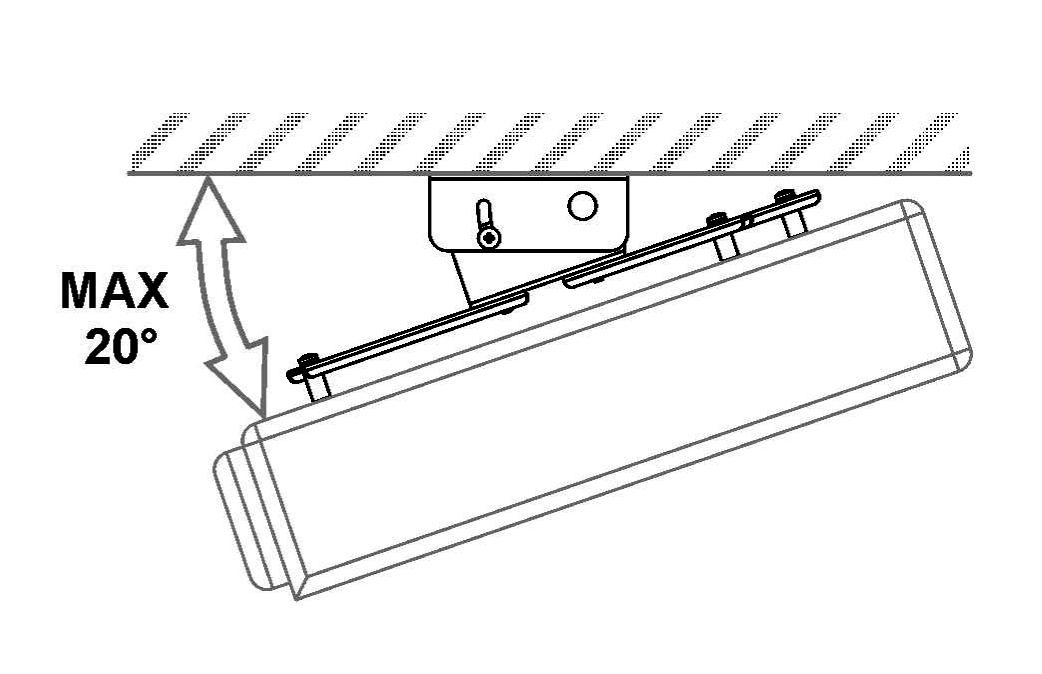

Ceiling mount CM11

Professional designed ceiling mount for easy ceiling installation for all types of projectors. Suitable for low ceilings. Easy changing of projector angle (tilt 0° – 20°). It holds projectors up to 10 kg. Ceiling mount weight is 1,1 kg. Color of the mount is matt silver.

Easy ceiling installation for all types of projectors

Easy changing of projector angle (00– 200)

Projector weight up to 10 kg

Weight: 1,1 kg

Colour: matt silver

Wall mount WM

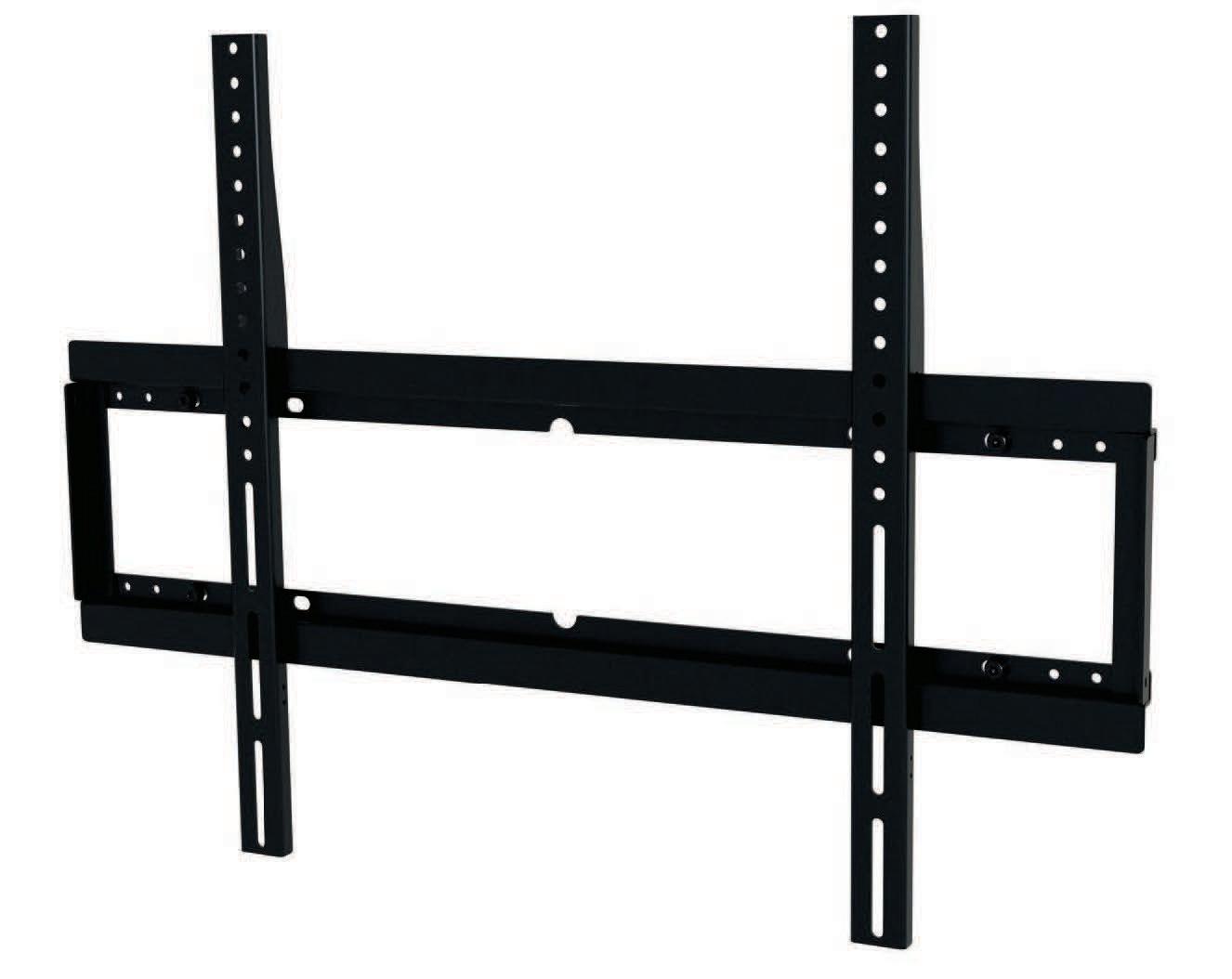

Wall mount WM40

Wall mount WM 40 is designed for the new generation of interactive or LCD displays. Made of solid steel framework it meets all the needs of modern users seeking an advanced solution for interactive or LCD displays with optimum combination of functionality, ergonomics and fashionable design. Our Universal Wall Mount will satisfy diverse tastes and adapt perfectly to your work or home environment. Wall mount WM 40 holds displays only 30 mm from the wall (please be sure to check that your display has only side or bottom ports/inputs).

Specifications:

VESA standards: from 200 x 200 to 800 x 600

For displays from 32” or bigger

Maximum loading weight: 150 kg

Packed in to carton packaging (weight 5,2 kg)

Available in anthracite colour

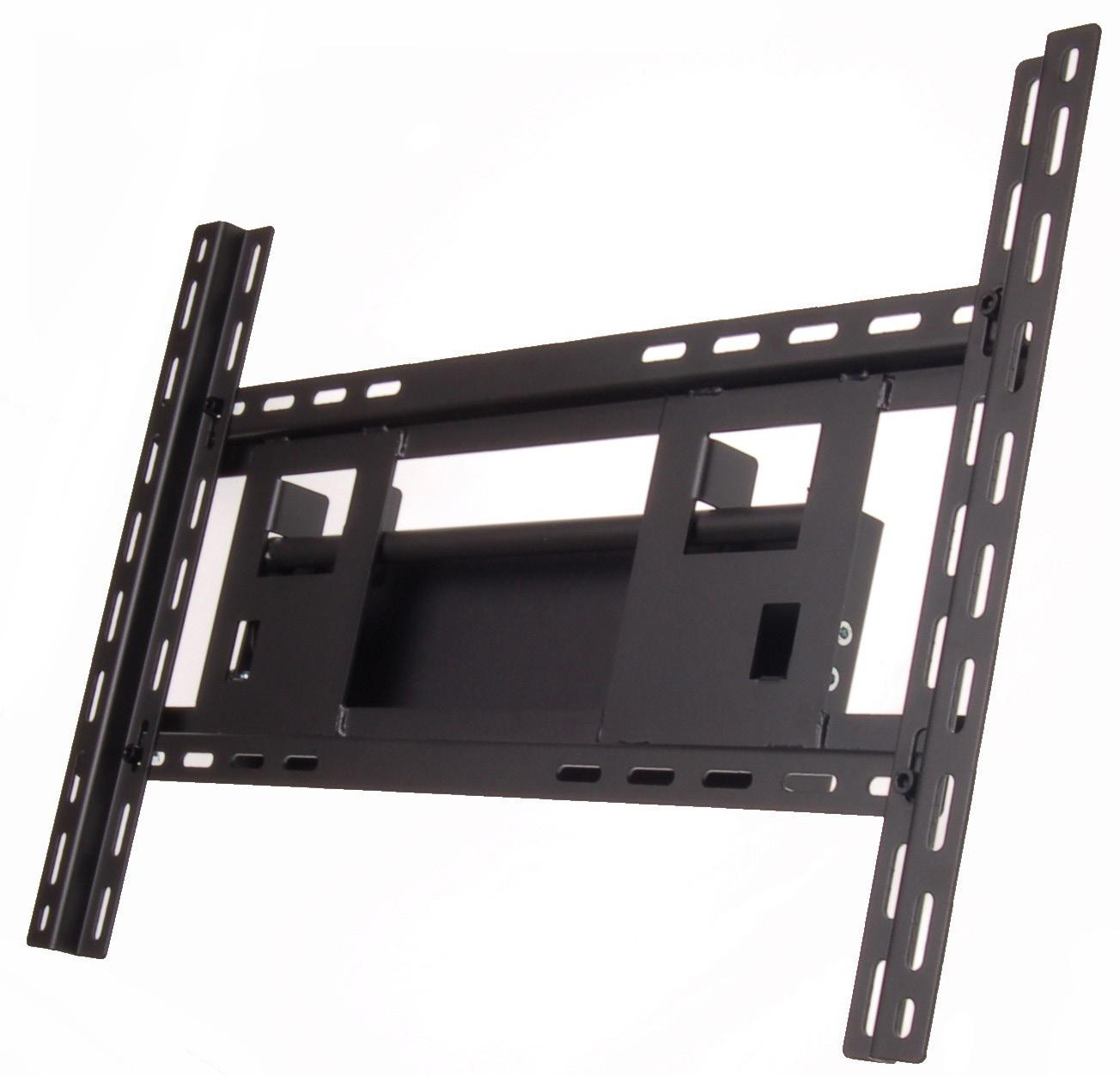

Wall mount WM42

WM 42 is a universal wall mount for LCD or interactive displays. It has a high load capacity of up to 120 kg and is universal, as it is designed for displays from from 42” to 86” or more. The bracket is designed to be fixed to the wall and has the possibility to tilt from 0° to 10°. It is available in dark anthracite color.

Specifications:

VESA standards: from 200 x 200 to 800 x 600

For screens 42'' or larger

Maximum load: 120 kg

Tilt from 0° to 10°

Distance from wall 96 mm

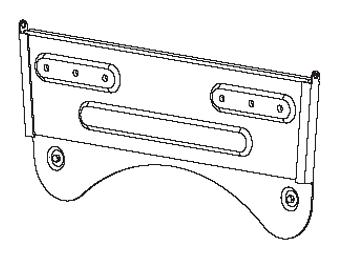

Wall mount consoles

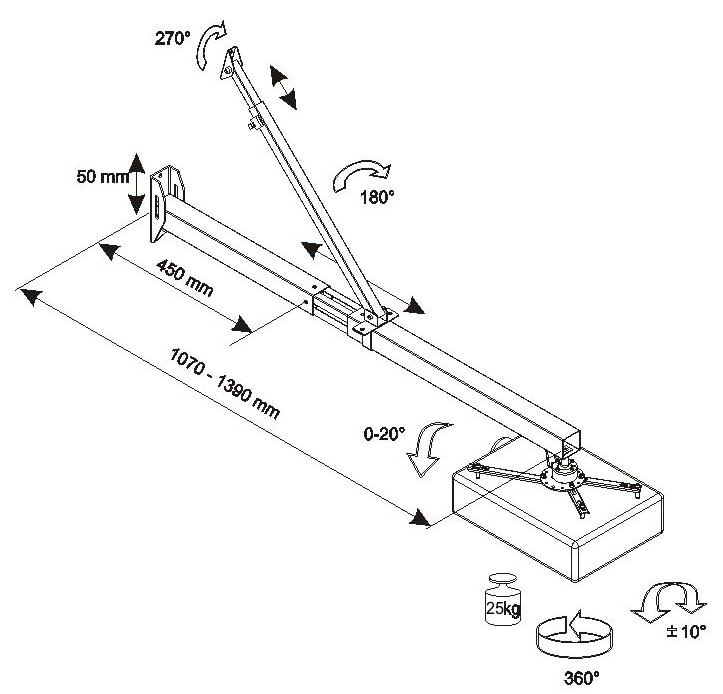

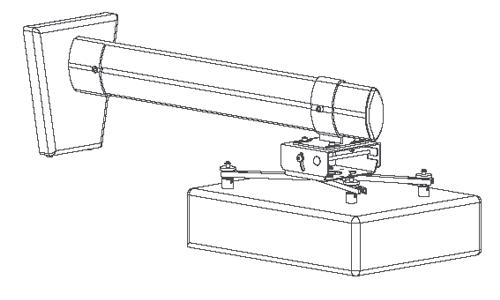

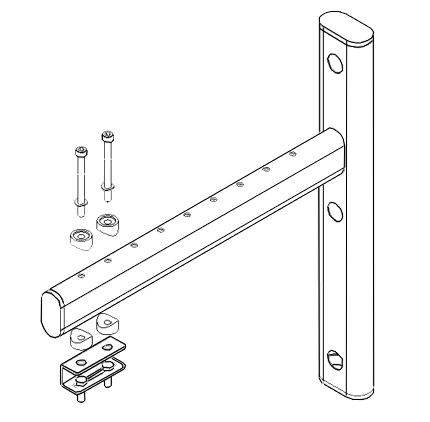

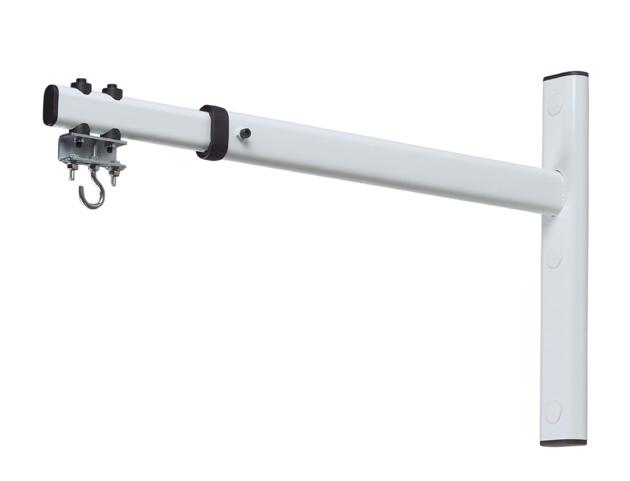

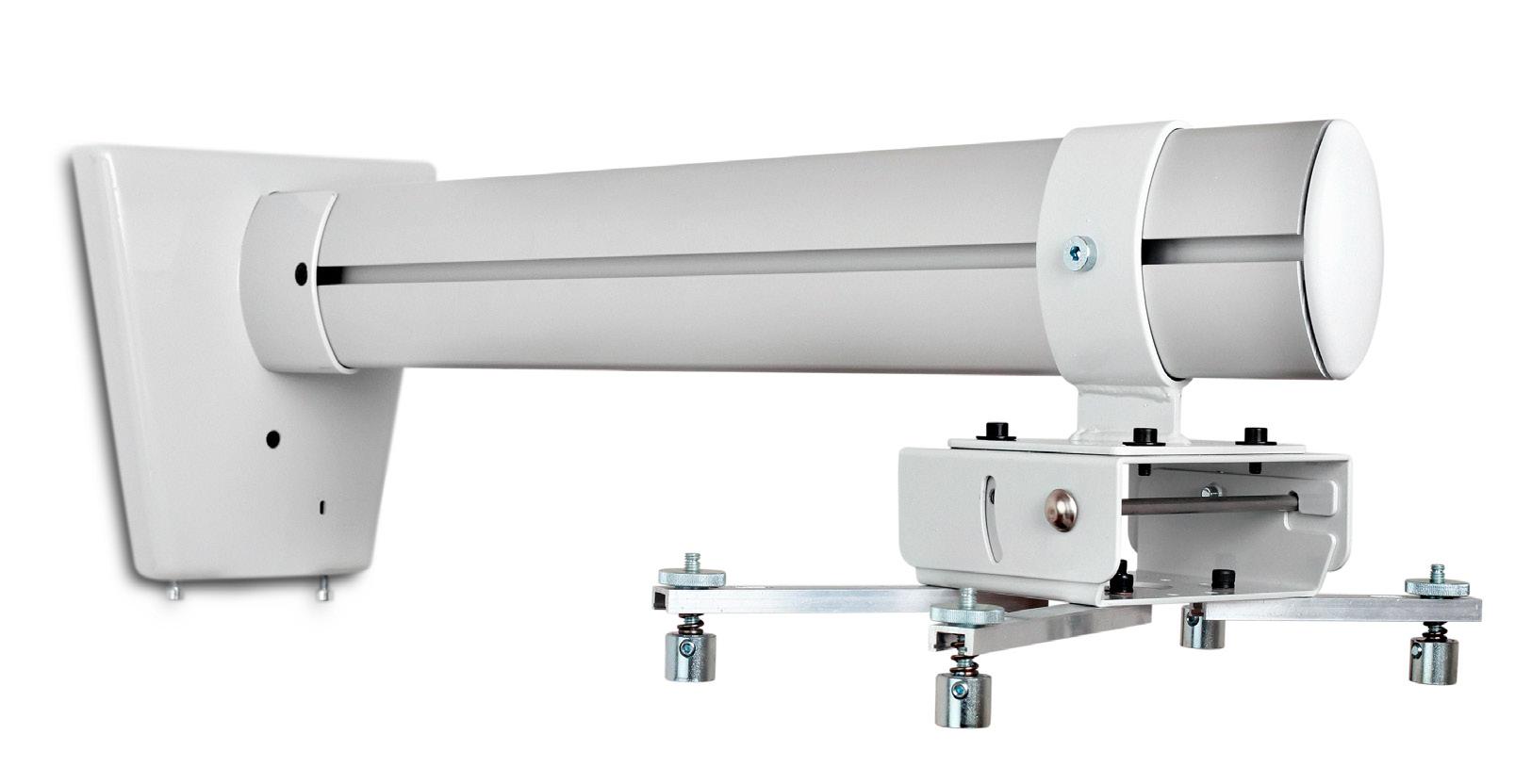

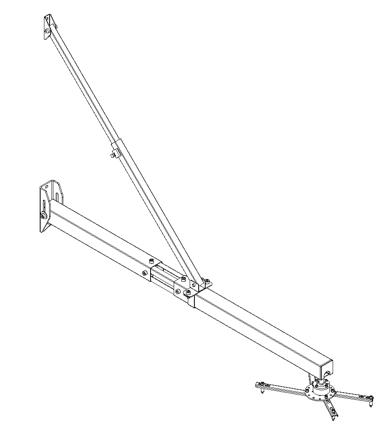

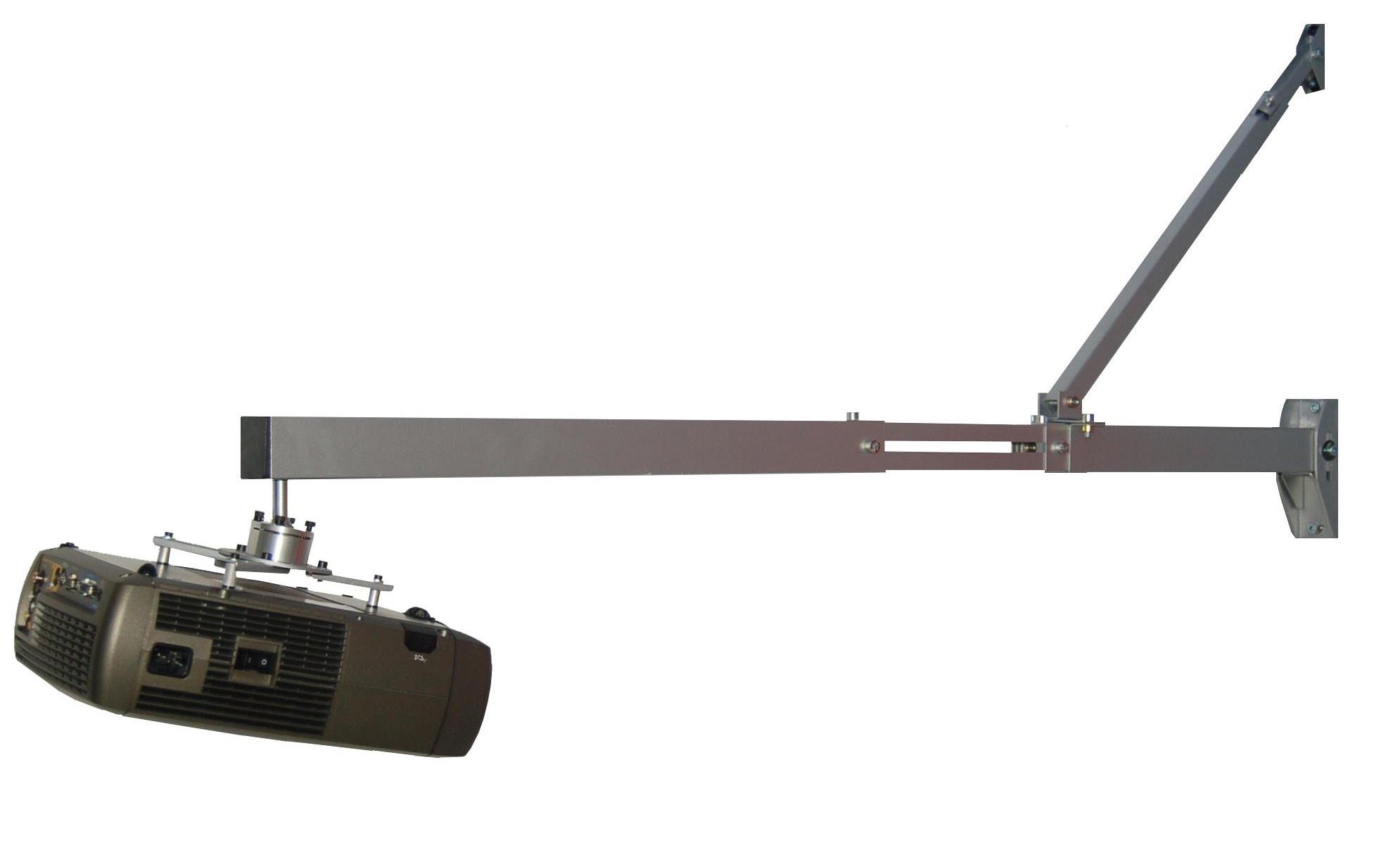

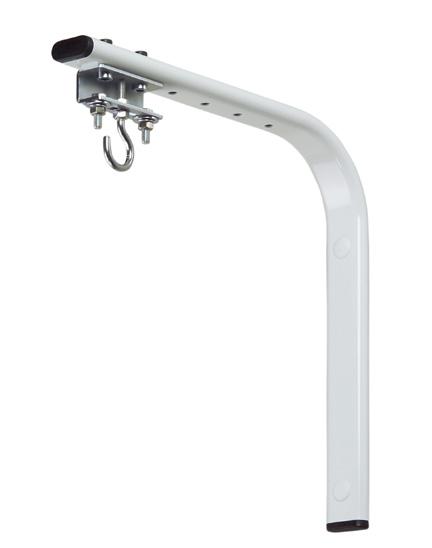

Wall mount console WMC 39-140

The console is designed for fitting of LCD projectors used for projection on interactive whiteboards. Specialized LCD projectors have different build-in wide-angled objectives. The console allows fitting on different distances from the whiteboard (minimum fixed fitting of 45 centimetres and continuous fitting in range between 107 and 139 centimetres from the whiteboard). Because of it special design it could be also used as a substitute for Ceiling mount when it can’t be used (inclined ceiling, week ceiling…).

Specifications:

Carrying capacity of the console in the fitting point of LCD projector is 11 kg

Fitting range:

a) Fixed: 45 centimetres

b) Adjustable: 107-139 centimetres

Range of vertical adjustment of the console in wall mount: 5 centimetres

Fitting point allows for inclination of:

• 20 degrees down / 0 degrees up

• 10 degrees left or right

• Revolving 360 degrees

Colour: silver

Cable management system

Packing in cardboard packaging. Protected against dust and damages.

Wall mount console WM

Wall mount console WMC 70/130

The console is designed for mounting of LCD projectors used for projection on interactive whiteboards. Specialized LCD projectors have different build-in wide-angled objectives. The console allows mounting on different distances from the whiteboard (minimum fixed fitting of 15 centimetres and continuous fitting in the range between 16 and 65 or 15 and 125 centimetres). Console is equipped with Vega’s inovative fine adjustment mechanism which enables precise setting of the projected picture.

management

Specifications:

Carrying capacity of the console in the fitting point of LCD projector is 11 kg

Console can be adjusted perpendicular to the wall with two screws which are positioned on the console holder

Fitting range: Adjustable: 15 - 65 or 15 - 125 centimetres

Range of horizontal adjustment: 3 centimetres

Fitting point allows fine adjustment for inclanation of:

• 30 degrees down / 0 degrees up

• 5 degrees lef or right

Colour: combination of white and aluminium

Cable managment system

Kensington lock protection

Packed in cardboard packaging. Protected against dust and damages.

Cable

Mounts for IWB

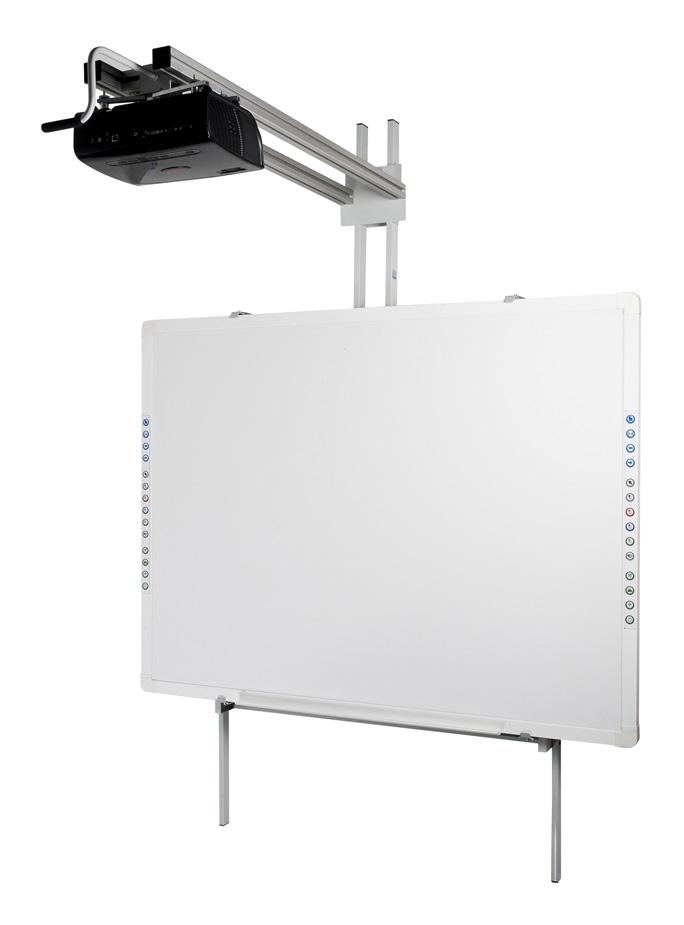

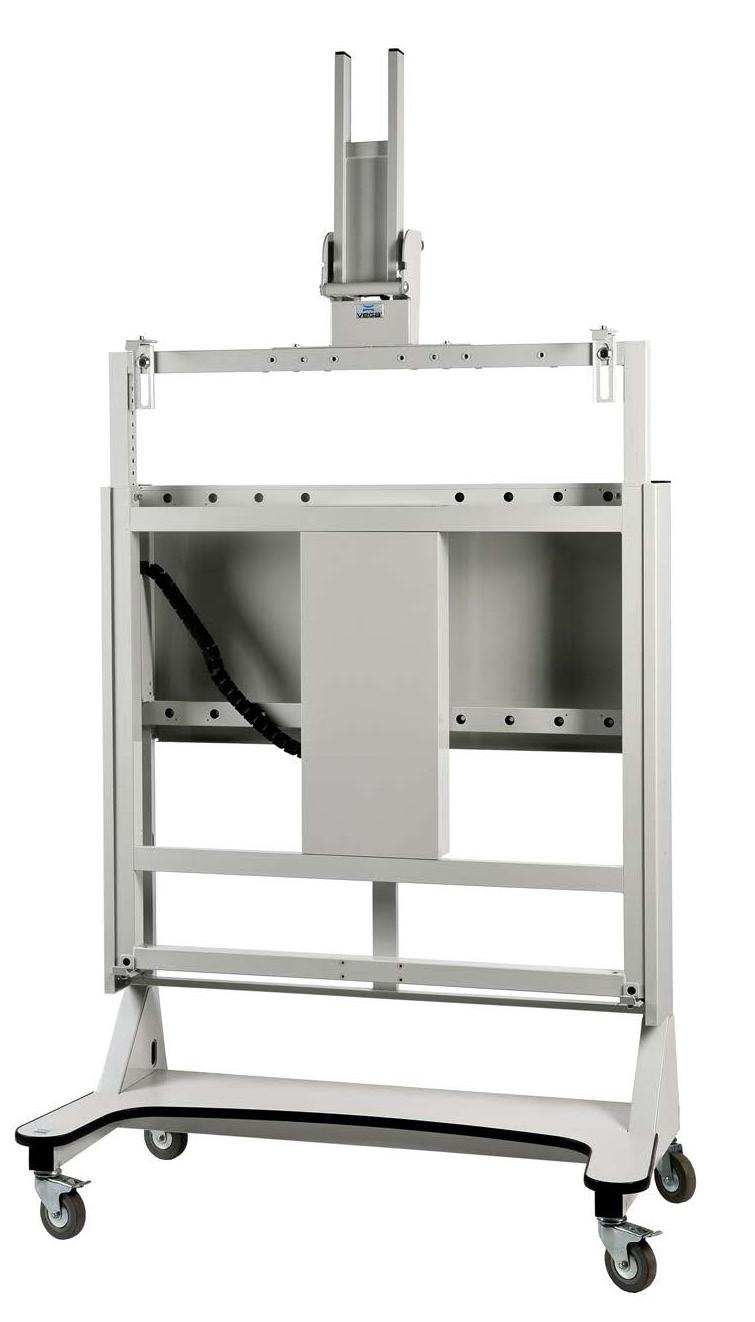

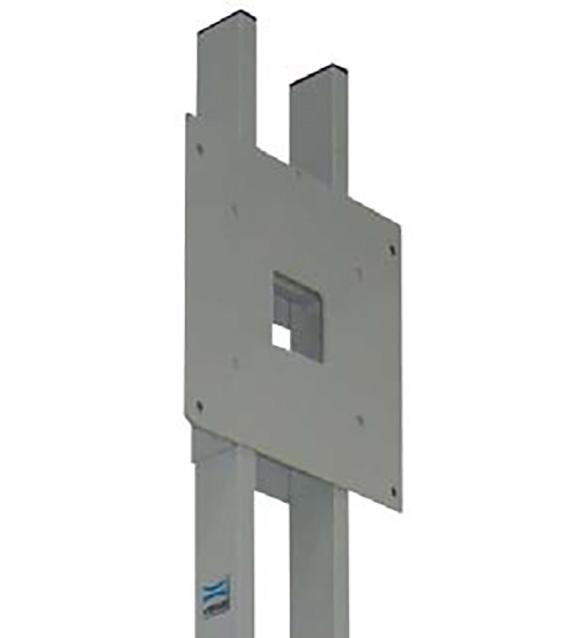

Mount WM 600 Easy Lift EL

VEGA’s universal electric mount enables the vertical adjustment of the interactive board together with the projector for 50 centimeters from its basic position. Easy Lift is universal and can be used with any board or projector regardless to its brand. With additional accessories it offers full interactive adventure.

Specifications:

The VEGA universal bracket enables:

• attachment of interactive tables from different manufacturers

• attachment of interactive tables of dimensions from 60” to 105”

• attachment of interactive tables of different formats (4:3, 16:9, 16:10)

• mounting of projectors from different manufacturers

• attaching projectors of different projection ranges (ultra-wide-angle or wide-angle)

• attachment of projectors that are equipped with the manufacturer's projection arm

• attachment of projectors that do not have their own arm via the VEGA attachment system

• easy passage through doors with minimum dimensions of 195 x 85 centimeters (switched)

• easy switching of the projector via the unique VEGA shock absorber system

• easy vertical movement of the board and projector (50 centimeters) using an electric motor - easy routing of cables

• Permissible load: 70 kg (150 kg with a stronger engine)

Many accessories are available for the VEGA electric universal carrier. By using it, the interactive presentation takes on a completely new dimension.

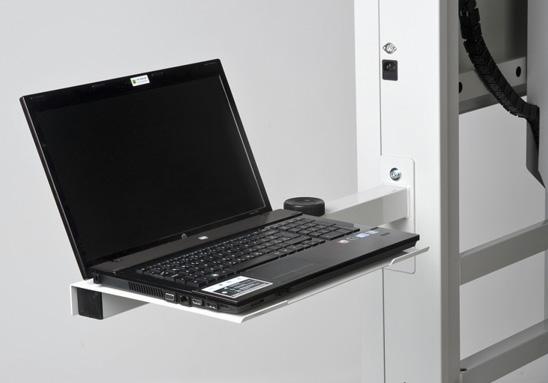

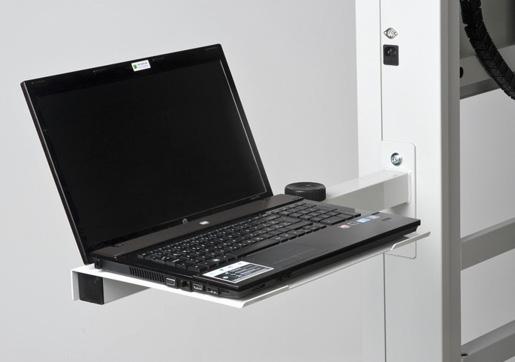

Laptop arm for WM 600

Mounts for IWB

Mount WM 600 Easy Go EL

VEGA’s universal electric mount enables the adjustment of the interactive board together with the projector for 50 centimeters from its basic position. This action eliminates the necessity of recurring calibration of the board. Together with our WMS 600 stand it provides for effortless movement between different locations. All additional devices can be placed on to nicely designed shelf

Specifications:

VEGA’s universal mount enables:

• fitting of various boards from all major manufacturers

• fitting of boards with various dimensions ranging from 60” to 105”

• fitting of boards with various aspect ratios (4:3, 16:9, 16:10)

• fitting of various projectors from all major manufacturers

• fitting of projectors with various throw ratios (ultra short and short throw)

• fitting of projectors equipped with it’s own arm with the use of adapter plate

• fitting of projectors without their own arm with the use of VEGA mounting system

• easy passage trough doors with minimum door dimensions 195 x 85 centimeters (folded)

• easy folding of the projector with the use of unique gas spring system

• easy vertical movement of the board with the projector (50 centimeters) with the use of electric motor

• easy cable management

• Max. load capacity: 65 kg (140 kg with stronger motor)

VEGA’s universal mount has several posibilities for additional equipment. This enables full featured interactive experience.

Laptop arm for WM 600

Mobile stands

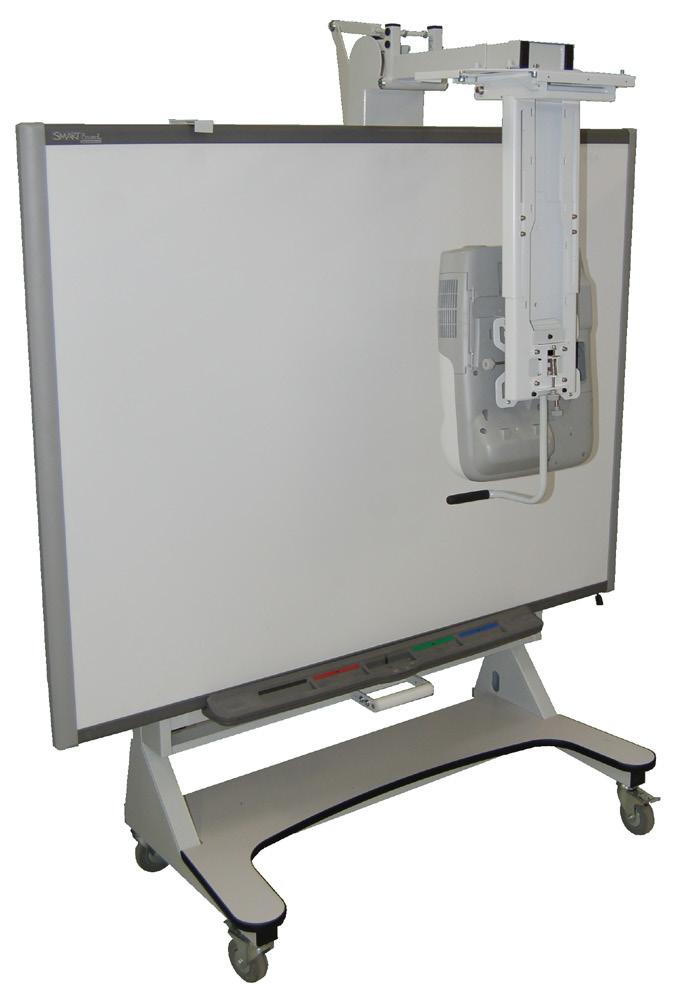

Mobile stand WMS 600 WB

VEGA mobile stand WMS 600 WB is designed for mounting of regular or interactive whiteboards. It is equipped with four industrial castors (two with brake) which allow easy passage over small obstacles. Cable management is possible through the supporting legs. Optionally the mobile stand can be equipped with VEGA projector holder thus comprising a powerful interactive unit which can be moved effortless between different locations.

Specifications:

Designed for boards with dimensions ranging from 125 to 240 cm (width) and 110 to 130 cm (height)

Four castors (two with brake)- Easy cable management trough supporting legs

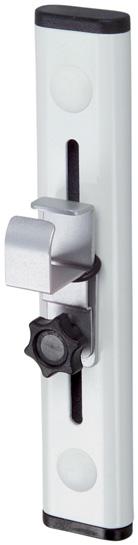

Universal hooks allow the installation of any board regardless of its brand

Upper bar allows the installation of VEGA projector holder (optional)

Projector holder and adapter plate are sold separately.

Wall/table boxes

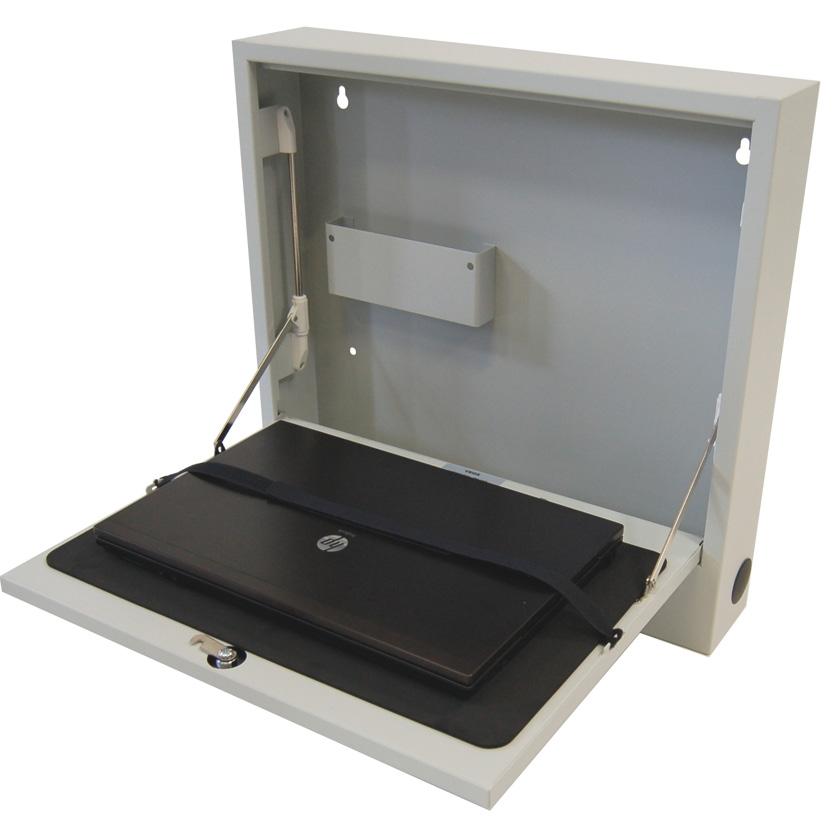

Laptop box - Premium

Laptop box is intended for storage of laptops in classrooms. It is designed in a way that enables mounting on the wall and easy cable management. That is why it represents a unique solution when used with interactive boards or touch displays. You don’t need to plug in all the cables at the beginning of a presentation. Simply unlock the box, open it and start using your laptop, projector, interactive board and/or touch display. Inside the box a special holder suitable for various types of sockets (VGA, HDMI, RJ45, USB, power cable) is installed. An elastic mesh is suitable for storing laptop charger or computer mouse. Of course you can use VEGA’s laptop box as a single unit just for storage of laptop thus eliminating daily carrying of your laptop when leaving the classroom.

Specifications:

Suitable for laptops up to 19”

Dimensions: 580 x 420 x 107 mm (WxHxD)

Door dimensions: 547 x 387 mm

Gas springs (prevent sudden and uncontrolled opening of the door)

Easy cable management

Socket holder for VGA, HDMI, RJ45, USB, power cable (we recommend Legrand mosaic sockets)

Laptop box – Deluxe

Laptop box is intended for storage of laptops in classrooms. It is designed in a way that enables mounting on the wall and easy cable management. That is why it represents a unique solution when used with interactive boards. You don’t need to plug in all the cables at the beginning of a presentation. Simply unlock the box, open it and start using your laptop, projector and interactive board. Laptop box also has a drawer where pens, remote control and stationary can be placed. Of course you can use VEGA’s laptop box as single unit just for storage of laptop thus eliminating daily carrying of your laptop when leaving the classroom.

Specifications:

Suitable for laptops up to 19”

Dimensions: 570 x 540 x 105 mm (WxHxD)

Door dimensions: 510 x 385 mm

One drawer

Pad for laptop

Gas springs (prevents sudden and uncontrolled opening of the door)

Easy cable management

Wall/table boxes

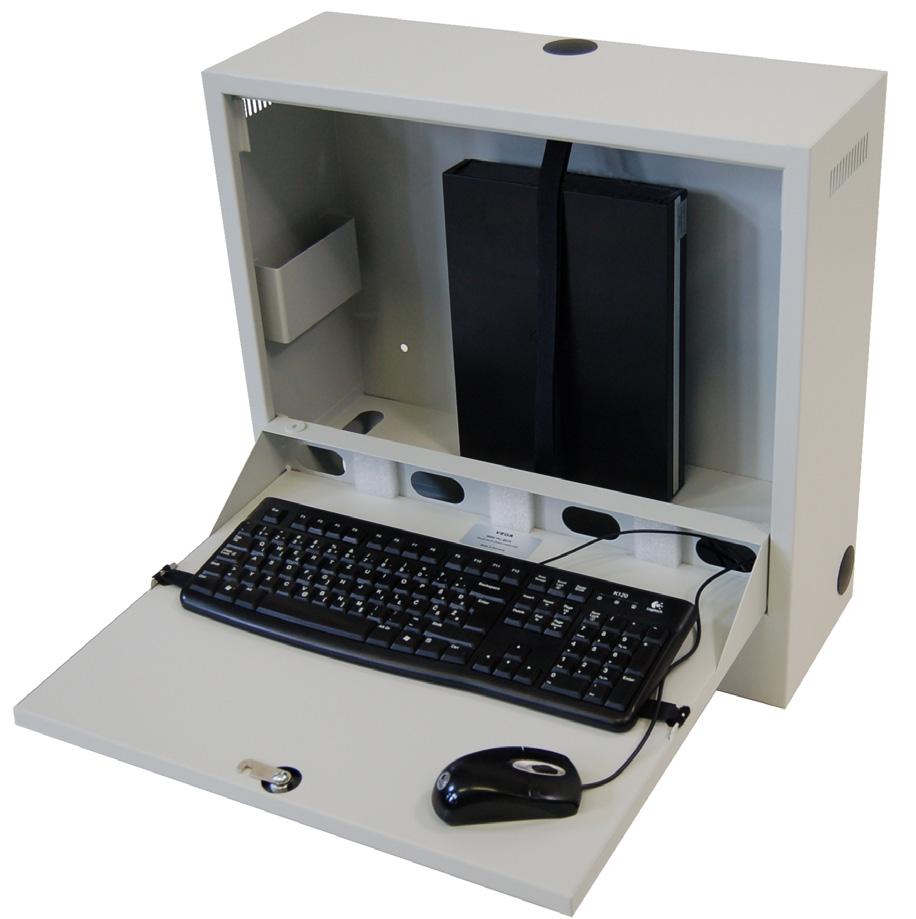

Mini PC box

Mini PC box is intended for storage of Mini PCs, keyboards and mouses in classrooms. It is designed in a way that enables mounting on the wall and easy cable management. That is why it represents a unique solution when used with interactive boards. You don’t need to plug in all the cables at the beginning of a presentation. Simply unlock the box, open it and start using your Mini PC, projector and interactive board. Mini PC box also has a drawer where pens, remote control and stationary can be placed.

Specifications:

Dimensions: 570 x 540 x 200 mm (WxHxD)

One drawer

Max. Mini PC dimension: 500 x 395 x 108 mm (WxHxD)

Easy cable management

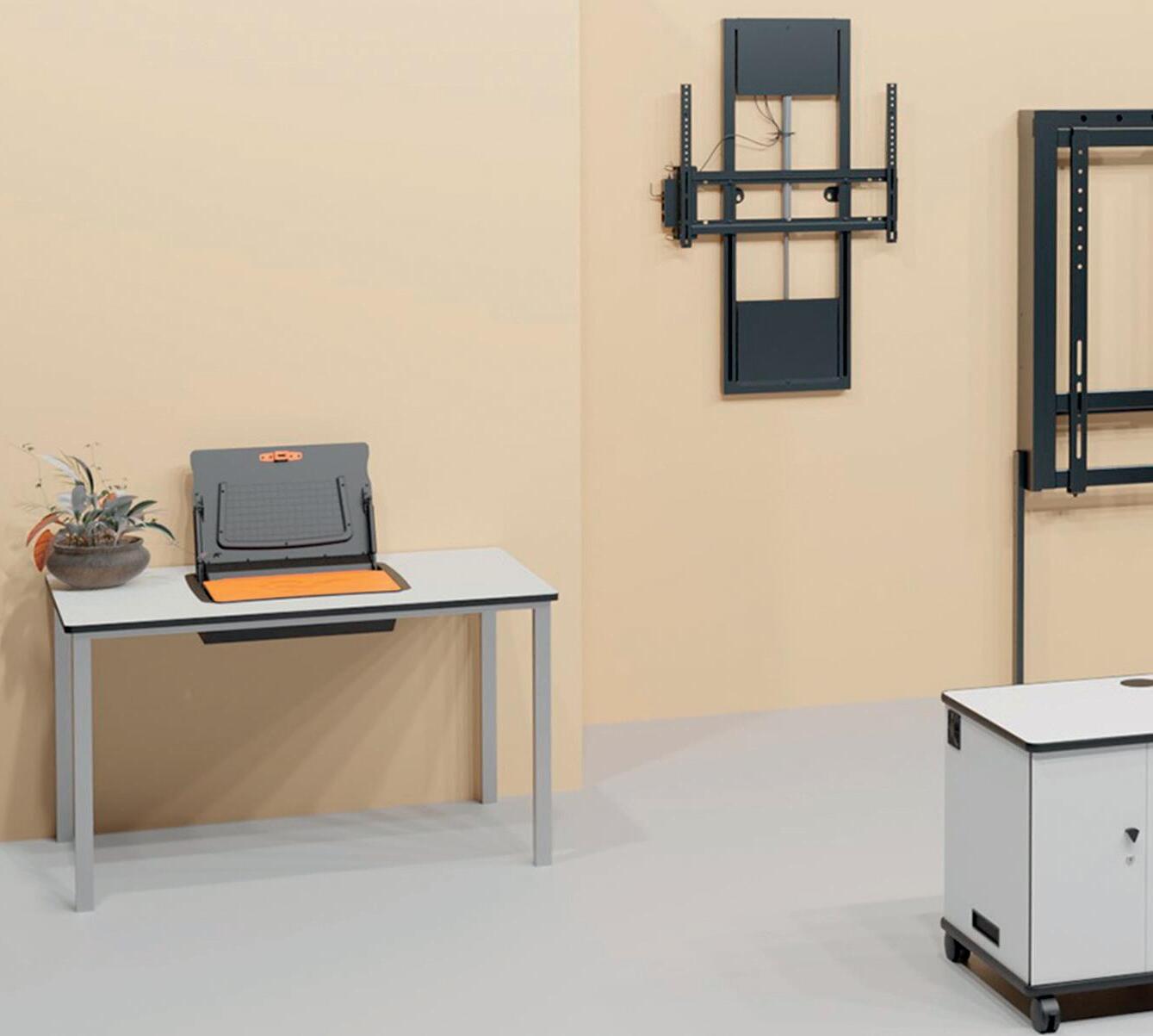

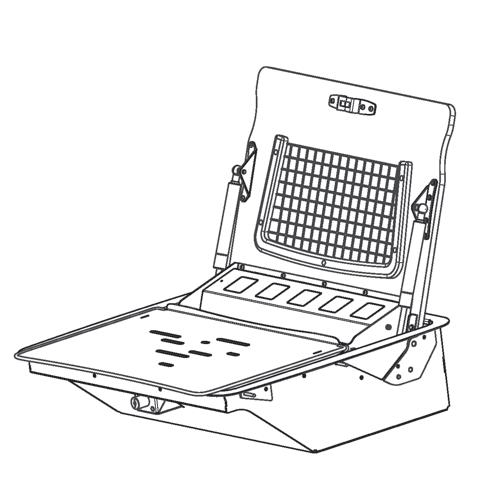

Integrated Laptop box

Integrated laptop box is intended for storage of laptops in classrooms. It is designed in a way that enables integration into the school’s table. It could also be used in multipurpose cabinets or charging carts where synchronization with charging appliances is needed. Integrated laptop box has enough space for efficient cable management. Inside the box a special holder suitable for various types of sockets (VGA, HDMI, RJ45, USB, power cable) is installed. The cover and the laptop tray are lifted with the help of gas springs. Inside the box there is also an elastic mesh suitable for storing laptop charger or computer mouse.

Specifications:

For laptops with max. dimension 340 x 235 mm

Integrated box dimension 535 x 480 x 142 mm

Desk space cut-out needed 490 x 450 mm

Max. surface thickness 15-30 mm

Socket holder for VGA, HDMI, RJ45, USB, power cable (we recommend Legrand mosaic sockets)

Furniture

AV TROLLEYS

MULTIFUNCTIONAL TROLLEYS

LECTERN

AV CABINETS

MULTIFUNCTIONAL CABINETS

PROJECTION CABINETS

Presentation Perfection

When giving presentation it is important that the presenter is satisfied with the equipment. That is why we developed several trolleys, stands, AV cabinets, and other products, which will make your presentation easier.

AV trolleys

For proper use AV appliances sometimes are not enough. If we want to make them mobile or to put them on higher positions use of AV trolleys or stands is necessary. VEGA trolleys and stands are made for several different occasions and could meet almost any request for presentation. We offer our trolleys, stands and lecterns in two basic colors. One is light grey and the other one is combination of anthracite (metal parts) and beech (shelves). All products are equipped with four castors (two with brake). Shelves are protected with rubber ribbon on the edges.

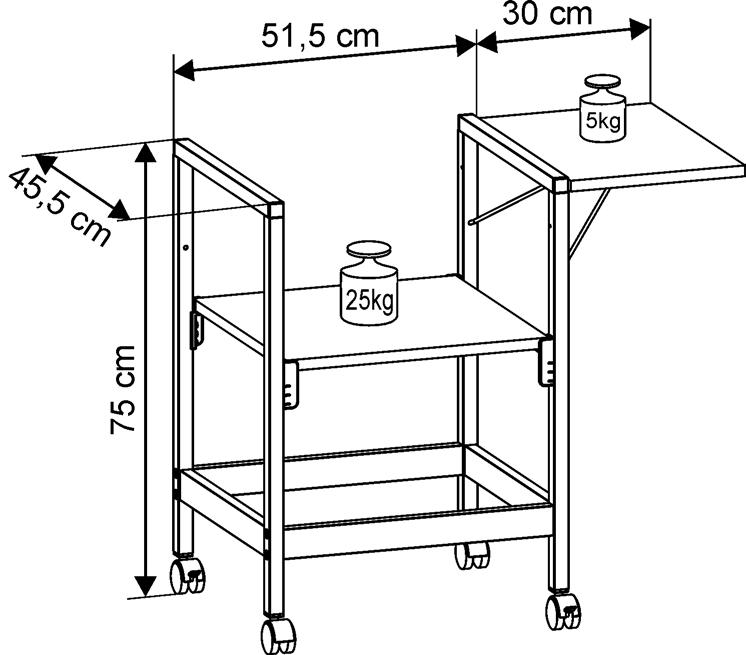

AV 750 / AV 750 B

AV 850 / AV 850 B

With one multi-height and micro adjustable centre shelf and one side shelf.

Equipped with 4 wheels with two locking castors.

Option: side and bottom shelf

AV 750 – light grey

AV 750 B – anthracite/beech

Not in stock, available on request only

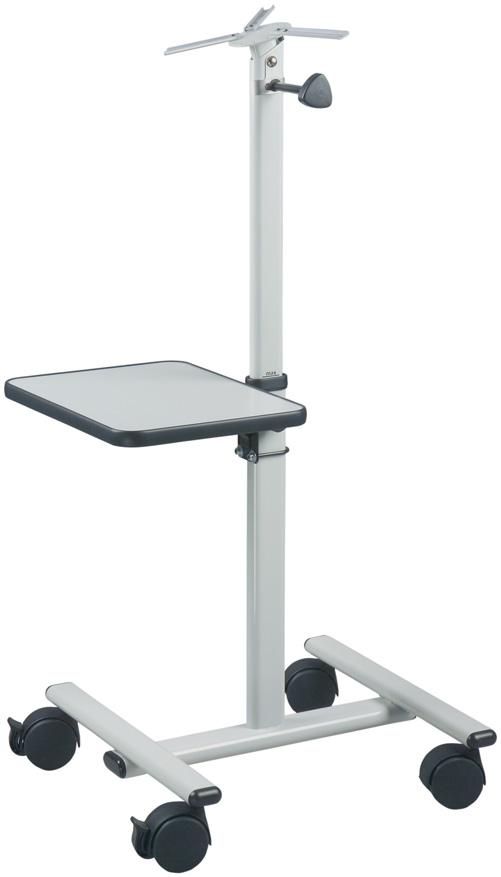

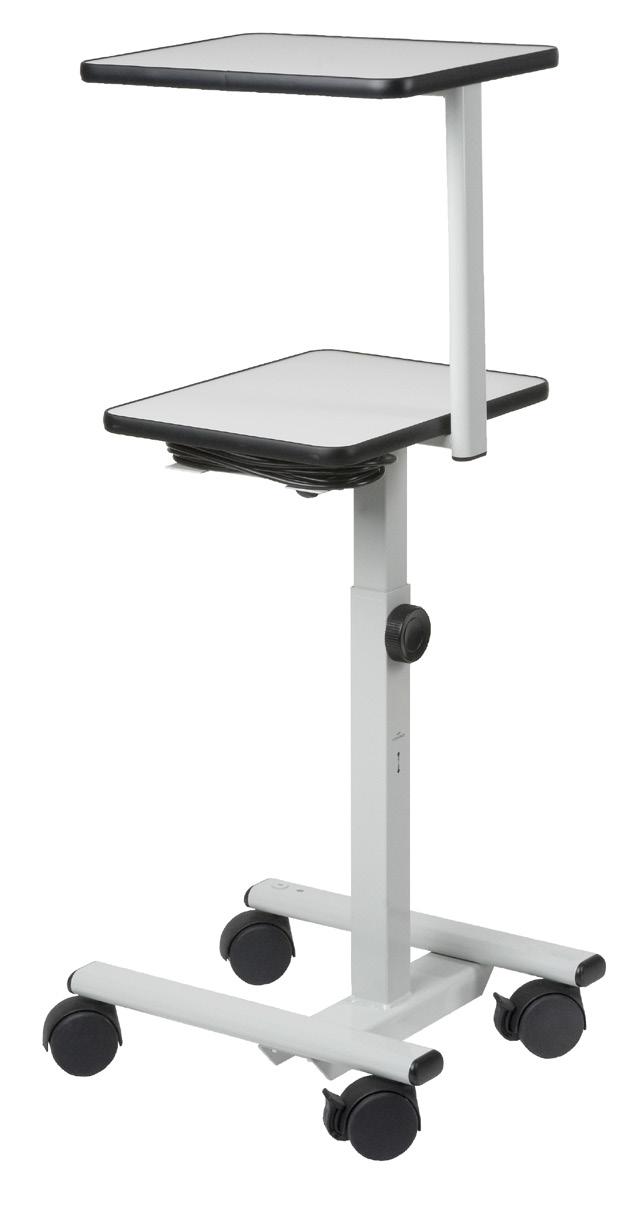

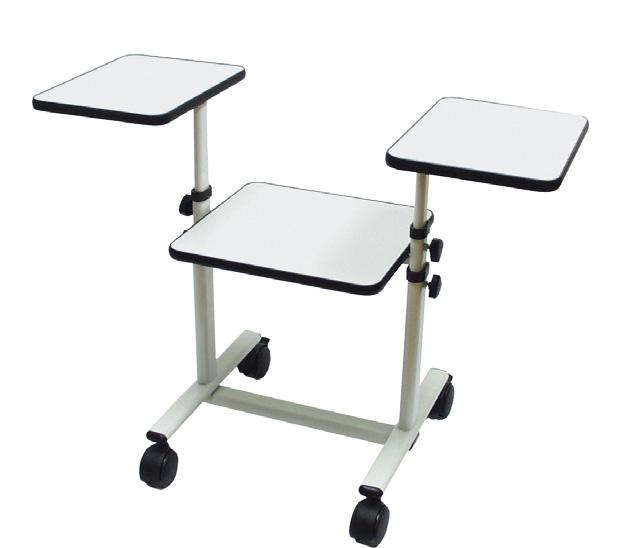

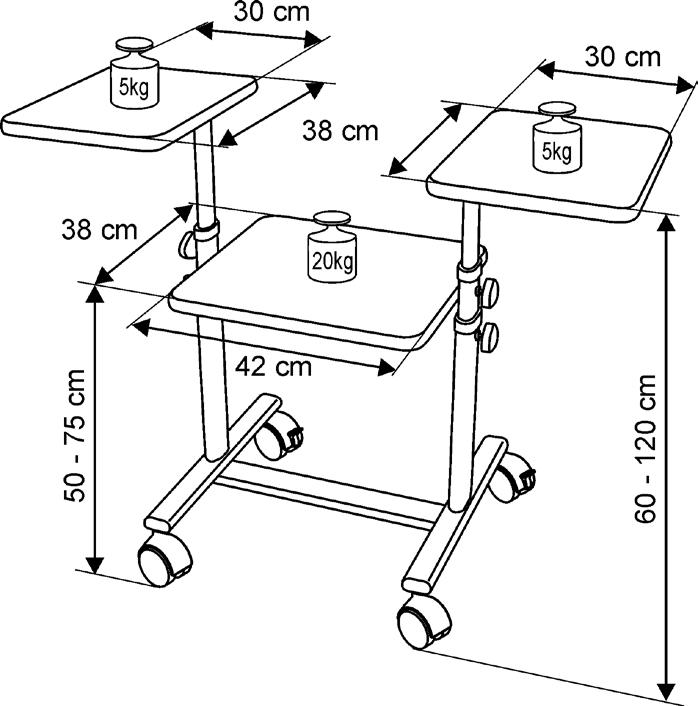

Multipurpose projector trolley with one adjustable centre and two adjustable side shelves.

Equipped with 4 wheels with two locking castors.

AV 850 – light grey

AV 850 B – anthracite/beech

AV trolleys

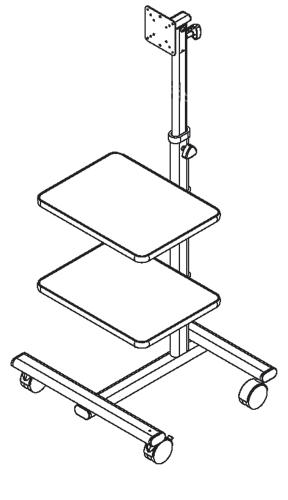

AV 1150 / AV 1150 B

Universal trolley for AV equipment, specially for opaque projectors

• top and bottom shelf

• 4 wheels with two locking castors

Not in stock, available on request only

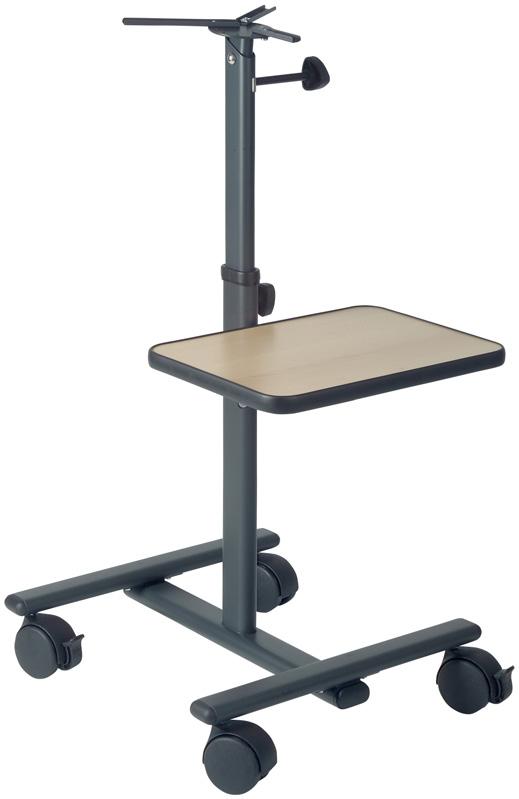

Trolley for all types of projectors

Easy changing of height and inclination of projector

Universal projector plate included in the package

Equipped with 4 wheels with two locking castors.

Option: additional shelf

AV 1150 – light grey

AV 1150 B – anthracite/beech

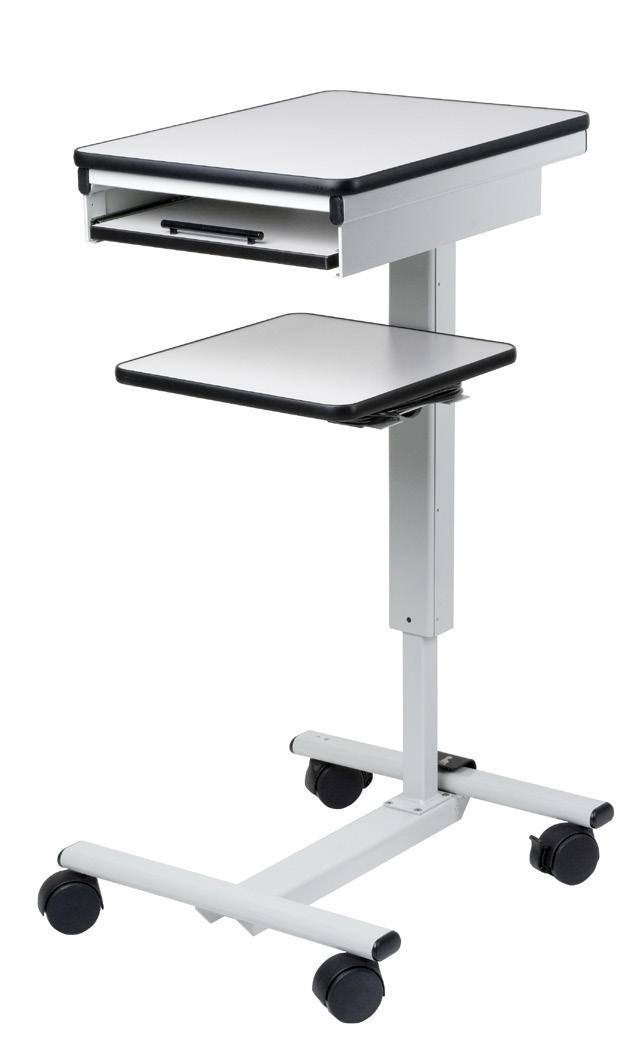

Multifunctional trolleys

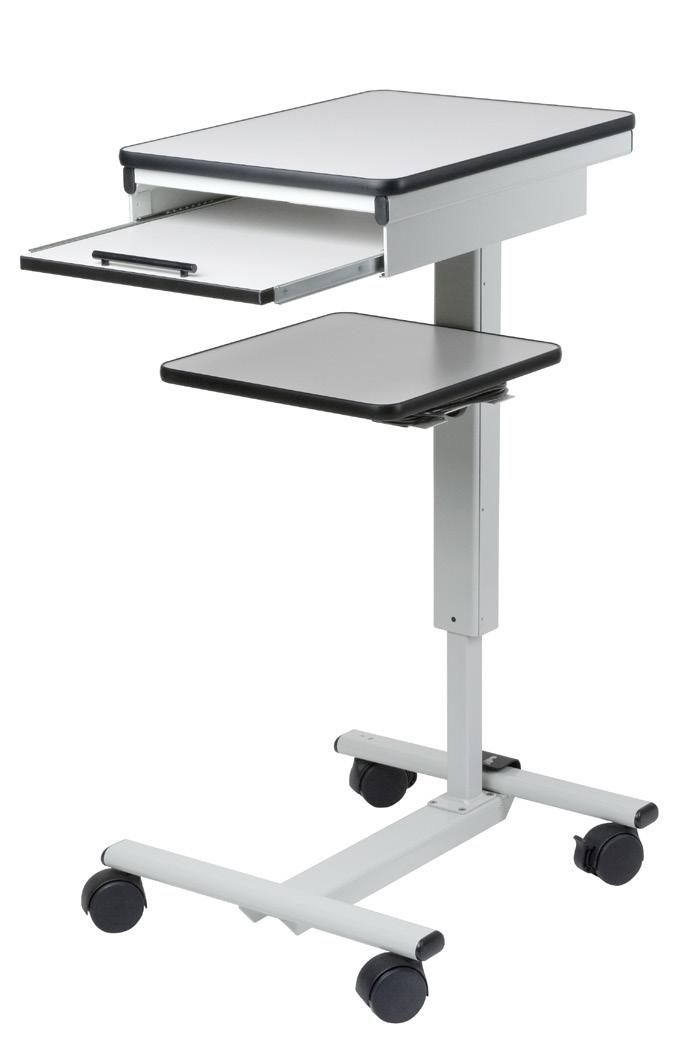

AV 1270

• High load capacity

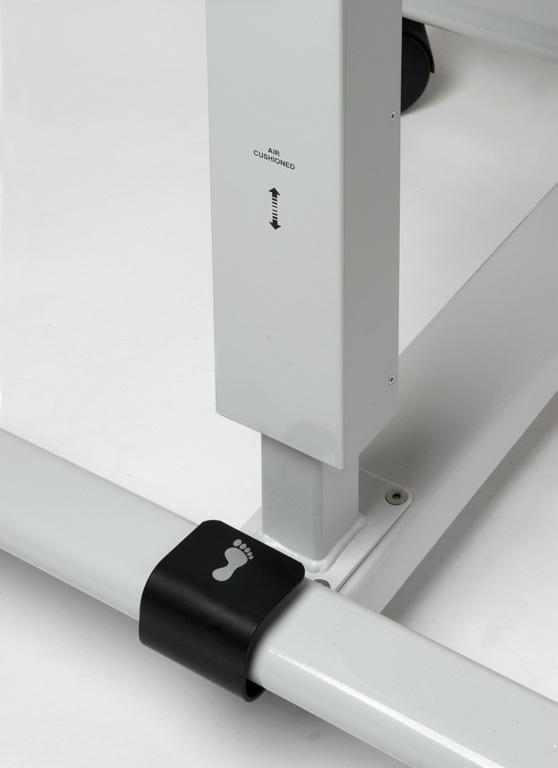

• Steplessly adjustable height

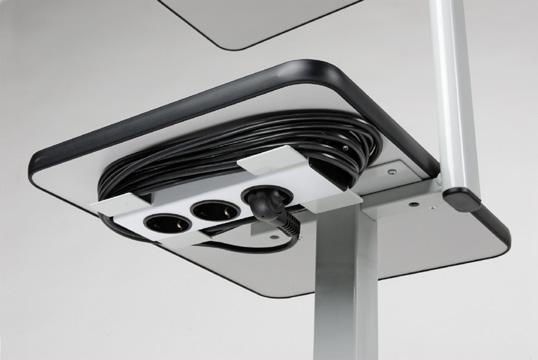

• Additional lower shelf equiped with triple socket

• Laptop pull-out shelf

• Equiped with Microsaver connection used to keep the table on its position

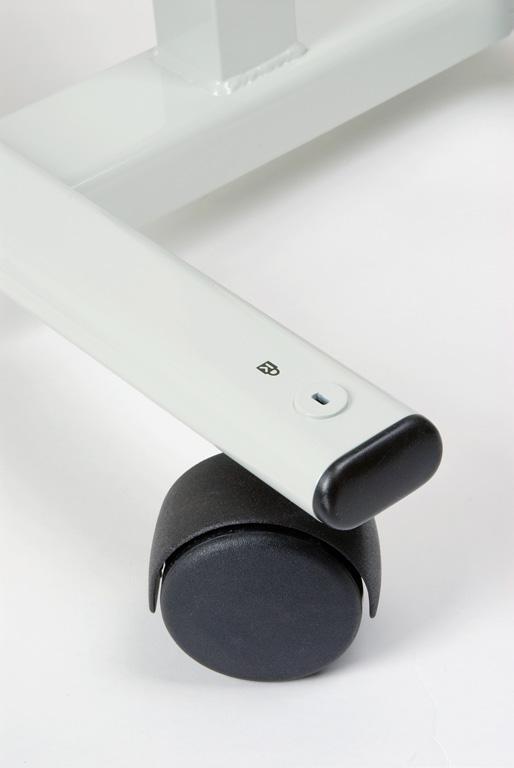

• Four wheels (two with brake)

Multifunctional trolleys

• Steplessly adjustable height

• Additional lower shelf equiped with triple socket

• Equiped with Microsaver connection used to keep the table on its position

• Four wheels (two with brake)

• High load capacity

• Steplessly adjustable height

• Additional lower shelf

• Equiped with Microsaver connection used to keep the table on its position

• Four wheels (two with brake)

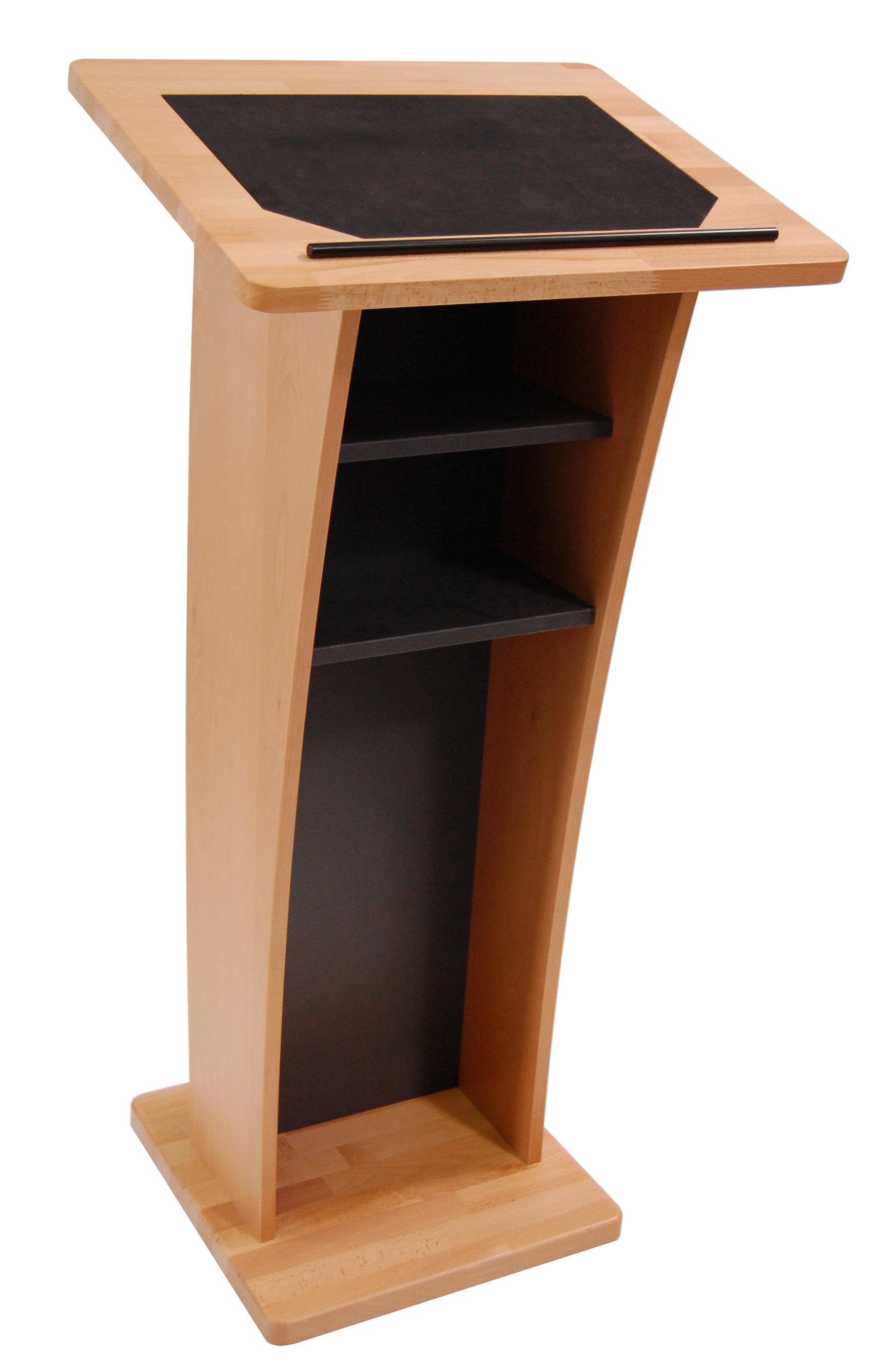

Lectern

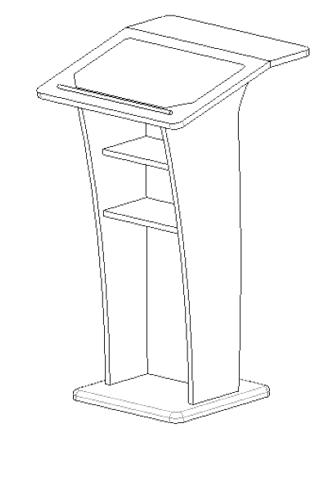

AVL 1300

VEGA Lectern is nicely designed product suitable for small show rooms as well as large conference halls. Top and bottom plates are made of massive wood which gives this product a unique and professional look. Lectern is equipped with a reading pad, metal bar which prevents documents to fall down and two shelves for additional equipment. Optionally it could be equipped with LED lamp.

Specifications:

Upper and bottom plates are made of massive wood (colour beech)

Side plates are made of furnished wood (colour beech)

Front plate is made of furnished wood (colour anthracite)

Two adjustable shelves (colour anthracite)

Four height adjustable legs

Reading pad built in to the upper plate

LED light (optional)

Other colours available upon request

Other colours and upper plate shapes available upon request.

AV cabinets

Multimedia - AV cabinet is a solution for the needs of schools and other educational facilities, who require compact and closed cabinets for video equipment.

• plenty of storage and shelf space for DVP, OHPs, laptops, PCs etc

• shelves are moveable

• openings at the front and back

• doors at the back you can only open when the cabinet is unlocked and open as well (due to safety reasons)

• lifting mechanism (AVC 600 - optional) allows permanent fixture of DVP

• pull-out-shelf (AVC 1100 only) offers comfortable work surface for keyboard.

• extra pull-out-drawer makes storing of office accessories easy

• built-in five-part power socket makes possible simultaneous connection of all equipment

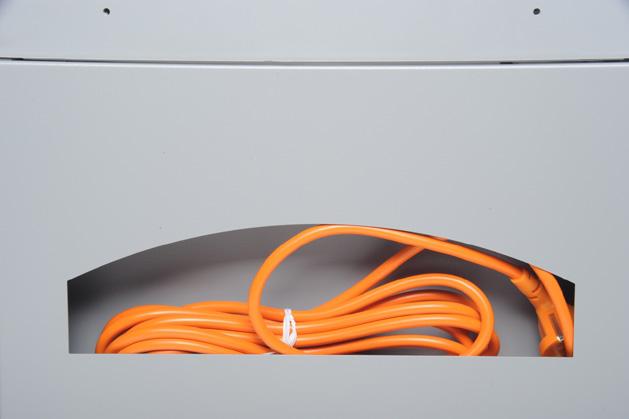

• supplied 5-metre cable with roller and outer power socket

• cabinet stability is ensured by a metal frame, 1,8 cm wide sides and the bottom of the cabinet

• gas shock-absorbers ensure safe and convenient opening and closing of the lid

• rubberized wheels ensure easy transportation of the cabinet

• central-locking system efficiently secures equipment from theft, while an extra metal band makes chaining of the cabinet possible

• There is a possibility of »cable lock« within the cabinet.

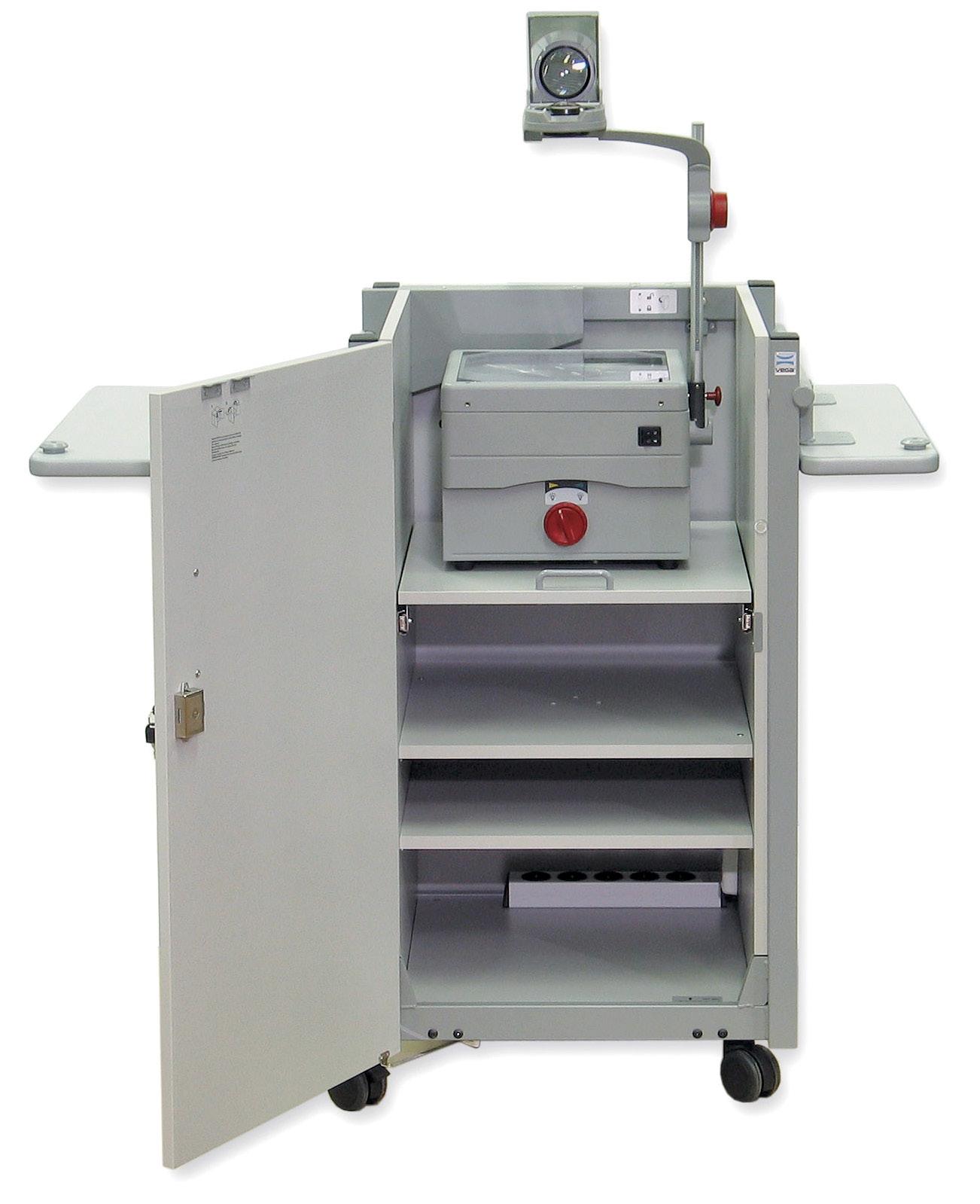

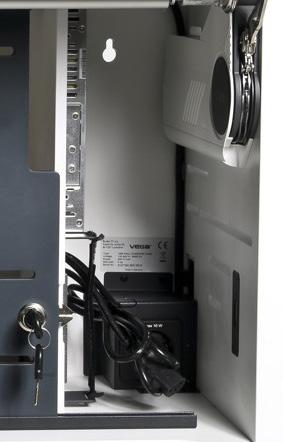

AV cabinet 600

* audio in video equipment are not included in the basic price

Cesta 24. junija 23, 1231 Ljubljana, Slovenija, tel: +386 1 5890501, E-mail: vega@vega.si, www.vega.si

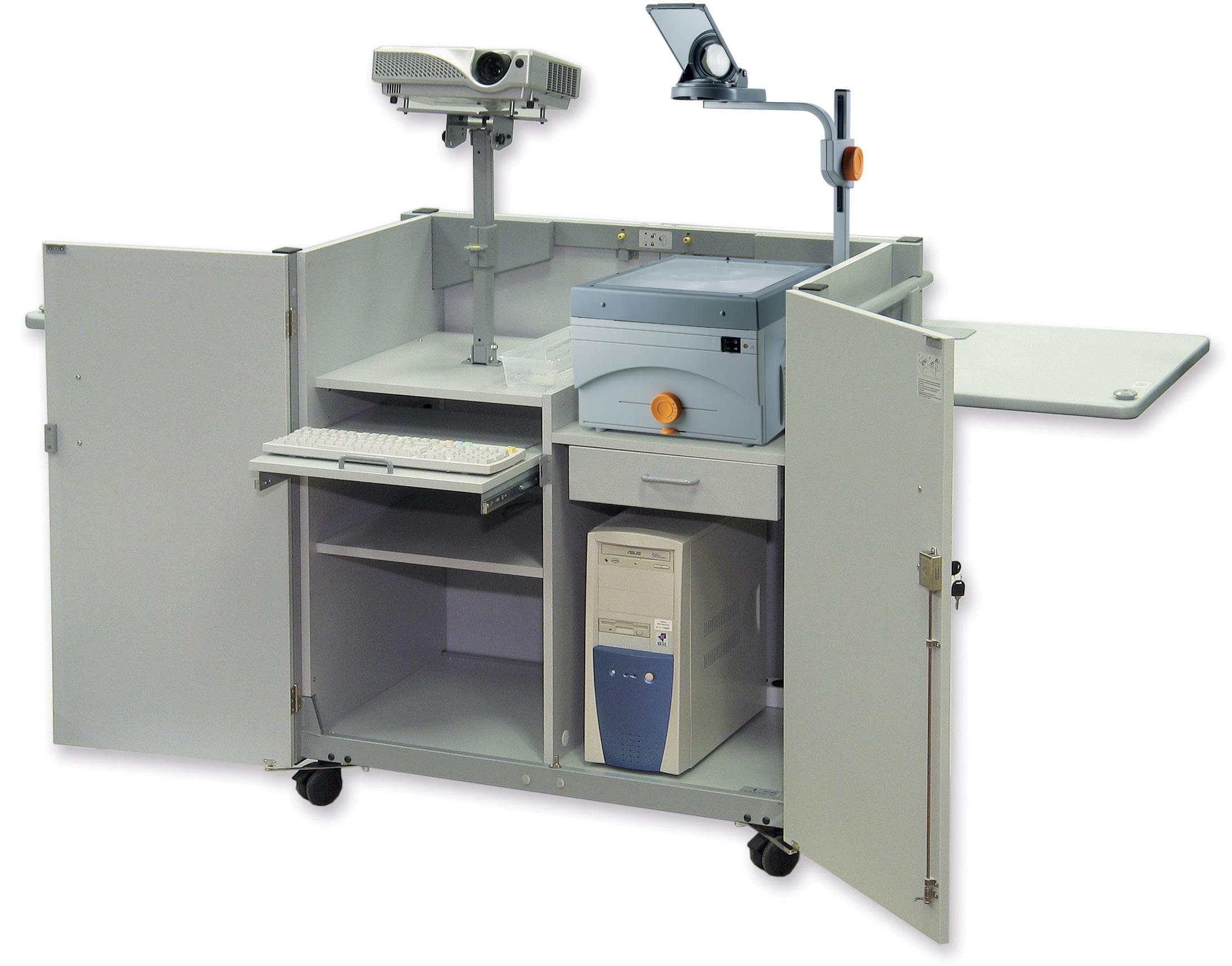

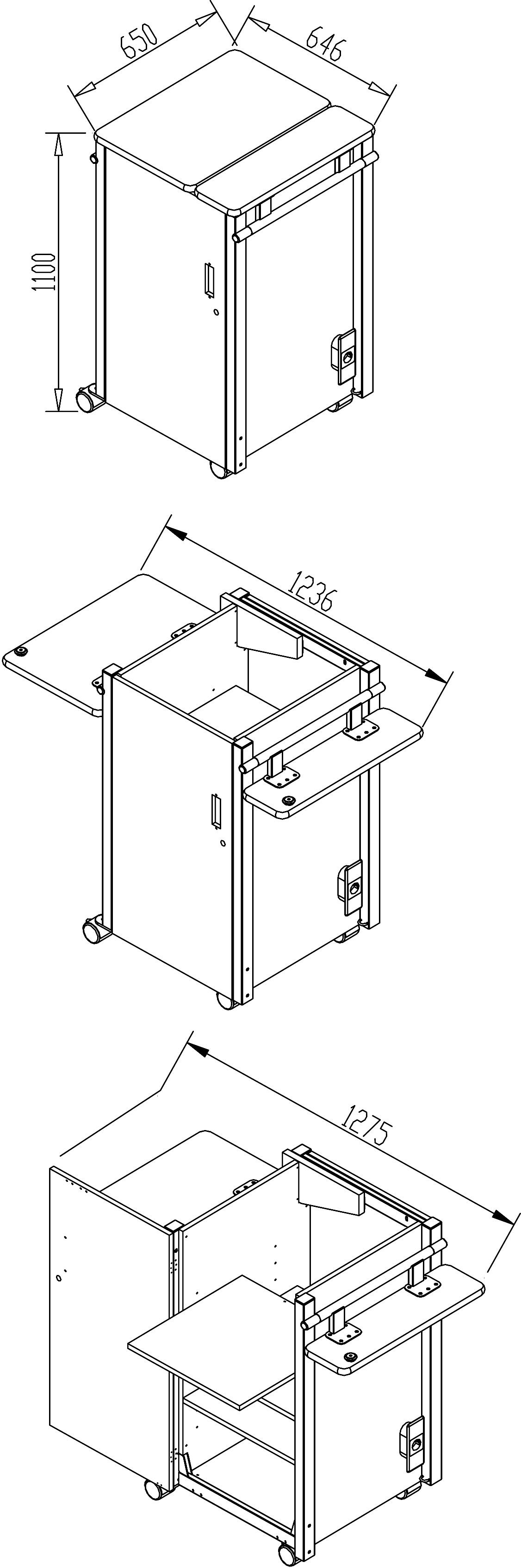

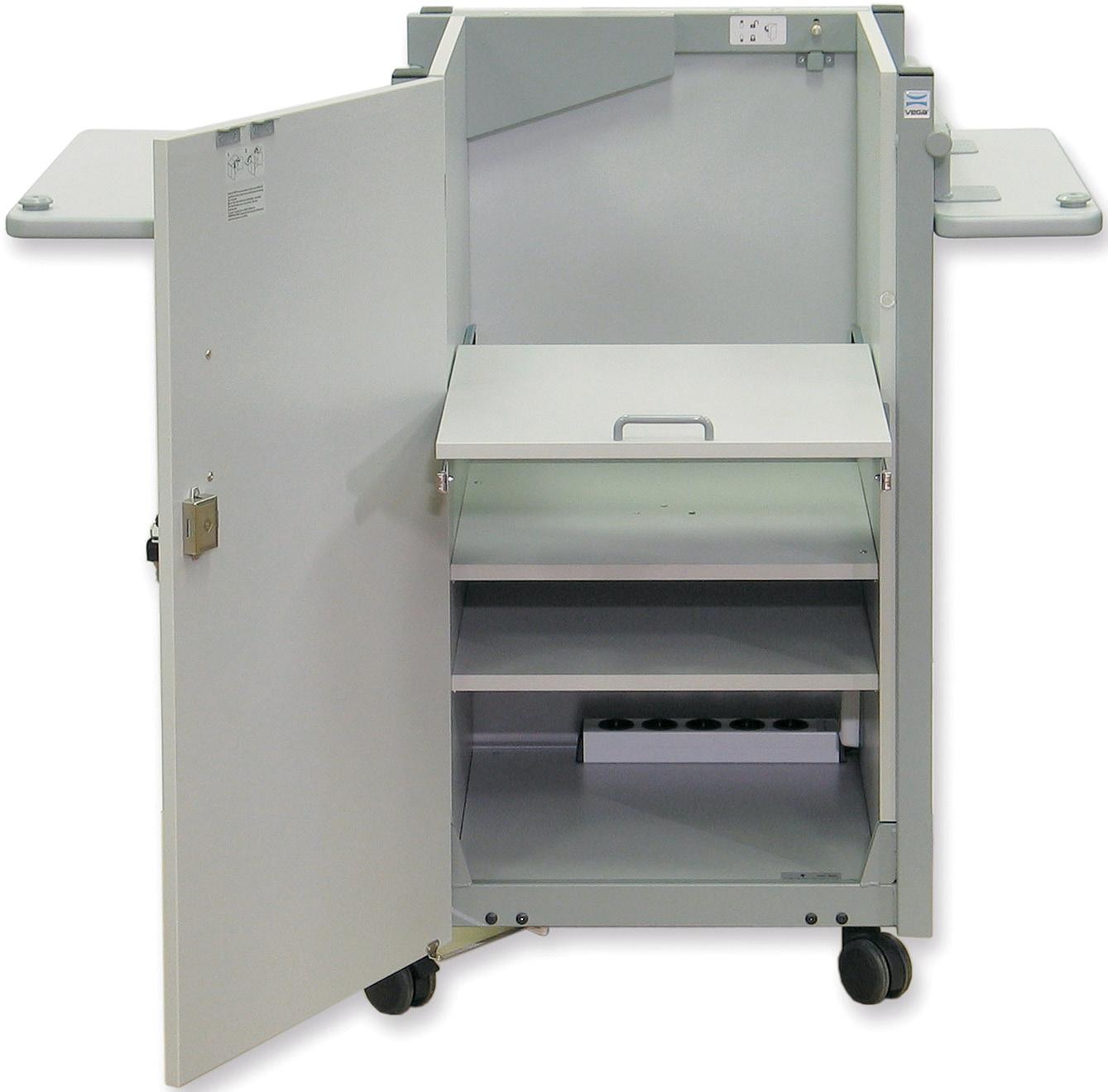

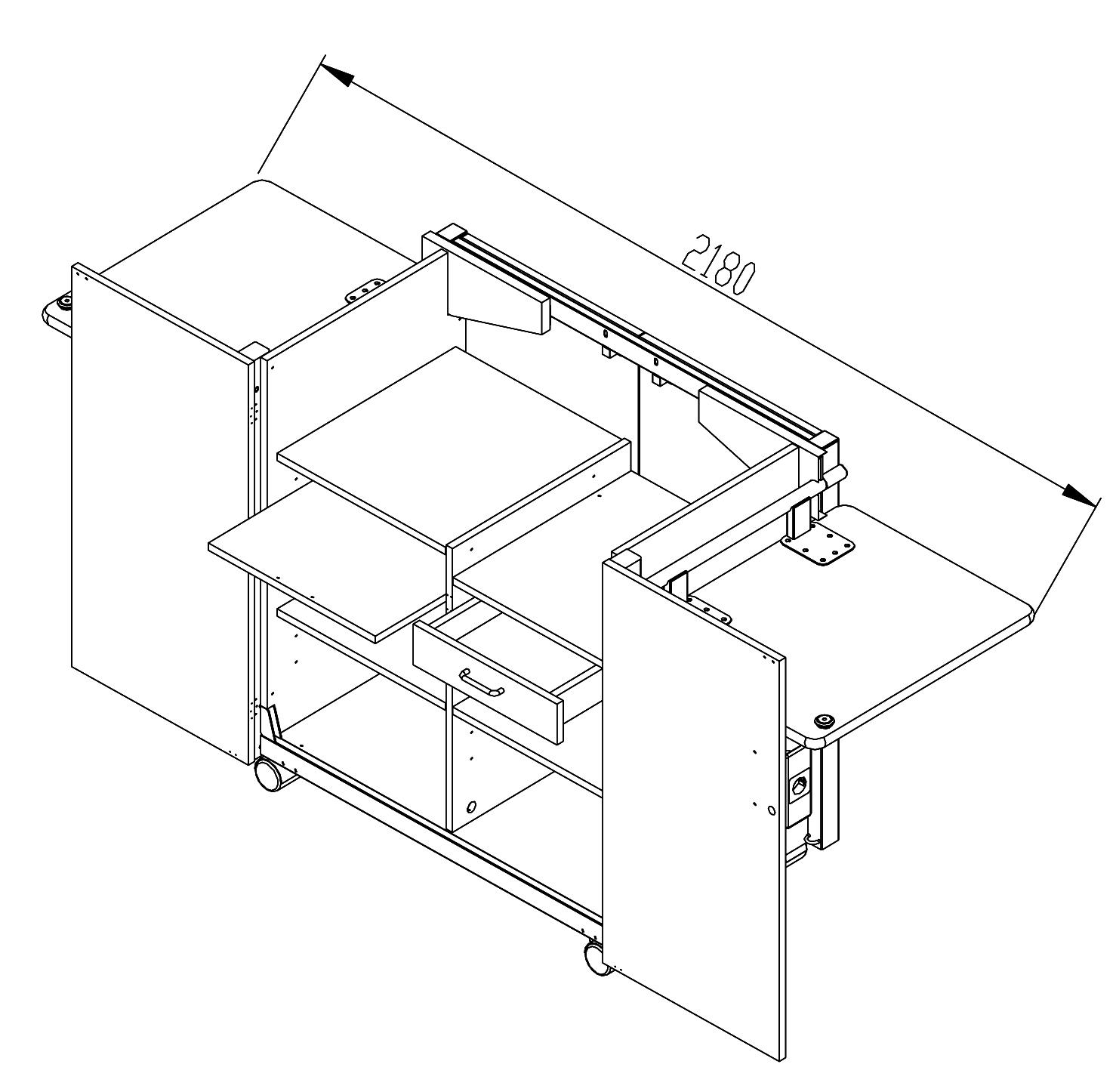

AV cabinet 1100

AV cabinet 1100 with built-in lifting mechanism and universal fixture for data/video projectors.

Cesta 24. junija 23, 1231 Ljubljana, Slovenija, tel: +386 1 5890501, E-mail: vega@vega.si, www.vega.si

Multifunctional cabinets

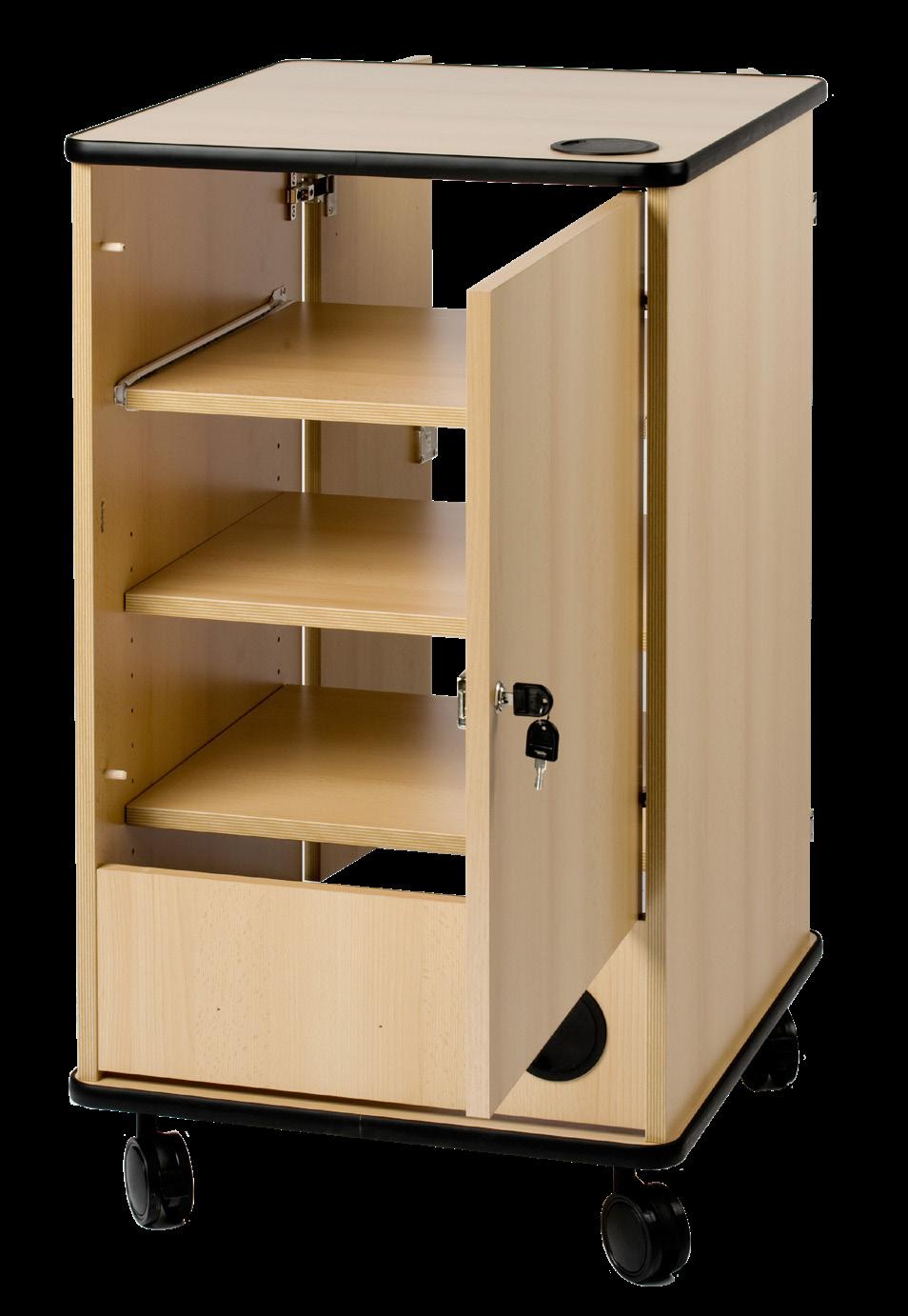

AV cabinet 955/956

Multimedia - AV cabinet is a solution for the needs of schools and other educational facilities, who require compact and closed cabinets for video equipment.

The AV 955 stand with wood finish (AV 956 in grey) offers several usage possibilities.

Extendable top shelf

Two height-adjustable shelves

Cable channels on top and rear

Door-lock · door opens by 270

Door pocket for miscellaneous items

4 wheels O 80mm (two with brakes)

Cable roller on the rear

Ventilation holes on the rear, protected by a net

Damage-proof tape on top and bottom

Optional:

• the stand is meant for 19” rack guides with 18HU (shelves are not included)

Multifunctional cabinets

AV cabinet 955/956 G

AV cabinet 955/956 S

AV cabinets 955 G/ 956 G have glass doors instead of wood doors.

AV cabinets 955 S/ 956 S have service doors on the back side. This allow user easy access to the component's cables

Optional: AV cabinets 955 GS/ 956 GS with glass and service doors.

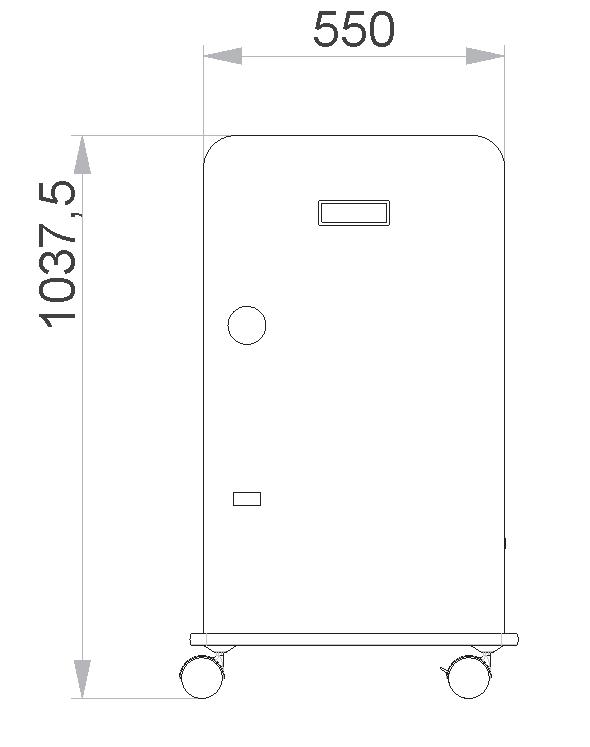

Projection cabinets

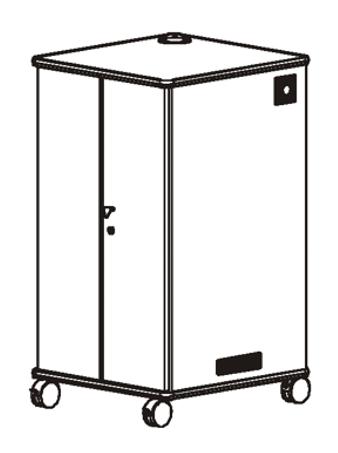

AV cabinet 980/981

AV cabinets 980/981 together with a projector and projector’s source represent a powerful projection mobile kit. Cabinet can be additionally equipped with three socket plug and detachable power cord. It has one upper shelf on which the projector can be placed and one pull-out shelf designed for notebooks. There is a lot of empty storage space under the pull-out shelf that can be used for other appliances and one drawer in which leaflets, catalogues or other presentation material can be stored. Cabinet is protected with a roller-shutter and secured with a lock.

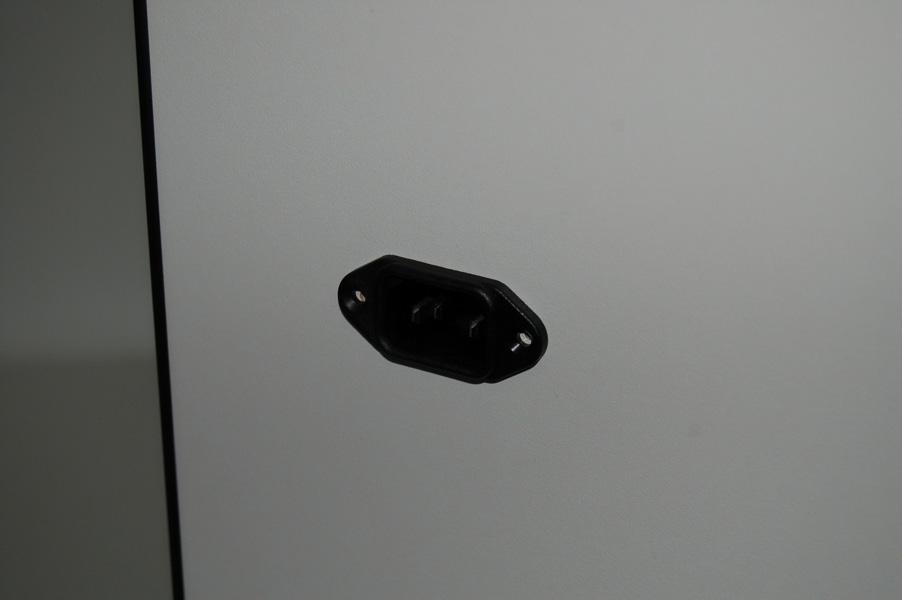

Outside main socket (for detachable power cord)

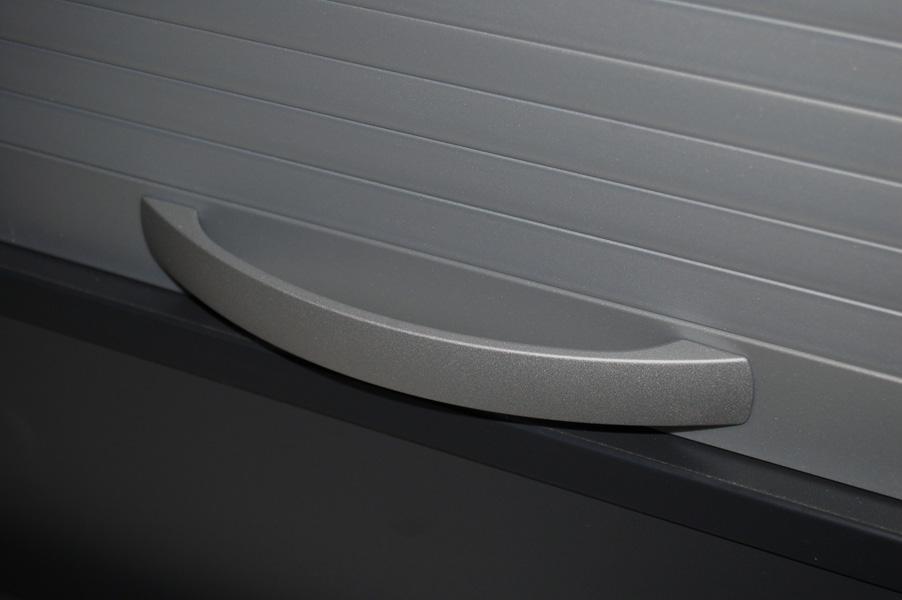

Handle on rollo-shutter

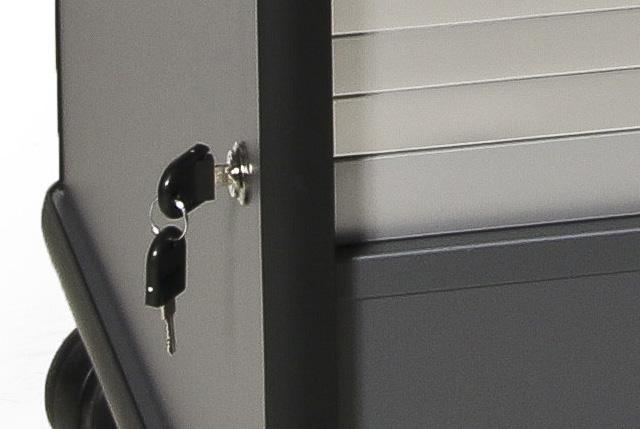

Lock & keyes

3-socket extension plug

Side handle enables mobility

Every quality presentation requires carefully chosen equipment. The most important part is usually the projector. Only the carefully chosen projector will give your presentation the attention it deserves.

OHP ARCUS

OHP SAVA

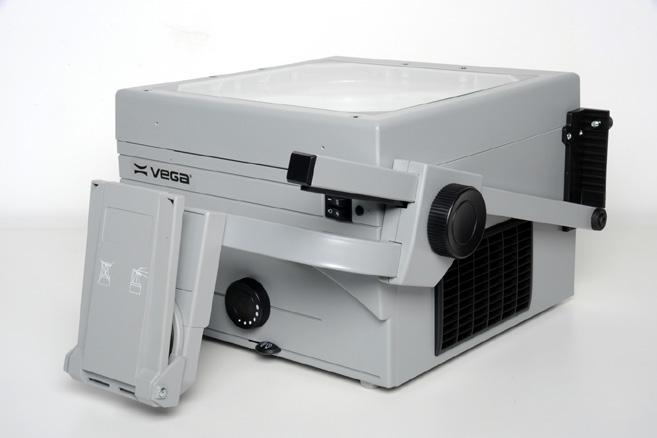

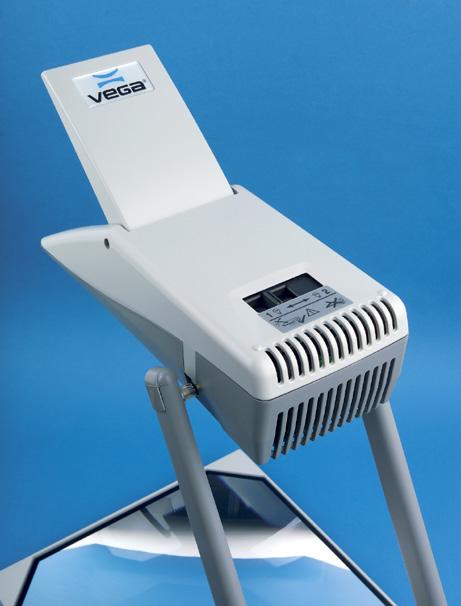

Projector OHP Arcus

Arcus features a foldable arm, special silent cooling system, cable compartment and carefully chosen optical elements. A specially designed rotating head (360°) enables all-side projection. All models are equipped with two lamps with fast lamp-changer. The integrated colour correction system enables a better range of picture sizes and distances. Arcus is equipped with unique Vega optical elements, designed and manufactured by Vega, which is one of the key strengths of our products. Many years of experience has led to the achievement of perfect quality as regards optics this being confirmed by references from our partners and customers throughout the world.

Specifications:

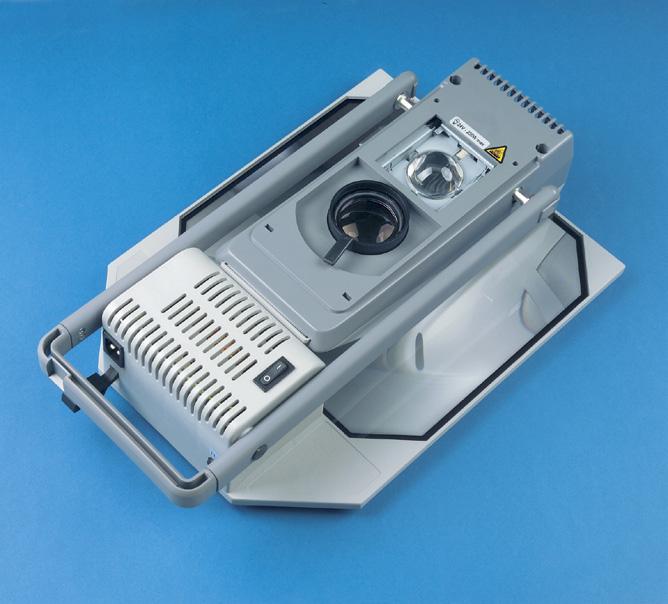

Acrus folded

Cable compartment

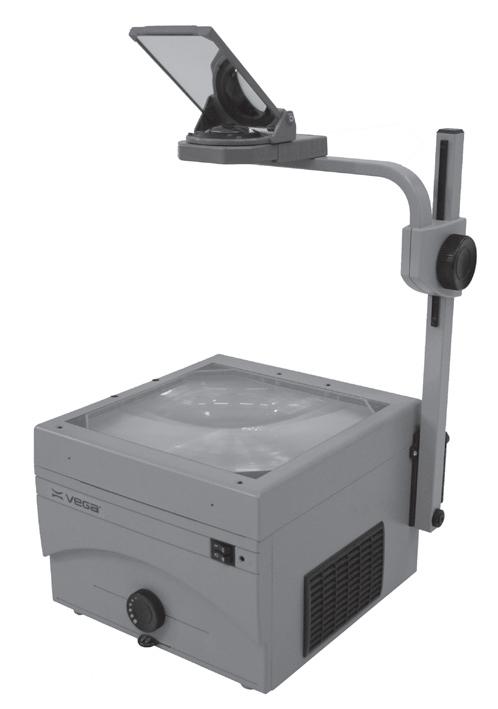

Projector OHP Sava

Features like easy set up and manipulation, a silent cooling system, elegant transportation and perfect picture due to the top optical elements (3-element vario projection lens and condenser), have made Sava one of the best selling flatbed portables in many countries under different brand names. In a situation where the lamp burns out, a quick lamp-changer instantly enables activation of a spare lamp. A handy case is included in the standard package. It is available in two versions with either electronic or classic transformer.The electronic one is lighter and the more suitable of the two in areas with an unstable power supply.

Specifications:

Projection screens

WALL/CEILING SCREENS

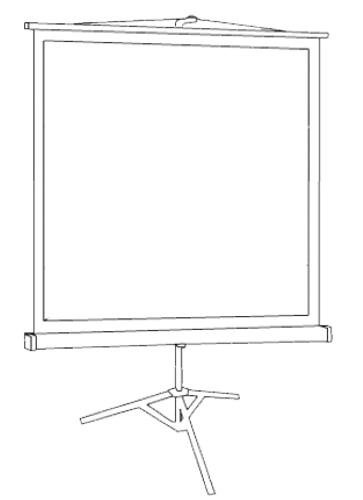

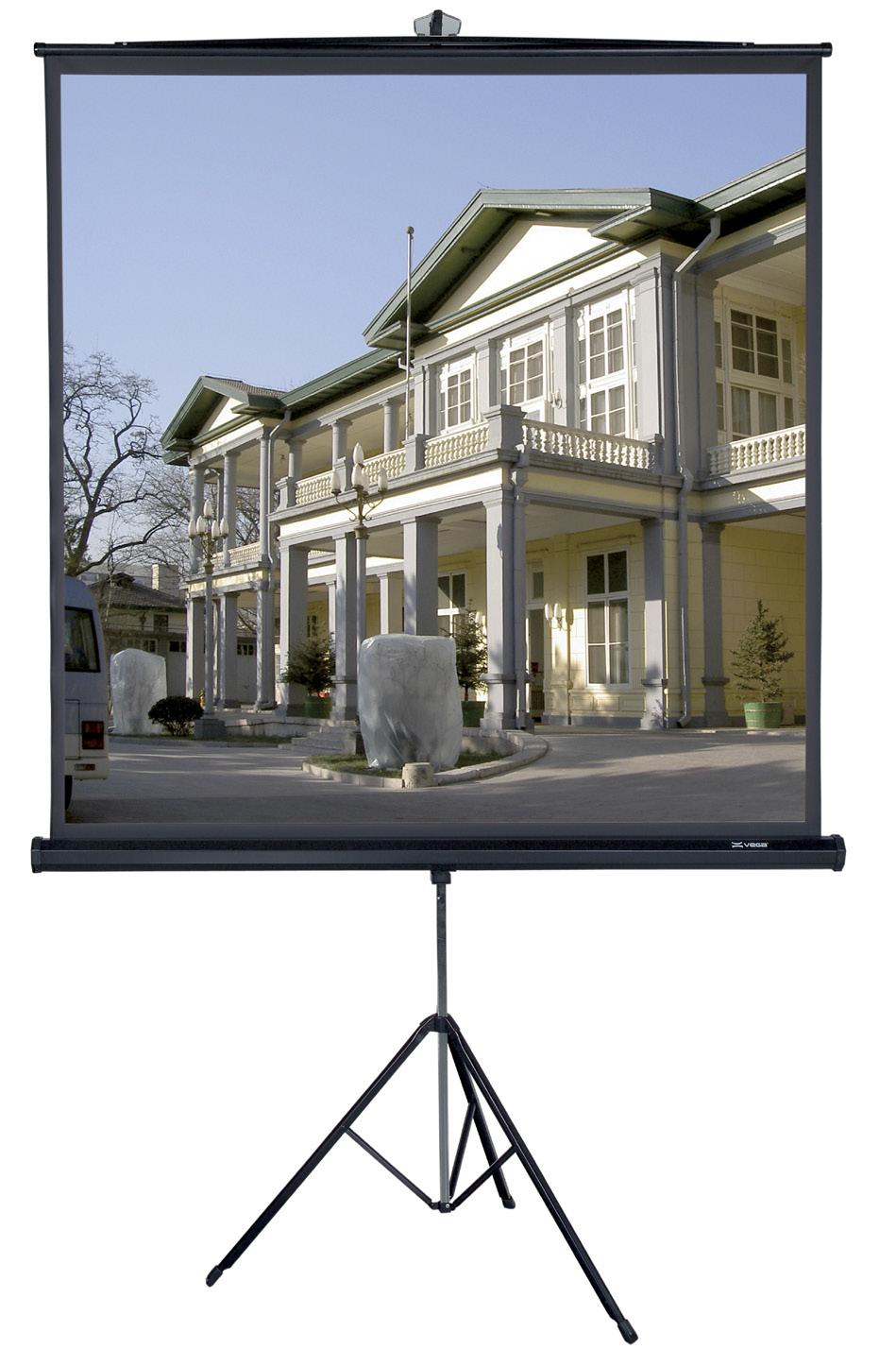

TRIPOD SCREENS

ELECTRIC SCREENS

ACCESSORIES

Projection Perfection

• The screen on which your projected image is shown can significantly enhance its clarity and quality. Obviously, there is little point in spending money on a good quality projector, only to have the sharpness of the picture let down by an inferior projection surface.

• All VEGA projection screens utilise high quality curl resistant materials to ensure that your computer graphics, OHP or 35 mm slide images, and video pictures are shown to the very best effect. All of our screens have a 1.0 gain factor which, combined with black coloured backs, is more than adequate for most applications. This is especially the case with the brighter light outputs of today's projectors. However, high-gain screens can be supplied to special order.

• A distinguishing feature of our projection screens is the quality, both in style and construction, of the housing. Not only are they attractive to look at whether the screen is in use or not, they are also built to a high standard suitable for professional / commercial use, so ensuring that the casing as well as the screen mechanism will give you many years of reliable service.

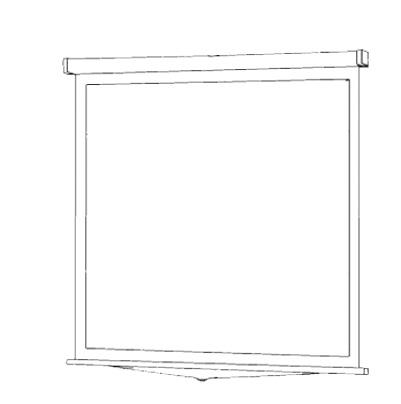

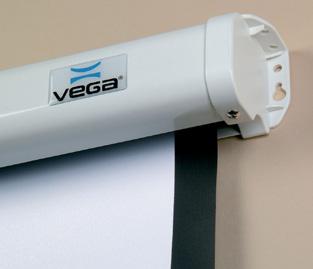

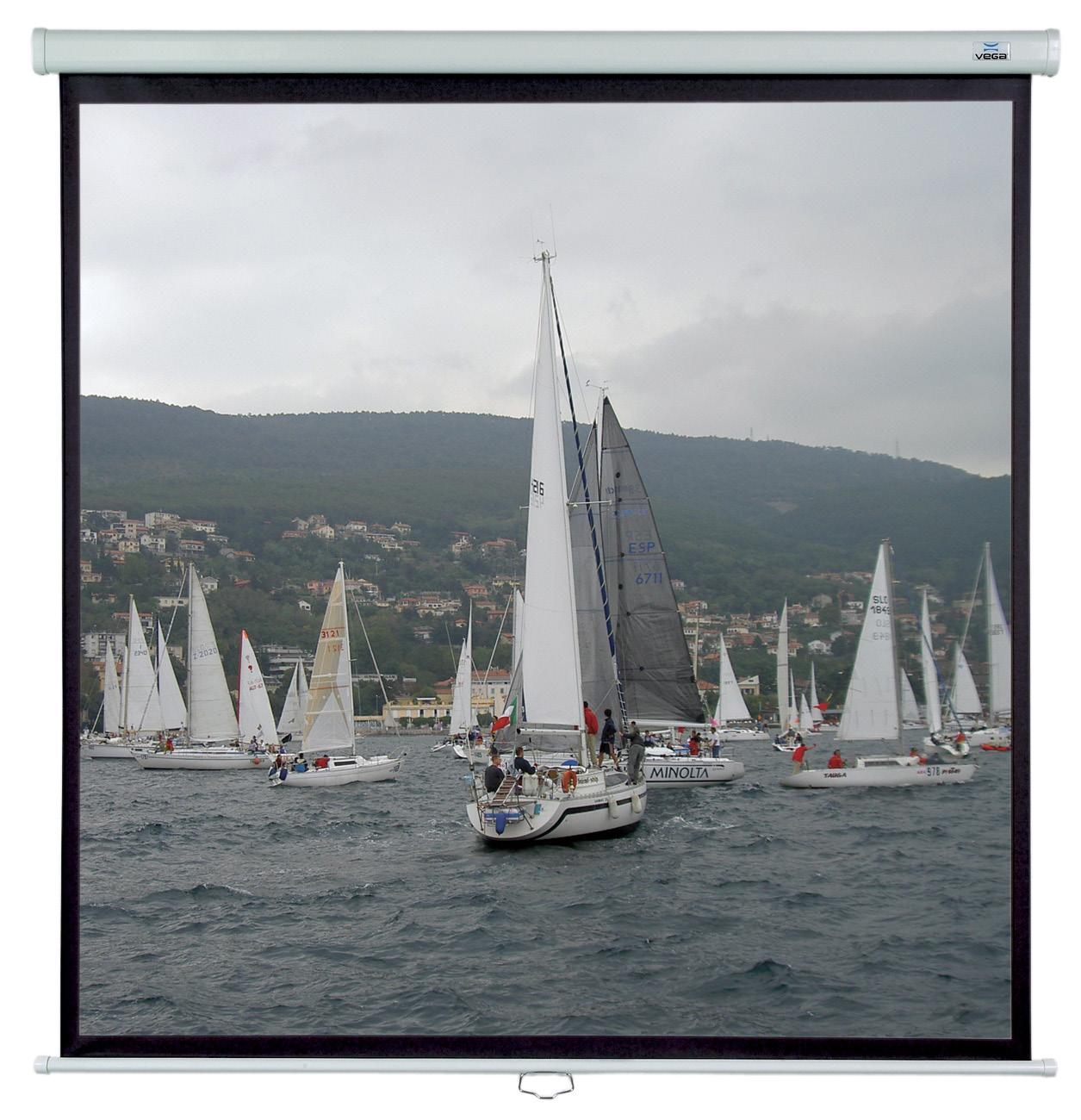

Wall/ceiling screens

Instant pull down facility with a smart appearance.

• Stylish, dust-proof housing makes an attractive feature of your screen.

• Roller mechanism allows screen to be stopped at any point.

• Weighted rod at base keeps screen surface taut.

• Suitable for wall or ceiling mounting, easy to install and adjust

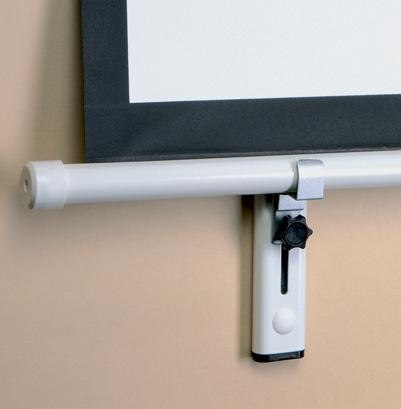

• Optional extension brackets allow screen housing to be positioned away from the wall to eliminate the Keystone effect when used with an overhead projector.

• Black borders give a professional appearance

Square format (1:1)

• sizes 125, 150, 180, 200, 240, 300 cm

Video format (4:3)

• 50 cm additional black top

• sizes 150, 180, 200, 240, 300 cm

Wide format (16:9)

• 100 cm additional black top

• sizes 150, 180, 200, 240, 300 cm
