Healthcare Lighting
About Visa Lighting
Proudly Made in America
Visa Lighting products have been meticulously constructed by dedicated American workers in Milwaukee, WI for over 60 years. Our employees strive to consistently provide exceptional product with exceptional service every day. Our luminaires are created with a blend of old-world craftsmanship and new-world technologies. Highly skilled design, engineering, manufacturing, and assembly teams ensure fixture quality and artistry, while innovative machining methods ensure consistency and efficiency.
As an American manufacturer, you can have the peace of mind that comes from knowing your lighting product has contributed to American jobs and has been built according to American manufacturing standards. Plus, with engineering and manufacturing located together in the heartland of the U.S., we have the capability to customize products to your specific needs.
Our Capabilities
At Visa Lighting, we pride ourselves on our advanced lighting technology and custom capabilities that set us apart in the industry. From energy-efficient LED systems to advanced controls and smart lighting features, we harness technology to create lighting products that are efficient, sustainable, and transformative.
In addition to our cutting-edge technology, we provide unparalleled custom capabilities that allow us to collaborate closely with clients to bring their unique lighting visions to life. Our dedicated team of designers and engineers work hand-in-hand with customers to develop bespoke lighting solutions tailored to their specific needs and preferences.
Healthcare Lighting
We understand the critical role that lighting plays in healthcare environments, from enhancing patient well-being to supporting medical staff in their roles.
Our healthcare lighting solutions, meticulously designed and engineered, cater to various healthcare settings such as nurses’ stations, waiting rooms, patient rooms, and more. By blending functionality with aesthetics, we aim to create lighting solutions that improve the overall experience for both patients and healthcare professionals.
Products pictured: Serenity Tandem Overbed
Harmony Page 18
Slots Page 27
Page 19
Headwall Page 32
Page 43
Overbed Page 22
Linear Art Sconce Page 33
Page 46
Page 23
Page 36
Ether Page 47
Overbed Page 26
Headwall Page 37
Page 50
Lenga
Serenity
Symmetry
Unity
Unity
Bowe
Serenity
Unity
Asta Page 42
Blush
Deck
Linear Art Sconce
Posh Page 51
Raven Page 54
Sanibel Page 55
Sass Page 58 Shine Page 59
Voila Page 62
Wand Page 63
Allegro Table Lamp Page 68
Allegro Sconce Page 69 Anara Page 72
Table of Contents
Aries Page 73
Art Sconce Page 76
Bowe Sconce Page 81 Cane Ceiling Page 84
Midland Arts Page 89 Basics Page 77
Symmetry Page 97
Ground Page 110
Bliss Round Page 80
Cane Pendant Page 84 Cylinder Page 85
Square Page 80
Cypress Page 88
Naya Page 72
Sconce Page 100
Sequence Page 92 Serenity Table Lamp Page 93 Serenity Sconce Page 96
Table Lamp Page 101
Wall Slot Page 104
Surface Page 111 Air Foil Page 114 Avatar Page 115
Page 105
Colonnade Page 118
Bliss
Unity
Unity
Unity
Visage
Advantus
Visit visalighting.com to explore all of our luminaires.
Image Page 122
Passage Page 123
Plural Page 126
Raven Page 127
Sanibel Page 130
Cypress Page 119
Shine Page 138
Visage Page 139

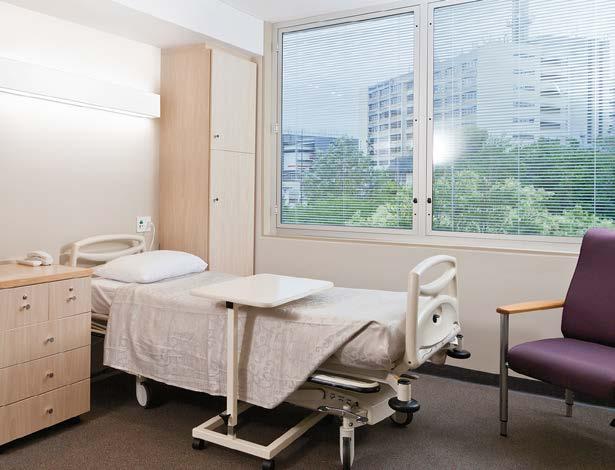

Lighting a Patient Room
Let us help you help others.
At Visa Lighting we strive to create beautiful, functional fixtures for all your project needs. Need further assistance? Please call us at 1-800-788-VISA or email info@visalighting.com with questions.
General
Healthcare Lighting Guidelines
• Use diffuse indirect sources to avoid glare
• Select lighting with 82 CRI and above
• Choose fixtures with cleanable surfaces
• Light pathway from bed to bathroom
• Use acrylic or cleanable fabric instead of glass for lenses and shades
• Include dimming controls, have multiple zones of light
• Use amber light at night to keep sleep disturbances to a minimum
Recommended IES FC Levels at Horizontal Targets
Controls
Reading: Controlled by the patient via pillow speaker or bed control
Ambient: Light should be dimmable, controlled at room entry and bed side
Exam: Control at headwall and optional switching at room entry
Nightlight: Locate between bed and bath for pathway lighting, use photocell
Switches: Use labels and a consistent location in each same sided room
Shades/HVAC/Media: Integrate with controls as needed
Tunable Lighting
Healthcare facilities have recognized the need for tunable lighting. This is the balance of artificial lighting mimicking the outdoors with the time of day. Using higher light levels with bluer/cooler temperatures in the morning to help stimulate patients, and warmer/dimmer lighting at night to keep sleep disturbances to a minimum, can help promote healing.
Lighting a Patient Room

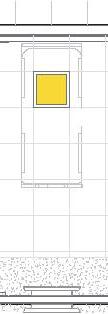

Options & Ideas
There is no one way to light a patient room, but there are light level requirements that must be met. When it comes to style, we have a wide range of designs for you to choose from. Use these as inspiration and check out our website for IES files, specifications and more.
Vanity Options
Blush
Sconce Options
Round Page 80
Headwall Options
Page 72 Linear Art Sconce Page 33
Page 32
Overbed Lighting Options
Page 22
Page 18
Page 100 Serenity Page 36
Page 23
Anara
Bliss
Bowe
Bespoke Lighting
Tailored Luminaire Design and Product Modifications
At Visa Lighting, our custom lighting solutions offer you the opportunity to bring your unique vision to life. With the expertise of our applications engineers and product designers, we collaborate closely with you to create bespoke luminaires that perfectly match your design requirements. Whether you are looking to modify existing fixtures to better suit your space or need entirely new and personalized designs, our custom lighting solutions cater to a wide range of possibilities. We are committed to providing you with lighting that not only aligns with your aesthetic and functional goals, but also seamlessly integrates into your architectural spaces. With Visa Lighting’s custom lighting services, you can be assured of receiving tailored solutions that elevate your project’s lighting design to a whole new level.
Overbed Lighting
Harmony™
Overbed Light
Harmony overbed lighting has a uniquely shaped lens which provides comfortable, controllable illumination designed to improve the patient experience with soothing, easy-on-the-eyes illumination. Harmony’s simple design has a smooth cleanable surface that efficiently and effectively delivers recommended illumination for the patient and staff.
Harmony’s uniquely regressed lens features a quiet inner area which provides patients with visual comfort for a better healing environment.
• Ambient, Reading and Exam modes standard
• Option for a 3rd circuit for additional high output exam mode.
• 90+CRI Standard
• Optional nightlight
Harmony Overbed & General Light Model Options
CM1881-W
2’ x 2’, Overbed, White LED
CM1882-T
2’ x 2’, General Use - Tunable
CM1882-W
2’ x 2’, General Use - White LED
CM1885-W
2’ x 4’, Overbed, White LED
CM1886-T
2’ x 4’, General Use - Tunable
CM1886-W
2’ x 4’, General Use - White LED
L 23-3/4” (603mm) W 23-3/4” (603mm) RD 4-5/8” (117mm) 3000K 3500K 4000K
L 23-3/4” (603mm) W 23-3/4” (603mm) RD 4-5/8” (117mm) 2700K-6500K
L 23-3/4” (603mm) W 23-3/4” (603mm) RD 4-5/8” (117mm) 3000K 3500K 4000K
Amb: 3050-3150
Reading: 4050-4200
2C Exam: 7100-7350
Amb: 39 Reading: 64 2C Exam: 104
L: 1900-2000 M: 2900-3000 H: 3800-4000 L: 25 M:38 H: 52 0-10V to 1%
L 47-3/4” (1213mm) W 23-3/4” (603mm) RD 4-5/8” (117mm) Amb: 3250 Reading: 4950 2C Exam: 8250 3C Exam: 15700
L 47-3/4” (1213mm) W 23-3/4” (603mm) RD 4-5/8” (117mm) 2700K-6500K L: 3000 M:4500 H: 6000
L 47-3/4” (1213mm) W 23-3/4” (603mm) RD 4-5/8” (117mm) 3000K 3500K 4000K
L: 2900-3000 M: 4400-4600 H: 5900-6100 L: 33 M:49 H: 66 0-10V to 1%
Lenga™
Overbed Slot Lights
Recognized as the industry’s slimmest overbed luminaire, Lenga tandem slot lights are constructed with a co-extruded lens to emit exam level light asymmetrically to center above the patient bed without producing glare or shadows.
• 90+ CRI Standard
• Two chamber optical system
• Directional reflectors
• Co-extruded, snap-in acrylic lenses for toolless access
• 0-10V control of CCT and dimming (-T model)
Lenga Overbed Slot Light Model Options
CM2060-T
3” Dual Overbed, Tunable L 47-3/4” (1213mm) W 3-1/4” (83mm) RD 4” (102mm) 2700-6500K
CM2060-W
3” Dual Overbed
2600 Exam: 7000 Cmb: 9400
2700-2800 Exam: 8200-8600 Cmb: 10900-11500

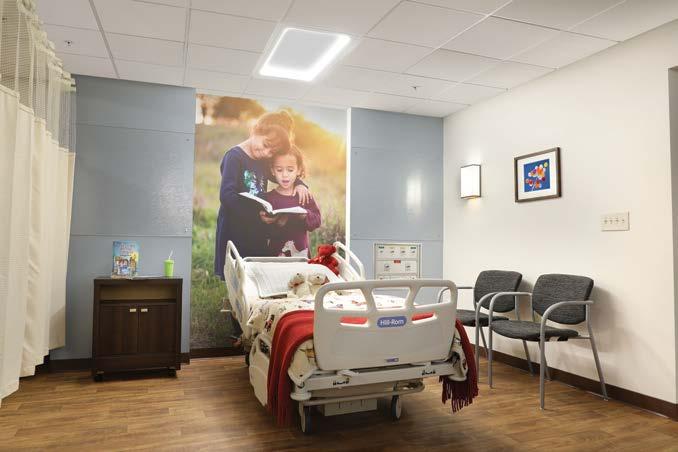

Children’s Nebraska: Hubbard Center for Children - Omaha NE
Aurora Kenosha Surgery - Kenosha WI
Specifier: Harwood Engineering Consultants | Photo/Architect: Kevin O’Donnell
Serenity™
Overbed Lights
The Serenity overbed lights feature illuminated diffusers with soft, calming patterns. These functional, yet beautiful, luminaires create a soothing, positive distraction to help patients feel more relaxed, whether the light is in amber nightlight mode or bright exam mode. The Serenity family also features behavioral health, headwall, table lamp, and wall sconce models.
• Driver located within the housing and accessible from below the ceiling
• Amber night light option to minimize patient disturbance
• 90+ CRI Standard
Serenity Overbed Light Model Options
CM1930
1’ x 4’, Tandem, Overbed
CM1938
2’ x 2’, Overbed
CM1946
2’ x 4’, Overbed
L 47–5/8” (1210mm)
W 11-5/8” (295mm)
RD 3–1/2” (89mm)
L 23–3/4” (1210mm)
W 23-3/4” (295mm)
RD 3–1/2” (89mm)
L 47–5/8” (1210mm)
W 23-5/8” (600mm)
RD 3–1/2” (89mm)
3000K
3500K
4000K
Amb: 2700-2800
Reading: 2800-2900
Exam: 7100-7400
Cmb: 12600-13100
Amb: 2500-2600
Reading: 3000-3200
Exam: 6000-6300
Cmb: 5500-12100
Amb: 2600-2700
Reading: 2900-3000
Exam: 6400-6700
Cmb: 5500-12400
Amb: 30
Reading: 44 Exam: 94 Cmb:74-168
Amb: 28
Reading: 43
Exam: 89 Cmb:71-160
Amb: 28
Reading: 44
Exam: 91 Cmb:71-160
Integral 0-10V to 1% LVPC-DIM Damp
Symmetry™
Overbed Lights
Symmetry round patient room overbed lights enhance healthcare environments with pleasant, soothing, ambient lighting.
Symmetry is available in 23” or 45” diameters. This multifunction overbed has output options for ambient, exam, and combined with optional amber night light.
• Integral driver located within the housing and accessible from below the ceiling
• 90+CRI Standard
Symmetry Overbed Light Model Options
CM1970-W 45”, Overbed
CM1980-W 23” Overbed
RW 44” (1118mm)
RD 6” (152mm) DIA 44-1/2” (1130mm) 3000K 3500K 4000K
RW 23-1/2” (597mm)
RD 6-1/2” (165mm) DIA 22-7/8” (581mm)
Amb: 5300-5500
Exam: 8300-8600 Cmb: 13500-14100
Amb: 4300-4500
Exam: 6800-7100 Cmb: 10900-11400
Amb: 46 Exam: 76 Cmb: 122
Amb: 50 Exam: 71 Cmb: 121 Integral
Our Lady of the Lake Regional Medical Center, Baton Rouge LA Specifier: Mazzetti
Photo: Brett Drury
Unity™
Overbed Lights
Our award-winning Unity patient room over bed lights are designed for warmth, visual comfort, and multi-functionality. Easily switch between ambient, exam, and reading light modes for different activities.
Like the other luminaires in the Unity collection, these overbed lights are meant to recall the gentle curves of fabric billowing in a breeze. They present a soft, comforting light in healthcare spaces, promoting patient health and well-being.
• Driver replacement is plenum non-invasive
• 90+ CRI Standard
• Compatible with LVPC-DIM accessory
Unity Overbed Light Model Options
CM1900
2’ x 2’, Overbed
CM1901
2’ x 2’, Overbed, Sans Reading
CM1906
2’ x 4’, Overbed, Center Reading Light
CM1907
2’ x 4’, Overbed, End Reading Light
CM1912
9” x 48’, Tandem Overbed
L 23-5/8” (600mm)
W 23-5/8” (600mm)
D 1-7/8” (48mm)
RD 3-1/2” (89mm)
L 47-5/8” (1210mm)
W 23-5/8” (600mm)
D 1-7/8” (48mm)
RD 4” 3-1/2” (89mm)
L 47-3/4” (1231mm)
W 8-3/4” (222mm)
D 1-3/4” (44mm)
RD 3-1/2” (89mm)
L: 6500-6800 H: 13200-13700
79
L: 2300-2400 H: 9400-9800 L: 22 H: 91
L: 4500-4700
H: 11400-11900
Amb: 2800
Reading: 4200
Exam: 7100
Exam-H: 14200 Night: 475
Amb: 2400-2500
Reading: 3900-4000
Exam: 6600-6900
Exam-H: 6300-13400
L: 56 H: 125
Amb: 21
Reading: 52
Exam: 73
Exam-H: 129 Night: 8
L: 19 H:42
Unity™
Overbed Slots
Designed as an evolution of the Unity tandem overbed, the Units Overbed Slots feature narrow 3” slot luminaires with the same gently curved diffuser profile. Easily switch between light output levels for ambient, exam, or both. Available as a multifunction tandem pair or a single unit.
Like the other luminaires in the Unity collection, these overbed slot lights are reminiscent of gentle curves of fabric billowing in a breeze. They present a soft, comforting light in healthcare spaces, promoting patient health and well-being.
• 90+ CRI Standard
• Separate 0-10V control of dimming and CCT for each function (-T models
• Antimicrobial finishes (no VOC) on all interior and exterior painted surfaces
• Compatible with LVPC-DIM accessory Models
Unity Overbed Slot Model Options
CM1910-T
3” Dual Overbed Slots, Tunable White
CM1910-W
3” Dual Overbed Slots
CM1911-T
3” Single Ceiling Unit, Tunable White
CM1911-W
3” Single Ceiling Unit
L 47-3/4” (1213mm) W 3” (76mm) D 4” (102mm)
(102mm)
5100
L 47-3/4” (1213mm) W 3” (76mm) D 4” (102mm) RD 4” (102mm) 3000K 3500K 4000K Amb: 5300-5600 Exam: 7600-8000 Cmb: 12700-13400 Amb: 57 Exam: 89 Cmb: 144
L 47-3/4” (1213mm) W 3” (76mm) D 4” (102mm) RD 4” (102mm) 2700K-6500K L: 1950 H: 3900 L: 20 H: 43
0-10V to 1% LVPC-DIM DALI
L 47-3/4” (1213mm) W 3” (76mm) D 4” (102mm) RD 4” (102mm) 3000K 3500K 4000K L: 1950-2000 H:3900-4100 L: 19 H:42 0-10V to 1% DALI
Scott & White Emergency Hospital, Cedar Park TX | Specifier: Page Southerland Page | Photo: Slyworks Photography
Bowe™
Headwall
Featuring a curved acrylic diffuser and a metal center trim plate, Bowe creates a pleasing glow on the wall for vanity or headwall applications. The diffuser can be specified in five different pattern options, giving the sconce a multi-dimensional, fabric-like effect.
• 90+ CRI Standard
• Optional Lumicor™ acrylic diffuser materials
Bowe Headwall Model Options
CB6456
Headwall H 4-3/4” (121mm) W 33” (838mm) D 5-1/2” (140mm)
CB6458 41” Headwall H 4-3/4” (121mm) W 41” (1041mm) D 5-1/2” (140mm)
Integral 0-10V to 1% Damp
Linear Art Sconce™
Headwall
Linear Art Sconce has the power and options to bring light and life to scaled corridors. It is an ideal solution for vanity and headwall applications or any space that requires a sleek design and a warm aesthetic.
• Heavy gauge fabricated metal housing
• Diffuse top and bottom lenses for cleanability
• 90+ CRI Standard
Linear Art Sconce Headwall Model Options
Memorial Community Hospital, McCook NE
| Specifier: TSP Architects, Designer: HDR Architects | Photo: Tom Kessier
Serenity™
Headwall
Serenity patient room headwall light provides patients and staff with visual interest and multi-functionality. Easily switch between ambient and reading light levels. The Serenity healthcare collection features illuminated diffusers with soft, calming patterns designed to create a serene positive distraction, allowing occupants and patients to feel more relaxed.
• Optional amber night light option to minimize patient disturbance
• 90+ CRI Standard
• Optional pull chain switch
Serenity Headwall Model

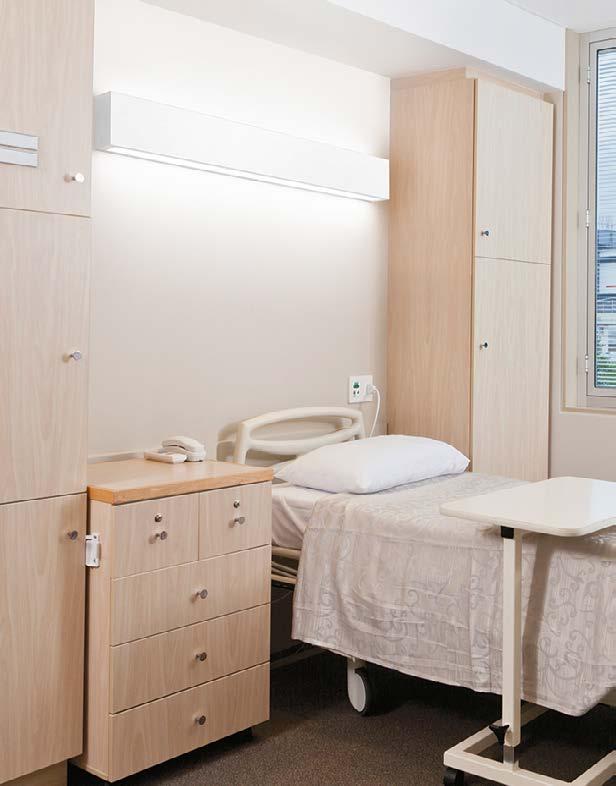

Unity™
Headwall
Our Unity patient room headwall lighting provides patients and staff with visual comfort and multi-functionality. Easily switch between ambient, and reading light levels. Like the other luminaires in the Unity collection, these headwall lights bring to mind the gentle curves of fabric billowing in a breeze. They present a soft, comforting light in healthcare spaces, promoting patient health and well-being.
• Optional Amber night light option to minimize patient disturbance
• 90+ CRI Standard
• LVPC–DIM switching interface accessory available for pillow speaker/nurse call systems
• Optional pull chain switch
Unity Headwall Luminaire Model
7–1/8” (181mm)
White Plains Hospital, White Plains NY
Specifier: Perkins Eastman | © Sarah Mechling
Vanity Lighting
Asta™
Linear Light Fixtures
The cylindrical body of this linear wall fixture glows between two end caps like an illuminated scroll. Sleek and modern, Asta’s beautiful radiance will elevate any space it is used. Whether mounted vertically or horizontally, the slim forms of light from this minimalist luminaire add a rhythmic edge along walls or columns. Asta is ETL listed for damp locations so it can be used safely in bathrooms or locker rooms, creating perfect lighting over vanities and counters.
• Can be mounted in vertical or horizontal orientation to a 2 X 4 single gang junction box with provided hardware
• Heavy gauge fabricated metal backbox; diecast end caps
• Acrylic diffuser
• 90+ CRI Standard
Asta Linear Light Fixtures Model Options
CB6505 24”
CB6507 36”
CB6509 46”
L 23-7/8” (606mm) W 3-1/4” (83mm) RD 4-7/8” (124mm)
L 35-3/4” (606mm) W 3-1/4” (83mm) RD 4-7/8” (124mm)
L 23-7/8” (606mm) W 45-1/2” (1156mm) RD 4-7/8” (124mm)
24”, 36”, and 46” models.
Blush™
Sconce
The elegantly curved front plate of the Blush sconce softens its geometric style with a slotted opening to show off its beautiful inner glow or optional diffuser pattern. Because Blush produces direct and indirect illumination and can be mounted vertically or horizontally, these wall sconces can bring elegance and visual interest to any space.
• Vertical or horizontal mounting
• Optional Lumicor® diffuser material available
Blush Sconce Model Options
Relative Scale Drawing
Deck™
Linear Sconces
Deck linear wall sconces are minimalist in form but contain multiple layers of detail that draw visual interest. Mounted in vertical or horizontal orientation, Deck supports a cozy, relaxing environment in workplace, healthcare, education, retail, and vanity spaces.
• Two lengths and diffuser styles are available, with recessed or surface mounted models.
• Horizontal or vertical mounting
• Semi-recessed (mud required; mud frame included) or surface mount
Deck Linear Sconce Model Options
H 1-1/2” (38mm)
W 23-1/2” (597mm)
CB1971 Single Layer, Recessed
CB1972 Single Layer, Surface
CB1974 Single Layer, Recessed
CB1975
Single Layer, Surface
CB1977
Dual Layer, Recessed
CB1978
Dual Layer, Recessed
CB1979
Dual Layer, Recessed
CB1980
Dual Layer, Surface
D 1-1/8” (29mm)
RH 1-7/8” (48mm)
RW 23-3/4” (603mm)
RD 3-1/4” (83mm)
H 1-1/2” (38mm)
W 23-1/2” (597mm)
D 2-1/2” (64mm)
H 1-1/2” (38mm)
W 34-1/2” (876mm)
D 1-1/8” (29 mm)
RH 1-7/8” (48mm)
RW 34-3/4” (883mm)
RD 3-1/4” (83mm)
H 1-1/2” (38mm)
W 34-1/2” (876mm)
D 2-1/1” (64mm)
H 3-1/2” (89mm)
W 23-1/2” (597mm)
D 1-1/4” (32mm)
RH 1-7/8” (48mm)
RW 23-3/4” (603mm)
RD 3-1/4” (83mm)
H 3-1/2” (89mm)
W 23-1/2” (597mm)
D 2-5/8” (67mm)
H 3-1/2” (89mm)
W 34-1/2” (876mm)
D 1-1/4” (32mm)
RH 1-7/8” (48mm)
RW 34-3/4” (883mm)
RD 3-1/4” (83mm)
H 3-1/2” (89mm)
W 34-1/2” (876mm)
D 2-5/8” (67mm)
Remote
Remote
Integral
Remote
Integral
Remote
Ether™
Surface Light
Ether is an aesthetically pleasing wall or ceiling mount luminaire that offers compact performance in a sleek, architectural design. With the clean, contemporary styling, solid performance features and a wide selection of colors, this sleek fixture will complement your vision or disappear into it.
• Ceiling or wall mount (horizontal or vertical orientation)
• Die-cast end caps and extruded aluminum housing
• Reflector painted white standard
Ether Surface Light Model Options
CV1700 24”, Wall/ Ceiling
CV1702
23-1/4” (591mm)
36”, Wall/ Ceiling L 35” (889mm) W 3” (75mm)
CV1704 48”, Wall/ Ceiling L 46-7/8” (1191mm) W 3” (75mm)
CV1706
60”, Wall/ Ceiling L 58-5/8” (1488mm) W 3” (75mm) D 4” (102mm)
CV1708
72”, Wall/ Ceiling
CV1710
96”, Wall/ Ceiling
L 69-1/4” (1759mm) W 3” (75mm) D 4” (102mm)
L 92-7/8” (2359mm) W 3” (75mm) D 4” (102mm)
3200 H: 4900 L: 38 H: 61
Lourdes Medical Center, Willingboro NJ, Specifier/Photo: Alberto & Associates/CI
Miller Children’s Hospital - Long Beach CA
Architect: TAYLOR | Photo: Ryan Beck Photography
Memorial Community Hospital, McCook NE | Specifier: TSP Architects, Designer: HDR Architects |
Photo: Tom Kessier
Linear Art Sconce™
Wall Sconce
This simple linear wall sconce brings comfortable indirect light to workplace and educational spaces. Glare-free illumination comes from the top and bottom openings, while the smooth painted housing adds warmth and color. Linear Art Sconce is available with a headwall model and general use models of various lengths.
• Mounts to standard electrical junction box (by others) with provided hardware
• Heavy gauge fabricated metal housing
Linear Art Sconce Vanity Light Model Options
CB3141
CB3142
CB3145 No
CB3146 No Accent
6-1/2” (165mm)
(610mm)
6-1/2” (343mm)
13-1/2” (165mm)
(165mm)
(610mm)
(102mm)
Posh™
Wall Sconce
Posh wall sconces are linear and indirect, shielding the eye from the light source itself, with a subtle sophistication that creates a comfortable atmosphere. Posh’s minimal luminaire body can be painted with one of our powder-coat finishes to match or complement any interior setting. With three different length options, which can be mounted vertically or horizontally, Posh is perfect for vanity, corridor, and large-scale applications.
• Horizontal or vertical mount
• Extruded white acrylic diffuser with matte finish
Posh Wall Sconce Model Options
CB5518
28”, ADA
CB5519
28”
CB5520
40”, ADA
CB5521
40”
CB5522
52”, ADA
CB5523
52”
L 27-3/4” (705mm) W 3” (75mm) D 4” (102 mm)
L 27-3/4” (705mm) W 3” (75mm) D 4-5/8” (111mm)
L 39-3/4” (1010mm) W 3” (75mm) D 4” (102mm)
L 39-3/4” (1010mm) W 3” (75mm) D 4-5/8” (111mm)
L 51-3/4” (1315mm) W 3” (75mm) D 4” (102 mm)
L 51-3/4” (1315mm) W 3” (75mm) D 4-5/8” (111mm)
L: 1700-1800 H: 2700-2800 L: 14 H: 25
L: 2400-2500 H: 3600-3700 L: 20 H: 32
Damp
Damp ADA
Damp
Damp ADA
Damp
Owensboro Hospital, Owensboro KY | Specifier: HGA, Smith Seckman Reid
| Photo: Halkin Mason
Raven™
Interior Surface Light
Raven is a versatile luminaire family with a simple linear form and diffused illumination for corridors, vanity lighting, patient room headwalls, and more.
• Ceiling or wall mount (horizontal or vertical orientation)
• Mounts to 2X4 electrical junction box (by others) with provided hardware
Raven Interior Surface Light Model Options
CV1800 24”, Indoor, with accent
CV1802
36”, Indoor, with accent
CV1804
48”, Indoor, with accent
CV1806 60”, Indoor, with accent
CV1818
18”, Indoor, with accent
CV1820
18”, Indoor, no accent
CV1822
24”, Indoor, no accent
CV1824
36”, Indoor, no accent
CV1826
48”, Indoor, no accent
CV1828
60”, Indoor, no accent
L 24-3/4” (629mm) W 3-3/8” (86mm) D 4” (102mm)
L 36-1/2” (927mm) W 3-3/8” (86mm) D 4” (102mm) L: 1900-2000
L 48-3/8” (1229mm) W 3-3/8” (86mm) D 4” (102mm)
L 60-1/8” (1527mm) W 3-3/8” (86mm)
D 4” (102mm)
L 18-1/2” (470mm)
W 3-3/8” (86mm) D 4” (102mm)
L 18-1/2” (470mm)
W 3-3/8” (86mm)
D 4” (102mm)
L 24-3/4” (629mm)
W 3-3/8” (86mm)
D 4” (102mm)
L 36-1/2” (927mm)
W 3-3/8” (86mm) D 4” (102mm)
L 48-3/8” (1229mm)
W 3-3/8” (86mm)
D 4” (102mm)
L 60-1/8” (1527mm)
W 3-3/8” (86mm) D 4” (102mm)
L: 2800 H: 3900-4100 L: 23 H: 35
L: 750 H: 1100 L: 7 H: 10
L: 800 H: 1400 L: 7 H: 13
L: 1900-2000 H: 2800 L: 17 H: 26
L: 2200-2300 H: 3300-3400 L: 19 H: 29
L: 2800
H: 3900-4100 L: 23 H: 35
Sanibel™
Interior Sconce
Sanibel is minimalist and modern, with a unique curved body and indirect light that creates understated illumination. It can be mounted in an uplight or downlight orientation. Depending on the finish color chosen, Sanibel can blend into the wall for a clean, quiet effect.
• Die cast aluminum housing
• Frosted acrylic lens
• May be mounted in uplight or downlight orientation
• Easily cleaned slim profile
• 90+ CRI Standard
Sanibel Interior Sconce Model Options
CB3942-14
CB3942-26
H 2” (51mm) W 14-3/4” (375mm) D 2-7/8” (73mm) 3000K 3500K 4000K
H 2” (51mm) W 26-1/2” (673mm) D 3-1/4” (83mm)

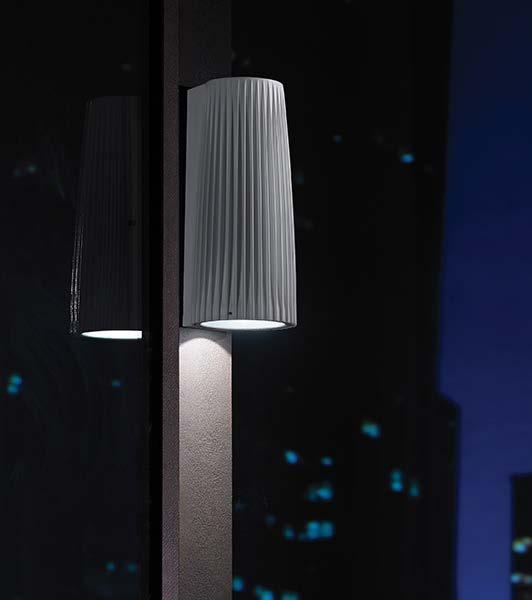

Sass™
Wall Sconce
Available with a cylindrical or rectilinear form, the SASS sconce is equipped to light indoor or outdoor applications. Its luminous glow begins in the center and reaches the diffuser ends, giving SASS and the surrounding space an elegant softness.
• 90+ CRI Optional
• IP65 rated
Sass Wall Sconce Model Options
Shine™
Indoor Surface Lights
The Shine family is a simple, luminous design that is modern and highly efficient. Shine’s linear diffuser body with solid square endcaps can be mounted horizontally or vertically, ideal for vanity applications and a variety of interior styles.
• Vertical or horizontal mounting
• Cast and extruded aluminum construction
• Frosted high impact grade acrylic diffuser
• Surface mount to 2x4 junction box. Optional junction box cover (JBC option) available for 4” junction box
• 90+ CRI Standard
Shine Indoor Surface Light Model Options
CB5513
28”, Indoor
CB5515
42”, Indoor
CB5517
52”, Indoor
CB5524
19”, Indoor
L 28” (711mm) W 3” (76mm) D 4” (102mm) D (JBC) 4-1/4” (108mm)
L 42-1/2” (1080mm) W 3” (76mm) D 4” (102mm)
(JBC) 4-1/4” (108mm)
L 52-1/2” (1334mm) W 3” (76mm)
D 4” (102mm) D (JBC) 4-1/4” (108mm)
L 19” (483mm)
W 3” (76mm)
D 4” (102mm) D (JBC) 4-1/4” (108mm)
Platte County Nursing Care & Assisted Living Facility, Wheatland WY Specifier: Boulder Associates | Photo: Ed LaCasse
Carnegie - Philadelphia PA | Specifier: Coscia Moos
Architecture | Photo: Jeff Totaro
Carnegie - Philadelphia PA | Specifier: Coscia Moos Architecture | Photo: Jeff Totaro
Voila™
Luminaires
This minimalist wall/ceiling luminaire creates an eye-catching illusion. Voila’s open cylinder diffuser sits on top of the light source, creating an effortless glow that makes the space feel comfortable and luxurious.
Voila Luminaires Model Options
H 2” (51mm)
W 23-1/2” (597mm)
CV4140
23” x 2”, Integral Driver, Recessed
CV4141
23” x 3”, Integral Driver, Recessed
CV4145
34” x 2”, Integral Driver, Recessed
CV4146
34” x 3”, Integral Driver, Recessed
CV4147
34” x 4”, Integral Driver, Recessed
CV4142
23” x 4”, Integral Driver, Recessed
CV4160
23” x 2”, Remote Driver, Surface
CV4161
23” x 3”, Remote Driver, Surface
CV4162
23” x 4”, Remote Driver, Surface
CV4165
34” x 2”, Remote Driver, Surface
CV4166
34” x 3”, Remote Driver, Recessed
CV4167
34” x 4”, Remote Driver, Surface
D 2-5/8” (67mm)
RH 1-7/8” (48mm)
RW 23-3/4” (603mm)
RD 3-1/4” (83mm)
H 3” (76mm)
W 23-1/2” (597mm)
D 3-5/8” (92mm)
RH 1-7/8” (48mm)
RW 23-3/4” (603mm)
RD 3-1/4” (83mm)
H 2” (51mm)
W 34-1/2” (876mm)
D 2-5/8” (67mm)
RH 1-7/8” (48mm)
RW 34-3/4” (883mm)
RD 3-1/4” (83mm)
H 3” (76mm)
W 34-1/2” (876mm)
D 3-5/8” (92mm)
RH 1-7/8” (48mm)
RW 34-3/4” (883mm)
RD 3-1/4” (83mm)
H 4” (102mm)
W 34-1/2” (876mm)
D 4-5/8” (117mm)
RH 1-7/8” (48mm)
RW 34-3/4” (883mm)
RD 3-1/4” (83mm)
H 4” (102mm)
W 23-1/2” (597mm)
D 4-5/8” (117mm)
RH 1-7/8” (48mm)
RW 34-3/4” (883mm) RD 3-1/4” (83mm)
H 2” (51mm) W 23-1/2” (597mm) D 4” (102mm)
H 3” (76mm) W 23-1/2” (597mm) D 5” (127mm)
H 4” (102mm) W 23-1/2” (597mm) D 6” (152mm)
H 2” (51mm) W 34-1/2” (876mm) D 4” (102mm)
H 3” (76mm) W 34-1/2” (876mm) D 5” (127mm)
H 4” (102mm) W 34-1/2” (876mm) D 6” (152mm)
L: 1000
H: 1500-1600
L: 1000-1100
L: 770
L: 750 H: 1000-1100
1000 H: 1500
L: 1000 H: 1500-1600
L: 1000-1100 H: 1600
13
Wand™
Indoor Surface Lights
Wand is a modern wall and ceiling luminaire featuring a rectilinear diffuser body with clean, shadow-free edges that floats on the light source. Its simple form and efficient illumination evokes a calm, clean aesthetic that complements a variety of styles and applications and surface or recessed models.
• Versatile mounting; wall installations (vertical or horizontal orientation) or ceiling installations (drywall only)
Wand Indoor Surface Light Model Options
H 2” (51mm)
W 23-1/2” (597mm)
D 2-3/4” (70mm)
CV4180 Recessed
CV4181 Recessed
CV4185 Surface
CV4186 Surface
RH 1-7/8” (48mm)
RW 23-3/4” (603mm) RD 3-1/4” (83mm)
H 2” (51mm)
W 34-1/2” (876mm)
D 2-3/4” (70mm)
RH 1-7/8” (48mm) RW 34-3/4” (883mm)
RD 3-1/4” (83mm)
H 2” (51mm) W 23-1/2” (597mm) D 2-3/4” (70mm)
H 2” (51mm) W 34-1/2” (876mm) D 2-3/4” (70mm)
General Use Lighting
Allegro™
Table Lamp
The Allegro table lamp helps to create a cozy, home-like atmosphere, which is enhanced by integrated LEDs that have been designed to simulate the look and feel of traditional incandescent lighting. Available with a choice of round, square, or rectangular shades, and a choice of curved or rectangular base.
• Rocker switch is standard
• Bottom of base features a “rubber-like” thermoplastic coating to protect fixture bottom and tables from scratches
• Combination Duplex Receptacle/Outlet and USB Charger option
• Black 7’ power cord
Allegro Table Lamp Model
Allegro™
Sconces
Allegro wall sconces feature a warm incandescent look, but with energy efficient LED sources. Fabric and easy-to-clean vinyl shade options make Allegro sconces perfect for hospitality or healthcare settings. For a unified look, pair these sconces with other luminaires from the Allegro family.
• Integral phase-cut dimmable power supply
• Optional top and bottom acrylic lenses
• Easy-to-clean tri-laminate shades
Allegro Sconce Model Options
Models
CB1966
7” ADA Sconce, Straight H 7-1/2 ” (191mm) W 5-3/4” (146mm) D 4” (102mm)
CB1968
19 Integral Dimming Damp ADA
7” ADA Sconce, Curved Straight and Curved Models
StoneSprings Hospital Center, Dulles VA | Specifier:Gresham, Smith and Partners | Photo: Robert Pepple
Anara™ & Naya™
Wall Sconce
Anara and Naya were designed to be easy-to-clean sconces with a modern profile and soft edges. These compact ADA wall sconces are offered with static white or dim-to-warm source options. The dim-to-warm LED source gives people increased control of their environment by allowing them to shift to warmer color temperatures as the lighting is dimmed. This creates a cozy and relaxing atmosphere.
• Formed aluminum fascia with rounded corners
• Top and bottom acrylic lenses
• Static white and dim-to-warm source options
• Smooth outer surfaces for improved cleanability
Anara Wall Sconce Model
Models
CB7020 H 5-1/4” (133mm) W 5-1/8” (130mm) D 3-7/8” (98mm)
3000K 3500K 4000K
1800K-3000K
2700K-4000K
(30K) L: 1150 H: 1650 (35K) L: 1200 H: 1650 (40K) L: 1200 H: 1700 (1830DW) L: 850 H: 1250 (2740DW) L: 950 H: 1300 (30K) L: 13 H: 19 (35K) L: 13 H: 19 (40K) L: 13 H: 19 (1830DW) L: 14 H: 20 (2740DW) L: 14 H: 20
Naya Wall Sconce Model
Models
CB7030 H 5-1/4” (133mm) W 5-1/8” (130mm) D 3-7/8” (98mm)
3000K 3500K 4000K 1800K-3000K
2700K-4000K
(30K) L: 1100 H: 1550 (35K) L: 1050 H: 1600 (40K) L: 1050 H: 1600 (1830DW) L: 825 H: 1200 (2740DW) L: 925 H: 1200
(30K) L: 13 H: 19 (35K) L: 13 H: 19 (40K) L: 13 H: 19 (1830DW) L: 14 H: 20 (2740DW) L: 14 H: 20 Integral 0-10V to 1%
Anara and Naya Models
Aries™
Pendants
Aries pendants have a mid-century modern aesthetic with 21st century sources. The beveled edge of the disc adds subtle texture up close and disappears at a distance, allowing light and shadow alone to create the visible shape.
• Mounts to standard electrical junction box (by others) for sloped ceiling up to 45° from horizontal
• Thermally formed 1/8” thick white acrylic diffuser with matte finish
• Spun aluminium fixutre body
Aries Pendant Model Options
CP4450 22” x 3” W 22-1/2” (572mm) X 3-3/8” (86mm) OAH 24” (610mm)
CP4452 32” x 4”
32” (813mm) X 3-5/8” (92mm) OAH 30” (762mm)
CP4454 42” x 4” W 42” (1067mm) X 4” (102mm) OAH 36” (914mm)
22”, 32”, 42” Models
Art Sconce™
Sconce
For Art Sconce, light is both the subject and the artist — illuminating above, below, and within the three dimensional frame. While the wall fixture’s square body evokes stability and containment, its separation from the surrounding structure allows the designer to play with layers and textures.
• Heavy gauge fabricated metal housing
Art Sconce Model
Basics™
Wall Sconce
Simple, yet elegant, Basics blends beautifully with just about any decor. This versatile wall sconce comes in two models with a choice of subtly different diffuser materials to provide soft, direct illumination. Integral components with two trim options create an attractive fixture that is easy to install.
• Optional Lumicor™ acrylic diffuser materials
Basics Wall Sconce Model Options
CB5142
(229mm) W 9” (273mm)
(406mm)
(273mm)
(102mm)
Bliss™
Interior Compact Wall Sconce
Bliss provides beautiful illumination from its shallow cylindrical and boxed forms. The halo of light emits from a round or square frosted acrylic lens and provides comfortable, easy-on-the-eyes illumination from all angles. The painted aluminum front face offers a unique opportunity for a pop of color. Use Bliss for wayfinding or in hallways for eye-catching illuminated room markers. This compact ADA wall sconce features a seamless acrylic lens that is easy to clean.
• Seamless, extruded acrylic luminous diffuser
• Static white and dim-to-warm source options
• Smooth outer surfaces for improved cleanability
Bliss Interior Compact Wall Sconce Model Options
CB7000 Round DIA 6-1/2” (156mm) D 3-7/8” (98mm) 3000K
3500K 4000K
1800K-3000K
2700K-4000K
CB7010 Square H 4-3/4” (121mm) W 4-3/4” (121mm) D 3-7/8” (98mm)
(30K) L: 1050 H: 1450 (35K) L: 1050 H: 1500 (40K) L: 1100 H: 1550 (1830DW) L: 750 H: 1100 (2740DW) L: 850 H: 1200
(30K) L: 1100 H: 1600 (35K) L: 1150 H: 1600 (40K) L: 1150 H: 1650 (1830DW) L: 825 H: 1200 (2740DW) L: 950 H: 1250
(30K) L: 13 H: 19 (35K) L: 13 H: 19 (40K) L: 13 H: 19 (1830DW) L: 14 H: 20 (2740DW) L: 14 H: 20 Integral 0-10V to 1%
(30K) L: 13 H: 19 (35K) L: 13 H: 19 (40K) L: 13 H: 19 (1830DW) L: 14 H: 20 (2740DW) L: 14 H: 20
Children’s Nebraska - Hubbard Center for Children, Omaha, NE.
Bowe™
Wall Sconces
Featuring a curved acrylic diffuser and a metal center trim plate, Bowe creates a pleasing glow on the wall for vanity or headwall applications. The diffuser can be specified in five different pattern options, giving the sconce a multi-dimensional, fabric-like effect.
• 90+ CRI Standard
Bowe Wall Sconce Model Options
Models
CB6456
33” Headwall
CB6458
41” Headwall
H 4-3/4” (121mm) W 33” (838mm)
D 5-1/2” (140mm) 3000K 3500K 4000K L: 2000 H: 3300-3400 L: 17 H: 30 Integral 0-10V to 1% Damp
H 4-3/4” (121mm) W 41” (1041mm) D 5-1/2” (140mm) L: 3200-3300 H: 5400-5500 L: 26 H: 46
Mills Peninsula Hospital, Burlingame CA, Specifier: Claudio Ramos, IALD | Photo: Joe Fletcher
Homestead Hospital, Homestead FL | Architect: HKS | Photo: Ed LaCasse
Cane™
Ceiling Mount & Pendant
These mid-century modern inspired luminaires provide functional downlight from its softly glowing luminous body. Cane’s hand-spun metal trim adds sophistication and can be painted with any of our No-VOC paint finishes to add a pop of color.
Cane Ceiling Mount Model
Cane Pendant Model
Children’s Nebraska - Hubbard Center for Children, Omaha, NE.

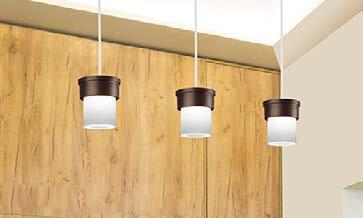

Cylinder™
Pendants
Originally based on classic pendant styles, the new Cylinder luminaire is all about performance. This family features multiple trimmed or untrimmed styles and optional downlights, making Cylinder a timeless addition to contemporary or traditional projects.
• Wired for dual circuit operation (bodylight/downlight)
• Spun downlight baffle trim, painted white with downlight option (bottom is solid white aluminum when no downlight is specified)
Cylinder Pendant Model Options
CP4341
Accent W 10” (254mm) OAH 42” (1067mm) X 25” (635mm)
(305mm)
CP4345 Double Bars W 10” (254mm) OAH 42” (1067mm) X 25” (635mm)
CP4347 Double Bars W 12” (305mm) OAH 48” (1219mm) X 28” (711mm) L: 2500-2600 H: 5600-5800 L: 27 H: 61
CP4349 Cross Bars W 10” (254mm) OAH 42” (1067mm) X 25” (635mm) L: 1900-2000 H: 4400-4500 L: 22 H: 48
CP4351 Cross Bars W 12” (305mm) OAH 48” (1219mm) X 28” (711mm)
L: 2500-2600 H: 5600-5800 L: 27 H: 61
SCMC Prineville Hospital, Prineville OR | Photo: LaCasse
The Agility Center - Bentonville AR
Specifier: Gould Turner Group | Photo: Creative Sources Photography
Danbury Hospital NICU, Danbury CT | Specifier: Perkins Eastman | Photo: Chris Cooper
Danbury Hospital NICU, Danbury CT | Specifier: Perkins Eastman | Photo: Chris Cooper
Cypress™
Wall Sconce
The sleek, curved, aluminum face of the Cypress wall sconce visually pulls the wall surface outward as it creates functional uplight with glowing side illumination. Cypress offers several size and cutout accent options to create a more personalized sconce.
• Uplight or downlight orientation
Cypress Exterior Wall Sconce Model Options
CB5122 Multi-Window
CB5124 No Window
• Custom cut-outs for windows available as a variation Single Window, Multi-Window, and No Window Models
Midland Arts™
Decorative Cylinder Pendants
Available in pendant or wall sconce form, the Midland Arts family best compliments traditional Arts and Craft style. However, the design can be flexible enough to integrate with ornate interiors or draw the eye in more contemporary settings.
• Wired for dual circuit operation (bodylight/downlight)
• Spun downlight baffle trim, painted white with downlight option (bottom is solid white aluminum when no downlight is specified)
Midland Arts Decorative Cylinder Pendant Model Options
11” (279mm) OAH 42” (1067mm) X 25” (635mm)
L: 1900-2000 H: 4400-4500 L: 22 H: 48
W 13” (330mm) OAH 48” (1219mm) X 28” (711mm)
L: 2500-2600 H: 5600-5800 L: 27 H: 61
Detroit Medical Center, Detroit MI | Designer: Harley Ellis Devereaux | Photo: Curt Clayton
Sequence™
Indoor Wall Sconce
A beautifully illuminated 4” cylinder of light sits off the wall with thin crescentshaped arms. This dramatic wall sconce is available in 34” and 45” lengths. Sequence Sconce is our popular Sequence pendant in wall-mounted form. This luminous tube sconce is also available in outdoor models.
• Horizontal or vertical mounting
• Even Illumination
• Cast aluminum housing
• Impact-resistant acrylic body
Sequence Indoor Wall Sconce Model Options
(870mm)
(149mm)
Serenity™
Table Lamps
Serenity table lamps feature a slim square shade with four calming pattern options, and are designed to fit into tight corners to maximize space. These table lamps can be fixed or freestanding and can include a dimmable option as well as charging ports in the base. They are perfect for patient rooms, but also work well in waiting rooms, break rooms, and more.
• Easy to clean acrylic shade options – choose from four calming patterns
• Freestanding base allows portability
• Amber LED night light option to minimize patient disturbance
• Supplied with gray 7’ long, hospital grade cord and 3-prong grounded plug. Lamps are equipped (when specified) with hospital grade receptacles in lamp base
Serenity Table Lamp Model Options
Models
TF1930
TF1934
Charging Base
H 29-1/2 ” (749mm) W 12-1/8” (308mm) D 6” (152mm)
(343mm)
H 29-7/8 ” (759mm) W 12-1/8” (308mm) D 6” (152mm) SH 13-1/2” (343mm)
H 32-1/4 ” (819mm) W 12-1/8” (308mm)
D 6” (152mm) SH 13-1/2” (343mm)
StoneSprings Hospital Center, Dulles VA | Specifier:Gresham, Smith and Partners | Photo: Robert Pepple
Serenity™
ADA Healthcare Sconce
The Serenity wall sconce features illuminated diffusers with soft, calming patterns. This creates a serene, positive distraction, allowing patients to feel more relaxed. The Serenity wall sconce is part of a lighting family and is available with coordinating behavioral health, patient room overbed, headwall, and table lamp models.
• Amber night light option to minimize patient disturbance
• Easy to clean acrylic shade with fabric look
• Optional antimicrobial paint finish clear coat
Serenity ADA Healthcare Sconce Model
Symmetry™
General Use Lights
Symmetry is a beautiful concave recessed ceiling mount light with a graceful, shallow dome in the center that offers an out-of-the box aesthetic. High-quality sources provide easy-on-the-eyes illumination in multiple output options, including tunable CCT for circadian rhythm support.
• Integral driver located is accessible from below the ceiling
• Shallow recessed depth minimizes interference within ceiling plenum
Symmetry General Use Light Model Options
CM1972-T
45”, Tunable
CM1972-W
45”, General Use
CM1982-T
23” Tunable
44” (1118mm)
RD 5-7/8” (149mm) DIA 44-1/2” (1130mm)
RW 44” (1118mm)
RD 6” (152 mm) DIA 44-1/2” (1130mm)
RW 23-1/2” (597mm)
RD 6-1/2” (165mm) DIA 22-7/8” (581mm)
Children’s Nebraska - Hubbard Center for Children, Omaha,
White Plains Hospital, White Plains NY
Specifier: Perkins Eastman | © Sarah Mechling
White Plains Hospital, White Plains NY
Specifier: Perkins Eastman | © Sarah Mechling
Unity™
Sconce
Like the other luminaires in the Unity collection, these sconces are meant to recall the gentle curves of fabric billowing in a breeze. They present a soft, comforting light in healthcare spaces, promoting patient health and well-being.
• Available top and bottom lenses for cleanability
• 90+ CRI Standard
Unity Sconce Model Options
CB1902 Sconce, Top-Bottom Lens
Unity™
Table Lamps
Unity table lamps are designed specifically for healthcare spaces and feature patient room-specific options allowing you to configure the best applicationspecific table lamp option.
Like the other luminaires in the Unity collection, these table lamps are reminiscent of the gentle curves seen in fabric that is billowing in a breeze. They present a soft, comforting light in healthcare spaces, promoting patient health and well-being.
• Amber night light option to minimize patient disturbance
• Easy to clean Tri–lam vinyl coated shade or Oyster Linen Lumicor® acrylic shade with fabric look
• Flat backed shade option allows placement at edge of table against wall
• Fixed mount base option maximizes available table space and prevents accidental tipping
• Supplied with gray 7’ long, hospital grade cord and 3-prong grounded plug. Lamps are equipped (when specified) with hospital grade receptacles in lamp base
Unity Table Lamp Model Options
TF1904
Fixed Base
TF1906
Freestanding
TF1908
Charging Base
H 29–1/2” (749mm) W 15” (318mm) D 7–1/8” (181mm) SH 14” (35 mm)
H 30–1/8” (765mm) W 15” (318mm) D 7–1/8” (181mm) SH 14” (356mm)
H 32–1/2” (826mm) W 15” (318mm) D 7–1/8” (181mm) SH 14” (356mm)
25W E26 Plug
Fixed Mount Base, Freestanding Base, Charging Base
Max
Integral dim Rocker Switch Damp
Ministry St. Michael’s Hospital, Steven’s Point WI | Photo: Robert Ness
Cooper Cancer Center - Camden NJ
Specifier: SBLD Studio and Francis Cauffman |
Photo: Chris Cooper
Unity™
Wall Slot Lights
As part of the Unity family for healthcare environments, the Unity Slot also features narrow 3” slot luminaires with the same gently curved diffuser profile.
Like the other luminaires in the Unity collection, these slot lights are reminiscent of gentle curves of fabric billowing in a breeze. They present a soft, comforting light in healthcare spaces, promoting patient health and well-being.
• 90+ CRI Standard
• Formed acrylic lenses
• Separate 0-10V control of CCT and dimming (-T model)
Unity Wall Slot Light Model Options
(1194mm)
(76mm)
(102mm)
(102mm)
Visage™
Indoor Linear Slot Lights
The beauty of Visage lies in its simplicity. Visage features a clean, luminous diffuser, multiple length options, and a shallow recessed depth, complementing building architecture.
• Shallow 3-3/8” recessed housing
• Vertical or horizontal mounting
Visage Indoor Slot Light Model Options
CV1601
26” Surface Frame
CV1603
37” Surface Frame
CV1605
48” Surface Frame
CV1607
59” Surface Frame
CV1609
26”, Flush (Mud-In)
CV1611
37”, Flush (Mud-In)
CV1613
48”, Flush (Mud-In)
CV1615
60”, Flush (Mud-In)
L 26-1/8” (664mm) W 4-1/2” (114mm)
RL 25”(635mm)
L 37-1/8” (943mm) W 4-1/2” (114mm)
RL 36” (914mm)
RD 3-4/5” (97mm) WT 4 lbs (1814g)
L 48-1/8” (1222mm) W 4-1/2” (114mm)
RL 47” (1194mm)
RD 3-4/5” (97mm) WT 5 lbs (2268g)
L 59-1/8” (1502mm) W 4-1/2” (114mm)
RL 58”(1473mm)
RD 3-4/5” (97mm) WT 6 lbs (2722g)
RD 3-4/5” (97mm) WT 3 lbs (1361g) 3000K 3500K 4000K
L 26-1/8” (664mm) W 4-1/2” (114mm)
RL 26-3/8”(670mm)
RD 4-1/8” (105mm) WT 3 lbs (1361g)
L 37-1/8” (943mm) W 4-1/2” (114mm)
RL 37-3/8” (949mm)
RD 4-1/8” (105mm) WT 4 lbs (1814g)
L 48-1/8” (1222mm) W 4-1/2” (114mm)
RL 48-3/8” (1228mm)
RD 4-1/8” (105mm) WT 5 lbs (2268g)
L 59-1/8” (1502mm) W 4-1/2” (114mm)
RL 58-3/8”(1508mm)
RD 4-1/8” (105mm) WT 6 lbs (2722g)
L: 1050-1100 H: 1600-1700 L: 12 H: 19
L: 1600-1650 H: 2400-2500 L: 17 H: 27
L: 2100-2200 H: 3200-3300 L: 23 H: 36
L: 2600-2700 H: 3900-4100 L: 27 H: 43
L: 1050-1100 H: 1600-1700 L: 12 H: 19
L: 1600-1650 H: 2400-2500 L: 17 H: 27
L: 2100-2200 H: 3200-3300 L: 23 H: 36
L: 2600-2700 H: 3900-4100 L: 27 H: 43
Advantus™
Ground Mount Luminaires
A linear surface mount luminaire with four different model lengths and four different optics options, Advantus projects low or high indirect illumination — ideal for building facades, signage, doorways, and landscaping.
• Multiple optic options for flood, wash, and graze applications
• Wall or ceiling mount
• Easy mounting with secure aiming lock – aimable to 360°. Die-cast mounting plate allows direct access to junction box
• Zero clearance end mount for easy installation and maintenance in tight mounting applications
Advantus Surface Mount Luminaire Model Options
OG2000-24
29”, No Visor, Ground Mount
OG2000-36
40”, No Visor, Ground Mount
OG2000-48
52”, No Visor, Ground Mount
OG2000-60
63”, No Visor, Ground Mount
OG2010-24
29”, w/ Visor, Ground Mount
OG2010-36
40”, w/ Visor, Ground Mount
OG2010-48
52”, w/ Visor, Ground Mount
OG2010-60
63”, w/ Visor, Ground Mount
L 29-1/8” (741mm)
H 13-1/2” (343mm)
SC 27” (659mm)
WT 8 lbs (3629g)
L 40-1/2” (1030mm)
H 13-1/2” (343mm)
SC 38-3/8” (975mm)
WT 10 lbs (4536g)
L 51-7/8” (1318mm)
H 13-1/2” (343mm)
SC 50” (1270mm)
WT 12 lbs (5443g)
L 63-1/4” (1608mm)
H 13-1/2” (343mm)
SC 61-1/8” (1553mm) WT 15 lbs (6804g)
L 29” (737mm)
H 13-1/2” (343mm)
SC 26-3/4” (679mm)
WT 9 lbs (4082g)
L 40” (1016mm)
H 13-1/2” (343mm)
SC 37-3/4” (959mm)
WT 12 lbs (5443g)
L 52” (1321mm)
H 13-1/2” (343mm)
SC 49-3/4” (1264mm)
WT 14 lbs (6350g)
L 63” (1600mm)
H 13-1/2” (343mm)
SC 60-3/4” (1575mm)
WT 17 lbs (7711g)
L: 2000-2500 H: 3900-4800 L: 20 H: 42
L: 2600-3300 H: 5200-6500 L: 26 H: 55
L: 3300-4100 H: 6500-8100 L: 33 H: 69
L: 1300-1650
H: 2600-3200 L: 13 H: 28
L: 2000-2500 H: 3900-4800 L: 20 H: 42
L: 2600-3300
H: 5200-6500 L: 26 H: 55
L: 3300-4100
H: 6500-8100 L: 33 H: 69
Advantus™
Surface Mount Luminaires
A linear surface mount luminaire with four different model lengths and four different optics options, Advantus projects low or high indirect illumination — ideal for building facades, signage, doorways, and landscaping.
• Multiple optic options for flood, wash, and graze applications
• Wall or ceiling mount
• Easy mounting with secure aiming lock – aimable to 360°. Die-cast mounting plate allows direct access to junction box
• Zero clearance end mount for easy installation and maintenance in tight mounting applications
Advantus Surface Mount Luminaire Model Options
Models
OV2100-24
28” No Visor
OV2100-36
39” No Visor
OV2100-48
50” No Visor
OV2100-60
62” No Visor
OV2100-24
28” with Visor
OV2100-36
39” with Visor
OV2100-48
50” with Visor
OV2100-60
62” with Visor
L 27-7/8” (707mm) SC 26-1/2” (673mm) WT 5.5 lbs (2495g)
L 39-1/4” (996mm) SC 37-7/8” (962mm) WT 7.5 lbs (3402g)
L 50-5/8” (1285mm) SC 49-1/2” (1257mm) WT 10 lbs (4536g)
L 61-15/16” (1574mm) SC 60-5/8” (1540mm) WT 12 lbs (5443g)
L 27-7/8” (707mm) SC 26-1/2” (673mm) WT 6.5 lbs (2948g)
L 39-1/4” (996mm) SC 37-7/8” (962mm) WT 9 lbs (4082g)
L 50-5/8” (1285mm) SC 49-1/2” (1257mm) WT 12 lbs (5443g)
L 61-15/16” (1574mm) SC 60-5/8” (1540mm) WT 14.5 lbs (6577g)
L: 2000-2500 H: 3900-4800 L: 20 H: 42
L: 2600-3300 H: 5200-6500 L: 26 H: 55
L: 3300-4100 H: 6500-8100 L: 33 H: 69
L: 1300-1650 H: 2600-3200 L: 13 H: 28
L: 2000-2500 H: 3900-4800 L: 20 H: 42
L: 2600-3300 H: 5200-6500 L: 26 H: 55
L: 3300-4100 H: 6500-8100 L: 33 H: 69
New York Methodist Hospital, Brooklyn NY
Architect: Gary Maranga | Photo: Brad D. Jackson
Air Foil™
Wall Sconces and Pendants
Air Foil pendant lights were inspired by the elliptical shape of aircraft wings. The unique form of the Air Foil is evenly illuminated and features an optional downlight. Created in coordination with lighting designers specifically for large venues and spaces with high ceilings, Air Foil is sure to make a dynamic impression wherever it’s installed.
Air Foil Wall Sconce and Pendant Model Options
CP5301
16”x 4’
CP5311 24”x 4’
CP5321 36”x 4’
CP5393
16”x 2’
CP5395
16”x 3’
W 16-1/4” (413mm)
W 24-1/4” (616mm)
D 10-1/2” (267mm) OAH 192” (4877mm) X 48” (1219mm)
W 36-1/4” (921mm)
D 15” (381mm) OAH 192” (4877mm) X 48” (1219mm)
D 7-1/4” (184mm) OAH 192” (4877mm) X 48” (1219mm) 3000K 3500K 4000K RGB
W 16-1/4” (413mm)
D 7-1/4” (184mm) OAH 192” (4877mm) X 26” (660mm)
W 16-1/4” (413mm)
D 7-1/4” (184mm) OAH 192” (4877mm) X 37” (940mm)
WHT: 8200-8500 WHT: 67 RGB: 77
WHT: 5900-6100 WHT: 49 RGB: 77 Integral 0–10V to 1% DMX (RGB) Damp
WHT: 10700-11000 WHT: 93 RGB: 107
WHT: 3300-3400 WHT: 27 RGB: 39
WHT: 4600-4700 WHT: 38 RGB: 58
Avatar™
Exterior Sconces
The Avatar exterior sconce pairs a timeless architectural style with the advancements of modern technology and design. Avatar’s solid metal accent bars add visual stability, while the acrylic diffuser creates efficient, pleasing illumination.
• Removable cam-action hinged frame for ease of maintenance
• Extruded aluminum backplate and center accent, die-cast end caps.
• Solid metal or die-cast accent
• Sealed and gasketed construction
Avatar Exterior Sconce Model Options
OW1301
20”, Single Bar L
OW1303
25”, Single Bar
OW1305
36”, Single Bar
OW1307
48”, Single Bar
OW1311
20”, Dual Bars
OW1313
25”, Dual Bars
OW1315
36”, Dual Bars
OW1317
48”, Dual Bars
OW1331
20”, Perforated
OW1333
25”, Perforated
OW1335
36”, Perforated
OW1337
48”, Perforated
25-1/8” (638mm) W 4” (102mm) D
47-1/4” (1200mm) W 4” (102mm) D 7-1/4” (184mm)
L 19-3/4” (502mm) W 4” (102mm) D 7-1/4” (184mm)
L 25-1/8” (638mm) W 4” (102mm) D 7-1/4” (184mm)
L 36-1/8” (918mm) W 4” (102mm) D 7-1/4” (184mm)
1600-1700 H: 2400-2500 L: 19 H: 29
L 47-1/4” (1200mm) W 4” (102mm) D 7-1/4” (184mm) L: 2200 3300-3400
L 19-3/4” (502mm) W 4” (102mm) D 7-1/4” (184mm)
L 25-1/8” (638mm) W 4” (102mm) D 7-1/4” (184mm)
L 36-1/8” (918mm) W 4” (102mm) D 7-1/4” (184mm)
L 47-1/4” (1200mm) W 4” (102mm) D 7-1/4” (184mm)
25 H: 38
800 H: 1200 L: 9 H: 15
1100 H: 1600-1700
1600-1700 H: 2400-2500
19 H: 29
2200 3300-3400 L: 25 H: 38
Photo: Ken Graham Photography
Photo: Ken Graham Photography
Colonnade™
Outdoor Wall Sconces
Colonnade Outdoor wall sconces create a classic architectural look that’s beautifully suited for exterior applications, with interior model options available for design continuity. Sturdy outdoor construction and efficient sources make Colonnade a practical choice for many project types. Plus, there are many different sizes and accent options for Colonnade allowing this timeless luminaire to blend perfectly with just about any design style.
• Solid metal accent bars; sealed and gasketed construction
Colonnade Outdoor Wall Sconce Model Options
OW1041 Single
OW1043 Single
H 15-1/4” (387mm) W 7-3/8” (187mm) D 5” (127mm)
(514mm) W 9-3/8” (238mm)
(140mm)
OW1045 Center Bars H 15-1/4” (387mm) W 7-3/8” (187mm) D 5” (127mm)
OW1047 Center Bars H 20-1/4” (514mm) W 9-3/8” (238mm) D 5-1/2” (140mm)
OW1049 Cross Bars
OW1051 Cross Bars
OW1053 Medallion Accent
OW1055 Medallion Accent
H 15-1/4” (387mm) W 7-3/8” (187mm) D 5” (127mm)
H 20-1/4” (514mm) W 9-3/8” (238mm) D 5-1/2” (140mm)
H 15-1/4” (387mm) W 7-3/8” (187mm) D 5” (127mm)
H 20-1/4” (514mm) W 9-3/8” (238mm) D 5-1/2” (140mm)
Cypress™
Exterior Wall Sconce
The smooth, curved, aluminum face of the Cypress exterior wall sconce visually pulls the mounting surface outward as it creates functional uplight and glowing side illumination. Cypress exterior offers many size and cutout accent options allowing for personalization.
• Uplight or downlight application
• Custom cut-outs for windows available (contact factory)
Cypress Exterior Wall Sconce Model Options
OW1214
H 32-1/8” (816mm) W 13-1/2” (343mm) D 9-1/2” (241mm)
OW1220 Accent Bar H 18-3/4” (457mm) W 8” (203mm) D 6” (152mm)
OW1222 Accent Bar H 25” (635mm) W 10-1/2” (267mm) D 7-3/4” (197mm)
OW1224 Accent Bar H 33-1/8” (343mm) W 13-1/2” (841mm) D 10” (254mm)
Image™
Outdoor Lights
The Image family of luminaires provides tasteful ambient light and flexible design options. These versatile fixtures can be mounted on walls in vertical or horizontal orientations. Image’s quality construction includes solid metal trim and die cast end caps with finish options to meet any design aesthetic.
• Removable cam-action hinged frame for ease of maintenance
• Extruded aluminum backplate and center accent, die-cast end caps.
• Solid metal or die-cast accent
• Sealed and gasketed construction
Image Outdoor Light Model Options
(1216 mm)
20”, 26”, 37”, 48” Image Models
Passage™
Outdoor Linear Egress Lights
Passage is a sleek outdoor egress fixture that provides high-output directional light. Mount the versatile Passage luminaire horizontally over doorways, on facades, along paths of egress, and window mullions.
• Luminous lens or Forward Throw optic
• Extruded aluminum housing
Passage Outdoor Linear Egress Model Options
L
OW2480 Mullion Mount
OW2482 Mount over J-Box
OW2484
(946mm)
(64mm)
(64mm)
L 37-1/4” (946mm) H 2-1/2” (64mm) D 2-3/4” (70mm)
(64mm)
(1829mm)
(64mm)
(70mm)
Plural™
Window Mullion and Night Sky Friendly Outdoor Sconce
Plural is a full cut off performance LED fixture with a chic, tapered profile, and fluted form. Downlight is offered with narrow or medium distribution options. This budget friendly fixture meets a wide variety of exterior lighting requirements.
Plural was created with glass facades in mind. If you are looking for continuity in design, the same fixture can be mounted to the mullion inside and out.
Plural Window Mullion Model
Raven™
Exterior Surface Lights
Raven is a versatile luminaire family with a simple linear form and diffused illumination for corridors, vanity lighting, patient room headwalls, exterior facades, and more.
Raven Exterior Surface Light Model Options
OW1340
24”, Outdoor, with accent
L 24-3/4” (629 mm)
3-3/8” (86mm)
36”, Outdoor, with accent L 36-1/2” (927 mm) W 3-3/8” (86mm) D 4” (102mm)
OW1344
48”, Outdoor, with accent
L 48-3/8” (1229 mm)
(86mm)
(102mm)
OW1346 60”, Outdoor, with accent L 60-1/8” (1527 mm) W 3-3/8” (86mm) D 4” (102mm)
OW1348
2800 H: 3900-4100 L: 23 H: 35
18”, Outdoor, with accent L 18-1/2” (470mm) W 3-3/8” (86mm) D 4” (102mm) L: 750 H: 1100 L: 7 H: 10
OW1350
18”, Outdoor, no accent
OW1352
24”, Outdoor, no accent
OW1354
36”, Outdoor, no accent
OW1356
48”, Outdoor, no accent
OW1358
60”, Outdoor, no accent
L 24-3/4” (629 mm) W 3-3/8” (86mm) D 4” (102mm) L: 800 H: 1400 L: 7 H: 13
L 36-1/2” (927 mm) W 3-3/8” (86mm) D 4” (102mm) L: 1900-2000 H: 2800-2900 L: 17 H: 26
L 48-3/8” (1229 mm) W 3-3/8” (86mm) D 4” (102mm) L: 2200-2300 H: 3300-3400 L: 19 H: 29
L 60-1/8” (1527 mm) W 3-3/8” (86mm) D 4” (102mm)
L: 2800 H: 3900-4100 L: 23 H: 35
Sanibel™
Outdoor Sconce
Sanibel is minimalist and modern, with a unique curved body and indirect light that creates understated illumination. It can be mounted in an uplight or downlight orientation. Depending on the finish color chosen, Sanibel can blend into the wall for a clean, quiet effect.
• Die cast aluminum housing
• Frosted acrylic lens
• May be mounted in uplight or downlight orientation
• Easily cleaned slim profile
Sanibel Outdoor Sconce Model Options
Sass™
Outdoor Wall Sconce
Available with a cylindrical or rectilinear form, the SASS sconce is equipped to light indoor or outdoor applications. Its luminous glow begins in the center and reaches the diffuser ends, giving SASS and the surrounding space an elegant softness.
• Cast aluminum body
• IP65 rated
Sass Outdoor Wall Sconce Model Options
22” (559mm) W 2-1/2” (64mm)
H 22” (559mm) W 2-1/2” (64mm) D 4” (102mm)
Sass Cylindrical, Sass Rectilinear
Scope™
Cylinder Outdoor Sconce, Window Mullion Friendly
Scope is a small and elegant cylindrical outdoor fixture that can be mounted on exterior walls and window mullions. Scope is offered in a variety of product models featuring luminous body and cast body with beam light housing styles—mix and match models to achieve your exterior lighting goals while maintaining a unified luminaire style.
• Narrow or Medium beam light spread
• 0-10V dimming to 1%
• IP65 rated
Scope Cylinder Outdoor Sconce Model Options
Sequence™
Outdoor Wall Sconce
A beautifully illuminated 4” cylinder of light sits off the wall with thin crescentshaped arms. This dramatic wall sconce is available in 34” and 45” lengths. Sequence Sconce is our popular Sequence pendant in wall-mounted form. This luminous tube sconce is also available in indoor models.
• Die-cast wall housing
• Impact-resistant acrylic diffuser
Sequence Outdoor Wall Sconce Model Options
Avera Sacred Heart Hospital, Yankton SD Specifier: BWBR Architects | Photo: Kenneth Petersen
Shine™
Outdoor Surface Lights
Built for outdoor applications, this Shine outdoor surface light will allow for a seamless continuity of design if paired with our indoor version of this luminaire. The Shine family offers simple, luminous design that is modern and highly efficient. Shine’s linear diffuser body with solid square endcaps can be mounted horizontally or vertically.
• Cast and extruded aluminum construction
• Frosted high impact grade acrylic
• Tamper resistant fasteners
Shine Outdoor Surface Light Model Options
(711mm)
(76mm)
L 42-1/2” (1080 mm) W 3” (76mm)
4” (102mm) D (JBC) 4-1/4” (108mm)
L 52-1/2” (1334 mm)
OW5517
OW5524
3” (76mm)
4” (102mm)
(108mm)
L 19” (483mm) W 3” (76mm) RD 4” (102mm) D (JBC) 4-1/4” (108mm)
19”, 28”, 42”, and 52” Shine Models
Visage™
Outdoor Slot Lights
The beauty of Visage lies in its simplicity. Visage features a clean, luminous diffuser, multiple length options, and a shallow recessed depth, complementing building architecture.
• Shallow 3-3/8” recessed housing
• Vertical or horizontal mounting
Visage Outdoor Slot Light Model Options
OW1600
26”, Outdoor, Surface Frame
OW1604
38”, Outdoor, Surface Frame
OW1606
49”, Outdoor, Surface Frame
OW1610
60”, Outdoor, Surface Frame
L 25-1/2” (648 mm) W 6-1/8” (156mm) D 1” (25mm)
L 37-1/2” (953mm) W 6-1/8” (156mm) D 1” (25mm)
RL 36-3/8”(924mm) RD 3-3/8” (86mm)
L 49”(1245 mm) W 6-1/8” (156mm) D 1” (25mm)
RL 47-7/8”(1216mm) RD 3-3/8” (86 mm)
L 61” (1549mm) W 6-1/8” (156mm) D 1” (25mm)
RL 59-7/8”(1521mm) RD 3-3/8” (86mm)
L: 1350-1450 H: 2100 L: 18 H: 29
RL 24-1/4”(616mm) RD 3-3/8” (86mm) 3000K 3500K 4000K L: 900-950 H: 1400-1450 L: 12 H: 20
L: 1900-1950 H: 2800-2900 L: 23 H: 38
L: 2200-2300 H: 3400-3500 L: 29 H: 45
Maria Parham MC, Henderson NC | Specifier: McCulloch England Associates | Photo: Peter Brentlinger
Accessories
Remote Power Supplies for PSX Models
• Single power supply provides power to single or multiple fixtures
• 120V or 277V input, 24VDC output
• Class II output eliminates the need for conduit
• Uses plenum rated class II cable (available as an accessory)
• Integral terminal block for output connections
• Available with analog (0-10V) or DMX-512 interface for 3-channel color mixing
• UL 1598 Listed Fixture Fitting
• Suitable for recessed installation (non-IC)
(277V)
* Maximum 20’ remote wiring distance to each connected luminaire
Emergency Lighting
• UL listed stand-alone simulated sine wave output inverter designed to provide power to designated emergency lighting fixtures
• In a power loss situation, the EMV will supply 20375 watts of power from the on-board battery supply, depending on model below
• Input: 120/277V
• Output: 120/277V, 20W, 125W or 375W for 90 minutes in emergency mode.
• PS-EMVM and PS-EMVH have dimming circuit bypass relay to force full output during a power failure
• Surface or cabinet mount
Cables
LVPC-DIM Low Voltage Controller (3 Load with Dimming)
The LVPC-DIM interface enables users to turn lights on or off or dim safely when used with low voltage, momentary contact switches, such as those found on patient pillow speakers, bed communication side rail devices, and nurse call auxiliary outputs.
Only a single switch is required for full control of each load, allowing use of existing patient controls and simple momentary wall switches. It can be used with fluorescent, LED and other lamp types. It controls up to 3 general-use and electronic ballast type loads, with dimming control of two loads (via 0-10V interface). Additional switches/contacts may be wired in parallel to permit control from multiple locations.
LVPC-DIM Wiring Diagram
The LVPC-DIM may be mounted in a light fixture or other suitable enclosure and should be installed by a qualified electrician only. The installer must follow all applicable National Electrical Code requirements.
*Patient hand control switch in photo made by others
Visit visalighting.com/accessories for more information.
Paint Finishes
Eco Friendly Standard Powder Coat Finishes
With no solvents or hazardous materials, our powder coat painting process is more consistent, durable, and more environmentally friendly than conventional liquid paint. Choose from standard color options without worrying about safety and sustainability. Powder coating eliminates runs, drips and sags during the painting process, and protects against chips, abrasions, UV light, chemicals, and heat (up to 400° F).
We offer additional RAL colors and custom color matching for a slight premium charge.
Slate Grey SLGR RAL 7021
Sagebrush Green SBGN RAL 180-80-10
Alpine Green ALGN RAL 140-30-10
Cove Blue CVBL RAL 260-30-20
Ocean Blue OCBL RAL 280-20-10
Vineyard Red VNRD RAL 030-30-20
Terracotta Canyon TRCN RAL 2013
Sierra Taupe SSTP RAL 060-60-10
Velvet Black VBLK
Jet Black JBLK RAL 9005
Shoreline Grey SHGR RAL 060-70-05
Agate Grey AGGY RAL 7038
Harbor Grey HRGR RAL 7040
Glacier White GLWT RAL 9003
Traffic White TRWT RAL 9016
Deoro Gold DEOR RAL 1012
Blade Silver BSIL
Graphite Silver GSIL
Bronze BRNZ
Bronze Matte BMAT
Alternative Finishes
Alternative & Premium Metal Finishes
We offer alternative metal finishes on certain fixtures to attain a metal look without the cost and environmental damage of standard plated metals. Premium metal and acrylics are also available.
Specify color code when ordering. For accurate color matching, individual paint and finish samples are available upon request For more information about our finishes visit visalighting.com/finishes
Premium Metal Finishes
Visa Lighting premium metal finishes are spun, polished, and finished in our Milwaukee facility. All finishes are grade level 1. Each product specification sheet shows which finishes are available.
Brushed Brass Alternative BZA
Rustic Brass Alternative
Brushed Bronze Alternative
Brushed Copper Alternative BUA
