Behavioral Health Lighting

About Visa Lighting

Proudly Made in America

Visa Lighting products have been meticulously constructed by dedicated American workers in Milwaukee, WI for over 60 years. Our employees strive to consistently provide exceptional product with exceptional service every day. Our luminaires are created with a blend of old-world craftsmanship and new-world technologies. Highly skilled design, engineering, manufacturing, and assembly teams ensure fixture quality and artistry, while innovative machining methods ensure consistency and efficiency.

As an American manufacturer, you can have the peace of mind that comes from knowing your lighting product has contributed to American jobs and has been built according to American manufacturing standards. We strive to source our components within a onestate radius of our headquarters in Milwaukee, WI, enabling us to verify that all of our luminaires meet the requirements of both the Buy American Act (BAA) and the Build America Buy America Act (BABA). Plus, with engineering and manufacturing located together in the heartland of the U.S., we have the capability to customize products to your specific needs.

5X Winner of the Nightingale Awards

The prestigious Nightingale Awards recognize a product’s contribution to the healing environment as well as its functionality, durability, quality, aesthetics, style, and pricing.

• Nightingale Innovation Award: Liberty Winning products include:

• Nightingale Gold Award: Gig, Harmony, Symmetry

• Nightingale Silver Award: Lenga, Sole

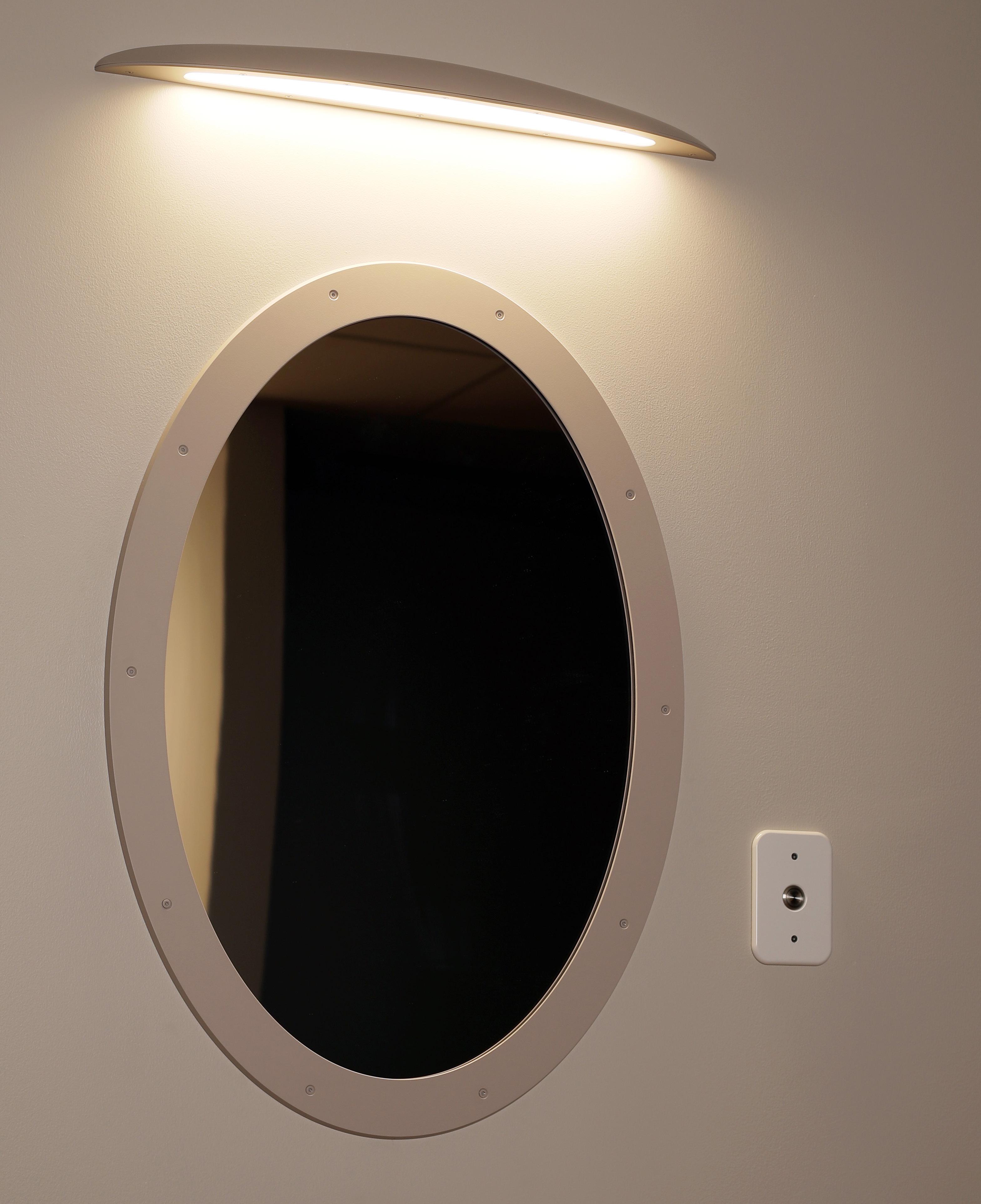

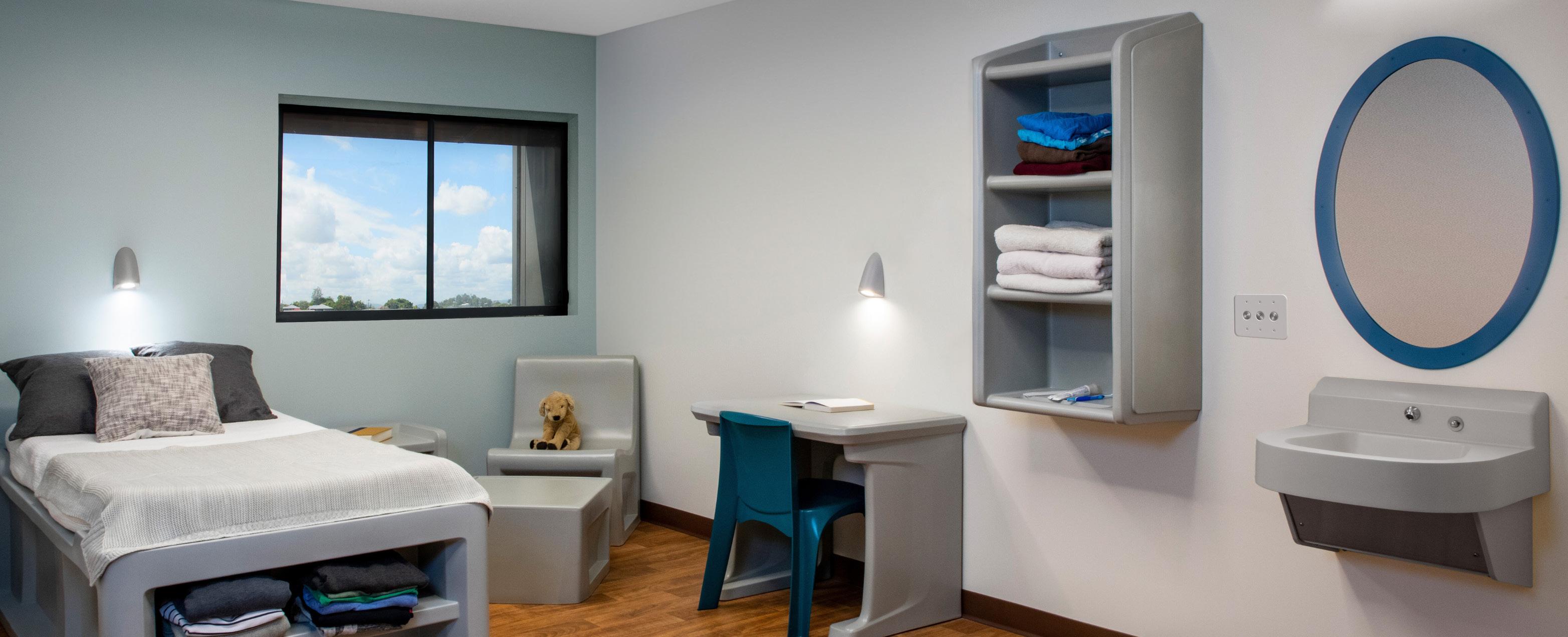

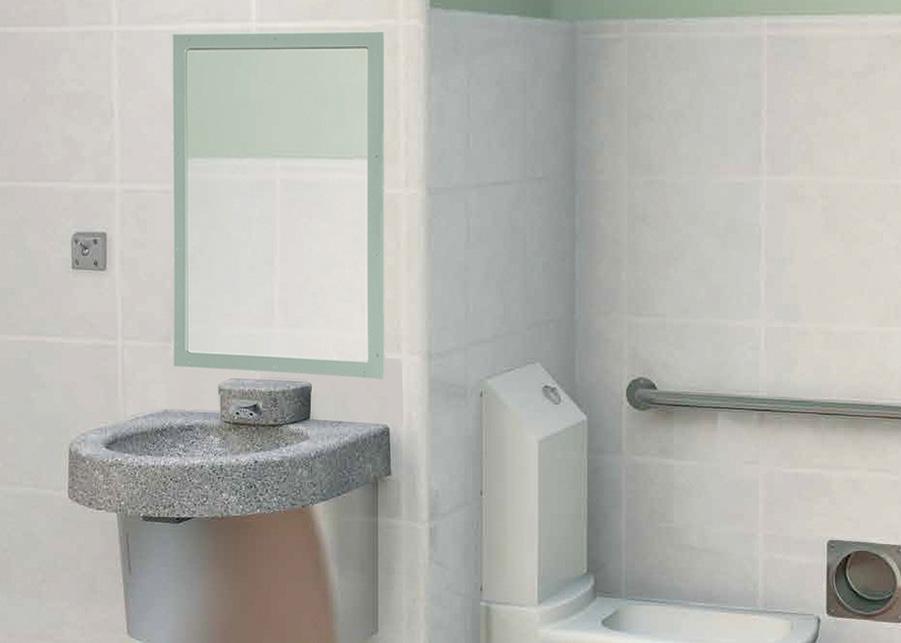

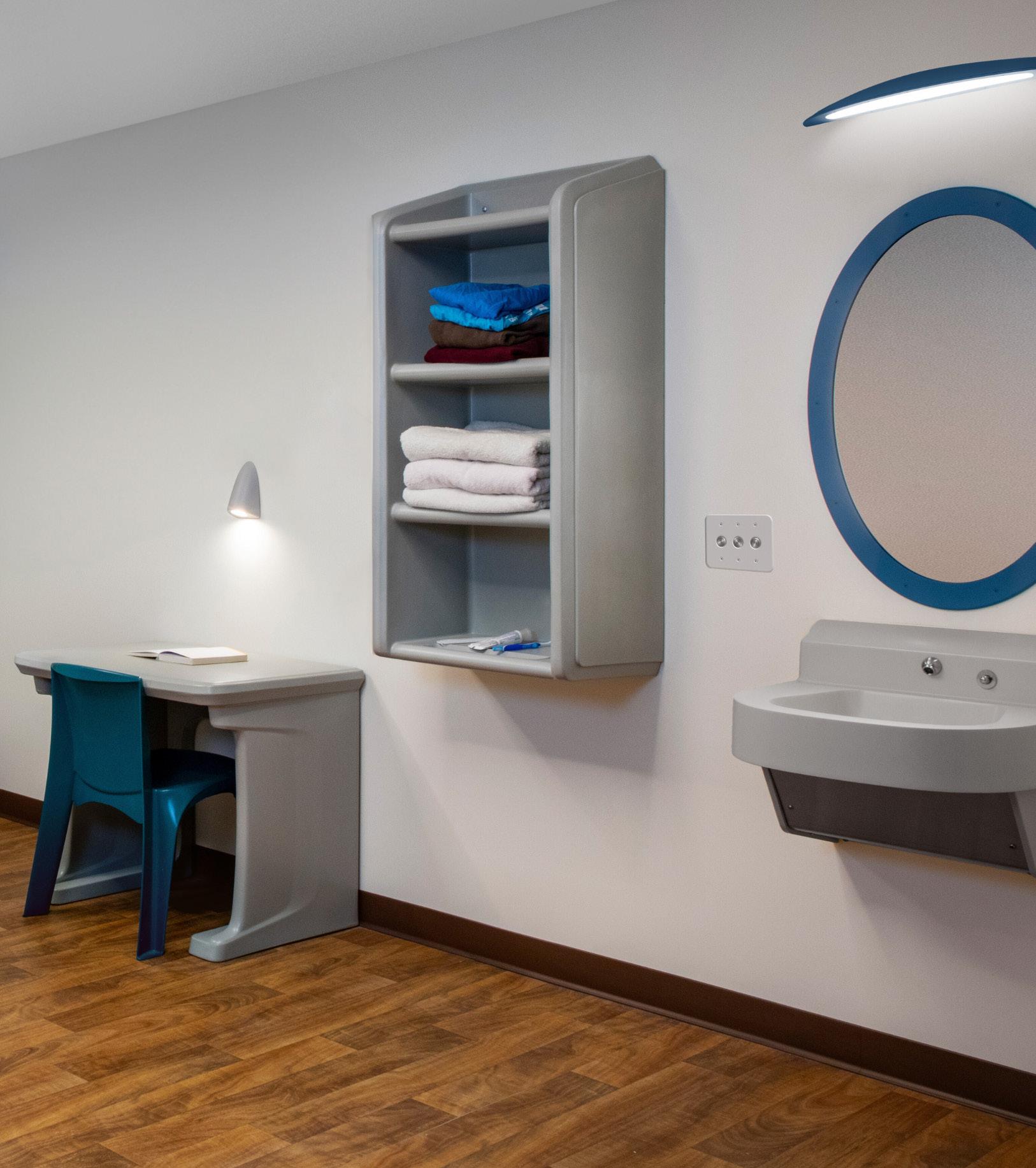

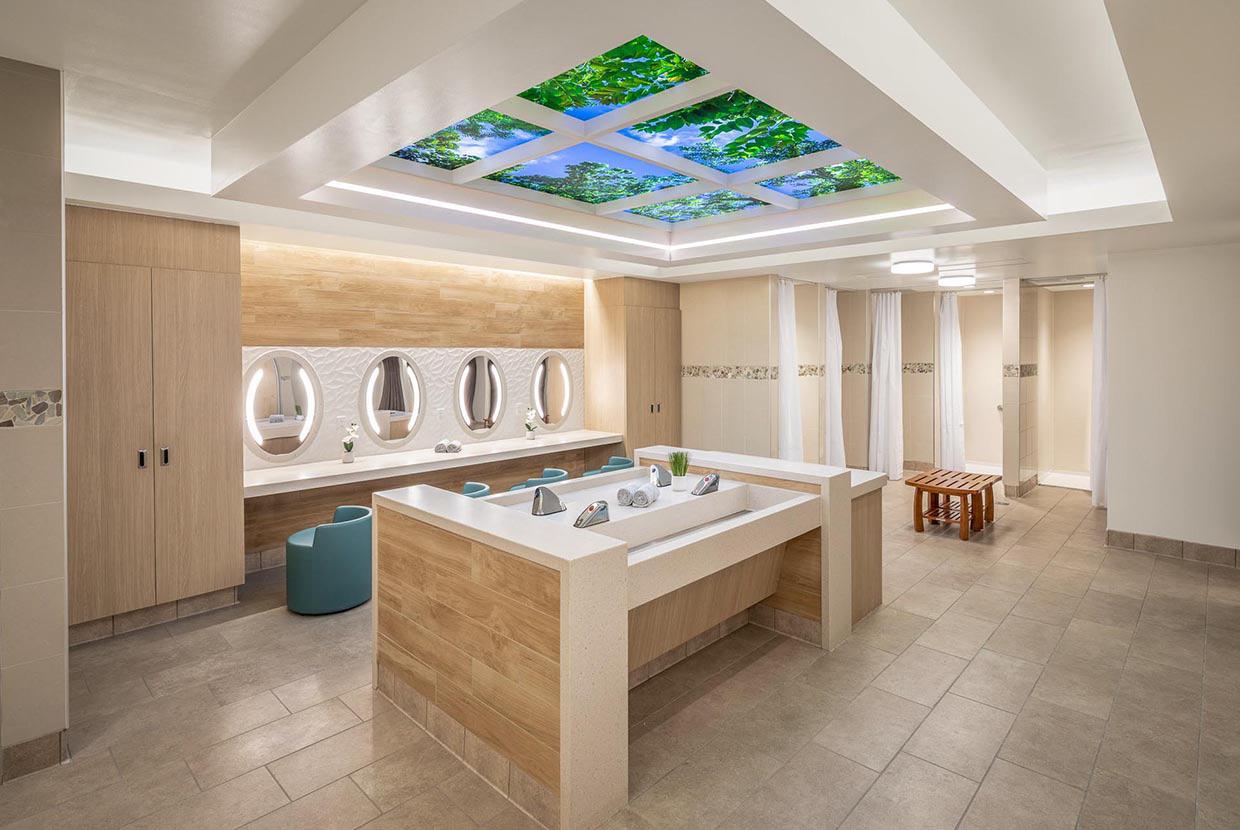

Products pictured: Gig and Sole Non-Illuminated Mirror

Improving Behavioral Health

Illuminating Wellness: The Purpose of Behavioral Health Lighting

Lighting plays a profound role in influencing mood, behavior, and overall mental wellbeing. In behavioral health settings, where patients may already be experiencing heightened stress or anxiety, the impact of lighting becomes even more significant.

Research consistently demonstrates the significant impact of lighting on patient outcomes in behavioral health settings.

Studies have shown that environments with well-designed lighting can:

• Reduce symptoms of depression and anxiety

• Improve sleep quality and duration

• Increase patient satisfaction and engagement in therapy

• Accelerate recovery rates

By addressing the specific sensory needs and challenges faced by individuals with mental health conditions, behavioral health lighting contributes to a holistic approach to care that encompasses both physical and psychological wellbeing.

Our Approach to Behavioral Health Lighting

In the realm of healthcare design, every detail plays a vital role in enhancing patient wellbeing and aiding in recovery. Among these details, lighting stands out as a crucial factor, especially in behavioral health environments.

At Visa Lighting, we are dedicated to crafting lighting solutions that are robust yet non-institutional in style. Recognizing the importance of aesthetics in improving the patient’s experience with behavioral health environments, we’ve created luminaires which promote a sense of calmness by integrating sleek designs with state-of-the-art technology. This commitment goes beyond mere functionality, aiming to enhance the overall experience of patients, their families, and staff within these environments.

Our Products

Our behavioral health luminaires are constructed for ligature, impact, and tamper resistance. This is achieved by using the right components, made from carefully selected materials.

Tamper Resistant Screws

To prevent being opened or damaged, tamper-resistant screws with special heads that can only be removed with a specific tool are used.

Pick Proof Caulk

To reduce damage and ligature risk, many fixtures require caulk that is pickproof around the housing, especially if the surface is not smooth.

Certifications & Listings:

Mounting Brackets

Luminaires must be securely fastened to structural blocking using supplemental screws and/or mounting brackets, according to installation instructions.

Polycarbonate Lens

High abuse luminaires need polycarbonate lenses in place of (or over) typical diffusers to protect inner components and to allow light through.

Testing

While there is no universally upheld standard for fixtures in behavioral health, our engineers evaluate each luminaire according to the New York State Office of Mental Health’s testing model. We also conduct our impact testing based on the IEC IK standard for impact resistance.

Ligature Resistance

All patient-facing components where two or more materials meet must be thoroughly tested for ligature resistance. This means that objects cannot be wedged in or looped around any particular spot to create an anchor point. To test this, engineers attempt to secure a ligature to luminaires both before and after repeatedly applying mechanical impact or pressure to the luminaire while it is installed.

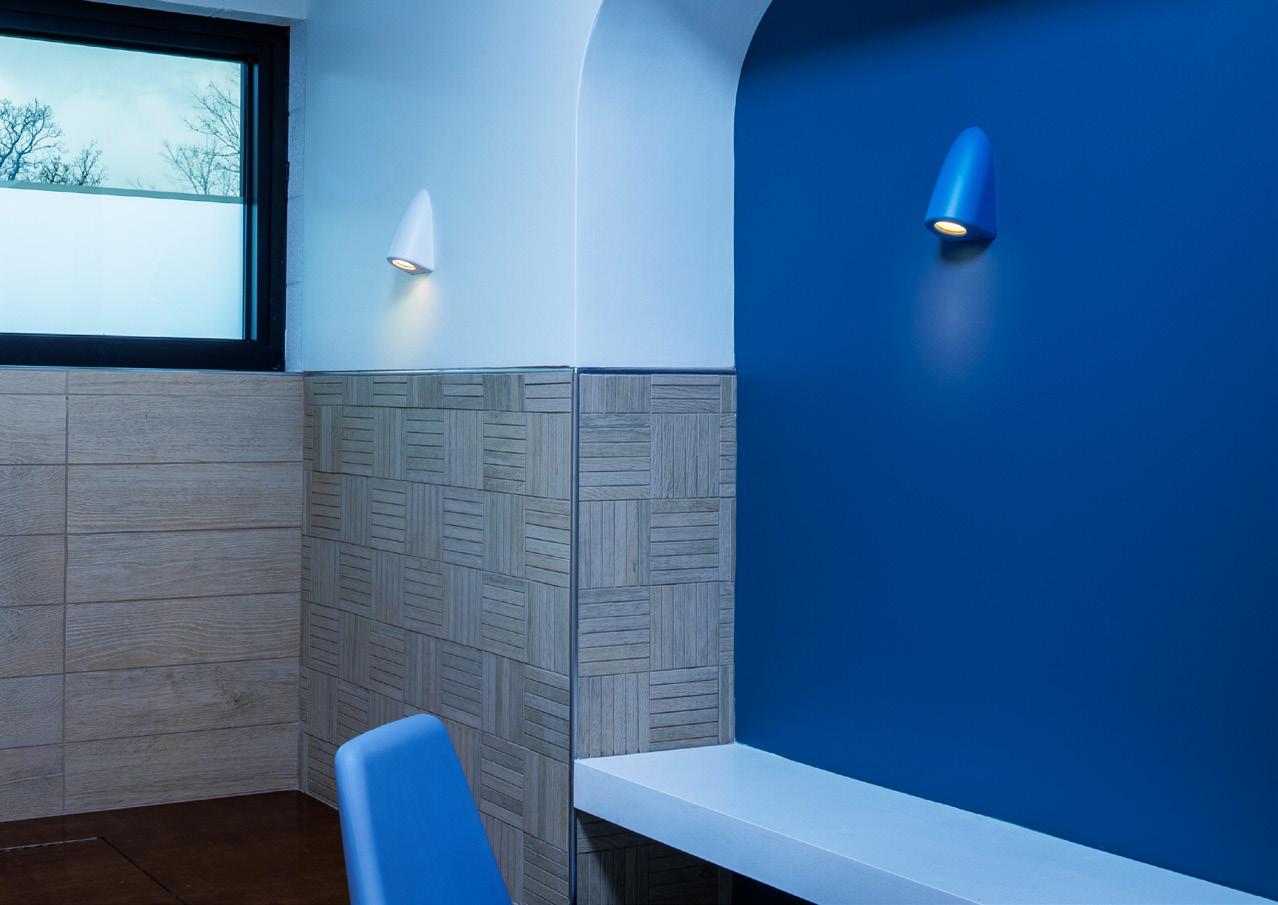

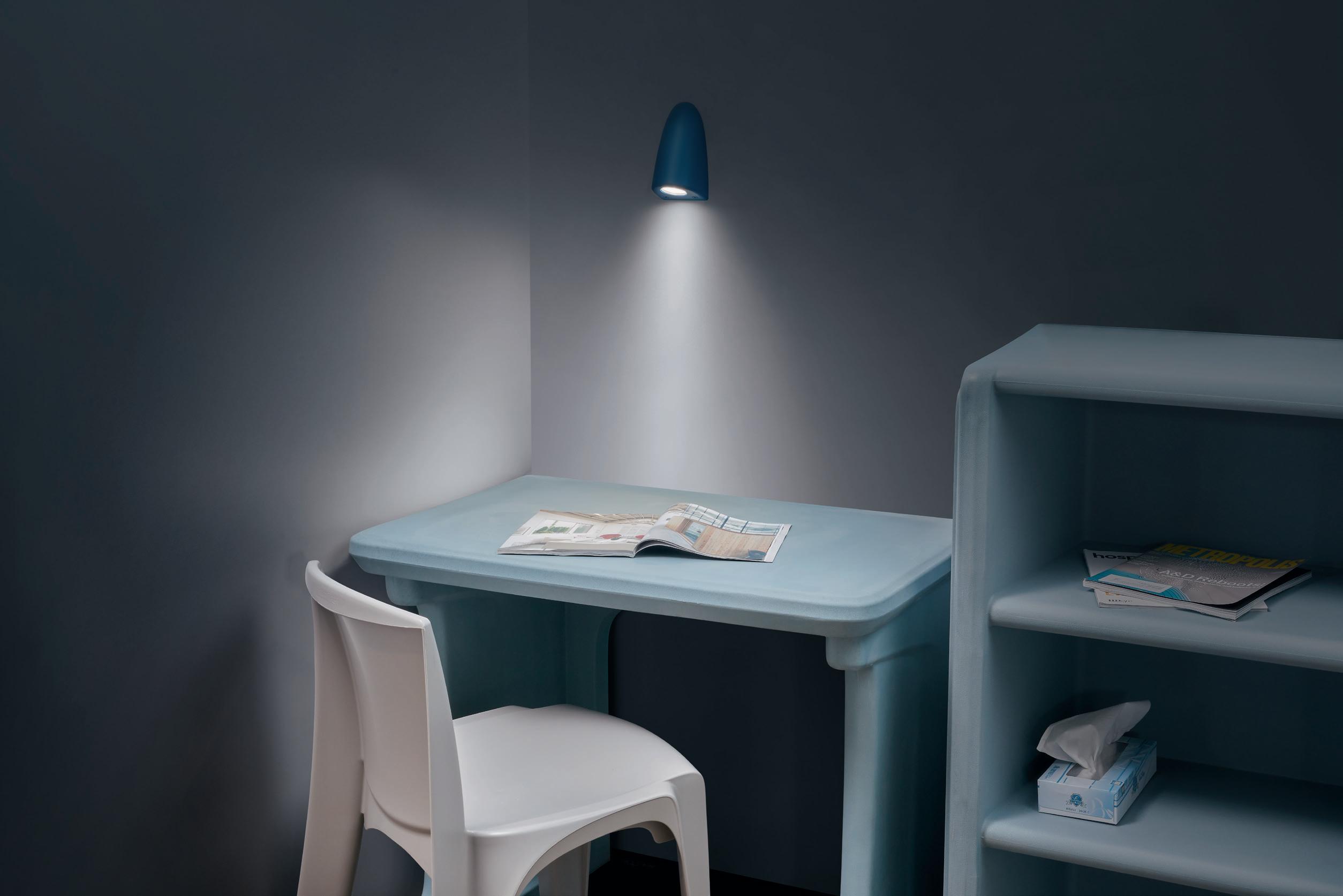

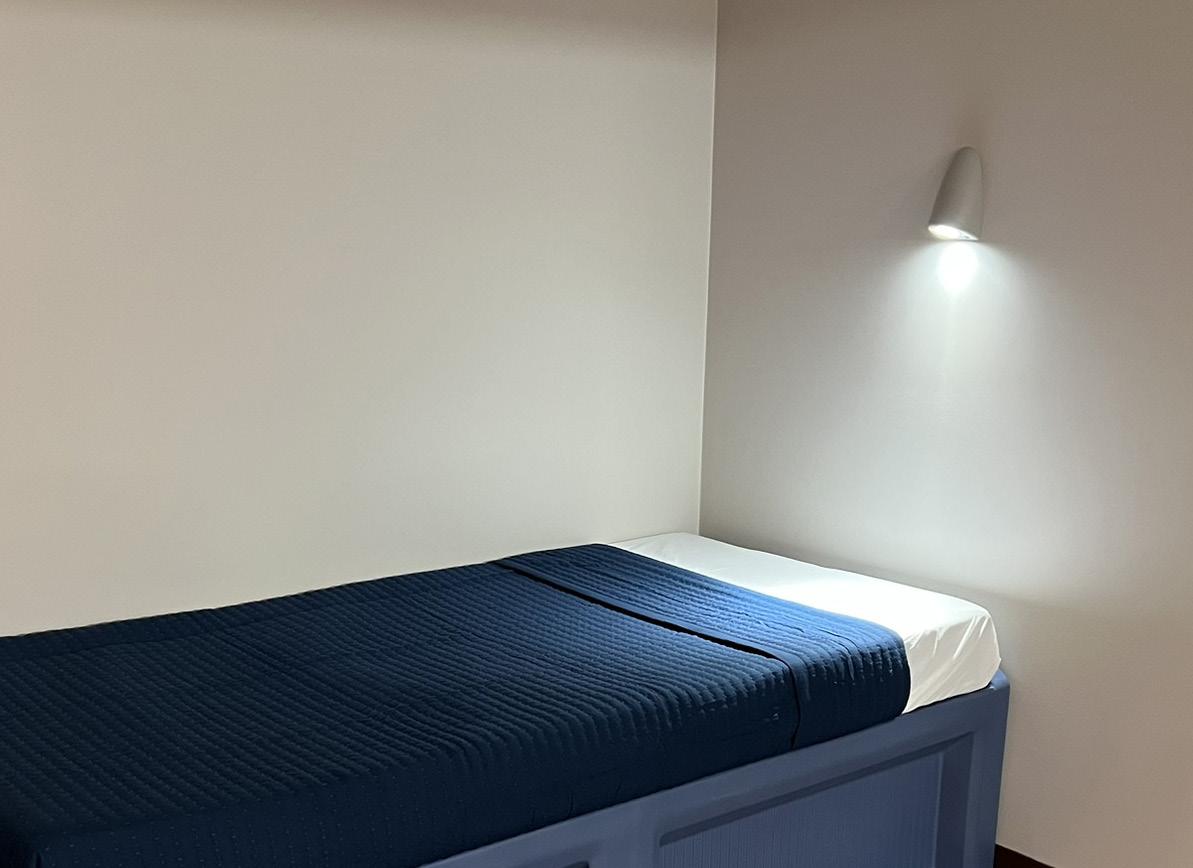

Gig™

Task Lights

Gig is the first task light designed for behavioral health/high-abuse applications. With a IK10+ (100 joules) high-abuse impact rating, an impact-resistant polycarbonate lens, and anti-ligature construction, this compact task light is designed for patient and caregiver safety.

In addition, its minimalist, attractive design and high-quality illumination provide visual comfort.

• Integral or remote driver

• IP65 rated

• IK10+ (100 joules) impact-resistant when BH1 Mounting Bracket is used

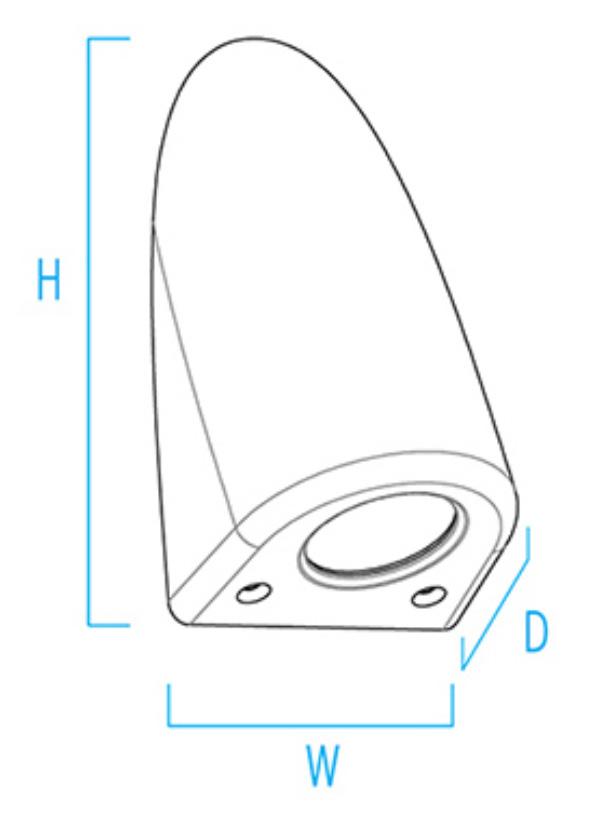

GIG | Integral (CB1800)

• Small form factor

• Smooth, ligature-resistant design

• 0-10V, touch dimming, or DALI options available

6-3/4” (171mm)

3-3/4” (95mm)

VOLTAGE, DRIVER, AND CONTROLS PROTOCOL

120V-TOUCHDIM

MVOLT-RMD-TOUCHDIM

MVOLT-RMD-DIM10

MVOLT-RMD-DALI

COMPLIANCE Wet IP65 IK10+ ADA

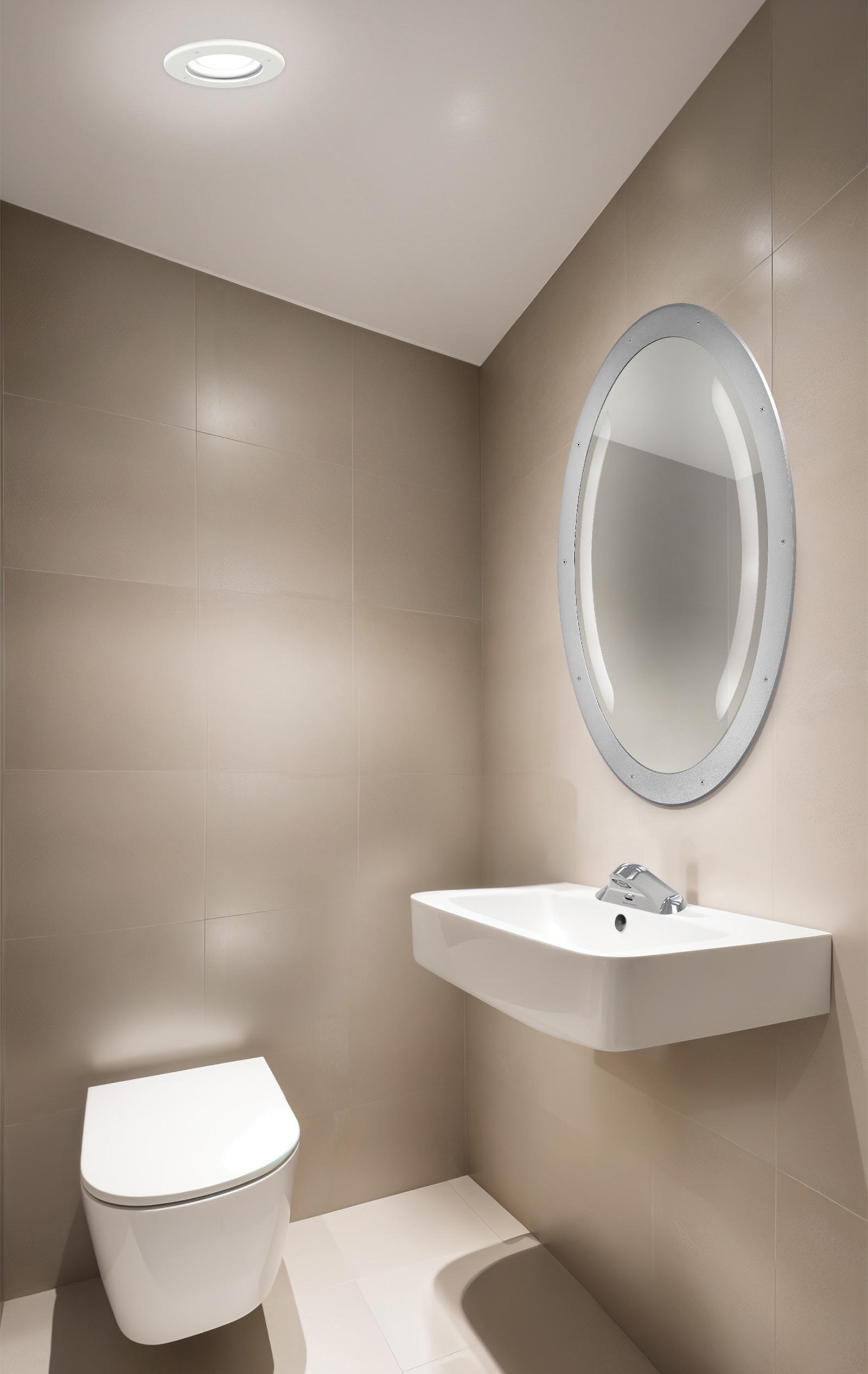

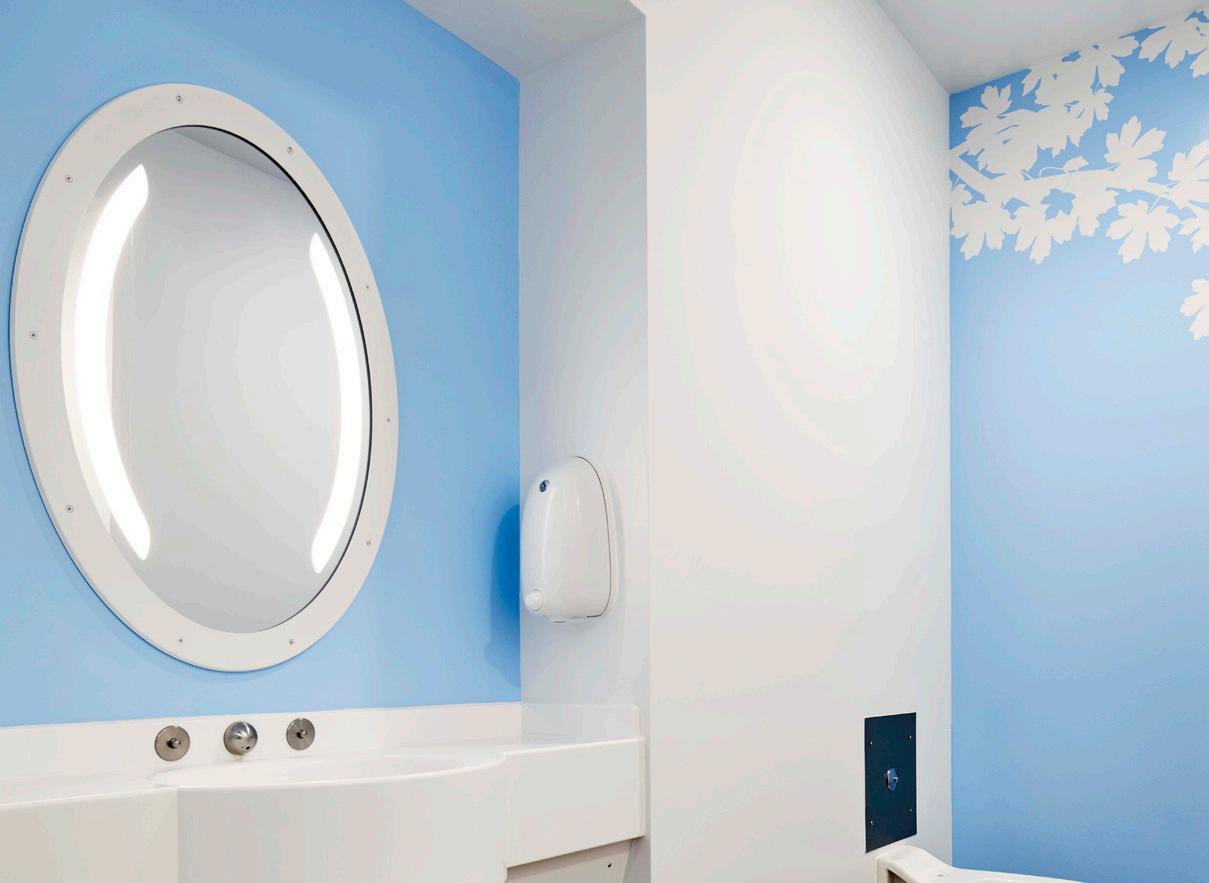

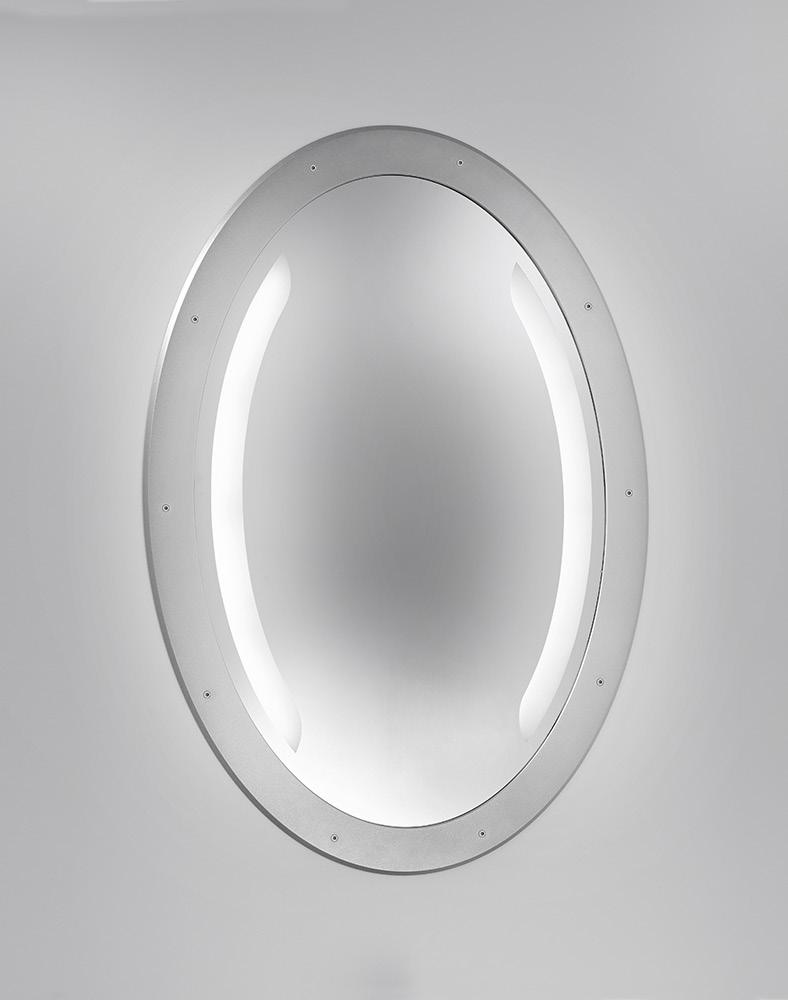

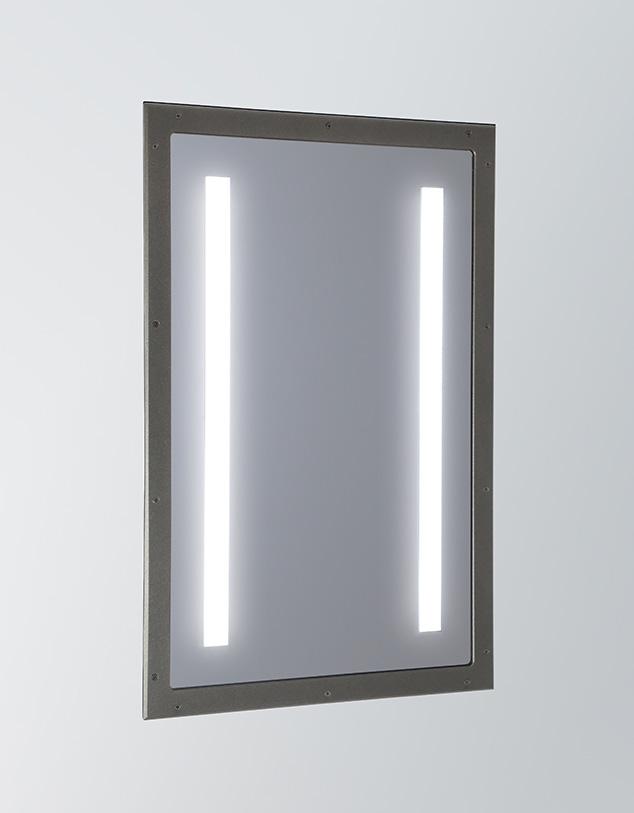

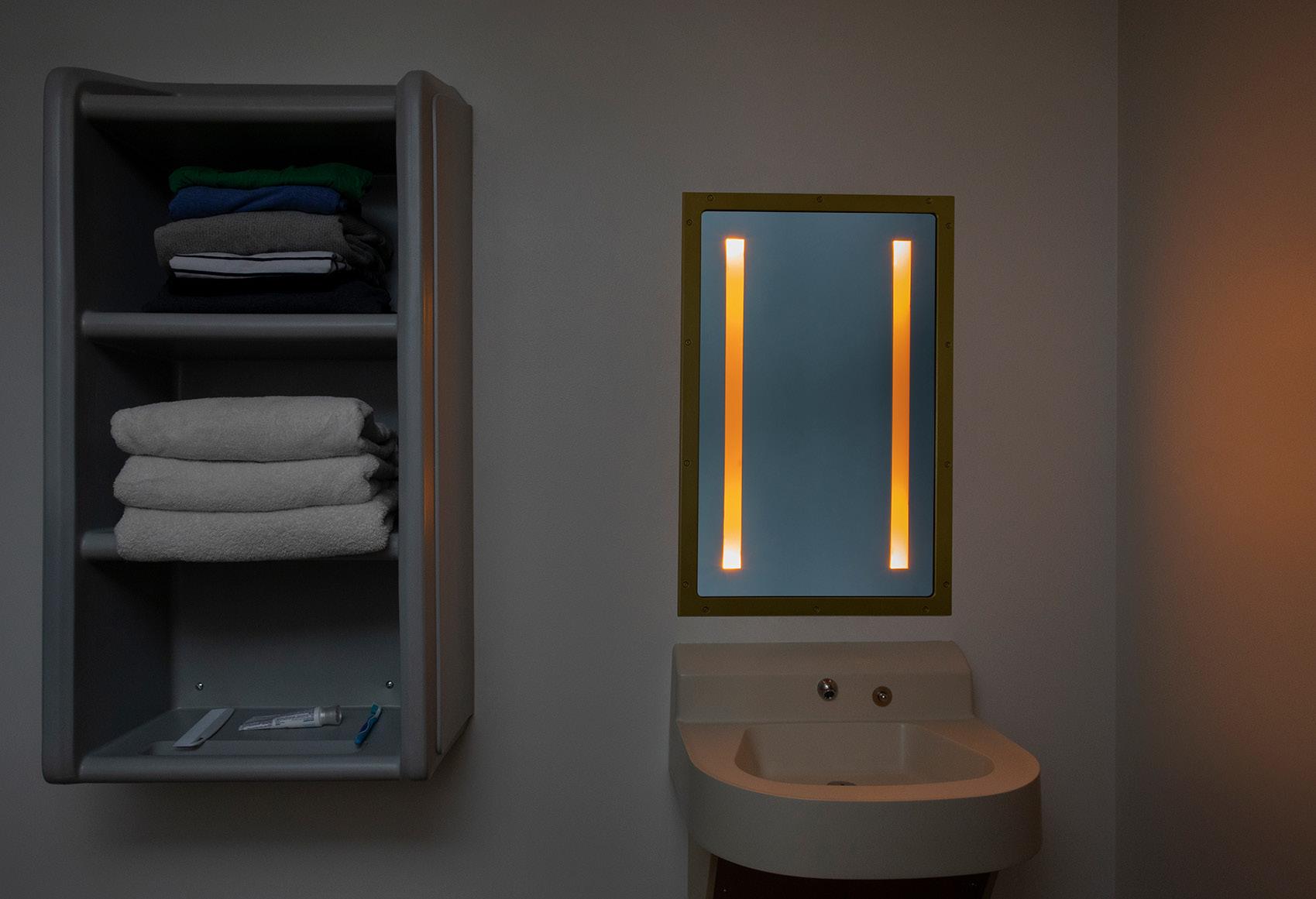

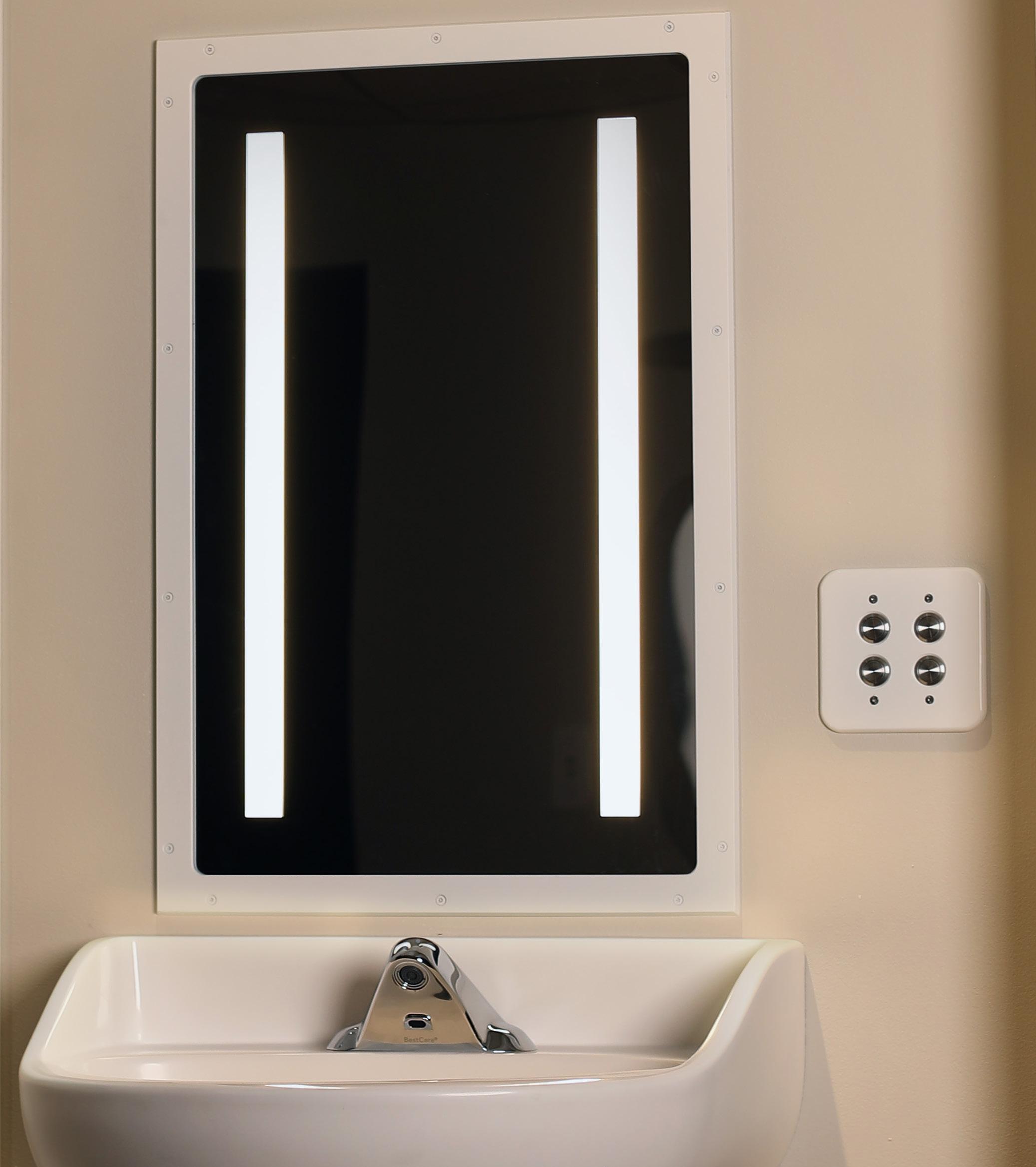

Sole™

Illuminated Behavioral Health/High-Abuse Mirror

With an impact-resistant polycarbonate mirror and tamper-resistant hardware, Sole is ideal for patient bathrooms. Sole’s attractive aesthetic fits high end hospitality designs, providing a warm, relaxing environment for behavioral health/high-abuse facility patients.

• Ligature resistant

• Tamper-resistant hardware

• Remote driver box allows servicing without disturbing the patient

• Optional amber LED Night Light

• IP65 rated

• 90+ CRI Standard

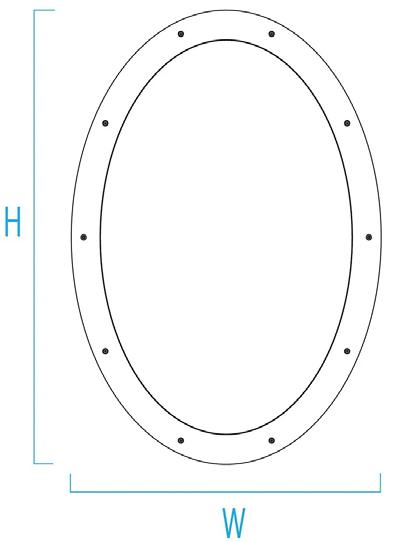

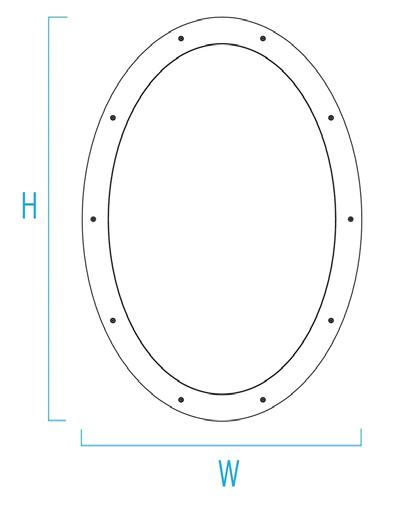

SOLE | Oval (CB1853)

H 33-7/8” (860mm)

W 23-7/8” (606mm)

RD 3-3/4” (95mm)

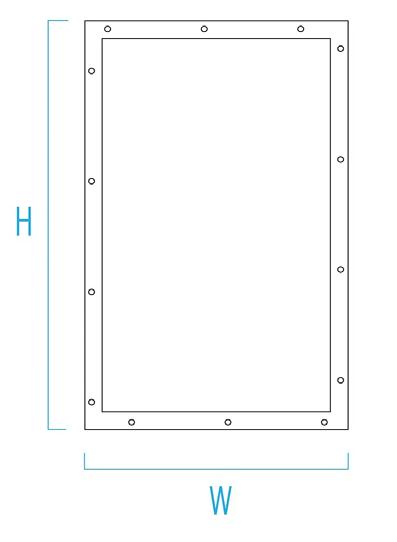

SOLE | Rectangular (CB1851)

H 30” (762mm)

W 20” (508mm)

RD 3-5/8” (92mm)

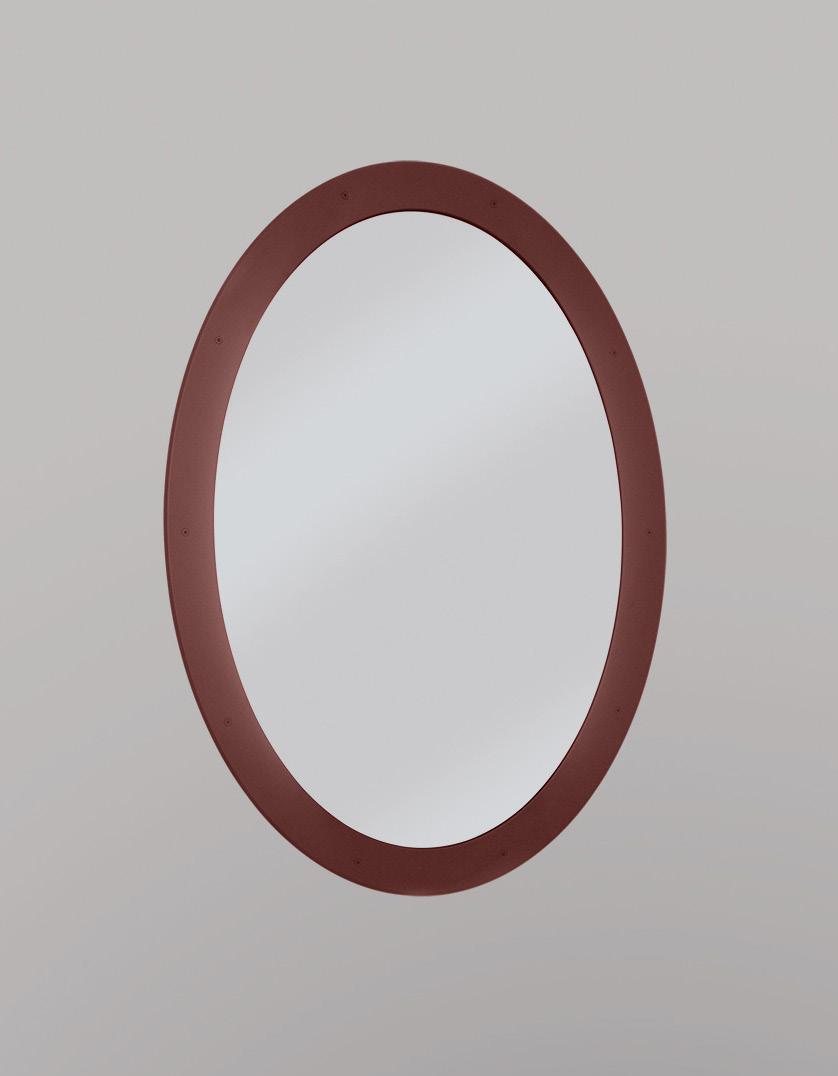

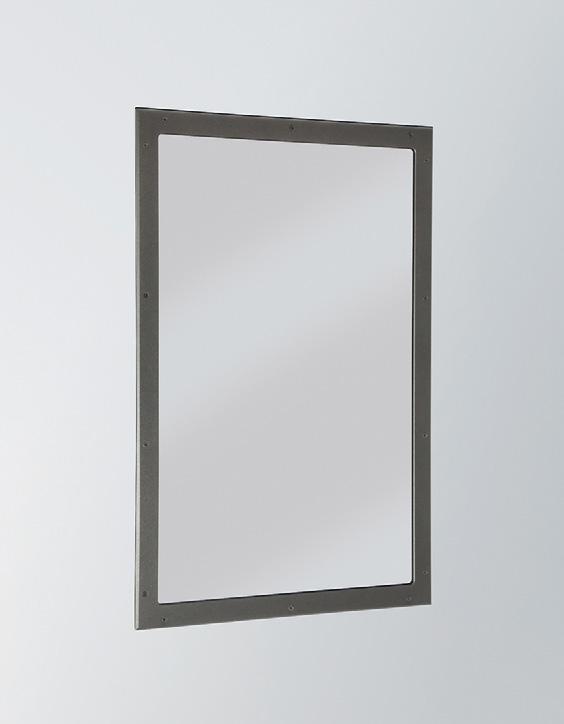

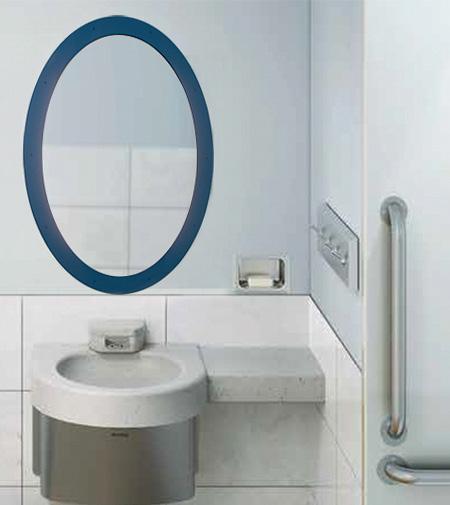

Non-Illuminated Behavioral Health/High-Abuse Mirror

Sole is also offered in a non-illuminated version to compliment Visa Lighting’s Sanibel Behavioral Health sconce. These unlit mirrors have the option of the impact-resistant polycarbonate mirror or a stainless-steel mirror.

• Ligature resistant

• Tamper-resistant hardware

• Polycarbonate or stainless steel mirror material options

• Impact-resistant

SOLE | Oval (CB1857)

SOLE | Rectangular (CB1855)

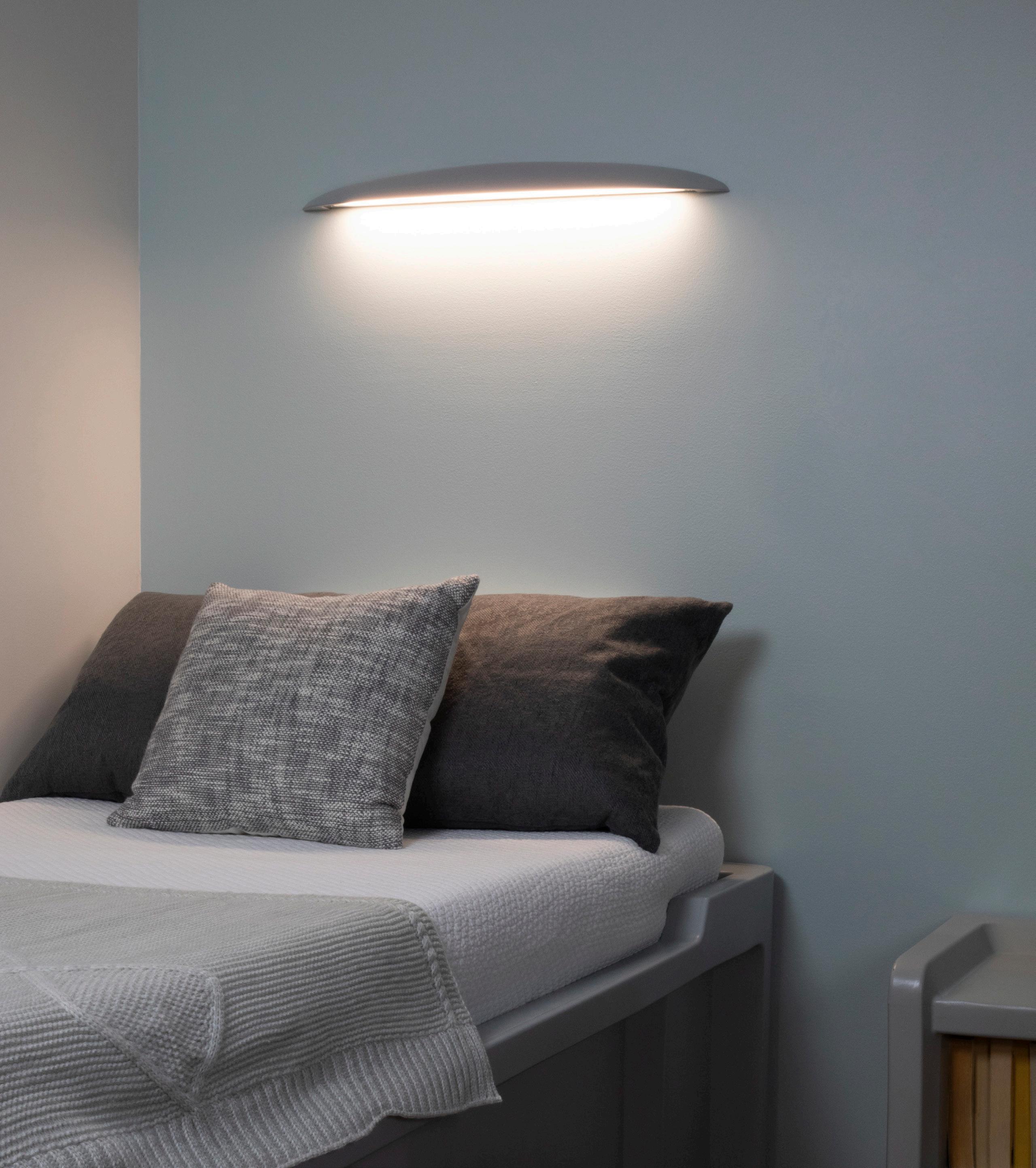

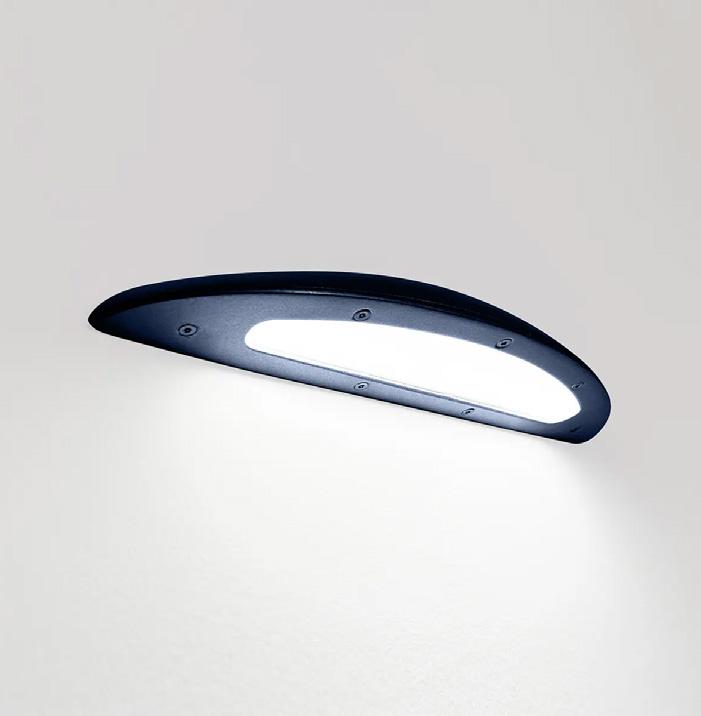

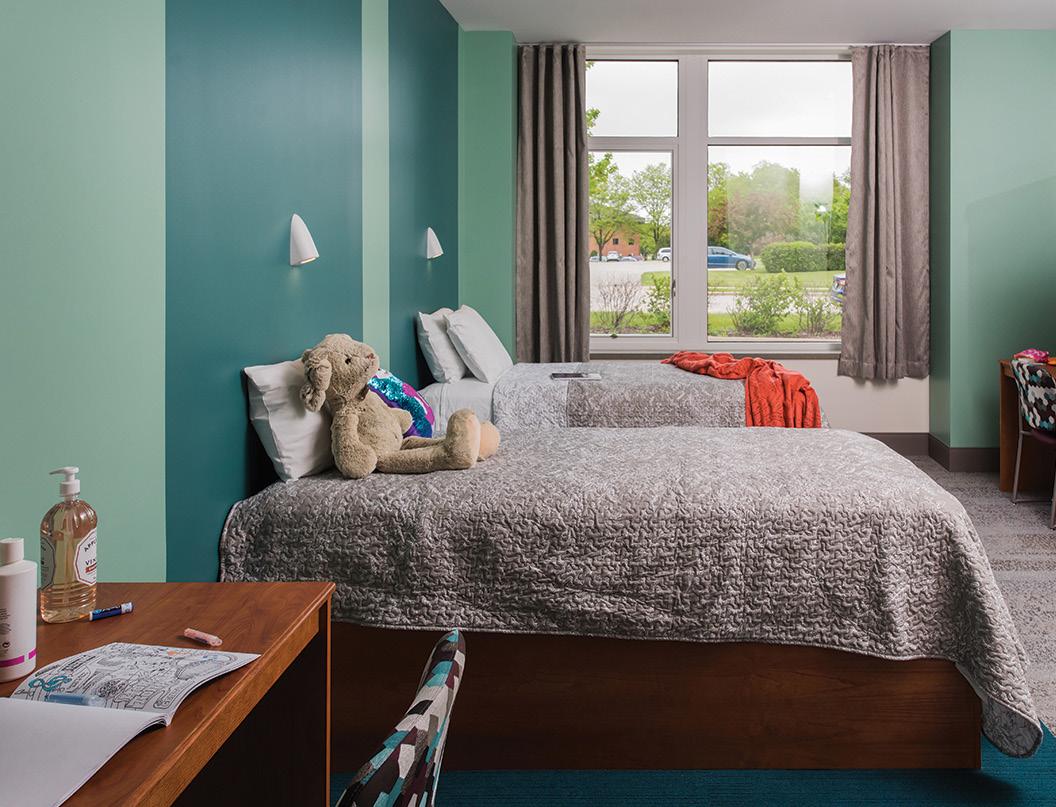

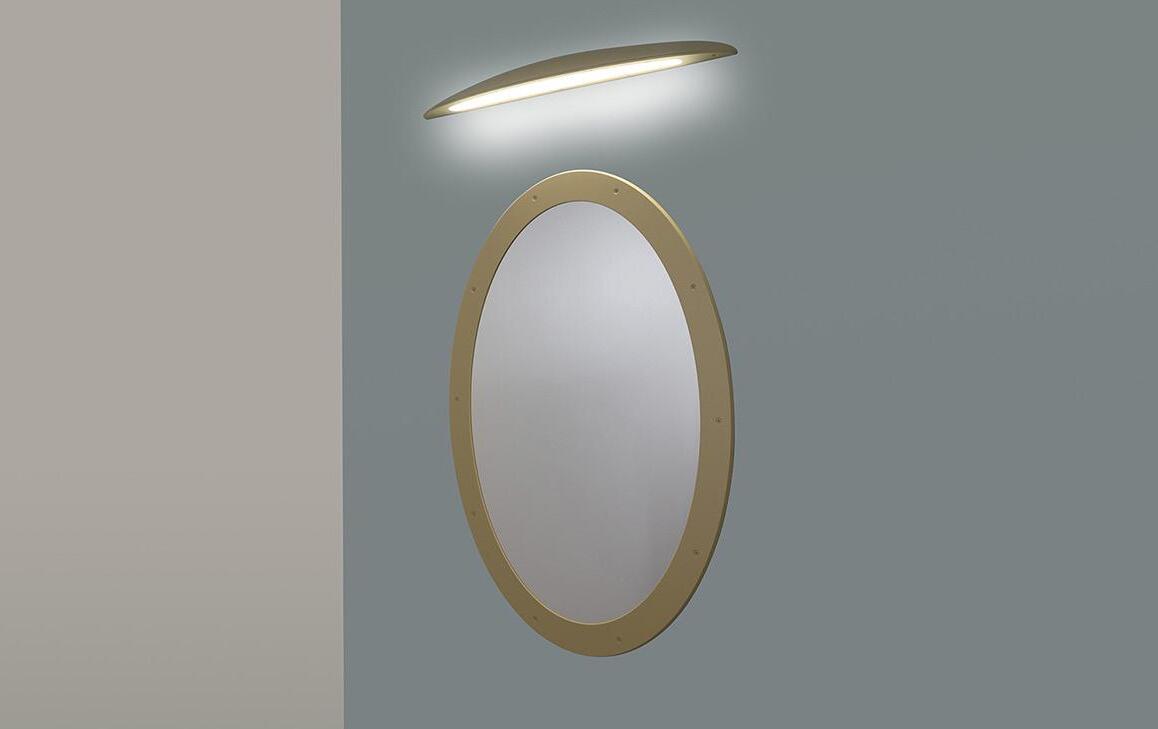

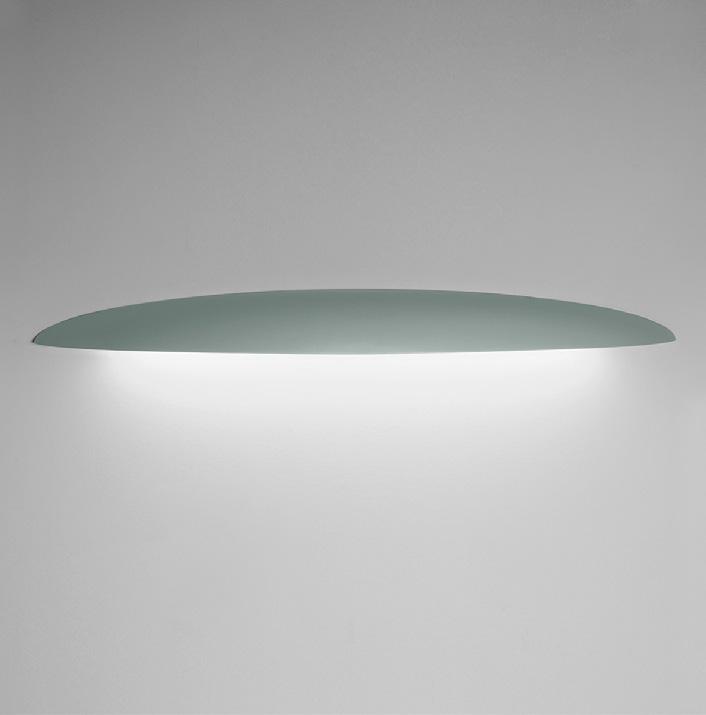

Sanibel™

Behavioral Health/High-Abuse Sconce

Sanibel is minimalist and modern, with a unique curved body that delivers understated illumination. Behavioral health/high-abuse models can only be mounted in a downlight orientation. Depending on the finish color chosen, Sanibel can blend into the wall for a clean, quiet effect.

• Die cast aluminum housing

• Polycarbonate lens

• Machined, back-box for high-abuse installations

• Easily cleaned slim profile

• Remote driver box (able to locate in accessible location)

• 90+ CRI Standard

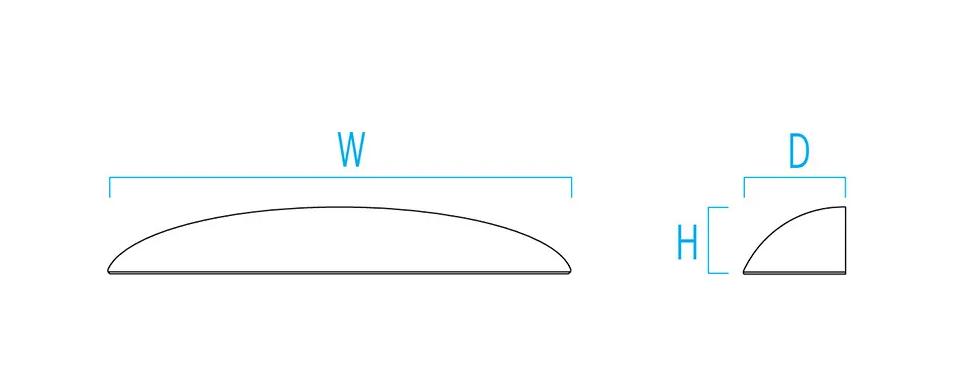

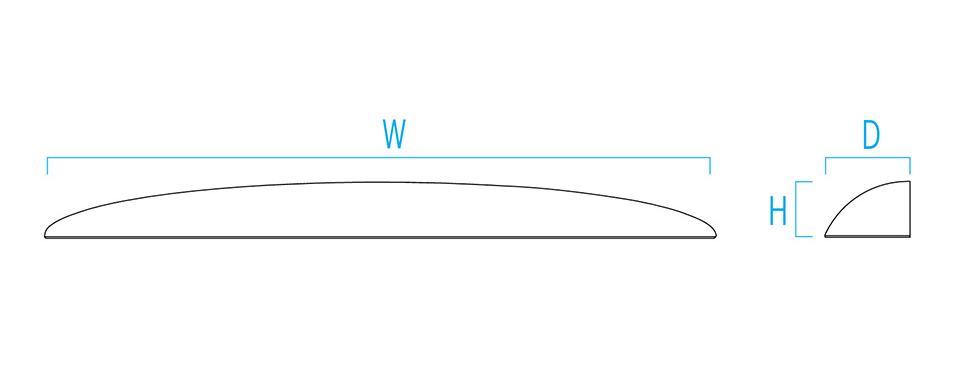

SANIBEL | 14”, Behavioral Health/High-Abuse (CB3944-14)

H 2-1/8” (54mm)

L 2-1/8” (54mm) W 14-3/4” (375mm)

2-7/8” (73mm)

SANIBEL | 26”, Behavioral Health/High-Abuse (CB3944-26)

H 2-1/8” (54mm) W 26-1/2” (673mm) D 3-1/4” (83mm)

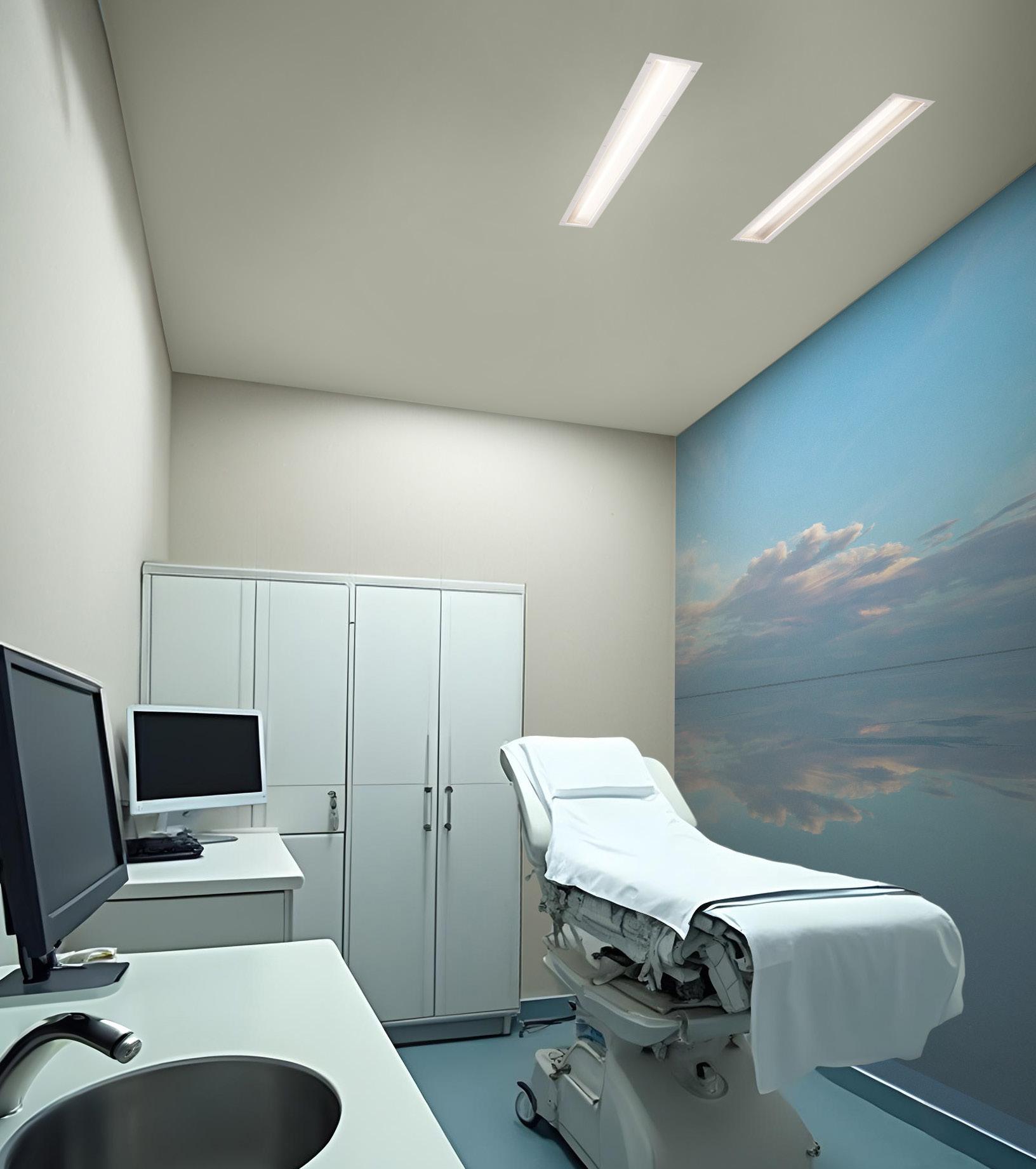

Lenga™

Behavioral Health/High-Abuse Overbed Slot Lights

Lenga’s slender dimensions give medical behavioral health spaces proper lighting without adding bulk. Designed as a minimal overbed luminaire, Lenga provides multi-functional light levels in patient rooms that require ligature and tamper resistance. The dual units work in tandem to illuminate the bed while minimizing shadows and glare.

• Integral drivers

• 90+ CRI Standard

• Left and right models sold as a pair

• Two-chamber optical system

• Directional reflectors

• Recessed housing

• Ligature resistant

• Pin-in-Torx screws standard for lens door

• Sheetrock/drywall installation, not suited for grid ceiling installation

• High-abuse lens and frame features highimpact clear polycarbonate secured with tamper-resistant fasteners

LENGA | 3” Dual Overbed, Tunable White, Behavioral Health (CM2062-T)

L 48-1/8” (1222 mm)

LENGA | 3” Dual Overbed, Behavioral Health (CM2062-W)

L 48-1/8” (1222 mm)

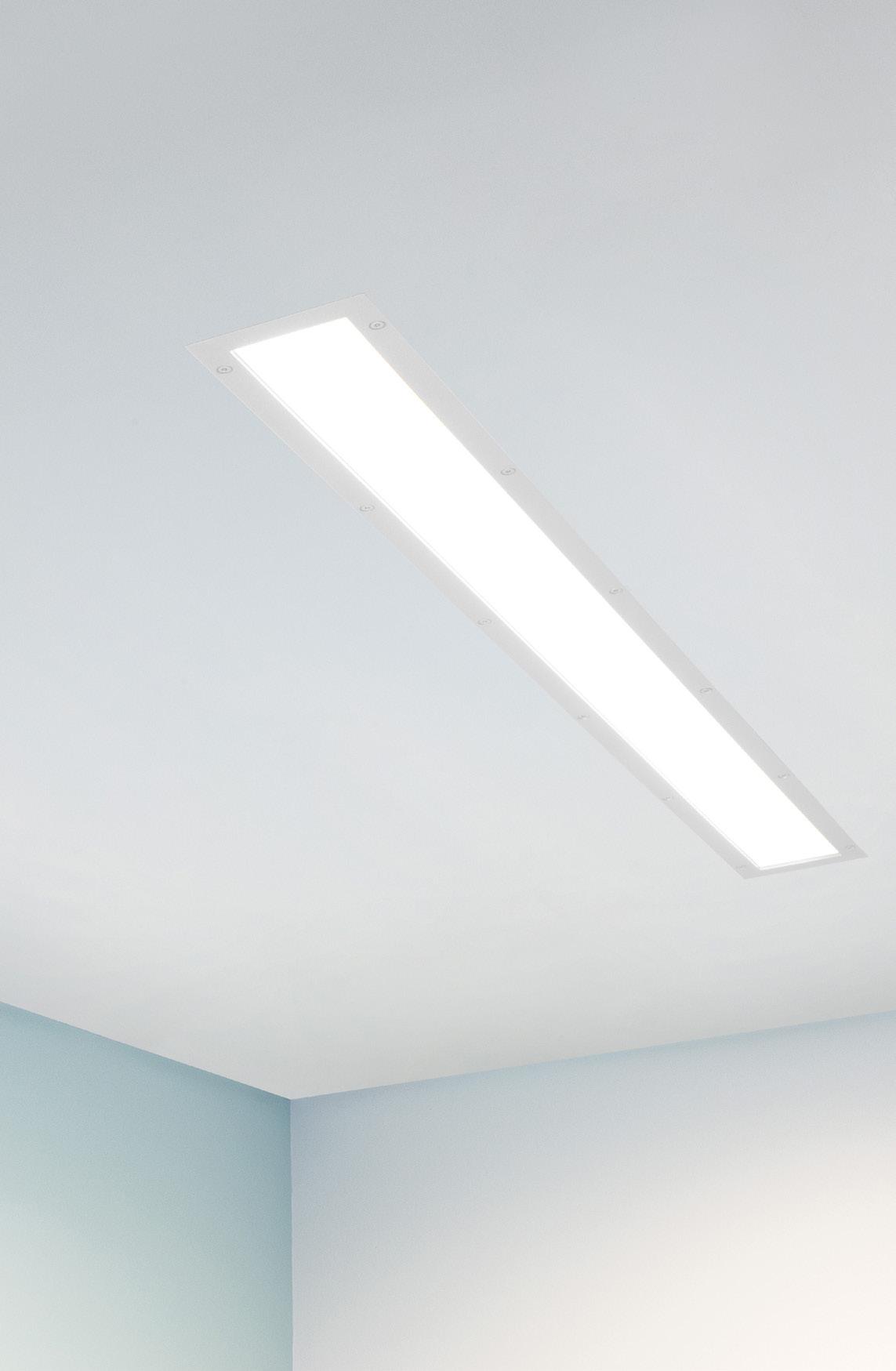

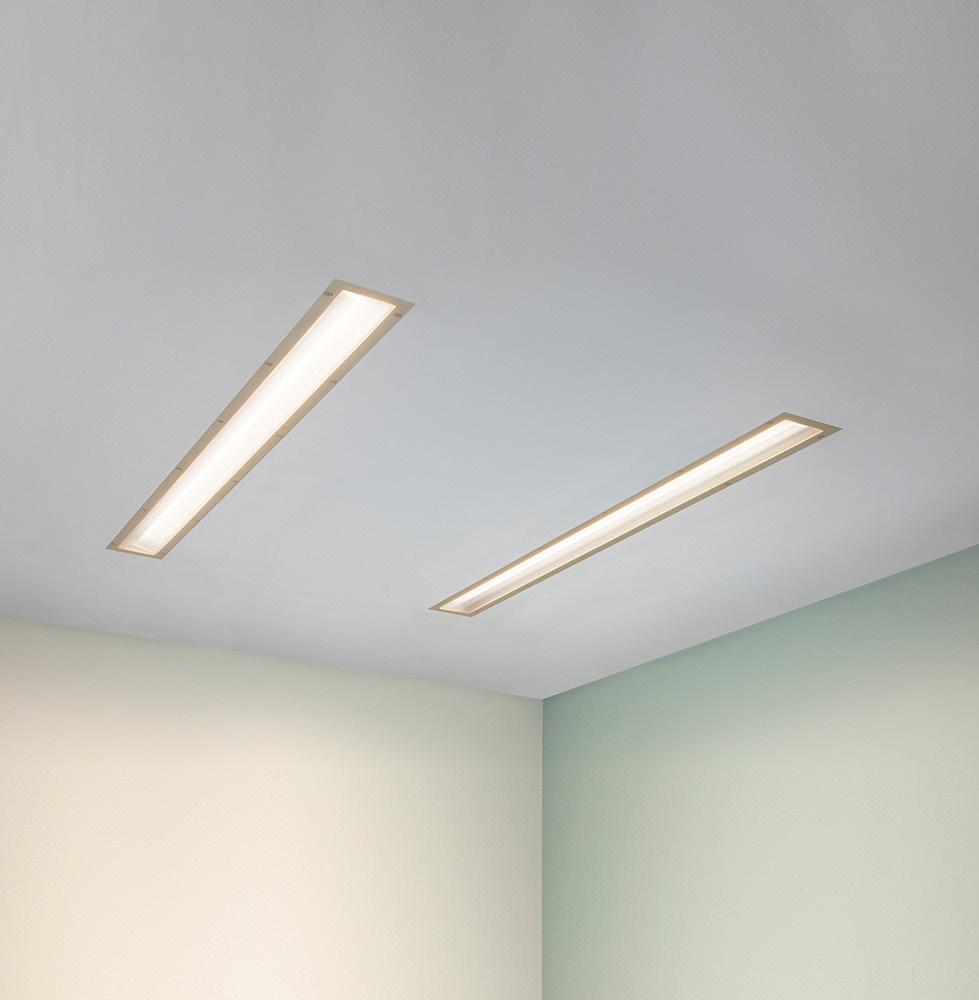

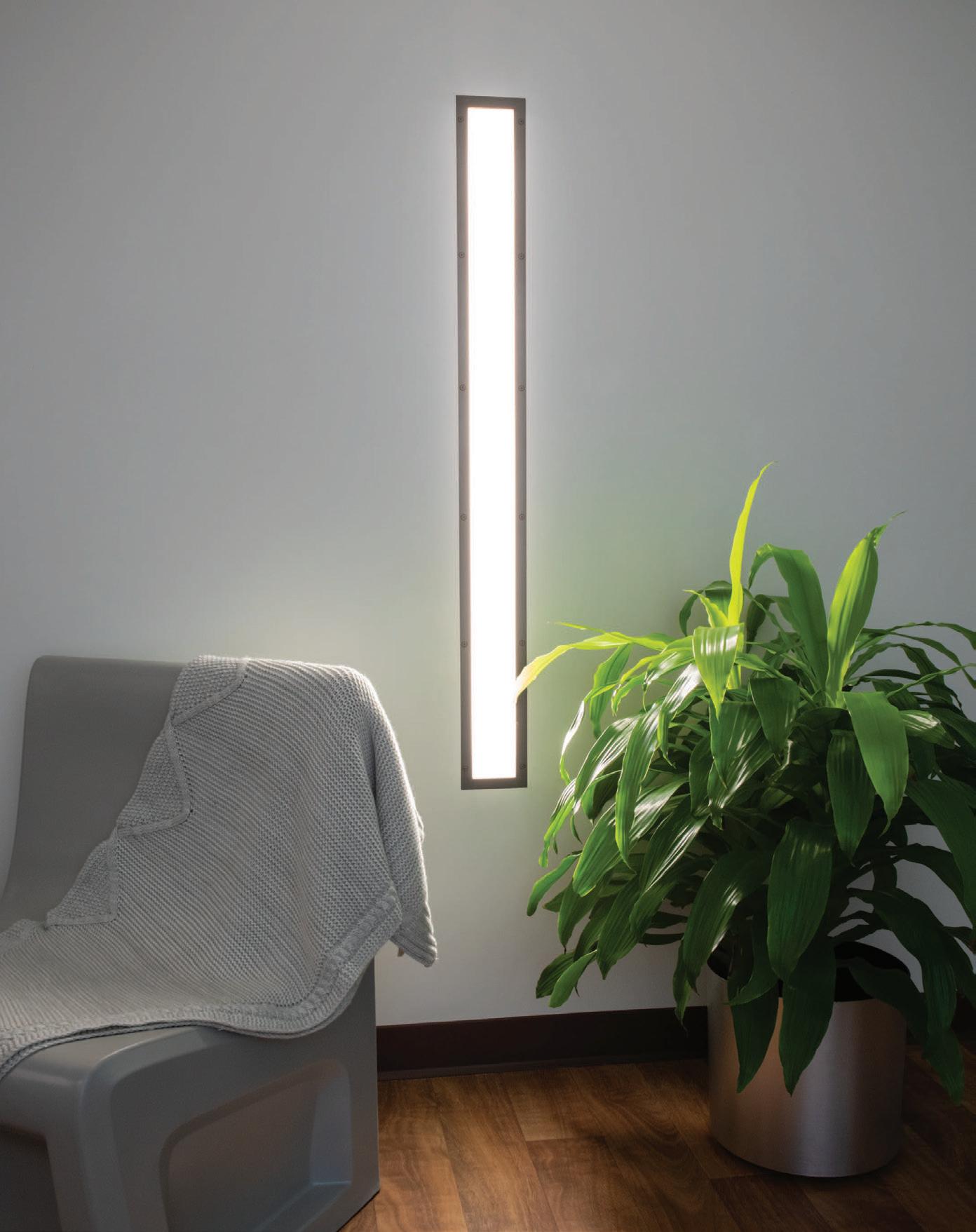

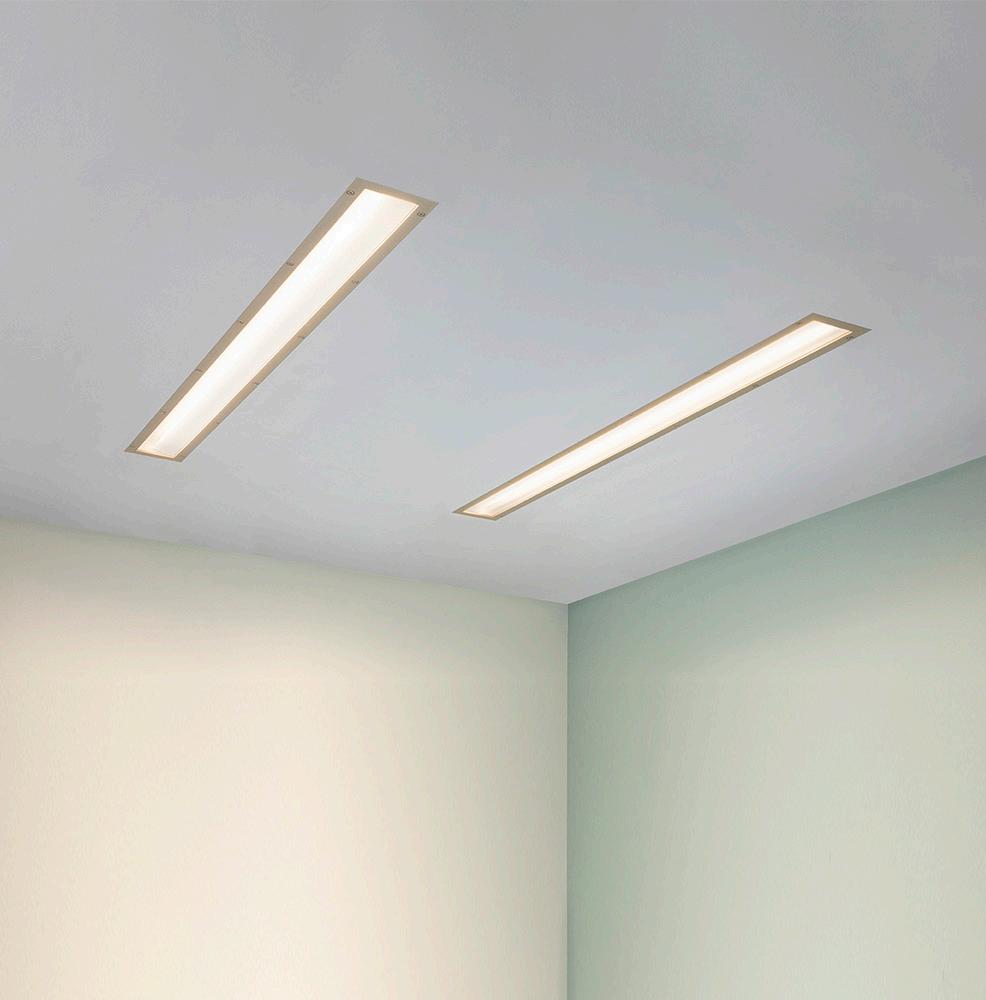

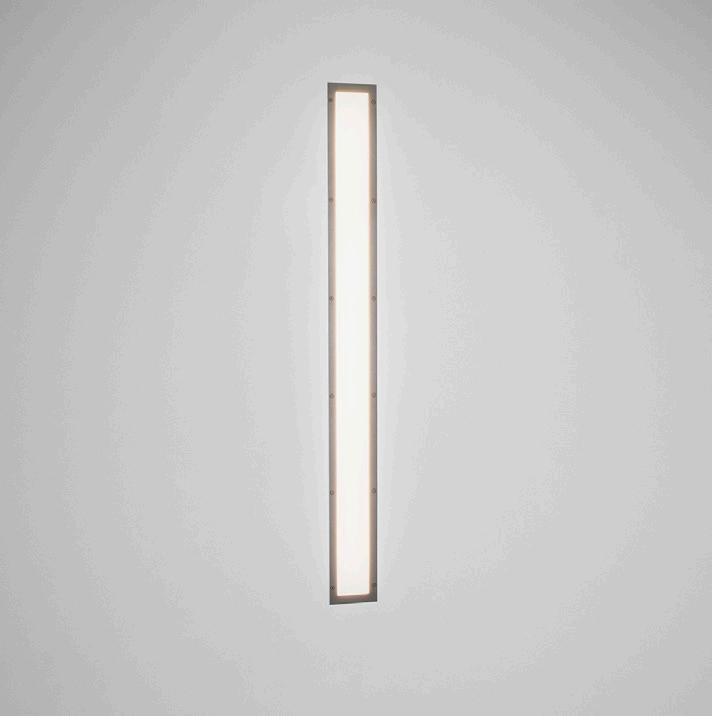

Visage™

Behavioral Health/High-Abuse Slot Lights

With a pure, luminous diffuser, multiple length options, and a shallow recessed depth, Visage is a fundamental luminaire that fits anywhere throughout the behavioral health/high-abuse facility. Visage can be used to fill general spaces with ambient light.

• Integral driver

• Recessed housing

• Ligature resistant

• Sheetrock/drywall installation only, not suited for grid ceiling installation

• Housing integrates with drywall via mud flange

• Housing is fully sealed from room side

• High-abuse lens and frame features high-impact clear polycarbonate secured with tamper-resistant fasteners

• 90+ CRI Standard

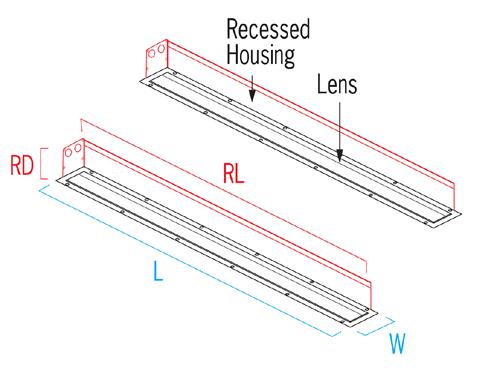

VISAGE

| 48”, Flush (Mud-In), Behavioral Health (CV1680)

L 48-1/8” (1222 mm)

W 4-5/8” (117 mm)

RL 47” (1197 mm) RD 4-1/8” (105 mm)

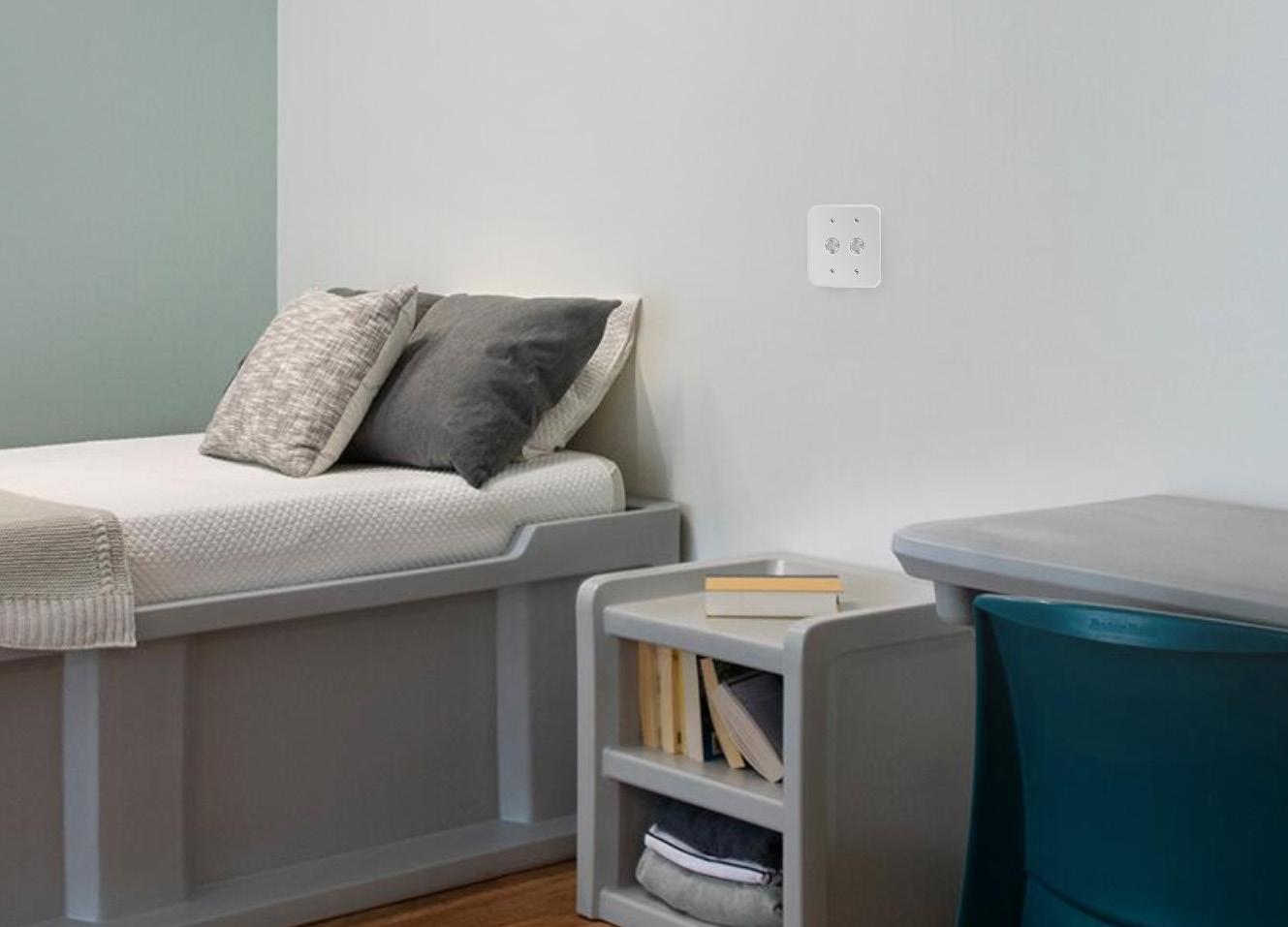

Liberty™

Behavioral Health/High-Abuse Momentary Switches

These high-abuse momentary switch assemblies are available in single, dual, and triple-gang models and compliment Visa Lighting behavioral health/high-abuse lighting products. The face plate is machined from solid aluminum. Liberty can be used where switches are vulnerable to damage in high-abuse and behavioral health applications. These low voltage switches pair perfectly with our LVPC-DIM controller but also function properly with any other control system with momentarycontact inputs.

• Room-side sealed & high-abuse resistant construction

• Stainless steel switch body and actuator

• Momentary switch function (normally OFF)

• Switches rated for max 0.1A, 24VDC

• Can be combined with LVPC-DIM accessory to control multiple zones with optional lockout & override functions

• Class 2 circuits only

• Switches recessed into wall plates for enhanced resistance to tampering Installs into single, dual, or three-gang recessed switch boxes (by others) using provided screws

• Stainless Steel fasteners

• Single piece machined aluminum wall plate

• Tamper-resistant hardware

| Single Gang Single Switch Momentary Wall Switch

5-3/8” (137 mm)

3-5/8” (92 mm)

| Single Gang Dual Switch Momentary Wall Switch

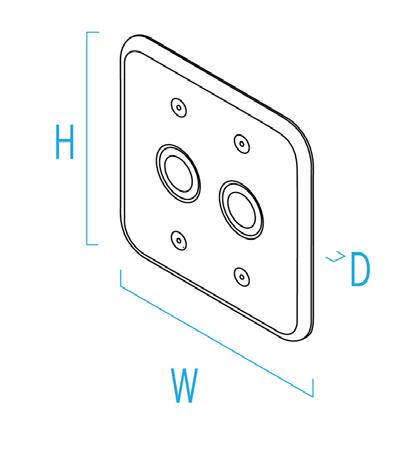

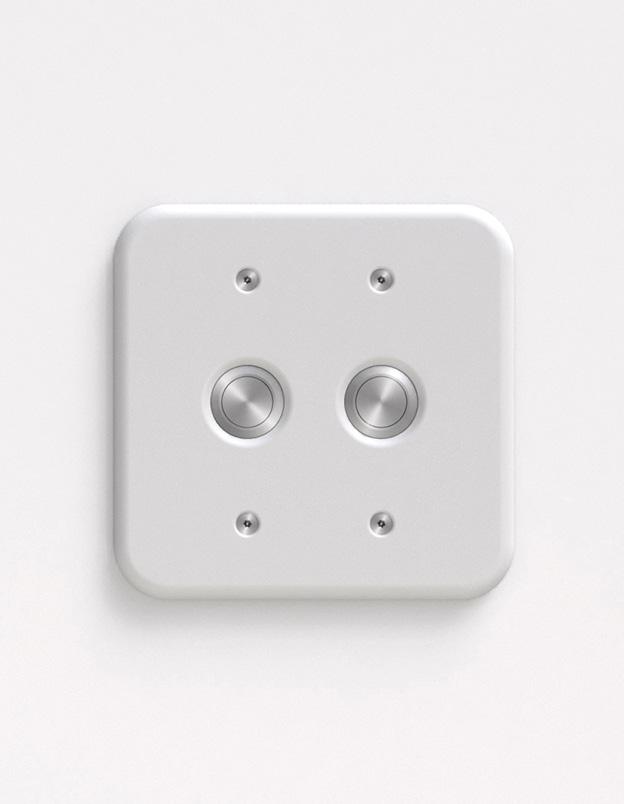

LIBERTY | Dual Gang Dual Switch Momentary Wall Switch (SW7070-2G2S)

H 5-3/8” (137 mm)

W 5-7/16” (138 mm)

D 0.25” (6 mm)

LISTINGS IK10+ IP65

LIBERTY | Dual Gang Dual Switch Momentary Wall Switch (SW7070-2G2S)

H 5-3/8” (137 mm)

W 5-7/16” (138 mm)

D 0.25” (6 mm) LISTINGS IK10+ IP65

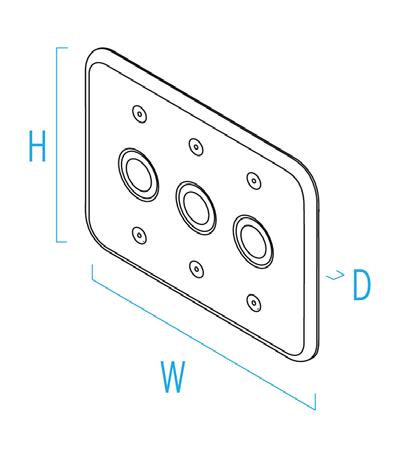

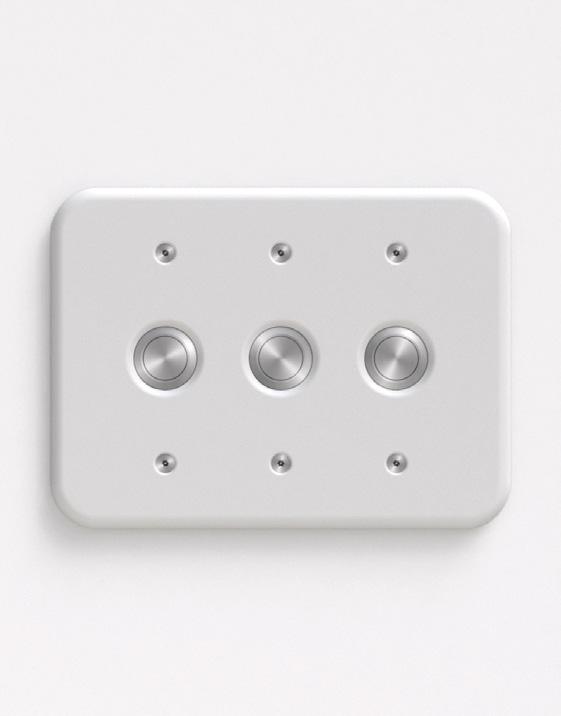

LIBERTY | Triple Gang Triple Switch Momentary Wall Switch (SW7070-3G3S)

H 5-3/8” (137 mm)

W 7-1/4” (184 mm)

D 0.25” (6 mm) LISTINGS IK10+ IP65

Liberty™

Behavioral Health/High-Abuse Maintained Switches

Liberty maintained switches differ from momentary switches as they stay on once pushed on, and turn off when pushed again. Maintained switches are intended for use with control systems that require maintained inputs, such as shade systems, door access, or lighting relay packs. They are low-voltage devices and are not suitable for switching AC line voltage.

• Room-side sealed & high-abuse resistant construction

• Stainless steel switch body and actuator

• Maintained switch function

• Switches rated for max 0.1A, 24VDC

• Can be used with any control system with maintained-contact control inputs

• Class 2 circuits only

• Switches recessed into wall plates for enhanced resistance to tampering Installs into single, dual, or three-gang recessed switch boxes (by others) using provided screws

• Stainless Steel fasteners

• Single piece machined aluminum wall plate

• Tamper-resistant hardware

LIBERTY | Single Gang Single Switch Maintained Wall Switch (SW7080-1G1S)

H 5-3/8” (137 mm)

W 3-5/8” (92 mm)

D 0.25” (6 mm)

COMPLIANCE IK10+ IP65

LIBERTY | Single Gang Dual Switch Maintained Wall Switch (SW7080-1G2S)

H 5-3/8” (137 mm)

W 3-5/8” (92 mm)

D 0.25” (6 mm)

COMPLIANCE IK10+ IP65

LIBERTY | Dual Gang Dual Switch Maintained Wall Switch (SW7080-2G2S)

H 5-3/8” (137 mm)

W 5-7/16” (138 mm)

LISTINGS IK10+ IP65

D 0.25” (6 mm)

LIBERTY | Dual Gang Dual Switch Maintained Wall Switch (SW7080-2G2S)

H 5-3/8” (137 mm)

W 5-7/16” (138 mm)

D 0.25” (6 mm) LISTINGS IK10+ IP65

LIBERTY | Triple Gang Triple Switch Maintained Wall Switch (SW7080-3G3S)

H 5-3/8” (137 mm)

W 7-1/4” (184 mm)

D 0.25” (6 mm)

LISTINGS IK10+ IP65

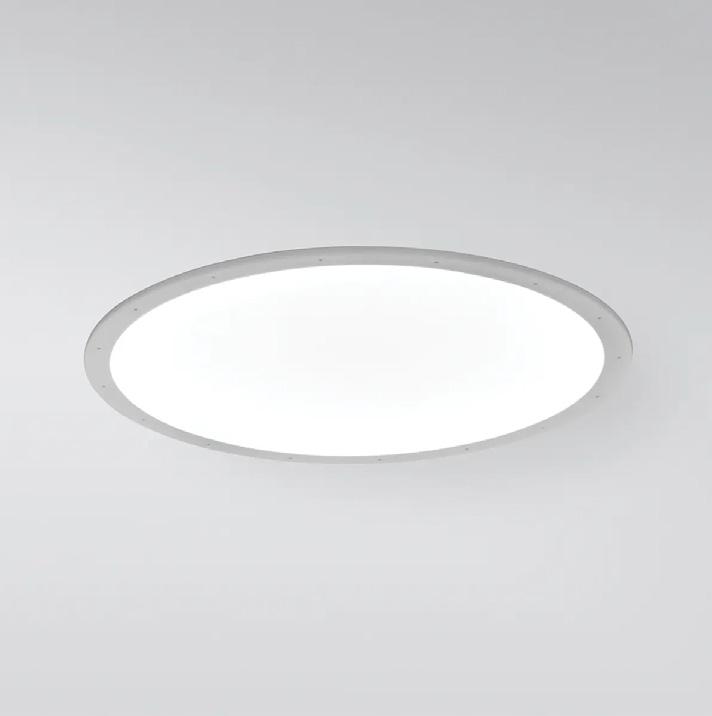

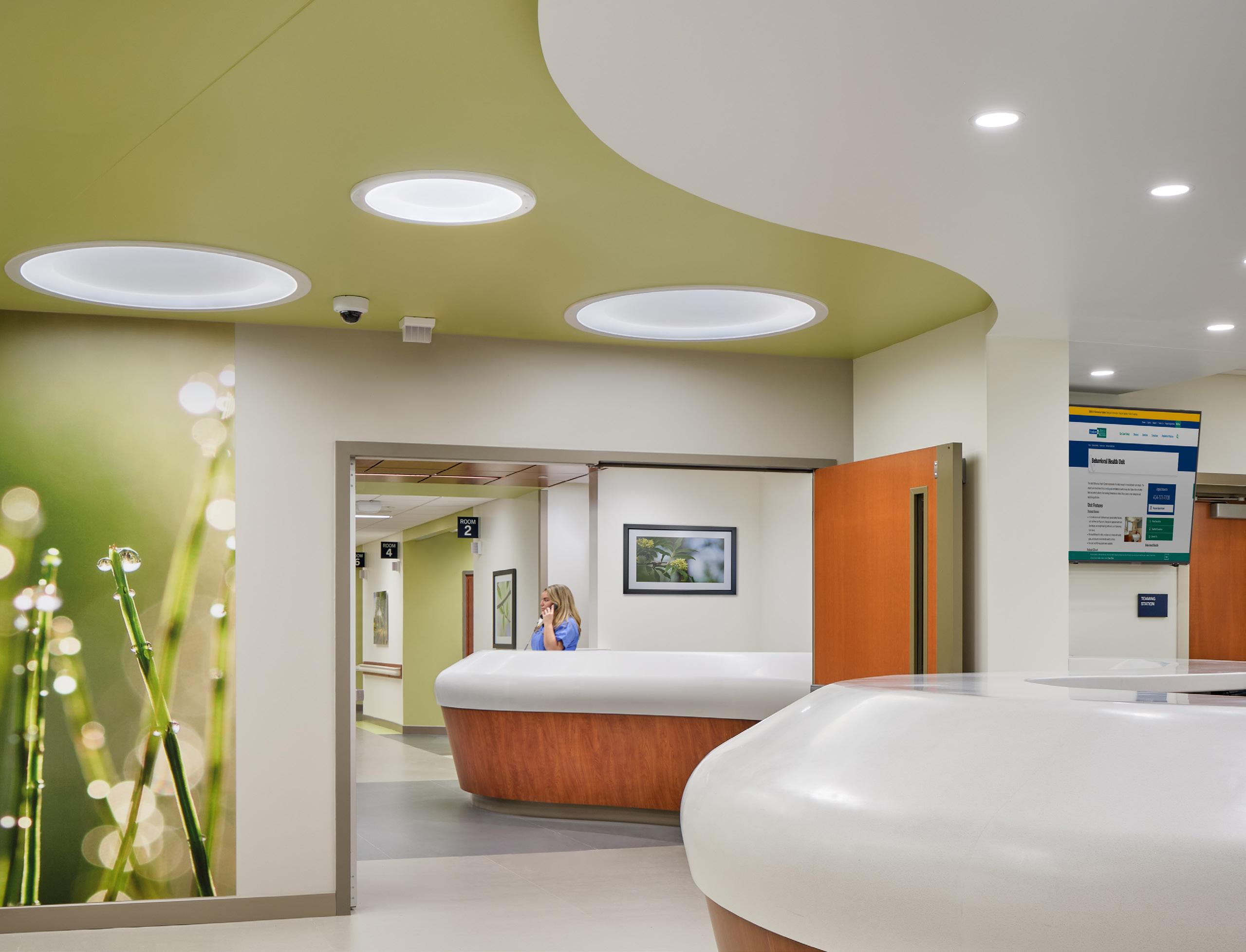

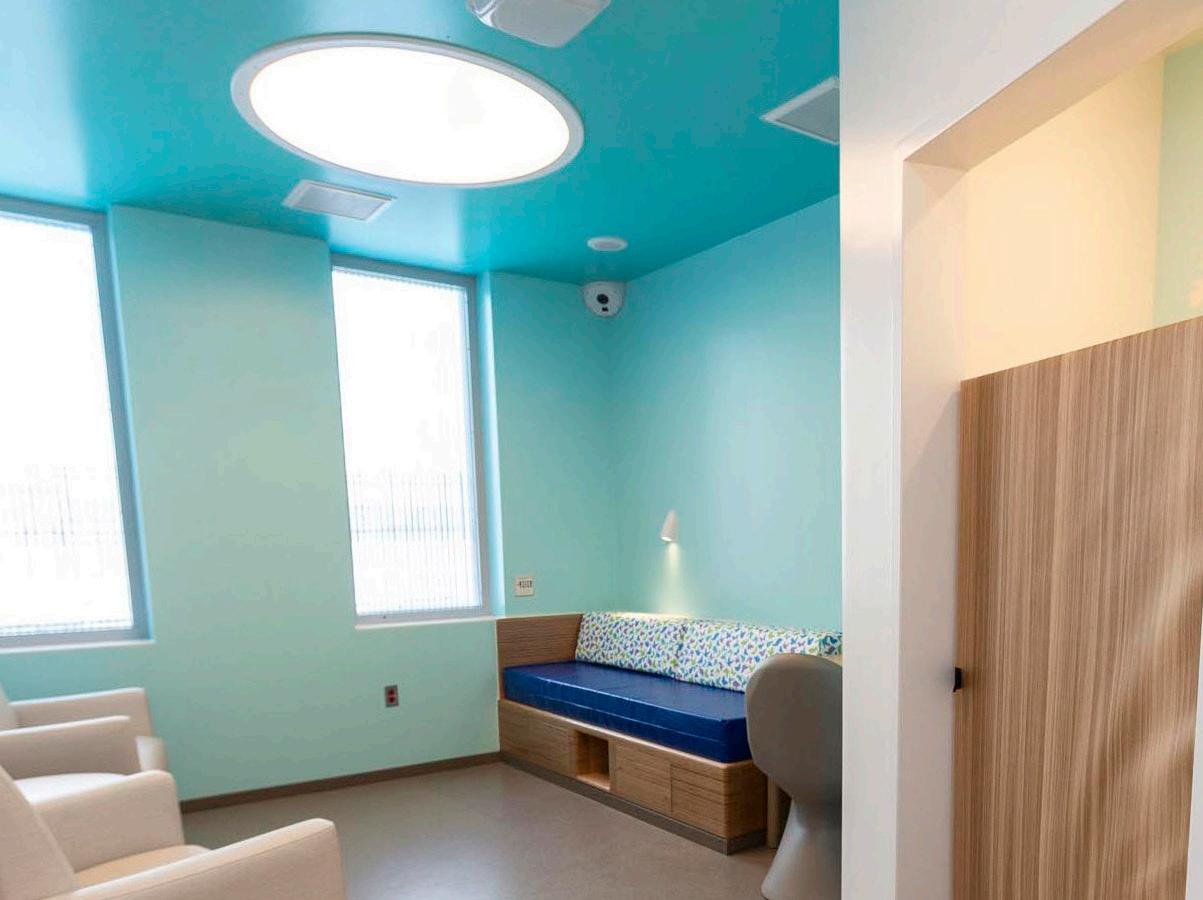

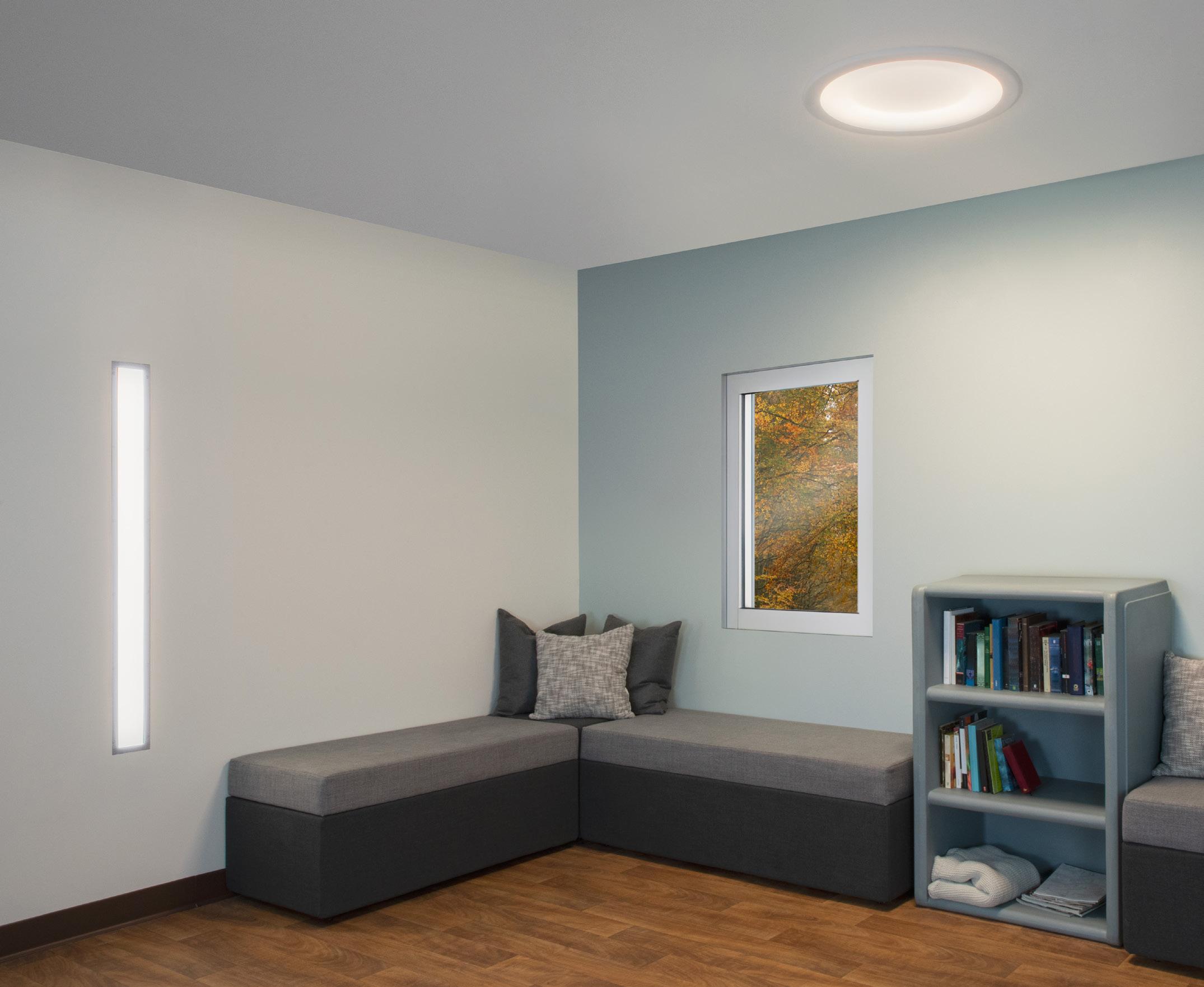

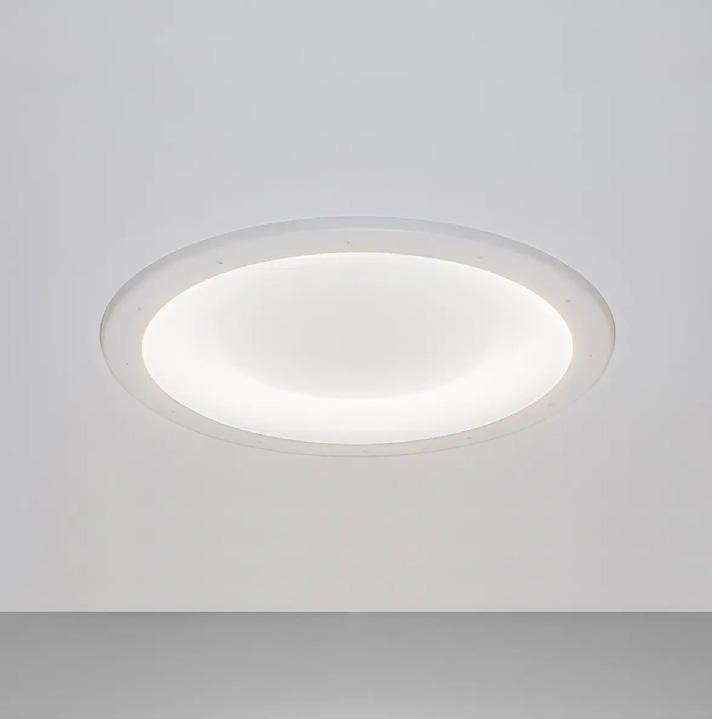

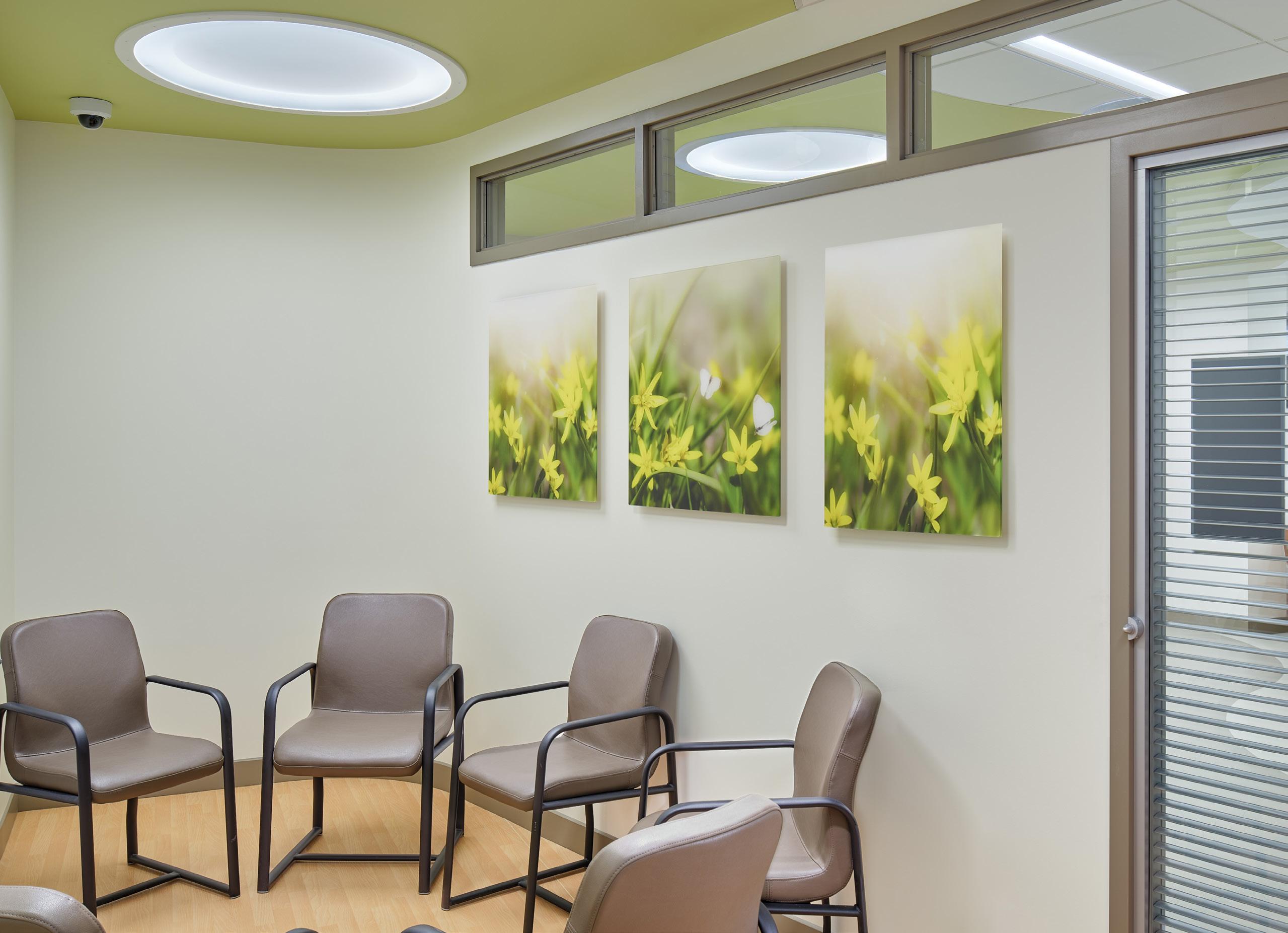

Symmetry™

Behavioral Health/High-Abuse Ceiling Lights

Symmetry is offered in six models to be used throughout a behavioral health/high-abuse facility, including 23” and 45” models for general use, tunable/circadian lighting, and patient room overbed. These behavioral health/high-abuse models have polycarbonate lenses and tamper-resistant fasteners.

• High-impact clear polycarbonate overlay

• Tamper-resistant fasteners

• 90+ CRI Standard

• Suitable for t-grid installation (45” models only)

• Suitable for drywall/sheetrock installation

• Optional amber nightlight

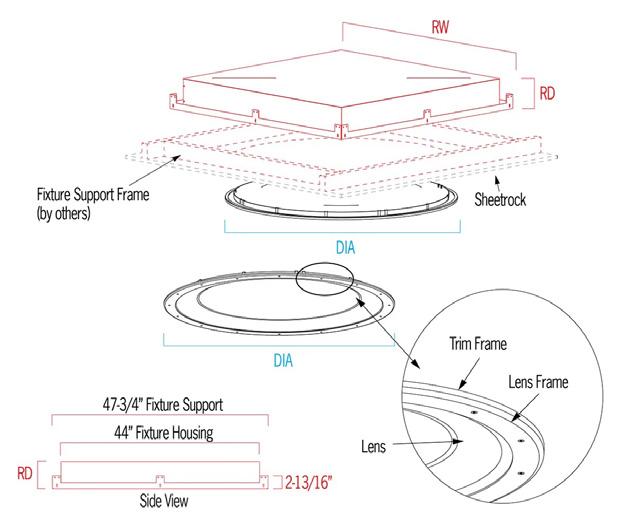

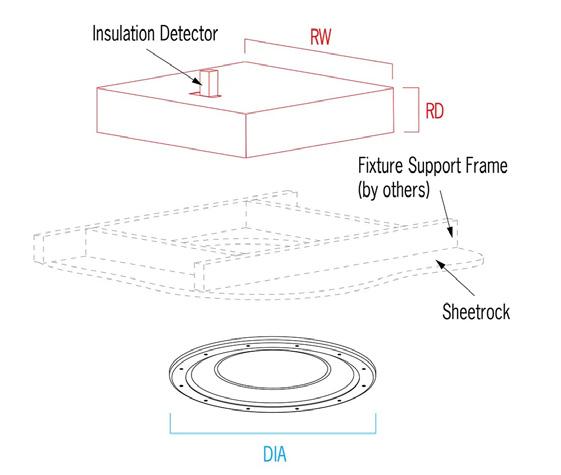

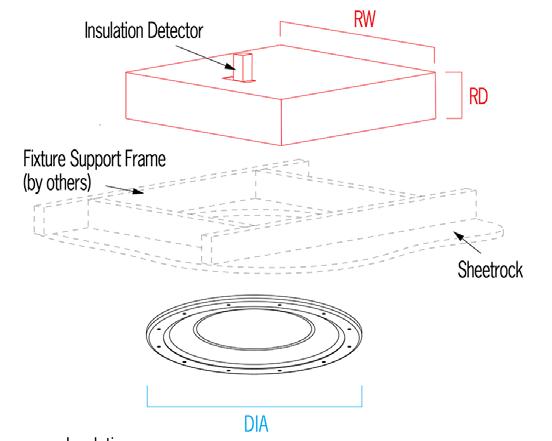

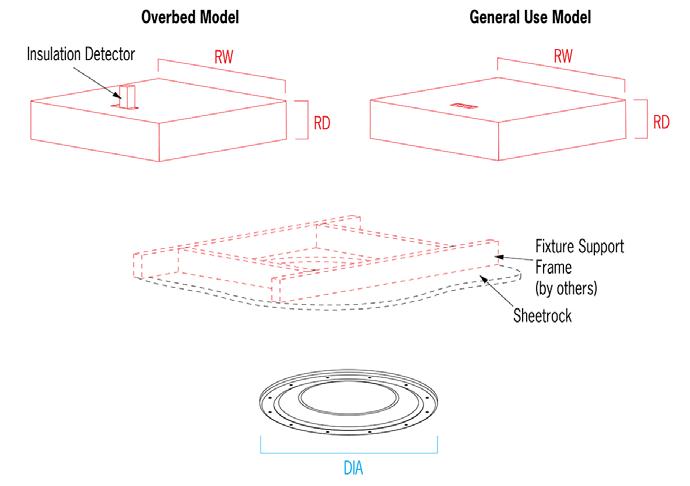

SYMMETRY | 45”, Overbed, Behavioral Health/High-Abuse (CM1976-W)

RW 47-3/4” (1213 mm)

RD 6” (152 mm) DIA 45-11/16” (1160 mm)

Amb: 46 Reading: 76 Cmb: 122

SYMMETRY | 45”, Tunable White, Behavioral Health/High-Abuse (CM1978-T)

RW 47-3/4” (1213 mm) RD 6” (152 mm) DIA 45-11/16” (1160 mm)

SYMMETRY | 45”, General Use, Behavioral Health/High-Abuse (CM1978-W)

RW 47-3/4” (1213 mm)

RD 6” (152 mm) DIA 45-11/16” (1160 mm) CCT 3000K 3500K 4000K LUMENS L: 2700-2800 H: 4600-4800 WATTS L: 29 H: 49

Integral REM Option

0-10V to 1% DALI Zigbee

Damp

SYMMETRY | 23”, Overbed, Behavioral Health/High-Abuse (CM1986-W)

RW 23-1/2” (597mm)

RD 6-5/8” (168mm) DIA 23-1/2” (597mm)

CCT 3000K 3500K 4000K

LUMENS Amb: 3900-4000 Reading: 6100-6400 Cmb: 9800-10200

WATTS Amb: 50 Reading: 71 Cmb: 121

0-10V to 1% DALI LVPC-DIM

Damp

SYMMETRY | 23”, Tunable White, Behavioral Health/High-Abuse (CM1988-T)

RW 23-1/2” (597mm)

RD 6-5” (168mm) DIA 23-1/2” (597mm) CCT 2700K-6500K

L: 2700 H: 4500

L: 35 H: 63

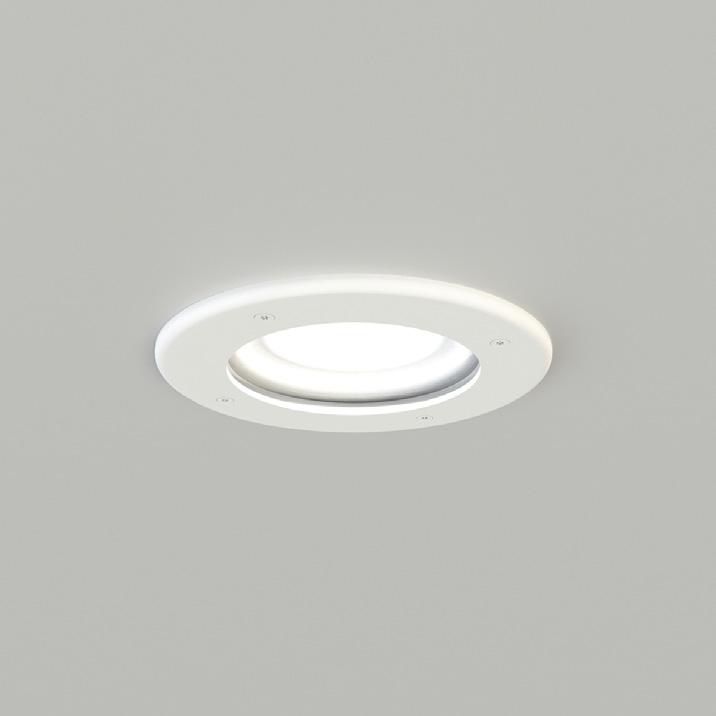

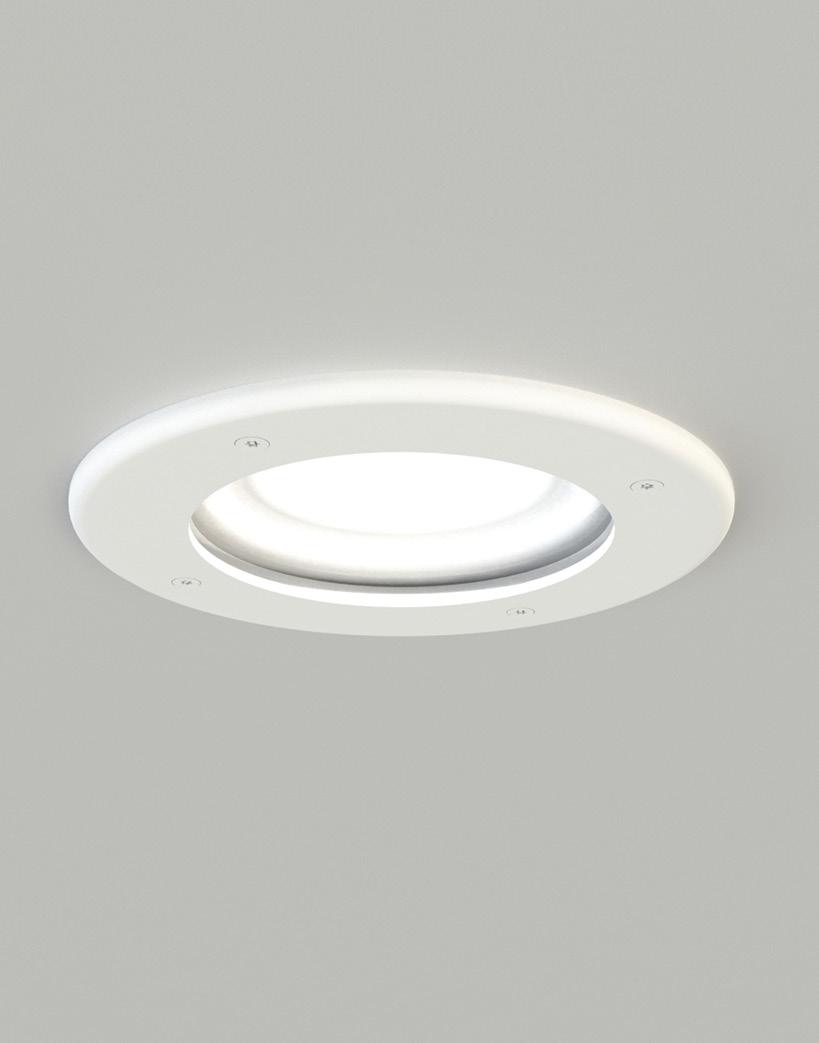

Symmetry™ DL

Behavioral Health/High-Abuse Downlight

The newest member of the Symmetry family is Symmetry DL – a high-abuse downlight with a 4” diameter aperture. It features a machined aluminum trim ring and impact-resistant polycarbonate lens with anti-scratch coating, utilizing stainless steel flat-head pin-in-Torx tamper-resistant fasteners.

• IK10+ impact-resistant

• IP65 rated

• High-impact clear polycarbonate overlay

• Tamper-resistant hardware

• 90+ CRI Standard

• Suitable for grid or sheetrock installation

• Choice of 3 beam widths

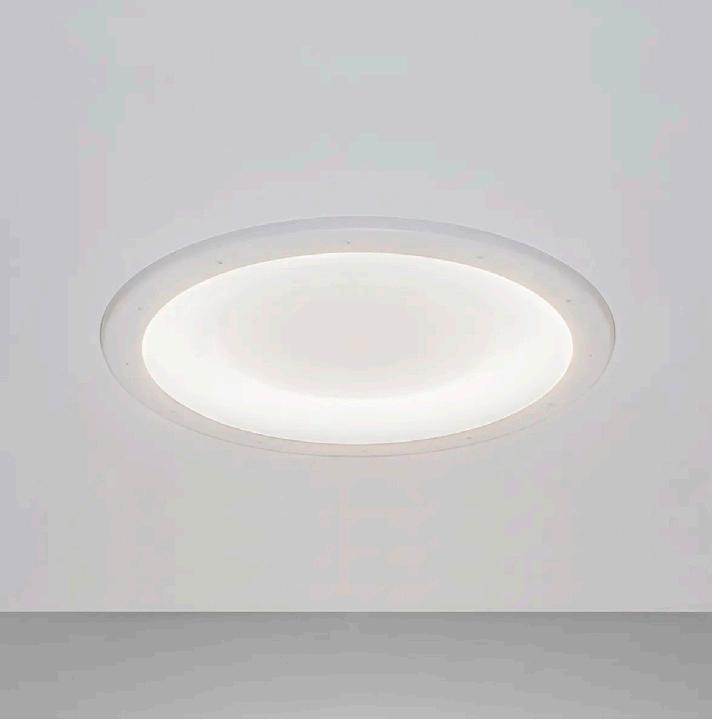

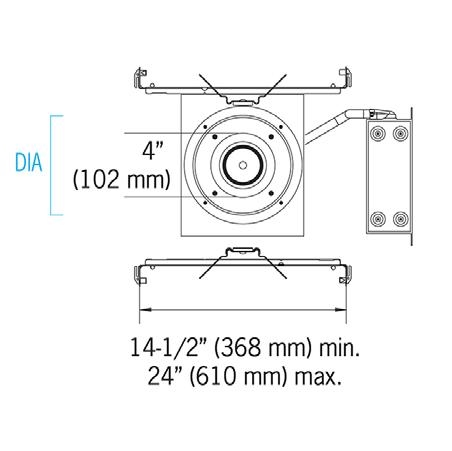

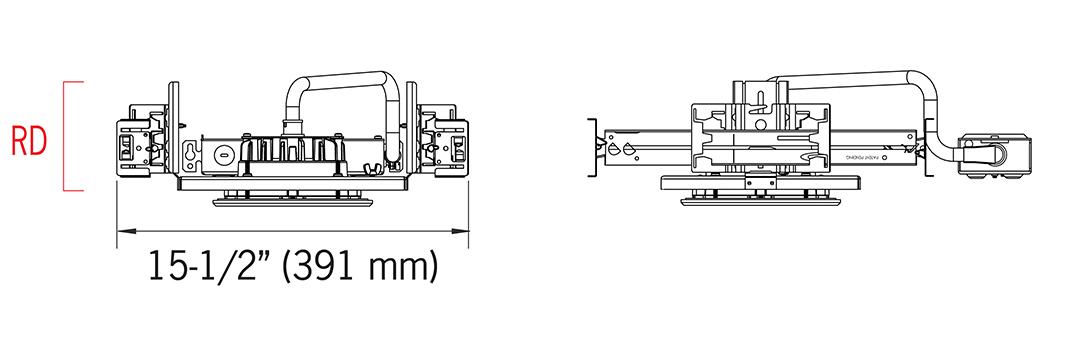

SYMMETRY DL | Behavioral Health/High-Abuse 4” Downlight (CM2500)

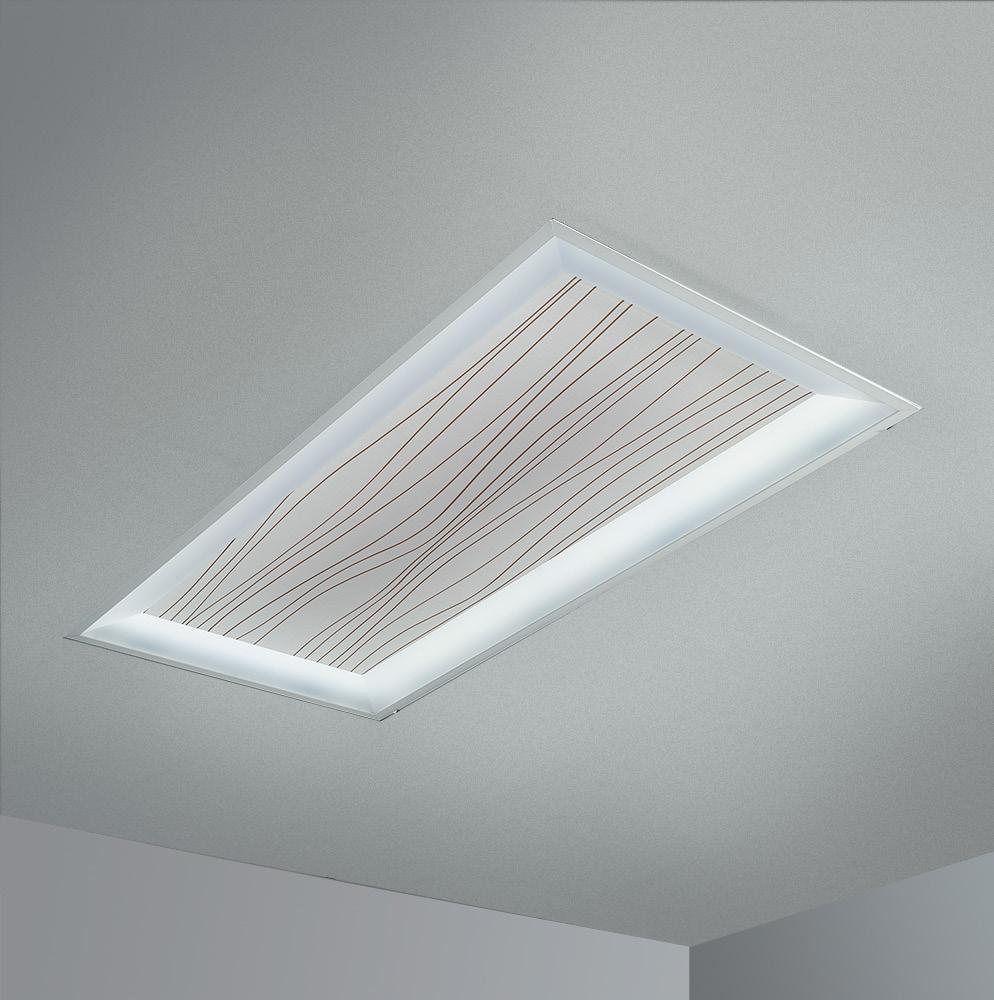

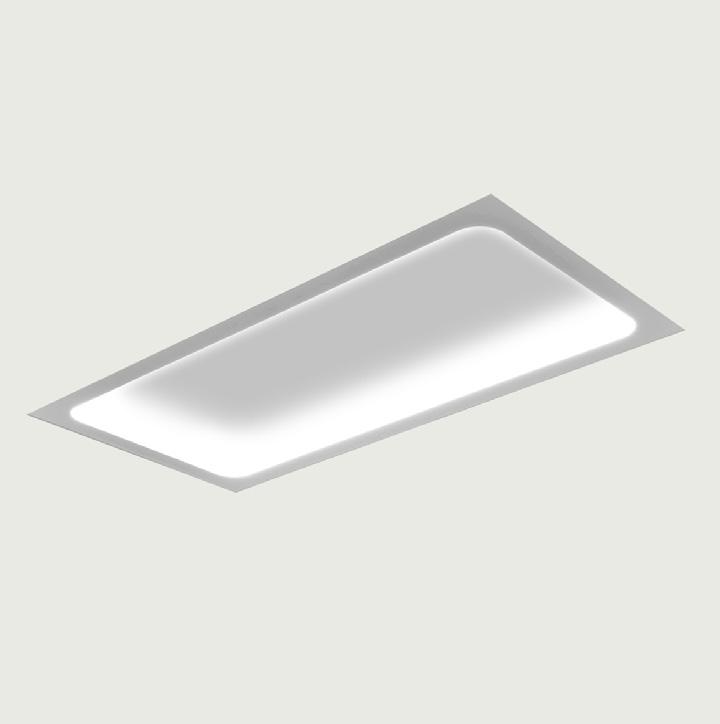

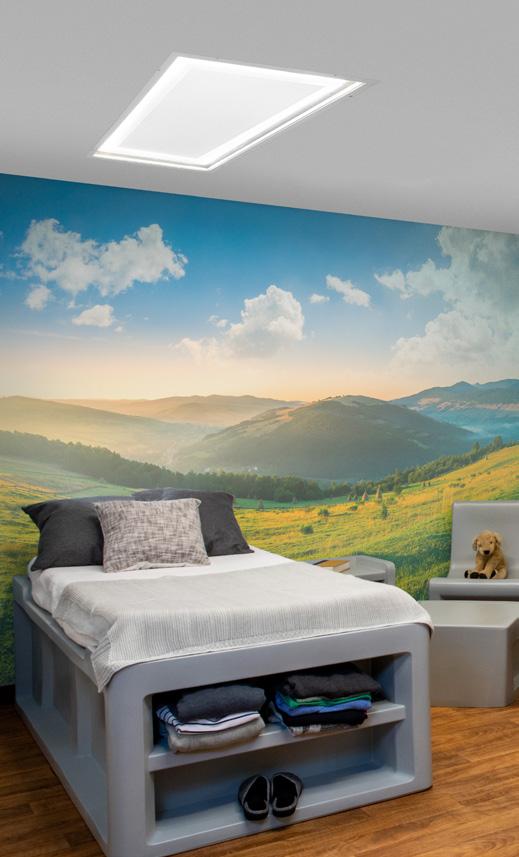

Serenity™

Behavioral Health/High-Abuse Overbed Lights

The Serenity overbed lights feature illuminated diffusers with soft, calming patterns. These functional, yet beautiful, luminaires create a soothing, positive distraction to help patients feel more relaxed.

• Driver located within the housing and accessible from below the ceiling

• Low voltage patient control (LVPC-DIM) switching interface accessory available for pillow speaker/nurse call systems

• Amber night light option to minimize patient disturbance

• Clear polycarbonate bottom lens

• Tamper-resistant fasteners

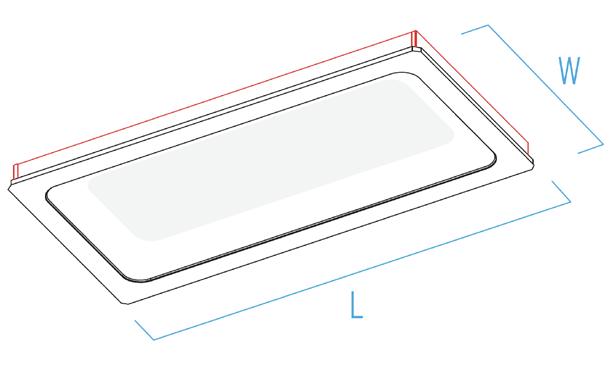

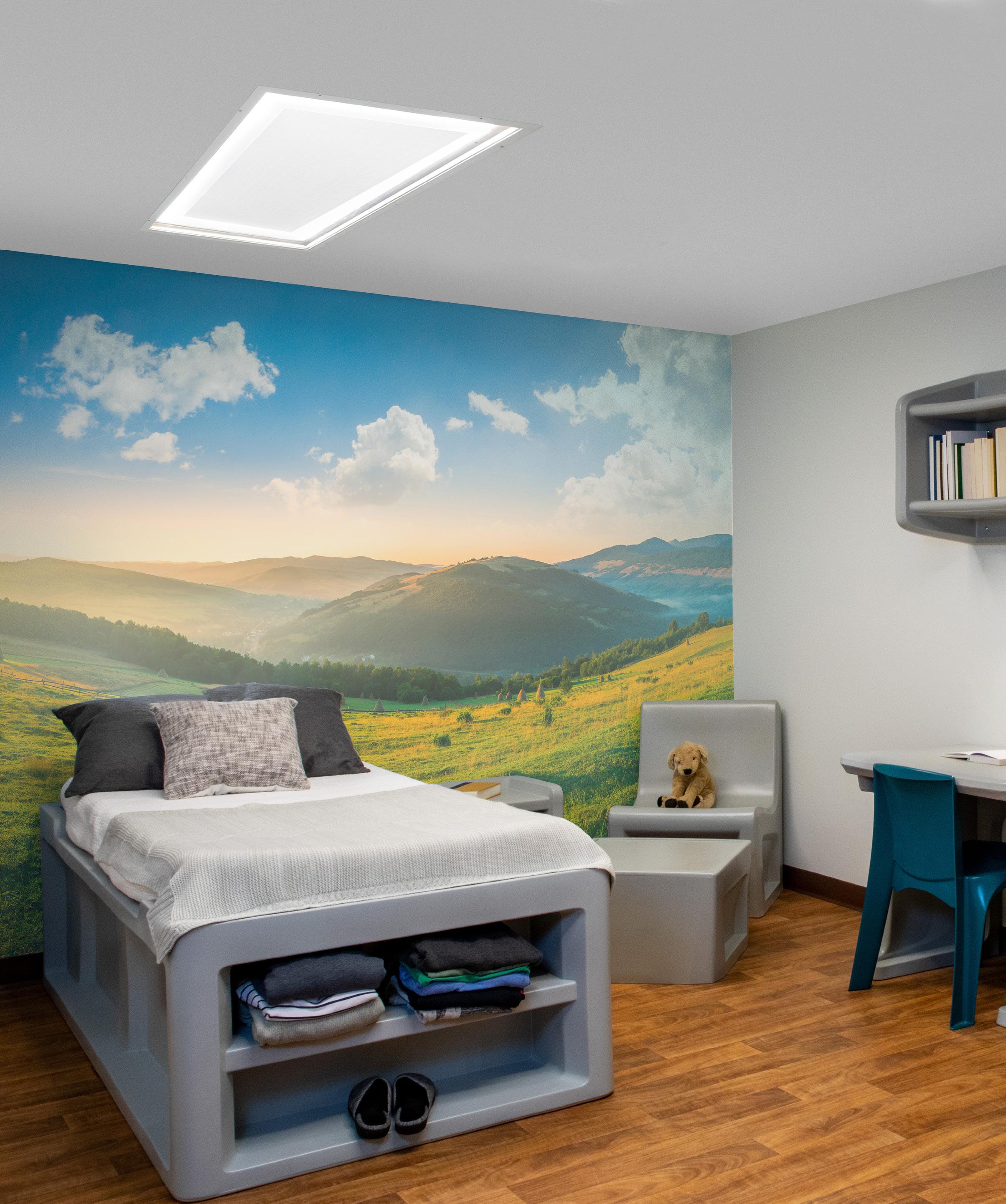

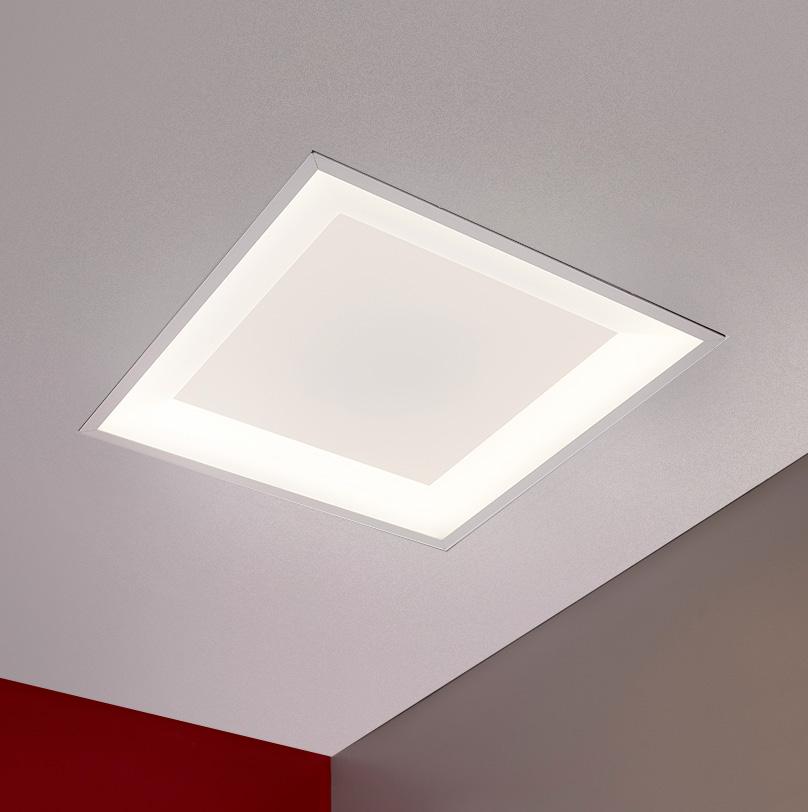

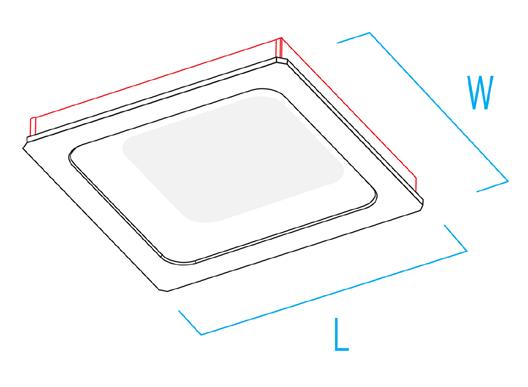

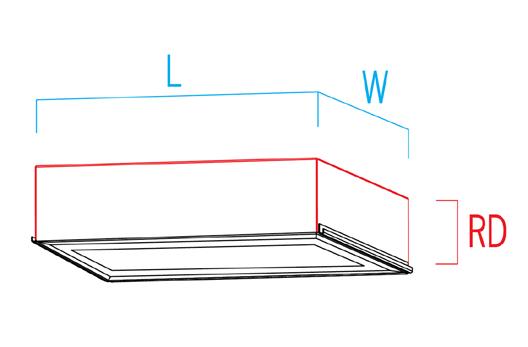

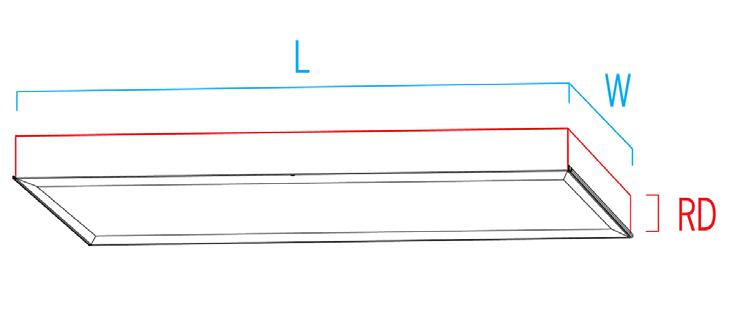

SERENITY | 2’x2’, Overbed (CM1938)

L 23-3/4” (603mm)

W 23-3/4” (603mm) RD 3-1/2” (89mm)

SERENITY | 2’x4’, Overbed (CM1946)

L 47-5/8” (1210mm) W 23-5/8” (600mm)

(89mm)

Harmony™

Behavioral Health/High-Abuse

Harmony has a uniquely shaped lens providing comfortable, soft illumination, with soothing ambient lighting to improve the patient experience. Harmony has a smooth, cleanable, impactresistant polycarbonate lens and trim with tamper-resistant flat head pin-in-Torx fasteners.

• Multiple lumen output options

• 90+ CRI Standard

• Remote mounted driver

• Formed acrylic inner diffuser

• Clear polycarbonate bottom lens

• Remote or top-mounted driver

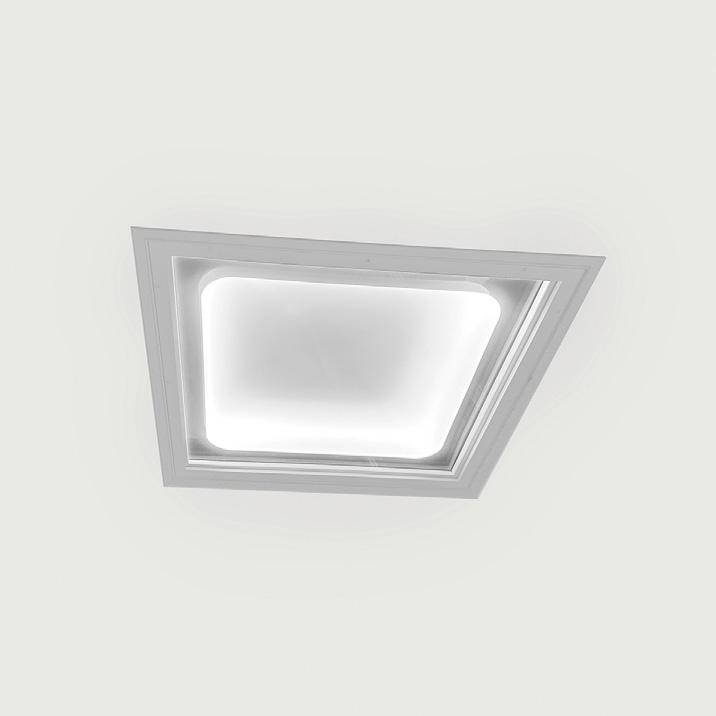

HARMONY | 2’ x 2’, Overbed, Behavioral Health - White LED (CM1883-W)

L 27-1/2” (700mm)

W 27-1/2” (700mm) RD 5” (127mm) CCT 3000K 3500K 4000K LUMENS Amb: 2750-2850 Reading: 3650-3800 2C Exam: 6350-6600 WATTS Amb: 39 Reading: 64 2C Exam: 104

HARMONY | 2’ x 2’, General Use, Behavioral Health - Tunable (CM1884-T)

L 27-1/2” (700mm) W 27-1/2” (700mm) RD 5” (127mm)

L: 1800 M:2700 H: 3600

L: 26 M:39 H: 53

HARMONY | 2’ x 2’, General Use, Behavioral Health - White LED (CM1884-W)

L 27-1/2” (700mm)

W 27-1/2” (700mm)

RD 5” (127mm)

CCT 3000K 3500K 4000K

LUMENS L: 1700-1800 M: 2600-2700 H: 3500-3600

L: 25 M:38 H: 52

HARMONY | 2’ x 4’, Overbed, Behavioral Health - White LED (CM1887-W)

L 51-1/2” (1308 mm)

W 27-1/2” (700 mm)

RD 5” (127mm)

CCT 3000K 3500K 4000K

LUMENS Amb: 2925 Reading: 4455 2C Exam: 7425 3C Exam: 14130

WATTS Amb: 37 Reading: 62 2C Exam: 99 3C Exam: 178

HARMONY | 2’ x 4’, General Use, Behavioral Health - Tunable (CM1888-T)

L 51-1/2” (1308 mm)

W 27-1/2” (700 mm)

RD 5” (127mm)

CCT 2700K-6500K LUMENS L: 2700 M:4000 H: 5400 WATTS L: 33 M:50 H: 67

Remote Driver

HARMONY | 2’ x 4’, General Use, Behavioral Health - White LED (CM1888-W)

L 51-1/2” (1308 mm) W 27-1/2” (700 mm) RD 5” (127mm)

2600-2700

3900-4100

5300-5500

Environmental Safety Risk Assessment

Safety Risk Assessment Tool

Whether or not a particular behavioral health setting needs ligature-resistant lighting depends on two factors:

• The patient supervision level

• Their risk for self-harm

By weighing these factors against one another, designers and clinical staff can discuss the risk levels of each space. The chart is an assessment tool developed by James Hunt and David Sine and published in the Behavioral Health Design Guide. Each quadrant includes areas of a similar risk level:

LEVEL I: Patients not allowed (staff break rooms and meeting rooms, maintenance areas)

LEVEL II: Patients are highly supervised (group rooms, counseling rooms, corridors)

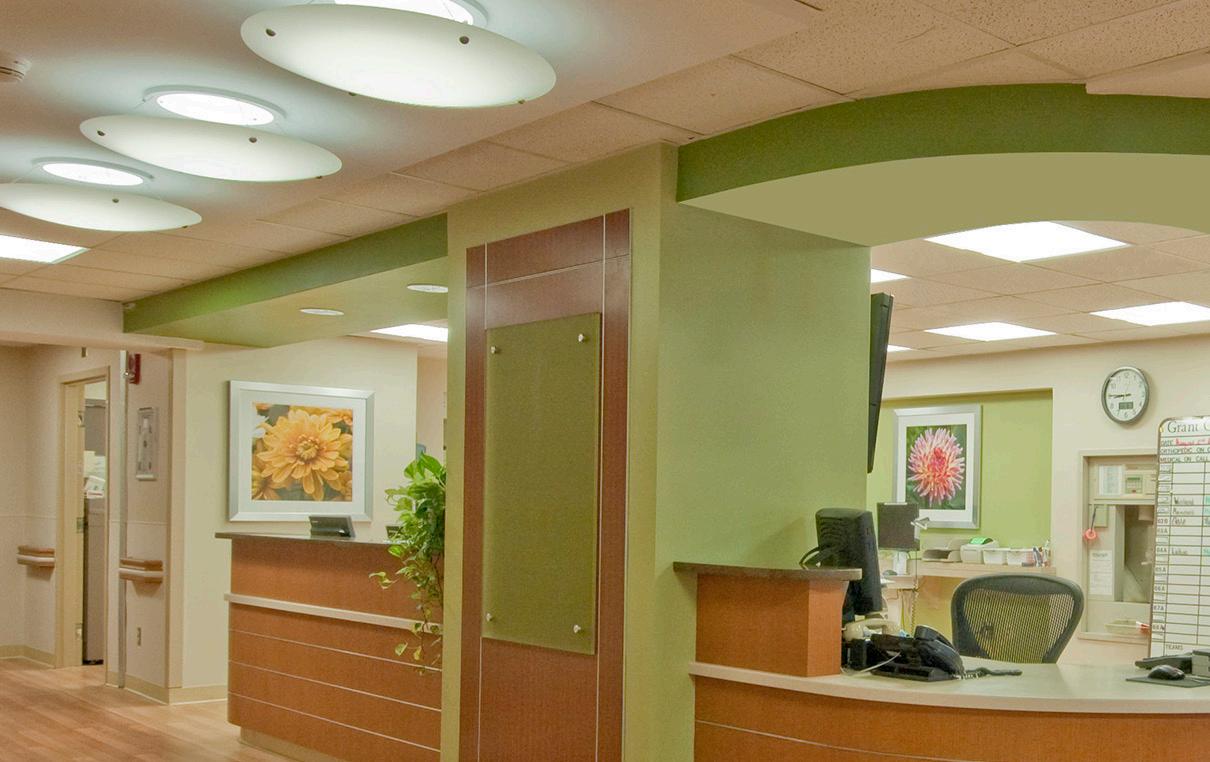

LEVEL III: Patients are under minimal supervision (day rooms, open nursing stations)

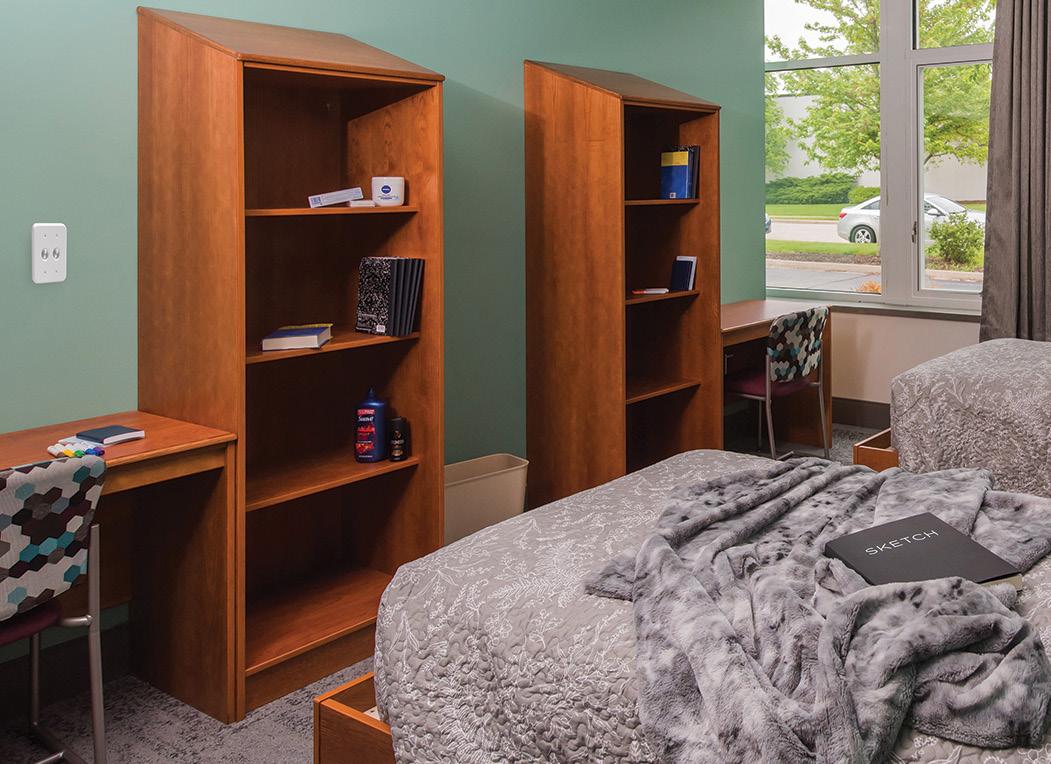

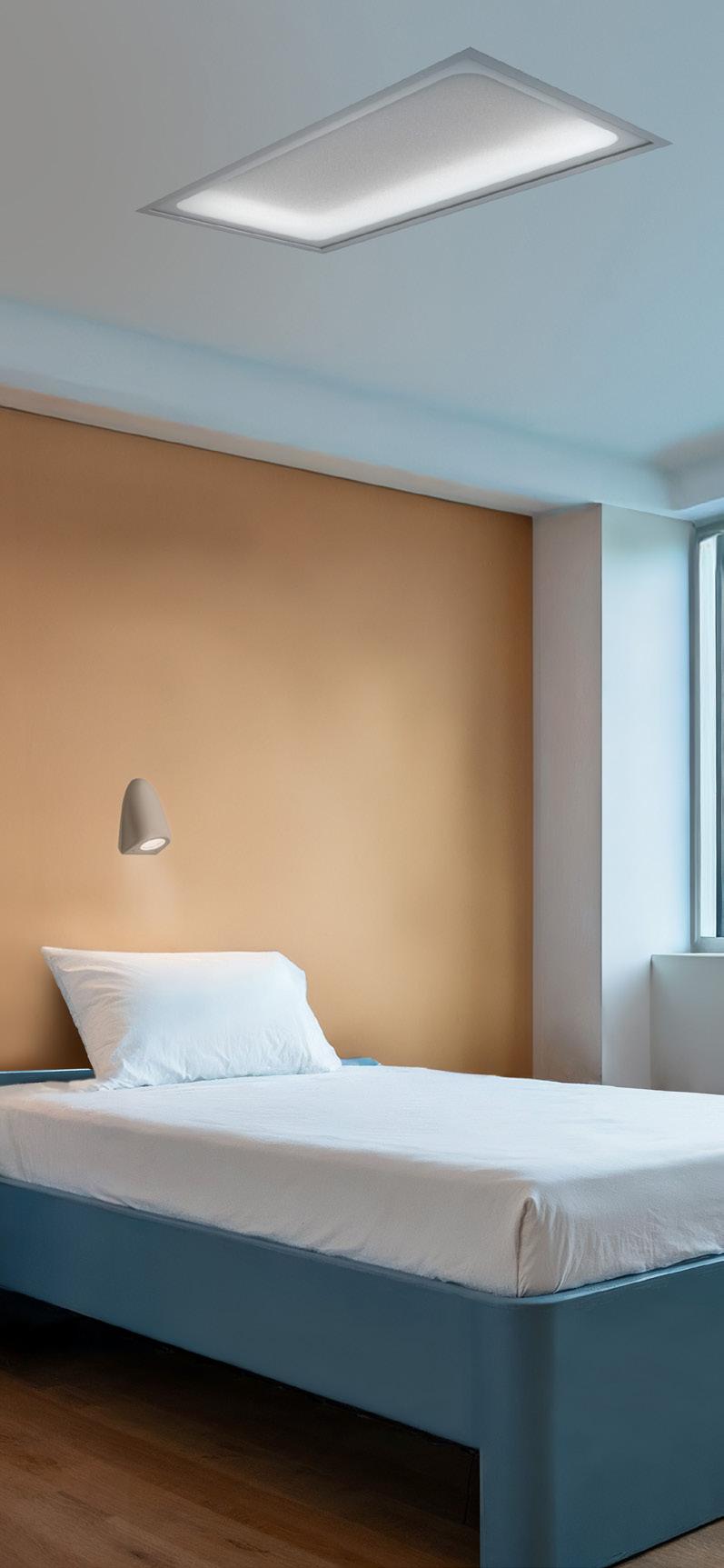

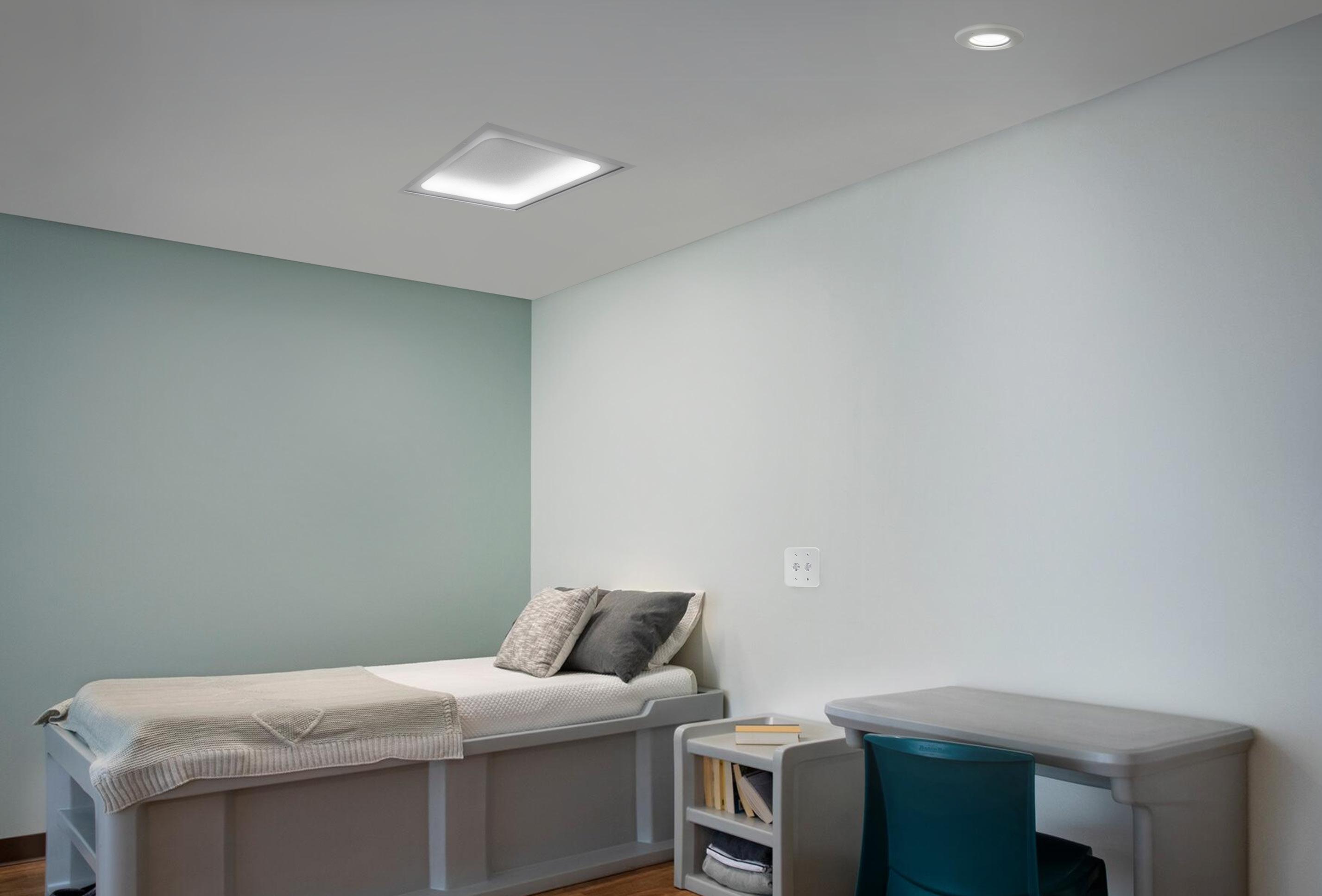

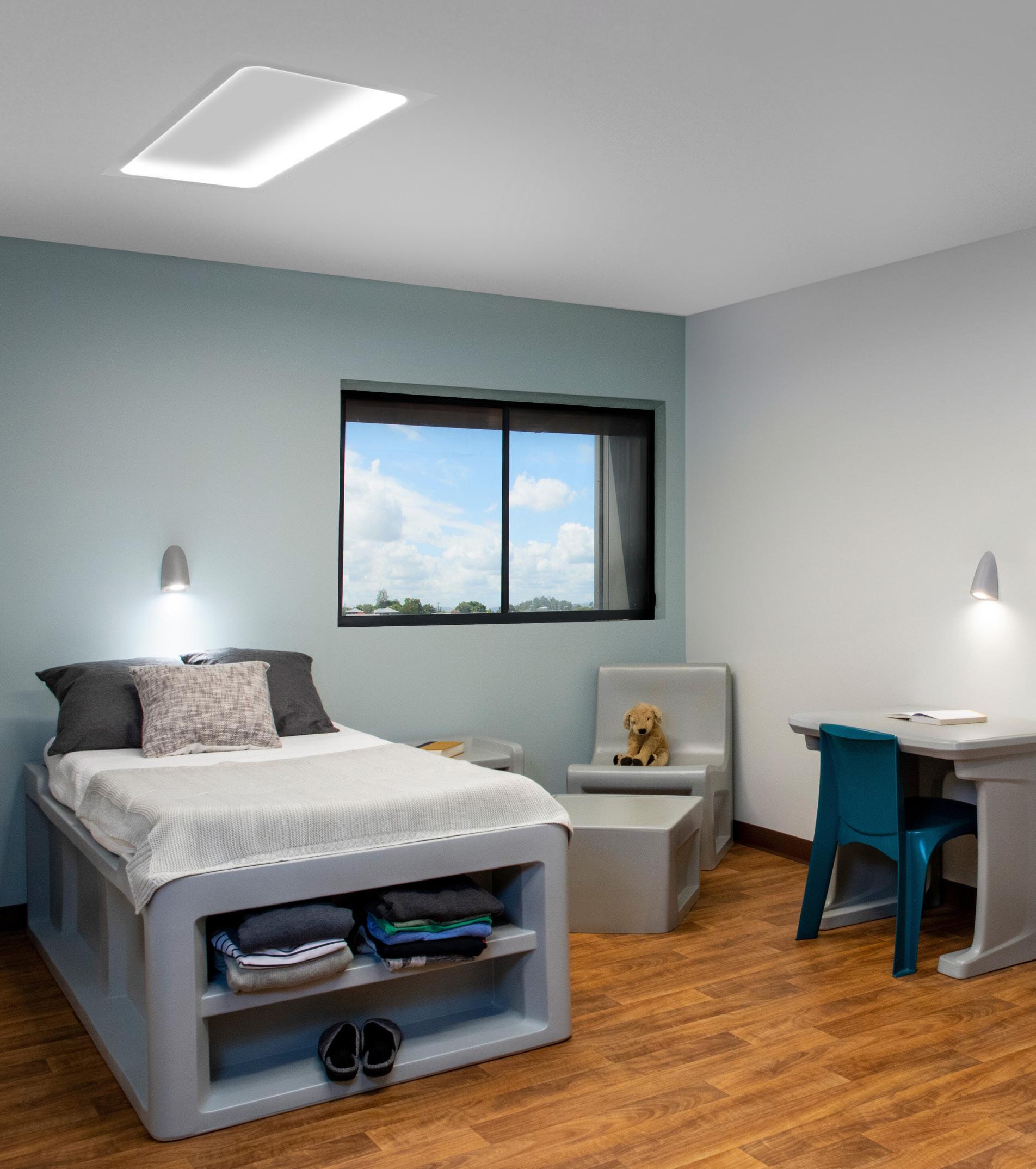

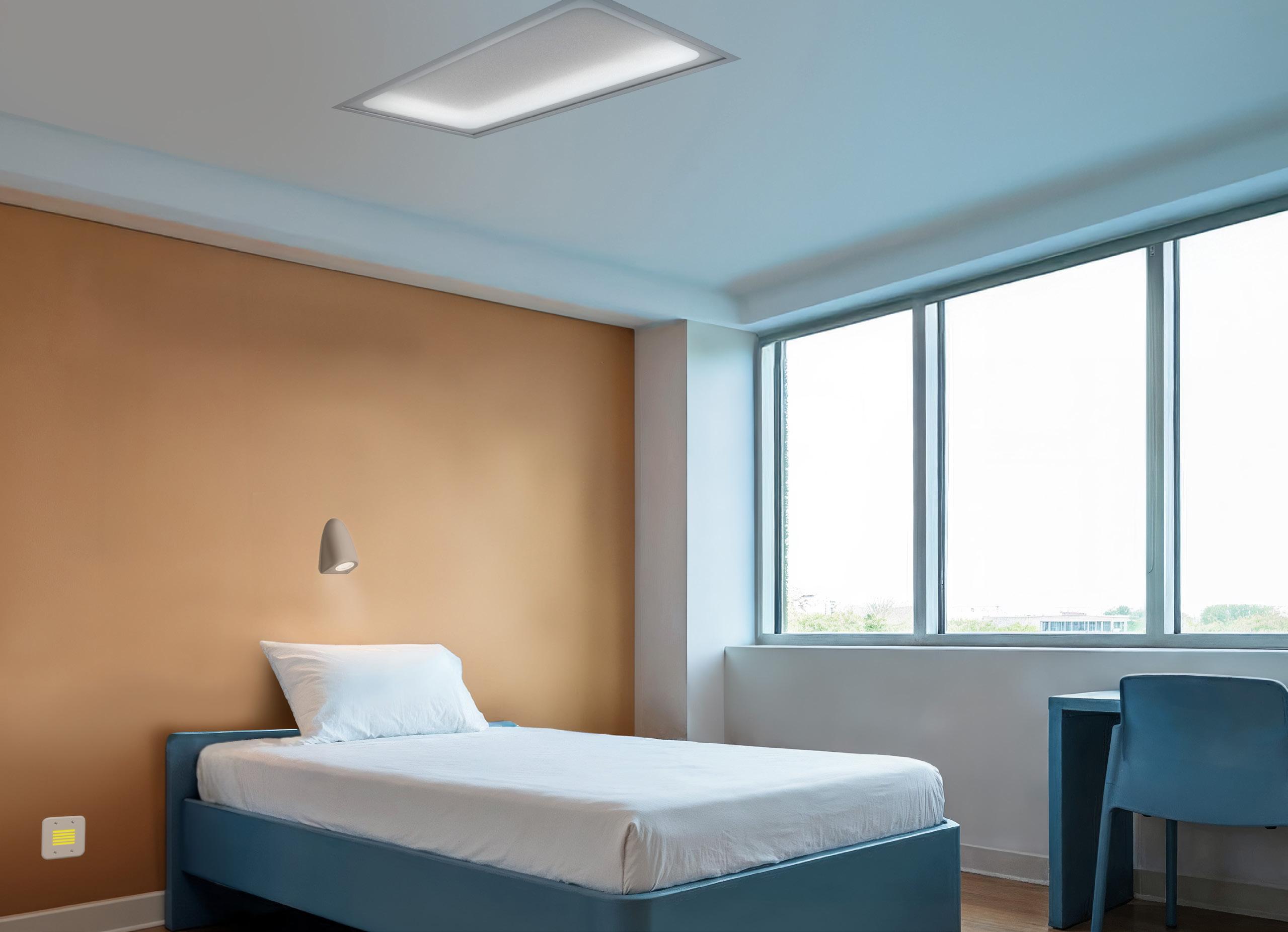

LEVEL IV: Patients spend a great deal of time alone with minimal/no supervision (bedrooms, bathrooms)

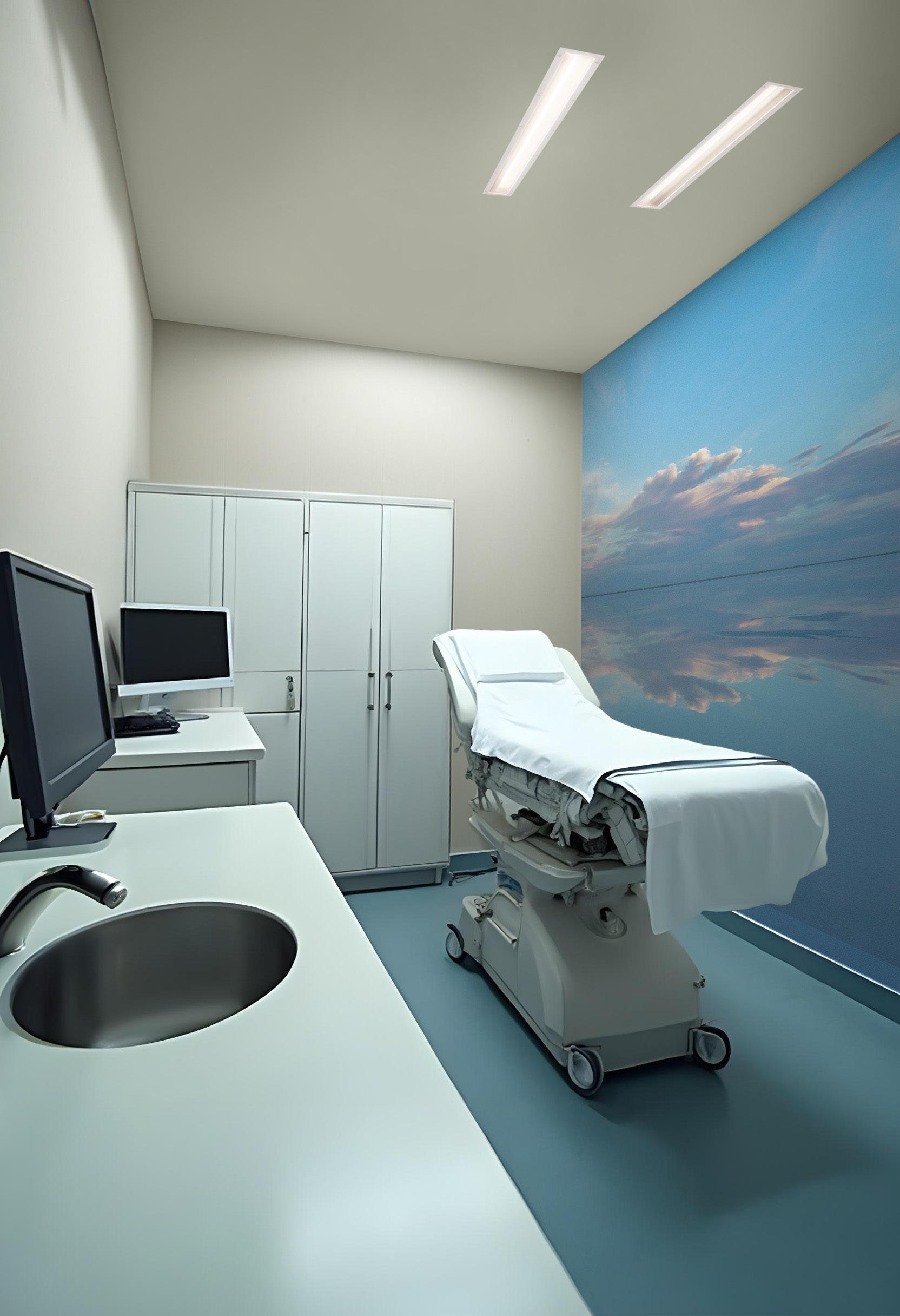

LEVEL V: Patients are newly admitted or present potential unknown risks (admission rooms, seclusion rooms, exam rooms)

“Safety Risk Assessment Tool”

James M. Hunt and David M. Sine

Behavioral Health Design Guide www.bhfcllc.com/design-guide

LEVEL II

INTENT FOR SELF-HARM COMPLETELY ALONE

LEVEL I

LEVEL III LEVEL IV

OPPORTUNITY FOR SELF-HARM (PRIVACY)

LEVEL V

SPECIAL CONSIDERATIONS

Planning for Risk Levels

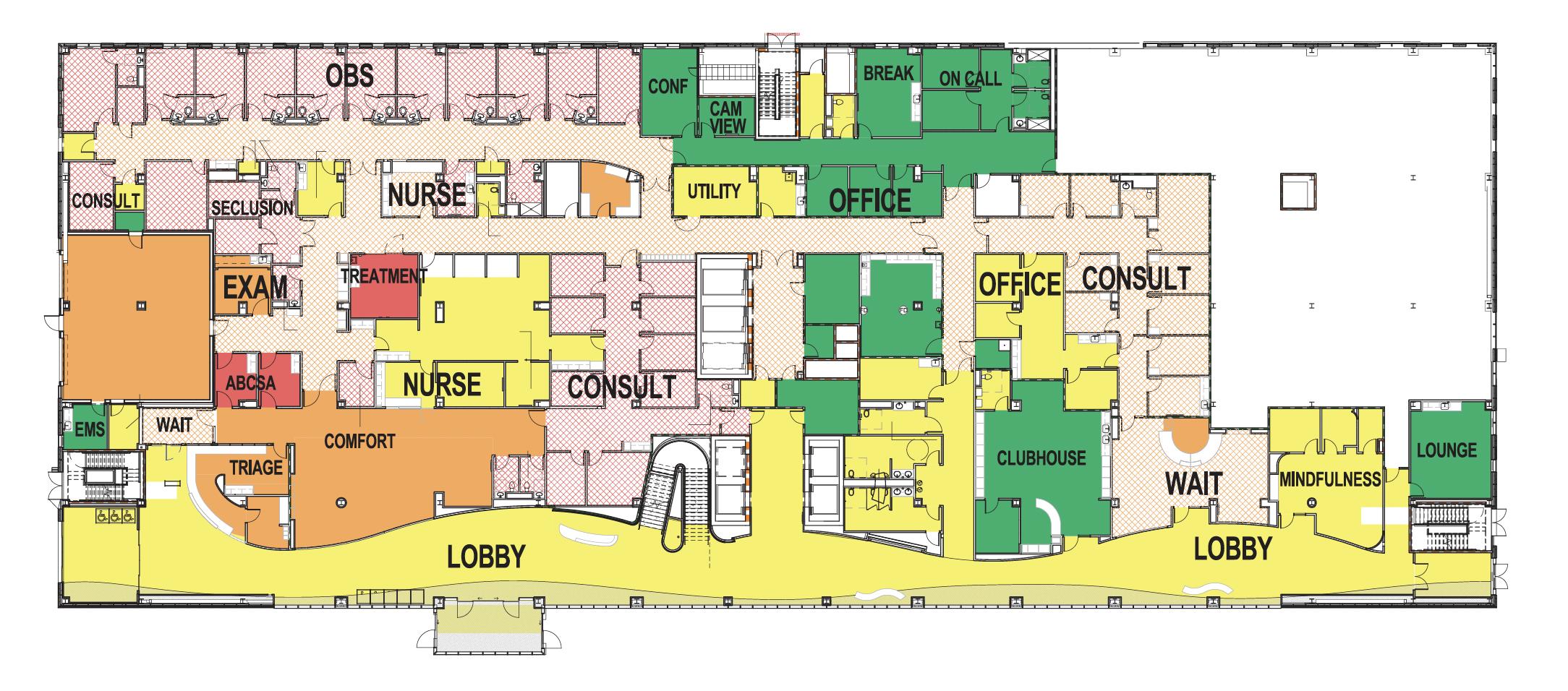

Level 1 Risk Level Plan

For this large-scale behavioral health project, the design team used their own risk assessment tool to evaluate which design elements should be chosen for each area. This model uses Low Risk, Medium Risk, and High Risk categories, determined by that area’s safety (potential patient self-harm) and resiliency (harm to the environment).

Room Layout Credit: Architecture + NBBJ

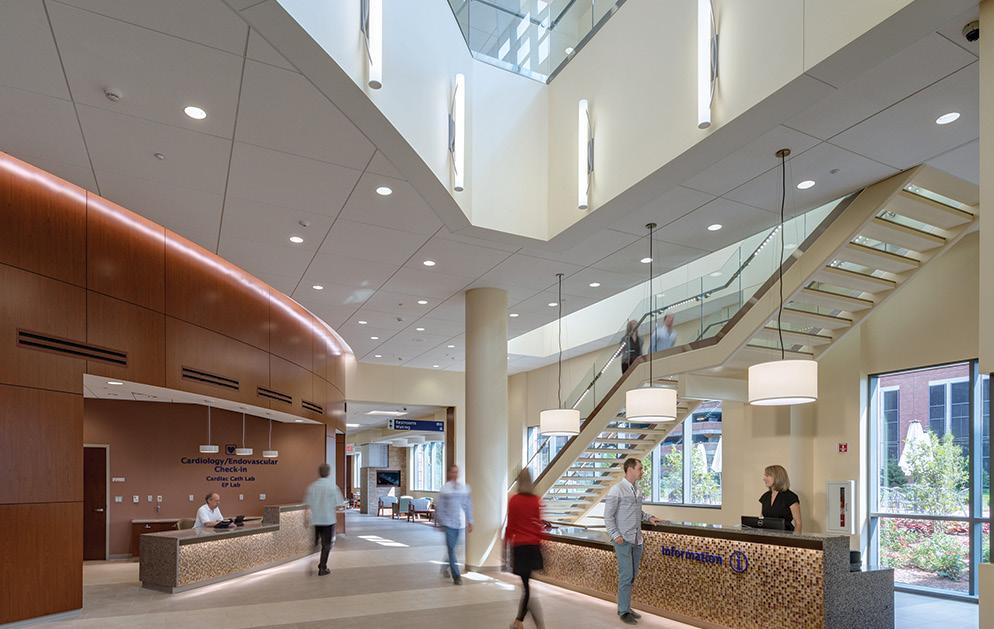

Welcome Area

Lobbies should be inviting and relaxing. What new patients and visitors see there can impact their comfort level in the space, and even how they feel about treatment.

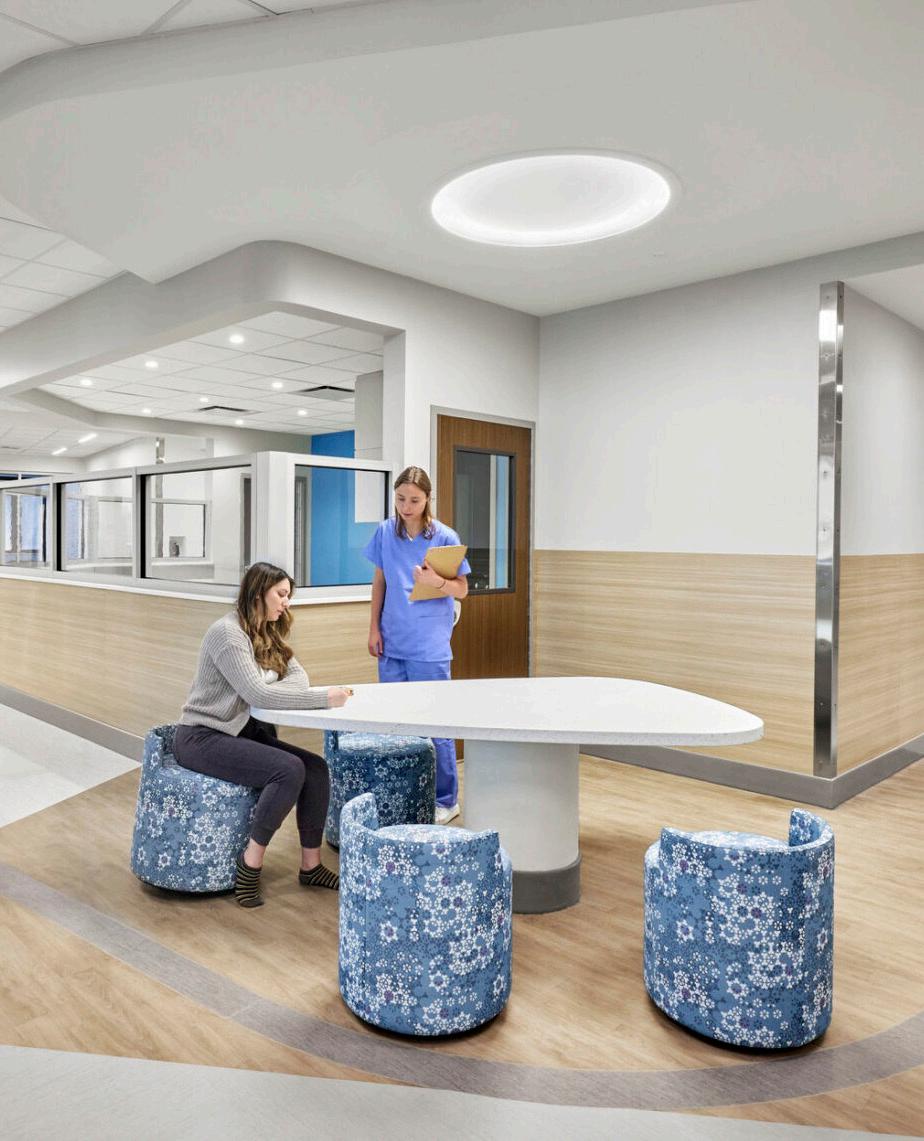

Staff Spaces

Therapeutic design positively impacts staff as well as patients. Areas where staff takes breaks and conducts meetings should evoke a homelike atmosphere.

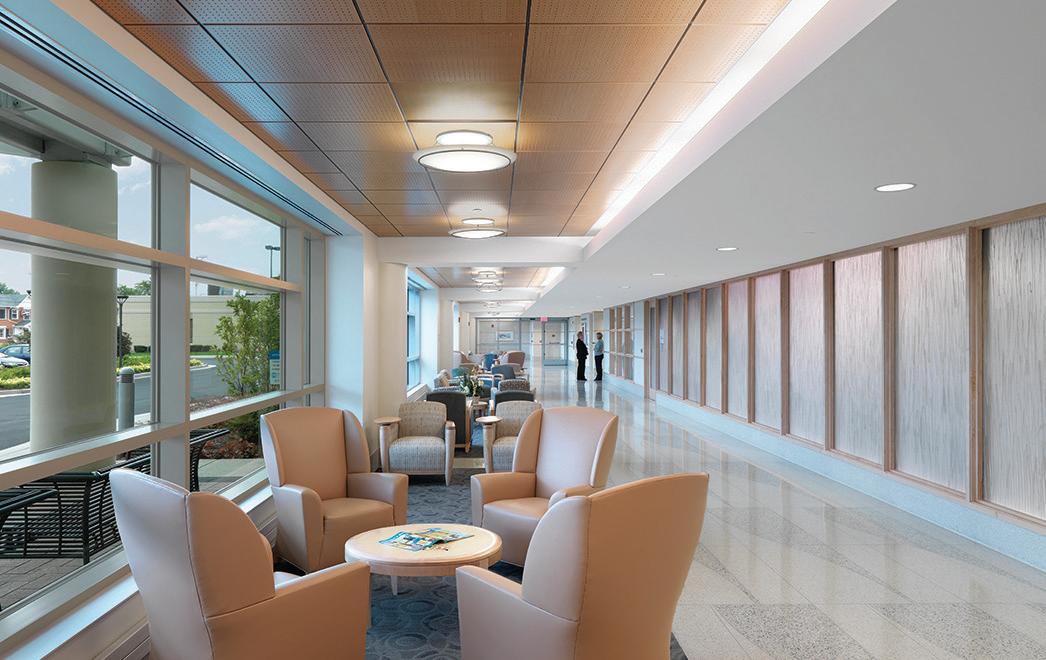

Corridors

To avoid an institutional aesthetic and encourage socialization, corridor lighting should be dimmer than typical hospitals and be indirect if possible.

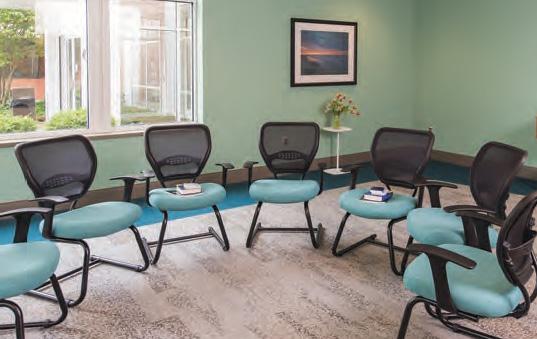

Group Rooms

Group rooms host supervised activities like classes, group therapy, and celebrations. Luminaires should be dimmable and provide task lighting.

of our luminaires.

Powder Coat Paint Finishes

With no solvents or hazardous materials, our powder coat painting process is more consistent, durable, and environmentally friendly than conventional liquid paint. Most of our products are offered in 20 rich and enduring powder coat paint finishes. Powder coating eliminates runs, drips and sags during the painting process, and protects against chips, abrasions, UV light, chemicals, and heat (up to 400° F).

We also offer additional RAL colors and custom color matching for a slight premium charge.
