ARCHITECTURE PORTFOLIO
Vipul Tiwari
ABOUT ME
A curious & enthusiastic architecture student, who is always eager to work with spaces and surrounding in order to overcome architectural obstacles in the best way possible.
I have always been passionate about learning creative approaches to solve new challenges, so that I can make an impact on people’s mind.
It would be an honor to be able to utilise my knowledge for the betterment of society.
EDUCATION
Bachelor of Architecture
Bhagwan Mahaveer School of Architecture, Sonipat, Haryana (2018-23)
Higher Secondary Education
Richmondd Global School, Paschim Vihar, New Delhi (2017-18)
SEMINARS AND WORKSHOP
Architecture and Urban Housing Development
(Ar. Gaurav Gupta, 2018)
Creating Smart Sustainable Infrastructure and Interiors in Airport and Mega Structures
(Prof. Charanjit S Shah, 2019)
Brick/Bamboo Workshop
(BMSA, Sonepat, 25-28 Feb, 2019)
Sustainibility in Architecture
(Ar. Filipe Boni, 2021)
Developing Twinmotion Projects Further into Ureal Engine
(Webinar, 1 Sept, 2021)
SOFTWARE PROFICIENCY
AUTOCAD SKETCHUP
TWINMOTION
PHOTOSHOP
INDESIGN
MS OFFICE
ARCHITECTURAL COMPETENCE
Creative Thinking
Hand- Modelling
Digital Sketching
Hand Sketching
Hand Drafting
Documentation
Problem Solving Skills
Quick Learning
Wood Working
VIPUL TIWARI
3DS MAX LUMION
REVIT
V-RAY
TOD oriented Mixed use Development, Nehru Place, New Delhi
Group Housing, Noida Sector 99, UP
Cultural Centre, Dhalli, Shimla
Working Drawing (Precast Construction)
Baundary Wall Design
INTERNSHIP WORK
01 02
Cabin Interior, Amrit Seair Express, D-Block, Samalkha
Pent House, Noida Sector 108, UP
01
02 03 04 05 TABLE OF CONTENTS ACADEMIC WORK
ACADEMIC WORK
URBAN DSIGN
TRANSIT ORIENTED DEVELOPMENT ( MIXED USE TOWER FOCUSED)
INTRODUCTION
SITE LOCATION: NEHRU PLACE, SOUTH DELHI, INDIA.
C LIMATE: COMPOSITE CLIMATE WITH MAXIMUM TEMP. EXCEEDING 35B C AND MINIMUM TEMP. FALL DOWN TO 23B C.
CONNECTIVITY:-
MAJOR TRANSIT POINTS ARE NEHRU PLACE METRO STATION (BLUE LINE), KALKAJI MANDIR METRO STATION (MAJENTA LINE) AND NEHRU ENCLAVE (MAGENTA LINE) AND NEHRU PLACE TERMINAL
THE MAIN ATTRACTION IN THE REGION IS THE WHOLE NEHRU PLACES MARKET WHICH IS FAMOUS FOR ITS ELECTRONIC MARKET SPECIALISED IN LAPTOPS AND COMPUTERS.
LOTUS TEMPLE AND KALKAJI TEMPLE ARE THE OTHER ATTRACTION IN THE REGION WHICH IS AT A DISTANCE OF 1.3KM AND 0.55KM RESPECTIVELY FROM THE SITE.

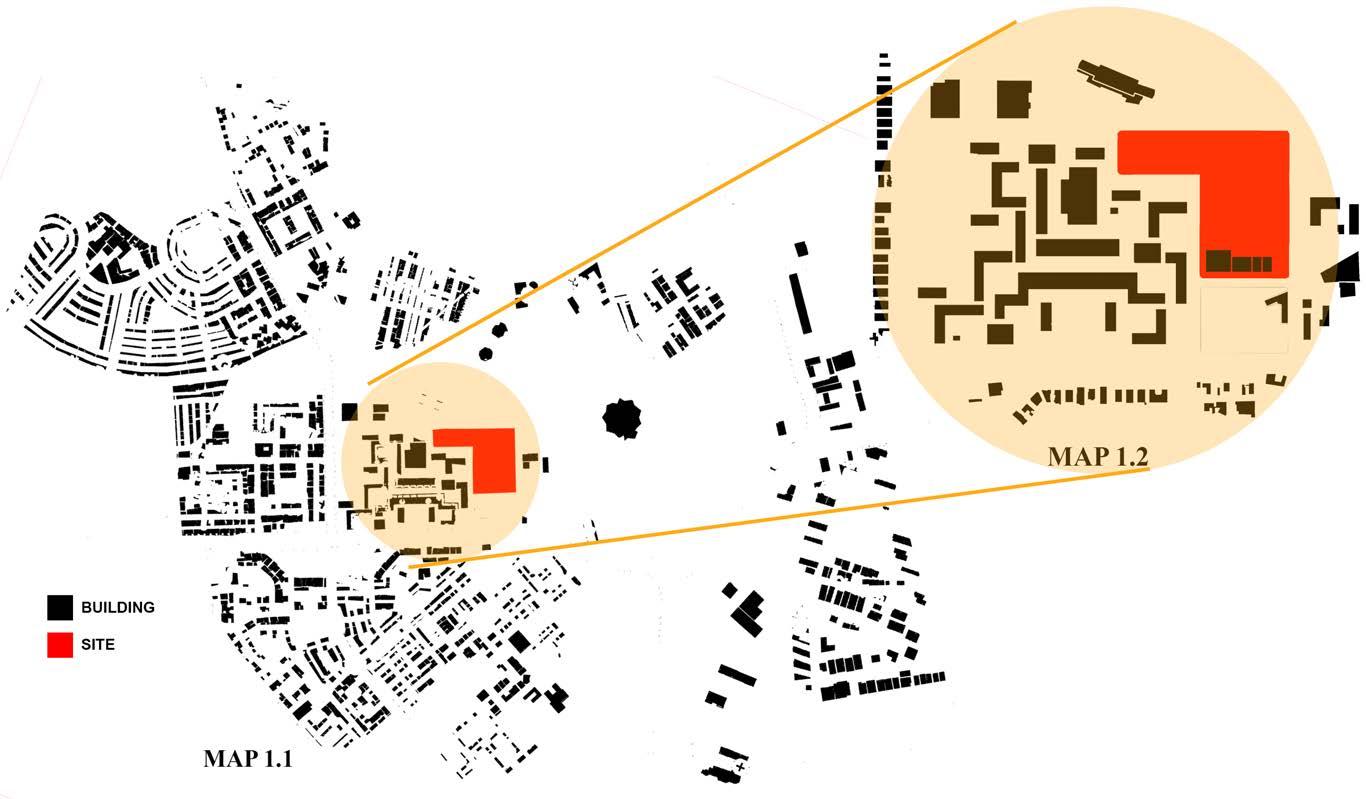

FIGURE GROUND MAP

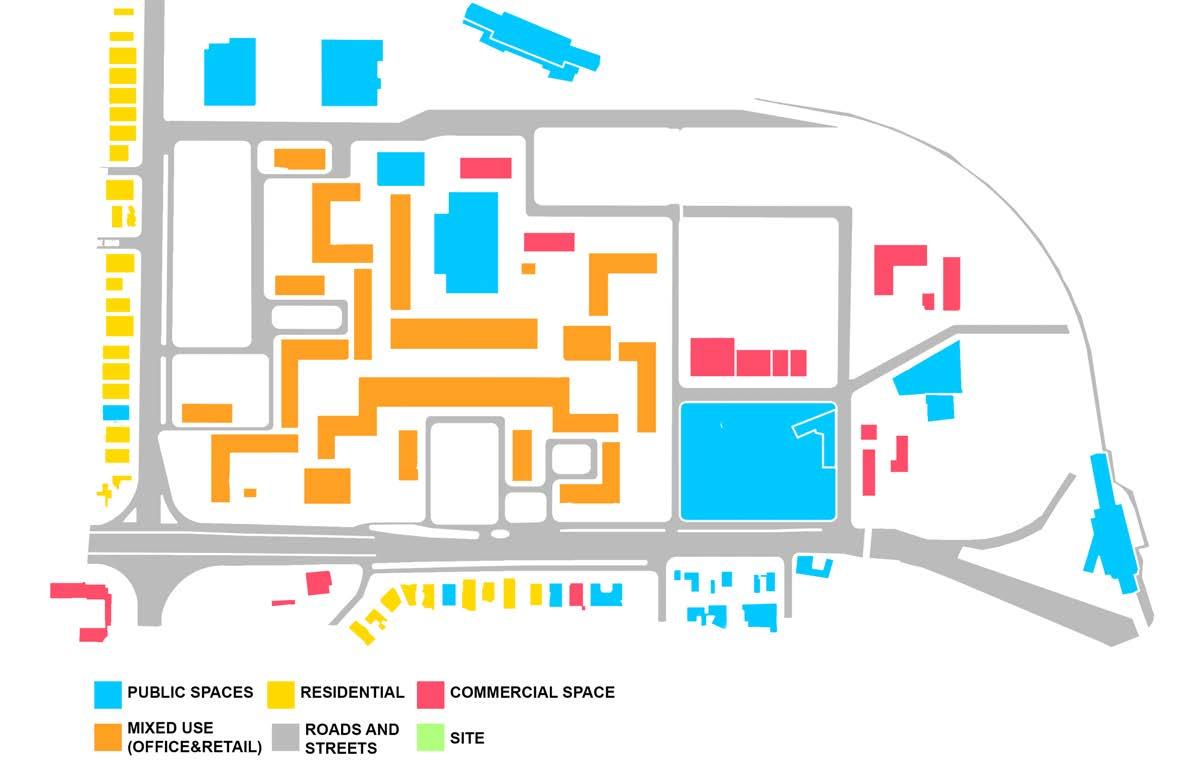

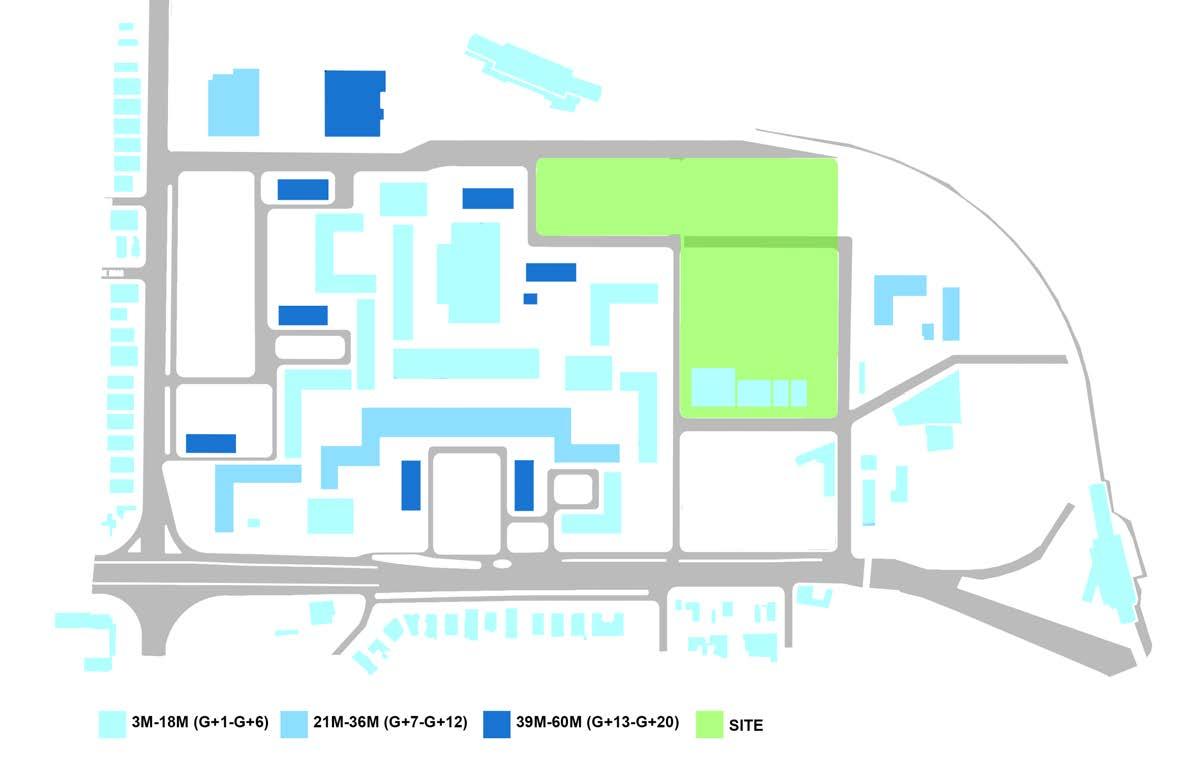

BUILT-USE MAP BUILT-HEIGHT MAP

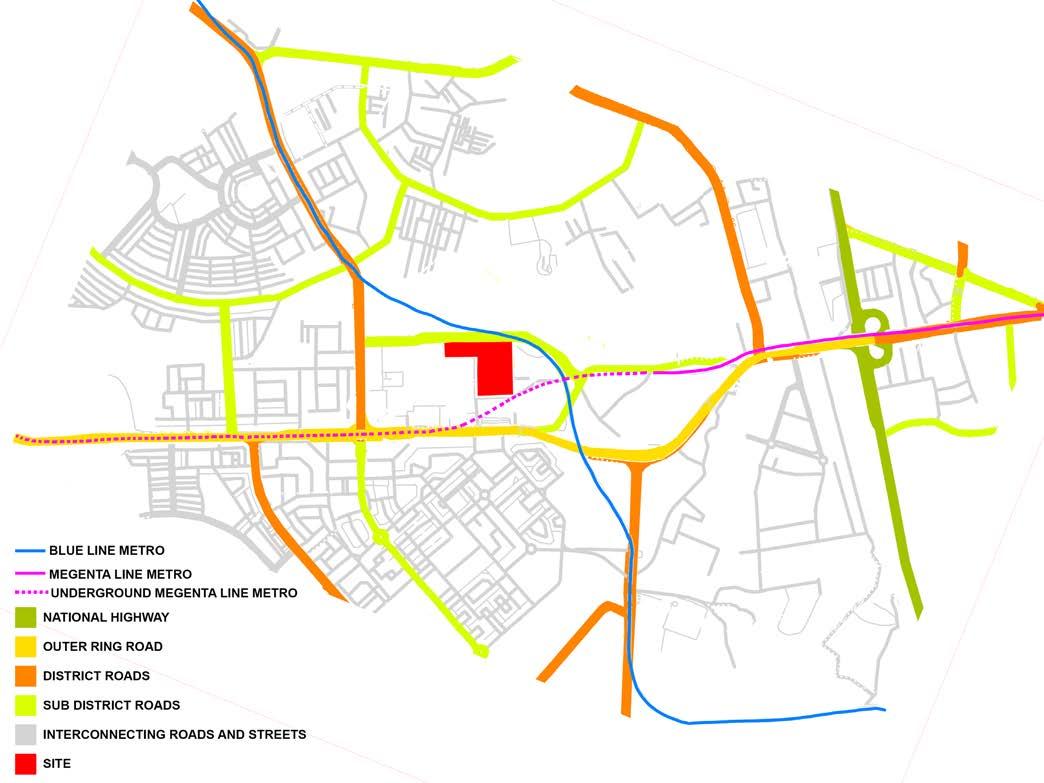

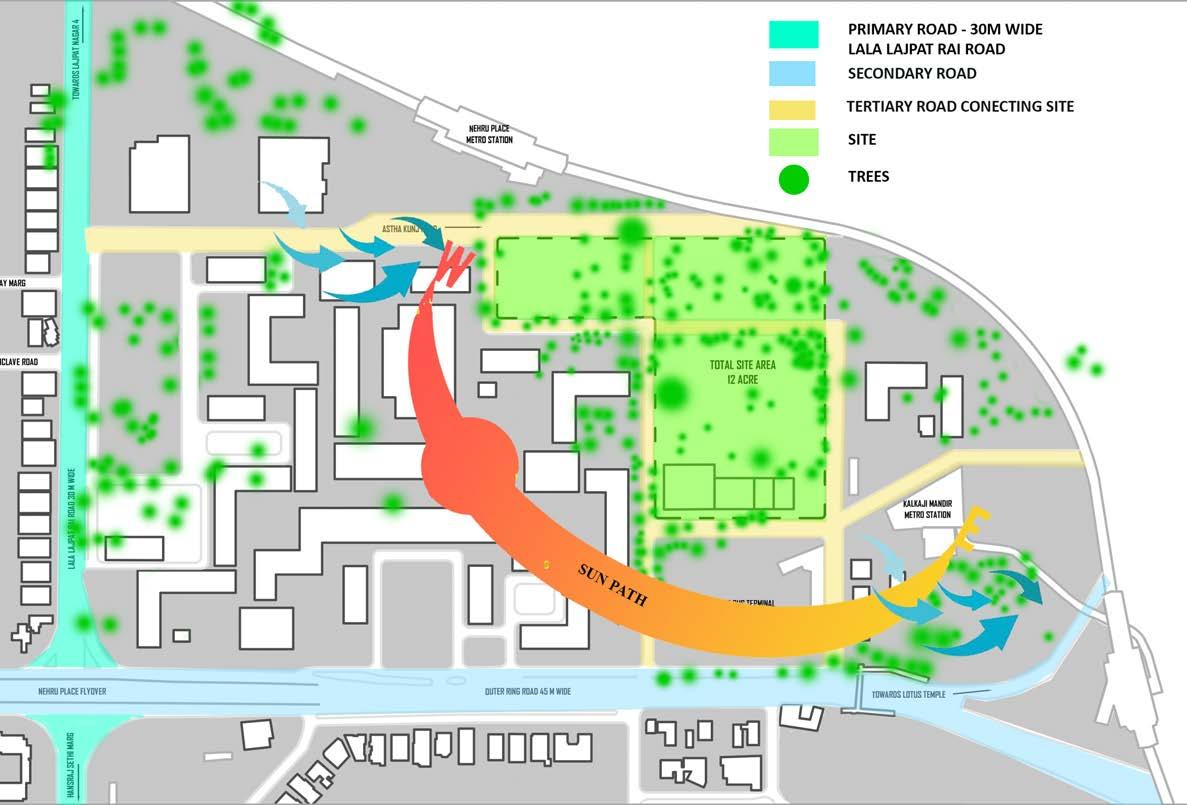

ROAD NETWORK AND HEIRARCHY MAP

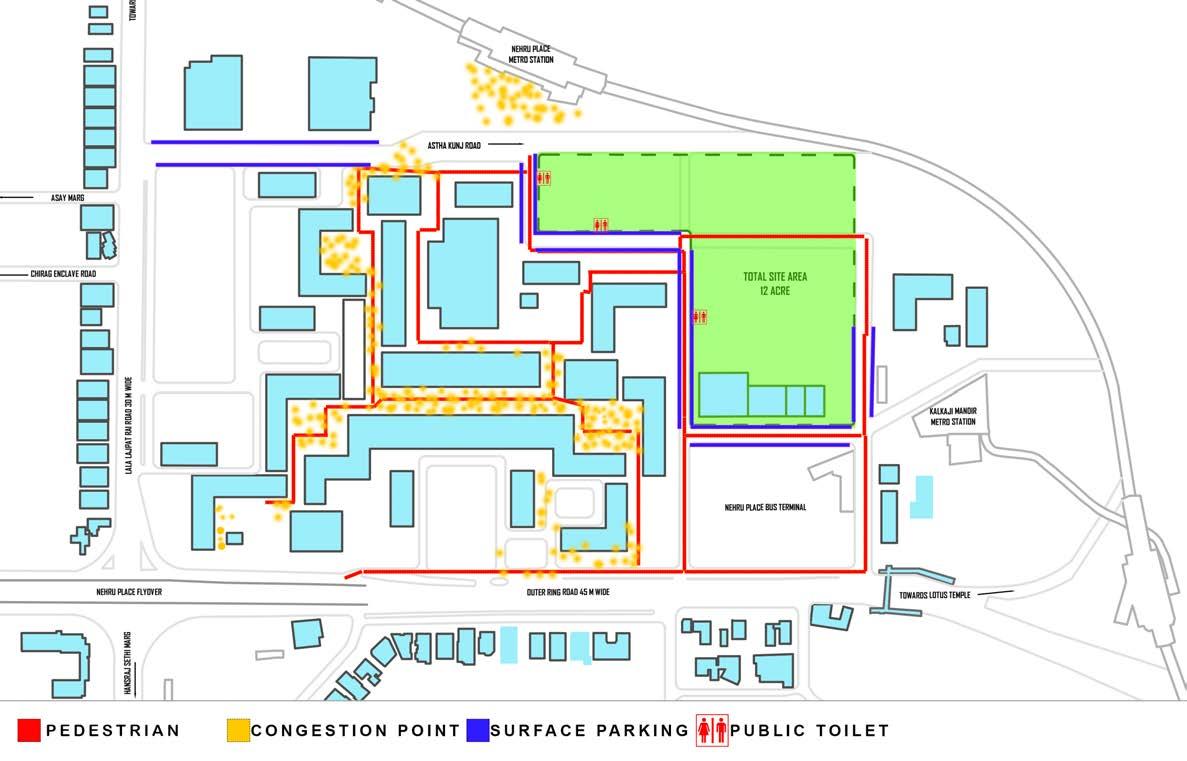

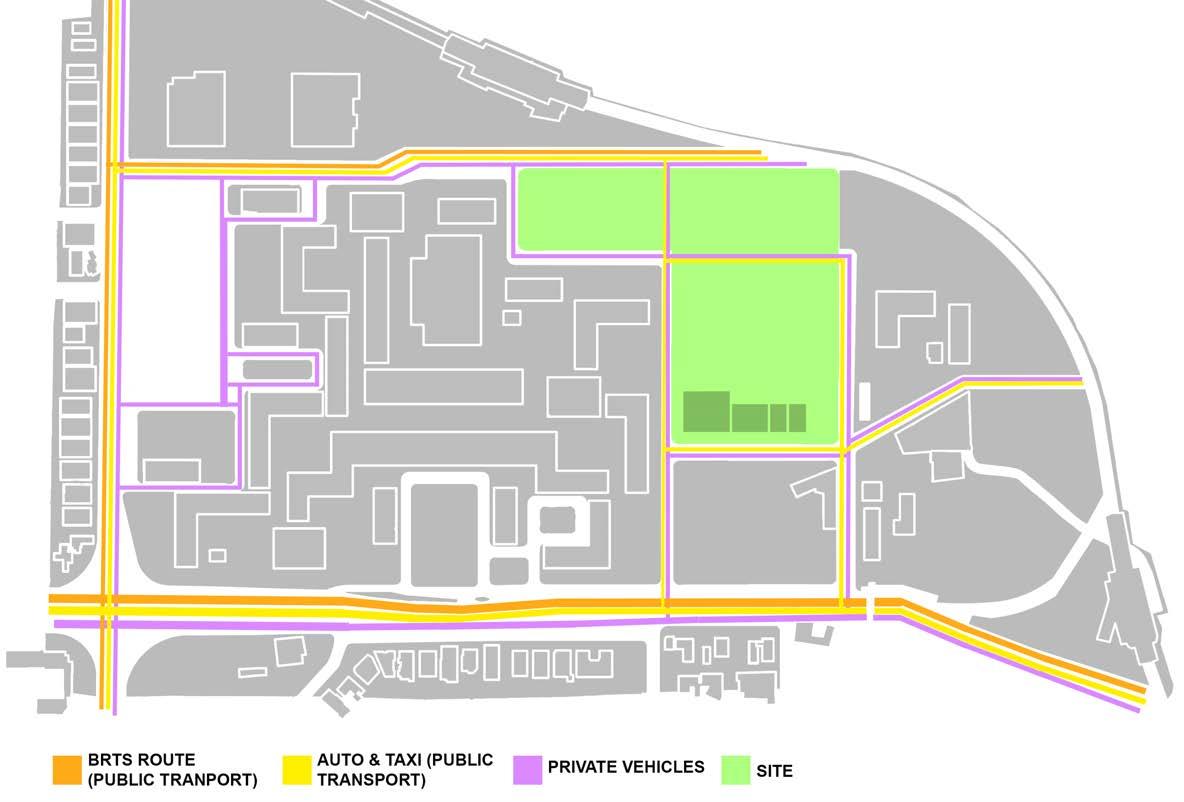

VEHICULAR MOVEMENT MAP

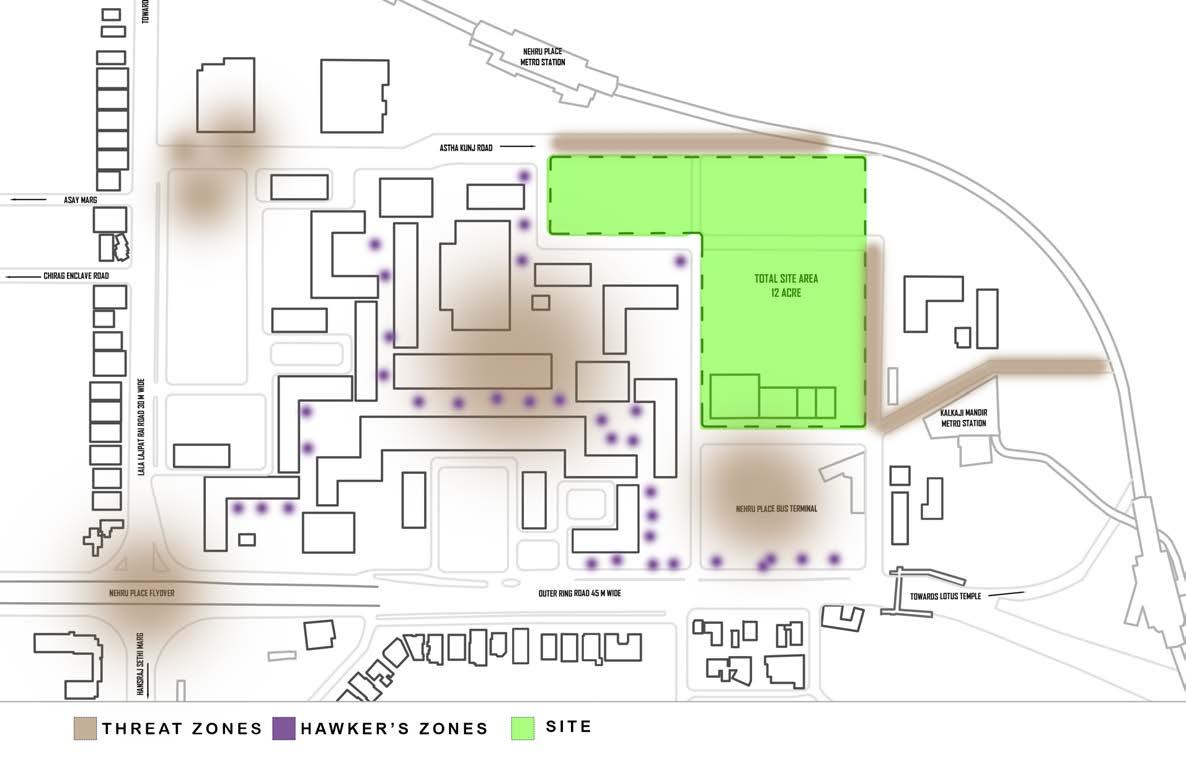

WEAKNESS MAP THREAT MAP
PHYSIOGRAPHY MAP
CONCEPT
♦ GARDEN CITY IS A METHOD OF URBAN PLANNING IN WHICH SELF-CONTAINED COMMUNITIES ARE SURROUNDED BY “GREEN BELT”, CONTAINING PROPORTIONATE AREA OF RESIDENCES, INDUSTRIES AND AGRICULTURES.
♦ THE IDEA WAS INITIATED BY SIR EBENEZER HOWARD IN 1898 IN UK AND AIM TO CAPTURE THE PRIMARY BENEFITS OF A COUNTRYSIDE ENVIRONMENT AND A CITY ENVIRONMENT WHILE VOIDING THE DISADVANTAGES OF BOTH.
CONNECTIVITY OF GARDEN CITY WITH OTHER CITY
CONNECTIVITY OF PROJECT SITE WITH OTHER SURROUNDING AREA

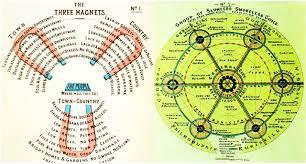

THE THREE MAGNET CONCEPT
♦ IN TRYING TO UNDERSTAND AND REPRESENT THE ATTRACTION OF CITY HE COMPARED EACH CITY TO A MAGNET, WITH INDIVIDUAL REPRESENTED AS NEEDLES DRAWN TO CITY AND IS CALLED THE “THE THREE MAGNET”.
♦ HE OFFERED A VISION OF TOWN FREE OF SLUMS AND ENJOYING THE BENEFITS OF BOTH TOWN( SUCH AS OPPORTUNITY, AMUSEMENT AND GOOD WAGES) AND COUNTRY (SUCH AS BEAUTY, FRESH AIR AND LOW RENTS).
♦ HE BELIEVED THAT “HUMAN SOCIETY AND BEAUTY OF NATURE ARE MEANT TO BE ENJOYED T OGETHER “- HENCE GIVING HIS SOLUTION “ TWO MAGNETS MUST BE MADE ONE”. TOWN AND COUNTRY MUST BE UNITED.

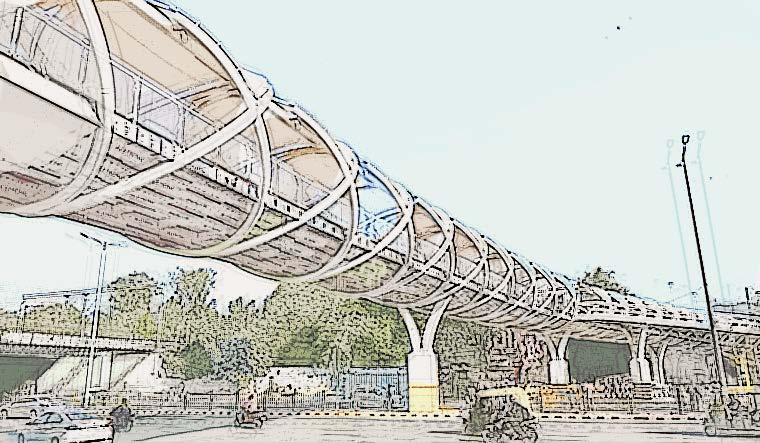

SKYWALK
SKYWALK IS PROVIDED WITH BOTH THE METRO STATION (NEHRU PLACE AND KALKAJI METRO STATION), TO CREATEE A CONNECTIVITY BETWEEN THESE STATION FOR THE EASE OF ACCESS AND ALSO TO CONNECT SITE DIRECTLY WITH METRO STATION.
ITS POSITION IS SHOWN IN THE MASTER PLAN

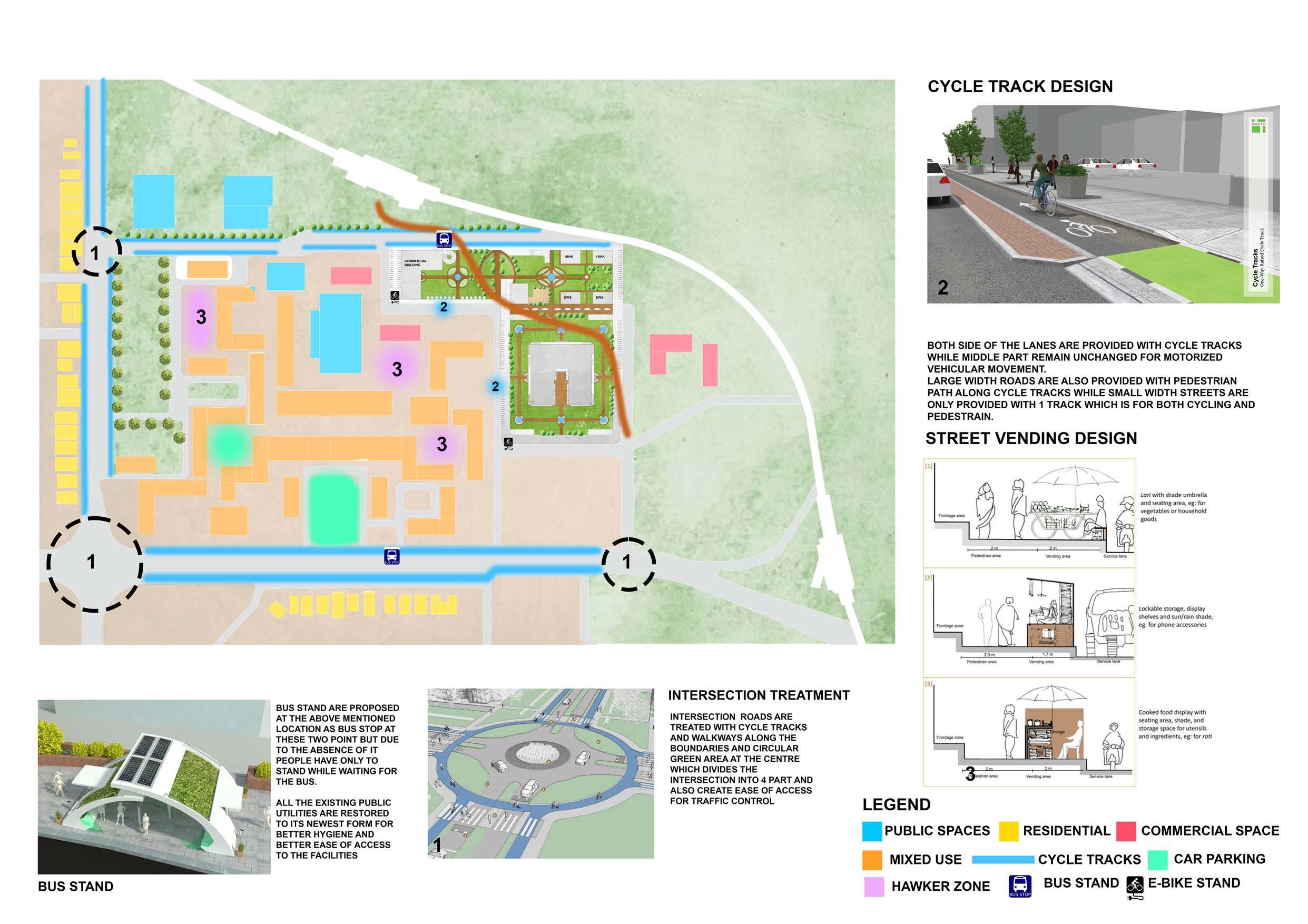

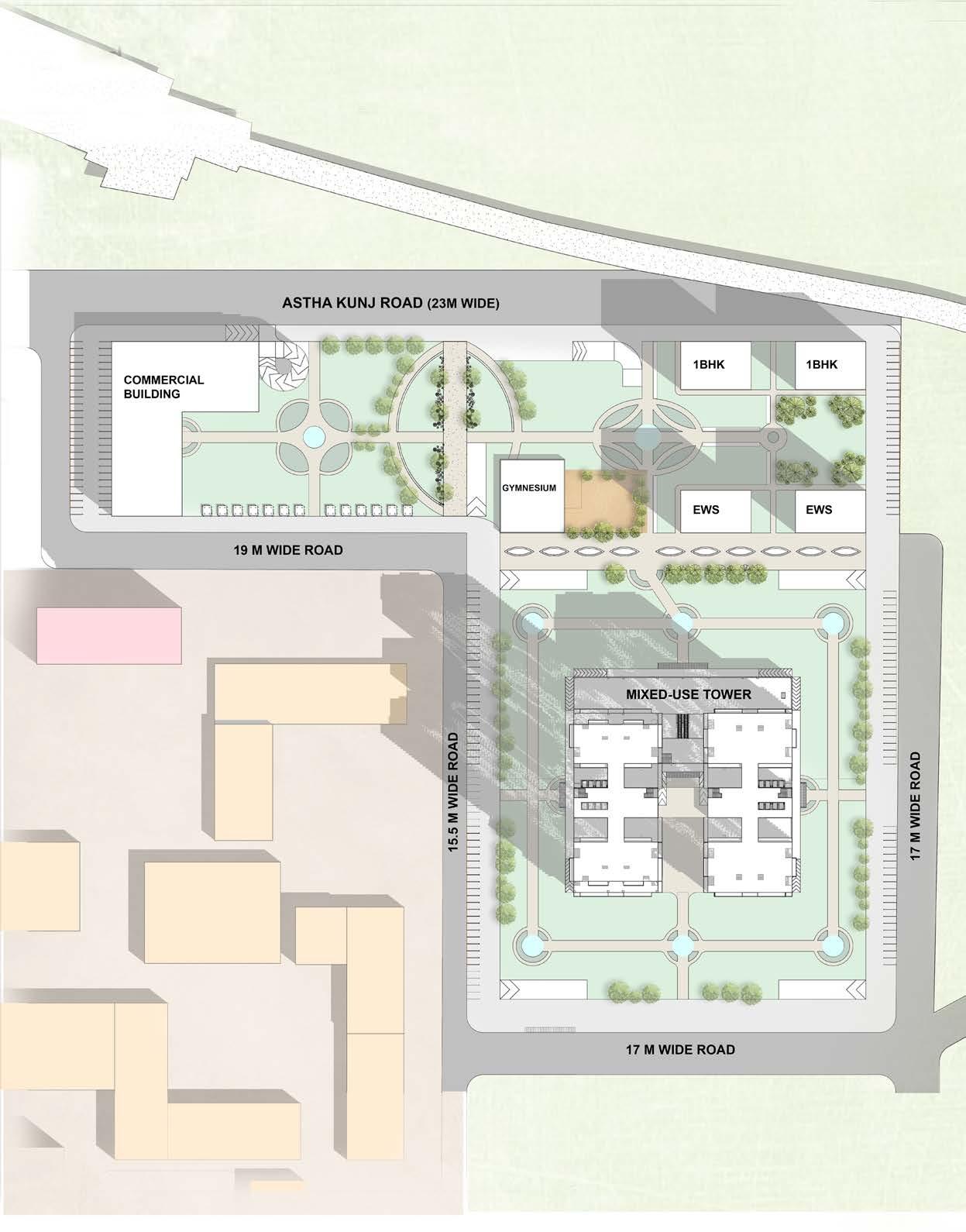

MASTER PLAN
SITE PLAN
SITE AREA: 12 ACRE S/48,562.27 SQ.M.
PERMISSIBLE GROUND COVERAGE (40% OF PA): 4.8 ACRES/19,425 SQ M
PERMISSIBLE FAR: 4
PERMISSIBLE BUILT-UP AREA: 48
ACRES/1,94,249.08 SQ M
GROUND COVERAGE ACHIEVED: 19.68% OF PLOT AREA= 9560 SQ.M.
PERMISSIBLE FAR: 4
BUILT-UP AREA: 192554.05 SQ.M.
F.A.R.ACHIEVED: 3.9

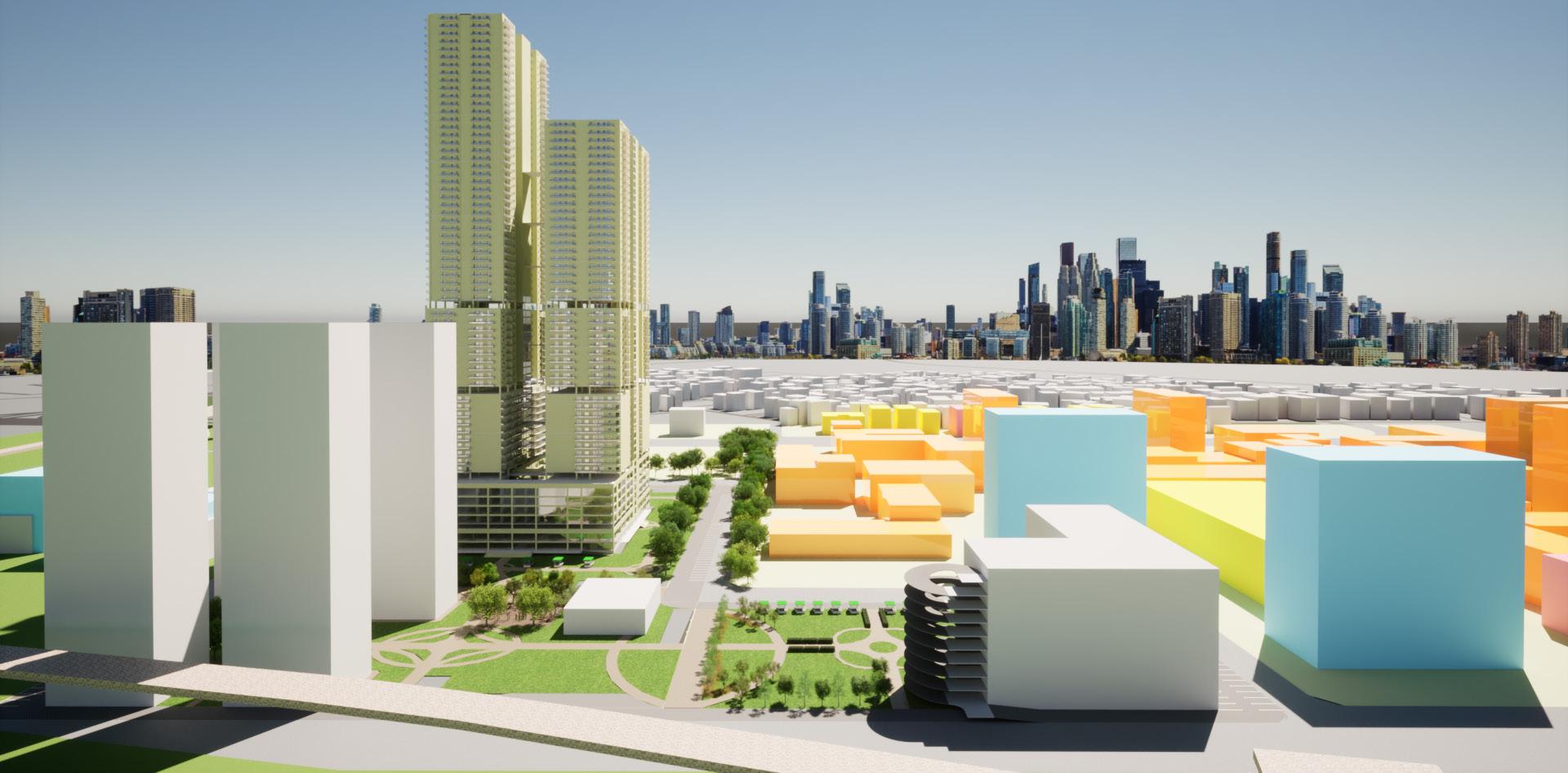

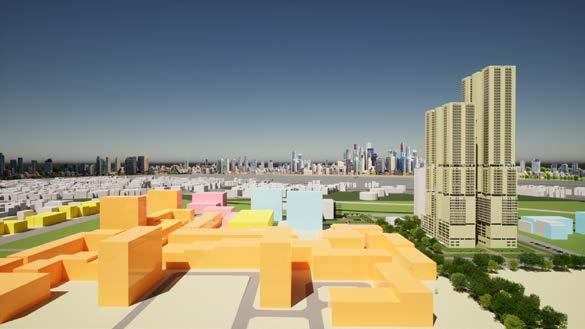

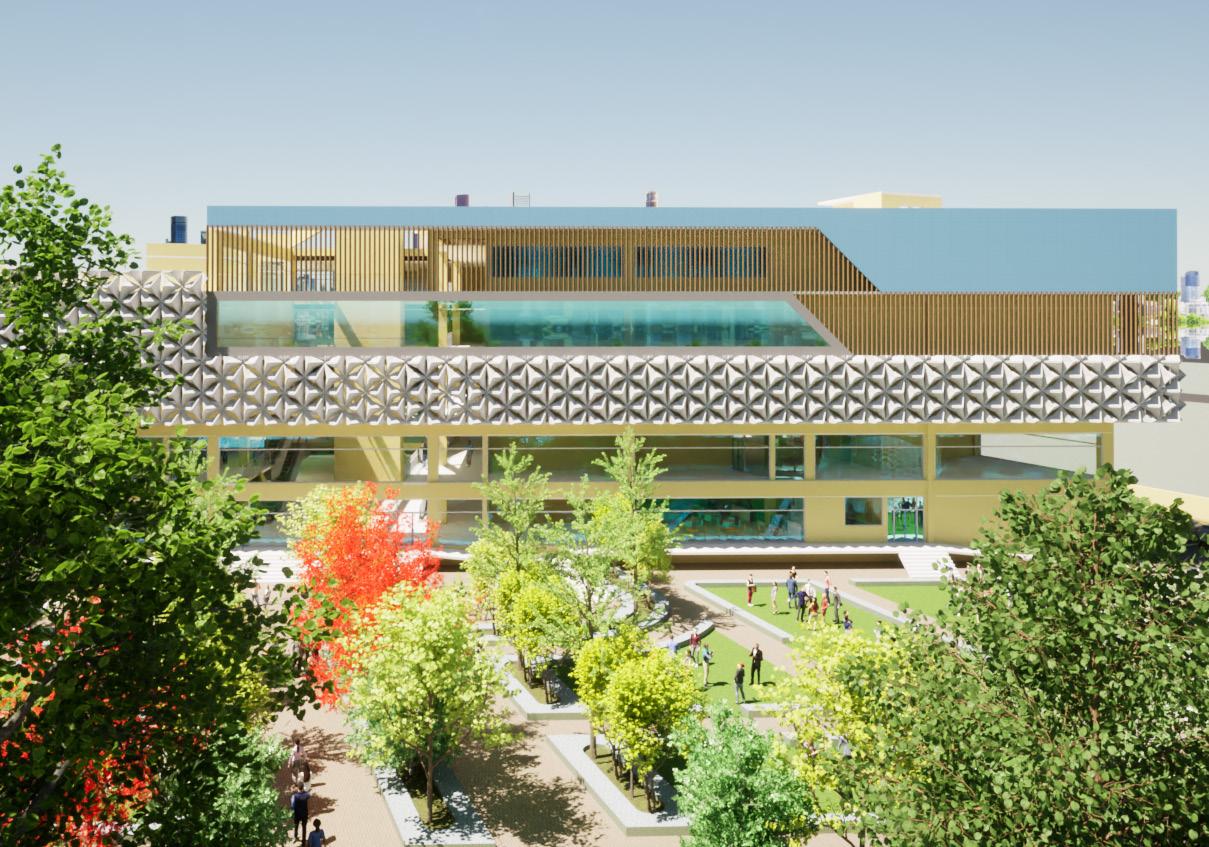

VIEW FROM TOWER ETRANCE

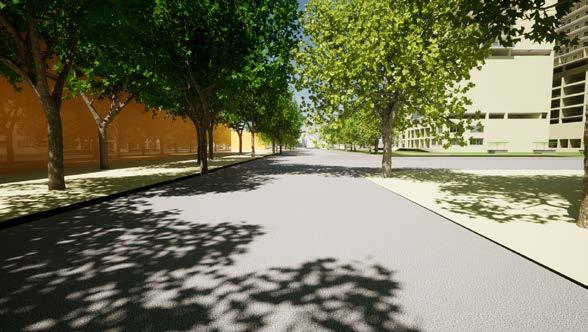

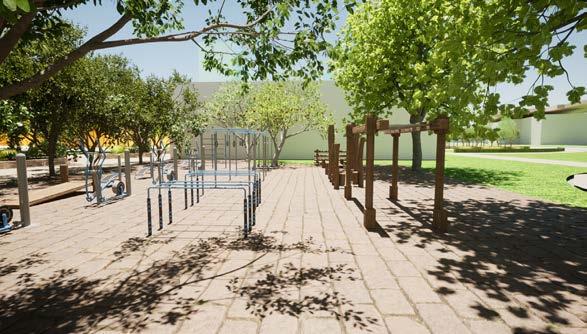

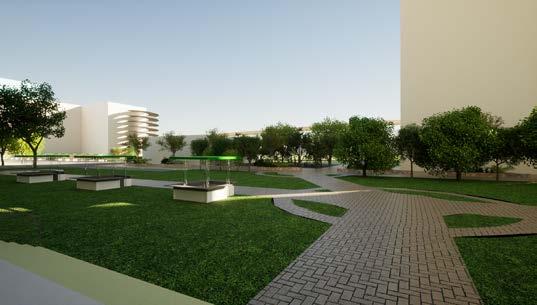

PEDESTRIAN AREA VIEW OUTDOOR GYM VIEW
VIEW OF COMMERCIAL COMPLEX LANDSCAPING ON COMMERCIAL AREA
OTHERSIDE OF MIXED-USE TOWER PEDESTRAIN MOVEMENT

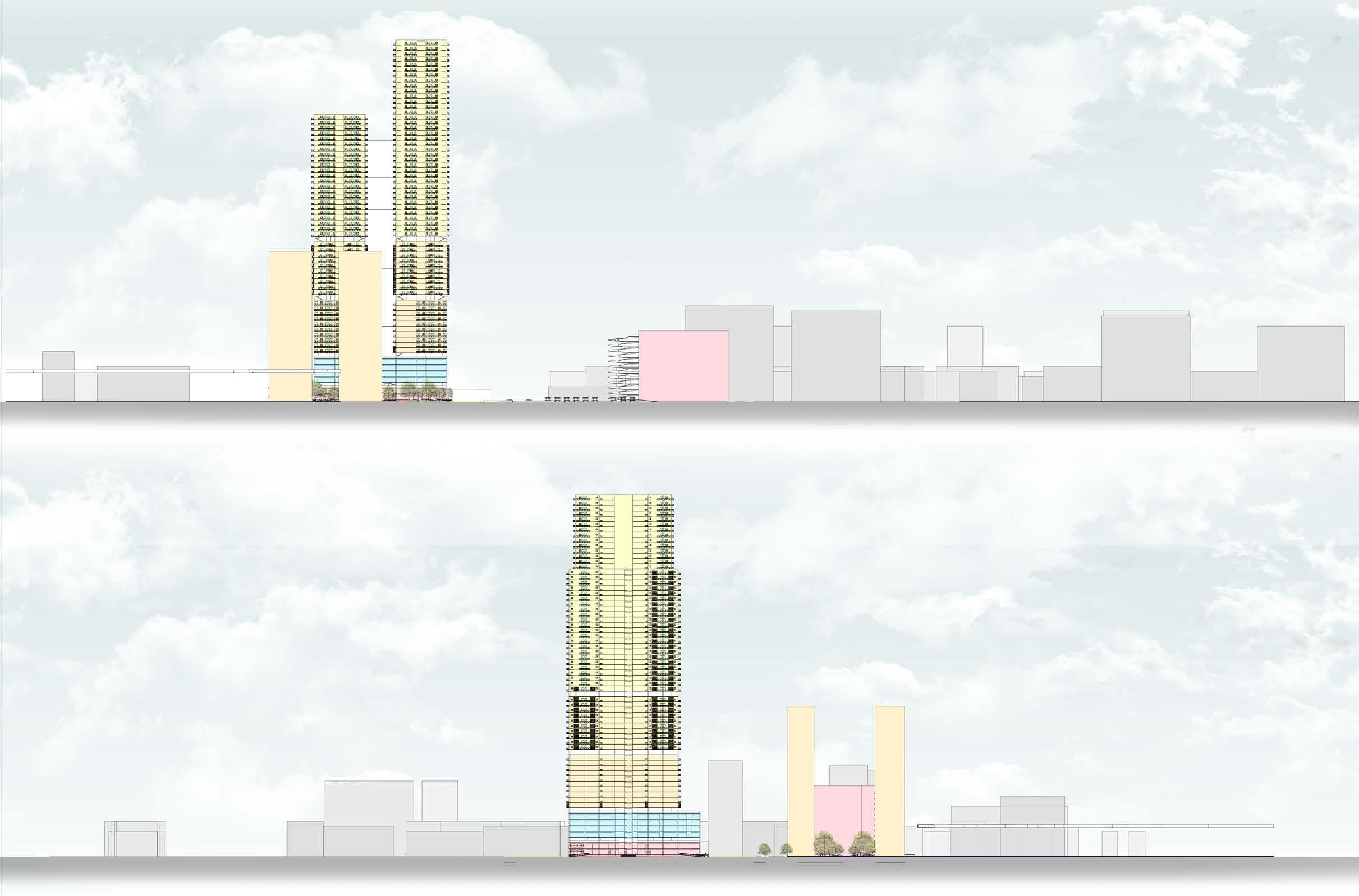

SITE ELEVATION

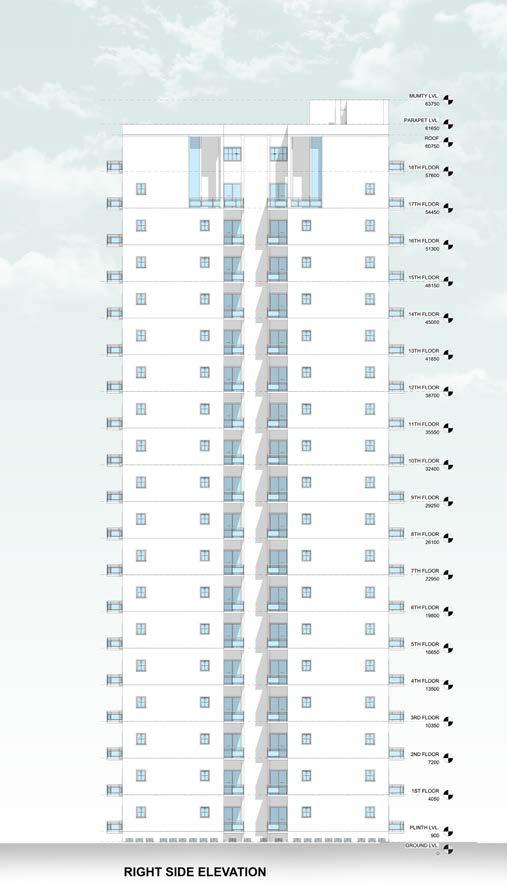

RIGHT SIDE ELEVATION
ELEVATION ASTHA KUNJ ROAD
GROUP HOUSING
INTRODUCTION
LOCATION: SECTOR 99,NOIDA.
CLIMATE: COMPOSITE CLIMATE WITH MAXIMUM TEMP.
EXCEEDING 40B C AND MINIMUM TEMP. FALL DOWN TO 2B C.
CONNECTIVITY:-
BUS STAND (BHAKTAWARPUR SHANI MANDIR): 3.2KM
METRO STATION (GOLF COURSE):4.5KM
SHANTI HOSPITAL: 1.13KM
SHRI OM KASHYAP LIFELINE HOSPITAL: 2KM

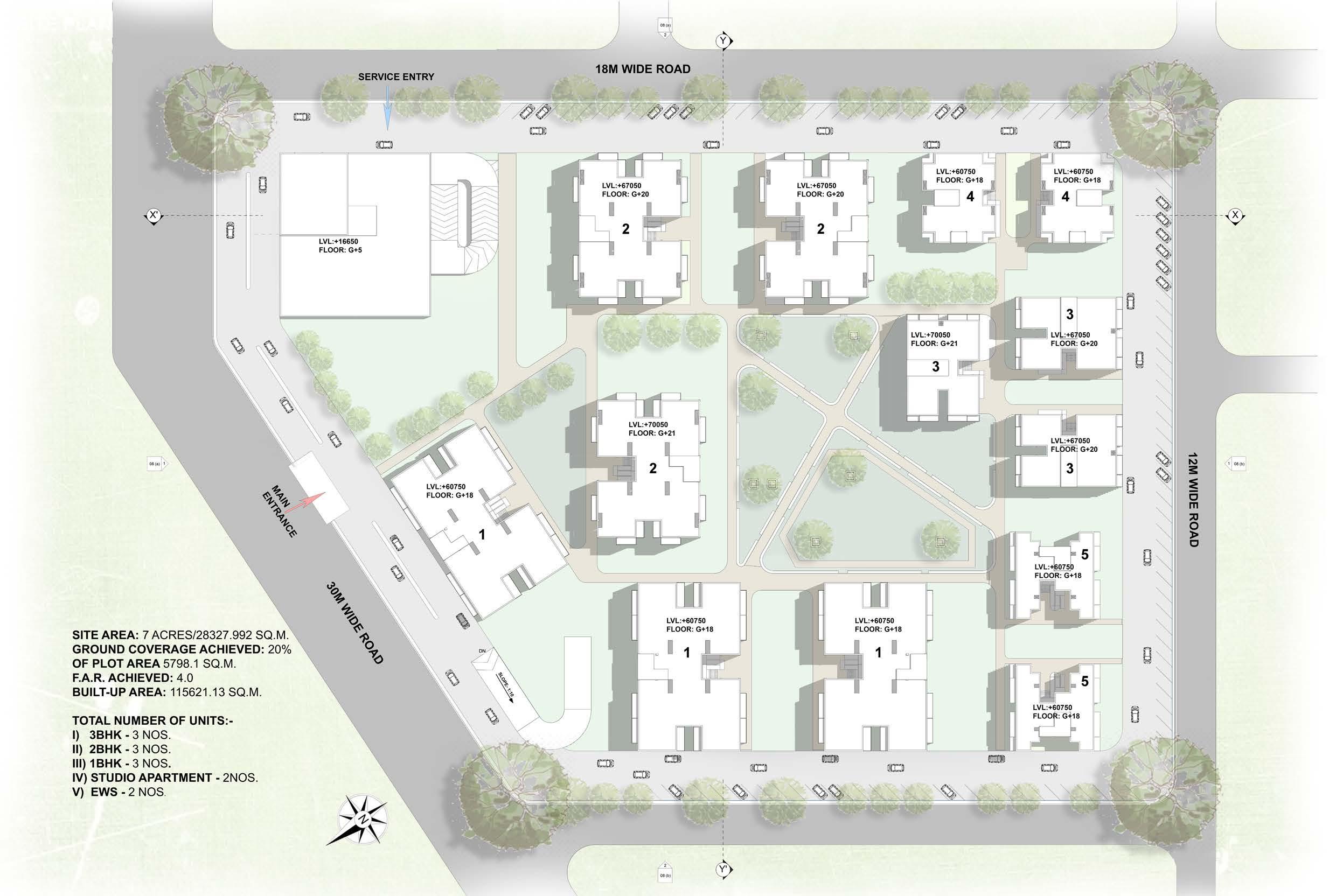

SITE PLAN

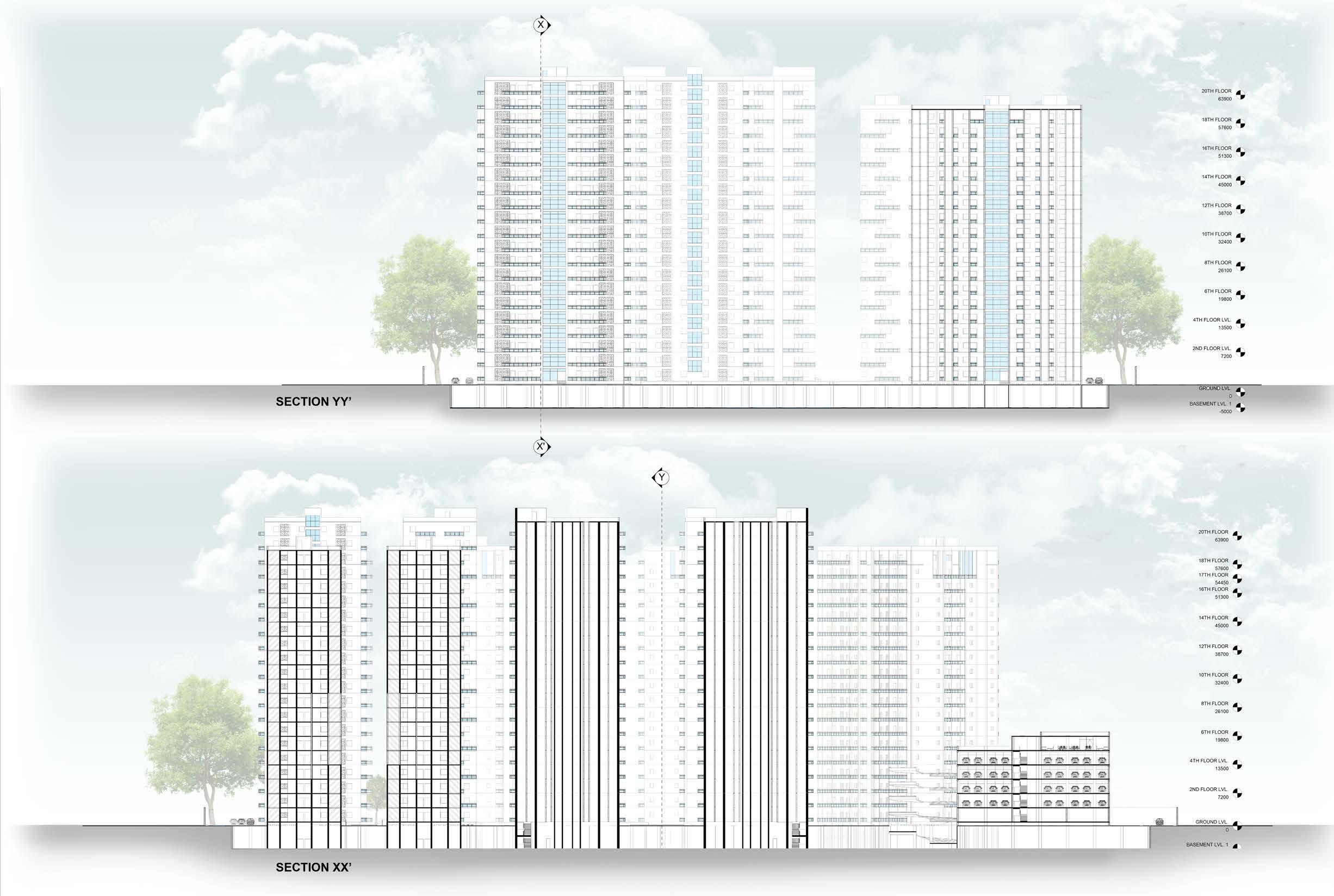

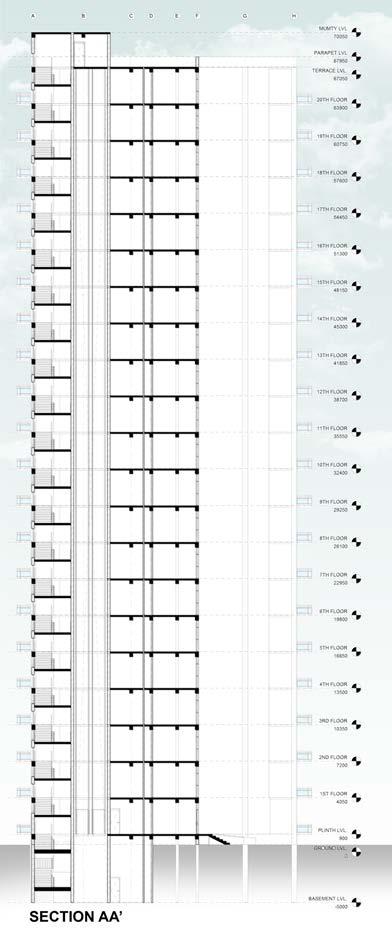

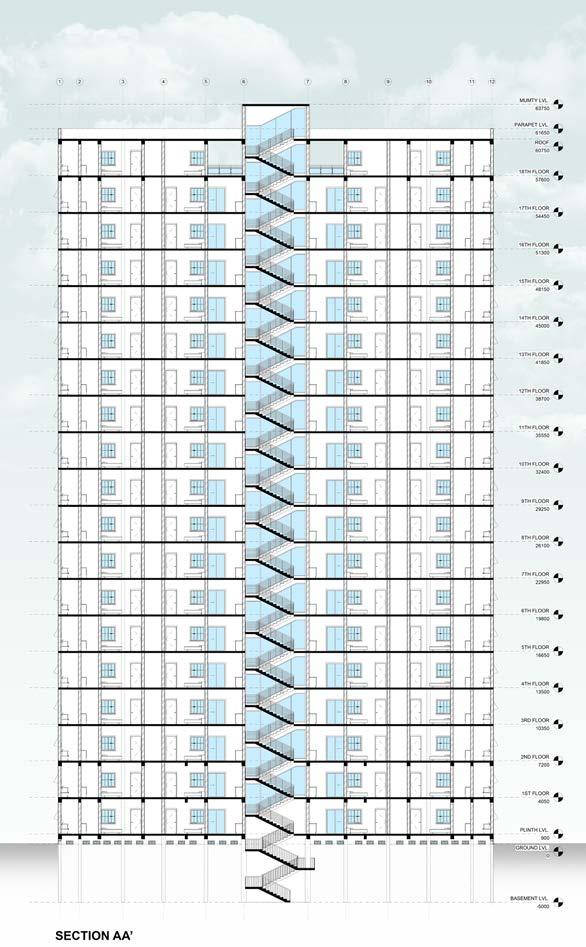

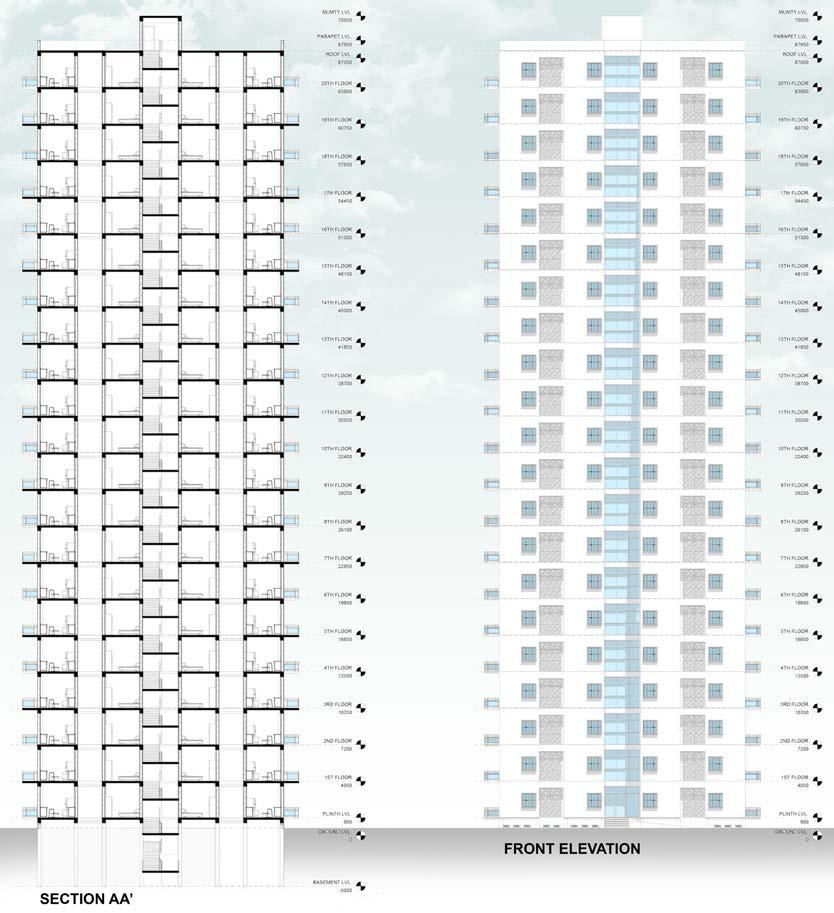

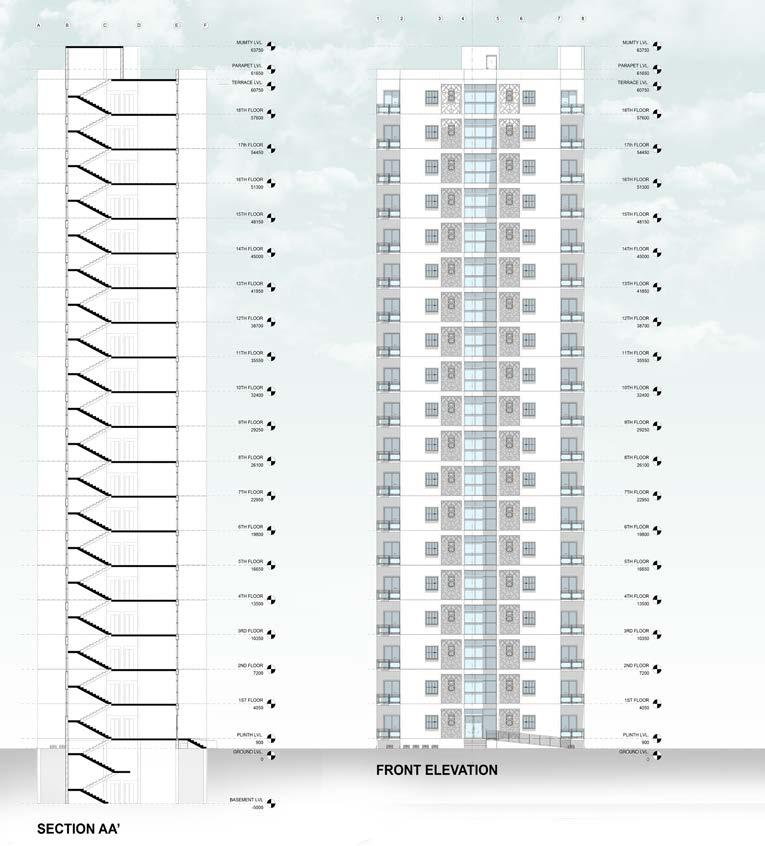

SITE SECTION
TOTAL NUMBER OF TOWERS: 2 NO. TOTAL GROUND COVERAGE: 490 SQ.M. TOTAL BUILT-UP AREA: 9310 SQ.M. AREA OF 1 UNIT: 42.8 SQ.M. GROUND COVERAGE OF 1 TOWER: 245 SQ.M. BUILT-UP AREA OF 1 TOWER: 4655 SQ.M. TOTAL NUMBER OF TOWERS: 2 NO. TOTAL GROUND COVERAGE: 549.18 SQ.M. TOTAL BUILT-UP AREA: 10434.4 SQ.M. AREA OF 1 UNIT: 49 SQ.M. GROUND COVERAGE OF 1 TOWER 274.6 SQ.M. BUILT-UP AREA OF 1 TOWER: 5217.2 SQ.M. TOTAL NUMBER OF TOWERS: 3 NO. TOTAL GROUND COVERAGE: 900 SQ.M. TOTAL BUILT-UP AREA: 19200SQ.M. AREA OF 1 UNIT: 54.8 SQ.M. GROUND COVERAGE OF 1 TOWER: 300 SQ.M. BUILT-UP AREA OF 1 TOWER: 6300 SQ.M. TOWER PLAN TOWER PLAN TOWER PLAN UNIT PLAN UNIT PLAN UNIT PLAN EWS TOWER STUDIO APARTMENT TOWER 1BHK TOWER
PLAN
TOTAL NUMBER OF TOWER: 3 NO.
TOTAL GROUND COVERAGE:1732 SQ.M.
TOTAL BUILT-UP AREA: 36374.3 SQ.M.
AREA OF 1 UNIT: 112.4 SQ.M.
GROUND COVERAGE OF 1 TOWER: 577.37 SQ.M.
BUILT-UP AREA OF 1 TOWER: 12124.77 SQ.M
3 BHK TOWER

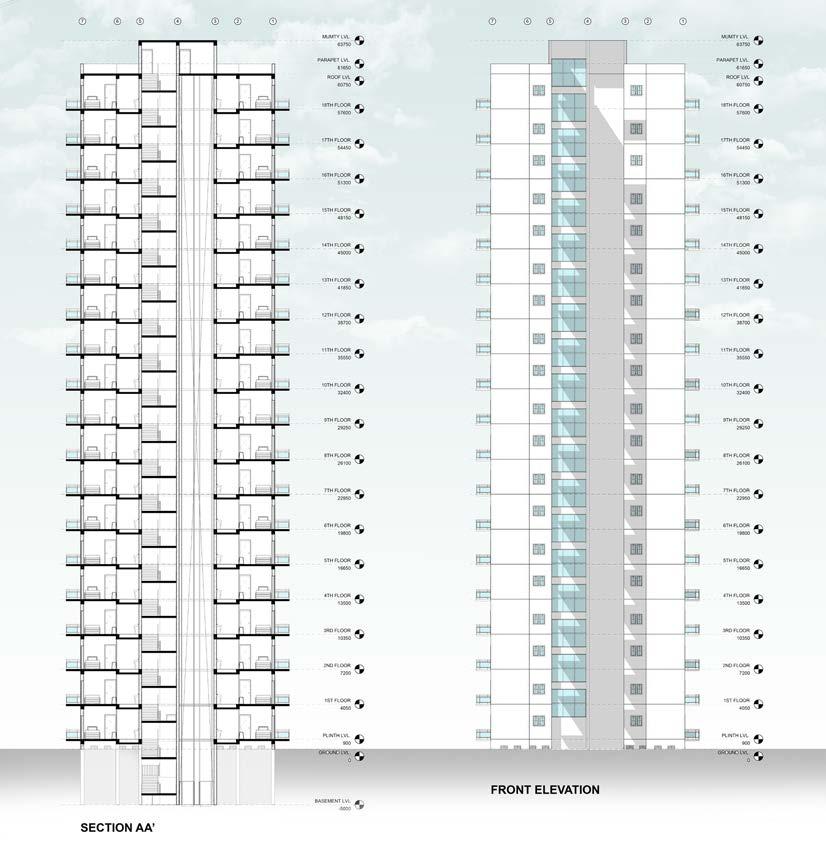

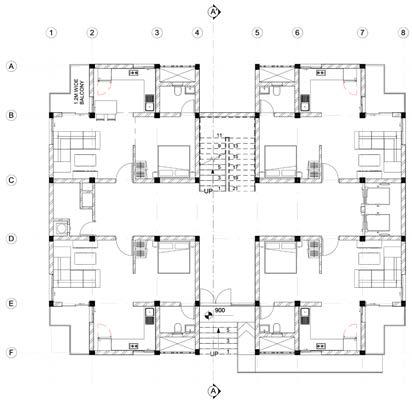

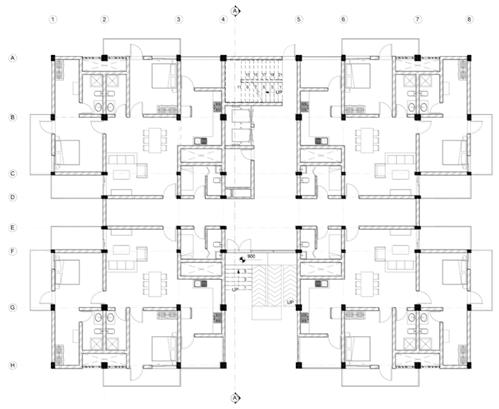

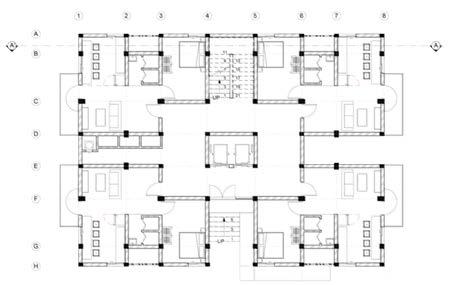

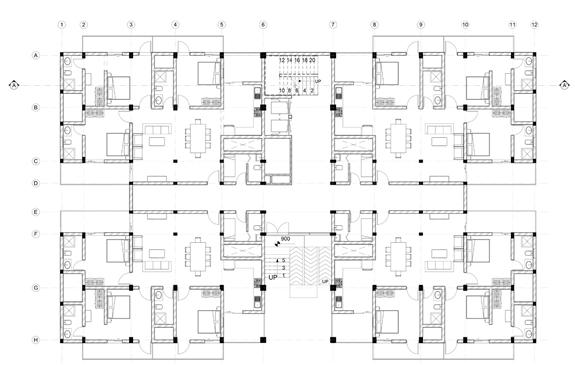

TOWER PLAN
TOTAL NUMBER OF TOWERS : 3 NOS.
TOTAL GROUND COVERAGE: 2,126.7 SQ.M.
TOTAL BUILTUP AREA: 36155.78 SQ.M.
AREA OF 1 UNIT: 144 SQ.M.
GROUND COVERAGE OF 1 TOWER: 708.9 SQ.M.
BUILTUP AREA OF 1 TOWER: 12051 SQ.M.
UNIT
TOWER
PLAN

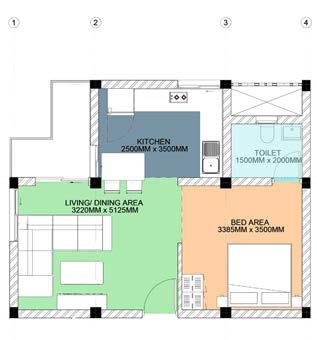

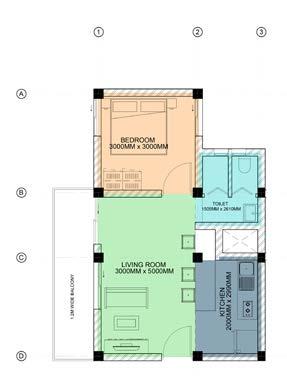

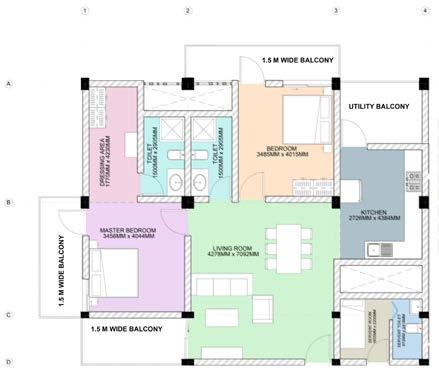

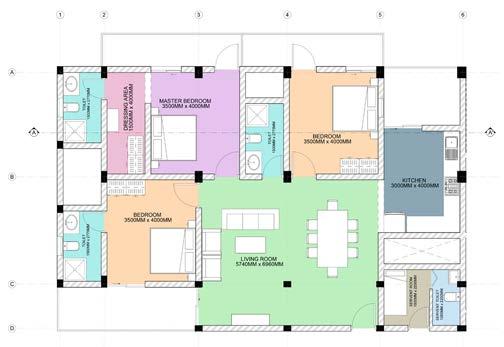

UNIT PLAN
2 BHK TOWER
CULTURAL CENTRE
INTRODUCTION
LOCATION: DHALLI, SHIMLA.
CLIMATE: COLD CLIMATE WITH MAXIMUM
TEMP. GOES UPTO 28B C AND MINIMUM TEMP.
FALL DOWN TO -1B C.
CONNECTIVITY:-
ICICI ATM: 2KM
PETROL PUMP: 0.6KM
TRAVEL AGENCY: 0.26KM
RESTAURNAT/ CAFE: 0.3KM
NEAREST GUEST HOUSE: 0.17KM
CULTURE AND HERITAGE OF SHIMLA
THE PEOPLE IN SHIMLA LIVE IN SMALL HUTS WITH SLATED ROOFS.
THE MUSIC IS DOMINATED WITH INSTRUMENTS RATHER THAN VOCALS.
THE MAIN INSTRUMENTS THAT ARE USED WHILE SINGING ARE FLUTE, GHARIYAL, GHUNGHROO, ETC. THE MAJOR DANCE FORMS OF SHIMLA ARE THE KAYANG DANCE, BAKAYANG DANCE, BNAYANGCHU DANCE, JATARU KAYANG DANCE, CHOHARA DANCE, SHAND AND SHABU DANCES AND RASA DANCE.

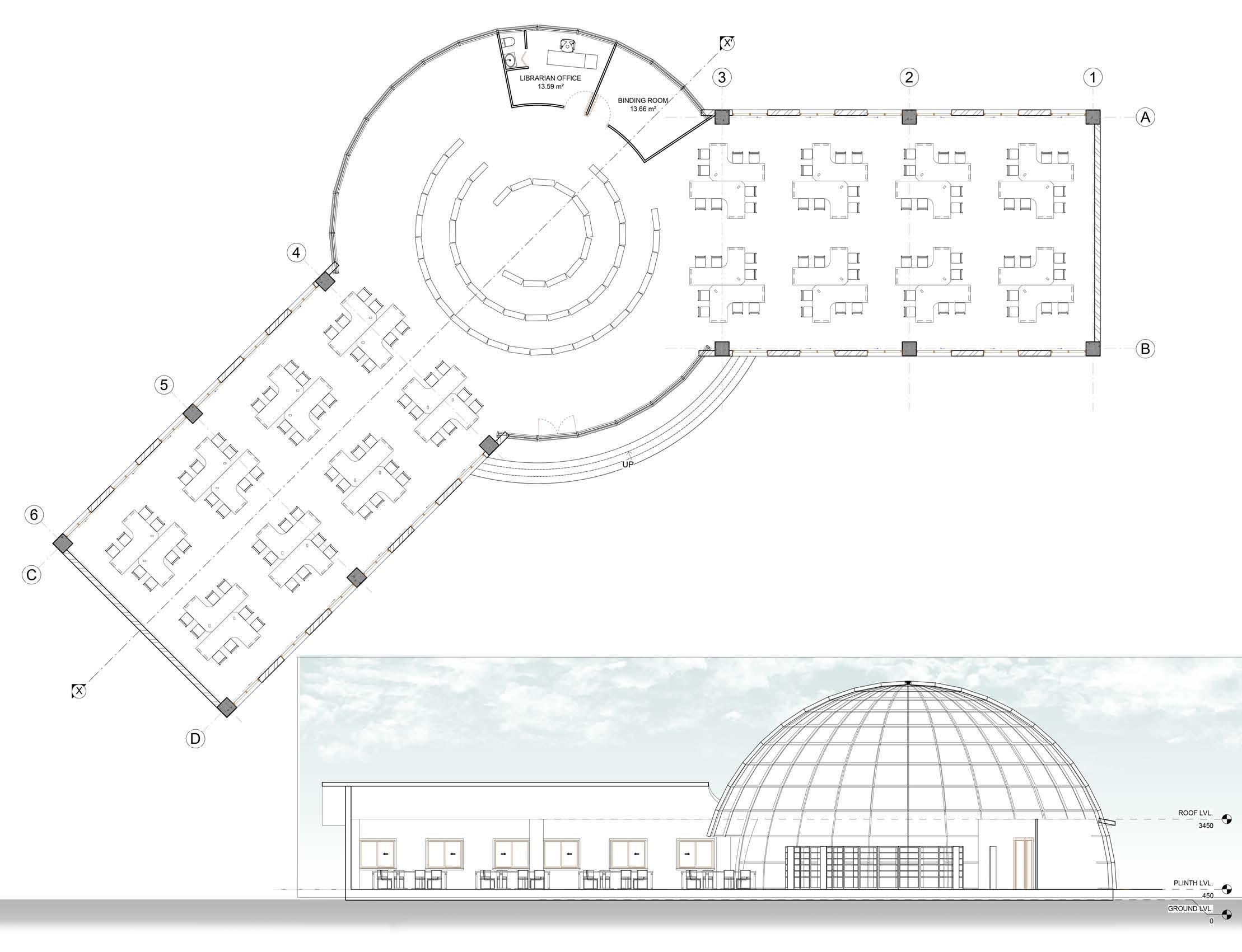

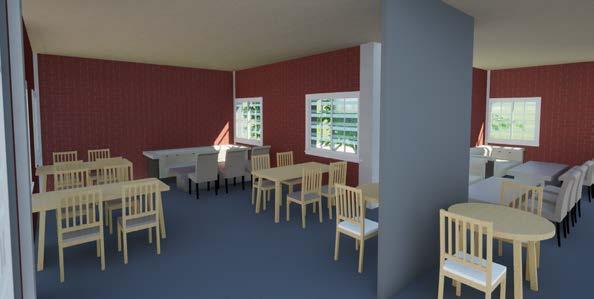

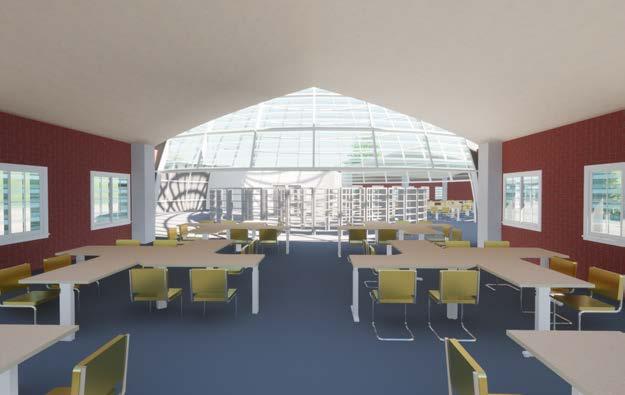

SEATING ARRANGEMENT OF LIBRARY

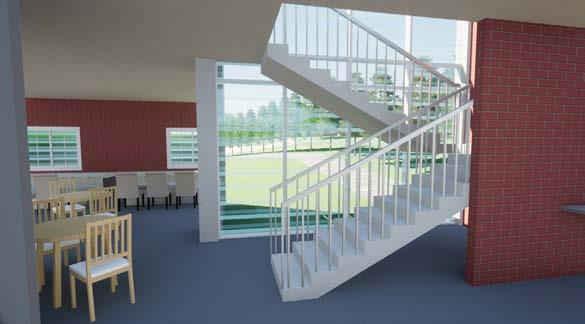

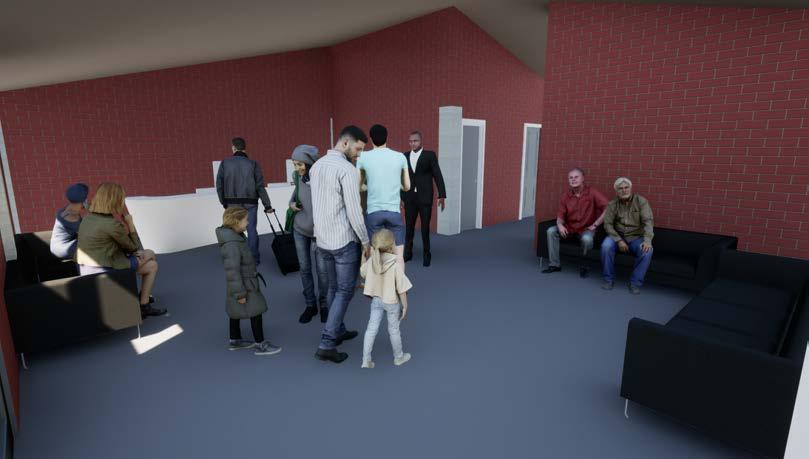

RECEPTION VIEW

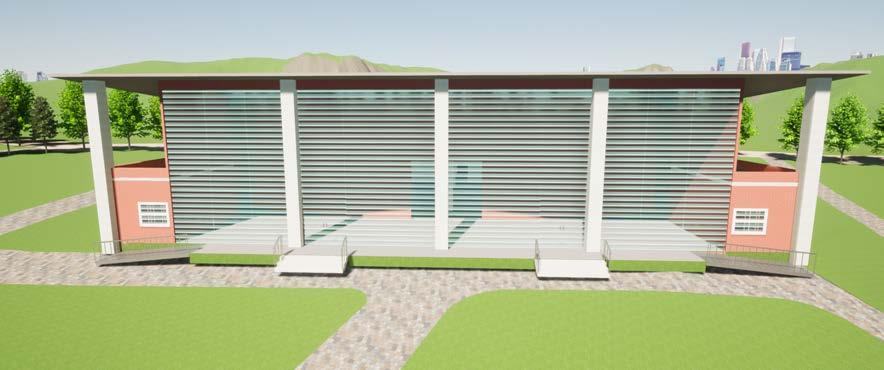

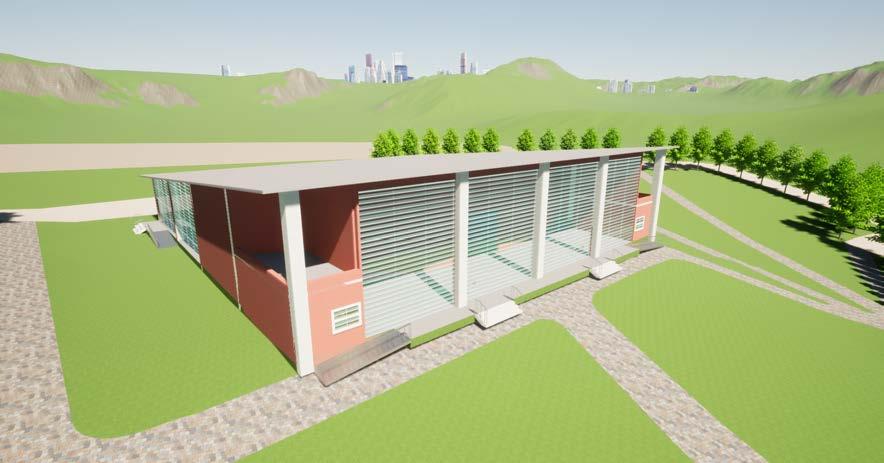

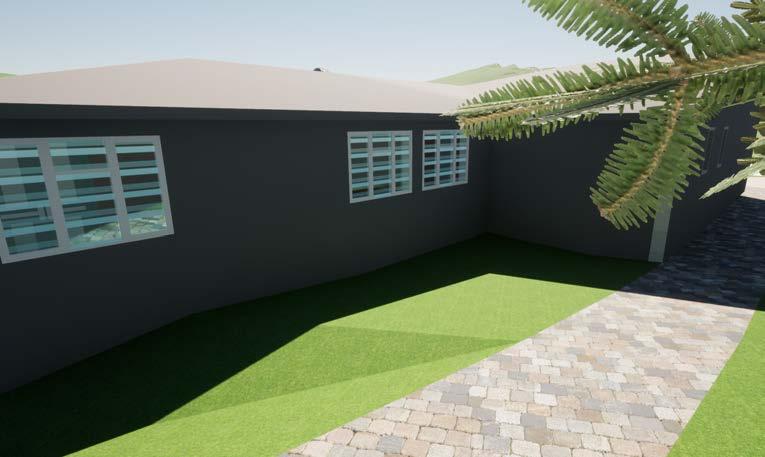

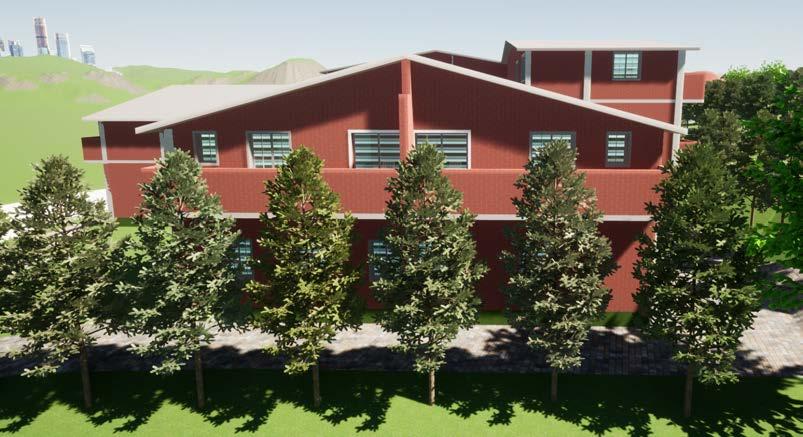

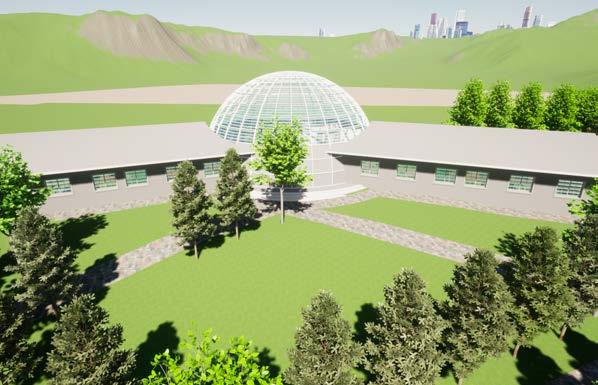

EXTERIOR VIEW OF GUEST HOUSE
INTERIOR OF AUDITORIUM
SITE LANDSCAPE VIEW FROM BALCONY
ADMIN OFFICE VIEW

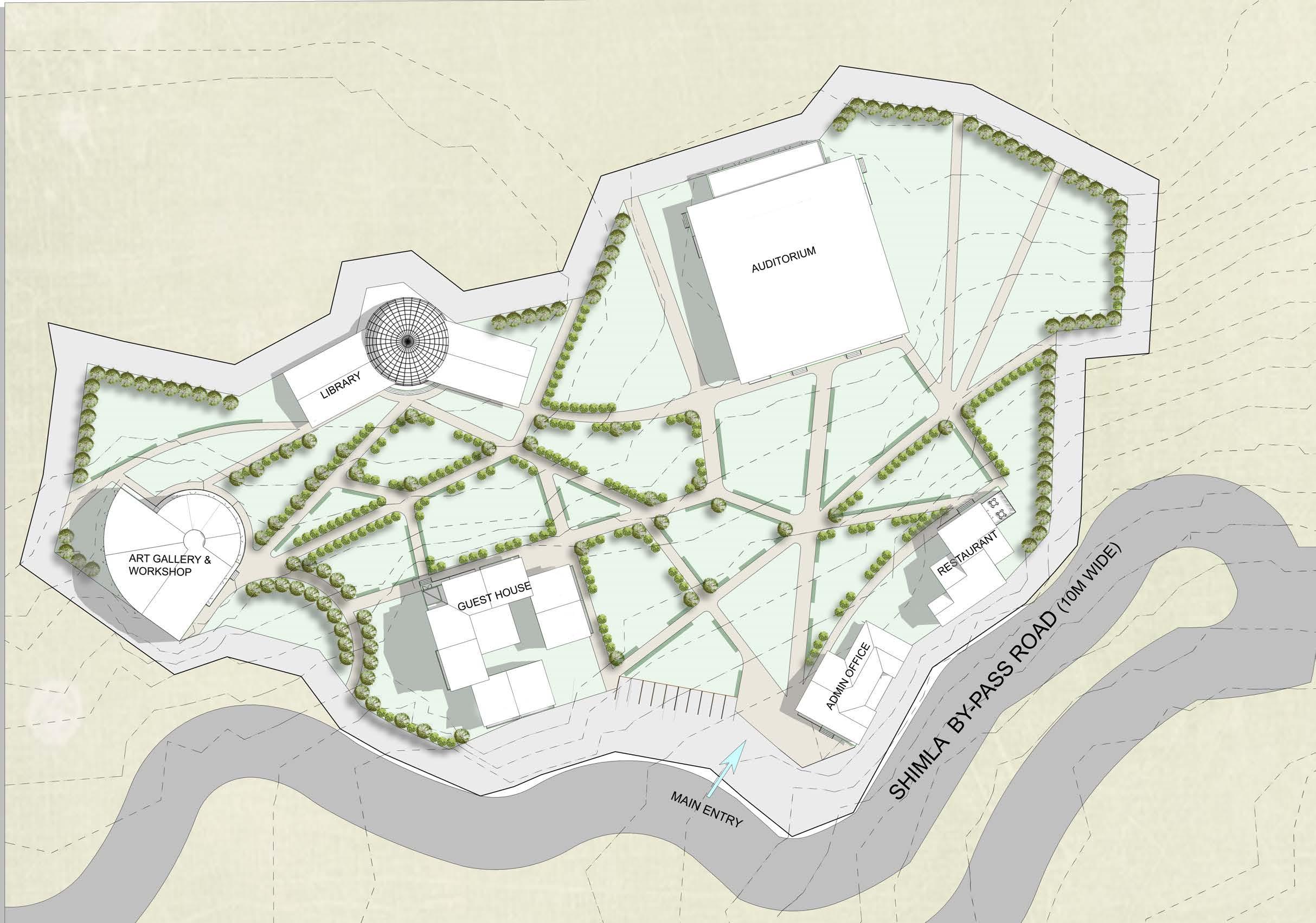

SITE PLAN
SITEAREA: 5.3 ACRES/21448.34 SQ.M.
PERMISSIBLE GROUND COVERAGE
(35% OF PA): 1.85 ACRES/7486.68 SQ M
GROUND COVERAGE ACHIEVED: 16.61% OF PLOT AREA= 3563.42 SQ.M.
BUILT-UP AREA: 5176 SQ.M.
F.A.R.ACHIEVED: 0.24
GROUND COVERAGE
♦ ADMIN OFFICE: 240.9 SQ.M.
♦ RESTAURANT: 245.64 SQ.M.
♦ GUEST HOUSE: 566.56 SQ.M.
♦ AUDITORIUM: 1354.70 SQ.M.
♦ ART GALLERY: 570.48 SQ.M.
♦ LIBRARY: 585.14 SQ.M.
BUILT-UP AREA
♦ ADMIN OFFICE: 240.9 SQ.M.
♦ RESTAURANT: 491.28 SQ.M.
♦ GUEST HOUSE: 1363.72 SQ.M.
♦ AUDITORIUM: 1354.70 SQ.M.
♦ ART GALLERY: 1140.96 SQ.M.
♦ LIBRARY: 585.14 SQ.M.

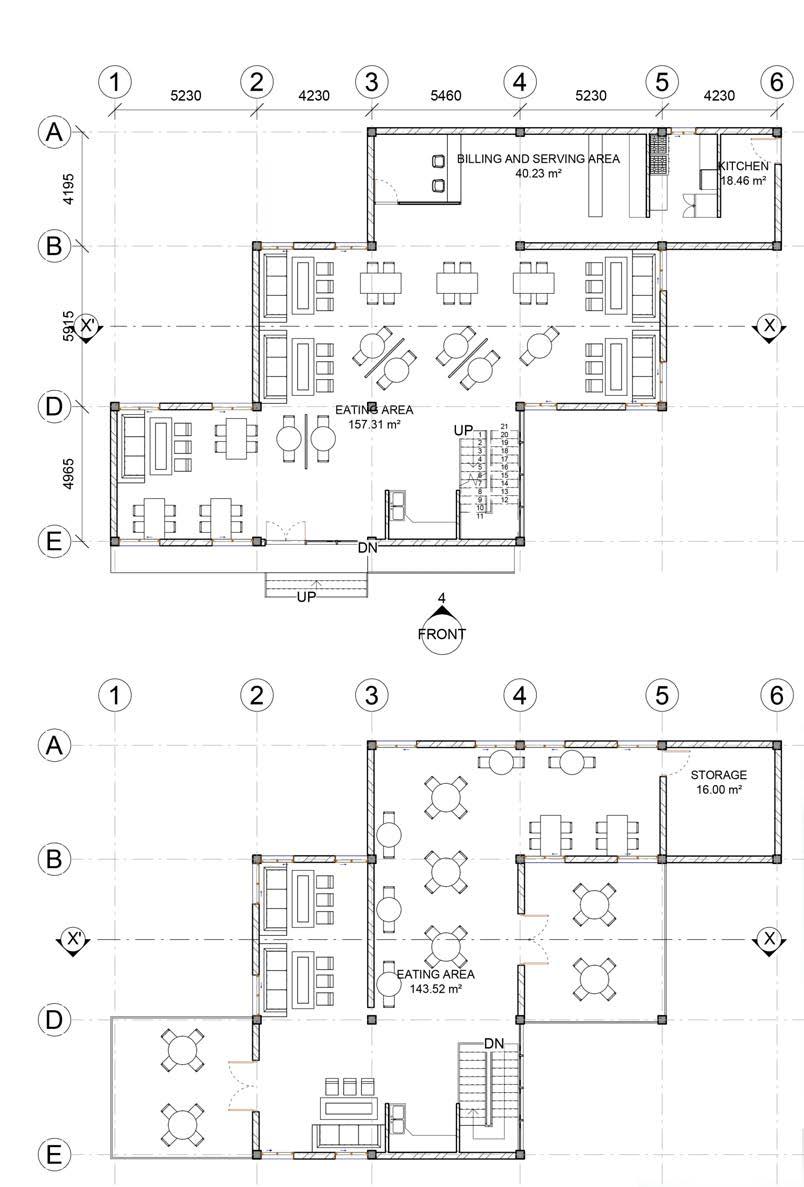

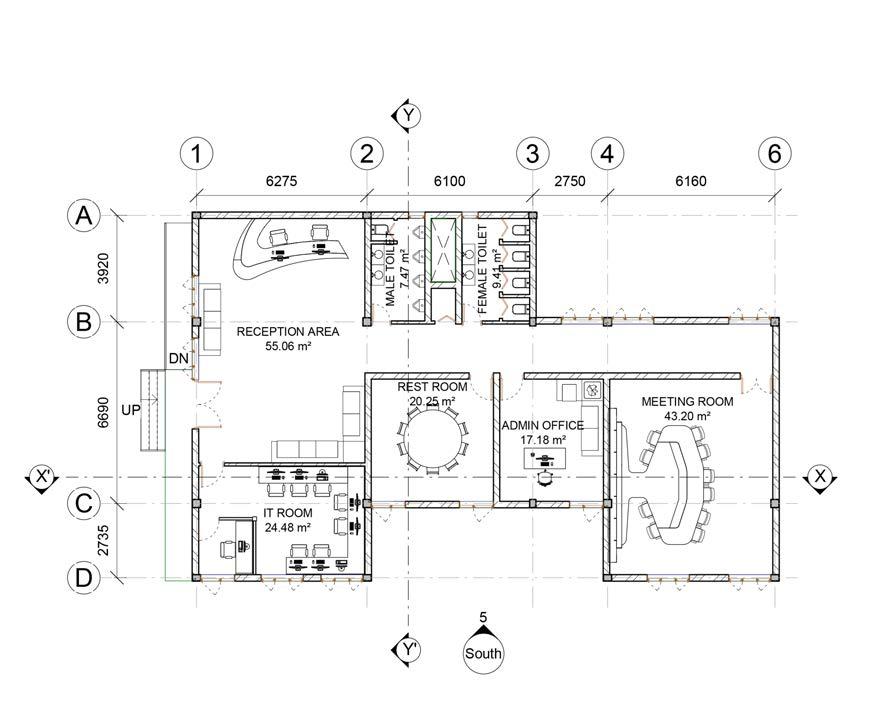

ADMIN BLOCK RESTAURANT
PLAN

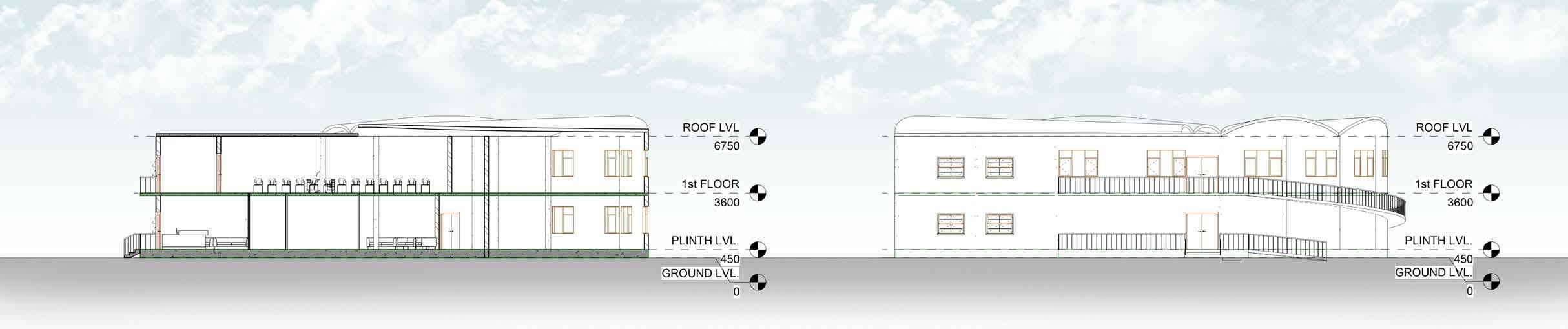

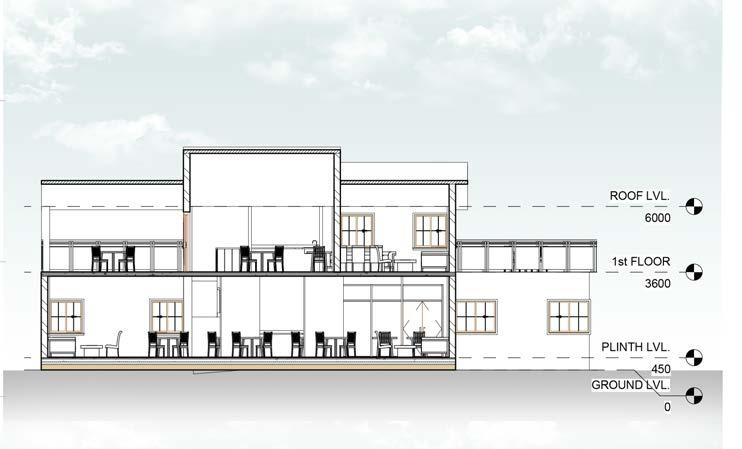

SECTION XX’
SECTION YY’

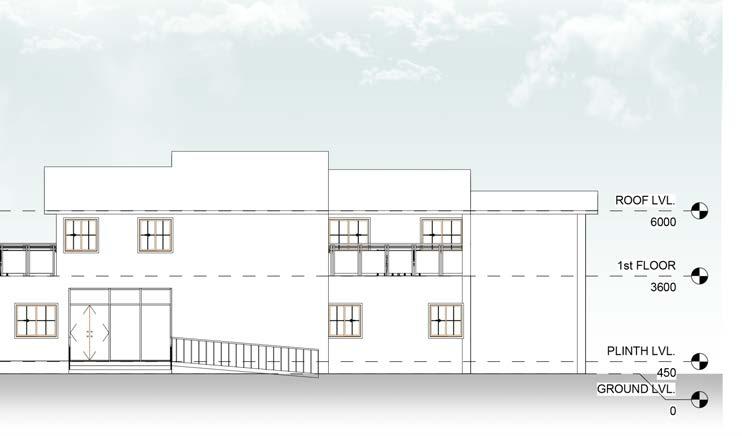

BACKSIDE ELEVATION
GROUND FLOOR PLAN
1ST FLOOR PLAN
SECTION XX’

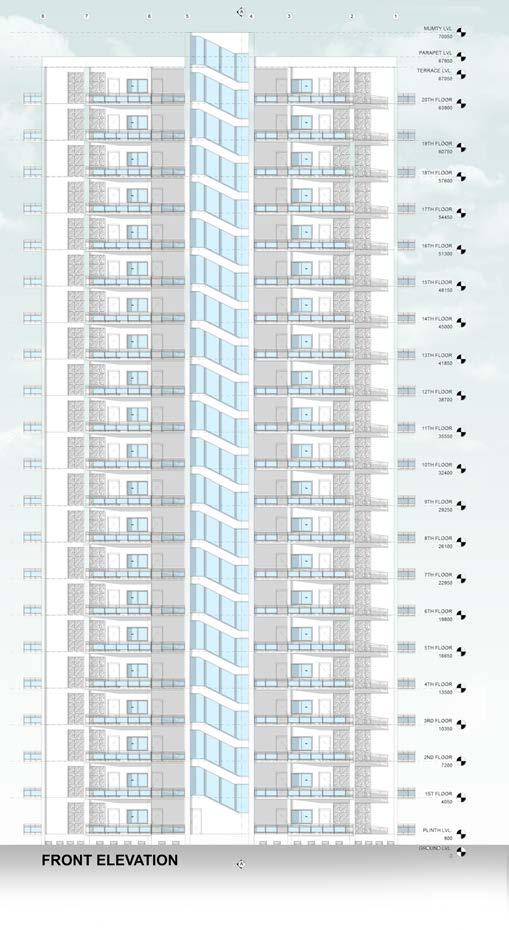

FRONT ELEVATION
FRONT ELEVATION
AERIAL ELEVATION

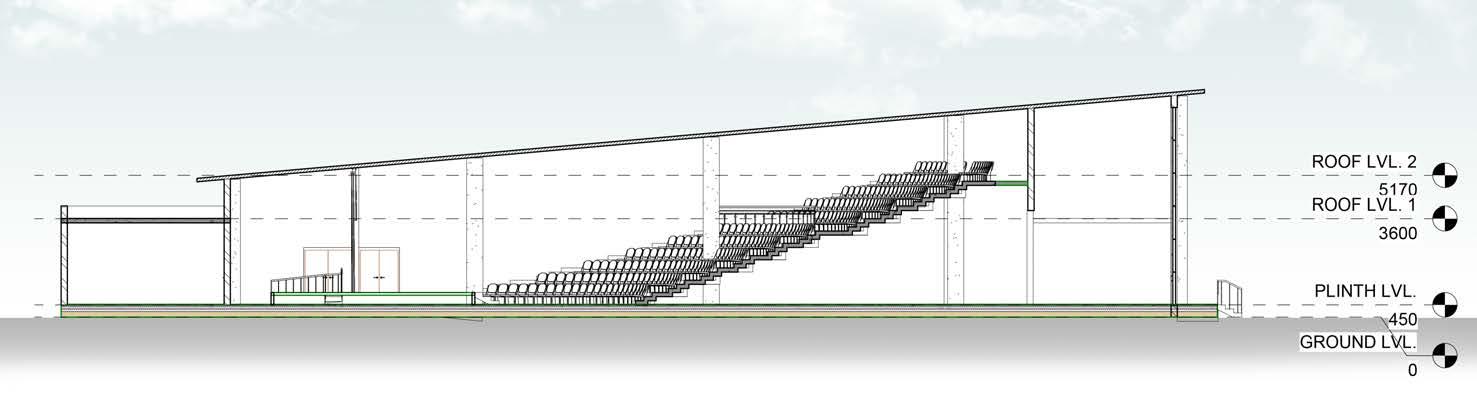

SECTION XX’

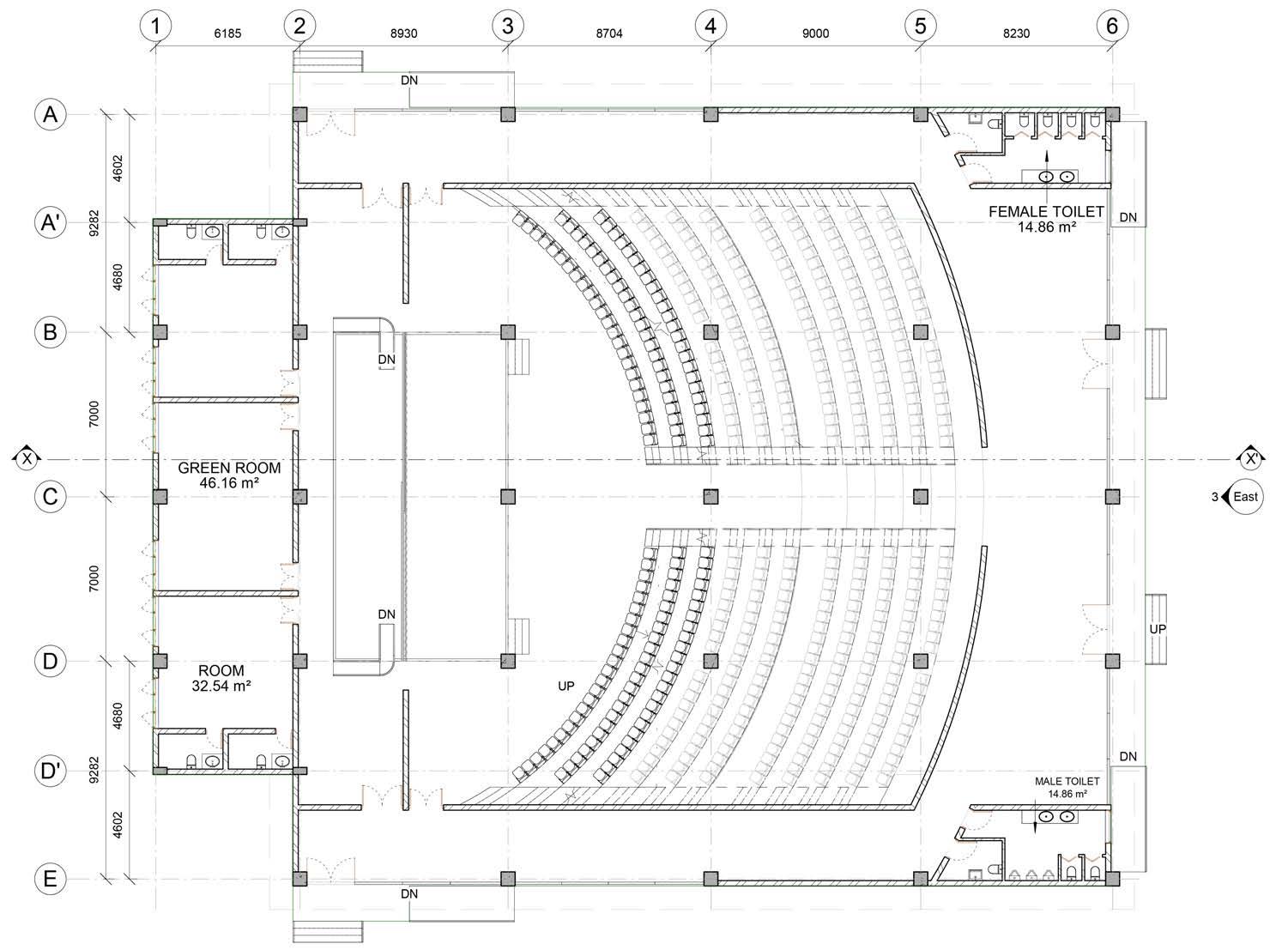

AUDITORIUM FLOOR PLAN
VIEW FROM STAGE
PLAN SECTION XX’
LIBRARY
ART GALLERY

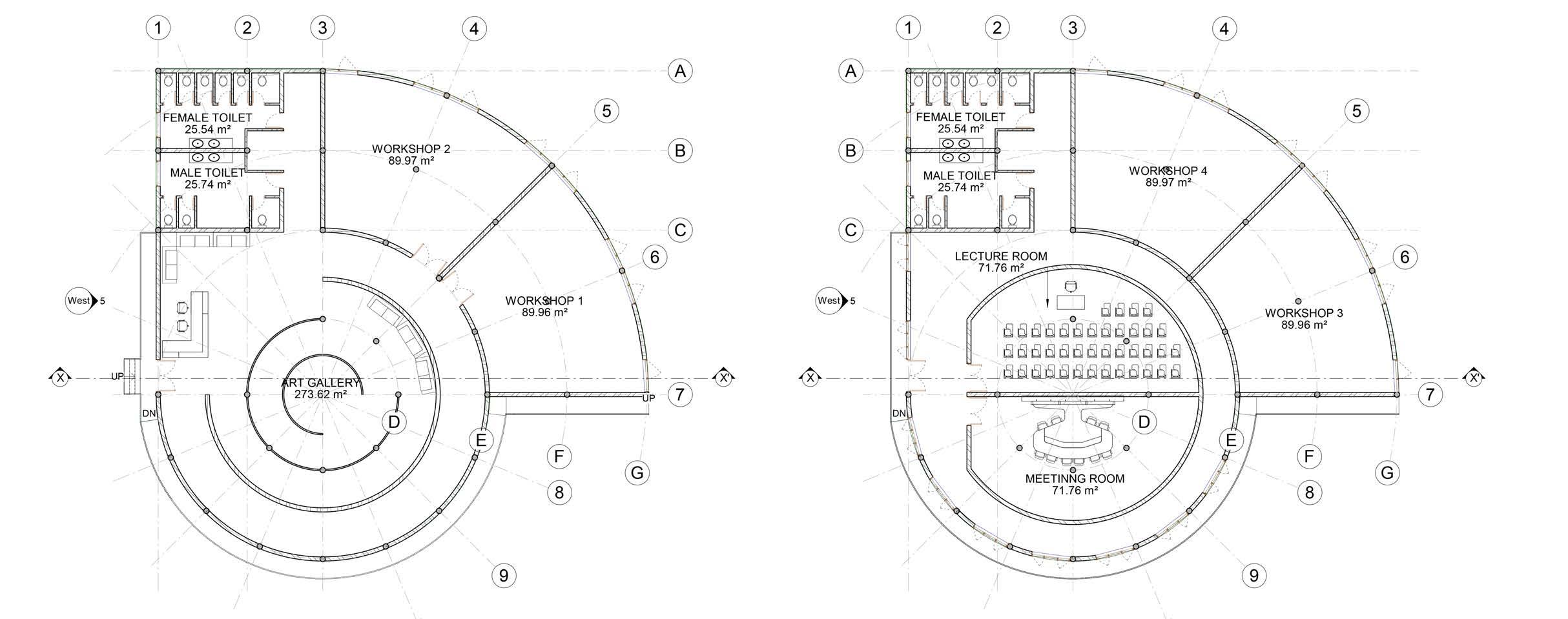

GROUND FLOOR PLAN
SECTION XX’
1ST FLOOR PLAN
LEFT SIDE ELEVATION
THE MOST COMMON TYPES OF JOINT BETWEEN PRECAST CONCRETE CLADDING AND/OR WALL PANELS ARE:
♦ OPEN-DRAINED JOINTS.
♦ FACE-SEALED JOINTS.
♦ COMPRESSION-SEAL JOINTS.
FIELD-MOULDED SEALANTS ARE AVAILABLE IN THE FOLLOWING TYPES:
♦ POLYSULPHIDE SEALANTS
POLYURETHANE SEALANTS
ACRYLIC SEALANTS
BUTYL SEALANTS
SILICONE SEALANTS
PANEL TO PANEL JOINT
RCC NOOSES
JOINERY DETAIL PRECAST WALL UNIT PRECAST WALL UNIT
PRECAST WALL UNIT PRECAST WALL UNIT
PRECAST COLUMN
RCC NOOSES
PRECAST COLUMN CORNER/L JOINT COLUMN CONNECTION DETAIL
PRECAST COLUMN
PRECAST WALL UNIT PRECAST WALL UNIT PRECAST WALL UNIT
1 1.1 2.5 3 2 1500 600 900
900 2100
1 1.1 2.5 3 2 1500 600 900
52.5160052160052 900 1200 900
PRECAST WALL UNIT PRECAST WALL UNIT PRECAST WALL UNIT
PRECAST WALL UNIT
T JOINT COLUMN CONNECTION DETAIL
T JOINT COLUMN CONNECTION DETAIL
1ST LVL. 3600
PRECAST WALL UNIT
900 2100
1 1.1 2.5 3 2 3000
ROOF LVL. 3600
1ST LVL. 3600
900 900 600 900 2100
900 900 1200 900
RCC NOOSES PRECAST WALL UNIT RCC NOOSE GROUND LVL. 0
1 1.1 2.5 3 2 3000
ROOF LVL. 3600
900 500 400 900 GROUND LVL. 0
900 900600 900 2100
900 900 1200 900
850750750850
PLINTH LVL. 450
PLINTH LVL. 450
RCC NOOSES PRECAST WALL UNIT RCC NOOSE GROUND LVL. 0
900 500 400900 GROUND LVL. 0
ROOF LVL. 52.5 1600 52 1600 52 900 1200 900
850 750 750 850
PLINTH LVL. 450
250 900 250 900 GROUND LVL. 0
PLINTH LVL. 450
ROOF LVL. 3600
A B C D E 230 67.5 130037.51300 37.5 450 30.5 130037.5140037.51400 37.5 450 95.5 180037.5180037.51800 37.5 450 60.5 170037.5165037.5165053450 3450
PLINTH LVL. 450
PLINTH LVL. 450
FRONT ELEVATION ELEVATION AT A ELEVATION AT B GROUND LVL. 0
250 900250900 GROUND LVL. 0
A B C D E 230 67.5 1300 37.5 1300 37.5 450 30.5 1300 37.5 1400 37.5 1400 37.5 450 95.5 1800 37.5 1800 37.5 1800 37.5 450 60.5 1700 37.5 1650 37.5 1650 53 450 3450
150 LEFT ELEVATION
150 LEFT ELEVATION
ROOF LVL. 3600
ROOF LVL. 3600
FRONT ELEVATION ELEVATION AT A ELEVATION AT B GROUND LVL. 0
PLINTH LVL. 450
PLINTH LVL. 450
PROJECT
PROJECT
SUBJECT ELEVATION
SHEET
DATE
SHEET
DRAWN
CHECKED
PRECAST WALL UNIT SCALE
SUBJECT ELEVATION
DATE
DRAWN
CHECKED
PRECAST WALL UNIT SCALE
PRECAST COLUMN CORNER/L JOINT COLUMN CONNECTION DETAIL PRECAST WALL UNIT PRECAST WALL UNIT RCC NOOSES PRECAST WALL UNIT RCC NOOSES PRECAST WALL UNIT RCC NOOSE GROUND LVL. 0 PLINTH LVL. 450 1ST LVL. 3600 1 1.1 2.5 3 2 1500 600 900 900 2100 900 500 400900 GROUND LVL. 0 PLINTH LVL. 450 ROOF LVL. 3600 1 1.1 2.5 3 2 3000 900 900600 900 2100 900 900 1200 900 250 900250900 GROUND LVL. 0 PLINTH LVL. 450 ROOF LVL. 3600 52.5160052160052 900 1200 900 850750750850 FRONT ELEVATION ELEVATION AT A ELEVATION AT B GROUND LVL. 0 PLINTH LVL. 450 ROOF LVL. 3600 A B C D E 230 67.5 130037.51300 37.5 450 30.5 130037.5140037.51400 37.5 450 95.5 180037.5180037.51800 37.5 450 60.5 170037.5165037.5165053450 3450 150 LEFT ELEVATION T JOINT COLUMN CONNECTION DETAIL PRECAST WALL UNIT PRECAST WALL UNIT PRECAST WALL UNIT PRECAST COLUMN PRECAST WALL UNIT SCALE CHECKED DRAWN DATE SHEET PROJECT SUBJECT ELEVATION
♦
♦
♦
♦
PRECAST CONSTRUCTION PRECAST COLUMN CORNER/L JOINT COLUMN CONNECTION DETAIL

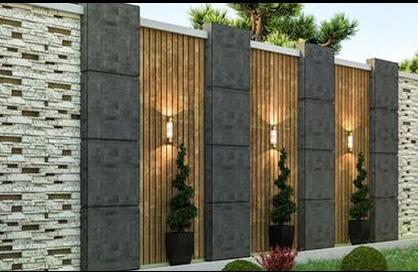

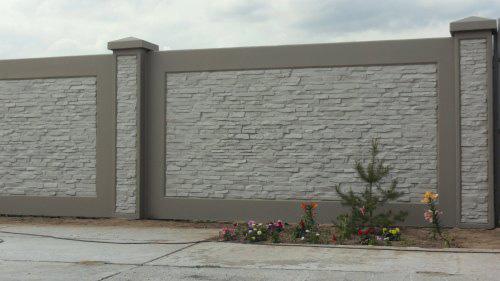

BAUNDARY WALL DESIGN
BOUNDARY WALLS, FRONT FENCE, PRIVACY FENCE; THESE ARE MANY VARIATIONS OF THE BOUNDARIES WE USE IN SEPARATING OUR PROPERTIES FROM OTHERS. SUCH REASONS INCLUDE PREVENTING PEOPLE FROM SPYING INTO OUR HOMES, SAFETY, SECURITY, AND CONCEALMENT. BOUNDARY WALLS ARE ALSO MADE TO ADD UNIQUE AND APPEALING FEATURE TO THE HOUSE.
BOUNDARY WALL
300 665 665 665 665 EQ. EQ EQ. EQ. 2660 900 2100 1850 WALL FINS. IN WOODEN PLANKS WALL FINS. IN SLATE WALL WALL FINS. IN BRICK TILE STONE COPING20MM THK GATE AS/ DET. 300MM CONC. PILLAR SLIDING GATE AS/ CLIENT SELECTION 2100 2850 2500 2550 1900 600 1900 4460 2100 450 900 2360 900 600 300 1500 150 A B C D E F 600 900 2660 900 1240 7000 2500 600 230 4000 230 1240 300 7000 3500 3500 3500 450 GAURD ROOM GATE AS / DETAIL GATE PILLAR AS/DETAIL 450 450 2660 450 450 SLIDING GATE AS/ SELECTION MS SHS450MMX450MM HOLLOW MS SHEET: 150MM THK MS SHS-450x450MM 450 300 300 GLASS BRICK WALL ELEVATION PLAN 300 300 100 50 600 100400100 100 1505015050150501505015050150 DETAIL AT A DETAIL AT B DETAIL AT C DETAIL AT D 900 150 600 150 DETAIL 5020050 5050 20 20 20 SUBJECT NAME AND CODE NAME: TOPIC NAME VIPUL BUILDING CONSTRUCTION 900 2100 1850 SLATE WALL WALL FINS. IN BRICK TILE GATE AS/ DET. 300MM CONC. PILLAR SLIDING GATE AS/ CLIENT SELECTION 2850 2500 2550 1900 300 150 D E F 900 1240 7000 2500 600 230 1240300 7000 3500 3500 3500 450 GATE AS / DETAIL GATE PILLAR AS/DETAIL 450450 2660 450450 SLIDING GATE AS/ SELECTION MS SHS450MMX450MM HOLLOW MS SHEET: 150MM THK MS SHS-450x450MM 450 300 300 BRICK WALL
PLAN 300 300 100 50 600 100 400 100 100 150 50 150 50 150 50 150 50 150 50 150 DETAIL AT A DETAIL AT B DETAIL AT C DETAIL AT D 900 150 600 150 150 900 150 600 150 150 DETAIL AT E DETAIL AT F 50 200 50 50 50 20 20 20 20 20 20 1800 150 5035050 100 5030050 100 5035050 150 450 400 450 900 150 150 800 50 50 GATE DETAIL
AND CODE COLLEGE NAME NAME: ROLL NO.: YEAR: SIGN: TOPIC NAME VIPUL TIWARI 02026001618 2020-21 (3rd YEAR) AP- 304
ELEVATION
NAME
CONSTRUCTION
INTERNSHIP WORK

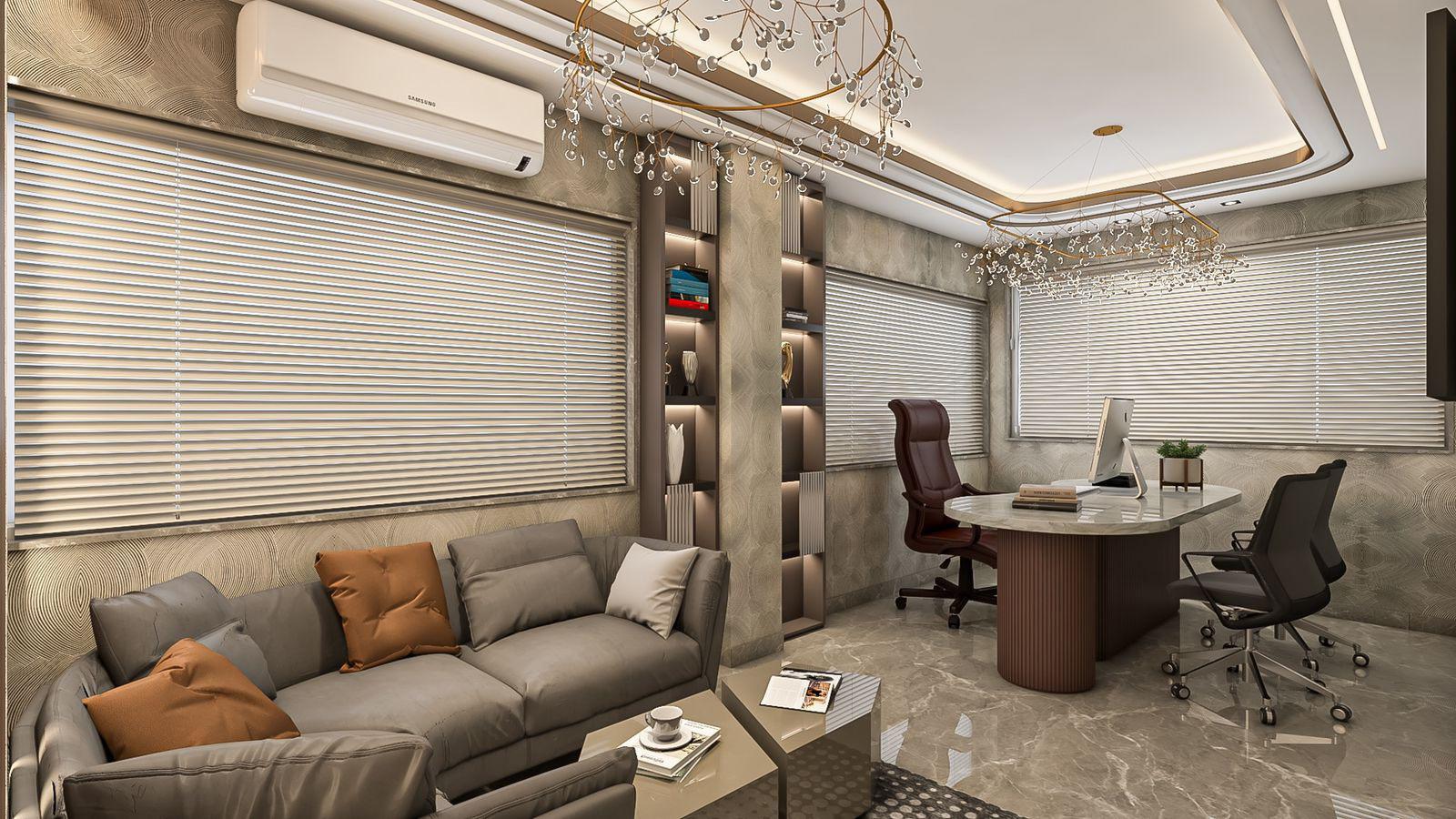

AMRIT SEAIR EXPRESS
SITE LOCATION: D- BLOCK, SAMALKHA
PROJECT TYPE: EXECUTIVE CABIN INTERIOR
PROJECT AREA: 160 SQ. FT.
FLOORING LAYOT
EXECUTIVE TABLE DETAIL
DETAIL
CENTRE TABLE
L- SHAPED CURVED
SOFA DETAIL
SITE LOCATION: SECTOR 108, NOIDA
PROJECT TYPE: RENOVATION
PROJECT AREA: 2135 SQ. FT./FLOOR
CLIENT REQUREMENT:-
1. THE VERY FIRST REQUIREMENT OF CLIENT IS THAT THE HOUSE SHOULD BE ACCORDING TO VASTU COMPLIANT.
2. SECONDLY THEY WANT THE INTERIOR TO BE DONE IN NEO- CLASSICAL STYLE
PENTHOUSE

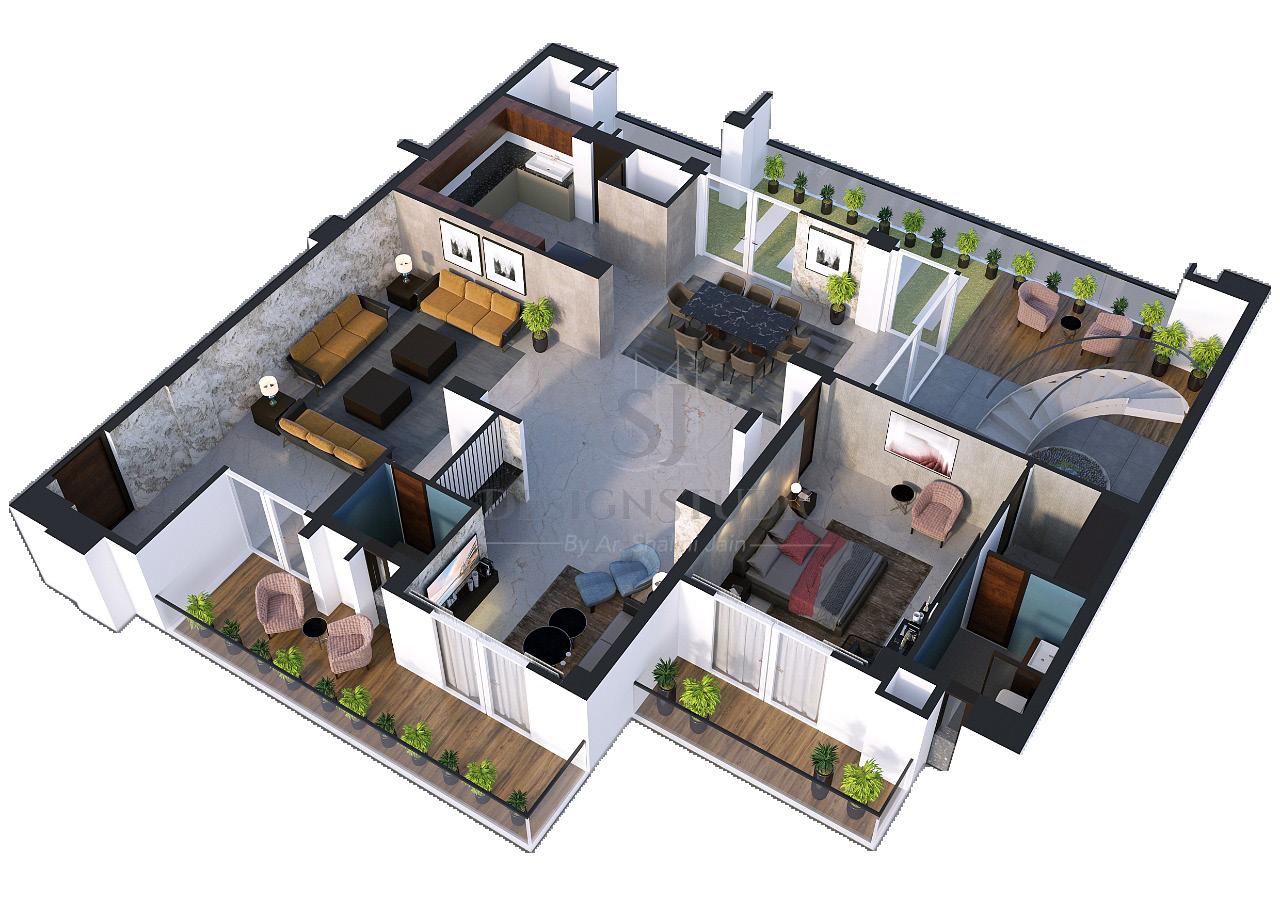

PROPOSED PLAN
LOWER FLOOR PLAN
LOWER FLOOR PLAN
Notes: Revision:
1.Drawing and dimensions are only to be read and not scaled
2. Unless otherwise mentioned, all dimensions are given in feet & inches.
3. Any discrepancy between the architectural/ structural or services drawings must be brought
UPPER FLOOR PLAN
UPPER FLOOR PLAN
BEDROOM 1 17'-0" X 10'-3" STUDY BALCONY 2 5'-10" X 13'-4" BALCONY 1 6'-4" X 32'-0" DOUBLE HEIGHT TOILET-1 8'-2" X 5'-10" KITCHEN 11'-11" X 15'-9" DRESSER 6'-10" X 5'-10"
OPEN TERRACE AREA 9'-5" X 34'-10" PDR TOILET 4'-6"x6' BALCONY - 1 6'-4" X 32'-0" DOUBLE HEIGHT OPEN TERRACE AREA 9'-5" X 34'-10" BEDROOM - 3 13'-5" X 11'-3" TOILET-2 8'-2" X 5'-10" DRESS 6'-10" X 5'-10" ENTRTANCE FOYER 6'-9" X 7'-1" TV UNIT BEDROOM - 2 17'-0" X 10'-3" LOUNGE AREA 12'- 9"X 10'10" FAMILY LOUNGE 12'-3" X 15'-2" STORE 4'-7" X 3'-10" CONSOLE LIVING AREA 23'-9" X 19'-4" TV UNIT DRESSER 7'-6" X 7' TOILET-3 7'-6" X 5'-3" BAR UNIT FRIDGE POOJA AREA 4'-3" X 4'-3" MASTER TOILET 7'-6" X 6'-4" MASTER BEDROOM 15'-10" X 13'-8" TERRACE GARDEN 17'-4" X 14'-8" UP UP 1 2 3 4 5 6 89 13 12 TV UNIT DESIGNER PARTITION shelfs WATERBODY 7 1011 14 15 16 17 18 DN 1 2 3 4 5 6 89 13 12 7 1011 14 15 16 17 18
Project No: Scale: Sheet Size: Drawing No: Sheet No: Revision: Key
Drawing
NTS A3 Address: Somdutt Tower Chamber I, Upper Ground
Plan: Project Name:
Title:
to the attention of the architect by the contractor REV DESCRIPTION BY DATE PENTHOUSE , NOIDA LOWER FLOOR PLAN N S E W NW SW NE SE
DINING AREA 11'-3" X 13'-4" WARDROBE TV UNIT WARDROBE WARDROBE TV UNIT TV UNIT 4 SEATER SOFA 2 SEATER SOFA 2 SEATER SOFA END TABLE END TABLE CENTRE TABLE CENTRE TABLE 3 SEATER SOFA CENTRE TABLE END TABLE RECLINER DOUBLE BED 6'-" X 6'-0" CHAIR DOUBLE BED 6'-" X 6'-0" OTTOMAN 5'-0" X 1'-6" OTTOMAN 4'-6" X 1'-6" DOUBLE BED 6'-0" X 6'-0" OTTOMAN 4'-6" X 1'-6" DOUBLE BED 6'-0" X 6'-0" 3 SEATER SOFA CENTRE TABLE POUF POUF TABLE CHAIR CHAIR TABLE 8 SEATER DINING TABLE WARDROBE END
ELEVATION-A DOOR AS / DESIGN MDF FLUTING FINISH WITH PU HIGH GLOSS METAL STRIP PASTED ON 12mm PLY 4" 8' 9" 4' 1'-9" 5'-4" 2' 4" 2' 4" 4" 2' 4" 2' VENEER PASTED ON 12MM PLY AS/SELECTION STONE LOOK LAMINATE SHEET AS/SELECTION EMBOSSING PATTERN ON P.O.P WALLPAPER AS/SELECTION LVL ±00 1' 7' 1' WALL FINISHED WITH PAINT/WALLPAPER COLUMN TAK COLUMN TAK 6" 4" THK SKIRTING MDF PANEL FINISH WITH PU HIGH GLOSS WITH COVE LIGHT 6MM GROOVES LVL +4" LVL +4" LVL ±0" LVL +4" Flat No.: 9211, Parax Laureate,Sector 108, Noida Project Name: Drawing Title: Drawn by: Checked by: Approved by: Date: WALL ELEVATION FOR LIVING AREA Notes: Legends: Somdutt Tower, Chamber I, Upper Ground Floor, 32/33, Bhikaji Cama Place, New Delhi - 110066 Project No: Scale: Sheet Size: Drawing No: Sheet No: Revision: Key Plan: NTS A3 1' 6'-6 1 2 " 1' 8'-11" 30'-21 2 " 30'-21 2 8'-5" 9' 9'-6" 8'-11" 10' 8'-6" 8'-6" PLAN 3D VIEW ENTRTANCE FOYER 6'-9" X 7'-1" CONSOLE LIVING AREA 23'-9" X 19'-4" B A KEY PLAN
ELEVATIONS

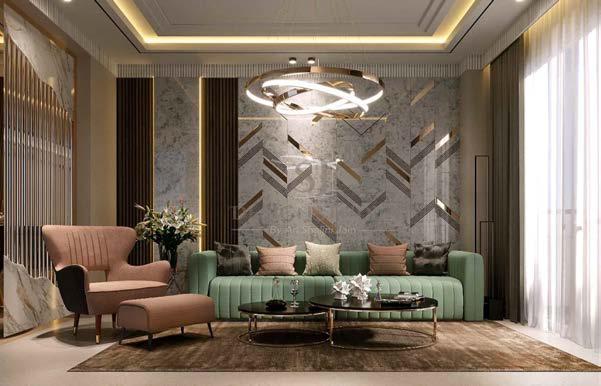

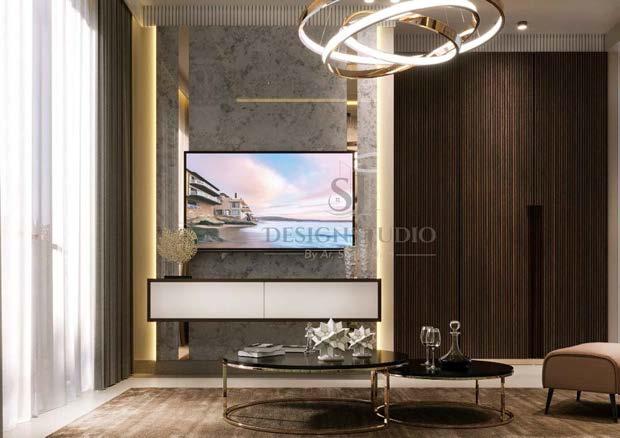

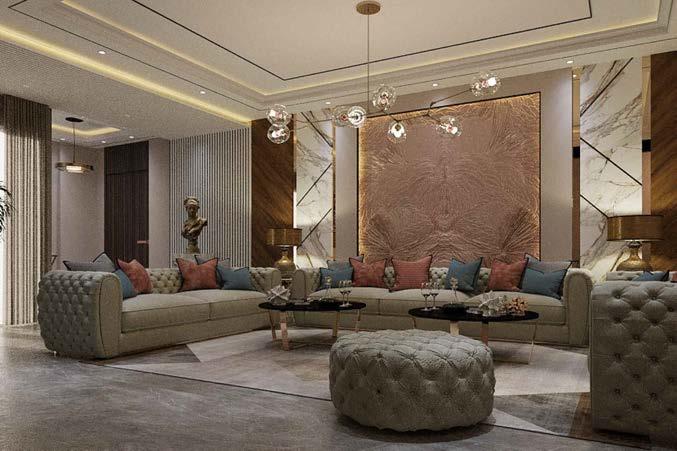

LIVING ROOM WALL
LIVING ROOM FALSE CEILING
FRIDGE LVL -6" 6" LVL+18" AS/BEAM LVL P.O.P FILLING P.O.P LVL-6" P.O.P LVL-6" LVL+18" AS/BEAM LVL LVL-1 2 " LVL-1 2 LVL1 2 2' 2" 9'-4 1 2 " 2" 2' 6MM P.O.P GROOVE 3'-7 1 2 " 5'-101 2 " 18'-5" 3'-11" 6'-21 2 " 2' 2" 14'-1" 2" 2' 5'-4" 13'-10" 4" 4" 4" 101 2 " 4" 16' 4" 10 " MDF FLUTTING FINISH LVL+18" AS/BEAM LVL MOULDING AS/3D DESIGN LVL -12" P.O.P FROM 18" LVL LVL -12" P.O.P GROOVING FOCUS LIGHT COVE LIGHT CHANDELIER/FAN AS/SELEC. Flat No.: 9211, Parax Laureate,Sector 108, Noida Project Name: Drawing Title: Notes: Legends: Project No: Scale: Sheet Size: Drawing No: Sheet No: Key Plan: NTS A3 1' COVE LIGHT 3" 9" 1' 2' 1/2" GROOVE 8" 1 2 " 5" 6" 5'-4" MDF FLUTING FINISH WITH PU HIGH GLOSS P.O.P.MOULDING AS/SELECTION COVE LIGHT 6" 9" 3" 1' 2' 8" 1'-6" 1 2 " DETAIL - A CHANDELIER AS/ SELECTION 6" 1' 6'-51 2 COVE LIGHT 1 2" GROOVE 3'-51 2 9" 9" 3" 81 2 81 2 DETAIL - B DETAIL - C 3D VIEW FALSE CEILING WITH SECTION FOR CHANDELIER AS/ SELECTION 1' COVE LIGHT 6" 1' 6'-51 2 " 5'-4" COVE LIGHT GROOVE MDF FLUTING FINISH WITH PU HIGH GLOSS P.O.P.MOULDING AS/SELECTION COVE LIGHT 6" 9" 3" 1' 7" 3" 9" 1' 7" 15'-7" 2' 2' 5" DETAIL B DETAIL - C 3'-51 2 9" 9" 8" 2 GROOVE CHANDELIER AS/ SELECTION SECTION DETAIL -AA' DETAIL - A 8" 111 2 1 2 COLUMN TAK 6" A A'
FAMILY LOUNGE WALL ELEVATION
ELEVATION A
OPNEABLE SHUTTERS FINISHED WITH FLUTTING PATTERN DESIGN AS/3D
ELEVATION B
POP 1"X1"
STONE CLADDING / STONE
LAMINATE AS/ SELECTION MDF WOODEN STRIP PANEL AS/SELECTION 4MM GROOVE LVL ±00
FLUTTING
TEXTURE
TAK GOLDEN
PLY LVL-1/2"
LAMINATE 7'-11" 1'-3" 11" 11" 11" 11" 11" 11" 11" 1'-1" 4" THK SKIRTING LVL ±00 LVL ±00LVL +3" 6" DOWN PELMET STONE CLADDING / STONE TEXTURE LAMINATE AS/ SELECTION WITH COVE LIGHT DESIGNER PARTITION AS/SELEC. WALL FINISH WITH PAINT AS/SELEC. LVL±00" 1' 8'-5" 9'-2" 6" 7'-11" 9" 7'-7" 12'-9"
11" 1'-3" 1'-10" ELEVATION-A 3D VIEW PDR TOILET 4'-6"x6' LOUNGE AREA 12'- 9"X 10'10" TV UNIT BAR UNIT DESIGNER PARTITION A B KEY PLAN 6" POP 1"X1" FLUTING GOLDEN STRIP TILE SKIRTING 10' 1'-3" 9" 8'-5"
COLUMN
STRIP PASTED ON 12MM
FROM
COLUMN FINISH WITH PAINT AS/SELEC.
6' 4" RECESSED HANDLE AS/SELCTION LVL +3"
LVL± 00 6" DOWN PELMET STONE CLADDING / STONE TEXTURE LAMINATE AS/ SELECTION COVE LIGHT 5" 9" 4" 3'-11" 4" 9" 5" 2' 2' 2' 2" WALL PAINT AS/SELCTION LVL± 00 ELEVATION-B 3D VIEW
FAMILY LOUNGE FALSE CEILING
BALCONY - 1 6'-4" X 32'-0" DOUBLE HEIGHT PDR TOILET 4'-6"x6' P.O.P FILLING LVL+18" AS/BEAM LVL LVL-6" LVL-8" 1'-5" 3'-11" -21 2 " 2' 5'-2 1 2 " 2' 2' 6'-4" 9'-2" 91 2 " -21 2 " 1' 1 2 " 9'-5 1 2 " 1 2"X12" THK P.O.P FLUTING 6" DOWN PELMET CHANDELIER/FAN AS/SELEC. P.O.P STEPS DESIGN AS/3D 6" 2" 2" 6'-4" 2" 2" 6" 2" 2" 6" 2" 2" 6" P.O.P 6MM GROOVE 5" Flat No.: 9211, Parax Laureate,Sector 108, Noida Project Name: Drawing Title: Notes: Legends: Project No: Scale: Sheet Size: Drawing No: Sheet No: Key Plan: NTS A3 PLAN PDR TOILET 4'-6"x6' LOUNGE AREA 12'- 9"X 10'10" TV UNIT BAR UNIT DESIGNER PARTITION A B KEY
FALSECEILING 1 2"X1 2 THK P.O.P FLUTING 6" DOWN PELMET P.O.P 6MM GROOVE COVE LIGHT 6" 6" 7" 1'-51 2 " 1 2 " 21 2 " 6'-1" 21 2 " 1 2 1'-7" 8" 1" 1" 2" 1' 2" 1' 1 2"X12" THK P.O.P FLUTING 6" DOWN PELMET P.O.P 6MM GROOVE COVE LIGHT 6" 6" 7" 21 2 " 1 2 " 1'-7" 8" 1" 1" 2" 1' 1'-6" COLUMN TAK CURTAIN AS/SELECTION 3D VIEW DETAIL - A SECTION DETAIL -AA' A A' CURTAIN AS/SELECTION
PLAN
WALL FINISH WITH 6MM STONE GROOVE
2'-5" 4" WINDOW
ELEVATION A
10' 9'
MOSAIC TILES STONE CLADDING ON LVL.
±00"
9'
FALSE CEILING
BASIN AS/SELECTION
ELEVATION - B
TAP MIXTURE AS/ SELECTION PDR TOILET 4'-6"x6' A B C D
2' 2' 2' 2' A/S
9'
2' 2' 2' 2' A/S
FINISH
AS/SELECTION STONE/TILE FINISH AS/SELECTION
FALSE CEILING 8' A/S DESIGN 41 2 "
PLY LVL±0" PEDESTAL BASIN 3'-8" 1'-111 2 " 41 2 " 2'-6" 2' 2' 2' 2' 1' 41 2 " 4'-11 2 " LVL±00" LVL±00" LVL±00" FALSE CEILING FALSE CEILING 2' 2' 2' 2' 1' 5'-6" 2'-6" 1' 9' 3D VIEW 6' 4'-6" 6' KEY PLAN ELEVATION - C STONE/TILE
4'-6"
1' 9' 8'
ELEVATION - D
9'
2" THK TOP FINISH WITH STONE LVL+41 2 " 3'-12" 2'-6"
LVL+41 2 " 6'-3"
1" THK SS FRAME WITH MIRROR
COUNTER TOP FINISH WITH STONE AS/SELEC.
TILE /STONE FINISH WITH COVE LIGHT LVL +4 1 2 " AS/SELEC. MIRROR PASTED ON
12MM
POWDER TOILET WALL ELEVATIONS

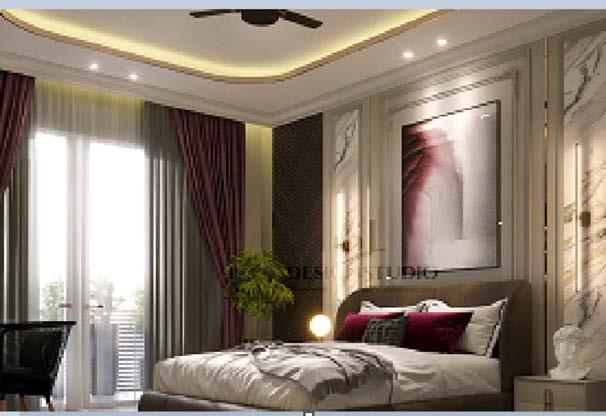

BEDROOM 1 WALL ELEVATIONS
ELEVATION-A 3D VIEW
ELEVATION -A
HANGING LIGHT WALL LIGHT DEPICTION DOOR FINISH WITH 1" WOODEN STRIP PANEL 1" THK GOLDEN STRIP AS PER DESIGN FLUSH DOOR AS PER DESIGN STONE TEXTURE FINISH LAMINATE AS PER SELECTION PASTED ON MDF PANEL CORNICE DESIGN AS/SELECTION MOTIF DESIGN AS/SELECTION 1 1 2"X 3 4" MOULDING PASTED ON MDF PANEL FINISH WITH PU HIGH GLOSS 9" 3' 1'-6" 1" 6'-21 2 " 1" 1'-6" 3'-1" 9" WALL FINISH WITH PAINT AS/SELEC. LVL ±0" PAINTING DEPICTION LVL ±00 LVL ±00 4" THK SKIRTING 6" 9' 1 1 2"X 3 4" MOULDING PASTED ON MDF PANEL FINISH WITH PU HIGH GLOSS DOOR DEPICTION 16'-111 2 " 4" 3" 1 1 2 " 3" 1 1 2 " 7'-2" 1 1 2 " 3" 1 1 2 " 3" 7'-11" 9" 1 1 2 3" 1 1 2 " 3" 3" 1' 3" EQ EQ 9" 1 1 2 " 3" 1' 3" 3" 8'-8" 4'-81 2 " 1 1 2 " 3" 8' BEDROOM 1 17'-0" X 10'-3" TV UNIT STUDY A B
KEY PLAN
MOTIF DESIGN AS/SELECTION PROFILE LIGHT 3" GOLDEN STRIP AS PER DESIGN T.V SHELF FINISH WITH PU FINISH GLOSS WITH PROFILE LIGHT 2" THK SHELF FINISH WITH PU HIGH GLOSS AS/SELEC. PUSH TO OPEN DRAWER DRAWER FINISH WITH PU HIGH GLOSS LVL+15" 1 1 2"X 3 4 MOULDING PASTED ON MDF PANEL FINISH WITH PU HIGH GLOSS CORNICE DESIGN AS/SELECTION 1" GOLDEN STRIP U SHAPE LEDGE SUPPORT FOR SHELF CORNICE AS/DESIGN 6" DOWN PELMET DRAWERDRAWER DOOR DEPICTION WOODEN STRIPS PANEL ABOVE COLUMN LVL PANEL FINISH WITH STONE LOOK LAMINATE AS/SELEC. 5" 3' 9" 3" 8' 3" 2'-9" 10" 9" 4'-9" 4" 2'-2" 2" 2' 4'-4" 4" THK SKIRTING 1" 1' 1" 1' 1" 2'-1" 2'-9" 1'-71 2 " LVL ±00 LVL ±00 LVL ±00 LVL+15" 1'-5" 1' 2" 4" 11 2 " 3" 11 2 " 6'-4" 7' PANEL FINISH WITH PU HIGH GLOSS 1 1 2 " 3" 1 1 2 " 4" 4" 8'-8" 8' 4" 11 2 " 3" 11 2 " 6'-4" WALL FINISH WITH PAINT AS/SELEC. LVL ±00 16'-111 2 " 9' 6" 7'-4" DRAWER 8'-8" 4" 1 1 2 " 3" 1 1 2 " DRAWER ELEVATION
-B ELEVATION-B 3D VIEW
BEDROOM 1 FALSE CEILING
STUDY TV UNIT 3"x6" THK CORNICE AS /DESIGN HANGING LIGHT SS GOLDEN T-STRIP BEDROOM - 1 17'-0" X 10'-3" LVL±00 LVL+6" 6" DOWN PELMET R9" R9" 2' 8' 2' 2' 12'-21 2 " 2' 1" 8" Flat No.: 9211, Parax Laureate,Sector 108, Noida Project Name: Drawing Title:
Legends: Somdutt Tower, Chamber I, Upper Ground Floor, 32/33, Bhikaji Cama Project No: Scale: Sheet Size: Drawing No: Sheet No: Revision: Key Plan: NTS A3 BEDROOM - 1 17'-0" X 10'-3" TV UNIT STUDY A B KEY PLAN WALL ELEVATION FOR BEDROOM-1 3D VIEW 3"x6" THK CORNICE AS /DESIGN SS GOLDEN T-STRIP 6" DOWN PELMET COVE LIGHT 6" 6" 1' 8" 12'-21 2 1'-9" 3" 3" 1'-9" 3"x6" THK CORNICE AS /DESIGN SS GOLDEN T-STRIP 6" DOWN PELMET COVE LIGHT 6" 6" 1' 8" 1'-9" 3" A A' SECTION DETAIL -AA' DETAIL - A DETAIL - A
Notes:

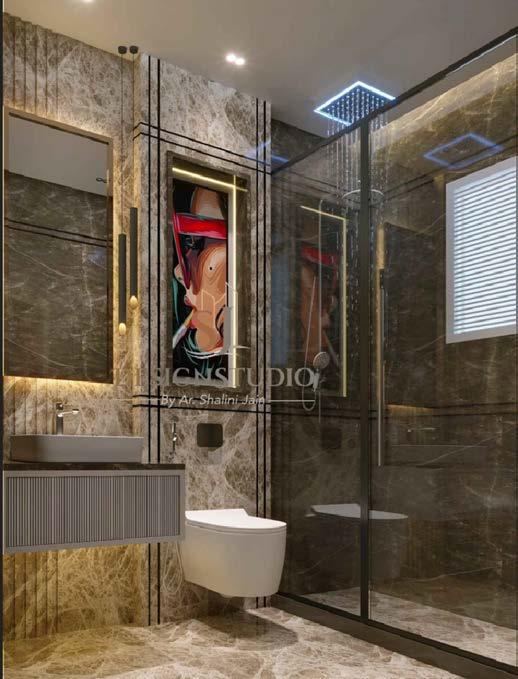

TOILET -1 WALL ELEVATIONS
C
- A
3D VIEW
FALSE CEILING 6 MM THK GROOVE 1" COUNTER TOP FINISH WITH STONE AS/SELEC. STONE/TILE FINISH AS/SELECTION MIRROR PASTED ON 12MM PLY LVL+3" LVL+41 2 " LVL-41 2 " STONE /TILE FINISH AS/SELECTION 10' 9'-6" 2'-5" 4" 6" 4'-9" 1'-6" 1'-5" 1'-3" 2'-9" 3" 2'-6" 4" 2'-1" 4" 4' 4' 1'-6" LVL±00" STONE FLUTING AS/SECTION 1" THK SS FRAME WITH MIRROR 2'-6" 2' 5'-6" ELEVATION
8'-2" drawer GLASS PARTITION LVL+ 22" NICHE LVL±00" WALL FINISH WITH STONE /TILE AS/SELECTION WITH COVE LIGHT AS/3D FALSE CEILING LVL±00" 5" 2'-6" 3' 5'-10" 8' 1'-6" 10' TILE /STONE FINISH AS/SELECTION 1" THK TOP FINISH WITH STONE 8' DOOR A/S DESIGN LVL+41 2 " vanity depiction LIGHT POINT 1'-9" ELEVATION
- B
FALSE CEILING LVL±00" 5'-5" 3" 2'-6" 8' 1'-6" 3'-3" 6" 1' 1' 3'-9" 8'-2" 10' ELEVATION-
NICHE LVL±00" NICHE LVL±00" LVL+4 1 2 " FALSE CEILING WINDOW LVL±00" 5'-6" 2'-6" 1'-6" 5'-6" 4" 5'-10" 10' TILE /STONE FINISH AS/SELECTION NICHENICHE ELEVATION -
9'-6" TILE /STONE FINISH AS/SELECTION TOILET-1 8'-2" X 5'-10" A B C D NICHE NICHE 4 1 2 " KEY PLAN
D
DINING AREA FALSE CEILING
Notes: Legends:
COVE LIGHT Flat No.: 9211, Parax Laureate, Sector 108, Noida Project Name: Drawing Title: DINNING AREA FALSE CEILING
Somdutt Tower, Chamber I, Upper Ground Floor, 32/33, Bhikaji Cama Project No: Scale: Sheet Size: Drawing No: Sheet No: Revision: Key Plan: NTS A3 5'-9" CURTAIN AS/SELECTION 6" DOWN PELMET 8" 9" 8" 1' PROFILE LIGHT 1'- 4" 1'-6" A A' DETAIL - B DETAIL - A DETAIL - D PROFILE LIGHT - " GROOVE 2" 3" 4" 5" 1'-1" 8" 1' PROFILE LIGHT 1" 2" 3" 4" 6" DETAIL - C B B' 6" DOWN PELMET 1" 2" 1" 2" 1" 2" 1" 2" LVL+18" LVL-6" LVL+18" AS/BEAM LVL CURTAIN AS/SELECTION 6" DOWN PELMET 9" 8" 1' 5'-81 2 1' 8" 1'-6" DETAIL - C DETAIL - D 6" 3'-6" 6" 1'-1" LVL-6" 1" 2" 1" 2" 1" 2" 1" 2" 8" 5'-9" 8" 8" 9" 9" 1'-8" 6" 3'-6" 6" 12'-5" 7" 1' 1'-2" 1' 6" 1'-10" 8" 1' 7'-8" 1' 8" 1'-1" PROFILE LIGHT PROFILE LIGHT 1" 1" DETAILA DETAILB SECTION DETAIL -BB' SECTION DETAIL -AA' COVE LIGHT 6" 3'-6" 6" 1'-1" 1'-6" CUT OUT 7'-9" 2'-1" 6" 3'-2" 3'-1" 7'-8" CUTOUT LVL-6" CUTOUT LVL-6" 6" 10'-8" 1'-2" 1' 1'-10" 1'-6" 1'-6" 1'-5" 2'-2" 1" 1" 7" 3'-2" 3'-2" 1' 7" 1' 1'-2" 1' 1'-3" 3'-2" 7" 11" 6" 1' 7" 6" 1' CHANDELIER AS/SELECTION
3D VIEW PLAN
FOLDED PLATE MODEL
MISCELLANEOUS
RAILWAY STATION MODEL
LINEAR STROKE PAINTING

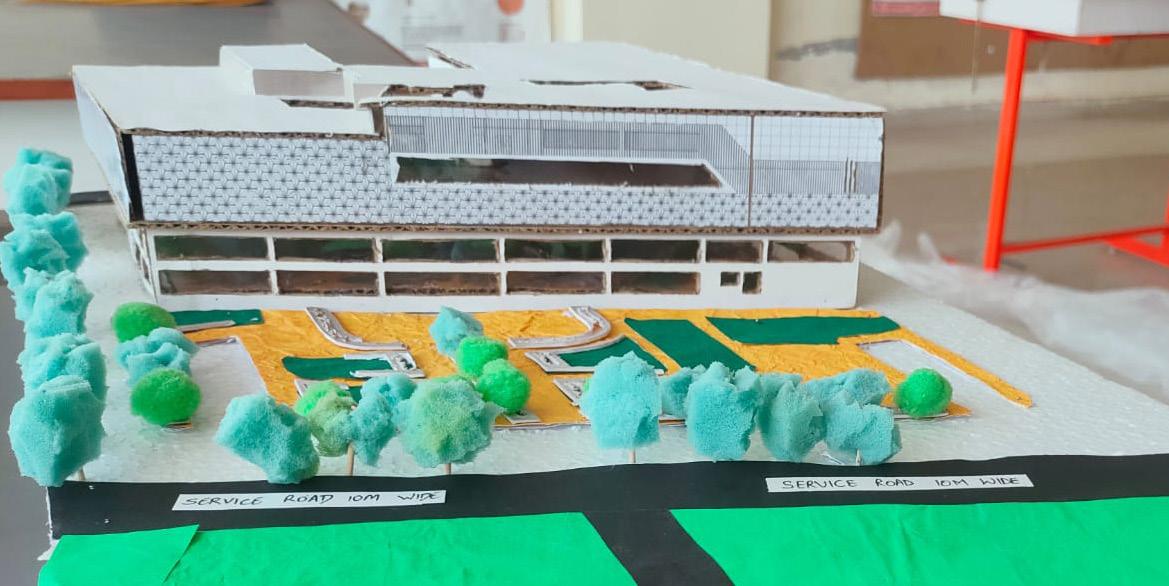

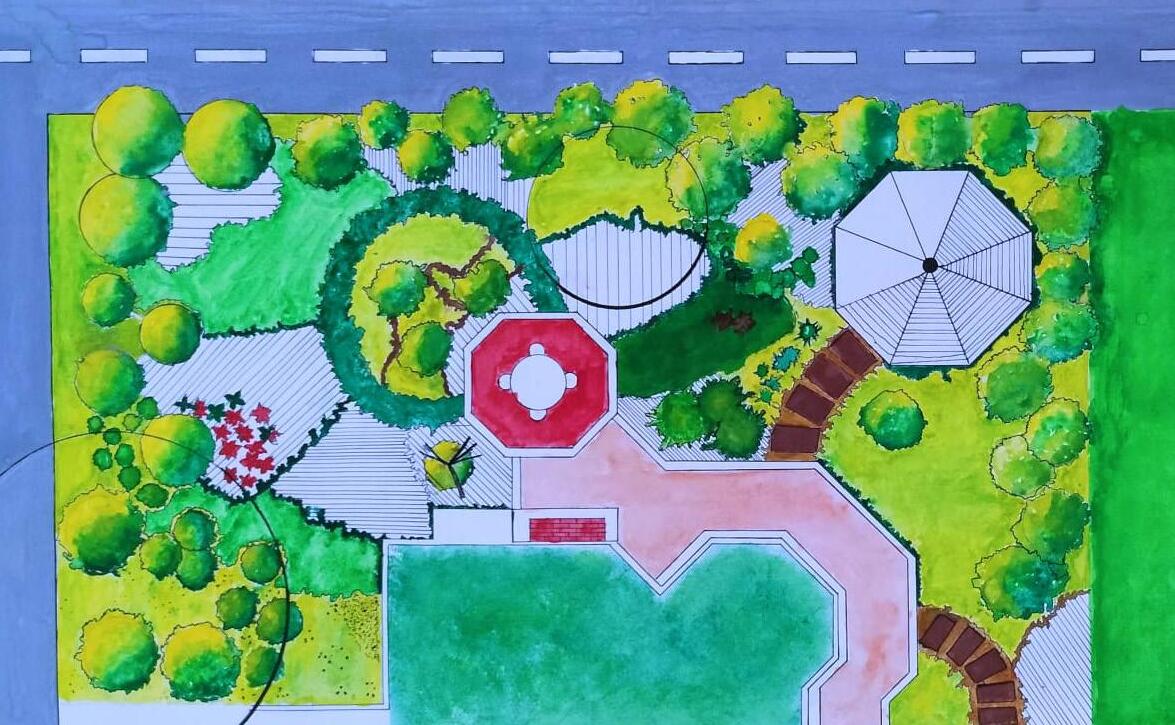

WOODEN DOOR MODEL COMMERCIAL COMPLEX MODEL LANDSCAPE HAND RENDERING
ABSTACT ART
T
GET IN TOUCH Contact: 9667605570 Email ID: vtvipultiwari12@gmail.com LinkedIn: www.linkedin.com/in/vipul-tiwari-61a38b188
H A N K Y O U
