SkyBox, "Techhub in a Historic Shell"

SKYBOX TECH HUB AND RECREATION CENTER

| VIKRAM BARRETTO

| 1

|

Vikram Barretto

ARCH 486 Advanced Architectural Design II

| VIKRAM BARRETTO

| 2

|

ARCH 486 Advanced Architectural Design II

TABLE OF CONTENTS

4. INTRODUCTION 5. SYSTEM 11. SITE 14. ARCHITECTURAL INTEGRATION 45. ENCLOSURE 48. PHYSICAL STUDIES

| VIKRAM BARRETTO

| 3

|

ARCH 486 Advanced Architectural Design II

INTRODUCTION This project reimagines the historic Eugene Steam Plant as a vibrant, mixed-use innovation hub through adaptive reuse and mass timber expansion. The design integrates fabrication labs, maker spaces, offices, and recreational facilities across three levels, supporting a new ecosystem for research, design, and community engagement. Central to the project is the introduction of a dual-directional, fully encapsulated mass timber structural system. This system not only enhances structural performance and fire safety but also demonstrates sustainable construction practices by reducing embodied carbon and enabling prefabricated, modular construction methods. By preserving the existing building’s character and layering in renewable timber technologies, the project contributes to Eugene’s goals for environmental leadership, historic preservation, and economic revitalization along the riverfront.

| VIKRAM BARRETTO

| 4

|

ARCH 486 Advanced Architectural Design II

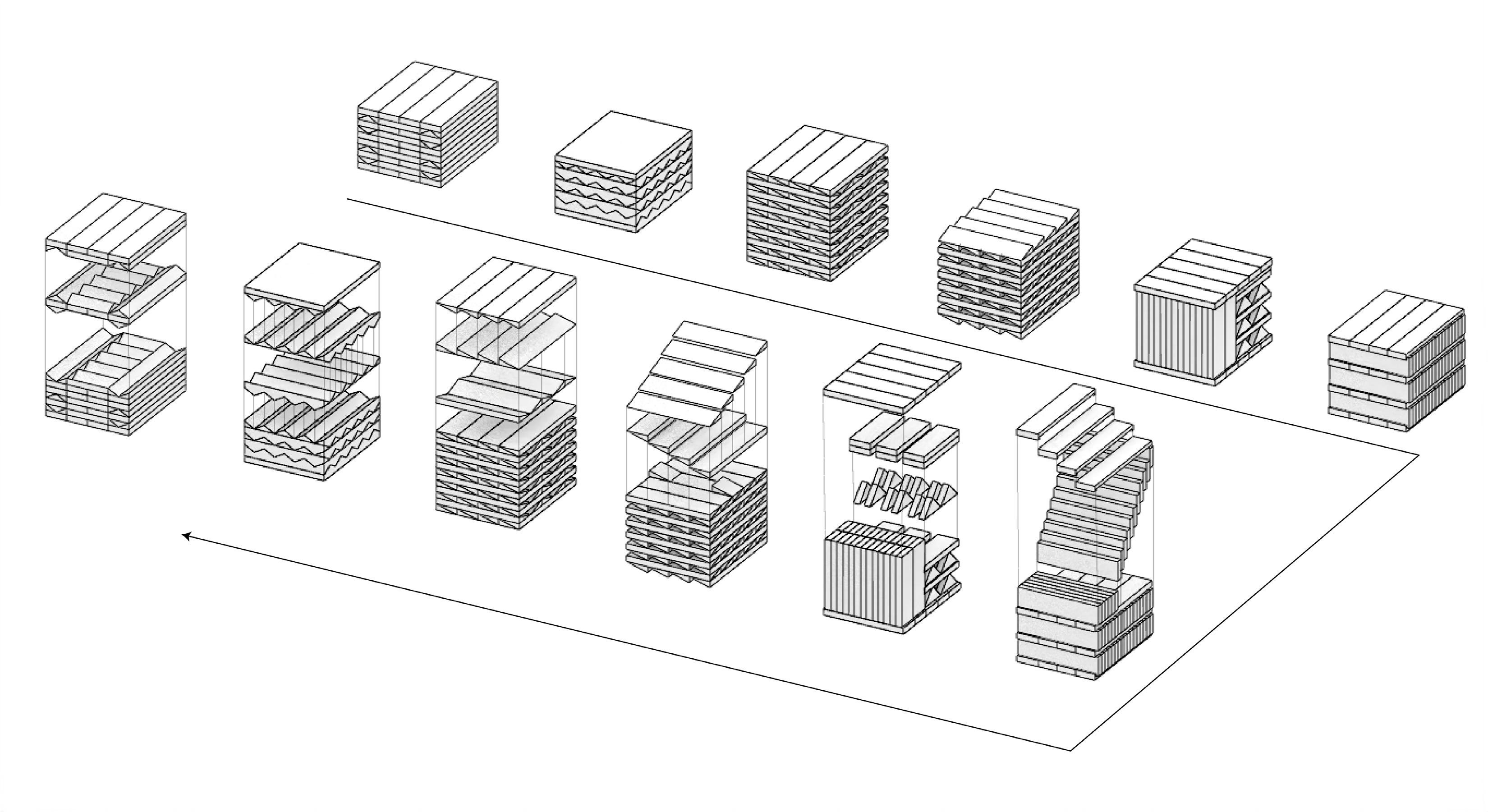

SYSTEM RESEARCH

| VIKRAM BARRETTO

| 5

|

ARCH 486 Advanced Architectural Design II

STRUCTURAL SYSTEM NARRATIVE

| VIKRAM BARRETTO

| 6

|

ARCH 486 Advanced Architectural Design II

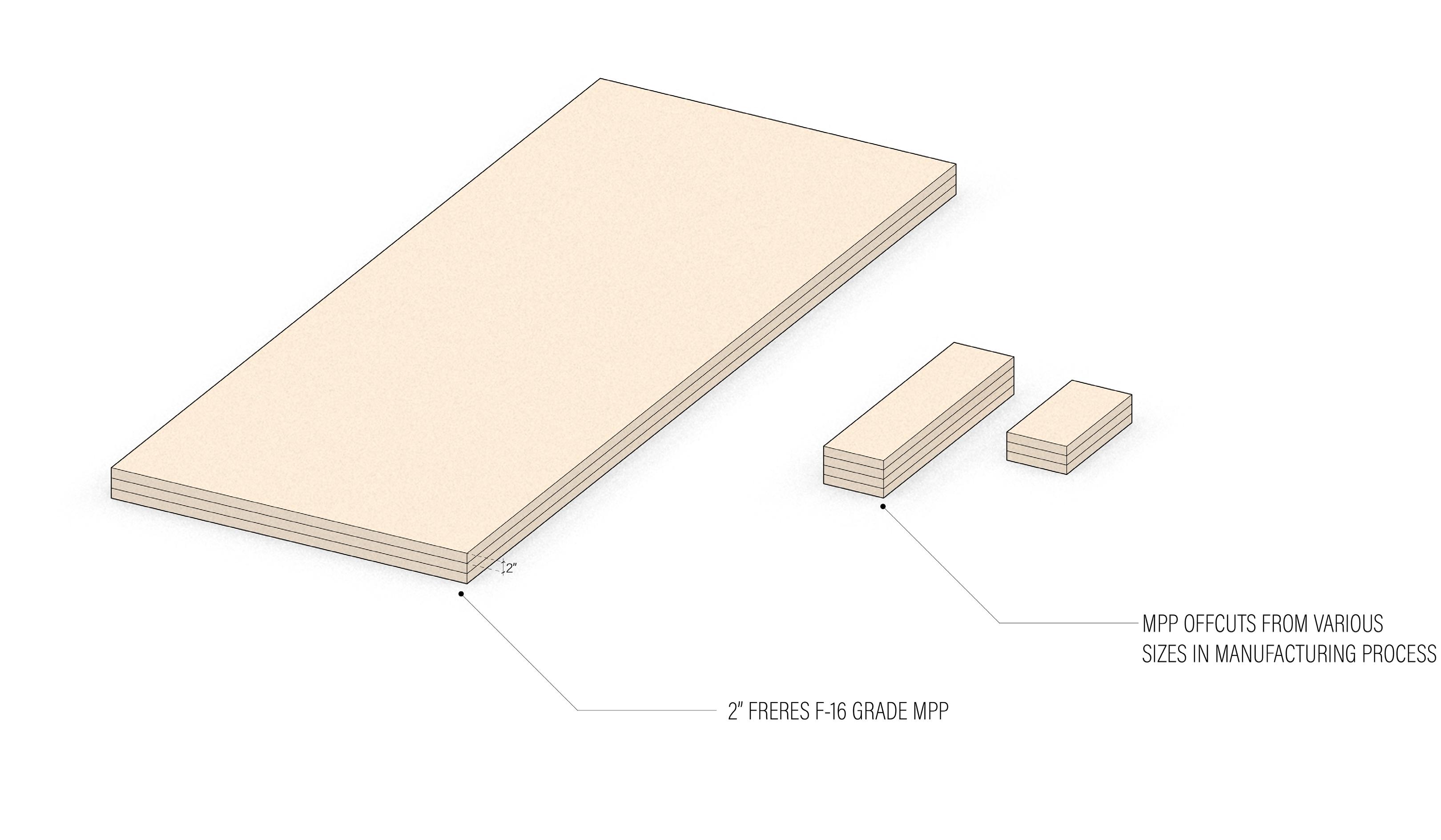

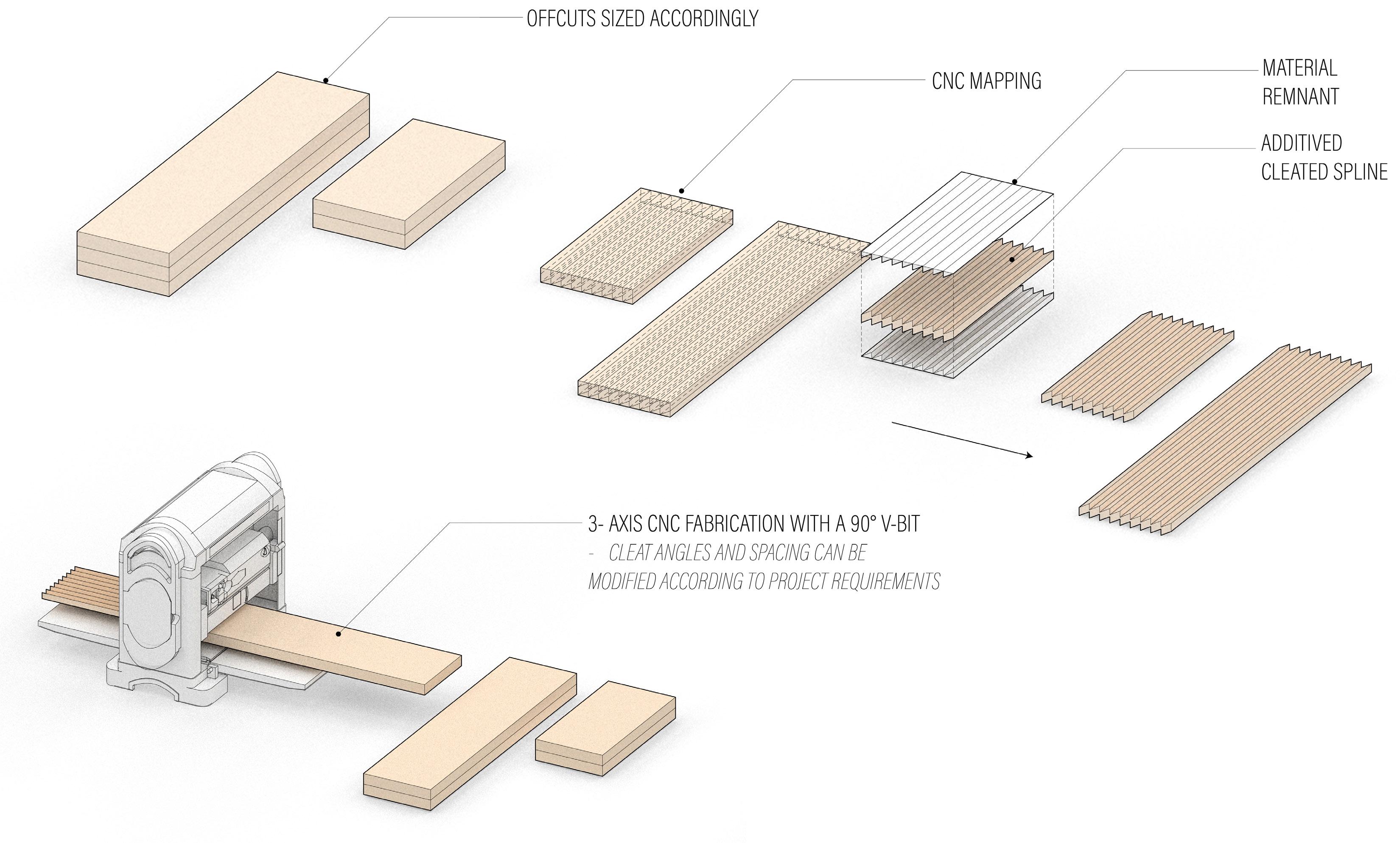

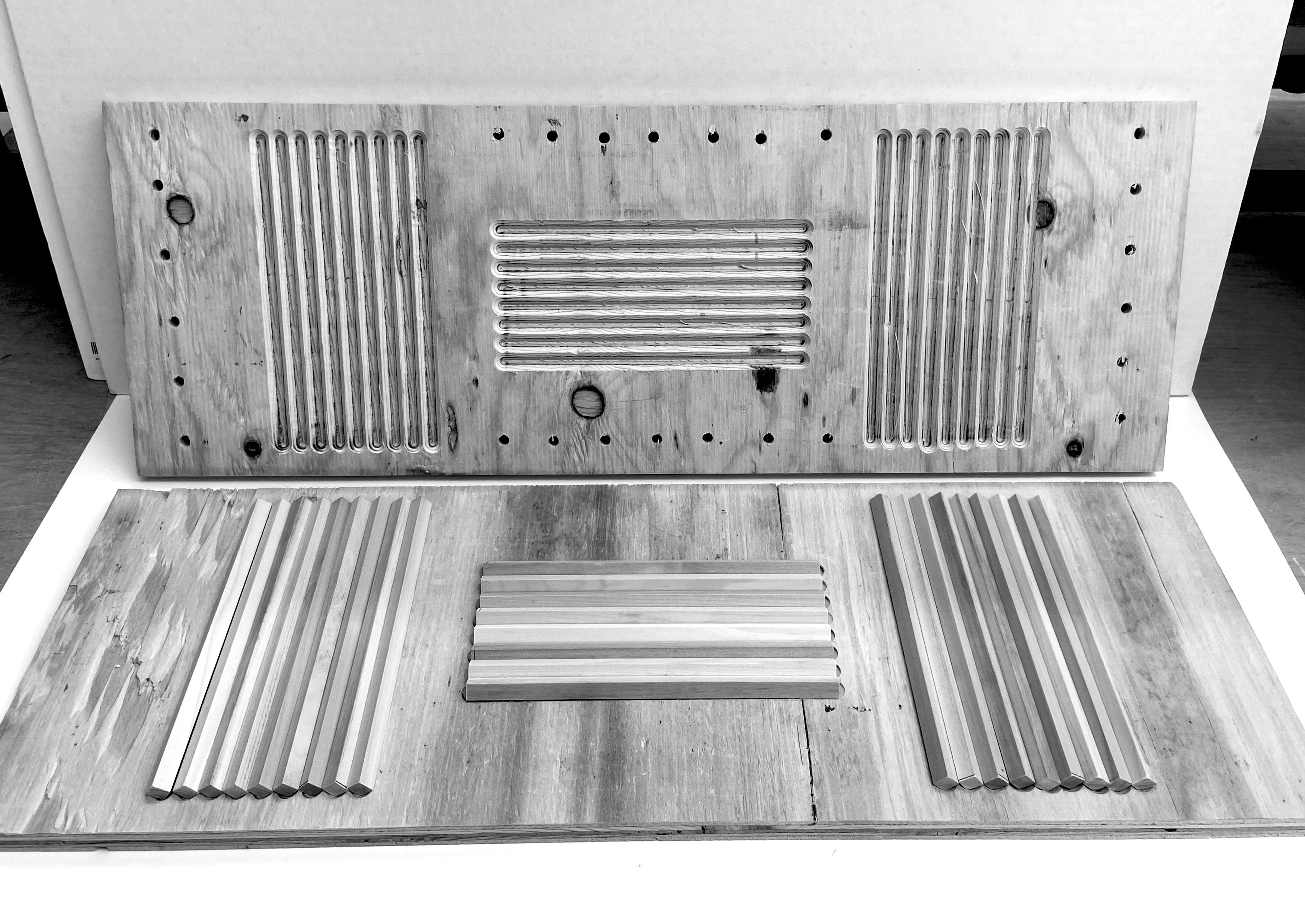

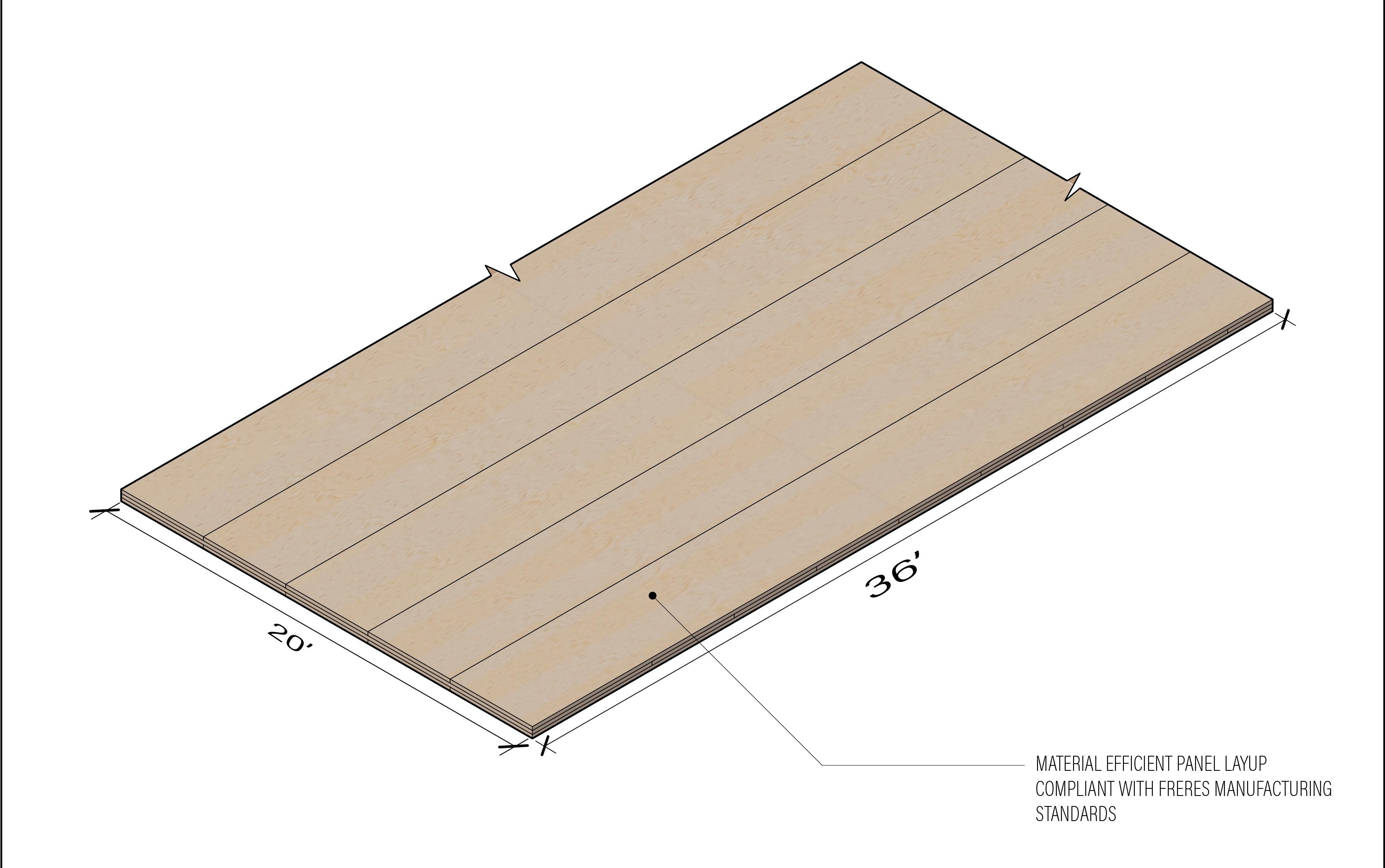

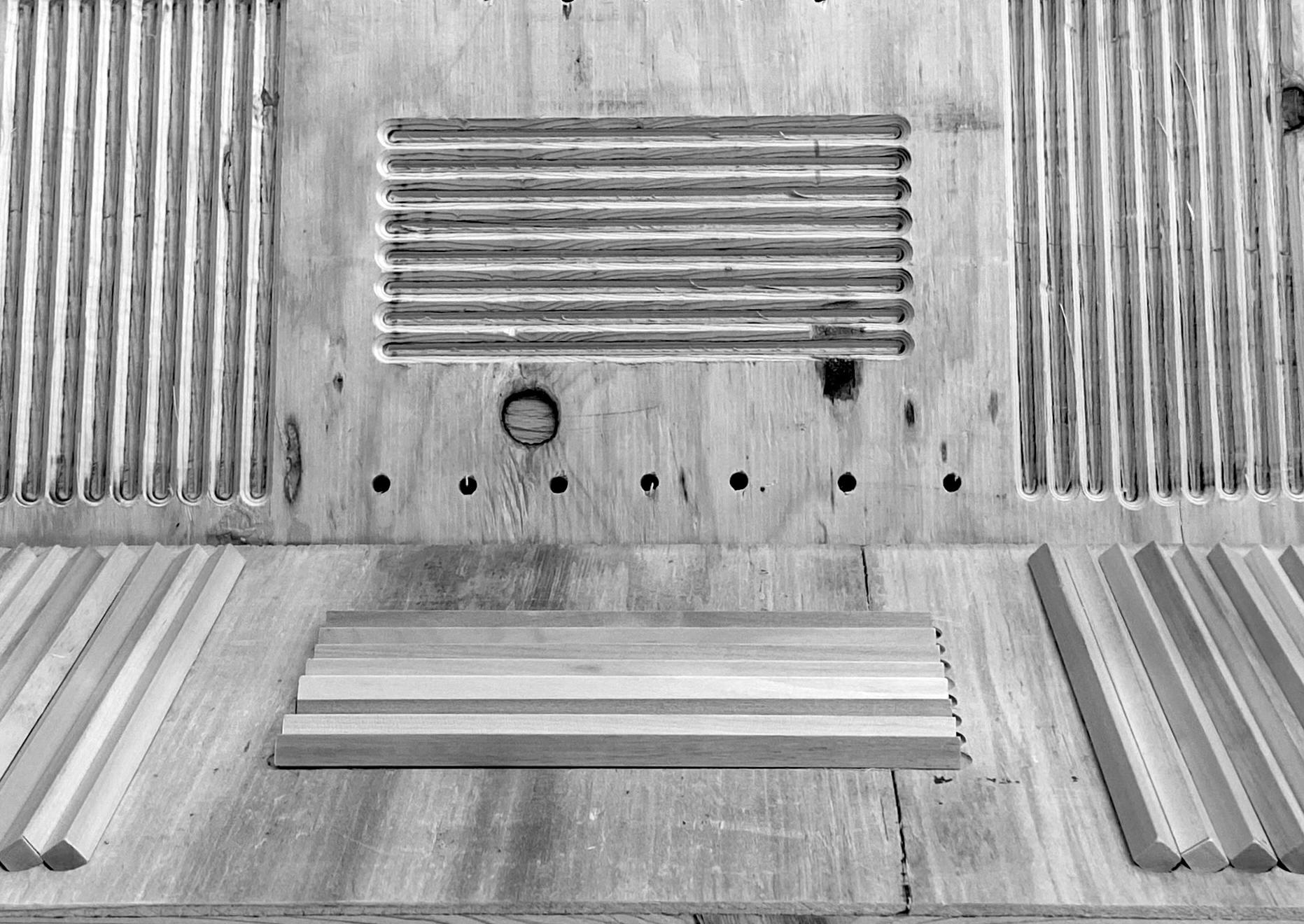

SYSTEM FABRICATION

| VIKRAM BARRETTO

| 7

|

ARCH 486 Advanced Architectural Design II

SYSTEM CHUNK - “ENDLESS SLAB”

| VIKRAM BARRETTO

| 8

|

ARCH 486 Advanced Architectural Design II

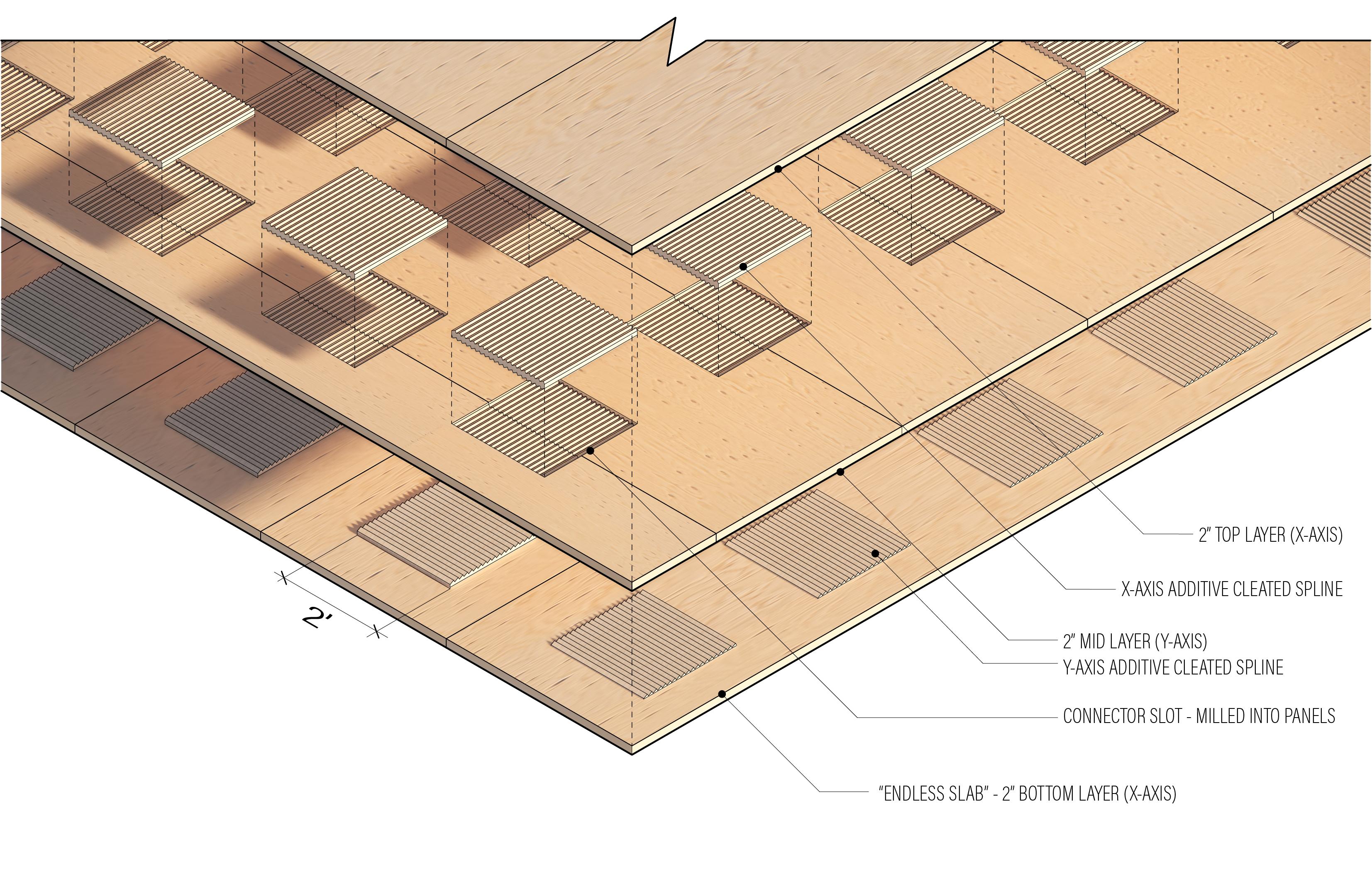

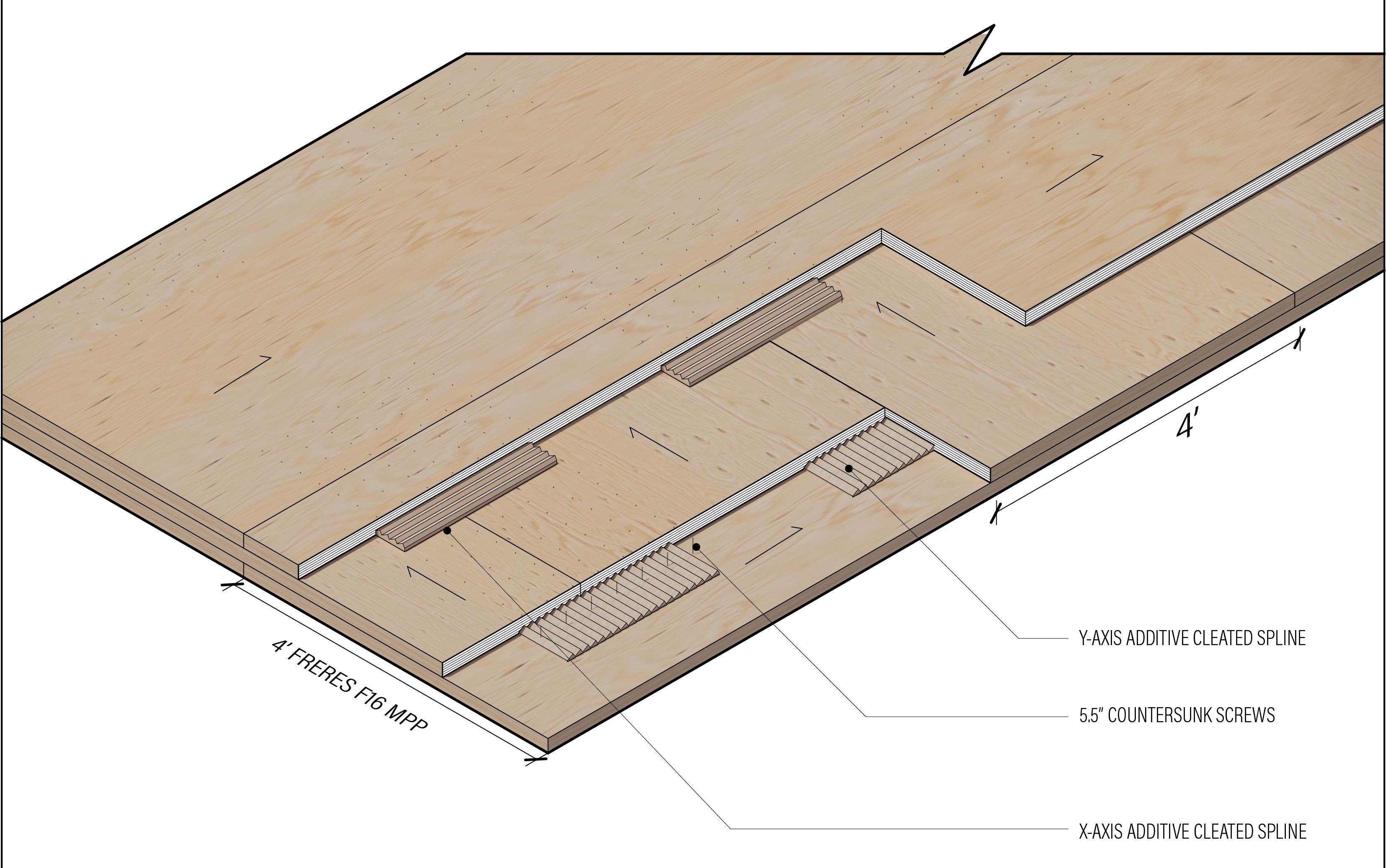

SYSTEM CHUNK DETAIL

| VIKRAM BARRETTO

| 9

|

ARCH 486 Advanced Architectural Design II

SYSTEM CHUNK ASSEMBLY

| VIKRAM BARRETTO

| 10

|

ARCH 486 Advanced Architectural Design II

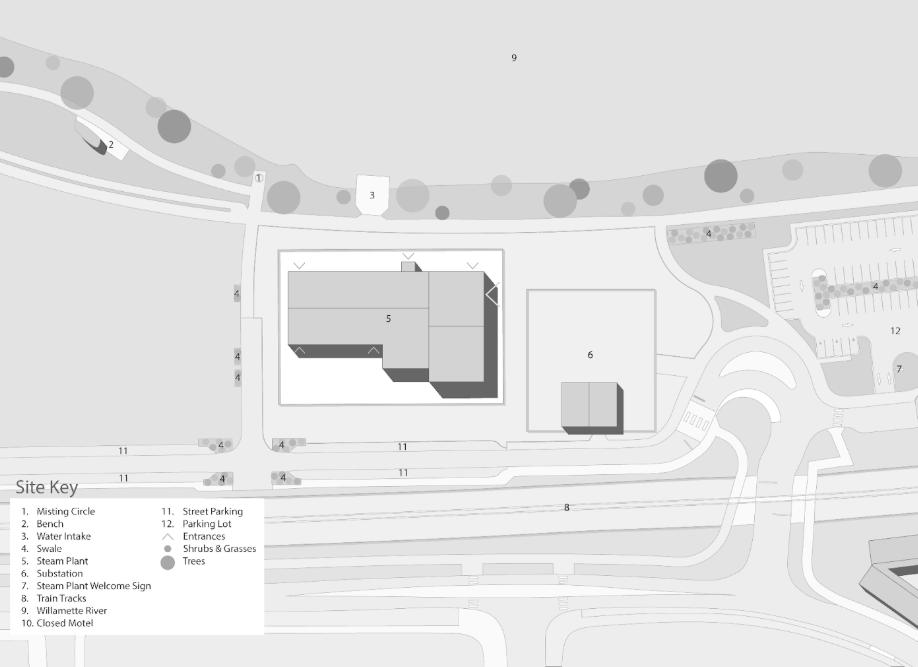

SITE MAP

| VIKRAM BARRETTO

| 11

|

ARCH 486 Advanced Architectural Design II

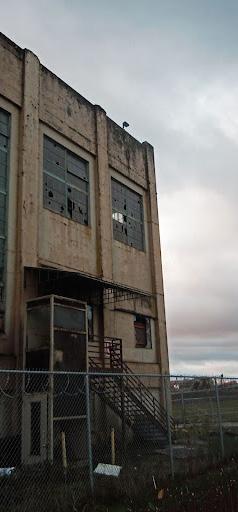

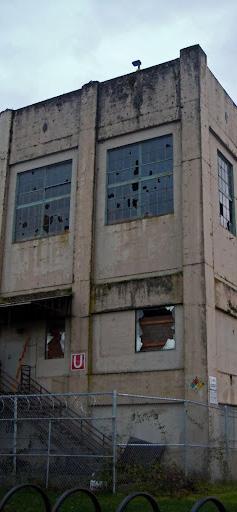

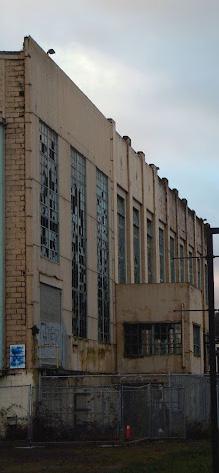

EXISTING CONDITIONS

| VIKRAM BARRETTO

| 12

|

ARCH 486 Advanced Architectural Design II

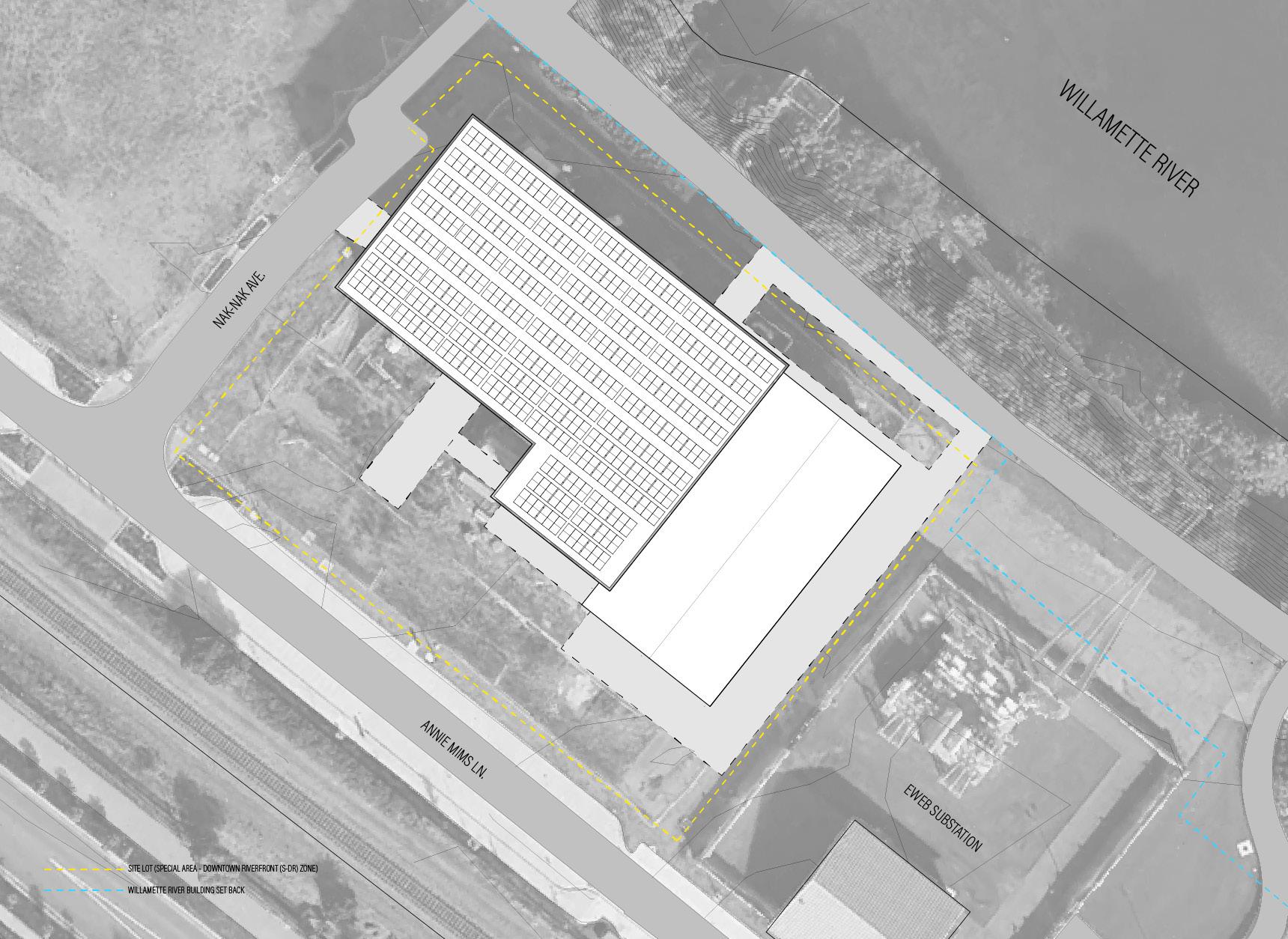

SITE PLAN AND ZONING

| VIKRAM BARRETTO

| 13

|

ARCH 486 Advanced Architectural Design II

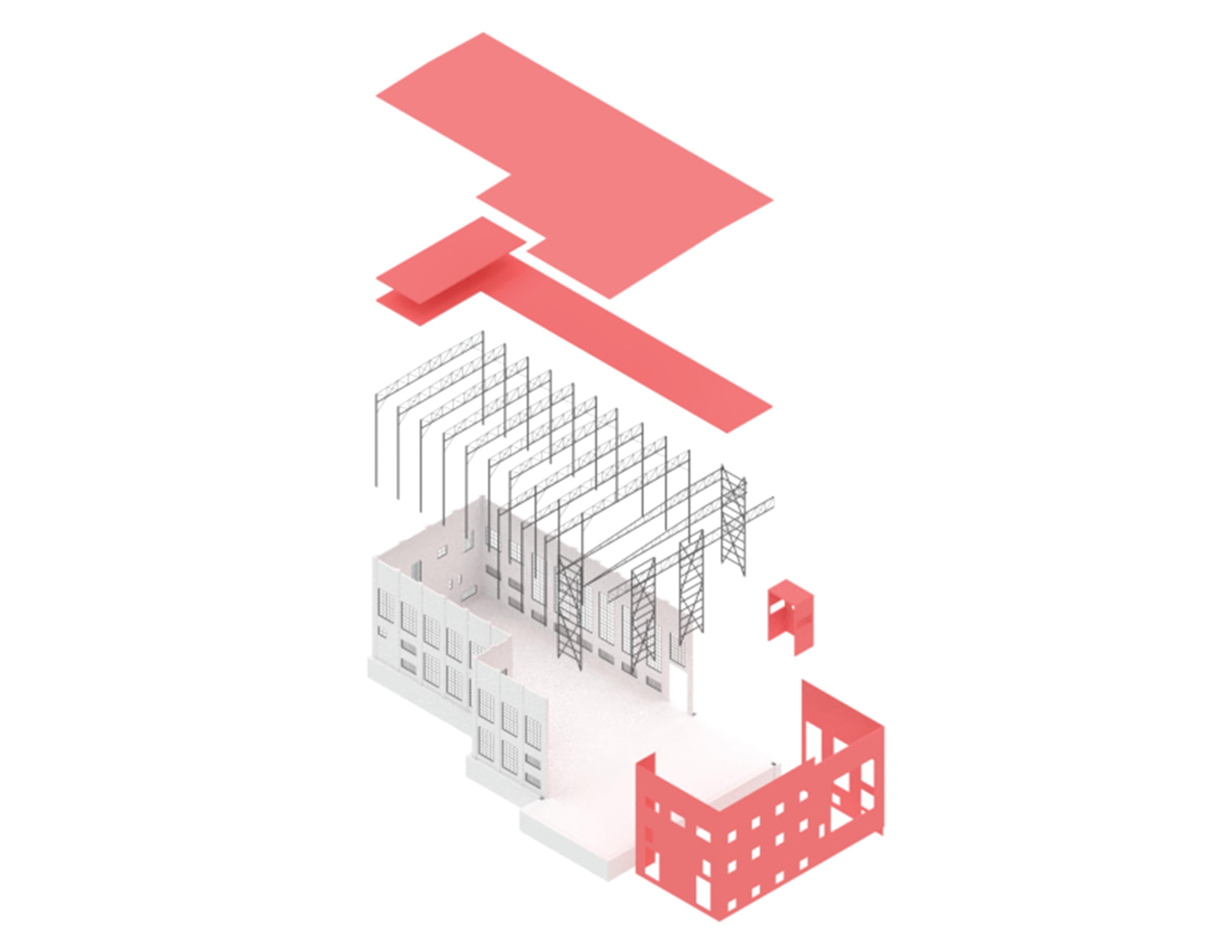

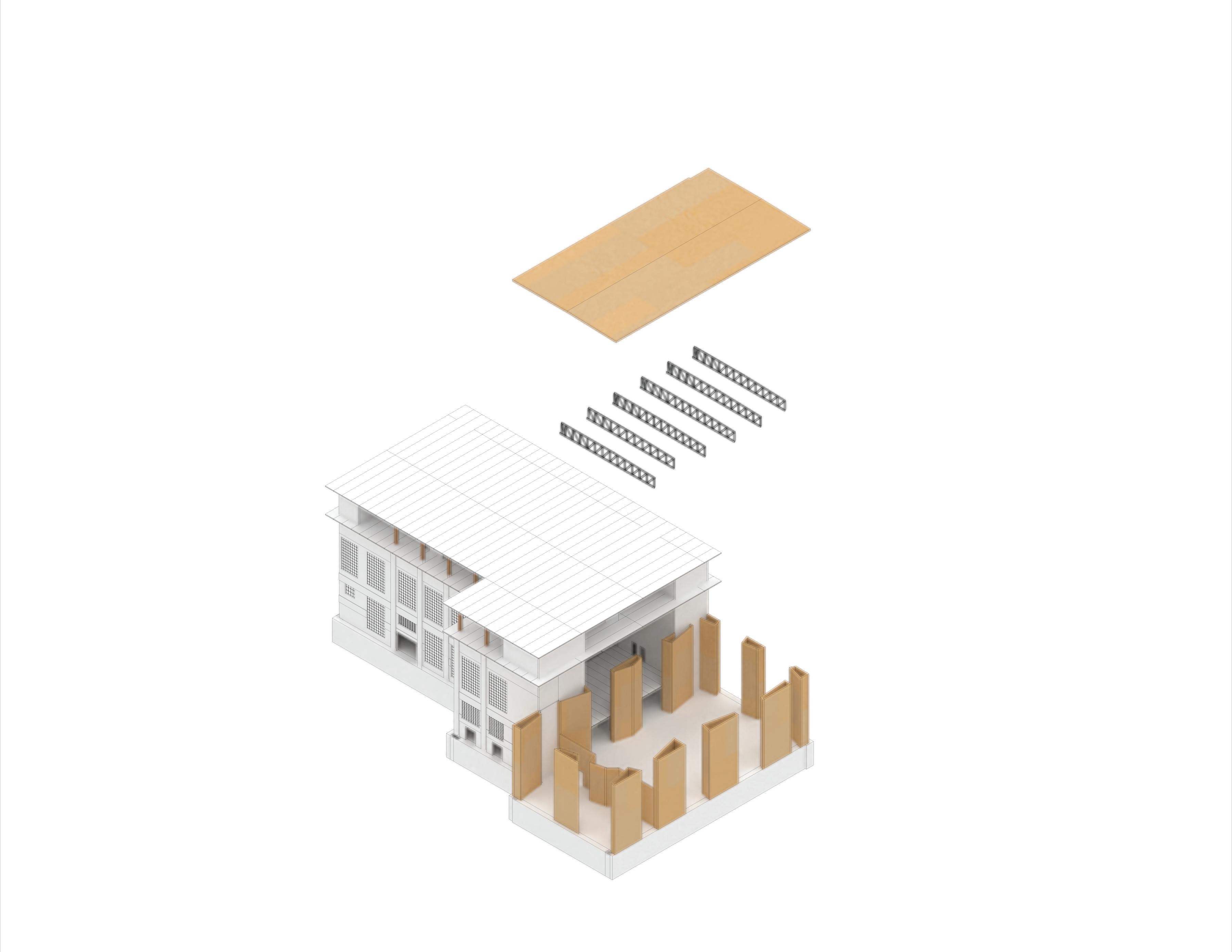

ADAPTIVE REUSE CONCEPT

REMOVE PHASE 3 AND WORN BUILDIING ELEMENTS

| VIKRAM BARRETTO

REINFORCE EXISTING STRUCTURE WITH CORES AND COLUMNS

ADD IN SLABS

| 14

REUSE P-I TRUSSES AND INSTALL P -III NEW CONSTRUCTION

|

ARCH 486 Advanced Architectural Design II

Existing Roof

Existing Floors Existing Phase I Steel Trusses (To be Reused)

Existing Steel Structure (Phase II & III)

Existing Phase I & II Concrete Walls Existing Phase I & II Windows

Phase III Walls (Asbestos Construction)

Existing Building Elements Removed

| VIKRAM BARRETTO

| 15

|

ARCH 486 Advanced Architectural Design II

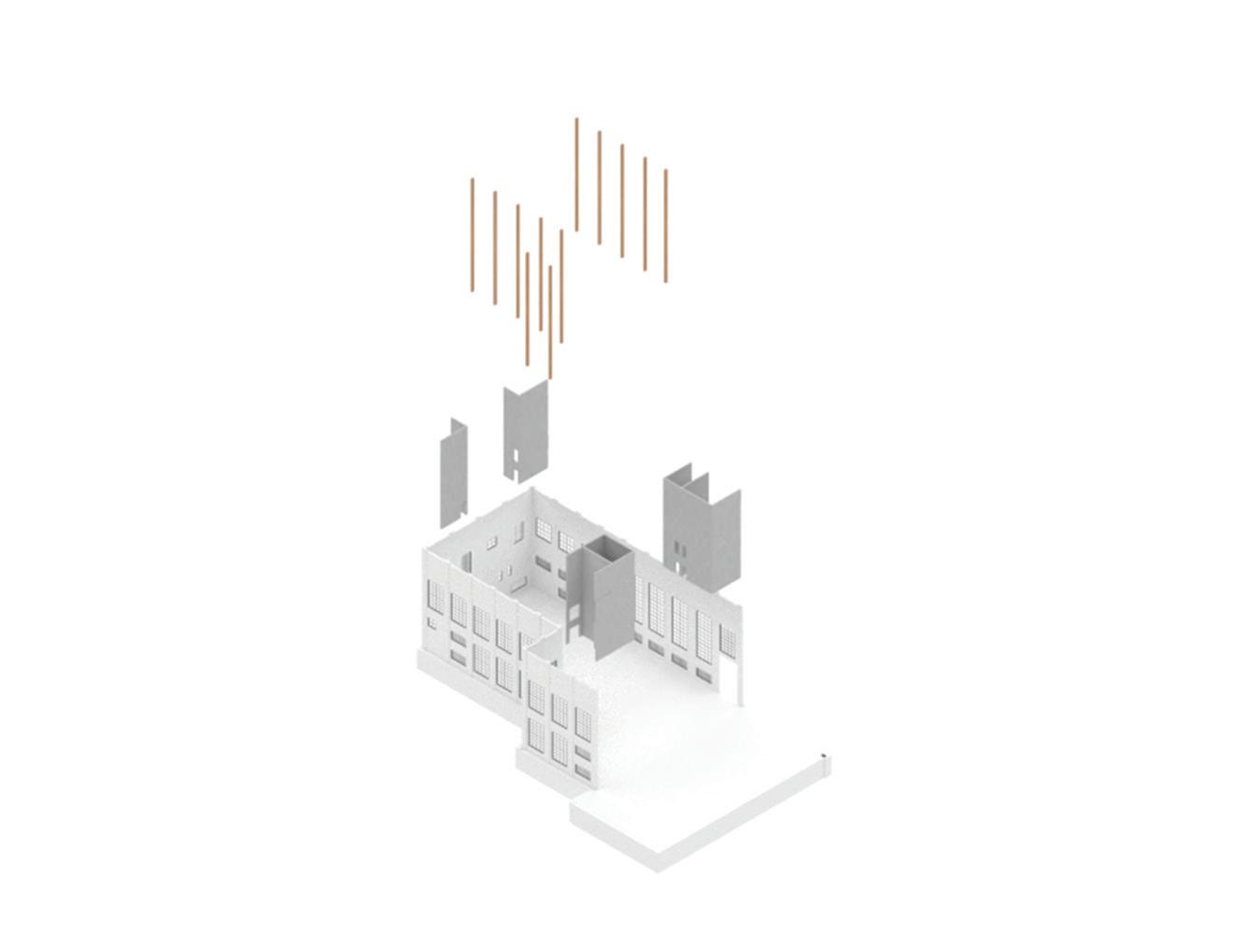

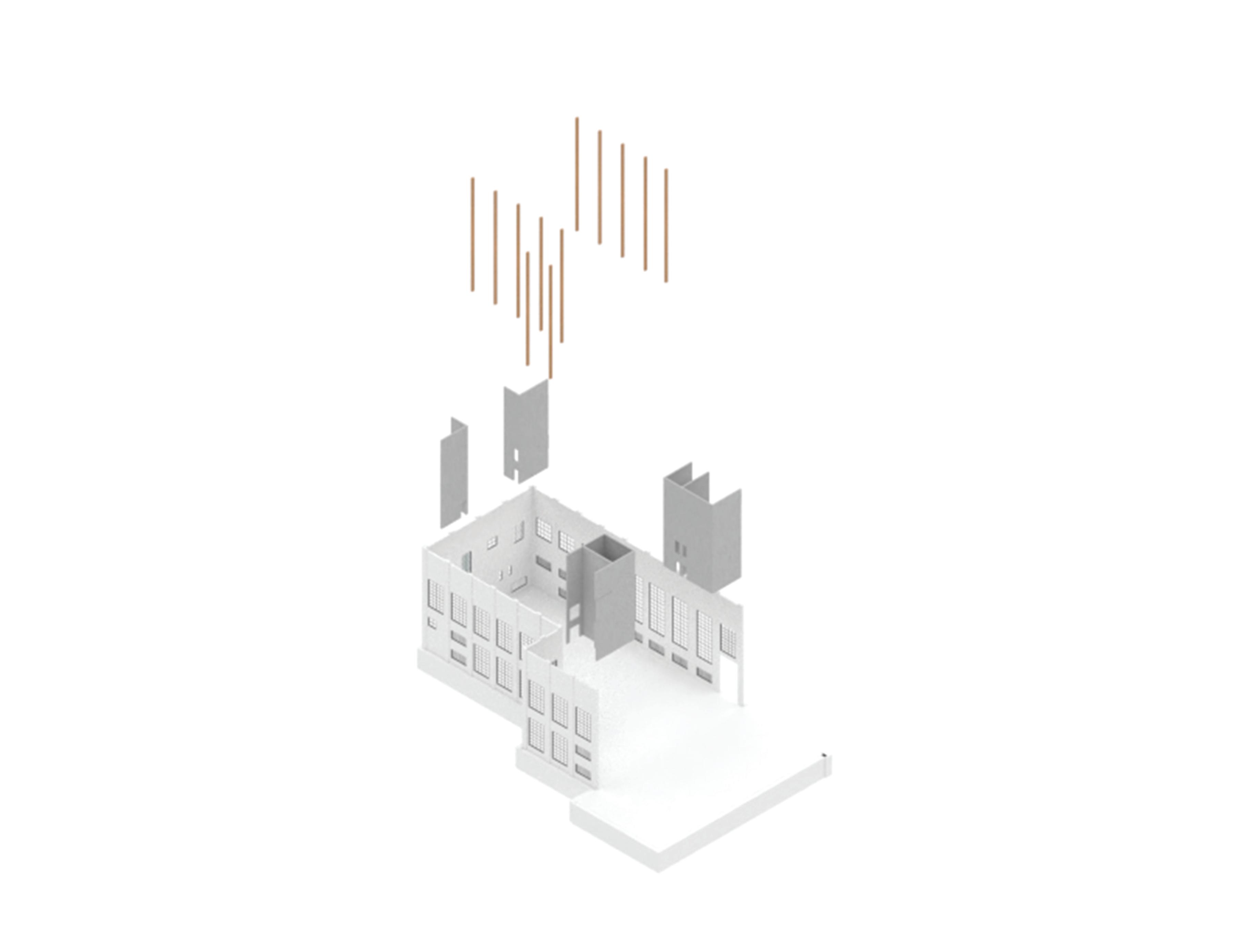

12 x 18 Glulam Columns to reinforce existing column structure

Add Concrete Cores

Install New Windows

Reinforce Existing Foundation

| VIKRAM BARRETTO

| 16

|

ARCH 486 Advanced Architectural Design II

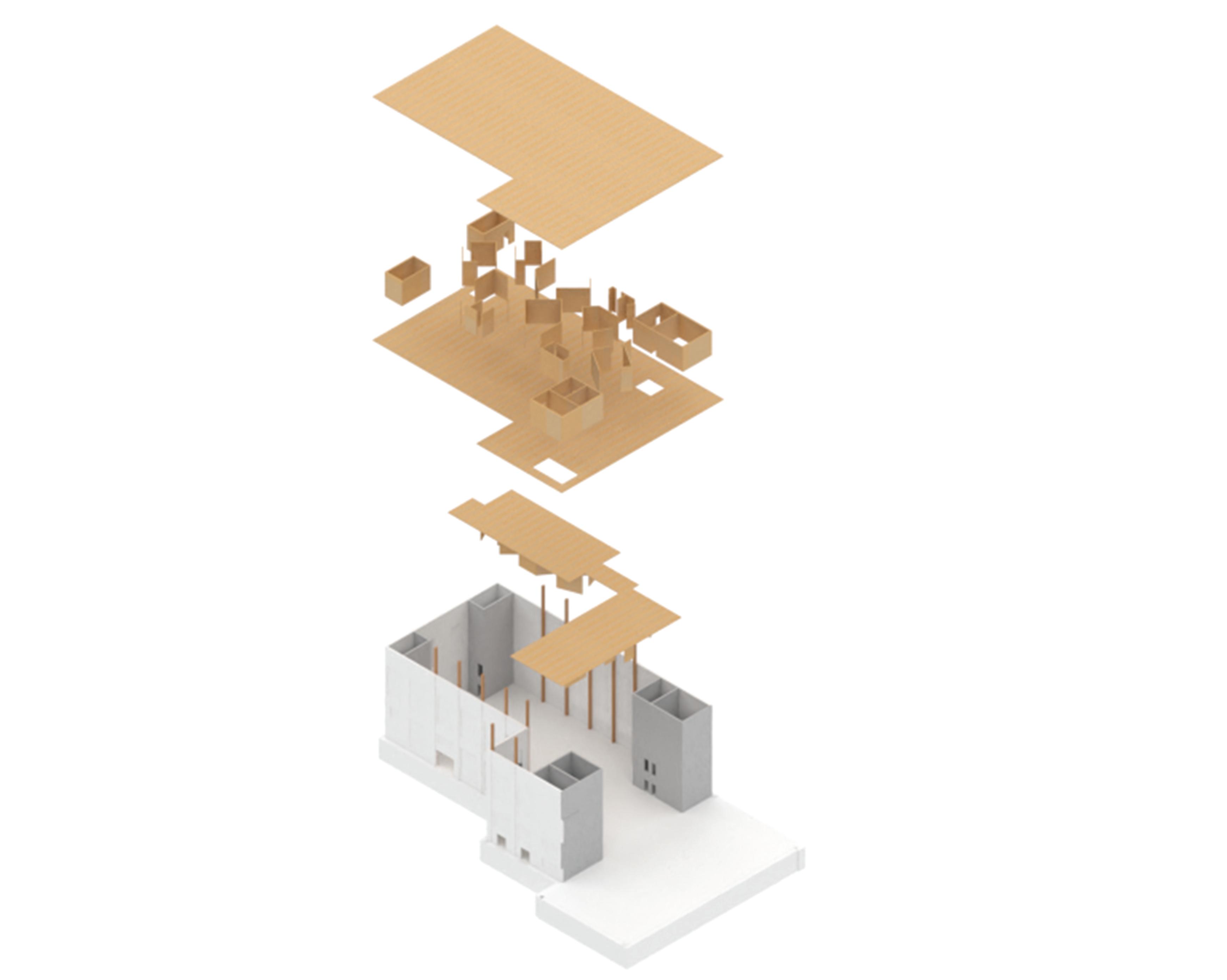

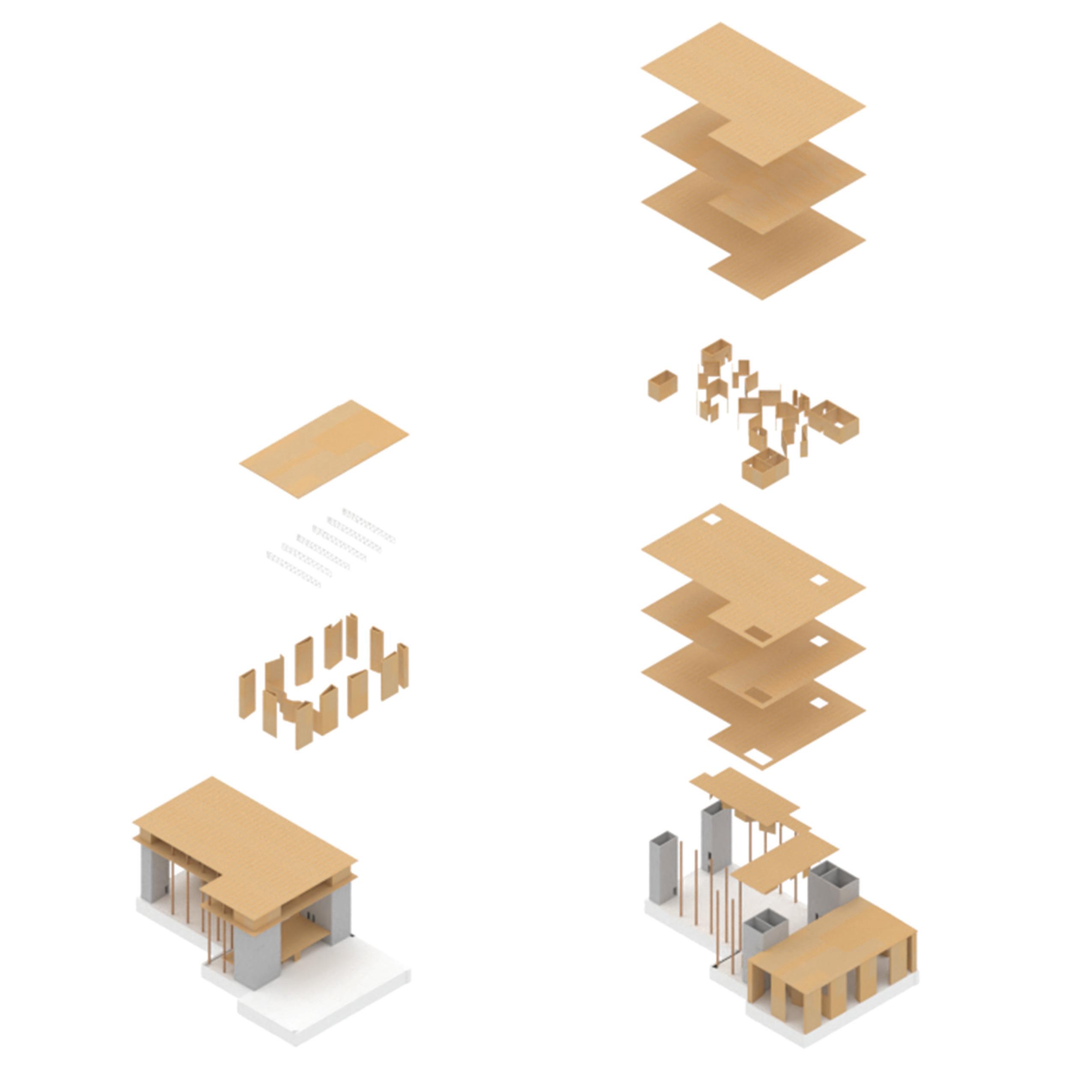

Roof Top Slab “SkyBox” (Endless Slab)

MPP Shear Walls

Roof Base Slab “SkyBox” (Endless Slab)

Add Ground Floor “Endless Slab System”

| VIKRAM BARRETTO

| 17

|

ARCH 486 Advanced Architectural Design II

6” Built - up MPP Roof (Endless Slab System)

Existing Phase I Steel Trusses: Reused

SkyBox

6” MPP Cores: 25’ in Length

| VIKRAM BARRETTO

| 18

|

ARCH 486 Advanced Architectural Design II

| VIKRAM BARRETTO

| 19

|

ARCH 486 Advanced Architectural Design II

PROGRAM FLOOR

AREA

SPACE

GROUND FLOOR GROUND FLOOR GROUND FLOOR GROUND FLOOR VARIES MEZZANINE MEZZANINE VARIES TOP FLOOR VARIES

6975.45 SF 750 SF 1860 SF 6078 SF 1080 SF 2590 SF 2590 SF 780 SF 10,055 SF 354 SF

FABRICATION HALL LABS LOBBY RECREATION HALL MECHANICAL MAKER SPACE FAB DECK BATHROOMS OFFICES ELECTRICAL

TOTAL = 33,112.45 SF

| VIKRAM BARRETTO

| 20

|

ARCH 486 Advanced Architectural Design II

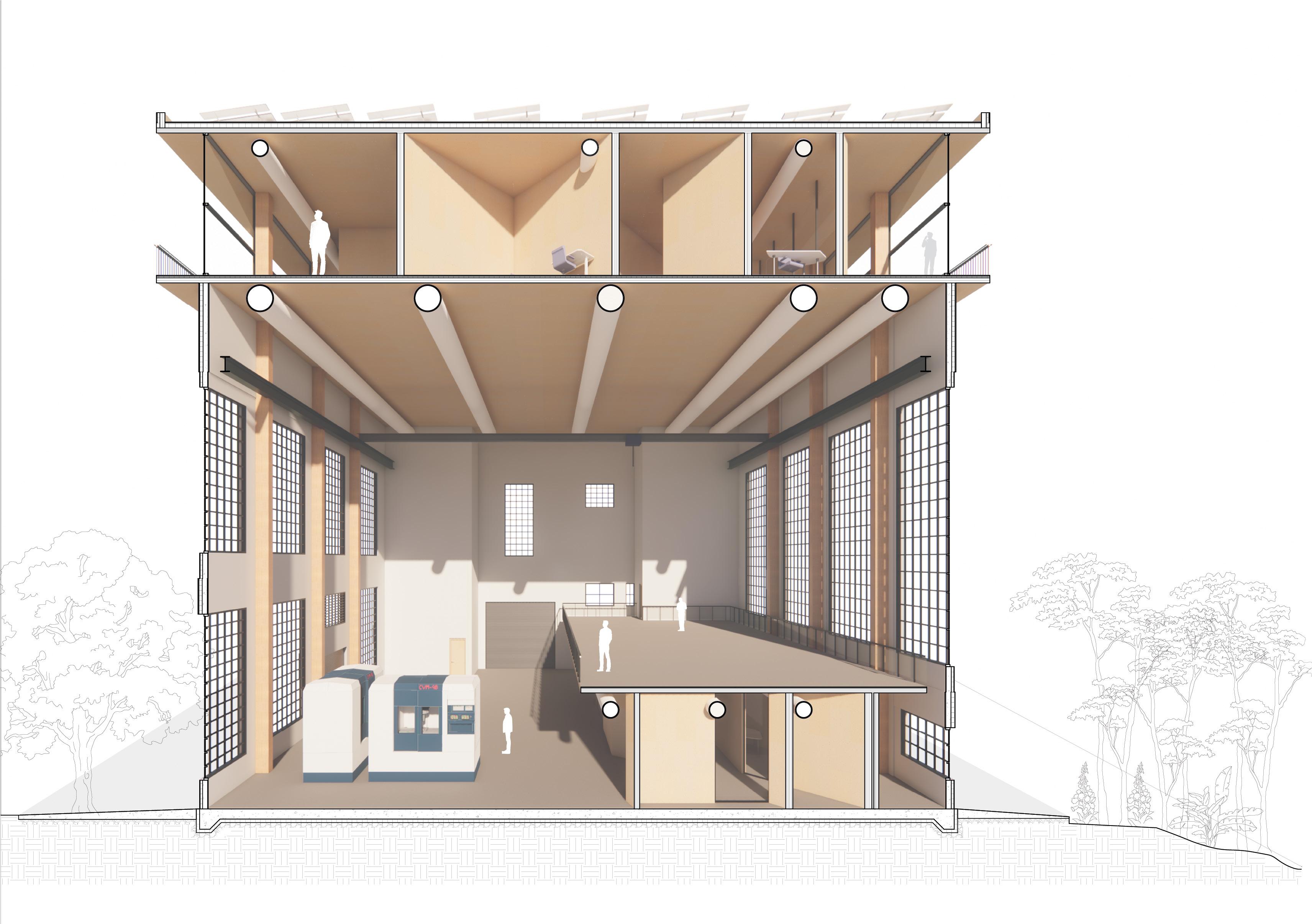

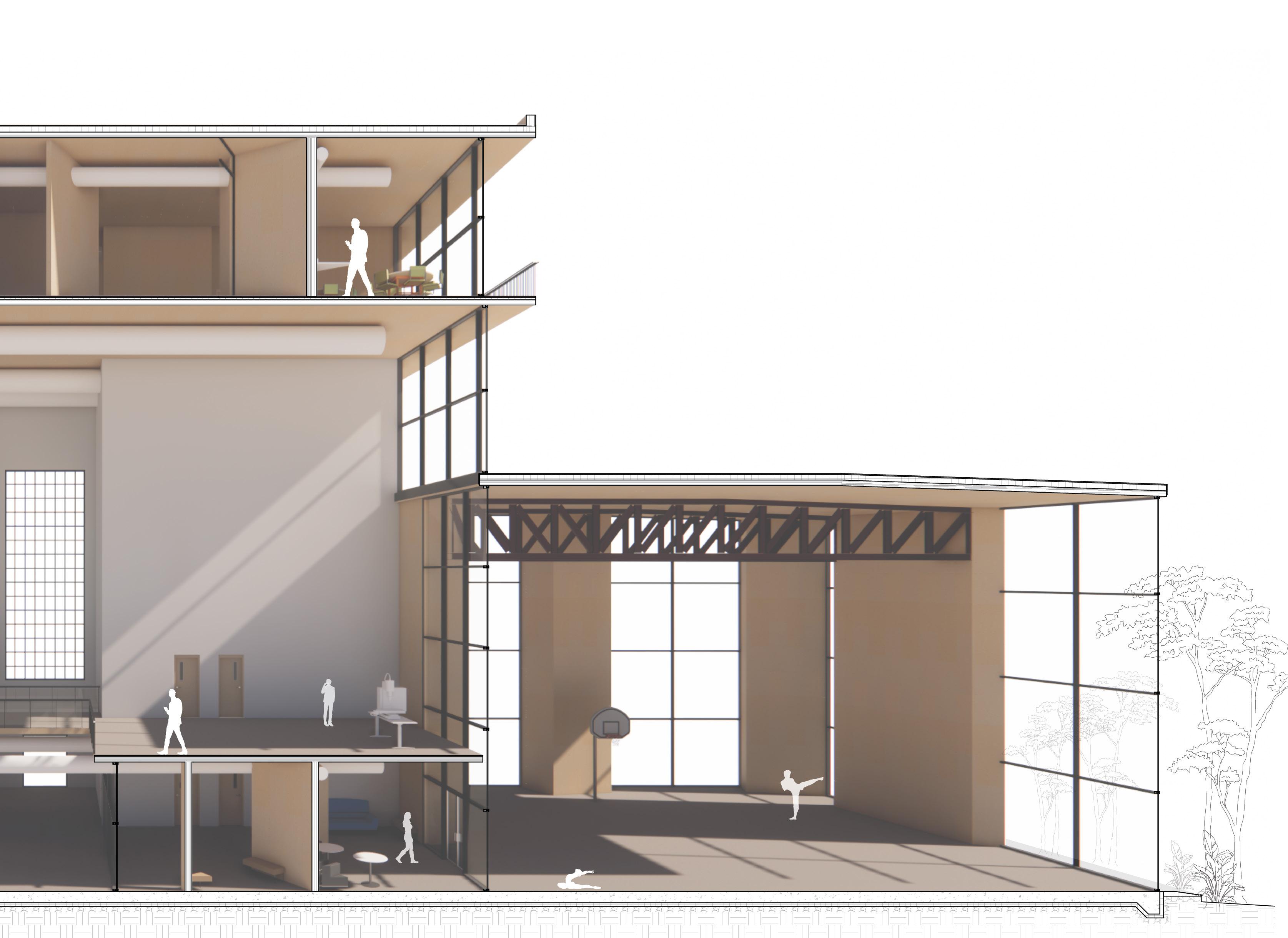

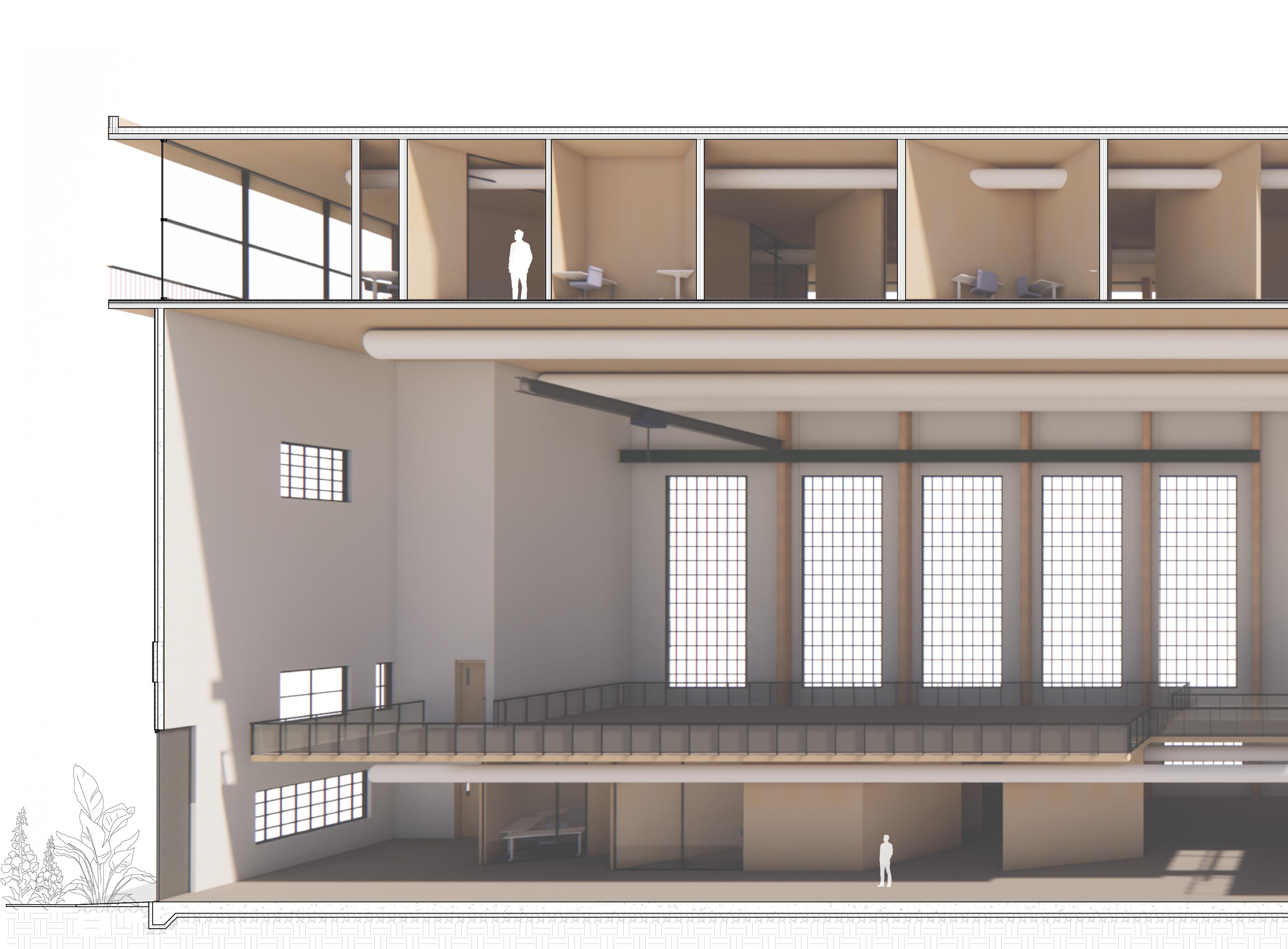

CROSS SECTION

| VIKRAM BARRETTO

| 21

|

ARCH 486 Advanced Architectural Design II

LONGITUDINAL SECTION

| VIKRAM BARRETTO

| 22

|

ARCH 486 Advanced Architectural Design II

| VIKRAM BARRETTO

| 23

|

ARCH 486 Advanced Architectural Design II

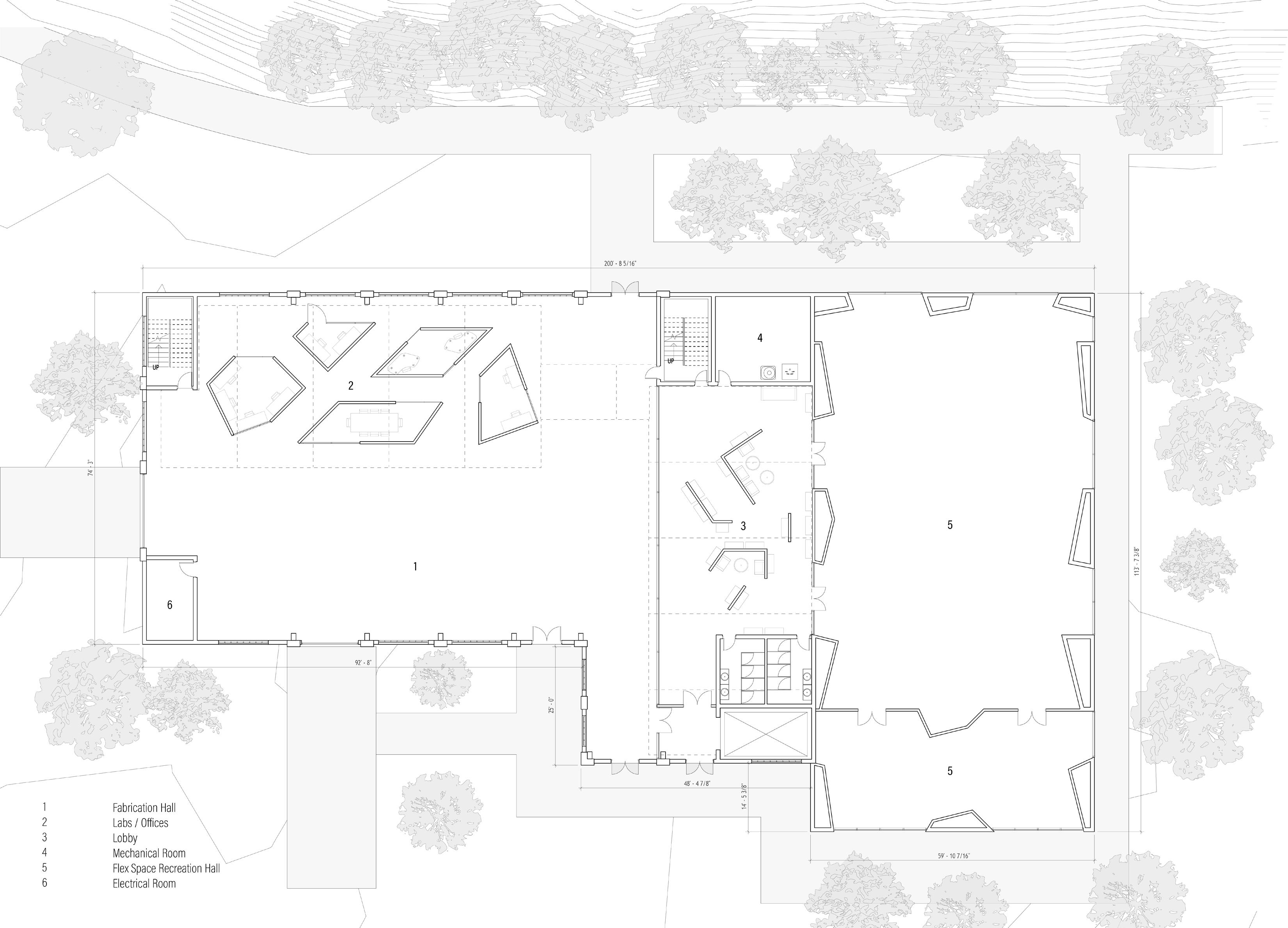

GROUND FLOOR

| VIKRAM BARRETTO

| 24

|

ARCH 486 Advanced Architectural Design II

| VIKRAM BARRETTO

| 25

|

ARCH 486 Advanced Architectural Design II

MEZZANINE

| VIKRAM BARRETTO

| 26

|

ARCH 486 Advanced Architectural Design II

| VIKRAM BARRETTO

| 27

|

ARCH 486 Advanced Architectural Design II

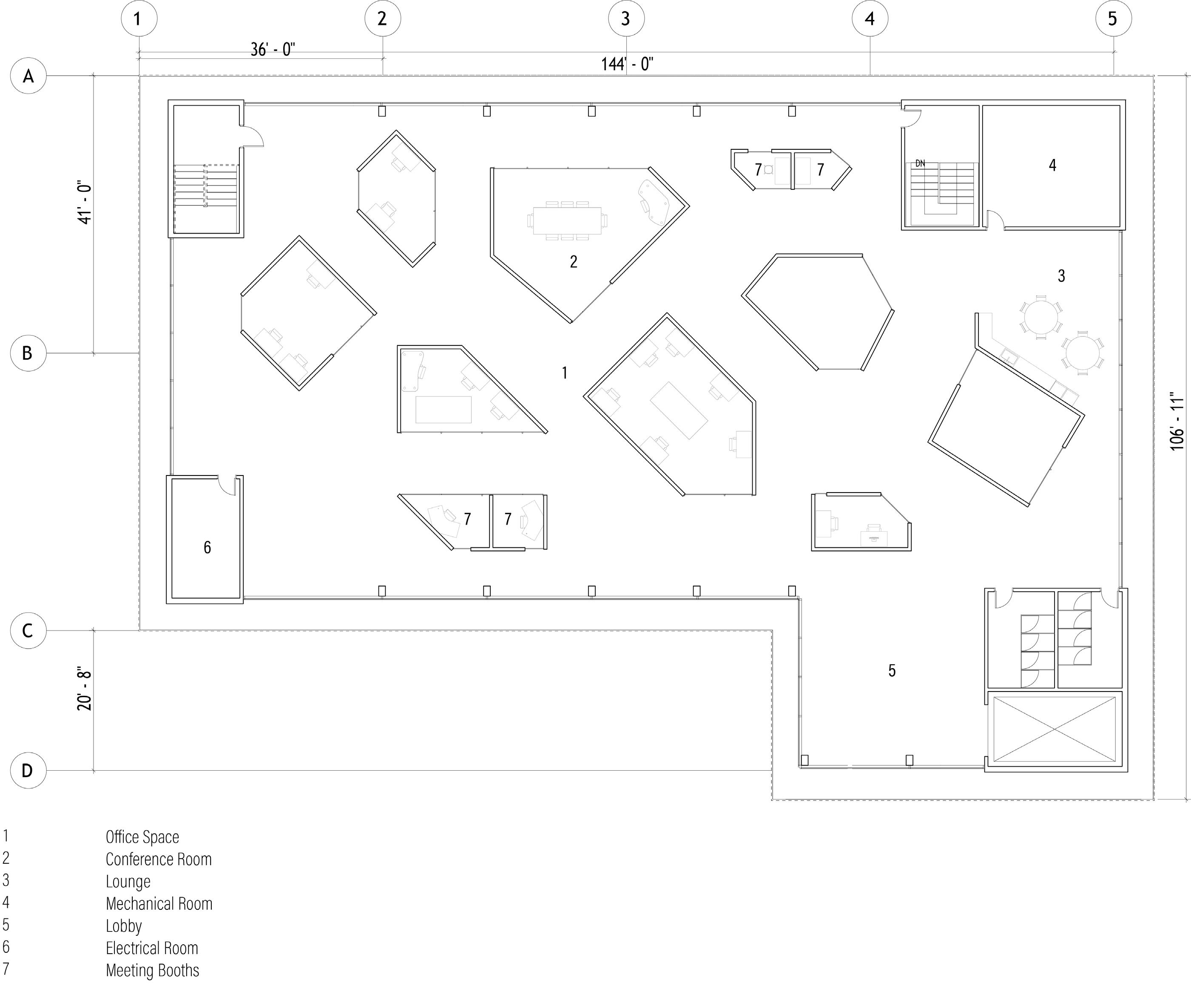

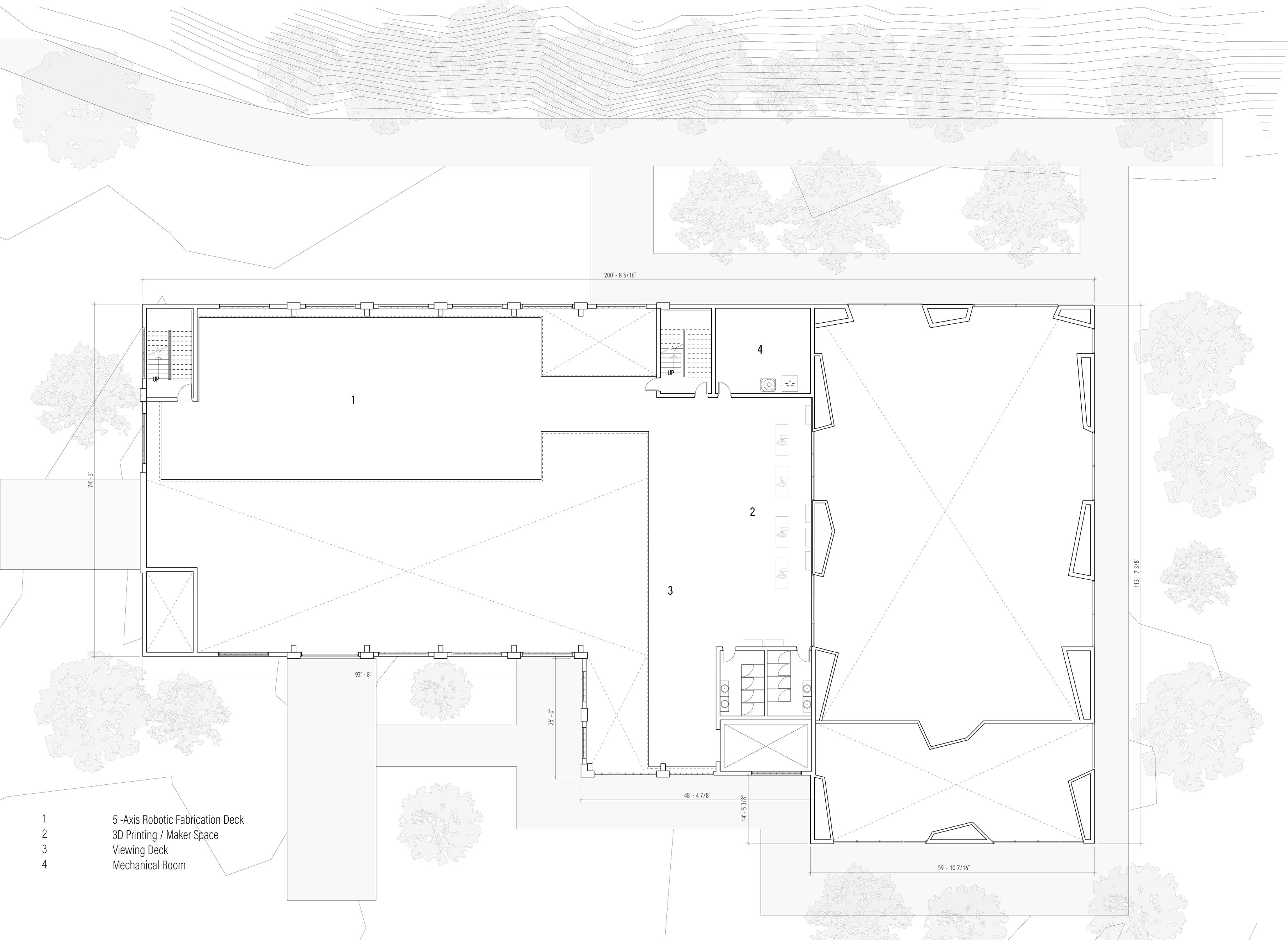

TOP FLOOR

| VIKRAM BARRETTO

| 28

|

ARCH 486 Advanced Architectural Design II

| VIKRAM BARRETTO

| 29

|

ARCH 486 Advanced Architectural Design II

ROBOTIC FABRICATION DECK

| VIKRAM BARRETTO

| 30

|

ARCH 486 Advanced Architectural Design II

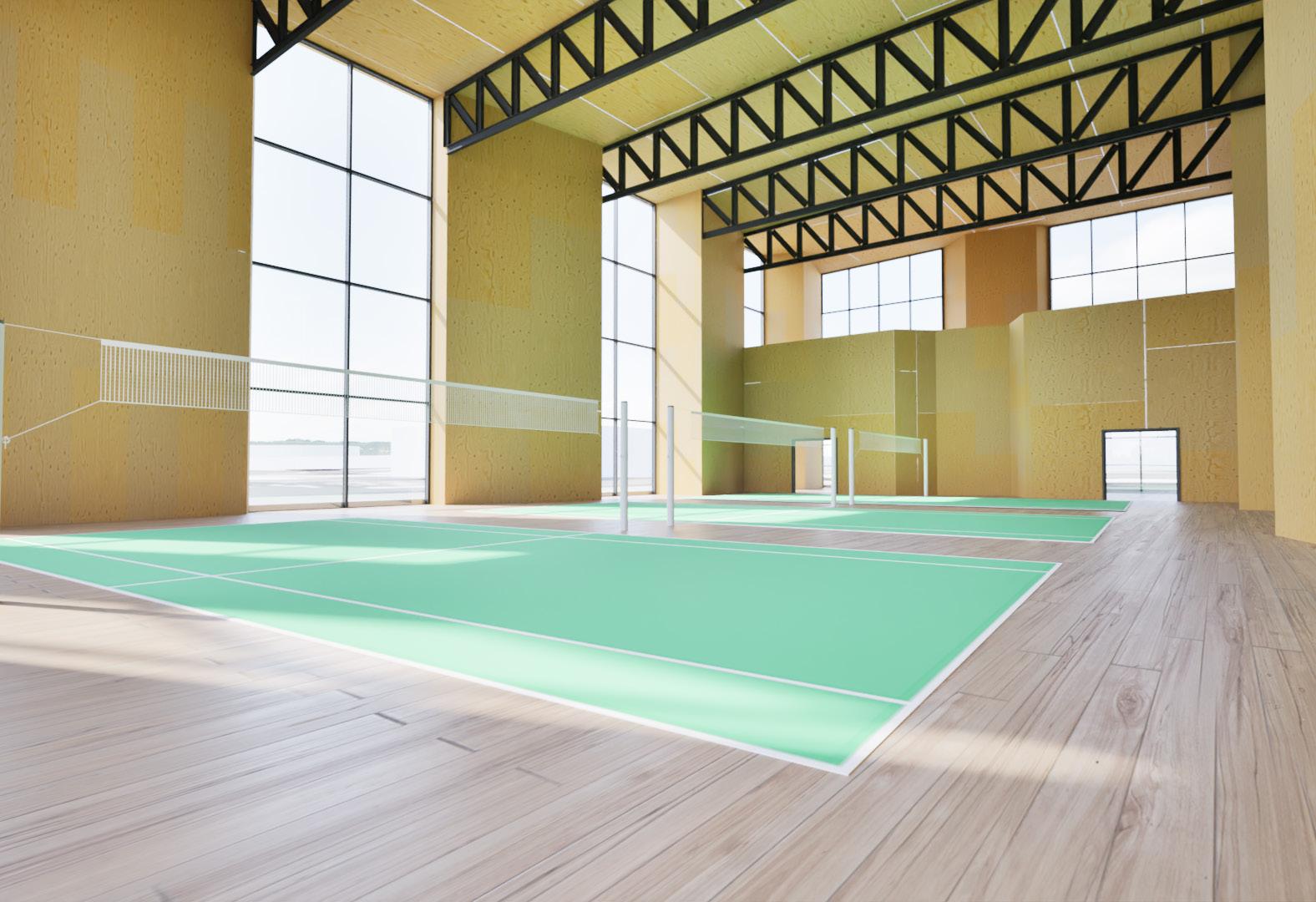

RECREATION HALL

| VIKRAM BARRETTO

| 31

|

ARCH 486 Advanced Architectural Design II

FABRICATION HALL

| VIKRAM BARRETTO

| 32

|

ARCH 486 Advanced Architectural Design II

TOP FLOOR BALCONY

| VIKRAM BARRETTO

| 33

|

ARCH 486 Advanced Architectural Design II

CIRCULATION - GROUND FLOOR

| VIKRAM BARRETTO

| 34

|

ARCH 486 Advanced Architectural Design II

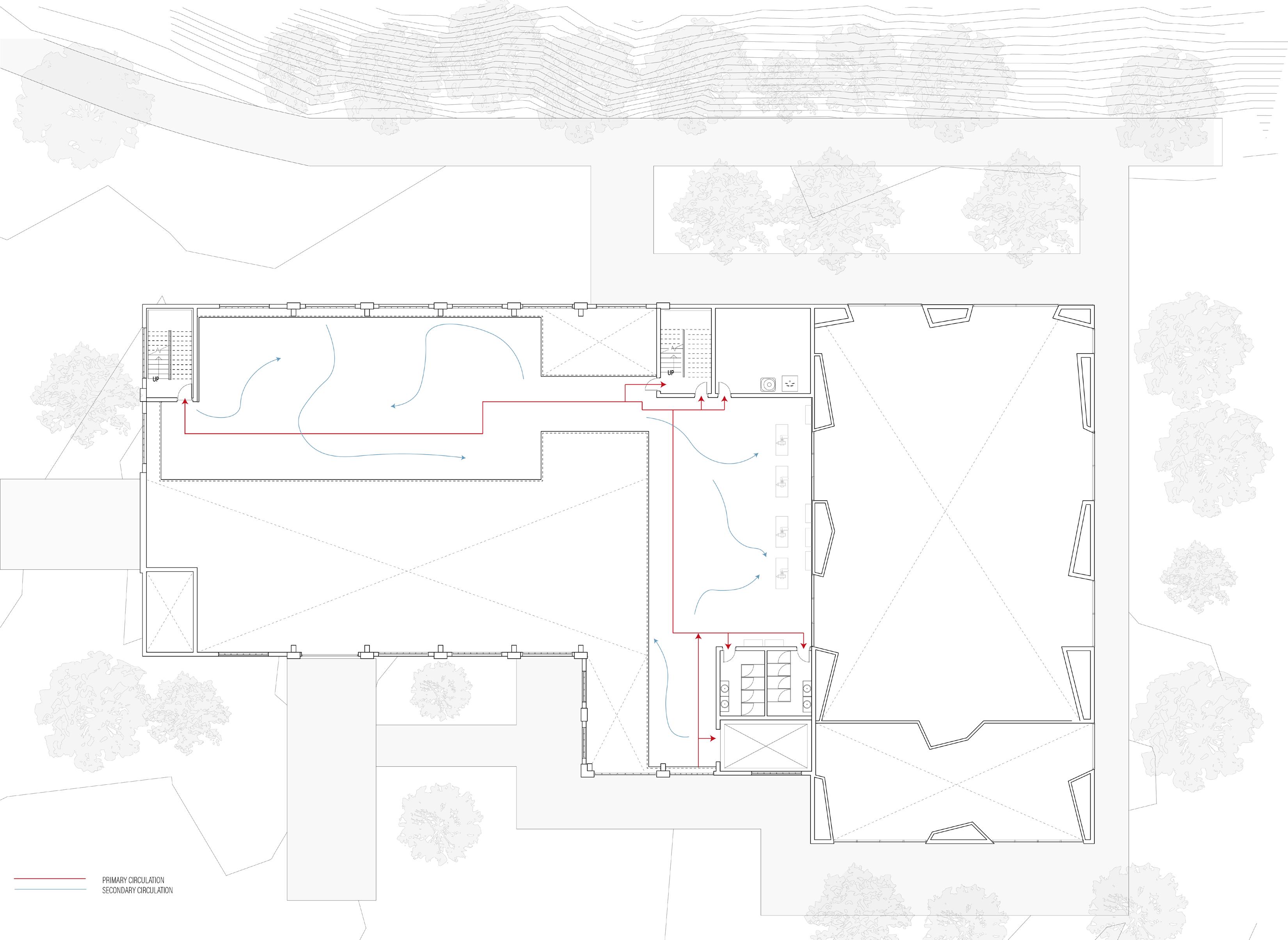

CIRCULATION - MEZZANINE

| VIKRAM BARRETTO

| 35

|

ARCH 486 Advanced Architectural Design II

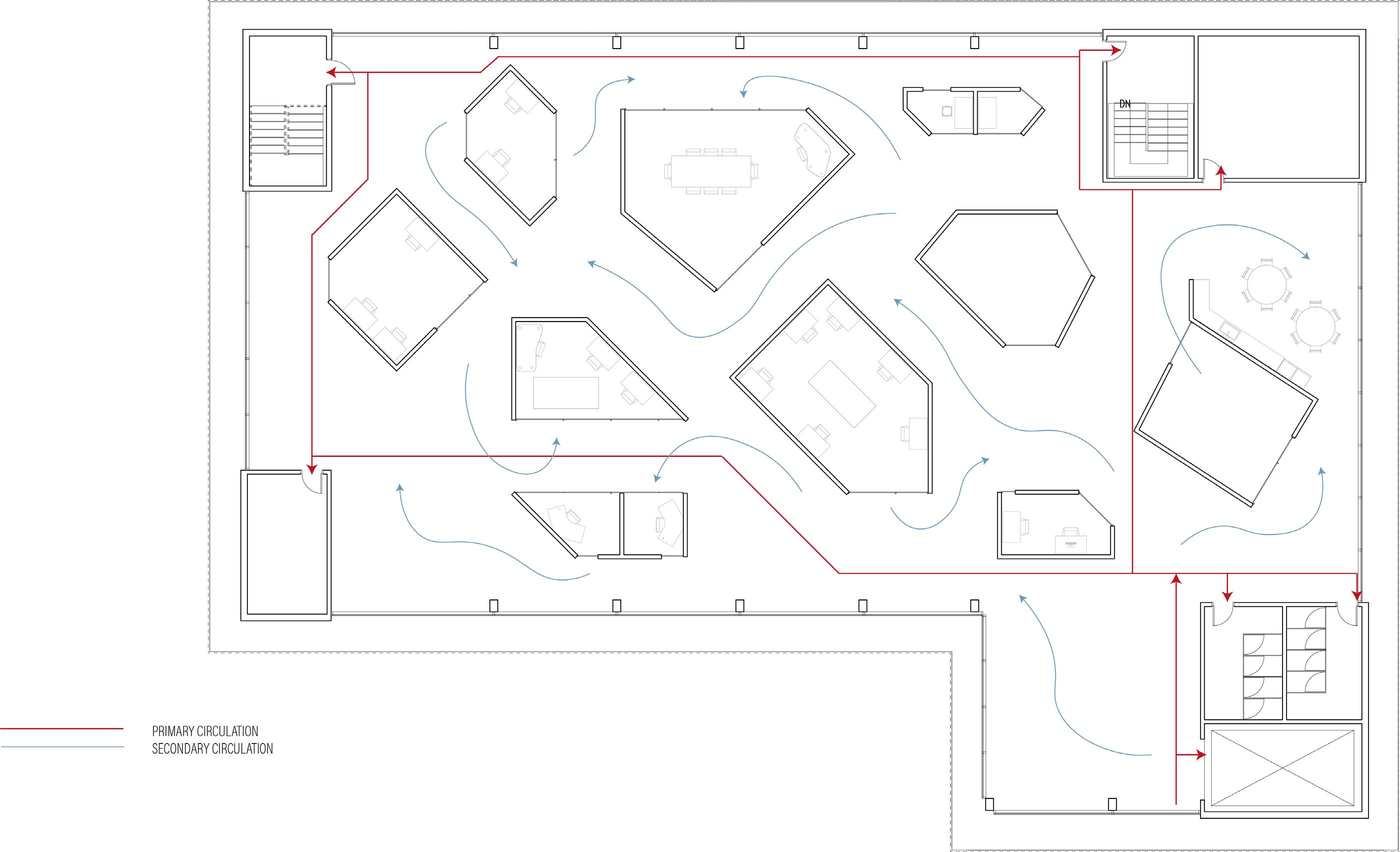

CIRCULATION - TOP FLOOR

| VIKRAM BARRETTO

| 36

|

ARCH 486 Advanced Architectural Design II

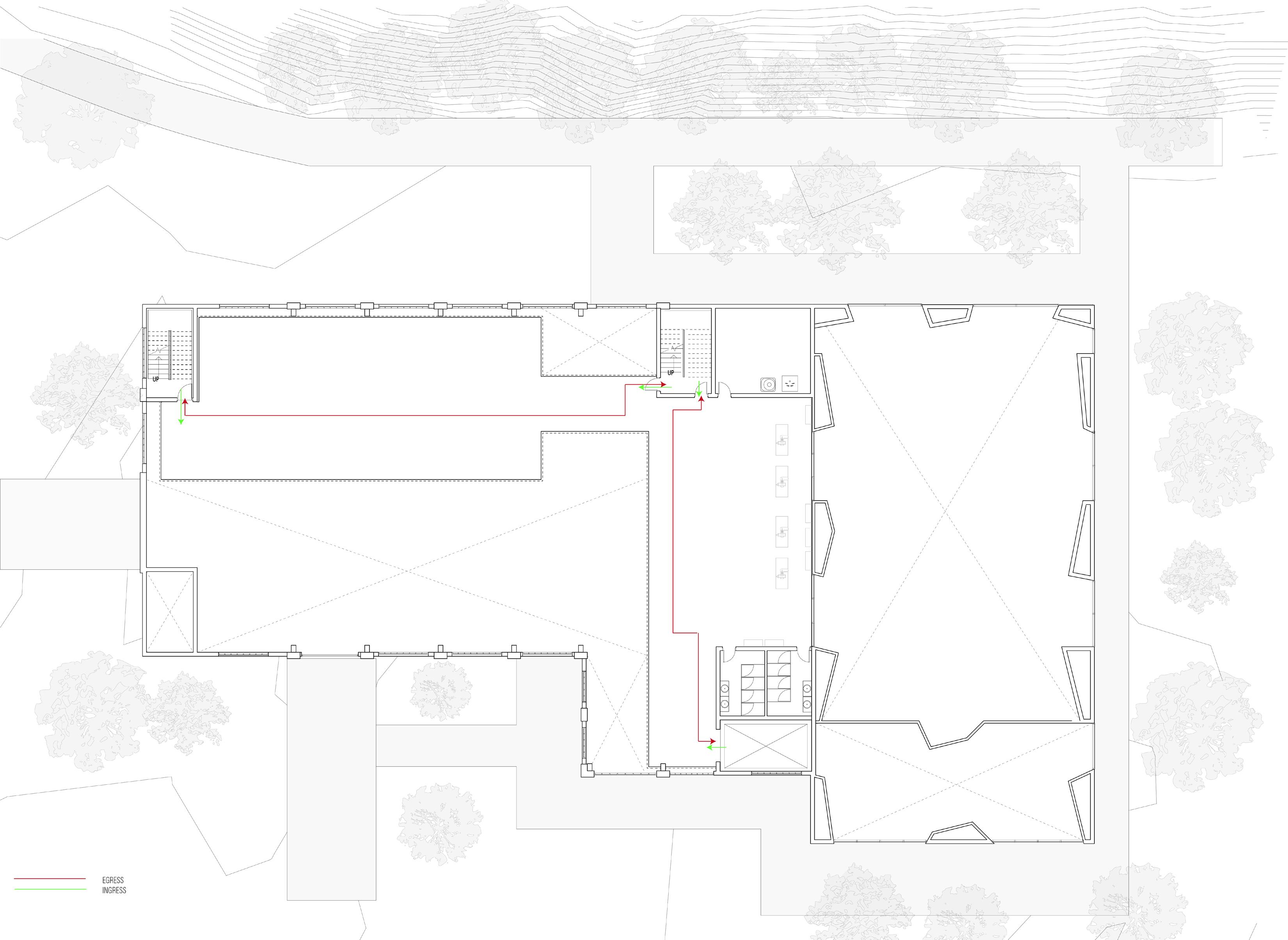

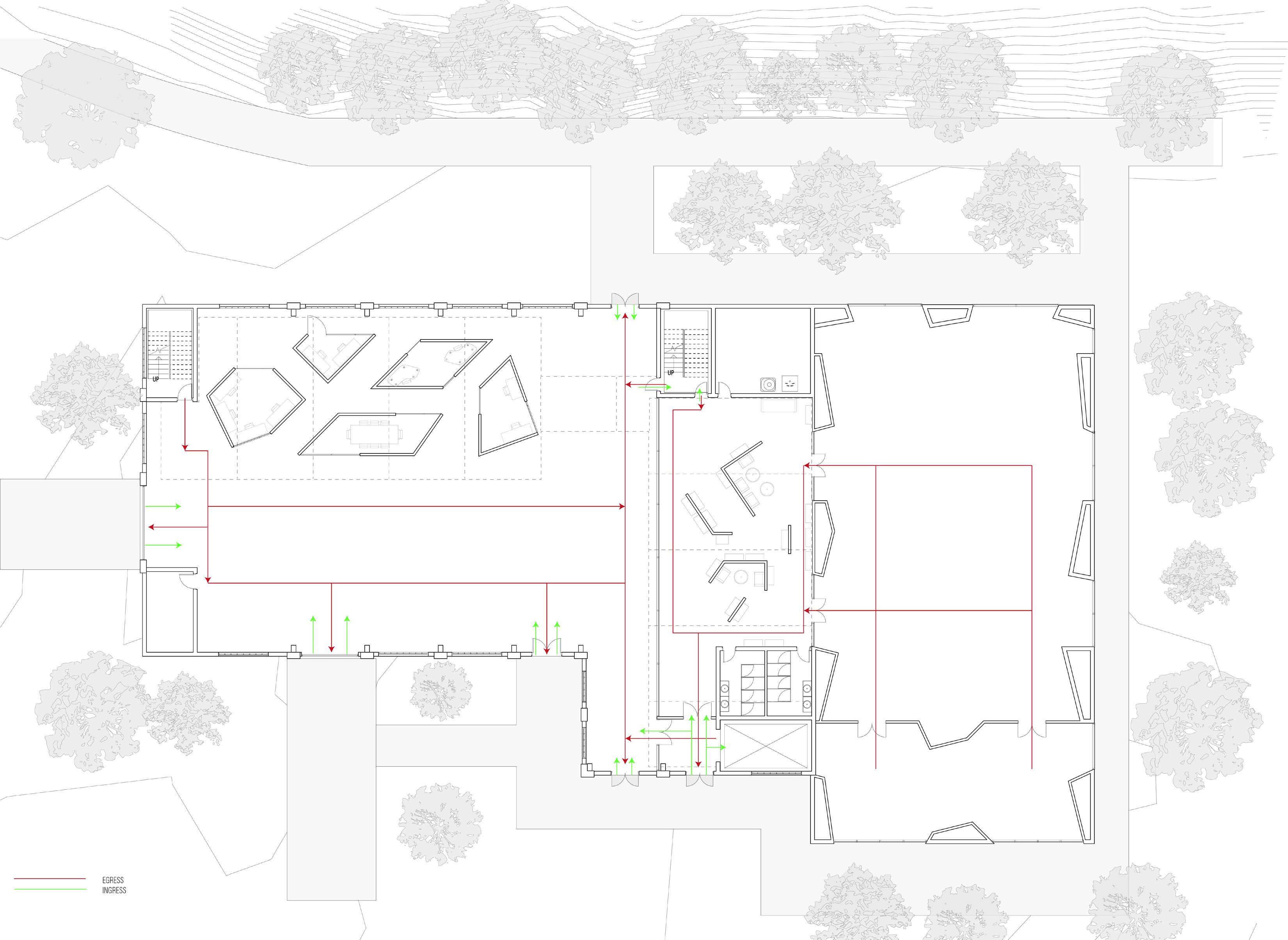

INGRESS & EGRESS - GROUND FLOOR

| VIKRAM BARRETTO

| 37

|

ARCH 486 Advanced Architectural Design II

INGRESS & EGRESS - MEZZANINE

| VIKRAM BARRETTO

| 38

|

ARCH 486 Advanced Architectural Design II

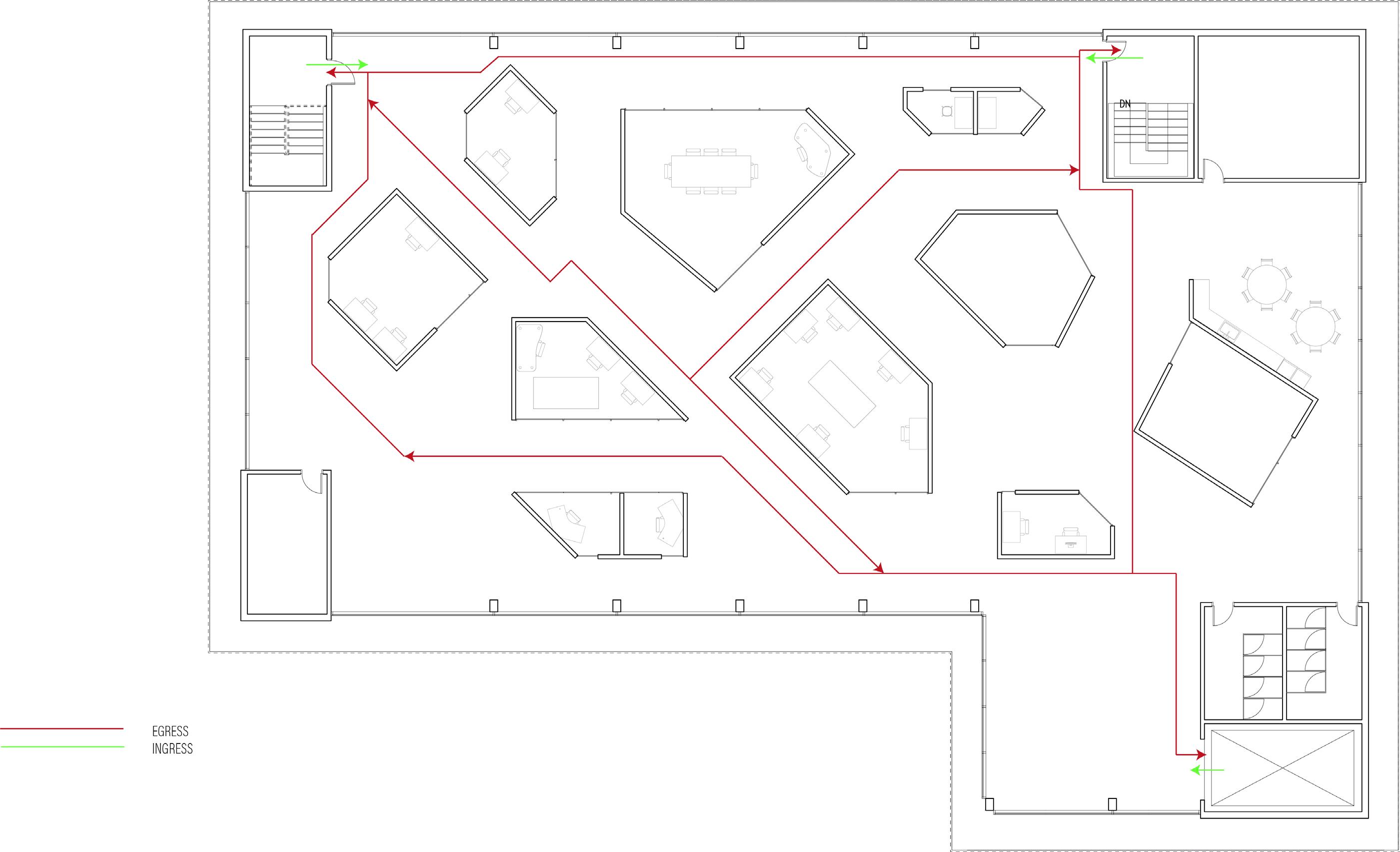

INGRESS & EGRESS - TOP FLOOR

| VIKRAM BARRETTO

| 39

|

ARCH 486 Advanced Architectural Design II

ACCESSIBILTY AND LIFE SAFETY SPACE

AREA

OCCUPANCY GROUP

LOAD FACTOR

OCCUPANCY LOAD

Fabrication Hall Labs Lobby Recreation Hall Mechanical Maker Space Fab Deck Bathrooms Offices Electrical

6975.45 SF 750 SF 1860 SF 6078 SF 1080 SF 2590 SF 2590 SF 780 SF 10,055 SF 354 SF

F-1 B A-3 A-3 S-1 B F-1 B B S-1

100 1OO 15 50 VARIES 100 100 150 150 300

70 5 124 405 4 26 26 1 67 1

CONSTRUCTION TYPE: EXISTING BUILDING: TYPE IV - C NEW CONSTRUCTION: TYPE IV - A (FULLY PROTETCED MASS TIMBER) PROPERTY LINE SETBACK: 10’ SPRINKERLED: YES FIRE RATING: CONSTRUCTION TYPE: ALL FIRE ALARM SYSTEMS: YES AUTO SPRINKLERS: YES

SINKS WITH KNEE SPACE

60” TURNING RADIUS

| VIKRAM BARRETTO

| 40

60” X 84” WHEELCHAIR ACCESSIBLE TOILET

60” X 84” WHEELCHAIR ACCESSIBLE TOILET 60” TURNING RADIUS

|

ARCH 486 Advanced Architectural Design II

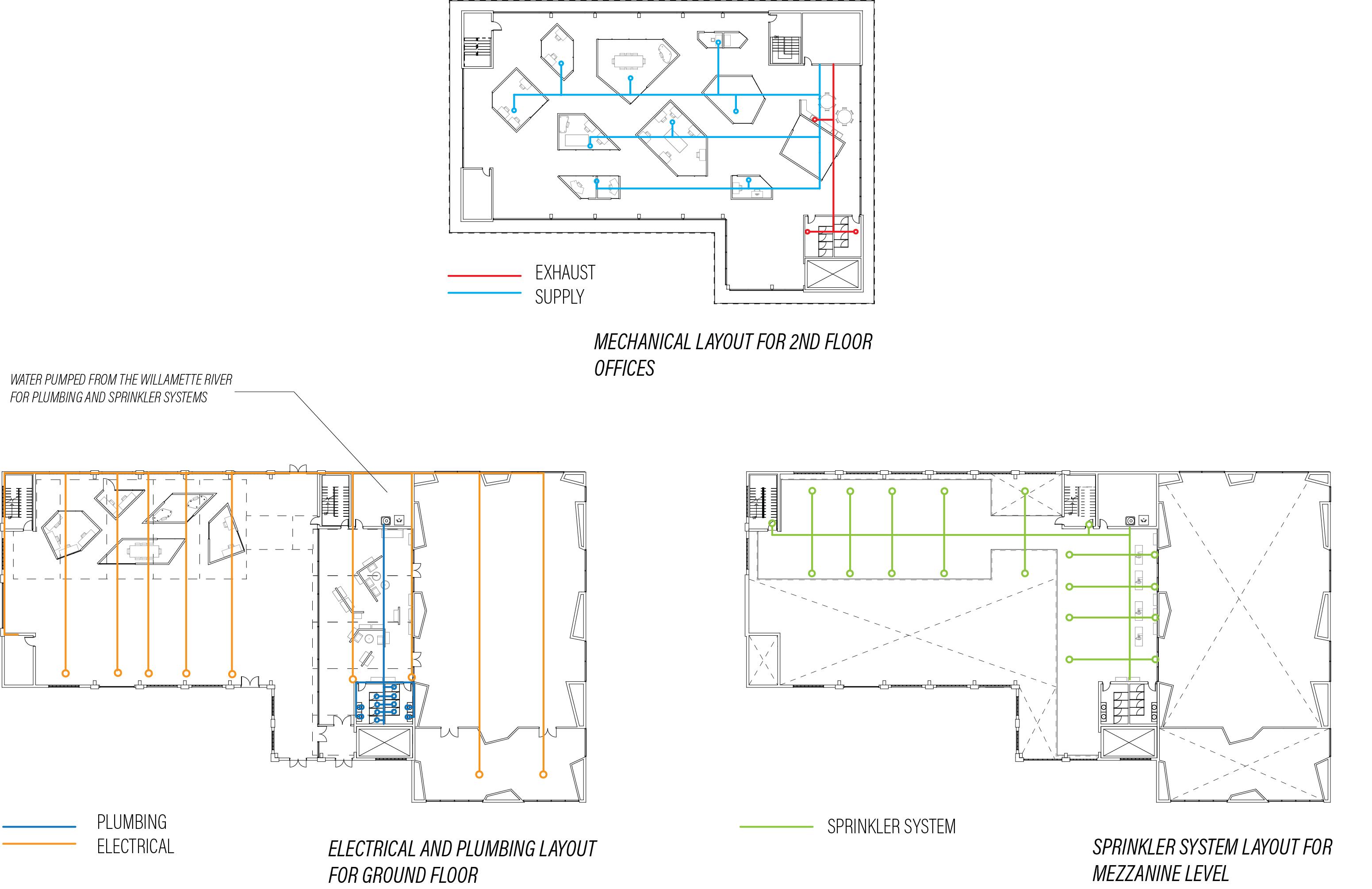

HVAC & FIRE SPRINKLERS

| VIKRAM BARRETTO

| 41

|

ARCH 486 Advanced Architectural Design II

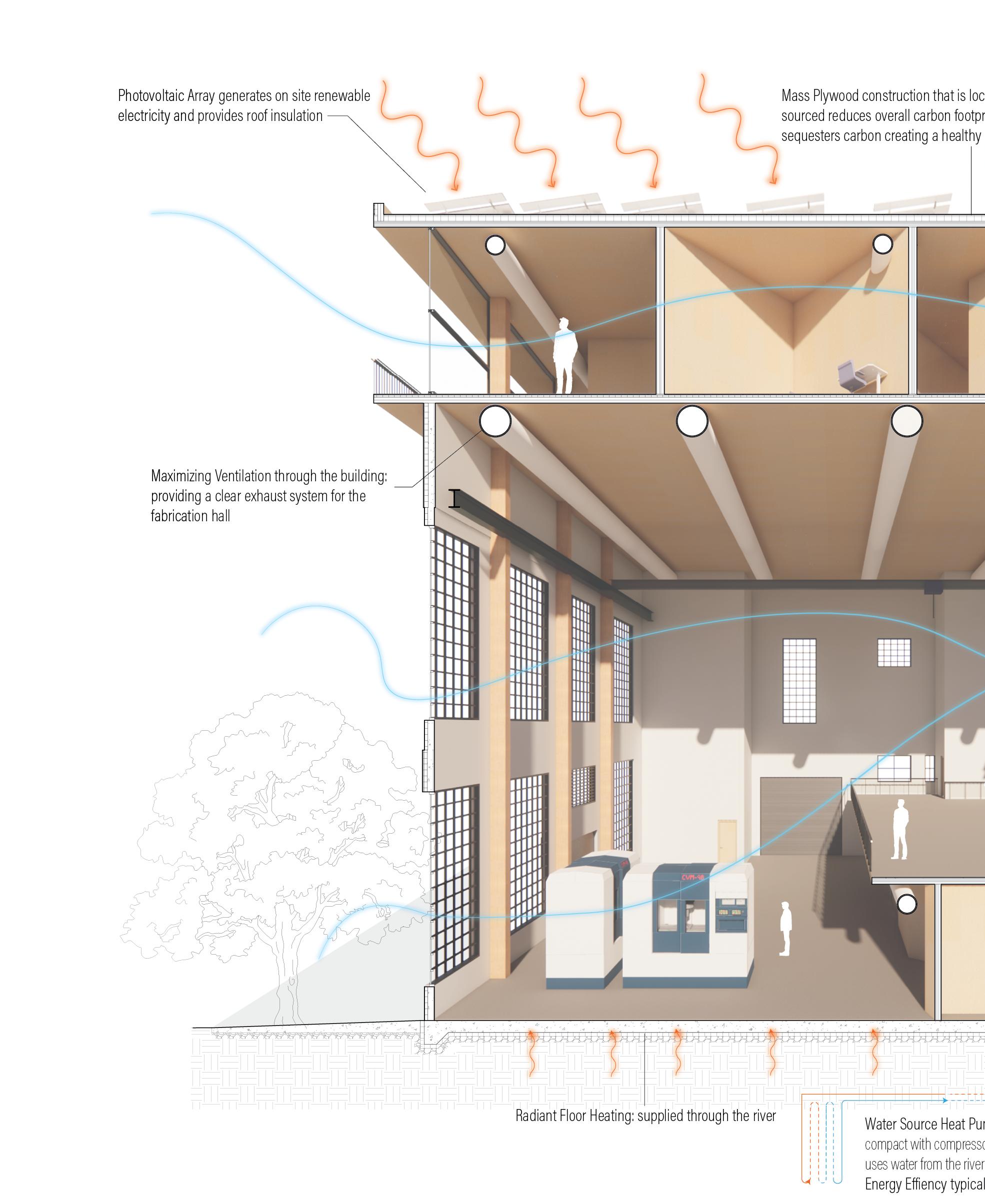

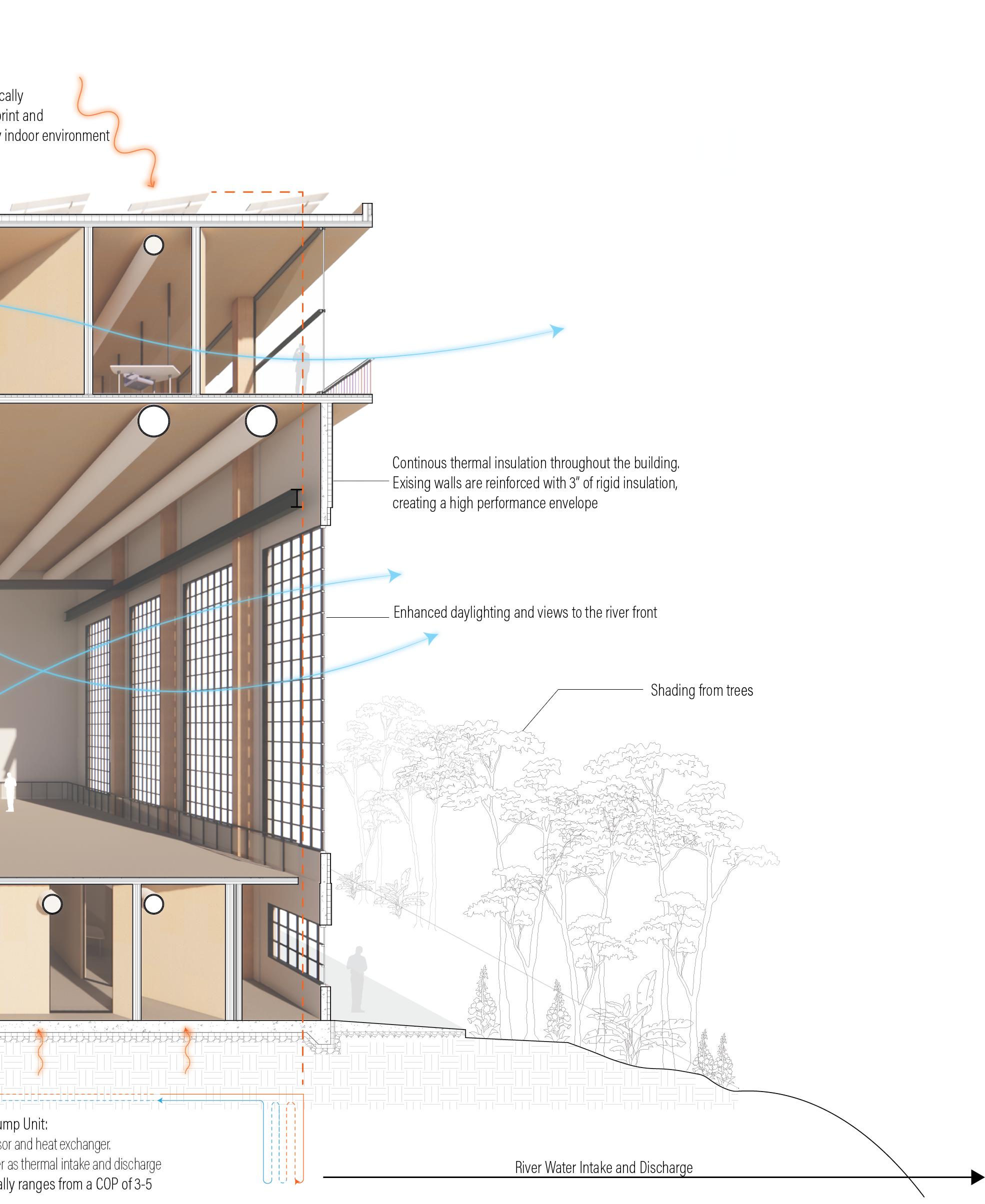

SUSTAINABILITY

| VIKRAM BARRETTO

| 42

|

ARCH 486 Advanced Architectural Design II

| VIKRAM BARRETTO

| 43

|

ARCH 486 Advanced Architectural Design II

BUILDING ENVELOPE SHEET METAL COPING TPO CANT STRIP

COVERBOARD

9" RIGID INSULATION

3 X 2" MPP PANELS

MPP PANEL CONNECTORS

KAWNEER CURTAIN WALL

PARAPET DETAIL 1” - 1’-0” | VIKRAM BARRETTO

| 44

|

ARCH 486 Advanced Architectural Design II

PHASE 3 MASS TIMBER ADDITON FOUNDATION DETAIL 1” - 1’-0”

Countersunk Screws 5.5"

MPP Panel Connectors

6" (3 x 2") MPP Timber System

3/8" Corrugated Zinc Siding 4" Rigid Insulation

Perforated Steel Knife Plate

| VIKRAM BARRETTO

Insect Screen

| 45

|

ARCH 486 Advanced Architectural Design II

KAWNEER CURTAIN WALL

INTERIOR CONCRETE FLOOR TOPPING

MPP PANEL SYSTEM

MPP PANEL CONNECTORS - SCREWED IN

5/8" GWB

EXISTING WALL ASSEMBLY

3" EXTERIOR RIGID INSULATION TO THERMALLY REINFORCE WALL

EXISTING WALL TO BALCONY DETAIL 1” - 1’-0” | VIKRAM BARRETTO

| 46

|

ARCH 486 Advanced Architectural Design II

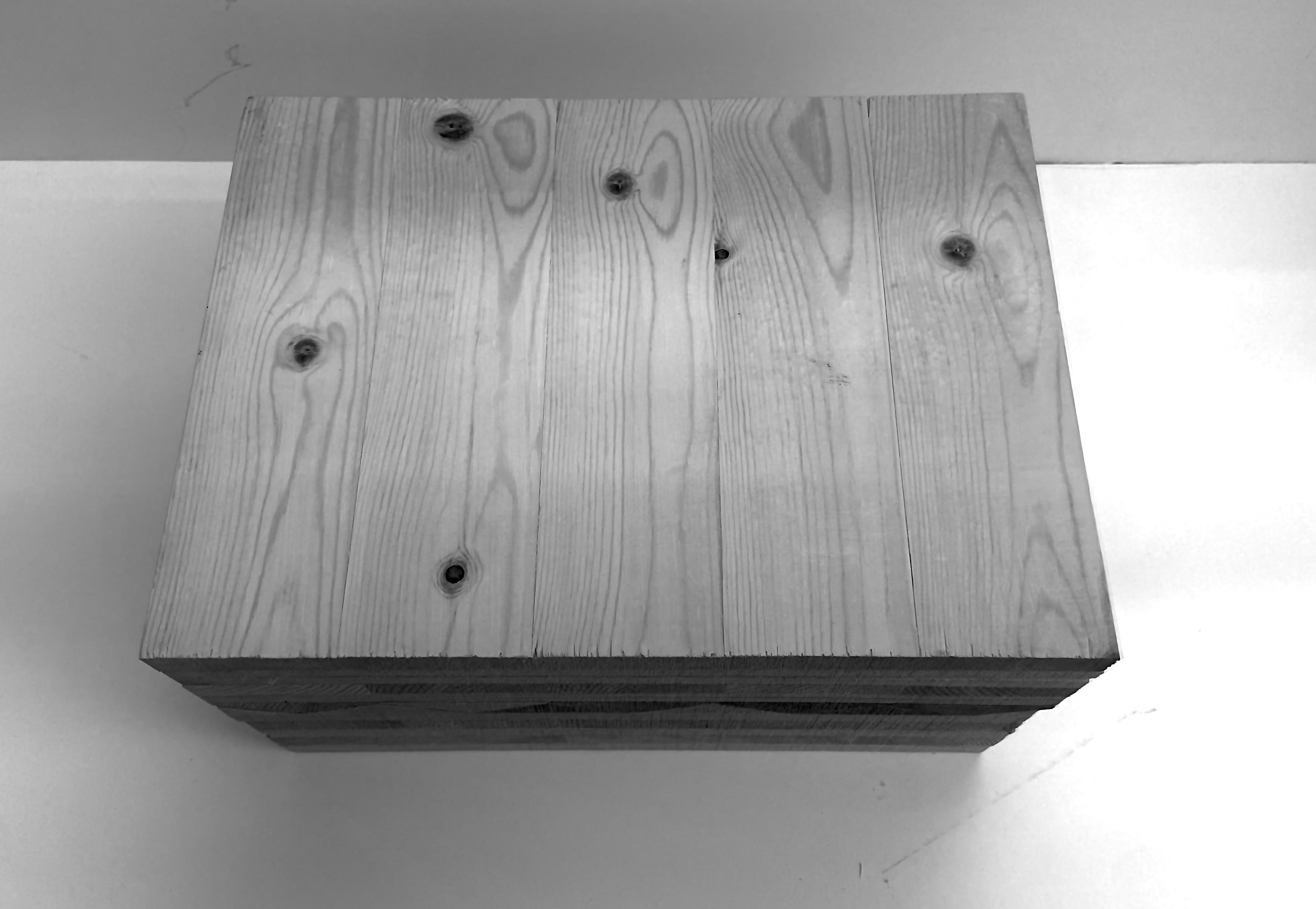

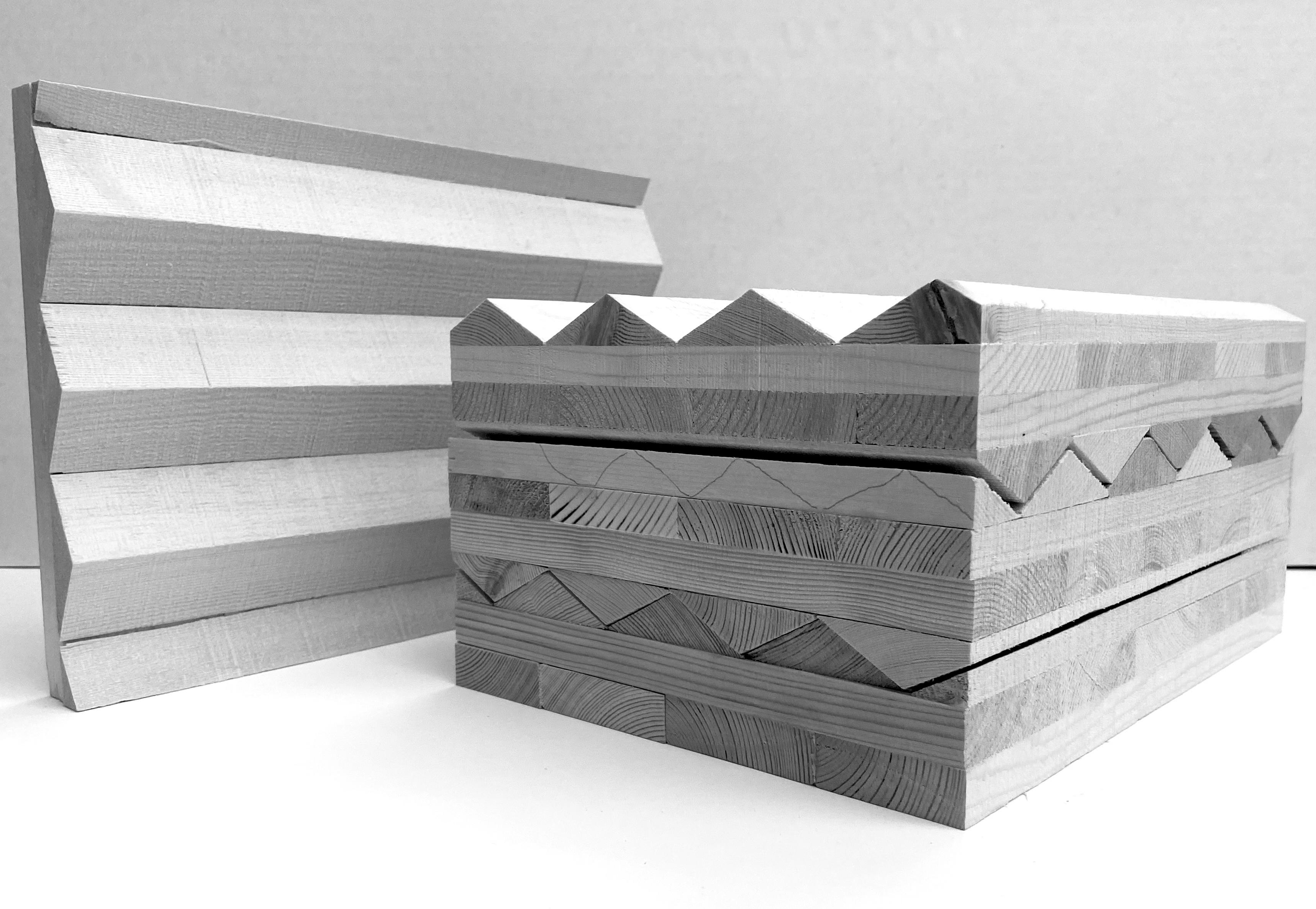

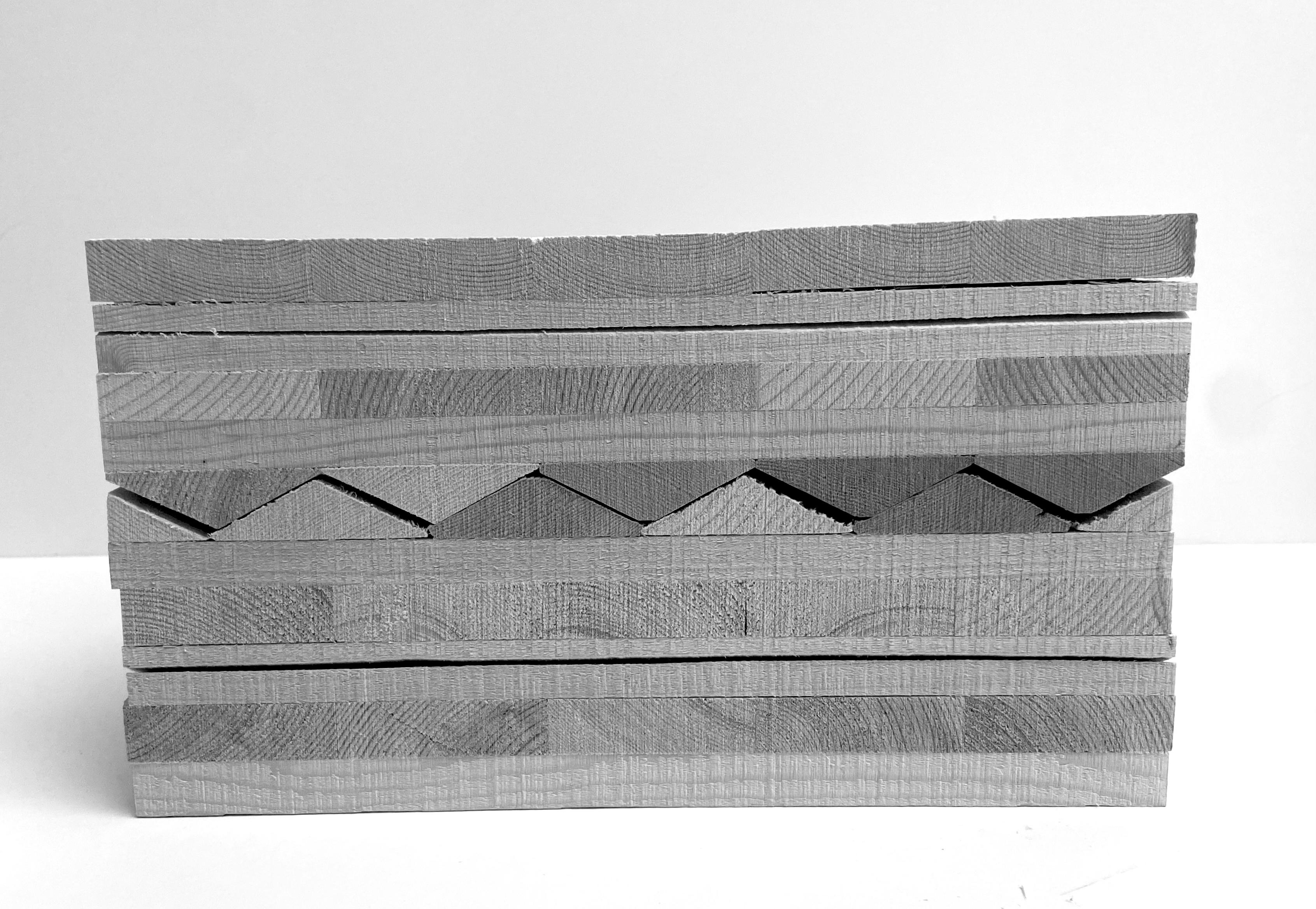

PHYSICAL CHUNK MODEL

| VIKRAM BARRETTO

| 47

|

ARCH 486 Advanced Architectural Design II

| VIKRAM BARRETTO

| 48

|

ARCH 486 Advanced Architectural Design II

| VIKRAM BARRETTO

| 49

|

ARCH 486 Advanced Architectural Design II

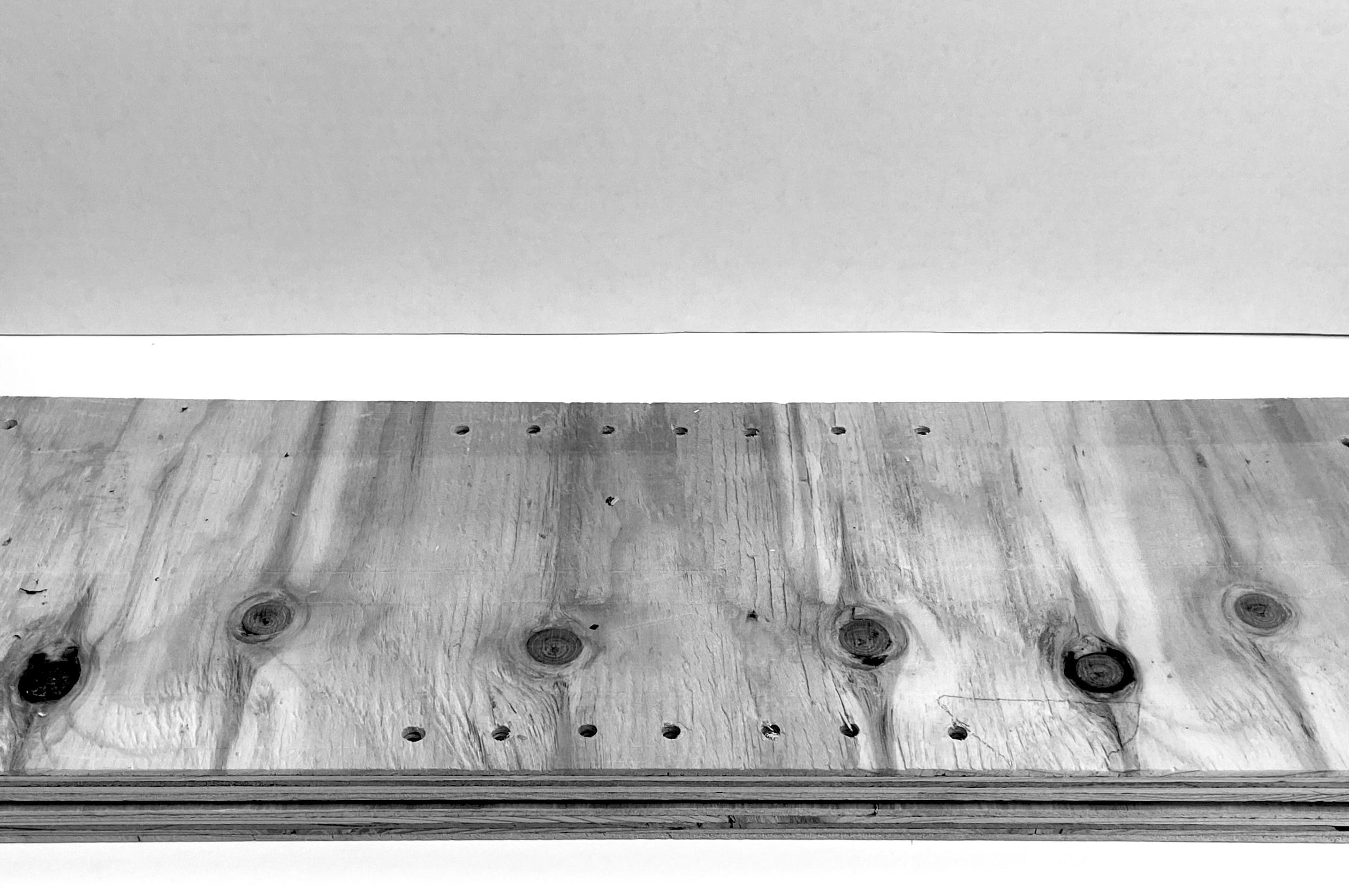

PROTO CHUNKS

| VIKRAM BARRETTO

| 50

|

ARCH 486 Advanced Architectural Design II

| VIKRAM BARRETTO

| 51

|

ARCH 486 Advanced Architectural Design II

| VIKRAM BARRETTO

| 52

|

ARCH 486 Advanced Architectural Design II

| VIKRAM BARRETTO

| 53

|

ARCH 486 Advanced Architectural Design II
