Bachelor of Architecture, University of Oregon, 2020-2025

ARCHITECTURE PORTFOLIO

B.ARCH - UNIVERSITY OF OREGON VIKRAM BARRETTO

TABLE OF CONTENTS

1. UNDULATING WAVES 2. COMMUNITY HALL 3. BEDSIDE TABLE 3. HEXA TIMBER WALL 4. GALATA SARAY 5. TRUSS TO TRUSS

UNDULATING WAVES COMPUTATIONAL DESIGN BENCH

Instructor: Philip Speranza Course: ARCH 222 Intro to Comp. Design Year: Spring 2021 Software: Rhino 3D, Grasshopper, Enscape, Adobe Photoshop

PRO J E C T D E S C R I P TI O N:

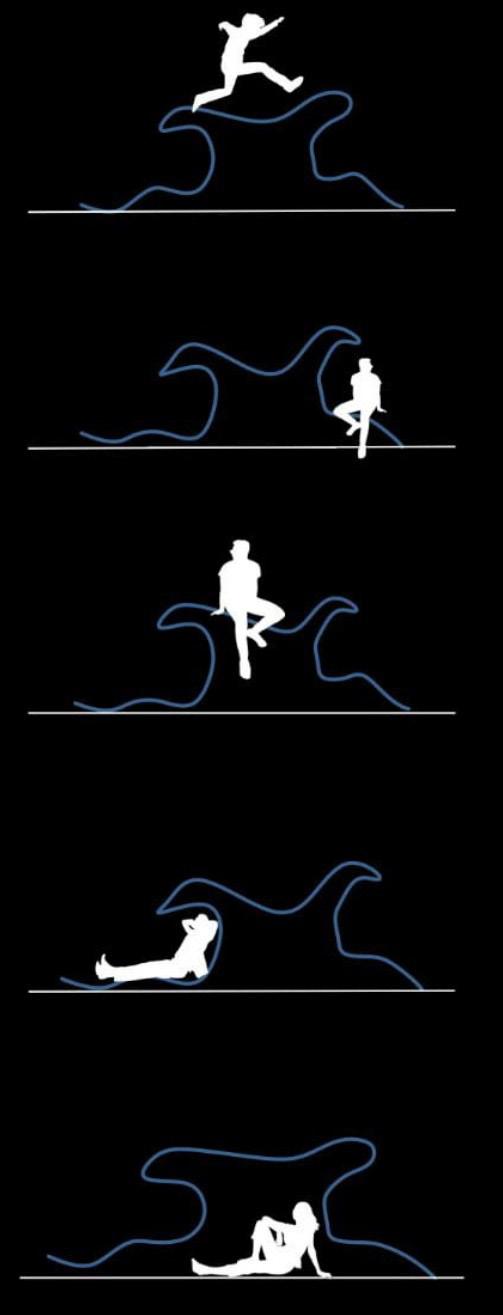

This project was an experiment in computational design and possible fabrication methods via laser cut models.

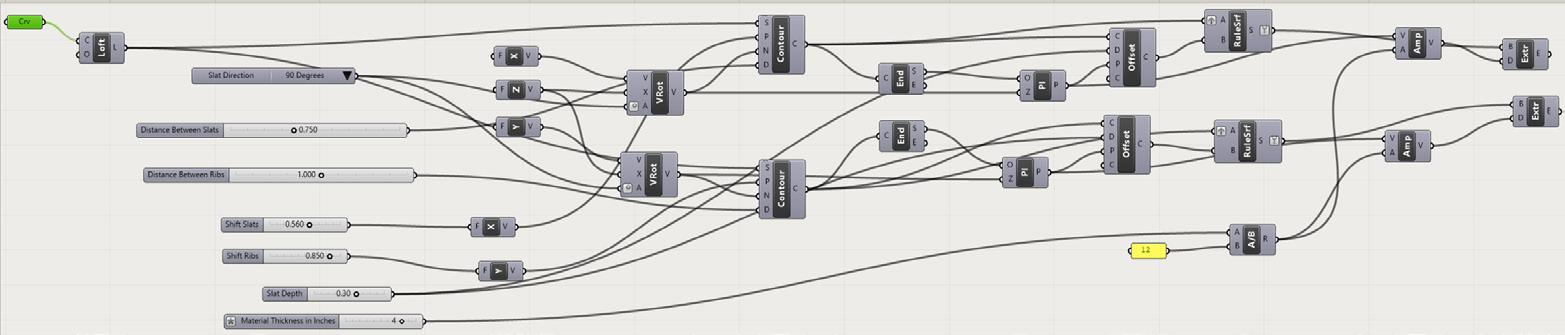

Using Rhino to create the form of the bench we then were tasked to work in grasshopper to develop a concept of how to fabricate it and assemble it. I used a waffling method that interlocked slats within a set of parameters defined by the curved form of the bench to create the overall shape of it.

COMMUNITY HALL TRUSS DESIGN AND ANALYSIS

Instructor: Norm Faris Course: ARCH 462 Structural Design II Project Team: Vikram Barretto, Eryk Sysmans Year: Winter 2023 Software: Rhino 3D, Dlubal RFEM, Enscape, Photoshop

PRO J E C T D E S C R I P TI O N:

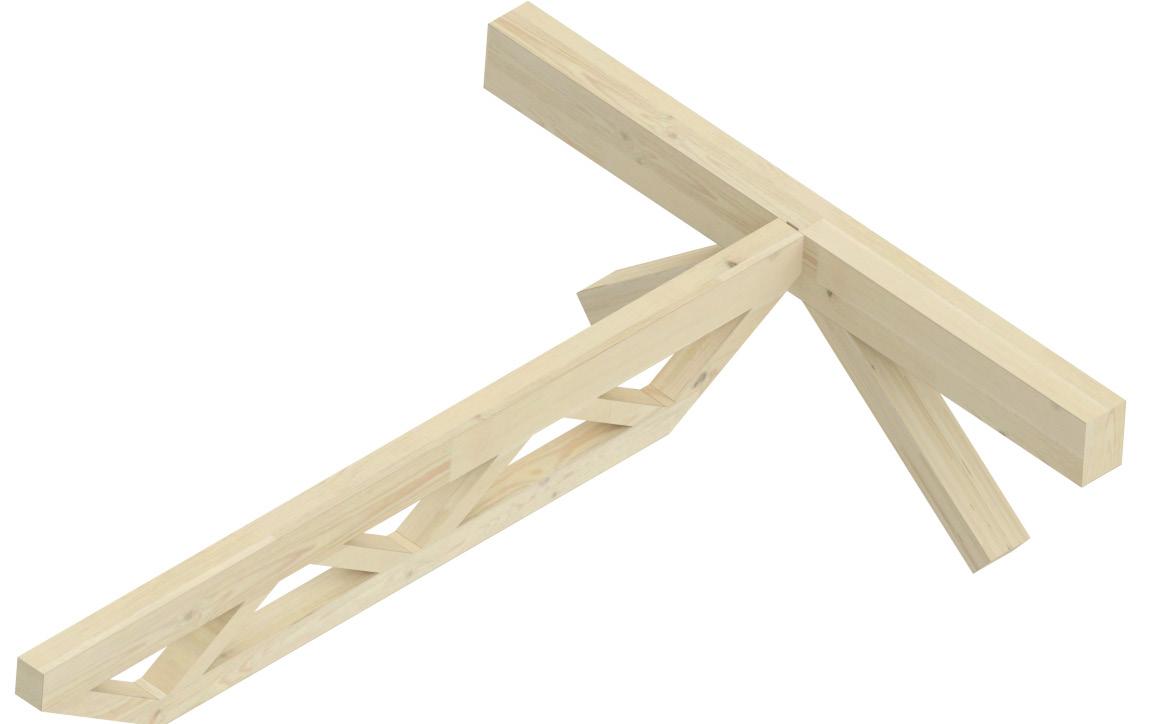

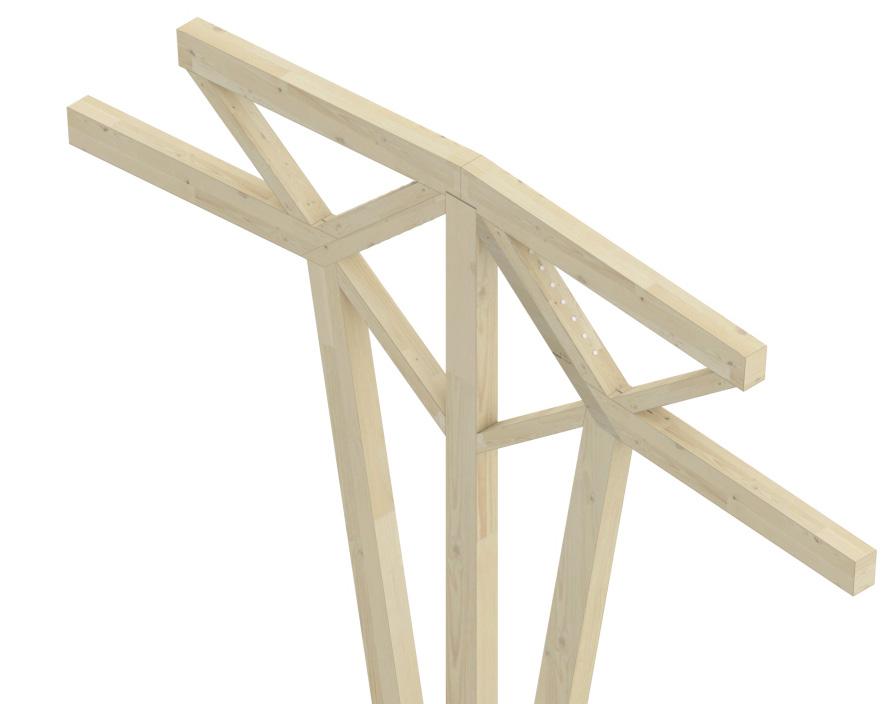

The Portland Community Hall is a timberstructured gathering space designed to foster community engagement while showcasing the strength and sustainability of engineered wood. The project focused on designing and structurally analyzing a custom timber truss as a key component of the structural system.

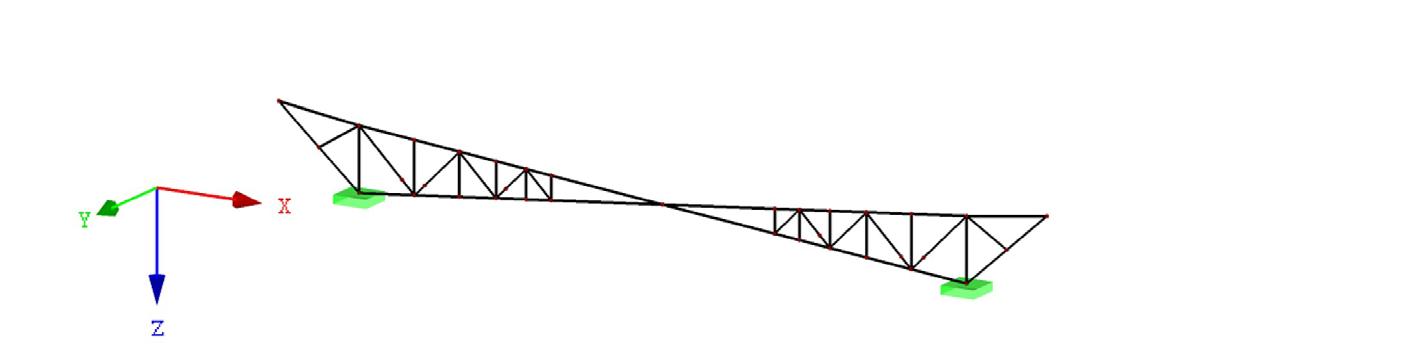

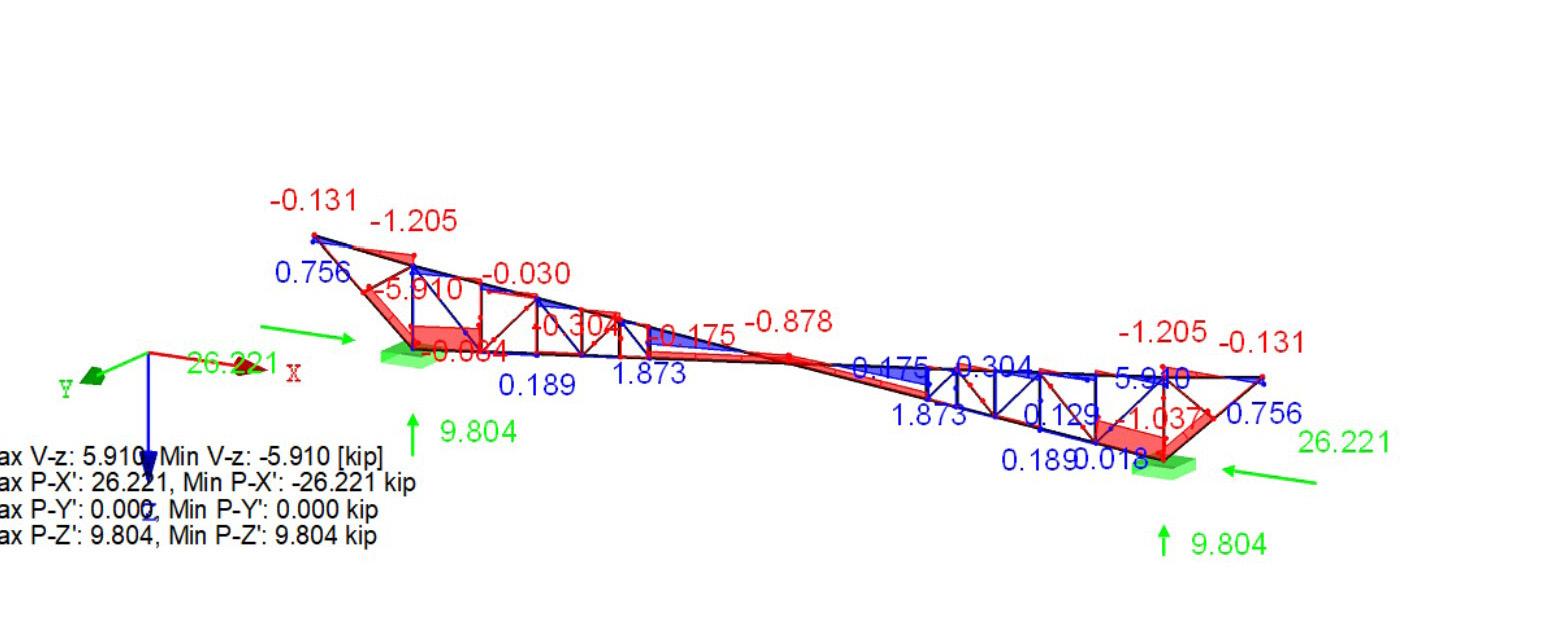

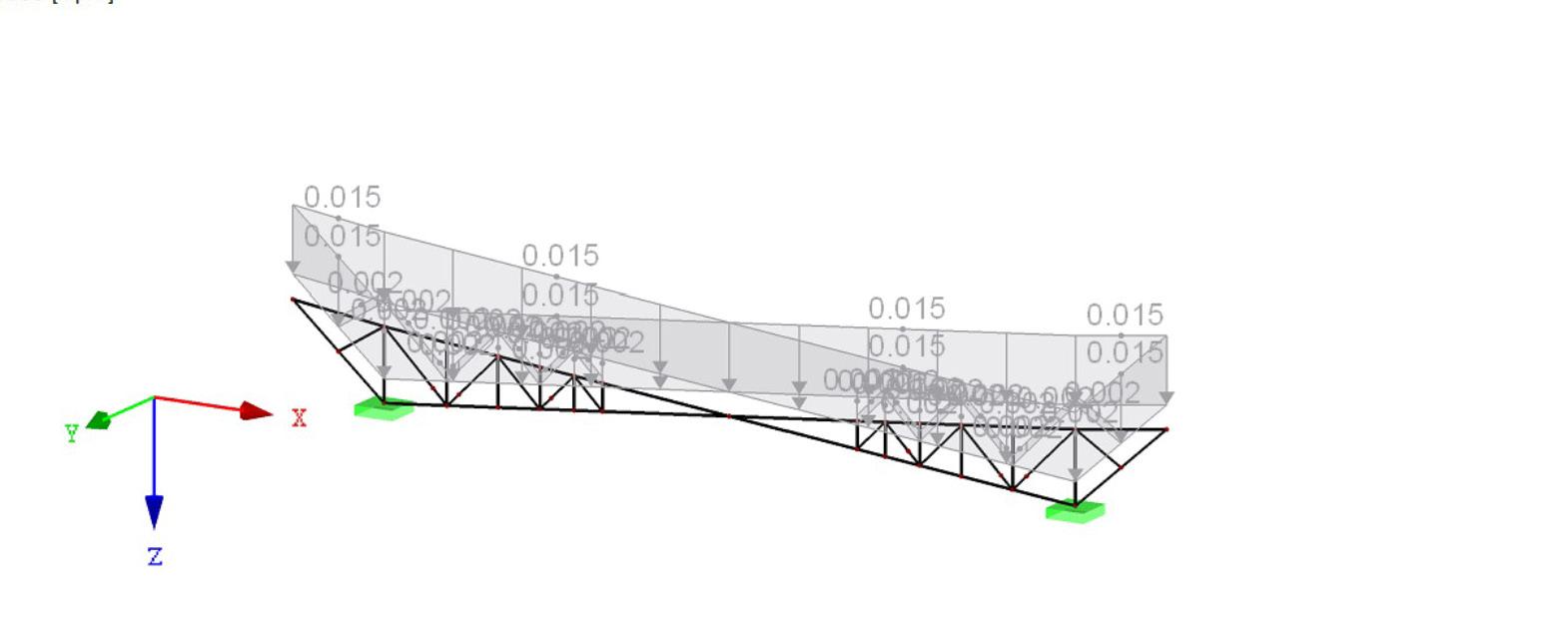

Comprehensive structural analysis was conducted to evaluate shear, moment, and axial stresses, ensuring optimal load distribution and stability. Connection details were designed based on calculated forces, balancing efficiency and durability.

Deflection analysis informed refinements to enhance performance and longevity.

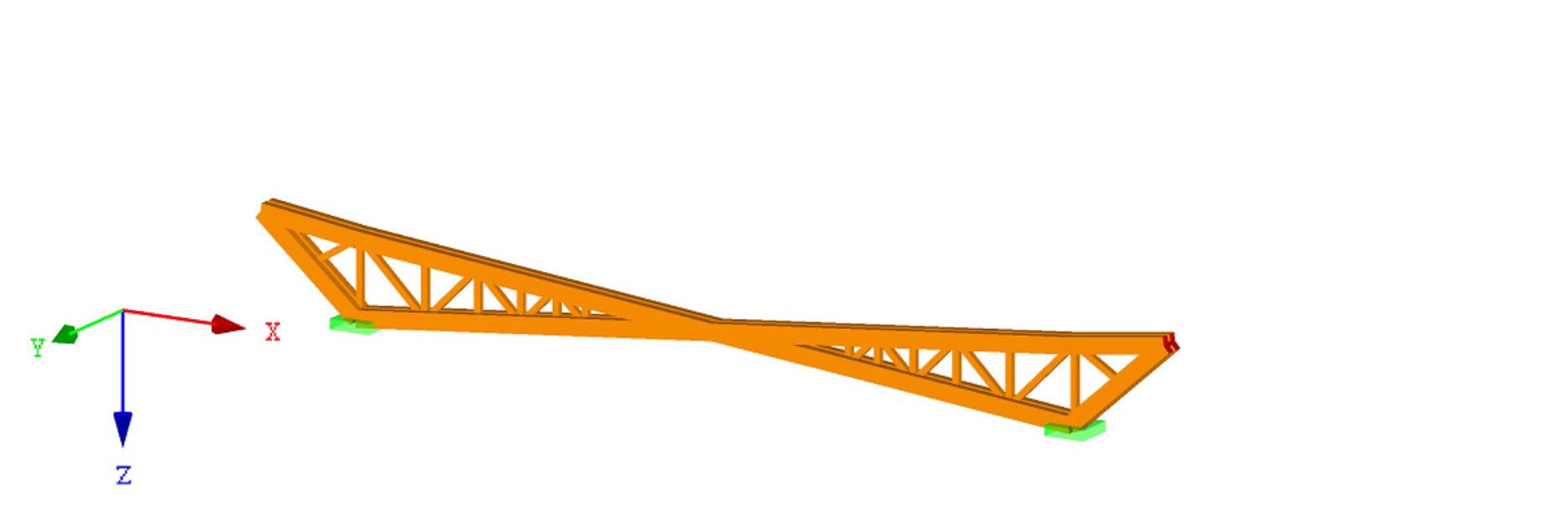

Using Rhino 3D for modeling and Dlubal RFEM for structural simulation, the project integrated digital tools to refine the truss design, optimizing both form and function for a resilient and sustainable community space.

39’-6”

10’-0” 10’-0” 10’-0” 10’-0” 10’-0”

30’-0”

39’-6” 3’-0”

10’-0”

10’-0”

10’-0”

3’-0”

15’-0”

15’-0”

30’-0”

50’-0”

10’-0”

10’-0”

TRUSS SIDE MEMBER - 8X10 Timber Beam

TRUSS INTERIOR MEMBER - 4x4 Timber Beam

8”

4”

2”

2.5”

8”

BOLTS - 1/2” diameter

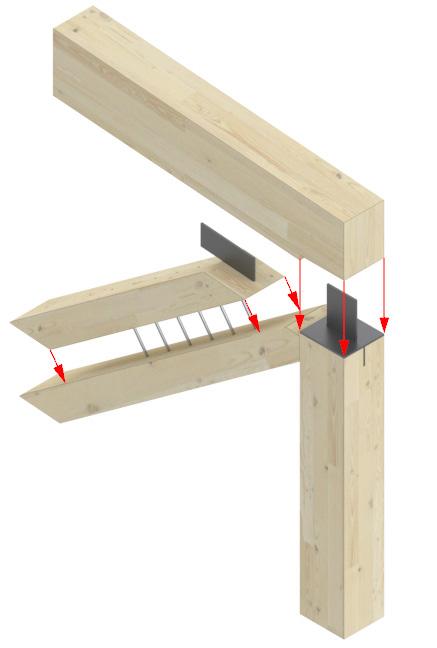

STEEL GUSSET CONNECTION PLATE - 0.2” thick on both sides TRUSS BOTTOM CHORD MEMBER - 8x10 Timber Beam

TRUSS TOP CHORD MEMBER - 8x10 Timber Beam

BOLTS - 1/2” diameter

11.5” 2” 2” 2” 2”

2” 2” 2” 3.9”

7.3”

STEEL GUSSET CONNECTION PLATE - 0.2” thick on both sides TRUSS BOTTOM CHORD MEMBER - 8x10 Timber Beam

BEDSIDE TABLE DESIGN WITH A RITUAL

Instructor: Cory Olsen Course: IARC 486 Furniture Studio Year: Winter 2023 Software: Rhino 3D, Grasshopper.

Fabrication Tools: Jointer, Planer, CNC Router, Miter saw, Vacuum press, Table saw, Band saw.

PRO J E C T D E S C R I P TI O N:

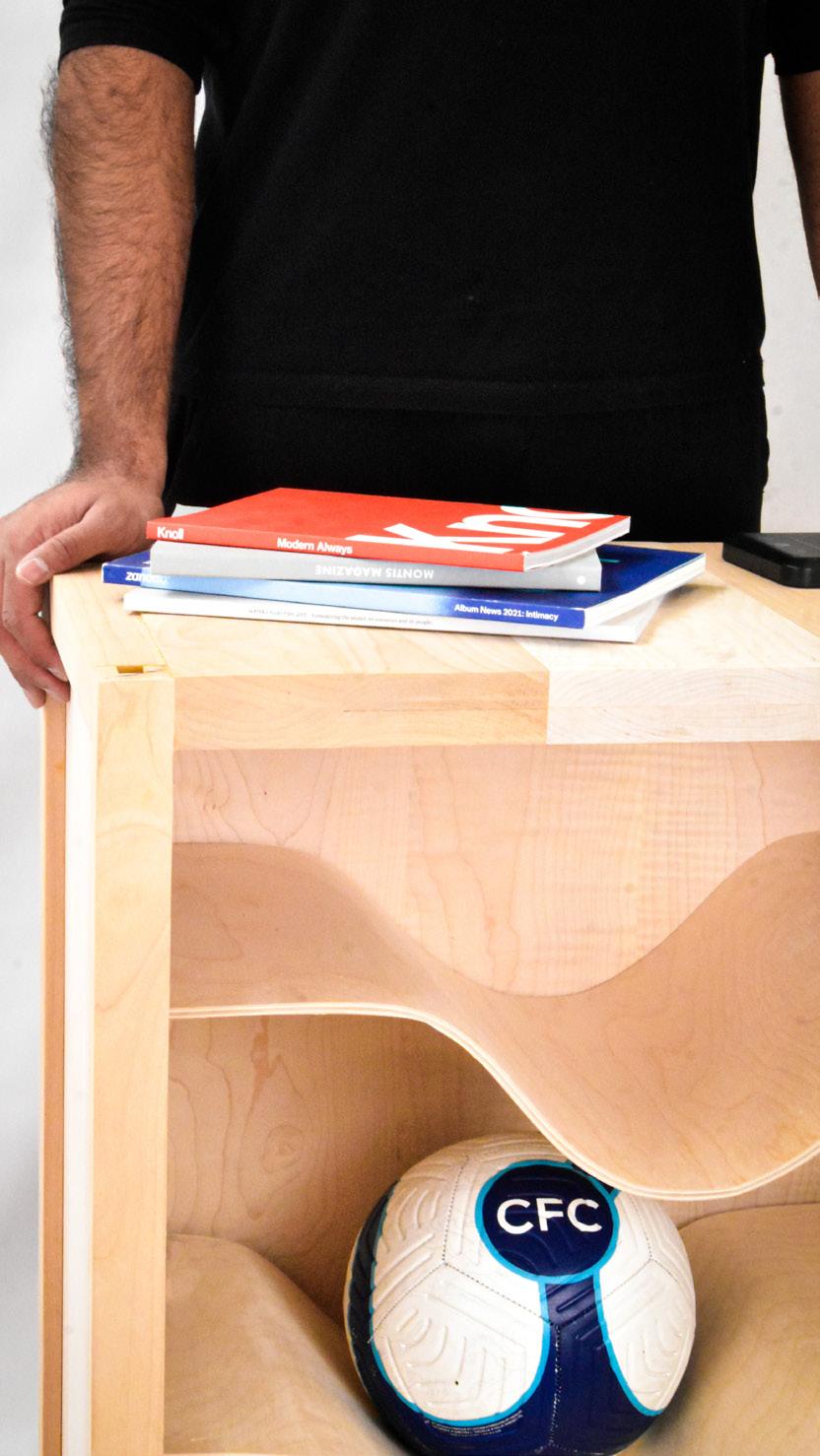

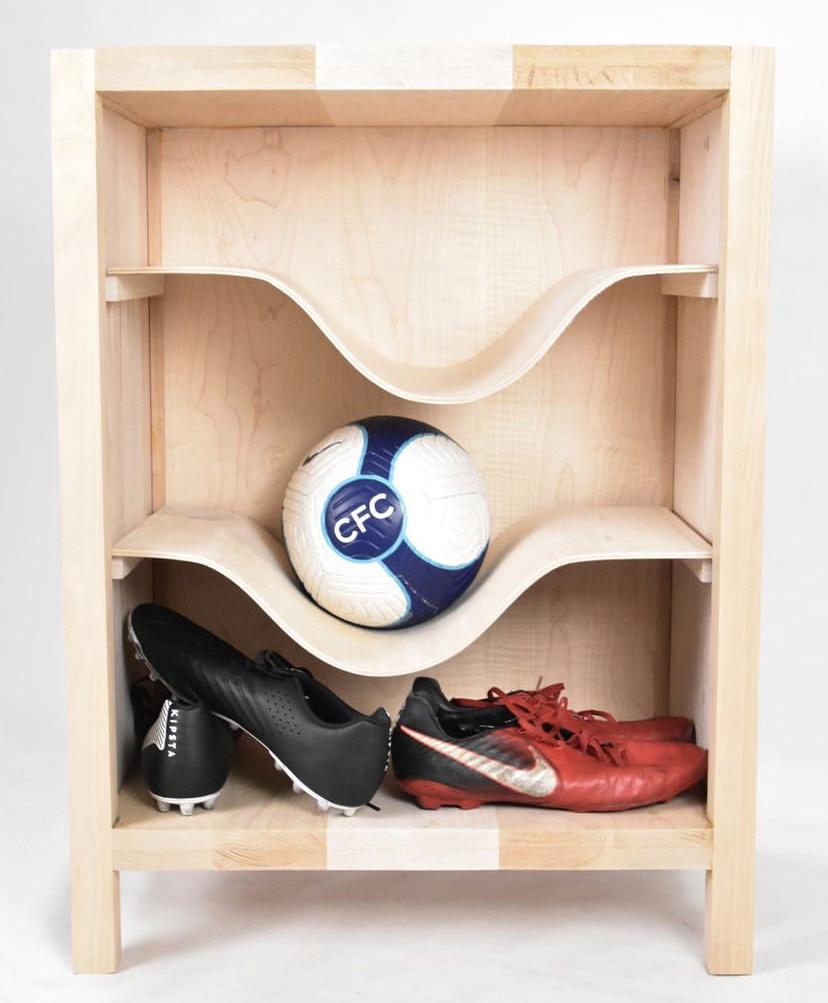

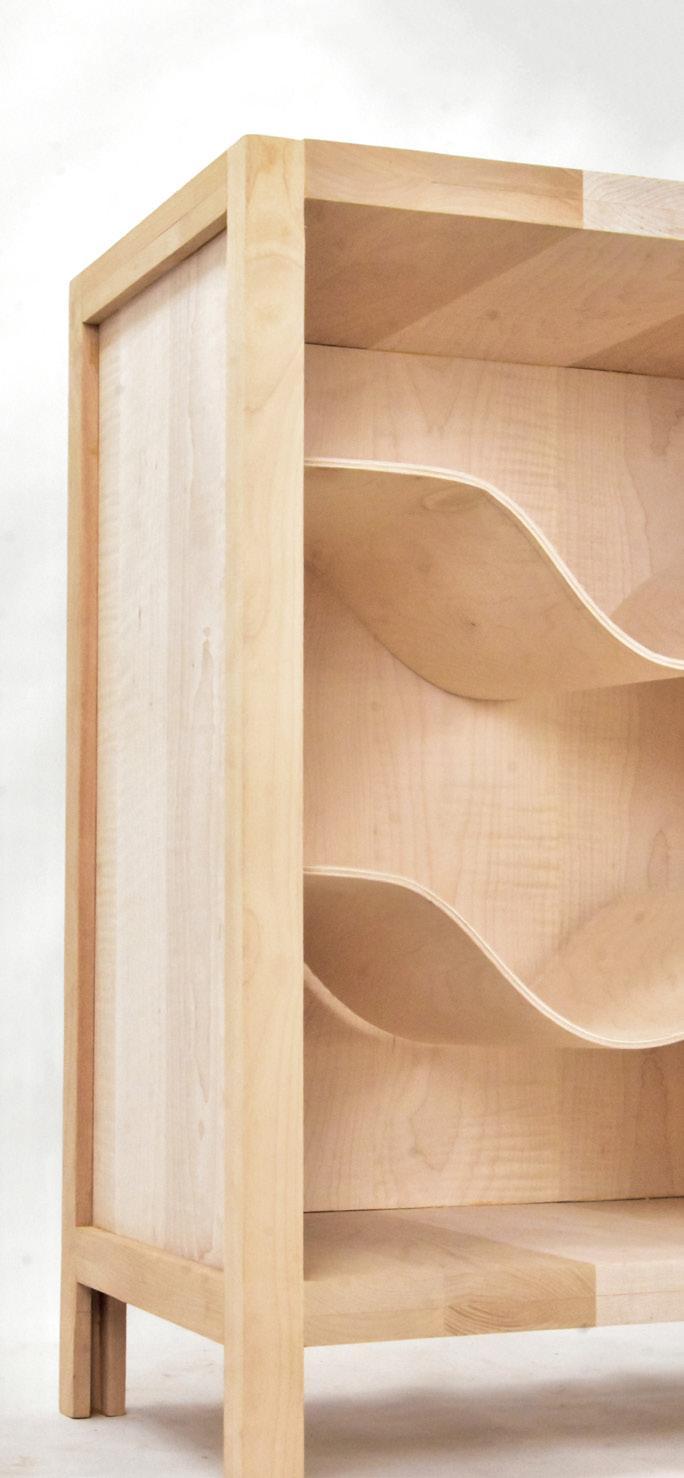

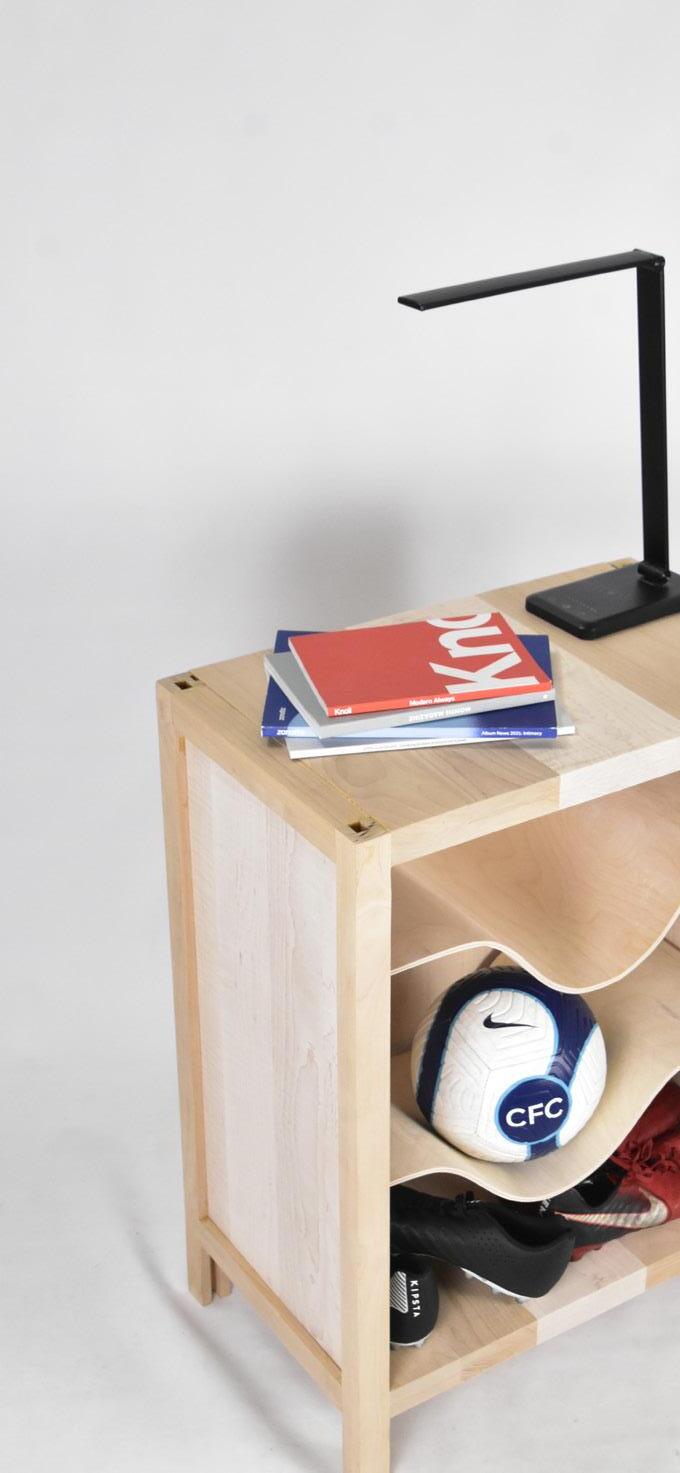

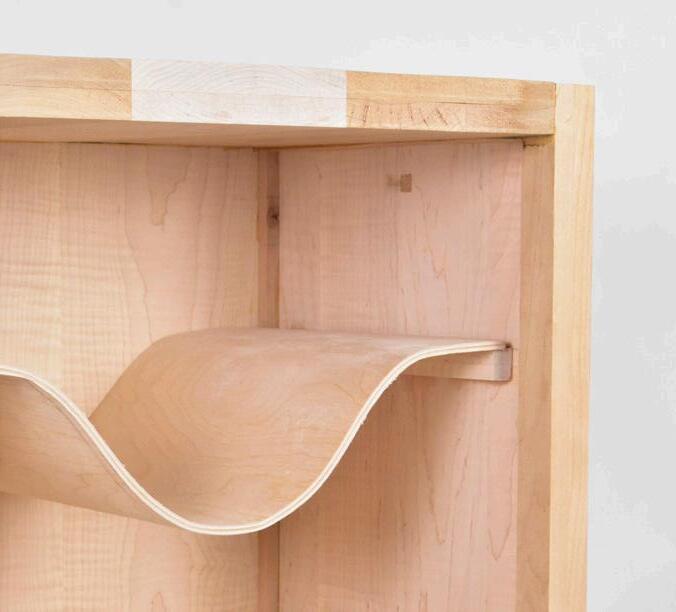

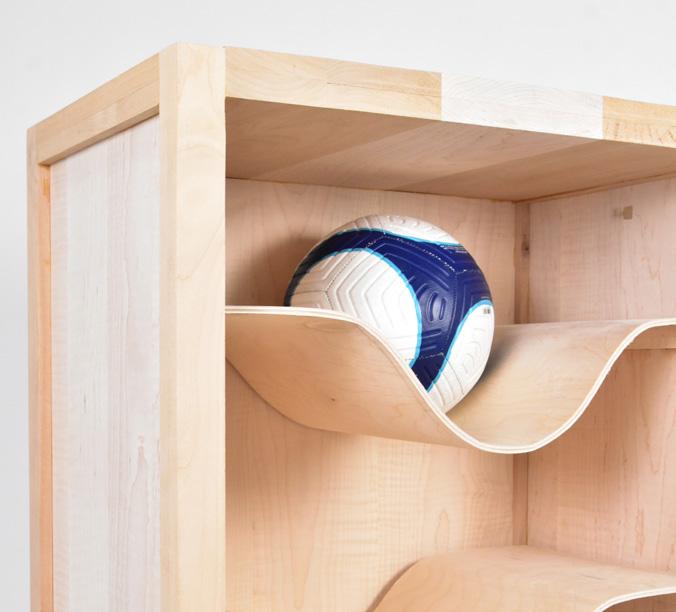

The design of this Bedside Table is meant to highlight and is inspired by daily activity. The form of the piece is inspired by the juxtapostion of organic waves within a rigid frame. At the vertex of each wave (the custom bent lamination - vacuum pressed shelves) is meant to perfectly nestle a soccer ball while the asymmertical, offset nature of the shelves themselves allow for a more funcational and practial use of the straight ede side shelves on either side.

Using Red Alder for the frame and enclosing it with Figured Maple panels, the form and structure of the piece is simplistic in nature while emphasizing the rigid and organic elements. Overall this piece not only serves its purpose as equipment storage for my daily activity but furthermore enhances that experience of daily routine in every element of it

HEXA WALL MODULAR TIMBER WALL

Instructor: Dylan Wood Course: ARCH 410 Adv Tech - Wood Fab Project Team: Vikram Barretto, Zhiyuan Zhang, Jin-Wei Chu Year: Spring 2023 Software: Rhino 3D, Grasshopper, KUKA prc (Grasshopper plugin), Enscape, Photoshop

PRO J E C T D E S C R I P TI O N:

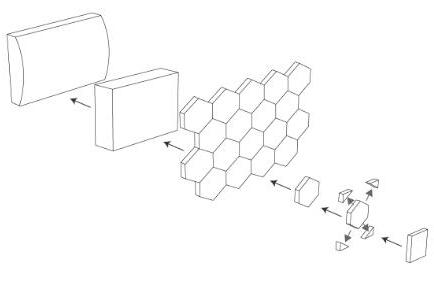

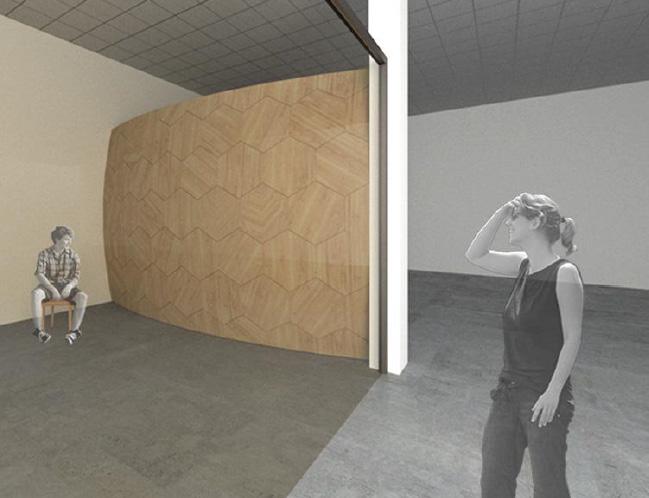

The goal of this project was to design and manufacture a modular wall concept that could be made out of reused mass timber parts.

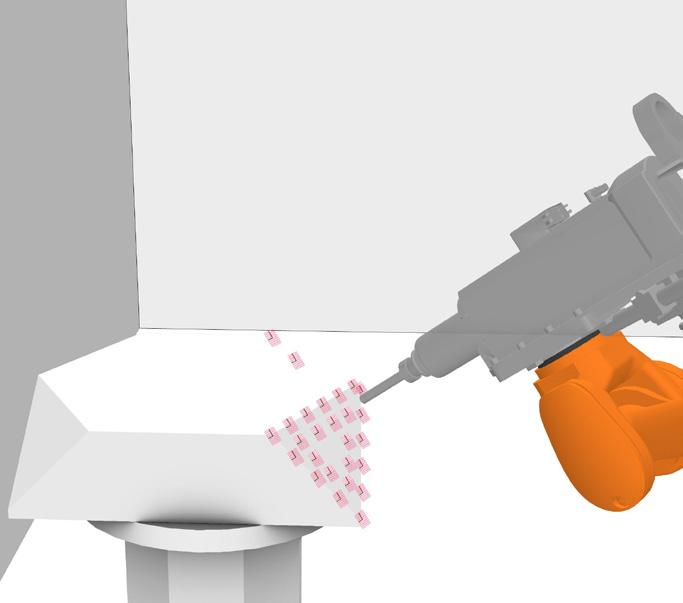

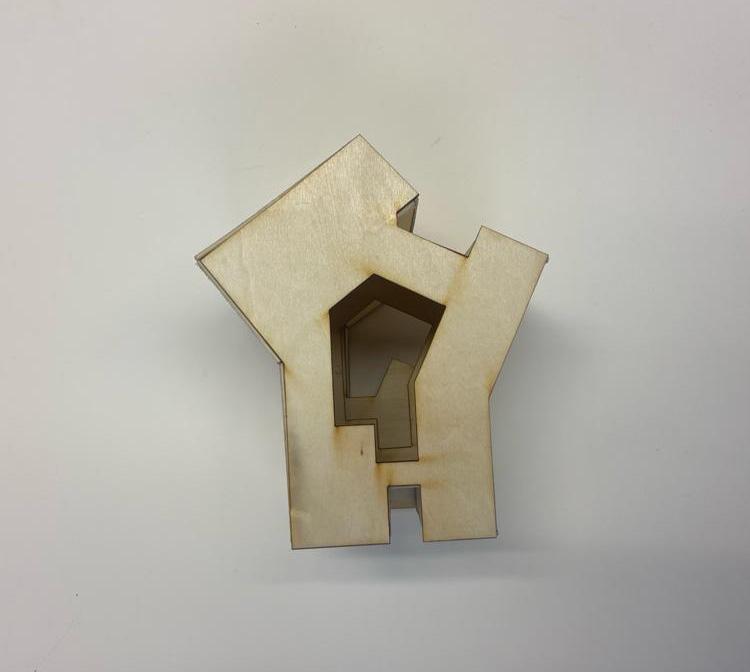

The manufacturing would be done via Robotic machining, that we were tasked to develop the logic for. Our team developed a concept based on the parameters of hexagons and curved surfaces cut from 7’x10’x8” MPP that would further 1.75’x 2.5’ panels.

In terms of architectural qualities, the bulge of the wall performs acoustically well, providing a better sound-reflective surface in the room its in.

MACHINING: S T R U C T U R E:

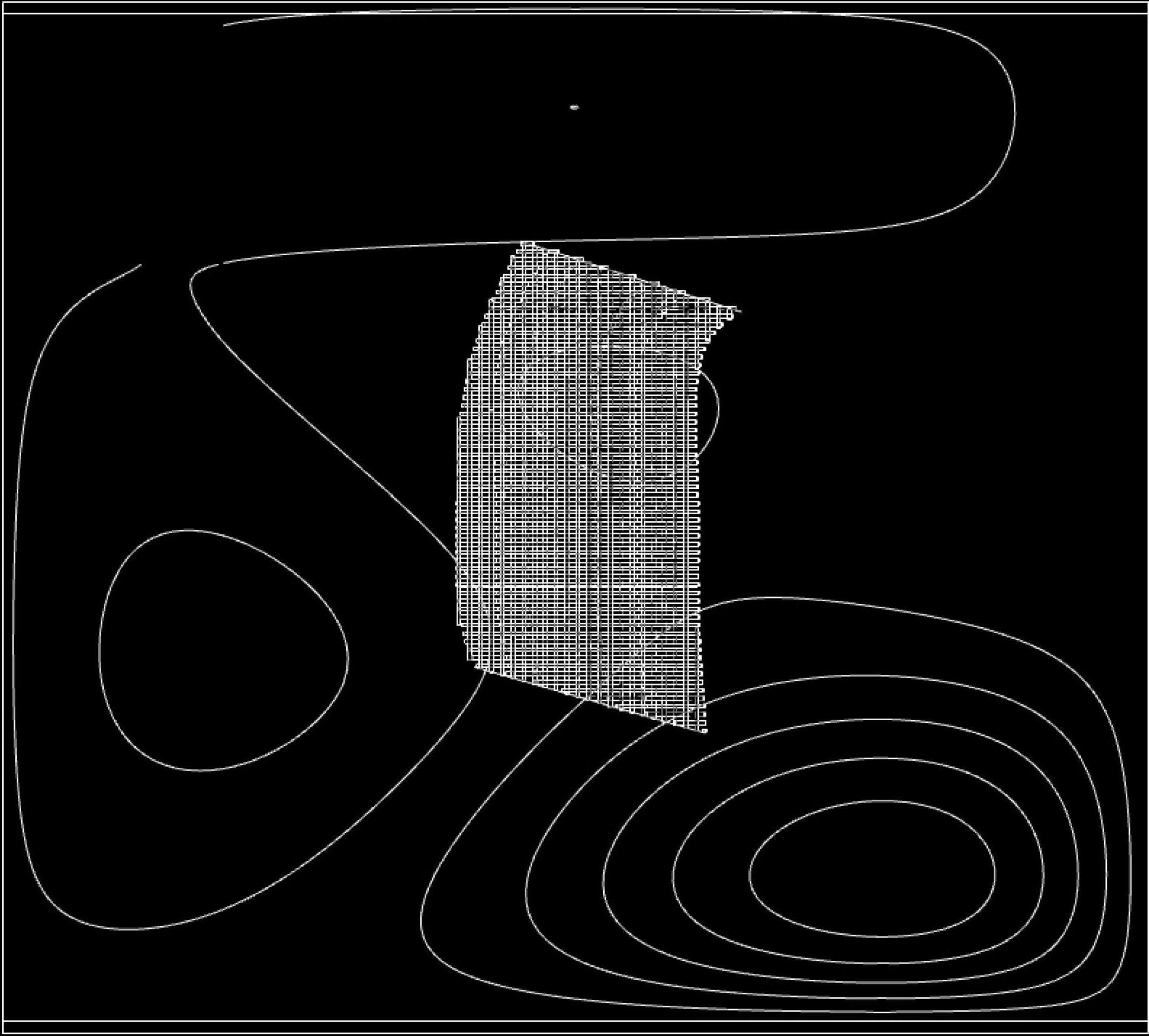

1. Run tool path 1 along the outline of the Hexagon shape at angle of approximately 126° 2. Secondary tool path to mill edges and remove material 3. Further removal of material from the edge 4. Removal of material on the underside of the block to form the joinery 5. Finishing of sharp edged surfaces 6. Tool Path for Surface finishing.

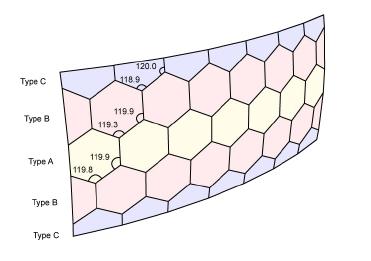

Three types of planar panels with different sizes

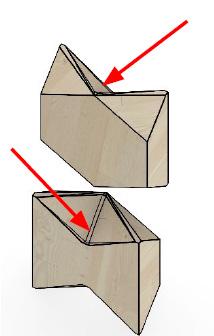

Carve out edges to create near perfect fit

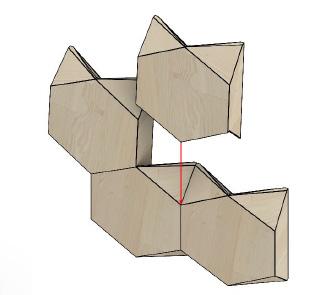

Stack designated pieces from bottom to top

Create reachable surface/ edge to allow router to pass through

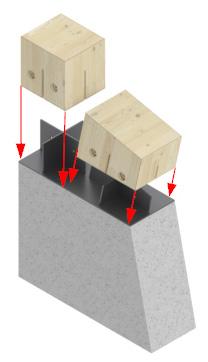

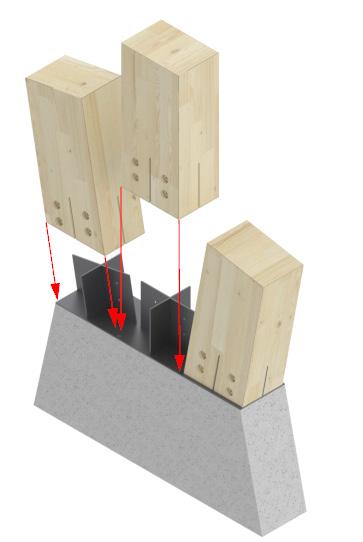

Bottom panel inserted to knife plate to connect to the floor

GALATA SARAY ISTANBUL INFILL HOUSING

Instructor: Mark Gillem Course: ARCH 484 - Vertical Studio Project Team: Vikram Barretto Year: Fall 2023 Software: Revit, TwinMotion, Illustrator, Photoshop

PRO J E C T D E S C R I P TI O N:

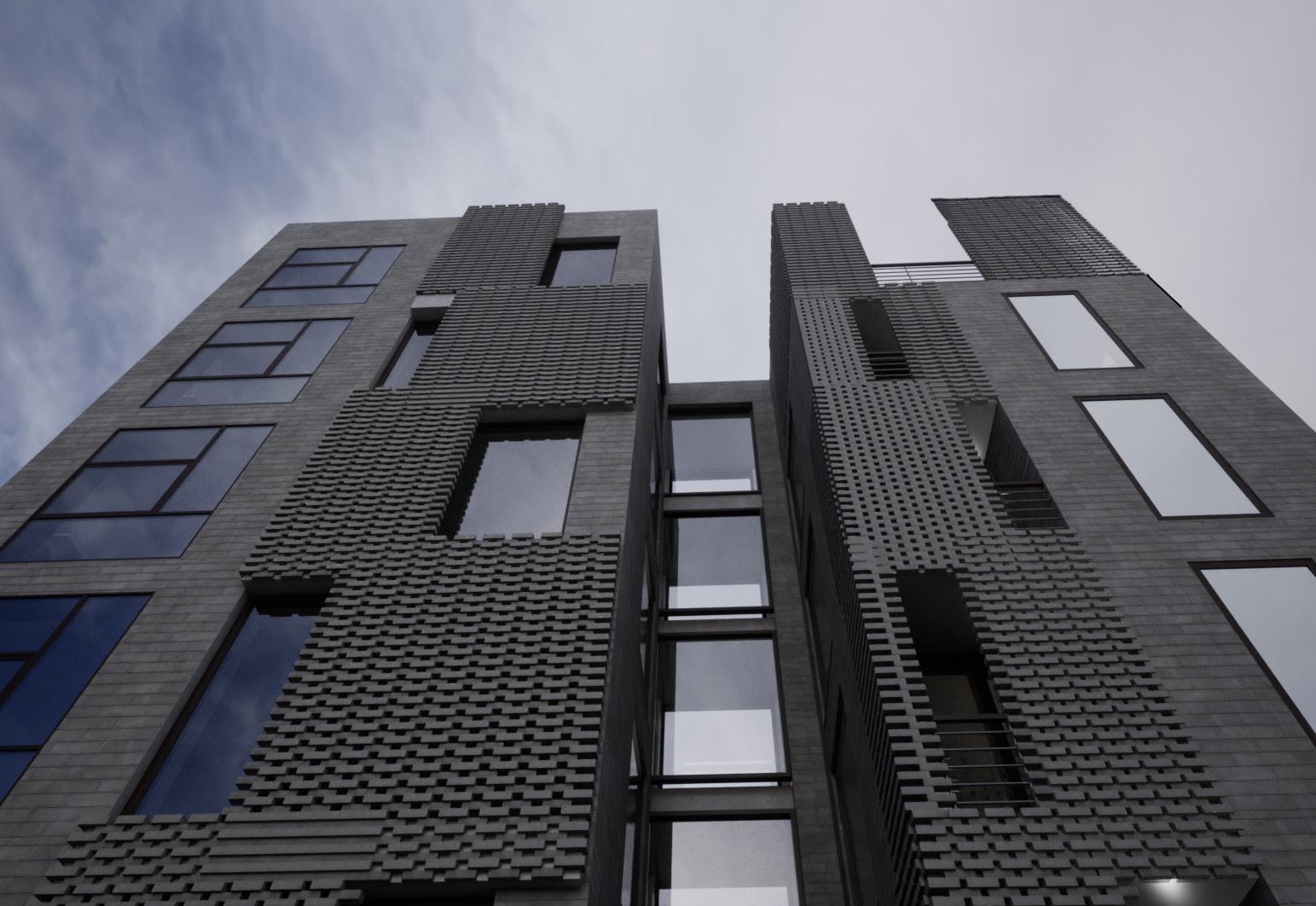

Galata Saray is an infill mixed-use housing project focused on reclaiming and renewing a historic piece of land for dwelling and urban vitality. This project is centered in the historic district of Galata in Istanbul, Turkey, filled with narrow and crowded streets. the project’s vision was to create a sustainable building with light-filled apartments that contribute to the urban fabric while implementing contemporary and historic elements.

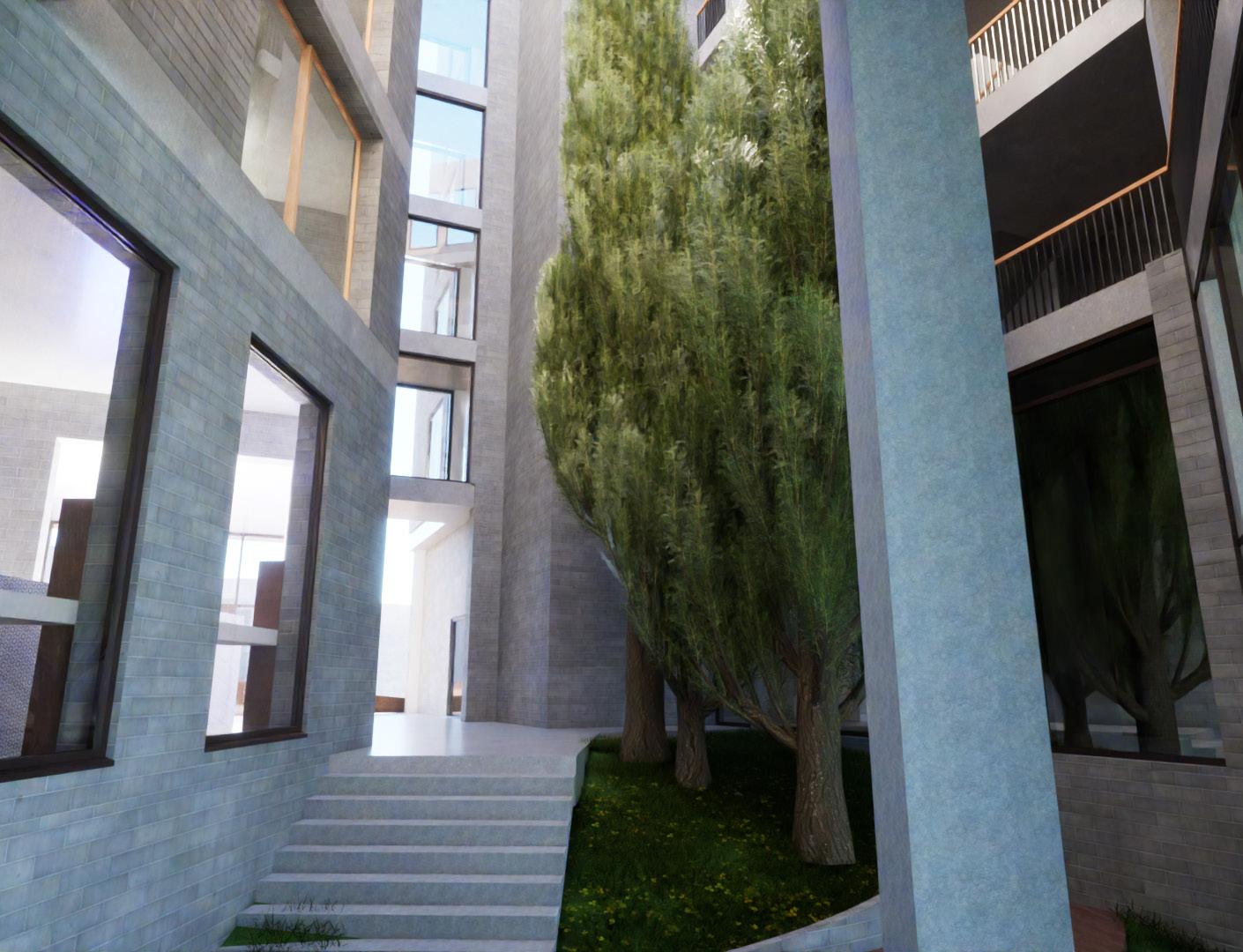

The project utilizes effective Turkish historic building strategies such as jalis and bay windows and features a public ground floor filled with shops and restaurants, a courtyard creating a path between two adjacent streets, plenty of outdoor seating, and four stories of residential occupancy with a private entrance on the ground floor.

DN

DN

UP

5

3 2

4

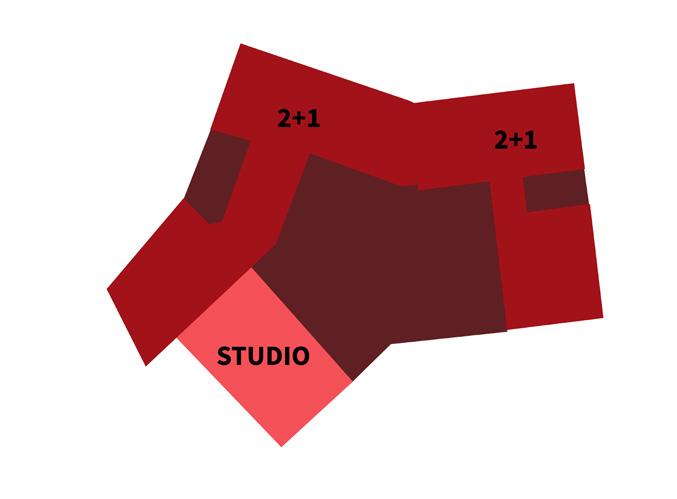

Total Area / Toplam alanı 1. Kitchen + Living / Mutfak + Salon = 500 SF / 46.5 m2 2. Bedroom 1 / Yatak odası 1 = 181 SF / 16.8 m2 3. Bedroom 1 Bathroom / Yatak odası 1 Banyo = 67 SF / 6.2 m2 4. Bedroom 2 / Yatak odası 2 =163 SF / 15 m2 5. Bedroom 2 Bathroom / Yatak odası 2 Banyo = 76 SF / 7 m2

1

W/D

ROOF PARAPET ROOF PARAPET 1 A104

CANT STRIP CANT STRIP

Sim

1 A104

Sim

PARAPET PARAPET COPING COPING EXPANSION JOINT EXPANSION JOINT

CEILING CEILING

PARAPET PARAPET

FLASHINGFLASHING OPERABLEOPERABLE AWNING WINDOW AWNING WINDOW AWNING WINDOW AWNING WINDOW FLASHINGFLASHING

RIGID FLOORING INSULATION RIGID FLOORING INSULATION 1 A101

1 A103

CONCRETE FLOOR FINISH CONCRETE FLOOR FINISH

BEAMS

1 A102

Sim

1 A101

Sim

1 A103

Sim

Sim

1 A102

Sim

LEVEL 5 LEVEL 5

AHDERED AHDERED BRICK VENEERBRICK VENEERFLEMISH BOND FLEMISH BOND

AHDERED AHDERED BRICK VENEERBRICK VENEERRUNNING RUNNING BOND BOND Sim

LEVEL 4 LEVEL 4

BEAMS

LEVEL 3 LEVEL 3

LEVEL 2 LEVEL 2

LEVEL 1 LEVEL 1

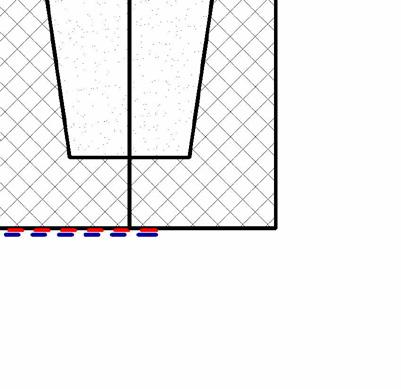

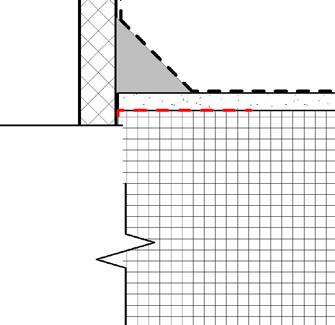

DOUBLE GLASS DOOR DOUBLE GLASS DOOR RIGID INSULATION POLYISO INSULATION RIGID POLYISO GRAVEL GRAVEL FOUNDATION FOOTING FOOTING FOUNDATION GROUND FLOOR GROUND FLOOR EARTH

EARTH

1

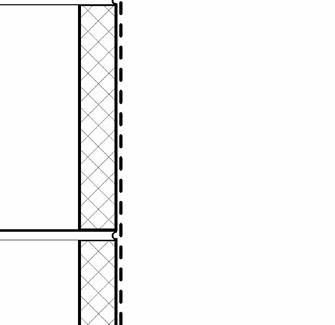

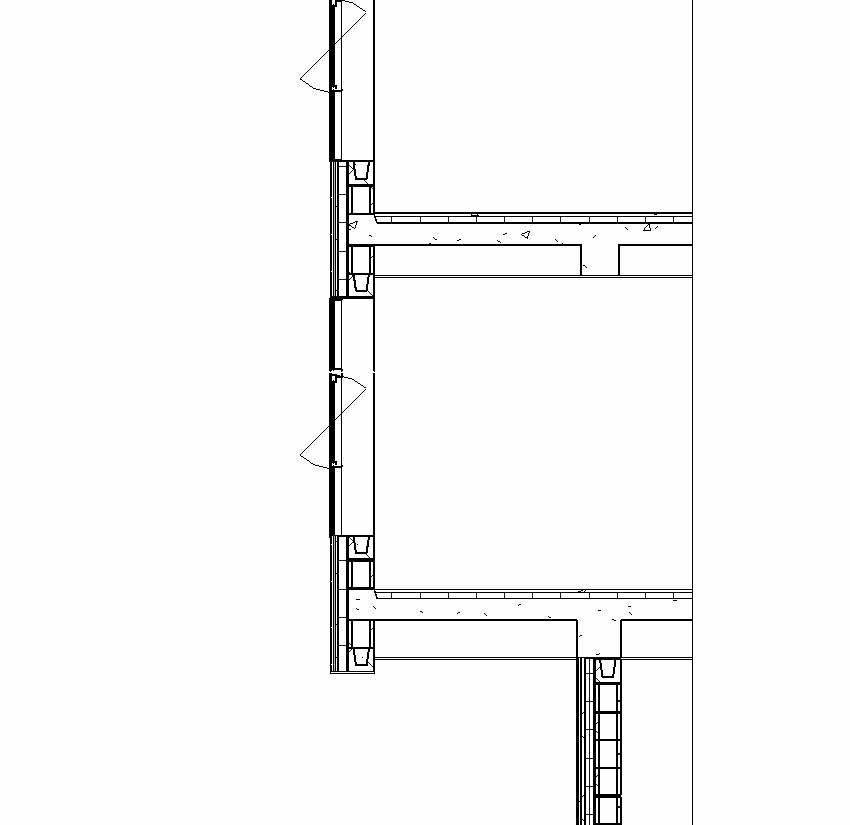

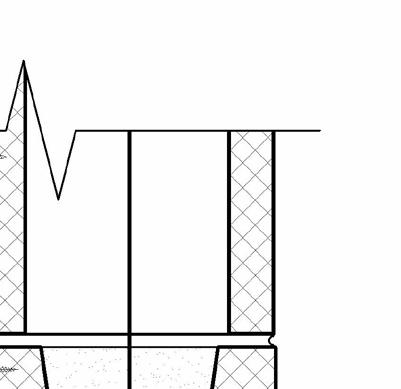

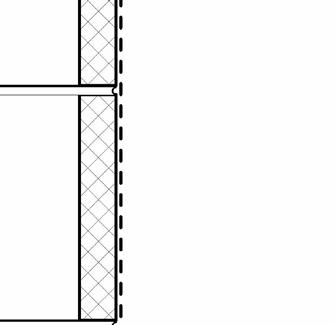

Wall Section Wall Section 1 1/8" = 1'-0" 1/8" = 1'-0"

2

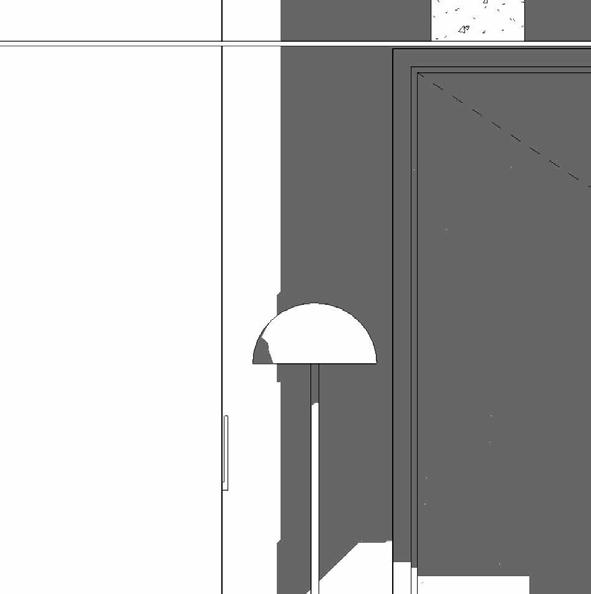

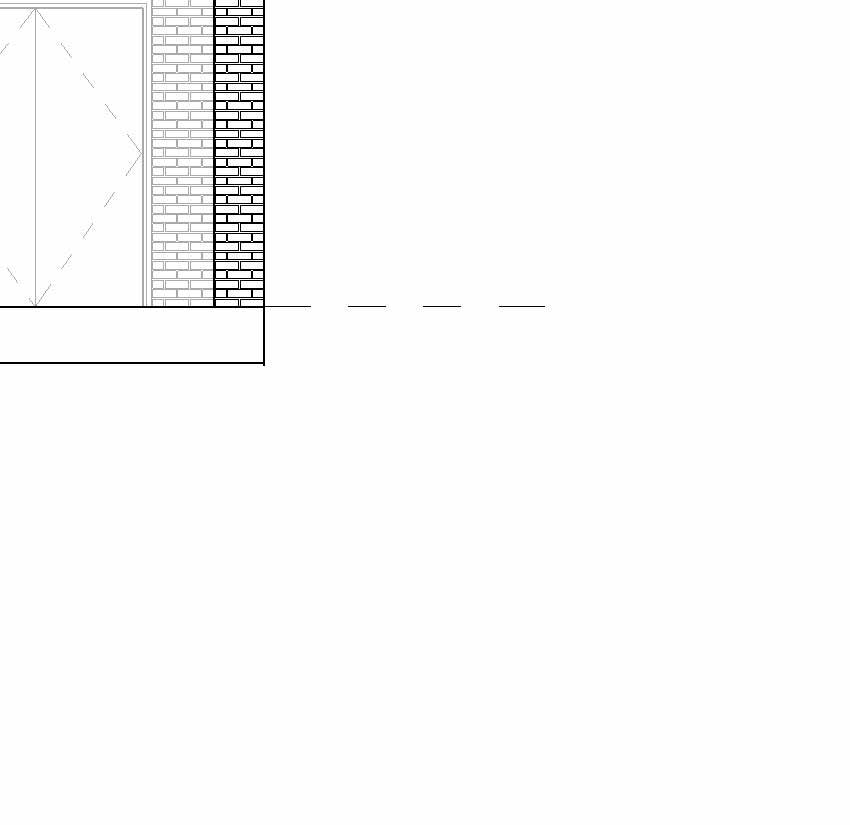

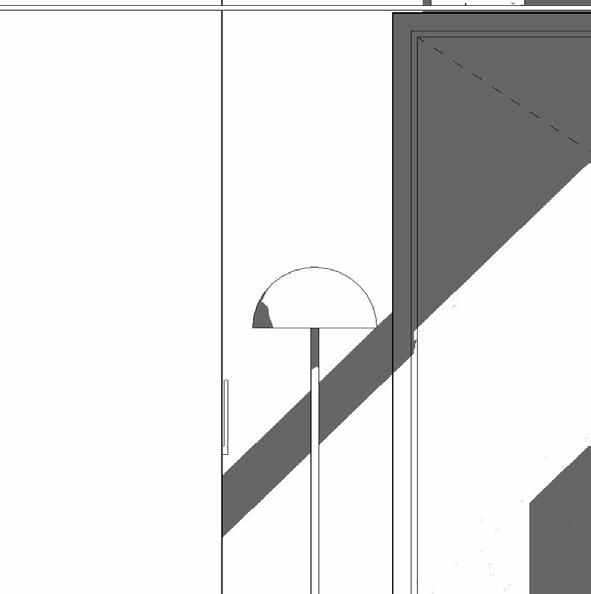

PARTIAL PARTIAL ELEVATION ELEVATION 2 1/8" = 1'-0" 1/8" = 1'-0"

A101

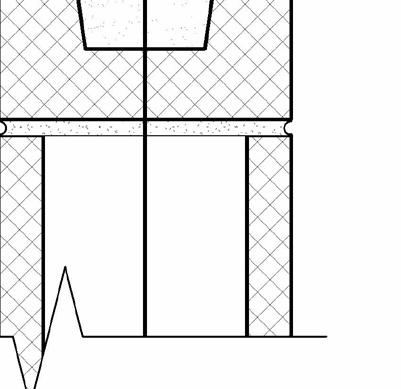

WEEP VENT CMU GROUT

BLOCKING

DRAWING #(s)

ADHERED BRICK VENEER

FLASHING

REBAR

LATH W/ FASTENERS

DRAINAGE MEDIUM 3" MINERAL WOOL INSULATION

XXXXX

MORTAR SCRATCH COAT

CONCRETE SILL PLATE

SEALANT

CMU BACKING

12/12/2023 15:42:17 3" = 1'-0"

MORTAR BOND COAT

CMU GROUT CMU BACKING

ADHERE CONCRETE SILL CASING BEAD

LIQUID APPLIED WRB

REBAR

VAPOR BARRIER BLOCKING

Date

MORTAR BOND COAT

Scale

ADHERED BRICK VENEER Section #

LATH W/ FASTENERS

MORTAR SCRATCH COAT

CASING BEAD DRAINAGE MEDIUM

WEEP VENT SEALANT

3" MINERAL WOOL INSULATION

FLASHING

VIKRAM BARRETTO

LIQUID APPLIED WRB

EAD DETAIL 1

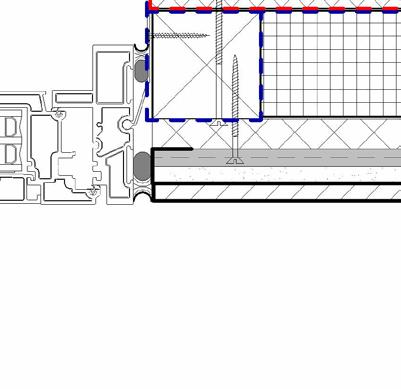

WINDOW SILL DETAIL 3" = 1'-0"

ALBORZ NAZARI

VAPOR BARRIER

SHIM

LATH W/ FASTENERS

A102

ADHERED BRICK VENEER

PARAPET COPING

WRB LAPPED 6" FLASHING

CMU GROUT

MORTAR BOND COAT

CMU BACKING

MORTAR SCRATCH COAT

TPO ROOF MEMBRANE

DRAWING #(s)

CMU GROUT DRAINAGE MEDIUM

XXXXX

CMU BACKING

VAPOR BARRIER 3" MINERAL WOOL INSULATION

REBAR

DRAINAGE MEDIUM LATH W/ FASTENERS

Scale

CASING BEAD

12/12/2023 15:42:18 3" = 1'-0"

SEALANT

Date

BLOCKING

Section #

3" MINERAL WOOL INSULATION

LIQUID APPLIED WRB

LIQUID APPLIED WRB

MORTAR SCRATCH COAT

CANT STRIP

MORTAR BOND COAT

1

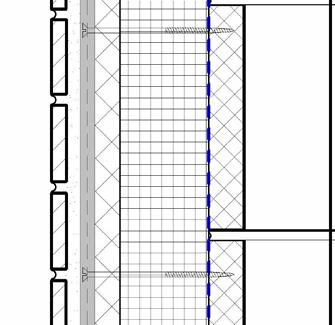

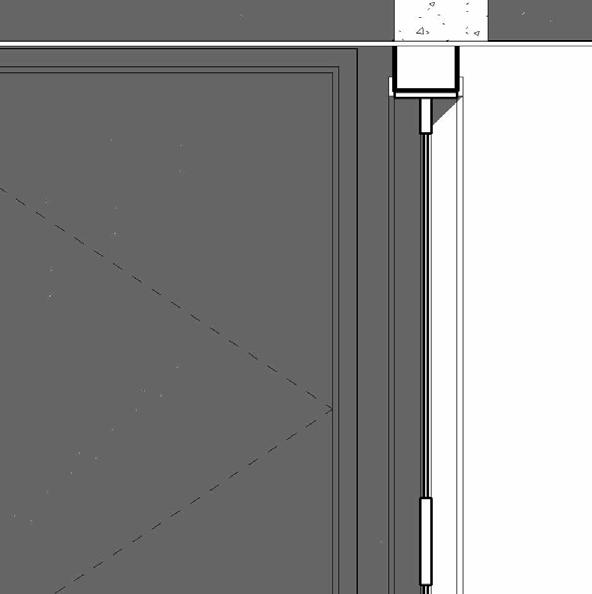

WINDOW JAMB DETAIL 3" = 1'-0"

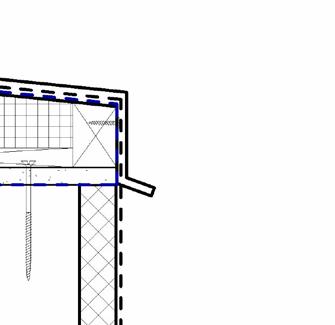

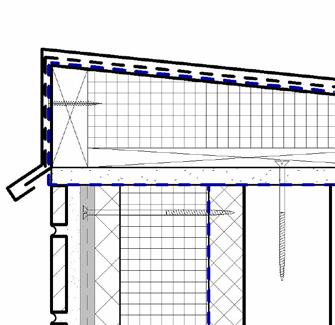

CRITICAL DETAIL-PARAPET 3" = 1'-0"

LBORZ NAZARI

1

IKRAM BARRETTO

VAPOR BARRIER

ADHERED BRICK VENEER

9" RIGID POLYISO INSULATION 1/2" COVERBOARD

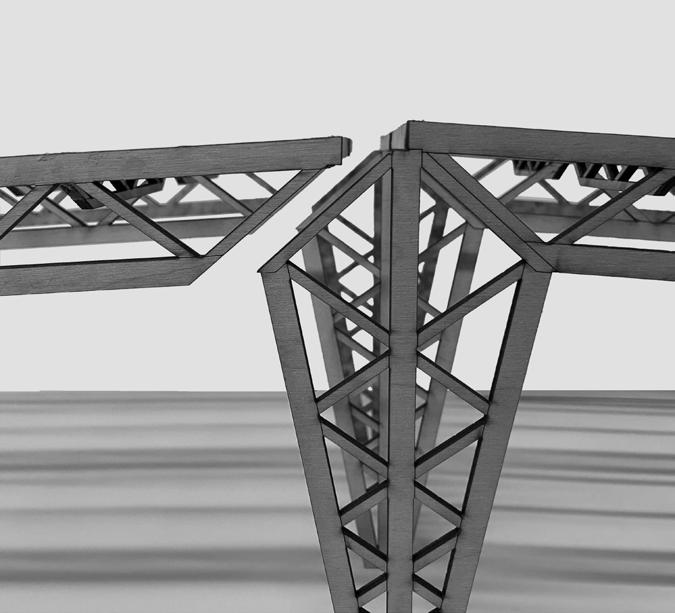

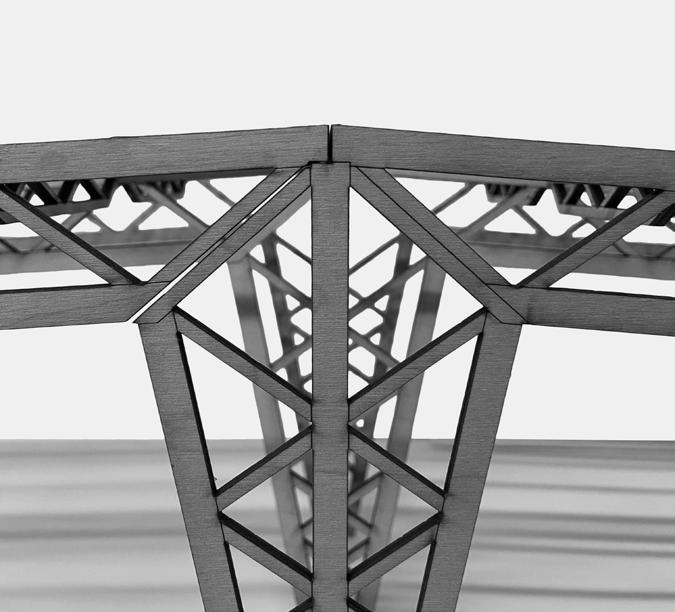

TRUSS TO TRUSS MASS TIMBER FACTORY

Instructor: Judith Sheine Course: ARCH 484 - Vertical Studio Project Team: Vikram Barretto, Alan Lai, Cosi Restagno Year: Fall 2024 Software: Rhino 3D, Revit, Grasshopper, TwinMotion, Photoshop, Illustrator

PRO J E C T D E S C R I P TI O N:

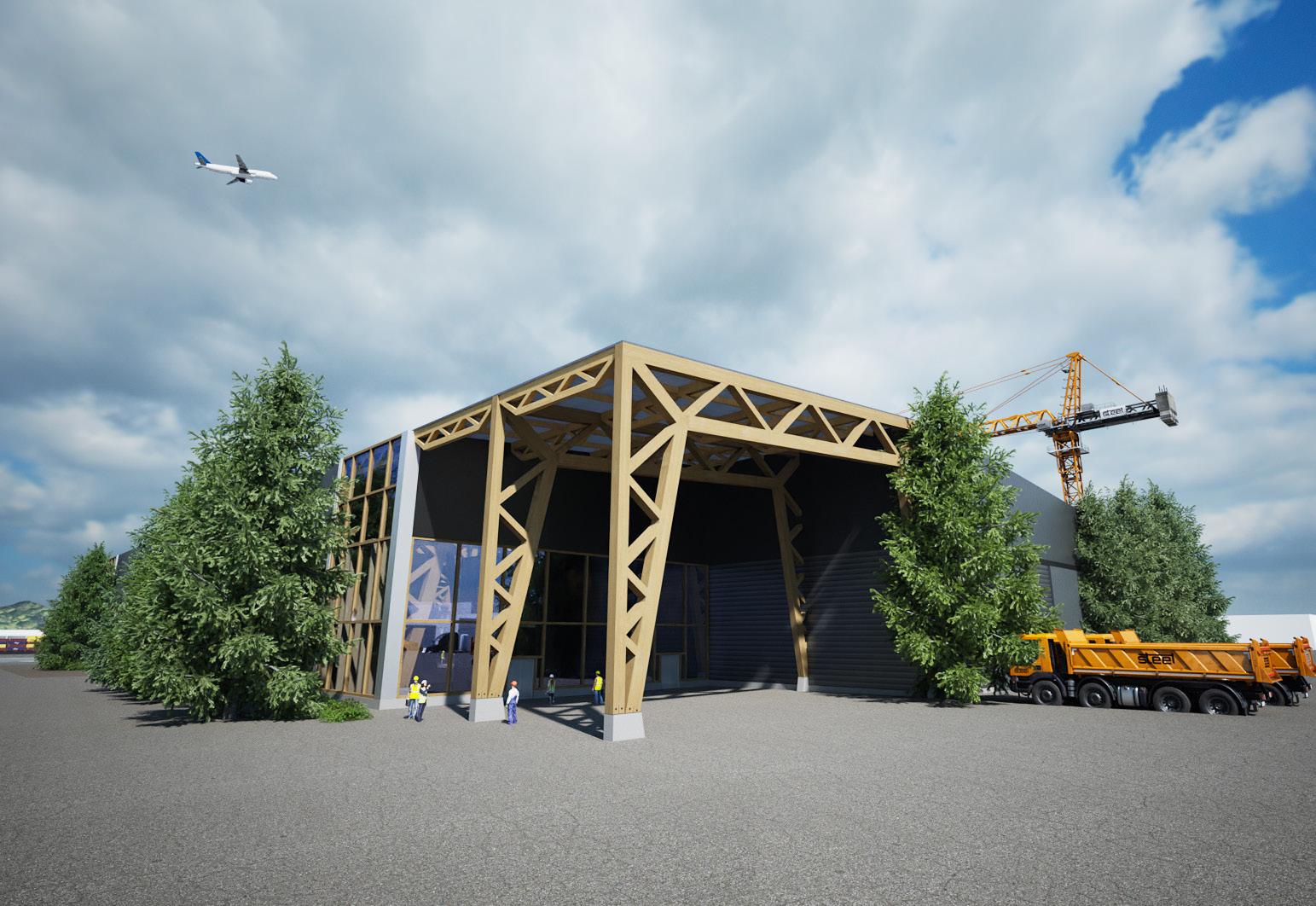

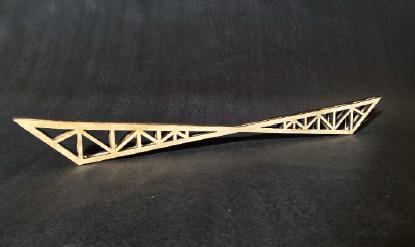

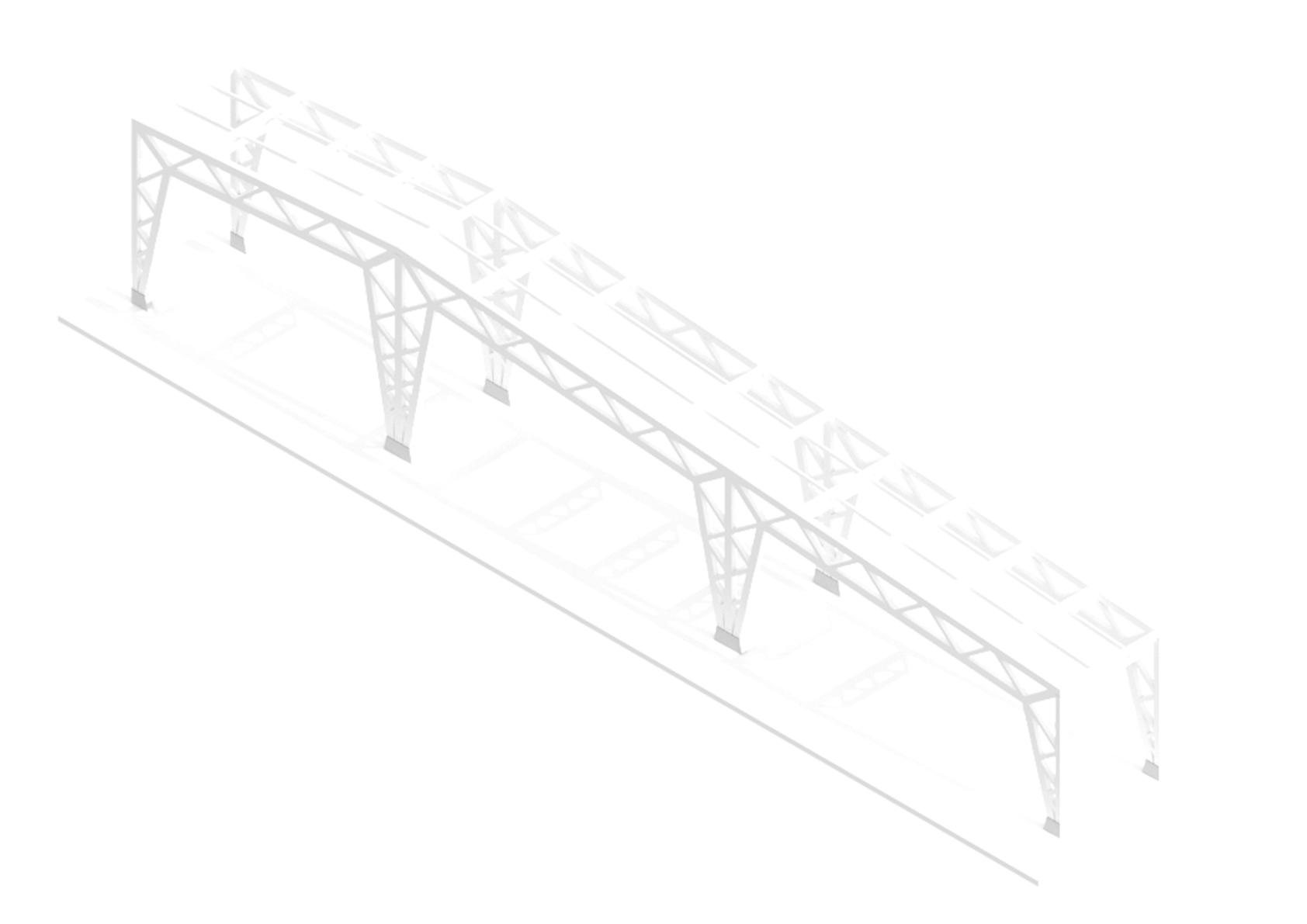

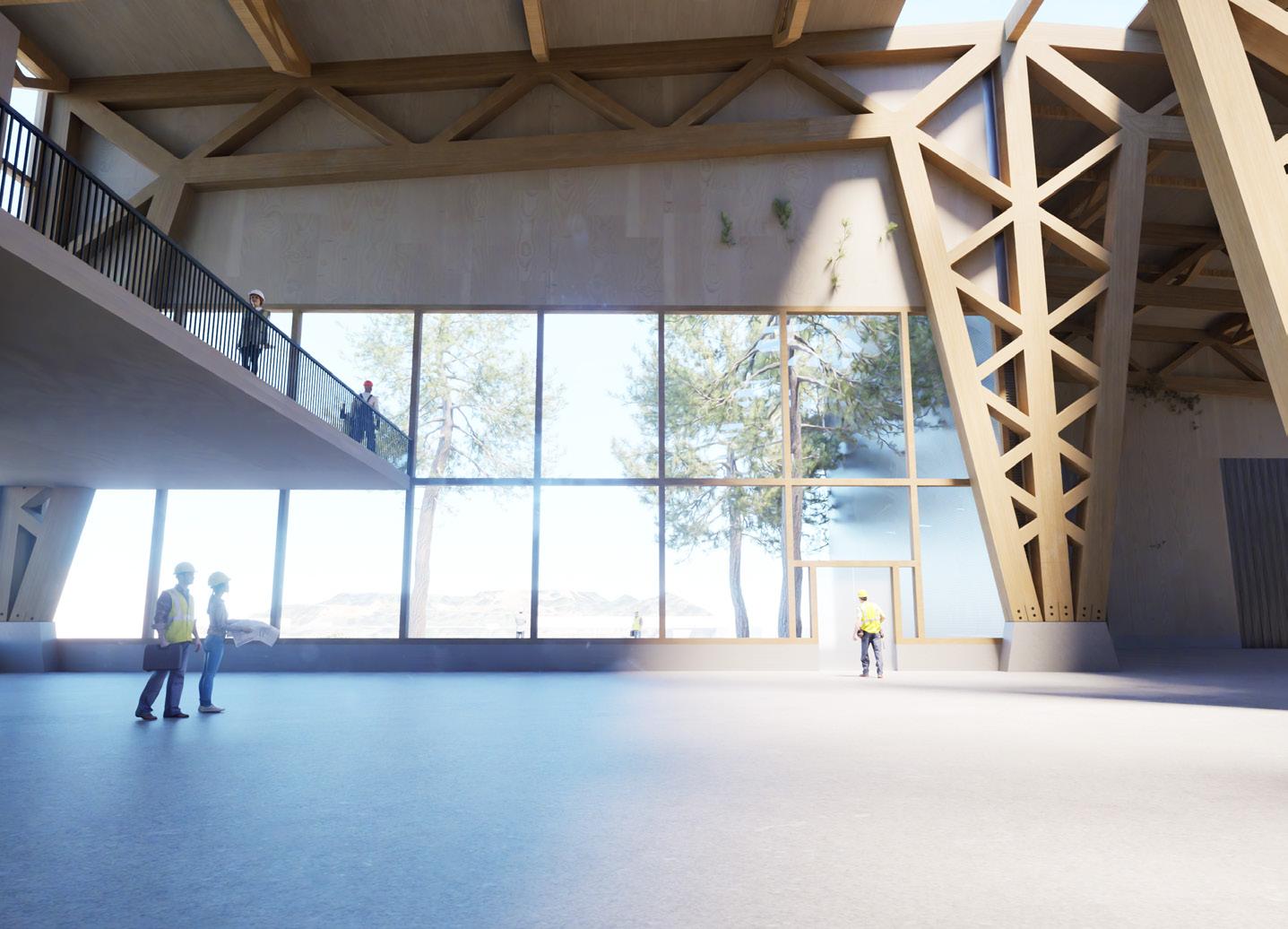

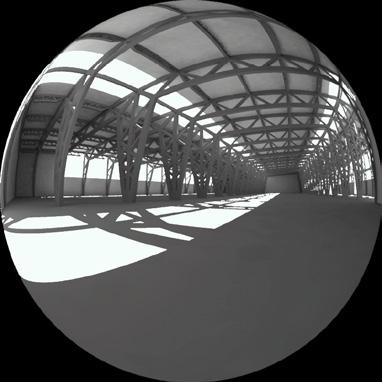

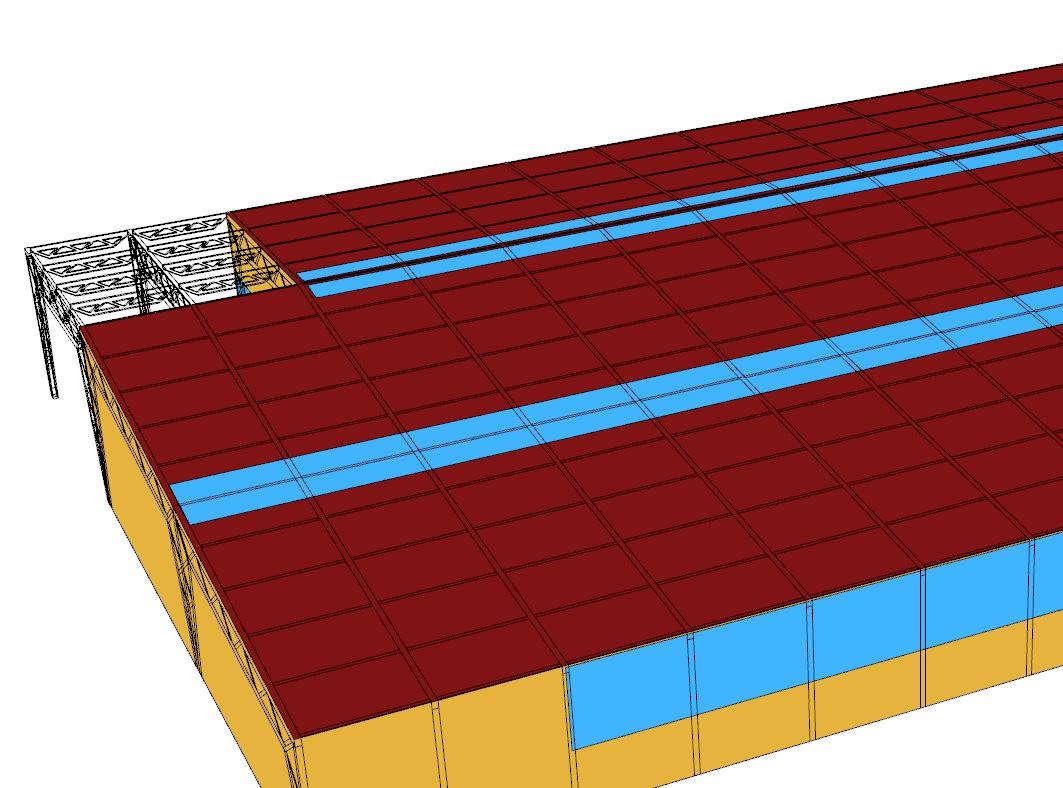

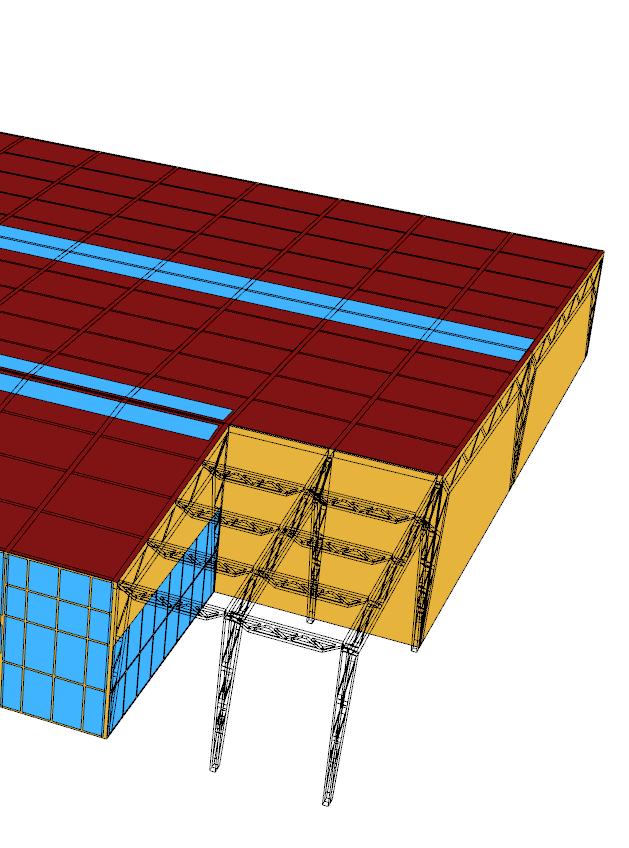

The Mass Timber Housing Factory is a high-performance manufacturing facility designed for the Port of Portland as part of the new Mass Timber Housing Innovation Campus. This factory streamlines prefabrication and modular construction, supporting the assembly of mass timber housing while promoting sustainable building practices. The vision was to create a low-carbon, energyefficient facility that integrates precisionengineered glulam trusses, passive ventilation strategies, and renewable energy systems. Locally sourced timber from Oregon and Washington minimizes the carbon footprint, while extensive daylight studies enhance interior comfort and performance. Designed to optimize workflow and minimize waste, the factory enables large-scale production of prefabricated modular housing, advancing innovation in mass timber construction.

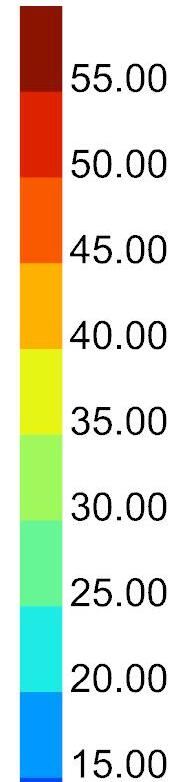

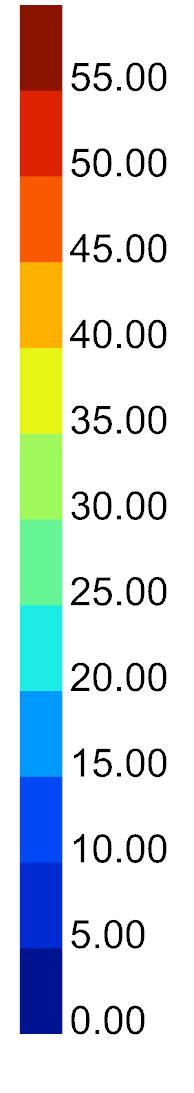

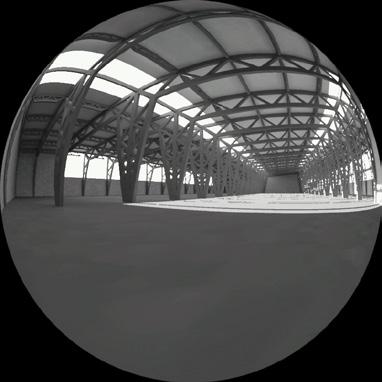

SPATIAL DAYLIGHT AUTONOMY

9AM

12PM

3PM

SUMMER | JUN

EQUINOX | SEP

WINTER | DEC

1.

7.

4.

3.

2.

5.

6.

1.

2.

5.

6.

3.

4.

7.

THANK YOU FOR YOUR TIME
