Transform Olympus CX23 into a High-Performance Polarizing Microscope
DPM23 Digital Polarizing Microscope
Elevate Olympus CX23 Microscope for Advanced Polarization Imaging
The DPM23 is a high-quality polarizing microscope expertly adapted from the Olympus CX23 While maintaining the original optical system with Köhler illumination and plan achromatic objectives, the DPM23 seamlessly integrates specialized polarizing accessories, including a Bertrand lens, polarizer, analyzer, rotating stage, polarizing condenser, and compensator. This thoughtful modification ensures exceptional polarized light imaging without compromising the renowned optical performance of the CX23
The DPM23 integrates seamlessly with Olympus CX23 optics, delivering lab-grade polarized imaging at 60% lower cost versus dedicated systems Its modular design allows incremental upgrades start with basic polarization or add advanced compensators (λ/4, Quartz Wedge) as needed
Core Polarizing Components

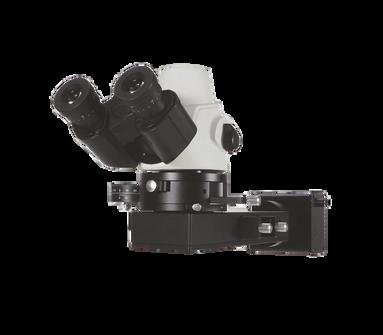

Bertrand lens: Fixed-center design for conoscopic imaging
Compensator: λ, λ/4, Quartz Wedge (retardation range: 0–550 nm)
QuartzWedge,λ,λ/4
Analyzer
Centering adapter
360° Rotary Stage: ±0.5° angular accuracy with clickstop locking
*Abbe Condenser: NA 1 25
Auxiliary lens
Polarizer: 360°rotation with mark
CX23 Compatibility
No mechanical modification required direct bolt-on upgrade
Retains original rotating nosepiece & plan objectives
Retains original Köhler illumination
* Note:Sincethecondenser(CX3-SC)fortheCX23binocularcannotaccommodatethe polarizerunit,itisessentialtousethecondenser(CX3-AC)fortheCX23TR(trinocular)
Analyzer

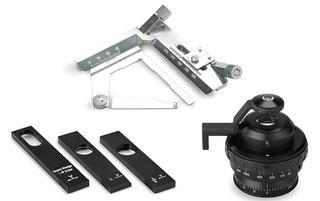

Polarizing Parts for Modifying Olympus CX23
The components below are specifically designed for the body shape and transmitted optical system of the CX23 microscope
Owners of the Olympus CX23 microscope can opt to buy just the polarization components By adhering to the installation guidelines, upgrading your CX23 microscope becomes a straightforward process We suggest using our camera, which is white-balanced and color-calibrated specifically for transmitted polarization applications For further information, please reach out to our product specialists.
Part Code
HP180100 Eyepiece micrometer
HP181000 Analyzer
HP180300 Centering adapter
HP180400 Polarizer
HP180500 360° Rotary stage
HP180600 Tool box
HP180800 Quartz wedge, λ, λ/4
HP180900 Narrow bandpass filter (optional)
0 1mm Eyepiece micrometer
Analyzer (Bertrand lens included)
Centering adapter
Polarizer
360° Rotary stage
Tool box & Installation Manual
Compensator: Quartz wedge, λ, λ/4
Narrow bandpass filter (optional)
Optical System Infinity optical system
Illumination System Built-in transmitted illumination system
Revolving Nosepiece Fixed quadruple nosepiece with inward tilt
Stage Ball bearing rotary stage (diameter: 142mm); rotatable 360° horizontally; can be fixed at a specific position; graduated 360° (in 1° increments); Rotation clamp equipped
Observation Tube Binocular, 10X eyepiece, Tube inclination 30°
Plan achromatic objectives anti-fungal
4X
Objectives
10X
40X
mm
Bertrand Lens: Built-in rotatable analyzer and Bertrand lens focusable
Analyzer 360° rotary dial with division, minimum reading angle 0 1 Polarizer Rotatable 360°, scaled, can be locked
Condenser Abbe Condenser: NA 1 25
Compensator Standard adjustable tint plate: Quartz wedge, λ/4, λ
Digital Camera CA1200: 12MP multi-output camera 4000x3000 pixels @ 30fps (*standard configuration)
Software Pixit Pro for Windows 7, 8, 10 & 11 (Preview, Capture, Record, Measurement, Annotation, EDOF, Stitching, etc ) App Imaging App for smart devices (Android and iOS)
Weight 9 8 KG
Dimensions 198 mm × 398 mm × 486 mm
ThestandardconfigurationsofDPM23comewithanembeddedmulti-outputcameraCA1200 Userscanalsoselectothertypesofcameras basedontheirneeds
Camera Solutions
