ABOUT WDTOOLS COMPANY
WDTOOLS is a company specialized in manufacturing high-quality diamond machines and tools With expertise and experience in the sector, WDTOOLS is renowned for its dedication to excellence and innovation in its products. Their comprehensive portfolio includes a variety of machines and tools, such as drills, saw blades, cutting discs, and more, all designed to meet the needs of diverse applications
WDTOOLS diamond machines and tools are made with the finest materials and advanced technology, ensuring exceptional performance and superior durability The company ' s products are widely used in sectors such as construction, mining, gemstone processing, and industrial applications With a continuous commitment to quality and customer satisfaction, WDTOOLS is a reliable choice for professionals seeking dependable and efficient diamond tools for their activities.
2 0 1 3 2
WDTOOLS REVOLUTIONIZES THE CUTTING SECTOR WITH THE APPLICATION OF NEW DIAMOND WIRE CONFIGURATIONS FOR DIAMETERS OF
2 0 2 4
WDTOOLS EXPANDS ITS RANGE OF PRODUCTS WITH THE PRODUCTION OF MACHINERY WITH OWN DESIGNS AND REPRESENTING THE BEST MULTITHREAD
ON THE MARKET

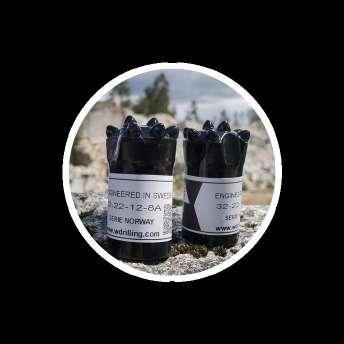

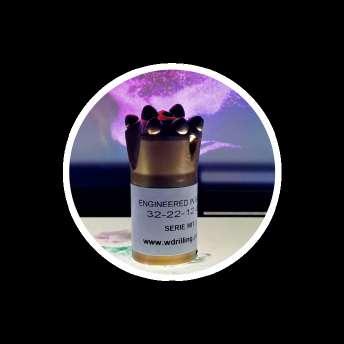

Ø32 mm8 botons-12 °
SERIES
Ø33 mm8 botons-12 ° EPIC SERIES
Ø32 mm7 botons-12 °

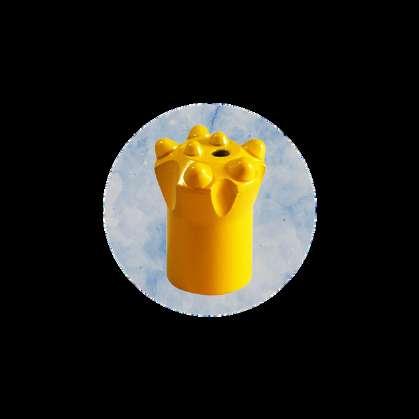

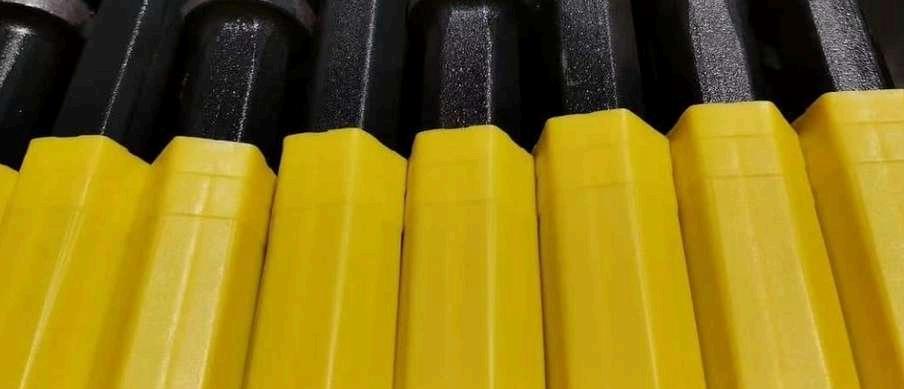

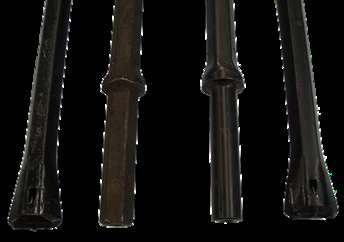

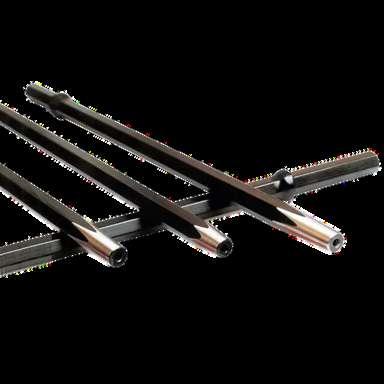

DRILLING TOOLS PRODUCT RANGE

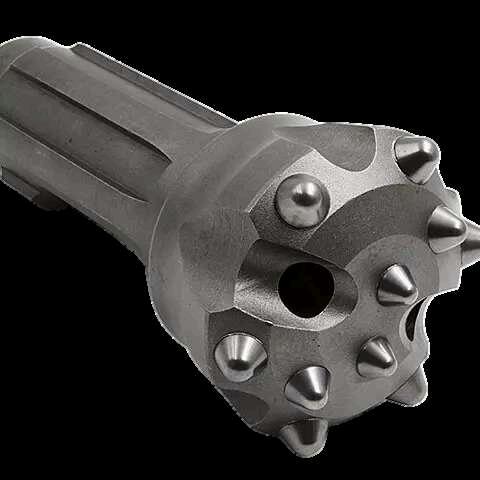

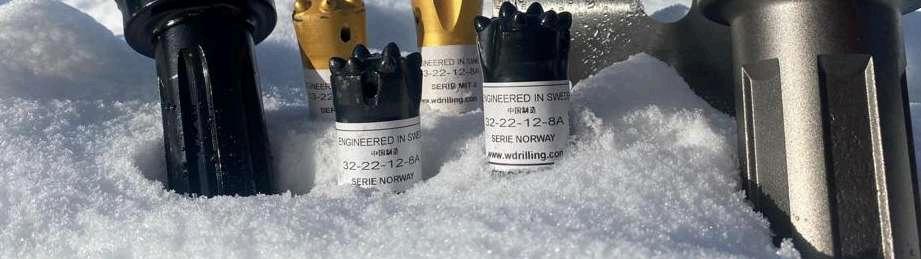

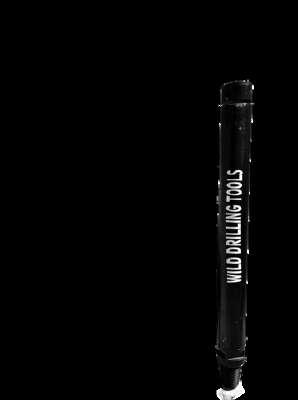

DTH DRILLING BIT
DRILLING BIT DTH HUMMER
ACCESORIES FOR QUARRY
Crimper machine WDT45
Dies WDT45
Crimper machine WD10T
Hidrobags
Pump for Hidrobags V1 & V2
HOLE FINDER WDT2
WDT WEDGES

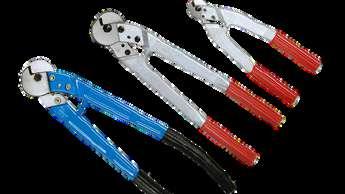

Scissors for diamond wire
Pipes & Accesories
Alluminium Flywheel
bber for Wire Saw mahines
"Machinery
for easy working"

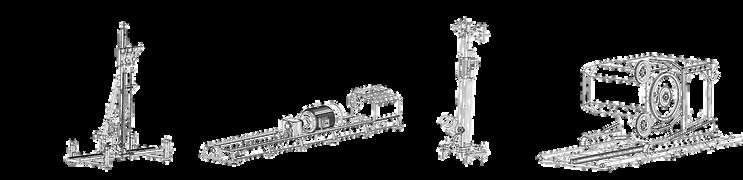

Mobile machinery for stone extraction
The Pathfinder Series represents the culmination of our dedication to innovation in the ornamental stone extraction sector. These mobile quarry machines not only signify a technological evolution but also a commitment to ease of work for industry professionals. With a focus on efficiency and precision, our Pathfinder machines streamline extraction operations, enabling users to make the most of every resource while ensuring the highest quality in the extracted stone. At WDTOOLS, we believe that excellence in work should not compromise convenience, and the Pathfinder Series is the proof of that commitment.

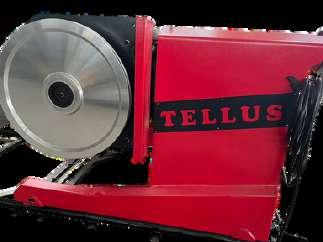

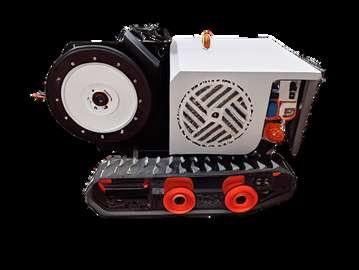

The TELLUS 55 by WDTOOLS is an innovative cutting machine specialized for the mining industry, specifically designed for cutting natural stone such as granite, marble, and limestone Its advanced system allows for precise adjustment of wire speed and tension, achieving efficient and accurate cuts without damaging the material. Manufactured to high European quality standards, the TELLUS 55 features a robust design and premium materials, ensuring long-lasting durability and exceptional performance This machine enhances productivity and reduces waste, making it an essential tool in the natural stone cutting industry

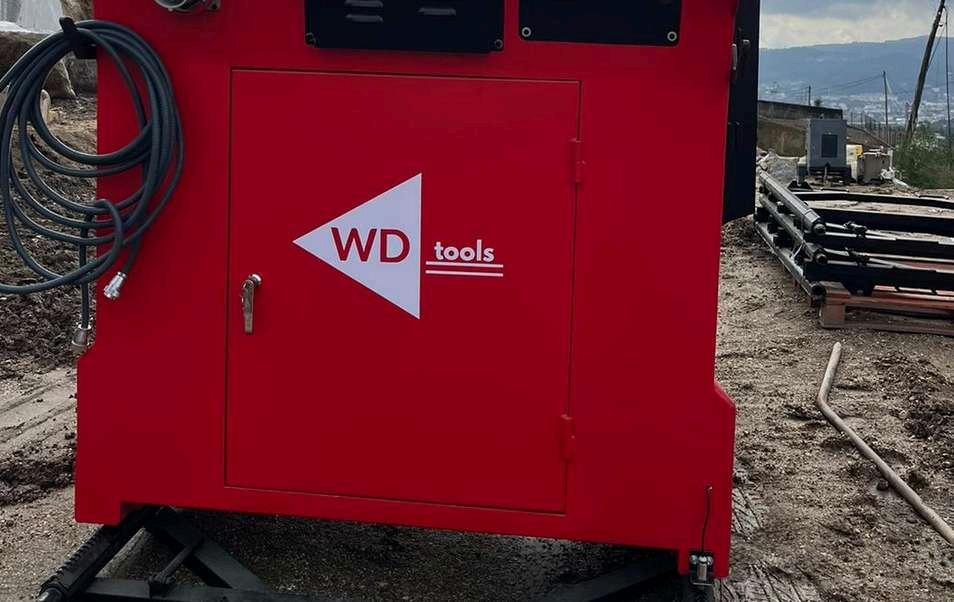

TELLUS WIRE SAW
TELLUS 55 DISCOVERY - Mobility Without Limits
The TELLUS 55 DISCOVERY offers unparalleled precision anywhere, allowing work in quarries and remote areas without geographical constraints Equipped with a robust motor and advanced technology, this mobile machine tackles the toughest challenges, ensuring efficient and high-quality work on all types of materials
Exceptional Versatility: Compatible with various diamond wire diameters, it adapts to a wide range of projects, from precise cuts in natural stone to quarry applications
Intuitive Control: Its user-friendly control panel allows you to adjust cutting speed and pressure as needed, achieving precise and consistent results with just a few clicks
Durability and Strength: Made from high-quality materials, the TELLUS 55 DISCOVERY is designed to withstand extreme conditions and intensive use, ensuring robustness and performance during long working hours
The TELLUS 55 DISCOVERY is the perfect choice for experts seeking outstanding performance in wire cutting for quarries, combining mobility, power, and versatility to take your projects to new horizons

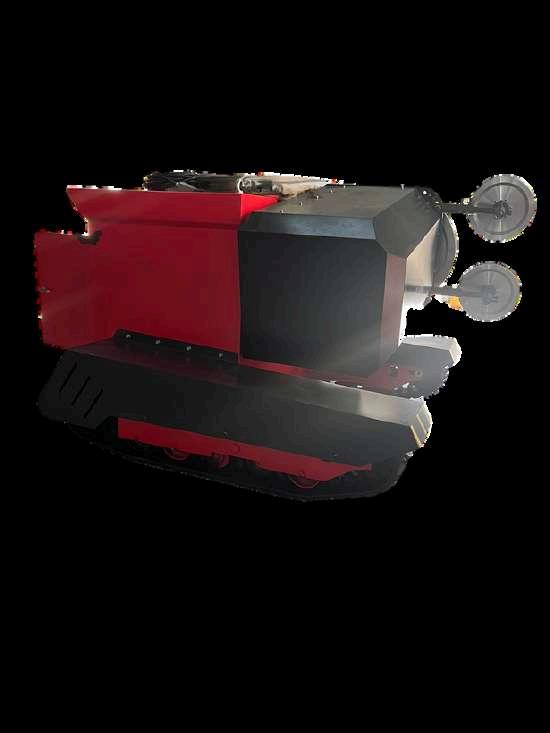

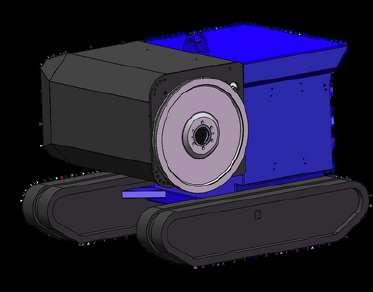

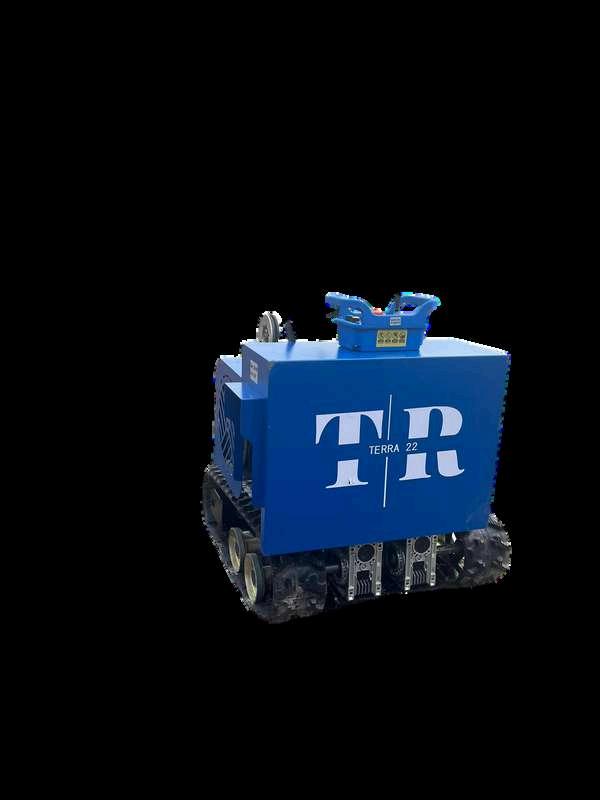

TERRA SQUARING BLOCKS MACHINE
TERRA : The Complete Solution for Your Projects
Extreme Precision: Cutting-edge design and advanced control system ensure precise and clean cuts for impeccable results
High Versatility: Handles a wide range of materials, from granite to reinforced concrete, ready to face any challenge
Unrestricted Mobility: Robust tracks allow easy maneuvering on difficult terrain, enabling projects anywhere
Enhanced Efficiency: Powerful motor and adjustable speed maximize productivity, reduce cutting time, and minimize material waste
Safety First: Meets the highest safety standards with advanced protection systems and integrated safety features for a secure work environment

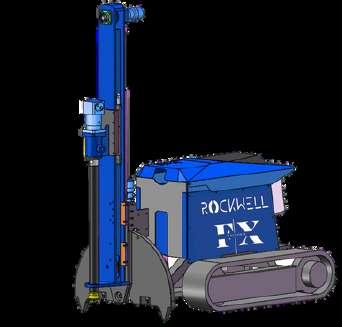

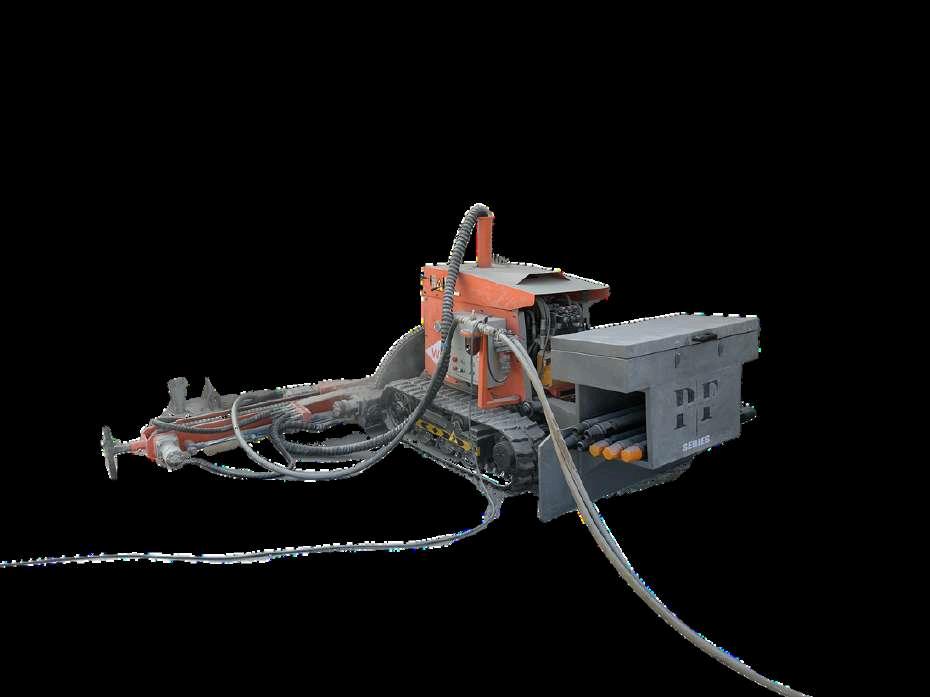

FALCON X DRILLING MACHINE
WDTOOLSFalconX:AdvancedCrawlerDrill
TheWDTOOLSFalconXisapowerfulcrawlerdrillofferingmobilityandagility fordeepdrillingprojects Itsinnovativedesignandsimplifiedfeatures significantlyreduceworktimes
KeyFeatures:
Mobility:ThecrawlersystemallowstheFalconXtoeasilynavigatevarious terrains,adaptingtodifferentdrillingconditions Itsabilitytomovequickly enablesaccesstohard-to-reachareas,idealforremotedrillingprojects
EaseofUse:Designedforoperationalsimplicity,itsintuitivecontrolpanel allowsoperatorstostartandmanagedrillingtasksefficiently,reducingsetup andpreparationtimesandboostingoverallprojectproductivity
EnhancedEfficiency:Combiningmobility,agility,andeaseofuse,theFalconX isperfectforcompaniesandprofessionalsaimingtoenhancetheirdeep drillingefficiency Thisinnovativetoolenablesfaster,simplerdrillingprojects, savingtimeandresources

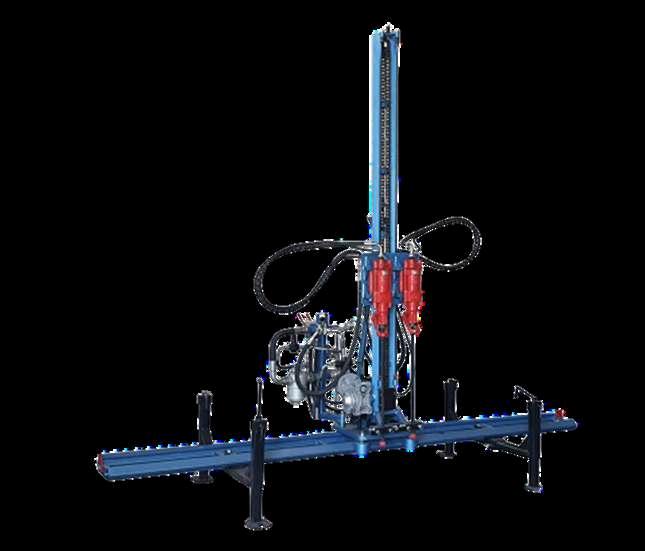

FALCON DTH DRILLING MACHINE
FALCON DTH DRILLING MACHINE

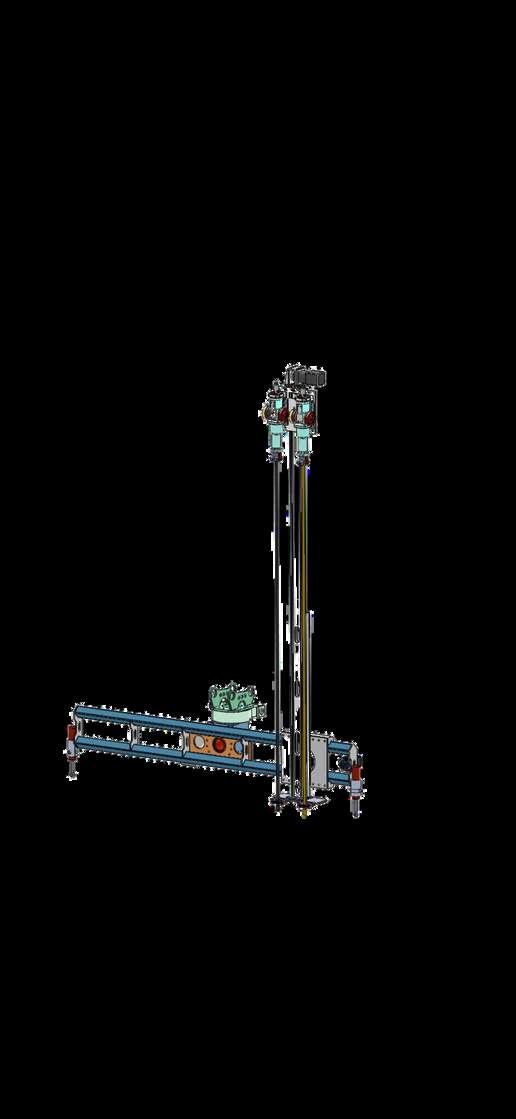

FALCON T DRILLING MACHINE

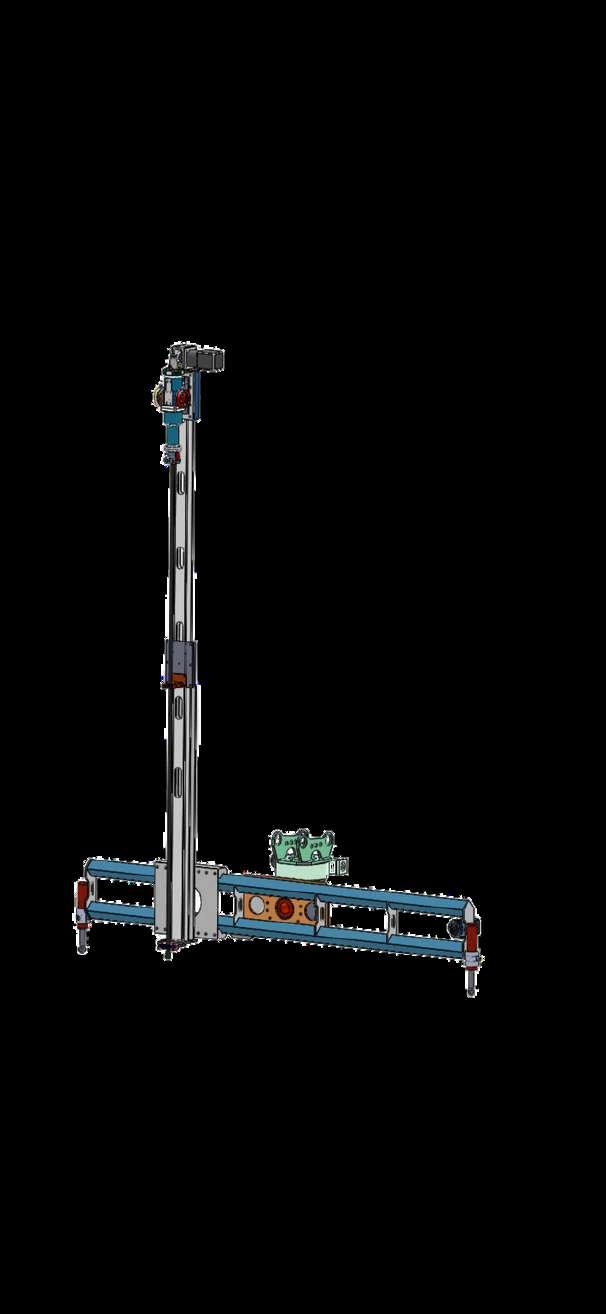

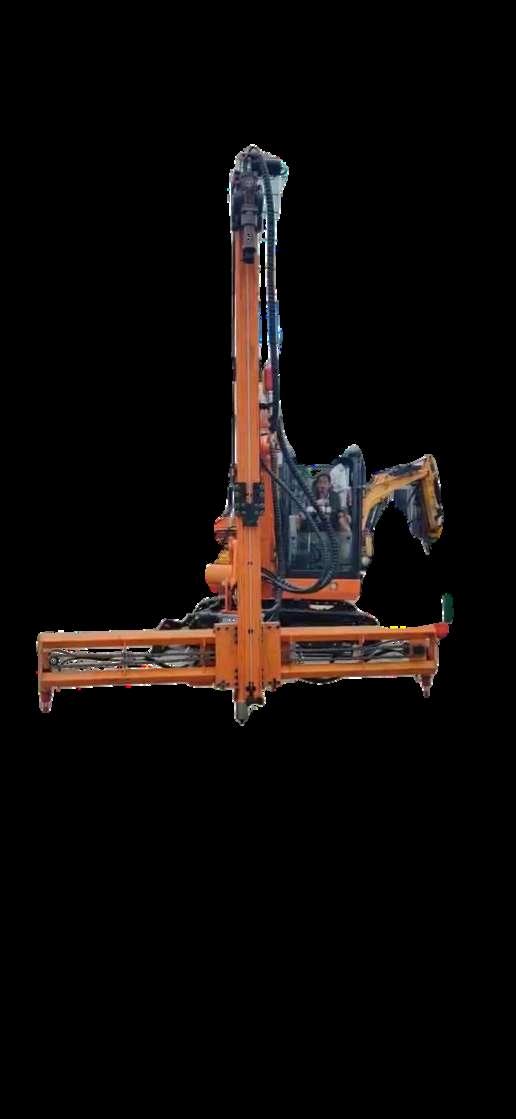

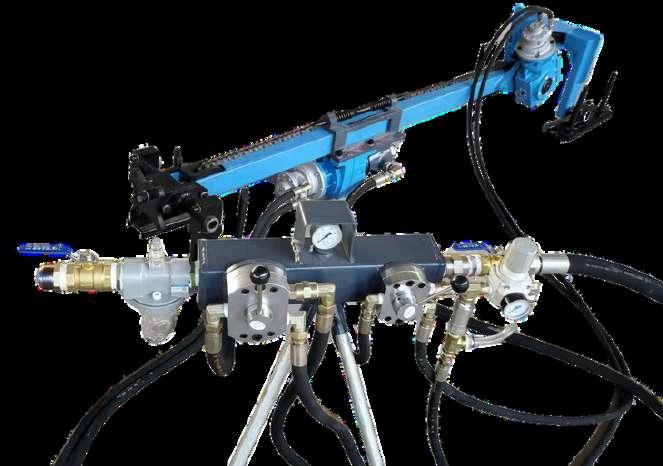

FALCON DRILL PRO MACHINE

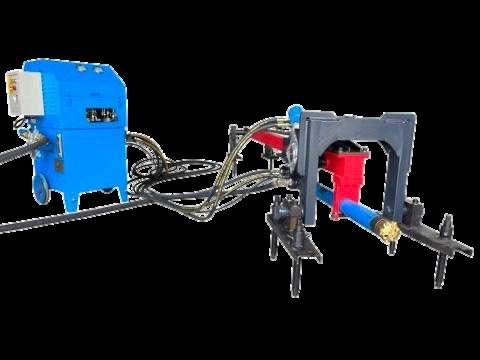

The FALCON DRILL PRO by WDTOOLS is a versatile drilling attachment compatible with any 8T machine, providing an economical and high-quality solution for your drilling needs. It features up to 3.4 meters of width, two hydraulic hammers, a wireless remote control, and a water system for dust suppression. This innovative tool transforms your equipment into a flexible and efficient drilling machine, perfect for a variety of projects. With the FALCON DRILL PRO, optimize your machinery and maximize productivity without compromising on quality.

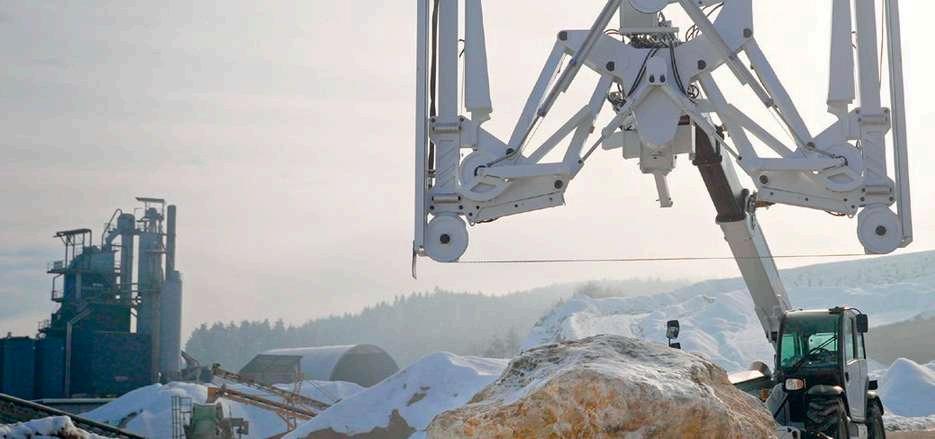

Mobile diamond wire saw MDS-5034
The mobile diamond wire saw (MDS for short) is a new development by Schwing, primarily designed for the natural stone industry for cutting raw blocks of any type of stone and cutting tranches directly in the quarrying area.
Directionsofmovement
Tip range Tilt range
Swivel range Telescope
Adjustmentrange
Cutting depth Max. reach
Diamondwire
Nominal diameter of diamond wire
Speed of diamond wire
Powersupply,hybrid
Carriervehicle
Steering
OtherTransportdata
Transport height
Transport
Transport
8,8 - 9,2 (endless spliced, without crimping) 20-40
Diesel, electric Telehandler
"Just for the most selected customers"

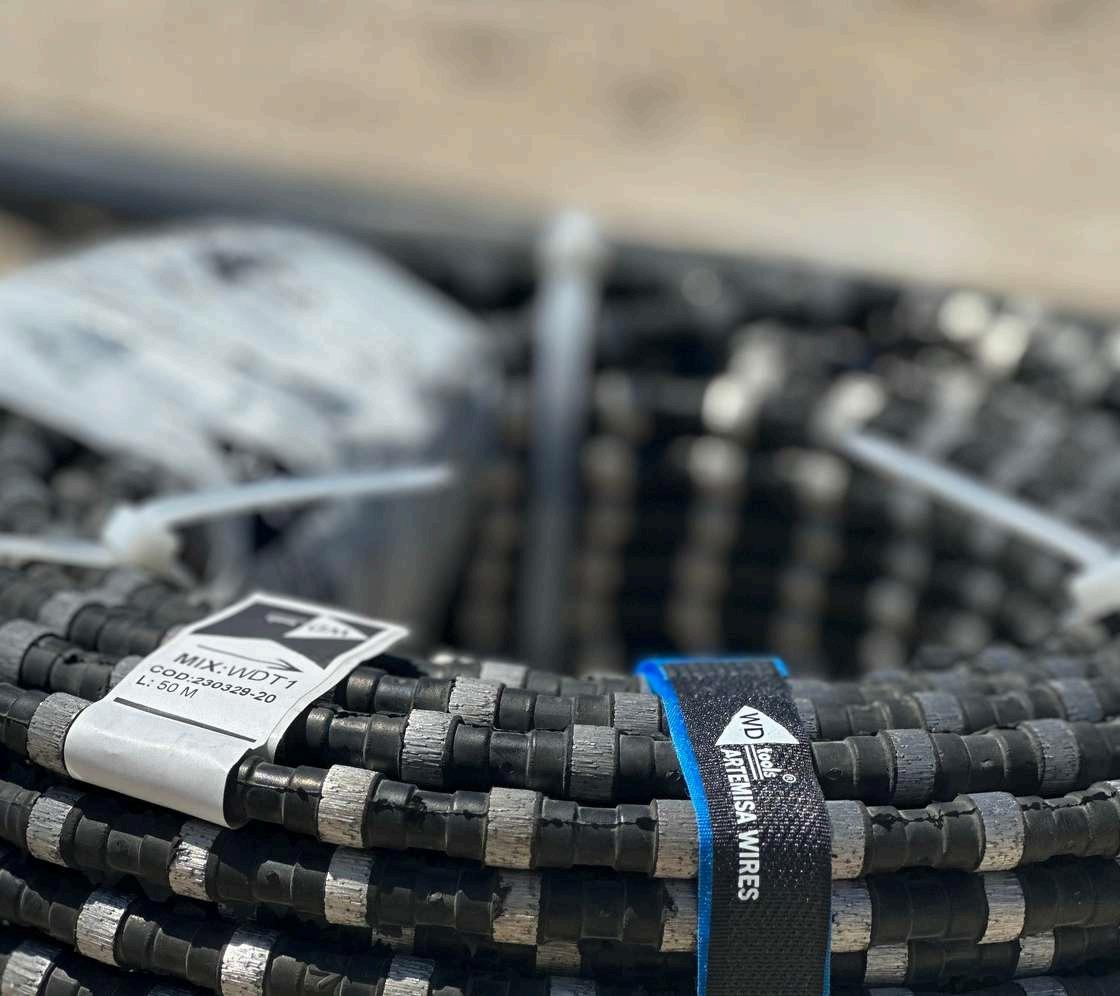

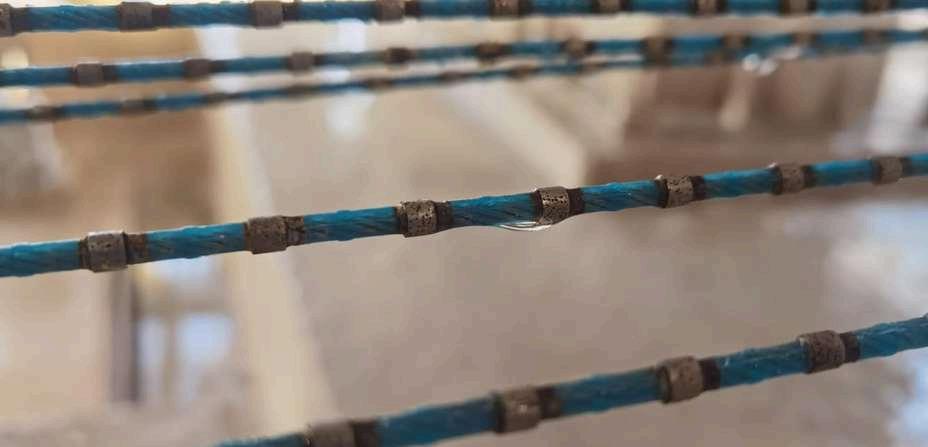

ARTEMISA MULTIWIRES
ARTEMISA MONOWIRES

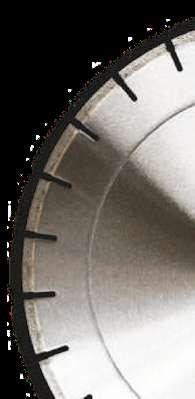

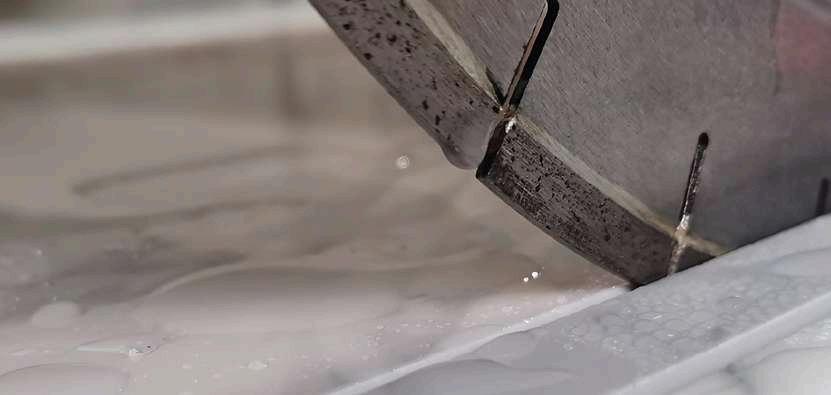

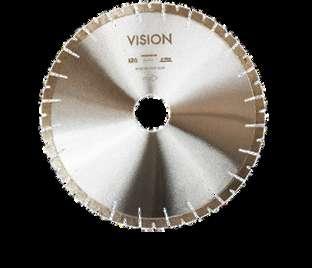

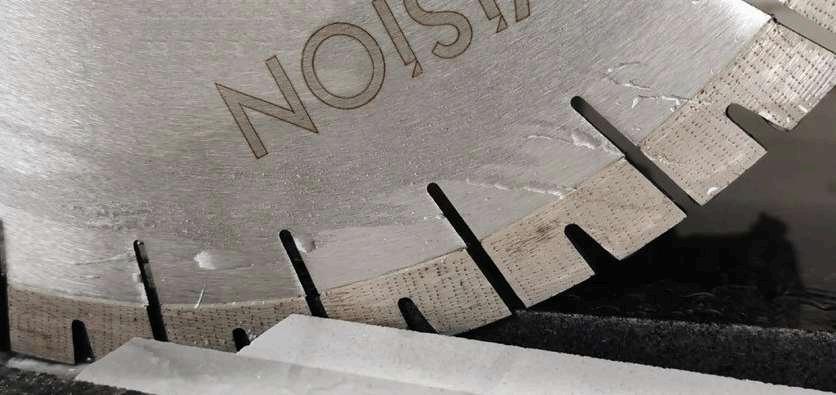

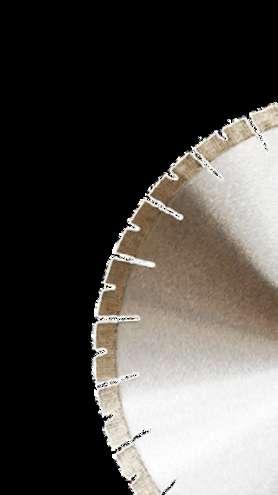

DIAMOND BLADES by Vision-IDM
NORMAL
· Optimal cutting quality. · Guarantees a perfect finish on the upper and lower edges.
SLIM
· Optimal cutting quality. · Guarantees a perfect finish on the upper and lower edges.
SILENT STEEL
cuttingspeed upto25/min
Qualityandsafety guaranteed
Avoidbreaks without needforstoking
DIAMOND BLADES by Vision-IDM
XTREME BLADE
Cuts through an entire countertop in just 6 minutes. HIGH SPEED CUTTING DISC Powered by QUADRIX technology, the New Array has a cutting capacity of 12 m/min in straight cuts and 8 m/minute in miter cuts. Thus guaranteeing quality, safety and increasing production in less time Disc for cutting Granite, quartz compacts and quartzite Greater production in less time Diamond formula that guarantees 100% constant cutting power
ACERO SILENT Diameter
ø300 mm
ø350 mm
ø400 mm
ø400 mm
ø450 mm
ø450 mm
"Stone is unique, make it shine"

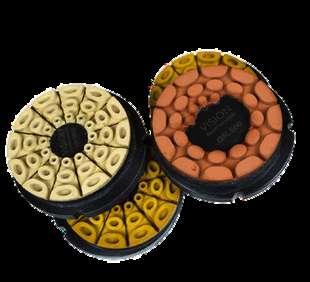

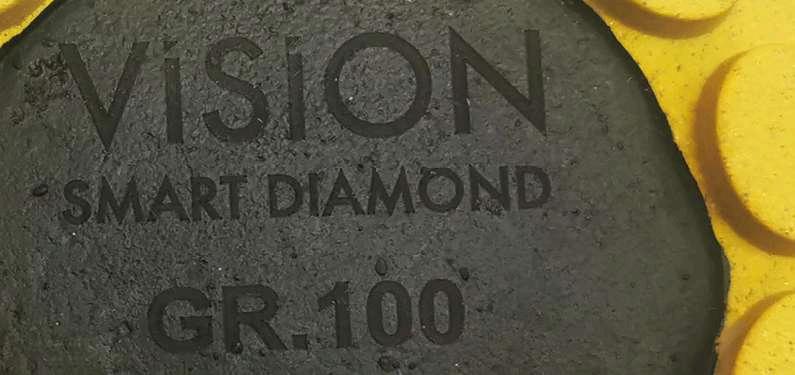

POLISHING TOOLS
CRAZY EDGE
· No abrasive streaks
Provides a uniform color to the material. Reduces polishing cost by 44%.
CRAZYHYBRIT
Provides a uniform color to the material Sandpaper designed to polish both straight and round edges
CRAZY STABLE
Provides a uniform color to the material Sandpaper designed for machines in less than perfect condition

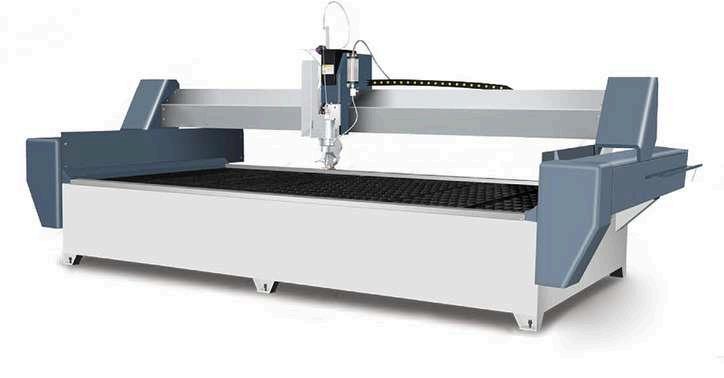

WATERJET
A machine designed for ceramics. Water jet technology has become the best alternative for ceramic production, surpassing other options on the market. Its exceptional safety, high speed, robustness and structural stability guarantee a continuous and efficient production process, without the material breakage problems that other technologies may face.
This machine not only offers superior performance but also excellent cost-effectiveness benefit Its ability to make high-precision, high-speed cuts in materials such as ceramics,
stone and rock slabs puts it in an advantageous position, significantly improving productivity and processing in related industries.
TECHNICAL SPECIFICATIONS
CUTTING TABLE DIMENSIONS
CUTTING STROKE
4100x2100 mm
mm ±65 Giros infinitos Servosistema de AC ±0.1 mm ±0.01 mm 6500/15000mm/min 37 kW

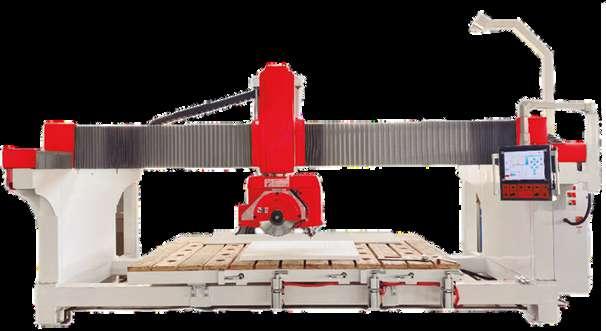

VISION ICUTPRO
This 5 interpolated axes cutting machine represents the latest in technology for the treatment of materials such as ceramics, quartz, granites and marbles. Its robust one-piece design makes it ideal for workshops without computer knowledge, since its use is intuitive and simple The machine offers great precision and versatility, allowing complex cuts to be made with ease.
TECHNICAL SPECIFICATIONS
PROGRAMMING METHOD 1 CONTROL
METHOD MAIN MOTOR POWER AXIS
MOTOR RPM BLADE SIZE CUTTING
WORKTABLE SIZE PACKAGING SIZE
WEIGHT CONTAINER LOAD 20º
CAD and Manual CNC
11 kW 380 VAC 5.5 kW
24000 r.p.m. 200 6000r/min
400 mm 3500 mm 2300 mm 290 mm
360º free rotation Automatic chamfer from 0 to 90 degrees 100 mm
3500*2300 mm 5850*2100*2559 mm 4350 kg 1

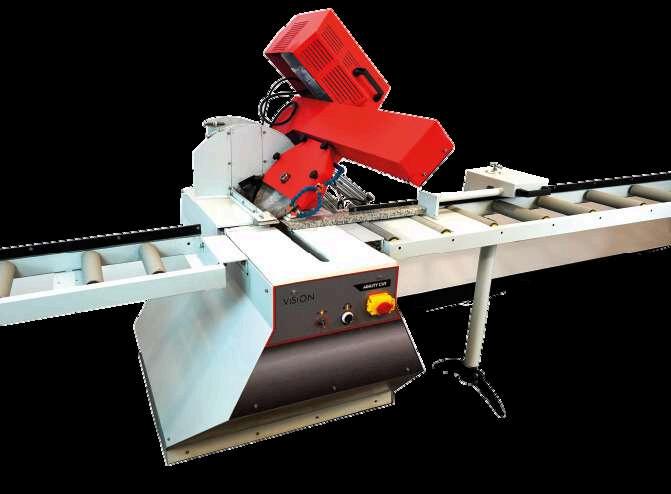

AGILITY CUT
3 POSITIONS
A machine designed to cut small pieces, a modern miter machine for the marble worker, to be able to make those small cuts with great quality, precision and speed.
TECHNICAL SPECIFICATIONS
SUPPLY PRESSURE PNEUMATIC
ELECTRICAL POWER SPIN SPEED DISC
COOLING APPROXIMATE WEIGHT
MAXIMUM CUT LENGTH MAXIMUM CUT
THICKNESS
7 BAR
4 kW 2900 r p m 250 mm Water 300 kg
350 cm
30 mm

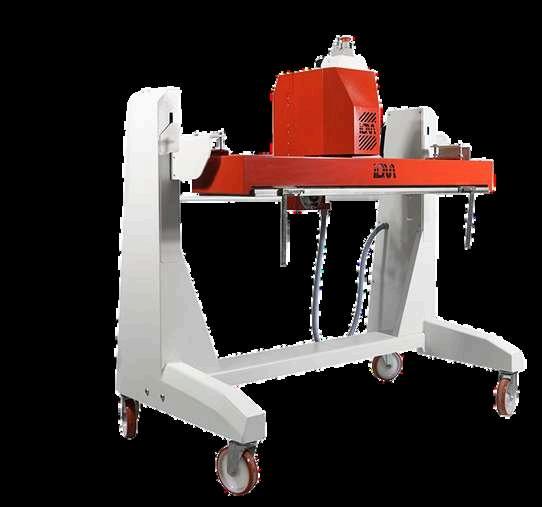

STARBAND S3
STARBAND is based on the great abrasive power of diamond belts (much higher than that of circular sandpaper) to obtain a perfect finish in approximately 5 times less time It incorporates several modules composed of an initial band to create a perfect angle on the edge, a second finer grain polishing band, a disc to eliminate vertical scratches followed by a third gloss band and a bevel.
TECHNICAL SPECIFICATIONS
ELECTRICAL POWER SUPPLY VOLTAGE
SUPPLY PRESSURE TIRE ROTATION SPEED
MODULES BELT WATER RECIRCULATION
WATER SOURCE WATER INLET FILTER
COOLING APPROXIMATE WEIGHT SANDING
BELTS WIDTH DISC DIAMETER 90° DISC
DIAMETER BEVEL (45°) RECOMMENDED
GREASE TRANSMISSION POWER
STARBAND S3 MEASUREMENTS
4 kW
400 VAC 7 BAR 2840 r p m
Not recommended Tap water Mesh300 WATER 400 kg
80 mm 125 mm
125 mm
High quality lithium multifunction grease
Per belt Width 725 mm x height 1200 mm x length
3350 mm
COMPACT MITER
With COMPACT MITER, cutting mitered parts has never been easier. Its guide system allows you to always make perfect cuts, with the good side facing the guides, eliminating the problem of curved cuts In addition, it is the only machine on the market that can cut 2 5 cm mitered pieces on both sides thanks to its pressure system.
TECHNICAL SPECIFICATIONS
SUPPLY PRESSURE TIRE ELECTRICAL POWER SPIN SPEED DISC COOLING
APPROXIMATE WEIGHT THICKNESS
FROM
7 BAR 4 kW 2900
r.p.m. 300 mm Water
400 kg
From 0 to 3 cm
MONOBLOCK
UNIONLESS MONOBLOCK
WITH MONOBLOCK UNION
The only system on the market to create invisible unions Forget about unsightly joints and design limitations This innovative system allows you to create countertops, fronts and other surfaces without visible joints, using ceramics, quartz, granite and marble. Enjoy maximum quality and hygiene, make the most of your materials and repair breaks and damages without the need to repeat work A versatile system that allows you to join all types of materials and unleash your creativity without limits.
TECHNICAL SPECIFICATIONS
GRINDING DISC DIAMETER SHAFT DIAMETER GRINDING TOOL HOLDER
MAXIMUM GRINDING DEPTH REGULATION VERTICAL CAPACITY MOTOR
POWER GRINDING CIRCULAR DRIVE GRINDING DISC ROTATION SPEED
APPROXIMATE WEIGHT OF THE MACHINE GRINDING DISC COOLING
MAXIMUM REF PRESSURE RIGERATED VOLTAGE COUPLING A THREE-
PHASE ELECTRICAL NETWORK LONG AMPERAGE OF JOINTS
APOLO
X-axistravling
Y-axistraving
Z-axis
Precision
Structure
Cutting way
Total Machine power Speed
Working mode
Working voltage
Workingprecision 0.05mm
Repeated positioning accuracy 0 02mm
X、Ystructure X.Yaxis---gearrack,20mmguiderail
Working command Control system Wire saw
Working speed

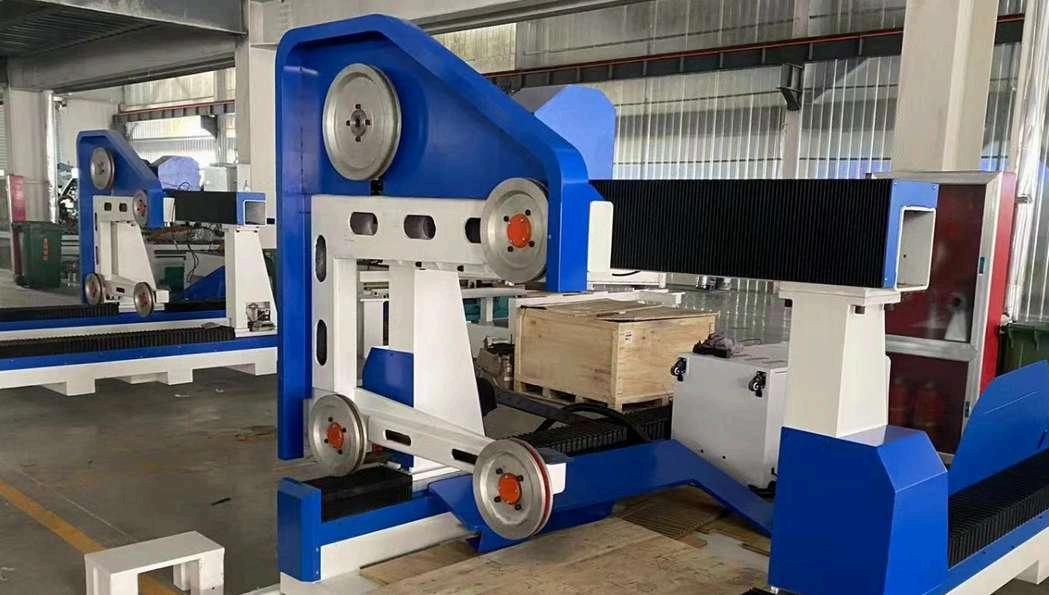

The Apolo CNC diamond wire machine is specially designed for tasks requiring high precision and complex shapes. It simplifies the process of working with intricate forms, ensuring superior quality results. By adding versatility to your operations, Apolo enhances the capabilities of sawmills and broadens their commercial opportunities, offering a wider range of services to meet diverse client needs.
16KW 20-30mm/min
Stepper motor AC380V/50Hz G code Nc studio (Weihong system)

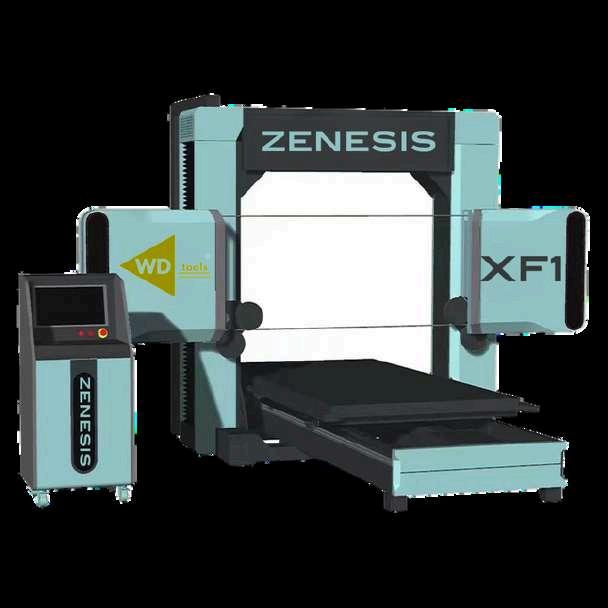

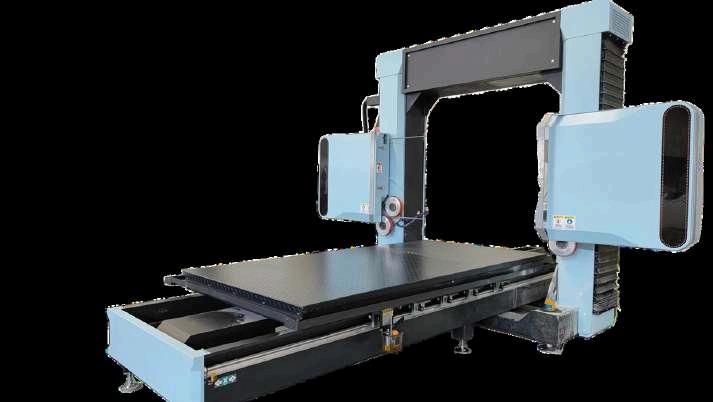

ZENESIS
The ZENESIS XF1 diamond wire machine is engineered specifically for tasks demanding exceptional precision and intricate designs This machine streamlines the process of handling complex forms, guaranteeing top-tier quality results By incorporating versatility into your operations, the ZENESIS XF1 expands the capabilities of cutting facilities and enhances their commercial potential, providing a broader array of services to cater to diverse client requirements. With the ZENESIS XF1, you can achieve unmatched efficiency and precision, ensuring your projects meet the highest standards of excellence
Parameter
Cutting mode Diamond fast wire
Cutting size 1300X2500mm
Cutting height 800mm
Table type
PVC T-slot table
Control system NC controller
Major motor 7Kw
Motor speed 1200RPM
Driver and motor 1.5Kw Servo
Wire diameter 4mm/6mm/8mm/12mm
Roller diameter 800mm
Rack pinion 1 5M helical
Positioning
Cutting
AQUILA MULTIWIRE MACHINE SERIES
AGFAquilaistheMultiwireFamilyfortheindustrialcutofmarble,graniteandothermaterialslabs,with diversethicknessesof15,20,30mmandmanymore.TheAGFAquilaalsooffersavarietyofsizes,withverifi edlifetime,duetoitsprojectwithstructuralrigidity;constructionusinghigh-qualitymaterialsandsimplified technicalsolutions
MODELOS PARA FIO DE 5.3
MODELS FOR 5.3MM MM
DE S CRI ÇÃ O
TECHNICAL DATA
Tipo do Equipamento
Type of Equipment
Comprimento do Fio
Diamond Wire Length
Diâmetro do Fio
Diamond Wire Diameter
Tensionamento
Tensioning
Tensão dos Fios
Max Diamond Wire Tension
Velocidade do fio diamantado (Mármore/Granito)
Diamond Wire Speed (Marble/Granite)
Espessura da Chapa
Slab Thickness
Motor Principal
Main Motor Power
Motor Unidade Hidráulica
Engine Hydraulic Unit
Motorredutor do Carro Porta-Blocos
Block Trolley Gear Motor
Motor de Elevação
Lifting Motor
Motorredutor cano d'água
Water Pipe Gear Motor
Potência Total Instalada
Total Installed Power
Metragem dos Trilhos
Rail Meters
Tensão Elétrica
Vol t a ge
Largura dos Rolos
Wire-Guide Rollers Length
Consumo de Água Médio
Average Water Consumption
Altura do Equipamento (A)¹
Machine Height (A)
Altura das colunas (C)
Column Height (C)
Comprimento do Equipamento
Machine Lenght
Largura (sem os trilhos)
Machine Width (Without the rails)
Peso do Equipamento
Machine Weight
Dimensão máx do Bloco (C x L x A)²
Max Block Dimensions
AQUILA MULTIWIRE MACHINE SERIES
MODELOS PARA FIO DE 6.3
DE S CRI ÇÃ O
TECHNICAL DATA
Tipo do Equipamento
Type of Equipment
Comprimento do Fio
Diamond Wire Length
Diâmetro do Fio
Diamond Wire Diameter
Tensionamento
Tensioning
Tensão dos Fios
Max Diamond Wire Tension
Velocidade do fio diamantado (Mármore/Granito)
Diamond Wire Speed (Marble/Granite)
Espessura da Chapa
Slab Thickness
Tipo do Motor
Motor type
Motor Principal
Main Motor Power
Motor Unidade Hidráulica
Engine Hydraulic Unit
Motorredutor do Carro Porta-Blocos
Block Trolley Gear Motor
Motor de Elevação
Lifting Motor
Motorredutor cano d'água
Water Pipe Gear Motor
Potência Total Instalada
Total Installed Power
Metragem dos Trilhos
Rail Meters
Tensão Elétrica
Vol t a ge
Largura dos Rolos
Wire-Guide Rollers Length
Consumo de Água Médio
Average Water Consumption
Altura do Equipamento (A)¹
Machine Height (A)
Altura das colunas (C)
Column Height (C)
Comprimento do Equipamento
Machine Lenght
Largura (sem os trilhos)
Machine Width (Without the rails)
Peso do Equipamento
Machine Weight
Dimensão máx do Bloco (C x L x A)²
Max Block Dimensions (L x W x H)
Versão das
AQUILA MULTIWIRE MACHINE SERIES
MODELOS PARA FIO DE 7.3
MODELS FOR 7.3MM MM
DE S CRI ÇÃ O
TECHNICAL DATA
Tipo do Equipamento
Type of Equipment
Comprimento do Fio
Diamond Wire Length
Tensionamento
Tensioning
Tensão dos Fios
Max Diamond Wire Tension
Velocidade do fio diamantado (Mármore/Granito)
Diamond Wire Speed (Marble/Granite)
Espessura da Chapa
Slab Thickness
Motor Principal
Main Motor Power
Motor Unidade Hidráulica
Engine Hydraulic Unit
Cervos de Deslocamento do Truck
Trolley Servomotor
Motorredutor do Carro Porta-Blocos
Block Trolley Gear Motor
Motor de Elevação
Lifting Motor
Motorredutor cano d'água
Water Pipe Gear Motor
Potência Total Instalada
Total Installed Power
Metragem dos Trilhos
Rail Meters
Tensão Elétrica
Vol t a ge
Largura dos Rolos Guia
Wire-Guide Rollers Length
Consumo de Água Médio
Average Water Consumption
Altura do Equipamento (A)¹
Machine Height (A)
Altura das colunas (C)
Column Height (C)
Comprimento do Equipamento
Machine Lenght
Largura (sem os trilhos)
Machine Width (Without the rails)
Peso do Equipamento
Machine Weight
Dimensão máx. do Bloco (C x L x A)²
Max Block Dimensions (L x W x H)
AQUILA MULTIWIRE MACHINE SERIES
MODELOS PARA FIO DE
7.3
MODELS FOR 7.3MM MM
DE S CRI ÇÃ O
TECHNICAL DATA
Tipo do Equipamento
Type of Equipment
Comprimento do Fio
Diamond Wire Length
Tensionamento
Tensioning
Tensão dos Fios
Max Diamond Wire Tension
Velocidade do fio diamantado (Mármore/Granito)
Diamond Wire Speed (Marble/Granite)
Espessura da Chapa
Slab Thickness
Motor Principal
Main Motor Power
Motor Unidade Hidráulica
Engine Hydraulic Unit
Cervos de Deslocamento do Truck
Trolley Servomotor
Motorredutor do Carro Porta-Blocos
Block Trolley Gear Motor
Motor de Elevação
Lifting Motor
Motorredutor cano d'água
Water Pipe Gear Motor
Potência Total Instalada
Total Installed Power
Metragem dos Trilhos
Rail Meters
Tensão Elétrica
Vol t a ge
Largura dos Rolos Guia
Wire-Guide Rollers Length
Consumo de Água Médio
Average Water Consumption
Altura do Equipamento (A)¹
Machine Height (A)
Altura das colunas (C)
Column Height (C)
Comprimento do Equipamento
Machine Lenght
Largura (sem os trilhos)
Machine Width (Without the rails)
Peso do Equipamento
Machine Weight
Dimensão máx do Bloco (C x L x A)²
Max Block Dimensions (L x W x H)
MAINTENANCE AND CONSULTING SERVICE
We visit your company and analyze the entire production system
We help you manage and organize your workflow
Profitability We guarantee a saving of 20% on your production
THE TEAM
-Electromechanical -IT Service
-Industrial process engineer
-Mechanical engineer
-Expert in Manufacturing and extraction
EXCLUSIVE TRAINING
We provide training in the latest cutting and programming techniques, as well as job completion, tool parameters and material storage In this way, we guarantee that the entire technical team is made up of highly qualified professionals trained to offer work of the highest quality
Exclusive training More efficient techniques for all processes from extraction to the commercial area
Personalized advice We assess the aspects to improve and look for solutions already applied in other countries or sectors
Maintenance Maintenance service and machine tune-up
WE VISIT THE COMPANY
We offer a complete analysis of the production system. For a period, our team will be in your company thoroughly evaluating all processes Subsequently, we will deliver a detailed report with the points to improve and an action plan to implement them.
NOTES
HEAD OFFICE
O U R E N S E - S P A I N + 3 4 6 3 5 1 2 6 8 8 5
I N F O @ W D - T O O L S . E S
