Product Catalogue Issue 3

Jason Guest MANAGING

> WHAT WE DO We partner with forward thinking and progressive vehicle and machinery manufacturers, to create quality lighting solutions that deliver genuine benefit.

Why Choose Venta?

> VALUE ADD SERVICES

We’re all about helping our customers and making things as easy as possible. In addition to lighting, here’s some of the ways in which we add value for our customers.

> FASTER FITMENT

Looking to speed up your production and reduce your costs? We can help you analyse your production processes to identify opportunities for faster fitment.

We can supply any of our standard products pre-terminated so that you can simply click everything into place without any hard wiring. Alternatively, if you need a different cable length or something else adapting on one of our products, let us know and we’ll see how we can help.

> PRODUCT BRANDING

Imagine having your branding subtly visible on your vehicle lighting. We can add your logo onto our lighting products giving you additional brand exposure to your customers and others who see it while the vehicle is on the road.

As well as enhancing your product, branding in this way also provides extra revenue opportunities for spare parts supply and keeps you at the forefront of your customers’ minds.

> PRE KITTING

Wouldn’t it be great if you could have all the lighting parts you need for one vehicle delivered straight to your production line? Well, we can deliver your parts in kits, rather than by product, saving you time, money and hassle.

Everything would be right where you need it, increasing your production line efficiency. You’d only need to order one part number from us, and we’d do the rest, simplifying your inventory management.

Where kits are stored prior to use, pre-kitting reduces your internal picking times and cuts the chance of picking errors dramatically.

> BESPOKE SOLUTIONS

If you’re looking to create something unique, our in-house design team can design a product from scratch or take a concept and make it into a manufacturable product.

Our in-house team of mechanical, electronic and optical design engineers will develop a product that is designed for quality, designed for manufacture and designed to complement your brand using materials that are sustainable, light weight, durable, manufacturable and cost effective.

As a Tier 1 supplier to automotive OEMs, we hold IATF 16949 certification. Our Design & Development process uses IATF core tools.

> EXCELLENT CUSTOMER SERVICE

We enjoy speaking to our customers by phone, in fact we encourage it. Our dedicated customer care team work hard to answer your calls as quickly as possible so you’re not kept waiting. On average this is within just 4 seconds!

When asked how satisfied our customers are with their experience of Venta, consistently over 90% claim they’re satisfied or very satisfied!

This means on average our customers rate their experience with us over 4.6 out of 5 stars. Most say this is because of our excellent customer care!

UK Manufacturing and Quality

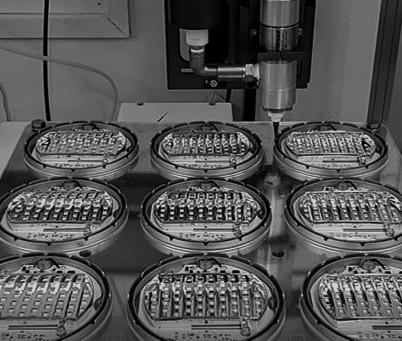

Over the last few years we have invested heavily in our UK based production facility, adopting the latest technologies enabling us to manufacture consistent high-quality products, efficiently.

> OUR CERTIFICATIONS:

As a Tier 1 supplier to automotive OEMs, we’re proud to hold a number of certifications which evidence our ability to create consistent, quality products that meet our customers’ requirements.

For the last two years PACCAR have recognised us as one of their 10 PPM suppliers. This means we’ve consistently met their requirements for parts and components to achieve 10 PPM or better quality.

CoP

Conformity of Production (CoP) is a means of evidencing the ability to produce a series of products that exactly match the specification, performance and marking requirements outlined in the type approval documentation.

Specifically for the automotive industry, IATF 16949 emphasises the development of a process-oriented quality management system that provides for continual improvement, defect prevention and reduction of variation and waste in the supply chain.

Quality Management

Environmental Management

Marker Lights

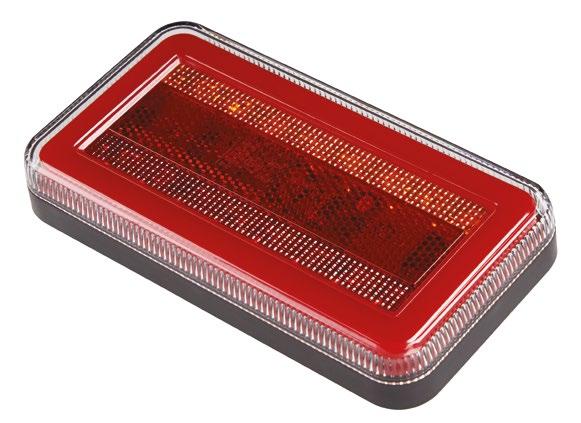

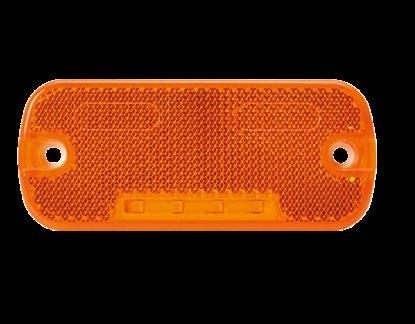

RL198 Series Dotless LED Marker Light with Reflector

> Modern, dotless marker light with an integrated reflector.

> Approved for vertical and horizontal mounting.

> Durable and waterproof.

> ADR-approved version available.

> Supplied pre-terminated with a Superseal connector as standard for fast and simple installation.

> Screws go through the back plate only and not the light, maintaining the integrity of the seal.

> ECE R3, R6, R7, R10, R91.

RL1980

RL198001

RL198002

RL198003

RL198004

Dotless LED Side Marker Light with Reflector, Superseal Connector and Bracket 12/24 0.058A @ 12V 0.063A @ 24V IP68 250 124x49x20 0.110

Dotless LED Side Marker Light with Reflector and Direction Indicator, Superseal Connector and Bracket 12/24 0.058A @ 12V 0.063A @ 24V IP68 250 124x49x20 0.103

Dotless LED Side Marker Light with Reflector and Direction Indicator, Female Superseal Connector and Bracket 12/24 0.058A @ 12V 0.063A @ 24V IP68 250 124x49x20 0.112

Dotless LED Rear Marker Light with Reflector and Superseal Connector 12/24 0.058A @ 12V 0.063A @ 24V IP68 250 124x49x20 0.097

Dotless LED Front Marker Light with Reflector and Superseal Connector 12/24 0.058A @ 12V 0.063A @ 24V IP68 250 124x49x20 0.097

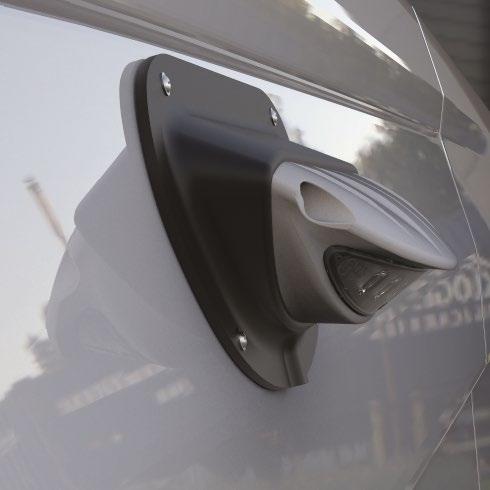

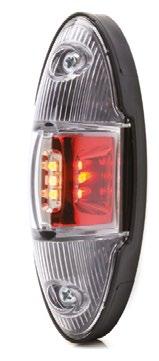

Branded LED Marker Light with Vehicle Side Illumination

> Suitable for horizontal or vertical mounting.

> Emits light on the ground, outlining your vehicle on the road.

> Retroreflector increases the safety of parked vehicles.

> Supplied pre-terminated with a Superseal connector as standard for fast and simple installation.

> ECE R3, R10, R91.

RL8762

Branded LED Side Marker Light with Vehicle Side Illumination and Superseal Connector 12/24 0.183A @ 12V 0.183A @ 24V IP69K 250 134x52x25 0.150

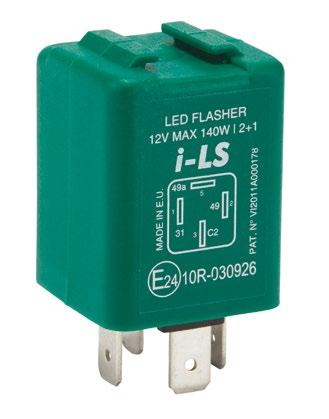

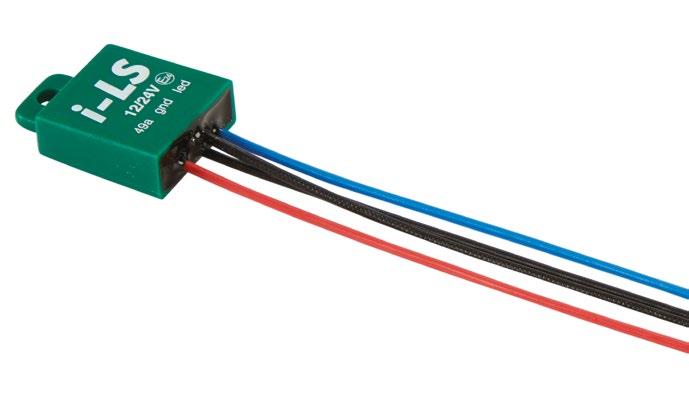

We have a side marker flasher unit available to help you meet the updated Regulation 48 legislation. The flasher unit allows you to flash your side markers to act as indicators, providing a cheaper alternative to fitting side markers with direction indicators.

SM189 Series

Marker

> Low profile at just 13mm deep. > ECE R7, R10.

SM19001 Series LED Marker

with Reflector

SM128 Series Slimline, Surface Mount LED Marker Light with Retroreflector

> Slimline surface mount design.

> Fully homologated for vertical and horizontal mounting.

> ECE R3, R7, R10, R91.

PART NUMBER DESCRIPTION

SM12801

SM12801DC

SM12801S

INNOVATE. CREATE. ILLUMINATE.

VOLTAGE DC (V) CURRENT DRAW IP RATING CABLE LENGTH (MM) DIMENSIONS (MM) WEIGHT (KG)

Slimline, Surface Mount LED Side Marker Light with Retroreflector 12/24 0.033A @ 12V 0.029A @ 24V IP68 220 105x45x12 0.055

Slimline, Surface Mount LED Side Marker Light with Retroreflector with Deutsch Connector 12/24 0.033A @ 12V 0.029A @ 24V IP68 265 105x45x12 0.062

Slimline, Surface Mount LED Side Marker Light with Retroreflector with Superseal Connector 12/24 0.033A @ 12V 0.029A @ 24V IP68 250 105x45x12 0.064

SM12802 Slimline, Surface Mount LED Rear Marker Light with Retroreflector 12/24 0.033A @ 12V 0.029A @ 24V IP68 220 105x45x12 0.055

SM12802S

SM12804

Slimline, Surface Mount LED Rear Marker Light with Retroreflector with Superseal Connector 12/24 0.033A @ 12V 0.029A @ 24V IP68 250 105x45x12 0.064

Slimline, Surface Mount LED Front Marker Light with Retroreflector 12/24 0.033A @ 12V 0.029A @ 24V IP68 220 105x45x12 0.055

SM12804DC Slimline, Surface Mount LED Front Marker Light with Retroreflector with Deutsch Connector 12/24 0.033A @ 12V 0.029A @ 24V IP68 265 105x45x12 0.062

ROAD VEHICLE LIGHTING

SM44 Series LED Marker Light

> Dual polarity for foolproof installation.

> Compact design.

> Approved for mounting both vertically and horizontally.

> Depth of marker light: 25mm. Once mounted, protrudes just 8mm.

> Available with Superseal connectors.

> ADR-approved version available.

> ECE R3, R7, R10, R91.

SM4401

SM4401H

SM4401HL

SM4401HLS

SM4401HLS-620

SM4401HS

SM4401HSF

SM4401S

SM4401S-240

SM4402

SM4402H

SM4402HS

SM4402S

SM4404

SM4404S

LED Side Marker Light 12/24 0.033A @ 12V 0.033A @ 24V IP68 220 98x32x8 0.027

LED Side Marker Light with Bracket 12/24 0.033A @ 12V 0.033A @ 24V IP68 220 98x62x8 0.036

LED Side Marker Light with Long Bracket 12/24 0.033A @ 12V 0.033A @ 24V IP68 430 98x105x8 0.053

LED Side Marker Light with Long Bracket and Superseal Connector 12/24 0.033A @ 12V 0.033A @ 24V IP68 450 98x105x8 0.061

LED Side Marker Light with Long Bracket with Holes and Superseal Connector 12/24 0.033A @ 12V 0.033A @ 24V IP68 655 98x105x8 0.070

LED Side Marker Light with Bracket and Superseal Connector 12/24 0.033A @ 12V 0.033A @ 24V IP68 250 98x62x8 0.043

LED Side Marker Light with Bracket and Female Superseal Connector 12/24 0.033A @ 12V 0.033A @ 24V IP68 240 98x32x8 0.041

LED Side Marker Light with Superseal Connector 12/24 0.033A @ 12V 0.033A @ 24V IP68 290 98x32x8 0.042

LED Side Marker Light with Superseal Connector, 240mm Cable 12/24 0.033A @ 12V 0.033A @ 24V IP68 240 98x32x8 0.037

LED Rear Marker Light 12/24 0.033A @ 12V 0.033A @ 24V IP68 220 98x32x8 0.029

LED Rear Marker Light with Bracket 12/24 0.033A @ 12V 0.033A @ 24V IP68 220 98x65x8 0.036

LED Rear Marker Light with Bracket and Superseal Connector 12/24 0.033A @ 12V 0.033A @ 24V IP68 290 98x65x8 0.046

LED Rear Marker Light with Superseal Connector 12/24 0.033A @ 12V 0.033A @ 24V IP68 290 98x32x8 0.043

LED Front Marker Light 12/24 0.033A @ 12V 0.033A @ 24V IP68 220 98x32x8 0.028

LED Front Marker Light with Superseal Connector 12/24 0.033A @ 12V 0.033A @ 24V IP68 290 98x32x8 0.036

INNOVATE. CREATE. ILLUMINATE.

SM65 Series Oval LED Marker Light

> Aesthetic design.

> Surface mount, no cutout required.

> Dual polarity for foolproof installation.

> Available with horizontal mounting bracket.

> Depth of marker light: 12mm. Depth including bracket: 34mm.

> Available with Superseal connectors.

> ECE R3, R7, R10, R91.

SM6501H

SM6501HS

SM6501S

SM6501-SMT

SM6502

SM6502H

SM6502S

SM6504

SM6504H

SM6504S

Oval LED Side Marker Light with Bracket 12/24 0.04A @ 12V 0.04A @ 24V IP68 220 102x68x34 0.045

Oval LED Side Marker Light with Bracket and Superseal Connector 12/24 0.04A @ 12V 0.04A @ 24V IP68 250 102x68x34 0.053

Oval LED Side Marker Light with Superseal Connector 12/24 0.04A @ 12V 0.04A @ 24V IP68 250 102x46x12 0.042

Oval LED Side Marker Light 12/24 0.04A @ 12V 0.04A @ 24V IP68 220 102x46x12 0.033

Oval LED Rear Marker Light 12/24 0.04A @ 12V 0.04A @ 24V IP68 220 102x46x12 0.033

Oval LED Rear Marker Light with Bracket 12/24 0.04A @ 12V 0.04A @ 24V IP68 220 102x68x34 0.045

Oval LED Rear Marker Light with Superseal Connector 12/24 0.04A @ 12V 0.04A @ 24V IP68 250 102x46x12 0.042

Oval LED Front Marker Light 12/24 0.04A @ 12V 0.04A @ 24V IP68 220 102x46x12 0.032

Oval LED Front Marker Light with Bracket 12/24 0.04A @ 12V 0.04A @ 24V IP68 220 102x68x34 0.045

Oval LED Front Marker Light with Superseal Connector 12/24 0.04A @ 12V 0.04A @ 24V IP68 250 102x46x34 0.042

- Front / Rear with Reflector

60° LED Outline Marker Light

INNOVATE. CREATE. ILLUMINATE.

60° LED Outline Marker Light

- Front / Rear with Side Marker and Reflector

> Integral side marker.

> Integrated reflector.

> Robust flexible housing.

> Dual polarity for foolproof installation.

> Available with Superseal connectors.

> Short stalk option available.

> ECE R3, R7, R10, R91.

PART NUMBER DESCRIPTION

SLM642L

60° LED Outline Marker Light - Front / Rear with Side Marker and ReflectorLeft Side 12/24 0.04A @ 12V 0.04A @ 12V IP68 220 180x131x37 0.208

SLM642L/1 60° LED Outline Marker Light - Front / Rear with Side Marker and ReflectorLeft Side, 1m Cable 12/24 0.04A @ 12V 0.04A @ 12V IP68 1000 180x131x37 0.242

SLM642LS 60° LED Outline Marker Light - Front / Rear with Side Marker and ReflectorLeft Side with Superseal Connector 12/24 0.04A @ 12V 0.04A @ 12V IP68 260 180x131x37 0.224

SLM642R 60° LED Outline Marker Light - Front / Rear with Side Marker and ReflectorRight Side 12/24 0.04A @ 12V 0.04A @ 12V IP68 220 180x131x37 0.208

SLM642R/1 60° LED Outline Marker Light - Front / Rear with Side Marker and ReflectorRight Side, 1m Cable 12/24 0.04A @ 12V 0.04A @ 12V IP68 1000 180x131x37 0.242

SLM642RS 60° LED Outline Marker Light - Front / Rear with Side Marker and ReflectorRight Side with Superseal Connector 12/24 0.04A @ 12V 0.04A @ 12V IP68 260 180x131x37 0.224

SLM643L 60° Short Stalk LED Outline Marker Light - Front / Rear with Side Marker and Reflector - Left Side 12/24 0.140A @ 12V 0.140A @ 24V IP68 220 130x131x37 0.170

SLM643LS 60° Short Stalk LED Outline Marker Light - Front / Rear with Side Marker and Reflector - Left Side with Superseal Connector 12/24 0.140A @ 12V 0.140A @ 24V IP68 270 130x131x37 0.174

SLM643LSF 60° Short Stalk LED Outline Marker Light - Front / Rear with Side Marker and Reflector - Left Side with Female Superseal Connector 12/24 0.140A @ 12V 0.140A @ 24V IP68 305 130x131x37 0.174

SLM643R 60° Short Stalk LED Outline Marker Light - Front / Rear with Side Marker and Reflector - Right Side 12/24 0.140A @ 12V 0.140A @ 24V IP68 220 130x131x37 0.170

SLM643RS 60° Short Stalk LED Outline Marker Light - Front / Rear with Side Marker and Reflector - Right Side with Superseal Connector 12/24 0.140A @ 12V 0.140A @ 24V IP68 270 130x131x37 0.174

SLM643RSF 60° Short Stalk LED Outline Marker Light - Front / Rear with Side Marker and Reflector - Right Side with Female Superseal Connector 12/24 0.140A @ 12V 0.140A @ 24V IP68 305 130x131x37 0.174

Front / Rear

Front /

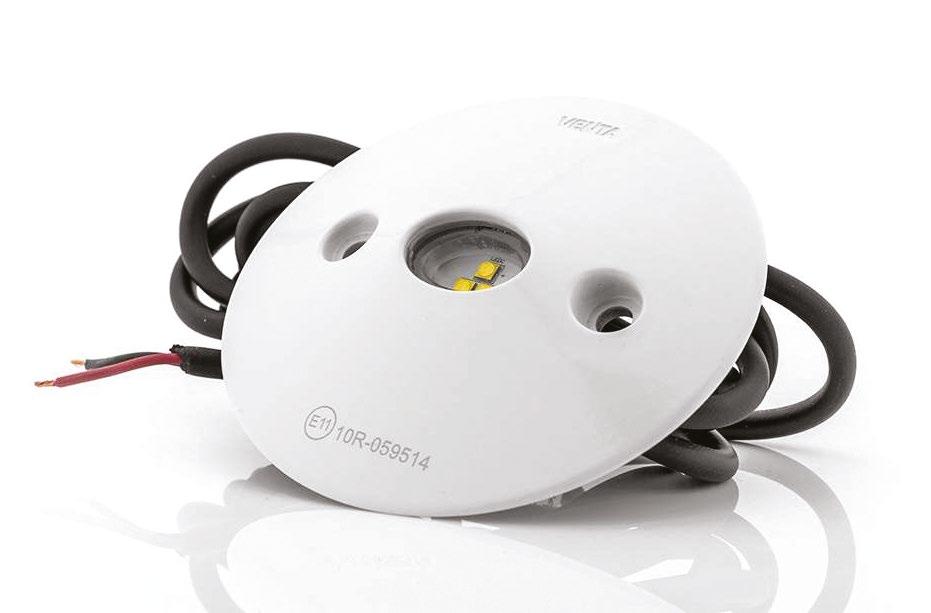

SM66 Series Push-Fit Recessed LED Marker Light

> Only 29mm diameter.

> Requires 21mm mounting hole.

> Very quick and easy to install.

> Dual voltage. > Robust construction. > ECE R3, R7, R10, R91.

SM6604/5

SM6604S

Light 12/24 0.02A @ 12V 0.04A @ 24V IP68 220 29x27 0.016

Push-fit Recessed LED Front Marker Light, 5m Cable 12/24 0.02A @ 12V 0.04A @ 24V IP68 5000 29x27 0.224

Push-fit Recessed LED Front Marker Light with Superseal Connector 12/24 0.02A @ 12V 0.04A @ 24V IP68 250 29x27 0.027

SM6604S/5 Push-fit Recessed LED Front Marker Light with Superseal Connector, 5m Cable 12/24 0.02A @ 12V 0.04A @ 24V IP68 5040 29x27 0.228

SM6605

Push-fit Recessed LED Green Marker Light 12/24 0.02A @ 12V 0.04A @ 24V IP68 220 29x27 0.016

NP408 Series LED Number

Plate Light

NP730 Series LED Number

Plate Light

High

Position: 0.04A @ 13.5V 0.04A @ 28V

Dipped Beam: 1.55A @ 13.5V 0.77A @ 28V

DRL: 0.7A @ 13.5V 0.35A @ 28V

Position: 0.03A @ 13.5V 0.028A @ 28V

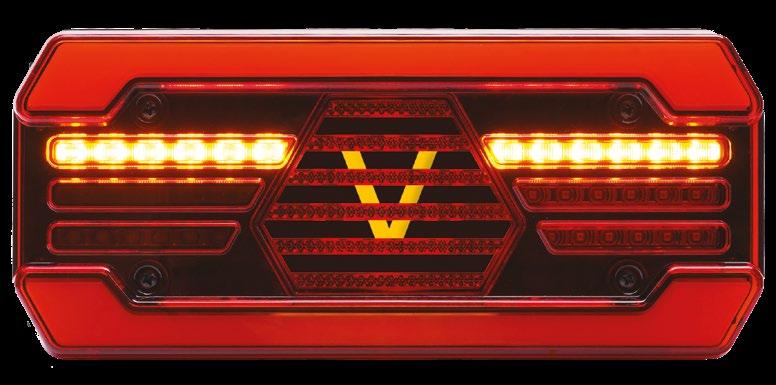

RL762 Series Branded LED Rear Combination Light

Customisable area behind the reflector illuminates branding of your choice providing additional brand exposure.

Dynamic and static indicator options available.

Three and five function options available.

Stop, tail, indicator, fog, reverse with integrated reflector.

ECE R4, R10, R148, R150 approvals.

Available with or without marker light feed.

Integrated connector.

RL7626

RL762601

Branded LED Rigid Vehicle Rear Light - Stop / Tail / Dynamic Indicator / Fog / Reverse / Reflector with Tyco Connector - Left Hand 12/24

Stop:

RL762602

RL762603

Branded LED Rigid Vehicle Rear Light - Stop / Tail / Dynamic Indicator / Fog / Reverse / Reflector with Tyco Connector - Right Hand 12/24 IP69K 0 302x131x58 1.17

Branded LED Rigid Vehicle Rear Light - Stop / Tail / Static Indicator / Fog / Reverse / Reflector with Tyco Connector Left Hand 12/24 IP69K 0 302x131x58 1.17

Stop: 0.42A@ 12V 0.21A @ 24V Tail: 0.45A @ 12V 0.23A @ 24V Indicator: 1.75A @ 12V 0.88A @ 24V Fog: 0.42A @ 12V 0.21A @ 24V

Branded LED Rigid Vehicle Rear Light - Stop / Tail / Static Indicator / Fog / Reverse / Reflector with Tyco Connector - Right Hand 12/24 IP69K 0 302x131x58 1.17

Reverse: 0.5A @ 12V 0.25A @ 24V

ROAD VEHICLE LIGHTING

RL.150 Series LED Rear

Combination Light

> Progressive indicator.

> Must be mounted horizontally.

> Crash resistant polycarbonate lens.

> 50,000hr LED lifetime.

Stop: 0.24A @ 12V 0.12A @ 24V

RL.150.BTIFR.M

LED Rear Combination Light - Stop / Tail / Progressive Indicator / Fog / Reverse / Reflector 12/24

RL.151 Series LED Rear Combination Light

> Can be mounted horizontally or vertically.

> Crash resistant polycarbonate lens.

> 50,000hr LED lifetime.

> ADR-approved version available.

> ECE R3, R4, R6, R7, R10, R23, R38.

IP68 2000 230x104x40 0.667 PART

NUMBER DESCRIPTION

LED Rear Combination Light - Stop / Tail / Indicator / Fog / Reverse / Reflector 12/24

Stop: 0.24A @ 12V 0.12A @ 24V

Tail: 0.12A @ 12V 0.06A @ 24V Indicator: 0.36A @ 12V 0.18A @ 24V Fog: 0.11A @ 12V 0.05A @ 24V Reverse: 0.36A @ 12V 0.18A @ 24V

IP68 2000 230x104x40 0.667

LED

Stop: 0.104A @ 12V 0.052A @ 24V Tail: 0.108A @ 12V 0.104A @ 24V Indicator: 0.9A @ 12V 0.45A @ 24V

IP68 0 306x133x61 1.03 RL.185DD.BTIFR.M

Fog: 0.133A @ 12V 0.066A @ 24V

Tail: 0.158A @ 12V 0.079A @ 24V Indicator: 0.092A @ 12V 0.046A @ 24V ROAD VEHICLE LIGHTING

RL573 Series LED Rear Combination Light

>

> An ideal cost effective solution for the agriculture sector.

> Homogeneous light output.

> Left hand and right hand versions available.

> Comes with a 6-way Superseal connector as standard.

> ECE R10.

RL95 Series LED Rear Light

> Front DRL / position / indicator options available in the same series.

> ECE R6, R7, R23, R38.

Stop:

RL95W

RL122 Series LED Rear Light

> Surface mount design.

> Dual voltage.

> Red and clear lens versions available.

> Front position / indicator options available in the same series.

RL122FWC

RL122STI

RL122STIS/LH

122mm LED Rear Light - Fog / Reverse 12/24

122mm LED Rear Light - Fog / Reverse - Clear Lens 12/24

122mm LED Rear Light - Stop / Tail / Indicator - Red Lens 12/24

122mm LED Rear Light - Stop / Tail / Indicator with Superseal Connector, 0.2m Cable - Left Side 12/24

Fog: 0.18A @ 12V 0.09A @ 24V Reverse: 0.15A @ 12V 0.075A @ 24V

INNOVATE.

CREATE. ILLUMINATE.

IP67 230 122x43 0.224

IP67 230 122x43 0.224

IP67 230 122x43 0.224

IP67 240 122x43 0.249

RL122STIS/RH

RL122STIC18S

RL122STIC195S

122mm LED Rear Light - Stop / Tail / Indicator with Superseal Connector, 0.2m Cable - Right Side 12/24

122mm LED Rear Light - Stop / Tail / Indicator - Clear Lens with Superseal Connector, 1.8m Cable 12/24

122mm LED Rear Light - Stop / Tail / Indicator - Clear Lens with Superseal Connector, 1.95m Cable 12/24

IP67 240 122x43 0.249

RL122STIC21S

RL122STIC22

RL122STIDCL

122mm LED Rear Light - Stop / Tail / Indicator - Clear Lens with Superseal Connector, 2.1m Cable 12/24

122mm LED Rear Light - Stop / Tail / Indicator - Clear Lens, 2.2m Cable 12/24

122mm LED Rear Light - Stop / Tail / Indicator - Clear Lens with Deutsch Connector, 2m Cable 12/24

Stop: 0.14A @ 12V 0.07A @24V Tail: 0.01A @12V 0.005A @ 24V Indicator: 0.15A @12V 0.075A @ 24V

IP67 1800 122x43 0.406

IP67 1950 122x43 0.421

IP67 2100 122x43 0.435

IP67 2200 122x43 0.430

IP67 245 122x43 0.422

RL100 Series Square LED Rear Light

RL100STI

> ECE R6, R7, R10, R23, R38.

RL100TF 100mm Square LED Rear Light - Tail / Fog 10-30

RL100TW

100mm Square LED Rear Light - Tail / Reverse 10-30

Stop: 0.192A @ 12V 0.095A @ 24V Tail: 0.23A @ 12V 0.115A @ 24V Indicator: 0.067A @ 12V 0.033A @ 24V

Tail: 0.23A @ 12V 0.115A @ 24V Fog: 0.275A @ 12V 0.1375A @24V

Tail: 0.23A @ 12V 0.115A @ 24V Reverse: 0.2A @ 12V 0.1A @ 24V

RL145 Series LED Rear Light

IP67 240 100x100x28 0.160

RL145STI

Stop: 0.08A @ 12V 0.04A @ 24V

Tail: 0.15A @ 12V 0.075A @ 24V Indicator: 0.175A @ 12V 0.0875A @ 24V

IP67 250 100x100x28 0.159

IP67 250 100x100x28 0.149

IP68 2040 108x102x38 0.228

RL410 Series Ultra Slim LED

Rear Light

RL410SL/4

RL410SR/4

RL556

Stop: 0.04A @ 12V 0.02A @ 24V Tail: 0.01A @ 12V 0.005A @ 24V Indicator: 0.07A @ 12V 0.035A @ 24V

IP69K 250 238x21x10 0.083

RL682 Series Slimline LED 3rd Brake Light

> Slimline surface mount design.

> Robust construction.

> Dual voltage.

> Red and clear lens versions available.

> Low profile option available.

> ECE R7, R10.

RL682

RL682/05 Slimline LED 3rd Brake Light - Red Lens, 0.5m Cable 12/24 0.108A @ 12V 0.108A @ 24V IP68 500 237x20.5x22 0.087

RL682/3 Slimline LED 3rd Brake Light - Red Lens, 3m Cable 12/24 0.108A @ 12V 0.108A @ 24V IP68 3000 237x20.5x22 0.200

RL682/11 Slimline LED 3rd Brake Light - Red Lens, 11m Cable 12/24 0.108A @ 12V 0.108A @ 24V IP68 11000 237x20.5x22 0.542

RL682S Slimline LED 3rd Brake Light - Red Lens with Superseal Connector 12/24 0.108A @ 12V 0.108A @ 24V IP68 550 237x20.5x22 0.096

RL682S/5 Slimline LED 3rd Brake Light - Red Lens with Superseal Connector, 5m Cable 12/24 0.108A @ 12V 0.108A @ 24V IP68 5040 237x20.5x22 0.298

RL682C Slimline LED 3rd Brake Light - Clear Lens 12/24 0.108A @ 12V 0.108A @ 24V IP68 390 237x20.5x22 0.073

RL682C/7 Slimline LED 3rd Brake Light - Clear Lens, 7m Cable 12/24 0.108A @ 12V 0.108A @ 24V IP68 7000 237x20.5x22 0.396

RL682CS/7 Slimline LED 3rd Brake Light - Clear Lens with Superseal Connector, 7m Cable 12/24 0.108A @ 12V 0.108A @ 24V IP68 7040 237x20.5x22 0.411

RL682/LP

Slimline Low Profile LED 3rd Brake Light - Red Lens 12/24 0.058A @ 12V 0.058A @ 24V IP68 390 238x21x10 0.031

ROAD VEHICLE LIGHTING

V100 Series R65 LED Lightbar

> ECE R10, R65 Class 2, SAE Class 1, CAP168.

> Comes in amber as standard. Can be supplied in other colours including blue, red and white.

> Layouts are customisable.

> Available with options including alley lights, stop / tail / indicator modules, illuminated centre.

> Single colour flashing, pattern changing, dimming,

> Available in four lengths.

> Angled adjustable bracket to match the roof angle, ensuring the lightbar is positioned horizontally when on angled surfaces.

> Can be supplied with waterproof connectors, including Superseal.

> Polycarbonate lens and base, aluminium housing.

VPR001 Round, Push-Fit R65 LED Warning Light - Amber 12/24 0.354A @ 12V 0.281A @ 24V IP67 190 48x25 0.041

VPR0011M Round, Push-Fit R65 LED Warning Light - Amber, 1m Cable 12/24 0.354A @ 12V 0.281A @ 24V IP67 1000 48x25 0.056

VPR001S Round, Push-Fit R65 LED Warning Light - Amber with Superseal Connector 12/24 0.354A @ 12V 0.281A @ 24V IP67 1040 48x25 0.062

VPR003 Round, Push-Fit R65 LED Warning Light - Blue 12/24 0.354A @ 12V 0.281A @ 24V IP67 190 48x25 0.041

VPRWM VPR Series Rubber Mount - White N/A N/A N/A N/A 45x15 0.008

WSVPR3AM

SideBlazer

-

Push-fit with optional screw fitting.

Fits where vertical space is limited.

Warm white and cool white colour temperatures available.

White or black bezel blends to your vehicle.

Matt black shroud reduces glare.

AU.13.403C.12

Comes with spade connectors as standard.

Only 19.5mm in depth.

Recessed mount.

Protrudes by just 3.5mm when mounted.

Frosted lens provides a dotless light output.

When illuminated the line of white light around the bezel gives a premium look and feel.

Robust

Ideal for internal or external use.

Available with black or white housing.

Sleek, curved design blends in with your vehicle.

AU.20.402.M

Intense light output.

Helps provide an effective working environment.

AU.25 Series Round Dual Voltage LED Interior Light

> Provides a powerful, consistent and comfortable light output for a range of interior applications.

> Frosted lens gives an effective, homogeneous output.

> Fully waterproof making it ideal for refrigerated vehicles or anywhere it could get wet.

> Wide and even light spread means fewer units are needed to achieve the same effect, saving time and money.

> Strong polycarbonate lens and low profile design protects it from knocks and scrapes.

> Available with a PIR sensor to save current draw on your vehicle.

> Surface mount and recessed options available.

Strip Lighting - Rigid

ILW Series LED Strip Light with Night Illumination

> Bespoke or standard stock lengths available.

> Excellent light output and spread.

> Surface mount design for easy fitment.

> Rugged polycarbonate lens.

> Night illumination options available.

ILOB86144

ILWR05

LED Strip Light - White / Red Night Illumination, 445mm 10-30

ILWW05

LED Strip Light - White / White Night Illumination, 445mm 10-30

ILWB125WE

LED Strip Light Extension with White LED Joiner - White / Blue Night Illumination, 1.25m 12/24

ILWB250W

LED Strip Light with White LED JoinerWhite / Blue Night Illumination, 2.5m 12/24

White: 0.56A @ 12V 0.28A @ 24V Red: 0.01A @ 12V 0.005A @ 24V

White: 0.566A @ 12V 0.333A @ 24V Night light: 0.049A @ 12V 0.053A @ 24V

White: 1.65A @ 12V 0.87A @ 24V Blue: 0.17A @ 12V 0.17A @ 24V

White: 3.5A @ 12V 1.76A @ 24V Blue: 2.78A @ 12V 0.306A @ 24V

IP52 250 445x110x18 0.450

IP52 250 445x110x18 0.450

IP52 400 1250x108x15 1.38

IP52 250 2500x108x15 2.61

ILV Series High Power LED Strip Light

> Slimline design.

> Surface mount.

> Available in a range of lengths.

> Available in 12V or 24V.

> PIR and non-PIR

available.

ILV150M

High Power LED Strip Light - 212mm, 12V with PIR 12 0.2A @ 12V IP20 1000 210x15.5x25 0.042

ILV200 High Power LED Strip Light - 262mm, 12V 12 0.2A @ 12V IP20 1000 260x9x25 0.068

ILV200D High Power LED Strip Light - 262mm, 24V 24 0.12A @ 24V IP20 1000 260x9x25 0.068

ILV200DS High Power LED Strip Light - 262mm, 24V with Superseal Connector 24 0.12A @ 24V IP20 1040 260x9x25 0.072

ILV250M High Power LED Strip Light - 312mm, 12V with PIR 12 0.2A @ 12V IP20 1000 310x15.5x25 0.074

ILV250MD High Power LED Strip Light - 312mm, 24V with PIR 24 0.15A @ 24V IP20 1000 310x15.5x25 0.074

ILV250RGB High Power LED Strip Light - 312mm, 12V RGB 12 0.3A @ 12V IP20 1000 310x15.5x25 0.074

ILV250S High Power LED Strip Light - 310mm, 12V Switched 12 0.11A @ 12V IP20 1000 310x9x25 0.078

ILV250SS High Power LED Strip Light - 310mm, 12V Switched with Superseal Connector 12 0.11A @ 12V IP20 1040 310x15.5x25 0.082

ILV300 High Power LED Strip Light - 362mm, 12V 12 0.18A @ 12V IP20 1000 360x9x25 0.095

ILV300TS High Power LED Strip Light - 362mm, 12V with Superseal Connector, 120mm Cable 12 0.18A @ 12V IP20 120 360x9x25 0.072

ILV350M High Power LED Strip Light - 412mm, 12V with PIR 12 0.280A @ 12V IP20 1000 410x15.5x25 0.097

ILV350MS High Power LED Strip Light - 412mm, 12V with PIR and Superseal Connector 12 0.280A @ 12V IP20 1040 410x15.5x25 0.101

ILV400 High Power LED Strip Light - 462mm, 12V 12 0.454A @ 12V IP20 1000 460x9x25 0.118

ILV400D High Power LED Strip Light - 462mm, 24V 24 0.242A @ 24V IP20 1000 460x9x25 0.118

ILV450M High Power LED Strip Light - 512mm, 12V with PIR 12 0.360A @ 12V IP20 1000 510x15.5x25 0.125

ILV450MD High Power LED Strip Light - 512mm, 24V with PIR 24 0.180A @ 24V IP20 1000 510x15.5x25 0.125

ILV450SW

High Power LED Strip Light - 512mm, 12V Switched - Warm White 12 0.414A @ 12V IP20 1000 510x9x25 0.130

ILV600 High Power LED Strip Light - 662mm, 12V 12 0.685A @ 12V IP20 1000 660x9x25 0.160

ILV600D High Power LED Strip Light - 662mm, 24V 24 0.37A @ 24V IP20 1000 660x9x25 0.160

ILV600S

ILV650M

High Power LED Strip Light - 662mm, 12V with Superseal Connector 12 0.685A @ 12V IP20 1040 660x9x25 0.164

High Power LED Strip Light - 712mm, 12V with PIR 12 0.6A @ 12V IP20 1000 710x15.5x25 0.181

ILV650MD High Power LED Strip Light - 712mm, 24V with PIR 24 0.260A @ 24V IP20 1000 710x15.5x25 0.181

ILV650MS

ILVH1200

High Power LED Strip Light - 712mm, 12V with PIR and Superseal Connector 12 0.6A @ 12V IP20 1040 710x15.5x25 0.185

High Power LED Strip Light - 1262mm, 12V IP65, 6000K 12 2.4A @ 12V IP65 150 1262x9x25 0.245

ILVH1200N High Power LED Strip Light - 1262mm, 12V IP65, 4000K 12 2.4A @ 12V IP65 150 1262x9x25 0.245

Strip Lighting - Flexible

COB Series LED Flexible Strip Light

> Flexible cuttable strip light.

> Homogeneous light output.

> Clean and even light spread.

> Different colour temperatures available3000K, 4000K, 6000K.

> Available in 12V.

> IP20 rated.

> Easy to bend for simple installation.

> Surface mount with 3M VHB tape applied.

> Cuttable to a length of your choice.

> Dimensions: 8mm (W) x 1.4mm (H).

ILDS Series Dotless LED Flexible Strip Light

> Flexible cuttable strip light.

> Homogeneous light output.

> Clean and even light spread.

> Different colour temperatures available3000K, 4000K, 6000K.

> Available in 12V and 24V.

> Surface mount with tape applied.

> Cuttable to a length of your choice.

> Dimensions: 6mm (W) x 12mm (H).

ILG Series LED Flexible Strip Light

>

Flexible cuttable strip light.

> Available in white and RGB.

> Available in 12V and 24V.

> Surface mount with tape applied.

> Cuttable to a length of your choice.

> Dimensions: 12mm (W) x 4mm (H).

ILF Series LED Flexible Strip Light

> Flexible cuttable strip light.

> Available in white, blue, red, RGB, RGBW.

> Available in 12V and 24V.

> IP20 and IP65 options available.

> Surface mount with tape applied.

> Cuttable to a length of your choice.

> Dimensions: 10mm (W) x 3mm (H).

ILQ Series LED Side-Emitting

Flexible Strip Light

> Flexible cuttable strip light.

> Available in white and red.

> Available in 12V and 24V.

> IP20 and IP65 options available.

> Surface mount with tape applied.

> Cuttable to a length of your choice.

> Dimensions: 8mm (W) x 0.8-3mm (H).

EXTERIOR LIGHTING

Scene Lights

Ezio High Power LED Scene Light

Powder coated cover provides colour matching options.

Hidden heat sink.

Glue sealed with a breathable valve.

Potted cable exit providing an IP69K rating.

Daylight colour temperature for maximum visibility.

Available in any colour.

Robust aluminium housing.

Protruding lip reduces glare and protects the lens.

Waterproof.

Compact unit.

Sleek curved design.

Ultra-wide light spread.

Blends into the vehicle.

AU.09.4.M

AU.09.4.MS

AU.09.403.M

AU.09.403.MS

AU.09.404.M

High Power LED Scene Light - White Housing 10-32 1.6A @ 12V 0.82A @ 24V IP69K 490 224x58x51 0.280

High Power LED Scene Light - White Housing with Superseal Connector 10-32 1.6A @ 12V 0.82A @ 24V IP69K 530 224x58x51 0.288

High Power LED Scene Light - Black Housing 10-32 1.6A @ 12V 0.82A @ 24V IP69K 490 224x58x51 0.280

High Power LED Scene Light - Black Housing with Superseal Connector 10-32 1.6A @ 12V 0.82A @ 24V IP69K 530 224x58x51 0.288

High Power LED Scene LightAmbulance Yellow Housing 10-32 1.6A @ 12V 0.82A @ 24V IP69K 490 224x58x51 0.280

Robust cast aluminium housing protects against knocks and scrapes.

Ideal for internal or external use.

Available with black or white housing.

Sleek, curved design blends in with your vehicle.

Daylight colour temperature ensures maximum visibility and safety.

AU.20.M

Intense light output.

Helps provide an effective working environment.

AU.02 Series LED Service Light

> Ideal for illuminating the area around motorhomes or caravans.

> Slimline, curved design allows the light to flow nicely into the bodywork.

> Recessed channel at the rear allows for varying cable exits.

> Surface mounted with a large landing area for bonding adhesive, making it easy to install.

> Cool and warm white versions available.

> Available with a connector of your choice.

AU.02.4.12 LED Service Light - White 12 0.3A @ 12V IP68 675 290x41x26 1.14

AU.02.W4.12 LED Service Light - Warm White 12 0.3A @ 12V IP68 675 290x41x26 1.14

AU.02.W4.12.SC LED Service Light - Warm White with Spade Connectors 12 0.3A @ 12V IP68 700 290x41x26 1.14

Excellent light output of 115 lux at 1 metre.

Indirect light prevents glare.

Curved design to divert rainwater away from the door and the vehicle. > Recessed channel on the rear allows for a varying cable exit.

> Secure and easy to install surface mounted design with 5 screw holes, plus a large landing area for the bonding adhesive.

Available with white or grey housing.

MILITARY LIGHTING

Designed specifically for military vehicles, our range of military LED lighting uses covert blackout features or infra-red to give you visibility whilst keeping you hidden during operations.

> Infra-Red Driving Lights 94

> Map Lights 96

Ideal for military vehicles during covert operations.

Milled aluminium housing with an anodised finish.

Two mounting points.

Military spec gasket.

20° angular light distribution.

800nm infra-red light, visible through night-vision goggles.

Designed to meet MIL-STD-461F and DEFSTAN 59-411.

Designed to cope in the toughest military environments.

Recessed mounting.

Recessed lens reduces the chance of the light being hit.

Rib down the centre gives the lens extra protection from any impact.

Predator Series Military Infra-Red Rear Light

> Designed to cope in the toughest military environments.

> Attaches to the back of military vehicles for driving in convoy during covert operations.

> Tail function helps those behind follow.

> Brake function warns those behind that the vehicle is stopping.

> 880nm infra-red light, visible through night-vision goggles.

> Milled aluminium housing with an anodised finish.

> Designed to meet MIL-STD461F and DEFSTAN 59-411.

INNOVATE. CREATE. ILLUMINATE.

Key Benefits

Rappid™ offers a fully waterproof modular vehicle wiring system which is a simple, quick and cost-effective alternative to hard wiring. In fact, each connection takes just over 2 seconds - that’s over 12,000 connections in a single eight hour shift!

1

SAVE TIME AND MONEY

> Simple to fit with no hard wiring or specialists needed.

> Readily available stocked parts.

> Reduces production bottlenecks.

> Low replacement costs and shorter lead times.

> Reduced vehicle downtime for your customer.

2

MODULAR SOLUTION

> Replace only the parts you need, not the entire system.

> A range of cable lengths available.

> Unique Venta T-Piece connectors.

> Industry standard cable connectors.

> Connectors and cables are available in 2, 3 or 6-way options.

> Compatible with any lighting product.

3

HIGH QUALITY & WATERPROOF

> IP67 rated making it totally protected against the elements.

> Superseal connectors.

> 3 year warranty.

Chassis Connectors

Harnesses

> Did you know?

We also provide bespoke harnesses.

Where Rappid™ isn’t an option, we also design and produce bespoke harnesses, enabling you to install a wiring system that is designed specifically for the vehicle. This is useful when you’re producing high volumes of the same vehicle.

Load Module

> Simulates the current draw for a standard halogen direction indicator.

> No intelligence in loading.

> Pre-plugged load module to create plug and play solution.

ILS Intelligent Load Module

> Simulates the current draw for a standard halogen direction indicator.

> ISO1320701:2012 compliance.

> Fixes fast indicator flashing.

> Fully waterproof.

> One unit required per indicator.

> Intelligently adjusts to the current draw of the indicator.

> Doesn’t get hot so can be mounted anywhere.

> Used in conjunction with our ILS 4-Pin LED Flasher Unit. See page 108 for more details.

INNOVATE. CREATE. ILLUMINATE.

Intelligent Load Module

> Simulates the current draw for a standard halogen direction indicator.

> Monitors the state of the LED light.

> Available in 12V or 24V.

> Compact design.

Intelligent Load Module

> Simulates the current draw for a standard halogen direction indicator.

> Monitors the state of the LED light.

> Robust construction.

> Fully sealed against water ingress. > Single and

INNOVATE. CREATE. ILLUMINATE.

Understanding Measurements of Light

Here we explain the difference between the different ways of measuring the brightness of light.

> LUMINOUS FLUX & LUMENS

The amount of visible light that the human eye can see in all directions is known as the luminous flux. Luminous flux quantifies the overall perceived brightness of a product. This is useful for products like worklamps where overall light output is important.

Luminous flux is measured in lumens (lm). The higher the lumen rating the brighter the light will be, and the lower the lumen rating the dimmer the light will be.

> RAW LUMENS & EFFECTIVE LUMENS

Raw lumens - a theoretical rating that doesn’t take factors such as product housing into consideration. It’s only a measure of the LEDs themselves, not an assembled light.

Raw lumens = lumen rating per LED x number of LEDs in the light.

Effective lumens - takes into consideration any energy lost from heat, product housing and the stabilisation of light. This is the most accurate reflection of the luminous flux.

> LUMINOUS INTENSITY & CANDELAS

Luminous intensity describes how much light is emitted from a light source in a particular direction, to help us understand the light output at a specific angle.

Luminous intensity is measured using candelas (cd), a particularly important measurement for testing road lighting for legal requirements. The candela rating will be the same at all distances from the light source, at a specific point or angle.

> ILLUMINANCE & LUX

Illuminance, measured using lux, describes the amount of visible light (luminous flux) on a surface area. This is helpful in determining the intensity of light in a particular area.

One lux is equivalent to one lumen per square meter of a surface area.

The lux value changes depending on the distance of the light source from a surface, which is useful in ensuring work areas are sufficiently illuminated, or for interior lighting designs where a consistent light level is desired.

> FOOTCANDLES

Footcandles is an imperial measurement meaning the illuminance has been measured by square feet instead of square metres.

INNOVATE. CREATE. ILLUMINATE.

A

IP stands for Ingress Protection, although sometimes it’s referred to as “International Protection”. IP ratings are used to define levels of sealing effectiveness of electrical enclosures (like lights) against intrusion from foreign bodies (tools, dirt and other things). These ratings are made up of the prefix ‘IP’ and then 2 digits, for example ‘IP68’. Here’s what it means…

What is Kelvin Colour Temperature?

When you’re looking at a white light, sometimes it looks warm and sometimes it looks cooler. This level of warmth and coolness is measured on a scale which is called the Kelvin Scale (K).

COLOUR TEMPERATURE IS MEASURED IN KELVINS

(K)

The scale is from 1,000K to 10,000K, and simply the higher the number, the cooler the light. So the warmer a light is the redder the colour, and the cooler it is, the more blue it is in colour.

In the automotive industry, lighting typically falls somewhere on a scale from 2000K to 6500K. This table briefly outlines the main range of Kelvin colours:

Colour Temperature (Kelvin)

2000K - 3000K 3100K - 4500K 4600K - 6500K

Light Appearance Warm White Cool White Daylight Ambience Cosy, Calm Bright, Vibrant Crisp, Fresh

IN SUMMARY:

> Less than 2000K gives off a dim glow of light, similar to what you might find from candlelight.

> 2000K-3000K gives off a soft white glow, often yellow in appearance.

> 3100K-4500K gives off a bright amount of white light.

> 4600K-6500K gives off a bright amount of blue-white light.

> 6500K and up gives off a bright bluish hue of light.

Awning Lights 88

Beacons 58

Dashlights 54 Downlights 64

Controllers................................................................. 103

Dimmers ..................................................................... 105

Exterior Lighting - General 86 Extrusion 80

Flashers........................................................................108

Front Lights 26

Front Position Lights/Indicators.........................29

Headlights.....................................................................26 Harnesses.....................................................................102

Indicators 31

Infra-Red Driving Lights.........................................94

Interior Lighting - General 66 Lightbars 46 Lightheads 49 Load Modules 106 Map Lights ..................................................................96

Marker Lights 12

Message Boards 62

Minibars 47

Number Plate Lights 23

Number Plate Warning Lights............................ 55

Rappid™........................................................................ 98

Reading Lights 82

Rear Lights 33 Reflectors 44

Reversing Alarms & Camera Systems 112 Safety Lamps 60

Scene Lights ............................................................... 84

Search Lights ............................................................. 92

Service Lights 87

Step Lights 72

Strip Lighting - Flexible 78 Strip Lighting - Rigid 73

Switching 110

Tail Lift Warning Lights 56 Worklamps .................................................................. 89

INNOVATE. CREATE. ILLUMINATE.

INNOVATE. CREATE. ILLUMINATE.

> WANT TO TALK TO A HUMAN?

Call us: +44 (0)1962 88 44 44

Email us: hello@venta.global

This literature is intended for illustrative purposes and does not form part of any contract. We reserve the right to change or remove products from our range.

© Venta Global Ltd (2022)
