Roll-A-Rail Accessories

Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.

Rail Cross Bar Clamps onto bottom side of rail track. All aluminum cross bar with adjustable 3’ legs and pads. Recommended 4500 lb rail to be supported every 8’ if track leaves the ground and 6500 lb rail to be supported every 4’. The 5’ cross bar is used to support rail up to 4’ above ground level. In instances that the elevation is above 4’, use the 8’ cross bar for support. 5’ 4500 lb part# LRAL 5’ 6500 lb part# LRALL 8’ 6500 lb part# LRALL8

Rail Cable Guides Polyethylene guide prevents wear on braces when the degree or slope of land changes. 2 pieces part# LRACG

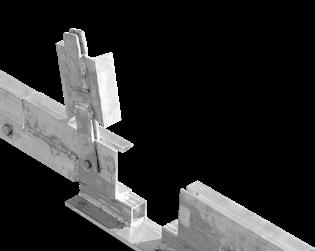

Rail Tip-Up Pivoting rail section allows garage or boathouse door to close completely. part# LRTUP

26-1/4”

6-1/4”

Mechanical Limit Switch Mechanical spring driven limit switch prevents you from overlifting your boat on lift. AC/DC Models with remote ONLY! part# LWHDDSS

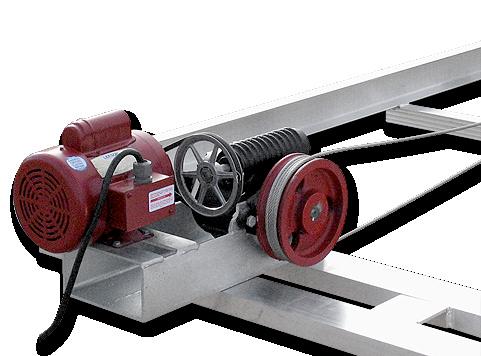

Braking Winch

Used on rail if incline is greater than 10° (1.6’ in 16’ elevations). (Standard on 6500.) part# LRMSB
