Benches, Umbrellas and Patio Chairs

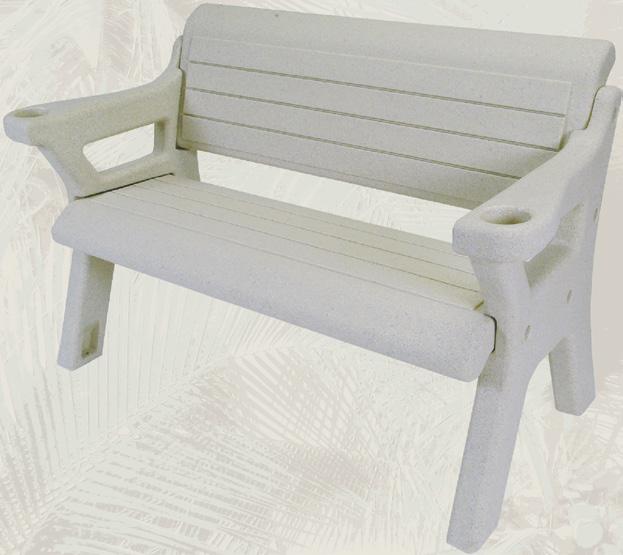

Bench Seat Options Available in three colors.
White
Beige
Woodgrain
Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Free Standing Bench R
S
F U
Mounts to any flat surface. All aluminum brackets. Shown with aluminum planks. (Umbrella not included.) Aluminum 4’ panel (2” x 6”) bench kit & bolts (White) part# D1BFA4A 4’ panel (2” x 6”) bench kit & bolts part# D1BFA4AB (Beige) 4’ panel (2” x 6”) bench kit & bolts part# D1BFA4W (Woodgrain)
39”
8’ panel (2” x 6”) bench kit & bolts (White) part# D1BFA8A 8’ panel (2” x 6”) bench kit & bolts (Beige) part# D1BFA8AB 8’ panel (2” x 6”) bench kit & bolts (Woodgrain) part# D1BFA8W
30” Table
21”
Bench Bracket Kit (w/bolts, no wood) part# D1BFA
part# DPTABLER R
14”
18”
Care-free, durable and classic are just a few words that come to mind when you see this large low-maintenance all aluminum powder-coated mesh table. Includes hole for an optional umbrella and a bracket for mounting table to dock.
F
part# DPTABLEC C

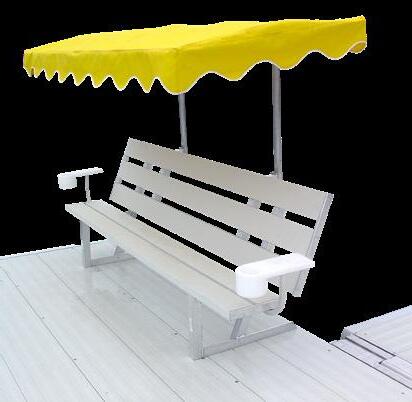

Bench Umbrella
Aluminum construction, mounts to back of bench. Used to shade the sitting area of your bench, 32” of adjustment.
Vinyl Umbrella 4’ 8’
part# D1U4 color part# D1U8 color
part# DTABLEU
Large 5” x 13-1/2” molded armrest has deep cup holder that is rotational molded, and can hold up to a 3-1/2” diameter cup.
Defender Umbrella 4’ 8’
part# DPTABLEW W

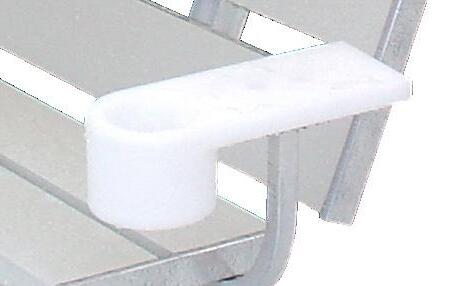

Bench Armrest with Cup Holder
part# D1US4 color part# D1US8 color
Table Only 5”
part# D1BAR 13-1/2”
Defender Colors
19 oz marine fabric made from combining fabric with a textured marine grade vinyl. Waterproof and has a fluorocarbon finish for UV, water, mildew and fade resistance. Choose from 11 popular colors. Other colors available through special order.
Standard Vinyl Canopy Colors
44
Our 16 oz nylon with 9 x 9 reinforced vinyl canopies are durable, waterproof and UV resistant to prevent premature fading. Randomly textured finish in 7 popular colors.
DEFENDER MARINE
Defender
BLACK TRIM
Chair features an powder coated all-aluminum, adjustable swivel rocker mechanism that offers an exciting way to experience comfort and relaxation. Chair is wrapped with two layers of fabric making this chair extremely durable and very comfortable. Includes bracket for mounting chair to dock.
F
part# DPCHAIRC C
Fabric
Dubonnet Tweed
F C W U
Patio Chair
part# DPCHAIRR R
FABRIC
MARINE FABRIC
U
part# DPTABLE R
WHITE TRIM
Burgundy
Charcoal Tweed BLACK TRIM
BLACK TRIM
Midnight
Forest BLACK TRIM
BLACK TRIM
BLACK TRIM
Dubonnet Tweed
Cadet
Toast BROWN TRIM
WHITE TRIM
Pacific
part# DPCHAIRW W part# DCHAIRU
Hemlock Tweed
Navy WHITE TRIM
U
Chair Only - part# DPCHAIR R
F C W U
Holes are 4” on center
BLACK TRIM
4”
Vinyl Black BLACK TRIM
Gray BLACK TRIM
Beige BROWN TRIM
Blue WHITE TRIM
Green BLACK TRIM
Yellow WHITE TRIM
White
Universal Bracket part# DPBRKTU
WHITE TRIM
U
Dock Bracket part# DPBRKTR
R
F
Wave Dock Bracket part# DPBRKTW
Classic Bracket part# DPBRKTC
W
C
R oll-A-Dock
V ers-A-Dock
S ectional
Offset Bench
C lassic dock
W ave Dock
Universal Dock and Patio Bench
14”
All aluminum construction, Hewitt Benches are unique when mounted to the dock. The bench is over the water, not on the deck, leaving that important deck space.
F loating Dock
21”
* Armrest/Cup Holders are sold seperately, see page 2. 18”
Maintenance-free, weatherproof dock/ outdoor benches can be utilized in virtually any outdoor space within both residential and commercial locations such as: home, cabin, parks, golf courses, marinas, schools and more. Pebble Beach color. 4’ Bench: 52”Wx37”Hx27”D. 66lbs. part# DF300014
4’ WIDE DOCK
R
V
S
F
6’ WIDE DOCK
R
V
S
CLASSIC DOCK
ULTRA DOCK
C
U
F
4’ Aluminum Bench White Kit & bolts Beige Woodgrain
part# D1BA4A part# D1BA4AB part# D1BA4W
part# D6BA4A part# D6BA4AB part# D6BA4W
part# D1BCA4A part# D1BCA4AB part# D1BCA4W
part# D1BUA4A part# D1BUA4AB part# D1BUA4AW
8’ Aluminum Bench White Kit & bolts Beige Woodgrain
part# D1BA8A part# D1BA8AB part# D1BA8W
part# D6BA8A part# D6BA8AB part# D6BA8W
part# D1BCA8A part# D1BCA8AB part# D1BCA8W
part# D1BUA8A part# D1BUA8AB part# D1BUA8AW
Bench Bracket With bolts, no wood
part# D1BA
part# D6BA
Bench Bracket only
N/A
N/A
N/A part# DCBB
N/A
5’ Bench: 64”Wx37”Hx27”D. 81lbs. part# DF301092 6’ Bench: 76”Wx37”Hx27”D. 96lbs. part# DF300016
R
V
S
U ltra Dock
C
F W U
37”
Anchoring Point Recessed Sides Side support seat, not just a bolt.
27”
• Rotational molded construction • High-impact polyethylene • Weatherproof and UV Resistant • Molded-in beverage holders • Molded-in anchoring compartments

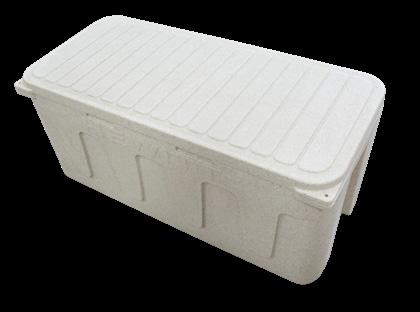

Universal Storage Box
Rotationally molded with high-impact polyethylene and maximum UV protection. Pebble Beach Textured Finish. (Fits 5’ Bench only) part# DF301093 R
V
S
C
F W U
part# DUBB
17-3/4”
51-1/2”
13”
55
PIER BUMPER Table Accessories
Pro Guard Bumper

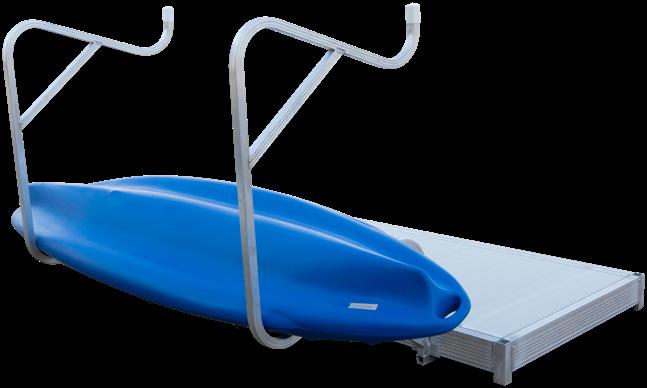

Kayak Rack
Dock Cleats
PIER BUMPER Table Accessories
Pro Guard Bumper
Kayak Rack
PIER BUMPER
Pier Bumper
Pro Guard Bumper
Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
10” Weel
Corner Wheel
STRAIGHT BUMPER
PIER BUMPER
es
Pro Guard Bumper
PIER BUMPER
Corner Wheel 9-15/16” Corner Wheel
Pro Guard Bumper
R
V
S
C
F U
Pier Bumper
Black White
STRAIGHT BUMPER
S-Cleat
V
S
C
6-1/2”Corner Wheel Corner Wheel Corner Wheel Corner Wheel
Bolt Screw
F U

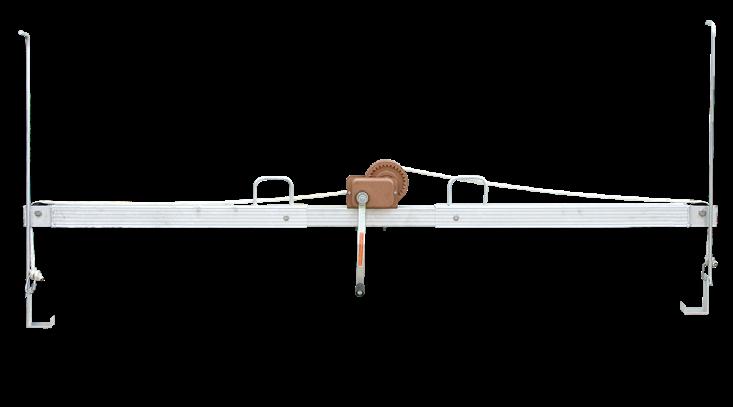

Hand winch Fold Cleat
Secure your boat quickly and easily with the 10” cast-aluminum “S” Compact Cleat dock cleat. Made of corrosion-resistant aluminum for enhanced Support Pipes winch durability. Oversized horns make it easy to loop large ropes. “S” Compact cleatHandCleat hasPipes recessed mounting holes to reduce the chance of line snag Cleat and fray. Support Compact
C
F
U
Pro-Guard Storm
Pro-Guard Storm
Compact Cleat
Round Edge Guards
Support Pipes (Requires two bolts, nuts and washers per cleat)
part# D1CN8 8” Volume Pack 50 pcs (Requires two bolts, nuts and washers per cleat.)
Braking Post Winchwinch Lower Lip Corner Bumper
dock cleat
part# NB516212C Used with deck thickness up to 1/2”. Lower Lip Corner Bumper 5/16” x 3-1/2” SS Carriage Bolt part# NB516312C Universal Bumper Postwith Ratchetdeck thickness up to 1-1/2”. Used 5/16” Brass Nut part# NN516B Small part# NW516FL Universal Bumper 5/16” SS Flat Washer Universal Bumper
Braking Winch dock cleat
Heavy12” Duty Cleat
Heavy 15” Duty Cleat
dock cleat 6”
8” dock cleat seat
dock cleat seat
mooring cleat Corner Bumper
Small Post Ratchet
Universal Bumper
Universal Bumper
storage boxes Cushion Bumper
Dock Cleat Seat Hardware
Post Ratchet
R
V
S
C
R F Decking Backer Cruizer
F U
U
Reinforcement backer plate Provides a simple yet secure way to mount your cleats used under the mooring deck of cleatdock to to your dock. Used with deck thickness up to 2”. help secure dock ladders and (Mounts 4 cleats) dock cleat seat cleats. Fits up to 1-1/4” tube. part# D1CSH Volume Pack 20 pcs
storage boxes
Backer part# D1DDB
Cushion Bumper
Cruizer
Impulse mooring cleat
Impulse Piling Bumper
Piling Bumper
1-11/32”
Harbor Straight Bumper
Paddle
12”
12”
storage boxes Cushion Bumper
Small
Classic Dock Backer Plate
Paddle Universal Bumper Truss Bumper
mooring c
C
Under dock support plate for increased stability mounting accessories to dock.
Paddle
66
H
Corner Bumper
dock cleat seat
Post Ratchet
Hea
5/16”Bumper x 2-1/2” SS Carriage Bolt Lower Lip Corner
Heavy10” Duty Cleat
dock cleat
Cooler Post winch (Requires two bolts, nuts and 4 washers per cleat.) 7/16” x 3” part# NB7163G Used with deck thickness up to 1/2” 7/16” x 4” part# NB7164G Used withdock deckcleat thickness up to 1-1/2” 7/16 Nut part# NN716S ½” SS flat washer part# NW12FL dock cleat seat
Compact Cleat
Fold Cleat
Fold Cleat
Cooler
Braking Winch Post winch
S
1/4” x 2-1/2” SS Carriage Bolt part# Cooler NB14212C used with deck thickness up to 1-1/4” 1/4” x 3-1/2” SS Carriage Bolt Cooler part# NB14312C used with deck thickness up to 2-1/4” 1/4” Coated Nut part# NN14S winch ¼” SS FlatPost Washer part# NW14FL
Pro-Guard Storm
10” (Volume Pack 40 pcs) part# D1CS10 12” (Volume Pack 40 pcs) part# D1CS12 Cooler part# D1CS15 15” (Volume Pack 20 pcs)
V
Round Edge Guards
Pro-Guard Storm
R
R
Round Edge Guards Corner Wheel Support Pipes 6” Volume Pack 50 pcs part# D1CN6
Corner Wheel
Bolt Screw
Pro-Guard Storm
Nylon Dock Cleat
Cleats are injection molded in black nylon for long-lasting strength and durability.
Bolt Screw
part# D1CSW
10” Weel 10” Weel
6” Launch
Launch

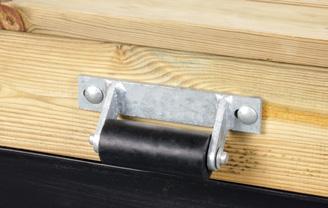

Rugged, folding tie-down. Bolts to any flat surface. Tensile Strength: 27,000 PSI Volume Pack 50 pcs Rated for: 1/2” Rope Pier Bumper Pier Bumper STRAIGHT Mounting Hardware: 1/4” Lag Screw 1/4” Hex Head (not included) BUMPER STRAIGHT part# BUMPER D1CSB
Bolt Screw Bolt Screw
Table Accessories
Dock Cleat Seat
Pier Bumper
STRAIGHT BUMPER
Harbor Straight Bumper Piling Bumper
storage boxes part# DCBP5 Corner Bumper Two recommended for freestanding bench and ladder (Not tip-over ladder hinge). Truss Bumper
part# DCBP10 Recommended for cleats.
Cushion Bumper
Pro Guard Bumper
Table Accessories
Corner Wheel
Kayak Rack
PIER BUMPER
10” Weel
Pro Guard Bumper
PIER BUMPER
Table Accessories
Corner Wheel
Pro Guard Bumper
Corner Wheel
Kayak Rack
10” Weel 10” Weel
Pier Bumper STRAIGHT BUMPER
Pier BumperR
oll-A-Dock
V ers-A-Dock
Pier Bumper Pier Bumper STRAIGHT BUMPER
STRAIGHT BUMPER
S ectional
C lassic dock
F loating Dock
Round Edge Guards Launch
Launch Wheel Corner
Bolt Screw Launch
Pro-Guard Storm
Corner Wheel
Corner Wheel
Bolt Screw
W aveBolt Dock Screw
Cor
U ltra Dock Corner Wh
Corner Wheel
Corner Wheel
Bolt Screw
Corner Wheel
Pro-Guard Storm
Pro-Guard Storm
Fold Cleat
6” Aluminum Cleat
R
V
S
C
F U
Support Pipes R Galvanized Cleats
Volume Pack part# D1CA6C PIER BUMPER 100 pcs part# D1CA6W part# D1CA6B
Pro Guard Bumper Hand winch
S
C
Braking Winch
F U
Pro-Guard Storm
part# D1CMW part# D1CMB part# D1CMC
5/16” x 2-1/2” SS Hex Bolt part# NB516212G
Post Ratchet
Volume Pack 200 pcs
Impulse
Post Ratchet
Corner Wheel
Cooler
dock cleat seat
Impulse
dock cleat
Cleat Hardware part# D1CSH Volume Pack 20 pcs Kit includes hardware for mounting eight mini cleats. Used with deck thickness up to 2”.
Impulse
part# D1CG12 12” Volume Pack 40 pcs (Requires two bolts, nuts, washers per cleat.) dock cleat seat
7/16” x 3” SS Hex Bolt part# NB7163G Piling Bumper Used with deck thickness up to 1/2”. 7/16” x 4” SS Hex Bolt part# NB7164G mooring cleat Used with deck thickness up to 1-1/2”. 7/16” part# NN716S dock cleat seat Brass Nut ½” SS Flat Washer part# NW12FL Piling Bumper
dock cleat seat
Harbor Straight Bumper
mooring cleat
Paddle
storage boxes
8” Aluminum Cleat
R
V
S
C
F U
Cushion Bumper
Harbor Straight Bumper Piling Bumpe
For larger boats on larger bodies of water.
3” Cruizer
Small Unive
Cushion Bumper
Lower Lip Corner Bumper
Cruizer
Heavy Duty 12” Cleat dock cleat seat
3/8” x 3” SS Hex Bolt part# NB383G Used with deck thickness up to 3/4”. 3/8” x 4” SS Hex Bolt part# NB384G Used with deck thickness up to 1-3/4”. 3/8” Brass Nut part# NN38S 3/8” SS Flat Washer part#storage NW38FL boxes
Small Universal Bumper
Post Ratchet
Heavy Duty 10” Cleat
Small Universal Bu
dock cleat
Fold Cleat Cruizer
Low
8” Cleat Heavy Duty
dock cleat
Universal Bumper Compact Cleat
Lower Lip
dock cleat
10” Weel Used withPost deck Cooler Corner Wheel winch thickness up to 3/4”.
Heavy Duty Cleat
3” mini cleat’s compact design is excellent for tieing up canoes, chairs to the docks and for mooring small fishing boats.
White upport PipesBlack Cast
8” Volume Pack 100 pcs part# D1CG8 (Requires two bolts, nuts and washers per cleat.) Cooler
Corner Wheel
Bolt Screw
V
Fold Cleat
Fold Cleat
Cooler
part# D1CG10 10” Volume Pack 60 pcs Lower Lip Corner Bumper (Requires two bolts, nuts and washers per Edge cleat.) Round Guards
STRAIGHT BUMPER
dock cleat
F U
5/16” x 3-1/2” SS Hex Bolt part# NB516312G Used with deck thickness up to 1-3/4”. 5/16” Brass Nut part# NN516B Braking Winch Post winch 5/16” SS Flat Washer part# NW516FL
(Requires two bolts, nuts and washers per cleat.) 3/8” x 1-1/2” SS Hex Bolt Compact Cleat part# NB38112G Hand winch Used with deck thickness up to 3/4”. 3/8” x 2” FT SS Hex Bolt part# NB382FT Used with deck thickness up to 1-1/4”. 6” Pier Bumper 3/8”Brass Nut part# NN38S Hand winch Braking Winch 3/8”SS Flat Washer part# NW38FL Post winch
R
C

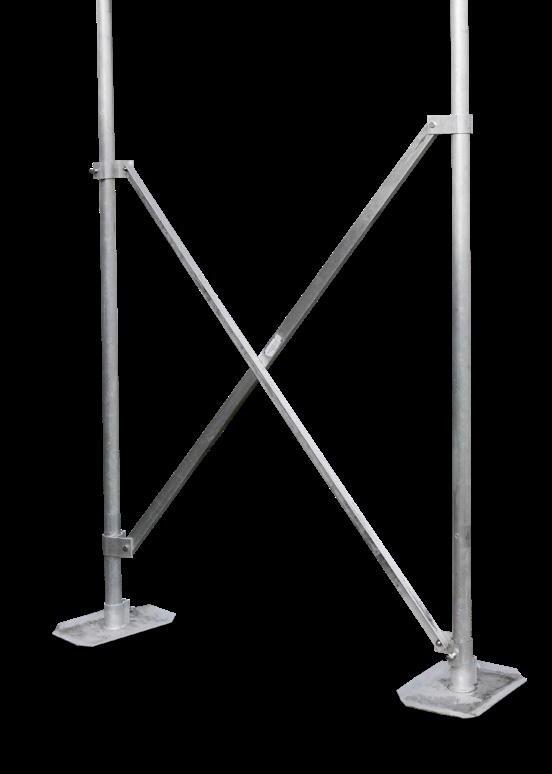

Support Pipes galvanized cleat in three sizes (Bolts not included). Compact Cleat Heavy-duty
Support Pipes
Fold Cleat
Mini Cleat
S
Compact Cleat
Heavy-duty commercial cleat for use on Pro-Guard Storm inland waters with boats up to 18’. Cast White Black
V
Compact Cleat
Paddle
Corner Bumper mooring cleat (Requires two bolts, nuts and washers per cleat.) 3/8” x 1-1/2” SS Hex Bolt part# NB38112G Used with deck thickness up to 3/4”. Universal Bumper 3/8” x 2” FT SS Hex Bolt part# NB382FT part# D1CA8W Volume Pack 50 pcs White storage boxes Used with deck thickness up to 1-1/4”. part# D1CA8B Volume Pack 50 pcs Black Cushion Bumper HarborNN38S Straight Bumper Small 3/8”Brass Nut part# part# D1CA8C Volume Pack 60 pcs Cast Universal Bumper 3/8”SS Flat Washer part# NW38FL
Heavy Duty Cleat
Cast, White or Black powder-coated.
8”
Corner Bumper
77
PIER BUMPER Table Accessories
Pro Guard Bumper

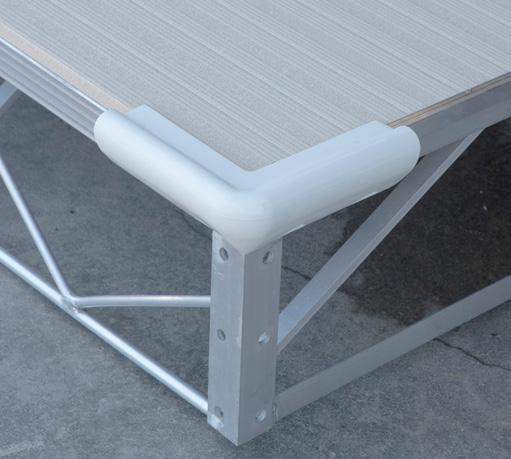

Corner Bumpers
10” Weel
Corner Wheel
Kayak Rack
PIER BUMPER
essories
Pro Guard Bumper
10” Weel
Corner Wheel
Pier Bumper STRAIGHT
Indicates this product STRAIGHTis shippable via UPS from your local dealer or visit us online at www.hewittrad.com. BUMPER
Corner Wheel
Bolt Screw
Ro
BUMPER It is recommended that the rub rail of your boat comes in contact with the bumper rather thanCorner the bumper Corner Wheel Wheel Screw to come in contact with the sides of your boat as this canBoltresult in serious damage to the sides of your boat.
Pier Bumper Round Edge Guards
Corner Wheel
Pro-Guard Storm Launch
Pro-Guard Storm
Fold Cleat

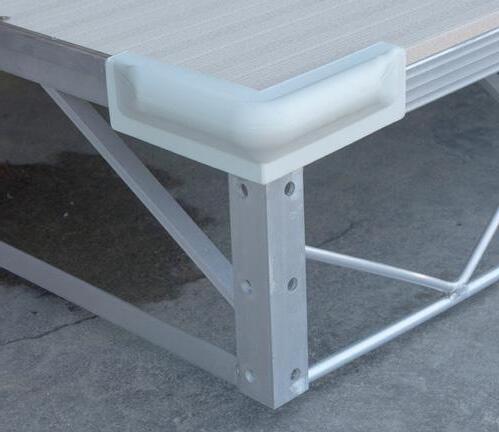

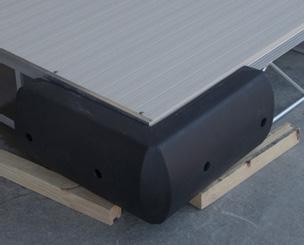

6” Universal Corner Bumper
Fold Cleat
Support Pipes
Compact Cleat
Marine-grade PVC with one-inch solid outside flange for fastening to dock.
Colors: White, Black, Blue, Light Gray, Darkdock Gray cleat
Cooler
Post winch
dock cleat
Heavy Duty Cleat
Hand winch
Universal Bumper
Post winch
Small
Universal Bumper 1-1/4”
Braking Winch
Volume Pack 32 pcs
Lower Lip Corner Bumper
Cooler
Lower Lip Corner Bumper
Colors: White, Black, Light Gray, Dark Gray, Blue part# D1BUC6WE part# D1BUC6BK part# D1BUC6BE part# D1BUC6GYL part# D1BUC6GYD
Compact Cleat
Marine-grade PVC with one-inch solid outside flange for fastening to dock.
Support Pipes
White Black Blue Light Gray Dark Gray
10” Universal Corner Bumper
part# D1BUC10WE part# D1BUC10BK part# D1BUC10BE part# D1BUC10GYL part# D1BUC10GYD part# D1BUC10TN
White Black Blue Light Gray Dark Gray Tan
Universal Bu
Small
1”Universal Bumper
Corner Bumper
dock cleat seat
(5 fasteners recommended per bumper, see page 8.)
6”
Piling Bumper
3-1/2”
2-3/4”
(7 fasteners recommended per bumper, see page 8.)
Post Ratchet
Post Ratchet
dock cleat seat
Volume Pack 24 pcs
3-7/8”
3-1/8”
Heavy Duty Cleat
9-1/4
” Piling Bumper
Truss Bumper
mooring cleat
Truss Bu
mooring cleat
PIER BUMPER storage boxes
10” Classic Corner Bumper
Cushion Bumper
Marine-grade PVC with one-inch solid outside flange for fastening to dock.
10” Small Lip Corner Bumper
Harbor Straight Bumper
Cruizer
Impulse
Kayak Rack
PIER BUMPER
part# D1BUCWE Table Accessories part# D1BUCBK part# D1BUCBE part# D1BUCTN part# D1BUCGYL part# D1BUCGYD part# D1BUCKI
(7 fasteners recommended per bumper, see page 8.)
88
STRAIGHT BUMPER
10”
2-3/4”
Harbor Straight Bumper
Colors: White, Black, Blue, Tan, Light Gray, Dark Gray
White Black Blue Tan Light Gray Pier Bumper Dark Gray Launch
1”
Volume Pack 24 pcs
Cushion Bumper
Marine-grade PVC with small 3/16” flange for fastening to dock.
Paddle
Colors: White, Black, Blue, Tan, Light Gray, Dark Gray, Khaki White Black Kayak Rack Blue Tan Light Gray Dark Gray Khaki
Table Accessories
storage boxes
Pro Guard Bumper
part# D1BUCSLWE Corner Wheel part# D1BUCSLBK part# D1BUCSLBE part# D1BUCSLTN part# D1BUCSLGYL part# D1BUCSLGYD
Volume Pack 24 pcs 3-3/4”
Bolt Screw
Pier B STRAIGHT BUMPER
10” Weel
Pro
3/16”
Round Edge Guards Corner Wheel
(7 fasteners recommended per bumper, see page 8.)
Corner Wheel
10” Pipes Support
2-3/4”
3-3/4”
Pro-Guard Storm Launch
Cooler
Launch
Fold Cleat Compact Cleat
per
Support Pipes
Pro Guard Bumper Corner Wheel
Kayak Rack
Corner Wheel
Bolt Screw
Corner Wheel
Bumper Colors
Pro Guard Bumper Corner Wheel
Hand winch
10” Weel
Lower Lip Corner Bumper
Round Edge Guards
Cooler
White
Black
Blue
Green
Tan
dock cleat
Light Gray Dark Gray Chocolate
Pier Bumper
PIER BUMPER 10” Weel
Heavy Duty Cleat
STRAIGHT BUMPER Bolt Screw
Post winch
ard Storm
Corner Wheel
Teal
Khaki
Red
Round Edge Guards Universal Bumper
Corner Wheel
Small Universal Bumper Pro-Guard Storm
Pier Bumper
Lower Lip Corner Bumper STRAIGHT
Launch Braking Winch
Fold Cleat Volume Pack 24 pcs Bolt Screw
BUMPER
Wraps around 4.5” docks. One-inch solid outside Compact Cleat flange for fastening to dock. Marine-grade PVC. Colors: White, Black, Blue, Light Gray White Black Blue SupportLight Pipes Gray
Cooler
Piling Bumper
9-1/2” Compact Cleat Hand winch
Heavy Duty Cleat Braking Winch
Paddle
Universal Bumper
dock cleat seat
12” Soft Harbor Corner Bumper dock cleat seat
Designed for larger docks and watercraft. Flat ends can be mounted together with harbor straight bumper. Marine-grade PVC. Impulse
Matching 36” bumper on page 14.
Paddle
Straight mooring cleat Harbor Bumper
part# D1BHCWE part# D1BHCBK part# D1BHCGYL
Piling Bumper
storage boxes
Volume Pack 12 pcs (8 fasteners recommended per bumper, see page 8.) mooring cleat
11” White part# D1BUTC11WE Black part# D1BUTC11BK * Corner Bumper mooring cleat Blue part# D1BUTC11BE TanCorner Bumper part# D1BUTC11TN Green part# D1BUTC11GN storage boxes Light Gray part# D1BUTC11GYL* Cushion Bumper Rack Dark Gray part#Kayak D1BUTC11GYD Chocolate part# D1BUTC11CE* Khaki part# D1BUTC11KI* Truss Bumper * New style like 8” shown below
Small Universal Bumper
Piling Bumper
Cruizer
dock cleat
Cushion Bumper
Corner Bumper Harbor Straight Bumper
Truss Bumper
12”
5”
”
17
10”
8” White Black Blue Tan Green Light Gray Dark Gray Chocolate Khaki
part# D1BUTC8WE part# D1BUTC8BK part# D1BUTC8BE part# D1BUTC8TN part# Launch D1BUTC8GN part# D1BUTC8GYL part# D1BUTC8GYD part# D1BUTC8CE part# D1BUTC8KI
Truss Bumper
Heavy Duty Cleat
13” Fold Cleat White part# D1BUTC13WE* mooring cleat Black part# D1BUTC13BK* Post winch Blue part# D1BUTC13BE* Tan part# D1BUTC13TN* 4-1/2” 6” Lower Lip Corner Bumper storage boxes Green part# D1BUTC13GN LightCushion Gray Bumper part# D1BUTC13GYL*Harbor Straight Bumper dock D1BUTC13GYD cleat seat Dark Gray part# Heavy Duty Cleat Universal Bumper Chocolate part# D1BUTC13CE * New style like 8” shown below Universal Bumper Small Post Ratchet
Cushion Bumper
Volume Pack 20 pcs (4 fasteners recommended per bumper, see page 8.)
Lower 1” Lip Corner Bumper
dock cleat
White Black Light Gray
Colors: White, Black, Blue, Green, Tan, Light Gray, Dark Gray, Chocolate, Khaki
Lower Lip Corner Bumper
Cooler
Colors: White, Black, Light Gray
Designed to work with Compact truss Cleat and solid side docks with up to a 11.5” span. Marine-grade PVC.
Post Ratchet
dock cleat
Impulse
Corner Bumper Fold Cleat
Corner Wheel
Pro-Guard Storm
part# D1BLLCWE part# D1BLLCBK part# D1BLLCBE part# D1BLLCGYL
Cruizer
Truss Corner Bumper
dock cleat seat Round Edge Guards Corner Wheel
(7 fasteners recommended Support per Pipes bumper, see page 8.)
st winch
t
PIER BUMPER
Table Accessories
4”
Universal Bumper
Small Universal Bumper
13-1/2”
11-1/2”
Corner Bumper
Piling Bumper
Truss Bumper 3-1/4”
9-1/2”
PIER BUMPER
11-1/2”
Table Accessories Harbor Straight Bumper
STRAIGHT BUMPER
4-5/8”
6”
8”
Support Pipes
Harbor Straight Bumper Cooler
99
Pro Guard B
Corner Bumpers It is recommended that the rub rail of your boat comes in contact with the bumper rather than the bumper to come in contact with the sides of your boat as this can result in serious damage to the sides of your boat.
Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
24” Poly Harbor Cushion Corner
Corner Bumper
11-1/2”
Made of tough and durable polyethylene. White part# D1BPHCW Black part# D1BPHCB Volume Pack 12 pcs (Requires 4 bolts, 4 nuts and 8 washers per bumper)
6A Corner and 6B Side Bumper. Polythene bumper available in black only.
Pier Bumper
part# D1B6A part# D1B6B
19”
23-1/2” 24”
1” bolt length through bumper.
AIGHT MPER
3/8” x 3” SS Hex Bolt part# NB383G used with wall thickness up to 1”
Matching 48” bumper on page 17.
3/8” x 4” SS Hex Bolt part# NB384G used with wall thickness up to 2” 3/8” Brass Nut part# NN38S 3/8” SS Flat Washer part# NW38FL
Poly Bumper Backing Plate 3/8” x 2” Aluminum. Volume Pack 200 pcs part # D1BPHCP
10 10
10”
Straight Frame Bumper
Corner Bumper
8-1/2”
Bumper Screws - Wood
Bumper Screws
#10 Stainless steel 1-1/4” bumper screws for wood decking/docks. 50 qty bag
Use to securely fasten bumpers to your dock frame with a large .455” head.
Volume Pack 24 pcs
50 qty bag (self-tapping)
part# D1BUSCSS
R
V
S
C
F U
Bolt Screw
Volume Pack 24 pcs
.373”
.455”
part# D1BUSC
Lag Bolt Set
Pro-Guard Storm
Galvanized lag bolts for attaching harbor and frame bumpers to wood docks.
3/8” x 2” galvanized lag bolt 3/8” x 3” galvanized lag bolt 3/8” x 5” galvanized lag bolt 3/8” SS flat washer
part# NB382L part# NB383L part# NB385L part# NW38FL
Post Caps and Covers Bumper Colors
White
Black
Blue
Green
Tan
Light Gray Dark Gray Chocolate
Red
Round Rubber Pipe Cap
Pole Cover
Round marine-grade vinyl caps fit over the top of dock pipes.
The 36” pipe covers are designed to slide over 1-1/4”, 1-1/2” or 2” dock pipe to provide a uniform look to your dock. They can be trimmed to any size for custom applications. Material: Marine-grade PVC
Colors: Blue, Red, Black, White, Green, Tan, Light Gray, Teal, Khaki Volume Pack 200 pcs
Khaki
Teal
Installation: Trim the pipe covers to your desired length and slide them over your dock pipe. Slides easily over dock pipes. WITH FLAT TOP 1-1/4” Cap for 1-1/2” OD Pipe Blue part# D1RC114BE part# D1RC114RD Red part# D1RC114BK Black part# D1RC114WE White part# D1RC114GN Green part# D1RC114TN Tan part# D1RC114GYL Light Gray 1-1/2” Cap for 1-3/4” OD Pipe part# D1RC112BE Blue part# D1RC112RD Red part# D1RC112BK Black part# D1RC112WE White part# D1RC112GN Green part# D1RC112GYL Light Gray 2” Cap for 2-1/4” OD Pipe part# D1RC2BE Blue part# D1RC2RD Red part# D1RC2BK Black part# D1RC2WE White part# D1RC2GN Green part# D1RC2TN Tan part# D1RC2GYL Light Gray 2-11/16” Dock Post, 2-15/16” ID part# D1RC211/16 White
WITH ROUND TOP 1-1/4” Cap for 1-1/2” OD Pipe Blue part# D1RRC1-1/4BE part# D1RRC1-1/4BK Black part# D1RRC1-1/4WE White part# D1RRC1-1/4GN Green part# D1RRC1-1/4GYL Light Gray part# D1RRC1-1/4KI Khaki 1-1/2” Cap for 1-3/4” OD Pipe part# D1RRC1-1/2BE Blue part# D1RRC1-1/2RD Red part# D1RRC1-1/2BK Black part# D1RRC1-1/2WE White part# D1RRC1-1/2GN Green part# D1RRC1-1/2GYL Light Gray part# D1RRC1-1/2TL Teal part# D1RRC1-1/2KI Khaki 2” Cap for 2-1/4” OD Pipe part# D1RRC2-BE Blue part# D1RRC2-BK Black part# D1RRC2-WE White part# D1RRC2-GN Green part# D1RRC2-TN Tan part# D1RRC2-GYL Light Gray part# D1RRC2-TL Teal
Colors: White, Black, Blue, Green, Tan, Light Gray, Khaki Volume Pack 24 pcs
36”
Small Cover 2” ID for 1-1/4 and 1-1/2” Pipe White part# D1PG114WE part# D1PG114BK Black part# D1PG114BE Blue part# D1PG114GN Green part# D1PG114TN Tan part# D1PG114GYL Light Gray part# D1PG114KI Khaki Large Cover 2-3/4” ID for 2” Pipe part# D1PG2WE White part# D1PG2BK Black part# D1PG2BE Blue part# D1PG2GN Green part# D1PG2TN Tan part# D1PG2GYL Light Gray part# D1PG24KI Khaki
11 11
Dock Wheels Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
12” Wheel - Post Mount
10” & 14” Wheel - Corner Mount
These dock wheels are designed to gently roll your watercraft along the dock. They will fit over 1-1/4”, 1-1/2”, or 2” dock pipe with an optional locking collar.
These dock wheels are designed to gently roll your watercraft along the dock. Attaches to corners of dock. Material: Marine-grade PVC
Material: Marine-grade PVC Installation: Slide one nylon bushing over post and tighten set screws. Slide the dock wheel over the post, then slide second nylon bushing over post and tighten set screws. Color: White
Volume Pack 12 pcs
Pro Guard BumperFor 1-1/4” and 1-1/2” Pipe Wheel Only Corner Wheel
part# DF300021 10” Weel part# DF301032
For 2” Pipe Wheel Only
PIER BUMPER
Pro Guard Bumper
Locking Collar Corner Wheel Nylon bushing with nylon set screws for easy height adjustment and locking wheel from being raised.
mper
part# 10” Weel D1BDW12COLLAR
Round Edge Guards
Pier Bumper
Corner Wheel
Bolt Screw
Corner 12”Wheel Round Edge Guards
Bolt Screw
Corner Wheel 1-1/4” and 1-1/2” have 2” opening 2” has 2-1/2” opening
Corner Wheel
Guard Storm Pro-Guard Storm
Cleat Fold Fold Cleat Compact Cleat
6-1/2”
Compact Cleat
12 12
10” 14”
Lower Lip Corner Bumper
White part# D1CR10WE part# D1CR14WE
Black part# D1CR10BK part# D1CR14BK
Torpedo Bumpers Bumper Colors
Torpedo Post Bumper
R
V
S
C
White
Black
Blue
Green
Tan
Light Gray Dark Gray Chocolate
Red
Khaki
Teal
F U
Slides over dock pipe and wraps around support stand bracket. Protects your boat from rubbing on dock. Marine-grade PVC vinyl with UV and anti-fungal protection.
23”
9-1/4”
14”
Installation: Slide the top end cap down the length of your dock post, then open the slit on the bottom end cap and wrap the cap around the post under your dock while fitting the dock hardware in the recessed back. Colors: White, Black, Blue, Green, Tan, Light Gray, Dark Gray, Chocolate, Cranberry, Khaki, Teal Volume Pack 20 pcs 18” Torpedo Post Bumper White part# D1BT18WE Black part# D1BT18BK Blue part# D1BT18BE Green part# D1BT18GN Tan part# D1BT18TN Light Gray part# D1BT18GYL Dark Gray part# D1BT18GYD Chocolate part# D1BT18CE Khaki part# D1BT18KI Teal part# D1BT18TL
2-1/4” 3-1/4”
18”
High strength and corrosion resistant. Hewitt parts and accessories are built to last.
24” Torpedo Post Bumper White* part# D1BUW Black part# D1BT24BK Blue* part# D1BUB Green part# D1BT24GN Tan part# D1BT24TN Light Gray part# D1BT24GYL Dark Gray part# D1BT24GYD Khaki part# D1BT24KI * Best Sellers
13 13
Adjustable Bumpers
It is recommended that the rub rail of your boat comes in contact with the bumper rather than the bumper to come in contact with the sides of your boat as this can result in serious damage to the sides of your boat.
Bumper Colors
White
Black
Blue
Green
Tan
Light Gray Dark Gray Chocolate
Red
Cranberry
Khaki
Teal
Indicates this product is shippable via UPS from your local dealer or visit us online at www.buyhewitt.com.
These bumpers are specially designed to work with modern truss-style docking. The bumpers have an aluminum extrusion inside the bumper with a rail exposed on the back side. The rail holds the bolt heads that can slide up or down the bumper to adjust the height before the hardware is tightened. Marine-grade PVC, Aluminum core.
36” Bumper with Aluminum Backer
R
F
U
Installation: Simply place the bumper in the desired location and attach the back plate and nuts.
U
36”
Colors: White, Black Volume Pack 28 pcs
Colors: White, Black, Blue, Light Gray, Chocolate, Green, Tan, Khaki White Black Blue Light Gray Chocolate Green Tan Khaki
F
Low density polyethylene.
Installation: Simply place the bumper in the desired location and attach the back plate and nuts.
30” Half-Round Bumper with Aluminum Backer - VERTICAL
R
2” Deep White part# D1BU36WA2W Black part# D1BU36WA2B
part# D1BU30VWE part# D1BU30VBK part# D1BU30VBE part# D1BU30VGYL part# D1BU30VCE part# D1BU30VGN part# D1BU30VTN part# D1BU30VKI
2-1/4” 5”
3-1/2” Deep White Black
part# D1BU36WAXW part# D1BU36WAXB
Volume Pack 28 pcs
Volume Pack 24 pcs
Front
Back
30” Half-Round Bumper with Aluminum Backer - HORIZONTAL
R
F
U
Colors: White, Black, Blue, Light Gray, Chocolate, Green, Tan, Khaki White Black Blue Light Gray Chocolate Green Tan Khaki
part# D1BU30HWE part# D1BU30HBK part# D1BU30HBE part# D1BU30HGYL part# D1BU30HCE part# D1BU30HGN part# D1BU30HTN part# D1BU30HKI
Volume Pack 24 pcs
14 14
2”
Front
Back
4-1/2”
Front Back
3-1/2”
30”
End View
4-1/2”
End View
R oll-A-Dock
V ers-A-Dock
S ectional
Wave Dock Mount
36” Adjustable Side Bumpers
Pipe Mount
part# D1BUVW
Durable plastic bumper mounted on a 2” x 2” aluminum tube (largest in the industry) with your choice of aluminum mounting hardware. This setup is completely adjustable.
C lassic dock
Large Pipe Mount
part# D1BUVP
R
W
S
C
F loating Dock
Deck Mount
part# D1BUVL
F U
R
C
F U
U ltra Dock
Side Mount
part# D1BUVD
R
S
F U
part# D1BUVS
R
F
2-1/2 ” ID
1-3/4” ID
7”
W ave Dock
Volume Pack 24 pcs
35-1/2”
Sectional Mount
V
S
35-1/2”
35-1/2”
Ultra Bracket
part# D1BUVV
R
35-1/2”
35-1/2”
C
part# D1BUVDU1
F
U
U 4-1/2”
4-1/2”
4-1/2”
4-1/2”
4-1/2”
1-11/32”
36” Locking Arm Bumper
35-1/2”
Must also purchase side-mount bumper. part# D1BUVS
4-1/2”
This bumper slides over the BoatPort locking arm upright to act as a bumper/centering guide.
2-1/4” ID
Volume Pack 24 pcs White part# D1BUVAW Black part# D1BUVAB
2-1/8” ID
4-1/2”
15 15
d Cleat
Rectangular and Edging Bumpers Bumper Colors
White
Black
It is recommended that the rub rail of your boat comes in contact with the bumper rather than the bumper to come in contact with the sides of your boat as this can result in serious damage to the sides of your boat.
Blue
Green
Tan
Light Gray Dark Gray Chocolate
Red
Cranberry
Khaki
Teal
Indicates this product is shippable via UPS from your local dealer or visit us online at www.buyhewitt.com.
Dockside Bumper
Lower Lip Corner Bumper Straight Bumper
C
R
Larger-sized bumper with deep projection with nautical design. Marine-grade PVC.
part# D1BDBWE part# D1BDBBK part# D1BDBBE part# D1BDBGN part# D1BDBTN part# D1BDBGYL part# D1BDBKI
(4 fasteners recommended per bumper, see page 8.)
S
C
36” Soft Harbor Bumper
F U
Handles larger watercraft. 5” of projection from the dock. Marine-grade PVC.
Marine-grade PVC. Mount on the sides of any wood or metal dock.
Colors: Black, Blue, Green, Tan, Light Gray, Khaki uty Cleat White, Volume Pack 24 pcs White Black Blue Green Tan Light Gray Khaki
V
Colors: White, Black, Light Gray Volume Pack 24 pcs
Colors: White, Black, Blue, Tan, Light Gray, Dark Gray, Khaki Volume Pack 24 pcs White Black UniversalBlue Bumper Tan Light Gray Dark Gray Khaki
White Black Light Gray
part# D1BUSWE part# D1BUSBK part# D1BUSBE part# D1BUSTN part# D1BUSGYL part# D1BUSGYD part# D1BUSKI
(8 fasteners recommended per bumper, see page 8.) Matching corner on page 7.
36”
(6 fasteners recommended per bumper, see page 8.)
Small Universal Bumper
part# D1BHSWE part# D1BHSBK part# D1BHSGYL
10” 17-1/4”
Corner Bumper
”
18
1”
5”
3”
3-1/4”
16 16
Piling Bumper
4”
5”
R oll-A-Dock
V ers-A-Dock
36” and 48” Round Edge Guard without Lip R
V
S ectional
S
C
48”
36”
1/2” Bolt length through bumper. 1-3/4”
3-3/4” 4-1/2”
4-1/2”
V
S
C
W ave Dock
36” With Lip White Black Blue Green Tan Light Gray Khaki
U ltra Dock
F
36” Without Lip White part# D1BUEWE Black part# D1BUEBK Blue part# D1BUEBE Green part# D1BUEGN Tan part# D1BUETN Light Gray part# D1BUEGYL Khaki part# D1BUEKI
Colors: White, Black, Blue, Green, Tan, Light Gray, Khaki. Volume Pack 24 pcs
3” 2-1/4”
F loating Dock
36” and 48” Round Edge Guard with Lip R
F U
Handles larger watercraft. Marine-grade PVC with UV and anti-fungal protection.
2-1/4
C lassic dock
part# D1BUELWE part# D1BUELBK part# D1BUELBE part# D1BUELGN part# D1BUELTN part# D1BUELGYL part# D1BUELKI
48” Without Lip White part# D1BUE48WE Black part# D1BUE48BK (Requires 4 bolts, 4 nuts and 8 washers per bumper) 3/8” x 3” SS Hex Bolt part# NB383G used with wall thickness up to 1” 3/8” x 4” SS Hex Bolt part# NB384G used with wall thickness up to 2” 3/8” Brass Nut part# NN38S 3/8” SS Flat Washer part# NW38FL
(Requires 3 bolts, 3 nuts and 6 washers per bumper) 3/8” x 3” SS Hex Bolt part# NB383G used with wall thickness up to 1" 3/8” x 4” SS Hex Bolt part# NB384G used with wall thickness up to 2" 3/8” Brass Nut part# NN38S 3/8” SS Flat Washer part# NW38FL
17 17
Edging Bumpers
It is recommended that the rub rail of your boat comes in contact with the bumper rather than the bumper to come in contact with the sides of your boat as this can result in serious damage to the sides of your boat.
Bumper Colors
White
Black
Blue
Green
Light Gray Dark Gray Chocolate
Tan
Red
Cranberry
Teal
Khaki
Indicates this product is shippable via UPS from your local dealer or visit us online at www.buyhewitt.com.
24”and 36” Plastic Bumpers
43” Frame Bumper R
High-strength polyethylene plastic formulated with UV protection for the marine environment. Mount to square poles with recessed mounting holes.
Durable polyethylene with UV inhibitors. Molded-in recessed mounting holes make the frame bumper easy to mount.
Colors: White, Black, Green, Tan, Light Gray. Volume Pack 24 pcs
White part# D1BUFRW Black part# D1BUFRB Volume Pack 24 pcs
24” Bumpers Flat back-White 2” slot-White 2” slot-Black 3-1/2” slot-White 3-1/2” slot-Black 3-1/2” slot-Light Gray
part# D1BUVP24FW part# D1BUVP24W part# D1BUVP24B part# D1BUVP243W part# D1BUVP243B part# D1BUVP243GYL
24”
36” Bumpers 2” slot-White part# D1BUVP2W 2” slot-Black part# D1BUVP2B 2” slot-Green part# D1BUVP2G 2” slot-Tan part# D1BUVP2TN 2” slot-Light Gray part# D1BUVP2GYL 2-1/2” slot-White part# D1BUVP212W 2-1/2” slot-Black part# D1BUVP212B 2-1/2” slot-Light Gray part# D1BUVP212GYL (Mounted to 2x2 tube. Requires 2 bolts, 2 nuts and 4 washers per bumper) 1/2” Bolt 3/8” x 3-1/2” SS Hex Bolt part# NB38312G length (Used with tube thickness up to 2”) through bumper 3/8” Brass Nut part# NN38S 3/8” SS Flat Washer part# NW38FL 36” Bumpers 1/2” Bolt 3-1/2” slot-White part# D1BUVP3W length through 3-1/2” slot-Black part# D1BUVP3B bumper (Mounted to 3x3 tube. Requires 2 bolts, 2 nuts and 4 washers per bumper) 3/8” x 4-1/2” SS Hex Bolt part# NB38412G (Used with tube thickness up to 3”) 3/8” Brass Nut part# NN38S 1/2” Bolt length 3/8” SS Flat Washer part# NW38FL through bumper
18 18
X36” Bumpers X36” Plastic with 3-1/2” Slot-White part# D1BUVP312W Kayak Rack X36” Plastic with 3-1/2” Slot-Black part# D1BUVP312B Kayak Rack (Mounted to 3x3 tube. Requires 2 bolts, 2 nuts and 4 washers per bumper) 2-1/8” Bolt length 3/8” x 6” Bolt part# NB386G through bumper (Used with tube thickness up to 3”) 3/8” Brass Nut part# NN38S 3/8” SS Flat Washer part# NW38FL
F
U
”
43-1/2
12”
(Requires 4 bolts, 4 nuts and 8 washers per bumper) 3/8” x 5” SS Hex Bolt part# NB385G used with wall thickness up to 1” 3/8” x 6” SS Hex Bolt part# NB386G used with wall thickness up to 2” 3/8” Brass Nut part# NN38S 3/8” SS Flat Washer part# NW38FL
36”
5-1/4”
4-3/8” Bolt length through bumper
Frame Bumper Backing Plate
2”
3/8” x 2” Aluminum. Volume Pack 200 pcs
2” 3/4”
part # D1BUFRP
4-1/2” 2-1/2” 2”
Pier Bumper C
3/4”
Mount on the sides of any wood or metal dock. Marine-grade PVC.
4-1/2” 3-1/2”
Colors: White, Black, Blue, Tan, Light Gray, Khaki Volume Pack 24 pcs (4 fasteners recommended per bumper, see page 8.)
2”
3/4” 4-1/2”
Table Accessories
3-1/2”
Table Accessories White 3-1/2”
3/4” 4-1/2”
Black Blue Tan Light Gray Khaki
part# D1BPBWE part# D1BPBBK part# D1BPBBE part# D1BPBTN part# D1BPBGYL part# D1BPBKI
PIER17-1/2” BUMPER
PIER BUMPER
5”
1-3/4”
Pier Bumper
Lower Lip Corner Bumper
Universal
Cooler dock cleat
Heavy Duty Cleat
Universal Bumper
dock cleat seat Small R oll-A-Dock
V ers-A-Dock
S ectional
Universal Bumper
C lassic dock
F loating Dock
W ave Dock
U ltra Dock
Corner Bumper
dock cleat seat
Piling Bumper
Cushion Bumper
Designed to mount vertically on pilings to provide protection Piling Bumper to watercraft. The concave shape provides a perfect mating Truss Bumper
Upper and lower lip wrap around the dock. Waffle effect backside for additional cushioning. Marine-grade PVC.
surface to pilings. Marine-grade PVC.
Colors: White, Black, Blue, Light Gray Volume Pack 24 pcs White part# D1BCBWE part# D1BCBBK Black Blue storage boxes part# D1BCBBE part# D1BCBGYL Light Gray
36”
5-3/4” Cushion Bumper
(8 fasteners recommended per bumper, see page 8.)
Piling Bumper
Colors: White, Black, Blue, Light Gray, Khaki Volume Pack 40 pcs
mooring cleat
Harbor Straight Bumper
2”
White Black Blue Light Gray Khaki
24”
part# D1BPWE part# D1BPBK part# D1BPBE part# D1BPGYL cleat part#mooring D1BPKI
2-3/4
(12 fasteners recommended per bumper, see page 8.)
3-3/4”
4”
storage boxes Poly Harbor Cushion
R
F
Cushion Bumper
U
Poly Bumper Backing Plate
Durable polyethylene with UV inhibitors. Molded-in recessed mounting holes make the frame bumper easy to mount. 48” White Black
part# D1BPHSW part# D1BPHSB
Harbor Straight Bumper 3/8” x 2” Aluminum.
48”
part # D1BPHCP 11-1/2”
5/8” Bolt length through bumper
Volume Pack 24 pcs (Requires 4 bolts, 4 nuts and 8 washers per bumper) 3/8” x 3” SS Hex Bolt part# NB383G used with wall thickness up to 1” 3/8” x 4” SS Hex Bolt part# NB384G used with wall thickness up to 2” 3/8” Brass Nut part# NN38S 3/8” SS Flat Washer part# NW38FL
4-1/2”
Matching corner on page 8.
19 19
Rub Rails
It is recommended that the rub rail of your boat comes in contact with the bumper rather than the bumper to come in contact with the sides of your boat as this can result in serious damage to the sides of your boat.
Bumper Colors
White
Black
Blue
Green
Tan
Light Gray Dark Gray Chocolate
Red
Khaki
Indicates this product is shippable via UPS from your local dealer or visit us online at www.buyhewitt.com.
The industry’s finest quality, workmanship and design.
20 20
Teal
R oll-A-Dock
V ers-A-Dock
5002 Rub Rail – 10’ length R
V
S
C
S ectional
C lassic dock
F loating Dock
5001 Rub Rail – 10’ length R
F U
White
part# D1BUB5002W
White
part# D1BUB5001W
Black
part# D1BUB5002B
Black
part# D1BUB5001B
Dark Gray
part# D1BUB5002GYD
Volume Pack 100 pcs
V
S
W ave Dock
C
U ltra Dock
F U
(40 fasteners recommended per bumper, see page 8.)
Volume Pack 96 pcs (40 fasteners recommended per bumper, see page 8.)
1.15”
1.10”
.275”
.275”
1.25”
1”
.875”
White
part# D1BUB5007W
Black
part# D1BUB5007B
S
.25” .75”
3”
3.5”
5007 Rub Rail – 10’ length V
.25”
C
Volume Pack 96 pcs (40 fasteners recommended per bumper, see page 8.)
.197”
1.105”
.747”
123°
.296” 3.75”
21 21
Brackets and Lights Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Aluminum Mud Pads 1-1/4” Standard 1-1/2” Large
R
V
1-3/4” ID 2-1/2” ID
S
C
F W U
part# DAMUD part# DAMUDLG
Wheel Pad
C U
Slides on wheel upright axle. part# DCMUD
V
Vers-A-Dock Corner Pipe Holder
Connection Clamp
V
C
Used for connecting Vers-A-Dock and Classic dock sections together.
Used to add a corner post to the part# DV101 Vers-A-Dock.
part# DV102
8-1/2” 8-1/2” 12”
12”
Support Stand Brackets
Galvanized bracket 2” medium 2-1/2” large 3-1/4” extra large Aluminum bracket 1-1/4” standard 2-1/2” large short 2-1/2” large long
X-Large
ID 2” 2-1/2” 3-1/4”
Finish galvanized galvanized galvanized
Part# DSBRACM DSBRACLG DSBRACXL
1-3/4” 2-1/2” 2-1/2”
aluminum aluminum aluminum
DABRAC DABRACLG DABRACLGL
Large Long
Unidock Clamp U
5-3/4”
5-1/4”
Used for connecting Ultra Dock sections together. part# DUCLAMP
Large 5-1/4”
Large Short 10”
5-1/4”
Medium 4-3/4”
10”
Standard 5-1/4”
4”
10” 5-1/4”
5-1/4”
4”
4-1/2” 13”
11-1/2”
3” 3”
3”
5”
Hinged Sea Wall Brackets R
For mounting Roll-A-Dock to sea wall face.
22 22
part# D1SWBHI
Hooked Sea Wall Brackets
R
Hooks Roll-A-Dock to sea walls up to 4-1/2” thick. Custom sizes available for Vers-A-Dock, Classic and other types of docks. part# D1SWBH
Sectional Sea Wall Brackets
Mounts sectional docks to sea walls. part# D1SWB
S
Ultra Sea Wall Brackets
C U V
Mounts to sea wall and allows dock section to set in. Secured with set screw. part# DUSB
R oll-A-Dock
V ers-A-Dock
S ectional
Ultra Pipe Brackets
Deck Light
U
R
Heavy-duty pipe brackets for Ultra Dock. Standard - for 1-1/4” Pipe part# DUBRAC Medium - for 1-1/2” Pipe part# DUBRACM Large - for 2” Pipe part# DUBRACL
V
S
C
F
Industrial strength low profile aluminum solar powered deck light made for superior protection. Deck lights have a built in reflector (104mm x 106mm) One Light part# D1LDECK
C lassic dock
F loating Dock
Post Light U
R
V
S
C
F W U
Great way to light up your dock or pier. Lasts 18+ hours on a full charge and much brighter. Automatically turns on the super bright LED.
W ave Dock
U ltra Dock
Wave Dock Hexagon Solar Light W Solar-powered light ensures visibility.
One Light part# DF301126
Two Lights part# D1LPOST Volume Pack 24 pcs
Volume Pack 48 pcs
hewittrad.com 23 23
Augers, Pipes, Tires and Bracing Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Roll-In Wheel
Augers
Attach auger at end of post and turn post to auger into the bottom of lake bed.
(Do not fit Hewitt axles.)
DB800-standard 1-5/8” inside diameter (slides over pipe)
part# DAMUDP
DB903-medium 1-7/8” inside diameter (slides over pipe)
part# DAMUDPM
DB400-large 2” outside diameter (slides inside pipe) Requires drilling and 3/8” x 3” bolt and nut.
part# DAMUDPLG
For use with roll-in dock and lift applications. 7-1/2”
7-1/2”
Wheels weigh 12 pounds each with an estimated weight limit of 750 pounds each or 1500 pounds per pair. High strength plastic wheel with UV protection. 24” Diameter, 8” Wide Volume Pack 80 pcs 1-1/4” axle, 1-5/8” od 1-1/2” axle, 1-7/8” od 2” axle, 2-3/8” od
Post Ratchet
R
V
S
C
F W U
part# D1TIRE114 part# D1TIRE112 part# D1TIRE2
24”
18” Diameter, 8” Wide Volume Pack 40 pcs
Provides leverage to easily install and remove pipes with augers. This 19” handle and reversible ratchet fits 1-1/4”, 1-1/2’, and 2” pipes up to 2-1/4” O.D.
1-1/4” axle, 1-5/8” od 1-1/2” axle, 1-7/8” od 2” axle, 2-3/8” od
part# DAPR
part# D1TIRE18-114 part# D1TIRE18-112 part# D1TIRE18-2 18”
Support Stand Pipes
F W U
Fishing Rod/Cup Holder
DAP8
10’ DAP10
12’ DAP12
21’ DAP20
24’ N/A
DGP81/4 DGP8M DGP8L DGP8XL
DGP101/4 DGP10M DGP10L DGP10XL
DAP121/4 DGP12M DGP12L DGP12XL
DGP211/4 DGP21M DGP21L DGP21XL
DGP241/4 DGP24M DGP24L DGP24XL
Rigid aluminum bracket mounts to 1-1/2” outside diameter post. Two flush-mount cup holders and two mounted rod holders along with a spot for a needle-nose pliers.
Galvanized pipe with auger and hole for post ratchet. 2” 2-1/4” N/A DGP8LWA DGP10LWA
DGP12LWA
N/A
N/A
Aluminum ID OD 1-1/4” 1-1/2” Galvanized 1-1/4” 1-1/2” 2” 2-1/2”
24 24
1-1/2” 1-3/4” 2-1/4” 2-3/4”
R
V
S
C
R 5’
DAP5 DGP51/4 DGP5M DGP5L DGP5XL
8’
V
S
C
part# D1ROD
F W U
R oll-A-Dock
V ers-A-Dock
Hewitt Standard Plastic Tire
R
These are Hewitt’s standard tires and fit all Hewitt axles and wheel kits.
C
S ectional
C lassic dock
F loating Dock
25” Otter Tire
U
R
Volume Pack 100 pcs
27”
16” Tire 12lbs (950 lbs capacity) part# DWHEELS
16”
Non-Vented 14lbs (1150 lbs capacity) part# DF300450
V
S
C
F U
Provides leverage for adjusting your dock. Winch slides over dock post. Winch kit pipe has a 2” inside diameter.
14lbs (1150 lbs capacity) part# DF300449
27” Tire Heavy-duty 24lbs (1300 lbs capacity) part# DWHEELHD
U ltra Dock
Post Winch Kit
1-7/8” Axle Opening. Does not fit Hewitt axles.
27” Tire Standard 18lbs (950 lbs capacity) part# DWHEEL
W ave Dock
part# DAPW 25”
Polyethylene tire features seamless construction and venting.
Aluminum Cross Brace Kit
2’ Cross Brace Kit V
For more stability in muddy or deep water. Heavy-duty extruded ends slide over pipe and secure with large set screws. (complete X)
C
U
Aluminum cross bracing that works great in shallow waters on the ends and sides of the dock. One end clamps to dock and other end slides over pipe.
Length
ID
Part #
5’ kit
1-3/4”
DS1095
R V S C U
8’ kit
1-3/4”
DS108
R V S C U
5’ kit
2-1/2”
DS1095L
R
C
U
8’ kit
2-1/2”
DS108L
R
C
U
2’ Pipe to Frame
part# DS13
Quick Change Cross Bracing
Add galvanized steel dock leg bracing from on top of your dock, without going under water, and keeping superior strength with a simple design. Fits pipe up to 1-1/2” OD. 5’ Pipe to Frame part# DV1035 R
V S C U
part# DV1036 R
S U
Fits pipe up to 2-1/4” OD. 7’ Pipe to Frame part# DV1037 R
C U
6’ Pipe to Pipe
25 25
Dock Wheels and Accessories Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Dock Hitch R
Heavy duty aluminum hitch for easier dock removal or installation. Attach to an SUV, lawn mower or ATV. 4’ wide 6’ wide
part# D1HITCH part# D6HITCH
Adjustable Shore End Helper Wheel
Attaches to shore end of dock to help with dock installation or removal without lifting or carrying over rocks or other rough terrain.
Swivel Wheel R
The aluminum fork and tongue slides into the heavy-duty aluminum cross bar that attaches to the shore end of dock. Used to maneuver dock around objects. 4’ wide swivel wheel
part# D1HSW
C R 4’ wide aluminum with 3’ tall pipe R 6’ wide aluminum with 3’ tall pipe
part# D1HSAA3 part# D6HSAA3
C R 4’ wide aluminum with 5’ tall pipe R 6’ wide aluminum with 5’ tall pipe
part# D1HSAA5 part# D6HSAA5
C R 4’ wide aluminum with 8’ tall pipe R 6’ wide aluminum with 8’ tall pipe
part# D1HSAA8 part# D6HSAA8
U 4’ wide Ultra with 3’ tall pipe
part# DUSEW3 part# DUSEW5
U 4’ wide Ultra with 5’ tall pipe
26 26
R oll-A-Dock
Dock Crank Handle
V ers-A-Dock
R
Removable handle to raise and lower the Roll-A-Dock.
R
U
C lassic dock
F loating Dock
W ave Dock
U ltra Dock
Deep Water Kit R
Used to plug deck hole when crank handle is removed.
Replaces the standard wheel assembly to adjust up to 8’. 4’ Aluminum 4’ Galvanized 6’ Galvanized
part# DPLUG
part# DHANDLE
Deep Water Extensions
Dock Hole Plug
S ectional
part# DDEEPA part# DDEEPG part# D6DEEPG
R
Converts the standard 4’ wide aluminum wheel assemblies to accommodate 8’ water depths by making it telescope (cutting required). Replaces the standard wheel assembly to adjust up to 8’. 48”
Aluminum
part# DDEEPA3-3
Helper Wheel for “L”
R
Attaches to dock ends to assist in removing or installing “L” or “T” dock sections. 4’ wide with 5’ upright 4’ wide with 8’ upright 4’ wide with screw upright 6’ wide with 5’ upright 6’ wide with 8’ upright 6’ wide with screw upright
part# D1HLA part# D1HLA8 part# D1HLAS part# D6HLA part# D6HLA8 part# D6HLAS
*Recommended use of 3’ x 3’ cap for 4’, 6’ & 8’ models. See page 62.
8’ Helper Wheel for “L” R
Attaches to sides of 8’ sections or end of two 4’ sections to assist in removing or installing “L” or “T” dock sections. 8’ wide with 5’ upright 8’ wide with 8’ upright 8’ wide with screw upright 8’ wide with two 5’ uprights 8’ wide with twp 8’ uprights 8’ wide with two screw uprights
part# D8HLA part# D8HLA8 part# D8HLAS part# D8HLAD part# D8HLAD8 part# D8HLADS
Screw Upright with Patent-Pending Brake and Stop Bolt
Adjustable Screw Drive Bit Fits all screw legs except the classic dock screw legs. part# LLSAB
27 27
Sectional Dock Systems, Hinges and Plates Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Sectional Dock S
Add your own decking to our permanent aluminum framed dock system. part# DSFRAME5 part# DSFRAME8 part# DS6FRAME5 part# DS6FRAME8
4’ x 8’ Frame with 5’ support pipes 4’ x 8’ Frame with 8’ support pipes 6’ x 8’ Frame with 5’ support pipes 6’ x 8’ Frame with 8’ support pipes
4’ x 10’ Frame with 5’ support pipes 4’ x 8’ Frame with 8’ support pipes 6’ x 10’ Frame with 5’ support pipes 6’ x 10’ Frame with 8’ support pipes
part# DSFRAME105 part# DSFRAME108 part# DS6FRAME105 part# DS6FRAME108
Price includes: Two extruded sides, One 4’ or 6’ cross arm bracket, Two 1-1/4” aluminum support pipes and Two aluminum mud plates.
4’ and 6’ Turn Arm Bracket S
Used to construct right angles, deck peninsulas, or “L” or “T” sections. 4’ Turn bracket only One 5’ Aluminum pipe only 4’ Turn bracket kit w/5’ pipe 6’ Turn bracket kit w/5’ pipe
part# DS103 part# DAP5 part# DS1035 part# DS1135
6’ Turn bracket only One 8’ Aluminum pipe only 4’ Turn bracket kit w/8’ pipe 6’ Turn bracket kit w/8’ pipe
part# DS113 part# DAP8 part# DS1038 part# DS1138
Price includes: One 4’ or 6’ turn bracket, One 1-1/4” aluminum pipe and One aluminum mud plate.
Make your own dock! 4’ or 6’ Aluminum Cross Arm S Support pieces for dock ends.
4’ Cross arm only One 5’ Aluminum pipe only One Aluminum mud plate only 4’ Cross arm kit with 8’ support pipes 6’ Cross arm kit with 8’ support pipes
part# DS102 part# DAP5 part# DAMUD part# DS1028 part# DS1078
6’ Cross arm only One 8’ Aluminum pipe only 4’ Cross arm kit with 5’ support pipes 6’ Cross arm kit with 5’ support pipes
part# DS107 part# DAP8 part# DS1025 part# DS1075
Price includes: One 4’ or 6’ cross arm bracket, Two 1-1/4” aluminum support pipes and Two aluminum mud plates.
4’ and 6’ End Caps S
Closes off dock ends for a more finished look.
28 28
4’ Aluminum
part# DS122
6’ Aluminum
part# DS6122
Sectional Starter Piece S
Keeps front of dock from sinking into sand. 4’ Starter piece
part# DS120
R oll-A-Dock
V ers-A-Dock
S ectional
C lassic dock
F loating Dock
W ave Dock
U ltra Dock
3” or 3-1/4” RIGHT 7-3/8”
TALL 8-1/2”
SHORT 2-1/2”
MEDIUM 4-1/2”
36” LEFT
Small Heavy-Duty Hinges
R
4’ aluminum small heavy duty 6’ aluminum small heavy duty
3-1/4” 3-1/4”
Used on longer multi-section Roll-A-Docks over 48’ long equipped with two or more wheel bases. Small heavy-duty hinge has a 2-hole bolt pattern.
Piano Hinges
Our most popular hinge provides good appearance with maximum strength. Piano hinge has a 3-hole bolt pattern. Has replaceable internal PVC to make a quiet hinge and reduce wear on aluminum parts. 2’ Bolt-on Piano Hinge – Short/Short 2’ Bolt-on Piano Hinge – Short/Medium 2’ Bolt-on Piano Hinge – Short/Tall 2’ Bolt-on Piano Hinge – Tall/Medium 2’ Bolt-on Piano Hinge – Tall/Tall
part# D2HINHSS part# D2HINHSM part# D2HINHST part# D2HINHTM part# D2HINHTT
3’ Bolt-on Piano Hinge – Short/Short 3’ Bolt-on Piano Hinge – Short/Medium 3’ Bolt-on Piano Hinge – Short/Tall 3’ Bolt-on Piano Hinge – Tall/Medium 3’ Bolt-on Piano Hinge – Tall/Tall
part# D3HINHSS part# D3HINHSM part# D3HINHST part# D3HINHTM part# D3HINHTT
4’ Bolt-on Piano Hinge – Short/Short 4’ Bolt-on Piano Hinge – Short/Medium 4’ Bolt-on Piano Hinge – Short/Tall 4’ Bolt-on Piano Hinge – Tall/Medium 4’ Bolt-on Piano Hinge – Tall/Tall
part# D1HINHSS part# D1HINHSM part# D1HINHST part# D1HINHTM part# D1HINHTT
6’ Bolt-on Piano Hinge – Short/Short 6’ Bolt-on Piano Hinge – Short/Medium 6’ Bolt-on Piano Hinge – Short/Tall 6’ Bolt-on Piano Hinge – Tall/Medium 6’ Bolt-on Piano Hinge – Tall/Tall
part# D6HINHSS part# D6HINHSM part# D6HINHST part# D6HINHTM part# D6HINHTT
8’ Bolt-on Piano Hinge – Short/Short 8’ Bolt-on Piano Hinge – Short/Medium 8’ Bolt-on Piano Hinge – Tall/Medium 8’ Heavy Duty Alum Piano Hinge
part# D8HINHSS part# D8HINHSM part# D8HINHTM part# D8HINAP
Corner Support Hinge
F
Used with piano hinge to secure fingers or walkways on floating docks. This hinge needs a special plate welded to the dock for mounting. Left Right
part# D1HINACL part# D1HINACR
Large Heavy-Duty Hinges R
part# D1HINAHS part# D6HINAHS
F
Used in rough water where up and down flex is needed. Heavy-duty hinge has a 3-hole bolt pattern. 4’ aluminum heavy duty 6’ aluminum heavy duty 4’ galvanized heavy duty 6’ galvanized heavy duty
3-1/4” 3-1/4” 3” 3”
part# D1HINAH part# D6HINAH part# D1HINGH part# D6HINGH
Aluminum Transition Plate
Heavy-Duty Aluminum Transition Plate
Create a smooth transition between dock sections or seawall. (Hardware not included)
4’ 5’ 6’ 8’
4’ 6’ 8’ 12’
part# D1TP4 part# D1TP6 part# D1TP8 part# D1TP12
part# D1TPHD4 part# D1TPHD5 part# D1TPHD6 part# D1TPHD8
24”
Weld hinge to your ramp/gangway, dock or seawall. part # ADD-00114
12”
1/2” x 5” SS Hex Bolt part # NB125G 1/2” Coated Hex Lock Nut part #NN12L (Three are used on each plate.)
29 29
Dock Ramps and Corner Triangles Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Roll-A-Dock Ramp
R
Ultra Dock Ramp U
Used for the transition between the dock and your shoreline. This ramp features a tip-over design. No need to unbolt the ramp at the end of the season or when mowing around docks. Simply flip it over! Four decking options available.
Used for the transition between the dock and your shoreline. Two decking options available; includes hinge kit. 2-5/8”
4’ x 4’ 6’ x 4’ 4’ x 8’ 6’ x 8’ 4’ x 12’
Sectional Dock Ramp
S
Used for the transition between the dock and your shoreline. Three decking options available; includes hinge kit; drilling required. 4’ x 4’ 4’ x 8’
Wave Dock Ramp W
6’ x 4’ 6’ x 8’
Paver-style “pebble beach” textured deck finish. Rotationally molded with high-impact polyethylene and maximum UV protection. 2-5/8”
Vers-A-Dock Ramp
4’ x 4’ 4’ x 8’ 4’ x 12’
7’ Wave Dock Ramp 12’ 8” Wave Dock Ramp
DF300055 DF301518
V
Used for the transition between the dock and your shoreline. Three decking options available; includes hinge kit.
Custom Aluminum Ramp with Wave Armor Deck W
4’ x 4’ 4’ x 8’
5x10’ 5x20’ 2-5/8”
Classic Dock Ramp C
D1FMWD5X10 D1FMWD5X20
*Must purchase custom Wave Dock hinge. D1HINCH
Custom Aluminum Ramp with Beige Aluminum Decking W
Used for the transition between the dock and your shoreline. Three decking options available; includes hinge kit.
4x10’ 5x10’
4’ x 4’ 4’ x 8’ 2-5/8”
4x16’ 5x16’
4x20’ 5x20’
4x24’ 5x24’
*Must purchase custom Wave Dock hinge. D1HINCH * Also available with ThruFlow™ decking.
30 30
2” frame on 4’ long ramps. 2-5/8” frame on 8’ and 12’ long ramps plus height of decking.
R oll-A-Dock
4’ Triangle Corners
V ers-A-Dock
R
F
Triangle corners for truss frame docks have a 2” frame with choice of four decking options. Aluminum and cedar shown at right. (Bolts on, drilling required. Purchase three Connection Clamps for clamp on - DV102.)
4’ Ultra Dock Triangle Corner U
Triangle corner with 2” aluminum frame. Choose from white or woodgrain aluminum and white, beige, or gray ThruFlow™. (Clamps on.)
S ectional
C lassic dock
F loating Dock
4’ Classic Dock Triangle Corner
C
4’ Vers-A-Dock Triangle Corner
V
W ave Dock
U ltra Dock
Classic Dock triangle corner has a 5” classic extruded frame with choice of three decking options. ThruFlow™ decking, shown right, is one option available. (Clamps on.)
Vers-A-Dock triangle corners have a 2” frame with choice of 3 decking options. Shown to the right is a Vers-A-Dock with aluminum decking. (Bolts on, drilling required. Purchase three Connection Clamps for clamp on - DV102.)
hewittrad.com
31 31
Decking Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Decking Options Hewitt offers several different decking options. Each style is unique. Let us help you decide what best fits your needs. Hewitt can customize your dock with any of these listed materials. If you have any questions, please contact your local dealer.
Cedar. A traditional favorite. Solid, durable wood that is naturally weather resistant. Cedar boards come in 5/4” radius smooth planks. R
V
S
C
F
Skidguard. A waffle-weave textured panel with a heavy-duty phenolic overlay. Skidguard provides a continuous, no-gap surface that is highly resistant to peeling or chipping.* R
BEIGE WHITE
F
* not available on 6’ wide docks.
QT Powder Coated All-Aluminum. Extruded aluminum decking that offers superior strength, low weight and corrosion resistance. Incorporates sound deadening material and a baked-on beige, white, or woodgrain finish for a durable nonskid surface. Custom colors available. R
V
S
C
F U
WOODGRAIN
BEIGE WHITE GRAY
32 32
*Woodgrain available for Ultra Dock and Residential Gangways only.
ThruFlow™. Reinforced polypropylene finished decking system, designed for easy assembly that requires no maintenance. Its strong, durable, lightweight design makes for a perfect finish on our docks. ThruFlow™ allows water and debris to fall through your dock surface. R
V
S
C
F U
ThruFlow™ Decking
PER PIER BUMPER
Pro Guard Bumper Pro Guard Bumper Corner W
ThruFlow™
The complete flooring system for docks, decks, marinas, gangways and walkways. Easy to assemble, maintenance-free and long-lasting.
ThruFlowTM is designed and engineered to be the finished decking surface for docks, decks, walkways and virtually any indoor or outdoor structure. ThruFlowTM panels are the ideal choice for: Docks and piers, decks and patios, marinas, walkways, gangways and ramps, any area prone to storm effects, or environmental sensitivity.
Safety First
Proprietary molded-in 360 degree non-slip surface makes ThruFlowTM safe for children and always comfortable on the feet. ThruFlowTM also has complete fresh and saltwater tolerance.
GRAY
WHITE
BEIGE
A grated design allows for maximum light penetration; protecting sensitive sea grasses and marine life. Total open area amounts to 43%.
ThruFlow™ Decking White 1x3 1x4 1x5 4x4
part# D1DTF3X1 part# D1DTF4X1 part# D1DTF5X1 part# D1DTF4X4
Volume Pack 280 pcs 280 pcs 280 pcs 70 pcs
Mounting Holes 6 8 10 32
Beige 1x3 1x4 1x5 4x4
part# D1DTFB3X1 part# D1DTFB4X1 part# D1DTFB5X1 part# D1DTFB4X4
Volume Pack 280 pcs 280 pcs 280 pcs 70 pcs
Mounting Holes 6 8 10 32
Gray 1x3 1x4 1x5 4x4
part# D1DTFG3X1 part# D1DTFG4X1 part# D1DTFG5X1 part# D1DTFG4X4
Volume Pack 280 pcs 280 pcs 280 pcs 70 pcs
Mounting Holes 6 8 10 32
Pier Bumper
Environmentally Friendly
Pier Bumper
Maintenance-free
As a non-microbial product, ThruFlowTM does not allow for any leaching, rot, mildew or insect growth. There is absolutely no treatment required.
Durable
Not only does ThruFlowTM have unparalleled strength, but its open design minimizes the lifting effects that waves and storm surge have on your dock. Survive the storm with ThruFlowTM.
ThruFlow™ Self-Tapping Screws
High-quality screws fasten with a large .455” head. Ideal for aluminum frames. Coated Screws for Steel Frames
Stainless Steel Screws for Aluminum Frames One each part# NS10134FH Volume Pack 400 pcs
Bolt Screw .455”
One each part# NS10134FHPSD Volume Pack 400 pcs
Bolt Screw
Stainless Steel Screws for Wood Frames
Corner Whe
One each part# NS102PH Volume Pack 400 pcs
.455”
33 33
Wave Armor Dock Accessories Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Wave Dock Bumpers W
Slim Dock Bumpers
Vertical 15.5”H x 9.5”D Extends 4” above dock surface. part# DF301103
Vertical 32”H x 10”W x 5.5”D Extends 3” above dock surface. part# DF301510
Horizontal 24”L x 12”H x 8.5”D Sits flush with dock surface. part# DF300069
Horizontal 32”H x 10”W x 5.5”D Extends 20” above dock surface. part# DF301350
Large Vertical Dock Bumpers 10”W x 15.5”D x 44”H Extends 27” above dock surface. part# DF300979
34 34
W
W
36” Vinyl Bumper W Adjustable in height. Includes universal H-beam. part# D1BUVW
It is recommended that the rub rail of your boat comes in contact with the bumper rather than the bumper to come in contact with the sides of your boat as this can result in serious damage to the sides of your boat.
Dock Ramp with Tapered End and Hinge Kit
W
7’ Long part# DF300055
10” Pylon Hoop Attachment W
Mooring Chain Adaptor W
(Qty 1)
Insert Only. For 3/8” and 1/2” chain. Mounts to post attachment kits.
part# DF300106
12’8”’ Long part# DF301518
part# DF21926
Custom sizes available.
Mooring Cap W Mounts to post attachment kits. part# DF300493
Universal H-Beam T-Plate Connector W
5” Filler (Decorative Side Panel) W
Connector secures personalized accessories.
Creates a finished look.
7” (sold as single) part# DF302593 12” (2 pcs) part# DF301504
(8 pcs) part# DF301530
Corners W Adds to your surface area. 30” Corner Deck Section part# DF300051 40” Corner Deck Section part# DF302047 60” Corner Deck Section part# DF301577
Winch Mooring Adaptor W Mounts to post attachment kit. Winch and handle sold separately. part# DF21925
35 35
Wave Armor Dock Accessories Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Ramp Abutment W
Wave Dock Post Cover W
7’ Long part# DF301509
Slides over post. Mounts to Attachment Kit sold separately. (2 pcs) part# DF301532
12’8” Long part# DF301661
Universal Dock & Patio Bench W 4’ Bench: 52”W x 37”H x 27”D. 66 lbs. part# DF300014 5’ Bench: 64”W x 37”H x 27”D. 81 lbs. part# DF301092 6’ Bench: 76”W x 37”H x 27”D. 96 lbs. part# DF300016
Wave Dock Post Attachment Kit (with 4” flat insert) W (With flat reducer bushing) (Pair - 2 pcs) part# DF301610
With Solar Light Pocket part# DF302132 - (2 pcs) part# DF302133 - (8 pcs)
Floating Dock Ladder W Folds up when not in use. part# DF300081
Heritage Dock Post Cover W Post covers are eloquently designed with molded-in through holes that accomodate rope up to 1-1/2” D. Covers feature a recessed pocket on top to secure Hexagon Solar Light. Slides over post. part# DF301262 Slides into H-beam. part# DF301278
36 36
Wave Armor Hand Railing W Single Handrail 5’ part# D1RAILCW5 10’ part# D1RAILCW10 Must purchase two universal H-beams per each handrail. part# DF302593
Decorative Snap-in Plugs W (Qty 20) For a clean, finished look. part# DF301574
Dock Locker Box High-impact molded polyethylene and UV protection. Pebble Beach Textured Finish. (Fits 5’ Bench only) Storage Box part# DF301093
60” Half Round Dock W (2-Piece) part# DF301910
Kayak Rack W Stows two kayaks or canoes. part# DF300107
40” Half Round Dock W part# DF302055
60” Quarter Round Dock W (2-Piece) part# DF301841
Wave Dock Post Attachment Kit (Raised Insert) W part# DF302065 part# DF302214 part# DF301608 part# DF301526 part# DF301527
Dock Bench Attachment System Places the bench over the water. part# DF300963
W
Dock Wedge W Creates a 30-degree angle. 40” part# DF301091 60” part# DF301090
37 37
Wave Armor Dock Accessories Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Patio Chair for Wave Dock W
Kayak Launch Loops W
Kayak Assist W
Powder-coated aluminum, adjustable swivel rocker mechanism. Chair is wrapped with two layers of fabric and is durable and comfortable. Includes T-plate and powder coated bracket for mounting chair to Wave Dock.
Get in and out of kayaks and canoes with ease. Heavy-duty aluminum frame.Six adjustable settings.
Provides stability when launching or exiting kayaks and canoes. Mounts to Lower Step Down. Includes one rail and float.
Launch with Wave Dock Bracket part# D1KLW
Kayak Assist only part# DF301246
Optional Guide Bunk part# NABPBP
Step Down only part# DF301096
part# DPCHAIRW
30” Patio Table for Wave Dock W
Entire Kit part# DF301753
Low-maintenance powder-coated aluminum mesh table. Includes hole for optional umbrella and T-plate and powder coated bracket for mounting table to Wave Dock. part# DPTABLEW
Wave Dock Bracket W
Cleat W
Mount patio chairs and table with ability to reposition chairs anytime. Aluminum bracket is powder-coated to match the table and chairs.
Wave Dock 10” Aluminum Dock Cleat (2) part# DF301779
Small Planter/ Flower Pot W part# DF301844
part# DPBRKTW Must purchase T-plate DF302593
Large Planter/ Flower Pot W 38 38
part# DF301776
Garbage Can With Lid W part# DF301775
Smart Steps Kit/ Universal Dock Steps Kit W Includes two steps, t-plate, and mount. part# DF301809
R oll-A-Dock
V ers-A-Dock
S ectional
C lassic dock
F loating Dock
W ave Dock
U ltra Dock
Premium Residential and Commercial Floating Docks and Ports Built to Last a Lifetime
39 39
Wave Armor Dock Accessories Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Otter Island Raft Anchor Made of 100% high-density polyethylene. Just fill it with sand and this 140 lb anchor will keep your raft where you want it. part# DF300003 Volume Pack 6 pcs
Otter Island Raft Cover
Made to protect your raft from UV rays and storage during the off season. part# DF300050
Double Clevis Kit
This complete hardware kit is designed for quick, easy attachment of an anchor to your Hewitt swim raft or Otter Island raft, using rope or chain. The kit includes two 32” lengths of galvanized chain with a clevis at each end for attachment to the raft’s eyelets. Two sections of stretch rope are provided as a flexible link that hooks between the eyelet at the center of the clevis chain and your anchor rope or chain.
Otter Island Seat Cushion This padded seat fits over the backrest and provides a comfortable seating surface. Made of durable quick-dry fabric and foam. part# DF301545
Bird Deterrent
Attaches to raft and will keep birds away and your raft clean. Removable when raft is in use. part# DBIRDR
REMOVABLE
part# DF302209 Volume Pack 12 pcs Clevis Only part# DF301547
hewittrad.com 40 40
Storage Boxes and Coolers
Wave Armor Coolers
Universal Storage Box
R
R
V
S
C
F W U
Thick and rugged roto-molded polyethylene. Grizzly Bear Certified by National Park Service. Other features include pressure-injected polyurethane insulation, saltwater-tested hinge pins and hardware and freezer-quality gasket. Aluminum core foam encased handles and quickrelease compression lid latches make handling easy. Oversized non-slip, non-marking feet, quick-turn drain plug with gasket, hold-fast tie down slots and secure padlock thru-holes (lockable). 22-quart cooler 42-quart cooler
part# DF301548-WHITE part# DF301034-WHITE
V
S
C
F W U 17-3/4”
Rotationally molded with high-impact polyethylene and maximum UV protection. Pebble Beach Textured Finish. (Fits 5’ Bench only)
51-1/2”
part# DF301093
Attaches to Universal Bench, see page 3.
13”
Polyethylene Storage Box 42 qt. dimensions shown.
Molded handles and double-walled lid. Water and dust resistant. Lockable.
39-3/4”
31-1/2”
17”
15”
16-1/2” Overall height
14-1/2”
Standard Box part# L1HYPB
Latch pin with grommet to hold cover shut.
20-1/4”
Medium Box part# L1HYPBL
18 ”
27”
Lock
Latch
41 41
Ladders and Steps Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
3, 4 or 5-Step Metal Ladders
R
V
S
C
F
Galvanized or Powder-coated blue. Optional speed release. 5” step. 3-step Galvanized part# DH28273 3-step Powder-coated part# DH27273 4-step Galvanized part# DH28274 4-step Powder-coated part# DH27274 5-step Galvanized part# DH28275 5-step Powder-coated part# DH27275
3-step 49” 4-step 60” 5-step 71” 11” 11”
16”
Straight Ladder
C
U
Brackets mount on side or end of Ultra Dock and Classic Dock. Four-step straight ladder has three mounting holes and bolts to bracket at a 10-degree angle. Classic Ultra
part# D1LADAC part# D1LADAU
Judge, Northern Lights, and Floe require Ultra Bracket.
42 42
Classic Bracket Only part# D1LADC1
Optional Galvanized Speed-Release Used with galvanized and blue powder-coated ladders only. Speed-release
Ultra Bracket Only part# D1LADU1
part# DH27271
5”
U
R oll-A-Dock
V ers-A-Dock
Heavy-Duty All-Aluminum Ladder
R
V
S
C
Ladder constructed of heavy-duty 1-1/2” square aluminum to resist corrosion. Ladder features 3-1/2” extruded aluminum channel serrated to produce a non-skid surface rung with no sharp edges. Ladder rated 665 lb per rung.
S ectional
F loating Dock
W ave Dock
U ltra Dock
Ladder Mounting Hardware
F U
Hardware for mounting 4 and 6 step ladders. Used with deck thickness up to 2-1/2”.
16-1/4”
part# D1LADM
part# D1LADA4 part# D1LADA42 part# D1LADA6 part# D1LADA62
4 steps 4 steps (2 piece) 6 steps 6 steps (2 piece)
C lassic dock
Aluminum Ladder Hinges
R
S
F U
Aluminum hinge allows you to swing ladder to an upright position. (Drilling required in ladder.)
16-1/4”
One pair
17”
part# D1LADH
18-3/8”
10-1/2”
17”
70-1/2”
91”
10-1/2” 70-1/4
18-3/8”
10-1/4”
10-1/2” 10-1/2”
13”
This unique ladder is constructed with 100% highdensity polyethylene. This dock ladder Integrates perfectly with the Wave Armor system. Folds up and out of the water when not in use. Bottom section of ladder floats. part# DF300081
50” 10-1/2”
Wave Armor Ladder W
4”
-3/
19 68”
14-3/4”
10-1/4”
10-1/4”
12” 3-1/2” 12”
3-1/2” 22”
43 43
Ladders and Steps Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
1-1/4”
26”
Attachment Bracket
26”
60”
60”
38”
38”
16” Leg 32” 32”
36” 36”
33”
36”
White
Aluminum Dock 5-Step
R
V
S
C
Heavy-duty aluminum construction provides solid footing. 5-step with 3-1/2” tread step, two hand railings and two 16” legs. Aluminum Dock 5 Step 1-1/4”
44 44
Attachment Bracket
part# D1STEP5
Optional 25” Leg part# D1STEP5L25
Beige
C
Dock 3-Step with Solid Sides
These all aluminum steps offer a 2” x 5-1/2” powder coated tread, ideal for young children to the elderly. Ensures safe entrance or exit from the water. The step system comes with attachment bracket that fits most docks, two hand railings and two 16” front legs with pads.
Perfect for areas with a rise from the shore to the deck of the dock. Aluminum construction with 36” powder coated stair treads. Top step is 24” tall, longer lengths available.
Dock 4-Step
R
V
Dock 4 Step - White Dock 4 Step - Beige Optional 25” Legs
S
part# D1STEP4 part# D1STEP4B part# D1STEP5L25
Dock 3 step stairs (beige) Dock 3 step with railing (beige) Dock 3 step stairs (white) Dock 3 step with railing (white)
White
part# D1STEP3B part# D1STEP3BWR part# D1STEP3W part# D1STEP3WWR
Beige
R oll-A-Dock
V ers-A-Dock
S ectional
C lassic dock
F loating Dock
U ltra Dock
White
Adjustable Dock to Step Bracket
Beige
Used to mount Hewitt adjustable steps to a deck, seawall side or end of Roll-A-Dock. Custom brackets available for other docks. The adjustable dock step bracket allows for ascending or descending scenarios.
ThruFlow™ GRAY
W ave Dock
WHITE
R
part# D1STEPDMB-1 (For original style steps)
BEIGE
part# D2STEPDMB (For new style steps)
Classic Step C Optional Non-Adjusting Steps Aluminum Bullnose Step
ThruFlow Bullnose Step
Custom Adjustable Steps Need something unique? Custom designs, custom widths and lengths, custom colors and painted handrailings available. Step tread is 9.6” Optional nonadjusting steps have 2” x 8” side tube. Railing and side rails shown above include custom paint option.
Used to mount Hewitt adjustable steps to side or end of a classic dock. Custom brackets available for other docks. The adjustable dock step bracket allows for ascending or descending scenarios.
Adjustable Steps The All-Terrain staircase is made entirely of corrosion resistant aluminum. All components are ruggedly constructed, yet lightweight, for easy handling and assembly. Stair treads and landings are made from the same high-quality QT powder coated aluminum and ThruFlow™ decking that is available on Hewitt Docks. The baked-on finish provides sure footing even when wet. See dealer for ThruFlow™ decking. 3’ Adjustable steps (3’ to 4-1/2’) 5‘ Adjustable steps (5’ to 7-1/2’) 3‘ Adjustable steps (beige 3’ to 4-1/2’) 5‘ Adjustable steps (beige 5’ to 7-1/2’)
part# D1STEPA3 part# D1STEPA5 part# D1STEPAB3 part# D1STEPAB5
part# D1STEPDMBC-1 (For original style steps) One step with brackets.
part# D2STEPDMBC (For new style steps) One pair - brackets only.
45 45
Harbor Straight Bumper
Piling Bu Heavy Duty Cleat
mooring cleat
Impulse Kayak
pu
dle
Paddle 10’
Impulse
Hand winch
lse Pad
Cruizer
Braking Winch
Paddle Impulse Cruizer
Launch
r
Im
Post Ratchet
Post winch
Support Pipes
Braking Winch
Post Ratchet
Post winch Hand winch
46 46
Bra
kin
gW inc
h
part# DF300089
Paddle
ize
Includes foam/neoprene seat cushion.
8’6”
Two-piece, 7’ paddle easily breaks down for storage and transport.
Cru
part# DF300442 part# DF300443
Kayak (blue) Kayak (yellow)
ch
Po st
storage boxes
part# DF300440 part# DF300441
win
Kayak Paddle
Overall Dimensions: 10’L x 32”W x 10”D Cockpit Dimensions: 4’L x 23”W x 6”D 300 lb Weight Capacity 45 lb Kayak Weight
Cooler
storage boxes
Cushion Bumper
dock cleat seat
dock cleat
Cushion Bumper
Overall Dimensions: 8’6”L x 30”W x 15”D Cockpit Dimensions: 4’L x 23”W x 6”D 185 lb Weight Capacity 36 lb Kayak Weight
STRAIGHT BUMPER
nd
Sit-on-top style kayak is comfortable and ultra-stable. Designed for use on lakes or slower moving rivers by paddlers of all abilities. Weatherproof roto-molded polyethylene construction. Adjustable foam seat cushion, rear compartment and molded beverage holder, handles and grips provide added comfort. Available in blue or yellow.
Our basic model made for the beginning paddler. Molded construction features beverage holders, footrests and handles. Spacious cockpit and high-speed hull. High-impact polyethylene provides maximum UV protection and superior stability. Available in blue or yellow.
Kayak (blue) Kayak (yellow)
Ha
’
Harbor Straight Bumper
Compact Cleat
mooring cleat
Pro-Guard Storm
Pier Bumper
dock cleat seat
Bolt Screw
Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Cruizer Kayak
nch
3.5
Fold Cleat
Piling Bumper
Corner Wheel
Small Universal Bumper
Kayaks and Accessories
Lau
R
R oll-A-Dock
V ers-A-Dock
S ectional
Aluminum Kayak/Canoe Rack
Plastic Kayak Rack
Solid 1-1/2”x1-1/2” aluminum rack stores kayak/canoe with ease. Includes paddle shelf and four loop tension cords.
A sturdy and stylish kayak rack is a great solution for waterfront storage. Features molded-in kayak hook receivers to secure kayak to rack. Attaches to Wave Armor Dock or special brackets available for mounting to truss or wood docks.
One Pair part# D1KR R
C
F
U
33”
43”
Heavy-duty aluminum frame loops to assist with getting in and out of kayaks and canoes. Six adjustable settings. part# D1KLT
W part# D1KLW
U ltra Dock
Universal Kayak Rack
27-1/4”
Universal Kayak Rack part# DF300109 45-1/2” 69” 27-1/4”
45-1/2”
2.77”
69”
6”
1.63”
F
4.5”
1/2” Bolts are 4” on center.
BRACKET
TENSION CORD
Kayak Launch Loops
F
W ave Dock
Kayak Rack & Brackets for Truss and Wood Docks part# DF300107K R F Bracket only for Truss and Wood Docks (1) part# DF300107B R
R
F loating Dock
For Wave Dock part# DF300107 (pair) W
50”
BRACKET FITS 1-1/4” TUBE
C lassic dock
Optional 7’ Guide Bunk part# NABPBP
C part# D1KLC U part# D1KLT (Must also purchase 2-D1BUVDU1 and DUAPR1)
61”
Paddle Board Rack
30-1/2”
R
C
F U
1-1/2” x 1-1/2” aluminum frame with 1” x 1” support arms. Arms have heavy-duty rubber sleeve for extra protection.
19” 58” 51”
part# D1PAT Bracket Fits 1-1/4” Tube
47 47
Dock Gates and Mat Rack Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
All-aluminum gate can be mounted to end of dock, gangways or ramps. Special widths available. Includes latch and key.
Security Gate
R
C
F
F
1-1/2” x 1-1/2” aluminum rack stores your water mat. Includes tension cords and fits dockside tubes up to 1-1/4”
4’ Access Gate
part# DGATEA4
part# D1MAT
6’ Access Gate
part# DGATEA6
F
Access Gate
4’ Security Gate
part# DGATES4
6’ Security Gate
part# DGATES6
R
Mat Rack
R
32”
40”
16”
72”
Bracket Fits 1-1/4” Tube
98”
54”
4’ OR 6’
4’ OR 6’
hewittrad.com 48 48
Tension Cord
Float Tanks and Otter Accessories
Float Tanks
F
Used to construct a floating dock or raft. Also useful for adding sections to an existing dock. Over 40 different sizes available. “The most important component of your floating dock is the flotation that keeps the dock floating.”
Structural Ribs Top, Bottom, Sides For Extra Strength Heavy Mounting Flanges 1-1/4” To 1-3/4” Thick Stronger Attachment Points
Threaded Vent Plug Prevents Heat Build-up
What you can’t see is vital to the performance of our floating docks! Unarguably the most sought after floats (based on sales volume) in the marina market are from Premier, because they meet ALL of the important design, engineering, manufacturing, shipping, storage and installation standards that give you the best performance and value. One piece molded rotational drum: Foam filled, molded in mounting slots, heavy-duty mounting flanges, air relief vent, 8 year limited warranty (non-prorated).
Molded Mounting Slots Roto-Molder Encasement For 9/16” Wide x 1-1/2” Long – One-Piece Construction – Completely Water Tight; Meets The ASTM Falling Easier Fastening Dart/Puncture Test
EPS Foam Filled Meets The Hunt 7-Day Water Absorption Test Of Less Than 3.0 lbs/cu.ft.
Heavy Nominal Wall Thickness Of .150” Minimum Of .125”
Float Tank Brackets
R
Brackets for connecting float tanks to a Roll-A-Dock frame. Includes hardware. Part number includes one pair for one float. 4’ Wide 6’ Wide
part# D1FBS42 part# D1FBS62
Lag Bolt Set for wood Attach flotation drums to dock system. 3/8” x 2” galvanized lag bolt 3/8” x 3” galvanized lag bolt 3/8” x 5” galvanized lag bolt 3/8” SS flat washer
part# NB382L part# NB383L part# NB385L part# NW38FL
Model Size (Inches) Series 1248 part# DFT1248-20 12” x 48” x 20” Series 1848 part# DFT1848-36 18” x 48” x 36” Series 2072 part# DFT2072-08 20” x 72” x 8” part# DFT2072-10 20” x 72” x 10” Series 2096 part# DFT2096-10 20” x 96” x 10” Series 2436 part# DFT2436-08 24” x 36” x 8” part# DFT2436-12 24” x 36” x 12” part# DFT2436-16 24” x 36” x 16” part# DFT2436-20 24” x 36” x 20” Series 2448 part# DFT2448-08 24” x 48” x 8” part# DFT2448-12 24” x 48” x 12” part# DFT2448-16 24” x 48” x 16” part# DFT2448-20 24” x 48” x 20” part# DFT2448-24 24” x 48” x 24” part# DFT2448-36 24” x 48” x 36” Series 2472 part# DFT2472-12 24” x 72” x 12” part# DFT2472-16 24” x 72” x 16” Series 2496 part# DFT2496-08 24” x 96” x 8” part# DFT2496-12 24” x 96” x 12” part# DFT2496-16 24” x 96” x 16” part# DFT2496-20 24” x 96” x 20” Series 3048 part# DFT3048-12 30” x 48” x 12” part# DFT3048-16 30” x 48” x 16” Series 3072 part# DFT3072-16 30” x 72” x 16” Series 3242 part# DFT3242-18 32” x 42” x 18” Series 3648 part# DFT3648-08 36” x 48” x 8” part# DFT3648-12 36” x 48” x 12” part# DFT3648-16 36” x 48” x 16” part# DFT3648-18 36” x 48” x 18” part# DFT3648-20 36” x 48” x 20” part# DFT3648-24 36” x 48” x 24” part# DFT3648-32 36” x 48” x 32” Series 3660 part# DFT3660-12 36” x 60” x 12” part# DFT3660-16 36” x 60” x 16” part# DFT3660-20 36” x 60” x 20” Series 3672 part# DFT3672-12 36” x 72” x 12” part# DFT3672-16 36” x 72” x 16” part# DFT3672-20 36” x 72” x 20” part# DFT3672-24 36” x 72” x 24” part# DFT3672-32 36” x 72” x 32” Series 3696 part# DFT3696-12 36” x 96” x 12” part# DFT3696-16 36” x 96” x 16” part# DFT3696-20 36” x 96” x 20” part# DFT3696-24 36” x 96” x 24” part# DFT3696-32 36” x 96” x 32” Series 3878 part# DFT3878-12 38” x 78” x 12” Series 4272 part# DFT4272-12 42” x 72” x 12” part# DFT4272-16 42” x 72” x 16” part# DFT4272-20 42” x 72” x 20” Series 4848 part# DFT4848-12 48” x 48” x 12” part# DFT4848-16 48” x 48” x 16” part# DFT4848-20 48” x 48” x 20” part# DFT4848-24 48” x 48” x 24” part# DFT4848-32 48” x 48” x 32” part# DFT4848-36 48” x 48” x 36” Series 4860 part# DFT4860-12 48” x 60” x 12” part# DFT4860-16 48” x 60” x 16” part# DFT4860-20 48” x 60” x 20” part# DFT4860-24 48” x 60” x 24” part# DFT4860-32 48” x 60” x 32” Series 4872 part# DFT4872-12 48” x 72” x 12” part# DFT4872-16 48” x 72” x 16” part# DFT4872-20 48” x 72” x 20” part# DFT4872-24 48” x 72” x 24” part# DFT4872-28 48” x 72” x 28” part# DFT4872-32 48” x 72” x 32” part# DFT4872-36 48” x 72” x 36” Series 4884 part# DFT4884-12 48” x 84” x 12” part# DFT4884-16 48” x 84” x 16” Series 4896 part# DFT4896-12 48” x 96” x 12” part# DFT4896-16 48” x 96” x 16” part# DFT4896-20 48” x 96” x 20” part# DFT4896-24 48” x 96” x 24” part# DFT4896-32 48” x 96” x 32” Series 48120 part# DFT48120-12 48” x 120” x 12” part# DFT48120-16 48” x 120” x 16” part# DFT48120-20 48” x 120” x 20” Boat Lift Series (All .375 Wall Thickness) part# DFT252 BLAT 26” x 30” x 60” part# DFT183 BLAT 30” x 30” x 90” part# DFT242 BLAT 32” x 40” x 108”
Cu. Ft.
Wt. (lbs)
Float Buoy.
6.7
27
359
18
54
966
6.7 8.3
34 38
360 450
11.1
50
592
4 6 8 10
21 27 30 33
211 318 436 540
5.3 8 10.7 13.3 16 24
27 33 39 44 50 72
288 433 581 729 866 1297
12 16
44 57
629 796
10.7 16 21.3 26.7
53 64 75 84
562 866 1155 1420
11.3 13.3
33 38
514 712
20
56
1051
14.2
46
790
8 12 16 18 20 24 32
37 45 51 54 62 66 82
429 650 874 990 1088 1280 1644
15 20 25
58 61 74
783 1017 1328
18 24 30 36 48
62 78 87 99 120
999 1313 1638 1951 2553
24 32 40 48 64
90 103 112 132 149
1331 1735 2172 2597 3349
20.6
76
1133
21 28 35
80 86 98
1166 1555 1934
16 21.3 26.7 32 42.7 48
55 67 77 86 108 114
878 1182 1480 1738 2231 2480
20 26.7 33.3 40 53.3
73 80 92 106 130
1101 1497 1851 2199 2815
24 32 40 48 56 64 72
78 98 111 123 141 154 166
1369 1823 2225 2701 2940 3457 3800
28 37.3
89 105
1510 2056
32 42.7 53.3 64 85.3
109 131 145 163 193
1803 2396 2996 3578 4631
40 53.3 66.7
124 143 177
2118 3020 3692
27 46.9 81.5
85 130 200
1000 2000 3700
A Superior 15-Year Warranty, with the first 8 years 100% non-prorated.
49 49
Otter ATV Trailers • Haul up to 15 Cubic Feet and 1500 Pounds • 10 Year Warranty on Trailer Bed and 1 Year Warranty on Trailer Components
Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Xpress 15 Trailer
Super Xpress 20 Trailer
Xpress 20 Trailer
• High Clearance Frame with 3/4D Solid Steel Axle • Steel Wheels w/ Integrated Greaseable Roller Bearings • Industry Strongest Roto-Molded Trailer Body • Molded-In Power-Rail Frame • Reinforced Outer Lip For Remarkable Wall Strength • Tilt-N-Swivel Side & Rear Dumping w/ Tipper Latch • Standard Pin Style Hitch Attachment
4-bolt hub assembly with greaseable tapered roller bearings.
• High Clearance Frame with 3/4D Solid Steel Axle • Steel Wheels w/ Integrated Greaseable Roller Bearings • Standard Pin Style Hitch Attachment • Optional 2D Ball Coupler Attachment • Tows Smoothly Behind any ATV / UTV • Molded-In Power-Rail Frame • Reinforced Outer Lip For Remarkable Wall Strength • Tilt-N-Swivel Side & Rear Dumping w/ Tipper Latch
Dimensions: 65L x 36W x 14D Tires: 18 x 7 x 8 Floatation Turf Tires
Dimensions: 65L x 46W x 14D Load Capacity: 1500 lbs Cubic Ft. of Space: 20 ft Tires: 18 x 9.5 x 8 Floatation Turf Tires
Load Capacity: 1500 lbs Cubic Ft. of Space: 15 ft
part# DFA201244
Dimensions: 65L x 46W x 14D Load Capacity: 1500 lbs Tires: 18 x 8.5 x 8 Floatation Turf Tires Cubic Ft. of Space: 20 ft part# DFA201239
part# DFA201234 46’
36’ 14’ 65’
14’
65’
65’
Travel Cover
Bucket Holder
Auger Shield
Protect your gear and your load with a Rhino Xpress 20 Trailer Cover. The heavyweight fabric is extremely durable and waterresistant, with a sewn-in shock cord into the hem to seal out the elements. Designed to fit Xpress 20 Off-Road Trailer.
Constructed of 100% thick, and rugged Roto-Molded Polyethylene. Simply attach this Accessory to your Rhino Rear ATV Box for the simplest way to carry 5 gallon buckets with you during transport. With no tools necessary for installation, you simply need to slide this tank onto the built-in accessory attachment points.
Revolutionary Auger Shield is a full-length ice auger boot that completely encases the auger blade. Constructed of 100% thick and rugged Roto-Molded polyethylene plastic, it protects your expensive gear from being damaged by the sharp, metal edge of your auger blade while protecting the blade itself. A built-in carrying handle makes for easy transport and allows you to conveniently store your shield by hanging it on the wall. Designed for standard length augers. Our Auger Shield fits a 10” auger drill.
part# DFA200847
part# DFA200829
50 50
46’
14’
part# DFA200553
Galvanized Dock Hardware
Dock Hardware Commercial-grade (1/4”) dock hardware is designed for use with 1-1/2” thick lumber (minimum width 6”). All hardware is mounted with 3/8” carriage bolts. All male and female dock to dock connections are made with either 3/4” bolts with lock nuts or 3/4” connecting pins.
Wood Dock Plan Kit will show you the basics on building a lightweight and long-lasting floating dock system.
Inside Corner Back Up Plate
Angle Bracket Outside Corner (Female) Connector Pin
Outside Corner
Chain Retainer
Outside Washer Plate Pipe Holder Roller Assembly
Female “T” Connector and Hex Head Bolt Male “T” Connector Outside Corner “Male”
51 51
Galvanized Dock Hardware Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Lag Bolt Set
Connector Pin Set “O”
Aluminum Transition Plate
Attach flotation drums to dock system.
For quick disconnect. Used to connect male and female T connectors.
Create a smooth transition between dock sections or seawall.
3/8” x 2” galvanized lag bolt 3/8” x 3” galvanized lag bolt 3/8” x 5” galvanized lag bolt 3/8” SS flat washer
part# NB382L part# NB383L part# NB385L part# NW38FL
part# DH26531
3/4” Connector Pin & Hitch Clip Pin Volume Pack 48 pcs
4’ 6’ 8’ 12’
part# D1TP4 part# D1TP6 part# D1TP8 part# D1TP12
4-15/16”
2-1/12”
3-1/12”
Effective Reach 12”
Carriage Bolt Set Includes bolt, flat washer and nut. 3/8” x 2-1/2” SS Carriage Bolt 3/8” SS Flat Washer 3/8” Brass Nut
part# NB38212C part# NW38FL part# NN38S
1/2” x 3” “M” SS Carriage Bolt 1/2” SS Flat Washer 1/2” Coated Nut
part# NB123C part# NW12FL part# NN12S
3/4” x 3-1/2” “N” SS Hex Bolt 3/4” SS Flat Washer 3/4” Coated Nut
part# NB34312G part# NW34FL part# NN34L
Pipe Holder/ 3” Outside “K”
Heavy-Duty Roller Assembly “T”
Bolts to outside of dock. Use 2” pipe to hold dock in place.
Assist vertical motion of the dock in tidal action areas. 6” roller, 3/8” bracket.
Pipe Holder
HD Roller Assembly “T” Replacement Roller Only
part# DH26411
part# DH26414 part# DH48939
Volume Pack 24 pcs 3” ID 10.5”
7”
5” 6”
52 52
2”
Heavy-Duty Aluminum Transition Plate
Inside Corner “D”
Inside Rolling Ramp Bracket
With replaceable wear guard.
Heavy-duty inside corner should be used with an outside corner.
Includes left and right ramp brackets. 5”x11” x 1/4”
Inside Corner “D” part# DH26403
Inside Rolling Ramp Bracket part# DH26431
Volume Pack 32 pcs
Replacement Roller Only part# DH48939
4’ 5’ 6’ 8’
part# D1TPHD4 part# D1TPHD5 part# D1TPHD6 part# D1TPHD8
24”
Weld hinge to your ramp/gangway, dock or seawall. part # ADD-00114
8-1/4”
8-1/4”
1/2” x 5” SS Hex Bolt part # NB125G 1/2” Coated Hex Lock Nut part #NN12L (Three are used on each plate.)
5”
11”
6”
5”
11”
Outside Corner End “C” Use at ends of fingers and docks. Ideal for swim floats. Each Leg Is 10”L x 5”H. Outside Corner End “C”
part# DH26402
Inside Corner/ 3” Pipe holder “E”
Inside Corner/ 2” Pipe holder “E”
Use with one of the outside corners and as an internal pipe holder for dock frame strength.
Use with one of the outside corners and as an internal pipe holder for dock frame strength.
8-1/2”L x 5”H.
8-1/2”L x 5”H.
3” Pipe Holder ”E” Volume Pack 16 pcs
part# DH26404
2” Pipe Holder ”E” 2” or 3” ID
Volume Pack 16 pcs
part# DH26405 2” or 3” ID
10”
10”
5” 8-1/2”
8-1/2”
53 53
Galvanized Dock Hardware Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Chain Retainer “J”
Female T Connector “G”
Use weights and chains to hold dock in place. Accommodates 1/4”, 3/8”, & 1/2” Chain. 5”L x 5”H.
Two welded 1/2” tabs. Bolts to side of dock to attach fingers and ramps. Female T Connector “G” part# DH26407
Chain Retainer “J” part# DH26410
Volume Pack 24 pcs
Volume Pack 24 pcs 5”
5”
5” 5”
1-1/4” gap
Washer Plate “I”
Outside Corner (Male) “B”
Cleat Angle
Use two washer plates with each angle.
1/2” welded tab. Use with a female outside corner to connect docks end to end.
Slots accommodate various cleat sizes.
Washer Plate part# DH26409
Each leg 10”L x 5” H. Outside Corner (Male) “B” part# DH25491
Volume Pack 48 pcs
Volume Pack 24 pcs
10”
Cleat Angle part# DH26422 Volume Pack 48 pcs
5”
2.75”
2.75”
10”
5”
5” .563”x2”
1-1/2”
54 54
.563”x1.625x2”
Male T Connector “H”
Angle “F”
Outside Corner (Female) “A”
Welded 1/2” Tab. Use with female T connector to attach fingers and ramps.
Heavy-Duty angle for cross supports.
Two 1/2” welded tabs. Use with a male outside corner.
Angle “F” part# DH26406
Male T Connector “H” part# DH26408
Each Leg 10”L x 5”H. Outside Corner (Female) “A” part# DH26400
Volume Pack 48 pcs
Volume Pack 24 pcs
Volume Pack 24 pcs
2-5/8”
10” 5” 5”
5”
10”
5”
1-1/4” gap
.438” x 4
Back-Up Plates “Q”
Dock Packages
Use 5”x 5” reinforcing plates to back up Single T Males and Females.
Dock planning made easy with our Dock Hardware Planning Guides.
3’x20’ Wood Finger Dock
Dock Hardware Planning Guide in PDF format available for download at glmarineproducts.com.
Back-Up Plate “Q” part# DH26413
PDF Planning Guides • 10’x20’ Wood Main Dock • 8’x20’ Wood Main Dock • 4’x20’ Wood Main Dock • 6’x20’ Wood Main Dock • Typical U-Dock • 3’x20’ Wood Finger Dock • 12’x12’ Wood Swim Float • 10’x10’ Wood Swim Float • Main Dock Decking
Volume Pack 40 pcs
5”
5”
8’x20’ Wood Main Dock
10’x20’ Wood Main Dock
55 55
Piling Rings and Caps Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
14” Interior Pile Guide 14” clearance for square or round pile. Guide with four rollers. 14” Interior Pile Guide part# DH26434 Volume Pack 12 pcs
24”
24”
3.75”
14” 7.94”
Piling Rings with Four Rollers and Removable End 8” Dock pile ring (10” opening) part# DABPR8 Volume Pack 12 pcs 10” Dock pile ring (12” opening) part# DABPR10 Volume Pack 12 pcs 12” Dock pile ring (14” opening) part# DABPR12 Volume Pack 12 pcs
56 56
Custom Dock pile ring (made to your size) part# DABPR 10”-12” Ring
Opening Dimension
8” Ring
Piling Caps
Keep birds from roosting in your pilings. Mildew inhibitors and UV stabilized. Available in white or black.
Flat Piling Cap
Black 6.5” Flat White 7” Flat Black 7” Flat White 7.5” Flat Black 7.5” Flat White 8” Flat Black 8” Flat White 9” Flat Black 9” Flat White 10” Flat Black 10” Flat White 10.5” Flat Black 10.5” Flat White 11” Flat Black 11” Flat White 12” Flat Black 12” Flat
Cone Piling Cap
part# FPC65B part# FPC7W part# FPC7B part# FPC75W part# FPC75B part# FPC8W part# FPC8B part# FPC9W part# FPC9B part# FPC10W part# FPC10B part# FPC105W part# FPC105B part# FPC11W part# FPC11B part# FPC12W part# FPC12B
part# CPC7W part# CPC7B part# CPC75W part# CPC75B part# CPC8W part# CPC8B part# CPC85W part# CPC85B part# CPC9W part# CPC9B part# CPC95W part# CPC95B part# CPC10W part# CPC10B part# CPC105W part# CPC105B part# CPC11W
White 7.0” Cone Black 7.0” Cone White 7.5” Cone Black 7.5” Cone White 8.0” Cone Black 8.0” Cone White 8.5” Cone Black 8.5” Cone White 9.0” Cone Black 9.0” Cone White 9.5” Cone Black 9.5” Cone White 10.0” Cone Black 10.0” Cone White 10.5” Cone Black 10.5” Cone White 11.0” Cone
Black 11.0” Cone White 11.5” Cone Black 11.5” Cone White 12.0” Cone Black 12.0” Cone
12” Piling Hoop with Roller and Removable End
13” Piling Hoop with Roller and Removable End
Make vertical movement easier in areas with wind, current or tides. For pilings up to 12” in diameter.
13”x13” Pile hoop with roller and removable end for up to 12” pile.
12” Piling Hoop and Roller Assembly
part# DH26415
part# CPC11B part# CPC115W part# CPC115B part# CPC12W part# CPC12B
part# DH26423
Volume Pack 12 pcs
Volume Pack 12 pcs
22”
22.5”
4-1/4”
6” 12” 4”
4” 14-1/4”
20.25”
57 57
Lift Bumpers, Full-Length Guides and Motor Stop Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Hydraulic Motor Stop
24”and 36” Plastic Bumpers High-strength polyethylene plastic formulated with UV protection for the marine environment. Mount to square poles with recessed mounting holes. Colors: White, Black, Green, Tan, Light Gray. Volume Pack 24 pcs 24” Bumpers 2” slot-White 2” slot-Black 3-1/2” slot-White 3-1/2” slot-Black 3-1/2” slot-Light Gray
part# D1BUVP24W part# D1BUVP24B part# D1BUVP243W part# D1BUVP243B part# D1BUVP243GYL
Single Motor 4,400-10,100 Double Motor 4,000-10,100 Large Double Motor 12,100-24,100 24”
36” Bumpers 2” slot-White part# D1BUVP2W 2” slot-Black part# D1BUVP2B 2” slot-Green part# D1BUVP2G 2” slot-Tan part# D1BUVP2TN 2” slot-LightGray part# D1BUVP2BGYL 2-1/2” slot-White part# D1BUVP212W 2-1/2” slot-Black part# D1BUVP212B 2-1/2” slot-Light Gray part# D1BUVP212GYL (Mounted to 2x2 tube. Requires 2 bolts, 2 nuts and 4 washers per bumper) 3/8” x 3-1/2” SS Hex Bolt part# NB38312G used with tube thickness up to 2” 1/2” Bolt 3/8” Brass Nut part# NN38S length through 3/8” SS Flat Washer part# NW38FL bumper 36” Bumpers 3-1/2” slot-White part# D1BUVP3W 3-1/2” slot-Black part# D1BUVP3B 1/2” Bolt (Mounted to 3x3 tube. Requires 2 bolts, 2 nuts and 4 washers per bumper) length through bumper part# NB38412G 3/8” x 4-1/2” SS Hex Bolt used with tube thickness up to 3” 3/8” Brass Nut part# NN38S 3/8” SS Flat Washer part# NW38FL 1/2” Bolt length through bumper
58 58
X36” Bumpers X36” Plastic with 3-1/2” Slot-White part# D1BUVP312W X36” Plastic with 3-1/2” Slot-Black part# D1BUVP312B (Mounted to 3x3 tube. Requires 2 bolts, 2 nuts and 4 washers per bumper) part# NB386G 3/8” x 6” Bolt 2-1/8” Bolt length used with tube thickness up to 3” through 3/8” Brass Nut part# NN38S bumper 3/8” SS Flat Washer part# NW38FL
24”
This design fits new rubber bunks. Carriage bolts slide into track on outside of bottom bunk and plates are attached on the outside. There are two hole patterns on the plate for height adjustment. The extensions are 24” long for length adjustment and then finished off with a 36” plastic bumper. Motor stop for older lifts available. part# LMSHYS part# LMSHYD part# LMSHYD2
20” of Adjustment
36”
Motor Stop
Protect your motor from overrunning the lift. For cantilever and vertical lifts part# LMS Small Large Adjustable part# LMSL For Proteus Lift
part# LMSP
2”
Bow Stop
Bow stops are used for rough water or outdrive ski boats to keep boat from overrunning the lift. Standard Stop for cantilever and vetical lifts part# LBS
36”
LBS
Large Bow Stop for 4600-6600 part# LBSHD
2” 3/4” 4-1/2”
Bow Stop for Proteus lift part# LBSHD Drilling required
2-1/2”
24” 2” 3/4”
LBSHD
4-1/2”
2”
3/4” 4-1/2”
3-1/2” 3-1/2” 3/4” 4-1/2”
Foam Post Bumper
Hydraulic Bow Stop
3-1/2”
This design fits new rubber bunks. 11’ custom extrusion slides into the bottom bunk with 8’ of adjustment inside the bunk and is secured with two 1/2” set screws. Bow stop for older lifts available. Hydraulic Stop 2,500-10,100 part# LBSHY
36”
Bumper slides over 1-1/2” OD pipe and also serves as replacement foam for centering guides.
1-1/2” 4”
part# D1BUF 26-1/4”
Various shapes and sizes of aluminum are available for sale. Contact your local dealer for details.
Boat Port Side Walk Brackets Bolts onto Boat Port cross-beams to create a side walkway. (Planks not included.)
14’ Carpeted Pontoon Guides
Carpeted 12’ Standard for 1800 - 5200 part# LFLCG 14’ Standard for 1800 - 5200 part# LFLCG14 (Standard also fits hydraulic 4400-8100) 12’ Medium for 1600 - 3800 part# LFLCGH 14’ Medium for 1600 - 3800 part# LFLCGH14 12’ 4600 for 4600 HL part# LFLCG46 14’ 4600 for 4600 HL part# LFLCG4614 12’ Large for 5600 - 6600 HL part# LFLCGHL 14’ Large for 5600 - 6600 HL part# LFLCGHL14
Standard 1800 - 5200 part# LFLCGCP14 (Standard also fits hydraulic 4400-8100) Medium 1600 - 3800 part# LFLCGCH14 4600 4600 part#LFLCGCP46 Large 5600 - 6600 part# LFLCGCPL14
Full-length guide steps aid in guiding your boat into the same position every time. Vertical and horizontal adjustment support for getting in and out of your boat.
One Bracket part# LBPWB 2- tank lift uses 4 brackets per side 3- tank lift uses 5 brackets per side
Full-Length Guide Step
16” Max
Boat Port Front Walk Brackets
30” Support with four 14’ carpeted bunks to help guide your pontoon into the lift.
Bolts onto front of Boat Port to create a side walkway. One needed per side. (Planks not included.) One Bracket part# LBPWBF
16” Max
Aluminum Guide Step
Aluminum guide step is 13’ 6” and carpeted 2” x 6” bunk is 14’. Aluminum guide step has pre-drilled holes. Bunk attached by six 3/8” lag bolts. The top flat of the guide step extension slides in from end. The top flat is drilled and tapped for quick adjustment. Standard 1800 - 5200 part#LFLAG (Standard also fits 4400-8100) Medium 1600 - 3800 part#LFLAGH 4600 4600 part#LFLAGH46 Large 5600 - 6600 part#LFLAGHL
Hydraulic Full-Length Outriggers
Allows you to install guides onto hydraulic lifts. Keep in mind, two pair are needed – one pair for each side of lift. One pair 2,500-8,100 part# LFLCGHYB
59 59
Universal Bumper Post winch Small Universal Bumper
Centering Guides and Catwalk
Corner Bumper
dock cleat seat
Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Various shapes and sizes of aluminum are available for sale. Contact your local dealer for details.
Post Ratchet Piling Bumper
Cushion Bumper
Heavy-Duty Centering Guides mooring cleat
Upper and lower lip wrap around the lift post. Waffle effect backside for additional cushioning. Marine-grade PVC. Colors: White, Black, Blue, Light Gray storage boxes White Black Blue Light Gray
part# D1BCBWE part# D1BCBBK part# D1BCBBE part# D1BCBGYL
(8 fasteners recommended per bumper, see page 8.) Volume Pack 24 pcs
30” Plastic Pontoon Guides for Cantilever Lifts and PWC Lifts These guides feature shock absorbing rubber bushings at the base and durable 24” plastic bumpers to help guide your pontoon boat into the lift. White
part#LCGBPP
The name says it all. Our heavy-duty centering guides feature shock absorbing springs at the base and durable plastic bumpers that won’t mar your boat’s finish. Fits tubes up to 3-3/4” w x 8” h.
36”
5-3/4” Cushion Bumper
Harbor Straight Bumper
4400-10,100 12,100-18,100
part# LCGBHD part# LCGBHDL (Adds 24” to height)
2” 3-3/4”
36” Plastic Centering Guides These guides feature shock absorbing rubber bushings at the base and durable plastic bumpers. Standard fits up to 3” wide by 3” tall beds part# LCGBP Hi-Lifter fits up to 3” wide by 5” tall beds up to 4,500 lbs. part# LCGBPHL For Proteus lift part# LCGBPPO
60 60
Truss Bumper
70”
4-1/2”
87”
36”
Narrow Pontoon Guide Roller This guide bolts onto a 3” tube. Roller aids in guiding boat onto lift. One pair
part# LNPGR
Narrow Pontoon Front Stop
Catwalk
Stop pontoon from overrunning lift. One pair part# LNPFS
12”
16-1/2”
All aluminum brackets with mounting hardware, to make side mounted catwalk for cantilever, vertical and hydraulic lifts with canopy or free standing canopies (planks not included). One Pair for Cantilever Lift part# LCWB
3”
One Pair for Hi-Lift Verticals (drilling required) part# LCWBHL
13”
Narrow Pontoon Stabilizer Bars Get more stability out of your narrow pontoon lift with these stabilizer bars. All aluminum with hardware. One pair part# LNPSB
61 61
Pontoon Conversions and Accessories Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Pontoon Rack Kit
Convert your regular lift into a pontoon lift with these heavy-duty aluminum brackets and hardware. Rack lifts under the boat’s deck, adds life to the boat’s tanks. Also useful as a landing guide to center your boat over the lift. There are two different rack styles, (shown at left) pontoon rack with wood, (shown at right) aluminum adjustable rack kit Standard Rack Kit: 1800 Wide, 2400-5200 Cantilever Medium Rack Kit: 1800 Roll-A-Rail, 1600-3800 Hi-Lifter 4600 Rack Kit: 4600 Hi-Lifter Large Rack Kit: 5600HL, 6600HL Proteus Rack Kit:
Wood Bunks part# LNPRKS part# LNPRKM part# LNPRK46 part# LNPRKL part# LNPRKP
Aluminum Rack part#LNPRKAS part#LNPRKAM part#LNPRKA46 part#LNPRKAL part#LNPRKAP
43”
Adjustable from 26-1/2” to 29”
ADJUSTABLE RACK KIT OPTION
Optional Guide Rollers For Adjustable Aluminum Rack Kit Roller aids in guiding boat onto lift. One pair part# LNPGR
62 62
* Aluminum adjustable rack kit works on tritoons.
Various shapes and sizes of aluminum are available for sale. Contact your local dealer for details.
Vinyl Pontoon Bed
One set 1800-5200 Cantilevers 1600-3800 Hi-Lifter 4600-6600 Hi-LIfter Proteus
Twin Tube part# LNPCVB part# LNPCVBH part# NA part# LNPCVBP
Triple Tube part# LNPCVB1/2 part# LNPCVBH1/2 part#LNPCVBHL1/2 part# LNPCVBP1/2
Carpeted Pontoon Wood Bed
Twin Tube part# LNPCWB part# LNPCWBH part# NA part# LNPCWBP
Triple Tube part# LNPCWB1/2 part# LNPCWBH1/2 part# LNPCWBHL1/2 part# LNPCWBP1/2
Convert your regular lift into a pontoon lift using the 14’ vinyl bunks, to be installed in a “V” shape. This vinyl bed fully cradles your pontoons.
Convert your regular lift into a pontoon lift using the 14’ carpeted bunks, to be installed in a “V” shape. This wood bed fully cradles your pontoons.
One set 1800-5200 Cantilevers 1600-3800 Hi-Lifter 4600-6600 Hi-LIfter Proteus
hewittrad.com 63 63
Bunks and Bunk Treads Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Trailer Jack Stand Donut
Replacement Carpet
Keep your trailer jack from sinking into the ground or moving.
Heavy-duty all-weather carpet with thick backing is designed to replace worn and frayed bunks. The marine-grade carpet will not rot or mildew. UV fade and fray resistant. One of the strongest on the market!
Marine-grade PVC. Trailer Jack Stand Donut part# D1BJD
Weight: 14 oz. per square yard Material: Interlocked Polypropylene Fibers Backing: 10 oz. Marine Back 11” x 30’ 16” x 30’ 20” x 30’ 26” x 30’
for two 14’ for two 14’ for two 14’ for two 14’
1” x 4” 2” x 6” guides 2” x 10”
part# LCARPETV part# LCARPETB part# LCARPETG part# LCARPETBL
Bunk Glide On Slide easily on or off. Self Centering and constructed with enhanced PVC. For painted, fiberglass or aluminum boats. Fits Standard bunk boards. (Includes mounting screws.) 2”x6” - Four 13” end caps, Four 36” middles part# D1BG26WE White 2” x 6” Glide On part# D1BG26BK Black 2” x 6” Glide On 2”x4” - Four 50” pieces White 2” x 4” Glide On Black 2” x 4” Glide On
Bunk Treads Make sliding on or off easy. Treads screw directly onto carpeted bunk boards. Screws Included.
part# D1BG24WE part# D1BG24BK
Fits 2” x 6” or 2” x 4” standard bunk boards. 10 pcs 3” x 16” Treads part# D1BBT
6”
64 64
4”
Various shapes and sizes of aluminum are available for sale. Contact your local dealer for details.
PWC Bunk Upgrade
Aluminum Tube with extruded non-scratch plastic glides with UV protection. Sold as 1. 2” x 4” x 84” for 1150, 2300 PWC part# NAM0916 2” x 4” x 72” for 1100HL part# L1PWB11
Aluminum Rubber Bunks
All aluminum 3-1/4” x 3-1/4” bunk with an extruded ribbed rubber surface. Bunks sold in pairs (2). Length Part # 12’ LBAR12 14’ LBAR14
Bunk Spacer
A Bunk Spacer will be used on Aluminum bunk PWC lifts and also pontoons with an elliptical pontoon. Adds 2-1/2” of height. part# LBSK212
Aluminum V-Bunk
Solid 3” x 3” aluminum tube with a carpeted, pressure treated bunk or 3-1/4” x 3-1/4” alumium with rubber bunk used on all outdrive ski boats. Bunks sold in pairs (2). Length 12’ Standard 1800 Wide - 5200 Cantilever 14’ Standard 1800 Wide - 5200 Cantilever 12’ Medium 1800, 1600 - 4600 HL 14’ Medium 1800, 1600 - 4600 HL 12’ Large 5600 - 6600 HL 14’ Large 5600 - 6600 HL
Wood Part # LVBA LVBA14 LVBAH LVBAH14 LVBAHL LVBAHL14
Rubber Part # LVBAR12 LVBAR14 LVBARH12 LVBARH14 LVBARHL12 LVBARHL14
Carpeted Full-Length Bunks
Full-Length Bunks are made from pressure treated lumber and covered with premium grade marine carpeting. Carpeting is highly resistant to mildew and rot. Bunks sold in pairs (2). Size Length 2” x 6” 12’ 2” x 6” 14’ 2” x 10” 12’ 2” x 10” 14’
Part # LFLB12 LFLB14 LFLBL12 LFLBL14
Shown with rubber.
Shown with wood.
65 65
Lift Legs and Extensions Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
3”x3” Adjustable Screw Leg
Leveling Legs
A variety of lengths of leveling legs are available to assure level lift installation in deep water or on an uneven lake or river bed. 18” long 1-1/2” x 1-1/2” sq. 30” long 1-1/2” x 1-1/2” sq. 36” long 1-1/2” x 1-1/2” sq. 60” long 1-1/2” x 1-1/2” sq. 36” long 2” x 2” sq. 72” long 2” x 2” sq. 96” long 2” x 2” sq. 36” long 3” x 3” sq. 72” long 3” x 3” sq. 96” long 3” x 3” sq. 30” long 2-5/8” x 2-5/8” sq. 72” long 2-5/8” x 2-5/8” sq. 96” long 2-5/8” x 2-5/8” sq. 84” long 3” x 3” sq.
Have fluctuating water? Adjustable screw legs mount on the outside of lift and operate with a simple cordless drill. 15.5” of total adjustment. Features patent-pending brake and stop bolt. Fits Cantilever Lifts 30004800lbs. Back only of 3900-5200. Optional screw drive bit available.
part# LL182 – for 1150 and 2300 PWC part# LLH3 – for Narrow Pontoon Lifts part# LL132 – for 1150 and 2300 PWC part# LL152 part# LL232 part# LL262 part# LL282 part# LL332 part# LL362 part# LL382 part# LLH32 part# LLH62 part# LLH82 part# LLH72
3’ x 3’
3” 8-1/2”
part# LLSA
Hi-Lifter Adjustable Screw Leg
Replaces existing leveling leg. The Hi-lifter adjustable screw legs mount on the outside of lift and operate with a simple cordless drill. 15.5” of total adjustment. Features patent-pending brake and stop bolt. Fits Hi-Lifts 2600-6600lbs.
Leveling Legs Extensions
Add onto existing leveling legs without buying a whole new leg. 2” x 2” 3” x 3”
part# LL2E part# LL3E
2-5/8” Legs without exchange part# LLSAHL 2-5/8” Legs with exchange part# LLSAHLX
10”
12”
Leg Pins and Setscrew for Leveling Legs
For quick and easy height adjustments to leveling legs. 1/2” x 1” setscrew 1/2” x 2” setscrew 2-1/2” leg pin with clip 3-1/2” leg pin with clip 4” leg pin with clip 4-1/2” leg pin with clip
Adjustable Screw Leg Option
part# LLSS part# LLSS2 part# LLP2/2 part# LLP3/2 part# LLP4 part# LLP4/2
Optional screw drive bit for adjustable screw legs. Does not work on classic dock screw legs. part# LLSAB Hewitt rubber caps are tough and very durable. They help cover sharp edges and fit snug to ensure they stay in place. This rubber material has a UV inhibitor to protect it from the elements.
Square Rubber Caps
Large Aluminum Pad
23-1/2”
Gives leveling legs greater support in soft or sandy lake bottoms. Installs to bottom of existing pad. Drilling required for installation.
66 66
part# LLPAD
17”
Volume Pack 100 pcs 1-1/2” square D1RC1SQ 2” square D1RC2SQ 3” square D1RC3SQ 2” x 4” square LRARC
Square Plastic Hole Plugs
Volume Pack 100 pcs 1-1/2” square 1-1/4” D1PC1SQ 2” square 1-3/4” D1PC2SQ 3” square 2-3/4” D1PC3SQ
Rubber Post Plug 2” square 1-3/4”
LCGBPLUG
Tie-Downs and Augers
Tie-Down
Leveling Leg Bracing
Personal watercraft and small boat mooring made easy. Simply screw in. Removable handle stows inside anchor tube.
Used to stabilize long leveling legs. Price includes parts for two legs. 2” x 2” for 1800 Cantilever 2” x 3” for 2400 Cantilever 3” x 3” for 3000-4800 Cantilever 2-5/8” x 3” for 2600-6600 Hi-Lifter 4100, 6100, Hydraulic 8100, 10100, 12,100 Hydraulic
Tie-Down Kit
Includes 15’ anchor line, float and nylon carry bag. The original “Beach Security Anchor” from Tie Down. Ideal for mooring personal watercraft or small boats. Screws in easily. Removable handle stows inside anchor tube. part# L1TDK
part# LL2BR part# LL2BR24 part# LL3BR part# LLHBR part# LLHYBR part# LLHYBR8
part# L1TD
High-Wind Tie-Down
Extra anchoring for your boat lift in rough or high-wind areas. Attaches to any rectangle or square tube up to 3”x3”. Includes hardware, adjustable bracket, screw auger and two 5’ aluminum posts. High-Wind Tie Down Kit (2) part# LLTD
7-1/2”
Drilling required on hydraulic lifts
Post Ratchet
R
V
S
C
F W U
Provides leverage to easily install and remove pipes with augers. This 19” handle and reversible ratchet fits 1-1/4”, 1-1/2’, and 2” pipes up to 2-1/4” O.D. part# DAPR
67 67
Lift Wheels Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Corner Assist Wheel Kit Makes lift installation and removal much easier: they’re quick to set up, lightweight, easy-to-use, and may be used on several lift sizes without permanent attachment. 1200-1800 Cantilever part# LWCS 2400-5200 Cantilever part# LWCL Cantilever
1100-1600 Hi-Lifters (with welded plastic slide) part# LWCH
Hi-Lifter with Plastic Slides
Hi-Lifter with Rollers
Hydraulic
4100-10100 Hydraulic (Bracket slides over leveling leg) part# LWCHY 2600-6600 Hi-LIfters (with rollers and bolt-on corner slides) part# LWCHL
Lift Ease Boatlift adjustable screw wheel kit features a full-length mounting extrusion and is attached to the lift in two locations. Built-in tire brake helps avoid tire rotation when the wheel is not touching the ground. 20-1/2” of adjustment. 27” wheel standard, optional 16” wheel available. part# LWKE
Simple cordless drill operation. Unmatched heavy-duty design and user-friendly features.
Stainless-Steel Rod Nylon Nut Brake Pad (Patent Pending)
Exchange 27” wheel for 16” wheel. part# DWHEELSX
39” Support Flange for Superior Strength and Support
• Screw legs are completely rebuildable to make fixes easy if needed • Built-in extension-stop prevents the leg from being overextended • Features stainless-steel rod and maintenance-free nylon nut • Patent-pending brake pad prevents the leg from self adjusting due to wave action
Screw Upright with PatentPending Brake and Stop Bolt
Back
68 68
Built-In Extension Stop
Adjustable Screw Drive Bit Fits all screw legs except the classic dock screw legs. part# LLSAB
Lift Wheel Kit
Lift Jack
Transportation Bar
Mounts on center of lift. Works great for maneuvering around objects or over sea walls.
The “Original” lift jack allows you to raise one end of the lift to easily adjust lift legs and assist with installing/removing lift wheels without going under water. Lift jack handle is 36”.
Use a boat to move lift in and out of deep water or to a new location.
For cantilever lifts For narrow pontoon lifts
part# LWK part# LWKNP
Lift Jack (with non-braking winch)
part# LWJ
Lift Jack (with braking winch)
part# LWJB
part# LWTRAN
hewittrad.com 69 69
Roll-A-Rail Accessories Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Rail Cross Bar Clamps onto bottom side of rail track. All aluminum cross bar with adjustable 3’ legs and pads. Recommended 4500 lb rail to be supported every 8’ if track leaves the ground and 6500 lb rail to be supported every 4’. The 5’ cross bar is used to support rail up to 4’ above ground level. In instances that the elevation is above 4’, use the 8’ cross bar for support. 5’ 5’ 8’
4500 lb 6500 lb 6500 lb
part# LRAL part# LRALL part# LRALL8
Rail Cable Guides
Mechanical Limit Switch
Polyethylene guide prevents wear on braces when the degree or slope of land changes.
Mechanical spring driven limit switch prevents you from overlifting your boat on lift. AC/DC Models with remote ONLY!
2 pieces
part# LWHDDSS
part# LRACG
Braking Winch
Rail Tip-Up Pivoting rail section allows garage or boathouse door to close completely. part# LRTUP
26-1/4”
6-1/4”
Used on rail if incline is greater than 10° (1.6’ in 16’ elevations). (Standard on 6500.) part# LRMSB
70 70
Lift Accessories
Hydraulic Pump Box Stands Mounts over 3” x 3” square tube and keeps your hydraulic pump off your dock and out of the way. Medium Pump Box
part# L1HYPBM (currently what pumps are in)
Cylinder Sleeves
Hydraulic Hose Extension Kit
Dress-up vinyl sleeve for cylinders on hydraulic cantilever lifts. Available in seven colors: gray, beige, blue, white, green, yellow and teal. Also available in SeaMark fabric.
Hoses make it quick and easy to move your pump box away from lift or into a boathouse. Comes with two hoses.
part# LHYCS - Color (pair)
Kit Fits 2500 - 8100lb lifts. 19’ extension part# NAHYHE22 Large Kit Fits 10100 - 24100lb lifts. 19’ extension part# NAHYHEL22 Large Kit
Replacement Key Fob COMMANDER (top) LIFT BOSS LIFT BOSS replacement battery GEN3 Remote
Standard
Lift Boss
GEN3
part# LWHDDK part# LWHDDF part# LWHYRBCC part# LWHDDK3
71 71
SLX Wave Port Attachments and Accessories Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
SLX Z-bracket Attachment Kit Secures port to a fixed dock or sea wall. 2” Kit part# DF301281 4” Kit part# DF301282
Telescoping Port to Fixed Dock Kit 2” kit adjusts from 16” to 24”. (Two Ports) part# DF301434
72 72
SLX Port to Port Attachment
SLX Snap-In Cap
SLX Buoyancy Booster
Connects a pair or multiple ports side-by-side.
Cover unused mounting pockets.
Installs in the rear pockets, adds additional flotation to the rear of the port, decreasing the rearward pitch for heavier crafts.
part# DF300046
part# DF300116
part# DF300498
SLX Post Extension Attachment
SLX Bushing
Moves poles outside, increasing the distance between the two posts, allowing more room for larger PWCs.
Raised and flat reducer bushing. Raised design increases friction on post mount applications. 2”=2 1/2” ID. 4”=4 11/16” ID.
2”Kit part# DF300095 4” Kit part# DF300096
SLX Port to Other Floating Dock Brands Hinge Attachment Kits lock into dock C-channels. 19-3/4 part# DF301308 25-3/4 part# DF301309
2” Raised part# DF302202
4” Flat part# DF301525
SLX Port to Wave Dock
SLX Side Extension
part# DF301915
Adds 22” to one side. part# DF300115 Must purchase one port-to-port to attach side extension. part# DF300046
73 73
Apex Wave Port Attachments And Accessories Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Apex Port to Port Attachment
Apex Buoyancy Booster
Apex Post Extension Attachment
Apex Snap-In Cap
Connects a pair or multiple ports side-by-side.
Installs in the rear pockets, adds additional flotation to the rear of the port, decreasing the rearward pitch for heavier crafts.
Moves poles outside, increasing the distance between the two posts, allowing more room for larger PWCs.
Cover unused mounting pockets.
part# DF300046
part# DF300498
2”Kit part# DF300095
part# DF300116
4” Kit part# DF300096
Apex Bushing
Apex Telescoping Port to Fixed Dock Kit
Apex to Floating Dock Kit
Raised and flat reducer bushing. Raised design increases friction on post mount applications. 2”=2 1/2” ID. 4”=4 11/16” ID.
2” kit adjusts from 16” to 24”. (Two Ports)
These heavy-duty C-Channel brackets allow for direct mount to a floating structure.
part# DF301434
part# DF301360
2” Raised part# DF302202
4” Flat part# DF301525
Apex Side Extension
Apex to Wave Dock Kit
Z-bracket Attachment Kit
Apex Bolt-In Caps
Adds 22” to one side.
This receiver bracket slides directly in the H-beam channel of the Wave Dock system.
Secures port to a fixed dock or sea wall.
Finish the look with these bolt-in caps for a sleek finish. (2)
part# DF300115 Must purchase one port-to-port to attach side extension. part# DF300046
74 74
part# DF301347
2” Kit part# DF301281 4” Kit part# DF301282
part# DF301514
Genesis and Extreme Wave Port Attachments and Accessories
Genesis to Floating Dock Attachment Kit part# DF301857
Extreme Pipe Sleeves 2” part# DF301746 3” part# DF301747 4” part# DF301748
Extreme Front Plug Kit (2) part# DF301749
Genesis and Extreme Buoyancy Booster Designed to fit underneath the entrance sections of the EVO7 and SLX10 series. Each booster delivers an extra 150 lbs of flotation. part# DF301823
Extreme Pipe Mount to Fixed Dock 2” (24” - 42”) part# DF301409 4” (24” - 42”) part# DF301410 2” Raised part# DF301411 4” Raised part# DF301412
Extreme Floating Dock Kit part# DF301329
Extreme Direct Connect to Wave Dock part# DF301346
75 75
Winches and Wheels Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Winch Top Cover
Protect your winch from the elements with a winch cover. Hewitt 1501-2001 Winch Top Cover part# LWHWC
Braking Winches: Replacement or upgrade. These braking winches have a completely enclosed gear box with a large cable spool. Crank one way to go up, crank the other way to go down. Stop in any position without flipping a lever. B-1200 B-1500 B-2500
Gear Ratio 4:1 Gear Ratio 6:1 Gear Ratio 12:1
part# LWB12 part# LWB15 part# LWB25
Hewitt 2501 Winch Top Cover part# LWHWC25
Hewitt Chain Driven Winch
This chain driven, gear reduced,self-braking winch has an all aluminum casing that lets you raise and lower your boat with ease. 1501: 15 to 1 ratio 2001: 20 to 1 ratio 2501: 25 to 1 ratio
part# LWHW15 part# LWHW20 part# LWHW25
Double Pulley Conversion Kit
For 3000 lb lift. Converts lift to 3600 lb capacity. part# L1PCO
Crank Handle & Large Wheel
For less fatiguing manual winch operation. For DL, B1200, B1500, B2500, 1501, 2001, 2501 winches. Crank handle 40” Aluminum wheel Spinner knob with hardware
Winch Gear Cover
For Hewitt 1501-2501 winch.
Hand Winch
This is a non-braking winch with a one-way ratchet system. B-1100 Gear Ratio 3.9:1 Crank handle
part# LWHWGC
part# DWINCH part# D304016 4”
4”
4”
76 76
Winch Arm Extensions
Length 18” (2-5/8” x 2-5/8”) For Model 2600 HL - 4600 HL 3,000-4,200 part# NAMWEXT18
part# LWWCH part# LWWL part# LKNOB
Solar Panels and Battery Stands Various shapes and sizes of aluminum are available for sale. Contact your local dealer for details.
Solar Panel Battery Charger
These 10 watt & 20 watt solar panels offer outstanding performance even in cloudy conditions. This charger will efficiently keep your marine battery charged without overcharging. Rugged enough for year-round installation. 10 Watt Dimensions: 13-1/2” x 11” 20 Watt Dimensions: 24-1/2” x 11” 30 Watt Dimensions: 23-1/4” x 17-3/4” part# LSPP10 10 Watt 12V Solar Panel Package (Includes Solar Panel, Stand, and Status Indicator with Charge Regulator) 10 Watt 12V Solar Panel Only part# LSP10 20 Watt 12V Solar Panel Package (Includes Solar Panel, Stand, Status Indicator with Charge Regulator) part# LSPP20 20 Watt 12V Solar Panel Only part# LSP20 30 Watt 12V Solar Panel Package (Includes Solar Panel, Stand, Status Indicator with Charge Regulator) part# LSPP12-30 30 Watt 24 V Solar Panel Package (Includes Solar Panel, Stand, Status Indicator with Charge Regulator) part# LSPP30 40 Watt 24 V Solar Panel Package (Includes Solar Panel, Stand, Status Indicator with Charge Regulator) part# LSPP40 Solar Panel Stand only part# LSPS10 Status Indicator part# LSPSB
System Components
10 Watt Panel
Status Indicator
Battery Box Stand
Kill A Watt
These battery box stands keep your marine batteries off your dock and out of the way. 12V Stand Clamps to square or round tube part# L1HYBBS 24V Stand Bolts on, drilling required part# L1HYBBS24
20 & 30 Watt Panel
16-1/2” ID
13-1/2” ID
13-5/8” ID
8-1/2” ID
Simply plug in Kill A Watt to evaluate the quailty of the electrical power provided from your utility company, by monitoring voltage, live frequency and power factor. Perfect for detecting voltage drops and brownout conditions before they damage delicate equipment. part# LWMETER
77 77
Boat Lift Boss Electric Hoist Various shapes and sizes of aluminum are available for sale. Contact your local dealer for details.
Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Boat Lift Boss
The Lift Boss Boat Lift Direct Drive System takes the place of the standard winch wheel. It features convenient remote control operation and dock lighting for added safety. The unit is quick and easy to install and is available in AC and DC versions. For use on lifts up to 6000 lb lifting capacity. Brackets available for all lift brands. The Lift Boss double sealed motorshaft, sealed electrical box, and O-rings around the rivets allow for extra protection from the elements. This unit includes a two piece cover. Please ask your dealer for details.
AC Unit
Drive unit, AC non-remote control box with key, or AC remote control box complete with key and one wireless remote control key fobs.
DC Unit
Includes 12 or 24V DC drive unit, non-remote control box with key or DC remote control box complete with one wireless remote control key fob. Optional Jumper Wire needed to run motor (24V) part# NAHYBC18
Motor
AC 110V Unit w/Remote AC 110V Unit w/Key Switch DC 12V/24V Unit w/Remote DC 12V/24V Unit w/Key Switch
RPM
56 60 58 at 12V 96 at 24V 58 at 12V 96 at 24V
Current Draw
7-16 AMPS 9-11 AMPS 40-80 AMPS at 12V 20-40 AMPS at 24V 40-80 AMPS at 12V 20-40 AMPS at 24V
Part #
LWHDD110 LWHDDS110 LWHDD12
Installation Kits Beach King
Daka Lifts Dock Rite Dutton-Lainson B1200, 1500, 2500 (Lorenz winch) Floe inc (Open Face winch) Fulton Harbormaster Hewitt Lakeside Lift (Lorenz winch) Porta-Dock RGC ShoreMaster Shorestation (Up to 4000) Shorestation (Up to 6000)
LWHDDS12
Optional Jumper Wire needed to run motor (24V) part# NAHYBC18
Buck Booster
Used when electrical wiring is inadequate or if faster lifting time is desired. AC Models ONLY! part# LWHDDB
78 78
Limit Switch
Mechanical spring driven limit switch prevents you from overlifting your boat on lift. AC/DC Models with remote ONLY! Lift Boss part# LWHDDL Shore Commander, Rail, Proteus part# LWHDDSS
DC Model
AC Model
Lift Boss Pendant
15’ Hand pendant for lift boss turn key. part# LWHDDPEN
Lift Boss LED Light part# LWHDDK-LIGHT
part# LWHDDK-L part# LWHDDK-L part# LWHDDK-L part# LWHDDK-DL part# LWHDDK-L part# LWHDDK-L part# LWHDDK-F part# LWHDDK-HM part# LWHDDK-H part# LWHDDK-L part# LWHDDK-PD part# LWHDDK-RGC part# LWHDDK-SM part# LWHDDK-SS4 part# LWHDDK-SS6
10’ Battery Extension part# LWHDDB10
Integrated Hoist
Integrated Hoist
All-in-one winch and motor available in: AC with remote DC with remote 5,000lb AC DC
part# LWIWAC part# LWIWDC
7,500lb for 5/16” Cable part# LWIWAC516 AC part# LWIWDC516 DC 7,500lb for 3/8” Cable part# LWIWAC38 AC part# LWIWDC38 DC
Stainless Steel Hardware
Anodized Aluminum Housing
•All the hardware found throughout the unit, inside and out, is constructed of high-grade stainless steel and will never rust.
• The clear anodized finish provides a great look while protecting it from corrosion.
High-Power 120V or 12/24V Motor
•Available in both AC and DC models, designed and perfected for the marine environment. AC models are designed for lifts with access to GFI-protected shore power, while DC models run either on 12V or 24V battery power. Powering DC models with 24V will nearly double the lift speed. Additional battery, solar power and wiring are required.
Heavy-Duty Worm Drive Gear Head
• The Heavy-Duty Worm Drive Gear has been painstakingly engineered through years of development to survive and surpass the stress and torque experienced with the weight of today’s lifts. The trauma force that lifts face cause many of the competitors’ off-the-shelf parts to fail, but Boat Lift Boss Worm Drive Gear Head has the strength and holding power to not simply outlast, but to thrive in these extreme conditions.
Weather-Resistant ABS Housing
•The fully-sealed injection-molded electronics housing offers the best protection for the electrical components while providing a clean factory-designed look, not just the bolted-on afterthought look other brands feature.
Heavy-Duty Roller Bearings
•All major load-bearing points utilize oversized bearings and are protected with a plastic cover and weatherproof O-ring. Competitors use bronze bushings that can fail rapidly and crush under a load.
Heavy-Duty Chain and Sprockets
• Heavy-duty hardened steel sprockets add life to the unit, while the heavy-duty chain is spun on a true roller bearing instead of a bronze bushing.
Field Upgradeable Quick-Detach Electronics
•The quick-detach electronic connectors allow a quick and easy electronics swap without ever needing to remove the entire unit from the lift. Eight simple screws and one quick-connect plug are all that fasten the electronics to the rest of the Boat Lift Boss, making it all possible to change the entire electrical system in less than two minutes. This feature is especially helpful when a customer wishes to add a wireless remote control to their existing Boat Lift Boss.
HDPE Cable Keeper INTEGRATED, DIRECT DRIVE, WHEEL DRIVE
The Engineering Wonder That Makes This Drive System Remarkable
• When there is no load on the winch, cables have the potential to loosen and slip outside of the spool, which the consumer would not recognize until too late. Cables becoming caught in the chains and sprockets can cause expensive damages to the lift and leave it unusable. The HDPE Cable Keeper eliminates this possibility by keeping the cable fully contained in the spool where it belongs.
High-Sided Winch Drum
•High sides on the winch drum work in conjunction with the Cable Keeper so no cable can escape through the top while also allowing plenty of space for extra cable should it be needed.
Roller Fairlead
•The Roller Fairlead guides the cable properly into the drum and is recessed close to the spool, preventing the cable from ever jumping outside of the drum.
79 79
Heavy-Duty Electric Hoists Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.
Heavy Duty Motor / E-Gear Remote
Heavy Duty Hoist Motors
Hewitt Heavy Duty Hoists are an alternative to the manual winch. They feature a heavy-duty worm drive powered by a 115V AC or 24V DC motor. High-strength, precision machined components allow these hoists to be rated for higher lifting capacities than competitive brands. Available in three models for capacities of 2000, 4000, 6500 and 8500 lbs. Cast gears, pulleys, motors and wire gauge are specifically sized to the capacity. Hoists include a protective cover, weatherproof wiring and a baked-on powder coated finish.
Is built with a manual up and down push button, or use the two wireless remote key fobs included. Heavy duty motor remote has an auto stop plug that allows you to add a mechanical limit switch to stop the motor at a specific boat lift height. 110 V 24 V
Cable Drum
Capacity
4000 lbs 4000 lbs 6500 lbs 6500 lbs 8500 lbs
80 80
Box Drum »
Motor 1 H.P. 1 H.P. 1.5 H.P. 1.5 H.P. 1.5 H.P.
Weight
78 lbs 78 lbs 99 lbs 99 lbs 110 lbs
part# LRMR part# LRMR24
See optional limit switch on pg. 72.
Wiring
14 ga. 14 ga. 14 ga. 14 ga. 12 ga.
Plate
12” x 24” 12” x 24” 12” x 24” 12” x 24” 12” x 24”
Gear 12” 12” 12” 12” 12”
Part # 110V
LWHP4 (w/cable drum) LWHP4B (w/box drum) LWHP6 (w/cable drum) LWHP6B (w/box drum) LWHP8 (w/cable drum)
Part # 24V
LWHP4-24 (w/cable drum) LWHP4B-24 (w/box drum) LWHP6-24 (w/cable drum) LWHP6B-24 (w/box drum) LWHP8-24 (w/cable drum)
Canopy Accessories & Camper Stabilizers
Canopy Storage Net
Canopy LED Lighting
Canopy Bracing
Canopy Repair Kit
Tension Cords
Storage net creates storage under your canopy. Net protects gear from sun, rain, wind, and theft. Installs with quick release clips in minutes. No tools required. Makes boating much more enjoyable. Turn your canopy into a boathouse today.
Wireless light kit turns your boat and boat lift canopy into an extended evening entertainment area, adding ample light to continue the festivities. Just a quick click on the remote (included) will turn the lights on or off.
Used to support canopies 29’ and up. Completely adjustable with the telescoping extension.
Did you have an accident and puncture your canvas? No problem This canvas repair kit is easy to use for permanent repairs of small holes and tears in your canvas. This patch kit comes with a 4 oz can of adhesive with brush and one 1/4 square yard of fabric in your color choice.
Tired of tying canvas to your canopy frame and cutting knots when you remove the canvas? Then tension cords are the answer! Quick and easy.
Size Small Medium Large
Width 96” - 107” 108” - 120” 121” - 138”
Bird Deterrent
Part # LDCS1096 LDCS1108 LDCS1138
Keep birds away and your canopy clean. Bracket attaches to a lift upright and then over the canopy frame. Allows removal of your canopy cover without having to remove the bird deterrent. part# DBIRDC
For 3’x3’ Rails For 3’x6’ Rails
part# LDCB part# LDCBJ
Vinyl Defender SeaMark
part# LWHDDCLR
part# REPAIR-(color) part# REPAIRD-(color) part# REPAIRS-(color)
Canopy Mesh Skirt
Camper Stabilizers
42” mesh skirt that attaches to the canopy frame work.
Lightweight, but heavy-duty stabilizers remove the side-to-side and front-to-back frame movement. No more annoying sway! Stabilize frame heights from 19-26 inches high. Any camper with an exposed frame works well with our camper stabilizers.
Call for more information.
Set of 40 part# LDR
part# TSTABLE Complete with: • Two stabilizing legs • Two adjustable pins • Chain • Binder
81 81
10. Leather Portfolio – embossed logo. 11. Hewitt Beach Towel. 12. Grill Tool with printed logo. 13. Insulated Beverage Container – black with screen printed logo. 14. Can Coolers with screen printed logo. 15. Backpack – black with screen printed logo. 16. Soft-Sided Cooler – blue with screen printed logo. 17. Insulated Cup with Handle – white with printed logo. 18. Insulated Beverage Containers with printed logo.
1. Embroidered baseball cap, various colors. 2. Stocking cap, various colors. 3. Polo T-shirts, various colors – embroidered. 4. Polar fleece jacket, various colors. 5. Embroidered sweatshirt in two logo styles, various colors. 6. Micro fiber pullover, various colors. 7. Hooded sweatshirt with full front logo – screen printed. 8. T-shirts, various colors – screen printed. 9. Messenger Bag in black with screen printed logo.
Apparel
15 10 11
9
16
7
13 18 12 8
17
14 6 5 3
82 82
4
2
1
We at HEWITT would like to thank you for your interest in our products. We are confident that you will find the service, quality, workmanship, and design of all HEWITT products to be the industry’s finest. For over 40 years, boat and watercraft owners have trusted the safety and longevity of their investments to Hewitt lifts, docks, and canopies.
LIMITED WARRANTY During the periods stated below from the earlier of the date of purchase or the date the product was put into service, Hewitt Machine & Mfg., Inc. (hereinafter “HEWITT”) shall cover the costs of parts needed to repair or replace any of the following products defective in material, workmanship or factory preparation, subject to the limitations and expectations contained herein. 1. 15 year warranty on aluminum welds; 2. 5 year warranty on the following: a. BoatPort galvanized steel and welds; b. Vinyl and SeaMark canvases; and c. Aluminum decking. 3. 3 year warranty on BoatPort polyethylene tanks. 4. 2 year warranty on all other products and accessories. (hereinafter the “Warranted Products”) This Limited Warranty is subject to the following limitations and exceptions: 1. This Limited Warranty covers only Warranted Products manufactured by HEWITT. Non-HEWITT manufactured products are sold “ as is,” without warranty of any kind by HEWITT including any express warranty and implied warranty regarding MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND ALL SUCH WARRANTIES ARE DISCLAUMED. The sole warranty, if any, with respect to such non-HEWITT manufactured products is given by the manufacturer or producer thereof. Based upon HEWITT’s knowledge the following warranties are provided by other manufacturers: hydraulic pumps and hoses carry a manufacturer’s 2 year warranty. Hydraulic cylinders carry a manufacturer’s 1 year warranty. BoatPort controller carries a manufacturer’s 1 year warranty. However, HEWITT makes no representations or warranties concerning these nonHEWITT manufactured products, and the customer should inquire directly with such third party manufacturers regarding any warranties. 2. This Limited Warranty covers only Warranted Products purchased new by the original purchaser. This Limited Warranty shall not extend to anyone other than the original purchaser of the HEWITT product. 3. This Limited Warranty does not cover the labor costs to repair or replace the Warranted Products. 4. This Limited Warranty does not cover the costs to repair damage to the Warranted Products caused by corrosion, fading and minor deterioration resulting from exposure to the elements, including the sun, environmental factors or acts of God. “Environmental factors” include such things as airborne fallout, chemicals, tree sap, salt, ocean spray, water hazards. “Acts of God” include such things as fire or accident, rainstorms, hailstorms, windstorms, tornados, sandstorms, lightning, floods and earthquakes. 5. This Limited Warranty does not cover the costs to repair damage to the Warranted Products caused by abuse, misuse, neglect, poor/ improper maintenance, tampering with parts, improper or unauthorized adjustment or alteration.
6. This Limited Warranty does not cover the costs to repair damage to the paint and/or finishes, puncture damage, dents, or scratches of the Warranted Products. 7. This Limited Warranty does not cover the costs of normal/scheduled maintenance of the Warranted Products. 8. This Limited Warranty does not cover the costs to repair damage to the Warranted Products caused by improper installation. 9. This Limited Warranty does not cover the costs to repair damage to the Warranted Products caused by the failure to comply with specifications or instructions. Specifications and instructions are subject to change without notice. 10. HEWITT reserves the right to make changes in the Warranted Products at any time without incurring any obligation under this Limited Warranty to make the same or similar modifications on Warranted Products previously manufactured and/or sold. 11. In the event of a possible warranty claim, the Warranted Product shall be returned to HEWITT. If proven to be defective upon inspection, the defective Warranted Product shall be exchanged for new or comparable rebuilt products, as determined by HEWITT. and shipped back to the original owner/purchaser. All shipping costs are the responsibility of the customer. Warranty replacement shall not extend the original warranty period of the defective Warranted Product. HEWITT must be notified in writing within one month of the expiration of the applicable period of the Limited Warranty for an item to be evaluated for warranty. 12. The customer’s remedies with respect to Warranted Products shall be exclusively limited to the repair or replacement remedy as provided in this Limited Warranty and in no event shall HEWITT be liable for loss of profits, revenues, savings, inconvenience, associated costs, expense for equipment or service, use of capital, facilities, services, storage charges, damage to property, or any other special, incidental or consequential damages caused by the use or misuse of, or inability to use, the Warranted Product, regardless of the legal theory on which the claim is based, and even if HEWITT has been advised of such damages. In no event shall recovery of any kind against HEWITT be greater in amount than the purchase price of the Warranted Product sold by HEWITT and causing the alleged damage. Without limiting the foregoing, the purchaser assumes all risk and liability for loss, damage or injury to persons, animals or property arising out of use or misuse of, or inability to use, the Warranted Product. HEWITT is not liable for third party claims. In no event shall HEWITT be liable for incidental or consequential damages to the full extent such may be disclaimed by law. 13. This Limited Warranty is the only warranty between the parties. This Limited Warranty states the limits and association of risk between two parties. The customer acknowledges and understands this Limited Warranty and agrees to be bound by the terms contained herein. No other express or implied warranties or guaranties, except as indicated in this Limited Warranty, given by any person or entity with respect to HEWITT and its products shall bind HEWITT. This Limited Warranty supercedes all other warranties expressed or implied. NO IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE APPLY TO HEWITT AND ITS PRODUCTS AND ARE HEREBY DISCLAIMED. Specifications are subject to change without notice.
709 Old Hwy 14, Nicollet, MN 56074 Weekdays, 7:00 am to 4:00 pm CST Ph: 507.225.3421 or 800.544.2067 Fax: 507.225.3053 www.hewittrad.com PRINTED IN THE USA 01-2024
