LIft Wheels

Indicates this product is shippable via UPS from your local dealer or visit us online at www.hewittrad.com.

Corner Assist Wheel Kit Makes lift installation and removal much easier: they’re quick to set up, lightweight, easy-to-use, and may be used on several lift sizes without permanent attachment. 1200-1800 Cantilever part# LWCS 2400-5200 Cantilever part# LWCL 1100-1600 Hi-Lifters (with plastic slide) part# LWCH 4100-10100 Hydraulic (Bracket slides over leveling leg) part# LWCHY 2600-6600 Hi-LIfters (with rollers) part# LWCHL

Retractable Wheel Kit Why break your back carrying your lift in and out of the water every season? These wheels stay permanently attached to your lift. To operate, simply attach the chains to the lift bed and crank the lift up. Large Wheel Kit part# LWRL (for 2400-5200) Large Wheel Hi-Lifter Kit part# LWRHL (for 3800-6600 HL)

Cantilever

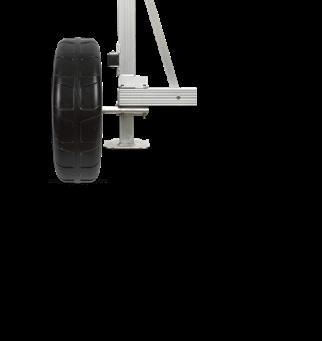

Hydraulic Bunk Wheel Kit For 2500-8100 Hydraulic Lifts Fits new rubber bunks. Slide two carriage bolts into outside track of bottom bunk. Bracket hooks under bottom bunk and secured with bolts in the track (the bracket can stay on the lift at all times). Next, slide in the wheel upright on both sides of lift, then slide the top support bar over both uprights (this ties them together for outstanding support. part# LWAHYB

Hi-Lifter with Plastic Slides

Hi-Lifter with Rollers

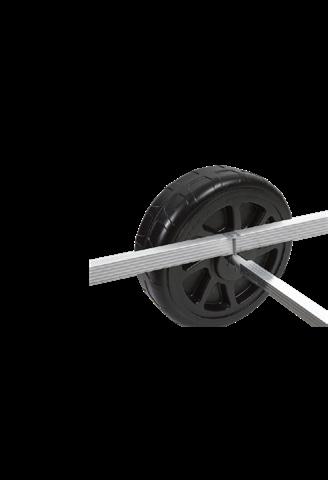

Lift Wheel Kit Mounts on center of lift. Works great for maneuvering around objects or over sea walls. For cantilever lifts part# LWK For narrow pontoon lifts part# LWKNP

Hydraulic Lift Arm Wheel Kit For 2500-6100 Hydraulic Lifts Mounts on the lift arms. Wheel Kit works with one simple button. Push down button on your remote and you’re ready to go.

part# LWAHY

Hydraulic

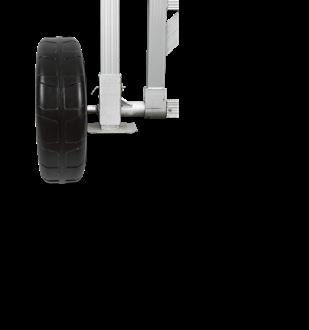

Lift Ease Boatlift adjustable screw wheel kit features a full length mounting extrusion and is attached to the lift in two locations. Built in tire brake helps avoid tire rotation when the wheel is not touching the ground. 20-1/2” of adjustment. 27” wheel standard, optional 18” wheel available. part# LWKE

Exchange 27” wheel for 18” wheel. part# DWHEELSX

Back

Lift Jack The “Original” lift jack allows you to raise one end of the lift to easily adjust lift legs and assist with installing/removing lift wheels without going under water. Lift jack handle is 36”. Lift Jack (with non-braking winch) part# LWJ Lift Jack (with braking winch) part# LWJB

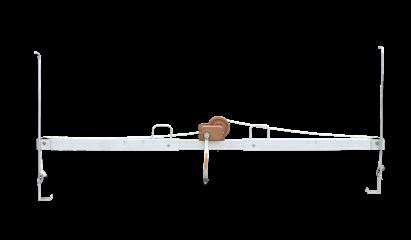

Transportation Bar Use a boat to move lift in and out of deep water or to a new location. part# LWTRAN
