Wave Armor Products Distributed by Hewitt

2026

DISTRIBUTED BY

Scan to view digital catalog

H E W I T T R A D . C O M

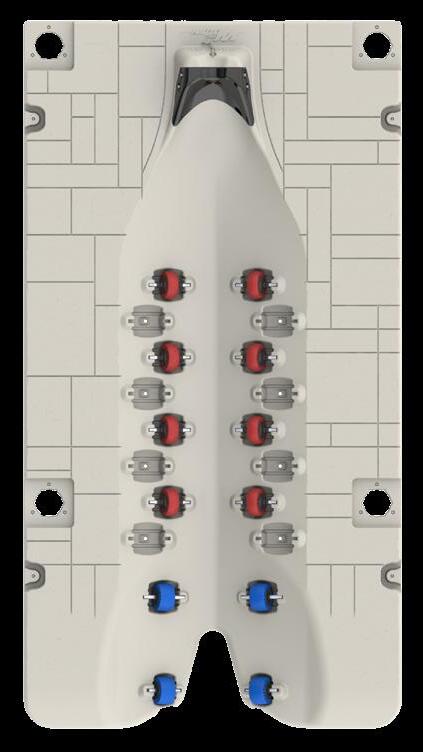

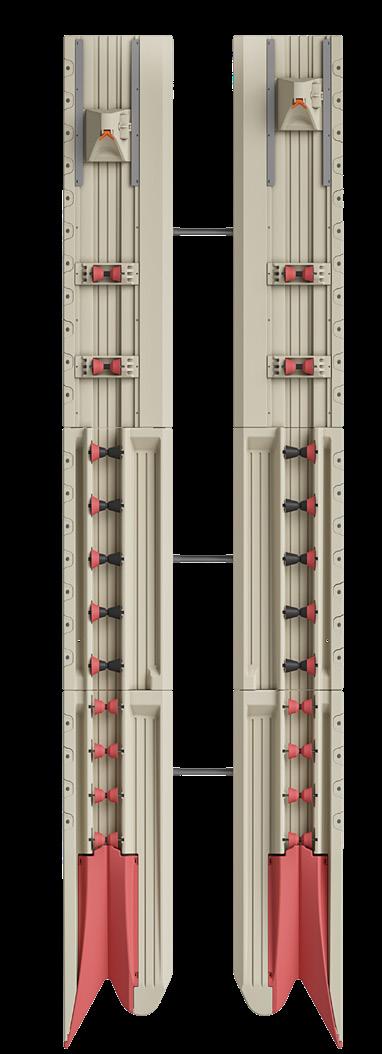

/ index Wave Dock. . . . . . . . . . . . . . . . 4 PWC PORTS - APEX 5 & 6 . . . . . . . . . . . . . . 38 - PRO 5,6, WB. . . . . . . . . . . . . . 42 - PRO MAXX 5, 6, WB. . . . . . . 44 - PRO INLINE PORT. . . . . . . . 50 - SPORT PORT. . . . . . . . . . . . . 56 - SLX 5 & 6. . . . . . . . . . . . . . . . 60 BOAT PORTS - PRO 170 & 220. . . . . . . . . . . 66 - PRO 8. . . . . . . . . . . . . . . . . . . 72 - EXTREME X16 & X24. . . . . . 78 PONTOON PORTS . . . . . . . . . . . 84 CANOPIES. . . . . . . . . . . . . . . . . . 94 POWER LAUNCH. . . . . . . . . . . . 106 KAYAK LAUNCH. . . . . . . . . . . . . 110 RAFTS . . . . . . . . . . . . . . . . . . . . . 116 UNIVERSAL ACC'S . . . . . . . . . . 124 REPLACEMENT PARTS . . . . . . . 142

DISTRIBUTED BY

4

WAVE DOCK

5

WAVE DOCK

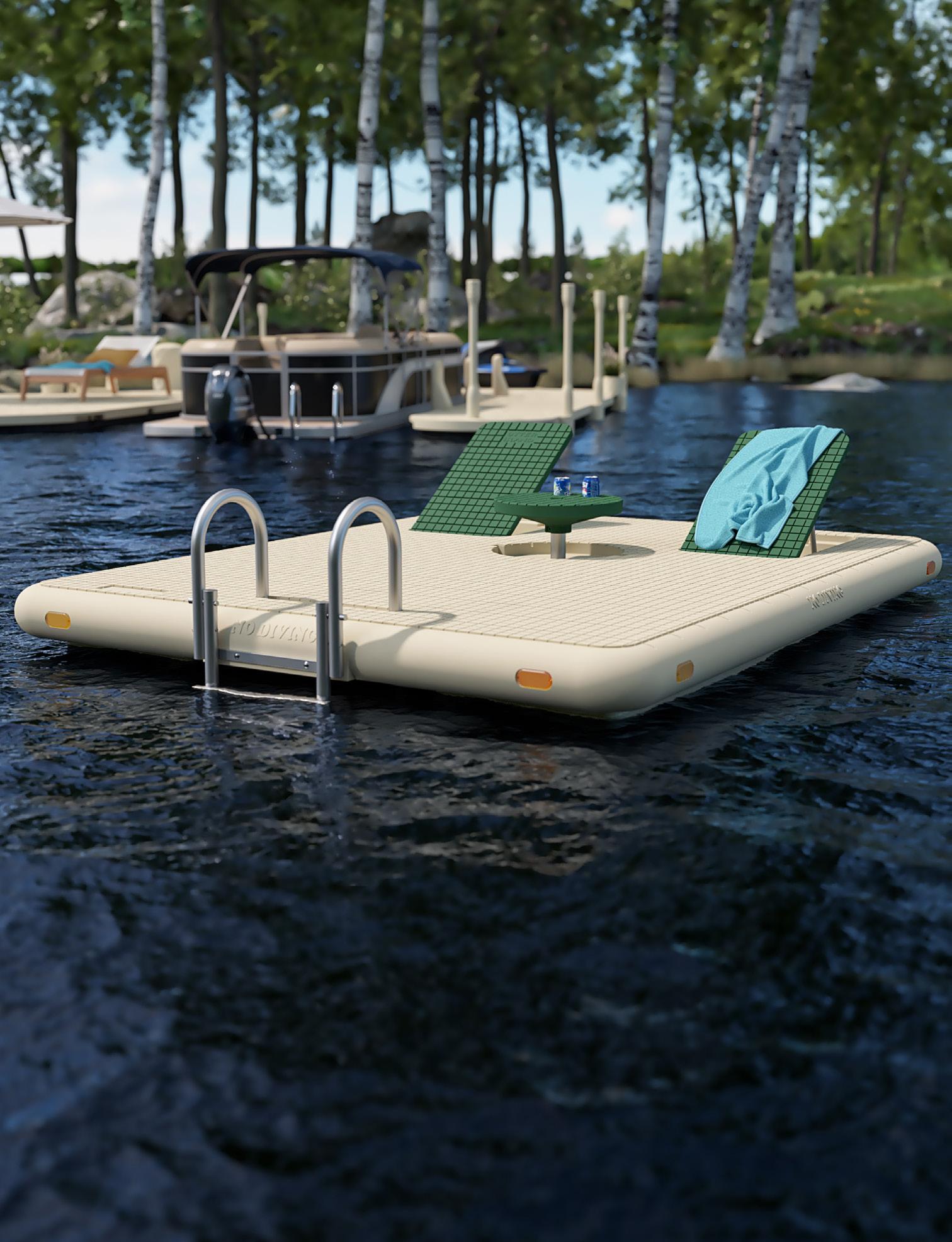

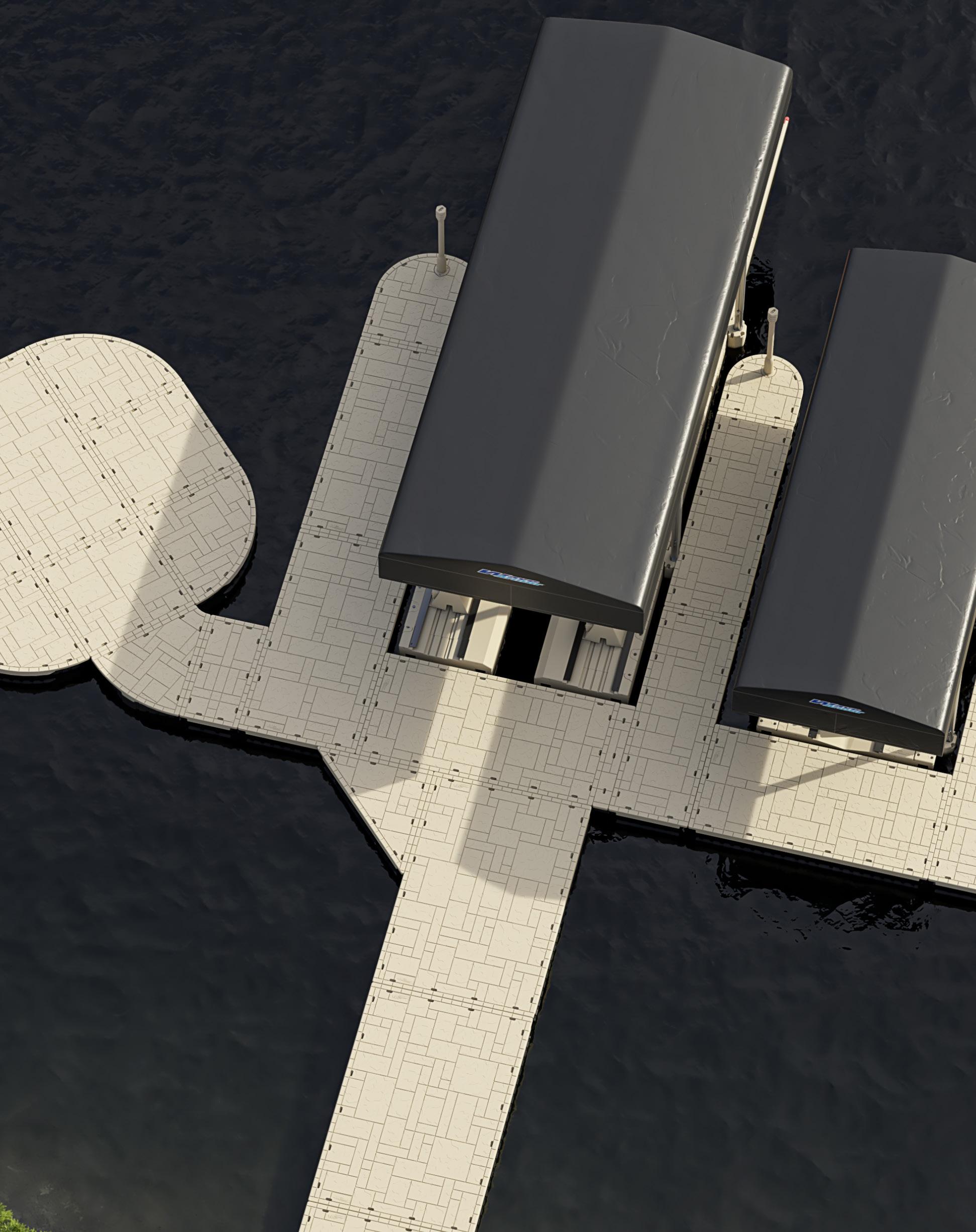

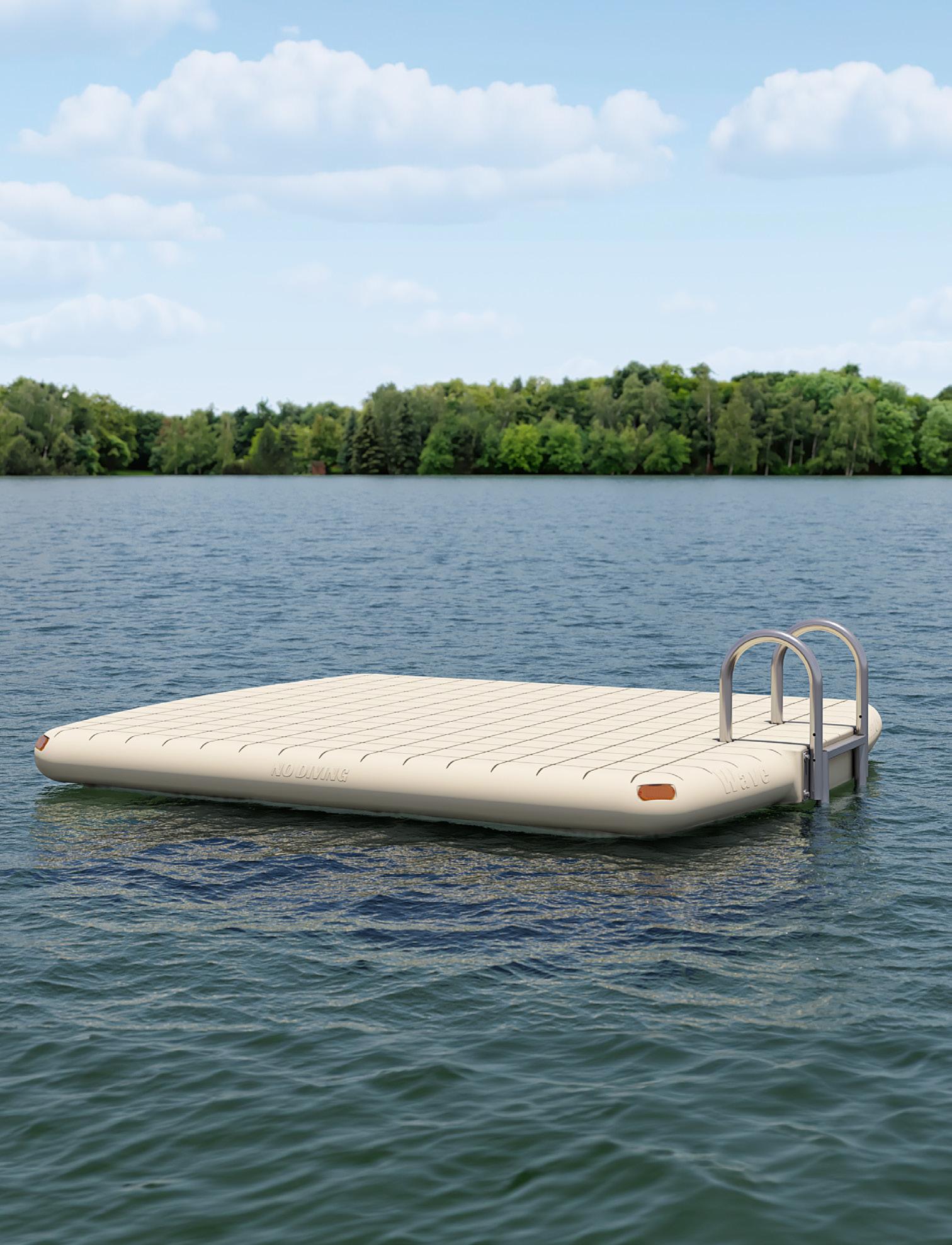

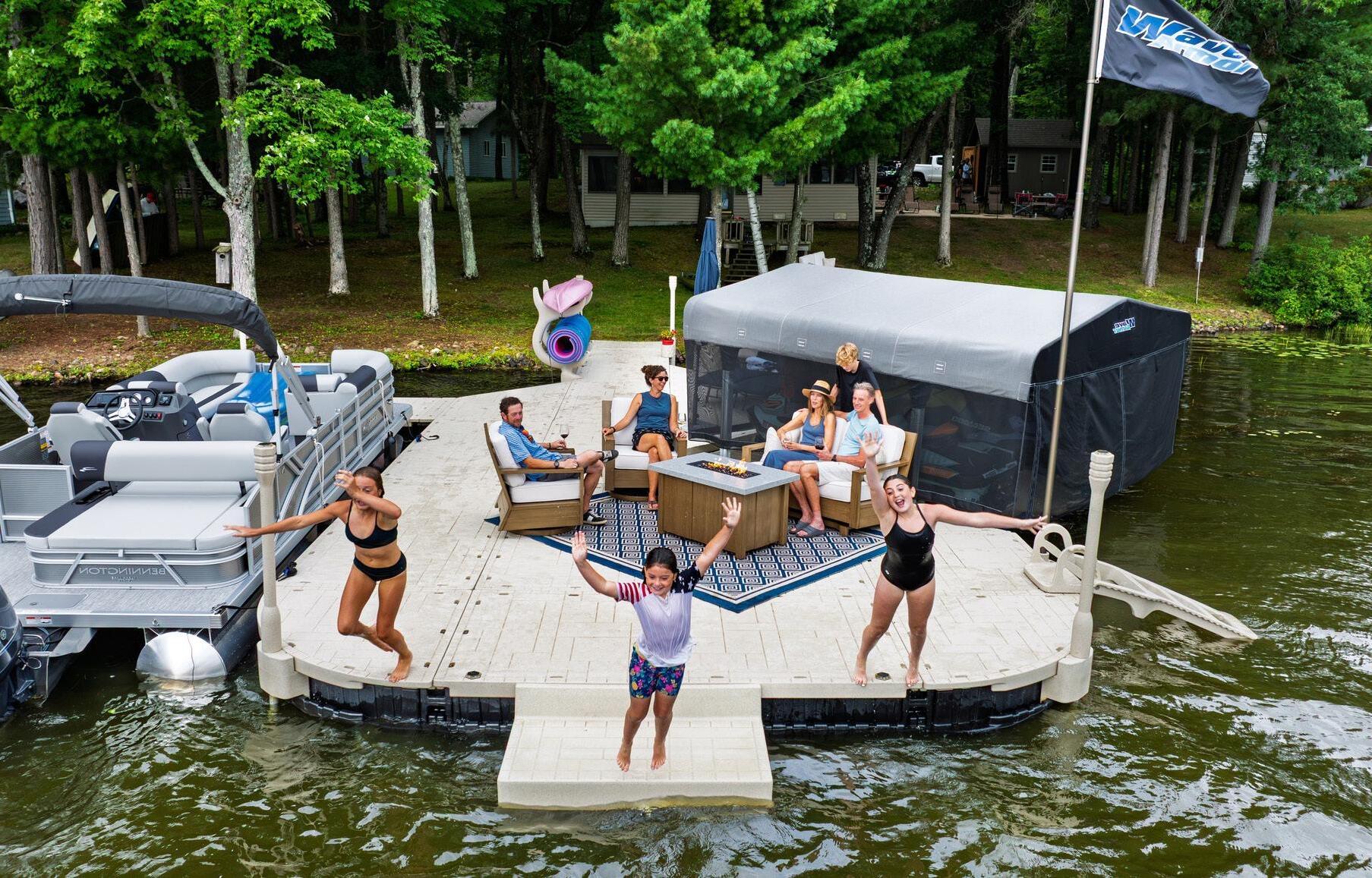

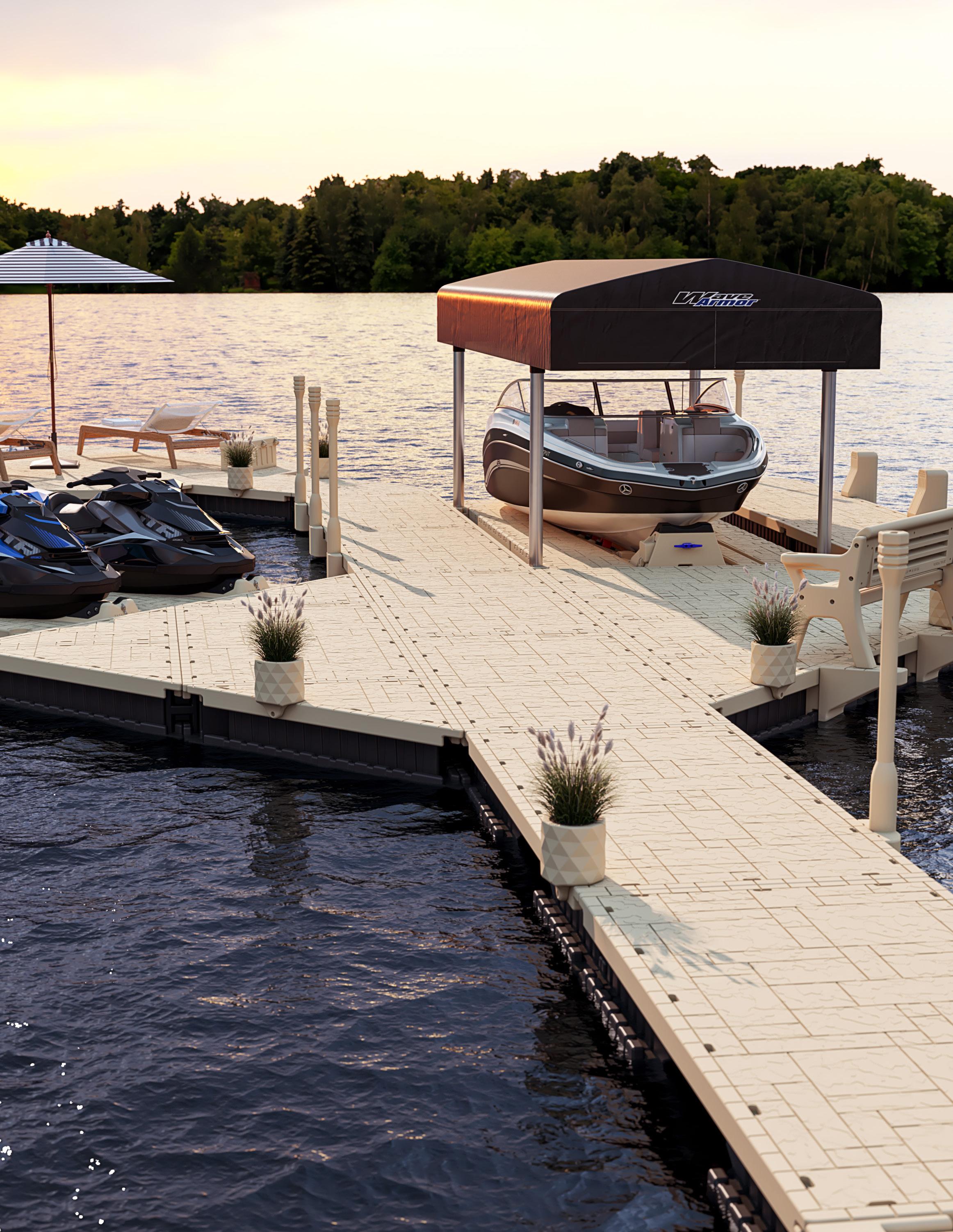

Wave Dock / a pinnacle of premium floating dock systems

where

resilience

meets

refinement

for

a

lasting

waterfront

haven

4 3

5 6 2

1

1 / 80” × 120” Dock Section DF302718 2 / 60” × 120” Dock Section DF301937 3 / 40” × 120” Dock Section DF300445 4 / 60” × 60” Dock Section DF301894 5 / 30” × 60” Dock Section DF300444 6 / 8” × 60” Dock Section DF302712

6

DISTRIBUTED BY

H E W I T T R A D . C O M

WAVE DOCK

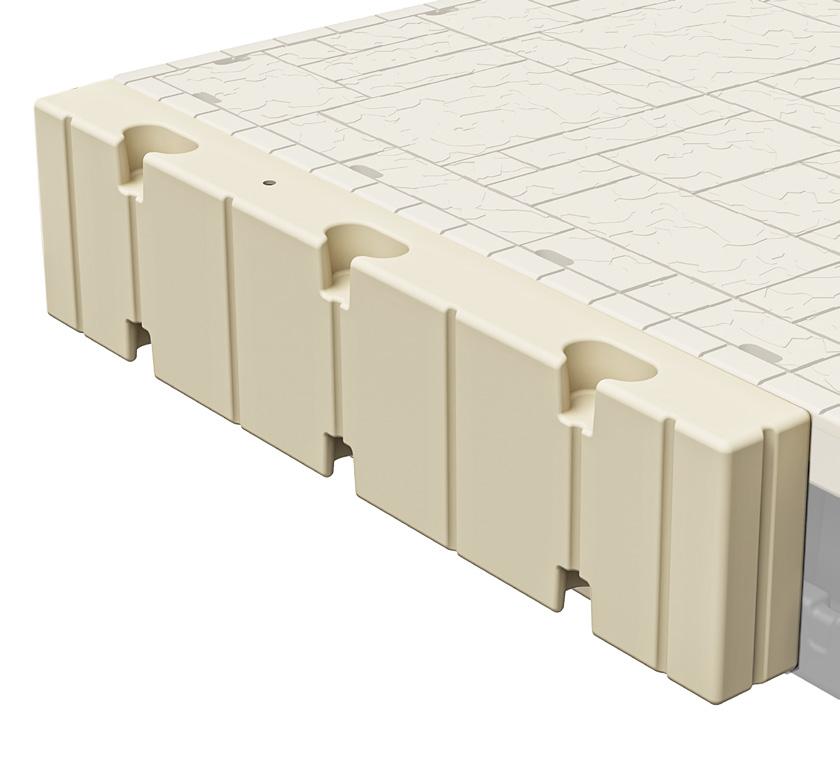

/ DOCK SECTIONS

1

3

2

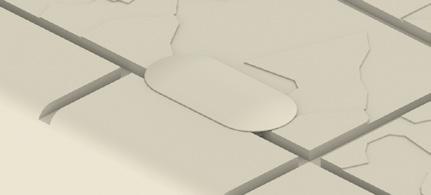

• Modular system to configure any layout, big or small • Unmatched durability & long-lasting performance • Aesthetic flagstone finish designed to move water off the surface • Crafted from durable rotomolded polyethylene • UV stabilizing components prevent fading, cracking, and chipping • Hassle-free assembly with attachment slots and H-Beam channels • Versatility to attach various Wave Dock accessories • Engineered with interior float, marine-grade foam and unique recessed pockets on underside for unmatched water surface stability

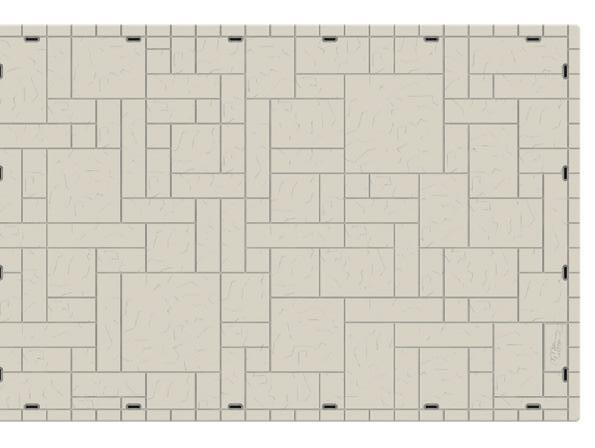

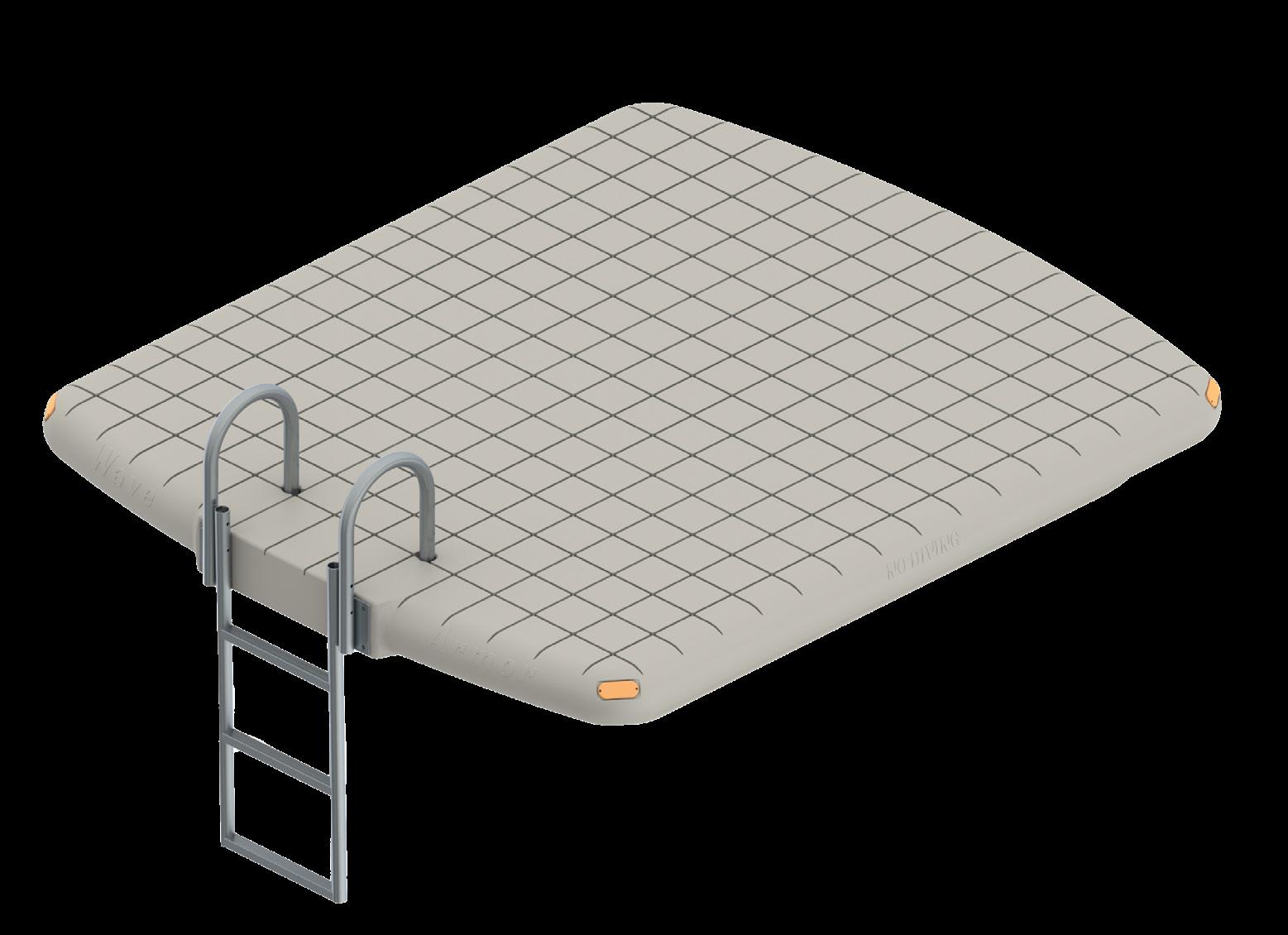

80” × 120” DOCK SECTION

60” × 120” DOCK SECTION

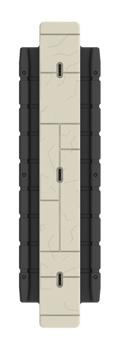

40” × 120” DOCK SECTION

DF302718 MSRP $2,750

DF301937 MSRP $2,189

DF300445 MSRP $1,600

Dims: 80” W × 120” L × 17” H Weight: 480 lbs.

Weight capacity: 4,000 lbs.

Dims: 60” W × 120” L × 17” H Weight: 385 lbs.

Weight capacity: 3,000 lbs.

Dims: 40” W × 120” L × 16” H Weight: 285 lbs.

Weight capacity: 2,000 lbs.

4

100” × 80” DOCK SECTION

DF302882 MSRP $2,450 Dims: 100” W × 80” L × 17” H Weight: 463 lbs.

Weight capacity: 3500 lbs.

6

5

8” × 60” DOCK SECTION

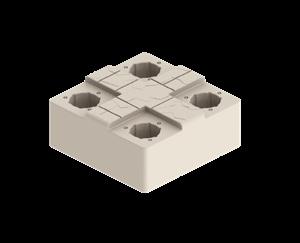

60” × 60” DOCK SECTION

30” × 60” DOCK SECTION

DF301894 MSRP $1,200

DF300444 MSRP $785

DF302712 MSRP $429

Dims: 60” W × 60” L × 17” H Weight: 193 lbs.

Weight capacity: 1,600 lbs.

Dims: 30” W × 60” L × 16” H Weight: 90 lbs.

Weight capacity: 600 lbs.

Not recommended for fingers.

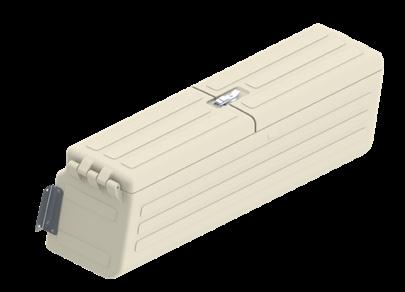

Dims: 8” W × 60” L × 16” H Weight: 50 lbs.

Includes 2 Made to extend the width of a slip space to accomodate a canopy bracket attached to a boat port. Built-in H-Beam.

/ DOCK SECTIONS

7

WAVE DOCK

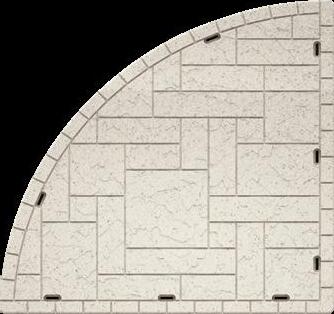

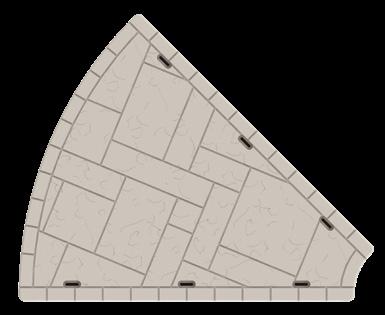

Wave Dock quarter round sections, half round ends, corners and wedges seamlessly integrate with all dock sections for unlimited layout possibilities. Increase square footage while enhancing overall architectural design.

3

2

1

1 / 90˚ Corner Dock Section DF301841 2 / 45˚ Corner Dock Section DF302554 3 / Half Round 60” Dock End DF301910

8

DISTRIBUTED BY

H E W I T T R A D . C O M

WAVE DOCK

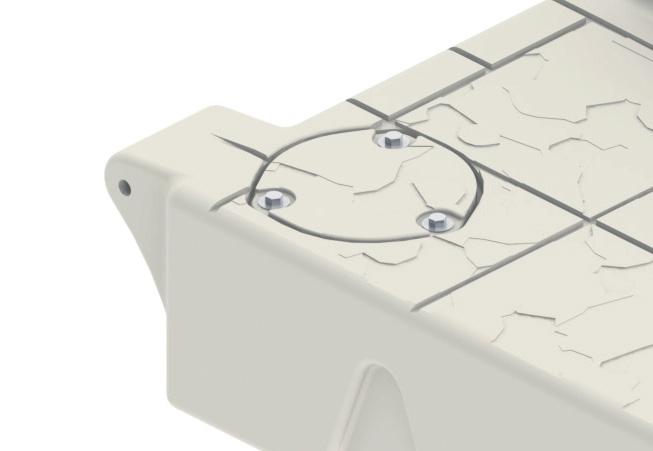

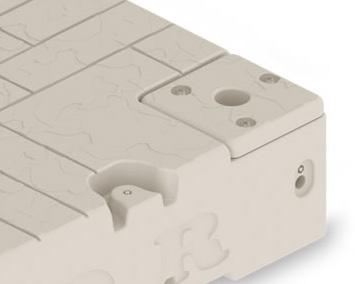

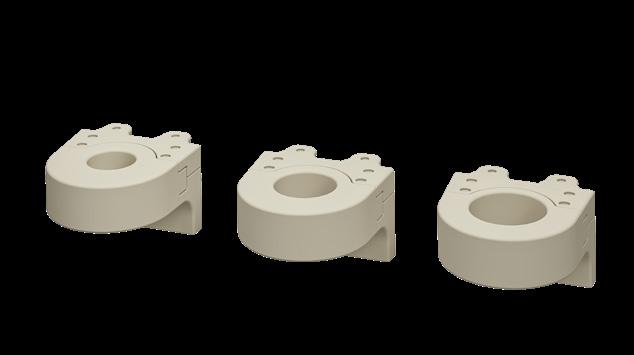

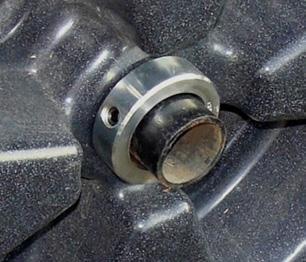

/ DOCK SECTIONS 1 UTILITY PIPE SLEEVES 2” raised DF301211 MSRP $99 3” FLUSH DF301212 MSRP $103 4” FLUSH DF301213 MSRP $103

2

• Includes 2 pipe sleeves + hardware

90˚ CORNER SECTION - 60"

45˚ CORNER SECTION - 60"

Dims: 60” W × 60” L Weight: 150 lbs.

• Requires 50” H-Beam #DF300067 (not included)

Dims: 45” W × 60” L Weight: 109 lbs.

• Requires 50” H-Beam #DF300067 (not included)

DF301841 MSRP $975

DF302554 MSRP $875

Raised

Flush

3

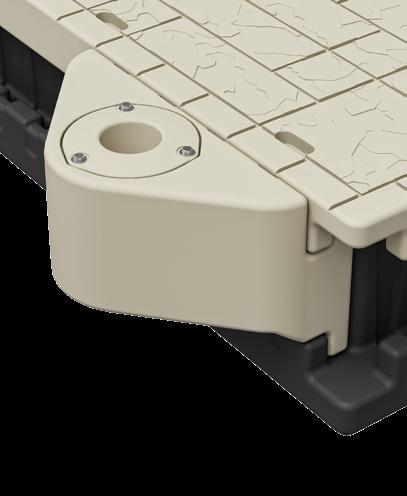

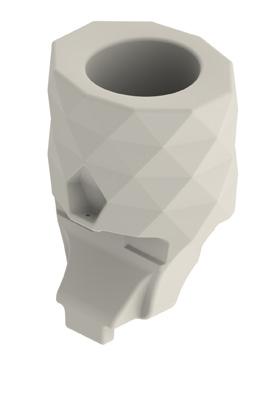

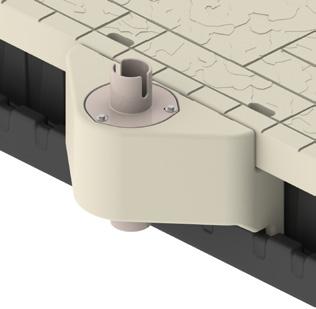

FLAG POLE SLEEVE DF302059 MSRP $610 HALF ROUND 40” DOCK END

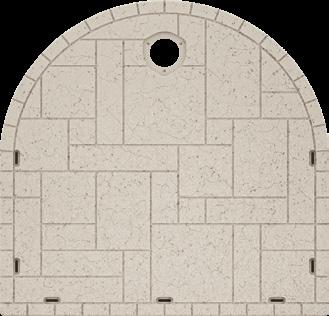

HALF ROUND 60” DOCK END

DF302055 MSRP 785

DF301910 MSRP $1,125

Dims: 40” W × 28” L Weight: 90 lbs.

Dims: 60” W × 40” L Weight: 160 lbs.

• Designed for beautiful & safer dock ends!

• Requires 31” H-Beam #DF301520 (not included)

• Designed for beautiful & safer dock ends!

• Requires 50” H-Beam #DF300067 (not included)

$

• Provides a secure and stable mount for your flag pole

30˚ DOCK WEDGE - 60"

DF301090 MSRP $610 Dims: 60” L Weight: 80 lbs.

• H-Beam channel built-in

DF300051 MSRP $250

40” CORNER DOCK SECTION DF302047 MSRP $535

60” CORNER DOCK SECTION DF301577 MSRP $795

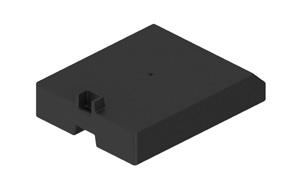

Dims: 30” W × 30” L Weight: 25 lbs.

Dims: 40” W × 40” L Weight: 55 lbs.

Dims: 60” W × 60” L Weight: 95 lbs.

• Has built-in H-Beam & T-Plate

• Requires 31” H-Beam #DF301520 (not included)

• Requires 50” H-Beam #DF300067 (not included)

30” CORNER

30˚DOCK WEDGE - 40"

DF301091 MSRP $460 Dims: 40” L Weight: 55 lbs.

• H-Beam channel built-in

/ DOCK SECTIONS

9

WAVE DOCK

1 1 / 72” Port Mount 45˚ Dock Section DF302692

2

2 / 60” × 120” Bridge Dock Section DF301592

3

3 / 60” × 60” Bridge Dock Section DF302471

10

DISTRIBUTED BY

H E W I T T R A D . C O M

WAVE DOCK

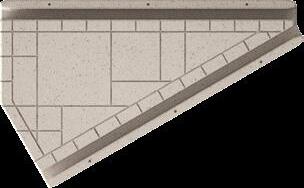

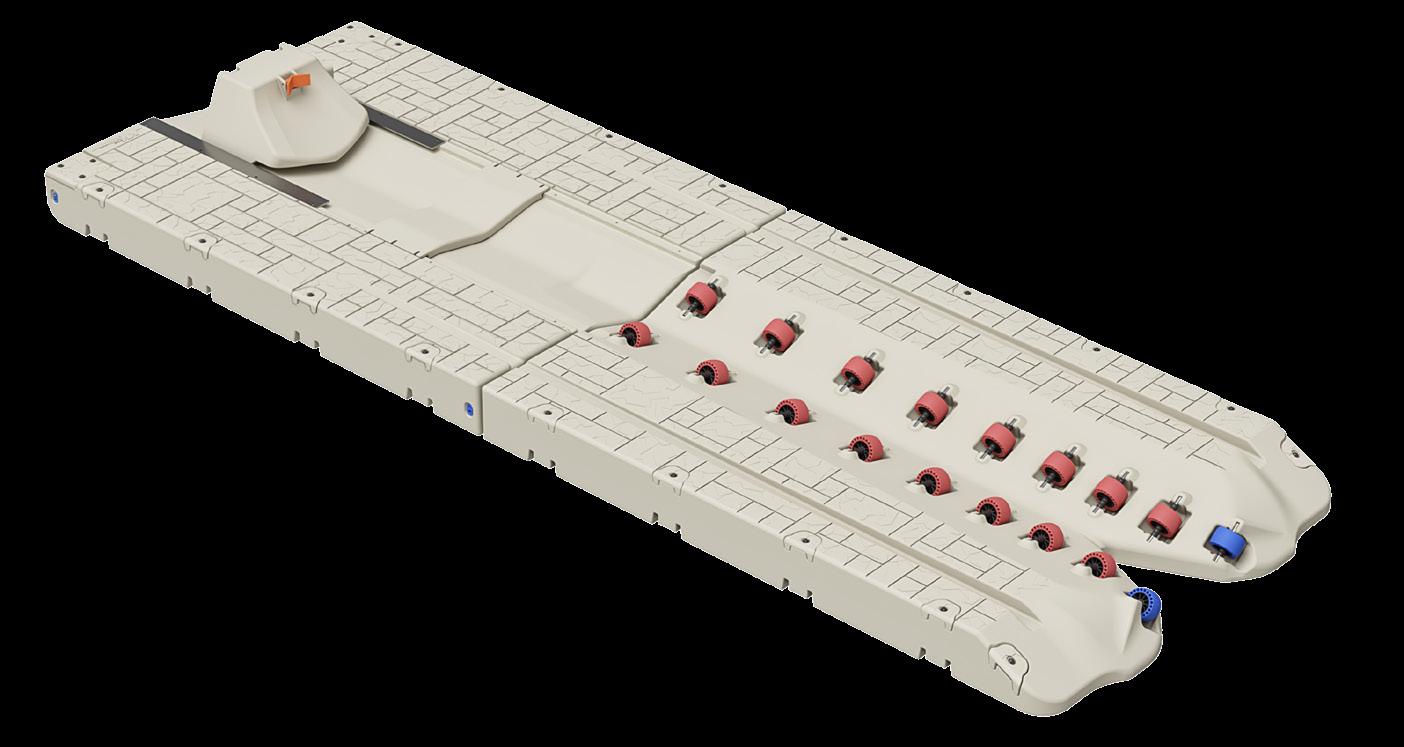

/ DOCK SECTIONS 60” PORT MOUNT 45˚ DOCK SECTION

1

DF302692 MSRP $838 Dims: 82” W × 47” L × 17” H (72" long on angled side) Weight: 110 lbs.

Designed to mount 5' ports at a 45° angle • Requires one 50" H-Beams (not included)

72” PORT MOUNT 45˚ DOCK SECTION

DF302693 MSRP $989 Dims: 101” W × 57” L × 17” H (72" long on angled side) Weight: 170 lbs.

Designed to mount 6' ports at a 45° angle • Requires two 31" H-Beams (not included)

80” PORT MOUNT 45˚ DOCK SECTION

DF302694 MSRP $1,109 Dims: 113” W × 63” L × 17” H (80" long on angled side) Weight: 200 lbs.

Designed to mount WB ports at a 45° angle • Requires two 50" H-Beams (not included)

/ BRIDGES 60” × 120” BRIDGE DOCK SECTION

2

DF301592 MSRP $2,250 Dims: 60” W × 120” L × 18.5” H Weight: 425 lbs.

• Increase water flow and minimize stagnant buildup around your dock.

• Requires 50” H-Beam #DF300067 (not included) • Engineered to provide similar buoyancy to a standard dock section • Includes molded-in slot for cleat and solar light

3

60” × 60” BRIDGE DOCK SECTION

30” × 60” BRIDGE DOCK SECTION

DF302471 MSRP $535

DF302379 MSRP $372

Dims: 60” W × 60” L × 14” H Weight: 100 lbs.

Dims: 38” W × 60” L × 14” H Weight: 61 lbs.

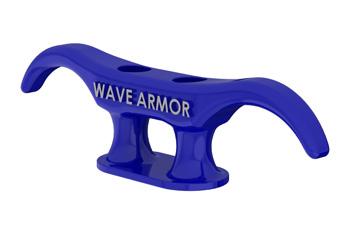

• H-Beam channel built-in • Includes molded-in slot for cleat and solar light

• H-Beam channel built-in • Includes molded-in slot for cleat and solar light

/ DOCK SECTIONS

11

WAVE DOCK

1 / 7’ Dock Ramp DF300055 2 / 7’ Ramp Abutment Kit DF301509

1

2

12' HAND Railing For 12' Wave Dock Ramp D1RAILCW12 MSRP $522 12' Classic Railing For 12' Wave Dock Ramp.

• 1-1/2" Square Tubing • Hardware and mounting brackets included • Can be mounted on either side or both

12

DISTRIBUTED BY

H E W I T T R A D . C O M

WAVE DOCK

/ RAMPS

Did you know?

12' ramp is designed for the option to add additional support underneath with 2" Schedule 40 pipe. Up to (3) pipes can be installed.

Consider a gangway if you need a flat walking surface.

1 12’ DOCK RAMP

7’ DOCK RAMP

DF300055 MSRP 1,150

DF301518 MSRP $1,750

Dims: 60” W × 84” L Weight: 170 lbs.

Dims: 60” W × 152” L Weight: 285 lbs.

• H-Beam channel built-in • May require additional dock float to end of dock section #DF302066

• H-Beam channel built-in • Includes a raised side lip for railing mount options • May require additional dock float to end of dock section #DF302066 • Must install sloped to shed water.

$

2

7’ RAMP ABUTMENT KIT

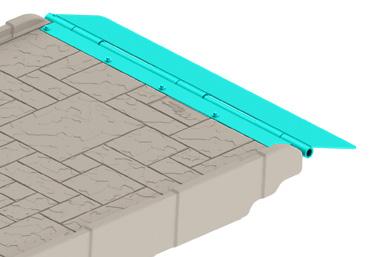

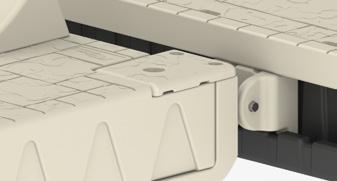

UNIVERSAL DOCK HINGE

12’ RAMP ABUTMENT HINGE

12’ RAMP TRANSITION KIT

DF301509 MSRP $530

DF301135 MSRP $955

DF301661 MSRP $545

DF302121 MSRP $575

Connects the 7’ ramp to a solid structure on land.

• Hardware for Wave Dock install included • Includes 3 steel bars and 1 angle steel bracket • (Abutment highlighted in blue - not actual color)

Two hinged, heavy duty aluminum plates secure into the Wave Dock H-Beam channel and connect to existing floating docks, custom ramps or gangways.

• Hardware for Wave Dock install included • (Hinge highlighted in blue - not actual color)

Designed to link the 12’ ramp to a solid structure on land.

• Hardware for Wave Dock install included • (Abutment highlighted in blue - not actual color)

Designed to provide a smooth transition from land to the ramp.

Wheel chair friendly.

• Hardware for Wave Dock install included • (Transition highlighted in blue - not actual color)

/ RAMPS

13

WAVE DOCK

DOCK RAILING

NEW!

Includes 1 + mounting hardware.

5' DF302838 MSRP $430 Dims: 60" L × 37” H

10' DF302837 MSRP $727 Dims: 120" L × 37” H

14

DISTRIBUTED BY

H E W I T T R A D . C O M

WAVE DOCK

/ WALKWAY & GANGWAY

60" GANGWAY

40” GANGWAY

10' DF303008 MSRP $2,399

5' DF303090 MSRP $1,328

15' DF302913 MSRP $2,548

Dims: 40” W × 5' L Weight: 100 lbs.

Dims: 40” W × 15' L Weight: 291 lbs.

10' DF302915 MSRP $2,086

17.5' DF302912 MSRP $3,133

Dims: 40” W × 10' L Weight: 209 lbs.

Dims: 40” W × 17.5' L Weight: 333 lbs.

12.5' DF302914 MSRP $2,318

20' DF302911 MSRP $3,400

Dims: 40” W × 12.5' L Weight: 250 lbs.

Dims: 40” W × 20' L Weight: 375 lbs.

Dims: 60” W × 10' L Weight: 275 lbs.

15' DF302917 MSRP $3,195 Dims: 60” W × 15' L Weight: 400 lbs.

20' DF302916 MSRP $4,243 Dims: 60” W × 20' L Weight: 525 lbs.

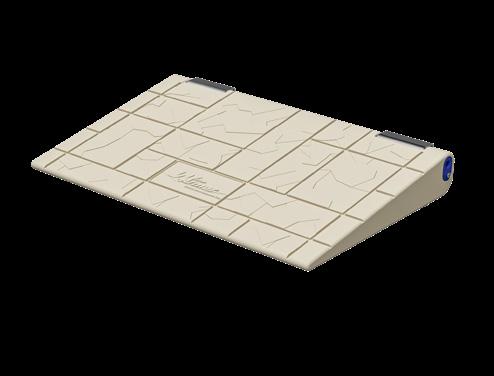

60" TRANSITION RAMP

40" TRANSITION RAMP

DF302910 MSRP 431

DF302909 MSRP $338

Dims: 60” W × 24” L Weight: 30 lbs.

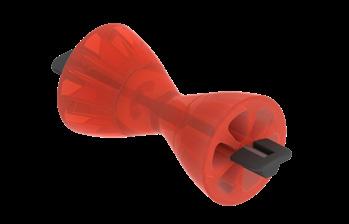

Includes rollers

Dims: 40” W × 24” L Weight: 15 lbs.

Includes rollers

$

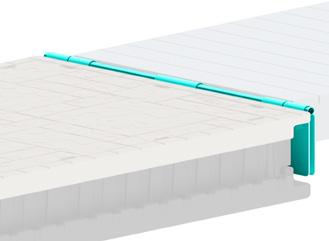

60" WAVE DOCK HINGE

40" WAVE DOCK HINGE

DF302997 MSRP 597

DF302998 MSRP $509

$

Includes T-Plate

Includes T-Plate

60" UNIVERSAL SEAWALL HINGE

40" UNIVERSAL SEAWALL HINGE

DF302999 MSRP $441

DF303000 MSRP $411 GANGWAY RAILING Includes 2 + all mounting hardware to Wave Armor Gangways.

Pricing subject to change.

10' DF303319 MSRP $1,199

17.5' DF303055 MSRP $1,914

Dims: 9'8" L × 37” H

Dims: 17'2" L × 37” H

12.5' DF303057 MSRP $1,432

20' DF303054 MSRP $2,110

Dims: 12'2" L × 37” H

Dims: 19'8" L × 37” H

15' DF303056 MSRP $1,646 Dims: 14'8" L × 37” H

/ DOCK SECTIONS

15

WAVE DOCK

/ hewitt ramps and hardware

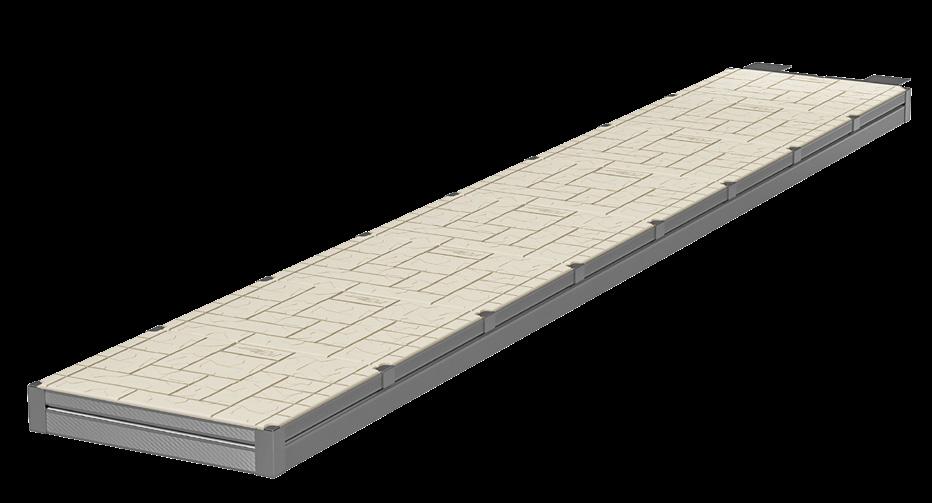

Custom Aluminum Ramp with Wave Armor Deck 5x10’ 5x20’

D1FMWD5X10 D1FMWD5X20

MSRP $2,689 MSRP $3,675

* Must purchase custom Wave Dock hinge D1HINCH (pg. 10) * May require additonal dock float to end of dock section.

Classic and ADA Handrails available.

Custom Aluminum Ramp with Beige Aluminum Decking 4x10’ 5x10’ 4x16’ 5x16’ 4x20’ 5x20’ 4x24’ 5x24’

D1FMAAB10 D1FMAAB5X10 D1FMAAB16 D1FMAAB5X16 D1FMAAB20 D1FMAAB5X20 D1FMAAB24 D1FMAAB5X24

MSRP $2,309 MSRP $2,704 MSRP $2,992 MSRP $3,471 MSRP $4,156 MSRP $4,454 MSRP $4,365 MSRP $5,322

Aluminum Decking

ThruFlow™ Decking

* Must purchase custom Wave Dock hinge D1HINCH (pg. 10) * Also available with ThruFlow™ decking. * May require additonal dock float to end of dock section.

Classic and ADA Handrails available.

Aluminum Transition Plate Create a smooth transition between dock sections or seawall. (Hardware not included) 4’ 6’ 8’ 12’

BEIGE

WHITE

GRAY

BEIGE

Heavy-Duty Aluminum Transition Plate With replaceable wear guard.

4’ D1TPHD4 MSRP $426 5’ D1TPHD5 MSRP $585 6’ D1TPHD6 MSRP $639 8’ D1TPHD8 MSRP $961

D1TP4 MSRP $187 D1TP6 MSRP $225 D1TP8 MSRP $299 D1TP12 MSRP $320

24”

12”

16

DISTRIBUTED BY

Weld hinge to your ramp/gangway, dock or seawall. part # ADD-00114

H E W I T T R A D . C O M

WAVE DOCK

/ hand rails

5' or 10' Wave Dock Classic Hand Railing*

Wave Dock tie Rail 30" D1RAILTDW30 MSRP $ 41 40" D1RAILTDW40 MSRP $ 54 60" D1RAILTDW60 MSRP $ 78 120" D1RAILTDW120 MSRP $ 142

D1RAILCW5 MSRP 255 D1RAILCW10 MSRP $ 270 $

Classic railing for Wave Dock, 1-1/2" square tubing, 36" tall.

5' fits 60” Wave Dock and 60" Wave Dock corner. 10' fits 120” Wave Dock. Must purchase two DF302593 plates (pg. 23) for each hand rail.

Works as a kick rail, low profile grab rail, or boat tie-down rail. Mounts to top of Wave Dock sections.

• 1 1/2” square tubing • Hardware included

* Custom lengths available. Can also build curved hand rail

for wedge, quarter, and half-round dock sections.

16”

72” 98”

54”

4’ OR 6’

4’ OR 6’

12' HAND Railing For 12' Wave Dock Ramp

Security Gate

Access Gate

D1RAILCW12 MSRP $522 12' Classic Railing For 12' Wave Dock Ramp.

40" Security Gate

40" Access Gate

DGATESw40 MSRP $ 1,895

DGATEAw40 MSRP $ 639

60" Security Gate

60" Access Gate

DGATESw60 MSRP $ 2,312

DGATEAw60 MSRP $ 772

All-aluminum gate can be mounted to sides of Wave Dock.

All-aluminum gate can be mounted to sides of Wave Dock.

• Includes latch and key • Must purchase two DF302593 plates (pg. 23)

• Includes latch and key • Must purchase two DF302593 plates (pg. 23)

• 1-1/2" Square Tubing • 36" height • Hardware and mounting brackets included • Can be mounted on either side or both

17

WAVE DOCK

18

DISTRIBUTED BY

H E W I T T R A D . C O M

WAVE DOCK

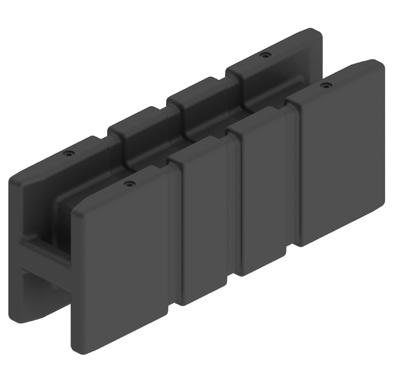

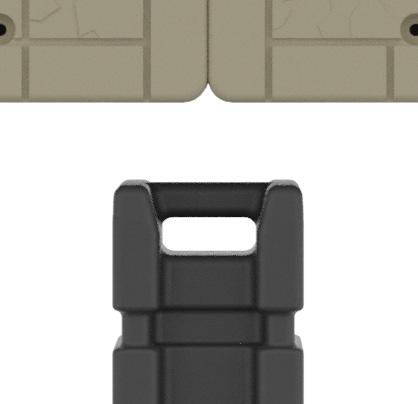

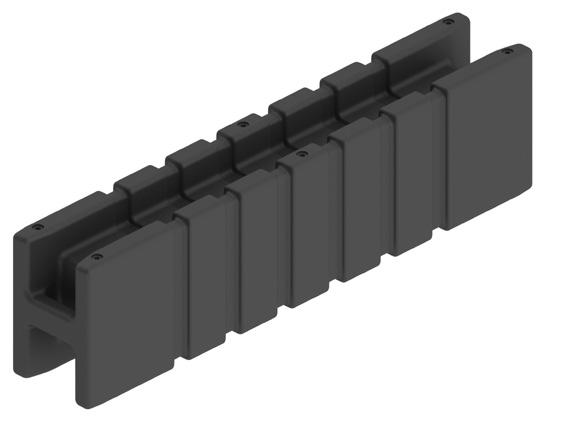

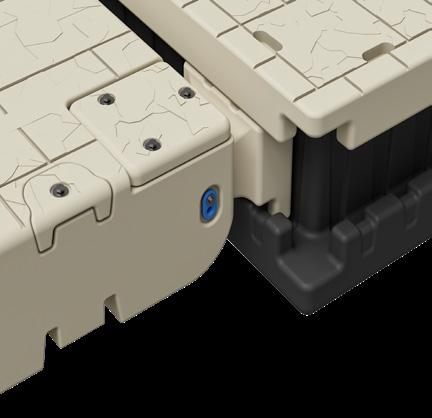

/ H-BEAM DOCK CONNECTIONS Connect dock sections quickly and easily. The patented Wave Armor H-Beams feature molded-in inserts that align with the slots on the top deck of each Wave Armor Dock Section. With molded-in handles, H-Beams simply slide into the molded-in H-Beam channels on any side of the dock sections.

• Hidden, secure connection with uniform rigidity and flexibility • Solid stainless steel anchor insert with anti-galling coating • Made of high impact high density polyethylene, Rotomolded construction

24” H-BEAM

31” H-BEAM

50” H-BEAM

Recommended for docks that require annual removal (standard dock sections).

Connect two 40” × 120” dock sections end to end, 40” corner gusset, 40” half round.

Connect two 60” × 120” dock sections side to side or two 60” × 120” dock sections end to end.

DF300065 Qty 2 MSRP $205

DF301520 Qty 2 MSRP $250

DF300067 Qty 2 MSRP $320

DF301519 QTY 24 MSRP $2,265

DF301521 QTY 12 MSRP $1,375

DF301522 QTY 12 MSRP $1,785

24” HINGED H-BEAM Recommended for rougher water conditions. Can also be used for easier dock disassembly without having to take the H-Beam out.

Remove the pin and you're done! Hardware included.

DF302924 Qty 2 MSRP $395

/ H-BEAMS

19

WAVE DOCK

H-BEAM GUIDE • Line up two Wave Dock sections end to end. Butt them up tight against each other and insert the H-Beam into the channels. Be sure to have the brass inserts on the H-Beam facing upwards. The tapered end of the H-Beam should be inserted first (see image A). Use lubricant (dish soap) to allow the H-Beam to slide into position easier.

• Pound the H-Beam into the dock section channels using a 10-12lb Sledgehammer until the brass inserts align with the slots on dock surface. The H-Beam should be all the way in and not sticking out of the channel.

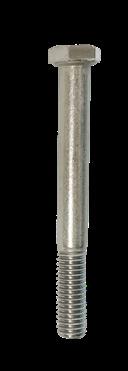

• Once inserts are aligned with the slots, secure the H-Beam using bolts and washers:

Side by Side for 120” Long Sections (2) 50” H-Beams

A

TAPERED END IN FIRST

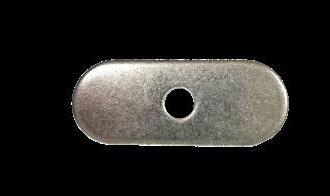

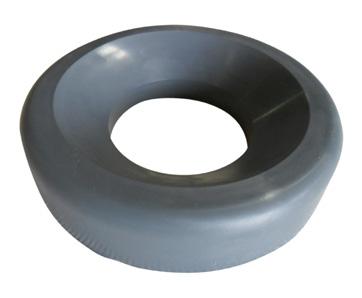

Oval Washer Round Washer 60” x 120” End to End with (1) 50” H-Beam Option 1 (Preferred)

20

DISTRIBUTED BY

H E W I T T R A D . C O M

WAVE DOCK

Oval Washer

Round Washer

60” x 120” End to End with (2) 24” H-Beams Option 2 (Alternate)

40” x 120” End to End with (1) 31” H-Beam

80” x 120” and 100” x 80” End to End with (2) 31” H-Beams

100” x 80” End to End with (1) 50” H-Beam & (1) 31” H-Beam

100” x 80” Side by Side with (2) 31” H-Beams

/ H-BEAMS

21

WAVE DOCK

/ DOCK MOORING KITS 2” SLIM POST BRACKET KIT UTILITY DF302214 MSRP $179 Utility post brackets have wire channels.

HEAVY DUTY DF302065 MSRP $165 Secures dock posts to the Wave Dock system by sliding into the H-Beam channel. Designed to be more compact and accommodate a 2” pipe without additional pipe sleeve.

• Extends 4.5” from edge of dock • Includes 2 + hardware

Utility (with wire channel)

Heavy Duty

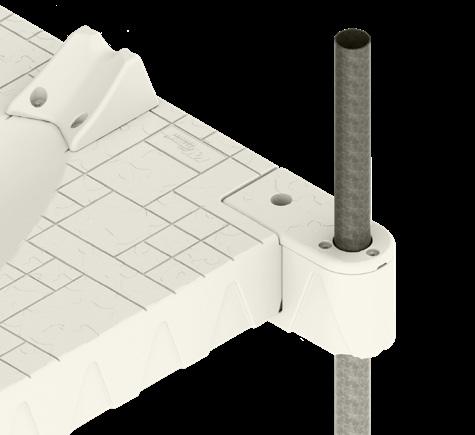

UTILITY POST BRACKET KITS Utility post brackets have wire channels.

2” raised DF301608 MSRP $304 3” FLUSH DF301609 MSRP $310 4” FLUSH DF301610 MSRP $310 (BRACKET ONLY DF303265) MSRP $205

Raised

Secures dock posts to the Wave Dock system by sliding into the H-Beam channel. Designed to be used in areas where you want to use an auger head on the bottom of your galvanized pipe.

• Each kit includes 2 post brackets, 2 sleeves + hardware Shown with raised pipe sleeve.

Flush

UTILITY PIPE SLEEVES • Includes 2 pipe sleeves + hardware 2” raised DF301211 MSRP $99 3” FLUSH DF301212 MSRP $105 4” FLUSH DF301213 MSRP $105

Raised

Flush

HEAVY DUTY POST BRACKET KITS 2” raised DF301526 MSRP $349 3” FLUSH DF301527 MSRP $355 4” FLUSH DF301528 MSRP $355 (BRACKET ONLY DF303266) MSRP $250

Raised

Secures dock posts to the Wave Dock system by sliding into the H-Beam channel. The best choice for mounting in rougher water conditions.

• Each kit includes 2 post brackets, 2 sleeves + hardware Flush

Shown with flush pipe sleeve.

HEAVY DUTY PIPE SLEEVES • Includes 2 pipe sleeves + hardware 2” raised DF301709 MSRP $111 3” FLUSH DF301710 MSRP $110 4” FLUSH DF301711 MSRP $115

22

DISTRIBUTED BY

Raised

H E W I T T R A D . C O M

Flush

WAVE DOCK

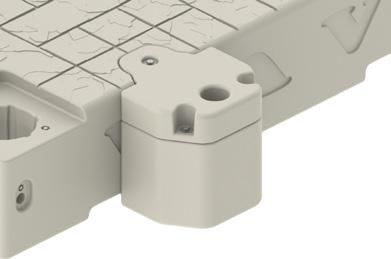

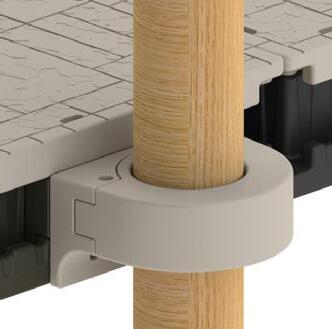

/ DOCK MOORING KITS PYLON HOOP KIT DF302211 8” MSRP 425

14” GALVANIZED PYLON HOOP KIT

DF302212 10” MSRP $425

DF302005 MSRP $636

DF302213 12” MSRP $425

• Includes 1 + hardware

$

Designed to allow Wave Dock installation onto existing pylons.

• Includes 1 + hardware

10” PYLON HOOP ATTACHMENT DF300106 MSRP $325 • Includes 1 + hardware

ANCHOR CAP MOORING KIT DF300493 MSRP $600 An alternative to pipe mounting, the anchor cap mooring kit is a secure attachment point for a submersible anchor chain or cable.

• Includes 1 bracket & 1 anchor cap

ANCHOR CAP ONLY DF303269 MSRP $350

MOORING WINCH ADAPTOR DF21925 MSRP $153 Top mounted hand crank adaptor mounts to post attachment for adjustment of submersed anchor cable.

• Fits utility post brackets • Winch not included

• Includes 2

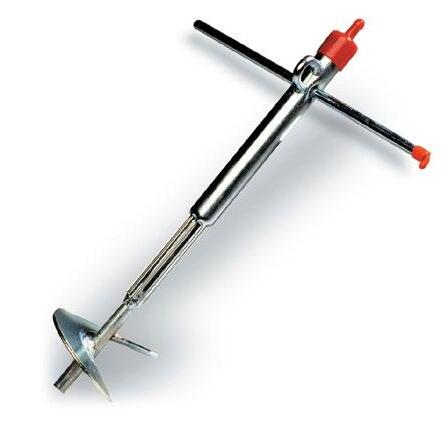

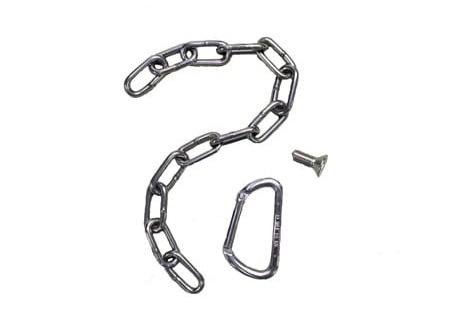

MOORING CHAIN ADAPTOR ANCHOR PIN MOORING KIT DF301336 MSRP $500 The top adjusting heavy duty mooring kit provides a secure attachment point for a submersible anchor chain.

• Includes 1 bracket & 1 anchor pin (chain not included)

ANCHOR PIN ONLY DF303267 MSRP $395 • Includes 2 • Chain not included

DF21926 MSRP $97 Insert Only. For 3/8” and 1/2” chain. Mounts to post attachment kits.

MOORING CAP KIT DF300493 MSRP $600 Mounts to post attachment kits.

MOORING CAP ONLY DF303269 MSRP $350

/ DOCK MOORING KITS

23

WAVE DOCK

3

5 4 3

2

1

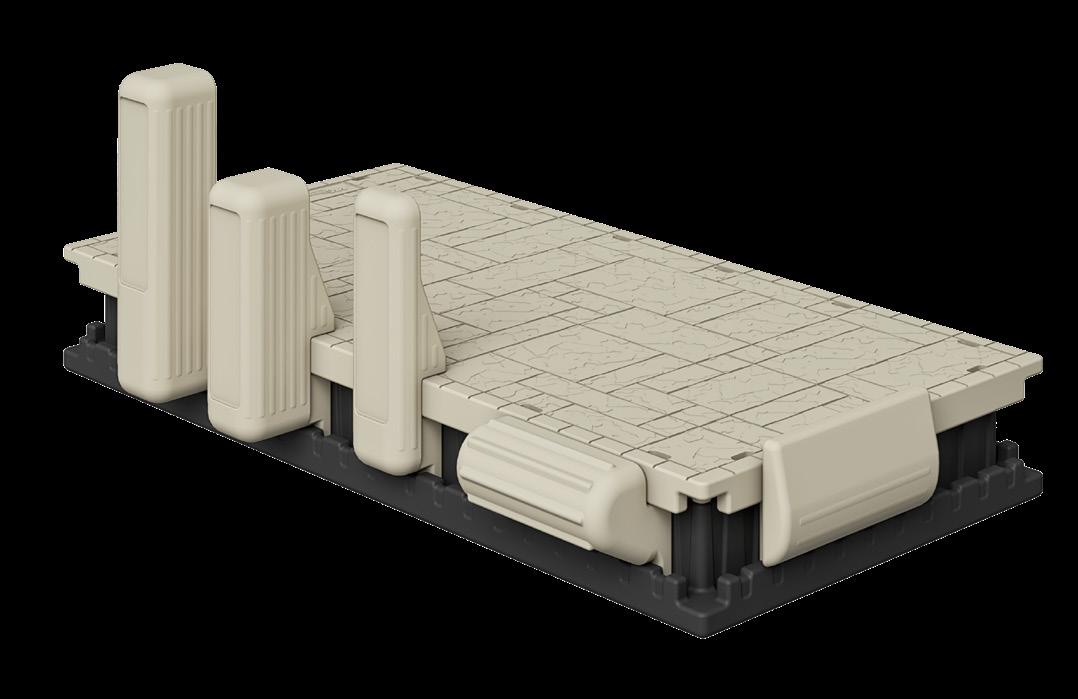

1 / Slim Horizontal Bumper DF301350 2 / Horizontal Bumper DF300069 3 / Slim Vertical Bumper DF301510 4 / Medium Vertical Bumper DF300978 5 / Large Vertical Bumper DF300979

24

DISTRIBUTED BY

H E W I T T R A D . C O M

WAVE DOCK

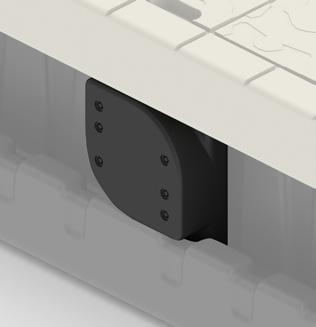

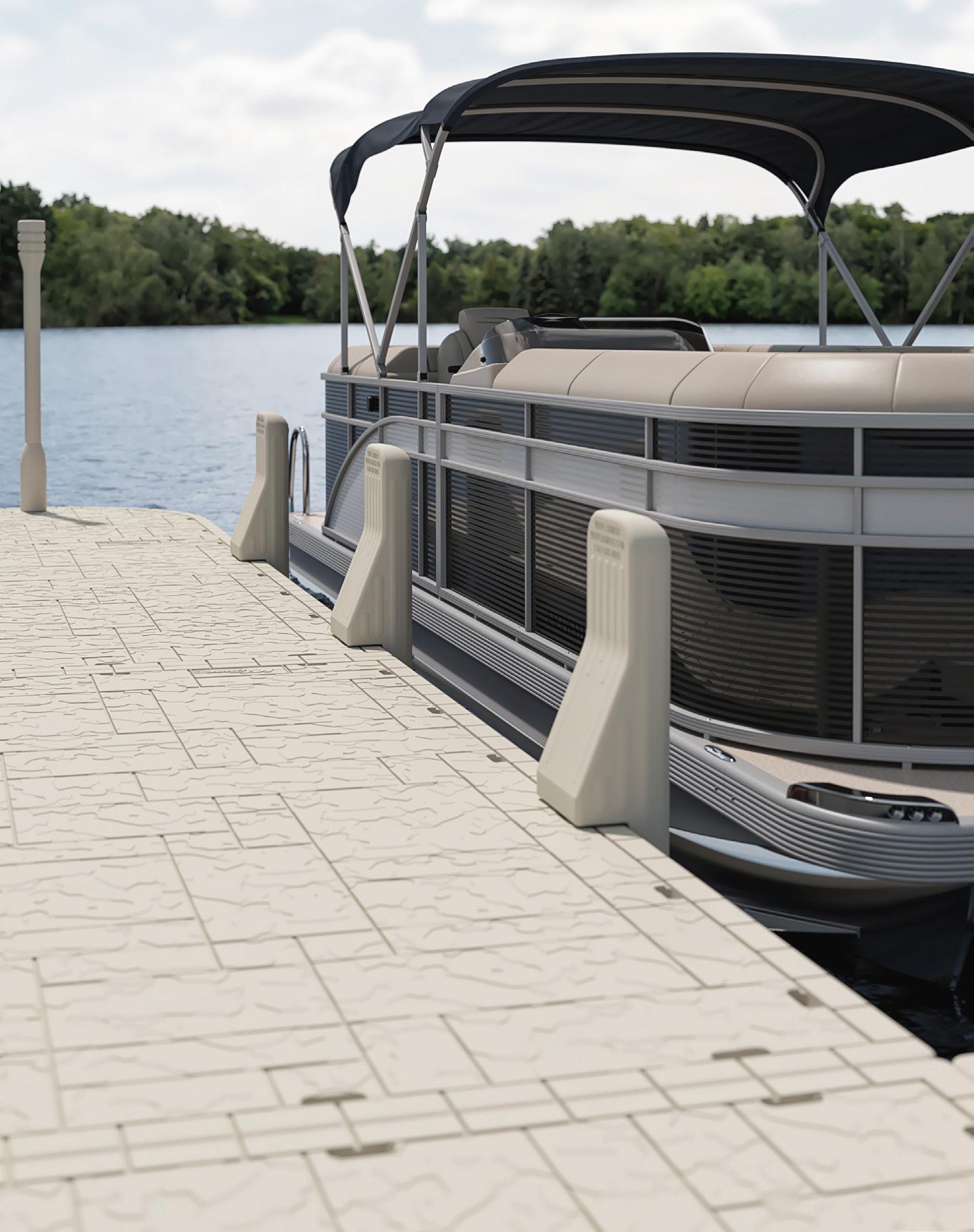

/ BUMPERS Hewitt Wave Dock Mount 36” Adjustable Side Bumpers D1BUVW MSRP $184 35-1/2”

Durable plastic bumper mounted on a 2” x 2” aluminum tube (largest in the industry) with your choice of aluminum mounting hardware. This setup is completely adjustable.

Post Bracket Bumper Kit DF301539 MSRP $106

• Must purchase DF302593

Cushion that mounts to post attachments that have inserts mold on outside. Includes 2.

4-1/2”

2

1

SLIM HORIZONTAL BUMPER

HORIZONTAL BUMPER

SMALL VERTICAL BUMPER

DF301350 MSRP 135 Dims: 27” H × 15” W × 5.5” D • Extends 3” above dock surface • Extends 5.25” from dock edge

DF300069 MSRP 115 Dims: 12” H × 24” W × 8.5” D • Flush with dock surface • Extends 8.5” from dock edge • Recommended for pontoons only

DF301103 MSRP $115

$

$

4

3

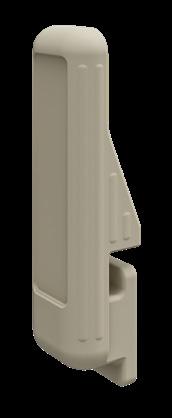

SLIM VERTICAL BUMPER DF301510 MSRP 145 Dims: 32” H × 10” W × 5.5” D • Extends 20” above dock surface • Extends 5.5” from dock edge $

Dims: 23” H × 10” W × 11.5” D • Extends 12” above dock surface • Extends 11.5” from dock edge

5

MEDIUM VERTICAL BUMPER

LARGE VERTICAL BUMPER

DF300978 MSRP 149 Dims: 32” H × 10” W × 11.5” D • Extends 20” above dock surface • Extends 11.5” from dock edge

DF300979 MSRP $169 Dims: 42” H × 10” W × 11.5” D • Extends 30” above dock surface • Extends 11.5” from dock edge

$

/ BUMPERS

25

WAVE DOCK

2

3

4

1

1 / Lower Deck Section DF301096 2 / Lockable Dock Box DF300019 3 / Folding Dock Ladder DF300081 4 / Small Flower Pot DF301844

26

DISTRIBUTED BY

H E W I T T R A D . C O M

WAVE DOCK

/ WAVE DOCK ACCESSORIES

2

1

3

LOWER DECK SECTION

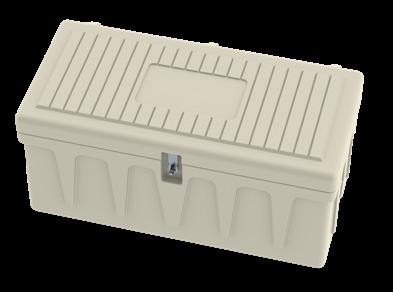

LOCKABLE DOCK BOX

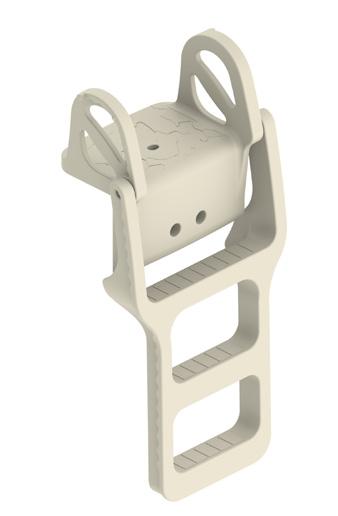

FOLDING DOCK LADDER

DF301096 MSRP $575

L1HYPB MSRP $245

DF300081 MSRP $405

The Wave Dock Lower Step Down simply connects to the molded-in H-Beam Channels on the Wave Dock System. Ideal for lounging at water level and provides an additional point of entry or exit.

Attach to the Wave Dock system or placing on a patio or other outdoor area, allowing you to store your items with convenience and peace of mind.

Features large steps and handles to easily step out of water onto dock.

Easy T-Plate mount slides into Wave Dock H-Beam channel, ladder installs directly onto Easy T-Plate. Ladder folds up and locks for storage.

• H-Beam channel built-in • Dims: 60” W × 36” L × 16” H • Weight: 100 lbs.

• Weight capacity: 400 lbs.

• Dims: 31.25 L × 15.5 D × 15 H • Weight: 20 lbs.

• Hardware included • Inside dims: 13.75" × 31.75"

• Easy T-Plate (DF302593) + hardware included • Dims: 24" W • Weight: 45 lbs.

4

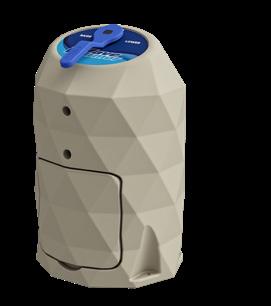

GARBAGE CAN / COOLER

LARGE FLOWER POT

SMALL FLOWER POT

DF301775 MSRP 316

DF301776 MSRP $179

DF301844 MSRP $47

Installs directly into H-Beam channel on Wave Dock system. Dual purpose solution. Use as a garbage can or a cooler for ice & beverages. Features an inner liner for convenient emptying & hinged lid.

Installs directly into H-Beam channel on Wave Dock system.

Featuring a molded-in interior basin for less water maintenance.

Requires T-Plate for H-Beam or other installation. Features a molded-in interior basin for less water maintenance.

• Dims: 30" H × 24" W × 20" D • Weight: 20 lbs.

• Dims: 13" H × 13" W × 12" D • Weight: 5 lbs.

• Hardware included

$

• Dims: 42" H × 23" W × 19" D • Weight: 30 lbs.

/ WAVE DOCK ACCESSORIES

27

WAVE DOCK

1

3

2 1 / 5’ Dock Bench DF301092 2 / Bench Attachment System DF300963 3 / 5’ Dock Bench Box DF301093

4

4 / Universal Dock Step DF302769

28

DISTRIBUTED BY

H E W I T T R A D . C O M

WAVE DOCK

2 3

1

BENCHES DF300014 4’ MSRP $535 52” W × 37” H × 27” D, 60 lbs.

DF301092 5’ MSRP 650 $

64” W × 37” H × 27” D, 81 lbs.

DF300016 6’ MSRP $710 76” W × 37” H × 27” D, 90 lbs.

Constructed of rotomolded granite compounded polyethylene, and featuring molded-in beverage holders and anchoring areas.

• Hardware included

BENCH ATTACHMENT SYSTEM

DF300963 MSRP 265 $

Installs in the Wave Dock H-Beam channel to mount the 5’ Dock Bench over the water, freeing up valuable dock space.

• 26" D × 20" H × 10" W • Weight: 26 lbs.

• Includes 2

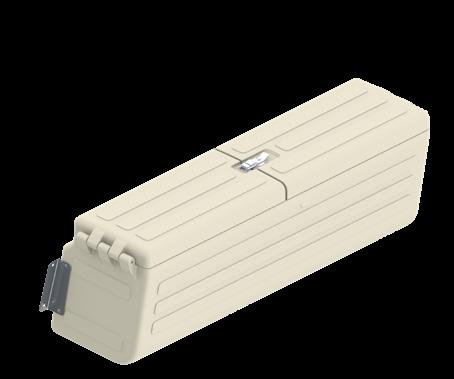

5’ DOCK BENCH BOX

DF301093 MSRP $375 Convenient, lockable storage solution. Mounts to back of 5’ Dock Bench (DF301092).

• Dims: 48” L × 15" W × 15” D • Weight: 42 lbs.

• Hardware included

4

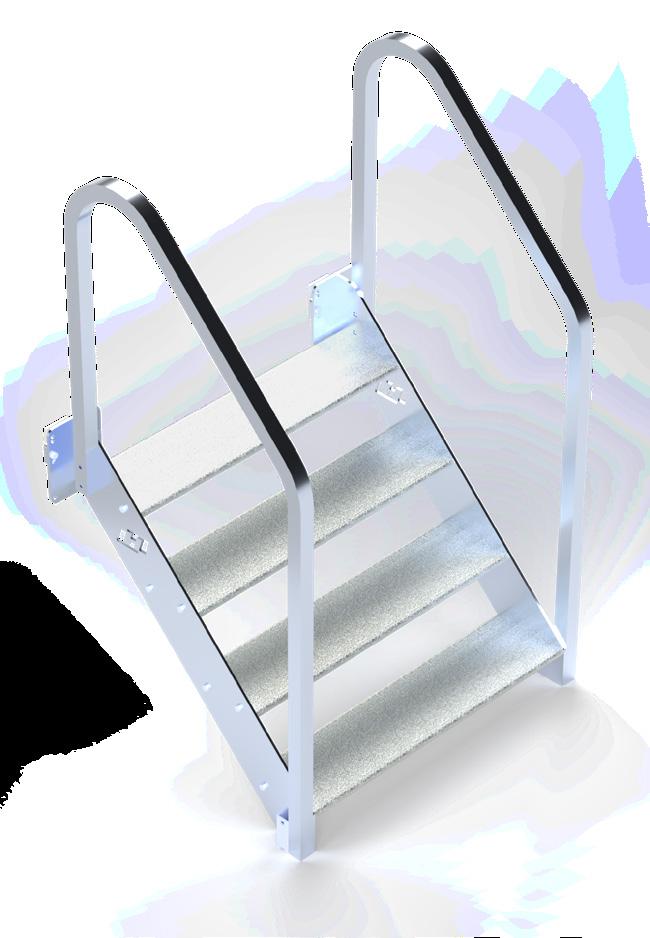

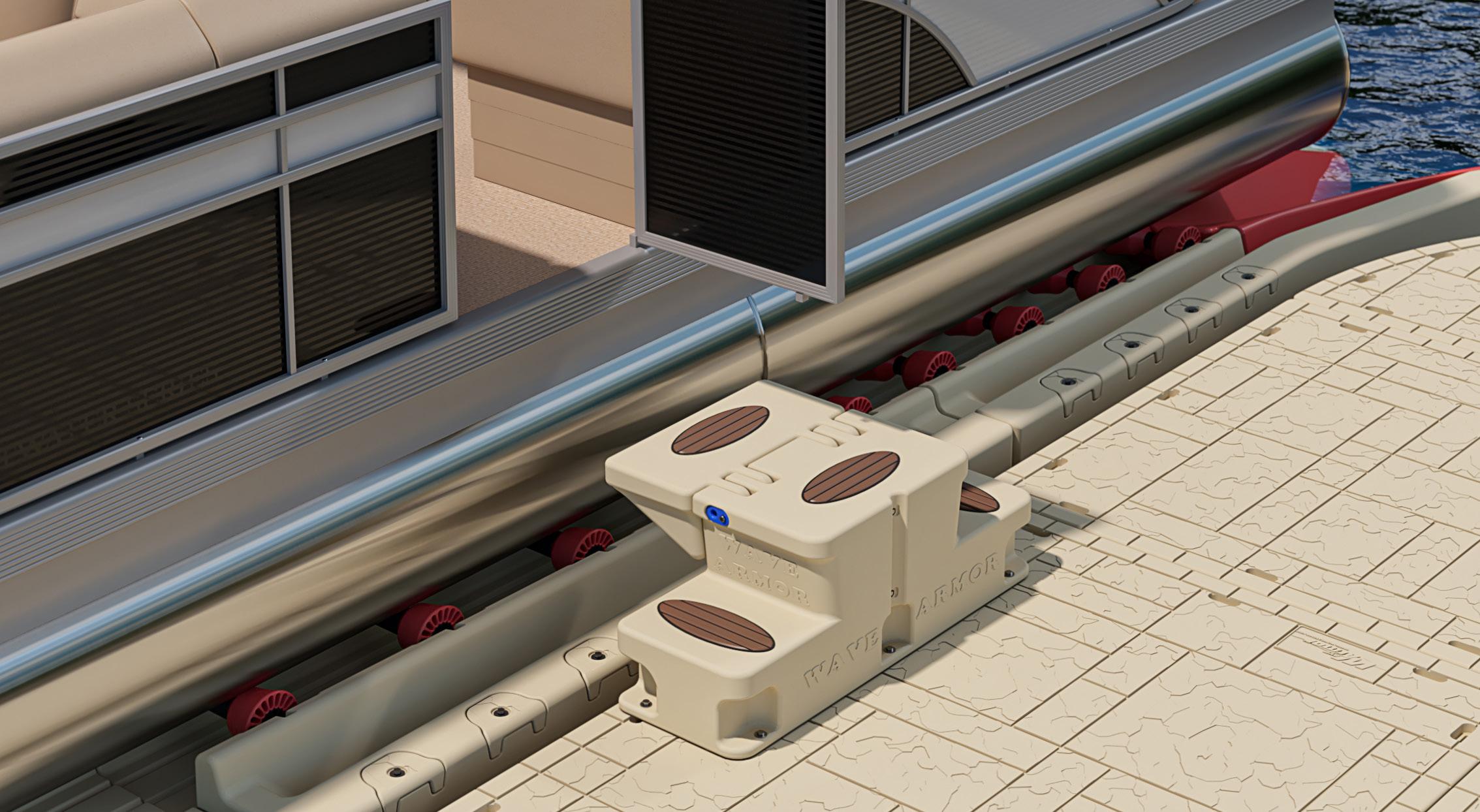

UNIVERSAL DOCK STEP

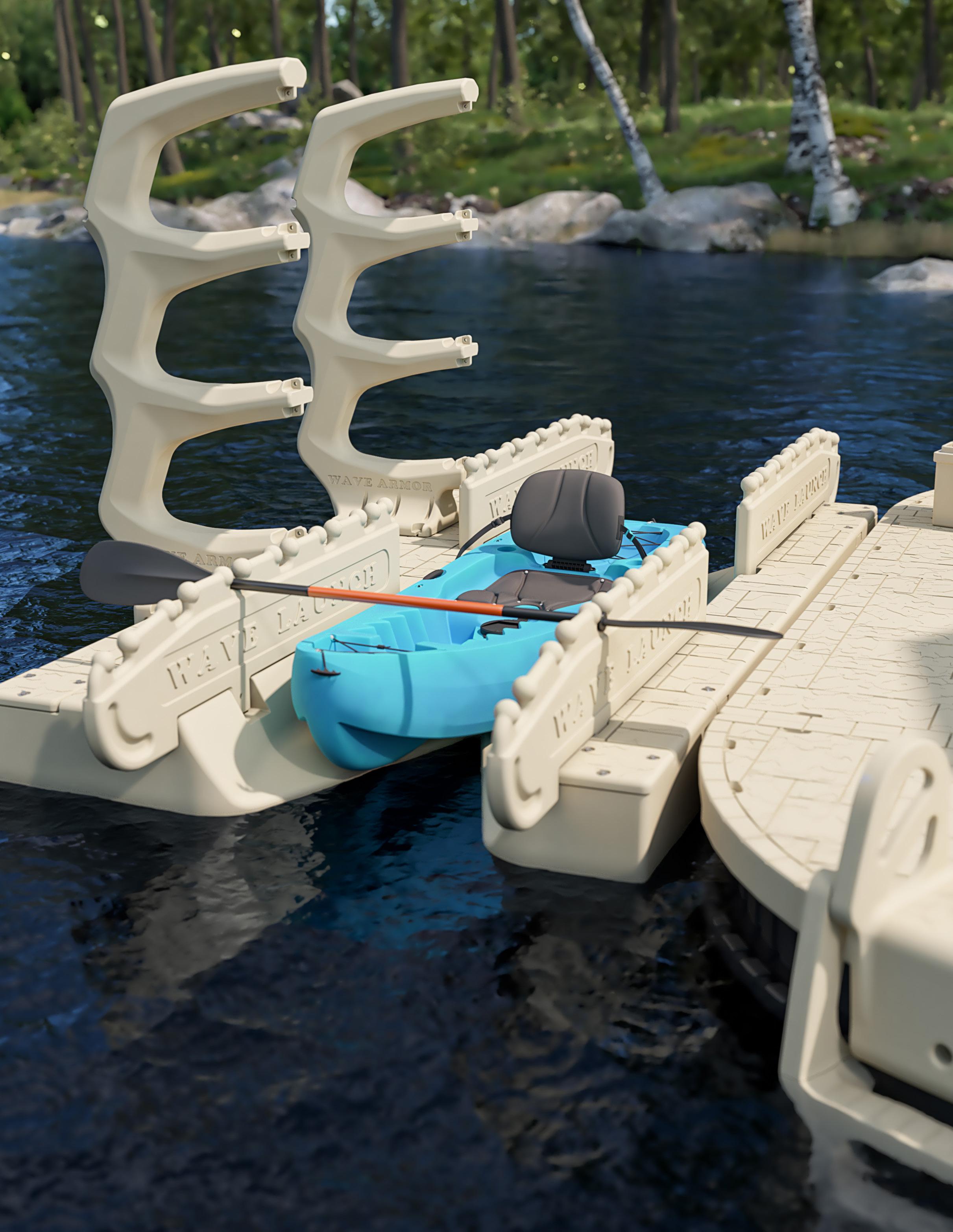

DOCK RACK

DF300107 MSRP 465 $

DF302769 MSRP $449

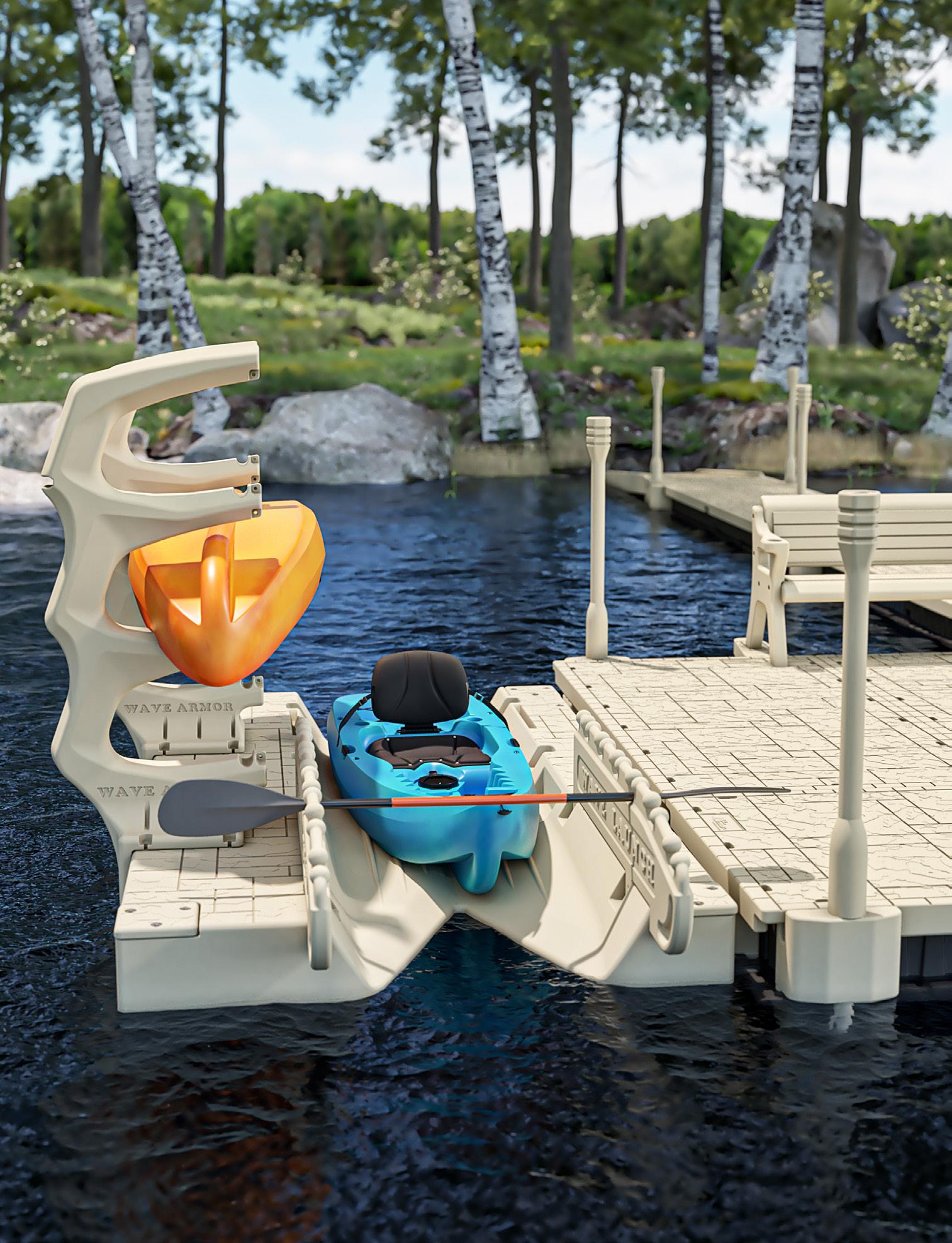

Store kayaks and swim mats close to the water. Slides into Wave Dock H-Beam channel & features moldedin eye loops for easy tie-down.

Designed with non-slip surface and tiered steps on both sides providing easier and safer access to boats and pontoons. Hinged step folds down to close the gap between step and boat when loading and flips up out of the way when loading boat onto the lift.

Installs directly onto dock surface.

• Includes 2 • Hardware included • Dims: 75" H × 39" W • Weight: 59 lbs.

• Hardware included • Dims: 16" H × 24" W × 41" L • Weight: 35 lbs.

/ WAVE DOCK ACCESSORIES

29

WAVE DOCK

30

DISTRIBUTED BY

H E W I T T R A D . C O M

WAVE DOCK

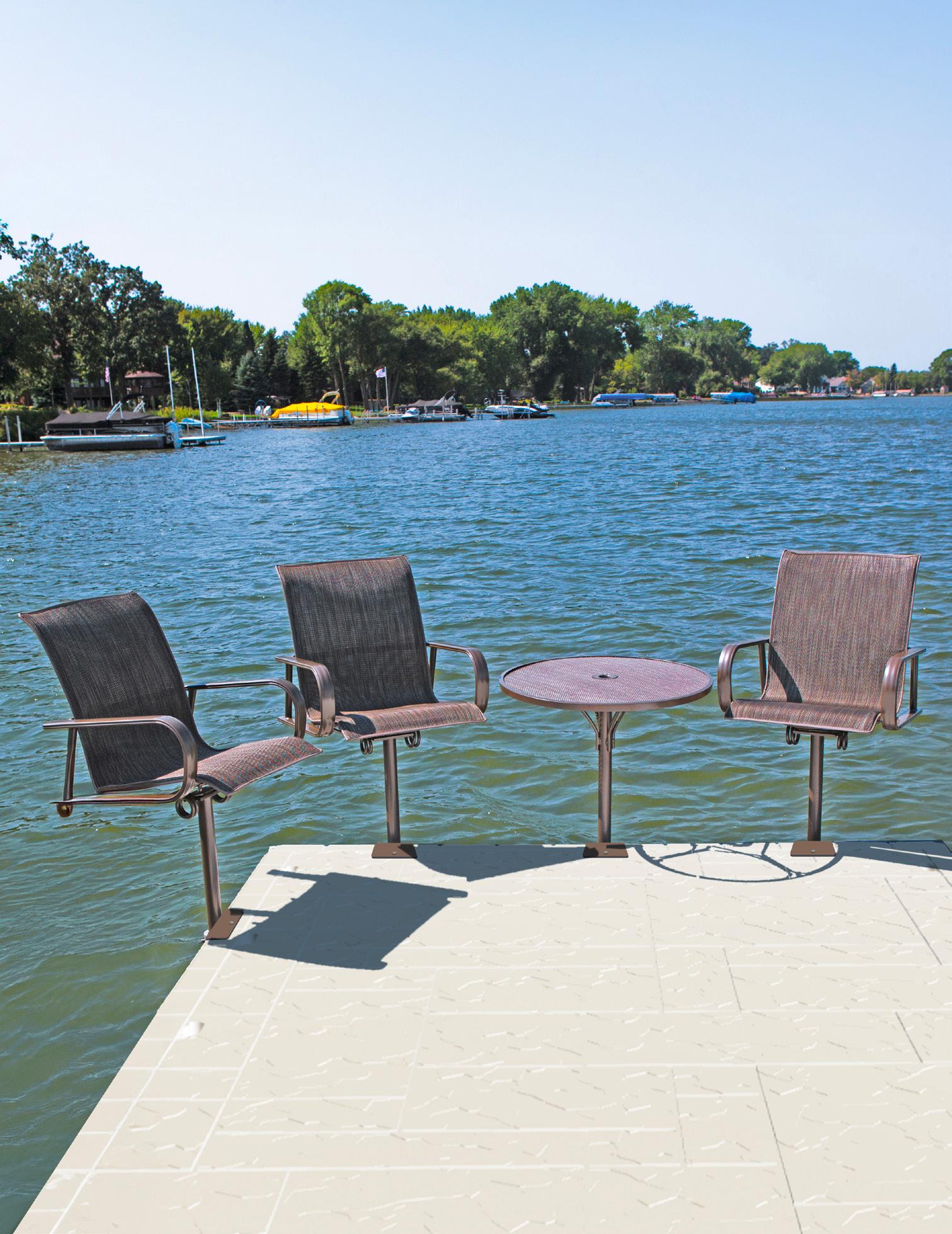

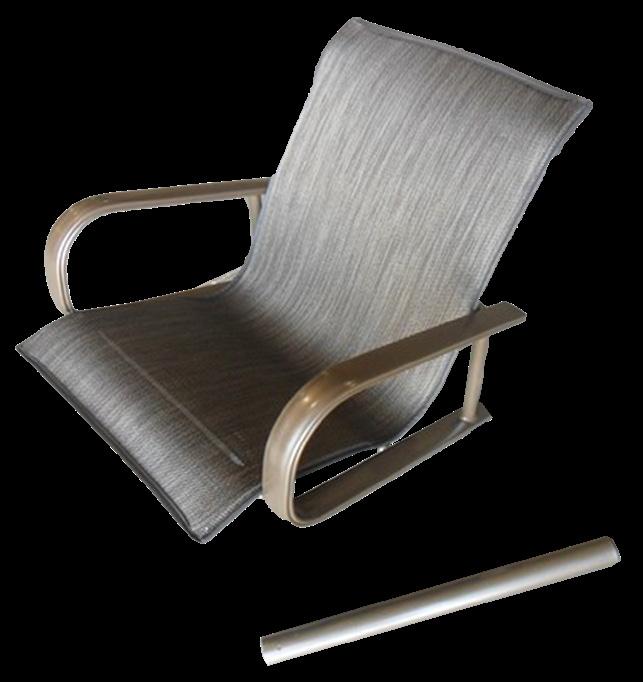

PATIO CHAIR FOR WAVE DOCK DPCHAIRW MSRP $945

30” PATIO TABLE FOR WAVE DOCK DPTABLEW MSRP $928

Powder-coated aluminum, adjustable swivel rocker mechanism. Chair is wrapped with two layers of fabric and is durable and comfortable.

• Includes T-plate (DF302593) and powder-coated bracket (DPBRKTW) for mounting table to Wave Dock.

Low-maintenance powder-coated aluminum mesh table.

• Hole for optional umbrella • Includes T-plate (DF302593) and powder-coated bracket (DPBRKTW) for mounting table to Wave Dock.

WAVE DOCK BRACKET DPBRKTW MSRP $225 Mount patio chairs and table with ability to reposition chairs anytime. Aluminum bracket is powder-coated to match the table and chairs. Must purchase T-plate DF302593.

31

WAVE DOCK

2

1

1 / Hex Post Cover - Set of 8 DF302133 2 / Solar Light DF301126

32

DISTRIBUTED BY

H E W I T T R A D . C O M

WAVE DOCK

ROUND POST COVER

DF302179 Set of 2 MSRP $65 DF302180 Set of 8 MSRP $215 Slides over galvanized post.

HEX POST COVER DF302132 Set of 2 MSRP $65

DF302133 Set of 8 MSRP $215

• 54” height from dock surface • Compatible with DF302065, DF301608, DF301526 attachment kit • Does not accept solar lights

Slides over galvanized post.

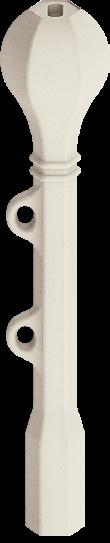

HERITAGE POST COVER

HERITAGE POST COVER WITH H-BEAM

DF301262 Set of 2 MSRP 150 DF301537 Set of 8 MSRP $575 $

Slides over galvanized post.

• 49.5” height from dock surface • Molded-in through holes to accommodate rope • Compatible with DF302065, DF301608, DF301526 attachment kit • Recessed top for optional DF301126 Solar Light

2 SOLAR LIGHT

DF301126 MSRP 125 $

Solar Lights snap into mounting pockets on Hex and Heritage Post Covers, as well as dock sections.

• Includes 2 • Batteries included • Recommended replacement batteries: Panosonic eneloop rechargeable batteries

1

• 54” height from dock surface • Compatible with DF301523 attachment kit • Recessed top for optional DF301126 Solar Light

DF301278 Set of 2 MSRP $225 DF301538 Set of 8 MSRP $832 Slides over galvanized post.

• 49.5” height from dock surface • Compatible with DF301523 attachment kit • Recessed top for optional DF301126 Solar Light

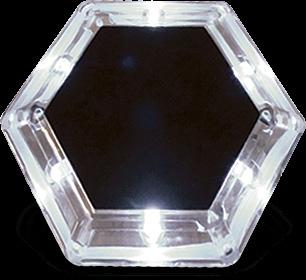

SOLARWAVE DOTS WHITE D1LWAVEW MSRP $55 BLUE D1LWAVEB MSRP $55 Solar Wave Dots are ultra-bright, flush-mount solar lights made for Wave Armor docks. Nearly invisible by day, they eliminate tripping hazards and deliver bright, all-night LED illumination. Snap-in installation takes minutes, adding safety, style, and nighttime visibility.

/ WAVE DOCK ACCESSORIES

33

WAVE DOCK

7” EASY T-PlatE CONNECTOR DF302593 MSRP $60

12” T-PLATE CONNECTOR

Twists into to H-Beam channel, creating options for securing accessories after dock install is already complete.

Slides into the proprietary H-Beam channel of the Wave Dock System during dock install, creating many options for securing large personalized accessories.

DF301504 MSRP $138

• Includes 1

• Includes 2

HINGE CONNECTOR KIT

DF301854 MSRP $140 Two poly receivers bridge the connection from a Wave Armor dock to an existing floating dock by securing to a pair of galvanized C channels (DF303288) sold separately.

• Includes 2 receivers • C-channels (DF303288) sold separately

WAVE DOCK EASY LINK

DF302857 MSRP $224 Creates connection from EZ Dock® to Wave Dock®. Installs in H-Beam channel.

• 58" L x 14.5" H • Includes 1

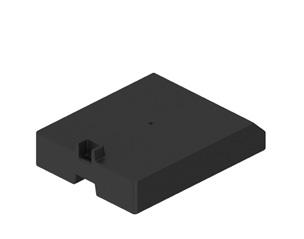

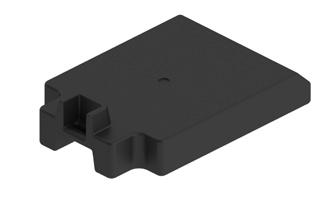

WAVE DOCK BUOYANCY BOOSTER

ADDITIONAL DOCK FLOAT

DF302066 MSRP 175

DF301120 MSRP $425

This low profile dock float is designed to compensate and balance buoyancy deficiency caused by heavy gangways or ramps. Provides extra 350 lb of buoyancy per float to a Wave Dock system. Recommended to be pre-assembled with the dock section prior to installation.

Additional Dock Floats provide extra buoyancy to the Wave Dock. Common areas include under heavy gangways and dock benches. Adds 150 lbs of buoyancy.

$

• Includes 1 • Dims: 60” L × 30” W × 12” H

34

DISTRIBUTED BY

• Includes 2 dock floats, 4 T-plates + hardware

H E W I T T R A D . C O M

WAVE DOCK

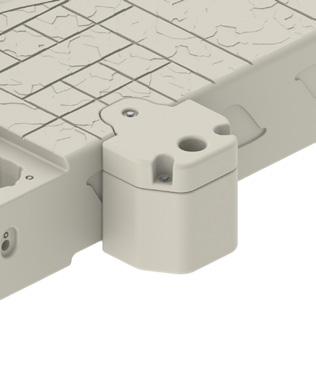

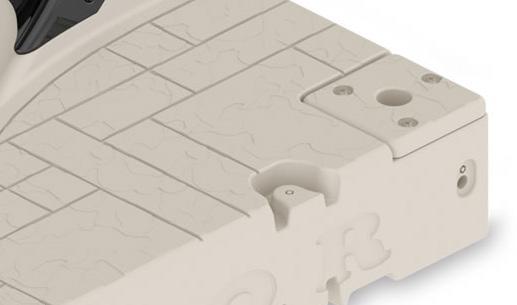

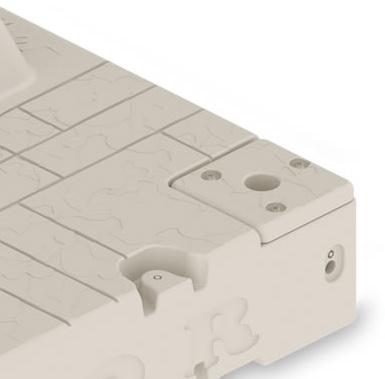

2” PIPE CAP PLUG BOLT-IN CAPS FOR HALF ROUND DOCK SECTIONS

SNAP-IN PLUG

DF302073 MSRP $30

DF301531 MSRP $69

DF301574 MSRP $38 Complete the finished look of your Wave Dock System with these snap-in poly plugs.

THIS IS A MUST-HAVE! This cast aluminum pipe cap plug fits into a 2” pipe end and prevents mud and rocks from collecting. Works great when used with the extension pipe (DF302282) for early spring and high water. Keeps pipe clean and light.

• Includes 2 + hardware

• Includes 20

• Includes 2

10" DOCK CLEAT

DF301779 MSRP $99 • Includes 2 + Wave Dock hardware • Powder coated aluminum

FLAG POLE SLEEVE

DF302059 MSRP $89

8" DOCK CLEAT

DF301106 MSRP $70 • Includes 2 + Wave Dock hardware

Wave Armor Flag Pole sleeve has a metal plate on the bottom and fits in to the pipe sleeve opening of the 60” or 40“ Half Round Dock End Section, or Post Bracket (not included).

• Hardware included

EXTENSION PIPE 2” × 48”

DF302282 MSRP $169

UNIVERSAL PERGOLA MOUNT PLATE

DF302057 MSRP 192 $

The Universal Pergola Plate kit allows you to mount an outdoor structure such as a gazebo or pergola onto the Wave Armor dock surface or any other suitable surface.

• No pre-drilled holes • Includes 4 aluminum 12 × 8 plates • Hardware for Wave Dock system included

UMBRELLA MOUNT

DF302061 MSRP $163 Add the umbrella of your choice to the dock with our aluminum Umbrella Mount.

• Aluminum construction • Adjustable hardware recessed slots • Requires additional drilling for specific umbrella leg size • Hardware for Wave Dock system included

Designed specifically for adding length to the 2” pipes during water fluctuations. Works best with pipe cap plug (DF302073).

This pipe extension tightens the inside of your pipe so it will not fall out.

• Includes 1

/ WAVE DOCK ACCESSORIES

35

DISTRIBUTED BY

36

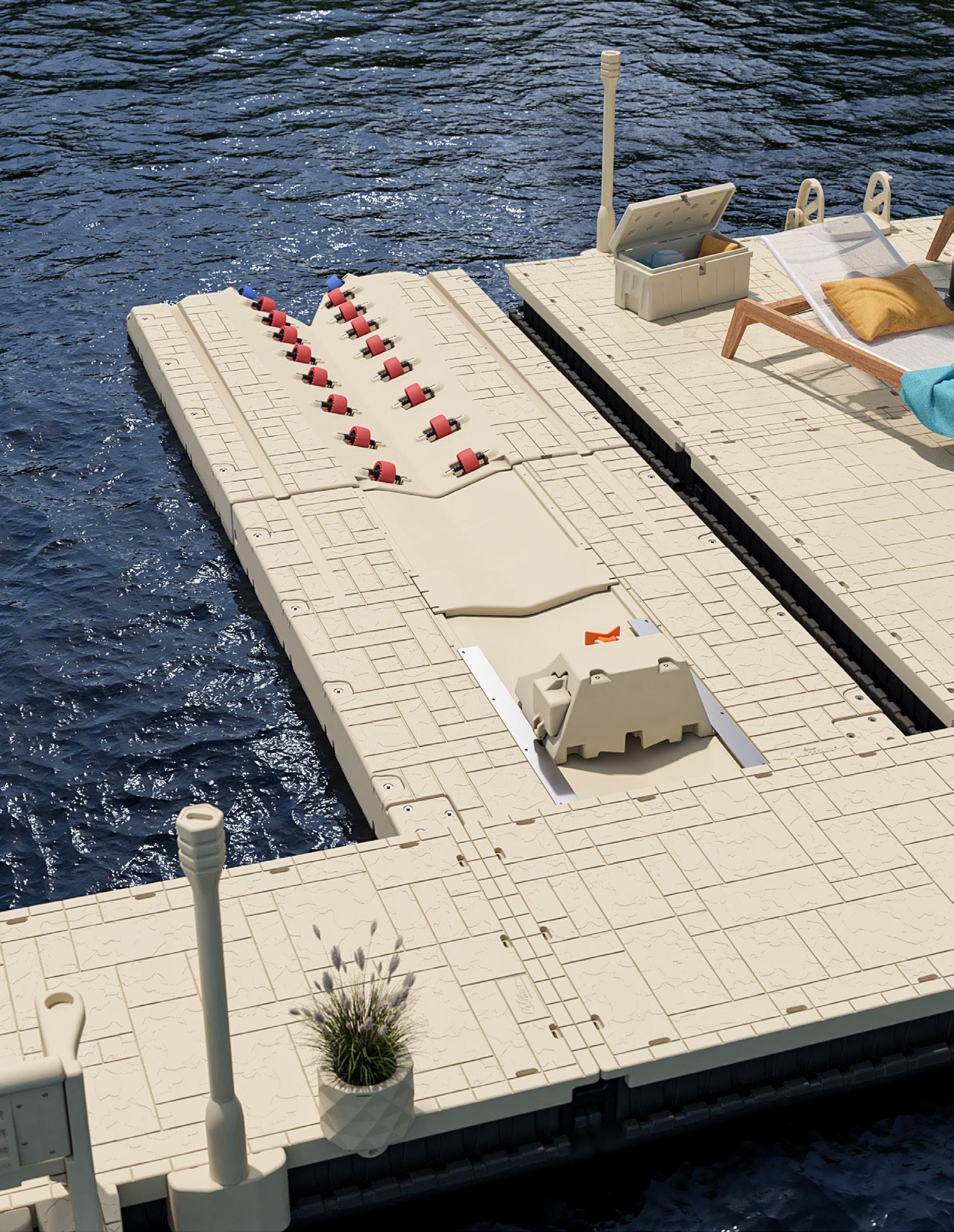

PWC PORTS

37

PWC PORTS

38

DISTRIBUTED BY

H E W I T T R A D . C O M

PWC PORTS

/ APEX 6 PORT

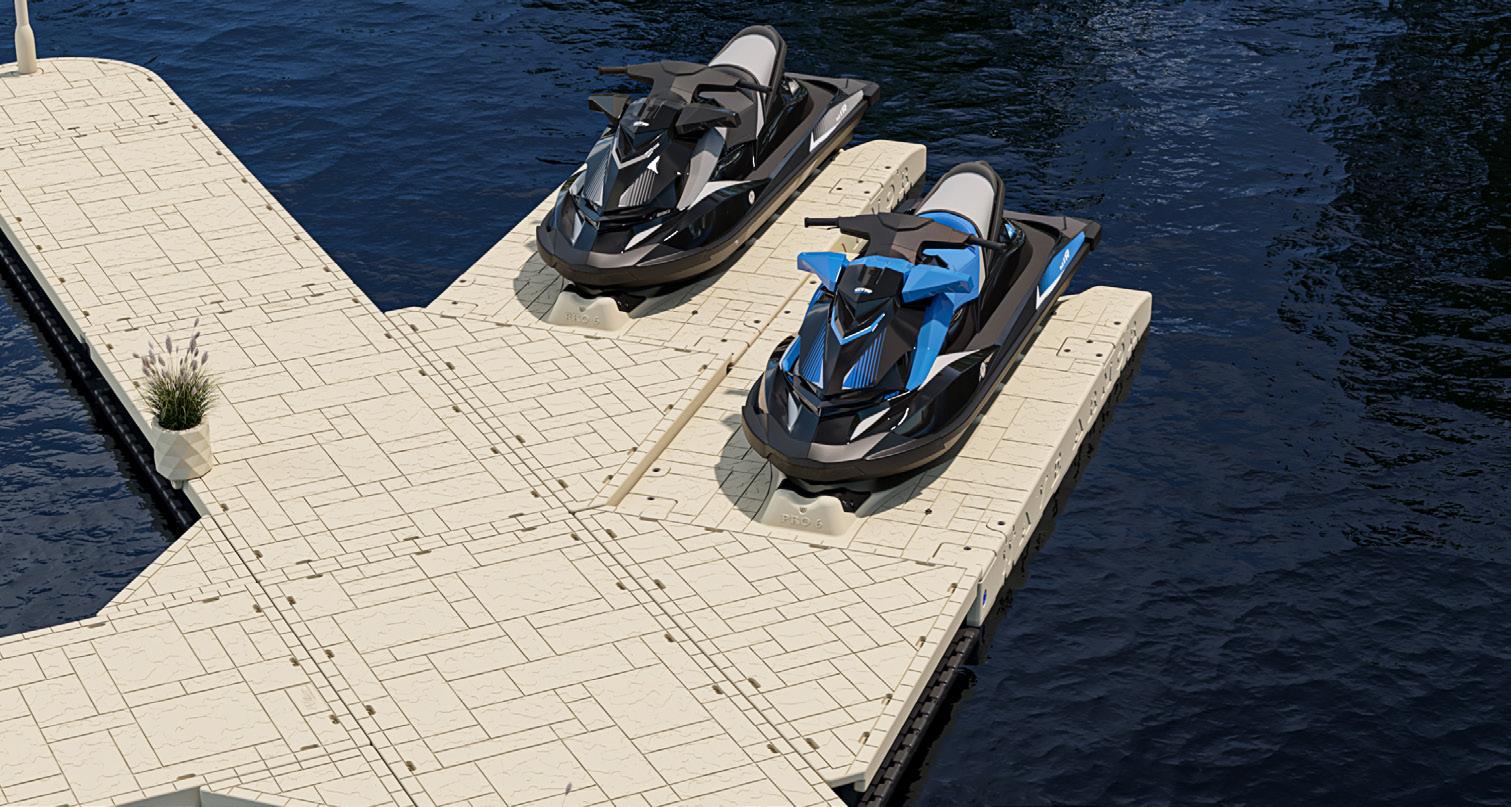

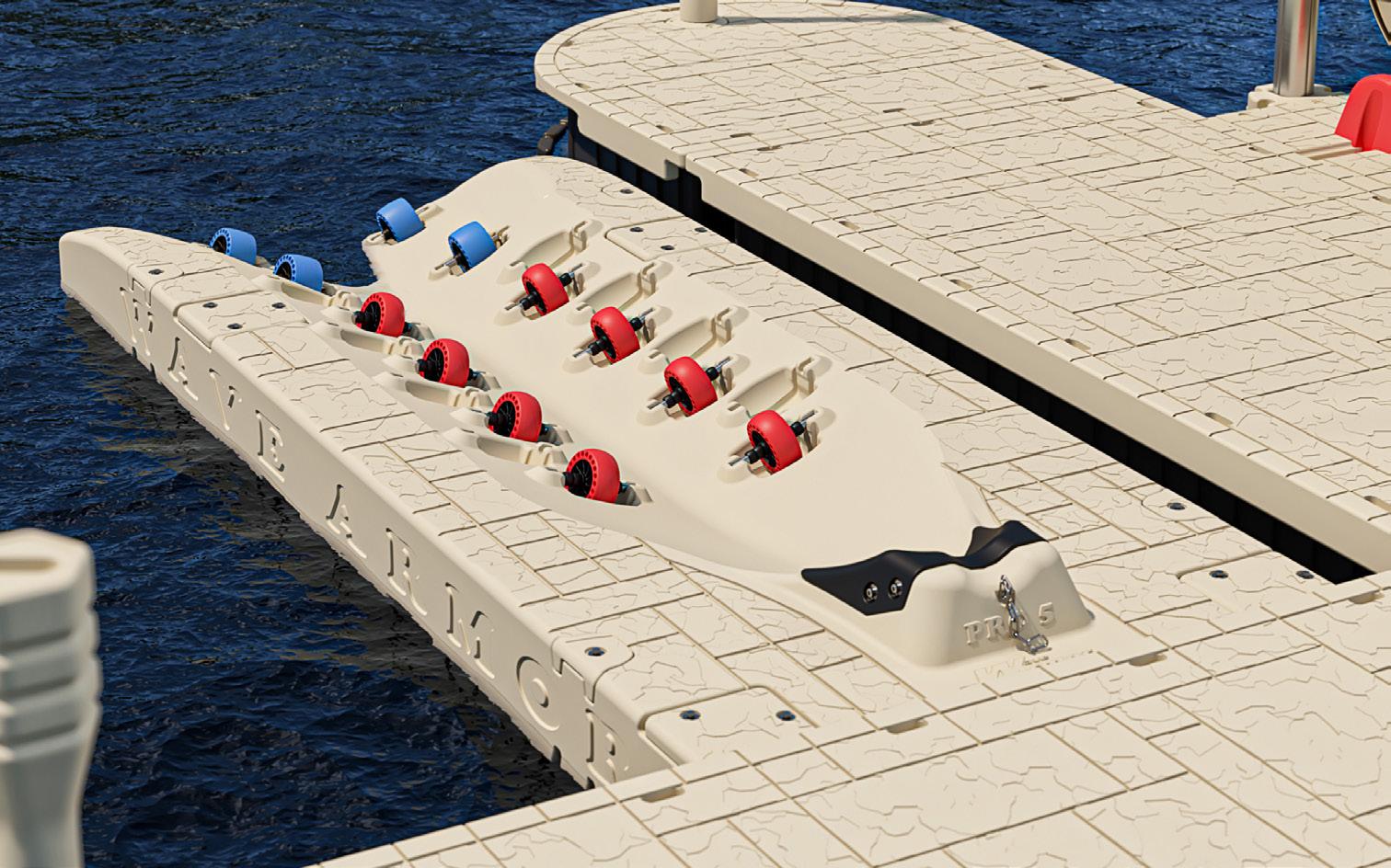

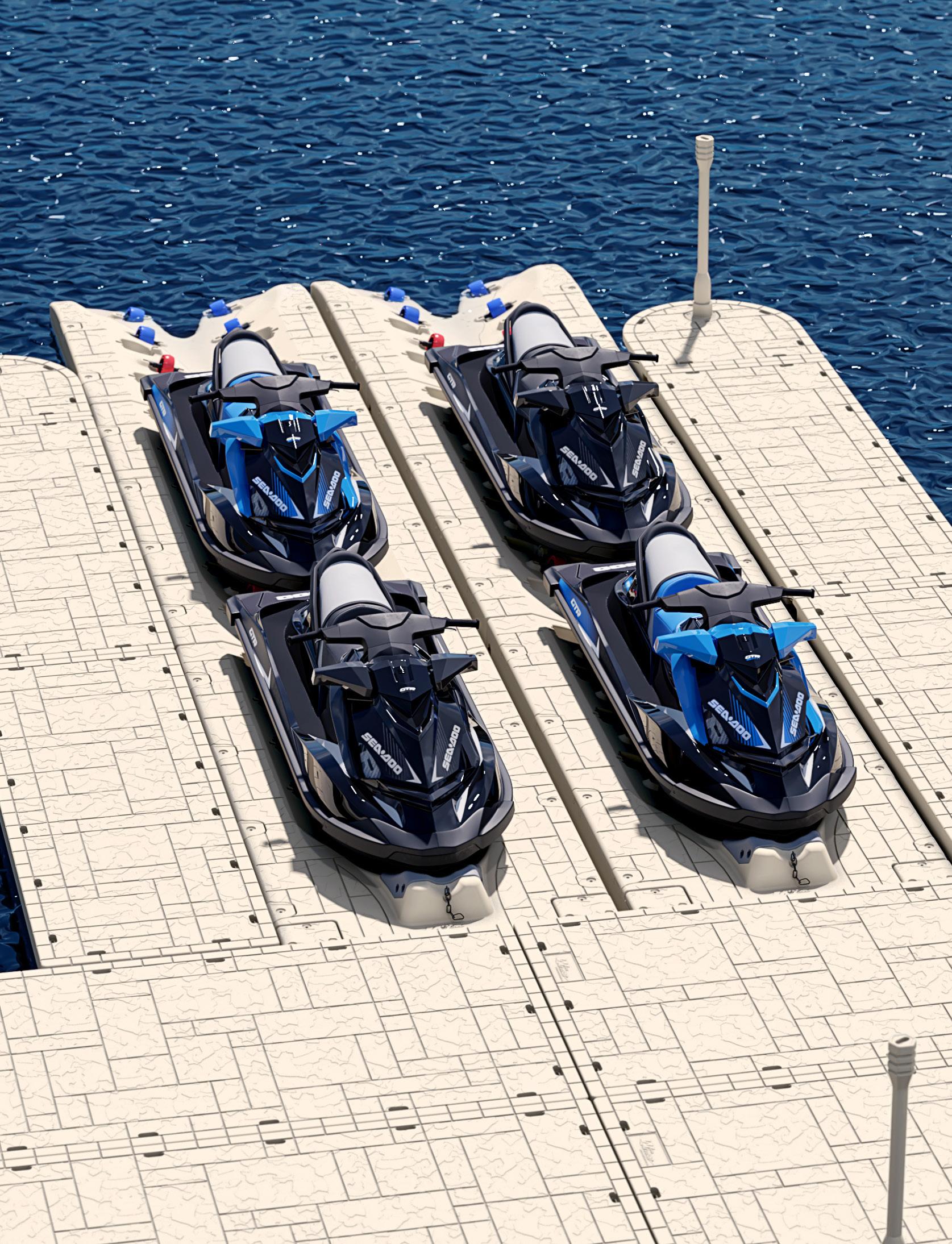

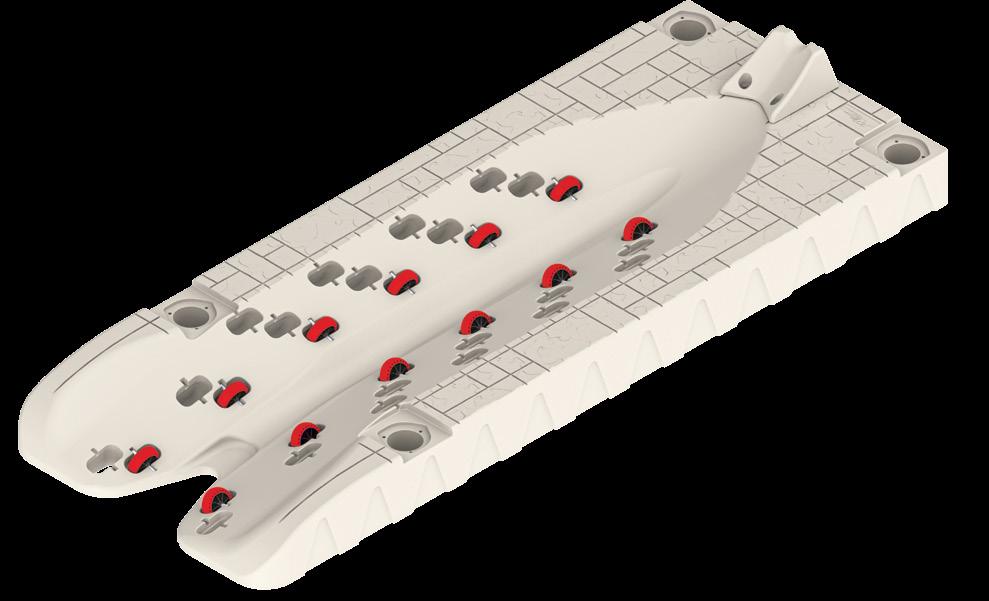

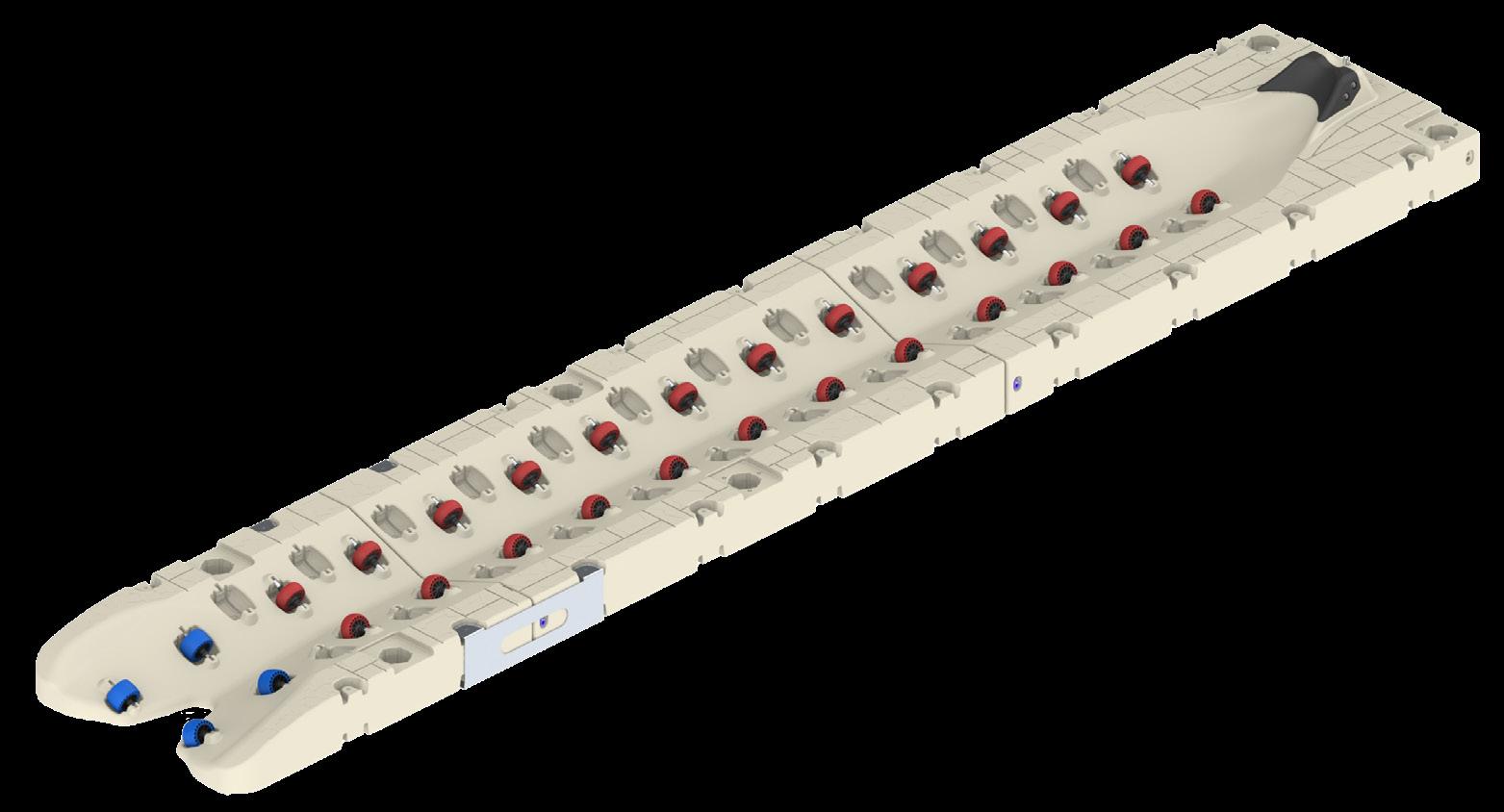

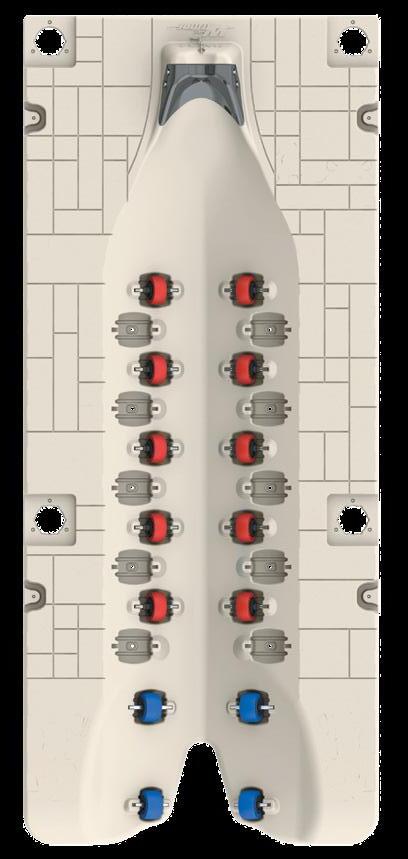

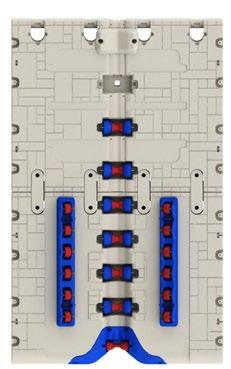

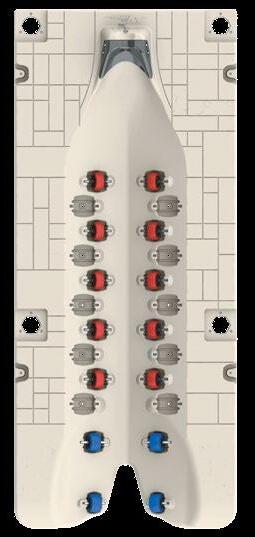

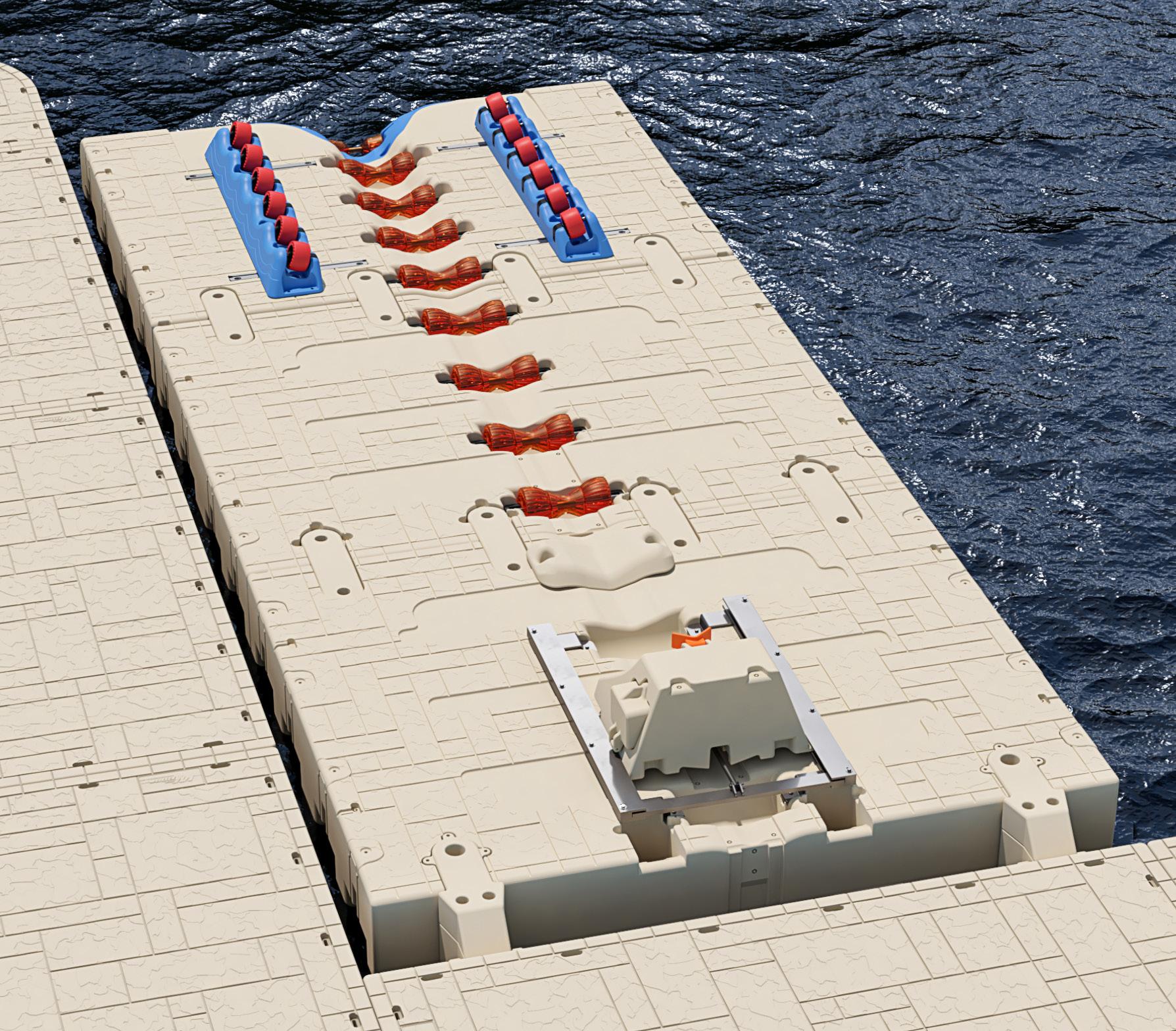

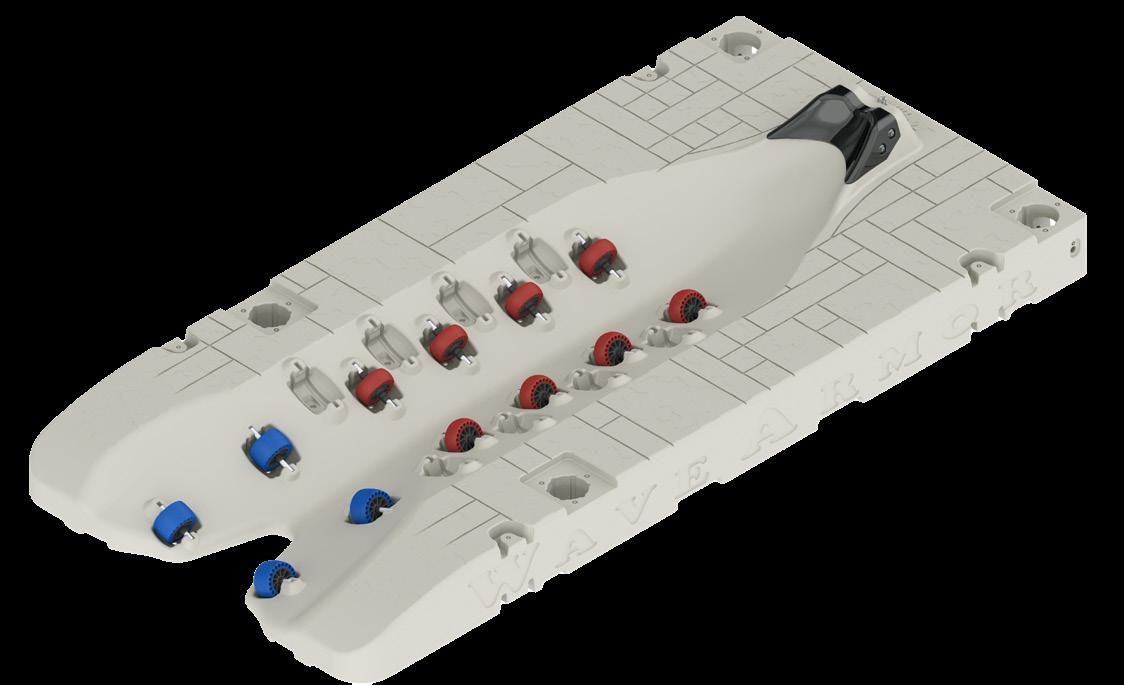

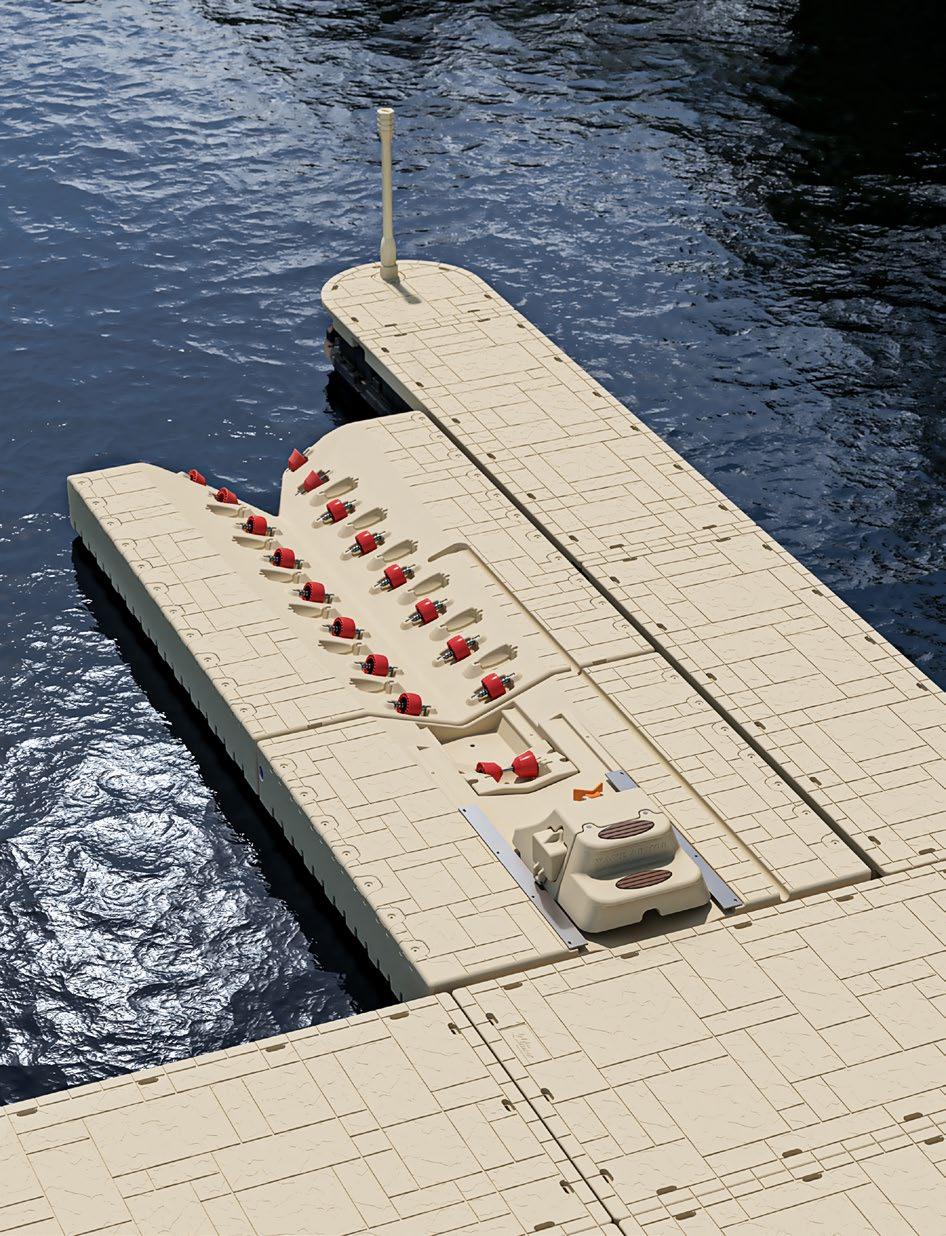

APEX 6 PORT DF301903 MSRP $2,395 Dims: 72” w x 172” l Weight: 375 lbs.

Weight capacity: 2100 lbs.

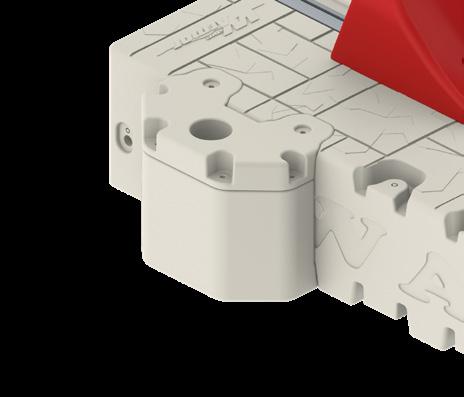

This Port features molded in direct connection pockets allowing it to be mounted as close as possible to the dock creating the cleanest look. The Apex can stand alone, connect to the Wave Armor dock system or to other floating dock brands utilizing one of our PWC port connection kits (sold separately).

• Extremely durable rotomolded shell • 100% filled with marine-grade EPS foam • High density premium polyethylene material with UV protection • Molded-in bow stop with rubber overlay • Quick clip & stainless steel chain • Variety of mounting options • Extra wide adjustable wheel pockets provide better weight distribution and precise wheel alignment

/ APEX port

39

PWC PORTS

/ apex port / WAVE DOCK ATTACHMENTS

/ FLOATING DOCK ATTACHMENTS

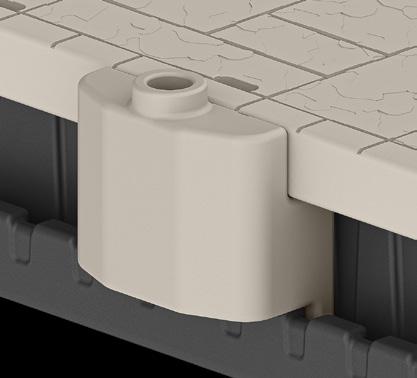

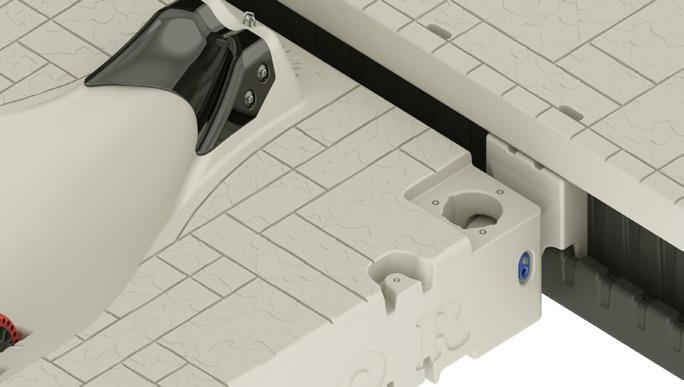

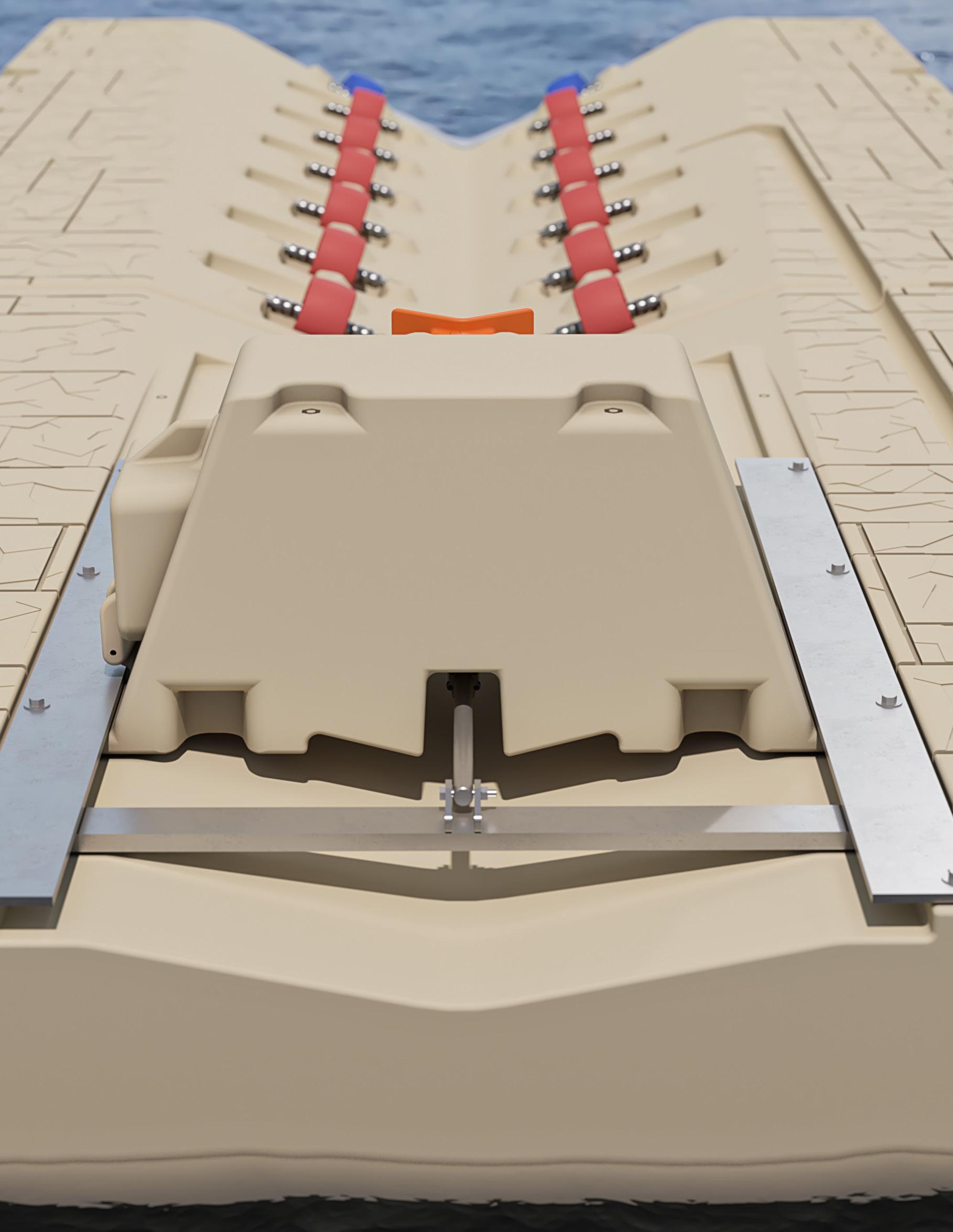

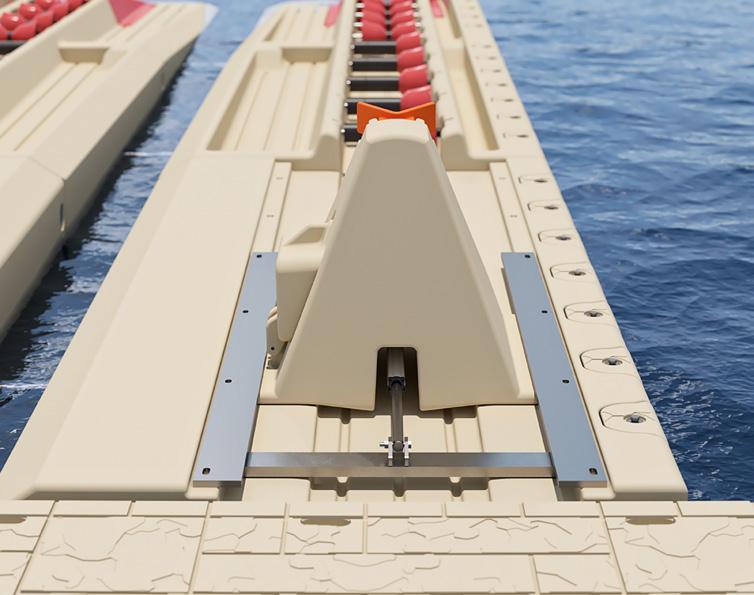

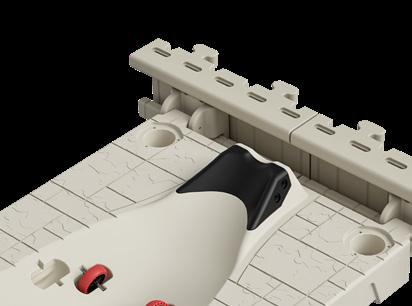

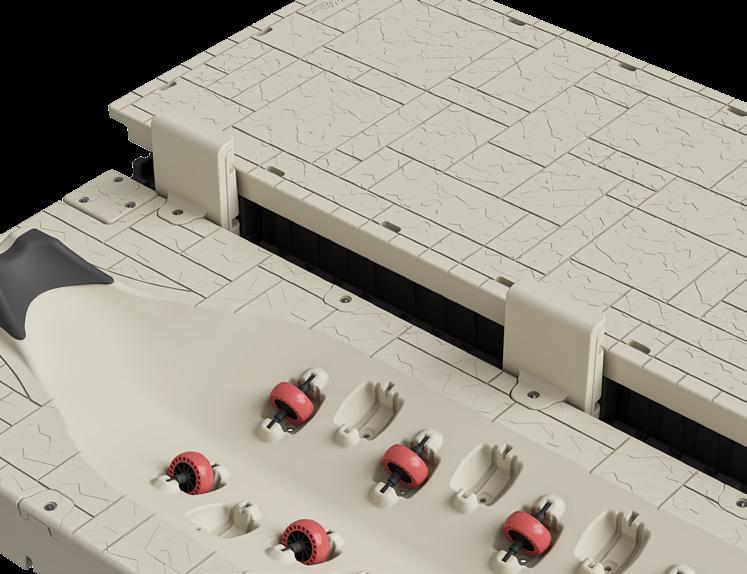

apex TO WAVE DOCK kit

apex TO FLOATING DOCK kit

DF301347 MSRP 195

DF301360 MSRP $175

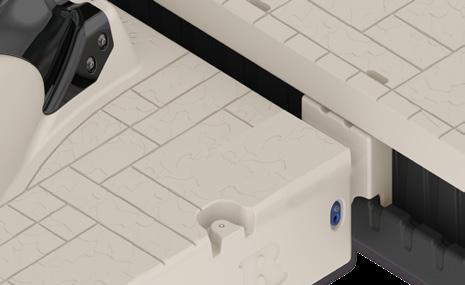

This one piece receiving bracket slides directly in to the H-Beam channel of a Wave Armor dock section.

• Includes 2 + hardware

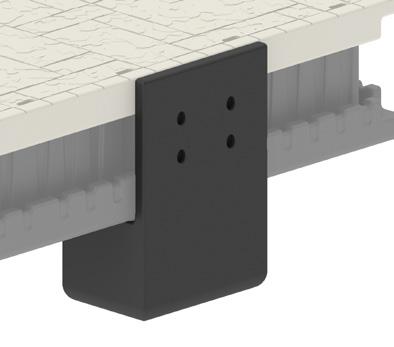

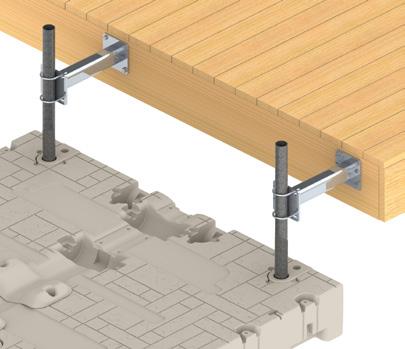

This universal galvanized C-channel connection bracket provides an easy mount to other floating docks or floating structures.

$

• Includes (2) 25.75” C-channel brackets • Additional hardware required for mounting to the structure is not included

/ POST MOUNTS (FREE STANDING) pipe sleeves DF300103 raised for 2” pipe MSRP $115 DF301011 flush for 3” pipe MSRP $85 DF300041 flush for 4” pipe MSRP $96 Replaceable pipe sleeves accommodate 2”, 3” and 4” pipes and are engineered to absorb the everyday wear and tear associated with pipe mount installations.

• 2 pipe sleeves • hardware included Raised

Flush

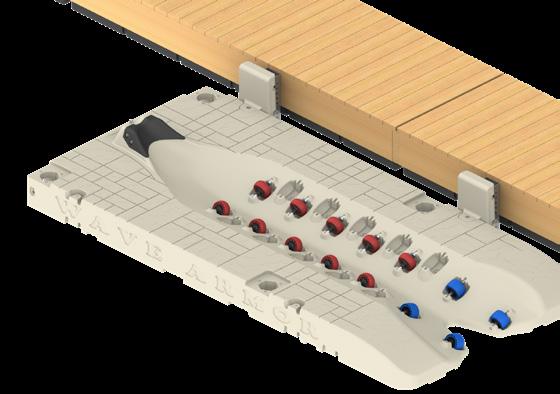

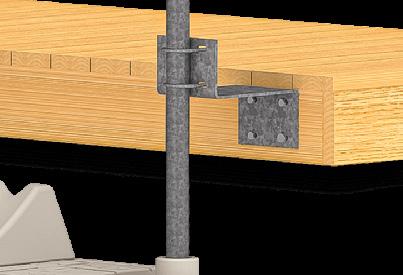

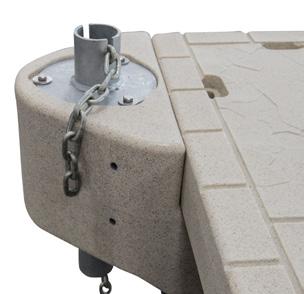

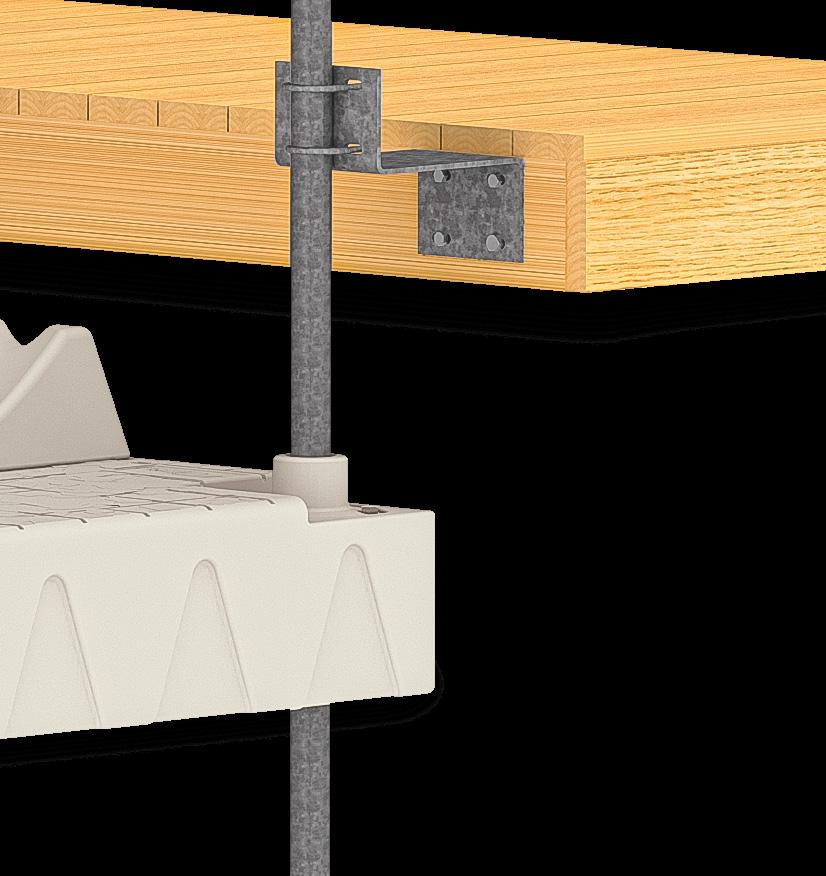

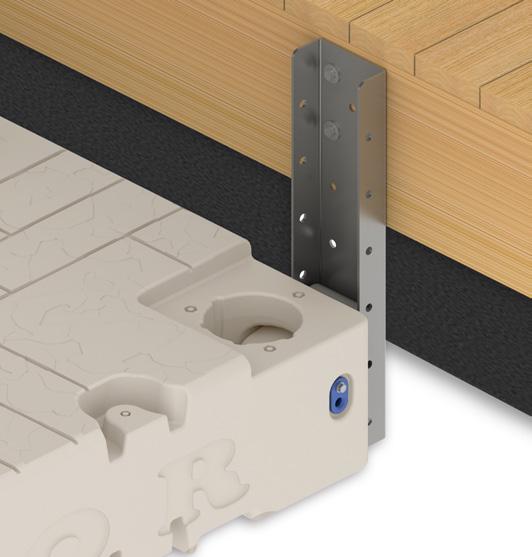

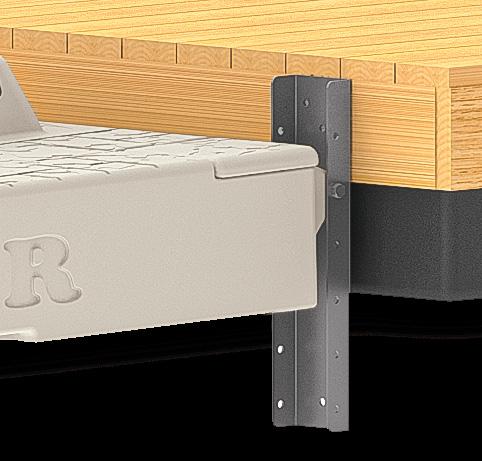

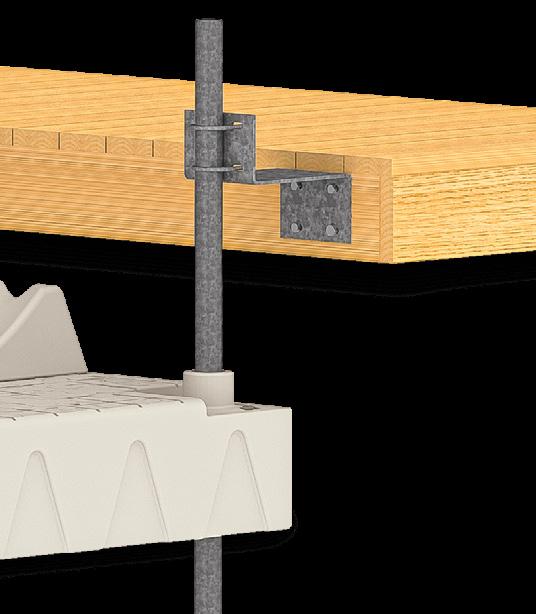

/ FIXED BRACKET MOUNTS z-bracket PORT TO FIXED DOCK KIT DF301281 FOR 2” PIPE MSRP $225 DF301282 FOR 4” PIPE MSRP $225 Galvanized steel z-bracket with u-bolt secures port to a fixed dock or sea wall allowing for free movement in fluctuating waters.

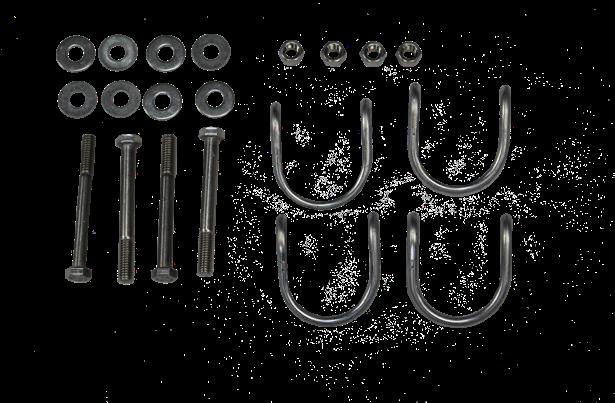

• (2) Z-brackets, (4) U-bolts + hardware included • Requires 2” or 4” pipe sleeves sold separately

40

DISTRIBUTED BY

H E W I T T R A D . C O M

PWC PORTS

/ apex port / ACCESSORIES apex side extension kit DF300115 MSRP $915 Adds 22” of extra walking room on the side of the Apex port.

Dims: 22” w x 120” l Weight: 132 lbs.

Weight capacity: 400 lbs.

• Includes 1 side extension + 2 port to port connectors

apex post extension kit DF300095 for 2” pipe MSRP $265 DF300096 for 4” pipe MSRP $265 The Apex Post Extension Kit mounts directly inside the mounting pockets of SLX5, 6 and Apex A5, A6. Extends the outside edge of the port, increasing the distance between two posts allowing more room for larger PWCs when using pipe installation type.

• Includes 2 + hardware

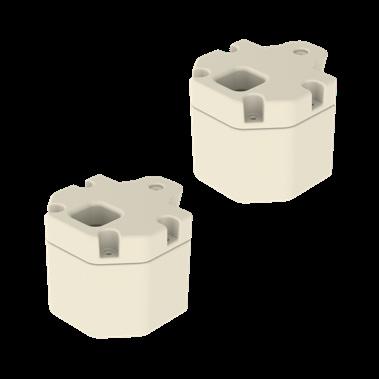

apex PORT Buoyancy BOOSTER DF300498 MSRP $125 The Port Buoyancy Booster kit features custom drums that install in the rear mounting pockets of your PWC Port.

Adds additional flotation to the rear of the Port, thus decreasing the rearward pitch for heavier personal water crafts.

• Includes 2 • Adds 40 lbs buoyancy per booster

apex port to port connection kit DF300046 MSRP $250 Connect two or more SLX ports together.

• Includes 2

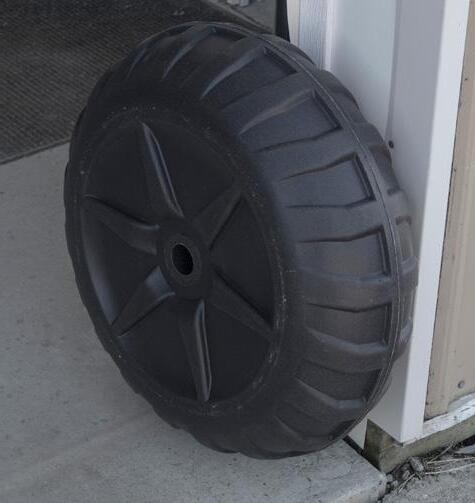

apex wheel kit DF301929 MSRP $33 Additional wheel for your Wave Port Apex 5, Apex 6, and Sport ports manufactured after Fall 2021.

• Includes 1 Wheel, 1 Axle, 2 Washers

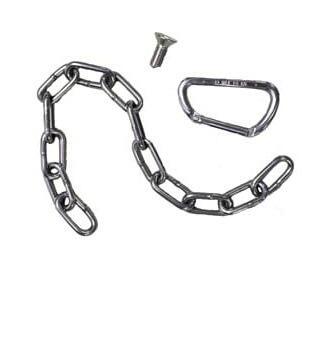

stainless steel chain & clip DF301269 MSRP $40 Secure your port with this stainless steel chain & clip.

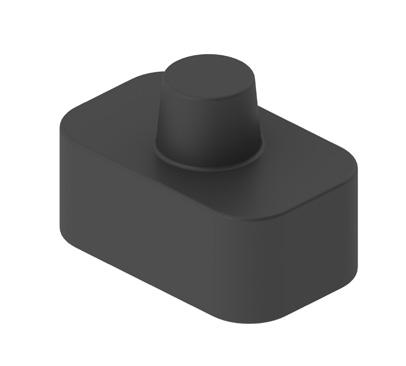

SNAP-IN CAP DF300116 MSRP $72 Covers unused mounting pockets.

• Includes 2

/ APEX port

41

PWC PORTS

42

DISTRIBUTED BY

H E W I T T R A D . C O M

PWC PORTS

/ PRO 5, 6, WB PORTS PRO 5 PORT

DF302098 MSRP $2,299 Dims: 5' W × 12.5' L (59” W × 150” L) Deck Height: 12" (Not including bow stop) Weight: 275 lbs.

Weight capacity: 1,500 lbs.

PRO 6 PORT

DF302096 MSRP $2,399 Dims: 6' W × 12.5' L (72” W × 150” L) Deck Height: 12" (Not including bow stop) Weight: 325 lbs.

Weight capacity: 1,800 lbs.

PRO WIDE BODY PORT

DF302400 MSRP $2,499 Dims: 6.7' W × 12.5' L (80” W × 150” L) Deck Height: 12" (Not including bow stop) Weight: 380 lbs.

Weight capacity: 2,250 lbs.

• • • • • •

Wave Armor Pro Ports: The Original Gold Standard in Floating Drive On Ports. Experience unmatched loading and launching performance.

• • • •

Features a signature gradual entrance for a seamless, smooth experience Deeper midsection design accommodates PWCs with deeper hulls Newly designed wheel pockets for impeccable alignment Array of 12 strategically positioned wheels with varying softness and widths Provides optimal hull protection during docking and departure Pro line connectors and attachments for seamless integration with watercraft setups Includes a molded-in bow stop with rubber overlay and a robust stainless steel clip and chain for secure positioning Extremely durable rotomolded shell 100% filled with marine-grade EPS foam High density premium polyethylene material with UV protection

5' 59"

12.5' 150"

6' 72"

12.5' 150"

PRO 5

6.7' 80"

12.5' 150"

PRO 6

PRO WB

/ PRO PORTS

43

PWC PORTS

44

DISTRIBUTED BY

H E W I T T R A D . C O M

PWC PORTS

/ PRO MAXX 5, 6 & WB PORTS PRO MAXX 5 PORT

DF302390 MSRP $2,499 Dims: 5' W × 14' L (59” W × 168”L) Deck Height: 12" (Not including bow stop) Weight: DF300 lbs.

Weight capacity: 1,650 lbs.

PRO MAXX 6 PORT

DF302392 MSRP $2,599 Dims: 6' W × 14' L (72” W × 168” L) Deck Height: 12" (Not including bow stop) Weight: 350 lbs.

Weight capacity: 1,950 lbs.

• • • • • • •

PRO MAXX WIDE BODY PORT

DF302743 MSRP $2,699

Dims: 6.7' W × 14' L (80” W × 168” L) Deck Height: 12" (Not including bow stop) Weight: 400 lbs.

Weight capacity: 2,500 lbs.

• • • • 5' 59"

Longer body than the original Pro Ports Features a signature gradual entrance for a seamless, smooth experience Deeper midsection design accommodates PWCs with deeper hulls Newly designed wheel pockets for impeccable alignment Array of 12 strategically positioned wheels with varying softness and widths Provides optimal hull protection during docking and departure Pro line connectors and attachments for seamless integration with watercraft setups Includes a molded-in bow stop with rubber overlay and a robust stainless steel clip and chain for secure positioning Extremely durable rotomolded shell 100% filled with marine-grade EPS foam High density premium polyethylene material with UV protection 6' 72"

14' 168"

14' 168"

PRO MAXX 5

6'8" 80"

14' 168"

PRO MAXX 6

PRO MAXX WB

/ PRO MAXX PORTS 45

PWC PORTS

/ PRO & PRO MAXX 5, 6 & WB PORTS / WAVE DOCK ATTACHMENTS PRO PORT SIDE CONNECTION TO WAVE DOCK KIT DF302365 MSRP $375 This kit provides simple side attachment with brackets that slide directly on to our Wave Armor dock.

• Includes 2 + hardware

PRO PORT FRONT MOUNT TO WAVE DOCK DF302196 MSRP $195

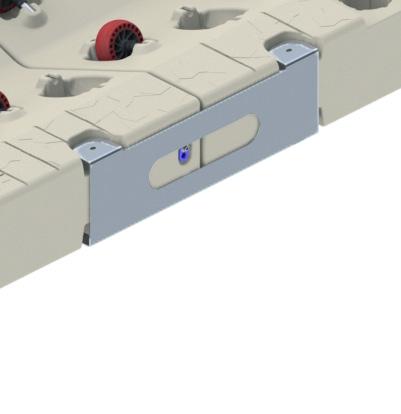

Receiving bracket slides directly into the H-Beam channel of the Wave Armor dock section. Allows for hinged-like movement for wave action.

• Includes 2 + hardware PRO PORT SIDE CONNECTOR ONLY DF303285 MSRP $180 • Includes 2 + hardware

WAVE DOCK TO PORT CONNECTOR ONLY DF301347 MSRP $195 • Includes 2 + hardware

PRO PWC, 170/220 SIDE MOUNT SLIDE ASSY TO WAVE DOCK DF302789 MSRP $495 Connects from mounting pockets on side of ports 12" tall to H-Beam channel on Wave Dock. Allows port to move 12" for easier loading and unloading.

• Includes 2 + hardware

/ FLOATING DOCK ATTACHMENTS

x2

x2

PRO PORT CONNECTOR KIT

PRO PORT SIDE CONNECTOR KIT

DF302197 19.75” C-Channel MSRP $260 DF302198 25.75” C-Channel MSRP $260 This heavy duty poly bracket designed for the Pro Port series creates a receiver that attaches to the galvanized C-Channel on one side and connects with a pin to the port front mounting pocket. Designed to secure to any floating dock structure.

• Includes 2 + hardware

DF302507 25.75” C-Channel MSRP $360

PRO PORT CONNECTOR ONLY

This kit provides side attachment to other brands of floating docks with simple bolt-on C-Channels.

• Includes 1 + hardware x2

PRO PORT SIDE CONNECTOR ONLY DF303285 MSRP $180 • Includes 2 + hardware

23.5" C-CHANNELS ONLY DF303288 MSRP $180 • Includes 2 + Hardware • Required for many attachments to other floating docks

DF303289 MSRP $80 • Includes 2 + hardware

46

DISTRIBUTED BY

H E W I T T R A D . C O M

PWC PORTS

/ PRO & PRO MAXX 5, 6 & WB PORTS / FLOATING DOCK ATTACHMENTS

PORT EASY LINK

PRO PWC, 170/220 SIDE MOUNT SLIDE ASSY TO FLOATING DOCK

DF302823 MSRP $328

DF302793 MSRP $340 Connects from mounting pockets on side of ports 12" tall to floating dock.

Allows port to move 12" for easier loading & unloading.

• Includes 2 + hardware • Requires C-Channel DF303288 (not included)

Creates an H-Beam channel to connect Wave Armor products to all EZ Dock® products. Upgrade EZ Dock® ports to new, state-of-theart Wave Armor® Pro Series, Boat & Pontoon Ports!

• 38.5" L x 10.5" H - Includes 2 • Requires a Wave Dock attachment to connect a port (#DF302196) sold separately)

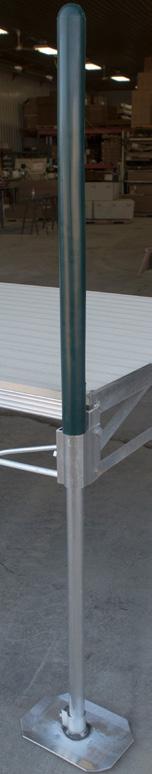

/ POST MOUNTS (FREE STANDING) PRO PORT FRONT PIPE MOUNT

DF302411 2” MSRP $195 DF302412 3” MSRP $195 DF302798 4” MSRP $195 Designed to be used when the slip width is limited or when a parallel installation to an existing dock is required. For additional installation strength, add the Z Bracket kits or adjustable fixed dock mounts.

• Hardware included • Can be used in combination w/ other brackets

PRO PORT PIPE SLEEVE

DF302128 2” MSRP 85 DF302152 3” MSRP $85 DF302768 4” MSRP $85 $

Quick and easy drop-in installation utilizing mounting pipe holes in all 4 corners of the port.

• Bolt-on design • 2 pipe sleeves + hardware included

PRO SIDE POST ATTACHMENT KIT

DF302649 2” MSRP $285 DF302650 3” MSRP $285 Designed specifically for PRO ports series. Ideal in windy conditions, these attachments would eliminate the need to remove the pipes.

• 12" H • Includes 2 + hardware

/ PRO & PRO MAXX PORTS

47

PWC PORTS

/ PRO & PRO MAXX 5, 6 & WB PORTS / FIXED BRACKET MOUNTS Z-BRACKET PORT TO FIXED DOCK KIT

DF301281 FOR 2” PIPE MSRP $225 DF301282 FOR 3-4” PIPE MSRP $225 Galvanized steel z-bracket with u-bolt secures port to a fixed dock or sea wall allowing for free movement in fluctuating waters.

• (2) Z-brackets, (4) U-bolts + hardware included • Requires 2” or 4” pipe sleeves sold separately

/ ACCESSORIES PRO HALF CAP Cover unused mounting pockets for a finished look.

DF302414 QTY 4 MSRP $40 DF302415 QTY 24 MSRP $190

Fits: Pro 220 DF302600 Pro 170 DF302666 Pro Pontoon Port DF302163 Pro Max Pontoon Port Pro 8 Boat Port DF301937 Pro Side Extension DF302514 Extreme X24 DF301980 Pro 5 DF302098 Pro 6 DF302096 Pro Wide Body DF302400 Pro Maxx 5 DF302390 Pro Maxx 6 DF302392 Pro Maxx Wide Body DF302743 Pro Inline DF302499 Kayak Launch DF302509

PRO BUOYANCY BOOSTER

DF302685 MSRP $165 • Each booster adds 85 lbs. of buoyancy for a total of 170 lbs.

• Includes 2 • 24" x 24" x 6" • Recommended for PWC ports with canopy added

48

DISTRIBUTED BY

H E W I T T R A D . C O M

PWC PORTS

/ PRO & PRO MAXX 5, 6 & WB PORTS / ACCESSORIES

2 3

1

4

PRO SIDE EXTENSION DECK WITH CONNECTIONS

DF302472 MSRP $900

1

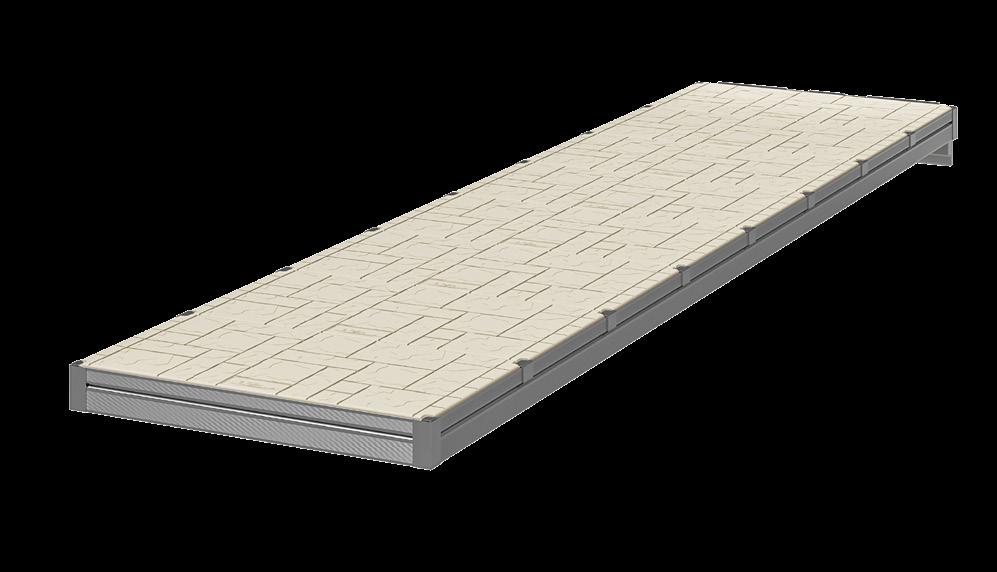

Side Extension deck can be connected to the side of any Pro Series port or in front of 2 Pro 6’s. If a front extension is required on a pair of Pro 5’s, then you need to add an extra extension deck in the middle of both ports.

• Dims: 144.5” L × 27.5" W × 12" H • Works with Pro, Pro Maxx and Pro Wide Body ports • Includes (1) side extension, (1) set of port-to-port connectors DF302102 • Note: Cover unused mounting holes with Pro Cap #DF302151 and Pro Half Cap #DF302414 to avoid injury (not included)

2

PRO CORNER DECK

DF302473 MSRP $400 The Pro Corner Deck was designed to be used in conjunction with the Pro Side Extension Deck DF302472 when extra room is desired in the front of the Pro ports.

• Dims: 27.5” L × 27.5” W × 12" H • (1) corner, (1) set of port connectors DF302102

3

PRO PORT TO PORT CONNECTION KIT

DF302102 MSRP $250 Connects two or more PRO ports.

• Includes 2

4

PRO PORT BOLT ON CAP

DF302151 MSRP $75 Cover unused pipe mounting holes.

• Includes 2

/ PRO & PRO MAXX PORTS 49

PWC PORTS

50

DISTRIBUTED BY

H E W I T T R A D . C O M

PWC PORTS

/ PRO INLINE PORT

5' 58"

* Brace plates sold separately.

PRO INLINE PORT

DF302499 MSRP $5,199 Dims: 5' W* × 27’ L (58” W × 324" L) Deck Height: 12" (Not including bow stop) Weight: 560 lbs.

Weight capacity: 3,200 lbs.

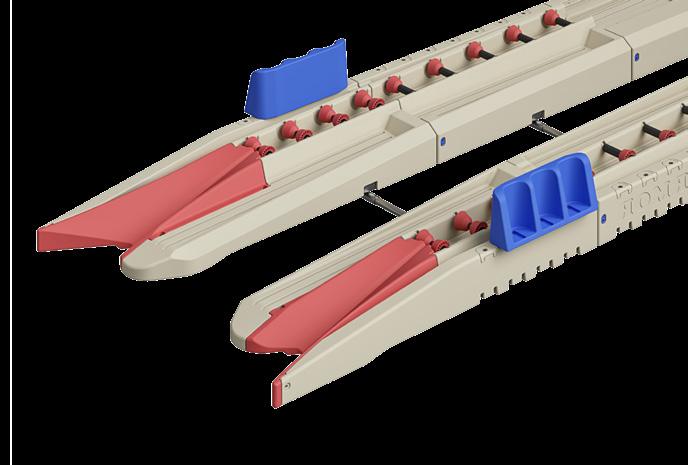

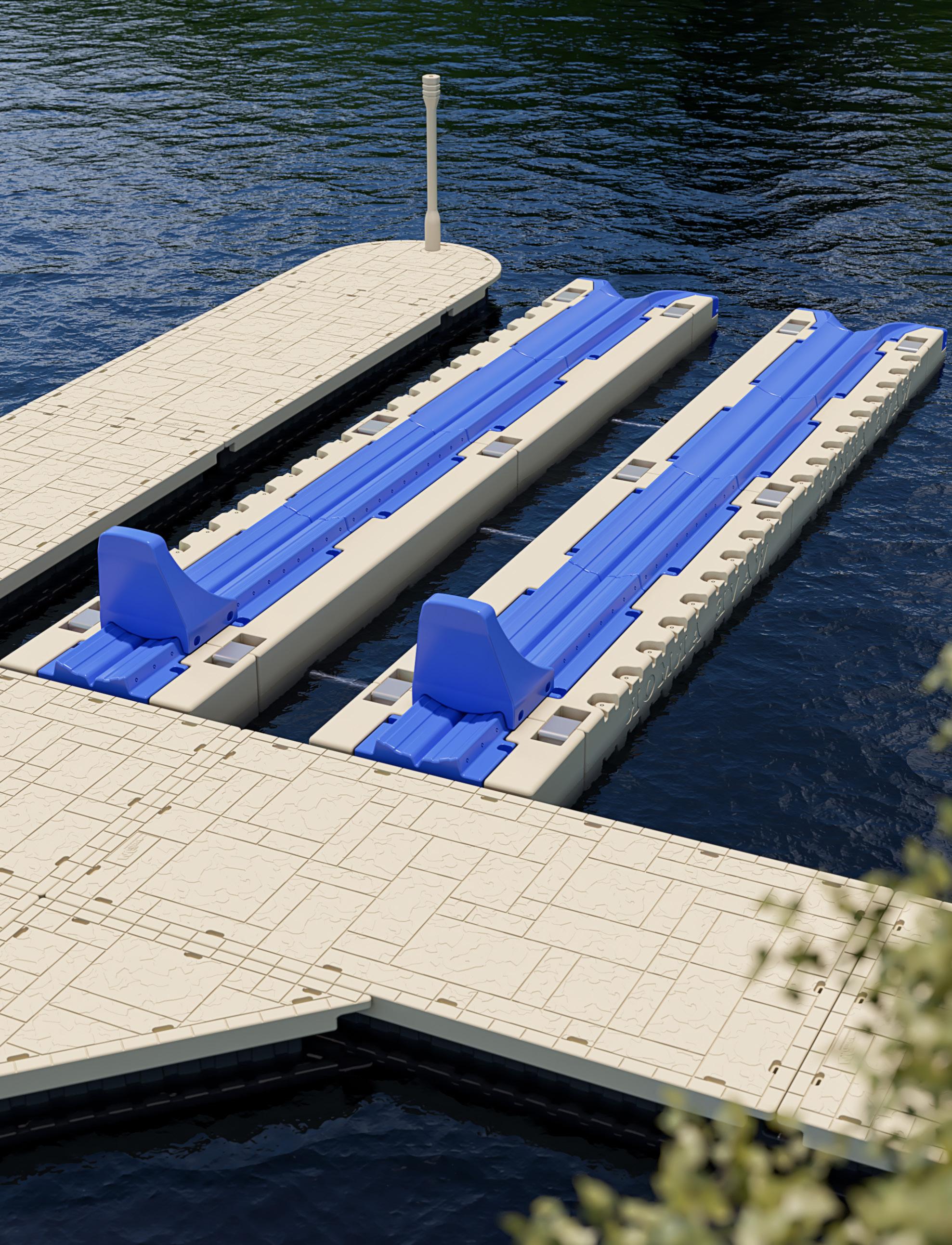

The Wave Armor Pro Inline Port creates a perfect fit for narrow slip spaces, canal applications or multiple PWC accommodations such as rental operations. Based on the body of our newest Pro Port series, this Inline Port features all the latest upgrades, utilizing the same mounts and assembly hardware as Pro Ports.

27' 324"

The optional mid-section add-on offers an expandable design increasing the overall length as needed.

• • • •

5’ width* allows side-by-side installation for standard 10’ slip Fits most PWCs in the market today and can be expanded from 2, 4, 6 or more PWCs Utilizes all front mount Pro Port mounts Molded in bow stop with our rubber pad. Comes with quick clip & stainless steel chain

*Nominal Width

/ PRO INLINE PORT

51

PWC PORTS

/ PRO INLINE PORT / WAVE DOCK ATTACHMENTS PRO PORT FRONT MOUNT TO WAVE DOCK

DF302196 MSRP $195 Receiving bracket slides directly into the H-Beam channel of the Wave Armor dock section. Allows for hinged-like movement for wave action.

• Includes 2 + hardware

PRO PWC, 170/220 SIDE MOUNT SLIDE ASSY TO WAVE DOCK

DF302789 MSRP $495 Connects from mounting pockets on side of ports 12" tall to H-Beam channel on Wave Dock.

• 2 kits recommended • Includes 2 + hardware

/ FLOATING DOCK ATTACHMENTS INSTALLATION EXAMPLE

x2

x2

PRO PORT CONNECTOR KIT DF302197 19.75” C-Channel MSRP $260 DF302198 25.75” C-Channel MSRP $260 This heavy duty poly bracket designed for the Pro Port series creates a receiver that attaches to the galvanized C-Channel on one side and connects with a pin to the port front mounting pocket. Designed to secure to any floating dock structure.

• Includes 2 + hardware

PRO PORT CONNECTOR ONLY

23.5" C-CHANNELS ONLY DF303288 MSRP $180 • Includes 2 + Hardware • Required for many attachments to other floating docks

DF303289 MSRP $80 • Includes 2 + hardware

52

DISTRIBUTED BY

H E W I T T R A D . C O M

PWC PORTS

/ PRO INLINE PORT / FLOATING DOCK ATTACHMENTS

PRO PWC, 170/220 SIDE MOUNT SLIDE ASSY TO FLOATING DOCK

DF302793 MSRP $340 Connects from mounting pockets on side of ports 12" tall to floating dock.

• Includes 2 + hardware • Requires C-Channel DF303288 (not included) • Needs part #DF301347 when used with dock slip canopy

PORT EASY LINK

DF302823 MSRP $328 Creates an H-Beam channel to connect Wave Armor products to all EZ Dock® products. Upgrade EZ Dock® ports to new, state-of-the-art Wave Armor® Pro Series, Boat & Pontoon Ports!

• 38.5" L x 10.5" H - Includes 2 • Requires a Wave Dock attachment to connect a port (sold separately)

/ POST MOUNTS (FREE STANDING)

PRO PORT PIPE SLEEVE

PRO PORT FRONT PIPE MOUNT

DF302411 2” MSRP $195 DF302412 3” MSRP $195 DF302798 4” MSRP $195

Designed to be used when the slip width is limited or when a parallel installation to an existing dock is required. For additional installation strength, add the Z Bracket kits or adjustable fixed dock mounts.

• Hardware included • Can be used in combination with other brackets

DF302128 2” MSRP $85 DF302152 3” MSRP $85 DF302768 4” MSRP $85 Quick and easy drop-in installation utilizing mounting pipe holes in all 4 corners of the port.

• Bolt-on design • 2 pipe sleeves + hardware included

PRO SIDE POST ATTACHMENT KIT DF302649 2” MSRP $285 DF302650 3” MSRP $285 This 2-piece PWC Pro Series Side Post Attachment was designed specifically for PRO ports series and allows for more width between the PWC and poles. Ideal in windy conditions, these attachments would eliminate the need to remove the pipes and can be installed 100% by the consumer. Works on all Pro Series ports.

• 12" H • Includes 2 + hardware

/ PRO INLINE PORT

53

PWC PORTS

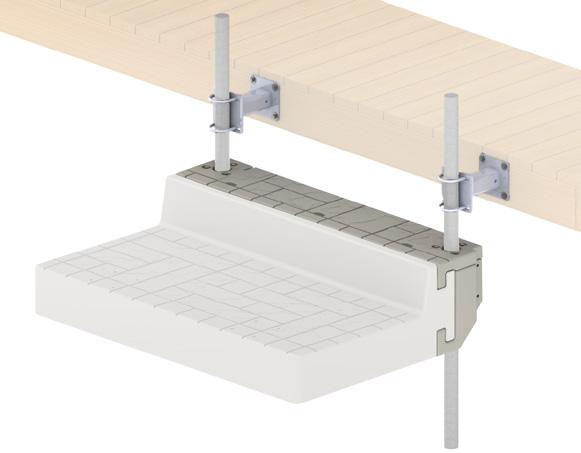

/ PRO INLINE PORT / FIXED BRACKET MOUNTS Z-BRACKET PORT TO FIXED DOCK KIT

DF301281 FOR 2” PIPE MSRP $225 DF301282 FOR 3-4” PIPE MSRP $225 Galvanized steel z-bracket with u-bolt secures port to a fixed dock or sea wall allowing for free movement in fluctuating waters.

• (2) Z-brackets, (4) U-bolts + hardware included • Requires 2” or 4” pipe sleeves sold separately

/ ACCESSORIES PRO INLINE PORT MIDSECTION

PRO CLEAT

DF302386 MSRP 2,126

DF302711 MSRP $80

$

Expandable by design, the additional Inline mid-sections can easily be added to the Inline Port to increase the overall length as needed for additional PWC . Manufactured with all the same features and benefits of the Pro Series ports.

Installs in mounting pockets along perimeter of Pro 8, Extreme, Pontoon and Pro 220 / 170 ports.

• Includes 2 + hardware

Dims: 58” W × 126” L × 12" H Weight: 220 lbs.

Weight capacity: 1200 lbs.

• Can be expanded from 2 to 6 PWC’s or more • Utilizes all Pro Port mounts

54

DISTRIBUTED BY

H E W I T T R A D . C O M

PWC PORTS

/ PRO INLINE PORT / ACCESSORIES PRO INLINE SIDE WING

DF302498 MSRP $585 Add walking room to side of Pro Inline PWC port.

Dims: 63" L × 12" W × 12" H Weight: 140 lbs.

• Includes 2

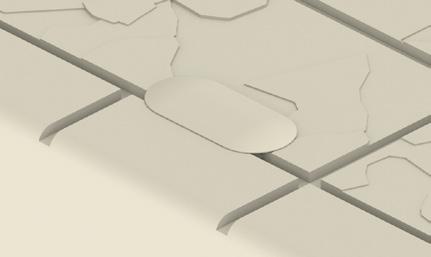

PRO HALF CAP Cover unused mounting pockets for a finished look.

DF302414 QTY 4DF302415 QTY 24 MSRP $190 MSRP $40 Fits: Pro 220 DF302600 Pro 170 DF302666 Pro Pontoon Port DF302163 Pro Max Pontoon Port Pro 8 Boat Port DF301937 Pro Side Extension DF302514 Extreme X24 DF301980 Pro 5 DF302098 Pro 6 DF302096 Pro Wide Body DF302400 Pro Maxx 5 DF302390 Pro Maxx 6 DF302392 Pro Maxx Wide Body DF302743 Pro Inline DF302499 Kayak Launch DF302509

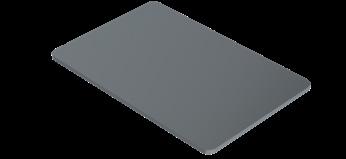

INLINE BRACE PLATES DF302810 MSRP $249 Optional accessory designed for the Pro Inline Port to increase support at entrance for heavier jetskis to ease in the exit of PWC from the port.

• Includes 2 + hardware

PRO PORT TO PORT CONNECTION KIT DF302102 MSRP $250 Connects two or more PRO ports.

• Includes 2

PRO BUOYANCY BOOSTER

DF302685 MSRP $165 • Each booster adds 85 lbs. of buoyancy • Includes 2 / PRO INLINE port

55

PWC PORTS

56

DISTRIBUTED BY

H E W I T T R A D . C O M

PWC PORTS

/ SPORT PORT

*EARLY BUY ONLY

SPORT PORT

5' 58"

DF301901 MSRP $1,725 Dims: 5' W × 11' L (58” W × 132”L) Deck Height: 9" (Not including bow stop) Weight: 180 lbs.

Weight capacity: 700 lbs.

Sport port is specifically designed for smaller, lightweight PWCs or stand up models. This Port features molded in direct connection pockets allowing it to be mounted as close as possible to the dock creating the cleanest look. The Sport can stand alone, connect to the Wave Armor dock system or to other floating dock brands utilizing one of our PWC port connection kits (sold separately).

• Extremely durable rotomolded shell • 100% filled with marine-grade EPS foam • High density premium polyethylene material with UV protection • Molded-in bow stop with rubber overlay • Quick clip & stainless steel chain • Variety of mounting options • Extra wide adjustable wheel pockets provide better weight distribution and precise wheel alignment

11' 132"

/ SPORT PORT

57

PWC PORTS

/ SPORT PORT / FLOATING DOCK ATTACHMENTS

SPORT TO FLOATING DOCK kit DF301360 MSRP $175 This universal galvanized C-channel connection bracket provides an easy mount to other floating docks or floating structures.

• Includes (2) 25.75” C-channel brackets • Additional hardware required for mounting to the structure is not included

23.5" C-CHANNELS ONLY DF303288 MSRP $180 This universal galvanized C-channel connection bracket provides an easy mount to other floating docks or floating structures.

• Includes (2) 23.5” C-channel brackets • Additional hardware required for mounting to the structure is not included

/ WAVE DOCK ATTACHMENTS

PORT EASY LINK

DF302823 MSRP $328 Creates an H-Beam channel to connect Wave Armor products to all EZ Dock® products. Upgrade EZ Dock® ports to new, state-of-the-art Wave Armor® Pro Series, Boat & Pontoon Ports!

• 38.5" L x 10.5" H - Includes 2 • Requires a Wave Dock attachment to connect a port (sold separately)

SPORT TO WAVE DOCK KIT DF301347 MSRP $195 This one piece receiving bracket slides directly in to the H-Beam channel of a Wave Armor dock section.

• Includes 2 + hardware

/ POST MOUNTS (FREE STANDING) PIPE SLEEVES DF300103 RAISED FOR 2” PIPE MSRP $85 DF301011 FLUSH FOR 3” PIPE MSRP $85 DF300041 FLUSH FOR 4” PIPE MSRP $96 Replaceable pipe sleeves accommodate 2”, 3” and 4” pipes and are engineered to absorb the everyday wear and tear associated with pipe mount installations.

• 2 pipe sleeves + hardware included

58

DISTRIBUTED BY

H E W I T T R A D . C O M

PWC PORTS

/ SPORT PORT / FIXED BRACKET MOUNTS PORT TO FIXED DOCK KIT

DF301281 FOR 2” PIPE MSRP $225 DF301282 FOR 3-4” PIPE MSRP $225 Galvanized steel z-bracket with u-bolt secures port to a fixed dock or sea wall allowing for free movement in fluctuating waters.

• (2) Z-brackets, (4) U-bolts + hardware included • Requires 2” or 4” pipe sleeves sold separately

/ ACCESSORIES SPORT & SLX WHEEL KIT

DF301929 MSRP $33

Additional wheel for your Wave Port SLX 5, SLX 6, and Sport ports manufactured after Fall 2021.

• 1 Wheel • 1 Axle • 2 Washers (Qty 1)

SPORT BOLT-IN CAP

DF301514 MSRP $72 Cover unused mounting pockets.

• Includes 2 + hardware

/ SPORT PORT

59

PWC PORTS

60

DISTRIBUTED BY

H E W I T T R A D . C O M

PWC PORTS

/ SLX 5 & 6 PORTS

SLX 5 PORT

TAN DF301890 MSRP $2,100 GRAY DF302516 MSRP $2,100 Dims: 5' W × 12.6' L (59” W × 152” L) Deck Height: 12" (Not including bow stop) Weight: 286 lbs.

Weight capacity: 1,500 lbs.

SLX 6 PORT

TAN DF301891 MSRP $2,199 GRAY DF302521 MSRP $2,199 5' 59"

Dims: 6' W × 12.6' L (72” W × 152” L) Deck Height: 12" (Not including bow stop) Weight: 321 lbs.

Weight capacity: 1,800 lbs.

6' 72"

The SLX Series ports are the original easy drive on/roll off port that changed industry standards by switching to an independent wheel system rather than stiff roller system. The SLX series ports are still the envy of the industry for their ease of use and versatility.

Designed to integrate with our Wave Armor floating dock system and can also be installed as a stand-alone system or connect together with other floating dock brands and structures.

12.6' 152"

12.6' 152"

• Rotationally Molded, UV protected polyethylene durable shell • 100% Foam-filled with marine grade EPS foam • Integrated side pontoons • Molded-in direct connect pockets • Removable bow stop with tie-down ring • Variety of mounting options • 12 adjustable shock-absorbing wheels SLX 5

SLX 6

/ SLX 5 & 6 PORTS

61

PWC PORTS

/ SLX 5 & 6 PORTS / WAVE DOCK ATTACHMENTS Allows for hinged-like movement during wave action.

BRACKETS ONLY TAN DF303284 MSRP $180 GRAY DF303287 MSRP $180 • Includes 2 + hardware

RECIEVING BRACKETS ONLY

SLX PORT TO WAVE DOCK FLEX CONNECTION KIT TAN DF301915 MSRP $375 GRAY DF302530 MSRP $375 • Includes 2 + hardware

TAN DF301347 MSRP $195 GRAY DF303294 MSRP $195 x2

• Includes 2 + hardware

/ FLOATING DOCK ATTACHMENTS SLX PORT TO floating dock KIT TAN DF301308 19.75” C-Channel MSRP $360 GRAY DF302534 19.75” C-Channel MSRP $360 TAN DF301309 25.75” C-Channel MSRP $360 GRAY DF302535 25.75” C-Channel MSRP $360 Two heavy duty poly brackets attach to the galvanized C-Channel for securing to any floating dock structure.

• Set of 2, Hardware NOT included

x2

BRACKETS ONLY TAN DF303284 MSRP $180 GRAY DF303287 MSRP $180 Two heavy duty poly brackets attach to the galvanized C-Channel (sold separately) for securing to any floating dock structure.

• Includes 2

23.5" C-CHANNELS DF303288 MSRP $180 • Includes 2

PORT EASY LINK

TAN DF302823 MSRP $328 GRAY DF303016 MSRP $330 Creates an H-Beam channel to connect Wave Armor products to EZ Dock®.

• 38.5" L x 10.5" H - Includes 2 • Requires a Wave Dock attachment to connect a port (sold separately)

/ POST MOUNTS (FREE STANDING) PIPE SLEEVES Replaceable pipe sleeves accommodate 2”, 3” and 4” pipes and are engineered to absorb the everyday wear and tear associated with pipe mount installations.

• 2 pipe sleeves + hardware included TAN DF300103 RAISED FOR 2” PIPE MSRP $85 TAN DF301011 FLUSH FOR 3” PIPE MSRP 85 TAN DF300041 FLUSH FOR 4” PIPE MSRP $96 $

GRAY DF302526 FLUSH FOR 3” PIPE MSRP 85 $

GRAY DF302528 FLUSH FOR 4” PIPE MSRP 96 $

62

DISTRIBUTED BY

2” SQUARE PIPE SLEEVE KIT FOR SLX TAN DF302202 MSRP $85 GRAY DF302524 MSRP $85 Designed to perfectly fit into recessed pipe mounting holes in all 4 corners of the SLX. • 2 pipe sleeves + hardware included

H E W I T T R A D . C O M

PWC PORTS

/ SLX 5 & 6 PORTS / FIXED BRACKET MOUNTS Z-BRACKET PORT TO FIXED DOCK KIT DF301281 FOR 2” PIPE MSRP $225

DF301282 FOR 4” PIPE MSRP $225

Galvanized steel z-bracket with u-bolt secures port to a fixed dock or sea wall allowing for free movement in fluctuating waters.

• (2) Z-brackets, (4) U-bolts + hardware included • Requires 2” or 4” pipe sleeves sold separately

/ ACCESSORIES SLX SIDE EXTENSION KIT

TAN DF300115 MSRP $915

Adds 22” of extra walking room on GRAY DF302541 MSRP $915 the side of the SLX port.

Dims: 22” W × 120" L × 12" H Weight: 132 lbs. | Weight capacity: 400 lbs.

• Includes 1 side extension + 2 port to port connectors

SLX POST EXTENSION KIT

TAN DF300095 FOR 2” PIPE MSRP $265 TAN DF300096 FOR 3-4” PIPE MSRP $265 GRAY DF302544 FOR 2” PIPE MSRP $267 GRAY DF302547 FOR 3-4” PIPE MSRP $267

The SLX Post Extension Kit mounts directly inside the mounting pockets of SLX 5 and 6.

Extends the outside edge of the port, increasing the distance between two posts allowing more room for larger PWCs when using pipe installation type.

• Includes 2 + hardware

SLX PORT BUOYANCY BOOSTER DF300498 MSRP $125 Designed to increase buoyancy for heavier PWCs. Install in the rear mounting pockets of your PWC Port.

• Adds 40 lbs. buoyancy per booster, Includes 2

SLX WHEEL KIT

SLX PORT TO PORT CONNECTION KIT

DF301929 MSRP 33 $

TAN DF300046 MSRP 250 $

GRAY DF302538 MSRP $250 Connect two or more SLX ports together.

• Includes 2

Additional wheel for SLX 5, SLX 6, and Sport ports manufactured after Fall 2021.

• Includes 1 Wheel, 1 Axle, 2 Washers

STAINLESS STEEL CHAIN & CLIP DF301269 MSRP $40 Secure your port with this stainless steel chain & clip.

SNAP-IN CAP TAN DF300116 MSRP $72 GRAY DF302536 MSRP $72 Covers unused mounting pockets.

• Includes 2

63

DISTRIBUTED BY

64

BOAT PORTS

65

BOAT PORTS

Did you know?

Tips for choosing a boat port:

Buoyancy boosters can be installed on the underside of the front end to increase lift and create additional slant for easier launching.

Match weight to capacity: Ensure the port’s weight capacity exceeds your boat’s fully loaded weight (including fuel, gear, and passengers).

Check length compatibility: The port should be equal to or slightly longer than your boat’s overall length for proper balance and support.

Compare beam to width: Make sure your boat’s beam (widest point) fits comfortably within the port’s width, leaving a few extra inches for easy centering.

Consider extensions: Add side extensions if you want additional walkaround space for easier access, cleaning, or maintenance.

66

DISTRIBUTED BY

H E W I T T R A D . C O M

BOAT PORTS

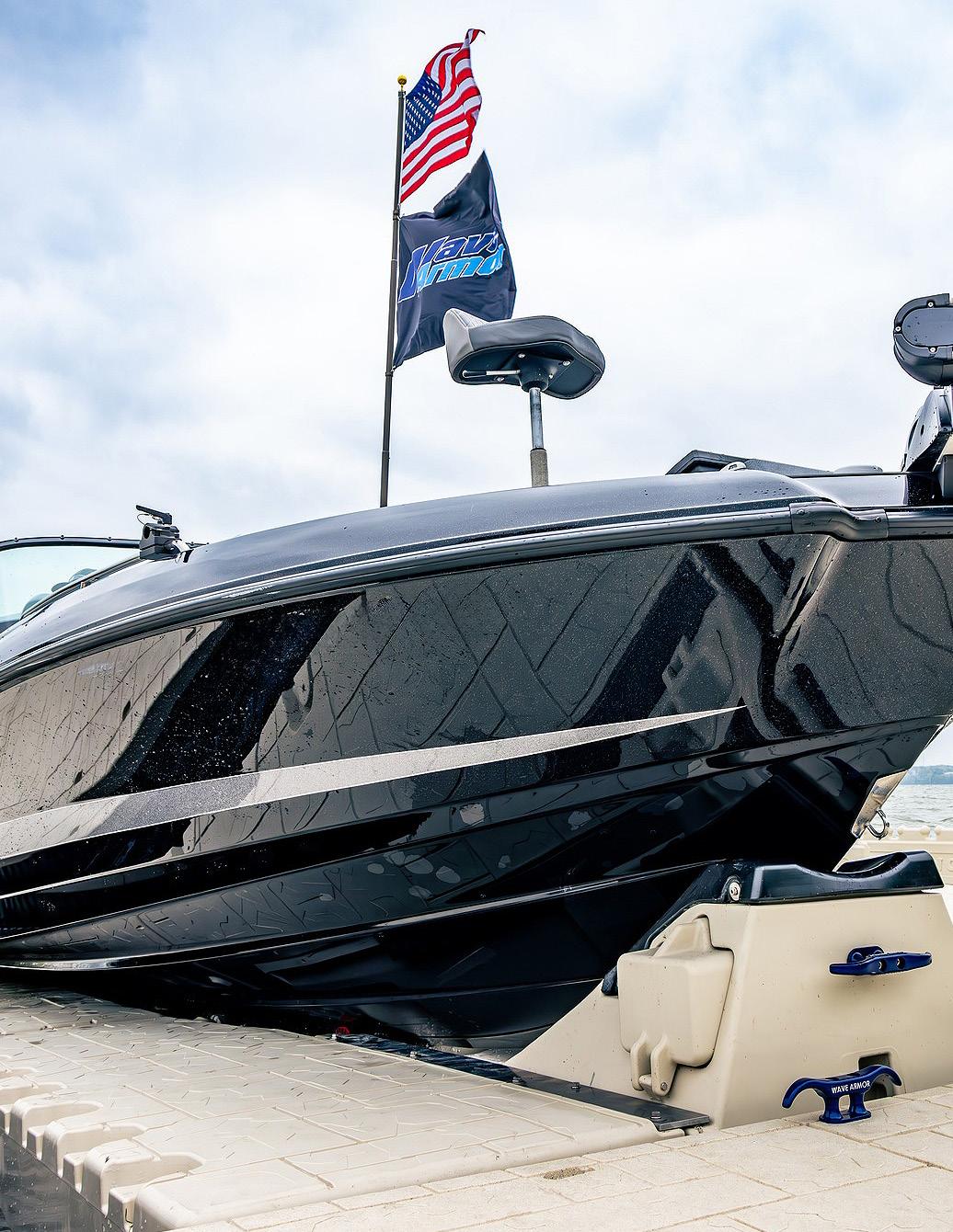

/ PRO 170 & 220 BOAT PORTS

PRO 170

DF302666 MSRP $4,250 Dims: 17' L × 7.5' W (202" × 90") Deck Height: 12" (not including bow stop) Weight: 565 lbs.

Weight capacity: 2,400 lbs.

Switch Recommendations: 13' or 16'-18' without Power Launch Assist

PRO 220

DF302600 MSRP $5,495 Dims: 22' L × 7.5' W (265" × 90") Deck Height: 12" (not including bow stop) Weight: 720 lbs.

Weight capacity: 2,800 lbs.

Switch Recommendations: 16'-18' and 19'-21' with or without Power Launch Assist.

Designed for boats up to 22' feet in length, these boat ports are engineered to revolutionize your docking experience.

SeaDoo Switch® Compatibility: Our optional conversion kit is tailor-made for docking the SeaDoo Switch. The blue plates cradle the outside toons of the Switch, ensuring a perfect alignment on the port and keeping your valuable craft entirely out of the water.

Effortless Docking: With an enhanced entrance design featuring a wider entrance body, you'll find it easier than ever to align your boat and glide onto the port smoothly.

Versatile Adjustability: The adjustable bow stop allows you to finetune your boat's position on the port, ensuring a secure fit every time. Plus, the adjustable wheels make it a breeze to accommodate 17' various boat sizes.

202"

7.5' 90"

7.5' 90"

22' 265"

Pro 220 comes equipped with a keel rest roller that not only prevents keel dragging but also assists in effortless loading and unloading.

Boosters available to accommodate heavier boats and weight distribution due to heavy motors.

Not recommended for step or W hull boats.

/ PRO 170 & 220 BOAT PORTS

67

BOAT PORTS

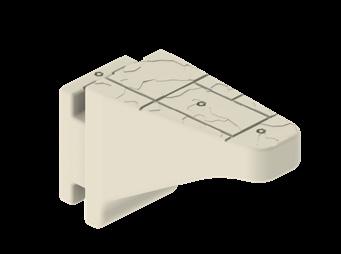

/ PRO 170 & 220 PORTS / WAVE DOCK ATTACHMENTS PRO PORT FRONT MOUNT TO WAVE DOCK

DF302196 MSRP $195 Receiving bracket slides directly into the H-Beam channel of the Wave Armor dock section. Allows for hinged-like movement for wave action.

• Includes 2 + hardware

PRO 170/220 SIDE MOUNT SLIDE ASSY TO WAVE DOCK

DF302789 MSRP $495 Connects from mounting pockets on side of ports 12" tall to H-Beam channel on Wave Dock. Allows port to move 12" for easier loading and unloading.

• Includes 2 + hardware • Requires Pro Inline Side Wing DF302498 when using with SeaDoo Switch®

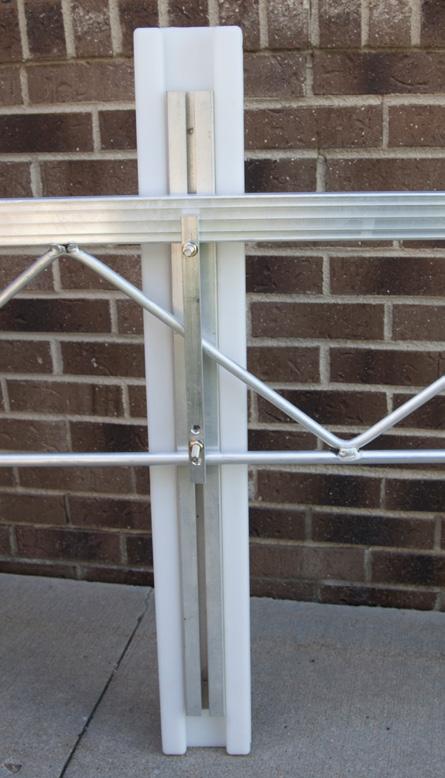

/ FLOATING DOCK ATTACHMENTS INSTALLATION EXAMPLE

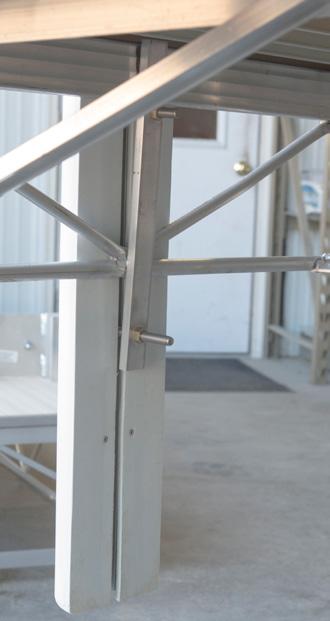

PRO PORT TO FLOATING DOCK KIT DF302197 19.75” C-Channel MSRP $260 DF302198 25.75” C-Channel MSRP $260 This heavy duty poly bracket designed for the Pro Port series creates a receiver that attaches to the galvanized C-channel on one side and connects with a pin to the port front mounting pocket. Designed to secure to any floating dock structure.

• Includes 2 + hardware

68

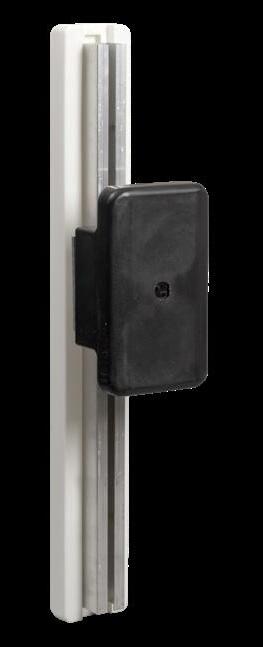

CONNECTOR ONLY

23.5" C-CHANNELS ONLY

DF303289 MSRP $80

DF303288 MSRP $180

This heavy duty poly bracket creates a receiver that attaches to a galvanized C-Channel (sold separately) on one side and connects with a pin to the port front mounting pocket. Designed to secure to any floating dock structure.

• Includes 2 + hardware • C-Channels sold separately (DF303288)

• Includes 2 + Hardware • Required for many attachments to other floating docks

DISTRIBUTED BY

H E W I T T R A D . C O M

BOAT PORTS

/ PRO 170 & 220 PORTS / FLOATING DOCK ATTACHMENTS (CONTINUED) PRO 170/220 SIDE MOUNT SLIDE ASSY TO FLOATING DOCK

DF302793 MSRP $340 Connects from mounting pockets on side of ports 12" tall to floating dock. Allows port to move 12" for easier loading & unloading.

• Includes 2 + hardware • Requires C-Channel DF303288 (not included) • Requires Pro Inline Side Wing DF302498 when using with SeaDoo Switch®

PORT EASY LINK

DF302823 MSRP $328 Creates an H-Beam channel to connect Wave Armor products to all EZ Dock® products. Upgrade EZ Dock® ports to new, state-of-theart Wave Armor® Pro Series, Boat & Pontoon Ports!

• 38.5" L x 10.5" H - Includes 2 • Requires a Wave Dock attachment to connect a port (sold separately)

/ POST MOUNTS (FREE STANDING) PRO PORT PIPE SLEEVE

DF302128 2” MSRP $85 DF302152 3” MSRP $85 DF302768 4” MSRP $85 Quick and easy drop-in installation utilizing mounting pipe holes in all 4 corners of the port. Secured with stainless steel hardware.

• Bolt-on design • 2 pipe sleeves + hardware included

PRO SIDE POST ATTACHMENT

DF302649 2” MSRP $285 DF302650 3” MSRP $285 Designed specifically for PRO ports series that are 12" H. Ideal in windy conditions, these attachments would eliminate the need to remove the pipes.

• 12" H • Includes 2 + hardware

/ PRO 170 & 220 BOAT PORTS

69

BOAT PORTS

/ PRO 170 & 220 PORTS / ACCESSORIES PRO HALF CAP

PRO CLEAT

DF302711 MSRP $80 Installs in mounting pockets along perimeter of Pro 8, Extreme X24, Pontoon, Pro 220 / 170, Pro PWC ports.

Cover unused mounting pockets for a finished look.

DF302414 QTY 4 MSRP $40

DF302415 QTY 24 MSRP $190

• Includes 2 + hardware

Fits: Pro 220 DF302600 Pro 170 DF302666 Pro Pontoon Port DF302163 Pro Max Pontoon Port Pro 8 Boat Port DF301937 Pro Side Extension DF302514 Extreme X24 DF301980 Pro 5 DF302098 Pro 6 DF302096 Pro Wide Body DF302400 Pro Maxx 5 DF302390 Pro Maxx 6 DF302392 Pro Maxx Wide Body DF302743 Pro Inline DF302499 Kayak Launch DF302509

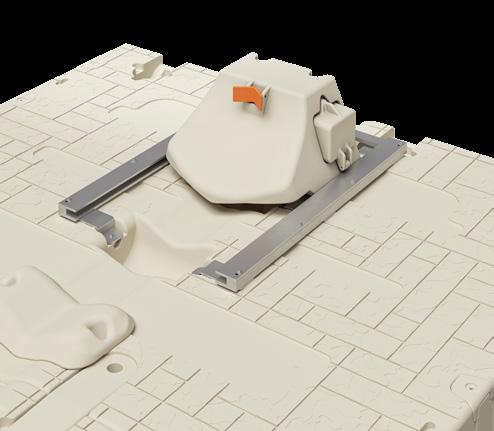

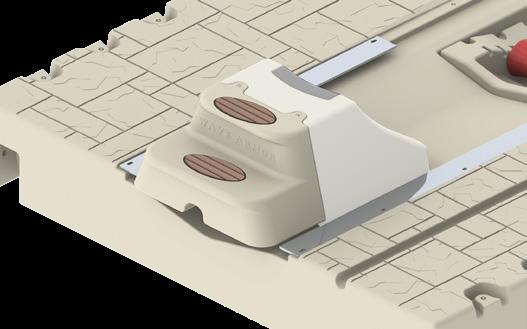

PRO BOW STOP STEP

DF302814 MSRP $150 Add-on bow stop step allows for safer and easier on/off access from the front of the boat. Decorative pads create an anti-slip surface for increased safety. Works with the newest style of Pro 170, Pro 220 and Pro 8 boat port bow stops.

PRO INLINE SIDE WING

DF302498 MSRP $585 Add walking room to side of Pro 220 / 170 port.

Dims: 63" L x 12" W x 12" H Weight: 140 lbs.

• Includes 2

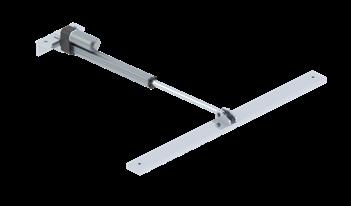

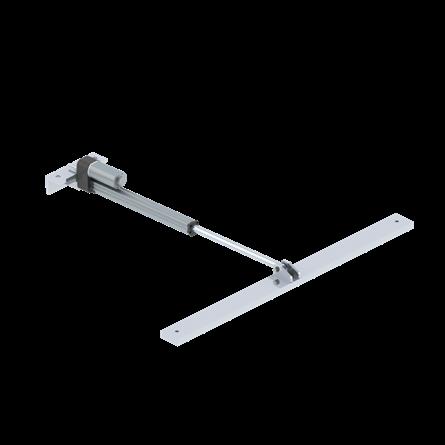

POWER LAUNCH ASSIST FOR PRO 8 AND PRO 220 & 170 PORTS

DF302673 MSRP 1,225 $

Includes bar system Battery sold separately Patent pending

70

PRO BUOYANCY BOOSTER DF302725 MSRP $195 This buoyancy booster provides an extra 160 lbs. of floatation per booster for a total of 320 lbs. Can be installed along the perimeter of the port in multiple molded-in underside pockets, even after full port installation is completed.

No tools or hardware needed.

• 24" x 36" • Includes 2 • Recommended for Pro 170/220 with canopy added

DISTRIBUTED BY

H E W I T T R A D . C O M

BOAT PORTS

/ PRO 170 & 220 PORTS

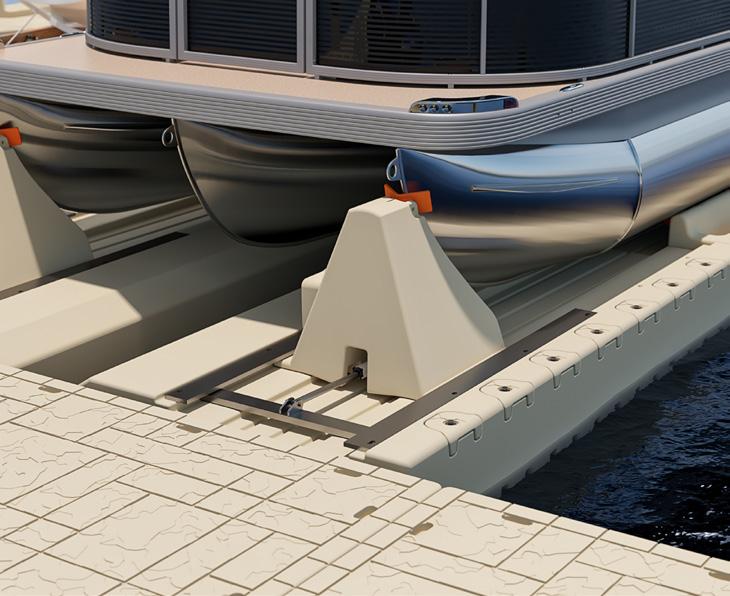

Shown with optional Conversion Kit (DF302707)

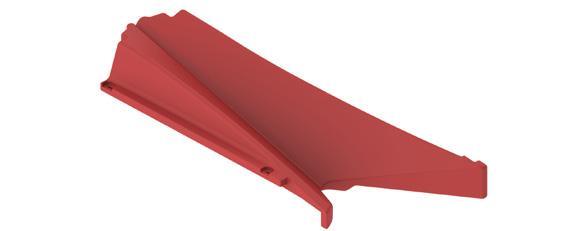

PRO 170/220 CONVERSION KIT FOR SEADOO SWITCH®

DF302707 MSRP $550 Add-on assembly to accommodate all SeaDoo Switch® models 13ft. - 21ft. on the Pro 220 / 170 boat port.

Includes skids and alignment scoops.

/ PRO 170 & 220 BOAT PORTS

71

BOAT PORTS

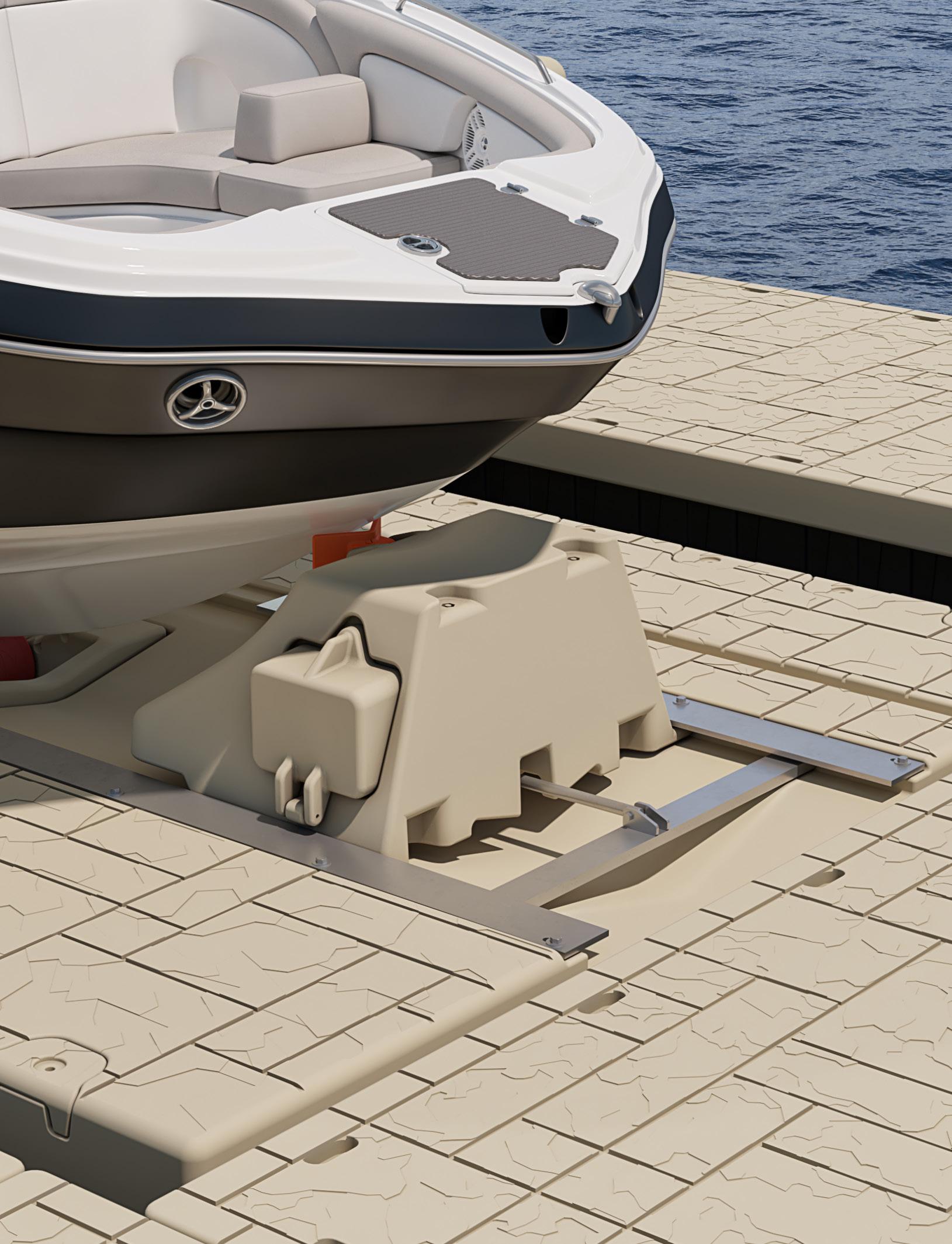

Shown with optional Bow Stop Step (DF302814)

72

DISTRIBUTED BY

H E W I T T R A D . C O M

BOAT PORTS

/ PRO 8 BOAT PORT

PRO 8 BOAT PORT

8' 96"

DF302513 MSRP $7,000 Dims: 20’ L × 8’ W (240" × 96") Deck Height: 15" (not including bow stop) Weight: 850 lbs.

Weight capacity: 4,000 lbs.

The Pro 8 Boat Port is designed to be the most customizable docking system for boats up to 4,200 lbs..

Additional side extension decks (DF302514) are available to expand width for more walkaround room and increased capacity.

Features a bow stop that can be adjusted up to 48" with option to add Power Launch Assist and/or Bow Stop Step.

Ideal for jet boats and watercrafts with smaller engines.

Varied wheel density ensures a soft port entrance.

Center front roller adjusts up/down in 3” pockets, raising or lowering the bow as needed.

20'' 240"

Side mounting pockets allows attachment of additional Wave Armor accessories.

Big centering V-shape in entrance for easy port entrance, even if not perfectly centered or at an angle.

Not recommended for step or W hull boats.

/ PRO 8 BOAT PORT

73

BOAT PORTS

/ PRO 8 / WAVE DOCK ATTACHMENTS PRO PORT FRONT MOUNT TO WAVE DOCK

DF302196 MSRP $195 Receiving bracket slides directly into the H-Beam channel of the Wave Armor dock section. Allows for hinged-like movement for wave action.

• Includes 2 + hardware

PRO 8 AND PONTOON PORT SIDE MOUNT SLIDE ASSY TO WAVE DOCK

DF302603 MSRP $495 Connects from mounting pockets on side of ports 15" tall to H-Beam channel on Wave Dock. Allows for easier loading and unloading.

• Includes 2 + hardware

/ FLOATING DOCK ATTACHMENTS PRO 8/PONTOON SIDE MOUNT SLIDE ASSY TO FLOATING DOCK

DF302792 MSRP $350 Connects from mounting pockets on side of port 15" tall to floating dock. Allows for easier loading and unloading.

• Includes 2 + hardware • Requires C-Channel (sold separately #DF303288) • Needs part #DF301347 if used with canopy

PRO PORT TO FLOATING DOCK KIT DF302197 19.75” C-Channel MSRP $260 DF302198 25.75” C-Channel MSRP $260 This heavy duty poly bracket designed for the Pro Port series creates a receiver that attaches to the galvanized C-channel on one side and connects with a pin to the port front mounting pocket. Designed to secure to any floating dock structure.

• Includes 2 + hardware

74

CONNECTOR ONLY

23.5" C-CHANNELS ONLY

DF303289 MSRP $80

DF303288 MSRP $180

This heavy duty poly bracket creates a receiver that attaches to a galvanized C-Channel (sold separately) on one side and connects with a pin to the port front mounting pocket. Designed to secure to any floating dock structure.

• Includes 2 + hardware • C-Channels sold separately (DF303288)

• Includes 2 + Hardware • Required for many attachments to other floating docks

DISTRIBUTED BY

H E W I T T R A D . C O M

BOAT PORTS

/ PRO 8 / FLOATING DOCK ATTACHMENTS PORT EASY LINK

DF302823 MSRP $328 Creates an H-Beam channel to connect Wave Armor products to all EZ Dock® products.

Upgrade EZ Dock® ports to new, state-of-the-art Wave Armor® Pro Series, Boat & Pontoon Ports!

• 38.5" L x 10.5" H - Includes 2 • Requires a Wave Dock attachment to connect a port (sold separately)

/ POST MOUNTS (FREE STANDING) PRO PORT FRONT PIPE MOUNT

DF302411 2” MSRP $195 DF302412 3” MSRP $195 DF302798 4” MSRP $195

Designed to be used when the slip width is limited or when a parallel installation to an existing dock is required. Includes the Pro Port pipe sleeves. For additional installation strength, the Z Bracket kits or adjustable fixed dock mounts are the perfect add on. Rotomolded construction.

• Includes 2 + hardware • Can be used in combination with other brackets

PRO PORT PIPE ANCHORING KIT

DF302345 2” MSRP $390 DF302346 3” MSRP $390 DF302347 4” MSRP $390 Allows the port to be installed as a stand alone unit utilizing pipe mount type of installation or inside of a boat slip without mounting directly to a dock. It can be used to mount to a seawall in combination with other brackets. Designed to attach over any of the molded-in (horseshoe shaped) pockets located along the perimeter of the port.

• Includes 2 brackets + hardware • 4 pipe mounts are recommended for freestanding install

PRO 8 & PONTOON PORT PYLON HOOPS

DF302815 8" MSRP $314 DF302816 10" MSRP $314 DF302817 12" MSRP $314 • Includes 1 + hardware

/ PRO 8 BOAT PORT

75

BOAT PORTS

/ PRO 8 / FIXED BRACKET MOUNTS 16-24” TELESCOPING PORT TO FIXED DOCK KIT DF301434 FOR 2” PIPE MSRP $421

DF301435 FOR 4” PIPE MSRP $431

Fastened to fixed docks the telescoping bracket adjusts horizontally 16”- 24” inches allowing space between dock and port. Pipes secure to these brackets with U-bolts and feed through poly sleeves allowing the port to move freely in fluctuating water levels.

• Includes 2 brackets, 2 U-bolts and hardware • Requires 2” or 4” pipe sleeves (not included)

RAISED PIPE MOUNT TO FIXED DOCK KIT DF302081 FOR 2-3” PIPE MSRP $809 DF302082 FOR 4” PIPE MSRP $823 DF302039 EXTRA SUPPORT FOR 2-3” PIPE MSRP $397 DF302515 EXTRA SUPPORT FOR 4” PIPE MSRP $413 Heavy duty aluminum L-bracket kit allows you to mount the port to a low profile fixed dock (non-floating), and allows the port to rise up and down.

/ ACCESSORIES PRO SIDE EXTENSION

DF302514 MSRP $295 Designed to increase the width of the port by 10” for more walk around room. Not intended to increase buoyancy.

• 47.75” L × 14.6” W × 15” H • Includes 1 • Increases width of port by 10” • Weight: 20 lbs.

PRO CLEAT

DF302711 MSRP $80 Installs in mounting pockets along perimeter of Pro 8, Extreme, Pontoon and Pro 220 / 170 ports.

• Includes 2 + hardware

76

DISTRIBUTED BY

H E W I T T R A D . C O M

BOAT PORTS

/ PRO 8 / ACCESSORIES PRO HALF CAP Cover unused mounting pockets for a finished look.

DF302414 QTY 4 MSRP $40 DF302415 QTY 24 MSRP $190

Fits: Pro 220 DF302600 Pro 170 DF302666 Pro Pontoon Port DF302163 Pro Max Pontoon Port Pro 8 Boat Port DF301937 Pro Side Extension DF302514 Extreme X24 DF301980 Pro 5 DF302098 Pro 6 DF302096 Pro Wide Body DF302400 Pro Maxx 5 DF302390 Pro Maxx 6 DF302392 Pro Maxx Wide Body DF302743 Pro Inline DF302499 Kayak Launch DF302509

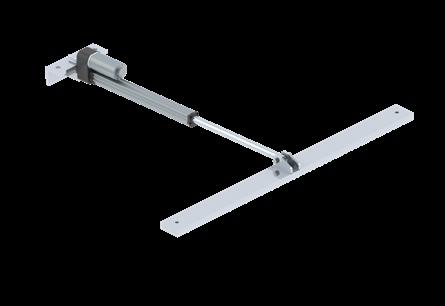

POWER LAUNCH ASSIST FOR PRO 8 AND PRO 220 & 170 PORTS

DF302673 MSRP $1,225 Includes bar system Battery sold separately Patent pending

BUOYANCY BOOSTERS DF302159 MSRP $230 This buoyancy booster provides an extra 200 lbs. of flotation per booster for a total of 400 lbs.

Can be installed along the perimeter of the port in multiple molded-in underside pockets, even after full port installation is completed. No tools or hardware needed.

• 24" x 48" • Includes 2 • Recommended for Pro 8 with canopy added

PRO BOW STOP STEP

DF302814 MSRP $150 Add-on bow stop step allows for safer and easier on/ off access from the front of the boat. Decorative pads create an anti-slip surface for increased safety. Works with the newest style of Pro 170, Pro 220 and Pro 8 boat port bow stops.

/ PRO 8 BOAT PORT

77

BOAT PORTS

78

DISTRIBUTED BY

H E W I T T R A D . C O M

BOAT PORTS

/ EXTREME X24 BOAT PORT

10' 120"

EXTREME X24 BOAT PORT

DF301980 MSRP $12,250 Dims: 24' L × 10' W (288" L × 120" W) Deck Height: 15" (not including rollers) Weight: 1,500 lbs.

Weight capacity: 8,000 lbs.

Highly customizable bunk design with sliding aluminum rail accommodates boats from 23’ to 32’ in length and up to 8,000 lbs. weight capacity.

Shock-absorbing roller system for unmatched docking performance.

Entrance rollers provide additional loading support for comfortable docking.

24' 240"

Additional buoyancy can be added, up to 2,000 lbs., to support heavier motors.

Durable rotomolded shell. 100% foam filled with marine-grade EPS. Front or side mounting options.

Not recommended for step hull, wake boats, direct drive or v-drive boats.

/ EXTREME X24 BOAT PORT

79

BOAT PORTS

/ EXTREME X24 BOAT PORT / WAVE DOCK ATTACHMENTS

EXTREME TO WAVE DOCK KIT

DF301346 MSRP $610 This heavy duty kit allows you to connect and Extreme boat port to a Wave Armor H-Beam channel system. This hinged connection system provides movement during wave action.

• Includes 2 + hardware

/ FLOATING DOCK ATTACHMENTS

EXTREME TO FLOATING DOCK KIT

DF301329 MSRP $733 Connects the Extreme boat port to any floating dock while keeping the boat port close to the dock.

• Includes 2 + hardware

PORT EASY LINK

DF302823 MSRP $328 Creates an H-Beam channel to connect Wave Armor products to EZ Dock®.

• 38.5" L x 10.5" H - Includes 2 • Requires a Wave Dock attachment to connect a port DF301346 (sold separately)

Shown with DF301346 connection (sold separately)

80

DISTRIBUTED BY

H E W I T T R A D . C O M

BOAT PORTS

/ EXTREME X24 BOAT PORT / POST MOUNTS (FREE STANDING) 2” POST ATTACHMENT KIT

DF301859 MSRP $319 These brackets allow the boat port to be free standing and self adjusts to fluctuating water levels.

• Recommended for calmer waters such as bays or canals • Set of 2 + hardware included

3” POST ATTACHMENT KIT

DF301945 MSRP $412 Heavy duty version of the standard post attachments. Allows the boat port to be free standing and self-adjusting to fluctuating water levels.

• Recommended for rougher water conditions • Set of 2 + hardware included

EXTREME PIPE SLEEVES

DF301746 2" MSRP $140 DF301256 2" KIT MSRP $140 DF301747 3” MSRP $146 DF301748 4” MSRP $140 Replaceable pipe sleeves accommodate 2”, 3” and 4” pipes and are engineered to absorb the everyday wear and tear associated with pipe mount installations.

• Set of 2 + hardware included

PYLON HOOP ATTACHMENT KIT

DF301966 FITS 8.5” PYLON MSRP $459 DF301967 FITS 10.5” PYLON MSRP $420 DF302009 FITS 12.5” PYLON MSRP $459 Provides a secure connection of boat port to pylons with easy installation to new or existing pylons.

• Heavy duty oversized build • Includes 1 + hardware

/ EXTREME X24 BOAT PORT

81

BOAT PORTS

/ EXTREME X24 BOAT PORT / FIXED BRACKET MOUNTS 16-24” TELESCOPING PORT TO FIXED DOCK KIT

DF301434 FOR 2” PIPE MSRP $421

DF301435 FOR 4” PIPE MSRP $431

Fastened to fixed docks the telescoping bracket adjusts horizontally 16”- 24” inches allowing space between dock and port. Pipes secure to these brackets with U-bolts and feed through poly sleeves allowing the port to move freely in fluctuating water levels.

• Includes 2 brackets, 2 U-bolts and hardware • Requires 2” or 4” pipe sleeves (not included)

RAISED PIPE MOUNT TO FIXED DOCK KIT DF302081 FOR 2-3” PIPE MSRP $804 DF302082 FOR 4” PIPE MSRP $823 DF302039 EXTRA SUPPORT FOR 2-3” PIPE MSRP $397 DF302515 EXTRA SUPPORT FOR 4” PIPE MSRP $413 Heavy duty aluminum L-bracket kit allows you to mount the port to a low profile fixed dock (non-floating), and allows the port to rise up and down.

/ ACCESSORIES

PRO CLEAT

EXTREME CENTER KEEL ROLLER

EXTREME ENTRANCE ROLLER

DF302708 MSRP $376

DF302710 MSRP $382

• Includes 1

• Qty 1

BUOYANCY BOOSTERS

DF302159 MSRP 230 $

Each booster provides an extra 200 lbs. of flotation per booster for a total of 400 lbs.

• 24" x 48" • Includes 2 • Recommended for X24 with canopy added

82

DF302711 MSRP $80 Installs in mounting pockets along perimeter of Pro 8, Extreme, Pontoon and Pro 220/170 ports.

• Includes 2 + hardware

BOAT PORT BUOYANCY BOOSTER

EXTREME BOAT PORT FRONT PLUG KIT

DF302601 MSRP $262

DF301749 MSRP $165

Each booster delivers an extra 400 lbs. of buoyancy for a total of 800.

• 24" x 36" x 9" • Includes 2

Fill in unused mounting pockets for clean, finished look and a flush walking surface.

• 2 plugs + hardware included

DISTRIBUTED BY

H E W I T T R A D . C O M

BOAT PORTS

/ EXTREME X24 PORT BOAT / ACCESSORIES POWER LAUNCH ASSIST FOR EXTREME X24 BOAT PORT

DF302672 MSRP $3,500 Retro fits all past Extreme models Includes bar system + bow stop Battery sold separately Patent pending

/ EXTREME X24 BOAT PORT

83

DISTRIBUTED BY

84

PONTOON PORTS

85

PONTOON PORTS /

NEW!

86

DISTRIBUTED BY

H E W I T T R A D . C O M

PONTOON PORTS /

/ PRO AIR PONTOON PORT

NEW!

10.25' 122" PRO AIR PONTOON LIFT

NEW!

DF303053 MSRP $9,995 For Pontoons & Tritoons up to 24' Dims: 24' L × 10.25' W Deck Height: 18" (not including blue ribs & bow stop) Weight: 1200 lbs.

Weight capacity: 4,800 lbs.

Increase weight capacity with optional buoyancy boosters.

Introducing Wave Armor’s Latest Innovation and Easiest Pontoon lift!

The latest evolution in the Wave Armor lineup delivers our easiest drive-on / drive-off experience yet.

This advanced lift utilizes integrated air and water chambers to raise or lower the entrance at the flip of a switch, simplifying both loading and dry storage.

24' 288"

• Dual-chamber system: Air and water assist for controlled lift and launch.

• Low-water capability: Operates effectively in 2.5 ft (0.76 m) or deeper.

• Optimized fit: Designed for 18'–24' pontoons.

• Adjustable bow stop: Allows precise alignment and secure positioning.

• High-and-dry storage: Keeps pontoons elevated for reduced hull growth and maintenance.

PRO AIR SERIES CONTROLLER 24V DC

DF303313 MSRP $895 For best fitment & performance during testing, a lithium Timeusb 25.6V with 25Ah battery was utilized. Not included.

PRO AIR SERIES CONTROLLER 120V AC

DF303323 MSRP $995 / PRO AIR PONTOON LIFT 87

PONTOON PORTS /

88

DISTRIBUTED BY

H E W I T T R A D . C O M

PONTOON PORTS /

/ PRO PONTOON PORT

(U.S. Patent No. 11,904,990) Heavy-duty, flared entrance with self-centering guides ensures a seamless transition from the water to rollers during loading.

Enjoy adaptability with an adjustable Bow Stop.

Specially designed rollers for the pontoon port have cushioning, protection, and precise alignment for easy loading and unloading.

Strategically positioned axle pocket heights prevent drag.

PRO PONTOON PORT

DF302508 MSRP 10,500 $

For Pontoons & Tritoons 23-25'.

Dims: 27' L × adjustable Deck Height: 15" (not including bow stop) Weight: 1,DF300 lbs.

Weight capacity: 4,800 lbs.

Increase weight capacity with optional buoyancy boosters.

Crafted with an incredibly durable rotomolded shell, fully filled with marine-grade EPS foam, offering maintenance-free high-density polyethylene construction.

8.6' (104") - 10.6' (128")

Optional Power Launch Assist addon aids with even easier Pontoon launching with the click of a button.

8.6' (104") - 10.6' (128")

PRO MAXX PONTOON PORT

DF302818 MSRP $11,500 For Pontoons & Tritoons 25'-29'.

Dims: 31' L × 8.5' W (372" × 102") Deck Height: 15" (not including bow stop) Weight: 1,460 lbs.

Weight capacity: 5,400 lbs.

Increase weight capacity with optional buoyancy boosters.

31' 372" 27' 324"

Pontoon Ports are NOT recommended for Manitou® Pontoons.

/ PONTOON PORTS 89

PONTOON PORTS /

/ PONTOON PORTS / WAVE DOCK ATTACHMENTS PRO PORT FRONT MOUNT TO WAVE DOCK

DF302196 MSRP $195 Receiving bracket slides directly into the H-Beam channel of the Wave Armor dock section. Allows for hinged-like movement for wave action.

• Includes 2 + hardware

SIDE MOUNT SLIDE ASSY TO WAVE DOCK

DF302603 MSRP $495 Connects from mounting pockets on side of ports 15" tall to H-Beam channel on Wave Dock. Allows for easier loading and unloading.

• Includes 2 + hardware

/ FLOATING DOCK ATTACHMENTS PRO 8/PONTOON SIDE MOUNT SLIDE ASSY TO FLOATING DOCK

DF302792 MSRP $350 Connects from mounting pockets on side of port 15" tall to floating dock. Allows for easier loading and unloading.

• Includes 2 + hardware • Requires C-Channel (sold separately #DF303288) • Needs part #DF301347 if used with canopy

PRO PORT TO FLOATING DOCK KIT DF302197 19.75” C-Channel MSRP $260 DF302198 25.75” C-Channel MSRP $260 This heavy duty poly bracket designed for the Pro Port series creates a receiver that attaches to the galvanized C-channel on one side and connects with a pin to the port front mounting pocket. Designed to secure to any floating dock structure.

• Includes 2 + hardware

90

CONNECTOR ONLY

23.5" C-CHANNELS ONLY

DF303289 MSRP $80

DF303288 MSRP $180

This heavy duty poly bracket creates a receiver that attaches to a galvanized C-Channel (sold separately) on one side and connects with a pin to the port front mounting pocket. Designed to secure to any floating dock structure.

• Includes 2 + hardware • C-Channels sold separately (DF303288)

• Includes 2 + Hardware • Required for many attachments to other floating docks

DISTRIBUTED BY

H E W I T T R A D . C O M

PONTOON PORTS /

/ PONTOON PORTS / FLOATING DOCK ATTACHMENTS PORT EASY LINK

DF302823 MSRP $328 Creates an H-Beam channel to connect Wave Armor products to EZ Dock®.

• 38.5" L x 10.5" H - Includes 2 • Requires a Wave Dock attachment to connect a port (sold separately #DF302196)

/ POST MOUNTS (FREE STANDING) PRO PORT FRONT PIPE MOUNT

DF302411 2” MSRP $195 DF302412 3” MSRP $195 DF302798 4” MSRP $195

Designed to be used when the slip width is limited or when a parallel installation to an existing dock is required. Includes the Pro Port pipe sleeves. For additional installation strength, the Z Bracket kits or adjustable fixed dock mounts are the perfect add on. Rotomolded construction.

• Includes 2 + hardware • Can be used in combination with other brackets

PRO PORT PIPE ANCHORING KIT

DF302345 2” MSRP $390 DF302346 3” MSRP $390 DF302347 4” MSRP $390 Allows the port to be installed as a stand alone unit utilizing pipe mount type of installation or inside of a boat slip without mounting directly to a dock. It can be used to mount to a seawall in combination with other brackets. Designed to attach over any of the molded-in (horseshoe shaped) pockets located along the perimeter of the port.

• Includes 2 brackets + hardware • 4 pipe mounts are recommended for freestanding install

PYLON HOOPS

DF302815 8" MSRP $314 DF302816 10" MSRP $314 DF302817 12" MSRP $314 • Includes 1 + hardware

/ PONTOON PORTS

91

PONTOON PORTS /

/ PONTOON PORTS / FIXED BRACKET MOUNTS 16-24” TELESCOPING PORT TO FIXED DOCK KIT DF301434 FOR 2” PIPE MSRP $421

DF301435 FOR 4” PIPE MSRP $431

Fastened to fixed docks the telescoping bracket adjusts horizontally 16”- 24” inches allowing space between dock and port. Pipes secure to these brackets with U-bolts and feed through poly sleeves allowing the port to move freely in fluctuating water levels.

• Includes 2 brackets, 2 U-bolts and hardware • Requires 2” or 4” pipe sleeves (not included)

RAISED PIPE MOUNT TO FIXED DOCK KIT DF302081 FOR 2-3” PIPE MSRP $804 DF302082 FOR 4” PIPE MSRP $823 DF302039 EXTRA SUPPORT FOR 2-3” PIPE MSRP $397 DF302515 EXTRA SUPPORT FOR 4” PIPE MSRP $413 Heavy duty aluminum L-bracket kit allows you to mount the port to a low profile fixed dock (non-floating), and allows the port to rise up and down.

/ ACCESSORIES PRO SIDE EXTENSION

DF302514 MSRP $295 Designed to increase the width of the port by 10” for more walk around room. Not intended to increase buoyancy.

• 47.75” L × 14.6” W × 15” H • Includes 1 • Increases width of port by 10” • Weight: 20 lbs.

PRO CLEAT

DF302711 MSRP $80 Installs in mounting pockets along perimeter of Pro 8, Extreme, Pontoon and Pro 220 / 170 ports.

• Includes 2 + hardware

92

DISTRIBUTED BY

H E W I T T R A D . C O M

PONTOON PORTS /

/ PONTOON PORTS / ACCESSORIES PRO HALF CAP Cover unused mounting pockets for a finished look.

DF302414 QTY 4 MSRP $40 DF302415 QTY 24 MSRP $190

BUOYANCY BOOSTERS DF302159 MSRP $230 This buoyancy booster provides an extra 200 lbs. of flotation per booster for a total of 400 lbs.

Can be installed along the perimeter of the port in multiple molded-in underside pockets, even after full port installation is completed. No tools or hardware needed.

• 24" x 48" • Includes 2 • Recommended for Pro 8 with canopy added

BUOYANCY BOOSTERS DF302601 MSRP $262 This buoyancy booster provides an extra 200 lbs. of flotation per booster for a total of 400 lbs.

Can be installed along the perimeter of the port in multiple molded-in underside pockets, even after full port installation is completed. No tools or hardware needed.

• 24" x 36" x 9 • Includes 2

SIDE GUIDES

NEW!

DF303144 MSRP $415 Side Guides attach to the Pontoon Port to align and center your pontoon as you drive on, ensuring smooth and effortless docking every time.

• Includes 2 + Hardware • Works for all Pontoon Ports

POWER LAUNCH ASSIST FOR PRO & PRO MAXX PONTOON PORT

DF302919 MSRP $1,225 • Includes 1 system • Battery sold separately • Patent pending • Not applicable for Pro Air Pontoon Lift

/ PONTOON PORTS

93

DISTRIBUTED BY

94

CANOPIES

95

CANOPIES

CANOPY POST BRACKETS

DF302647 MSRP $465 • Made for Pro PWC ProTect'R Canopies • Includes 2 • Pro 5, Pro 6, Pro WB, Pro Maxx 5, Pro Maxx 6, Pro Maxx WB

96

DISTRIBUTED BY

H E W I T T R A D . C O M

CANOPIES

/ PWC PORT PROTECT'R™ CANOPIES Protection from the elements is here. Introducing ProTect'R™, the new Wave Armor port canopy system. The perfect solution to safeguard your boat, pontoon, or personal watercraft from the elements - specifically designed for Wave Armor ports. Constructed using our rugged rotational molded process; the new canopy features lightweight, yet incredibly strong trusses secured to a rigid aluminum frame, and paired with adjustable aluminum columns. Our UV resistant, marine grade Wavebrella™ canvas fends off sun, rain, and debris. The canopy also features fully-screened ends for ventilation with 24-inch perimeter drape for even greater protection.

The result is a lightweight design that won’t oxidize, with a clean, custom look. Best of all, the Wave Armor ProTect'R canopy features telescopic columns providing nearly 4-feet of height adjustment to accommodate nearly any pontoon, boat or PWC.

CANOPY DRAPE LENGTH OPTIONS

24"

48"

10' × 13' / 10' × 15' / PRO 5 / PRO MAXX 5 PROTECT'R CANOPY

PRO 5 / Dims: 10' W × 13' L | Fits over (2 side-by-side) Pro 5 (DF302098) ports. May require additional buoyancy boosters on the ports.

Structure with post brackets (no canvas) DF302733 MSRP $3,750 24" Drape Canvas DF302643 MSRP $1,575 PRO MAXX 5 / Dims: 10' W × 15' L | Fits over (2 side-by-side) Pro 5 (DF302390) ports. May require additional

buoyancy boosters on the ports.

Structure with post brackets (no canvas) DF302734 MSRP $4,000 24" Drape Canvas DF302642 MSRP $1,833

12' × 14' / PRO 6 / PRO MAXX 6 PROTECT'R™ CANOPY Dims: 12' W × 14' L | Fits over (2 side-by-side) Pro 6 or Pro Maxx 6 ports DF302096 / DF302392. May require additional buoyancy boosters on the ports.

Structure with post brackets (no canvas) DF302775 MSRP $4,500 24" Drape Canvas DF302862 MSRP $1,948 48" Drape Canvas DF302927 MSRP $2,185

13' × 14' / PRO WB / PRO MAXX WB PROTECT'R™ CANOPY Dims: 13' W × 14' L | Fits over (2 side-by-side) Pro WB or Pro Maxx WB ports DF302400 / DF302743. May require additional buoyancy boosters on the ports.

Structure with post brackets (no canvas) DF302995 MSRP $5,130 24" Drape Canvas DF302928 MSRP $2,100 48" Drape Canvas DF303004 MSRP $2,350 / CANOPIES

97

CANOPIES

CANOPY POST BRACKETS

DF302648 MSRP $465 • Made for Pro 170/220 ProTect'R Canopies • Includes 2

DF302348 MSRP $465 • Made for Pro 8 & Pontoon ProTect'R Canopies • Includes 2

98

DISTRIBUTED BY

H E W I T T R A D . C O M

CANOPIES

/ CANOPy colors

DEFENDER MARINE

WHITE TRIM

BLACK TRIM

BLACK TRIM

BLACK TRIM

WHITE TRIM

FABRIC

Burgundy

Defender Colors

19 oz marine fabric made from combining fabric with aD textured mariner grade vinyl. Waterproof and has efende MARINE FABRIC a fluorocarbon finish for UV, water, mildew and fade resistance. Choose from 11 popular colors. Other colors available through special order.

Linen Tweed

Charcoal Tweed BLACK TRIM

BLACK TRIM

DEFENDER CANVAS CODES

Midnight

Forest BLACK TRIM

Dubonnet Tweed

Cadet

Toast

Hemlock Tweed

Navy

BROWN TRIM

Pacific

WHITE TRIM

BLACK TRIM

Burgundy

Midnight

Dubonnet Cadet

Pacific

Linen

Charcoal

Forest

Toast

Navy

Hemlock

BUR

MID

DUB

PAC

LIN

CHA

FOR

TST

NAV

HEM

CAD

Note: Add the 3-letter code shown above in place of "???" in the item number to get complete item number for ordering.

Standard Vinyl Colors

Our 16 oz nylon with 9 x 9 reinforced vinyl canopies are durable, waterproof and UV resistant to prevent premature fading. Randomly textured finish in 7 popular colors.

VINYL CANVAS CODES

Black

Gray

BLACK TRIM

BLACK TRIM

Black

Gray

Beige

Blue

Green

Yellow

White

BLK

GRY

BEI

BLU

GRN

YEL

WHI

Beige BROWN TRIM

Blue WHITE TRIM

Green BLACK TRIM

Yellow WHITE TRIM

White WHITE TRIM

Note: Add the 3-letter code shown above in place of "???" in the item number to get complete item number for ordering.

/ PWC PORT PROTECT'R™ CANOPIES Protection from the elements is here. Introducing ProTect'R™, the new Wave Armor port canopy system. The perfect solution to safeguard your boat, pontoon, or personal watercraft from the elements - specifically designed for Wave Armor ports. Constructed using our rugged rotational molded process; the new canopy features lightweight, yet incredibly strong trusses secured to a rigid aluminum frame, and paired with adjustable aluminum columns. Our UV resistant, marine grade Wavebrella™ canvas fends off sun, rain, and debris. The canopy also features fully-screened ends for ventilation with 24-inch perimeter drape for even greater protection.

The result is a lightweight design that won’t oxidize, with a clean, custom look. Best of all, the Wave Armor ProTect'R canopy features telescopic columns providing nearly 4-feet of height adjustment to accommodate nearly any pontoon, boat or PWC.

CANOPY drape length options

24"

48"

/ CANOPIES

99

CANOPIES

/ BOAT & Pontoon port PROTECT'R™ CANOPIES

10' × 13' / 10' × 15' / PRO 5 / PRO MAXX 5 PROTECT'R CANOPY

PRO 5 / Dims: 10' W × 13' L Structure w/ post brackets (no canvas) DF302733 MSRP $3,750

DF302643 MSRP $1,575 13' x 120" Hewitt Vinyl CWA-13x120??? MSRP $1,590 13' x 120" Hewitt Defender CWAD-13x120??? MSRP $1,981 PRO MAXX 5 / Dims: 10' W × 15' L Structure w/ post brackets (no canvas) DF302734 MSRP $4,000 24" Wave Armor Drape Canvas DF302642 MSRP $1,900 15' x 120" Hewitt Vinyl CWA-15x120??? MSRP $1,520 15' x 120" Hewitt Defender CWAD-15x120??? MSRP $1,900 24" Wave Armor Drape Canvas

12' × 14' / PRO 6 / pro maxx 6 PROTECT'R™ CANOPY

new!

Dims: 12' W × 14' L | Fits over (2 side-by-side) Pro 6 or Pro Maxx 6 ports DF302096 / DF302392. May require additional buoyancy boosters on the ports.

Structure w/ post brackets (no canvas) DF302775 MSRP $4,500 24" Wave Armor Drape Canvas DF302862 MSRP $1,833 48" Wave Armor Drape Canvas DF302927 MSRP $2,185

CWA-14x144??? MSRP $1,543 14' x 144" Hewitt Defender CWAD-14x144??? MSRP $1,929

14' x 144" Hewitt Vinyl

13' × 14' / PRO WB / pro maxx wb PROTECT'R™ CANOPY

new!

Dims: 13' W × 14' L | Fits over (2 side-by-side) Pro WB or Pro Maxx WB ports DF302400 / DF302743. May require additional buoyancy boosters on the ports.

Structure w/ post brackets (no canvas) DF302995 MSRP $5,130 24" Wave Armor Drape Canvas DF302928 MSRP $2,100 48" Wave Armor Drape Canvas DF303004 MSRP $2,350

CWA-14x156??? MSRP $1,668 14' x 156" Hewitt Defender CWAD-14x156??? MSRP $2,085

14' x 156" Hewitt Vinyl

100

DISTRIBUTED BY

H E W I T T R A D . C O M

CANOPIES

/ BOAT & Pontoon port PROTECT'R™ CANOPIES

9' × 17' / PRO 170 PORT

new!

Dims: 9' W × 17' L | Fits over Pro 170 Boat Port. May require additional buoyancy boosters under the port.

Structure w/ post brackets (no canvas) DF302996 MSRP $5,415

DF302929 MSRP $2,090 48" wave armor Drape Canvas DF303003 MSRP $2,375 17' x 108" Hewitt Vinyl CWA-17x108??? MSRP $1,585 17' x 108" Hewitt Defender CWAD-17x108??? MSRP $1,981

24" wave armor Drape Canvas

9' × 22' / PRO 220 PORT Dims: 9' W × 22' L | Fits over Pro 220 Boat Port. May require additional buoyancy boosters under the port.

Structure w/ post brackets (no canvas) DF302736 MSRP $5,250

DF302696 MSRP $2,250 48" wave armor Drape Canvas DF303002 MSRP $2,500 22' x 108" Hewitt Vinyl CWA-22x108??? MSRP $1,768 22' x 108" Hewitt Defender CWAD-22x108??? MSRP $2,294

24" wave armor Drape Canvas

/ PRO 8 PORT Dims: 9' W × 22' L | Fits over Pro 8 Boat Port. May require additional buoyancy boosters under the port.

Structure w/ post brackets (no canvas) DF302735 MSRP $5,250

DF302696 MSRP $2,250 48" wave armor Drape Canvas DF303002 MSRP $2,500 22' x 108" Hewitt Vinyl CWA-22x108??? MSRP $1,768 22' x 108" Hewitt Defender CWAD-22x108??? MSRP $2,294

24" wave armor Drape Canvas

/ CANOPies 101

CANOPIES

/ BOAT & Pontoon port PROTECT'R™ CANOPIES

10' × 28' / EXTREME X24 PORT new!

Dims: 10' W × 28' L | Fits over Extreme X24 Boat Port. May require additional buoyancy boosters under the dock.

Structure w/ post brackets (no canvas) DF302839 MSRP $6,000

DF302634 MSRP $2,781 48" Wave Armor Drape Canvas DF302930 MSRP $2,898 28' x 120" Hewitt Vinyl CWA-28x120??? MSRP $2,080 28' x 120" Hewitt Defender CWAD-28x120??? MSRP $2,711 24" Wave Armor Drape Canvas

/ PRO PONTOON PORT

Dims: 10' W × 28' L | Fits over Pro Pontoon Port. May require additional buoyancy boosters under the dock.

Structure w/ post brackets (no canvas) DF302737 MSRP $6,000

DF302634 MSRP $2,781 48" wave armor Drape Canvas DF302930 MSRP $2,898 28' x 120" Hewitt Vinyl CWA-28x120??? MSRP $2,080 28' x 120" Hewitt Defender CWAD-28x120??? MSRP $2,711

24" wave armor Drape Canvas

/ DOCK SLIP new!

Dims: 10' W × 28' L | Fits over standard 10' wide Wave Armor Dock Slip. Comes with post brackets.

May require additional buoyancy boosters under the dock.

Structure w/ post brackets (no canvas)

DF302841 MSRP $6,500

DF302634 MSRP $2,781 48" Drape Canvas DF302930 MSRP $2,898 28' x 120" Hewitt Vinyl CWA-28x120??? MSRP $2,080 28' x 120" Hewitt Defender CWAD-28x120??? MSRP $2,711 24" Drape Canvas

10' × 31' / PRO MAXX PONTOON PORT new!

102

Dims: 10' W × 31' L | Fits over Pro Maxx Pontoon Port. May require additional buoyancy boosters under the dock.

Structure with post brackets (no canvas) DF302921 MSRP $6,500 24" wave armor Drape Canvas DF302861 MSRP $2,895 48" wave armor Drape Canvas DF30DF3001 MSRP $3,135 31' x 120" Hewitt Vinyl CWA-31x120??? MSRP $2,730 31' x 120" Hewitt Defender CWAD-31x120??? MSRP $3,545

DISTRIBUTED BY

H E W I T T R A D . C O M

CANOPIES

*Image shown with transparent canvas to demonstrate how inline ports are installed underneath. Actual canopy drape is not transparent.

/ CANOPies 103

CANOPIES

104

DISTRIBUTED BY

H E W I T T R A D . C O M

CANOPIES

/ CANOPy accessories

Canopy Mesh Skirt 4 FOOT 5 FOOT 6 FOOT 8 FOOT 10 FOOT 11 FOOT 12 FOOT

Canopy Storage Net

LCXC-M4 MSRP $130 LCXC-M5 MSRP $162 LCXC-M6 MSRP $165 LCXC-M8 MSRP $262 LCXC-M10 MSRP $282 LCXC-M11 MSRP $302 LCXC-M12 MSRP $312

S 96” - 107” M 108” - 120” L 121” - 138”

42” (h) mesh skirt that attaches to the canopy frame work. Many sizes and combinations available. Call for more information.

LDCS1096 MSRP $174 LDCS1108 MSRP $174 LDCS1138 MSRP $174

Storage net creates storage under your canopy. Net protects gear from sun, rain, wind, and theft. Installs with quick release clips in minutes. No tools required.

Makes boating much more enjoyable. Turn your canopy into a boathouse today.

Bird Deterrent

Canopy LED Lighting

DBIRDC MSRP $228

LWHDDCLR MSRP $146

Keep birds away and your canopy clean. Bracket attaches to a lift upright and then over the canopy frame. Allows removal of your canopy cover without having to remove the bird deterrent.

Wireless light kit turns your boat and boat lift canopy into an extended evening entertainment area, adding ample light to continue the festivities. Just a quick click on the remote (included) will turn the lights on or off.

/ CANOPIES 105

DISTRIBUTED BY

106

POWER LAUNCH ASSIST

107

POWER LAUNCH

POWER LAUNCH

/ POWER LAUNCH ASSIST The patent pending Wave Armor Power Launch Assist™ Is designed to allow easy launching of your watercraft on the Wave Armor Pro 8, Pro 170/220, Pro Pontoon Ports and Extreme X24 ports. Constructed for ease of use, and durability, the Wave Armor Power Launch features simple push-button, remote-operated convenience, with built in auto return. It’s the easiest way to launch your watercraft.

The Wave Armor Power Launch is powered by a 12 volt battery system so there is no need to run AC power to the port.

POWER LAUNCH ASSIST FOR PRO 8, PRO 220 & 170 PORTS

DF302673 MSRP $1,225 Includes 1 bar system Battery sold separately Patent pending

POWER LAUNCH ASSIST FOR EXTREME X24 BOAT PORT

DF302672 MSRP $3,500 Retro fits all past Extreme models Includes bar system + bow stop Battery sold separately Patent pending

POWER LAUNCH ASSIST FOR PRO PONTOON PORT

DF302919 MSRP $1,225 Includes 1 bar system Battery sold separately Patent pending Not applicable to Pro Air Pontoon Port

/ POWER LAUNCH 109

DISTRIBUTED BY

110

KAYAK LAUNCH

111

KAYAK LAUNCH

112

DISTRIBUTED BY

H E W I T T R A D . C O M

KAYAK LAUNCH

/ KAYAK LAUNCH

KAYAK LAUNCH

DF302509 MSRP $2,100 Dims: 6.7’ W × 12.5' L (80" W × 150" L) Deck Height: 12" (Not including rails) Weight: 350 lbs.

Estimated Weight Capacity: 1,500 lbs.

The new Wave Armor Kayak Launch is made for the beginner or a seasoned kayaker. It’s great for getting on the water in early spring through late fall without getting your feet wet! A simple & safe solution - Also great for canals where you have seawalls.

• Can be attached to our beautiful Wave Armor dock, any standard fixed dock or other brands of floating docks • Rails feature strategically positioned ball-shaped hand grips for effortless entry and launching • Includes one set of rails, with option for second set for continuous travel-through • Optional Kayak Launch Rack installs onto the platform to provide smart, simple & handy storage • Underside pockets for additional boosters (Sold separately.)

6.7' 80"

KAYAK LAUNCH EXTRA RAILS

DF302510 MSRP $400 Dims: 6.25’ (75") L × 3” W × 19” H Weight: 60 lbs.

Includes 2 + hardware

KAYAK LAUNCH RACK

DF302511 MSRP $465

12.5' 150"

Dims: 6’ (72") H × 20” W (at base) × 32” D Weight: 25 lbs. each Includes 2 + hardware May require add-on boosters to Kayak Launch to support weight of kayaks.

See accessory section for options.

/ KAYAK LAUNCH 113

KAYAK LAUNCH

/ KAYAK LAUNCH / WAVE DOCK ATTACHMENTS PRO PORT SIDE CONNECTION TO WAVE DOCK FOR FRONT OF KAYAK LAUNCH KIT

DF302365 MSRP $375 This kit provides simple side attachment with brackets that slide directly on to our Wave Armor dock.

PRO PORT FRONT MOUNT TO WAVE DOCK FOR SIDE OF KAYAK LAUNCH

CONNECTOR PRO PORT SIDE

DF303285 MSRP $180

DF302196 MSRP $195

• Includes 2 + hardware

One piece receiving bracket slides directly into the H-Beam channel of the Wave Armor dock section.

Allows for hinged-like movement for wave action.

• Includes 2 + hardware

CONNECTOR WA DOCK TO PORT

DF301347 MSRP $195 • Includes 2 + hardware

/ FLOATING DOCK ATTACHMENTS PORT EASY LINK

DF302823 MSRP $328 Creates an H-Beam channel to connect Wave Armor products to EZ Dock®.

• 38.5" L x 10.5" H - Includes 2 • Requires a Wave Dock attachment to connect a port DF301346 (sold separately) Shown with DF301346 connection (sold separately)

x2

x2

PRO PORT CONNECTOR KIT

PRO PORT SIDE CONNECTOR KIT

DF302197 19.75” C-Channel MSRP $260 DF302198 25.75” C-Channel MSRP $260 This heavy duty poly bracket designed for the Pro Port series creates a receiver that attaches to the galvanized C-Channel on one side and connects with a pin to the port front mounting pocket. Designed to secure to any floating dock structure.

• Includes 2 + hardware

DF302507 25.75” C-Channel MSRP $320

PRO PORT CONNECTOR ONLY

This kit provides side attachment to other brands of floating docks with simple bolt-on C-Channels.

• Includes 1 + hardware x2

PRO PORT SIDE CONNECTOR ONLY DF303285 MSRP $180 • Includes 2 + hardware

23.5" C-CHANNELS ONLY DF303288 MSRP $180 • Includes 2 + Hardware • Required for many attachments to other floating docks

DF303289 MSRP $80 • Includes 2 + hardware

114

DISTRIBUTED BY

H E W I T T R A D . C O M

KAYAK LAUNCH

/ KAYAK LAUNCH / POST MOUNTS PRO PORT PIPE SLEEVE

Quick and easy drop-in installation utilizing mounting pipe holes in all 4 corners of the port.

Secured with stainless steel hardware.

DF302128 2” MSRP $85 DF302152 3” MSRP $85 • Simple installation DF302768 4” MSRP $85 • Rigid Rotomolded construction

• Bolt-on design • 2 pipe sleeves + hardware included

/ FIXED BRACKET MOUNTS Z-BRACKET PORT TO FIXED DOCK KIT

DF301281 FOR 2” PIPE MSRP $225 DF301282 FOR 4” PIPE MSRP $225 Galvanized steel z-bracket with u-bolt secures port to a fixed dock or sea wall allowing for free movement in fluctuating waters.

• (2) Z-brackets, (4) U-bolts + hardware included • Requires 2” or 4” pipe sleeves sold separately

/ ACCESSORIES PRO HALF CAP DF302414 QTY 4 MSRP $40 DF302415 QTY 24 MSRP $190

Cover unused mounting pockets for a finished look.

Fits: Extreme X24 DF301980 Pro Maxx Wide Body DF302743 Pro 220 DF302600 Pro 5 DF302098 Pro 170 DF302666 Pro Inline DF302499 Pro Pontoon Port DF302163 Pro 6 DF302096 Kayak Launch DF302509 Pro Wide Body DF302400 Pro Max Pontoon Port Pro Maxx 5 DF302390 Pro 8 Boat Port DF301937 Pro Side Extension DF302514 Pro Maxx 6 DF302392

PRO BUOYANCY BOOSTER

PRO BUOYANCY BOOSTER

BUOYANCY BOOSTERS

DF302685 MSRP 165 • Each booster adds 85 lbs. of buoyancy

DF302725 MSRP $195 • Each booster adds160 lbs. of buoyancy

DF302159 MSRP $230

$

for a total of 170 lbs.

• 24" x 24" x 6" • Includes 2

for a total of 320lbs.

• 24" x 36" • Includes 2

• Each booster adds 200 lbs. of buoyancy for a total of 400 lbs.

• 24" x 48" • Includes 2

/ KAYAK LAUNCH 115

DISTRIBUTED BY

116

RAFTS

117

RAFTS

118

DISTRIBUTED BY

H E W I T T R A D . C O M

RAFTS

/ OASIS RAFT

OASIS RAFT

DF302563 TAN DF302702 YELLOW MSRP $1,650 Dims: 105" L × 90" W × 12" H (8.75' × 7.5') Weight: 305 lbs.

Weight capacity: 2,000 lbs.

The Oasis Swim Raft by Wave Armor – your affordable gateway to a lifetime of aquatic enjoyment. This rotomolded raft offers durability and simplicity, perfect for everyday water fun. It's a smaller, cost-effective version of the iconic Otter Island Raft, designed to last a lifetime. Features one anchor point underneath for a Wave Armor anchor kit (sold separately) or universal anchor. Includes an attached durable aluminum ladder for getting in and out of the water with ease. Ladder flips up for seamless transport and storage.

/ OASIS RAFT 119

RAFTS

120

DISTRIBUTED BY

H E W I T T R A D . C O M

RAFTS

/ ISLAND RAFT

ISLAND RAFT

D1PSRBB TAN/BLUE D1PSRB TAN/GREEN D1PSRY YELLOW/BLUE D1PSRYG YELLOW/GREEN MSRP $2,195 Dims: 120” W × 96” L × 18” H (10' × 8') Weight: 425 lbs.

Weight capacity: 3,000 lbs.

This deluxe polyethylene swim raft includes ideal features such as backrests, a pop-up table and a pontoon style bottom for ultimate stability!

• Tough & Weatherproof, Roto-Molded Polyethylene Construction • Foam Filled Entire Body • Recessed Reflectors on All Sides • Non-Slip Surface • 4 Molded-in Anchor Attachment Points (on raft bottom) • Molded-in Handles (around entire raft bottom) • Multi-Angle Back Rests (also lay flat) • Storage Space Beneath Back Rests • Pop-Up Table with Beverage Holders (also lays flat) • Folding Aluminum Ladder • Rounded Corners • Options Available: Seat Cushions, Anchor and More

/ ISLAND RAFT 121

RAFTS

/ ISLAND & OASIS RAFT / ACCESSORIES HIGH VISIBILITY ANCHOR

DF300003 MSRP $120 Wave Armor’s high visibility poly Raft Anchor is a safe, do-it-yourself option to the typical store-bought raft anchor. Simply fill the anchor with sand and you’ve created a 140 LB raft anchor. The anchor’s universal design works with any swim raft on the market.

• Includes 1 • Rotational Molded High-Density Polyethylene • High Visibility • Rounded Top-Side (no sharp edges) • Top Eyelet (for connecting rope or chain) • Top Fill hole (fill with sand to create a 140 LB anchor) • Underside Claws (to securely hold lake bottom) • Dimensions: 26” Diameter × 10” H • Fits 135 lbs. of sand

ISLAND SWIM RAFT COVER

DF300050 MSRP $162 Wave Armor’s Protective Raft Cover protects your Island Swim Raft and Ladder during off season storage.

• 600 Denier Polyester • Double Polyurethane Coating • UV and Water-Resistant • Adjustable Buckle Clips (all corners) • Dimensions: 10' L × 8' W • Color: Tan

ANCHOR CLEVIS KIT WITH BUNGEES

ANCHOR CLEVIS & HARDWARE

All-in-one kit for the attachment of a raft anchor to your swim raft. Kit includes bungee and hardware. Available in single or double for use in different water conditions.

DF301547 MSRP $64

DF302209 MSRP $145 DOUBLE

122

DF302210 MSRP $90 SINGLE

DISTRIBUTED BY

Simple and secure, the U-Shaped Anchor Clevis fits the Island Swim Raft. Use this anchor clevis for attaching any anchor to your swim raft.

• Includes four (4) Anchor Clevis Fasteners • Hardware for mounting to raft

H E W I T T R A D . C O M

RAFTS

/ ISLAND & OASIS RAFT / bird deterrent

Removable

Bird Deterrent DBIRDR MSRP $147 Attaches to raft and will keep birds away and your raft clean. Removable when raft is in use.

DISTRIBUTED BY

/ ISLAND & OASIS RAFT 123

DISTRIBUTED BY

124

UNIVERSAL ACCESSORIES

125

UNIVERSAL ACCESSORIES

/ DOCK ACCESSORIES

LOWER DECK TO FLOATING DOCK ATTACHMENT KIT

LOWER DECK TO FIXED DOCK ATTACHMENT KIT

DF302381 MSRP $499

DF302512 MSRP $575

This universal lower deck attachment allows for Wave Armor’s Lower Deck Section (Not included #DF301096) and Wave Armor Kayak Assist (Not included #DF301753) to be installed to existing floating dock systems utilizing a top step and the galvanized C-Channel Brackets.

This universal lower deck attachment allows for Wave Armor’s Lower Deck Section (Not included #DF301096) and Wave Armor Kayak Assist (Not included #DF301753) to be installed to fixed docks and seawalls using a 2” pipe in conjunction with our 8-12” telescoping aluminum fixed dock brackets. 2” pipe is required for standalone installations (not included.)

• Weight limit DF300 lbs.

• Includes (1) Top Step, (2) C-Channel Brackets

• Weight limit DF300 lbs.

• Includes (1) Top Step and (2) 8-12” Telescoping Aluminum Fixed Dock Brackets • Pipe installation with 2” pipe (not included)

UNIVERSAL MAT RACK

UNIVERSAL KAYAK RACK

LOCKABLE DOCK BOX

DF300109 MSRP 495

DF302511 MSRP 465

L1HYPB MSRP $245

Dims: 79” H × 39” W Weight: 52 lbs.

Fastens to the outside of your dock/pier without interfering with valuable dock space, offering the utmost in storage convenience.

Dims: 6’ (72") H × 20” W (at base) × 32” D Weight: 25 lbs. each Fastens to the outside of your dock/pier without interfering with valuable dock space, offering the utmost in storage convenience.

Attach to the Wave Dock system or placing on a patio or other outdoor area, allowing you to store your items with convenience and peace of mind.

• Rotomolded Polyethylene, Weatherproof, UV-Resistant • Stores 2 mats, kayaks or canoes.

• Molded-In Eye-Loops In Each Arm (allows easy tie-down or bungee)

• Rotomolded Polyethylene, Weatherproof, UV-Resistant • Stores 3 Kayaks or Canoes • Molded-In Eye-Loops In Each Arm (allows easy tie-down or bungee)

• Dims: 31.25" L × 15.5" D × 15" H • Weight: 20 lbs.

• Hardware included

$

126

DISTRIBUTED BY

$

H E W I T T R A D . C O M

UNIVERSAL ACCESSORIES

BENCHES

DF300014 4’ MSRP $535 52” W × 37” H × 27” D, 60 lbs.

DF301092 5’ MSRP $650 64” W × 37” H × 27” D, 81 lbs.

DF300016 6’ MSRP $710

5’ DOCK BENCH BOX

76” W × 37” H × 27” D, 81 lbs.

DF301093 MSRP $375

Constructed of rotomolded granite compounded polyethylene, and featuring molded-in beverage holders and anchoring areas.

• Hardware included

Convenient, lockable storage solution. Mounts to back of 5’ Dock Bench (DF301092).

• Dims: 48” L × 15" W × 15” D • Weight: 42 lbs.

• Hardware included

UNIVERSAL 10” DOCK CLEAT UNIVERSAL DOCK STEP DF302769 MSRP $449

DF301778 MSRP $27

Designed with non-slip surface and tiered steps on both sides providing easier and safer access to boats and pontoons. Hinged step folds down to close the gap between step and boat when loading and flips up out of the way when loading boat onto the lift. Installs directly onto dock surface.

Wave Armor’s signature design provides a safer walking surface and secure tie down option. This universal model will work with any kind of dock surface.

• Includes 1 • Hardware NOT included

• Hardware included • Dims: 16" H × 24" W × 41" L • Weight: 35 lbs.

BUMPER DOCK WHEEL DF300021 2” WHITE MSRP $59 DF301032 2.5” BLACK MSRP $59 Wave Armor Universal Dock Bumper Wheels are constructed of durable poly-vinyl material and provide superior strength with unmatched quality! The Dock Bumper Wheels simply slide over any galvanized dock post, protecting your boat and dock when entering or exiting.

/ DOCK ACCESSORIES 127

UNIVERSAL ACCESSORIES

128

DISTRIBUTED BY

H E W I T T R A D . C O M

UNIVERSAL ACCESSORIES

/ WHEELS 10” & 14” Wheel Corner Mount D1CR10WE 10” WHITE MSRP $133 D1CR10BK 10” BLACK MSRP $133 D1CR14WE 14” WHITE MSRP $204 D1CR14BK 14” BLACK MSRP $204 These dock wheels are designed to gently roll your watercraft along the dock. Attaches to corners of dock. Material: Marine-grade PVC.

DOCK WHEEL LOCKING COLLAR DF300085 MSRP $30 Secures dock wheel in place on the axle.

BUMPER DOCK WHEEL WHITE DF300021 2” MSRP $59 BLACK DF301032 2.5” MSRP $59 Wave Armor Universal Dock Bumper Wheels are constructed of durable poly-vinyl material and provide superior strength with unmatched quality! The Dock Bumper Wheels simply slide over any galvanized dock post, protecting your boat and dock when entering or exiting.

D1BDW12COLLAR MSRP $16.25 Locking Collar. Nylon bushing with nylon set screws for easy height adjustment and locking wheel from being raised.

Dock wheels pre-drilled DF300447 24” MSRP $66.75 1,150 lb load cap | 24” h x 8.5” tread width DF300450 24” NON-VENTED MSRP $124 1,150 lb load cap | 24” h x 8.5” tread width Wave Armor Dock Wheels are ideal for roll-in docks, boat lifts, and unlimited other uses.

These polyethylene Dock Wheels never go flat, wear out, or rust on the shaft! Wave Armor is the original manufacturer of the “MaintenanceFree” Poly Dock Wheel. Our Dock Wheels are rotational molded using a durable & virtually indestructible polyethylene material, producing a one-piece seamless tire. The heavy-duty construction and wide footprint design allow these dock wheels to roll over the roughest terrain with ease.

• Pre-drilled to avoid extra flotation after submerging into the water • Roto-Molded Polyethylene construction • 2-Inch Axle Opening (slides over 1-1/2 inch pipe) • Provides simple and easy dock installation and removal

18” 24”

18” and 24” Roll-In Wheel For use with roll-in dock and lift applications. Wheels weigh 12 pounds each with an estimated weight limit of 750 pounds each or 1500 pounds per pair.

High strength plastic wheel with UV protection. Colors: Black

18” Diameter, 8” Wide D1TIRE18-114 1-1/4” axle, 1-5/8” od MSRP $50 D1TIRE18-112 1-1/2” axle, 1-7/8” od MSRP $50 D1TIRE18-2 2” axle, 2-3/8” od MSRP $50

24” Diameter, 8” Wide D1TIRE114 1-1/4” axle, 1-5/8” od MSRP $62 D1TIRE112 1-1/2” axle, 1-7/8” od MSRP $62 D1TIRE2 2” axle, 2-3/8” od MSRP $64

/ WHEELS 129

UNIVERSAL ACCESSORIES

Shown with beige ThruFlow decking, sides and handrailings painted with oil-rubbed bronze.

130

DISTRIBUTED BY

H E W I T T R A D . C O M

UNIVERSAL ACCESSORIES

/ adjustable stairs

Looking for Something Unique?

Hewitt Custom Adjustable Stairs are completely custom with lots of options. Shown with beige aluminum steps and painted side and hand railings. Choose from 13 colors and either aluminum or ThruFlow decking.

•

Widths 3', 4', 5', 6'

custom adjustable stairs

custom paint option Customize with 13Hammer color options, PAINT OPTIONSyour FORStaircase Silver SIDES/HANDRAILING & 53 for more see page details.

Semi-Gloss ALUMINUM STEP TREADS Oil Rubbed Bronze

Flint Grey Texture

Mock Rock Texture

Green

Peco Black

Cracked

Cardinal Heather Grey

Brown Speck Texture

Blue Hammer

Black Hammer

Silver Vein with Clear Topcoat

Beige Texture Semi-Gloss

decking option Customize your Staircase with 13 color options, see page 53 for more details.

Aluminum

ThruFlow

/ ADJUSTABLE STAIRS 131

UNIVERSAL ACCESSORIES

132

DISTRIBUTED BY

H E W I T T R A D . C O M

UNIVERSAL ACCESSORIES

/ steps

Dock 4-Step

Dock 3-Step with Solid Sides

D1STEP4 MSRP $750

Dock 3 step stairs - White D1STEP3W MSRP $628

These all aluminum steps offer a 8” x 32” aluminum tread, ideal for young children to the elderly. Ensures safe entrance or exit from the water. The step system comes with attachment bracket that fits most docks, two hand railings and two front legs with pads.

Dock 3 step with railing - White D1STEP3WWR MSRP $727 Dock 3 step stairs - Beige D1STEP3b MSRP $660 Dock 3 step with railing - Beige D1STEP3bWR MSRP $759 Perfect for areas with a rise from the shore to the deck of the dock. Aluminum construction with 36” powder coated stair treads. Top step is 24” tall, longer lengths available.

26”

57”

35”

36”

32” 33”

White 25” Legs with 7” of adjustment

1-1/4”

Beige

Attachment Bracket

/ STEPS 133

UNIVERSAL ACCESSORIES

134

DISTRIBUTED BY

H E W I T T R A D . C O M

UNIVERSAL ACCESSORIES

/ ladders 16-1/4”

16-1/4” 17” 18-3/8”

10-1/2”

91”

10-1/2” 17” 70-1/4 70-1/2”

18-3/8”

10-1/2”

10-1/4”

10-1/2” 50”

10-1/2”

10-1/4”

10-1/4” 3-1/2”

3-1/2”

Heavy-Duty All-Aluminum Ladder

Aluminum Ladder Hinges

D1LADA4 4 steps MSRP $196 D1LADA42 4 steps (2 piece) MSRP $279 D1LADA6 6 steps MSRP $259 D1LADA62 6 steps (2 piece) MSRP $340

D1LADH MSRP $61

Ladder constructed of heavy-duty 1-1/2” square aluminum to resist corrosion. Ladder features 3-1/2” extruded aluminum channel serrated to produce a non-skid surface rung with no sharp edges.

Ladder rated 665 lb per rung.

Aluminum hinge allows you to swing ladder to an upright position. (Drilling required in ladder.)

• 1 pair

Ladder Mounting Hardware D1LADM MSRP $16.75 Hardware for mounting 4 and 6 step ladders. Used with deck thickness up to 2-1/2”.

/ LADDERS 135

UNIVERSAL ACCESSORIES

/ augers, pipes, and holder Augers Attach auger at end of post and turn post to auger into the bottom of lake bed.

DB800-standard 1-5/8” inside diameter (slides over pipe) DAMUDP MSRP $19.50 DB903-medium 1-7/8” inside diameter (slides over pipe) DAMUDPM MSRP $21

7-1/2”

7-1/2”

DB400-large 2” outside diameter (slides inside pipe) Requires drilling and 3/8” x 3” bolt and nut.

DAMUDPLG MSRP $21

Post Ratchet DAPR MSRP $166 Provides leverage to easily install and remove pipes with augers. This 19” handle and reversible ratchet fits 1-1/4”, 1-1/2’, and 2” pipes up to 2-1/4” O.D.

Support Stand Pipes ID Aluminum 1-1/4”

OD

5’

8’

10’

12’

21’

24’

1-1/2”

DAP5 $28

DAP8 $39

DAP10 $47

DAP12 $59

DAP20 $85

N/A

Galvanized - (All Galvanized pipe is schedule 40) 1-1/4”

1-1/2”

DGP51/4 $46

DGP81/4 $70

DGP101/4 $75

DAP121/4 $89

DGP211/4 $135

DGP241/4 $170

1-1/2”

1-3/4”

DGP5M $60

DGP8M $80

DGP10M $95

DGP12M $125

DGP21M $176

DGP24M $205

2”

2-1/4”

DGP5L 65

DGP8L 105

DGP10L 135

DGP12L 155

DGP21L 230

DGP24L $227

2-1/2”

2-3/4”

N/A

N/A

N/A

DGP12XL $230

DGP21XL $395

DGP24XL $420

DGP10LWA $165

DGP12LWA $200

DGP14LWA $185

DGP23LWA $373

$

$

$

$

$

Galvanized pipe with auger and hole for post ratchet.

2”

2-1/4”

N/A

DGP8LWA $145

Fishing Rod/Cup Holder D1ROD MSRP $102 Rigid aluminum bracket mounts to 1-1/2” outside diameter post.

Two flush-mount cup holders and two mounted rod holders along with a spot for a needle-nose pliers.

136

DISTRIBUTED BY

H E W I T T R A D . C O M

UNIVERSAL ACCESSORIES

/ bunks and bunk treads

Replacement Carpet

Trailer Jack Stand Donut D1BJD MSRP $15.25 Keep your trailer jack from sinking into the ground or moving.

•

Marine-grade PVC.

Heavy-duty all-weather carpet with thick backing is designed to replace worn and frayed bunks. The marine-grade carpet will not rot or mildew. UV fade and fray resistant. One of the strongest on the market!

• • •

Weight: 14 oz. per square yard Material: Interlocked Polypropylene Fibers Backing: 10 oz. Marine Back

11” x 30’ 16” x 30’ 20” x 30’ 26” x 30’

for two 14’ for two 14’ for two 14’ for two 14’

1” x 4” LCarpetV MSRP $88 2” x 6” LCarpetB MSRP $90 Guides LCarpeTG MSRP $143 2” x 10” LCarpetBL MSRP $156

4”

6”

Bunk Glide On Slide easily on or off. Self Centering and constructed with enhanced PVC. For painted, fiberglass or aluminum boats. Fits Standard bunk boards. (Includes mounting screws.)

2”x6” - Four 13” end caps, Four 36” middles White 2” x 6” Glide On D1BG26WE MSRP $57 Black 2” x 6” Glide On D1BG26BK MSRP $57 2”x4” - Four 50” pieces White 2” x 4” Glide On Black 2” x 4” Glide On

D1BG24WE MSRP $57 D1BG24BK MSRP $57

/ UNIVERSAL ACCESSORIES 137

UNIVERSAL ACCESSORIES

/ post caps and covers White

Black

Blue

Green

Tan

Light Gray Dark Gray Chocolate

Red

Khaki

Teal

Flat Top Post Caps

Round Top Post Caps

Round Rubber Pipe Cap Round marine-grade vinyl caps fit over the top of dock pipes.

• •

Colors: Blue, Red, Black, White, Green, Tan, Light Gray, Teal, Khaki Volume Pack 100 pcs

Pole Cover

With Flat Top

With round Top

1-1/4” Cap for 1-1/2” OD Pipe

MSRP $3.25

1-1/4” Cap for 1-1/2” OD Pipe

MSRP $3.50

Blue Red Black White Green Tan Light Gray

D1RC114BE D1RC114RD D1RC114BK D1RC114WE D1RC114GN D1RC114TN D1RC114GYL

blue red black White Green Light Gray Teal Khaki

D1RRC1-1/4bE D1RRC1-1/4rd D1RRC1-1/4bk D1RRC1-1/4WE D1RRC1-1/4GN D1RRC1-1/4GYL D1RRC1-1/4TL D1RRC1-1/4KI

1-1/2” Cap for 1-3/4” OD Pipe

MSRP $4.00

Blue Red Black White Green Light Gray Teal Khaki

D1RRC1-1/2BE D1RRC1-1/2RD D1RRC1-1/2BK D1RRC1-1/2WE D1RRC1-1/2GN D1RRC1-1/2GYL D1RRC1-1/2TL D1RRC1-1/2KI

2” Cap for 2-1/4” OD Pipe

MSRP $4.25

Large Cover MSRP $32

blue Black White Green Tan Light Gray Teal

D1RRC2-Be D1RRC2-BK D1RRC2-WE D1RRC2-GN D1RRC2-TN D1RRC2-GYL D1RRC2-TL

2-3/4” ID for 2” Pipe

1-1/2” Cap for 1-3/4” OD Pipe

MSRP $3.50

Blue Red Black White Green Light Gray

D1RC112BE D1RC112RD D1RC112BK D1RC112WE D1RC112GN D1RC112GYL

2” Cap for 2-1/4” OD Pipe

MSRP $3.75

Blue Red Black White Green Tan Light Gray

D1RC2BE D1RC2RD D1RC2BK D1RC2WE D1RC2GN D1RC2TN D1RC2GYL

138

DISTRIBUTED BY

The 36” pipe covers are designed to slide over 1-1/4”, 1-1/2” or 2” dock pipe to provide a uniform look to your dock. They can be trimmed to any size for custom applications.

• • • •

Material: Marine-grade PVC Slides easily over dock pipes.

White, Black, Blue, Green, Tan, Light Gray, Khaki Volume Pack 12 pcs

Installation: Trim the pipe covers to your desired length and slide them over your dock pipe.

Small Cover MSRP $18.25 2” ID for 1-1/4 and 1-1/2” Pipe White Black Blue Green Tan Light Gray Khaki

White Black Blue Green Tan Light Gray Khaki

D1PG114WE D1PG114BK D1PG114BE D1PG114GN D1PG114TN D1PG114GYL D1PG114KI

D1PG2WE D1PG2BK D1PG2BE D1PG2GN D1PG2TN D1PG2GYL D1PG24KI

H E W I T T R A D . C O M

UNIVERSAL ACCESSORIES

/ piling caps

Cone Piling Cap

Piling Caps Keep birds from roosting in your pilings. Mildew inhibitors and UV stabilized. Available in white or black.

Flat Piling Cap Black 6.5” Flat White 7” Flat Black 7” Flat White 7.5” Flat Black 7.5” Flat White 8” Flat Black 8” Flat White 9” Flat Black 9” Flat White 10” Flat Black 10” Flat White 10.5” Flat Black 10.5” Flat White 11” Flat Black 11” Flat White 12” Flat Black 12” Flat

FPC65B MSRP $14.50 FPC7W MSRP $15.75 FPC7B MSRP $15.75 FPC75W MSRP $15.75 FPC75B MSRP $15.75 FPC8W MSRP $16.75 FPC8B MSRP $16.75 FPC9W MSRP $16.75 FPC9B MSRP $16.75 FPC10W MSRP $16.75 FPC10B MSRP $16.75 FPC105W MSRP $17.50 FPC105B MSRP $17.50 FPC11W MSRP $16.75 FPC11B MSRP $16.75 FPC12W MSRP $17 FPC12B MSRP $17

White 7.0” Cone Black 7.0” Cone White 7.5” Cone Black 7.5” Cone White 8.0” Cone Black 8.0” Cone White 8.5” Cone Black 8.5” Cone White 9.0” Cone Black 9.0” Cone White 9.5” Cone Black 9.5” Cone White 10.0” Cone Black 10.0” Cone White 10.5” Cone Black 10.5” Cone White 11.0” Cone Black 11.0” Cone White 11.5” Cone Black 11.5” Cone White 12.0” Cone Black 12.0” Cone

CPC7W MSRP $14.25 CPC7B MSRP $14.25 CPC75W MSRP $14.25 CPC75B MSRP $14.25 CPC8W MSRP $14.25 CPC8B MSRP $14.25 CPC85W MSRP $14.50 CPC85B MSRP $14.50 CPC9W MSRP $15.75 CPC9B MSRP $15.75 CPC95W MSRP $16 CPC95B MSRP $16 CPC10W MSRP $16.25 CPC10B MSRP $16.25 CPC105W MSRP $17.75 CPC105B MSRP $17.75 CPC11W MSRP $17.75 CPC11B MSRP $17.75 CPC115W MSRP $19 CPC115B MSRP $19 CPC12W MSRP $18 CPC12B MSRP $18

/ CAPS AND COVERS 139

UNIVERSAL ACCESSORIES

/ adjustable bumpers

Front

Front

Back

Back

30” Half-Round Bumper with Aluminum Backer MSRP $65 White Black Blue Light Gray Chocolate Green Tan Khaki

VERTICAL: D1BU30VWE D1BU30VBK D1BU30VBE D1BU30VGYL D1BU30VCE D1BU30VGN D1BU30VTN D1BU30VKI

HORIZONTAL: D1BU30HWE D1BU30HBK D1BU30HBE D1BU30HGYL D1BU30HCE D1BU30HGN D1BU30HTN D1BU30HKI

End View

2-1/4”

Dims: 30” l x 5” w x 2.25" d

5”

These bumpers are specially designed to work with modern truss-style docking. The bumpers have an aluminum extrusion inside the bumper with a rail exposed on the back side. The rail holds the bolt heads that can slide up or down the bumper to adjust the height before the hardware is tightened. Marine-grade PVC, Aluminum core.

• Installation: Simply place the bumper in the desired location and attach the back plate and nuts.

• Colors: White, Black, Blue, Light Gray, Chocolate, Green, Tan, Khaki • Volume Pack 12pcs

140

DISTRIBUTED BY

H E W I T T R A D . C O M

UNIVERSAL ACCESSORIES

/ adjustable bumpers

Front

Back End View

36” Bumper with Aluminum Backer MSRP $48 White Black

2” DEEP D1BU36WA2W D1BU36WA2B

3-1/2” DEEP D1BU36WAXW D1BU36WAXB

2” 4-1/2”

3-1/2”

Dims: 36” l x 4.5” w x (depth above) These bumpers are specially designed to work with modern truss-style docking.

The bumpers have an aluminum extrusion inside the bumper with a rail exposed on the back side. The rail holds the bolt heads that can slide up or down the bumper to adjust the height before the hardware is tightened. Low density polyethylene, Aluminum core.

4-1/2”

• Installation: Simply place the bumper in the desired location and attach the back plate and nuts.

• Colors: White, Black • Volume Pack 14pcs

/ ADJUSTABLE BUMPERS 141

DISTRIBUTED BY

142

REPLACEMENT PARTS

143

REPLACEMENT PARTS

/ WAVE DOCK REPLACEMENT PARTS

SOLAR LIGHT

SNAP-IN PLUG

DF301126 MSRP $125

DF301574 MSRP 38

DF302073 MSRP $30

• Qty 20

• Qty 2

• Qty 2

2” PIPE CAP PLUG $

/ PRO 8 REPLACEMENT PARTS

PRO 8 BLUE WHEEL KIT

PRO 8 UPPER RED WHEEL KIT

DF302656 MSRP 55

DF302655 MSRP 55

• Qty 1

• Qty 1

$

$

ADDITIONAL BLUE PINS

DF302695 MSRP $60 • Qty 2

/ EXTREME X24 REPLACEMENT PARTS

EXTREME CENTER KEEL ROLLER

EXTREME ENTRANCE ROLLER

EXTREME ADDITIONAL KEEL REST

DF302708 MSRP $376

DF302710 MSRP $382

DF301799 MSRP $90

• Qty 1

• Qty 1

• Qty 1

/ PONTOON PORT REPLACEMENT PARTS

PONTOON LEFT ENTRANCE SKID PLATE

PONTOON RIGHT ENTRANCE SKID PLATE

DF302580 MSRP 333

DF302581 MSRP $333

• Qty 1

• Qty 1

$

144

DISTRIBUTED BY

H E W I T T R A D . C O M

REPLACEMENT PARTS

/ PRO PORT REPLACEMENT PARTS

PRO PORT BLUE WHEEL

PRO PORT RED WHEEL

PRO PORT BLUE ENTRANCE WHEEL

PRO BLUE CONNECTOR PINS

DF302654 MSRP $55

DF301878 MSRP $48

DF302653 MSRP $49

DF302695 MSRP $60

• Qty 1

• Qty 1

• Qty 1

• Qty 2

/ SLX REPLACEMENT PARTS

SLX RED WHEEL KIT DF301929 MSRP $33 • Qty 1

STAINLESS STEEL TETHERING CHAIN & CLIP DF301269 MSRP 40

/ ISLAND SWIM RAFT

$

SLX BOW STOP TAN

SLX BOW STOP GRAY

DF301108 MSRP $82

DF302519 MSRP $82

/ DOCK WHEELS

LADDER REPLACEMENT PINS

DOCK WHEEL LOCKING COLLAR

DF300945 MSRP $22

DF300085 MSRP $30

• Qty 2

/ POWER LAUNCH POWER LAUNCH CONTROL BOX

DF302799 MSRP $515

/ REPLACEMENT PARTS 145

REPLACEMENT PARTS

/ HARDWARE KIT INSTALLER HARDWARE KIT

DF302719 MSRP $380 • Comes with a case (case subject to change) • (30) oval washers • (80) 3/8 split lock stainless steel washers • (80) 3/8 .12 thick stainless steel washers • (50) 3/8 16x1 1/4 hex head stainless steel bolts • (50) 3/8 16x2 stainless steel bolts • (20) 3/8 16x3 1/2 stainless steel bolts

OVAL WASHERS • Qty 10 • Common use: Dock

3/8 SPLIT LOCK STAINLESS STEEL WASHERS

3/8 .12 THICK STAINLESS STEEL WASHERS

102396 MSRP $3.50

102397 MSRP $5.50

• Qty 10

• Qty 10 • Common use: All parts

3/8 × 1 1/4 HEX HEAD STAINLESS STEEL BOLT

3/8 × 2 HEX HEAD STAINLESS STEEL BOLT

102398 MSRP $5.75

102399 MSRP $8.75

3/8 × 3 1/2 HEX HEAD STAINLESS STEEL BOLT

• Qty 10 • Common use: Pipe sleeves

• Qty 10 • Common use: Most attachments

102395 MSRP $24

146

DISTRIBUTED BY

102400 MSRP $9.25 • Qty 10 • Common use: Ladder, Dock bench, brackets

H E W I T T R A D . C O M

REPLACEMENT PARTS

147

DISTRIBUTED BY 709 Old Hwy 14, Nicollet, MN 56074 Weekdays, 7:30 am to 4:00 pm CST Ph: 507.225.3421 or 800.544.2067 Fax: 507.225.3053 www.hewittrad.com

PART #: HPBROCW | PRINTED IN THE USA 620220
