ict + powered by vectralis

ict

testing the future now

in circuit testing + powered by vectralis

Thanks to Brain Power Network, we are leaders in turnkey systems.

We dedicated +15 years of experience in developing solutions for In-Circuit testing.

By integrating high-end technology, we can ensure the best program stability.

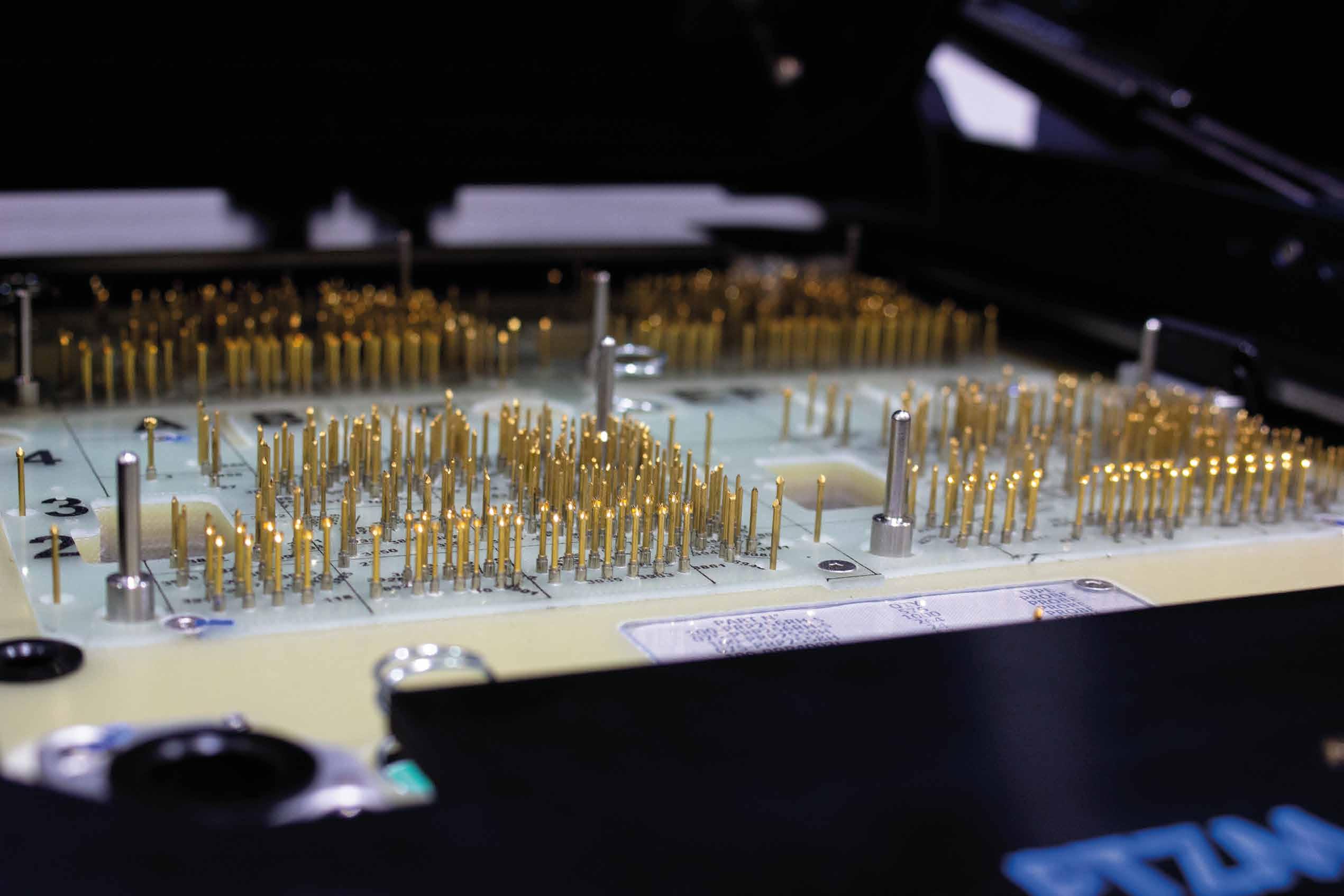

bed of nails

3fs

3 focus system

vectralis is an exclusive TERADYNE partner, with TERADYNE platform equipment in our testing laboratory and showroom.

These platforms are developed to ensure the highest test coverage, processing speed, and increased test outputs, through their parallel programming with the option of two verification heads.

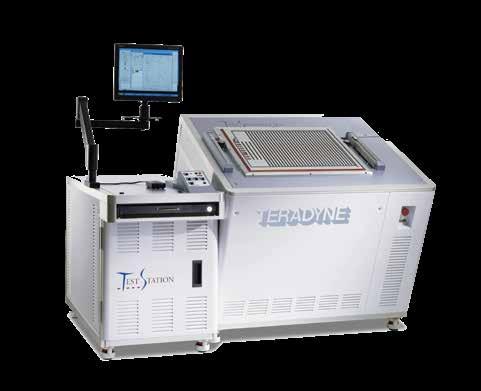

LH

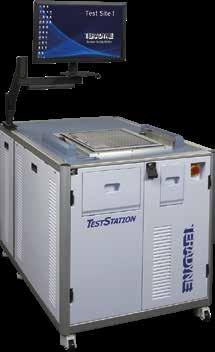

LX

station

station

•Single test site •16 pin board slots •4,096 max. test points •1102 x 832 x 878 mm

•Single test site •30 pin board slots •7680 max. test points •1672 x 844 x 1130 mm

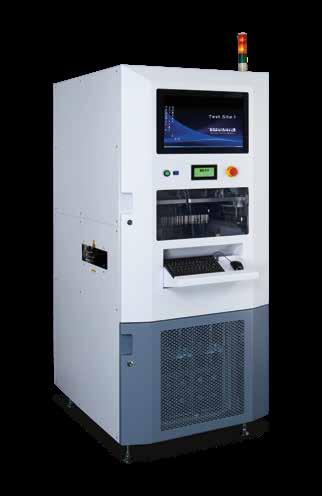

TSH

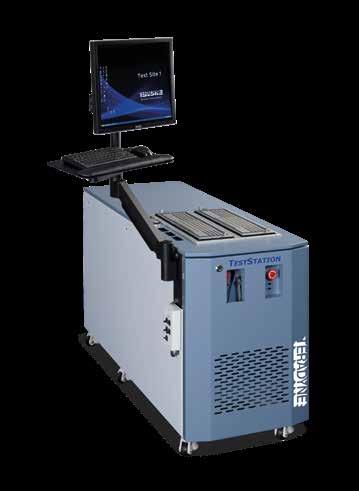

TSO

•Single/Dual test site •5 pin board slots/site •2,560 max. test points/site •850 x 1,170 x 1,904 mm

•Single/Dual test site •5 pin board slots/site •2,560 max. test points/site •600 x 1,560 x 1,980 mm

station

We are the best and most thoroughly integrated team of ICT+v engineers in Mexico.

14

software engineers

station

6

mechanical engineers

6

APPsupport engineers

7

HWsupport enginners

We can manufacture from the simplest to the most complex equipment.

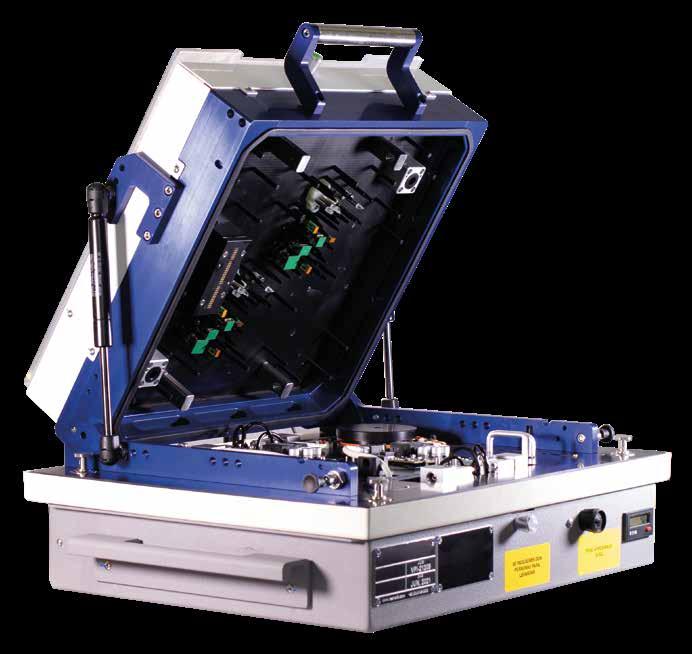

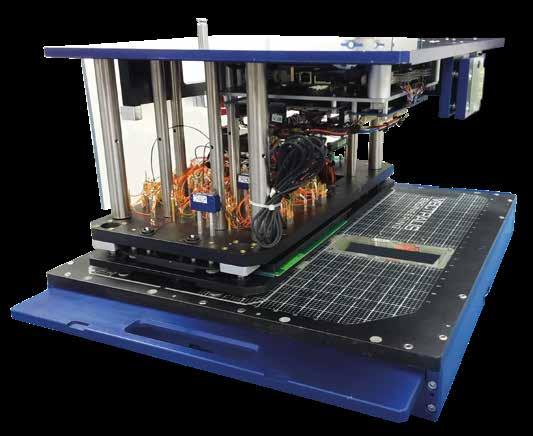

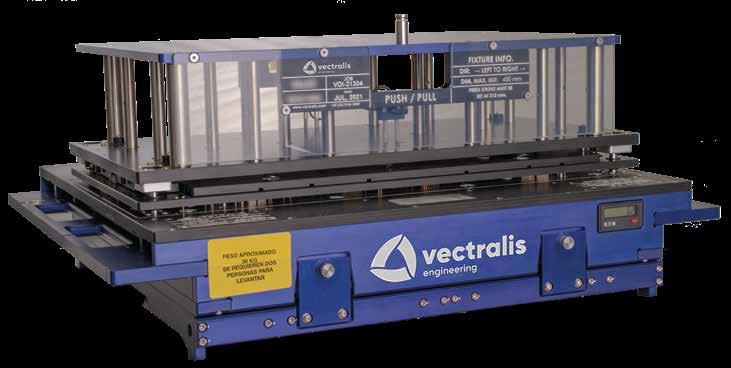

Platform Fixtures

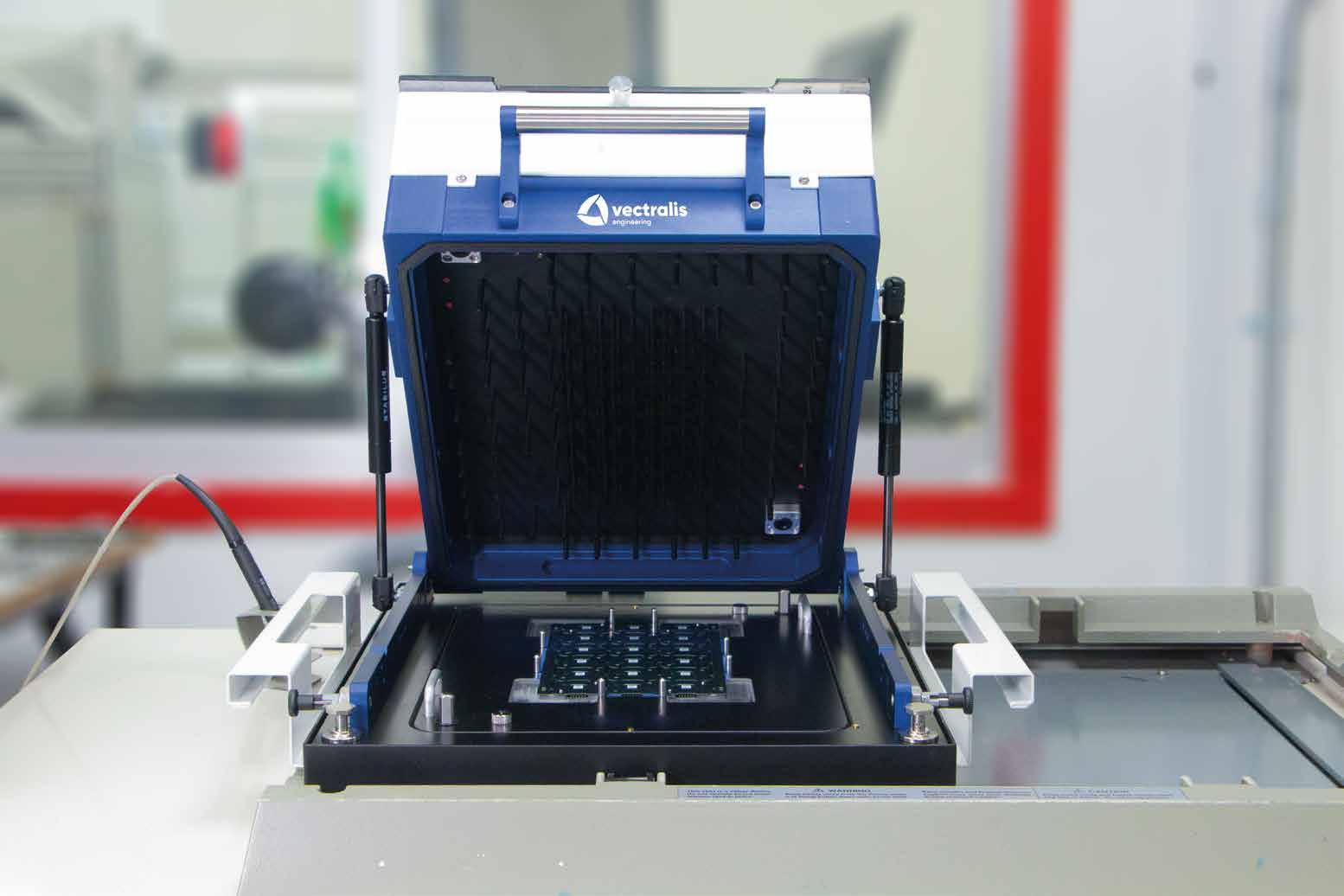

Off-line

fixture

TSLH, TSO & LX platforms

In-line fixture TSH platforms

HP 3070

We are qualified to deliver solutions and services for Keysight’s In&Off-line platforms.

Off-line

fixture 3070

In-line fixture 3070

With Keysight platform off-line equipment in our testing laboratory, we are fit to deliver all fixtures already debugged, ready for on-site fine tuning.

All this allows meeting the different requirements of our customers, offering capabilities such as:

test capabilities Analog, Digital, Hybrid, Power Up On board programming External programmer device integration (SMH) Boundary scan Pre-functional test LED test LED binning CAN Bus, LIN, & others Temperature sensor VTEP / Framescan Swith probes sensors

interaction capabilities Interaction with the UUT (pneumatic, electric) MES integration Board markers Automatic scanners Self-openers system Sweep sensors Activation of vacuum or pneumatic system Dual stage fixtures Fixture up to 5000 pins X-probe technology

analysis tools Always with the advantages of after-sales service through the efficiency of our support and service.

FEA - Finite elements analysis Strain gauge analysis - 450us R&R repeatability study Component failure analysis Study of test coverage and stability Cp / Cpk analysis to ensure high yields Design for testability (DFT) Advice / Training on the complete solution

We have an optimal solution for your needs.

Do you require a quote? Share us CAD, BOM, GBR, Schematics.

+52 (33) 3165-2000 sales@vectralis.com www.vectralis.com
