the house on anderson avenue

An adaptive reuse From office to apartment In Manhattan, Kansas Completed in 11 weeks Of the fall semester of 2024

6

Existing Non-Academic Housing

Existing Academic Housing

Homes are adjacent to one another along a street

Units are stacked on one another to house as many

making up a neighborhood.

students as possible.

Existing Building The Unger Complex serves as an office space with its fixed structure and form.

A House of Houses The proposal is an amalgamation of the two housing typologies and the existing structure.

7

Floors Are Neighborhoods Each

typical

unit

plan

pays

homage

to

the

two

existing housing typologies connected by streets.

8

Neighborhood Floor Plan

9

Street Elevation

Entry Elevation

10

West Section

11

Detail Notes Western States Metal Roofing

Wall Panel

1.

Vertical 7/8” Western Wave® Wall Panel

2.

Western States Metal Roofing: Window/Door Head Trim Western States Metal Roofing: Z-Metal Trim

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

Horizontal 7/8” Western Wave® Wall Panel Western States Metal Roofing: Window/Door Jamb Western States Metal Roofing: Window/Door Sill Trim Western States Metal Roofing: 7/8 Transition Trim Construction Layers Cavity Insulation Gypsum Sheathing Rigid Insulation Wood Substrate Vapor Barrier Gypsum Board ClarkDietrich Steel ClarkDietrich: 3” Cold-Formed Steel C-Stud

14.

15. ClarkDietrich: 3” Z-Furring Channel 16. Box Header Framing 17. ClarkDietrich: 3” U-Channel

18. ClarkDietrich: 7/8” Hat Furring Channel

8 9 10 11 12

13 14 15

1 2 3 4

19. Hidden #10x1” Pancake Woodgrip Screw 20. Manko: Window Head System

16

5

6 7

1-7 8-13 14-18

8 9 10 11 12

19 16 13

3 2 20

17 18

Metal Wall Panel Detail

Facade Exploded Axonometric

12

2

the interpretative center of the six nations

A culture center For the six Native American nations I n To p e k a , K a n s a s Completed in 8 weeks Of the fall semester of 2023

14

D i s c o v e r y o f Te n s i o n C o l l a g e A study in the hidden narrative between site context and project proposal. Adjacent structures were symbols of assimilation on Native American culture.

Award of Distinction, Design Communication Assoc. 2024 Architectural Drawing Exhibition

15

Reversing Methodology of the Built Environment

A b s t r a c t i n g Fo r m a l Ty p o l o g y o f To p e k a

This diagram became a conceptual baseline, the

Surrounding

question, “what would architecture have been pre-

assimilation which are then abstracted to become

European conflict?”

echoes of the past.

building

context

Earth

Nestle

Migration

Integration

Growth

Discovery

16

are

forms

of

10

11

12

12

5

6

18 9

7

4

3

Floor Plan

North Section

17

13

Key 1. Entry 2. Lobby 3. Cafe 4. Cafe Kitchen 8

5. Council Chamber 6. Classroom 7. Apartments

16

8. Archives 9. Open Office 10. Conference Room

14

11. Director’s Office 12. Office 13. Performance Hall 14. Outdoor Amphitheater 15. Gallery 16. Outdoor Gallery 15

2

1

18

Entry

Above

19

20

3

the chelsea white box theatre

A whitebox theatre Appreciating the context In Chelsea District, Manhattan, NYC Completed in 8 weeks Of the spring semester of 2024

22

The Flux of Chelsea Collage A study of the Chelsea neighborhood’s inherently theatrical character. The history of the site is investigated to understand the construction of the well-known project the High Line. The prospected design situates adjacent to the high line and resides between communities prominently divided, a middle ground.

23

Missing Coexistence

Settled Residence

Leveled Connection

Punctured Stage

Nestled Stage

Framed Context

Parti The theatre serves as a middle ground between interactions as the stage of Wrapped Services

the Chelsea district.

24

Te n t h S t r e e t E l e v a t i o n

Punctured Section

25

26

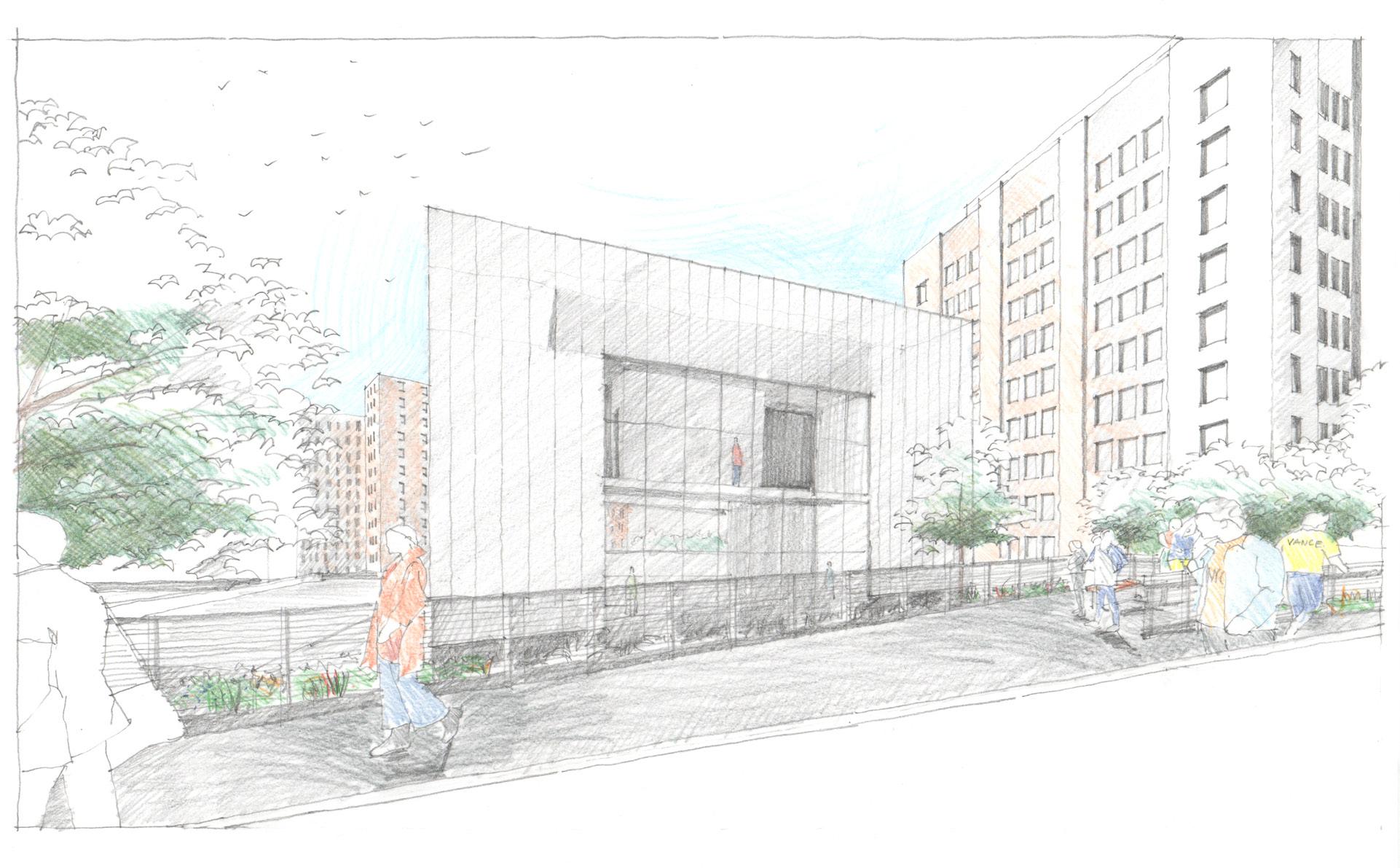

Approach

27

High Line

Performance

28

4

a gathering place in west baltimore

A Park and Transit Hub For the community In West Baltimore, Maryland Completed in 8 weeks Alongside the fall semester of 2024

This project was an entry in the 2024 BGL NOMA Student Design Competition. This project was completed with other s t u d e n t s ; B r i n l e e D e e t e r , H e n r y R o h r s , C o o p e r S a n d h e i n r i c h , S a m u e l N i c ko l s , J o s h G a d d y, C h r i s Ta p i a , a n d R y l i e Va r d i m a n

30

The Highway to Nowhere Collage The Highway to Nowhere underwent construction as a response to migration with a priority on moving cars rather than people. The plan was to create a space that would patch and heal the wounds of the highway through a place of gathering

31

Issue People migrated from the urban to the suburbs, the incentive to connect and bridge the gap between the spaces emerged.

Existing The Highway to Nowhere was constructed in efforts to connect the suburbs to the urban but destroyed communities in the process.

Proposed Opportunities exist for a new park in hopes to revitalize the communities and connect the urban and suburbs in the form of designed green space.

32

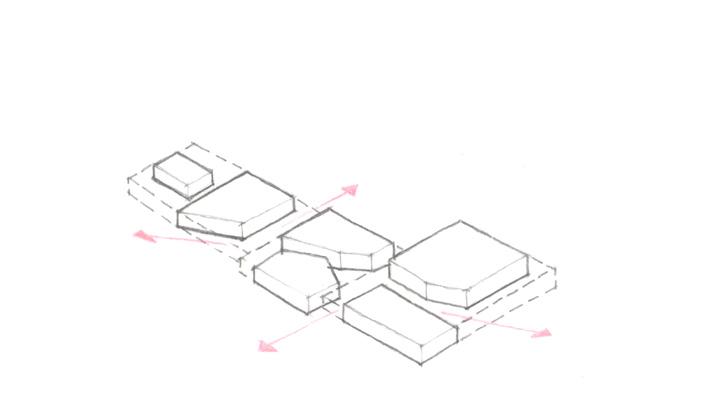

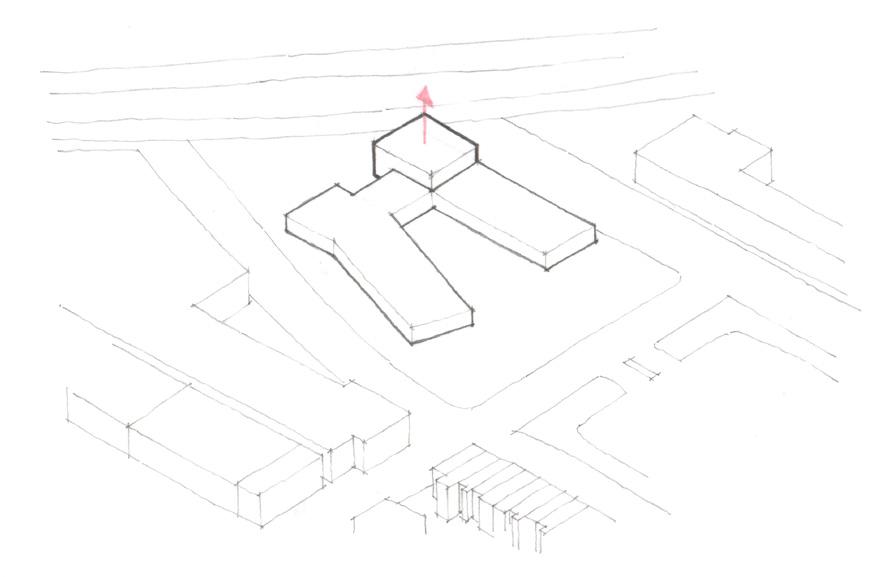

Masses

Link

Pivot

Above

33

Extrude

Response

Gathering

34
