is a new line of easy to install, predesigned interior elevator cabs.
We understand it can be time-consuming to install custom interior elevator cabs. As installers ourselves, we share the same concerns. That’s why we designed a fast and easy elevator to install, without sacrificing aesthetics or quality.
Our specially developed, proprietary Z-clip system coupled with our MagLok design creates the quickest and easiest elevator interior install.
Developed by Experts
For over 15 years, AMST has been a trusted leader in custom elevator interiors. Our success is built on craftsmanship, deep industry expertise, and a streamlined process that provides efficiency and dependable followthrough. From concept to completion, we deliver tailored solutions that elevate every project.
Easily Installed by You
We ship to your designated location ready for easy install.
Discover Our Innovative Z-clip
MagLok was designed with you in mind. A custom cab aesthetic without the complex installation.
Custom Z-clip
Elevator interior panel
Stainless reveal
System
Elevator interior panel

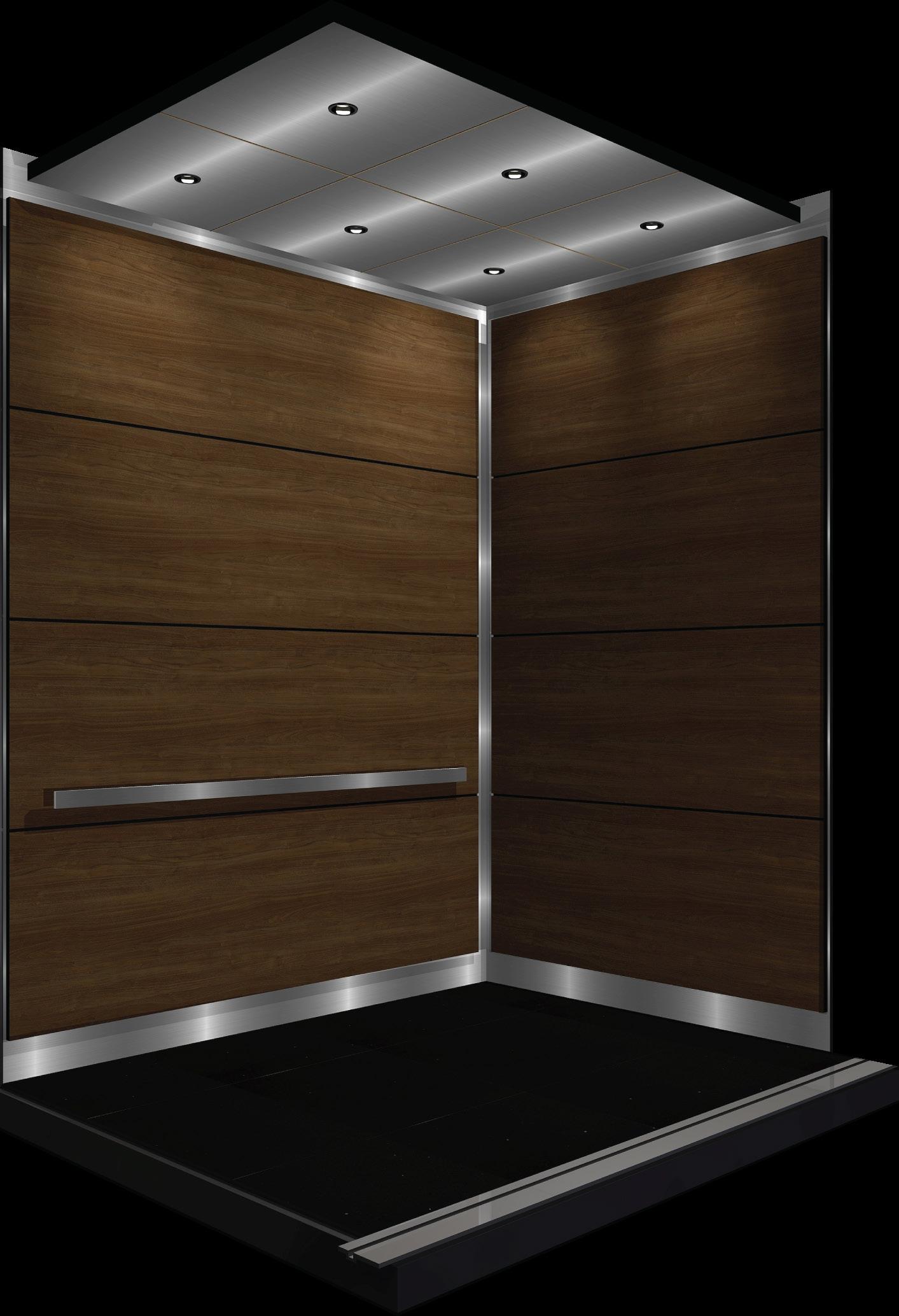

Option 1
REAR WALL PANELS
Four (4) equally dimensioned horizontal laminate panels.
¼” black-painted routed reveals between each panel.
Perimeters of panels painted black.
SIDE WALL PANELS
Four (4) equally dimensioned horizontal laminate panels.
¼” black-painted routed reveals between each panel.
Perimeters of panels painted black.
CEILING (T-FRAME)
Ceiling illustrated is option SSC Aluminum t-frame ceiling with #4SS panel inserts. Six (6) Man-D-Tec Eyebeam-SC downlights included, 4100K dimmable, with access to emergency escape hatch included. Emergency lighting is included.

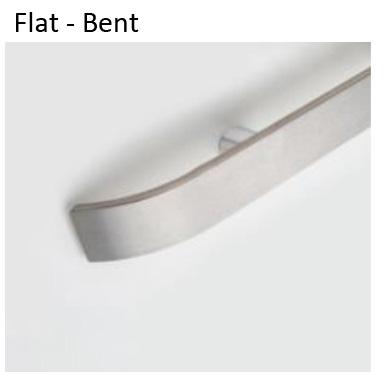

HANDRAIL

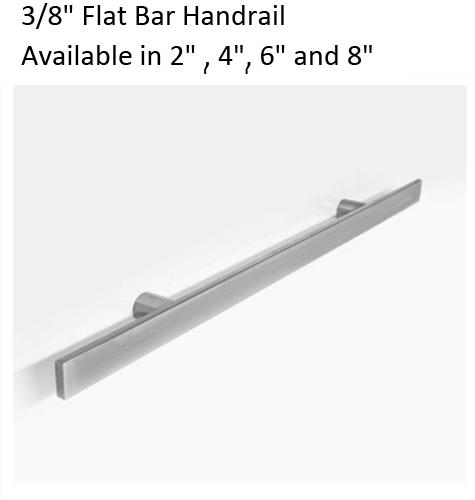

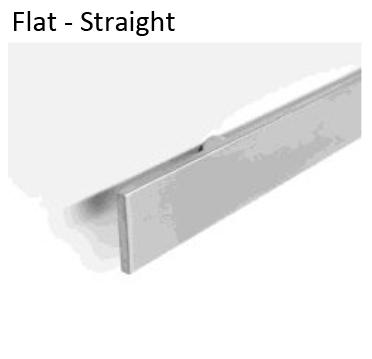

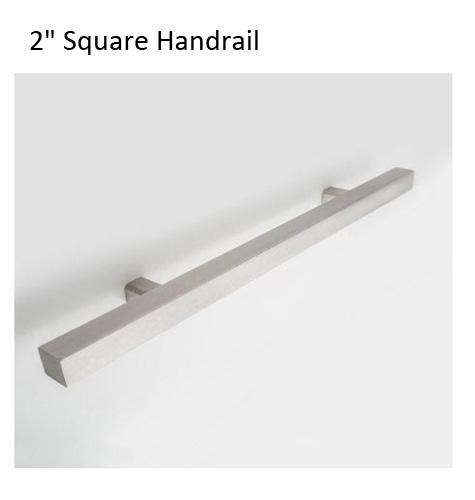

#4SS 2” flat handrail with 1 ¼” standoffs to be used as attachment to rear wall only.
Designs
Series Designs

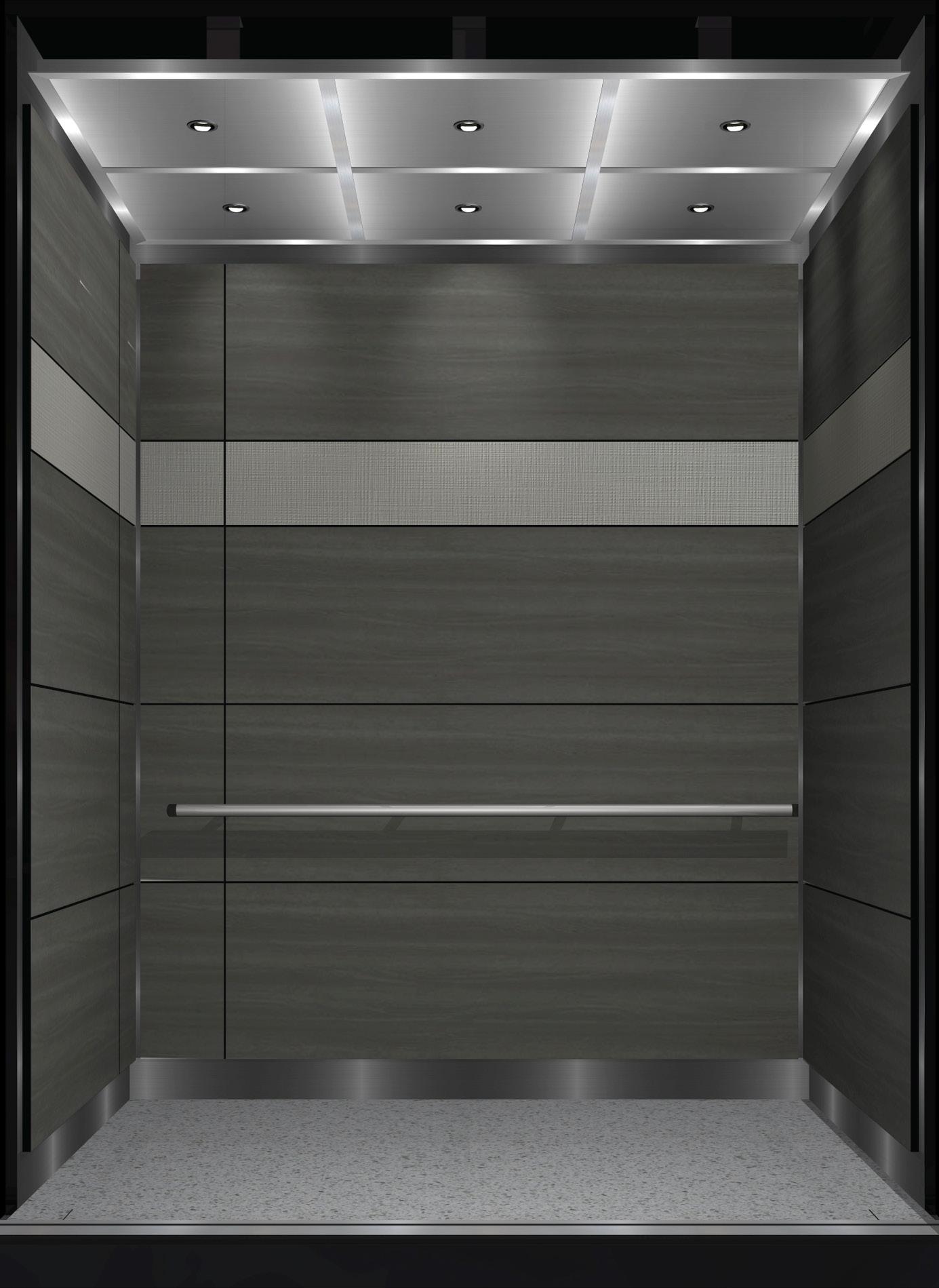

Option 2
REAR WALL PANELS
Four (4) equally dimensioned laminate panels. One (1) additional horizontal laminate accent panel located below top panel. Each panel to have a vertical ¼” black-painted routed reveal approximately 16” from left side edge only. ¼” blackpainted routed reveals between all panels. Perimeters of panels to be painted black.
SIDE WALL PANELS
Four (4) equally dimensioned laminate panels. One (1) additional horizontal laminate accent panel located below top panel. Left side wall panels to have a vertical ¼” black-painted routed reveal approximately 16” from right side edge only. Right side wall panels do not include vertical ¼” routed reveal. ¼” black-painted routed reveals between all panels. Perimeters of panels to be painted black.
CEILING (T-FRAME)
Ceiling illustrated is option TFS
Aluminum t-frame ceiling with #4SS panel inserts. Six (6) ManD-Tec Eyebeam-SC downlights included, 4100K dimmable, with access to emergency escape hatch included. Emergency lighting is included.
HANDRAIL
#4SS 2” flat handrail with 1 ¼” standoffs to be used as attachment to rear wall only.

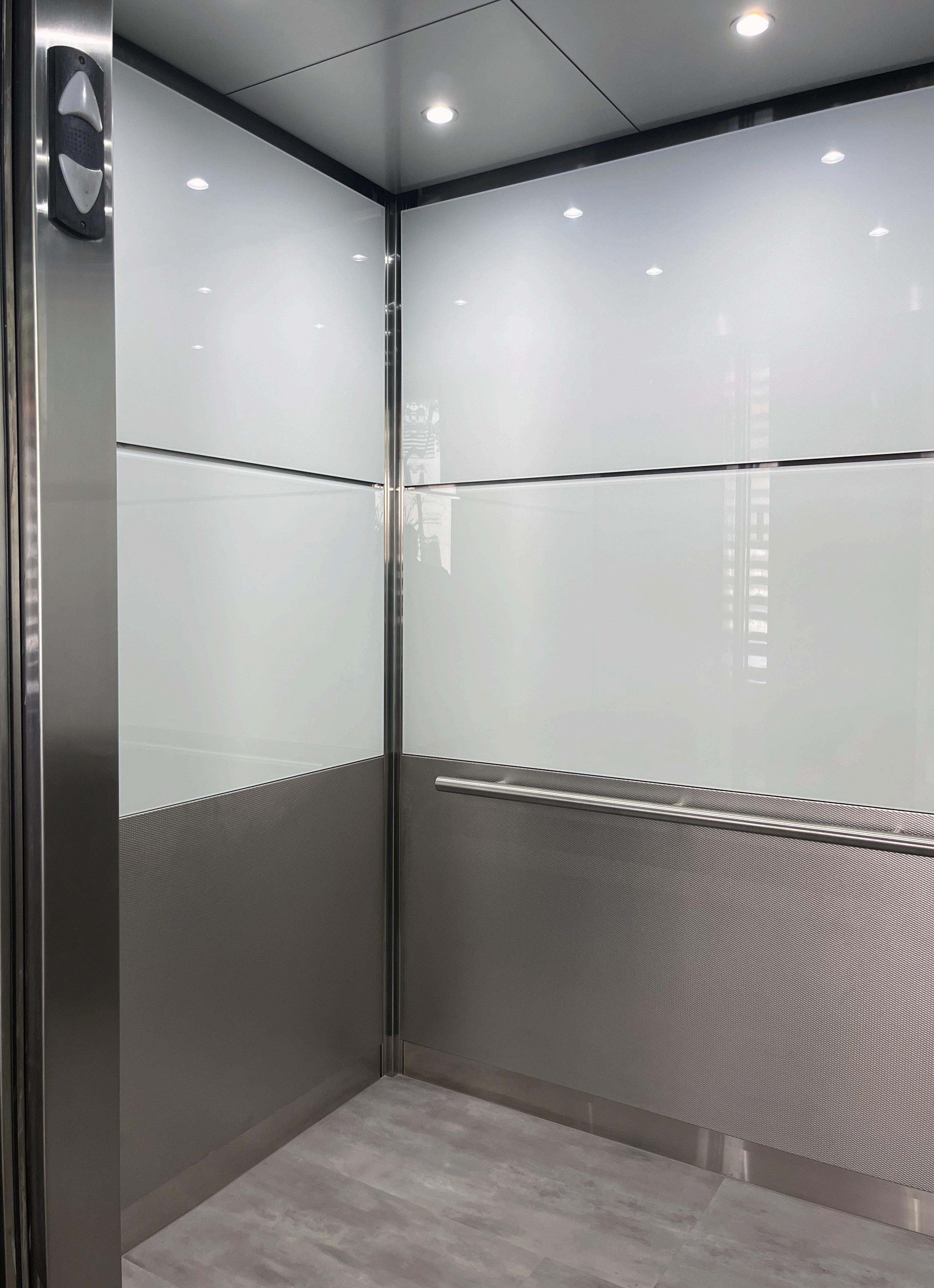

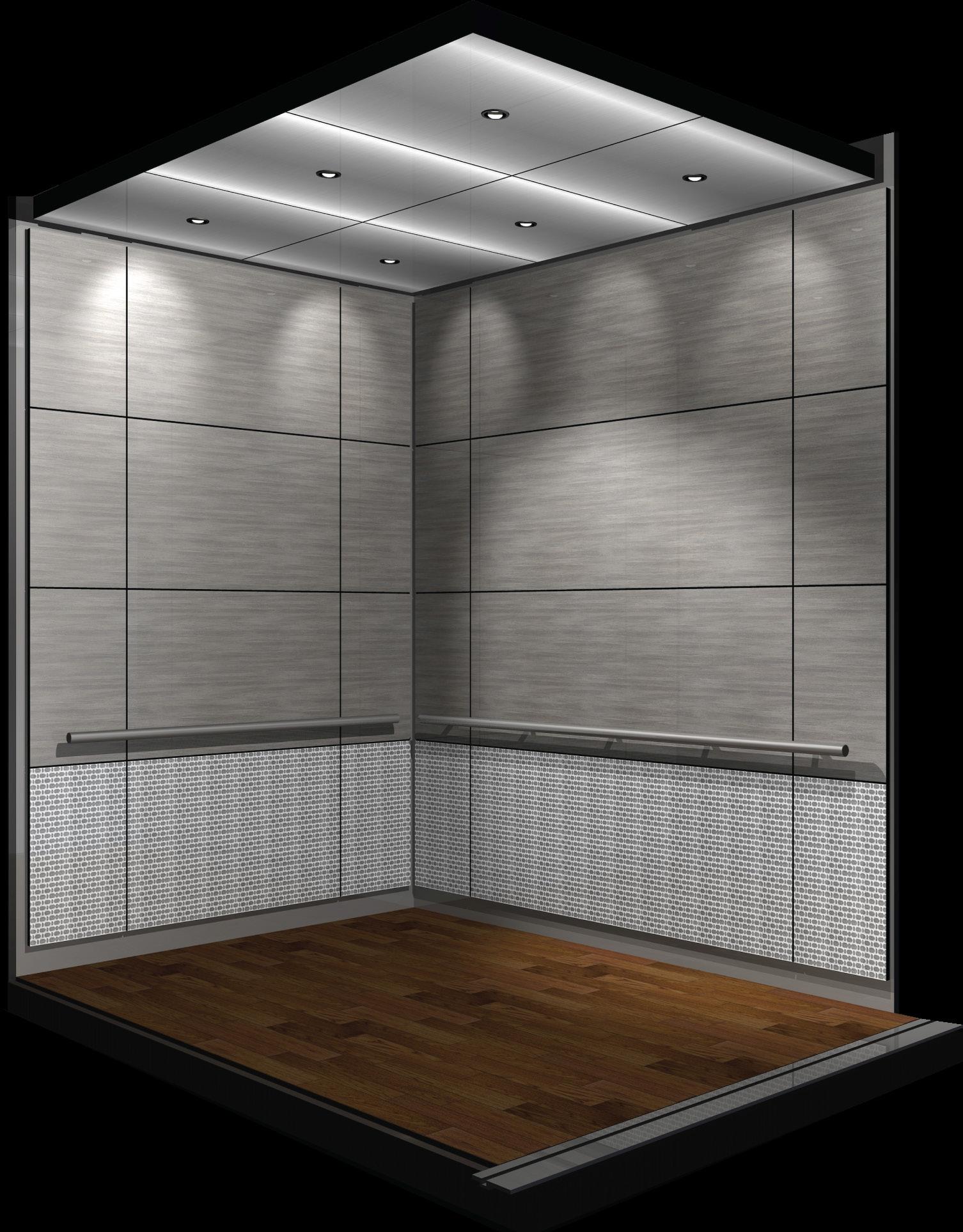

REAR WALL PANELS
Upper Rear Wall: Three (3) equally dimensioned horizontal laminate panels at upper rear wall. Each panel to have a vertical ¼” black-painted routed reveal approximately 16” from edge of left and right side of wall panels.
Lower Rear Wall: One horizontal textured stainless steel panel. Panel to have a vertical ¼” black-painted routed reveal approximately 16” from edge of left and right side of wall panels. ¼” black-painted routed reveals between all panels. Perimeters of panels to be painted black.
SIDE WALL PANELS
Upper Side Walls: Three (3) equally dimensioned horizontal laminate panels at upper rear wall. Each panel to have a vertical ¼” black-painted routed reveal approximately 16” from edge of left and right side of wall panels.
Option 3 MagLok H Series Designs
Lower Side Walls: One horizontal textured stainless steel panel. Panel to have a vertical ¼” black-painted routed reveal approximately 16” from edge of left and right side of wall panel. ¼” black-painted routed reveals between all panels. Perimeters of panels to be painted black.
CEILING
Ceiling illustrated is option SSC
#4SS ceiling with six (6) Man-D-Tec Eyebeam-SC downlights, 4100K dimmable, with access to emergency escape hatch included. Emergency lighting is included.

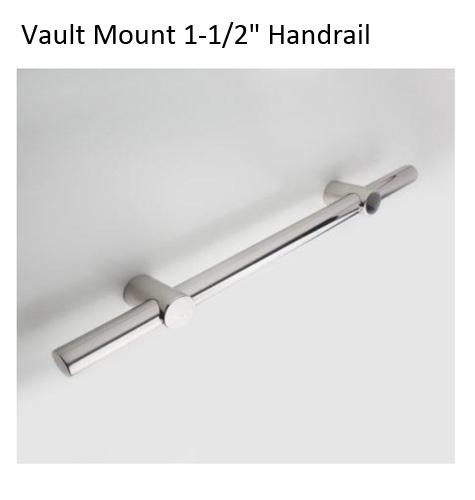

HANDRAIL

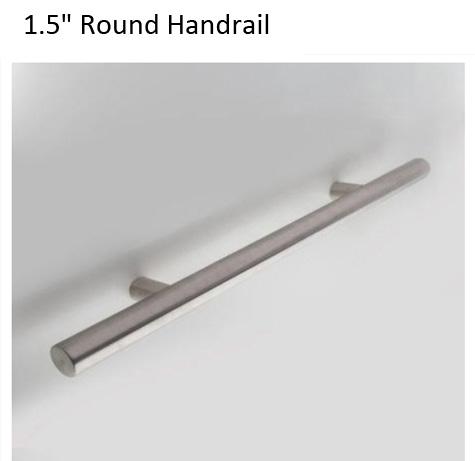

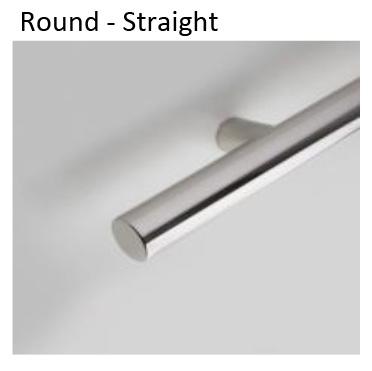

#4SS 1 ½” diameter handrail with 1 ¼” standoffs to be used as attachment to rear wall only.
Series Designs
MagLok

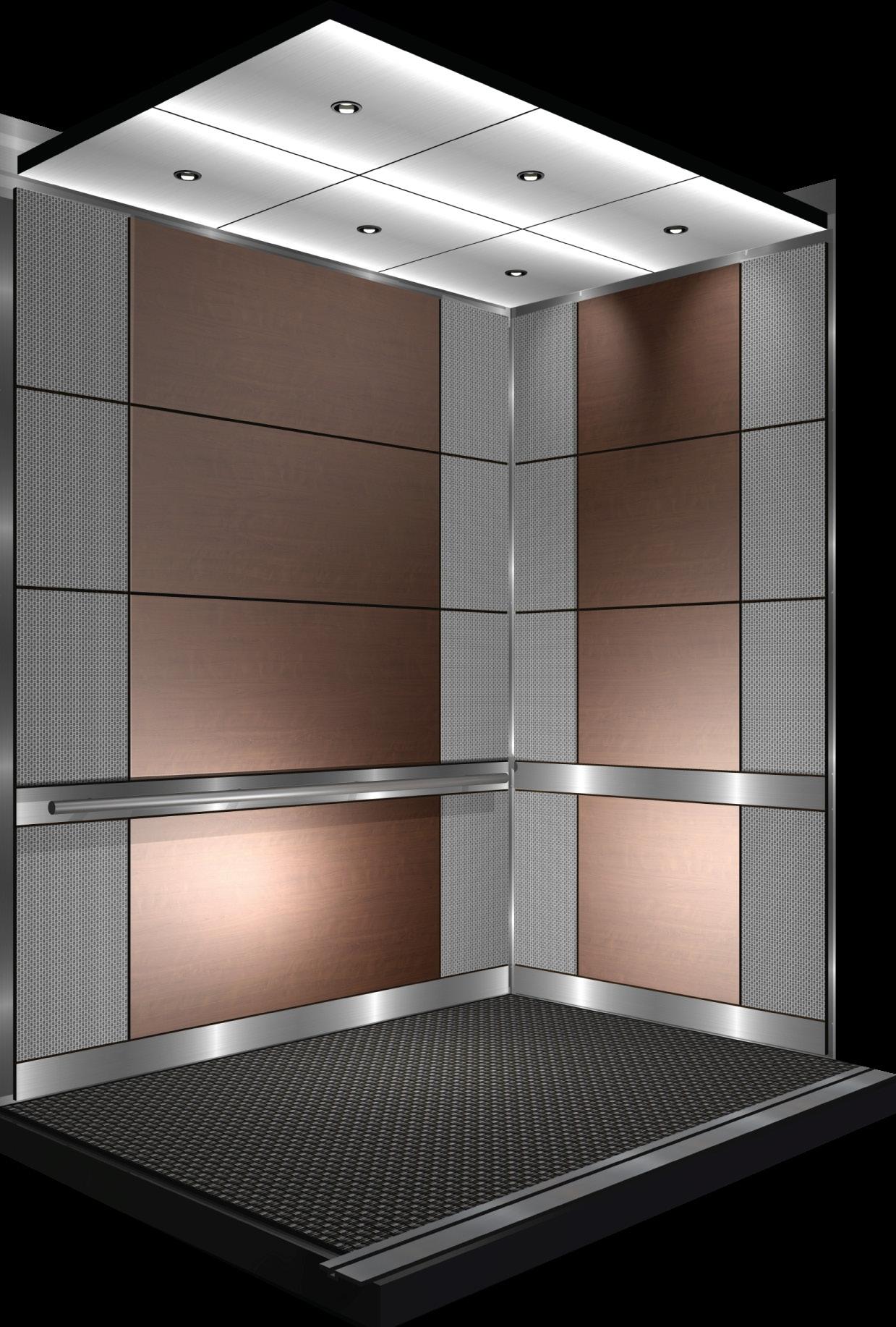

Option 4
REAR WALL PANELS
Upper Rear Wall: Three (3) equally dimensioned horizontal laminate panels at upper-center rear wall. Each upper-corner of rear wall to include a textured stainless steel panel approximately 16” wide.
Lower Rear Wall: One horizontal laminate panel. Each lower-corner of rear wall to include a textured stainless steel panel. Widths of panels to match upper wall panels.
¼” black-painted routed reveals between all panels. Perimeters of panels to be painted black.
SIDE WALL PANELS
Upper Side Walls: Three (3) equally dimensioned horizontal laminate panels at upper-center rear wall. Each upper-corner of rear wall to include a textured stainless steel panel approximately 16” wide.
Lower Side Walls: One horizontal laminate panel. Each lower-corner of rear wall to include a textured stainless steel panel. Widths of panels to match upper wall panels.
¼” black-painted routed reveals between all panels. Perimeters of panels to be painted black.
CEILING
#4SS ceiling with six (6) Man-D-Tec Eyebeam-SC downlights, 4100K dimmable, with access to emergency escape hatch included. Emergency lighting is included.
HANDRAIL
#4SS 1 ½” diameter handrail with 1 ¼” standoffs to be used as attachment to rear wall only.
#4SS 4” flush handrail backer at rear and side walls. ¼” black painted routed reveals between handrail backer and upper/lower wall panels.
