CASE STUDY- NON RATED BUILDING

Kalabhoomi Museum

INTRODUCTION: The Odisha Crafts Museum Kala Bhoom i is a one-of-a-kind crafts hub, created to display all the- handicrafts and handlooms of the state of Odisha.

Typology: Public space | Site Planning | Culture

|Institutional

Extent: 12.68 acres

Architect: Architects' Studio, Bhubaneshwar

Site-Shilpi Vihar, Pokhariput, Bhubaneswar, Odisha.

Vernacular Aspects

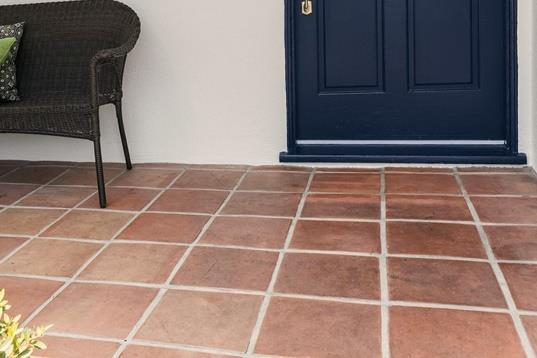

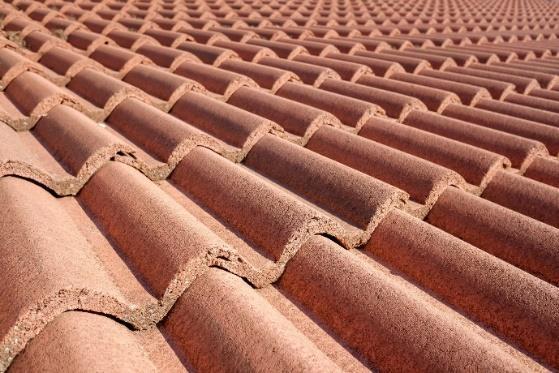

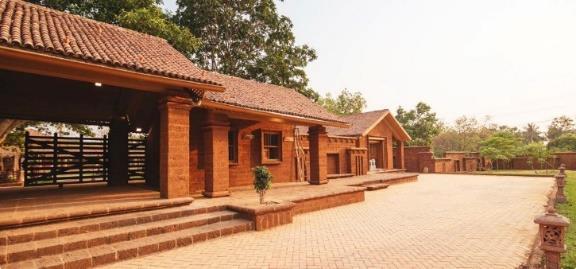

• Terracotta used for floor Tile and Roof

CONCEPT:

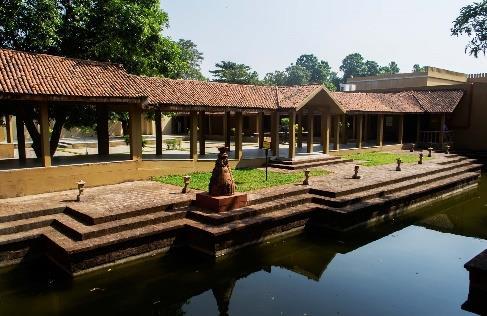

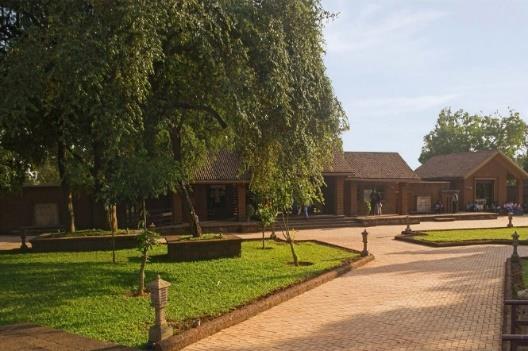

• A unique feature of the museum is the outdoor displa y sections in the form of courtyards.

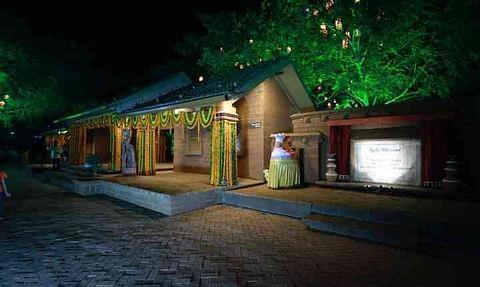

• Courtyards dedicated to Tribal living and Temple architecture are part of the museum complex while th e entry courtyard which leads up to the museum has a special large container display section as well as a Kulde vi temple

LANDSCAPE FEATURES:

• Tulsi charas

• Conserving the old tree s

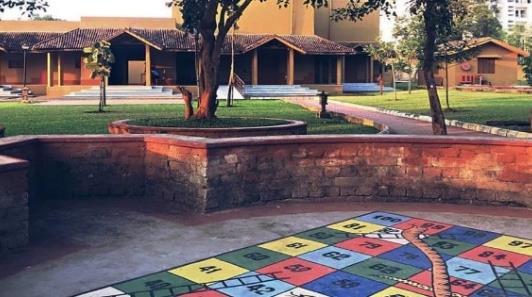

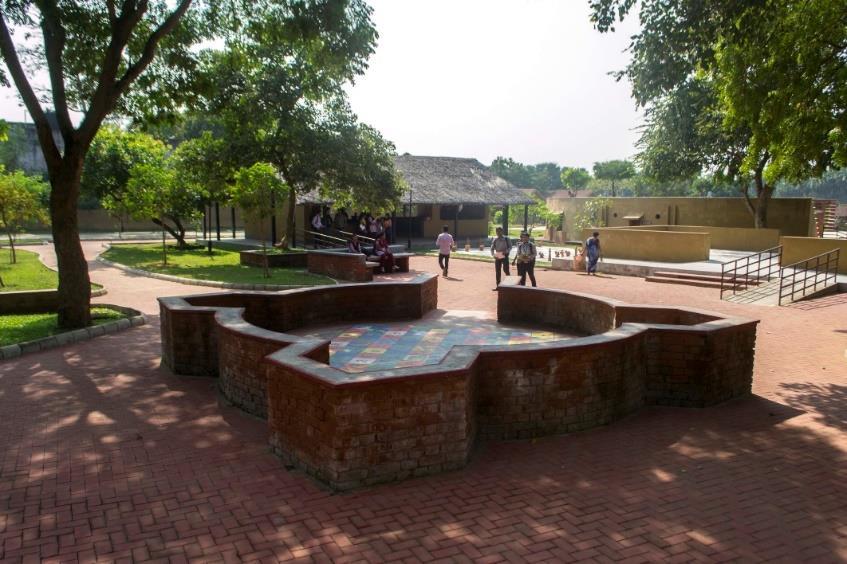

• Platform under the tree s

• Drainage is placed with pebbles in such a way that it giv s an aesthetic appearanc e

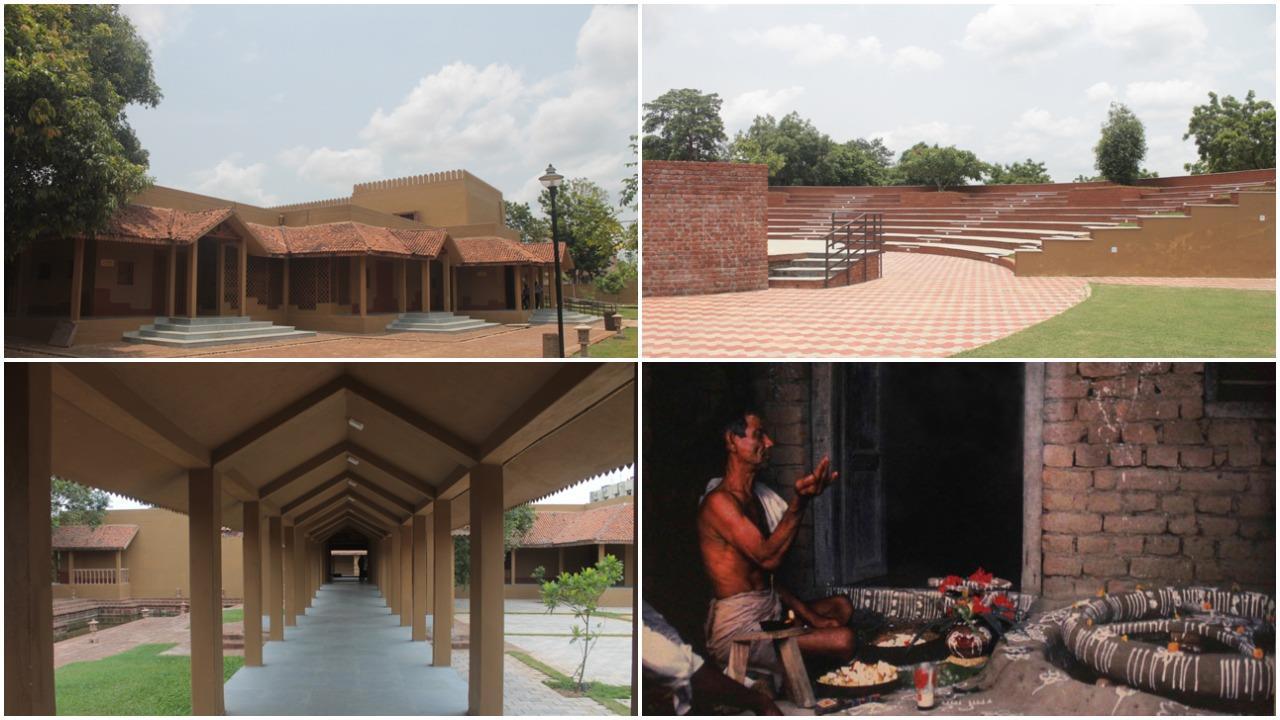

• Stepped walls.

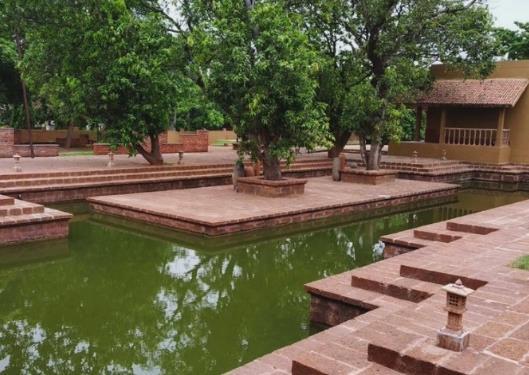

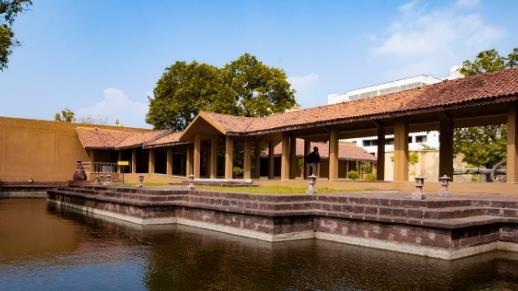

• A stepped Rainwater kund.

• Canopy cover The decision to adapt the buildings and mobilitydesign to accommodat e existing trees was a key factor fo r shade outdoors..

NAME-VAISHNAVI B. PATIL

FINAL YEAR B.ARCH DIV-B

ROLL NO. 25

Circulation Pattern

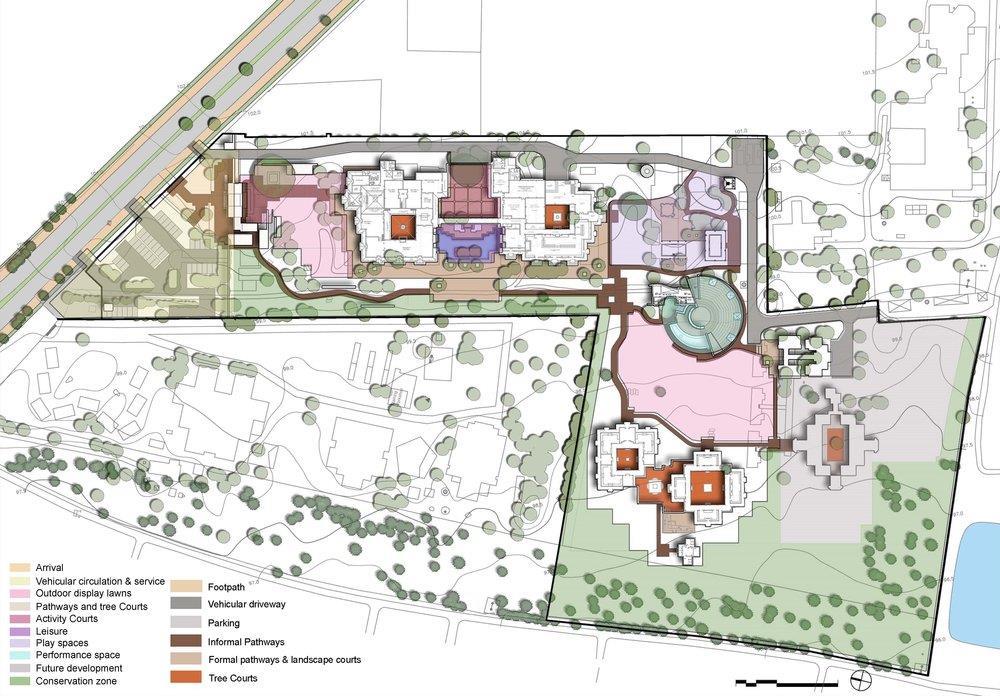

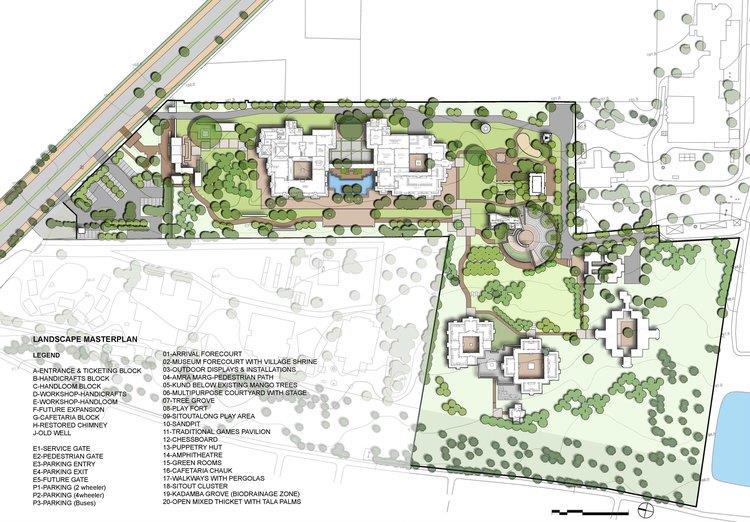

The landscape is structured into a series of outdoor areas on the basis of visitor circulation and architectural function. The one-sided entry into the site was a key constraint for circulation.

Runoff Management

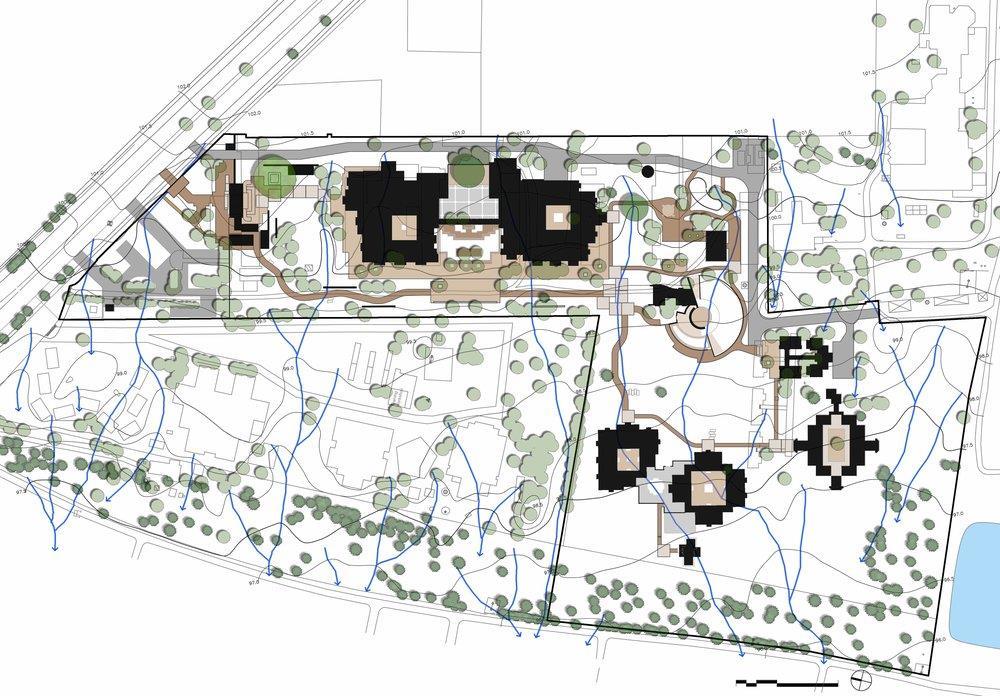

The surface run-off management strategy was proposed as an exten sion of the landscape design. Runoff was diverted towards the lower slopes by careful land grading, keeping ex isting trees in mind, into storm drains with recharge pits.

Excess volumes were dispersed into the low-lying area on site in the South-East, from where it was known to percolate into a pond outside the site.so

Used Material

• The galleries cover Terracotta

• Traditional Paintings, Stone and Wood carving,

• Metal crafts, Natural Crafts, Tribal Crafts, Pre-weaving techniques and Cocoons and lastly Handlooms.

Replication of Puri routes

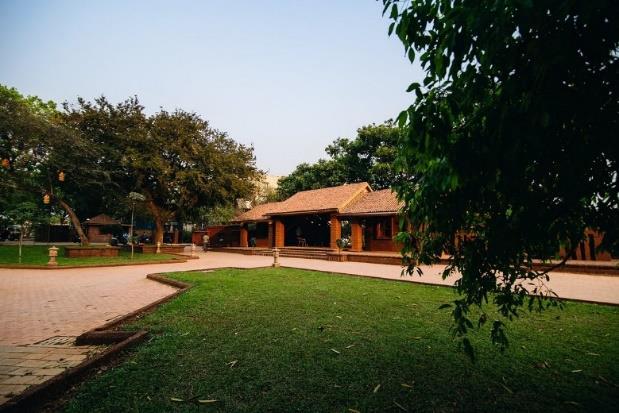

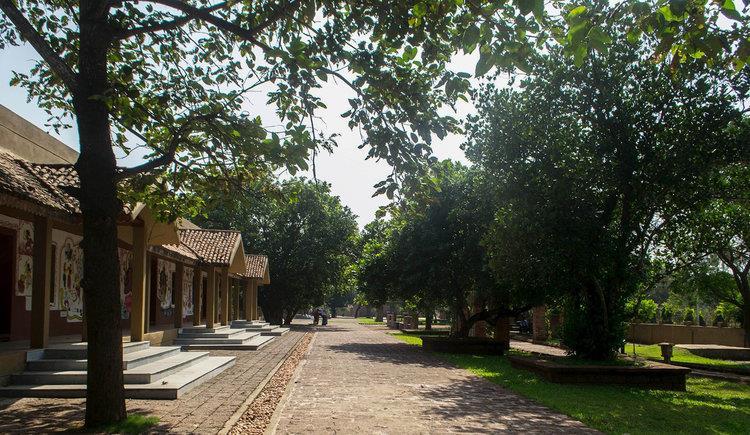

The Amra (mango) Marg between the Handicraft and Handloom block s, with the straight wide pathway and building facade designed like loc al houses. invokes the principal streets of the Jagganatha,Puri processio n route.

.
