Uzair Sawant Architectural Portfolio by Uzair Sawant

ARCHITECTURE PORTFOLIO UZAIR SAWANT

BUILDING THE PAST; SAVING THE FUTURE

INTRODUCTION

The study proposes guidelines and strategies that don’t interfere with its historic character and heritage. To assess how urbanization has affected and continues to affect Old Goa’s built and unbuilt heritage.The aim is to reduce the future implications of urbanization and revive this historic precinct. To then come up with strategies and regulations that help in minimizing the impact of development and help build in respect to context.

Old-Goa is a world Heritage site declared by UNESCO. It is well known for its rich built Heritage and culture having more than 50 monuments and sites of high significance. There are a number of churches, convents, and monuments located in the area which date back to the 16th century and are examples of innovative building techniques and architecture with historical significance. There are twetyone monuments of national importance in Goa out of which seven are adopted by UNESCO as “Group of Monuments” of World Heritage.

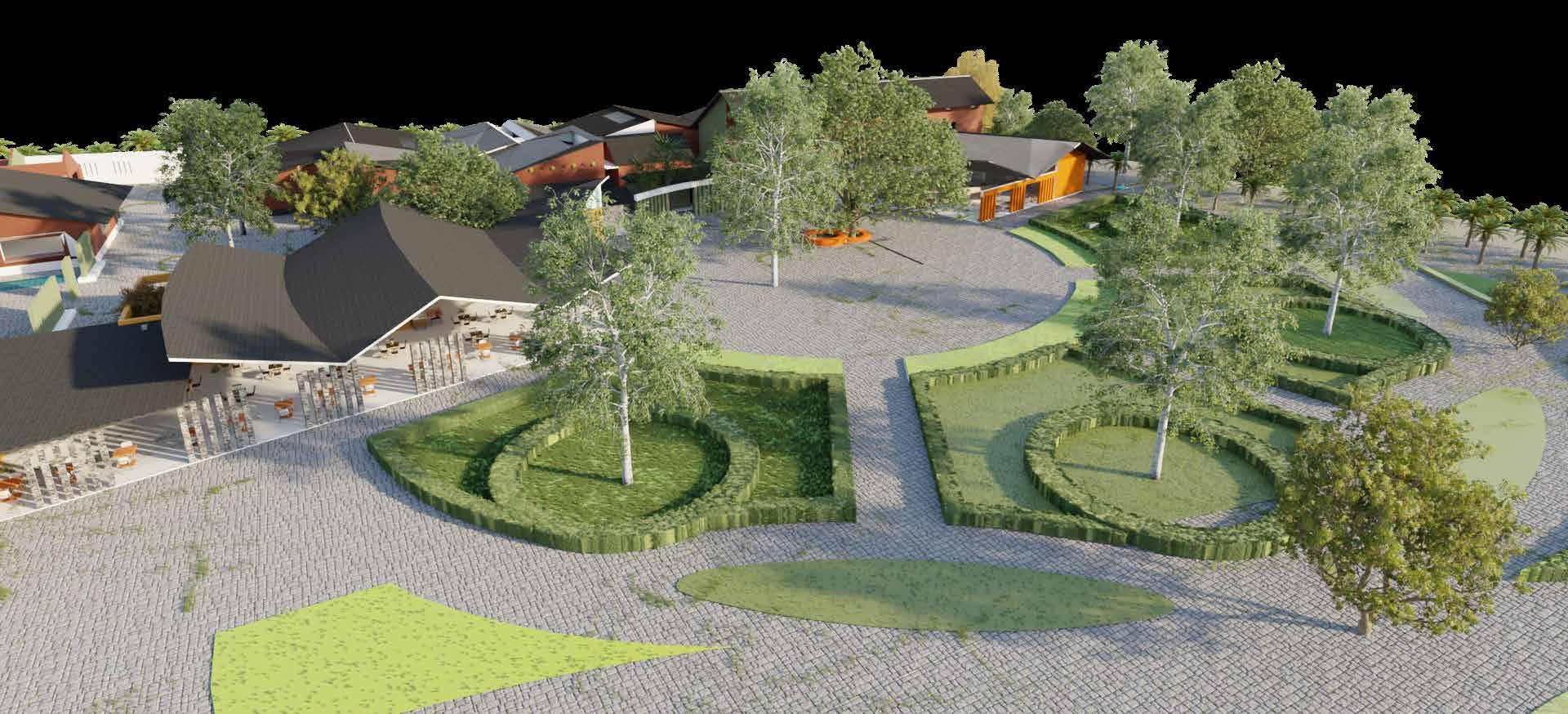

PLAN FIRST FLOOR PLAN

MUNICIPAL WATER LINE ASI OFFICE 203 SQ.M SECURITY ADMIN OFFICE 600 SQ.M ENTRANCE CANTEEN/ PANTRY, STORE ROOM 365 SQ.M HOTEL CAFE FOODCOURT MUSEUM LIBRARY SOUVENIR SHOPS WC WC WC WC RECEPTION STAFF QUARTERS PARKING SERVICE ENTRANCE EXHIBITION SPACE LEGEND MUNICIPAL SUPPLY LINE HYDRANT BREECHING POINT UGT TO OHT HYDRANT CONNECTION BOOSTER PUMP STAND BY PUMP STOP VALVE BREECHING POINT TO FIRE TANK HOSE REEL OHT TO HOSE REEL BREECHING POINT TO HYDRANT PRIMARY LINE SECONDARY LINE TERTIARY LINE SPRINKLER EMERGENCY LIGHTING LOOPING WIRE SMOKE DETECTORS WATER BODY WATER BODY

TYPICAL HOTEL ROOM PLAN SECTION A-A’ HOTEL ROOM VIEW JACK ARCHES DETAIL SECURITY & ADMIN OFFICE 600 SQ.M ENTRANCE CANTEEN/ PANTRY, HOTEL CAFE FOODCOURT SOUVENIR SHOPS RECEPTION PARKING SERVICE ENTRANCE LEGEND MUNICIPAL SUPPLY LINE UGT OHT UGT TO OHT WATER BODY WATER BODY ASI OFFICE 203 SQ.M SECURITY ADMIN OFFICE 600 SQ.M ENTRANCE CANTEEN/ PANTRY, STORE ROOM 365 SQ.M HOTEL CAFE FOODCOURT MUSEUM LIBRARY SOUVENIR SHOPS KITCHEN WC WC WC WC RECEPTION STAFF QUARTERS PARKING SERVICE ENTRANCE LEGEND MUNICIPAL SUPPLY LINE UGT OHT UGT TO OHT WATER BODY WATER BODY A' A PLAN SECTION A-A' SCALE- 1:25 MS FOLDED PLATE ELEVATION CANTILEVER STAIRCASE DETAIL 20MM THK TIMBER CLADDING MS SECTION 100x200 MM MS BOX SECTION MS FOLDED PLATE 10MM THK BACKING DRAINAGE LAYOUT CANTILEVER STAIRCASE DETAIL A' A PLAN SECTION A-A' SCALE1:25 CANTILEVER STAIRCASE 20MM THK TIMBER CLADDING MSI 100x200SECTION MM MSBOX SECTION MSFOLDED PLATE 10MM THK BACKING PLAN A' SECTION A-A' SCALE- 1:25 ELEVATION SECTION A-A’ ELEVATION SECTION A-A' SCALE- 1:25 MS FOLDED PLATE MS SECTION 100x200 ELEVATION MS BOX SECTION CANTILEVER STAIRCASE DETAIL SCALE- 1:50 20MM THK CLADDING MS SECTION 100x200 MM MS BOX SECTION MS FOLDED PLATE 10MM THK BACKING A' A PLAN SECTION A-A' SCALE- 1:25 MS FOLDED PLATE MS SECTION 100x200 MM ELEVATION MS BOX SECTION CANTILEVER STAIRCASE DETAIL SCALE- 1:50 20MM THK TIMBER CLADDING MS I SECTION 100x200 MM MS BOX SECTION MS FOLDED PLATE 10MM THK BACKING

FIRE LAYOUT

CASE STUDY- FUNCTION BASED

DIAGRAMATIC - SPATIAL DISTRIBUTION (FOR UNDERSTANDING)

ZONING

FORM DEVELOPMENT

DIAGRAMATIC - SPATIAL DISTRIBUTION (FOR UNDERSTANDING)

CASE STUDY- CONSTRUCTION

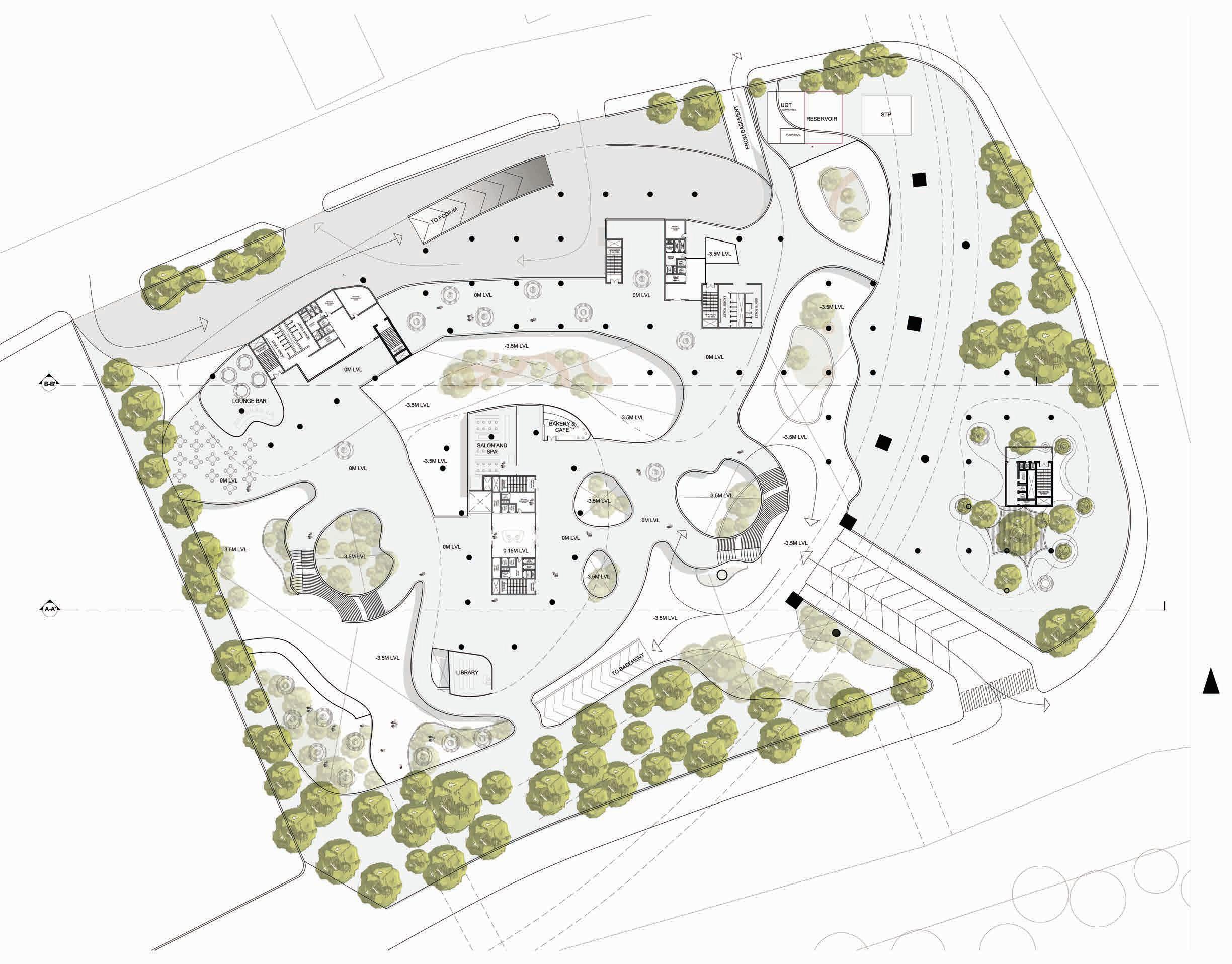

MASTERPLAN - GROUND

ELEVATION -

MASTERPLAN - GROUND

ELEVATION -

ELEVATION - SOUTH

HOSPITALITY

EMPLOYEES ROOMS (LVL 2-4)

HOSPITALITY

EMPLOYEES ROOMS (LVL 2-4)

SECTION- B-B’

ELEVATION - SOUTH

HOSPITALITY SUITE ROOMS (LVL 5-7)

BUSINESS CENTRE-OFFICE BRIDGEFLOOR (LVL 15)

BASEMENT

SECTION- B-B’

SKY LOUNGE (LVL-8)

HOSPITALITY SKY LOUNGE (LVL-8)

MASTERPLAN - LOWER GROUND

BUSINESS CENTRE-OFFICE

OFFICE-RETAIL BRIDGEFLOOR BUSINESS CENTRE-OFFICE

ELEVATION- EAST

PODIUM (LVL 1-5)

OFFICE-RETAIL BRIDGEFLOOR BUSINESS CENTRE-OFFICE

PODIUM (LVL 1-5)

OFFICE-RETAIL BRIDGEFLOOR

7-9) BUSINESS

(LVL

CENTRE-OFFICE

BUSINESS CENTRE-OFFICE BRIDGEFLOOR (LVL 15)

&CONCIERGE (LVL-1)

MASTERPLAN - LOWER GROUND

HOSPITALITY EMPLOYEES ROOMS (LVL 2-4)

SECTION- A-A’

HOSPITALITY SUITE ROOMS (LVL 5-7)

HOSPITALITY BANQUET &CONCIERGE (LVL-1) (LVL 2-4)

HOSPITALITY SKY LOUNGE (LVL-8)

BASEMENT PLAN (B1- B3)

OFFICE MULTISTOREY (LVL 11- 14, 16)

OFFICE-RETAIL BUSINESS CENTRE-OFFICE PODIUM (LVL 1-5)

EAST

TYPICAL FLOORINTERNATIONAL

ODD

TYPICAL FLOOR -

BUSINESS CENTREODD

BUSINESS CENTRE-OFFICE

BRIDGEFLOOR (LVL 15)

CENTRE-OFFICE

BUSINESS CENTRE-OFFICE

BRIDGEFLOOR (LVL 15)

RETAIL -OFFICES ABOVE (LVL 10 - 13)

BUSINESS CENTRE-OFFICE MULTISTOREY (LVL 11- 14, 16)

OFFICE -TYPICAL FLOOR - EVEN

RETAIL - FOOD COURT (LVL 6)

OFFICE -TYPICAL FLOOR - ODD

RETAIL - SUPERMARKET (LVL 5)

(LVL

BUSINESS CENTRE-SHARED WORKSPACES (LVL 6 - 10)

SHARED WORKSPACES (LVL 6 - 10)

INTERNATIONAL FINANCE CENTRE BKC SAKIB PATHAN 1848 SUMAYYA PATHAN 1849 UZAIR SAWANT 1856

SUPERMARKET

5) INTERNATIONAL FINANCE CENTRE BKC 1848 SUMAYYA PATHAN 1849 UZAIR SAWANT 1856 TRINISHA SRIJITH 1876

INTERNATIONAL FINANCE CENTRE SAKIB PATHAN 1848 SUMAYYA PATHAN 1849 UZAIR SAWANT 1856

BUSINESS CENTRE-

SPRING, SIOLIM

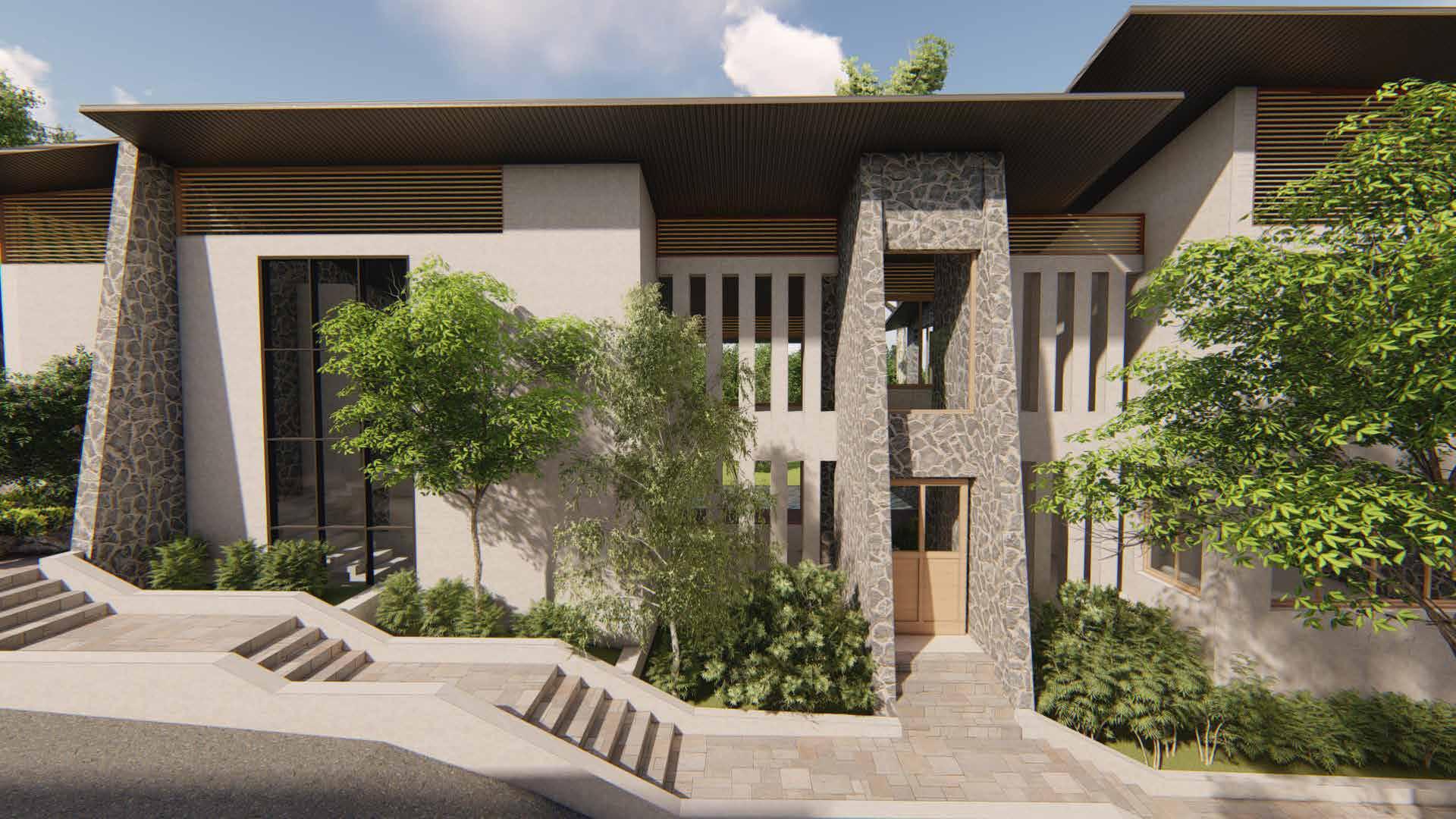

FOUR VILLAS

GROUND FLOOR PLAN

LIFT 1.5 x 1.5m UTILITY ROOM 3.00 2.10m POWDER ROOM 1.80 x 3.0m BEDROOM 5.00 x 4.70m SWIMMING POOL 4.20 X 14.00m TOILET 4.80 x 3.00m BEDROOM 6.00 5.40m KITCHEN 5.00 4.10m COURTYARD 4.80 X 4.20m FOYER 1.60 x 4.20m STORE ROOM 3.20 x 1.80m TOILET 5.00 2.20m DECK 2.9m wide LIVING ROOM 5.00 x 12.10m MAIN ENTRANCE 3.00 10.80 0.30 0.30 5.40 0.30 1.20 0.30 0.30 6.00 6.40 0.40 3.20 0.30 3.00 0.40 0.30 4.80 1.80 1.50 0.30 0.30 0.30 0.30 1.20 3.90 13.20 12.10 0.50 4.70 2.20 0.30 0.30 0.30 1.40 0.30 5.00 5.70 20.00 12.10 0.40 4.70 2.20 0.30 0.30 0.10 4.60 0.30 4.10 0.70 0.30 1.80 0.30 0.40 0.700.30 3.30 31.50 20.40 DINING ROOM 5.00 4.60m W1 W1 V1 V1 V1 D1 D1 D1 D1 D1 D1 D1 D1 D4 W3 W3 W3 W3 D2 D2 D2 D2 W5 W5 D3 BALCONY 3.30 x 1.50m DECK 2.5m wide DECK 2.5m wide 22 12 13 19 18 17 16 15 14 11 20 21 31 25 26 27 28 29 30 24 23 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 DUCT 1.20 0.70m DUCT 0.70 x 1.10m DUCT 1.40 0.70m 4.20 14.00 2.50 2.90 DUCT 1.20 0.70m 2.50 1.20 LIFT FAMILY LOUNGE 5.00 4.30m TOILET 3.30 2.50m BEDROOM 6.00 4.30m COURTYARD BELOW Bridge 1.6m wide LIVING ROOM BELOW Passage 1.6m wide TOILET 1.80 x 1.7m STAFF ROOM 4.80 3.00m TOILET 3.50 x 2.40m BEDROOM 6.50 3.50m BEDROOM 5.00 5.00m TOILET 5.00 2.20m WARDROBE 5.00 2.20m 9.60 0.30 2.20 2.20 0.30 0.30 0.30 1.40 0.30 5.00 5.70 20.00 0.30 2.20 0.30 2.20 0.10 5.00 0.30 10.00 4.30 0.30 2.40 0.30 3.50 0.30 32.50 0.30 4.80 0.30 1.20 0.30 1.80 0.30 1.50 0.30 3.90 13.20 0.30 3.00 0.30 5.40 0.30 1.20 0.30 10.80 0.30 2.40 0.30 3.30 0.40 6.40 0.40 6.50 0.40 6.00 20.40 5.00 0.10 W1 W1 V1 V1 V1 V1 D1 D1 D1 D1 D1 D1 D1 D4 W2 W2 W2 W2 W2 W2 W1 W1 W3 W5 W5 DN 22 32 13 19 18 17 16 15 14 20 21 31 25 26 27 28 29 30 24 23 DUCT 1.20 0.70m DUCT 0.70 1.10m DUCT 1.40 0.70m DUCT 1.20 0.70m W2 W2 W2 W2 W2 W2 W2 W2 1.00 D2 BALCONY 6.50 x 1.50m 1.20 8.30 10.90 2.00 1.50 6.30 12.40 33.30 26.70 7.31 8.80 4.80 BEDROOM TOILET POWDER ROOM INVERTER ROOM STORE ROOM PUMP ROOM TOILET STAFF ROOM STORE ROOM KITCHEN DINING ROOM LIVING ROOM TOILET TOILET WARDROBE BEDROOM FAMILY LOUNGE TOILET BEDROOM LVL: +0.00 M LVL: -3.20 M LVL: +3.30 M EAVES LVL: +5.50 M RIDGE LVL: +7.75 M LVL: +0.00 M LVL: +3.30 M LVL: +7.20 M 0.90 1.60 2.80 3.15 2.20 3.75 LVL: -3.35 M LVL: -0.45 M D1 W1 W1 W2 W2 W2 W2 W2 W4 W3 V1 D2 W3 D1 D2 D2 D2 D2 D2 D2 D2 D2 D2 D4 EAVES LVL: +6.00 M 3.15 0.25 2.50 3.79 2.50 3.30 2.50 4.00 0.90 1.60 0.90 0.25 4.00 2.90 3.90 0.25 2.90 W2 W2 0.45 GROUND LVL RIDGE LVL: +7.96 M 100.0 101.0 102.0 103.0 104.0 105.0 106.0 108.0 109.0 3.58 3.21 3.00 7.81 14.28 54.59 23.79 24.50 16.40 35.00 6.00 16.53 B A A A B B A A B B A B GROUND FLOOR PLAN SCALE 1:100 FIRST FLOOR PLAN SCALE 1:100 ROOF PLAN SCALE 1:100 SECTION BB SCALE 1:100 PROPOSED STRUCTURE PROPOSED POOL Septic Tank Soak Pit N N ST. to Morjim Duler-Marna-Siolim toAguada Aguada-SiolimRd Proposed Boundary Wall

SECTION B-B’ LIFT 1.5 1.5m UTILITY ROOM 3.00 x 2.10m POWDER 3.0m BEDROOM 5.00 4.70m SWIMMING POOL 4.20 X 14.00m KITCHEN 5.00 x 4.10m COURTYARD 4.80 X 4.20m FOYER 1.60 4.20m STORE ROOM 3.20 1.80m TOILET 5.00 x 2.20m DECK 2.9m wide LIVING ROOM 5.00 x 12.10m UP MAIN ENTRANCE 6.40 0.40 3.20 0.30 3.00 0.40 1.50 0.30 0.30 3.90 13.20 12.10 0.50 4.70 2.20 0.30 0.30 0.30 1.40 0.30 5.00 5.70 20.00 12.10 0.40 4.70 2.20 0.30 0.30 0.10 4.60 0.30 4.10 0.70 0.30 1.80 0.30 31.50 20.40 DINING ROOM 5.00 x 4.60m W1 V1 D1 D1 D1 D1 D1 D4 W3 W3 W3 W3 D2 D2 D2 D2 W5 W5 D3 DECK 2.5m wide DECK 2.5m wide 22 12 13 19 18 17 16 15 14 11 20 21 31 25 26 27 28 29 30 24 23 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 DUCT 1.40 0.70m 4.20 14.00 2.50 2.90 DUCT 1.20 0.70m 2.50 1.20 LIFT FAMILY LOUNGE 5.00 x 4.30m TOILET 3.30 x 2.50m BEDROOM 6.00 x 4.30m COURTYARD BELOW Bridge 1.6m wide LIVING ROOM BELOW Passage 1.6m wide TOILET 1.80 x 1.7m STAFF ROOM 4.80 x 3.00m TOILET 3.50 x 2.40m BEDROOM 6.50 x 3.50m BEDROOM 5.00 x 5.00m TOILET 5.00 x 2.20m WARDROBE 5.00 x 2.20m 9.60 0.30 2.20 2.20 0.30 0.30 0.30 1.40 0.30 5.00 5.70 20.00 0.30 2.20 0.30 2.20 0.10 5.00 0.30 10.00 4.30 0.30 2.40 0.30 3.50 0.30 32.50 0.30 4.80 0.30 1.20 0.30 1.80 0.30 1.50 0.30 3.90 13.20 0.30 3.00 0.30 5.40 0.30 1.20 0.30 10.80 0.30 2.40 0.30 3.30 0.40 6.40 0.40 6.50 0.40 6.00 20.40 5.00 0.10 W1 W1 V1 V1 V1 V1 D1 D1 D1 D1 D1 D1 D1 D4 W2 W2 W2 W2 W2 W2 W1 W1 W3 W5 W5 22 32 13 19 18 17 16 15 14 20 21 31 25 26 27 28 29 30 24 23 DUCT 1.20 0.70m DUCT 0.70 x 1.10m DUCT 1.40 0.70m DUCT 1.20 0.70m W2 W2 W2 W2 W2 W2 W2 W2 1.00 D2 BALCONY 6.50 1.50m 1.20 8.30 10.90 2.00 1.50 6.30 12.40 33.30 26.70 6.60 1.60 7.31 8.80 4.80 BEDROOM STORE ROOM KITCHEN DINING ROOM LIVING ROOM TOILET TOILET WARDROBE BEDROOM FAMILY LOUNGE TOILET BEDROOM LVL: +0.00 M LVL: +3.30 M LVL: +7.20 M 3.15 2.20 3.75 LVL: -0.45 M W1 W1 W2 W2 W2 W2 W2 W3 V1 D2 W3 D1 D2 D2 D2 D2 D2 D2 D2 D2 D2 EAVES LVL: +6.00 M 3.30 2.50 4.00 0.90 1.60 0.90 0.25 4.00 2.90 3.90 0.25 2.90 W2 W2 0.45 GROUND LVL RIDGE LVL: +7.96 M 100.0 101.0 102.0 103.0 104.0 105.0 106.0 108.0 109.0 110.0 111.0 112.0 113.0 3.00 6.31 1.01 3.58 3.21 3.00 7.81 14.28 54.59 23.79 24.50 16.40 39.60 35.00 6.00 16.53 B SCHEDULE OF OPENINGS ALL DIMENSIONS ARE IN METRES UNLESS STATED OTHERWISE. RESID. BASEMENT TOTAL 88.65 520.89 133.54 34.81 654.43 - 318.90 27.51 37.59 281.31 25.57% RESID. FIRST - 246.88 239.58 21.78% 19.76 10.08 STATEMENT OF AREAS (IN SQ.M.) 1. AREA OF PLOT = BUILT UP AREA USE FLOOR 10. DETAILS OF AREAS AND USE, FLOOR-WISE 7. PERMISSIBLE F.A.R (60%)= NET AREA PARK. BAL./VER.STAIRS/LIFT AREAS FREE FROM F.A.R TOTAL RESID. GROUND F.A.R. 1100.00 9. F.A.R. CONSUMED = 520.89 8. PROPOSED F.A.R. = 47.35 % 660.00 5. PROPOSED COVERAGE = 4. PERMISSIBLE COVERAGE (40%)= 440.00 318.90 6. COVERAGE CONSUMED 3. EFFECTIVE AREA OF PLOT (1-2) = 2. DEDUCTION FORTOTAL (a + b) = b) ANY OTHER USE = a) ROAD WIDENING = 1100.00 47.35% 28.99 % 29.84 A B B A A B B A A B TYPE SIZE (cms) SILL HEIGHT (cms) NOS. W1 300 x 160 90 6 W2 200 x 160 90 14 W3 150 x 160 90 5 W4 70 x 160 90 4 W5 120 x 160 90 3 V1 100 x 100 150 8 D1 100 x 220 - 17 D2 200 x 250 - 17 D3 140 x 220 - 1 D4 80 x 220 - 8 FIRST FLOOR PLAN SCALE 1:100 ROOF PLAN SCALE 1:100 SECTION BB SCALE 1:10068.89 7.30 7.30 PROPOSED STRUCTURE PROPOSED POOL Septic Tank Soak Pit N N SITE FOOTBALL GROUND ST. ANTHONY'S CHRUCH to Morjim to Duler Duler-Marna-Siolim Rd toAguada Aguada-SiolimRd 68.89 - - 88.65 Proposed Boundary Wall 2.50 2.50 1.50 1.00 2.90 STORE ROOM 2.50 x 3.00m PUMP ROOM 2.50 x 3.00m 0.30 0.30 0.30 13.30 2 WHEELER PARKING 3.30 2.90m D4 D4 GARAGE 6.30 x 4.00m DUCT 1.20 0.70m DUCT 0.70 1.10m +0.15 M LVL +1.50 M LVL UP D1 0.10 0.70 0.30 3.30 0.40 6.80 W4 W4 W3 D1 10 LIFT 1.5 1.5m LIFT 1.5 x 1.5m UTILITY ROOM 3.00 x 2.10m POWDER ROOM 1.80 3.0m BEDROOM 5.00 4.70m SWIMMING POOL 4.20 X 14.00m TOILET 4.80 x 3.00m BEDROOM 6.00 x 5.40m KITCHEN 5.00 x 4.10m COURTYARD 4.80 X 4.20m FOYER 1.60 4.20m STORE ROOM 3.20 1.80m TOILET 5.00 x 2.20m DECK 2.9m wide LIVING ROOM 5.00 x 12.10m MAIN ENTRANCE 3.00 10.80 0.30 0.30 5.40 0.30 1.20 0.30 0.30 6.00 6.40 0.40 3.20 0.30 3.00 0.40 0.30 4.80 1.80 1.50 0.30 0.30 0.30 0.30 1.20 3.90 13.20 12.10 0.50 4.70 2.20 0.30 0.30 0.30 1.40 0.30 5.00 5.70 20.00 12.10 0.40 4.70 2.20 0.30 0.30 0.10 4.60 0.30 4.10 0.70 0.30 1.80 0.30 0.40 0.700.30 3.30 31.50 20.40 DINING ROOM 5.00 x 4.60m W1 W1 V1 V1 V1 D1 D1 D1 D1 D1 D1 D1 D1 D4 W3 W3 W3 W3 D2 D2 D2 D2 W5 W5 D3 BALCONY 3.30 1.50m DECK 2.5m wide DECK 2.5m wide 22 12 13 19 18 17 16 15 14 11 20 21 31 25 26 27 28 29 30 24 23 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 DUCT 1.20 x 0.70m DUCT 0.70 1.10m DUCT 1.40 0.70m 4.20 14.00 2.50 2.90 DUCT 1.20 x 0.70m 2.50 1.20 LIFT FAMILY LOUNGE 5.00 x 4.30m TOILET 3.30 x 2.50m BEDROOM 6.00 x 4.30m COURTYARD BELOW Bridge 1.6m wide LIVING ROOM BELOW Passage 1.6m wide TOILET 1.80 x 1.7m STAFF ROOM 4.80 x 3.00m TOILET 3.50 2.40m BEDROOM 6.50 x 3.50m BEDROOM 5.00 x 5.00m TOILET 5.00 x 2.20m WARDROBE 5.00 x 2.20m 9.60 0.30 2.20 2.20 0.30 0.30 0.30 1.40 0.30 5.00 5.70 20.00 0.30 2.20 0.30 2.20 0.10 5.00 0.30 10.00 4.30 0.30 2.40 0.30 3.50 0.30 32.50 0.30 4.80 0.30 1.20 0.30 1.80 0.30 1.50 0.30 3.90 13.20 0.30 3.00 0.30 5.40 0.30 1.20 0.30 10.80 0.30 2.40 0.30 3.30 0.40 6.40 0.40 6.50 0.40 6.00 20.40 5.00 0.10 W1 W1 V1 V1 V1 V1 D1 D1 D1 D1 D1 D1 D1 D4 W2 W2 W2 W2 W2 W2 W1 W1 W3 W5 W5 DN 22 32 13 19 18 17 16 15 14 20 21 31 25 26 27 28 29 30 24 23 DUCT 1.20 0.70m DUCT 0.70 1.10m DUCT 1.40 x 0.70m DUCT 1.20 0.70m W2 W2 W2 W2 W2 W2 W2 W2 1.00 D2 BALCONY 6.50 1.50m 1.20 8.30 10.90 2.00 1.50 6.30 BEDROOM TOILET POWDER ROOM INVERTER ROOM STORE ROOM PUMP ROOM DINING ROOM TOILET STAFF ROOM FAMILY LOUNGE STORE ROOM KITCHEN DINING ROOM LIVING ROOM TOILET TOILET WARDROBE BEDROOM FAMILY LOUNGE TOILET BEDROOM LVL: +0.00 M LVL: -3.20 M LVL: +3.30 M EAVES LVL: +5.50 M RIDGE LVL: +7.75 M LVL: +0.00 M LVL: +3.30 M LVL: +7.20 M 0.90 1.60 3.01 2.20 3.86 2.50 3.15 0.90 1.60 2.80 3.15 2.20 3.75 LVL: -3.35 M LVL: -0.45 M D1 D1 D1 W1 W1 W2 W2 W2 W2 W2 W1 W1 W1 W4 W3 V1 D2 W3 D1 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D4 EAVES LVL: +6.00 M 0.65 0.51 4.35 3.15 0.25 2.50 3.79 2 9 10 11 32 31 25 26 27 28 29 30 24 23 22 2.50 3.30 2.50 4.00 0.90 1.60 0.90 0.25 4.00 2.90 3.90 0.25 2.90 1.50 POOL DECK W2 W2 0.45 GROUND LVL RIDGE LVL: +7.96 M 0.30 0.15 100.0 101.0 102.0 103.0 104.0 105.0 106.0 108.0 109.0 3.58 3.21 3.00 7.81 14.28 54.59 23.79 24.50 16.40 35.00 6.00 16.53 B FLOOR PLAN SCALE 1:100 A A A B B A A B A GROUND FLOOR PLAN SCALE 1:100 FIRST FLOOR PLAN SCALE 1:100 ROOF PLAN SCALE 1:100 SECTION AA SCALE 1:100 SECTION BB SCALE 1:100 PROPOSED STRUCTURE PROPOSED POOL Septic Tank Soak Pit N N Proposed Boundary FIRST FLOOR PLAN INVERTOR ROOM 1.50 2.90m 0.40 1.50 2.50 2.50 1.50 1.00 2.90 V1 STORE ROOM 2.50 x 3.00m PUMP ROOM 2.50 x 3.00m 0.40 0.30 0.30 0.30 13.30 2 WHEELER PARKING 3.30 2.90m D4 D4 D4 GARAGE 6.30 x 4.00m DUCT 1.20 0.70m DUCT 0.70 1.10m +0.15 LVL +1.50 M LVL UP D1 0.10 2.90 0.30 4.00 0.40 1.10 0.30 0.70 0.30 3.30 0.40 6.80 2.80 10.80 2.40 0.40 W4 W4 W4 W4 W3 D1 1.40 3 10 +0.00 M LVL LIFT 1.5 1.5m POWDER ROOM 1.80 x 3.0m TOILET 4.80 3.00m BEDROOM 6.00 x 5.40m FOYER 1.60 MAIN ENTRANCE 3.00 10.80 0.30 0.30 5.40 0.30 1.20 0.30 0.30 6.00 0.30 4.80 1.80 0.30 0.30 0.30 1.20 13.20 0.40 0.700.30 3.30 W1 V1 V1 D1 D1 D1 D4 BALCONY 3.30 1.50m DUCT 1.20 x 0.70m DUCT 0.70 1.10m TOILET POWDER ROOM INVERTER ROOM STORE ROOM PUMP ROOM DINING ROOM TOILET STAFF ROOM FAMILY LOUNGE LVL: +0.00 M LVL: -3.20 M LVL: +3.30 M EAVES LVL: +5.50 M RIDGE LVL: +7.75 M 0.90 1.60 3.01 2.20 3.86 2.50 3.15 0.90 1.60 2.80 LVL: -3.35 M D1 D1 D1 W1 W1 W1 W4 D2 D4 0.65 0.51 4.35 3.15 0.25 2.50 3.79 4 10 11 32 31 25 26 27 28 29 30 24 23 22 2.50 1.50 SWIMMING POOL DECK LIFT SHAFT GROUND LVL 0.30 0.15 WATER LVL W1 W1 D2 W3 W3 W3 V1 D1 D3 LVL: +0.00 M LVL: +3.30 M RIDGE LVL: +7.96 M LVL: -0.45 M EAVES LVL: +5.60 M BASEMENT FLOOR PLAN SCALE 1:100 A A A GROUND FLOOR PLAN SCALE 1:100 SECTION AA SCALE 1:100 WEST SIDE ELEVATION SCALE 1:100 SIDE ELEVATION OF COMPOUND PLAN OF COMPOUND WALL 30CM 15 CM MASONRY WALL WEST ELEVATION

Pit

GROUNDFLOORPLAN

SCALE1:100

SIDEELEVATIONOFCOMPOUNDWALL

30CMMASONRYPIER

ROOFPLANSCALE1:100

SECTIONCCSCALE1:100

MASONRYPIER

MASONRYWALL

BOUNDARYWALLDETAILSSCALE1:200

PROJECT:

SECTION

PROPOSEDHOUSE,atSurveyno.350/13,PLOTA1, SiolimVillage,Bardez

SECTIONBBSCALE1:100

GROUNDFLOOR

TOTALFLOORAREA= A+B+C+D+E+F+G+H+I+J+K+L+M+

FIRST FLOOR TOTALFLOORAREA= A+B+C+D+E+F+G+H+I+J+K+L+M+N+O+P+Q+R+S+T+a+b =14.26+28.67+0.60+0.56+0.90+35.42+0.45+0.81+3.72+0.33+ 6.36+9.68+18.48+2.61+0.72+53.42+10.87+18.32+8.00+8.40+9.78

MR. VIKRAMR.GUPTA

=232.36Sq.m.

AREASFREEFROMF.A.R.= a+b+c =8.40+9.78 =18.18Sq.m.

NETAREA= totalfloorarea -areafreefromF.A.R =232.36-18.18 =214.18Sq.m.

RajivD'Silva,B.Arch. Reg.No.AR/0109/2010

DATE:

OWNER: 24/05/2022

DRAWNBY:

C.P.

2S2,EdconEnclave,VasudhaColonyLane1,Alto-SantaCruz, Bambolim,Tiswadi Goa. Ph:0832-2458031,email:rajivdsilva@gmail.com ©2022'Studio15,73'.NOPARTOFTHISDRAWINGMAYBEREPRODUCEDOR MODIFIEDWITHOUTTHEWRITTENCONSENTOFTHEARCHITECTS.

1:100 SCALE:

DWG.SS/VillaB_Sub_01_R0 NO.:

W 4.20 1.90 2.00 5.00 1.70 0.30 1.70 BEDROOM 4.20 5.00m TOILET 1.90 3.70 C CLOSET 2.00 1.70 DUCT W ROOF PLAN GROUND FLOOR PLAN W2 W4 W4 W4 V1 D4 0.30 0.30 0.30 0.30 0.30 0.30 UTILITYROOM 2.50X2.00m POWDER ROOM 2.30X1.70m SWIMMINGPOOL 12.0X3.60m TOILET 4.00x2.80m BEDROOM 4.00x5.40m KITCHEN 4.10X4.20m DINING 5.00X7.20m Courtyard DECK 2.3mwide STOREROOM 2.50X1.9m 4.60CourtyardX2.70m LOUNGE 5.00X4.50m BEDROOM 3.50x4.10m TOILET2.10x4.10m UP DN SERVICE BALCONY 2.0x3.20m FOYER 2.00X3.10m PASSAGE5.80X1.90m LIVINGROOM 5.30X7.50m 2.00 0.30 4.00 1.50 9.00 5.00 2.30 4.10 2.50 0.40 0.30 0.30 0.30 0.30 0.30 0.30 0.30 2.80 0.30 5.40 0.40 4.50 0.40 0.40 4.00 0.30 2.00 3.10 5.00 5.00 4.60 3.50 0.40 0.30 0.30 0.30 0.30 0.40 4.10 0.30 2.00 0.30 1.90 0.40 0.900.30 W1 W1 W1 W1 W1 W1 W1 W2 W2 W2 W2 W2 W2 W3 D2 V1 V1 D3 D3 D5 D1 D1 D1 D1 D1 D1 D1 D4 D4 34.10 9.40 9.20 14.20 32.20 LIFT 1.5x1.5m DUCT 1.50 0.80m DUCT 1.00 0.70m DUCT 0.9 0.60m 2.30 3.60 DECK 2.3mwide DECK 2.1mwide 6.22 12.00 2.30 2.10 3.10 8 10 11 12 14 13 19 1817 16 15 20 21 0.40 1 9 10 11 12 14 13 19 1718 16 15 20 21 22 1.20 1.05 TOILET 4.60X2.30m BEDROOM 4.60X4.20m BEDROOM 3.50x4.10m TOILET2.10x4.10m LOUNGE3.3m BALCONY 2.00x6.50m 4.60 0.30 4.60 0.40 3.50 2.10 0.30 0.30 6.50 0.40 4.20 0.30 4.10 0.40 0.90 0.30 2.00 W1 D2 W2 W2 V1 V1 D1 D1 D1 D1 DUCT 1.00x0.70m DUCT 0.9 0.60m 11.40 c 17.36sq.m. C 42.84sq.m. M 6.72sq.m. G 7.04sq.m. K 71.94sq.m. L 27.44sq.m. F 1.58sq.m. N 11.96sq.m. O 38.90sq.m. P 17.49sq.m. Q 16.74sq.m. b 3.96sq.m. a 8.40sq.m. b 9.78sq.m. A 14.26sq.m. B 28.67sq.m. C 0.60sq.m. D 0.56sq.m. F 0.90sq.m. G 35.42sq.m. H 0.45sq.m. I 0.81sq.m. J 3.72sq.m. K 0.33sq.m. L 6.36sq.m. M 9.68sq.m. N 18.48sq.m. O 2.61sq.m. P 0.72sq.m. Q 53.42sq.m. R 10.87sq.m. S 18.32sq.m. T 8.00sq.m. 5.60 3.10 6.10 7.00 3.20 10.90 4.60 3.30 3.20 1.50 0.60 2.64 4.90 5.60 6.60 2.20 2.30 9.00 5.60 1.20 2.60 5.30 5.40 4.00 9.90 1.10 0.70 1.00 0.60 0.90 8.70 3.30 3.20 9.60 2.30 9.00 5.60 1.20 6.60 3.29 5.89 4.00 8.20 1.10 0.70 1.00 0.60 0.90 2.00 1.50 6.50 2.40 0.30 10.90 8.72 1.48 12.50 3.00 8.10 1.20 4.00 11.80 3.40 17.40 1.50 6.90 2.70 4.40 DININGROOM POWDERROOM KITCHEN STOREROOM BEDROOM TOILET FAMILYROOM GARAGE INVERTER ROOM BEDROOM TOILET BEDROOM TOILET 2.60 0.90 3.15 2.75 3.25 3.15 2.20 2.85 4.78 3.15 2.95 0.90 1.60 LVL:+0.00 M LVL:+3.30M LVL:+6.35M RIDGELVL: +8.55M LVL:+0.00M LVL:+3.30M LVL:-3.00M EAVESLVL: +5.50M RIDGELVL: +8.55M LVL:-3.00M LVL:-0.30M W1 D2 D1 D4 D1 W1 W4 W2 W2 W2 D1 D1 W2 2.95 3.11 0.20 3.30 3.06 0.25 0.25 1.60 2.50 2.50 0.90 1.60 0.90 1.60 2.50 GROUNDLVL W1 V1 LVL:+3.30M EAVESLVL: +5.50M RIDGELVL: +8.55M 1.50 SWIMMINGPOOL DECK GROUNDLVL WATERLVL 105.0 106.0 107.0 108.0 109.0 110.0 111.0112.0113.0 3.00 3.09 3.00 3.00 3.10 3.76 5.85 5.37 4.48 4.08 42.51 17.43 41.10 23.15 35.00 6.00 4.85 B ALLDIMENSIONSAREINMETRESUNLESSSTATEDOTHERWISE. PLAN SCALE1:200 FIRSTFLOORPLAN SCALE1:200

AREASFREEOFF.A.R.

N+O+P+Q+a+b+c=15.81+0.45+42.84+0.12+1.15+1.58+7.04+0.69+3.84+0.33+ 71.94+27.44+6.72+11.96+38.90+17.49+16.74+5.10+3.96+20.70 =294.80Sq.m. AREASFREEFROMF.A.R.= a+b+c =5.10+3.96+20.70 =29.76Sq.m. NETAREA= totalfloorarea -areafreefromF.A.R =294.80-29.76 =265.04Sq.m. BASEMENTFLOOR TOTALFLOORAREA= A+B+C+D+E+a+b+c =0.96+1.95+3.25+0.86+6.09+12.40+33.60+17.36

AREASFREEFROMF.A.R.= a+b+c =12.40+33.60+17.36 =63.36Sq.m. NETAREA= totalfloorarea -areafreefromF.A.R =76.67-63.36 =13.31Sq.m.

=76.67Sq.m.

CALCULATIONS A A A A B A TYPE W1 W2 W3 150x W4 70x160 W5 120x160 V1 100x100 150 D1 100x220D2 200x250D3 140x2201 D4 80x2208

SECTIONAASCALE1:100

PLANOFCOMPOUNDWALL C C A B B

PROPOSEDSTRUCTUREPROPOSEDPOOL SITEPLANSCALE1:500

SoakSepticTank

GATE

N SITE

toMorjim to Duler

Rd to Aguada Aguada-Siolim Rd N N ProposedBoundaryWall STAFF QUARTER BEDROOM TOILET TOILET BEDROOM PASSAGE PASSAGE LIVING /DINING FAMILY LOUNGE TOILET CLOSET 3.15 4.49 SECTION A-A' SECTION B-B' LIVING /DINING FAMILY LOUNGE FRONT ELEVATION SIDE ELEVATION LVL: +0.00 M LVL: +0.00 M LVL: -0.45 M LVL: +3.30 M LVL: +7.80 M LVL: +7.99 M LVL: +2.65 M LVL: +2.95 M LVL: +0.00 M LVL: -0.15 M LVL: +3.30 M LVL: +6.99 M LVL: +7.99 M 2.25 0.90 1.25 2.95 0.90 1.60 2.20 4.49 0.90 1.60 3.15 2.20 2.20 W4 D4 W1 W1 W2 W4 D1 D4 W5 W6 W1 W1 W2 W2 W5 D4 V1 W4 W3 D4 D2 D1 W1 V1 V1 V1 W3 D1 W5 W6 D3 W1 W1 W2 W2 W2 W2 W5 V1 10 20 0.30 20 21 22 0.15 FAMILY LOUNGE FRONT ELEVATION ELEVATION LVL: +7.80 M LVL: +7.99 M LVL: +6.99 M LVL: +7.99 M 4.06 W5 W6 W1 W4 W1 V1 W3 D1 W5 W6 D3 W1 W1 W2 W2 W2 W2 W5 V1 SECTION B-B' LIVING /DINING FAMILY LOUNGE FRONT ELEVATION LVL: +0.00 M LVL: -0.45 M LVL: +3.30 M LVL: +7.80 M LVL: +7.99 M LVL: +0.00 M LVL: -0.15 M LVL: +3.30 M LVL: +6.99 M LVL: +7.99 M 2.20 2.20 4.06 W4 W3 D4 D2 D1 W1 W3 D1 W5 D3 W1 W1 W2 W2 W2 W2 W5 10 11 12 13 14 15 16 0.15 STAFF QUARTER BEDROOM TOILET TOILET BEDROOM PASSAGE PASSAGE LIVING /DINING FAMILY LOUNGE TOILET CLOSET 3.15 4.49 SECTION A-A' SECTION B-B' LIVING /DINING FAMILY LOUNGE FRONT ELEVATION SIDE ELEVATION LVL: +0.00 M LVL: +0.00 M LVL: -0.45 M LVL: +3.30 M LVL: +7.80 M LVL: +7.99 M LVL: +2.65 M LVL: +2.95 M LVL: +0.00 M LVL: -0.15 M LVL: +3.30 M LVL: +6.99 M LVL: +7.99 M 2.25 2.95 2.20 4.49 0.90 1.60 2.20 4.06 W4 D4 W1 W1 W2 W4 D1 D4 W5 W6 W1 W1 W2 W2 W5 D4 V1 W4 W3 D4 D2 D1 W1 V1 V1 V1 W3 D1 W5 W6 D3 W1 W1 W2 W2 W2 W2 W5 V1 12 13 15 16 18 0.30 0.15 10 17 19 SIOLIM D SCHEDULE OF OPENINGS TYPE SIZE (cms) SILL HEIGHT (cms) NOS. W1 300 160 90 11 W2 200 160 90 5 W3 150 160 90 7 W4 120 160 90 2 W5 120 405 175 1 V1 100 100 150 5 D1 100 220 - 11 D2 300 250 - 2 D3 140 250 - 1 D4 80 220 - 10 A 0.84 SQ.M B 22.88 SQ.M 1.80 1.30 1.00 1.50 5.20 4.40 A 29.30 SQ.M a SQ.M C 56.95 SQ.M B 2.40 SQ.M D 9.36 SQ.M E 7.92 SQ.M G 19.80 SQ.M F 3.98 SQ.M 0.60 1.50 7.70 1.50 4.00 5.20 1.80 8.50 3.60 2.20 2.20 1.81 3.30 A 29.30 SQ.M B 56.95 SQ.M C 9.36 SQ.M D 7.92 SQ.M G 3.31 SQ.M E 1.88 SQ.M F 12.98 SQ.M 7.70 4.00 6.70 8.50 5.20 1.80 3.60 2.20 2.20 1.40 1.50 1.81 5.90 2.20 6.90 3.40 6.50 3.10 6.00 1.00 1.50 SCHEDULE OF OPENINGS TYPE SIZE (cms) SILL HEIGHT (cms) NOS. W1 300 x 160 90 11 W2 200 x 160 90 W3 150 x 160 90 W4 120 x 160 90 W5 120 x 405 175 V1 100 x 100 150 D1 100 x 220 - 11 D2 300 x 250D3 140 x 250D4 80 220 - 10 A 0.84 SQ.M B 22.88 SQ.M 1.80 1.30 1.00 1.50 5.20 4.40 A 29.30 SQ.M 6 SQ.M C 56.95 SQ.M B 2.40 SQ.M D 9.36 SQ.M E 7.92 SQ.M G 19.80 SQ.M F 3.98 SQ.M 36.75 SQ.M 0.60 1.50 7.70 1.50 4.00 5.20 1.80 8.50 3.60 2.20 2.20 1.81 7.50 3.30 4.90 A 29.30 SQ.M B 56.95 SQ.M C 9.36 SQ.M D 7.92 SQ.M G 3.31 SQ.M E 1.88 SQ.M J 9.20 SQ.M F 12.98 SQ.M H 2.60 SQ.M 29.09 SQ.M a 2.20 SQ.M K 26.32 SQ.M L 7.20 SQ.M 7.70 4.00 6.70 8.50 5.20 1.80 3.60 2.20 2.20 1.40 1.50 1.81 5.90 2.20 6.90 4.00 3.40 6.50 3.10 2.30 5.60 3.60 2.00 4.70 2.20 4.90 6.60 1.00 0.70 1.50 3.80 BASEMENT TOTAL FLOOR AREA= A + B 0.84 + 22.88 = 23.72 SQ.M GROUND FLOOR TOTAL FLOOR AREA= A + B C D + E F + G + H + + J K + a = 29.30 + 2.40 + 56.95 + 9.36 7.92 + 3.98 19.80 + 25.07 36.75 + 26.32 + 7.20 + = 231.02 SQ.M AREAS FREE FROM F.A.R= a 6 SQ.M NET AREA= 231.02- 6 225.02 SQ.M FIRST FLOOR TOTAL FLOOR AREA= A + B C D + E F + G + H + + J K + L a = 29.30 + 56.95 + 9.36 + 7.92 3.31 + 1.88 12.98 + 3.31 + 2.60 + 29.09 + 9.20 + 26.32 7.20 + 2.20 201.62 SQ.M AREAS FREE FROM F.A.R= a = 2.20 SQ.M NET AREA= 201.62- 2.20 199.42 6.00 1.00 1.50 0.80 SCHEDULE OF OPENINGS TYPE SIZE (cms) SILL HEIGHT (cms) NOS. W1 300 160 90 11 W2 200 160 90 5 W3 150 160 90 7 W4 120 160 90 2 W5 120 405 175 1 V1 100 100 150 5 D1 100 220 - 11 D2 300 250 - 2 D3 140 250 - 1 D4 80 220 - 10 A 0.84 SQ.M B 22.88 SQ.M 1.80 1.30 1.00 1.50 5.20 4.40 0.60 1.50 7.70 1.50 1.00 7.70 1.00 1.50 SCHEDULE OF OPENINGS TYPE SIZE (cms) SILL HEIGHT (cms) NOS. W1 300 160 90 11 W2 200 160 90 5 W3 150 160 90 7 W4 120 160 90 2 W5 120 405 175 1 V1 100 100 150 5 D1 100 220 - 11 D2 300 250 - 2 D3 140 250 - 1 D4 80 x 220 - 10 A 0.84 SQ.M B 22.88 SQ.M 1.80 1.30 1.00 1.50 5.20 4.40 A 29.30 SQ.M a 6 SQ.M C 56.95 SQ.M B 2.40 SQ.M D 9.36 SQ.M E 7.92 SQ.M H 25.07 SQ.M G 19.80 SQ.M F 3.98 SQ.M 36.75 SQ.M 26.32 SQ.M K 7.20 SQ.M 4.00 6.70 0.60 1.50 7.70 1.50 1.00 4.00 5.20 1.80 8.50 3.60 2.20 2.20 1.81 7.50 3.30 2.30 10.90 5.60 4.70 2.00 3.60 4.90 A 29.30 SQ.M B 56.95 SQ.M C 9.36 SQ.M D 7.92 SQ.M G 3.31 SQ.M E 1.88 SQ.M 9.20 SQ.M F 12.98 SQ.M H 2.60 SQ.M 29.09 SQ.M a 2.20 SQ.M K 26.32 SQ.M L 7.20 SQ.M 7.70 4.00 6.70 8.50 5.20 1.80 3.60 2.20 2.20 1.40 1.50 1.81 5.90 2.20 6.90 4.00 3.40 6.50 3.10 2.30 5.60 3.60 2.00 4.70 2.20 4.90 6.60 1.00 0.70 1.50 3.80 BASEMENT TOTAL FLOOR AREA= A 0.84 22.88 23.72 SQ.M GROUND FLOOR TOTAL FLOOR AREA= A D E + F + G + H + + + 29.30 + 2.40 + 56.95 7.92 3.98 + 19.80 36.75 + 26.32 + 7.20 231.02 SQ.M AREAS FREE FROM F.A.R= = SQ.M NET AREA= 231.02- 6 = 225.02 SQ.M FIRST FLOOR TOTAL FLOOR AREA= A D E + F + G + H + + + 29.30 + 56.95 + 9.36 3.31 1.88 + 12.98 2.60 29.09 + 9.20 7.20 2.20 = 201.62 SQ.M AREAS FREE FROM F.A.R= 2.20 SQ.M NET AREA= 201.62- 2.20 199.42 6.00 1.00 1.50 0.80 SCHEDULE OF OPENINGS TYPE SIZE (cms) SILL HEIGHT (cms) NOS. W1 300 x 160 90 11 W2 200 x 160 90 W3 150 x 160 90 W4 120 x 160 90 W5 120 x 405 175 V1 100 x 100 150 D1 100 x 220 - 11 D2 300 x 250D3 140 x 250D4 80 220 - 10 A 0.84 SQ.M B 22.88 SQ.M 1.80 1.30 1.00 1.50 5.20 4.40 A 29.30 SQ.M 6 SQ.M C 56.95 SQ.M B 2.40 SQ.M D 9.36 SQ.M E 7.92 SQ.M H 25.07 SQ.M G 19.80 SQ.M F 3.98 SQ.M 36.75 SQ.M J 26.32 SQ.M K 7.20 SQ.M 4.00 6.70 0.60 1.50 7.70 1.50 1.00 4.00 5.20 1.80 8.50 3.60 2.20 2.20 1.81 7.50 3.30 2.30 10.90 5.60 4.70 2.00 3.60 4.90 A 29.30 SQ.M B 56.95 SQ.M C 9.36 SQ.M D 7.92 SQ.M G 3.31 SQ.M E 1.88 SQ.M J 9.20 SQ.M 12.98 SQ.M H 2.60 SQ.M 29.09 SQ.M a 2.20 SQ.M K 26.32 SQ.M L 7.20 SQ.M 7.70 4.00 6.70 8.50 5.20 1.80 3.60 2.20 2.20 1.40 1.50 1.81 5.90 2.20 6.90 4.00 3.40 6.50 3.10 2.30 5.60 3.60 2.00 4.70 2.20 4.90 6.60 1.00 0.70 1.50 3.80 BASEMENT TOTAL FLOOR AREA= = 0.84 + 22.88 23.72 SQ.M GROUND FLOOR TOTAL FLOOR AREA= D + E F + G + H + = 29.30 + 2.40 + 56.95 7.92 + 3.98 + 19.80 36.75 + 26.32 + 7.20 = 231.02 SQ.M AREAS FREE FROM F.A.R= 6 SQ.M NET AREA= 231.02- 6 225.02 SQ.M FIRST FLOOR TOTAL FLOOR AREA= D + E F + G + H + 29.30 + 56.95 + 9.36 3.31 + 1.88 + 12.98 2.60 + 29.09 + 9.20 7.20 + 2.20 201.62 SQ.M AREAS FREE FROM F.A.R= 2.20 SQ.M NET AREA= 201.62- 2.20 = 199.42 6.00 1.00 1.50 0.80

15CMMASONRYWALL

FRONTELEVATIONOFCOMPOUNDWALL LOCATIONPLANNTS

FOOTBALLGROUND ST.ANTHONY'SCHRUCH

Duler-Marna-Siolim

2.50 2.20 7.10 3.80 0.40 0.40 5.10 4.50 0.40 0.40 0.30 2.10 0.30 2.10 3.70 0.30 27.80 8.50 2.50 0.30 3.70 0.40 4.50 0.30 5.10 1.40 3.70 5.20 2.00 27.80 0.30 2.70 2.20 0.30 1.50 0.30 4.60 0.30 0.30 3.80 0.30 4.40 0.30 1.40 Balcony 1.00 x 2.20m BEDROOM 4.50 4.60m TOILET 3.70 2.50m PASSAGE 5.40 1.60m 4.10 4.50m TOILET 1.20 2.50m LIFT WELL PASSAGE 5.40 1.60m FOYER BELOW 1.00 1.50m STAFF QUARTER 3.80 2.00 + 2.5 X 2.6 DOWN BELOW GROUND FLOOR PLAN FIRST FLOOR PLAN ROOF PLAN POWDER ROOM 1.90 2.20m BEDROOM 4.50 4.60m TOILET 3.70 x 2.50m PASSAGE 5.50 1.60m LIFT 1.50 1.50m FOYER 1.40 1.80m UP UP SERVICE BALCONY 4.00 2.10 GROUND FLOOR PLAN W1 W1 W1 W1 W2 W2 W2 W3 W3 V1 V1 V1 W5 W4 W5 W4 D1 D1 D1 D1 D4 D4 D4 D3 W3 V1 D1 D4 0.30 0.40 0.40 0.40 2.50 1.50 2.50 3.70 0.40 6.00 14.50 4.00 1.70 3.00 2.20 7.10 3.80 0.40 0.40 5.10 4.50 0.40 0.40 3.60 10.50 0.30 0.30 0.30 0.30 2.10 0.30 2.10 3.70 0.30 10.70 6.70 31.90 27.80 8.50 7.70 2.50 1.50 2.50 0.30 0.30 3.70 0.40 6.00 3.60 10.49 4.00 0.30 3.70 0.40 4.50 0.30 5.10 1.40 3.70 5.20 2.00 27.80 3.00 0.30 2.70 2.20 2.00 0.30 1.50 0.30 4.60 0.30 0.30 3.80 0.30 4.40 0.30 1.40 BEDROOM 4.00 5.00m Balcony 1.00 x 2.20m TOILET 1.70 x 3.00 BEDROOM 6.00 x 4.80m BEDROOM 4.50 4.60m TOILET 3.70 2.50m TOILET 3.70 2.50m PASSAGE 5.40 1.60m WARDROBE 2.80 x 1.50m LIVING BELOW FAMILY LOUNGE 4.10 4.50m TOILET 1.20 2.50m LIFT WELL PASSAGE 5.40 1.60m DUCT DECK BELOW FOYER BELOW DUCT STAFF QUARTER 3.80 2.00 + 2.5 X 2.6 DOWN ON GROUND LVL BELOW GROUND FLOOR PLAN FIRST FLOOR PLAN ROOF PLAN KITCHEN 4.00 5.00m LIVING /DINING ROOM 10.50 5.00m POWDER ROOM 1.90 2.20m UTILITY 1.70 x 3.00 DECK 3.60 X 4.10 SWIMMING POOL 14.50 2.50m DECK 10.90 1.80 BEDROOM 6.00 4.80m BEDROOM 4.50 4.60m TOILET 3.70 2.50m TOILET 3.70 x 2.50m PASSAGE 5.50 x 1.60m LIFT 1.50 1.50m WARDROBE 2.80 1.50m FOYER 1.40 1.80m DUCT UP UP SERVICE BALCONY 4.00 2.10 GROUND FLOOR PLAN W1 W1 W1 W1 W1 W1 W1 W1 W1 W2 W2 W2 W2 W2 W3 W3 W3 W3 V1 V1 V1 V1 V1 V1 V1 W5 W4 W5 W4 D1 D1 D1 D1 D1 D1 D1 D1 D1 D4 D4 D4 D4 D4 D4 D4 D4 D4 D3 W3 W3 V1 D1 D4 10 11 13 15 17 19 20 21 22 10 12 14 16 18 20 22 0.30 0.30 0.30 0.40 0.40 0.30 0.30 0.30 0.30 0.40 0.30 0.40 31.90 0.40 0.40 0.40 4.00 1.70 0.40 0.30 6.70 8.50 7.70 0.30 3.70 0.40 6.00 3.60 10.49 4.00 0.30 3.70 0.40 4.50 0.30 5.10 1.40 3.70 5.20 2.00 27.80 0.30 3.00 0.30 2.70 2.20 2.00 BEDROOM 4.00 5.00m Balcony TOILET 1.70 3.00 BEDROOM 6.00 4.80m BEDROOM 4.50 4.60m TOILET 3.70 2.50m TOILET 3.70 2.50m PASSAGE 5.40 1.60m WARDROBE 2.80 1.50m LIVING BELOW FAMILY LOUNGE 4.10 4.50m LIFT WELL +1.20 1.20m PASSAGE 5.40 1.60m 1.00 1.50m DECK BELOW FOYER BELOW DOWN SWIMMING POOL FIRST FLOOR PLAN KITCHEN 4.00 5.00m POWDER ROOM 1.90 2.20m UTILITY 1.70 3.00 W1 W1 W1 W1 W1 W1 W2 W2 W2 W2 W3 W3 V1 V1 V1 V1 V1 W5 W4 D1 D1 D1 D1 D1 D4 D4 D4 D4 D4 D4 W3 0.30 0.30 0.30 0.40 0.30 0.40 31.90 0.40 0.40 0.40 2.20 7.10 3.80 0.40 0.40 5.10 4.50 0.40 0.40 0.30 2.10 0.30 3.70 0.30 27.80 8.50 2.50 0.30 3.70 0.40 4.50 0.30 5.10 1.40 3.70 5.20 2.00 27.80 0.30 0.30 0.30 3.80 0.30 4.40 0.30 1.40 Balcony 1.00 x 2.20m BEDROOM 4.50 4.60m TOILET 3.70 2.50m PASSAGE 5.40 1.60m LOUNGE 4.10 x 4.50m TOILET 1.20 2.50m LIFT WELL +1.20 1.20m PASSAGE 5.40 x 1.60m FOYER BELOW 1.00 1.50m STAFF QUARTER 3.80 2.00 2.5 X 2.6 DOWN BELOW GROUND FLOOR PLAN FIRST FLOOR PLAN ROOF PLAN LIVING /DINING ROOM 10.50 5.00m POWDER ROOM 1.90 2.20m BEDROOM 4.50 x 4.60m TOILET 3.70 2.50m PASSAGE 5.50 1.60m LIFT 1.50 1.50m +1.20 1.20m FOYER 1.40 1.80m UP SERVICE BALCONY 4.00 2.10 GROUND FLOOR PLAN W1 W1 W1 W2 W2 W2 W2 W3 W3 V1 V1 V1 W5 W4 W5 W4 D1 D1 D1 D1 D1 D4 D4 D4 D4 D3 W3 V1 0.30 0.30 0.40 0.40 0.40 STAFF QUARTER BEDROOM TOILET LIVING /DINING POWDER ROOM PASSAGE BEDROOM TOILET PASSAGE FAMILY LOUNGE BALCONY FRONT ELEVATION SIDE ELEVATION 3.15 4.50 0.90 1.60 2.20 0.90 1.60 2.25 1.50 0.65 LVL: +0.00 M LVL: -2.65 M LVL: -2.80 M LVL: +3.30 M LVL: +7.80 M LVL: +7.99 M LVL: -1.50 M LVL: -0.45 M V1 W4 D3 W4 W2 W1 W1 W1 W1 D1 D1 D1 W3 W3 W1 W2 W2 W5 W4 D1 W1 W2 D3 W2 W4 V1 16 17 STAFF QUARTER BEDROOM TOILET LIVING /DINING SECTION B-B' LIVING /DINING FAMILY LOUNGE POWDER ROOM PASSAGE BEDROOM TOILET PASSAGE FAMILY LOUNGE BALCONY FRONT ELEVATION SIDE ELEVATION LVL: +0.00 M LVL: +3.30 M LVL: -0.45 M LVL: +6.89 M LVL: +7.99 M 3.15 4.19 3.73 3.15 4.50 0.90 1.60 2.20 0.90 1.60 2.25 1.50 0.65 LVL: +0.00 M LVL: -2.65 M LVL: -2.80 M LVL: +3.30 M LVL: +7.80 M LVL: +7.99 M LVL: -1.50 M LVL: -0.45 M W3 D4 D2 D4 W1 V1 W4 D3 W4 W2 W1 W1 W1 W1 D1 D1 D1 W3 W3 W1 W2 W2 W5 W4 D1 W1 W2 D3 W2 W4 V1 V1 V1 D1 DECK 10 11 18 19 21 22 0.15 16 17 19 STAFF QUARTER BEDROOM TOILET LIVING /DINING SECTION B-B' LIVING /DINING FAMILY LOUNGE POWDER ROOM PASSAGE BEDROOM TOILET PASSAGE FAMILY LOUNGE BALCONY FRONT ELEVATION SIDE ELEVATION 3.15 4.19 3.73 3.15 4.50 0.90 1.60 2.20 0.90 1.60 2.25 1.50 0.65 LVL: +0.00 M LVL: -2.65 M LVL: -2.80 M LVL: +3.30 M LVL: +7.80 M LVL: +7.99 M LVL: -1.50 M LVL: -0.45 M W3 D4 D2 D4 W1 V1 W4 D3 W4 W2 W1 W1 W1 W1 D1 D1 D1 W3 W3 W1 W2 W2 W5 W4 D1 W1 W2 D3 W2 W4 V1 V1 V1 D1 DECK 10 12 15 16 17 18 19 20 22 0.15 16 18 20 STAFF QUARTER BEDROOM TOILET LIVING /DINING POWDER ROOM PASSAGE BEDROOM TOILET PASSAGE FAMILY LOUNGE BALCONY FRONT ELEVATION SIDE 3.15 4.50 0.90 1.60 2.20 0.90 1.60 2.25 1.50 0.65 LVL: +0.00 M LVL: -2.65 M LVL: -2.80 M LVL: +3.30 M LVL: +7.80 M LVL: +7.99 M LVL: -1.50 M LVL: -0.45 M V1 W4 D3 W4 W2 W1 W1 W1 W1 D1 D1 D1 W3 W3 W1 W2 W2 W5 W4 D1 W1 W2 D3 W2 W4 V1 16 17 18 19 20 STAFF QUARTER BEDROOM TOILET TOILET BEDROOM PASSAGE PASSAGE LIVING /DINING FAMILY LOUNGE TOILET CLOSET 3.15 4.49 SECTION A-A' FRONT ELEVATION SIDE ELEVATION LVL: +0.00 M LVL: +0.00 M LVL: -0.45 M LVL: +3.30 M LVL: +7.80 M LVL: +7.99 M LVL: +2.65 M LVL: +2.95 M 2.25 0.90 1.25 2.95 0.90 1.60 2.20 4.49 0.90 1.60 W4 D4 W1 W1 W2 W4 D1 D4 W5 W6 W1 W1 W2 W2 W5 D4 V1 W4 D4 V1 V1 V1 W5 W6 D3 W2 W2 W2 W2 W5 V1 13 14 15 17 18 19 0.30 12 13 14 15 16 17 18 19 0.15

QUALITY LIVING

TWO VILLAS

B E N A U L I M

GROUND FLOOR PLAN

BEDROOM 4.00m 4.20m TOILET 2.2m 2.7m POWDER ROOM 2.2m x 1.5m TOILET 1.7m 2.0m CARETAKER'S ROOM 3.60m 3.0m KITCHEN 4.80m x 4.20m UTILITY 2.90m 2.00m STORE ROOM 2.6m x 2.00m LIVING ROOM 8.0m 4.5m DINING ROOM 3.5m 5.70m DECK 4.5m x 3.0m VERANDAH 1.6m 4.5m UP -0.60M LVL UP UP -0.15M LVL +0.00M LVL +0.00M LVL -0.15M LVL -0.15M LVL INVERTER ROOM 1.0m x 2.0m CLOSET 1.7m 1.4m BEDROOM 4.00m 4.20m TOILET 2.2m x 2.7m POWDER ROOM 2.2m 1.5m TOILET 1.7m 2.0m KITCHEN 4.80m 4.20m UTILITY 2.90m x 2.00m STORE ROOM 2.6m x 2.00m LIVING ROOM 8.0m 4.5m DINING ROOM 3.5m 5.70m DECK 4.5m 3.0m VERANDAH 1.6m 4.5m UP UP -0.15M LVL +0.00M LVL +0.00M LVL -0.15M LVL -0.60M LVL INVERTER ROOM 1.9m x 2.0m CLOSET 1.7m 1.4m STUDY 3.60m x 4.20m 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. DRAWN BY: U.R.S APPROVED BY: R.D CLIENT: RANJEET PROJECT: QUALITY LIVING, BENAULIM DATE: 8-MAR-22 DWG NO: WD_1.01_R3 TYPICAL GROUND FLOOR PLAN 1.20 1.00 0.80 1.00 0.30 1.20 0.30 1.00 1.20 1.00 1.20 1.00 0.10 1.70 0.30 2.90 0.10 2.60 0.30 0.30 0.90 10.20 N SCALE: 1:100 A A B D1 D2 D2 D2 D2 D2 D2 D2 D2 W1 W4 W4 W6 W5 W3 W3 W3 W2 D4 D3 6.90 0.30 0.80 23.70 2.99 4.41 2.80 4.80 2 7 9 10 11 12 13 14 15 16 17 18 19 20 6.30 0.30 0.30 4.20 0.30 0.30 2.50 7.00 6.10 0.30 4.50 0.30 3.00 0.30 3.20 0.30 11.90 0.30 2.00 0.30 4.20 0.30 4.50 0.10 1.50 0.30 1.40 0.10 2.70 0.30 1.00 23.70 0.30 5.40 10.2090X 220 W4 2150X 240 D3 D2 SIZE (cms) SCHEDULE OF OPENINGS 325 X 240 D1 TYPE SILL HT. (cms) NOS. D4 2 24 4 - 294X 240 2 90 4 60 X 150 W1 200X 225 2 W2 15100 X 150 16 W3 90 200 X 240 - 1 D5 80 X 220 100 X 230 4 W5100 X 120 17 W6 120 2.60 1.00 2.00 1.00 0.30 1.40 2.00 1.40 2.80 2.70 1.50 4.50 2.99 0.30 1.51 2.99 0.30 0.60 1.80 0.60 1.17 0.90 1.40 1.00 1.00 1.30 1.20 0.60 1.00 1.40 3.50 3.96 1.90 0.94 1.00 1.00 1.00 2.90 1.17 1.00 1.20 1.00 0.27 1.23 0.27 1.00 0.83 1.00 1.17 10.14 23.70 6.90 4.80 W7 D1 D2 D2 D2 D2 D2 D2 D2 W1 W4 W4 W5 W3 W3 W3 D4 D3 W7 LINTE.HT.(cms) 240 D5 3.50 2.00 1.45 3.50 D3 D3 29.40 15.00 W2 W6 W6 W6 W6 W6 W6 W6 W6 W6 W6 W6 W3 W3 0.60 0.60 0.05 - 2 D6 450 X 240 240 220 240 240 220 240 145 X 80 2 W7240 240240 240 240 B 26cm Laterite masonry 10cm Fly-ash Brick masonry 10cm Exposed Brick cladding VILLA A VILLA B 3 7 8 10 11 12 13 14 15 16 17 18 19 20 D2 0.27 D7 90 X 220 220 2 -

BEDROOM 4.80m 4.20m FAMILY ROOM 4.10m x 4.50m BEDROOM 4.50m 4.20m TERRACE 3.00m 4.50m TOILET 2.6m x 2.0m DN +3.30M LVL TOILET 2.6m x 2.0m CLOSET 2.20m x 2.0m CLOSET 1.8m x 2.0m STUDY 3.50m 2.00m +3.15M LVL BEDROOM 4.80m 4.20m FAMILY ROOM 4.10m 4.50m BEDROOM 4.50m 4.20m TERRACE 3.00m 4.50m +3.30M LVL DN TOILET 4.5m 2.0m TOILET 4.8m 2.0m A A B D2 D2 W6 W3 3 9 10 11 12 13 14 15 16 17 18 19 20 W6 W3 W3 W3 W5 W6 D7 W6 W3 W6 W3 W3 W3 W5 69.00 8.81 48.00 28.00 40.07 4.50 1.60 0.30 4.50 0.30 1.00 2.20 1.00 2.60 1.20 1.00 2.10 1.20 2.50 1.00 1.20 2.60 1.00 2.20 1.00 3.80 1.00 0.70 1.00 1.59 0.30 0.90 1.00 0.69 0.10 1.01 0.80 0.30 0.70 1.41 0.10 0.69 1.00 0.90 0.30 10.20 D2 D2 D2 0.30 2.00 1.00 0.30 2.20 1.00 0.30 3.50 1.00 0.30 0.40 1.00 1.59 23.70 0.30 2.00 0.30 1.00 2.20 1.00 0.30 4.50 0.30 2.99 6.90 4.80 4.01 2.80 4.50 2.99 1.17 1.00 2.47 1.23 2.10 1.00 0.30 4.45 0.27 1.00 2.20 1.00 2.57 2.57 1.00 2.20 1.00 3.72 1.00 0.70 1 8 9 10 1112 13 14 15 16 17 18 19 20 B D2 D2 D6 D6 4.50 4.5090X 220 W4 2150X 240 D3 D2 SIZE (cms) SCHEDULE OF OPENINGS 325 X 240 D1 TYPE SILL HT. (cms) NOS. D4 2 24 4 - 294X 240 2 90 4 60 X 150 W1 200X 225 2 W2 15100 X 150 16 W3 90 200 X 240 - 1 D5 80 X 220 100 X 230 4 W5100 X 120 17 W6 120 LINTE.HT.(cms) 240 - 2 D6 450 X 240 240 220 240 240 220 240 145 X 80 2 W7240 240240 240 240 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. DRAWN BY: U.R.S APPROVED BY: R.D CLIENT: RANJEET PROJECT: QUALITY LIVING, BENAULIM DATE: 8-MAR-22 DWG NO: WD_1.02_R3 TYPICAL FIRST FLOOR PLAN N SCALE: 1:100 26cm Laterite masonry 10cm Fly-ash Brick masonry 10cm Exposed Brick cladding VILLA A VILLA B D7 90 X 220 220 - 2 D7 1.17

FIRST FLOOR PLAN

CENTRELINE PLAN

FOUNDATION PLAN

BEDROOM 4.00m x 4.20m TOILET 2.2m x 2.7m POWDER ROOM 2.2m x 1.5m TOILET 1.7m x 2.0m CARETAKER'S ROOM 3.60m x 3.0m KITCHEN 4.80m x 4.20m UTILITY 2.90m x 2.00m STORE ROOM 2.6m x 2.00m LIVING ROOM 8.0m x 4.5m DINING ROOM 3.5m x 5.70m DECK 4.5m x 3.0m VERANDAH 1.6m x 4.5m UP -0.60M LVL UP UP -0.15M LVL +0.00M LVL +0.00M LVL -0.15M LVL -0.15M LVL INVERTER ROOM 1.0m x 2.0m CLOSET 1.7m x 1.4m TOILET 2.2m x 2.7m POWDER ROOM 2.2m x 1.5m KITCHEN 4.80m x 4.20m STORE ROOM 2.6m x 2.00m DINING ROOM 3.5m x 5.70m UP +0.00M LVL CLOSET 1.7m x 1.4m A B C D E F G H I J K A B C D E F G H I J K 1 2 3 4 5 6 7 8 10 9 1 2 3 4 5 6 7 8 10 9 0.90 0.69 1.22 0.70 0.78 0.72 0.60 0.99 0.40 1.60 0.90 0.69 1.22 0.70 0.78 0.72 0.60 0.99 0.40 1.60 2.94 1.54 1.72 5.61 4.77 3.30 1.17 1.70 0.60 2.94 1.54 1.72 5.61 4.77 3.30 1.17 1.70 0.60 L L 0.79 0.79 5.43 M M 0.50 0.50 4.30 3.20 1 2 3 4 5 6 7 8 10 9 0.40 1.60 2.94 1.54 1.72 5.61 4.77 3.30 1.17 1.70 0.60 0.79 A B C D 8.99 2.86 9.31 5.65 5.30 3.08 2.95 0.10 0.20 0.20 0.10 4.10

TYPICAL SECTION THROUGH INTERNAL LOAD BEARING WALL AT A-A' G.L. P.C.C 100MM THK RUBBLE SOLING 200MM THK D.P.C 100MM THK C.C.(1:2:4) 300Thk.LOAD BEARING MASONRY WALL (IN SUPERSTRUCTURE) 300Thk. PLINTH MASONRY P.C.C 100MM THK 1:3:6 RUBBLE SOLING 200MM THK 480Thk. PLINTH MASONRY 550Thk. PLINTH MASONRY UFL +0.00 m 300Thk. PLINTH MASONRY P.C.C 100MM THK 1:3:6 G.L. P.C.C 100MM RUBBLE SOLING 200MM THK RUBBLE SOLING 200MM THK 300Thk.LOAD BEARING MASONRY (IN SUPERSTRUCTURE) D.P.C 100MM THK C.C.(1:2:4) 480Thk. PLINTH MASONRY 550Thk. PLINTH MASONRY(3LAYERS) TYPICAL SECTION THROUGH EXTERNAL LOAD BEARING WALL AT B-B' 300Thk. PLINTH MASONRY P.C.C 100MM THK 1:3:6 G.L. RUBBLE SOLING 200MM THK RUBBLE SOLING 200MM THK D.P.C 100MM THK C.C.(1:2:4) UFL +0.00 m UFL -0.15 m 300Thk. PLINTH MASONRY P.C.C 100MM THK 1:3:6 G.L. P.C.C 100MM THK 1:3:6 RUBBLE SOLING 200MM THK RUBBLE SOLING 200MM THK TYPICAL SECTION THROUGH INTERNAL PARTITION WALL FOUNDATION AT D-D' 100Thk. BRICK MASONRY WALL (IN SUPERSTRUCTURE) G.L. -0.60 G.L. SECTION AT 1-1' PL. LEVEL -0.45 m PL. LEVEL +0.00 m P.C.C 100MM THK 1:3:6 A' A A' A A' A A' A A B C D E F G H I J K A B C D E F G H I J K 1 2 3 4 5 6 7 8 10 1 2 3 4 5 6 7 8 10 0.90 0.69 1.22 0.70 0.78 0.72 0.60 0.99 0.40 1.60 0.90 0.69 1.22 0.70 0.78 0.72 0.60 0.99 0.40 1.60 1.72 5.61 4.77 3.30 1.17 1.70 0.60 1.72 5.61 4.77 3.30 1.17 1.70 0.60 L L 0.79 0.79 M M 0.50 0.50 B' B B' B B' B B' B B' B A' A B' B C' C D' D D' D D' D D' D 0.85 1.50 0.30 0.34 0.86 0.60 0.60 0.60 0.60 0.85 0.60 0.60 TYPICAL SECTION THROUGH DECK/VERANDHA WALL AT C-C' 1' 1 0.25 0.05 0.25 0.05 0.25 0.05 0.25 0.10 0.20 9 9 2.94 1.54 2.94 0.10 TYPICAL SECTION THROUGH INTERNAL LOAD BEARING WALL AT A-A' G.L. P.C.C 100MM THK 1:3:6 RUBBLE SOLING 200MM THK D.P.C 100MM THK C.C.(1:2:4) 300Thk.LOAD BEARING MASONRY WALL (IN SUPERSTRUCTURE) 300Thk. PLINTH MASONRY P.C.C 100MM THK 1:3:6 RUBBLE SOLING 200MM THK 480Thk. PLINTH MASONRY 550Thk. PLINTH MASONRY UFL +0.00 m 300Thk. PLINTH MASONRY P.C.C 100MM THK 1:3:6 G.L. P.C.C 100MM THK 1:3:6 RUBBLE SOLING 200MM THK RUBBLE SOLING 200MM THK 300Thk.LOAD BEARING MASONRY WALL (IN SUPERSTRUCTURE) D.P.C 100MM THK C.C.(1:2:4) 480Thk. PLINTH MASONRY 550Thk. PLINTH MASONRY(3LAYERS) TYPICAL SECTION THROUGH EXTERNAL LOAD BEARING WALL AT B-B' 300Thk. PLINTH MASONRY P.C.C 100MM THK 1:3:6 G.L. RUBBLE SOLING 200MM THK RUBBLE SOLING 200MM THK D.P.C 100MM THK C.C.(1:2:4) UFL +0.00 m UFL -0.15 m 300Thk. PLINTH MASONRY P.C.C 100MM THK 1:3:6 G.L. P.C.C 100MM THK 1:3:6 RUBBLE SOLING 200MM THK RUBBLE SOLING 200MM THK TYPICAL SECTION THROUGH INTERNAL PARTITION WALL FOUNDATION AT D-D' 100Thk. BRICK MASONRY WALL (IN SUPERSTRUCTURE) G.L. -0.60 G.L. SECTION AT - 1-1' PL. LEVEL -0.45 m PL. LEVEL +0.00 m P.C.C 100MM THK 1:3:6 A' A A' A A' A A' A A B C D E F G H J K A B C D E F G H I J K 1 2 3 4 5 6 7 8 10 1 2 3 4 5 6 7 8 10 0.90 0.69 1.22 0.70 0.78 0.72 0.60 0.99 0.40 1.60 0.90 0.69 1.22 0.70 0.78 0.72 0.60 0.99 0.40 1.60 L L 0.79 0.79 M M 0.50 0.50 B' B B' B B' B B' B B' B A' A B' B C' C D' D D' D D' D D' D 0.85 0.34 0.86 0.60 0.60 0.85 0.60 0.60 TYPICAL SECTION THROUGH DECK/VERANDHA WALL AT C-C' 1' 1 0.05 0.25 0.05 0.25 0.05 0.25 0.05 0.25 0.10 0.20 9 9 1.54 0.10 0.20

ELECTRICAL LAYOUT

BEDROOM TOILET POWDER ROOM TOILET KITCHEN UTILITY STORE ROOM LIVING ROOM DINING ROOM DECK VERANDAH INVERTER ROOM CLOSET CARETAKER'S ROOM UP SB1 SB1 SB1 SB1 Staircase light point 2-way from first floor AC SB1 1.85 1.85 0.90 0.20 1.40 1.40 0.75 0.20 0.30 0.85 1.25 1.25 1.07 0.35 0.30 0.80 1.90 0.80 0.94 0.30 1.13 2.29 3.30 2.50 MB DB SB1 SB1 SB1 SB2 SB4 Staircase light point 2-way from first floor AC SB1 1.85 1.85 0.90 0.20 1.40 1.40 0.75 0.20 0.30 0.85 1.25 1.25 1.07 0.30 0.80 1.90 0.80 0.94 1.10 0.30 1.09 2.29 3.30 MB DB SB4 0.30 AC AC BEDROOM TOILET POWDER ROOM TOILET KITCHEN UTILITY STORE ROOM LIVING ROOM DINING ROOM DECK VERANDAH INVERTER ROOM CLOSET CARETAKER'S ROOM LEGEND SWITCH BOARD EXHAUST FAN D/BELL SWITCH DOOR BELL AC UNIT 5AMP + SWITCH 15AMP + SWITCH TV POINT (DISH) 2 WAY ELEC. WIRE AC SYM ABV TEXT SB EF DBS DBS1 AC PP PP1 TV SWITCH BOARD SPECIFICATIONS SB1 HT 1.20 M SB3 HT 0.25 M SB2 HT 0.60 M 1 WAY ELEC. WIRE CAMERA & BELL ELEC. WIRE 1 WAY 2 WAY 1 WAY CEILING LIGHT POINT WALL LIGHT POINT DISTRIBUTION BOARD METERBOX CEILING FAN POINT PUMP POINT PU UP LIGHTERS GEYSER GY UL FP MB DB WP CP IP INTERNET POINT WARDROBE LIGHT POINT PARAPET LIGHT SB4 HT 0.95 M SB5 FLOOR PT. HANGING LIGHTS 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. DRAWN BY: U.R.S APPROVED BY: R.D CLIENT: RANJEET PROJECT: QUALITY LIVING, BENAULIM DATE: 6-APRIL-22 DWG NO: WD_1.04_R0 GROUND FLOOR ELECTRICAL LAYOUT N SCALE: 1:150 BEDROOM FAMILY ROOM BEDROOM TERRACE TOILET TOILET CLOSET CLOSET STUDY SB1 SB2 SB2 SB2 SB2 AC AC Staircase light point 2-way from first floor 0.80 3.20 0.30 0.30 1.70 0.70 1.50 DB BEDROOM FAMILY ROOM BEDROOM TERRACE TOILET TOILET CLOSET CLOSET STUDY SB1 SB2 SB2 SB2 AC AC 0.80 3.20 0.30 0.30 1.70 0.70 1.50 DB LEGEND SWITCH BOARD EXHAUST FAN D/BELL SWITCH DOOR BELL AC UNIT 5AMP + SWITCH 15AMP + SWITCH TV POINT (DISH) 2 WAY ELEC. WIRE AC SYM ABV TEXT SB EF DBS DBS1 AC PP PP1 TV SWITCH BOARD SPECIFICATIONS SB1 HT 1.20 M SB3 HT 0.25 M SB2 HT 0.60 M 1 WAY ELEC. WIRE CAMERA & BELL ELEC. WIRE 1 WAY 2 WAY 1 WAY CEILING LIGHT POINT WALL LIGHT POINT DISTRIBUTION BOARD METERBOX CEILING FAN POINT PUMP POINT PU UP LIGHTERS GEYSER GY UL FP MB DB WP CP IP INTERNET POINT WARDROBE LIGHT POINT PARAPET LIGHT SB4 HT 0.95 M SB5 FLOOR PT. HANGING LIGHTS 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. DRAWN BY: U.R.S APPROVED BY: R.D CLIENT: RANJEET PROJECT: QUALITY LIVING, BENAULIM DATE: 6-APRIL-22 DWG NO: WD_1.04_R0 FIRST FLOOR ELECTRICAL LAYOUT N SCALE: 1:150 GROUND FLOOR ELECTRICAL LAYOUT BEDROOM FAMILY ROOM BEDROOM TERRACE TOILET TOILET CLOSET CLOSET STUDY SB1 SB2 SB2 SB4 AC AC 0.80 3.20 0.40 0.30 1.70 0.70 1.50 0.80 2.90 0.50 DB BEDROOM FAMILY ROOM BEDROOM TERRACE TOILET TOILET CLOSET CLOSET STUDY SB1 SB2 SB2 SB4 AC AC 0.70 3.20 0.40 0.30 1.70 0.70 1.50 2.90 0.50 DB LEGEND SWITCH BOARD EXHAUST FAN D/BELL SWITCH DOOR BELL AC UNIT 5AMP + SWITCH 15AMP + SWITCH TV POINT (DISH) 2 WAY ELEC. WIRE AC SYM ABV TEXT SB EF DBS DBS1 AC PP PP1 TV SWITCH BOARD SPECIFICATIONS SB1 HT 1.20 M SB3 HT 0.25 M SB2 HT 0.60 M 1 WAY ELEC. WIRE CAMERA & BELL ELEC. WIRE WAY WAY WAY CEILING LIGHT POINT WALL LIGHT POINT DISTRIBUTION BOARD METERBOX CEILING FAN POINT PUMP POINT PU UP LIGHTERS GEYSER GY UL FP MB DB WP CP IP INTERNET POINT WARDROBE LIGHT POINT PARAPET LIGHT SB4 HT 0.95 M SB5 FLOOR PT. HANGING LIGHTS 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. DRAWN BY: U.R.S APPROVED BY: R.D CLIENT: RANJEET PROJECT: QUALITY LIVING, BENAULIM DATE: 6-APRIL-22 DWG NO: WD_1.04_R0 FIRST FLOOR ELECTRICAL LAYOUT N SCALE: 1:150 BEDROOM FAMILY ROOM BEDROOM TERRACE TOILET TOILET CLOSET CLOSET STUDY SB1 SB2 AC 3.20 0.30 0.30 1.70 0.70 1.50 DB LEGEND SWITCH BOARD EXHAUST FAN D/BELL SWITCH DOOR BELL AC UNIT 5AMP + SWITCH 15AMP + SWITCH TV POINT (DISH) 2 WAY ELEC. WIRE AC SYM ABV TEXT SB EF DBS DBS1 AC PP PP1 TV SWITCH BOARD SPECIFICATIONS SB1 HT 1.20 M SB3 HT 0.25 M SB2 HT 0.60 M 1 WAY ELEC. WIRE CAMERA & BELL ELEC. WIRE WAY WAY WAY CEILING LIGHT POINT WALL LIGHT POINT DISTRIBUTION BOARD METERBOX CEILING FAN POINT PUMP POINT PU UP LIGHTERS GEYSER GY UL FP MB DB WP CP IP INTERNET POINT WARDROBE LIGHT POINT PARAPET LIGHT SB4 HT 0.95 M SB5 FLOOR PT. HANGING LIGHTS 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS DRAWING REPRODUCED OR MODIFIED WITHOUT THE WRITTEN THE ARCHITECTS. FIRST FLOOR ELECTRICAL LAYOUT

PU GY GY BEDROOM TOILET POWDER ROOM TOILET KITCHEN UTILITY STORE ROOM LIVING ROOM DINING ROOM DECK VERANDAH INVERTER ROOM CLOSET CARETAKER'S ROOM UP BEDROOM TOILET POWDER ROOM TOILET KITCHEN UTILITY STORE ROOM LIVING ROOM DINING ROOM DECK VERANDAH INVERTER ROOM CLOSET CARETAKER'S ROOM UP GY GY 0.54 0.35 0.55 0.55 0.37 0.37 0.44 TAP TAP TAP TAP TAP TAP 1.27 1.491.54 1.50 1.50 PU 4.58 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. DRAWN BY: S.K. APPROVED BY: R.D CLIENT: RANJEET PROJECT: QUALITY LIVING, BENAULIM DATE: 21-JAN-22 DWG NO: WD_1.06_R0 GROUND FLOOR PLUMBING LAYOUT N SCALE: 1:150 LEGEND SYM TEXT HOT WATER LINE COLD WATER LINE GROUND FLOOR PLUMBING LAYOUT BEDROOM FAMILY ROOM BEDROOM TERRACE TOILET TOILET CLOSET CLOSET STUDY BEDROOM FAMILY ROOM BEDROOM TERRACE TOILET TOILET CLOSET CLOSET STUDY 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. DRAWN BY: S.K APPROVED BY: R.D CLIENT: RANJEET PROJECT: QUALITY LIVING, BENAULIM DATE: 21-JAN-22 DWG NO: WD_1.07_R0 FIRST FLOOR PLUMBING LAYOUT N SCALE: 1:150 LEGEND SYM TEXT HOT WATER LINE COLD WATER LINE FIRST FLOOR PLUMBING LAYOUT

SEPTIC TANK SOAK PIT SEPTIC TANK SOAK PIT IC-1 IC-2 IC-3 IC-4 IC-5 IC-6 IC-7 IC-8 IC-9 IC-10 IC-11 IC-12 IC-11 IC-10 IC-9 IC-8 IC-12 IC-13 IC-7 IC-6 IC-5 IC-1 IC-3 IC-4 IC-2 BEDROOM TOILET POWDER ROOM TOILET KITCHEN UTILITY STORE ROOM LIVING ROOM DINING ROOM DECK VERANDAH INVERTER ROOM CLOSET CARETAKER'S ROOM UP BEDROOM TOILET POWDER ROOM TOILET KITCHEN UTILITY STORE ROOM LIVING ROOM DINING ROOM DECK VERANDAH INVERTER ROOM CLOSET CARETAKER'S ROOM UP 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2021 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. DRAWN BY: S.K. APPROVED BY: R.D CLIENT: RANJEET PROJECT: QUALITY LIVING, BENAULIM DATE: 11-OCT-21 DWG NO: WD_1.08_R0 GROUND FLOOR SEWAGE LAYOUT N SCALE: 1:150 LEGEND SYM TEXT WASTE WATER LINE SOIL WASTE LINE INSPECTION CHAMBER (30X30) BEDROOM FAMILY ROOM BEDROOM TERRACE TOILET TOILET CLOSET CLOSET STUDY BEDROOM FAMILY ROOM BEDROOM TERRACE TOILET TOILET CLOSET CLOSET STUDY PROJECT: QUALITY LIVING, BENAULIM N LEGEND SYM TEXT SEWAGE LAYOUT VILLA A SEPTIC TANK SOAK PIT SEPTIC TANK SOAK PIT IC-1 IC-2 IC-3 IC-4 IC-5 IC-6 IC-7 IC-8 IC-9 IC-10 IC-11 IC-12 IC-11 IC-10 IC-9 IC-8 IC-12 IC-13 IC-7 IC-6 IC-5 IC-1 IC-3 IC-4 IC-2 BEDROOM TOILET POWDER ROOM TOILET KITCHEN UTILITY STORE ROOM LIVING ROOM DINING ROOM DECK VERANDAH INVERTER ROOM CLOSET CARETAKER'S ROOM BEDROOM TOILET POWDER ROOM TOILET KITCHEN UTILITY STORE ROOM LIVING ROOM DINING ROOM DECK VERANDAH INVERTER ROOM CLOSET CARETAKER'S ROOM UP 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2021 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. DRAWN BY: S.K. APPROVED BY: R.D CLIENT: RANJEET PROJECT: QUALITY LIVING, BENAULIM DATE: 11-OCT-21 DWG NO: WD_1.08_R0 GROUND FLOOR SEWAGE LAYOUT N SCALE: 1:150 LEGEND SYM TEXT WASTE WATER LINE SOIL WASTE LINE INSPECTION CHAMBER (30X30) BEDROOM FAMILY ROOM BEDROOM TERRACE TOILET TOILET CLOSET CLOSET STUDY BEDROOM FAMILY ROOM BEDROOM TERRACE TOILET TOILET CLOSET CLOSET STUDY 2S2, Edcon Enclave, Vasudha Colony Lane Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2021 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. DRAWN BY: S.K APPROVED BY: R.D CLIENT: RANJEET PROJECT: QUALITY LIVING, BENAULIM DATE: 11-OCT-21 DWG NO: WD_1.09_R0 FIRST FLOOR SEWAGE LAYOUT N SCALE: 1:150 LEGEND SYM TEXT WASTE WATER LINE SOIL WASTE LINE INSPECTION CHAMBER (30X30) SEWAGE LAYOUT VILLA B

TODUR HOUSE RESTORATION PROJECT

K A R W A R

PLAN CENTRAL ROOM 6.61X 4.15M MEN'S ROOM 2.55 X 4.17M STUDY 2.58 X 2.55M KITCHEN/DINING 2.60 X 10.27M FOYER 6.55 X 2.80M W3 W3 W4 W4 W5 W6 W2 W1 W7 W8 W8 W9 W9 W10 W11 D1 D1 OP1 D3 D2 D4 D5 D6 TOILET 1.2x2.5M TOILET 1.2x2.5M V1 V1 D4 V1 C1 C1 2.80 1.72 0.90 3.21 1.2x1.2M 1.2x1.2M 1.20 LADIES ROOM 6.65 X 2.54M UP WM 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. DRAWN BY: U.R.S APPROVED BY: R.D CLIENT: PALEKAR PROJECT: PALEKAR HOUSE, KARWAR DATE: 7-MAR-22 DWG NO: DD_5.01_R1

N SCALE: 1:100 TOP ROOM 6.7X 4.3M FRONT BALCONY 6.7X 2.86M W12 W12 W12 W12 W12 W12 W12 W12 D5 DOWN 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. DRAWN BY: U.R.S APPROVED BY: R.D CLIENT: PALEKAR PROJECT: PALEKAR HOUSE, KARWAR DATE: 7-MAR-22 DWG NO: DD_5.01_R1 FIRST FLOOR FURNITURE LAYOUT N SCALE: 1:100 CENTRAL ROOM MEN'S ROOM STUDY KITCHEN/DINING FOYER W3 W3 W4 W4 W5 W6 W2 W1 W7 W8 W8 W9 W9 W10 W11 D1 D1 OP1 D3 D2 D4 D5 D6 TOILET V1 V1 D4 V1 V1 C1 C1 C1 2.80 1.72 0.90 3.21 1.20 LADIES ROOM UP WM SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB2 SB2 SB2 SB2 SB2 SB2 SB1 1.45 1.30 0.20 1.30 1.30 1.02 0.25 2.16 1.02 1.30 0.60 0.63 1.25 0.63 0.40 1.25 0.63 1.25 0.63 0.60 0.40 2.45 0.20 0.60 1.65 2.75 2.75 0.60 0.64 1.67 1.28 0.66 1.28 1.28 0.48 0.80 0.20 3.22 0.25 0.20 3.45 3.45 2.40 2.10 0.60 0.60 2.85 2.85 0.15 1.10 0.15 1.07 0.60 0.60 1.40 1.69 3.82 3.69 1.30 2.00 0.20 1.30 2.20 1.00 0.30 3.80 0.25 0.70 1.40 0.70 0.40 1.40 1.62 1.63 1.62 3.25 0.10 0.25 0.25 0.25 0.30 0.00 0.20 1.62 1.62 1.62 1.62 1.00 1.08 1.08 1.00 TOILET SB2 0.60 0.60 1.40 SB3 0.15 SB1 0.25 DRAWN BY: U.R.S APPROVED R.D CLIENT: PALEKAR PROJECT: PALEKAR HOUSE, DATE: 4-APRIL-22 GROUND FLOOR ELECTRIC N SCALE: 1:100 2S2, Edcon Enclave, Vasudha Colony Lane Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS REPRODUCED OR MODIFIED WITHOUT THE THE ARCHITECTS. LEGEND SYM ABV SB DBS DBS1 1 1 WAY CEILING FP WP CP 15AMP SWITCH SPECIFICATIONS SB1 HT 1.20 SB3 HT 1.5 SB2 HT 0.80 PP PP1 GY CENTRAL ROOM MEN'S ROOM STUDY KITCHEN/DINING FOYER W3 W3 W4 W4 W5 W6 W2 W1 W7 W8 W8 W9 W9 W10 W11 D1 D1 OP1 D3 D2 D4 D5 D6 TOILET V1 V1 D4 V1 V1 C1 C1 C1 2.80 1.72 0.90 3.21 1.20 LADIES ROOM UP WM SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB1 SB2 SB2 SB2 SB2 SB2 SB2 SB2 SB2 SB1 SB1 0.35 1.30 0.20 1.30 1.30 0.25 1.30 2.10 0.60 0.63 1.25 0.63 0.40 0.63 1.25 0.63 0.60 0.40 2.45 0.20 0.60 1.65 2.75 2.75 0.60 1.67 1.28 1.28 0.48 0.80 0.20 3.22 0.25 0.20 3.45 3.45 2.40 2.10 0.60 0.60 2.85 2.85 0.15 1.10 0.15 1.07 0.60 0.60 1.40 1.69 3.82 3.69 1.30 2.00 0.20 1.30 2.20 1.00 0.30 3.80 0.25 0.70 1.40 0.70 0.40 1.40 1.62 1.63 1.62 3.25 0.10 0.25 0.25 0.25 0.30 0.00 0.20 1.62 1.62 1.62 1.62 1.00 1.08 1.08 1.00 TOILET 0.60 0.60 1.40 SB3 0.15 SB1 0.25 DRAWN BY: U.R.S APPROVED BY: R.D CLIENT: PALEKAR PROJECT: PALEKAR HOUSE, KARWAR DATE: 4-APRIL-22 DWG NO: WD_5.01_R3 GROUND FLOOR ELECTRIC LAYOUT N SCALE: 1:100 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. LEGEND SWITCH BOARD D/BELL SWITCH DOOR BELL SYM ABV TEXT SB DBS DBS1 WAY ELEC. WIRE 1 WAY CEILING LIGHT POINT WALL LIGHT POINT CEILING FAN POINT FP WP CP 5AMP + SWITCH 15AMP + SWITCH SWITCH BOARD SPECIFICATIONS SB1 HT 1.20 M SB3 HT 1.5 M SB2 HT 0.80 M PP PP1 GEYSER GY TOP ROOM FRONT BALCONY W12 W12 W12 W12 W12 W12 W12 W12 D5 DOWN SB1 SB1 SB1 SB2 SB2 1.70 1.62 1.62 1.70 2.40 2.20 1.05 1.08 1.08 1.05 0.30 0.30 0.90 1.55 1.95 1.63 1.62 3.42 1.40 0.71 0.74 1.67 1.43 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. DRAWN BY: U.R.S APPROVED BY: R.D CLIENT: PALEKAR PROJECT: PALEKAR HOUSE, KARWAR DATE: 4-APRIL-22 DWG NO: WD_5.01_R3 FIRST FLOOR ELECTRIC LAYOUT N SCALE: 1:100 LEGEND SWITCH BOARD D/BELL SWITCH DOOR BELL SYM ABV TEXT SB DBS DBS1 1 WAY ELEC. WIRE 1 WAY CEILING LIGHT POINT WALL LIGHT POINT CEILING FAN POINT FP WP CP 5AMP + SWITCH 15AMP + SWITCH SWITCH BOARD SPECIFICATIONS SB1 HT 1.20 M SB3 HT 1.5 M SB2 HT 0.80 M PP PP1 GEYSER GY ELECTRICAL LAYOUT

GROUND FLOOR FURNITURE LAYOUT

SECTION B-B' SECTION C-C'

KITCHEN/DINING W5 W10 W11 WM +0.8M LEVEL +0.65M LEVEL 0.80 0.40 0.72 0.57 2.87 0.44 0.50 0.81 0.53 0.60 2.87 A A' C' C B' B

0.60 0.95 1.32 PLAN DRAWN BY: U.R.S APPROVED BY: R.D CLIENT: PALEKAR PROJECT: PALEKAR HOUSE, DATE: 1-APRIL-22 KITCHEN DETAIL N SCALE: 1:50 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi - Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. KITCHEN/DINING W5 W10 W11 WM +0.8M LEVEL +0.65M LEVEL 0.80 0.40 0.72 0.57 2.87 0.44 0.50 0.81 0.53 0.60 2.87 A A' C' C B' B

0.60 0.95 1.32 PLAN DRAWN BY: U.R.S APPROVED BY: R.D CLIENT: PALEKAR PROJECT: PALEKAR HOUSE, KARWAR DATE: 1-APRIL-22 DWG NO: WD_6.01_R0 KITCHEN DETAIL N SCALE: 1:50 Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, - Goa. email: rajivdsilva@gmail.com 15,73'. NO PART OF THIS DRAWING MAY BE MODIFIED WITHOUT THE WRITTEN CONSENT OF 0.32 0.17 0.20 0.80 0.50 0.60 0.50 0.60 0.32 0.17 0.80

SECTION A-A'

DRAWN BY: U.R.S APPROVED BY: R.D CLIENT: PALEKAR PROJECT: PALEKAR HOUSE, DATE: 1-APRIL-22 KITCHEN DETAIL N SCALE: 1:50 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi - Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. 0.32 0.17 0.20 0.80 0.50 0.60 0.50 0.60 0.32 0.17 0.80

DRAWN BY: U.R.S APPROVED BY: R.D CLIENT: PALEKAR PROJECT: PALEKAR HOUSE, KARWAR DATE: 1-APRIL-22 DWG NO: WD_6.01_R0 KITCHEN DETAIL N SCALE: 1:50 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi - Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2022 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. KITCHEN DETAILS

WASHROOM DETAILS TOILET 1.2x2.5M TOILET 1.2x2.5M V1 V1 D4 C1 A A' 2.50 SECTION A-A' 2.50 SECTION B-B' B B' C C' SECTION C-C' C1 D D' SECTION D-D' 0.80 0.60 1.20 2.10 2.10 1.20 0.60 0.80 NT NT NT 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com CLIENT: PALEKAR PROJECT: PALEKAR HOUSE, KARWAR DWG NO: INTERNAL WASHROOMS N SCALE: 1:75 TOILET 1.2x2.5M TOILET 1.2x2.5M V1 V1 D4 C1 A A' 2.50 SECTION A-A' 2.50 SECTION B-B' B B' C C' SECTION C-C' C1 D D' SECTION D-D' 0.80 0.60 1.20 2.10 2.10 1.20 0.60 0.80 NT NT NT 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com CLIENT: PALEKAR PROJECT: PALEKAR HOUSE, KARWAR DWG NO: INTERNAL WASHROOMS N SCALE: 1:75 KITCHEN/DINING W5 W10 W11 WM +0.8M LEVEL +0.65M LEVEL 0.80 0.40 0.72 0.57 2.87 0.44 0.50 0.81 0.53 0.60 2.87 A A' C' C B' B SECTION A-A' 0.60 0.95 1.32 PLAN CLIENT: PROJECT: PALEKAR HOUSE, KARWAR UZAIR SAWANT THANK YOU Uzair Sawant Architect H gh y mag nat ve and forward-think ng entryJunio Arch tect with n esteemed architectural uza r sawant4@gma l com 9820522573 Mumba nd a SKILLS Autocad Sketchup Revit Twinmot on EDUC ATION Bachelor of Architecture Rizv College of Architecture 08/2018 - 04 2023 HSC V dhyan dhi Jun or College of Scien 06/2016 - 03 2018 SSC Hansra Morarji Public School 06/2003 - 04 2016 https://www.linkedin.com/in/uzair-sawant-89691627b
