Community Centre ,New Delhi
सामुदाियक क , नई िद ी
Climatic Type- Composite Soil type- Alluvial Soil Maximum annual Temp- 47deg C Mnimum Annual Temp- 26 deg C Wind Direction- From the North West
The wind is most often from the west for 7.9 months. The wind is most often from the East for 1.5 months from July 14 to August 29 . North West wind during winters.
Strength 1. The site is located in an area surrounded by residences of different urban densities and socio-economic groups. Hence, there’s opportunity to create a platform for interactions between user and income groups. 2. Presence of low mid-rise buildings around site leaves most of the site open for daylight penetration.
The site is located in Punjabi Bagh , Delhii. The site is lying
Weakness 1. Weaker connectivity with the Central and Southern parts of Delhi by metro. 2. The eastern edge of the site remains mostly shaded due to thepresence of mid-rise buildings close to the site boundary
has been converted into mixed use .
vacant and is being used for dumping garbages on the edges and it aslo holds festive events.s The Surrounding built use is predominantly residential with commercial , institutional and public - semi public facilities spread across the area . Due to lack of sufficient planned commercial facilties in the area , ground oor of most of the buildings around site
The site is well connected via a network of public transport .
Total Area of plot - 26500 sqm or 6.54 acres Area of existing infrastructure (police post + petrol pump) - 2500sqm Available Site Area - 24000sqm or 5.93 acre Permissible Ground Coverage - 25% i.e., 6000sqm Permissible FAR - 1.25 Total Permissible BuiltUp Area- 30000sqm Height Restriction - 150m ECS - 3 Setbacks - front 9m , side 6m Total Parking Required- 900
Opportunities 1. Opportunities to maximise views towards the park and its open spaces. 2. Opportunity for the proposed community centre on site to act as a major landmark in its vicinity . Threat 1. Designing in the composite climate of Delhi could be challenge considering the various constraints on site. 2. Under-used park and stadium adjacent to the site make it unsafe.
UTAKARS ANAND
BARCH/19053/1900051
COMMUNITY CENTRE , DELHI
THESIS 2024

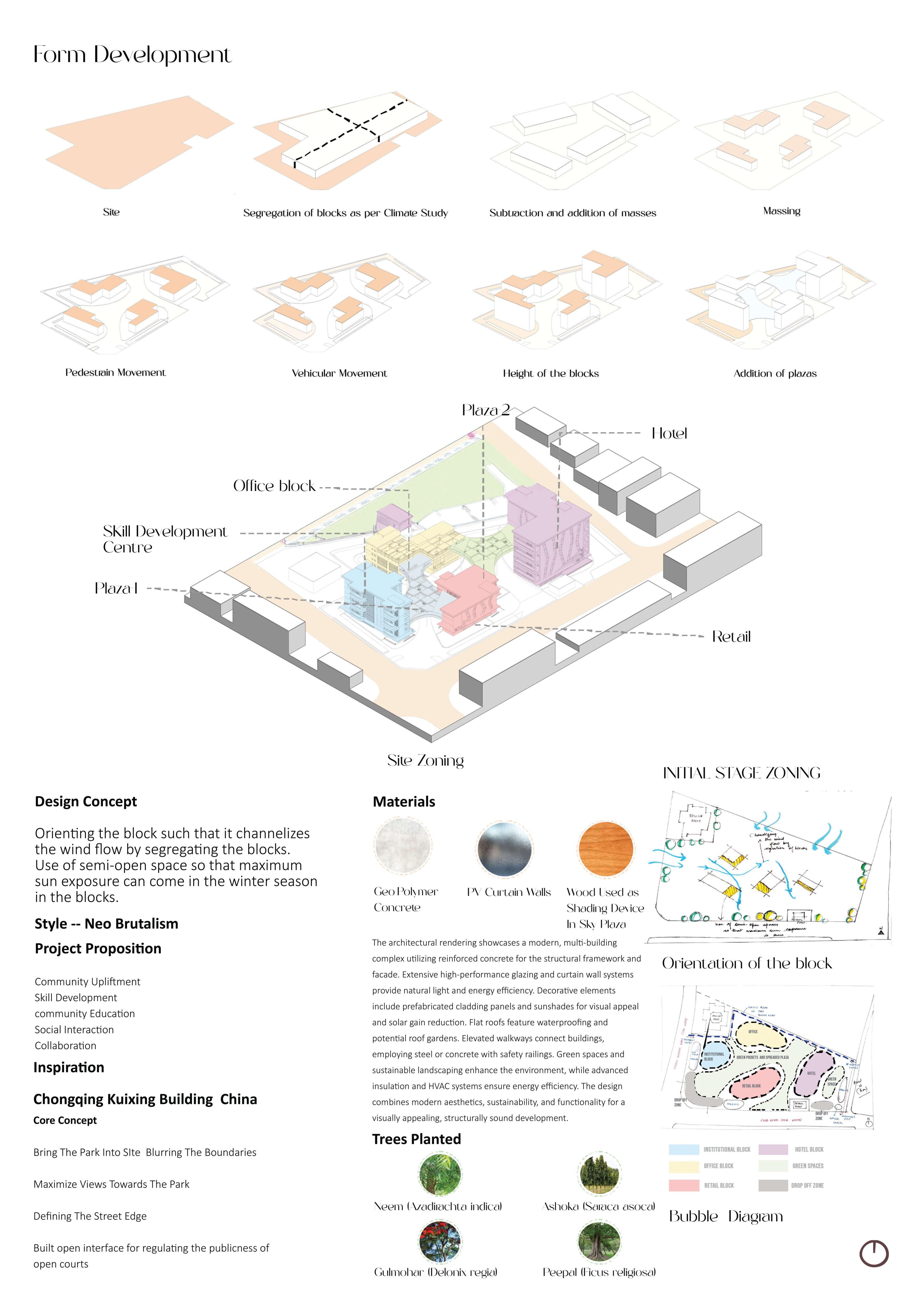

Community Centre ,New Delhi
Marg 18M
Jheel Park
Vishnu M dir
Fire
Ten der
Existing Police Station
Ro ad 7
Office Employee Entry/Exit
Entry
Fire Tender Road 7 M / Service Roa d
Fire
Ten der

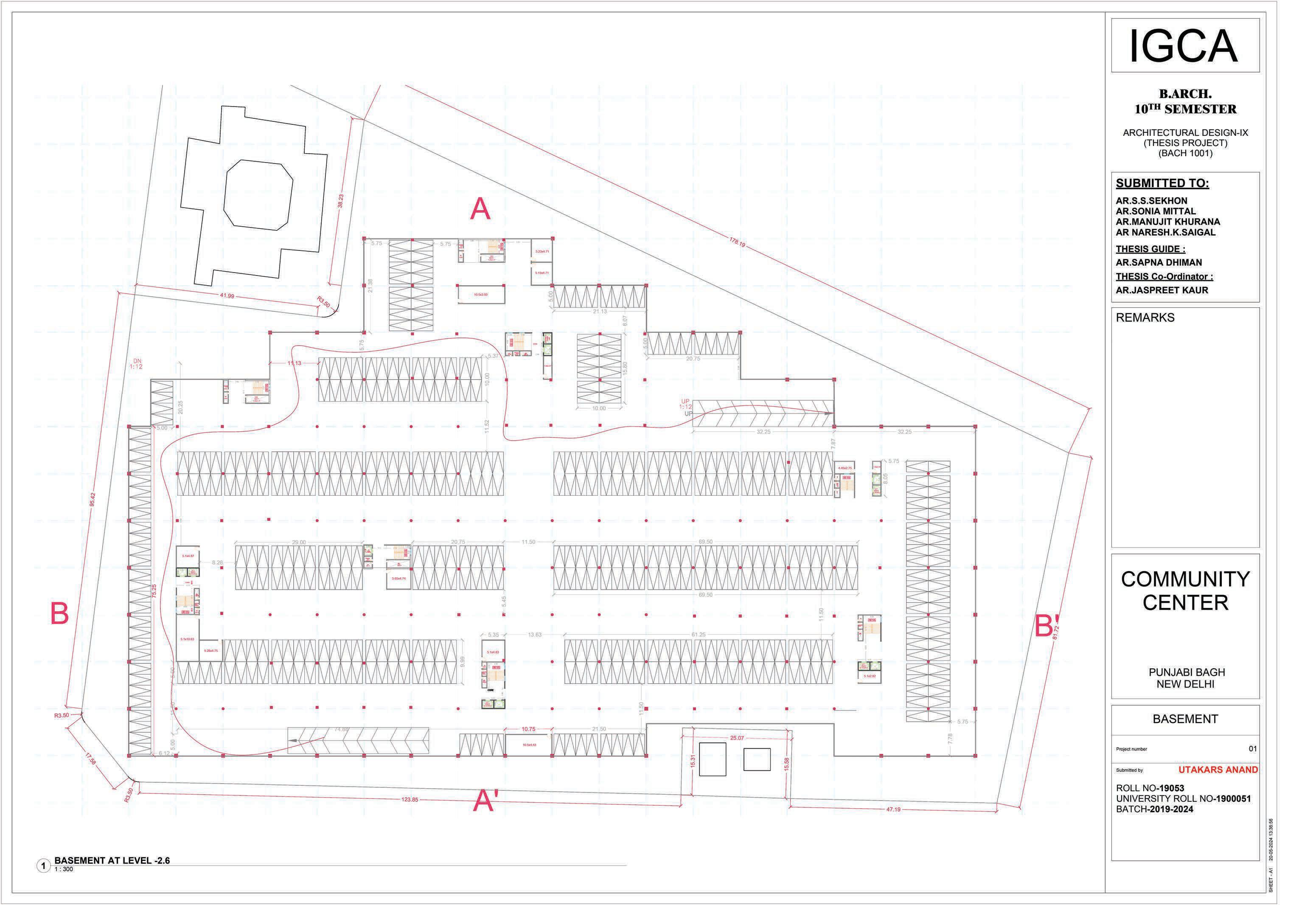

Basement Basement Entry/Exit Entry/Exit

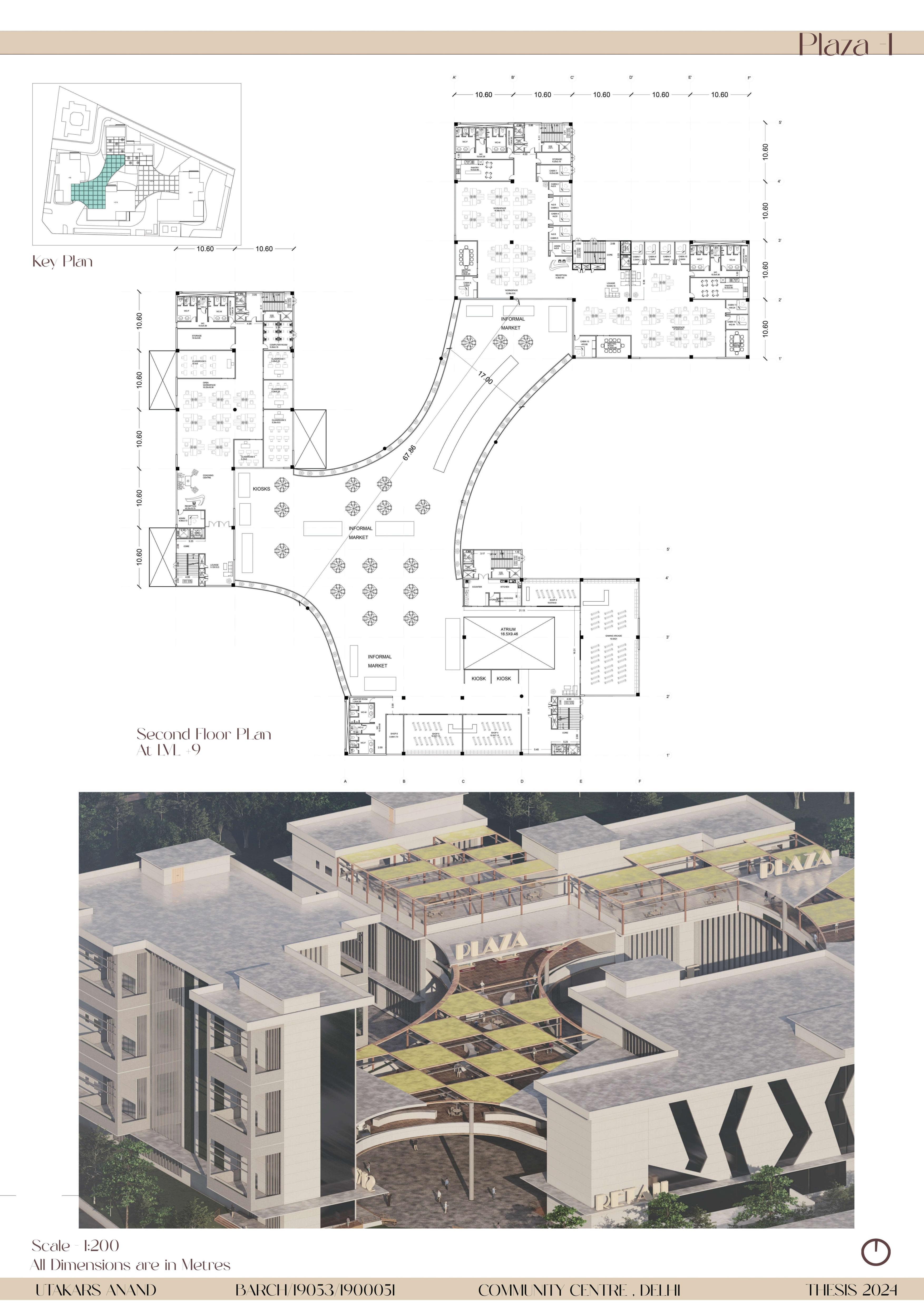

Plaza LVL ± 0
Ro ad
7M
/S erv ice Ro ad
Hol Service Entry/Exit Exit
Plaza LVL + 13.2
Vishnu M dir Ma rg 18M
Ser vice Ro ad

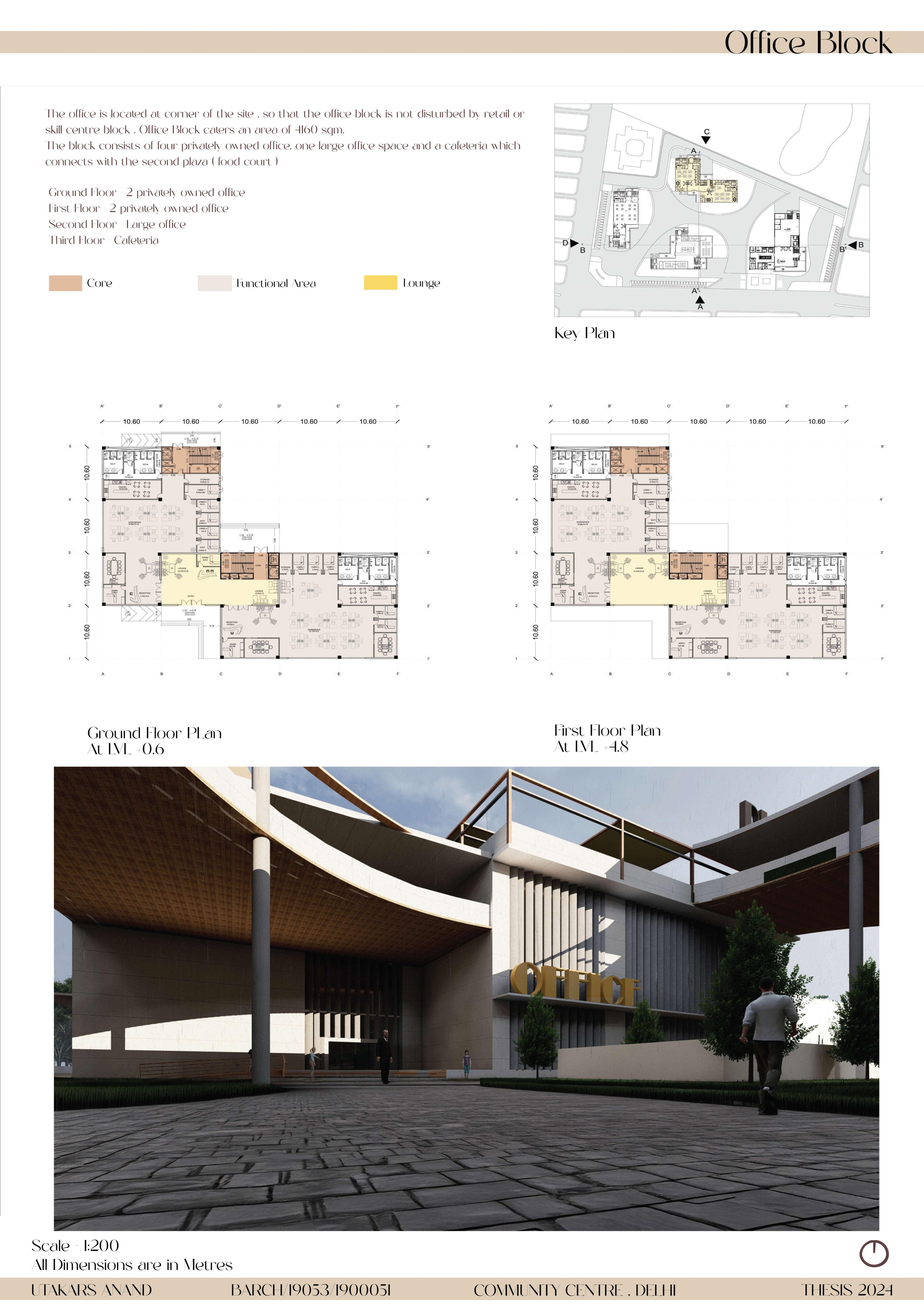

Office Block LVL + 16.8
SDC Entry/Exit

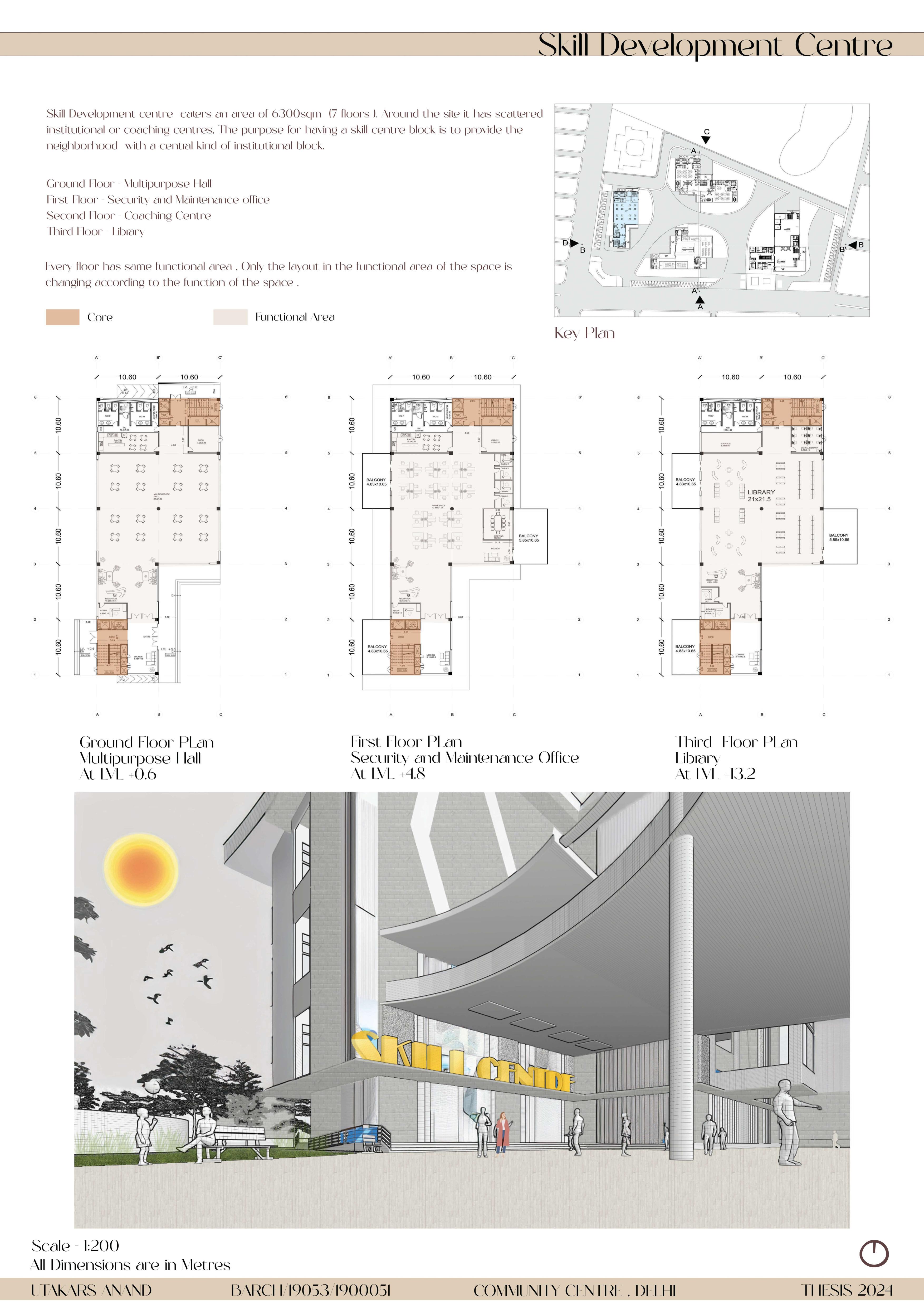

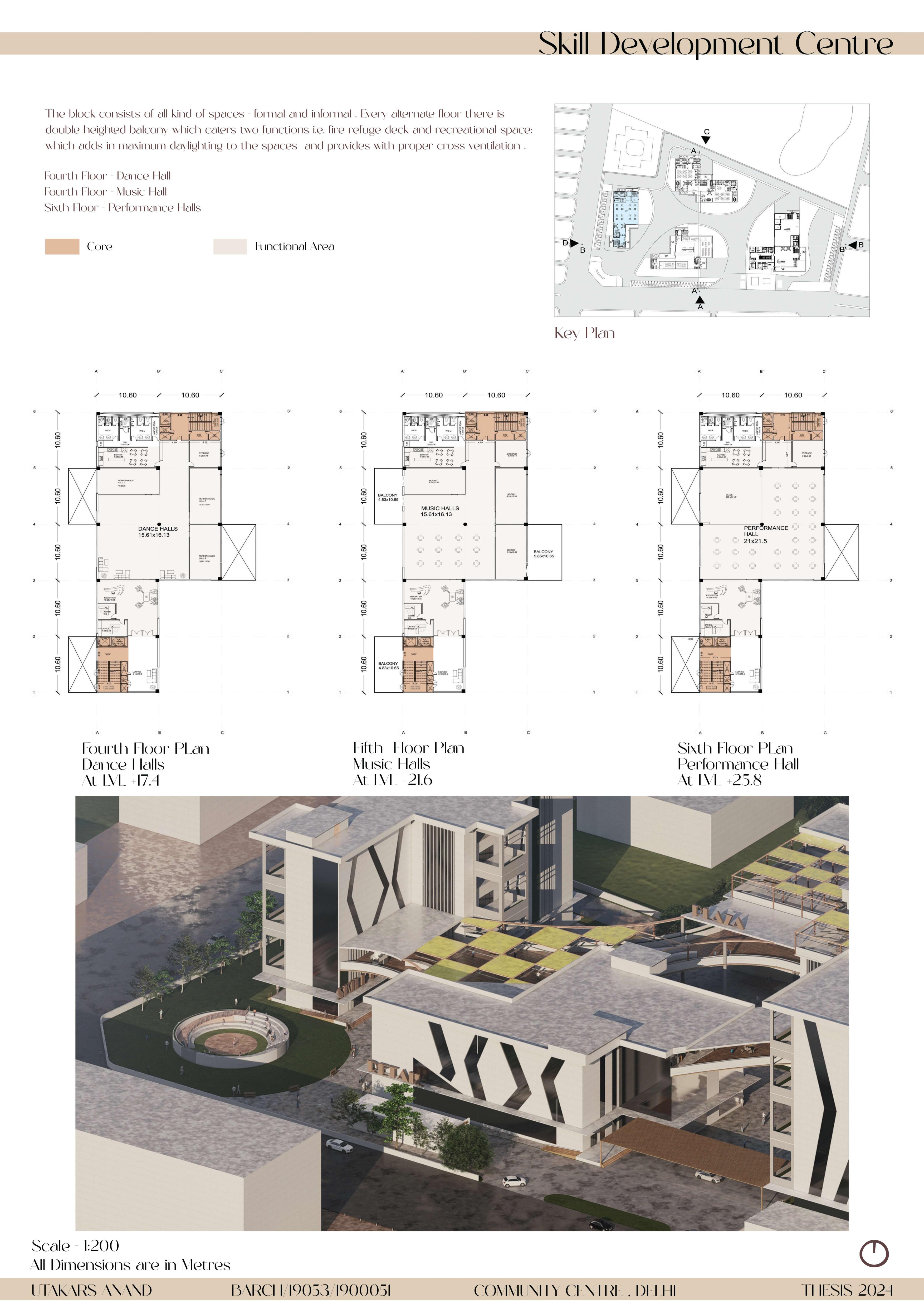

Skill Development Centre LVL + 25.2
M/
Plaza LVL ± 0
Plaza LVL + 17.4
Road 13
8M

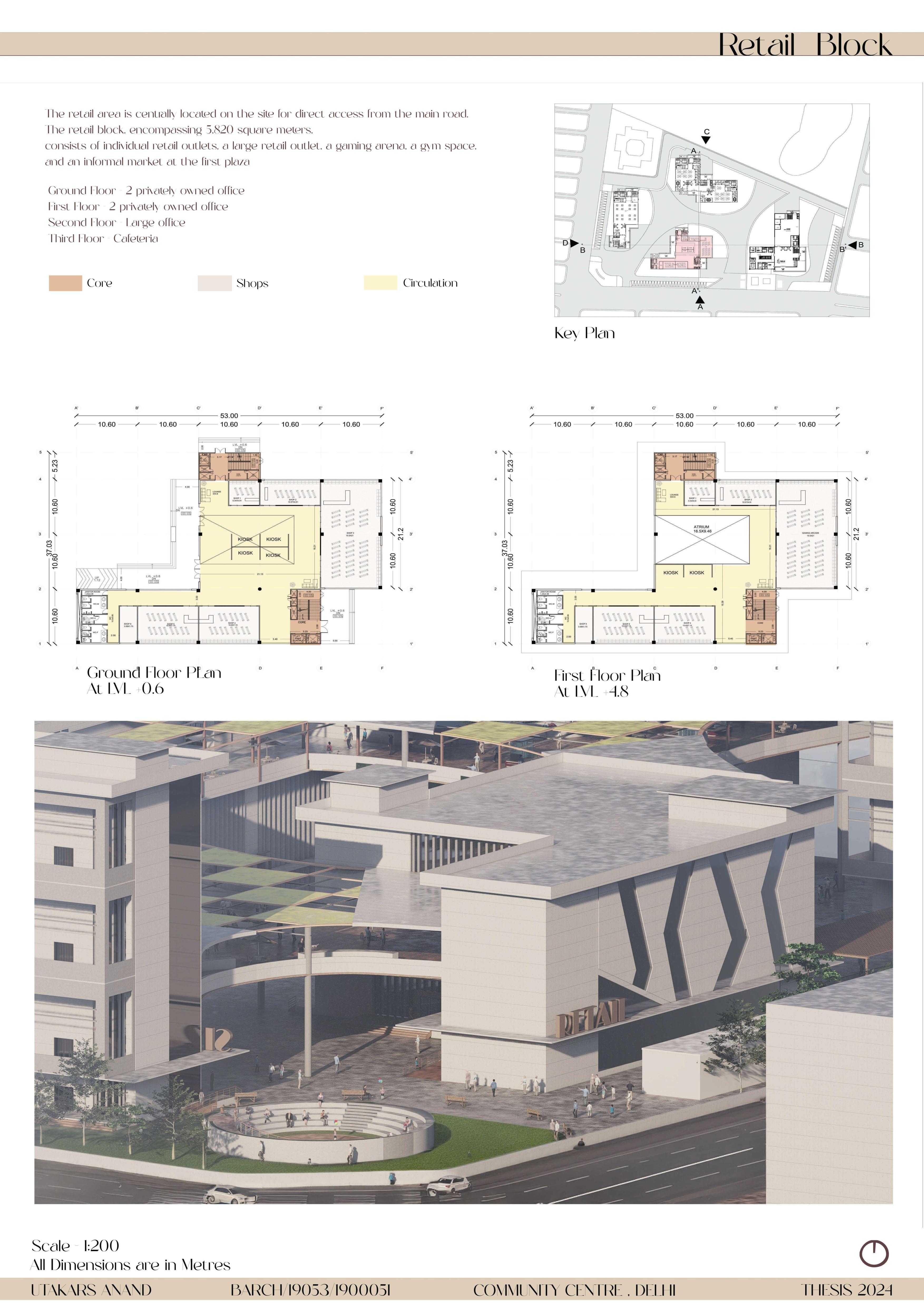

Retail Block LVL + 21

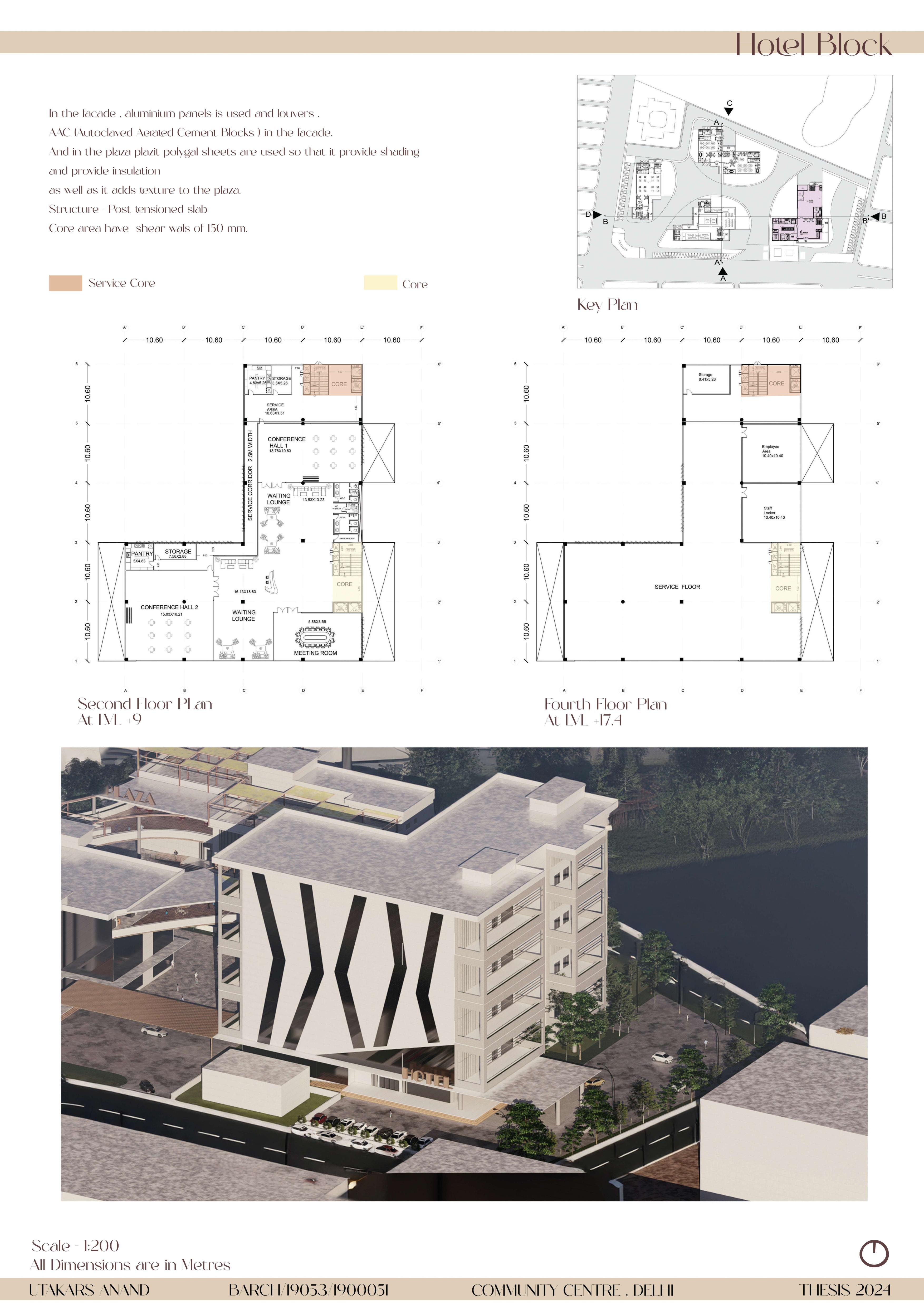

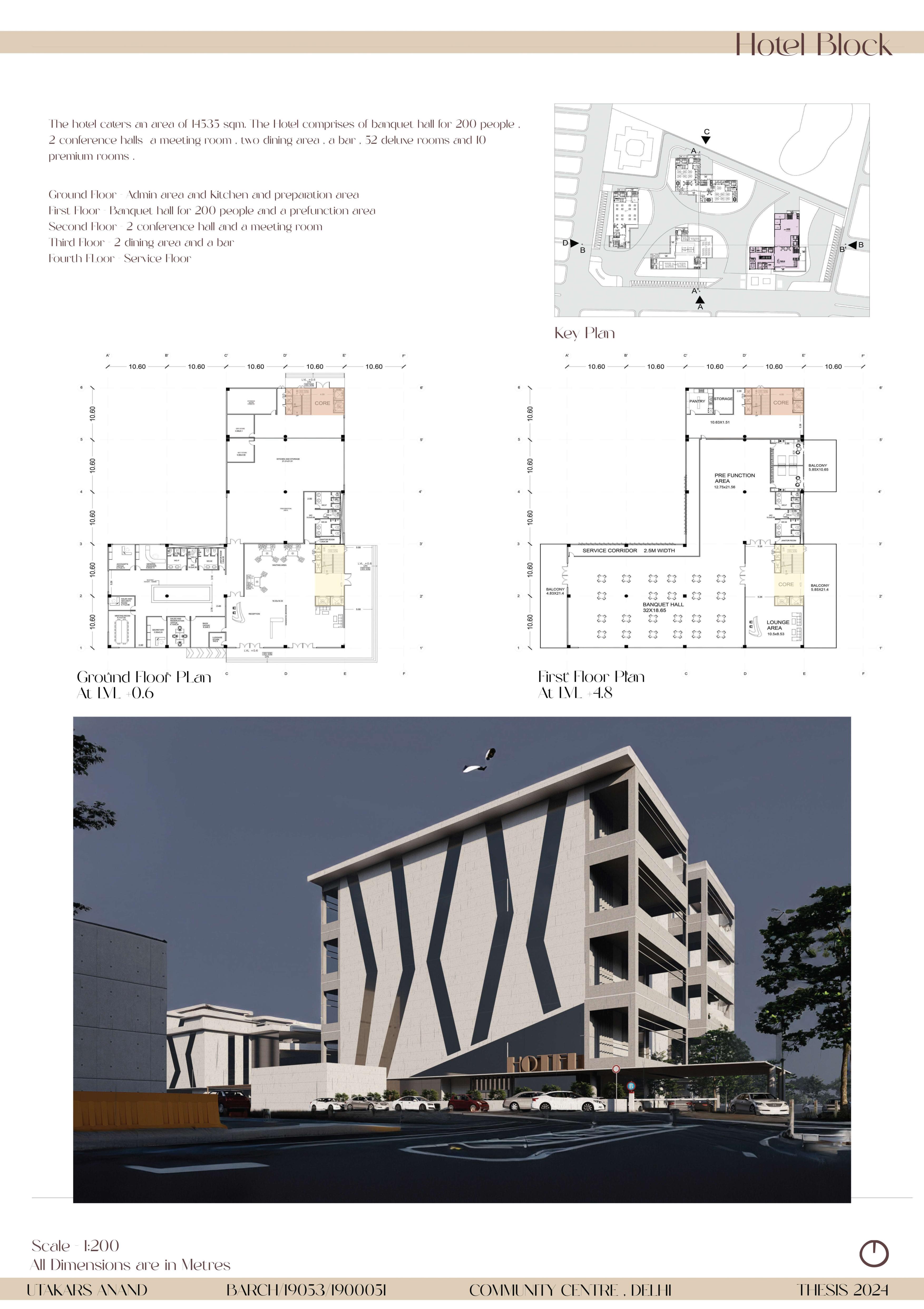

Hol Block LVL + 33.6
Hol Drop-Off
OAT
Drop-Off ± 0
Basement Entry/Exit
Existing Petrol Pump Entry
Exit
Hol Car Park
Hol Entry/Exit
Club Road 24m Club Road 24m
Pedestri Entry Vehicular Entry Basement Entry

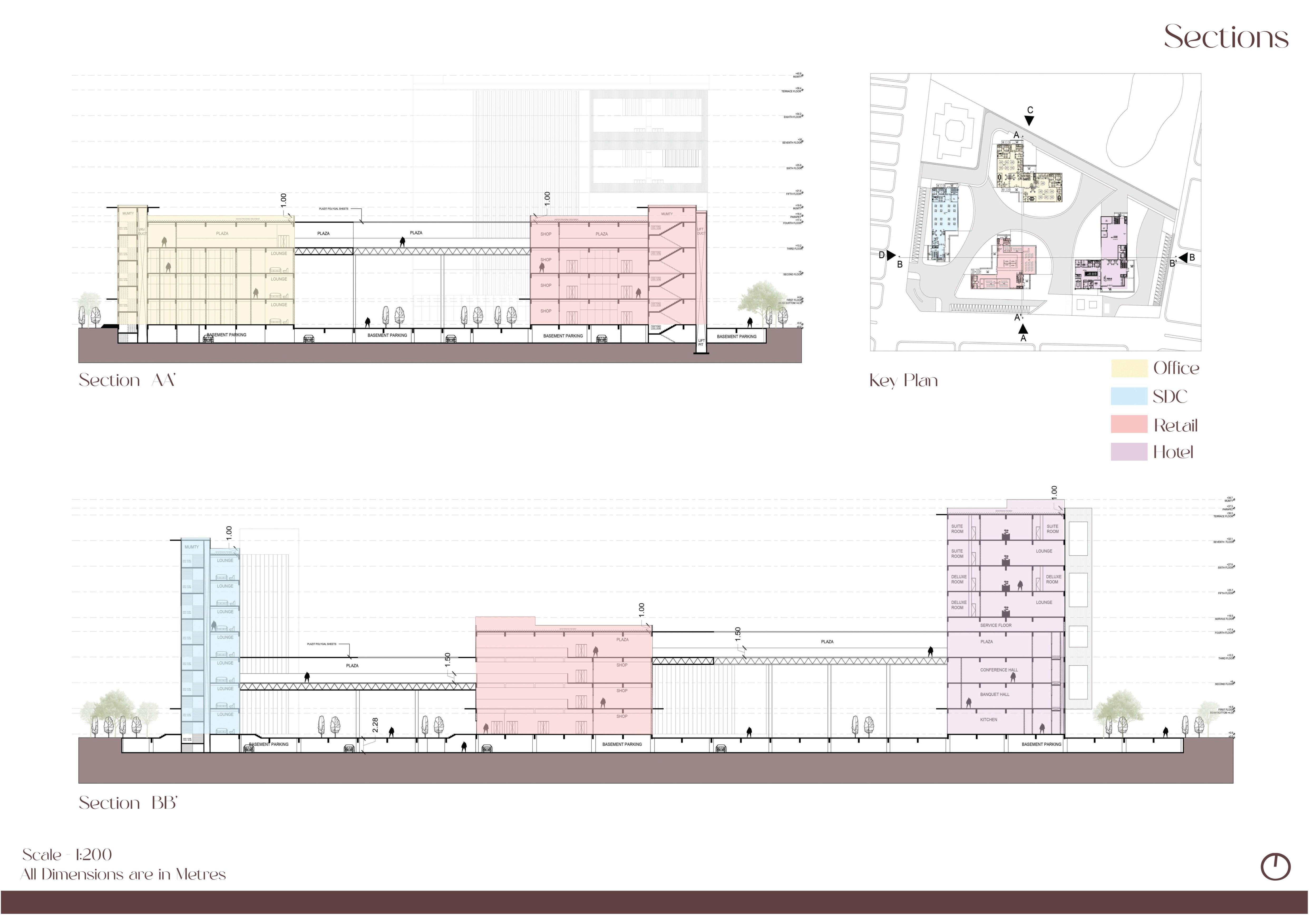

All Dimensions are in Metres
Elevations
Elevation at A
Elevation at B
Scale - 1:200 All Dimensions are in Metres
Key Pl
Elevations
Elevation at C
Elevation at D
Scale - 1:200 All Dimensions are in Metres
Key Pl
