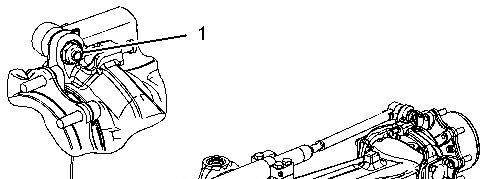

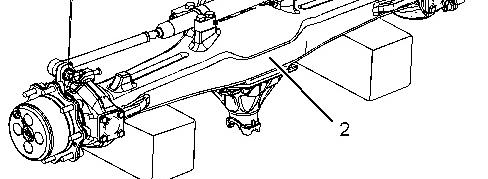

3. Install nut (1) to each side of front axle assembly (2) . Tighten nut (1) to a torque of 220 N·m (162 lb ft).
End By: Install the front axle. Refer to Disassembly and Assembly, "Drive and Steering Axle (Front) - Install".
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sat Feb 8 01:25:25 UTC+0700 2025
Product: BACKHOE LOADER
Model: 414E BACKHOE LOADER ELB
Configuration: 414E Backhoe Loader ELB00001-UP (MACHINE) POWERED BY 3054 Engine
Disassembly and Assembly
414E, 416E, 420E, 422E, 428E, 430E, 432E, 434E, 442E and 444E Backhoe Loaders Power Train
Steering Cylinder (Front) - Remove and Install - Two-Wheel Drive
SMCS - 4303-010-FR
Removal Procedure
Table 1
Required Tools
Tool Part Number
Part Description Qty
A 155-0695 Thread Lock Compound -
Start By:
A. Release the hydraulic system pressure. Refer to Disassembly and Assembly, "Hydraulic System Pressure - Release".
B. Remove the tie rods. Refer to Disassembly and Assembly, "Tie Rod (Steering) (Front)Remove".
Note: Put identification marks on all lines, on all hoses, on all wires, and on all tubes for installation purposes. Plug all lines, hoses, and tubes. This helps to prevent fluid loss and this helps to keep contaminants from entering the system.
Illustration 1
g01238002

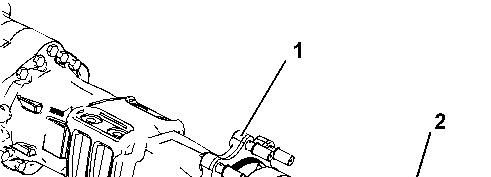

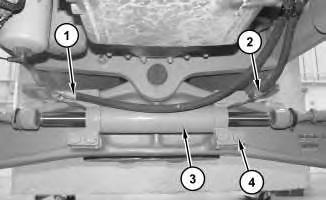

1. Disconnect hose assemblies (1) and (2) . Remove bolts (4) and steering cylinder (3) .
Installation Procedure
Illustration 2
g01238002

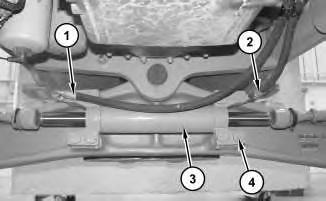

1. Install steering cylinder (3) and bolts (4) . Apply Tooling (A) to bolts (4) and install bolts (4) . Tighten bolts (4) to a torque of 460 N·m (340 lb ft). Connect hose assemblies (1) and (2) .
End By: Install the tie rods. Refer to Disassembly and Assembly, "Tie Rod (Steering) (Front)Install".
Copyright 1993 - 2025 Caterpillar Inc. All Rights Reserved. Private Network For SIS Licensees. Sat Feb 8 01:25:39 UTC+0700 2025
Product: BACKHOE LOADER
Model: 414E BACKHOE LOADER ELB
Configuration: 414E Backhoe Loader ELB00001-UP (MACHINE) POWERED BY 3054 Engine
Disassembly and Assembly
414E, 416E, 420E, 422E, 428E, 430E, 432E, 434E, 442E and 444E Backhoe Loaders Power Train
Final Drive Planetary - Remove
SMCS - 4050-011; 4084-011
Removal Procedure
Start By:
i02106590
a. Remove the wheel and tire. Refer to Disassembly and Assembly, "Wheel and Tire - Remove and Install".
NOTICE
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
Refer to Special Publication, NENG2500, "Caterpillar Tools and Shop Products Guide" for tools and supplies suitable to collect and contain fluids on Caterpillar products.
Dispose of all fluids according to local regulations and mandates.
1. Drain the oil from the final drive planetary into a suitable container for storage or disposal. Refer to Operation and Maintenance Manual, "Final Drive Planetary (Axle) Oil - Change".

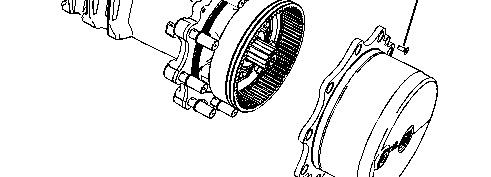

Illustration 1 g01072848
2. Remove screws (2) and remove planetary carrier assembly (3) from wheel flange (1).
