Poly-Pipe Field Irrigation Tubing

Can be used with or without Blue Gate Valve

TOLL-FREE: 888-334-1440

EMAIL: USGR@USGR.COM

POLY-FLEX TYPICAL APPLICATION AGRICULTURAL IRRIGATION AND FARM IRRIGATION LARGE ACREAGE NURSERY IRRIGATION

• •

Polyflex uses only the finest virgin materials with UV inhibitors.

Polyflex's use of the latest technology ensures Poly-Pipe's performance against the elements, especially the sun's harsh ultraviolet rays.

Along with this strong commitment to quality, you receive the most cost-effective irrigation system available next to, of course, Mother Nature

How Polyflex Poly-Pipe brings your irrigation costs down to earth • Eliminates costly main ditch cutting and the need for dams on small grade changes.

• Eliminates labor intensive hand priming of siphon pipe.

• Eliminates 24-hour vigils searching for breaks in water-soaked banks.

• Reduces water costs by ending loss through evaporation or percolation.

• Increases productivity by allowing you to irrigate where you want, when you want.

• Less friction allows water to travel farther without boost.

• With careful installation, retrieval and storage, you can use Poly Pipe for several seasons.

• Dry headlands permit easy access to all gates for precise adjustments and optimum control over water flow.

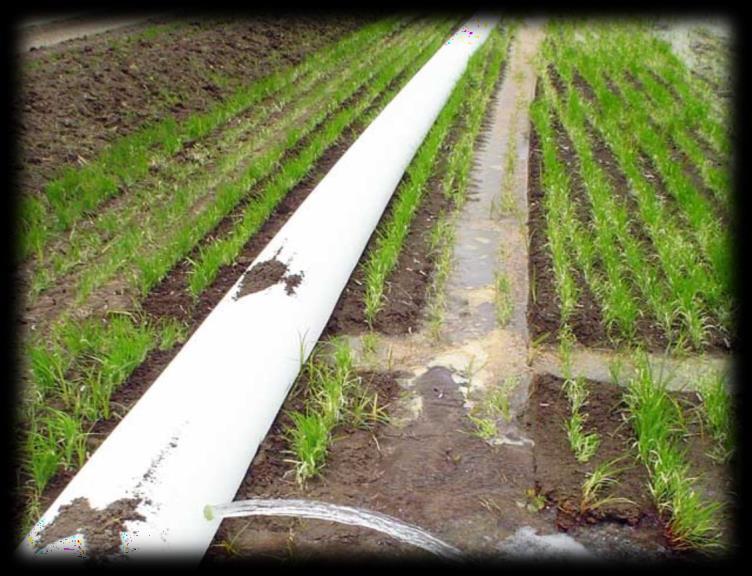

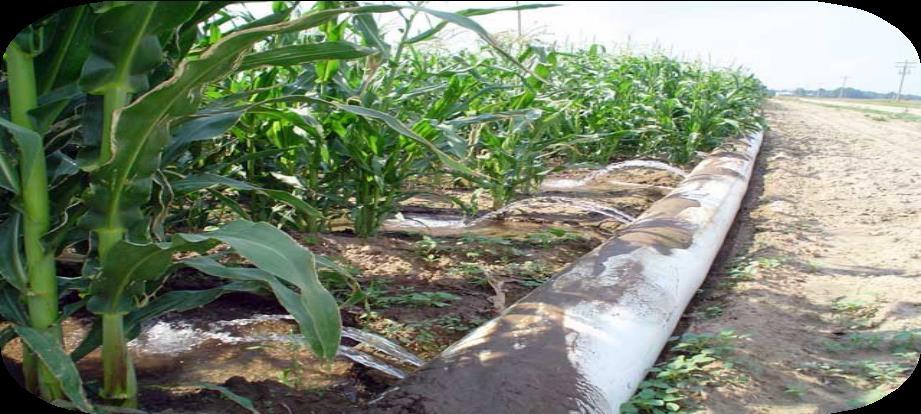

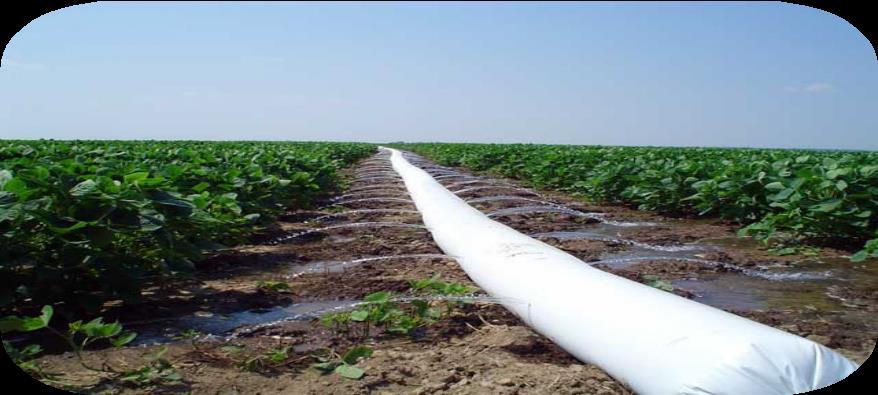

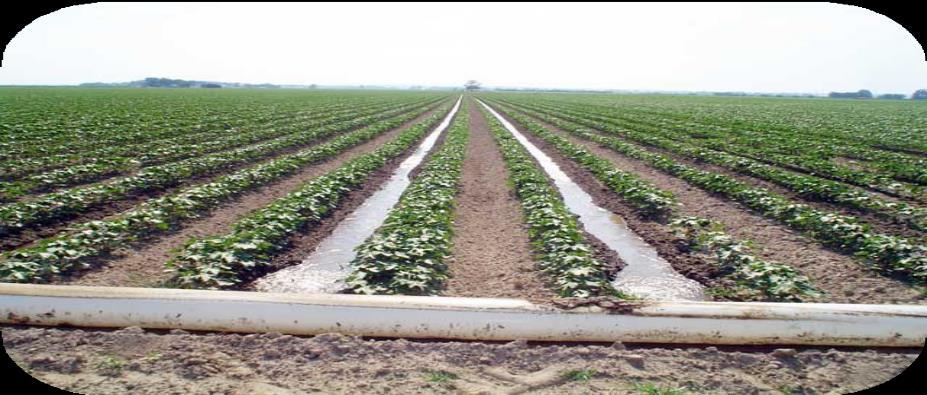

Poly-Pipe flexible field pipe is primarily designed for use with typically level grade farming. It will not transfer water over hills or upgrades / up hills. Most standard headlands are level or have a slight or small downgrade and are perfect for Poly-Pipe.

USGR offers our outstanding economical farm irrigation system for agricultural field irrigation which is also ideal for large open field nursery irrigation.

• • • • •

Excellent low price field poly pipe irrigation.

Used as flexible poly pipe and gates and valves so ditch cutting not necessary in level agricultural irrigation and most field nursery irrigation systems.

Agricultural irrigation system reduces labor because it is so easy to install.

Our agricultural irrigation system reduces water costs. No evaporation.

Great for field nursery irrigation.

CATEGORY

DIAMETER

GAUGE (MIL))

LENGTH (FT)

LAYFLAT

PP-Standard White

5”

6 mil

500

8 inches

PP-Standard White

7”

7 mil

1320

11 inches

PP-Standard White

7”

10 mil

1320

11 inches

PP-Standard White

9”

7 mil

1320

14 inches

PP-Standard White

9”

10 mil

1320

14 inches

PP-Standard White

10”

7 mil

1320

16 inches

PP-Standard White

10”

9 mil

1320

16 inches

PP-Standard White

10”

10 mil

1320

16 inches

PP-Standard White

10”

15 mil

660

16 inches

PP-Standard white

12”

7 mil

1320

19 inches

PP-Standard White

12”

9 mil

1320

19 inches

PP-Standard White

12”

10 mil

1320

19 inches

PP-Standard White

12”

15 mil

660

19 inches

PP-Standard White

15”

7 mil

1320

23.5 inches

PP-Standard White

15”

9 mil

1320

23.5 inches

PP-Standard White

15”

10 mil

1320

23.5 inches

PP-Standard White

15”

15 mil

660

23.5 inches

PP-Standard White

18”

9 mil

1320

28.25 inches

PP-Standard White

18”

10 mil

1320

28.25 inches

PP-Standard White

18”

15 mil

660

28.5 inches

PP-Standard White

20”

9 mil

1320

31.5 inches

PP-Standard White

20”

10 mil

1320

31.5 inches

PP-Standard White

20”

15 mil

660

31.5 inches

PP-Standard White

21”

10 mil

1320

33 inches

PP-Standard White

22”

10 mil

1320

34.5 inches

PP-Standard White

24”

10 mil

1320

37.5 inches

Minimum order is 8 rollS/one pallet. Free shipping within the Continental U.S. on order of 3 pallets or more.

For Pricing information, please give SKU, Length of each roll if not standard and number of rolls.

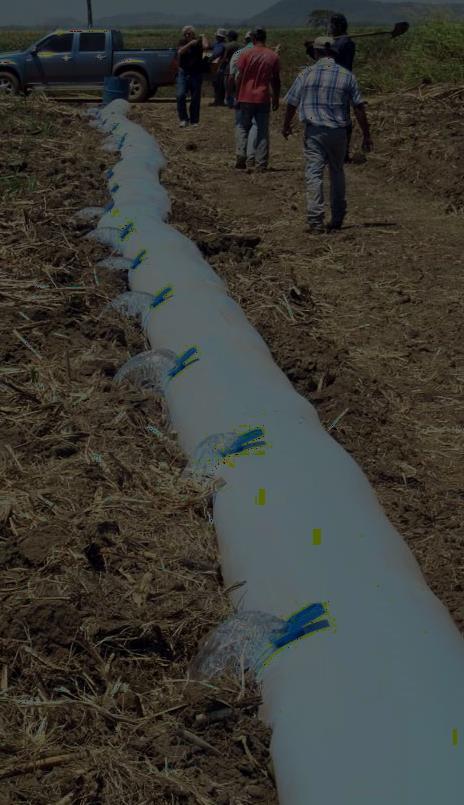

Blue Gate Irrigation Gate Valve supplied on request. Please state total number required.

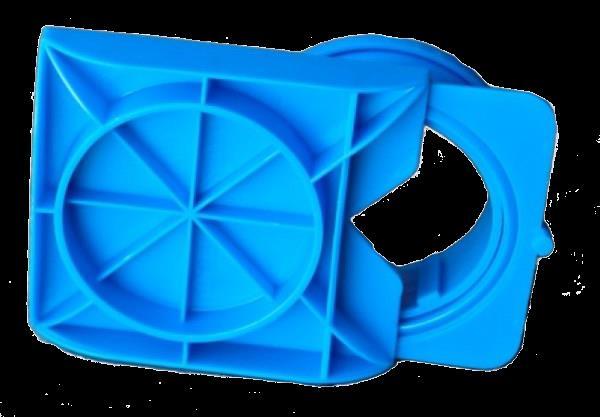

BLUE GATE IRRIGATION GATE VALVE When irrigation is the way to go, our Blue Gate Irrigation Gate Valve is the choice to make. This fully adjustable irrigation gate valve delivers up to 80 G.P.M and is one of the most economical and user-friendly irrigation gate valves on the market today.

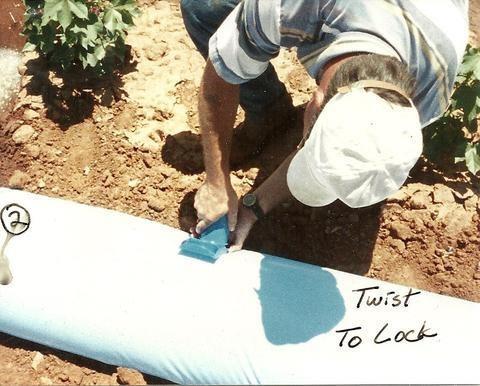

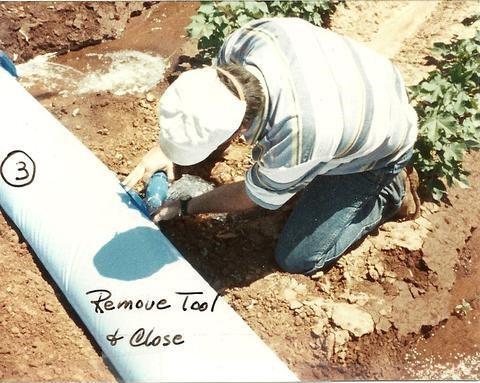

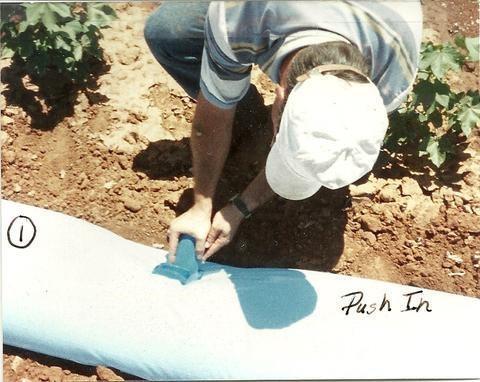

The Blue Gate Irrigation Gave Valves are made of quality Polyethylene construction making them lightweight but extremely durable. Also available are installation tools or Gate Punchers making the gate easy to install and cutting labor costs. Irrigation gates are fully adjustable for precise water metering and eliminate the need for syphon pipes. They are also reusable and weather and sunlight resistant. Open, closed or anywhere in between you are guaranteed on one thing, the Blue Gate Irrigation Gate Valve will work!

Look for the unmistakable "blue" color. You will not find a better irrigation gate for your money.

For more information and prices give us a call at 1-888-334-1440 or send us an email at usgr@usgr.com. We would be happy to talk with you.

Proudly Made in the U.S.A
