ABERDEEN TOWER BLOCKS 27 STUDENT HOUSING

M U L T I S T O R Y

ABERDEEN’S TOWER BLOCKS HAVE LONG RISEN ABOVE THE COMPETITION BUT DO THEIR RECENT LISTING BY HISTORIC ENVIRONMENT SCOTLAND SPELL SUCCESS OR TROUBLE? MARK CHALMERS INVESTIGATES A LOOMING CONFLICT BETWEEN THE HERITAGE BODY AND THE CITY COUNCIL.

Today Aberdeen has a housing crisis – but not the type of housing crisis you’d expect.

Rather than a shortage of affordable homes, Radio Scotland reported in July that the city has the highest proportion of unoccupied houses in the UK. In this case, there are at least 3000 unaffordable homes in Aberdeen … but the issue making the Press & Journal’s front page is the fate of the city’s tower blocks.

Scottish councils don’t build high rises nowadays. The era of tower building demonstrated public patronage on a glorious scale, but in recent years high rise social housing has become a Rorschach Test for politicians, sociologists and journalists. People see what they want to see when they look at a tower block, and that’s usually something negative. The first high-rise tower in the UK was Frederick Gibberd’s The Lawn, a nine-storey butterfly-plan block built in Harlow in 1951. It was followed a few years later by the Alton Estate at Roehampton, which became a benchmark for multi-storey concrete housing blocks. These were the forerunners of the Age of the Tower Block.

The architectural experimentation of the early towers was lost once two competing techniques for tower block construction became predominant. Non-Traditional construction covered a range of methods, the most successful of which was the Wimpey “No Fines” in-situ concrete technique. Its rival was industrialised or system building, which became popular in the mid-1960’s, with Bison, Skarne, Jesperson and Anglian developing large panel precast concrete systems.

Yet tower block fervour was in danger of outstripping safety legislation. In 1962 the Scottish architect George Fairweather chaired the government committee which drew up a new fire safety code. Whilst in the throes of drafting it, he took a group of students to see system-built flats being erected in Greenwich. It became apparent that when concrete panels didn’t fit, a labourer attacked them with a sledgehammer until they did. “Mark my words,” said George, “One day one of these bloody things will fall down just like the Tay Bridge.”

His words turned out to be prophetic. In 1968 a gas cooker blew up in a flat at Ronan Point, a system-built block in West Ham. Rather than wrecking the interior of just one flat, the explosion brought down an entire side of the tower block. It collapsed like a house of cards. Fairweather later said, “One day the truth will come out about that building. Either Ronan Point will have to be taken down, or it will fall down of its own accord.”

After that, local authorities fell out of love with tower block, and half a century later, the tragedy at Grenfell Tower initiated another period of soul searching. You’d be forgiven for thinking that high rise housing was doomed in 1968, and doubly so after 2017. The rational conclusion is that tower blocks are a flawed

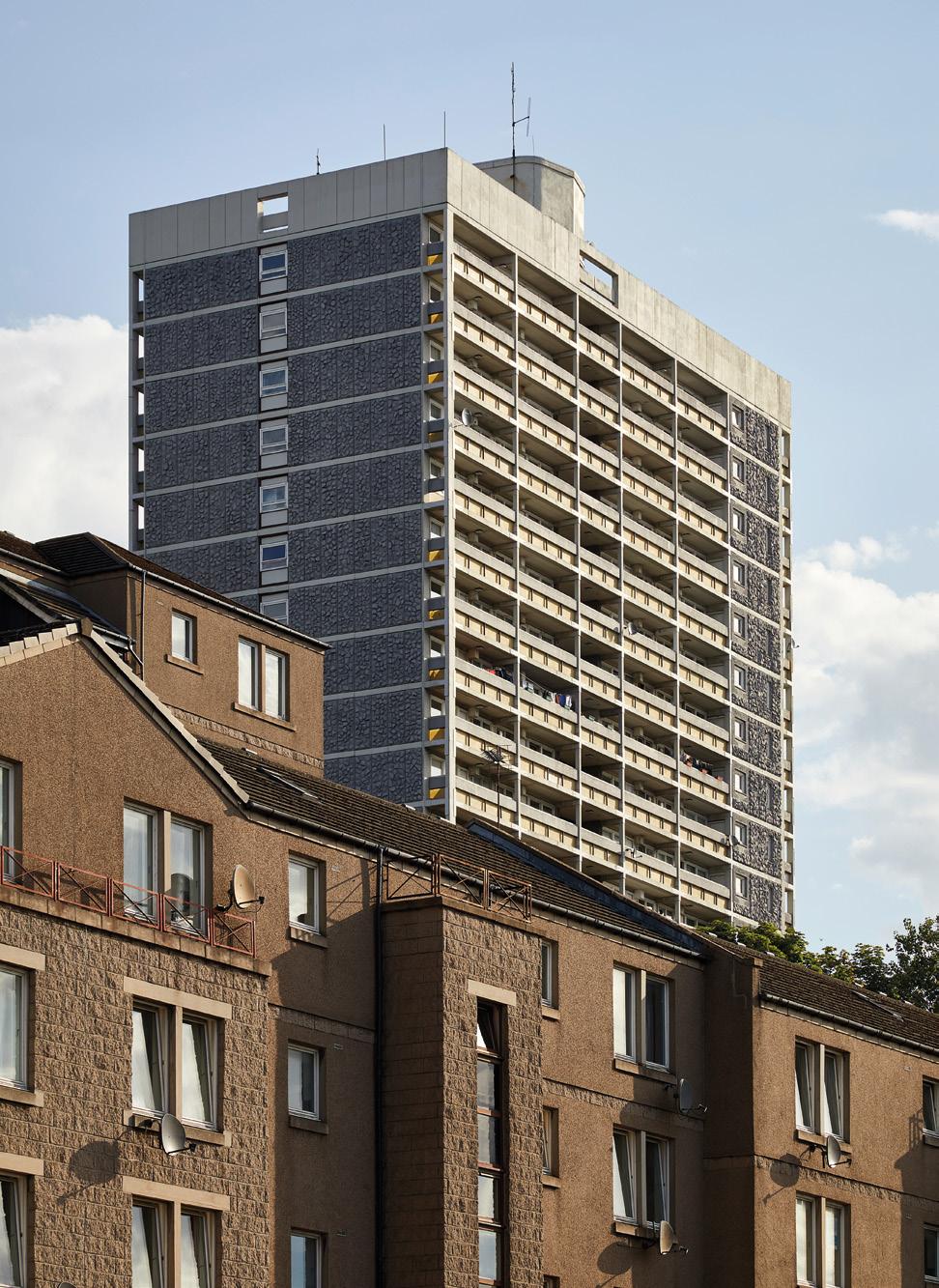

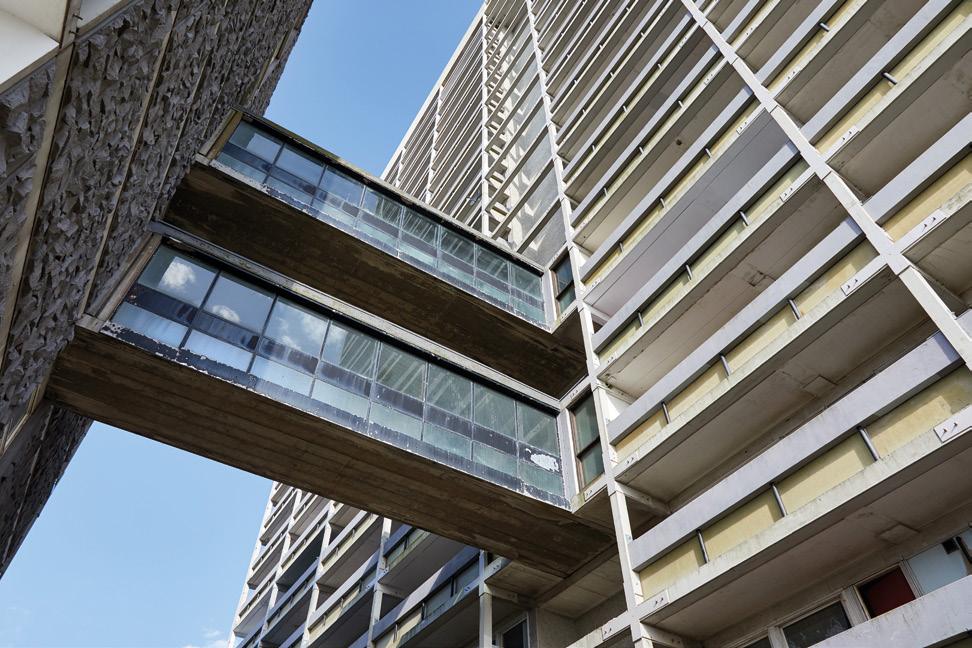

Left - Sky bridges linking Seamount & Porthill Courts Right - Marischal Court from west, with modern housing on Virginia Street in foreground

typology – but our appetite for simple truths in a complicated world often denies the reality.

Aberdeen did things differently at every stage of the social housing journey. Back in the 1930’s, the journalist George Blake described Aberdeen as “the most Scottish of Scottish cities” and its Housing Department has a long history of following its own path. During the decades after the War, Aberdeen Corporation was comparable to Camden Council’s Architect’s Department in its appetite for innovation, although because it’s 500 miles too far north, it has received none of the acclaim.

The city began experimenting in the 1930’s, when Leo Durnin borrowed from Red Vienna to create a great horseshoeshaped Modernist tenement at Rosemount Crescent. The twist here was that, being Aberdeen, it was built from granite. At the same time, a Non-Traditional prototype known as the Aberdeen Corporation In-Situ Concrete House was developed, and 120 were built in the late 1930’s. The city also constructed 40 timber-framed chalet bungalows clad in cedar boarding and shingles at Kincorth; they’re among the very earliest timberframed houses in BRE’s mammoth Non-Traditional Housing study.

Aberdeen’s spirit of independence continued after the War. In April 1950, Baillie Frank Magee, the city’s housing convenor, declared that there were still appalling slums in the city which must be wiped out. “We are not going to build tenements, but something we will be proud of, and something I hope that may win another Saltire Prize”.

The city was slow to adopt high rise housing, so it was Magee’s successor Councillor Robert Lennox who combined forces with Aberdeen City Architects Department, under the supervision of chief architect George Keith, to map a tower block strategy. As it happens, Robert Lennox was the great uncle of Eurythmics singer Annie Lennox, although he achieved something she hasn’t so far – becoming Lord Provost of Aberdeen.

Keith and Lennox were inspired by their visits in 1959 to multi-storey housing schemes at Roehampton Estate in London and Hutchesontown in Glasgow, so Aberdeen decided to design its own blocks rather than adopting standard “package deal” solutions from Wimpey or Bison. While the blocks further out at Seaton, Tillydrone and Midstocket are similar to high rises elsewhere in Scotland, the city centre blocks at Gilcomstoun, Gallowgate and Castlehill are unique.

The towers on Gallowgate make dramatic use of the sloping land towards West North Street: Seamount Court and Porthill Court grow out of several tiers of concrete car park. The towers on Castlehill – Virginia Court and Marischal Court – were deliberately placed on the highest point of the city centre in order to command Union Street. The Gallowgate and Castlehill blocks share a common approach: an 18 storey slab block with

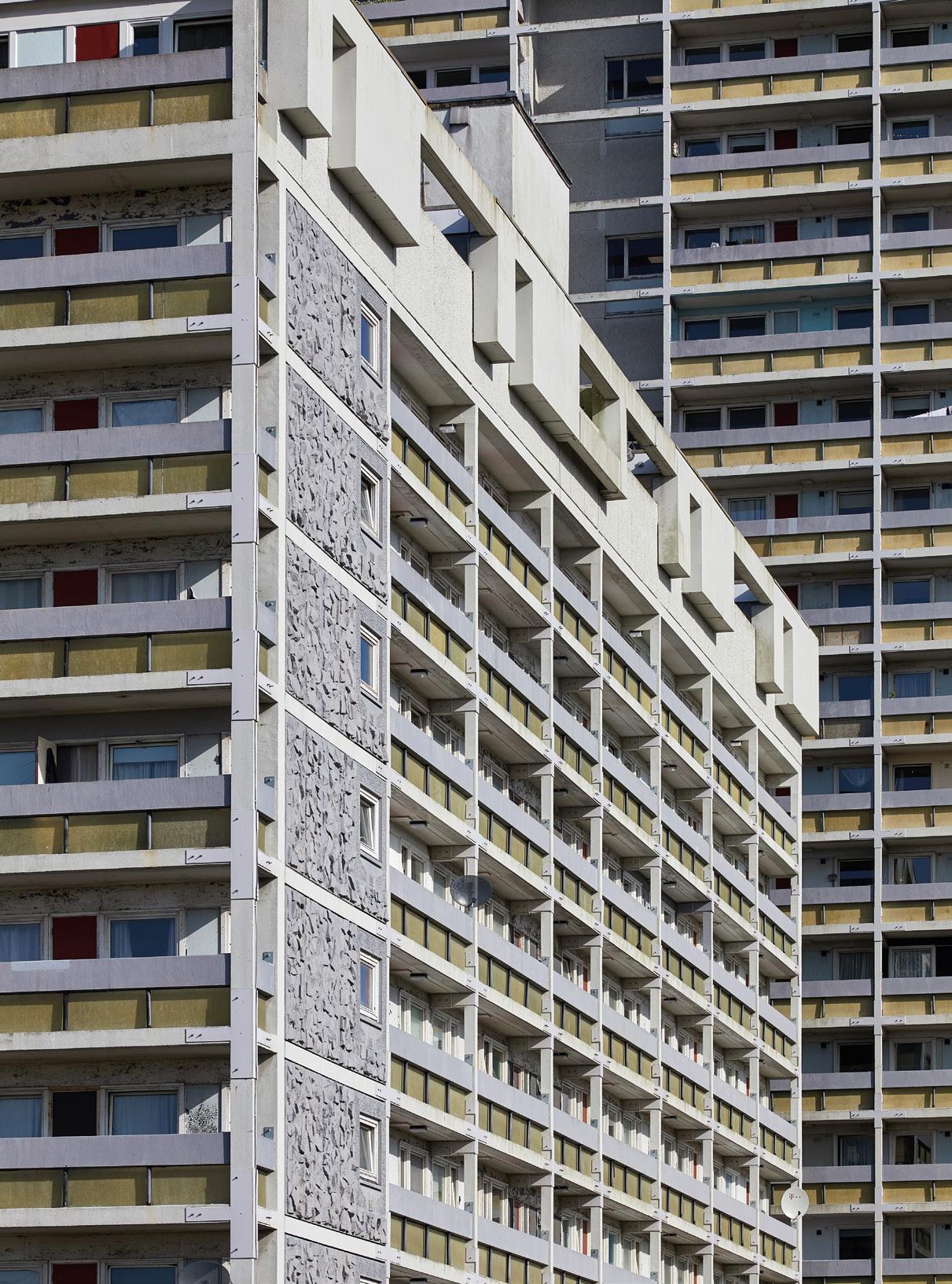

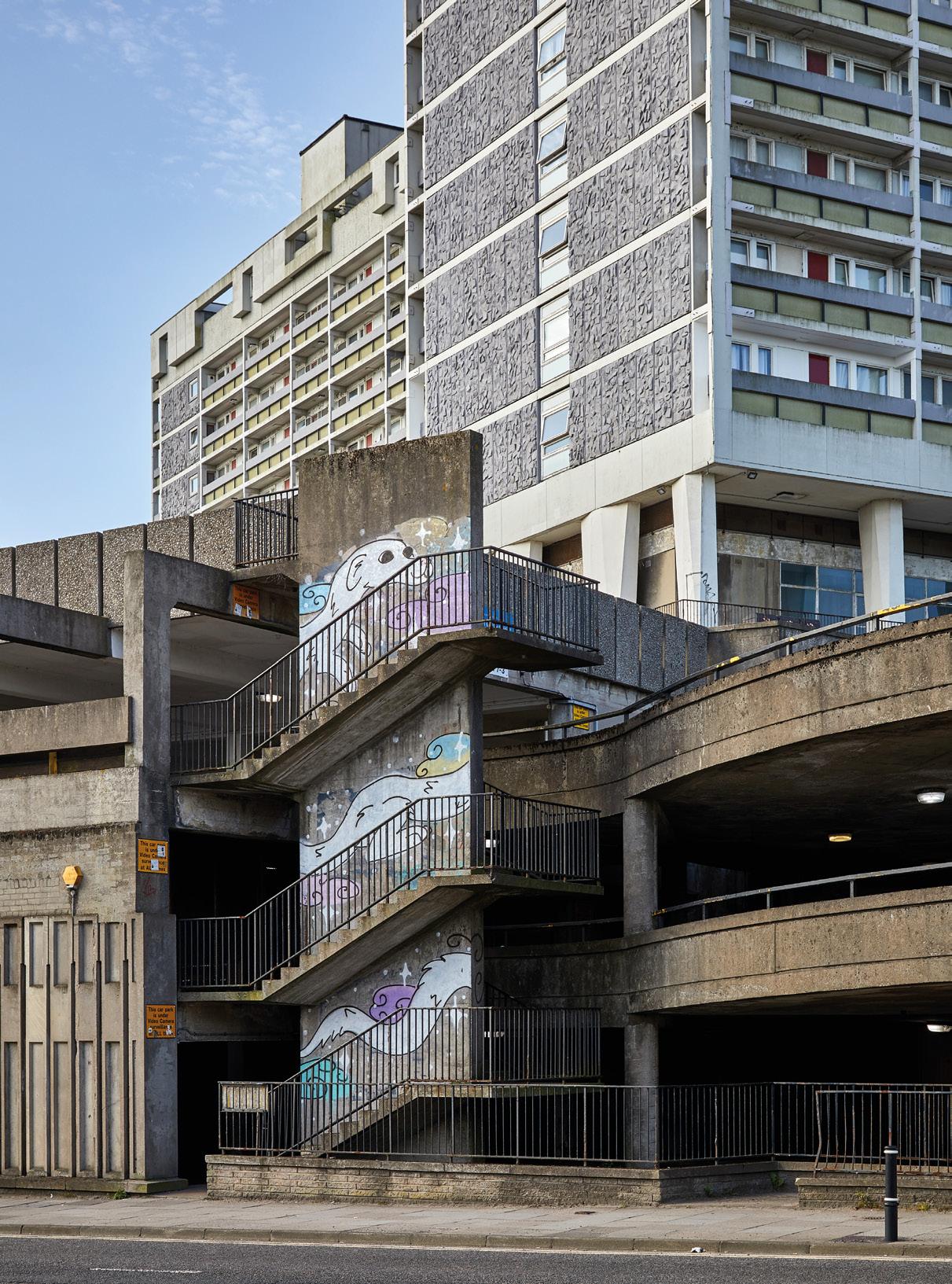

Seamount & Porthill Courts, Gallowgate from east

a 9 storey slab block set at right angles to it, tied together with sky bridges.

Further west, Gilcomstoun Land and Thistle Court lie behind Union Street and to the north, Hutcheon Court and Greig Court are less dominant, but loom over the giant roundabout at Mounthooly.

This is architecture at its toughest and it commands respect. The blocks were clad with precast concrete faced in silver granite rubble which weathers well, sparkles in the sun and acknowledges the materiality of the city. Granite was still being quarried in the city during the 1960’s, and Aberdeen was self-sufficient in concrete panels too, thanks to the precast factory which John Fyfe ran at Rubislaw Quarry, and the Adamant works at Dancing Cairns.

Yet the true innovation in Aberdeen’s tower blocks isn’t visible from the outside. They employed one of the original ideas of Modern Movement, the scissors section, which made it possible to build dual aspect flats with efficient circulation. Le Corbusier gets the credit here, as they were developed from the dual aspect, interlocking flats he conceived for the Unité d’Habitation in Marseilles.

British architects travelled to France soon after the Unité was completed, and shortly afterwards the through-plan flat was adopted by London County Council Architects department. Most of the British examples are in London: Erno Goldfinger’s Trellick Tower and Balfron Tower use “overlapping” section flats, whereas Kenneth Frampton’s Corringham block in London is a true “scissors” section, as are the “up-and-over” maisonettes in Willoughby House at the Barbican.

The most efficient way to plan flats is with rooms set along the perimeter and circulation in the core: that maximises natural light and ventilation and generally gives the best ratio of net to gross floorspace too. However, in slab blocks that usually means either dark internal corridors which are double-loaded with single aspect flats, or numerous vertical cores which only serve a handful of flats. Deck access is one way to get around that, but scissors section flats are a better-resolved solution.

Put simply, a cross-plan or interlocking flat locates the kitchens, living and dining rooms along one aspect, connected to bedrooms on the opposite side by an internal flight of stairs. The internal stairs bridge over a circulation corridor, which typically runs along every alternate storey, and the adjacent flat is mirrored in two axes, so that two flats drawn in cross section begin to resemble a pair of scissors. In order to understand it properly, you need to draw it.

The long elevations at Gallowgate and Castlehill are powerfully articulated with concrete balcony beams and spandrel panels influenced by the Unité. Another Corbusian feature are the sky bridges: Erno Goldfinger was similarly inspired and just like Trellick Tower, the blocks in Aberdeen are

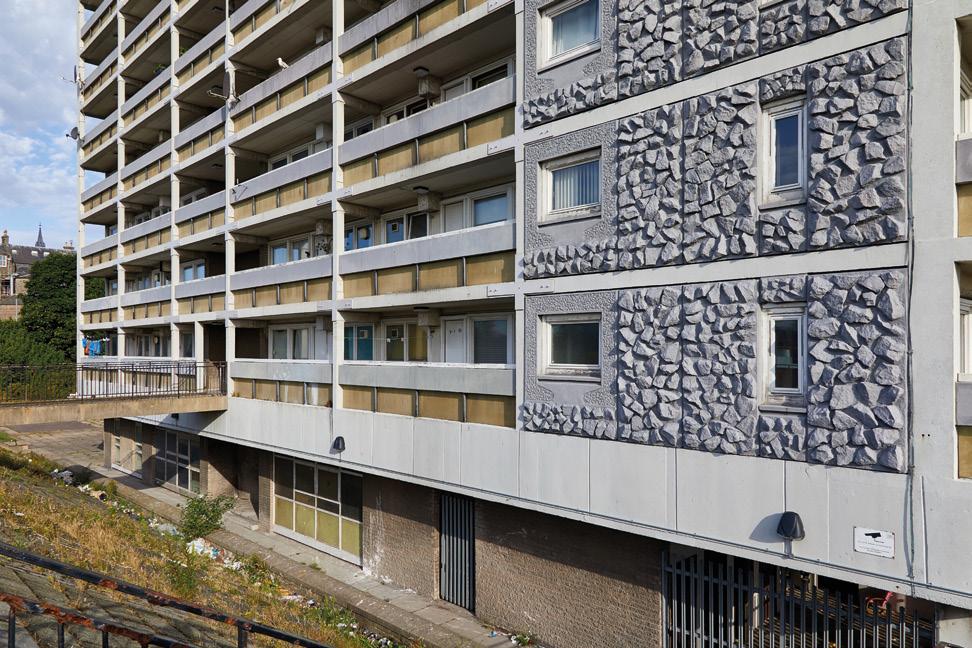

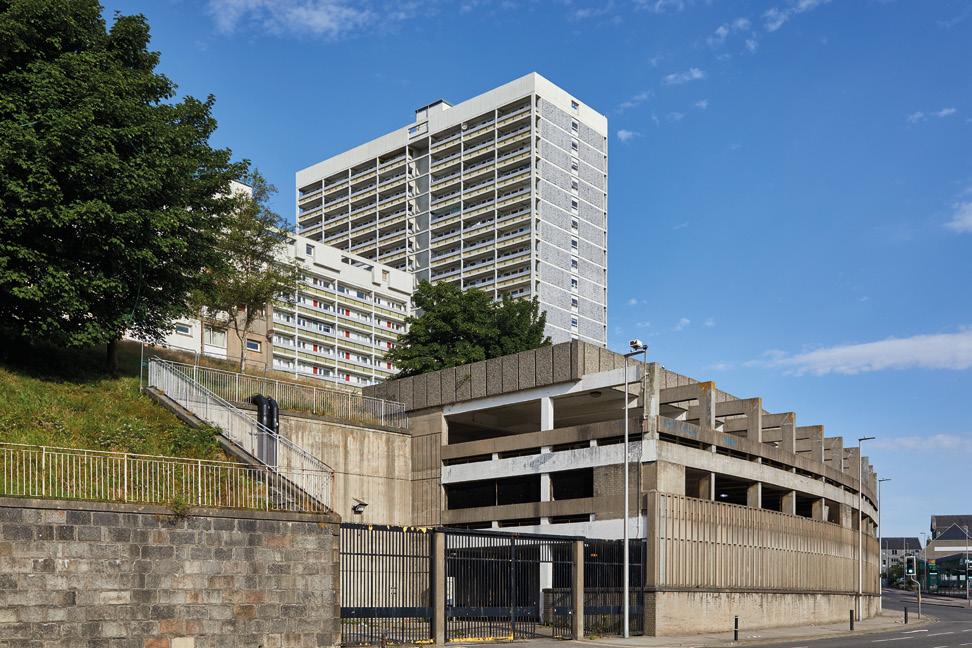

Left - Marischal Court, detail of facade Right - Seamount Court with West North Street car park in foreground and Porthill Court behind

tied together by walkways many storeys up.

Aberdeen’s slab blocks also have the communal facilities which high rise flats in other cities lack: the towers’ podiums have teak-lined entrance foyers, with laundry rooms, drying areas, and in some blocks community rooms too. Ground level is where George Keith’s circle of influence widens, because the towers are set on faceted piloti which owe more to Marcel Breuer than Corb.

The influences from International Modernism were married to the Scots tradition of building vertically, which stretches back to medieval tower houses. Z-plan towers such as Claypotts Castle in Broughty Ferry were cited by Basil Spence as a precedent for his high rise flats at Hutchestontown in Glasgow, and the influence was also picked up by Robert Matthew with his Queen’s College Tower in Dundee. These truly are Scots tower blocks.

Most authorities gave up on their tower blocks a decade or two ago and began demolishing them, but Aberdeen kept the faith: it was the last city in Scotland to build a high-rise block, in 1985. It also carried out maintenance and provided concierges, thus avoiding the blight of graffiti, vandalism and anti-social tenants which created ghettoes in the sky elsewhere.

Taken together, this group of eight tower blocks in Aberdeen is as good as anyone erected during the 1960’s. They’re unique in combining granite cladding, scissors section flats, sky bridges, and maintaining a link with tower-house building. They’re of their time and also their place – and crucially, Aberdeen’s blocks aren’t system built like Ronan Point, nor have they been overclad like Grenfell Tower.

For all these reasons, Historic Environment Scotland awarded the blocks a Category “A” listing in January 2021. Aberdeen now has more listed tower blocks than anywhere else in the UK, including London – but as Joseph Heller wrote, there was only one catch, and that was Catch-22.

In April 2021, Aberdeen City Council appealed against the listing and the Scottish Government is considering what to do next. Although the tower blocks’ concrete-framed and concrete-clad construction is both fireproof and has a high thermal mass, the thermal insulation is poor by today’s standards. The Energy Efficiency Standard for Social Housing (EESSH) was introduced by the Scottish Government to drive up energy efficiency, and that inevitably means upgrading the building fabric.

Elsewhere, councils have over-clad tower blocks with rainscreen panels or rendered external wall insulation – but in Aberdeen, the towers’ “A” listing would preclude that. Hence Catch-22, either architectural heritage or sustainability. Hopefully we’ll find a way to reconcile the two, rather than them becoming the poles of an argument which ends in delisting, or worse.

RAKKAUS FURNITURE SAY HALO TO NET-ZERO CARBON KILMARNOCK PROJECT

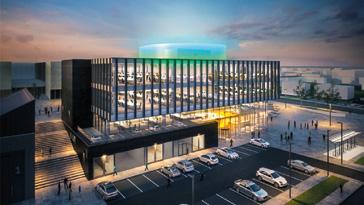

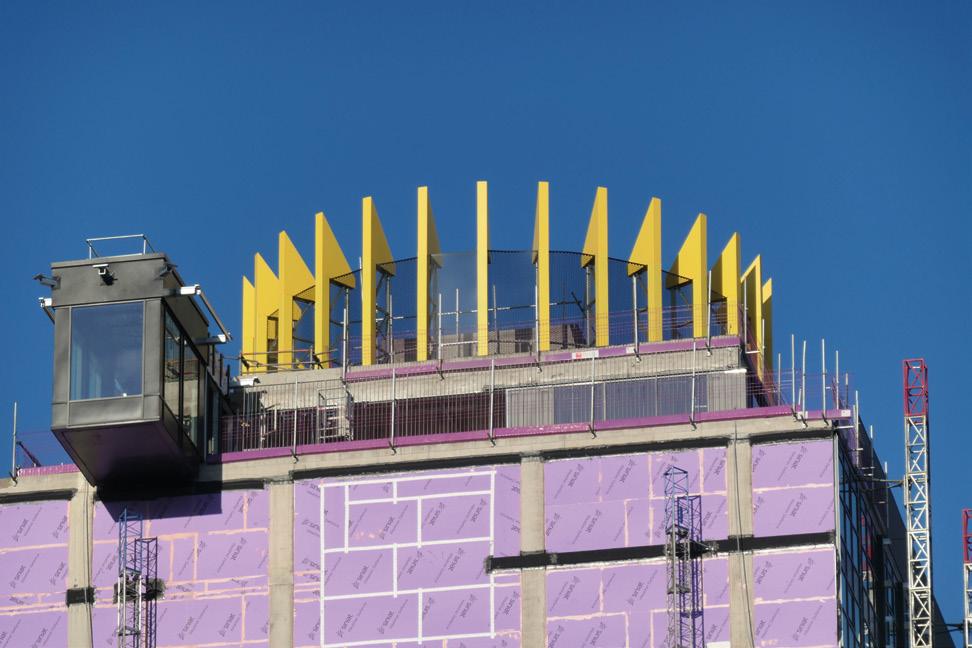

Left - Rakkaus will pay fitting tribute to their hometown Below - A crowning ring of light illuminates Kilmarnock’s future

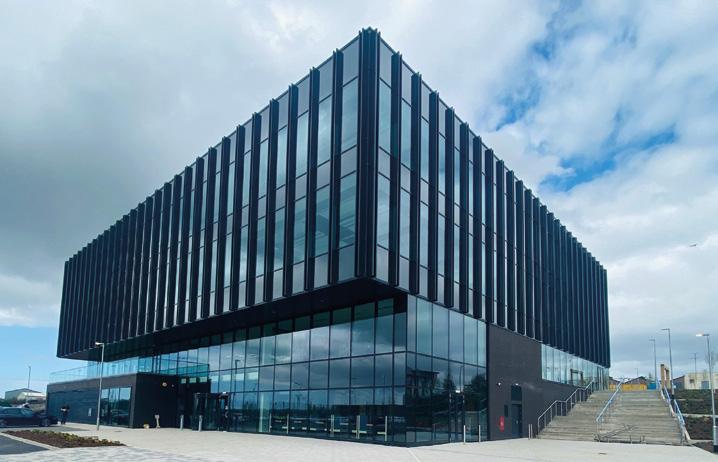

Ayrshire based commercial interiors specialists Rakkaus Furniture have been awarded the furnishing contract for the first town centre net-zero carbon energy project in Scotland, HALO Kilmarnock.

Situated next to the state-of-the-art Ayrshire College on what was once the busy and bustling site of Jonnie Walker, the world’s leading Scotch Whisky producer, the HALO Enterprise and Innovation Hub will stimulate digital learning, inspire innovative thinking and support the Ayrshire economy. Spearheaded by Dr Marie Macklin CBE, chair of HALO Urban Regeneration, HALO Kilmarnock will create a dynamic commercial, educational, cultural, leisure and lifestyle quarter of the town, fueled by renewable energy, where people can live, work, learn and play.

Rakkaus Furniture joins a delivery team led by Keppie Design, acting on behalf of the Klin group and HALO Urban Regeneration, to deliver the furniture and flooring package for the major urban renewal project, installation of which will commence over the coming weeks for completion this autumn.

Chris Arkley, managing director of Rakkaus, said: “I have known Marie Macklin for a number of years now and her plan for this site in Kilmarnock is nothing short of visionary. We are excited to have such a forward-thinking development in our town and to be part of its interior is awesome.”

Rakkaus are particularly excited by HALO’s zero-carbon vision which includes the use of 100% renewable energy, centralised battery storage and electric transport. Arkley continued: “Our business has sustainability at its core, from our personal mentality to climate change all the way through to our supply chain”.

Commissioned furniture will be made from recycled components from the car industry, as well as sustainably sourced timber for seating and low carbon manufacturing processes. Rakkaus will also be providing the BREEAM certified carpet tiles.

Based in Kilmarnock town centre, Rakkaus has long been established as the premier supplier of commercial furniture and flooring to companies across the UK and beyond.

Tel: 01563 501 887 Web: rakkausfurniture.co.uk

© DENNIS GILBERT

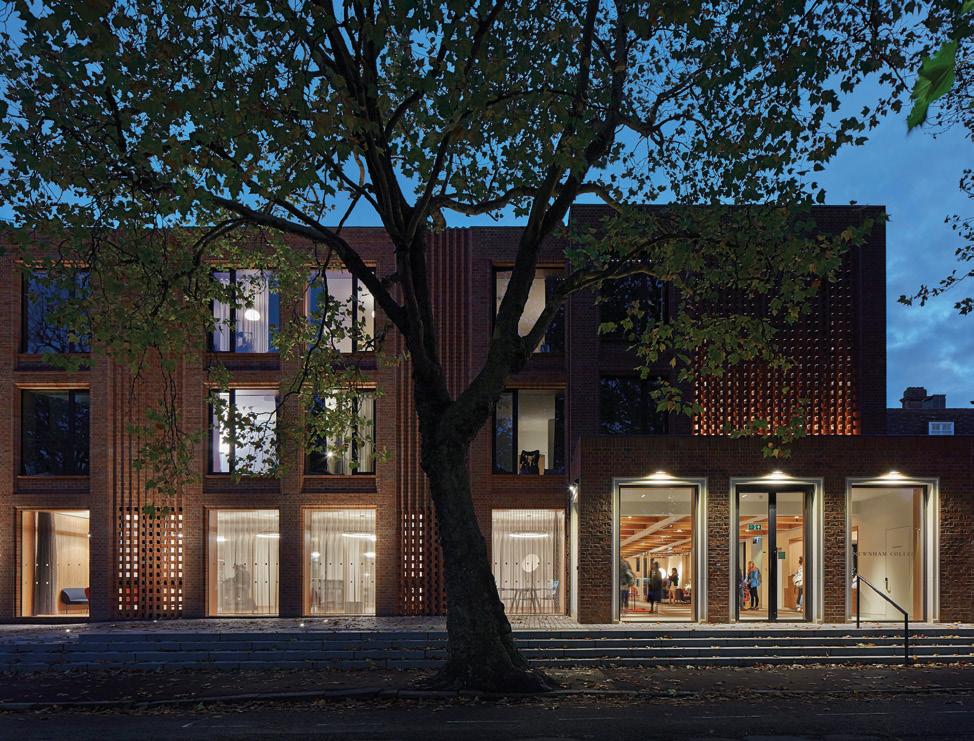

Intricate brickwork at the University of Cambridge adopts arts & crafts principles

C A M P U S C A L C U L U S

AMID A PIVOT TO ONLINE LEARNING WE LOOK AT HOW COMMUNAL LIVING MUST CHANGE TO MEET THE NEEDS OF A FAST-EVOLVING SECTOR. WILL TODAY’S DIGS STAND THE TEST OF TIME AND IF NOT WHAT NEEDS TO BE DONE DIFFERENTLY? HAS A LONG-RUNNING BOOM RUN ITS COURSE?

The glut of student accommodation delivered in recent decades raises questions about how such buildings may be repurposed as demand shifts and how design can play a role in ensuring the sector can survive and thrive through the uncertain years ahead. With many buildings lying empty as remote learning takes hold, what are the challenges and opportunities facing education?

Rapid professionalisation of the sector has seen the ‘Bottom’-style stereotype of dilapidated digs in haphazard rooms give way to professionally managed blocks drawing hundreds of students together in one building with all the everyday amenities you could need under one roof - and higher rental fees to match. This process has fed interest from overseas students wary of living in a foreign country

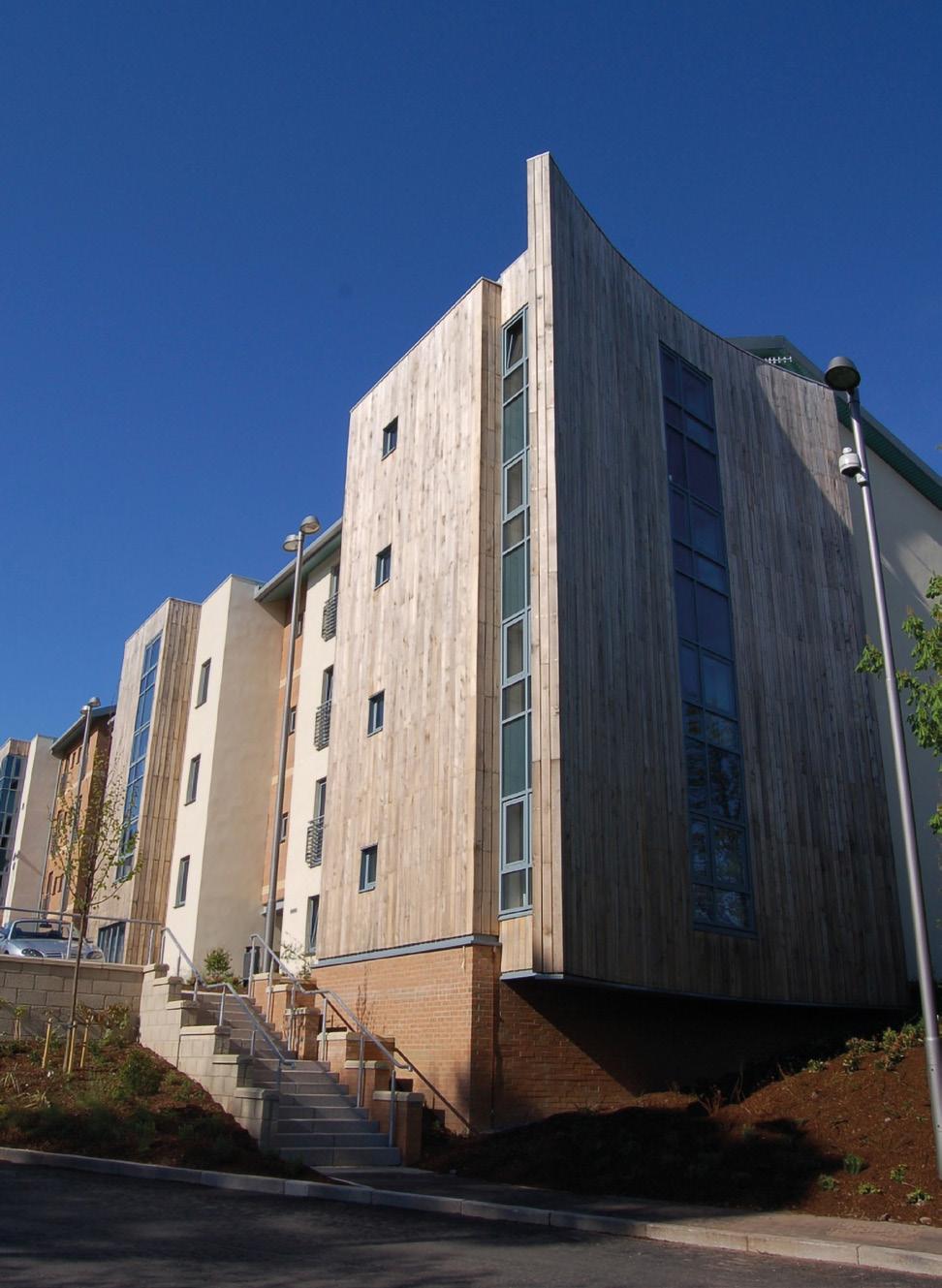

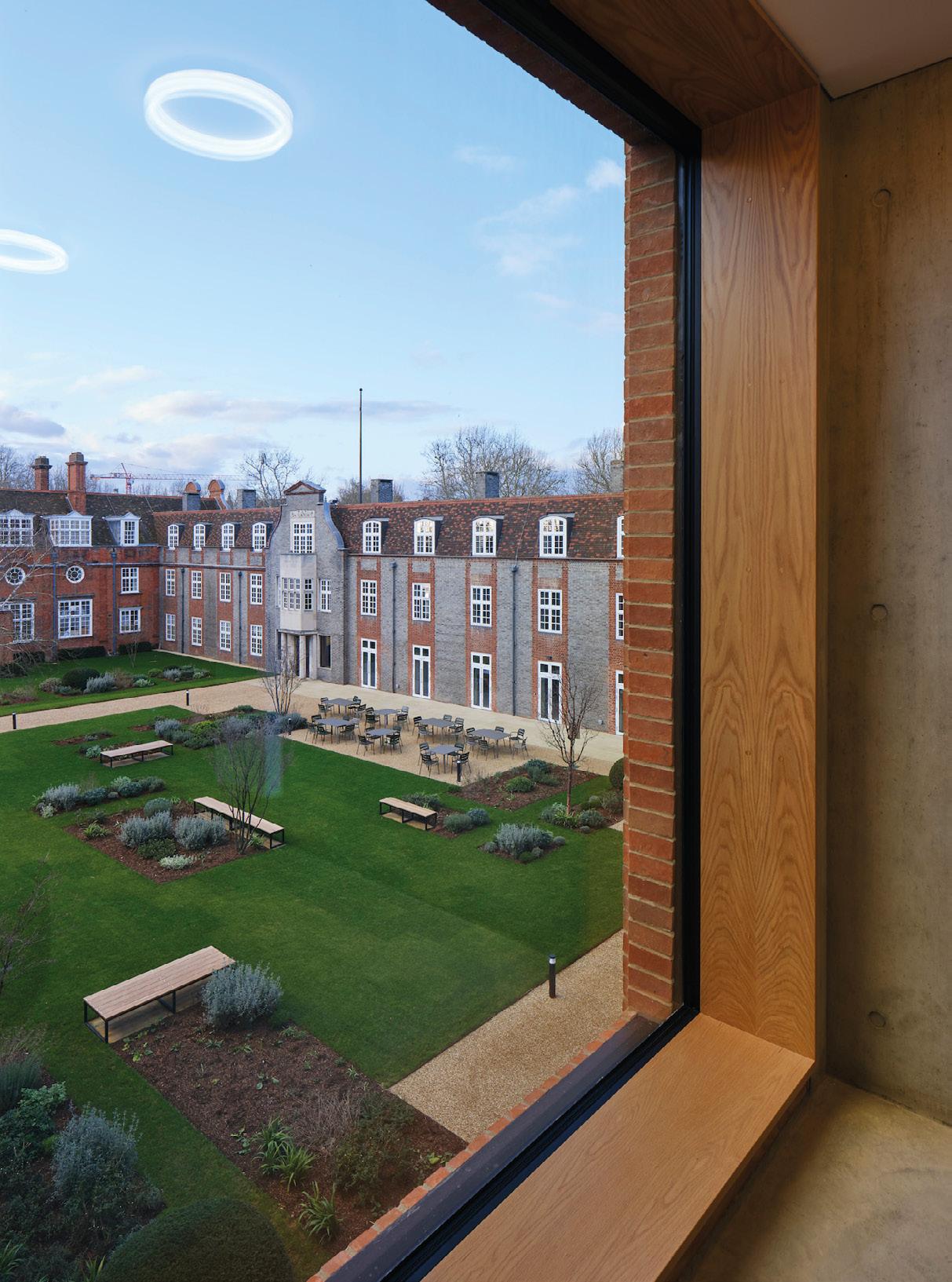

Left - Student housing continues to rise at a breakneck clip Right - Newnham is founded on Walter & Cohen’s collegiate approach

and stoked tensions from people worried about the concentration of transient populations on their doorstep but is there a ‘right’ mix of accommodation and will recent trends survive the post-pandemic reset?

Among those practices with a stake in the future of the sector is Walter & Cohen Architects, fresh from delivering student accommodation for Newnham College at the University of Cambridge. Partner Cindy Walters believes that the future of student accommodation lies in mixed-use developments that are microcosms of the wider city.

Stressing the importance of consultation Walters told Urban Realm: “Newnham is all about communal living and consultation was central to the vision for the project.

“In line with good design practice the Dorothy Garrod Building at Newnham is intentionally flexible and includes many design features the students asked for during the consultation; openable windows, direct access to the outdoors, balconies and roof terraces, that have proved invaluable during the pandemic.”

Babak Sasan, director at BMJ Architects, who has experience of delivering a 398-bed student development at 366 Cathedral Street, Glasgow, while at Corstorphine + Wright, said: “I thought it would stop but at the moment the reliance of universities on the sector to boost income is still there. The reason for that is two-fold, 28%-plus of students come from China where the standard lease is 12 months not 10 and students often come with family. Foreign students still view the UK as a top degree destination that is worth more than competing countries.”

Asked about the possibility of converting such buildings for other uses Sassan added: “At a push, halls could be repurposed as a hotel. It’s a night/day difference from when I was a student with well thought out common spaces and airport-style lounges.”

One downside of the push for space has been the rising incidence of deaths associated with students falling from their buildings, including the death of a 20-year-old woman in Wolverhampton over the summer. Sassan said: “Higher than regulation parapets can help, you cannot police everywhere.”

Student housing may be the sector that everyone loves to hate but its attraction for investors, foreign students and universities means it will take much more than a pandemic to pull the rug out from beneath the feet of developers.

Instead, a period of evolution is on the cards as strides are taken to deliver on affordability and attractiveness and self-contained facilities become the norm rather than the exception. In the process student housing shows that it iremains one of the most versatile construction sectors.

Alistair Scott Smith Scott Mullan Associates

It is estimated that the UK has nearly 2.5 million students in higher education. As a consequence of housing such numbers, student accommodation has become one of the major components of our built environment.

Monasteries, Oxbridge colleges, red brick and plate glass universities have all contributed to housing our scholars, however, in terms of the overall impact of the massive expansion in higher education during the late 20th century and the aspiration to provide accommodation for most first-year and overseas students led to new typologies and funding models emerging, with the private sector becoming a major provider. Quality varied greatly, from soviet era type bocks to international exemplars such as Steven Holl’s juxtaposition of grid forms and porosity at M.I.T.

One of the largest shifts was from the communal “Halls of Residence” to the now ubiquitous “cluster block” of 5 or 6 individual rooms with en-suite facilities and a communal kitchen, developed in forms ranging from 4 storey courtyards to high rise point blocks. Recent research however has identified a limitation in this model as it can restrict social interaction (particularly with overseas students) and a rebalance towards a more collegiate viewpoint seems likely.

As student housing has spread beyond the campus it has impacted existing communities, often gaining a “bad press” with local residents objecting and mustering political support. This issue is about balance within a neighbourhood, and we should recognise that not only do students bring vitality to an area but as a typology student accommodation offers advantages of density, car-free development and ground floor facilities, all of which support our sustainability and place-making goals such as the 20-minute neighbourhood.

As to our post-Covid future, hopefully, the next emphasis will be on quality, and diversity of type as older stock gets replaced. Health and wellbeing and online tuition will be major issues, while the rise of commercial build to rent, will have the impact of blurring boundaries between mainstream and student housing.

All this will need significant input from the design professions, and we must not lose sight of the key role that student housing plays in allowing our young people to gather, socialise and build the aspirations that will shape our world in the future.
