Medicine mixer, Dosatron & spare parts

Electronic medicine mixer / dosing system with simple operation and many application options. Can dose two components completely independently of each other. Can dose from 0.01% or used for pulse dosing.

Item number: 1215-2510

Item number: 1215-1230

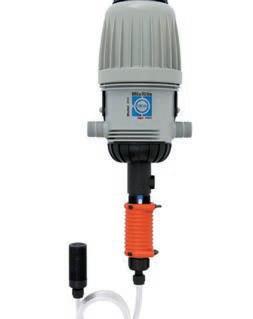

Medicine mixer MixRite 0,2-2%

MixRite dosing device. For the addition of formic acid, medicine, vitamins and disinfection, etc. Dosage 0.2 to 2.0%. Water pressure 0.15 to 6 bar. Water flow 20 to 2500 liters / hour. Only works with water pressure and automatically mixes concentrated liquids in a desired ratio with water. Very reliable and accurate dosage regardless of water flow and water pressure. Supplied with mounting bracket and suction hose with filter. Connection 3/4 ”outside RG.

Item number: 1215-1222 Item number: 1215-2500

Medicine mixer MixRite 0,4-4%

Dosage device 0.4 - 4% MixRite LFR 10-2500 ltr. 0.15 - 6 bar. Connector Size [inch] 3/4 Concentration [%] 0.4-4 Max flow [l / min] 42 Max Press [MPa] 8 Material plastic My flow [l / min] 0.15 Flow [l / min] 0.15 - 42

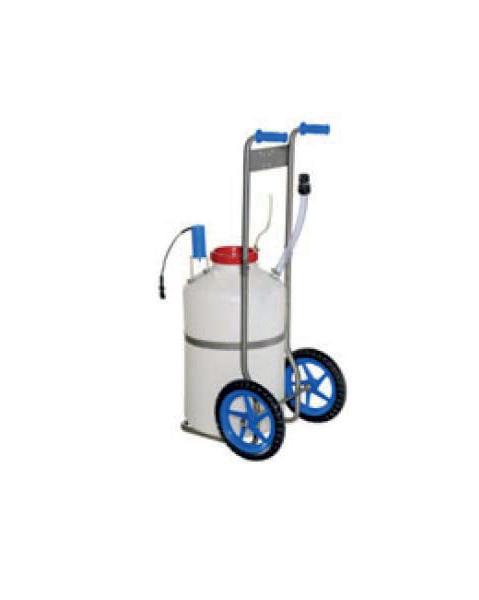

Mobil mixing wagon

Complete carriage for mounting with a Dosatron Dosing Pumps. The wagon is made of stainless steel and with plastic wheels. The container is 50 liters and with stainless steel stirrer. Supplied including quick connectors on arrival and departure as well as hours for the stirrer. Note, the price does not include the dosing pump.

Dosatron D25RE2-PV 0,2-2% 2,5 m3 acid-proo

Water flow: 10 to 2,500 ltr. hour. Dosage between 0.2-2%. Pressure: 0.3 - 6 bar. PVDF pump housing for dosing of aggressive acids. Item number: 1215-9590 Item number: 1215-9590

Dosatron medicine mixer D25 0,2-2%

Dosing pump for dosing all liquids in water. It only works with water pressure and doses proportionally to the amount of water. Water flow between 10 and 2500 liters per hour. Dosage between 0.2 and 2%.

Dosage without the use of electricity. Doses only by means of water pressure and flow and 100% proportional to water pressure and flow. Constant and accurate dosage of all types of liquid additives. Many years of experience with dosage in many industries and applications. Water flow: 10 to 2,500 liters per. hour. Dosage between 0.2 - 2%. Pressure: 0.3 - 6 bar. External dosage (chemistry dosed outside pump housing).

Item number: 1215-1222 Item number: 1215-1211

Dosatron D 8re 02-2%

Dosage without the use of electricity. Dosates only by water pressure and flow and doses 100% proportionally to water pressure and flow. Constant and accurate dosage of all types of liquid additives. Many years of experience with dosage in many industries and applications. Water flow: 500 to 8,000 liters per. hour. Dosage between 0.2 - 2%. Pressure: 0.15 - 8 bar. Integrated ByPass system.

Item number: 1215-1222

Dosatron D25RE5IE 1-5% PVDF

Model D25RE5-IE: • Waterflow: 10 to 2,500 liters per. hour. • Dosage between 1 - 5%. • Pressure: 0.3 - 6 bar. • External dosing (chemistry runs around the pump housing).

Item number: 1215-1222 Item number: 1215-1225

ProDos electronic

Simple and inexpensive dosing pump, especially suitable for dosing of aggressive acids. Dosage: 0; 05 to 4%. Water flow: 12 to 2000 L / T. Alarm at overflow. Water meter with reset. Easy setting of dosage. Very reliable. To 230 volts.

Dirt filter with replaceable filter. 3/4 ”internal thread. Supplied with either a filter for normal cleaning or a special vacuum cleaner. Remember to specify the type you want. The price is the same!

Item number: 1215-0770

Strainer for Amatek

For item 1215-0770 Strainer Amatek. Item number: 1215-0780

Filter for mobilwagon D25/Dl16

Mobilwagen spare part no. 10.

Item number: 1215-0790

Gasket for Dosatron D200/D25

For dosage stamp. Item number: 1925-0206

Dosatron medicine mixerD25RE2

The check valve ensures that the water flows back into the system in a simple way. Made in PP, and can therefore be used for dosing of aggressive additives. With ¾” internal thread.

Item number: 1925-1045

MixRite gasket set

MixRite packing kit max 2%. Comprises: suction stamp packing, water stamp and silicone grease. Item number: 1925-1000

MixRite check valve

Compound valve for MixRite 10 mm. New model.
