Threaded with 1/2” NPT. May be mounted into threaded hubs in junction boxes or mounting accessories. Heavy-duty composite stake included.
WIRING:
Pre-wired with a five-foot pigtail of 18/2 cable.
WARRANTY: 10-year warranty
Opt. 6” extended shroud 3W & 6W #490260
DIMENSIONS:
Opt. 6” extended shroud 8W, 12W & 16W #490261
Type:
Model:

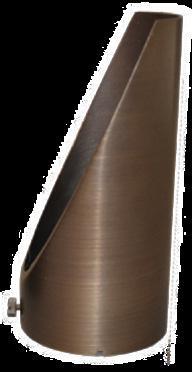

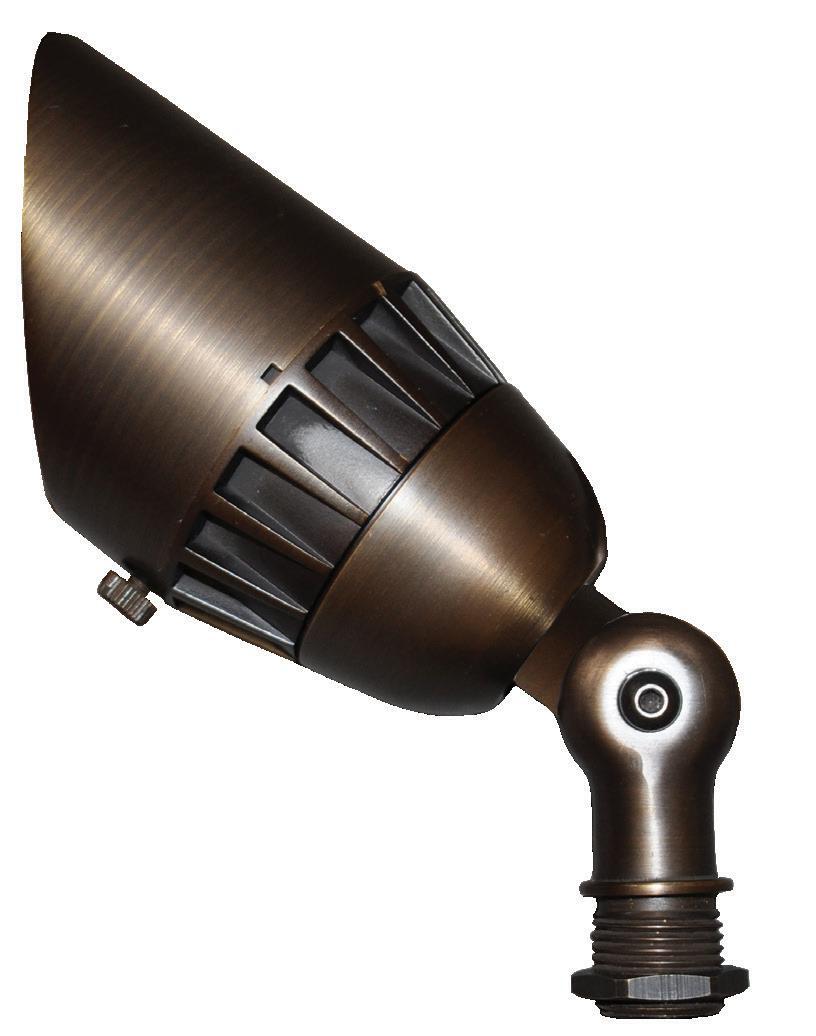

The Bodacious uplight features an integrated LED source available in 3, 8, 6,12 or 16 watts. 2700K, 3000K and 5000K options. 30-, 45-, 65- and 100-degree beam spreads.
SPECIFICATION SHEET
BODACIOUS Integrated LED Uplight
SPECIFICATIONS
VOLTAGE:
12V AC/DC
HOUSING:
Cast brass with removable 3” shroud. Optional 6” shroud available.
Threaded with 1/2” NPT. May be mounted into threaded hubs in junction boxes or mounting accessories. Heavy-duty composite stake included.
WIRING:
Pre-wired with a five-foot pigtail of 18/2 cable.
WARRANTY: 10-year warranty

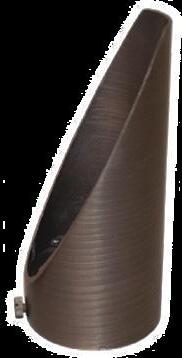

Opt. 6” extended shroud 3W & 6W #490260

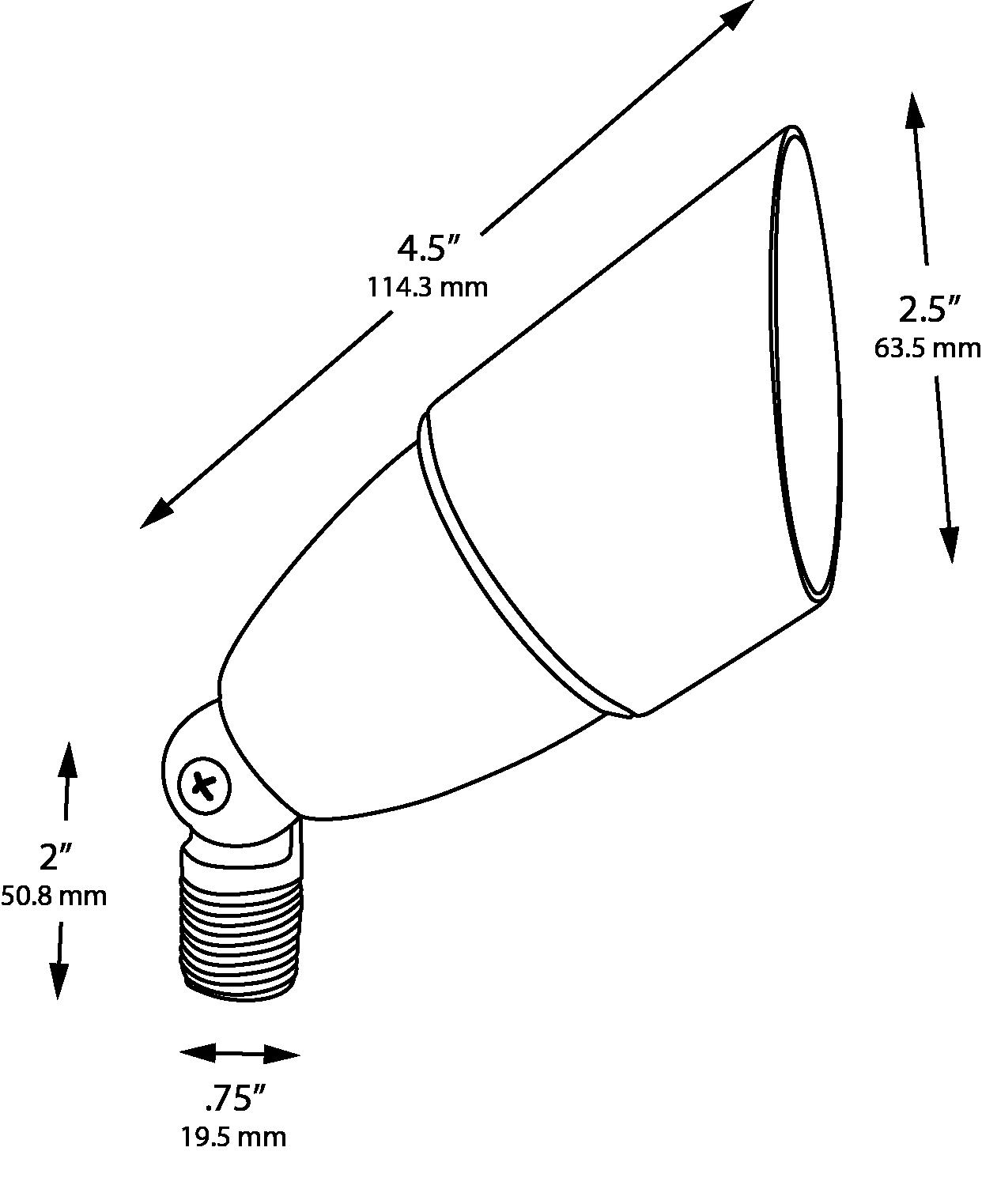

DIMENSIONS:
Opt. 6” extended shroud 8W, 12W & 16W #490261
Type:
Model:
The Bodacious uplight features an integrated LED source available in 3, 8, 6,12 or 16 watts. 2700K, 3000K and 5000K options. 30-, 45-, 65- and 100-degree beam spreads.

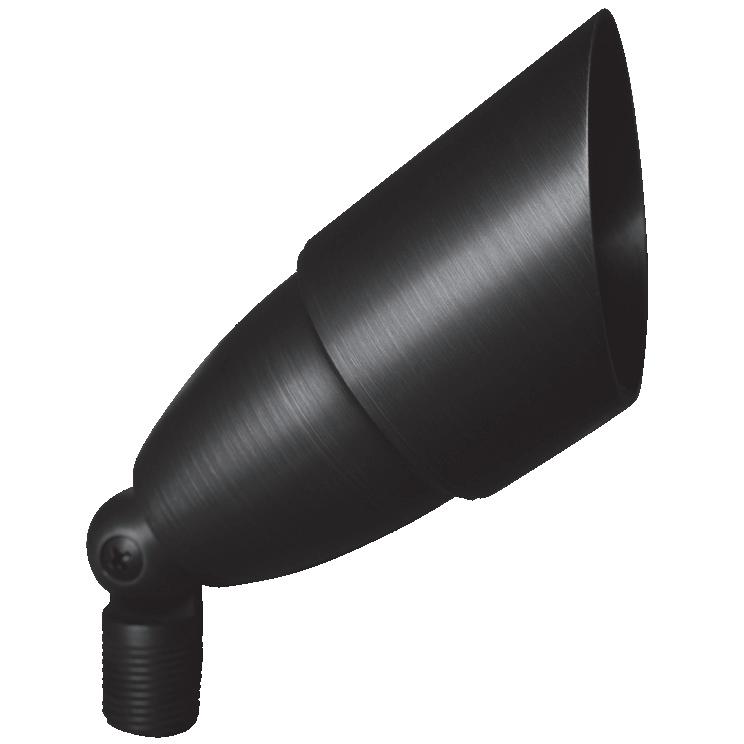

One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS: Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:

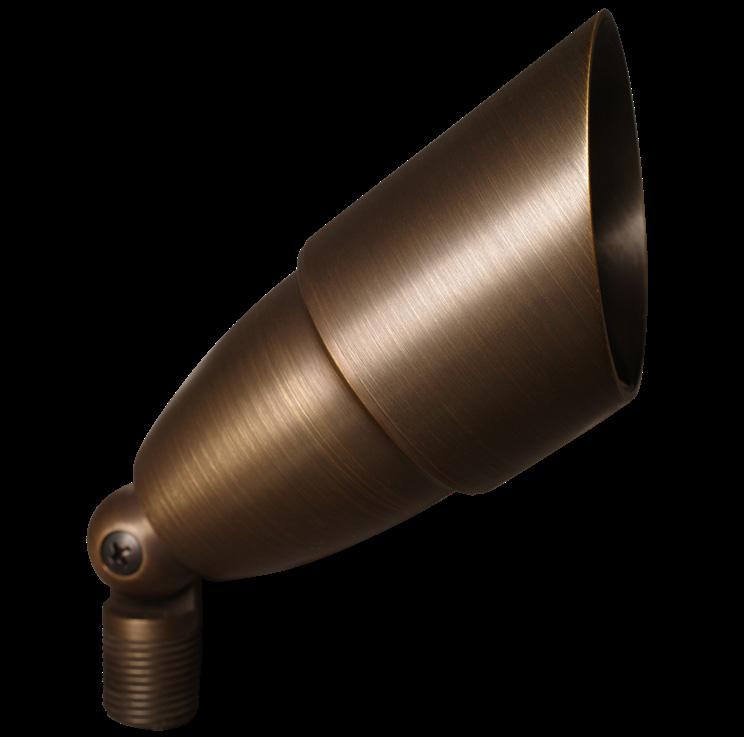

The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS: Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
490003
490003-BLK
490003-FS (floating socket)
490003-FS-BLK (floating socket)
Composite stake (incl.) 490034
M3 Trident Heavy-Duty 3-Prong Stake 490036
PM Round pier mount 490057
MR Round tapered 3-hole surface mount 490048 MP PVC/Brass post stake 490037 GM Brass gutter mount 490047
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION
SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
490003-BLK
490003-FS (floating socket)
490003-FS-BLK (floating socket)
Composite stake (incl.) 490034
M3 Trident Heavy-Duty 3-Prong Stake 490036
PM Round pier mount 490057
MR Round tapered 3-hole surface mount 490048 MP PVC/Brass post stake 490037 GM Brass gutter mount 490047

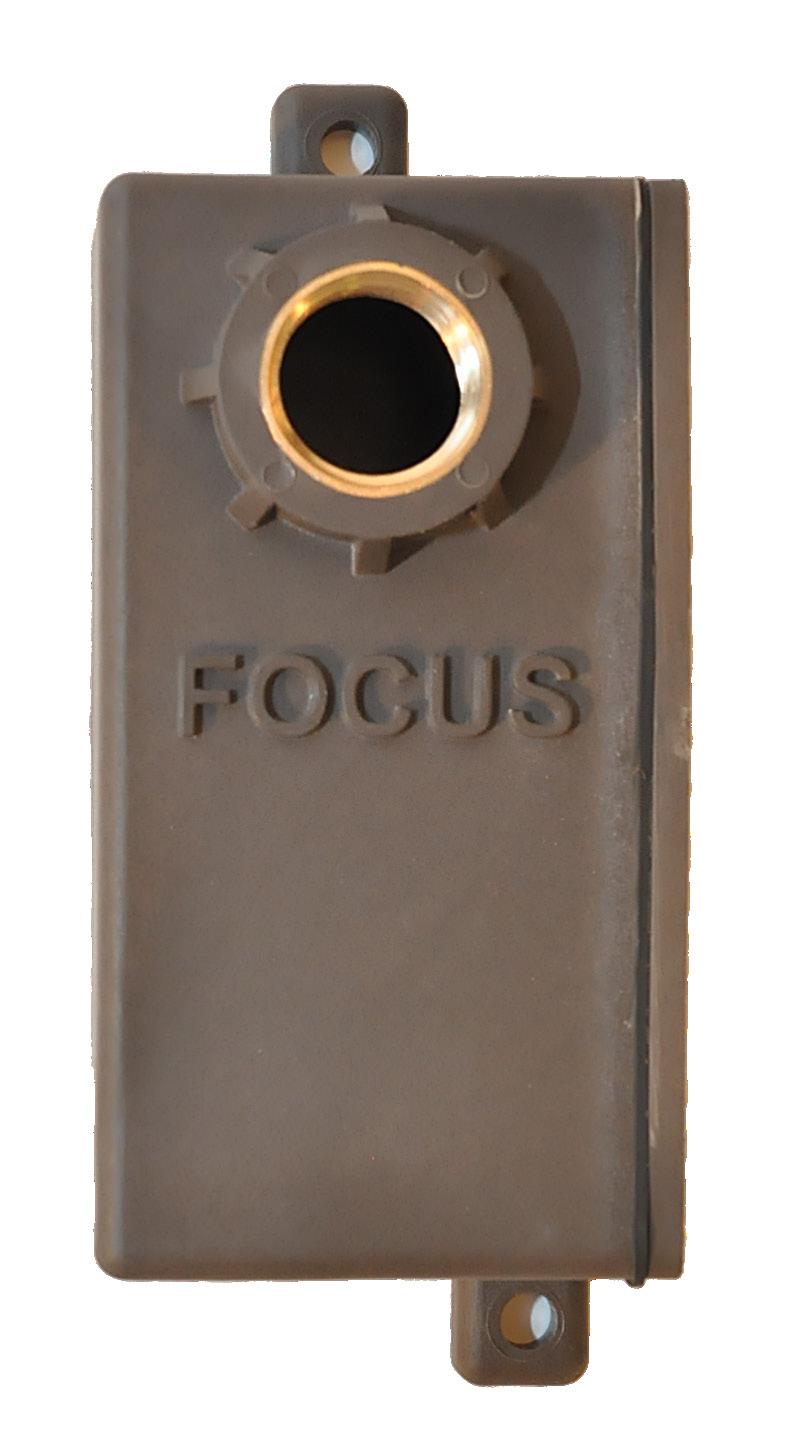

FOCUS ACCESSORIES
(Bron ze Composite)
HW126350120LED
HW126350277LED LED Driver 277v
HW128700LED LED Driver 120v
HW127575W Hardwire Electronic Transformer 120v
FOCUS ACCESSORIES
(B ronze Composite)
HW126350120LED LED Driver 120v
HW126350240LED LED Driver 240v
HW126350277LED LED Driver 277v
HW128700LED LED Driver 120v
HW1260LED LED Transformer 120v HW127575W Hardwire Electronic Transformer 120v
FOCUS ACCESSORIES
(Bron ze Composite)
HW126350120LED
HW126350277LED LED Driver 277v
HW128700LED LED Driver 120v
HW127575W Hardwire Electronic Transformer 120v
FOCUS ACCESSORIES
HW126350240LED LED Driver 240v HW126350277LED LED Driver 277v HW128700LED LED Driver 120v HW1260LED LED Transformer 120v HW127575W Hardwire Electronic Transformer 120v MATERIAL (standard material listed)
(Br onze Composite)
HW126350120LED LED Driver 120v
SPECIFICATION SHEET

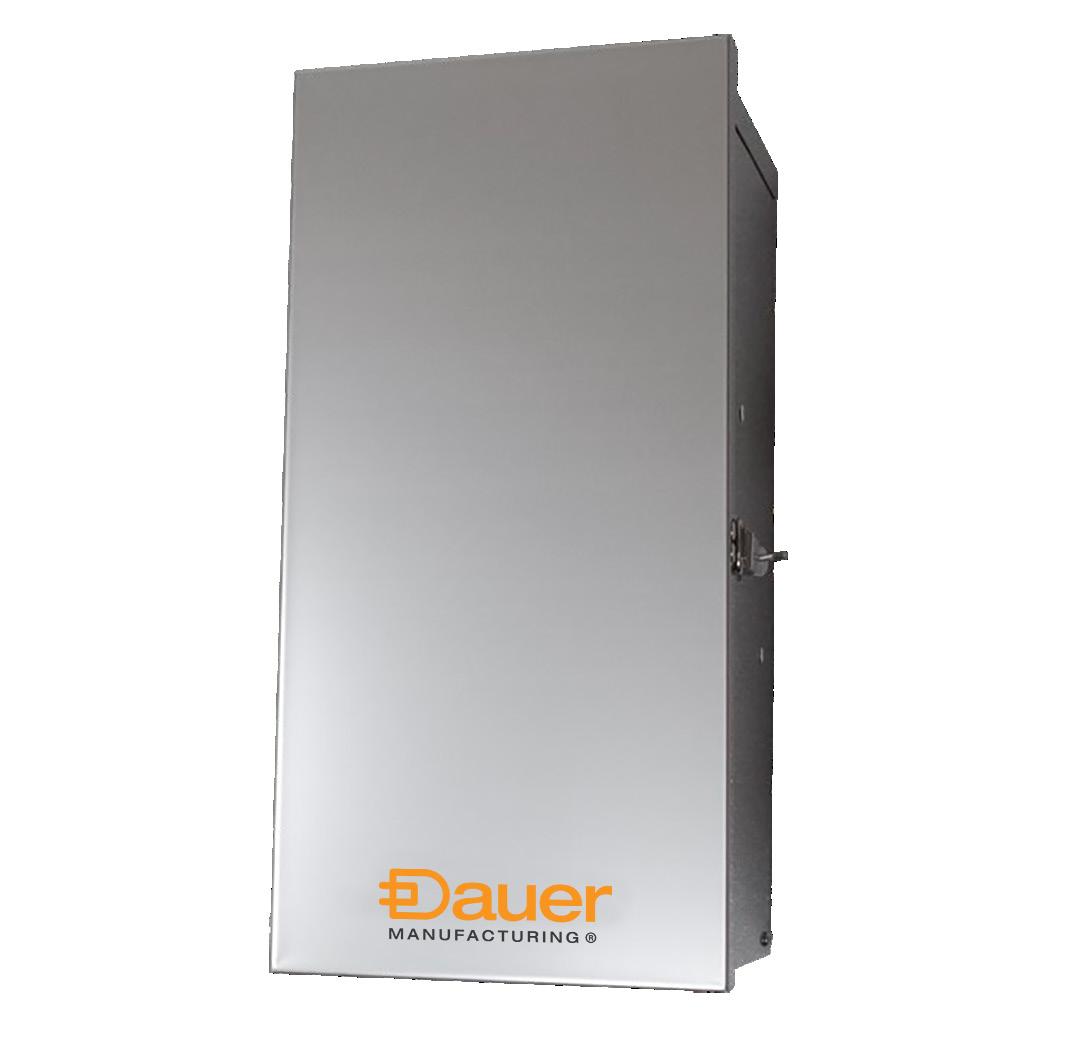

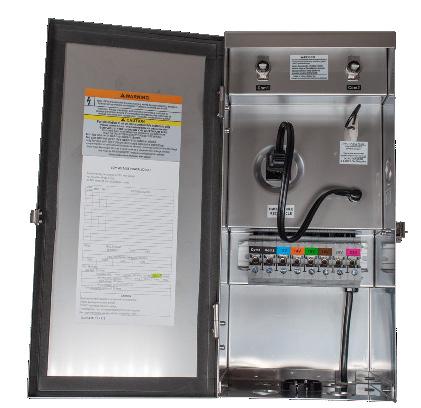

600W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490543
SPECIFICATIONS
OUTPUT:
600W, 25A per circuit (2). Taps for 12V, 14V, 16V, 18V, 20V, 22V. Two common taps.
INPUT:
120V, 60Hz, 5A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 2 25A breakers, heavy-duty grounded 5-foot power cord. Suitable for interior or exterior use.
AGENCY LISTINGS:
ETL listed. Conforms to ANSI/UL 2101.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490543-DT200LT
Type:
Model:
If this unit is being mounted within 25 feet of a panel box with primary breakers, it is recommended to have a designated circuit with a high in-rush current, magnetic load type breaker which is compatible with the existing brand of panel.
SPECIFICATION SHEET
600W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490543
SPECIFICATIONS
OUTPUT:
600W, 25A per circuit (2). Taps for 12V, 14V, 16V, 18V, 20V, 22V. Two common taps.
INPUT:
120V, 60Hz, 5A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 2 25A breakers, heavy-duty grounded 5-foot power cord.
Suitable for interior or exterior use.
AGENCY LISTINGS:
ETL listed. Conforms to ANSI/UL 2101.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490543-DT200LT
Type:
Model: _____________________________
If this unit is being mounted within 25 feet of a panel box with primary breakers, it is recommended to have a designated circuit with a high in-rush current, magnetic load type breaker which is compatible with the existing brand of panel.
Example: CLP-X43-40CLED-T2-30K-MV-BLK-PC)
The CLP-X43 is an architectural LED area light fixture constructed with rugged die-cast aluminum. IP66 OPTICS standard . Perfect for lighting up residential exteriors, walkways, perimeters, school campuses, industrial/commercial spaces, parking lots, recreational parks.
-10 year/100,000 hour limited warranty.
-Dark Sky Luminaire
FEACTURES
Energy Savings: Over 66% compared to HID light sources.. Improved lumen maintenance. Utilizes high efficient Phillips Lumiled LED’s.
0-10Dimming, Occupancy Sensors, Photocell and Wireless Controls (Optional)
CONSTRUCTION
Housing is Heavy-Duty Cast Aluminum. Clear Optical System
3 mils Powder Coat bronze finish (standard) various colors available
Silicone gasket provide weather-tight protection.
Mounting: over of a 3” O.D Tenon or Pole (standard) (Adapter is Required for other mounting sizes)
OPTIC DISTRIBUTION
Example: CLP-X43-40CLED-T2-30K-MV-BLK-PC)
The CLP-X43 is an architectural LED area light fixture constructed with rugged die-cast aluminum. IP66 OPTICS standard . Perfect for lighting up residential exteriors, walkways, perimeters, school campuses, industrial/commercial spaces, parking lots, recreational parks.
-10 year/100,000 hour limited warranty.
-Dark Sky Luminaire
FEACTURES
Energy Savings: Over 66% compared to HID light sources.. Improved lumen maintenance. Utilizes high efficient Phillips Lumiled LED’s.
0-10Dimming, Occupancy Sensors, Photocell and Wireless Controls (Optional)
CONSTRUCTION
Housing is Heavy-Duty Cast Aluminum. Clear Optical System
3 mils Powder Coat bronze finish (standard) various colors available
Silicone gasket provide weather-tight protection.
Mounting: over of a 3” O.D Tenon or Pole (standard) (Adapter is Required for other mounting sizes)
OPTIC DISTRIBUTION
Round

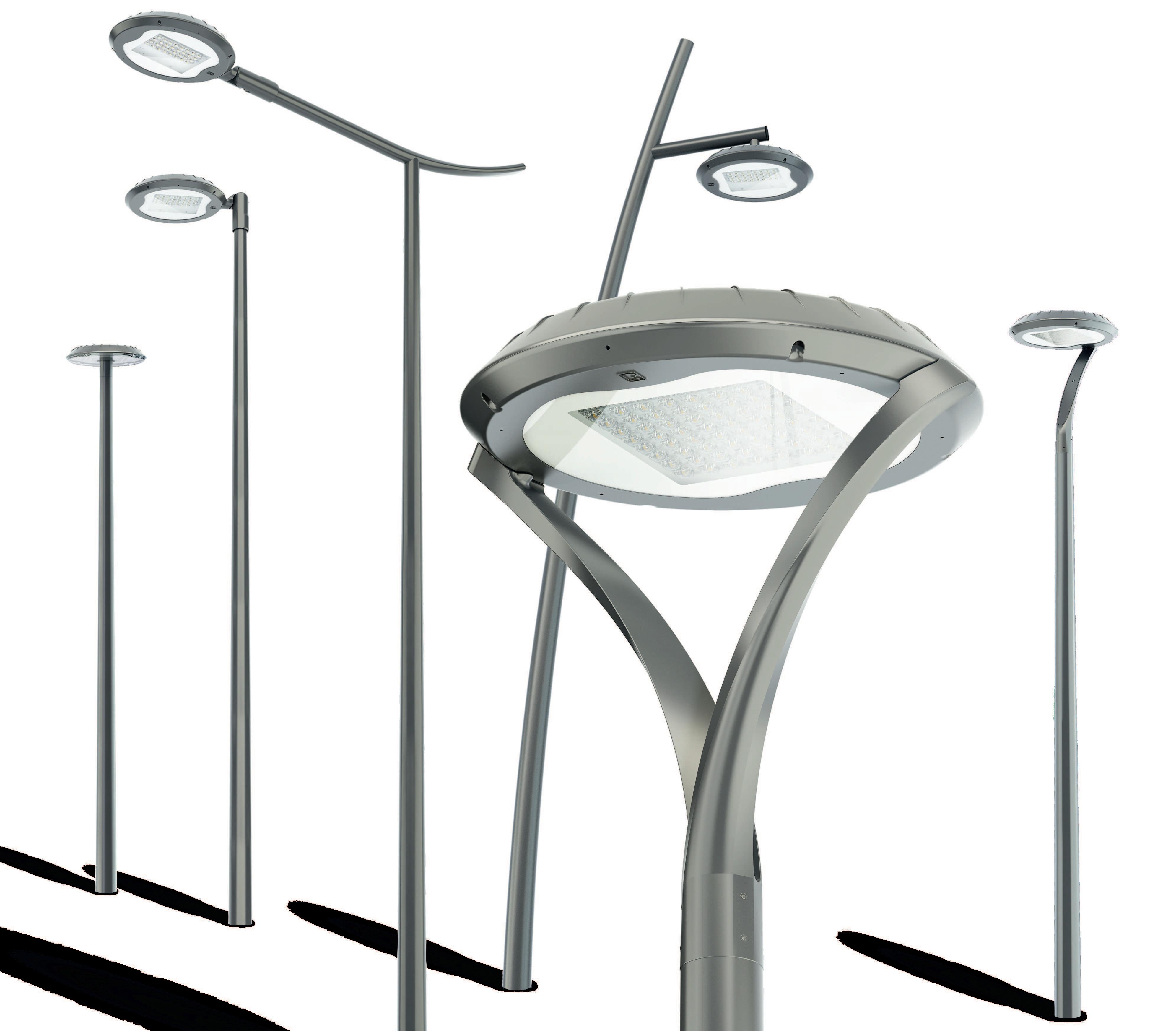

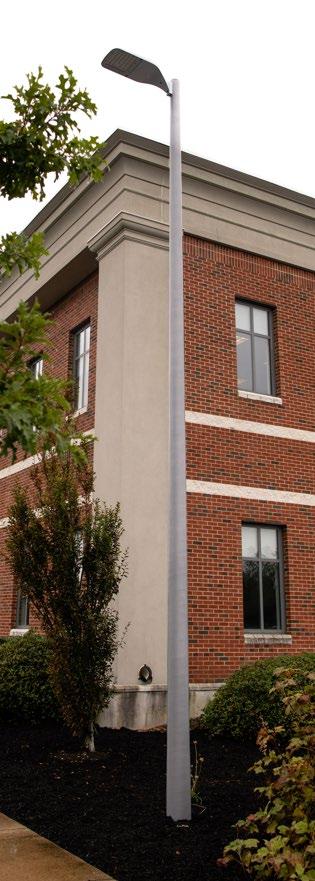

Tapered Fiberglass Light Poles
Direct Bury
Job/Client Name:
Location:
Notes:
Standard, Intermediate, Heavy, and Extra Heavy Duty
Product Offering Includes:
ο Direct Bury poles to fit your specific wind zone and loading requirements.
ο 15-40’ lengths.
ο 3-Layers of protection against UV degradation. Includes thermally bonded outer coating.
ο Surface finish options include natural and smooth.
ο Ground line protection.
ο Multiple hand hole size options.
ο 2-3/8”, 3” Tenons or Top Cap available.
ο Standard Colors in black, bronze, and gray (other colors available by request).
ο Light Weight, Non-Conductive, and Non-Corrosive.
Product Numbers and EPA Ratings1,2
Round Tapered, 25’, direct bury, fiberglass light pole.
Round Tapered Fiberglass Light Poles
Direct Bury
Job/Client Name:
Location:
Notes:
Standard, Intermediate, Heavy, and Extra Heavy Duty
Product Offering Includes:
ο Direct Bury poles to fit your specific wind zone and loading requirements.
ο 15-40’ lengths.
ο 3-Layers of protection against UV degradation. Includes thermally bonded outer coating.
ο Surface finish options include natural and smooth.
ο Ground line protection.
ο Multiple hand hole size options.
ο 2-3/8”, 3” Tenons or Top Cap available.
ο Standard Colors in black, bronze, and gray (other colors available by request).
ο Light Weight, Non-Conductive, and Non-Corrosive.
Product Numbers and EPA Ratings1,2
Round Tapered, 25’, direct bury, fiberglass light pole.

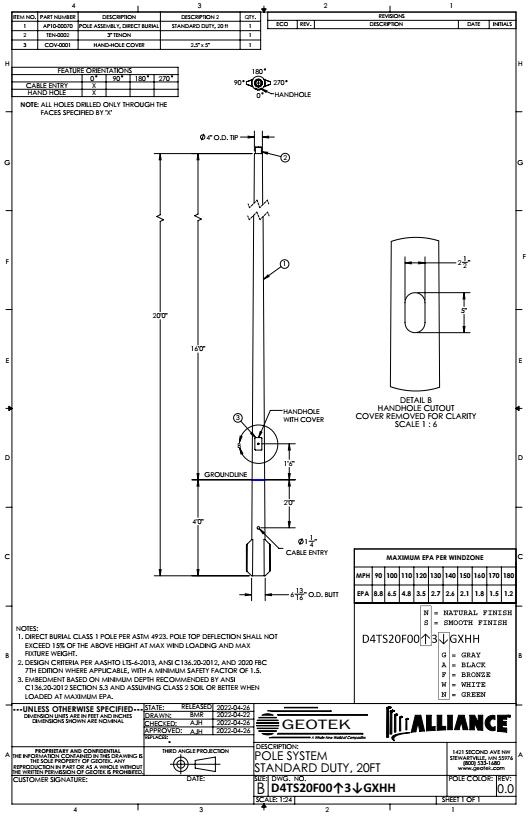

Round Tapered Fiberglass Light Poles
Example: D6TS30F00N2G0001: Direct Bury, 6’ Burial Depth, Standard Duty, 30’, Natural Finish, with 2 3/8” Tenon in Gray.
Pole Options2
2½" x 5" Hand Hole Cover (Standard)
4" x 6" Hand Hole Cover
4" x 6" Universal Hand Hole Cover, 8" Backer Bar 4" x 12" Universal Hand Hole Cover, 14" Backer Bar
Hand Hole Tether I.D. Tag
Non-Standard Cable Entry (Standard is 2¼" Round)
Cable Entry Grommet Ground Line Indicator
Pole Guard, 1-Piece, 20”, Installed at factory (Black or Bronze) Accessories3
Pole Guard, 1-Piece, 20” (Black or Bronze), Field Install
Weed Eater Cover - heavy Duty, 2-Piece, Urethane
Base Shroud 1-Piece
Base Shroud 2-Piece
Footnotes
Drawings available at
1Design criteria per AASHTO LTS-6-2013, with a minimum safety factor of 1.5 per ANSI C136.20-2012, 3 second gust wind speeds per ASCE 7-16, and velocity conversions per IBC
1609.3.1, 2018. Lighting installations for side and top mounting of luminaires with effective projected area (EPA) not to exceed maximum allowable loading of the specified pole in its installed geographic location. EPA ratings available up to 180 mph or for EPA ratings calculated per AASHTO LRFD or other, alternate methods, contact sales@alliancecompositesinc.com for more information.
2EPA ratings shown are for light pole with a standard 2½” x 5” Hand Hole. EPA ratings with a 4” x 6” or a 4” x 12” Hand Hole. Custom color poles (Non-standard) will have a single fastener Hand Hole Cover with a backer bar, matching the color of the pole.
3Longer lead times may apply, contact factory.
4Customer to provide drill patterns. These will be available on the provided, engineering drawing, prior to PO acceptance.
5Pole weights are approximate, +/- 10% of stated value. All products supported by best-in-class Engineering and Customer
All specifications are subject to change without notice. Please visit alliancecompositesinc.com for latest information. Consult GEOTEK with specific inquiries.
All rights reserved. No part of this document may be reproduced in any form without the prior written permission of GEOTEK.
Example: D6TS30F00N2G0001: Direct Bury, 6’ Burial Depth, Standard Duty, 30’, Natural Finish, with 2 3/8” Tenon in Gray.
Pole Options2
2½" x 5" Hand Hole Cover (Standard)
4" x 6" Hand Hole Cover
4" x 6" Universal Hand Hole Cover, 8" Backer Bar
4" x 12" Universal Hand Hole Cover, 14" Backer Bar
Hand Hole Tether I.D. Tag
Non-Standard Cable Entry (Standard is 2¼" Round)
Cable Entry Grommet Ground Line Indicator
Pole Guard, 1-Piece, 20”, Installed at factory (Black or Bronze) Accessories3
Pole Guard, 1-Piece, 20” (Black or Bronze), Field Install
Weed Eater Cover - heavy Duty, 2-Piece, Urethane
Base Shroud 1-Piece
Base Shroud 2-Piece
Footnotes
Drawings available at
1Design criteria per AASHTO LTS-6-2013, with a minimum safety factor of 1.5 per ANSI C136.20-2012, 3 second gust wind speeds per ASCE 7-16, and velocity conversions per IBC
1609.3.1, 2018. Lighting installations for side and top mounting of luminaires with effective projected area (EPA) not to exceed maximum allowable loading of the specified pole in its installed geographic location. EPA ratings available up to 180 mph or for EPA ratings calculated per AASHTO LRFD or other, alternate methods, contact sales@alliancecompositesinc.com for more information.
2EPA ratings shown are for light pole with a standard 2½” x 5” Hand Hole. EPA ratings with a 4” x 6” or a 4” x 12” Hand Hole. Custom color poles (Non-standard) will have a single fastener Hand Hole Cover with a backer bar, matching the color of the pole.
3Longer lead times may apply, contact factory.
4Customer to provide drill patterns. These will be available on the provided, engineering drawing, prior to PO acceptance.
5Pole weights are approximate, +/- 10% of stated value. All products supported by best-in-class Engineering and Customer
All specifications are subject to change without notice. Please visit alliancecompositesinc.com for latest information. Consult GEOTEK with specific inquiries.
All rights reserved. No part of this document may be reproduced in any form without the prior written permission of GEOTEK.

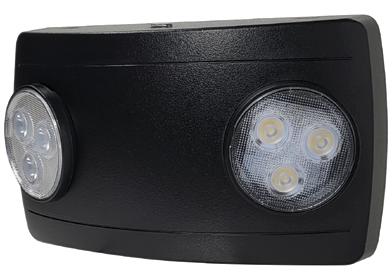

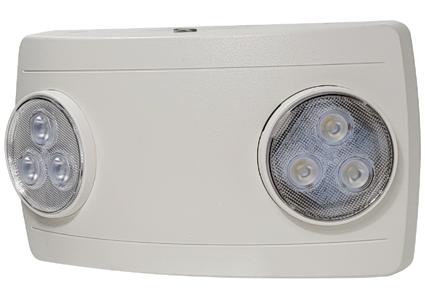

Compact Dual Head LED Emergency Light with Optional Remote Capability
Source: (2) 0.9W or 1W LED (2)90lm to 150lm
PRODUCT DESCRIPTION
Luminaire provides 90 minutes of light from two adjustable heads for illuminating paths of egress upon failure of normal power. Emergency unit is available in higher lumen output and remote capability.
FEATURES
Compact housing with (2) adjustable LEDs Lightweight snap together design
Self-diagnostic and self-testing option available Ceiling or wall mounted
Universal 120/277VAC input
Remote capability
SPECIFICATION
Construction: Injection-molded thermoplastic ABS housing. Plastic enclosure with 5VA flame retardant. Quick connector design for easy installation. Two fully adjustable glare-free round heads for emergency lighting.
Mounting: Plastic enclosure includes a top and side knockout for conduit application. Suitable for wall mounting or ceiling mounting. Waterproof vandal resistant enclosure available, must specify NEG-602.
Operation: Luminaire will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time per battery.
ELECTRICAL
Input Voltage: 120/277VAC 60Hz
Lumens / Wattage:
NE-612LED: (2) 110lm / 0.9W
NE-612LEDRC: (2) 90lm / 0.9W
NE-612LEDHORC: (2) 150lm / 1W
Color Temperature: 5700K
Operating Temperature: 10˚C to 40˚C ambient temperature (-25°C to 50°C when used with NEG-602)
Batteries: NiMH 3.6V 2W maintenance-free
Remote Option: Luminaire is capable of including an additional 3.6V / 4W battery. Additional battery is used to power an additional remote emergency light. Upon power failure, each additional battery requires an additional 24 hours to recharge.
LABELS AND LISTINGS
· cULus Listed for Damp Locations (Wet Location Listed when used with NEG-602)
Meets or exceeds all requirements in NFPA 70, NFPA 101 life safety code 5-Year Limited Warranty
Notes

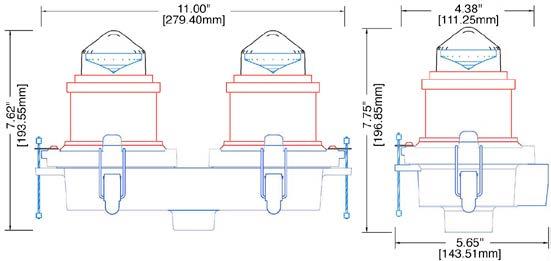

PRODUCT IMAGES & DIMENSIONS
NFPA 101 requires 1.0 foot-candle average and 0.1 foot-candle minimum with a 40:1 maximum/minimum ratio. Below is a recommended mounting height and spacing on surface with reflectance at 80% ceiling, 50% walls, and 20% floor.
Compact Dual Head LED Emergency Light
= (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, White Finish
NE-612LEDRCB = (2) 0.9W / 90lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish
NE-612LEDRCW = (2) 0.9W
/
for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish
NE-612LEDHORCW = (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
Accessory
Example: NE-612LEDHORCW = Compact Dual Head LED Emergency Light with (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White finish Description NE-612LEDB = (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, Black Finish
Compact Dual Head LED Emergency Light with Optional Remote Capability
Source: (2) 0.9W or 1W LED (2) 90lm to 150lm
PRODUCT DESCRIPTION
Luminaire provides 90 minutes of light from two adjustable heads for illuminating paths of egress upon failure of normal power. Emergency unit is available in higher lumen output and remote capability.
FEATURES
Compact housing with (2) adjustable LEDs Lightweight snap together design
Self-diagnostic and self-testing option available Ceiling or wall mounted
Universal 120/277VAC input
Remote capability
SPECIFICATION
Construction: Injection-molded thermoplastic ABS housing. Plastic enclosure with 5VA flame retardant. Quick connector design for easy installation. Two fully adjustable glare-free round heads for emergency lighting.
Mounting: Plastic enclosure includes a top and side knockout for conduit application. Suitable for wall mounting or ceiling mounting. Waterproof vandal resistant enclosure available, must specify NEG-602.
Operation: Luminaire will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time per battery.
ELECTRICAL
Input Voltage: 120/277VAC 60Hz
Lumens / Wattage:
NE-612LED: (2) 110lm / 0.9W
NE-612LEDRC: (2) 90lm / 0.9W
NE-612LEDHORC: (2) 150lm / 1W
Color Temperature: 5700K
Operating Temperature: 10˚C to 40˚C ambient temperature (-25°C to 50°C when used with NEG-602)
Batteries: NiMH 3.6V 2W maintenance-free
Remote Option: Luminaire is capable of including an additional 3.6V / 4W battery. Additional battery is used to power an additional remote emergency light. Upon power failure, each additional battery requires an additional 24 hours to recharge.
LABELS AND LISTINGS
· cULus Listed for Damp Locations (Wet Location Listed when used with NEG-602)
Meets or exceeds all requirements in NFPA 70, NFPA 101 life safety code 5-Year Limited Warranty
Notes
PRODUCT IMAGES & DIMENSIONS
NFPA 101 requires 1.0 foot-candle average and 0.1 foot-candle minimum with a 40:1 maximum/minimum ratio. Below is a recommended mounting height and spacing on surface with reflectance at 80% ceiling, 50% walls, and 20% floor.
Compact Dual Head LED Emergency Light
Description NE-612LEDB = (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, Black Finish
= (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, White Finish
NE-612LEDRCB = (2) 0.9W / 90lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish
NE-612LEDRCW = (2) 0.9W

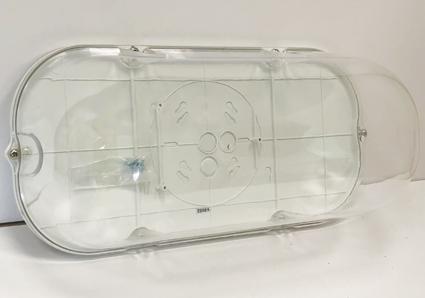

Accessory
= Waterproof Vandal Resistant Enclosure
= Replacement Battery for
= Replacement Batteries for
with Remote (RC)
/
for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish
NE-612LEDHORCW = (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
Example: NE-612LEDHORCW = Compact Dual Head LED Emergency Light with (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White finish

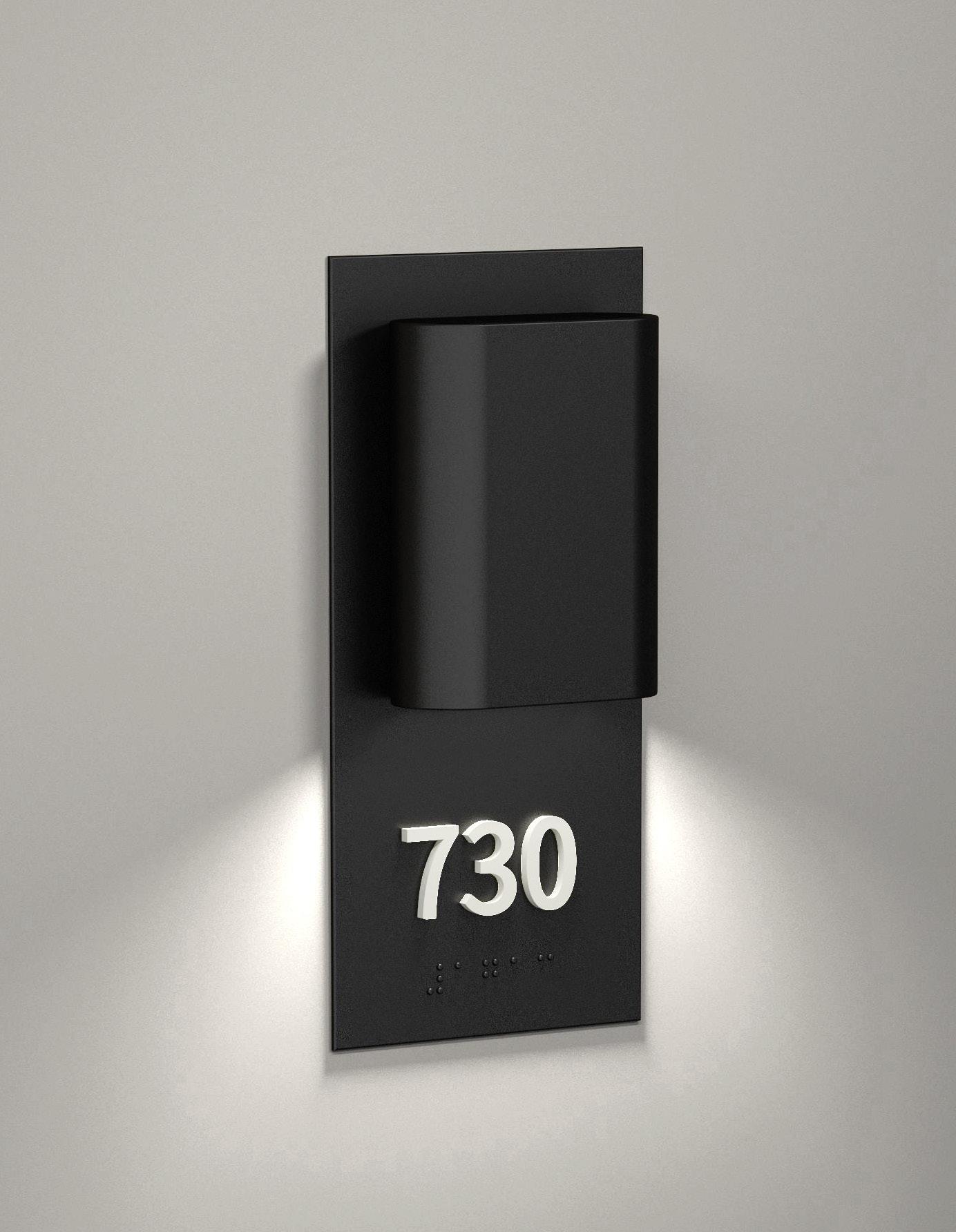

Shown in Dark Oxide (black) painted finish, with opal acrylic numbers.
Signage with Braille is included, customized for your project.
Other finishes and fonts are available.
Dimensions 3” wide x 6.25” tall x 1” extension
Lamping 120v G9 socket for 4w LED bulb (not included)
Certification UL or ETL listed. Complies with ADA Standards for Accessible Design.

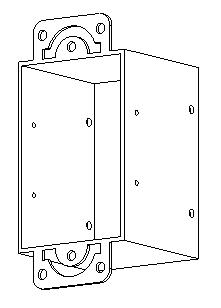

Mounting 2” x 3” rectangle junction box
Numbers Up to 4 digits
Font Source Sans Pro Bold font is used on the numbers
Lead Time 4 to 5 months
Tearsheet date Jun 18, 2025

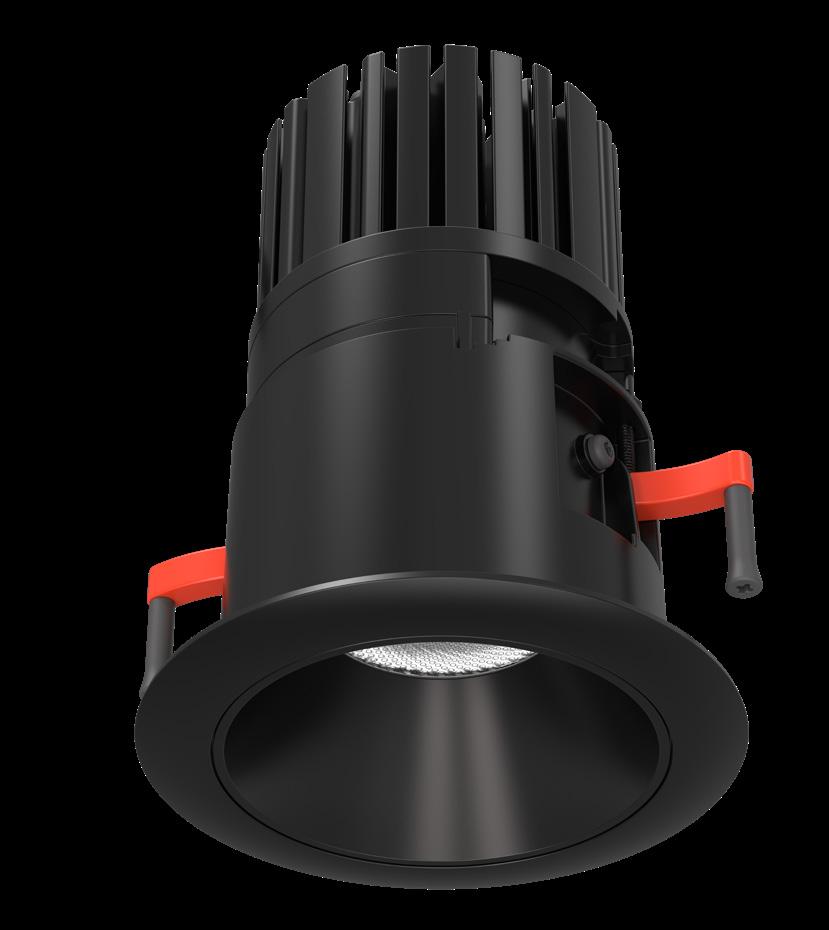

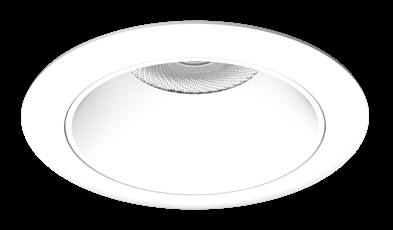

NIO-4RNB

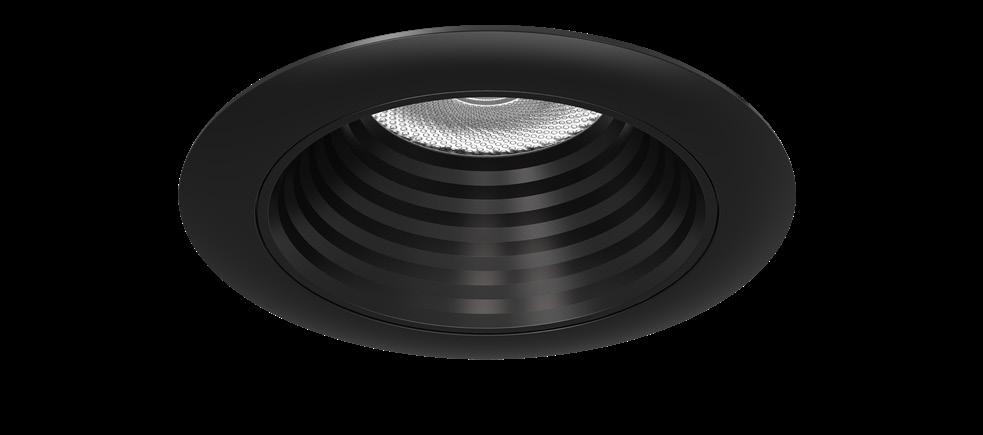

4" Iolite Round Bullnose
Source: 13W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70

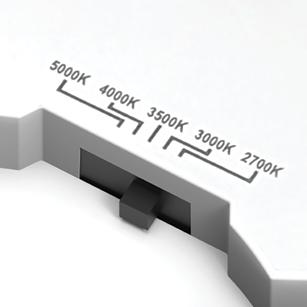

Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing

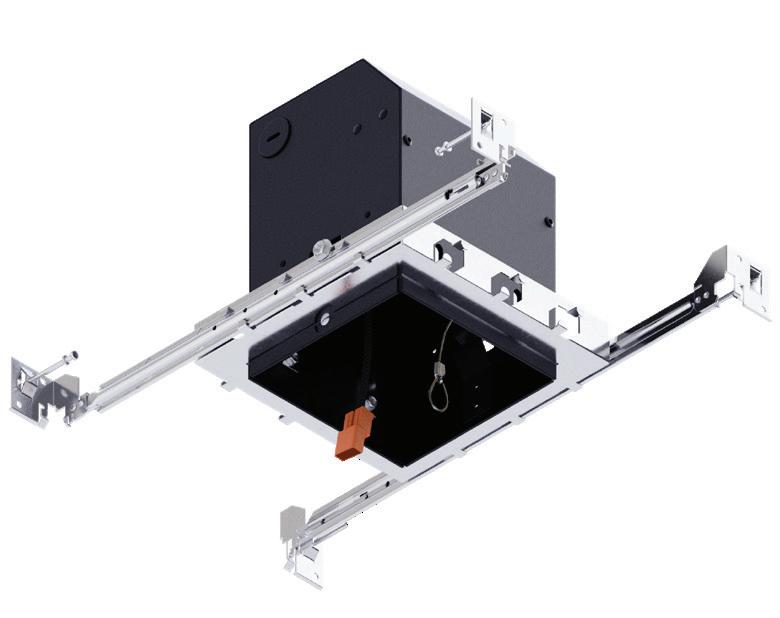

COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
4" Iolite Round Bullnose - Dedicated Housing Required Color
NIO-4RNB50X = 5000K * NIO-4RNBCDX = Comfort Dim † BB = Black BZ = Bronze MPW = Matte Powder White
NIO-4RNB27 X = 2700K
NIO-4RNB30X = 3000K
NIO-4RNB35 X = 3500K
NIO-4RNB40X = 4000K
NIO-4RNB50X = 5000K
NIO-4RNBCDX = Comfort Dim †
* 5000K LED modules in 800lm are while supplies last
† Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
Compatible Housings BB Black BZ Bronze MPW Matte Powder White NN Natural Metal WW White
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-48 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
NIO-4RNB
4" Iolite Round Bullnose
Source: 13W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
4" Iolite Round Bullnose - Dedicated Housing Required Color
NIO-4RNB50X = 5000K * NIO-4RNBCDX = Comfort Dim † BB = Black BZ = Bronze MPW = Matte Powder White
NIO-4RNB27 X = 2700K
NIO-4RNB30X = 3000K
NIO-4RNB35 X = 3500K
NIO-4RNB40X = 4000K
NIO-4RNB50X = 5000K
NIO-4RNBCDX = Comfort Dim †
= Natural Metal WW = White
5000K LED modules in 800lm are while supplies last
† Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
Compatible Housings BB Black BZ Bronze MPW Matte Powder White NN Natural Metal WW White
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-48 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
NIO-4RNB
4" Iolite Round Bullnose
Source: 13W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
4" Iolite Round Bullnose - Dedicated Housing Required Color
NIO-4RNB50X = 5000K * NIO-4RNBCDX = Comfort Dim † BB = Black BZ = Bronze MPW = Matte Powder White
NIO-4RNB27 X = 2700K
NIO-4RNB30X = 3000K
NIO-4RNB35 X = 3500K
NIO-4RNB40X = 4000K
NIO-4RNB50X = 5000K
NIO-4RNBCDX = Comfort Dim †
* 5000K LED modules in 800lm are while supplies last
† Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
Compatible Housings BB Black BZ Bronze MPW Matte Powder White NN Natural Metal WW White
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-48 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
NIO-4RNB
4" Iolite Round Bullnose
Source: 13W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-48 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
NIO-4RNB
4" Iolite Round Bullnose
Source: 13W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available Flood optic, narrow flood and spot optics (included) 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
· cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-48 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
NIO-4RNB
4" Iolite Round Bullnose
Source: 13W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-48 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
NIO-4RNB
4" Iolite Round Bullnose
Source: 13W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-48 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
NIO-4RNB
4" Iolite Round Bullnose
Source: 13W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-48 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W

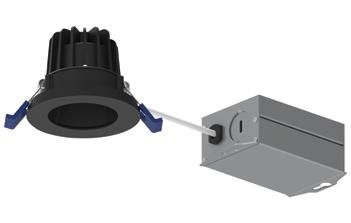

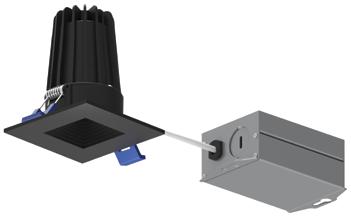

NM2-2RDC
2" M2 Round Can-less LED Recessed Downlight
Source: 6W to 10W LED 400lm to 850lm
PRODUCT DESCRIPTION
M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into multiple options with trim accessories and produces over 850 lumens.
FEATURES
No housing required - IC Airtight rated
Easy installation for remodel or new construction applications
Variety of trim accessories to configure desired appearance
· Quick disconnect allows for extended lengths
400lm, 600lm or 850lm LED packages
2700K, 3000K or 4000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Open downlight includes a reflector with the same finish as trim ; optional field changeable accessories are available; square trim, pinhole trim, wall wash trim, reflector inserts or baffle inserts.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (400lm/600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7" quick connect wire Luminaire includes 5" (400lm/600lm) or 4" (850lm) quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit s are available, see accessories.
Trims: M2 series is available in three lumen outputs with LED driver Round trims can be converted to baffles, pinholes or wall wash in the field with optional trims and inserts.
2" M2 Round Can-less LED Recessed Downlight
Lumens / Wattage Color Temperature Finish
NM2-2RDC40 = 400lm / 6W 27 = 2700K 30 = 3000K BB = Black MPW = White
NM2-2RDC60 = 600lm / 8W
NM2-2RDC85 1 = 850lm / 10W
Note: 4000K available in black finish only
M2 Trim Accessories
Accessory Type
27 = 2700K
30 = 3000K
40 = 4000K BB = Black MPW = White
OPTIONAL TRIM ACCESSORIES
NM2-2REFL : Reflector Insert for NM2-2RDC, Black or Haze
NM2-2BAF: Baffle Insert for NM2-2RDC, Black or White
NM2-2RPH: Round Pinhole Trim for NM2-2RDC, Black or White
NM2-2RW: Round Wall Wash Trim for NM2-2RDC, Black or White
NM2-2SDT: Square Trim for NM2-2RDC, Black or White
OPTIONAL MOUNTING ACCESSORIES
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2 : Two Head Multiple Lighting System Plate
NM2-MLS3: Three Head Multiple Lighting System Plate
NM2-EW-10 : 10' Quick Connect Linkable Extension Cable\ NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations 5-Year Limited Warranty · FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2025
NM2-2RDCXXXXBB 400lm or 600lm Black Finish
2-1/2" (40/60) 4-3/4" (85) 2" 3-3/16"
NM2-2REFL Reflector Insert
NM2-2RPH Round Pinhole Trim
NM2-2SDT Square Trim
NM2-2RDC85XXMPW 850lm White Finish
Cut out: 2-7/8"
4" (40/60) 3-7/8" (85)
NM2-2BAF Baffle Insert
NM2-2RW Round Wall Wash Trim

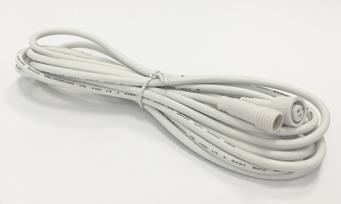

NM2-EW Extension Cables
Optional Accessories
Accessory Type Finish
NM2-MLS1 = One Head MLS Plate
NM2-MLS2 = Two Head MLS Plate
NM2-MLS3 = Three Head MLS Plate
Finish
NM2-2REFL = Reflector for NM2-2RDC B = Black HZ = Haze
NM2-2BAF = Baffle for NM2-2RDC
NM2-2RPH = Round Pinhole Trim for NM2-2RDC
NM2-2RW = Round Wall Wash Trim for NM2-2RDC
NM2-2SDT = Square Trim for NM2-2RDC
B = Black MPW = White
Example: NM2-2RDC6030MPW = 2" M2 Round Can-less LED Recessed Downlight, 600lm / 8W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
BB = Black MPW = White
NF-R246 = Universal New Construction Frame-In
NFC-R275 = New Construction Frame-In with Collar
NM2-EW-4 = 4' Quick Connect Extension Cable
NM2-EW-10 = 10' Quick Connect Extension Cable

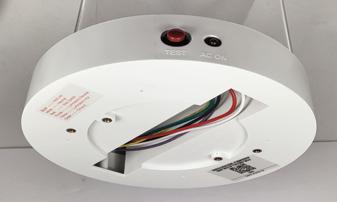

NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
NM2-2RDC
2" M2 Round Can-less LED Recessed Downlight
Source: 6W to 10W LED 400lm to 850lm
PRODUCT DESCRIPTION
M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into multiple options with trim accessories and produces over 850 lumens.
FEATURES
No housing required - IC Airtight rated
Easy installation for remodel or new construction applications
Variety of trim accessories to configure desired appearance
· Quick disconnect allows for extended lengths
400lm, 600lm or 850lm LED packages
2700K, 3000K or 4000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Open downlight includes a reflector with the same finish as trim ; optional field changeable accessories are available; square trim, pinhole trim, wall wash trim, reflector inserts or baffle inserts.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (400lm/600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7" quick connect wire Luminaire includes 5" (400lm/600lm) or 4" (850lm) quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit s are available, see accessories.
Trims: M2 series is available in three lumen outputs with LED driver Round trims can be converted to baffles, pinholes or wall wash in the field with optional trims and inserts.
2" M2 Round Can-less LED Recessed Downlight
Lumens / Wattage Color Temperature Finish
NM2-2RDC40 = 400lm / 6W 27 = 2700K 30 = 3000K BB = Black MPW = White
NM2-2RDC60 = 600lm / 8W
NM2-2RDC85 1 = 850lm / 10W
Note: 4000K available in black finish only
M2 Trim Accessories
Accessory Type
27 = 2700K
30 = 3000K
40 = 4000K
OPTIONAL TRIM ACCESSORIES
NM2-2REFL : Reflector Insert for NM2-2RDC, Black or Haze
NM2-2BAF: Baffle Insert for NM2-2RDC, Black or White
NM2-2RPH: Round Pinhole Trim for NM2-2RDC, Black or White
NM2-2RW: Round Wall Wash Trim for NM2-2RDC, Black or White
NM2-2SDT: Square Trim for NM2-2RDC, Black or White
OPTIONAL MOUNTING ACCESSORIES
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2 : Two Head Multiple Lighting System Plate
NM2-MLS3: Three Head Multiple Lighting System Plate
NM2-EW-10 : 10' Quick Connect Linkable Extension Cable\ NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations 5-Year Limited Warranty · FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2025
NM2-2RDCXXXXBB 400lm or 600lm Black Finish
2-1/2" (40/60) 4-3/4" (85) 2" 3-3/16"
NM2-2REFL Reflector Insert
NM2-2RPH Round Pinhole Trim
NM2-2SDT Square Trim
NM2-2RDC85XXMPW 850lm White Finish
Cut out: 2-7/8"
BB = Black MPW = White
Finish
NM2-2REFL = Reflector for NM2-2RDC B = Black HZ = Haze
NM2-2BAF = Baffle for NM2-2RDC
NM2-2RPH = Round Pinhole Trim for NM2-2RDC
NM2-2RW = Round Wall Wash Trim for NM2-2RDC
NM2-2SDT = Square Trim for NM2-2RDC
B = Black MPW = White
Example: NM2-2RDC6030MPW = 2" M2 Round Can-less LED Recessed Downlight, 600lm / 8W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
4" (40/60) 3-7/8" (85)
NM2-2BAF Baffle Insert
NM2-2RW Round Wall Wash Trim
NM2-EW Extension Cables
Optional Accessories
Accessory Type Finish
NM2-MLS1 = One Head MLS Plate
NM2-MLS2 = Two Head MLS Plate
NM2-MLS3 = Three Head MLS Plate
BB = Black MPW = White
NF-R246 = Universal New Construction Frame-In
NFC-R275 = New Construction Frame-In with Collar
NM2-EW-4 = 4' Quick Connect Extension Cable
NM2-EW-10 = 10' Quick Connect Extension Cable
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
NIO-4RNB
4" Iolite Round Bullnose
Source: 13W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
4" Iolite Round Bullnose - Dedicated Housing Required Color
NIO-4RNB50X = 5000K * NIO-4RNBCDX = Comfort Dim † BB = Black BZ = Bronze MPW = Matte Powder White
NIO-4RNB27 X = 2700K
NIO-4RNB30X = 3000K
NIO-4RNB35 X = 3500K
NIO-4RNB40X = 4000K
NIO-4RNB50X = 5000K
NIO-4RNBCDX = Comfort Dim †
5000K LED modules in 800lm are while supplies last

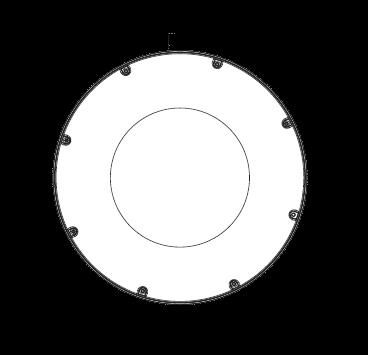

PRODUCT IMAGES & DIMENSIONS 4-7/8" 1-5/8"
NIO-4RNB Round Bullnose Non-Adjustable
Compatible Housings BB Black BZ Bronze MPW Matte Powder White NN Natural Metal WW White
† Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-48 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
NIO-4RNB
4" Iolite Round Bullnose
Source: 13W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-48 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W

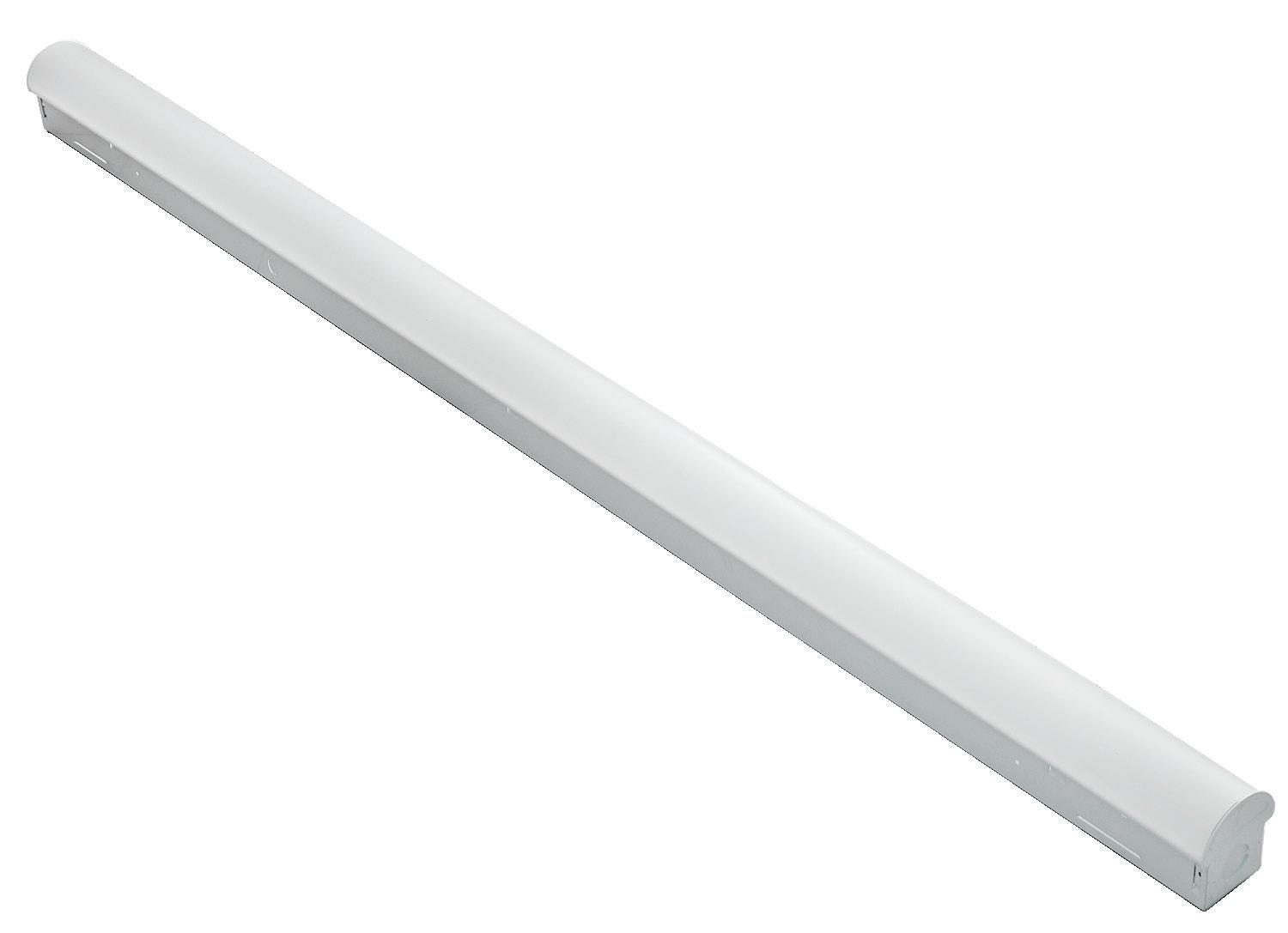

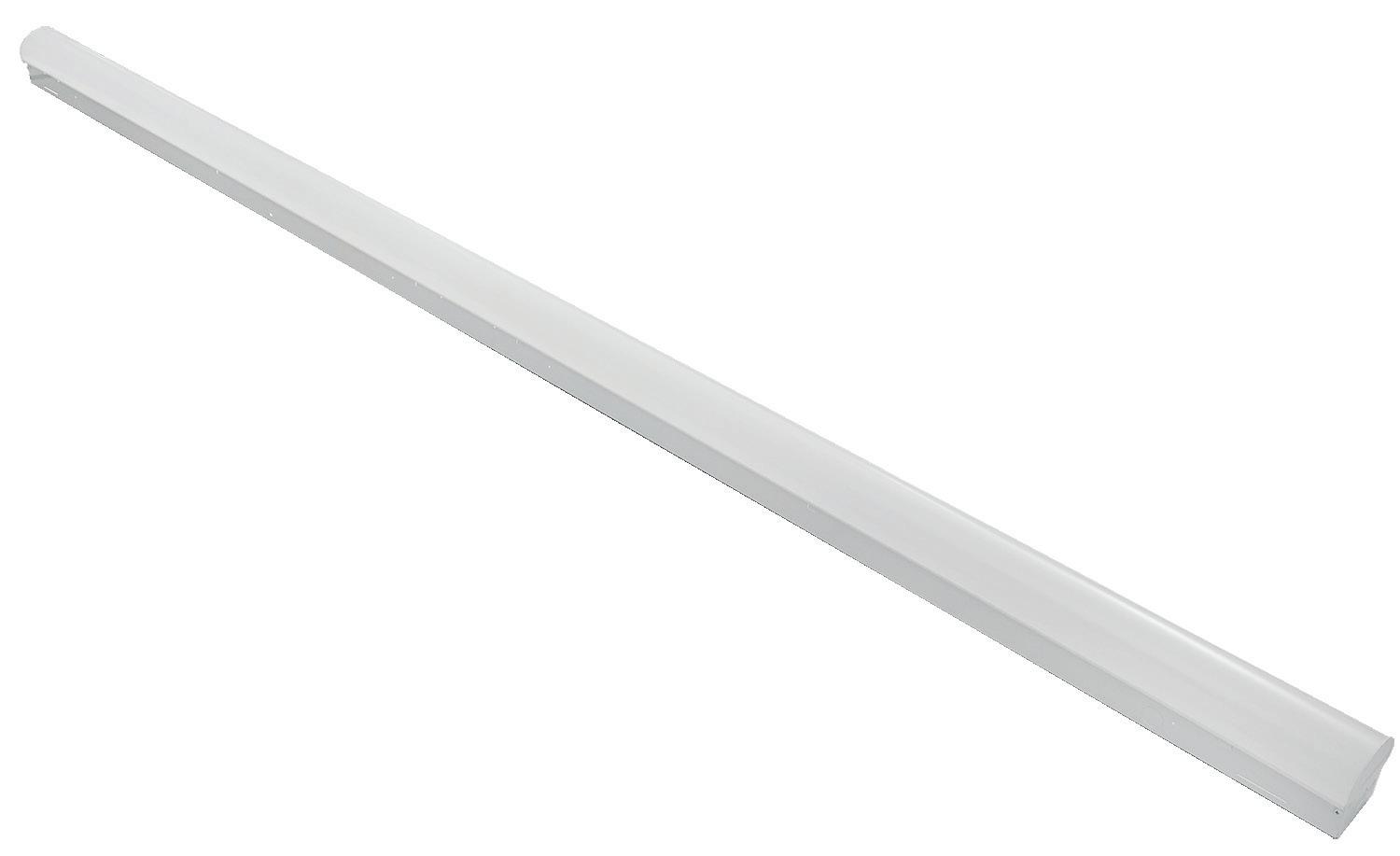

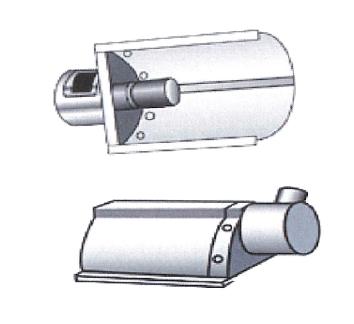

Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
• Wattage selectable 35/45/55W
• Color Selectable 35/40/50K
• O ptional battery backup
Ideal Applications
• Co mmercial settings
• St airways
• Bi-level dimming microwave motion sensor
• S urface or pendant mounting
• Industrial settings
• Warehouses
UPC TAMPA TYPE

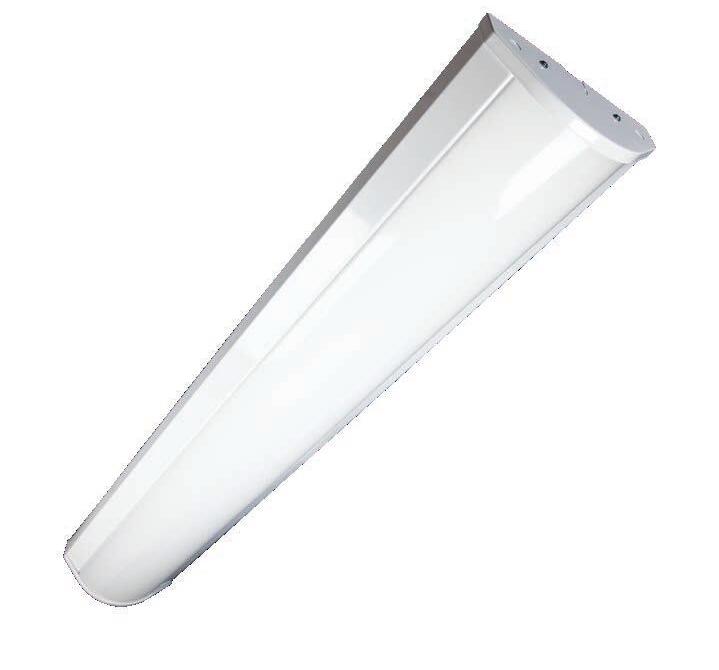

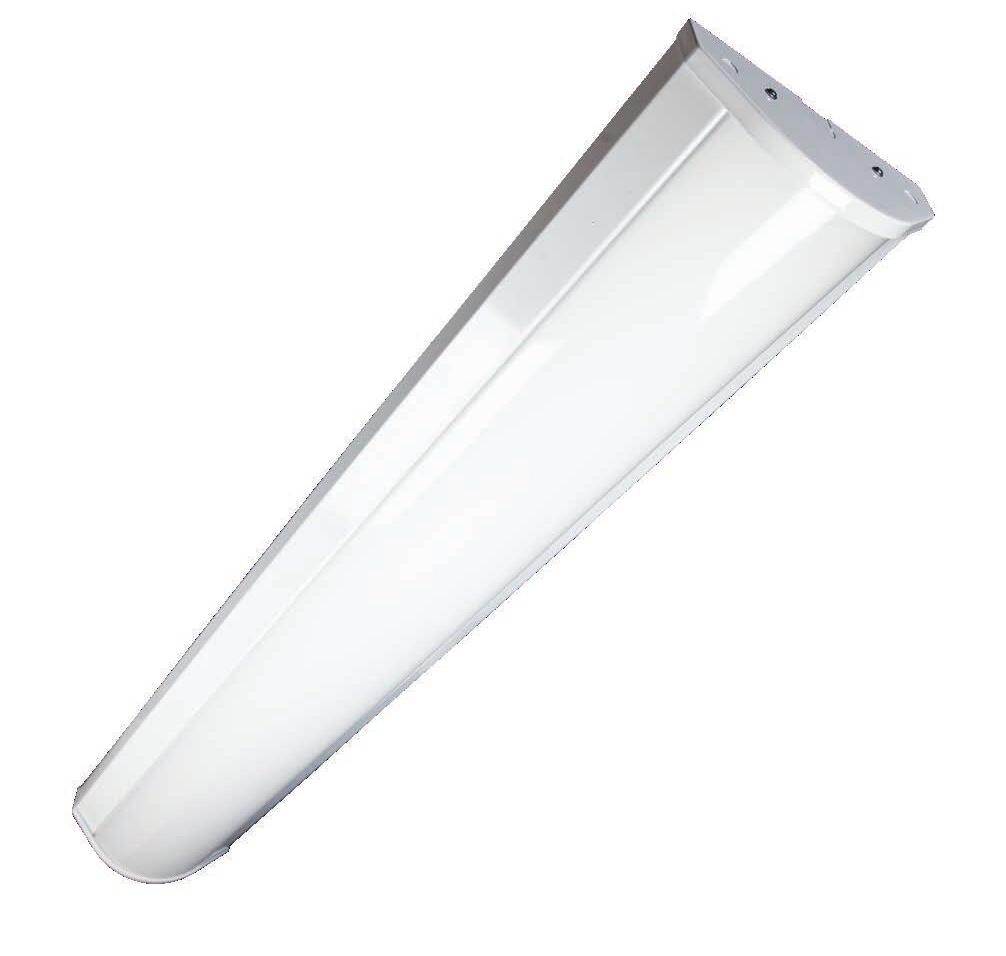

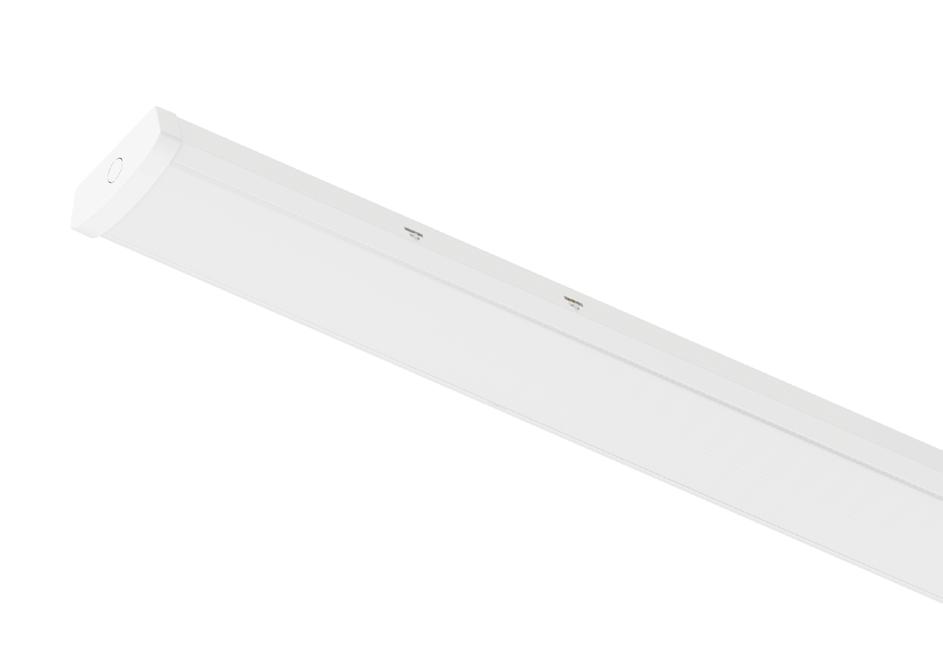

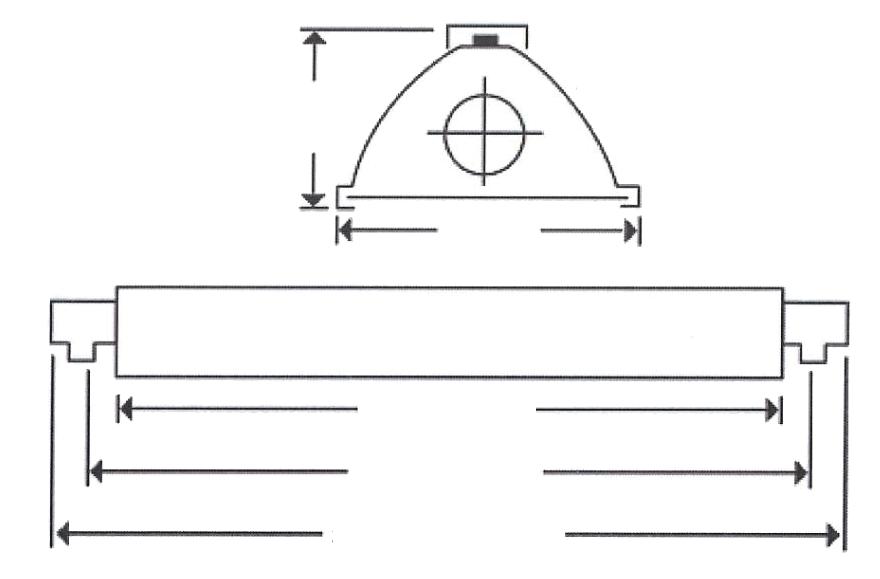

Wraparound with Selectable Lumens & CCT
Source: 16W to 65W LED 2000lm to 8100lm
PRODUCT DESCRIPTION

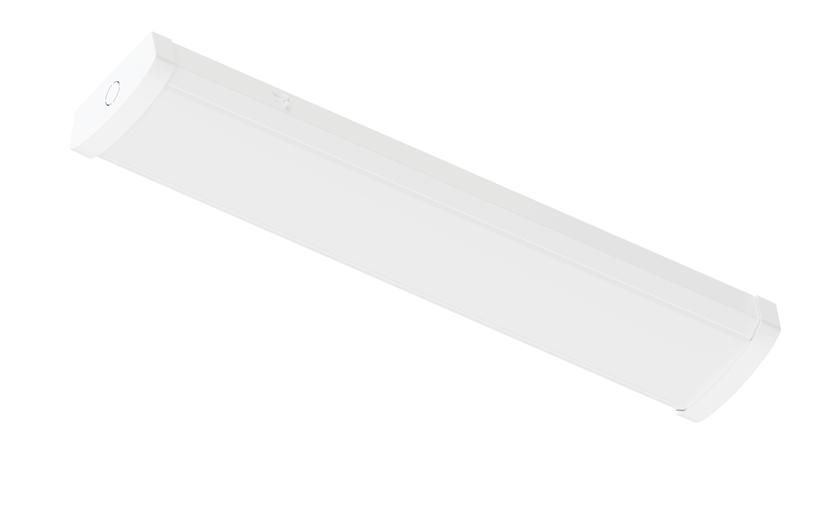

Wraparound luminaires includes an integral CCT switch to change the color temperature at any time! Surface mounted, it’s ideal for commercial, residential, industrial, and retail applications, such as stairwells, hallways, garages, schools, offices, and more. Easy to install and great for replacing outdated fluorescents with an energy efficient, cost saving alternative. The luminaire’s lens is designed to uniformly spread and soften the appearance of the light while maximizing its distribution and output. Each luminaire includes two switches; Selectable Lumens easily allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance so it is perfectly customized to your needs.
FEATURES
cULus Listed
Selectable Lumen switch changes lumen output and wattage
Selectable CCT switch changes the color temperature from 3000K / 3500K / 4000K 120-277V input; 0-10V dimming
DLC Listed
Optional emergency and/or motion sensor for 4' wraparound only
SPECIFICATION
Construction: Steel stamped body. Finished in white powder coat. Top, end and cap knockouts.
Switches: Each luminaire includes two switches on the top of the driver enclosure. Selectable Lumen switch changes the lumen output and wattage. Selectable CCT switch changes the color temperature.
MOUNTING
2' Wrap: Luminaires can be surface mounted only.
4' Wrap: Luminaires can be surface mounted, wall mounted or suspended with pendant kit (ordered separately: NLWPSWA-PK).
ELECTRICAL
Input Voltage: 120-277VAC
Lumens / Wattage: See chart below
Color Temperature: Selectable CCT (3000K / 3500K / 4000K); Preset to 3000K
Color Rendering Index: 80+ CRI
Beam Spread: 100° Wide Flood
Operating Temperature: 0˚C to 45˚C
Lifetime: 60,000 hours @ L70
Dimming: 0-10V
OPTIONAL ACCESSORY

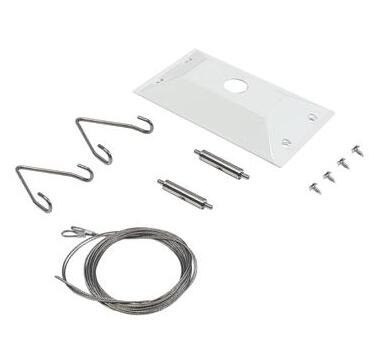

NLWPSWA-PK : Pendant Kit for 4' only (canopy, 8' aircraft cable and hooks)
Optional motion sensor (4' only): Microwave motion sensor can detect motion up to 17' away and 120˚ under the luminaire. All MS are preset to dim from 100% to 50% after 1 minute, then turn off after another minute without detected motion. The light sensor is enabled to keep fixture inactive when detecting light levels of 50 Lux or higher for daylight savings. Dip switches can be used to change the motion sensor settings. After each power cycle, the fixture will perform a start-up cycle and resume normal operation. Note: 0-10V dimmer cannot be used with MS and EMMS configurations.
Emergency (4' only): Luminaire can be specified with an emergency battery with integral test switch Battery operates luminaire at 8W for 90-minute emergency operation on fully charged battery. Battery may take up to 24 hours to fully charge.
LABELS AND LISTINGS
DLC Listed (Direct Linear, Stairwell and Passageway)
NLWPSW-2L334W = DLC V5.1
· NLWPSW-4L334W = DLC V6.0
cULus Listed for Damp Locations
5-Year Limited Warranty
FCC Compliant
Suitable for use in closets when installed in accordance to NEC Section
Field Installed Accessories: YTGHANGER - 10’ adjustable cable hang kit
Listings
Five year limited warranty against defects
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
BLANK
ED96/WLINEAR/3CCT/3WO/UNV/D/HO+MS
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
PHOTOMETRIC
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM
3500K - 135 4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K - 140
3500K - 135 4000K - 136 5000K - 137
3500K - 4794
4000K - 4828
5000K - 4862
3500K - 5244
4000K - 5282
5000K - 5320
3500K - 6075
4000K - 6120
5000K - 6165
3500K - 4794
4000K - 4828
5000K - 4862
3500K - 5244
4000K - 5282
5000K - 5320
3500K - 6075
4000K - 6120
5000K - 6165
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K - 140
3500K - 135
4000K - 136
5000K - 137
ED96/WLINEAR/3CCT/3WO/UNV/D/HO+MS
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
PHOTOMETRIC
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM
3500K - 135 4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K - 140
3500K - 135 4000K - 136 5000K - 137
3500K - 4794
4000K - 4828
5000K - 4862
3500K - 5244
4000K - 5282
5000K - 5320
3500K - 6075
4000K - 6120
5000K - 6165
3500K - 4794
4000K - 4828
5000K - 4862
3500K - 5244
4000K - 5282
5000K - 5320
3500K - 6075
4000K - 6120
5000K - 6165
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K - 140
3500K - 135
4000K - 136
5000K - 137
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project
Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project
Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
UPC TAMPA
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
LEDVANCE LUMINAIRES

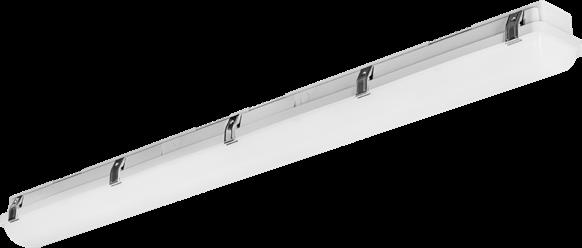

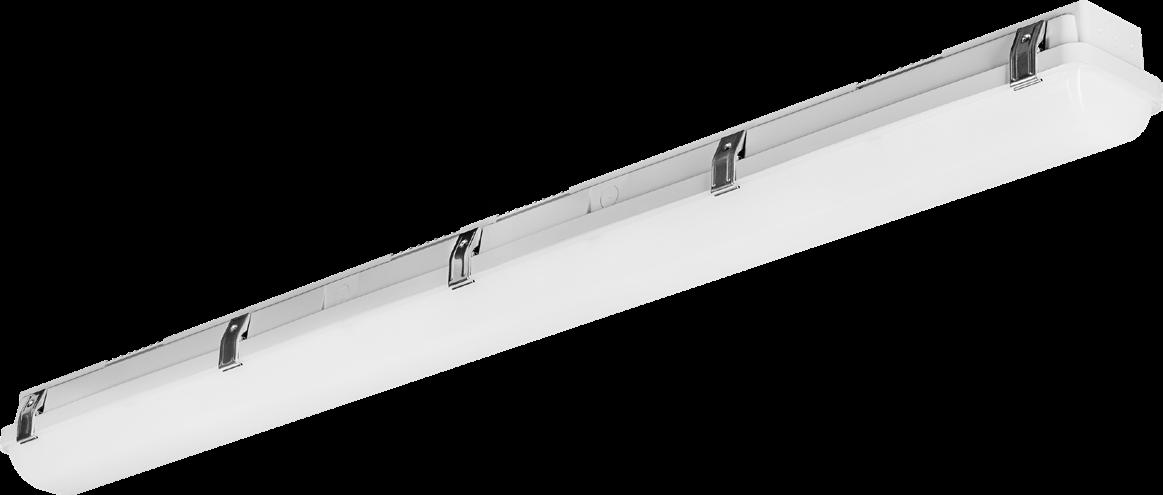

DUAL SELECTABLE VAPOR TIGHT ILT
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project
Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 150 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2835/3060/3775 lm
– 20/3 0/40/50W | 3120/4620/6080/7500 lm
– 70/80/90/100W | 10,920/12,320/13,680/15,000 lm
— DLC Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
LEDVANCE LUMINAIRES
DUAL SELECTABLE VAPOR TIGHT ILT
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project
Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 150 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2835/3060/3775 lm
– 20/30/40/50W | 3120/4620/6080/7500 lm
– 70/80/90/100W | 10,920/12,320/13,680/15,000 lm
— DLC Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
ELECTRICAL
120-347Vac Power Factor >90%
THD <20%
— 2.5kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
ORDERING GUIDE
CERTIFICATIONS
& LISTINGS
UL1598 (cULus)
RoHS
NEMA 4X
IP66
DLC Listed
NSF Splash Zone
IK08
RATED LIFE
125,000 hours (L70)
OPERATING TEMPERATURE
-40°F to +122°F (-40°C to +50°C)
— 0°F
for EMBB models
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
VAPOR = Vapor Tight Luminaire
UPC TAMPA TYPE U-E
ELECTRICAL
120-347Vac Power Factor >90%
THD <20%
— 2.5kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
ORDERING GUIDE
CERTIFICATIONS
& LISTINGS
UL1598 (cULus)
RoHS
NEMA 4X
IP66
DLC Listed
NSF Splash Zone
IK08
RATED LIFE
125,000 hours (L70)
OPERATING TEMPERATURE
-40°F to +122°F (-40°C to +50°C)
— 0°F
for EMBB models
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
VAPOR = Vapor Tight Luminaire
NO SPEC
NIO-4RTLNDC
4" Iolite Round Trimless Downlight
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes stainless steel friction clips to mount securely to trimless mud ring Mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2 A mud ring (NIO-TLMR-4R) or flange accessory (NIO-4RTFA) is required per trimless.
LABELS AND LISTINGS
· cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2025
NIO-4RTLNDCCDX = Comfort Dim† /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing) * 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NIO-4RTLNDC30X = 3000K
NIO-4RTLNDC35 X = 3500K
NIO-4RTLNDC40X = 4000K
NIO-4RTLNDC50X = 5000K
NIO-4RTLNDC50XMPW / NIO-TLMR-4RA = 4" Iolite Round Trimless Reflector, 5000K, Bright White finish, 800lm / 4" Round Trimless Mud Ring
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes stainless steel friction clips to mount securely to trimless mud ring Mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2 A mud ring (NIO-TLMR-4R) or flange accessory (NIO-4RTFA) is required per trimless.
LABELS AND LISTINGS
· cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2025
NIO-4RTLNDCCDX = Comfort Dim† /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing) * 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NIO-4RTLNDC50XMPW / NIO-TLMR-4RA = 4" Iolite Round Trimless Reflector, 5000K, Bright White finish, 800lm / 4" Round Trimless Mud Ring
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com

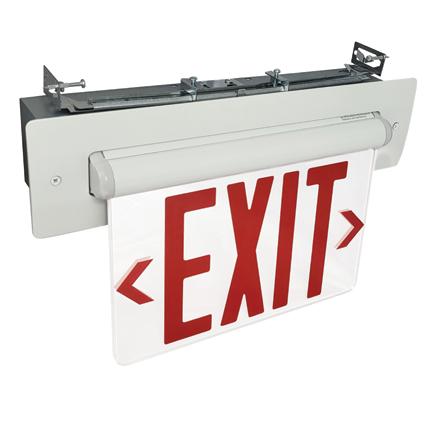

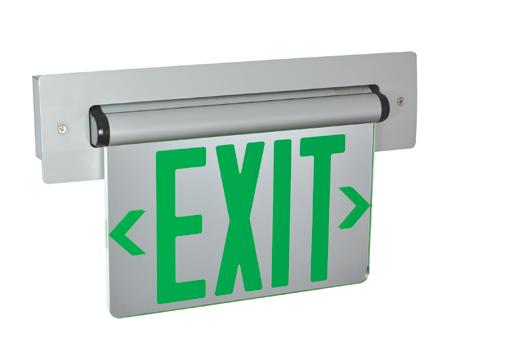

Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: Normal operation: 3.8W / Emergency operation: 0.7W
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery Back-Up (NX-815-LED): NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
Listed
· State & Municipal Certified to the energy efficiency standards of California Title 20
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: Normal operation: 3.8W / Emergency operation: 0.7W
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery Back-Up (NX-815-LED): NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
Listed
· State & Municipal Certified to the energy efficiency standards of California Title 20
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: Normal operation: 3.8W / Emergency operation: 0.7W
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery Back-Up (NX-815-LED): NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
Listed
· State & Municipal Certified to the energy efficiency standards of California Title 20
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: Normal operation: 3.8W / Emergency operation: 0.7W
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery Back-Up (NX-815-LED): NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
Listed
· State & Municipal Certified to the energy efficiency standards of California Title 20
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
5-Year Limited Warranty
· UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
5-Year Limited Warranty
· UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com

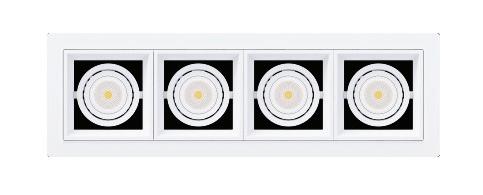

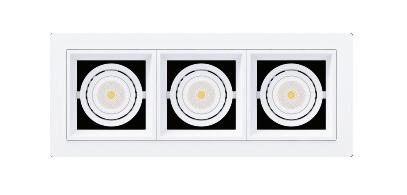

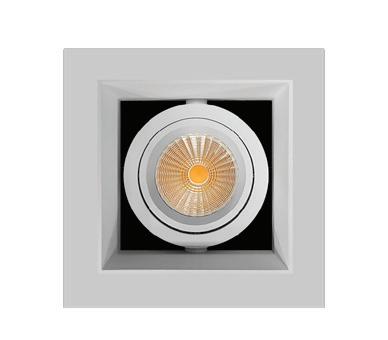

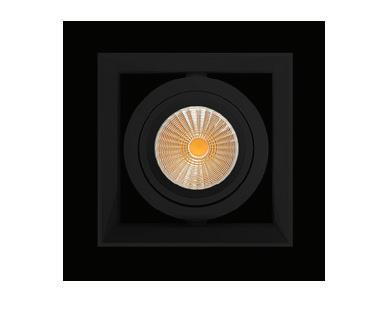

A recessed multiple mini combo downlight, available in 1, 2, 3 or 4 heads, with fully interchangeable, field-adjustable modules. Each individual head has full aiming adjustability, rotating 360°, pivoting 35° vertically, with a secure locking mechanism. Each head can be individually specified, allowing for mix-and-matching of different color temperatures, finishes, flange colors, and field-changeable optics in a single housing. Delivering the full spectrum of cool to warm tones, the FCM is ideal for retail, hospitality, commercial, and high-end residential applications.
2-Step MacAdam Ellipse 90+ Standard L70 at 102,000 Hours
In Accordance with IES LM79-08, LM80 and TM-30, TM-21
*Only powers one head and must have ceiling access.
BK (Black), WH (White), Trimless Custom RAL Colors.
UPC TAMPA TYPE

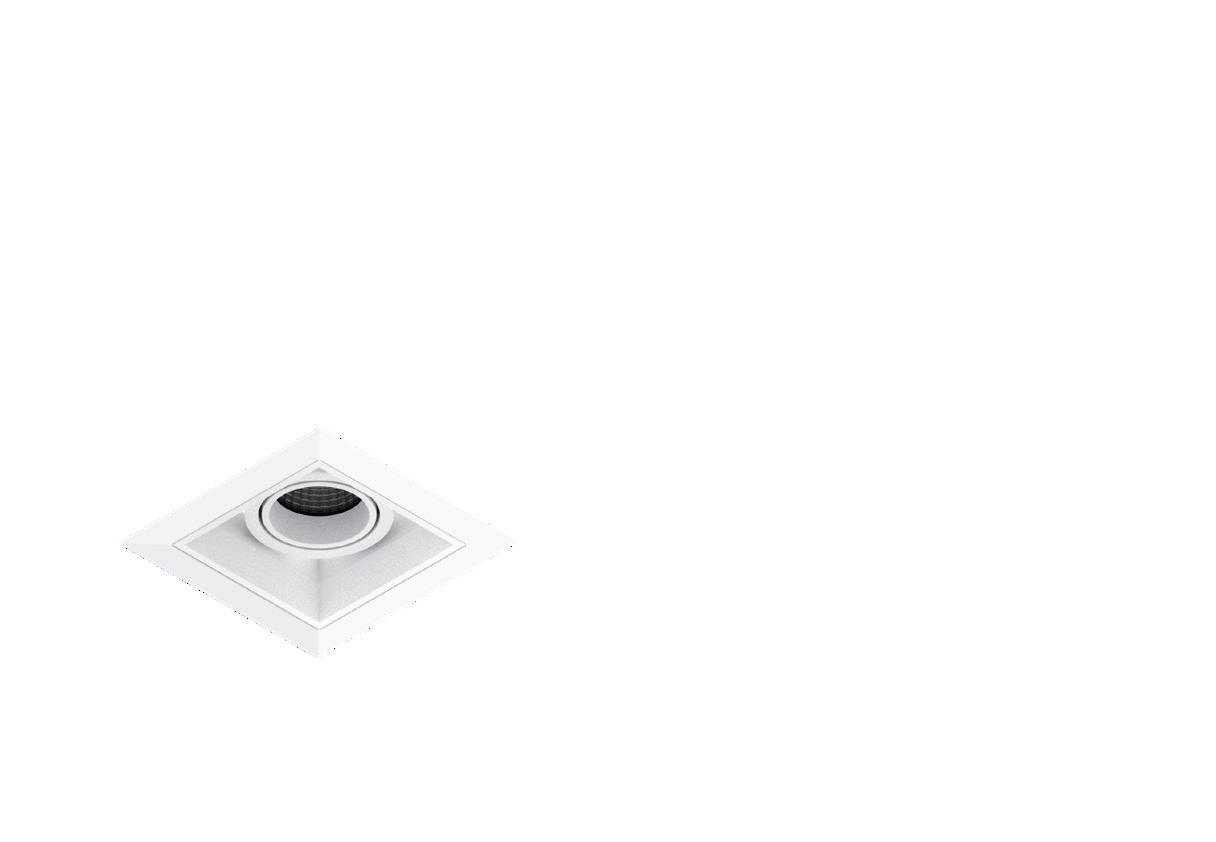

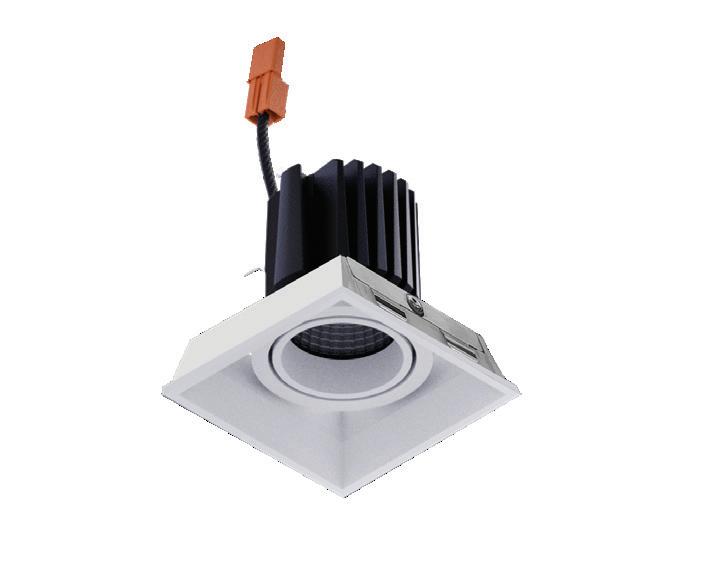

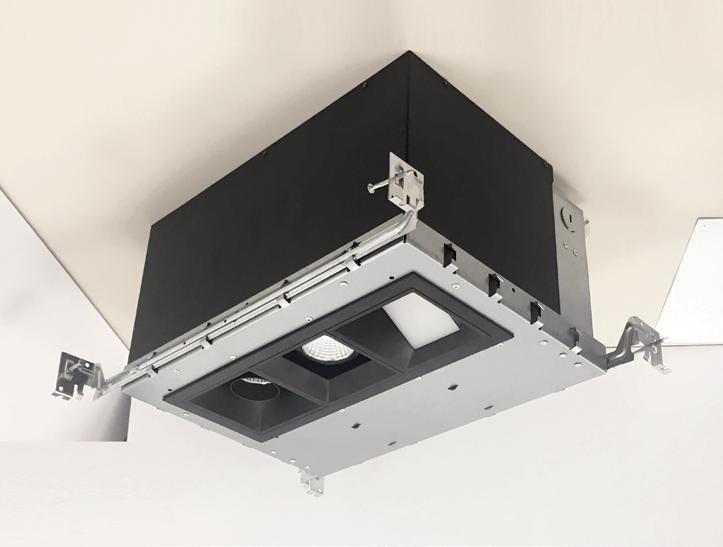

NMIO Series
PRODUCT DESCRIPTION
Endless possibilities with Iolite multiple’s functionality and architectural aesthetics. Iolite multiple recessed family consist of one to three independently adjustable heads, variety of beam distributions and multiple reflector options. Iolite multiple series is a perfect solution for most retail, hospitality and commercial applications.
FEATURES
Trimless of Flanged appearance
One to three head configurations
Customizable reflector options
· Housing includes individual drivers for each module Comfort Dim (warm dim) also available in 800lm only Triac, ELV or 0-10V dimming
SPECIFICATION
Housing: 0.0475" Galvanized steel housing with quick connects from each driver for ease of installation Housing accepts standard ceiling thickness up to 1-1/2" may vary depending on ceiling type (up to 1" ceiling thickness when used with NMIO-W).
Clearance: “IC ” Insulated ceiling housings are direct contact rated; no minimum clearance is required. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 7/ 8 " to 25" adjustable bar hangers with captive nails are included with the housing. Bar hangers are parallel to junction box, but can be repositioned 90˚ perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 40 cubic inch 0.0 475" thick galvanized steel, with six 1/2 " knockouts. Leads are #18AWG wire. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box (max. of 4 with wall wash trims)
Trimless: Mud plate mounts inside Iolite Multiple Housing and screws into drywall to be flush. A professional drywall finisher floats the ceiling to blend in the mud plate, sands and paints. The trims are then inserted into the mud plate and the results are a spectacular, minimalist appearance with no flange.
ELECTRICAL
Voltage: 120/277V
Lumens / Wattage:
1000lm / 12W per head (Comfort Dim is 800lm per head) (Delivered lumens will vary depending on reflector, CCT, beam spread and finish)
Color Temperature:
2700K, 3000K, 3500K, 4000K or 5000K
Color Rendering Index: 90+CRI
Optics: 10° Spot, 25° Spot, 38° Narrow Flood, 60° Flood Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Triac, ELV or 0-10V
Click Here or c heck complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab.
Optics: Each LED module includes (3) field changeable optics (spot, narrow flood and flood - preinstalled) or fixed 10° TIR optic. Premium 22° and 26° TIR optics are also available for field changeable only.
(Note: TIR optics are not compatible with Comfort Dim)
TRIMS
Fixed Downlight: Fixed downlight delivers over 1300lm in four finishes; Black (B), Black interior / White exterior (BMPW
- Note: adjustable and wall wash reflectors mixed with BMPW will be MPW), Haze (HZ) or White (MPW).
Adjustable Snoot: Rotates 359° horizontally and pivots 20° while delivering over 1100 lumens.
Adjustable Gimbal: Rotates 359° horizontally and pivots 38° while delivering over 1300 lumens.
Wall Wash: Fixed wall wash reflector aims LED modules at optimal angle for maximum light distribution along wall surfaces.
Blank Plate: Blank plate is used in conjuction with two or three head configurations where a blank head is needed.
LABELS AND LISTINGS
cULus Listed for Damp Location
5-Year Limited Warranty
Certified to the high efficacy requirements of Ca lifornia Title 24 JA8-2025
1-Head: 3.95" x 3.95" 2-Head: 7-1/2" x 3.95" 3-Head: 11" x 3.95"
By Elite Lighting
ORDERING GUIDE
HOUSING
Example: FCM1-LED-BK-DIMTR-120/DIM10-MVOLT
SERIES DIMMING
o FCM1-LED
o FCM2-LED
o FCM3-LED
o FCM4-LED
o DIM10-347V
o DIMTR-120/ DIM10-MVOLT 0-10V dimming on either MVOLT 120 or 277
LED MODULE
Example: FCM-LED-1000L-FL-30K-90-WH
SERIESLUMEN OPTICS CCT - CRI INTERIOR COLOR
o FCM-LED o 1000L o SP- Spot-23° o NFL- Narrow Flood-30° o
o WH (White) o BK (Black)
MUST ORDER LED MODULES BASED ON HOUSING SIZE. FCM3-LED (3 HEADS) = 3 X FCM-LED (3 LED MODULES)

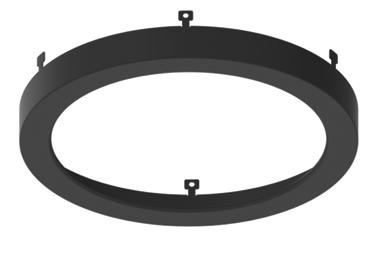

TRIM OPTIONS
Example: FCM1-T-F-BK
SERIESTRIM OPTIONTRIM COLOR
o FCM1-T
o FCM2-T
o FCM3-T
o FCM4-T o F (Flanged) o TL (Trimless) o WH (White) o BK (Black)
Note: Trimless has no finish color.
FCM1-T-F
FCM4-T-TL
FCM3-T-TL
BLANK
CUSTOM: SPS9683
Swirl-ribbed
FINISHES

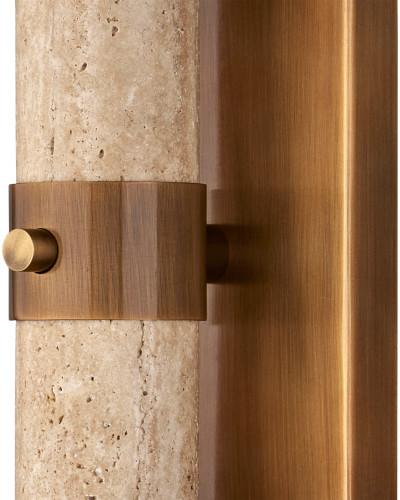

Beatrix Beige Bath Wall Sconce
5800-0047
Bestseller
Overall: 22"h x 5"w x 5"d
Finish: Natural / Antique Brass / White Materials: Travertine / Metal / Textured Glass
Item Weight: 11 lbs.
Number of Lights: 2
Suggested Bulb: B Torpedo Tip
Socket Type: E12
Watts per Socket/Item: 60/120
Voltage: 120
Dimmable: Yes
Cord: 1' Black/White
UL/cUL Listed
Certi ed for Damp Locations
The Beatrix Beige Bath Wall Sconce features a center column made of natural travertine that extends beyond each end of the wall-plate to hold globes made of textured art glass. The milky, mottled glass draws out the pale veins in the travertine, while the antique brass nish on the metal brings warmth to the xture. This wall sconce can be mounted horizontally or vertically, and the natural stone will vary from xture to xture.
Beatrix Beige Bath Wall Sconce
5800-0047
Bestseller
Overall: 22"h x 5"w x 5"d
Finish: Natural / Antique Brass / White Materials: Travertine / Metal / Textured Glass
Item Weight: 11 lbs.
Number of Lights: 2
Suggested Bulb: B Torpedo Tip
Socket Type: E12
Watts per Socket/Item: 60/120
Voltage: 120
Dimmable: Yes
Cord: 1' Black/White
UL/cUL Listed
Certi ed for Damp Locations
The Beatrix Beige Bath Wall Sconce features a center column made of natural travertine that extends beyond each end of the wall-plate to hold globes made of textured art glass. The milky, mottled glass draws out the pale veins in the travertine, while the antique brass nish on the metal brings warmth to the xture. This wall sconce can be mounted horizontally or vertically, and the natural stone will vary from xture to xture.

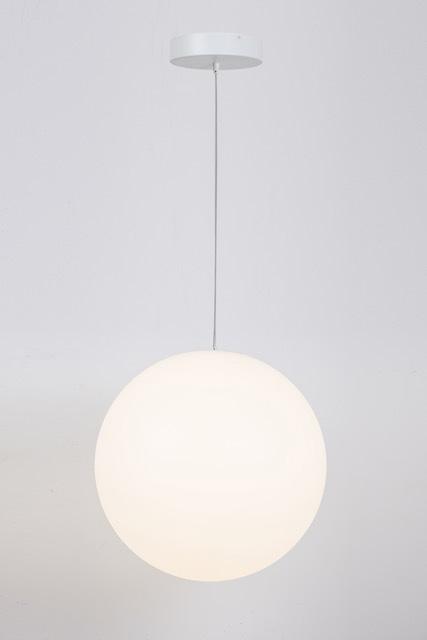

The Pearl fixture is designed to work in a variety of spaces. The fixture is made of polycarbonate, making it both beautiful and durable. It is available in a white finish and the light source comes from a dedicated onboard LED. Triac dimming standard.
Dimensions:
Globe Diameter: 6” / 10” / 16” / 20” / 24” / 32”
Suspension Length: 70”
(20 watts / 2000lm)
(24 watts / 2400lm)
(32 watts / 3200lm)
Project Name:
Applicability: Interior Finish: White
Light source: Onboard LED
Material: Polycarbonate
Performance: 6w / 10w / 16w / 20w / 24w / 32w
Power: 120-277v
CRI: 90
Chain/Cord: Adjustable
Canopy Height: 1.57”
Canopy Diameter: 6” (sizes 6-24); 8.66” (size 32)
Dimming: TRIAC / 0-10v Dimming
The Pearl fixture is designed to work in a variety of spaces. The fixture is made of polycarbonate, making it both beautiful and durable. It is available in a white finish and the light source comes from a dedicated onboard LED. Triac dimming standard.
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 20’
• Includes Sure-Tite connectors
SPECIFICATIONS
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels. ELECTRICAL
•24V
• 4.5 watts per foot
•90+ CRI
•-4°F to 122°F
• For proper thermal management, we recommend to mount this product in a channel

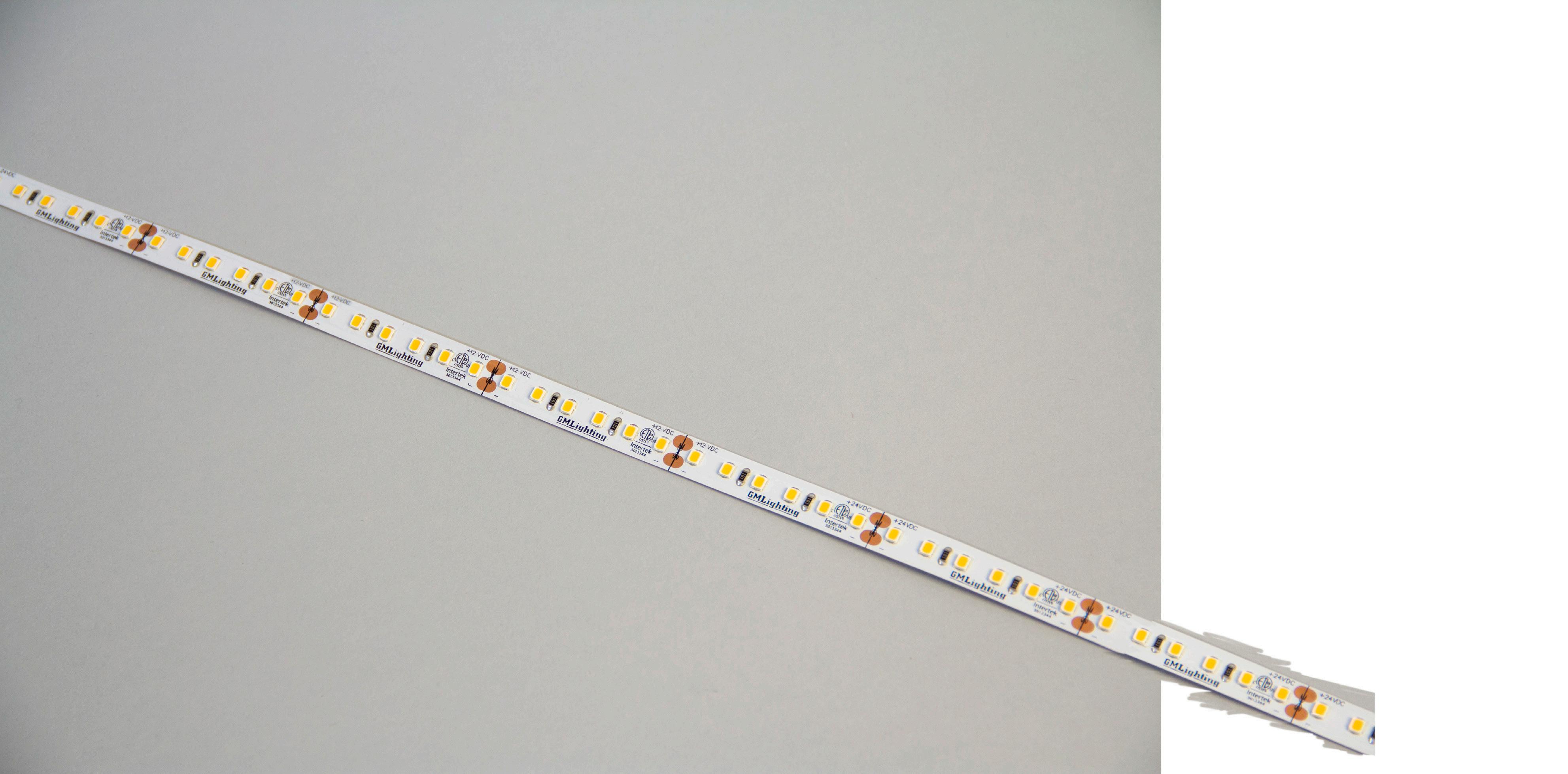

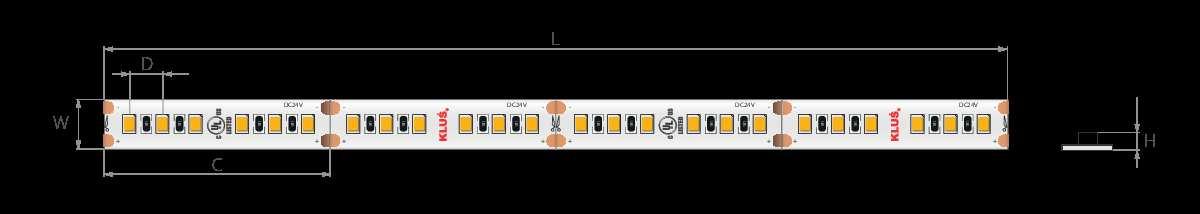

LTR-P Professional Series
4.5W, 24VDC LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 20’
• Includes Sure-Tite connectors
SPECIFICATIONS
ELECTRICAL
• 24V
• 4.5 watts per foot OPTICS
• 90+ CRI
• -4°F to 122°F
• For
LTR-P Professional Series ®
4.5W, 24VDC LED Tape Specification Sheet
Kelvin temperature (color) ±100K. 16’-4” and 100’ reel includes 48” lead affixed to tape. 16’-4” reel includes (3) ESTW-60 Sure-Tite connectors. 100’ reel includes (10) ESTW-60 Sure-Tite connectors
COMPATIBLE CONTROLLERS
SHWC LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage SHWD LUXcontrol Smart 2.4 GHz WiFi Dimmer, Standard 12V/24V Low Voltage
SWD-40W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 40W, 12VDC
SWD-60W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 12VDC
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
CM-RF-UNV-5CH Universal 1-5 Channel Control Module
NOTE: Please see our website for updated power supply specifications and information.
LTR-P Professional Series ®
4.5W, 24VDC LED Tape
Specification Sheet
Kelvin temperature (color) ±100K. 16’-4” and 100’ reel includes 48” lead affixed to tape. 16’-4” reel includes (3) ESTW-60 Sure-Tite connectors. 100’ reel includes (10) ESTW-60 Sure-Tite connectors
COMPATIBLE CONTROLLERS
SWD-40W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 40W, 12VDC
SWD-60W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 12VDC
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
CM-RF-UNV-5CH Universal 1-5 Channel Control Module
- Socket bar, end plate, and ballast cover snap on easily
ELECTRICAL
- Quad Tap (QT) - 120-277V
- 0-10V Dimmable Driver standard
- Pf >.90
- THD<20%
- 4kV Surge Protection
- 50,000 hours @ L70
OPTICAL SYSTEM
- Smooth, clear acrylic diffuser/lens
- Rotatable for specific light aiming
- Offered in 30K, 35K, 40K, 50K
MOUNTING
- Typically mounted on conduit
- End plate doubles as coupler when used in continuous run
CODE COMPLIANCE
- cULus Listed for Damp locations
- FCC Compliant
- RoHS Compliant
- BAA Compliant
WARRANTY - 5 Year
ORDERING INFORMATION
MODEL#
4X17L (17W, 3220 Lumens)
4X24L (24W, 4480 Lumens)
4X30L (30W, 5705 Lumens)
4X37L (37W, 6910 Lumens)
4X48L (48W, 8640 Lumens)
4X70L (70W, 11,797 Lumens)
8FT
8X17L (17W, 3220 Lumens)
8X24L (24W, 4480 Lumens)
8X30L (30W, 5705 Lumens)
8X37L (37W, 6910 Lumens)
8X48L (48W, 8640 Lumens)
8X70L (70W, 11,797 Lumens)
8X74L (74W, 13,820Lumens)
8X96L (96W, 17,280 Lumens)
8X140L (140W, 23,594 Lumens)
OPTIONS (Factory Installed)
EM5 - 5W Emergency Battery
CC - Custom Color
LSLED2-K LED Linear Sign Light
Details:
Shown in Dark Oxide (black) painted finish, with opal acrylic numbers.
Signage with Braille is included, customized for your project.
Other finishes and fonts are available.
Dimensions 3” wide x 6.25” tall x 1” extension
Lamping 120v G9 socket for 4w LED bulb (not included)
Certification UL or ETL listed. Complies with ADA Standards for Accessible Design.
Mounting 2” x 3” rectangle junction box
Numbers Up to 4 digits
Font Source Sans Pro Bold font is used on the numbers
Lead Time 4 to 5 months
Tearsheet date Jun 18, 2025
NM2-2RDC
2" M2 Round Can-less LED Recessed Downlight
Source: 6W to 10W LED 400lm to 850lm
PRODUCT DESCRIPTION
M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into multiple options with trim accessories and produces over 850 lumens.
FEATURES
No housing required - IC Airtight rated
Easy installation for remodel or new construction applications
Variety of trim accessories to configure desired appearance
· Quick disconnect allows for extended lengths
400lm, 600lm or 850lm LED packages
2700K, 3000K or 4000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Open downlight includes a reflector with the same finish as trim ; optional field changeable accessories are available; square trim, pinhole trim, wall wash trim, reflector inserts or baffle inserts.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (400lm/600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7" quick connect wire Luminaire includes 5" (400lm/600lm) or 4" (850lm) quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit s are available, see accessories.
Trims: M2 series is available in three lumen outputs with LED driver Round trims can be converted to baffles, pinholes or wall wash in the field with optional trims and inserts.
2" M2 Round Can-less LED Recessed Downlight
Lumens / Wattage Color Temperature Finish
NM2-2RDC40 = 400lm / 6W 27 = 2700K 30 = 3000K BB = Black MPW = White
NM2-2RDC60 = 600lm / 8W
NM2-2RDC85 1 = 850lm / 10W
Note: 4000K available in black finish only
M2 Trim Accessories
Accessory Type
27 = 2700K
30 = 3000K
40 = 4000K BB = Black MPW = White
OPTIONAL TRIM ACCESSORIES
NM2-2REFL : Reflector Insert for NM2-2RDC, Black or Haze
NM2-2BAF: Baffle Insert for NM2-2RDC, Black or White
NM2-2RPH: Round Pinhole Trim for NM2-2RDC, Black or White
NM2-2RW: Round Wall Wash Trim for NM2-2RDC, Black or White
NM2-2SDT: Square Trim for NM2-2RDC, Black or White
OPTIONAL MOUNTING ACCESSORIES
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2 : Two Head Multiple Lighting System Plate
NM2-MLS3: Three Head Multiple Lighting System Plate
NM2-EW-10 : 10' Quick Connect Linkable Extension Cable\ NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations 5-Year Limited Warranty · FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2025
NM2-2RDCXXXXBB 400lm or 600lm Black Finish
2-1/2" (40/60) 4-3/4" (85) 2" 3-3/16"
NM2-2REFL Reflector Insert
NM2-2RPH Round Pinhole Trim

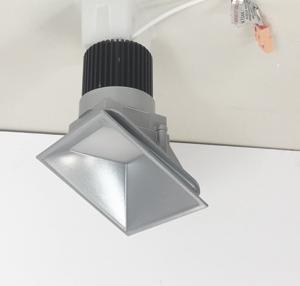

NM2-2SDT Square Trim
NM2-2RDC85XXMPW 850lm White Finish
Cut out: 2-7/8"
4" (40/60) 3-7/8" (85)
NM2-2BAF Baffle Insert
NM2-2RW Round Wall Wash Trim
NM2-EW Extension Cables
Optional Accessories
Accessory Type Finish
NM2-MLS1 = One Head MLS Plate
NM2-MLS2 = Two Head MLS Plate
NM2-MLS3 = Three Head MLS Plate
Finish
NM2-2REFL = Reflector for NM2-2RDC B = Black HZ = Haze
NM2-2BAF = Baffle for NM2-2RDC
NM2-2RPH = Round Pinhole Trim for NM2-2RDC
NM2-2RW = Round Wall Wash Trim for NM2-2RDC
NM2-2SDT = Square Trim for NM2-2RDC
B = Black MPW = White
Example: NM2-2RDC6030MPW = 2" M2 Round Can-less LED Recessed Downlight, 600lm / 8W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
BB = Black MPW = White
NF-R246 = Universal New Construction Frame-In
NFC-R275 = New Construction Frame-In with Collar
NM2-EW-4 = 4' Quick Connect Extension Cable
NM2-EW-10 = 10' Quick Connect Extension Cable
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
NM2-2RDC
2" M2 Round Can-less LED Recessed Downlight
Source: 6W to 10W LED 400lm to 850lm
PRODUCT DESCRIPTION
M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into multiple options with trim accessories and produces over 850 lumens.
FEATURES
No housing required - IC Airtight rated
Easy installation for remodel or new construction applications
Variety of trim accessories to configure desired appearance
· Quick disconnect allows for extended lengths
400lm, 600lm or 850lm LED packages
2700K, 3000K or 4000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Open downlight includes a reflector with the same finish as trim ; optional field changeable accessories are available; square trim, pinhole trim, wall wash trim, reflector inserts or baffle inserts.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (400lm/600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7" quick connect wire Luminaire includes 5" (400lm/600lm) or 4" (850lm) quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit s are available, see accessories.
Trims: M2 series is available in three lumen outputs with LED driver Round trims can be converted to baffles, pinholes or wall wash in the field with optional trims and inserts.
2" M2 Round Can-less LED Recessed Downlight
Lumens / Wattage Color Temperature Finish
NM2-2RDC40 = 400lm / 6W 27 = 2700K 30 = 3000K BB = Black MPW = White
NM2-2RDC60 = 600lm / 8W
NM2-2RDC85 1 = 850lm / 10W
Note: 4000K available in black finish only
M2 Trim Accessories
Accessory Type
27 = 2700K
30 = 3000K
40 = 4000K
OPTIONAL TRIM ACCESSORIES
NM2-2REFL : Reflector Insert for NM2-2RDC, Black or Haze
NM2-2BAF: Baffle Insert for NM2-2RDC, Black or White
NM2-2RPH: Round Pinhole Trim for NM2-2RDC, Black or White
NM2-2RW: Round Wall Wash Trim for NM2-2RDC, Black or White
NM2-2SDT: Square Trim for NM2-2RDC, Black or White
OPTIONAL MOUNTING ACCESSORIES
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2 : Two Head Multiple Lighting System Plate
NM2-MLS3: Three Head Multiple Lighting System Plate
NM2-EW-10 : 10' Quick Connect Linkable Extension Cable\ NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations 5-Year Limited Warranty · FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2025
NM2-2RDCXXXXBB 400lm or 600lm Black Finish
2-1/2" (40/60) 4-3/4" (85) 2" 3-3/16"
NM2-2REFL Reflector Insert
NM2-2RPH Round Pinhole Trim
NM2-2SDT Square Trim
NM2-2RDC85XXMPW 850lm White Finish
Cut out: 2-7/8"
BB = Black MPW = White
Finish
NM2-2REFL = Reflector for NM2-2RDC B = Black HZ = Haze
NM2-2BAF = Baffle for NM2-2RDC
NM2-2RPH = Round Pinhole Trim for NM2-2RDC
NM2-2RW = Round Wall Wash Trim for NM2-2RDC
NM2-2SDT = Square Trim for NM2-2RDC
B = Black MPW = White
Example: NM2-2RDC6030MPW = 2" M2 Round Can-less LED Recessed Downlight, 600lm / 8W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
4" (40/60) 3-7/8" (85)
NM2-2BAF Baffle Insert
NM2-2RW Round Wall Wash Trim
NM2-EW Extension Cables
Optional Accessories
Accessory Type Finish
NM2-MLS1 = One Head MLS Plate
NM2-MLS2 = Two Head MLS Plate
NM2-MLS3 = Three Head MLS Plate
BB = Black MPW = White
NF-R246 = Universal New Construction Frame-In
NFC-R275 = New Construction Frame-In with Collar
NM2-EW-4 = 4' Quick Connect Extension Cable
NM2-EW-10 = 10' Quick Connect Extension Cable
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
NM2-2RDC
2" M2 Round Can-less LED Recessed Downlight
Source: 6W to 10W LED 400lm to 850lm
PRODUCT DESCRIPTION
M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into multiple options with trim accessories and produces over 850 lumens.
FEATURES
No housing required - IC Airtight rated
Easy installation for remodel or new construction applications
Variety of trim accessories to configure desired appearance
· Quick disconnect allows for extended lengths
400lm, 600lm or 850lm LED packages
2700K, 3000K or 4000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Open downlight includes a reflector with the same finish as trim ; optional field changeable accessories are available; square trim, pinhole trim, wall wash trim, reflector inserts or baffle inserts.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (400lm/600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7" quick connect wire Luminaire includes 5" (400lm/600lm) or 4" (850lm) quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit s are available, see accessories.
Trims: M2 series is available in three lumen outputs with LED driver Round trims can be converted to baffles, pinholes or wall wash in the field with optional trims and inserts.
2" M2 Round Can-less LED Recessed Downlight
Lumens / Wattage Color Temperature Finish
NM2-2RDC40 = 400lm / 6W 27 = 2700K 30 = 3000K BB = Black MPW = White
NM2-2RDC60 = 600lm / 8W
NM2-2RDC85 1 = 850lm / 10W
Note: 4000K available in black finish only
M2 Trim Accessories
Accessory Type
27 = 2700K
30 = 3000K
40 = 4000K BB = Black MPW = White
OPTIONAL TRIM ACCESSORIES
NM2-2REFL : Reflector Insert for NM2-2RDC, Black or Haze
NM2-2BAF: Baffle Insert for NM2-2RDC, Black or White
NM2-2RPH: Round Pinhole Trim for NM2-2RDC, Black or White
NM2-2RW: Round Wall Wash Trim for NM2-2RDC, Black or White
NM2-2SDT: Square Trim for NM2-2RDC, Black or White
OPTIONAL MOUNTING ACCESSORIES
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2 : Two Head Multiple Lighting System Plate
NM2-MLS3: Three Head Multiple Lighting System Plate
NM2-EW-10 : 10' Quick Connect Linkable Extension Cable\ NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations 5-Year Limited Warranty · FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2025
NM2-2RDCXXXXBB 400lm or 600lm Black Finish
2-1/2" (40/60) 4-3/4" (85) 2" 3-3/16"
NM2-2REFL Reflector Insert
NM2-2RPH Round Pinhole Trim
NM2-2SDT Square Trim
NM2-2RDC85XXMPW 850lm White Finish
Cut out: 2-7/8"
4" (40/60) 3-7/8" (85)
NM2-2BAF Baffle Insert
NM2-2RW Round Wall Wash Trim
NM2-EW Extension Cables
Optional Accessories
Accessory Type Finish
NM2-MLS1 = One Head MLS Plate
NM2-MLS2 = Two Head MLS Plate
NM2-MLS3 = Three Head MLS Plate
Finish
NM2-2REFL = Reflector for NM2-2RDC B = Black HZ = Haze
NM2-2BAF = Baffle for NM2-2RDC
NM2-2RPH = Round Pinhole Trim for NM2-2RDC
NM2-2RW = Round Wall Wash Trim for NM2-2RDC
NM2-2SDT = Square Trim for NM2-2RDC
B = Black MPW = White
Example: NM2-2RDC6030MPW = 2" M2 Round Can-less LED Recessed Downlight, 600lm / 8W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
BB = Black MPW = White
NF-R246 = Universal New Construction Frame-In
NFC-R275 = New Construction Frame-In with Collar
NM2-EW-4 = 4' Quick Connect Extension Cable
NM2-EW-10 = 10' Quick Connect Extension Cable
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
NM2-2RDC
2" M2 Round Can-less LED Recessed Downlight
Source: 6W to 10W LED 400lm to 850lm
PRODUCT DESCRIPTION
M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into multiple options with trim accessories and produces over 850 lumens.
FEATURES
No housing required - IC Airtight rated
Easy installation for remodel or new construction applications
Variety of trim accessories to configure desired appearance
· Quick disconnect allows for extended lengths
400lm, 600lm or 850lm LED packages
2700K, 3000K or 4000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Open downlight includes a reflector with the same finish as trim ; optional field changeable accessories are available; square trim, pinhole trim, wall wash trim, reflector inserts or baffle inserts.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (400lm/600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7" quick connect wire Luminaire includes 5" (400lm/600lm) or 4" (850lm) quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit s are available, see accessories.
Trims: M2 series is available in three lumen outputs with LED driver Round trims can be converted to baffles, pinholes or wall wash in the field with optional trims and inserts.
2" M2 Round Can-less LED Recessed Downlight
Lumens / Wattage Color Temperature Finish
NM2-2RDC40 = 400lm / 6W 27 = 2700K 30 = 3000K BB = Black MPW = White
NM2-2RDC60 = 600lm / 8W
NM2-2RDC85 1 = 850lm / 10W
Note: 4000K available in black finish only
M2 Trim Accessories
Accessory Type
27 = 2700K
30 = 3000K
40 = 4000K
OPTIONAL TRIM ACCESSORIES
NM2-2REFL : Reflector Insert for NM2-2RDC, Black or Haze
NM2-2BAF: Baffle Insert for NM2-2RDC, Black or White
NM2-2RPH: Round Pinhole Trim for NM2-2RDC, Black or White
NM2-2RW: Round Wall Wash Trim for NM2-2RDC, Black or White
NM2-2SDT: Square Trim for NM2-2RDC, Black or White
OPTIONAL MOUNTING ACCESSORIES
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2 : Two Head Multiple Lighting System Plate
NM2-MLS3: Three Head Multiple Lighting System Plate
NM2-EW-10 : 10' Quick Connect Linkable Extension Cable\ NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations 5-Year Limited Warranty · FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2025
NM2-2RDCXXXXBB 400lm or 600lm Black Finish
2-1/2" (40/60) 4-3/4" (85) 2" 3-3/16"
NM2-2REFL Reflector Insert
NM2-2RPH Round Pinhole Trim
NM2-2SDT Square Trim
NM2-2RDC85XXMPW 850lm White Finish
Cut out: 2-7/8"
BB = Black MPW = White
Finish
NM2-2REFL = Reflector for NM2-2RDC B = Black HZ = Haze
NM2-2BAF = Baffle for NM2-2RDC
NM2-2RPH = Round Pinhole Trim for NM2-2RDC
NM2-2RW = Round Wall Wash Trim for NM2-2RDC
NM2-2SDT = Square Trim for NM2-2RDC
B = Black MPW = White
Example: NM2-2RDC6030MPW = 2" M2 Round Can-less LED Recessed Downlight, 600lm / 8W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
4" (40/60) 3-7/8" (85)
NM2-2BAF Baffle Insert
NM2-2RW Round Wall Wash Trim
NM2-EW Extension Cables
Optional Accessories
Accessory Type Finish
NM2-MLS1 = One Head MLS Plate
NM2-MLS2 = Two Head MLS Plate
NM2-MLS3 = Three Head MLS Plate
BB = Black MPW = White
NF-R246 = Universal New Construction Frame-In
NFC-R275 = New Construction Frame-In with Collar
NM2-EW-4 = 4' Quick Connect Extension Cable
NM2-EW-10 = 10' Quick Connect Extension Cable
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
NM2-2RDC
2" M2 Round Can-less LED Recessed Downlight
Source: 6W to 10W LED 400lm to 850lm
PRODUCT DESCRIPTION
M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into multiple options with trim accessories and produces over 850 lumens.
FEATURES
No housing required - IC Airtight rated
Easy installation for remodel or new construction applications
Variety of trim accessories to configure desired appearance
· Quick disconnect allows for extended lengths
400lm, 600lm or 850lm LED packages
2700K, 3000K or 4000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Open downlight includes a reflector with the same finish as trim ; optional field changeable accessories are available; square trim, pinhole trim, wall wash trim, reflector inserts or baffle inserts.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (400lm/600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7" quick connect wire Luminaire includes 5" (400lm/600lm) or 4" (850lm) quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit s are available, see accessories.
Trims: M2 series is available in three lumen outputs with LED driver Round trims can be converted to baffles, pinholes or wall wash in the field with optional trims and inserts.
2" M2 Round Can-less LED Recessed Downlight
Lumens / Wattage Color Temperature Finish
NM2-2RDC40 = 400lm / 6W 27 = 2700K 30 = 3000K BB = Black MPW = White
NM2-2RDC60 = 600lm / 8W
NM2-2RDC85 1 = 850lm / 10W
Note: 4000K available in black finish only
M2 Trim Accessories
Accessory Type
27 = 2700K
30 = 3000K
40 = 4000K BB = Black MPW = White
OPTIONAL TRIM ACCESSORIES
NM2-2REFL : Reflector Insert for NM2-2RDC, Black or Haze
NM2-2BAF: Baffle Insert for NM2-2RDC, Black or White
NM2-2RPH: Round Pinhole Trim for NM2-2RDC, Black or White
NM2-2RW: Round Wall Wash Trim for NM2-2RDC, Black or White
NM2-2SDT: Square Trim for NM2-2RDC, Black or White
OPTIONAL MOUNTING ACCESSORIES
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2 : Two Head Multiple Lighting System Plate
NM2-MLS3: Three Head Multiple Lighting System Plate
NM2-EW-10 : 10' Quick Connect Linkable Extension Cable\ NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations 5-Year Limited Warranty · FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2025
NM2-2RDCXXXXBB 400lm or 600lm Black Finish
2-1/2" (40/60) 4-3/4" (85) 2" 3-3/16"
NM2-2REFL Reflector Insert
NM2-2RPH Round Pinhole Trim
NM2-2SDT Square Trim
NM2-2RDC85XXMPW 850lm White Finish
Cut out: 2-7/8"
4" (40/60) 3-7/8" (85)
NM2-2BAF Baffle Insert
NM2-2RW Round Wall Wash Trim
NM2-EW Extension Cables
Optional Accessories
Accessory Type Finish
NM2-MLS1 = One Head MLS Plate
NM2-MLS2 = Two Head MLS Plate
NM2-MLS3 = Three Head MLS Plate
Finish
NM2-2REFL = Reflector for NM2-2RDC B = Black HZ = Haze
NM2-2BAF = Baffle for NM2-2RDC
NM2-2RPH = Round Pinhole Trim for NM2-2RDC
NM2-2RW = Round Wall Wash Trim for NM2-2RDC
NM2-2SDT = Square Trim for NM2-2RDC
B = Black MPW = White
Example: NM2-2RDC6030MPW = 2" M2 Round Can-less LED Recessed Downlight, 600lm / 8W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
BB = Black MPW = White
NF-R246 = Universal New Construction Frame-In
NFC-R275 = New Construction Frame-In with Collar
NM2-EW-4 = 4' Quick Connect Extension Cable
NM2-EW-10 = 10' Quick Connect Extension Cable
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
NM2-2RDC
2" M2 Round Can-less LED Recessed Downlight
Source: 6W to 10W LED 400lm to 850lm
PRODUCT DESCRIPTION
M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into multiple options with trim accessories and produces over 850 lumens.
FEATURES
No housing required - IC Airtight rated
Easy installation for remodel or new construction applications
Variety of trim accessories to configure desired appearance
· Quick disconnect allows for extended lengths
400lm, 600lm or 850lm LED packages
2700K, 3000K or 4000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Open downlight includes a reflector with the same finish as trim ; optional field changeable accessories are available; square trim, pinhole trim, wall wash trim, reflector inserts or baffle inserts.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (400lm/600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7" quick connect wire Luminaire includes 5" (400lm/600lm) or 4" (850lm) quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit s are available, see accessories.
Trims: M2 series is available in three lumen outputs with LED driver Round trims can be converted to baffles, pinholes or wall wash in the field with optional trims and inserts.
2" M2 Round Can-less LED Recessed Downlight
Lumens / Wattage Color Temperature Finish
NM2-2RDC40 = 400lm / 6W 27 = 2700K 30 = 3000K BB = Black MPW = White
NM2-2RDC60 = 600lm / 8W
NM2-2RDC85 1 = 850lm / 10W
Note: 4000K available in black finish only
M2 Trim Accessories
Accessory Type
27 = 2700K
30 = 3000K
40 = 4000K
OPTIONAL TRIM ACCESSORIES
NM2-2REFL : Reflector Insert for NM2-2RDC, Black or Haze
NM2-2BAF: Baffle Insert for NM2-2RDC, Black or White
NM2-2RPH: Round Pinhole Trim for NM2-2RDC, Black or White
NM2-2RW: Round Wall Wash Trim for NM2-2RDC, Black or White
NM2-2SDT: Square Trim for NM2-2RDC, Black or White
OPTIONAL MOUNTING ACCESSORIES
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2 : Two Head Multiple Lighting System Plate
NM2-MLS3: Three Head Multiple Lighting System Plate
NM2-EW-10 : 10' Quick Connect Linkable Extension Cable\ NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations 5-Year Limited Warranty · FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2025
NM2-2RDCXXXXBB 400lm or 600lm Black Finish
2-1/2" (40/60) 4-3/4" (85) 2" 3-3/16"
NM2-2REFL Reflector Insert
NM2-2RPH Round Pinhole Trim
NM2-2SDT Square Trim
NM2-2RDC85XXMPW 850lm White Finish
Cut out: 2-7/8"
BB = Black MPW = White
Finish
NM2-2REFL = Reflector for NM2-2RDC B = Black HZ = Haze
NM2-2BAF = Baffle for NM2-2RDC
NM2-2RPH = Round Pinhole Trim for NM2-2RDC
NM2-2RW = Round Wall Wash Trim for NM2-2RDC
NM2-2SDT = Square Trim for NM2-2RDC
B = Black MPW = White
Example: NM2-2RDC6030MPW = 2" M2 Round Can-less LED Recessed Downlight, 600lm / 8W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
4" (40/60) 3-7/8" (85)
NM2-2BAF Baffle Insert
NM2-2RW Round Wall Wash Trim
NM2-EW Extension Cables
Optional Accessories
Accessory Type Finish
NM2-MLS1 = One Head MLS Plate
NM2-MLS2 = Two Head MLS Plate
NM2-MLS3 = Three Head MLS Plate
BB = Black MPW = White
NF-R246 = Universal New Construction Frame-In
NFC-R275 = New Construction Frame-In with Collar
NM2-EW-4 = 4' Quick Connect Extension Cable
NM2-EW-10 = 10' Quick Connect Extension Cable
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
Source: 2.2W
PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
5-Year Limited Warranty
· UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
5-Year Limited Warranty
· UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
The Cirko Collection offers four distinct variations, thoughtfully designed for residential lighting applications. Each model features a sleek circular aluminum body accented with decorative spiral stripes, adding a modern touch to any setting. Choose from top-mounted or suspended Cirko models, or opt for the Cirko Flex, which includes a flexible sleeve for versatile top or lateral mounting. Enhance the aesthetic with optional decorative brackets like the Lyre, Monolyre, or a customizable cage. The range supports configurations from 8 to 48 LEDs, delivering light outputs between1,000and13,800lumens,providingbothstyleandperformance.
The Cirko Collection offers four distinct variations, thoughtfully designed for residential lighting applications. Each model features a sleek circular aluminum body accented with decorative spiral stripes, adding a modern touch to any setting. Choose from top-mounted or suspended Cirko models, or opt for the Cirko Flex, which includes a flexible sleeve for versatile top or lateral mounting. Enhance the aesthetic with optional decorative brackets like the Lyre, Monolyre, or a customizable cage. The range supports configurations from 8 to 48 LEDs, delivering light outputs between1,000and13,800lumens,providingbothstyleandperformance.
ORDERING INFORMATION
ORDERING INFORMATION
Round Tapered Fiberglass Light Poles
Direct Bury
Job/Client Name:
Location:
Notes:
Standard, Intermediate, Heavy, and Extra Heavy Duty
Product Offering Includes:
ο Direct Bury poles to fit your specific wind zone and loading requirements.
ο 15-40’ lengths.
ο 3-Layers of protection against UV degradation. Includes thermally bonded outer coating.
ο Surface finish options include natural and smooth.
ο Ground line protection.
ο Multiple hand hole size options.
ο 2-3/8”, 3” Tenons or Top Cap available.
ο Standard Colors in black, bronze, and gray (other colors available by request).
ο Light Weight, Non-Conductive, and Non-Corrosive.
Product Numbers and EPA Ratings1,2
Round Tapered Fiberglass Light Poles
Direct Bury
Job/Client Name:
Location:
Notes:
Standard, Intermediate, Heavy, and Extra Heavy Duty
Product Offering Includes:
ο Direct Bury poles to fit your specific wind zone and loading requirements.
ο 15-40’ lengths.
ο 3-Layers of protection against UV degradation. Includes thermally bonded outer coating.
ο Surface finish options include natural and smooth.
ο Ground line protection.
ο Multiple hand hole size options.
ο 2-3/8”, 3” Tenons or Top Cap available.
ο Standard Colors in black, bronze, and gray (other colors available by request).
ο Light Weight, Non-Conductive, and Non-Corrosive.
Product Numbers and EPA Ratings1,2
Round Tapered Fiberglass Light Poles
Example: D6TS30F00N2G0001: Direct Bury, 6’ Burial Depth, Standard Duty, 30’, Natural Finish, with 2 3/8” Tenon in Gray.
Pole Options2
2½" x 5" Hand Hole Cover (Standard)
4" x 6" Hand Hole Cover
4" x 6" Universal Hand Hole Cover, 8" Backer Bar 4" x 12" Universal Hand Hole Cover, 14" Backer Bar
Hand Hole Tether I.D. Tag
Non-Standard Cable Entry (Standard is 2¼" Round)
Cable Entry Grommet Ground Line Indicator
Pole Guard, 1-Piece, 20”, Installed at factory (Black or Bronze) Accessories3
Pole Guard, 1-Piece, 20” (Black or Bronze), Field Install
Weed Eater Cover - heavy Duty, 2-Piece, Urethane
Base Shroud 1-Piece
Base Shroud 2-Piece
Footnotes
Drawings available at
1Design criteria per AASHTO LTS-6-2013, with a minimum safety factor of 1.5 per ANSI C136.20-2012, 3 second gust wind speeds per ASCE 7-16, and velocity conversions per IBC
1609.3.1, 2018. Lighting installations for side and top mounting of luminaires with effective projected area (EPA) not to exceed maximum allowable loading of the specified pole in its installed geographic location. EPA ratings available up to 180 mph or for EPA ratings calculated per AASHTO LRFD or other, alternate methods, contact sales@alliancecompositesinc.com for more information.
2EPA ratings shown are for light pole with a standard 2½” x 5” Hand Hole. EPA ratings with a 4” x 6” or a 4” x 12” Hand Hole. Custom color poles (Non-standard) will have a single fastener Hand Hole Cover with a backer bar, matching the color of the pole.
3Longer lead times may apply, contact factory.
4Customer to provide drill patterns. These will be available on the provided, engineering drawing, prior to PO acceptance.
5Pole weights are approximate, +/- 10% of stated value. All products supported by best-in-class Engineering and Customer
All specifications are subject to change without notice. Please visit alliancecompositesinc.com for latest information. Consult GEOTEK with specific inquiries.
All rights reserved. No part of this document may be reproduced in any form without the prior written permission of GEOTEK.
Example: D6TS30F00N2G0001: Direct Bury, 6’ Burial Depth, Standard Duty, 30’, Natural Finish, with 2 3/8” Tenon in Gray.
Pole Options2
2½" x 5" Hand Hole Cover (Standard)
4" x 6" Hand Hole Cover
4" x 6" Universal Hand Hole Cover, 8" Backer Bar
4" x 12" Universal Hand Hole Cover, 14" Backer Bar
Hand Hole Tether I.D. Tag
Non-Standard Cable Entry (Standard is 2¼" Round)
Cable Entry Grommet Ground Line Indicator
Pole Guard, 1-Piece, 20”, Installed at factory (Black or Bronze) Accessories3
Pole Guard, 1-Piece, 20” (Black or Bronze), Field Install
Weed Eater Cover - heavy Duty, 2-Piece, Urethane
Base Shroud 1-Piece
Base Shroud 2-Piece
Footnotes
Drawings available at
1Design criteria per AASHTO LTS-6-2013, with a minimum safety factor of 1.5 per ANSI C136.20-2012, 3 second gust wind speeds per ASCE 7-16, and velocity conversions per IBC
1609.3.1, 2018. Lighting installations for side and top mounting of luminaires with effective projected area (EPA) not to exceed maximum allowable loading of the specified pole in its installed geographic location. EPA ratings available up to 180 mph or for EPA ratings calculated per AASHTO LRFD or other, alternate methods, contact sales@alliancecompositesinc.com for more information.
2EPA ratings shown are for light pole with a standard 2½” x 5” Hand Hole. EPA ratings with a 4” x 6” or a 4” x 12” Hand Hole. Custom color poles (Non-standard) will have a single fastener Hand Hole Cover with a backer bar, matching the color of the pole.
3Longer lead times may apply, contact factory.
4Customer to provide drill patterns. These will be available on the provided, engineering drawing, prior to PO acceptance.
5Pole weights are approximate, +/- 10% of stated value. All products supported by best-in-class Engineering and Customer
All specifications are subject to change without notice. Please visit alliancecompositesinc.com for latest information. Consult GEOTEK with specific inquiries.
All rights reserved. No part of this document may be reproduced in any form without the prior written permission of GEOTEK.
The Cirko Collection offers four distinct variations, thoughtfully designed for residential lighting applications. Each model features a sleek circular aluminum body accented with decorative spiral stripes, adding a modern touch to any setting. Choose from top-mounted or suspended Cirko models, or op for the Cirko Flex, which includes a flexible sleeve for versatile top or lateral mounting. Enhance the aesthetic with optional decorative brackets like the Lyre, Monolyre, or a customizable cage. The range supports configurations from 8 to 48 LEDs, delivering light outputs between1,000and13,800lumens,providingbothstyleandperformance.
The Cirko Collection offers four distinct variations, thoughtfully designed for residential lighting applications. Each model features a sleek circular aluminum body accented with decorative spiral stripes, adding a modern touch to any setting. Choose from top-mounted or suspended Cirko models, or o for the Cirko Flex, which includes a flexible sleeve for versatile top or lateral mounting. Enhance the aesthetic with optional decorative brackets like the Lyre, Monolyre, or a customizable cage. The range supports configurations from 8 to 48 LEDs, delivering light outputs between1,000and13,800lumens,providingbothstyleandperformance.
ORDERING INFORMATION
ORDERING INFORMATION
IDL
Corridor Disk
The IDL series LED Disk Light provides versatile lighting in 120V or 277V applications. Includes 0-10V Dimming capabilities for extra control with selectable color temperature. It’s small profile is an easy upgrade to your downlighting from the traditional surface mounts to a more modern looking, energy efficient solution.
The IDL series LED Disk Light provides versatile lighting in 120V or 277V applications. Includes 0-10V Dimming capabilities for extra control with selectable color temperature. It’s small profile is an easy upgrade to your downlighting from the traditional surface mounts to a more modern looking, energy efficient solution.
Finish: Natural / Antique Brass / White Materials: Travertine / Metal / Textured Glass
Item Weight: 11 lbs.
Number of Lights: 2
Suggested Bulb: B Torpedo Tip
Socket Type: E12
Watts per Socket/Item: 60/120
Voltage: 120
Dimmable: Yes
Cord: 1' Black/White
UL/cUL Listed
Certi ed for Damp Locations
The Beatrix Beige Bath Wall Sconce features a center column made of natural travertine that extends beyond each end of the wall-plate to hold globes made of textured art glass. The milky, mottled glass draws out the pale veins in the travertine, while the antique brass nish on the metal brings warmth to the xture. This wall sconce can be mounted horizontally or vertically, and the natural stone will vary from xture to xture.
Beatrix Beige Bath Wall Sconce
5800-0047
Bestseller
Overall: 22"h x 5"w x 5"d
Finish: Natural / Antique Brass / White Materials: Travertine / Metal / Textured Glass
Item Weight: 11 lbs.
Number of Lights: 2
Suggested Bulb: B Torpedo Tip
Socket Type: E12
Watts per Socket/Item: 60/120
Voltage: 120
Dimmable: Yes
Cord: 1' Black/White
UL/cUL Listed
Certi ed for Damp Locations
The Beatrix Beige Bath Wall Sconce features a center column made of natural travertine that extends beyond each end of the wall-plate to hold globes made of textured art glass. The milky, mottled glass draws out the pale veins in the travertine, while the antique brass nish on the metal brings warmth to the xture. This wall sconce can be mounted horizontally or vertically, and the natural stone will vary from xture to xture.
DIRECT WIRE SLIM-LINE PICTURE LIGHT

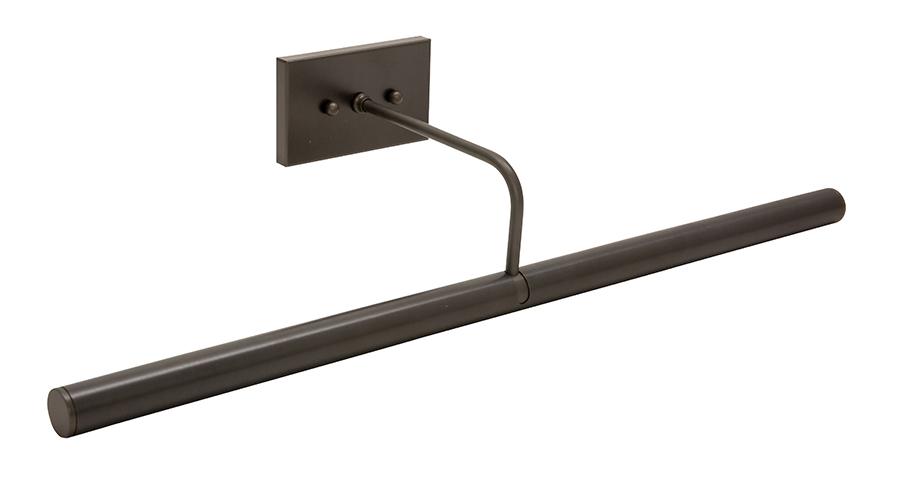

Direct Wire Slim-Line 24" Oil Rubbed Bronze Picture Light
SKU: DSL24-91
Finish Shown: Oil Rubbed Bronze
Other nishes available. Please call 800-428-5367 for assistance.
Dimensions: 4.75"H x 24"W x 7.5"D
Base/Backplate: 2.75"x 4.5"
Shade Size: 24"
Shade Material: Metal
Base Material: Metal
Voltage: 120
Number of Bulbs: 4
Bulb: 15W-T4 candelabra base
Type of Bulbs: Incandescent
Bulb Included: Yes
Read More SKU: DSL24-91
Price: $478.00
DIRECT WIRE SLIM-LINE PICTURE LIGHT
Direct Wire Slim-Line 24" Oil Rubbed Bronze Picture Light
SKU: DSL24-91
Finish Shown: Oil Rubbed Bronze
Other nishes available. Please call 800-428-5367 for assistance.

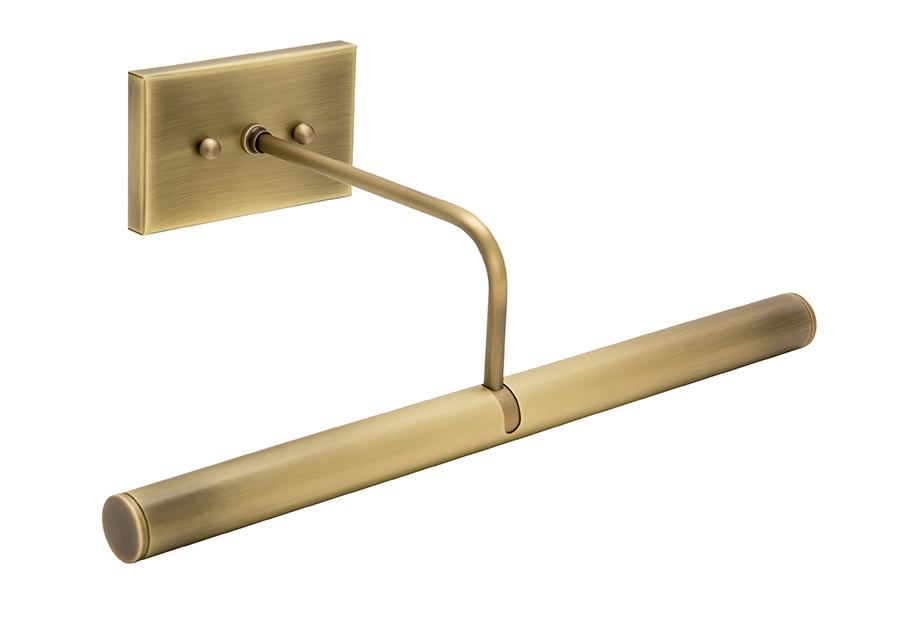

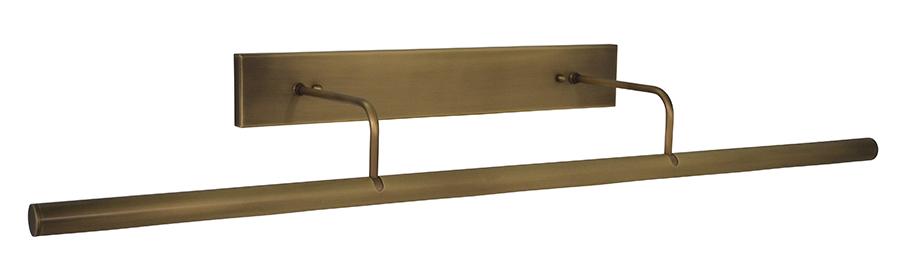

Direct Wire Slim-Line 14" Antique Brass Picture Light
SKU: DSL14-71
Finish Shown: Antique Brass
Other nishes available. Please call 800-428-5367 for assistance.
Dimensions: 4.75"H x 14"W x 7.5"D
Base/Backplate: 2.75"x 4.5"
Shade Size: 14"
Shade Material: Metal
Base Material: Metal
Voltage: 120
Number of Bulbs: 2
Bulb: 15W-T4 candelabra base
Type of Bulbs: Incandescent
Bulb Included: Yes
Read More SKU: DSL14-71
Price: $378.00
DIRECT WIRE SLIM-LINE PICTURE LIGHT
Direct Wire Slim-Line 14" Antique Brass Picture Light
SKU: DSL14-71
Finish Shown: Antique Brass
Other nishes available. Please call 800-428-5367 for assistance.
Dimensions: 4.75"H x 14"W x 7.5"D
Base/Backplate: 2.75"x 4.5"
Shade Size: 14"
Shade Material: Metal
Base Material: Metal
Voltage: 120
Number of Bulbs: 2
Bulb: 15W-T4 candelabra base
Type of Bulbs: Incandescent
Bulb Included: Yes
Read More SKU: DSL14-71
Price: $378.00
CUSTOM: SPS9037

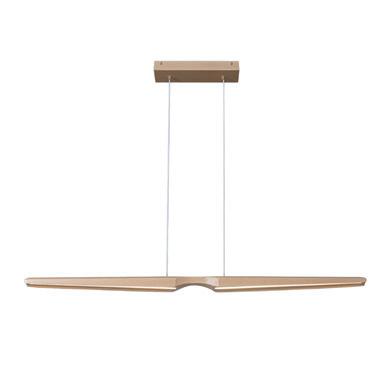

DAKOTA
LP21647-BW-UNV Beech Wood
LP21647-WT-UNV Walnut
SP ECIFICATIO N DETA IL S
Fixture Dimensions
Light Source
Wattage
Total Lumens
Delivered Lumens
Voltage
Color Temperature
CRI (Ra)
Optional Colour Temps
LED Rated Life
Dimming
CEC Title 24 JA8
Location
Wire Length
Wire Type
Minimum Hang Height
Illumination Direction
Sloped Ceiling Adaptable
Adjustable
Material
Paint Finish
Canopy Dimensions
L47-1/4” x W2-7/8” x H1-3/4”
The Dakota collection showcases a linear pendant design crafted from real carved wood, available in rich walnut or light beech wood stains. Ideal for dining rooms or kitchen islands. Dakota brings a warm, natural elegance that makes a stunning statement in any space.
• Integrated LED with 3000K Warm White Color Temperature
• Designed for dining room, kitchen, and beyond
• Modern, Contemporary Style with Decorative Details
• Installation hardware included
• Easy assembly instructions included in box
• Dimmable, see specs for detail
• Sloped ceiling adaptable, see specs for details
BW-1503lm; W T-1360lm
50 000 hours
3000K LED with DC Driver Yes, JA8-2022
Dry
2700K - 5000K Available, Minimum Order Quantities Apply
Threaded with 1/2” NPT. May be mounted into threaded hubs in junction boxes or mounting accessories. Heavy-duty composite stake included.
WIRING:
Pre-wired with a five-foot pigtail of 18/2 cable.
WARRANTY: 10-year warranty
Opt. 6” extended shroud 3W & 6W #490260
DIMENSIONS:
Opt. 6” extended shroud 8W, 12W & 16W #490261
Type:
Model:
The Bodacious uplight features an integrated LED source available in 3, 8, 6,12 or 16 watts. 2700K, 3000K and 5000K options. 30-, 45-, 65- and 100-degree beam spreads.
SPECIFICATION SHEET

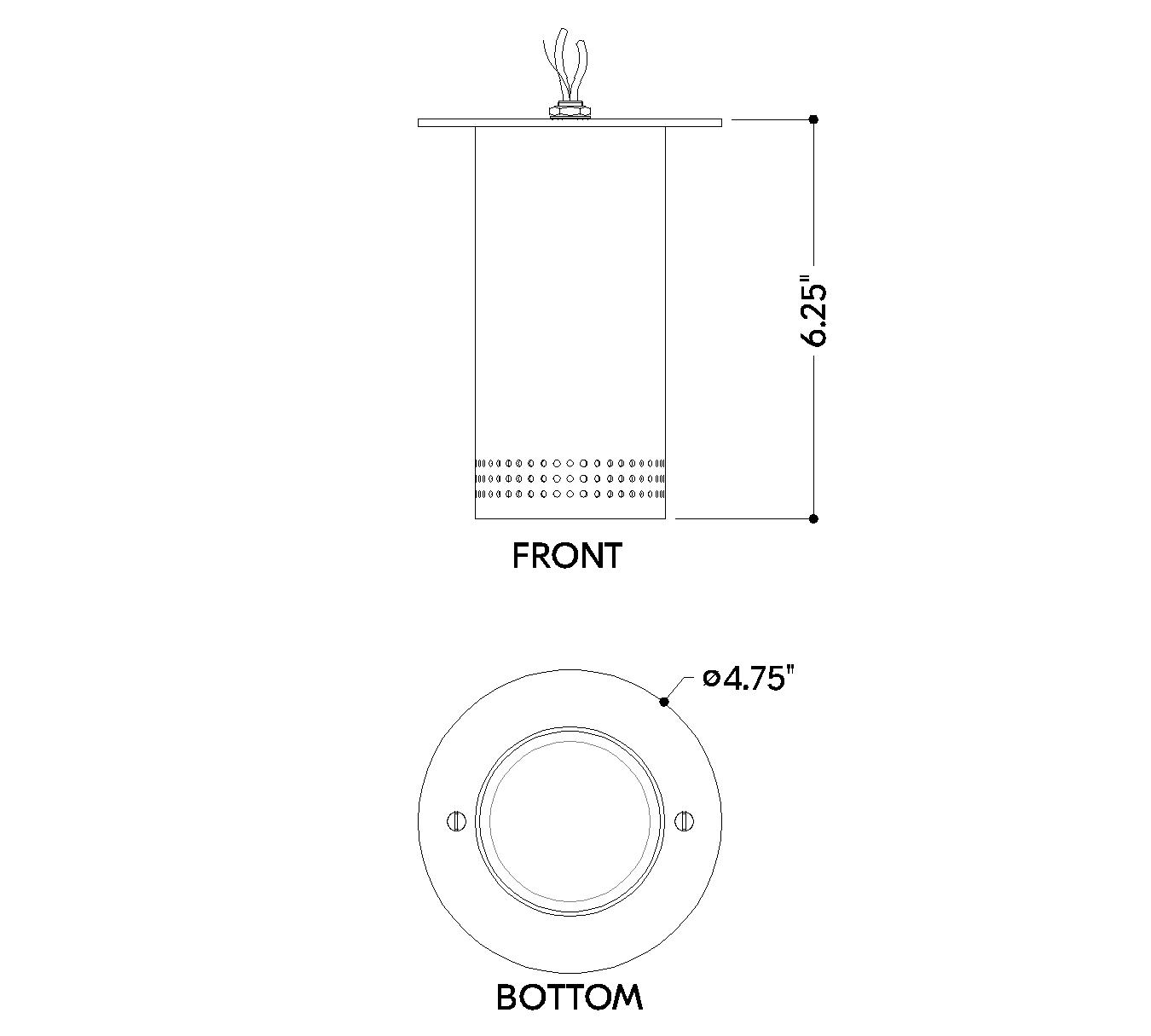

BODACIOUS Integrated LED Uplight
SPECIFICATIONS
VOLTAGE:
12V AC/DC
HOUSING:
Cast brass with removable 3” shroud. Optional 6” shroud available.
Threaded with 1/2” NPT. May be mounted into threaded hubs in junction boxes or mounting accessories. Heavy-duty composite stake included.
WIRING:
Pre-wired with a five-foot pigtail of 18/2 cable.
WARRANTY: 10-year warranty
Opt. 6” extended shroud 3W & 6W #490260
DIMENSIONS:
Opt. 6” extended shroud 8W, 12W & 16W #490261
Type:
Model:
The Bodacious uplight features an integrated LED source available in 3, 8, 6,12 or 16 watts. 2700K, 3000K and 5000K options. 30-, 45-, 65- and 100-degree beam spreads.
600W, 25A per circuit (2). Taps for 12V, 14V, 16V, 18V, 20V, 22V. Two common taps.
INPUT:
120V, 60Hz, 5A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 2 25A breakers, heavy-duty grounded 5-foot power cord. Suitable for interior or exterior use.
AGENCY LISTINGS:
ETL listed. Conforms to ANSI/UL 2101.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490543-DT200LT
Type:
Model:
If this unit is being mounted within 25 feet of a panel box with primary breakers, it is recommended to have a designated circuit with a high in-rush current, magnetic load type breaker which is compatible with the existing brand of panel.
SPECIFICATION SHEET
600W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490543
SPECIFICATIONS
OUTPUT:
600W, 25A per circuit (2). Taps for 12V, 14V, 16V, 18V, 20V, 22V. Two common taps.
INPUT:
120V, 60Hz, 5A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 2 25A breakers, heavy-duty grounded 5-foot power cord.
Suitable for interior or exterior use.
AGENCY LISTINGS:
ETL listed. Conforms to ANSI/UL 2101.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490543-DT200LT
Type:
Model: _____________________________
If this unit is being mounted within 25 feet of a panel box with primary breakers, it is recommended to have a designated circuit with a high in-rush current, magnetic load type breaker which is compatible with the existing brand of panel.
600W, 25A per circuit (2). Taps for 12V, 14V, 16V, 18V, 20V, 22V. Two common taps.
INPUT:
120V, 60Hz, 5A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 2 25A breakers, heavy-duty grounded 5-foot power cord.
Suitable for interior or exterior use.
AGENCY LISTINGS:
ETL listed. Conforms to ANSI/UL 2101.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490543-DT200LT
Type:
Model: _____________________________
If this unit is being mounted within 25 feet of a panel box with primary breakers, it is recommended to have a designated circuit with a high in-rush current, magnetic load type breaker which is compatible with the existing brand of panel.
SPECIFICATION SHEET
600W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490543
SPECIFICATIONS
OUTPUT:
600W, 25A per circuit (2). Taps for 12V, 14V, 16V, 18V, 20V, 22V. Two common taps.
INPUT:
120V, 60Hz, 5A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 2 25A breakers, heavy-duty grounded 5-foot power cord.
Suitable for interior or exterior use.
AGENCY LISTINGS:
ETL listed. Conforms to ANSI/UL 2101.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490543-DT200LT
Type:
Model: _____________________________
If this unit is being mounted within 25 feet of a panel box with primary breakers, it is recommended to have a designated circuit with a high in-rush current, magnetic load type breaker which is compatible with the existing brand of panel.
FOCUS ACCESSORIES
(Bron ze Composite)
HW126350120LED
HW126350277LED LED Driver 277v
HW128700LED LED Driver 120v
HW127575W Hardwire Electronic Transformer 120v
FOCUS ACCESSORIES
(B ronze Composite)
HW126350120LED LED Driver 120v
HW126350240LED LED Driver 240v
HW126350277LED LED Driver 277v
HW128700LED LED Driver 120v
HW1260LED LED Transformer 120v HW127575W Hardwire Electronic Transformer 120v
FOCUS ACCESSORIES
(Bron ze Composite)
HW126350120LED
HW126350277LED LED Driver 277v
HW128700LED LED Driver 120v
HW127575W Hardwire Electronic Transformer 120v
FOCUS ACCESSORIES
HW126350240LED LED Driver 240v HW126350277LED LED Driver 277v HW128700LED LED Driver 120v HW1260LED LED Transformer 120v HW127575W Hardwire Electronic Transformer 120v MATERIAL (standard material listed)
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS: Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS: Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
490003
490003-BLK
490003-FS (floating socket)
490003-FS-BLK (floating socket)
Composite stake (incl.) 490034
M3 Trident Heavy-Duty 3-Prong Stake 490036
PM Round pier mount 490057
MR Round tapered 3-hole surface mount 490048 MP PVC/Brass post stake 490037 GM Brass gutter mount 490047
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION
SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
490003
490003-BLK
490003-FS (floating socket)
490003-FS-BLK (floating socket)
Composite stake (incl.) 490034
M3 Trident Heavy-Duty 3-Prong Stake 490036
PM Round pier mount 490057
MR Round tapered 3-hole surface mount 490048 MP PVC/Brass post stake 490037 GM Brass gutter mount 490047

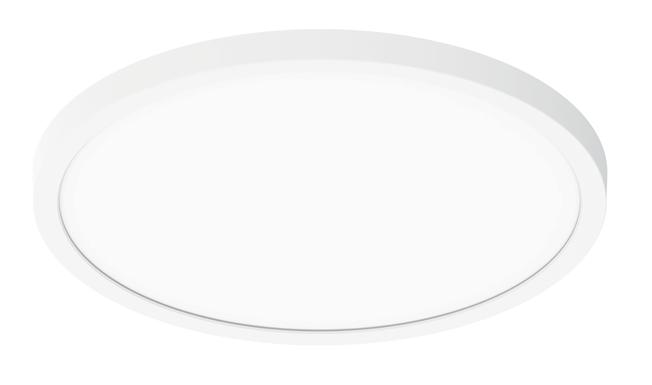

TYPE UA SPEC UPC TAMPA
NELO

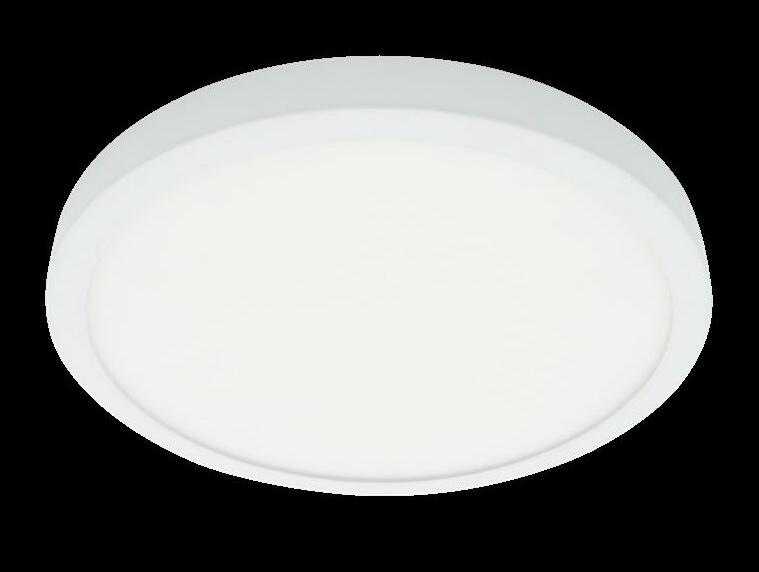

ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Dead front (non-metallic) polycarbonate luminaire with integral driver and color temperature switch. Gasket included for airtight and wet location listing without additional caulking.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.
Five position sliding switch 27K / 30K / 35K / 40K / 50K
Diameter: Aperture:
NELO-4RTW 5-1/2" 4-1/2"
NELO-6RTW 7" 6"
NELO-8RTW 8-7/8" 7-3/4"
NELO-12RTW 12-1/4 11"
NSEM-6WDW Surface Mount Enclosure with Emergency Driver for 6" only

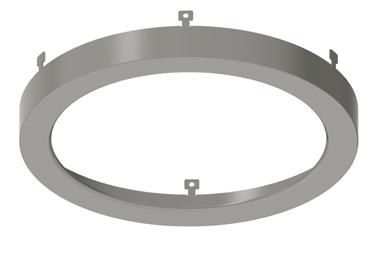

Decorative Ring
Optional Accessories
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO
NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"
UPC TAMPA TYPE UA
NELO
ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Dead front (non-metallic) polycarbonate luminaire with integral driver and color temperature switch. Gasket included for airtight and wet location listing without additional caulking.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.
Five position sliding switch 27K / 30K / 35K / 40K / 50K
Diameter: Aperture:
NELO-4RTW 5-1/2" 4-1/2"
NELO-6RTW 7" 6"
NELO-8RTW 8-7/8" 7-3/4"
NELO-12RTW 12-1/4 11"
NSEM-6WDW
Surface Mount Enclosure with Emergency Driver for 6" only
Decorative Ring
Optional Accessories
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO
NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"
TYPE UC SPEC UPC TAMPA
NELO
ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Dead front (non-metallic) polycarbonate luminaire with integral driver and color temperature switch. Gasket included for airtight and wet location listing without additional caulking.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.
Five position sliding switch 27K / 30K / 35K / 40K / 50K
Diameter: Aperture:
NELO-4RTW 5-1/2" 4-1/2"
NELO-6RTW 7" 6"
NELO-8RTW 8-7/8" 7-3/4"
NELO-12RTW 12-1/4 11"
NSEM-6WDW Surface Mount Enclosure with Emergency Driver for 6" only
Decorative Ring
Optional Accessories
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO
NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"
UPC TAMPA TYPE UC
NELO
ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Dead front (non-metallic) polycarbonate luminaire with integral driver and color temperature switch. Gasket included for airtight and wet location listing without additional caulking.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.

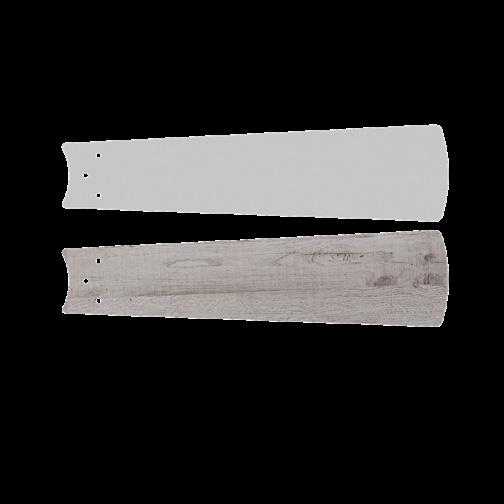

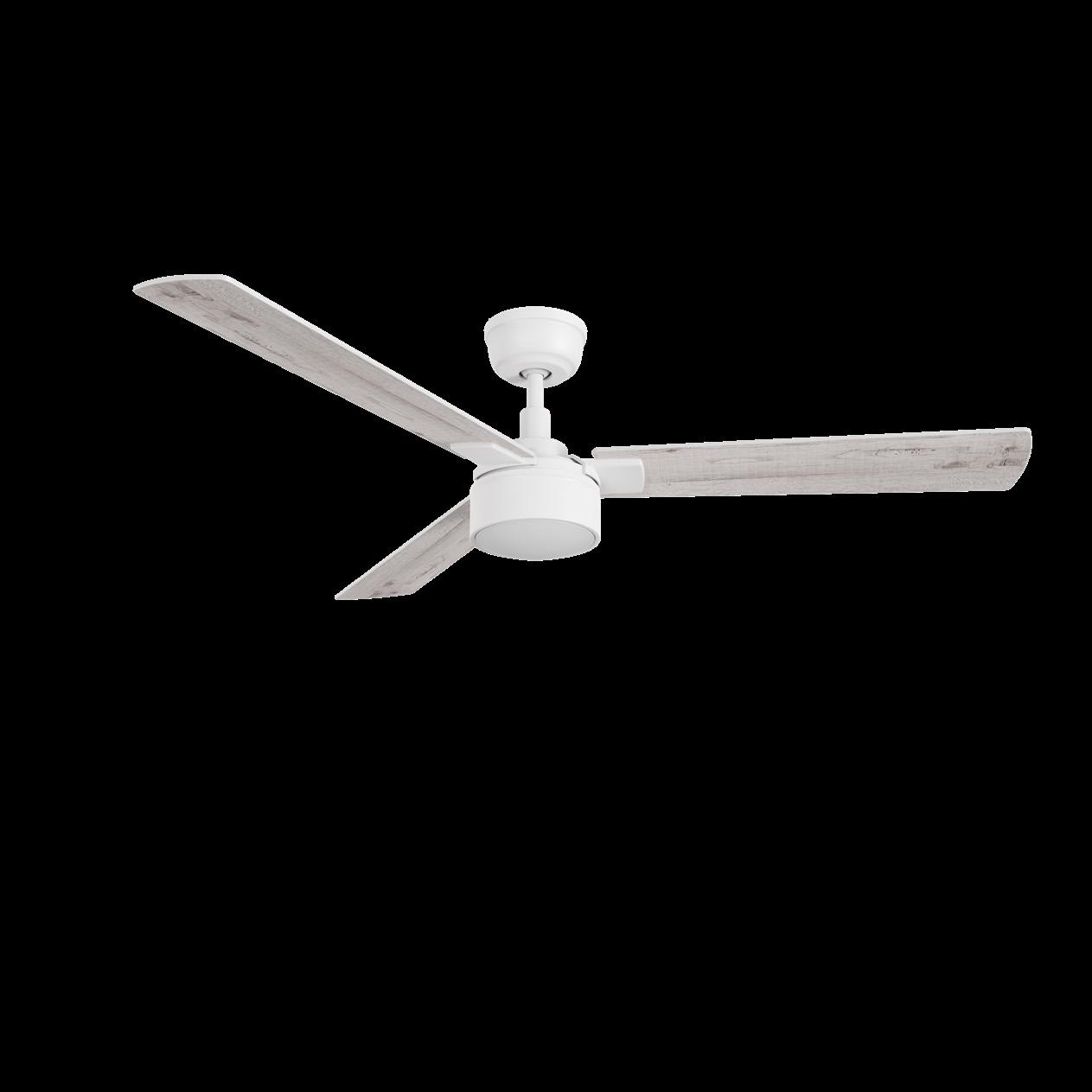

-Simple and intuitive design with standard layout.
-Multi-functional fan speed control with fan forward/reverse, light brightness adjustment, and fan/light on/off.
-Hardwired Wall Control (Standard)
•Single Live Wire No Neutral Needed
• Push Button or Knob design available
-Remote (Optional*)
-Pull Chain (Optional*)
*Optional controls at an additional cost
*Data subject to change without notice
Pendants
C60601BKSM
Speci cations
Description
Delcia
The Delcia is a graceful and sophisticated lighting family. Available in Aged Gold Brass xture with Clear glass or Black xture with Smoke glass. The glass is a half globe and is open on one side which creates unconventional visual interest. Excellent for any application.
*LIGHTBULBS NOT INCLUDED
matteolighting.com
Canada: 100-1873 Forge Place Abbotsford, BC V2T 0L2 USA: 6875 Speedway Blvd. Ste 106 Las Vegas, NV 89115 Project:
Pendants
C60601BKSM
Description
Delcia
The Delcia is a graceful and sophisticated lighting family. Available in Aged Gold Brass xture with Clear glass or Black xture with Smoke glass. The glass is a half globe and is open on one side which creates unconventional visual interest. Excellent for any application.
*LIGHTBULBS NOT INCLUDED
Speci cations Notes
Pendants
C60601BKSM
Speci cations
Description
Delcia
The Delcia is a graceful and sophisticated lighting family. Available in Aged Gold Brass xture with Clear glass or Black xture with Smoke glass. The glass is a half globe and is open on one side which creates unconventional visual interest. Excellent for any application.
*LIGHTBULBS NOT INCLUDED

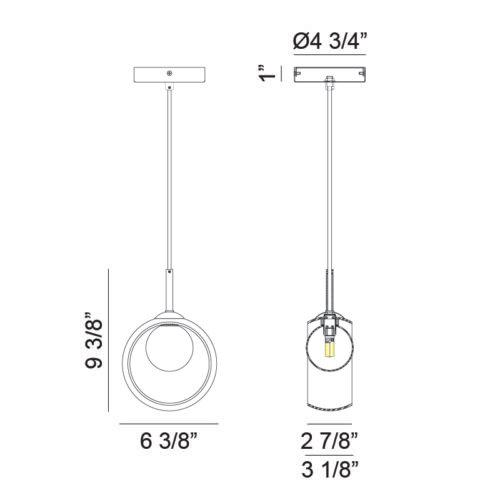

C60601BKSM
Dimensions: 6 3/8"L x 3 1/8"W x 9 3/8"H
Lamping: 1 x 10W LED G9 120V (Bulbs not included)
Finish: Black
Shade: Smoke Glass
Cord Color: Black
Canopy: Ø4 3/4" x 1"H
Canopy Color: Black
Wire Length: 120" Max.
Location: Dry
Delcia The Delcia is a graceful and sophisticated lighting family. Available in Aged Gold Brass xture with Clear glass or Black xture with Smoke glass. The glass is a half globe and is open on one side which creates unconventional visual interest. Excellent for any application. *LIGHTBULBS NOT INCLUDED
Similar Products
C60601AGCL
C60611BKSM
C60611AGCL
C60603BKSM
C60603AGCL
C60607BKSM
Type:

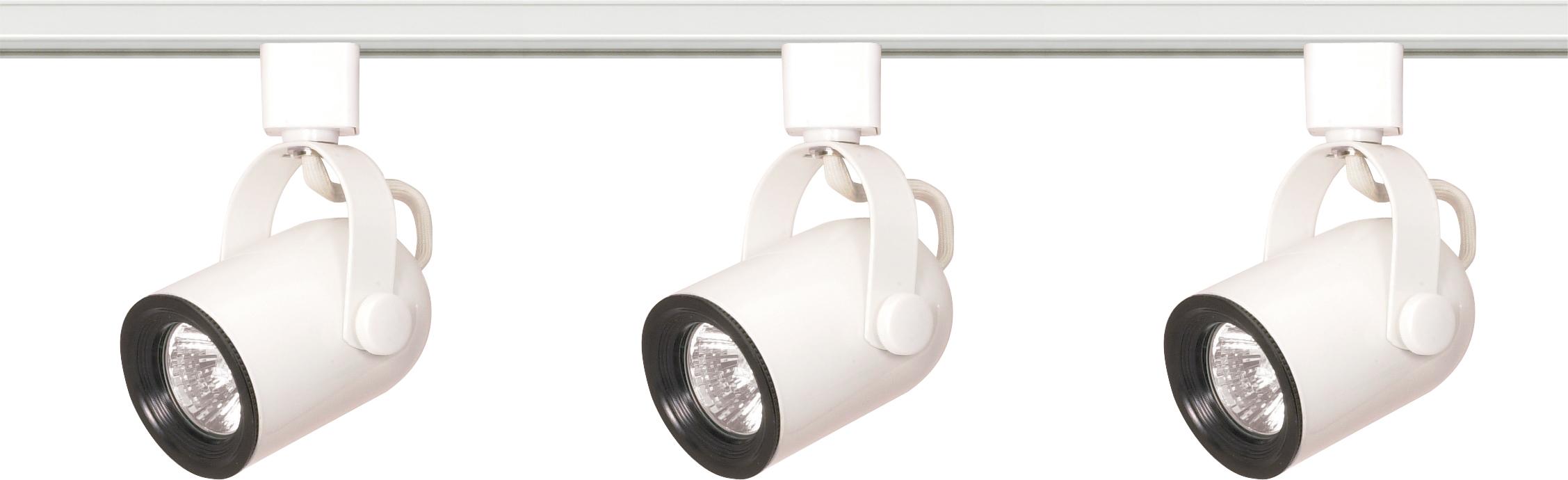

- 3 Light; MR16; Round Back Track Kit; 4 foot Track; Line Voltage; White; H-Style

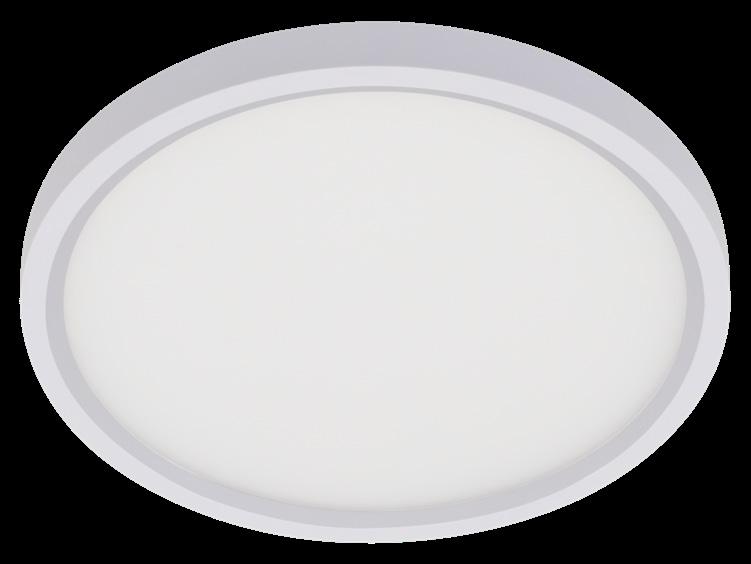

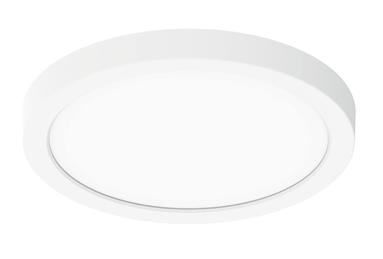

RDL
LED Round Low Profile Flush
RDL series LED Disk Light provides versatile lighting on standard line voltage, yet produces the high energy savings you desire from LED fixtures. The RDL series allows for easy upgrade to your downlighting from the traditional recessed cans to a more modern looking, energy efficient solution. This Disk Light can be mounted on to a junction box or retrofitted into an existing recessed can with the optional hardware mounting adapter (not included).
RDL
5-5” 7-7” 9-9” 12-12” 15-15”
5” Housing 10- 10W, 750 Lumens
12- 12W, 875 Lumens
7” Housing
15- 15W, 1050 Lumens
18- 18W, 1300 Lumens
9” Housing
18- 18W, 1300 Lumens
12” Housing
22- 22W, 1540 Lumens
15” Housing 30- 30W, 2100 Lumens
120D- 120V Dimming, 10-100%
277- 277V Triac Dimming
930- 3000K, 90CRI
940- 4000K, 90CRI
MCT- 2700K, 3000K, 3500K, 4000K, 5000K CCT Selectable, 90CRI BL- Black BN- Brushed Nickel WH- White ORB- Oil Rubbed Bronze
OPTIONS / ACCESSORIES
Options
EM2-RDL-7-WH 7” Emergency Battery
EMBX-RDL-7-WH 7” Blank Box
EM2-RDL-12-WH 12” Emergency Battery
EMBX-RDL-12-WH 12” Blank Box
EMTB Fixture w/ Emergency Test Button (Compatible only with EML-JB-AC2 & EM2-RDL / Available in case of 12)
ACCESSORIES
BULK- Bulk (Case of 12) BLANK- Individual Packaging
RDL series LED Disk Light provides versatile lighting on standard line voltage, yet produces the high energy savings you desire from LED fixtures. The RDL series allows for easy upgrade to your downlighting from the traditional recessed cans to a more modern looking, energy efficient solution. This Disk Light can be mounted on to a junction box or retrofitted into an existing recessed can with the optional hardware mounting adapter (not included).
RDL
5-5” 7-7” 9-9”
12” 15-15”
5” Housing 10- 10W, 750 Lumens
12- 12W, 875 Lumens
7” Housing
15- 15W, 1050 Lumens
18- 18W, 1300 Lumens
9” Housing
18- 18W, 1300 Lumens
12” Housing
22- 22W, 1540 Lumens
15” Housing 30- 30W, 2100 Lumens
120D- 120V Dimming, 10-100%
277- 277V Triac Dimming
930- 3000K, 90CRI
940- 4000K, 90CRI
MCT- 2700K, 3000K, 3500K, 4000K, 5000K CCT Selectable, 90CRI BL- Black BN- Brushed Nickel WH- White ORB- Oil Rubbed Bronze
OPTIONS / ACCESSORIES
Options
EM2-RDL-7-WH 7” Emergency Battery
EMBX-RDL-7-WH 7” Blank Box
EM2-RDL-12-WH 12” Emergency Battery
EMBX-RDL-12-WH 12” Blank Box
EMTB Fixture w/ Emergency Test Button (Compatible only with EML-JB-AC2 & EM2-RDL / Available in case of 12)
ACCESSORIES
BULK- Bulk (Case of 12) BLANK- Individual Packaging

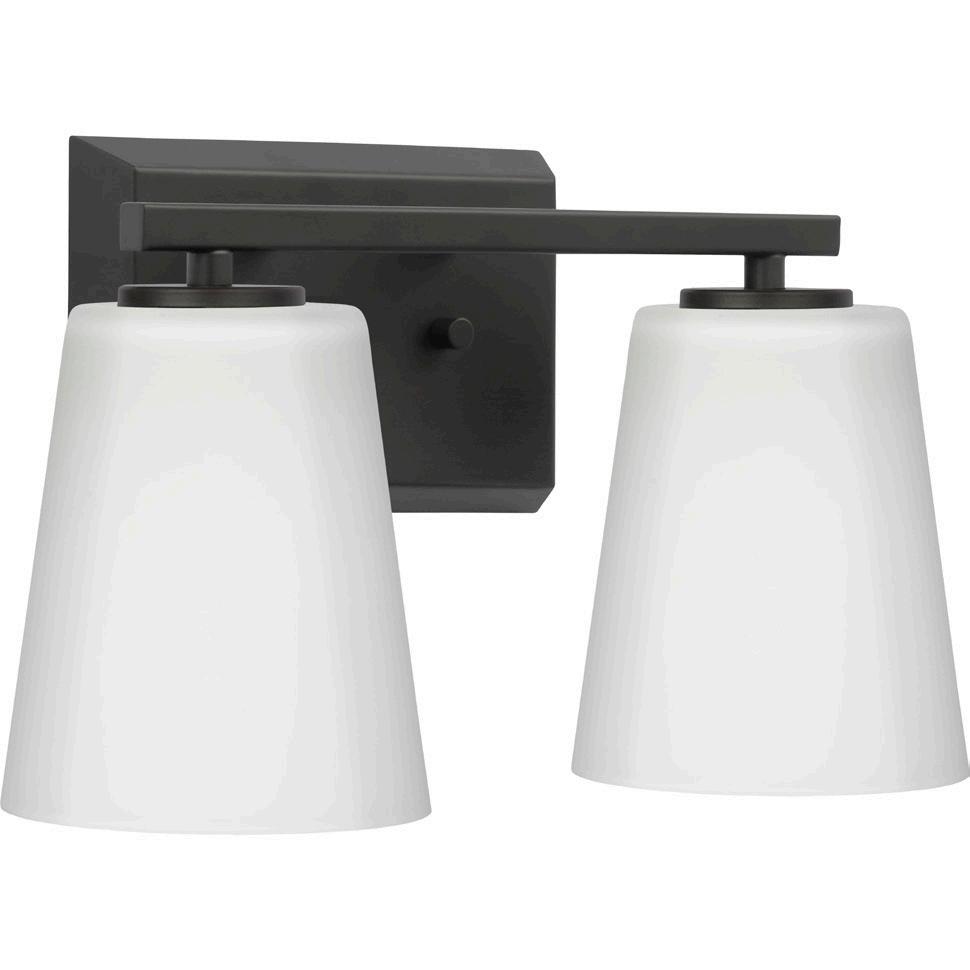

Vertex Collection Two-Light Matte Black Etched White Glass Contemporary Bath Light
Category: Bath & Vanity
Finish: Matte Black (Painted)
Construction: Steel Construction
Glass/Shade: Etched White Glass Cone
Mounting plate for outlet box included
Fixture can be installed with glass facing up or down
Canopy covers a standard 4” recessed outlet box: 7.06” W., 4.75” ht., 0.87” depth
Width: 12-7/8 in Extends: 6-1/4 in Height: 7.5 in H/CTR: 5-1/8 in (glass facing up)
Etched White Glass Cone Width: 4-3/4 in Height: 5-5/8 in
(E26) Socket Lamp Type A19
Incandescent: 60-watt MAX per socket
LED: 12.5-watt MAX per socket
Fully dimmable with dimmable bulbs
Project: Fixture Type: Location: Contact:
P300462-31M
Vertex Collection Two-Light Matte Black Etched White Glass Contemporary Bath Light
Category: Bath & Vanity
Finish: Matte Black (Painted)
Construction: Steel Construction
Glass/Shade: Etched White Glass Cone
Canopy covers a standard 4” recessed outlet box: 7.06” W., 4.75” ht., 0.87” depth
Width: 12-7/8 in
Extends: 6-1/4 in Height: 7.5 in
H/CTR: 5-1/8 in (glass facing up)
Etched White Glass Cone Width: 4-3/4 in Height: 5-5/8 in
Incandescent: 60-watt MAX per socket LED: 12.5-watt MAX per socket
with dimmable bulbs

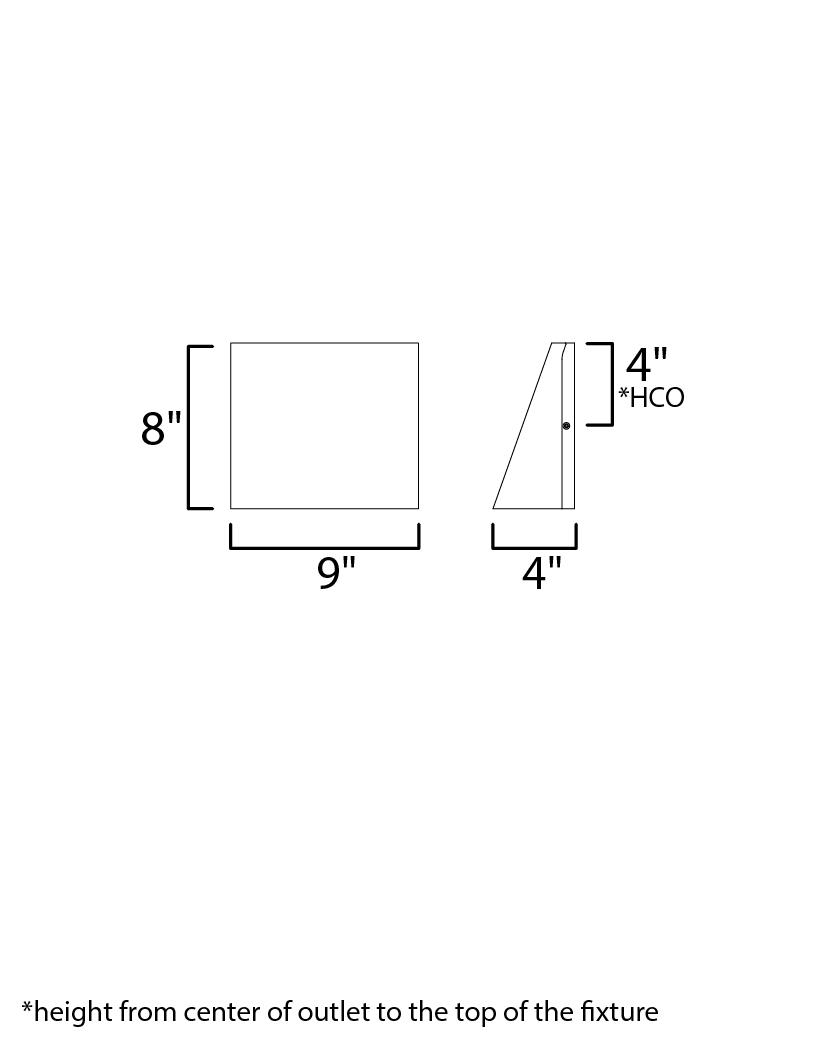

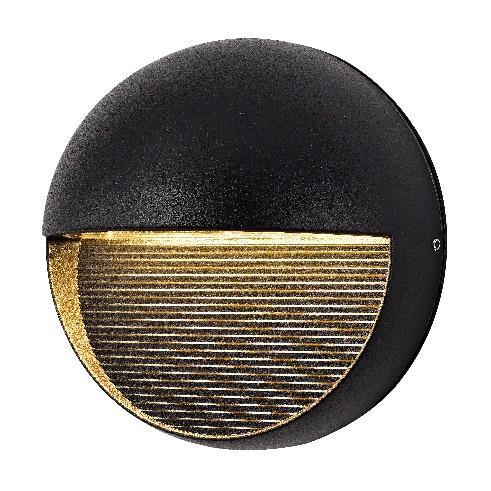

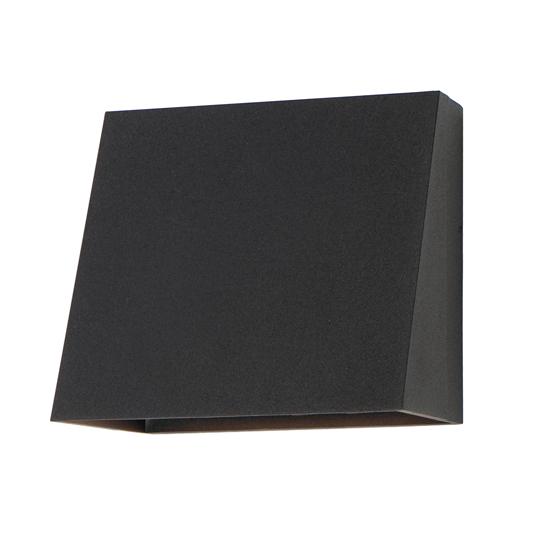

3-4079D
Wall Mount, Outdoor
Features
Housing
Die-cast Aluminum with Powder Coated Finish
Finish Options: -05 Black, -30 Oil Rubbed Bronze, -08 Gray Good for Wet Location Applications
Optical Shade: Frosted Glass
Electrical 120V -277
High Power Factor, Low THD
Lamp
Integrated LED Module, Color Temperature Option 3000K or 4000K
Certification
ETL/cETL Listed, Suitable for Wet Locations, CEC Listed (JA8)
Warranty
5 Years Limited Warranty on Driver and LED
LED Type
3-4079D
Wall Mount, Outdoor
Features
Housing
Die-cast Aluminum with Powder Coated Finish
Finish Options: -05 Black, -30 Oil Rubbed Bronze, -08 Gray Good for Wet Location Applications
Optical Shade: Frosted Glass
Electrical
120V -277 High Power Factor, Low THD
Lamp
Integrated LED Module, Color Temperature Option 3000K or 4000K
Certification
ETL/cETL Listed, Suitable for Wet Locations, CEC Listed (JA8)
Warranty
5 Years Limited Warranty on Driver and LED
LED Type
LTR-P Professional Series
3W, 12VDC and 24VDC
LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Includes Sure-Tite connectors
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
SPECIFICATIONS
•12V/24V
• 3 watts per foot
•90+ CRI
CERTIFICATION
•ETL (12V) / UL (24V)
• Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
• Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space
WARRANTY
•5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
LTR-P Professional Series
3W, 12VDC and 24VDC
LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Includes Sure-Tite connectors
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
SPECIFICATIONS
•12V/24V
• 3 watts per foot
•90+ CRI
CERTIFICATION
•ETL (12V) / UL (24V)
• Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
• Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space
WARRANTY
•5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
RECOMMENDED DRIVERS
LD-XD-UNV LineDrive Electronic Multi-Dimmable Power Supply, 12VDC or 24VDC 20W, 40W, 60W, 96W, 180W, 200W, 300W
LD-E-UNV LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 200W, 300W
LD-MD-UNV LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 150W, 200W, 300W View Spec Sheet
LD-EDM LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC 60W
LTP Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
PSD Electronic Dimmable Power Supply, 12VDC or 24VDC 15W, 24W, 60W, 90W
DIMENSION
16’-4” (5M reel) 100’ (30M reel)
(8mm)
.039” (1mm) Cuttable every 2” (51mm)
CONNECTORS
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
RECOMMENDED DRIVERS
LD-XD-UNV LineDrive Electronic Multi-Dimmable Power Supply, 12VDC or 24VDC 20W, 40W, 60W, 96W, 180W, 200W, 300W
LD-E-UNV LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 200W, 300W
LD-MD-UNV LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 150W, 200W, 300W View Spec Sheet
LD-EDM LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC 60W
LTP Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
PSD Electronic Dimmable Power Supply, 12VDC or 24VDC 15W, 24W, 60W, 90W
DIMENSION
16’-4” (5M reel) 100’ (30M reel)
(8mm)
.039” (1mm) Cuttable every 2” (51mm)
CONNECTORS
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
LED-CHL
LED-CHL-6
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL N/A
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole N/A
LED-CHL-MC (2) Additional mounting clips for LED-CHL
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
LED-CHL
LED-CHL-6
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole. N/A
LED-CHL-MC (2) Additional mounting clips for LED-CHL
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'
3-Step MacAdam’s ellipse, single binning Suitable for Installation in the Storage Area of a Clothes Closet K-CR-1275-24 LED tape Ref. K-CR-1275-24
TECHNICAL SPECIFICATIONS
IP protection rating 2020 CRI 9595
LxBy L80B50L80B50
Lifetime 60000h60000h
Working temperature -22°F - 140°F -22°F - 140°F
Input voltage 24 V DC24 V DC
Power consumption 4.4W/ft4.4W/ft
Beam angle 120°120°
MacAdam’s ellipse 3SDCM3SDCM
Number of LEDs per 1 ft 3636
Number of LEDs per cut section 6pcs6pcs
Energy consumption 15 kWh/1000h 15
Does not contain mercury and leadyesyes
Closet Rated yesyes
Dimmable yesyes
No UV IR radiation yesyes
Warranty [months] 8484
K-CR22-1275-24
K-CR25-1275-24
lm/WK-CR30-1275-24 K-CR30-1275-24
K-CR50-1275-24
LTR-P Professional Series
4.5W, 24VDC LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 20’
• Includes Sure-Tite connectors
SPECIFICATIONS
ELECTRICAL
• 24V
• 4.5 watts per foot OPTICS
• 90+ CRI
• -4°F to 122°F
• For
Max5 Series
Can be used with all static white LEDs
96W, 1-Channel, Class 2 / 288W, 3-Channel, Class 2 / 300W, 1-Channel, Class 1 / 5-Way Universal Dimming / 24V LED Driver / NEMA 3R Wet Location Rating
Dimensions
Width 8.1" (206mm) Overall
(252mm)
5.6" (142mm)
4.3" (110mm) Depth 1.7" (43mm) MODEL
(193mm)
(163mm)
1.9" (48.3mm)
ULTRA
Can be used with all static white LEDs
Constant Voltage LED Drivers 3-in-1 Universal Dimming 30W P/N:ULTRA-30-24V, 60W P/N:ULTRA-60-24V, 96W P/N:ULTRA-96-24V
Kelvin temperature (color) ±100K. 16’-4” and 100’ reel includes 48” lead affixed to tape. 16’-4” reel includes (3) ESTW-60 Sure-Tite connectors. 100’ reel includes (10) ESTW-60 Sure-Tite connectors
COMPATIBLE CONTROLLERS
SWD-40W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 40W, 12VDC
SWD-60W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 12VDC
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
CM-RF-UNV-5CH Universal 1-5 Channel Control Module
PSD Electronic Dimmable Power Supply, 12VDC/24VDC 15W, 24W, 60W, 90W
NOTE: Please see our website for updated power supply specifications and information.
Can be used with all static white LEDs We reserve the right to change and modify our products.
40W, Class 2 / 60W, Class 2 / 90W, Class 2 / 120W, Class 1 / 24V LED Drivers / 120-277 VAC / IP67 Outdoor Rating
(53mm) (150mm)
(35mm)
(63mm) (171mm)
(37.5mm)
(63mm) (191mm)
(37.5m)
PWM dimming
40 - 40 W
- 60 W
W
- 120 W
- 24VDC
Can be used with all static white LEDs, color changing LEDs (Including RGB, RGBW, and tunable white). Compatible with all KLUS controller options including DMX.
30W, Class 2 / 60W, Class 2 / 96W, Class 2 / Constant Voltage LED Drivers Non-Dimming 24V LED Drivers, 120277VAC IP66 Outdoor Rating
12.10" (307.34mm) 2.36" (59.94mm) 1.40" (35.6mm)
Dimming Styles: None: Non-dimming driver
5/19/2026
- 30 W
LTR-P Professional Series ®
4.5W, 24VDC LED Tape Specification Sheet
LED-CHL
LED-CHL-6
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL N/A
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole. N/A
LED-CHL-MC (2) Additional mounting clips for LED-CHL
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'
Shown in Dark Oxide (black) painted finish, with opal acrylic numbers.
Signage with Braille is included, customized for your project.
Other finishes and fonts are available.
Dimensions 3” wide x 6.25” tall x 1” extension
Lamping 120v G9 socket for 4w LED bulb (not included)
Certification UL or ETL listed. Complies with ADA Standards for Accessible Design.
Mounting 2” x 3” rectangle junction box
Numbers Up to 4 digits
Font Source Sans Pro Bold font is used on the numbers
Lead Time 4 to 5 months
Tearsheet date Jun 18, 2025
NIO-4RNB
4" Iolite Round Bullnose
Source: 13W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
4" Iolite Round Bullnose - Dedicated Housing Required Color
NIO-4RNB50X = 5000K * NIO-4RNBCDX = Comfort Dim † BB = Black BZ = Bronze MPW
NIO-4RNB27 X = 2700K
NIO-4RNB30X = 3000K
NIO-4RNB35 X = 3500K
NIO-4RNB40X = 4000K
NIO-4RNB50X = 5000K
NIO-4RNBCDX = Comfort Dim †
5000K LED modules in 800lm are while supplies last
PRODUCT IMAGES & DIMENSIONS 4-7/8" 1-5/8"
NIO-4RNB Round Bullnose Non-Adjustable
Compatible Housings
† Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-48 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
NIO-4RNB
4" Iolite Round Bullnose
Source: 13W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-48 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
• Wattage selectable 35/45/55W
• Color Selectable 35/40/50K
• O ptional battery backup
Ideal Applications
• Co mmercial settings
• St airways
• Bi-level dimming microwave motion sensor
• S urface or pendant mounting
• Industrial settings
• Warehouses
UPC TAMPA TYPE
Wraparound with Selectable Lumens & CCT
Source: 16W to 65W LED 2000lm to 8100lm
PRODUCT DESCRIPTION
Wraparound luminaires includes an integral CCT switch to change the color temperature at any time! Surface mounted, it’s ideal for commercial, residential, industrial, and retail applications, such as stairwells, hallways, garages, schools, offices, and more. Easy to install and great for replacing outdated fluorescents with an energy efficient, cost saving alternative. The luminaire’s lens is designed to uniformly spread and soften the appearance of the light while maximizing its distribution and output. Each luminaire includes two switches; Selectable Lumens easily allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance so it is perfectly customized to your needs.
FEATURES
cULus Listed
Selectable Lumen switch changes lumen output and wattage
Selectable CCT switch changes the color temperature from 3000K / 3500K / 4000K 120-277V input; 0-10V dimming
DLC Listed
Optional emergency and/or motion sensor for 4' wraparound only
SPECIFICATION
Construction: Steel stamped body. Finished in white powder coat. Top, end and cap knockouts.
Switches: Each luminaire includes two switches on the top of the driver enclosure. Selectable Lumen switch changes the lumen output and wattage. Selectable CCT switch changes the color temperature.
MOUNTING
2' Wrap: Luminaires can be surface mounted only.
4' Wrap: Luminaires can be surface mounted, wall mounted or suspended with pendant kit (ordered separately: NLWPSWA-PK).
ELECTRICAL
Input Voltage: 120-277VAC
Lumens / Wattage: See chart below
Color Temperature: Selectable CCT (3000K / 3500K / 4000K); Preset to 3000K
Color Rendering Index: 80+ CRI
Beam Spread: 100° Wide Flood
Operating Temperature: 0˚C to 45˚C
Lifetime: 60,000 hours @ L70
Dimming: 0-10V
OPTIONAL ACCESSORY
NLWPSWA-PK : Pendant Kit for 4' only (canopy, 8' aircraft cable and hooks)
Optional motion sensor (4' only): Microwave motion sensor can detect motion up to 17' away and 120˚ under the luminaire. All MS are preset to dim from 100% to 50% after 1 minute, then turn off after another minute without detected motion. The light sensor is enabled to keep fixture inactive when detecting light levels of 50 Lux or higher for daylight savings. Dip switches can be used to change the motion sensor settings. After each power cycle, the fixture will perform a start-up cycle and resume normal operation. Note: 0-10V dimmer cannot be used with MS and EMMS configurations.
Emergency (4' only): Luminaire can be specified with an emergency battery with integral test switch Battery operates luminaire at 8W for 90-minute emergency operation on fully charged battery. Battery may take up to 24 hours to fully charge.
LABELS AND LISTINGS
DLC Listed (Direct Linear, Stairwell and Passageway)
NLWPSW-2L334W = DLC V5.1
· NLWPSW-4L334W = DLC V6.0
cULus Listed for Damp Locations
5-Year Limited Warranty
FCC Compliant
Suitable for use in closets when installed in accordance to NEC Section
Field Installed Accessories: YTGHANGER - 10’ adjustable cable hang kit
Listings
Five year limited warranty against defects
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
BLANK
ED96/WLINEAR/3CCT/3WO/UNV/D/HO+MS
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
PHOTOMETRIC
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM
3500K - 135 4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K - 140
3500K - 135 4000K - 136 5000K - 137
3500K - 4794
4000K - 4828
5000K - 4862
3500K - 5244
4000K - 5282
5000K - 5320
3500K - 6075
4000K - 6120
5000K - 6165
3500K - 4794
4000K - 4828
5000K - 4862
3500K - 5244
4000K - 5282
5000K - 5320
3500K - 6075
4000K - 6120
5000K - 6165
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K - 140
3500K - 135
4000K - 136
5000K - 137
ED96/WLINEAR/3CCT/3WO/UNV/D/HO+MS
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
PHOTOMETRIC
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM
3500K - 135 4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K - 140
3500K - 135 4000K - 136 5000K - 137
3500K - 4794
4000K - 4828
5000K - 4862
3500K - 5244
4000K - 5282
5000K - 5320
3500K - 6075
4000K - 6120
5000K - 6165
3500K - 4794
4000K - 4828
5000K - 4862
3500K - 5244
4000K - 5282
5000K - 5320
3500K - 6075
4000K - 6120
5000K - 6165
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K - 140
3500K - 135
4000K - 136
5000K - 137

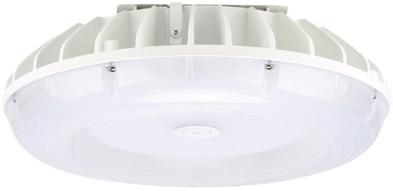

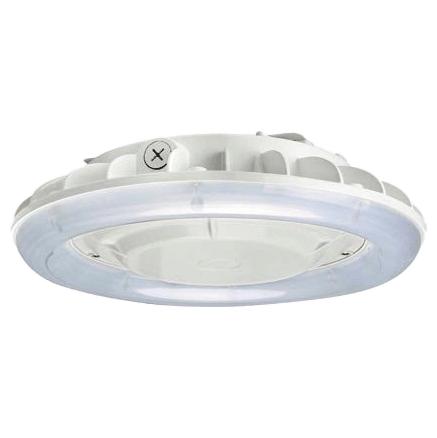

LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project
Type
Prepared by

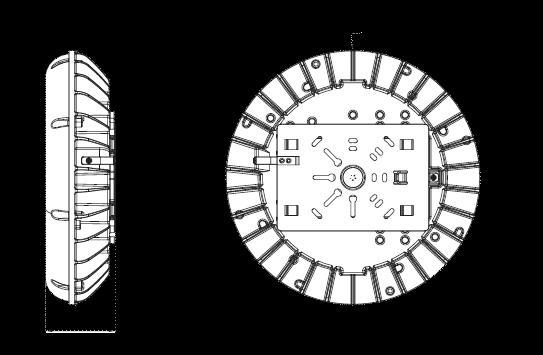

APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project
Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
UPC TAMPA
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
The LaYR 2.0 Round Fixed Performance downlight is a versatile lighting solution that can adapt to different lighting needs and style preferences. Its design includes a 2” aperture with round baffle, offering users 5 distinct optic options to adjust the beam spread. With a lumen output range of 500 to 2000 lumens, it can provide sufficient illumination for various purposes, such as accent lighting or general illumination.
To add to its adaptability, the downlight can be further customized by choosing from a range of baffle and trim finishes, drivers, housings, and accessories. This customization allows users to create a unique downlight that fits their specific requirements and style preferences.
27K, 30K, 35K, 40K *90 CRI Option has an R9 Value Greater than 50 (min) 3/8" - (max) 1 1/2" Performance Series
3/8" (REM) - 3 1/2" (OF/IC) Hex Louver, Frosted Lens, Linear Spread Lens, Spread Lens, Clear Lens Up to 2 0-10V, TRIAC, ELV, Lutron Ecosystem, DALI 1%, 5%, 0.1%
Volt Non-IC, IC Rated, Remodel
UL 1598/UL 2108 Listed US and Canada
Image Above Shown With Deep Smooth Black Baffle and Black Trim Ring
Image Above Shown With Deep Milli-Groove Black Baffle and Black Trim Ring
50mm Beam Optics:
White WH Black BK Satin Silv er SS Champagne CG TRIM & BAFFLE FINISHES
NIO-4RNB
4" Iolite Round Bullnose
Source: 13W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
4" Iolite Round Bullnose - Dedicated Housing Required Color
NIO-4RNB50X = 5000K * NIO-4RNBCDX = Comfort Dim † BB = Black BZ = Bronze MPW
NIO-4RNB27 X = 2700K
NIO-4RNB30X = 3000K
NIO-4RNB35 X = 3500K
NIO-4RNB40X = 4000K
NIO-4RNB50X = 5000K
NIO-4RNBCDX = Comfort Dim †
5000K LED modules in 800lm are while supplies last
PRODUCT IMAGES & DIMENSIONS 4-7/8" 1-5/8"
NIO-4RNB Round Bullnose Non-Adjustable
Compatible Housings
† Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-48 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
& DRIVER
4" Iolite Accessories
4" Iolite Round Bullnose
FIELD CHANGEABLE OPTICS
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Trim
FLUSH MOUNT
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
4" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-4R Round Mud Ring
Mounts reflector flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-48 or NHIOICDCP-48 new construction housings and NIO-4R trims. Dimensions: 7-7/8" diameter 1/2" thick
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
The LaYR 2.0 Round Fixed Performance downlight is a versatile lighting solution that can adapt to different lighting needs and style preferences. Its design includes a 2” aperture with round baffle, offering users 5 distinct optic options to adjust the beam spread. With a lumen output range of 500 to 2000 lumens, it can provide sufficient illumination for various purposes, such as accent lighting or general illumination.
To add to its adaptability, the downlight can be further customized by choosing from a range of baffle and trim finishes, drivers, housings, and accessories. This customization allows users to create a unique downlight that fits their specific requirements and style preferences.
27K, 30K, 35K, 40K *90 CRI Option has an R9 Value Greater than 50 (min) 3/8" - (max) 1 1/2" Performance Series
3/8" (REM) - 3 1/2" (OF/IC) Hex Louver, Frosted Lens, Linear Spread Lens, Spread Lens, Clear Lens Up to 2 0-10V, TRIAC, ELV, Lutron Ecosystem, DALI 1%, 5%, 0.1%
Volt Non-IC, IC Rated, Remodel
UL 1598/UL 2108 Listed US and Canada
Image Above Shown With Deep Smooth Black Baffle and Black Trim Ring
Image Above Shown With Deep Milli-Groove Black Baffle and Black Trim Ring
50mm Beam Optics:
White WH Black BK Satin Silv er SS Champagne CG TRIM & BAFFLE FINISHES
NIO-4RNB
4" Iolite Round Bullnose
Source: 13W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
· 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
4" Iolite Round Bullnose - Dedicated Housing Required Color
NIO-4RNB50X = 5000K * NIO-4RNBCDX = Comfort Dim † BB = Black BZ = Bronze MPW
NIO-4RNB27 X = 2700K
NIO-4RNB30X = 3000K
NIO-4RNB35 X = 3500K
NIO-4RNB40X = 4000K
NIO-4RNB50X = 5000K
NIO-4RNBCDX = Comfort Dim †
5000K LED modules in 800lm are while supplies last
PRODUCT IMAGES & DIMENSIONS 4-7/8" 1-5/8"
NIO-4RNB Round Bullnose Non-Adjustable
Compatible Housings
† Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-48 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
4" Iolite Accessories
4" Iolite Round Bullnose
FIELD CHANGEABLE OPTICS
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Trim
FLUSH MOUNT
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
4" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-4R Round Mud Ring
Mounts reflector flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-48 or NHIOICDCP-48 new construction housings and NIO-4R trims. Dimensions: 7-7/8" diameter 1/2" thick
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: Normal operation: 3.8W / Emergency operation: 0.7W
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery Back-Up (NX-815-LED): NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
Listed
· State & Municipal Certified to the energy efficiency standards of California Title 20
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: Normal operation: 3.8W / Emergency operation: 0.7W
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery Back-Up (NX-815-LED): NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
Listed
· State & Municipal Certified to the energy efficiency standards of California Title 20
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: Normal operation: 3.8W / Emergency operation: 0.7W
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery Back-Up (NX-815-LED): NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
Listed
· State & Municipal Certified to the energy efficiency standards of California Title 20
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: Normal operation: 3.8W / Emergency operation: 0.7W
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery Back-Up (NX-815-LED): NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
Listed
· State & Municipal Certified to the energy efficiency standards of California Title 20
L-810 LED Night Vision Compatible Steady-Burning Red Obstruction Light
Compliance and Applications
• ETL Certified L-810: FAA AC 150/5345-43J; EB-67D
• IP67 Certified
• Certified FCC 47 CFR, Part 15:2020, §15.107 and §15.109, Class A
Compliant to:
• ICAO Annex 14, Low Intensity Obstacle Light, Type B
• DGAC of Mexico
• MIL-C-7989
Our Night Vision Compatible, omni-directional, red, steady-burning, LED obstruction light is designed for marking tall structures such as buildings, towers, masts, cranes, meteorological towers, chimneys and other hazards to aircraft. This energy-saving LED light is a direct replacement for incandescent fixtures, providing years of reliable and maintenance-free operation. Available in single, double, and retrofit configurations; optional solar drive package
What Does NVG Friendly Mean?
Both the FAA and Transport Canada have issued safety alerts warning that common LED obstruction lights pose a hazard to pilots using Night Vision Goggles (NVGs). This is due to the fact that NVGs typically use filters to block cockpit lighting from saturating the imaging system. This has the unintended effect of making LED obstruction lights invisible to pilots.
In response, we have incorporated NVG Friendly technology into our fixture (IR 860 nm peak intensity), giving pilots using night vision goggles unmatched visibility of airfield perimeters, buildings, and towers. The L810LEDNV light is the first LED L-810 available to ensure that your structure is visible to all pilots, making it the first true LED replacement for incandescent obstruction lights.
Why Our L810LEDNV is Better
• Direct replacement for existing incandescent light
• Lasts up to 10 times longer than an incandescent light
• Uses 96% less power than an incandescent light
• Night Vision Goggle & NVIS Compatible
• No regular maintenance
• Available in single and dual configurations with bottom or side conduit outlets
• Can be operated in steady-burning or flashing mode (controller not supplied)
Marine Treated Option:
• Recommended for harsh, high-salt coastal and marine environments.
• Protects fixture finish from salt damage and prevents corrosion.
• 3-Step Powder Coat: 1) Primer, 2) Epoxy powder base coat and glossy polyester gray (RAL 7030) powder finish coat, 3) Oven curing.
• Photocell option for automatic activation at night
• Wind Loading: Effective Projected Area of the L-810 with single mounting base is 23.125 square-inches
Night Vision Compatible Obstruction Light
Optional Low Surface Mount
Single L-810 LED Night Vision Compatible Obstruction Light
Shown with Riser, Frangible Coupling and Floor Flange
Optional 2" Pole Mount
L-810 LED Night Vision Compatible Steady-Burning Red Obstruction Light
Compliance and Applications
• ETL Certified L-810: FAA AC 150/5345-43J; EB-67D
• IP67 Certified
• Certified FCC 47 CFR, Part 15:2020, §15.107 and §15.109, Class A
Compliant to:
• ICAO Annex 14, Low Intensity Obstacle Light, Type B
• DGAC of Mexico
• MIL-C-7989
Our Night Vision Compatible, omni-directional, red, steady-burning, LED obstruction light is designed for marking tall structures such as buildings, towers, masts, cranes, meteorological towers, chimneys and other hazards to aircraft. This energy-saving LED light is a direct replacement for incandescent fixtures, providing years of reliable and maintenance-free operation. Available in single, double, and retrofit configurations; optional solar drive package.
What Does NVG Friendly Mean?
Both the FAA and Transport Canada have issued safety alerts warning that common LED obstruction lights pose a hazard to pilots using Night Vision Goggles (NVGs). This is due to the fact that NVGs typically use filters to block cockpit lighting from saturating the imaging system. This has the unintended effect of making LED obstruction lights invisible to pilots. In response, we have incorporated NVG Friendly technology into our fixture (IR 860 nm peak intensity), giving pilots using night vision goggles unmatched visibility of airfield perimeters, buildings, and towers. The L810LEDNV light is the first LED L-810 available to ensure that your structure is visible to all pilots, making it the first true LED replacement for incandescent obstruction lights.
Why Our L810LEDNV is Better
• Direct replacement for existing incandescent light
• Lasts up to 10 times longer than an incandescent light
• Uses 96% less power than an incandescent light
• Night Vision Goggle & NVIS Compatible
• No regular maintenance
• Available in single and dual configurations with bottom or side conduit outlets
• Can be operated in steady-burning or flashing mode (controller not supplied)
Marine Treated Option:
• Recommended for harsh, high-salt coastal and marine environments.
• Protects fixture finish from salt damage and prevents corrosion.
• 3-Step Powder Coat: 1) Primer, 2) Epoxy powder base coat and glossy polyester gray (RAL 7030) powder finish coat, 3) Oven curing.
• Photocell option for automatic activation at night
• Wind Loading: Effective Projected Area of the L-810 with single mounting base is 23.125 square-inches
Night Vision Compatible Obstruction Light
Optional Low Surface Mount
Single L-810 LED Night Vision Compatible Obstruction Light
Shown with Riser, Frangible Coupling and Floor Flange
Optional 2" Pole Mount
Spare Parts
FL-810LEDNV-AC 100-277 VAC LED NV
Replacement Light Head
FL-810LEDNV-DC 12-48 VDC LED NV
Replacement Light Head
Alarm Line Option:
For AC and DC model fixtures, the blue wire (18AWG) is defined as the Alarm Line. When the red LED fails, the fixture’s input voltage for the fixture will be present at this wire. For AC and DC model fixtures, during normal operation (LED ON), it will have 0 VAC and 0 VDC respectively at the blue wire; in case of LED failure (turning off), it will energize the blue wire to the fixture’s input voltage, 100-277 VAC for AC models and 12-48 VDC for DC model fixtures.
L-810 LED Ordering Codes
VDC
Red
Shipping Information:
Single: 3.2 lb. (1.45 kg); 10" x 10" x 10" Carton
Double: 7 lb. (3.17 kg); 15" x 15" x 10" Carton
1 1-1/2" Frangible Coupling (FL-FC1.5) UNF threads are not compatible with NPT threaded junction boxes. 2 For single option only. 3 CAUTION! For AC model fixtures, the Alarm Line (blue wire) will be energized to a high AC voltage (fixture’s input voltage 120-277VAC) during a failure of the LED.
Obstruction Lighting Controls
Lighting controls are designed for use when multiple obstruction light fixtures are to be controlled with common electronics. The electronic control module comes in a cast iron device box with threaded hubs on both top and bottom. Replacement modules (controls without device box) are also available upon request.
Photocells
• Model 81020: 105-305VAC, 1000W photocell. FAA style photocells activate at 35 ft-cd and turn off at 52 ft-cd. Instant ON photocell has 3-5 second time delay that prevents activation and de-activation from momentary light conditions. Does not come with device box, includes 1/2" threaded male fitting.
• Model 81021: 120/240VAC, 4800W photocell. Meets FAA/FCC requirements for obstruction lighting. Energized at 35 ft-cd and de-energized at 60 ft-cd. Time delay eliminates contact chatter. Contains dual 20A load contacts. Front plastic housing mounts to cast aluminum junction box (included).
• Model 81022: Hazardous Location Photocontrol Unit. Outdoor lighting control for exterior lighting in hazardous locations: explosion proof, dust-ignition proof, and weatherproof. Nominal Voltage 50/60 Hz: 120/208/240/277VAC. Voltage Range: 105-305. Housing: sand cast copper-free aluminum - epoxy powder coated.
Photocell Ordering Codes
Part Number Description
FL-81020
FL-81021
FL-81021-2
FL-81022
Photocell only (105-305VAC, 1000W max)
Photocell with aluminum box (120VAC, 4800W max)
Photocell with aluminum box (240VAC, 4800W max)
Hazardous Location Photocontrol Unit (120/208/240/277VAC)
Model 81020
Model 81021
Model 81022
Alarm Line: Blue
Alarm Line: Blue
Wire Color Guide
Spare Parts
FL-810LEDNV-AC 100-277 VAC LED NV
Replacement Light Head
FL-810LEDNV-DC 12-48 VDC LED NV
Replacement Light Head
Alarm Line Option:
For AC and DC model fixtures, the blue wire (18AWG) is defined as the Alarm Line. When the red LED fails, the fixture’s input voltage for the fixture will be present at this wire. For AC and DC model fixtures, during normal operation (LED ON), it will have 0 VAC and 0 VDC respectively at the blue wire; in case of LED failure (turning off), it will energize the blue wire to the fixture’s input voltage, 100-277 VAC for AC models and 12-48 VDC for DC model fixtures.
L-810 LED Ordering Codes
VDC
Red
Shipping Information:
Single: 3.2 lb. (1.45 kg); 10" x 10" x 10" Carton
Double: 7 lb. (3.17 kg); 15" x 15" x 10" Carton
1 1-1/2" Frangible Coupling (FL-FC1.5) UNF threads are not compatible with NPT threaded junction boxes. 2 For single option only. 3 CAUTION! For AC model fixtures, the Alarm Line (blue wire) will be energized to a high AC voltage (fixture’s input voltage 120-277VAC) during a failure of the LED.
Obstruction Lighting Controls
Lighting controls are designed for use when multiple obstruction light fixtures are to be controlled with common electronics. The electronic control module comes in a cast iron device box with threaded hubs on both top and bottom. Replacement modules (controls without device box) are also available upon request.
Photocells
• Model 81020: 105-305VAC, 1000W photocell. FAA style photocells activate at 35 ft-cd and turn off at 52 ft-cd. Instant ON photocell has 3-5 second time delay that prevents activation and de-activation from momentary light conditions. Does not come with device box, includes 1/2" threaded male fitting.
• Model 81021: 120/240VAC, 4800W photocell. Meets FAA/FCC requirements for obstruction lighting. Energized at 35 ft-cd and de-energized at 60 ft-cd. Time delay eliminates contact chatter. Contains dual 20A load contacts. Front plastic housing mounts to cast aluminum junction box (included).
• Model 81022: Hazardous Location Photocontrol Unit. Outdoor lighting control for exterior lighting in hazardous locations: explosion proof, dust-ignition proof, and weatherproof. Nominal Voltage 50/60 Hz: 120/208/240/277VAC. Voltage Range: 105-305. Housing: sand cast copper-free aluminum - epoxy powder coated.
Photocell Ordering Codes
Part Number Description
FL-81020
FL-81021
FL-81021-2
FL-81022
Photocell only (105-305VAC, 1000W max)
Photocell with aluminum box (120VAC, 4800W max)
Photocell with aluminum box (240VAC, 4800W max)
Hazardous Location Photocontrol Unit (120/208/240/277VAC)
Model 81020
Model 81021
Model 81022
Alarm Line: Blue
Alarm Line: Blue
Wire Color Guide

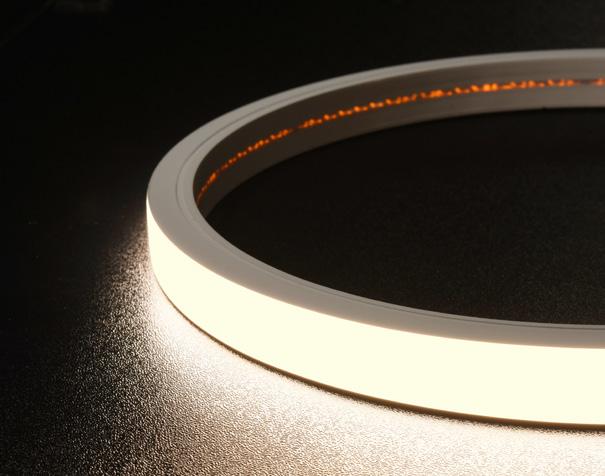

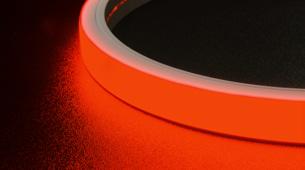

NeoVision120 TopFlex
120VAC Neon LED Tape Specification Sheet
PRODUCT OVERVIEW
120VAC operation for higher power and brightness.
Flexible linear “neon” tape is designed for applications that require ultra-rich light and color saturation that is characteristic of neon. TopFlex enables lighting along straight or inward/outward curved surfaces.
NeoVision120 tapes provide long, continuous runs up to 163 feet.
FEATURES
•120VAC operation (no driver required)
•Wet location - IP65
• Multiple power feed options:
End Feed
Bottom Feed
•Tape encased in UV resistant silicone
•Triac/ELV dimmable
•White and color LED options
•120° viewing angle
• Maximum run: 163’ - made to order in 12” increments
SPECIFICATIONS
ELECTRICAL PHOTOMETRIC
•Input: 120VAC 60Hz
•White: 2700K, 3000K
•3.4W per foot (colors) or 4000K at 90+ CRI
•4.3W per foot (white) WARRANTY
•PF>0.9 •3 years
ENVIRONMENTAL CERTIFICATION
•Outdoor & wet location rated •ETLus
•UV resistant UL1598 (Hardwire)
• Ambient operating temp: UL2388 (Plug-in)
-4°F to +113°F (-20°C to +45°C) •IP65
ORDERING INFORMATION
1.Select Tape
2.Pick Feed
3.Pick Mounting Options
4.Pick Control Options
All NeoVision120 tape configurations must be specified at time of order. Parts are made to order and sealed by GM LIghting at the factory only.
3000K

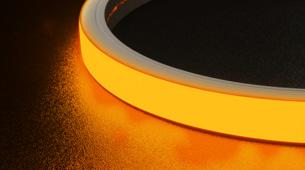

Amber Green
Blue Red
NeoVision120 TopFlex
120VAC Neon LED Tape Specification Sheet
PRODUCT OVERVIEW
120VAC operation for higher power and brightness.
Flexible linear “neon” tape is designed for applications that require ultra-rich light and color saturation that is characteristic of neon. TopFlex enables lighting along straight or inward/outward curved surfaces.
NeoVision120 tapes provide long, continuous runs up to 163 feet.
FEATURES
•120VAC operation (no driver required)
•Wet location - IP65
• Multiple power feed options:
End Feed
Bottom Feed
•Tape encased in UV resistant silicone
•Triac/ELV dimmable
•White and color LED options
•120° viewing angle
• Maximum run: 163’ - made to order in 12” increments
SPECIFICATIONS
ELECTRICAL PHOTOMETRIC
•Input: 120VAC 60Hz
•White: 2700K, 3000K
•3.4W per foot (colors) or 4000K at 90+ CRI
•4.3W per foot (white) WARRANTY
•PF>0.9 •3 years
ENVIRONMENTAL CERTIFICATION
•Outdoor & wet location rated •ETLus
•UV resistant UL1598 (Hardwire)
• Ambient operating temp: UL2388 (Plug-in)
-4°F to +113°F (-20°C to +45°C) •IP65
ORDERING INFORMATION
1.Select Tape
2.Pick Feed
3.Pick Mounting Options
4.Pick Control Options
All NeoVision120 tape configurations must be specified at time of order. Parts are made to order and sealed by GM LIghting at the factory only.
3000K
Amber Green
Blue Red
NeoVision120 TopFlex
120VAC Neon LED Tape Specification Sheet
1.Select Tape
All NeoVision 120 tape configurations will be cut and sealed by GM Lighting to your specifications. No field modifications allowed.
ACCESSORIES
2.Pick Feed 3.Pick Mounting Options
NV120T-HW-8-EF Hardwire End Feed w/Filter & 8A Fuse
