2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
PART NUMBER (HYPERLINK TO PAGE IN BLUE)
ASD-OLCLS-2D18CC-BK
ASD-OLCLR-1D9CC-BK
TRP2-24L-50-4K7-4
BR-8228-B-150-W-G4-RS
GR-3106-B-9.5-27-SP-HL
NO SPEC
DUAL LITE
DUAL LITE
DUAL LITE
ELITE
NORA
ALORA MOOD MOOIE LIGHT
BASELITE
EV-2-X-X-02L
LE-C-S-G-X-N-E
LE-C-S-G-X-N-E
RL575-1100L-DIMTR-120
NYLD2-6

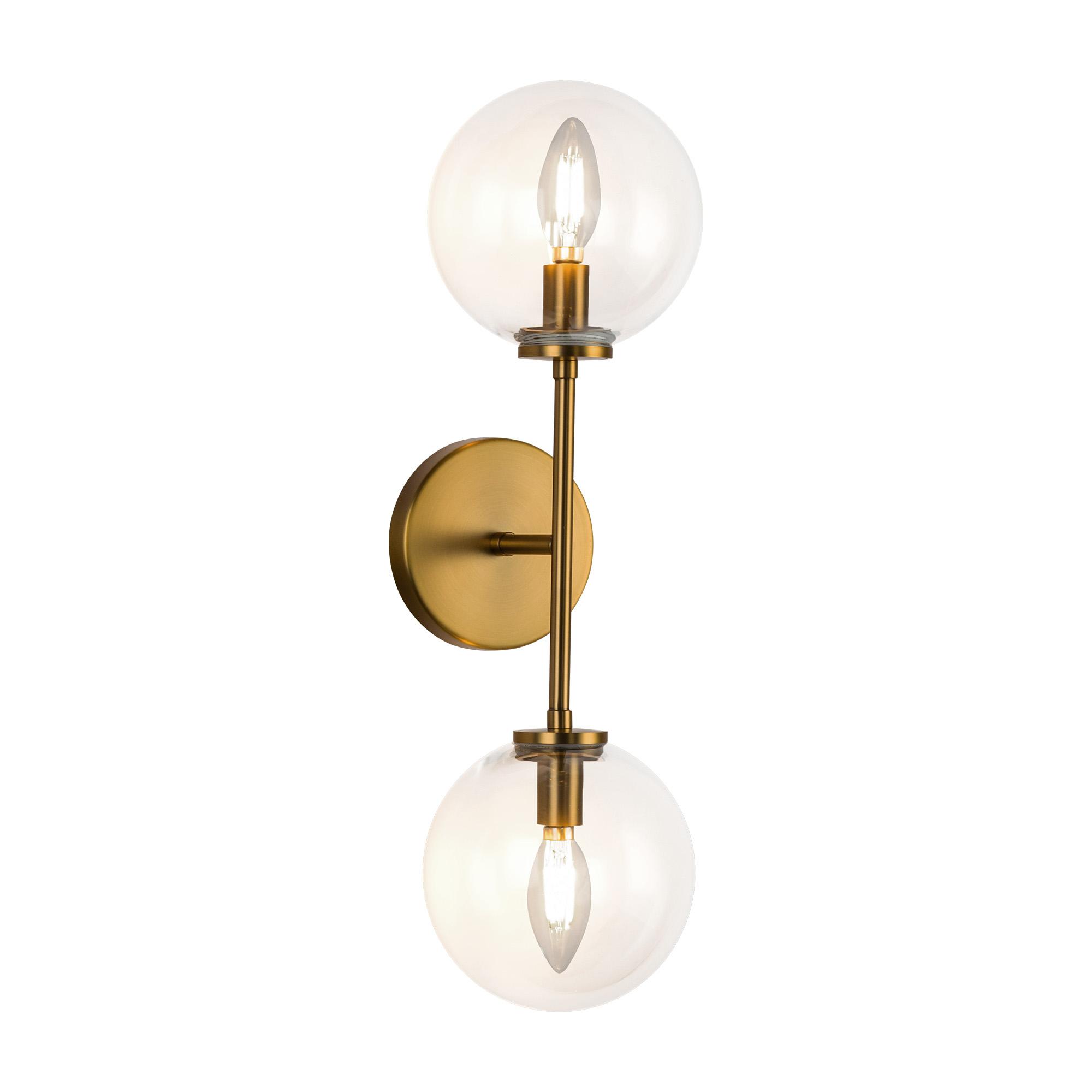

WV549220AGCL
STELLA CEILING LAMP
OB20
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
PART NUMBER (HYPERLINK TO PAGE IN BLUE)
NO QUOTE, EXISTING FIXTURE ODN-
SH4-50W-T5-40K-MV-4R-XXX-XXX

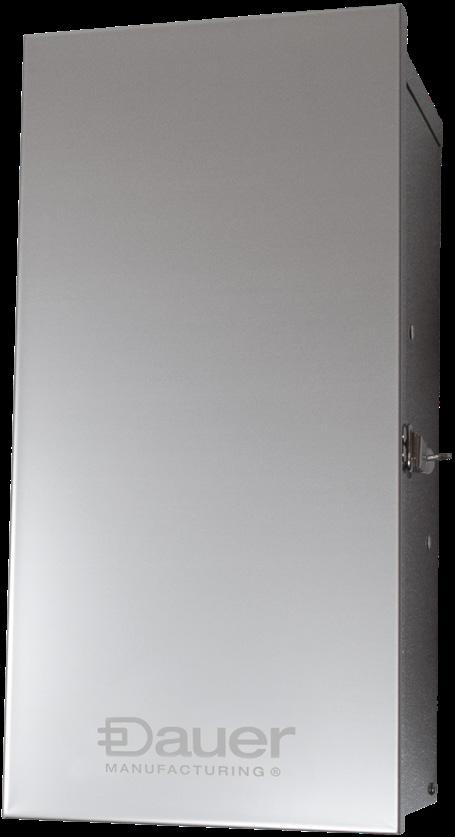

CRYSTAL ALLIANCE ASD ASD SPITZER ATG DAUER DAUER
D6TI21F00N4AGXHH
ALORA MOOD
MOOIE LIGHT
BASELITE
ASD-OLCLR-1D9CC-BK
ASD-OLCLR-MV-2D18CC-EM-BK
WPFP-37LC/30W/CCT
BLD/BLF-X-CS-24-24.5-40K
490230-12W-30K-MS
T300EMSP 12-15V
NE-612LEDRCW
NX-812-LED-R-C-2M-A
NX-815LED-R2MA
LR23749
NYLD2-6C10130B4AC

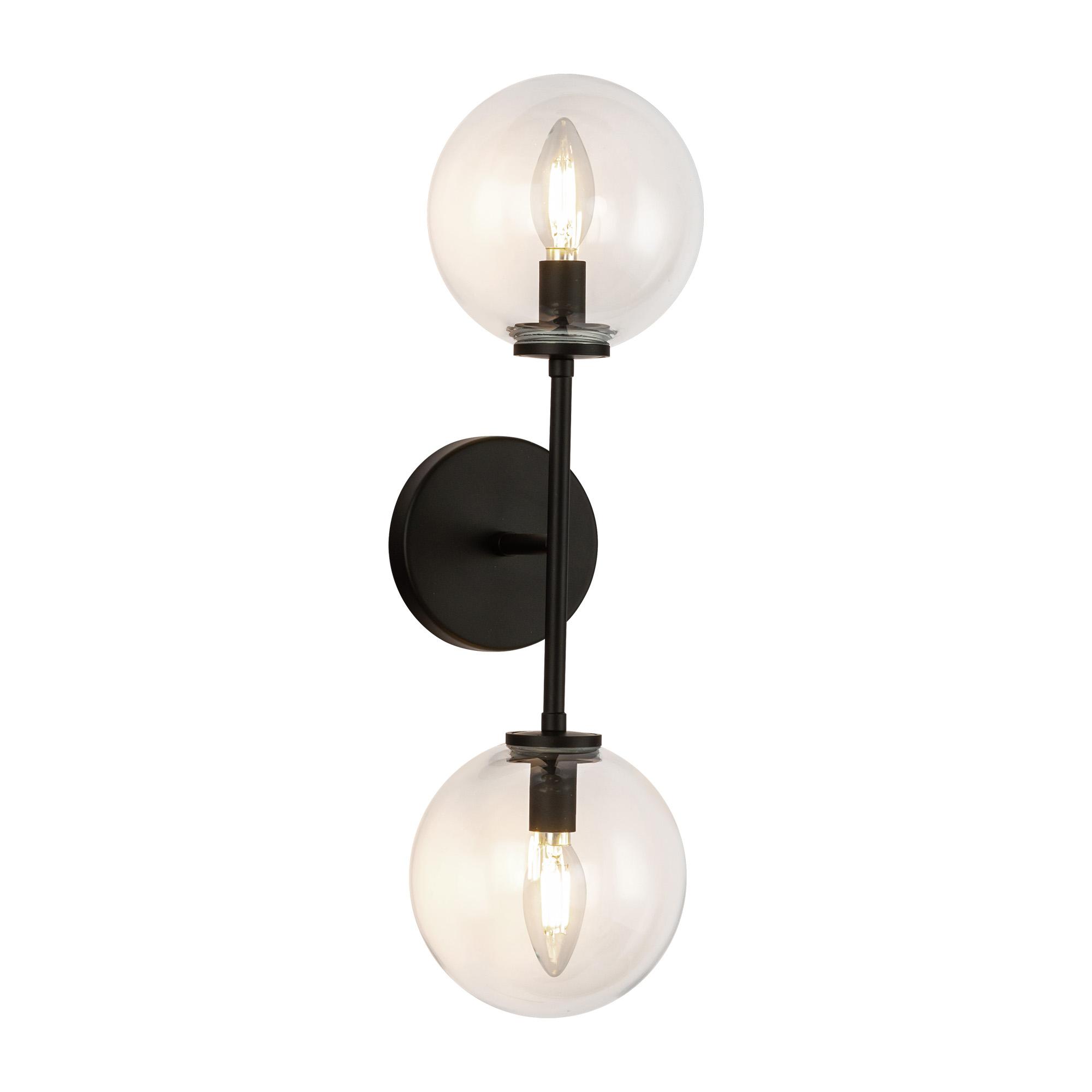

WV549220AGOP + LED BULBS
STELLA CEILING LAMP
OB20
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
KUZCO KUZCO ALORA ALORA WEST ELM ALORA KUZCO
PART NUMBER

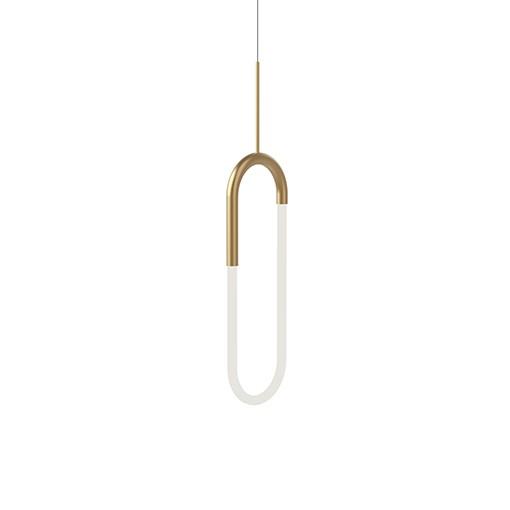

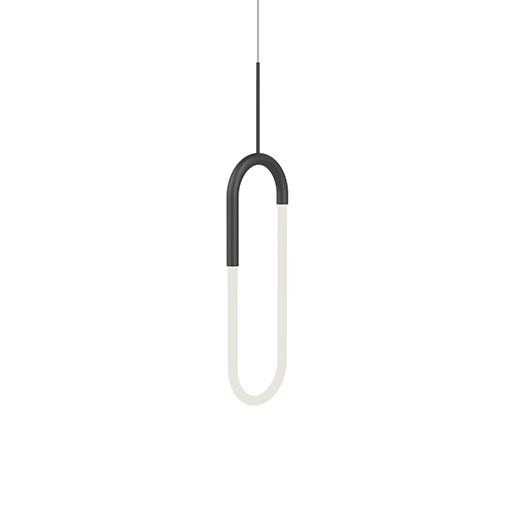

PD95108-BG
PD95518-BG

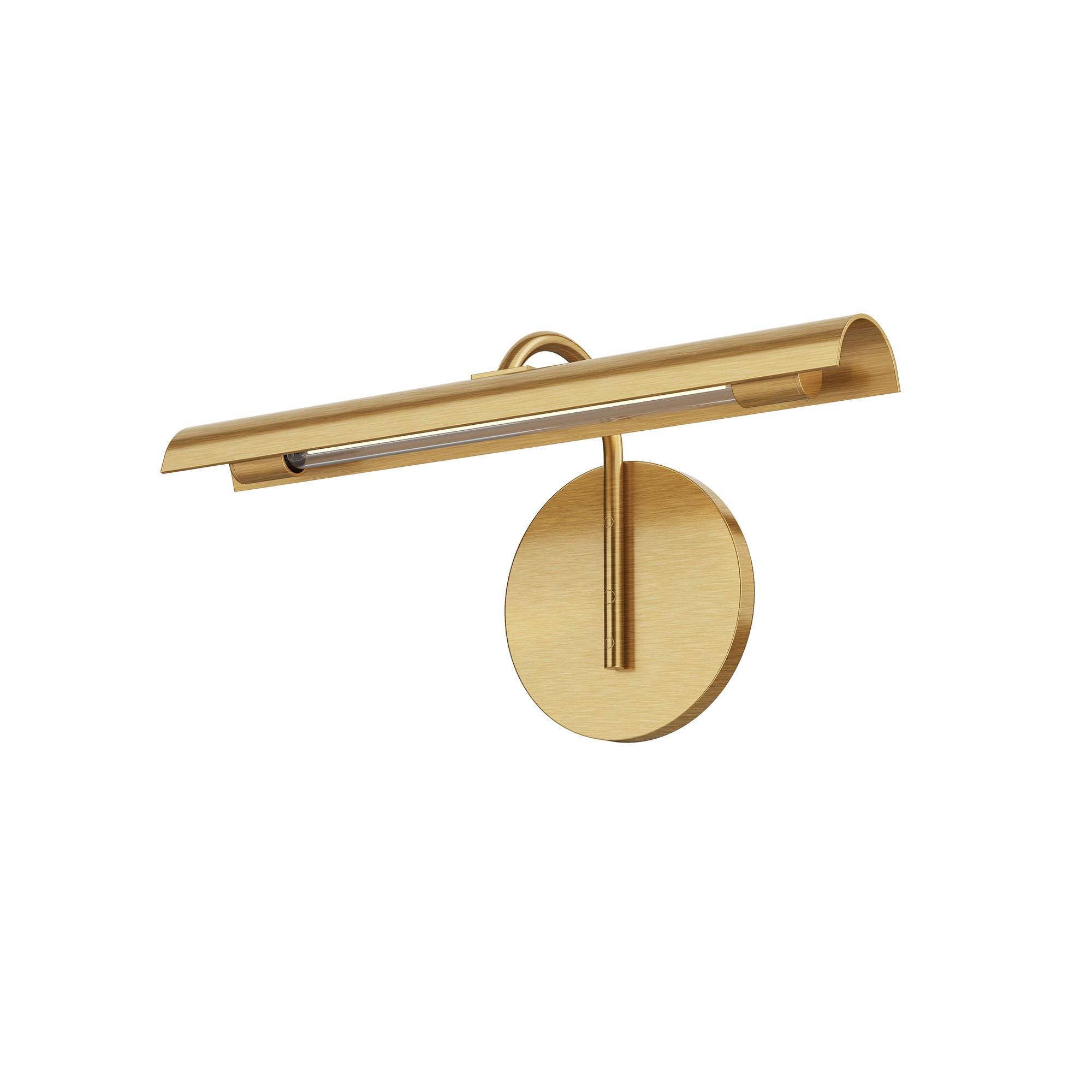

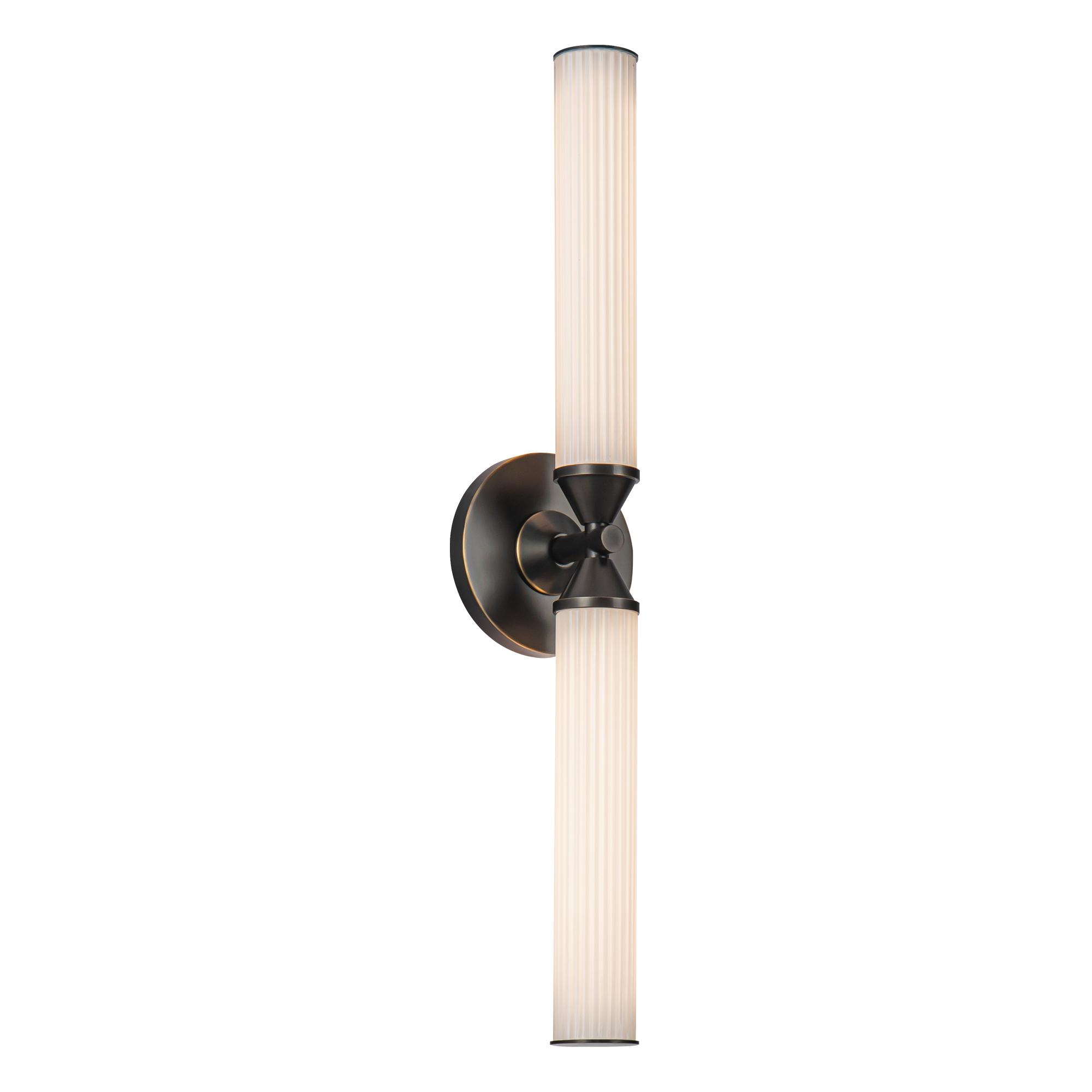

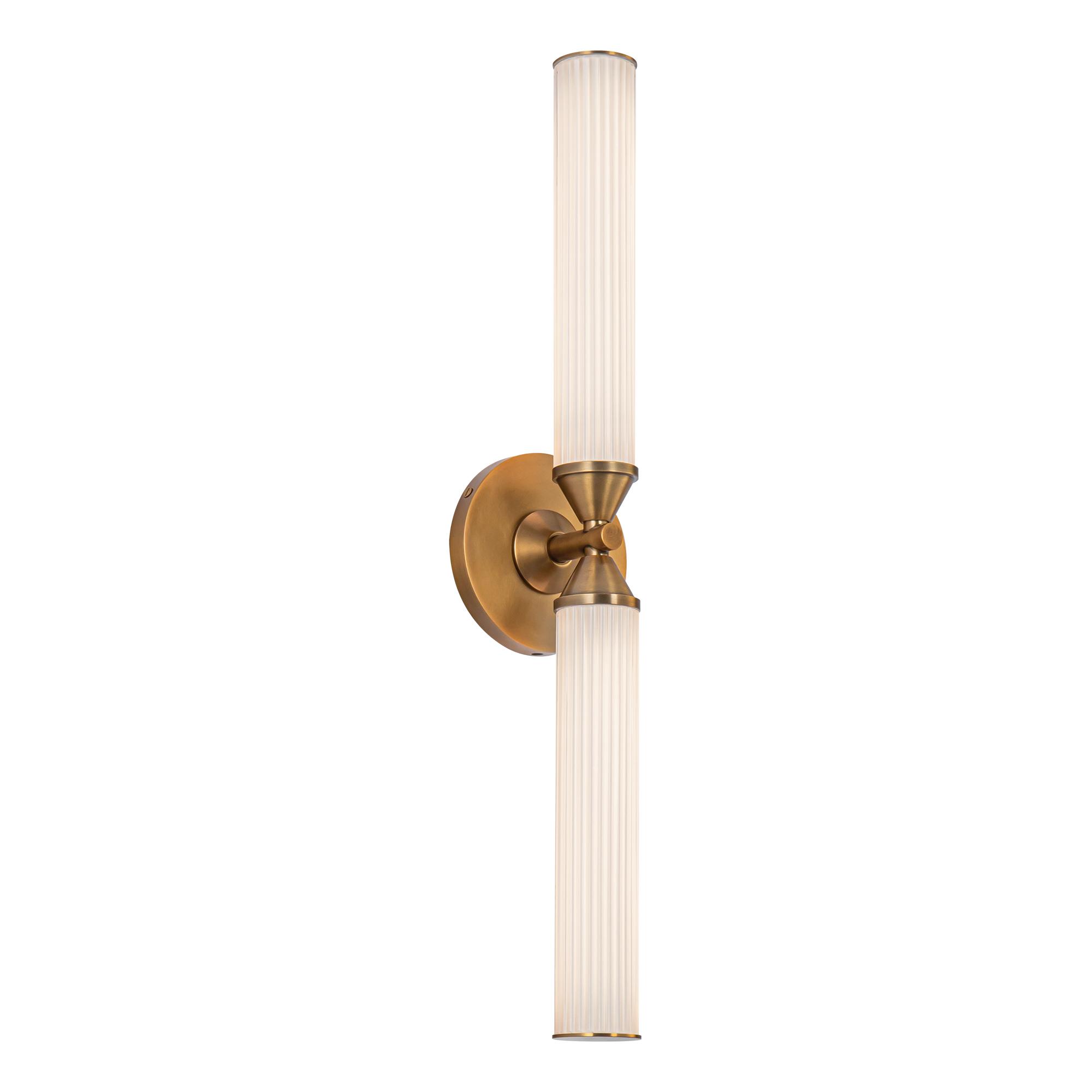

WV316501VBMS
WV348222VBPR

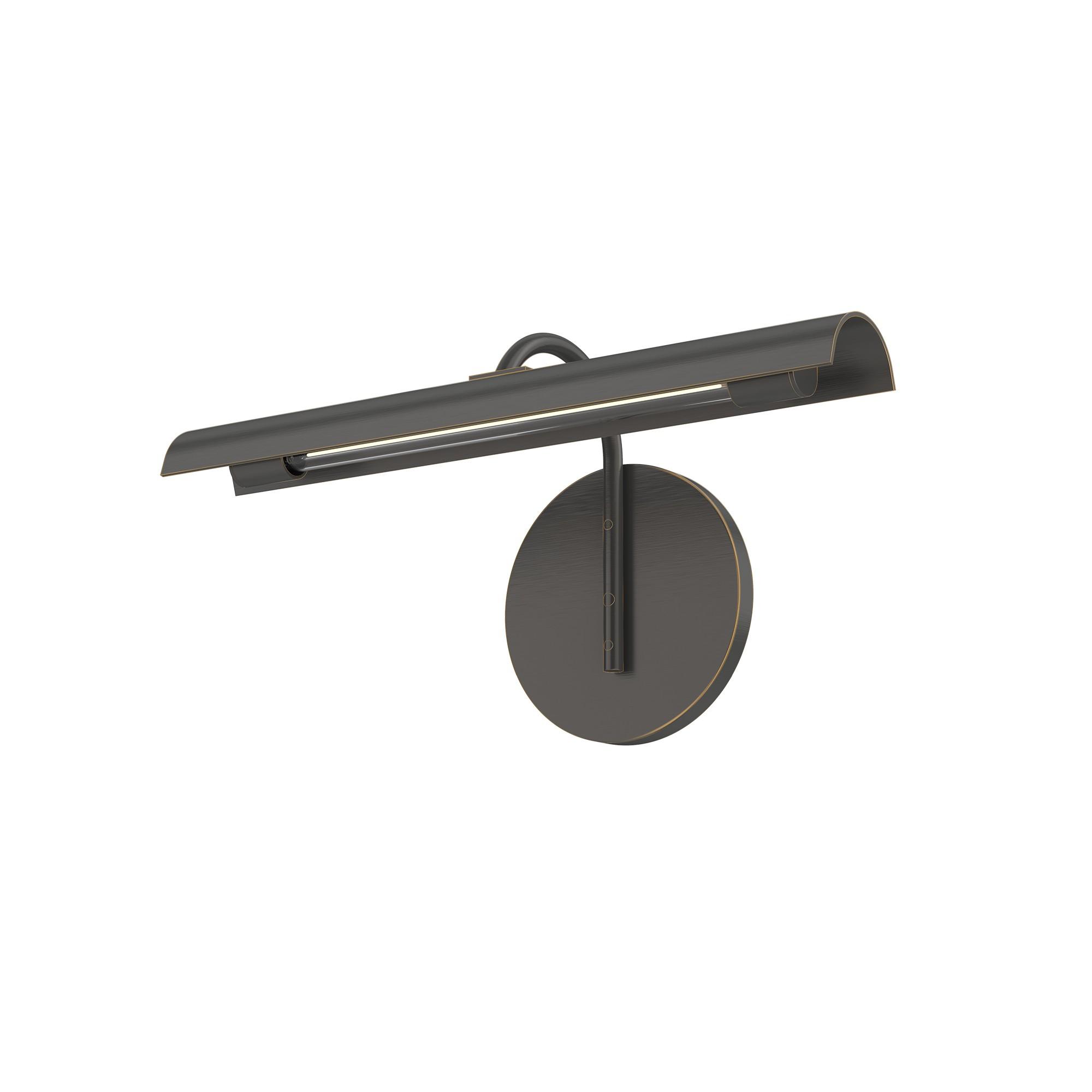

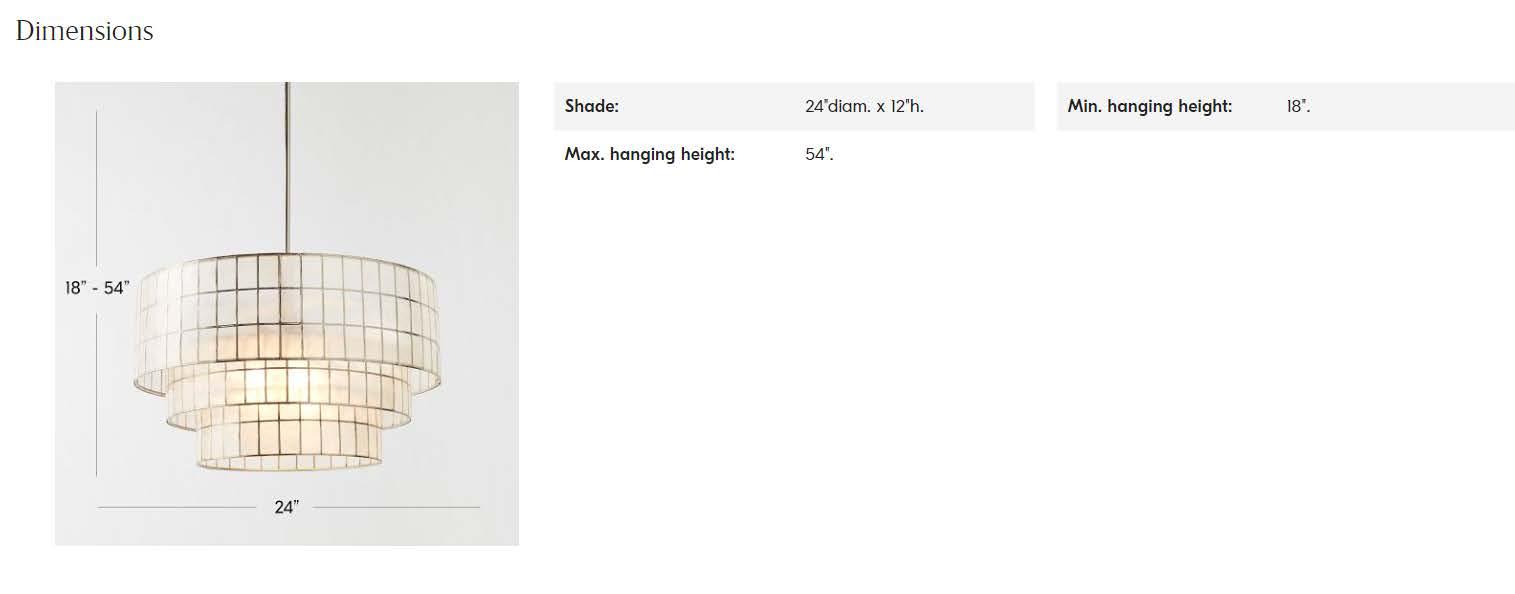

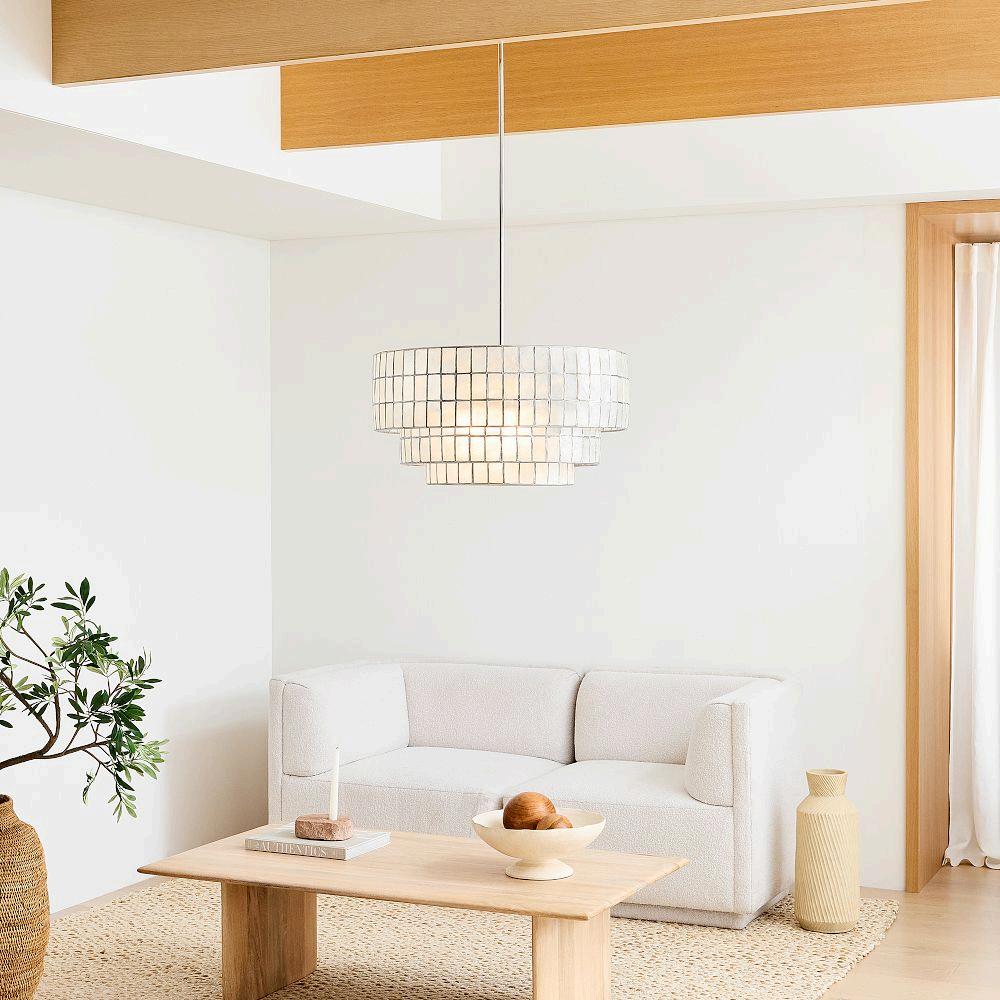

CAPIZ TIERED CHANDELIER

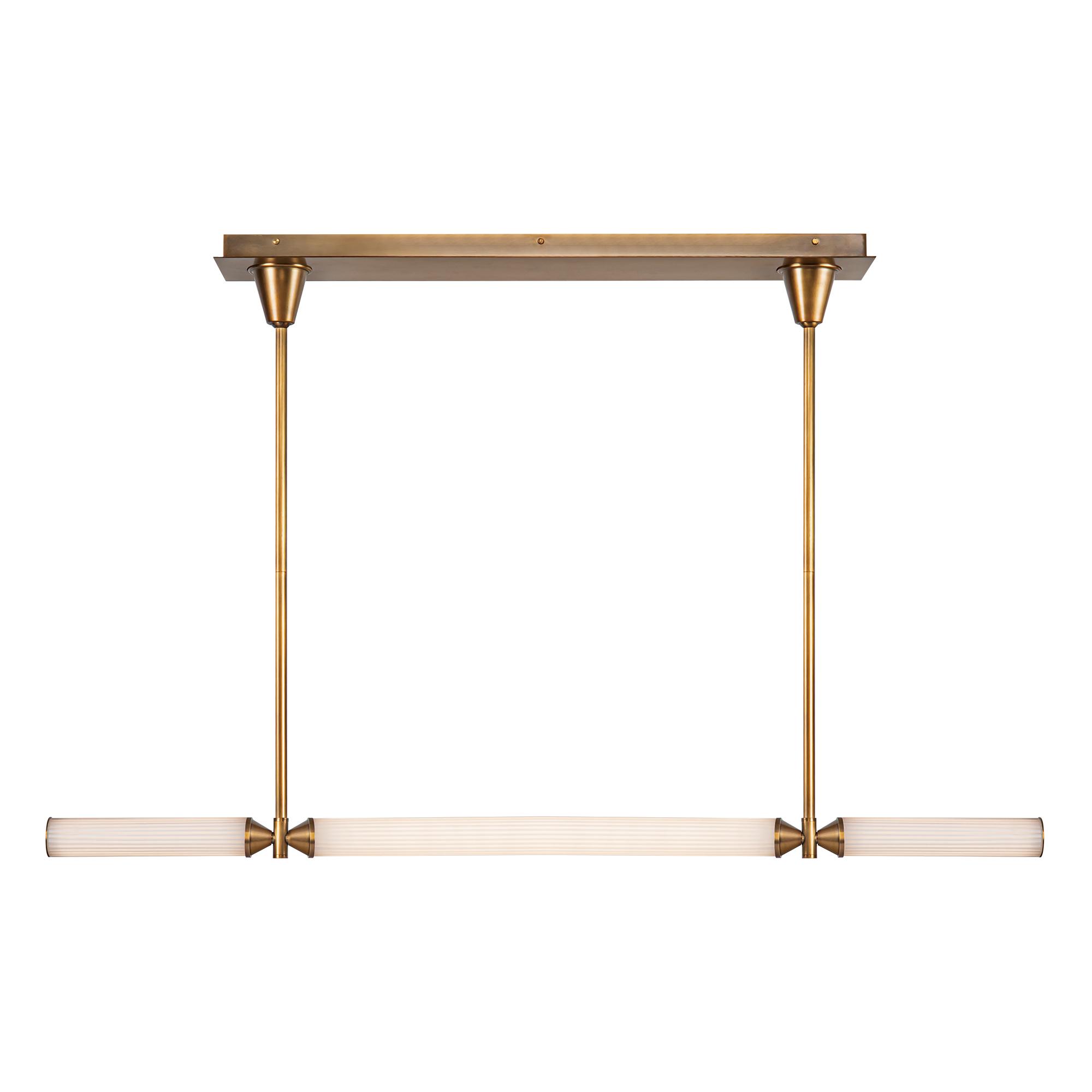

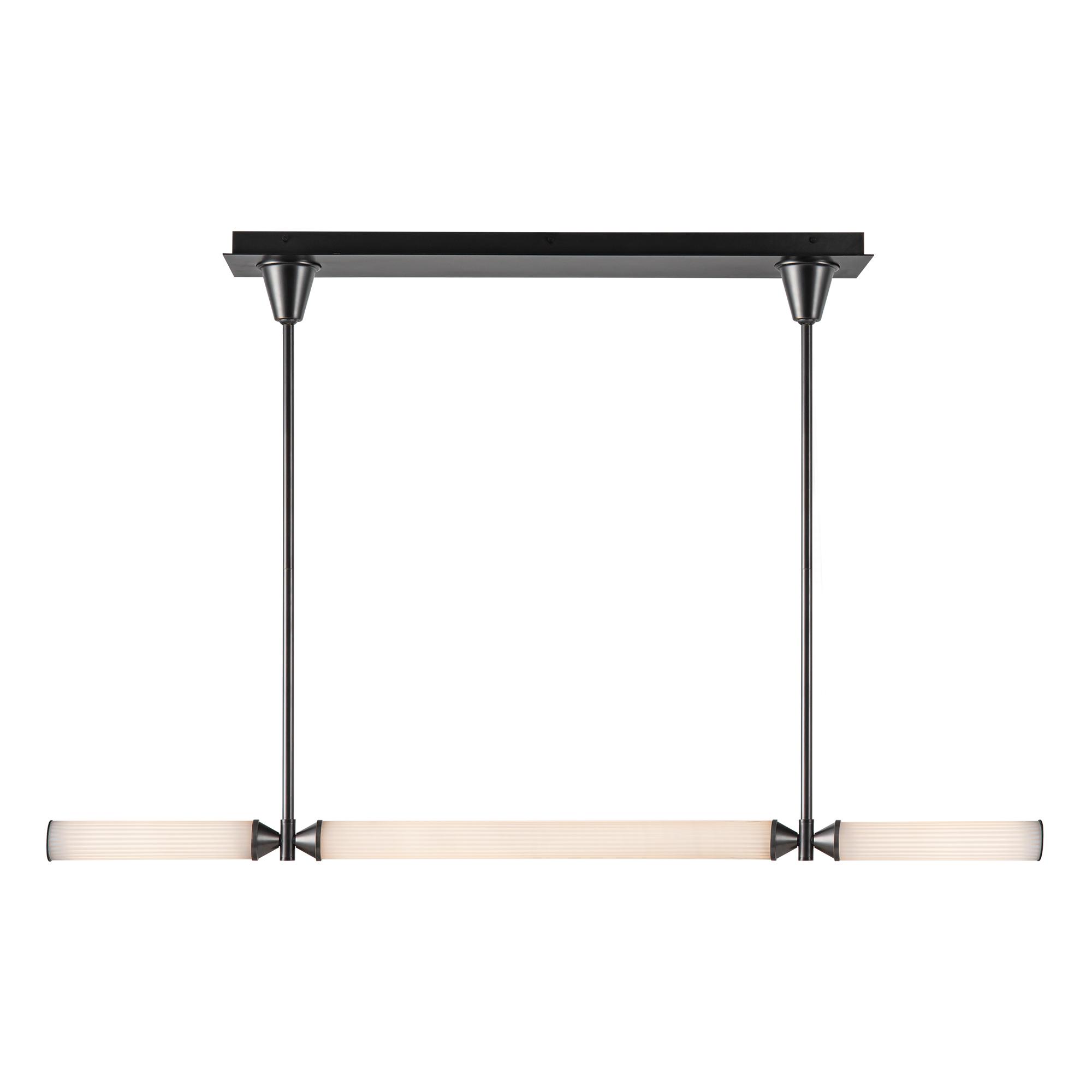

LP348148VBPR
LP95354

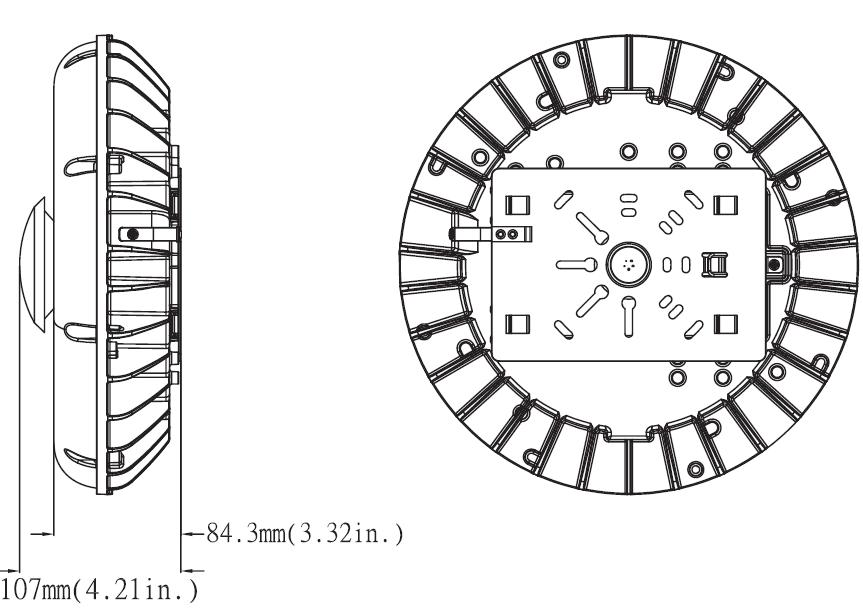

UFO-58WLED-UNIV-40
VP-2-320L-185-4K8-4F
NO SPEC
COLUMBLA
COLUMBLA
C5L4-LSCS
C5L4-LSCS

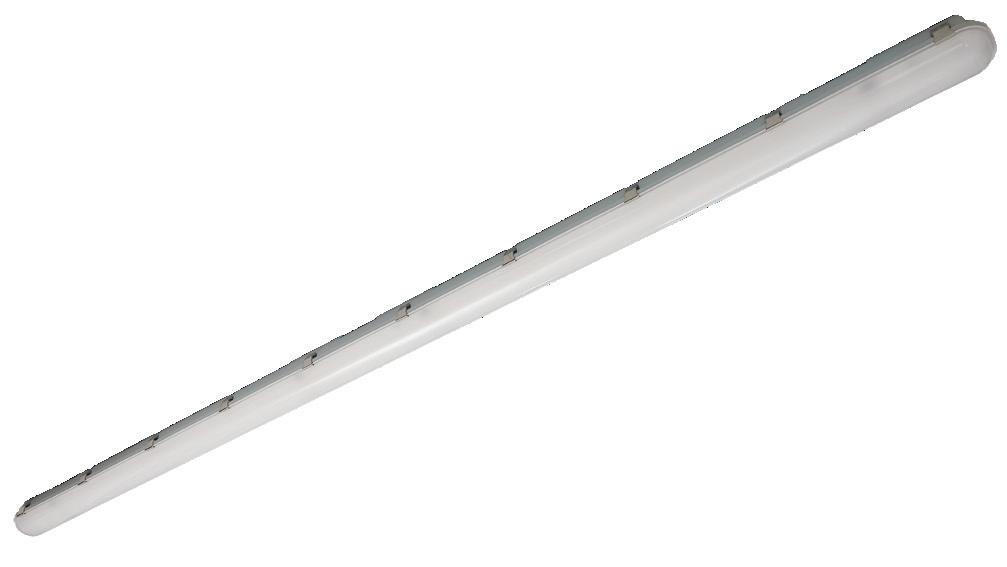

L276-48-38W-40K-55
NEFLINTW-R4-233-MPW
NELOCAC-6R-30
1005-WW-WW-E26-L NO SPEC
RL670-W-WH-14W
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
KUZCO KUZCO ALORA ALORA DIMENSIONS
ALORA KUZCO
EELP XTRALIGHT
ALLIENCE
LUXRITE
LUXRITE
LUXRITE
PART NUMBER
PD95108-BG
PD15518-BG
WV316501VBMS
WV348222VBFR
CAPIZ TIERED CHANDELIER
DECOR CHANDELIER LP348148VBFR
LP95354-BK
GL9-60L-QT-40K
VNTM-30000L-40K-DIM-4S-N-XX + VNT-RPA-XX
D7TS27F00N1AGXHH
LR25185 + EM
LR25185
LR25260
LUXRITE
ARTIKA
CARRO MINKA
ARTIKA
LR23731
7FLPR-SP3K-WH

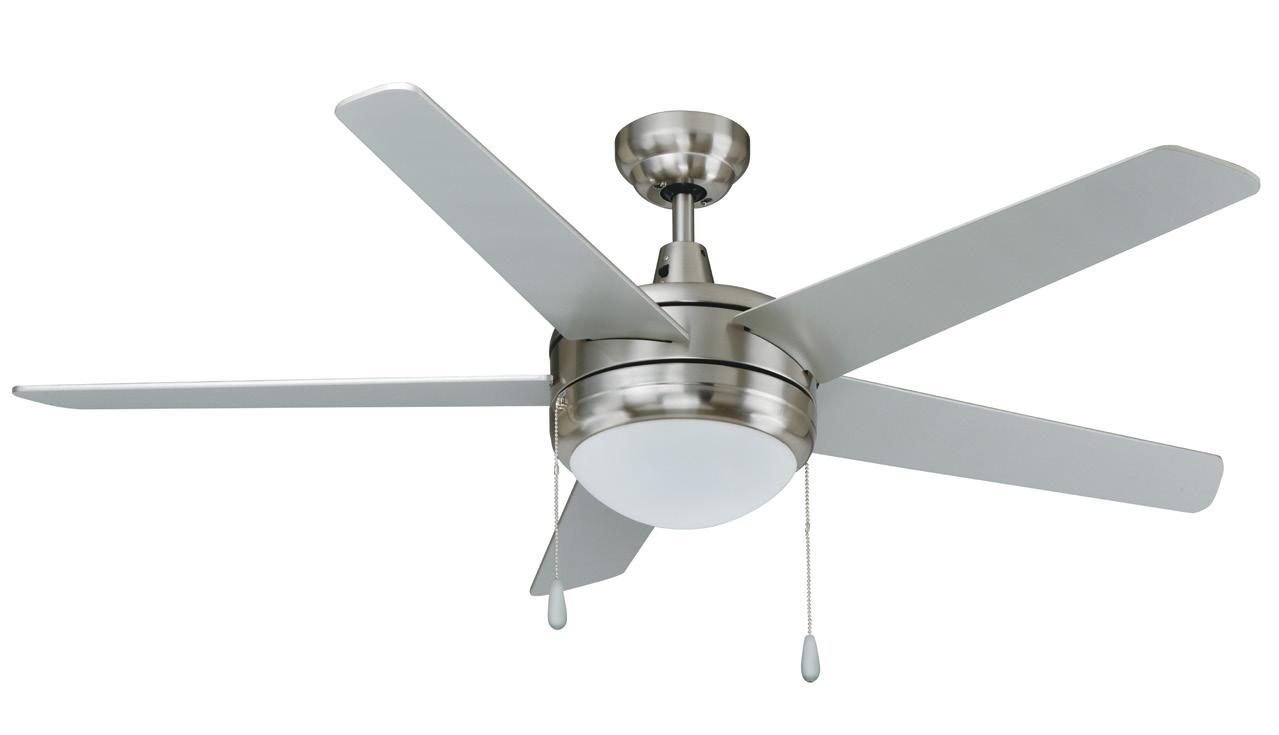

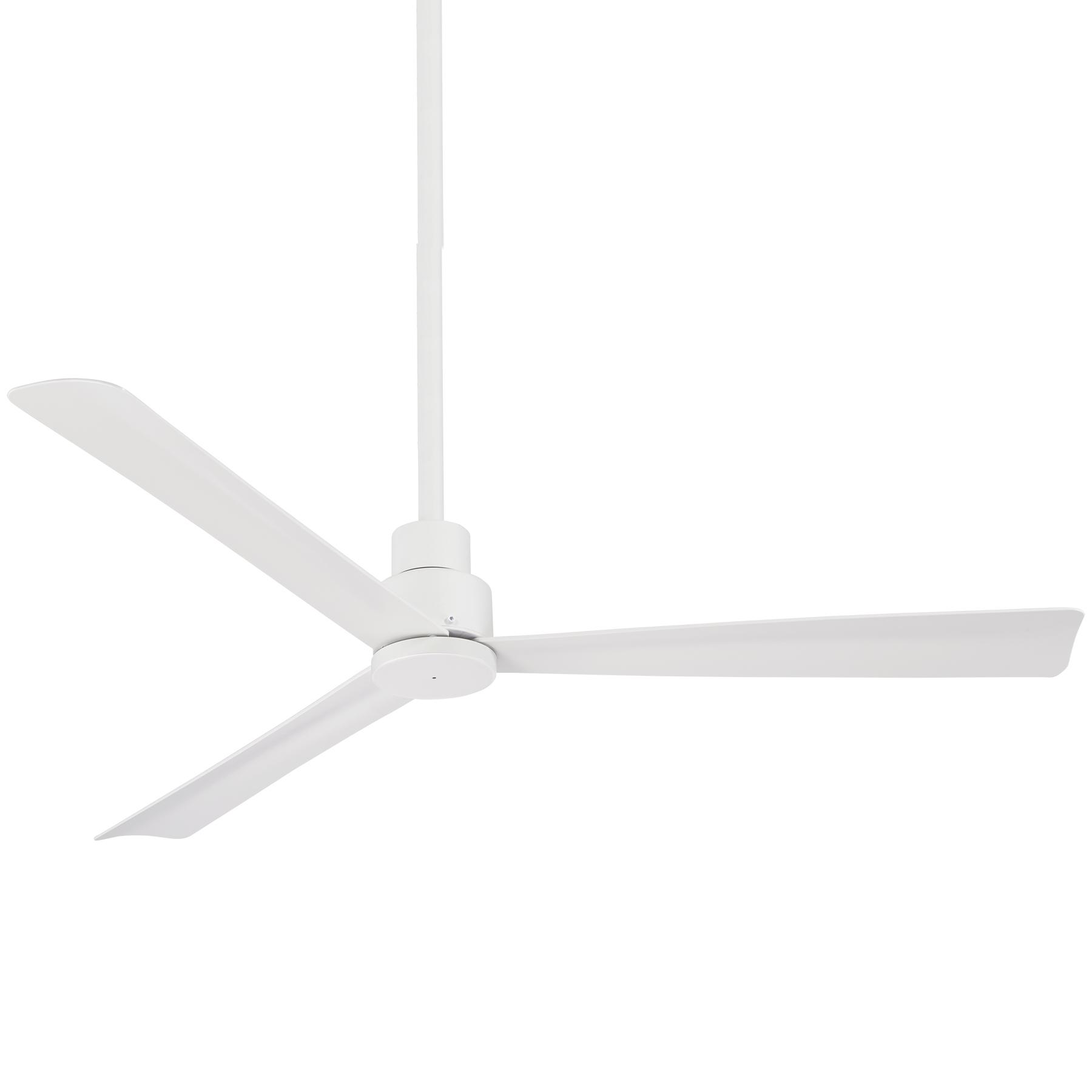

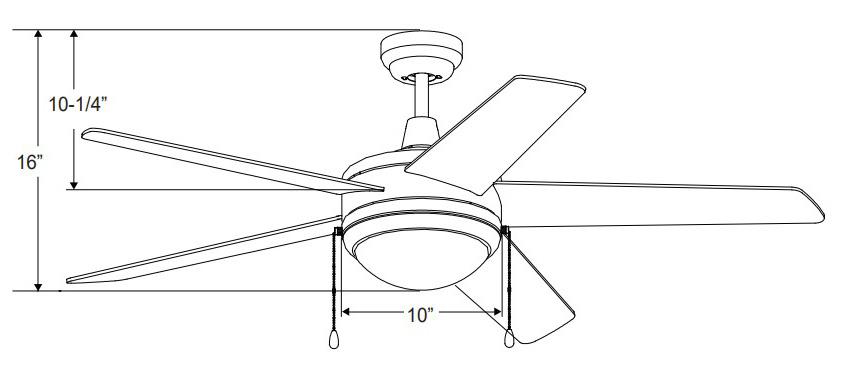

CARRO AMALFI FAN F787-WH
7FLPR-SP3K-WH
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377

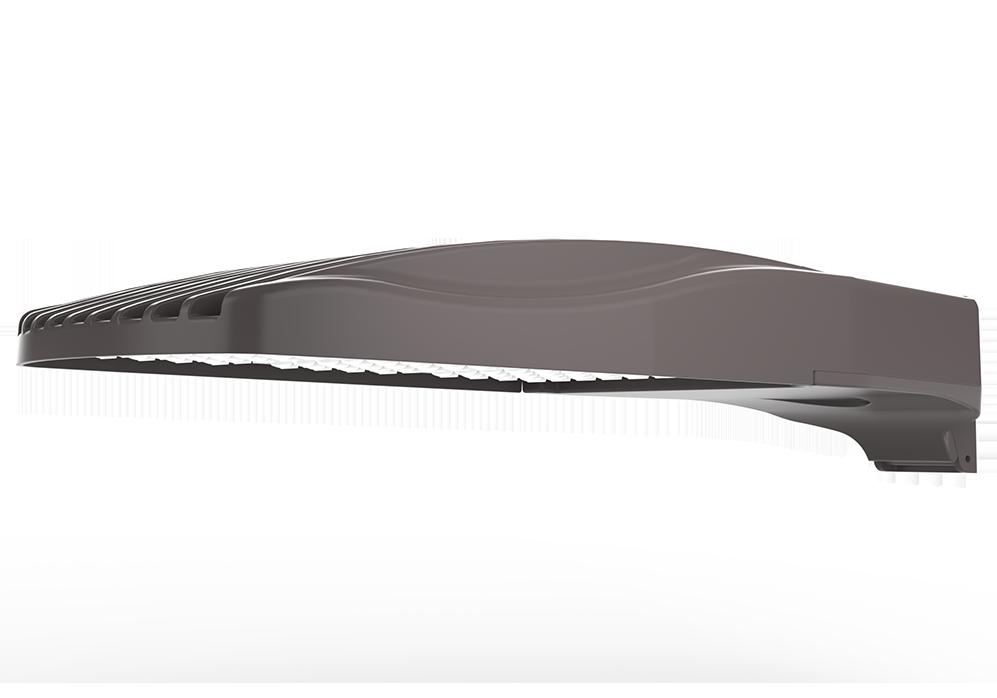

VISION 3
NO SPEC
NO QUOTE, EXISTING FIXTURE
PROJECT NAME:
ORDERING CODE:

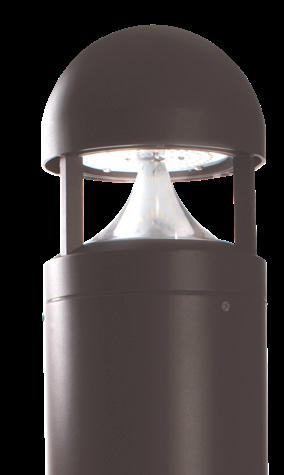

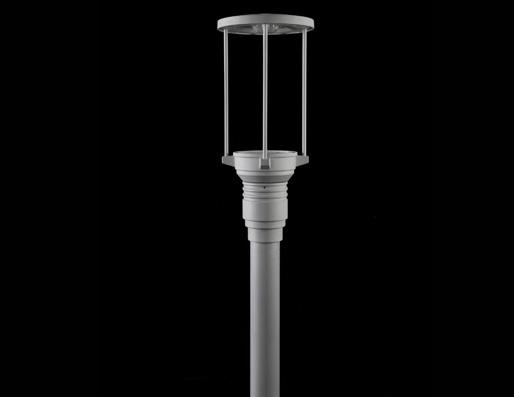

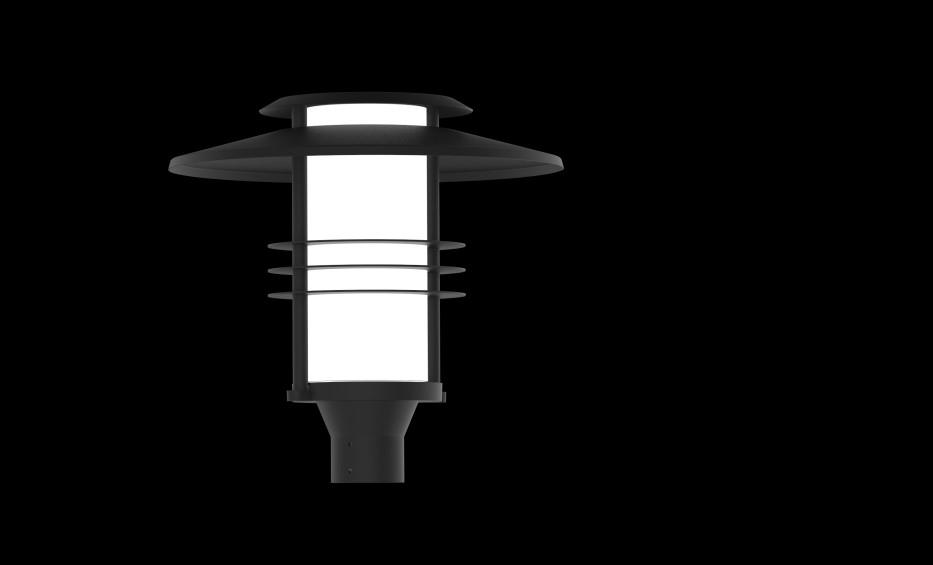

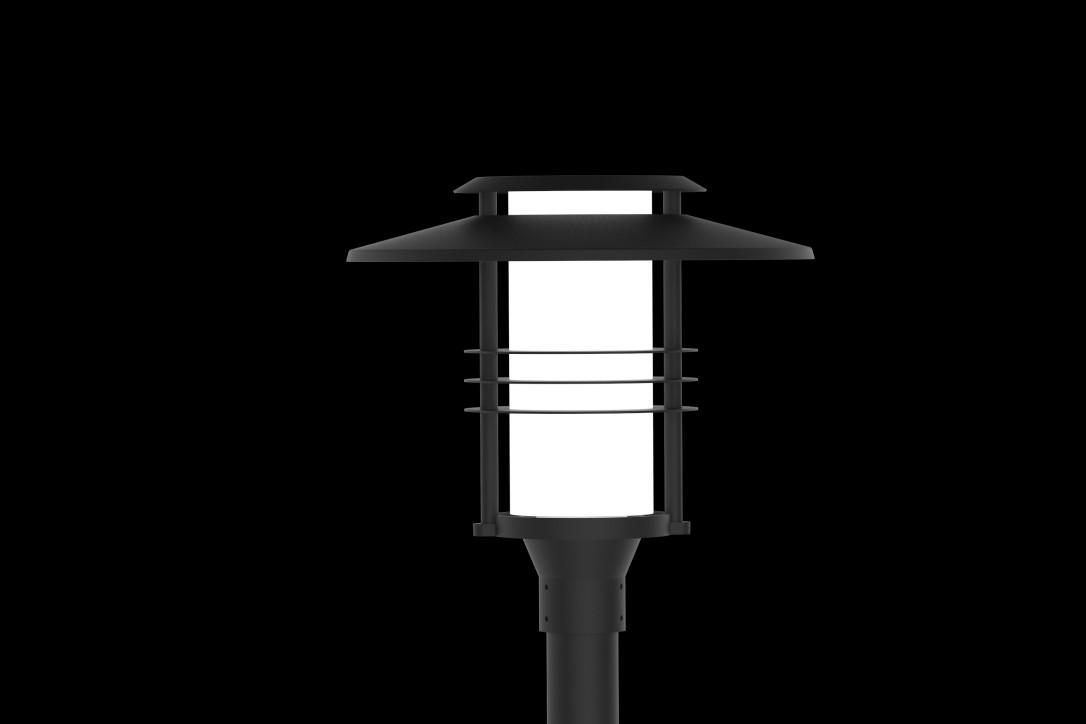

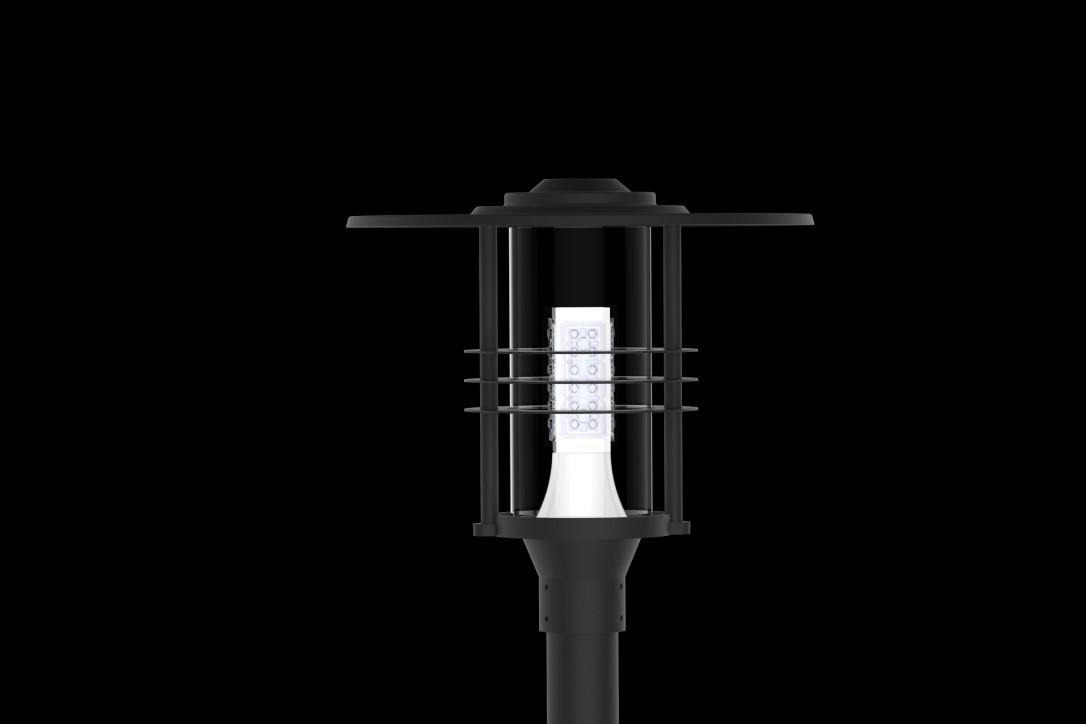

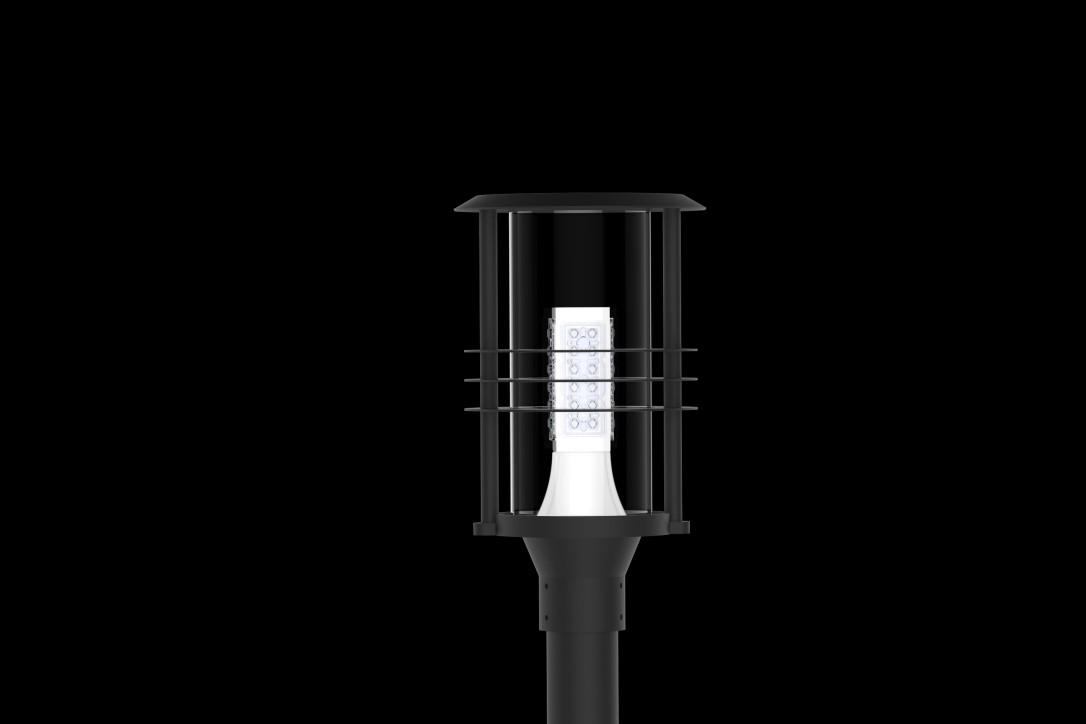

➀ Heavy cast aluminum top cover with integral LED heat dissipating pad.
➁ Optional one piece .090” (2.3mm) thick hard aluminum top shade. Underside surface is painted white enamel to optimize light performance.
➂ Set of 4 X 1/2” (13mm) solid aluminum struts.
➃ Cast aluminum upper electrical housing.
➄ Cast aluminum lower electrical housing.
MATERIALS
Eclipse is made of corrosion resistant 356 aluminum alloy with a copper (CU) content of less than 0.1%. The lower cast aluminum housing fits with a 4” (102mm) or 5” (127mm) pole and contains all electrical controls on a removable tray.
ELECTRICAL DRIVER
Driver is 0-10V dimming-ready (dims to 10%) with: 120-277 multi-volt compatibility (50-60Hz), optional 347V, minimum operating temperature of -30°C/-22°F, output over voltage protection, output over current protection, output short circuit protection with autorecovery, and over temperature protection (110°C).
LED LIGHT ENGINE
Type II, III & V light distribution via high performance optical lenses. Offered in 2700K, 3000K, 3500K, 4000K with 80 CRI. Removable modular LED platform. 70% LED lumen maintenance at 60,000 hours (L70/B50) based on IESNA LM-80-08 LED extrapolated life, calculated per IESNA TM-21-21.
Optional true amber LED for turtle sensitive areas. Wavelengths: 585nm to 597nm.
FINISH
Five-stage preparation process including preheating of cast aluminum parts for air extraction, and an environmentally friendly alloy sealant. Polyester powder coating is applied through an electrostatic process and oven cured for long term finish.
CERTIFICATION
UL Certified to Canadian and U.S. safety standards. Certified for use in wet locations. Rated IP65. Photometric testing performed by an independent laboratory in accordance with IES LM-79-08 standards at 25°C. Actual performance may differ as a result of end-user environment and application.
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: https://www.acuitybrands.com/ support/warranty/terms-and-conditions
MOUNTING
Standard luminaire mounts on a 4” (102mm) or 5” (127mm) pole. Alternate pole attachments are proposed with high quality components to meet multiple installation conditions.

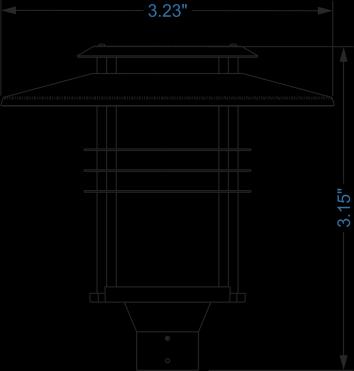

MEASUREMENTS
29” (747mm) 13” (317mm)
Maximum weight: 27 lbs (12 kg)
EPA: 0.95
EC800-PT4
EC800 Static White
L1L20 2224 lm / 21w
L1L40 3742 lm / 38w
L2L40 7675 lm / 74w
True Amber
L1LK2A 388 lm / 17w 1
Delivered lumens calculated at 4000K/80CRI for static white. Type V distribution. Typical power consumption. Refer to LCF table for outputs at other CCTs.
LV3 3 aluminum louvers

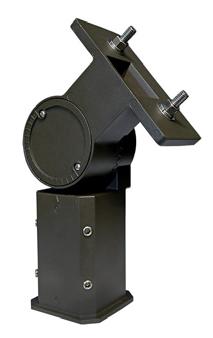

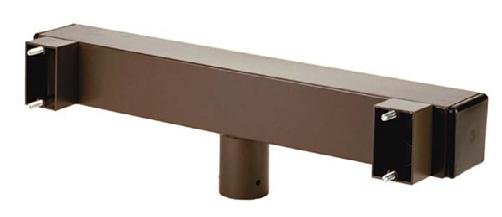

PM45 Pole mount w/45˚ support
PM Pole mount
PMS Pole mount - short
PR8
Pedestal mount adaptor
PT4 Post top mounting on Ø4" pole
PT5 Post top mounting on Ø5" pole
NOTES
BZT Bronze
TN3 3" pole adaptor3 BLC Back light control4 BKT Jet black
Looking for Fuse, Photocell or nLight Air? Refer to Luminis pole spec sheets.
*- Denotes a required field
1- Available only with AMB option.
2- For IDA certification compliance, luminaire must be ordered with 3000K or warmer.
3- 3” tenon pole adaptor only required for 3” O.D. poles by others.
4- Not available with LD5 or L2L40. Can be installed in the field on existing fixtures.
5- Contact factory to coordinate custom matching color.
6- Specify RAL number.
7- Marine grade paint for harsh, coastal environment and exposure to salt water. Additional delay required.

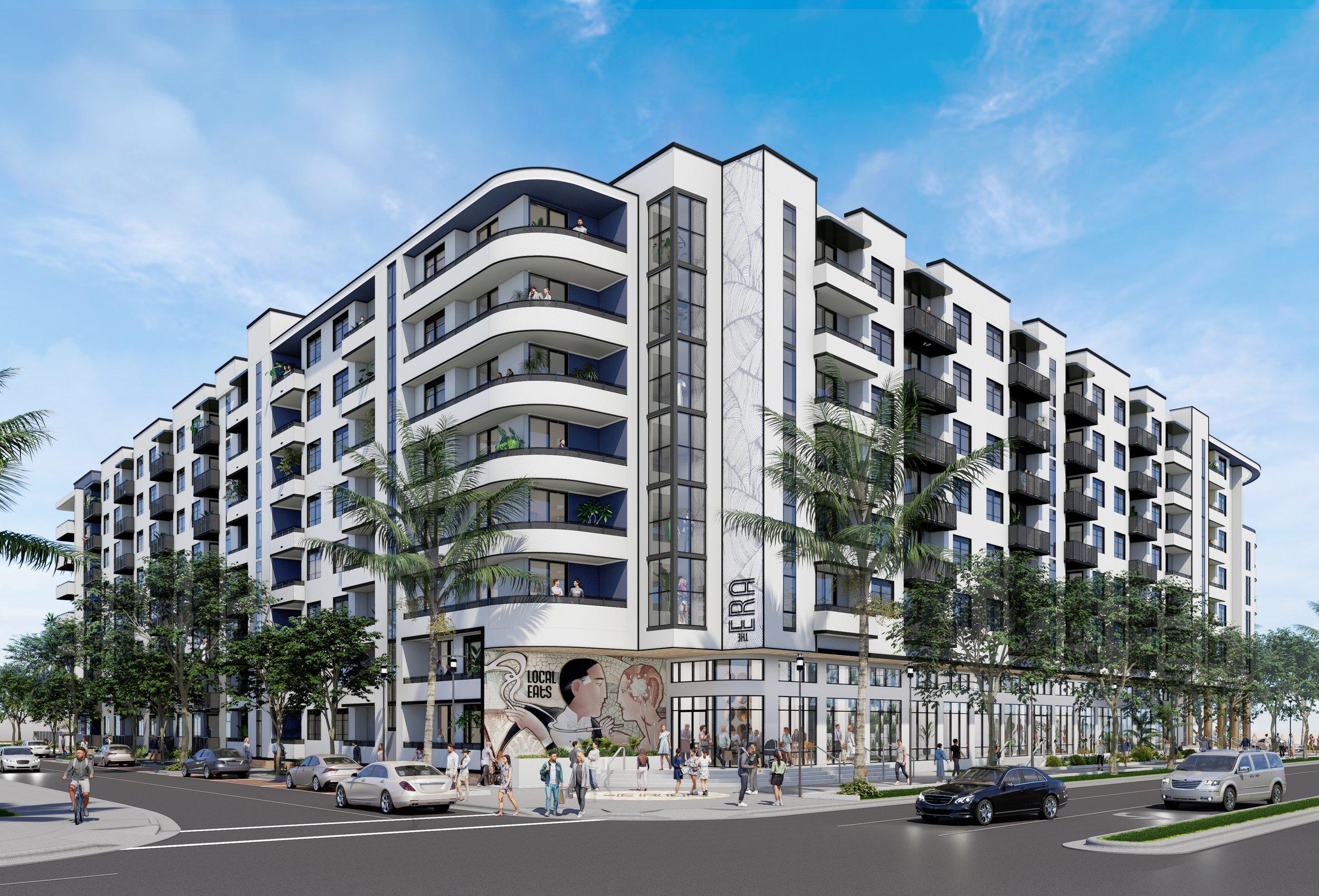

TYPE S5 POLE SPEC THE ERA
LUMINIS POLE DETAILS PRB4 Pole series PRS4/PRS5 Pole series
*For reference only. Must be selected with the pole. Refer to the separate pole specification for details.
PRB4 Ø4 round bottleneck aluminum pole
PRS4 Ø4 round straight aluminum pole
PRS5 Ø5 round straight aluminum pole

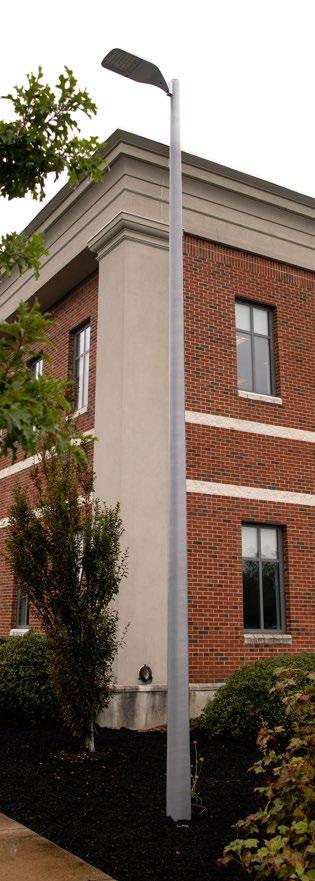

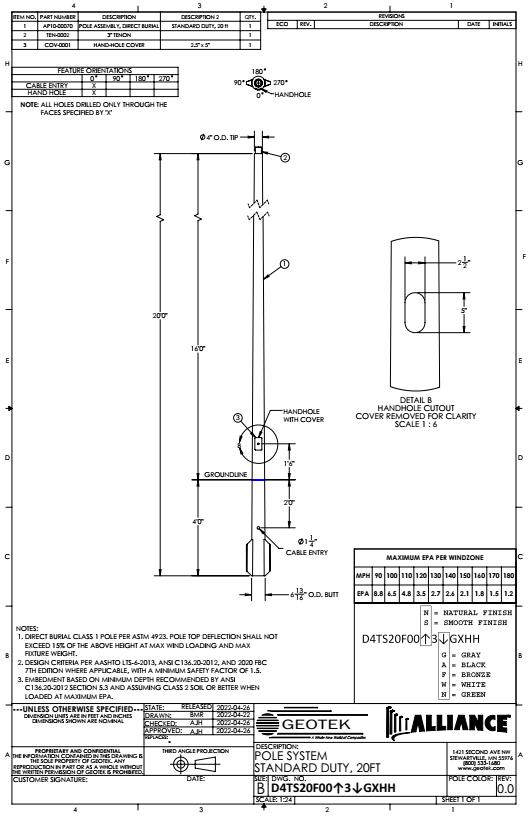

Round Tapered Fiberglass Light Poles
Direct Bury
Job/Client Name:
Standard, Intermediate, Heavy, and Extra Heavy Duty
Product Offering Includes:
ο Direct Bury poles to fit your specific wind zone and loading requirements.
ο 15-40’ lengths.
ο 3-Layers of protection against UV degradation. Includes thermally bonded outer coating.
ο Surface finish options include natural and smooth.
ο Ground line protection.
ο Multiple hand hole size options.
ο 2-3/8”, 3” Tenons or Top Cap available.
ο Standard Colors in black, bronze, and gray (other colors available by request).
ο Light Weight, Non-Conductive, and Non-Corrosive.
Product Numbers and EPA Ratings1,2
TYPE S5 POLE SPEC
L1L20 2436 lm / 21w
L1L40 4147 lm / 38w
L2L40 8083 lm / 74w Type III
L1L20 2409 lm / 21w
L1L40 4058 lm / 38w
L2L40 8331 lm / 74w
Catalog Number
Example: D6TS30F00N2G0001: Direct Bury, 6’ Burial Depth, Standard Duty, 30’, Natural Finish, with 2 3/8” Tenon in Gray.
Options and Accessories - Select and refer to Customer Service
Pole Options2
2½" x 5" Hand Hole Cover (Standard)
4" x 6" Hand Hole Cover
4" x 6" Universal Hand Hole Cover, 8" Backer Bar 4" x 12" Universal Hand Hole Cover, 14" Backer Bar
Hand Hole Tether I.D. Tag
Non-Standard Cable Entry (Standard is 2¼" Round)
Cable Entry Grommet
Ground Line Indicator
Pole Guard, 1-Piece, 20”, Installed at factory (Black or Bronze)
Accessories3
Pole Guard, 1-Piece, 20” (Black or Bronze), Field Install
Weed Eater Cover - heavy Duty, 2-Piece, Urethane
Base Shroud 1-Piece
Base Shroud 2-Piece
Footnotes
Drawings available at
1Design criteria per AASHTO LTS-6-2013, with a minimum safety factor of 1.5 per ANSI C136.20-2012, 3 second gust wind speeds per ASCE 7-16, and velocity conversions per IBC 1609.3.1, 2018. Lighting installations for side and top mounting of luminaires with effective projected area (EPA) not to exceed maximum allowable loading of the specified pole in its installed geographic location. EPA ratings available up to 180 mph or for EPA ratings calculated per AASHTO LRFD or other, alternate methods, contact sales@alliancecompositesinc.com for more information.
2EPA ratings shown are for light pole with a standard 2½” x 5” Hand Hole. EPA ratings with a 4” x 6” or a 4” x 12” Hand Hole. Custom color poles (Non-standard) will have a single fastener Hand Hole Cover with a backer bar, matching the color of the pole.
3Longer lead times may apply, contact factory.
4Customer to provide drill patterns. These will be available on the provided, engineering drawing, prior to PO acceptance.
5Pole weights are approximate, +/- 10% of stated value. All products
information. Consult GEOTEK with specific inquiries.
All rights reserved. No part of this document may be
▶ DESIGN -LEDOUTDOORWALLCYLINDERhasamoderndesignwith effective up and/or down illumination. This fixture has a tempered glass cover and a durable die-cast aluminum body. It is designed to operate on 120V circuits and provides smooth triac dimming capabilities ranging from 10% to 100%.

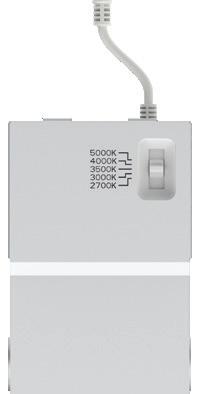

▶ COLOR SELECTABLE - You can choose either a 3,000K warm white, 4,000K cool white or 5,000K daylight color temperature.
▶ PHOTOCELL - The built-in Dusk to Dawn Photocell for indicated models will automatically turn the fixture on/off depending on the time of day.
▶ APPLICATION - The fixture is rated for Wet Locations, making it perfect for indoor and outdoor projects such as decks, front doors, porches, patios, corridors, walkways, or any other common areas.
▶ ADVANTAGES - With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with ETL certification to guarantee top quality products and safety!
Black Bronze
x 11-13/16"OLCLR ROUND WITH DECORATIVE RING
ASD-LCLR-1B-9BK 1 9W120-277 V TRIAC up to 579 lm3CCT (3,000/4,000/5,000 K)Black4-3/8" x 6-9/16" x 7-15/16" -
ASD-LCLR-2B-18BK 2 18W120-277 V TRIAC up to 1180 lm3CCT (3,000/4,000/5,000 K)Black4-3/8" x 6-9/16" x 11-13/16"OLCLS SQUARE
ASD-LCLS-1A-9BK 1 9W120-277 V TRIAC up to 819 lm3CCT (3,000/4,000/5,000 K)Black4-3/8" x 5-13/16" x 7-7/8" -
ASD-OLCLS-1D9CC-BZ 1 9W 120VTRIAC up to 983 lm3CCT (3,000/4,000/5,000 K)Bronze5-13/16" x 4-3/8" x 7-7/8" -
ASD-OLCLS-1D9CC-BK 1 9W 120VTRIAC up to 983 lm3CCT (3,000/4,000/5,000 K)Black5-13/16" x 4-3/8" x 7-7/8" -
ASD-LCLS-2A-18BK 2 18W120-277 V TRIAC up to 1,613 lm3CCT (3,000/4,000/5,000 K)Black4-3/8" x 5-13/16" x 10-3/16" -
ASD-OLCLS-2D18CC-BZ 2 18W 120VTRIAC up to 1,974 lm3CCT (3,000/4,000/5,000 K)Bronze5-13/16" x 4-3/8" x 10-1/4" -
ASD-OLCLS-2D18CC-BK 2 18W 120VTRIAC up to 1,974 lm3CCT (3,000/4,000/5,000 K)Black5-13/16" x 4-3/8" x 10-1/4" -

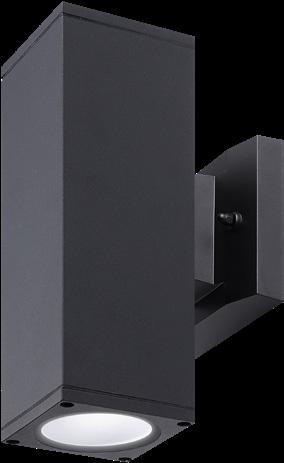

OLCLS SQUARE WITH DECORATIVE RING
ASD-LCLS-1B-9BK 1 9W120-277 V TRIAC up to 502 lm3CCT (3,000/4,000/5,000 K)Black4-3/8" x 5-13/16" x 7-15/16"ASD-LCLS-2B-18BK 2 18W120-277 V TRIAC up to 962 lm3CCT (3,000/4,000/5,000 K)Black4-3/8" x 5-13/16" x 11-13/16"OLCLR-EM ROUND WITH BATTERY BACK-UP
2 18W120-277

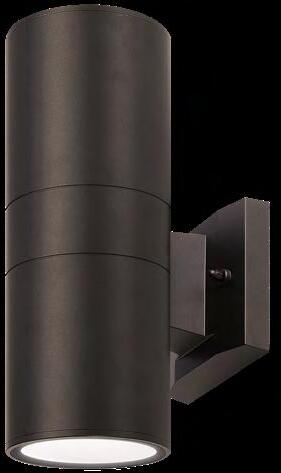

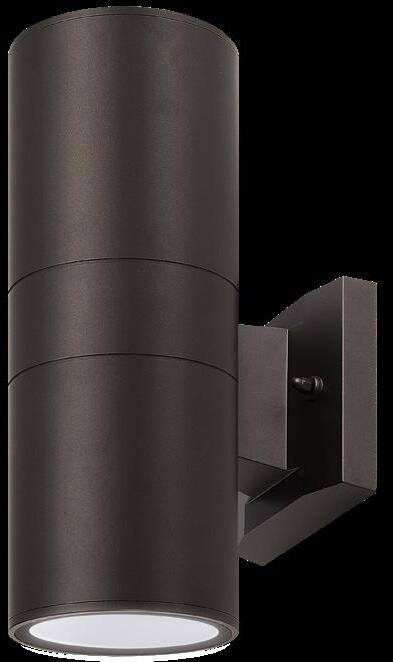

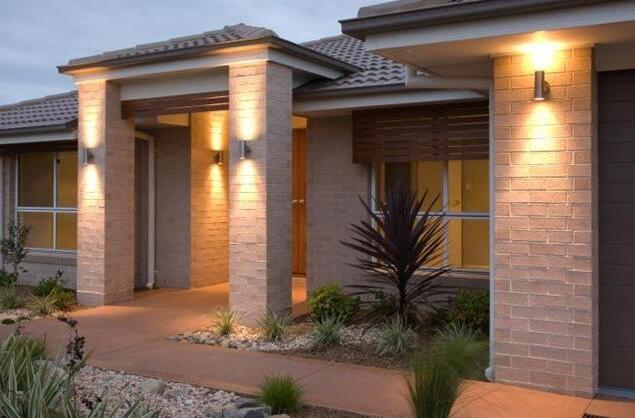

LED ROUND OUTDOOR WALL CYLINDER
▶ DESIGN -LEDOUTDOORWALLCYLINDERhasamoderndesignwith effective up and/or down illumination. This fixture has a tempered glass cover and a durable die-cast aluminum body. It is designed to operate on 120V circuits and provides smooth triac dimming capabilities ranging from 10% to 100%.
▶ COLOR SELECTABLE - You can choose either a 3,000K warm white, 4,000K cool white or 5,000K daylight color temperature.
▶ PHOTOCELL - The built-in Dusk to Dawn Photocell for indicated models will automatically turn the fixture on/off depending on the time of day.
▶ APPLICATION - The fixture is rated for Wet Locations, making it perfect for indoor and outdoor projects such as decks, front doors, porches, patios, corridors, walkways, or any other common areas.
▶ ADVANTAGES - With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with ETL certification to guarantee top quality products and safety!
Finish: Black Bronze
120V- up to 1,002 lm3CCT (3,000/4,000/5,000 K)Black4-3/8" x 6-7/16" x 7-7/8"Photocell
ASD-OLCLR-2N18CC-PC-BZ 2 18W 120V- up to 1,859 lm3CCT (3,000/4,000/5,000 K)Oil rubbed bronze4-3/8" x 6-7/16" x 11-13/16"Photocell
ASD-OLCLR-2N18CC-PC-BK 2 18W 120V- up to 1,859 lm3CCT (3,000/4,000/5,000 K)Black4-3/8" x 6-7/16" x 11-13/16"Photocell
ASD-OLCLR-2N18CC-PC-BK-2PACK 2 18W 120V- up to 1,859 lm3CCT (3,000/4,000/5,000 K)Black4-3/8" x 6-7/16" x 11-13/16"Photocell OLCLS-PC SQUARE WITH PHOTOCELL
ASD-OLCLS-1N9CC-PC-BK 1 9W 120V- up to 983 lm3CCT (3,000/4,000/5,000 K)Black5-13/16" x 4-3/8" x 7-7/8"Photocell
ASD-OLCLS-2N18CC-PC-BK 2 18W 120V- up to 1,974 lm3CCT (3,000/4,000/5,000 K)Black5-13/16" x 4-3/8" x 10-1/4"Photocell
For detailed luminous flux information please refer to Annex 1.
LED ROUND OUTDOOR WALL CYLINDER
▶ DESIGN & OPTIONS -LEDROUNDOUTDOORWALLCYLINDERhasa modern design with effective up/down illumination. This fixture has a tempered glass cover and durable die-cast aluminum body that is highly resistant to rust. It runs on 120V circuits with Triac dimming. It is also CCT selectable, letting you set it to 3,000K, 4,000K or 5,000K with a simple switch. Comes in a BLACK or BRONZE finish.
Models with a built-in battery back-up provide 90 minutes of power in case of emergency.
Models with a built-in PC automatically turn on/off depending on the time of day.
▶ INSTALLATION - Installation is quick and easy: just attach the mounting plate to the J-box with screws, connect the wires, and fasten the fixture to the mounting plate. Waterproof gaskets, decorative nuts and all necessary installation accessories are provided. Refer to install instructions for detailed steps.
▶ APPLICATION - This LED ROUND OUTDOOR WALL CYLINDER creates a cozy ambience that is great for indoor and outdoor projects such as decks, front doors, porches, patios, gardens, corridors, balconies, villas, and walkways. The fixture is Wet Location rated and suitable for severe weather conditions.
▶ ENERGY SAVINGS & EFFICIENCY - With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! This fixture can cut your electric bill by up to 80% instantly and will save you a significant amount of money in its lifetime.
▶ CERTIFICATION & WARRANTY - Buy with confidence: ASD provides a 5-year limited warranty along with ЕТL certification to guarantee top quality products and safety!
lm3CCT (3,000/4,000/5,000 K)Oil rubbed bronze6-3/8" x 4-3/8" x 7-7/8"Photocell ASD-OLCLR-2N18CC-PC-BK218W120 V - 1,678/1,859/1,745 lm3CCT (3,000/4,000/5,000 K)Black6-3/8" x 4-3/8" x 11-13/16"Photocell
ASD-OLCLR-2N18CC-PC-BZ218W120 V - 1,678/1,859/1,745 lm3CCT (3,000/4,000/5,000 K)Oil rubbed bronze6-3/8" x 4-3/8" x 11-13/16"Photocell
PRODUCT SPECIFICATIONS:
Environmental system
Work environmentSuitable for Wet Locations
Operating temperature-4℉ to 113℉ (-20℃ to 45℃) for model with photocell or battery back-up: -4℉ to 122℉ (-20℃ to 50℃) L-70 Life > 50,000 hrs
THE ERA TYPE L23 ALT
LED ROUND OUTDOOR WALL CYLINDER
▶ DESIGN -LEDOUTDOORWALLCYLINDERhasamoderndesignwith effective up and/or down illumination. This fixture has a tempered glass cover and a durable die-cast aluminum body. It is designed to operate on 120V circuits and provides smooth triac dimming capabilities ranging from 10% to 100%.
▶ COLOR SELECTABLE - You can choose either a 3,000K warm white, 4,000K cool white or 5,000K daylight color temperature.
▶ PHOTOCELL - The built-in Dusk to Dawn Photocell for indicated models will automatically turn the fixture on/off depending on the time of day.
▶ APPLICATION - The fixture is rated for Wet Locations, making it perfect for indoor and outdoor projects such as decks, front doors, porches, patios, corridors, walkways, or any other common areas.
▶ ADVANTAGES - With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with ETL certification to guarantee top quality products and safety!
Catalog
1 9W
Finish: Black Bronze
up to 983 lm3CCT (3,000/4,000/5,000 K)Black5-13/16" x 4-3/8" x 7-7/8" -
ASD-OLCLS-2D18CC-BZ 2 18W 120VTRIAC up to 1,974 lm3CCT (3,000/4,000/5,000 K)Oil rubbed bronze5-13/16" x 4-3/8" x 10-1/4"ASD-OLCLS-2D18CC-BK 2 18W 120VTRIAC up to 1,974 lm3CCT (3,000/4,000/5,000
1
120V- up to 1,002 lm3CCT (3,000/4,000/5,000 K)Black4-3/8" x 6-7/16" x 7-7/8"Photocell
ASD-OLCLR-2N18CC-PC-BZ 2 18W 120V- up to 1,859 lm3CCT (3,000/4,000/5,000 K)Oil rubbed bronze4-3/8" x 6-7/16" x 11-13/16"Photocell
ASD-OLCLR-2N18CC-PC-BK 2 18W 120V- up to 1,859 lm3CCT (3,000/4,000/5,000 K)Black4-3/8" x 6-7/16" x 11-13/16"Photocell
ASD-OLCLR-2N18CC-PC-BK-2PACK 2 18W 120V- up to 1,859 lm3CCT (3,000/4,000/5,000 K)Black4-3/8" x 6-7/16" x 11-13/16"Photocell OLCLS-PC SQUARE WITH PHOTOCELL
ASD-OLCLS-1N9CC-PC-BK 1 9W 120V- up to 983 lm3CCT (3,000/4,000/5,000 K)Black5-13/16" x 4-3/8" x 7-7/8"Photocell
ASD-OLCLS-2N18CC-PC-BK 2 18W 120V- up to 1,974 lm3CCT (3,000/4,000/5,000 K)Black5-13/16" x 4-3/8" x 10-1/4"Photocell
For detailed luminous flux information please refer to Annex 1.

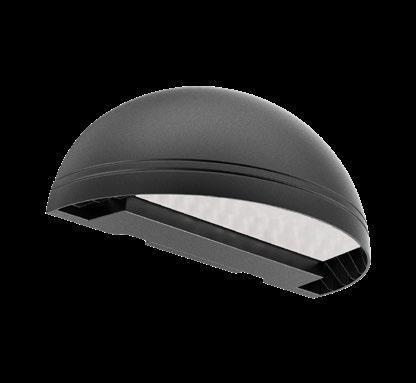

TRP2/RDI2/QSP2

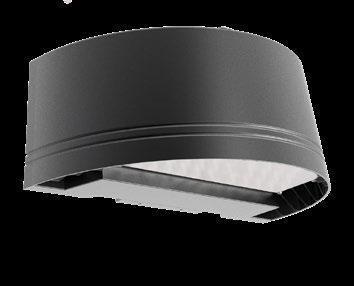

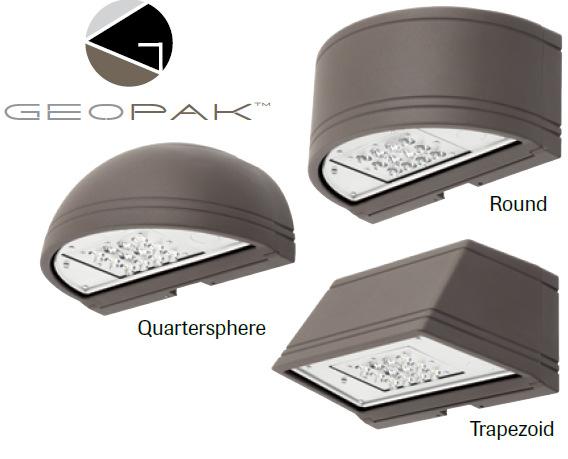

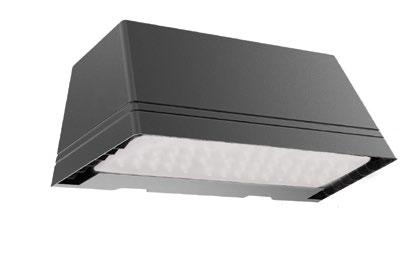

GeoPak Architectural Wallpacks
Medium sized architectural wallpacks in three stylish shapes accentuate building architecture and provide excellent illumination and uniformity
• Optional Sensor and wireless controls
ORDERING INFORMATION
ACCESSORIES (ORDER SEPARATELY)
Die-cast aluminum with upper and lower casting for ease of installation and maintenance
• Spectron® self-testing/self-diagnostic electronics are included st andard
SCP-REMOTE* Remote control for SCP option. Order at least one per project to program and control dimming settings
BB-GEO-XX Black box with 4 - 1/2" threaded conduit holes, specify finish by replacing "XX" with finish selection, eg. Dark Bronze "DB"
SWUSB** SiteSync loaded on USB flash drive (Windows based only)
SWTAB** SiteSync Windows Tablet
SWBRG+ SiteSync Wireless Bridge Node
* Must order minimum of one remote control to program dimming settings, 0-10V fully adjustable dimming with automatic daylight calibration and different time del ay settings.
** When ordering with SiteSync, one of the following interface options must be chosen an ordered separately. Each
DIMENSIONS

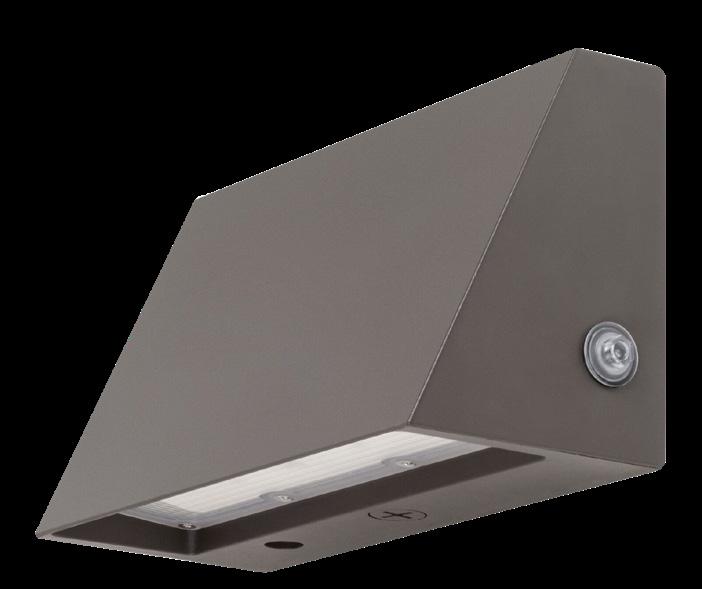

PEAK
Architectural Full Cut-Off Wall Pack
DESCRIPTION
Type: Fixture:
TECHNICAL DATA
PRODUCT WPFP-37LC
WATTAGE Up to 30W
LUMENS Up to 3700LM
EFFICACY up to 123 LM/W CCT Color Changeable 3000K/4000K/5000K
VOLTAGE 120 - 277V
RATING IP65, WET LOCATION
CONTROL
DISTRIBUTION TYPE GENERAL w/visual comfort lens
LUMEN MAINTENANCE L90 >36,000 HOURS WORKING TEMP -22� F TO 113� F
FINISH DARK BRONZE, BLACK*, WHITE*
Peak series color changeable full cut off wall pack is aesthetically designed to meet the specifier’s every wall-mounted lighting application. The small size peak has lumen package ranges from 3700 - 1600 lumens with visual comforting general distribution.
INTENDED USE
Peak series is ideal for entryway, pathway, area and perimeter lighting.
ORDERING INFORMATION
cost and/or lead time on customized fixtures may apply. Customized features can not be returned.
C2 Bi-Level Microwave Motion Sensor
PRODUCT FEATURES MODEL 8228 | Specification Sheet

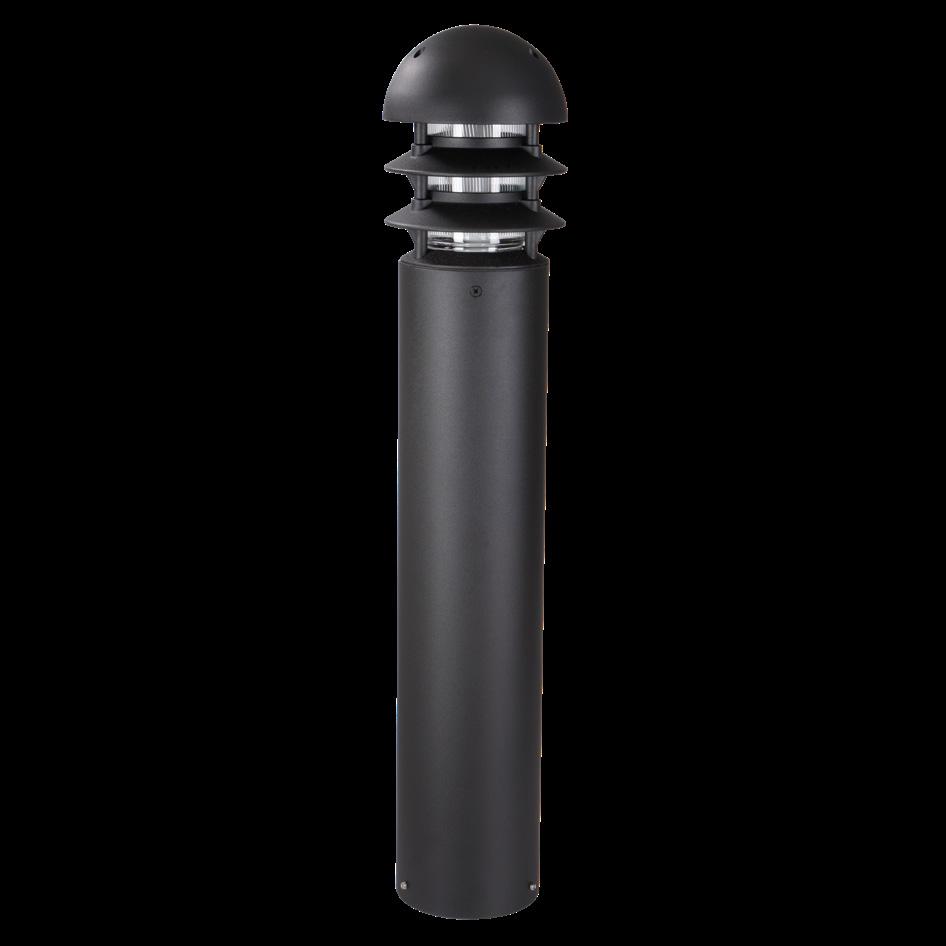

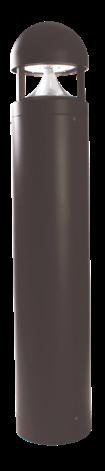

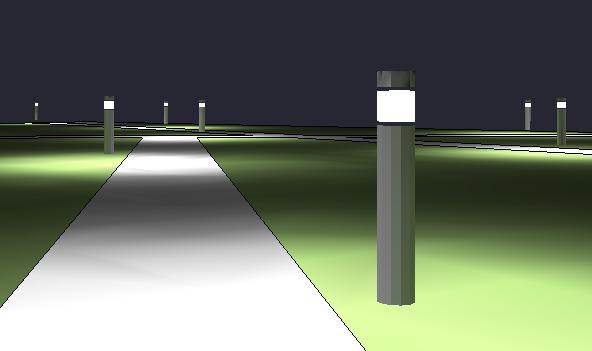

SPARTAN BOLLARD
SPARTAN BOLLARD
The Spartan Bollard is the LED alternative to traditional bollard lighting, which illuminates pathways, parking structures, or any kind of commercial real estate. Details at the top of the fixtures, add an architectural feel to the design, making this light great for customers looking for safety and style. PROJECT DETAILS
PRODUCT SPECS
LED Bollard Light
The Spartan Bollard is the LED alternative to traditional bollard lighting, which illuminates pathways, parking structures, or any kind of commercial real estate. Details at the top of the fixtures, add an architectural feel to the design, making this light great for customers looking for safety and style.
The Spartan Bollard is the LED alternative to traditional bollard lighting, which illuminates pathways, parking structures, or any kind of commercial real estate. Details at the top of the fixtures, add an architectural feel to the design, making this light great for customers looking for safety and style.
Input Voltage (VAC) 100-277
PRODUCT SPECS
Input Voltage (VAC) 100-277 CRI 70+
PRODUCT SPECS
CCT (K) 4000, 5000 PF >.9
Project:
Product:
Prepared by:
PROJECT DETAILS
PROJECT DETAILS TYPE
Notes:
Project:
Project:
Product:
Product:
Prepared by:
Prepared by:
Notes:
Notes:
PRODUCT HIGHLIGHTS
• IP65 Rated
PRODUCT HIGHLIGHTS
• Can be cut to custom lengths
· IP65 Rated
• Built from high strength extruded aluminum
PRODUCT HIGHLIGHTS
· Can be cut to custom lengths
Lifetime (Hrs per TM21-08 @L70 50,000
Input Voltage (VAC) 100-277
CCT (K) 3000K/4000K/5000K Selectable PF >.9
CRI 70+
Lifetime (Hrs per TM21-08 @L70 54,000
Color Bronze, Black Housing Aluminum and PC
CCT (K) 4000, 5000 PF >.9
Color Bronze, Black
Lens Clear (std.), Frosted Operating Temperature -40°C to 40°C
Lifetime (Hrs per TM21-08 @L70 50,000
Housing Aluminum
Lens Clear
Limited Warranty 10 Years‡
Operating Temperature -40°C to 40°C
Limited Warranty 10 Years‡
Color Bronze, Black Housing Aluminum and PC
CERTIFICATIONS AND COMPATIBILITIES
· Built from high strength extruded aluminum
• IP65 Rated
• Can be cut to custom lengths
CERTIFICATIONS AND COMPATIBILITIES
• Built from high strength extruded aluminum
CERTIFICATIONS AND COMPATIBILITIES
*Photocontrol is available by special order. Contact ATG for details. *
*Photocontrol is available by special order. Contact ATG for details.
ORDER FORMAT EXAMPLE: BLD-24-40
ORDER FORMAT
Lens Clear (std.), Frosted
Product ID – Wattage – CCT – Voltage
Operating Temperature -40°C to 40°C
Seties– Wattage – CCT
Limited Warranty 10 Years‡
EXAMPLE: BLD-24-40
BLD=Dome Top BLF=Round Flat Top – 24=24W – CS=3000K/4000K/5000K Selectable – Blank=100-277V –Blank=1-10V Dimming– Blank=Bronze custom finins*
ORDER FORMAT
*talk to our sales for more information about custom finis
*Photocontrol is available by special order. Contact ATG for details.
BLD-24-40
APPLICATION CONSTRUCTION
APPLICATION
The luminaire comes standard with an 8 bolt mounting kit. The Spartan Bollard can also be cut to custom lengths upon request.
The luminaire comes standard with an 8 bolt mounting kit. The Spartan Bollard can also be cut to custom lengths upon request.
CONSTRUCTION
ATG’s Spartan LED bollard is built from high-strength extruded aluminum with a polycarbonate lens. The housing features integral thermal management and is IP65 rated for stellar protection from the elements. Operating ambient temperature ranges from -40°C to +40°C.
CONSTRUCTION
ATG’s Spartan LED bollard is built from high-strength extruded aluminum with a polycarbonate lens. The housing features integral thermal management and is IP65 rated for stellar protection from the elements. Operating ambient temperature ranges from -40°C to +40°C.
ELECTRICAL
The fixture operates at a standard voltage of 100-277V and draws 24W of power. L70 is rated for >54,000 hours, or >10 years at 12 hours a day of operation.
ATG’s Spartan LED bollard is built from high-strength extruded aluminum with a polycarbonate lens. The housing features integral thermal management and is IP65 rated for stellar protection from the elements. Operating ambient temperature ranges from -40°C to +40°C.
OPTICS
The Sparttan Bollard outputs 2,472+ Lm. The fixture operates at a standard voltage of 100-277V and draws 24W of power. L70 is rated for >54,000 hours, or >10 years at 12 hours a day of operation.
ELECTRICAL
ELECTRICAL OPTICS
The LED array is tight shielded by a clear polycarbonate lens. Available with CCT switchable model with 3000K/4000K/5000K selections, matched with an outstanding 70+ CRI for optimal nighttime visibility.
The Sparttan Bollard outputs 2,472+ Lm. The fixture operates at a standard voltage of 100-277V and draws 24W of power. L70 is rated for >54,000 hours, or >10 years at 12 hours a day of operation.
The LED array is tight shielded by a clear polycarbonate lens. Available CCT options are 4000K, and 5000K, matched with an outstanding 70+ CRI for optimal nighttime visibility.
OPTICS
*Data for 4000K(fixed) is based on IES file,5000K is based on extrapolated data with 1.08 factor
The LED array is tight shielded by a clear polycarbonate lens. Available CCT options are 4000K, and 5000K, matched with an outstanding 70+ CRI for optimal nighttime visibility.
MODEL 3106 | Specification Sheet
Type:
Model:

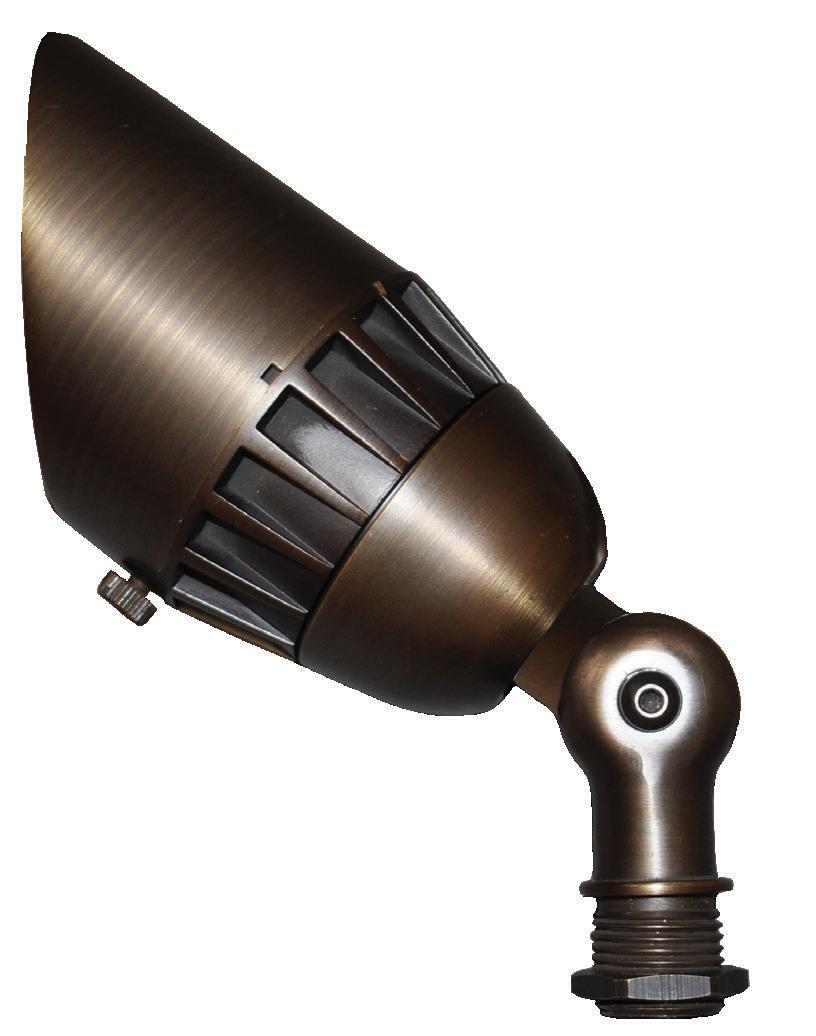

BODACIOUS Integrated LED Uplight
SPECIFICATIONS
VOLTAGE:
12V AC/DC
HOUSING:
Cast brass with removable 3” shroud. Optional 6” shroud available.
Threaded with 1/2” NPT. May be mounted into threaded hubs in junction boxes or mounting accessories. Heavy-duty composite stake included.
WIRING:
Pre-wired with a five-foot pigtail of 18/2 cable.
WARRANTY: 10-year warranty

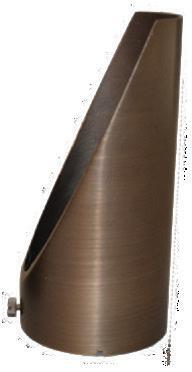

Opt. 6” extended shroud 3W & 6W #490260
DIMENSIONS:
Opt. 6” extended shroud 8W, 12W & 16W #490261
SPECIFICATION SHEET
The Bodacious uplight features an integrated LED source available in 3, 8, 6,12 or 16 watts. 2700K, 3000K and 5000K options. 30-, 45-, 65- and 100-degree beam spreads.
TYPE UL SPEC THE ERA
MODEL 3106 | Specification Sheet

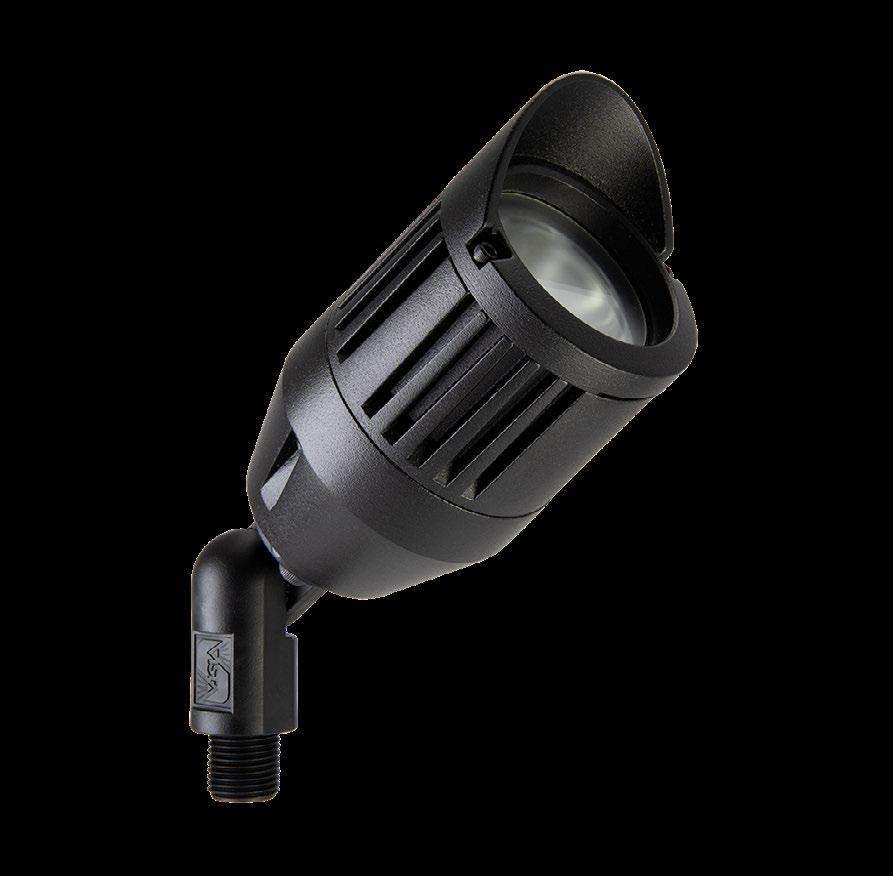

Residential Series · Up / Accent / Downlight
SPECIFICATIONS
HOUSING CONSTRUCTION:
Die-cast A360 aluminum. Optic and driver compartment environmentally sealed.
DOOR CONSTRUCTION:
Die-cast A360 aluminum.
Door is designed to shed water from the lens surface.
FINISH:
Powder coat finish available in Black, Architectural Bronze, Dark Bronze, Granite, White, Architectural Brick, Light Bronze, Special Bronze, Glossy Gray, Rust, Hunter Green, Weathered Bronze, Weathered Iron, Graphite Metallic, Verde, Pewter, Mocha and Olde Finish. Custom Powder coat finishes available on request.
LENS:
Tempered and beveled clear glass.
LED:
Discreet performance LEDs binned to three MacAdam ellipses.
135 – 738 Lumens delivered.
4.5 – 13 Watts.
COLOR TEMPERATURE:
2700K, 3000K, 3500K, 4000K or 5000K CCT White.
COLOR RENDERING:
80 CRI minimum
ELECTRICAL:
Input voltage range 9 - 15 VAC.
Low voltage transformer required to operate (sold separately).
DIMENSIONS
REFLECTOR:
Precision molded metalized optics combined with glare controlling filters. Very Narrow Spot optic incorporates an additional internal source shield to eliminate unwanted glare outside the beam pattern.
FASTENERS:
All fasteners are stainless steel.
WIRING:
Prewired with a 36” pigtail of 18-2 direct-burial cable and underground connectors.
MOUNTING:
Injection-molded composite knuckle with ½” NPS thread.
CERTIFICATION:
UL Listed to U.S. and Canadian safety standards for low voltage landscape luminaires (UL 1838).
LIGHT DISTRIBUTION:
Very Narrow Spot VNS (16° FWHM)
Narrow Spot NS (19° FWHM)
Medium Flood MF (30° FWHM)
Wide Flood WF (46° FWHM)
CONTINUED FROM PREVIOUS PAGE
Mount 490057
TSM Tapered Surface Mount 490048
EM Round Electrical Mounting Plate 490043

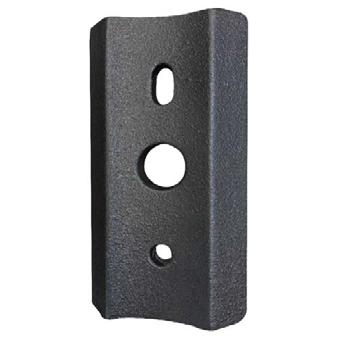

RMP Rectangular Electrical Mounting Plate 490044
NO SPEC
THE ERA TYPE DRIVER
SPECIFICATION SHEET
300W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490542
SPECIFICATIONS
OUTPUT:
300W, 25A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT:
120V, 60Hz, 2.5A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 25A breaker, heavy-duty grounded 5-foot power cord. Suitable for interior or exteriror use.
AGENCY LISTINGS:
ETL approved. Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490542-DT200LT
DIMENSIONS:
Type:
Model:
If this unit is being mounted within 25 feet of a panel box with primary breakers, it is recommended to have a designated circuit with a high in-rush current, magnetic load type breaker which is compatible with the existing brand of panel.
DATE: LOCATION: TYPE:
EV Series
ARCHITECTURAL LED EMERGENCY LIGHT
FEATURES
• Standard EV model has 20' spacing, optional -02L model increases spacing to 33' on a 6' path
• High impact, flame rated and UV stable white thermoplastic housing
• The EV series includes the EVR-2 LED remote as an accessory
• Fully adjustable high output LED lamp-heads
• Environmentally Friendly Nickel Metal Hydride Battery
• Top mount conduit entry
• Remote capacity models have a minimum run-time of 120 minutes when no remotes are installed
Self-Testing/Self-Diagnost
SPECIFICATIONS
APPLICATION
• The EV Series is a compact architectural emergency lighting unit designed for fast wall mount installation and reliable service
• The EV Series has a flame-rated, UV stable thermoplastic housing and a lightly textured white finish
• Integral LED based lamp-heads are fully adjustable
• Unit provides a full 90 minutes of emergency lighting
• Includes micro-controlled pulse charger and nickel metal hydride (NiMH) battery
• The EV accepts 120/277VAC input at 60 Hz and optional 220-240VAC input at 50-60 Hz with self-diagnostics option
CONSTRUCTION
• The EV Series housing and back-plate are made from durable injection molded thermoplastic
• Lamp-head front halves are made of die-cast aluminum for thermal dissipation
• Back half of lamp-head made of ABS thermoplastic
• LED lens are made of acrylic.
INSTALLATION
RELATED PRODUCTS
EVC Series - Combination Emergency/Exit Sign
EVE Series - Architectural Exit Sign
EV4R - Recessed Emergency Light
EVHC - High Capacity Emergency Light EV4D-02WAL - Emergency Light EVO - Remote Head
• Universal mounting template molded in the back plate aids in quick installation
• Unit mounts to all single gang and standard 3 1/2” and 4” square or octagonal electrical boxes. Conduit entry through a molded-in knock-out at the top center
• Pre-stripped AC input leads provided
• Unit may be ceiling or wall mounted
ILLUMINATION
• The EV Series provides bright and uniform illumination and increased spacing by using 2 high power LEDs which are mounted in a specially designed heat dissipation lamphead
• Each lamp-head is fully adjustable and positioning is maintained by a friction fit design
• Photometrics are available for download at www.dual-lite.com
COMPLIANCES
• Listed to UL924 Standard, NFPA 101, NFPA 70
• Damp Location Listed Optional
• RoHS
• CEC T20 Compliant
WARRANTY
• LED Lifetime Warranty
• EV Full 3 year warranty
• EV with Spectron® Full 5 year warranty
• See HLI Standard Warranty for additional information
THE ERA TYPE EM ALT

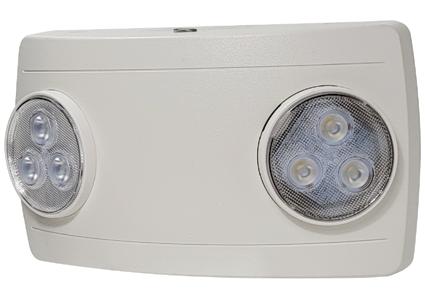

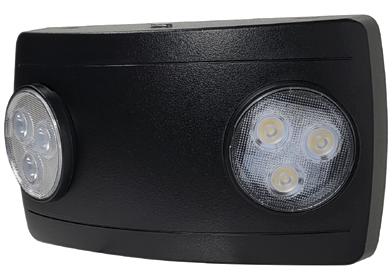

Compact Dual Head LED Emergency Light with Optional Remote Capability
Source: (2) 0.9W or 1W
PRODUCT DESCRIPTION
Luminaire provides 90 minutes of light from two adjustable heads for illuminating paths of egress upon failure of normal power. Emergency unit is available in higher lumen output and remote capability.
FEATURES
Comp act housing with (2) adjustable LEDs
Light weight snap together design
Plas tic enclosure with 5VA flame retardant
3.6V maintenance-free, rechargeable NiMH battery
· Self-diagnostic and self-testing option available
Ceiling or wall mounted
Univ ersal 120/277VAC input
Remo te capability
SPECIFICATION
Construction: Injection-molded thermoplastic ABS housing. Plastic enclosure with 5VA flame retardant. Quick connector design for easy installation. Two fully adjustable glare-free round heads for emergency lighting.
Mounting: Plastic enclosure includes a top and side knockout for conduit application. Suitable for wall mounting or ceiling mounting. Waterproof vandal resistant enclosure available, must specify NEG-602.
Operation: Luminaire will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time per battery.
ELECTRICAL
Input Voltage: 120/277VAC 60Hz
Lumens / Wattage:
NE-612LED: (2) 110lm / 0.9W
NE-612LEDRC: (2) 90lm / 0.9W
NE-612LEDHORC: (2) 150lm / 1W
Color Temperature: 5700K
Operating Temperature: 10˚C to 40˚C ambient temperature (-25°C to 50°C when used with NEG-602)
Batteries: NiMH 3.6V 2W maintenance-free
Remote Option: Luminaire is capable of including an additional 3.6V / 4W battery. Additional battery is used to power an additional remote emergency light. Upon power failure, each additional battery requires an additional 24 hours to recharge.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Location Listed when used with NEG-602)
Meet s or exceeds all requirements in NFPA 70, NFPA 101 life safety code 3-Ye ar Limited Warranty
2EV2 available with or without damp listing, all other models include damp 3-24K option only available with damp plus Spectron®
4Not capable of running remote heads
5Can only be run from EV4 model
6-0 No-head option only available with EV4D-02L, with or without Spectron®
Note: Remote Capacity models have a minimum run-time of 120 minutes when no remotes are installed NOTE: Remote Capacity Option will only power the EVR2 and EVO remotes

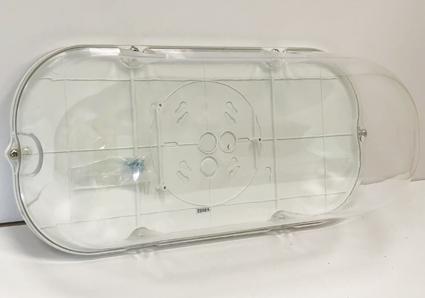

WGLXC Wire Guard 61/4 x 14"L x 4"D VRS3 Vandal Resistant Shield - 111/2"H x 151/2"L x 41/2"D
ELECTRONICS
Upon failure of normal utility power, a solid-state transfer switch automatically activates the emergency LED lamp-heads. Upon resumption of normal utility power, the battery is disconnected from the load and recharged through a microprocessor controlled pulse charger. The battery is a maintenance-free Nickel Metal Hydride(NiMH) type. The EV series accepts dual-voltage input of 120 or 277VAC at 60 Hz, or an optional 220-240VAC input at 50-60 Hz. A low voltage battery disconnect (LVD) feature protects the battery from severe damage during prolonged power failures. Manual testing is available at any time using the push-to-test button.
Number of Lamps- 2 High Power LEDs at 1 watt each configured so that if 1 lamp malfunctions, the remaining lamp will continue to provide illumination to the -0(no-head) option will power 1 double-head remote (EVR2 or EVODW) at 2 watts per lamp (145 lumens). This option allows the battery to be located in a conditioned environment.
STANDARD FEATURES INCLUDE
• Intelligent 2-wire input connection
• External push-to-test switch and AC-on indicator
• Battery re-charge within 24 hours
• AC Lock-out circuit
• Low voltage disconnect
• Conduit entry knock-out located at the top center
• Microprocessor controlled pulse charger
OPTIONAL SPECTRON FEATURE
• Self-diagnostics monitors LED status, LED load transfer circuit, battery capacity and charger function and displays any fault detection by means of a flashing code
• Self-Test feature automatically runs a 1 minute test once a month and an alternating 30 or 60 minute test once every 6 months. Multi-color LED indicator provides visible fault detection and charging status.
• User initiated 1 or 90-minute system test feature
• 15 minute re-transfer delay
• Automatic unit transfer in brown-out conditions (below 80% of nominal AC input voltage)
OPERATING TEMPERATURE RANGE
Standard: 68˚ to 86˚F (20˚ to 30˚C)
Damp Listed: 50˚ to 104˚F (10˚ to 40˚C)
WEIGHT
2.0 lbs
BLANK
DATE: LOCATION:
TYPE: PROJECT:
CATALOG #:
LE Series
RECESSED MOUNTING EDGE-LIT LED EXIT SIGN
FEATURES
• Easy to install
• Extruded aluminum construction
• Available in six color finishes: white, black, satin aluminum, satin brass, chrome, and dark bronze
• Long-life LED lamps
• Molded acrylic plaque
• Clear acrylic plaque standard
• Ceiling, wall or end mounted models for recessed installations
• Red or green letter models
• Universal rough-in box
• 120/277 VAC, 60 Hz. operation
• AC On Indicator Light
Ceiling Mount
RELATED PRODUCTS
LES Replacement battery - 0120894
SPECIFICATIONS
APPLICATION
• The LE Series provides bright, even letter illumination in an energy-saving LED edge-lit exit sign configuration
• AC or Emergency operation with optional Spectron® self-test/self-diagnostic circuitry.
• Special Wording ("SW") option allows customizing the stencil field to convey important information
CONSTRUCTION
• Water-clear injection-molded acrylic EXIT plaque is available with clear, white or mirror backgrounds
• High strength extruded aluminum trim available in six finishes
• Exit face design in single or double face with red or green letters. Custom printed directional chevron arrows
• Standard EXIT stencil with 6" letters and ¾" stroke. Rough-in kit: galvanized steel, .036 (20 Ga.) housing, .060 (16 Ga.) mounting bars
INSTALLATION
• Universal rough-in box accommodates recessed installation of all models in wall, ceiling or end-mount applications
• All mounting hardware is fully concealed
ILLUMINATION
• Exit face illumination is provided by energy saving, long life red or green LEDs
• Exceeds UL 924 requirements for brightness and uniformity
• 10 year LED life
COMPLIANCES
• UL 924 Listed
• NFPA 70
• NFPA 101
• CEC T20 Compliant WARRANTY
• 5 year warranty
• See HLI Standard Warranty for additional information
KEY DATA
Power Factor, Average .8 (lagging)
Battery Type Sealed Nickel Cadmium
Reported Life (Hours) 60,000
Input Current Range 120/277VAC, 60 Hz
THE ERA TYPE EX ALT
Type Project

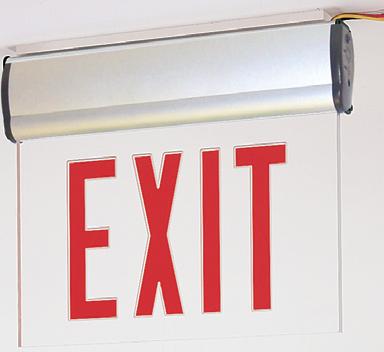

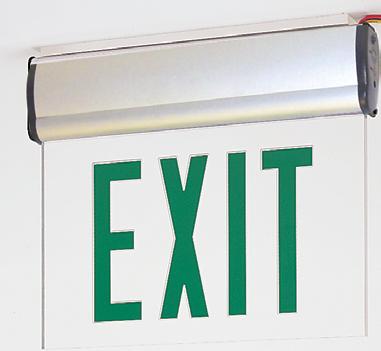

Surface Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Extruded aluminum housing and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Face is constructed with 0.40 clear acrylic with rounded and finished edge for attractive appearance. Face contains red or green 6” high and 3/4” thick lettering inside face to comply with NFPA requirements. Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic. Face can be adjusted in the field from 0º to 90º for wall, ceiling or sloped applications.
MOUNTING
Mounting hardware consist of 0.06 steel universal junction box bracket, 7/8” profile 0.11 die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knocouts once mounting configuration is selected.
ELECTRICAL
Voltage: Dual 120V/277V (0.038A / 0.017A)
LED Wattage: 3 Watts normal / 5 Watts emergency operation
Emergency Circuit (NX-811-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-812-LED): Replaceable Ni-Cad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
UL Listed
NEC
NFPA
S tate & Municipal
· 5 -Year Limited Warranty
C ertified to the energy efficiency standards of California Title 20
Exit Sign
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS
Optional Accessories
DATE: LOCATION: TYPE:
RECESSED
White plaque background
Accessories (Order Separately)
URK Universal Rough-in Kit
URK2C Universal 2-circuit rough-in kit 1,2,3
1For use with AC models only.
2 Rough-in kit may not be ordered separately on modles specified with -24K option
3Must be ordered in conjunction with -2C option on exit sign
To order Rough-in kit only for field installation, add "XK" option suffix to exit model number and order "URK" or " URK2C" kit separately.
ELECTRONICS
Notes:
1For use with emergency models only
2For use with AC models only
4For emergency illumination of sign from remote 6-24VDC power sources.
6Allows ordering of rough-in kit separately for recessed mount (LE) models. See "Accessories"
7For use with single face models only. Standard on double face models.
8Rough-in kit may not be ordered separately on models specified with -24K option.
9Specify special wording code from page 3 when ordering. Example: SW41
10Some special wording signs not available with directional arrows
Available with AC, emergency and Spectron® self-test/self-diagnostic electronics option. Emergency and self-diagnostic models equipped with isolation transformer and fully automatic constant current solid state charger with sealed maintenance-free nickel-cadmium battery. All emergency models with 90-minute run-time. All components mounted inside housing. Includes test switch and AC-on indicator. Transient/surge protection, low voltage disconnect and AC lock-out features included. Battery re-charge within UL time standards. Includes pre-stripped AC input pigtail leads.
POWER CONSUMPTION (120/277VAC)
Red AC Only 2.2 watts3.4 watts
Green AC Only 2.5 watts4.0 watts
Red Emergency 3.3 watts4.5 watts
Green Emergency 3.6 watts5.0 watts
* Wattage figures include LED lamps, transformer and electronics power requirements.
Operating Temperature Range: 20°C to 30°C (68°F to 86°F)
CATALOG #:
BLANK
DATE: LOCATION:
TYPE: PROJECT:
CATALOG #:
LE Series
RECESSED MOUNTING EDGE-LIT LED EXIT SIGN
FEATURES
• Easy to install
• Extruded aluminum construction
• Available in six color finishes: white, black, satin aluminum, satin brass, chrome, and dark bronze
• Long-life LED lamps
• Molded acrylic plaque
• Clear acrylic plaque standard
• Ceiling, wall or end mounted models for recessed installations
• Red or green letter models
• Universal rough-in box
• 120/277 VAC, 60 Hz. operation
• AC On Indicator Light
Ceiling Mount
RELATED PRODUCTS
LES Replacement battery - 0120894
SPECIFICATIONS
APPLICATION
• The LE Series provides bright, even letter illumination in an energy-saving LED edge-lit exit sign configuration
• AC or Emergency operation with optional Spectron® self-test/self-diagnostic circuitry.
• Special Wording ("SW") option allows customizing the stencil field to convey important information
CONSTRUCTION
• Water-clear injection-molded acrylic EXIT plaque is available with clear, white or mirror backgrounds
• High strength extruded aluminum trim available in six finishes
• Exit face design in single or double face with red or green letters. Custom printed directional chevron arrows
• Standard EXIT stencil with 6" letters and ¾" stroke. Rough-in kit: galvanized steel, .036 (20 Ga.) housing, .060 (16 Ga.) mounting bars
INSTALLATION
• Universal rough-in box accommodates recessed installation of all models in wall, ceiling or end-mount applications
• All mounting hardware is fully concealed
ILLUMINATION
• Exit face illumination is provided by energy saving, long life red or green LEDs
• Exceeds UL 924 requirements for brightness and uniformity
• 10 year LED life
COMPLIANCES
• UL 924 Listed
• NFPA 70
• NFPA 101
• CEC T20 Compliant WARRANTY
• 5 year warranty
• See HLI Standard Warranty for additional information
KEY DATA
Power Factor, Average .8 (lagging)
Battery Type Sealed Nickel Cadmium
Reported Life (Hours) 60,000
Input Current Range 120/277VAC, 60 Hz
THE ERA TYPE EX2
NX-813-LED / NX-814-LED / NX-815-LED

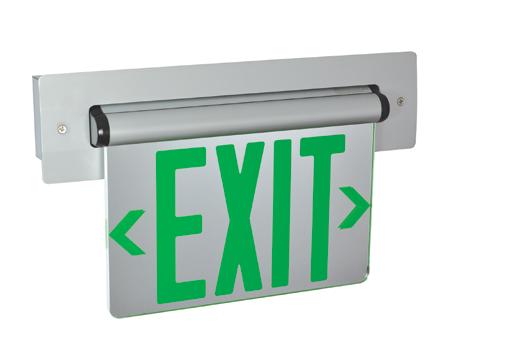

Recessed Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
UL Lis ted
NEC
NFPA
Stat e & Municipal
5-Ye ar Limited Warranty
Cert ified to the energy efficiency standards of California Title 20
Notes
DATE: LOCATION: TYPE:
RECESSED
White plaque background
Accessories (Order Separately)
URK Universal Rough-in Kit
URK2C Universal 2-circuit rough-in kit 1,2,3
1For use with AC models only.
2 Rough-in kit may not be ordered separately on modles specified with -24K option
3Must be ordered in conjunction with -2C option on exit sign
To order Rough-in kit only for field installation, add "XK" option suffix to exit model number and order "URK" or " URK2C" kit separately.
ELECTRONICS
Notes:
1For use with emergency models only
2For use with AC models only
4For emergency illumination of sign from remote 6-24VDC power sources.
6Allows ordering of rough-in kit separately for recessed mount (LE) models. See "Accessories"
7For use with single face models only. Standard on double face models.
8Rough-in kit may not be ordered separately on models specified with -24K option.
9Specify special wording code from page 3 when ordering. Example: SW41
10Some special wording signs not available with directional arrows
Available with AC, emergency and Spectron® self-test/self-diagnostic electronics option. Emergency and self-diagnostic models equipped with isolation transformer and fully automatic constant current solid state charger with sealed maintenance-free nickel-cadmium battery. All emergency models with 90-minute run-time. All components mounted inside housing. Includes test switch and AC-on indicator. Transient/surge protection, low voltage disconnect and AC lock-out features included. Battery re-charge within UL time standards. Includes pre-stripped AC input pigtail leads.
POWER CONSUMPTION (120/277VAC)
Red AC Only 2.2 watts3.4 watts
Green AC Only 2.5 watts4.0 watts
Red Emergency 3.3 watts4.5 watts
Green Emergency 3.6 watts5.0 watts
* Wattage figures include LED lamps, transformer and electronics power requirements. Power Factor, Average: .8 (lagging)
Operating Temperature Range: 20°C to 30°C (68°F to 86°F)
CATALOG #:
BLANK
INSTALLATION
Cut hole in ceiling. Insert luminaire into opening by squeezing spring clips on both sides of luminaire. The width in ceiling needed for the driver to fit is 3”.
You MUST seal all gaps between the ceiling and fixture with weatherproof silicone sealant. This deters moisture and water from damaging fixtures and other mechanical ceiling elements.
FEATURES

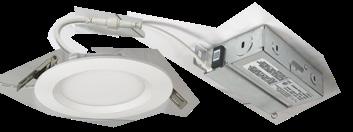

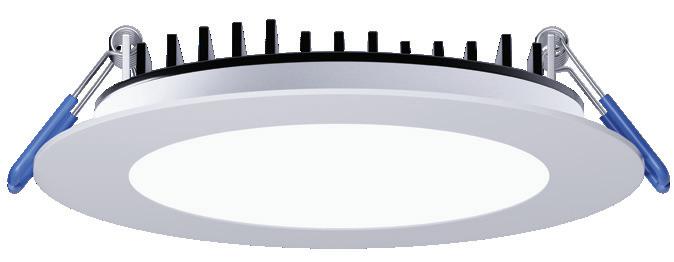

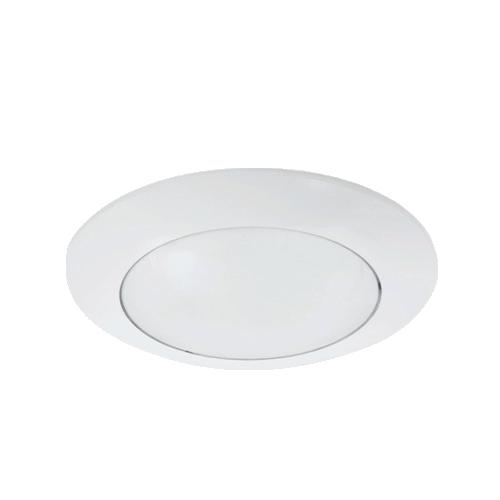

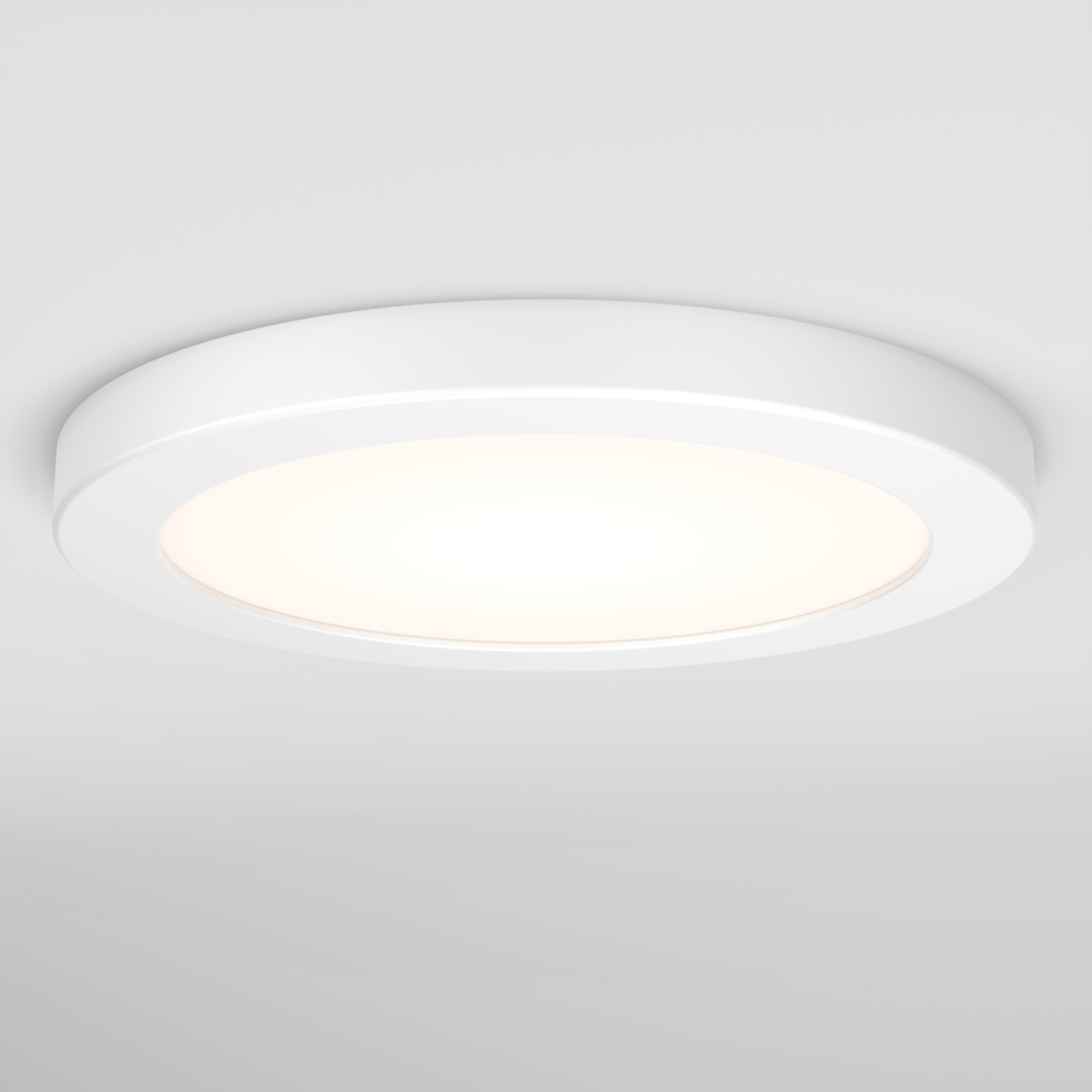

5” round dimmable multi-CCT LED “Slim Disk” engineered for new construction, remodel, or retrofit to accommodate insulated or dropped ceilings. Easily access field-adjustable 5-Color SeleCCTor switch by lowering the luminaire from the opening. Remote driver allows easy installation and maintenance. Small aperture and shallow depth are ideal for unlimited applications.
LUMENS
CCT
CRI
COLOR QUALITY
CONSTRUCTION
TRIM OPTION
TRIM COLORS
DIMMING
EMERGENCY
LIFETIME
27K/30K/35K/40K/50K
90+
3-Step MacAdam Ellipse
Aluminum die-cast body and trim
Round Flat Lens
WH (White), BK (Black), BZ( Bronze), CH, Chrome), SN(Satin Nickel),
(Triac), DIM10 (0-10V)
16W high voltage inverter ( remote)
L70 at 50,000 Hours
PHOTOMETRIC TESTS In Accordance with IES LM79-08, LM80 and TM-30, TM-21
• IC-rated and Air-Tight ready and may be in direct contact with insulation.
• Can be installed in shallow plenum spaces.
• May be installed in drywall or suspended ceilings.
• Flicker-free 120V forward-phase Triac dimming down to 5%.
• Even illumination achieved with patent-pending optics and edge-lit LED technology.
• Ideal when ceiling or top access is unavailable.
• Five-year warranty (Labor not included)

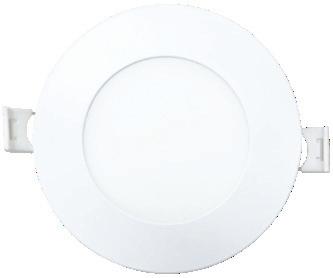

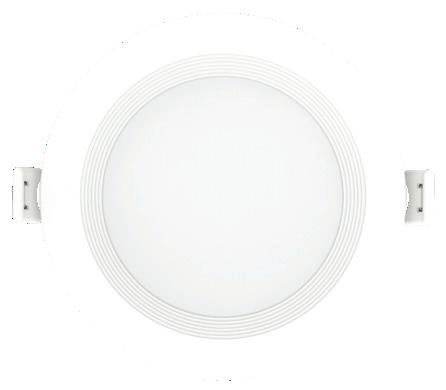

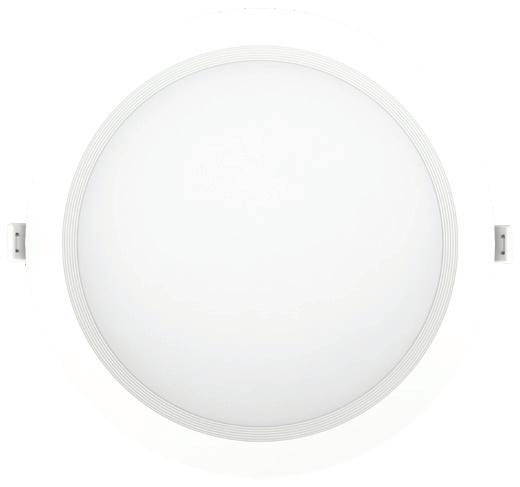

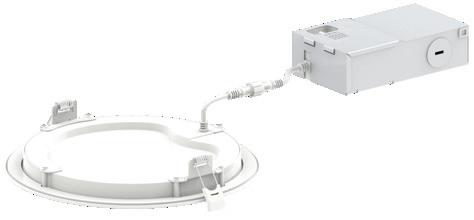

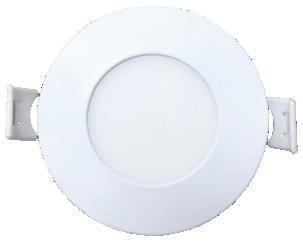

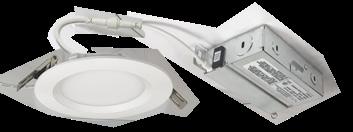

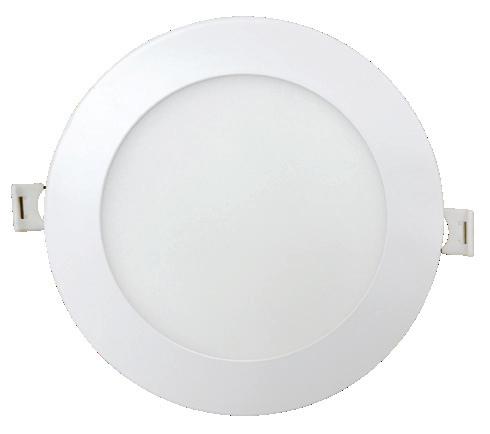

LED SPOTLIGHT-CANLESS MINI PANEL - CCT SELECT
TYPE L1 SPEC THE ERA

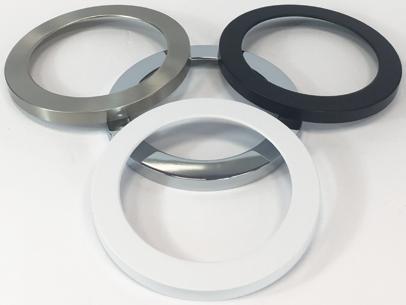

SLIM TRIM ACCESSORIES
INSTALLATION
INSTALLATION
INSTALLATION
• Cut hole in ceiling and snap fixture in opening with attached spring clips. Space in ceiling needed for the driver to fit through the ceiling height – 3".
• Cut hole in ceiling and snap fixture in opening with attached spring clips. Space in ceiling needed for the driver to fit through the ceiling height – 3".
• Cut hole in ceiling and snap fixture in opening with attached spring clips. Space in ceiling needed for the driver to fit through the ceiling height – 3".
RL-ACC-SLIM-1-10F 10-ft long extension RL-ACC-SLIM-1-20F 20-ft long extension
20-ft long extension
EXAMPLE: RL173-360L-DIMTR-120-30K-90-WH
TYPELUMENCCTCRIFINISH
RL-UNV-4/5/6 For use with: 4”, 5”, 6”
RL-ACC-SLIM-1-10F
OPTIONS

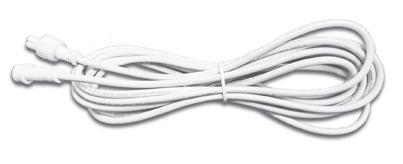

o RL-ACC-SLIM-1-10F - 10ft Long Extension
o RL-ACC-SLIM-1-20F - 20ft Long Extension

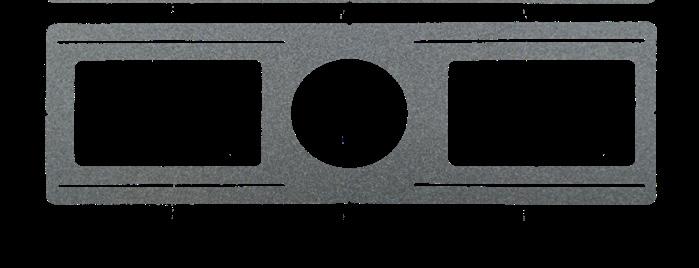

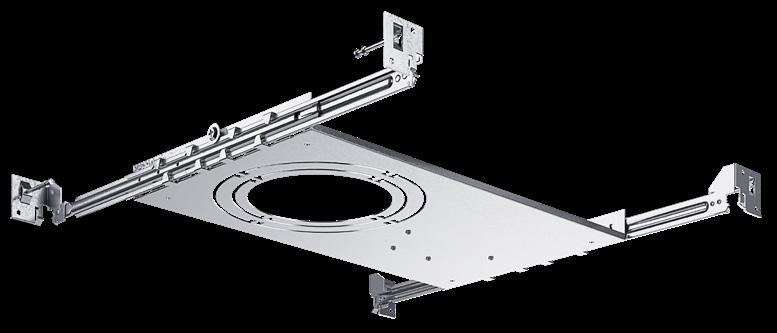

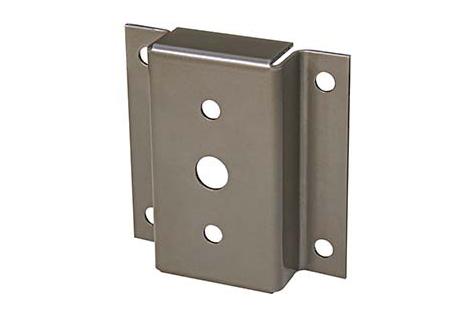

o RL-UNV-4/5/6 - Universal Mounting Plate for 4”,5” and 6”
o RL-ACC-SLIM-5-ROUGHPLATE - 5” Mounting Plate
L ED/MINI4/PANEL/5CCT/RD2
LED/MINI5/PANEL/5CCT/RD
L ED/MINI6/PANEL/5CCT/RD2
L ED/MINI8/PANEL/5CCT/RD2
L ED/MINI3/PANEL/5CCT/RD2
L ED/MINI4/PANEL/5CCT/RD2
LED/MINI5/PANEL/5CCT/RD
L ED/MINI6/PANEL/5CCT/RD2
L ED/MINI8/PANEL/5CCT/RD2
PHOTOMETRIC
2700K/3000K/3500K/4000K/5000K
2700K/3000K/3500K/4000K/5000K
2700K/3000K/3500K/4000K/5000K
2700K/3000K/3500K/4000K/5000K
2700K/3000K/3500K/4000K/5000K
TYPE L2 SPEC

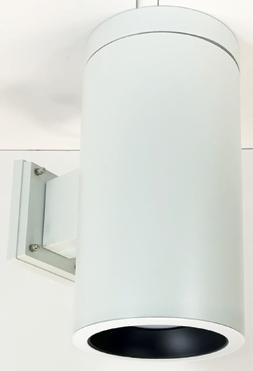

NYLD2-6
6" Cobalt Cylinder
Source:
PRODUCT DESCRIPTION
Architectural grade LED cylinder with deep set optics featuring a deep cone reflector or baffle for optimal visual comfort. Cylinder is available in a variety of mounting options including cable, stem, surface or wall mounted.
FEATURES
Interna l thermal protection
750lm or 1 000lm output
2700K, 3 000K, 3500K or 4000K @ 90+ CRI
Triac, E LV or 0-10V dimming
5-Year L imited Warranty
ENERGY STAR certified
CONSTRUCTION
Cylinder Cap: High quality 0.040" steel cap with universal slots to allow for direct mounting to junction box for surface mount. Incorporates all thread in the center for the installation of a cable or pendant rod kit for the corresponding mounting method. Three screws on the bottom of cap secure cylinder body to cylinder cap. (Adjustable with flathead screw drive)
Cylinder Body: 0.040" steel cylindrical body with three keyhole slots allowing body to be installed to cylinder cap. Spring brackets accept torsion wing trim springs. Four butterfly clips also accommodated for spring-less trims.
INSTALLATION
Cable Mount: Cylinder comes with 8' of field cuttable aircraft cable and offset cable (5-wire) for power and dimming. Stem Mount: Cylinder includes a swivel canopy and 7' (consisting of (3) 12" and (2) 24") of internally threaded rod. Swivel canopy is compatible with sloped ceilings with a ceiling pitch from 1/12 to 10/12.
Surface & Wall Mount: Cylinder is supplied with hardware to mount directly over junction box.
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab.
Emergency: Cylinder can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ). Not compatible with stem mount option.
Architectural grade LED cylinder with deep set optics featuring a deep cone reflector or baffle for optimal visual comfort. Cylinder is available in a variety of mounting options including cable, stem, surface or wall mounted.
FEATURES
Inter nal thermal protection
750lm or 1000lm output
2700 K, 3000K, 3500K or 4000K @ 90+ CRI
Tria c, ELV or 0-10V dimming
5-Ye ar Limited Warranty
ENER GY STAR certified
CONSTRUCTION
Cylinder Cap: High quality 0.040" steel cap with universal slots to allow for direct mounting to junction box for surface mount. Incorporates all thread in the center for the installation of a cable or pendant rod kit for the corresponding mounting method. Three screws on the bottom of cap secure cylinder body to cylinder cap. (Adjustable with flathead screw drive)
Cylinder Body: 0.040" steel cylindrical body with three keyhole slots allowing body to be installed to cylinder cap. Spring brackets accept torsion wing trim springs. Four butterfly clips also accommodated for spring-less trims.
INSTALLATION
Cable Mount: Cylinder comes with 8' of field cuttable aircraft cable and offset cable (5-wire) for power and dimming. Stem Mount: Cylinder includes a swivel canopy and 7' (consisting of (3) 12" and (2) 24") of internally threaded rod. Swivel canopy is compatible with sloped ceilings with a ceiling pitch from 1/12 to 10/12.
Surface & Wall Mount: Cylinder is supplied with hardware to mount directly over junction box.
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab.
Emergency: Cylinder can be specified with connections for emergency battery installation. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ). Not compatible with stem mount option.
Inspiration brings elegance to mid-century design. Arranged in an innovative pattern, the handcrafted brass body showcases a series of opaque glass spheres. When lit, the Stella Ceiling Lamp shines and instantly adds a sophisticated ambience to your space.
Finishes: Gold.
Lampshade: Glass
Shade Colours: White
Customization available upon request. Made and assembled in China.
DIMENSIONS
41.3″ D x 5.1″ H / 105 cm D x 13 cm H
Light Source: Integrated LED Power: 80W 3000K
CRI: 80+
Lumens: 8050 Lumens est.
LED Drivers: Yes, (Requires connection driver)
Dimming: Not supported Dimming
Warranty: 3 years
Environment: Indoor
Standard Lead time: 4-7 weeks
MATERIALS
Brass, Glass
Voltage: AC 120-240V
Certification: CCC, CE, UL, SAA, KC
Inspiration brings elegance to mid-century design. Arranged in an innovative pattern, the handcrafted brass body showcases a series of opaque glass spheres. When lit, the Stella Ceiling Lamp shines and instantly adds a sophisticated ambience to your space.
Finishes: Gold.
Lampshade: Glass
Shade Colours: White
Customization available upon request. Made and assembled in China.
DIMENSIONS
41.3″ D x 5.1″ H / 105 cm D x 13 cm H
Light Source: Integrated LED Power: 80W 3000K
CRI: 80+
Lumens: 8050 Lumens est.
LED Drivers: Yes, (Requires connection driver)
Dimming: Not supported Dimming
Warranty: 3 years
Environment: Indoor
Standard Lead time: 4-7 weeks
MATERIALS
Brass, Glass
Voltage: AC 120-240V
Certification: CCC, CE, UL, SAA, KC
TYPE L13 SPEC THE ERA

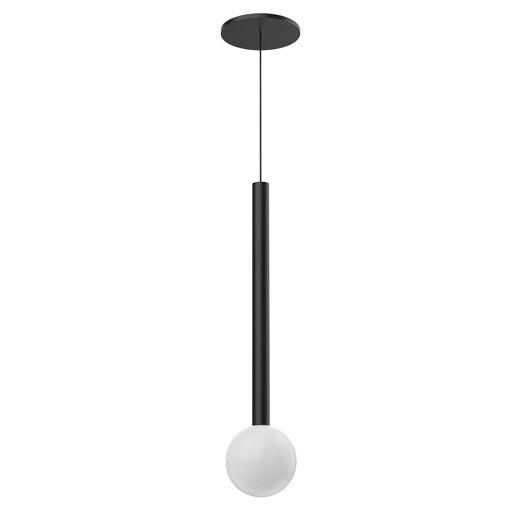

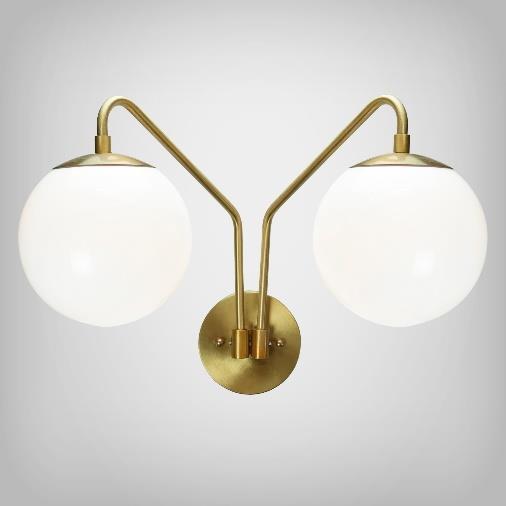

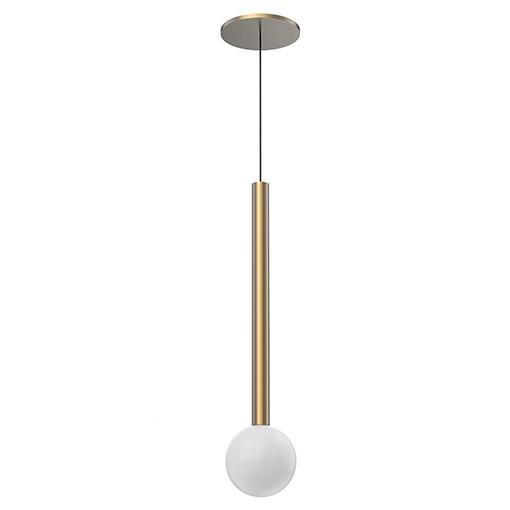

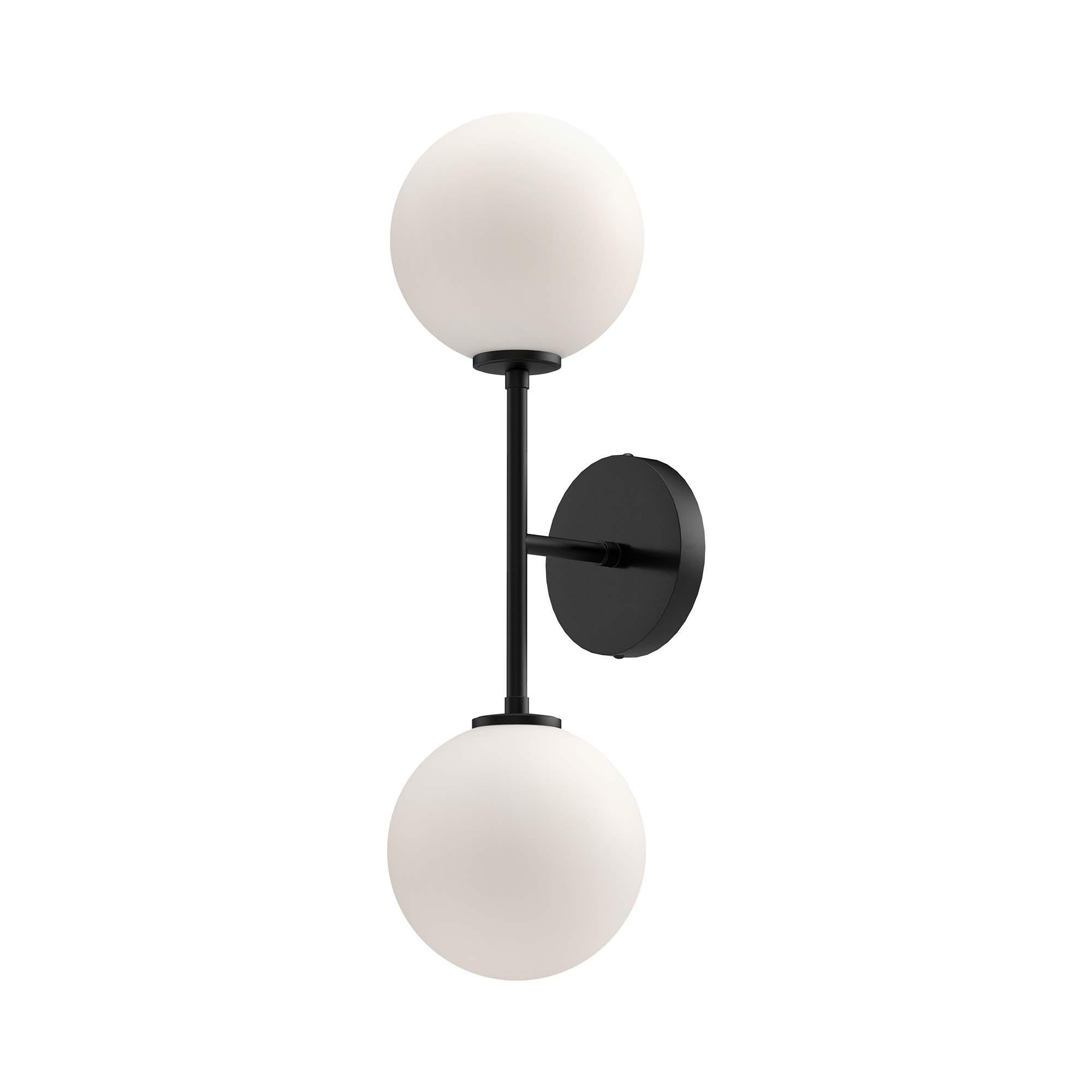

BASELITE – OPAL BALL – LED – SPECIFICATION SHEET
PROJECT NAME:
(SEE WEBSITE FOR SWATCH COLORS) (*SEE NOTES FOR LIMITATIONS*)
(1). FINISH OPTIONS 20, 21, 22, 23 ARE FOR SOLID BRASS FIXTURES ONLY.
(2). FINISH OPTIONS 19, 21, 22, 23, 75,76, 77, 83, 84, 88, 93 AND 98 ARE APPLIED BY HAND. THESE FINISHES WILL VARY IN CONSISTENCY.
(3). FINISH OPTIONS 19, 38, 39, 40, 49, 54, 57, 58, 61, 62, 63, 70, 71, 72, 73, 78, 83, 84, 88, 92, 93, 98 ONLY AVAILABLE INSIDE AND OUT OF FIXTURE. OTHER FINISHES ARE WHITE INSIDE.
(4). FINISH OPTIONS 61, 62, 70, 71, 72, 73 ARE FINISHED WITH A SUPERCHROME ON THE INSIDE FOR ALL LED LIGHT SOURCE OPTIONS.
(5). COLOR CORDS ARE NOT APPLICABLE FOR LED OPTIONS.
(1). FINISH OPTIONS 20, 21, 22, 23 ARE FOR SOLID BRASS FIXTURES ONLY.
(2). FINISH OPTIONS 19, 21, 22, 23, 75,76, 77, 83, 84, 88, 93 AND 98 ARE APPLIED BY HAND. THESE FINISHES WILL VARY IN CONSISTENCY.
(3). FINISH OPTIONS 19, 38, 39, 40, 49, 54, 57, 58, 61, 62, 63, 70, 71, 72, 73, 78, 83, 84, 88, 92, 93, 98 ONLY AVAILABLE INSIDE AND OUT OF FIXTURE. OTHER FINISHES ARE WHITE INSIDE.
(4). FINISH OPTIONS 61, 62, 70, 71, 72, 73 ARE FINISHED WITH A SUPERCHROME ON THE INSIDE FOR ALL LED LIGHT SOURCE OPTIONS.
(5). COLOR CORDS ARE NOT APPLICABLE FOR LED OPTIONS.
Shining shells Tocreate the CapizTiered Chandelier, capiz shells often referred to as "glass oysters" because of their fragile, translucent appearance are hand cut and arranged in a tiered pattern by skilled Filipino artisans
KEY DETAILS
Metal frame in Polished Nickel finish
Faceted natural capiz shells
Adjustable hanging height
Comes with three 12" metal rods and one 6" rod.
Hardwired
Conforms to UL standards
Accommodates three 60WCFL bulbs or LED equivalent (sold separately).
Compatible with dimmer switches (sold separately).
This contract-grade item is manufactured to meet the demands of commercial use in addition to residential.
See more
Made in the Philippines
Details + dimensions
DETAILED SPECIFICATIONS
Overall: 24"diam x 18"–54"h
Min hanging height: 18"
Max hanging height: 54"
Shade: 24"diam x 12"h
ASSEMBLYINSTRUCTIONS
Hardwired Assembly required Professional installation recommended Can be hung from a sloped ceiling
CARE
Wipe with a damp cloth. Avoid the use of chemicals and household cleaners as they may damage the finish.
Shipping + returns
FRONTDOOR DELIVERY
With Front Door Delivery, your item ships from our Distribution Center by UPS and arrives to your home within 4-5 business days of order receipt
PICK UP IN STORE
Select items are eligible for pick up at your local store. In-stock items can be picked up 2 hours after your order is placed at no additional cost Eligible non-stocked items can be Shipped to Store for a reduced flat-rate shipping fee, starting as low as $19.99 (on orders up to Chat
TYPE L18 SPEC THE ERA
$399). Please refer to the item dimensions to ensure the product will fit in your vehicle Visit our Shipping Information Page for more information
UPS STANDARD DELIVERY + PROCESSING CHARGES
The shipping rate varies depending on your order total and shipping options Visit our Shipping Information Page for more information
Add $8.50 for each gift wrap For next day delivery, add $26.00 per address Items shipped directly from the manufacturer and oversized items are not eligible for next day delivery
NEXTDAYDELIVERY + PROCESSING
For an extra charge of $26.00 per address, within the contiguous 48 states, we can arrange for next day delivery to most destinations If we receive your order by 6pm PTMonday through Friday, you 'll receive your order the next business day; orders placed on Friday after 6pm PTthrough Sunday will arrive onTuesday Note: Next day delivery service is not available for out-of-stock items, personalized items or for items shipped directly from the vendor
EASYRETURNS
AtWest Elm, we takegreat pride in the quality of our merchandise With valid proof of purchase, most items are eligible for return within 30 days of purchase or delivery for a refund of the merchandise value Items that aren’t eligible for return are:
Final sale items (with prices ending in $.97 or $.99)
USBD User Select Bi-Level Dim w/ Occ. Sensor DIM Dimming Leads Added (Must Use w/ FSIR/100 Remote)
BCS Bird Cone Shield - Used w/ Pendant Mount Only FSIR/100 Remote Configuration Tool for WLOS, and USBD, C ontrol Options
* Option Not C urrently DL C Qualified SD347* 347V Step Down Transformer BDxx Preset Bi-Level Dim Sensor (xx=% e.g. 20, 30)
LEDBBCT & SD480 Cannot Be Installed Together
HOUSING
- Sealed die cast housing
ELECTRICAL
- Quad Tap (QT) - 120/208/240/277V
- Dimmable driver standard
OPTICAL SYSTEM
- Available in 4000K and 5000K
- Offered in Low Bay or Parking Garage (wide) distributions
MOUNTING
-Suitable for JBox or Pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
- Meets DLC Requirements
WARRANTY
- 5 Year
- 10 Year Warranty Available
ORDERING INFORMATION
CATALOG # Wattage Lumens Color
GL9-30L-QT-50K 30W 3800 Lumens 5000K
GL9-45L-QT-50K 45W 5500 Lumens 5000K
GL9-60L-QT-50K 60W 7600 Lumens 5000K
OPTIONS (Factory Installed)
PG - Parking Garage (wide) Distribution Goes after ‘GL9’ in part number 40K - 4000K (special order)
EBLED - Emergency Ballast
OCS - Occupancy Sensor
10YR - 10 Year Warranty

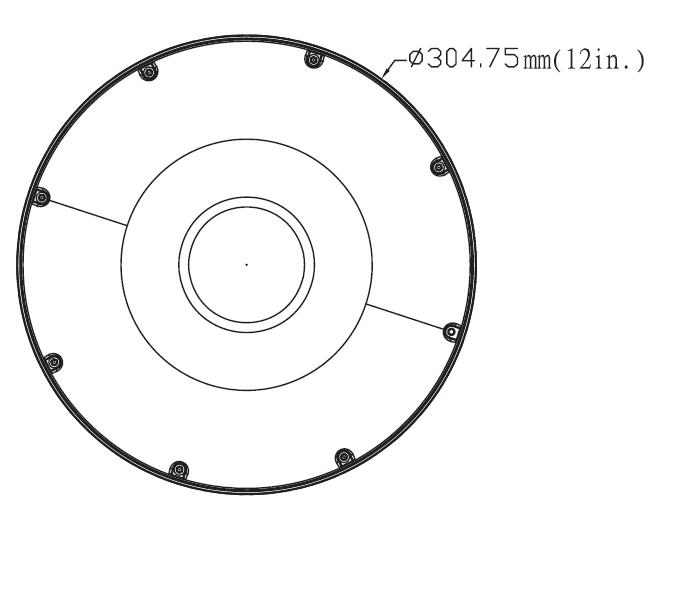

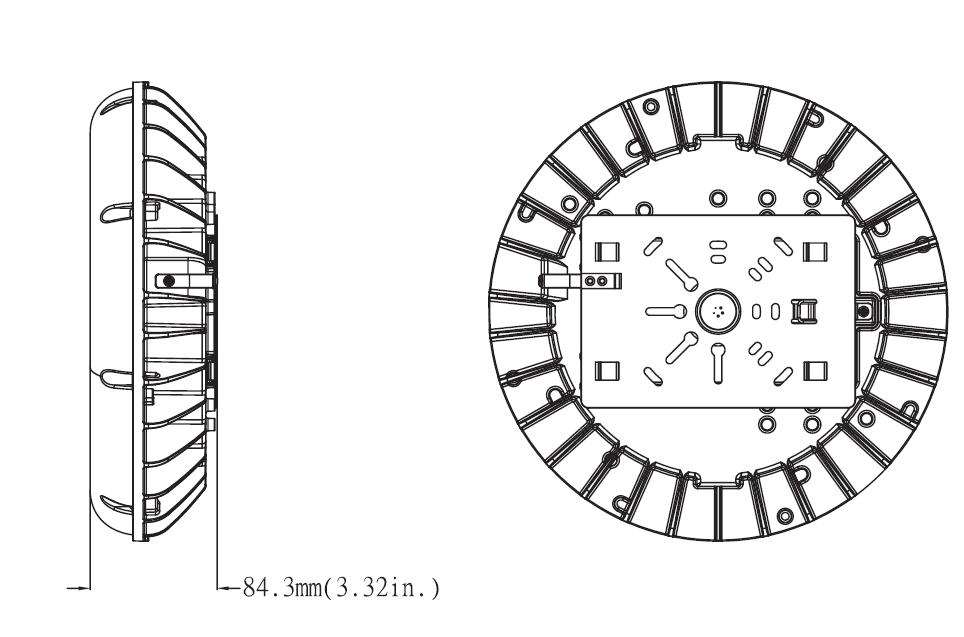

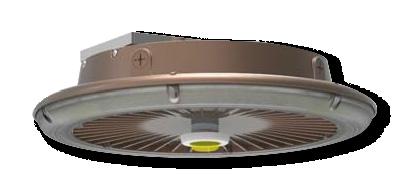

GL9-LED LED Canopy
L31 SPEC

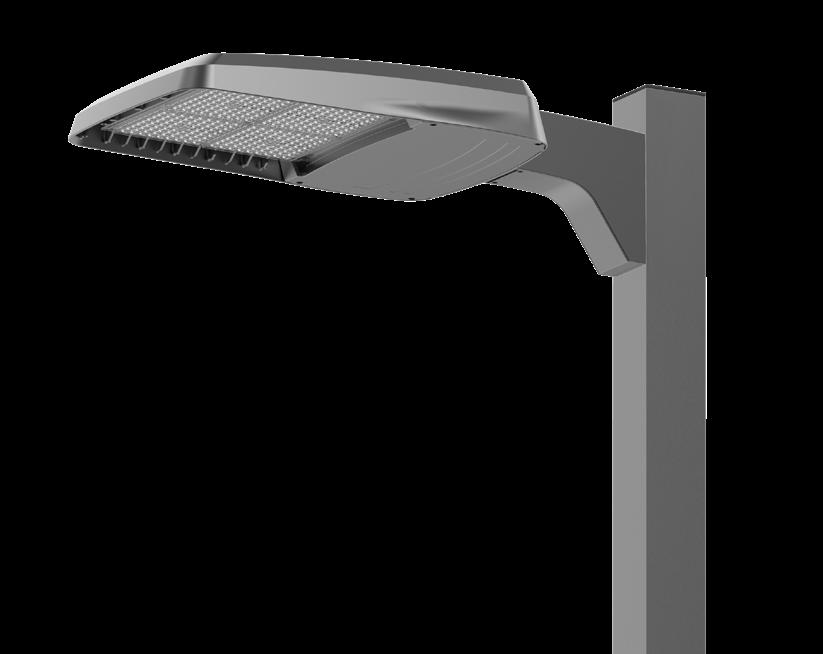

VIPER Area/Site
VIPER LUMINAIRE
FEATURES
DATE: LOCATION:
• Low profile LED area/site luminaire with a variety of IES distributions for lighting applications such as auto dealership, retail, commercial, and campus parking lots
• Featuring two different optical technologies, Strike and Micro Strike Optics, which provide the best distribution patterns for retrofit or new construction
• Rated for high vibration applications including bridges and overpasses. All sizes are rated for 1.5G
• Control options including photo control, occupancy sensing, NX Distributed Intelligence™, wiSCAPE and 7-Pin with networked controls
• New customizable lumen output feature allows for the wattage and lumen output to be customized in the factory to meet whatever specification requirements may entail
• Field interchangeable mounting provides additional flexibility after the fixture has shipped
CONTROL TECHNOLOGY
SPECIFICATIONS
CONSTRUCTION
• Die-cast housing with hidden vertical heat fins are optimal for heat dissipation while keeping a clean smooth outer surface
• Micro Strike Optics (160, 320, 480, or 720 LED counts) maximize uniformity in applications and come standard with midpower LEDs which evenly illuminate the entire luminous surface area to provide a low glare appearance. Catalog logic found on page 2
• Strike Optics (36, 72, 108, or 162 LED counts) provide best in class distributions and maximum pole spacing in new applications with high powered LEDs. Strike optics are held in place with a polycarbonate bezel to mimic the appearance of the Micro Strike Optics so both solutions can be combined on the same application. Catalog logic found on page 3
• Both optics maximize target zone illumination with minimal losses at the house-side, reducing light trespass issues. Additional backlight control shields and house side shields can be added for further reduction of illumination behind the pole
• One-piece silicone gasket ensures a weatherproof seal
• Zero up-light at 0 degrees of tilt
• Field rotatable optics
INSTALLATION
• Mounting patterns for each arm can be found on page 11
• Optional universal mounting block for ease of installation during retrofit applications. Available as an option (ASQU) or accessory for square and round poles.
• All mounting hardware included
INSTALLATION (CONTINUED)
• Knuckle arm fitter option available for 2-3/8” OD tenon
