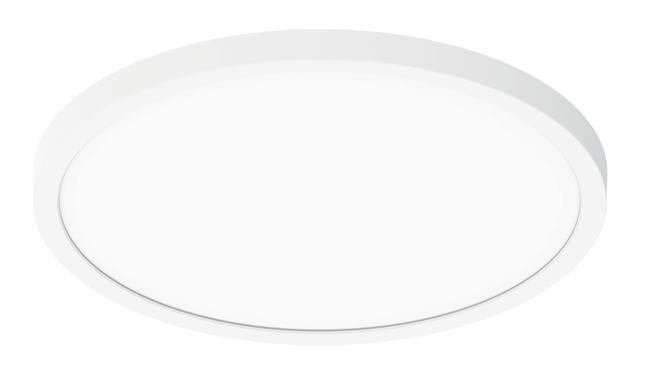

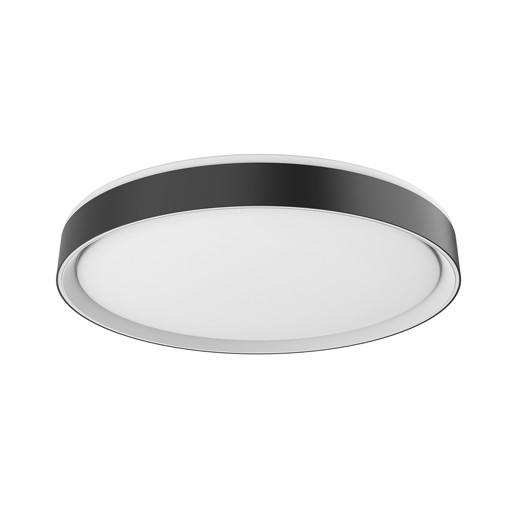

ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with CCT switch.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.

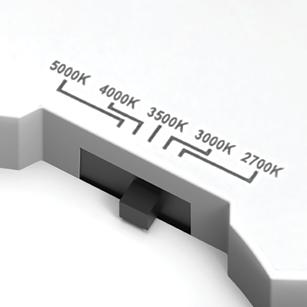

Five position sliding switch 27K / 30K / 35K / 40K / 50K
3/4"
Aperture
Diameter
Diameter:Aperture:
NELO-4RTW5-1/2"4-1/2"
NELO-6RTW7"6"
NELO-8RTW8-7/8"7-3/4"
NELO-12RTW12-1/4"11"
NSEM-6WDW
Surface Mount Enclosure with Emergency Driver for 6" only

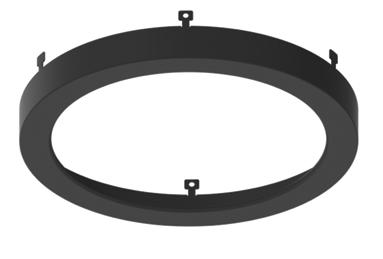

Decorative Ring
Optional Accessories
Description Finish
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO
NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"

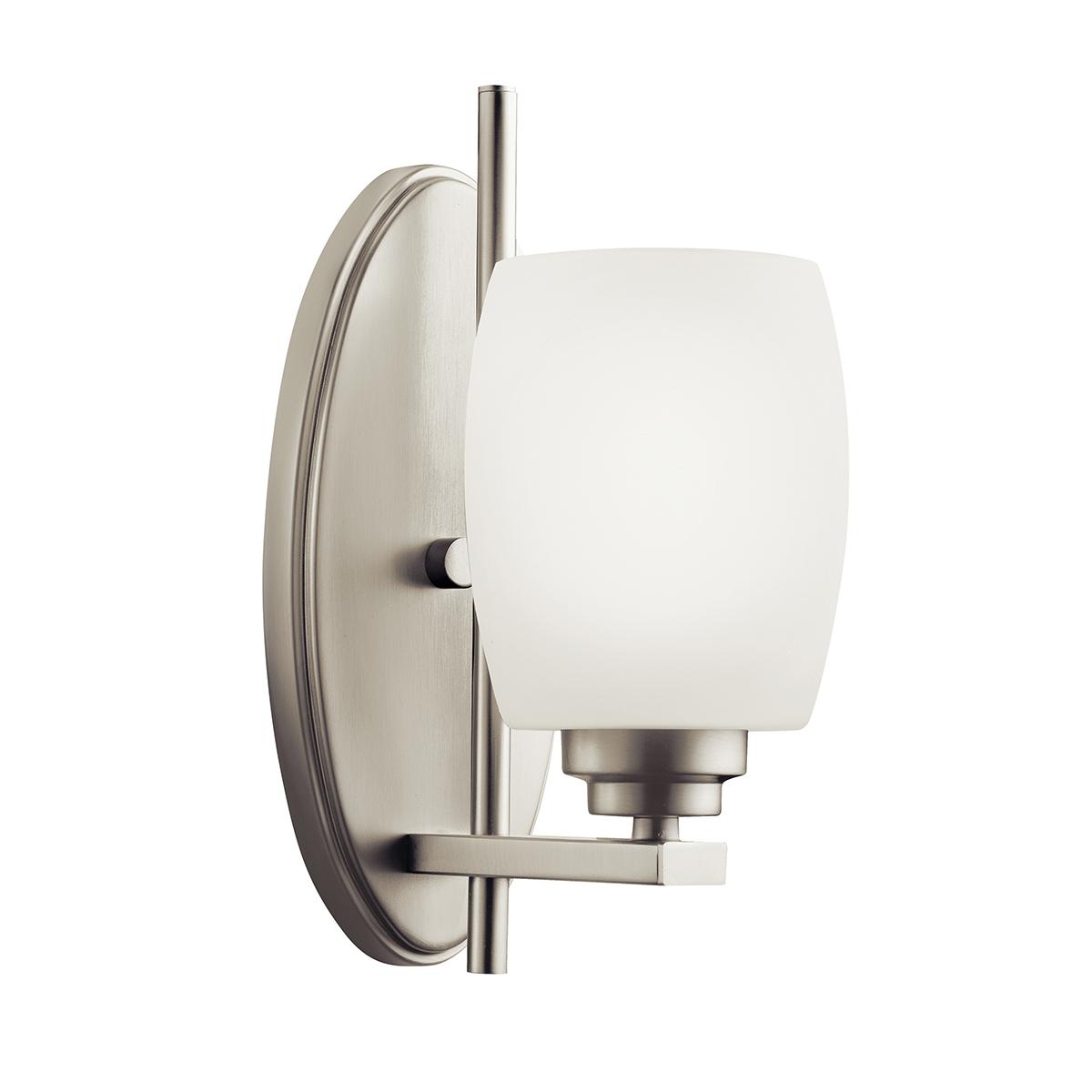

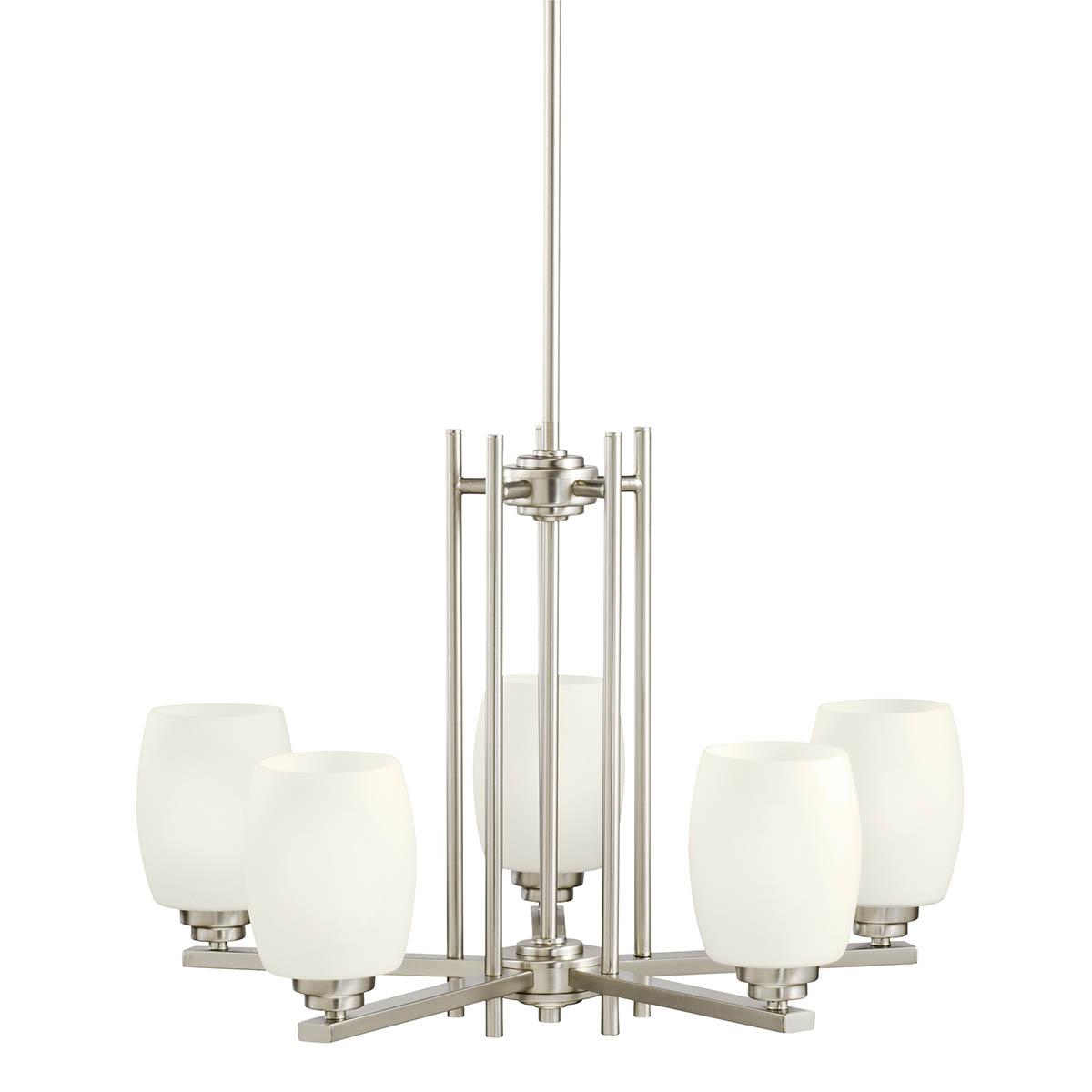

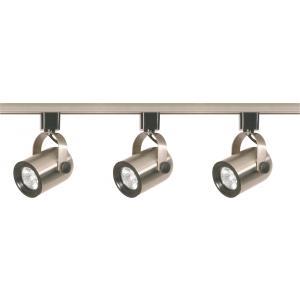

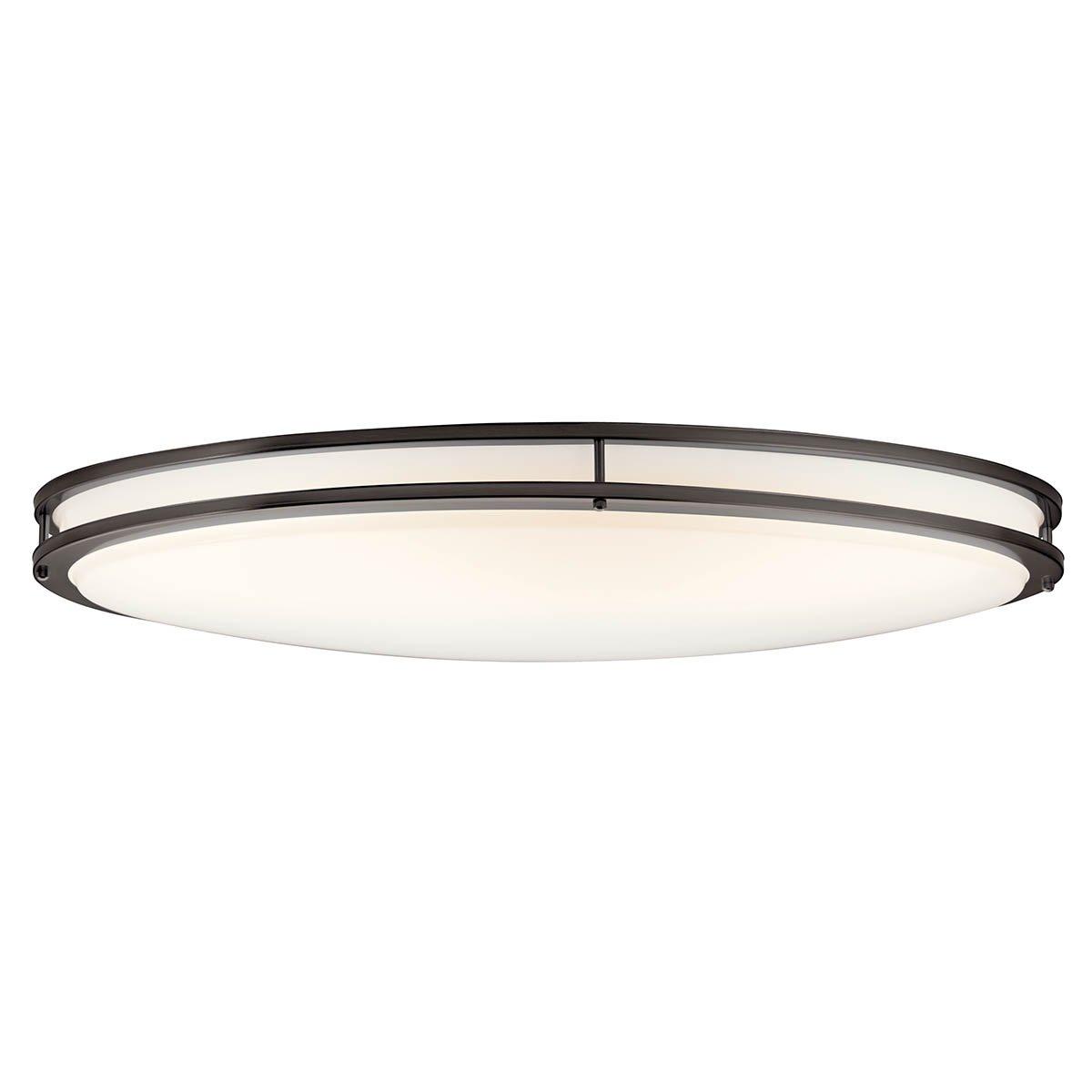

Certifications/Qualifications
ADA Compliant No
Prop65 No
Dark Sky Compliant No
Location Rating Damp kichler.com/warranty
Dimensions
Electrical Input Voltage
Light Source
Light Source Integrated LED
Lamp Included Integrated # Of Bulbs/LED Modules1
Max Or Nominal Watt54 W
Max Wattage/Range54 Dimmable Yes
Photometrics
Color Rendering Index90
Color Temperature Range3000 K
Delivered Lumens 3750
Delivered Efficacy (Lumens/Watt) 69
Mounting/Installation
Interior/Exterior
FIXTURE ATTRIBUTES
Housing/Glass
Primary Material Steel
Product/Ordering Information
Brushed Nickel

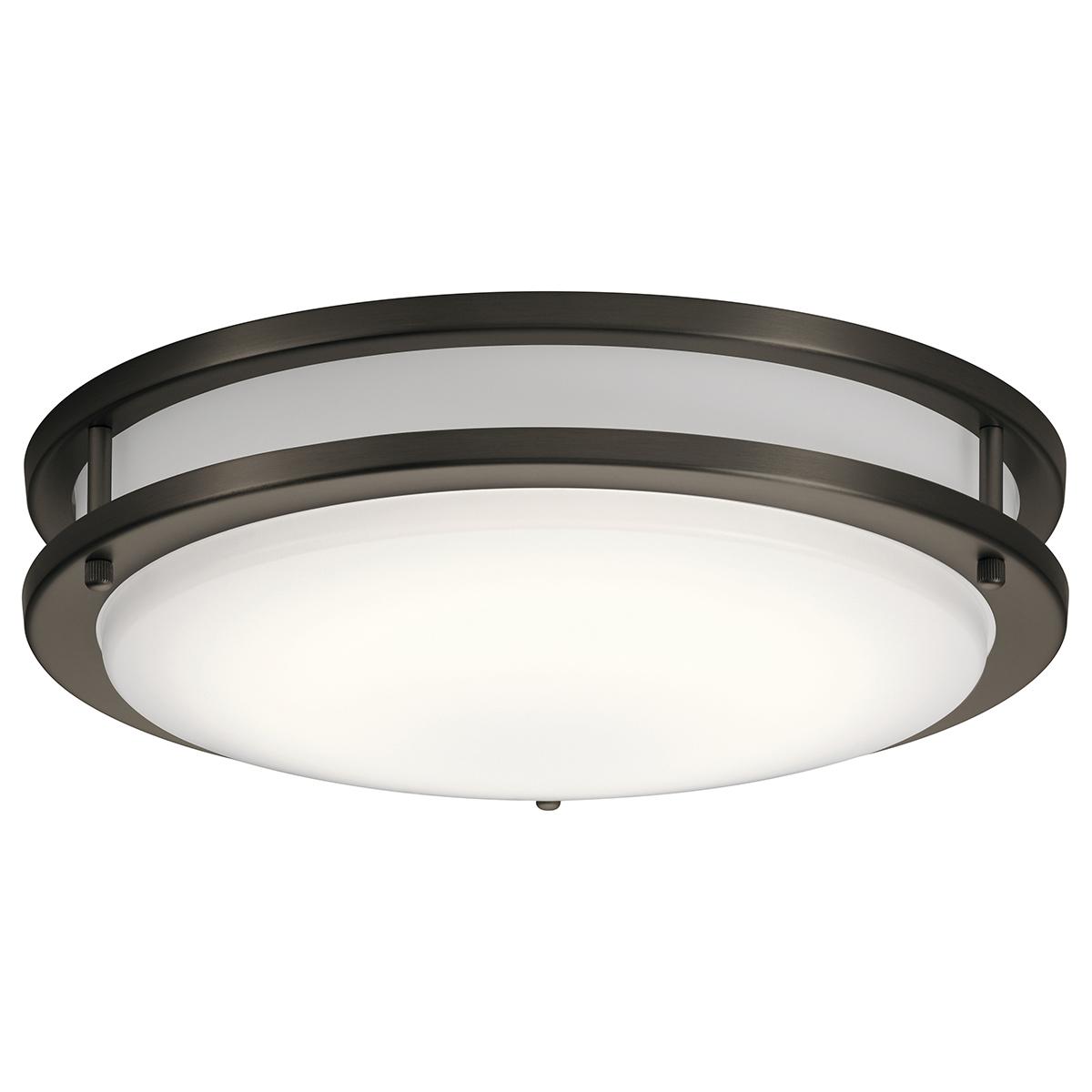

Olde Bronze
General
Notes
Dimmable Lamp Dependent
Dimming Note
Dimming requirements and compatible dimmers are dependent on the light bulb(s) used
Technology Halogen
Indoor or Outdoor Fixture Indoor
Dimensions
Compliance
Safety Listing cETLus - Listed
Location Rating Dry
UL Application Track
Energy Star No
DLC Approved No
CA T20 / T24 Rationale T20 Exempt - Fixtures Not Regulated
California Status Lawful for sale in California
Title 20 / 24 Status Lawful for sale
California Prop 65 Lead
RoHS Compliant Yes
Additional Information
Additional Information
Most Track Accessories and Parts are available and interchangeable between finishes Includes (1) TR127 4' Track, (1) TP155 Floating Power Feed, (3) TH317 Track Heads, All Required Mounting Hardware
Warranty 1 Year Limited - Fixtures

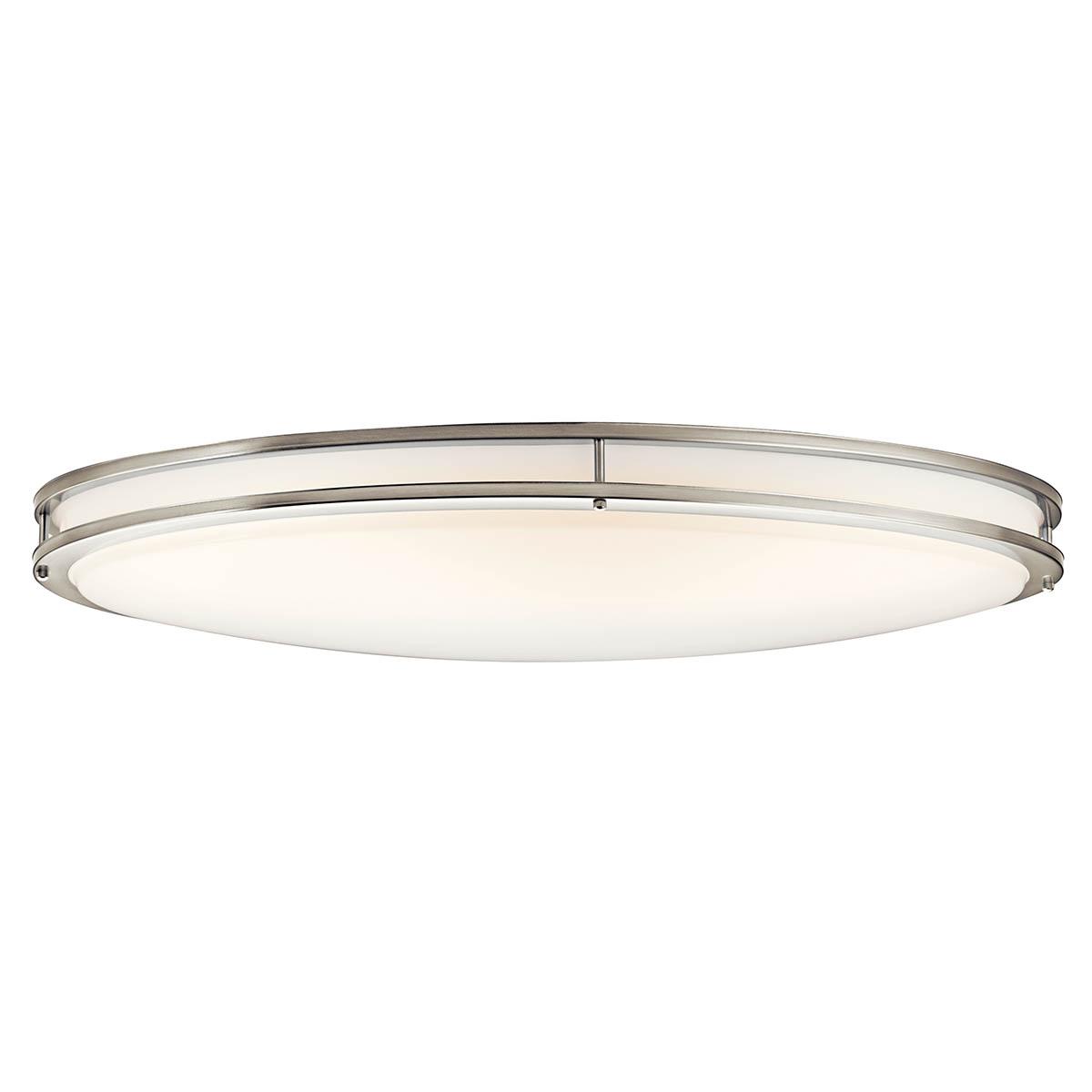

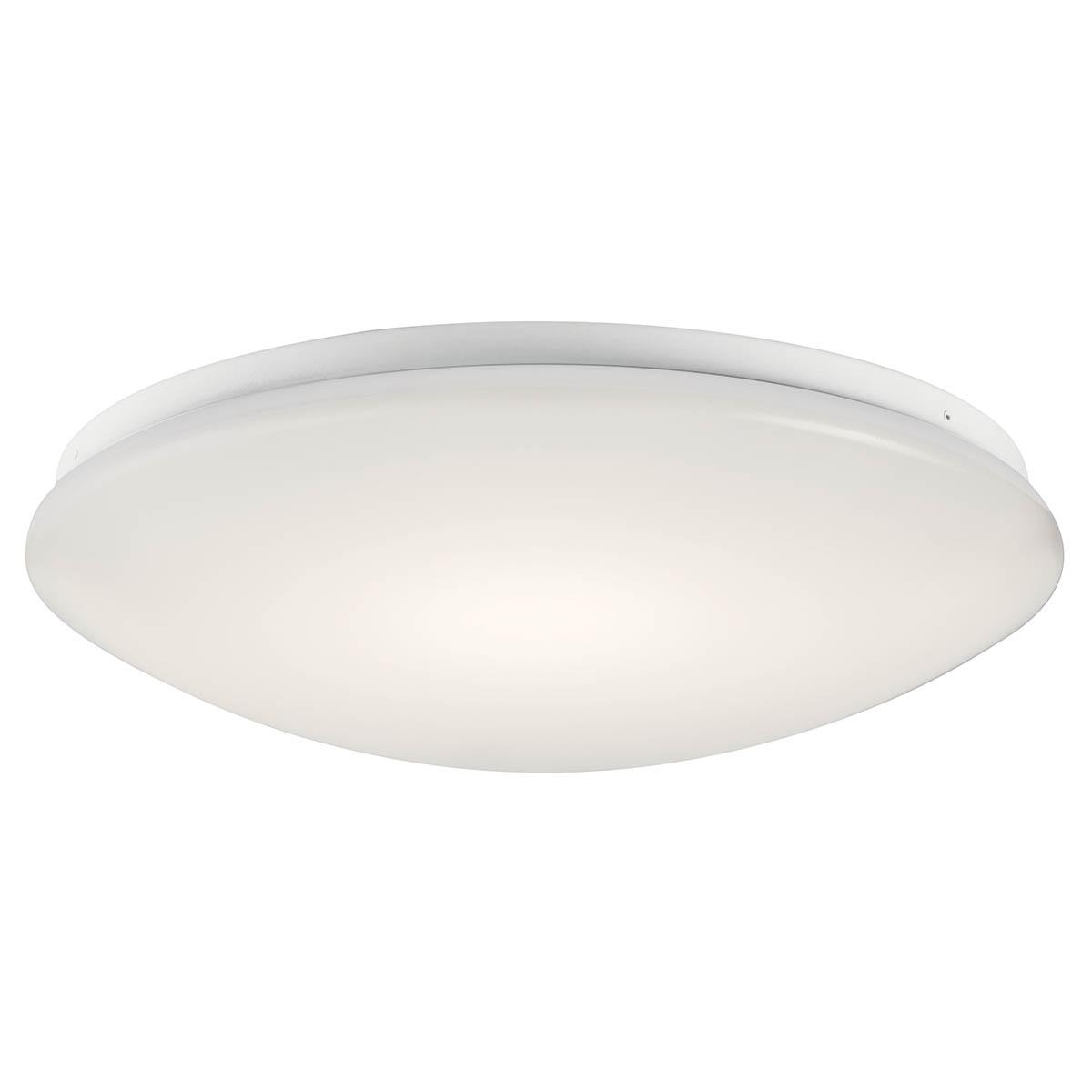

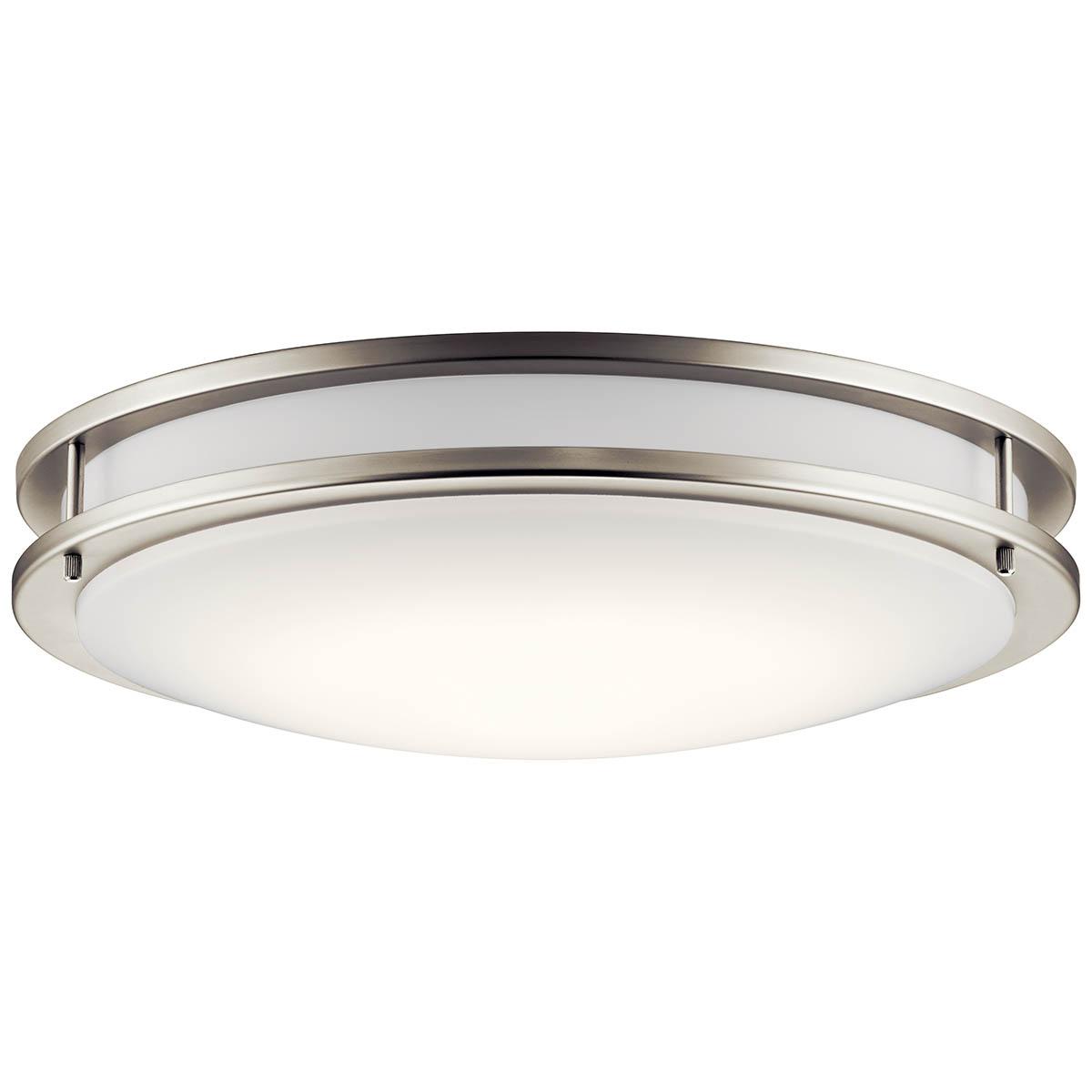

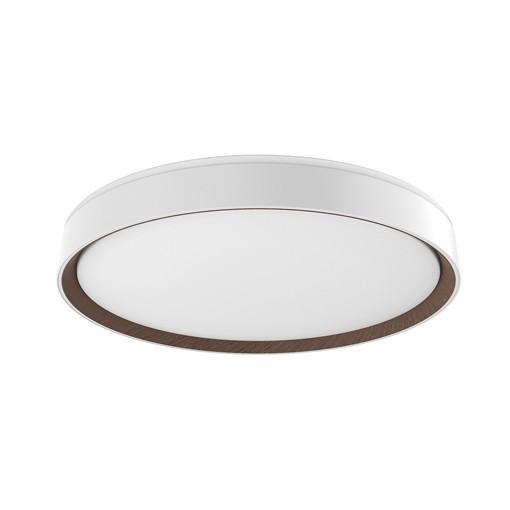

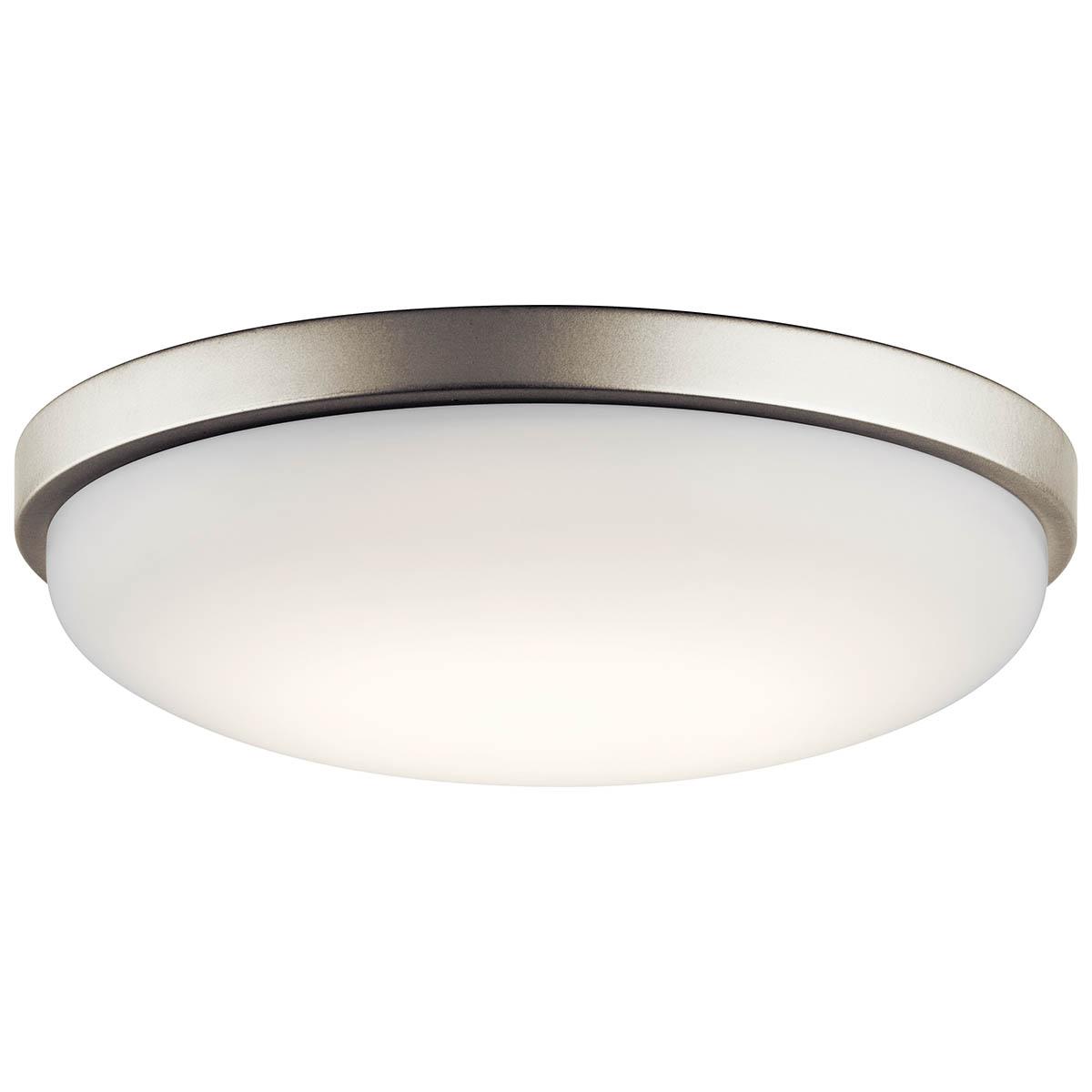

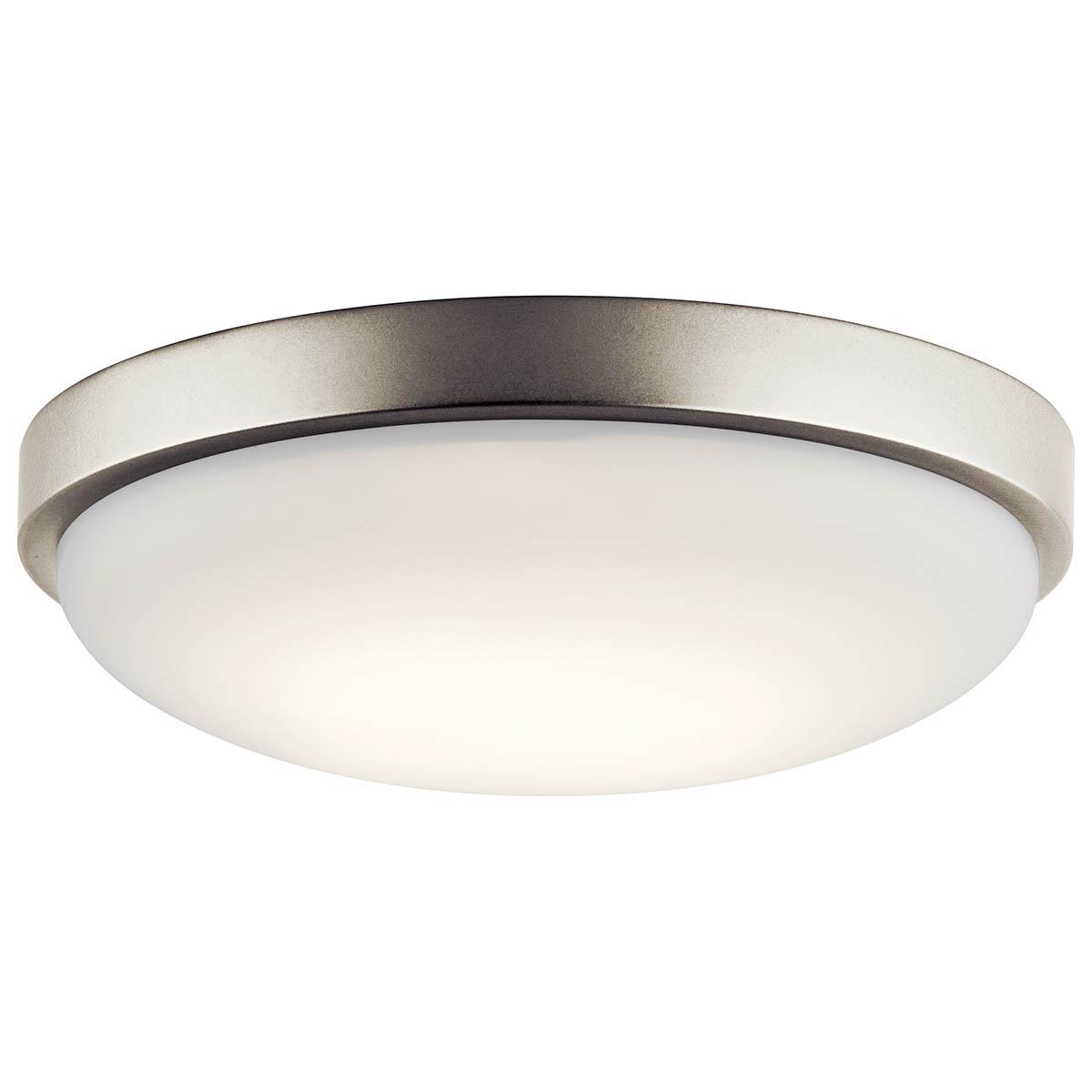

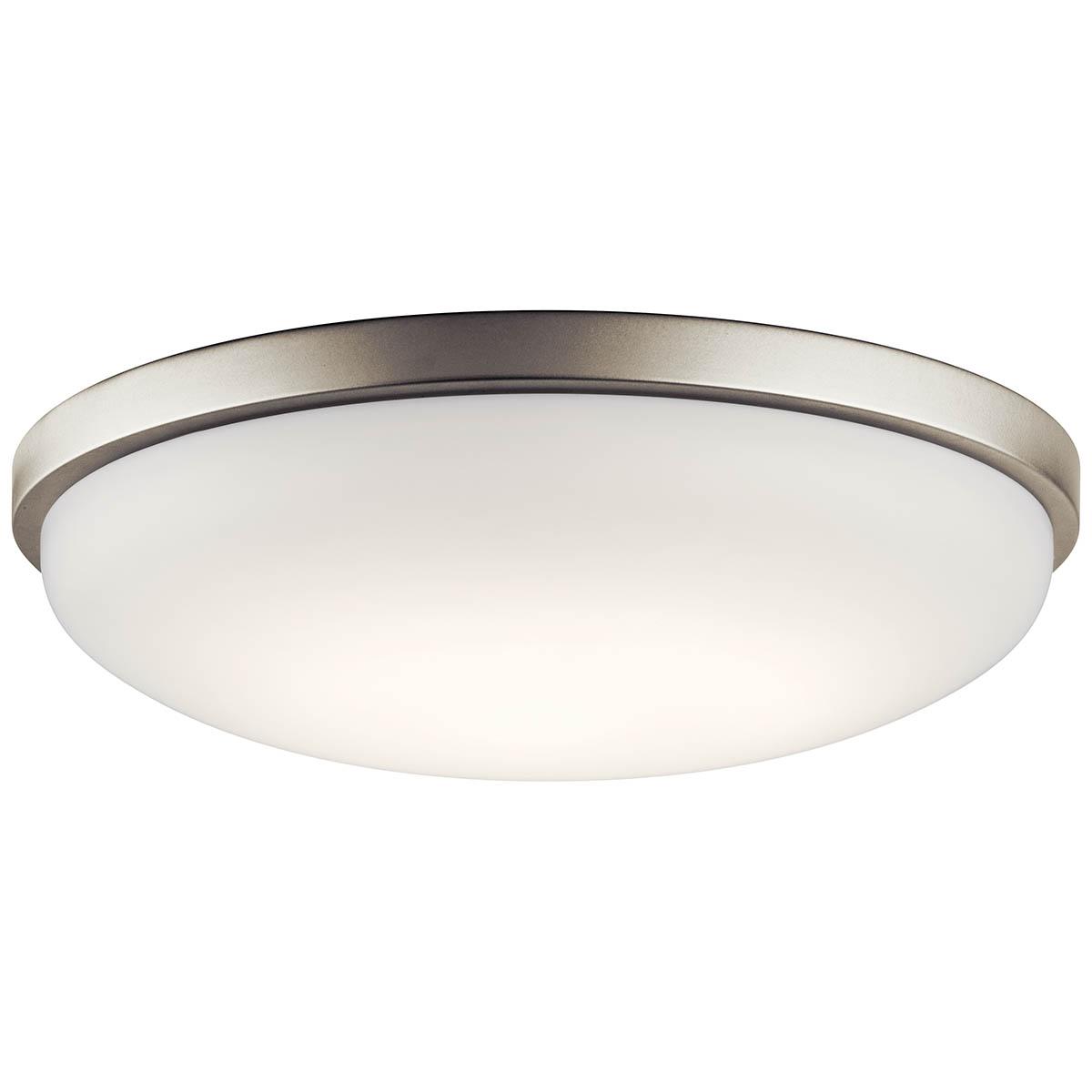

Certifications/Qualifications
ADA Compliant No
Prop65 No
Dark Sky Compliant No
Location Rating Damp kichler.com/warranty
Dimensions
Canopy Width 13"
Canopy Depth
Electrical
Input Voltage 120 V
Light Source
Light Source Integrated LED
Lamp Included Integrated
# Of Bulbs/LED Modules1
Max Or Nominal Watt23 W
Max Wattage/Range23
Dimmable Yes
Photometrics
Color Rendering Index90
Color Temperature Range3000 K
Delivered Lumens 1070
Delivered Efficacy (Lumens/Watt) 47
Mounting/Installation
Interior/Exterior Interior Product
Mounting Style FLUSHMOUNT
Mounting Weight 0.99 LBS
Modular Yes
Lead Wire Length 6
FIXTURE ATTRIBUTES
Housing/Glass
Primary Material Steel
Shade Included No Shade Dimensions 12.75 X 2.25
Product/Ordering Information

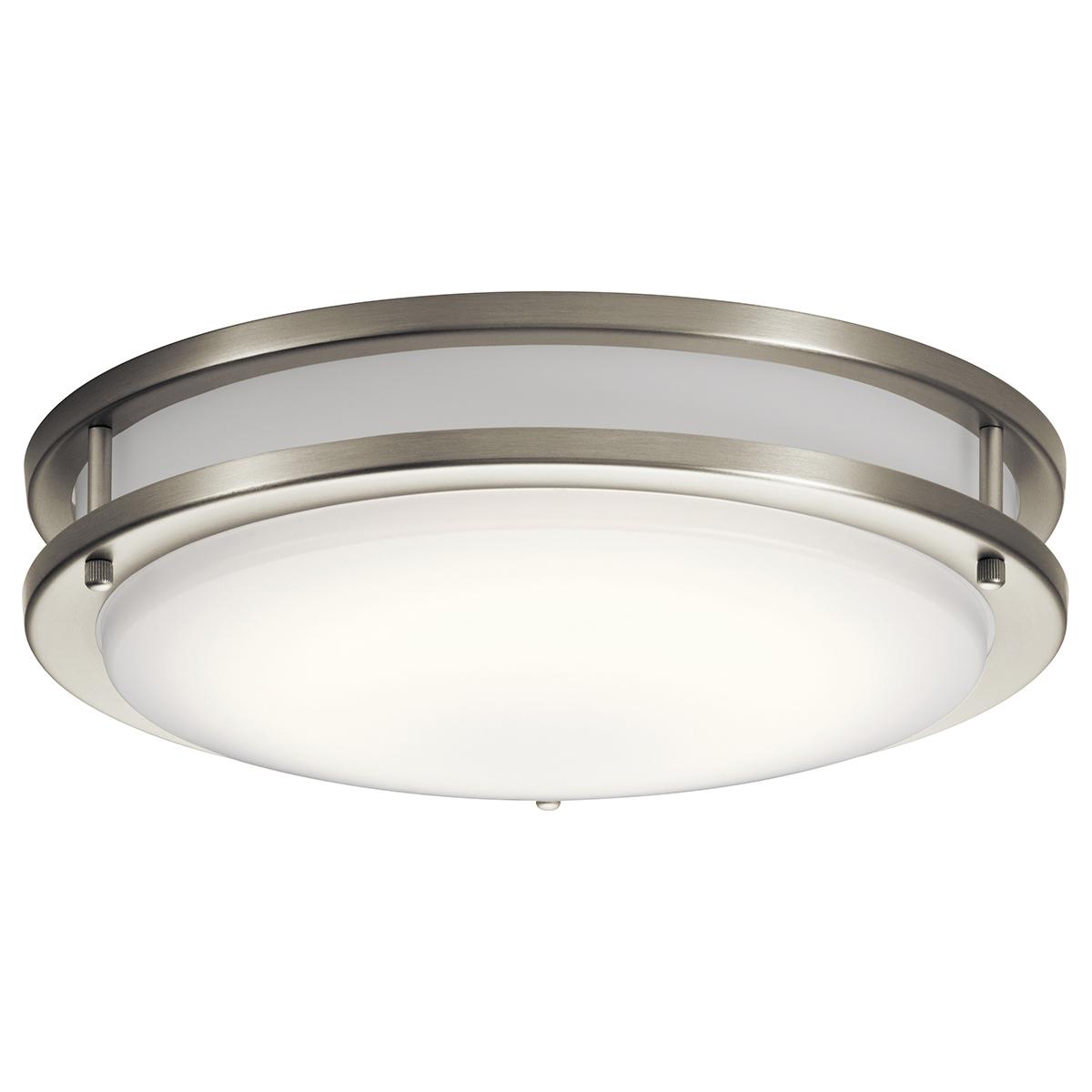

Sku 10885NILED
Finish Brushed Nickel UPC 783927519502 Finishes
SHALIMAR BOYNTON
NELO
ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with CCT switch.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.
Five position sliding switch 27K / 30K / 35K / 40K / 50K
3/4"
Aperture
Diameter
Diameter:Aperture:
NELO-4RTW5-1/2"4-1/2"
NELO-6RTW7"6"
NELO-8RTW8-7/8"7-3/4"
NELO-12RTW12-1/4"11"
NSEM-6WDW
Surface Mount Enclosure with Emergency Driver for 6" only
Decorative Ring
Optional Accessories
Description Finish
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO
NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"
Certifications/Qualifications
ADA Compliant No
Prop65 No
Dark Sky Compliant No
Location Rating Damp kichler.com/warranty
Dimensions
Canopy Width 13"
Canopy Depth
Electrical
Input Voltage 120 V
Light Source
Light Source Integrated LED
Lamp Included Integrated
# Of Bulbs/LED Modules1
Max Or Nominal Watt23 W
Max Wattage/Range23
Dimmable Yes
Photometrics
Color Rendering Index90
Color Temperature Range3000 K
Delivered Lumens 1070
Delivered Efficacy (Lumens/Watt) 47
Mounting/Installation
Interior/Exterior Interior Product
Mounting Style FLUSHMOUNT
Mounting Weight 0.99 LBS
Modular Yes
Lead Wire Length 6
FIXTURE ATTRIBUTES
Housing/Glass
Primary Material Steel
Shade Included No Shade Dimensions 12.75 X 2.25
Product/Ordering Information
Sku 10885NILED
Finish Brushed Nickel UPC 783927519502 Finishes
SHALIMAR BOYNTON
NELO
ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with CCT switch.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.
Five position sliding switch 27K / 30K / 35K / 40K / 50K
3/4"
Aperture
Diameter
Diameter:Aperture:
NELO-4RTW5-1/2"4-1/2"
NELO-6RTW7"6"
NELO-8RTW8-7/8"7-3/4"
NELO-12RTW12-1/4"11"
NSEM-6WDW
Surface Mount Enclosure with Emergency Driver for 6" only
Decorative Ring
Optional Accessories
Description Finish
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO
NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"

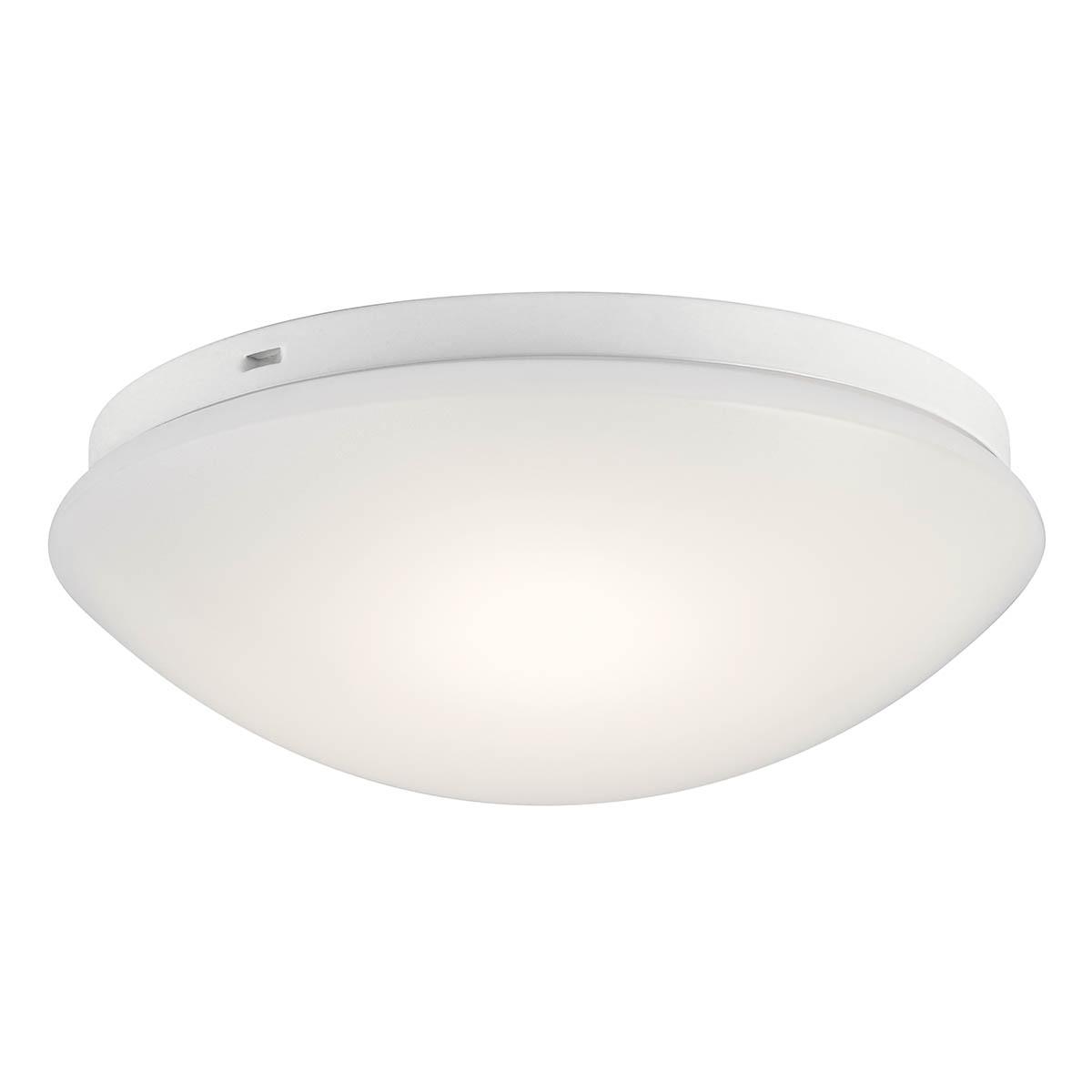

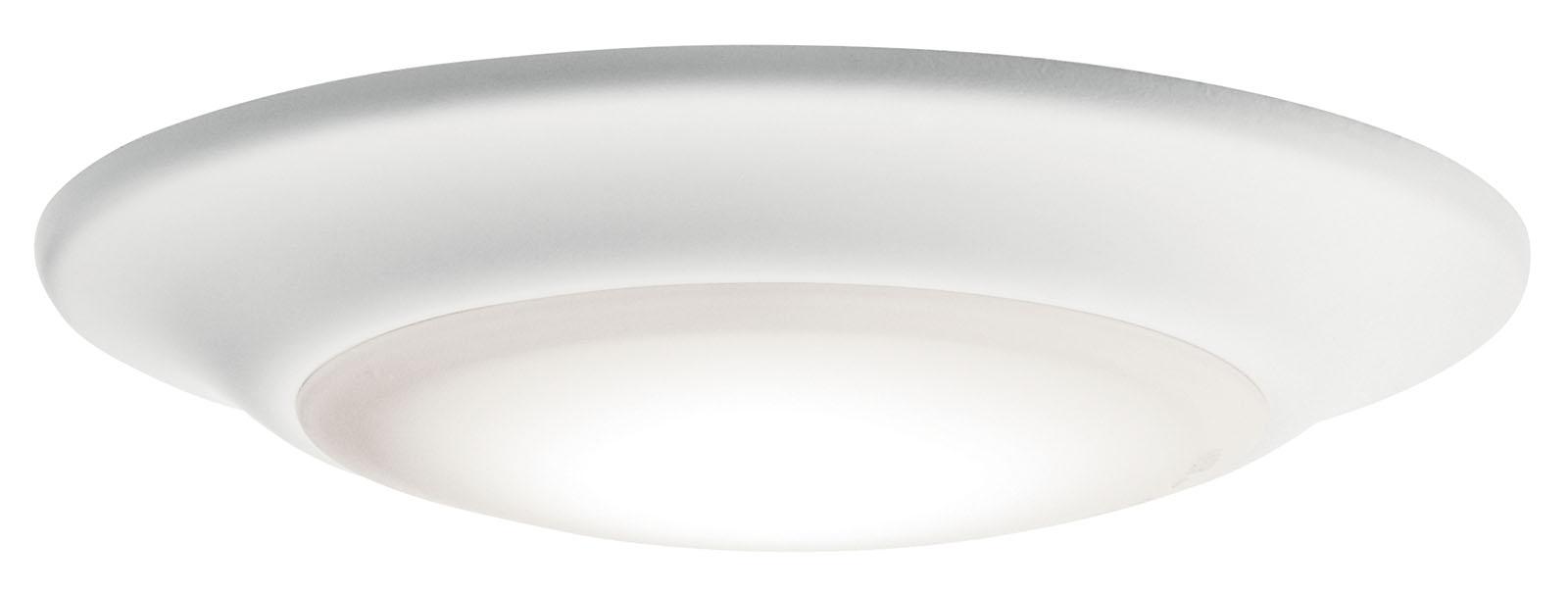

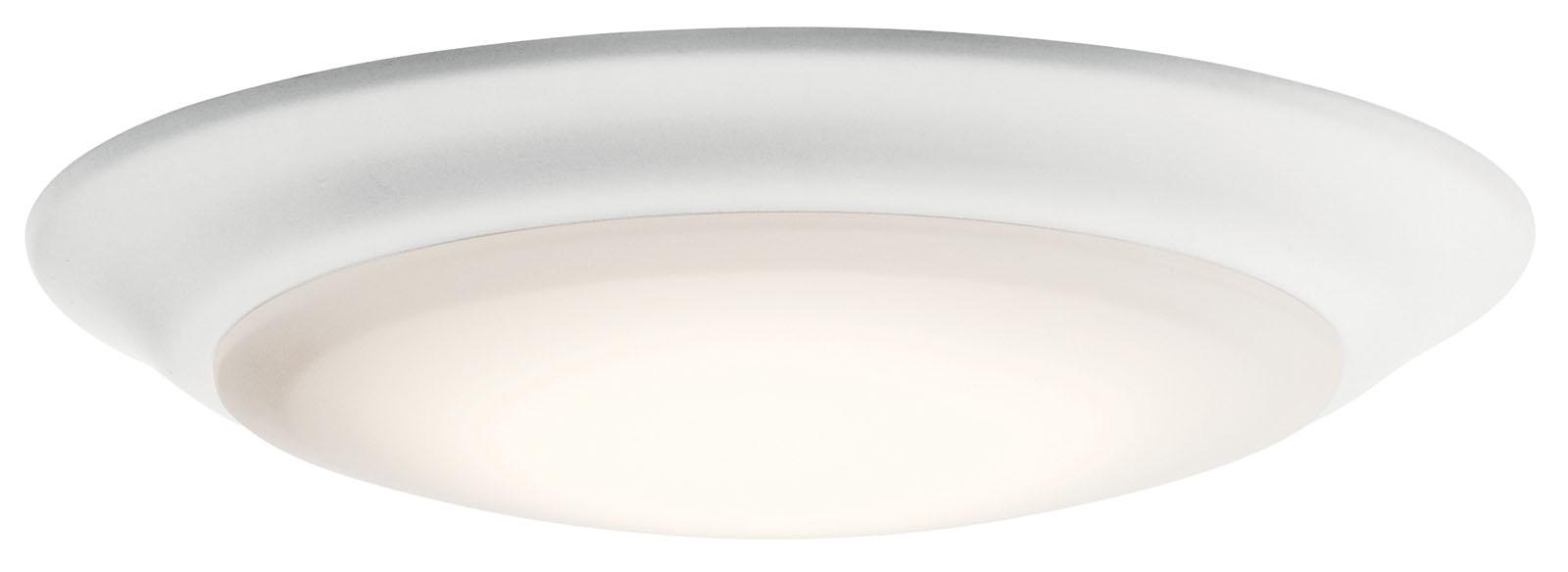

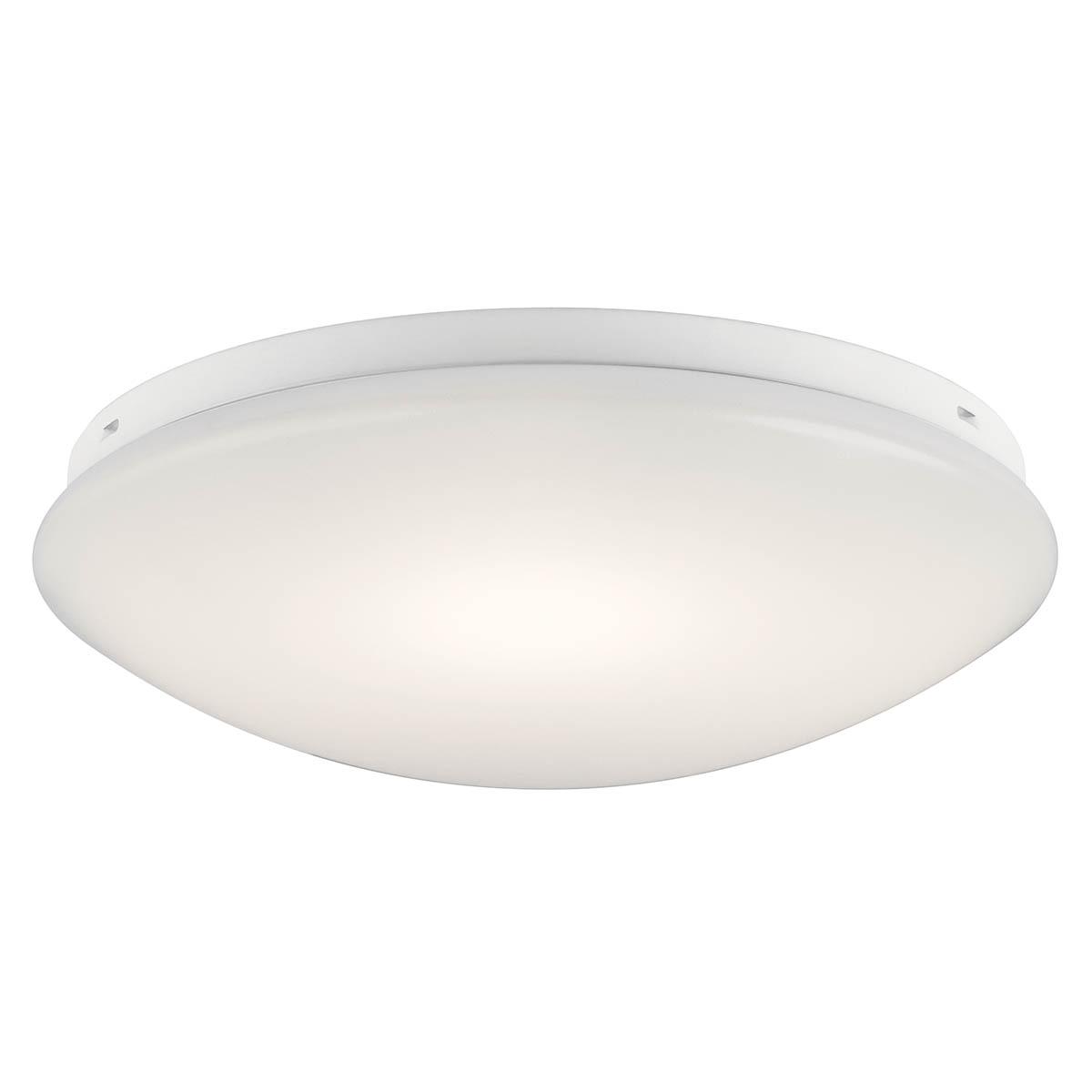

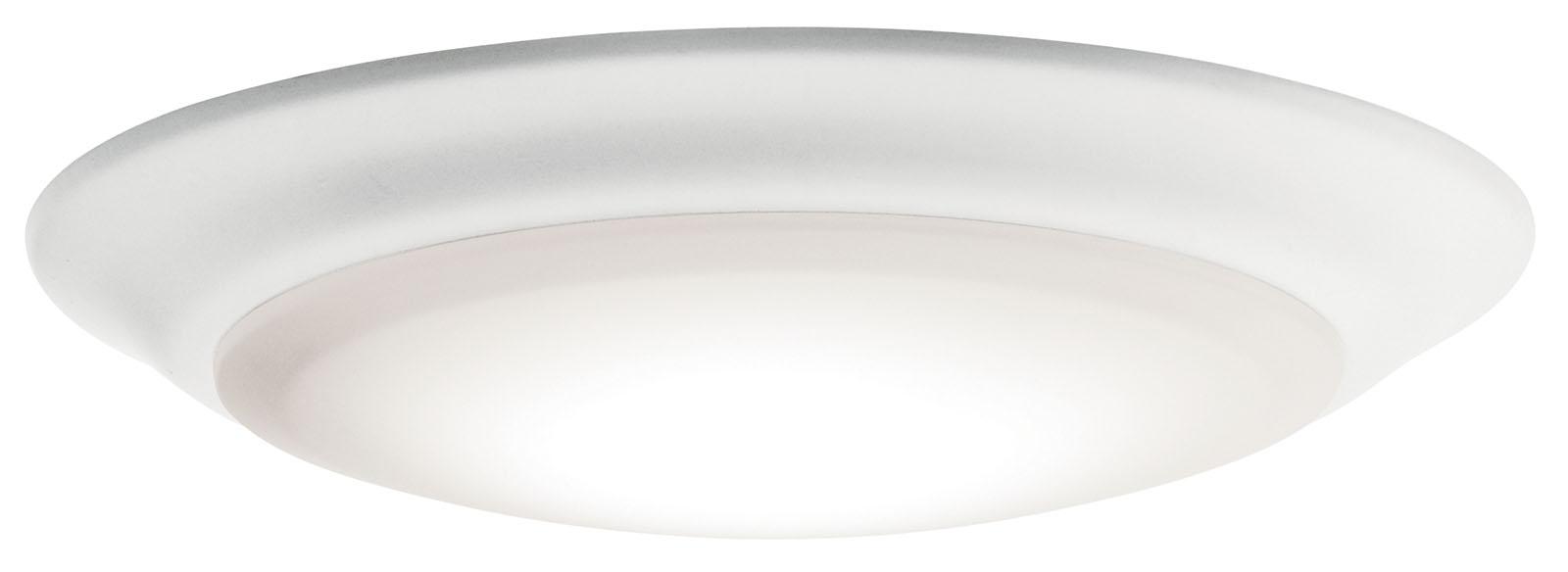

Certifications/Qualifications
ADA Compliant Yes
Prop65 No
Dark Sky Compliant No
Location Rating Wet kichler.com/warranty
Dimensions
Weight 0.5 LBS
Electrical
Input Voltage 120 V
Light Source
Light Source Integrated LED
Lamp Included Integrated
Max Or Nominal Watt18.5 W
Max Wattage/Range16
Dimmable Yes
Photometrics
Color Rendering Index90
Color Temperature Range4000 K Delivered Lumens 1000 Delivered Efficacy (Lumens/Watt) 62.5
Mounting/Installation
Interior/Exterior Interior Product
Mountable On Wall Or CeilingYes
Mounting Weight 0.5 LBS
Modular Yes
FIXTURE ATTRIBUTES
Housing/Glass
Primary Material Aluminum Shade Included No
Product/Ordering Information
Sku 43848WHLED40T
Finish White UPC 783927541503 Finishes
NLOPAC-R6509T24
6" AC Opal - LED Surface Mount
Source: 16.5W Up to 1150lm
PRODUCT DESCRIPTION

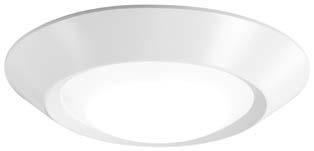

The AC Opal LED Series LED fixture is designed to surface mount over a standard junction box. The low profile dimmable luminaire produces even illumination and is cETLus listed for wet locations.
FEATURES
AC LED (No Driver)
Dimmable
2700K, 3000K, 4000K or 5000K @ 90+ CRI
White, black, bronze or natural metal finishes
Mount on standard 4" junction box
Retrofit kit included for 5" or 6" recessed housings
ENERGY STAR certified
SPECIFICATION
Construction: One piece aluminum die formed housing and trim. Aluminum body dissipates heat and extends life.
Mounting: Surface mount luminaire is compatible with 3" or 4" junction boxes and 1/2" deep pancake boxes for ceiling or wall mount applications. Luminaires can also be retrofit over 5" or 6" recessed housings with retrofit kit (included).
Optics: Nora specified and designed precision molded lens for optimal lumen output and even distribution.
Finishes: Available in white, black, bronze and natural metal finishes.
Ratings: IC rated when used with a 4" electrical junction box rated for direct contact with insulation. Fire rated when used with a fire rated junction box.
Retrofit: Each luminaire includes a retrofit kit with medium base socket adapter to mount over 5" or 6" recessed housings. Kit also includes torsion spring brackets that hold luminaire flush against ceiling. Retrofit kit is intended to be used with a lighting fixture as a lamp replacement.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: Up to 1150lm / 16.5W
Color Temperature: 2700K, 3000K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating temperature: 0-45°C
Lifetime: 50,000 hours @ L70
Dimming: 5% with Triac or 10% with ELV Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
ACCESSORIES
NLOPAC-4BKT-2: Universal bracket for mounting to 3" or 4" junction boxes.
LISTING
cETLus Listed for wet locations
cETLus classified for retrofit
· ENERGY STAR certified
5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1) FCC Compliant
6" AC Opal - LED Surface Mount
Color Temperature / Finish
NLOPAC-R6509T2427BZ = 2700K / Bronze
NLOPAC-R6509T2427NM = 2700K / Natural Metal
NLOPAC-R6509T2427W = 2700K / White
NLOPAC-R6509T2430B = 3000K / Black
NLOPAC-R6509T2430BZ = 3000K / Bronze (Discontinued, direct replacement: NLOPAC-R6TWB)
NLOPAC-R6509T2430NM = 3000K / Natural Metal
NLOPAC-R6509T2430W = 3000K / White
NLOPAC-R6509T2440BZ = 4000K / Bronze (Discontinued, direct replacement: NLOPAC-R6TWB)
NLOPAC-R6509T2440NM = 4000K / Natural Metal
NLOPAC-R6509T2440W = 4000K / White
NLOPAC-R6509T2450W = 5000K / White
Example: NLOPAC-R6509T2450W = 6" AC Opal, 1150lm / 16.5W, 5000K, White finish

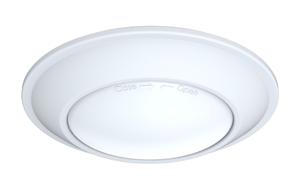

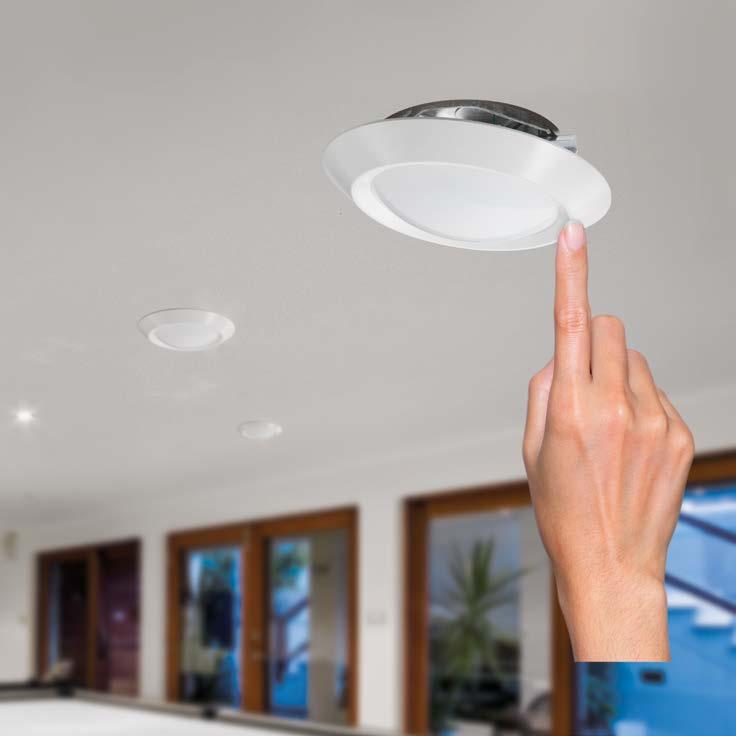

The P8022 delivers a solution for flush mount and recessed applications, for both residential and commercial markets. In addition, the P8022 is wet located, Title 24 - JA8 - 2016 and is a cost effective solution for fire rated application. The P8022 luminaire unites performance, cost and safety benefits.
Construction:
• Diffused polycarbonate lens controls direct glare from the LEDs
• Simple snap in installation for J-Box and Twist and Push for recessed housings
• Die-cast aluminum construction with a powder coat paint finish
• Can be installed in a 4” J-Box and 6”, 5” and 4” recessed housing. (All hardware included)
• Lumen output and distribution comparable to a 100W incandescent lamp
• Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
• Suitable for use in IC or NON-IC Applications with 25ºC (77ºF) continuous room side ambient temperature.
• Provided with quick link for use with E26 Edison Base adapter
• This product is not available for sale into the State of California.
Performance:
Images:
Dimensions:
Diameter: 7.25”
Height: 1.1875”
P8022-28-30K
Included Mounting Options:
Recessed Mount with Quick-Link
EMI/RFI
Min. Start Temp
Max. Operating Temp
(LM-79)
(L70/TM-21)
FCC Title 47, Part 15, Class B
C
C
Warranty 5 yrs.
Labels
Catalog number:
cCSAus classified for wet locations ENERGY STAR® qualified California Title 24 - JA8-2016
NLOPAC-R6509T24
6" AC Opal - LED Surface Mount
Source: 16.5W Up to 1150lm
PRODUCT DESCRIPTION
The AC Opal LED Series LED fixture is designed to surface mount over a standard junction box. The low profile dimmable luminaire produces even illumination and is cETLus listed for wet locations.
FEATURES
AC LED (No Driver)
Dimmable
2700K, 3000K, 4000K or 5000K @ 90+ CRI
White, black, bronze or natural metal finishes
Mount on standard 4" junction box
Retrofit kit included for 5" or 6" recessed housings
ENERGY STAR certified
SPECIFICATION
Construction: One piece aluminum die formed housing and trim. Aluminum body dissipates heat and extends life.
Mounting: Surface mount luminaire is compatible with 3" or 4" junction boxes and 1/2" deep pancake boxes for ceiling or wall mount applications. Luminaires can also be retrofit over 5" or 6" recessed housings with retrofit kit (included).
Optics: Nora specified and designed precision molded lens for optimal lumen output and even distribution.
Finishes: Available in white, black, bronze and natural metal finishes.
Ratings: IC rated when used with a 4" electrical junction box rated for direct contact with insulation. Fire rated when used with a fire rated junction box.
Retrofit: Each luminaire includes a retrofit kit with medium base socket adapter to mount over 5" or 6" recessed housings. Kit also includes torsion spring brackets that hold luminaire flush against ceiling. Retrofit kit is intended to be used with a lighting fixture as a lamp replacement.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: Up to 1150lm / 16.5W
Color Temperature: 2700K, 3000K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating temperature: 0-45°C
Lifetime: 50,000 hours @ L70
Dimming: 5% with Triac or 10% with ELV Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
ACCESSORIES

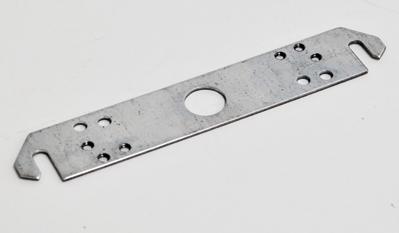

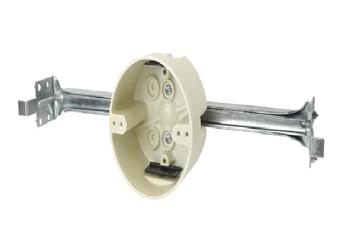

NLOPAC-4BKT-2: Universal bracket for mounting to 3" or 4" junction boxes.
LISTING
cETLus Listed for wet locations
cETLus classified for retrofit
· ENERGY STAR certified
5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1) FCC Compliant

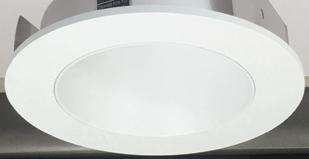

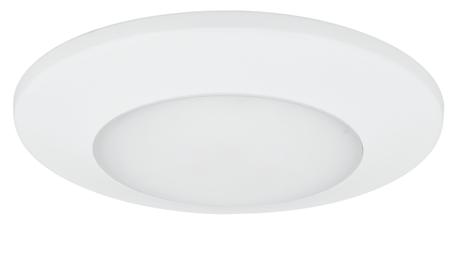

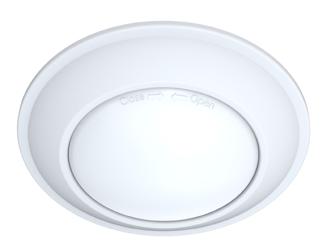

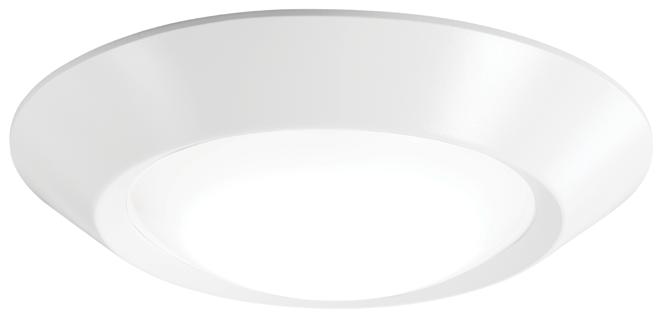

6" AC Opal - LED Surface Mount
Color Temperature / Finish
NLOPAC-R6509T2427BZ = 2700K / Bronze
NLOPAC-R6509T2427NM = 2700K / Natural Metal
NLOPAC-R6509T2427W = 2700K / White
NLOPAC-R6509T2430B = 3000K / Black
NLOPAC-R6509T2430BZ = 3000K / Bronze (Discontinued, direct replacement: NLOPAC-R6TWB)
NLOPAC-R6509T2430NM = 3000K / Natural Metal
NLOPAC-R6509T2430W = 3000K / White
NLOPAC-R6509T2440BZ = 4000K / Bronze (Discontinued, direct replacement: NLOPAC-R6TWB)
NLOPAC-R6509T2440NM = 4000K / Natural Metal
NLOPAC-R6509T2440W = 4000K / White
NLOPAC-R6509T2450W = 5000K / White
Example: NLOPAC-R6509T2450W = 6" AC Opal, 1150lm / 16.5W, 5000K, White finish

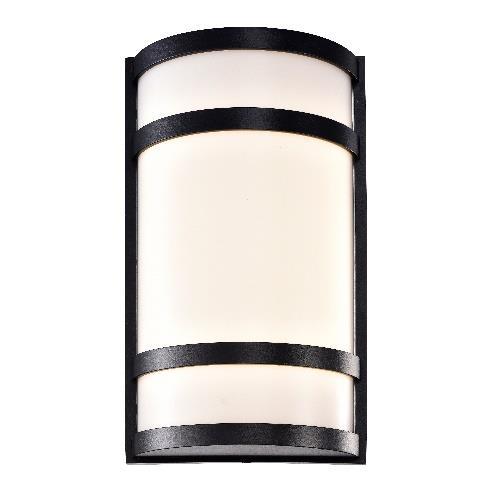

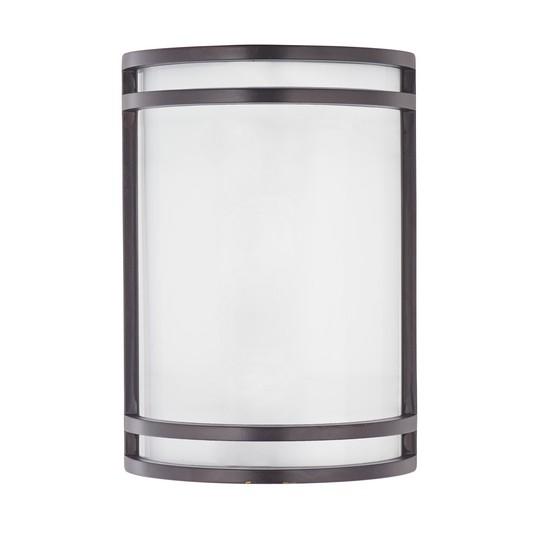

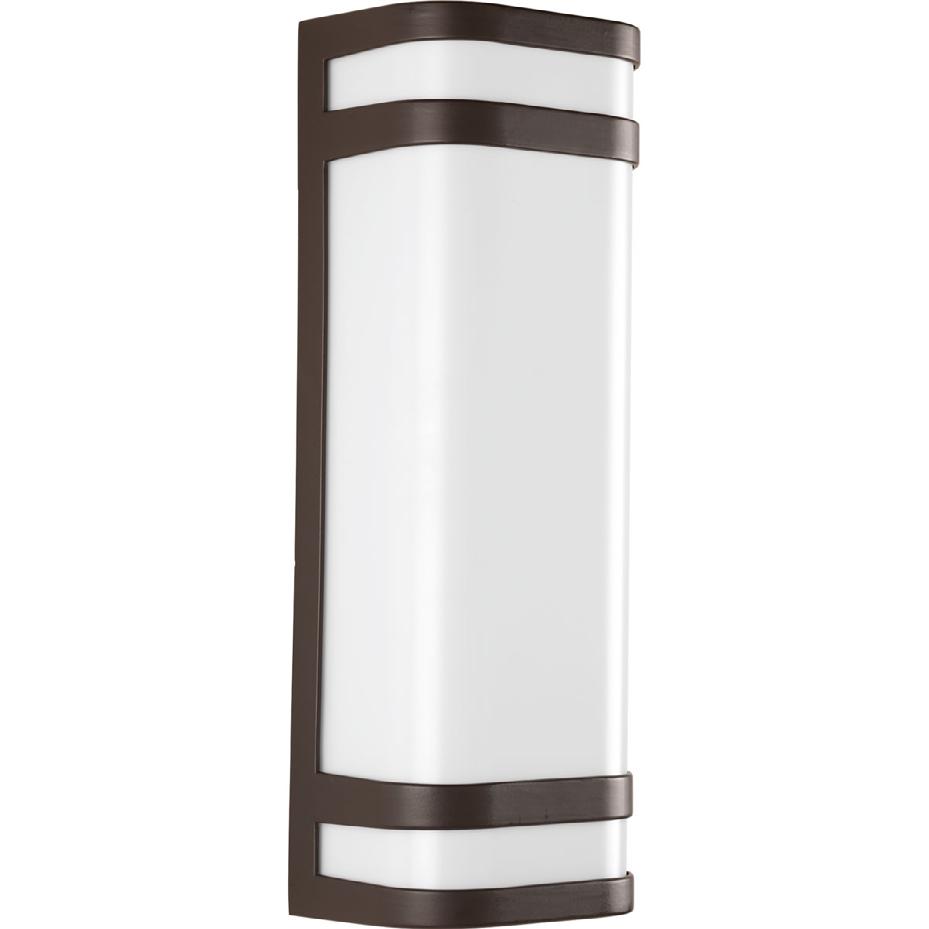

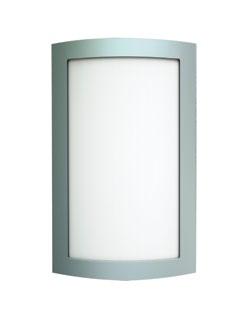

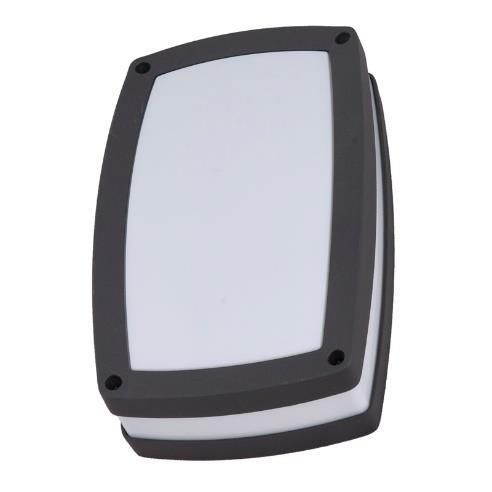

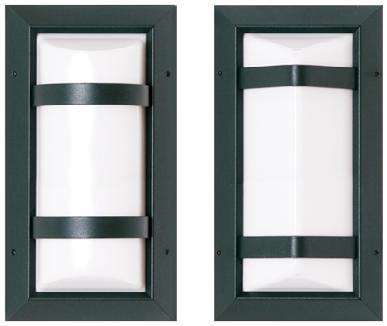

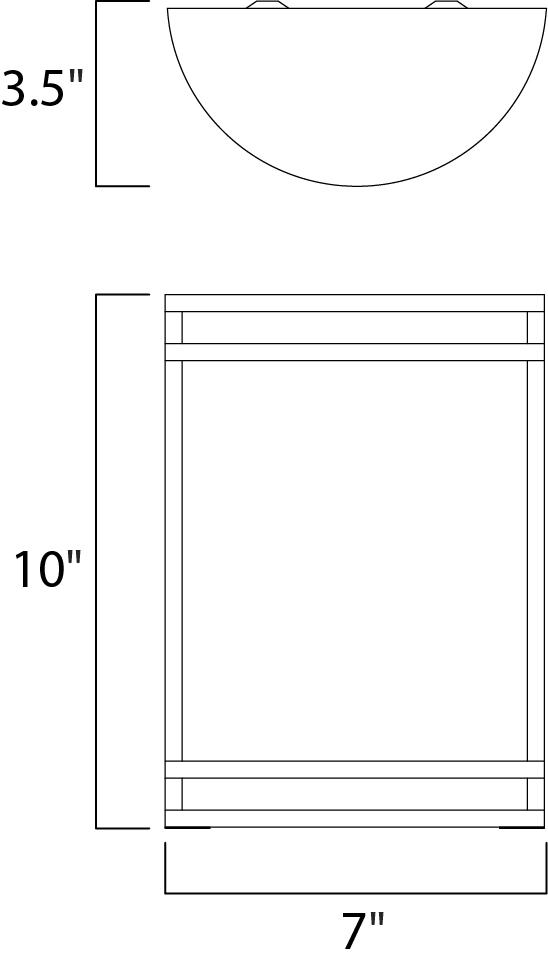

Clean lines are up front and center for these modern LED outdoor sconces. Valera features a die-cast aluminum frame and matte white, acrylic diffuser. Energy efficient LED source offers 3000K color temperature and 90+CRI output. Title 24 compliant. Two-light 9w LED wall lantern in an Architectural Bronze finish.
Specifications:
• Architectural Bronze (-129) (painted)
• Aluminum Construction
• Matte White acrylic diffuser
• LED Module is replaceable (part # 93054049)
• Modern LED outdoor sconce.
• Clean lines are central to design.
Features a die-cast aluminum frame and matte white, acrylic diffuser. 623 lumens 69.2 lumens/watt (source)
3000K color temperature, 90+ CRI.
Wall mount - vertical only.
Dimmable to 10% brightness (See Dimming Notes)
Chassis covers a standard 4" octagonal recessed outlet box
Mounting strap for outlet box included 6" of wire supplied
Complies with "Americans with Disabilities Act" - ADA
ENERGY STAR® qualified Meets California Title 24 high efficacy requirements for outdoor use only
Performance:
Number of Modules
2
Input Power 9w per module
Input Voltage
Input Frequency
Lumens/LPW (Source)
Lumens/LPW (Delivered)
120 V
60 Hz
623/69.2 (LM-82) per module
640/41 (LM-79)
CCT 3000 K
CRI 90+
Life (hours)
60,000 (L70/TM-21)
FCC Meets FCC Title 47, Part 15 Class B
Min. Start Temp -30 °C
Max. Operating Temp 30 °C
Warranty
Labels
5 year warranty
cCSAus Wet location listed
ENERGY STAR® qualified Meets California Title 24 high efficacy requirements for outdoor use only
RATINGS cETLus WetLocation EnergyStar ADA ADDITIONAL INSTALLUP/DOWN:Any RATEDLIFE 50000Hours
OPERATINGTEMPERATURE: -20°C(-4°F),40°C(104°F)
PHOTOMETIC:ReportFoundOnline
TYPE A SPEC SHALIMAR BOYNTON
FEATURES & SPECIFICATIONS
INTENDED USE —For areas that require good vertical illumination and excellent glare control at low mounting heights. Ideal for open areas, retail spaces and aisles. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION — One-piece 5VA rated fiberglass housing with integral perimeter channel utilizes continuous poured-in-place NEMA 4X gasket. Simple two-piece design consists of housing and optical assembly to streamline installation process. Polymeric latches positively attach to housing and keep from becoming a hindrance during install.
OPTICS — Injection-molded, acrylic lens (.080" thick), provides high impact-resistance comparable to 100% DR. F1 rated for outdoor use, lenses resist breaking, yellowing or becoming brittle over time. UV stabilized polycarbonate diffuser available (.080" thick) in clear or frosted for additional impact strength. Polycarbonate lens is recommend for lower mounting heights where vandal protection is desired.
ELECTRICAL — Tool-less one piece optical assembly combines LEDs and lens into one component. Optical assembly easily connects to housing with plug and play harness, eliminating time consuming wiring connections. High-efficiency drivers operate 120-480V offered with 0-10V dimming, allowing granular control when coupled with wireless networking controls. Luminaire Surge Protection Level: Designed to withstand up to 2.5kV/0.75kA per ANSI C82.77-5-2015. L85 at 60,000 hours.
INSTALLATION — Two-piece design makes installations faster than ever by simplifying wiring connections. Power connection is easily accommodated through pre-drilled holes at each end, optional wet location fittings available for maximum flexibility.
Stainless steel (#316) surface spring-mounting brackets with bail wires standard (2 included) allow for ceiling, wall or suspended mount.
Swivel stem(provided by others) when pendant mounting. Factory installed junction box option accommodates up to 4X4 sized boxes and includes integrated gasket to maintain wet location listings.
Quick Mount Bracket (QMB) ships installed on fixture and is recommended for fastest surface mount installs, ideal for end to end installations or larger jobs.
LISTINGS — CSA Certified to UL and C-UL standards. NEMA 4X rated. IP ratings: IP65 and IP66 rated. See page 3 for ambients.
NSF listed for Splash Zone II.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.

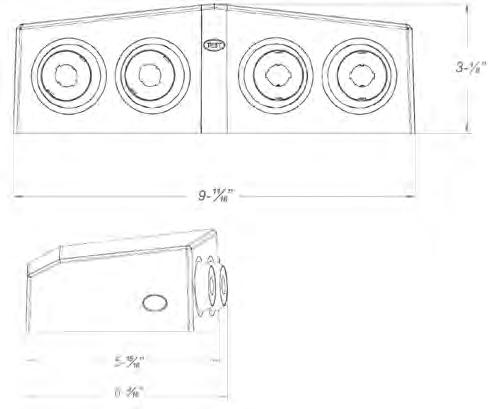

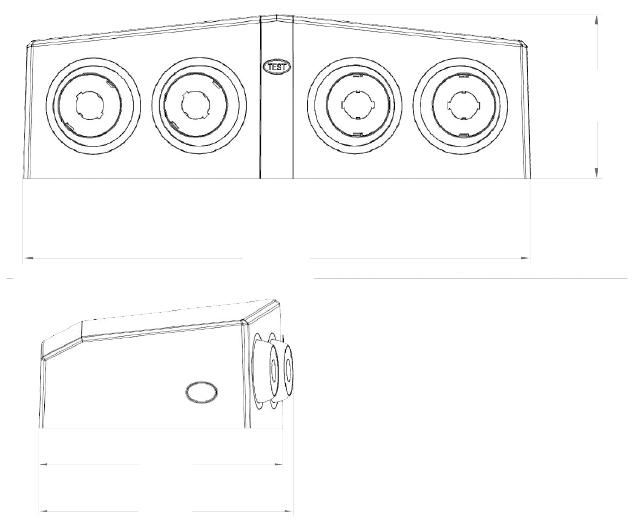

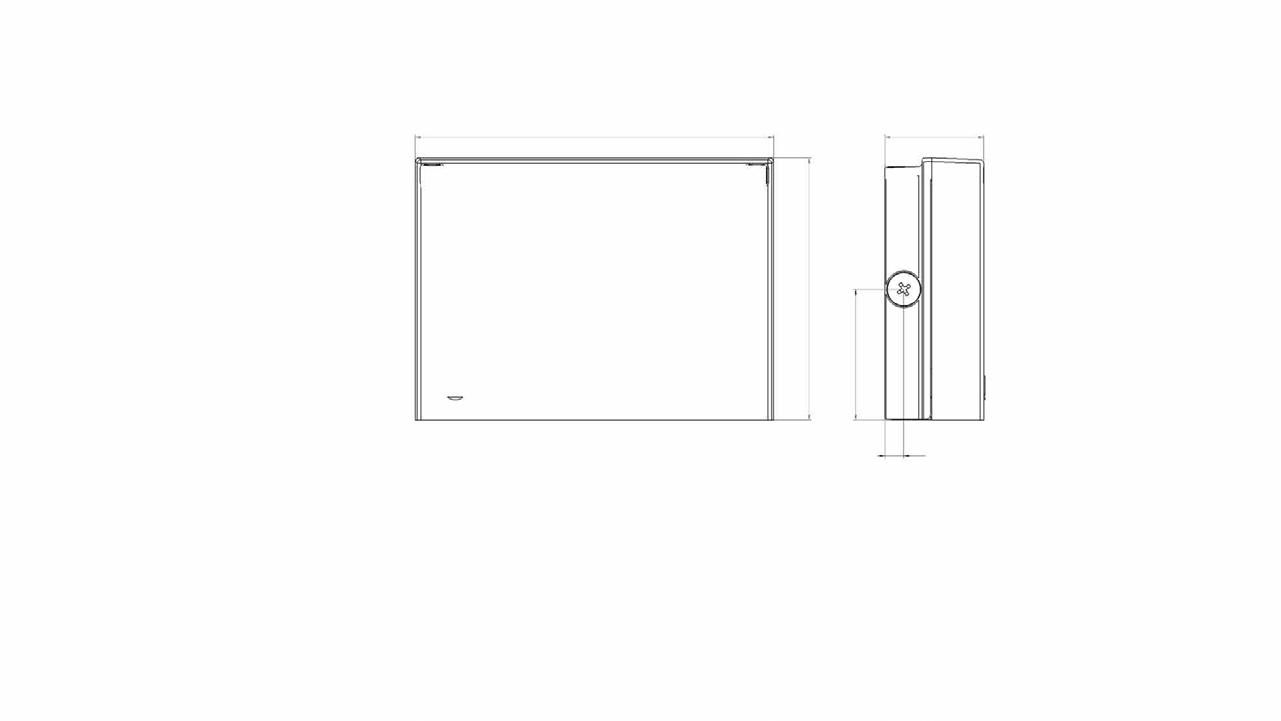

DIMENSIONS
All dimensions are shown in inches (centimeters) unless otherwise noted.
PHOTOMETRICS
Please see www.lithonia.com
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus.
*See ordering tree for details

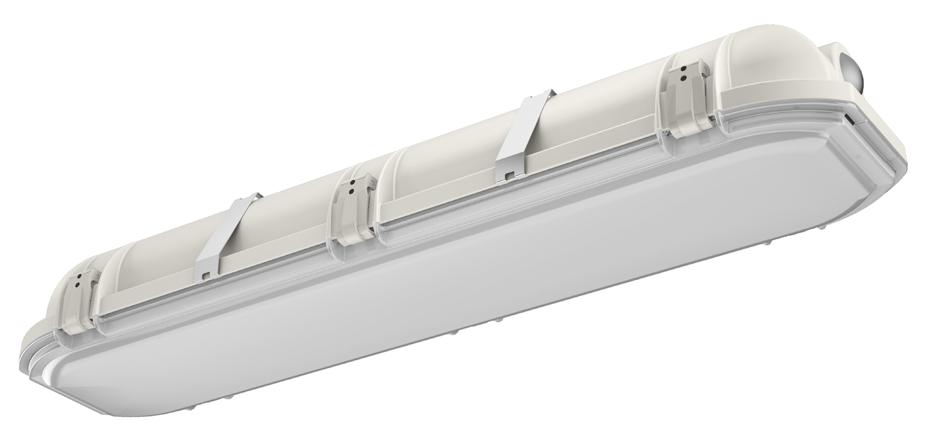

SYLVANIA Luminaires

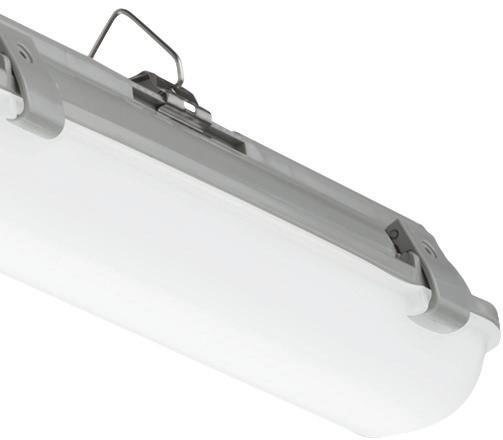

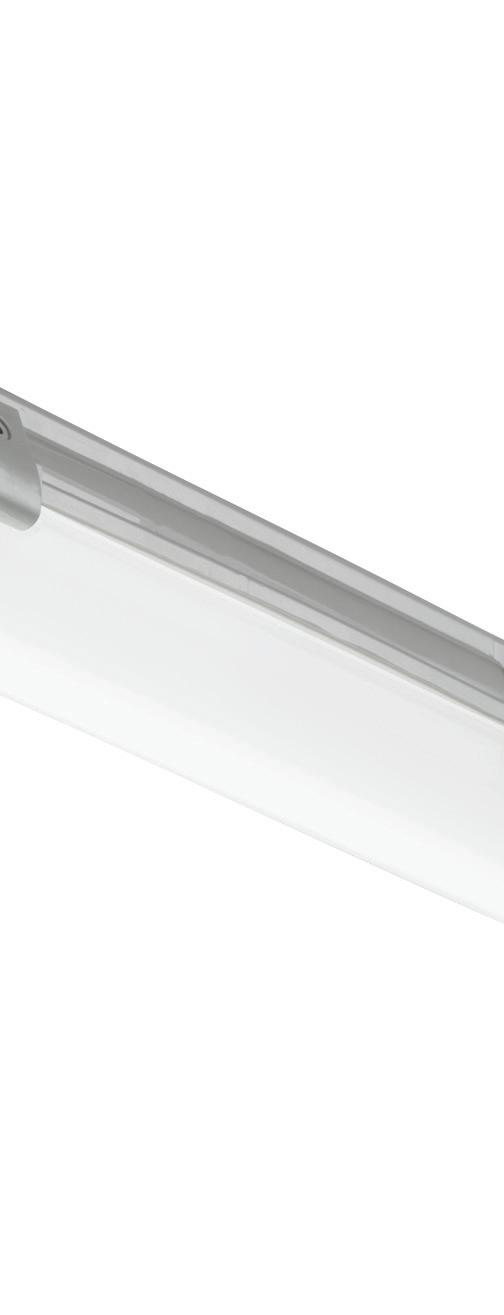

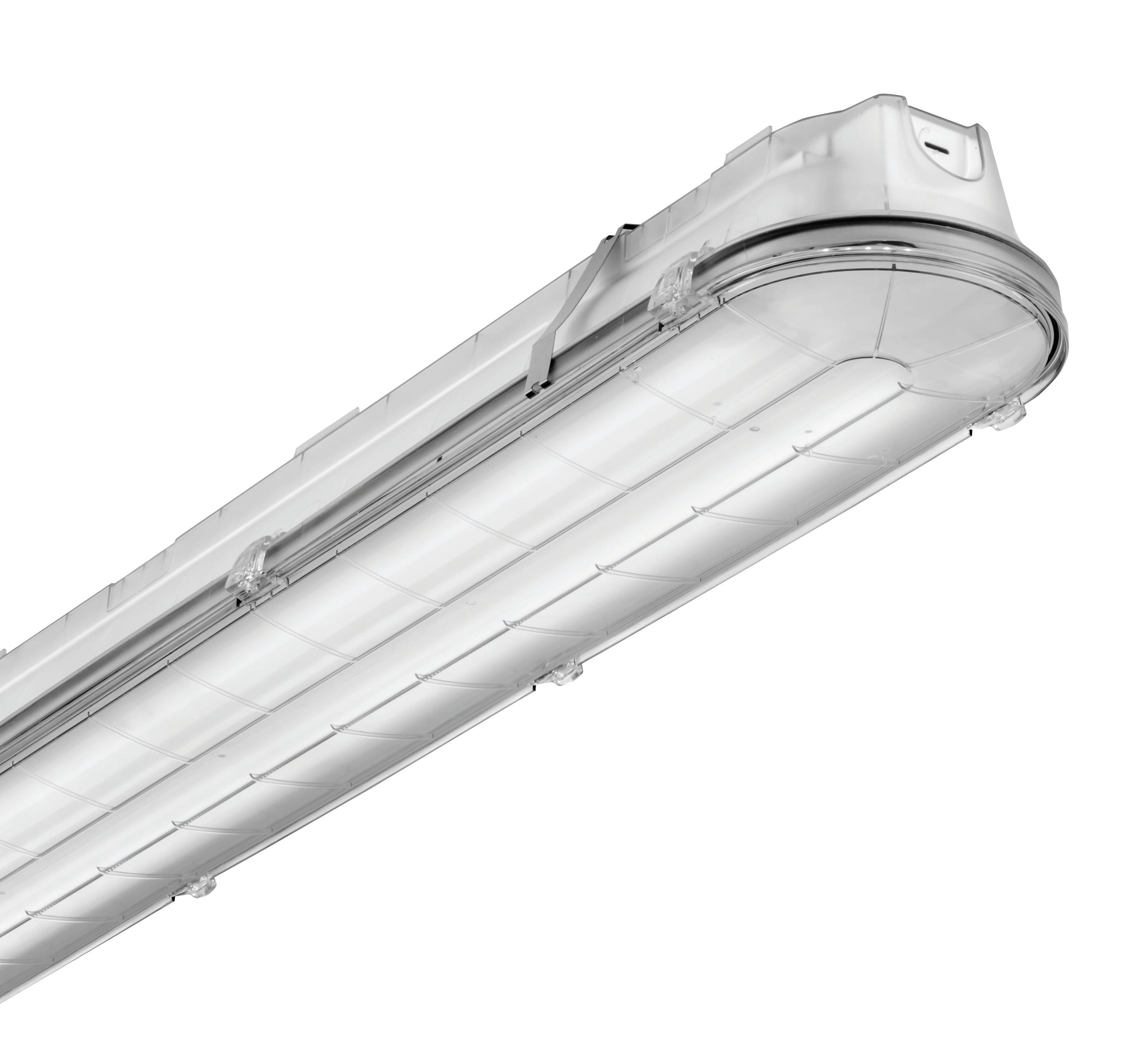

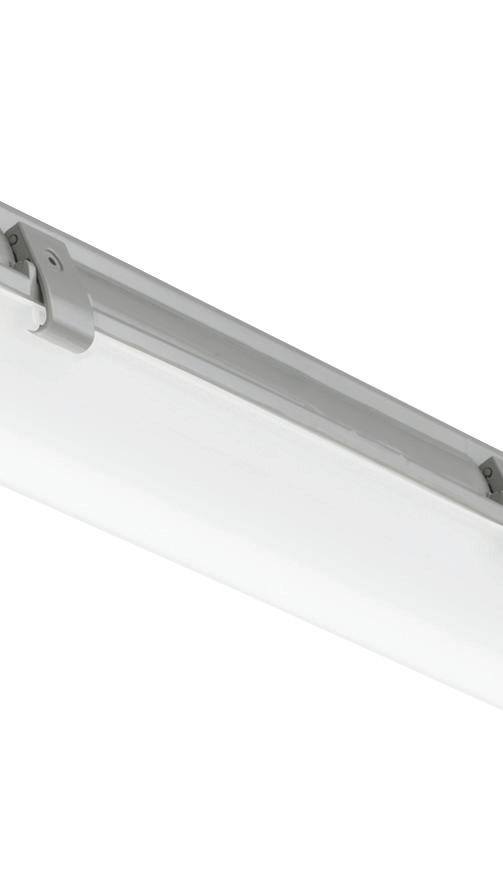

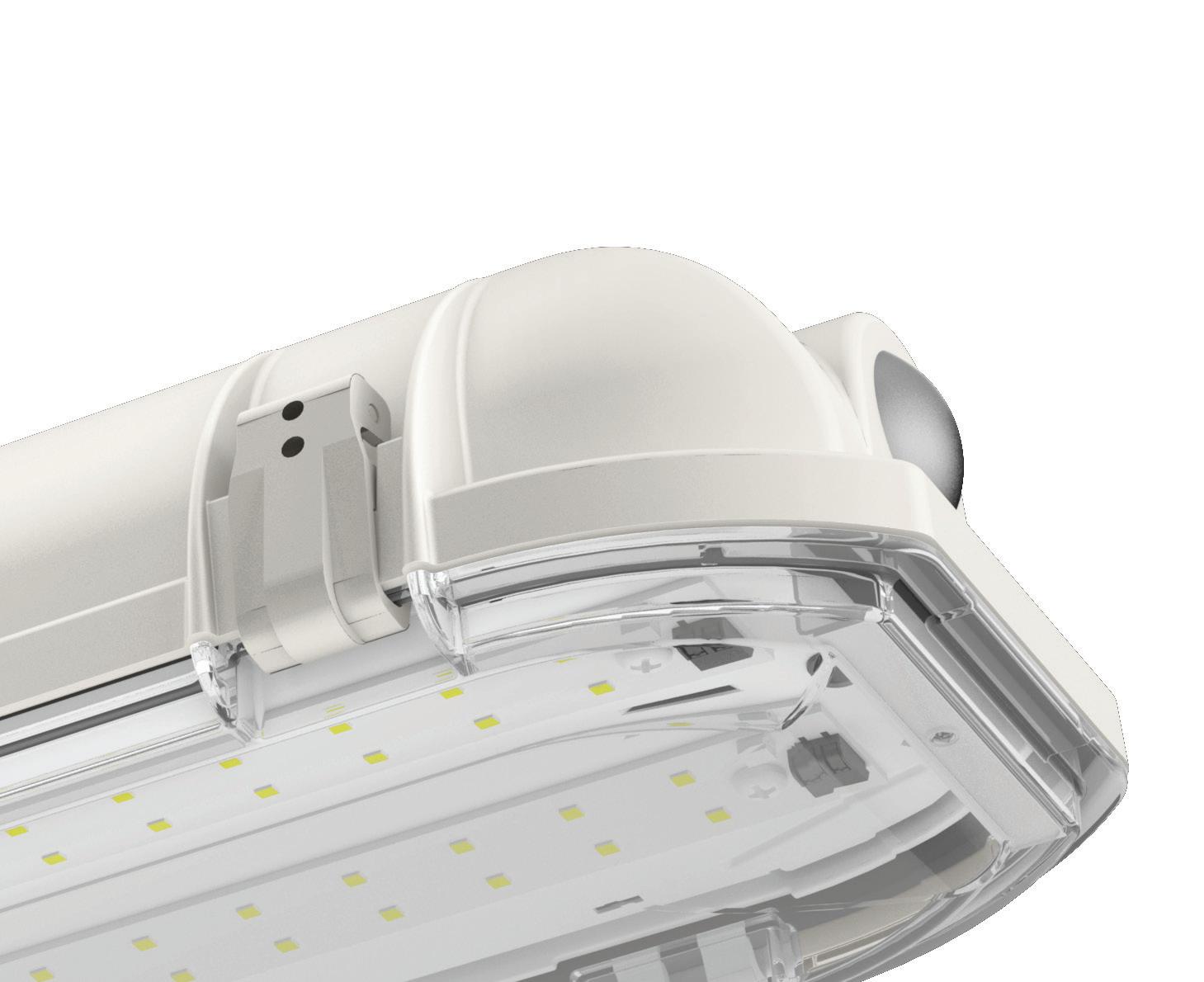

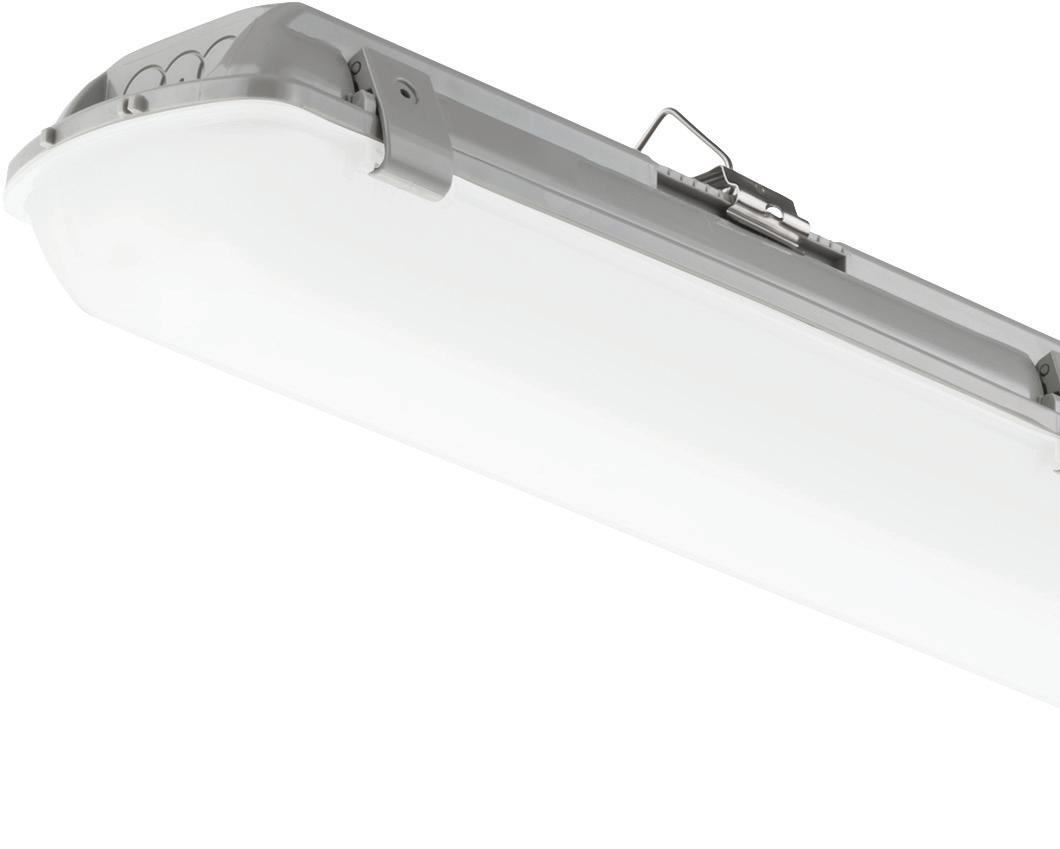

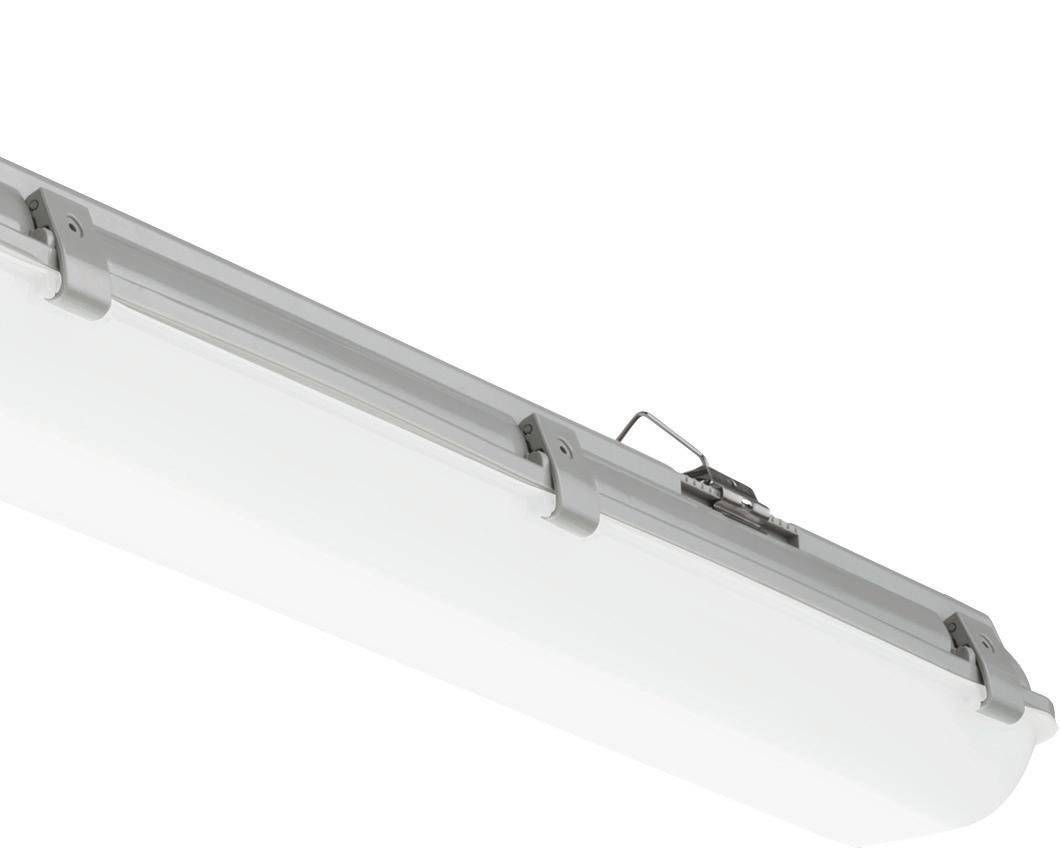

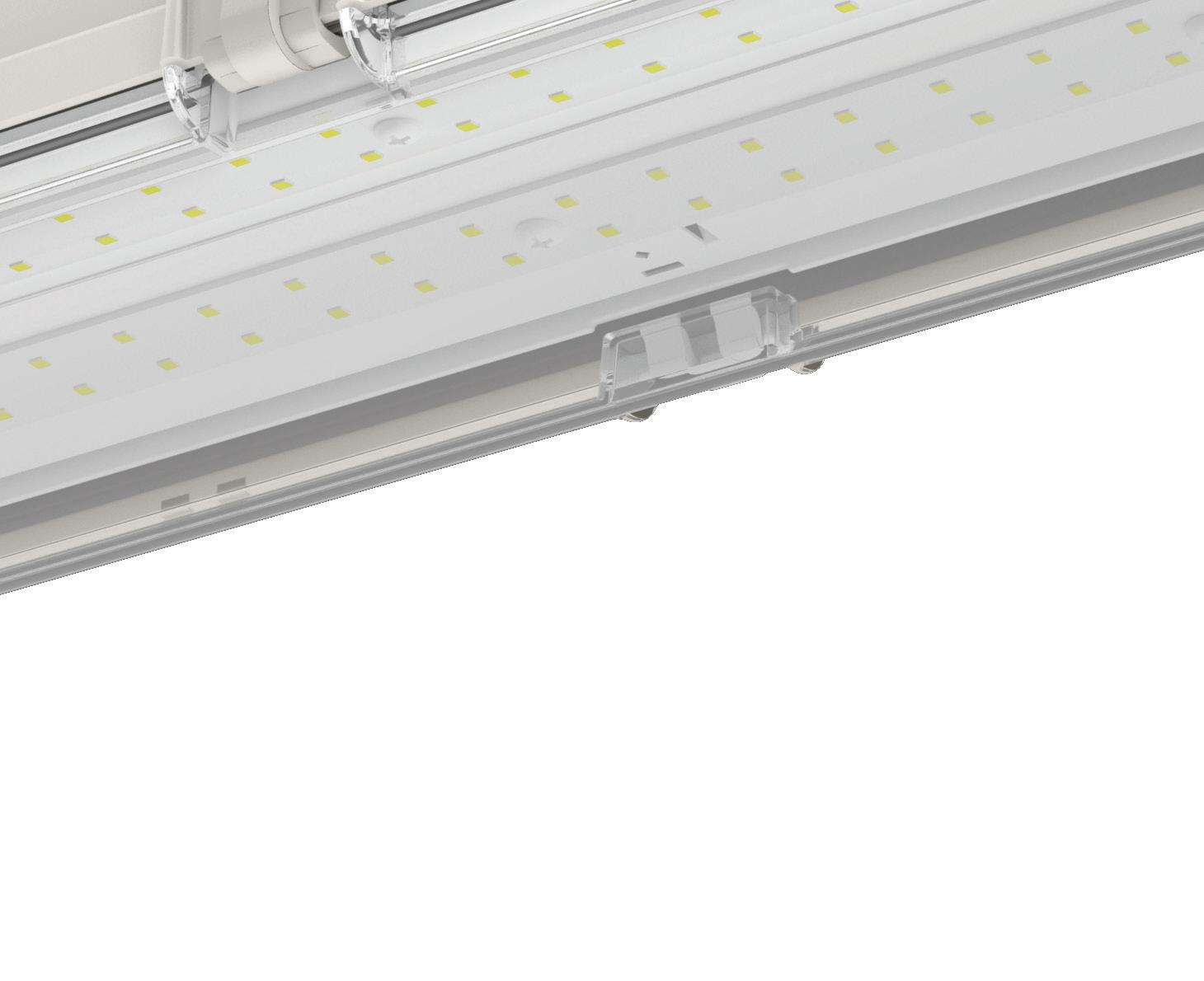

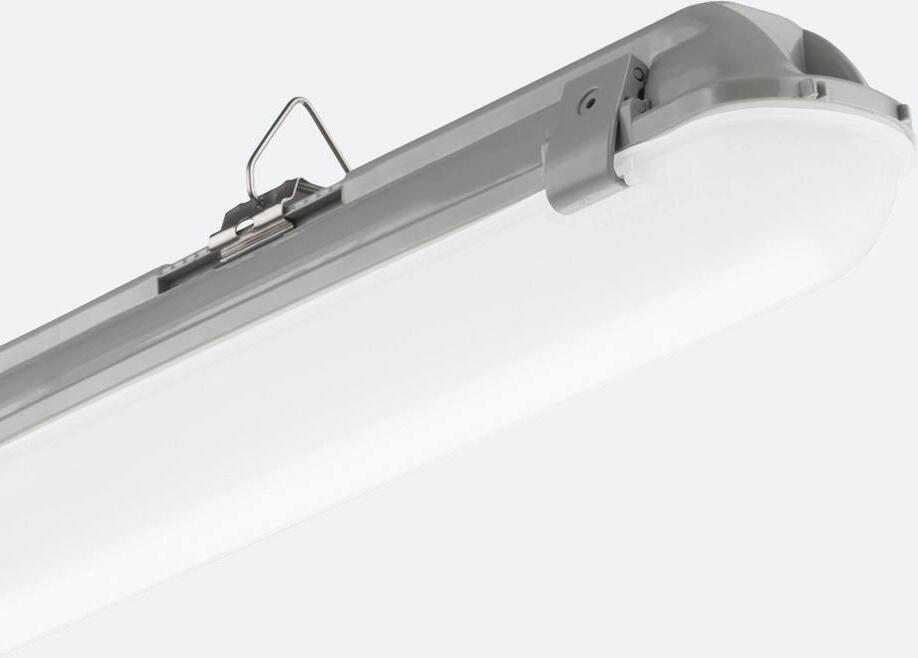

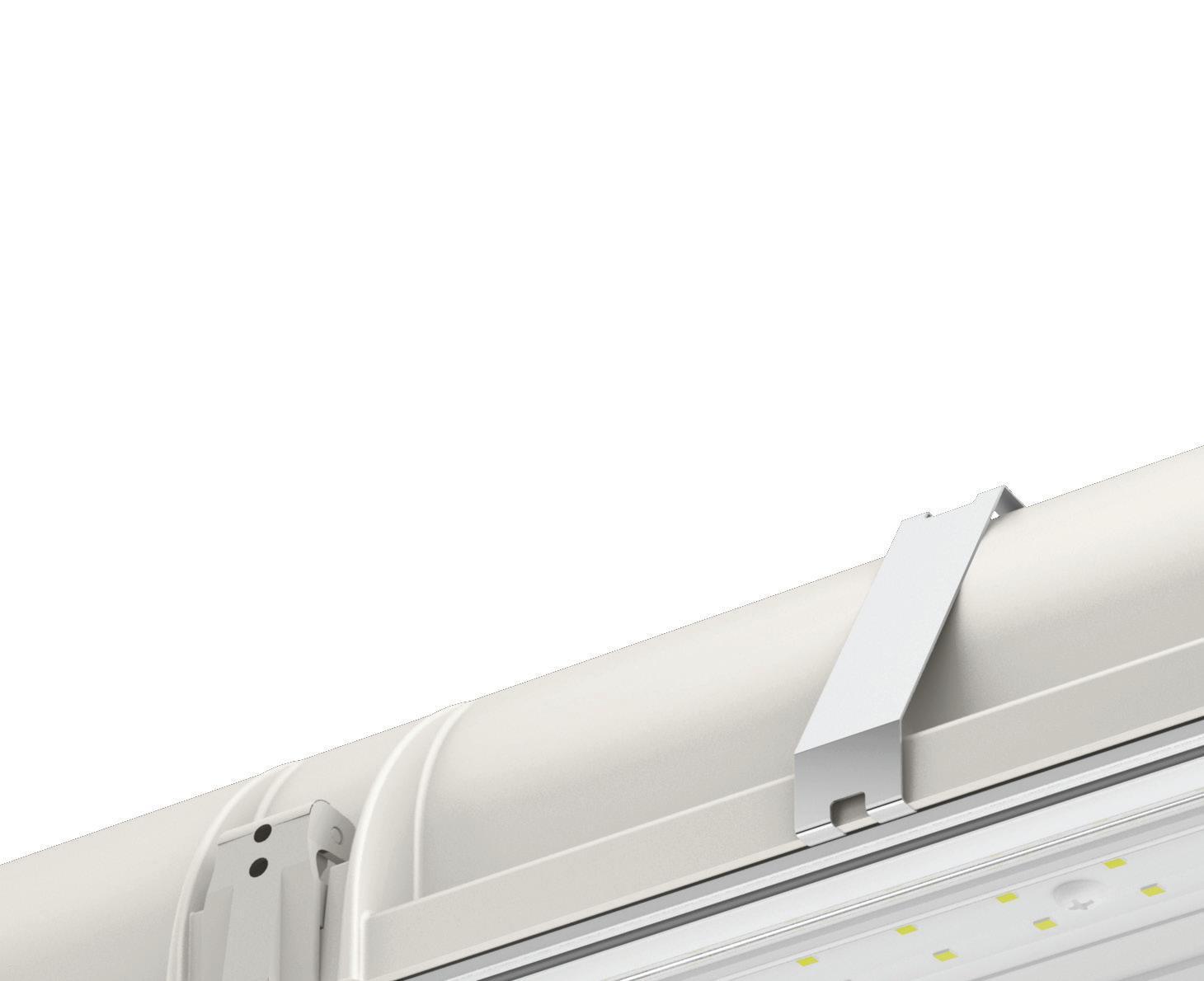

UltraLED™ Dual Selectable Vapor Tight 3A
Application
Ideal in new construction and retrofit applications, the UltraLED Dual Selectable Vapor Tight 3A is offered in three sizes that all feature both lumen and CCT selectability. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
Benefits and Features
IP66 rated polycarbonate body and lens and a broad temperature range ensure a durable product
— Stainless steel lens clips
DLC 5.1 listing maximizes energy savings and rebate opportunities
Optional integrated motion/daylight sensor and emergency battery back-up offer further potential energy savings
— Dual selectability facilitated by the switches located inside the luminaire allows for customizable light
— Offered in three wattage selectable sizes
–2ft: 15, 20, or 25W selectable
–4ft: 30, 40, or 50W selectable
–8ft: 70, 80, or 90W selectable
3500K, 4000K, and 5000K selectable color temperature
— Up to 144 LPW
— CRI >80
Energy savings up to 59%
Electrical
120-347Vac
— Power Factor >90%
— THD <20%
2.5kV surge suppression
0-10V dimmable
UL Wet rated Auxiliary 12V output
Rated Life
100,000 hours (L70)
Warranty 5-year
— NLB Trusted Warranty Program
Wattage Comparison
Operating Temperature
— -40°F to 122°F (-40°C to 50°C) for 2' and 4' models (chain mount)
— -40°F to 104°F (-40°C to 40°C) for 2', 4', and 8' models (surface mount)
— -40°F to 113°F (-40°C to 45°C) for 8' models (chain mount)
— -31°F (-35°C) minimum ambient for motion sensor models
32°F (0°C) minimum ambient for EMBB models
Certifications and Listings
Installation Fixture can be surface mounted or suspended. Stainless steel mounting brackets and V-hooks are included
TYPE A SPEC SHALIMAR BOYNTON

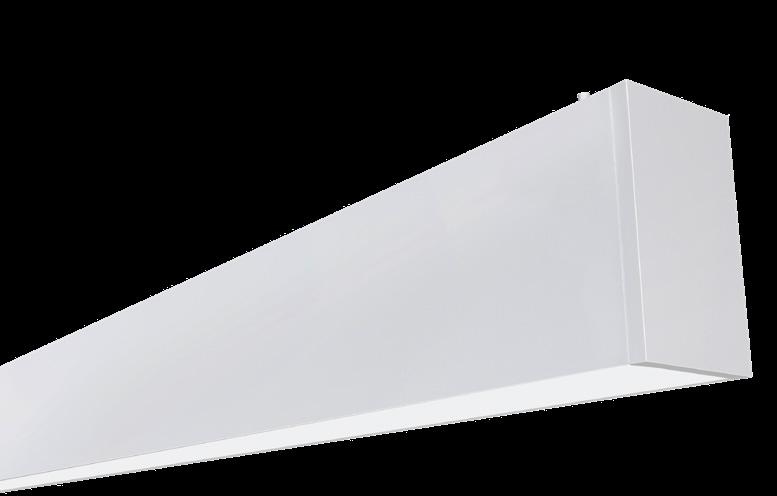

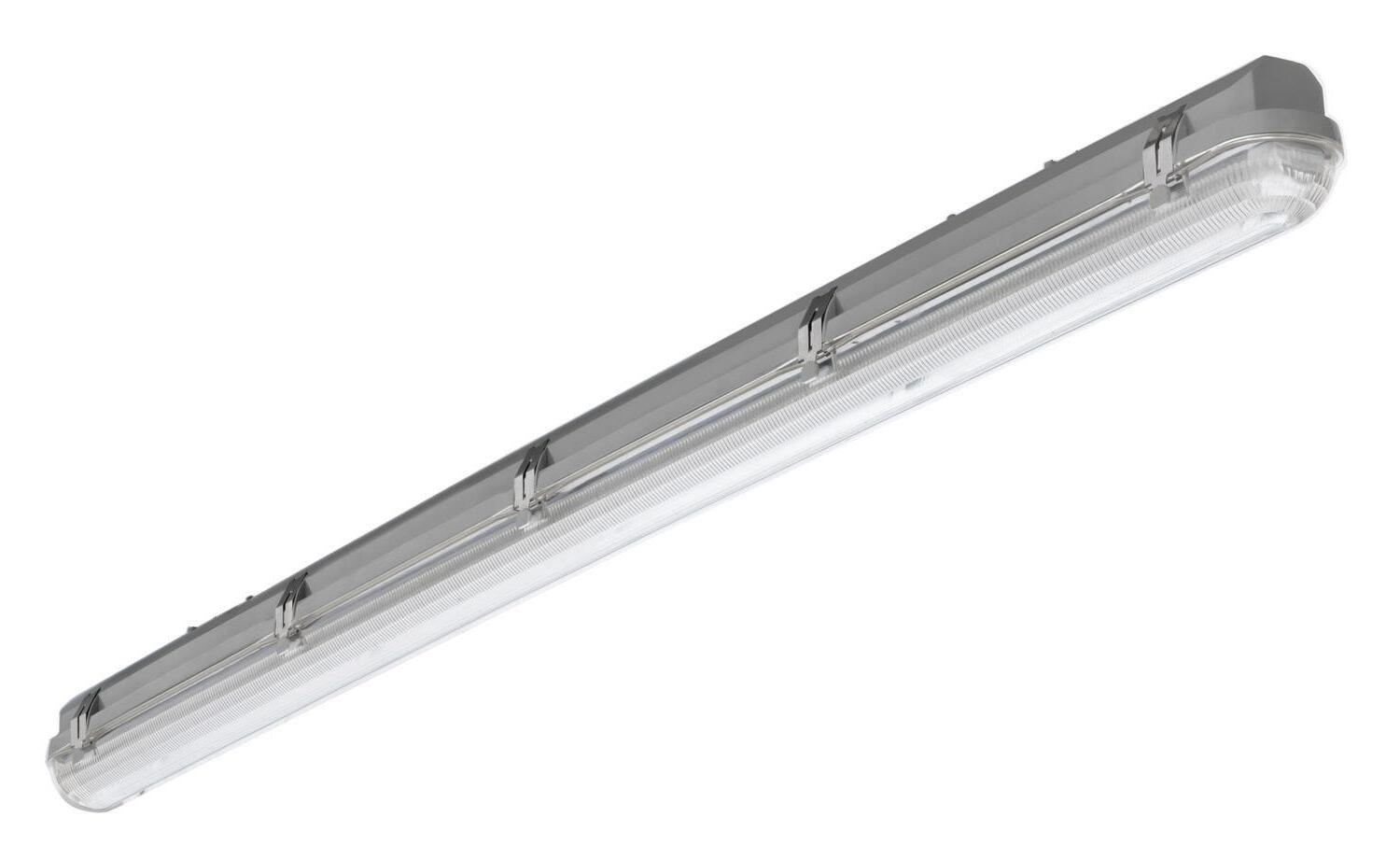

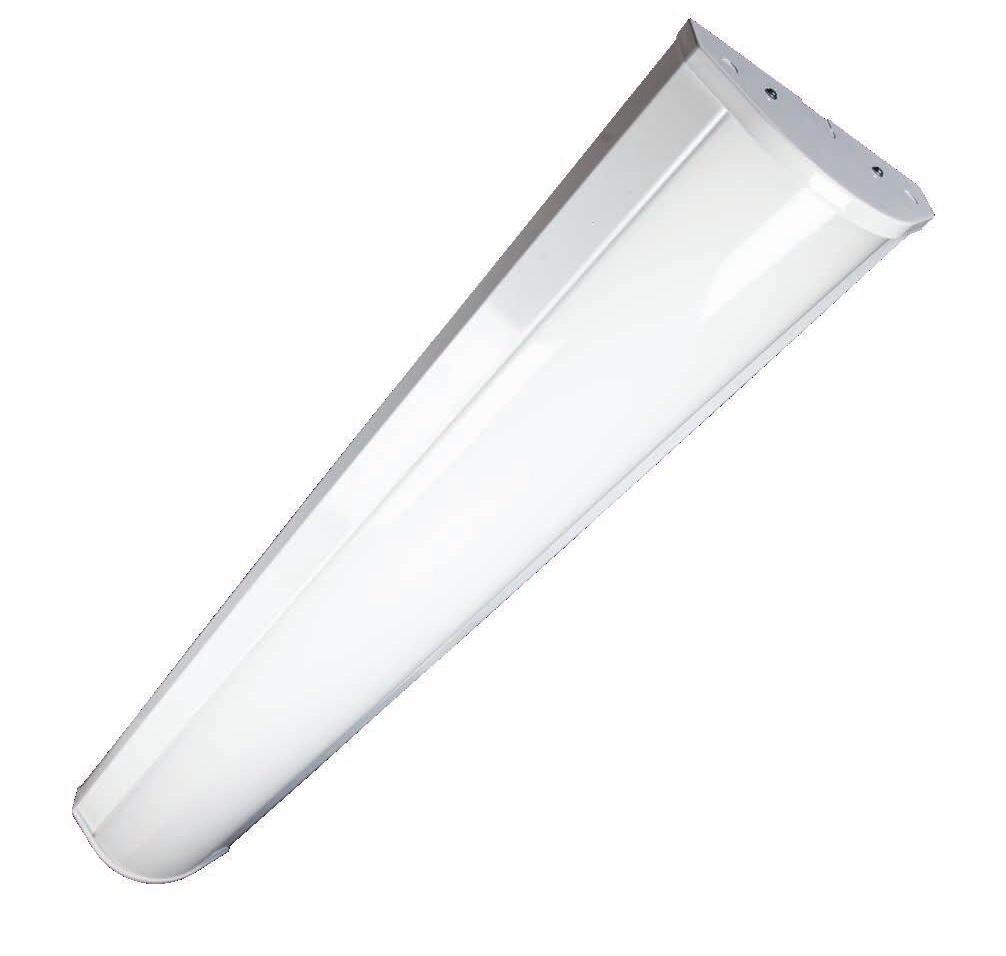

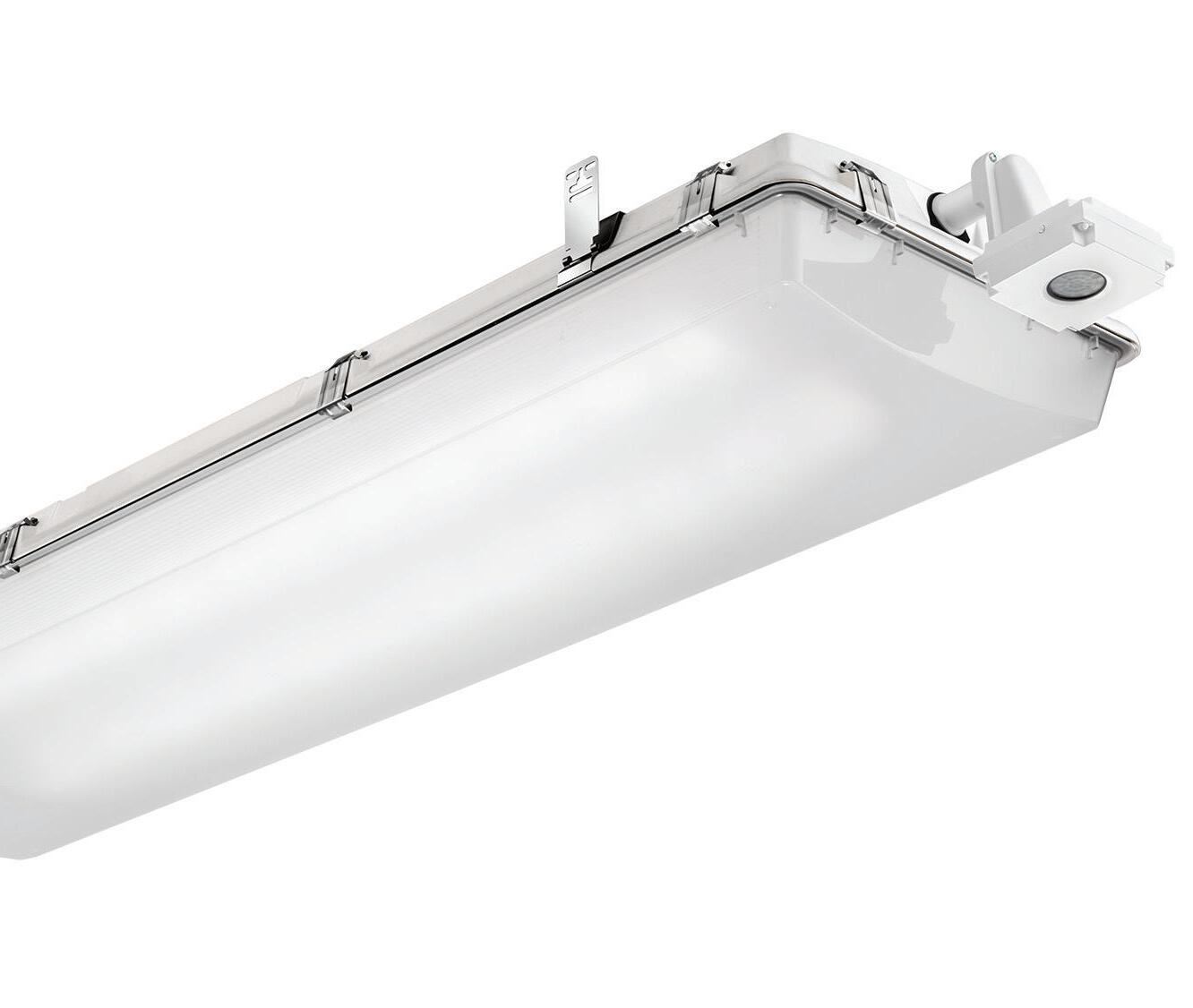

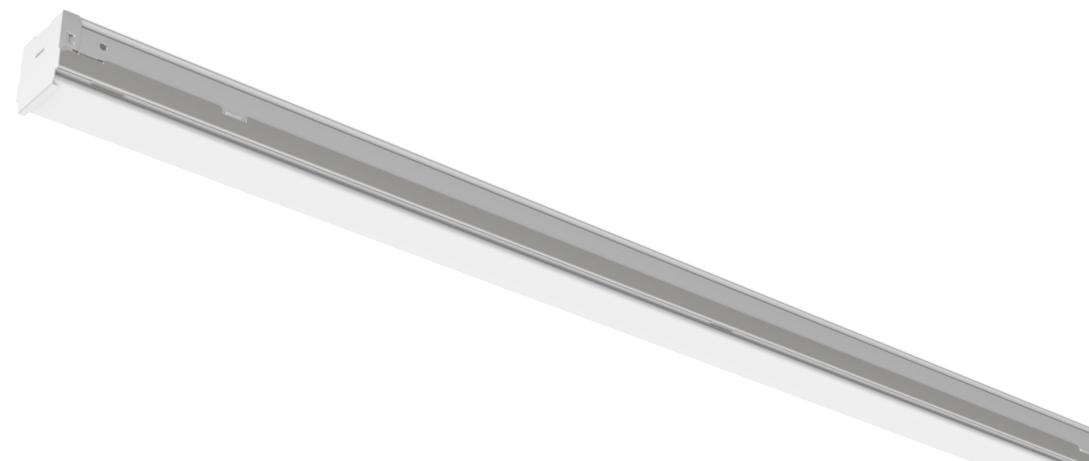

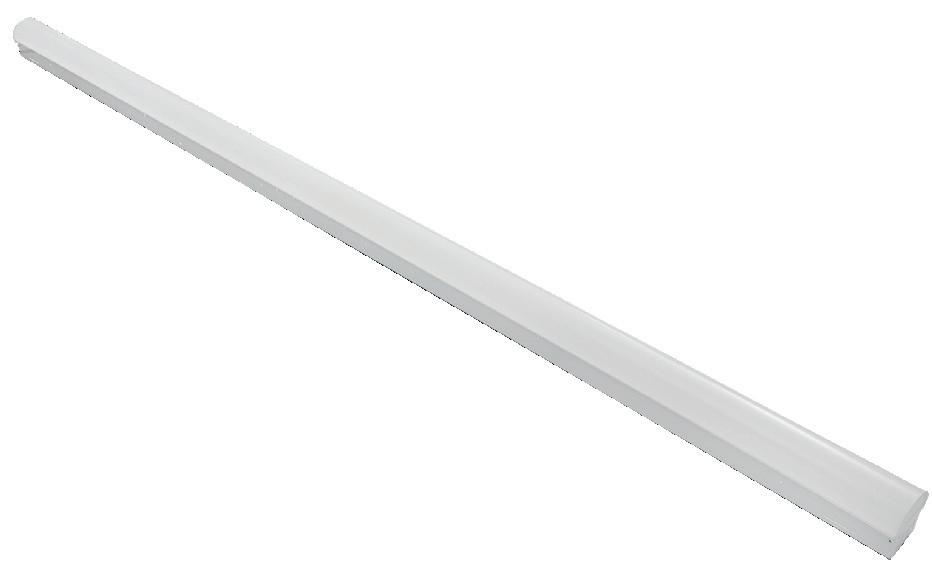

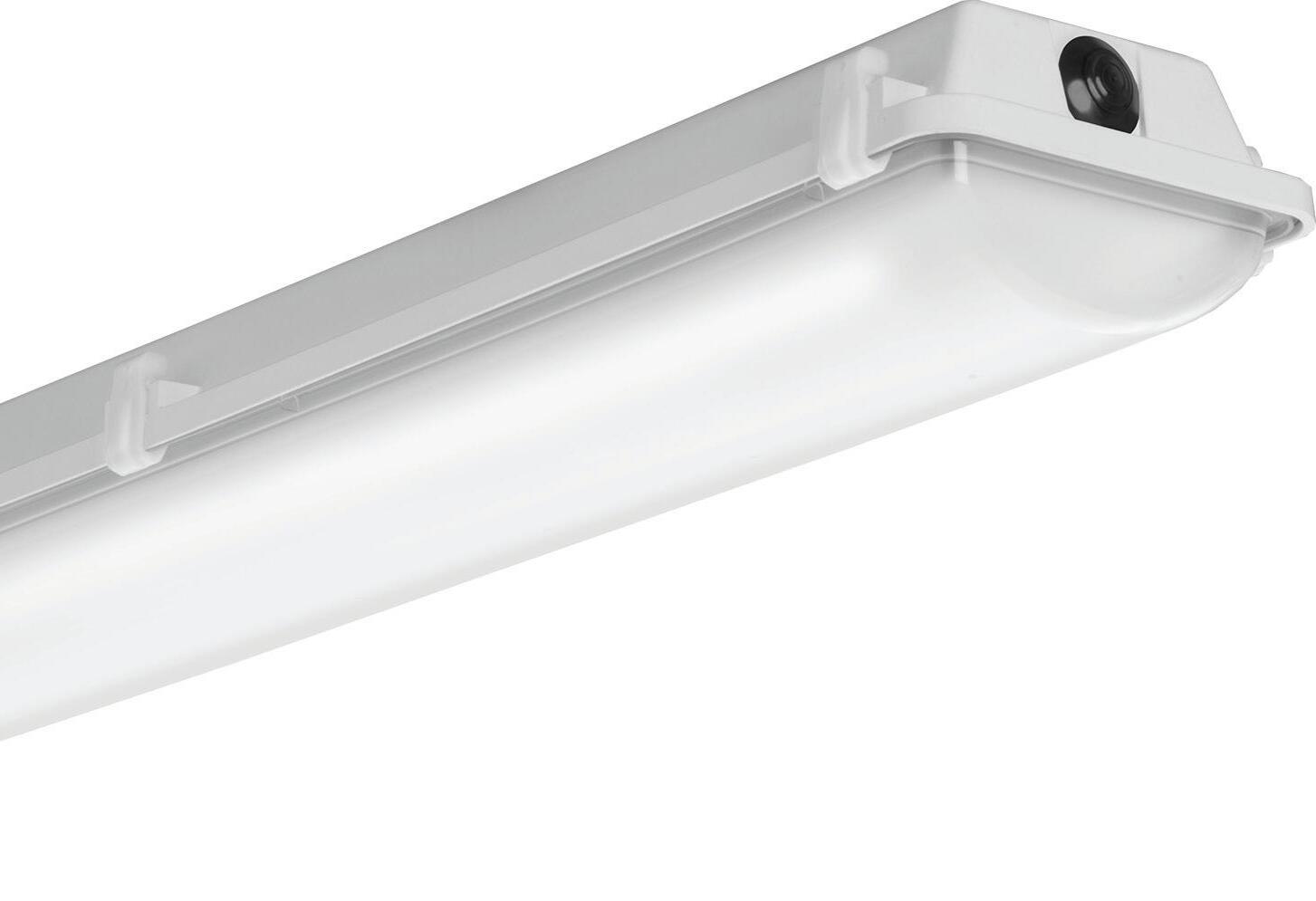

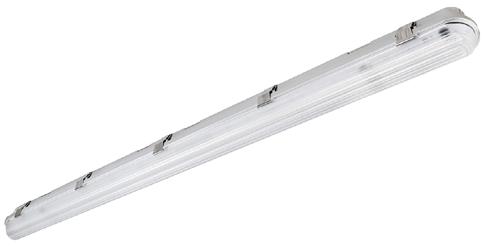

DMW2 LED Wet Location
A+ Capable options indicated by this color background.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
DMW2 LED wet location L2424" 2000LM 2,000 lumens
3000LM 3,000 lumens
Options
PS1050 Emergency LED battery pack for 0°C and up (1400 lumens), 10W, CA Title 20 noncompliant 2
E10WCP EM Self-diagnostics battery pack , 10W, Constant Power Certified in CA Title 20 MAEDBS 2,3
PMP4X Pendant monopoint with NEMA4X fitting (not available with JSB option)3,4
WLFEND Wet location fitting (one fitting out end)5
WLFEND2 Wet location fitting (fittings out both ends)6
JSB Junction box snap-bracket7
QMBQuick-mount ceiling bracket7
CS896' white cord, 16/3, no plug, wet location8
CS89L1212' white cord, 16/3, no plug, wet location8
CS88 6' Brad Harrison 16/3 cord and straight blade plug set, NEMA 4X rated 8
CS88L12 12' Brad Harrison 16/3 cord and straight blade plug set, NEMA 4X rated 8
CS88R Brad Harrison receptacle, NEMA 4X rated 9
NOM Nom certified
TPS TorxT10 tamper-resistant screws
STSL Stainless steel latches
SPD 10KV surge protection device 10
BAABuy America(n) Act and/or Build America Buy America Qualified
Notes
MSI10NWLLow mount 360 integral motion sensor, wet location, On/Off operation11
MSI102L3VWL Low mount 360 integral motion sensor, wet location, High/Low operation (3 level)11
MSI10NWL DSCNWL low mount 360 integral motion sensor, wet location , On/Off operation for motion sensing, override Off due to daylight11
NLTAIR2 RSBOR10 nLight AIR Generation 2 enabled 360° low mount motion sensor12
1. Plastic latches supplied as standard. Provided with 2X KO plugs at both ends.
Accessories: Order as separate catalog number.
RK1 T10BIT W/PIN UHex-base driver bit, Torx TX10, for tamper-resistant screws with center reject pin
DMW2WLF Wet location fitting
DMW2QMBQuick-mount ceiling bracket
12. Not available with other external MSI sensors or WLFEND2. Normal luminaires (non-emergency) can be used as a normal power sensing device for nearby nLight AIR devices and luminaires with EM emergency options. Series1
2. Not available with JSB, PMP4X mounting options. Not available with CS88 cord sets or CS88R receptacle. Must specify voltage. Not available with 347, 480V. Maximum ambient temperature 25°C.
3. Not for field install.
4. Not available with PS1050 option. Not available with QMB, JSB mounting options.
5. Not available with WLFEND2. Not available with PS1050. Not available with cordsets or sensors.
6. Not available with WLFEND, PS1050, CS cord sets, or MSI sensors.
7. Not available with other mounting options
8. Not available with other cord sets. Not available with PS1050 option.
9. Receptacle only. Not available with PS1050.
10. Not available with PS1050, MSI10NWL, MSI102L3VWL, MSI10NWL DSCNWL, NLTAIR2 RSBOR10.
11. Not available with other external MSI sensors or WLFEND2. Must specify voltage.
LITHONIA-DMW2-LINEAR-SURFACE-LED-ENCLOSED AND GASKETED
SHALIMAR BOYNTON
Catalog # Type Project Comments Prepared by
Ordering Guide
VAPOR = Vapor Tight luminaire
= Generation
Ordering Information
= wattage selectable 15, 20, or 25W S050 = wattage selectable 30, 40, or 50W S090 = wattage selectable 70, 80 or 90W
62492
To Order
Information
TYPE AE SPEC SHALIMAR BOYNTON
FEATURES & SPECIFICATIONS
INTENDED USE —For areas that require good vertical illumination and excellent glare control at low mounting heights. Ideal for open areas, retail spaces and aisles. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION — One-piece 5VA rated fiberglass housing with integral perimeter channel utilizes continuous poured-in-place NEMA 4X gasket. Simple two-piece design consists of housing and optical assembly to streamline installation process. Polymeric latches positively attach to housing and keep from becoming a hindrance during install.
OPTICS — Injection-molded, acrylic lens (.080" thick), provides high impact-resistance comparable to 100% DR. F1 rated for outdoor use, lenses resist breaking, yellowing or becoming brittle over time. UV stabilized polycarbonate diffuser available (.080" thick) in clear or frosted for additional impact strength. Polycarbonate lens is recommend for lower mounting heights where vandal protection is desired.
ELECTRICAL — Tool-less one piece optical assembly combines LEDs and lens into one component. Optical assembly easily connects to housing with plug and play harness, eliminating time consuming wiring connections. High-efficiency drivers operate 120-480V offered with 0-10V dimming, allowing granular control when coupled with wireless networking controls. Luminaire Surge Protection Level: Designed to withstand up to 2.5kV/0.75kA per ANSI C82.77-5-2015. L85 at 60,000 hours.
INSTALLATION — Two-piece design makes installations faster than ever by simplifying wiring connections. Power connection is easily accommodated through pre-drilled holes at each end, optional wet location fittings available for maximum flexibility.
Stainless steel (#316) surface spring-mounting brackets with bail wires standard (2 included) allow for ceiling, wall or suspended mount.
Swivel stem(provided by others) when pendant mounting. Factory installed junction box option accommodates up to 4X4 sized boxes and includes integrated gasket to maintain wet location listings.
Quick Mount Bracket (QMB) ships installed on fixture and is recommended for fastest surface mount installs, ideal for end to end installations or larger jobs.
LISTINGS — CSA Certified to UL and C-UL standards. NEMA 4X rated. IP ratings: IP65 and IP66 rated. See page 3 for ambients.
NSF listed for Splash Zone II.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
DIMENSIONS
All dimensions are shown in inches (centimeters) unless otherwise noted.
PHOTOMETRICS
Please see www.lithonia.com
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus.
*See ordering tree for details
SYLVANIA Luminaires
UltraLED™ Dual Selectable Vapor Tight 3A
Application
Ideal in new construction and retrofit applications, the UltraLED Dual Selectable Vapor Tight 3A is offered in three sizes that all feature both lumen and CCT selectability. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
Benefits and Features
IP66 rated polycarbonate body and lens and a broad temperature range ensure a durable product
— Stainless steel lens clips
DLC 5.1 listing maximizes energy savings and rebate opportunities
Optional integrated motion/daylight sensor and emergency battery back-up offer further potential energy savings
— Dual selectability facilitated by the switches located inside the luminaire allows for customizable light
— Offered in three wattage selectable sizes
–2ft: 15, 20, or 25W selectable
–4ft: 30, 40, or 50W selectable
–8ft: 70, 80, or 90W selectable
3500K, 4000K, and 5000K selectable color temperature
— Up to 144 LPW
— CRI >80
Energy savings up to 59%
Electrical
120-347Vac
— Power Factor >90%
— THD <20%
2.5kV surge suppression
0-10V dimmable
UL Wet rated Auxiliary 12V output
Rated Life
100,000 hours (L70)
Warranty 5-year
— NLB Trusted Warranty Program
Wattage Comparison
Operating Temperature
— -40°F to 122°F (-40°C to 50°C) for 2' and 4' models (chain mount)
— -40°F to 104°F (-40°C to 40°C) for 2', 4', and 8' models (surface mount)
— -40°F to 113°F (-40°C to 45°C) for 8' models (chain mount)
— -31°F (-35°C) minimum ambient for motion sensor models
32°F (0°C) minimum ambient for EMBB models
Certifications and Listings
Installation Fixture can be surface mounted or suspended. Stainless steel mounting brackets and V-hooks are included
TYPE AE SPEC SHALIMAR BOYNTON
DMW2 LED Wet Location
A+ Capable options indicated by this color background.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
DMW2 LED wet location L2424" 2000LM 2,000 lumens
3000LM 3,000 lumens
Options
PS1050 Emergency LED battery pack for 0°C and up (1400 lumens), 10W, CA Title 20 noncompliant 2
E10WCP EM Self-diagnostics battery pack , 10W, Constant Power Certified in CA Title 20 MAEDBS 2,3
PMP4X Pendant monopoint with NEMA4X fitting (not available with JSB option)3,4
WLFEND Wet location fitting (one fitting out end)5
WLFEND2 Wet location fitting (fittings out both ends)6
JSB Junction box snap-bracket7
QMBQuick-mount ceiling bracket7
CS896' white cord, 16/3, no plug, wet location8
CS89L1212' white cord, 16/3, no plug, wet location8
CS88 6' Brad Harrison 16/3 cord and straight blade plug set, NEMA 4X rated 8
CS88L12 12' Brad Harrison 16/3 cord and straight blade plug set, NEMA 4X rated 8
CS88R Brad Harrison receptacle, NEMA 4X rated 9
NOM Nom certified
TPS TorxT10 tamper-resistant screws
STSL Stainless steel latches
SPD 10KV surge protection device 10
BAABuy America(n) Act and/or Build America Buy America Qualified
208V
Accessories: Order as separate catalog number.
RK1 T10BIT W/PIN UHex-base driver bit, Torx TX10, for tamper-resistant screws with center reject pin
DMW2WLF Wet location fitting
DMW2QMBQuick-mount ceiling bracket
Notes
MSI10NWLLow mount 360 integral motion sensor, wet location, On/Off operation11
MSI102L3VWL Low mount 360 integral motion sensor, wet location, High/Low operation (3 level)11
MSI10NWL DSCNWL low mount 360 integral motion sensor, wet location , On/Off operation for motion sensing, override Off due to daylight11
NLTAIR2 RSBOR10 nLight AIR Generation 2 enabled 360° low mount motion sensor12
1. Plastic latches supplied as standard. Provided with 2X KO plugs at both ends.
2. Not available with JSB, PMP4X mounting options. Not available with CS88 cord sets or CS88R receptacle. Must specify voltage. Not available with 347, 480V. Maximum ambient temperature 25°C.
3. Not for field install.
4. Not available with PS1050 option. Not available with QMB, JSB mounting options.
5. Not available with WLFEND2. Not available with PS1050. Not available with cordsets or sensors.
6. Not available with WLFEND, PS1050, CS cord sets, or MSI sensors.
7. Not available with other mounting options
8. Not available with other cord sets. Not available with PS1050 option.
9. Receptacle only. Not available with PS1050.
10. Not available with PS1050, MSI10NWL, MSI102L3VWL, MSI10NWL DSCNWL, NLTAIR2 RSBOR10.
11. Not available with other external MSI sensors or WLFEND2. Must specify voltage.
12. Not available with other external MSI sensors or WLFEND2. Normal luminaires (non-emergency) can be used as a normal power sensing device for nearby nLight AIR devices and luminaires with EM emergency options.
LITHONIA-DMW2-LINEAR-SURFACE-LED-ENCLOSED AND GASKETED
SHALIMAR BOYNTON
Catalog # Type Project Comments Prepared by
Ordering Guide
VAPOR = Vapor Tight luminaire
= Generation 3AS025 = wattage selectable 15, 20, or 25W S050 = wattage selectable 30, 40, or 50W S090 = wattage selectable 70, 80 or 90W
Ordering Information
To Order
Information
TYPE B SPEC SHALIMAR BOYNTON
FEATURES & SPECIFICATIONS
INTENDED USE — Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T5 and T8 lengths. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, cove and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Compact-design channel and cover are formed from code-gauge cold-rolled steel. Easy to install row aligner included for continuous row mounting.
Finish: Paint options include high-gloss, baked white enamel (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). After fabrication, five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Standard diffuse snap on/snap off lens eliminates pixels, improves uniformity and minimizes glare. L/LENS option available.
ELECTRICAL — L70>60,000hours. Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 2.) Electronic LED driver is rated for 75 input watts maximum (see Operational Data on page 4 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide nominal 80 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,000 lumens per foot. In 86°F (30°C) ambient environments. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION — Tool-less channel cover for easy installation.
Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Three-point aligner locks in place for easy continuous row mounting. LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -40°F (-40°C) and 86°F (30°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
48" and 96" Lengths
L/Lens
Lensed
TYPE B SPEC SHALIMAR

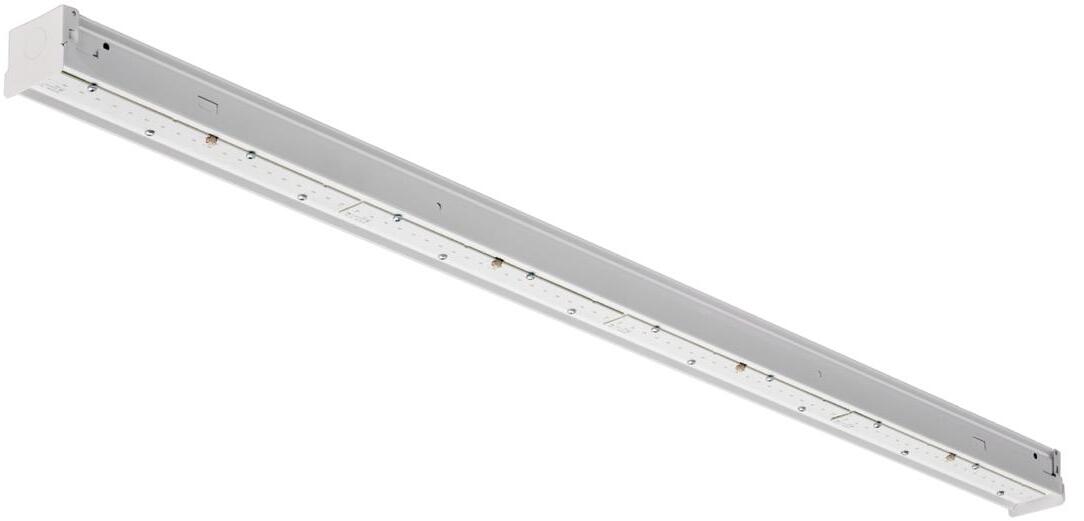

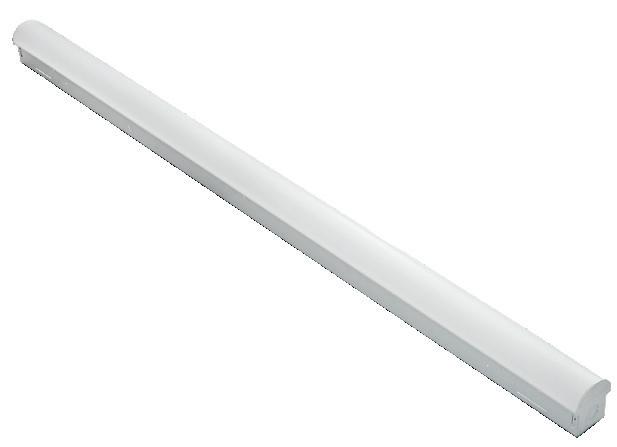

ZL1N LED Striplight
A+ Capable options indicated by this color background.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
ZL1N LED striplight L24 24" ‡ (blank) Less reflector SMR Symmetric
E7W 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E7W 2) 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E10W 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E10W (2) 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E15WLCP Power Sentry® PS1555LCP, 15 watt emergency battery, Certified in CA Title 20 MAEDBS (LINK )‡
OUTEND Cord set to exit endplate of fixture
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless ‡
NLTAIR2
RLSXR10 nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights) (LINK )
NLTAIR2
RLSXR10EM nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights),UL 924 Emergency Operation, via power interrupt detection (not available with battery pack) (LINK ) ‡
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
ZLANGBKT Luma-tilt™ angle bracket for shelf or ledge mounting only
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
INTENDED USE — Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T5 and T8 lengths. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, cove and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Compact-design channel and cover are formed from code-gauge cold-rolled steel. Easy to install row aligner included for continuous row mounting.
Finish: Paint options include high-gloss, baked white enamel (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). After fabrication, five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Standard diffuse snap on/snap off lens eliminates pixels, improves uniformity and minimizes glare. L/LENS option available.
ELECTRICAL — L70>60,000hours. Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 2.) Electronic LED driver is rated for 75 input watts maximum (see Operational Data on page 4 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide nominal 80 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,000 lumens per foot. In 86°F (30°C) ambient environments. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION — Tool-less channel cover for easy installation.
Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Three-point aligner locks in place for easy continuous row mounting. LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -40°F (-40°C) and 86°F (30°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
48" and 96" Lengths
L/Lens
Lensed
TYPE BE SPEC SHALIMAR BOYNTON
ZL1N LED Striplight
A+ Capable options indicated by this color background.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
ZL1N LED striplight L24 24" ‡ (blank) Less reflector SMR Symmetric
L46 46" L48 48" (blank) Less reflector ASR Asymmetric (L48 only) SMR Symmetric
1500LM 1,500 lumens
2500LM 2,500 lumens
3500LM 3,500 lumens
3,000 lumens
5,000 lumens
Snap on frosted, diffuse L/LENS No diffuser SBL FST Straight blade louver with snap on frosted, diffuse
6,000 lumens
10,000 lumens
7,000 lumens TZL1N LED striplight ‡ L9292" L96 96" (blank) Less reflector SMR Symmetric
Plug-in wiring ‡
Plug-in wiring-low voltage ‡
E7W 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E7W 2) 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E10W 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E10W (2) 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E15WLCP Power Sentry® PS1555LCP, 15 watt emergency battery, Certified in CA Title 20 MAEDBS (LINK )‡
OUTEND Cord set to exit endplate of fixture
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless ‡
NLTAIR2
RLSXR10 nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights) (LINK )
NLTAIR2
RLSXR10EM nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights),UL 924 Emergency Operation, via power interrupt detection (not available with battery pack) (LINK ) ‡
Individual Controls ‡
LBOZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), ON/OFF occupancy, pre-wired (LINK ) ‡
LBH0SZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), high/low occupancy dimming, prewired (LINK )‡
LBPZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), ON/OFF photocell, pre-wired (LINK ) ‡
LBM0SZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), dimming and switching photocell, pre-wired (LINK ) ‡
Cord sets:‡
CS1W Cord with NEMA 5-15P, 120V straight blade plug, 18 gauge, 3 conductors, white, 6ft
CS3W Cord with NEMA L5-15P, 120V twist lock plug, 18 gauge, 3 conductor, white, 6ft
CS7W Cord with NEMA 7-15P, 277V straight blade plug, 18 gauge, 3 conductors, white, 6ft
CS11W Cord with NEMA L7-15P, 277V twist lock plug, 18 gauge, 3 conductors, white, 6ft
CS25W Cord with NEMA L24-20P, 347V twist lock plug, 18 gauge, 3 conductors, white, 6ft
CS97W Cord with NEMA L8-20P, 480V twist lock plug, 18 gauge, 3 conductors, white, 6ft
CS93W Cord only (no plug), 18 gauge, 3 conductors, white, 6ft
MBMatte black SKGY Smoke gray
Accessories: Order as separate catalog number.
HC36 M12 Hanger chain, 36" (1 pair)
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
ZLANGBKT Luma-tilt™ angle bracket for shelf or ledge mounting only
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")

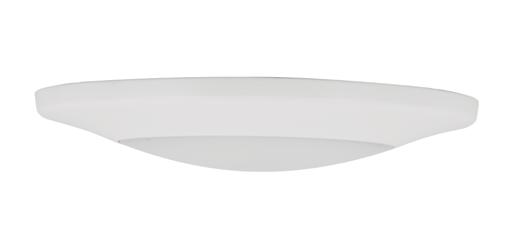

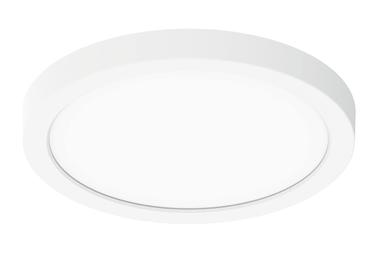

Juno SlimBasics JSBT Tapered LED Surface Mount Disk Light
4" and 6" Round Disk Lights for JBox Installation

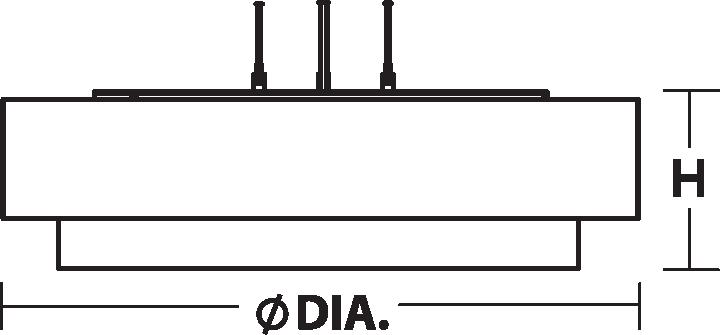

Dimensions
Project:
Fixture Type:
Location:
Contact/Phone:
Product Features
The SlimBasics™ JSBT Slim Tapered LED Disk Lights are low-profile and the perfect economic solution for any junction box installation. Available in 4in and 6in sizes, the JSBT mounts directly over standard junction boxes allowing the fixture to be installed below the ceiling resulting in a budget friendly install. Additionally, these surface mount disk lights bring an aesthetically pleasing design element that blends with any décor.
Applications
• Suitable for wet locations (indoor covered ceilings): perfect for closet, showers, bathrooms, and outdoor soffits and ceiling covering applications
• Residential and Light Commercial applications including multi-family and hospitality
• Ideal for use in corridors, foyers, living spaces, closets, hallways, pantries, stairways and much more
• Installs directly into industry standard junction boxes
• Suitable for use in closets, compliant when installed to NFPA® 70 NEC® Section 410.16 (A)(1) and (C)(1)
Performance
Delivered Lumens JSBT 4IN = 700L JSBT 6IN = 950L
Led Color Temperature 2700K CRI 90+
Voltage Dedicated 120V
Dimming Phase Dimming down to 10%
Delivered Lumens JSBT 4IN = 750L JSBT 6IN = 990L
LED Color Temperature 3000K CRI 90+
Voltage Dedicated 120V
Dimming Phase Dimming down to 10%
Specifications
WidthDepth
JSBT 4IN 6.461.15
JSBT 6IN 7.721.16
All dimensions are in Inches
SHALIMAR BOYNTON
NLOPAC-R6509T24
6" AC Opal - LED Surface Mount
Source: 16.5W Up to 1150lm
PRODUCT DESCRIPTION
The AC Opal LED Series LED fixture is designed to surface mount over a standard junction box. The low profile dimmable luminaire produces even illumination and is cETLus listed for wet locations.
FEATURES
AC LED (No Driver)
Dimmable
2700K, 3000K, 4000K or 5000K @ 90+ CRI
White, black, bronze or natural metal finishes
Mount on standard 4" junction box
Retrofit kit included for 5" or 6" recessed housings
ENERGY STAR certified
SPECIFICATION
Construction: One piece aluminum die formed housing and trim. Aluminum body dissipates heat and extends life.
Mounting: Surface mount luminaire is compatible with 3" or 4" junction boxes and 1/2" deep pancake boxes for ceiling or wall mount applications. Luminaires can also be retrofit over 5" or 6" recessed housings with retrofit kit (included).
Optics: Nora specified and designed precision molded lens for optimal lumen output and even distribution.
Finishes: Available in white, black, bronze and natural metal finishes.
Ratings: IC rated when used with a 4" electrical junction box rated for direct contact with insulation. Fire rated when used with a fire rated junction box.
Retrofit: Each luminaire includes a retrofit kit with medium base socket adapter to mount over 5" or 6" recessed housings. Kit also includes torsion spring brackets that hold luminaire flush against ceiling. Retrofit kit is intended to be used with a lighting fixture as a lamp replacement.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: Up to 1150lm / 16.5W
Color Temperature: 2700K, 3000K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating temperature: 0-45°C
Lifetime: 50,000 hours @ L70
Dimming: 5% with Triac or 10% with ELV Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
ACCESSORIES
NLOPAC-4BKT-2: Universal bracket for mounting to 3" or 4" junction boxes.
LISTING
cETLus Listed for wet locations
cETLus classified for retrofit
· ENERGY STAR certified
5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1) FCC Compliant
6" AC Opal - LED Surface Mount
Color Temperature / Finish
NLOPAC-R6509T2427BZ = 2700K / Bronze
NLOPAC-R6509T2427NM = 2700K / Natural Metal
NLOPAC-R6509T2427W = 2700K / White
NLOPAC-R6509T2430B = 3000K / Black
NLOPAC-R6509T2430BZ = 3000K / Bronze (Discontinued, direct replacement: NLOPAC-R6TWB)
NLOPAC-R6509T2430NM = 3000K / Natural Metal
NLOPAC-R6509T2430W = 3000K / White
NLOPAC-R6509T2440BZ = 4000K / Bronze (Discontinued, direct replacement: NLOPAC-R6TWB)
NLOPAC-R6509T2440NM = 4000K / Natural Metal
NLOPAC-R6509T2440W = 4000K / White
NLOPAC-R6509T2450W = 5000K / White
Example: NLOPAC-R6509T2450W = 6" AC Opal, 1150lm / 16.5W, 5000K, White finish
Juno SlimBasics JSBT Tapered LED Surface Mount Disk Light 4" and 6" Round Disk Lights for JBox Installation
BLANK
Juno SlimBasics JSBT Tapered LED Surface Mount Disk Light
4" and 6" Round Disk Lights for JBox Installation
Dimensions
Project:
Fixture Type:
Location:
Contact/Phone:
Product Features
The SlimBasics™ JSBT Slim Tapered LED Disk Lights are low-profile and the perfect economic solution for any junction box installation. Available in 4in and 6in sizes, the JSBT mounts directly over standard junction boxes allowing the fixture to be installed below the ceiling resulting in a budget friendly install. Additionally, these surface mount disk lights bring an aesthetically pleasing design element that blends with any décor.
Applications
• Suitable for wet locations (indoor covered ceilings): perfect for closet, showers, bathrooms, and outdoor soffits and ceiling covering applications
• Residential and Light Commercial applications including multi-family and hospitality
• Ideal for use in corridors, foyers, living spaces, closets, hallways, pantries, stairways and much more
• Installs directly into industry standard junction boxes
• Suitable for use in closets, compliant when installed to NFPA® 70 NEC® Section 410.16 (A)(1) and (C)(1)
Performance
Delivered Lumens JSBT 4IN = 700L JSBT 6IN = 950L
Led Color Temperature 2700K CRI 90+
Voltage Dedicated 120V
Dimming Phase Dimming down to 10%
Delivered Lumens JSBT 4IN = 750L JSBT 6IN = 990L
LED Color Temperature 3000K CRI 90+
Voltage Dedicated 120V
Dimming Phase Dimming down to 10%
Specifications
WidthDepth
JSBT 4IN 6.461.15
JSBT 6IN 7.721.16
All dimensions are in Inches
SHALIMAR BOYNTON
NLOPAC-R6509T24
6" AC Opal - LED Surface Mount
Source: 16.5W Up to 1150lm
PRODUCT DESCRIPTION
The AC Opal LED Series LED fixture is designed to surface mount over a standard junction box. The low profile dimmable luminaire produces even illumination and is cETLus listed for wet locations.
FEATURES
AC LED (No Driver)
Dimmable
2700K, 3000K, 4000K or 5000K @ 90+ CRI
White, black, bronze or natural metal finishes
Mount on standard 4" junction box
Retrofit kit included for 5" or 6" recessed housings
ENERGY STAR certified
SPECIFICATION
Construction: One piece aluminum die formed housing and trim. Aluminum body dissipates heat and extends life.
Mounting: Surface mount luminaire is compatible with 3" or 4" junction boxes and 1/2" deep pancake boxes for ceiling or wall mount applications. Luminaires can also be retrofit over 5" or 6" recessed housings with retrofit kit (included).
Optics: Nora specified and designed precision molded lens for optimal lumen output and even distribution.
Finishes: Available in white, black, bronze and natural metal finishes.
Ratings: IC rated when used with a 4" electrical junction box rated for direct contact with insulation. Fire rated when used with a fire rated junction box.
Retrofit: Each luminaire includes a retrofit kit with medium base socket adapter to mount over 5" or 6" recessed housings. Kit also includes torsion spring brackets that hold luminaire flush against ceiling. Retrofit kit is intended to be used with a lighting fixture as a lamp replacement.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: Up to 1150lm / 16.5W
Color Temperature: 2700K, 3000K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating temperature: 0-45°C
Lifetime: 50,000 hours @ L70
Dimming: 5% with Triac or 10% with ELV Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
ACCESSORIES
NLOPAC-4BKT-2: Universal bracket for mounting to 3" or 4" junction boxes.
LISTING
cETLus Listed for wet locations
cETLus classified for retrofit
· ENERGY STAR certified
5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1) FCC Compliant
6" AC Opal - LED Surface Mount
Color Temperature / Finish
NLOPAC-R6509T2427BZ = 2700K / Bronze
NLOPAC-R6509T2427NM = 2700K / Natural Metal
NLOPAC-R6509T2427W = 2700K / White
NLOPAC-R6509T2430B = 3000K / Black
NLOPAC-R6509T2430BZ = 3000K / Bronze (Discontinued, direct replacement: NLOPAC-R6TWB)
NLOPAC-R6509T2430NM = 3000K / Natural Metal
NLOPAC-R6509T2430W = 3000K / White
NLOPAC-R6509T2440BZ = 4000K / Bronze (Discontinued, direct replacement: NLOPAC-R6TWB)
NLOPAC-R6509T2440NM = 4000K / Natural Metal
NLOPAC-R6509T2440W = 4000K / White
NLOPAC-R6509T2450W = 5000K / White
Example: NLOPAC-R6509T2450W = 6" AC Opal, 1150lm / 16.5W, 5000K, White finish
Juno SlimBasics JSBT Tapered LED Surface Mount Disk Light 4" and 6" Round Disk Lights for JBox Installation
BLANK

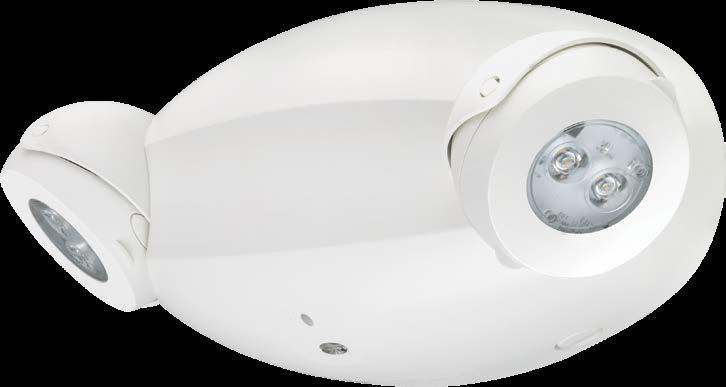

TYPE EMB SPEC SHALIMAR
FEATURES & SPECIFICATIONS
INTENDED USE — Provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet and exceed code required emergency lighting. Ideal for applications requiring attractive LED unit equipment with quick installation and unparalleled performance for mounting heights from 7.5’ to 30’. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — The housing is a standard white (black optional) thermoplastic with a compact and lowprofile contemporary design. It is 5VA flame rated, impact-resistant, scratch-resistant and corrosion proof. The UV-stable resin resists discoloration from natural and man-made light sources. There is a low-profile, integrated and back-lit test switch with an easily visible multi-color LED status indicator. The back-plate contains a universal j-box mounting pattern to facilitate ease of installation on a wide variety of j-boxes and the front housing allows tool-less access for ease of maintenance.
The lamp heads have a unique track-and-swivel arrangement permitting full range of direction of optical aiming.
OPTICS — The ELM4L features two high-performance LEDs rated at 3.3 watts per lamp head and delivers a total of 640 lumens in a spot pattern (SP640L).
The ELM6L features three high-performance LEDs rated at 5.3 watts per lamp head and delivers a total of 1,100 lumens in a spot pattern (SP1100L).
The typical life of an LED is 10 years. The LED light sources typically never need to be replaced under normal conditions for normal off applications.
CCT: 5000K
ELEC TRICAL — Orderable in multiple voltages (see ordering tree for specific voltages.)
Current-limiting charger maximizes battery life and minimizes energy consumption to provide low operating costs. Small battery chargers Certified in the CA Title 20 Appliance Efficiency Database.
Short-circuit protection — current-limiting charger circuitry protects printed circuit board from shorts. Regulated charge voltage maintains a stable charge voltage over a wide range of line voltages.
Prevents over/undercharging that shortens battery life and reduces capacity. Filtered charger input minimizes charge voltage ripple and extends battery life.
BATTERY: Sealed, maintenance-free nickel-cadmium (ELM4L only) or Lithium Iron Phosphate battery. Optional
High-Output (HO option) and Extra High Output (EHO option), LTP battery type only, provides a wide variety of remote capacities and/or extended run-times.
Automatic 24-hour recharge after a 90-minute discharge.
Advanced electrical design provides constant light output throughout the entire discharge period.
Brownout protection is automatically switched to emergency mode when supply voltage drops below approximately 80 percent nominal of 120, 220, 277 or 347. Other input voltages may vary.
AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge.
Self-Diagnostics: Continuously monitors AC functionality. Test switch and remote tester (RTKIT accessory) provide manual activation of 30-second diagnostic testing for on-demand visual inspection. Standard derangement monitoring will indicate disconnected battery, charger failure and displays green flashing indicator light while in emergency mode. Single multi-chromatic LED indicator to display two-state charging, test activation and three-state self-diagnostics.
SELF-DIAGNOSTICS and REMOTE TEST (SDRT and AELR option):
Self-diagnostic testing: Five minutes every 30 days and 90 minutes annually. Diagnostic evaluation of lamps, AC to DC transfer, battery charging and condition of microprocessor. Automatic test is easily postponed for eight hours by activating manual test switch or use of remote tester (RTKIT accessory).
AELR option: STAR (Self-testing Automated Reporting) radio transmits monthly and annual test results and diagnostics information for automated reporting requirements. For more information visit AcuityBrands.com/STAR
INSTALLATION — Wall and ceiling mount standard. Blind-mate connector ensures easy installation and safe maintenance. 7/8" entrance provision at top of unit for standard 1/2" conduit entry. Tool-less removal of front cover from back-plate for ease of installation and maintenance.
LISTINGS — UL damp location listed standard and wet location listed when used with the WPVS accessory, all at 50-104°F (10-40°C). Meets or exceeds all applicable requirements for UL 924, NFPA 101 (current Life Safety code), NFPA 70 (NEC), NOM (Norma Oficial Mexicana), California Energy Commission Title 20 section 1605.3 (W)(4), FCC Title 47, Part 15, Subpart B and OSHA. List and labeled to comply with Canadian Standards C22.2 No. 141-10.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
† Small Battery Chargers Certified in the CA Title 20 Appliance Efficiency Database.
MOUNTING
All dimensions are inches (centimeters) unless otherwise indicated.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect *See ordering tree for details
SHALIMAR BOYNTON

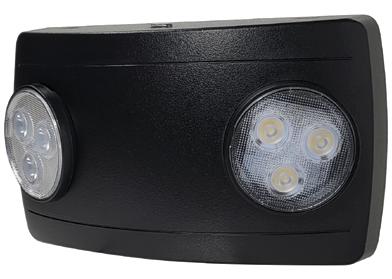

NE-612LED

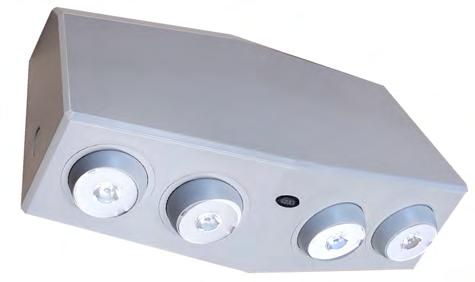

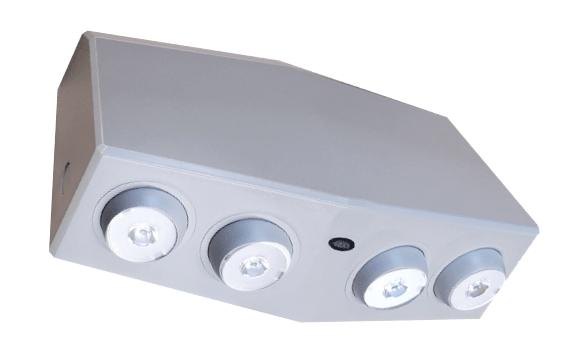

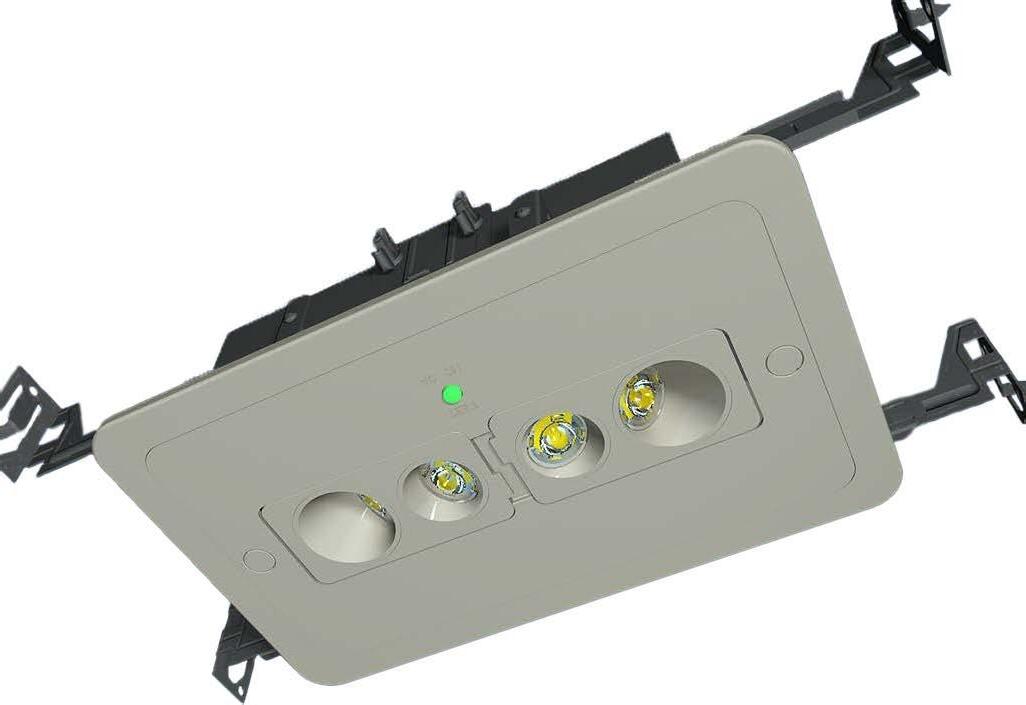

Compact Dual Head LED Emergency Light with Optional Remote Capability
Source: (2) 0.9W or 1W LED (2)90lm to 150lm
PRODUCT DESCRIPTION

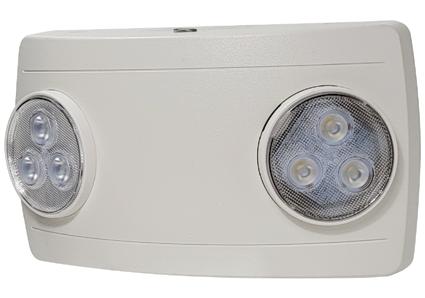

Luminaire provides 90 minutes of light from two adjustable heads for illuminating paths of egress upon failure of normal power. Emergency unit is available in higher lumen output and remote capability.
FEATURES
Compact housing with (2) adjustable LEDs Lightweight snap together design
Self-diagnostic and self-testing option available Ceiling or wall mounted
Universal 120/277VAC input
Remote capability
SPECIFICATION
Construction: Injection-molded thermoplastic ABS housing. Plastic enclosure with 5VA flame retardant. Quick connector design for easy installation. Two fully adjustable glare-free round heads for emergency lighting.
Mounting: Plastic enclosure includes a top and side knockout for conduit application. Suitable for wall mounting or ceiling mounting. Waterproof vandal resistant enclosure available, must specify NEG-602.
Operation: Luminaire will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time per battery.
ELECTRICAL
Input Voltage: 120/277VAC 60Hz
Lumens / Wattage:
NE-612LED: (2) 110lm / 0.9W
NE-612LEDRC: (2) 90lm / 0.9W
NE-612LEDHORC: (2) 150lm / 1W
Color Temperature: 5700K
Operating Temperature: 10˚C to 40˚C ambient temperature (-25°C to 50°C when used with NEG-602)
Batteries: NiMH 3.6V 2W maintenance-free
Remote Option: Luminaire is capable of including an additional 3.6V / 4W battery. Additional battery is used to power an additional remote emergency light. Upon power failure, each additional battery requires an additional 24 hours to recharge.
LABELS AND LISTINGS
· cULus Listed for Damp Locations (Wet Location Listed when used with NEG-602)
Meets or exceeds all requirements in NFPA 70, NFPA 101 life safety code 3-Year Limited Warranty
Notes
PRODUCT IMAGES & DIMENSIONS
NFPA 101 requires 1.0 foot-candle average and 0.1 foot-candle minimum with a 40:1 maximum/minimum ratio. Below is a recommended mounting height and spacing on surface with reflectance at 80% ceiling, 50% walls, and 20% floor.
Compact
Dual Head LED Emergency Light Optional Accessory
Description
NE-612LEDB = (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, Black Finish
NE-612LEDW = (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, White Finish
NE-612LEDRCW = (2) 0.9W / 90lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
NE-612LEDRCW
= (2) 1W / 150lm LED Heads with
/ 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
NE-612LEDHORCW = (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
= Waterproof Vandal Resistant Enclosure
with Remote (RC)
Example: NE-612LEDHORCW = Compact Dual Head LED Emergency Light with (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White finish
2 Must be ordered when using for wet location applications.. WPVS breaks out and ships separately and color will match (ex: WPVS LRG B). Decreases delivered lumens up to 20%. See spec sheet WPVS for more information.
3 Pendant mount option will include a 12" long 3/8-16 UNC threaded rod and hardware. Not available with any other lengths.
Design Select options indicated by this color background.
Other Accessories: Order as separate catalog number.

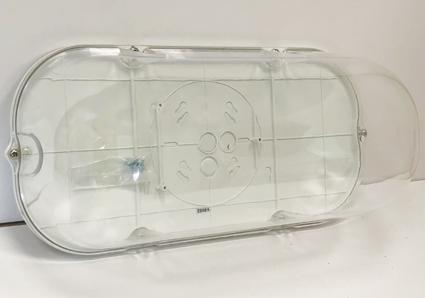

WPVS LRG WWet protective vandal shield, white (must be used for wet location applications)
WPVS LRG BWet protective vandal shield, black (must be used for wet location applications)
ELA WG1 Wireguard, 13 3/4"H x 15 1/4"W x 6"D (see spec sheet ELA-WG).
RTKIT Remote test kit, up to 40' away (includes goggles, laser and battery)

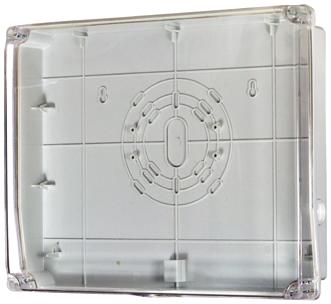

ELM4L-ELM6L mounted inside the WPVS
Notes
1 Extended run-time or remote capacity is standard. New ELMRE and ELMRW style remotes are compatible with both SDRT and non-SDRT versions (see page 4).
2 Only available with ELM4L.
3 SDRT option required. AELR radio transmits monthly and annual test results and diagnostics information for automated reporting requirements. Only available with LTP battery type. Not available with BAA option.
4 ELM4L with LLH (less lamp heads) not available with SDRT. ELM6L with LLH only available with SDRT.
5 Must be ordered when using for wet location applications. WPVS breaks out and ships separately and color will match (ex: WPVS LRG B). Decreases delivered lumens up to 20%. See spec sheet WPVS for more information.
6 Pendant mount option will include a 12" long 3/8-16 UNC threaded rod and hardware. Not available with any other lengths.
BLANK
FMML 13

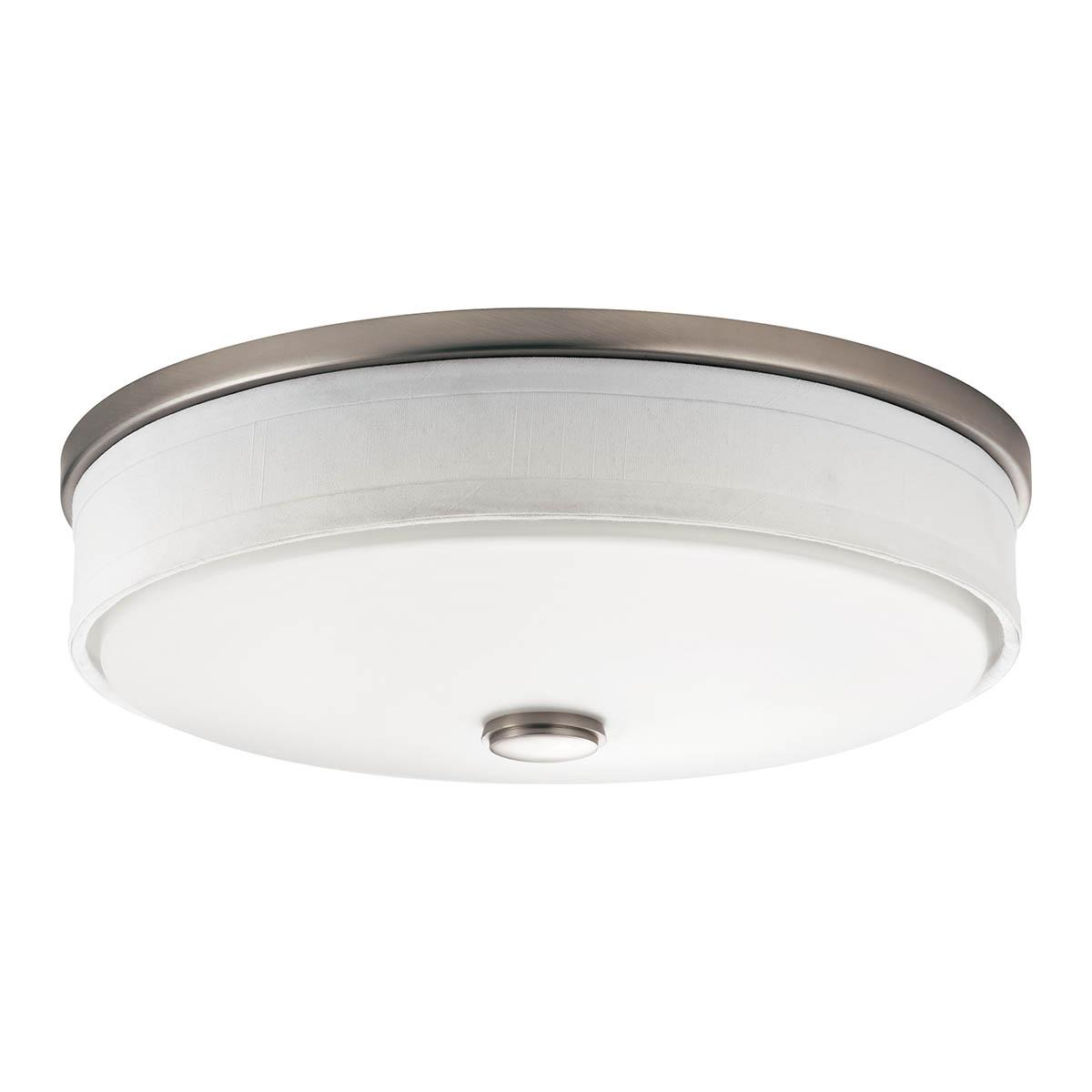

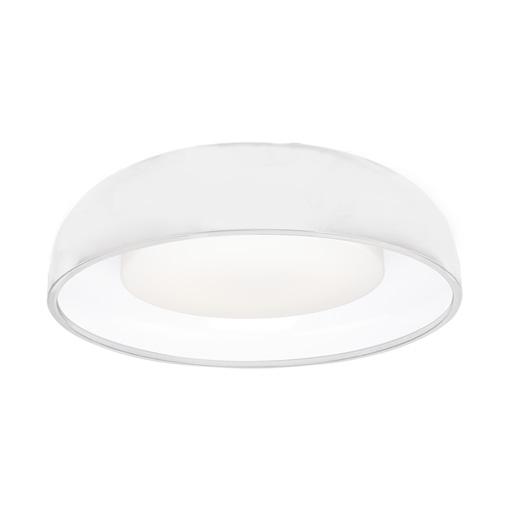

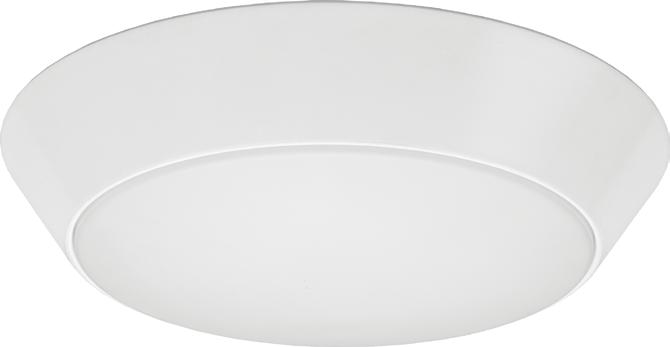

Versi Lite™ LED Flush Mount
Available in 13" round, the LED Versi Lite Flush Mount offers an energy-efficient lighting solution for an array of indoor and outdoor residential and light commercial spaces. With a 50,000 hour maintenance-free life, the Versi Lite delivers reliability along with bright, high quality illumination. Ideal for use in closets, foyers, hallways, bedrooms, offices, utility work areas, stairways, and many other rooms in the house.
FEATURES:
¡ Available in 4000K color temperature
¡ Dimmable to 10% on most standard triac dimmers
SHALIMAR BOYNTON
NELO
ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with CCT switch.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.
Five position sliding switch 27K / 30K / 35K / 40K / 50K
3/4"
Aperture
Diameter
Diameter:Aperture:
NELO-4RTW5-1/2"4-1/2"
NELO-6RTW7"6"
NELO-8RTW8-7/8"7-3/4"
NELO-12RTW12-1/4"11"
NSEM-6WDW
Surface Mount Enclosure with Emergency Driver for 6" only
Decorative Ring
Optional Accessories
Description Finish
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO
NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"
TYPE FS SPEC SHALIMAR BOYNTON

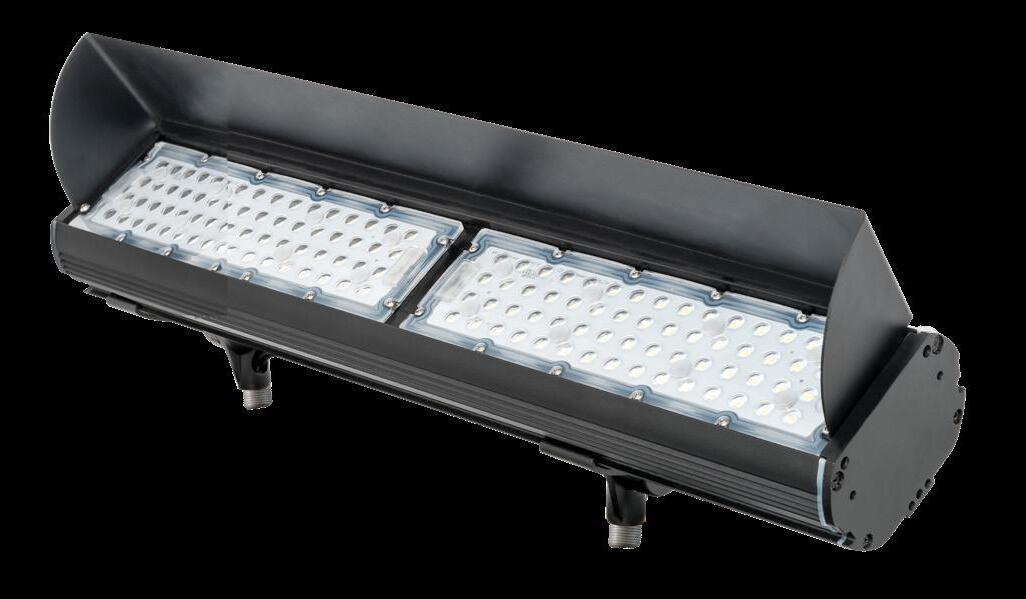

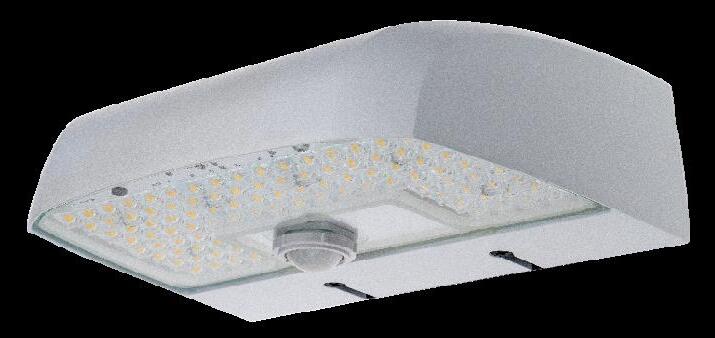

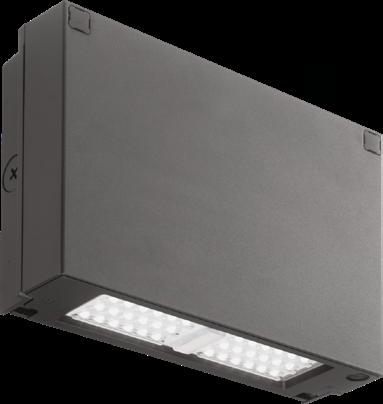

WPX LED Wall Packs
Introduction
The WPX LED wall packs are energy-efficient, costeffective, and aesthetically appealing solutions for both HID wall pack replacement and new construction opportunities. Available in three sizes, the WPX family delivers 1,550 to 9,200 lumens with a wide, uniform distribution.
The WPX full cut-off solutions fully cover the footprint of the HID glass wall packs that they replace, providing a neat installation and an upgraded appearance. Reliable IP66 construction and excellent LED lumen maintenance ensure a long service life. Photocell and emergency egress battery options make WPX ideal for every wall mounted lighting application.
Lumens, 11W
Lumens, 24W
Lumens, 47W
Lumens, 69W
Note: The lumen output and input power shown in the ordering tree are average representations of all configuration options. Specific values are available on request.
FEATURES & SPECIFICATIONS
INTENDED USE
The WPX LED wall packs are designed to provide a cost-effective, energy-efficient solution for the one-for-one replacement of existing HID wall packs. The WPX1, WPX2 and WPX3 are ideal for replacing up to 150W, 250W, and 400W HID luminaires respectively. WPX luminaires deliver a uniform, wide distribution. WPX is rated for -40ºC to 40ºC.
CONSTRUCTION
WPX feature a die-cast aluminum main body with optimal thermal management that both enhances LED efficacy and extends component life. The luminaires are IP66 rated, and sealed against moisture or environmental contaminants.
ELECTRICAL
Light engine(s) configurations consist of high-efficacy LEDs and LED lumen maintenance of L90/100,000 hours. Color temperature (CCT) options of 3000K, 4000K and 5000K with minimum CRI of 70. Electronic drivers ensure system power factor >90% and THD <20%. All luminaires have 6kV surge protection (Note: WPX1 LED P1 package comes with a standard surge protection rating of 2.5kV. It can be ordered with an optional 6kV surge protection). All photocell (PE) operate on MVOLT (120V - 277V) input.
Note: The standard WPX LED wall pack luminaires come with field-adjustable drive current feature. This feature allows tuning the output current of the LED drivers to adjust the lumen output (to dim the luminaire).
Black Note : For other options, consult factory.
1. All WPX wall packs come with 6kV surge protection standard, except WPX1 LED P1 package which comes with 2.5kV surge protection standard. Add SPD6KV option to get WPX1 LED P1 with 6kV surge protection. Sample nomenclature: WPX1 LED P1 40K MVOLT SPD6KV DDBXD
2. Battery pack options only available on WPX1 and WPX2.
3. Battery pack options not available with 347V or PE options.
INSTALLATION
WPX can be mounted directly over a standard electrical junction box. Three 1/2 inch conduit ports on three sides allow for surface conduit wiring. A port on the back surface allows poke-through conduit wiring on surfaces that don't have an electrical junction box. Wiring can be made in the integral wiring compartment in all cases. WPX is only recommended for installations with LEDs facing downwards.
LISTINGS
CSA Certified to meet U.S. and Canadian standards. Suitable for wet locations. IP66 Rated. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified. International Dark Sky Association (IDA) Fixture Seal of Approval (FSA) is available for all products on this page utilizing 3000K color temperature only.
WARRANTY
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25°C. Specifications subject to change without notice.
LENS: UV-stabilized, high impact resistant, pressure formed pearlescent 100% DR acrylic. Nominal thickness .125". Lens secured in place by lens frame and sealed to baseplate with closed cell silicone gasket.
LENS FRAME/CROSS BARS: Marine grade aluminum; secured to baseplate with tamper-resistant stainless steel Torx® with center pin fasteners. Cross bars nominal thickness .25". Post assembly TGIC polyester powder coat – 5-stage pre-treatment; Salt spray test: 1,000 hours. Optional perf insert 30% open, stainless steel.
HARDWARE: Four stainless steel Torx® T-20 with center pin fasteners. Internal brackets and fasteners are non-corrosive. Surface Conduit Adapter (SCA) accessory – stainless steel trim frame assembly with integral J-box; finished to match lens frame (not available with CA finish). Watertight conduit fittings supplied by others. Rough Service Adapter (RSA) accessory – stainless steel plate (adds .625" height) finished to match lens frame (not available with CA finish). Stainless steel fasteners provided for mounting fixture to RSA or SCA.
ELECTRICAL: Available 3500K, 4000K and 5000K color temperatures, 82 CRI. 120-277VAC, 50/60Hz electrical input with serviceable high power factor electronic, constant-current driver (<20% THD, >0.95 PF). Standard 0-10V dimming with 10-100% range, maximum driver source of 500 μA.
SENSOR & CONTROLS: Optional sensor available with compatible third party controls. To see the full list of compatible controls, click here.
INSTALLATION: Standard four-point mounting required for Peace of Mind Guarantee®
PHOTOMETRICS: Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For photometric information, go to www.kenall.com.
WARRANTY: Limited five (5) year LED warranty. Peace of Mind Guarantee against breakage.
LISTINGS: UL and CUL listed for Wet Location. UL certified IP65 per IEC 60598. ADA compliant.
SHALIMAR BOYNTON

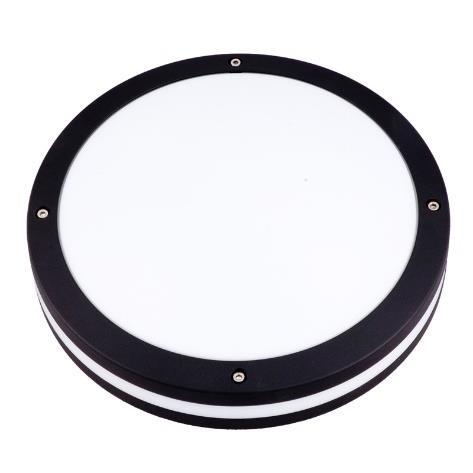

3-4310D 3-4310D-B
Features
Housing
Die-Cast Aluminum or Steel Frame with Powder Coated Finish
Optical
Diffuser: Opal Polycarbonate or High Light Transmission Acrylic
Electrical
120V – 277V, High Power Factor, Low THD
Built-in Photo Cell and Emergency Backup Option
Lamp
Integrated LED Module, Single Color Temperature or Adjustable Multiple Color
Temperature
LED: High Efficiency, High CRI, Binned and Mixed to Reach Uniform Light
XXXXK: Single Color Temperature, 3000K, 3500K, 4000K or 5000K MCT: Adjustable Multiple Color Temperature, 3000K/3500K/4000K
Wall Mount / Ceiling Mount, Outdoor Sunpark Electronics Corp. Phone: (310) 324-8880 Specifications are subject to 6/3/25 Page 1 of 2 16200 S. Figueroa St., Gardena, CA90248 Fax: (310) 324-4020 change without notice. DS_3-4310D_3-4310D-B.docx www.sunparkelectronics.com
3-4310D
3-4310D-B

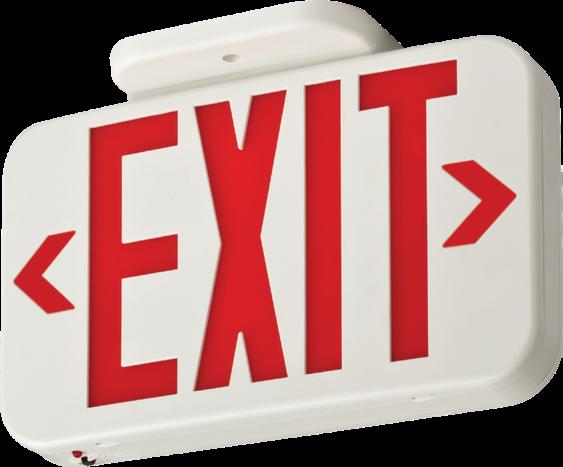

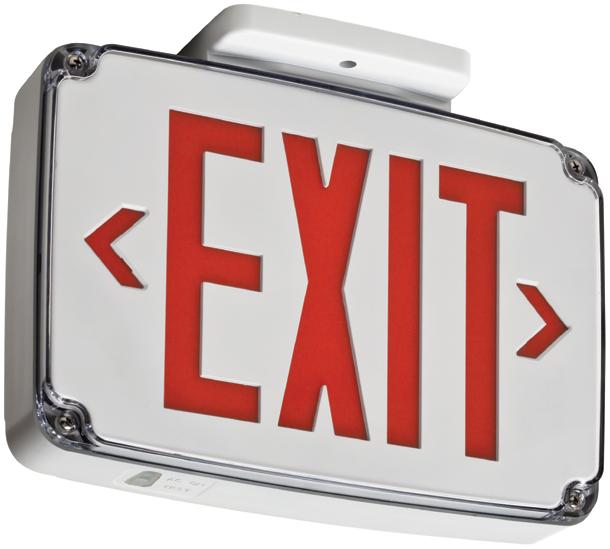

EXRG

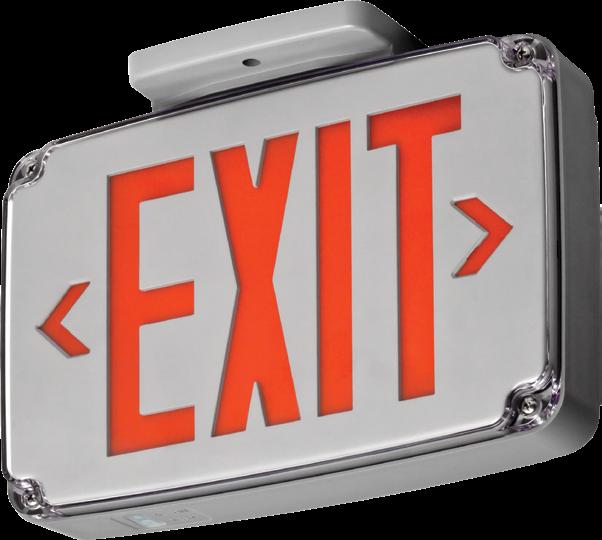

Lithonia Lighting Basics™ LED Exit
The Lithonia Lighting Basics™ EXRG Exit Sign is suitable for emergency signage applications such as stairways and hallways. This fully assembled single-face exit with extra faceplate is available in red and green letters. It's low profile makes it ideal for safely illuminated the path of egress in small spaces and can be wall or ceiling mounted. The emergency power provides 90 minutes of illumination in the event of a power loss.
FEATURES:
¡ Internal toggle switch for red or green letter color selection
¡ Test switch and status indicator for low maintenance (EL emergency models only)
¡ UL indoor damp location 50° to 104°F (10°C to 40°C) listed standard
¡ For use with Dual voltage 120/277VAC
¡ Internal switch for color selection
SHALIMAR BOYNTON TYPE X

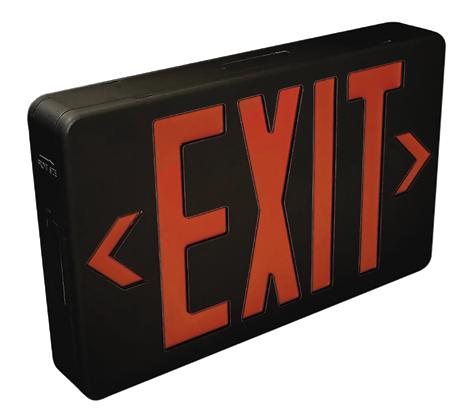

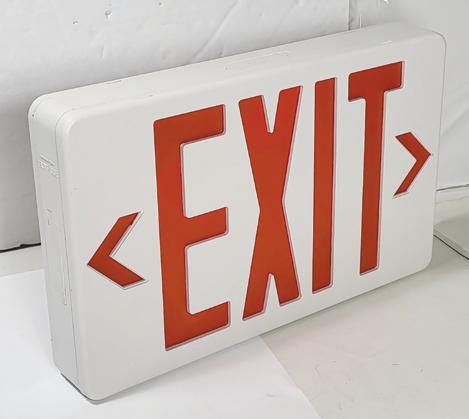

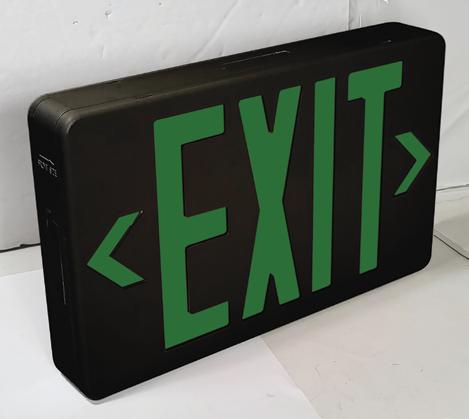

NX-603D-LED Thermoplastic Dual Color (Red/Green) LED Exit Sign with Battery Backup
PRODUCT DESCRIPTION
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
• 11-13/16" Width X 7-1/4" Height X 1-13/16" Depth
• Injection-molded thermoplastic housing
• Black or White housing finish
FACE
• 6" high text with color diffusion
• Both double and a blank face are included
• Snap-in direction indicators
MOUNTING
• Wall, side, or ceiling
• Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES
NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
UL 924
Rated for Damp Locations (Wet Location when used with NEG-60)
5-Year Limited Warranty
NFPA
Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”
• Includes Sure-Tite connectors
SPECIFICATIONS
• For proper thermal management, we recommend to mount this product in a channel
CLOSET
LTR-P Professional Series
4.5W, 24VDC LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 20’
• Includes Sure-Tite connectors
SPECIFICATIONS
•4.5 watts per foot
•90+ CRI
•-4°F to 122°F
• For proper
BLANK

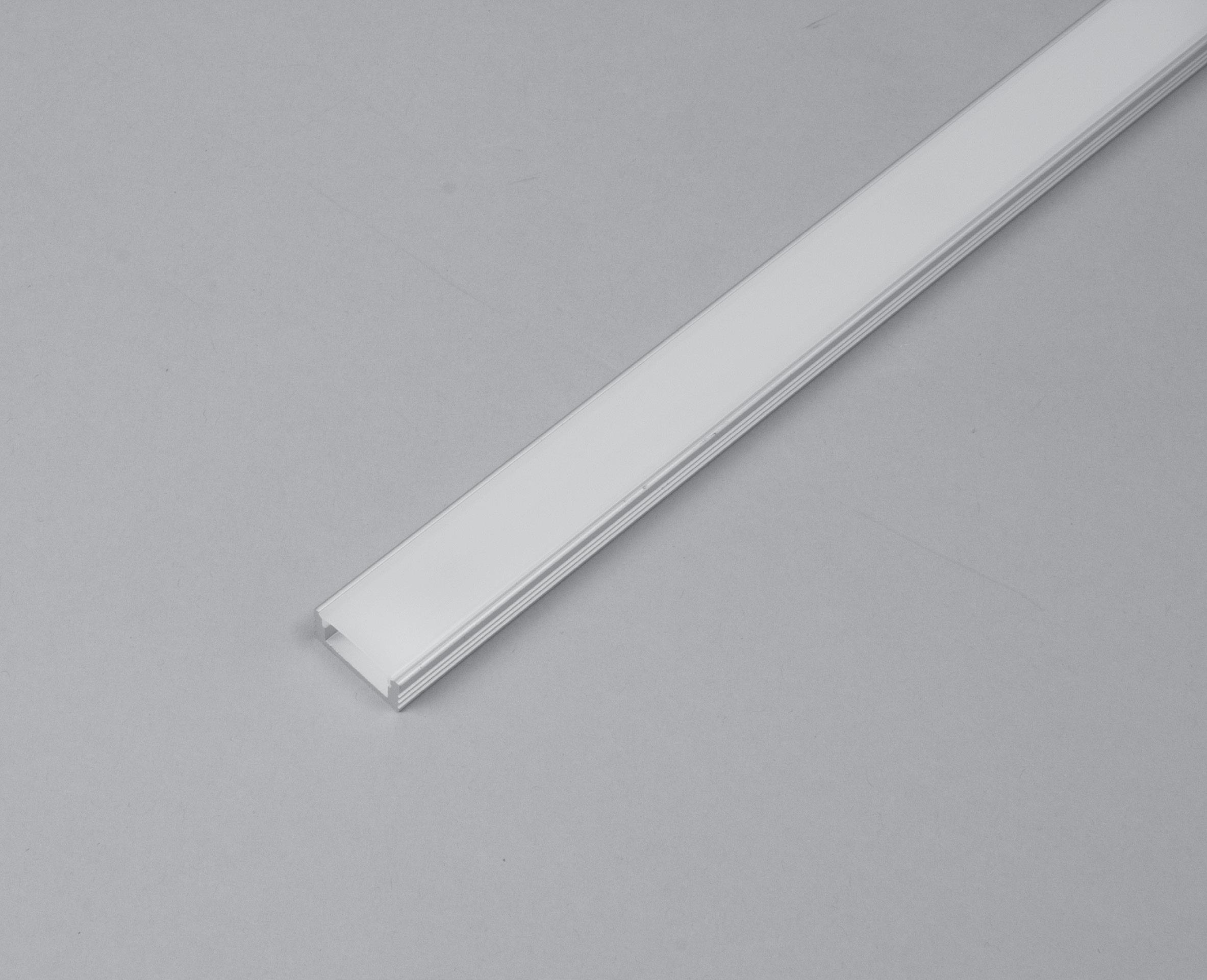

ALUMINUM MOUNTING CHANNEL ®
4’ / 8’ WIDE FORMAT
PRODUCT OVERVIEW
GM Lighting’s LED-CHL-W channel accepts all low voltage
GM Lighting LED tape. Available in 48” and 96” lengths, these wide format mounting channels are the perfect vessel that not only insures an architectural quality installation, but also minimizes diode imaging due to the frosted lens that is included with each channel.
FEATURES
•Available in 4ft (48in) and 8ft (96in)
• Silver Anodized finish
•Includes 2 mounting clips and screws with 4ft, 4 mounting clips and screws with 8ft
•Includes acrylic frosted lens
•End caps sold separately
• For LTR Series Tape - LTR-P, LTR-S and LTR-E
• Custom lengths available - consult factory
•Dry location only
Note: For Vision120, use V120-CHL channels.
SPECIFICATIONS
ELECTRICAL
•Fits 12V/24V LEDtask LED tape
WARRANTY
•5-year warranty
ORDERING INFORMATION
BLANK
ALUMINUM MOUNTING CHANNEL ®
4’ / 8’ WIDE FORMAT
DIAGRAM
DIMENSIONS
BLANK
Magnetic Dimmable ®
12/24VDC LineDRIVE Power Supply
Specification Sheet
PRODUCT OVERVIEW
LED dimming magnetic power supply that works with conventional low voltage magnetic wall mount dimmer with on/off switch. 12 or 24 VDC output. 120 or 277 VAC input. Highest efficiency with auto reset. Compatible with standard low voltage magnetic dimmers. Not recommended for digital control systems.
FEATURES
•Multi-tap Class 2
•120VAC and 277VAC dual input
•Auto-reset protection for short circuit
•NEMA 3R enclosure with built-in junction box
•Fanless design, cooling by free air convection
•Dimmable with compatible MLV dimmers
•Suitable indoor/outdoor wet locations when mounted vertically
•ETL Listed. Conf. to UL2108. Cert. CSA C22.2 No. 250.2
•5-Year warranty
SPECIFICATIONS
ELECTRICAL
•12V/24VDC
•120/277VAC / 60Hz input
• Load: min. 20% to max. 80% for optimal performance
HOUSING
•Black powder coated steel enclosure
•Cooling by free-air convection
ENVIRONMENT
• Outdoor / wet location NEMA 3R enclosure. For vertical mounting only.
ORDERING INFORMATION
OPERATING TEMP
•0 to 104°F (-18 to +40°C)
CERTIFICATION
•ETL compliant
•Cert. CS
•Class 2
WARRANTY
•5-year warranty
Project Name Type
Catalog # Date
Type COLUMN TAPE
NO SPECIFICATION
SHALIMAR BOYNTON
LTR-P Professional Series
5.8W, 24VDC LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”
• Includes Sure-Tite connectors
SPECIFICATIONS
• For proper thermal management, we recommend to mount this product in a channel
CLOSET
BLANK
Aluminum Mounting Channel
4’ / 6’ Wide Format
PRODUCT OVERVIEW
GM Lighting’s LED-CHL-W channel accepts all low voltage GM Lighting LED tape. Available in 48” and 72” lengths, these wide format mounting channels are the perfect vessel that not only insures an architectural quality installation, but also minimizes diode imaging due to the frosted lens that is included with each channel.
FEATURES
•Available in 4ft (48in) and 6ft (72in)
•Silver Anodized finish
• Includes 2 mounting clips and screws with 4ft, 4 mounting clips and screws with 6ft
•Includes acrylic frosted lens
•End caps sold separately
• For LTR Series Tape - LTR-P, LTR-S and LTR-E
• Custom lengths available - consult factory
•Dry location only
Note: For Vision120, use V120-CHL channels.
SPECIFICATIONS
ELECTRICAL
•Fits 12V/24V LEDtask LED tape
WARRANTY
•5-year warranty
BLANK
Magnetic Dimmable ®
12/24VDC LineDRIVE Power Supply
Specification Sheet
PRODUCT OVERVIEW
LED dimming magnetic power supply that works with conventional low voltage magnetic wall mount dimmer with on/off switch. 12 or 24 VDC output. 120 or 277 VAC input. Highest efficiency with auto reset. Compatible with standard low voltage magnetic dimmers. Not recommended for digital control systems.
FEATURES
•Multi-tap Class 2
•120VAC and 277VAC dual input
•Auto-reset protection for short circuit
•NEMA 3R enclosure with built-in junction box
•Fanless design, cooling by free air convection
•Dimmable with compatible MLV dimmers
•Suitable indoor/outdoor wet locations when mounted vertically
•ETL Listed. Conf. to UL2108. Cert. CSA C22.2 No. 250.2
•5-Year warranty
SPECIFICATIONS
ELECTRICAL
•12V/24VDC
•120/277VAC / 60Hz input
• Load: min. 20% to max. 80% for optimal performance
HOUSING
•Black powder coated steel enclosure
•Cooling by free-air convection
ENVIRONMENT
• Outdoor / wet location NEMA 3R enclosure. For vertical mounting only.
ORDERING INFORMATION
OPERATING TEMP
•0 to 104°F (-18 to +40°C)
CERTIFICATION
•ETL compliant
•Cert. CS
•Class 2
WARRANTY
•5-year warranty
Project Name Type
Catalog # Date
TYPE UC SPEC SHALIMAR

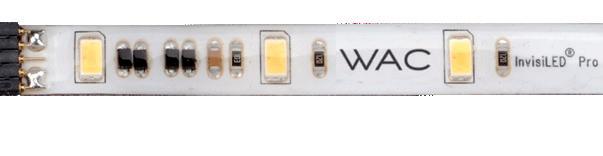

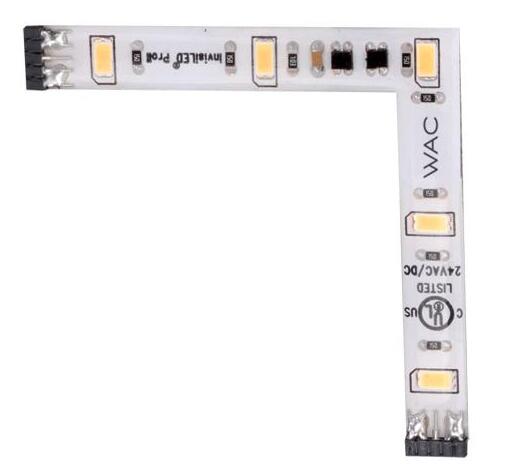

INVISILED® PRO 2
INVISILED®PRO 2
24V LED Tape Light
24V LED Tape Light
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
Ideal for task or accent lighting, InvisiLED Pro 2 is a high-performing and modern light system that provides exible, eco-friendly, and dimmable illumination. O ering three di erent mounting options, including the 3M construction adhesive on the back for peeling and sticking, enables it to be used in cabinets, counter tops, and coves. 80,000 hours of rated life ensures longevity and a high lumens output.
Ideal for task or accent lighting, InvisiLED Pro 2 is a high-performing and modern light system that provides flexible, eco-friendly, and dimmable illumination. Offering three different mounting options, including the 3M construction adhesive on the back for peeling and sticking, enables it to be used in cabinets, counter tops, and coves. 80,000 hours of rated life ensures longevity and a high lumens output.
FEATURES
FEATURES
• Can be eld cut, male to male adapter required to re-use female side
•Ultra thin pro le at 8"
• Can be field cut, male to male adapter required to re-use female side
•Diodes spaced evenly at 1" on center
• Ultra thin profile at 8"
• Diodes spaced evenly at 1" on center
• Minimum run length of 1'
•May be eld cut every 6" at the end of a run
• Minimum run length of 1'
•Three (3) mounting method provided for di erent surfaces
• May be field cut every 6" at the end of a run
•Specially rated for installation in the storage area of a clothes closet
• Three (3) mounting method provided for different surfaces
•80,000 hour rated life
• Specially rated for installation in the storage area of a clothes closet
• 80,000 hour rated life
• 5 year WAC Lighting product warranty
• 5 year WAC Lighting product warranty
Example: LED-TX2445-1-40-WT ORDER NUMBER – TAPE
LED-TX24___-______-WT
Fixture Type:
Fixture Type:
Catalog Number:
Catalog Number:
Project:
Project:
Location:
Location:
SPECIFICATIONS
Construction:
SPECIFICATIONS
Construction:
Light Source:
Operating Temp:
Light Source:
Operating Temp:
Standards: Flexible silicone cased tape light, peel and stick 3M construction adhesive on back, indicating marks for eld cutting.
12 LEDs per foot output, Runs on 24V at 4W per foot -4°F 122°F (-20°C 50°C) at relative humidity 95% UL & cUL Listed for Damp Locations
12 LEDs per foot output, Runs on 24V at 4W per foot -4°F − 122°F (-20°C − 50°C) at relative humidity 95% UL & cUL Listed for Damp Locations
Standards: Flexible silicone cased tape light, peel and stick 3M construction adhesive on back, indicating marks for field cutting.
LTR-P Professional Series
4.5W, 24VDC LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 20’
• Includes Sure-Tite connectors
SPECIFICATIONS
•4.5 watts per foot
•90+ CRI
•-4°F to 122°F
• For proper
BLANK
ALUMINUM MOUNTING CHANNEL ®
4’ / 8’ WIDE FORMAT
PRODUCT OVERVIEW
GM Lighting’s LED-CHL-W channel accepts all low voltage
GM Lighting LED tape. Available in 48” and 96” lengths, these wide format mounting channels are the perfect vessel that not only insures an architectural quality installation, but also minimizes diode imaging due to the frosted lens that is included with each channel.
FEATURES
•Available in 4ft (48in) and 8ft (96in)
• Silver Anodized finish
•Includes 2 mounting clips and screws with 4ft, 4 mounting clips and screws with 8ft
•Includes acrylic frosted lens
•End caps sold separately
• For LTR Series Tape - LTR-P, LTR-S and LTR-E
• Custom lengths available - consult factory
•Dry location only
Note: For Vision120, use V120-CHL channels.
SPECIFICATIONS
ELECTRICAL
•Fits 12V/24V LEDtask LED tape
WARRANTY
•5-year warranty
ORDERING INFORMATION
BLANK
ALUMINUM MOUNTING CHANNEL ®
4’ / 8’ WIDE FORMAT
DIAGRAM
DIMENSIONS
BLANK
Magnetic Dimmable ®
12/24VDC LineDRIVE Power Supply
Specification Sheet
PRODUCT OVERVIEW
LED dimming magnetic power supply that works with conventional low voltage magnetic wall mount dimmer with on/off switch. 12 or 24 VDC output. 120 or 277 VAC input. Highest efficiency with auto reset. Compatible with standard low voltage magnetic dimmers. Not recommended for digital control systems.
FEATURES
•Multi-tap Class 2
•120VAC and 277VAC dual input
•Auto-reset protection for short circuit
•NEMA 3R enclosure with built-in junction box
•Fanless design, cooling by free air convection
•Dimmable with compatible MLV dimmers
•Suitable indoor/outdoor wet locations when mounted vertically
•ETL Listed. Conf. to UL2108. Cert. CSA C22.2 No. 250.2
•5-Year warranty
SPECIFICATIONS
ELECTRICAL
•12V/24VDC
•120/277VAC / 60Hz input
• Load: min. 20% to max. 80% for optimal performance
HOUSING
•Black powder coated steel enclosure
•Cooling by free-air convection
ENVIRONMENT
• Outdoor / wet location NEMA 3R enclosure. For vertical mounting only.
ORDERING INFORMATION
OPERATING TEMP
•0 to 104°F (-18 to +40°C)
CERTIFICATION
•ETL compliant
•Cert. CS
•Class 2
WARRANTY
•5-year warranty
Project Name Type
Catalog # Date

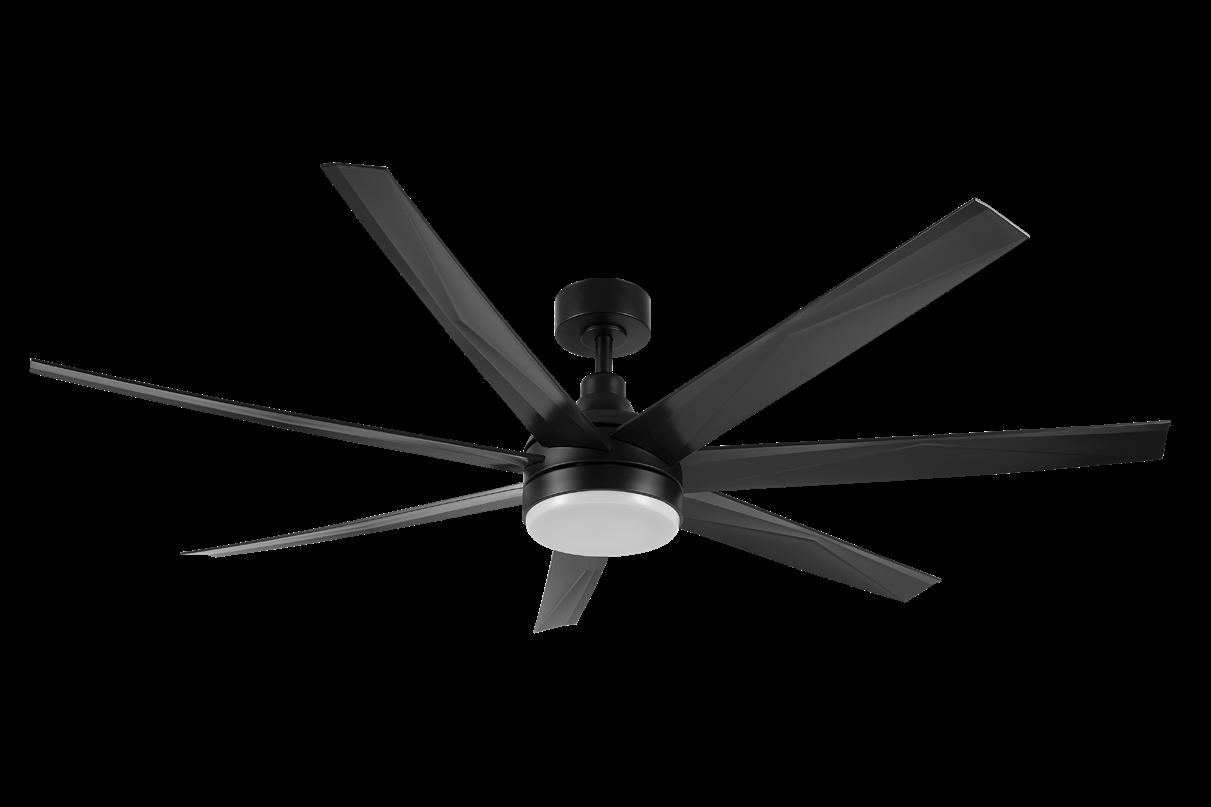

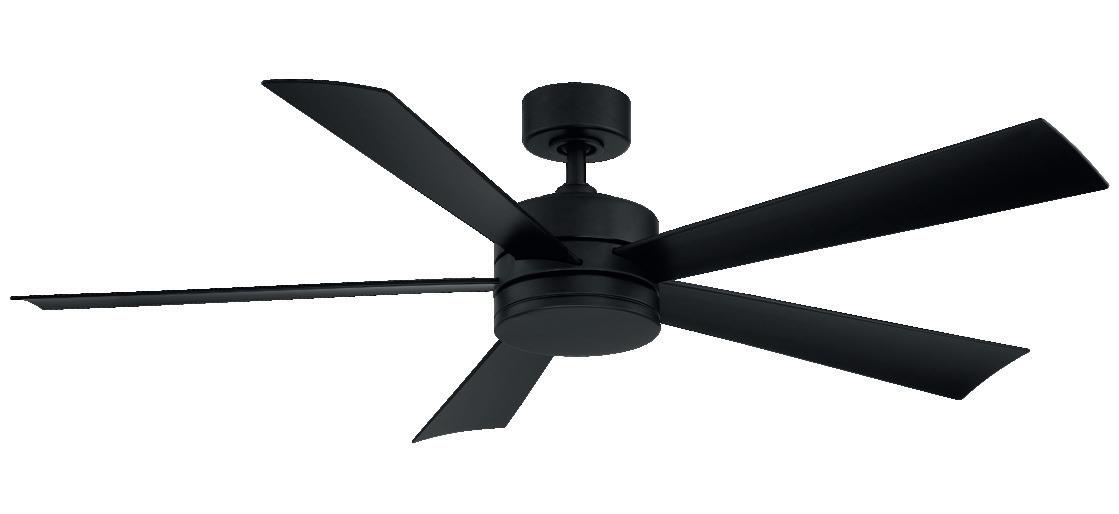

WYND
FR-W1801-60l
60” Ceiling Fan
PRODUCT DESCRIPTION
Transitional style meets smart technology with this versatile smart fan available in four weather-resistant finishes as well as a 316 marine-grade stainless steel for harsh outdoor climates. The 42” style is ideal for patios and breakfast nooks, while the 52” and 60” versions are perfect for living rooms and large bedrooms. The LED luminaire, powered by WAC, takes this design from beautiful to brilliant. Connect with our exclusive Modern Forms app for even more life enhancements.
FEATURES
• 6 fan speeds through both Summer and Winter Modes
•Silent DC motor
•Includes BT remote control
• Optional wall control for 3, 4-way control sold separately
•Compatible with Modern Forms app
AIRFLOW/ENERGY EFFICIENCY
Weighted-Average/High Airflow CFM:
Weighted-Average/High Energy Use (W):
Estimated Yearly Energy Cost ($):
Weighted-Average/High Efficiency (CFM/W): Max RPM: 5320/7516 27/35
ORDER NUMBER
Model Housing Blade
SPECIFICATIONS
Construction: Blade:
Downrod: Mounting Slope: Wire:
Hanging Weight: Total Power:
Standards:
Motor Type: Aluminum, ABS 13º Pitch, 60” sweep .75"W x 4.5"H included Up to 30° 80” 18.5 lbs 54.5W
UL/cUL Wet Location listed, Title 24 JA8-2016 Compliant, Title 20, Energy Star rated 125 x 30 sensorless DC motor
WIRELESS PERFORMANCE
Wi-Fi Range: Bluetooth Range: Up to 150 ft* Up to 150 ft*
7-Blade | 65" | Remote Control DC MOTOR 120V INTEGRATED LED LIGHT KIT
Dimensions
15.5" 9.25"12"
Height (lowest point)
Width (housing)
Height (top of blade)

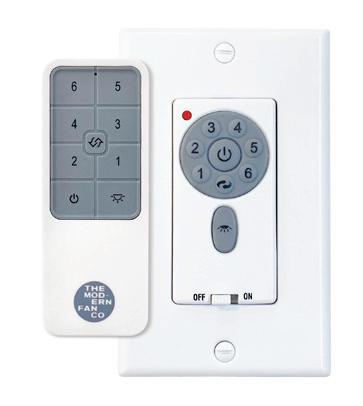

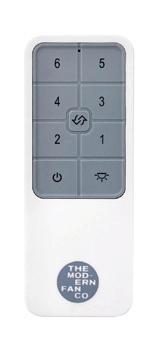

Fan Control Features and Options
-Simple and intuitive design with standard layout.
-Multi-functional fan speed control with fan forward/reverse, light brightness adjustment, and fan/light on/off.
-Remote (Standard)

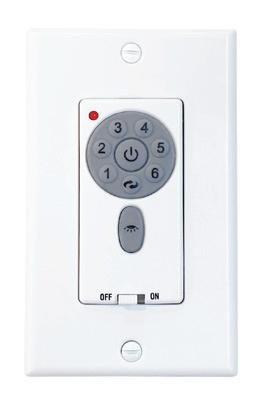

-Hardwired Wall Control (Optional*)
•Single Live Wire No Neutral Needed
•Push Button or Knob design available
-Pull Chain (Optional*)
*Optional controls at an additional cost
*Data subject to change without notice

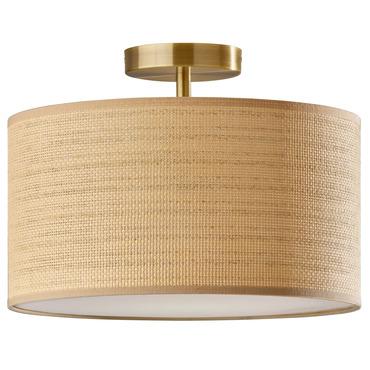

BRAND
DESCRIPTION
Corp
The Harvest Ceiling Light adds instant, contemporary style and illumination to any space. The light mounts to your ceiling with a round canopy base, while the large short drum shade is crafted of natural woven paper with trim along the top and bottom to match. To softly disperse and evenly distribute the light, a white diffuser is incorporated into the light's design.
SHADE COLOR Natural
BODY FINISH Antique Brass
WATTAGE 100W
DIMMER Standard 120V
DIMENSIONS 15"W x 11"H x 15"D
BULB NOT INCLUDED
LAMP 1 x A19/Medium (E26)/100W/120V Incandescent 1 x A19/Medium (E26)/120V LED
Adesso
Shown in: Antique Brass / Natural
Harvest Ceiling Light
Adesso Corp
DESCRIPTION
The Harvest Ceiling Light adds instant, contemporary style and illumination to any space. The light mounts to your ceiling with a round canopy base, while the large short drum shade is crafted of natural woven paper with trim along the top and bottom to match. To softly disperse and evenly distribute the light, a white diffuser is incorporated into the light's design.
SHADE COLOR Natural
BODY FINISH Antique Brass
WATTAGE 100W
DIMMER Standard 120V
DIMENSIONS 15"W x 11"H x 15"D
BULB NOT INCLUDED
LAMP 1 x A19/Medium (E26)/100W/120V Incandescent 1 x A19/Medium (E26)/120V LED

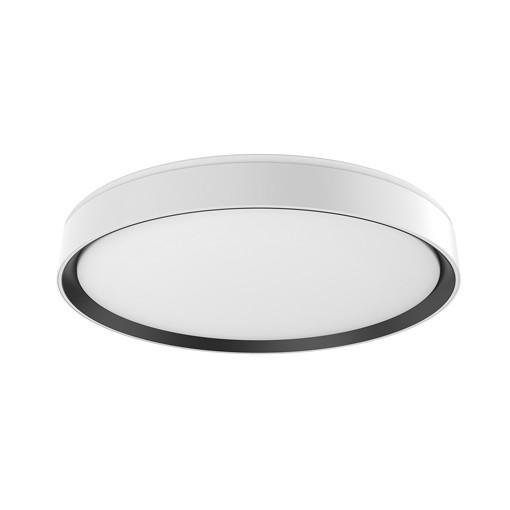

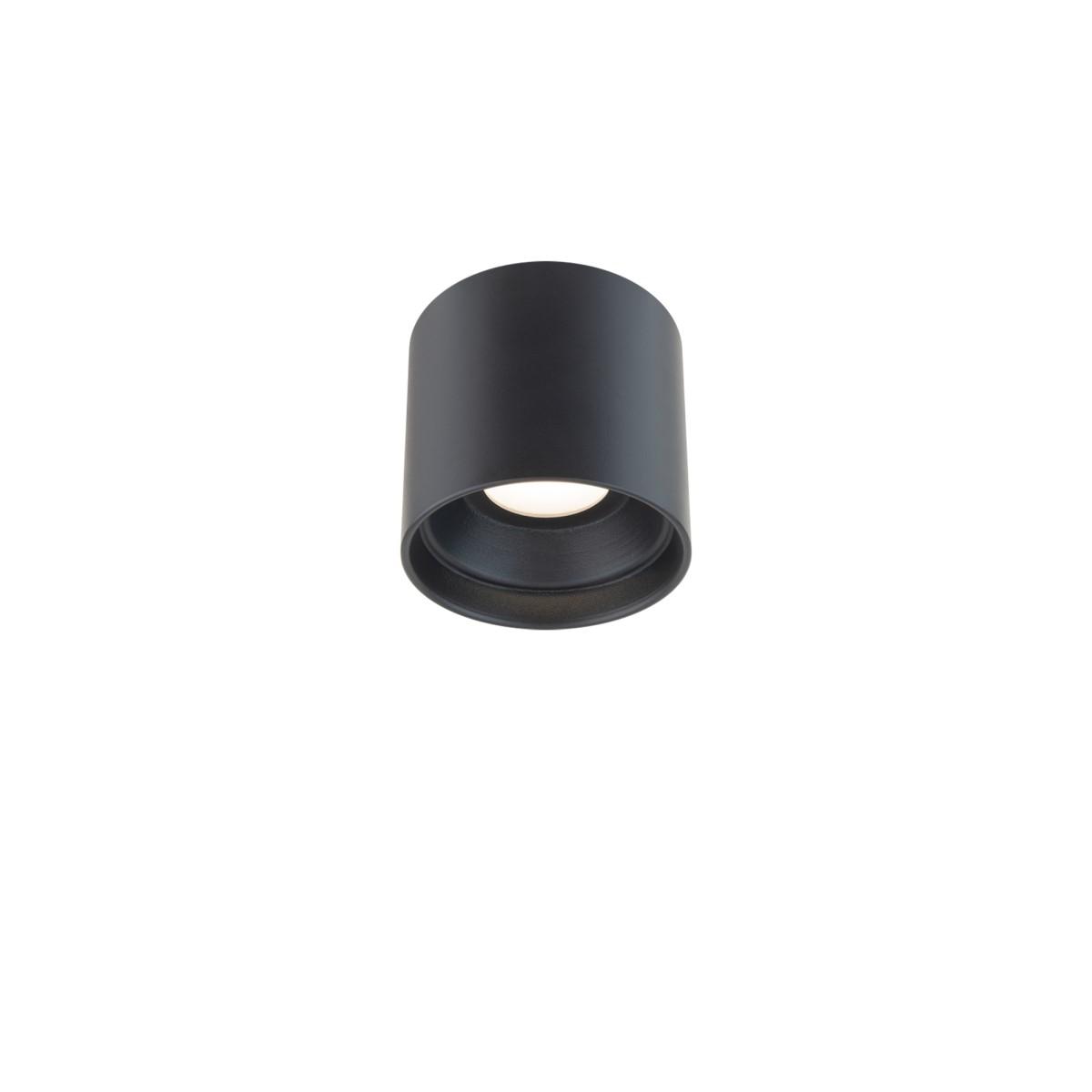

Mounting Can be mounted on ceiling or wall in all orientations
Color Temp 3500K,3000K,4000K
CRI 90
Construction Aluminum spun body with glass diffuser
Example: FM-W46205-40-WT For custom requests please contact customs@modernforms.com

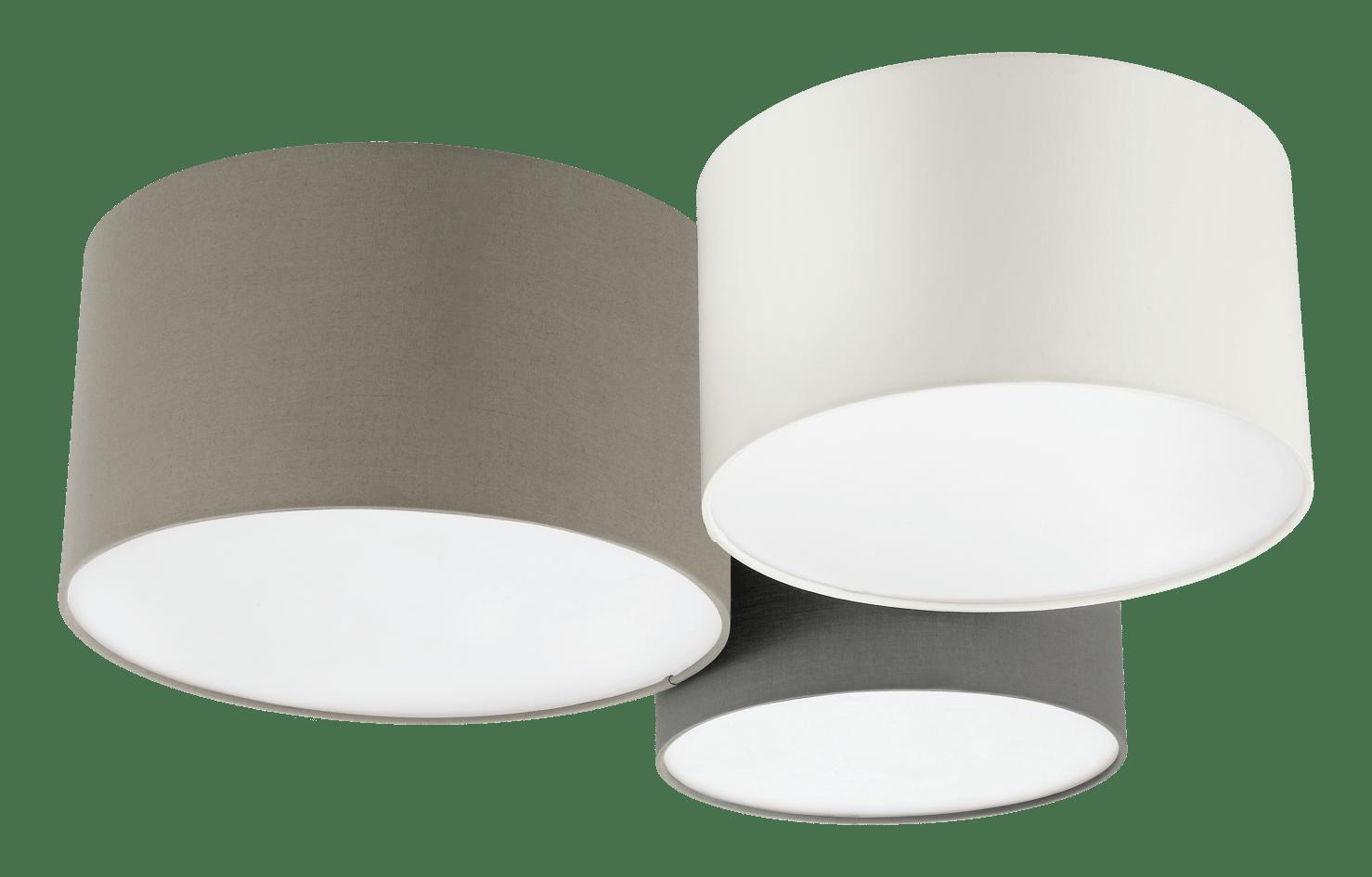

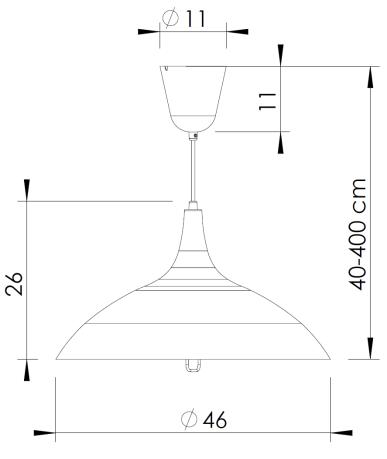

203213A PASTORE
General Information
Material
Dimensions
Material & Colour
Enclosure
Enclosure
Functionality
203213A PASTORE
General Information
Dimensions
Material & Colour
Enclosure
Enclosure
Functionality
Type
CM CORRIDOR
BLDG VI 2nd & 3rd Floors
NO SPECIFICATION
SHALIMAR BOYNTON

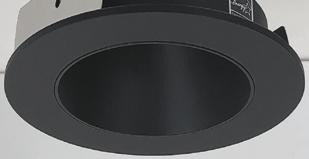

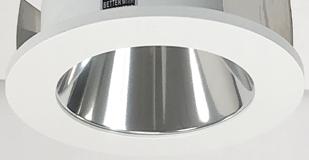

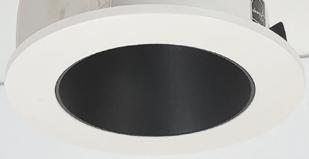

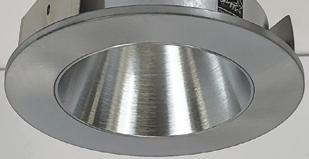

NPR-4RNDC

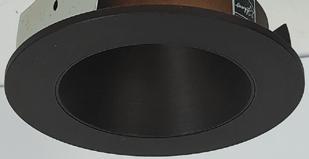

4" Pearl 120V LED Round Retrofit Reflector with Round Aperture
Source: 12W LED 1200lm
PRODUCT DESCRIPTION
Pearl LED Retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The 4" retrofit luminaires deliver over 1200 lumen s with deep regressed cone reflector for optim al visual cut-off.
FEATURES
Medium base socket adapter included Retrofit existing 4" recessed housings
Comfort Dim (warm dimming) is available in 900lm only 2700K, 3000K, 3500K, 4000K @ 90+ CRI
Field changeable optics included (Spot, Narrow Flood and Flood - installed) Integral dimmable driver 5-year limited warranty
· ENERGY STAR certified cULus classified for wet locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 22° and 26° TIR optics are also available
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 900lm only Dimming: Triac (leading edge) or ELV (trailing edge) Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
COMPATIBLE HOUSINGS
Pearl retrofit s are compatible with most 4" IC and Non-IC housings by Nora and others. Fire Box
NFBIC-4LMRATA* ICAT Dedicated LED
NFBIC-4INCATA ICAT Line Voltage
New Construction
NSIC-4LMRAT * Max. Adjustability ICAT Dedicated LED
* Nora Dedicated LED housings are cULus listed for use only with Nora LED Retrofits.
Retrofit: Pearl retrofit series includes medium base screw-socket adapter (NRA-211SM) for retrofitting into existing medium base downlight housings. GU24 socket adapter is available for use with GU24 housings, must specify NRA-212SM.
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2.
LABELS AND LISTINGS
cULus classified for Wet Locations
· ENERGY STAR certified RoHS compliant
5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
4" Pearl 120V LED Round Retrofit Reflector with Round Aperture
Color Temperature Finish
NPR-4RNDC27 X = 2700K
NPR-4RNDC30X = 3000K
NPR-4RNDC35 X = 3500K
NPR-4RNDC40X = 4000K
NPR-4RNDCCDX = Comfort Dim
BB = Black / Black
BW = Black / White
BZ = Bronze / Bronze
CHMPW = Champagne / Matte Powder White
CMPW = Specular Clear / Matte Powder White
HW = Haze / White
HZMPW = Haze / Matte Powder White
MPW = Matte Powder White
NN = Natural Metal / Natural Metal
WW = White / White
Example: NPR-4RNDC27XWW = 4" Pearl 120V LED Round Retrofit Reflector with Round Aperture, 2700K, White finish
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
NPR-4RNDC30XMPW 1200lm4000KFlood Delivered lumens will vary depending on CCT, optic and finish
BLANK

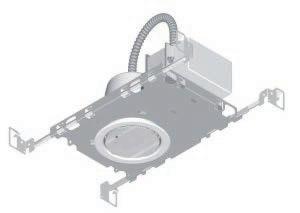

NHIC-4LMRAT
4" IC Air-Tight LED Dedicated New Construction Housing (Compatible with Iolite / Cobalt / Marquise / Onyx / Pearl)
PRODUCT DESCRIPTION
Dedicated new construction housing for use in insulated ceilings can be in direct contact with insulation.* Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with LED retrofit luminaires.
FEATURES
IC rated for direct contact with insulation
Quick connect provided for electrical connection to the LED downlights
ASTM E283 for Air-Tight 24-1/2" bar hangers with captive nails and alignment foot
CONSTRUCTION
Plaster Frame: High quality 0.04" steel die cut one piece frame
Housing: 0.040 galvanized steel housing with riveted cap adjusts for ceiling thicknesses from 5/8" to 1". Spring brackets accept torsion wing trim springs; slots on socket plate surface accept standard coil springs.
Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L” Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.
Junction Box: Prewired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2 " trade size knockouts and four Romex pryouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box.
ELECTRICAL
Input Voltage: 120/277V or 277V (must specify)
Socket: Quick connect for LED downlights
Operating Temperature: 122°F (50°C) max. Dimming: Specified by downlight
Step Down Transformer (converts 277V input to 120V): Optional 50W step down transformer installed (NHIC-4LMRAT/277). Maximum of 6 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box when used with step down transformer.
COMPATIBILITY
NIR-4 = 4" Iolite Retrofit
NLCBC-4 / NLCBC2-4 = 4" Cobalt Retrofit
NRMC2-4 = 4" Marquise II Retrofit
NOX-4 / NOXAC-4 / NOXTW-4 = 4" Onyx Retrofit
NPR-4 = 4" Pearl Retrofit
Emergency: Housing can be specified with an emergency battery installed on frame (Cobalt only). Requires top access.
Up to 7.5W emergency illumination with LEDs
Illumination Time: 90min
Voltage: 120/277 VAC, 60Hz
Output Voltage: 15.0-50.0 VDC
Remote test switch included
LABELS AND LISTINGS
cULus Listed for Damp Location (wet location when used with compatible downlight)
ENERGY STAR certified
· Meets or exceeds ASTM-283 Air-Tight requirements Certified to the high efficacy requirements of California Title 24 JA8-2022 (when used with compatible downlight) RoHS compliant
Type
Project
Catalog No.
4" IC Air-Tight LED Dedicated New Construction Housing
NHIC-4LMRAT/277 = 4” IC Air-Tight Housing, 277V input with 50W Step Down Transformer
NHIC-4LMRAT/EM = 4" IC Air-Tight Housing with Emergency Battery and Remote Test Switch, 120/277V input (Cobalt only - EM required)
NHIC-4LMRAT/4W = 4" IC Air-Tight Housing, 120/277V input (120V Triac/ELV/0-10V & 277V 0-10V dimming, Cobalt only - LE4 required)
NHIC-4LMRAT/277EM = 4" IC Air-Tight Housing with Emergency Battery and Remote Test Switch, 277V input with 50W Step Down Transformer (Cobalt only - EM required)
NHIC-4LMRAT/6WEM = 4" IC Air-Tight Housing with Emergency Battery and Remote Test Switch, 120/277V input (120V Triac/ELV/0-10V & 277V 0-10V dimming, Cobalt only - LE4EM required)
Example: NHIC-4LMRAT = 4" IC Air-Tight LED Dedicated New Construction Housing, 120/277V input
•Long lasting, efficient, ultra bright white LED lamp heads
•1.0 watt (1 LED x 1.0 watt) per head
•Unique all inclusive lamp, reflector and lens assembly
• Adjustable LED lamp heads provide up to 50-ft center-to-center spacing with 3-ft path of egress at 12-ft mounting height
•Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish
DIMENSIONS:
SPECIFICATION:
WARRANTY & LISTINGS:
•5-year warranty
•UL listed for damp locations (20°C – 40°C)(68°-104°F)
•Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
ELECTRICAL:
•Dual 120/277 voltage
•Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery)
•6V long life, maintenance free, rechargeable NiCd battery
•Internal solid-state transfer switch automatically connects the internal battery to LED board and lampheads for minimum 90-minute emergency illumination
•Fully automatic solid state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours
MOUNTING:
•Universal knockout pattern on back plate for surface mount
-Low Voltage Disconnect prevents batter from deep discharge
- Internal transfer switch automatically connects battery to lamp heads for 90-minute emergency illumination
-Two-rate charger initiates battery charge to recharge in battery in 24 hours
ILLUMINATION
- 1W LED Lamp heads (104 Lumens/head)
- All-inclusive lamp, reflector, and lens assembly
- Adjustable heads
MOUNTING
-Surface mount via back plate
-Suitable for wall or ceilig mount
-Knockout for conduit applications
CODE COMPLIANCE
- UL Listed for Damp Locations
- Meets UL924, NFPA101, NEC, OSHA, Local and State Codes
WARRANTY
- 5 Year
ORDERING INFORMATION
CATALOG#
DEM2-LED
OPTIONS (Factory Installed)
BLK -Black Housing SD -Self Diagnostics

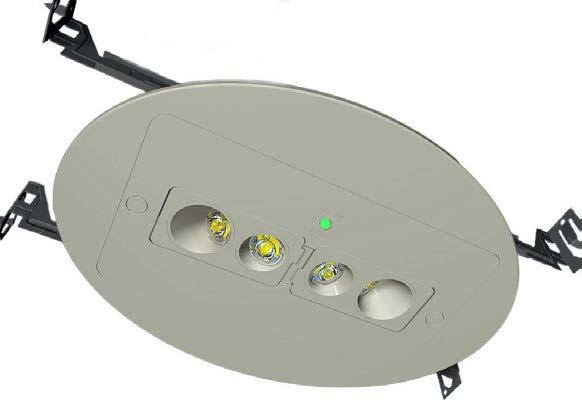

DEM2-LED LED Decorative Emergency Unit
TYPE EMR SPEC SHALIMAR
PRODUCT FEATURES
• Meets American Recovery & Reinvestment Act of 2009 (ARRA)
• Superior 55 foot center-to-center spacing
Prepared by
STANDARD
ILLUMINATION
• Long lasting, efficient, ultra-bright white LED lamp heads.
• 1 .0 watt (1LED x 1.0 watt) per head.
• Unique all inclusive lamp, re ector and lens assembly.
• Adjustable LED lamp heads provide up to 50-ft center-tocenter spacing with a 3-ft path of egress at 12-ft mounting height.
ELECTRICAL
• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 4.8V maintenance-free, rechargeable lithium iron phosphate battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
• Bar hangers included on the back box for recessed mount.
• Compatible with drop ceiling mount installations.
HOUSING
• •
WARRANTY / LISTING
• Five year warranty on all electronics and housing. Battery pro rated for two years.
• UL Listed for damp locations. 0°C – 50°C to 10°C – 50°C.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
DIMENSIONS
Type EXIT LIGHT
BLDG VI 1st Floor
NO SPECIFICATION
SHALIMAR BOYNTON

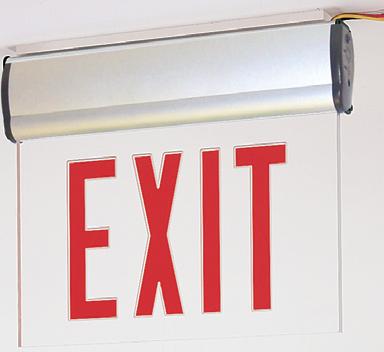

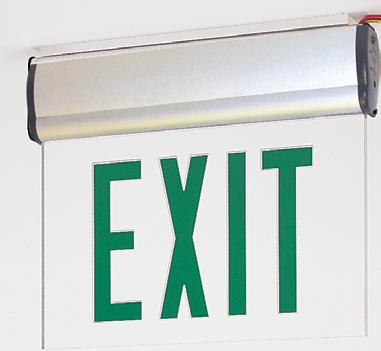

NX-810-LED / NX-811-LED / NX-812-LED
Surface Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Extruded aluminum housing and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Face is constructed with 0.40 clear acrylic with rounded and finished edge for attractive appearance. Face contains red or green 6” high and 3/4” thick lettering inside face to comply with NFPA requirements. Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic. Face can be adjusted in the field from 0º to 90º for wall, ceiling or sloped applications.
MOUNTING
Mounting hardware consist of 0.06 steel universal junction box bracket, 7/8” profile 0.11 die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knocouts once mounting configuration is selected.
ELECTRICAL
Voltage: Dual 120V/277V (0.038A / 0.017A)
LED Wattage: 3 Watts normal / 5 Watts emergency operation
Emergency Circuit (NX-811-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-812-LED): Replaceable Ni-Cad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
UL Listed
State & Municipal
5-Year Limited Warranty
Certified to the energy efficiency standards of California Title 20
The Lithonia Lighting Basics™ EXRG Exit Sign is suitable for emergency signage applications such as stairways and hallways. This fully assembled single-face exit with extra faceplate is available in red and green letters. It's low profile makes it ideal for safely illuminated the path of egress in small spaces and can be wall or ceiling mounted. The emergency power provides 90 minutes of illumination in the event of a power loss.
FEATURES:
¡ Internal toggle switch for red or green letter color selection
¡ Test switch and status indicator for low maintenance (EL emergency models only)
¡ UL indoor damp location 50° to 104°F (10°C to 40°C) listed standard
¡ For use with Dual voltage 120/277VAC
¡ Internal switch for color selection
SHALIMAR BOYNTON TYPE X COR ALT
Type Project Catalog No.
Notes
PRODUCT DESCRIPTION
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
• 11-13/16" Width X 7-1/4" Height X 1-13/16" Depth
• Injection-molded thermoplastic housing
• Black or White housing finish
FACE
• 6" high text with color diffusion
• Both double and a blank face are included
• Snap-in direction indicators
MOUNTING
PRODUCT IMAGES AND DIMENSIONS
NX-603D-LED Thermoplastic Dual Color (Red/Green) LED Exit Sign with Battery Backup NX-603D-LED
• Wall, side, or ceiling
• Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES
NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
UL 924
Rated for Damp Locations (Wet Location when used with NEG-60)
5-Year Limited Warranty
NFPA
Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
OUTER LENS: Thermoformed, UV-stabilized impact resistant polycarbonate, and frost or clear acrylic. See Ordering Information for options. Nominal thickness .125".
INNER LENS: UV-stabilized, high impact resistant, extruded 100% DR acrylic frost lens. Nominal thickness. 100". Lens secured in place by lens frame.
HARDWARE: Four stainless steel Torx® T-20 with center pin fasteners. Internal brackets and fasteners are non-corrosive. Surface Conduit Adapter (SCA) accessory – aluminum trim frame assembly with integral J-box; finished to match lens frame. Water-tight conduit fittings supplied by others.
ELECTRICAL: Available 3500K, 4000K and 5000K color temperatures, 82 CRI. 120-277VAC, 50/60Hz electrical input with serviceable high power factor electronic, constant-current driver (<20% THD, >0.95 PF). Standard 0-10V dimming with 10-100% range, maximum driver source of 250 μA.
PHOTOMETRICS: Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For photometric information, go to www.kenall.com.
WARRANTY: Limited five (5) year LED warranty. Peace of Mind Guarantee against breakage.
LISTINGS: UL and CUL listed for Wet Location – vertical wall mount only. UL certified IP64 per IEC 60598. ADA Compliant (SCA Option is non-ADA). Luminaire tested to an IK10 impact protection rating per IEC 60068-2-75:1997-08.
Built-in LED Module, Multiple Color Temperature (MCT), 3000K/3500K/4000K
Certification
ETL/cETL Listed, Suitable for Wet Locations
Warranty
5 Years Warranty on LED Driver and Module
(310)
16200 S. Figueroa St., Gardena, CA90248 Fax: (310) 324-4020 change without
www.sunparkelectronics.com
of
Project:
Fixture Type:
Location:
Contact/Phone:
PRODUCT DESCRIPTION
Sleek, ultra-low profile energy efficient LED surface mount fixture • Installs directly onto industry standard junction boxes and round mudrings • Replaces traditional 65W incandescent fixture performance, delivering 700 lumens • Dimmable with most standard incandescent dimmers and electronic low voltage dimmer • LED surface mount fixture is designed to provide over 50,000 hours of life • 5 year warranty.
PRODUCT
SPECIFICATIONS
Construction Decorative beveled aluminum trim frame with white finish
• Diffusing dome lens conceals the LEDs from direct view and provides uniform lens luminance.
LED Light Engine LED board mounted directly to aluminum housing designed to provide superior thermal management and ensure long life • 2700K or 3000K LED color temperature • LED’s binned for 3-step MacAdam ellipse color consistency • 90 CRI minimum • Accommodates 120 volts AC at 60Hz
• Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage dimmers • For a list of compatible dimmers, see JUNORETROBASICS-DIM
Electrical Connections Fixture provided with leads for direct wire connection in j-box • Low profile fixture design is free from external electrical components, so j-box volume and box fill is not compromised.
Life Rated for 50,000 hours at >70% lumen maintenance.
Labels ENERGY STAR® Certified • Certified to the high efficacy requirements of California T24 • UL listed for US and Canada • Suitable for damp locations
• Suitable for wet locations (indoor covered ceilings) when fixture is sealed to ceiling with field applied caulk (see instruction sheet for details).
Testing All reports are based on published industry procedures; field performance may differ from laboratory performance. Specifications subject to change without notice.
INSTALLATION
Junction Box Mounting Installs directly to industry standard junction boxes
• Compatible boxes include 3-1/2" and 4" octagon junction boxes (1-1/2" minimum depth), round mud rings with 2-3/4" mounting centers, and 3" & 4" diameter non-metallic boxes • Quick-mount strap and spring securement system provides fast installation of fully assembled fixture to junction box • Suitable for ceiling or wall mount • Suitable for use within closet storage spaces when installed per NEC requirements.
Regressed AC Opal Series fixture is designed to surface mount over a standard junction box. Regressed light source gives the appearance of a recessed luminaire.
FEATURES
Recessed appearance AC LED (No Driver)
2700K, 3000K or 4000K @ 90+ CRI
ENERGY STAR certified
cETLus Listed for Wet Locations
Certified to the high efficacy requirements of California Title 24 JA8-2022
SPECIFICATION
Construction: One piece die-cast aluminum formed luminaire. Aluminum body dissipates heat and extends life.
Mounting: Surface mount luminaire is compatible with 3" or 4" junction boxes and 1/2" deep pancake boxes.
Ratings: IC rated when used with 3" or 4" electrical junction box rated for direct contact with insulation. Fire rated when used with a fire rated junction box.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: Up to 700lm / 11W
Color Temperature: 2700K, 3000K, 4000K
Color Rendering Index: 90+ CRI
Beam Spread: 118° Wide Flood
Operating Temperature: -20°C to 40°C
Dimming: Triac/ELV
OPTIONAL ACCESSORIES
NLOPAC-R4REGRECKIT: Retrofit Kit for Recessed Housings
LISTING
cETLus Listed for wet locations
ENERGY STAR certified 5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1).
FCC Compliant
4" Regressed AC Opal
Series Color Temperature Finish
NLOPAC-R4REGT24 27 = 2700K 30 = 3000K 40 = 4000K W = White
Example: NLOPAC-R4REGT2427W = 4" Regressed AC Opal, 2700K, White Finish
NLOPAC-R4REGRECKIT Retrofit Kit for NLOPAC-R4REGT24
Optional Accessories
Description
NLOPAC-R4REGRECKIT = Retrofit Kit for NLOPAC-R4REGT24
Jayna Collection
Jayna 8 Light Chandelier
Product Information
ItemNumber: JAY-A5006-BS
StockAvailability: 35
Interior/Exterior: Interior
Rated: Damp
Product Details
Finish: Burnished Silver
AvailableFinishes: Burnished Silver
Bulb: E12 Candelabra
Voltage: 120v
Specifications
Dimensions: 31.25"W x 22"H x 31.25"D
Chain/Rod: Chain: 72"
OverallHeight: 99.5 in
CanopyDimensions: 5.1"W x 1"H
SlopedCeilingCompatible: Yes
HangingWeight: 15 lbs
Additional Information
Certification: UL, CUL, CSA
Carton: 34"L x 34"W x 20"H
ShipType: Oversized
CurrentCatalog: Yes
Jayna Collection
Jayna 8 Light Chandelier
Product Information
ItemNumber: JAY-A5006-BS
StockAvailability: 35
Interior/Exterior: Interior
Rated: Damp
Product Details
Finish: Burnished Silver
AvailableFinishes: Burnished Silver
Bulb: E12 Candelabra
Voltage: 120v
Specifications
Dimensions: 31.25"W x 22"H x 31.25"D
Chain/Rod: Chain: 72"
OverallHeight: 99.5 in
CanopyDimensions: 5.1"W x 1"H
SlopedCeilingCompatible: Yes
HangingWeight: 15 lbs
Additional Information
Certification: UL, CUL, CSA
Carton: 34"L x 34"W x 20"H
ShipType: Oversized
CurrentCatalog: Yes

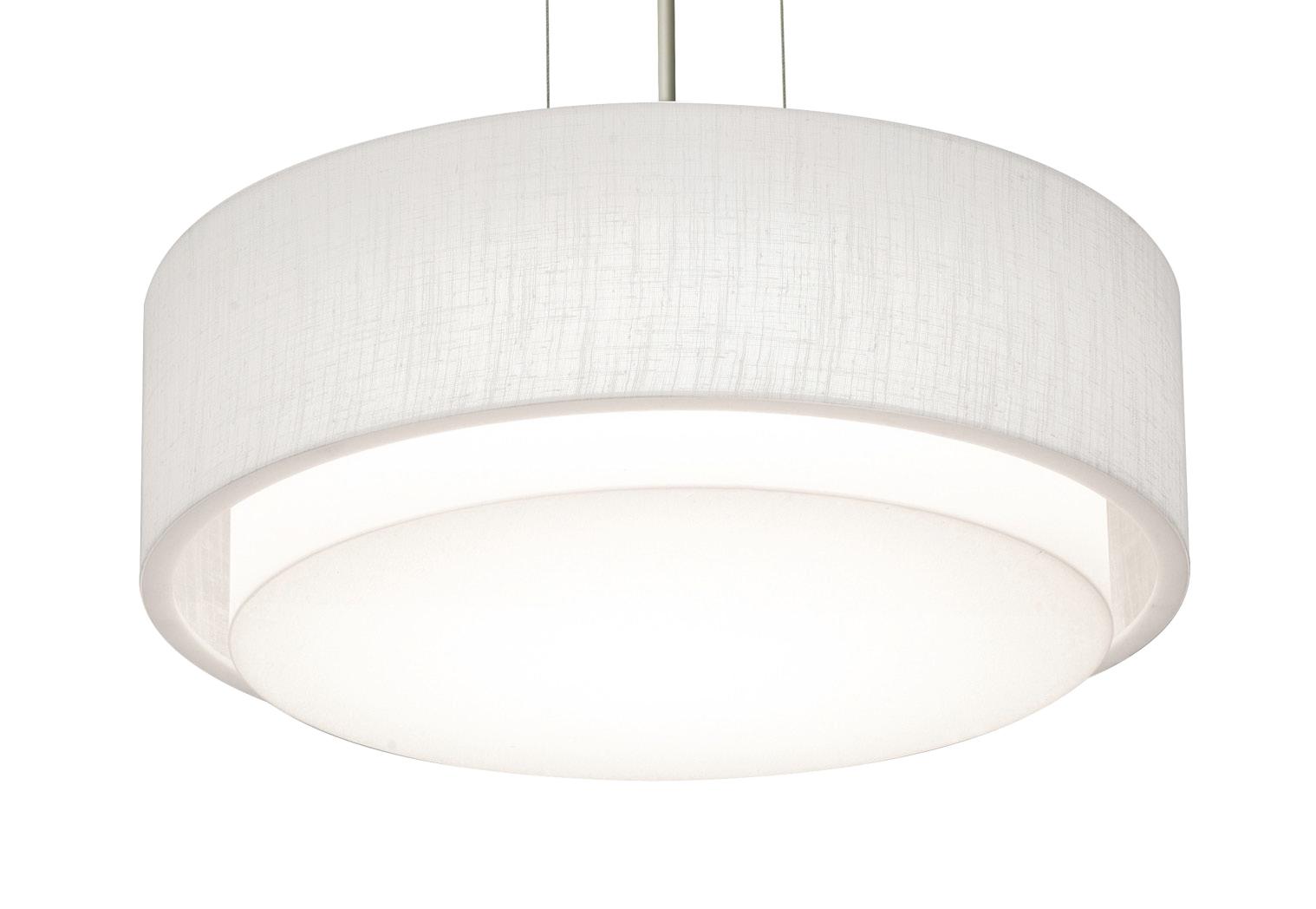

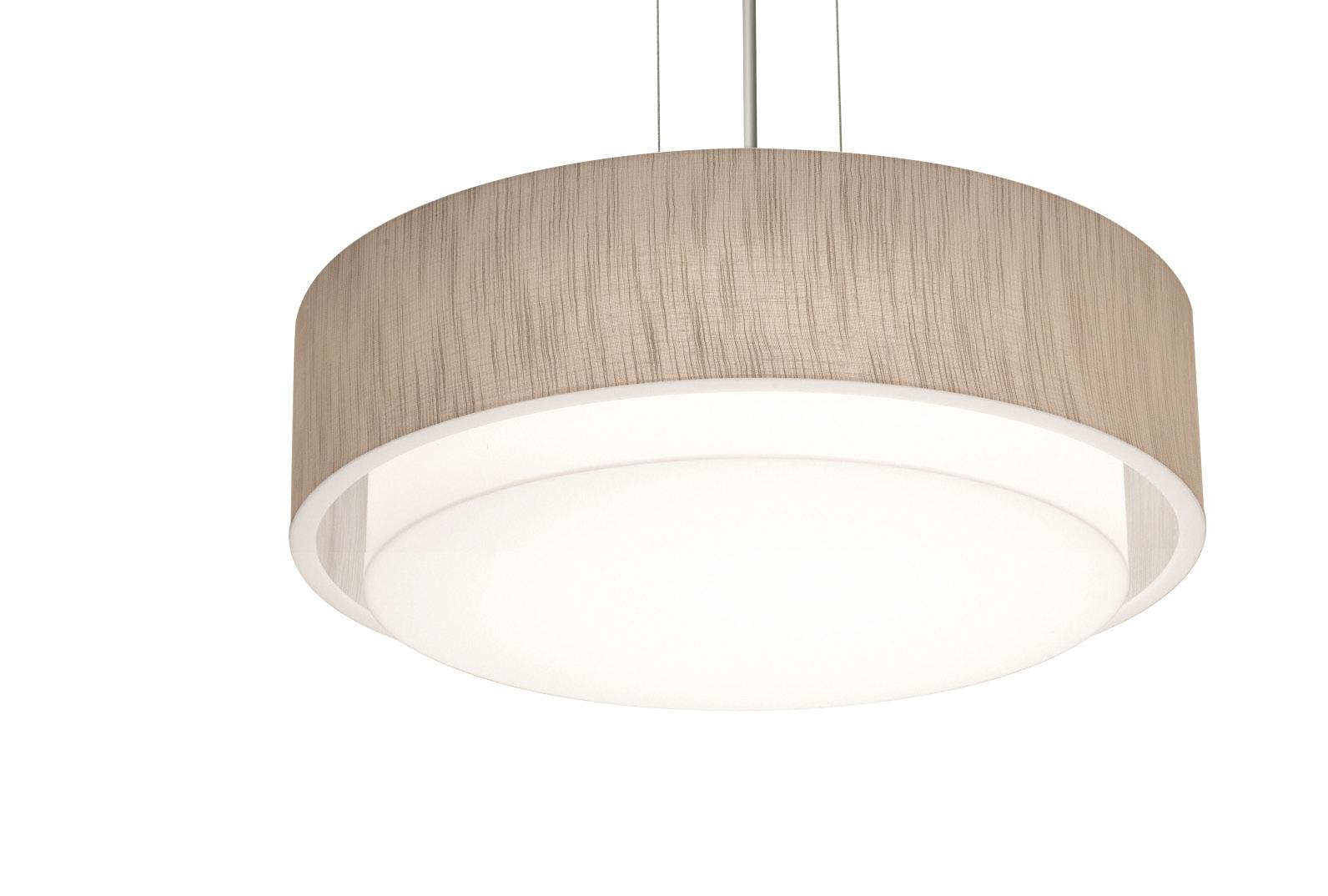

Sanibel Medium Base Pendant
SAP Series
Features
This modern double layer drum design provides a dramatic look and features Lumafuse™ laminated fabric/acrylic shade in 2 colors. White bottom acrylic diffuser disperses the light. Includes (2) 6" and (4) 12" adjustable stems with swivel on canopy for 60 deg sloped ceiling.
Construction
Metal housing and canopy. The canopy fits over a standard junction box. Power supply connections must be made inside a junction box (not included).
Finish Black or Satin Nickel finish.
Diffuser
Utilizing Lumafuse™ laminated fabric to acrylic in Jute or Linen White. Matte white acrylic bottom diffuser.
Electrical 120V medium base sockets.
Lamping
For use with 100W equivalent LED bulb. (2), (3) or (4) 25W Max medium base bulbs (lamps not included).
Certification
All fixtures are cETLus listed for indoor damp locations.
Options
Additional stems sold separately.
Warranty
Limited warranty: This fixture is free from defects in materials and workmanship for a period of 5 year from date of purchase.
Specifications and dimensions subject to change without notice.
This modern double layer drum design provides a dramatic look and features Lumafuse™ laminated fabric/acrylic shade in 2 colors. White bottom acrylic diffuser disperses the light. Includes (2) 6" and (4) 12" adjustable stems with swivel on canopy for 60 deg sloped ceiling.
Construction
Metal housing and canopy. The canopy fits over a standard junction box. Power supply connections must be made inside a junction box (not included).
Finish Black or Satin Nickel finish.
Diffuser
Utilizing Lumafuse™ laminated fabric to acrylic in Jute or Linen White. Matte white acrylic bottom diffuser.
Electrical 120V medium base sockets.
Lamping
For use with 100W equivalent LED bulb. (2), (3) or (4) 25W Max medium base bulbs (lamps not included).
Certification
All fixtures are cETLus listed for indoor damp locations.
Options
Additional stems sold separately.
Warranty
Limited warranty: This fixture is free from defects in materials and workmanship for a period of 5 year from date of purchase.
Specifications and dimensions subject to change without notice.
GTMB Graphite/Matte Black MP Maple CC Wall/Remote Combo
DBBS Dark Bronze/Brass MG Mahogany WW Whitewash
Dimensions
Specifications
– 6-speed, reversible DC motor
– Die cast aluminum construction
– 56” span, solid wood blades
– Includes 6” and 18” down rods (longer options also available)
– Optional LED light: 17W, 90 CRI, 3000K, 1530 lumens (dimmable) behind opal glass diffuser; adds 0.75” to length of fan; CA Title 24 (JA8) compliant
– Slope compatible up to 20°; adapter available for slopes up to 45°
– Designed by The Modern Fan Company
– ETL listed for dry and damp locations
– Weight: 13.0 lbs (5.9 kgs)
Performance Data
LOWEST SPEED
RPM: 50 CFM: 1,833 Watts: 2.87
CFM/W: 639
HIGHEST SPEED RPM: 160
5,741
w/ 6” down rod (shown)
Energy Guide Data
AverageEnergyUse 18 Watts
AverageAirflow 3,909 CFM
YearlyEnergyCost $5
AverageEfficiency 212 CFM/W
Energy Guide Data represents weighted averages of low speed and high speed performance, assuming typical use (excluding light). For more information, visit www.modernfan.com.

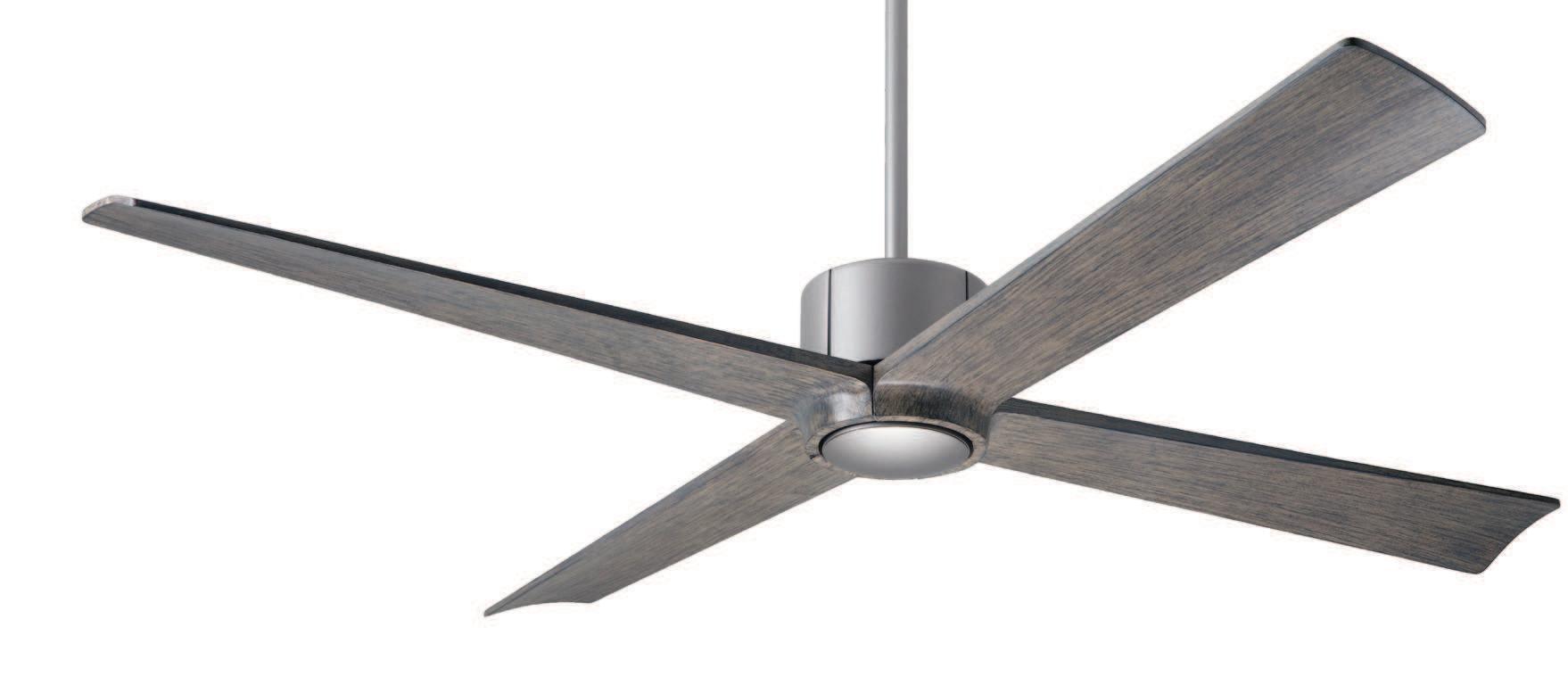

Nouveau DC
Nouveau DC > Configure item number from attributes below.
GTMB Graphite/Matte Black MP Maple CC Wall/Remote Combo
DBBS Dark Bronze/Brass MG Mahogany WW Whitewash
Dimensions
Specifications
– 6-speed, reversible DC motor
– Die cast aluminum construction
– 56” span, solid wood blades
– Includes 6” and 18” down rods (longer options also available)
– Optional LED light: 17W, 90 CRI, 3000K, 1530 lumens (dimmable) behind opal glass diffuser; adds 0.75” to length of fan; CA Title 24 (JA8) compliant
– Slope compatible up to 20°; adapter available for slopes up to 45°
– Designed by The Modern Fan Company
– ETL listed for dry and damp locations
– Weight: 13.0 lbs (5.9 kgs)
Performance Data
LOWEST SPEED
RPM: 50 CFM: 1,833 Watts: 2.87
CFM/W: 639
HIGHEST SPEED RPM: 160
5,741
w/ 6” down rod (shown)
Energy Guide Data
AverageEnergyUse 18 Watts
AverageAirflow 3,909 CFM
YearlyEnergyCost $5
AverageEfficiency 212 CFM/W
Energy Guide Data represents weighted averages of low speed and high speed performance, assuming typical use (excluding light). For more information, visit www.modernfan.com.
TYPE P3 SPEC SHALIMAR BOYNTON
Nouveau DC

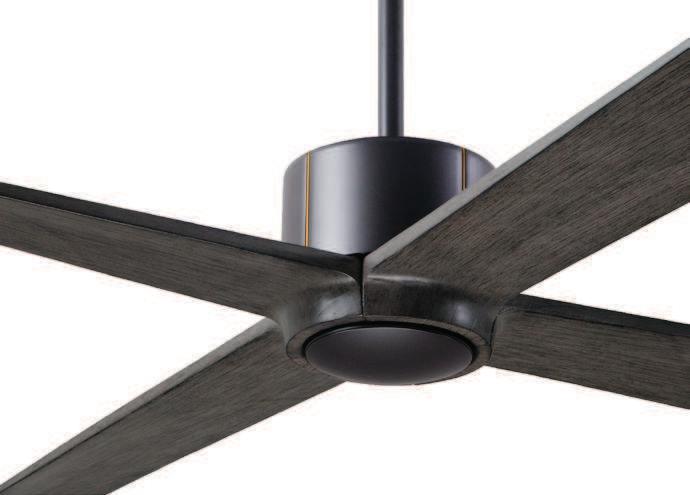

Dark Bronze/Brass with Ebony Blades (no light)
FAN FINISHES
Graphite/Matte Black with Maple Blades (no light)

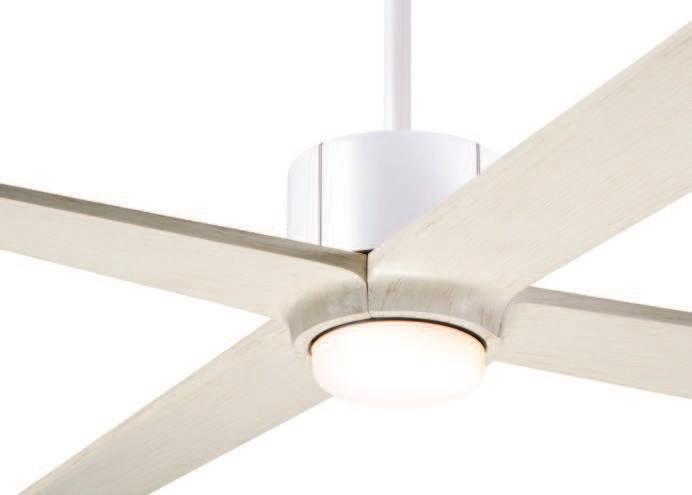

Matte White/Graphite with Whitewash Blades and 271 LED Light
SOLID WOOD BLADES
Solid wood blades are CNC milled from a light-weight and stable, plantation grown Paulownia, then hand-finished as shown here.
NOUVEAU DC CONTROLS
Nouveau DC controls use RF transmission to a receiving unit included with each fan, providing six speeds, reversing and light function (on/off or dimming). Control selection is made at time of order and incorporated into fan item number. Controls utilize dedicated (unique) RF channels to avoid interference with other ceiling fans installed nearby. The wall control (if ordered) also includes a master power switch.
Wall Control (WC) Remote Control (RC) Wall/Remote Combo (CC)
*The Nouveau DC must use one of the above control options. Third party fan controls are not compatible with this product. The Remote Control (RC) can be used in combination with a standard power switch (on-off) in wall box.
** Wall control unit is designed for operation of a single fan/fan light only. For multiple units on a single switch leg, the remote control option can be used if the fans are within suitable range. Contact Modern Fan customer support with questions or for additional guidance.
*** To replace lost or damaged control components or to add secondary control to existing control sets (e.g. to add a handset to an existing wall control system), contact Modern Fan Co. customer support for ordering guidance.

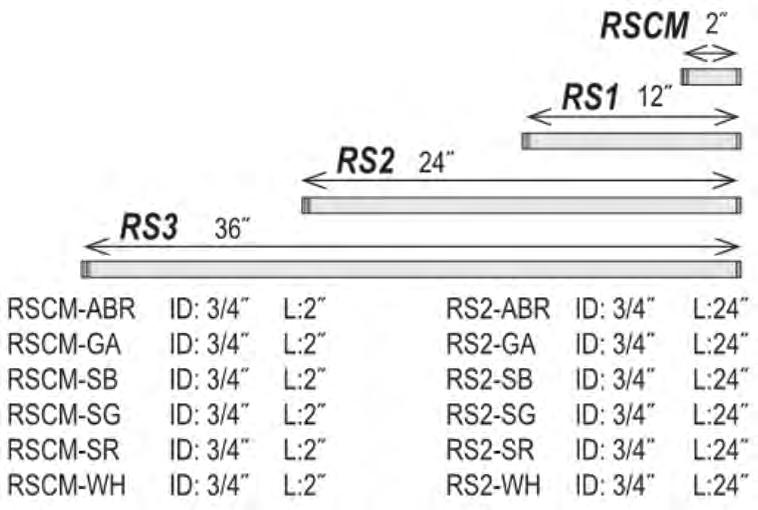

DOWN RODS
The Nouveau DC ships standard with 6”and 18” down rods. Use the following part numbers to order accessory down rods.
SLOPE ADAPTER
The Nouveau DC will accommodate ceiling slopes up to 20 degrees. The #045 slope adapter can accommodate slopes exceeding 20 degrees and up to 45 degrees.
Finish #045 –
MW Matte White
GT Graphite
DB Dark Bronze
Matte White/ Graphite Graphite/ Matte Black Dark Bronze/ Brass
Matte White/ Brass Graywash Mahogany Maple Ebony Whitewash
Nouveau DC
Dark Bronze/Brass with Ebony Blades (no light)
FAN FINISHES
Graphite/Matte Black with Maple Blades (no light)
Matte White/Graphite with Whitewash Blades and 271 LED Light
SOLID WOOD BLADES
Solid wood blades are CNC milled from a light-weight and stable, plantation grown Paulownia, then hand-finished as shown here.
NOUVEAU DC CONTROLS
Nouveau DC controls use RF transmission to a receiving unit included with each fan, providing six speeds, reversing and light function (on/off or dimming). Control selection is made at time of order and incorporated into fan item number. Controls utilize dedicated (unique) RF channels to avoid interference with other ceiling fans installed nearby. The wall control (if ordered) also includes a master power switch.
Wall Control (WC) Remote Control (RC) Wall/Remote Combo (CC)
*The Nouveau DC must use one of the above control options. Third party fan controls are not compatible with this product. The Remote Control (RC) can be used in combination with a standard power switch (on-off) in wall box.
** Wall control unit is designed for operation of a single fan/fan light only. For multiple units on a single switch leg, the remote control option can be used if the fans are within suitable range. Contact Modern Fan customer support with questions or for additional guidance.
*** To replace lost or damaged control components or to add secondary control to existing control sets (e.g. to add a handset to an existing wall control system), contact Modern Fan Co. customer support for ordering guidance.
DOWN RODS
The Nouveau DC ships standard with 6”and 18” down rods. Use the following part numbers to order accessory down rods.
SLOPE ADAPTER
The Nouveau DC will accommodate ceiling slopes up to 20 degrees. The #045 slope adapter can accommodate slopes exceeding 20 degrees and up to 45 degrees.
Finish #045 –
MW Matte White
GT Graphite
DB Dark Bronze
Matte White/ Graphite Graphite/ Matte Black Dark Bronze/ Brass
Matte White/ Brass Graywash Mahogany Maple Ebony Whitewash

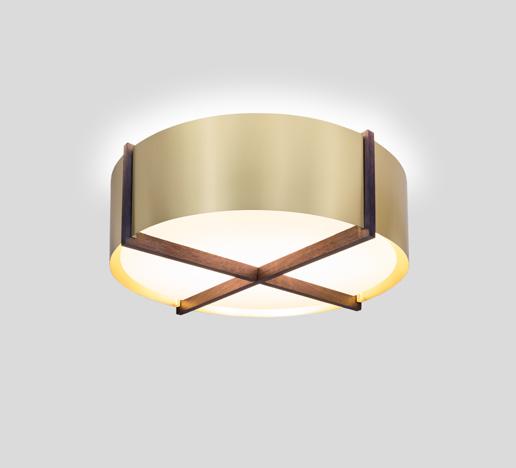

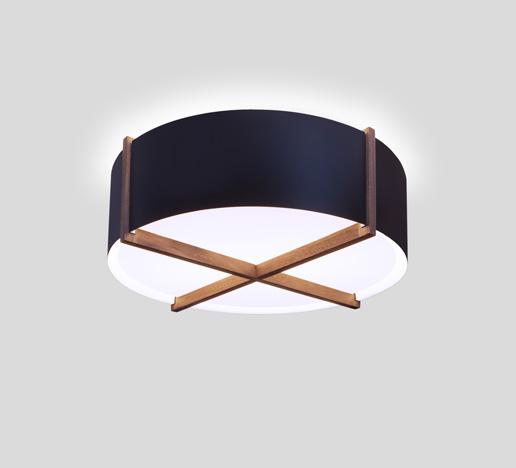

The Plura is a simple, straight forward fixture that is excellently executed. With the Plura it was about resolving the seams and edges and their relationships to one another. The result is a scalable fixture that has a sharp, sophisticated feel.

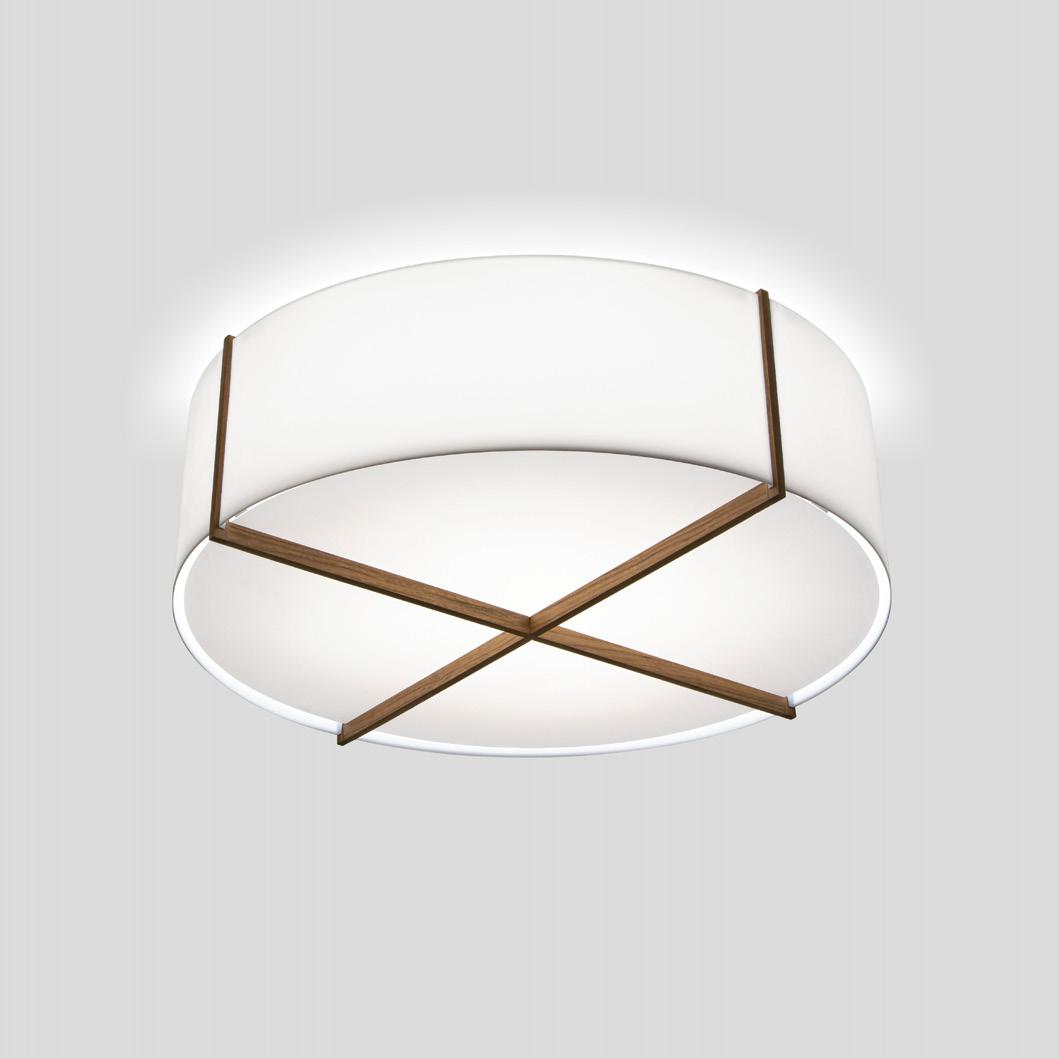

Plura flush mount
Dimensions:
Plura 18: 18" Ø, 6.4"
Plura 24: 24" Ø, 6.4"
Plura 30: 30" Ø, 8.4""
Plura 36: 36" Ø, 10.4"
Plura 46: 46" Ø, 12.4"
Materials: solid wood, polymer
Product weight:
MATERIAL & FINISH OPTIONS
Plura flush mount part # 08-100- -
Plura 18: 5 lb Plura
6 lb
9 lb
Integrated LED Specifications
Light output:
Plura 18 & 24: 1690 Lumens (source)
Plura 30, 36, & 46: 2815 Lumens (source)
Light color: 2700 K, 3000 K, 3500 K, or 4000 K
Color accuracy: 90+ CRI
Power usage:
Plura 18 & 24: 19.5 W
Plura 30, 36, & 46: 32.5 W
Dimmable (see driver below)
GU-24 Base Specifications
Light source:
Plura 18 & 24: 2x GU-24 base socket
Plura 30, 36, & 46: 4x GU-24 base socket
Lamping:
Plura 18 & 24: 2x GU-24 base selfballasted bulbs, 18 W max each
Plura 30, 36, & 46: 4x GU-24 base selfballasted bulbs, 18 W max each
Bulbs not included
Input voltage: 300 V AC max
Wood grain will vary
Specifications subject to change
Emergency backup option available upon request.
Also available in a pendant version.
Wood Body walnut (CM-001) W dark stained walnut (CM-002) D white washed oak (CM-095) O
Shade Material
frosted polymer (CM-051) F matte black (CM-085) with matte white interior B
brushed aluminum (CM-012) A brushed rose gold (CM-046) G brushed brass (CM-047) R distressed brass (CM-096) D gloss white (CM-054) W
sockets
Driver (LED version only)
AC Input Voltage Range:
V input: TRIAC, ELV & 0-10 V dimmable
& 277 V input: only 0-10 V dimmable
Includes: frosted polymer (CM-051)
Nick Sheridan, Designer walnut (CM-001) dark stained walnut (CM-002) white washed oak (CM-095)
frosted polymer (CM-051)
black (CM-085) with matte white interior
brushed rose gold (CM-046) brushed brass (CM-047) distressed brass (CM-096)
gloss white (CM-054)
36", dark stained walnut, frosted polymer
18", walnut, brushed brass
18", walnut, matte black with matte white
The Plura is a simple, straight forward fixture that is excellently executed. With the Plura it was about resolving the seams and edges and their relationships to one another. The result is a scalable fixture that has a sharp, sophisticated feel.
Plura flush mount
Dimensions:
Plura 18: 18" Ø, 6.4"
Plura 24: 24" Ø, 6.4"
Plura 30: 30" Ø, 8.4""
Plura 36: 36" Ø, 10.4"
Plura 46: 46" Ø, 12.4"
Materials: solid wood, polymer
Product weight:
MATERIAL & FINISH OPTIONS
Plura flush mount part # 08-100- -
Plura 18: 5 lb Plura
6 lb
Integrated LED Specifications
Light output:
Plura 18 & 24: 1690 Lumens (source)
Plura 30, 36, & 46: 2815 Lumens (source)
Light color: 2700 K, 3000 K, 3500 K, or 4000 K
Color accuracy: 90+ CRI
Power usage:
Plura 18 & 24: 19.5 W
Plura 30, 36, & 46: 32.5 W
Dimmable (see driver below)
GU-24 Base Specifications
Light source:
Plura 18 & 24: 2x GU-24 base socket
Plura 30, 36, & 46: 4x GU-24 base socket
Lamping:
Plura 18 & 24: 2x GU-24 base selfballasted bulbs, 18 W max each
Plura 30, 36, & 46: 4x GU-24 base selfballasted bulbs, 18 W max each
Bulbs not included
Input voltage: 300 V AC max
Wood grain will vary
Specifications subject to change
Emergency backup option available upon request.
Also available in a pendant version.
Wood Body
stained walnut (CM-002) D
washed oak (CM-095) O
Material frosted polymer (CM-051) F
black (CM-085) with matte white interior B
aluminum (CM-012) A brushed rose gold (CM-046) G brushed brass (CM-047) R distressed brass (CM-096) D gloss white (CM-054) W
Includes: frosted polymer (CM-051)
Nick Sheridan, Designer walnut (CM-001) dark stained walnut (CM-002) white washed oak (CM-095)
frosted polymer (CM-051)
black (CM-085) with matte white interior
brushed rose gold (CM-046) brushed brass (CM-047) distressed brass (CM-096)
Carisma Pendant is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending). A tailored end cap design and Amerlux’s trusted catch-and-latch mechanism prevents all light leakage.
The Carisma Pendant offers luminaires with 2” and 3" wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounting options, providing designers with the versatility to light up a space with their Carisma.
Product Overview
Type: Direct/Indirect distribution with Pendant or Wall Mounting Performance lens down/Batwing lens up
Wattage: 5W/ft, 10W/ft (or specify both direct & indirect wattage each between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
CRI: 80+ or 90+
Dimming (wired): 0-10V, 1% dimming (standard)
Lutron LDE1 Hi-lume® 1% Soft-On /Fade-to-Black DALI dimming, 1% dim
Continuous Runs: >8' (specify to the nearest foot) Custom: Made to measure lengths available (specify to nearest 1/8" of field dimensions). Requires approval drawings. Added cost & lead time. PROJECT:
Fixture Summary (see following pages for more information)
Performance Chart
Data is based on 3500K-80 IES files available on website
Data is based on 4' fixture with Performance lens direct & Batwing lens indirect
Runs
Individual Runs: 2' - 8' (specify in 1' increments)
Electrical Data
Carisma 2"
Linear Direct/Indirect LED
Features
Carisma Pendant is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending). A tailored end cap design and Amerlux’s trusted catch-and-latch mechanism prevents all light leakage.
The Carisma Pendant offers luminaires with 2” and 3" wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounting options, providing designers with the versatility to light up a space with their Carisma.
Product Overview
Type: Direct/Indirect distribution with Pendant or Wall Mounting Performance lens down/Batwing lens up
Wattage: 5W/ft, 10W/ft (or specify both direct & indirect wattage each between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
CRI: 80+ or 90+
Dimming (wired): 0-10V, 1% dimming (standard)
Lutron LDE1 Hi-lume® 1% Soft-On/Fade-to-Black DALI dimming, 1% dim
Continuous Runs: >8' (specify to the nearest foot) Custom: Made to measure lengths available (specify to nearest 1/8" of field dimensions). Requires approval drawings. Added cost & lead time. PROJECT:
Fixture Summary (see following pages for more information)
Performance Chart
Data is based on 3500K-80 IES files available on website
Data is based on 4' fixture with Performance lens direct & Batwing lens indirect
Runs
Individual Runs: 2' - 8' (specify in 1' increments)
Electrical Data
Carisma 2” Direct/Indirect
Linear Direct/Indirect LED
PROJECT: TYPE:
Model
CAR2-DI
Optics (select 1 for direct & 1 for indirect)
Direct:
PL - performance lens
ASY - asymmetric lens
Indirect:
BAT - batwing lens
Mounting
Pendant Mount (aircraft cable suspension)
ASW04 - through ceiling tile or gyp board, white, 4'*
ASW10 - through ceiling tile or gyp board, white, 10'
ASW20 - through ceiling tile or gyp board, white, 20'
ASB04 - through ceiling tile or gyp board, black, 4'*
ASB10 - through ceiling tile or gyp board, black, 10'
ASB20 - through ceiling tile or gyp board, black, 20'
ASW04T - over ceiling tee, white, 4'*
ASW10T - over ceiling tee, white, 10'
ASW20T - over ceiling tee, white, 20'
ASB04T - over ceiling tee, black, 4'*
ASB10T - over ceiling tee, black, 10'
ASB20T - over ceiling tee, black, 20'
Wall Mount
WM - wall mount
* 4' (xxx04) is standard length, other lengths are additional charge
Circuiting
1 - single circuit, direct & indirect are on the same circuit
2 - dual circuit, direct & indirect controlled independently
Note: 3' & below lengths must use single circuit.
Wattage (per foot, direct/indirect)
Standard: 5/5
10/10
5/10
10/5
Optional: Specify both direct & indirect wattage, each between 3 & 10 W/ft
Note: If specifying different wattage for direct and for indirect, then must specify dual circuit.
Color Temp
80+ CRI: 90+ CRI:
30 - 3000K-80+ 279 - 2700K-90+
35 - 3500K-80+ 309 - 3000K-90+
40 - 4000K-80+ 359 - 3500K-90+ 409 - 4000K-90+
Finish
HW - high reflectance matte white
BT - black texture
ST - silver texture
For other RAL color, consult factory
Voltage 120/277
Length
____________________ x ___________________ x ____________________ (Length A) (Length B) (Length C)
Length A (used for) Length B (used for) Length C (used for)
- all patterns - all patterns - PU
- IND - PR - 2 lengths - PZ
- CON of 2
- CUS
Configuration
IND1 - individual fixture, 2' to 8' in 1' increments
CON - continuous run > than 8', specify to nearest foot
CUS - custom made to measure lengths (specify to nearest 1/8" of field dimensions)
Standard Patterns (see page 6 for details):
PLL - L left, (2) straights + (1) 90° corner, leg right
PLR - L right, (2) straights + (1) 90° corner, leg left
PU - U shape, (3) straight lengths + (2) 90° corners
The 1965 Pendant was originally designed by Paavo Tynell in 1948. Like many of his best-known designs, the pendant was designed for the Finland House in New York - one of the most ambitious and successful projects of all time to showcase Finnish design. Perfecting the techniques of metal finishes, Tynell developed the 1965 Pendant with his exceptional ability to capture and translate a grace and exuberant lightness into his brass creations. Characterized by its triangular perforation pattern, an artistic detail utilised by Tynell in several of his lighting objects, the 1965 Pendant reflects the distinguished craftsmanship of the Finnish designer. With a frosted glass diffuser that softens the light, the pendant contributes to a subtle and tranquil environment.
VERSION - 1965 Pendant
Canopy and small parts // Polished Brass.
Fabric wire // Brass.
Wire // Steel.
Diffuser // Transparent glass, frosted on one side. Shade variations // Brass, Black, White, Red, or Green.
- Soft Black / White inside // RAL 9011 / RAL 9002 // Gloss level 15-20 /
- Classic White / White inside // RAL 9002 / RAL 9002 // Gloss
- Chianti Red / White inside // RAL 3004 / RAL 9002 // Gloss level 15-20 / Gloss level 10-15
- Bistro Green / White inside // RAL 6012 / RAL 9002 // Gloss level 15-20 / Gloss level 10-15
Due to natural materials surface and structure can vary.
MEASUREMENTS
Order item - look for part number
in the pricelist.
Series contains the following:
FACTS
OF PARCELS A1965 Pendant 1 pcs. 5321 Table Lamp 9464 Wall Lamp 9602 Floor Lamp
// Soft Black // Chianti Red
// Classic White // Brass
// Bistro Green
1965 Pendant // Brass base, US TYNELL COLLECTION
Designed by Paavo Tynell
PRODUCT COLOURS
DESCRIPTION
The 1965 Pendant was originally designed by Paavo Tynell in 1948. Like many of his best-known designs, the pendant was designed for the Finland House in New York - one of the most ambitious and successful projects of all time to showcase Finnish design. Perfecting the techniques of metal finishes, Tynell developed the 1965 Pendant with his exceptional ability to capture and translate a grace and exuberant lightness into his brass creations. Characterized by its triangular perforation pattern, an artistic detail utilised by Tynell in several of his lighting objects, the 1965 Pendant reflects the distinguished craftsmanship of the Finnish designer. With a frosted glass diffuser that softens the light, the pendant contributes to a subtle and tranquil environment.
VERSION - 1965 Pendant
Canopy and small parts // Polished Brass.
Fabric wire // Brass.
Wire // Steel.
Diffuser // Transparent glass, frosted on one side. Shade variations // Brass, Black, White, Red, or Green.
Optional GU24 LED : (1)10W GU24 Self Ballast LED Max
Optional LED : 10W 800 Initial lumens
Dimension : 11" H x 3.5" Dia.
Notes :
Made in the USA, This item is available in up to 40 handpainted finishes, as well as unfinished ceramic bisque (BIS) which is paintable, Group 1 Two-tone finishes are unavailable, Optional integrated LED engine available; Color Temperature = 3000K; Minimum CRI = 90; Dimming is compatible with Incandescent/Triac or ELV dimmers; 2700K, 3500K and 4000K color temperatures available upon request.
Lamping: LED
Justice Design Group, LLC. Los Angeles, California
Telephone: (800) 533-4799 (213) 437-0102
Fax: (800) 533-2911 (213) 437-0860
Email: sales@JDG.com Website: www.JDG.com

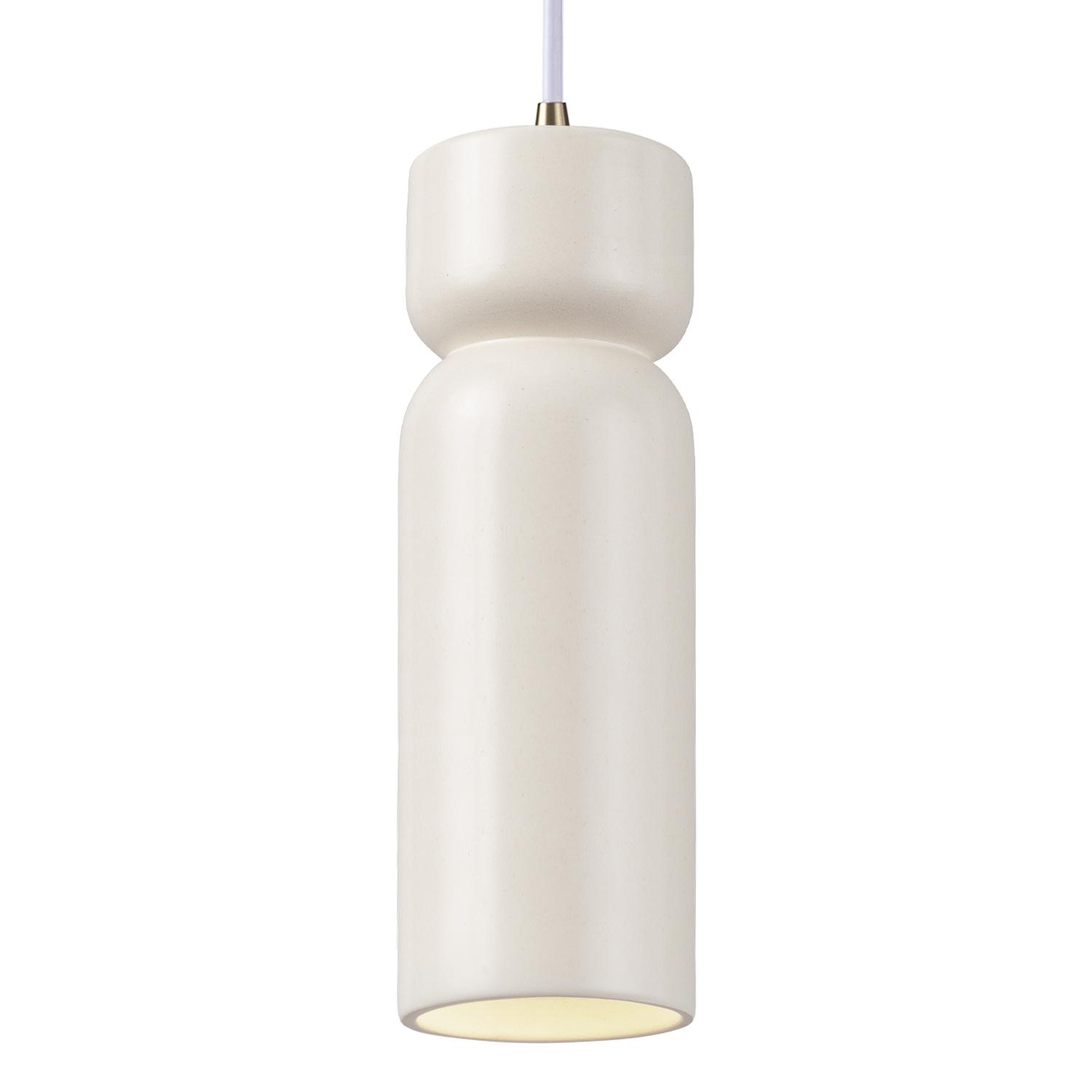

Ceramic Tall Hourglass Pendant
GLAZES (GROUP 1):
Matte White (MAT)
Metal Finish:
Antique Brass (ABRS)
Cord Option:
White Cord (WTCD)
Configured SKU: CER-6510-MAT-ABRS-WTCD
Description : Tall Hourglass Pendant
Primary Shade Material : Ceramic
Frame Style : Tall Hourglass Pendant
Finish Groups : Bisque, 1, 2, 4
UL/ETL Listing : Suitable for Damp Locations
Feature : Ceramic, Made in USA
Standard Incandescent : (1)40W A-19 Max
Optional GU24 LED : (1)10W GU24 Self Ballast LED Max
Optional LED : 10W 800 Initial lumens
Dimension : 11" H x 3.5" Dia.
Notes :
Made in the USA, This item is available in up to 40 handpainted finishes, as well as unfinished ceramic bisque (BIS) which is paintable, Group 1 Two-tone finishes are unavailable, Optional integrated LED engine available; Color Temperature = 3000K; Minimum CRI = 90; Dimming is compatible with Incandescent/Triac or ELV dimmers; 2700K, 3500K and 4000K color temperatures available upon request.
Lamping: LED
Justice Design Group, LLC. Los Angeles, California
Telephone: (800) 533-4799 (213) 437-0102
Fax: (800) 533-2911 (213) 437-0860
Email: sales@JDG.com Website: www.JDG.com
TYPE R SPEC SHALIMAR BOYNTON

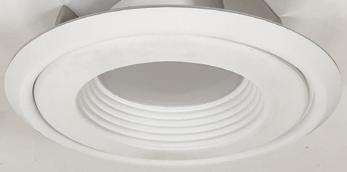

NOXAC-432
4" AC Onyx LED Retrofit Baffle
Source: 10.5W or 15W Up to 700lm or 1000lm
PRODUCT DESCRIPTION
4" AC Onyx Retrofit Series requires no driver and allow for a sleek design . Spun aluminum construction provides clean sharp edges and is suitable for use with most 4" recessed housings. Deep regressed optics and round aperture deliver even and glare-free illumination.
FEATURES
Up to 700 or 1000 delivered lumens
2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Dimmable AC LED
Includes medium base socket adapter for easy retrofitting in 4" recessed housings
Quick connector is compatible with dedicated LED housings
5-year limited warranty
· Classified for wet locations
ENERGY STAR certified
SPECIFICATION
Reflector: One piece, spun aluminum construction dissipates heat and extends life. Unitized Thermal Management, UTM, provides exceptional cool operation.
Mounting: Two steel, spring mounting blades allow for easy and secure mounting in most 4" housings.
Retrofit: Luminaires include a medium base screw-socket adapter (NRA-211SM) for retrofitting into medium base downlight housings. Intended to be used as a LED lamp replacement. GU24 socket adapter (NRA-212SM) is available
ELECTRICAL (blank) /HL
Input Voltage 120VAC
Frequency 60Hz
Input Power 10.5W 15W
Color Temperature 3500K, 4000K, 5000K 2700K, 3000K, 3500K, 4000K, 5000K
Dimming Triac / ELV
Operating Temp. 35°C max.25°C max.
COMPATIBLE HOUSINGS
Onyx retrofits are compatible with most 4" IC and Non-IC housings by Nora and others. Fire Box
NFJB-R4* ICAT Junction Box (700lm only)
NFBIC-4LMRATA* IC Air-Tight Dedicated LED Firebox
NFBIC-427LMRATA* Shallow ICAT Dedicated LED Firebox
NOXAC-432 / NOX-4OR-W White Oversize Ring NOXAC-432 / NOX-4EYELIDW White Eyelid
Optional Accessories
Description
NOX-4EYELIDW = 4" Round White Eyelid
NOX-4OR-W = 4" Round White Oversize Ring
NRA-211SM = Medium base screw-in socket (included w/ each)
NRA-212SM = Socket adapter for use with GU24 housings
032224P1
4" AC Onyx LED Retrofit Baffle
SHALIMAR BOYNTON TYPE
NOXAC-432
4" AC Onyx LED Retrofit Baffle
Source: 10.5W or 15W Up to 700lm or 1000lm
PRODUCT DESCRIPTION
4" AC Onyx Retrofit Series requires no driver and allow for a sleek design . Spun aluminum construction provides clean sharp edges and is suitable for use with most 4" recessed housings. Deep regressed optics and round aperture deliver even and glare-free illumination.
FEATURES
Up to 700 or 1000 delivered lumens
2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Dimmable AC LED
Includes medium base socket adapter for easy retrofitting in 4" recessed housings
Quick connector is compatible with dedicated LED housings
5-year limited warranty
· Classified for wet locations
ENERGY STAR certified
SPECIFICATION
Reflector: One piece, spun aluminum construction dissipates heat and extends life. Unitized Thermal Management, UTM, provides exceptional cool operation.
Mounting: Two steel, spring mounting blades allow for easy and secure mounting in most 4" housings.
Retrofit: Luminaires include a medium base screw-socket adapter (NRA-211SM) for retrofitting into medium base downlight housings. Intended to be used as a LED lamp replacement. GU24 socket adapter (NRA-212SM) is available
ELECTRICAL (blank) /HL
Input Voltage 120VAC
Frequency 60Hz
Input Power 10.5W 15W
Color Temperature 3500K, 4000K, 5000K 2700K, 3000K, 3500K, 4000K, 5000K
Dimming Triac / ELV
Operating Temp. 35°C max.25°C max.
COMPATIBLE HOUSINGS
Onyx retrofits are compatible with most 4" IC and Non-IC housings by Nora and others. Fire Box
NFJB-R4* ICAT Junction Box (700lm only)
NFBIC-4LMRATA* IC Air-Tight Dedicated LED Firebox
NFBIC-427LMRATA* Shallow ICAT Dedicated LED Firebox
NOXAC-432 / NOX-4OR-W White Oversize Ring NOXAC-432 / NOX-4EYELIDW White Eyelid
Optional Accessories
Description
NOX-4EYELIDW = 4" Round White Eyelid
NOX-4OR-W = 4" Round White Oversize Ring
NRA-211SM = Medium base screw-in socket (included w/ each)
NRA-212SM = Socket adapter for use with GU24 housings
032224P1
4" AC Onyx LED Retrofit Baffle
TYPE R SPEC SHALIMAR
NHIC-4LMRAT
4" IC Air-Tight LED Dedicated New Construction Housing (Compatible with Iolite / Cobalt / Marquise / Onyx / Pearl)
PRODUCT DESCRIPTION
Dedicated new construction housing for use in insulated ceilings can be in direct contact with insulation.* Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with LED retrofit luminaires.
FEATURES
IC rated for direct contact with insulation
Quick connect provided for electrical connection to the LED downlights
ASTM E283 for Air-Tight
24-1/2" bar hangers with captive nails and alignment foot
CONSTRUCTION
Plaster Frame: High quality 0.04" steel die cut one piece frame
Housing: 0.040 galvanized steel housing with riveted cap adjusts for ceiling thicknesses from 5/8" to 1". Spring brackets accept torsion wing trim springs; slots on socket plate surface accept standard coil springs.
Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L” Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.
Junction Box: Prewired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2 " trade size knockouts and four Romex pryouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box.
ELECTRICAL
Input Voltage: 120/277V or 277V (must specify)
Socket: Quick connect for LED downlights
Operating Temperature: 122°F (50°C) max. Dimming: Specified by downlight
Step Down Transformer (converts 277V input to 120V): Optional 50W step down transformer installed (NHIC-4LMRAT/277). Maximum of 6 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box when used with step down transformer.
COMPATIBILITY
NIR-4 = 4" Iolite Retrofit
NLCBC-4 / NLCBC2-4 = 4" Cobalt Retrofit
NRMC2-4 = 4" Marquise II Retrofit
NOX-4 / NOXAC-4 / NOXTW-4 = 4" Onyx Retrofit
NPR-4 = 4" Pearl Retrofit
Emergency: Housing can be specified with an emergency battery installed on frame (Cobalt only). Requires top access.
Up to 7.5W emergency illumination with LEDs
Illumination Time: 90min
Voltage: 120/277 VAC, 60Hz
Output Voltage: 15.0-50.0 VDC
Remote test switch included
LABELS AND LISTINGS
cULus Listed for Damp Location (wet location when used with compatible downlight)
ENERGY STAR certified
· Meets or exceeds ASTM-283 Air-Tight requirements Certified to the high efficacy requirements of California Title 24 JA8-2022 (when used with compatible downlight) RoHS compliant
Type
Project
Catalog No.
4" IC Air-Tight LED Dedicated New Construction Housing
NHIC-4LMRAT/277 = 4” IC Air-Tight Housing, 277V input with 50W Step Down Transformer
NHIC-4LMRAT/EM = 4" IC Air-Tight Housing with Emergency Battery and Remote Test Switch, 120/277V input (Cobalt only - EM required)
NHIC-4LMRAT/4W = 4" IC Air-Tight Housing, 120/277V input (120V Triac/ELV/0-10V & 277V 0-10V dimming, Cobalt only - LE4 required)
NHIC-4LMRAT/277EM = 4" IC Air-Tight Housing with Emergency Battery and Remote Test Switch, 277V input with 50W Step Down Transformer (Cobalt only - EM required)
NHIC-4LMRAT/6WEM = 4" IC Air-Tight Housing with Emergency Battery and Remote Test Switch, 120/277V input (120V Triac/ELV/0-10V & 277V 0-10V dimming, Cobalt only - LE4EM required)
Example: NHIC-4LMRAT = 4" IC Air-Tight LED Dedicated New Construction Housing, 120/277V input
4" IC Air-Tight LED Dedicated New Construction Housing (Compatible with Iolite / Cobalt / Marquise / Onyx / Pearl)
PRODUCT DESCRIPTION
Dedicated new construction housing for use in insulated ceilings can be in direct contact with insulation.* Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with LED retrofit luminaires.
FEATURES
IC rated for direct contact with insulation
Quick connect provided for electrical connection to the LED downlights
ASTM E283 for Air-Tight 24-1/2" bar hangers with captive nails and alignment foot
CONSTRUCTION
Plaster Frame: High quality 0.04" steel die cut one piece frame
Housing: 0.040 galvanized steel housing with riveted cap adjusts for ceiling thicknesses from 5/8" to 1". Spring brackets accept torsion wing trim springs; slots on socket plate surface accept standard coil springs.
Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L” Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.
Junction Box: Prewired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2 " trade size knockouts and four Romex pryouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box.
ELECTRICAL
Input Voltage: 120/277V or 277V (must specify)
Socket: Quick connect for LED downlights
Operating Temperature: 122°F (50°C) max. Dimming: Specified by downlight
Step Down Transformer (converts 277V input to 120V): Optional 50W step down transformer installed (NHIC-4LMRAT/277). Maximum of 6 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box when used with step down transformer.
COMPATIBILITY
NIR-4 = 4" Iolite Retrofit
NLCBC-4 / NLCBC2-4 = 4" Cobalt Retrofit
NRMC2-4 = 4" Marquise II Retrofit
NOX-4 / NOXAC-4 / NOXTW-4 = 4" Onyx Retrofit
NPR-4 = 4" Pearl Retrofit
Emergency: Housing can be specified with an emergency battery installed on frame (Cobalt only). Requires top access.
Up to 7.5W emergency illumination with LEDs
Illumination Time: 90min
Voltage: 120/277 VAC, 60Hz
Output Voltage: 15.0-50.0 VDC
Remote test switch included
LABELS AND LISTINGS
cULus Listed for Damp Location (wet location when used with compatible downlight)
ENERGY STAR certified
· Meets or exceeds ASTM-283 Air-Tight requirements Certified to the high efficacy requirements of California Title 24 JA8-2022 (when used with compatible downlight) RoHS compliant
Type
Project
Catalog No.
4" IC Air-Tight LED Dedicated New Construction Housing
NHIC-4LMRAT/277 = 4” IC Air-Tight Housing, 277V input with 50W Step Down Transformer
NHIC-4LMRAT/EM = 4" IC Air-Tight Housing with Emergency Battery and Remote Test Switch, 120/277V input (Cobalt only - EM required)
NHIC-4LMRAT/4W = 4" IC Air-Tight Housing, 120/277V input (120V Triac/ELV/0-10V & 277V 0-10V dimming, Cobalt only - LE4 required)
NHIC-4LMRAT/277EM = 4" IC Air-Tight Housing with Emergency Battery and Remote Test Switch, 277V input with 50W Step Down Transformer (Cobalt only - EM required)
NHIC-4LMRAT/6WEM = 4" IC Air-Tight Housing with Emergency Battery and Remote Test Switch, 120/277V input (120V Triac/ELV/0-10V & 277V 0-10V dimming, Cobalt only - LE4EM required)
Example: NHIC-4LMRAT = 4" IC Air-Tight LED Dedicated New Construction Housing, 120/277V input
INTENDED USE — Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T5 and T8 lengths. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, cove and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Compact-design channel and cover are formed from code-gauge cold-rolled steel. Easy to install row aligner included for continuous row mounting.
Finish: Paint options include high-gloss, baked white enamel (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). After fabrication, five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Standard diffuse snap on/snap off lens eliminates pixels, improves uniformity and minimizes glare. L/LENS option available.
ELECTRICAL — L70>60,000hours. Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 2.) Electronic LED driver is rated for 75 input watts maximum (see Operational Data on page 4 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide nominal 80 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,000 lumens per foot. In 86°F (30°C) ambient environments. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION — Tool-less channel cover for easy installation.
Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Three-point aligner locks in place for easy continuous row mounting. LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -40°F (-40°C) and 86°F (30°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
48" and 96" Lengths
L/Lens
Lensed

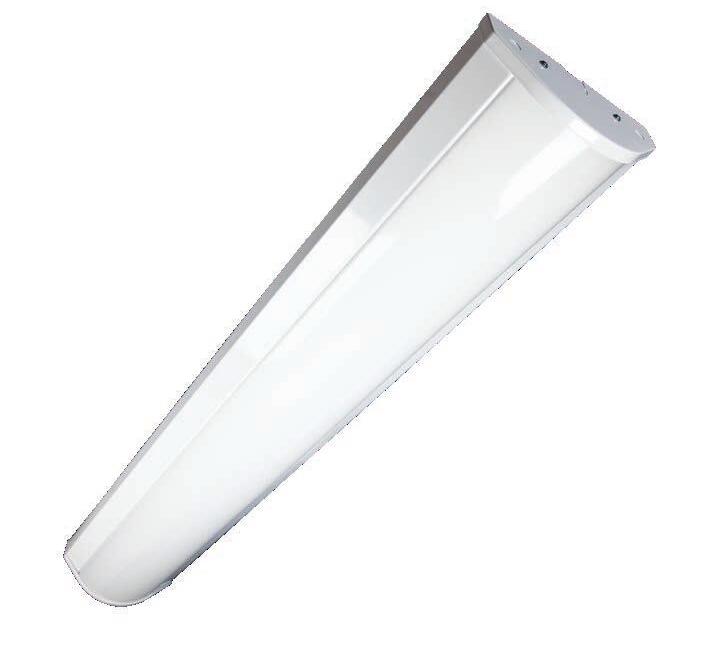

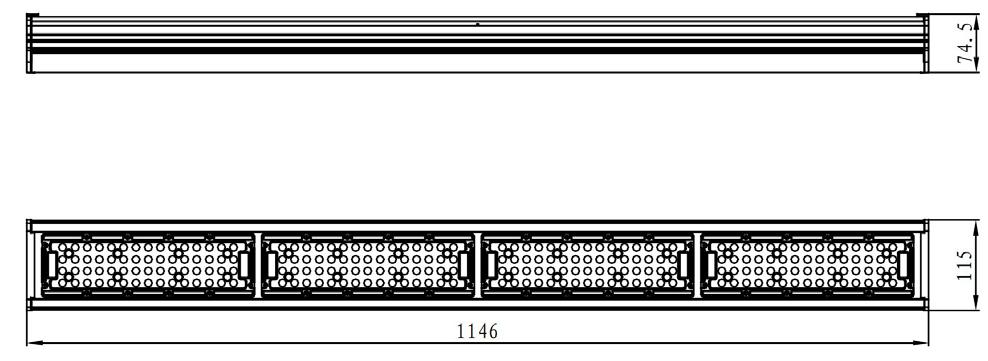

Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
• Wattage selectable 35/45/55W
• Co lor Selectable 35/40/50K
• Optional battery backup
Ideal Applications
• Commercial settings
• Stairways
• Bi-level dimming microwave motion sensor
• Surface or pendant mounting
• In dustrial settings
• Warehouses
ZL1N LED Striplight
A+ Capable options indicated by this color background.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
ZL1N LED striplight L24 24" ‡ (blank) Less reflector SMR Symmetric 1500LM 1,500 lumens 2500LM 2,500 lumens 3500LM 3,500 lumens
Accessories: Order as separate catalog number.
HC36 M12 Hanger chain, 36" (1 pair)
E7W 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E7W 2) 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E10W 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E10W (2) 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E15WLCP Power Sentry® PS1555LCP, 15 watt emergency battery, Certified in CA Title 20 MAEDBS (LINK )‡
OUTEND Cord set to exit endplate of fixture
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless ‡
NLTAIR2
RLSXR10 nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights) (LINK )
NLTAIR2
RLSXR10EM nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights),UL 924 Emergency Operation, via power interrupt detection (not available with battery pack) (LINK ) ‡
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
ZLANGBKT Luma-tilt™ angle bracket for shelf or ledge mounting only
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
Field Installed Accessories: YTGHANGER - 10’ adjustable cable hang kit
Listings
Five year limited warranty against defects
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.

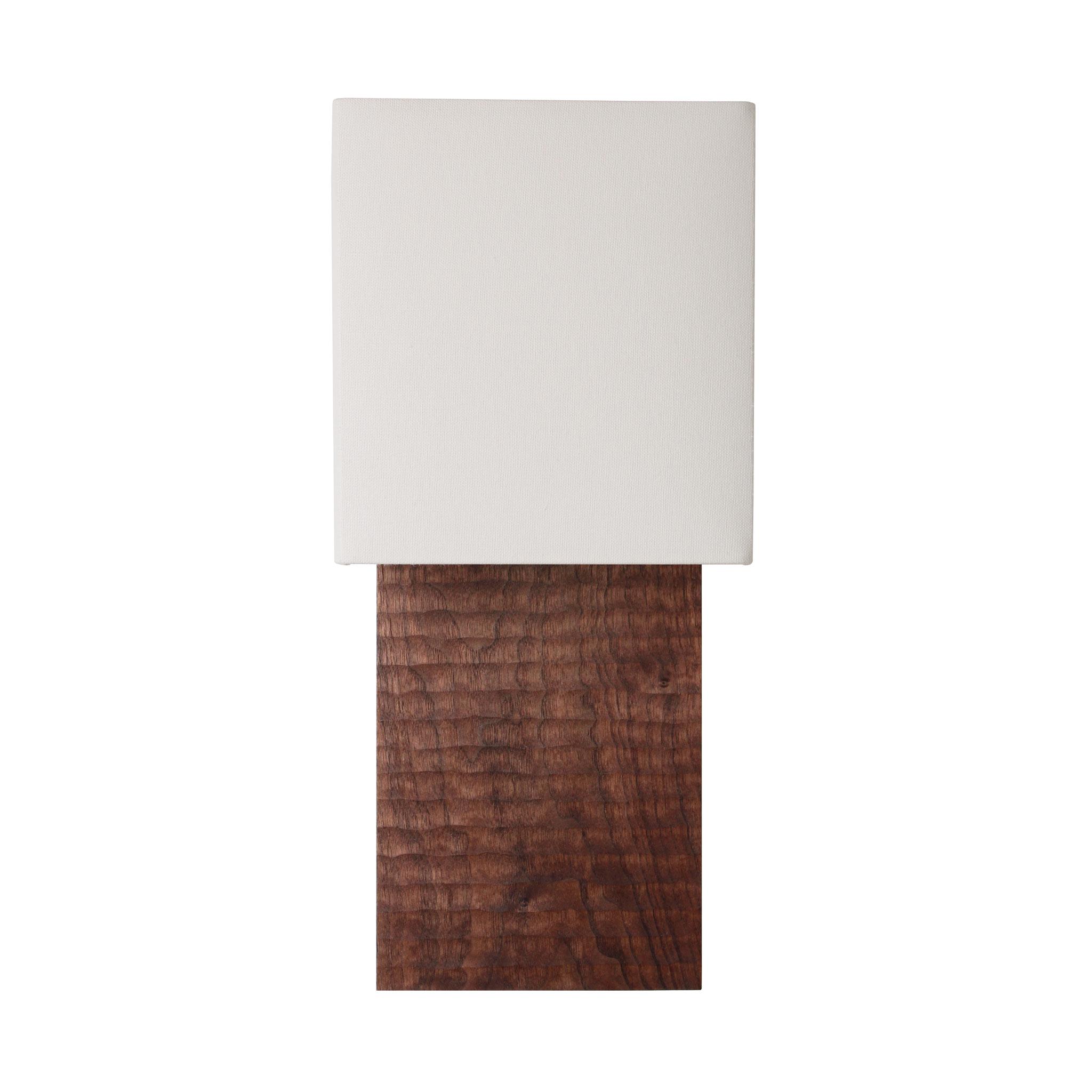

ODE SCONCE
Compositions in wood. Drawing inspiration from northwest regional sculptors of the 1960s & 70s, this original design is hand-carved in Portland from a single piece of solid American hardwood and finished with a plant-based 0% VOC oil.
SPECIFICATIONS
•7" W x 15.75” H x 3.875” D
• Weight: 2.5 lb
•Center mount 9“ from bottom
•Old or new work round junction box recommended for installation.
Not compatible with round pan or single gang style junction boxes.
•Meets ADA standard
LAMPING
• (1) E26 base
• 120V
• 40 W max
• (1) Dimmable LED bulb included 5W, 550 lumen, 2700K
• UL certified for damp locations
CERTIFICATIONS
ODE SCONCE
Compositions in wood. Drawing inspiration from northwest regional sculptors of the 1960s & 70s, this original design is hand-carved in Portland from a single piece of solid American hardwood and finished with a plant-based 0% VOC oil.
SPECIFICATIONS
•7" W x 15.75” H x 3.875” D
• Weight: 2.5 lb
•Center mount 9“ from bottom
•Old or new work round junction box recommended for installation.
Not compatible with round pan or single gang style junction boxes.
•Meets ADA standard
LAMPING
• (1) E26 base
• 120V
• 40 W max
• (1) Dimmable LED bulb included 5W, 550 lumen, 2700K
• UL certified for damp locations
CERTIFICATIONS

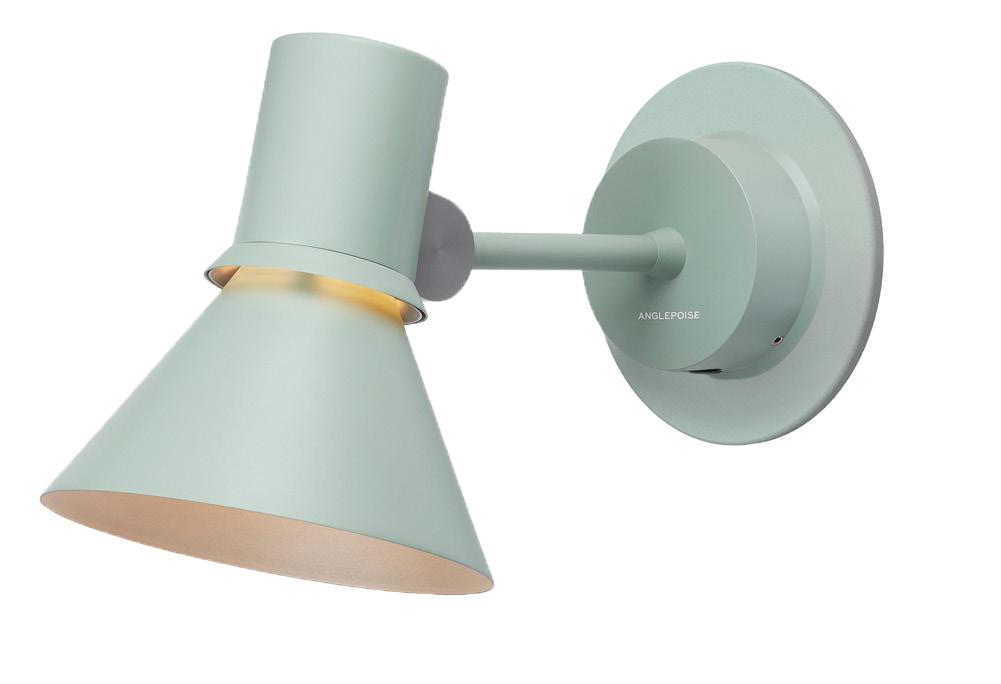

Type 80™
Type 80™ Collection | Technical Sheet
Product
Launched In 2019 | Designed by Sir Kenneth Grange
W1 Wall Light - Grey Mist
W1 Wall Light - Matte Black
W1 Wall Light - Pistachio Green W1 Wall Light - Rose Pink
Description
Distinguished by a striking, graphic profile, Type 80’s design is further enhanced by an attractive ‘halo’ light-escape feature in the shade. Every detail has been carefully considered and precision engineered to deliver streamlined style, ease of use and consistency across the collection. The lamp features sprung joint mechanisms with an accessible on-shade on/off switch. The wall sconce is visually aligned and easy to install.
Materials
-Matt paint and Anodised Aluminum finish
-Aluminum shade
-Steel Stem
-Anodised machined joint
-Aluminum and Steel wall plate
-Color-matched Junction Box Mounting Kit
-IP20 rating
Dimensions
-Shade diameter: 5.7in
-Shade height: 6.3in
-Max Reach: 12.6in (from wall to shade)
-Product Dimensions: 10.4in x 5.8in x 6.3in (L x W x H)
-Lamp Packaging: 7.7in x 7.1in x 12.8in (L x W x H)
-Lamp Packaged Weight: 3.4 lbs
Electrical
-cUL Certified
-Voltage: 110/120V, 50/60Hz
-Integrated shade switch
-E26 Lamp holder
-Maximum permitted bulb: 10W LED
-Supplied with a compatible LED bulb:
-4W LED Bulb
-Luminous Intensity: 380lm
-Life: 15,000 Hours
-Non-dimmable
-Color Temperature: 2700K
-CRI (Ra) : ≥ 80
Type 80™
Type 80™ Collection | Technical Sheet
Product
Launched In 2019 | Designed by Sir Kenneth Grange
W1 Wall Light - Grey Mist
W1 Wall Light - Matte Black
W1 Wall Light - Pistachio Green
W1 Wall Light - Rose Pink
Description
Distinguished by a striking, graphic profile, Type 80’s design is further enhanced by an attractive ‘halo’ light-escape feature in the shade. Every detail has been carefully considered and precision engineered to deliver streamlined style, ease of use and consistency across the collection. The lamp features sprung joint mechanisms with an accessible on-shade on/off switch. The wall sconce is visually aligned and easy to install.
Materials
-Matt paint and Anodised Aluminum finish
-Aluminum shade
-Steel Stem
-Anodised machined joint
-Aluminum and Steel wall plate
-Color-matched Junction Box Mounting Kit
-IP20 rating
Dimensions
-Shade diameter: 5.7in
-Shade height: 6.3in
-Max Reach: 12.6in (from wall to shade)
-Product Dimensions: 10.4in x 5.8in x 6.3in (L x W x H)
STEMS: 10" (Model 490025), 16" (Model 490023) and 18” (Model 490026) stems are sold separately.
SOCKET/LAMP HOLDER:
One fixed ceramic bi-pin socket in stem accepts bi-pin lamps with G4 or GY6.35 bases.
LAMP TYPE:
12V bi-pin. LED recommended. Halogen 35W maximum or 6W LED maximum.
MOUNTING:
1/2" NPT. Heavy-duty composite stake included with stem. May be mounted into threaded hubs in junction boxes or other mounting accessories.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
ARCHITECTURAL COLORS:
FINE TEXTURE SILVER
FINE TEXTURE WHITE
FINE TEXTURE BLACK
DIMENSIONS:
490020-S (clear lens)
490021-S (frosted lens)
490020-WH (clear lens)
490021-WH (frosted lens)
490020-BLK (clear lens)
490021-BLK (frosted lens)
Type:
Model:
THE PATH LIGHT WITH CLEAR LENS ONLY (490020) IS NOW OFFERED IN BLACK AS A STANDARD INVENTORY ITEM.

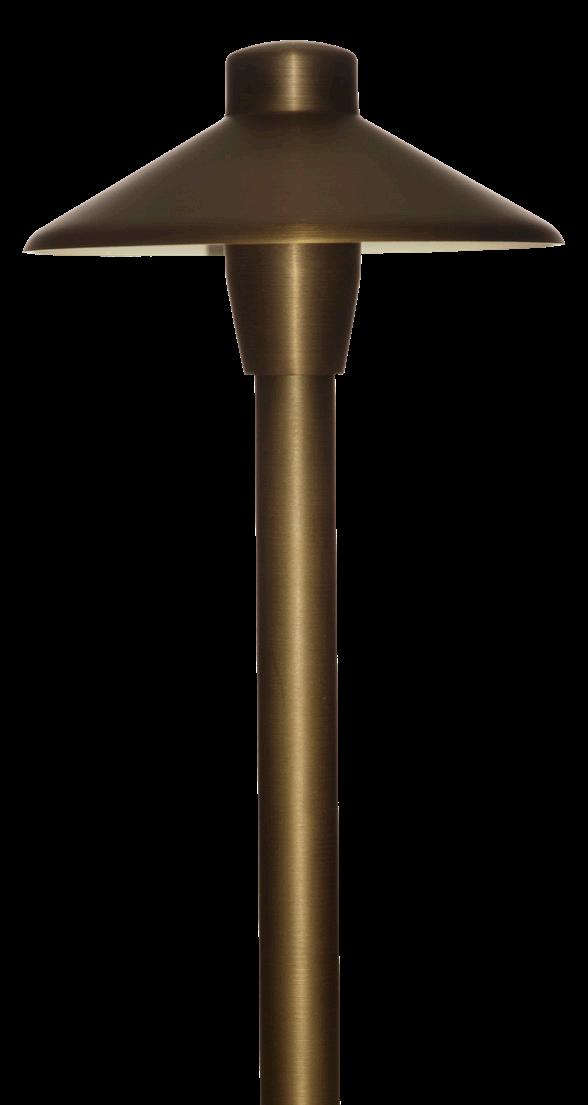

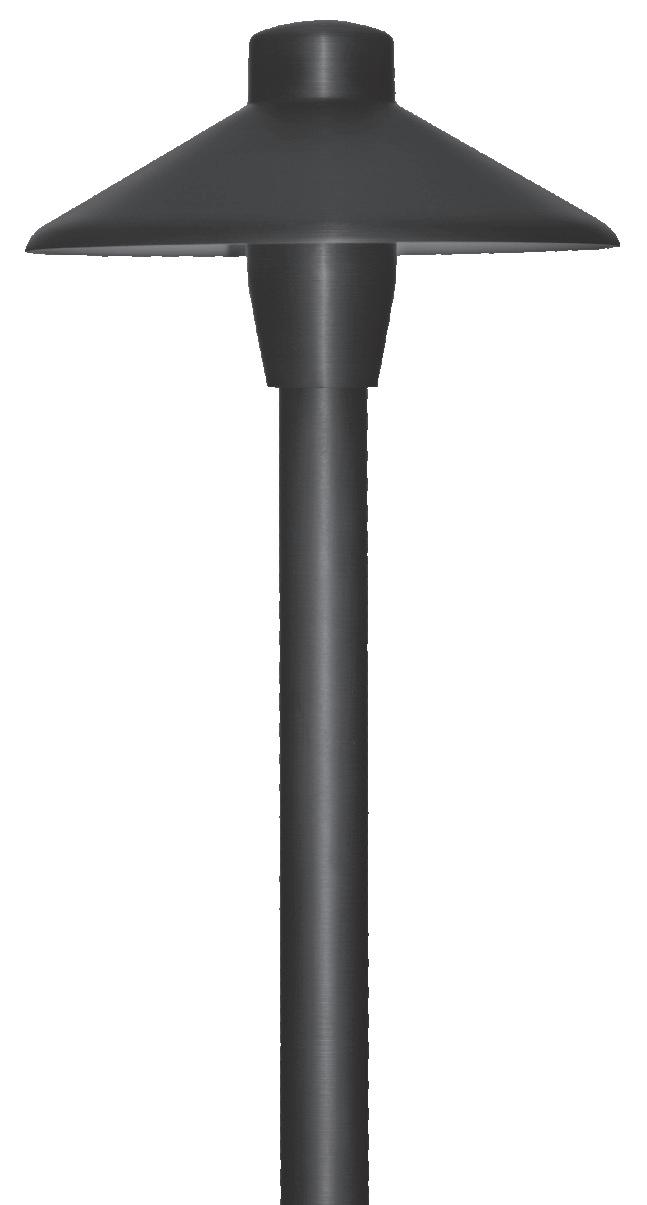

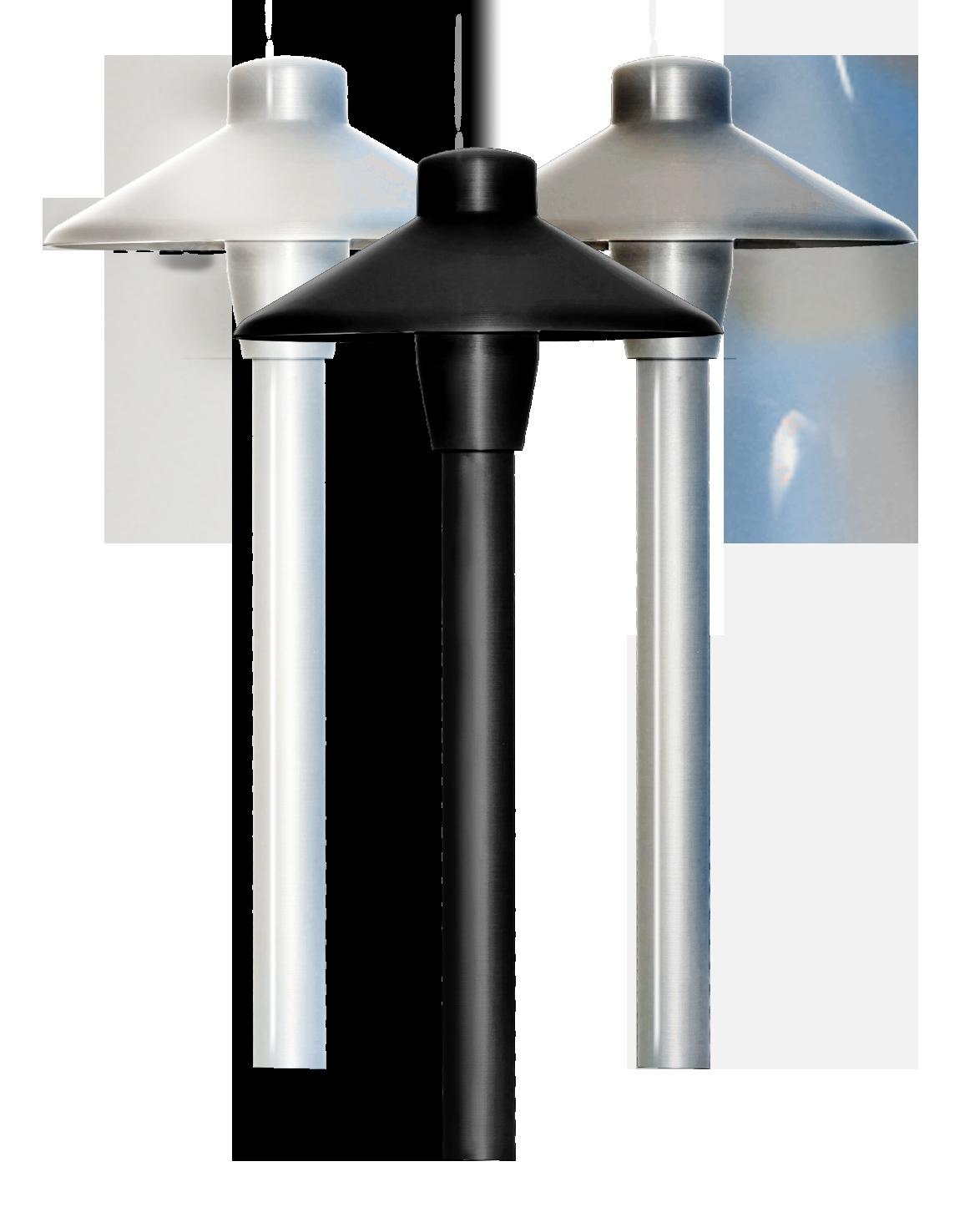

The Zen path light features a 6.3-inch-diameter cast brass hat. Its underside is a powder-coated reflective white surface. Impact-resistant clear or frosted lens options.
BLANK
LED LAMP SPECIFICATIONS
LAMP TYPE:
Dauer encapsulated bi-pin with 5-year warranty.
COLOR TEMPERATURES: 2700K or 3000K. Decorative colors include amber, blue, green and red.
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490020-490025-4W-E-2700K-MS
(clear lens)
490020
490020-S
490020-WH
490020-BLK
(frosted lens)
490021
490021-S
490021-WH
490021-BLK
SPECIFICATION SHEET Page 2
LED Bi-Pin Path Light Fixture
Trident Heavy-Duty 3-Prong Stake 490036
Round pier mount 490057 MR Round tapered 3-hole surface mount 490048 MP PVC/Brass post stake 490037
BLANK
SPECIFICATION SHEET

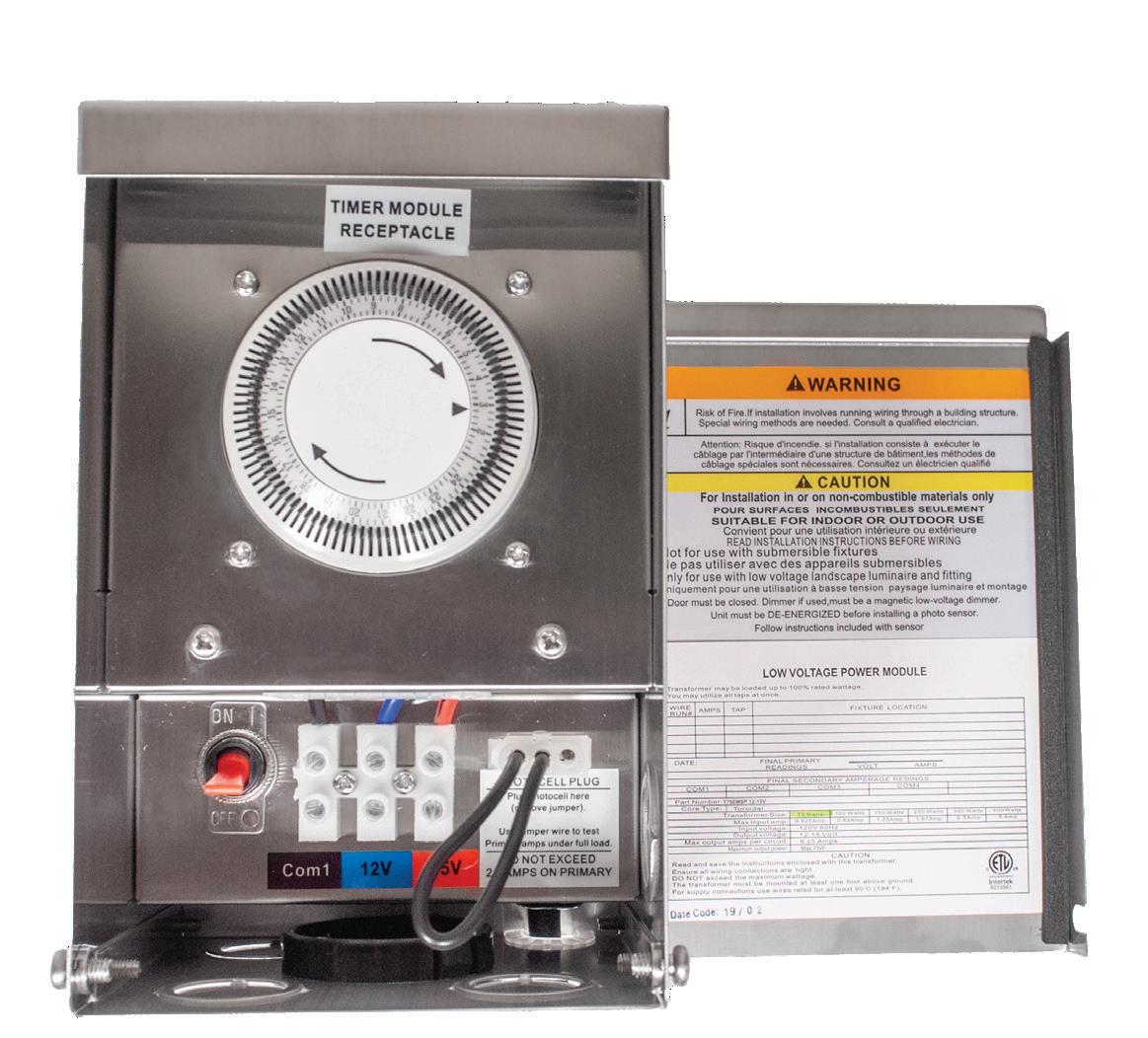

75W INTEGRAL TIMER TRANSFORMER
ORDERING CODE: 490549
SPECIFICATIONS
OUTPUT:
75W, 6.25A. Connectors for 12V and 15V. One common tap.
INPUT:
120V, 60Hz, 0.625A
HOUSING:
Stainless steel housing and removable front panel. Pre-punched bottom and side panels.
FEATURES:
Breaker, analog timer, heavy-duty grounded 5-foot power cord. Photocell plug. Suitable for interior or exterior use.
AGENCY LISTINGS:
ETL approved (5013561). Conforms to ANSI/UL-1838.
WARRANTY:
Three years.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS: Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.

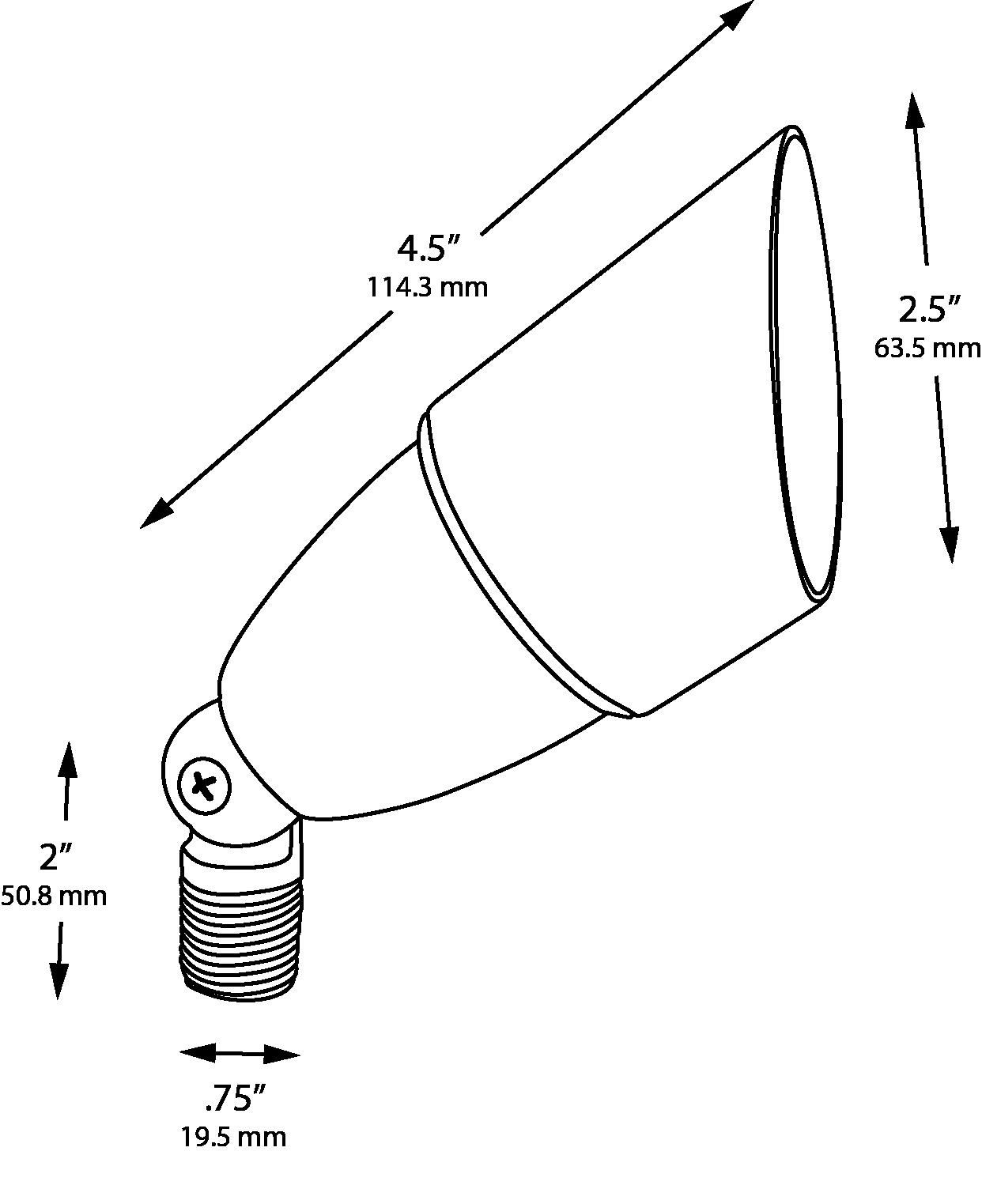

DIMENSIONS:
Type:
Model:

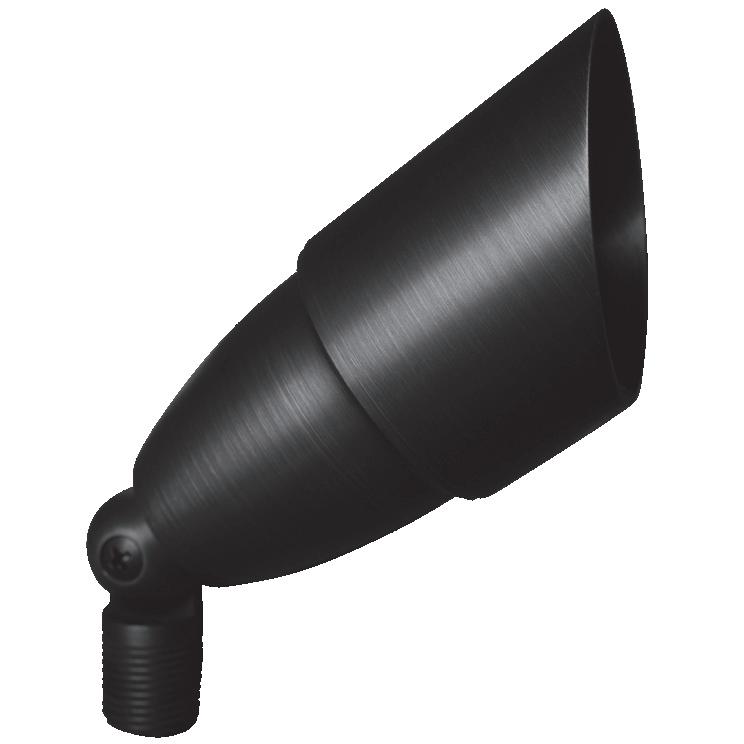

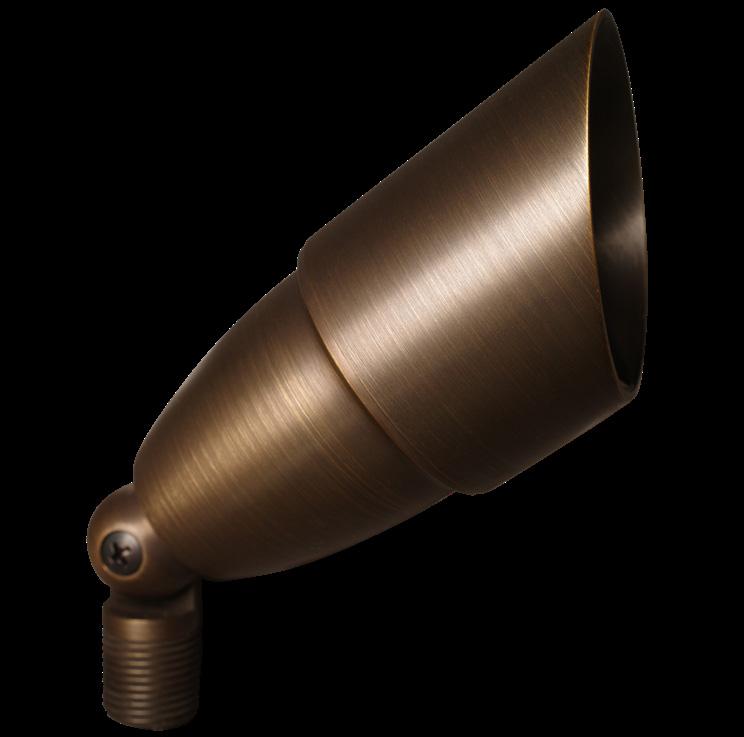

The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
BLANK
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
490003-BLK
490003-FS (floating socket)
490003-FS-BLK (floating socket)
Composite stake (incl.) 490034
M3 Trident Heavy-Duty 3-Prong Stake 490036
PM Round pier mount 490057
MR Round tapered 3-hole surface mount 490048 MP PVC/Brass post stake 490037
Brass gutter mount 490047
BLANK
SHALIMAR BOYNTON

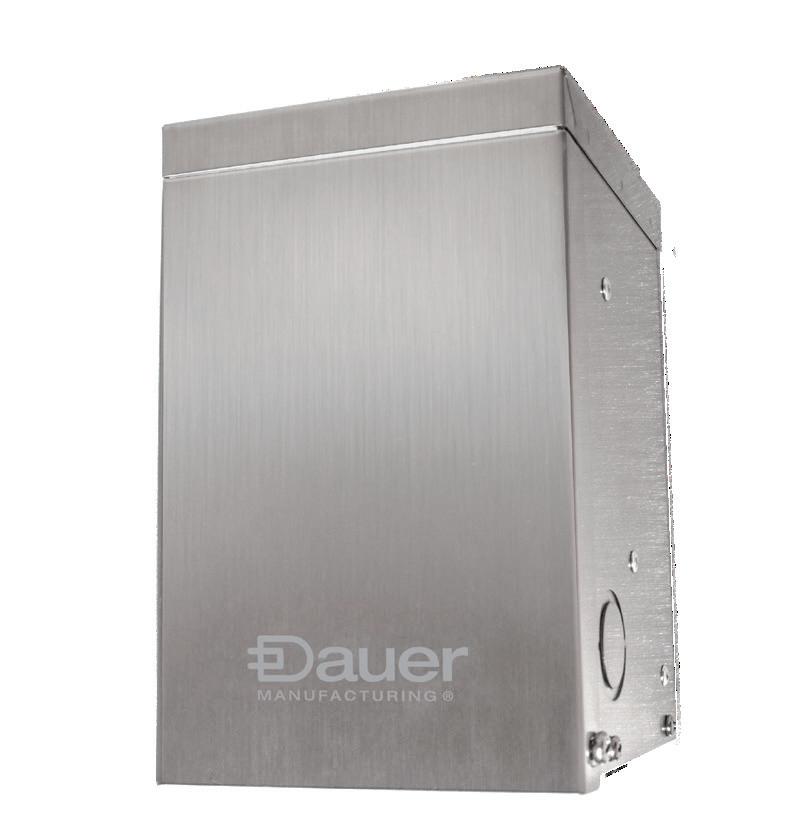

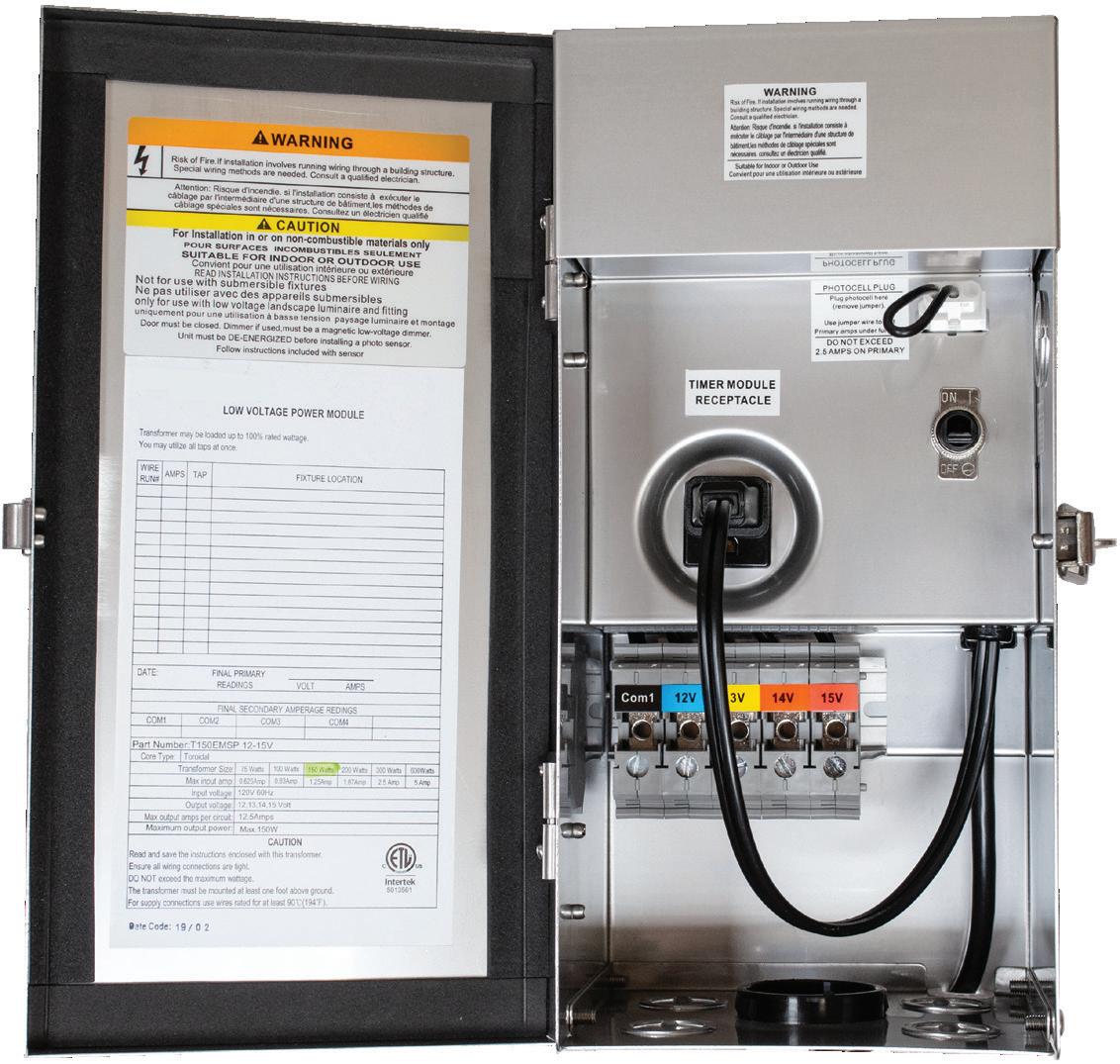

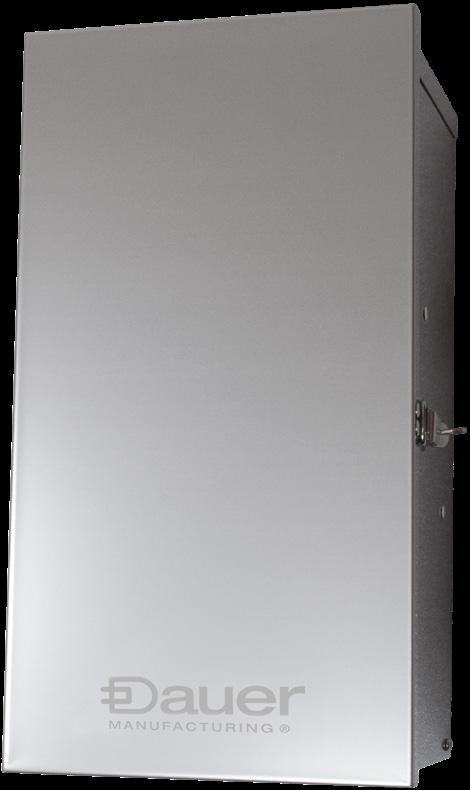

150W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490541
SPECIFICATIONS
OUTPUT:
150W, 12.5A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT: 120V, 60HZ, 1.25A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 12.5A breaker, heavy-duty grounded 5-foot power cord. suitable for interior or exterior use.
AGENCY LISTINGS: ETL approved (5013561). Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
ORDERING INFORMATION:
To order a transformer with an option, select the appropiate choices from each column as in the following example: EXPAMPLE: 490541-DT200LT
SPECIFICATION SHEET
Type:
Model:
DIMENSIONS:

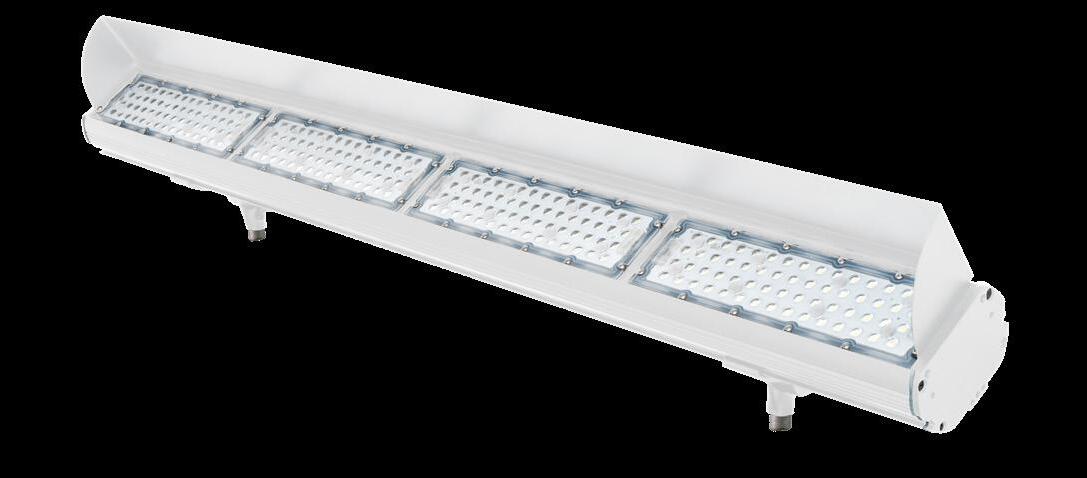

Type WASH LIGHT
NO SPECIFICATION
INTENDED USE
SPECIFICATION SHEET
Our Alcon 31027 is a specification grade sign light featuring a die-cast aluminum body suitable for outdoor wet applications. This fixture is Ideal for outdoor wall wash, parking structures, commercial or retail outdoor areas, and for sign and walkway lighting.
FEATURES
Construction:Die-cast aluminum with removable half shroud (included)
Mounting: Removable 1/2” NPT threaded knuckles (included), surface mounting bracket for ceiling and wall applications (optional).
Voltage: 120~277V; 50/60Hz AC
THD: <20%
CRI:70+
LED Life:50,000 hrs
Operating Temp:-40°F to 104°F
Beam Angle: 90°
Cord Type: 3.2 SJTW 18/3 AWG cable
Warranty:5 Years Carefree for Parts & Components (Labor Not Included)
Listings:DLC Rated, IP65, Wet Location Rated
ORDERING INFORMATION Example: (31027-2-30-BK-NPT)
Mounting Options
(Blank)Removable 1/2” NPT Knuckles
Ceiling & Wall Bracket

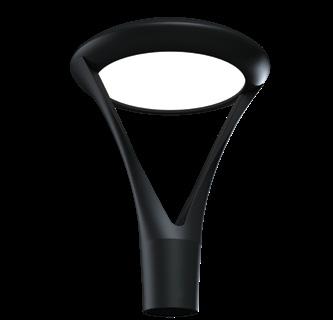

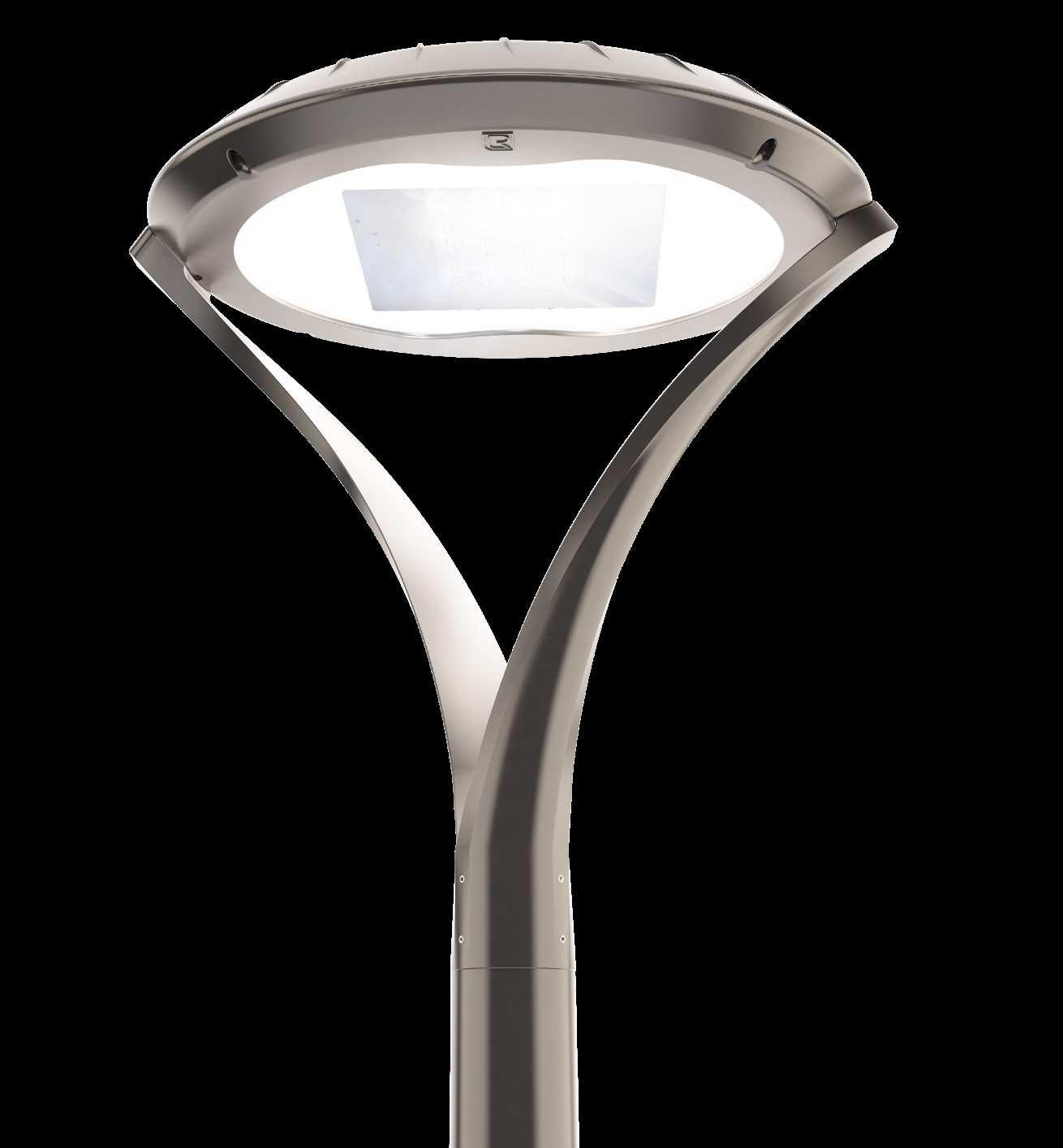

Opulence Small Post Top (OPS)
Outdoor Decorative Post Top
OVERVIEW
Lumen Package (lm)3,000 - 14,000
Wattage Range (W) 20 - 100
Efficacy Range (LPW) 120 - 155
Weight lbs (kg) 25 (11.3)
Control Options IMSBT, ALBCS, 7-Pin
FEATURES & SPECIFICATIONS
Construction
• Rugged die-cast aluminum housing.
• Fixtures are finished with LSI’s DuraGrip® polyester powder coat finishing process. The DuraGrip finish withstands extreme weather changes without cracking or peeling. Other standard LSI finishes available. Consult factory.
Optical System
• High density LED optical system delivers industry leading optical performance and visual comfort.
• 7 distribution types 3W, 4F, 5Q, 5C, 5R, 5D & AD
• Diffused lens version provides maximum visual comfort with reduced brightness and LED pixelization
• Available in 5000K, 4000K, 3500K, 3000K and 2700K color temperatures per ANSI C78.377. Also available in Phosphor Converted Amber with Peak intensity at 610nm.
• Minimum CRI of 80
• External Shield available for field installation (see accessory ordering information and dimensions for details).
Electrical
• High-performance driver features overvoltage, under-voltage, short-circuit and over temperature protection (6kV surge standard).
• 0-10V dimming driver (optional extended leads).
QUICK LINKS
• Standard Universal Voltage (120-277 VAC) Input 50/60 Hz or optional High Voltage (347-480 VAC).
• Total harmonic distortion (THD): <20%
• Operating temperature: -40°C to +40°C (-40°F to +104°F).
• Power factor (PF): >.90
• Input power stays constant over life.
• Field replaceable 10kV surge protection device meets a minimum Category C Low operation (per ANSI/IEEE C62.41.2).
• Driver is fully encased in potting material for moisture resistance and complies with FCC standards. Driver and key electronic components can easily be accessed.
Controls
• Integral passive infrared Bluetooth™ motion and photocell sensor options. Fixtures operate independently and can be commissioned via an iOS or Android configuration app.
• LSI’s AirLink™ Blue lighting control system is a simple feature rich wireless Bluetooth mesh network. The integrated fixture sensor module provides wireless control of grouped fixtures based on motion sensors, daylight or a fully customizable schedule. Updates and modifications to the control strategy are easily implemented via an intuitive iOS app.
Installation
• Designed to mount directly to a 2 3/8” - 3” outer diameter tenon (4” tall).
• Optional flush mount accesory slips inside the top of a 4” round pole for a virtually seamless transition from pole to luminaire.
Warranty
• LSI luminaires carry a 5-year limited warranty. Refer to https://www.lsicorp. com/resources/terms-conditionswarranty/ for more information.
Listings
• Listed to UL 1598 and UL 8750.
• Meets Buy American Act requirements.
• IDA compliant; with 3000K and warmer color temperature selection.
• Title 24 Compliant; see local ordinance for qualification information.
• Suitable for wet locations.
• IP66 rated Luminaire per IEC 60598-1.
• 3G rated for ANSI C136.31 high vibration applications.
• DesignLights Consortium® (DLC) Premium qualified product. Not all versions of this product may be DLC Premium qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
www.ragni-lighting.com
TYPE P1 SPEC SHALIMAR
Opulence Small Post Top (OPS) Outdoor Decorative Post Top
• Fixtures are finished with LSI’s DuraGrip® polyester powder coat finishing process. The DuraGrip finish withstands extreme weather changes without cracking or peeling. Other standard LSI finishes available. Consult factory.
Optical System
• High density LED optical system delivers industry leading optical performance and visual comfort.
• 7 distribution types 3W, 4F, 5Q, 5C, 5R, 5D & AD
• Diffused lens version provides maximum visual comfort with reduced brightness and LED pixelization
• Available in 5000K, 4000K, 3500K, 3000K and 2700K color temperatures per ANSI C78.377. Also available in Phosphor Converted Amber with Peak intensity at 610nm.
• Minimum CRI of 80
• External Shield available for field installation (see accessory ordering information and dimensions for details).
Electrical
• High-performance driver features overvoltage, under-voltage, short-circuit and over temperature protection (6kV surge standard).
• 0-10V dimming driver (optional extended leads).
QUICK LINKS
• Standard Universal Voltage (120-277 VAC) Input 50/60 Hz or optional High Voltage (347-480 VAC).
• Total harmonic distortion (THD): <20%
• Operating temperature: -40°C to +40°C (-40°F to +104°F).
• Power factor (PF): >.90
• Input power stays constant over life.
• Field replaceable 10kV surge protection device meets a minimum Category C Low operation (per ANSI/IEEE C62.41.2).
• Driver is fully encased in potting material for moisture resistance and complies with FCC standards. Driver and key electronic components can easily be accessed.
Controls
• Integral passive infrared Bluetooth™ motion and photocell sensor options. Fixtures operate independently and can be commissioned via an iOS or Android configuration app.
• LSI’s AirLink™ Blue lighting control system is a simple feature rich wireless Bluetooth mesh network. The integrated fixture sensor module provides wireless control of grouped fixtures based on motion sensors, daylight or a fully customizable schedule. Updates and modifications to the control strategy are easily implemented via an intuitive iOS app.
Installation
• Designed to mount directly to a 2 3/8” - 3” outer diameter tenon (4” tall).
• Optional flush mount accesory slips inside the top of a 4” round pole for a virtually seamless transition from pole to luminaire.
Warranty
• LSI luminaires carry a 5-year limited warranty. Refer to https://www.lsicorp. com/resources/terms-conditionswarranty/ for more information.
Listings
• Listed to UL 1598 and UL 8750.
• Meets Buy American Act requirements.
• IDA compliant; with 3000K and warmer color temperature selection.
• Title 24 Compliant; see local ordinance for qualification information.
• Suitable for wet locations.
• IP66 rated Luminaire per IEC 60598-1.
• 3G rated for ANSI C136.31 high vibration applications.
• DesignLights Consortium® (DLC) Premium qualified product. Not all versions of this product may be DLC Premium qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
www.ragni-lighting.com
TYPE P2 SPEC SHALIMAR
Opulence Small Post Top (OPS) Outdoor Decorative Post Top
ORDERING GUIDE
TYPICAL
PrefixMountingLumen Package1 DistributionVoltage Color Temperature / Rendering FinishControls
OPS - Opulance Small PT - Post Top (2 3/8” 3” Tennon)
3L - 3,000 lms, 20w
5L - 5,000 lms, 34w
6L - 6,000 lms, 41w
8L - 8,000 lms, 55w
10L - 10,000 lms, 70w
12L - 12,000 lms, 85w
14L - 14,000 lms, 100w
5Q - Type 5 Square
5C - Type 5 Concentrated
5R - Type 5 Rectangular
3W - Type 3 (Wide Throw)
4F - Type 4 (Forward Throw)
5D - Type 5 Diffused
AD - Asymmetric Diffused
1
2
3 IMSBTxL is field configurable via the Leviton app that can be downloaded from your smartphone’s app store.
4 Control device or shorting cap must be ordered separately. See Accessory Ordering Information.
5 Fusing must be located in hand hole of pole.
6 Accessories are shipped separately and field installed.
7 “CLR” to be replaced by paint finish selection. See Finish options for paint color selections.
UNV - Universal Voltage (120-277V) HV - High Voltage (347-480V)

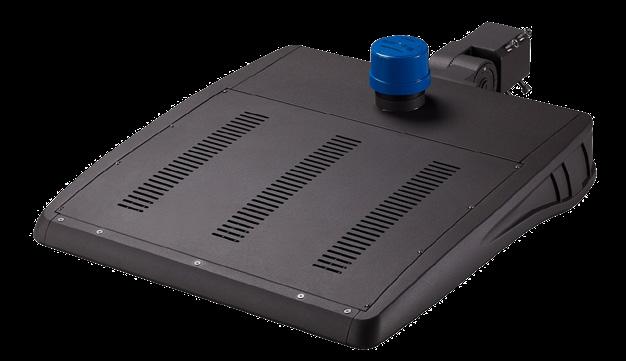

For all applications in site, area, and general lighting requiring high uniformity, excellent vertical light distribution, reduced offsite visibility, reduced on-site glare and effective security light levels. The LAP luminaire delivers exceptional performance in a low-profile design.
FEATURES:
• Die-cast aluminium construction body on which electrical components.
• Die-cast integral heat sink to provide thermal management.
MOUNTING:
• PMS: Pole mount arm available for 3”, 4” and 5” square pole.
• PMR: Pole mount arm available for 3” (PMR3), 4” (PMR4) and 5” (PMR5) dia. round pole.
• SF: Adjustable slip fitter mount available for pipe installation (1-21/32”O.D to 2-3/8”O.D)
• WM: Wall mount plate.
• Mounting arm bolts are 304 stainless steel and zincplated steel.
• MA: Available for 2.375”(O.D) sized Mast Arm Pole.
• MA2: Availabel for 1.900”(O.D) sized Mast Arm Pole.
LED:
• Color Temperature: 3000 / 4000 / 5000K
• Color Rendering Index: 70+ CRI.
• Nichia LED.
• Lifetime: over 50,000 hours.
• Optical lens is used to reduce glare.
ELECTRICAL:
• UL, FCC certified input voltage range: 100V-277V, 50/60Hz
• Power factor >90%, THD <20%
• 72LED: Class 2 LED electronic driver.
• 108LED, 141LED, 188LED: Class 1 electronic driver.
• Operating temperature: -40°C to 40°C (110W can reach +50°C).
• Provided with integrated surge protection (6kV lineline, 10kV line-earth).
• Optional integrated 10kV/10kA surge protection available (SP10).
• Over Voltage Protect : Hiccup mode. The power supply shall return to normal operation only after the power is turn-on again.
• Short Circuit Protect : No damage shall occur when any output operating in a short circuit condition. The power supply shall be self-recovery when the fault condition is removed.
• Over Temperature Protect : 110°C
• Meets ANSI/IEEE C62.41 Category C (outdoors) High.
• Waterproof (IP67) and UL Dry / Damp / Wet Location outdoor LED driver.
• RoHS compliant.
• Complies with Part 15 of the FCC Rules (meets 47 CFR 15, Class B).
OPTIC:
• UV stabilized polycarbonate lens.
LISTING:
• UL / CUL listed.
• Listed to UL 1598 and UL 8750.
• DLC listed. 3
• ARRA compliant (optional).
• BAA compliant (optional).
• Suitable for wet location.
• Tested to IESNA LM80 standards.
• LM79, LM80.
• 5 years limited warranty.
• 7 or 10 years limited warranty. (optional) 4
• IP66 Rating.
• Certified to ANSI C136.31-2010, 3.0G Level 2 for Bridge/Overpass Applications.
SHALIMAR BOYNTON

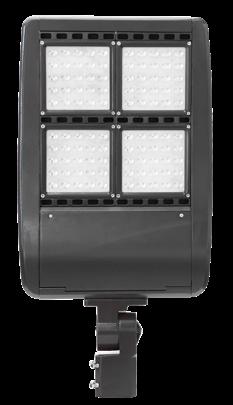

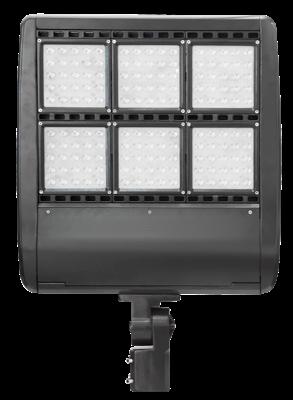

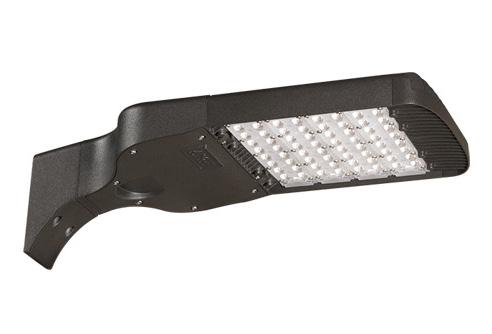

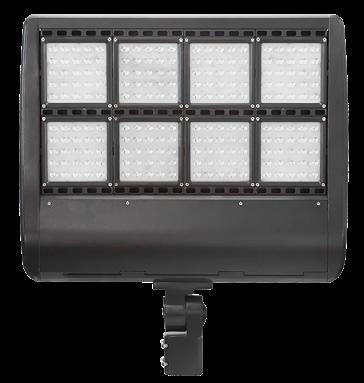

DESCRIPTION
The Luminoso SLS Series delivers a high level of performance in a scalable, low-profile design. Our high-efficiency optics system provides uniformity while saving energy, illumining walkways, parking lots, roadways, building areas and security lighting applications. IP65 rated and UL Listed for wet locations.
FEATURES
Our luminaire incorporates five types of optics, T2M, T3M, T4M, T5M, and AFL (Automotive Front-line). With a choice of 9 lumen packages, the SLS LED luminaire allows scalability from 12,800 to 90,000 delivered lumens. The color temperatures available are 3000K, 3500K, 4000K, and 5000K. Corrosion resistant polyester powder painted 100μm thickness. Meets a 1500-hour salt spray certification per ASTM B117/ ISO 9227.
NUMBER OF LIGHT SQUARES
EXAMPLE: SLS-SO-06-Y-50K-T4M-BZ-E
Enter configuration:
TYPE SA SPEC SHALIMAR BOYNTON

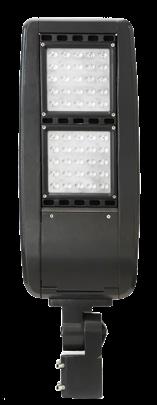

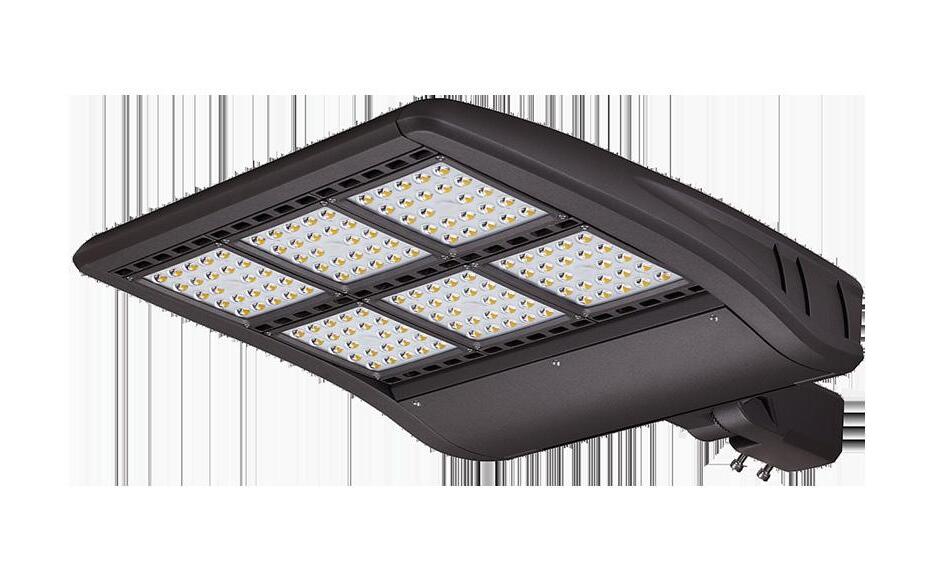

LAP-2G
ORDERING INFORMATION EXAMPLE: LAP-2G-108LED-50K-T3-UNV-DM-BZ-WM
Horizontal Tenon Mount (Mounts to 2” IP, 2.375” O.D)
Horizontal Tenon Mount (Mounts to 1-1/2” IP, 1.900” O.D)
1. Must specify lens. (L2, L3, L7)
TLPC-SC
SP10 FSP-211 (L2) (L3) (L7) House Shield
NEMA twist-lock receptacle only (no controls) NEMA 7-wire receptacle only (no controls)
3-Pin Receptacle and Twist Lock Photocell Installed 120V-277V
3-Pin Receptacle and Twist Lock Photocell Installed 480V
Shorting Cap
Remote handheld configuration tool for FSP-211
* Contact Factory for more options
Integrated 10kV/10kA surge protection
0-10V Dimming Control Occupancy Sensor 1, 2
FSP-L2 Lens @ 8’ height (up to 44’ diameter)
FSP-L3 Lens @ 20’ height (up to 40’ diameter)
FSP-L7 Lens @ 40’ height (up to 100’ diameter)
2. Default settings are Title 24 compliant for all spaces that do not require daylighting. For spaces that do require it, adjustments will be necessary for the Hold Off Setpoint and the Photocell functions.
3. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
0-10V Dimming Control Multi-level high/low step dim and Smart dim Occupancy Sensor (*IR remote programmable), (See note 7 to select lens for “x”)
8 IP-66 rated integrated 0-10V SmartDIM or multi-level high/low dim control occupancy sensor (*IR remote programmable), (See note 7 to select lens for “x”) 6, 8 Remote programmer for LRD-509S and LRD-309S McWong 0-10V Bi-level passive infrared (PIR) occupancy sensor with dim-to-off for Bluetooth Mesh in Silvair enabled
Assembled in USA for Buy American act BAA(Buy American Act) and BABA(Build America Buy America) compliant Bird Guard, Stainless Steel Spikes
Optional 7 Years Limited Warranty 4
Optional 10 Years Limited Warranty 4
Remote 16W Emergency Battery Backup (CEC Compliant EM) in black finish 10, 11 316 Stainless steel mounting arm bolts Zinc finish
4. This limited warranty covers electrical parts only and does not apply to labor, equipment lease, or defect from improper installation or operation.
5. Standard dimming 0-10V, ANSI C136.41, Photocell and shorting cap by others.
6. Its default setting can be found on the IR-TEC installation instructions.
7. A: Standard cone shape Lens @ 15’ height (up to 30’ coverage)
B: Extra wide cone shape Lens @ 10’ height (up to 60’ coverage)
C: High bay cone shape Lens @ 30’ height (up to 90’ coverage)
D: Standard round shape Lens @ 20’ height (up to 40’ coverage)
F: Extra wide dome shape Lens @ 20’ height (up to 80’ coverage)
G: Aisle way arch shape Lens @ 40’ height (up to 120’ coverage)
H: High bay dome shape Lens @ 50’ height (up to 50’ coverage)
8. Order “RS-LRD” to adjust sensor setting.
9. DLC is not available.
10. Only available with Wall Mount.
11. Remote Box is UL1598 recognized, IP66, IP67 rated, and ambient temperature up to 55ºC.
12. The proportion of radiated power in the 400nm-500nm segment is calculated to be 1.2%
PERFORMANCE DATA
Bridgelux5050
Pin NEMA
Bridgelux5050
Bridgelux5050 -10ºF to 120ºF 7 Pin NEMA
EPA Ratings
Nominal
Nominal

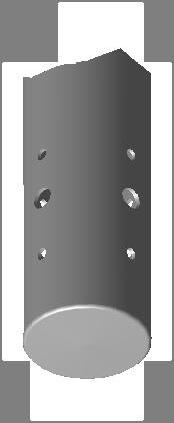

DRILLED PER FIXTURE REQUIREMENTS:
D1- DRILLED FOR 1 FIXTURE
D2- DRILLED FOR 2 FIXTURES AT 90° OR 180°
D3- DRILLED FOR 3 FIXUTRES AT 90° OR 120°
D4- DRILLED FOR 4 FIXTURES
MOUNT OPTIONS
TENON MOUNT OPTIONS
NOTE: COAL TAR EPOXY COATING AVAILABLE AS AN OPTION FOR EMBEDDED PORTION PLUS 6 IN. OF THE POLE SHAFT.
DRILLED PER FIXTURE REQUIREMENTS:
D1- DRILLED FOR 1 FIXTURE
D2- DRILLED FOR 2 FIXTURES AT 90° OR 180°
D3- DRILLED FOR 3 FIXUTRES AT 90° OR 120°
D4- DRILLED FOR 4 FIXTURES
MOUNT OPTIONS
TENON MOUNT OPTIONS
NOTE: COAL TAR EPOXY COATING AVAILABLE AS AN OPTION FOR EMBEDDED PORTION PLUS 6 IN. OF THE POLE SHAFT.
For all applications in site, area, and general lighting requiring high uniformity, excellent vertical light distribution, reduced offsite visibility, reduced on-site glare and effective security light levels. The LAP luminaire delivers exceptional performance in a low-profile design.
FEATURES:
• Die-cast aluminium construction body on which electrical components.
• Die-cast integral heat sink to provide thermal management.
MOUNTING:
• PMS: Pole mount arm available for 3”, 4” and 5” square pole.
• PMR: Pole mount arm available for 3” (PMR3), 4” (PMR4) and 5” (PMR5) dia. round pole.
• SF: Adjustable slip fitter mount available for pipe installation (1-21/32”O.D to 2-3/8”O.D)
• WM: Wall mount plate.
• Mounting arm bolts are 304 stainless steel and zincplated steel.
• MA: Available for 2.375”(O.D) sized Mast Arm Pole.
• MA2: Availabel for 1.900”(O.D) sized Mast Arm Pole.
LED:
• Color Temperature: 3000 / 4000 / 5000K
• Color Rendering Index: 70+ CRI.
• Nichia LED.
• Lifetime: over 50,000 hours.
• Optical lens is used to reduce glare.
ELECTRICAL:
• UL, FCC certified input voltage range: 100V-277V, 50/60Hz
• Power factor >90%, THD <20%
• 72LED: Class 2 LED electronic driver.
• 108LED, 141LED, 188LED: Class 1 electronic driver.
• Operating temperature: -40°C to 40°C (110W can reach +50°C).
• Provided with integrated surge protection (6kV lineline, 10kV line-earth).
• Optional integrated 10kV/10kA surge protection available (SP10).
• Over Voltage Protect : Hiccup mode. The power supply shall return to normal operation only after the power is turn-on again.
• Short Circuit Protect : No damage shall occur when any output operating in a short circuit condition. The power supply shall be self-recovery when the fault condition is removed.
• Over Temperature Protect : 110°C
• Meets ANSI/IEEE C62.41 Category C (outdoors) High.
• Waterproof (IP67) and UL Dry / Damp / Wet Location outdoor LED driver.
• RoHS compliant.
• Complies with Part 15 of the FCC Rules (meets 47 CFR 15, Class B).
OPTIC:
• UV stabilized polycarbonate lens.
LISTING:
• UL / CUL listed.
• Listed to UL 1598 and UL 8750.
• DLC listed. 3
• ARRA compliant (optional).
• BAA compliant (optional).
• Suitable for wet location.
• Tested to IESNA LM80 standards.
• LM79, LM80.
• 5 years limited warranty.
• 7 or 10 years limited warranty. (optional) 4
• IP66 Rating.
• Certified to ANSI C136.31-2010, 3.0G Level 2 for Bridge/Overpass Applications.
SHALIMAR BOYNTON

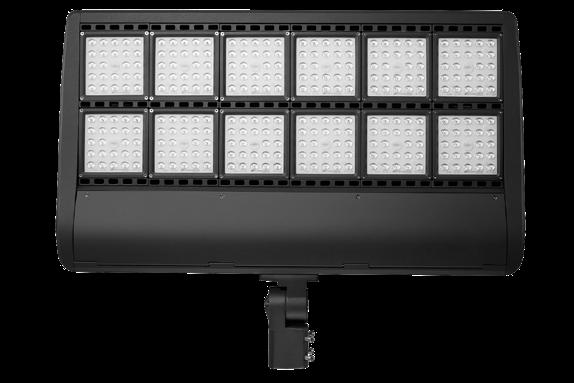

DESCRIPTION
The Luminoso SLS Series delivers a high level of performance in a scalable, low-profile design. Our high-efficiency optics system provides uniformity while saving energy, illumining walkways, parking lots, roadways, building areas and security lighting applications. IP65 rated and UL Listed for wet locations.
FEATURES
Our luminaire incorporates five types of optics, T2M, T3M, T4M, T5M, and AFL (Automotive Front-line). With a choice of 9 lumen packages, the SLS LED luminaire allows scalability from 12,800 to 90,000 delivered lumens. The color temperatures available are 3000K, 3500K, 4000K, and 5000K. Corrosion resistant polyester powder painted 100μm thickness. Meets a 1500-hour salt spray certification per ASTM B117/ ISO 9227.
NUMBER OF LIGHT SQUARES
EXAMPLE: SLS-SO-06-Y-50K-T4M-BZ-E
Enter configuration:
TYPE SB SPEC SHALIMAR BOYNTON
LAP-2G
ORDERING INFORMATION EXAMPLE: LAP-2G-108LED-50K-T3-UNV-DM-BZ-WM
Horizontal Tenon Mount (Mounts to 2” IP, 2.375” O.D)
Horizontal Tenon Mount (Mounts to 1-1/2” IP, 1.900” O.D)
1. Must specify lens. (L2, L3, L7)
SP10 FSP-211 (L2) (L3) (L7) House Shield
NEMA twist-lock receptacle only (no controls) NEMA 7-wire receptacle only (no controls)
3-Pin Receptacle and Twist Lock Photocell Installed 120V-277V
3-Pin Receptacle and Twist Lock Photocell Installed 480V
Shorting Cap
Remote handheld configuration tool for FSP-211
* Contact Factory for more options
Integrated 10kV/10kA surge protection
0-10V Dimming Control Occupancy Sensor 1, 2
FSP-L2 Lens @ 8’ height (up to 44’ diameter)
FSP-L3 Lens @ 20’ height (up to 40’ diameter)
FSP-L7 Lens @ 40’ height (up to 100’ diameter)
2. Default settings are Title 24 compliant for all spaces that do not require daylighting. For spaces that do require it, adjustments will be necessary for the Hold Off Setpoint and the Photocell functions.
3. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
0-10V Dimming Control Multi-level high/low step dim and Smart dim Occupancy Sensor (*IR remote programmable), (See note 7 to select lens for “x”)
IP-66 rated integrated 0-10V SmartDIM or multi-level high/low dim control occupancy sensor (*IR remote programmable), (See note 7 to select lens for “x”) 6, 8 Remote programmer for LRD-509S and LRD-309S McWong 0-10V Bi-level passive infrared (PIR) occupancy sensor with dim-to-off for Bluetooth Mesh in Silvair enabled
Assembled in USA for Buy American act BAA(Buy American Act) and BABA(Build America Buy America) compliant Bird Guard, Stainless Steel Spikes
Optional 7 Years Limited Warranty 4
Optional 10 Years Limited Warranty 4
Remote 16W Emergency Battery Backup (CEC Compliant EM) in black finish 10, 11 316 Stainless steel mounting arm bolts Zinc finish
4. This limited warranty covers electrical parts only and does not apply to labor, equipment lease, or defect from improper installation or operation.
5. Standard dimming 0-10V, ANSI C136.41, Photocell and shorting cap by others.
6. Its default setting can be found on the IR-TEC installation instructions.
7. A: Standard cone shape Lens @ 15’ height (up to 30’ coverage)
B: Extra wide cone shape Lens @ 10’ height (up to 60’ coverage)
C: High bay cone shape Lens @ 30’ height (up to 90’ coverage)
D: Standard round shape Lens @ 20’ height (up to 40’ coverage)
F: Extra wide dome shape Lens @ 20’ height (up to 80’ coverage)
G: Aisle way arch shape Lens @ 40’ height (up to 120’ coverage)
H: High bay dome shape Lens @ 50’ height (up to 50’ coverage)
8. Order “RS-LRD” to adjust sensor setting.
9. DLC is not available.
10. Only available with Wall Mount.
11. Remote Box is UL1598 recognized, IP66, IP67 rated, and ambient temperature up to 55ºC.
12. The proportion of radiated power in the 400nm-500nm segment is calculated to be 1.2%
PERFORMANCE DATA
Bridgelux5050
Pin NEMA
Bridgelux5050
Bridgelux5050 -10ºF to 120ºF 7 Pin NEMA
EPA Ratings
Nominal
Nominal
DRILLED PER FIXTURE REQUIREMENTS:
D1- DRILLED FOR 1 FIXTURE
D2- DRILLED FOR 2 FIXTURES AT 90° OR 180°
D3- DRILLED FOR 3 FIXUTRES AT 90° OR 120°
D4- DRILLED FOR 4 FIXTURES
MOUNT OPTIONS
TENON MOUNT OPTIONS
NOTE: COAL TAR EPOXY COATING AVAILABLE AS AN OPTION FOR EMBEDDED PORTION PLUS 6 IN. OF THE POLE SHAFT.
DRILLED PER FIXTURE REQUIREMENTS:
D1- DRILLED FOR 1 FIXTURE
D2- DRILLED FOR 2 FIXTURES AT 90° OR 180°
D3- DRILLED FOR 3 FIXUTRES AT 90° OR 120°
D4- DRILLED FOR 4 FIXTURES
MOUNT OPTIONS
TENON MOUNT OPTIONS
NOTE: COAL TAR EPOXY COATING AVAILABLE AS AN OPTION FOR EMBEDDED PORTION PLUS 6 IN. OF THE POLE SHAFT.
OSQW™ LED Wall Mount Luminaire featuring Patented NanoComfort® Technology
Product Description
The OSQW™ LED wall mount luminaire has a slim, low profile design intended for outdoor wall mounted applications. The rugged lightweight aluminum housing and mounting box are designed for installation over standard single gang J-Boxes and mud ring single gang J-Boxes. The luminaire allows for through-wired or conduit entry from the top, bottom, sides and rear. The housing design is intended specifically for LED technology including a weathertight LED driver compartment and thermal management. Optic design features industry-leading NanoComfort Technology which provides superior glare reduction and visual comfort with high-efficiency illumination delivered precisely where it is needed. Applications: General area and security lighting
Performance
Utilizes Patented NanoComfort® Technology
Utilizes Cree TrueWhite® Technology on 5000K Luminaires
Assembled in the USA by Cree Lighting from US and imported parts
Limited Warranty†: 10 years for luminaire/10 years for Colorfast DeltaGuard® finish/5 years for BML and ML sensors/up to 5 years for Synapse® accessories/1 year for accessories
Limited Warranty Emergency Back Up (EB) Battery: 1 year for Battery Back Up. Test regularly in accordance with local code
† See https://www.creelighting.com/resources/warranties/ for warranty terms. For Synapse accessories, consult Synapse spec sheets for details on warranty terms.
Accessories
Field-Installed
Beauty Plate
WM-PLT12** - 12" (305mm) Square
WM-PLT14** - 14" (356mm) Square
- Covers holes left by incumbent wall packs
Synapse® SimplySnap 10V Interface
DIM10-220F
- 120V-277V
- Requires either Synapse Central Base Station or On-Site Controller
- Refer to DIM10-220F spec sheet for details Synapse SimplySNAP Central Base Station CBSSW-450-002
- Includes On-Site Controller (SS450-002) and 5-button switch
- Indoor and Outdoor rated
- Refer to CBSSW-450-002 spec sheet for details
** Must specify color Rev. Date: V4 09/03/2024
Ordering Information
Synapse SimplySNAP On-Site Controller
SS450-002
- Verizon® LTE-enabled
- Designed for indoor applications
- Refer to SS450-002 spec sheet for details Synapse Building Management System (BMS) Gateway BMS-GW-002
- Required for BACnet integration
- Refer to BMS-GW-002 spec sheet for details Synapse Wireless Sensor WSN-DPM
- Motion and light sensor
- Control multiple zones
- Refer to WSN-DPM spec sheet for details
- Not available with 2L lumen package, controls options, or
Available only with P control - Not available with 2L lumen package, BML or ML controls, or EB option
multifunction sensor
- Refer to BML spec sheet for details
- 8-20' sensor lens installed on luminaire; 20-40' sensor lens and aisle shrouds included
- Not available with other controls or EB option
- Refer to ML spec sheet for details
- Utilizes a multifunction sensor
- Available only with UL voltage
- Not available with other controls or EB option P Button Photocell
- Provides 90 minutes and 7W of power in emergency mode
- Available only with UL voltage
- Not available with BML, ML or P controls
OSQ Series
OSQW™ LED Wall Mount Luminaire featuring Patented NanoComfort® Technology
Product Description
The OSQW™ LED wall mount luminaire has a slim, low profile design intended for outdoor wall mounted applications. The rugged lightweight aluminum housing and mounting box are designed for installation over standard single gang J-Boxes and mud ring single gang J-Boxes. The luminaire allows for through-wired or conduit entry from the top, bottom, sides and rear. The housing design is intended specifically for LED technology including a weathertight LED driver compartment and thermal management. Optic design features industry-leading NanoComfort Technology which provides superior glare reduction and visual comfort with high-efficiency illumination delivered precisely where it is needed. Applications: General area and security lighting
Performance
Utilizes Patented NanoComfort® Technology
Utilizes Cree TrueWhite® Technology on 5000K Luminaires
Assembled in the USA by Cree Lighting from US and imported parts
Limited Warranty†: 10 years for luminaire/10 years for Colorfast DeltaGuard® finish/5 years for BML and ML sensors/up to 5 years for Synapse® accessories/1 year for accessories
Limited Warranty Emergency Back Up (EB) Battery: 1 year for Battery Back Up. Test regularly in accordance with local code
† See https://www.creelighting.com/resources/warranties/ for warranty terms. For Synapse accessories, consult Synapse spec sheets for details on warranty terms.
Accessories
Field-Installed
Beauty Plate
WM-PLT12** - 12" (305mm) Square
WM-PLT14** - 14" (356mm) Square
- Covers holes left by incumbent wall packs
Synapse® SimplySnap 10V Interface
DIM10-220F
- 120V-277V
- Requires either Synapse Central Base Station or On-Site Controller
- Refer to DIM10-220F spec sheet for details Synapse SimplySNAP Central Base Station CBSSW-450-002
- Includes On-Site Controller (SS450-002) and 5-button switch
- Indoor and Outdoor rated
- Refer to CBSSW-450-002 spec sheet for details
** Must specify color Rev. Date: V4 09/03/2024
Ordering Information
Synapse SimplySNAP On-Site Controller
SS450-002
- Verizon® LTE-enabled
- Designed for indoor applications
- Refer to SS450-002 spec sheet for details Synapse Building Management System (BMS) Gateway BMS-GW-002
- Required for BACnet integration
- Refer to BMS-GW-002 spec sheet for details Synapse Wireless Sensor WSN-DPM
- Motion and light sensor
- Control multiple zones
- Refer to WSN-DPM spec sheet for details
- Not available with 2L lumen package, controls options, or
Available only with P control - Not available with 2L lumen package, BML or ML controls, or EB option
multifunction sensor
- Refer to BML spec sheet for details
- 8-20' sensor lens installed on luminaire; 20-40' sensor lens and aisle shrouds included
- Not available with other controls or EB option
- Refer to ML spec sheet for details
- Utilizes a multifunction sensor
- Available only with UL voltage
- Not available with other controls or EB option P Button Photocell
- Provides 90 minutes and 7W of power in emergency mode
- Available only with UL voltage
- Not available with BML, ML or P controls
FEATURES & SPECIFICATIONS
INTENDED USE — Ideal for wet location areas requiring exit signs for AC only or battery back-up power that are subject to saturation with non-mechanically delivered water. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — White, compact, contemporary design. Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof. Universal directional Chevron inserts are easily removed and reinserted. UL94V-0 flame rating. UV-stable resin resists discoloration from natural and man-made light sources. Rugged, heavy-duty, polycarbonate clear housing lens. Housing also available in black or gray. Letters 6" high with 3/4" stroke, with 100 ft. viewing distance rating, based upon UL924 standards.
OPTICS — Low energy consumption — fewer than 5 watts. The typical life of the exit LED lamp is 5 years, based on 24/7 operation.
ELECTRICAL — Dual voltage input capacity (120/277V).
Battery: (EL Option) – Sealed, maintenance free nickel-cadmium battery delivers 90 minutes rated capacity. Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection. Self-diagnostic testing (SD Option Only) for 30 seconds every 30 days, 30 minutes every 180 days and a 90-minute annual test. Diagnostic evaluation of LED light source, charging and battery condition.
INSTALLATION — Universal mounting canopy for top or end mount. Back mount standard for single face only. Junction box hole pattern for 4" octagon mounting. Flexible conduit entry.
LISTINGS — UL listed. Wet location listed. Standard cold temperature rating -4°F to 122°F (-20°C to 50°C). Meets UL 924, NFPA 101 (current Life Safety Code) and NFPA 70-NEC, Meets all applicable FCC Title 47, Part 15, Subpart B requirements.
WARRANTY — 5-year limited warranty. (Battery is prorated.) This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
† Exit Signs Certified in the CA Title 20 Appliance Efficiency Database.
Specifications
Length: 12-1/2 (31.8)
Depth: 2-1/2 (6.4)
Height: 8-1/8 (20.6)
Weight: 4.1 lbs (1.9 kg)
All dimensions are inches (centimeters) unless otherwise indicated.
SHALIMAR BOYNTON
Source: 2.2W
PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
UL 924 Listed for Wet Locations · NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
INTENDED USE — Ideal for wet location areas requiring exit signs for AC only or battery back-up power that are subject to saturation with non-mechanically delivered water. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — White, compact, contemporary design. Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof. Universal directional Chevron inserts are easily removed and reinserted. UL94V-0 flame rating. UV-stable resin resists discoloration from natural and man-made light sources. Rugged, heavy-duty, polycarbonate clear housing lens. Housing also available in black or gray. Letters 6" high with 3/4" stroke, with 100 ft. viewing distance rating, based upon UL924 standards.
OPTICS — Low energy consumption — fewer than 5 watts. The typical life of the exit LED lamp is 5 years, based on 24/7 operation.
ELECTRICAL — Dual voltage input capacity (120/277V).
Battery: (EL Option) – Sealed, maintenance free nickel-cadmium battery delivers 90 minutes rated capacity. Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection. Self-diagnostic testing (SD Option Only) for 30 seconds every 30 days, 30 minutes every 180 days and a 90-minute annual test. Diagnostic evaluation of LED light source, charging and battery condition.
INSTALLATION — Universal mounting canopy for top or end mount. Back mount standard for single face only. Junction box hole pattern for 4" octagon mounting. Flexible conduit entry.
LISTINGS — UL listed. Wet location listed. Standard cold temperature rating -4°F to 122°F (-20°C to 50°C). Meets UL 924, NFPA 101 (current Life Safety Code) and NFPA 70-NEC, Meets all applicable FCC Title 47, Part 15, Subpart B requirements.
WARRANTY — 5-year limited warranty. (Battery is prorated.) This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
† Exit Signs Certified in the CA Title 20 Appliance Efficiency Database.
Specifications
Length: 12-1/2 (31.8)
Depth: 2-1/2 (6.4)
Height: 8-1/8 (20.6)
Weight: 4.1 lbs (1.9 kg)
All dimensions are inches (centimeters) unless otherwise indicated.
SHALIMAR BOYNTON
Source: 2.2W
PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
UL 924 Listed for Wet Locations · NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
Compact Dual Head LED Emergency Light with Optional Remote Capability
Source: (2) 0.9W or 1W LED (2)90lm to 150lm
PRODUCT DESCRIPTION
Luminaire provides 90 minutes of light from two adjustable heads for illuminating paths of egress upon failure of normal power. Emergency unit is available in higher lumen output and remote capability.
FEATURES
Compact housing with (2) adjustable LEDs Lightweight snap together design
Self-diagnostic and self-testing option available Ceiling or wall mounted
Universal 120/277VAC input
Remote capability
SPECIFICATION
Construction: Injection-molded thermoplastic ABS housing. Plastic enclosure with 5VA flame retardant. Quick connector design for easy installation. Two fully adjustable glare-free round heads for emergency lighting.
Mounting: Plastic enclosure includes a top and side knockout for conduit application. Suitable for wall mounting or ceiling mounting. Waterproof vandal resistant enclosure available, must specify NEG-602.
Operation: Luminaire will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time per battery.
ELECTRICAL
Input Voltage: 120/277VAC 60Hz
Lumens / Wattage:
NE-612LED: (2) 110lm / 0.9W
NE-612LEDRC: (2) 90lm / 0.9W
NE-612LEDHORC: (2) 150lm / 1W
Color Temperature: 5700K
Operating Temperature: 10˚C to 40˚C ambient temperature (-25°C to 50°C when used with NEG-602)
Batteries: NiMH 3.6V 2W maintenance-free
Remote Option: Luminaire is capable of including an additional 3.6V / 4W battery. Additional battery is used to power an additional remote emergency light. Upon power failure, each additional battery requires an additional 24 hours to recharge.
LABELS AND LISTINGS
· cULus Listed for Damp Locations (Wet Location Listed when used with NEG-602)
Meets or exceeds all requirements in NFPA 70, NFPA 101 life safety code 3-Year Limited Warranty
Notes
PRODUCT IMAGES & DIMENSIONS
NFPA 101 requires 1.0 foot-candle average and 0.1 foot-candle minimum with a 40:1 maximum/minimum ratio. Below is a recommended mounting height and spacing on surface with reflectance at 80% ceiling, 50% walls, and 20% floor.
Compact
Dual Head LED Emergency Light Optional Accessory
Description
NE-612LEDB = (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, Black Finish
NE-612LEDW = (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, White Finish
NE-612LEDRCW = (2) 0.9W / 90lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
NE-612LEDRCW
= (2) 1W /
Heads with
/ 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
NE-612LEDHORCW = (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
= Waterproof Vandal Resistant Enclosure
with Remote (RC)
Example: NE-612LEDHORCW = Compact Dual Head LED Emergency Light with (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White finish

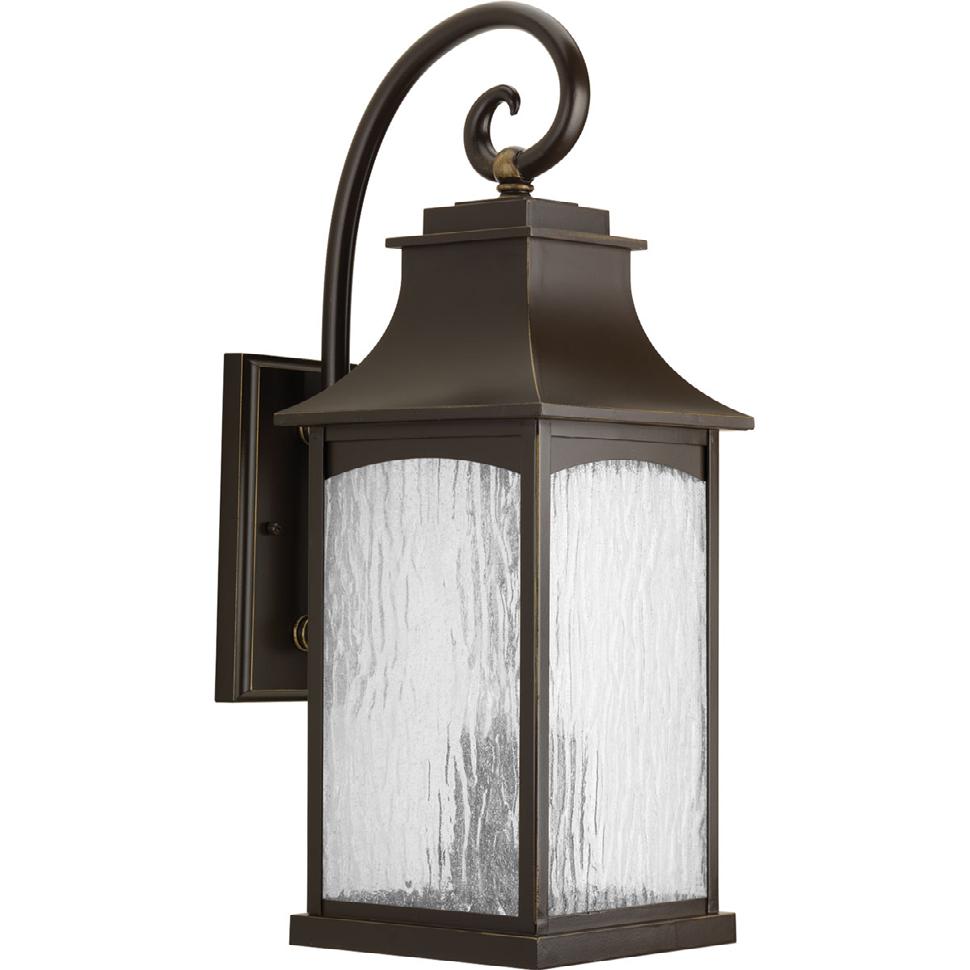

Three-light large wall lantern in the Maison Collection offers traditional French country styling for a variety of home settings. Classic and formal clear water seeded glass complements the powder coat finish. Oil Rubbed Bronze finish.
• Traditional French country styling.
• Classic and formal clear water seeded glass.
• Powder coat finish.
Category: Outdoor
Finish: Oil Rubbed Bronze (hand painted)
Construction: Aluminum Construction
Glass/Shade: Water Seeded glass panels
Wall mounted
Mounting strap for outlet box included
Back plate covers a standard 4” octagonal recessed outlet box
4.5” W., 9.0625” ht., 1” depth
Width: 8-1/2”
Height: 23-3/4”
Depth: 12”
H/CTR: 13-1/2”
DATE: TYPE:
NAME:
PROJECT: Incandescent
Maison
Three-light large wall lantern in the Maison Collection offers traditional French country styling for a variety of home settings. Classic and formal clear water seeded glass complements the powder coat finish. Oil Rubbed Bronze finish.
• Traditional French country styling.
• Classic and formal clear water seeded glass.
• Powder coat finish.
Category: Outdoor
Finish: Oil Rubbed Bronze (hand painted)
Construction: Aluminum Construction
Glass/Shade: Water Seeded glass panels
Wall mounted
Mounting strap for outlet box included
Back plate covers a standard 4” octagonal recessed outlet box
4.5” W., 9.0625” ht., 1” depth
Width: 8-1/2”
Height: 23-3/4”
Depth: 12”
H/CTR: 13-1/2”
XVML LED
Vapor Tight LED
Where Value and Vapor Tight Unite
Experience the savings. Feel the value. The XVML LED vapor tight series from Lithonia Lighting ® is a cost-effi cient, wet-location fi xture designed specifi cally for demanding environments. The XVML LED is an easy-to-install, low-cost, 4’ linear LED fi xture for wet locations and stands up to dust and dirt with its IP66 rating.
Its end-to-end illumination and multiple mounting options establish the XVML LED vapor tight fi xture as an inexpensive solution for outdoor venues, canopies, locker rooms, passageways, under eaves, covered patios, open bays and most other applications where moisture and dirt are a concern.
Ideal in new construction and retrofit applications, the UltraLED Dual Selectable Vapor Tight 3A is offered in three sizes that all feature both lumen and CCT selectability. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
Benefits and Features
IP66 rated polycarbonate body and lens and a broad temperature range ensure a durable product
— Stainless steel lens clips
DLC 5.1 listing maximizes energy savings and rebate opportunities
Optional integrated motion/daylight sensor and emergency battery back-up offer further potential energy savings
— Dual selectability facilitated by the switches located inside the luminaire allows for customizable light
— Offered in three wattage selectable sizes
–2ft: 15, 20, or 25W selectable
–4ft: 30, 40, or 50W selectable
–8ft: 70, 80, or 90W selectable
3500K, 4000K, and 5000K selectable color temperature
— Up to 144 LPW
— CRI >80
Energy savings up to 59%
Electrical
120-347Vac
— Power Factor >90%
— THD <20%
2.5kV surge suppression
0-10V dimmable
UL Wet rated Auxiliary 12V output
Rated Life
100,000 hours (L70)
Warranty 5-year
— NLB Trusted Warranty Program
Wattage Comparison
Operating Temperature
— -40°F to 122°F (-40°C to 50°C) for 2' and 4' models (chain mount)
— -40°F to 104°F (-40°C to 40°C) for 2', 4', and 8' models (surface mount)
— -40°F to 113°F (-40°C to 45°C) for 8' models (chain mount)
— -31°F (-35°C) minimum ambient for motion sensor models
32°F (0°C) minimum ambient for EMBB models
Certifications and Listings
Installation Fixture can be surface mounted or suspended. Stainless steel mounting brackets and V-hooks are included
Linear Enclosed & Gasketed Portfolio
Renowned for providing the Best Value in Lighting®, Lithonia Lighting® provides the most complete portfolio of enclosed-and-gasketed luminaires in the market. Available in LED and traditional fluorescent platforms, we help you meet stringent environmental and illumination requirements.
lighting may be needed. Polycarbonate housing and lens provide superior impact strength.
Cost-efficient, wet-location strip light designed specifically for demanding environments where moisture and dirt are a concern. Use where value and low cost are needed.
Lightweight multi-purpose luminaire. Use at lower mounting heights and ambient temperatures up to 104°F (40°C). Two-piece, snap-together design for simple one-person installation. Replaces 2-lamp T8 4-ft fluorescent fixtures.
Feature-rich, general purpose fixture suitable for most demanding applications. This is the workhorse of the wet location, vapor-tight line-up because of its available fixture sizes, broad range of lumen packages and numerous control options.
fixture that bridges the gap between vandal- and impact-resistant products, refined appearance, performance and controllability. Use when durability and aesthetics are a must.
Built to withstand the rigors of demanding environments. Specify in food processing, cold storage or applications with frequent washing or cleaning and higher mounting heights.
Lithonia Lighting® is a member of the Acuity Brands portfolio of lighting, controls and daylighting solutions. Lithonia Lighting offers one of the industry’s broadest lighting portfolios for commercial and industrial lighting applications. This includes high bays, rough service, strips, wraps, recessed, surface, RELIGHT and retrofit kits. Our LED, fluorescent and HID lighting are recognized for their quality, reliability and solid performance, making Lithonia Lighting the most specified brand in the lighting industry.
SHALIMAR BOYNTON
Catalog # Type Project Comments Prepared by
Ordering Guide
VAPOR = Vapor Tight luminaire
Generation
Ordering Information
= wattage selectable 15, 20, or 25W S050 = wattage selectable 30, 40, or 50W S090 = wattage selectable 70, 80 or 90W
To Order
Information
Basics Series™ Surface Mount
LED Fixtures
Affordable and easy-to-install, 4" and 6" fixtures
SHALIMAR BOYNTON
NELO
ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with CCT switch.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.
Five position sliding switch 27K / 30K / 35K / 40K / 50K
3/4"
Aperture
Diameter
Diameter:Aperture:
NELO-4RTW5-1/2"4-1/2"
NELO-6RTW7"6"
NELO-8RTW8-7/8"7-3/4"
NELO-12RTW12-1/4"11"
NSEM-6WDW
Surface Mount Enclosure with Emergency Driver for 6" only
Decorative Ring
Optional Accessories
Description Finish
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO
NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"
4RLS 6RLS
Saves up to 85% in energy costs when compared to 65W incandescent light source
Juno® 4" and 6" Basics Series Surface Mount Fixtures
Product Specifications:
• 4RLS Delivers 700 lumens at 10-watts with 90 CRI minimum
•Two 6RLS light engines available. 750 lumens from only 10-watts and 1000 lumens from only 14.5 watts, both with 90 CRI minimum
• 2700K or 3000K color temperature
• Easy installation directly to junction box or existing 4" recessed housing via 4RLSRETROKIT or existing 5" and 6" recessed housings via 56RLSRETROKIT accessory
• Can be used as a downlight or a sconce
• Very low 1-1/8" profile (4RLS) and 1-1/4" profile (6RLS)
• Beveled aluminum frame with white finish
• Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage dimmers
• Five year limited warranty
Qualified Dimmers
Compatible with incandescent, magnetic low voltage or electronic low voltage wall box dimmers. See specifications for a list of factory recommended dimmer models.
Installation
Junction Box Mounting
• Installs directly into industry standard junction boxes
• Compatible boxes include 3-1/2" and 4” octagon junction boxes (1-1/2" minimum depth), round mud rings with 2-3/4" mounting centers and 3" and 4" diameter non-metallic boxes
• Quick-mount strap and spring securement system provides fast installation of fully assembled fixture to junction box
• Suitable for ceiling or wall mount
• Suitable for use within closet storage spaces when installed per NEC requirements
Recessed Housing Mounting - 4RLS
• Must use 4RLSRETROKIT accessory
• 4RLS is compatible with most 4" recessed incandescent housings with an inside diameter between 4" and 4-1/2" and a minimum height of 4"
Compatible Juno Housings - 4RLS
• Juno IC1 and TC1 Series
Regulatory Listings & Standards
– Approved for use in Wet Locations (indoor covered ceilings only) – ENERGY STAR® Certified
Recessed Housing Mounting - 6RLS
•Must use 56RLSRETROKIT accessory
•6RLS is compatible with most 5" and 6" recessed incandescent housings with an inside diameter between 5" and 7" and a minimum height of 4"
Compatible Juno Housings - 6RLS
•Juno IC20, IC25, IC2, IC21, IC22, IC23, TC20 and TC2 Series
*243V4V Accessor y kit for use when installing in existing 4" recessed housings
*243V66 Accessory kit for use when installing in existing 6" recessed housings
See installation guidelines provided with fixture for information on installing in wet location environments.
BLANK
EXRG
Lithonia Lighting Basics™ LED Exit
The Lithonia Lighting Basics™ EXRG Exit Sign is suitable for emergency signage applications such as stairways and hallways. This fully assembled single-face exit with extra faceplate is available in red and green letters. It's low profile makes it ideal for safely illuminated the path of egress in small spaces and can be wall or ceiling mounted. The emergency power provides 90 minutes of illumination in the event of a power loss.
FEATURES:
¡ Internal toggle switch for red or green letter color selection
¡ Test switch and status indicator for low maintenance (EL emergency models only)
¡ UL indoor damp location 50° to 104°F (10°C to 40°C) listed standard
¡ For use with Dual voltage 120/277VAC
¡ Internal switch for color selection
SHALIMAR BOYNTON TYPE X
NX-603D-LED Thermoplastic Dual Color (Red/Green) LED Exit Sign with Battery Backup
PRODUCT DESCRIPTION
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
• 11-13/16" Width X 7-1/4" Height X 1-13/16" Depth
• Injection-molded thermoplastic housing
• Black or White housing finish
FACE
• 6" high text with color diffusion
• Both double and a blank face are included
• Snap-in direction indicators
MOUNTING
• Wall, side, or ceiling
• Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES
NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
UL 924
Rated for Damp Locations (Wet Location when used with NEG-60)
5-Year Limited Warranty
NFPA
Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
»Surface mount – ceiling (n/a with MO13EL) or wall mount; 9"W×13"H×4"D
»Aluminum baseplate with UV-stabilized high impact lens
»ADA compliant
»Peace of Mind Guarantee® against breakage
»Tested to IESNA LM-79-08 standards
SPECIFICATIONS
Job Name
Fixture Type
Catalog Number
Approved by
BASEPLATE: Marine grade die-cast aluminum. Integral heat sinks. Baseplate flange interlocks and wraps around lens base producing maximum moisture deflection and resistance to prying. Baseplate provided with four-point mounting holes, one wireway hole and temporary junction box mounting capabilities – See Installation Detail. Standard matte black, dark bronze or matte white exterior TGIC polyester powder coat – 5-step pre-treatment. See Ordering Information for optional finishes.
REFLECTOR: Full reflector/wire cover – 92% reflectivity.
LENS: UV-stabilized, high impact resistant, virgin injection molded polycarbonate. High efficiency blondel fluted lens maximizes uniformity. Close tolerance mating of injection molded lens and lens base facilitates set up and installation. Lens and lens base secured with two concealed captive Torx® with center pin fasteners.
LENS BASE/GRILLE: High impact resistant, injection molded matte black, dark bronze or matte white polycarbonate. Optional Light Gray, Silver, Forest Green or Custom Color (see Ordering Information below) are chemically bonded, impact resistant finishes
GASKETING: Die-cut, closed cell neoprene self adhesive gasket seals baseplate to mounting surface. Closed cell, silicone “O” ring gaskets positioned and friction secured in gasket channels of lens base, baseplate and optional surface adapter.
HARDWARE: Two stainless steel Torx® T-20 with center pin fasteners.
ELECTRICAL: Available in 3500K, 4000K, and 5000K color temperatures, 80 CRI. 120-277VAC, 50/60Hz electrical input with high power factor electronic, constant-current driver (>.90 PF). Standard 0-10V dimming with 1-100% range; maximum driver source of 200 μA.
SENSOR & CONTROLS: Optional sensor available with compatible third party controls. To see the full list of compatible controls, click here.
PHOTOMETRICS: Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For additional photometric information, go to www.kenall.com.
WARRANTY: Limited five (5) year LED warranty. Peace of Mind Guarantee against breakage.
LISTINGS: Luminaire is certified to UL Standards by either Underwriters Laboratory or Intertek Testing Laboratory for Wet Location (listing includes Emergency Battery Pack “LEL” option). UL certified IP64 per IEC 60598. ADA compliant.
Model
ORDERING INFORMATION (Ex: MO13FL-PP-DB-20L50K-DV)
MO13FL Full Face
MO13BL Bar
MO13CL Cross
MO13EL Eyelid
Lens Type
PP Pearlescent Polycarbonate
Finish
MB Matte Black
MW Matte White
DB Dark Bronze
LG Light Gray
SL Silver
FG Forest Green
CC Custom Color (Consult factory)
MO13BL/CL/FL
10L35K 10 Watt 3500K LED
10L40K 10 Watt 4000K LED
10L50K 10 Watt 5000K LED
20L35K 20 Watt 3500K LED
20L40K 20 Watt 4000K LED
20L50K 20 Watt 5000K LED
MO13EL
8L35K 8 Watt 3500K LED
8L40K 8 Watt 4000K LED
8L50K 8 Watt 5000K LED
16L35K 16 Watt 3500K LED
16L40K 16 Watt
| P: 800-4-Kenall
Options
LEL-SA LED Emergency Battery Backup with Die-cast Surface Adapter (SA) - Non ADA (n/a with 347V)
BPC-SA Photo Control – Shielded Button Type with Die-cast Surface Adapter (SA) - Non ADA (120V or 277V only)
FS Single Fuse & Holder
NAT Natatorium Environment Option
Accessories
SA Die-Cast Surface Adapter –Non ADA
• n/a with BPC
*When 347V is ordered, fixture will be supplied with Die-Cast Surface Adapter (SA) — Non ADA
