INTENDED USE — A general purpose and energy-efficient surface-mounted or suspended LED fixture, suitable for wet, damp and/or cold locations. For vapor-tight demanding environments where moisture or dust is a concern and where relatively low fixture mounting heights and wide fixture spacing are common. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Typical applications include industrial facilities, parking garages, retail malls, multi-purpose rooms, garden centers, and food processing. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for AcrylicPolycarbonate Compatibility table for suitable use.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.

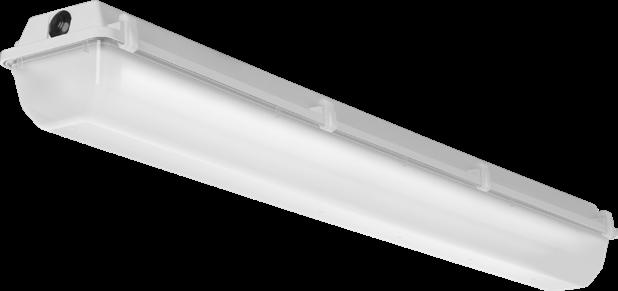

CONSTRUCTION — One-piece 5VA fiberglass housing with integral perimeter channel utilizing continuous poured-in-place NEMA 4X gasket. Approved for through wiring. Captive polymeric latches are standard. Stainless steel latches (316SS) available as an option for food processing or more demanding applications. Power connection is easily accomplished through pre-drilled holes.
OPTICS — Injection molded, acrylic lens (.080" thick) provides high impact-resistance comparable to 100% DR. A UV stabilized polycarbonate diffuser is available (.080" thick) in clear or frosted for additional impact strength where vandal protection is desired.
Expected service life of 60,000 hours at 80% lumen maintenance (L80); predicted life of more than 100,000 hours.
ELECTRICAL — Utilizes high-efficiency LEDs mounted to core circuit boards. High-efficiency drivers operate 120-277 (MVOLT) and 347-480 (HVOLT) offered with 0-10 volt dimming, dims to 10%. Standard Luminaire Surge Protection Level: 6kV/3kA Surge Rated per ANSI C82.77-5-2015.
INSTALLATION — A pair of stainless steel (316SS) surface mount brackets (SMB) are included (unless another mounting option is chosen) allowing for surface (ceiling) or suspension mount applications using included bail with aircraft cable or chain. Optional pair of dual pendant mount brackets (DPMB) (316SS) are available for surface (ceiling) or suspension mount applications using either 3/8" threaded rod or included bail with aircraft cable or chain. Optional pair of angle mounting brackets (ANGBKT) (316SS) for horizontal wall mount applications.
LISTINGS — CSA Certified to UL and C-UL Standards. Suitable for wet location. IP65, IP66, IP67 and IP69K (optional) rated. NSF Splash Zone 2 and Non-Food Zone rated. NEMA Type 4X rated. Sensors maintain IP65 and IP66 only. See chart on page 5 for Ambient Temperatures.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details

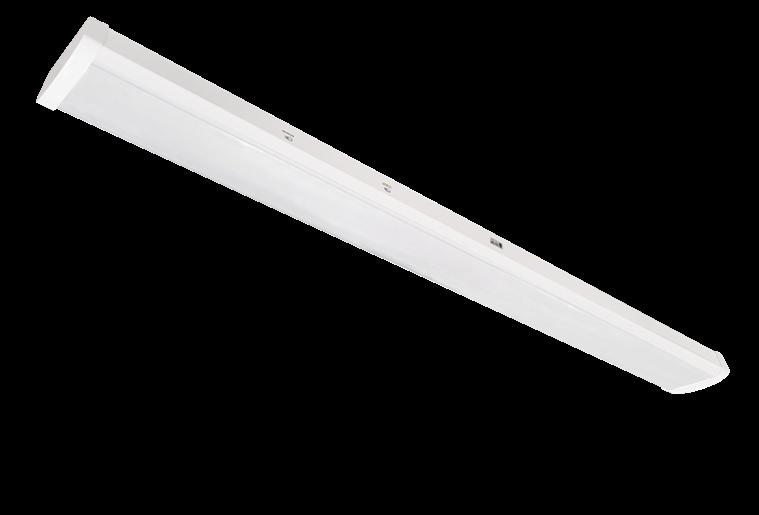

LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/9 0/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens

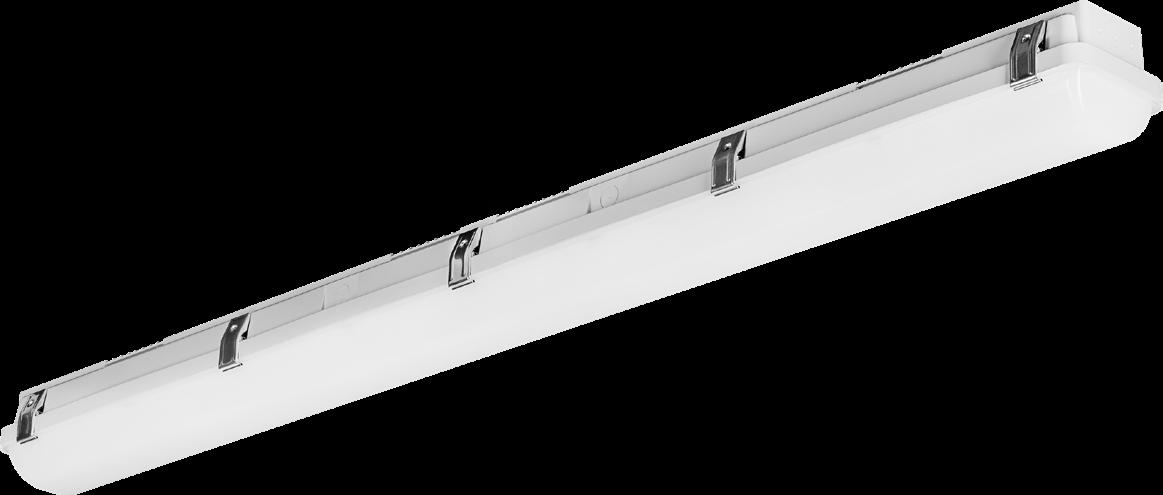

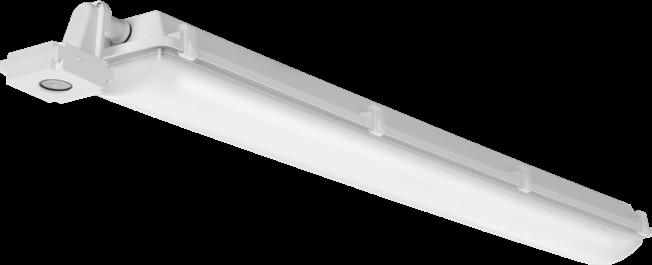

FEM LED Low-Profile Enclosed and Gasketed
Design
4,000 lumens
8,000 lumens
12,000 lumens
15,000 lumens
Options
Emergency:
BE6WCP 6W internal cold battery, illuminated test switch, cold rated -20°C min, wet location, Certified in CA Title 20 MAEDBS ‡
E10WMCP 10W internal constant power battery, self-diagnostic test switch, 5°C min, wet location, Certified in CA Title 20 MAEDBS ‡
ETS Emergency lighting control device for UL924 operation when using auxiliary generator or central inverter ‡
247OP 24/7 Operation with emergency battery and 3 conductor cord or plug ‡
Mounting:
ANGBKT Angle bracket shipped with fixture (316SS) ‡
WLFPMP4X Wet location fitting for pendant mounting, NEMA Type 4X rated ‡
WLFEND4X Wet location one end, NEMA Type 4X fittings ‡
WLFEND24X Wet Location both-ends, NEMA Type 4X fittings ‡
Other Options:
AO Adjustable output dimming ‡
DL Damp Location ‡
DRYLBL Dry Location ‡
IP69K IP69K rating, includes vent plugs ‡
SPD Surge protection device, additional 10kV/6kA
STSL Stainless steel latches (316SS)
TRS Tamper Resistant Torx® T10 screws (18-8SS)
BAA Buy America(n) Act and/or Build America Buy America Qualified
Cordsets:
CNP16WWL Cord, no plug, 16 gauge, 3 conductors, white, wet locations, 6 feet, other lengths available ‡
CNP164CWWL Cord, no plug, 16 gauge, 4 conductors for use with EM battery, white, wet locations, 6 feet, other lengths available ‡
CNP165CWWL Cord, no plug, 16 gauge, 5 conductors for use with ER controls or ETS device with 2 power sources, white, wet locations, 6 feet, other lengths available ‡
CNP165CDWWL Cord, no plug, 16 gauge, 5 conductors for 0-10V dimming, white, wet locations, 6 feet, other lengths available ‡
CPTL16W Cord with NEMA twist lock 15 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL16WWL Cord with NEMA twist lock 15 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPTL20A16W Cord with NEMA twist lock 20 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL20A16WWL Cord with NEMA twist lock 20 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPSB16W Cord with NEMA straight blade 15 amp plug, white, damp location, 6 feet, other lengths available
CMCMBH16YWL Cord with Brad Mini Change® male connector, nonmetallic coupling nut, 3 pole, 16 gauge, yellow, wet location, 6 feet, other lengths available ‡ MCRMBH16WL Receptacle with Brad Mini Change® male connector, stainless steel coupling nut, 3 pole, 16 gauge leads, wet location ‡
See chart for additional cordset options
Reloc®:
OCS Reloc® One Pass® circuit selector system drop, 18 gauge, 3 conductors, 6 feet, other lengths available ‡
OCS4C Reloc® One Pass® circuit selector system drop, 18 gauge, 4 conductors, for use with EM battery, 6 feet, other lengths available ‡
See chart for additional Reloc® options
Sensor Switch Embedded Controls:
SBOR10 360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off occupancy, Sensor/ control mounted external to the luminaire via a KO ‡
SBOR10 D 3V360° Low Mount Sensor, (8-15' mounting heights, more options available), high/low/off occupancy dimming, Sensor/control mounted external to the luminaire via a KO ‡
SBOR10 P360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off photocell, Sensor/ control mounted external to the luminaire via a KO ‡
See chart for additional control options
nLight Embedded Controls:
NLTAIR2 Embedded wireless controls by nLight ‡
NLTAIREM2 Embedded wireless controls by nLight with UL924 listed emergency operation ‡
NLTAIRER2 Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads ‡
NLTAIR2 APIRKO Embedded wireless controls by nLight, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
NLTAIREM2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/ control mounted external to the luminaire via a KO ‡
NLTAIRER2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
See chart for additional control options
NOTE: ‡ indicates option chosen has ordering restrictions. Please reference ordering restrictions chart, page 3. Options are sorted alphanumerically.
ONE PARK SARASOTA TYPE A ALT
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
TYPE AV SPEC ONE PARK SARASOTA
FEATURES & SPECIFICATIONS
INTENDED USE — A general purpose and energy-efficient surface-mounted or suspended LED fixture, suitable for wet, damp and/or cold locations. For vapor-tight demanding environments where moisture or dust is a concern and where relatively low fixture mounting heights and wide fixture spacing are common. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Typical applications include industrial facilities, parking garages, retail malls, multi-purpose rooms, garden centers, and food processing. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for AcrylicPolycarbonate Compatibility table for suitable use.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION — One-piece 5VA fiberglass housing with integral perimeter channel utilizing continuous poured-in-place NEMA 4X gasket. Approved for through wiring. Captive polymeric latches are standard. Stainless steel latches (316SS) available as an option for food processing or more demanding applications. Power connection is easily accomplished through pre-drilled holes.
OPTICS — Injection molded, acrylic lens (.080" thick) provides high impact-resistance comparable to 100% DR. A UV stabilized polycarbonate diffuser is available (.080" thick) in clear or frosted for additional impact strength where vandal protection is desired.
Expected service life of 60,000 hours at 80% lumen maintenance (L80); predicted life of more than 100,000 hours.
ELECTRICAL — Utilizes high-efficiency LEDs mounted to core circuit boards. High-efficiency drivers operate 120-277 (MVOLT) and 347-480 (HVOLT) offered with 0-10 volt dimming, dims to 10%. Standard Luminaire Surge Protection Level: 6kV/3kA Surge Rated per ANSI C82.77-5-2015.
INSTALLATION — A pair of stainless steel (316SS) surface mount brackets (SMB) are included (unless another mounting option is chosen) allowing for surface (ceiling) or suspension mount applications using included bail with aircraft cable or chain. Optional pair of dual pendant mount brackets (DPMB) (316SS) are available for surface (ceiling) or suspension mount applications using either 3/8" threaded rod or included bail with aircraft cable or chain. Optional pair of angle mounting brackets (ANGBKT) (316SS) for horizontal wall mount applications.
LISTINGS — CSA Certified to UL and C-UL Standards. Suitable for wet location. IP65, IP66, IP67 and IP69K (optional) rated. NSF Splash Zone 2 and Non-Food Zone rated. NEMA Type 4X rated. Sensors maintain IP65 and IP66 only. See chart on page 5 for Ambient Temperatures.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/3 0/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
FEM LED Low-Profile Enclosed and Gasketed
Design
4,000 lumens
6,000 lumens
8,000 lumens
10,000 lumens
‡ 9000LM 9,000 lumens
12,000 lumens
15,000 lumens
Options
Emergency:
BE6WCP 6W internal cold battery, illuminated test switch, cold rated -20°C min, wet location, Certified in CA Title 20 MAEDBS ‡
E10WMCP 10W internal constant power battery, self-diagnostic test switch, 5°C min, wet location, Certified in CA Title 20 MAEDBS ‡
ETS Emergency lighting control device for UL924 operation when using auxiliary generator or central inverter ‡
247OP 24/7 Operation with emergency battery and 3 conductor cord or plug ‡
Mounting:
ANGBKT Angle bracket shipped with fixture (316SS) ‡
WLFPMP4X Wet location fitting for pendant mounting, NEMA Type 4X rated ‡
WLFEND4X Wet location one end, NEMA Type 4X fittings ‡
WLFEND24X Wet Location both-ends, NEMA Type 4X fittings ‡
Other Options:
AO Adjustable output dimming ‡
DL Damp Location ‡
DRYLBL Dry Location ‡
IP69K IP69K rating, includes vent plugs ‡
SPD Surge protection device, additional 10kV/6kA
STSL Stainless steel latches (316SS)
TRS Tamper Resistant Torx® T10 screws (18-8SS)
BAA Buy America(n) Act and/or Build America Buy America Qualified
Cordsets:
CNP16WWL Cord, no plug, 16 gauge, 3 conductors, white, wet locations, 6 feet, other lengths available ‡
CNP164CWWL Cord, no plug, 16 gauge, 4 conductors for use with EM battery, white, wet locations, 6 feet, other lengths available ‡
CNP165CWWL Cord, no plug, 16 gauge, 5 conductors for use with ER controls or ETS device with 2 power sources, white, wet locations, 6 feet, other lengths available ‡
CNP165CDWWL Cord, no plug, 16 gauge, 5 conductors for 0-10V dimming, white, wet locations, 6 feet, other lengths available ‡
CPTL16W Cord with NEMA twist lock 15 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL16WWL Cord with NEMA twist lock 15 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPTL20A16W Cord with NEMA twist lock 20 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL20A16WWL Cord with NEMA twist lock 20 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPSB16W Cord with NEMA straight blade 15 amp plug, white, damp location, 6 feet, other lengths available
CMCMBH16YWL Cord with Brad Mini Change® male connector, nonmetallic coupling nut, 3 pole, 16 gauge, yellow, wet location, 6 feet, other lengths available ‡ MCRMBH16WL Receptacle with Brad Mini Change® male connector, stainless steel coupling nut, 3 pole, 16 gauge leads, wet location ‡
See chart for additional cordset options
Reloc®:
OCS Reloc® One Pass® circuit selector system drop, 18 gauge, 3 conductors, 6 feet, other lengths available ‡
OCS4C Reloc® One Pass® circuit selector system drop, 18 gauge, 4 conductors, for use with EM battery, 6 feet, other lengths available ‡
See chart for additional Reloc® options
Sensor Switch Embedded Controls:
SBOR10 360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off occupancy, Sensor/ control mounted external to the luminaire via a KO ‡
SBOR10 D 3V360° Low Mount Sensor, (8-15' mounting heights, more options available), high/low/off occupancy dimming, Sensor/control mounted external to the luminaire via a KO ‡
SBOR10 P360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off photocell, Sensor/ control mounted external to the luminaire via a KO ‡
See chart for additional control options
nLight Embedded Controls:
NLTAIR2 Embedded wireless controls by nLight ‡
NLTAIREM2 Embedded wireless controls by nLight with UL924 listed emergency operation ‡
NLTAIRER2 Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads ‡
NLTAIR2 APIRKO Embedded wireless controls by nLight, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
NLTAIREM2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/ control mounted external to the luminaire via a KO ‡
NLTAIRER2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
See chart for additional control options
NOTE: ‡ indicates option chosen has ordering restrictions. Please reference ordering restrictions chart, page 3. Options are sorted alphanumerically. See Accessories and ordering
ONE PARK SARASOTA TYPE AV ALT
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
TYPE AV-EM SPEC
FEATURES & SPECIFICATIONS
INTENDED USE — A general purpose and energy-efficient surface-mounted or suspended LED fixture, suitable for wet, damp and/or cold locations. For vapor-tight demanding environments where moisture or dust is a concern and where relatively low fixture mounting heights and wide fixture spacing are common. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Typical applications include industrial facilities, parking garages, retail malls, multi-purpose rooms, garden centers, and food processing. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for AcrylicPolycarbonate Compatibility table for suitable use.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION — One-piece 5VA fiberglass housing with integral perimeter channel utilizing continuous poured-in-place NEMA 4X gasket. Approved for through wiring. Captive polymeric latches are standard. Stainless steel latches (316SS) available as an option for food processing or more demanding applications. Power connection is easily accomplished through pre-drilled holes.
OPTICS — Injection molded, acrylic lens (.080" thick) provides high impact-resistance comparable to 100% DR. A UV stabilized polycarbonate diffuser is available (.080" thick) in clear or frosted for additional impact strength where vandal protection is desired.
Expected service life of 60,000 hours at 80% lumen maintenance (L80); predicted life of more than 100,000 hours.
ELECTRICAL — Utilizes high-efficiency LEDs mounted to core circuit boards. High-efficiency drivers operate 120-277 (MVOLT) and 347-480 (HVOLT) offered with 0-10 volt dimming, dims to 10%. Standard Luminaire Surge Protection Level: 6kV/3kA Surge Rated per ANSI C82.77-5-2015.
INSTALLATION — A pair of stainless steel (316SS) surface mount brackets (SMB) are included (unless another mounting option is chosen) allowing for surface (ceiling) or suspension mount applications using included bail with aircraft cable or chain. Optional pair of dual pendant mount brackets (DPMB) (316SS) are available for surface (ceiling) or suspension mount applications using either 3/8" threaded rod or included bail with aircraft cable or chain. Optional pair of angle mounting brackets (ANGBKT) (316SS) for horizontal wall mount applications.
LISTINGS — CSA Certified to UL and C-UL Standards. Suitable for wet location. IP65, IP66, IP67 and IP69K (optional) rated. NSF Splash Zone 2 and Non-Food Zone rated. NEMA Type 4X rated. Sensors maintain IP65 and IP66 only. See chart on page 5 for Ambient Temperatures.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog #
Project
Type
Prepared by
APPLICATION
Comments
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/8 0/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
FEM LED Low-Profile Enclosed and Gasketed
Design Select options indicated by this color background.
4,000 lumens
6,000 lumens
8,000 lumens
10,000 lumens
‡ 9000LM 9,000 lumens
12,000 lumens
15,000 lumens
Options
Emergency:
BE6WCP 6W internal cold battery, illuminated test switch, cold rated -20°C min, wet location, Certified in CA Title 20 MAEDBS ‡
E10WMCP 10W internal constant power battery, self-diagnostic test switch, 5°C min, wet location, Certified in CA Title 20 MAEDBS ‡
ETS Emergency lighting control device for UL924 operation when using auxiliary generator or central inverter ‡
247OP 24/7 Operation with emergency battery and 3 conductor cord or plug ‡
Mounting:
ANGBKT Angle bracket shipped with fixture (316SS) ‡
WLFPMP4X Wet location fitting for pendant mounting, NEMA Type 4X rated ‡
WLFEND4X Wet location one end, NEMA Type 4X fittings ‡
WLFEND24X Wet Location both-ends, NEMA Type 4X fittings ‡
Other Options:
AO Adjustable output dimming ‡
DL Damp Location ‡
DRYLBL Dry Location ‡
IP69K IP69K rating, includes vent plugs ‡
SPD Surge protection device, additional 10kV/6kA
STSL Stainless steel latches (316SS)
TRS Tamper Resistant Torx® T10 screws (18-8SS)
BAA Buy America(n) Act and/or Build America Buy America Qualified
Cordsets:
CNP16WWL Cord, no plug, 16 gauge, 3 conductors, white, wet locations, 6 feet, other lengths available ‡
CNP164CWWL Cord, no plug, 16 gauge, 4 conductors for use with EM battery, white, wet locations, 6 feet, other lengths available ‡
CNP165CWWL Cord, no plug, 16 gauge, 5 conductors for use with ER controls or ETS device with 2 power sources, white, wet locations, 6 feet, other lengths available ‡
CNP165CDWWL Cord, no plug, 16 gauge, 5 conductors for 0-10V dimming, white, wet locations, 6 feet, other lengths available ‡
CPTL16W Cord with NEMA twist lock 15 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL16WWL Cord with NEMA twist lock 15 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPTL20A16W Cord with NEMA twist lock 20 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL20A16WWL Cord with NEMA twist lock 20 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPSB16W Cord with NEMA straight blade 15 amp plug, white, damp location, 6 feet, other lengths available
CMCMBH16YWL Cord with Brad Mini Change® male connector, nonmetallic coupling nut, 3 pole, 16 gauge, yellow, wet location, 6 feet, other lengths available ‡ MCRMBH16WL Receptacle with Brad Mini Change® male connector, stainless steel coupling nut, 3 pole, 16 gauge leads, wet location ‡
See chart for additional cordset options
Reloc®:
OCS Reloc® One Pass® circuit selector system drop, 18 gauge, 3 conductors, 6 feet, other lengths available ‡
OCS4C Reloc® One Pass® circuit selector system drop, 18 gauge, 4 conductors, for use with EM battery, 6 feet, other lengths available ‡
See chart for additional Reloc® options
Sensor Switch Embedded Controls:
SBOR10 360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off occupancy, Sensor/ control mounted external to the luminaire via a KO ‡
SBOR10 D 3V360° Low Mount Sensor, (8-15' mounting heights, more options available), high/low/off occupancy dimming, Sensor/control mounted external to the luminaire via a KO ‡
SBOR10 P360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off photocell, Sensor/ control mounted external to the luminaire via a KO ‡
See chart for additional control options
nLight Embedded Controls:
NLTAIR2 Embedded wireless controls by nLight ‡
NLTAIREM2 Embedded wireless controls by nLight with UL924 listed emergency operation ‡
NLTAIRER2 Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads ‡
NLTAIR2 APIRKO Embedded wireless controls by nLight, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
NLTAIREM2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/ control mounted external to the luminaire via a KO ‡
NLTAIRER2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
See chart for additional control options
NOTE: ‡ indicates option chosen has ordering restrictions. Please reference ordering restrictions chart, page 3. Options are sorted alphanumerically. See Accessories and ordering restrictions on next page.
ONE PARK SARASOTA TYPE AV-EM ALT
ELECTRICAL
120-347Vac and 277-480Vac Power Factor >90%
THD <20%
2.5kV surge suppression
0-10V dimmable
UL Wet rated
Auxiliary 12V output WARRANTY
Trusted Warranty Program
CERTIFICATIONS
for EMBB models
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available
NO SPEC
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project
Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/9 0/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
BLANK
ONE PARK SARASOTA TYPE AV1 ALT
ELECTRICAL
120-347Vac and 277-480Vac Power Factor >90%
THD <20%
2.5kV surge suppression
0-10V dimmable
UL Wet rated
Auxiliary 12V output WARRANTY
Trusted Warranty Program
CERTIFICATIONS
for EMBB models
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available
TYPE B1 SPEC ONE PARK SARASOTA
FEATURES & SPECIFICATIONS
INTENDED USE — A general purpose and energy-efficient surface-mounted or suspended LED fixture, suitable for wet, damp and/or cold locations. For vapor-tight demanding environments where moisture or dust is a concern and where relatively low fixture mounting heights and wide fixture spacing are common. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Typical applications include industrial facilities, parking garages, retail malls, multi-purpose rooms, garden centers, and food processing. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for AcrylicPolycarbonate Compatibility table for suitable use.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION — One-piece 5VA fiberglass housing with integral perimeter channel utilizing continuous poured-in-place NEMA 4X gasket. Approved for through wiring. Captive polymeric latches are standard. Stainless steel latches (316SS) available as an option for food processing or more demanding applications. Power connection is easily accomplished through pre-drilled holes.
OPTICS — Injection molded, acrylic lens (.080" thick) provides high impact-resistance comparable to 100% DR. A UV stabilized polycarbonate diffuser is available (.080" thick) in clear or frosted for additional impact strength where vandal protection is desired.
Expected service life of 60,000 hours at 80% lumen maintenance (L80); predicted life of more than 100,000 hours.
ELECTRICAL — Utilizes high-efficiency LEDs mounted to core circuit boards. High-efficiency drivers operate 120-277 (MVOLT) and 347-480 (HVOLT) offered with 0-10 volt dimming, dims to 10%. Standard Luminaire Surge Protection Level: 6kV/3kA Surge Rated per ANSI C82.77-5-2015.
INSTALLATION — A pair of stainless steel (316SS) surface mount brackets (SMB) are included (unless another mounting option is chosen) allowing for surface (ceiling) or suspension mount applications using included bail with aircraft cable or chain. Optional pair of dual pendant mount brackets (DPMB) (316SS) are available for surface (ceiling) or suspension mount applications using either 3/8" threaded rod or included bail with aircraft cable or chain. Optional pair of angle mounting brackets (ANGBKT) (316SS) for horizontal wall mount applications.
LISTINGS — CSA Certified to UL and C-UL Standards. Suitable for wet location. IP65, IP66, IP67 and IP69K (optional) rated. NSF Splash Zone 2 and Non-Food Zone rated. NEMA Type 4X rated. Sensors maintain IP65 and IP66 only. See chart on page 5 for Ambient Temperatures.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project
Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/9 0/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
FEM LED Low-Profile Enclosed and Gasketed
Design
4,000 lumens
6,000 lumens
8,000 lumens
10,000 lumens
‡ 9000LM 9,000 lumens
12,000 lumens
15,000 lumens
Options
Emergency:
BE6WCP 6W internal cold battery, illuminated test switch, cold rated -20°C min, wet location, Certified in CA Title 20 MAEDBS ‡
E10WMCP 10W internal constant power battery, self-diagnostic test switch, 5°C min, wet location, Certified in CA Title 20 MAEDBS ‡
ETS Emergency lighting control device for UL924 operation when using auxiliary generator or central inverter ‡
247OP 24/7 Operation with emergency battery and 3 conductor cord or plug ‡
Mounting:
ANGBKT Angle bracket shipped with fixture (316SS) ‡
WLFPMP4X Wet location fitting for pendant mounting, NEMA Type 4X rated ‡
WLFEND4X Wet location one end, NEMA Type 4X fittings ‡
WLFEND24X Wet Location both-ends, NEMA Type 4X fittings ‡
Other Options:
AO Adjustable output dimming ‡
DL Damp Location ‡
DRYLBL Dry Location ‡
IP69K IP69K rating, includes vent plugs ‡
SPD Surge protection device, additional 10kV/6kA
STSL Stainless steel latches (316SS)
TRS Tamper Resistant Torx® T10 screws (18-8SS)
BAA Buy America(n) Act and/or Build America Buy America Qualified
Cordsets:
CNP16WWL Cord, no plug, 16 gauge, 3 conductors, white, wet locations, 6 feet, other lengths available ‡
CNP164CWWL Cord, no plug, 16 gauge, 4 conductors for use with EM battery, white, wet locations, 6 feet, other lengths available ‡
CNP165CWWL Cord, no plug, 16 gauge, 5 conductors for use with ER controls or ETS device with 2 power sources, white, wet locations, 6 feet, other lengths available ‡
CNP165CDWWL Cord, no plug, 16 gauge, 5 conductors for 0-10V dimming, white, wet locations, 6 feet, other lengths available ‡
CPTL16W Cord with NEMA twist lock 15 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL16WWL Cord with NEMA twist lock 15 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPTL20A16W Cord with NEMA twist lock 20 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL20A16WWL Cord with NEMA twist lock 20 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPSB16W Cord with NEMA straight blade 15 amp plug, white, damp location, 6 feet, other lengths available
CMCMBH16YWL Cord with Brad Mini Change® male connector, nonmetallic coupling nut, 3 pole, 16 gauge, yellow, wet location, 6 feet, other lengths available ‡ MCRMBH16WL Receptacle with Brad Mini Change® male connector, stainless steel coupling nut, 3 pole, 16 gauge leads, wet location ‡
See chart for additional cordset options
Reloc®:
OCS Reloc® One Pass® circuit selector system drop, 18 gauge, 3 conductors, 6 feet, other lengths available ‡
OCS4C Reloc® One Pass® circuit selector system drop, 18 gauge, 4 conductors, for use with EM battery, 6 feet, other lengths available ‡
See chart for additional Reloc® options
Sensor Switch Embedded Controls:
SBOR10 360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off occupancy, Sensor/ control mounted external to the luminaire via a KO ‡
SBOR10 D 3V360° Low Mount Sensor, (8-15' mounting heights, more options available), high/low/off occupancy dimming, Sensor/control mounted external to the luminaire via a KO ‡
SBOR10 P360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off photocell, Sensor/ control mounted external to the luminaire via a KO ‡
See chart for additional control options
nLight Embedded Controls:
NLTAIR2 Embedded wireless controls by nLight ‡
NLTAIREM2 Embedded wireless controls by nLight with UL924 listed emergency operation ‡
NLTAIRER2 Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads ‡
NLTAIR2 APIRKO Embedded wireless controls by nLight, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
NLTAIREM2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/ control mounted external to the luminaire via a KO ‡
NLTAIRER2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
See chart for additional control options
NOTE: ‡ indicates option chosen has ordering restrictions. Please reference ordering restrictions chart, page 3. Options are sorted alphanumerically. See Accessories and ordering
ONE PARK SARASOTA TYPE B1
ELECTRICAL
120-347Vac and 277-480Vac Power Factor >90%
THD <20%
2.5kV surge suppression
0-10V dimmable
UL Wet rated
Auxiliary 12V output WARRANTY
Trusted Warranty Program
CERTIFICATIONS
for EMBB models
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available
TYPE C SPEC ONE PARK SARASOTA
FEATURES & SPECIFICATIONS
INTENDED USE — A general purpose and energy-efficient surface-mounted or suspended LED fixture, suitable for wet, damp and/or cold locations. For vapor-tight demanding environments where moisture or dust is a concern and where relatively low fixture mounting heights and wide fixture spacing are common. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Typical applications include industrial facilities, parking garages, retail malls, multi-purpose rooms, garden centers, and food processing. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for AcrylicPolycarbonate Compatibility table for suitable use.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION — One-piece 5VA fiberglass housing with integral perimeter channel utilizing continuous poured-in-place NEMA 4X gasket. Approved for through wiring. Captive polymeric latches are standard. Stainless steel latches (316SS) available as an option for food processing or more demanding applications. Power connection is easily accomplished through pre-drilled holes.
OPTICS — Injection molded, acrylic lens (.080" thick) provides high impact-resistance comparable to 100% DR. A UV stabilized polycarbonate diffuser is available (.080" thick) in clear or frosted for additional impact strength where vandal protection is desired.
Expected service life of 60,000 hours at 80% lumen maintenance (L80); predicted life of more than 100,000 hours.
ELECTRICAL — Utilizes high-efficiency LEDs mounted to core circuit boards. High-efficiency drivers operate 120-277 (MVOLT) and 347-480 (HVOLT) offered with 0-10 volt dimming, dims to 10%. Standard Luminaire Surge Protection Level: 6kV/3kA Surge Rated per ANSI C82.77-5-2015.
INSTALLATION — A pair of stainless steel (316SS) surface mount brackets (SMB) are included (unless another mounting option is chosen) allowing for surface (ceiling) or suspension mount applications using included bail with aircraft cable or chain. Optional pair of dual pendant mount brackets (DPMB) (316SS) are available for surface (ceiling) or suspension mount applications using either 3/8" threaded rod or included bail with aircraft cable or chain. Optional pair of angle mounting brackets (ANGBKT) (316SS) for horizontal wall mount applications.
LISTINGS — CSA Certified to UL and C-UL Standards. Suitable for wet location. IP65, IP66, IP67 and IP69K (optional) rated. NSF Splash Zone 2 and Non-Food Zone rated. NEMA Type 4X rated. Sensors maintain IP65 and IP66 only. See chart on page 5 for Ambient Temperatures.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
FEM LED Low-Profile Enclosed and Gasketed
Design
4,000 lumens
6,000 lumens
8,000 lumens
10,000 lumens
‡ 9000LM 9,000 lumens
12,000 lumens
15,000 lumens
Options
Emergency:
BE6WCP 6W internal cold battery, illuminated test switch, cold rated -20°C min, wet location, Certified in CA Title 20 MAEDBS ‡
E10WMCP 10W internal constant power battery, self-diagnostic test switch, 5°C min, wet location, Certified in CA Title 20 MAEDBS ‡
ETS Emergency lighting control device for UL924 operation when using auxiliary generator or central inverter ‡
247OP 24/7 Operation with emergency battery and 3 conductor cord or plug ‡
Mounting:
ANGBKT Angle bracket shipped with fixture (316SS) ‡
WLFPMP4X Wet location fitting for pendant mounting, NEMA Type 4X rated ‡
WLFEND4X Wet location one end, NEMA Type 4X fittings ‡
WLFEND24X Wet Location both-ends, NEMA Type 4X fittings ‡
Other Options:
AO Adjustable output dimming ‡
DL Damp Location ‡
DRYLBL Dry Location ‡
IP69K IP69K rating, includes vent plugs ‡
SPD Surge protection device, additional 10kV/6kA
STSL Stainless steel latches (316SS)
TRS Tamper Resistant Torx® T10 screws (18-8SS)
BAA Buy America(n) Act and/or Build America Buy America Qualified
Cordsets:
CNP16WWL Cord, no plug, 16 gauge, 3 conductors, white, wet locations, 6 feet, other lengths available ‡
CNP164CWWL Cord, no plug, 16 gauge, 4 conductors for use with EM battery, white, wet locations, 6 feet, other lengths available ‡
CNP165CWWL Cord, no plug, 16 gauge, 5 conductors for use with ER controls or ETS device with 2 power sources, white, wet locations, 6 feet, other lengths available ‡
CNP165CDWWL Cord, no plug, 16 gauge, 5 conductors for 0-10V dimming, white, wet locations, 6 feet, other lengths available ‡
CPTL16W Cord with NEMA twist lock 15 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL16WWL Cord with NEMA twist lock 15 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPTL20A16W Cord with NEMA twist lock 20 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL20A16WWL Cord with NEMA twist lock 20 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPSB16W Cord with NEMA straight blade 15 amp plug, white, damp location, 6 feet, other lengths available
CMCMBH16YWL Cord with Brad Mini Change® male connector, nonmetallic coupling nut, 3 pole, 16 gauge, yellow, wet location, 6 feet, other lengths available ‡ MCRMBH16WL Receptacle with Brad Mini Change® male connector, stainless steel coupling nut, 3 pole, 16 gauge leads, wet location ‡
See chart for additional cordset options
Reloc®:
OCS Reloc® One Pass® circuit selector system drop, 18 gauge, 3 conductors, 6 feet, other lengths available ‡
OCS4C Reloc® One Pass® circuit selector system drop, 18 gauge, 4 conductors, for use with EM battery, 6 feet, other lengths available ‡
See chart for additional Reloc® options
Sensor Switch Embedded Controls:
SBOR10 360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off occupancy, Sensor/ control mounted external to the luminaire via a KO ‡
SBOR10 D 3V360° Low Mount Sensor, (8-15' mounting heights, more options available), high/low/off occupancy dimming, Sensor/control mounted external to the luminaire via a KO ‡
SBOR10 P360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off photocell, Sensor/ control mounted external to the luminaire via a KO ‡
See chart for additional control options
nLight Embedded Controls:
NLTAIR2 Embedded wireless controls by nLight ‡
NLTAIREM2 Embedded wireless controls by nLight with UL924 listed emergency operation ‡
NLTAIRER2 Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads ‡
NLTAIR2 APIRKO Embedded wireless controls by nLight, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
NLTAIREM2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/ control mounted external to the luminaire via a KO ‡
NLTAIRER2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
See chart for additional control options
NOTE: ‡ indicates option chosen has ordering restrictions. Please reference ordering restrictions chart, page 3. Options are sorted alphanumerically. See Accessories and ordering
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K - 140
3500K - 135
4000K - 136
5000K - 137
NO SPEC

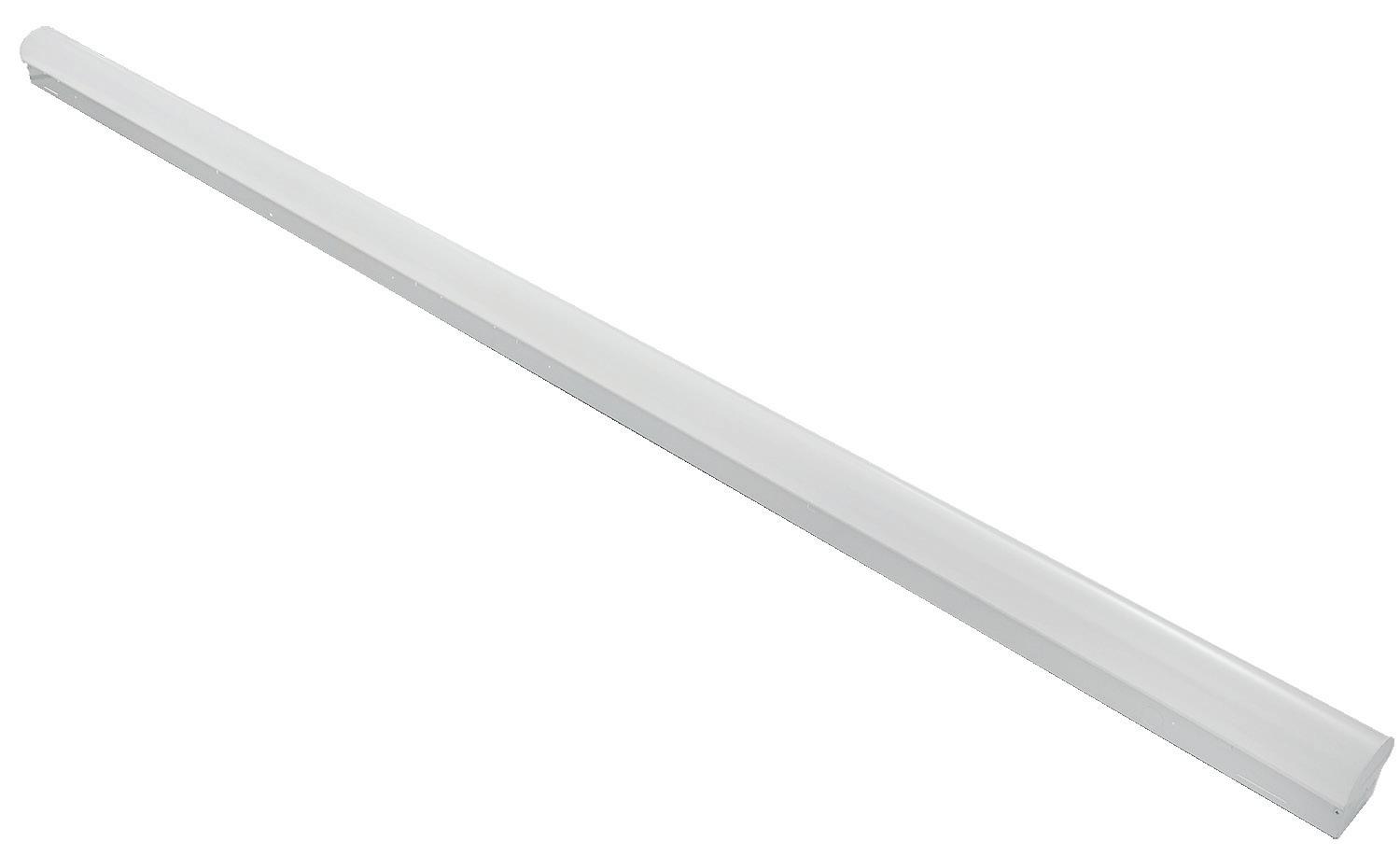

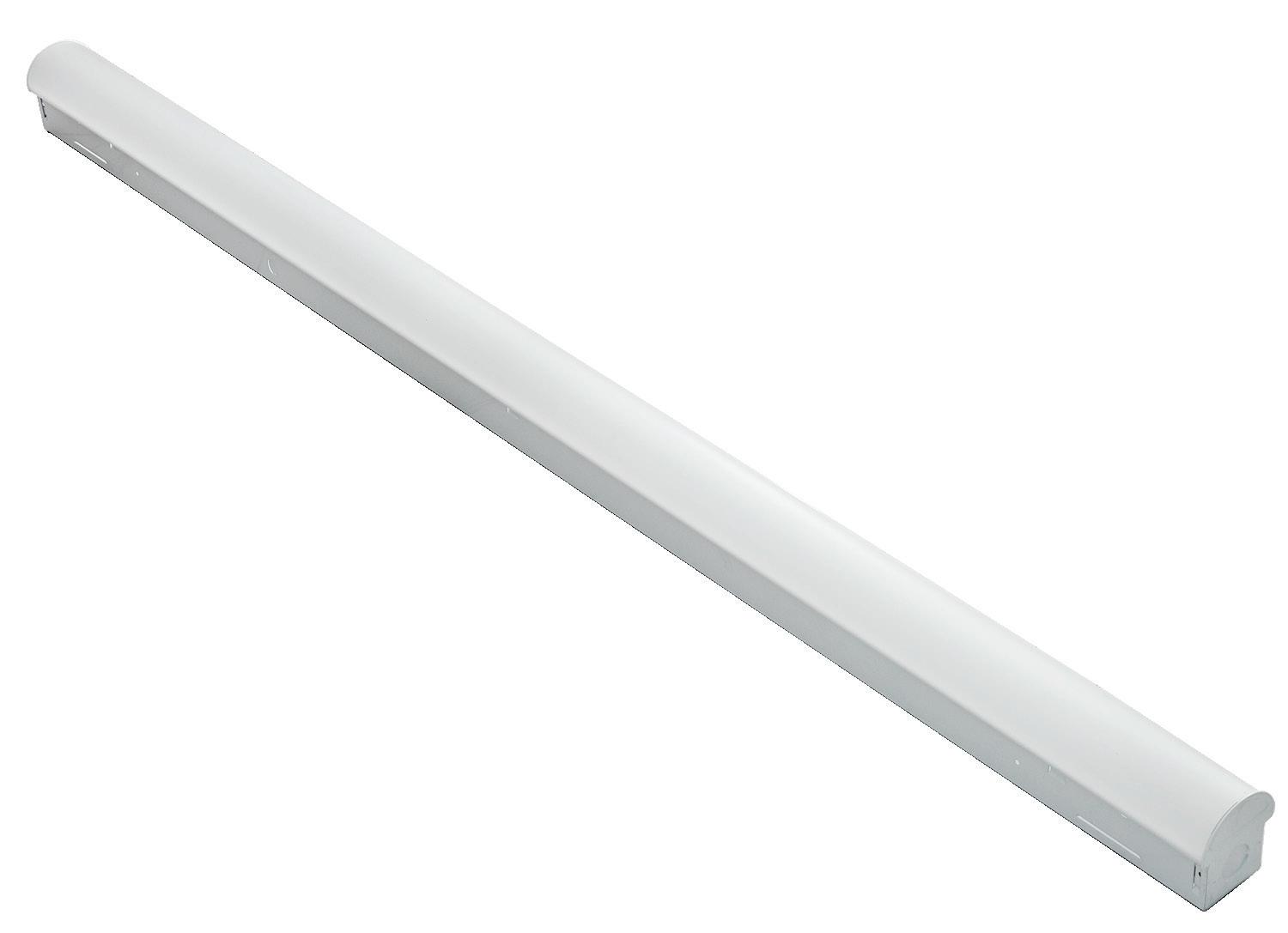

Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
•Sharkward bi-level dimming microwave motion sensor included
•Long 50,000 hour rated life
•Bi-level dimming microwave motion sensor included standard, battery backup optional
Catalog Ordering Matrix
Field Installed Accessories:
YTGHANGER - 10’ adjustable cable hang kit
Listings
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
NO SPEC
ONE PARK SARASOTA TYPE
NX-822-LED

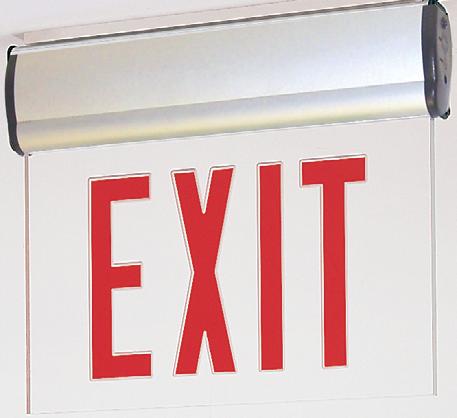

NYC Approved Edge-Lit Exit Sign with Adjustable Housing
Source: 3W normal 5W emergency
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. Letters available in either green or red color.
ELECTRICAL
Voltage: 120V or 277V dual input
Wattage: 3W normal, 5W emergency Light Source: LED
Circuitry Protection: Isolated surge and short circuit protection. Disconnect for deep discharge.
BODY
Two piece snap-together extruded aluminum housing holds battery, LED and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Face is constructed with 0.40 clear acrylic with rounded and finished edge for attractive appearance. Face contains 8" high and 3/4" thick red lettering inside face to comply with NY/ ETL/NFPA requirements. Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic. Face can be adjusted in the field from 0° to 90°for wall, ceiling or sloped applications.
MOUNTING
Wall, side or ceiling mount. Canopy and mounting hardware included.
High-charge / ready operation indicator light and test button.
LABELS AND LISTINGS
cULus Listed
New York City Approved NEC NFPA
Certified to the energy efficiency standards of California Title 20
NYC Approved LED Edge-Lit Exit Sign with Adjustable Housing
Example: NX-822-LEDR1CA = LED Edge-Lit Exit Sign, 8" Red Letters, Single Faced / Clear Acrylic, Natural Aluminum finish
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com e-mail: nora@noralighting.com
NO SPEC
ONE PARK SARASOTA
Source: 2.2W
PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
UL 924 Listed for Wet Locations · NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant

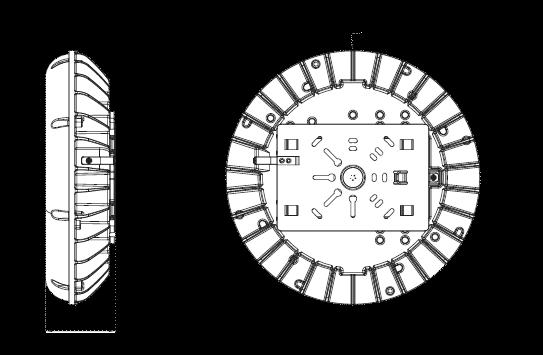

PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com

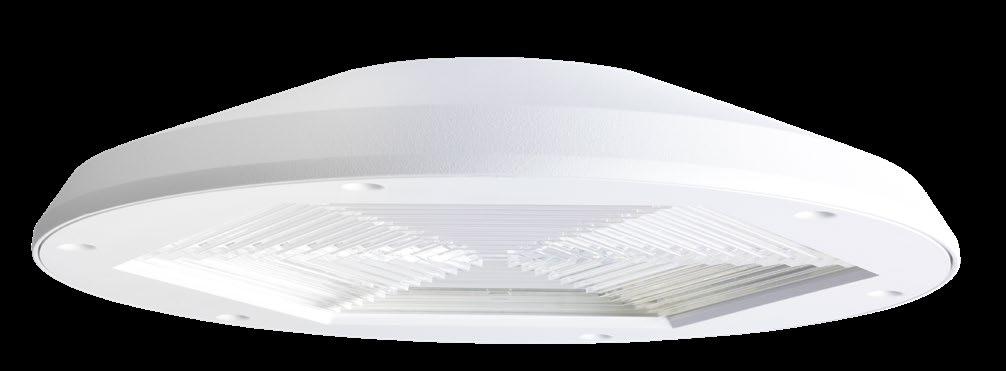

» Unique hexagonal light guide with edge-lit LED light engine provides three distribution optionsType V, Rectangular and Drive Lane
» Lightweight construction (7 lbs) for ease of installation
» Nominal output range of 4,000 to 12,000 lm
SPECIFICATIONS
HOUSING: Die-cast aluminum and UV-stabilized polycarbonate construction. Standard TGIC polyester powder coat finish on aluminum components with five-step pre-treatment to withstand 1,000 hour salt spray test per ASTM B117. See Ordering Information for available finishes. Closed-cell gasketing seals all housing component interfaces.
MOUNTING: Direct-to-Surface (DTS) mounts over recessed electrical box to ceiling, Quick-Mount (QM) mounts to either surface or recessed electrical box, Trunnion Mount (TK) or pendant-mounted (PM) via ¾" rigid sealed conduit (conduit and pendant components by others). See Ordering Information for selection. Fixture weight is 7 lbs.
OPTICAL: Type V-Wide (5W), Rectangular Wide (RW) and Drive Lane (DL) optical distribution options. Light guide outer lens constructed of clear UV-stabilized polycarbonate.
ELECTRICAL: Edge-lit mid-power LED light source. See Ordering Information for color temperature options. 80 CRI minimum. 120-277 VAC, 347VAC and 480VAC 50/60Hz input; constant-current dimming driver; <20% THD, >0.90 PF. Minimum 83% electrical efficiency. 0-10V dimming protocol with 1-100% range and dim-to-dark capabilities, 0.2mA source current (90L lamp is 10-100% dimming with dim-to-dark capabilities, 0.45mA source current). Surge and transient protection rated at 6kV per ANSI C62.41-2002 and 10kV per ANSI C82.77-5 2015. 20kA max. transient protection (L-N). Replaceable surge suppressor. Driver is EMC compliant with FCC 47 CFR Part 15, Class B. Passes IEC 61000-4-4 EFT and IEC 61000-4-5 (Class 4) surge evaluation.
TEKLINK™ TL50M/TL50DM: An independent lighting control system integral to the luminaire, featuring its own embedded occupancy sensor and adjustable time-out/dimming settings. TL50DM adds a closed-loop daylight harvesting function for maximum energy savings.
TEKLINK™ TL100: Centralized, wired zonal occupancy and closed-loop daylight harvesting control system. TL100 controllers are standalone devices and ordered separately from luminaire. Click here for specifications.
TEKLINK TL200M/TL200DM: A wireless, zonal occupancy control Bluetooth® Low Energy system (BLE v5.2) with embedded sensor. Mobile app for Android and iOS device allows changes to timeout period, turn-off delay and light level. System commissioning is not required - network is operational upon power-up. TL200DM adds the daylight harvesting function for maximum energy savings.
TEKLINK™ TL1000/2000: An adaptive lighting control system with wired or wireless communication between system nodes. In addition to occupancy detection and daylight harvesting, TL1000 and TL2000 feature advanced scheduling and energy management capabilities with cloud-based management of system settings, task tuning, power/energy monitoring, reporting and notifications. TL1000 utilizes wired (shielded twisted pair) communication to exchange information built on the CAN bus protocol. TL2000 uses wireless communication (900 MHz), designed to the IEEE 802.15.4 standard.
SENSOR & CONTROLS: Optional sensor available with compatible third party controls. To see the full list of compatible controls, click here.
PHOTOMETRICS: Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For photometric data, please go to www.kenall.com.
WARRANTY: Limited five (5) year warranty. Peace of Mind Guarantee® when ordered and installed with direct-to-surface (DTS) mounting.
LISTINGS: Luminaire is certified to UL Standards by Intertek Testing Laboratory for Wet Location. IP66 rating per IEC 60598 standard. Suitable for installation into -35°C to 40°C ambient environments, unless otherwise noted. Passes 3G vibration test per ANSI C136.31-2001. DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Visit https://qpl.designlights.org/ to confirm qualification.
Mounting
DTS Direct-to-Surface
PM Pendant Mount (by others)
TK Trunnion Kit
QM Quick Mount System
Finish
MW Matte White (STD)
LG Light Gray
CC Custom Color (consult factory)
Optic Type
5W Type V – Wide Circular
RW Rectangular – Wide
DL Drive Lane / Type 4
Lens Type
CP Clear Polycarbonate
» Compatible with TekLink™ lighting control technology www.kenall.com | P: 800-4-Kenall | F: 262-891-9700 | 10200
ORDERING INFORMATION (Ex: HPG14-PM-MW-5W-CP-50L-40K8-DIM1-DV-FS-TL200M)
Lamp Power 30L
LED (DL optic only) 35L^
Lamp Color
30K8 3000K/80CRI min
35K8 3500K/80CRI min
40K8 4000K/80CRI min 50K8 5000K/80CRI min
Driver Type
DIM1 0-10V Dimming to 1% with Dim-to-Dark (70L max.) DIM10I 0-10V Dimming to 10% with Dim-to-Dark Voltage DV 120-277 Volts (50/60Hz) 347 347 Volts (60Hz) 480 480 Volts (60Hz)
Options
LEL+ Integral 10W Emergency Battery Backup (0°C min. ambient)
CEL+ Integral 10W Cold Weather Battery Backup (-20°C min ambient , requires separate housing enclosure - see Dimensional Data)
GTDU+ UL924 and UL1008 Listed Switch Bypass/Lighting Transfer Switch with 0-10V Dimming Override (not available with LEL/CEL Option)
FS Single Fuse & Holder
BG Bird Guard (DTS and QM Mounting only)
Accessories
BD Bird Deterrent (PM and TK Mounting only)
TL50M+ Non-Networked Control - Motion Only (Click here for specifications)
TL50DM+ Non-Networked Control -Daylight Harvesting and Motion Sensing (Click here for specifications)
TL200M+ Wireless Networked Control - Motion Only (Click here for specifications)
TL200DM+ Wireless Networked Control -Daylight Harvesting and Motion Sensing (Click here for specifications)
TL1000+ Wired Network Control - Advanced (Click here for specifications)
TL2000+ Wireless Network Control - Advanced (Click here for specifications)
Please consult Kenall Applications when ordering controls. When specifying with integral controls, a mounting height of 10-14’ is recommended for optimal sensor coverage; 20’ maximum with reduced coverage.
Controls Kit < > Factory Assigned Internal Code
^ Not available with DL optic *Not available with DL and RW optic + DV input voltage only. Not available with 90L lamp power. I 90L lamp only. DV input voltage only.
-Mounting Bracket suitable for JBox mounting -Supports pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
-DLC Listed
WARRANTY
- 5 Year
ORDERING INFORMATION
Type
Catalog Number
OPTIONS (Factory Installed)
GL9-MS-MCT LED Selectable Canopy
Luminaires for Parking Garages
PRODUCT FEATURES:
» Unique hexagonal light guide with edge-lit LED light engine provides three distribution optionsType V, Rectangular and Drive Lane
» Lightweight construction (7 lbs) for ease of installation
» Nominal output range of 4,000 to 12,000 lm
SPECIFICATIONS
HOUSING: Die-cast aluminum and UV-stabilized polycarbonate construction. Standard TGIC polyester powder coat finish on aluminum components with five-step pre-treatment to withstand 1,000 hour salt spray test per ASTM B117. See Ordering Information for available finishes. Closed-cell gasketing seals all housing component interfaces.
MOUNTING: Direct-to-Surface (DTS) mounts over recessed electrical box to ceiling, Quick-Mount (QM) mounts to either surface or recessed electrical box, Trunnion Mount (TK) or pendant-mounted (PM) via ¾" rigid sealed conduit (conduit and pendant components by others). See Ordering Information for selection. Fixture weight is 7 lbs.
OPTICAL: Type V-Wide (5W), Rectangular Wide (RW) and Drive Lane (DL) optical distribution options. Light guide outer lens constructed of clear UV-stabilized polycarbonate.
ELECTRICAL: Edge-lit mid-power LED light source. See Ordering Information for color temperature options. 80 CRI minimum. 120-277 VAC, 347VAC and 480VAC 50/60Hz input; constant-current dimming driver; <20% THD, >0.90 PF. Minimum 83% electrical efficiency. 0-10V dimming protocol with 1-100% range and dim-to-dark capabilities, 0.2mA source current (90L lamp is 10-100% dimming with dim-to-dark capabilities, 0.45mA source current). Surge and transient protection rated at 6kV per ANSI C62.41-2002 and 10kV per ANSI C82.77-5 2015. 20kA max. transient protection (L-N). Replaceable surge suppressor. Driver is EMC compliant with FCC 47 CFR Part 15, Class B. Passes IEC 61000-4-4 EFT and IEC 61000-4-5 (Class 4) surge evaluation.
TEKLINK™ TL50M/TL50DM: An independent lighting control system integral to the luminaire, featuring its own embedded occupancy sensor and adjustable time-out/dimming settings. TL50DM adds a closed-loop daylight harvesting function for maximum energy savings.
TEKLINK™ TL100: Centralized, wired zonal occupancy and closed-loop daylight harvesting control system. TL100 controllers are standalone devices and ordered separately from luminaire. Click here for specifications.
TEKLINK TL200M/TL200DM: A wireless, zonal occupancy control Bluetooth® Low Energy system (BLE v5.2) with embedded sensor. Mobile app for Android and iOS device allows changes to timeout period, turn-off delay and light level. System commissioning is not required - network is operational upon power-up. TL200DM adds the daylight harvesting function for maximum energy savings.
TEKLINK™ TL1000/2000: An adaptive lighting control system with wired or wireless communication between system nodes. In addition to occupancy detection and daylight harvesting, TL1000 and TL2000 feature advanced scheduling and energy management capabilities with cloud-based management of system settings, task tuning, power/energy monitoring, reporting and notifications. TL1000 utilizes wired (shielded twisted pair) communication to exchange information built on the CAN bus protocol. TL2000 uses wireless communication (900 MHz), designed to the IEEE 802.15.4 standard.
SENSOR & CONTROLS: Optional sensor available with compatible third party controls. To see the full list of compatible controls, click here.
PHOTOMETRICS: Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For photometric data, please go to www.kenall.com.
WARRANTY: Limited five (5) year warranty. Peace of Mind Guarantee® when ordered and installed with direct-to-surface (DTS) mounting.
LISTINGS: Luminaire is certified to UL Standards by Intertek Testing Laboratory for Wet Location. IP66 rating per IEC 60598 standard. Suitable for installation into -35°C to 40°C ambient environments, unless otherwise noted. Passes 3G vibration test per ANSI C136.31-2001. DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Visit https://qpl.designlights.org/ to confirm qualification.
Mounting
DTS Direct-to-Surface
PM Pendant Mount (by others)
TK Trunnion Kit
QM Quick Mount System
Finish
MW Matte White (STD)
LG Light Gray
CC Custom Color (consult factory)
Optic Type
5W Type V – Wide Circular
RW Rectangular – Wide
DL Drive Lane / Type 4
Lens Type
CP Clear Polycarbonate
» Compatible with TekLink™ lighting control technology www.kenall.com | P: 800-4-Kenall | F: 262-891-9700 | 10200
ORDERING INFORMATION (Ex: HPG14-PM-MW-5W-CP-50L-40K8-DIM1-DV-FS-TL200M)
Lamp Power 30L
LED (DL optic only) 35L^
Lamp Color
30K8 3000K/80CRI min
35K8 3500K/80CRI min
40K8 4000K/80CRI min 50K8 5000K/80CRI min
Driver Type
DIM1 0-10V Dimming to 1% with Dim-to-Dark (70L max.) DIM10I 0-10V Dimming to 10% with Dim-to-Dark Voltage DV 120-277 Volts (50/60Hz) 347 347 Volts (60Hz) 480 480 Volts (60Hz)
Options
LEL+ Integral 10W Emergency Battery Backup (0°C min. ambient)
CEL+ Integral 10W Cold Weather Battery Backup (-20°C min ambient , requires separate housing enclosure - see Dimensional Data)
GTDU+ UL924 and UL1008 Listed Switch Bypass/Lighting Transfer Switch with 0-10V Dimming Override (not available with LEL/CEL Option)
FS Single Fuse & Holder
BG Bird Guard (DTS and QM Mounting only)
Accessories
BD Bird Deterrent (PM and TK Mounting only)
TL50M+ Non-Networked Control - Motion Only (Click here for specifications)
TL50DM+ Non-Networked Control -Daylight Harvesting and Motion Sensing (Click here for specifications)
TL200M+ Wireless Networked Control - Motion Only (Click here for specifications)
TL200DM+ Wireless Networked Control -Daylight Harvesting and Motion Sensing (Click here for specifications)
TL1000+ Wired Network Control - Advanced (Click here for specifications)
TL2000+ Wireless Network Control - Advanced (Click here for specifications)
Please consult Kenall Applications when ordering controls. When specifying with integral controls, a mounting height of 10-14’ is recommended for optimal sensor coverage; 20’ maximum with reduced coverage.
Controls Kit < > Factory Assigned Internal Code
^ Not available with DL optic *Not available with DL and RW optic + DV input voltage only. Not available with 90L lamp power. I 90L lamp only. DV input voltage only.
-Mounting Bracket suitable for JBox mounting -Supports pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
-DLC Listed
WARRANTY
- 5 Year
ORDERING INFORMATION
Type
Catalog Number
OPTIONS (Factory Installed)
GL9-MS-MCT LED Selectable Canopy
NO SPEC
ONE PARK SARASOTA TYPE

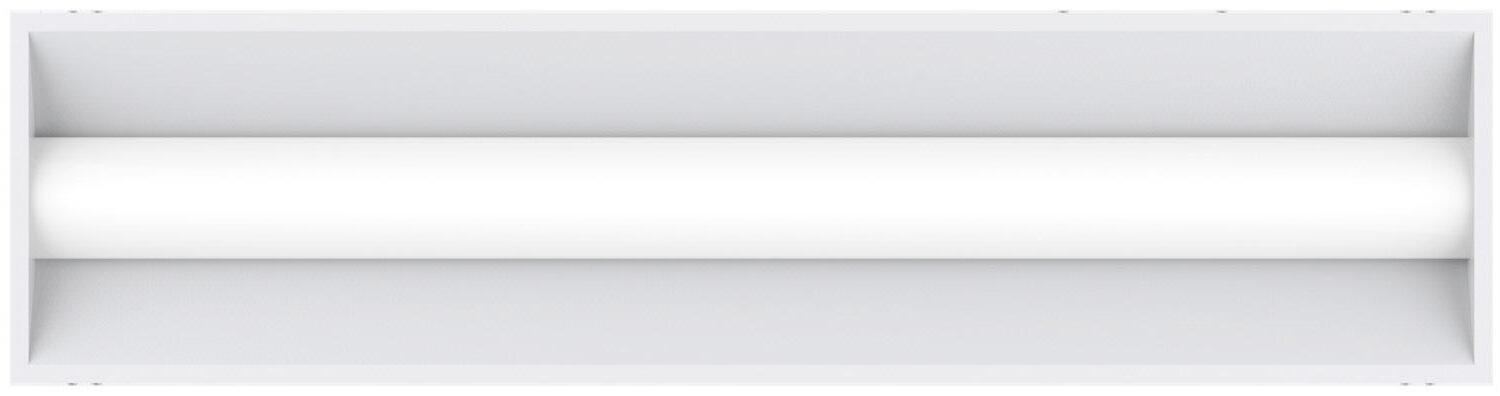

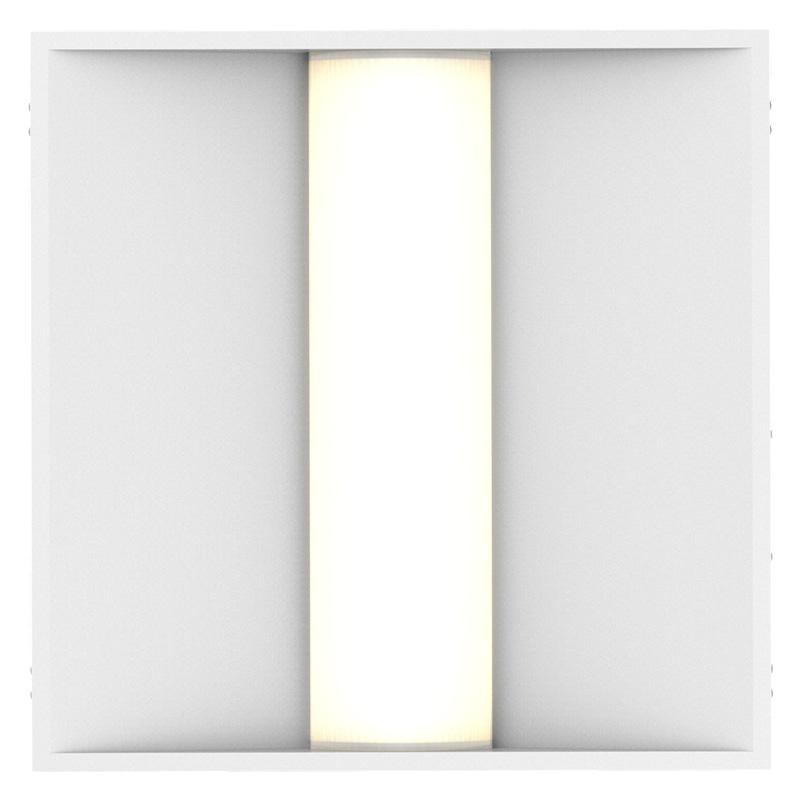

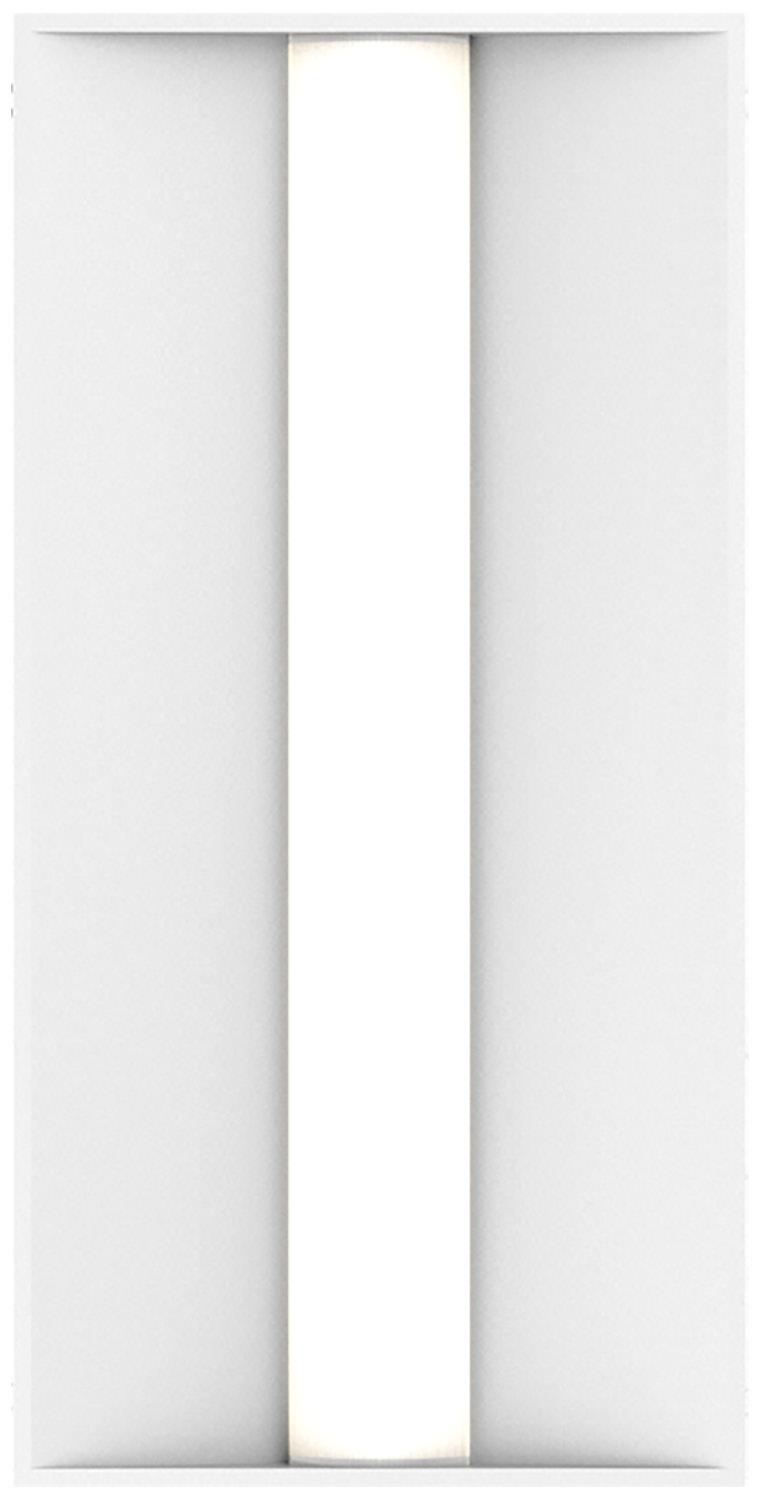

1X4’, 2X2’, 2X4’
BLANK
ONE PARK SARASOTA
3500K/4000K/5000K
3500K/4000K/5000K
3500K/4000K/5000K
3500K/4000K/5000K 3500K/4000K/5000K
LUMEN
3750 (@30W)
2500 (@20W)
2000 (@16W)
5000 (@40W)
3750 (@30W)
2500 (@20W)
5000 (@40W)
3750 (@30W)
2500 (@20W)
6250 (@50W)
5000 (@40W)
37500 (@30W)
6250 (@50W)
5000 (@40W)
37500 (@30W)
NO SPEC
ONE PARK SARASOTA TYPE L-EM ALT
NLWPSW-4L334W
4' Wraparound with Selectable Lumens & CCT
Source: 55W to 65W LED 7000lm to 8000lm
PRODUCT DESCRIPTION
4' Wraparound Light includes an integral CCT switch to change the color temperature at any time! Surface mounted, it’s ideal for commercial, residential, industrial, and retail applications, such as stairwells, hallways, garages, schools, offices, and more. Easy to install and great for replacing outdated fluorescents with an energy efficient, cost saving alternative. The luminaire’s lens is designed to uniformly spread and soften the appearance of the light while maximizing its distribution and output. Each luminaire includes two tunable switches; Selectable Lumens easily allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance so it is perfectly customized to your needs.
FEATURES
cULus Listed
Selectable Lumen switch changes output from 7000lm to 8000lm
Field selectable color temperature (3000K / 3500K / 4000K)
0-10V dimming
120-277V input
DLC Listed
SPECIFICATION
Construction: Steel stamped body. Finished in white powder coat. Top, end and cap knockouts.
Tunable Switches: Each luminaire includes two switches on the top of the driver enclosure. Selectable Lumen switch changes the lumen output and wattage. Seletable CCT switch changes the color temperature.
Mounting: Luminaires can be surface mounted, wall mounted or suspended with pendant kit (ordered separately: NLWPSWA-PK).
ELECTRICAL
Input Voltage: 120-277Vac
Lumens / Wattage: Selectable Lumens: 7000lm / 55W, 7500lm / 60W and 8000lm / 65W (Note: Preset to 65W)
Color Temperature: Selectable CCT (3000K / 3500K / 4000K) (Note: Preset to 3000K)
Color Rendering Index: 80+ CRI
Beam Spread: 100° Wide Flood
Operating Temperature: 0˚C to 45˚C
Lifetime: 60,000 hours @ L70
Dimming: 0-10V
OPTIONAL ACCESSORIES
NLWPSWA-PK : 8' Pendant Kit (aircraft cable and hooks)
NLSTRA-MSCONT2 : Remote Control for Motion Sensor (not required)
Optional motion sensor: Microwave motion sensor can detect motion up to 17' away and 120˚ under the luminaire. All MS are preset to dim from 100% to 50% after 1 minute, then turn off after another minute without detected motion. The light sensor is enabled to keep fixture inactive when detecting light levels of 50 Lux or higher for daylight savings. Dip switches or remote control (ordered separately) can be used to change the motion sensor settings). After each power cycle, the fixture will perform a start-up cycle and resume normal operation. Note: 0-10V dimmer cannot be used with MS and EMMS configurations.
Emergency: Luminaire can be specified with an emergency battery with integral test switch. Battery operates luminaire at 8W for 90-minute emergency operation on fully charged battery. Battery may take up to 24 hours to fully charge.
LABELS AND LISTINGS
DLC Listed (Direct Linear, Stairwell and Passageway)
cULus Listed for Damp Locations
5-Year Limited Warranty
FCC Compliant
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16
4' Wraparound with Selectable Lumens & CCT
Description
NLWPSW-4L334W = 4' Wraparound with Selectable Lumens & CCT
Options (blank) = Standard
/EM = Integral Emergency
/MS = Integral Motion Sensor
/EMMS = Integral Emergency and Motion Sensor
Example: NLWPSW-4L334W = 4' Wraparound with Selectable Lumens & CCT
4' Wraparound Light includes an integral CCT switch to change the color temperature at any time! Surface mounted, it’s ideal for commercial, residential, industrial, and retail applications, such as stairwells, hallways, garages, schools, offices, and more. Easy to install and great for replacing outdated fluorescents with an energy efficient, cost saving alternative. The luminaire’s lens is designed to uniformly spread and soften the appearance of the light while maximizing its distribution and output. Each luminaire includes two tunable switches; Selectable Lumens easily allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance so it is perfectly customized to your needs.
FEATURES
cULus Listed
Selectable Lumen switch changes output from 7000lm to 8000lm
Field selectable color temperature (3000K / 3500K / 4000K)
0-10V dimming
120-277V input
DLC Listed
SPECIFICATION
Construction: Steel stamped body. Finished in white powder coat. Top, end and cap knockouts.
Tunable Switches: Each luminaire includes two switches on the top of the driver enclosure. Selectable Lumen switch changes the lumen output and wattage. Seletable CCT switch changes the color temperature.
Mounting: Luminaires can be surface mounted, wall mounted or suspended with pendant kit (ordered separately: NLWPSWA-PK).
ELECTRICAL
Input Voltage: 120-277Vac
Lumens / Wattage: Selectable Lumens: 7000lm / 55W, 7500lm / 60W and 8000lm / 65W (Note: Preset to 65W)
Color Temperature: Selectable CCT (3000K / 3500K / 4000K) (Note: Preset to 3000K)
Color Rendering Index: 80+ CRI
Beam Spread: 100° Wide Flood
Operating Temperature: 0˚C to 45˚C
Lifetime: 60,000 hours @ L70
Dimming: 0-10V
OPTIONAL ACCESSORIES
NLWPSWA-PK : 8' Pendant Kit (aircraft cable and hooks)
NLSTRA-MSCONT2 : Remote Control for Motion Sensor (not required)
Optional motion sensor: Microwave motion sensor can detect motion up to 17' away and 120˚ under the luminaire. All MS are preset to dim from 100% to 50% after 1 minute, then turn off after another minute without detected motion. The light sensor is enabled to keep fixture inactive when detecting light levels of 50 Lux or higher for daylight savings. Dip switches or remote control (ordered separately) can be used to change the motion sensor settings). After each power cycle, the fixture will perform a start-up cycle and resume normal operation. Note: 0-10V dimmer cannot be used with MS and EMMS configurations.
Emergency: Luminaire can be specified with an emergency battery with integral test switch. Battery operates luminaire at 8W for 90-minute emergency operation on fully charged battery. Battery may take up to 24 hours to fully charge.
LABELS AND LISTINGS
DLC Listed (Direct Linear, Stairwell and Passageway)
cULus Listed for Damp Locations
5-Year Limited Warranty
FCC Compliant
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16
4' Wraparound with Selectable Lumens & CCT
Description
NLWPSW-4L334W = 4' Wraparound with Selectable Lumens & CCT
Options (blank) = Standard
/EM = Integral Emergency
/MS = Integral Motion Sensor
/EMMS = Integral Emergency and Motion Sensor
Example: NLWPSW-4L334W = 4' Wraparound with Selectable Lumens & CCT
4' Wraparound Light includes an integral CCT switch to change the color temperature at any time! Surface mounted, it’s ideal for commercial, residential, industrial, and retail applications, such as stairwells, hallways, garages, schools, offices, and more. Easy to install and great for replacing outdated fluorescents with an energy efficient, cost saving alternative. The luminaire’s lens is designed to uniformly spread and soften the appearance of the light while maximizing its distribution and output. Each luminaire includes two tunable switches; Selectable Lumens easily allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance so it is perfectly customized to your needs.
FEATURES
cULus Listed
Selectable Lumen switch changes output from 7000lm to 8000lm
Field selectable color temperature (3000K / 3500K / 4000K)
0-10V dimming
120-277V input
DLC Listed
SPECIFICATION
Construction: Steel stamped body. Finished in white powder coat. Top, end and cap knockouts.
Tunable Switches: Each luminaire includes two switches on the top of the driver enclosure. Selectable Lumen switch changes the lumen output and wattage. Seletable CCT switch changes the color temperature.
Mounting: Luminaires can be surface mounted, wall mounted or suspended with pendant kit (ordered separately: NLWPSWA-PK).
ELECTRICAL
Input Voltage: 120-277Vac
Lumens / Wattage: Selectable Lumens: 7000lm / 55W, 7500lm / 60W and 8000lm / 65W (Note: Preset to 65W)
Color Temperature: Selectable CCT (3000K / 3500K / 4000K) (Note: Preset to 3000K)
Color Rendering Index: 80+ CRI
Beam Spread: 100° Wide Flood
Operating Temperature: 0˚C to 45˚C
Lifetime: 60,000 hours @ L70
Dimming: 0-10V
OPTIONAL ACCESSORIES
NLWPSWA-PK : 8' Pendant Kit (aircraft cable and hooks)
NLSTRA-MSCONT2 : Remote Control for Motion Sensor (not required)
Optional motion sensor: Microwave motion sensor can detect motion up to 17' away and 120˚ under the luminaire. All MS are preset to dim from 100% to 50% after 1 minute, then turn off after another minute without detected motion. The light sensor is enabled to keep fixture inactive when detecting light levels of 50 Lux or higher for daylight savings. Dip switches or remote control (ordered separately) can be used to change the motion sensor settings). After each power cycle, the fixture will perform a start-up cycle and resume normal operation. Note: 0-10V dimmer cannot be used with MS and EMMS configurations.
Emergency: Luminaire can be specified with an emergency battery with integral test switch. Battery operates luminaire at 8W for 90-minute emergency operation on fully charged battery. Battery may take up to 24 hours to fully charge.
LABELS AND LISTINGS
DLC Listed (Direct Linear, Stairwell and Passageway)
cULus Listed for Damp Locations
5-Year Limited Warranty
FCC Compliant
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16
4' Wraparound with Selectable Lumens & CCT
Description
NLWPSW-4L334W = 4' Wraparound with Selectable Lumens & CCT
Options (blank) = Standard
/EM = Integral Emergency
/MS = Integral Motion Sensor
/EMMS = Integral Emergency and Motion Sensor
Example: NLWPSW-4L334W = 4' Wraparound with Selectable Lumens & CCT
The ENTRA CL 3" Adjustable, Fixed, and Wall Wash Downlights offer a costeffective alternative for residential, multi-family, and hospitality applications. Engineered for high performance and reliability, ENTRA CL 3" is easily configurable with a feature set that offers flexibility without an overwhelming list of options. The ENTRA CL 3" Adjustable, Fixed, and Wall Wash Downlights offer LED options with Static White and Warm Dim.
• SDCM: 2-step static white and warm dim
• Hot aiming (0-35° tilt + 360° rotation)
• Interchangeable optics: 20°, 30°, 40°, 60°
• Flanged/flangeless die-cast trims
• Available in IC Airtight, Chicago Plenum, and Fire-Rated
LUMEN MULTIPLIER (CRI/CCT)
CCT 90 CRI MULTIPLIER
2700K 0.95
3000K 1.00
3500K 1.05
Lumen output will vary by CCT and CRI. See photometric charts for output information.
SPECIFICATIONS
CCT 2700K, 3000K, or
DIMMING1
POWER SUPPLY
OPTICS
ADJUSTABILITY
CEILING APPEARANCE
Standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming down to 1%
Constant current driver with +.9 power factor and +80% efficiency
Field changeable: Includes 40° optic. 20°, 30°, and 60° optics can be ordered separately.
Asymmetric wall wash
Adjustable module: 35° tilt, 360° rotation N/A
Flanged and flangeless up to 2 ceiling thickness. Note: Tilt may be restricted in thicker ceilings
CEILING APERTURE 3-3/4" ceiling cutout
HOUSING
CONSTRUCTION
FINISH
GENERAL LISTINGS
CALIFORNIA TITLE 24
Fire-Rated, IC Airtight, Chicago Plenum. IC suitable up to R60 spray foam insulation
Housing: Galvanized Steel
Trims and Reflectors: Die-Cast Aluminum
Reflector: White, Black, Champagne, or Satin Silver (low-glare)
Flange: White or Black Select finish options for reflector and flange separately
Registered CEC Appliance Database. Can be used to comply with CEC 2019 Title 24 Part 6 (JA8-2016, JA8-2019) (for 90 CRI versions).
L70 50,000 hours min
WARRANTY2 5 years
Data in chart reflects 3000K/90CRI values unless noted.
Ordering grids available on page 2.
1See visualcomfort.com for dimmer compatibility.
2Visit visualcomfort.com for specific warranty limitations and details.
ONE PARK SARASOTA TYPE A-EM ALT
NIOC-2RNB
2" Iolite Can-less Round Bullnose
Source: 12W LED 1275lm
PRODUCT DESCRIPTION

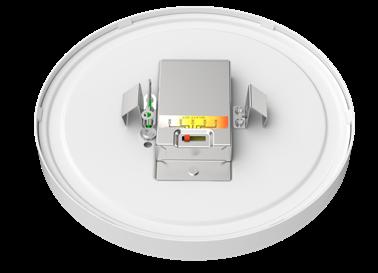

2" Iolite can-less downlights can be installed in new construction or remodel applications. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
No housing required - IC Air-Tight rated Easy installation for remodel or new construction applications Variety of trim accessories to configure desired appearance Quick disconnect allows for extended lengths Dedicated CCT or Comfort Dim (warm dim) Flood optic, narrow flood and spot optics (included) 5-Year limited warranty cULus Listed for Wet Locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.

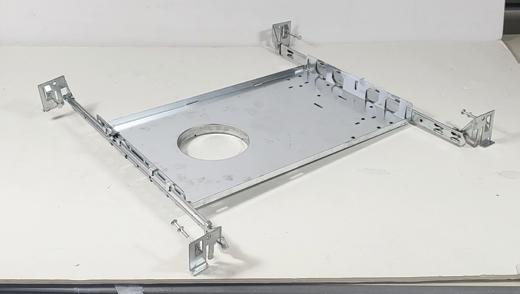

Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.
OPTICS
Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: 1275lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0°-30°C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 950lm only Dimming: Triac or ELV
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Delivered lumens will vary depending on CCT, optic and finish
PRODUCT IMAGES & DIMENSIONS
Item Number
NIOC-2RNBWW = White Trim 2" Iolite Can-less Round Bullnose Trim
NIOC-2RNBMPW = Matte Powder White Trim
Three field changeable optics included Cut out: 3-1/8"
Color Temperature
NIOC-24LED927 X = 2700K
NIOC-24LED930X = 3000K
NIOC-24LED935 X = 3500K
NIOC-24LED940X = 4000K
Driver Box
NJCB-12 = 12W / 120VAC input / Triac or ELV dimming 2" & 4" Iolite Can-less LED Module
NIOC-24LED9CDX = Comfort Dim (3100K~2000K)
Wattage
Example: NIOC-2RNBMPW / NIOC-24LED930X / NJCB-12 = 2" Iolite Can-less Bullnose Trim, Matte Powder White finish, 3000K LED Module, 12W Driver Box with 120VAC input; Triac or ELV dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
ENTRA™ CL 3" LED
ORDERING GRIDS
HOUSING
ENCL3R ENTRA CL 3 ROUND ENCL3S ENTRA CL 3 SQUARE L FLANGELESS F FLANGED
Includes an LED driver with universal input 120V-277V, dimmable by reverse-phase, forward -phase, TRIAC, and 0-10V controls. 277V is only compatible with 0-10V dimming. See dimmer compatibility chart. Trims are required and must be ordered separately.
1L15 - Output not available with WD31 warm dim.
2F- Certified to ASTM E119, UL 263, and CAN/ULC-S101. Fire Rating of 1 and 2 hours, respectively.
3F- Fire-Rated is not available in Adjustable or Wall Wash.
TRIM/LIGHT MODULE
PRODUCT CEILING APPEARANCE FUNCTION CRI/CCT REFLECTOR FINISH FLANGE FINISH
ENCL3R ENTRA CL 3 ROUND
ENCL3S ENTRA CL 3 SQUARE L FLANGELESS F FLANGED A ADJUSTABLE1 D DOWNLIGHT W WALL WASH1 -927 90 CRI, 2700K, 2-STEP -930 90 CRI, 3000K, 2-STEP -935 90 CRI, 3500K, 2-STEP -WD31 90 CRI, 3000K-1800K, WARM DIM, 2-STEP2,3 W WHITE B BLACK S SATIN SILVER C CHAMPAGNE FLANGELESS ONLY (LEAVE BLANK) -W WHITE -B BLACK
Includes 40° optic. 20°, 30° and 60° optics can be ordered separately.
1A/W - Fire-Rated, IC Airtight is not available in Adjustable or Wall Wash.
2WD31 - Warm dim not available with L15 output.
3WD31 - Warm dim includes a sandblasted lens; no additional lenses/louvers can be added.
1Lenses/louvers mounted to lamp assembly only (max 1).
Plaster plates are used to convert flanged housings into flangeless housings. Ships standard with flangeless housings.
ONE PARK SARASOTA
Iolite Can-less Accessories
FIELD CHANGEABLE OPTICS
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Frosted Optics
NIO-REFL38FR 60° Optic NIO-REFL60FR 73° Optic
TRIM ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color: AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Premium TIR Optics
NIO-REFLTIR15
MOUNTING ACCESSORIES
Opaque Collar Snoot
Optic NIO-REFLTIR25
Optic
TIR optics are not compatible with hex cell louver accessory.
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
Iolite canless luminaires are ready to be installed out of the box. Additional mounting accessories can be used to assist during installation or extend length between driver box and luminaire.
Quick Connect Extension Cables
Use to extend the length between luminaire and driver box. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
New Construction Frame-In NF-R124
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.
reserved. Specifications subject to change without notice.
New Construction Frame-In with Collar NFC-R313
New construction frame-in can be used to assist installing can-less recessed downlighting.
Hex Cell Louver
NIO-HC Black
FORMERLY KNOWN AS TECH LIGHTING
ENTRA™ CL 3" LED
ADJUSTABLE, FIXED, AND WALL WASH DOWNLIGHTS
The ENTRA CL 3" Adjustable, Fixed, and Wall Wash Downlights offer a costeffective alternative for residential, multi-family, and hospitality applications. Engineered for high performance and reliability, ENTRA CL 3" is easily configurable with a feature set that offers flexibility without an overwhelming list of options. The ENTRA CL 3" Adjustable, Fixed, and Wall Wash Downlights offer LED options with Static White and Warm Dim.
• SDCM: 2-step static white and warm dim
• Hot aiming (0-35° tilt + 360° rotation)
• Interchangeable optics: 20°, 30°, 40°, 60°
• Flanged/flangeless die-cast trims
• Available in IC Airtight, Chicago Plenum, and Fire-Rated
LUMEN MULTIPLIER (CRI/CCT)
CCT 90 CRI MULTIPLIER
2700K 0.95
3000K 1.00
3500K 1.05
Lumen output will vary by CCT and CRI. See photometric charts for output information.
SPECIFICATIONS
CCT 2700K, 3000K, or
DIMMING1
POWER SUPPLY
OPTICS
ADJUSTABILITY
CEILING APPEARANCE
Standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming down to 1%
Constant current driver with +.9 power factor and +80% efficiency
Field changeable: Includes 40° optic. 20°, 30°, and 60° optics can be ordered separately.
Asymmetric wall wash
Adjustable module: 35° tilt, 360° rotation N/A
Flanged and flangeless up to 2 ceiling thickness. Note: Tilt may be restricted in thicker ceilings
CEILING APERTURE 3-3/4" ceiling cutout
HOUSING
CONSTRUCTION
FINISH
GENERAL LISTINGS
CALIFORNIA TITLE 24
Fire-Rated, IC Airtight, Chicago Plenum. IC suitable up to R60 spray foam insulation
Housing: Galvanized Steel
Trims and Reflectors: Die-Cast Aluminum
Reflector: White, Black, Champagne, or Satin Silver (low-glare)
Flange: White or Black Select finish options for reflector and flange separately
Registered CEC Appliance Database. Can be used to comply with CEC 2019 Title 24 Part 6 (JA8-2016, JA8-2019) (for 90 CRI versions).
L70 50,000 hours min
WARRANTY2 5 years
Data in chart reflects 3000K/90CRI values unless noted.
Ordering grids available on page 2.
1See visualcomfort.com for dimmer compatibility.
2Visit visualcomfort.com for specific warranty limitations and details.
ONE PARK SARASOTA TYPE A-W ALT
NIOC-2RNB
2" Iolite Can-less Round Bullnose
Source: 12W LED 1275lm
PRODUCT DESCRIPTION
2" Iolite can-less downlights can be installed in new construction or remodel applications. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
No housing required - IC Air-Tight rated Easy installation for remodel or new construction applications Variety of trim accessories to configure desired appearance Quick disconnect allows for extended lengths Dedicated CCT or Comfort Dim (warm dim) Flood optic, narrow flood and spot optics (included) 5-Year limited warranty cULus Listed for Wet Locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.
OPTICS
Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: 1275lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0°-30°C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 950lm only Dimming: Triac or ELV
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Delivered lumens will vary depending on CCT, optic and finish
PRODUCT IMAGES & DIMENSIONS
Item Number
NIOC-2RNBWW = White Trim 2" Iolite Can-less Round Bullnose Trim
NIOC-2RNBMPW = Matte Powder White Trim
Three field changeable optics included Cut out: 3-1/8"
Color Temperature
NIOC-24LED927 X = 2700K
NIOC-24LED930X = 3000K
NIOC-24LED935 X = 3500K
NIOC-24LED940X = 4000K
Driver Box
NJCB-12 = 12W / 120VAC input / Triac or ELV dimming 2" & 4" Iolite Can-less LED Module
NIOC-24LED9CDX = Comfort Dim (3100K~2000K)
Wattage
Example: NIOC-2RNBMPW / NIOC-24LED930X / NJCB-12 = 2" Iolite Can-less Bullnose Trim, Matte Powder White finish, 3000K LED Module, 12W Driver Box with 120VAC input; Triac or ELV dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
TYPE A-W SPEC
ENTRA™ CL 3" LED
ORDERING GRIDS
HOUSING
ENCL3R ENTRA CL 3 ROUND ENCL3S ENTRA CL 3 SQUARE L FLANGELESS F FLANGED
Includes an LED driver with universal input 120V-277V, dimmable by reverse-phase, forward -phase, TRIAC, and 0-10V controls. 277V is only compatible with 0-10V dimming. See dimmer compatibility chart. Trims are required and must be ordered separately.
1L15 - Output not available with WD31 warm dim.
2F- Certified to ASTM E119, UL 263, and CAN/ULC-S101. Fire Rating of 1 and 2 hours, respectively.
3F- Fire-Rated is not available in Adjustable or Wall Wash.
TRIM/LIGHT MODULE
PRODUCT CEILING APPEARANCE FUNCTION CRI/CCT REFLECTOR FINISH FLANGE FINISH
ENCL3R ENTRA CL 3 ROUND
ENCL3S ENTRA CL 3 SQUARE L FLANGELESS F FLANGED A ADJUSTABLE1 D DOWNLIGHT W WALL WASH1 -927 90 CRI, 2700K, 2-STEP -930 90 CRI, 3000K, 2-STEP -935 90 CRI, 3500K, 2-STEP -WD31 90 CRI, 3000K-1800K, WARM DIM, 2-STEP2,3 W WHITE B BLACK S SATIN SILVER C CHAMPAGNE FLANGELESS ONLY (LEAVE BLANK) -W WHITE -B BLACK
Includes 40° optic. 20°, 30° and 60° optics can be ordered separately.
1A/W - Fire-Rated, IC Airtight is not available in Adjustable or Wall Wash.
2WD31 - Warm dim not available with L15 output.
3WD31 - Warm dim includes a sandblasted lens; no additional lenses/louvers can be added.
1Lenses/louvers mounted to lamp assembly only (max 1).
Plaster plates are used to convert flanged housings into flangeless housings. Ships standard with flangeless housings.
ONE PARK SARASOTA
Iolite Can-less Accessories
FIELD CHANGEABLE OPTICS
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Frosted Optics
NIO-REFL38FR 60° Optic NIO-REFL60FR 73° Optic
TRIM ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color: AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Premium TIR Optics
NIO-REFLTIR15
MOUNTING ACCESSORIES
Opaque Collar Snoot
Optic NIO-REFLTIR25
Optic
TIR optics are not compatible with hex cell louver accessory.
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
Iolite canless luminaires are ready to be installed out of the box. Additional mounting accessories can be used to assist during installation or extend length between driver box and luminaire.
Quick Connect Extension Cables
Use to extend the length between luminaire and driver box. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
New Construction Frame-In NF-R124
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.
reserved. Specifications subject to change without notice.
New Construction Frame-In with Collar NFC-R313
New construction frame-in can be used to assist installing can-less recessed downlighting.
Hex Cell Louver
NIO-HC Black
TYPE B SPEC ONE PARK SARASOTA
FORMERLY KNOWN AS TECH LIGHTING
ENTRA™ CL 3" LED
ADJUSTABLE, FIXED, AND WALL WASH DOWNLIGHTS
The ENTRA CL 3" Adjustable, Fixed, and Wall Wash Downlights offer a costeffective alternative for residential, multi-family, and hospitality applications. Engineered for high performance and reliability, ENTRA CL 3" is easily configurable with a feature set that offers flexibility without an overwhelming list of options. The ENTRA CL 3" Adjustable, Fixed, and Wall Wash Downlights offer LED options with Static White and Warm Dim.
• SDCM: 2-step static white and warm dim
• Hot aiming (0-35° tilt + 360° rotation)
• Interchangeable optics: 20°, 30°, 40°, 60°
• Flanged/flangeless die-cast trims
• Available in IC Airtight, Chicago Plenum, and Fire-Rated
LUMEN MULTIPLIER (CRI/CCT)
CCT 90 CRI MULTIPLIER
2700K 0.95
3000K 1.00
3500K 1.05
Lumen output will vary by CCT and CRI. See photometric charts for output information.
SPECIFICATIONS
CCT 2700K, 3000K, or
DIMMING1
POWER SUPPLY
OPTICS
ADJUSTABILITY
CEILING APPEARANCE
Standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming down to 1%
Constant current driver with +.9 power factor and +80% efficiency
Field changeable: Includes 40° optic. 20°, 30°, and 60° optics can be ordered separately.
Asymmetric wall wash
Adjustable module: 35° tilt, 360° rotation N/A
Flanged and flangeless up to 2 ceiling thickness. Note: Tilt may be restricted in thicker ceilings
CEILING APERTURE 3-3/4" ceiling cutout
HOUSING
CONSTRUCTION
FINISH
GENERAL LISTINGS
CALIFORNIA TITLE 24
Fire-Rated, IC Airtight, Chicago Plenum. IC suitable up to R60 spray foam insulation
Housing: Galvanized Steel
Trims and Reflectors: Die-Cast Aluminum
Reflector: White, Black, Champagne, or Satin Silver (low-glare)
Flange: White or Black Select finish options for reflector and flange separately
Registered CEC Appliance Database. Can be used to comply with CEC 2019 Title 24 Part 6 (JA8-2016, JA8-2019) (for 90 CRI versions).
L70 50,000 hours min
WARRANTY2 5 years
Data in chart reflects 3000K/90CRI values unless noted.
Ordering grids available on page 2.
1See visualcomfort.com for dimmer compatibility.
2Visit visualcomfort.com for specific warranty limitations and details.
ONE PARK SARASOTA TYPE B ALT
NIOC-2RNB
2" Iolite Can-less Round Bullnose
Source: 12W LED 1275lm
PRODUCT DESCRIPTION
2" Iolite can-less downlights can be installed in new construction or remodel applications. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
No housing required - IC Air-Tight rated Easy installation for remodel or new construction applications Variety of trim accessories to configure desired appearance Quick disconnect allows for extended lengths Dedicated CCT or Comfort Dim (warm dim) Flood optic, narrow flood and spot optics (included) 5-Year limited warranty cULus Listed for Wet Locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.
OPTICS
Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: 1275lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0°-30°C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 950lm only Dimming: Triac or ELV
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Delivered lumens will vary depending on CCT, optic and finish
PRODUCT IMAGES & DIMENSIONS
Item Number
NIOC-2RNBWW = White Trim 2" Iolite Can-less Round Bullnose Trim
NIOC-2RNBMPW = Matte Powder White Trim
Three field changeable optics included Cut out: 3-1/8"
Color Temperature
NIOC-24LED927 X = 2700K
NIOC-24LED930X = 3000K
NIOC-24LED935 X = 3500K
NIOC-24LED940X = 4000K
Driver Box
NJCB-12 = 12W / 120VAC input / Triac or ELV dimming 2" & 4" Iolite Can-less LED Module
NIOC-24LED9CDX = Comfort Dim (3100K~2000K)
Wattage
Example: NIOC-2RNBMPW / NIOC-24LED930X / NJCB-12 = 2" Iolite Can-less Bullnose Trim, Matte Powder White finish, 3000K LED Module, 12W Driver Box with 120VAC input; Triac or ELV dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
ENTRA™ CL 3" LED
ORDERING GRIDS
HOUSING
ENCL3R ENTRA CL 3 ROUND ENCL3S ENTRA CL 3 SQUARE L FLANGELESS F FLANGED
Includes an LED driver with universal input 120V-277V, dimmable by reverse-phase, forward -phase, TRIAC, and 0-10V controls. 277V is only compatible with 0-10V dimming. See dimmer compatibility chart. Trims are required and must be ordered separately.
1L15 - Output not available with WD31 warm dim.
2F- Certified to ASTM E119, UL 263, and CAN/ULC-S101. Fire Rating of 1 and 2 hours, respectively.
3F- Fire-Rated is not available in Adjustable or Wall Wash.
TRIM/LIGHT MODULE
PRODUCT CEILING APPEARANCE FUNCTION CRI/CCT REFLECTOR FINISH FLANGE FINISH
ENCL3R ENTRA CL 3 ROUND
ENCL3S ENTRA CL 3 SQUARE L FLANGELESS F FLANGED A ADJUSTABLE1 D DOWNLIGHT W WALL WASH1 -927 90 CRI, 2700K, 2-STEP -930 90 CRI, 3000K, 2-STEP -935 90 CRI, 3500K, 2-STEP -WD31 90 CRI, 3000K-1800K, WARM DIM, 2-STEP2,3 W WHITE B BLACK S SATIN SILVER C CHAMPAGNE FLANGELESS ONLY (LEAVE BLANK) -W WHITE -B BLACK
Includes 40° optic. 20°, 30° and 60° optics can be ordered separately.
1A/W - Fire-Rated, IC Airtight is not available in Adjustable or Wall Wash.
2WD31 - Warm dim not available with L15 output.
3WD31 - Warm dim includes a sandblasted lens; no additional lenses/louvers can be added.
1Lenses/louvers mounted to lamp assembly only (max 1).
Plaster plates are used to convert flanged housings into flangeless housings. Ships standard with flangeless housings.
ONE PARK SARASOTA
Iolite Can-less Accessories
FIELD CHANGEABLE OPTICS
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Frosted Optics
NIO-REFL38FR 60° Optic NIO-REFL60FR 73° Optic
TRIM ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color: AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Premium TIR Optics
NIO-REFLTIR15
MOUNTING ACCESSORIES
Opaque Collar Snoot
Optic NIO-REFLTIR25
Optic
TIR optics are not compatible with hex cell louver accessory.
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
Iolite canless luminaires are ready to be installed out of the box. Additional mounting accessories can be used to assist during installation or extend length between driver box and luminaire.
Quick Connect Extension Cables
Use to extend the length between luminaire and driver box. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
New Construction Frame-In NF-R124
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.
reserved. Specifications subject to change without notice.
New Construction Frame-In with Collar NFC-R313
New construction frame-in can be used to assist installing can-less recessed downlighting.
Hex Cell Louver
NIO-HC Black
TYPE A SPEC ONE PARK SARASOTA
Juno SlimForm™ LED with Selectable CCT
5" and 7" Round Downlight for JBox Installation
Dimensions
Project:
Fixture Type:
Location:
Contact/Phone:
Product Features
Sleek, ultra-low profile energy efficient LED surface mount downlights available in 5" and 7" sizes. Optional finish trims available for custom, designer look similar to standard recessed downlights. Provides general illumination in residential and commercial applications including multifamily and hospitality. Ideal for use in corridors, living spaces, closets, hallways, pantries, stairways, outdoor covered areas and much more.
With the newly added selectable CCT switch, the JSF gives the ultimate in flexibility for both the distributor as well as the end user.
Applications
• Suitable for wet locations (indoor covered ceilings): perfect for closets, showers, bathrooms, outdoor soffits, and covered ceiling applications.
• Residential and Light Commercial applications including multi-family and hospitality
• Ideal for use in corridors, foyers, living spaces, closets, hallways, pantries, stairways and much more
• Installs directly into industry standard junction boxes
• Suitable for use within closet storage spaces when installed per NEC requirements. Junction box sizes vary - Verify compatibility with fixture prior to installation
Led Color Temperature Switchable White (2700K, 3000K, 3500K, 4000K, 5000K) Default set at 3000K
CRI 90+
Voltage Dedicated 120V and MVOLT (120V-277V)
Dimming Phase Dimming down to 10%. 0-10V and phase dimming available.
Specifications
All dimensions are in Inches (centimeters unless otherwise indicated.
ONE PARK SARASOTA TYPE A
NELO
ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with CCT switch.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.
Five position sliding switch 27K / 30K / 35K / 40K / 50K
3/4"
Aperture
Diameter
Diameter:Aperture:
NELO-4RTW5-1/2"4-1/2"
NELO-6RTW7"6"
NELO-8RTW8-7/8"7-3/4"
NELO-12RTW12-1/4"11"
NSEM-6WDW
Surface Mount Enclosure with Emergency Driver for 6" only
Decorative Ring
Optional Accessories
Description Finish
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO
NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"
Juno SlimForm™ LED with Selectable CCT
techsupport@iotaengineering.com
Inverter, 35W output,High Efficiency (meets CA T20 efficiency requirement)
BRONZE SATIN NICKEL
BLANK
FORMERLY KNOWN AS TECH LIGHTING
ENTRA™ CL 3" LED
ADJUSTABLE, FIXED, AND WALL WASH DOWNLIGHTS
The ENTRA CL 3" Adjustable, Fixed, and Wall Wash Downlights offer a costeffective alternative for residential, multi-family, and hospitality applications. Engineered for high performance and reliability, ENTRA CL 3" is easily configurable with a feature set that offers flexibility without an overwhelming list of options. The ENTRA CL 3" Adjustable, Fixed, and Wall Wash Downlights offer LED options with Static White and Warm Dim.
• SDCM: 2-step static white and warm dim
• Hot aiming (0-35° tilt + 360° rotation)
• Interchangeable optics: 20°, 30°, 40°, 60°
• Flanged/flangeless die-cast trims
• Available in IC Airtight, Chicago Plenum, and Fire-Rated
LUMEN MULTIPLIER (CRI/CCT)
CCT 90 CRI MULTIPLIER
2700K 0.95
3000K 1.00
3500K 1.05
Lumen output will vary by CCT and CRI. See photometric charts for output information.
SPECIFICATIONS
CCT 2700K, 3000K, or
DIMMING1
POWER SUPPLY
OPTICS
ADJUSTABILITY
CEILING APPEARANCE
Standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming down to 1%
Constant current driver with +.9 power factor and +80% efficiency
Field changeable: Includes 40° optic. 20°, 30°, and 60° optics can be ordered separately.
Asymmetric wall wash
Adjustable module: 35° tilt, 360° rotation N/A
Flanged and flangeless up to 2 ceiling thickness. Note: Tilt may be restricted in thicker ceilings
CEILING APERTURE 3-3/4" ceiling cutout
HOUSING
CONSTRUCTION
FINISH
GENERAL LISTINGS
CALIFORNIA TITLE 24
Fire-Rated, IC Airtight, Chicago Plenum. IC suitable up to R60 spray foam insulation
Housing: Galvanized Steel
Trims and Reflectors: Die-Cast Aluminum
Reflector: White, Black, Champagne, or Satin Silver (low-glare)
Flange: White or Black Select finish options for reflector and flange separately
Registered CEC Appliance Database. Can be used to comply with CEC 2019 Title 24 Part 6 (JA8-2016, JA8-2019) (for 90 CRI versions).
L70 50,000 hours min
WARRANTY2 5 years
Data in chart reflects 3000K/90CRI values unless noted.
Ordering grids available on page 2.
1See visualcomfort.com for dimmer compatibility.
2Visit visualcomfort.com for specific warranty limitations and details.
ONE PARK SARASOTA TYPE A-EM ALT
NIOC-2RNB
2" Iolite Can-less Round Bullnose
Source: 12W LED 1275lm
PRODUCT DESCRIPTION
2" Iolite can-less downlights can be installed in new construction or remodel applications. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
No housing required - IC Air-Tight rated Easy installation for remodel or new construction applications Variety of trim accessories to configure desired appearance Quick disconnect allows for extended lengths Dedicated CCT or Comfort Dim (warm dim) Flood optic, narrow flood and spot optics (included) 5-Year limited warranty cULus Listed for Wet Locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.
OPTICS
Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: 1275lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0°-30°C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 950lm only Dimming: Triac or ELV
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Delivered lumens will vary depending on CCT, optic and finish
PRODUCT IMAGES & DIMENSIONS
Item Number
NIOC-2RNBWW = White Trim 2" Iolite Can-less Round Bullnose Trim
NIOC-2RNBMPW = Matte Powder White Trim
Three field changeable optics included Cut out: 3-1/8"
Color Temperature
NIOC-24LED927 X = 2700K
NIOC-24LED930X = 3000K
NIOC-24LED935 X = 3500K
NIOC-24LED940X = 4000K
Driver Box
NJCB-12 = 12W / 120VAC input / Triac or ELV dimming 2" & 4" Iolite Can-less LED Module
NIOC-24LED9CDX = Comfort Dim (3100K~2000K)
Wattage
Example: NIOC-2RNBMPW / NIOC-24LED930X / NJCB-12 = 2" Iolite Can-less Bullnose Trim, Matte Powder White finish, 3000K LED Module, 12W Driver Box with 120VAC input; Triac or ELV dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
ENTRA™ CL 3" LED
ORDERING GRIDS
HOUSING
ENCL3R ENTRA CL 3 ROUND ENCL3S ENTRA CL 3 SQUARE L FLANGELESS F FLANGED
Includes an LED driver with universal input 120V-277V, dimmable by reverse-phase, forward -phase, TRIAC, and 0-10V controls. 277V is only compatible with 0-10V dimming. See dimmer compatibility chart. Trims are required and must be ordered separately.
1L15 - Output not available with WD31 warm dim.
2F- Certified to ASTM E119, UL 263, and CAN/ULC-S101. Fire Rating of 1 and 2 hours, respectively.
3F- Fire-Rated is not available in Adjustable or Wall Wash.
TRIM/LIGHT MODULE
PRODUCT CEILING APPEARANCE FUNCTION CRI/CCT REFLECTOR FINISH FLANGE FINISH
ENCL3R ENTRA CL 3 ROUND
ENCL3S ENTRA CL 3 SQUARE L FLANGELESS F FLANGED A ADJUSTABLE1 D DOWNLIGHT W WALL WASH1 -927 90 CRI, 2700K, 2-STEP -930 90 CRI, 3000K, 2-STEP -935 90 CRI, 3500K, 2-STEP -WD31 90 CRI, 3000K-1800K, WARM DIM, 2-STEP2,3 W WHITE B BLACK S SATIN SILVER C CHAMPAGNE FLANGELESS ONLY (LEAVE BLANK) -W WHITE -B BLACK
Includes 40° optic. 20°, 30° and 60° optics can be ordered separately.
1A/W - Fire-Rated, IC Airtight is not available in Adjustable or Wall Wash.
2WD31 - Warm dim not available with L15 output.
3WD31 - Warm dim includes a sandblasted lens; no additional lenses/louvers can be added.
1Lenses/louvers mounted to lamp assembly only (max 1).
Plaster plates are used to convert flanged housings into flangeless housings. Ships standard with flangeless housings.
ONE PARK SARASOTA
Iolite Can-less Accessories
FIELD CHANGEABLE OPTICS
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Frosted Optics
NIO-REFL38FR 60° Optic NIO-REFL60FR 73° Optic
TRIM ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color: AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Premium TIR Optics
NIO-REFLTIR15
MOUNTING ACCESSORIES
Opaque Collar Snoot
Optic NIO-REFLTIR25
Optic
TIR optics are not compatible with hex cell louver accessory.
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
Iolite canless luminaires are ready to be installed out of the box. Additional mounting accessories can be used to assist during installation or extend length between driver box and luminaire.
Quick Connect Extension Cables
Use to extend the length between luminaire and driver box. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
New Construction Frame-In NF-R124
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.
reserved. Specifications subject to change without notice.
New Construction Frame-In with Collar NFC-R313
New construction frame-in can be used to assist installing can-less recessed downlighting.
Hex Cell Louver
NIO-HC Black
TYPE BW SPEC ONE PARK SARASOTA
Juno SlimForm™ LED with Selectable CCT
5" and 7" Round Downlight for JBox Installation
Dimensions
Project:
Fixture Type:
Location:
Contact/Phone:
Product Features
Sleek, ultra-low profile energy efficient LED surface mount downlights available in 5" and 7" sizes. Optional finish trims available for custom, designer look similar to standard recessed downlights. Provides general illumination in residential and commercial applications including multifamily and hospitality. Ideal for use in corridors, living spaces, closets, hallways, pantries, stairways, outdoor covered areas and much more.
With the newly added selectable CCT switch, the JSF gives the ultimate in flexibility for both the distributor as well as the end user.
Applications
• Suitable for wet locations (indoor covered ceilings): perfect for closets, showers, bathrooms, outdoor soffits, and covered ceiling applications.
• Residential and Light Commercial applications including multi-family and hospitality
• Ideal for use in corridors, foyers, living spaces, closets, hallways, pantries, stairways and much more
• Installs directly into industry standard junction boxes
• Suitable for use within closet storage spaces when installed per NEC requirements. Junction box sizes vary - Verify compatibility with fixture prior to installation
Led Color Temperature Switchable White (2700K, 3000K, 3500K, 4000K, 5000K) Default set at 3000K
CRI 90+
Voltage Dedicated 120V and MVOLT (120V-277V)
Dimming Phase Dimming down to 10%. 0-10V and phase dimming available.
Specifications
All dimensions are in Inches (centimeters unless otherwise indicated.
ONE PARK SARASOTA
NELO
ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with CCT switch.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.
A new aged brass finish updates the original Cascade design for a more refined take on minimalist glam. Each pendant illuminates bountifully while the jeweled crystal caps, expertlyhand-cut, punctuate each piece like a chic yet understated exclamation of luxury.
FEATURES
• Driver installed within the Junction Box, driver dimension: 2.8" x 1.3" x 1.2"
• Hand-cut faceted K9 crystal
• Thin powered aircraft cables provide an ultra clean look for adjustable suspension height
Example: PD-41728-PN For custom requests please contact customs@modernforms.com
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLEFINISHES:

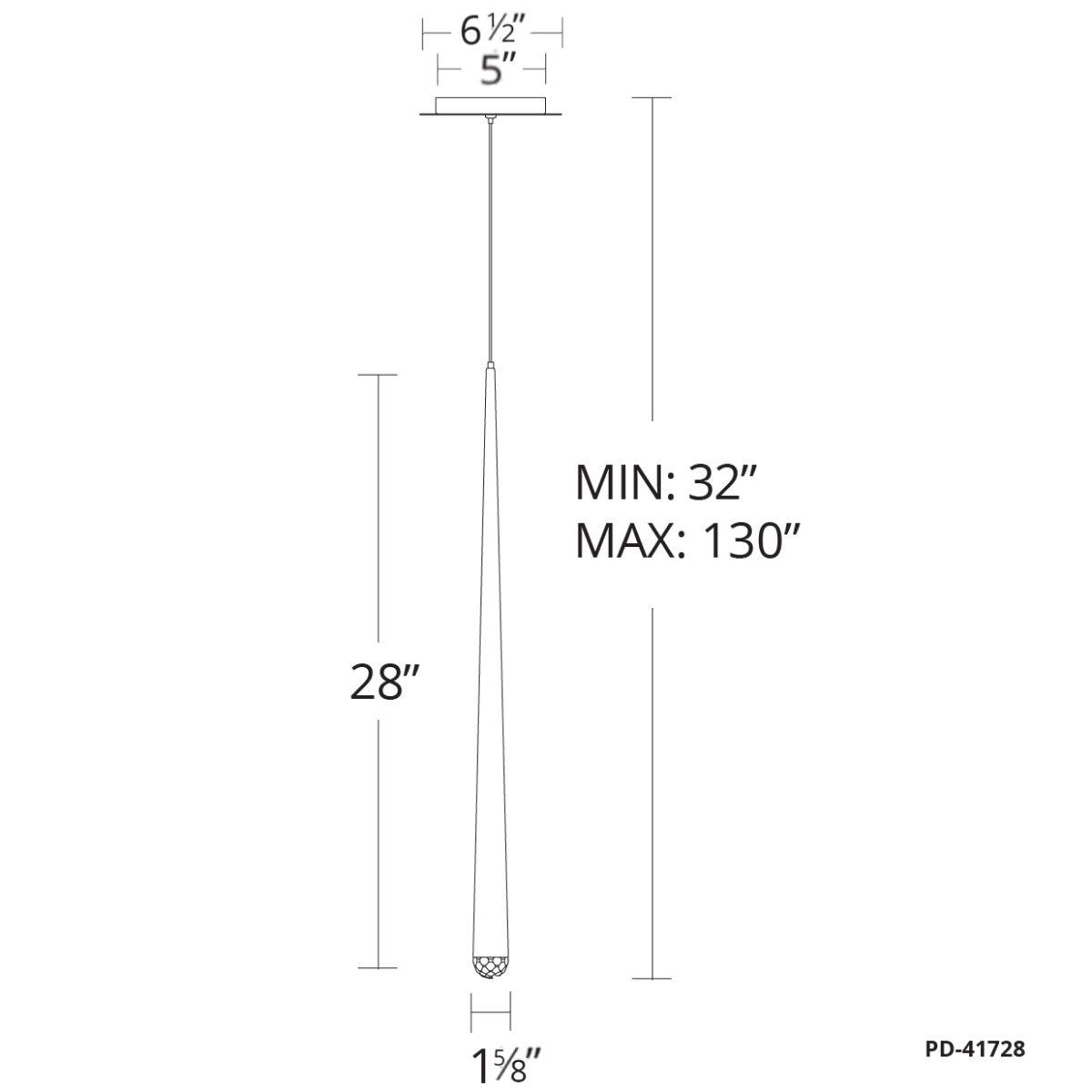

Cascade
PD-41728
PRODUCTDESCRIPTION
A new aged brass finish updates the original Cascade design for a more refined take on minimalist glam. Each pendant illuminates bountifully while the jeweled crystal caps, expertlyhand-cut, punctuate each piece like a chic yet understated exclamation of luxury.
FEATURES
• Driver installed within the Junction Box, driver dimension: 2.8" x 1.3" x 1.2"
• Hand-cut faceted K9 crystal
• Thin powered aircraft cables provide an ultra clean look for adjustable suspension height
