• Impact protection rating IK07 Lens and IK10 Housing
• Available in 4FT & 8FT lengths
• Stainless steel latches, single conduit hub, and mounting included
• Standard 0-10V dimming to 10% for more energy savings
• Emergency and sensor options available for commercial applications
Dimensional Details
OCEAN HARBOR
SYLVANIA Luminaires

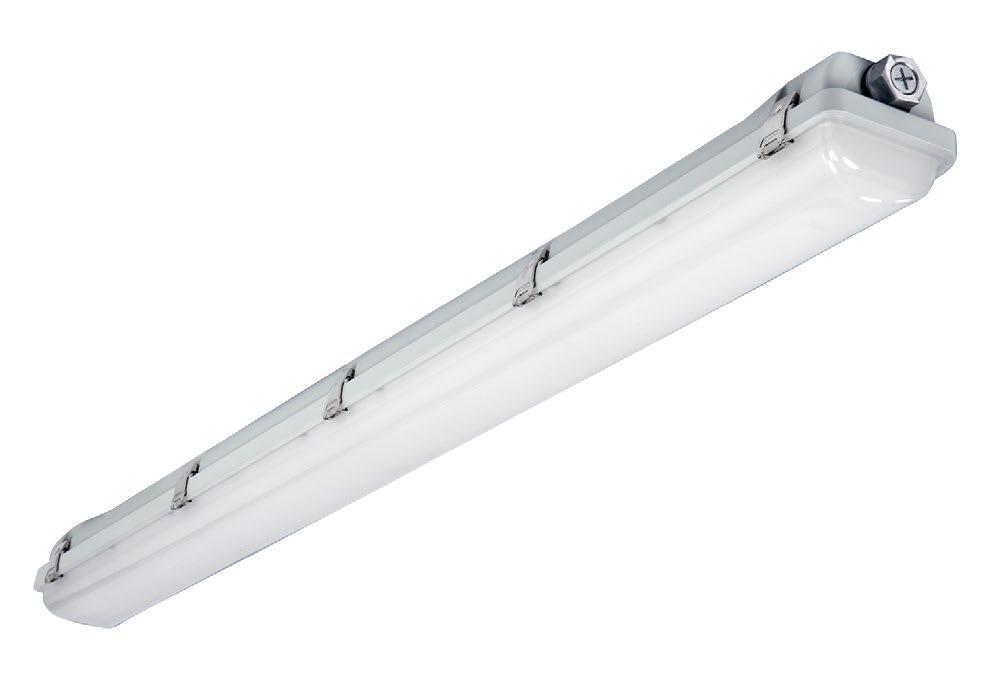

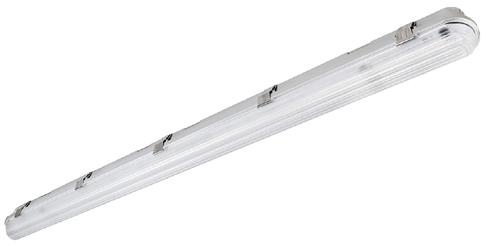

UltraLED™ Dual Selectable Vapor Tight 3A
Application
Ideal in new construction and retrofit applications, the UltraLED Dual Selectable Vapor Tight 3A is offered in three sizes that all feature both lumen and CCT selectability. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
Benefits and Features
IP66 rated polycarbonate body and lens and a broad temperature range ensure a durable product
— Stainless steel lens clips
DLC 5.1 listing maximizes energy savings and rebate opportunities
Optional integrated motion/daylight sensor and emergency battery back-up offer further potential energy savings
— Dual selectability facilitated by the switches located inside the luminaire allows for customizable light
— Offered in three wattage selectable sizes
–2ft: 15, 20, or 25W selectable
–4ft: 30, 40, or 50W selectable
–8ft: 70, 80, or 90W selectable
3500K, 4000K, and 5000K selectable color temperature
— Up to 144 LPW
— CRI >80
Energy savings up to 59%
Electrical
120-347Vac
— Power Factor >90%
— THD <20%
2.5kV surge suppression
0-10V dimmable
UL Wet rated Auxiliary 12V output
Rated Life
100,000 hours (L70)
Warranty 5-year
— NLB Trusted Warranty Program
Wattage Comparison
Operating Temperature
— -40°F to 122°F (-40°C to 50°C) for 2' and 4' models (chain mount)
— -40°F to 104°F (-40°C to 40°C) for 2', 4', and 8' models (surface mount)
— -40°F to 113°F (-40°C to 45°C) for 8' models (chain mount)
— -31°F (-35°C) minimum ambient for motion sensor models
32°F (0°C) minimum ambient for EMBB models
Certifications and Listings
Installation Fixture can be surface mounted or suspended. Stainless steel mounting brackets and V-hooks are included
Information by Catalog Number
8APVTLD-SL3C3-______
Example: 4APVTLD-SL3C3-EL10
(3) WPS4=WaveLinx Pro Wireless Sensor, Sidecar mount, 1200 sq ft. coverage at
WLS4=WaveLinx Lite Wireless Sensor, Sidecar mount, 15' - 40' Mounting
Notes: (1) IP ratings require fixtures to be mounted horizontally. 40C max ambient for EL option. (2) WaveLinx Lite devices are not currently compatible with the WaveLinx Pro Wireless Area Controller. (3) All fixtures with sensor come with two (2) hubs as standard. (4) Wavelinx with EL10W available on 8 ft only.
Mounting Data
Mounting hardware included with luminaire
Chain/Suspended Surface

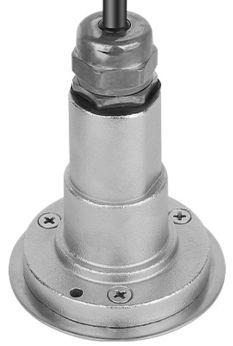

VT2 WATER TIGHT HUB (1) Water tight hub parts bag

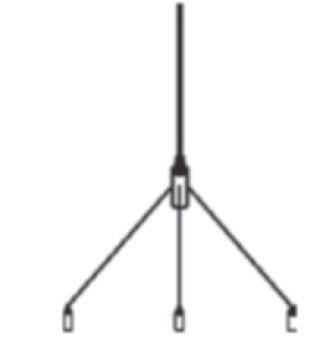

AYC-Chain/Set-U (2) 36" Chain Hanger (Use 1 set per fixture)

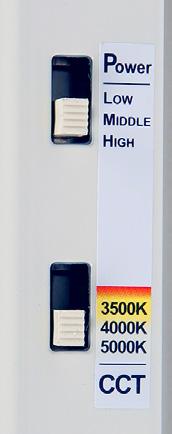

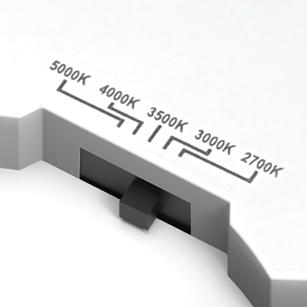

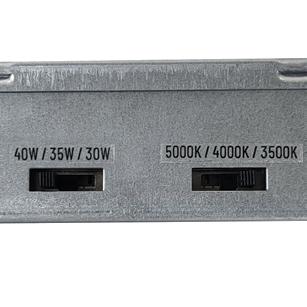

• External selectable switches provide easy, in field customization
• (3) color temperature and lumen select option provide application versatility
• Single frost lens (no breaks) provides clean, continuous lighting layout
• Up to 143 LPW and DLC compliant to enable rebates and energy savings
• Available in 8ft, 4ft and 2ft lengths, single and continuous mount capable
• UNV and 347V driver with 0-10V dimming, 10% standard

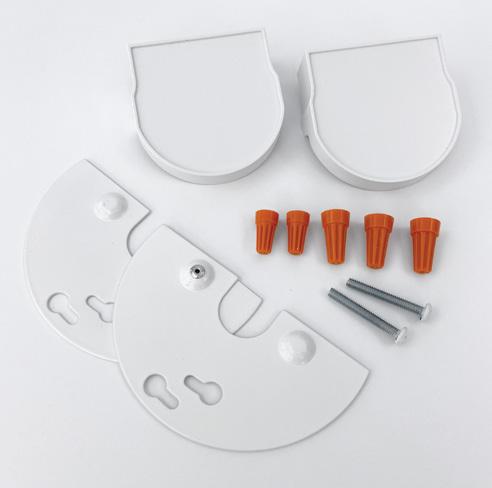

• Jbox cover, decorative endcap included to complete install.

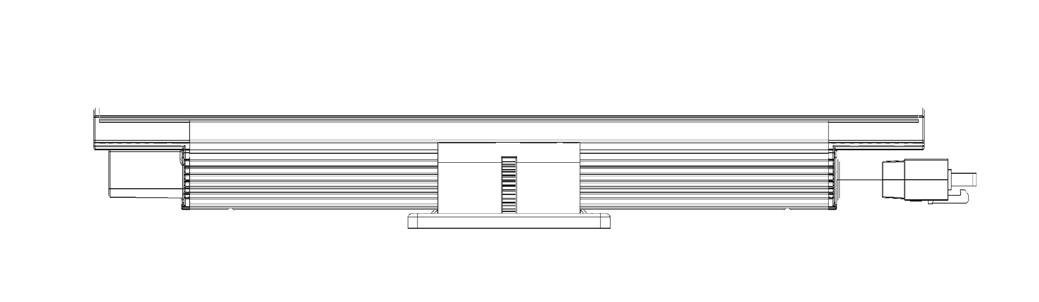

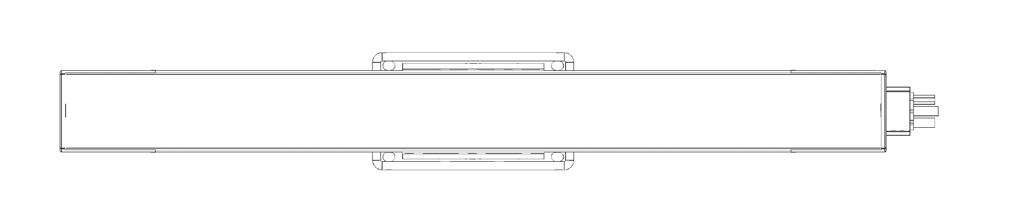

Dimensional and Mounting Details

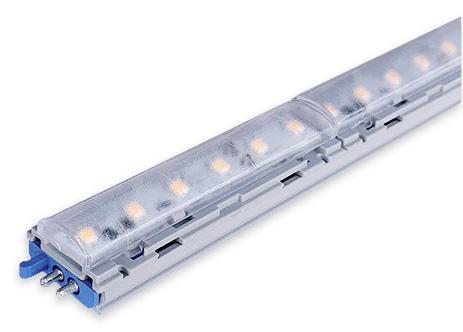

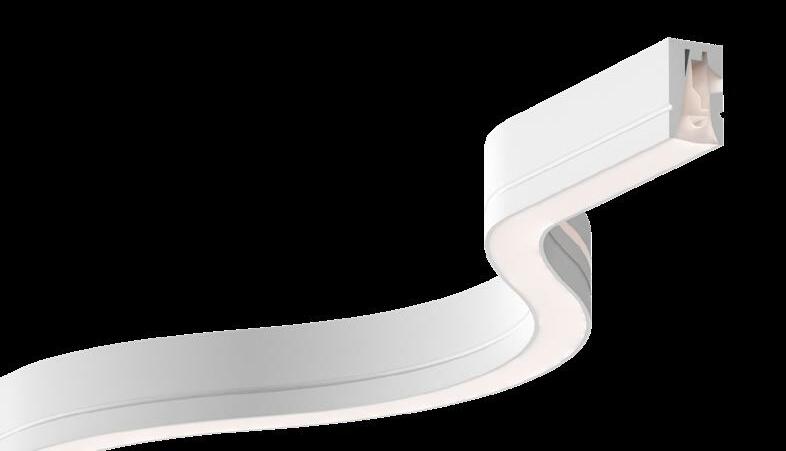

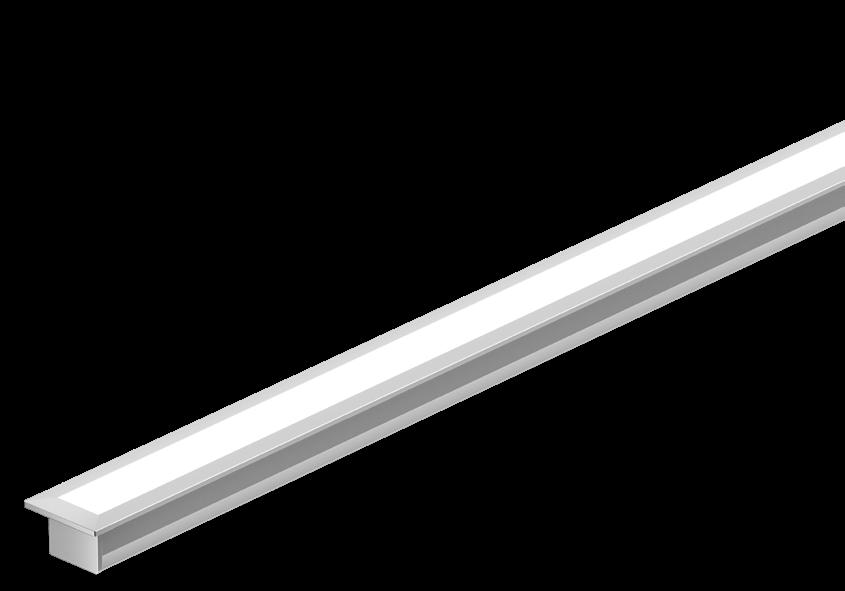

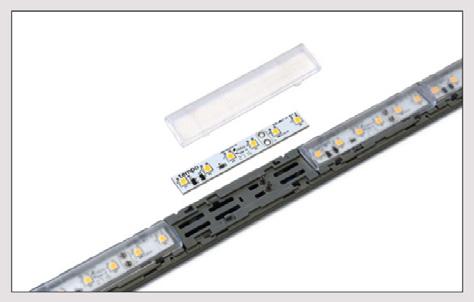

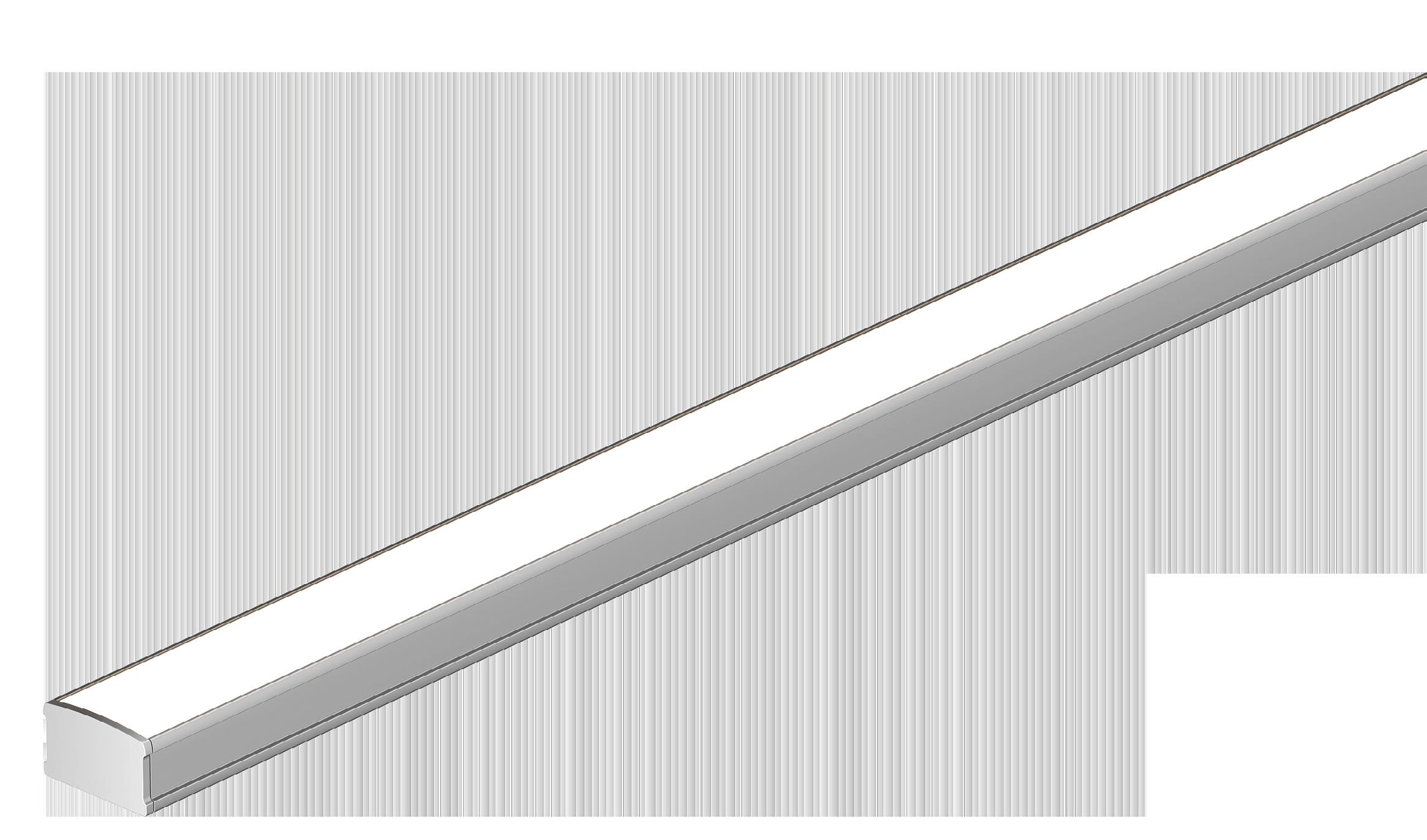

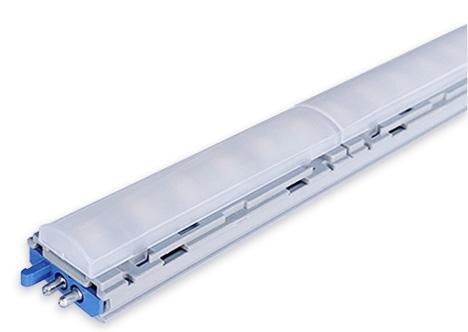

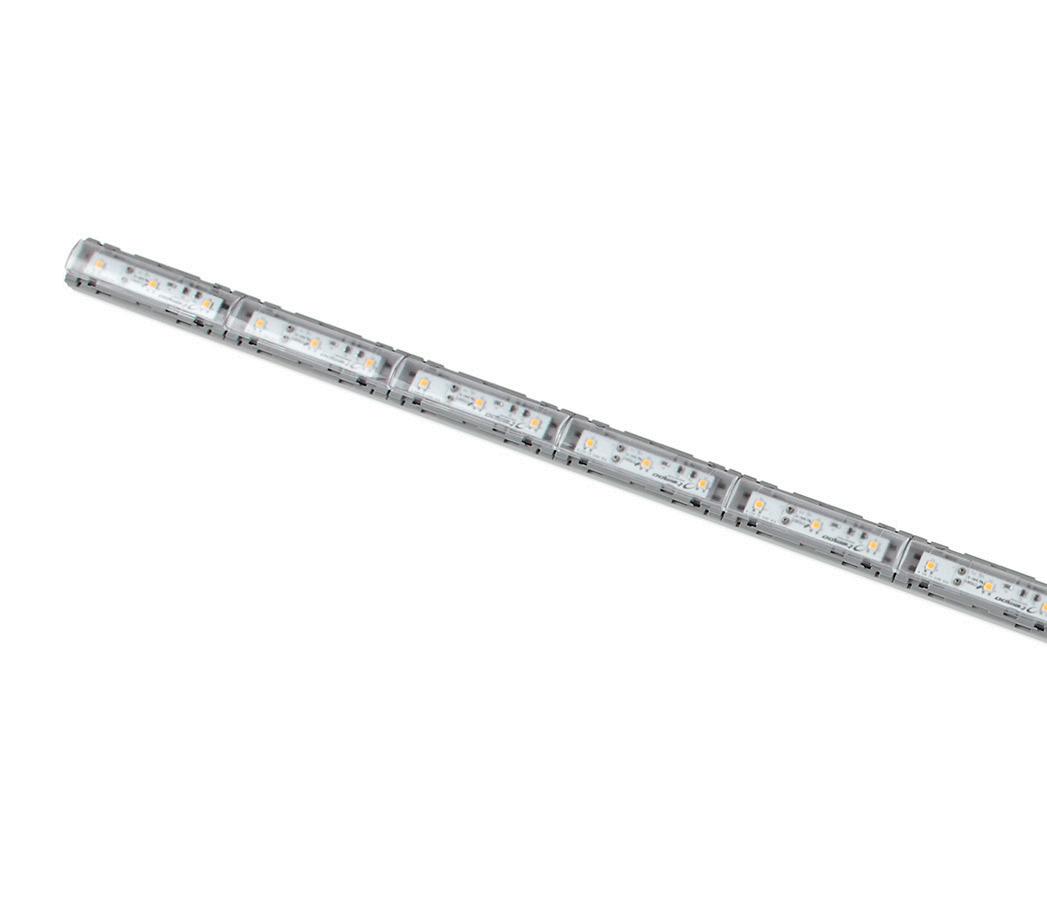

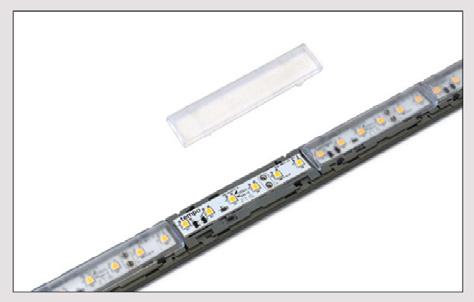

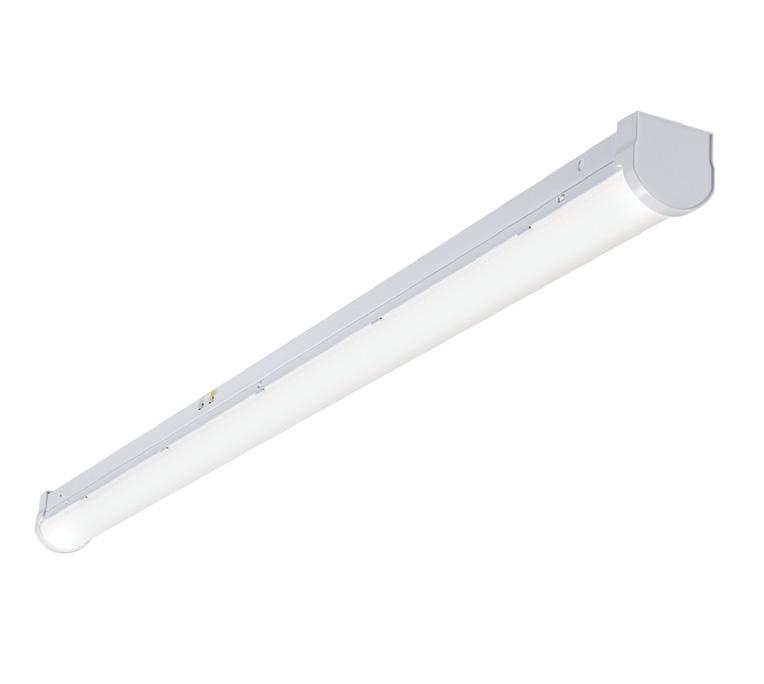

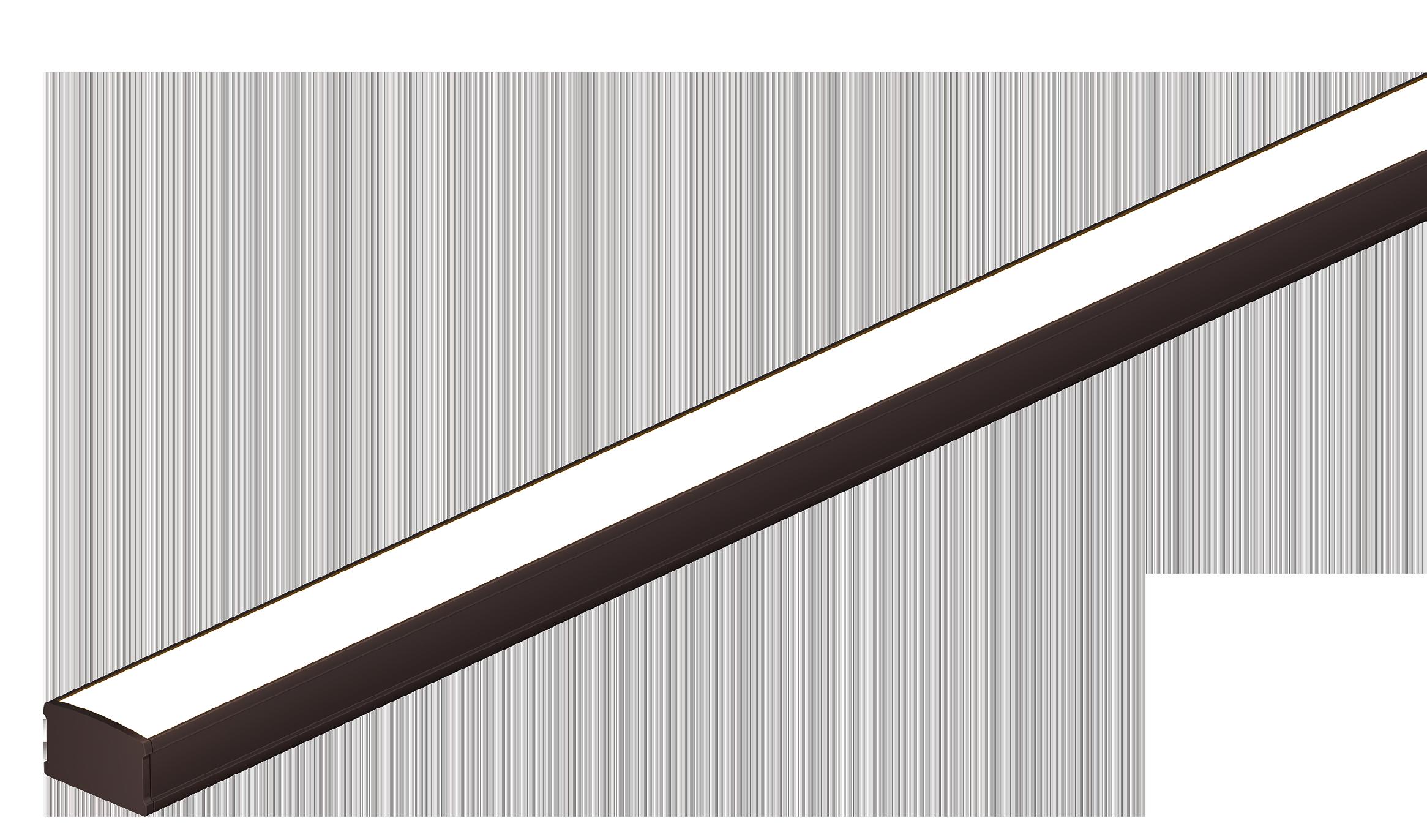

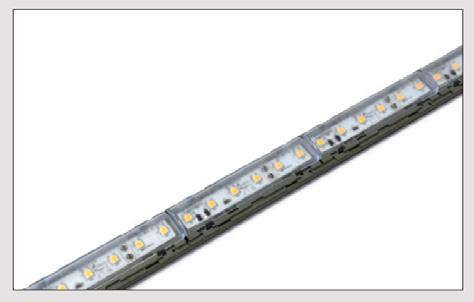

Power&CCT Selectable Linear Strip
TYPE D SPEC OCEAN HARBOR
Order Information and Performance Data
OCEAN HARBOR TYPE D ALT LNS

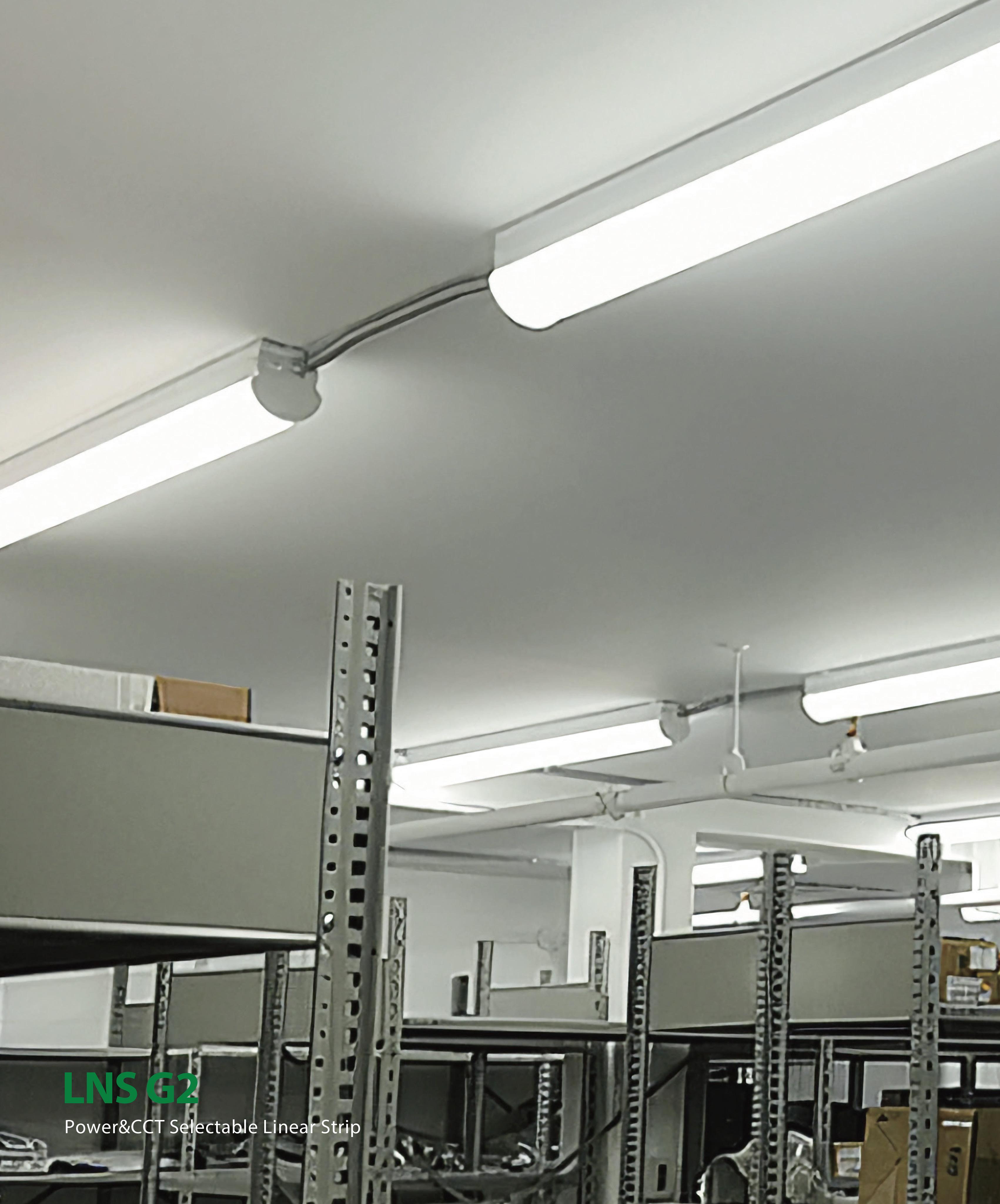

Power&CCT Selectable Linear Strip
LNS G2
Power&CCT
PRODUCT FEATURES
• •
•
•
•
• •
Powered by 0-10V dimming driver (dim to off)
12Vdc AUX output for extended wireless control
Ambient operating temperature: -20OC(-4OF) to 50OC(122OF)
PF>0.95, THD<20%
Snap-lock design, easy for installation and maintenance Stand Alone Fixture Control (SAFC) options available Curved lens comes standard, flat lens optional
Electrical feed through, extra parts needed (purchase separately)
PRODUCT SPECIFICATIONS
•
BLE Mesh Control (LLLC) and Circuit Level Control (LALC) options available BAA Copmliant (Optional)
Feature Power Selectable Technology: 3 step power adjustable Feature CCT Selectable Technology: Adjust CCT between 3500K/4000K/5000K L70>100,000 Hrs,5 Year Limited Warranty
* 4FT data is based on in-house IES files, 8FT data is extrapolated.
* LNS-4FT-24-T1-F-G2 is DLC listed as Direct Linear Ambient and Low-bay Luminaire, other models are pending
LNS-8FT-65-T1-F-G2

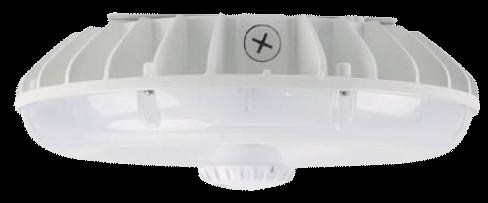

TYPE G SPEC OCEAN HARBOR
Prepared by Notes
Interactive Menu
• Ordering Information page 2
• Product Specifications page 2
• Optical Configurations page 3
• Mounting Details page 3
• Energy and Performance Data page 4
• Control Options page 6
Quick Facts
• Lumen packages range from 2,757 - 22,831
• Efficacies up to 146 LPW
• Patented waveguide technology for maximum visual comfort
• Mount options: surface, pendant, trunnion, wall, and direct conduit

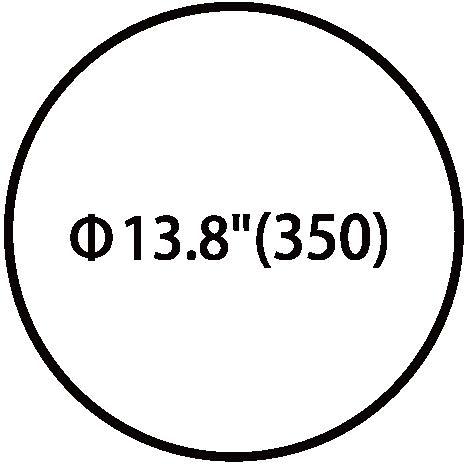

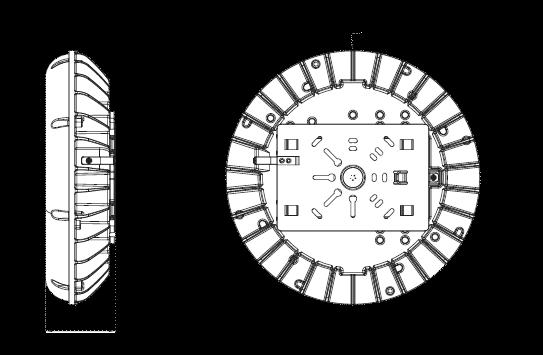

Dimensional Details
SURFACE MOUNT
CQ, MQ, WQ and RW: D1-D6
DL: D1-D4
Base luminaire weight: 18.2 lbs (8.3 kg)
Visual Comfort Luminaire
Product Features
Product Certifications
Connected Systems
• WaveLinx PRO Wireless
• WaveLinx LITE Wireless
• AirMesh
SURFACE MOUNT
CQ, MQ, WQ and RW: D7+ DL: D5+
Base luminaire weight: 20.1 lbs (9.1 kg)
TopTier (D1-D6)
TopTier (D7-D10)
OCEAN HARBOR
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
1. DesignLights Consortium ® Qualified. Refer to www.designlights.org Qualified Products List under Family Models for details.
2. Only for use with 480V Wye systems. Per NEC, not for use with ungrounded systems, impedance grounded systems or corner grounded systems (commonly known as Three Phase Three Wire Delta, Three Phase High Leg Delta and Three Phase Corner Grounded Delta systems).
3. Not available with D7 - D10 configurations.
4. Order Pendant Mount Stem accessory.
5. IBP ambient operating temperature -20°C to 35°C (D1-D3), -20°C to 25°C (D4-D6). Not available with D7-D10 configurations or DALI options.
6. Additional 8.0W. Provides 920 lumens. Not available with D10 configuration.
7. Choose lead length for Surface Mount and Stem Mount only. TMB, DPM and WM lengths predetermined.
8. Not available with CQ.
9. Standard with CQ, option available with WQ only.
10. U voltage only. Ambient operating temperature -20°C to 50°C (D1-D4) or -20°C to 40°C (D5-D6). UL924 listed component.
11. Includes integral photocell.
12. Specify color in place of XX.
13. Designed for use with Stem Mount and Decorative Pendant Mount only.
14. Designed for use with Decorative Pendant Mount only.
15. Not available with H voltage or IBP. Not compatible with MS/DIM or LWR sensors.
16. Specify Lead Length for wire harness length.
17. The FSIR-100 configuration tool is required to adjust parameters including high and low modes, sensitivity, time delay and more.
• Five optical distributions utilizing visual comfort waveguide technology
• 10 lumen packages, ranging from 2,757 to 22,831
• Integral uplight option utilizes a dedicated, 8W light engine, producing 920 lumens for reduced visual contrast and cave effect

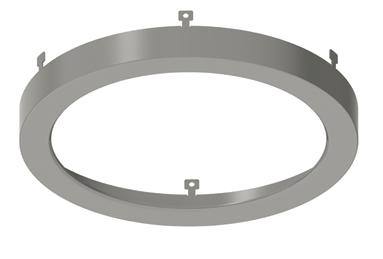

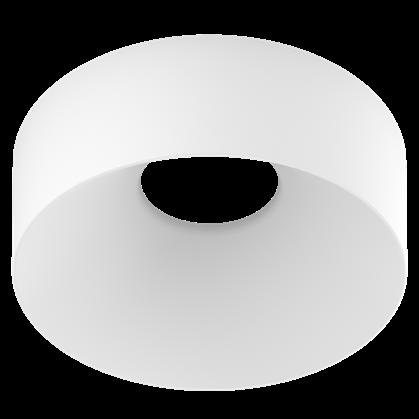

• TC TotalComfort trim ring option occludes high angle light for maximum visual comfort. Peak angle and max vertical reduced by 5°
Electrical
• D1-D6: -40C - 50C operating temperature
• D7-D10: -40C - 40C operating temperature
• Greater than 90% lumen maintenance at 50,000 hours
• 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation
• 10kV surge module standard
• 0-10V dimming standard
Mounting
MA1252=Replacement 10kV Surge Module
TT/WG =Wire Guard 23
TT/BG-UP-XX=Bird Guard 12, 13
TT/HSS-XX=House Side Shield 23

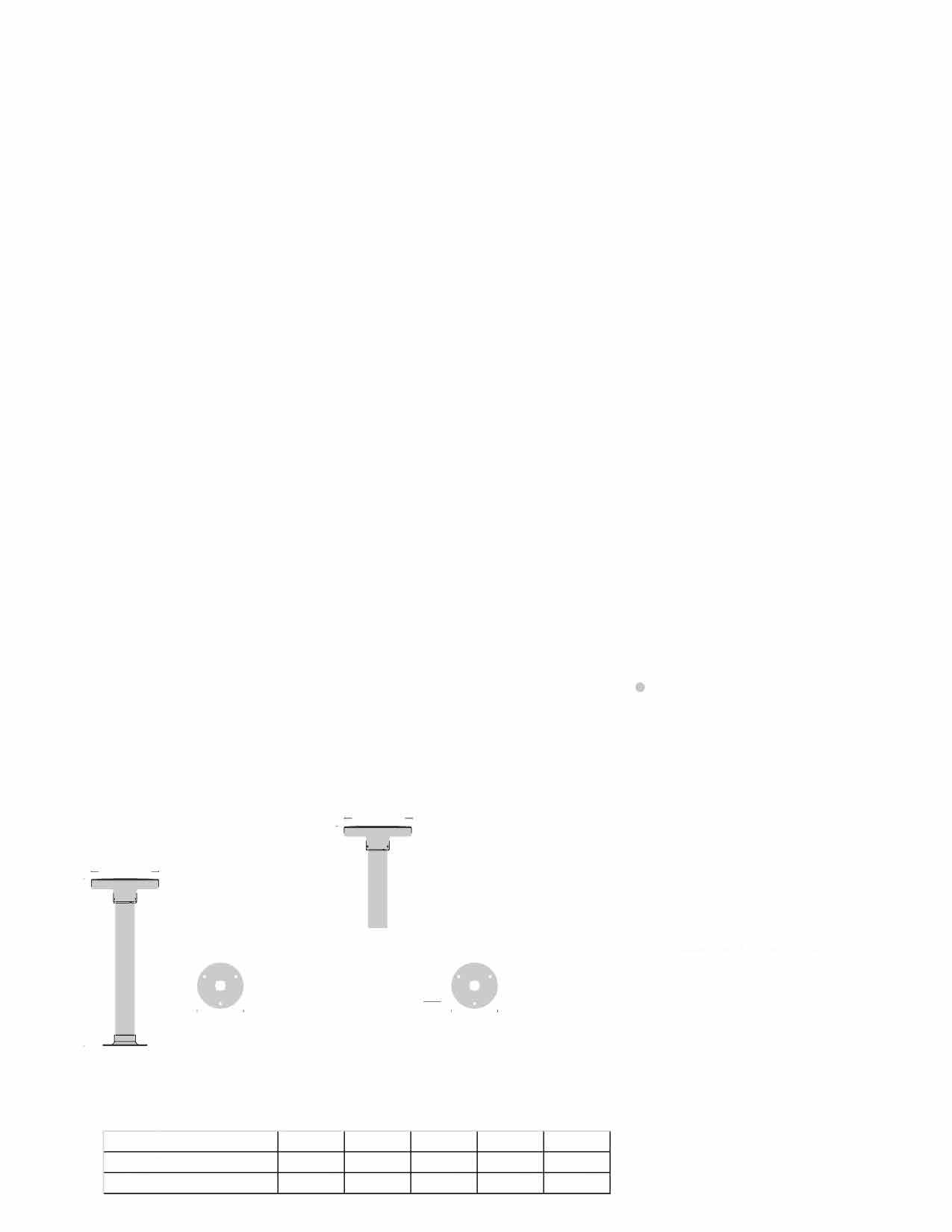

DPMS36-XX=36” Pendant
DPMS48-XX
DPMS96-XX
DPMST36-XX =
DPMST48-XX =
DPMST96-XX
FSIR-100 =Wireless Configuration Tool for Occupancy Sensor 17
18. 924 option provides luminaire UL924 listing, used in conjunction with ITS or IBP-CEC.
19. Sensor configuration mobile application required for configuration. See controls page for details.
20. Cannot be used with other control options.
21. For WaveLinx applications, WAC Gateway required to enable field-configurability: Order WAC-PoE and WPOE-120 (10V to PoE injector) power supply if needed. Not required for WaveLinx Lite Commercial (LC) applications.
22. Specify 120V or 277V.
23. TT/WG and TT/HSS cannot be installed together. TT/HSS & TT/WG not available on D7-D10 configurations.
24. D4-D10 only. Not compatible with battery.
25. Only product configurations with these designated prefixes are built to be compliant with the Buy American Act of 1933 (BAA) or Trade Agreements Act of 1979 (TAA), respectively. Please refer to DOMESTIC PREFERENCES website for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
26. Accessories sold separately will be separately analyzed under domestic preference requirements. Consult factory for further information.
27. Narrow-band 590nm +/- 5nm for wildlife and observatory use. Choose lumen package D1.
28. Not available in D10 configuration.
29. For installations in locations such as gymnasiums, arenas, sports complexes, multi-purpose rooms, and any other locations where the fixture potentially will be subject to impacts from external sources, DPM mounting is required, utilizing the stem kit with tether (DPMST*).
Surface Mount, Trunnion Mount (TMB), Wall Mount (WM) and Stem Mount (STM) are prohibited in these applications.
30. Only product configurations with these prefixes are built to be compliant with the Buy American Act of 1933 (BAA) or the Build America Buy America Act (BABA). BABA is the minimum Government compliance requirement for the Build America Buy America standards which is part of the Infrastructure and Investment Jobs Act (IIJA). Individual Government Agencies may have more stringent compliance standards. Please refer to the DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
• Surface mount directly to square or octagonal 4” surface or recessed junction box using quick mount bracket
• Optional stem mount bracket with set screw for direct 1/2” or 3/4” NPS conduit mounting
• Trunnion, decorative pendant, and wall mount options also available
• For installations in locations such as gymnasiums, arenas, sports complexes, multipurpose rooms, and any other locations where the fixture potentially will be subject to impacts from external sources, the stem kit with tether (DPMST*) is required
Typical Applications
• Parking garages, canopy, stairwells, and covered walkways
Finish
• 2.5 mil nominal TGIC powder coat thickness
• Finishes include white, black, bronze, gray, dark platinum and graphite metallic
• RAL and custom colors also available. Additional charges and lead time apply
Compliance
• Visit www.designlights.org to confirm qualification. Not all product variations are DLC qualified
• IDA Certified for Dark sky for 3000K and warmer only
• IP66 rated
• FHWA and FTA agencies are utilizing their BAA rules for BABA compliance. Cooper’s products with a BAA designation are manufactured in the US and utilize a BAA COTS exemption rule for compliance. To verify a configured product with specific accessories and options meet BABA Domestic Preference Requirements; submit this catalog number to Cooper Lighting Quotation team for validation by our Engineering and Manufacturing teams
• Please refer to the DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements Warranty
• Five year limited warranty, consult website for details www.cooperlighting.com/legal
BLANK
Interactive Menu
• Ordering Information page 2
• Mounting Details page 3
• Product Specifications page 4
• Energy and Performance Data page 4
• Control Options page 7
Quick Facts
• Available in 12W - 116W (1,800 - 16,000 lumens) models
• Full cutoff and refractive lens models available
• Energy and maintenance savings up to 95% compared to HID
• Energy efficient illumination results in up to 177LPW
• Replaces 70W up to 450W HID equivalents
Dimensional Details
• WaveLinx LITE Wireless Product Certifications & Features
Connected Systems
• WaveLinx PRO Wireless
PEAK

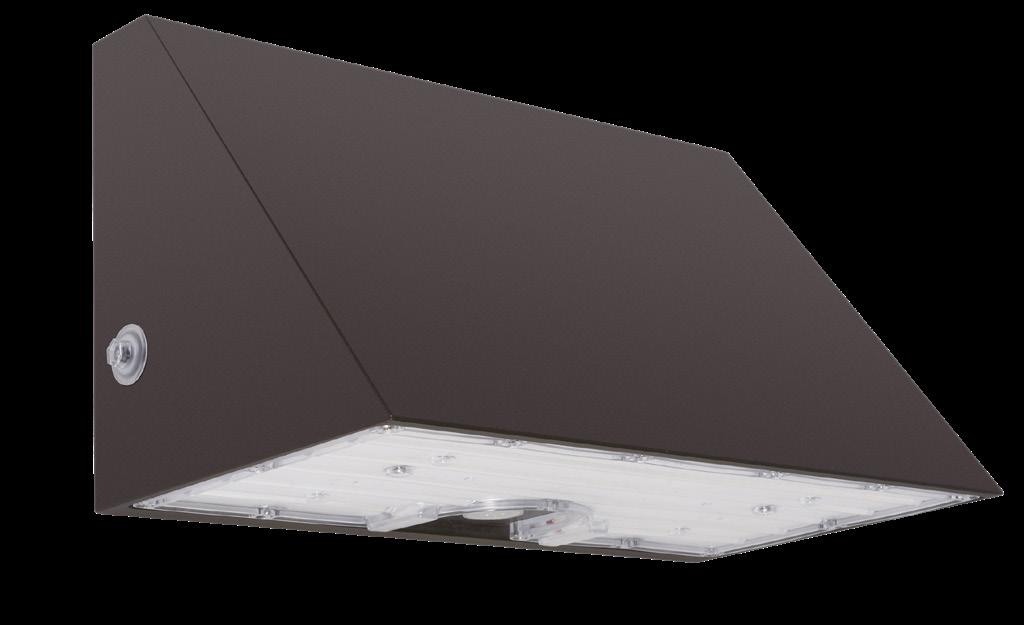

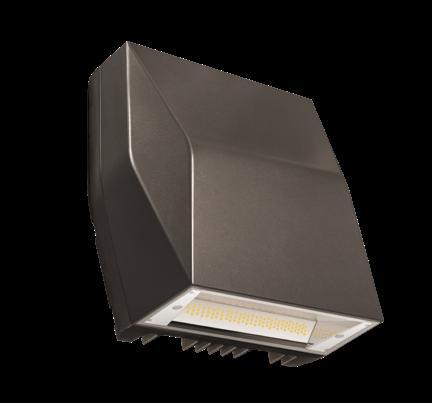

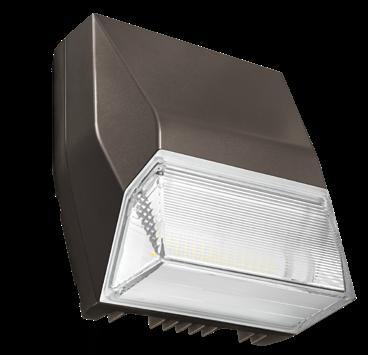

Color Changeable Full Cut-off Wall Pack
MODEL NO.
KEY FEATURES
•Modern rectilinear design
•Multiple distributions option available for different applications
BB/AXC =Axcent Lumen Select Back Box, Carbon Bronze 23
BB/AXC-PC =Axcent Lumen Select Back Box with PC, Carbon Bronze 23, 24
BB/AXC-WT=Axcent Lumen Select Back Box, Summit White 23
BB/AXC-WT-PC =Axcent Lumen Select Back Box with PC, Summit White 23, 24
NOTES:
1. DesignLights Consortium® Qualified. Refer to www.designlights.org Qualified Products List under Family Models for details.
2. Transformer used only when ordered with motion sensor or AXCS1 through AXCS5 or AXCL6 fixture wattages.
3. Not available in 347 or 480 VAC.
4. Button photocontrol and any motion sensor (MSP or LWR) not offered together.
5. Only available on AXCL6-AXCL12 models.
6. Used with 277, 347, and 480 VAC options.
7. Only available on AXCS1-AXCS5 models.
8. This configuration may contain materials that are not RoHS compliant. Contact your lighting representative for more information.
9. Uses deep back housing.
10. Sensor passive infrared (PIR) may be overly sensitive when operating below -20°C (-4°F). For the device to be field-configurable, requires WAC Gateway components WAC-PoE and WPOE-120 in appropriate quantities. Only compatible with WaveLinx system and software and requires system components to be installed for operation. See website for more Wavelinx application information.
11. Replace XX with sensor color (WH, BZ, or BK).
12. The ISHH-01 accessory is required to adjust parameters.
13. Ambient operating temperature -20°C to 25°C for AXCL6 through AXCL10. Ambient operating temperature -20°C to 30°C on AXCS4 models. Ambient operating temperature -20°C to 40°C on AXCS1 through AXCS3 models.
14. Not available with AXCS5 or AXCL12 models.
15. Uses deep back housing for AXCS1, AXCLS2, AXCS3, and AXCS4 models.
16. Not to be mounted in upwards / inverted orientation. Downlight wall mount only for AXCS1 through AXCS4. 17. CBP cannot be used with PC and motion sensor (MSP). CBP can be used with PC or motion sensor (MSP).
15. Uses deep back housing for AXCS1, AXCLS2, AXCS3, and AXCS4 models.
16. Not to be mounted in upwards / inverted orientation. Downlight wall mount only for AXCS1 through AXCS4.
Stock Ordering Information
AXCS1A=12W
AXCS2A=16W
AXCS3A=23W
AXCS4A=38W
AXCS5A=45W
AXCL6A=56W
AXCL8A=72W
AXCL10A=102W
AXCL12A=123W
AXCL6A-347V=50W
AXCL8A-347V=66W
AXCL10A-347V=89W
AXCL12A-347V=116W
347V=347V 2
480V=480V 2
PC1=Photocontrol 120V 3, 4, 5
PC2=Photocontrol 208-277V, 347V, 480V 4, 5, 6
PC =Photocontrol 120-277V, 347V, 480V 4, 7, 8
KKIT=Knuckle Floodlight Mount 7
TRNKIT=Trunnion Floodlight Mount
SFKIT=Slipfitter Floodlight Mount
PMAKIT=Pole Mount Arm
WPS2XX=Wavelinx Pro, SR Driver, Dimming Motion and Daylight, WAC Programmable, 7’ - 15’ Mounting Height 4, 9, 10, 11
WPS4XX=Wavelinx Pro, SR Driver, Dimming Motion and Daylight, WAC Programmable, 15’ - 40’ Mounting Height 4, 9, 10, 11
WLS2XX=WaveLinx Lite, SR Driver, Dimming Motion and Daylight, Bluetooth Programmable, 7’ - 15’ Mounting 4, 9, 10, 11
WLS4XX=WaveLinx Lite, SR Driver, Dimming Motion and Daylight, Bluetooth Programmable, 15’ - 40’ Mounting 4, 9, 10, 11
MA1010-XX=Single Tenon Adapter for 3-1/2” O.D. Tenon
MA1011-XX=2@180° Tenon Adapter for 3-1/2” O.D. Tenon
MA1017-XX=Single Tenon Adapter for 2-3/8” O.D. Tenon
MA1018-XX=2@180° Tenon Adapter for 2-3/8” O.D. Tenon
17. CBP cannot be used with PC and motion sensor (MSP or LWR). CBP can be used with PC or motion sensor (MSP).
18. Can not be ordered with CBP or PC options.
19. Use dedicated IES files on product website for lumen values and distributions.
20. Requires the use of PC1 or PC2 button photocontrol. See After Hours Dim supplemental guide for additional information.
21. Replace XX with color designation.
22. For use with full cutoff lens configurations only.
23. Lumen Select functionality not available in conjunction with any motion sensor option (MSP). Photocontrol back box not available with any photocontrol or motion sensor options (PC, MSP).
24. Photocell only operates at 120-277V input voltages. Not for use with 347 or 480V systems.
25. This tool enables adjustment to parameters including high and low modes, sensitivity, time delay, cutoff and more. Consult you lighting representative for more information.
26. Only product configurations with these designated prefixes are built to be compliant with the Buy American Act of 1933 (BAA) or Trade Agreements Act of 1979 (TAA), respectively. Please refer to DOMESTIC PREFERENCES website for more information. Components shipped separately may be seperately analyzed under domestic preference requirements.
27. Accessories sold separately will be separately analyzed under domestic preference requirements. Consult factory for further information.
28.Only product configurations with these prefixes are built to be compliant with the Buy American Act of 1933 (BAA) or the Build America Buy America Act (BABA). BABA is the minimum Government compliance requirement for the Build America Buy America standards which is part of the Infrastructure and Investment Jobs Act (IIJA). Individual Government Agencies may have more stringent compliance standards. Please refer to the DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
29. DarkSky approved when ordered with 3000K or warmer CCT.
AXCS1ARL=12W
AXCS2ARL=16W
AXCS3ARL=23W
AXCS4ARL=38W
AXCS5ARL=45W
AXCL6ARL=50W
AXCL8ARL=66W
AXCL10ARL=89W
AXCL12ARL=116W
AXCL6ARL-347V=50W
AXCL8ARL-347V=66W
AXCL10ARL-347V=89W
AXCL12ARL-347V=116W
PEAK
Color Changeable Full Cut-off Wall Pack
45W)
70W)
- (120-277V)
(277V-480V)**
- Color Changeable (30K/40K/50K)
(Type III)*
(Type IV)
(General)* C0 - (ON & Off with 0-10V
C1 - (ON & Off with 0-10V driver & integrated photocell)
- (Bi-level Motion Sensor)*
- (Bi-level PIR Sensor)*

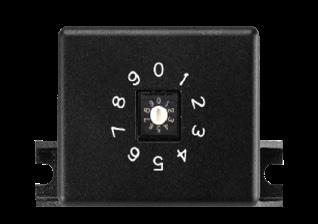

AOD (Adjustable Output Device) Spitzer’s AOD allows us to customize the Wattage and Lumen output to match your exact needs. Talk to your Sales Rep today.
TYPE X1 SPEC OCEAN HARBOR
Prepared by Notes
Interactive Menu
• Order Information page 2
• Energy Performance page 2
• Technical Data page 2
• Product Warranty
Top Product Features
• Universal Mount: surface and recessed
Sure-Lites
Sure-Lites Complete Exit, SCX Series
Universal Mount Edge Lit Exit Sign
Product Certification
Product Features
• Clear acrylic panels, single-sided clear and double-sided mirror included
• Aluminum housing available in satin aluminum finish
• Battery backup models provide 90 minutes of emergency run time
• Bright, long-life LED source provides uniform illumination
• Dual voltage input, 120/277 VAC, 60 Hz
• UL 924 Damp location certified Typical Applications
Dimensional
and Mounting Details

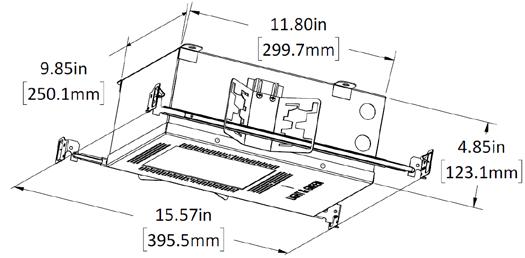

Recessed Ceiling Mount
Surface Ceiling Mount
[400mm] 9-1/4" [235mm]
OCEAN HARBOR

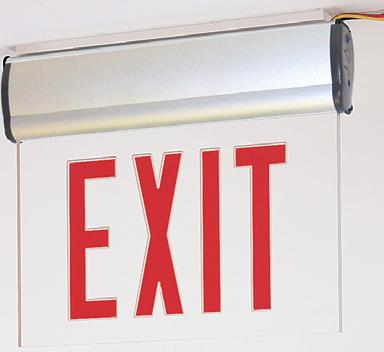

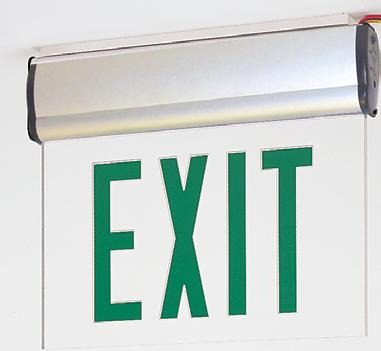

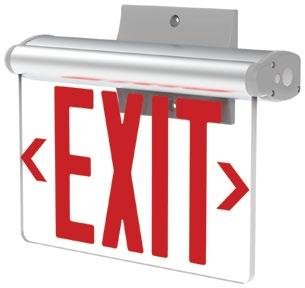

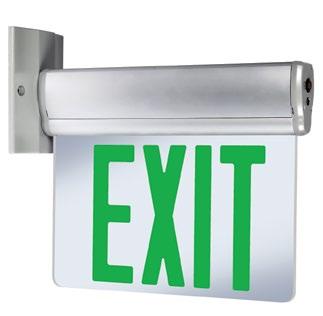

NX-810-LED / NX-811-LED / NX-812-LED
Surface Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Extruded aluminum housing and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Face is constructed with 0.40" clear acrylic with rounded and finished edge for attractive appearance. Face contains red or green 6" high and 3/4" thick lettering inside face to comply with NFPA requirements. Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic. Face can be adjusted in the field from 0º to 90º for wall, ceiling, or sloped applications.

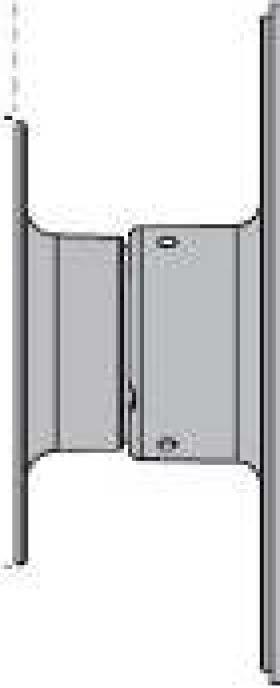

MOUNTING
Mounting hardware consist of 0.06" steel universal junction box bracket, 7/8" profile 0.11" die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knocouts once mounting configuration is selected.
ELECTRICAL
Voltage: Dual 120V/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-811-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-812-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High-charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
UL Listed
State & Municipal
Certified to the energy efficiency standards of California Title 20
Sign
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
Type Project
Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS
Optional Accessories
Sure-Lites
Ordering Information
SAMPLE ORDER NUMBER: SCX70R, SCX70G
Complete Fixture
SCX60R Sure-Lites Complete Edge Lit Exit, AC Only, Universal Mount, Red Letters, Universal Faces, Aluminum Finish 0800832863623
SCX60G Sure-Lites Complete Edge Lit Exit, AC Only, Universal Mount, Green Letters, Universal Faces, Aluminum Finish 0800832863863
• LED, Red or Green: Super-bright, long-life LEDs provide uniform illumination
Electronic
• Dual voltage input 120/277 VAC, 60Hz
• Long-life energy efficient LED lamps
AC only and AC with battery backup models
• Solid-state Voltage Charger
• Solid-state Switching
• Brownout Circuit
Low-Voltage disconnect
• Test Switch/Power Indicator Light
Housing Construction
• Extruded aluminum housing
Steel recessed housing, aluminum trim plate
• Pivot design allows simple installation for surface, recessed wall, ceiling and sloped ceilings
• Canopy provided for surface mounting
• Extruded aluminum housing with adjustable glavanized steel hangar bars provided for recessed mounting
• Standard satin aluminum finish blends with most decors
Energy and Performance Data
Lens
• Injection molded acrylic panels
• NFPA 101 compliant field installable chevron directional indicators
• Bright red and green letter colors
• 6" Letters
• Single-sided clear and double-sided mirror panels provided with each exit
Brownout Circuit (SCX7 Battery Backup Models)
• Monitors flow of AC current Activates the emergency lighting system when a predetermined reduction/dip of AC power occurs (a dip in voltage will cause most ballasted products to extinguish, causing loss of normal lighting though a total power failure has not occurred)
Low Voltage Disconnect (SCX7 Battery Backup Models)
• Low-voltage circuitry disconnects the lighting load when battery’s terminal voltage falls
• Disconnect remains in effect until normal utility power is restored, preventing deep battery discharge
Test Switch/Power Indicator Light (SCX7 Battery Backup Models)
Switch located on the side of the exit permits the activation of the emergency circuit for complete operational systems check
• Indicator light provides visual assurance the AC power is on Battery
• Sealed nickel cadmium
• Maintenance free, long life Full recharge time, 24 hrs (max.)
• Operating temperature 10°C to 40°C
Code Compliance
UL 924 Listed
• Life Safety NFPA 101
• NEC/OSHA
• Most State and Local Codes CEC Title 20
Limited Warranty
• Exit: 5-year Limited Warranty
• Battery: 2-year Limited Warranty
BLANK

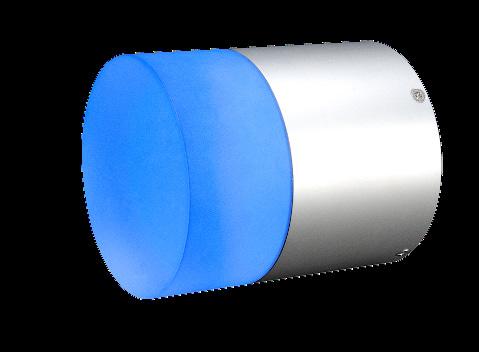

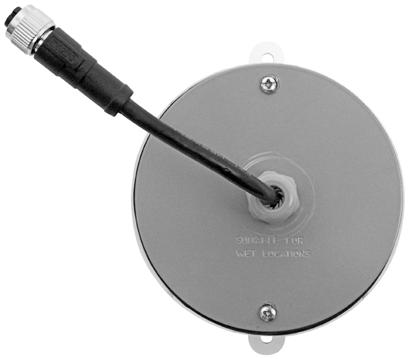

AL DOT AC
ACCLAIM LIGHTING
Client:
Project:
Type:
Order Code:
Quantity:
AL Dot AC is a direct view, RDM / DMX node, designed for low resolution graphics displays and individual dots of color. Available in a diffused flat, diffused dome, or clear lens, it also features an internal DMX + AC driver and all aluminum construction. It can be used indoor or outdoor and carries an IP66 outdoor rating.
SPECIFICATIONS
Color
RGBW (W=3000K), RGBA, 3000K, 4000K, Dynamic White (2400K-5000K)
Available Lenses Diffused Flat, Diffused Dome
Beam Angle 120º
Max Fixtures In Series 32 units via DMX-512
Total Lumens 447 (RGBW, Full On)
Control DMX / RDM
Mounting
Mount directly onto 4“ round electrical box
Power Consumption 15W
Operating Voltage 100-277VAC
Lumen Maintenance
L70 @ 150,000 Hours (25º C)
Finish Silver
Housing Material
Aluminum body, acrylic top
Operating Temperature -40°F to 123°F (-40°C to 50°C)
IP Rating IP66, Wet Location
Fixture Connectors 10‘ (3m) AC + DMX in & out feed cable
Warranty 5 Years
Weight TBD
Dimensions 4.25“ ø x 5.11“ H (108mm ø x 130mm H)
Certifications
AL DOT AC
ACCLAIM LIGHTING
Client:
Project:
Type:
Order Code:
Quantity:
AL Dot AC is a direct view, RDM / DMX node, designed for low resolution graphics displays and individual dots of color. Available in a diffused flat, diffused dome, or clear lens, it also features an internal DMX + AC driver and all aluminum construction. It can be used indoor or outdoor and carries an IP66 outdoor rating.
SPECIFICATIONS
Color
RGBW (W=3000K), RGBA, 3000K, 4000K, Dynamic White (2400K-5000K)
Available Lenses Diffused Flat, Diffused Dome
Beam Angle 120º
Max Fixtures In Series 32 units via DMX-512
Total Lumens 447 (RGBW, Full On)
Control DMX / RDM
Mounting
Mount directly onto 4“ round electrical box
Power Consumption 15W
Operating Voltage 100-277VAC
Lumen Maintenance
L70 @ 150,000 Hours (25º C)
Finish Silver
Housing Material
Aluminum body, acrylic top
Operating Temperature -40°F to 123°F (-40°C to 50°C)
IP Rating IP66, Wet Location
Fixture Connectors 10‘ (3m) AC + DMX in & out feed cable
Warranty 5 Years
Weight TBD
Dimensions 4.25“ ø x 5.11“ H (108mm ø x 130mm H)
Certifications
AL DOT AC TM
CODES
DIMENSIONS
AL DOT AC TM
CODES
DIMENSIONS
TYPE FL4 SPEC OCEAN HARBOR
Date
Notes

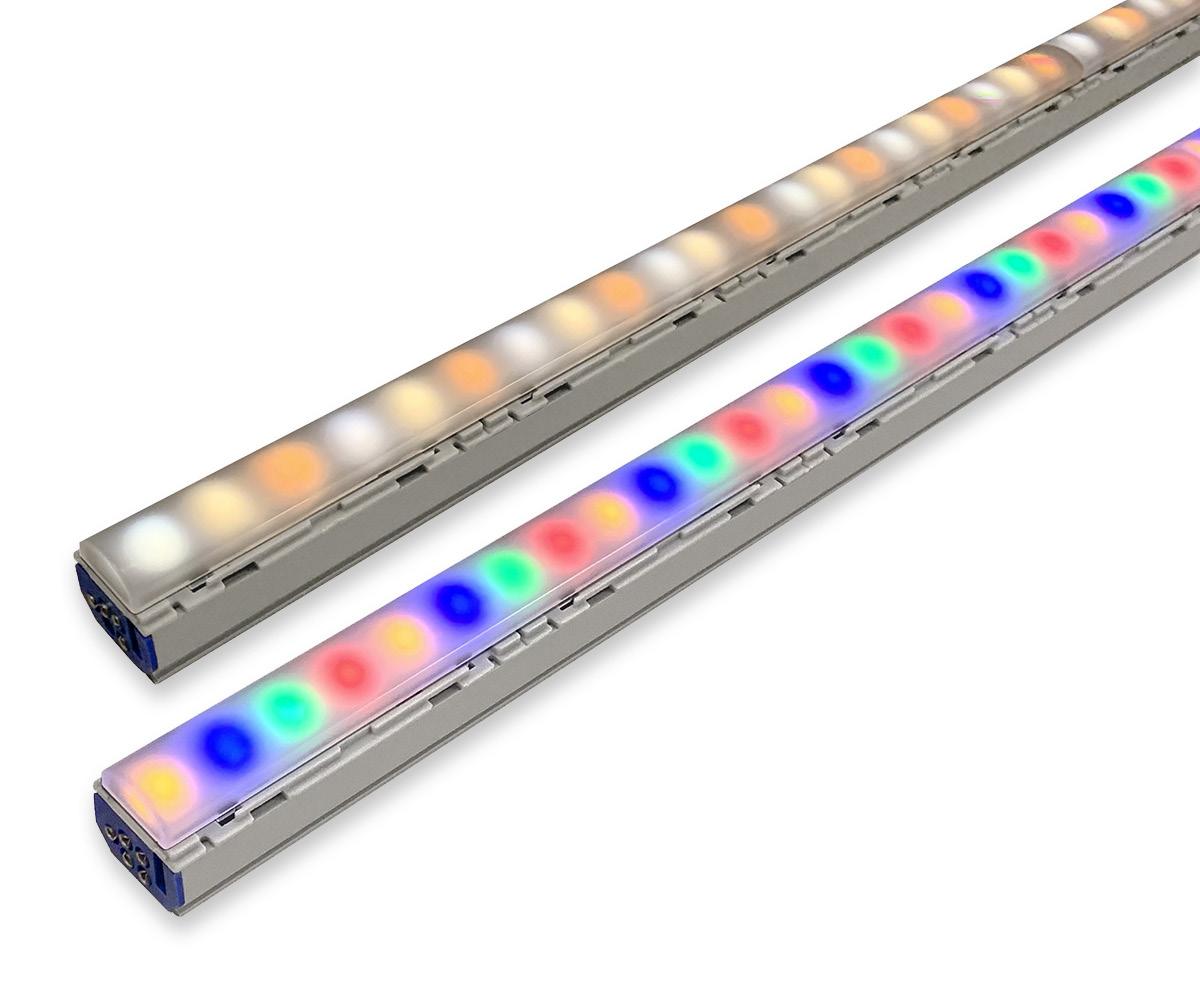

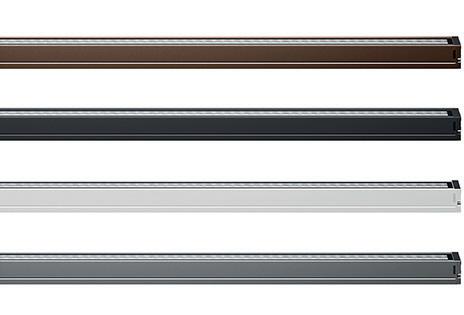

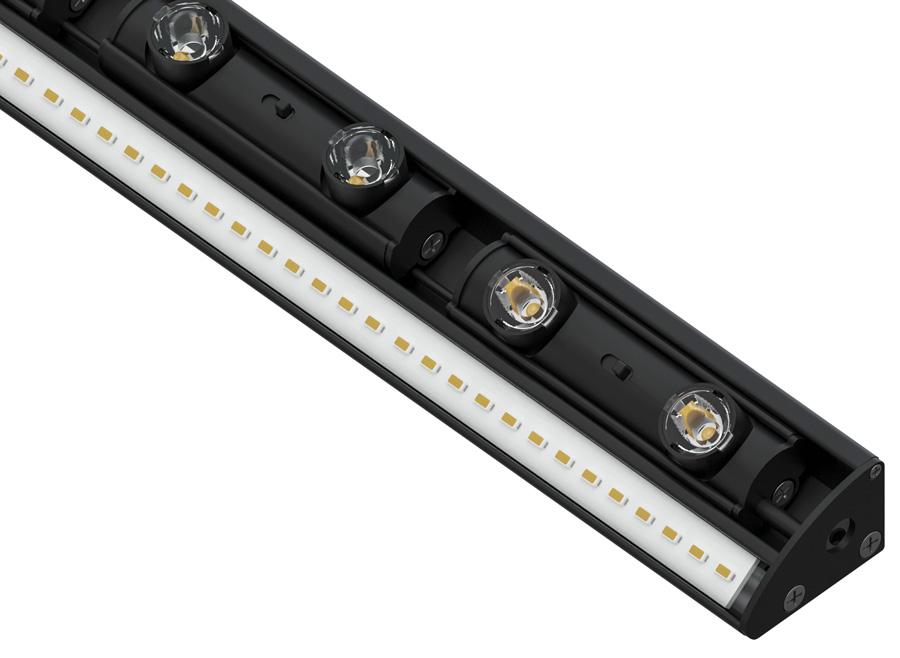

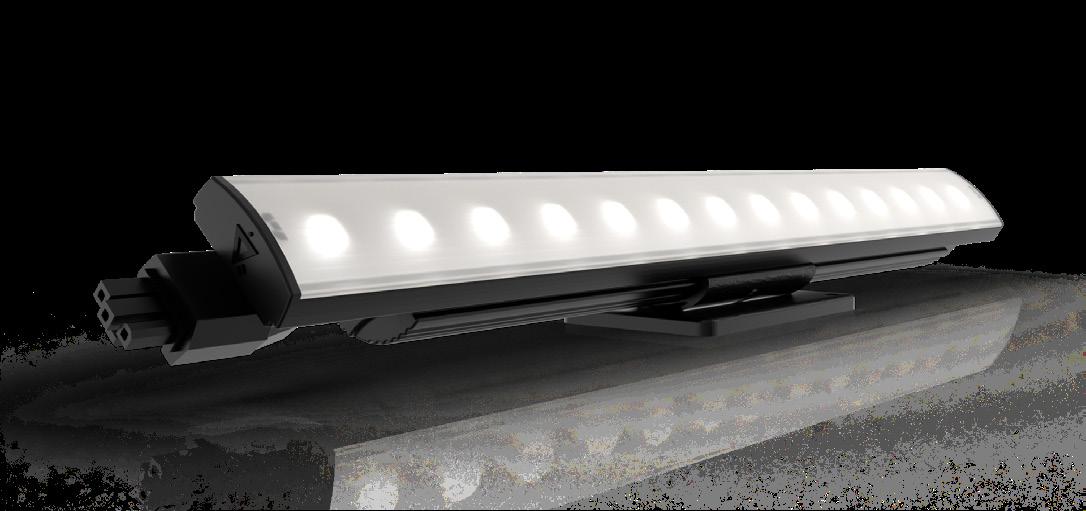

ARMOR SERIES | NANO PIVOT RGBW
The Nano Pivot RGBW is a hinged color changing wall washer/ grazer that increases flexibility in your lighting design. Create dramatic addressable effects around cornices and curved facades, columns or landscaping. Part of the Armor Series, the IP67 rated Nano Pivot RGBW works with incredibly simple SPI (Serial Peripheral Interface)controls to manage each 5-in. (125 mm) pixel. Secure with heavy duty mounting clips.
• 9.75 W/ft (32 W/m)
• 4 LEDs/5-in. (125 mm) pixel
• 8 pixels per 3 ft 3.37 in. (1 m) chain
• Daisy chain up to 6 fixtures
• Custom lengths available upon request
• Beam angles: 25°x25°, 45°x45°, 25°x45°
• 1271 lm/fixture at 25°x25° (all on)
• Uses SPI controls
• 24V external driver
• IP67
• 5-year warranty
ORDERING GUIDE
- Armor Series Nano Pivot
ACCESSORIES:

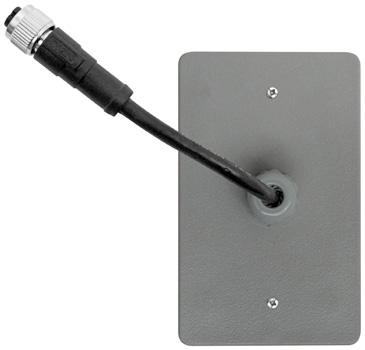

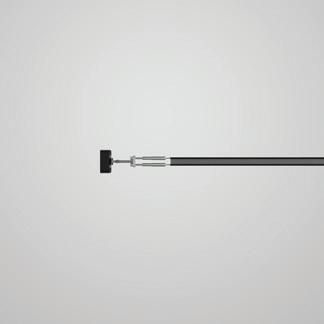

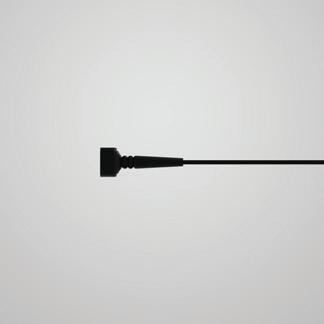

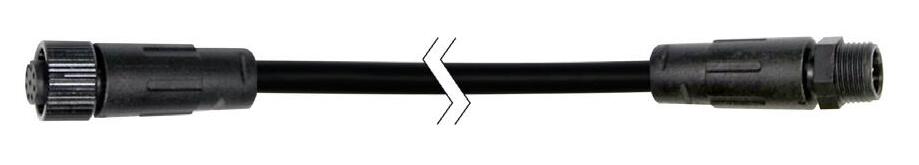

1. M12 3-Pin Female to Bare Wire Input Cable
M12CBLFB3PIN1000 (3 ft, 3.3 in. | 1 m)
M12CBLFB3PIN2000 (6 ft, 6.7 in. | 2 m)
M12CBLFB3PIN3000 (9 ft, 10 in. | 3 m)
2. M12 3-PIN Male to Female Jumper Cable M12JUMPMF3PIN1000 (3 ft, 3.3 in. | 1 m)
M12JUMPMF3PIN2000 (6 ft, 6.7 in. | 2 m)
M12JUMPMF3PIN3000 (9 ft, 10 in. | 3 m)
3. M12 3-PIN Power Cable, Single Feed (59 in. | 1.5 m)
M12YCBLS3PIN1500
4. M12 3-PIN Power Cable, Double Feed (59 in. | 1.5 m)
M12YCBLD3PIN1500
5. M12 3-PIN Power & Data Injector Cable (59 in. | 1.5 m)
M12YCBLP3PIN1500
6. M12 Input Cable, RJ45 to Female
M12CBLRJ45F4PIN15000 (49 ft | 15 m)
M12CBLRJ45F4PIN30000 (98 ft | 30 m)
M12CBLRJ45F4PIN50000 (164 ft | 50 m)
7. End Cap M12EC3PIN
Project
CONTROLLERS:
1. C4 Extended Controller
Part # for 1 universe model: CTRLPIXEL1
Part # for 2 universe model: CTRLPIXEL2
Part # for 4 universe model: CTRLPIXEL4
Part # for 8 universe model: CTRLPIXEL8 2. C4 Live Controller
# for 4 universe model: CTRLPIXELLIVE4
# for 8 universe model: CTRLPIXELLIVE8
# for 12 universe model: CTRLPIXELLIVE12
# for 16 universe model: CTRLPIXELLIVE16
Part # for 24 universe model: CTRLPIXELLIVE24
3. PxLNet Controller
Part #: CTRLPIXEL96
DRIVERS:
1. 24V 60W Non-dimmable Driver Part #: DRVW2460
2. 24V 96W Non-dimmable Driver Part #: DRVW2496

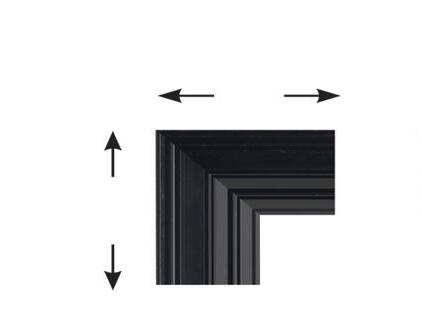

20°
Vertical Bend

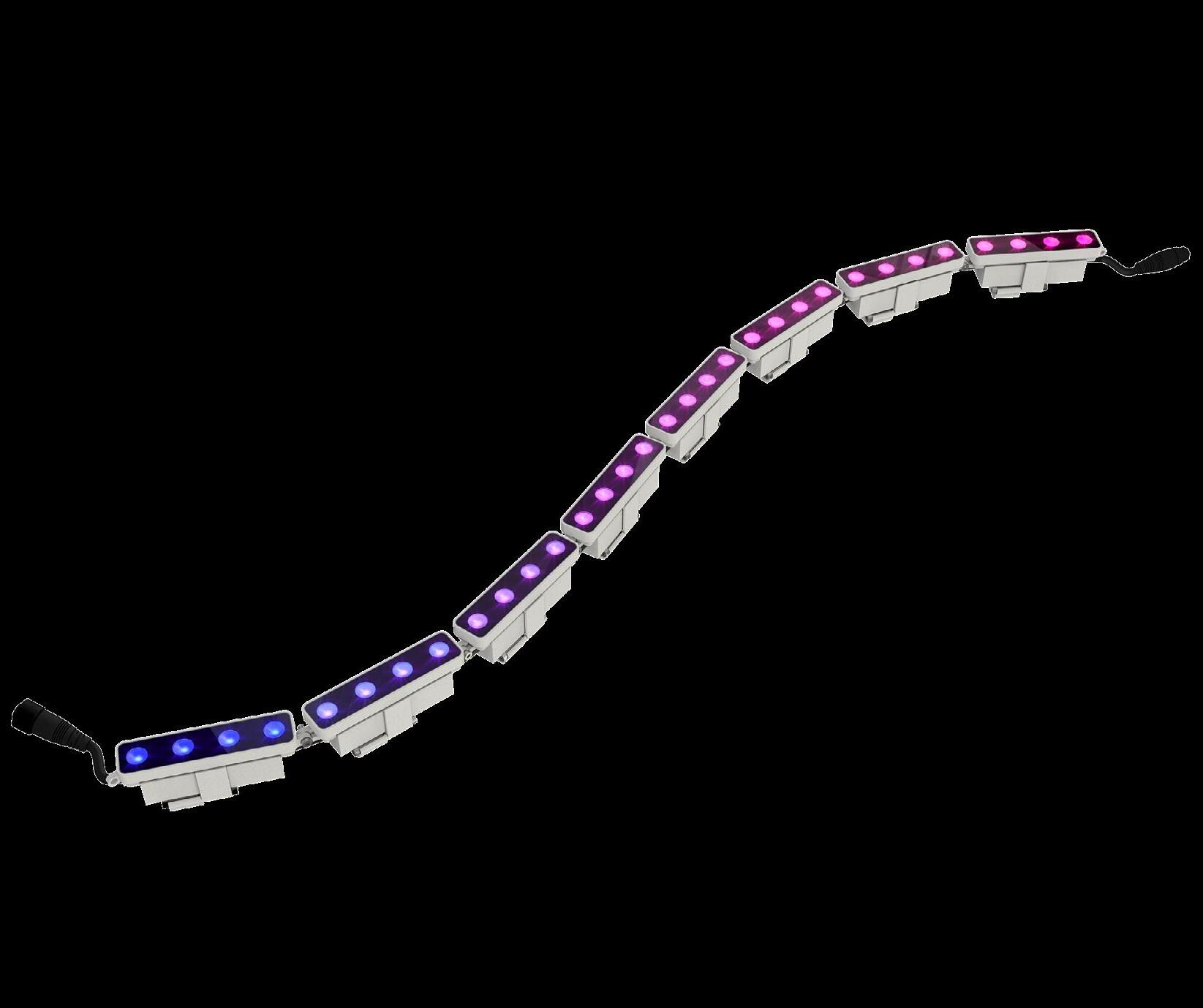

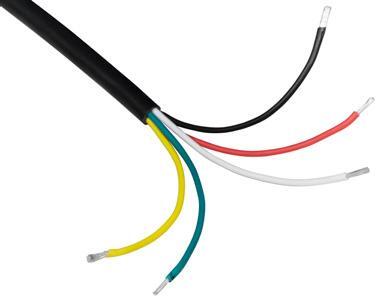

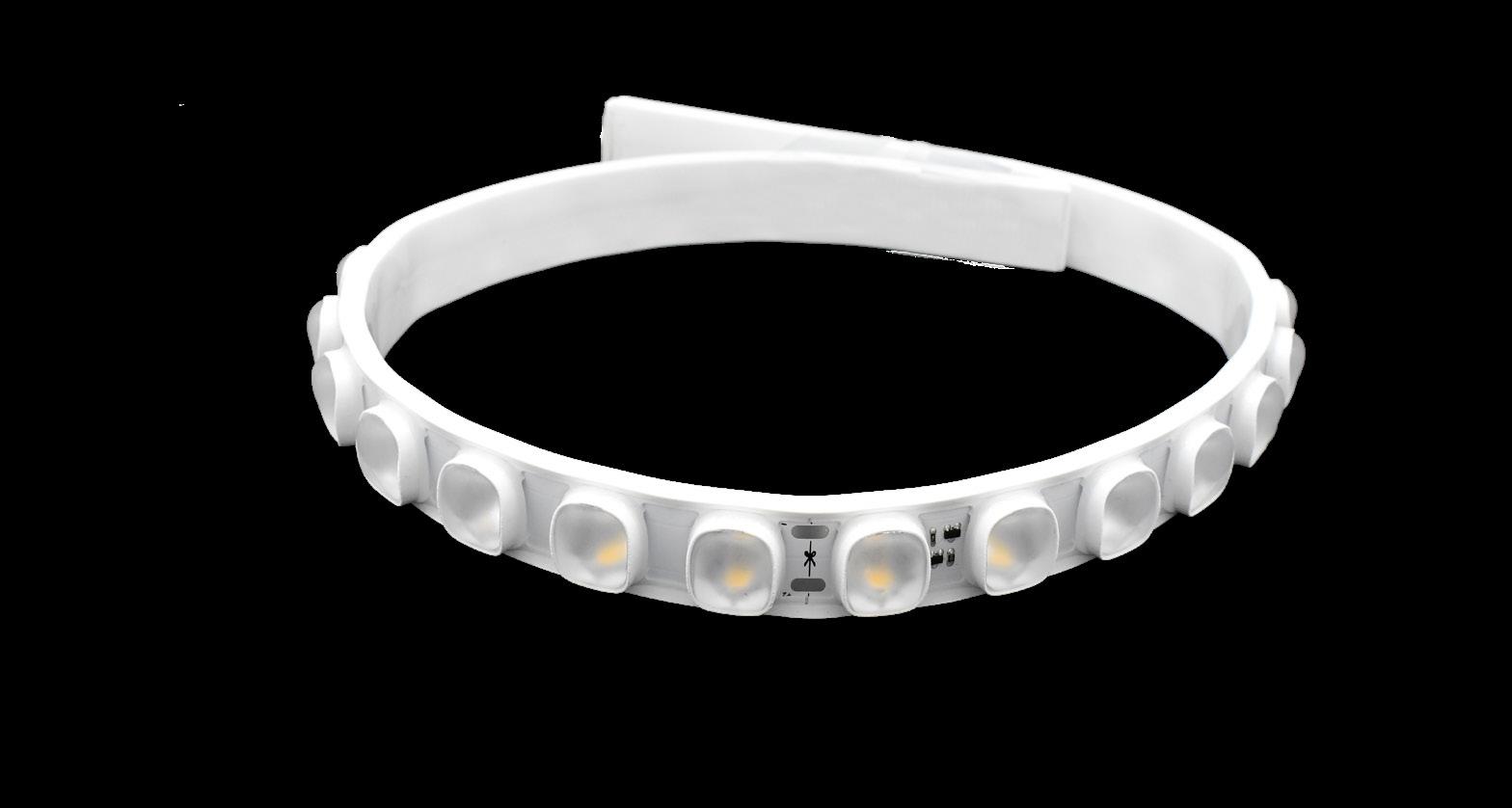

OmniFlexRGBW
Description
Unique modular design gives this fixture the flexibility to follow the irregular shape of a building or an object to create an even grazing effect. Multiple narrow, wide, and asymmetrical optics available RGBW 4-in-1 chips give better color blending with option of DMX512/RDM control protocol
Compliance
Conforms to ETL/FCC/CE standards
Features
LED Chip: 3 Pieces of Cree or Osram Chips Per Module

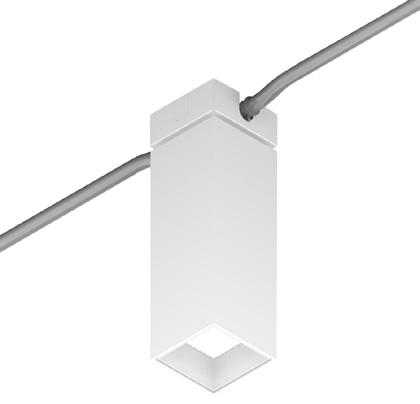

High style, yet also versatile. Spare and modern, yet warm and welcoming. This striking Rook 350 re-imagines the Hornet HP Downlight line in a popular new pendant form. It’s a fabulous solution for open ceilings, with the same aperture and drivers as Hornet HP Downlights–and yet its own distinctive style shines through. Rook 350 Pendant. Simply stunning.
TC8-TN1R straight cord 8’, Global GES 1cir/H-Style, 120V
TC8-TEKR straight cord 8’, Global TEK 2cir/2neut, 120V
TC8-TN3R straight cord 8’, Global XTS 3cir, 120V
TC8-TN2R straight cord 8’, Global HTEK 2cir/2neut, 277V
TC8-CTR straight cord 8’, J-Style, 120V
TC8-LOLR straight cord 8’, L-Style 1cir, 120V
R Not available for use with remote driver. Consult factory for conduit mounting pricing. Cord and Stem mounts are field cuttable. For custom lengths, consult factory.
30 3000K-83 309 3000K-90+ 3CLA 3K Class A HILUME-H-ECO Lutron LDE1 Hi-lume® 1% Soft-On/Fade-to-Black
35 3500K-83 359 3500K-90+
40 4000K-83 409 4000K-90+
† Not available for 18W SD model
TYPE FL7 SPEC OCEAN HARBOR

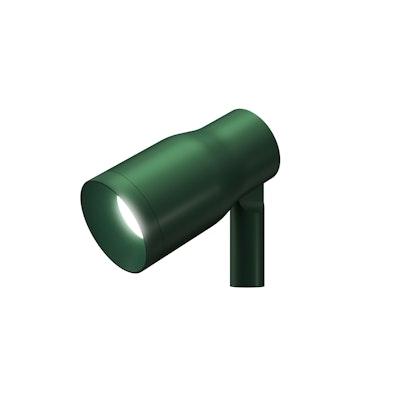

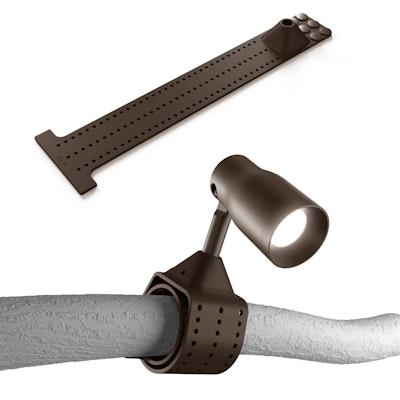

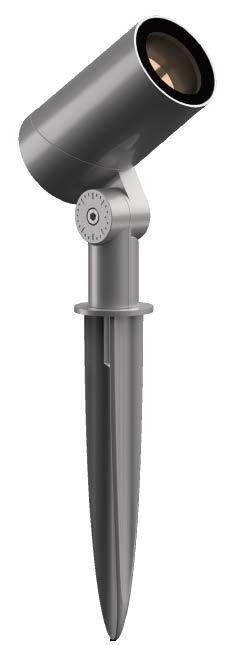

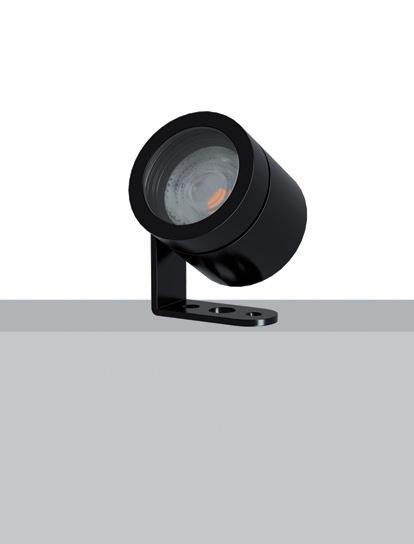

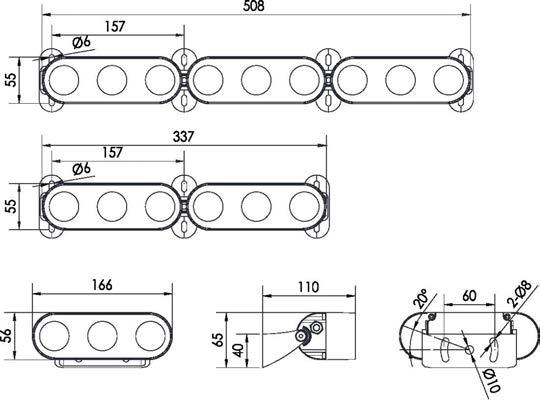

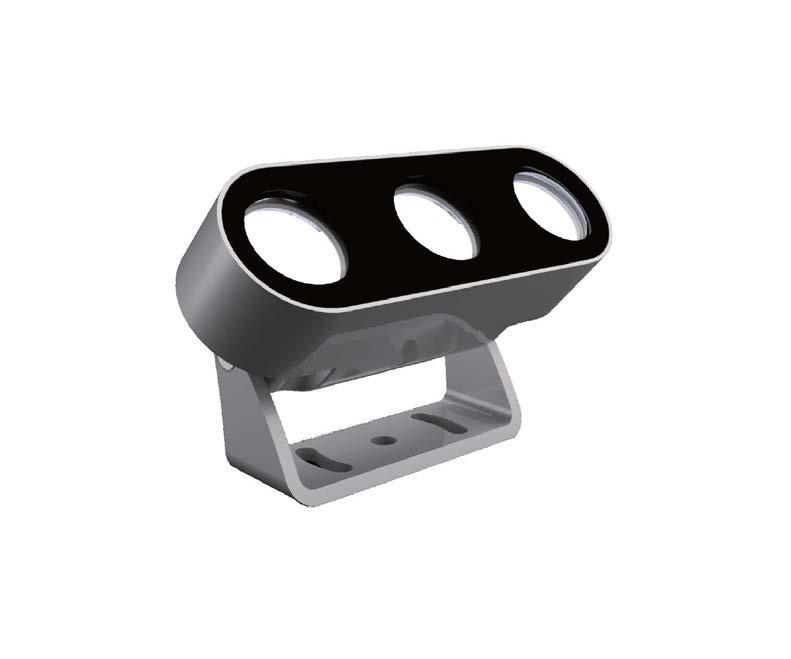

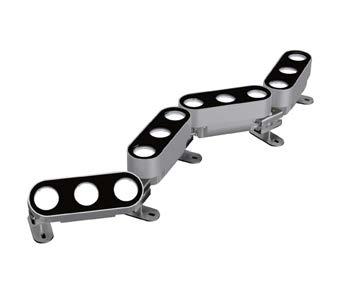

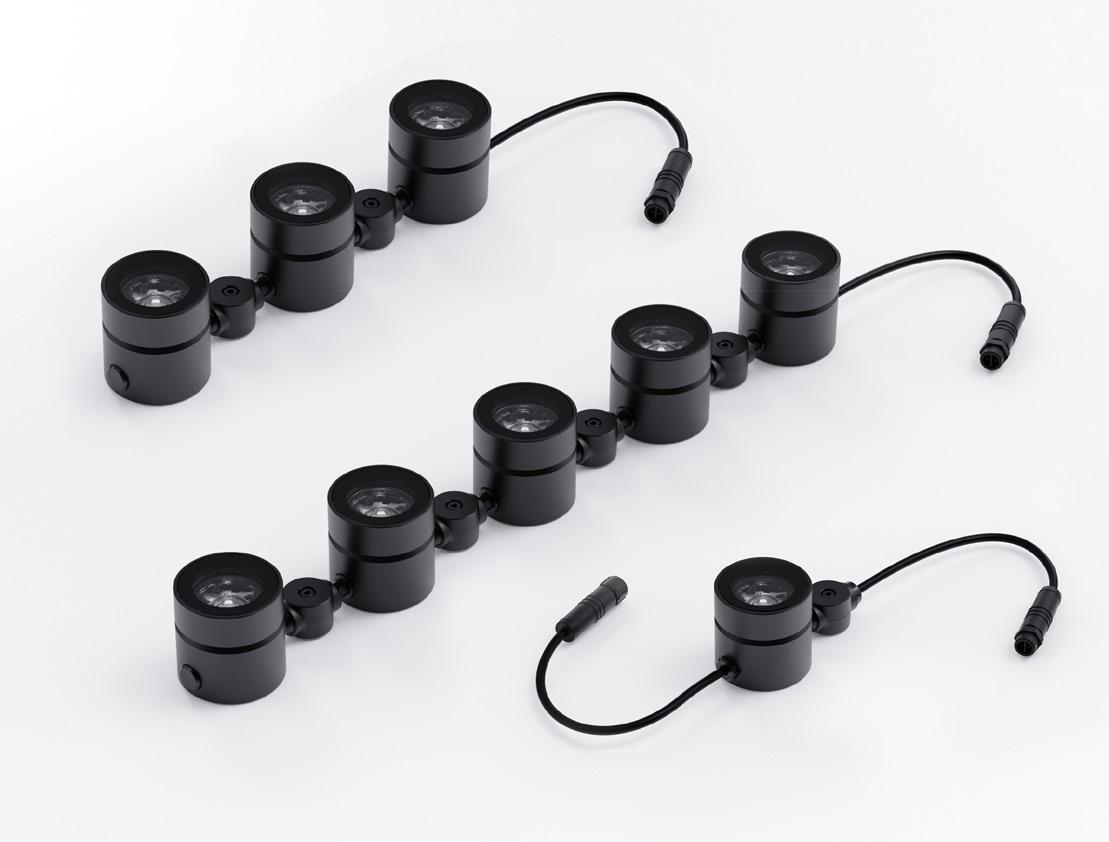

CATIRPEL TM

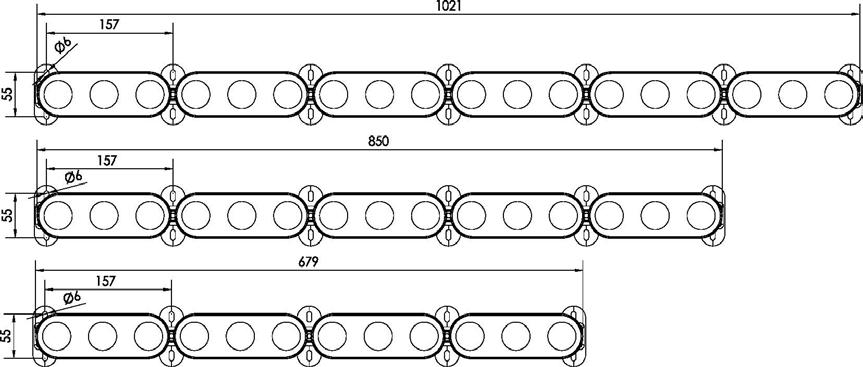

Modular Flexible Outdoor Projector System
CONCEPT
CATIRPELTM is a flexible modular outdoor system designed for landscape and architectural applications that require great installation flexibility and accurate light control. Designed to enhance nature, it is ideal for irregular curved or undulating surfaces.
MECHANICAL CHARACTERISTICS
Housing 2.05”Dia x 2.17”H
Materials CNC anodized 20µ aluminum body and joint connections.
ELECTRICAL CHARACTERISTICS
Power Supply Remote Class 2 120V-277V AC power supply required.
Wattage 3W per module (NSP only) – 3W Single / 9W Triple / 15W Quintet 6W per module – 6W Single / 18W Triple / 30W Quintet
Voltage 24V DC
Ambient Temp. -25ºC / +35°C (95°F)
Finish Matte smooth finish: Black Anodized Burnished Copper
Textured finish: Ferrite Dark Grey Sandstone Grey Black Heritage Brown Bronze
Custom RAL
Dune Grey White Olive Green
Power Connection Pre-cabled with IN/OUT IP67 connectors for plug-and-play connectivity to other light modules and remote power supply
Functionality Each luminaire module utilizes mechanical aim locking for individual adjustment of -/+110° on the vertical surface with aim lock set screw with an angle between the modules that reaches 45°. Luminaire system is specifically designed for mounting in irregular, curved, non linear or linear applications with a minimum of 7.5” curve diameter.

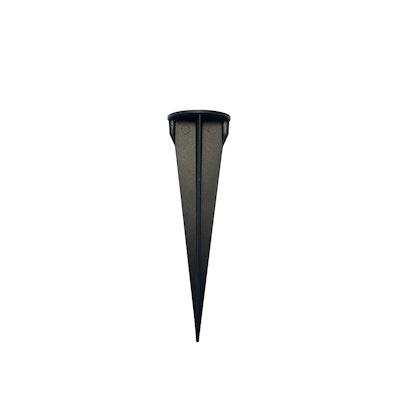

Mounting Fixture can be installed directly to mounting surface or used with optional mounting installation accessories for installations in trees, landscape, surface installations.
Weight 0.6lbs per module
Protection IP66
Impact IK06
CERTIFICATIONS
cULus Class 2 Wet Location Listed.
Tested in accordance with LM-79-08. Compliant for California installations. RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
A Fixture body complete with marine grade cataphoresis suitable for use in marine grade environments. Stainless steel trim will need to be maintained and cleaned regularly to avoid mineral deposits. Not to be in direct contact with salt or corrosive agents for extended periods of time.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
NSP version equipped with PMMA lens and
/ GZ versions equipped with collimating acrylic lens and holographic
Efficacy 84Lm/W max. Refer to photometric graphs for specific values.
CATIRPELTM is a flexible modular outdoor system designed for landscape and architectural applications that require great installation flexibility and accurate light control. Designed to enhance nature, it is ideal for irregular curved or undulating surfaces.
MECHANICAL CHARACTERISTICS
Housing 2.05”Dia x 2.17”H
Materials CNC anodized 20µ aluminum body and joint connections.
ELECTRICAL CHARACTERISTICS
Power Supply Remote Class 2 120V-277V AC power supply required.
Wattage 3W per module (NSP only) – 3W Single / 9W Triple / 15W Quintet 6W per module – 6W Single / 18W Triple / 30W Quintet
Voltage 24V DC
Ambient Temp. -25ºC / +35°C (95°F)
Finish Matte smooth finish: Black Anodized Burnished Copper
Textured finish: Ferrite Dark Grey Sandstone Grey Black Heritage Brown Bronze
Custom RAL
Dune Grey White Olive Green
Power Connection Pre-cabled with IN/OUT IP67 connectors for plug-and-play connectivity to other light modules and remote power supply
Functionality Each luminaire module utilizes mechanical aim locking for individual adjustment of -/+110° on the vertical surface with aim lock set screw with an angle between the modules that reaches 45°. Luminaire system is specifically designed for mounting in irregular, curved, non linear or linear applications with a minimum of 7.5” curve diameter.
Mounting Fixture can be installed directly to mounting surface or used with optional mounting installation accessories for installations in trees, landscape, surface installations.
Weight 0.6lbs per module
Protection IP66
Impact IK06
CERTIFICATIONS
cULus Class 2 Wet Location Listed.
Tested in accordance with LM-79-08. Compliant for California installations. RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
A Fixture body complete with marine grade cataphoresis suitable for use in marine grade environments.
Stainless steel trim will need to be maintained and cleaned regularly to avoid mineral deposits. Not to be in direct contact with salt or corrosive agents for extended periods of time.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
NSP version equipped with PMMA lens and
/ GZ versions equipped with collimating acrylic lens and holographic
Efficacy 84Lm/W max. Refer to photometric graphs for specific values.

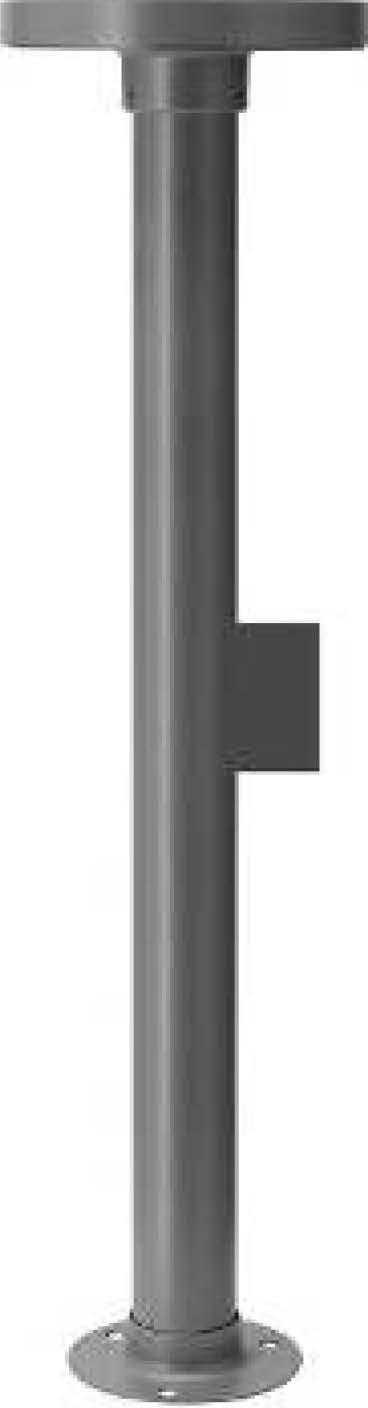

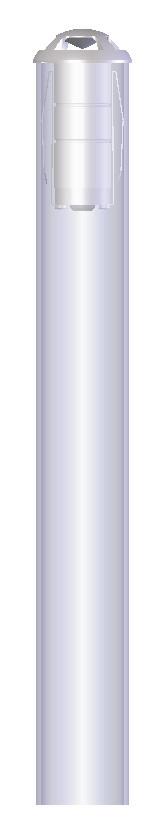

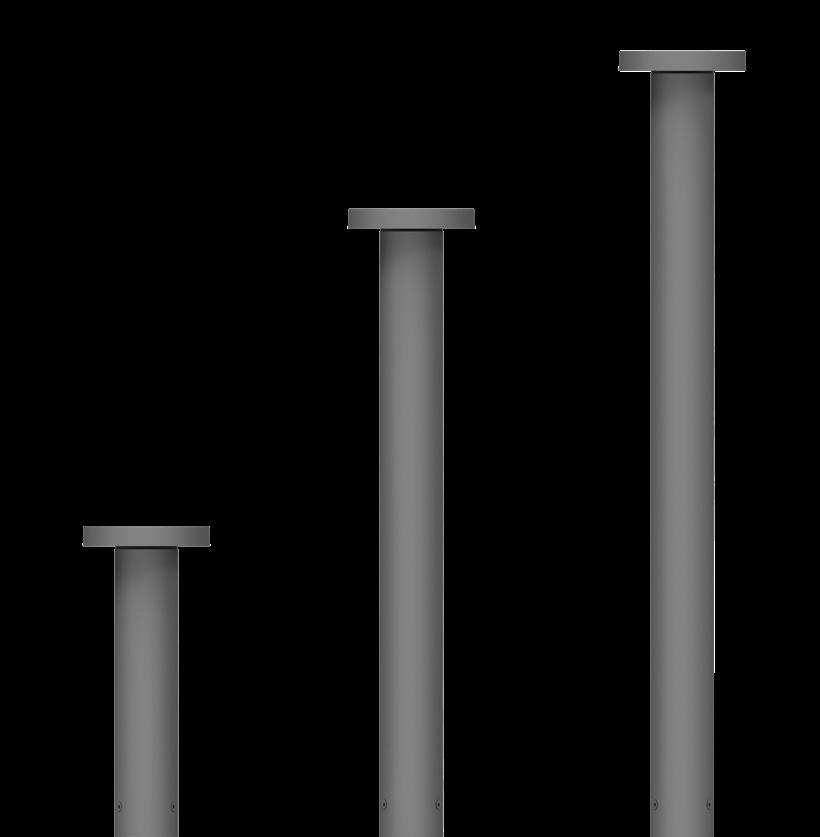

Radial-emission LED bollard specifically designed to light large open spaces.
FIXTURE MECHANICAL CHARACTERISTICS
Housing Ø 6.3” Dia. Top with Ø 3.15” Dia. Post
Materials Powder coated anodized die-cast aluminum optical head with extruded body. Marine Grade cataphoresis E available as optional.
Finish Textured finish.
Ferrite Dark Grey Black White Bronze Sandstone Grey Heritage Brown
Power Connection Factory shipped with DSM&T IP68 quick disconnect at fixture and mating 4ft SJOOW 18-6 cable with purple and grey wires for 0-10V.
Functionality Available in three different heights - 15.75in, 31.50in and 39.37in. 316L grade stainless steel base and stainless steel anti-theft screws.
BUG B0–U0–G0 Dark Sky Compliant
Weight 2.98lbs (fixture head only)
Protection IP66
Resistance IK10
CERTIFICATIONS
cULus Wet Location Listed E488257. Tested in accordance with LM-79-08. Compliant for California installations.
IEC 62471
RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
Internal high reflective anodized aluminum reflector with transparent polycarbonate lens positioned horizontally under optical head with external black anti-glare control. Beam
Delivered Lumens 2700K 878Lm
939Lm 502Lm 248Lm 519Lm
Efficacy 47Lm/W max. Refer to photometric graphs for specific values.
Lifetime 14W / 9W version: L92/B10 30000hrs at max TA +25°C
L90/B10 50000hrs at max TA +25°C
20W version only: L89/B10 30000hrs at max TA +25°C
C 90°+90° and 180° optics only available in 14W nominal.
D 360°optic only available in 20W nominal.
E Marine Grade is recommended for use in environments with occasional exposure to salt air, reclaimed water, fertilizers, chemical cleaners, or frequent pressure washing (steam) cleaning. Fixture housing complete with marine grade cataphoresis suitable for use in marine grade environments. Not to be in direct contact with salt or corrosive agents for extended periods of time.
Order Guide- Pado
TYPE FL10 SPEC OCEAN HARBOR
ULEW-30021
Leeds 3 Large Surface Wedge Downlight
Construction
Aluminum
TECHNOLOGY
Less than 0.1% copper content – Marine Grade 6060 extruded & LM6 Aluminum High Pressure die casting provides excellent mechanical strength , clean detailed product lines and excellent heat dissipation.
Pre paint
8 step degrease and phosphate process that includes deoxidizing and etching as well as a zinc and nickel phosphate process before product painting.
Memory Retentive -Silicon Gasket
Provided with special injection molded “fit for purpose” long life high temperature memory retentive silicon gaskets. Maintains the gaskets exact profile and seal over years of use and compression.
Thermal management
LM6 Aluminum is used for its excellent mechanical strength and thermal dissipation properties in low and high ambient temperatures. The superior thermal heat sink design by Ligman used in conjunction with the driver, controls thermals below critical temperature range to ensure maximum luminous flux output, as well as providing long LED service life and ensuring less than 10% lumen depreciation at 50,000 hours.
Surge Suppression
Standard 10kv surge suppressor provided with all fixtures.
BUG Rating
B1 - U0 - G0 [T2, T4]
B1 - U0 - G1 [T1, T3, ME]
B2 - U0 - G0 [M, W]
Finishing
All Ligman products go through an extensive finishing process that includes fettling to improve paint adherence.
Paint
UV Stabilized 4.9Mil thick powder coat paint and baked at 200 Deg C. This process ensures that Ligman products can withstand harsh environments. Rated for use in natatoriums.
Inspired by Nature Finishes
The Inspired by nature Finishing is a unique system of decorative powder coating. Our metal decoration process can easily transform the appearance of metal or aluminum product into a wood grain finish.
This patented technology enables the simulation of wood grain, and even marble or granite finish through the use of decorative powder coating.
The wood grain finish is so realistic that it’s almost undistinguishable from real wood, even from a close visual inspection. The system of coating permeates the entire thickness of the coat and as a result, the coating cannot be removed by normal rubbing, chipping, or scratching.
The Coating Process
After pre-treatment the prepared parts are powder coated with a specially formulated polyurethane powder. This powder provides protection against wear, abrasion, impact and corrosion and acts as the relief base color for the finalized metal decoration.

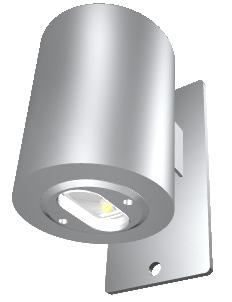

Clean, beautiful, surface wall fixtures with class leading performance. Minimalist form, yet the most powerful and flexible lighting tool of its type, offering packages up to 2,400 lumens and microVos technology.

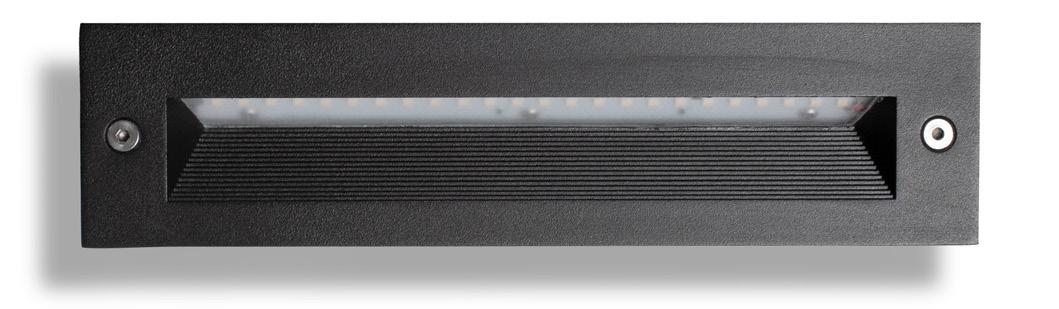

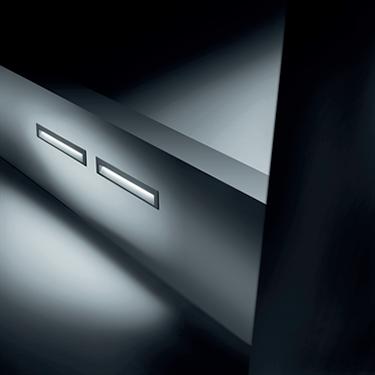

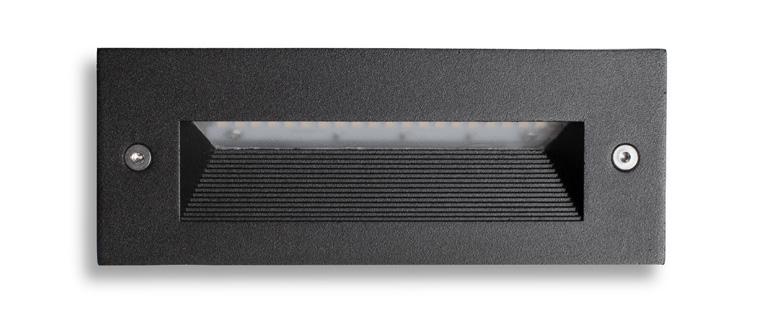

A range of small, square and rectangular, ADA compliant wall mounted luminaires with options of upward or downward light distributions. Ideally suited to illuminate the wall and surfaces in front of wall and for light accents on vertical surfaces using high efficiency LED’s. The Leeds is suitable for indoor and outdoor applications and provides a clean, visually appealing solution for small, unobtrusive wall mounted luminaires.
This luminaire is available in 3 different sizes and in combinations of down, up or up/down light distributions.
This fixture utilizes microVos technology, meaning the ability to do Type I,II,III,IV & V distributions as well as hybrid distributions to suit the designer’s requirements.
Using the microVos optics allows for very wide spacing to mounting height ratios, while still providing perfect uniformity and code compliant light levels.
To meet International Dark Sky criteria, 3000k or warmer LEDs must be selected and luminaire fix mounted (+/- 15˚ allowable to permit leveling).
TECHNOLOGY
The component is then wrapped with a sheet of non-porous film with the selected decoration pattern printed on it using special high temperature inks.
This printed film transfer is vacuum-sealed to the surface for a complete thermo print and then transferred into a customized oven. The oven transforms the ink into different forms within the paint layer before it becomes solid. Finally, the film is removed, and a vivid timber look on aluminum remains.
Wood grain coating can create beautiful wood-looking products of any sort. There are over 300 combinations of designs currently in use. Wood grains can be made with different colors, designs, etc.
Our powder coatings are certified for indoor and outdoor applications and are backed by a comprehensive warranty. These coatings rise to the highest conceivable standard of performance excellence and design innovation.
Added Benefits
• Resistance to salt-acid room, accelerated aging
• Boiling water, lime and condensed water resistant
Hardware Provided Hardware is Marine grade 316 Stainless steel.
Anti Seize Screw Holes
Tapped holes are infused with a special anti seize compound designed to prevent seizure of threaded connections, due to electrolysis from heat, corrosive atmospheres and moisture.

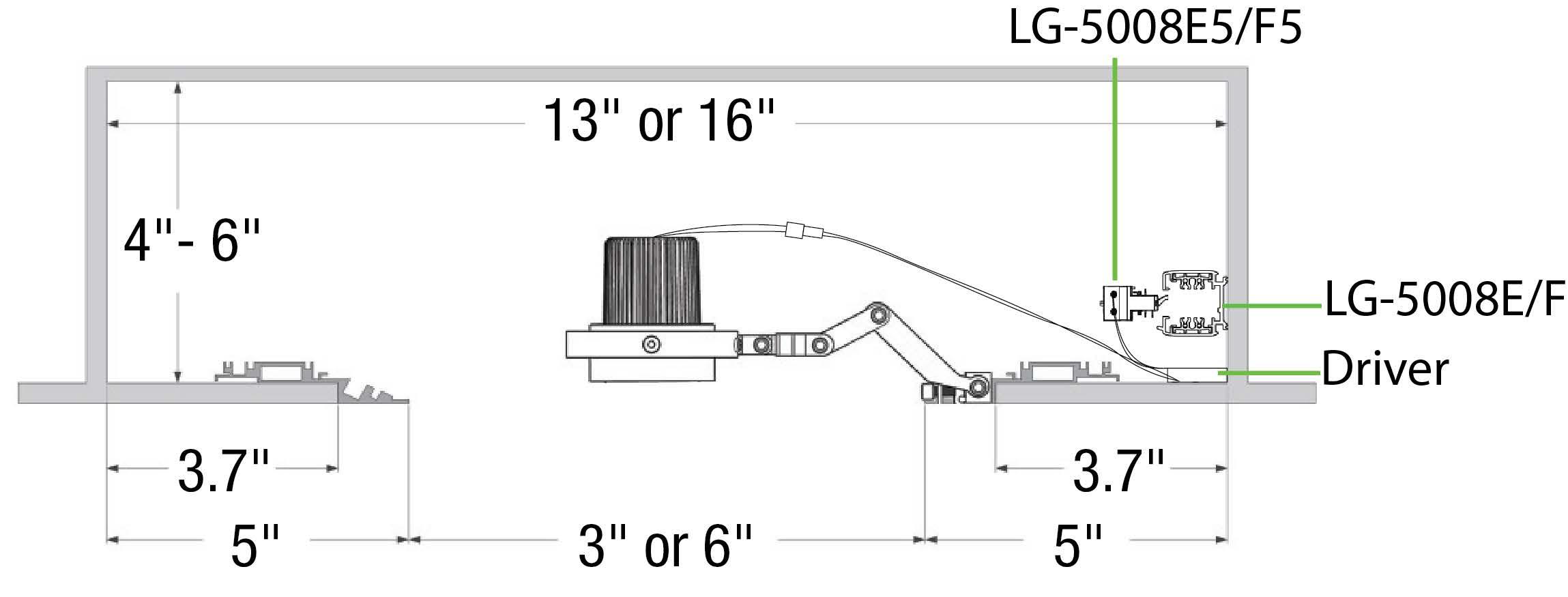

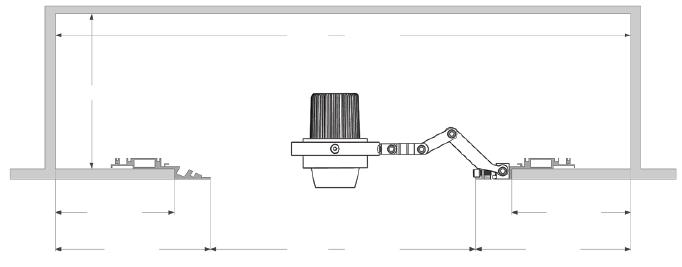

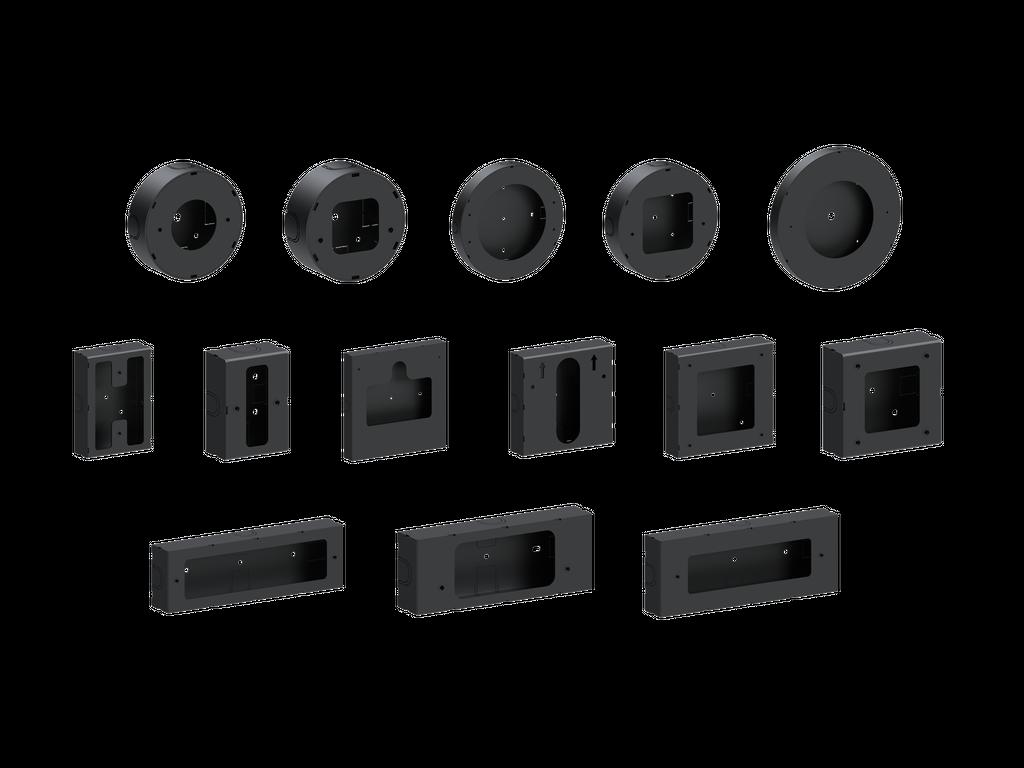

Mounting Detail
Ligman’s

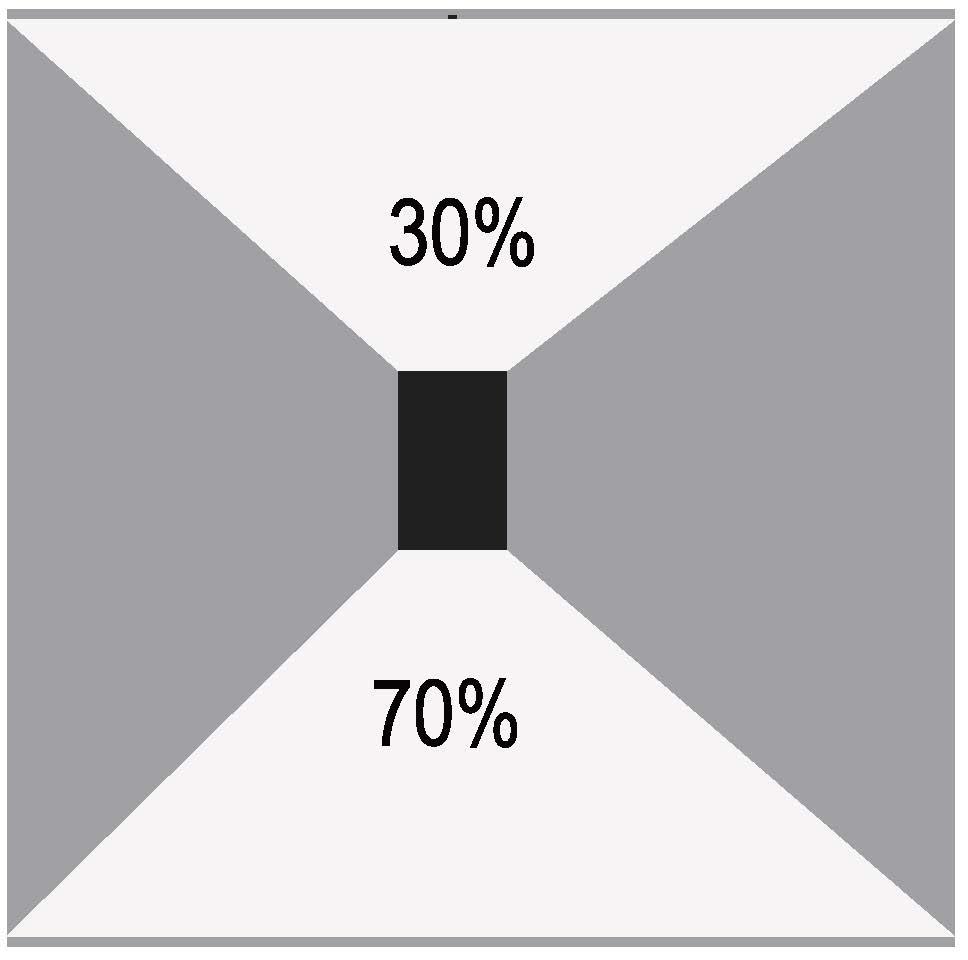

The variable optic system allows for the designer to create hybrid distributions for precise lighting requirements.
Color Changeable Full Cut-off Wall Pack PEAK
MODEL NO.
KEY FEATURES
•Modern rectilinear design
•Multiple distributions option available for different applications
*Delivered lumen may vary, refer to photometric for full performance data
DIMENSIONS
PROJECT/DATE
is subject to change without notice
PEAK
Color Changeable Full Cut-off Wall Pack
45W)
70W)
- (120-277V)
(277V-480V)**
- Color Changeable (30K/40K/50K)
(Type III)*
(General)* C0 - (ON & Off with 0-10V
C1 - (ON & Off with 0-10V driver & integrated photocell)
- (Bi-level Motion Sensor)*
- (Bi-level PIR Sensor)*
AOD (Adjustable Output Device) Spitzer’s AOD allows us to customize the Wattage and Lumen output to match your exact needs. Talk to your Sales Rep today.
TYPE LL1 SPEC OCEAN HARBOR

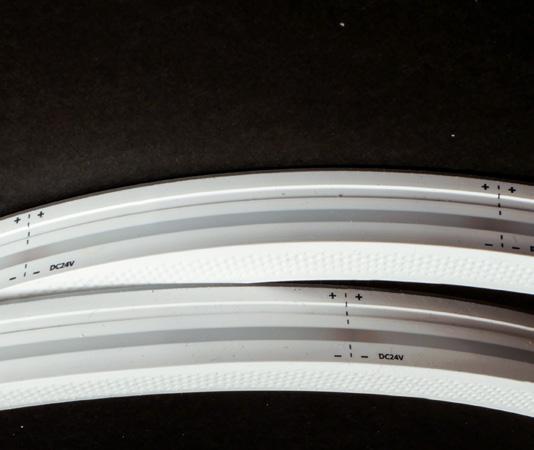

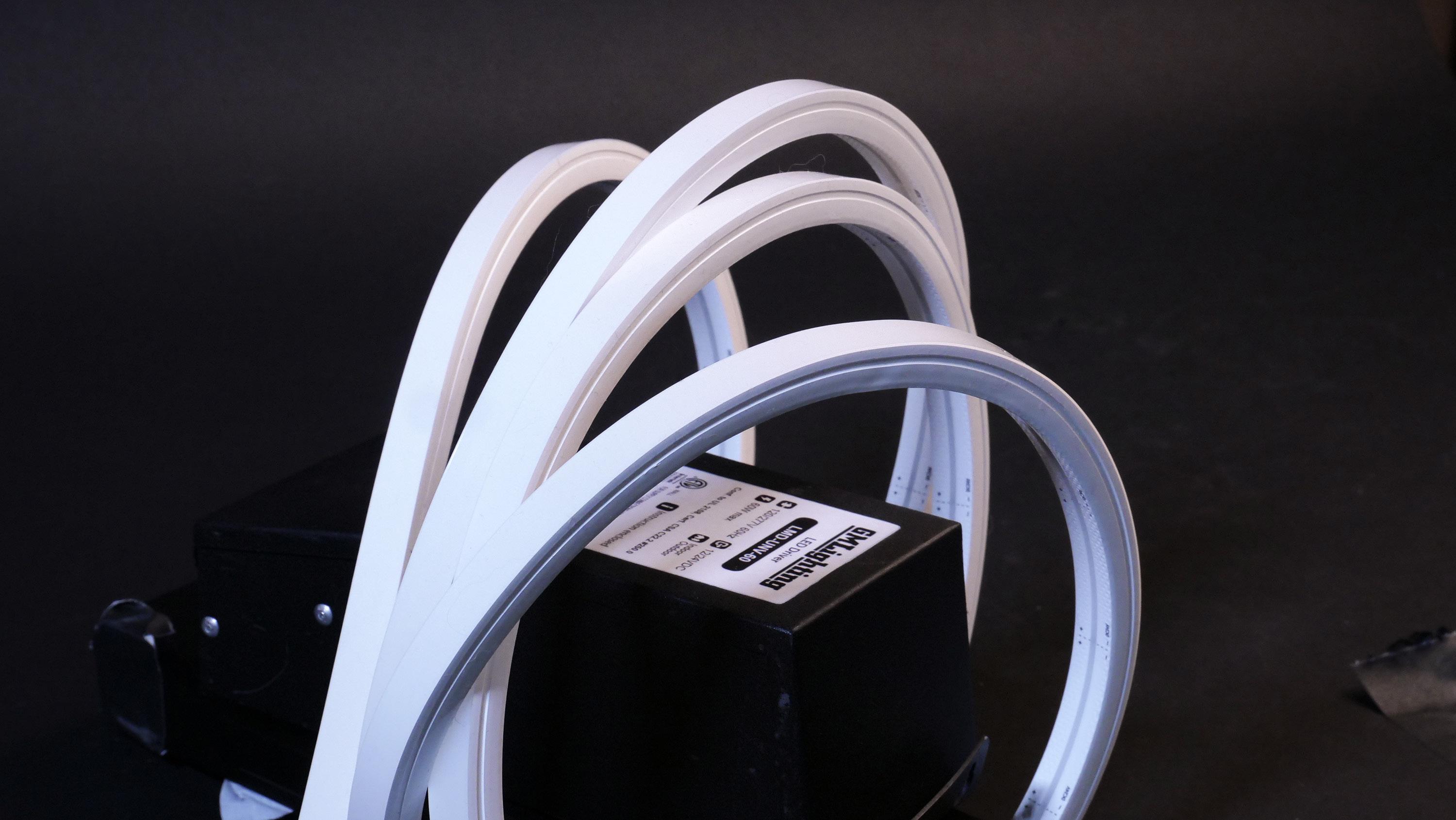

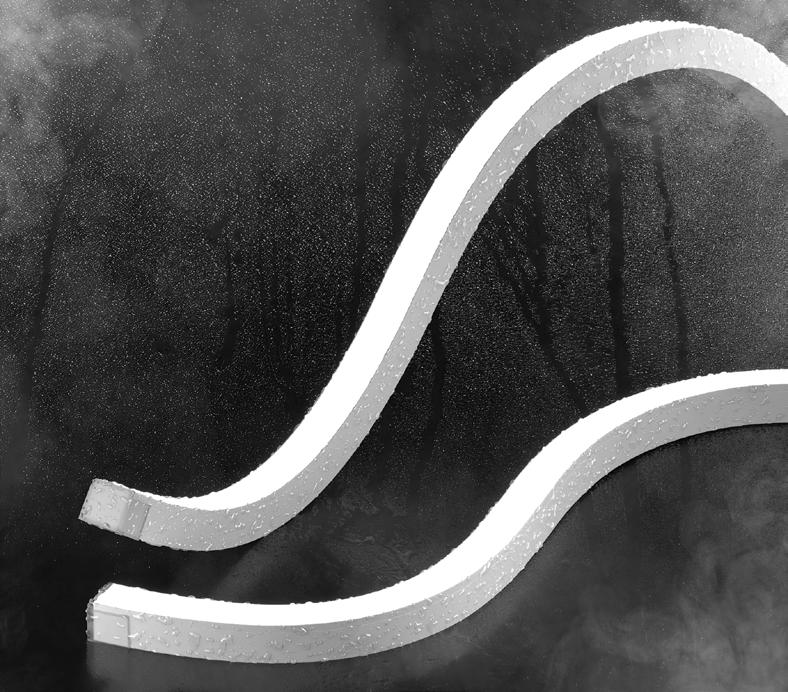

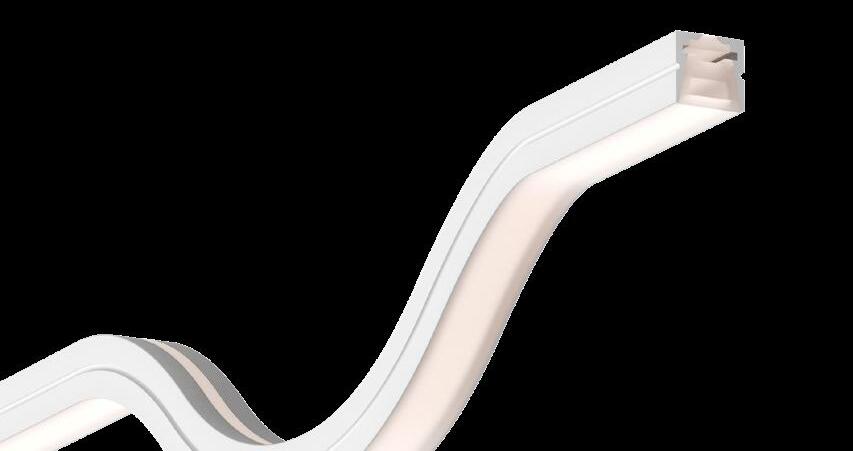

NeoVision24 TopFlex ®
24VDC 3W

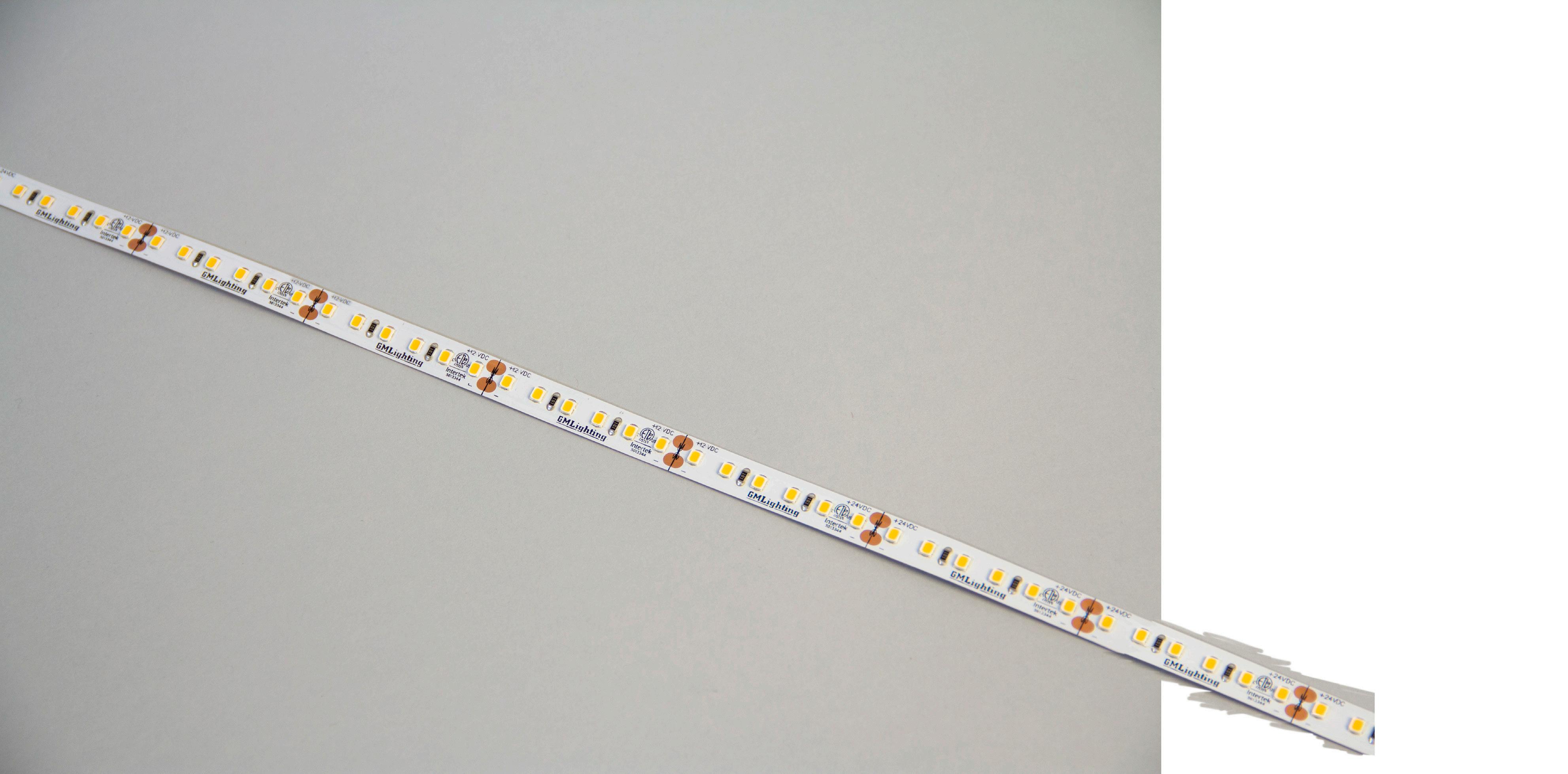

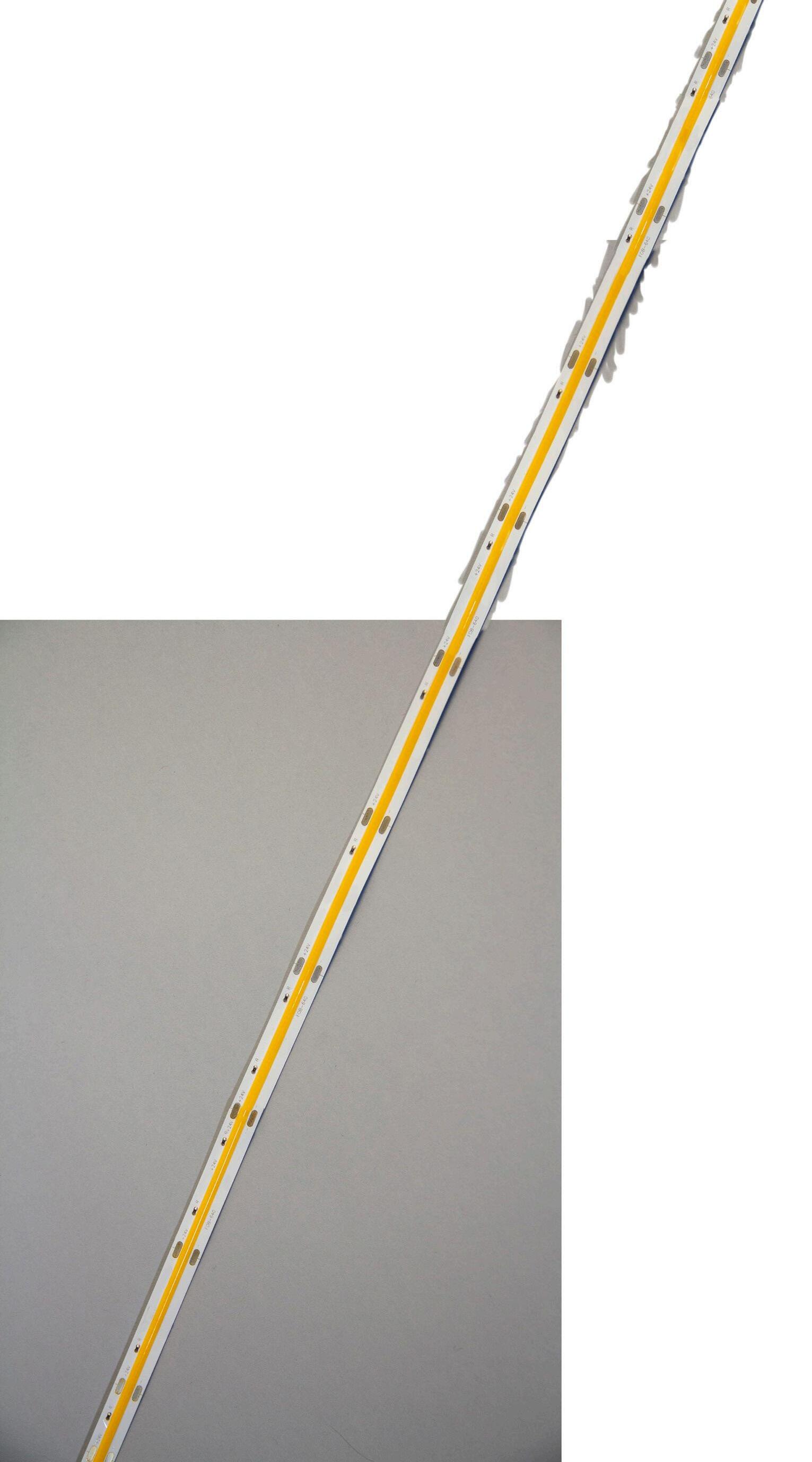

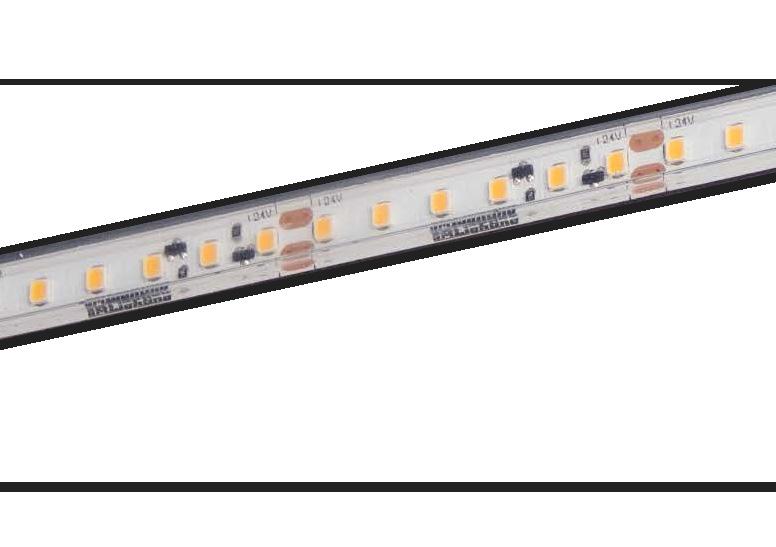

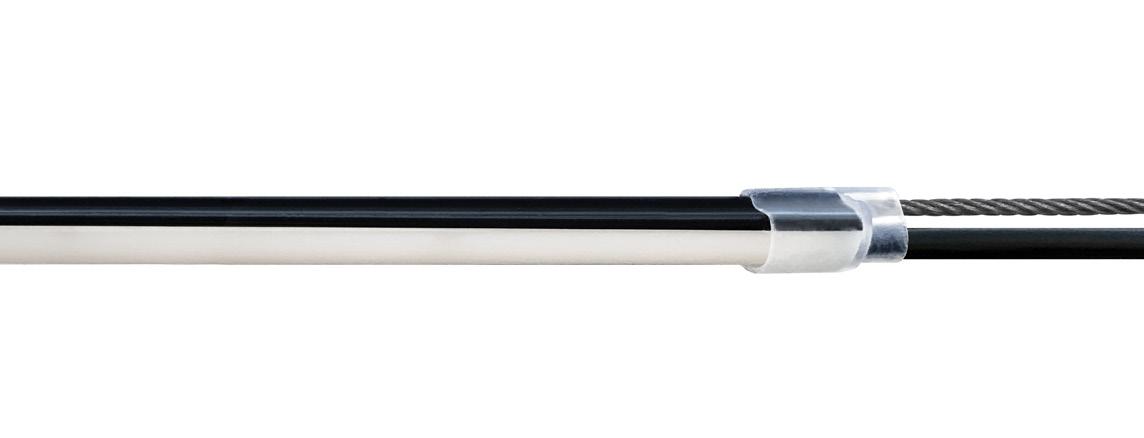

LED Tape Specification Sheet
PRODUCT OVERVIEW
A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. TopFlex enables vertical bending that conforms tape around curvilinear surfaces.
FEATURES
•24VDC operation
•Wet location - IP65
•Multiple power feed options
•Tape encased in UV stable silicone (UV protected)
•Dimmable
•Wireless control with LUXcontrol App and controller
•3000K or 4000K / Amber, Blue, Green or Red
•120° viewing angle
•Maximum run: 32’-8”
•Field cuttable and joinable in 2 inch increments while retaining IP65

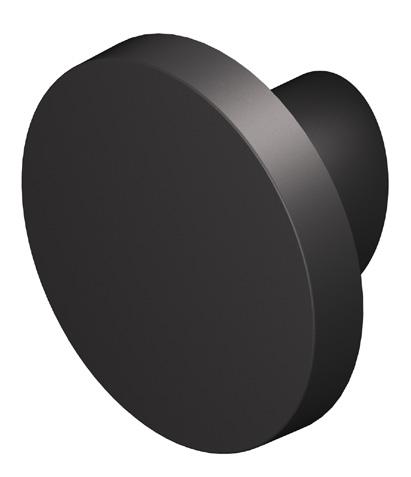

•Each run requires an end cap (sold separately)
•No tools required for capping and joining
•Mounting clips included (recommend use 1 per foot)
SPECIFICATIONS
ELECTRICAL
•24VDC
•3.0 watts per foot
OPTICS
•90+ CRI
WARRANTY
•5-year warranty when paired with GM power supply
ACCESSORIES
•LineDRIVE 24V Power Supplies

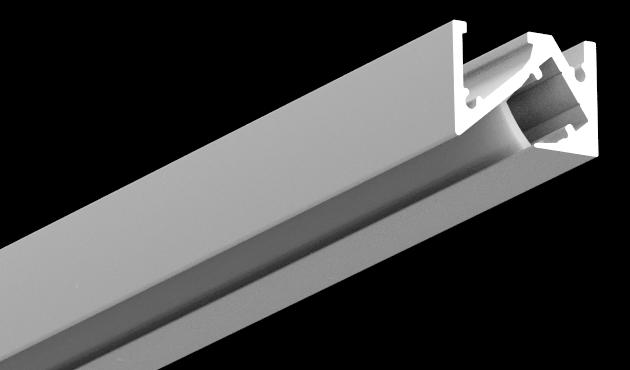

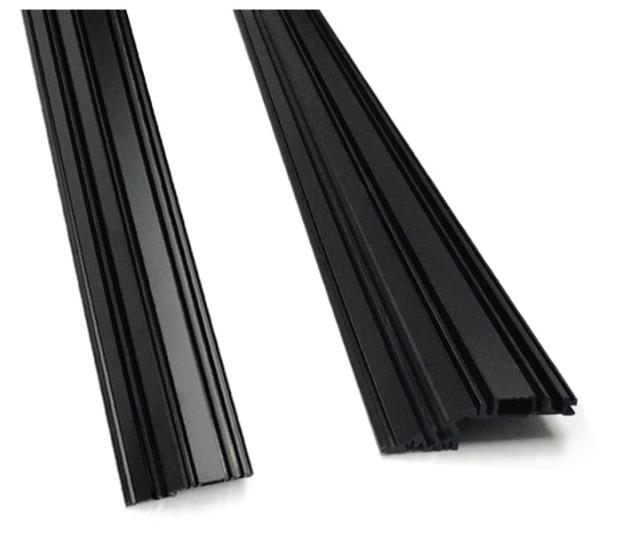

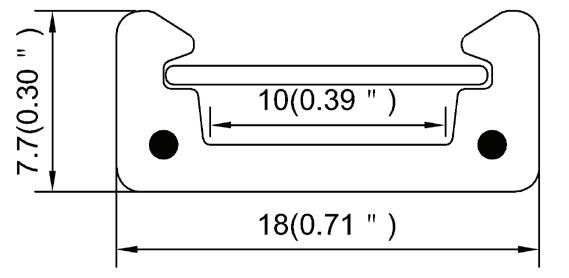

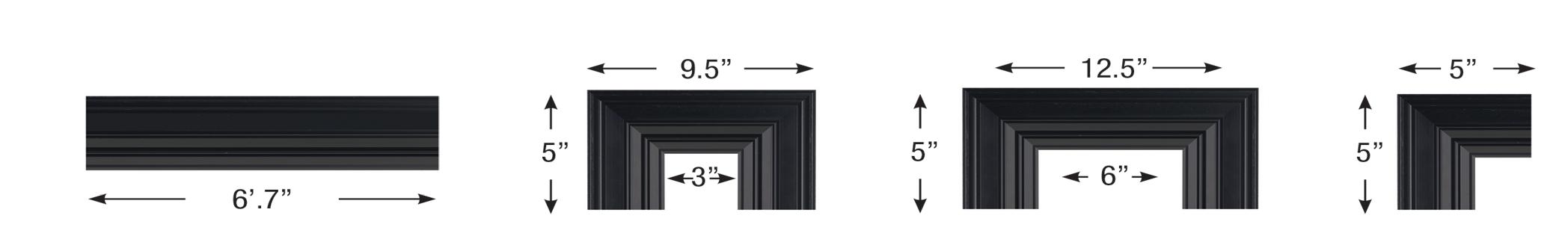

•Aluminum Channels (below)
•Connectors (below)
•Tape Cutting Tool (below)
CONTROLLERS
OCEAN HARBOR
NeoVision24 TopFlex ®
24VDC 3W
LED Tape Specification Sheet
PRODUCT OVERVIEW
A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. TopFlex enables vertical bending that conforms tape around curvilinear surfaces.
FEATURES
•24VDC operation
•Wet location - IP65
•Multiple power feed options
•Tape encased in UV stable silicone (UV protected)
•Dimmable
•Wireless control with LUXcontrol App and controller
•3000K or 4000K / Amber, Blue, Green or Red
•120° viewing angle
•Maximum run: 32’-8”
•Field cuttable and joinable in 2 inch increments while retaining IP65
•Each run requires an end cap (sold separately)
•No tools required for capping and joining
•Mounting clips included (recommend use 1 per foot)
SPECIFICATIONS
ELECTRICAL
•24VDC
•3.0 watts per foot
OPTICS
•90+ CRI
WARRANTY
•5-year warranty when paired with GM power supply
ACCESSORIES
•LineDRIVE 24V Power Supplies
•Aluminum Channels (below)
•Connectors (below)
•Tape Cutting Tool (below)
CONTROLLERS
TYPE LL2 SPEC OCEAN HARBOR

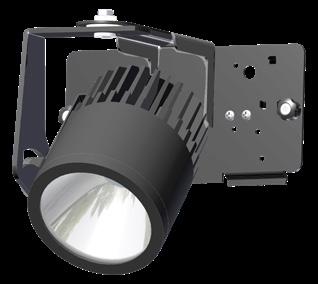

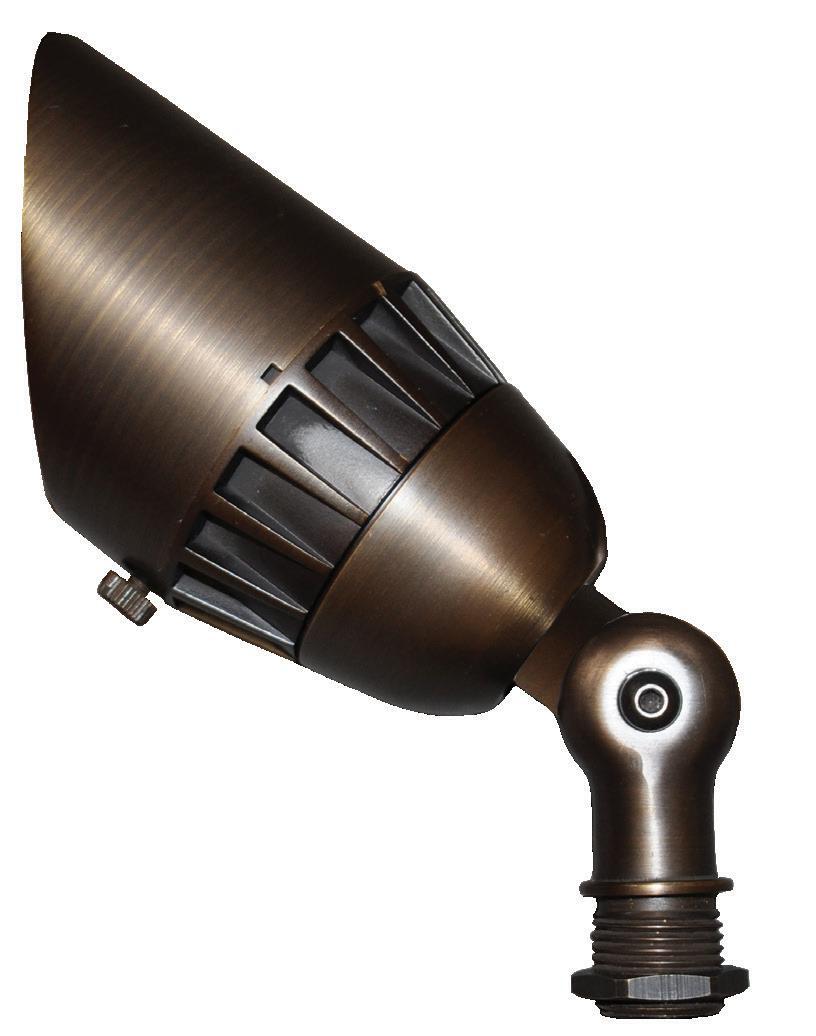

OMEGA
DIR200164
The Omega diretional luminaire features our upgraded Copper Core LM16 designer module, which is coupled to a brass body providing superior heat dissipation, longer life, and high performance.
•Storm Drain™ system to expel dirt, dust & water
•Interchangeable light module featuring Cree LED™

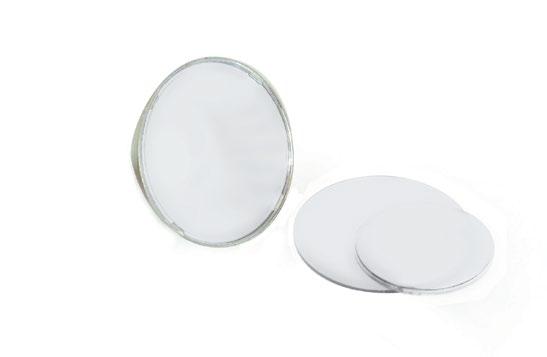

•3 interchangeable PMMA acrylic optics from 20° to 60°
•Ideal for trees, large greenery, architecture or facade
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS:
Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.

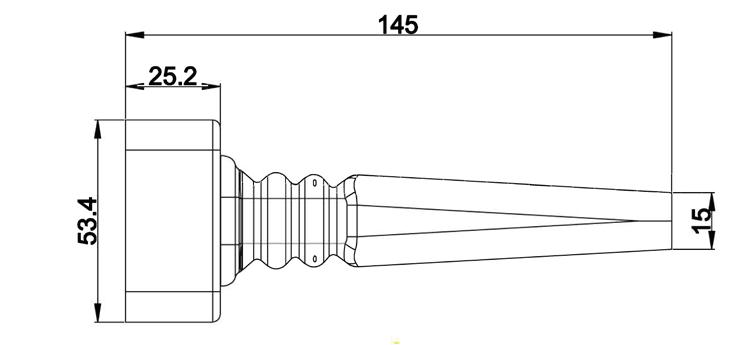

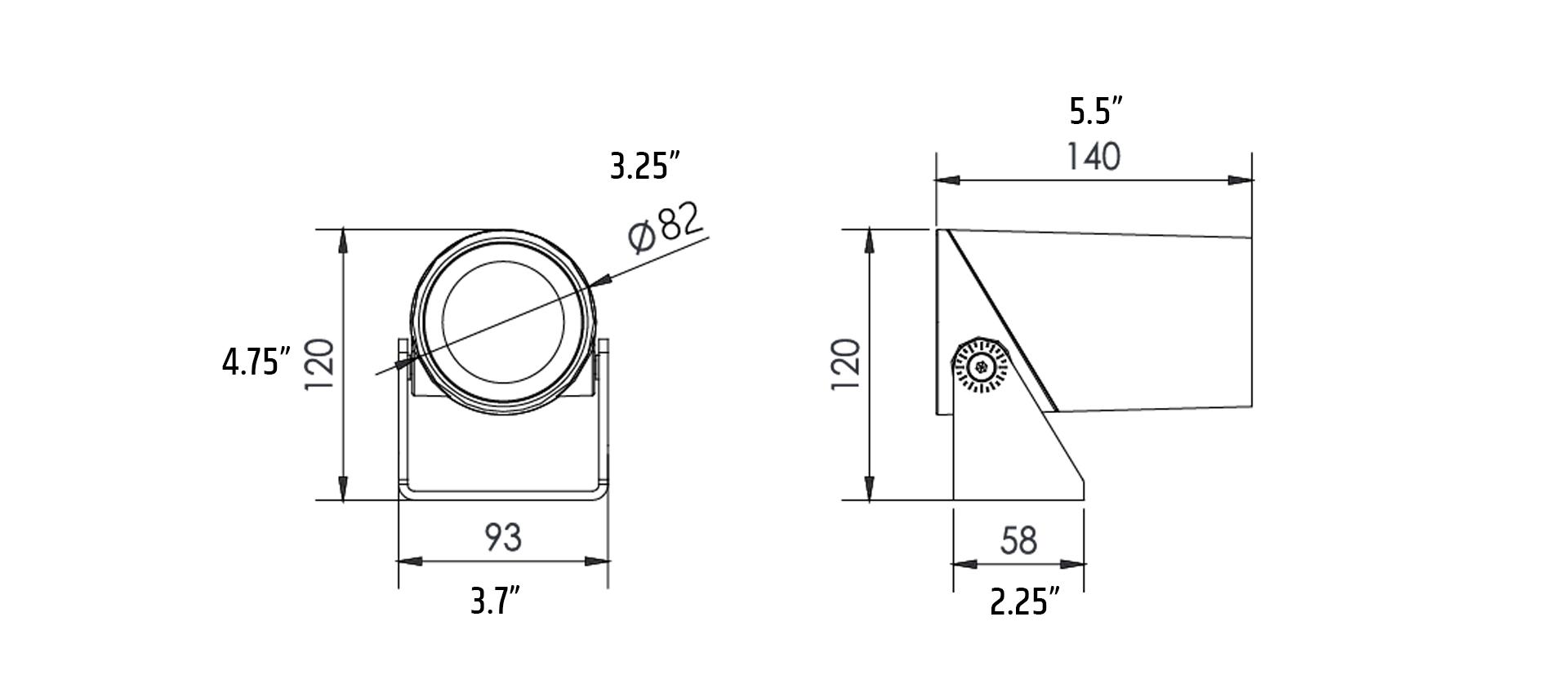

DIMENSIONS:
SPECIFICATION SHEET

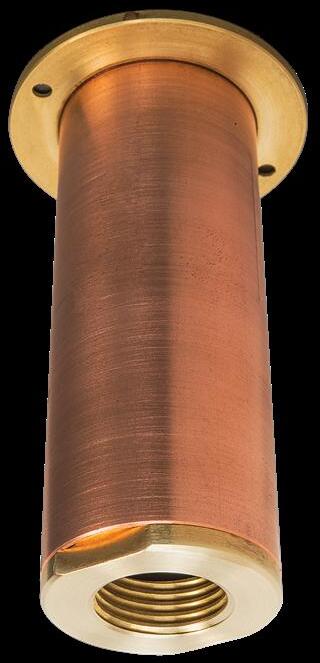

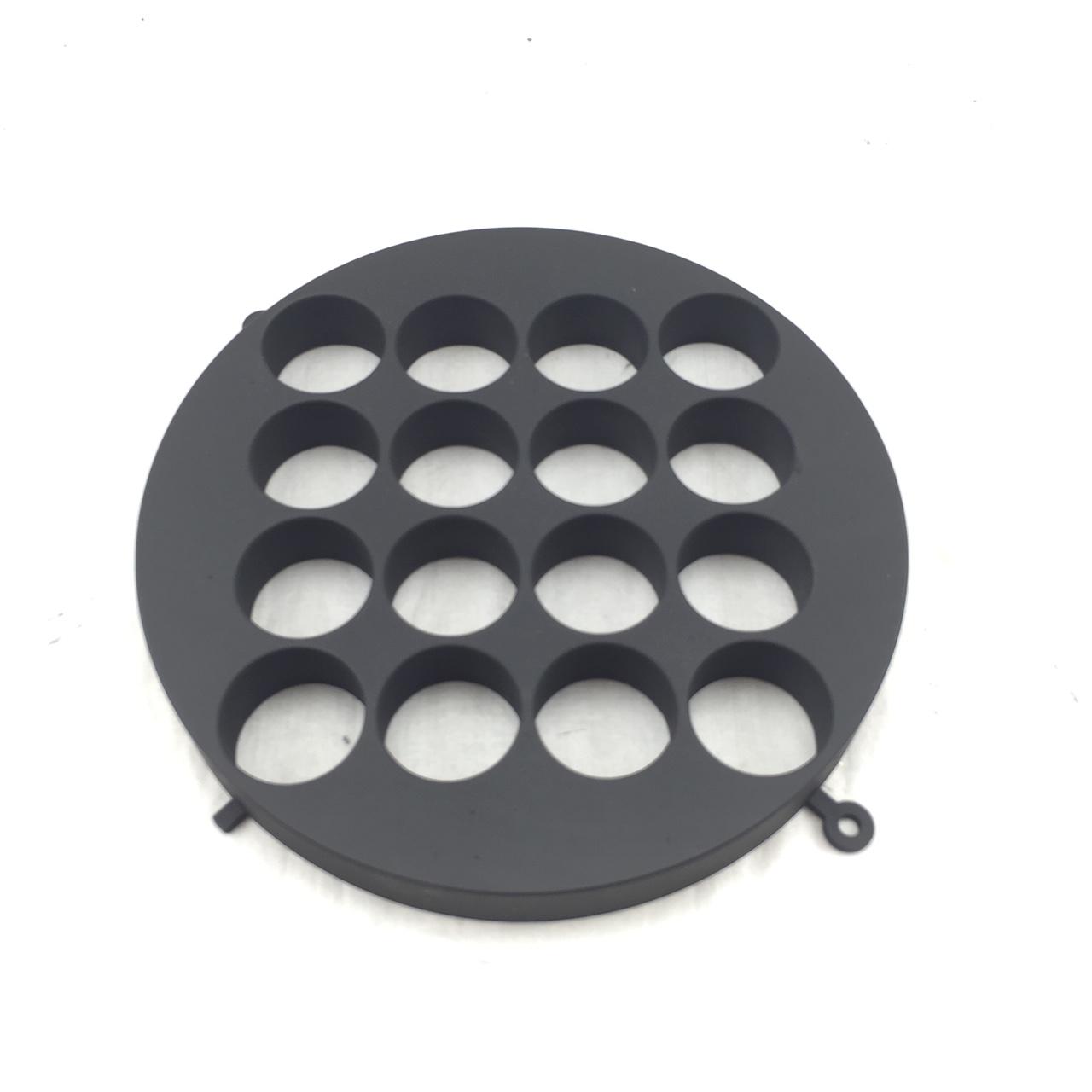

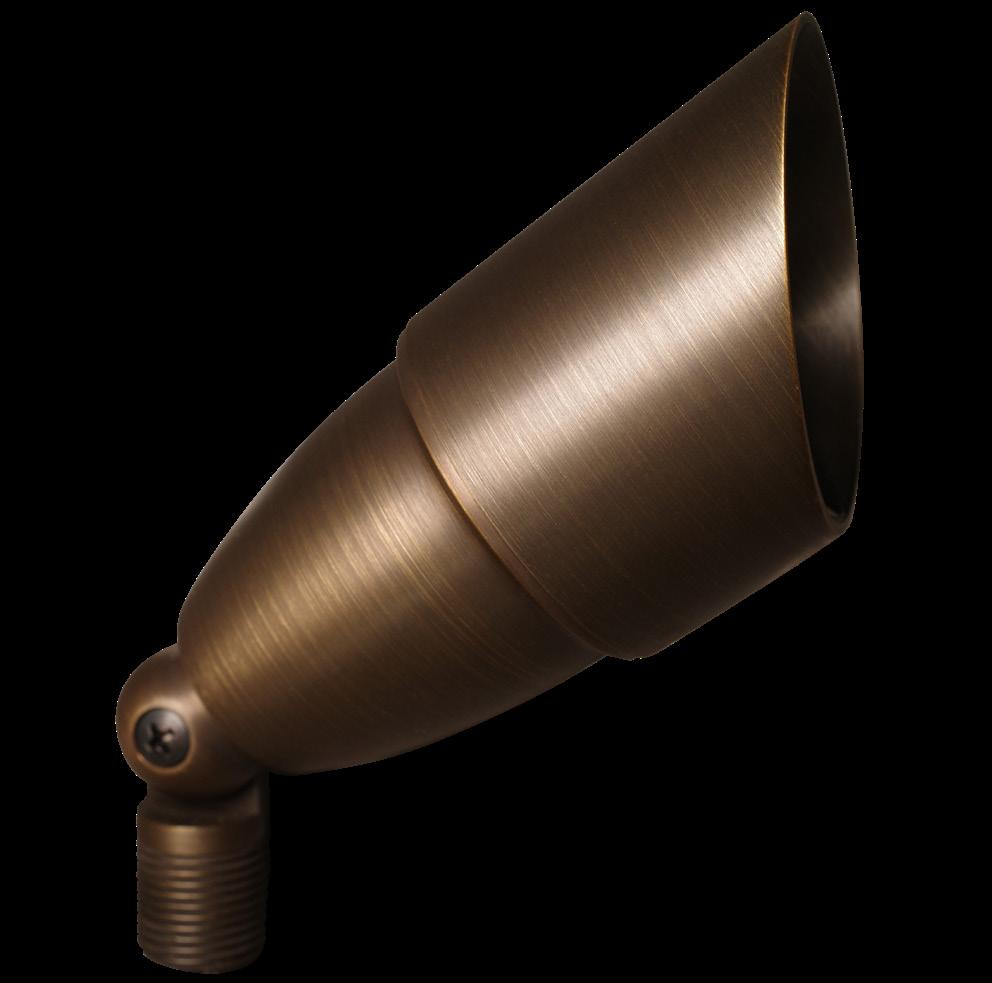

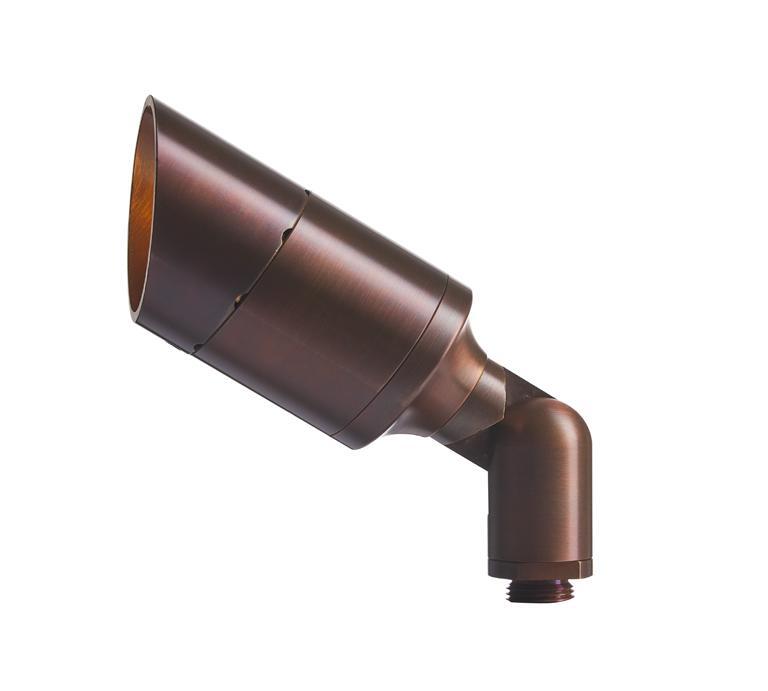

The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.

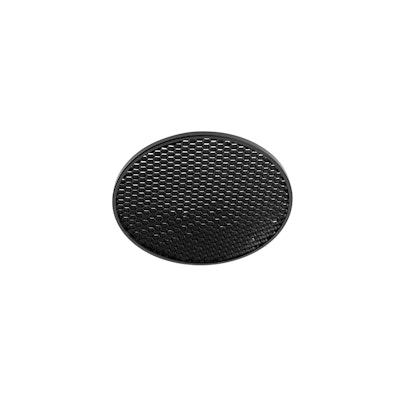

OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
4W
(incl.) 490034
M3 Trident Heavy-Duty 3-Prong Stake 490036
PM Round pier mount 490057
MR Round tapered 3-hole surface mount 490048
MP PVC/Brass post stake 490037
GM Brass gutter mount 490047
TYPE LL3 SPEC OCEAN HARBOR
OMEGA
DIR200164
The Omega diretional luminaire features our upgraded Copper Core LM16 designer module, which is coupled to a brass body providing superior heat dissipation, longer life, and high performance.
•Storm Drain™ system to expel dirt, dust & water
•Interchangeable light module featuring Cree LED™
•3 interchangeable PMMA acrylic optics from 20° to 60°
•Ideal for trees, large greenery, architecture or facade
Threaded with 1/2” NPT. May be mounted into threaded hubs in junction boxes or mounting accessories. Heavy-duty composite stake included.
WIRING:
Pre-wired with a five-foot pigtail of 18/2 cable.
WARRANTY: 10-year warranty

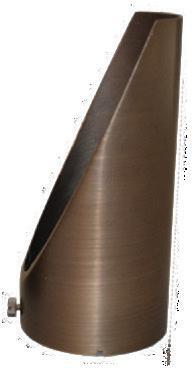

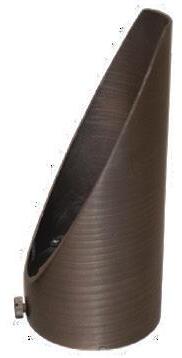

Opt. 6” extended shroud 3W & 6W #490260
DIMENSIONS:
Opt. 6” extended shroud 8W, 12W & 16W #490261
SPECIFICATION SHEET
The Bodacious uplight features an integrated LED source available in 3, 8, 6,12 or 16 watts. 2700K, 3000K and 5000K options. 30-, 45-, 65- and 100-degree beam spreads.
MS Heavy-duty slotted mounting stake (incl.) 490034
EX Excalibur Post Stake 490037
TR Trident HD 3-Prong Stake 490036
PM Pier Mount 490057
TSM Tapered Surface Mount 490048
EM Round Electrical Mounting Plate 490043
RMP Rectangular Electrical Mounting Plate 490044
F004D22AU12 Forest Green

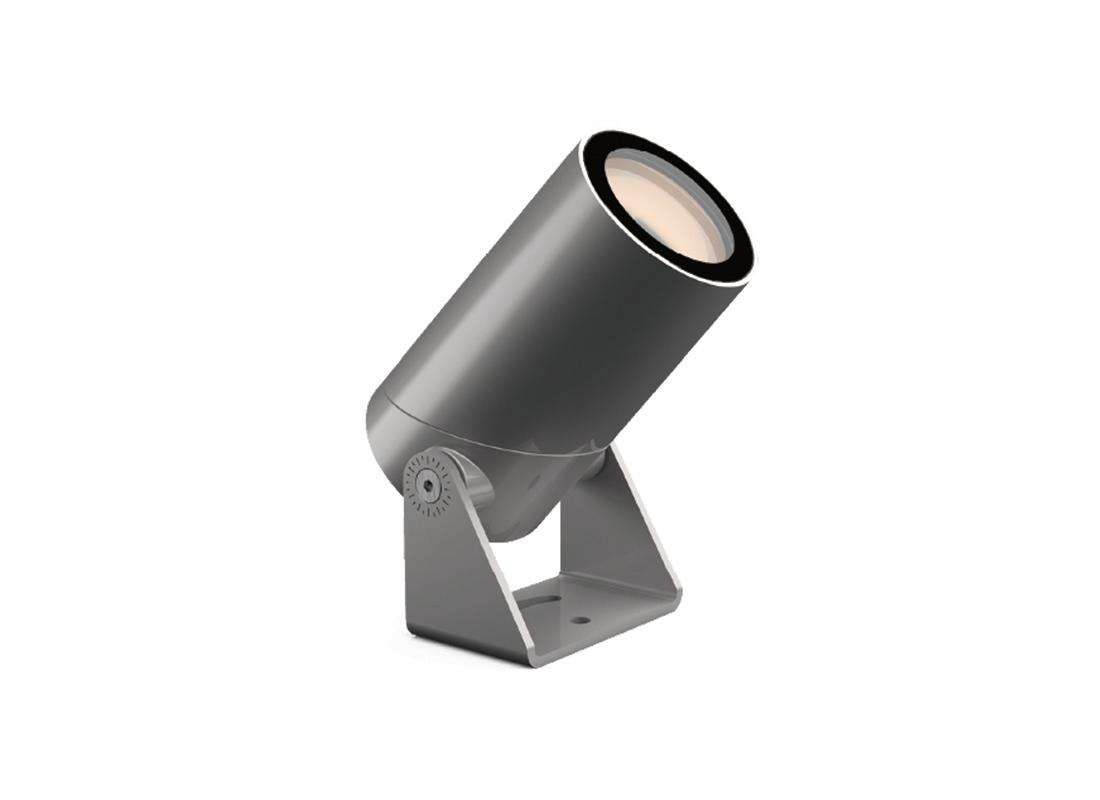

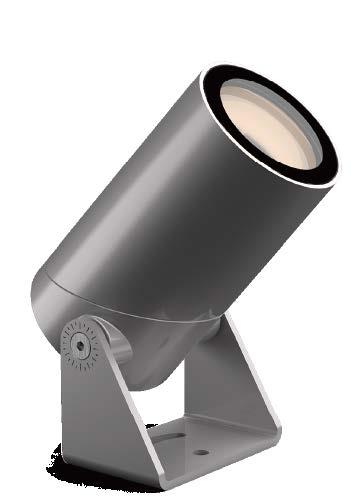

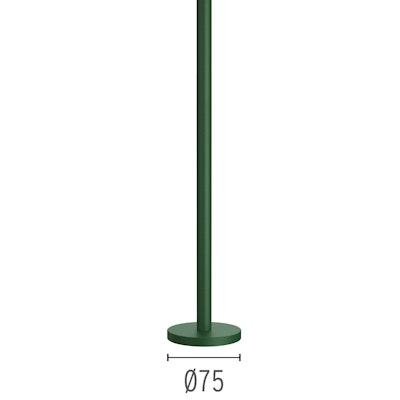

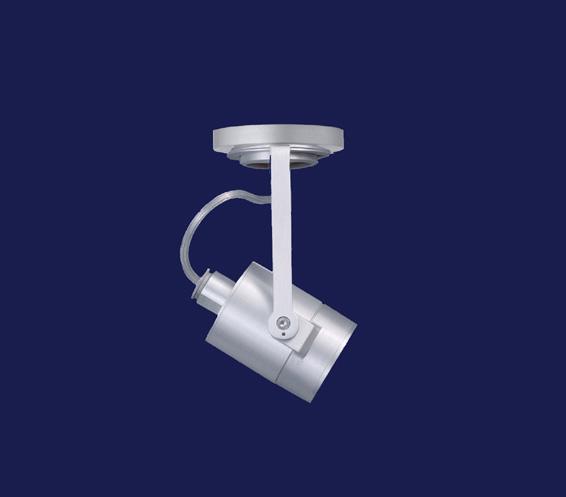

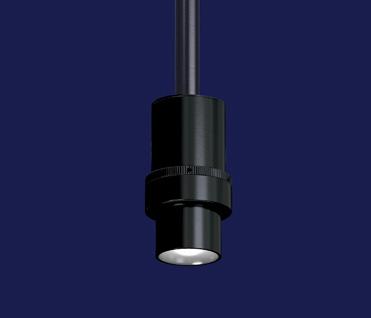

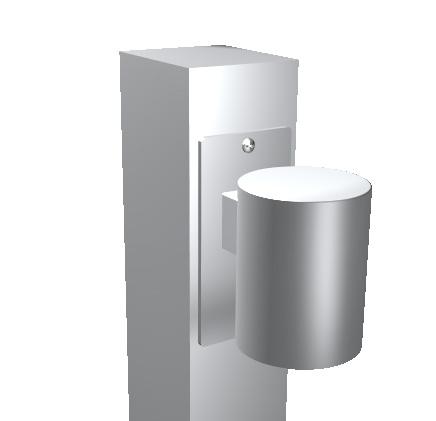

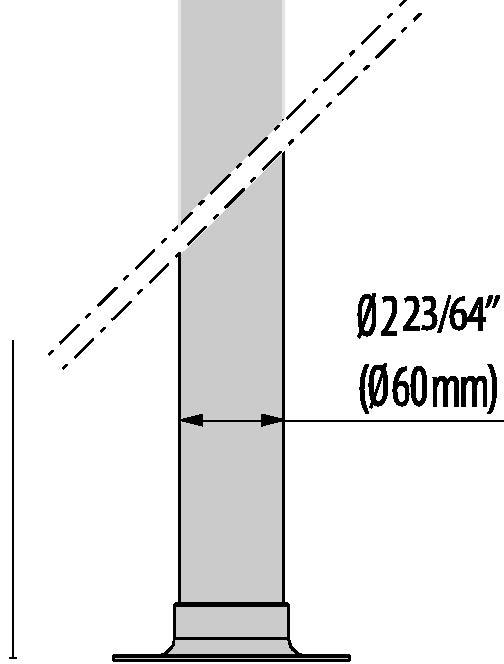

Landlord Spot Ø40 PWM Dimmable Forest Green
Designed by Piero Lissoni, 2018
Spot adjustable head for installation on ground poles or on wall base. Poles and base to be ordered as separated accessories. Heads are equipped with a dismountable ferrule, to insert flood lens or up to two honeycombs, (to be ordered as separate accessories). 24V remote power supply to be ordered separately. Each head comes with a 2000 mm lenght outgoing cable and a wiring kit.
Are you a professional and your project needs consulting and support?
Physical
Mounting Ground
Environments
Download
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class E
Replaceable (LED only) light source by a professional
In our constantly evolving world and business, technical upgrades happen every day. This means all product specifications and data are subject to change without warning in order t improve reliability, function, performance or otherwise. We make every effort to ensure the accuracy of our product images, however due to different lighting and screens used for viewing, the colours may vary. Images are indicative of the quality and style of the product but may not represent the precise details of the product you receive. This is because we are constantly working to make improvements. For aesthetic reasons, cables and/or electrical elements are often not shown. Refer to technical data sheets for all technical data. Images and colours are not part of any contract or warranty in any way.
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS:
Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
SPECIFICATION SHEET
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
In our constantly evolving world and business, technical upgrades happen every day. This means all product specifications and data are subject to change without warning in order t improve reliability, function, performance or otherwise. We make every effort to ensure the accuracy of our product images, however due to different lighting and screens used for viewing, the colours may vary. Images are indicative of the quality and style of the product but may not represent the precise details of the product you receive. This is because we are constantly working to make improvements. For aesthetic reasons, cables and/or electrical elements are often not shown. Refer to technical data sheets for all technical data. Images and colours are not part of any contract or warranty in any way.
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.

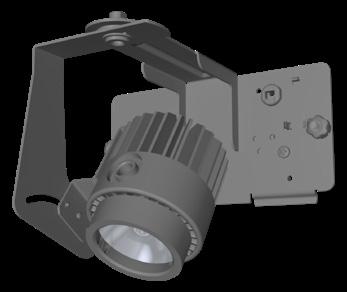

SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
4W
(incl.) 490034
M3 Trident Heavy-Duty 3-Prong Stake 490036
PM Round pier mount 490057
MR Round tapered 3-hole surface mount 490048
MP PVC/Brass post stake 490037
GM Brass gutter mount 490047
NO SPEC
OCEAN HARBOR
Type:
Model:

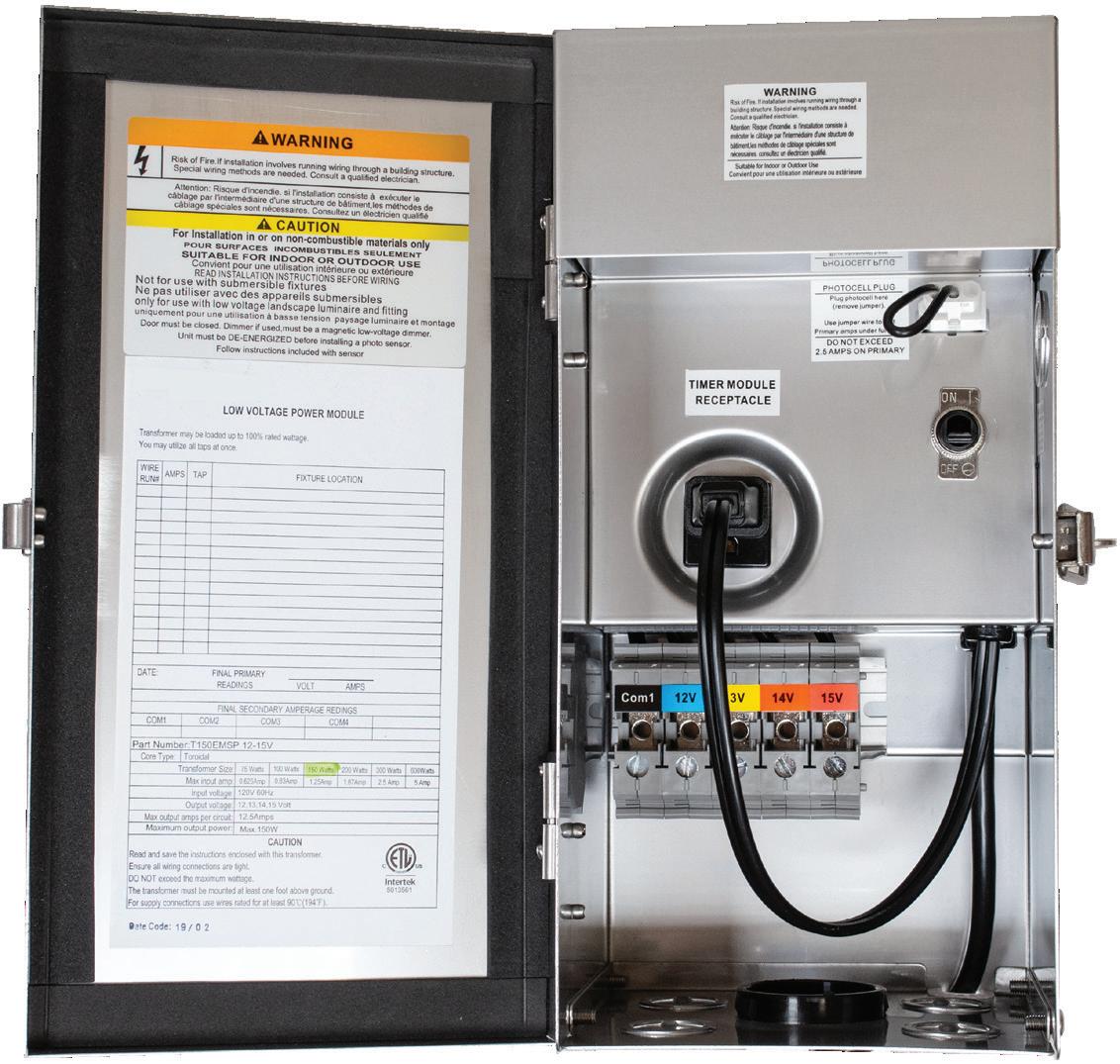

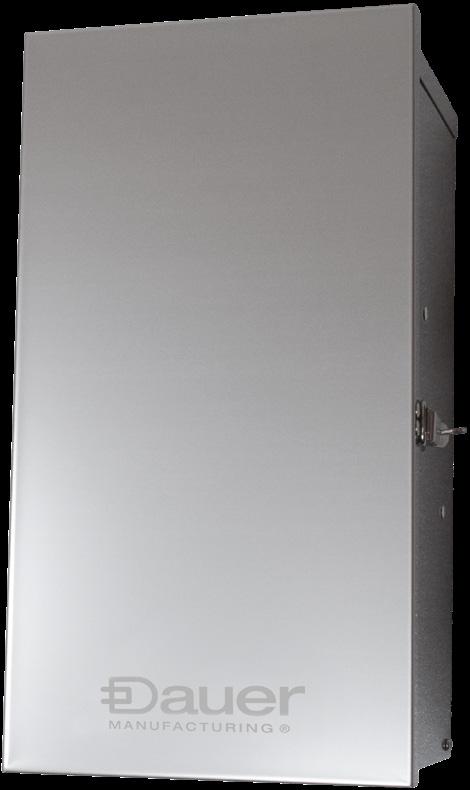

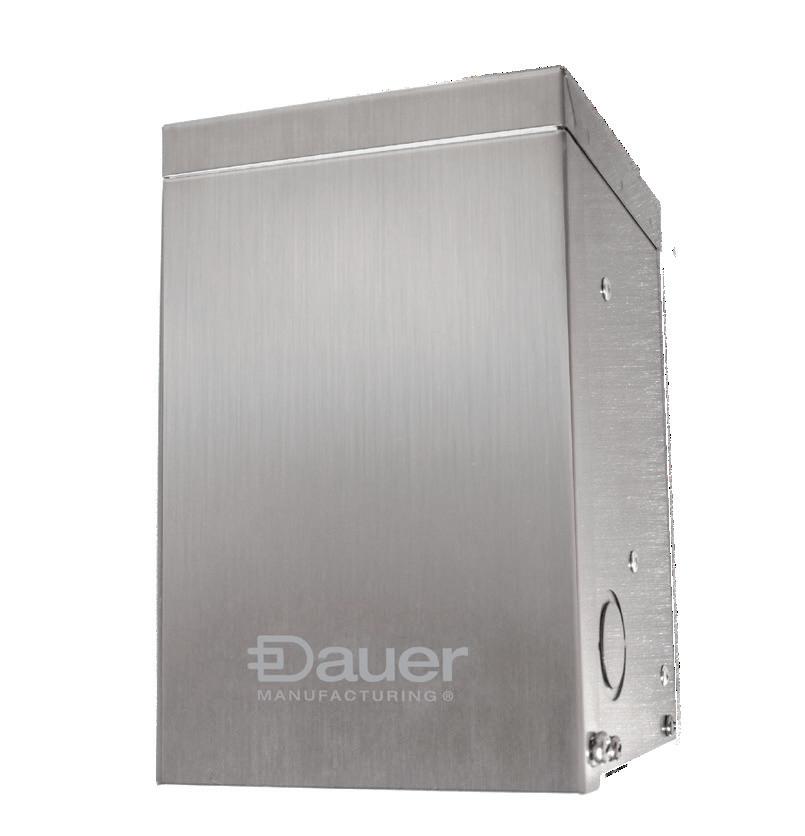

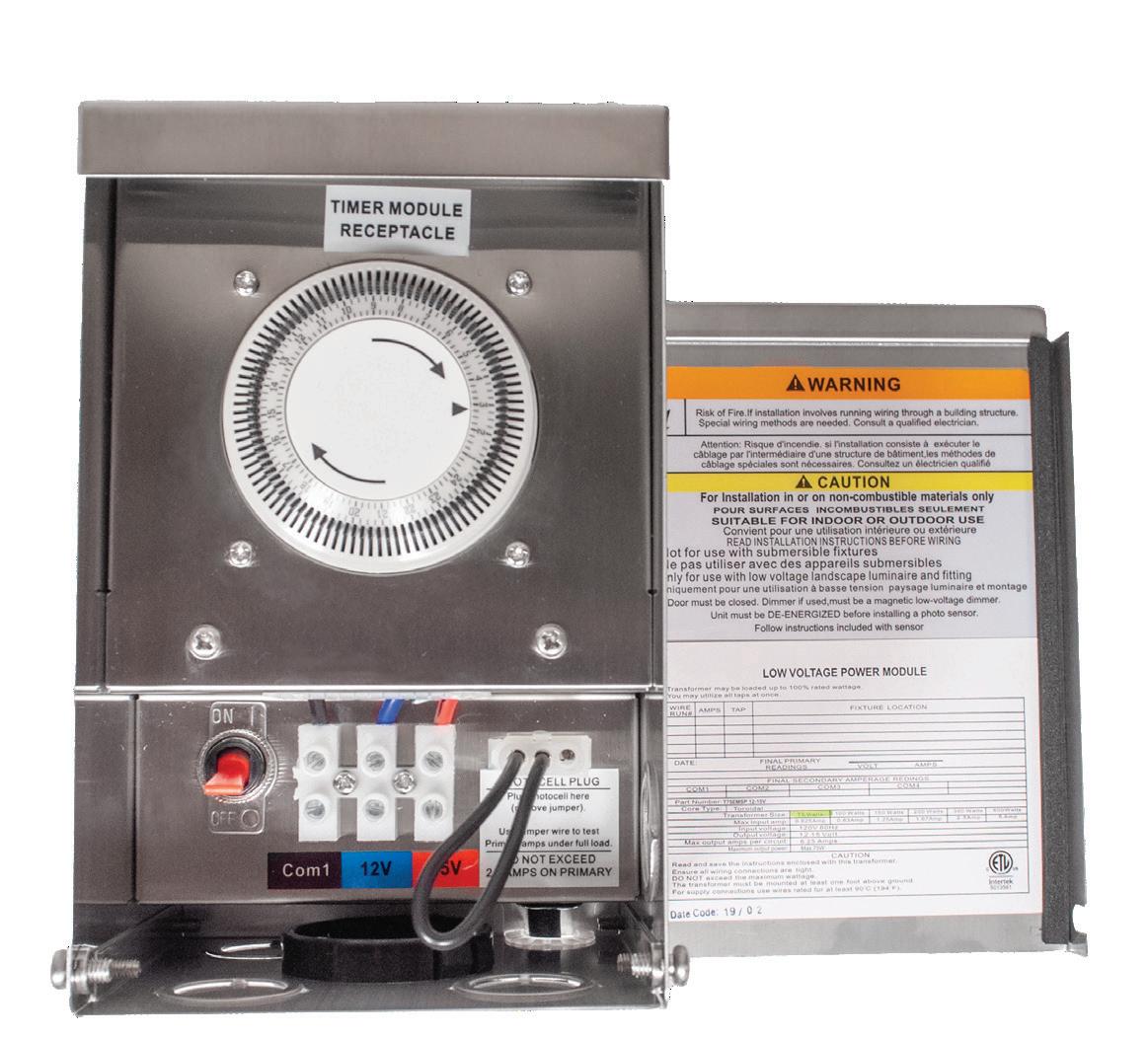

150W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490541
SPECIFICATIONS
OUTPUT:
150W, 12.5A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT: 120V, 60HZ, 1.25A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 12.5A breaker, heavy-duty grounded 5-foot power cord. suitable for interior or exterior use.
AGENCY LISTINGS: ETL approved (5013561). Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
ORDERING INFORMATION:
To order a transformer with an option, select the appropiate choices from each column as in the following example: EXPAMPLE: 490541-DT200LT
SPECIFICATION SHEET
DIMENSIONS:
TYPE LL5 SPEC OCEAN HARBOR

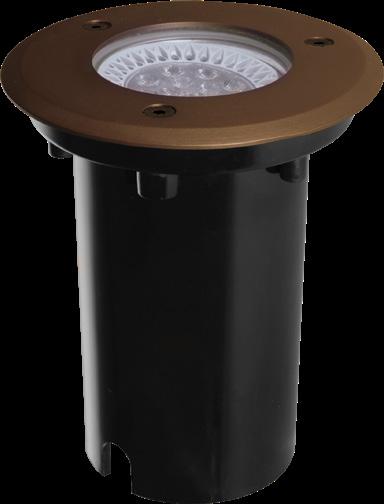

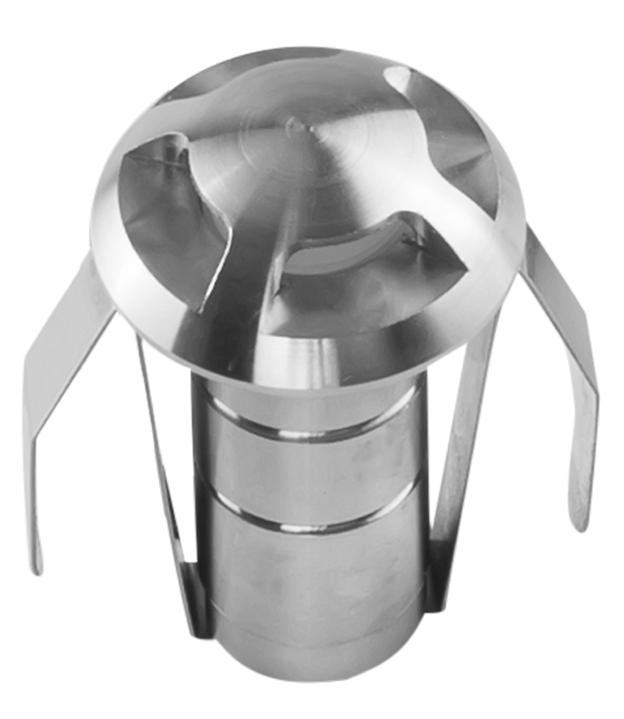

SONOMA
IGR025203
The Sonoma directional marker is a high flux; low wattage LED luminaire. Coupled with a brass body, our Thermally Integrated® LED Module provides superior heat dissipation, longer life, and higher performance.
•Thermally Integrated® w/ Copper Core Technology®
•Cree LED™ XLAMP® High Intensity (XP-L)
•IC Rated for Interior, Exterior and Wet Location Use
•Ideal for driveways, wide pathways & walkways
CONFIGURATOR:
( ) = Most common configuration
IGR025203 LED FINISH (2703) 2700K 3W (3003) 3000K 3W (NAT) Natural Brass (BLP) Bronze Living Patina (BLPX) Extra Dark BLP (NI) Nickel PVD

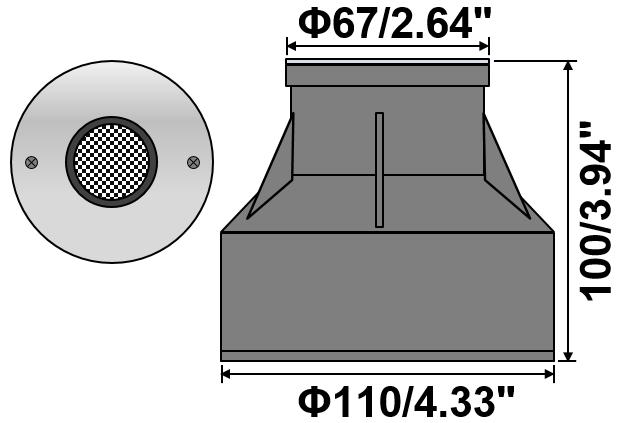

The Conduit Sleeve; Perfect for running conduit on a hardscape installation to many of our in-grade & step/ wall fixtures. This hub fits our Meridian, Terra Cotta, Roswell & Sonoma fixtures.
•Perfect for hardscape and architectural installation •Ideal for in-grade & step/wall fixtures

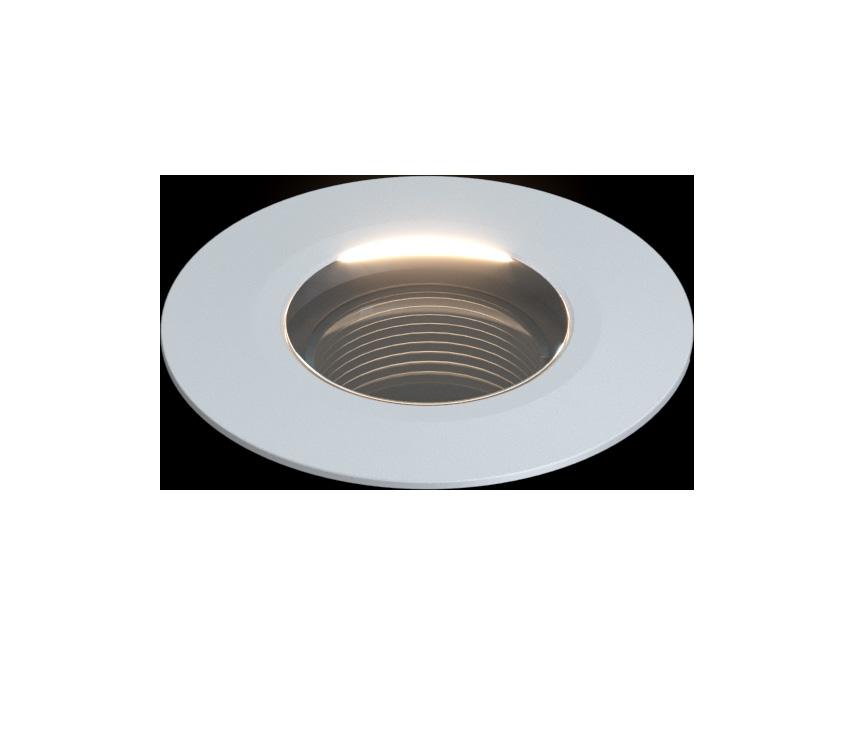

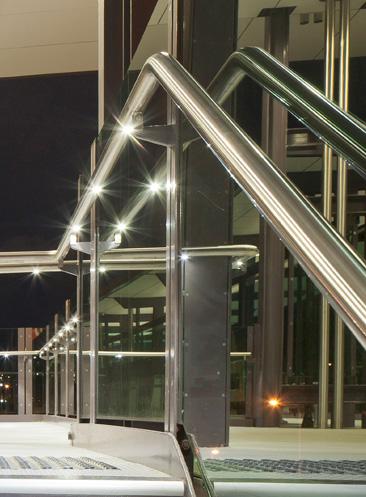

Discrete, seamless point source LED fixture for use in all code-compliant handrail, especially curving ramps and helical stairs as well as long runs on bridges and pedestrian paths. Asymmetric optic allows mounting at rail nadir, eliminating uncomfortable glare issues.
Housing
Clear-anodized aluminum body as standard. Color-match anodized or bronze body as options, consult factory.
Silicone gasket insulates fixture from parent metal, eliminating possibility of galvanic corrosion.
- Anodized aluminum standard
- Bronze option
- Color match anodize, consult factory
Mounting
Patented attachment method offers unparalleled security and ease of mounting. Requires only a simple drilled hole in railing material, eliminates threading, gluing or exposed fasteners common among other handrail fixtures. All conductors remain internal to railing to provide secure and safe wiring. Tamperproof option available for extreme environments; consult factory.
- Tube Size: Ø 1.5” - 1.75”, Max. wall .2” Other sizes available upon request
- Cut Out: 25mm
- Weight: 0.16 LBS
Electrical/LED Driver
- Input Voltage: 24 VDC
- Operating Temp: -40 to 120° F
- Efficiency: 88 lm/W
- Driver: Must use class 2 driver
- Primary Driver: 110 - 277 VAC UL Listed Constant Voltage
- Secondary Driver: 350 - 500mA Constant Current
- Control: DALI, 0-10V, DMX
- DMX control for dimming only, not for individually addressed LEDpod
- Enclosure: Minimum NEMA 3R required
Listings
- ETL listed, UL 1598/CSA 22.2; CE
- cETL
- IP65 rated All IP rated luminaires tested to AS60529-2004 Degrees of protection provided by enclosures (IP Code)
- IK08 Impact Resistance
- Wet location rated
Follow
Location:
Rep Agency:
Note: 1.5 Watt is non-dimmable
1. Additional sizes are available as special order, contact factory for rail dimensions other than those shown on this sheet.
2. Bronze material requires a special clip, contact factory for more information.

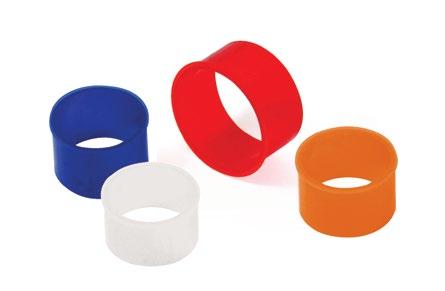

3. Also available in blue (BLU), green (GRN), red (RED), and custom color temperature (as special order).
4. Additional charges and lead time apply for this feature.
for frosted
5. Tamper proof option offers additional protection in extreme environments. Additional charges and lead time apply for this feature. To specify; add “TP” to product code.
6. To Specify 1.5 Watt; add “0350” to product code.
OCEAN HARBOR
Project Name:
Specifier: Fixture Type:

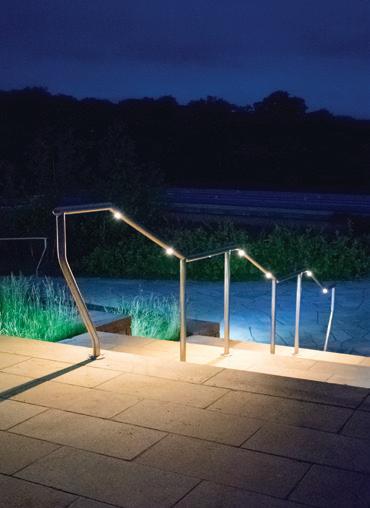

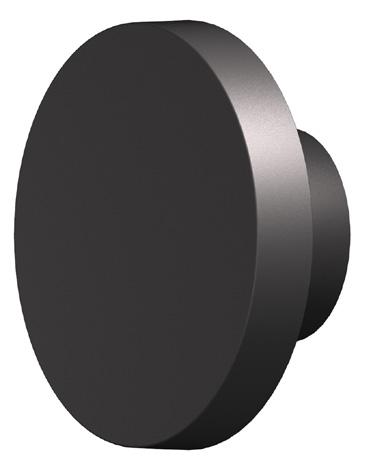

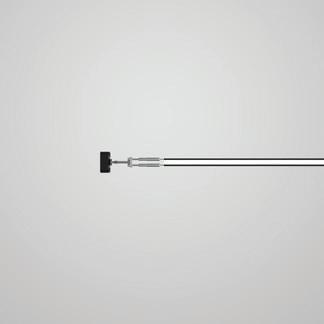

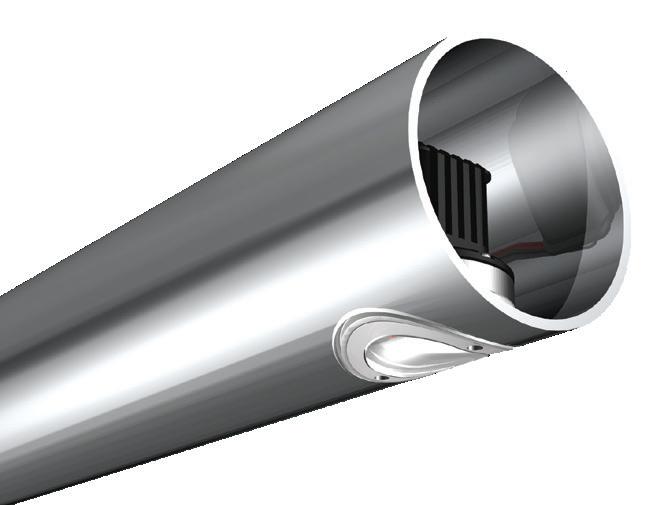

KLIK LEDpod™ 40 Patented
Description
Discrete, seamless point source LED fixture for use in all code-compliant handrail, especially curving ramps and helical stairs as well as long runs on bridges and pedestrian paths. Asymmetric optic allows mounting at rail nadir, eliminating uncomfortable glare issues.
Housing
Clear-anodized aluminum body as standard. Color-match anodized or bronze body as options, consult factory.
Silicone gasket insulates fixture from parent metal, eliminating possibility of galvanic corrosion.
- Anodized aluminum standard
- Bronze option
- Color match anodize, consult factory
Mounting
Patented attachment method offers unparalleled security and ease of mounting. Requires only a simple drilled hole in railing material, eliminates threading, gluing or exposed fasteners common among other handrail fixtures. All conductors remain internal to railing to provide secure and safe wiring. Tamperproof option available for extreme environments; consult factory.
- Tube Size: Ø 1.5” - 1.75”, Max. wall .2” Other sizes available upon request
- Cut Out: 25mm
- Weight: 0.16 LBS
Electrical/LED Driver
- Input Voltage: 24 VDC
- Operating Temp: -40 to 120° F
- Efficiency: 88 lm/W
- Driver: Must use class 2 driver
- Primary Driver: 110 - 277 VAC UL Listed Constant Voltage
- Secondary Driver: 350 - 500mA Constant Current
- Control: DALI, 0-10V, DMX
- DMX control for dimming only, not for individually addressed LEDpod
- Enclosure: Minimum NEMA 3R required
Listings
- ETL listed, UL 1598/CSA 22.2; CE
- cETL
- IP65 rated All IP rated luminaires tested to AS60529-2004 Degrees of protection provided by enclosures (IP Code)
- IK08 Impact Resistance
- Wet location rated
Follow
Location:
Rep Agency:
Note: 1.5 Watt is non-dimmable
1. Additional sizes are available as special order, contact factory for rail dimensions other than those shown on this sheet.
2. Bronze material requires a special clip, contact factory for more information.
3. Also available in blue (BLU), green (GRN), red (RED), and custom color temperature (as special order).
4. Additional charges and lead time apply for this feature.
for frosted
5. Tamper proof option offers additional protection in extreme environments. Additional charges and lead time apply for this feature. To specify; add “TP” to product code.
6. To Specify 1.5 Watt; add “0350” to product code.

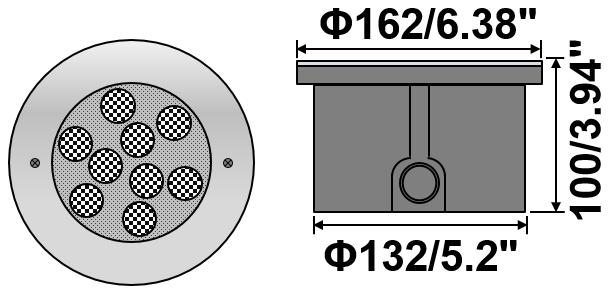

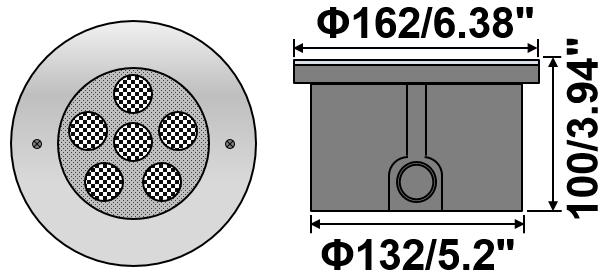

TYPE LL7 SPEC OCEAN HARBOR

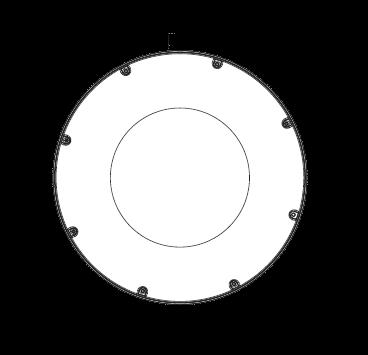

Specifications
Housing
Cover Ring
Gasket

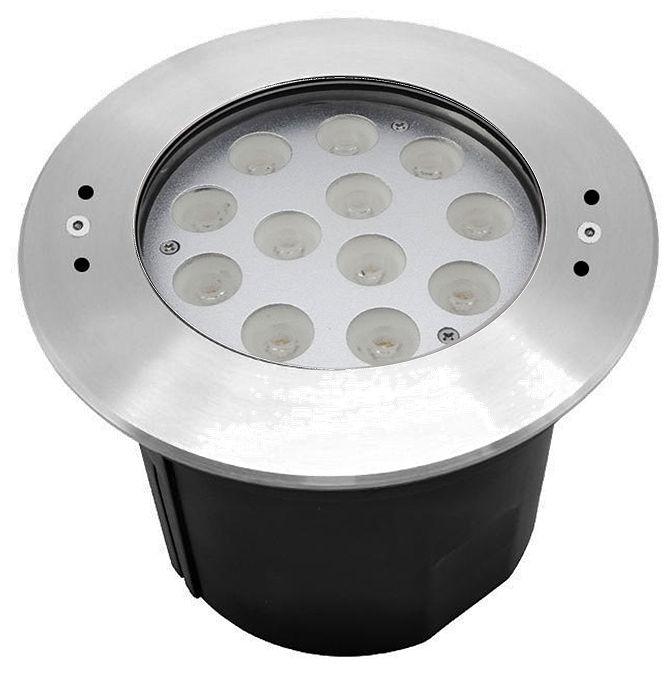

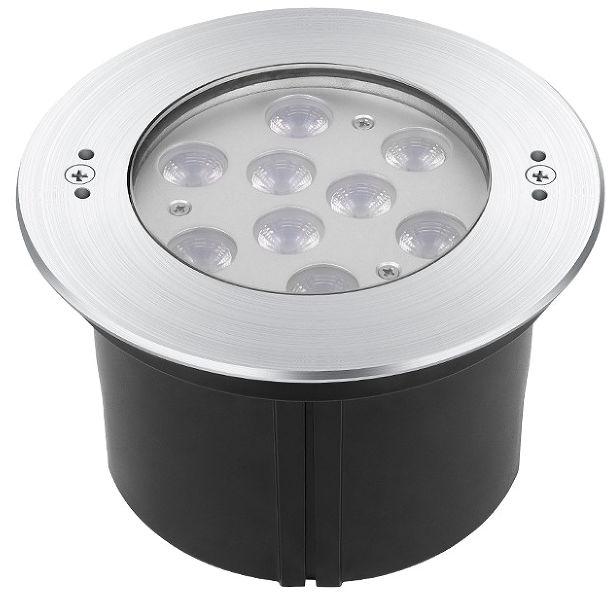

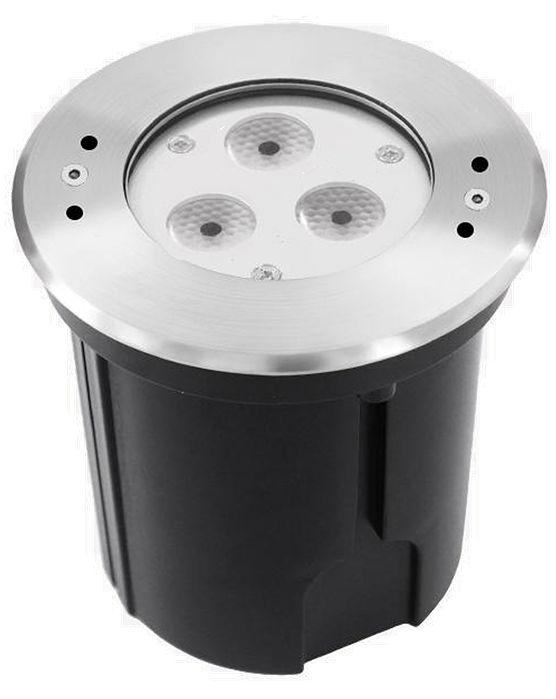

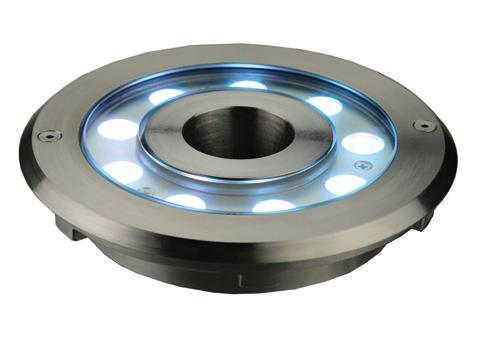

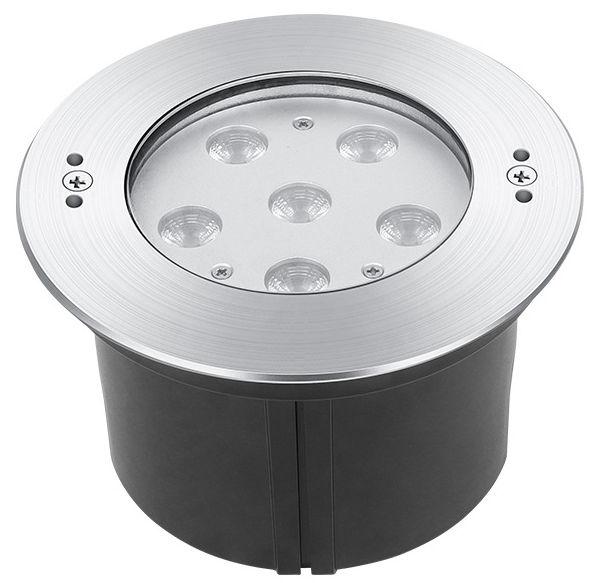

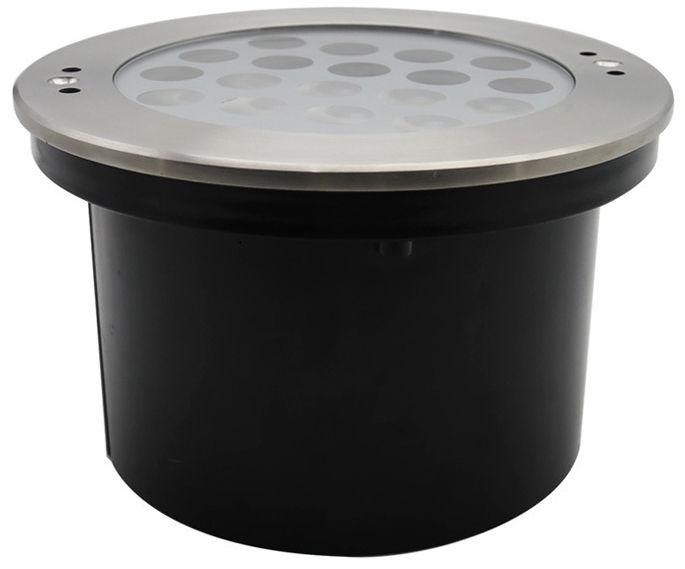

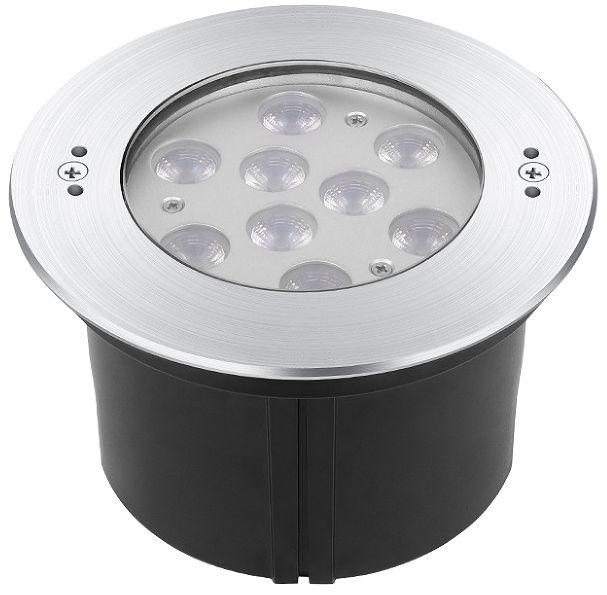

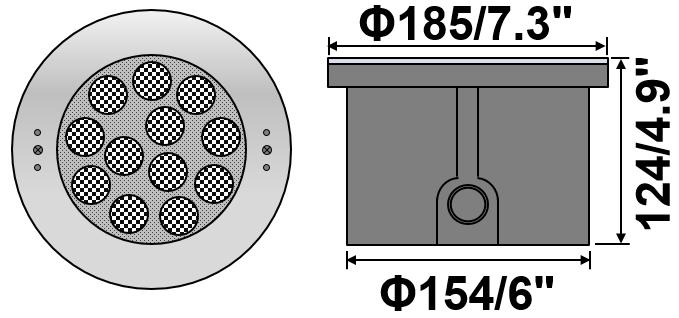

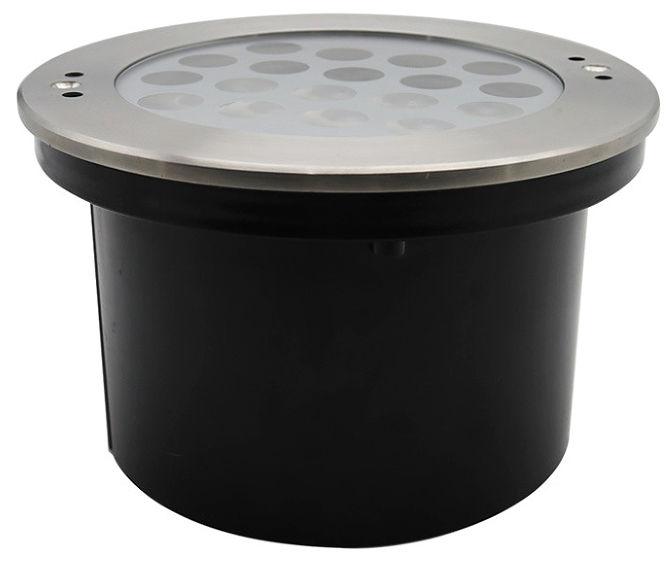

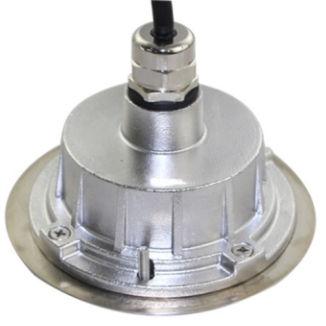

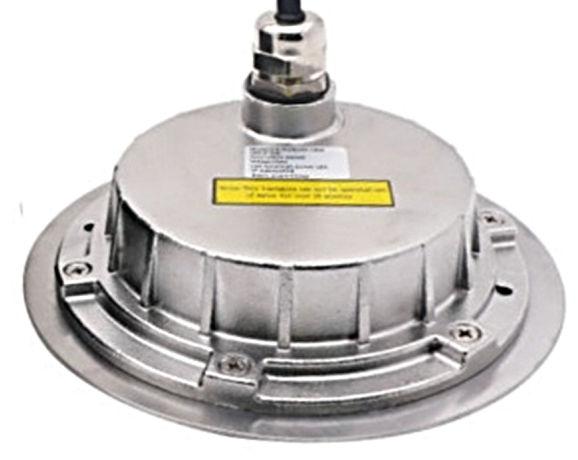

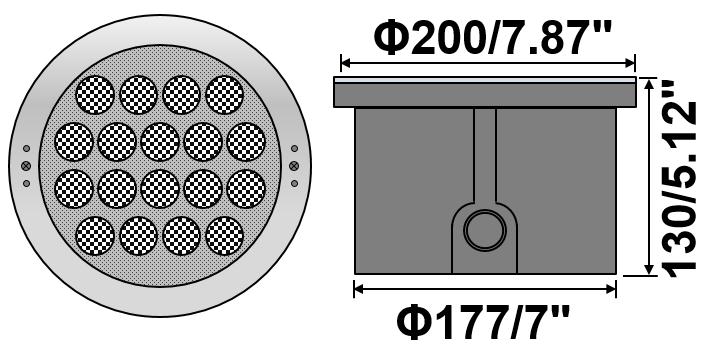

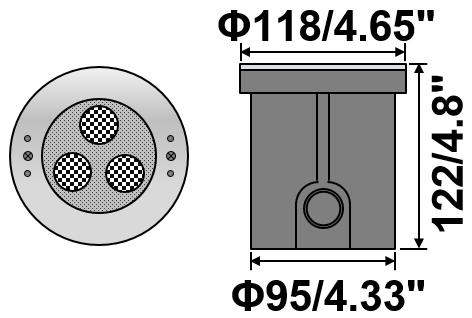

BL9009 LED 20W
BL9008 RGB LED 32W
Applications

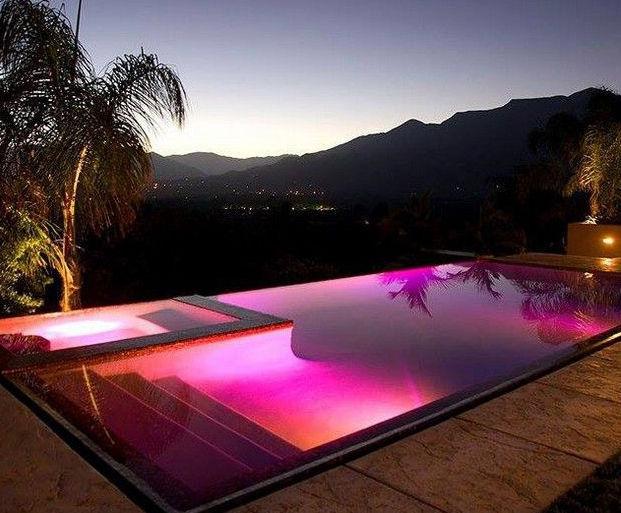

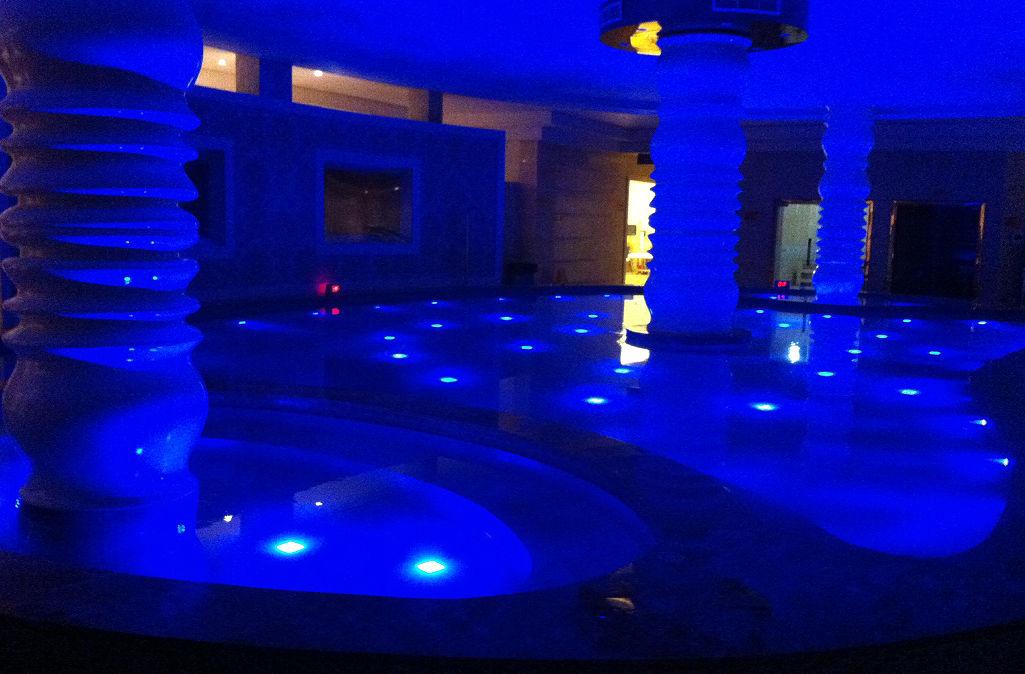

Stainless steel fountain lights, choices of white light or RGB for mounting around afountain nozzle and below water surface. When energized and in operation, product must be fully submerged in water and water must be kept at a neutral pH value.
Stainless steel 316 (Standard)
Stainless steel 316 (Standard)
Silicone rubber
Cover Lens Tempered Glass
LED Optic PMMA Lens
Surface Finish
Stainless steel 316 (Standard)
Driver Type Constant voltage
Input Voltage 24V/DC
Ambient Temperature -20°C~45°C
Ingress Protection IP68......5m
Certifications
Ordering Guide:
Example: BL9009 - C20 - 3 - 80 - 15 - 3 - RDM
Beam

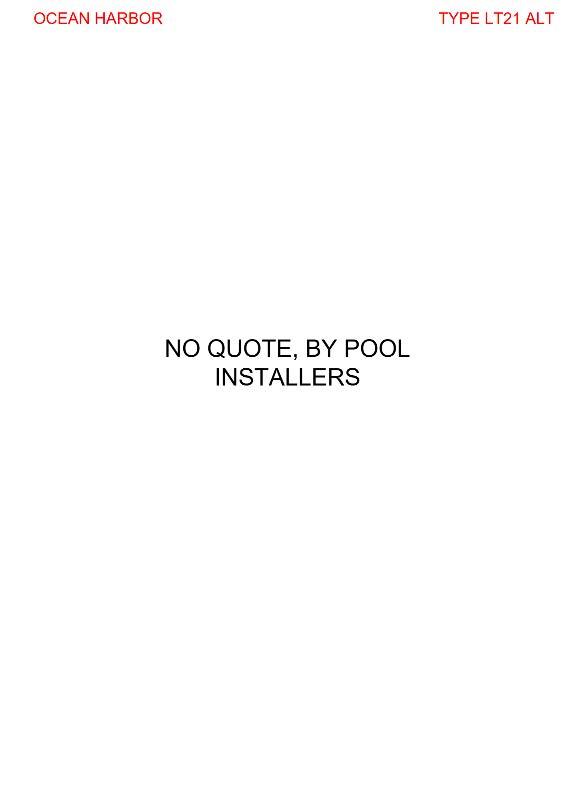

NO QUOTE, BY POOL
INSTALLERS
TYPE LL8 SPEC OCEAN HARBOR

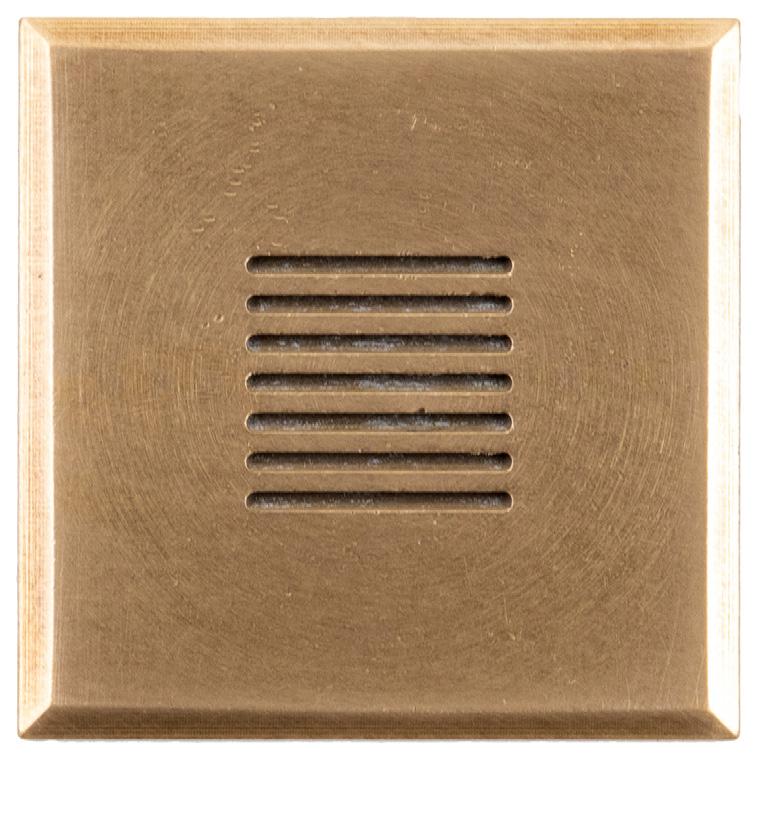

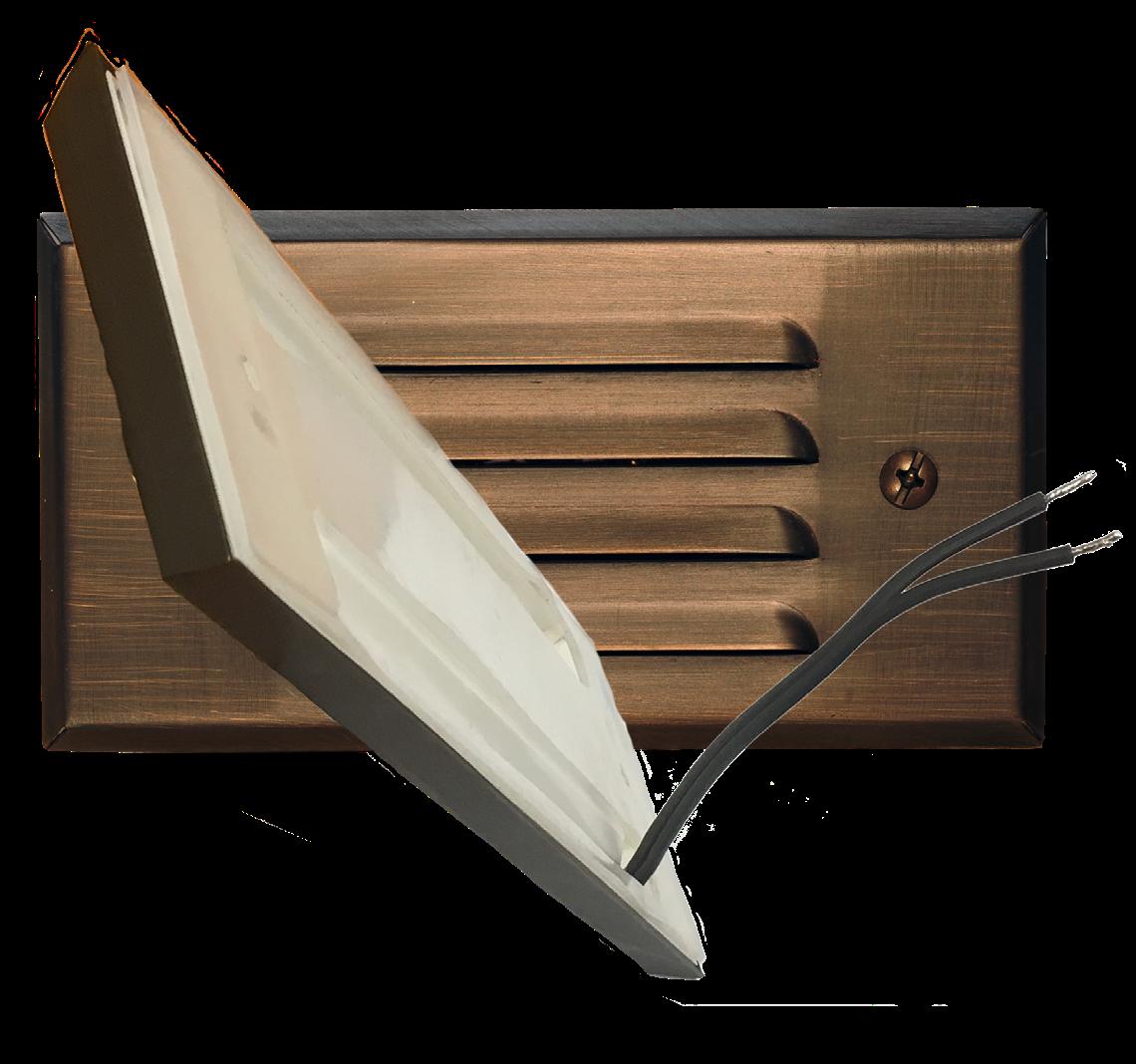

E3-SQL
The E3-SQL is a square, recessed, louvered steplight with a minimal 2.17” (55mm) footprint. Positioning of louvers milled at 30° angle throw light out and down without glare at fixture level.
Construction
Lens
Voltage
Mounting
Lamps
Cree XPE2
2W AMBER (1500K) TURTLE FRIENDLY
Cree XPG2
3W Warm White (3000K)*
Cree chipset
2W AMBER (1500K) TURTLE FRIENDLY
Mounting Accessories
Solid brass trim with brass cylindrical lamp compartment. PVC outer housing.
Frosted, tempered soda lime glass.
12 Volts AC / DC. Remote transformer required.
Ground, ceiling, or wall-mount installation in masonry or wood. No mounting accessory is needed for core drill applications. Optional Deck Mount accessory allows for adaptation to wood deck of varying thicknesses. Optional brass Conduit Fitting features two side and one bottom 1/2” NPT threaded holes for remote splicing and/or applications with limited depth. Concrete Form Kit secures the fixture Housing vertically or horizontally in a form for installation in new concrete. Trim and lamp compartment are friction-fit into sleeve using o-rings, eliminating the need for visible fasteners.
2W-A-SP __ 2W-A-NFL __ 2W-A-FL
3W-SP __ 3W-NFL __ 3W-FL
Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-NFL-2700K * __ 2W-A-MR11-NFL 30° narrow flood
WITH OPTIONAL BRASS CONDUIT FITTING (CF)
INDOOR
(None needed for Core Drill Applications)
Conduit Fitting (Limited Depth / Remote Splice) Concrete Form Kit Deck Mount adapter ring for wooden decks
Finish: Unfinished is standard, no specification required. The fixture will weather to a natural patina. The patina process is natural with brass and copper. Rate of patina and eventual color is dependent upon climate and proximity to the ocean. Thus, Beachside does not guarantee any specific appearance.
Mounting: Recessed wall installation using back box accessory.
Electrical:
Dimming:
Integral high efficiency LED driver, rated at 50 000 hours. 120V-277V.
Down to 0%, 0-10V (120-277V).
Finish: White or aluminum gray.
Weight: 3.30lbs (1.5kg)
Warranty: 5 year limited warranty.
Ratings: IP65, IK10
Certification: cULus listed for wet location.
DATE:
PROJECT:
FIRM:
CATALOG NO: COMMENTS:

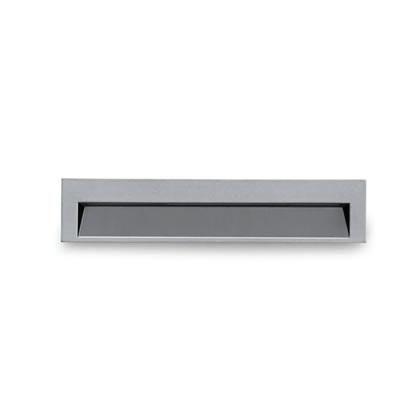

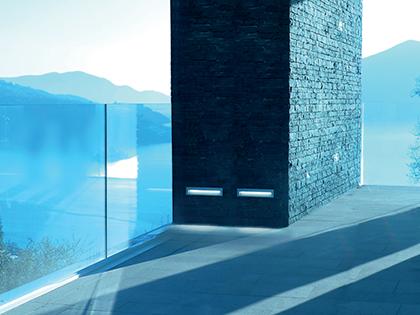

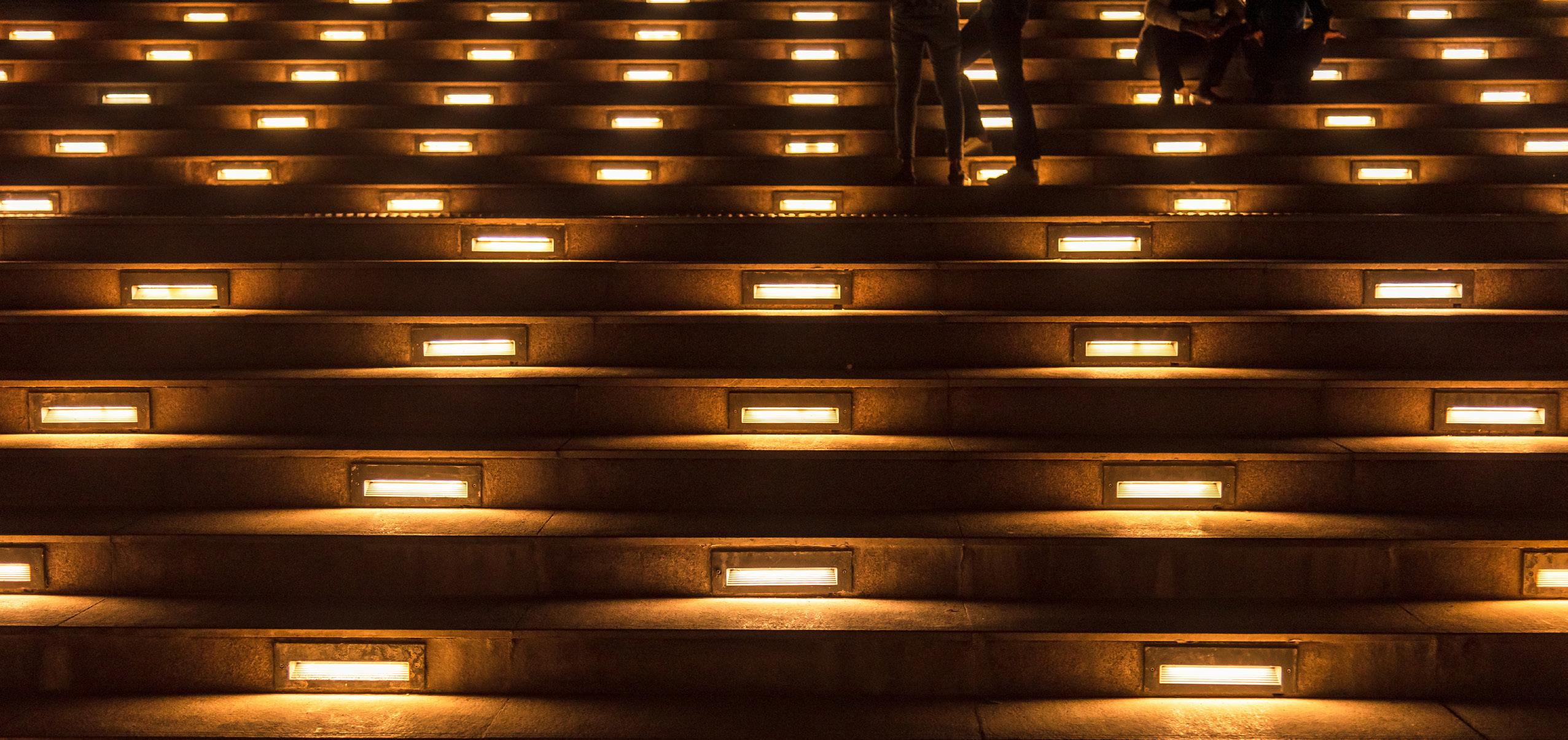

SL650L is an architectural step light with a recessed light source and glare hood, precision engineered for durability and performance.
Ideal for illuminating steps and walkways, SL650L is a powerful LED solution, with three different length and lumen packages and field-selectable color temperature. SL650L has a modern design, featuring a recessed housing with a flush glare-hood to shield the light source, which is installed into a concrete pour box provided with the unit. SL650L Series step lights are energy-efficient for long-lasting indoor and outdoor applications. The SL650L-13 model features an optional integral 10W Emergency Battery Pack with a 90 minute battery life.
TYPE LL9 SPEC OCEAN HARBOR

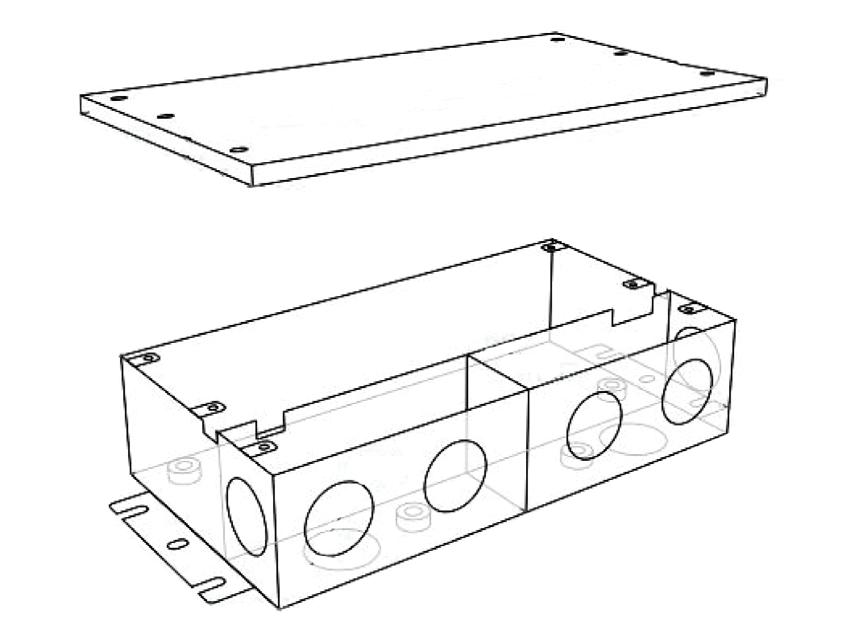

MOUNTING ACCESSORIES (TO BE ORDERED SEPARATELY)
S6329 - Recessed backbox Length: 12¼" x 3⅛" (310mm x 79mm) Depth 3⅜" (86mm)
ORDERING INFO
S6320W - 3000K, 90CRI S6320N - 4000K, 90CRI
VOLTAGE
UNV - 120-277V
FINISH
01 - White 14 - Aluminum gray
DIMMING
D10 - 0-10V (down to 0%)
OCEAN HARBOR TYPE
DATE:
PROJECT:
FIRM:
CATALOG NO: COMMENTS:

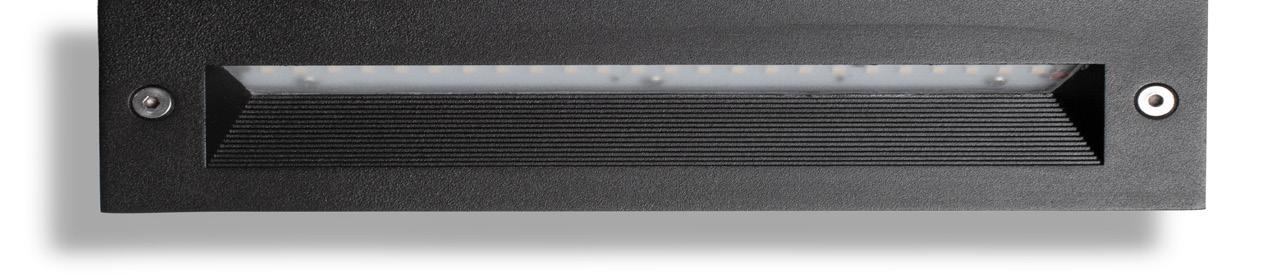

STEP LIGHT SL650L SERIES
SL650L is an elegant step and passageway luminaire with a discreet recessed glare hood, perfect for campus, resort, and residential use.
Ordering Guide
SL650L-6 5W
SL650L-10 7W Amber-TF 4000K
SL650L-13 12W 5000K
1Consult factory for additional options
2Consult factory for additional pricing
3Emergency Battery Pack option applicable to SL650L-13 models only
Performance Specifications
Up to Flux 475 lm, Power 12W, LER 41 lm/W (4000K)
120-277v input voltage; Starting temp. rated to -20˚F
0-10v Dimming Integrated
Integral Emergency Battery Pack option applicable to SL650L-13 only
For higher lumen packages, please consult the Lumux sales team.
Light Engine: Constant Current driver with integrated 0-10v dimming, powering high quality LEDs with field-selectable color temperatures options: 3000K, 4000K, 5000K. Turtle-friendly 590nm Amber-TF optional.

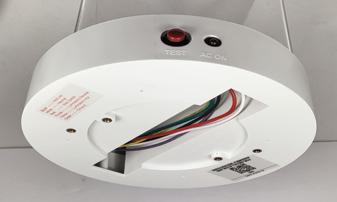

Emergency Battery Pack: The SL650L-13 model features an optional integral 10W Emergency Battery Pack providing standard lumens with a 90 minute battery life.
Housing: Heavy-duty construction corrosion resistant, low-copper die-cast aluminum. Enclosed lens secured with vandal resistant, stainless-steel fasteners.
Gasket: Closed-cell silicone foam gasket seals out moisture, dust, and insects, for weather-tight operation. IP65 - ETL listed for wet locations.
Mounting: Recessed mounted with the concrete pour-box (CPX) provided. The CPX for integral Emergency Battery Pack models is 5.75" deep.
Installation: Please refer to installation instructions.
Finish: Zinc polyester powder coat finish in black, white, silver, bronze, or any custom RAL color. Consult factory for marine grade or anti-microbial finish.
Content of specification sheet subject to change
7803 Industry Ave, Pico Rivera, CA 90660 sales@lumux.com
TYPE LL10 SPEC OCEAN HARBOR
CHIOBO
Radial Emission LED Bollard
CONCEPT
Radial-emission LED bollard specifically designed to light large open spaces.
FIXTURE MECHANICAL CHARACTERISTICS
Housing Ø 6.3” Dia. Top with Ø 3.15” Dia. Post
Materials Powder coated anodized die-cast aluminum optical head with extruded body. Marine Grade cataphoresis E available as optional.
Finish Textured finish.
Ferrite Dark Grey Black White Bronze Sandstone Grey Heritage Brown
Power Connection Factory shipped with DSM&T IP68 quick disconnect at fixture and mating 4ft SJOOW 18-6 cable with purple and grey wires for 0-10V.
Functionality Available in three different heights - 15.75in, 31.50in and 39.37in. 316L grade stainless steel base and stainless steel anti-theft screws.
BUG B0–U0–G0 Dark Sky Compliant
Weight 2.98lbs (fixture head only)
Protection IP66
Resistance IK10
CERTIFICATIONS
cULus Wet Location Listed E488257. Tested in accordance with LM-79-08. Compliant for California installations.
IEC 62471
RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
Internal high reflective anodized aluminum reflector with transparent polycarbonate lens positioned horizontally under optical head with external black anti-glare control. Beam
Delivered Lumens 2700K 878Lm
939Lm 502Lm 248Lm 519Lm
Efficacy 47Lm/W max. Refer to photometric graphs for specific values.
Lifetime 14W / 9W version: L92/B10 30000hrs at max TA +25°C
L90/B10 50000hrs at max TA +25°C
20W version only: L89/B10 30000hrs at max TA +25°C
C 90°+90° and 180° optics only available in 14W nominal.
D 360°optic only available in 20W nominal.
E Marine Grade is recommended for use in environments with occasional exposure to salt air, reclaimed water, fertilizers, chemical cleaners, or frequent pressure washing (steam) cleaning. Fixture housing complete with marine grade cataphoresis suitable for use in marine grade environments. Not to be in direct contact with salt or corrosive agents for extended periods of time.
Order Guide- Pado
TYPE LL11 SPEC OCEAN HARBOR

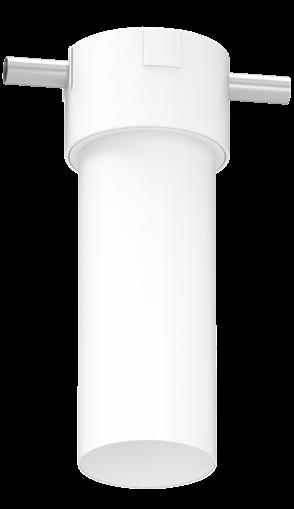

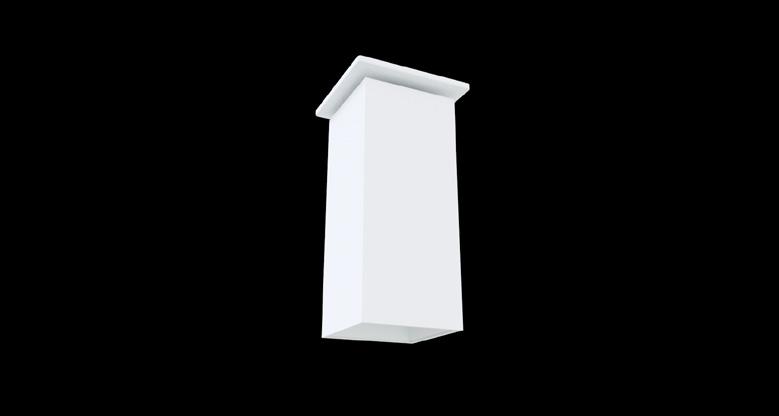

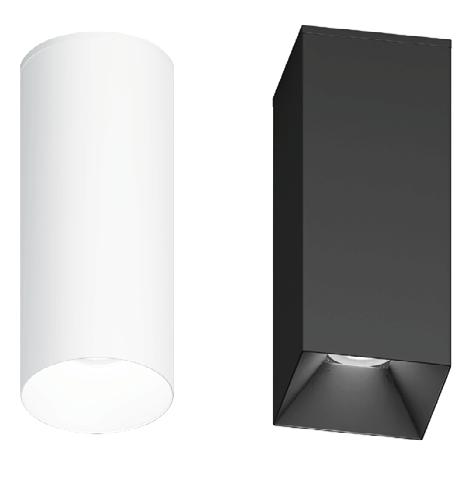

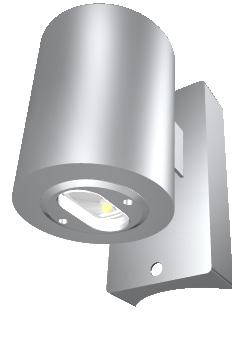

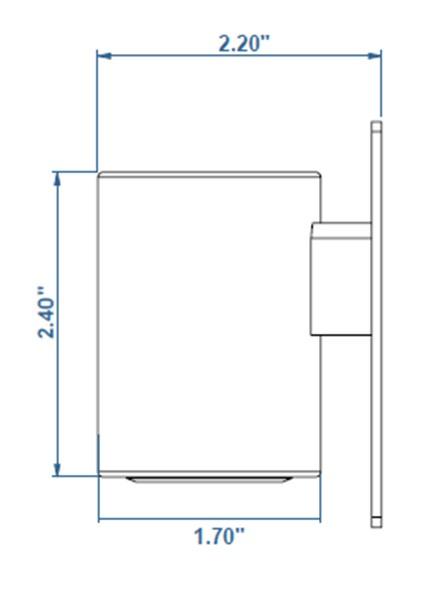

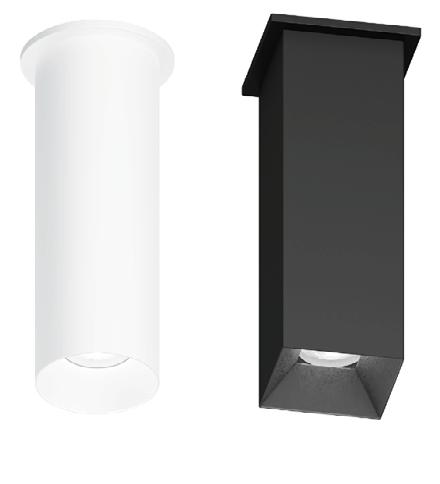

MISTI 028 CYL
SPEC SHEET
Project Name: Specifier:
Location:
Product Code:
Binning 2 McAdam Step
Distribution
OCEAN HARBOR
MISTI 028 CYL
SPEC SHEET
Project Name: Specifier:
Location:
Product Code:
Binning 2 McAdam Step
Distribution
TYPE LL12 SPEC OCEAN HARBOR
NORTH AMERICA
MAUNA 10
IP-rated projector
design Rod&Todd
Dimensions
Dimensiones
Photometric diagrams
Diagrammes photométriques
IP65 projectors equipped with COB LEDs with CRI98 and R9 93, they offer a wide range of narrow and precise light beams. Made of anodized aluminum, they are suitable for installation in particularly aggressive environments. Optical quality and fine finishes come together in a product of great reliability and quality.
Projecteurs IP65 équipés de LED COB avec CRI98 et R9 93, ils offrent une large gamme de faisceaux lumineux étroits et précis. Fabriqués en aluminium anodisé, ils sont adaptés à une installation dans des environnements particulièrement agressifs. La qualité optique et les finitions soignées sont réunies dans un produit d’une grande fiabilité et d’une grande qualité.
Proyectores IP65 equipados con LED COB con CRI98 y R9 93, ofrecen una amplia gama de haces de luz estrechos y precisos. Fabricados en aluminio anodizado, son adecuados para su instalación en entornos especialmente agresivos. Calidad óptica y finos acabados se unen en un producto de gran fiabilidad y calidad.
IP65 Class 2
Supply current Courant d’alimentation
Corriente de alimentación
Static White: 500mA (Vf18V)
Dim To Warm: 400mA (Vf 18V)
LED selection
Sélection des LED Selección del LED
2-Step MacAdam
Power
Pouissance
Potencia
Static White: 9W
Dim To Warm: 7,2W
CRI 98
Code construction
Construction du code produit
Construcción del código de producto
2 Aluminium 5 Black 6 Bronze C Custom
Series wiring Câblage en série
Cableado en serie
Lumens
Diagramas fotométricos made in Canada
Accessories
Accessoires
Accessorios
Static White 500mA drivers
Static White Alimentateurs 500mA
Static White Alimentadores 500mA
CCPRO10A-500 (1) IP20
Dimming: PHASE - 0-10V
CCPRO40A-500 (1..3) IP20
Dimming: PHASE - 0-10V
Dim to Warm 400mA drivers
Dim to Warm Alimentateurs 400mA
Dim to Warm Alimentadores 400mA
CCPRO10A-400 (1) IP20
Dimming: PHASE - 0-10V
CCPRO40A-400 (1..3) IP20
Dimming: PHASE - 0-10V

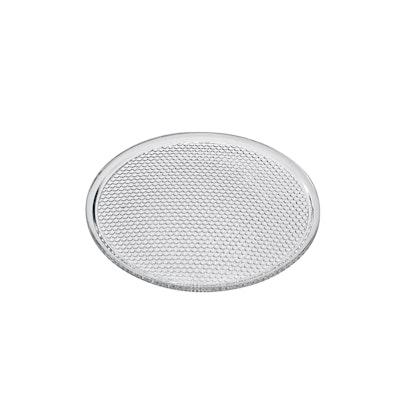

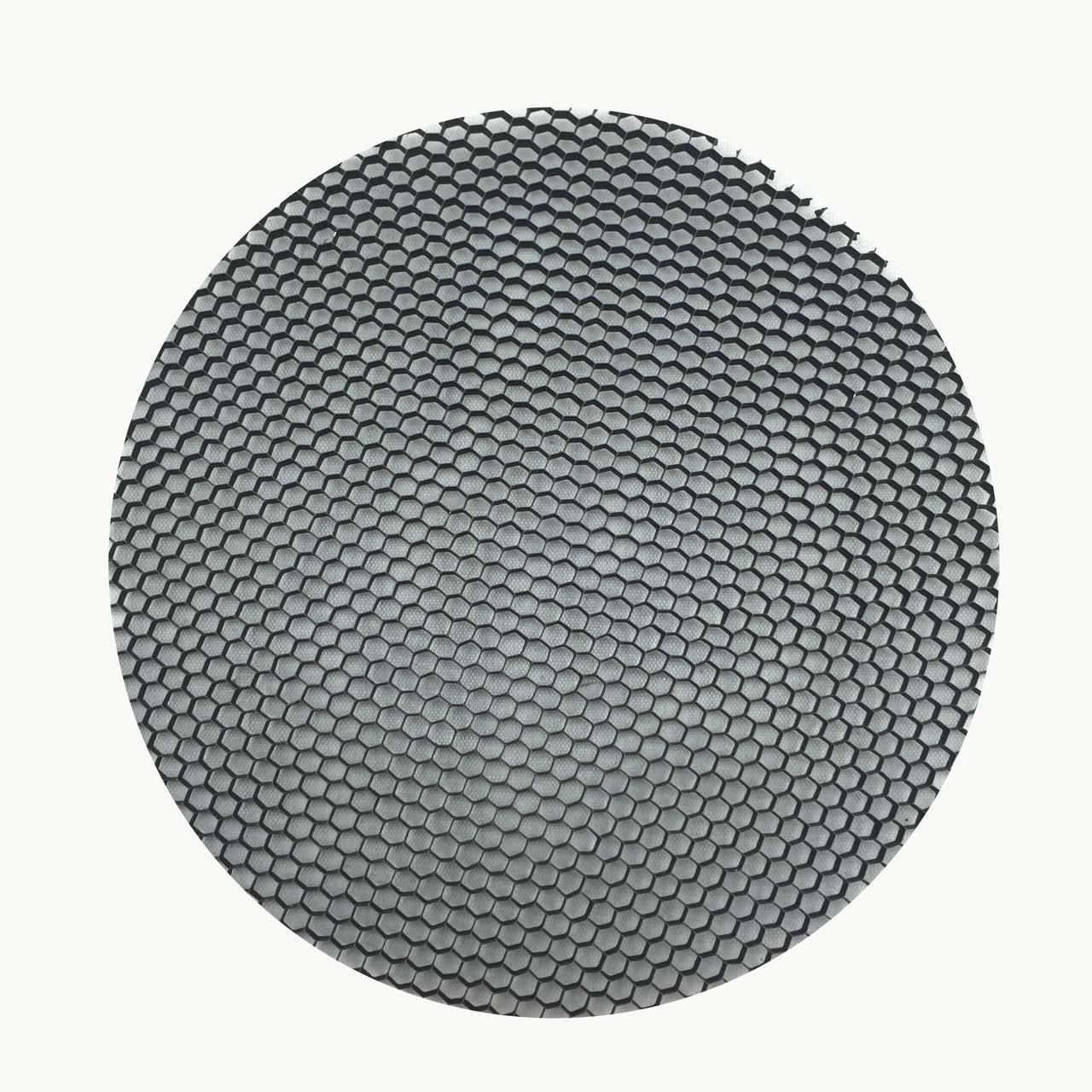

LH04
Low luminance hex louvre
EcoMono10W
Description
Eco is a high-performance architectural spotlight featuring a sleek, modern design. Its solid, durable construction makes it well-suited for harsh outdoor environments. The fixture offers flexibility for a wide range of applications, with multiple optic and mounting options. A variety of anti-glare accessories are also available to enhance visual comfort.
GM’s Professional Outdoor Series Flexible LED Tape combines style and technology with reliability for wet location. Designed for professional installations that demand a high level of quality, the LTR-P Series boasts a wide array of key features and is available in 16’-4” (5M), 98’-6” (30M) reels or custom cuts. Do not submerge in water.
FEATURES
• 24VDC
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K as well as Amber, Red, Green, Blue color temps
• Remote control with GM’s LUXcontrol™ App and controllers (requires NEMA box - by others)
• LM80 / IP65
• 120 LEDs per meter
• Cuttable every 2”
• Wet location
• Optical clear UV protected silicone sheath
• Premium diodes
• 120° viewing angle
• Dimmable
• Maximum run on a given lead is 60’ (1.5W), 32’-8” (3.0W), 16’-4” (5.8W)
SPECIFICATIONS
ELECTRICAL
•24V
•1.5W, 3W and 5.8 watts per foot
•90+ CRI
•-4°F to 122°F
CERTIFICATION
•UL
•May comply with Title 24 with select power supplies
•Class 2
•5-year warranty when paired with GM power supply OPTICS
• For proper thermal management, we recommend to mount this product in a channel
•Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5), excluding colors -AM, -BL, -RD, -GR and LTR-P-WP-24V-1.5W
WARRANTY
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
TYPE
BLANK
OCEAN HARBOR
LTR-P Professional Series ®
Wet Location, 24VDC 1.5W / 3.0W / 5.8W
LED Tape Specification Sheet
LED-CHL-XD
LED-CHL-XD-8
Extra deep format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 4’
Extra deep format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 8’
LED-CHL-XD-AMC (2) Adjustable mounting brackets for LED-CHL-XD N/A
LED-CHL-XD-EC (2) End caps for LED-CHL-XD. One solid, one with hole. N/A
LED-CHL-XD-MC (2) Mounting clips and screws for LED-CHL-XD N/A
LED-CHL-XD-F
LED-CHL-XD-F-8
Extra deep format extruded channel with flange. Includes snap-on frosted lens with mounting clips and screws. 4’
Extra deep format extruded channel with flange. Includes snap-on frosted lens with mounting clips and screws. 8’
LED-CHL-XD-F-DC (2) Drywall mounting brackets for LED-CHL-XD-F N/A
LED-CHL-XD-F-EC (2) End caps for LED-CHL-XD-F. One solid, one with hole.
45º LARGE ANGLE MOUNT
LED-CHL-45-1200
Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-45-1200-EC (2) End caps for LED-CHL-45 - one solid, one with hole
LED-CHL-45-1200-MC (2) Additional mounting clips for LED-CHL-45-1200
TYPE LL14 SPEC OCEAN HARBOR
CHIOBO WALL
Wall Mount LED Fixture
CONCEPT
Wall mounted LED fixture with radial emission available in two versions: Flat with Symmetric light effect, Angled for an elliptical asymmetric light effect.
MECHANICAL CHARACTERISTICS
Housing 6.30” Dia. X 3.15” (Flat) or 3.94” (Angled)
Materials Powder coated anodized die-cast aluminum optical head with extruded body. Marine Grade cataphoresis E available as optional.
Stainless Steel 316L junction box cover mounting back plate primer painted, suggested to be field painted the same color as the mounting surface.
Finish Textured finish provided as standard.
Power Connection
ELECTRICAL CHARACTERISTICS
Power Supply Local 4/1 smart driver (Non-Dimmable / 0-10V / Reverse Phase / Forward Phase) included with fixture. Driver to be mounted in local junction box behind the fixture.
Wattage 10W (500mA)
Voltage 120-277V Universal
Control 0-10V 1% Dim Phase (120V only) 10% Dim
SOURCE
LED Chip on Board.
Ferrite Dark Grey Black White Bronze
Sandstone Grey Heritage Brown
Pre-cabled with 7”L Belden direct burial 18ga 2 conductor cable for connection to remote power supply.
Functionality 316L grade stainless steel base and stainless steel anti-theft screws.
Mounting Surface mounted over recessed UL Listed 4” octagonal or round 1.5”D minimum junction box, supplied by others. Luminaire installs directly on wall with cover plate.
BUG B0–U3–G1
Weight 2.31lbs
Protection IP66
Impact IK10
CERTIFICATIONS
cULus Class 2 Wet Location Listed.
Tested in accordance with LM-79-08. Compliant for California installations. IEC 62471
RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
OPTIC
Internal high reflective anodized aluminum reflector with transparent diffusive polycarbonate lens.
Efficacy 36Lm/W max. Refer to photometric graphs for specific values.
CHIOBO WALL shown in Ferrite Dark Grey finish, Flat version (left) Angled version (right).
Cost:
Please note all custom orders are final sale. All quotes are valid for 30 days. 50% deposit is required to begin production. FFA does not apply on custom orders. Please sign and email documents to orders@avenuelighting.com with your purchase order.
Company Info:
Print Name:
By signing you acknowledge and agree to the above terms and conditions.
TYPE LL14 SPEC OCEAN HARBOR
CHIOBO WALL
BLANK
RNW3N
OCEAN HARBOR TYPE

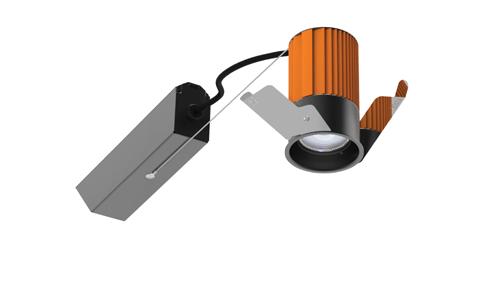

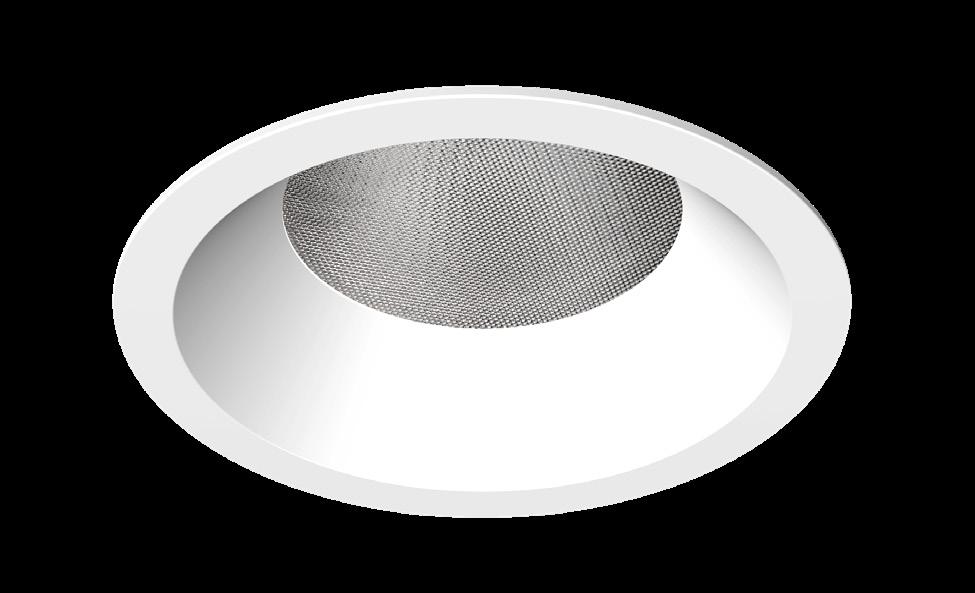

NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing

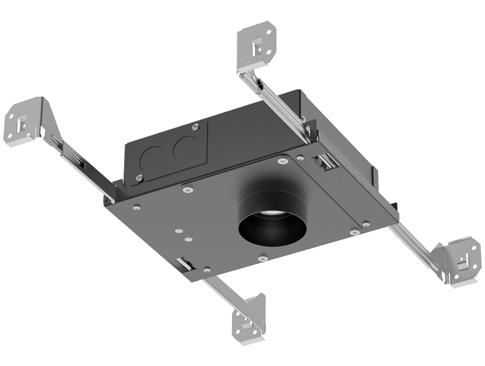

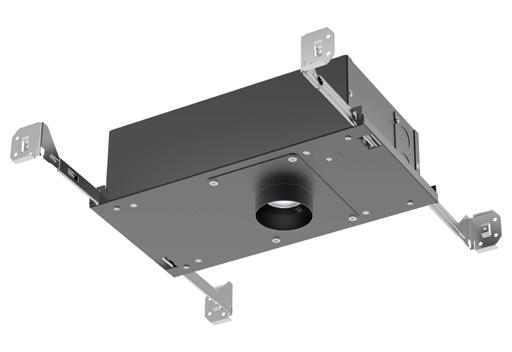

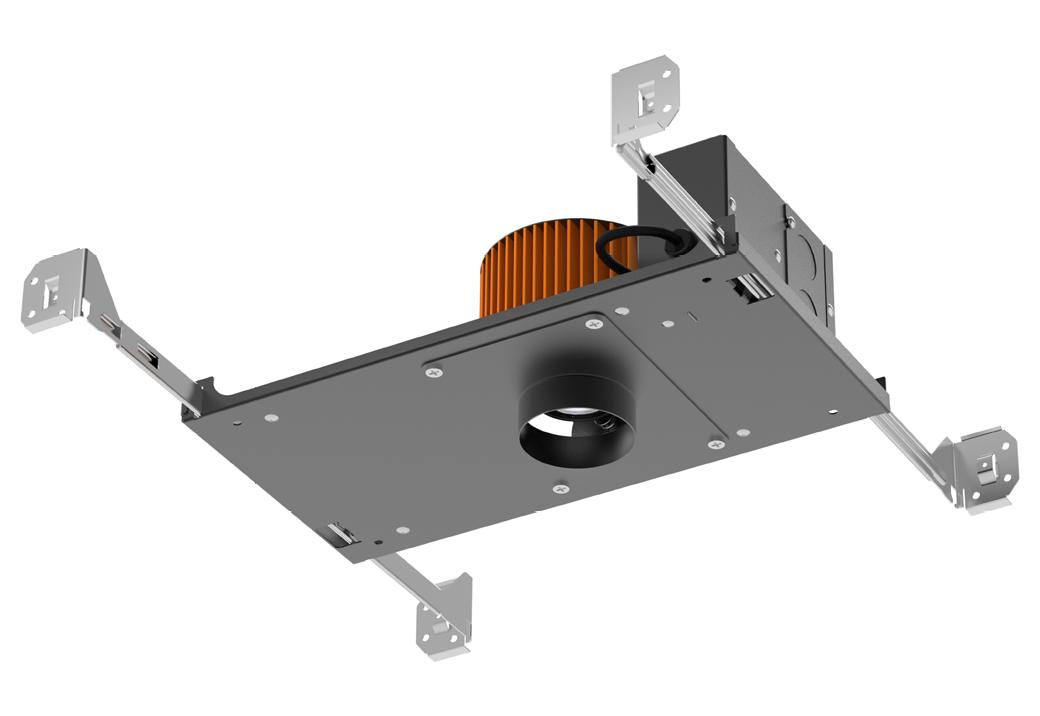

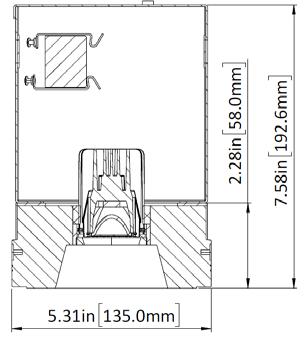

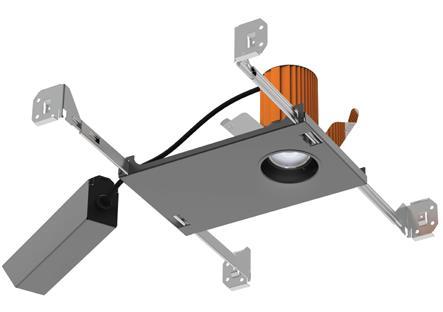

COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
C3R LED linear lighting produces uniform illumination designed to accent and highlight spaces such as small coves, under cabinets or millwork. Designed with modular CLiP® (Configurable Lighting Platform), C3R provides options to suit multiple application requirements. The rigid C3R may be connected to Tempo’s serpentine C3S providing an elegant solution for combined curved and straight-run applications. DMX, 0-10V & Triac dimming options.
Buy Tempo Buy American
CONSTRUCTION
Designed with non-ferrous components and mounting brackets. Meets MRI room requirements when used with brass mounting screws (part number C3A-MNTSCREW-BRS)
• Section lengths of 4 foot & 1 foot. Join sections and create continuous runs from one power supply.
• For combined curved and straight-run sections, C3R may be easily connected to Tempo’s C3S linear serpentine system
• Easily replaceable LED printed circuit boards.
• Quick wire connectors to join sections.
• CSA damp location listed.
OPTICS / LENS / DIFFUSER
• Clear or Frosted low-profile convex lens (120° x 120°)
POWER SYSTEM
• Utilizes remote, Class II low voltage 12Volt or 24Volt Power Supply. Power supplies must be installed in an approved enclosure (by others) in close proximity to luminaire. See Driver Remote Distance Chart for guidance.
• Triac dimming to 1% 0-10V dimming to under 10% DMX/RDM dimming to 1% Non-dimming also available
PERFORMANCE
Micro-Maintainable
CLiP™ - Configurable Lighting Platform module spacing options of 1” & 3” for specific applications or to reduce total watts per foot. (see pg. 6)
• Light output ranges from 220 to 320 lm/ft based on Watts/ft selection
• Dense Pack (DP) LED spacing (3W/ft only) places more LED’s closer together in each 3” module for high uniformity illumination.
• Operating temperature range of -20ºC to 50ºC
• Power Supply Total Harmonic Distortion <20%, Power Factor >0.9
LIGHT CHARACTERISTICS
Available in 1600K, 2000K, 2200K, 2700K, 3000K, 3500K, 4000K, 5000K plus Red, Green, Blue and Amber
• Typical CRI of 80+, 90+ CRI option available with 2700K, 3000K and 3500K selection (JA8).
• All LED’s are selected and placed on the printed circuit boards via Tempo Industries’ UniBin™ process which ensures consistent hue and color within the entire run. Color variations are held to within a maximum of a 2-step MacAdam ellipse.
WARRANTY
Tempo provides a 5-year limited warranty.
86,000 HOURS
L85 LUMEN MAINTENANCE
LED Luminaires will reach 85% of initial lumen output at or beyond 86,000 hours at 25°C.
Components, such as LED boards and lenses, can be easily replaced if necessary for increased product sustainability.
NEON FLEX SERIES
PRODUCT DATA SHEET
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
(1) C3R features 3” modules with zero spacing in between as standard. Module Spacing options of 1” & 3” in between each 3” module is available to reduce wattage per foot and reduce costs. See dimensional information for more details on Module Spacing.
• High CRI required to comply with 2016 & 2019 Title 24 JA8 High Efficacy Lighting.
Consult factory for information on tailored C3R fixture lengths.
Clear Lens (-CL)
Frosted Lens (-FL)
OCEAN HARBOR TYPE LT1
HW9 - Hardwire 9 ft
HWX - Hardwire custom ft
DC6 - DC plug 6 ft
DCX - DC plug custom, ft
secondary light source
AB - Back feed, side A AS1 - Side feed, side A1 AS2 - Side feed, side A2
53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only) G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
WD3 - 2700-3500K - 4.4 W/ft NO - No driver NO - No controller RGB AND TUNABLE WHITE
TW1 - Tun. White - 3.5 W/ft
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
TYPE LT1 SPEC OCEAN HARBOR
C3R
RIGID LED LINEAR ACCENT LIGHTING, LOW-POWER
REMOTE POWER SYSTEM
SYSTEM INTEGRATION ACCESSORIES
POWER SUPPLIES - 12V Output for 2W/ft Standard LED Spacing Require approved enclosure (by others). See chart on page 2
PWR-120-EL-040-T 120V AC Input, 12V DC Output, 40W, Triac Dimming (dim to 1%) Lutron Hi-lume 1% 2-wire LED driver, 120V forward phase - LTEA2W; 3.0” W x 1.0” H x 4.9” L
PWR-UNV-EL-060 120-277V AC Input, 12V DC Output, 60W, Non-Dimming; 1.7” W x 1.3” H x 8.4” L
PWR-UNV-EL-060-Z 120-277V AC Input, 12V DC Output, 60W, 0-10V Dimming (dim to under 10%); 1.7” W x 1.3” H x 8.4” L
POWER SUPPLIES - 24V Output for 3W/ft Dense Pack LED Spacing Require approved enclosure (by others). See chart on page 2
PWR-120-EM-040-T 120V AC Input, 24V DC Output, 40W, Triac Dimming (dim to 1%) Lutron Hi-lume 1% 2-wire LED driver, 120V forward phase - LTEA2W; 3.0” W x 1.0” H x 4.9” L
PWR-120-EM-040-T1 120V AC Input, 24V DC Output, 40W, Triac Dimming (dim to 1%) Lutron Hi-lume 1% 2-wire LED driver, 120V forward phase - LTEA2W; 1.2” W x 1.0” H x 14.25” L
PWR-120-EM-100-T 120V AC Input, 24V DC Output, 100W, Phase Dimming Triac & ELV; 3.0” W x 1.7” H x 9.9” L
PWR-UNV-EM-100-T-JB 120V AC Input, 24V DC Output, 100W, Phase Dimming Triac & ELV, Integral AC/DC J-Box; 3” W x 1.7”H x 14” L
PWR-UNV-EM-96-DMX 120-277V AC Input, 24V DC Output, 96W, DMX Dimming; 2.5”W x 1.25” H x 9.6” L
PWR-UNV-EM-060 120-277V AC Input, 24V DC Output, 60W, Non-Dimming; 1.7” W x 1.2” H x 9.5” L
PWR-UNV-EM-100 120-277V AC Input, 24V DC Output, 100W, Non-Dimming; 1.7” W x 1.2” H x 9.5” L
PWR-UNV-EM-100-Z 120-277V AC Input, 24V DC Output, 100W, 0-10V Dimming (dim to under 10%); 1.9” W x 1.3” H x 9.2” L
PWR-UNV-EM-100-Z-JB Plenum Rated J-Box Driver, 120-277V AC In, 24V DC Out, 100W, 0-10V Dimming (dim to under 10%); 2.5”
POWER & JUMPER FEED CABLES Additional lengths available, contact factory
C3A-MTGBRKT-SURF Set of 25 plastic Mounting Clips (screws included) 18” maximum recommended spacing between mounting clips.
C3A-MTGBRKT-SURF-20 Set of 25 plastic, 20º Mounting clips (screws included) 18” maximum recommended spacing between mounting clips.
ROT-MTGTRK-A6 6 foot Aluminum Track for use with rotational mounting brackets ROT-MTGBRK-C3 (Not MRI Room compliant)
ROT-MTGBRK-C3 Set of 25 plastic rotational mounting brackets for use with ROT-MTGTRK-A6. 18” maximum spacing between mounting clips.
C3A-MTGTRK 6 foot PVC mounting track for down and vertical mounting applications, 0.5” Tall, Gray
C3A-MNTSCREW-BRS Non Ferrous Brass mounting screw only for C3R mounting clip. (Meets MRI room requirements)
BLANK

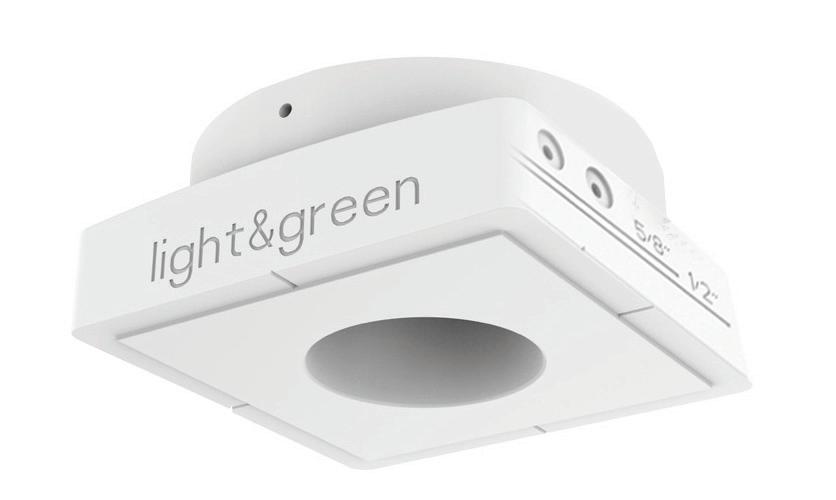

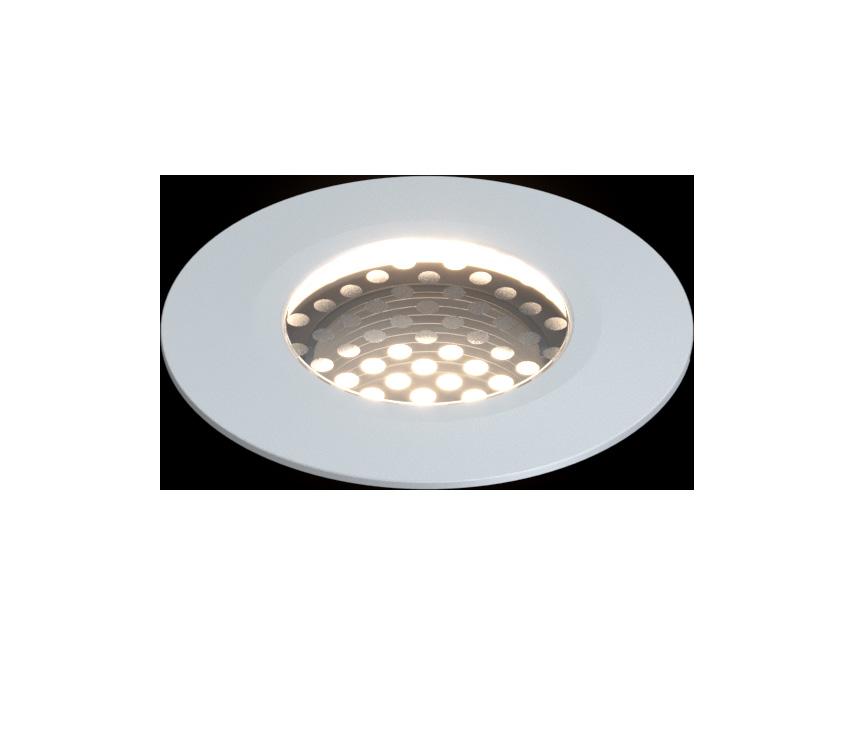

LG-9020
2” Non-adjustable Round
Recessed Downlight LED- Single
Project Address: Project Name:
Fixture Type: Quantity:
HARMONY
Trimless Recessed Downlight LED - Harmony downlights are solid plaster mud-in lighting solutions made from gypsum. Our plaster trims provide a TRUELY seamless and trimless lighting application. Our innovative monolithic design eliminates the need for touch ups after future maintenance. Our flangeless downlights are paintable, texturable, and manufactured at a level 5 plaster finish.
Quick Info
Application
Our LED modules are high performance, low power, and provide outstanding reliability and color quality/consistency. 2700K, 3000K, 3500K, and 4000K color temperatures are available with 95+ CRI. Also available in Warm Dim & Tunable White.
• Flicker free
• Dimming performance below 0.01%
• Life Rated for 50,000 hours at 70% lumen maintenance
New Construction / Remodeling
Delivered Lumens
1250 lm (13W) / 1800 lm (17W)
Color Temperature
2700K
3000K
3500K
4000K
Input Voltage
120V / 120-277V
Trims
(Ordering guide can be found on page 6) 1800K-3000K 940 Im (13W) / 1300 lm (17W)
Warm Dim Option 19
Tunable White Option
2700K-6500K 910 lm (13W)
Color Quality 95+ CRI
Beam Spreads
Module Ratings Wet location listed
Gypsum Flangeless (seamless)
Housing Ratings
IC Rated / Air Tight / CCEA
Dimming
• TRIAC/ELV (120V only)
• 0-10
• DALI
• Lutron EcoSystem
Trim Narrow Housing Shallow Housing
OCEAN HARBOR
NIO-2RTLNDC
PRODUCT DESCRIPTION
2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm or 1000lm LED packages
Comfort Dim (warm dimming) also available in 800lm only 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
ELECTRICAL
Lumens / Wattage: 800lm / 14W, 1000lm / 14W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com

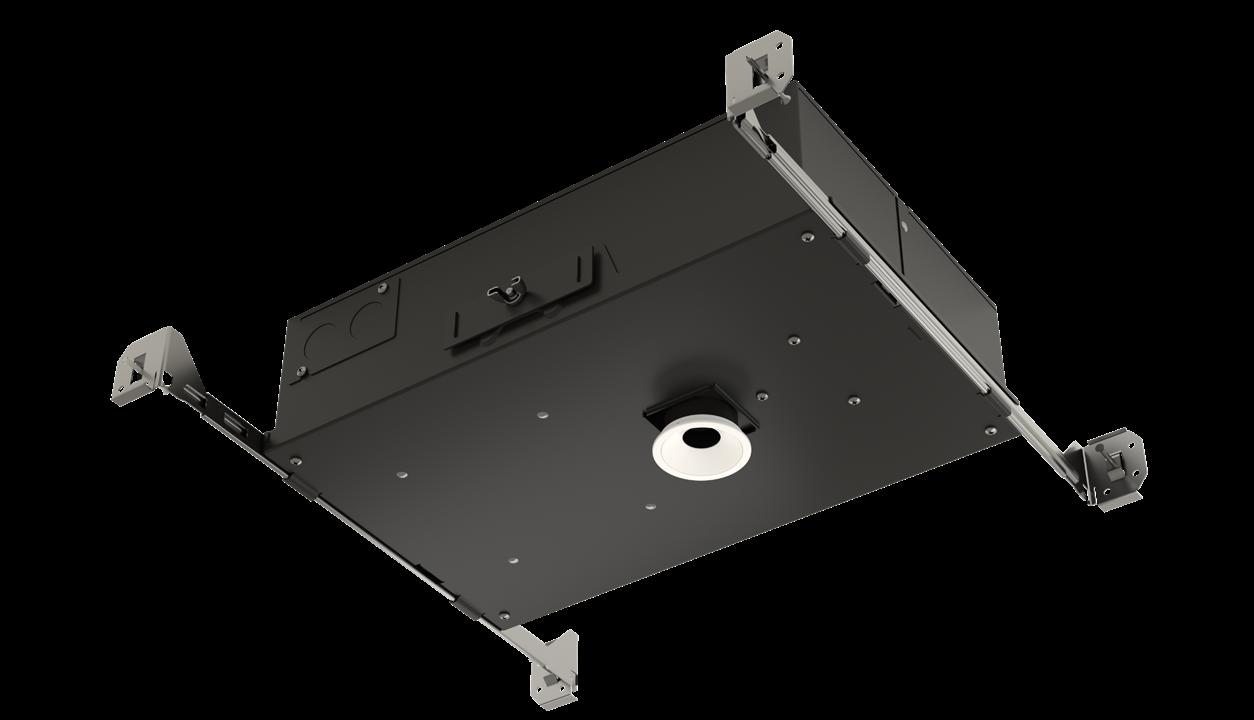

Compatible Housings
TYPE LT2 SPEC OCEAN HARBOR
LG-9020
2” Non-adjustable Round Recessed Downlight LED- Single
Ordering Guide
PRODUCT CODE
LG - 9020
REQUIRED OPTIONS
HOUSING
N - Narrow (1001-SQ)
S - Shallow (1004/1)
LED OPTIONS*
OUTPUT
13W - 1250 lm (13W)
17W - 1800 lm (17W)
COLOR TEMPERATURE
27K - 2700K
30K - 3000K
35K - 3500K
40K - 4000K
DIMMING OPTION*
Project Address:
Project Name:
Fixture Type: Quantity:
Example Number
LG-9020 N 13W 30K T Optional: 15 SF CY3
SN2-WH
Order Number
LG-9020 __ ___ ___ __
Optional: __ __ __
*Includes 90+ CRI, 38 degree beam spread OR TUNABLE WHITE
T - Triac/ELV (Less than 0.01%, compatible with 120V only)
D - DALI (Down to 0.5%)
0 - 10
WARM DIM (only compatible with 0-10)* - (Less than 0.1%)
*Please see installation guide for tunable white wiring diagram
ECO - (Hi - lume Premier 0.1% Eco System LED Driver with Soft-on, Fade-to-black dimming technology)
*For DMX please contact Light and Green directly.
OPTIONAL OPTIC OPTIONS
SPREAD
(Included)
LENS OPTICAL
HBL - Honeycomb
SF - Soft Focus
FR - Frosted
LS - Linear Spread
PR - Prismatic
LENS HOLDER
CY1-WH - Cylinder 1” White
CY2-WH - Cylinder 2” White
CY3-WH - Cylinder 3” White
CO-WH - Conical 1” White
CY1-BL - Cylinder 1” Black
CY2-BL - Cylinder 2” Black
CY3-BL - Cylinder 3” Black
CO-BL - Conical 1” Black
STUCCO ADAPTOR
SN2-WH - Snoot for 3/4” Stucco White
BLANK
TYPE LT3 SPEC
Luminaire characteristic:
OCEAN HARBOR
For 3000K, 80 CRI
Source:
White LED (LM-80 tested), 2200K: 80CRI, 2700K: 80CRI, 3000K: 80CRI, 3500K: 80CRI, 4000K: 80CRI.
Lumen maintenance: 85% of initial lumens at 100 000 hours (L85 B10) Ta 77°F and 104°F (25° and 40°)
Optic:
Material:
Mounting:
Electrical:
Symmetrical optics: Spot, flood, wide flood or general light. Wall grazer optics: Spot, medium, wide flood or no-dot. Wall grazer spot, medium and wide flood are also offered with internal micro-louver. Elliptical optic: 22°x60°
Body: Extruded aluminum. End caps: Die-cast aluminum with silicone seals. Protective screen: ¼ " (5mm) transparent glass. Hardware: Stainless steel.
Ceiling, floor or wall mounted with fix-flat or arm accessories. Ground installation with arms on spike.
24Vdc remote LED driver. See remote option page 4.
Dimming: 1-10V dimming (120-277V) down to 10% (on full load), DMX RDM (120-277V) or DALI (120-277) down to 0.1%. See dimming options page 4.
Temperature of operation: -22°F to 122°F (-30°C to 50°C)
Glass surface temperature: 104°F (40°C) maximum.
Finish:
Black, gray (RAL9007), rust brown or white (RAL9016), with a high level of weather and UV resistance. The semi-gloss finish coating is electrostatically applied, durable acrylic enamel baked at high temperatures for superior color retentive finish.
Weight: 0.99lb/ft (0.45kg/ft)
Warranty: 5 year limited warranty.
Ratings: IP66, IK06
Certification: cULus for wet location.
OCEAN HARBOR TYPE
VorteXLED Specification Series ®
5.8W, 24VDC ASYMMETRIC
LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6 inches increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• Asymmetric distribution, 45° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens SPECIFICATIONS
ELECTRICAL
•24VDC
•5.8 watts per foot
OPTICS
•90+ CRI
•Class 2 •IP65
WARRANTY
•5-year warranty when paired with GM power supply
ORDERING INFORMATION Example: VTX-A-24V-5.8W-27K-16
Note: Includes 48” leads. Factory sealed.
ACCESSORIES
VTX-TTC24 24in tape to tape connector
VTX-PCHW8 8ft. hardwired power feed
VTX-PCHW8-AF 8ft. hardwired power feed - alternate feed
VTX-EC Tape end cap
Note: For compatible channels, see next page.
Accessories included in factory assembled components. See selecting feed direction in this document to choose power feed.
CONTROLLERS
TYPE LT3 SPEC Linealuce
1.08' (329mm)
2.05' (625mm)
(920mm)
(1216mm)
(1511mm)
6.04' (1842mm)
7.01' (2138mm)
(2434mm)
8.95' (2729mm)
9.92' (3024mm)
11.01' (3355mm)
(3651mm)
(3946mm)
(4242mm)
(4537mm)
(4868mm)
(5164mm)
(5459mm)
(5755mm)
(6050mm)
822
2200K, 80CRI 827 2700K, 80CRI
830 3000K, 80CRI
835 3500K, 80CRI 840 4000K, 80CRI
SYMMETRICAL
(71mm)
adjustable arms 4-3/4'' (121mm)
Steel adjustable arms 4-3/4'' (121mm) 8 Black adjustable arms 8-3/4'' (221mm) 9 Steel adjustable arms 8-3/4'' (221mm) 10 ⁴ Black single adjustable arm 4-3/4'' (121mm) for 1ft module only
⁴ Stainless steel single adjustable arm 4-3/4'' (121mm) for 1ft module only
HARBOR
(For IK10)
(1) Length 6ft and more are module composition in continuous row (4) Available for mounting G, 1ft module only
(2) Elliptic and spot optics are available in 1ft, 2ft and 3ft module. (5) Consult Instruction sheet to see optic/accessory recommandations
(3) For Surface flat without arm mounting only (S1) (6) Optics not recommended for wall lighting
INCLUDED IN PRODUCT CODE
5ft cable*
*For 1 to 5ft module, 1 cable X169 (femelle) included. For 6 to 20ft compositions, 1 cable X169 (femelle) and 1 cable X173 (male) included.
Note: Use minimum of 2 clips or brackets per 4ft of channel.
DIMENSION
Note: Use minimum of 2 clips or brackets per 4ft of channel.
TYPE LT3 SPEC OCEAN HARBOR
Linealuce 27 Surface - Remote
INDOOR RATED DRIVERS
4449-0024A-060-UNV-ND
4449-0024A-060-UNV-D10
4449-0024A-060-UNV-DA
4449-0024A-060-UNV-LDMX
4449-0024A- 096 -UNV-ND
4449-0024A- 096 -UNV-D10
4449-0024A- 096 -UNV-DA
4449-0024A- 096 -UNV-LDMX
4446-0024A-120 -UNV-ND
4446-0024A-120 -UNV-D10
4446-0024A-192-UNV-ND
4446-0024A-192-UNV-D10 30ft (20ft of Linealuce module per feed)
OUTDOOR RATED DRIVERS Min-max
Driver box model
4549-0024A-060-UNV-ND
4549 -0024A-060-UNV-D10
4555 -0024A-060-UNV-DA
4555 -0024A-060-UNV-LDMX
4549 -0024A-096-UNV-ND
4549 -0024A-096-UNV-D10
4555 -0024A-096-UNV-DA
4555 -0024A-096 -UNV-LDMX
*Calculated for 20 AWG cable on a 20ft line with Vstart 25V. With bigger AWG from remote driver to relay wet location junction box, you can achieve longer distance. Consult installation sheet or contact factory for longer remote distance.
BLANK
TYPE LT4 SPEC OCEAN HARBOR

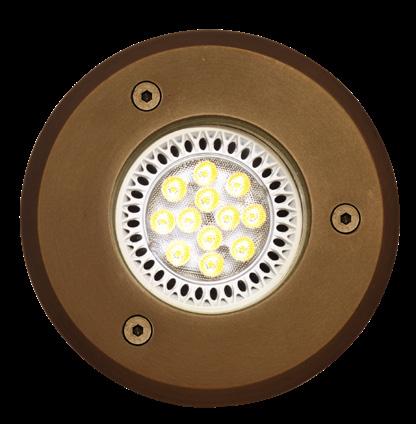

L312
EXTERIOR | INTERIOR
In-grade | For ground, ceilings, walls, and stairs Wet, Damp, and Dry location
Ordering Information
Date : Quantity :
Specifications
Luminaire | Example Code: L312-2-W30H-S-C-[ ]-0-MK3-P-S6
One ceramic GU5.3 bi-pin socket with stainless steel retaining springs, accepts MR16 lamps with G4 or GY6.35 bases.
LENS:
Flat tempered glass.
LAMP TYPE:
12V MR16. LED recommended. Halogen 30W maximum or 7W LED maximum.
MOUNTING:
Installs in-grade.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
SPECIFICATION SHEET
Driver-over rated at 4,400 lbs.
TYPE
BLANK
SPECIFICATION SHEET Page 2
CHELSEA Well Light Fixture
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 120°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490062-MR16-4W-25-2700K
TYPE LT5 SPEC OCEAN

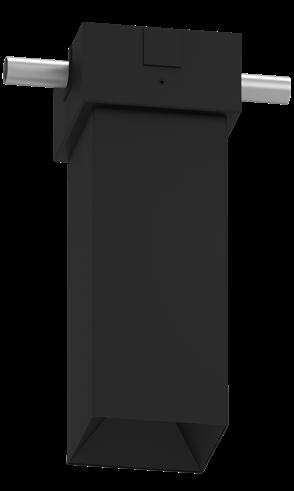

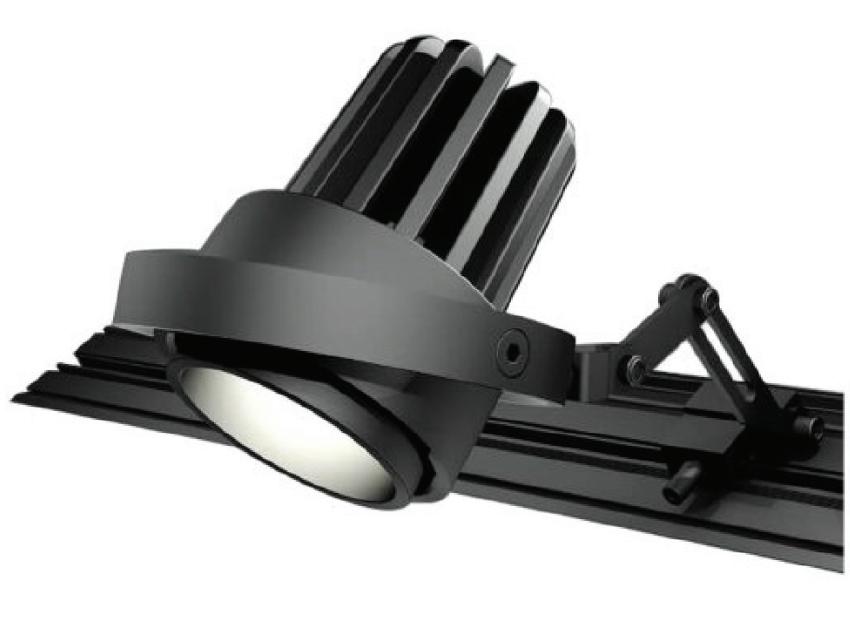

LG-5008
Aluminum Track for Plaster
AVAILABLE PROFILES
Fixture Type:
Fixture Type:
KNIFE EDGE
Location:
Invisible Track Light System - for Plaster
Revolutionary Knife Edge invisible track light rail system. This versatile track system is field cuttable and can be used to finish drywall, wood or a combination of drywall and wood. Optional spot head lighting attachments for Knife Edge have a full range of mobility and are field changeable, allowing for placement adjustments throughout the rail system.
Optional LED lighting engine is high performance, low power that provides outstanding reliability and color quality/consistency. 2700K, 3000K, 3500K, 4000K color temperatures are available with 95 CRI. Warm dim and tunable white LEDs are also available.
• Applications: track lighting, cove lighting, finishes for drop ceiling and soffit ceilings
• Fixtures are offered with a choice of spot, narrow flood or flood beam pattern
• Life Rated for 40,000 hours at 70% lumen maintenance
• All testing reports are based on published industry procedures
• Aluminum profile available in black and white color
• Easy installation for new construction and remodel applications
• Pre-made end caps, 3" or 6" inch opening “U” shapes available
• Pre-made corners, inside and outside
• Environmentally Friendly
• Rail can be used for architectural details
• Applications: Cove lighting, Edge Lighting, Custom pockets for HVAC, Tracks, Cameras, etc.
• Finishes for Drop ceilings, Soffit ceilings
• Field cuttable. Tightly secure flat side down. Use a high RPM fine toothed table saw to cut.
• Damp Location Rated
Concealed Modular Trough
PROJECT:
Features
TYPE:
The Concealed Modular Trough (CMT4) is a linear recessed housing with an aperture of 4.75” that offers a world of flexibility. Allowing you to install various lighting modules within a slim, continuous, single recessed housing. Ceilings never looked so clean. Offered in a the latest LED light sources with varying wattages to suit a broad range of applications.
The CMT4 housing only works in a gypsum board ceiling and must be installed before the sheet rock.
The 12” on center opening in the back of the housing must have either a light module or a blanking plate.
Product Overview
Type: Recessed Modular Trough, Accent & Display
Wattage: Depends on light module being used. See data below.
Color Temp: 2200K, 2700K, 3000K, 3500K, 4000K
(check ordering pages 6, 8, & 11 for availability)
CRI: 83 typ. or 90+ typ.
CrispWhite & 3K Class A LEDs available
Dimming: TRIAC & ELV, 5% Dim, 120/277VAC
0-10V, 1% Dim, 120/277VAC
Lutron LDE1 Hi-lume® 1% Dim Soft-On/Fade-to-Black, 120/277VAC
DALI, 1% Dim, 120/277VAC
NOTE: Housing and Light Modules are ordered separately. See page 2 for Housing ordering. See pages 6, 8 or 11 for Light Module ordering.
Fixture Summary
Performance Data
CMT4-HHP-LM
Watts Delivered Lumens LPW CBCP Color Temp-CRI
11 1030 93.7 8,243 3000K-83
16 1451 90.7 11,610 3000K-83
18 1640 91.1 13,119 3000K-83
Data is based on 3000K-83 , 120V IES files available on website.
Data is based on 3000K-83 120V IES files available on website. 15W & 21W data is based on Very Narrow Flood optics. See pg 9-10 for other beam spread data.
*18W data is Very Narrow Spot only.
CMT4-HSG
CMT4-HHP-LM
Certifications
CMT4-C3-LM
CMT4-C3-LM
Data is based on 3000K-83 120V IES files available on website. Data is “per head” and based on Flood Optic. See pg 12 for other beam spread data.
TYPE LT5 SPEC OCEAN HARBOR
LG-5008
Project Information: Project Name:
Ordering Guide
LINEAR PROFILE
LG - 5008 - 6.5' length*
GAP PROFILE
5008A - 3" Gap Profile
5008B - 6" Gap Profile
CORNER PROFILE
5008C - Inside Corner Profile
5008D - Outside Corner Profile
PROFILE COLOR
WH - White
BL - Black
*You will need to order one length per side for a channel
You only need to order one side for drop or soffit ceiling
Aluminum Track for Plaster LIGHTANDGREEN.COM 1-800-640-1907
Fixture Type:
Location:
Example Number
LG-5008 QTY 6
5008A QTY 2 5008B QTY 5008C QTY 1 5008D QTY 1 BL
LG-5008-6 5008A-2 5008C-1 5008D-1 BL
Order Number
LG-5008 QTY
5008A QTY 5008B QTY 5008C QTY 5008D QTY
LG-5008- 5008A- 5008B- 5008C- 5008D-
OPTIONAL ELECTRICFIED CHANNEL AVAILABLE, SEE LG-5008E / LG-5008F SPEC SHEETS FOR MORE DETAIL
Ver-1-1-2020
Concealed Modular Trough
PROJECT:
Ordering Information - Housing
CMT4-HSG 12 BT
Model
CMT4-HSG (use with HHP, C3M or C3 light modules, ordered separately, see pages 6, 8 or 11)
4 Configuration
Straight Runs
IND1 individual fixture, 2’ to 8’ in 1’ increments
CON continuous run > than 8’, specify to nearest foot
Patterns
12” x 12” 90° Corner available (provide drawing/sketch and consult factory)
5 Circuiting Options
1C 1 circuit harness 12/3, standard (for use with LE/TE driver only)
2C 2 circuit harness 12/3 (for use with LE/TE driver only)
1C6WIRE 1 circuit 12/6 dims (for use with 0-10V, HILUME-H, DALI drivers only)
2C6WIRE 2 circuit 12/6 dims (for use with 0-10V, HILUME-H, DALI drivers only)
NOTE: Order Light Modules separately. See pages 6, 8 or 11 for ordering information.
6 Accessory
CP Chicago Plenum

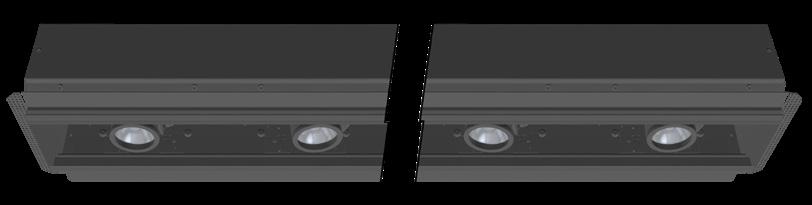

Concealed Modular Trough Continuous Runs
Example:
LG-5009
Adjustable Spot Head for Knife Edge
Quick Info
Application
New Construction / Remodeling
Delivered Lumens
950 lm (9W)/ 1250 lm (13W)/ 1800 Im (17W)
Color Temperature
Fixture Type:
Location:
KNIFE EDGE
Spot Head Lighting
Revolutionary spot head lighting attachment for Knife Edge invisible track light rail system. This versatile spot head has a full range of mobility and is field changeable, allowing for placement adjustments throughout the rail system.
LED lighting engine is high performance, low power that provides outstanding reliability and color quality/consistency. 2700K, 3000K, 3500K, 4000K color temperatures are available with 95 CRI.
• Fixtures are offered with a choice of spot, narrow flood or flood beam pattern
• Life Rated for 40,000 hours at 70% lumen maintenance
• All testing reports are based on published industry procedures
Color Quality
95 CRI, 2-step SDCM
Warm Dim Option
1800K-3000K 940 Im (13W)
Tunable White Option
2700K-6500K 910 lm (13W)
Input Voltage
120/277V
Arm
Aluminum material / Black powder coating
Arm has full range of mobility
Module Ratings
Damp Location
Guarantee
40,000 hrs | 3 years
LIGHTANDGREEN.COM
1-800-640-1907 Ver-1-1-2020
Light Distribution
General
Wall Wash Spot Light
Dimming
TRIAC/ ELV
Additional Arm Color
White
Additional Dimming Options
0-10 / DALI Dimming / Lutron EcoSystem
Concealed Modular Trough
PROJECT:
Features
TYPE:
The Concealed Modular Trough (CMT4) is a linear recessed housing with an aperture of 4.75” that offers a world of flexibility. Allowing you to install various lighting modules within a slim, continuous, single recessed housing. Ceilings never looked so clean. Offered in a the latest LED light sources with varying wattages to suit a broad range of applications.
The CMT4 housing only works in a gypsum board ceiling and must be installed before the sheet rock.
The 12” on center opening in the back of the housing must have either a light module or a blanking plate.
Product Overview
Type: Recessed Modular Trough, Accent & Display
Wattage: Depends on light module being used. See data below.
Color Temp: 2200K, 2700K, 3000K, 3500K, 4000K
(check ordering pages 6, 8, & 11 for availability)
CRI: 83 typ. or 90+ typ.
CrispWhite & 3K Class A LEDs available
Dimming: TRIAC & ELV, 5% Dim, 120/277VAC
0-10V, 1% Dim, 120/277VAC
Lutron LDE1 Hi-lume® 1% Dim Soft-On/Fade-to-Black, 120/277VAC
DALI, 1% Dim, 120/277VAC
NOTE: Housing and Light Modules are ordered separately. See page 2 for Housing ordering. See pages 6, 8 or 11 for Light Module ordering.
Fixture Summary
Performance Data
CMT4-HHP-LM
Watts Delivered Lumens LPW CBCP Color Temp-CRI
11 1030 93.7 8,243 3000K-83
16 1451 90.7 11,610 3000K-83
18 1640 91.1 13,119 3000K-83
Data is based on 3000K-83 , 120V IES files available on website.
Data is based on 3000K-83 120V IES files available on website. 15W & 21W data is based on Very Narrow Flood optics. See pg 9-10 for other beam spread data.
*18W data is Very Narrow Spot only.
CMT4-HSG
CMT4-HHP-LM
Certifications
CMT4-C3-LM
CMT4-C3-LM
Data is based on 3000K-83 120V IES files available on website. Data is “per head” and based on Flood Optic. See pg 12 for other beam spread data.
ECO - (Hi - lume Premier 0.1% Eco System LED Driver with Soft-on, Fade-to-black dimming technology)
0 - 10
LIGHTANDGREEN.COM
Concealed Modular Trough
PROJECT:
Ordering Information - Housing
CMT4-HSG 12 BT
Model
CMT4-HSG (use with HHP, C3M or C3 light modules, ordered separately, see pages 6, 8 or 11)
4 Configuration
Straight Runs
IND1 individual fixture, 2’ to 8’ in 1’ increments
CON continuous run > than 8’, specify to nearest foot
Patterns
12” x 12” 90° Corner available (provide drawing/sketch and consult factory)
5 Circuiting Options
1C 1 circuit harness 12/3, standard (for use with LE/TE driver only)
2C 2 circuit harness 12/3 (for use with LE/TE driver only)
1C6WIRE 1 circuit 12/6 dims (for use with 0-10V, HILUME-H, DALI drivers only)
2C6WIRE 2 circuit 12/6 dims (for use with 0-10V, HILUME-H, DALI drivers only)
NOTE: Order Light Modules separately. See pages 6, 8 or 11 for ordering information.
6 Accessory
CP Chicago Plenum
Concealed Modular Trough Continuous Runs
Example:
TYPE LT6 SPEC OCEAN HARBOR
LG-5008
Aluminum Track for Plaster
AVAILABLE PROFILES
Fixture Type:
Fixture Type:
KNIFE EDGE
Location:
Invisible Track Light System - for Plaster
Revolutionary Knife Edge invisible track light rail system. This versatile track system is field cuttable and can be used to finish drywall, wood or a combination of drywall and wood. Optional spot head lighting attachments for Knife Edge have a full range of mobility and are field changeable, allowing for placement adjustments throughout the rail system.
Optional LED lighting engine is high performance, low power that provides outstanding reliability and color quality/consistency. 2700K, 3000K, 3500K, 4000K color temperatures are available with 95 CRI. Warm dim and tunable white LEDs are also available.
• Applications: track lighting, cove lighting, finishes for drop ceiling and soffit ceilings
• Fixtures are offered with a choice of spot, narrow flood or flood beam pattern
• Life Rated for 40,000 hours at 70% lumen maintenance
• All testing reports are based on published industry procedures
MFL medium flood, 25° 30 3000K-83 279 2700K-90+ 3CLA* 3000K Class A
FL flood, 28° 35 3500K-83 309 3000K-90+
WF wide flood, 40° 40 4000K-83 359 3500K-90+
VWF very wide flood, 60° 409 4000K-90+
LS linear spread lens, 60° x 10° * Not available for 18W
7 Driver 8 Options
LE/TE TRIAC/ELV dimming, 5% dim (for use with 1C or 2C harness)
SNAH snoot accessory holder, 1” length, matte black interior, exterior finish matches fixture finish, accepts cross blade plus 2 additional forms of media 0-10V 0-10V dimming; 1% dim (for use with 1C6WIRE, 2C6WIRE or 0-10V harness)
HILUME-H-ECO Lutron LDE1 Hi-lume® 1% dim Soft-On/Fadeto-Black (for use with 1C6WIRE or 2C6WIRE harness)
AH accessory holder, specify finish (WT, BT, ST), accepts (2) 1/8” forms of media and optical film
HEX hexcell louver, 1/8”x1/8” (requires SNAH or AH) CB cross blade, matte black finish (requires SNAH)
DALI EldoLED; 1% dim (for use with 1C6WIRE or 2C6WIRE harness) SOL solite beam softening lens (requires SNAH or AH)
NOTE: Order CMT4 housing separately. See pages 2 for ordering information.

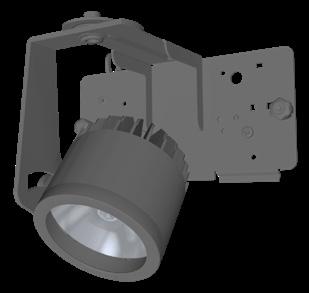

Product Detail - Hornet HP (HHP) Light Module (use with CMT4-HSG)
Accessories (diagrams show installation order)
TYPE LT6 SPEC OCEAN HARBOR
LG-5008
Aluminum Track for Plaster
Project Information: Project Name:
Fixture Type:
Ordering Guide
LINEAR PROFILE
LG - 5008 - 6.5' length*
GAP PROFILE
5008A - 3" Gap Profile
5008B - 6" Gap Profile
CORNER PROFILE
5008C - Inside Corner Profile
5008D - Outside Corner Profile
PROFILE COLOR
WH - White
BL - Black
*You will need to order one length per side for a channel
You only need to order one side for drop or soffit ceiling
Example Number
LG-5008 QTY 6
5008A QTY 2 5008B QTY 5008C QTY 1 5008D QTY 1 BL
Location:
LG-5008-6 5008A-2 5008C-1 5008D-1 BL
Order Number
LG-5008 QTY
5008A QTY 5008B QTY 5008C QTY 5008D QTY
LG-5008- 5008A- 5008B- 5008C- 5008D-
OPTIONAL ELECTRICFIED CHANNEL AVAILABLE, SEE LG-5008E / LG-5008F SPEC SHEETS FOR MORE DETAIL
OCEAN HARBOR
Concealed Modular Trough
PROJECT:
Ordering Information - C3M Light Module (use with CMT4-HSG)
1 Model
CMT4-C3M-LM (use with CMT4 housing)
CMT4-BP blanking plate, black (items 2-8 do not apply with this selection)
Note: Whole length must have 1 light module or blanking plate per foot
VNF very narrow flood, 18° 30 3000K-83 279 2700K-90+ 3CLA 3000K Class A
NF narrow flood, 23° 35 3500K-83 309 3000K-90+
FL flood, 34° 40 4000K-83 359 3500K-90+
WF wide flood, 44° 409 4000K-90+
LS linear spread lens, 60° x 10° * Not available for 18W
7 Driver 8 Options
LE/TE TRIAC/ELV dimming, 5% dim (for use with 1C or 2C harness)
SN - snoot, 1” length, matte black interior, exterior finish matches fixture finish, accepts up to 2 accessories + cross blade 0-10V 0-10V dimming; 1% dim (for use with 1C6WIRE, 2C6WIRE or 0-10V harness)
HILUME-H-ECO Lutron LDE1 Hi-lume® 1% dim Soft-On/Fadeto-Black (for use with 1C6WIRE or 2C6WIRE harness)
DALI EldoLED; 1% dim (for use with 1C6WIRE or 2C6WIRE harness)
HEX - hexcell louver SOL - solite beam softening lens
CB - cross blade, matte black (requires snoot)
NOTE: Order CMT4 housing separately. See pages 2 for ordering information.
Product Detail - C3M Light Module (use with CMT4-HSG)
Accessories (diagrams show installation order)
TYPE
BLANK
OCEAN HARBOR
Concealed Modular Trough
PROJECT:
Ordering Information - C3 Light Module (use with CMT4-HSG)
1 Model
CMT4-C3-LM (use with CMT4 housing)
CMT4-BP blanking plate, black (items 2-8 do not apply with this selection)
Note: Whole length must have 1 light module or blanking plate per foot
5 Beam Spread 6 Options
NSP narrow spot, 10° (based on availability, lead times may vary, consult factory)
SP spot, 15°
flood, 25°
WF wide flood, 40°
LS linear spread lens, 60° x 10°
* Not available with NSP beam spread
7 Driver 8 Options
LE/TE TRIAC/ELV dimming, 5% dim (for use with 1C or 2C harness)
0-10V 0-10V dimming; 1% dim (for use with 1C6WIRE, 2C6WIRE or 0-10V harness)
HILUME-H-ECO Lutron LDE1 Hi-lume® 1% dim Soft-On/Fadeto-Black (for use with 1C6WIRE or 2C6WIRE harness)
DALI EldoLED; 1% dim (for use with 1C6WIRE or 2C6WIRE harness)
(standard front door accepts 1 accessory)
SN34 - snoot 3/4” length, matte black interior, exterior finish matches fixture finish; accepts up to 2 accessories
SN15 - snoot 1-1/2” length, matte black interior, exterior finish matches fixture finish; accepts up to 2 accessories
HEX - hexcell louver
SOL - solite beam softening lens
CB - cross blade, matte black finish (requires snoot)
NOTE: Order CMT4 housing separately. See pages 2 for ordering information.
Product Detail - C3 Light Module (use with CMT4-HSG)
Accessories (diagrams show installation order)
Essential LEDs
The four components below are required to create a shelving unit with adjustable shelves that will light up in any position where they are placed Each shelving unit requires two busbars to be installed on each side of the unit; busbars are needed only for sections of the unit where illuminated shelves are desired After installation, busbars can be covered by laminate or veneer, or concealed by adjacent cabinetry Each adjustable shelf requires two (2) Brass Contact Pads and two (2) Brass Shelf Brackets Two (2) Lug Ring Connectors are required to connect driver to busbars See Cut Sheet #9X254 for full installation instructions
EssentialLEDs linear fixtures must be specified with ASWE wire exit.
0
0
0 500” [12 7mm]
0
0
0
Description: Conductive brass busbar with threaded holes (8-32) spaced every 32mm OC Each shelving unit requires two (2) Busbars, one on each side of unit
System is intended for installation in new cabinetry or millwork only; each cabinet requires milling out of symmetrical channels (depth of 0 150” [3 81mm]) on each side of unit for installation of busbars Available in 3’ [914 4mm], 6’ [1828 8mm] or Custom length (C)
Description: Custom vertical busbar with lap joints to allow additon of horizontal busbar; threaded holes (8-32) spaced every 32mm OC Contact factory for help to specify .
Description: Custom horizontal busbar with lap joint to allow connection to vertical busbar . Contact factory for help to specify
Description: Lug ring connector attaches positive and negative wires from driver to busbar to power lighting fixtures Screw and washer included System requires two (2) lug ring connectors per driver
1.5W / 3W COB (Chip On Board) LED Tape Specification Sheet
PRODUCT OVERVIEW
The newest technology in flexible LED tape is the COB (Chip On Board). Tightly spaced diodes are encapsulated into a single phosphor strip that provides a seamless linear light display with no LED pixelation. Available in 2700K, 3000K, 3500K and 4000K.
FEATURES
• 24VDC
• 2700K, 3000K, 3500K and 4000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 156 LEDs per foot
• Cuttable every 2”
• 180° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 32’-8”
• Includes Sure-Tite connectors
SPECIFICATIONS
ELECTRICAL
•24V
•1.5 / 3 watts per foot
OPTICS
•95+ CRI
Project
CERTIFICATION
•UL
•Title 24 compliant when used with specific drivers. Consult factory.
•Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space.
WARRANTY
•5-year warranty when paired with GM power supply.
Cut Sheet #9W415
BRASS CONTACT PAD W/ CONNECTOR
SPECIFICATIONS
Dimensions:
Material: Connector: 1 .250” x 1 .000” x 0 125” [31 75mm x 25 4mm x 3 175mm] Brass pad, plastic connector Wago Single Pole BRASS SHELF BRACKET & SCREW
Dimensions: Material: 0 750” x 0 750" x 0 500” [19mm x 19mm x 12mm] Brass PRO SERIES BRASS CONTACT PAD W/ CONNECTOR
0625”
0
Dimensions: Material: 0 780” x 0 660” x 0 125” [19 81mm x 16 76mm x 3 18mm] Brass
PRO SERIES BRASS MOUNTING PIN SPECIFICATIONS
Dimensions:
Material: 0 19” x 1 125” [4 83mm x 28 58mm] Brass
Description: Brass contact pad with Wago connector & screw for installation on underside of each shelf in Adjustable Shelf Lighting System Pocket for each contact pad should be milled to depth of 120” [3 .048mm] to ensure flush surface on underside of shelf . Wires from lighting fixture are inserted into Wago connectors to power fixture
System requires two (2) contact pads per shelf, one left, one right Available in Brass or Nickel-Plated finish
Description: Brass shelf bracket with brass screw for use with Adjustable Shelf Lighting System . Brass screw threads into busbar to conduct low voltage power from driver to lighting fixture Brass brackets and screws are required only in the holes that are connected to the busbar; ordinary shelf brackets can be used for the other supports
System requires two (2) brass shelf brackets & screws per shelf Available in Brass or Nickel-Plated finish .
Description: Pro Series Brass contact pad with Wago connector & screw for installation on underside of each shelf in Adjustable Shelf Lighting System Pocket for each contact pad should be milled to depth of 120” [3 048mm] to ensure flush surface on underside of shelf Wires from lighting fixture are inserted into Wago connectors to power fixture
Pro Series components require precise placement within millwork to ensure contact Pro Series requires two (2) contact pads per shelf, one left, one right
Description: Pro Series Brass mounting pin for use with Adjustable Shelf Lighting System Brass screw threads into busbar to conduct low voltage power from driver to lighting fixture Brass brackets and screws are required only in the holes that are connected to the busbar; ordinary shelf brackets can be used for the other supports
Pro Series components require precise placement within millwork to ensure contact Pro Series requires two (2) contact mounting pins per shelf Available in Brass or Nickel-Plated finish .
BLANK
TYPE LT8 SPEC OCEAN HARBOR
Kurba Large Sauna Horizontal and Vertical Static White Field Bendable 24V System
Features
Kurba Large is a dot free direct view, highly versatile, energy efficient and flexible LED strip suitable for Sauna and Spa locations capable of horizontal/side bends and vertical/top bends with a 6” bending radius. The silicone material offers excellent heat, weather, UV, and solvent resistance and has a special coating to repel dust and dirt accumulation.
Applications
Sauna and Spa locations
Materials
Silicone for Red list approved, as well as heat, weather, UV, and solvent resistance
Dimming
Dimable down to 1%. Dot Free even illumination. Also available with Black Lens
Average Life (L70)
50,000 hours
Approvals
24VDC Class 2 wet listed, IP67
Warranty 3 years
TOP VIEW FLEX NEON FLEX SERIES
PRODUCT DATA SHEET
The Top View Neon Flex is a flexible silicone channel that bends up and down on the vertical axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends up and down on the vertical axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
Available in static white, warm dimming, tunable white, RGB, and RGBW
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 150mm (6in)
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
BLANK
OCEAN HARBOR
35 - 3500K LP4 - 5.8 W/ft
42 - 4200K LHP - 7.0 W/ft
- ELV dimming 120/277 VAC (Only available in 96W - 24V driver)
VAC
53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only) G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K - 4.4 W/ft
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
- No controller RGB AND TUNABLE WHITE LED TAPE OPTIONS (See Delivered Lumens table in section 1 for details).
TW2 - Tun. White - 5.8 W/ft
TW1 - Tun. White - 3.5 W/ft N/A - Not available with TW and RGB options I - Indoor dry and damp location
Kurba Small Horizontal and Vertical Field Bendable 24V System
Features
Kurba Small is a direct view, small profile, energy efficient and flexible LED strip suitable for outdoor wet locations capable of horizontal/side bends and vertical/top bends with a 2” bending radius. The silicone material offers excellent heat, weather, UV, and solvent resistance and has a special coating to repel dust and dirt accumulation.
Applications
Indoor/Outdoor dry & wet location
Materials
Silicone for red list approved, as well as heat, weather, UV, and solvent resistance
Dimming
Dot Free even illumination. Also available with Black Lens
Technical Information
Average Life (L70)
50,00 Hours
Approvals
24VDC Class 2 wet listed, IP67
Warranty 3 years
Constraints
NEON FLEX SERIES
PRODUCT DATA SHEET
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
BLANK
OCEAN HARBOR TYPE
HWX - Hardwire custom ft
DC6 - DC plug 6 ft
DCX - DC plug custom, ft
secondary light source
AB - Back feed, side A AS1 - Side feed, side A1 AS2 - Side feed, side A2
53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only) G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
WD3 - 2700-3500K - 4.4 W/ft NO - No driver NO - No controller RGB AND TUNABLE WHITE
TW1 - Tun. White - 3.5 W/ft
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
TYPE LT10 SPEC OCEAN HARBOR
PROJECT:
TYPE:
CCT
DMX
18K, 22K, 27K, 3K, 35K, 4K, 65K
RGB, RGBW, RGBA, MONO, DYW, DMW CUSTOM
CRI UP TO 98, UL Diamond rated
Control
Optical Distribution
ELV, DALI, MoT, DMX, DMX RDM, DMX DALI, Dim to Warm ELV, Dim to Warm DMX
120°
Operating Temperature -4° F ~ 122° F (-20°C ~ 50°C)
Power Factor
≥ 0.9
SDCM 2- Step MacAdamEllipse
Dimensions
L: 1ft (305mm), 4ft (1219.2mm)
W: 1 2/11” (30mm) H: 1 1/4”(31.7mm)
Applications Cove and Indirect General Illumination
Voltage
100-277V AC 50Hz/60Hz
Warranty 5 Years
STANDARDS & CERTIFICATIONS
Tested to UL & CSA by Intertek For Use in USA & CANADA. 1 2/11” (30mm) 1 1/4” (31.7mm)
Color rendition rating, Diamond. Based on IES TM-30-20.
QUANTITY:
FIXTURE RUN LENGTHS
Max Run Length
Standard Output High Output
DIM TO WARM + DMX
OCEAN HARBOR TYPE LT10 ALT
PROJECT:
TYPE:
CCT
DMX
18K, 22K, 27K, 3K, 35K, 4K, 65K
RGB, RGBW, RGBA, MONO, DYW, DMW CUSTOM
CRI UP TO 98, UL Diamond rated
Control
Optical Distribution
ELV, DALI, MoT, DMX, DMX RDM, DMX DALI, Dim to Warm ELV, Dim to Warm DMX
120°
Operating Temperature -4° F ~ 122° F (-20°C ~ 50°C)
Power Factor
≥ 0.9
SDCM 2- Step MacAdamEllipse
Dimensions
L: 1ft (305mm), 4ft (1219.2mm)
W: 1 2/11” (30mm) H: 1 1/4”(31.7mm)
Applications Cove and Indirect General Illumination
Voltage
100-277V AC 50Hz/60Hz
Warranty 5 Years
STANDARDS & CERTIFICATIONS
Tested to UL & CSA by Intertek For Use in USA & CANADA. 1 2/11” (30mm) 1 1/4” (31.7mm)
Color rendition rating, Diamond. Based on IES TM-30-20.
QUANTITY:
FIXTURE RUN LENGTHS
Max Run Length
Standard Output High Output
DIM TO WARM + DMX
OCEAN HARBOR
TYPE LT11 SPEC OCEAN HARBOR
Kurba Large Pool Horizontal and Vertical Static White Field Bendable 24V System
Features
Kurba Large is a UL676 Pool Rated light strip with a sleek, direct view profile. Suitable for submersion max 6 ft deep and capable of horizontal/side and vertical/top bends up to 6” radius. Built with robust factory made power feeds or end caps using UL676 Pool Rated SJTW cabling, Kurba Large Pool Rated mounts to a specifically designed thick plastic channel.
Applications
Indoor/Outdoor wet & submerged location
Materials
PVC Material for high chlorine resistance
Dimming
Dimable down to 1%. Dot Free even illumination. Also available with Black Lens
Average Life (L70)
50,000 hours
Approvals
24VDC Class 2 wet listed, IP68
Warranty 3 years
Technical Information
Ordering Code
NO QUOTE, BY POOL INSTALLERS
Elegance LightRun Adjustable Spot
Description
An innovative, multi-functional linear lighting solution. This small and discreet luminaire for under-shelf applications in museums, retail and/ or hospitality, combines high performance, miniature Adjustable LED spots together with uniform diffused ambient lighting. The LED spots and diffused light stripe can be controlled separately, enabling the user to select and switch between a spot light effect or a diffused lighting effect or a combination of both. Requires separate drivers (Patent Pending). Each module of LED spot can be switch on or off using the on board switch. Each 2 LED spots module can be adjusted individually for maximizing visual display of the showcased products. Different CCT options are available. Specifier can select a different CCT for LED spots and for diffused stripe light.
Body
Surface mounted LED system in extruded aluminum. Available in different length configurations starting from 2.75" with increment of 2.36". Section 38.18"
Mounting
Additional mounting options include: -Integrated magnets for easy installation - L brackets -U mounting clips
Finish
Anodized black or aluminum finish.
Accessories
Mounting accessories included. Extension cable to be ordered separately.
LED Sources
Combination of 2 types of LEDs Spot Light Wall Wash
Applied LED High Power LED SMD LED
SDCM 3-Step MacAdam 3-Step MacAdam
CRI 97, R9>90 97, R9>90
Watts 5.6W/Ft 5.7W/Ft
Lumens 770Lm/Ft 810Lm/Ft
Efficacy 137Lm/W 142Lm/W
CCT 2700K, 3000K, 3500K, 4000K
-Other CRI and CCT options available on request. A combination of 2 CCTs is available.
Spot Light: 500mA Constant Current Remote Driver (order separately)
Wall Wash: 500mA Constant Current Remote Driver (order separately)
Applications
Miniature linear light. Delivers two types of light effects - a homogenous, diffused light effect together with spot light. An ideal solution for display showcase, under-shelf and under cabinet illumination. Application areas: Retail, cabinet displays, showcases, jewelry displays, residential, restaurants, museums.
R9>90
CRI>97 IP20
Elegance LightRun Adjustable Spot
Description
An innovative, multi-functional linear lighting solution. This small and discreet luminaire for under-shelf applications in museums, retail and/ or hospitality, combines high performance, miniature Adjustable LED spots together with uniform diffused ambient lighting. The LED spots and diffused light stripe can be controlled separately, enabling the user to select and switch between a spot light effect or a diffused lighting effect or a combination of both. Requires separate drivers (Patent Pending). Each module of LED spot can be switch on or off using the on board switch. Each 2 LED spots module can be adjusted individually for maximizing visual display of the showcased products. Different CCT options are available. Specifier can select a different CCT for LED spots and for diffused stripe light.
Body
Surface mounted LED system in extruded aluminum. Available in different length configurations starting from 2.75" with increment of 2.36". Section 38.18"
Spot Light: 500mA Constant Current Remote Driver (order separately)
Wall Wash: 500mA Constant Current Remote Driver (order separately)
Applications
Miniature linear light. Delivers two types of light effects - a homogenous, diffused light effect together with spot light. An ideal solution for display showcase, under-shelf and under cabinet illumination. Application areas: Retail, cabinet displays, showcases, jewelry displays, residential, restaurants, museums.
R9>90
CRI>97 IP20
LTR-S Specification Series
1.5W / 3W COB (Chip On Board) LED Tape Specification Sheet
PRODUCT OVERVIEW
The newest technology in flexible LED tape is the COB (Chip On Board). Tightly spaced diodes are encapsulated into a single phosphor strip that provides a seamless linear light display with no LED pixelation. Available in 2700K, 3000K, 3500K and 4000K.
FEATURES
• 24VDC
• 2700K, 3000K, 3500K and 4000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 156 LEDs per foot
• Cuttable every 2”
• 180° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 32’-8”
• Includes Sure-Tite connectors
SPECIFICATIONS
ELECTRICAL
•24V
•1.5 / 3 watts per foot
OPTICS
•95+ CRI
CERTIFICATION
•UL
•Title 24 compliant when used with specific drivers. Consult factory.
•Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space.
WARRANTY
•5-year warranty when paired with GM power supply.
1.5W / 3W COB (Chip On Board) LED Tape Specification Sheet
PRODUCT OVERVIEW
The newest technology in flexible LED tape is the COB (Chip On Board). Tightly spaced diodes are encapsulated into a single phosphor strip that provides a seamless linear light display with no LED pixelation. Available in 2700K, 3000K, 3500K and 4000K.
FEATURES
• 24VDC
• 2700K, 3000K, 3500K and 4000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 156 LEDs per foot
• Cuttable every 2”
• 180° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 32’-8”
• Includes Sure-Tite connectors
SPECIFICATIONS
ELECTRICAL
•24V
•1.5 / 3 watts per foot
OPTICS
•95+ CRI
Project
CERTIFICATION
•UL
•Title 24 compliant when used with specific drivers. Consult factory.
•Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space.
WARRANTY
•5-year warranty when paired with GM power supply.
TYPE LT14 SPEC OCEAN HARBOR
WHISPER FLEX LED DOWNLIGHT - WS-AIC
LED LIGHT ENGINE
RATED WATTAGE Static White = 16.9W, Warm Dim = 15.0W
DELIVERED LUMENS Up to 1271 lm @ 4000K - 50º Optic FT Trim
EFFICACY Up to 75 LPW @ 4000K - 50° Optic FT Trim
CCT @ 90CRI 2700K, 3000K, 3500K, 4000K, Warm Dim
COLOR QUALITY 90+ CRI, 2-Step SDCM
LED LIFETIME 55,000 hours @ L90
ADJUSTABLE 0º to 30º tilt, 360º pan
DELIVERED LUMENS MATRIX - FT REFLECTOR
CCT & CRI
2700K (90CRI) 770 lm 1104 lm
3000K (90CRI) 816 lm 1170 lm
3500K (90CRI) 862 lm 1235 lm
4000K (90CRI) 886 lm 1271 lm
Warm Dim (98CRI) 552 lm 791 lm
DELIVERED LUMENS MATRIX - ST REFLECTOR
CCT & CRI
2700K (90CRI) 642 lm 977 lm 783 lm
3000K (90CRI) 680 lm 1035 lm 830 lm
3500K (90CRI) 718 lm 1093 lm 877 lm
4000K (90CRI) 739 lm 1124 lm 902 lm
Warm Dim (98CRI) 440 lm 612 lm 491 lm
14508 Nelson Ave. City of Industry, CA 91744 • tel: 626.336.4511
SILENT VU™ OPTICS TECHNOLOGY
OPTICS 50º Installed and 30º included
POWER SUPPLY
INPUT VOLTAGE 120-277V, 50/60Hz
DIMMING TRIAC, ELV and 0-10VDC and Lutron EcoSystem options available SERVICABILITY All options: Below ceiling access
FEATURES
• ¾" aperture downlight minimizes fixture and light noise at the ceiling
• Delivers up to 1271 lumens of general or accent light using SilentVu™ optical control at 50° or 30°
• 55,000 hr LED lifetime and available integral or remote driver options
TRIM OPTIONS
• Fixed and Adjustable
• Wet Location (AL, FL & WW)
• Wall Wash
• Round and Square
• Standard, Trimless, and Wood Ceiling
TRIM COLORS
• White
• Black
• Champagne
• Custom Color
REFLECTOR COLORS
• White
• Black
• Champagne
• Satin Aluminum
• Custom Color
HOUSING
• Includes (2) galvanized steel adjustable hanger bars and butterfly brackets.
• Ceiling Material: Drywall, T-bar grid, Wood and Millwork
• Steel junction box with up to (4) ½" knockouts
• All options are Air Tight and CCEA (Chicago Plenum)
• 3½" minimum plenum height above the ceiling required
LISTING/WARRANTY
• cULus Listed
• UL Listed for Damp Location (All Styles) & Wet Location with AL, WL or WW reflector options.
• ASTM E283 Certified Airtight
• IC Rated
• CA Title 24-JA8 Compliant with 50° optic, 90+CRI
• Five (5) years limited warranty
• CCEA (Chicago Plenum) Approved
Creative Systems Lighting, A Division of Troy-CSL Lighting, Inc. All rights reserved. Subject to change without notice. Patent: csllighting.com/patents
OCEAN HARBOR TYPE LT14
NIOB-2RC

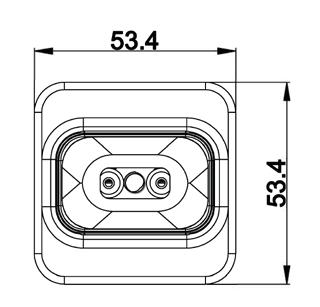

2" Iolite Round Adjustable Cone Reflector
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm
WHISPER FLEX LED DOWNLIGHT - WS-AIC
Emergency Options only applicable for integral driver options.
EMERGENCY OPTIONS
EM-1000 (25W Remote Inverter)
EM-1002 (10W Remote Emergency Driver) Title 20
(1) Whisper + (1) Universal Dim Driver: 1%-100% 0-10V, TRIAC, or ELV, 120V/277V (2) Whispers + (1) Universal Dim Driver: 1%-100% 0-10V, TRIAC, or ELV, 120V/277V
(3) Whispers + (1) Universal Dim Driver: 1%-100% 0-10V, TRIAC, or ELV, 120V/277V
(1) Whisper + (1) EldoLED Dim Driver: 0.1%-100% 0-10V, 120V/277V
(2) Whispers + (1) EldoLED Dim Driver: 0.1%-100% 0-10V, 120V/277V
(3) Whispers + (1) EldoLED Dim Driver: 0.1%-100% 0-10V, 120V/277V
(1) Whisper + (1) Lutron Dim Driver: 1%-100% EcoSystem, 120V/277V
(2) Whispers + (1) Lutron Dim Driver: 1%-100% EcoSystem, 120V/277V
(3) Whispers + (1) Lutron Dim Driver: 1%-100% EcoSystem, 120V/277V
Remote Driver Options listed above are specifically tuned to power the corresponding number of Whispers indicated and must be installed in the configuration as ordered: (1) Whisper + (1) Remote Driver, (2) Whispers + (1) Remote Driver, or (3) Whispers + (1) Remote Driver as defined above.
For Remote Driver options, specific installation provisions should meet local code and jurisdiction requirements as determined by your licensed electrical contractor. DC wiring will run between the provided CSL Whisper junction box and the remote mounted driver. Generally, #12AWG, #14AWG, and #18AWG stranded or solid UL certified power wiring can accommodate run lengths of up to 50ft between the installed CSL Whisper.
EM-1003-CA (35W Remote Inverter) Title 20
EM-1004 (50W Remote Inverter)
EM-1006 (25W Remote Inverter) Title 20
-C48 48" C-Channel
BLANK
Note:
WHISPER FLEX LED DOWNLIGHT - WS-AIC
BLANK
TYPE LT15 SPEC OCEAN HARBOR
ECO 1" LED DOWNLIGHT
LED LIGHT ENGINE
RATED WATTAGES 13.3W, 9.6W, 8.7W
DELIVERED LUMENS Up to 1110 lm EFFICACY Up to 103 LPW
CCT @ 90CRI 2700K, 3000K, 3500K, 4000K, Warm Dim
COLOR QUALITY 90+ CRI, 2-Step SDCM
LED LIFETIME 55,000 hours @ L90
DELIVERED LUMENS MATRIX
SILENT VU™
OPTICS TECHNOLOGY
OPTICS 50° Installed, 10°, 30°, 80° available
ADJUSTABLE 0° to 15° tilt (Adjustable housings only)
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
1" DOWNLIGHT TRIMLESS ORDER MATRIX (Example: ED1-RTLWT or ED1-RRMTLWT)
1. S (Square) not available for RM Reflector Style. * Trimless Reflector Only. Order corresponding Trimless Mud Plate.
MUD
(Blank)
1. S (Square) not available for RMTL Mud Plate. * Trimless Mud Plate Only. Order corresponding Trimless Reflector
(Fixed),
(Remodel)
BLANK
TBD
OCEAN HARBOR
1.5W / 3W COB (Chip On Board) LED Tape Specification Sheet
PRODUCT OVERVIEW
The newest technology in flexible LED tape is the COB (Chip On Board). Tightly spaced diodes are encapsulated into a single phosphor strip that provides a seamless linear light display with no LED pixelation. Available in 2700K, 3000K, 3500K and 4000K.
FEATURES
• 24VDC
• 2700K, 3000K, 3500K and 4000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 156 LEDs per foot
• Cuttable every 2”
• 180° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 32’-8”
• Includes Sure-Tite connectors
SPECIFICATIONS
ELECTRICAL
•24V
•1.5 / 3 watts per foot
OPTICS
•95+ CRI
Project
CERTIFICATION
•UL
•Title 24 compliant when used with specific drivers. Consult factory.
•Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space.
WARRANTY
•5-year warranty when paired with GM power supply.
TYPE LT19 SPEC
NPTPSW

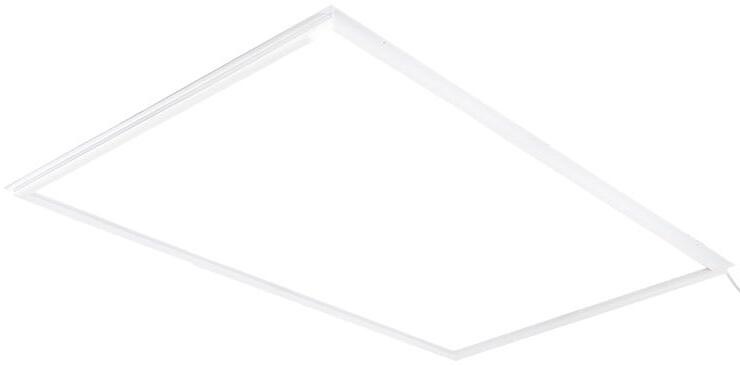

LED Frame Light with Selectable Lumens & Selectable CCT
Source: 30W to 55W LED
4000lm to 6950lm
PRODUCT DESCRIPTION
LED Frame lights are perimeter fixtures for standard 2'x2' or 2'x4' ceiling grids. Remote driver includes two Selectable Switches to change the color temperature and brightness. Universal input (120-277VAC) and dimmable with compatible 0-10V dimmers. No cutting is required and ceiling tile sits inside the frame light.
FEATURES
One-piece construction, no assembly required!
Easy installation without cutting tiles
120-277VAC input; 0-10V dimming
Selectable Lumen switch changes output up to 5000lm
Selectable CCT switch changes color temperature from 3500K / 4000K / 5000K
White finish matches most ceilings
cETLus listed for damp location
DLC Listed
SPECIFICATION
Lens: Poly carbonate lens is lightweight with no gaps around corners.
Installation: No cutting is required accommodate ceiling tile. Fixture drops into suspended grid ceiling and tile sits on top of thin LED frame. Each fixture includes a remote driver knockouts for romex or flex wiring . The luminaire fits into standard 15/16" and narrow 9/16" T-grid ceiling systems.
Junction Box: Prewired junction box includes quick connect to LED fixture for ease of installation. Junction box includes four 1/2" knockouts and snap on cover. Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6' and Junction box wire length: 6']
Note: Lumens shown at 4000K and will vary depending on CCT
Color Temperature: Selectable CCT: 3500K / 4000K / 5000K (Note: Preset to 3500K)
Color Rendering Index: 80+CRI
Operating Temperature: 0°C to 40°C
Lifetime: 50,000 hours @ L70
Dimming: 0-10V dimming
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Battery operates luminaire at 20W for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Damp Locations
DLC Listed
FCC certified
5-Year Limited Warranty
LED Frame Light with Selectable Lumens & Selectable CCT
Description
NPTPSW-E22/345W = 2' x 2' LED Frame Light
NPTPSW-E24/345W = 2' x 4' LED Frame Light
Example: NPTPSW-E22/345W = 2' x 2' LED Frame Light with Selectable Lumens & Selectable CCT, White finish
NEPK-20LEDUNV = 20W Emergency Battery w/Remote Test Switch
OCEAN HARBOR TYPE LT19 ALT
NPTPSW
Frame Light with Selectable Lumens & Selectable CCT
Source: 30W to 55W LED 4000lm to 6950lm
PRODUCT DESCRIPTION
LED Frame lights are perimeter fixtures for standard 2'x2' or 2'x4' ceiling grids. Remote driver includes two Selectable Switches to change the color temperature and brightness. Universal input (120-277VAC) and dimmable with compatible 0-10V dimmers. No cutting is required and ceiling tile sits inside the frame light.
FEATURES
One-piece construction, no assembly required!
Easy installation without cutting tiles
120-277VAC input; 0-10V dimming
Selectable Lumen switch changes output up to 5000lm
Selectable CCT switch changes color temperature from 3500K / 4000K / 5000K
White finish matches most ceilings
cETLus listed for damp location
DLC Listed
SPECIFICATION
Lens: Poly carbonate lens is lightweight with no gaps around corners.
Installation: No cutting is required accommodate ceiling tile. Fixture drops into suspended grid ceiling and tile sits on top of thin LED frame. Each fixture includes a remote driver knockouts for romex or flex wiring . The luminaire fits into standard 15/16" and narrow 9/16" T-grid ceiling systems.
Junction Box: Prewired junction box includes quick connect to LED fixture for ease of installation. Junction box includes four 1/2" knockouts and snap on cover. Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6' and Junction box wire length: 6']
Note: Lumens shown at 4000K and will vary depending on CCT
Color Temperature: Selectable CCT: 3500K / 4000K / 5000K (Note: Preset to 3500K)
Color Rendering Index: 80+CRI
Operating Temperature: 0°C to 40°C
Lifetime: 50,000 hours @ L70
Dimming: 0-10V dimming
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Battery operates luminaire at 20W for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Damp Locations
DLC Listed
FCC certified
5-Year Limited Warranty
LED Frame Light with Selectable Lumens & Selectable CCT
Description
Example: NPTPSW-E22/345W = 2' x 2' LED Frame Light with Selectable Lumens & Selectable CCT, White finish
NEPK-20LEDUNV = 20W Emergency Battery w/Remote Test Switch

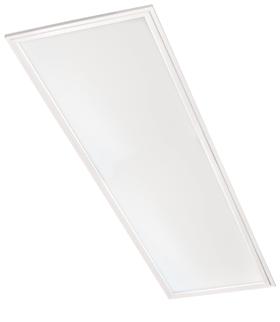

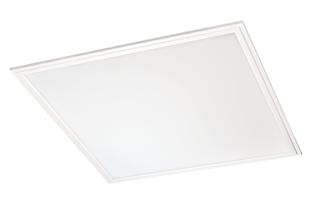

TYPE LT20 SPEC OCEAN HARBOR
Source: 20W to 45W LED 2600lm to 5700lm
PRODUCT DESCRIPTION
LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired. The white diffused lens optimizes output while diffusing LED diode image. Each luminaire includes two tunable switches; Selectable Lumens allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance.
FEATURES
Selectable Lumen switch changes output from 2600lm to 5700lm
· Selectable CCT switch changes color temperature from 3000K / 3500K / 4000K
1' x 4', 2' x 2' or 2' x 4' sizes
Surface, pendant and hard ceiling recessed kits available
0-10V dimming down to 5%
Universal 120-347V input
· cULus listed for damp location
SPECIFICATION
Construction: An array of LED s are mounted on the back of aluminum frame. White opalescent diffused lens optimizes output while reducing LED diode image. The construction seals the conditioned air from the plenum or non-conditioned air, eliminates bugs or dirt getting to top of lens for sav ings on maintenance cost.
Lens: PMMA (Polymethyl methacrylate) lens is lightweight and shatter resistant.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Installation: The luminaire fits into standard 15/16” and narrow 9/16” T-grid ceiling systems. Wiring compartment is on the back of panel and includes replaceable driver, which is accessible via a service door secured with two screws.
Wiring compartment consists of three 1/2" knockouts for romex or flex wiring
ELECTRICAL
Input: 120-347V (120-277V with emergency battery)
Lumens / Wattage: See chart below
Color Temperature: Selectable CCT (3000K / 3500K / 4000K; preset at 3000K)
Color Rendering Index: 80+CRI
Operating Temperature: 0°C to 45°C
Lifetime: 60,000 hours @ L70
Dimming: 0-10V dimming
Click Here or check complete dimmer list at www. NoraLighting.com in the “Compatibility” page under “Resources” tab
ACCESSORIES
NPDBL-JB4X4: 4" Junction Box to allow panels to be daisy chained (4-in / 4-out)
NPDBL-xxDFK/W: Surface Mount Frame to allow panels to be mounted over junction box
NPDBL-xxDDFK/W: Surface Mount Frame for panels with emergency battery
NPDBL-xxRFK/W: Recessed Mounting Kit to allow panels to be recessed into hard ceiling
NPDBL-PKW: Pendant Mounting Kit to suspend panels from monopoint canopy
Emergency: Luminaire can be specified with 120-277V emergency battery with remote test switch. Battery operates luminaire at 7W for 90 minute emergency operation on fully charged battery.
Note: EM option not compatible with pendant mounting kit accessory
LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired. The white diffused lens optimizes output while diffusing LED diode image. Each luminaire includes two tunable switches; Selectable Lumens allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance.
FEATURES
Selectable Lumen switch changes output from 2600lm to 5700lm
· Selectable CCT switch changes color temperature from 3000K / 3500K / 4000K
1' x 4', 2' x 2' or 2' x 4' sizes
Surface, pendant and hard ceiling recessed kits available
0-10V dimming down to 5%
Universal 120-347V input
· cULus listed for damp location
SPECIFICATION
Construction: An array of LED s are mounted on the back of aluminum frame. White opalescent diffused lens optimizes output while reducing LED diode image. The construction seals the conditioned air from the plenum or non-conditioned air, eliminates bugs or dirt getting to top of lens for sav ings on maintenance cost.
Lens: PMMA (Polymethyl methacrylate) lens is lightweight and shatter resistant.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Installation: The luminaire fits into standard 15/16” and narrow 9/16” T-grid ceiling systems. Wiring compartment is on the back of panel and includes replaceable driver, which is accessible via a service door secured with two screws.
Wiring compartment consists of three 1/2" knockouts for romex or flex wiring
ELECTRICAL
Input: 120-347V (120-277V with emergency battery)
Lumens / Wattage: See chart below
Color Temperature: Selectable CCT (3000K / 3500K / 4000K; preset at 3000K)
Color Rendering Index: 80+CRI
Operating Temperature: 0°C to 45°C
Lifetime: 60,000 hours @ L70
Dimming: 0-10V dimming
Click Here or check complete dimmer list at www. NoraLighting.com in the “Compatibility” page under “Resources” tab
ACCESSORIES
NPDBL-JB4X4: 4" Junction Box to allow panels to be daisy chained (4-in / 4-out)
NPDBL-xxDFK/W: Surface Mount Frame to allow panels to be mounted over junction box
NPDBL-xxDDFK/W: Surface Mount Frame for panels with emergency battery
NPDBL-xxRFK/W: Recessed Mounting Kit to allow panels to be recessed into hard ceiling
NPDBL-PKW: Pendant Mounting Kit to suspend panels from monopoint canopy
Emergency: Luminaire can be specified with 120-277V emergency battery with remote test switch. Battery operates luminaire at 7W for 90 minute emergency operation on fully charged battery.
Note: EM option not compatible with pendant mounting kit accessory
Suitable for Underwater Lighting, Like Pool, Fountain ……
[FRGT]: Ground or Wall Recessed
Fitting: Screwed into Buried Sleeve
Maximum Diving Depth: 5meters
NOTES: Custom Installation and Accessories Referred to Another Catalogue of Fixing Kits.
STANDARD
Designed and Manufactured to Comply with CE/RoHS/cETL/SAA……
IP68 and IK10 Protection, Class Ⅲ Electric
OPTIONS
LED CCT: 2700K/3500K/4000K/6000K/R/G/B/A
[CRI]: [E] RA80, [G] RA90, [H] RA97(RG0)
[ACF]: Female Waterproof Connector
NOTES: Cannot Be Operated for Over 10min Out of Water!
GTG9461A: UNDERWATER RECESSED LED LIGHT
GTG9461AMCA67A3C
G2700K
G3000K
G3500K
G4000K RA90
G5000K RA90
G2700K
[Symmetric]
BL15D:15°
BL25D:25°
BL30D:30°
BL45D:45°
BL60D:60° [Oval]
BLV15x45°
BLV15x60°
BLV30x70°
[Asymmetric]
BAS10D-12D
BAS18D-15D
BAS18D-25D
BAS18D-30D
BAS18D-45D
BAS18D-60D
BAS23D-30D
BAS30D-45D
BAS15D-V15x45D
BAS23D-V20x45D [BDF] Frosted BDF:120°
G3000K RA90 830
G3500K RA90 830
G4000K RA90
G5000K RA90
G6000K RA90 900
NOTE:
All parameters are measured at 25℃ ambient temperature, 35% humidity experimental environment. Tolerances of power and luminous flux are ±10%, tolerance of color rendering index is ±5.
GTG9461A-MCA: UNDERWATER RECESSED LED LIGHT SPECIFICATION
[FRGT] Ground or Wall Recessed DIMENSION:【UNIT: MM】
NOTES: Custom Installation and Accessories Referred to Another Catalogue of Fixing Kits. (MCA67A)-[FRGT]
(MCA118A)-[FRGT]
(MCA162A)-[FRGT]
(MCA162B)-[FRGT]
(MCA185A)-[FRGT]
(MCA200A)-[FRGT]
CASESTUDY:
BLANK
TYPE LT22 SPEC OCEAN HARBOR
Kurba Small Horizontal and Vertical Field Bendable 24V System
Features
Kurba Small is a direct view, small profile, energy efficient and flexible LED strip suitable for outdoor wet locations capable of horizontal/side bends and vertical/top bends with a 2” bending radius. The silicone material offers excellent heat, weather, UV, and solvent resistance and has a special coating to repel dust and dirt accumulation.
Applications
Indoor/Outdoor dry & wet location
Materials
Silicone for red list approved, as well as heat, weather, UV, and solvent resistance
Dimming
Dot Free even illumination. Also available with Black Lens
Technical Information
Average Life (L70)
50,00 Hours
Approvals
24VDC Class 2 wet listed, IP67
Warranty 3 years
Constraints
NEON FLEX SERIES
PRODUCT DATA SHEET
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
BLANK
OCEAN HARBOR TYPE LT22
HWX - Hardwire custom ft
DC6 - DC plug 6 ft
DCX - DC plug custom, ft
secondary light source
AB - Back feed, side A AS1 - Side feed, side A1 AS2 - Side feed, side A2
53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only) G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K - 4.4 W/ft NO - No driver
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
- No controller RGB AND TUNABLE WHITE
TW1 - Tun. White - 3.5 W/ft
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
4250 PROFILE
THE ELEGANCE OF SIMPLICITY
A new compact profile has been added to this thin series! Profile 4250 provides accent lighting at an angle of 53° to highlight products on shelves or to cut out the underside of cabinets. Even better, the phantom brackets perfectly conceal the surface installation. Ideal for commercial or residential applications.
FEATURES
–Compac t aluminum profile: 24.58 mm x 15.88 mm (0.97 in x 0.63 in)
–Custom lengths from 2 to 192 inches (4.88 m/16 ft) in aluminum, and 2 to 240 inches (6 m/20 ft) in black
–53° lighting angle
–4 lumen packages: LP0 (128 lm/1.5 W/ft), LP1 (160 lm/1.5 W/ft), LP2 (255 lm/3.0 W/ft) et LP3 (308 lm/4.5 W/ft) in 8 mm width with 5 mm tape guide –6 color temperatures (2400 K to 6200 K), CRI 90+
–End caps with milled hole on both sides for the feed wire
–Surface installation with phantom brackets
–Optional power supply unit with DC socket or hardwire connection
–Indoor use, IP22
Cross-section dimensions:
OPTIONS
LED STRIP COMPATIBILITY
Compatible with LED strips up to 8 mm wide.
LINEAR WEIGHT
0.25 lbs/ft, 0.37 kg/m (without lens)
RECESSED INSTALLATION IN ⅝
4250 PROFILE
THE ELEGANCE OF SIMPLICITY
A new compact profile has been added to this thin series! Profile 4250 provides accent lighting at an angle of 53° to highlight products on shelves or to cut out the underside of cabinets. Even better, the phantom brackets perfectly conceal the surface installation. Ideal for commercial or residential applications.
FEATURES
–Compac t aluminum profile: 24.58 mm x 15.88 mm (0.97 in x 0.63 in)
–Custom lengths from 2 to 192 inches (4.88 m/16 ft) in aluminum, and 2 to 240 inches (6 m/20 ft) in black
–53° lighting angle
–4 lumen packages: LP0 (128 lm/1.5 W/ft), LP1 (160 lm/1.5 W/ft), LP2 (255 lm/3.0 W/ft) et LP3 (308 lm/4.5 W/ft) in 8 mm width with 5 mm tape guide –6 color temperatures (2400 K to 6200 K), CRI 90+
–End caps with milled hole on both sides for the feed wire
–Surface installation with phantom brackets
–Optional power supply unit with DC socket or hardwire connection
–Indoor use, IP22
Cross-section dimensions:
OPTIONS
LED STRIP COMPATIBILITY
Compatible with LED strips up to 8 mm wide.
LINEAR WEIGHT
0.25 lbs/ft, 0.37 kg/m (without lens)
RECESSED INSTALLATION IN ⅝
TYPE LT23 SPEC OCEAN HARBOR
4250 Profile ordering sheet 4000 Series
OCEAN HARBOR TYPE
4250 Profile ordering sheet 4000 Series
LG-9020
2” Non-adjustable Round
Recessed Downlight LED- Single
Project Address: Project Name:
Fixture Type: Quantity:
HARMONY
Trimless Recessed Downlight LED - Harmony downlights are solid plaster mud-in lighting solutions made from gypsum. Our plaster trims provide a TRUELY seamless and trimless lighting application. Our innovative monolithic design eliminates the need for touch ups after future maintenance. Our flangeless downlights are paintable, texturable, and manufactured at a level 5 plaster finish.
Quick Info
Application
Our LED modules are high performance, low power, and provide outstanding reliability and color quality/consistency. 2700K, 3000K, 3500K, and 4000K color temperatures are available with 95+ CRI. Also available in Warm Dim & Tunable White.
• Flicker free
• Dimming performance below 0.01%
• Life Rated for 50,000 hours at 70% lumen maintenance
New Construction / Remodeling
Delivered Lumens
1250 lm (13W) / 1800 lm (17W)
Color Temperature
2700K
3000K
3500K
4000K
Input Voltage
120V / 120-277V
Trims
(Ordering guide can be found on page 6) 1800K-3000K 940 Im (13W) / 1300 lm (17W)
Warm Dim Option 19
Tunable White Option
2700K-6500K 910 lm (13W)
Color Quality 95+ CRI
Beam Spreads
Module Ratings Wet location listed
Gypsum Flangeless (seamless)
Housing Ratings
IC Rated / Air Tight / CCEA
Dimming
• TRIAC/ELV (120V only)
• 0-10
• DALI
• Lutron EcoSystem
Trim Narrow Housing Shallow Housing
OCEAN HARBOR
NIO-2RTLNDC
PRODUCT DESCRIPTION
2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm or 1000lm LED packages
Comfort Dim (warm dimming) also available in 800lm only 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
ELECTRICAL
Lumens / Wattage: 800lm / 14W, 1000lm / 14W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
Compatible Housings
LG-9020
2” Non-adjustable Round Recessed Downlight LED- Single
Ordering Guide
PRODUCT CODE
LG - 9020
REQUIRED OPTIONS
HOUSING
N - Narrow (1001-SQ)
S - Shallow (1004/1)
LED OPTIONS*
OUTPUT
13W - 1250 lm (13W)
17W - 1800 lm (17W)
COLOR TEMPERATURE
27K - 2700K
30K - 3000K
35K - 3500K
40K - 4000K
DIMMING OPTION*
Project Address:
Project Name:
Fixture Type: Quantity:
Example Number
LG-9020 N 13W 30K T Optional: 15 SF CY3
SN2-WH
Order Number
LG-9020 __ ___ ___ __
Optional: __ __ __
*Includes 90+ CRI, 38 degree beam spread OR TUNABLE WHITE
T - Triac/ELV (Less than 0.01%, compatible with 120V only)
D - DALI (Down to 0.5%)
0 - 10
WARM DIM (only compatible with 0-10)* - (Less than 0.1%)
*Please see installation guide for tunable white wiring diagram
ECO - (Hi - lume Premier 0.1% Eco System LED Driver with Soft-on, Fade-to-black dimming technology)
OPTIONAL OPTIC OPTIONS
*For DMX please contact Light and Green directly. BEAM SPREAD
LENS OPTICAL
HBL - Honeycomb
SF - Soft Focus
(Included)
FR - Frosted
LS - Linear Spread
PR - Prismatic
LENS HOLDER
CY1-WH - Cylinder 1” White
CY2-WH - Cylinder 2” White
CY3-WH - Cylinder 3” White
CO-WH - Conical 1” White
CY1-BL - Cylinder 1” Black
CY2-BL - Cylinder 2” Black
CY3-BL - Cylinder 3” Black
CO-BL - Conical 1” Black
STUCCO ADAPTOR
SN2-WH - Snoot for 3/4” Stucco White
BLANK

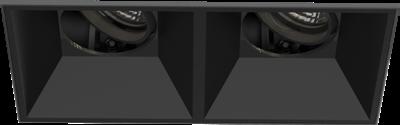

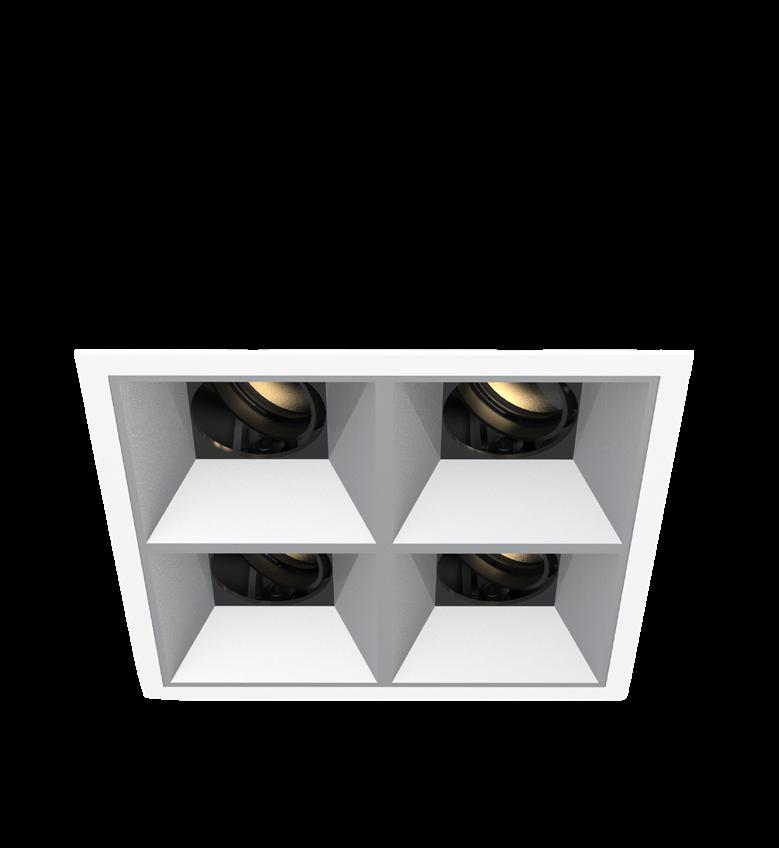

SENSE 2.0 MULTIPLE
Adjustable Downlight - Multiple Configuration
SENSE ADJUSTABLE DOWNLIGHTS
provide ultimate design flexibility from its modular, scalable design. Available in 1x2, 1x3 or 2x2 configurations, the square aperture fixtures can provide light in any direction from one small fixture.
FEATURES
Delivers up to 925 lumens per light
Available in 10°, 24°, 40° and 55° beam angles
UGR<19 glare rating providing a quiet
GOOD TO KNOW
Multiple head configurations provide a sleek and modern aesthetic
• LED modules are also used for the stand alone round and square Sense 2.0 fixtures
Mix and match flange and reflector finishes to complement interior design concept
Self-flanged or flangeless drywall and
Self-flanged and flangeless trims install
Install in ceilings between ¼” and 1” thick Fixture rotates up to 355° and tilt up to 30°
Housing
• New construction steel frame supplied with universal bar hangers and butterfly brackets
• Bar hangers are adjustable from 13-1/4” to 24-1/2”
• Fixture and driver are serviceable from below the ceiling
Universal 120-277V, 50/60Hz, 0-10V or 120V, 60Hz Triac/ELV dimming driver
Drivers connect to LED modules using
Thermal
• Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
Compliance
• ETL listed for Damp locations
• Optional Wet location rated trim
Warranty
• 5 Year limited parts warranty
SENSE 2.0 MULTIPLE
Adjustable Downlight - Multiple Configuration
SENSE ADJUSTABLE DOWNLIGHTS
provide ultimate design flexibility from its modular, scalable design. Available in 1x2, 1x3 or 2x2 configurations, the square aperture fixtures can provide light in any direction from one small fixture.
FEATURES
Delivers up to 925 lumens per light
Available in 10°, 24°, 40° and 55° beam angles
UGR<19 glare rating providing a quiet
GOOD TO KNOW
Multiple head configurations provide a sleek and modern aesthetic
• LED modules are also used for the stand alone round and square Sense 2.0 fixtures
Mix and match flange and reflector finishes to complement interior design concept
Self-flanged or flangeless drywall and
Self-flanged and flangeless trims install
Install in ceilings between ¼” and 1” thick Fixture rotates up to 355° and tilt up to 30°
Housing
• New construction steel frame supplied with universal bar hangers and butterfly brackets
• Bar hangers are adjustable from 13-1/4” to 24-1/2”
• Fixture and driver are serviceable from below the ceiling
Universal 120-277V, 50/60Hz, 0-10V or 120V, 60Hz Triac/ELV dimming driver
Drivers connect to LED modules using
Thermal
• Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
Compliance
• ETL listed for Damp locations
• Optional Wet location rated trim
Warranty
• 5 Year limited parts warranty
TYPE LT25 SPEC OCEAN HARBOR
SENSE 2.0 MULTIPLE
OCEAN HARBOR TYPE LT25
SENSE 2.0 MULTIPLE
PROJECT:
TYPE:
C3R RIGID LED LINEAR ACCENT LIGHTING, LOW-POWER
REMOTE POWER SYSTEM
APPLICATION
C3R LED linear lighting produces uniform illumination designed to accent and highlight spaces such as small coves, under cabinets or millwork. Designed with modular CLiP® (Configurable Lighting Platform), C3R provides options to suit multiple application requirements. The rigid C3R may be connected to Tempo’s serpentine C3S providing an elegant solution for combined curved and straight-run applications. DMX, 0-10V & Triac dimming options.
Buy Tempo Buy American
CONSTRUCTION
Designed with non-ferrous components and mounting brackets. Meets MRI room requirements when used with brass mounting screws (part number C3A-MNTSCREW-BRS)
• Section lengths of 4 foot & 1 foot. Join sections and create continuous runs from one power supply.
• For combined curved and straight-run sections, C3R may be easily connected to Tempo’s C3S linear serpentine system
• Easily replaceable LED printed circuit boards.
• Quick wire connectors to join sections.
• CSA damp location listed.
OPTICS / LENS / DIFFUSER
• Clear or Frosted low-profile convex lens (120° x 120°)
POWER SYSTEM
• Utilizes remote, Class II low voltage 12Volt or 24Volt Power Supply. Power supplies must be installed in an approved enclosure (by others) in close proximity to luminaire. See Driver Remote Distance Chart for guidance.
• Triac dimming to 1% 0-10V dimming to under 10% DMX/RDM dimming to 1% Non-dimming also available
PERFORMANCE
Micro-Maintainable
CLiP™ - Configurable Lighting Platform module spacing options of 1” & 3” for specific applications or to reduce total watts per foot. (see pg. 6)
• Light output ranges from 220 to 320 lm/ft based on Watts/ft selection
• Dense Pack (DP) LED spacing (3W/ft only) places more LED’s closer together in each 3” module for high uniformity illumination.
• Operating temperature range of -20ºC to 50ºC
• Power Supply Total Harmonic Distortion <20%, Power Factor >0.9
LIGHT CHARACTERISTICS
Available in 1600K, 2000K, 2200K, 2700K, 3000K, 3500K, 4000K, 5000K plus Red, Green, Blue and Amber
• Typical CRI of 80+, 90+ CRI option available with 2700K, 3000K and 3500K selection (JA8).
• All LED’s are selected and placed on the printed circuit boards via Tempo Industries’ UniBin™ process which ensures consistent hue and color within the entire run. Color variations are held to within a maximum of a 2-step MacAdam ellipse.
WARRANTY
Tempo provides a 5-year limited warranty.
86,000 HOURS
L85 LUMEN MAINTENANCE
LED Luminaires will reach 85% of initial lumen output at or beyond 86,000 hours at 25°C.
Components, such as LED boards and lenses, can be easily replaced if necessary for increased product sustainability.
OCEAN HARBOR
PRODUCT DESCRIPTION

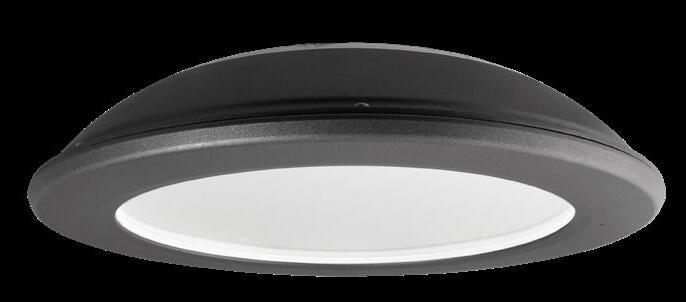

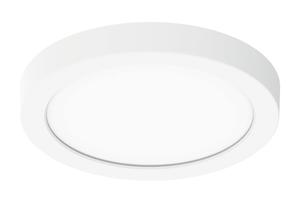

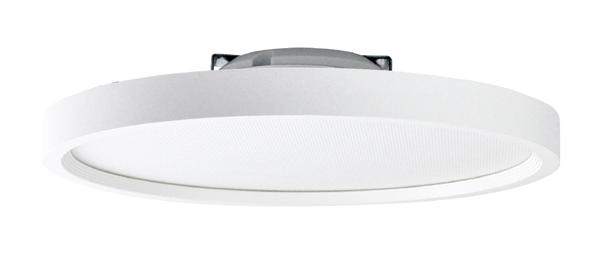

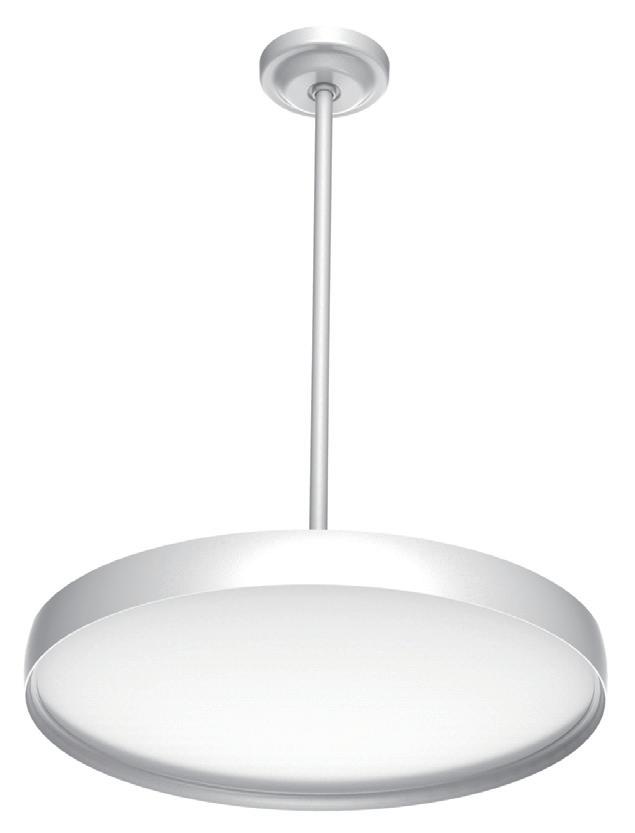

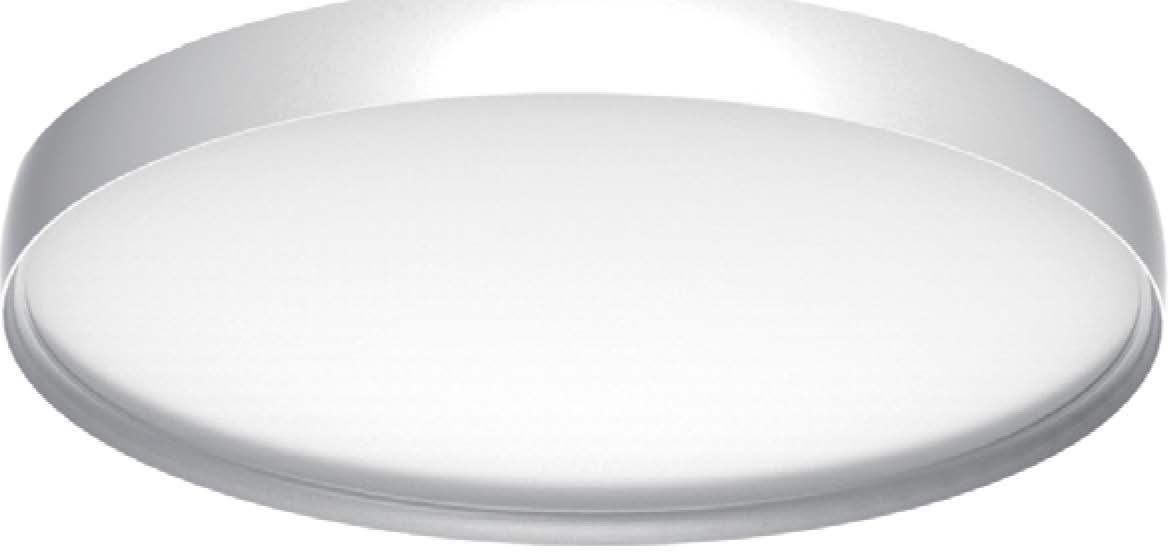

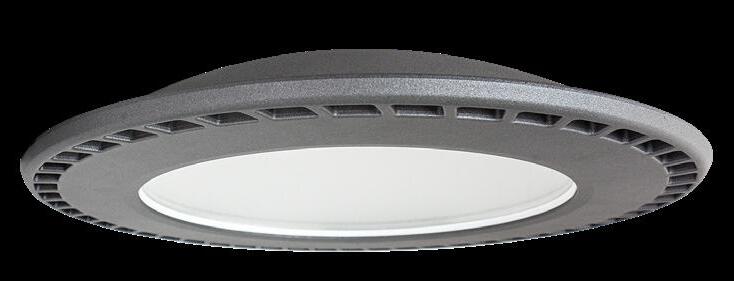

FOCUS ROUND LIGHT
The Focus Round Light offers the FOCUS family of LED fixtures in diameters from 13.8" through 47.2". Recessed light source design achieving perfect glare control. Edge-lit technology and non-yellowing microprismatic optical PMMA. Flexible installations come in pendant, surface and wall mounted. Options are available in selectable white, direct and indirect light distributions.
FEATURE
• Fixtures in diameters from 13.8" through 47.2"
• Recessed light source design achieving perfect glare control
•
ELECTRICAL SYSTEM
• Input Voltage: 120-277V, 50/60Hz
• 0-10V Dimming standard
PERFORMANCE
CRI
80 is standard 90 is optional
CCT
3000K, 3500K, 4000K
Dimming 0-10V Dimming Standard
Projected Lifetime
L70 - 100,000 Hours
Working Temperature
-4-104˚F (-20-40˚C)
• Edge-lit technology and non-yellowing optical PMMA
• Minimum Ambient -20˚C, Maximum Ambient is 40˚C Power Factor: > 0.9 at full load
• Total Harmonic Distortion: < 20% at full load
• Rod and Aircraft Cable Pendant mounted and surface mounted Direct and indirect light distributions
• Integrated driver design reduce the time to recess the driver into junction box
SPECIFICATION
Wire Cord Length: 47.2"(1200mm)
Aircraft Cable Length: 98.4"(2500mm)
Pendant Rod Length: 39.4"(1000mm) 1.18"(30mm) 1.18"(30mm) 1.18"(30mm) 1.18"(30mm) 3.94"(100mm) 3.94"(100mm) 3.94"(100mm) 5.9"(150mm) 5.9"(150mm)
(1) C3R features 3” modules with zero spacing in between as standard. Module Spacing options of 1” & 3” in between each 3” module is available to reduce wattage per foot and reduce costs. See dimensional information for more details on Module Spacing.
• High CRI required to comply with 2016 & 2019 Title 24 JA8 High Efficacy Lighting.
Consult factory for information on tailored C3R fixture lengths.
Clear Lens (-CL)
Frosted Lens (-FL)
OCEAN HARBOR
Ordering Information
xample: FRID24-64-40801

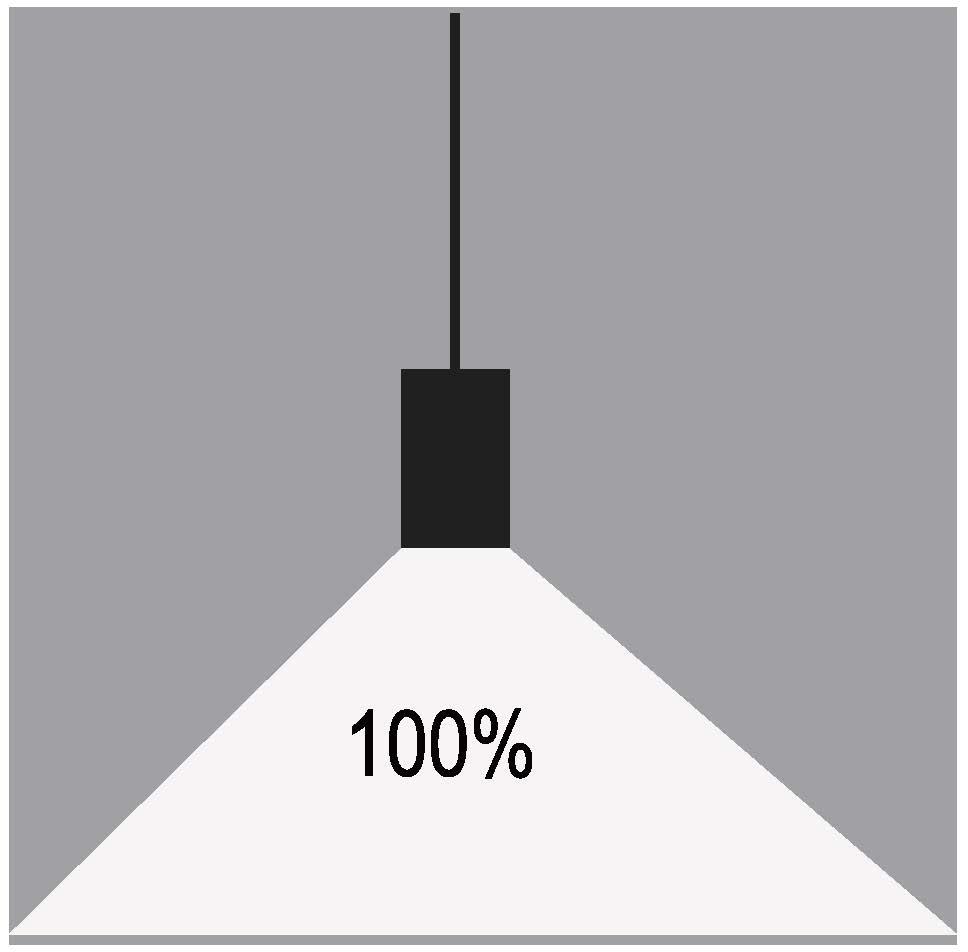

FR D - Direct ID- Direct and Indirect
Notice:
14-23 - 13.8"/23W1
18-42 - 17.7"/42W
24-64 - 23.6"/64W
35-102 - 35.4"/102W 47-136 - 47.2"/136W1
14-28 - 13.8"/28W1
18-42 - 17.7"/42W
24-64 - 23.6"/64W
35-102 - 35.4"/102W
47-136 - 47.2"/136W1 Diameter/Watts
Installation
-3000K 40 - 4000K
-120-277V
- 3500K
SW - 3000K/3500K /4000K selectable2
Ordered and shipped separately
ACPMK-FR
RPMK-FR Rod Pendant Mount Kits
SMK-FR
-White5 BK -Black
-Silver
-Blue YE -Yellow GR -Green OR -Orange RD -Red
1.13.8" and 47.2" sizes are available as special order. Please contact customer service
2.CCT selectable is available as special order. Please contact customer service
3.80CRI is standard. 90 CRI can be available for an additional fee. Please contact customer service
4.Mounting kits need to be bought separately.
5. Standard Finish is White. Optional and custom colors will be available for an additional fee. Please check with Customer Service for more information.
Accessories (Order and ship separately)
ACPMK-FR
Aircraft Cable Pendant Mount Kits for Focus Light
RPMK-FR14/18/24
Rod Pendant Mount Kits for 14"/18"/24" Focus Light
RPMK-FR35/47

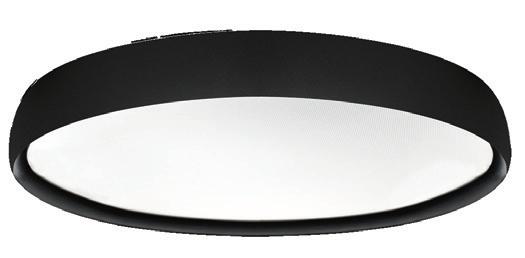

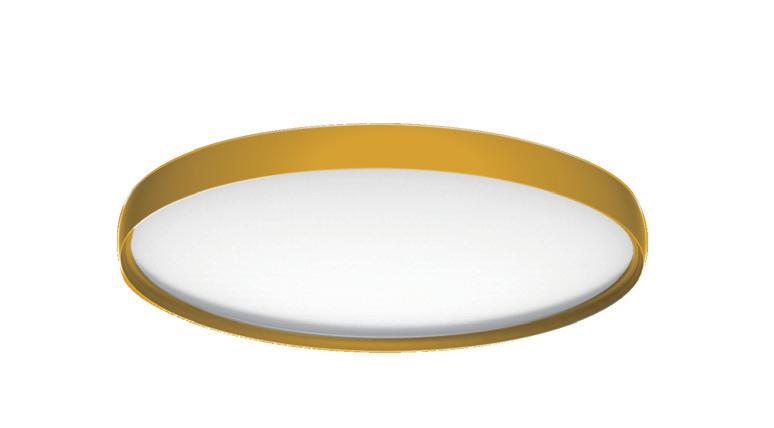

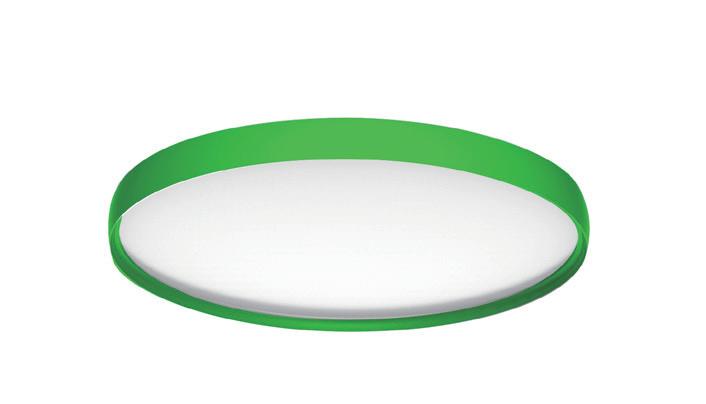

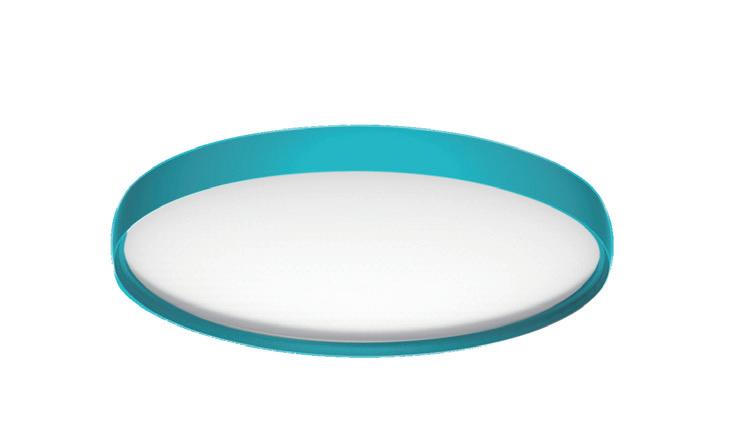

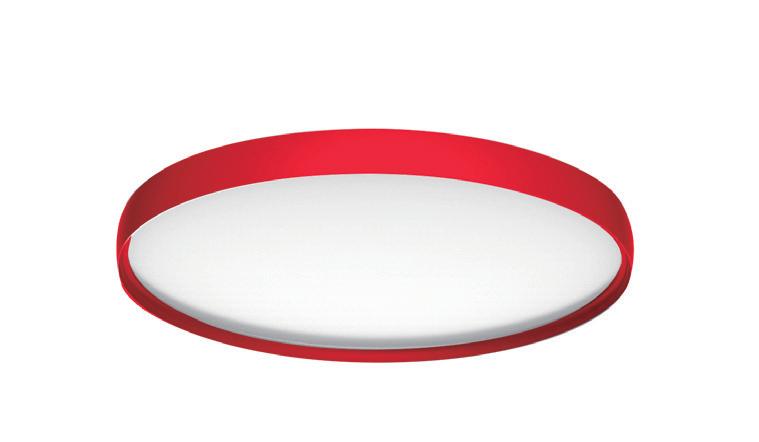

F inish Color Options

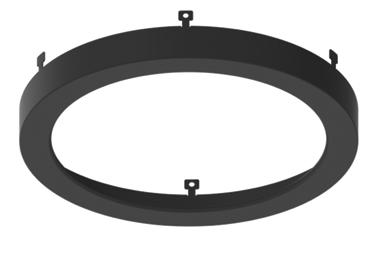

SMK-FR14/18
Surface Mount Kits for 14"/18" Focus Light
SMK-FR35/47
Surface Mount Kits for 35"/47" Focus Light
PROJECT:
TYPE:
C3R RIGID LED LINEAR ACCENT LIGHTING, LOW-POWER
REMOTE POWER SYSTEM
APPLICATION
C3R LED linear lighting produces uniform illumination designed to accent and highlight spaces such as small coves, under cabinets or millwork. Designed with modular CLiP® (Configurable Lighting Platform), C3R provides options to suit multiple application requirements. The rigid C3R may be connected to Tempo’s serpentine C3S providing an elegant solution for combined curved and straight-run applications. DMX, 0-10V & Triac dimming options.
Buy Tempo Buy American
CONSTRUCTION
Designed with non-ferrous components and mounting brackets. Meets MRI room requirements when used with brass mounting screws (part number C3A-MNTSCREW-BRS)
• Section lengths of 4 foot & 1 foot. Join sections and create continuous runs from one power supply.
• For combined curved and straight-run sections, C3R may be easily connected to Tempo’s C3S linear serpentine system
• Easily replaceable LED printed circuit boards.
• Quick wire connectors to join sections.
• CSA damp location listed.
OPTICS / LENS / DIFFUSER
• Clear or Frosted low-profile convex lens (120° x 120°)
POWER SYSTEM
• Utilizes remote, Class II low voltage 12Volt or 24Volt Power Supply. Power supplies must be installed in an approved enclosure (by others) in close proximity to luminaire. See Driver Remote Distance Chart for guidance.
• Triac dimming to 1% 0-10V dimming to under 10% DMX/RDM dimming to 1% Non-dimming also available
PERFORMANCE
Micro-Maintainable
CLiP™ - Configurable Lighting Platform module spacing options of 1” & 3” for specific applications or to reduce total watts per foot. (see pg. 6)
• Light output ranges from 220 to 320 lm/ft based on Watts/ft selection
• Dense Pack (DP) LED spacing (3W/ft only) places more LED’s closer together in each 3” module for high uniformity illumination.
• Operating temperature range of -20ºC to 50ºC
• Power Supply Total Harmonic Distortion <20%, Power Factor >0.9
LIGHT CHARACTERISTICS
Available in 1600K, 2000K, 2200K, 2700K, 3000K, 3500K, 4000K, 5000K plus Red, Green, Blue and Amber
• Typical CRI of 80+, 90+ CRI option available with 2700K, 3000K and 3500K selection (JA8).
• All LED’s are selected and placed on the printed circuit boards via Tempo Industries’ UniBin™ process which ensures consistent hue and color within the entire run. Color variations are held to within a maximum of a 2-step MacAdam ellipse.
WARRANTY
Tempo provides a 5-year limited warranty.
86,000 HOURS
L85 LUMEN MAINTENANCE
LED Luminaires will reach 85% of initial lumen output at or beyond 86,000 hours at 25°C.
Components, such as LED boards and lenses, can be easily replaced if necessary for increased product sustainability.

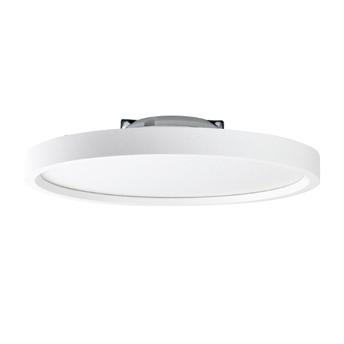

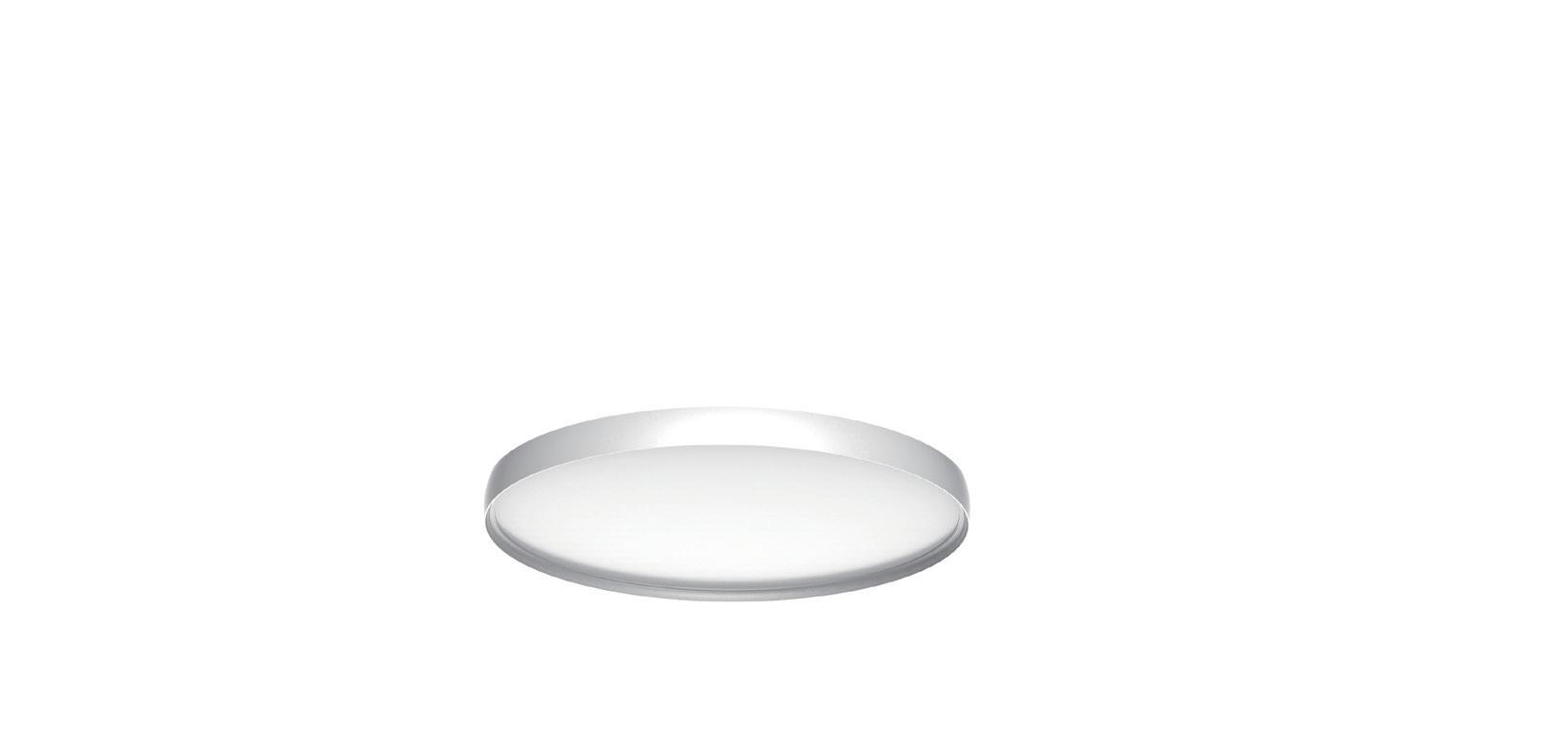

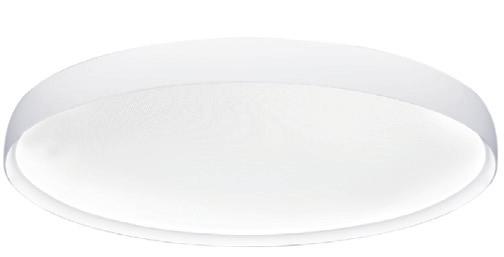

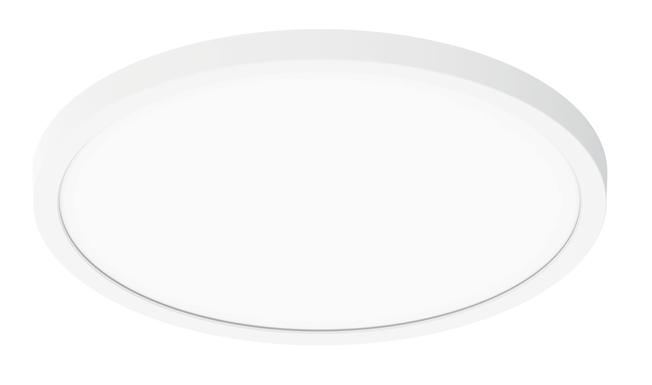

FOCUS ROUND LIGHT
PRODUCT DESCRIPTION
PERFORMANCE
3000K,3500K, 4000K
The Focus Round Light offers the FOCUS family of LEDfixtures in diameters from 13.8"through47.2". Recessed light source design achieving perfect glare control. Edge-lit technology and non-yellowing Dimming microprismaticoptical PMMA. Flexibleinstallationscomein pendant, surfaceand wall mounted. Options 0-10V Dimming optional are availablein tunable white, directand indirectlight distributions.
FEATURE
• Fixtures in diametersfrom 13.8" through 47.2"
• Recessed lightsource design achieving perfectglare control
(1) C3R features 3” modules with zero spacing in between as standard. Module Spacing options of 1” & 3” in between each 3” module is available to reduce wattage per foot and reduce costs. See dimensional information for more details on Module Spacing.
• High CRI required to comply with 2016 & 2019 Title 24 JA8 High Efficacy Lighting.
Consult factory for information on tailored C3R fixture lengths.
Clear Lens (-CL)
Frosted Lens (-FL)
Ordering Information
Example: FRID24-64-40801
Series Distribution Diameter/Watts .
.Controls .Finish
FR D-Direct 14-23-13.8"/23W1 •30-3000K 80-80Ra 1-120-277V Ordered and •Blank-None •Blank-White4
Visually stimulating and housed within our proprietary optical silicone lens, the Saber Mini Suspension is Tension hung offering flexible installation options, and conceptual yet functional design. The suspension bends Up and Down giving it the unique ability to traverse open spaces wall to wall, wall to ceiling, and floor to ceiling. The 0.6" wide round lens, offers superior color quality and performance while creating uniform illumination without pixelation, using cutting edge remote phosphor technology. Offered in multiple, dimmable Static White Color Temperatures. Saber Mini is an IP66 rated wet location system featuring watertight barrel connections. System includes a pair of turnbuckles and aircraft cable. Remote power Supplies and Canopies sold separately. Includes a 5-year pro-rated warranty. Patent Pending. For custom designs and quotes, email our design team: design@ PureEdgeLighting.com
LUMEN PERFORMANCE at 3000K 5W PER FOOT
(Refer to page 2 for full lumen data)
LUMEN OUTPUT 354 lm/ft
CCT
SPECIFICATIONS
DIMENSIONS
Height: 0.49" Width 0.60"
INPUT 120/277V
POWER SUPPLIES Remote 24VDC
POWER CONSUMPTION 3.3 or 4.4 watts per foot
INCREMENTS 1'
MAX LENGTH
3W-Up to 60' with power feeds at both ends, 30', with one feed 5W - Up to 40' with power feeds at both ends, 20' with one feed
REQUIRED COMPONENTS Power Supplies & Power Cables MATERIAL Optical Silicone
OPERATING TEMPERATURE -40º F (-40º C) to 122º F (+50º C) AVERAGE LED LIFE 50,000 hrs
WARRANTY 5 Year pro-rated COMPLIANCE Class 2 Wiring, Outdoor Wet Location with Water Tight Barrel Connectors, IP66 Rated, ETL listed, RoHS
REMOTE POWER SUPPLIES* & CONTROLS (SOLD SEPARATELY) 24VDC, Class 2 wiring OUTDOOR
• Pure Smart™ WiZ Pro Power Supplies & Controls
• UNI Driver: Universal Dimming (TRIAC, ELV, 0-10V) INDOOR
• Pure Smart™ WiZ Pro Power Supplies & Controls
• UNI Driver: Universal Dimming (TRIAC, ELV, 0-10V)
FEATURES
The Strike series grants creative opportunities that are seldom seen in the Lighting industry. Each space can be uniquely transformed by these LED Linear Strips. Unlimited shapes and formations can be designed to ensure a timeless intrigue. The COB Strip technology creates a seamless and transitional light output, without any interruptions such as with standard LED Chips. Black and White finishes available.
ORDERING GUIDE
SPECIFICATIONS
Diffuser
PC diffused cover Length
Custom lengths available up tp 40 ft. Lumens 412LM/W
Weight 0.252kg/m
Max LED Strip Width 10mm
Material Silicone Finish Black / White
Installation Wall Mounting
*CONTACT FOR QUICKSHIP OPTIONS
• Runs can not exceed 20 feet per home run
• Maximum driver distance of 20 feet before voltage drop (with 18 gage wire)
• Driver sold separately
* COMPATIBLE WITH ELECTRONIC DRIVER ONLY *
TYPE LT28 SPEC OCEAN HARBOR

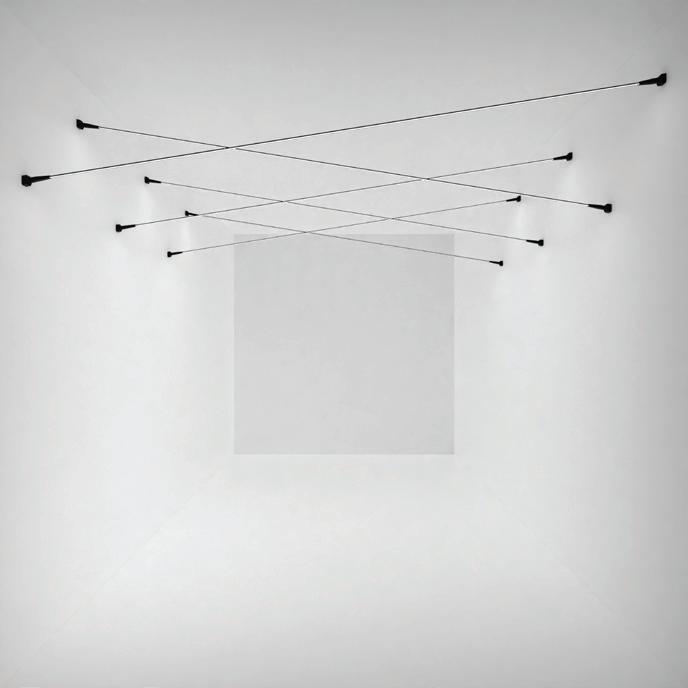

PAIR OF TURNBUCKLES AND AIRCRAFT CABLE (INCLUDED)
The Slim-Profile Turnbuckles hold the tension of the air craft cable running through the silicone Saber tube with LED strip. 6' stainless steel aircraft cable included.
AIRCRAFT CABLE (INCLUDED WITH AN EXTRA 6')
CANOPY (ORDER SEPARATELY)
Outdoor canopy with 8ft outdoor barrel connector power feed, may be cut on job site.
WET AND DAMP LOCATION CABLE ORDER PER FOOT
Our Wet Location, 5 Conductor, 14 Gauge Cable is a durable and adaptable cable suitable for transmitting power, control, and switching in indoor and outdoor wet and damp environments. Cable sold by the foot, simply specify the length needed by the foot. Keep within 50 ft between fixture and power supply. Cable sold by the foot, simply specify the length needed by the foot.
POWER CABLE CONNECTOR WET LOCATION
The flexible power cable connector is designed to work in outdoor environments for safe and reliable connections. This Flexible Connector is easy to install and configure, helping you create innovative lighting designs in an outdoor commercial or residential space.
COB STRIP ROLL
• Wattage 4.6W/FT
•Input Power 24V
•CRI 80
•LED Chip COB
•Environment IP20
•Maximum Run 20ft.
•Certification UL / ETL
•Dimming
•Length per Roll 20ft.
•Ambient Temperature
•Height x Width
•Adhesive 3M
• Warranty 5 years
BLANK
DRIVERS
*Driver sold separately
FEATURES
• Output constant voltage
• Built-in PFC function
• Protections: short circuit/ over voltage/ over heat
• Cooling by free air convection
• Flicker-free
• Work with leading edge & trailing edge triac dimmers
• Class 2, Class P, Type HL, CE, UL, FCC compliant
• PWM output, does not change the color index
• Metal housing
• Suitable for dry location
• Strong compatibility, flicker-free dimming
• Suitable for LED lighting and moving sign applications
• Compliance to worldwide safety regulations for lightings.
• Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
• 3 years warranty
SPECIFICATIONS

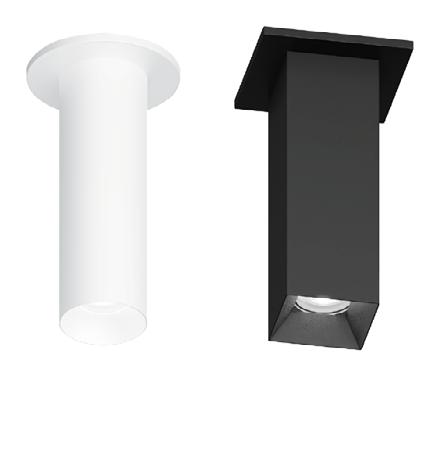

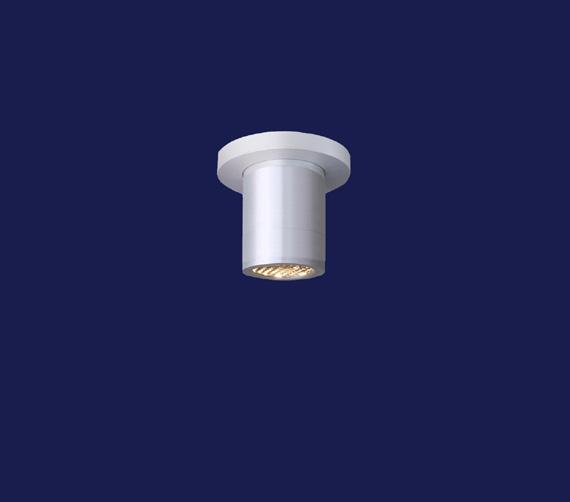

EXTON MONOPOINT SYSTEM
CATALOG NUMBER EXAMPLE
DOWNLIGHT, ADJUSTABLE DOWNLIGHT MODULES
Surface, Recessed Mount 2” Monopoint, IP65 LED, 0-10V Dimming
EX5–K–2MP–EXJB35–ID–DM–0–10V–DL–15–BLK–120/277V
EX5-CCT-22K
Exton Color Corrected Filter, 22K
EX5-CCT-24K
Exton Color Corrected Filter, 24K
EX5-HCL-BLK
Exton Honeycomb Louver, Black
EX5-SBL Exton Sandblasted Lens
EX5-SOL Exton Solite Lens
EX5-SN4 Exton Snoot
2MP-S Monopoint, Surface Mount
2MP-EXJB35-ID Monopoint, Exton Recessed J-Box 35W Integral Driver, Non-Dimming, 120/277V
*For Surface Mount, only. Refer to links below Remote Power Supply1
1. For Surface Mount (only). Order Monopoint(s) and Remote Power Supply(s) separately to create a complete System. Refer to Exton Remote Power Supply IP20, IP24, IP66 or IP68 spec sheets for options.
2. 24VDC operation. 0-10V Dimming. Refer to Remote Power Supply Spec Sheets for details.
3. Any field modification will void the warranty and listing.
4. Exton Snoot (EX5-SN) for downlight only. Contact factory for Adjustable Downlight Snoot.
Kore-EX5 LED, 2” Monopoint, Surface or Recessed Mount, Downlight Module, Aluminum or Black Finish.
Surface Mount – For use with Remote Power Supply(s)
EX5-K-2MP-S-DL-15/25/35-DL-AL/BLK
Recessed Mount – Exton Recessed J-Box w/Integral Driver
Monopoint with a 2” mounting plate. Kore-EX5 5W LED Downlight and Adjustable Downlight Module. Select 15°, 25° or 35° Beam Pattern. Flush, integral two (2) Media Holder. Order Media separately. Adjustable Downlight features lockable vertical and horizontal aiming. Integral current controller in LED Module for 24V DC operation. Surface Mount for use with a Remote Power Supply (ordered separately) or Exton Recessed J-Box with Integral Driver, Non-Dim and 0-10V Dimming. Refer to Exton Remote Power Supply IP20, IP24, IP66 or IP68 Specsheets for options. Available in anodized Aluminum (AL) or Black (BLK) finish.
NO QUOTE, BY SAUNA INSTALLERS
EXTON MONOPOINT SYSTEM
Surface, Recessed Mount 2” Monopoint, IP65 LED, 0-10V Dimming
NOTES:
1. Due to the rapidly evolving technology for Semiconductor products, Tegan driver options are subject to change at any time, without notice. In addition, if any of the standard drivers are out of stock or discontinued, Tegan Lighting will supply an equal as needed. Tegan can also supply alternative drivers upon request; contact the factory for details.
2. Tegan LED emitters, like all LEDs, undergo a natural depreciation in lumen output. This depreciation is within the specifications of LM-80. Extreme ambient temperatures, dusty environments, and power conditions may affect the depreciation. Wattage requirements and lumen output are subject to change with ongoing developments in LED technology.
ACCESSORIES
Exton Honeycomb Louver, Black (EX5-HCL-BLK)
1/8” Hexcell black metal. Controls spill illumination and glare. For all Envelopes, except Frosted.
Exton Sandblasted Lens (EX5-SBL)
Creates a uniform beam pattern that is useful for wall washing. Tempered glass. For all Envelopes, except Frosted/Bowl.
Exton Solite Lens (EX5-SOL)
Tempered glass with a stipple effect that provides obscurity while retaining high transmission values. This low-iron optically clear glass offers maximum transmission and minimal absorption. For all Envelopes, except Frosted.
Exton Color Corrected Filter, 22K or 24K (EX5-CCT-22K/24K)
22K or 24K Kelvin Temperature results when used with the standard 27K Cree LED.
Exton Snoot (EX5-SN-BLK)
Exton Snoot accessory for additional glare control. Black Finish. Downlight Module only. Installed with the standard Media Holder that accommodates two Media.
BLANK

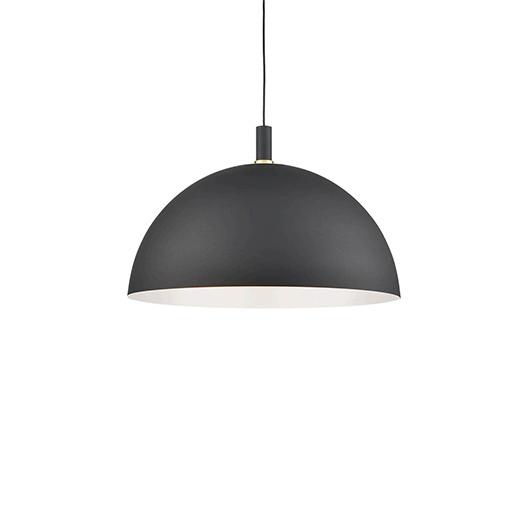

FU642031 Matte Black Skygarden 2
Designed by Marcel Wanders,Marcel Wanders studio, 2007
Halogen
- 150W
Imagine a stunning display blooming above you: Created by Marcel Wanders, the Skygarden S is just that. A gracefully hanging hemisphere, the pendant lamp makes a powerful impression with its sheer size. However, it is the inner diffuser in white painted cast plaster that steals the show. Standing beneath it, you will see the intricate design that gives this piece its name. The Skygarden's plaster diffuser support is die-cast aluminum alloy. Its upper cable gland and blocking ring nut come in black injection-molded PC (polycarbonate). Shaped adjustment screws are included. The upper and lower silicone shock absorbers are injection-molded and transparent. The lamp-holder and fixing support come in PPS. The diffuser is flashed and blown opal glass. The molded fixing ring nut is die-cast aluminum alloy with alodine plating. The frieze is photo-etched and mechanically drawn AISI 304 steel. The ceiling attachment is molded and galvanized steel ceiling attachment. It has a gray, injection-molded PA6 (Nylon) rose, steel wire, and a FEP/SIL UV-stabilized transparent power cord. The Skygarden S emits diffused light and is available in black, brown, bronze, matte black or white. Diffusers are available in three sizes (models): SKYGARDEN S1: 11.8" x Ø23.6" SKYGARDEN S2: 17.7" x Ø35.4" SKYGARDEN Small: 7.8'' x Ø15.7'' Inspiration behind the design: A house Marcel Wanders once lived in, which featured an old and ornate plaster ceiling that he dubbed his "Skygarden," inspired this artistic piece. Wishing that he could take this "garden on the ceiling" with him when he moved, Wanders created this pendant lamp so that he could do just that-and then share it with the world.
Are you a professional and your project needs consulting and support?
In our constantly evolving world and business, technical upgrades happen every day. This means all product specifications and data are subject to change without warning in order t improve reliability, function, performance or otherwise. We make every effort to ensure the accuracy of our product images, however due to different lighting and screens used for viewing, the colours may vary. Images are indicative of the quality and style of the product but may not represent the precise details of the product you receive. This is because we are constantly working to make improvements. For aesthetic reasons, cables and/or electrical elements are often not shown. Refer to technical data sheets for all technical data. Images and colours are not part of any contract or warranty in any way.
ALLOWANCE FOR PENDANT LIGHTING: $2,500.00/PER UNIT
TBD
ALLOWANCE FOR AUX. ROOM DECORATIVE: $500.00/PER UNIT
TBD
TBD
TYPE
TBD
NO SPEC
NEON FLEX SERIES
PRODUCT DATA SHEET
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
BLANK
OCEAN HARBOR TYPE LTS1
HWX - Hardwire custom ft
DC6 - DC plug 6 ft
DCX - DC plug custom, ft
secondary light source
AB - Back feed, side A AS1 - Side feed, side A1 AS2 - Side feed, side A2
53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only) G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
WD3 - 2700-3500K - 4.4 W/ft NO - No driver NO - No controller RGB AND TUNABLE WHITE
TW1 - Tun. White - 3.5 W/ft
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
TYPE LL12 SPEC OCEAN HARBOR
NORTH AMERICA
MAUNA 10
IP-rated projector
design Rod&Todd
Dimensions
Dimensiones
Photometric diagrams
Diagrammes photométriques
IP65 projectors equipped with COB LEDs with CRI98 and R9 93, they offer a wide range of narrow and precise light beams. Made of anodized aluminum, they are suitable for installation in particularly aggressive environments. Optical quality and fine finishes come together in a product of great reliability and quality.
Projecteurs IP65 équipés de LED COB avec CRI98 et R9 93, ils offrent une large gamme de faisceaux lumineux étroits et précis. Fabriqués en aluminium anodisé, ils sont adaptés à une installation dans des environnements particulièrement agressifs. La qualité optique et les finitions soignées sont réunies dans un produit d’une grande fiabilité et d’une grande qualité.
Proyectores IP65 equipados con LED COB con CRI98 y R9 93, ofrecen una amplia gama de haces de luz estrechos y precisos. Fabricados en aluminio anodizado, son adecuados para su instalación en entornos especialmente agresivos. Calidad óptica y finos acabados se unen en un producto de gran fiabilidad y calidad.
IP65 Class 2
Supply current Courant d’alimentation
Corriente de alimentación
Static White: 500mA (Vf18V)
Dim To Warm: 400mA (Vf 18V)
LED selection
Sélection des LED Selección del LED
2-Step MacAdam
Power
Pouissance
Potencia
Static White: 9W
Dim To Warm: 7,2W
CRI 98
Code construction
Construction du code produit
Construcción del código de producto
2 Aluminium 5 Black 6 Bronze C Custom
Series wiring Câblage en série
Cableado en serie
Lumens
Diagramas fotométricos made in Canada
Accessories
Accessoires
Accessorios
Static White 500mA drivers
Static White Alimentateurs 500mA
Static White Alimentadores 500mA
CCPRO10A-500 (1) IP20
Dimming: PHASE - 0-10V
CCPRO40A-500 (1..3) IP20
Dimming: PHASE - 0-10V
Dim to Warm 400mA drivers
Dim to Warm Alimentateurs 400mA
Dim to Warm Alimentadores 400mA
CCPRO10A-400 (1) IP20
Dimming: PHASE - 0-10V
CCPRO40A-400 (1..3) IP20
Dimming: PHASE - 0-10V
LH04
Low luminance hex louvre

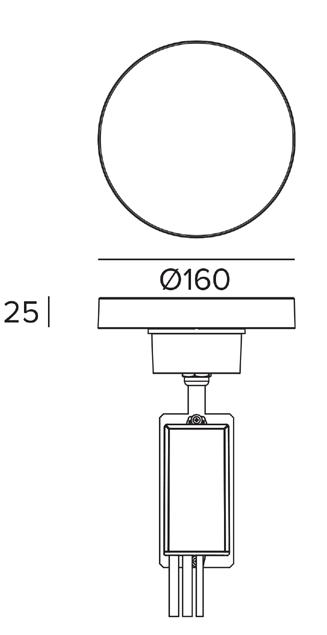

EcoMono10W
Description
Eco is a high-performance architectural spotlight featuring a sleek, modern design. Its solid, durable construction makes it well-suited for harsh outdoor environments. The fixture offers flexibility for a wide range of applications, with multiple optic and mounting options. A variety of anti-glare accessories are also available to enhance visual comfort.
Wall mounted LED fixture with radial emission available in two versions: Flat with Symmetric light effect, Angled for an elliptical asymmetric light effect.
MECHANICAL CHARACTERISTICS
Housing 6.30” Dia. X 3.15” (Flat) or 3.94” (Angled)
Materials Powder coated anodized die-cast aluminum optical head with extruded body. Marine Grade cataphoresis E available as optional.
Stainless Steel 316L junction box cover mounting back plate primer painted, suggested to be field painted the same color as the mounting surface.
Finish Textured finish provided as standard.
Power Connection
ELECTRICAL CHARACTERISTICS
Power Supply Local 4/1 smart driver (Non-Dimmable / 0-10V / Reverse Phase / Forward Phase) included with fixture. Driver to be mounted in local junction box behind the fixture.
Wattage 10W (500mA)
Voltage 120-277V Universal
Control 0-10V 1% Dim Phase (120V only) 10% Dim
SOURCE
LED Chip on Board.
Ferrite Dark Grey Black White Bronze
Sandstone Grey Heritage Brown
Pre-cabled with 7”L Belden direct burial 18ga 2 conductor cable for connection to remote power supply.
Functionality 316L grade stainless steel base and stainless steel anti-theft screws.
Mounting Surface mounted over recessed UL Listed 4” octagonal or round 1.5”D minimum junction box, supplied by others. Luminaire installs directly on wall with cover plate.
BUG B0–U3–G1
Weight 2.31lbs
Protection IP66
Impact IK10
CERTIFICATIONS
cULus Class 2 Wet Location Listed.
Tested in accordance with LM-79-08. Compliant for California installations. IEC 62471
RoHS3 EU 215/863
WARRANTY
5 year limited warranty.
SUSTAINABILITY
Luminaire designed for disposal/recycling at end-of-life. Replaceable LED light source and control gear by a Targetti technician.
OPTIC
Internal high reflective anodized aluminum reflector with transparent diffusive polycarbonate lens.
Efficacy 36Lm/W max. Refer to photometric graphs for specific values.
CHIOBO WALL shown in Ferrite Dark Grey finish, Flat version (left) Angled version (right).
Cost:
Please note all custom orders are final sale. All quotes are valid for 30 days. 50% deposit is required to begin production. FFA does not apply on custom orders. Please sign and email documents to orders@avenuelighting.com with your purchase order.
Company Info:
Print Name:
By signing you acknowledge and agree to the above terms and conditions.
TYPE LL14 SPEC OCEAN HARBOR
CHIOBO WALL
BLANK
RNW3N
OCEAN HARBOR TYPE
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Kurba Large Sauna Horizontal and Vertical Static White Field Bendable 24V System
Features
Kurba Large is a dot free direct view, highly versatile, energy efficient and flexible LED strip suitable for Sauna and Spa locations capable of horizontal/side bends and vertical/top bends with a 6” bending radius. The silicone material offers excellent heat, weather, UV, and solvent resistance and has a special coating to repel dust and dirt accumulation.
Applications
Sauna and Spa locations
Materials
Silicone for Red list approved, as well as heat, weather, UV, and solvent resistance
Dimming
Dimable down to 1%. Dot Free even illumination. Also available with Black Lens
Average Life (L70)
50,000 hours
Approvals
24VDC Class 2 wet listed, IP67
Warranty 3 years
TOP VIEW FLEX NEON FLEX SERIES
PRODUCT DATA SHEET
The Top View Neon Flex is a flexible silicone channel that bends up and down on the vertical axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends up and down on the vertical axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
Available in static white, warm dimming, tunable white, RGB, and RGBW
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 150mm (6in)
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
BLANK
OCEAN HARBOR
35 - 3500K LP4 - 5.8 W/ft
42 - 4200K LHP - 7.0 W/ft
- ELV dimming 120/277 VAC (Only available in 96W - 24V driver)
VAC
53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only) G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K - 4.4 W/ft
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
- No controller RGB AND TUNABLE WHITE LED TAPE OPTIONS (See Delivered Lumens table in section 1 for details).
TW2 - Tun. White - 5.8 W/ft
TW1 - Tun. White - 3.5 W/ft N/A - Not available with TW and RGB options I - Indoor dry and damp location
RATED WATTAGE Static White = 16.9W, Warm Dim = 15.0W
DELIVERED LUMENS Up to 1271 lm @ 4000K - 50º Optic FT Trim
EFFICACY Up to 75 LPW @ 4000K - 50° Optic FT Trim
CCT @ 90CRI 2700K, 3000K, 3500K, 4000K, Warm Dim
COLOR QUALITY 90+ CRI, 2-Step SDCM
LED LIFETIME 55,000 hours @ L90
ADJUSTABLE 0º to 30º tilt, 360º pan
DELIVERED LUMENS MATRIX - FT REFLECTOR
CCT & CRI
2700K (90CRI) 770 lm 1104 lm
3000K (90CRI) 816 lm 1170 lm
3500K (90CRI) 862 lm 1235 lm
4000K (90CRI) 886 lm 1271 lm
Warm Dim (98CRI) 552 lm 791 lm
DELIVERED LUMENS MATRIX - ST REFLECTOR
CCT & CRI
2700K (90CRI) 642 lm 977 lm 783 lm
3000K (90CRI) 680 lm 1035 lm 830 lm
3500K (90CRI) 718 lm 1093 lm 877 lm
4000K (90CRI) 739 lm 1124 lm 902 lm
Warm Dim (98CRI) 440 lm 612 lm 491 lm
14508 Nelson Ave. City of Industry, CA 91744 • tel: 626.336.4511
SILENT VU™ OPTICS TECHNOLOGY
OPTICS 50º Installed and 30º included
POWER SUPPLY
INPUT VOLTAGE 120-277V, 50/60Hz
DIMMING TRIAC, ELV and 0-10VDC and Lutron EcoSystem options available SERVICABILITY All options: Below ceiling access
FEATURES
• ¾" aperture downlight minimizes fixture and light noise at the ceiling
• Delivers up to 1271 lumens of general or accent light using SilentVu™ optical control at 50° or 30°
• 55,000 hr LED lifetime and available integral or remote driver options
TRIM OPTIONS
• Fixed and Adjustable
• Wet Location (AL, FL & WW)
• Wall Wash
• Round and Square
• Standard, Trimless, and Wood Ceiling
TRIM COLORS
• White
• Black
• Champagne
• Custom Color
REFLECTOR COLORS
• White
• Black
• Champagne
• Satin Aluminum
• Custom Color
HOUSING
• Includes (2) galvanized steel adjustable hanger bars and butterfly brackets.
• Ceiling Material: Drywall, T-bar grid, Wood and Millwork
• Steel junction box with up to (4) ½" knockouts
• All options are Air Tight and CCEA (Chicago Plenum)
• 3½" minimum plenum height above the ceiling required
LISTING/WARRANTY
• cULus Listed
• UL Listed for Damp Location (All Styles) & Wet Location with AL, WL or WW reflector options.
• ASTM E283 Certified Airtight
• IC Rated
• CA Title 24-JA8 Compliant with 50° optic, 90+CRI
• Five (5) years limited warranty
• CCEA (Chicago Plenum) Approved
Creative Systems Lighting, A Division of Troy-CSL Lighting, Inc. All rights reserved. Subject to change without notice. Patent: csllighting.com/patents
OCEAN HARBOR TYPE LT14
NIOB-2RC
2" Iolite Round Adjustable Cone Reflector
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm
WHISPER FLEX LED DOWNLIGHT - WS-AIC
Emergency Options only applicable for integral driver options.
EMERGENCY OPTIONS
EM-1000 (25W Remote Inverter)
EM-1002 (10W Remote Emergency Driver) Title 20
(1) Whisper + (1) Universal Dim Driver: 1%-100% 0-10V, TRIAC, or ELV, 120V/277V (2) Whispers + (1) Universal Dim Driver: 1%-100% 0-10V, TRIAC, or ELV, 120V/277V
(3) Whispers + (1) Universal Dim Driver: 1%-100% 0-10V, TRIAC, or ELV, 120V/277V
(1) Whisper + (1) EldoLED Dim Driver: 0.1%-100% 0-10V, 120V/277V
(2) Whispers + (1) EldoLED Dim Driver: 0.1%-100% 0-10V, 120V/277V
(3) Whispers + (1) EldoLED Dim Driver: 0.1%-100% 0-10V, 120V/277V
(1) Whisper + (1) Lutron Dim Driver: 1%-100% EcoSystem, 120V/277V
(2) Whispers + (1) Lutron Dim Driver: 1%-100% EcoSystem, 120V/277V
(3) Whispers + (1) Lutron Dim Driver: 1%-100% EcoSystem, 120V/277V
Remote Driver Options listed above are specifically tuned to power the corresponding number of Whispers indicated and must be installed in the configuration as ordered: (1) Whisper + (1) Remote Driver, (2) Whispers + (1) Remote Driver, or (3) Whispers + (1) Remote Driver as defined above.
For Remote Driver options, specific installation provisions should meet local code and jurisdiction requirements as determined by your licensed electrical contractor. DC wiring will run between the provided CSL Whisper junction box and the remote mounted driver. Generally, #12AWG, #14AWG, and #18AWG stranded or solid UL certified power wiring can accommodate run lengths of up to 50ft between the installed CSL Whisper.
Suitable for Underwater Lighting, Like Pool, Fountain ……
[FRGT]: Ground or Wall Recessed
Fitting: Screwed into Buried Sleeve
Maximum Diving Depth: 5meters
NOTES: Custom Installation and Accessories Referred to Another Catalogue of Fixing Kits.
STANDARD
Designed and Manufactured to Comply with CE/RoHS/cETL/SAA……
IP68 and IK10 Protection, Class Ⅲ Electric
OPTIONS
LED CCT: 2700K/3500K/4000K/6000K/R/G/B/A
[CRI]: [E] RA80, [G] RA90, [H] RA97(RG0)
[ACF]: Female Waterproof Connector
NOTES: Cannot Be Operated for Over 10min Out of Water!
GTG9461A: UNDERWATER RECESSED LED LIGHT
GTG9461AMCA67A3C
G2700K
G3000K
G3500K
G4000K RA90
G5000K RA90
G2700K
[Symmetric]
BL15D:15°
BL25D:25°
BL30D:30°
BL45D:45°
BL60D:60° [Oval]
BLV15x45°
BLV15x60°
BLV30x70°
[Asymmetric]
BAS10D-12D
BAS18D-15D
BAS18D-25D
BAS18D-30D
BAS18D-45D
BAS18D-60D
BAS23D-30D
BAS30D-45D
BAS15D-V15x45D
BAS23D-V20x45D [BDF] Frosted BDF:120°
G3000K RA90 830
G3500K RA90 830
G4000K RA90
G5000K RA90
G6000K RA90 900
NOTE:
All parameters are measured at 25℃ ambient temperature, 35% humidity experimental environment. Tolerances of power and luminous flux are ±10%, tolerance of color rendering index is ±5.
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
1. For Surface Mount (only). Order Monopoint(s) and Remote Power Supply(s) separately to create a complete System. Refer to Exton Remote Power Supply IP20, IP24, IP66 or IP68 spec sheets for options.
2. 24VDC operation. 0-10V Dimming. Refer to Remote Power Supply Spec Sheets for details.
3. Any field modification will void the warranty and listing.
4. Exton Snoot (EX5-SN) for downlight only. Contact factory for Adjustable Downlight Snoot.
Kore-EX5 LED, 2” Monopoint, Surface or Recessed Mount, Downlight Module, Aluminum or Black Finish.
Surface Mount – For use with Remote Power Supply(s)
EX5-K-2MP-S-DL-15/25/35-DL-AL/BLK
Recessed Mount – Exton Recessed J-Box w/Integral Driver
Monopoint with a 2” mounting plate. Kore-EX5 5W LED Downlight and Adjustable Downlight Module. Select 15°, 25° or 35° Beam Pattern. Flush, integral two (2) Media Holder. Order Media separately. Adjustable Downlight features lockable vertical and horizontal aiming. Integral current controller in LED Module for 24V DC operation. Surface Mount for use with a Remote Power Supply (ordered separately) or Exton Recessed J-Box with Integral Driver, Non-Dim and 0-10V Dimming. Refer to Exton Remote Power Supply IP20, IP24, IP66 or IP68 Specsheets for options. Available in anodized Aluminum (AL) or Black (BLK) finish.
INSTALLERS
EXTON MONOPOINT SYSTEM
Surface, Recessed Mount 2” Monopoint, IP65 LED, 0-10V Dimming
NOTES:
1. Due to the rapidly evolving technology for Semiconductor products, Tegan driver options are subject to change at any time, without notice. In addition, if any of the standard drivers are out of stock or discontinued, Tegan Lighting will supply an equal as needed. Tegan can also supply alternative drivers upon request; contact the factory for details.
2. Tegan LED emitters, like all LEDs, undergo a natural depreciation in lumen output. This depreciation is within the specifications of LM-80. Extreme ambient temperatures, dusty environments, and power conditions may affect the depreciation. Wattage requirements and lumen output are subject to change with ongoing developments in LED technology.
ACCESSORIES
Exton Honeycomb Louver, Black (EX5-HCL-BLK)
1/8” Hexcell black metal. Controls spill illumination and glare. For all Envelopes, except Frosted.
Exton Sandblasted Lens (EX5-SBL)
Creates a uniform beam pattern that is useful for wall washing. Tempered glass. For all Envelopes, except Frosted/Bowl.
Exton Solite Lens (EX5-SOL)
Tempered glass with a stipple effect that provides obscurity while retaining high transmission values. This low-iron optically clear glass offers maximum transmission and minimal absorption. For all Envelopes, except Frosted.
Exton Color Corrected Filter, 22K or 24K (EX5-CCT-22K/24K)
22K or 24K Kelvin Temperature results when used with the standard 27K Cree LED.
Exton Snoot (EX5-SN-BLK)
Exton Snoot accessory for additional glare control. Black Finish. Downlight Module only. Installed with the standard Media Holder that accommodates two Media.
BLANK
TYPE
NO SPEC
TYPE
NO SPEC
TYPE
NO SPEC
TYPE
NO SPEC
TYPE
NO SPEC

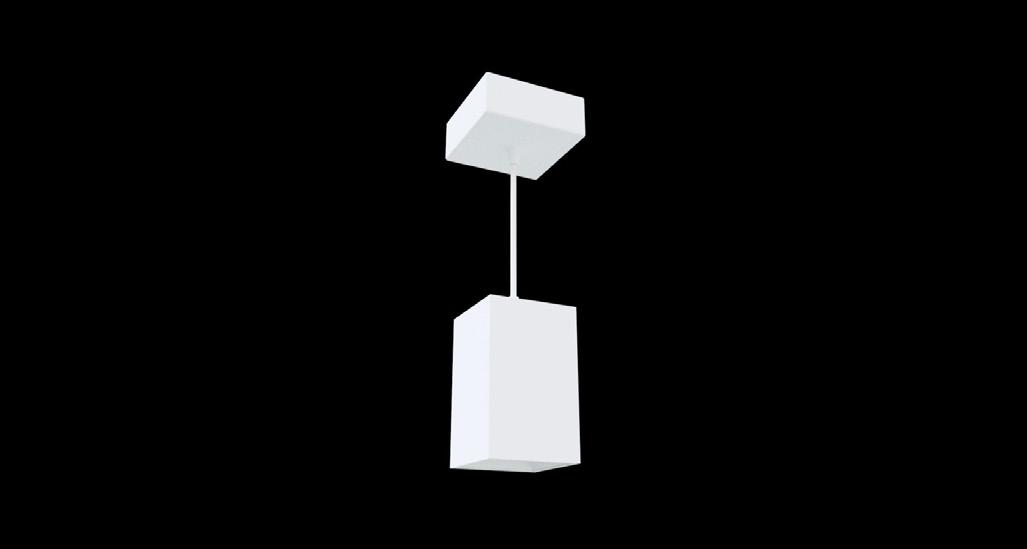

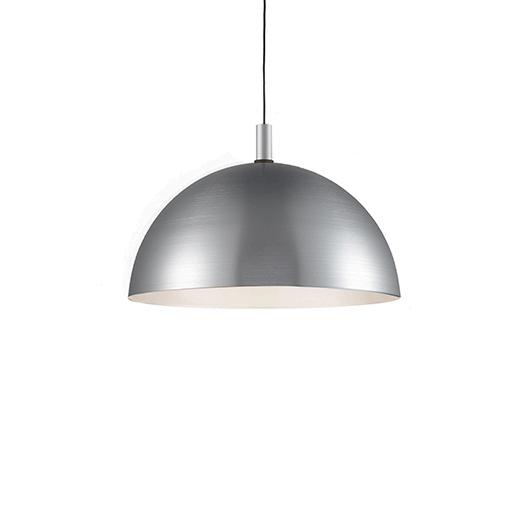

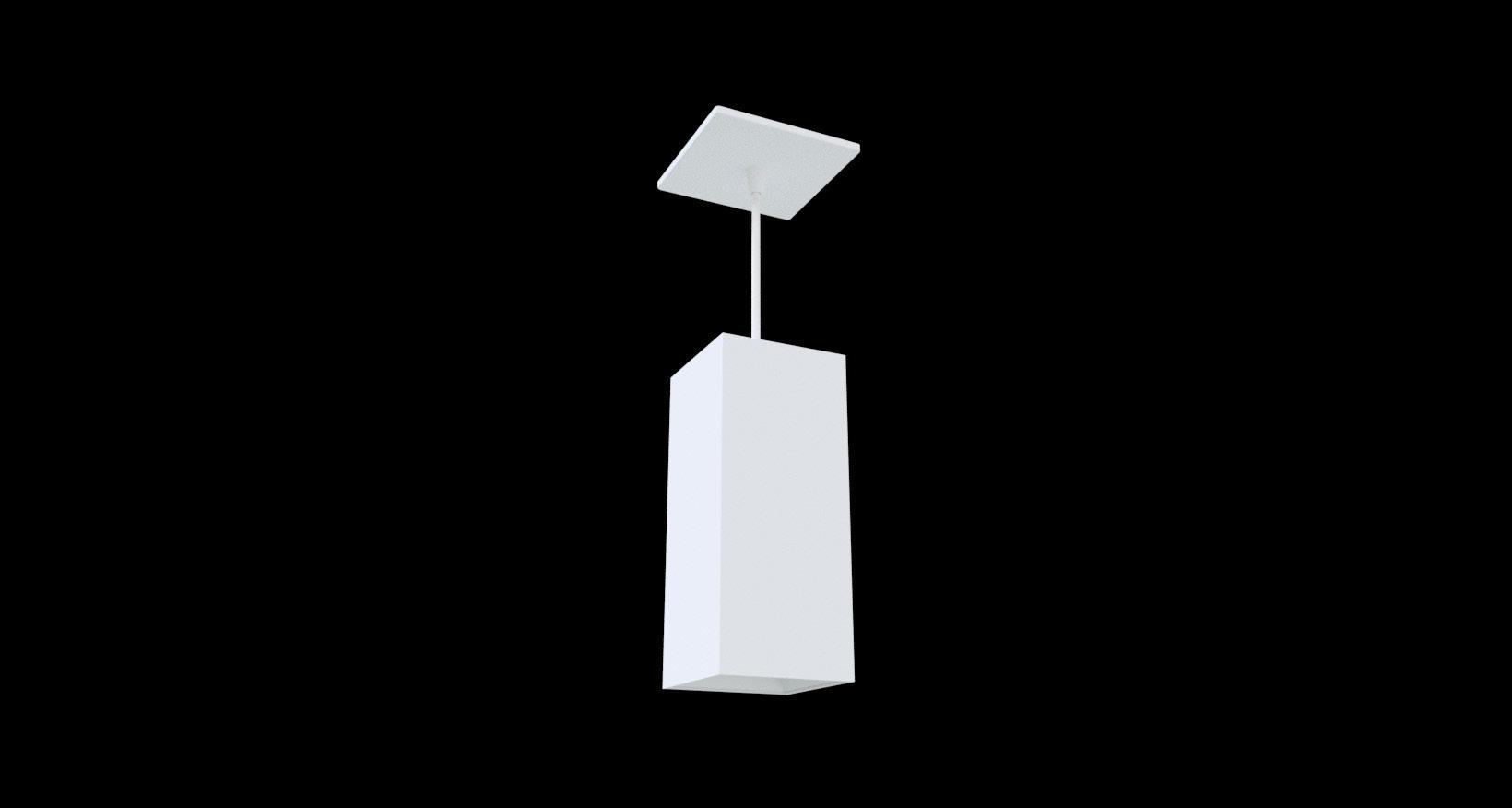

ALLOWANCE FOR LEVEL 18 PENDANT LIVING ROOM: $500.00/PER UNIT
TYPE LU2 SPEC OCEAN HARBOR
NIO-2RTLNDC
PRODUCT DESCRIPTION
2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm or 1000lm LED packages
Comfort Dim (warm dimming) also available in 800lm only 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
ELECTRICAL
Lumens / Wattage: 800lm / 14W, 1000lm / 14W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
Compatible Housings
NIO-2RTLNDC
PRODUCT DESCRIPTION
2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm or 1000lm LED packages
Comfort Dim (warm dimming) also available in 800lm only 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
ELECTRICAL
Lumens / Wattage: 800lm / 14W, 1000lm / 14W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
Compatible Housings
TYPE LU2A SPEC OCEAN HARBOR
NIO-2RTLNDC
PRODUCT DESCRIPTION
2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm or 1000lm LED packages
Comfort Dim (warm dimming) also available in 800lm only 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
ELECTRICAL
Lumens / Wattage: 800lm / 14W, 1000lm / 14W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
Compatible Housings
NIO-2RTLNDC
PRODUCT DESCRIPTION
2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm or 1000lm LED packages
Comfort Dim (warm dimming) also available in 800lm only 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
ELECTRICAL
Lumens / Wattage: 800lm / 14W, 1000lm / 14W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
Compatible Housings
TYPE LU3 SPEC
LTR-S Specification Series
1.5W / 3W COB (Chip On Board) LED Tape Specification Sheet
PRODUCT OVERVIEW
The newest technology in flexible LED tape is the COB (Chip On Board). Tightly spaced diodes are encapsulated into a single phosphor strip that provides a seamless linear light display with no LED pixelation. Available in 2700K, 3000K, 3500K and 4000K.
FEATURES
• 24VDC
• 2700K, 3000K, 3500K and 4000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 156 LEDs per foot
• Cuttable every 2”
• 180° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 32’-8”
• Includes Sure-Tite connectors
SPECIFICATIONS
ELECTRICAL
•24V
•1.5 / 3 watts per foot
OPTICS
•95+ CRI
CERTIFICATION
•UL
•Title 24 compliant when used with specific drivers. Consult factory.
•Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space.
WARRANTY
•5-year warranty when paired with GM power supply.
OCEAN HARBOR
LTR-P Professional Series
3W, 12VDC and 24VDC
LED Tape Specification Sheet
PRODUCT OVERVIEW
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Includes Sure-Tite connectors
SPECIFICATIONS
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels. ELECTRICAL
•12V/24V
•3 watts per foot
•90+ CRI
TYPE LU4 SPEC OCEAN HARBOR
NIO-1RNB
1" Iolite NTF Round Bullnose
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite NTF trims can be specified for use with Iolite new construction housings. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
600lm / 9W or 10W
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim Technology
60° (Flood) optic installed, 40° (Narrow flood) and 20° (Spot) optics included 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Each luminaire includes optics: flood (installed), narrow flood and spot.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Beam Spread: 24° Spot, 40° Narrow Flood or 57° Flood
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION
Type
Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
Round Bullnose Non-Adjustable
LUMENS / WATTAGE
NHIOICD-16LE3 ICAT New Construction, 120V; Triac/ELV 600lm / 9W
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V 600lm / 10W
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV 600lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 600lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
ENERGY STAR certified
5-Year Limited Warranty
· RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
1" Iolite NTF Round Bullnose - Dedicated New Construction Required
Trim Type
NIO-1RNB = Round Bullnose
X = 2700K 30X = 3000K 35 X = 3500K 40X = 4000K 50X = 5000K CDX = Comfort Dim (3000K-1900K)†
† 1" Comfort Dim uses a different dimming curve than 2" & 4" Comfort Dim
NHIOICDCP-16LE3 = Chicago Plenum / Triac/ELV / 600lm / 9W
/
NHIOICDCP-16LE4 = Chicago Plenum / Triac/ELV/0-10V / 600lm / 10W
OCEAN HARBOR TYPE LU4
NIO-1RNB
1" Iolite NTF Round Bullnose
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite NTF trims can be specified for use with Iolite new construction housings. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
600lm / 9W or 10W
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim Technology
60° (Flood) optic installed, 40° (Narrow flood) and 20° (Spot) optics included 5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Each luminaire includes optics: flood (installed), narrow flood and spot.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Beam Spread: 24° Spot, 40° Narrow Flood or 57° Flood
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION
Type
Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
Round Bullnose Non-Adjustable
LUMENS / WATTAGE
NHIOICD-16LE3 ICAT New Construction, 120V; Triac/ELV 600lm / 9W
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V 600lm / 10W
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV 600lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 600lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
ENERGY STAR certified
5-Year Limited Warranty
· RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
1" Iolite NTF Round Bullnose - Dedicated New Construction Required
Trim Type
NIO-1RNB = Round Bullnose
Compatible Housings
† 1" Comfort Dim uses a different dimming curve than 2" & 4" Comfort Dim Housing
X = 2700K 30X = 3000K 35 X = 3500K 40X = 4000K 50X = 5000K CDX = Comfort Dim (3000K-1900K)†
NHIOICDCP-16LE3 = Chicago Plenum / Triac/ELV / 600lm / 9W
/
NHIOICDCP-16LE4 = Chicago Plenum / Triac/ELV/0-10V / 600lm / 10W
1" Iolite Accessories
FIELD CHANGEABLE OPTICS
Type Project Catalog No.
Notes
Iolite reflectors include 20°, 40° and 60° optics. Optics can be changed in the field by removing LED module from die-cast reflector. Replacement optics include an optional frosted lens.
Frosted Filter-Optic
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast reflector. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-1AS15(color) 5/8" length
NIO-1AS19(color) 3/4" length
NIO-1AS24(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-1AS15(color) 5/8" length
NIO-1AS19(color) 3/4" length
NIO-1AS24(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
7" SURF Round LED Regressed Edge-Lit Surface Mount
Source: 14W LED Up to 1350lm
PRODUCT DESCRIPTION
SURF LED Surface Mount luminaires are only 11/16 " thick surface with DC driver mounted on the back. Luminaires resemble appearance of a recessed downlight. The specially designed regressed light guide with embedded honeycomb lens produces even illumination while reducing glare.
FEATURES
Over 80% energy savings when compared to incandescent
No housing needed, surface mounted over junction box
Edge-lit LEDs for uniform clean appearance
Matte Powder White finish
Dedicated CCT or Selectable CCT
5-year limited warranty
SPECIFICATION
Construction: Surface mounted LED edge-lit downlight adopts compact slim and elegant design. The special diffuser can increase central candela intensity by more than 30%, provide soft and comfortable light. 11/16 " deep polycarbonate regressed baffle trim. Dead front (non-metallic) luminaire is rated for wet locations without additional caulking.
Lens: Nora specified and designed edge-lit regressed light guide with embedded honeycomb lens greatly reduces aperture brightness while evenly distributing light.
Installation: Aluminum backplate attaches to junction box bracket (included) for seamless flush appearance.
Note: Make sure 4" octagonal junction box has minimum 1-1/2" height
Color Temperature: Dedicated CCT or Selectable CCT (2700K / 3000K / 3500K / 4000K / 5000K)
Color Rendering Index: 90+ CRI
Operating Temperature: 0- 45°C
Dimming: Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab.
OPTIONAL ACCESSORIES
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-23LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cULus Listed for Wet Location
5-Year Limited Warranty
FCC compliant
· Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1).
NEPK-LEDUNV = 23W Emergency LED Driver w/Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
090425P1
7" SURF Round LED Regressed Edge-Lit Surface Mount
OCEAN HARBOR
NELO
ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with CCT switch.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.
Five position sliding switch 27K / 30K / 35K / 40K / 50K
3/4"
Aperture
Diameter
Diameter:Aperture:
NELO-4RTW5-1/2"4-1/2"
NELO-6RTW7"6"
NELO-8RTW8-7/8"7-3/4"
NELO-12RTW12-1/4"11"
NSEM-6WDW
Surface Mount Enclosure with Emergency Driver for 6" only
Decorative Ring
Optional Accessories
Description Finish
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO
NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"
TYPE LU7 SPEC OCEAN HARBOR
NIOB-1
1" Iolite BWF Reflectors (New Construction and Remodel)
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF reflectors can be specified for use in new construction or remodel applications. The die-cast aluminum reflectors are available in square and round designs, with sharp and clean edges. Reflectors ships with a 60˚ optic installed, 20˚ and 40˚ optics are included and can be easily changed in the field. The reflectors produce 600lm output at 90+ CRI.
FEATURES
Cree® LED COB or Premium non-Cree Comfort Dim Technology (3100K-2000K)
Wide variety of reflectors and finishes
60° (Flood) optic installed, 40° (Narrow flood) and 20° (Spot) optics included 5-Year limited warranty
SPECIFICATION
Construction: Reflectors are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Reflectors:
NIOB-1RNB / NIOB-1SNB: Bullnose reflector with filleted aperture for minimal aperture brightness.
NIOB-1RNG / NIOB-1SNG: Straight reflector with sharp edges. NIOB-1RPH: Pinhole reflector focuses the beam spread through 1-1/8” opening.
NIOB-1RSL: Adjustable slot aperture focus the beam spread through 1-3/8” x 1-1/8” opening and adjust up to 15º (Remodel) or 30º (New Construction).
Mounting: Reflector includes friction blades to mount securely to housing.
Field Changeable Optics: Each reflector comes with a 60º (installed), 40º and 20º optics (included).
ELECTRICAL
Lumens / Wattage: 600lm / 9W (LE3) or 10W (LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: 90+CRI
Operating Temp.: 0˚C to 40˚C ambient temperature
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Reflector s are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION
NHIOICD-16 1" IC Air-Tight New Construction
NHIOICDCP-16 1" Chicago Plenum New Construction
NHRIOIC-16 1" IC Air-Tight Remodel
Accessories: Reflectors will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 3. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Location
ENERGY STAR certified 5-Year Limited Warranty
RoHS Compliant
Can be used to comply with 2016 Title 24 - part 6 High Efficacy LED light source requirements
PRODUCT IMAGES & DIMENSIONS
NIOB-1RNB Round Bullnose Non Adjustable
NIOB-1RNG Round Reflector Non Adjustable
NIOB-1RPH Round Pinhole Non Adjustable
BMPW, HZMPW, MPW
NIOB-1SNB Square Bullnose Non Adjustable BB, BZ, MPW, NN, WW
35 X = 3500K 40X = 4000K 50X = 5000K CDX = Comfort Dim †
BB = Black / Black
BMPW = Black / Matte Powder White
BW = Black / White
BZ = Bronze / Bronze
HW = Haze / White
HZMPW = Haze / Matte Powder White
MPW = Matte Powder White
NN = Natural Metal / Natural Metal
WW = White / White
† Comfort Dim technology uses non-Cree COB modules. 1" & 2" Iolite uses a different dimming curve than 4" Comfort Dim Not all finishes are available on all trims
1" Iolite BWF Reflectors (New Construction and Remodel)
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite BWF reflectors can be specified for use in new construction or remodel applications. The die-cast aluminum reflectors are available in square and round designs, with sharp and clean edges. Reflectors ships with a 60˚ optic installed, 20˚ and 40˚ optics are included and can be easily changed in the field. The reflectors produce 600lm output at 90+ CRI.
FEATURES
Cree® LED COB or Premium non-Cree Comfort Dim Technology (3100K-2000K)
Wide variety of reflectors and finishes
60° (Flood) optic installed, 40° (Narrow flood) and 20° (Spot) optics included 5-Year limited warranty
SPECIFICATION
Construction: Reflectors are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Reflectors:
NIOB-1RNB / NIOB-1SNB: Bullnose reflector with filleted aperture for minimal aperture brightness.
NIOB-1RNG / NIOB-1SNG: Straight reflector with sharp edges. NIOB-1RPH: Pinhole reflector focuses the beam spread through 1-1/8” opening.
NIOB-1RSL: Adjustable slot aperture focus the beam spread through 1-3/8” x 1-1/8” opening and adjust up to 15º (Remodel) or 30º (New Construction).
Mounting: Reflector includes friction blades to mount securely to housing.
Field Changeable Optics: Each reflector comes with a 60º (installed), 40º and 20º optics (included).
ELECTRICAL
Lumens / Wattage: 600lm / 9W (LE3) or 10W (LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: 90+CRI
Operating Temp.: 0˚C to 40˚C ambient temperature
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Reflector s are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION
NHIOICD-16 1" IC Air-Tight New Construction
NHIOICDCP-16 1" Chicago Plenum New Construction
NHRIOIC-16 1" IC Air-Tight Remodel
Accessories: Reflectors will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 3. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Location
ENERGY STAR certified 5-Year Limited Warranty
RoHS Compliant
Can be used to comply with 2016 Title 24 - part 6 High Efficacy LED light source requirements
PRODUCT IMAGES & DIMENSIONS
NIOB-1RNB Round Bullnose Non Adjustable
NIOB-1RNG Round Reflector Non Adjustable
NIOB-1RPH Round Pinhole Non Adjustable
BMPW, HZMPW, MPW
NIOB-1SNB Square Bullnose Non Adjustable BB, BZ, MPW, NN, WW
27 X = 2700K 30X = 3000K 35 X = 3500K 40X = 4000K 50X = 5000K CDX = Comfort Dim †
BB = Black / Black
BMPW = Black / Matte Powder White BW = Black / White
BZ = Bronze / Bronze HW = Haze / White
HZMPW = Haze / Matte Powder White
MPW = Matte Powder White
NN = Natural Metal / Natural Metal WW = White / White
† Comfort Dim technology uses non-Cree COB modules. 1" & 2" Iolite uses a different dimming curve than 4" Comfort Dim Not all finishes are available on all trims
Source: 9W or 10W LED 600lm PRODUCT IMAGES AND DIMENSIONS
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation**. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
FEATURES
IC rated for direct contact with insulation**
Quick connect provided for electrical connection to the LED reflector
ASTM E283 for Air-Tight
Dimming down to 5%
Patented driver assembly
SPECIFICATION
Housing: 0.040” Aluminum shallow housing with patented driver assembly, allows for driver to slide out without tools. Housing can be installed in 1/2" ceiling thickness, an extension collar is available for ceiling thickness up to 2", must specify NIO-1EXTC2.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance**: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13-3/4” to 24-1/2” adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90˚ perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064” thick galvanized steel, with seven 1/2” knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out). Access above ceiling required. ACCESS ABOVE CEILING REQUIRED.
ELECTRICAL
Voltage: 120V or 120/277V (must specify)
Power Factor: >0.90
Operatin Temp.: 104˚F (40ºC) max. ambient temperature
Wattage: 9W (LE3) or 10W (LE4)
Dimming: Triac / ELV or 0-10V (must specify)
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
COMPATIBLE REFLECTORS
CATALOG NO. DESCRIPTION
NIOB-1RNB 1" Round Bullnose (BWF)
NIOB-1SNB 1" Square Bullnose (BWF)
NIOB-1RNG 1" Round Straight Regress (BWF)
NIOB-1SNG 1" Square Straight Regress (BWF)
NIOB-1RPH 1" Round Pinhole (BWF)
NIOB-1RSL 1" Round Adj. Slot Aperture (BWF)
NIO-1RNB 1" Round Bullnose (NTF)
NIO-1SNB 1" Square Bullnose (NTF)
NIO-1RNG 1" Round Straight Regress (NTF)
NIO-1SNG 1" Square Straight Regress (NTF)
Emergency: Housing can be specified with connections for emergency battery installation. Requires top access. Must specify battery with remote test switch separately, NEPK-BSL17C-C2U.
LABELS AND LISTINGS
c ULus Listed for Damp Location (Wet Location when used with compatible reflector)
5 -Year Limited Warranty
R oHS Compliant
· P atent #D824567S
Meets or exceeds ASTM-283 Air-Tight requirements
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail: nora@noralighting.com
BLANK
TYPE LU8 SPEC OCEAN HARBOR
PRODUCT SPECIFICATION SHEET
BAXTER COLLECTION
Baxter 3-Light Pendant lamp Clear Glass
Dimensions
Canopy Size(in)
Chain/Rod Length
Length
Width
Maximum Height
Specifications
Finish 3 Finishes
Material Iron / Glass
Glass Color Clear
Type Pendant lamp
Hanging DeviceCord
Voltage 110-125V
Dimmable Yes
Warranty 1 Year Limited
Shipment TypeSmall Parcel
Bulb / Socket Socket Type
Number of Lights
Included Wattage/Bulb
Installation
Indoor/Outdoor
TBD
OCEAN HARBOR
NLOS
SURF LED Regressed Edge-Lit Surface Mount
Source: 11W to 14W LED Up to 1150lm
PRODUCT DESCRIPTION
SURF LED Surface Mount luminaires are only 11/16" thick surface with DC driver mounted on the back. Luminaires resemble appearance of a recessed downlight. The specially designed regressed light guide with embedded honeycomb lens produces even illumination while reducing glare. Series is available in square and round in 4", 6" or 7". SURF mounts easily over a standard or fire rated junction boxes.
FEATURES
Over 80% energy savings when compared to incandescent
No housing needed, surface mounted over junction box
Square and round sizes
Edge-lit LEDs for uniform clean appearance
2700K, 3000K, 3500K, 4000K or 5000K
5-year limited warranty
SPECIFICATION
Construction: Surface mounted LED edge-lit downlight adopts compact slim and elegant design. The special diffuser can increase central candela intensity by more than 30%, provide soft and comfortable light. 11/16" deep polycarbonate regressed baffle trim.
Lens: Nora specified and designed edge-lit regressed light guide with embedded honeycomb lens greatly reduces aperture brightness while evenly distributing light.
Installation: Aluminum backplate attaches to junction box bracket (included) for seamless flush appearance.
Note: Make sure 4" octagonal junction box has minimum 1-1/2" height
ELECTRICAL NLOS-R42LNLOS-S42LNLOS-R72L
Color Temperature 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index 90+ CRI
Dimming Triac / ELV
Operating Temperature 0° to 45°C
LABELS AND LISTINGS
· cULus Listed for Wet Location
5-Year Limited Warranty
FCC compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1).
SURF LED Regressed Edge-Lit Surface Mount
Luminaire
Example: NLOS-R42L27WW = 4" Round SURF LED Regressed Edge-Lit Surface Mount, 2700K, White finish
Delivered lumens will vary depending on color temperature
PRODUCT IMAGES AND DIMENSIONS
NLOS-R42L 4" Round SURF
NLOS-R72L 7" Round SURF
NLOS-S42L 4" Square SURF
NLOS-S62L 6" Square SURF
021325P1
TYPE LU11 SPEC OCEAN HARBOR
SURF LED Regressed Edge-Lit Surface Mount
Source: 11W to 14W LED Up to 1150lm
PRODUCT DESCRIPTION
SURF LED Surface Mount luminaires are only 11/16" thick surface with DC driver mounted on the back. Luminaires resemble appearance of a recessed downlight. The specially designed regressed light guide with embedded honeycomb lens produces even illumination while reducing glare. Series is available in square and round in 4", 6" or 7". SURF mounts easily over a standard or fire rated junction boxes.
FEATURES
Over 80% energy savings when compared to incandescent
No housing needed, surface mounted over junction box
Square and round sizes
Edge-lit LEDs for uniform clean appearance
2700K, 3000K, 3500K, 4000K or 5000K
5-year limited warranty
SPECIFICATION
Construction: Surface mounted LED edge-lit downlight adopts compact slim and elegant design. The special diffuser can increase central candela intensity by more than 30%, provide soft and comfortable light. 11/16" deep polycarbonate regressed baffle trim.
Lens: Nora specified and designed edge-lit regressed light guide with embedded honeycomb lens greatly reduces aperture brightness while evenly distributing light.
Installation: Aluminum backplate attaches to junction box bracket (included) for seamless flush appearance.
Note: Make sure 4" octagonal junction box has minimum 1-1/2" height
ELECTRICAL NLOS-R42LNLOS-S42LNLOS-R72L
Color Temperature 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index 90+ CRI
Dimming Triac / ELV
Operating Temperature 0° to 45°C
LABELS AND LISTINGS
· cULus Listed for Wet Location
5-Year Limited Warranty
FCC compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1).
SURF LED Regressed Edge-Lit Surface Mount
Luminaire
Example: NLOS-R42L27WW = 4" Round SURF LED Regressed Edge-Lit Surface Mount, 2700K, White finish
Delivered lumens will vary depending on color temperature
PRODUCT IMAGES AND DIMENSIONS
NLOS-R42L 4" Round SURF
NLOS-R72L 7" Round SURF
NLOS-S42L 4" Square SURF
NLOS-S62L 6" Square SURF
021325P1
OCEAN HARBOR TYPE
NLOS
SURF LED Regressed Edge-Lit Surface Mount
Source: 11W to 14W LED Up to 1150lm
PRODUCT DESCRIPTION
SURF LED Surface Mount luminaires are only 11/16" thick surface with DC driver mounted on the back. Luminaires resemble appearance of a recessed downlight. The specially designed regressed light guide with embedded honeycomb lens produces even illumination while reducing glare. Series is available in square and round in 4", 6" or 7". SURF mounts easily over a standard or fire rated junction boxes.
FEATURES
Over 80% energy savings when compared to incandescent
No housing needed, surface mounted over junction box
Square and round sizes
Edge-lit LEDs for uniform clean appearance
2700K, 3000K, 3500K, 4000K or 5000K
5-year limited warranty
SPECIFICATION
Construction: Surface mounted LED edge-lit downlight adopts compact slim and elegant design. The special diffuser can increase central candela intensity by more than 30%, provide soft and comfortable light. 11/16" deep polycarbonate regressed baffle trim.
Lens: Nora specified and designed edge-lit regressed light guide with embedded honeycomb lens greatly reduces aperture brightness while evenly distributing light.
Installation: Aluminum backplate attaches to junction box bracket (included) for seamless flush appearance.
Note: Make sure 4" octagonal junction box has minimum 1-1/2" height
ELECTRICAL NLOS-R42LNLOS-S42LNLOS-R72L
Color Temperature 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index 90+ CRI
Dimming Triac / ELV
Operating Temperature 0° to 45°C
LABELS AND LISTINGS
· cULus Listed for Wet Location
5-Year Limited Warranty
FCC compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1).
SURF LED Regressed Edge-Lit Surface Mount
Luminaire
Example: NLOS-R42L27WW = 4" Round SURF LED Regressed Edge-Lit Surface Mount, 2700K, White finish
