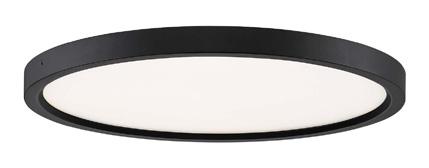

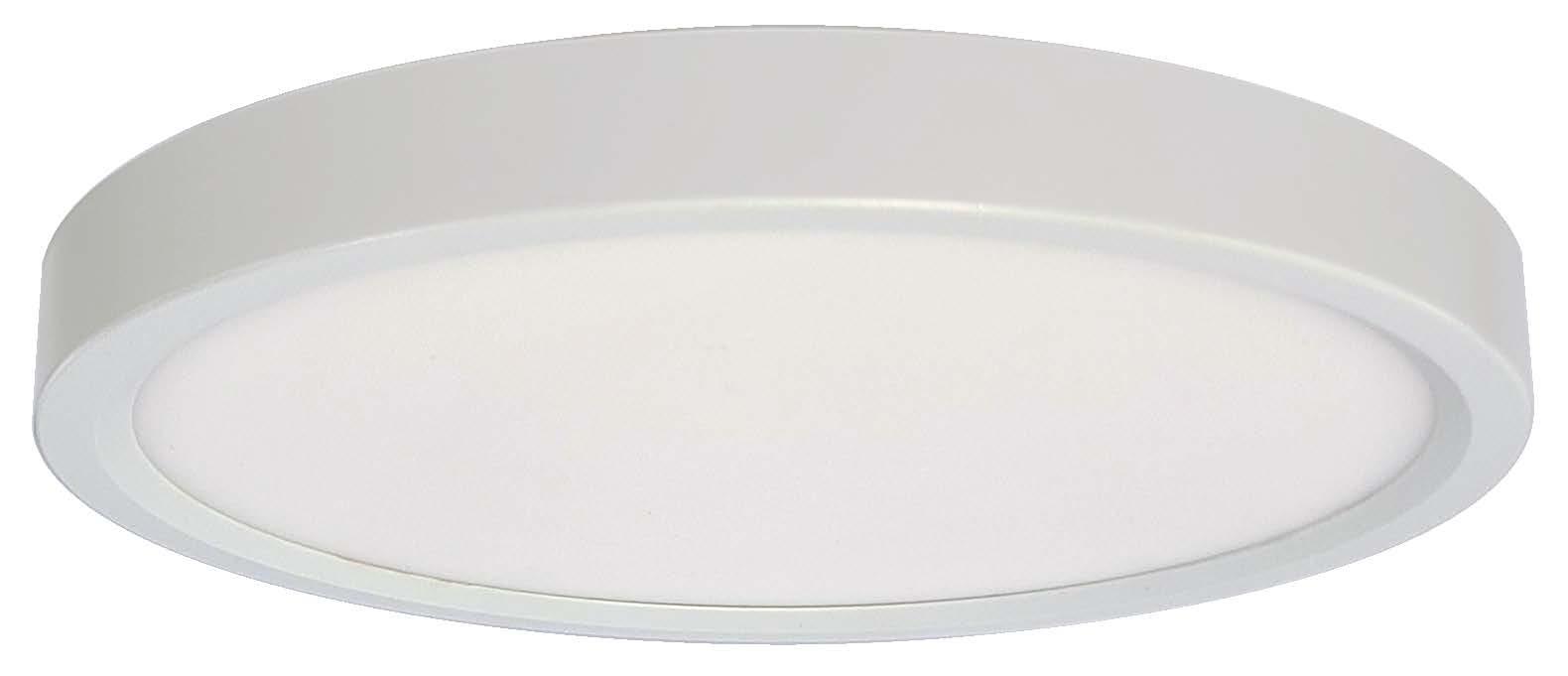

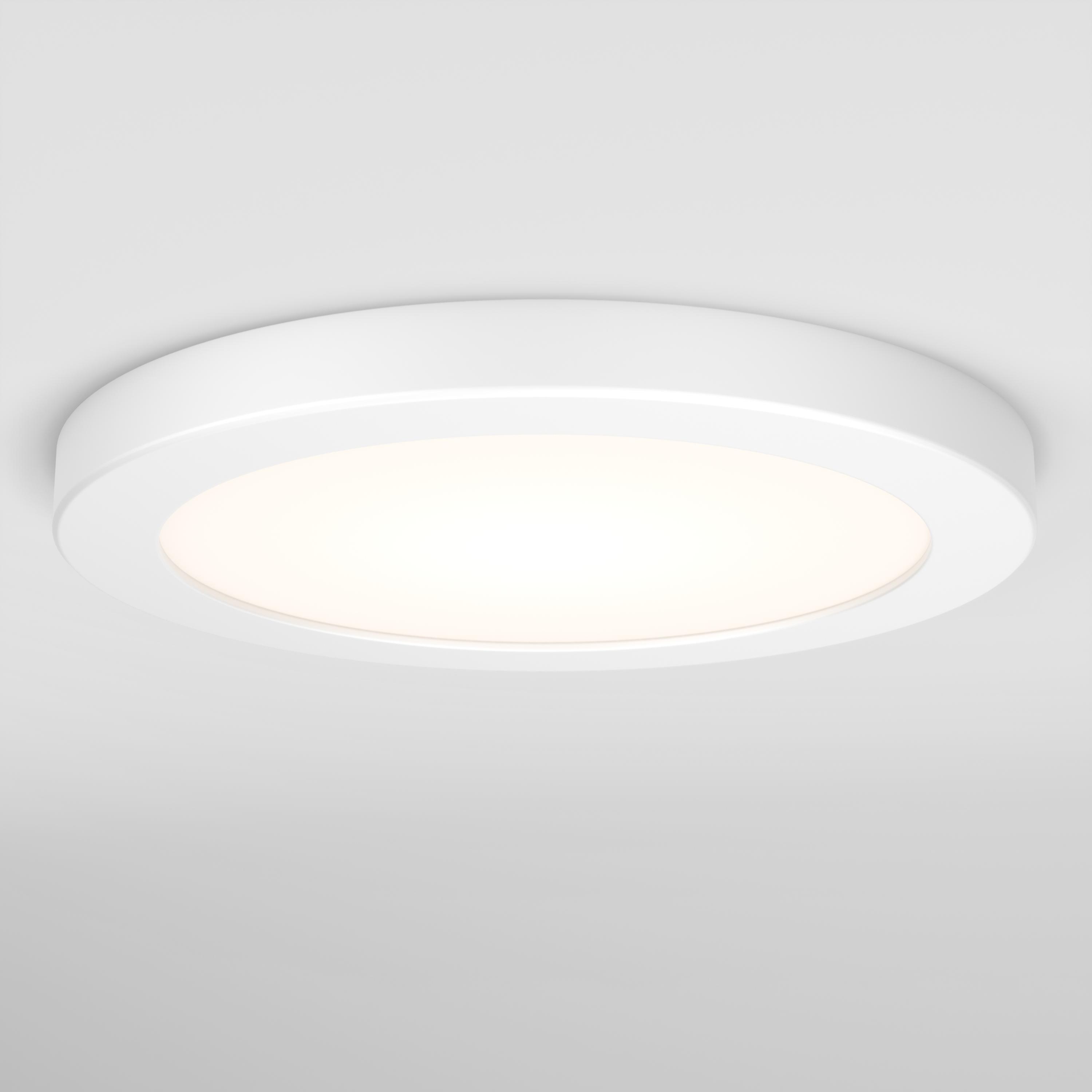

A slim round LED Edge-lit Disk light that is an affordable, attractive and versatile solution for a slim-profile surface mount downlight. Suitable for use in wet locations, this is a great choice for most any residential or light-commercial application.
DESIGN FEATURES
Construction
• Metal backplate and heat sink
• Frosted acrylic layered diffuser to reduce glare and provide even light distribution
Electrical
• 120V-60Hz
• Dimmable TRIAC or ELV, 10-100%
• 50,000 hour projected life
• 80 CRI | 15W | 1227 lms (delivered)
• 90 CRI | 15.5W | 1080 lms (delivered)
• 3000K or 4000K or 5CCT Selectable: 27K, 3K, 35K, 4K, 5K
Installation
• Mounting bracket included for installation in 3" or 4" J-Box applications
• Retrofit option includes torsion springs and E26 base adapter for mounting in 5/6” housings
EM Battery Pack (sold separately)
• Empty Filler Housing also available
• See page 2 for further information
Certifications
• CEC JA8 Compliant: 90 CRI Dedicated CCT Units Only
• 8536-1: cCSAus Listed for wet location
• LED Light Source: 5 Year Limited Warranty
• Non-Electrical: 1 Year Limited Warranty
• Suitable for use in closets when installed in accordance to NEC Section 410.16 (C)(1)

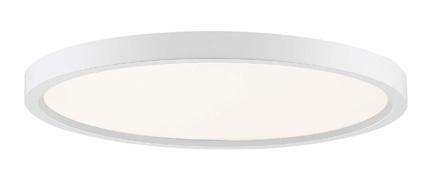

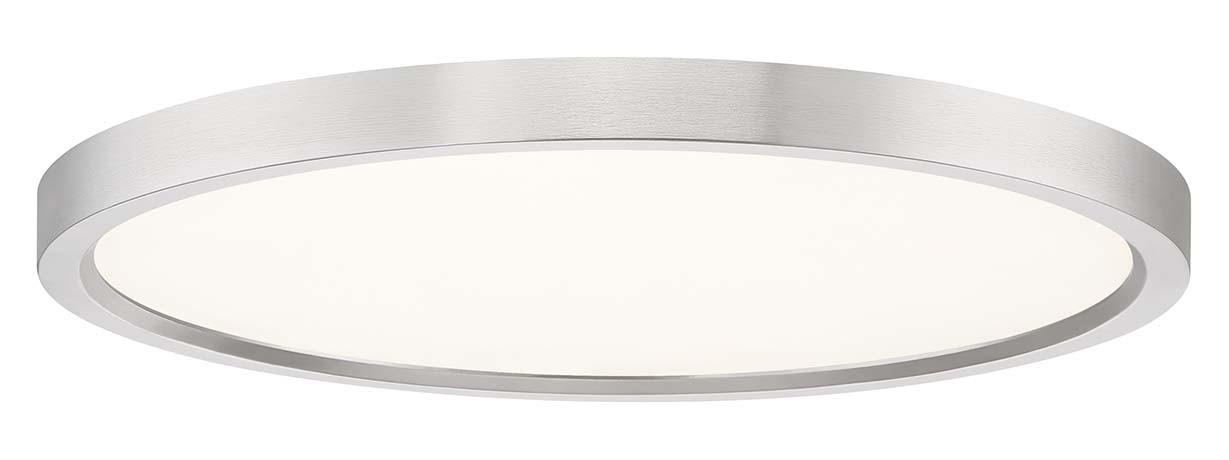

This versatile flat lens LED ceiling or wall mount fixture is great for hallways, larger rooms, and areas where a modern design with a thin profile would enhance the space.
DESIGN FEATURES
120V 60Hz Construction
• Steel frame construction
• Frosted acrylic lens
Electrical
• 120V-60Hz DC
• Dimmable TRIAC and ELV, 10-100%
• 50,000 hour projected life
• 3000K or 4000K | 90 CRI
• Beam Angle: 120º
• 11" | 15W | 1000 lms (delivered)
• 13" | 20W | 1450 lms (delivered)
• 15" | 30W | 1900 lms (delivered)
Dimensions
• 11”: 11” W x 1” H
• 13”: 13” W x 1” H
• 15”: 15” W x 1” H
Certifications
• ETL listed for damp location
• Energy Star listed
• CEC JA8 Compliant
• LED Lamp: 5 Year Limited Warranty
• Other Components: 1 Year Limited Warranty
Brushed Nickel (BN)
Oil Rubbed Bronze (OB) White (WH)
PROJECT: DATE:
FEATURES
IP RATING:
WEATHER RESISTANT POWDER COATING:
DAYLIGHT SENSOR:
FINISHES: DIMMABLE:
5-YEAR WARRANTY: LIGHT SOURCE:
SPECIFICATIONS
COLOR TEMPERATURE (K):
WATTAGE (W):
VOLTAGE (V):
CRI:
DIMMING:
FINISHES:
PRODUCT DIMENSION: D: L: W: H:
RATED LIFE (Y):
CONSTRUCTION:
MOUNTING:
CERTIFICATIONS
TECHNICAL DRAWING
NOTES:
reserves the right to modify its products from time to time as part of our continuous improvement program.
Model & Size CRI Kelvins Watts LED Lumens Delivered
Artika
Interactive Menu
• Order Information page 2
• Product Specifications page 4
• Photometric Data page 3
• Energy & Performance Data page 4
• Product Warranty
Top Product Features
• ENERGY STAR® certified
• 2700K, 3000K, 3500K, 4000K, 5000K, 90 CRI
LT4

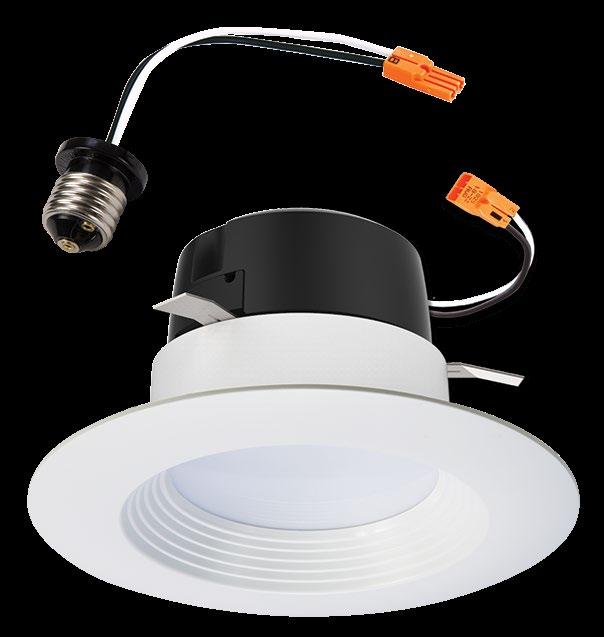

4" All-Purpose LED Integrated Trim Modules
600 Lumen Series
90 CRI
Typical Applications
Residential
Product Certification
Product Features
• Retrofits existing 4” housings with screwbase adapter included
• Use with Halo 4” LED housings - new construction and remodel
• Dimmable down to 10%

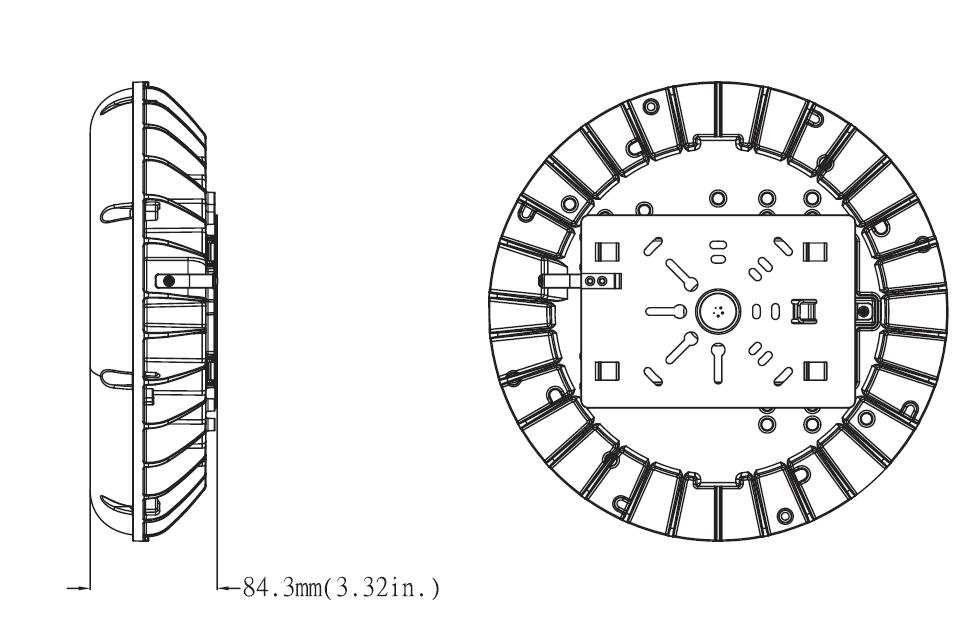

Dimensional and Mounting Details
NOXAC-431TW
4" AC Onyx LED Retrofit Reflector with Selectable CCT
Source: 11.5W 900lm
PRODUCT DESCRIPTION
4" AC Onyx Retrofit Series requires no driver and allow for a sleek design . Spun aluminum construction provides clean sharp edges and is suitable for use with most 4" recessed housings. Deep regressed optics and round aperture deliver even and glare-free illumination.
FEATURES
Over 900 delivered lumens
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
Dimmable AC LED
Includes medium base socket adapter for easy retrofitting in 4" recessed housings
Quick connector is compatible with dedicated LED housings
· 5-year limited warranty
Classified for wet locations
ENERGY STAR certified
SPECIFICATION
Reflector: One piece, spun aluminum construction dissipates heat and extends life. Unitized Thermal Management, UTM, provides exceptional cool operation.
Mounting: Two steel, spring mounting blades allow for easy and secure mounting in most 4" housings.
Retrofit: Luminaires include a medium base screw-socket adapter (NRA-211SM) for retrofitting into medium base downlight housings. Intended to be used as a LED lamp replacement. GU24 socket adapter (NRA-212SM) is available
ELECTRICAL
Voltage: 120VAC
Lumens / Wattage: 900lm / 11.5W
Color Temperature: Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
Color Rendering Index: 90+ CRI
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac/ELV
Click Here or check complete dimmer list at www. NoraLighting.com in the “Compatibility” page under “Resources” tab
COMPATIBLE HOUSINGS
Onyx retrofits are compatible with most 4" IC and Non-IC housings by Nora and others. Fire Box
NFJB-R4* ICAT Junction Box
NFBIC-4LMRATA* IC Air-Tight Dedicated LED Firebox
NFBIC-427LMRATA* Shallow ICAT Dedicated LED Firebox
NHRIC-427LMRAT* Shallow IC Air-Tight Dedicated LED
NSR-404QAT Air-Tight Line Voltage
NSRIC-404QAT IC Air-Tight Line Voltage
* Nora LED Dedicated housings are listed for use only with Nora LED Retrofits.
ACCESSORIES
NOX-4EYELIDW: White round eyelid used to convert round reflector or baffle to half moon wall wash trim.
NOX-4OR-W: White round oversize ring used to cover ceiling cut-outs up to 5- 7/8 ".
LABELS AND LISTINGS
cULus classified for Wet Locations
ENERGY STAR certified 5-Year Limited Warranty Meets ASTM-E283 Air-Tight requirements FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2022

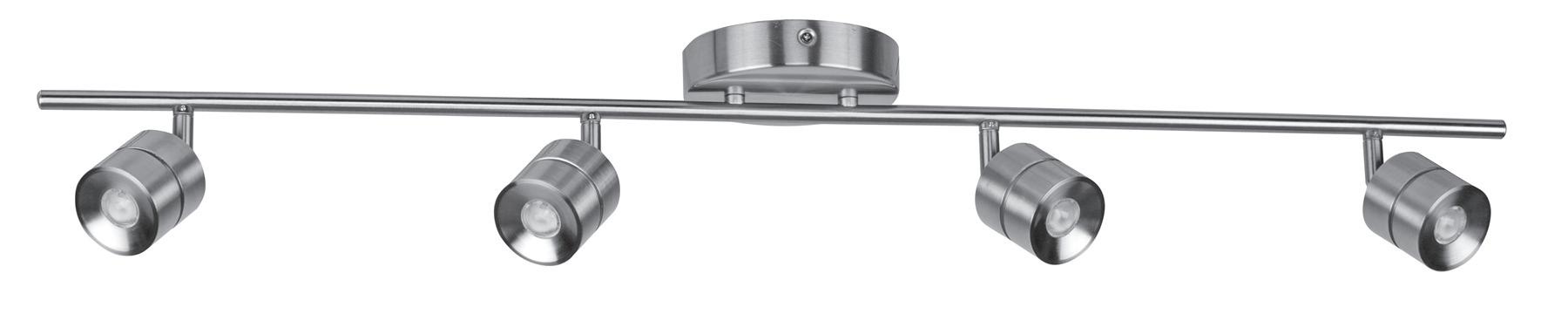

This decorative dimmable fixed rail features reliable high-performance LEDs. Heads swivel and pivot to direct light where needed. Applications that this fixture could fit well include: kitchens, retail environments, and anywhere that needs highlighted illumination.The fixture mounts to a standard junction box (not included).These fixtures mount to the ceiling or wall.
Construction
The canopy is 22-gauge stamped steel and the rail is made of 20-gauge steel tube. Power supply connections must be made inside a junction box (not included).
Finish
The canopy, rail, and individual rail heads are plated in a polished chrome or satin nickel finish with a clear lacquer topcoat.
Diffuser
Frosted acrylic diffuser.
Electrical
Input 120 VAC/60 Hz. Dimmable with standard 2-wire (TRIAC) or electronic low voltage (ELV) dimmer switch.
LED
DATE
Fixture is supplied with integrated LED rail heads. Each rail head contains non-replaceable high power LEDs which produce a total of 450 lumens/head. The LEDs have an average life of 50,000 hours. 3000K. 90 CRI.
Certification
All fixtures are cETLus listed for indoor damp locations. ENERGY STAR® qualified Title 24/JA8 Compliant
Warranty
Limited warranty: This fixture is free from defects in materials and workmanship for a period of 5 years from date-of-purchase.
Specifications and dimensions subject to change without notice.
Ordering Information:
Polished Chrome Satin Nickel Qty. Source Lumens L W H CRRF4450L30PC CRRF4450L30SN 25W 180036-3/8” 5-3/8” 6-1/4” CRRF6450L30SN 37W 270055-1/8” 5-1/4” 7-1/2”
LUNA 3.5" Round Fixed, 850 Lumens, 12 Watt Recessed Downlighting
Features
Body
Durable airtight fi xed aluminum body. Includes anodized blue heat sink to provide maximum airflow for the LED light source.
LED Characteristics
This general application light fi xture features a 12 watt LED module that maintains uniform intensity producing up to 850 lumens; with a typical CRI of 90. Available with 2700 K, 3000 K, 3500 K , 4000 K or 5000 K color selectable temperature.
Dimming
100%-10% dimming capability. This fi xture is compatible with industry standard TRIAC/ELV dimmers. For compatible dimmers, visit www.liteline. com/lunadimmers
Beam Spread
The fi xture lens provides 40° beam spread.
Mounting
Includes two spring loaded clips to attached to any ceiling material.
LED Driver
Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18” FT6 rated cable with DC 2.1 connector between driver and fi xture approved for use in plenums and suspended ceilings.
Quick Connect push-in terminals
Three “Quick connect” push-in terminals for fast and easy wiring.
Operating Temperature
-20°C~40°C (-4°F~104°F)
Environment
• Suitable for wet locations.
• Approved for direct contact with insulation.
Project Name Type
Location
Quantity
Contact/Phone
Notes
Date
SPECIFICATION
ApplicationCeiling Recess Mount
Approved LocationWet / Insulated Ceilings
Beam Angle40°
CCT (selectable) 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
CertificationcETLus
Class IIYes
ColorBK / BN / WH
CRI90
DimmingYes
Dimming TechTRIAC/ELV
Energy StarYes
Hole Cut Ø 35⁄8" (92mm)
Input100-135V AC, 50 / 60Hz
LM79Yes
LM80Yes
LumensUp to 850 Lumens per WattUp to 73 Power Factor>0.90
Projected Life70% @ 50,000 hrs
WarrantyLifetime Wattage12W
CCTLUMEN OUTPUT
Description
The RA35-12F is a 12 watt 3.5" round fi xed recessed light fi xture for retrofit application. It is a high-performance, easy to install downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations.
Notes: Accessories are sold separately. For additional options please consult your Liteline representative.
Due to our continued efforts to improve our products, product specifications are subject to change without notice.
Ordering Guide
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
· 800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
· Comfort Dim (warm dimming) also available in 800lm only Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
· cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant
· Certified to the high efficacy requirements of California
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
• Standard (SL) and High lumen/High Efficacy (HL) packages
• Three (3) CCT and Lumen selectable options available
• Up to 21,000 lumen and 174 LPW
• General, Narrow or Wide distributions
Product Features
• Decorative end cover and multiple finishes provide a polished look
• Integral factory installed controls option allows more energy savings
• Captive lens, electrical, and channel cover assembly
• Tool-less channel cover and electrical assembly
• Options to meet Buy American and other domestic preference requirements
Dimensional Details

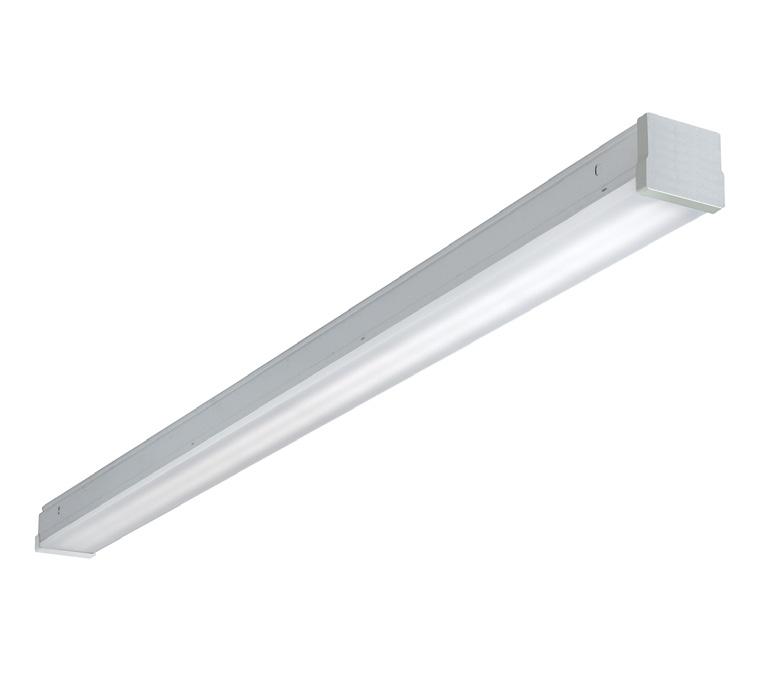

LEDVANCE LUMINAIRES DUAL SELECTABLE STRIP 3A
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project
Type
Prepared by
APPLICATION

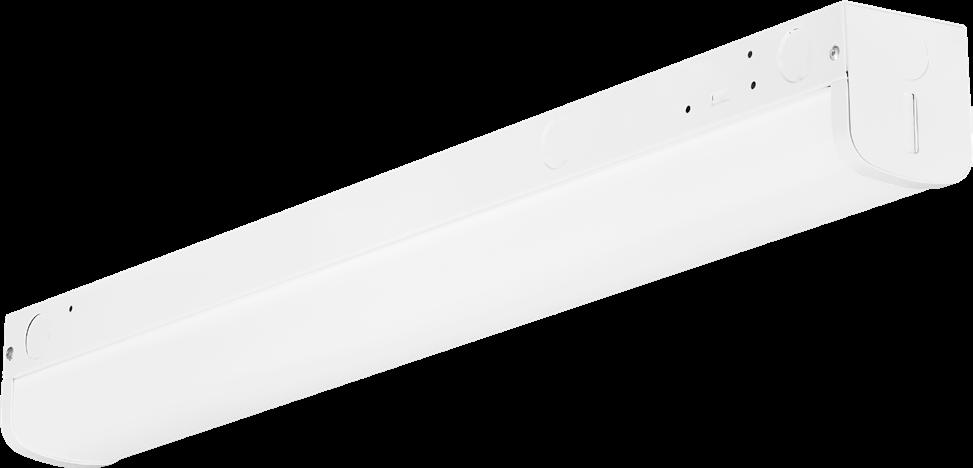

Ideal in retrofit and new installations, the LEDVANCE Dual Selectable Strip 3A Luminaire is intended for retail, manufacturing, warehouse, office, education, and lowbay applications.
BENEFITS & FEATURES
— CCT and Wattage Selectable
— Selection switches are easily accessible on the outside of the fixture

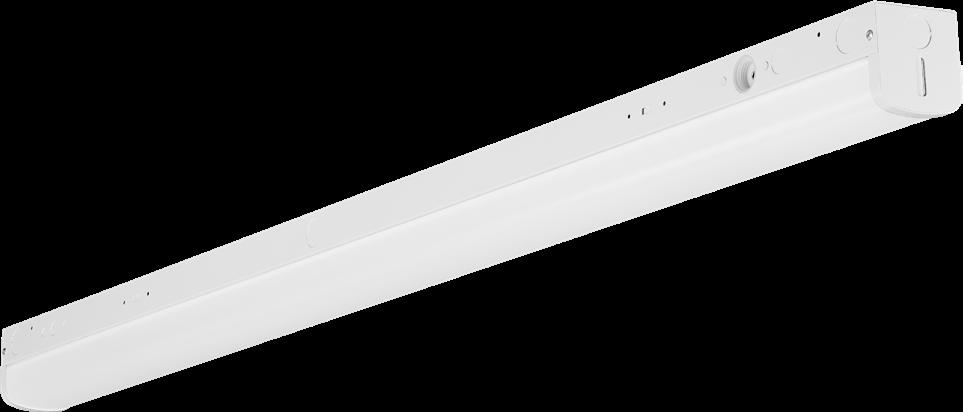

Available in 2ft, 4ft, and 8ft lengths
Light engine and lens module feature toolless removal and secure snap-fit for fast, efficient installation End-to-end joiner bracket for continuous row mounting, V-hook mounting bracket, and split junction box cover included with every fixture
Factory installed polarized wiring system is included in every fixture, making them ready for single circuit row mounted through wiring. No additional wiring needed; save time, material and money
— All fixtures are pre-wired with the sockets needed for quick, efficient field installation of optional internal microwave or external PIR motion/daylight sensors
— Compatible with field installable LEDVANCE LINK™ components
Diffuse Acrylic lens provides smooth, even illumination White powder coated metal body CRI>80
Suitable for installation within clothes closet storage spaces when installed per NEC 410.16 requirements
2 ft 4 ft 8 ft SL3 (25)
30SL31SL81HL62SL148HL (5)
40HL33SL84HL66SL162HL (5)
44HL37SL87HL74SL168HL (5)
47HL41SL90HL82SL174HL (5) 45SL93HL90SL180HL (5)
48SL100HL96SL186HL (5)
51SL104HL102SL (5) 200HL (5) 57SL
SL denotes standard lumen output. HL denotes high lumen output. Additional LEDs to obtain lumen package. SL3=Low/Med/High output (see performance table for lumen package).
SNX-SQLENS-SLW-2FT-U= Replacement Lens 2 ft, Full Frost
SNX-SQLENS-SLW-4FT-U= Replacement Lens 4 ft, Full Frost
Flat Replacement Lenses
SNX-Flat Lens-FDL-2FT-U= Replacement Lens 2 ft, Full Frost
SNX-Flat Lens-FDL-4FT-U= Replacement Lens 4 ft, Full Frost
Notes: (1) Only product configurations with these designated prefixes are built to be compliant with the Buy American Act of 1933 (BAA) or Trade Agreements Act of 1979 (TAA), respectively. Please refer to DOMESTIC PREFERENCES website for more information. Components shipped separately may be separately analyzed under domestic preference requirements. (2) DesignLights Consortium® Qualified and classified for both DLC Standard and DLC Premium, refer to www.designlights.org for details. (3) Nominal lumen values. See table for value and fixture length. (4) 347/480V max ambient temp 40C. (5) Requires two drivers. (6) SL3 must be ordered in conjunction w/CCT Select. CC83 or 93 default setting is 4000K and Medium output. (7) 2ft with Sensor limited to CD and HCD drivers only. (8) For a complete listing of Fifth Light products, visit www.cooperlighting.com (9) 4 ft and 8 ft only. (10) When ordering sensor or EBP option, specify UNV (for 120 or 277V), 347 or 480V. (11) Factory installed with integral test switch/indicator. For approximate delivered lumens multiply the lumens per watt of the desired fixture by the wattage of the emergency battery pack (100 lm/W x 7=700 lumens). IES-format photometry for luminaire under emergency operation available. (12) EL10WSD and EL14WSD not available with 347V. (13) Used to bypass local control during outage. Must be used in conjunction with UL 1008 device (provided by others). GTR2 include 2 relays on fixtures with dimming drivers. ETRD option only requires one relay when used on a dimming fixture. Must specify voltage as 120 or 277V when ordering GTR2. (14) Consult tech support on numerous options for this feature. (15) Most common C&P shown. Must specify location for cord. All “end” locations will be on the end with sensor installed. (16) Integral Mid-Row sensor does not apply for ZW-SVPD3. (17) Black or gray fixture and lens ends. Refer to Finish multiplier table for performance. (18) Accessories sold separately will be separately analyzed under domestic preference requirements. Consult factory for further information. (19) Order 2 per fixture. (20) Finished Deco end cover cannot be used with ZW end mount sensor or over any end mount fitting. (21) WLSx provided in separate enclosure.
in
(24)
with
Lite system pages for additional details and compatibility.
Stock is available in the following
ORDERING GUIDE
to Order
Prepared by Notes
APVT

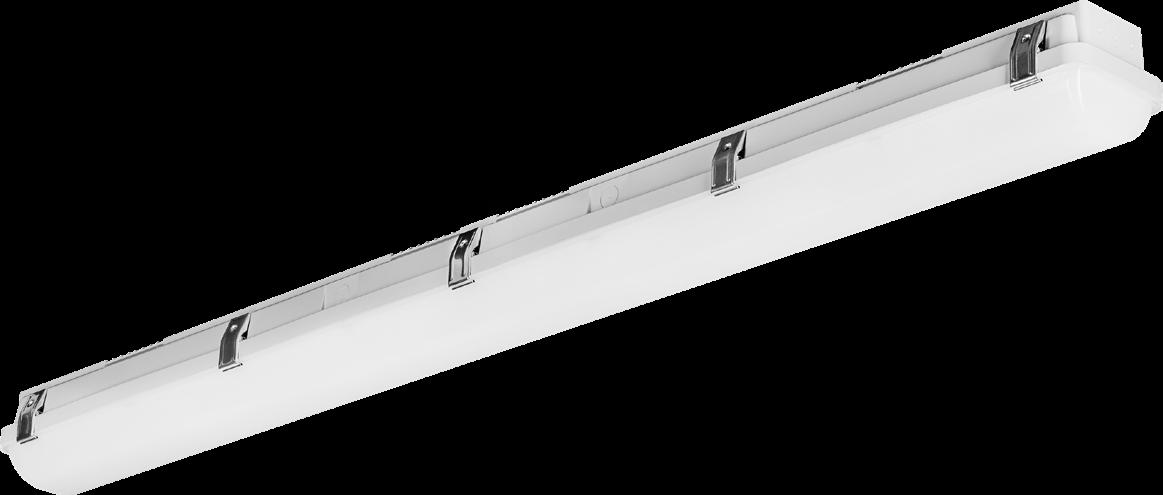

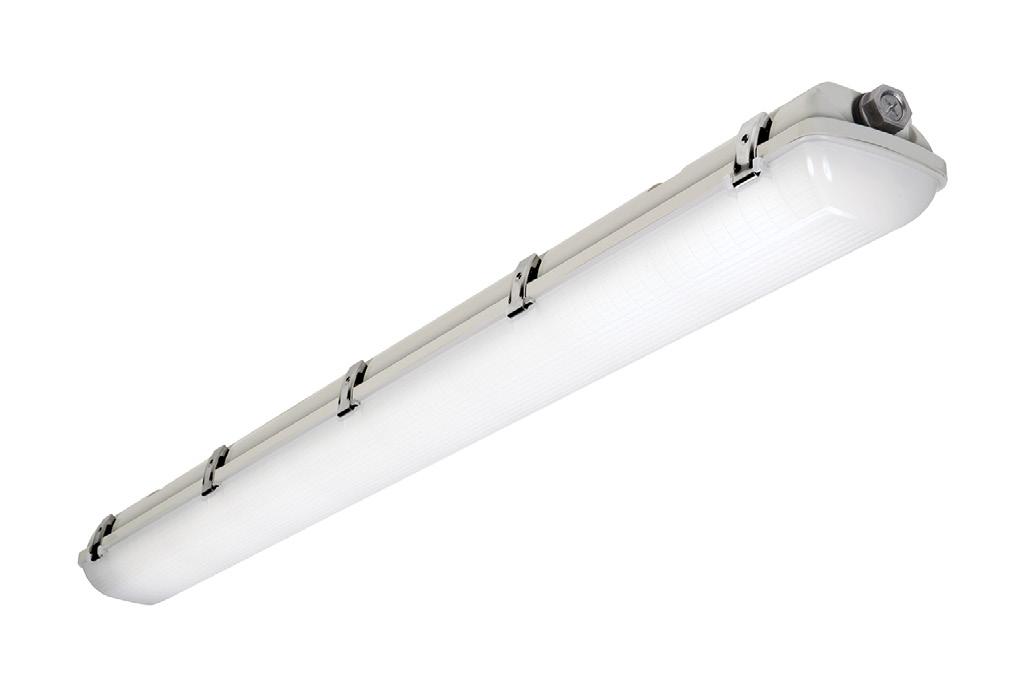

4' Vaportite Industrial LED
Whilesupplieslast
Typical Applications
Industrial
Manufacturing
Gymnasium
Warehouse
Product Certification
Interactive Menu
• Order Information page 2
• Photometric Data page 2
• Energy Data page 2
Top Product Features
• Durable gray polycarbonate housing with integrated metal gear tray
• High Impact Polycarbonate optical lens
• Available in 4ft, with lumen packages up to 6,000 lumens
• Wet Location listed
• High-Performance efficacy up to 123 lm/W
Dimensional and Mounting Details
3/4" [20mm]
• Product Warranty 5-3/32" [129mm]
3-7/8" [98mm]
5-3/32" [129mm]
[1265mm] 35-3/8" [898mm]
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog #
Project
Type
Prepared by
APPLICATION
Comments
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
• High-impact gray polycarbonate housing with interated metal gear tray
Standard housings available with one 7/8" conduit entry point
• Durable cam latches clamp diffuser tightly for a positive seal between housing and diffuser
• Electrical components and fixtures are UL/cUL listed for wet location, IP65 rated
Photometric Data
4APVTLD-40L840
Electronic Driver
Linear LED 4000K
Electrical
• Long-Life LED system coupled with a fixed output driver to deliver optimal performance LED’s available in 3500, 4000 and 5000K with a CRI ≥ 80 Projected life is L70 at 54,000 hours cULus listed Electronic drivers are available for 120-277V applications
Lens
• Thermoformed low profile, highimpact frosted lens with general distribution
Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.3 x mounting height
Lumens: 5115
Input Watts: 39W Efficacy: 131 lm/W
Test Report: 4APVTLD-40L840.IES
Energy and Performance Data
Shipping Data
Input Watts
4APVTLD-54=50W
Compliance
120-347V
6kV surge suppression
Auxiliary 12V output WARRANTY
to
(0°C to +50°C) for EMBB models
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available

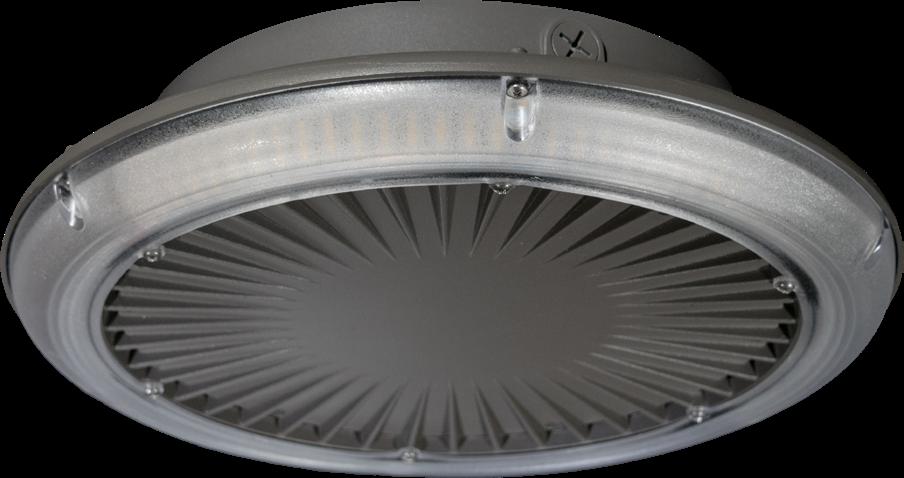

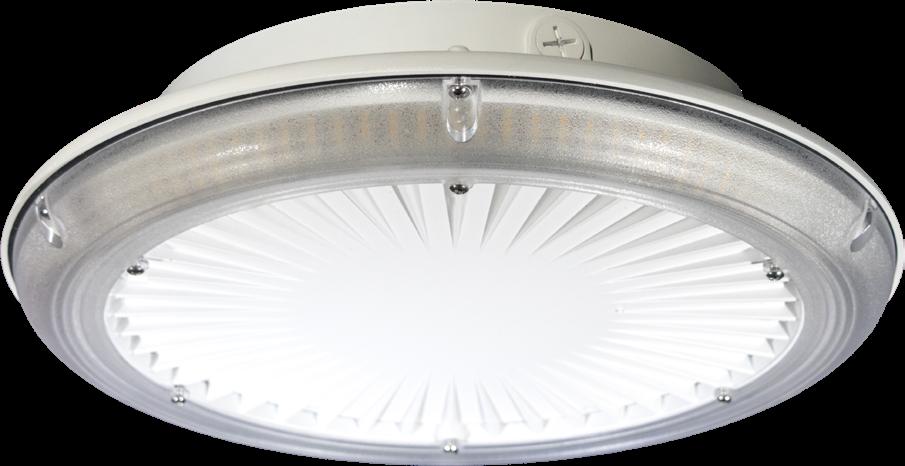

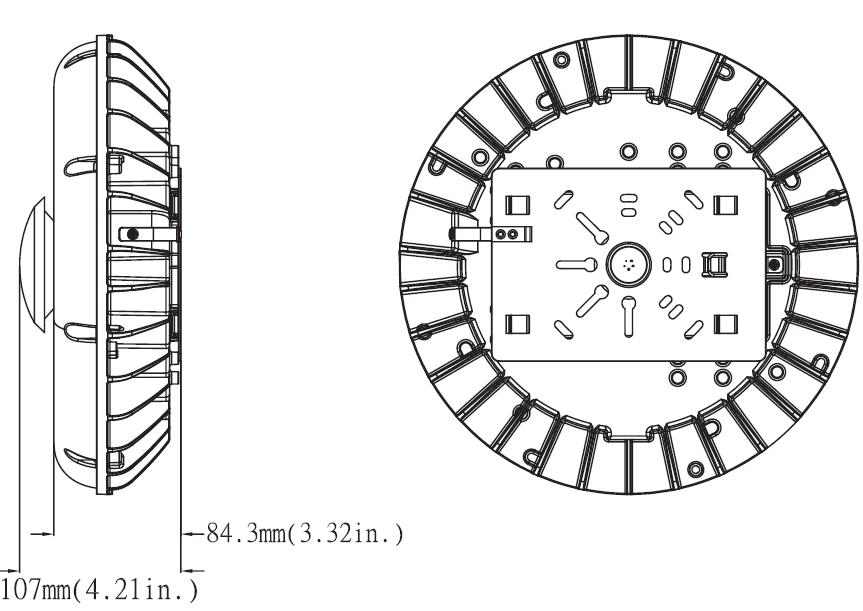

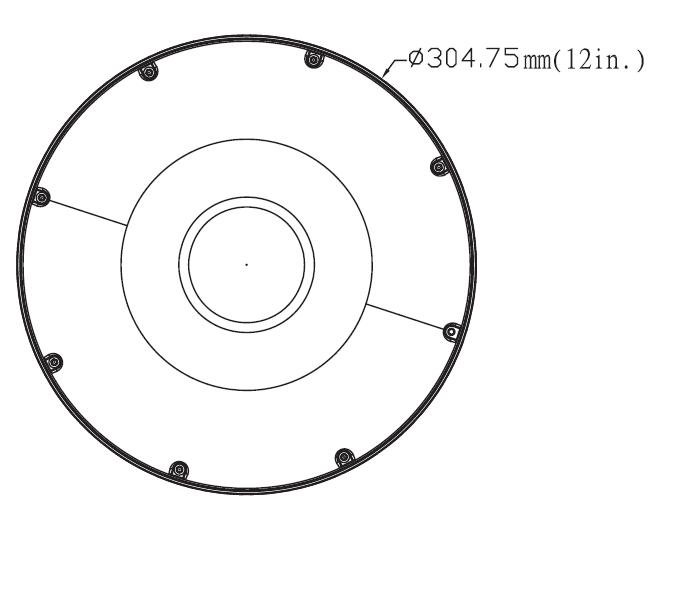

UFO PARKING GARAGE - 58WLED
FEATURES
• Die-cast aluminum round parking garage fixture
• Frosted polycarbonate lens (Std)
• 40 00K & 5000K available
• Quick mount bracket standard for easy surface mount installation
• ½” Coin plug on top for center pendant mount or JBOX with included cord lock
• Four ½" coin plugs on sides for conduit or photocell
• Sensor Ready: Motion, Daylight Harvesting, Grouping, Zones & IoT
- Offered in Low Bay or Parking Garage (wide) distributions
MOUNTING
-Suitable for JBox or Pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
- Meets DLC Requirements
WARRANTY
- 5 Year
- 10 Year Warranty Available
ORDERING INFORMATION
CATALOG # Wattage Lumens Color
GL9-30L-QT-50K 30W 3800 Lumens 5000K
GL9-45L-QT-50K 45W 5500 Lumens 5000K
GL9-60L-QT-50K 60W 7600 Lumens 5000K
OPTIONS (Factory Installed)
PG - Parking Garage (wide) Distribution Goes after ‘GL9’ in part number
40K - 4000K (special order)
EBLED - Emergency Ballast
OCS - Occupancy Sensor
10YR - 10 Year Warranty
Type
GL9-LED LED Canopy
Sure-Lites

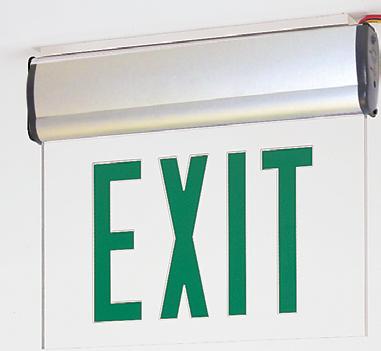

The APXEL Series Surface Mounted Edge-Lit Exit, with the Tri-Mount™ system, provides an attractive yet easy to install universal edge-lit exit sign. The crystal clear rounded-edge lens panel provides excellent light distribution, exit visibility and quick installation. Long life, energy efficient LED lamps reduce energy costs and eliminate routine lamp maintenance.
Specification f eature S
Electrical
-Dual Voltage Input
120/277 VAC, 60Hz
-Line-latching
-Solid-state Voltage Limited Charger
-Solid-state Switching
-Brownout Circuit
-Test Switch / Power Indicator Light
Battery (APX7)
-Sealed Nickel Cadmium.
-Maintenance-Free, Long-Life
-Full Recharge Time, 24 hrs. (Max.)
Housing Construction
- All components are injection molded, color stable, high impact UL 94-5VA rated plastic material
-Designer white textured finish available
-Components are of snap-fit construction to facilitate easy installation
-All components including battery and electronics are located inside the exit housing.
-Snap-fit canopy with captive mounting screw included with all exits
-Exit can be universally surface mounted, ceiling, wall or end with Tri-Mount™ system
- Universal J-box mounting adapter plate
Lens
-Injection molded, high impact, clear acrylic panels
-Bright red or bright deep green letter colors
-Universal, field installable Chevrons in bright red or deep green colors
-Mirrored background panels included with double face exits
-Edge reflector for optimized efficiency and visibility
Catalog #
Project Comments Prepared by
Code Compliance
-UL 924 Listed
-Life Safety NFPA 101
-NEC/OSHA
-Most State and Local Codes
Warranty
-Exit: Full 5-year warranty
Lamp Data
-AC LED: Long life LED lamps provide uniform diffused illumination
-DC: LED DC lamps
APXEL S ERIES
THERMOPLASTIC EXIT
AC ONLy SELF POwERED
EMERgENCy LED LAMPS e xit Lighting
Data
e nergy
Maximum power consumption under all charge conditions:
charge Mode
(fully Discharged Battery):
Sealed nickel cadmium Battery
LeD exits - red
Input Power:
= 4.1w
= 4.1w
Input Current (Max.):
= 0.03A
= 0.02A
LeD exits - green
Input Power:
= 4.1w
= 4.1w
Input Current (Max.):
= 0.31A
= 0.02A

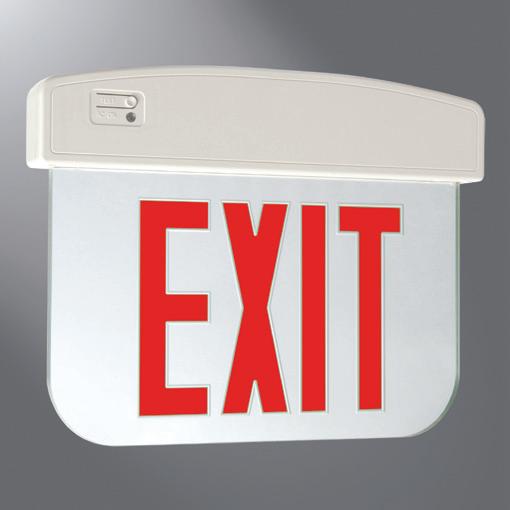

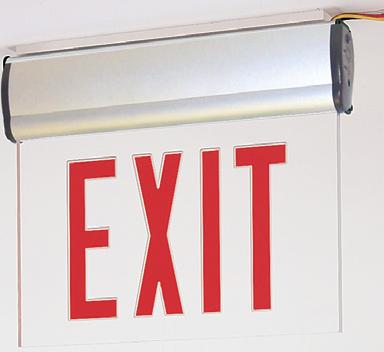

Surface Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Extruded aluminum housing and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Face is constructed with 0.40 clear acrylic with rounded and finished edge for attractive appearance. Face contains red or green 6” high and 3/4” thick lettering inside face to comply with NFPA requirements. Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic. Face can be adjusted in the field from 0º to 90º for wall, ceiling or sloped applications.
MOUNTING
Mounting hardware consist of 0.06 steel universal junction box bracket, 7/8” profile 0.11 die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knocouts once mounting configuration is selected.
ELECTRICAL
Voltage: Dual 120V/277V (0.038A / 0.017A)
LED Wattage: 3 Watts normal / 5 Watts emergency operation
Emergency Circuit (NX-811-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-812-LED): Replaceable Ni-Cad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
UL Listed
NEC
NFPA
Sta te & Municipal
· 5-Year Limited Warranty
Cer tified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
Type Project
Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS
t echnica L Data
Lamps
The APXEL Series Exits use energy efficient, long-life LEDs to provide uniform diffuse illumination of the exit face. These red and green LEDs require no maintenance. The low operating costs and zero maintenance requirement makes LED lamps the wisest choice for exit signs today. Emergency illumination is provided by LED lamps.
Housing Construction
Durable, injection-molded plastic materials are used throughout the APXEL Series exits. All structural components are designed with reinforcing ribs to add additional rigidity and to maximize structural integrity. These materials are impact and scratch-resistant and they have been UV stabilized to resist discoloration due to age and ultraviolet radiation. All components are designed to be of snap-fit construction to facilitate easy installation. APXEL Series exits can be wall-, ceiling- or end-mounted. A rugged, snap-fit, low profile canopy with captive screw is included with every exit.
Lens
Lens for the APXEL series edge-lit exits are injection-molded from impact-resistant clear acrylic. A choice of red or green letter colors and clear, or mirror backgrounds enable precise control of the fixtures aesthetic appearance. Universal, field-installable chevrons are provided in bright red or deep green colors allowing for universal configuration of the exit sign based on the directional needs of the application. The edge reflector further enhances visibility.
Line-Latched (Self-Powered Only)
Sure-Lites line-latched electronic circuitry makes installation easy and economical. A labor efficient AC activated load switch prevents the lamps from turning on during installation to a non-energized AC circuit. Line-latching eliminates the need for a contractor’s return to a job site to connect the batteries when the building’s main power is turned on.
Solid-State
Charger
Supplied with a 120/277 VAC, voltage regulated solid-state charger, the battery is recharged immediately upon restoration of AC current after a power failure. The charge circuit reacts to the condition of the battery in order to maintain peak battery capacity and maximize battery life. Solid-state construction recharges the battery following a power failure in accordance with UL 924.
Brownout Circuit
The brownout circuit on Sure-Lites exits monitors the flow of AC current to the exit and activates the emergency lighting system when a predetermined reduction of AC power occurs. This dip in voltage will cause most ballasted fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
Solid-State Transfer
The APXEL Series Exit incorporates solid-state switching which eliminates corroded and pitted contacts or mechanical failures associated with relays. The switching circuit is designed to detect a loss of AC voltage and automatically energizes the lamps using DC power. Upon restoration of AC power, the DC power will be disconnected and the charger will automatically recharge the battery.
Test Switch/Power Indicator Light
A test switch located on the front of the exit permits the activation of the emergency circuit for a complete operational systems check. The Power Indicator Light provides visual assurance that the AC power is on.
Sealed Nickel Cadmium Battery
Sure-Lites sealed nickel cadmium batteries are maintenance-free with a life expectancy of 10 years. The sealed rechargeable nickel cadmium battery offers high discharge rates and stable performance over a wide range of temperatures. The specially designed resealable vent automatically controls cell pressure, assuring safety and reliability. This battery is best suited for harsh ambient temperatures because the electrolyte is not active in the electrochemical process.
Warranty
All Sure-Lites’ products are backed by a full fiveyear warranty against defects in material and workmanship.
SaMpLe nuMBer: APXEL71R
BLANK
RWL

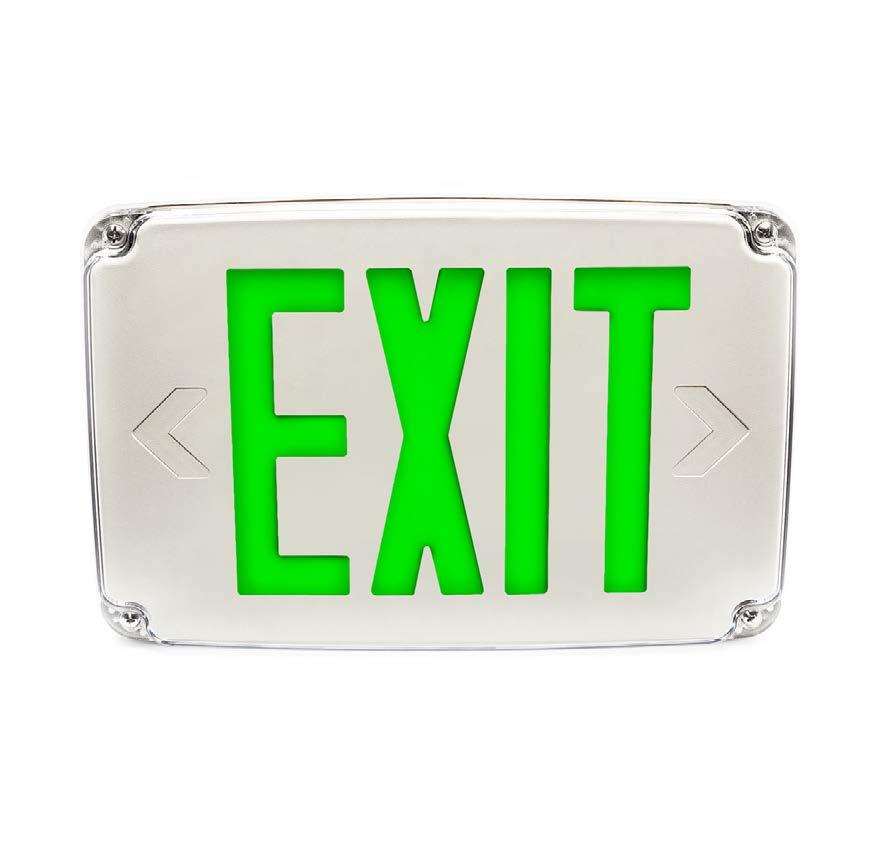

Wet Location Thermoplastic LED Exit Sign
DATE:
PROJECT
PROJECT: FEATURES
COMMENTS:
Suitable for wet location applications.
Super-bright LEDs with long life expectancy.
Quick-connect components and snap-on canopy for easy installation.
Nickel cadmium battery provides a minimum of 90 minute emergency operation.
Sealed external momentary test switch and dual diagnostic LED indicator displays AC presence and Hi-Charge status.
Self-Test / Self-Diagnostic monitoring is available.
Low voltage cut-off prevents battery damage and ensures positive charge acceptance following an extended discharge.
Line-latch prevents unnecessary discharge of battery during installation. Loads will not illuminate until after application of utility power.
120/277 VAC with field selectable inputs (with the exception of the C1/C2 (dual circuit) option which requires voltage specification upon ordering). ORDERING INFORMATION RWL-AC-G-1-BK-MTEBP
1. This dual circuit option should only be used for exits which are intended to be connected simultaneously to normal and emergency power circuits, but cannot support two hot inputs. Only one of the normal or emergency circuits can be powered at any given time. Energizing both normal and emergency circuits simultaneously will result in damage to the exit sign.
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
UL 924 Listed for Wet Locations
· NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
Threaded with 1/2” NPT. May be mounted into threaded hubs in junction boxes or mounting accessories. Heavy-duty composite stake included.
WIRING:
Pre-wired with a five-foot pigtail of 18/2 cable.
WARRANTY: 10-year warranty
Opt. 6” extended shroud 3W & 6W #490260

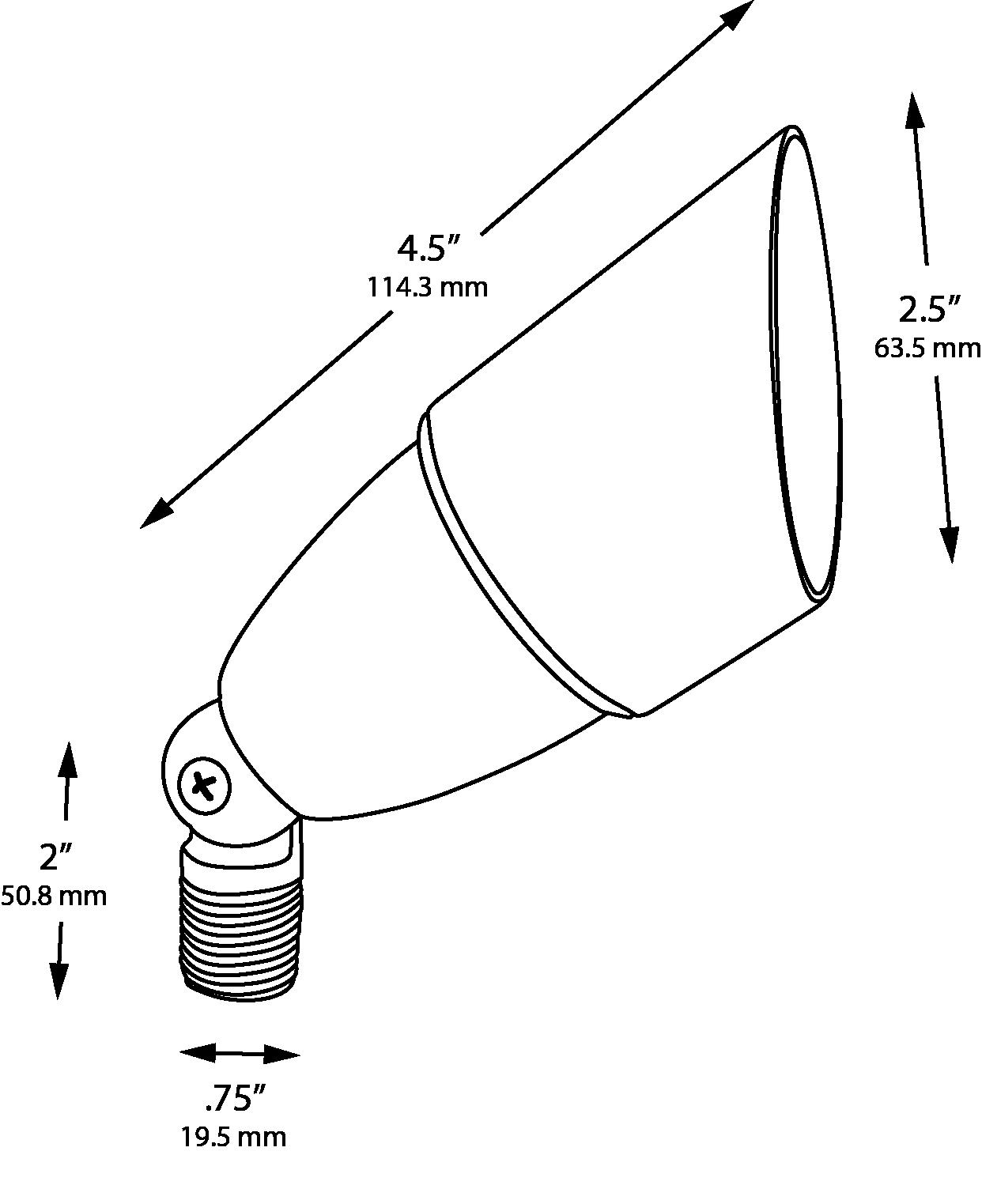

DIMENSIONS:
Opt. 6” extended shroud 8W, 12W & 16W #490261
SPECIFICATION SHEET

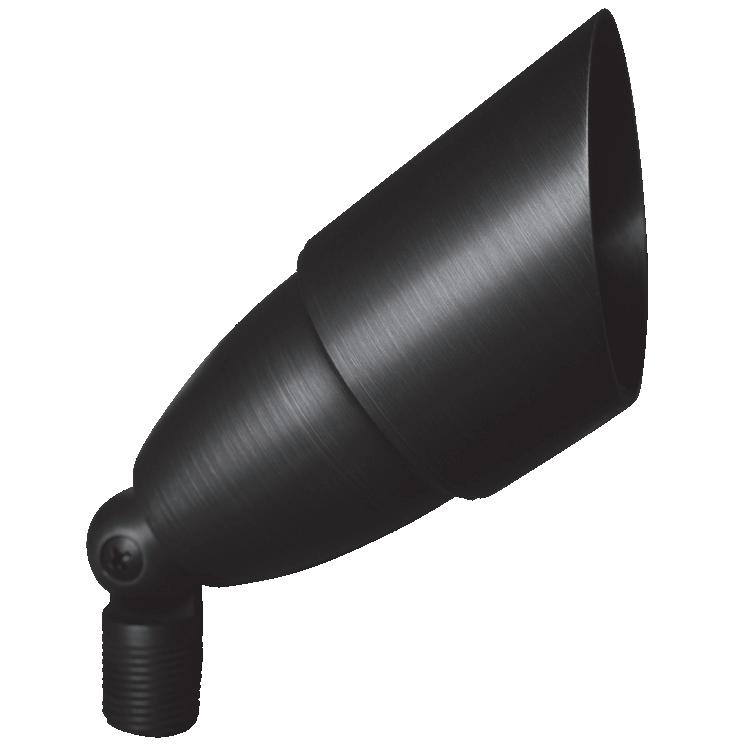

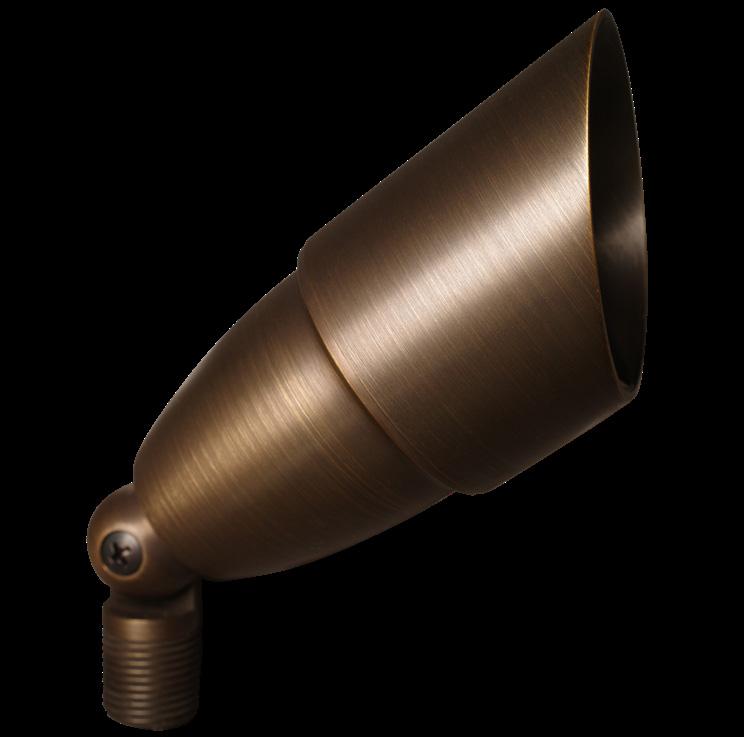

The Bodacious uplight features an integrated LED source available in 3, 8, 6,12 or 16 watts. 2700K, 3000K and 5000K options. 30-, 45-, 65- and 100-degree beam spreads.
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS: Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:

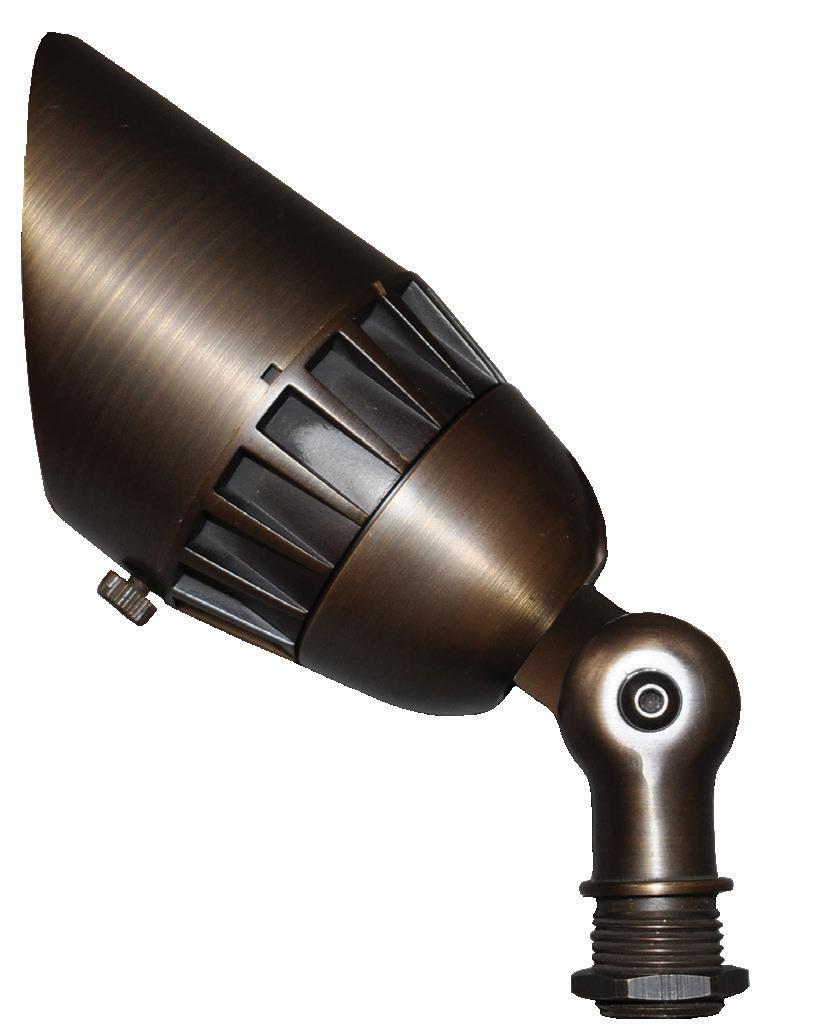

The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
Die-cast A360 aluminum. Stainless steel fasteners. Door is designed to shed water from the lens surface.
FINISH:
Powder coat finish available in Black, Architectural Bronze, Dark Bronze, Granite, White, Architectural Brick, Light Bronze, Special Bronze, Glossy Gray, Rust, Hunter Green, Weathered Bronze, Weathered Iron, Graphite Metallic, Verde, Pewter, Mocha and Olde Finish. Custom Powder coat finishes available on request.
LENS:
2.7mm thick tempered and beveled clear glass.
REFLECTOR:
Precision molded metalized optics combined with glare controlling filters. Very Narrow Spot optic incorporates an additional internal source shield to eliminate unwanted glare outside the beam pattern.
LED:
Discreet performance LEDs binned to three MacAdam ellipses. 135 – 1212 Lumens delivered. 5 – 20 Watts.
COLOR TEMPERATURE:
2700K, 3000K, 3500K, 4000K or 5000K CCT White.
COLOR RENDERING:
80 CRI minimum
ACCESSORIES:
Barn Doors BD, Full Shield FS, Half Shield HS and Cast Shield CS available.
WIRING:
Prewired with 150° C-rated wire.
MOUNTING:
Infinity Knuckle – Die-cast, copper-free aluminum, stainless steel stem with 1/2” NPT thread. A fully sealed spherical grommet allows for precise aiming and retention.
CERTIFICATIONS | STANDARDS | COMPLIANCE:
• UL Certified for wet locations (USA & Canada) | (UL)
• Ingress Protection Rating: IP66
• Buy American Act (BAA)
• Build America, Buy America Act (BABA)
DRIVER:
Multi-Volt MV 120V-277V equipped with tri-modal dimming capabilities. Start up/Operating Temperature: -10°C to +50°C.
Non-dimmable, 0-10V and Phase Cut (TRIAC/ELV-120VAC only) options available.
LIGHT DISTRIBUTION:
Very Narrow Spot VNS (16°) | NEMA 3x3
Narrow Spot NS (19°) | NEMA 3x3
Medium Flood MF (30°) | NEMA 4x4
Wide Flood WF (45°) | NEMA 5x5
DIMENSIONS
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
490003-FS (floating socket)
490003-FS-BLK (floating socket)
(incl.) 490034
Trident Heavy-Duty 3-Prong Stake 490036
Round pier mount 490057
Round tapered 3-hole surface mount 490048
PVC/Brass post stake 490037
Brass gutter mount 490047
Prepared by Notes
HL36A | TL3

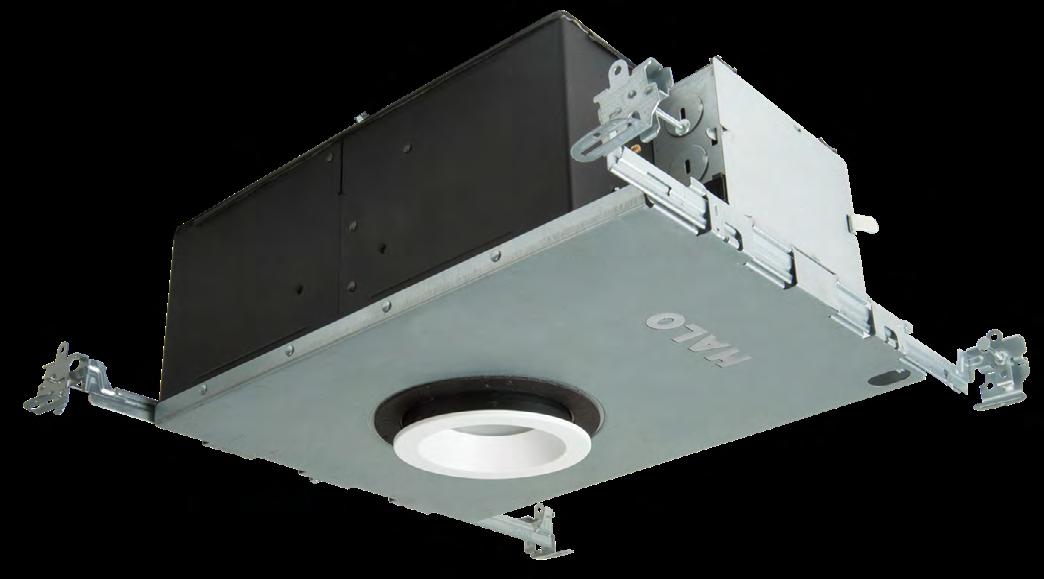

3" Shallow Directional New Construction LED Housing and Trims
Typical Applications
Residential, Light Commercial
Product Certification
Interactive Menu
• Order Information page 2
• Product Specifications page 4
• Photometric Data page 5
• Energy & Performance Data page 3
• Dimming Guide
• Product Warranty
Top Product Features
Product Features
• Broad range of trims, distribution can easily be changed in the field
• Optional adapter allows rimless installation
• Interchangeable 15°, 25°, 40° and 55° LED optics provide focus
• Flicker-free dimming down to 1%, available with LE/TE phase cut and 0-10V analog control
• Locking 365° rotation and 45° tilt holds any aiming position
• Options to meet Trade Agreements Act requirements
Dimensional and Mounting Details
MODERA AVENTURA TYPE LANDSCAPE
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
· 800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
· Comfort Dim (warm dimming) also available in 800lm only Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS

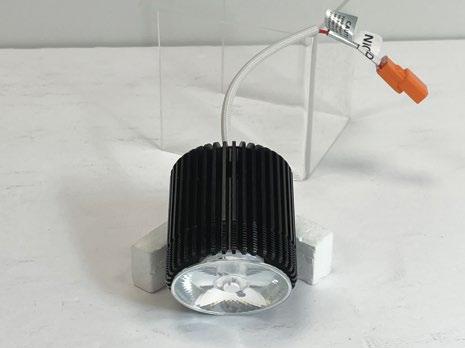

800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
· cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant
· Certified to the high efficacy requirements of California
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
HWF = semi-specular clear reflector and matte white flange
Electroplated Finishes
BN = brushed nickel reflector and flange
ORB = oil rubbed bronze reflector and flange
Painted Finishes
MW = matte white reflector and flange
MB = matte black reflector and flange
Painted Finishes
MW = matte white reflector and flange
Anodized Finishes
H = semi-specular clear reflector and flange
HWF = semi-specular clear reflector and matte white flange
Electroplated Finishes
BN = brushed nickel reflector and flange
ORB = oil rubbed bronze reflector and flange
Painted Finishes
MW = matte white reflector and flange
MB = matte black reflector and flange
Optics
TIR45SP15 = 15° beam
TIR45NFL25 = 25° beam
TIR45FL40 = 40° beam
TIR45WFL55 = 55° beam
TIR45MH12PK = replacement media holder, package of 12 L100 Series = 2.0” lens and filters, see spec sheet
(4) Accessories sold separately will be separately analyzed under domestic preference requirements. Consult factory for further information.
[blank] = full overlap self-flanged
RL = rimless, must be used with rimless adapter ordered separately
[blank] = full overlap self-flanged
RL = rimless, must be used with rimless adapter ordered separately
[blank] = full overlap self-flanged
RL = rimless, must be used with rimless adapter ordered separately
[blank] = full overlap self-flanged
2" Iolite Accessories
2" Iolite Round Reflector with Round Aperture
FIELD CHANGEABLE OPTICS
Type Project Catalog No.
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Replacement optics include an optional frosted lens. Note: Frosted filter-optics and Premium TIR optics are not compatible with /HL LED modules.
Frosted Filter-Optic
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trims. Dimensions: 7-7/8" diameter 1/2" thick

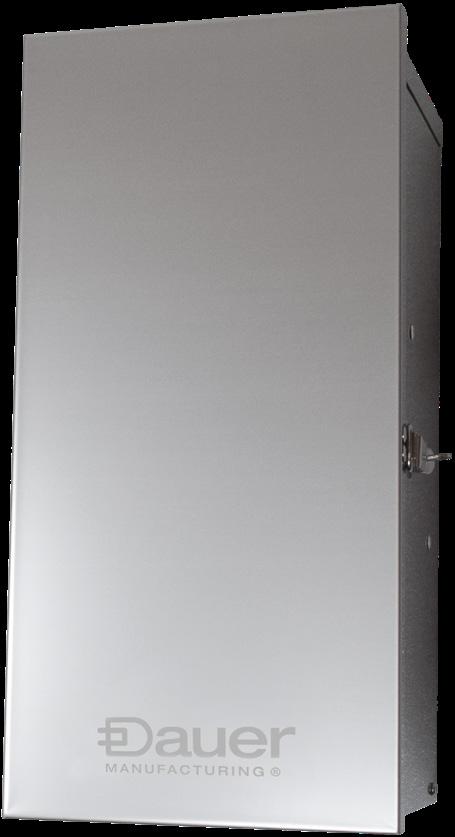

300W, 25A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT:
120V, 60Hz, 2.5A
HOUSING:

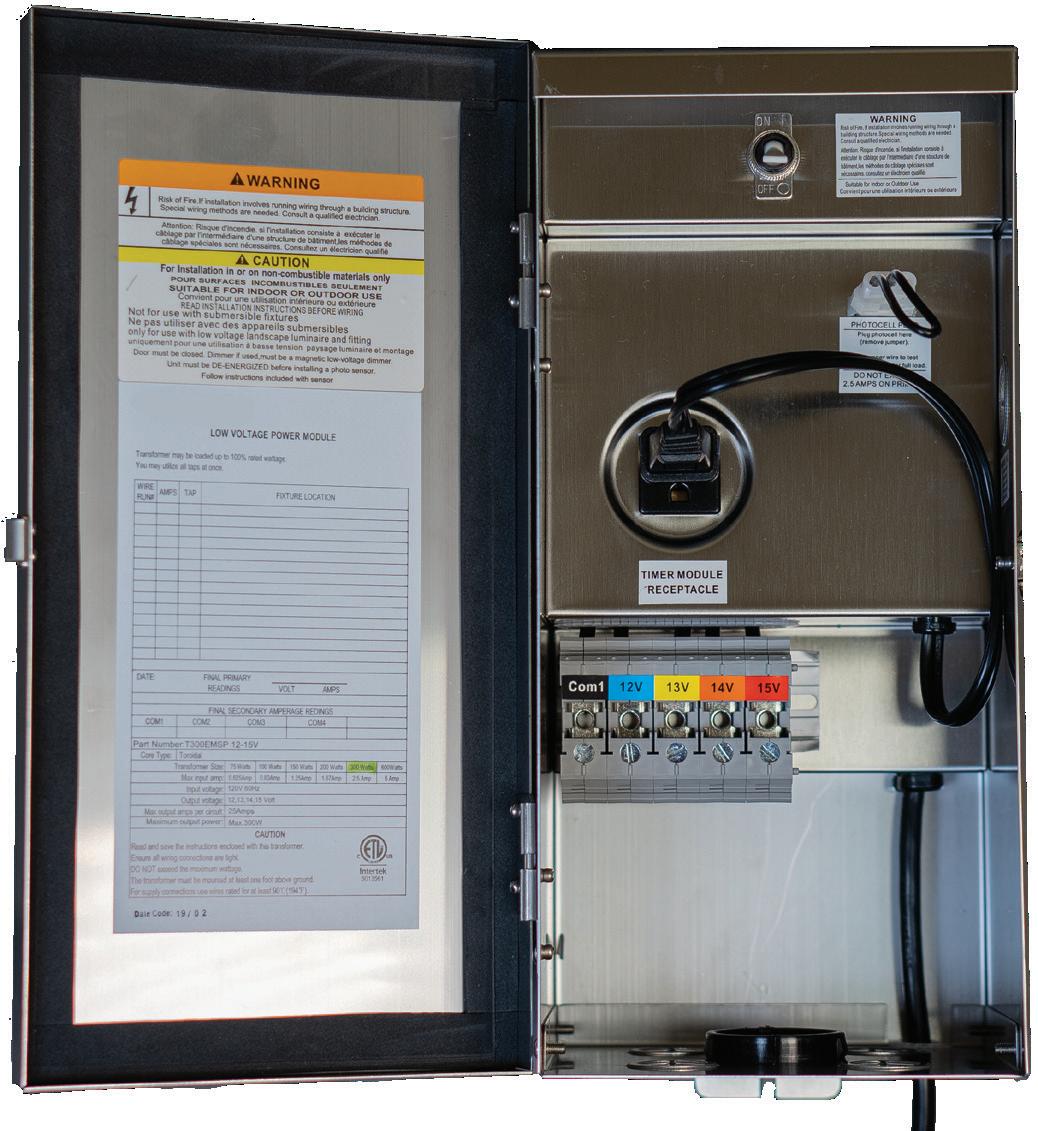

Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 25A breaker, heavy-duty grounded 5-foot power cord. Suitable for interior or exteriror use.
AGENCY LISTINGS:
ETL approved. Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490542-DT200LT
DIMENSIONS:
SPECIFICATION
If this unit is being mounted within 25 feet of a panel box with primary breakers, it is recommended to have a designated circuit with a high in-rush current, magnetic load type breaker which is compatible with the existing brand of panel.
