PART NUMBER

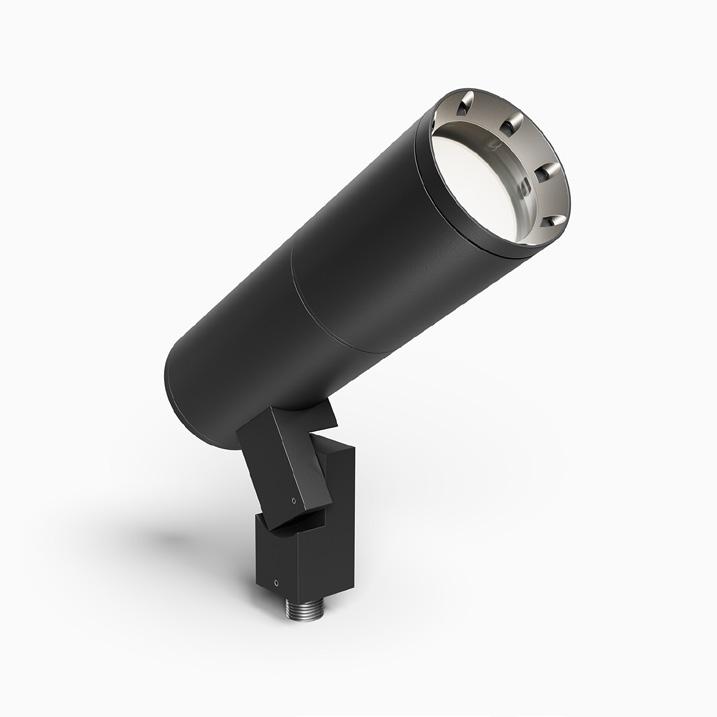

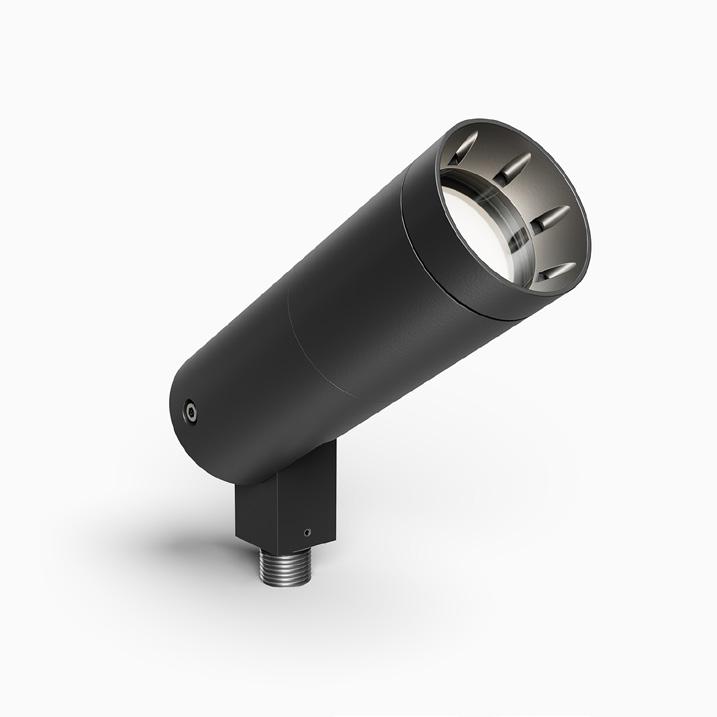

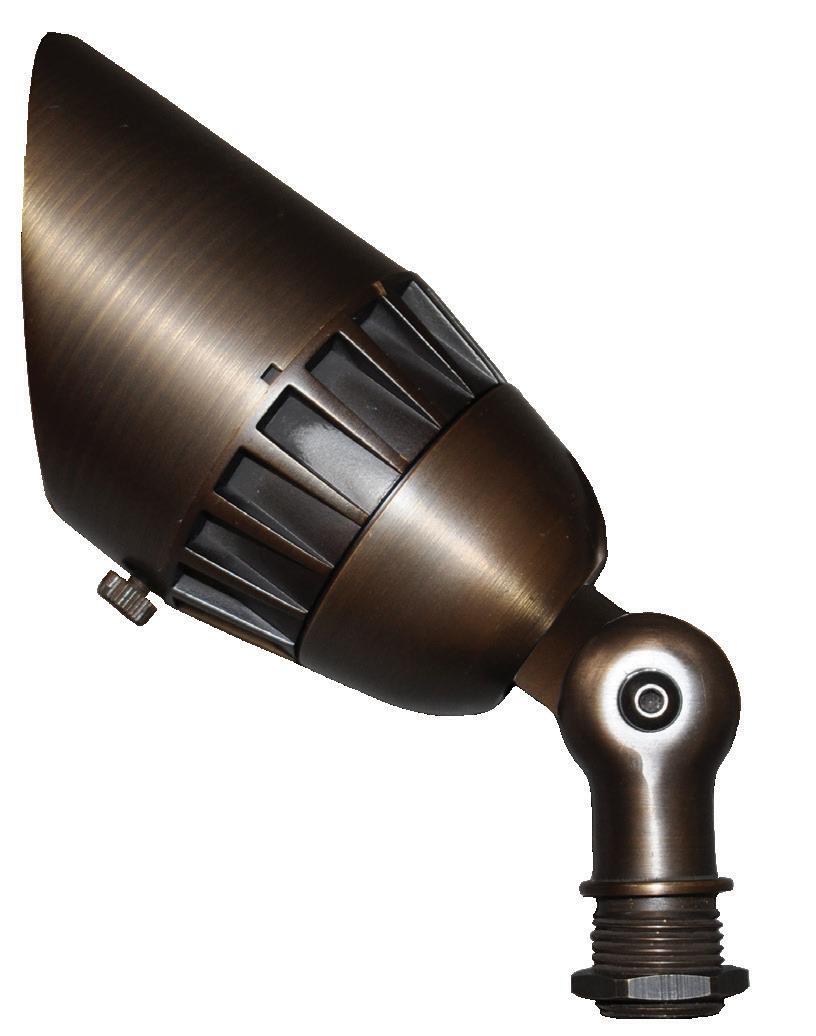

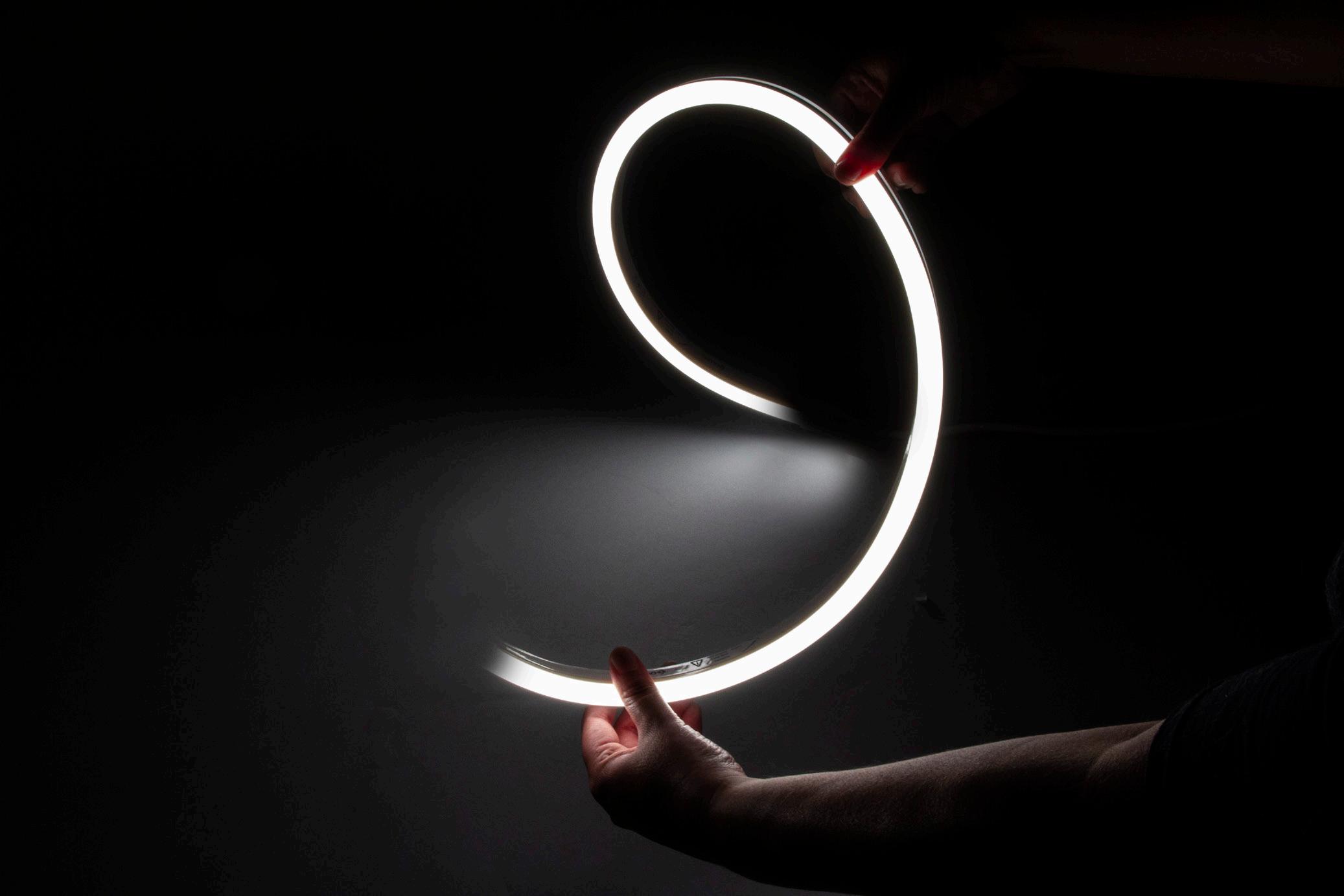

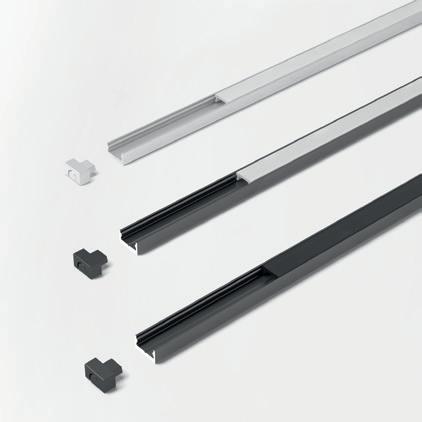

PER-XX-F-18-6-27-WFL; ECO30W-500

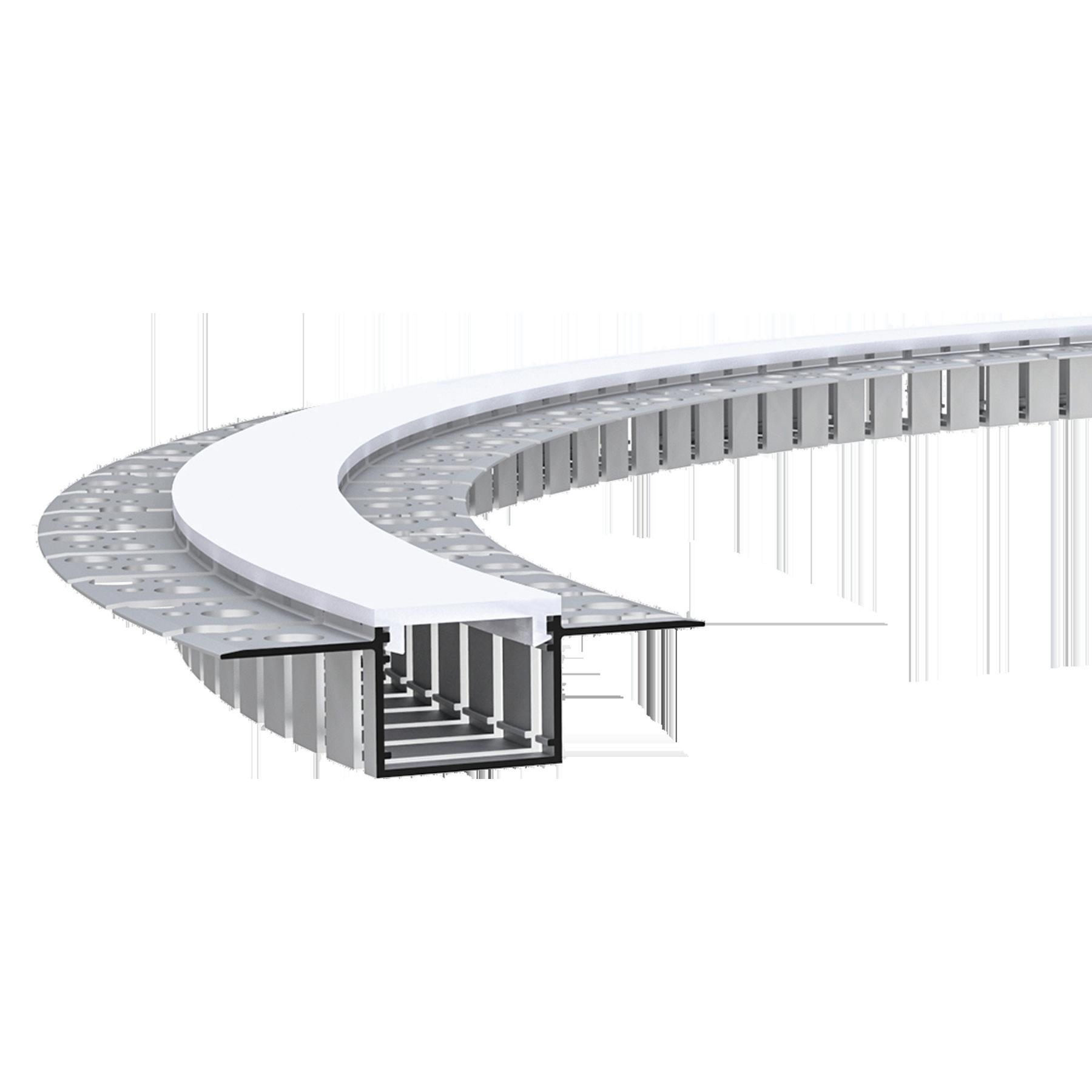

PER-XX-NS-18-6-27-WFL; E98550; ECO30W-500

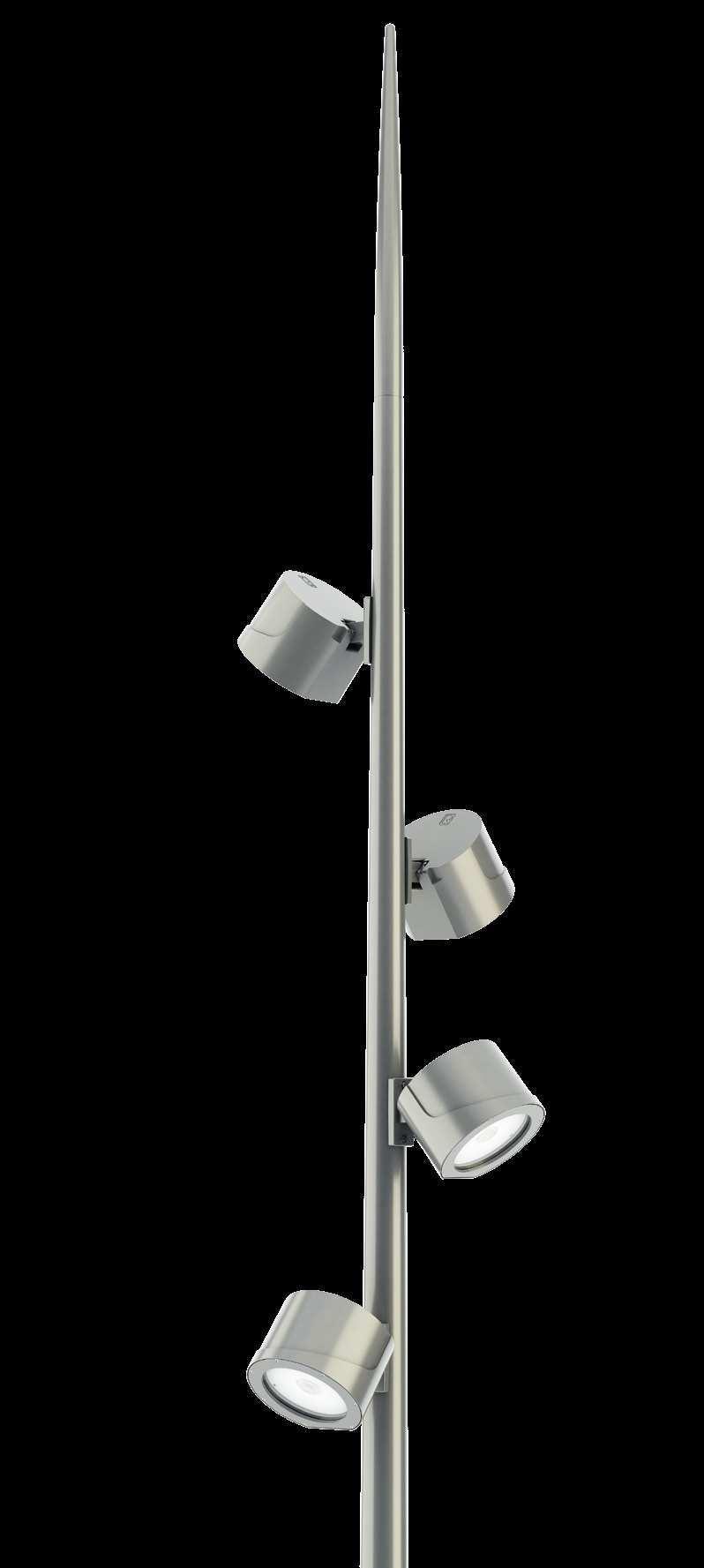

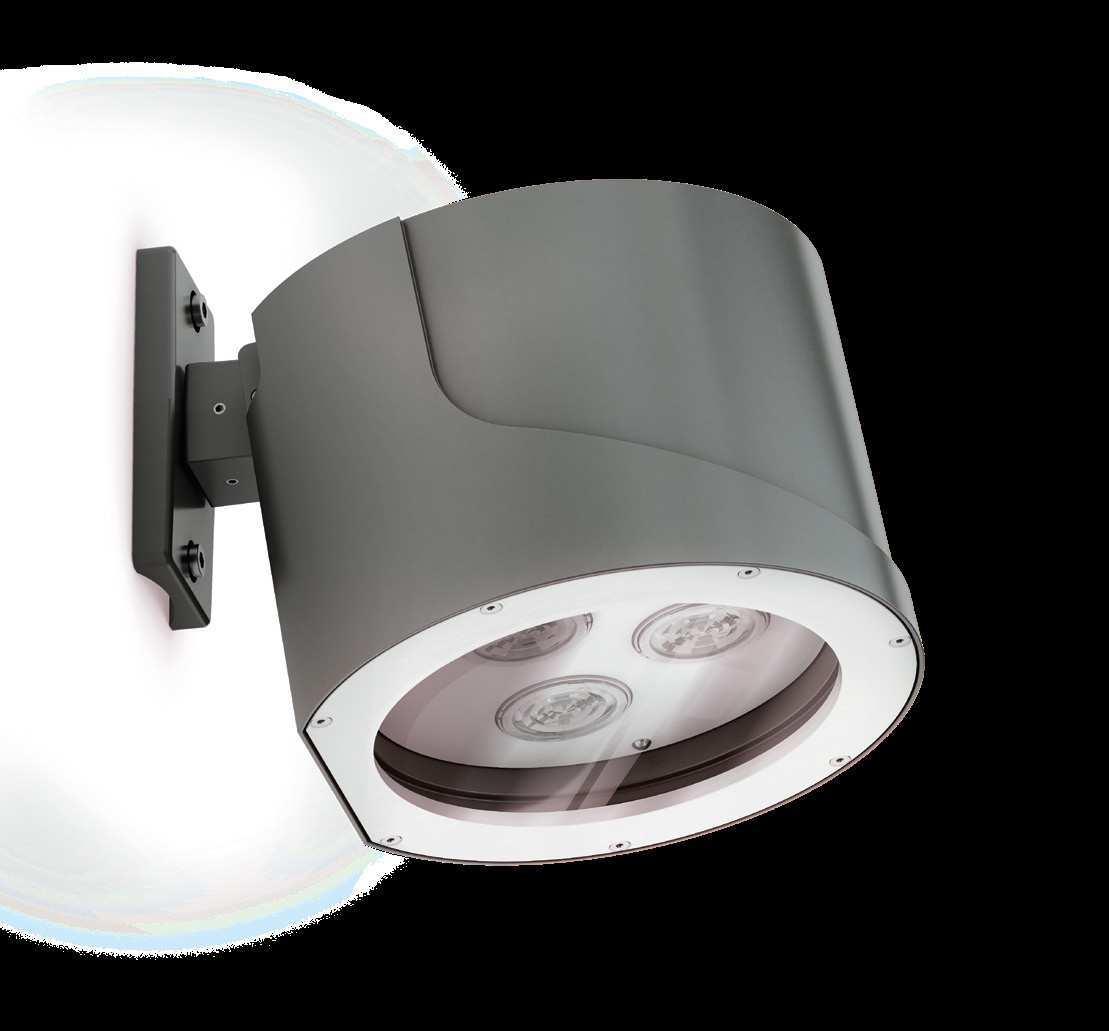

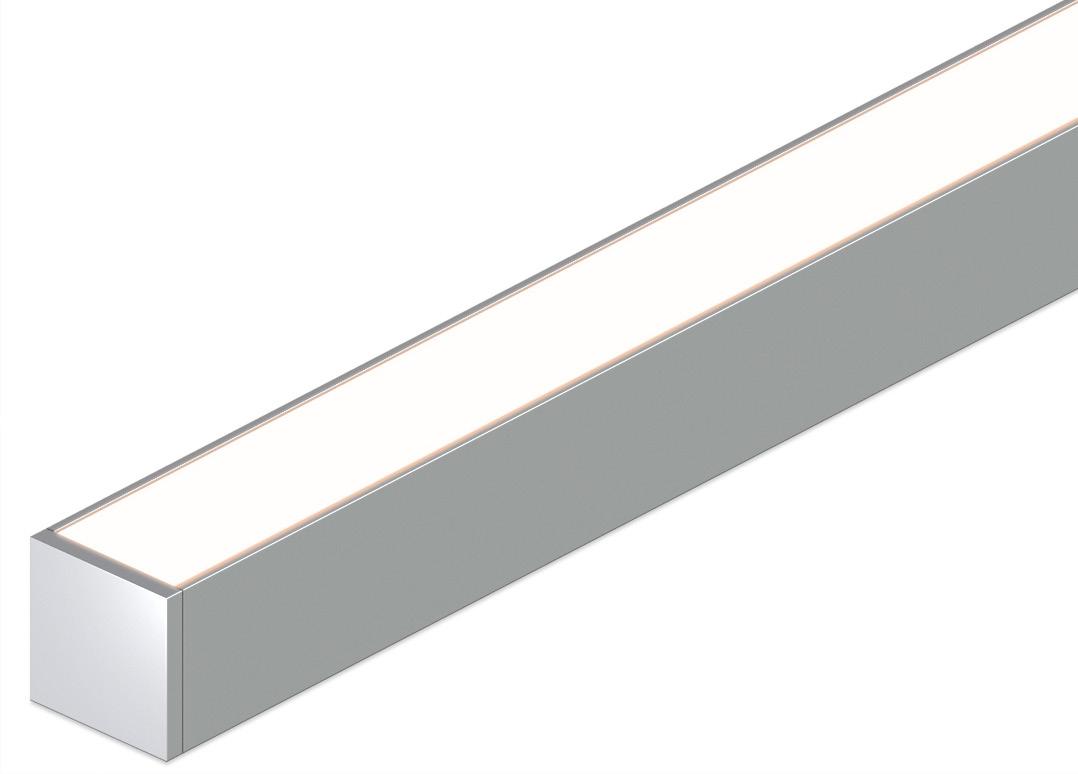

SUR-XX-A-36-7 CV-27-WFL; E99680; SOLO100W-630

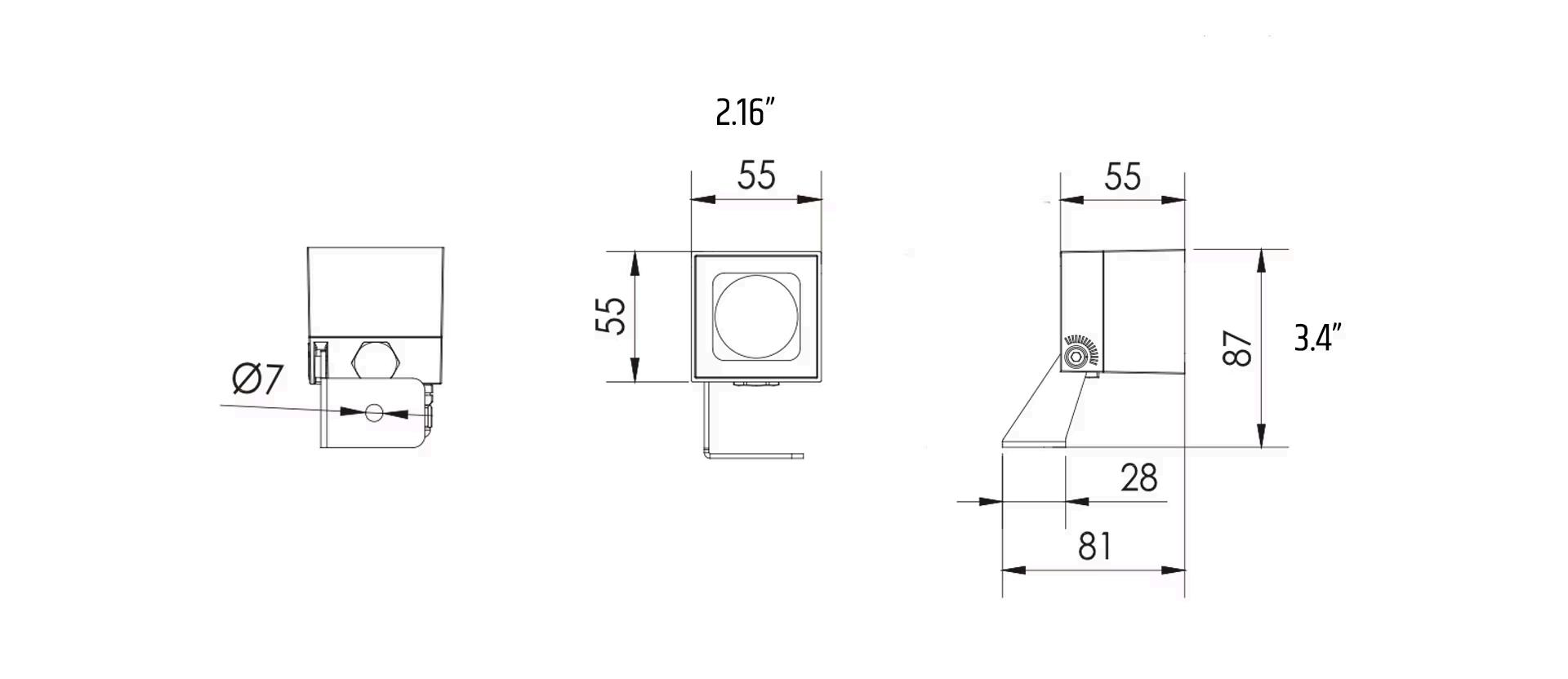

Medium Wide Flood-2700K-500lm-1-10V-PC Screen-XX
22261-K27-XXX

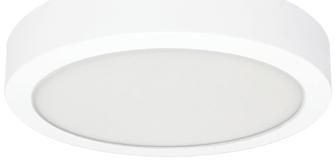

ULE-40591-13.5W-XX-W27-XX-120/277V-DIM-XX
LITHONIA
LITHONIA
LITHONIA
LITHONIA
LITHONIA
LITHONIA
LITHONIA
LITHONIA
LITHONIA
LITHONIA
LITHONIA
LITHONIA
LITHONIA

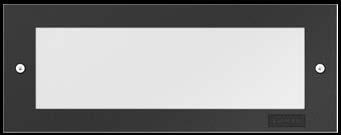

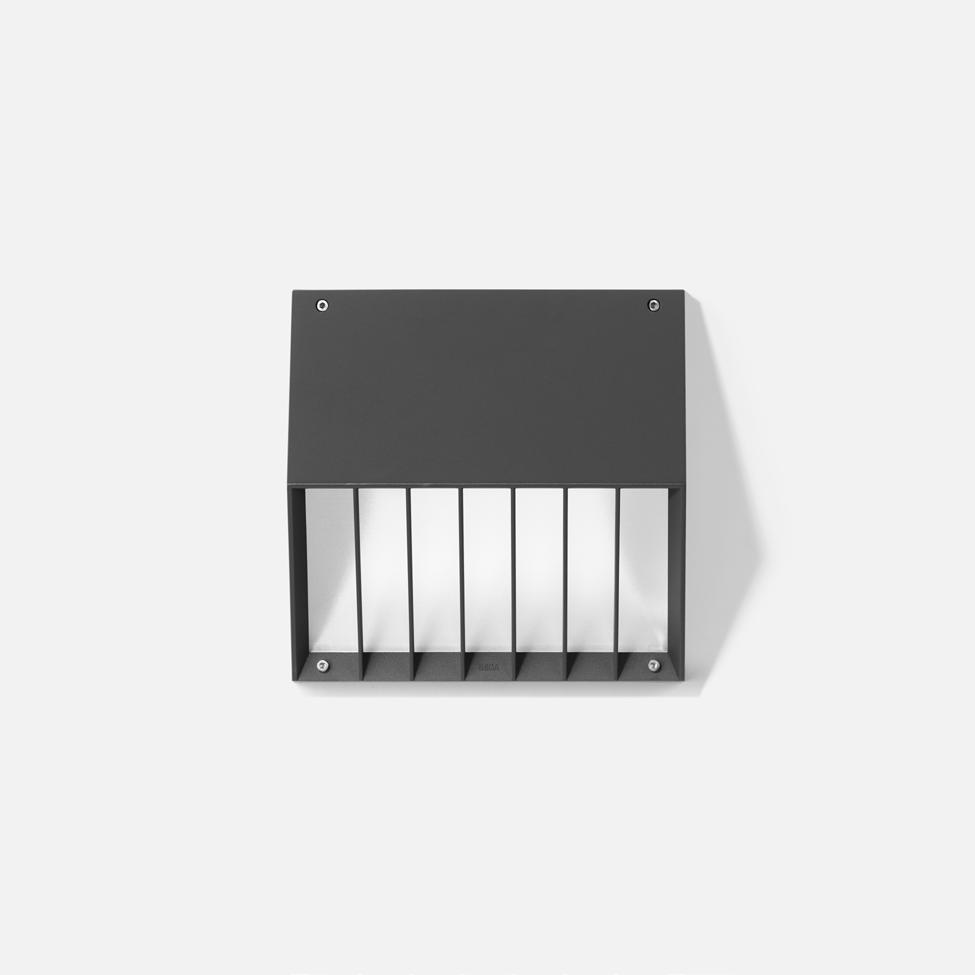

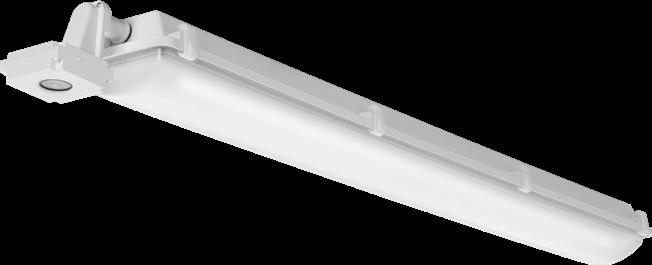

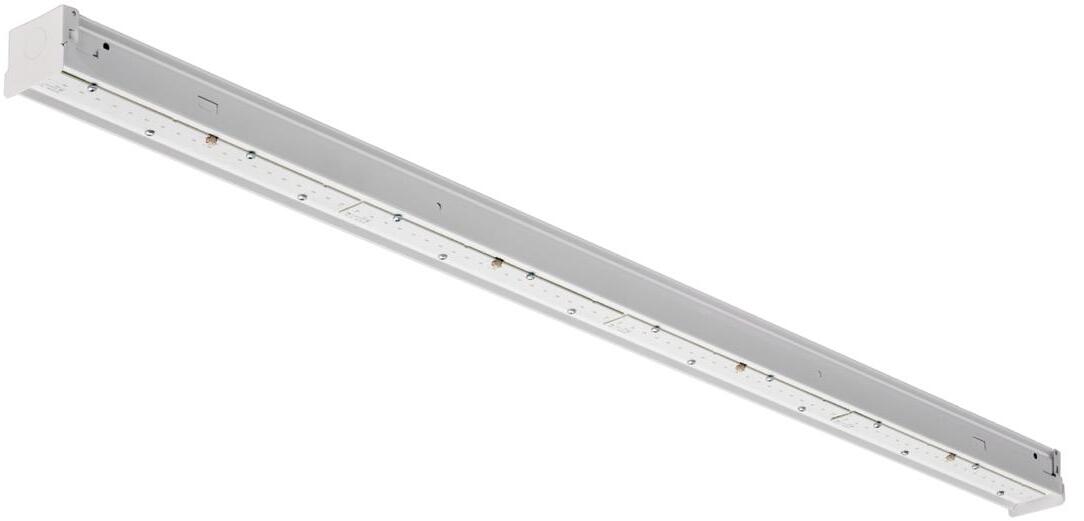

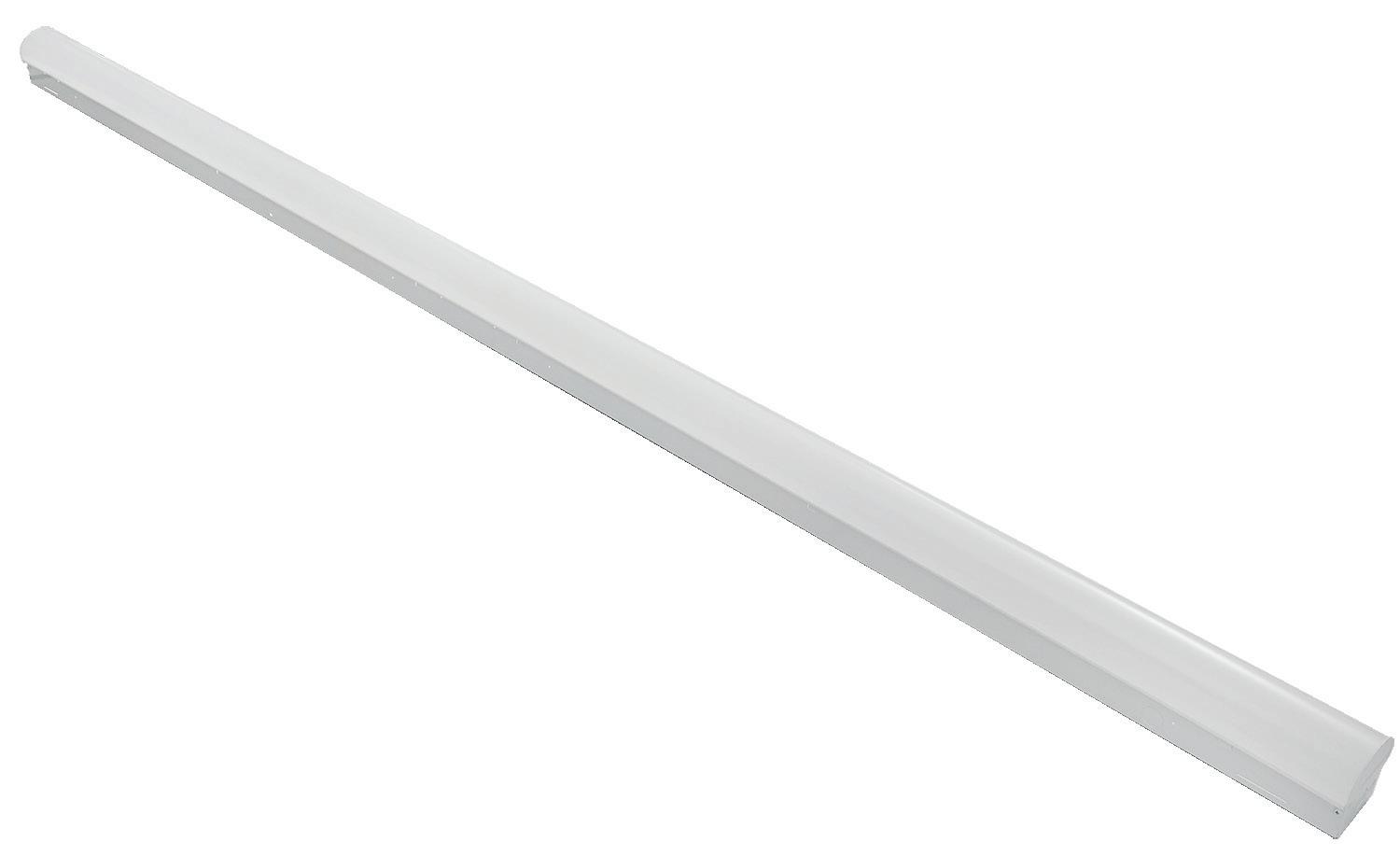

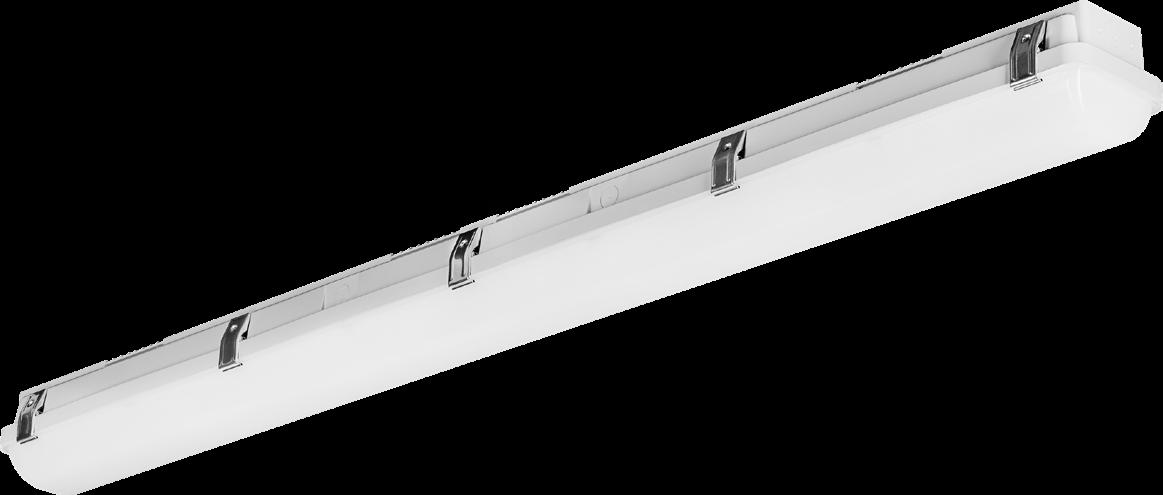

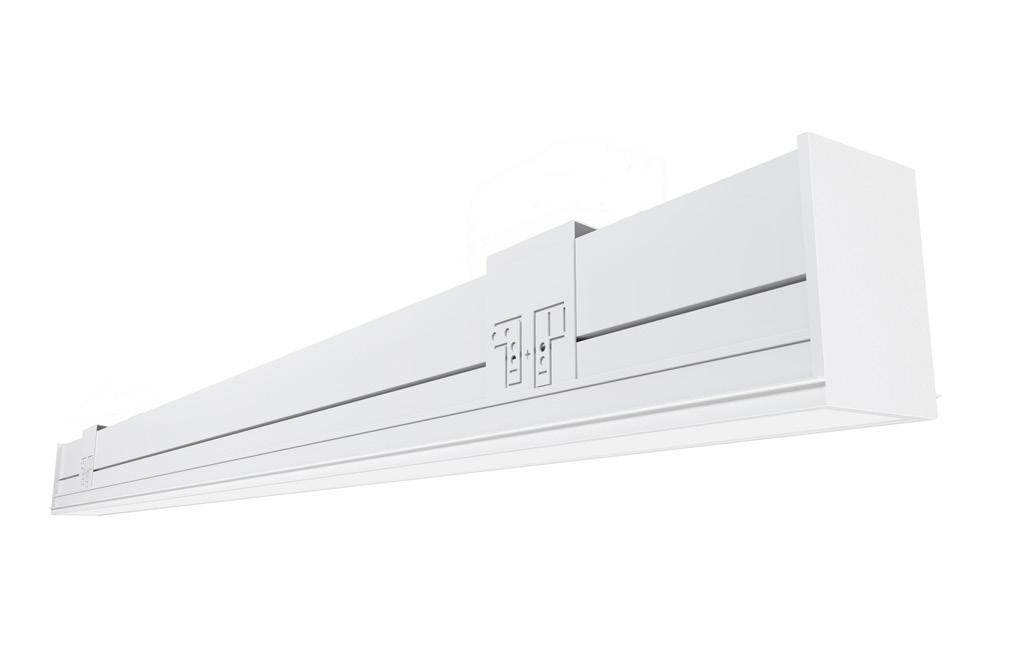

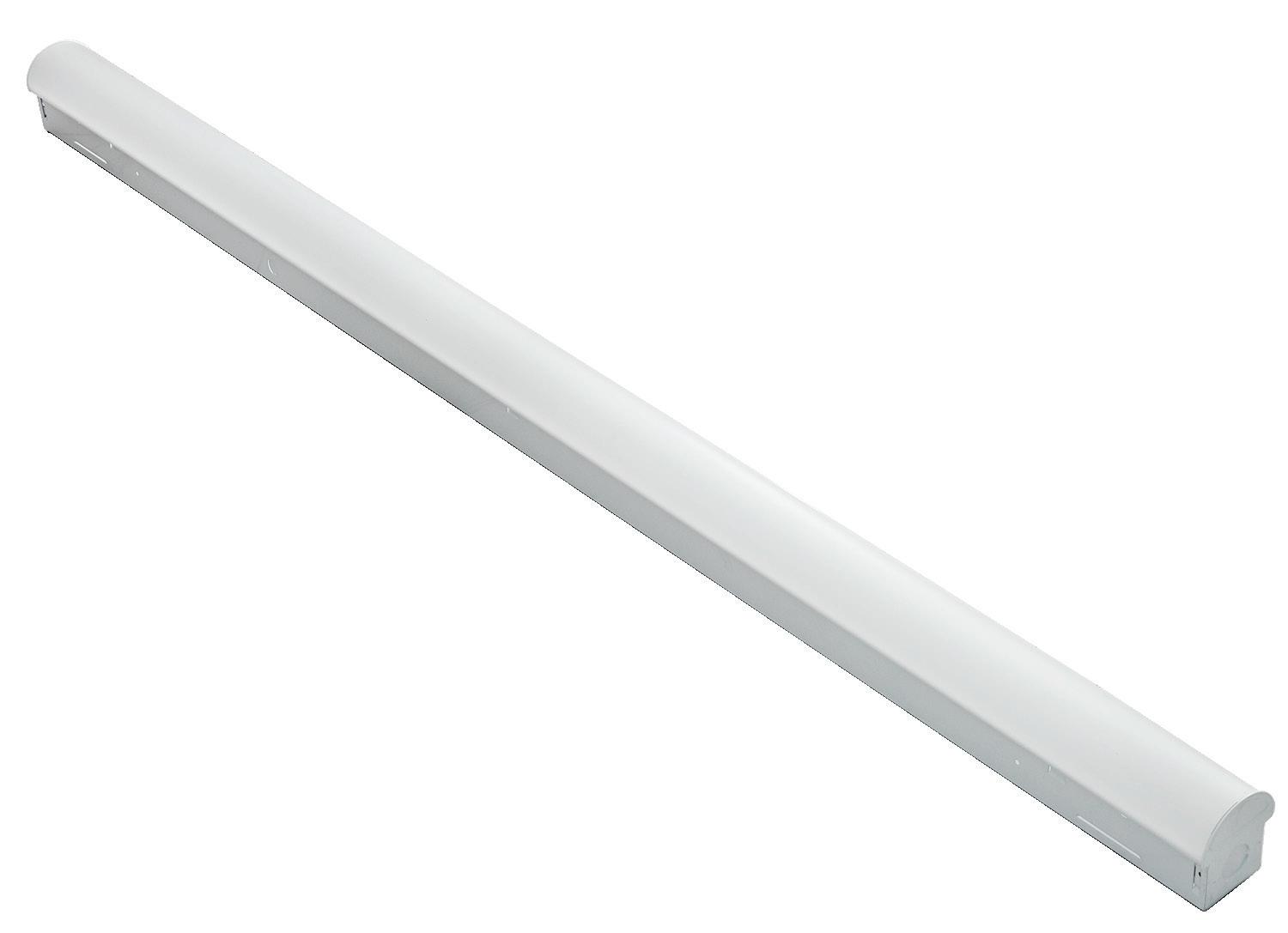

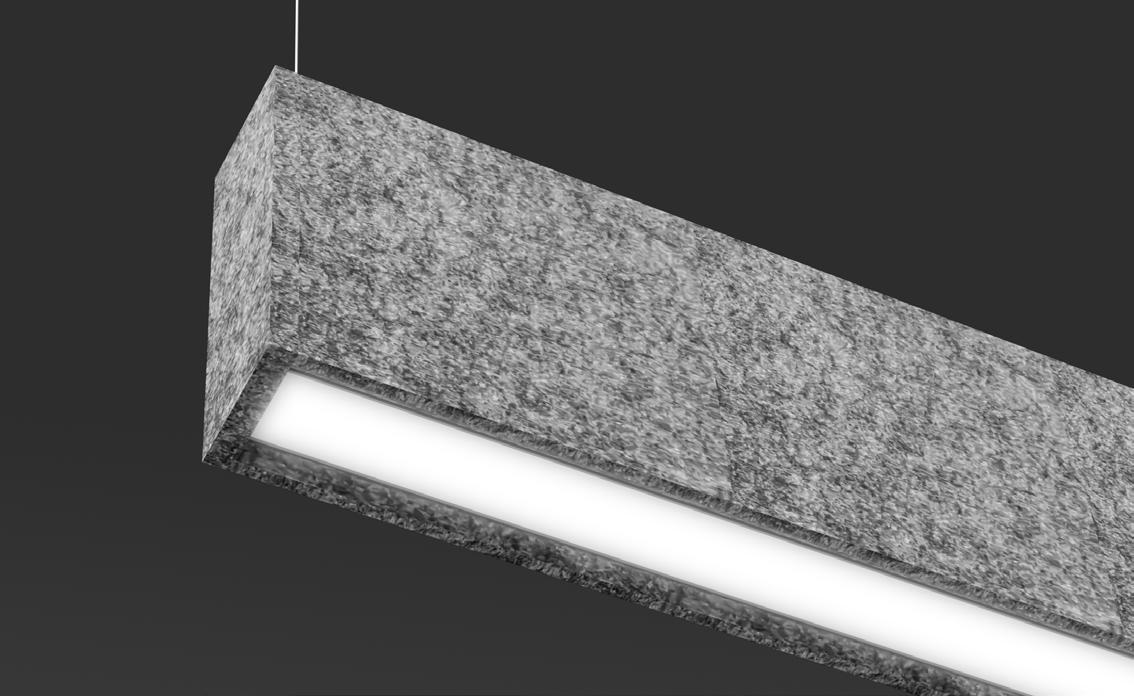

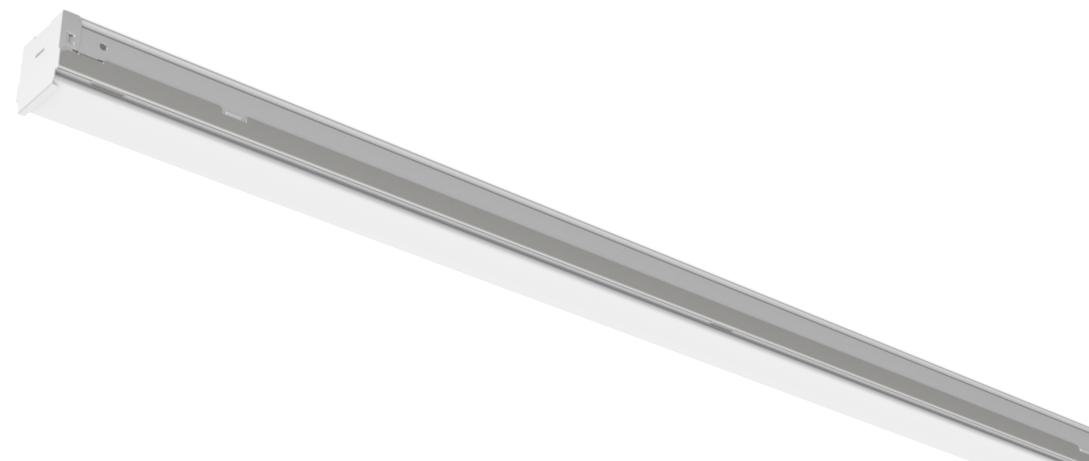

ZL1N L48 5000LM FST MVOLT 40K 80 CRI
ZL1N L48 5000LM FST MVOLT 40K 80 CRI E10WLCP
ZL1N L48 5000LM FST MVOLT 40K 80 CRI
ZL1N L48 7000LM FST MVOLT 40K 80 CRI E7W
ZL1N L48 7000LM FST MVOLT 40K 80 CRI
CSVT L48 4000LM MVOLT 4000K 80CRI
CSVT L48 4000LM MVOLT 4000K 80CRI IE7WCP
LDN4 40/15 LO4AR LD
LDN4 40/15 LO4AR LD EL
VCPG LED P1 40K T5W MVOLT
VCPG LED P1 40K T5W MVOLT
VCPG LED P1 40K T5W MVOLT

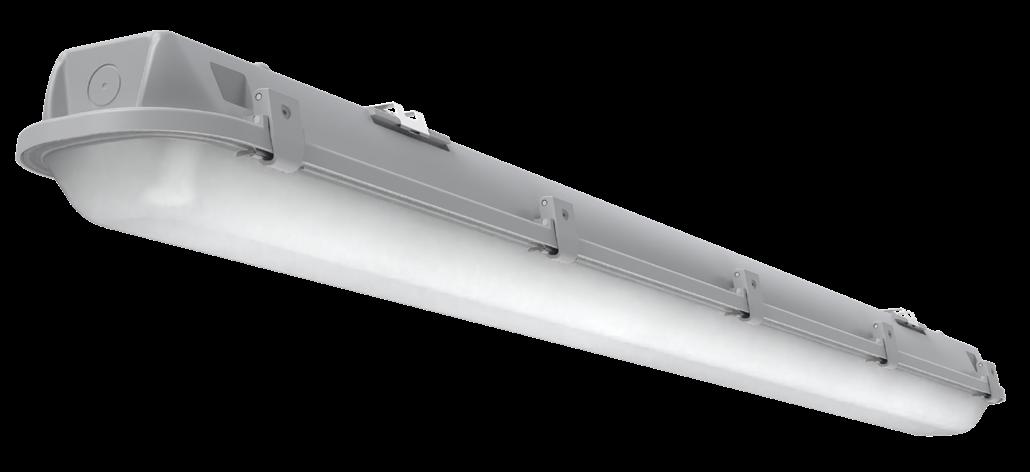

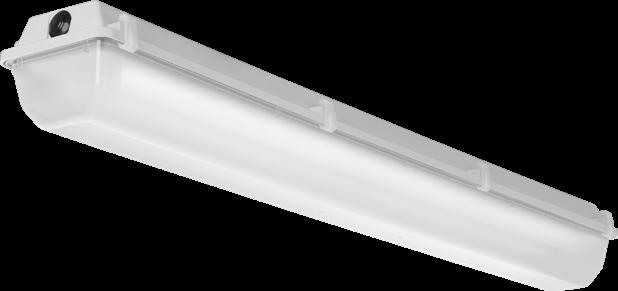

FEM L48 6000LM IMAFL MD MVOLT GZ10 40K 80CRI E10WMCP
BOH
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
CBRIGHT
CBRIGHT WAC WAC FOCUS KUZCO LIGMAN
NUMBER

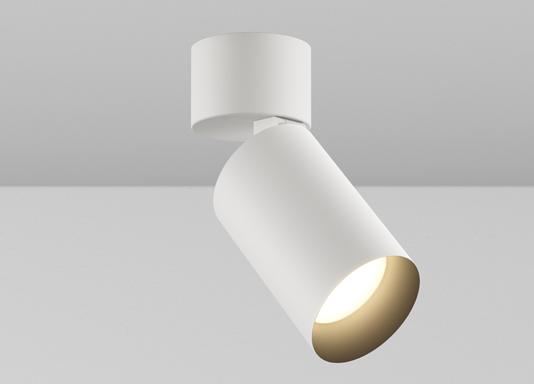

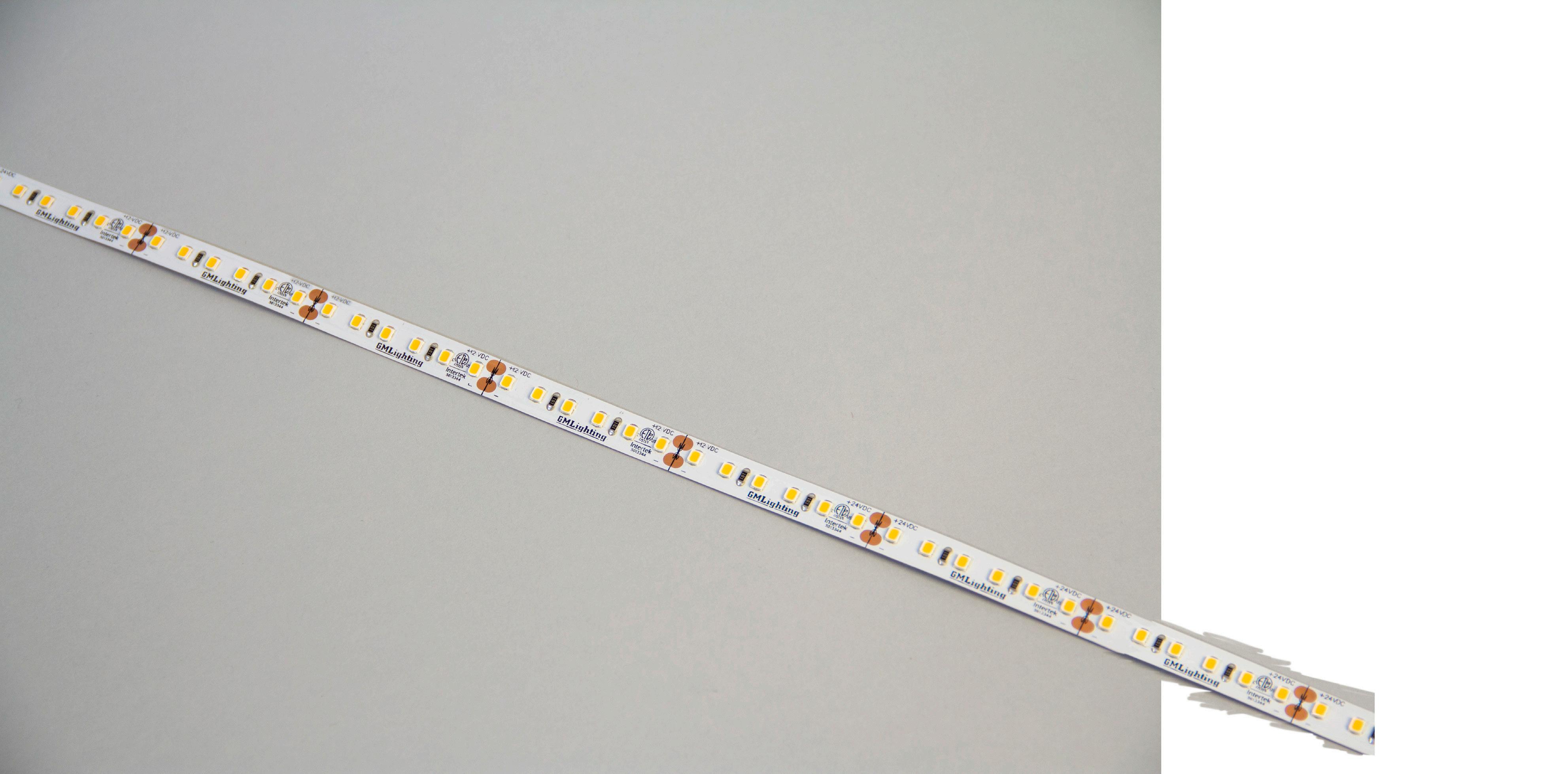

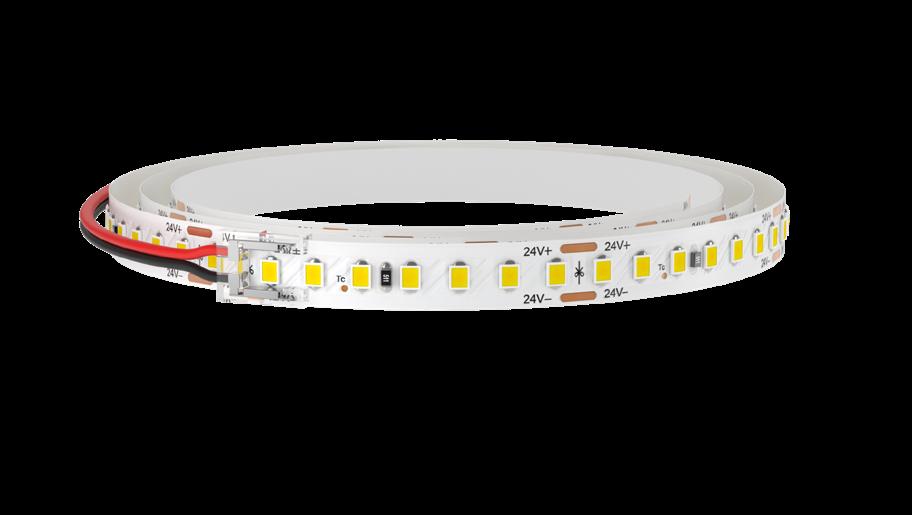

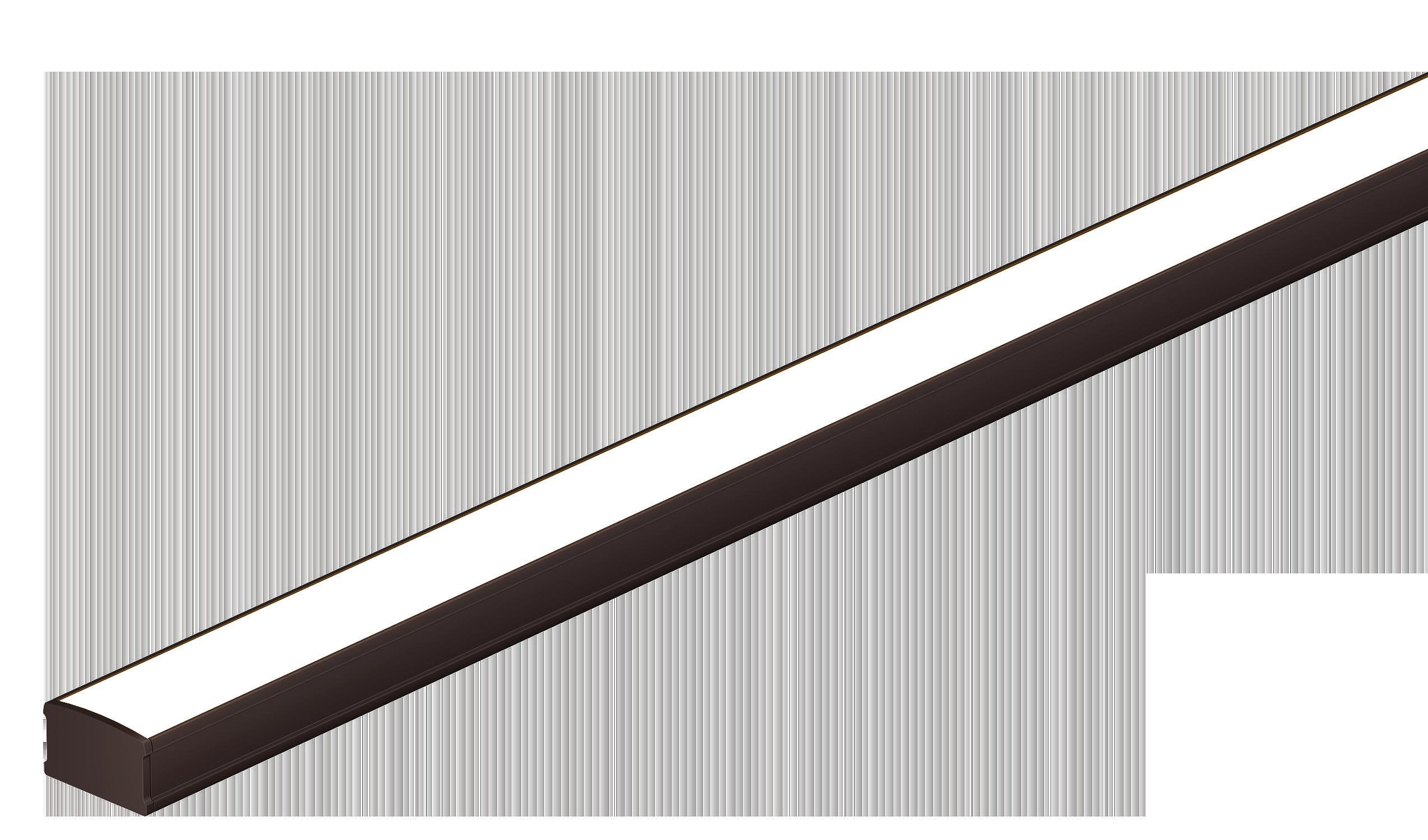

CB-SL1245-27K-60

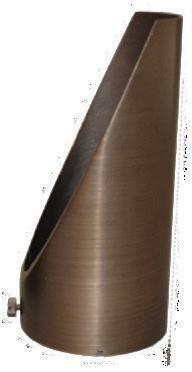

CB-SL1245-27K-60+SNOOT

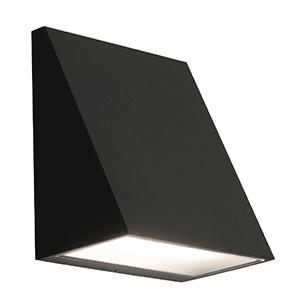

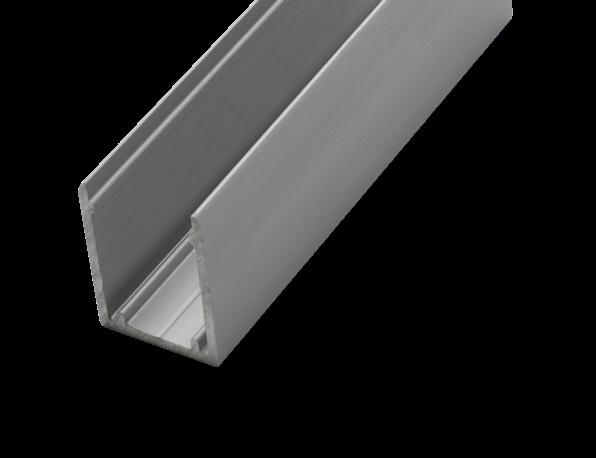

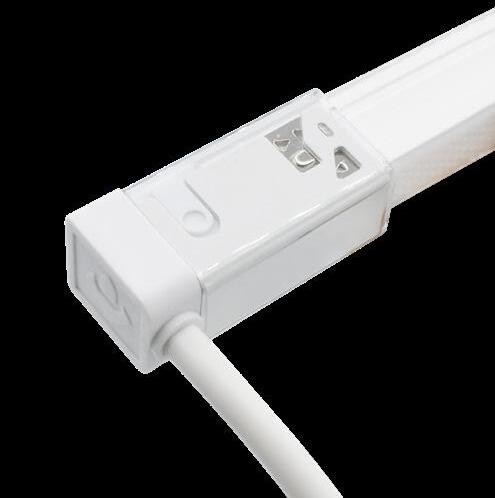

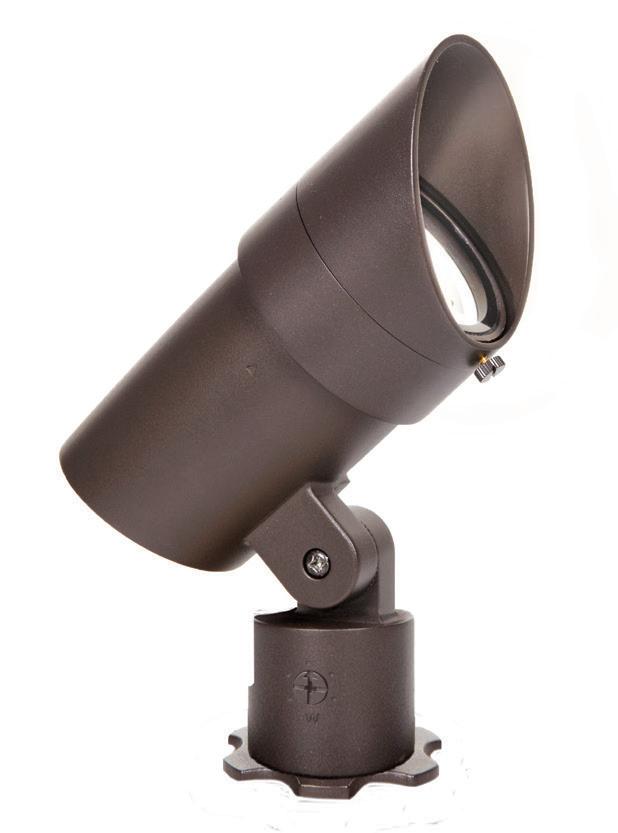

5031-27BBR

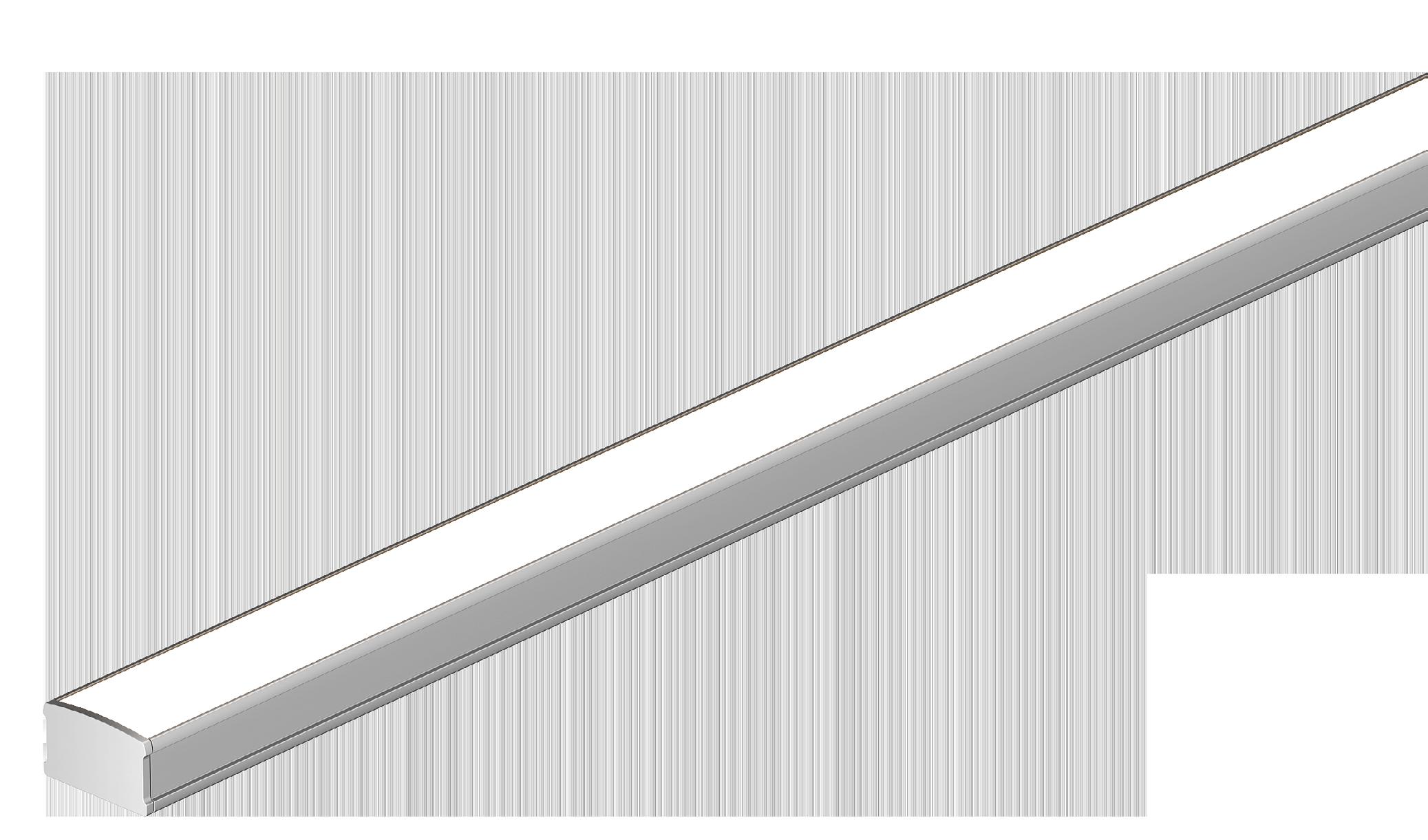

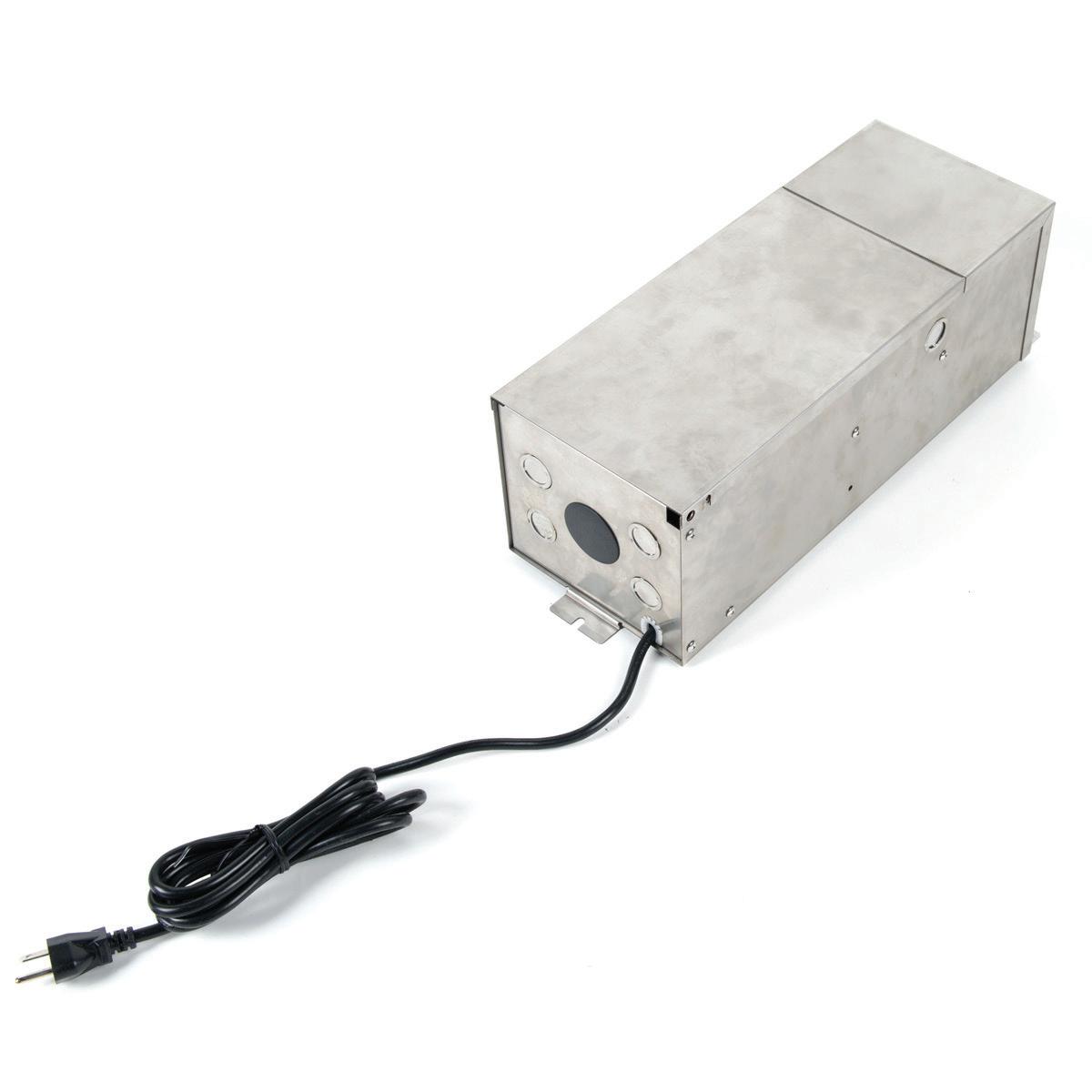

9300-TRN-SS

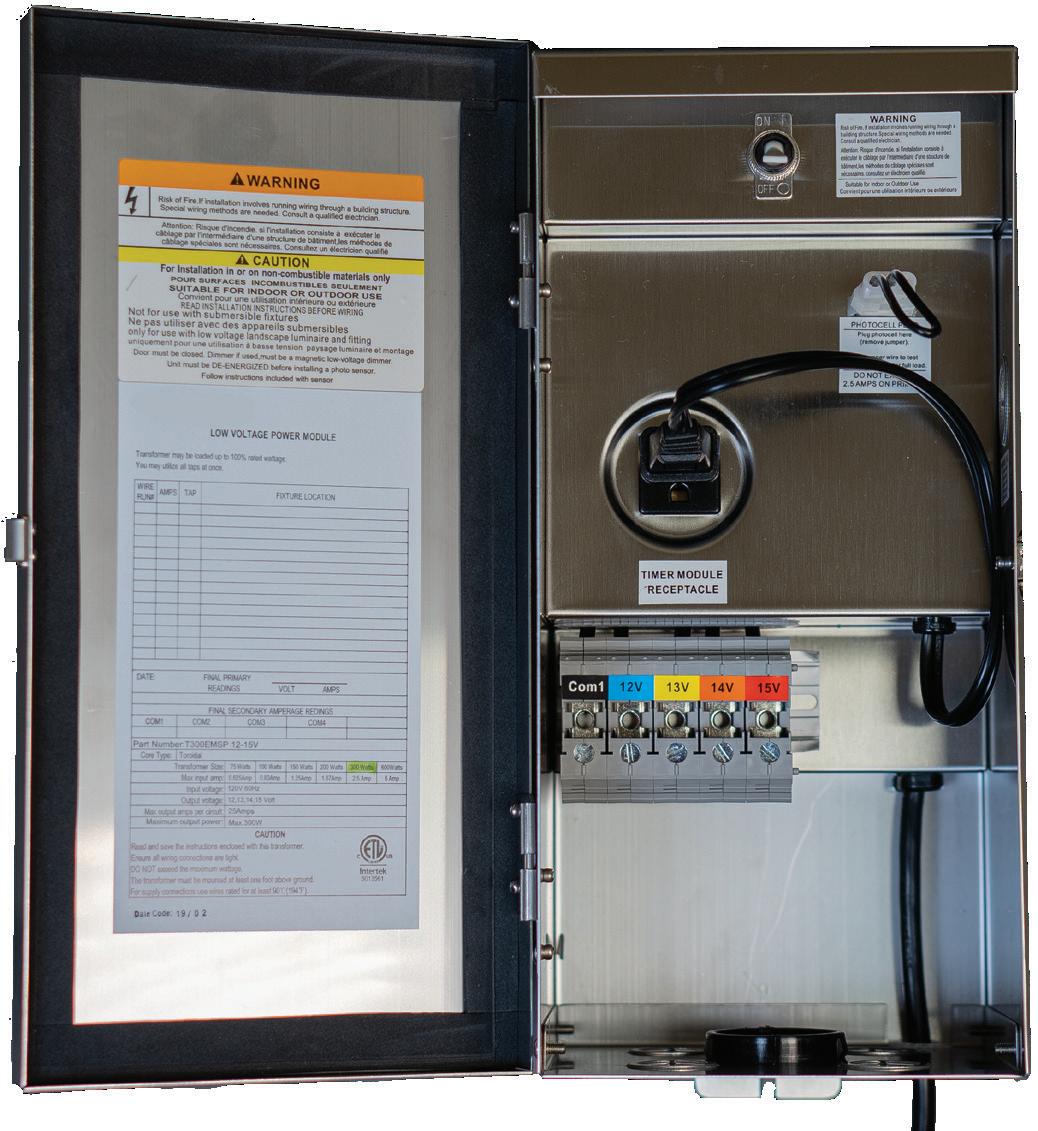

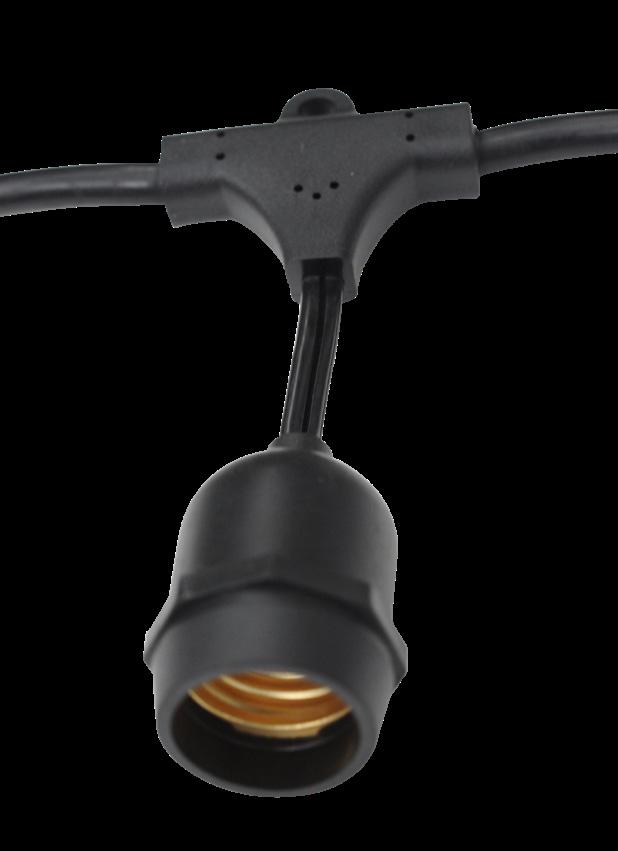

PL-23-DM18-LEDP-120V-BAT FA-26 MST-12-200

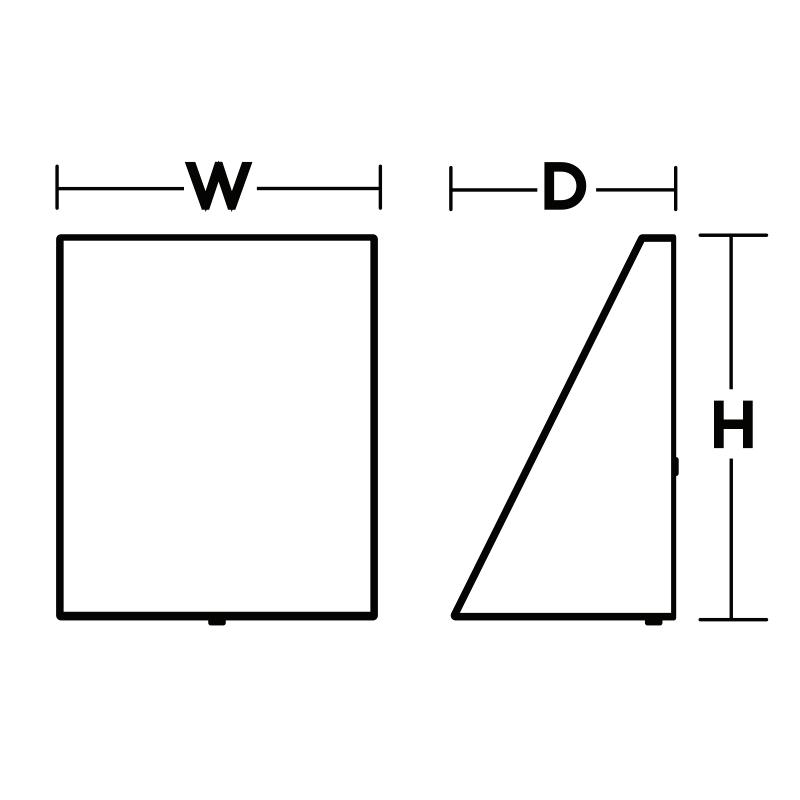

ER30103BK
ULE-40591-13.5W-XX-W27-XX-120/277V-DIM-XX

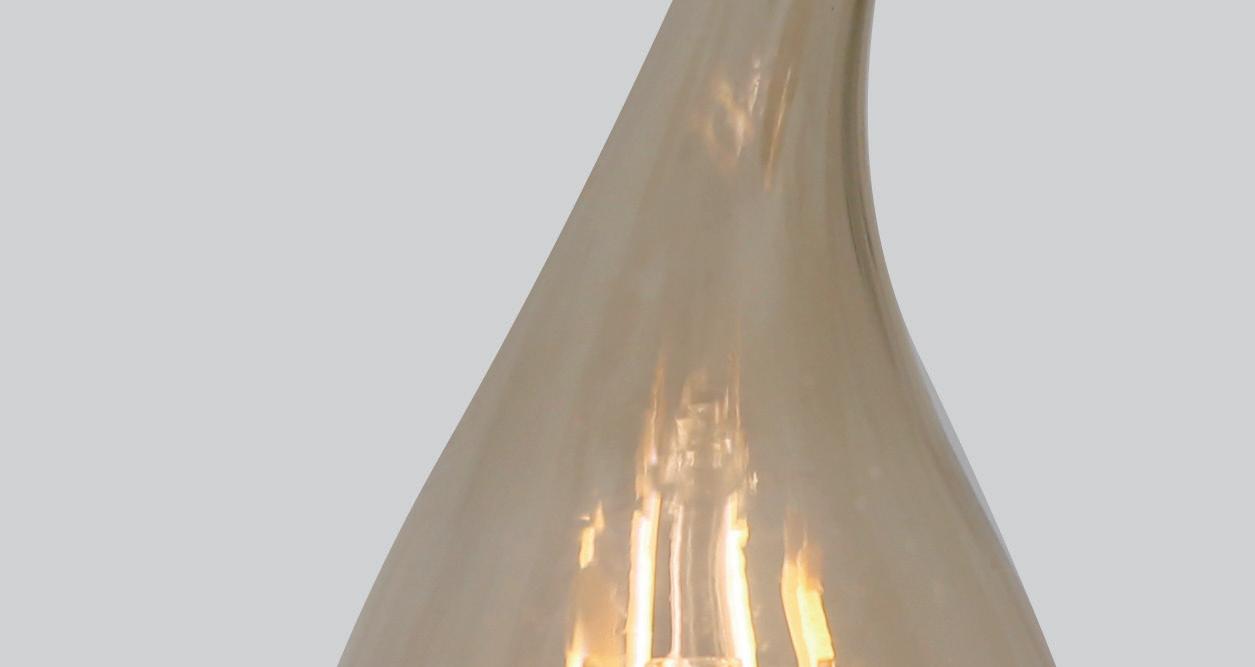

LUXRITE
LUXRITE
LUXRITE TCPI TCPI
LUXRITE
LUXRITE NORA NORA
VERSALED
VERSALED VERSALED
LEDVANCE
LR25195
LR25195+EM
LR25195

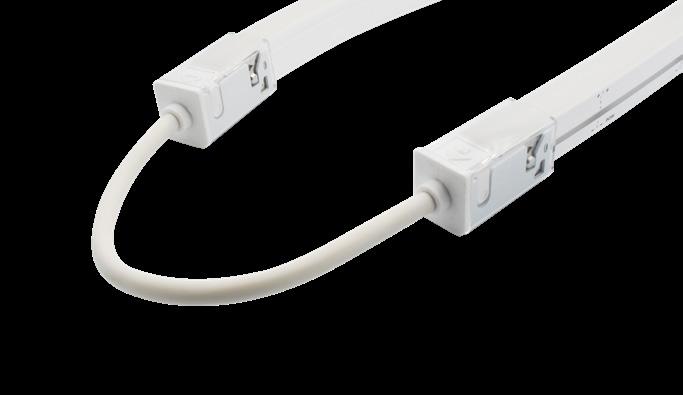

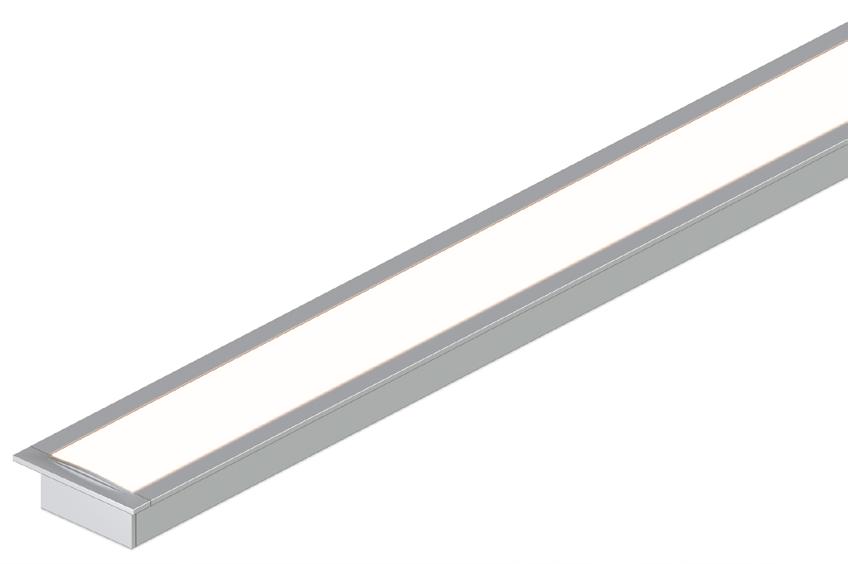

STR-4-U-ZD-A4-CCT-B
STR-4-U-ZD-A4-CCT
LR25195
LR25195+EM
NC3-41-L2-40-F-MPW/NCH3-4L2-C12
NC3-41-L2-40-F-MPW/NCH3-4L2-C12
GL9-MS-1L-QT-MCT
GL9-MS-1L-QT-MCT
GL9-MS-1L-QT-MCT 65906
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377

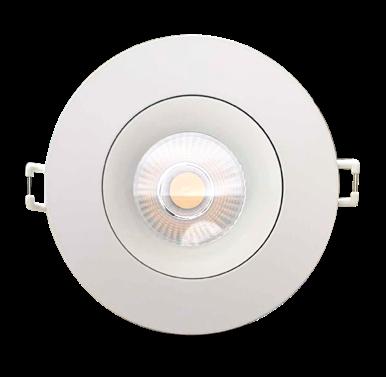

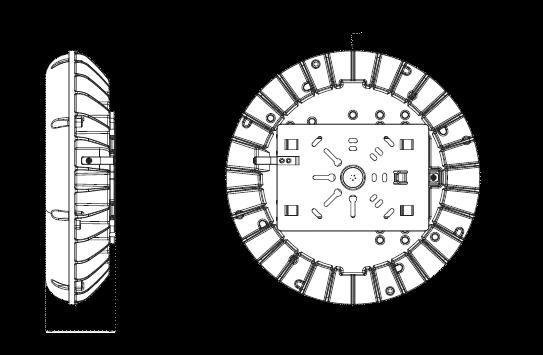

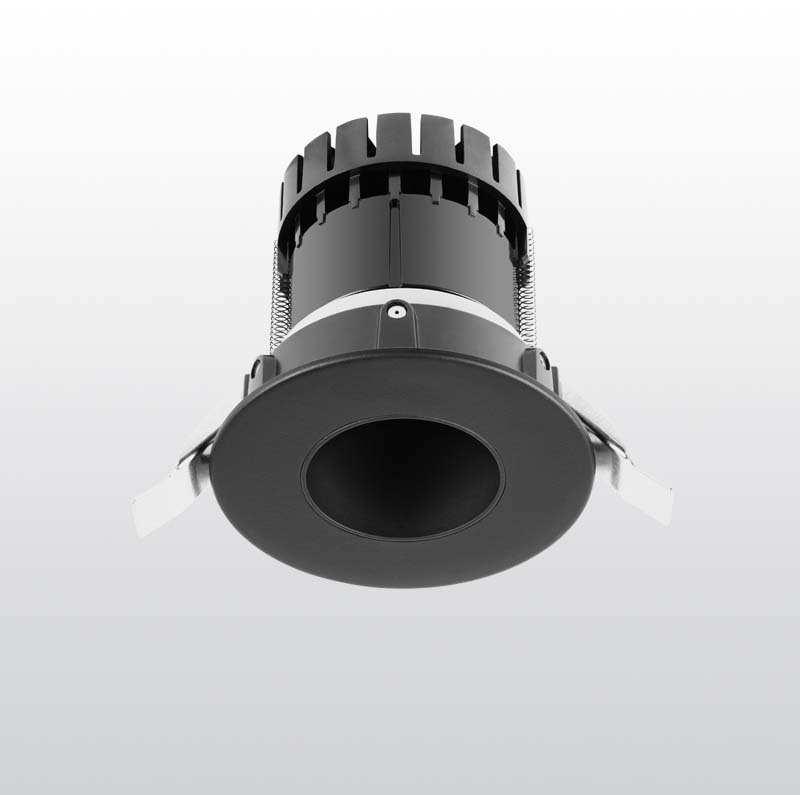

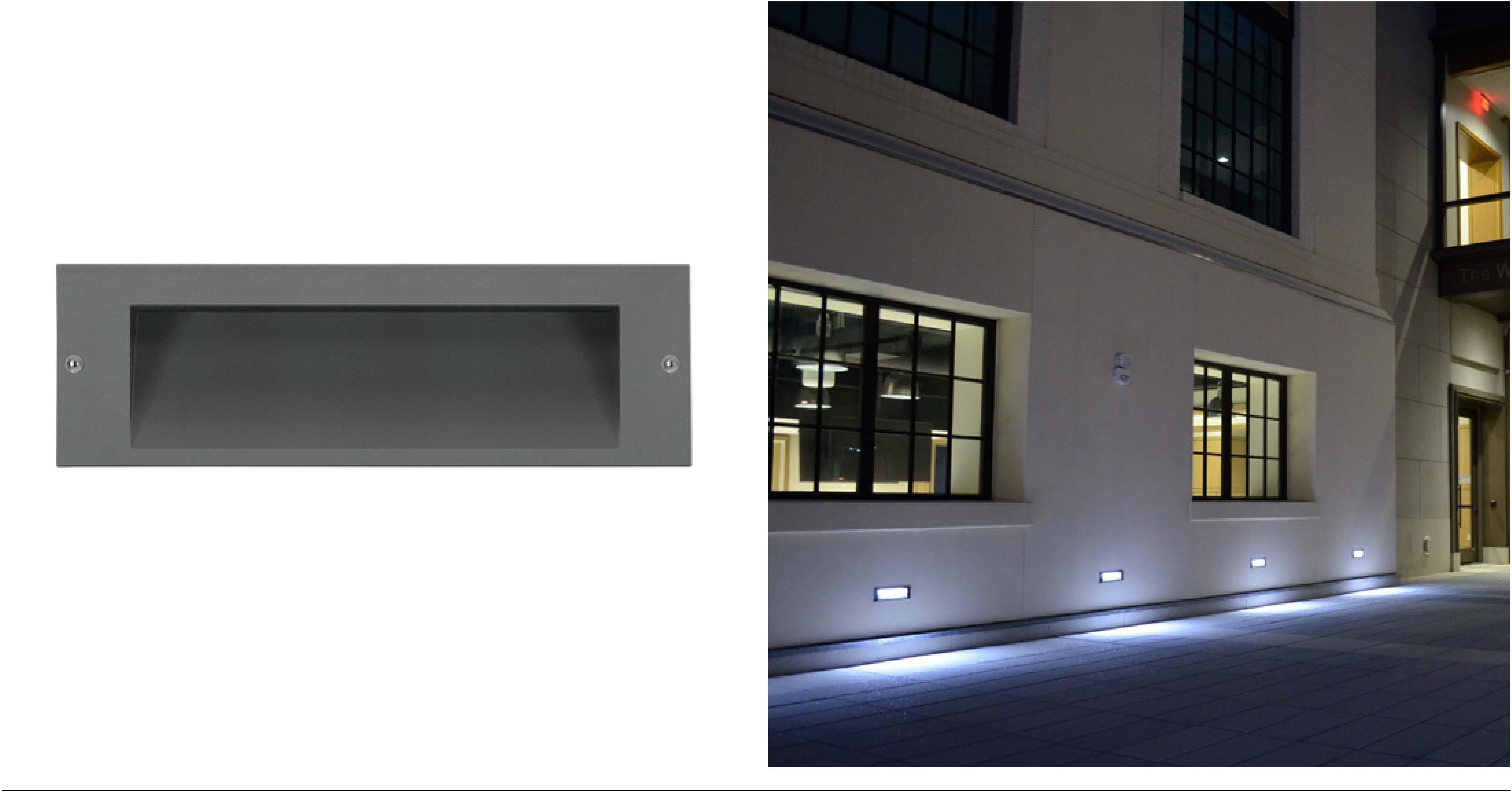

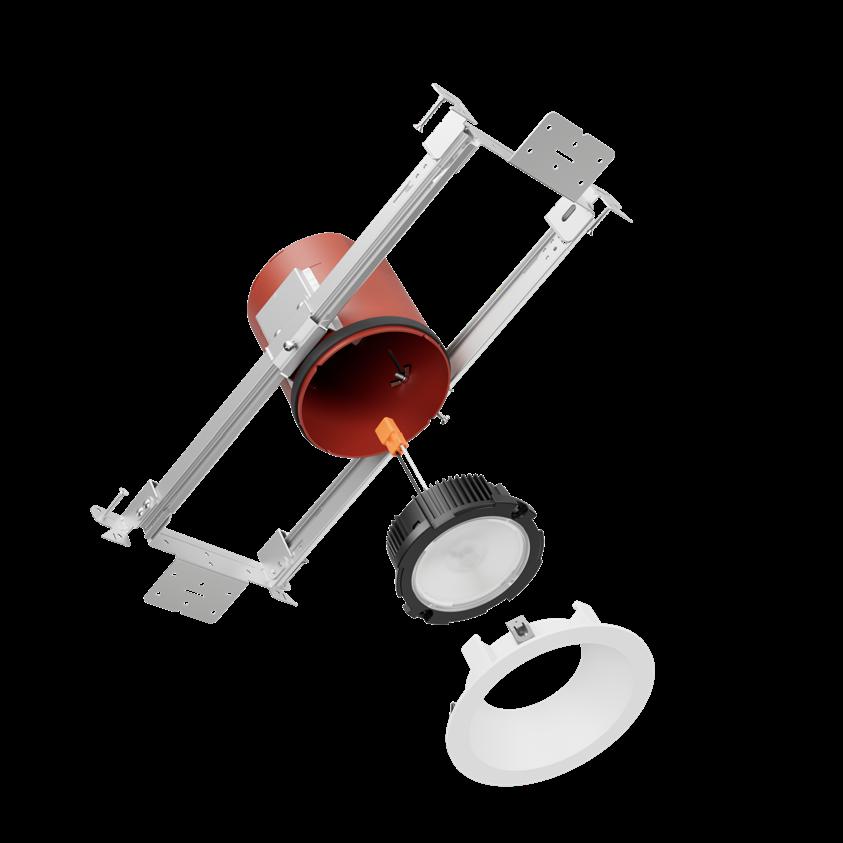

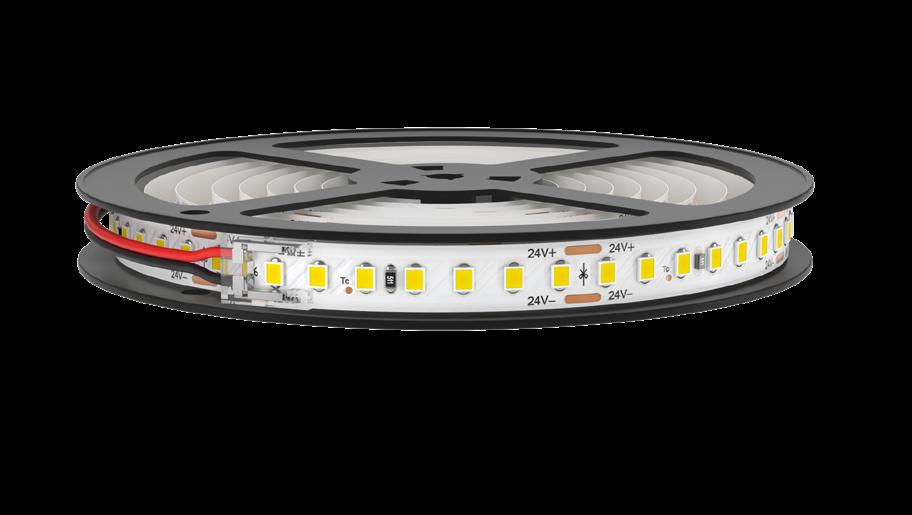

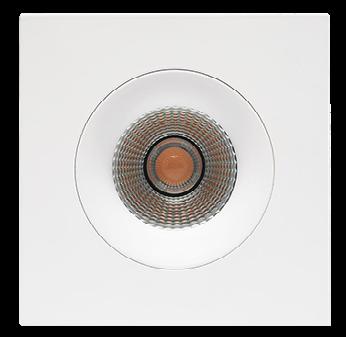

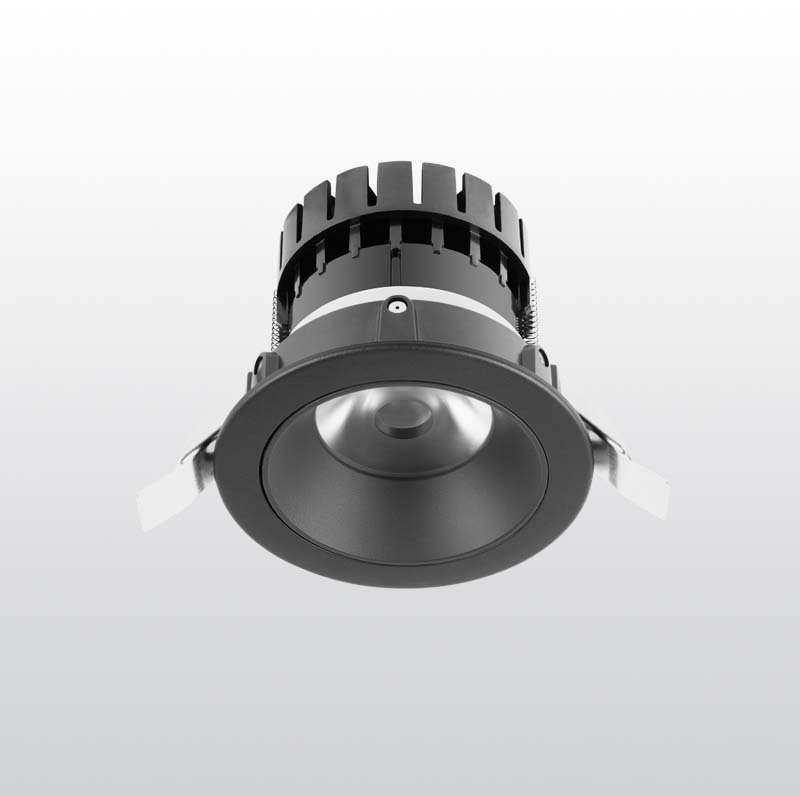

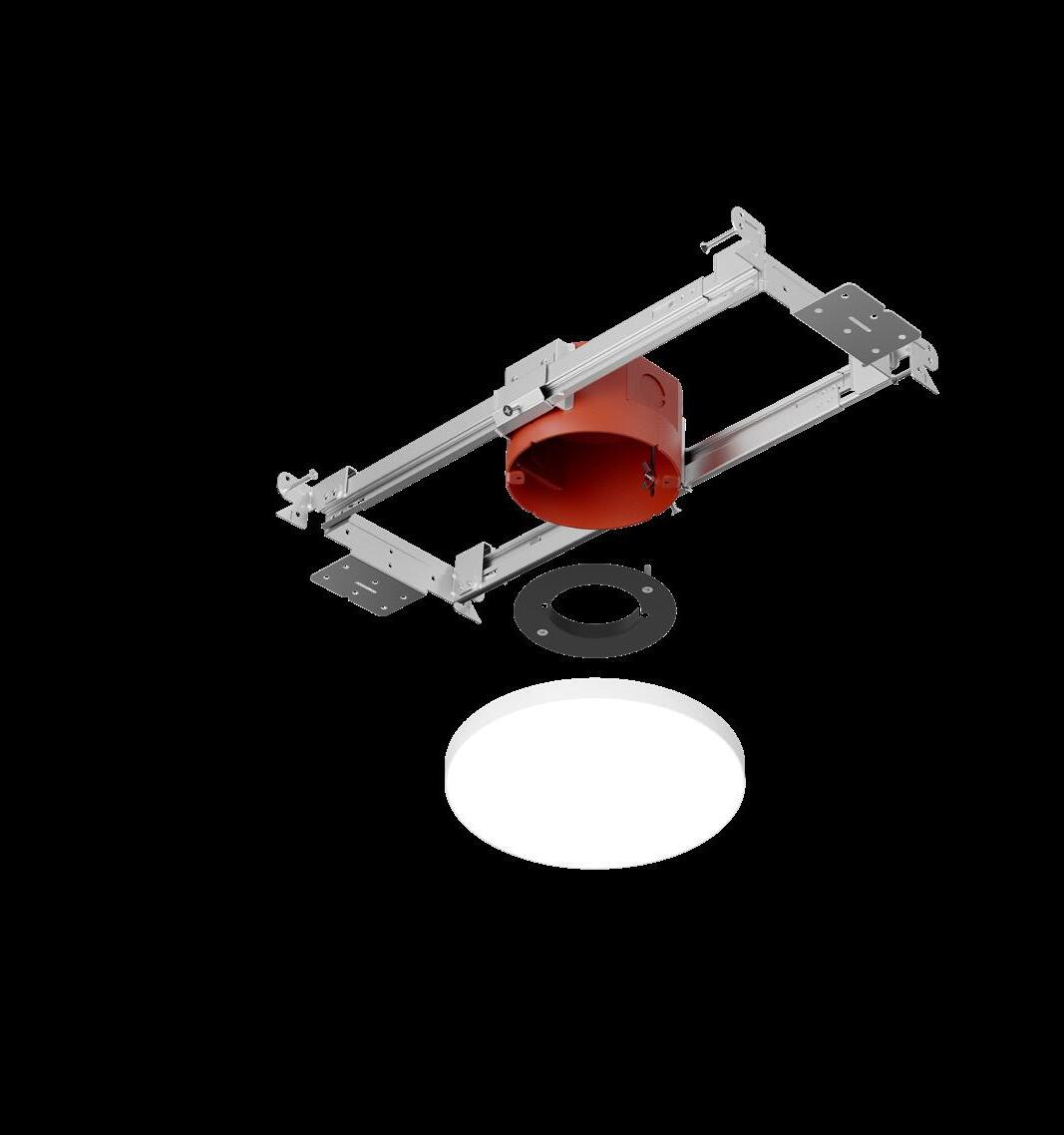

The Lumencore Recessed Nano Downlight is a highperformance LED downlight for ceiling applications. Available in an array of trims and finishes, outputs, optics, color renderings, accessories, and a WET IP54 option, these luminaires are here to outperform. The Lumencore Recessed Nano Downlight possesses a previously unseen lifespan, is quick to install, and can be used with a number of different control options.
Certifications
Features
Output (Nominal Lumens) L07: 700 lm,
Options
Warranty
Electrical and Control
Wattage Range
Physical
Trim
Ceiling Thickness
EBB: Emergency Battery Backup with Hanger Bar (Bodine BSL17C-C2)
EBI: Emergency Battery Backup with Hanger Bar (Iota ILBCP07-A TBTS)
WET: IP54 rating suitable for wet locations. For IP55 Shower Rated "Dead Front" applications see Lumencore Nano Shower Rated specification sheet
5-year limited warranty
8.5W to 30W (wattage will vary based on voltage, output, color temperature, color rendering, optic, control and installation type, refer to Power Consumption table for details)
RD: Round, SR: Square Trim with Round Hole, TLR: Trimless Round, SQ: Square, TLS: Trimless Square
1: 0.04 in to 1 in Ceiling Thickness
2: 1.05 in to 2 in Ceiling Thickness
NIO-4RTLNDC
4" Iolite Round Trimless Downlight
PRODUCT DESCRIPTION
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes stainless steel friction clips to mount securely to trimless mud ring. Mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Source: 14W to 28W LED 800lm to 2500lm Color Temperature
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing

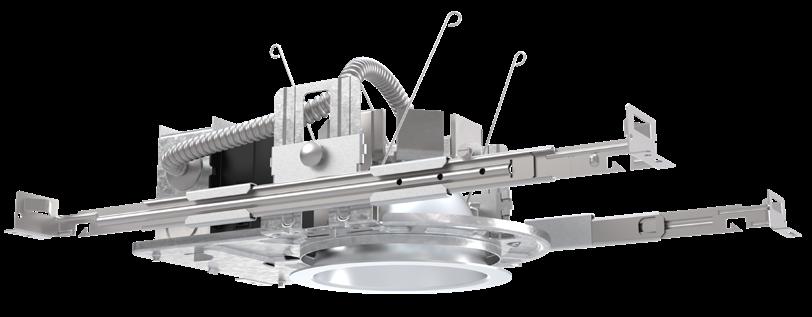

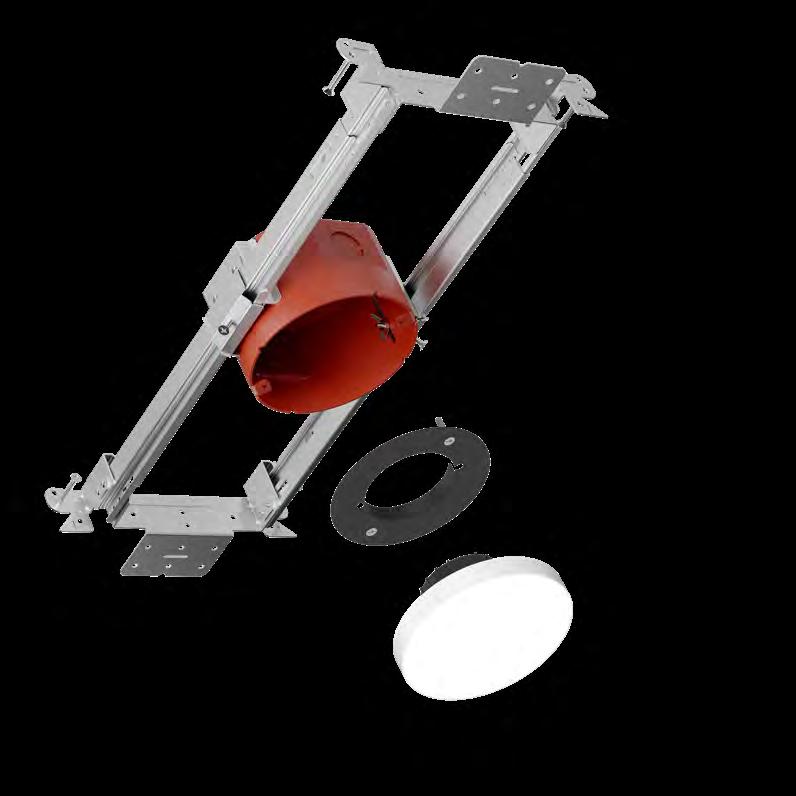

COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2. A mud ring (NIO-TLMR-4R) or flange accessory (NIO-4RTFA) is required per trimless.
LABELS AND LISTINGS
cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
= Black BZ = Bronze HZ = Haze MPW = Matte Powder White WW = White
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
= 1000lm / 14W /HL =
(varies by
Example: NIO-4RTLNDC50XWW / NIO-TLMR-4RA = 4" Iolite Round Trimless Reflector, 5000K, White finish, 800lm / 4" Round Trimless Mud Ring
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
Description
NIO-TLMR-4RA = 4" Round Trimless Mud Ring
NIO-4RTFA = 4" Flange Accessory

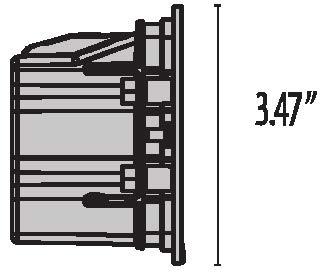

Weight

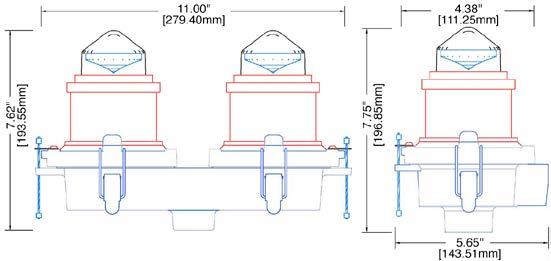

Ceiling Space Requirements (Length x Width x Height)
3 lbs with RM installation type, 4.2 lbs with NC installation type, 7.2 lbs with PC, IC, IC/AT and RMR installation types
(Weights are approximate based on the heaviest fixture configuration)
Please consult factory if exact fixture weight is needed
Up to 15 in x 8 in x 12 in with RM installation type, Up to 15 in x 9 in x 12 in with NC installation type
Up to 18 in x 15 in x 9 in with PC/IC/ICAT/RMR installation types
(Dimensions will vary by output and color rendering, refer to Ceiling Requirements table for details.)

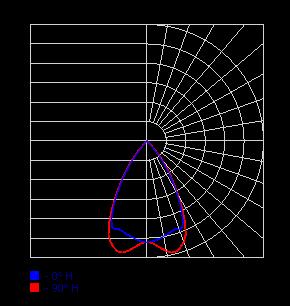

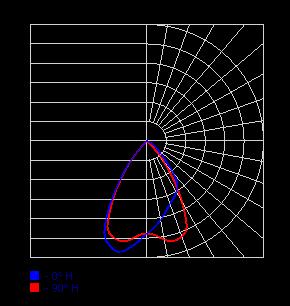

Performance
Maximum Delivered Output
Maximum Delivered Intensity
Lumen Maintenance
Environmental
Operating Temperature (Ceiling Cavity
Ambient Temperature)
Up to 2,868 lm (Very Wide Faceted Reflector optic 80°, 4000K, CRI 80)
Up to 31,473 cd (Extra Narrow Spot optic 5°, 4000K, CRI 80)
L95 55,000 hrs (Ta 25 °C)
L70 225,000 hrs (Ta 25 °C)
-4 °F to 104 °F (DA1, DA2, DA3, PDA1, PDA2, SDALI1, SDALI2, DALI1, DALI2, DALIT8, LT, DMX/RDM, PH and PPH control options), 14 °F to 104 °F (NO control option), 32 °F to 104 °F (NO3, ESP control options and EBB and EBI options)

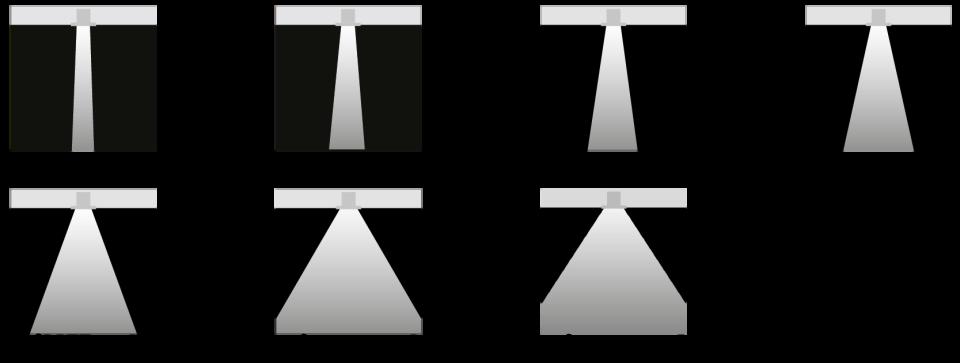

Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Replacement optics include an optional frosted lens. Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Die-cast Trim
Optic assembly includes optional frosted lens. 23°, 38° and 55° optics are included with 800lm and 1000lm luminaires.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Suction Cup
NIO-TLSUCTION
Assist removing trimless downlight from finished ceiling after installation.
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
Accessory
Die-cast Trim
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
Black
TRIMLESS MUD RING
4" Iolite trimless has no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
FLANGE ACCESSORY
4" Iolite trimless can be converted into flanged trim. Flange accessory allows trim to be used with remodel and new construction housings. Accessory does not require mud ring or professional drywall installation.
Mud Ring
NIO-TLMR-4RA Round Mud Ring
Mounts trimless reflector with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-48, NHIOICDCP-48 new construction housings and NIO-4RTLNDC.
1. Refer to website product configurator for all exceptions.
2 Refer to website for EZ Ship configurations.
3. Refer to website for ENERGY STAR certified product configurations.
4. Not available for 700 lumens. Not available for 1000 lumens when combined with 80 color rendering option.
5. Not available for XN and VN optics.

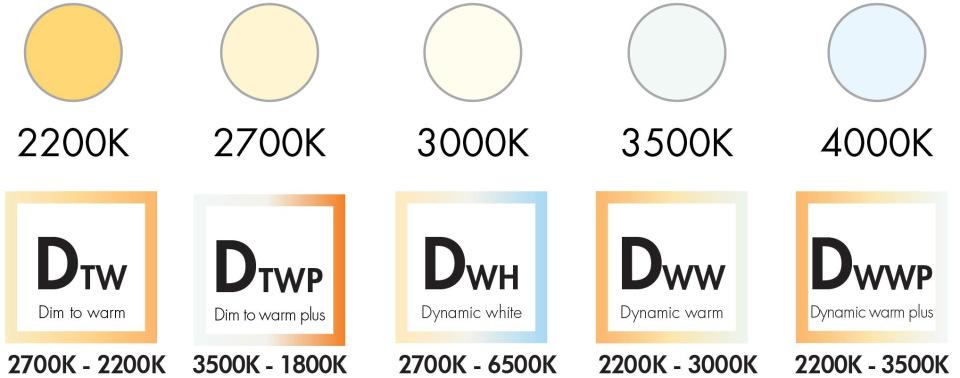

6. Not available for DTW, DTWP, DWH, DWW or DWWP color options.
7. Not available for ENERGY STAR certification.
8. For ENERGY STAR certification, not available with RM or NC installation types when combined with 90 color rendering option.
9. Available for M, MFR, W, WFR, VW and VWFR optics only.
10. Not available with PC, IC, IC/AT or RMR installation types.
11. Available for CRI 80 only.
12. Compatible with all control options except for DALIT8.
13. Available for 1000 and 1300 lumens when combined with 90 color rendering option and MFR, W, WFR, VW or VWFR optics only.
14. MFR, WFR and VWFR faceted reflector optics are recommended for optimal performance.
15. Compatible with DA1, SDALI1, SDALI2, DMX/RDM and LT control options only.
16. Available for 1300 lumens when combined with 80 color rendering option and MFR, W, WFR, VW or VWFR optics only.
17. Compatible with LT, DMX/RDM and DALIT8 control options only.
18. Available for 700 lumens when combined with 80 or 90 color rendering options and 27K, 30K, 35K or 40K color temperature options only.
PHB Pro Phase Dimming ERP PHB Series ESP Lutron® Hi-lume Premier 0.1% EcoSystem® PEQ0 Soft-on/Fade-to-Black
SDALI1
Standard DALI Dimming 1% Linear
SDALI2
Standard DALI Dimming 1% Logarithmic
DALI1
Pro DALI Dimming 0.1% Linear
DALI2
Pro DALI Dimming 0.1% Logarithmic
DALIT8
DALI-2 Dimming Type 8 (Multi-Channel Capability)
DMX/RDM
DMX/RDM (Configurable to 1, 2, or 3 Channel Control viaRDMintheField) LT Lumentalk Dimming
19 Available up to 1300 lumens when combined with 80 or 90 color rendering options and 27K, 30K, 35K or 40K color temperature options only.
20. Available up to 1300 lumens when combined with 80, 90 or 95 color rendering options only.
21. Available up to 2000 lumens when combined with 80 color rendering option and up to 1300 lumens when combined with 80, 90 or 95 color rendering options only.
22. Available up to 3000 lumens when combined with 80 color rendering option and up to 2000 lumens when combined with 80, 90 or 95 color rendering options only.
23. Control options vary according to color temperature, color rendering, optics and installation type combination. Refer to website product configurator for details.
24. Manufacturer's choice driver. Order code may change to NO1.
25. Not available with 347V.
26. Not available for 3000 lumens.
27. Manufacturer's choice driver. Order code may change to DAMC1 or DAMC2.
28. Not available for XN and VN optics.
29. Driver cuts off power to the fixture when the control signal drops below 0.5V.
30. Manufacturer's choice driver. Order code may change to PH1 or PH2.
31. Available for 120V voltage option only.
32. Manufacturer's choice driver. Order code is subject to change.
33. Not available for 700 lumens.
34. Not available for M, MFR, W, WFR, VW and VWFR optics when combined with 1000 lumens.
BLANK
How to Order
6. Not available for DTW, DTWP, DWH, DWW or DWWP color options.
7. Not available for ENERGY STAR certification.
25. Not available with 347V.
36. Not available for 3000 lumens.
43. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels when combined with RM or NC installation types or PC, IC and IC/AT installation types when combined with 90 color rendering option.
44. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels when combined with RM or NC installation types.
45. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels.
46. Coming soon, consult factory for details.
47. Available with DB and DR Bezels only.
48. Longer lead times can be expected for custom RAL color finishes.
49. Refer to Cylinder specification sheet and brochure for color options.
50. Not applicable to DR bezel option.
51. Cannot be combined with square ceiling cutout.
52. Cannot be combined with round ceiling cutout.
53. Available for 700 lumens when combined with XN optic and up to 1300 lumens when combined with VN, NS and N optics.
Available up to 2000 lumens when combined with NFR optic and up to 3000 lumens when combined with M, MFR, W, WFR, VW and VWFR optics. Refer to optic option notes for color rendering limitations.
54. Available for 700 lumens when combined with XN optic and up to 1300 lumens when combined with VN, NS, N and NFR optics. Available up to 2000 lumens when combined 80 color rendering option and M, MFR, W, WFR, VW and VWFR optics. Refer to optic option notes for color rendering limitations.
55. Not available for DWH, DWW or DWWP color options.
56. Remote distance is a maximum of 75 ft. For longer remote distances, please contact Lumenpulse Application Engineering Team for application validation.
57. Ceiling springs are field changeable, consult factory and installation instructions for details.
58. IP54 rating only if installation is interior covered recessed ceiling-mounted or exterior canopy-mounted.
59. DR bezel is recommended for outdoor canopy installations.
60. A CL, SL or PD must be specified to maintain an IP54 rating. A second accessory may be specified.
61. For ENERGY STAR certification, not available with RM or NC installation types when combined with 90 color rendering option combined and 2000 lumens.
62. Available for RM and NC installation types only.
63. Emergency battery backup options are field installed and not presided by Lumenpulse. Refer to related installation instructions for details.
64. Emergency battery backup options require ceiling access for test button use. The battery will operate for 90 minutes minimum and maintain a minimum of 1 fc from a 7 ft 2 in height as per UL 924. For indoor use only in dry or damp locations.
65. Maximum two accessories per fixture.
66. Not available for DTW and DTWP color options.
67. Available for XN, VN and NS optics only.
68. Can be combined with PD accessory only.
69. Recommended to be combined with HL or XLVR accessory only.
70. Recommended for XN, VN, NS, N and NFR optics when combined with 2200K, 2700K, 3000K, 3500K, 4000K color temperature options. Nominal 10° x 40° distribution when used with the NS optic. Recommended for MFR optic when combined with DTW, DTWP, DWH, DWW or DWWP color options only.
71. For optimal performance, it is not recommended to mix with other accessories.
72. Recommended for XN, VN, NS, N and NFR optics when combined with 2200K, 2700K, 3000K, 3500K, 4000K color temperature options only. Nominal 10° x 60° distribution when used with the NS optic. Recommended for MFR optic when combined with DTW, DTWP, DWH, DWW or DWWP color options only.
BLANK
TYPE F1A SPEC
The Lumencore Recessed Nano Downlight is a highperformance LED downlight for ceiling applications. Available in an array of trims and finishes, outputs, optics, color renderings, accessories, and a WET IP54 option, these luminaires are here to outperform. The Lumencore Recessed Nano Downlight possesses a previously unseen lifespan, is quick to install, and can be used with a number of different control options.
Certifications
Features
Output (Nominal Lumens) L07: 700 lm, L10:
Options
Warranty
Electrical and Control
Wattage Range
Physical
Trim
Ceiling Thickness
EBB: Emergency Battery Backup with Hanger Bar (Bodine BSL17C-C2)
EBI: Emergency Battery Backup with Hanger Bar (Iota ILBCP07-A TBTS)
WET: IP54 rating suitable for wet locations. For IP55 Shower Rated "Dead Front" applications see Lumencore Nano Shower Rated specification sheet
5-year limited warranty
8.5W to 30W (wattage will vary based on voltage, output, color temperature, color rendering, optic, control and installation type, refer to Power Consumption table for details)
RD: Round, SR: Square Trim with Round Hole, TLR: Trimless Round, SQ: Square, TLS: Trimless Square
1: 0.04 in to 1 in Ceiling Thickness
2: 1.05 in to 2 in Ceiling Thickness
MIAMI STARLITE TYPE
NIO-4RTLNDC

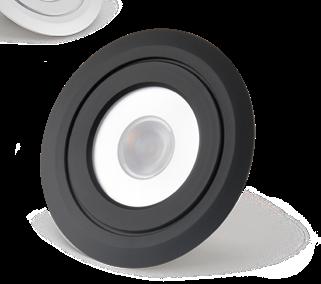

4" Iolite Round Trimless Downlight
PRODUCT DESCRIPTION
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes stainless steel friction clips to mount securely to trimless mud ring. Mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Source: 14W to 28W LED 800lm to 2500lm Color Temperature
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2. A mud ring (NIO-TLMR-4R) or flange accessory (NIO-4RTFA) is required per trimless.
LABELS AND LISTINGS
cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
= Black BZ = Bronze HZ = Haze MPW = Matte Powder White WW = White
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
= 1000lm / 14W /HL =
(varies by
Example: NIO-4RTLNDC50XWW / NIO-TLMR-4RA = 4" Iolite Round Trimless Reflector, 5000K, White finish, 800lm / 4" Round Trimless Mud Ring
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
Description
NIO-TLMR-4RA = 4" Round Trimless Mud Ring
NIO-4RTFA = 4" Flange Accessory
TYPE F1A SPEC Specification Sheet MIAMI STARLITE
Weight
Ceiling Space Requirements (Length x Width x Height)
3 lbs with RM installation type, 4.2 lbs with NC installation type, 7.2 lbs with PC, IC, IC/AT and RMR installation types
(Weights are approximate based on the heaviest fixture configuration)
Please consult factory if exact fixture weight is needed
Up to 15 in x 8 in x 12 in with RM installation type, Up to 15 in x 9 in x 12 in with NC installation type
Up to 18 in x 15 in x 9 in with PC/IC/ICAT/RMR installation types
(Dimensions will vary by output and color rendering, refer to Ceiling Requirements table for details.)
Performance
Maximum Delivered Output
Maximum Delivered Intensity
Lumen Maintenance
Environmental
Operating Temperature (Ceiling Cavity Ambient Temperature)
Up to 2,868 lm (Very Wide Faceted Reflector optic 80°, 4000K, CRI 80)
Up to 31,473 cd (Extra Narrow Spot optic 5°, 4000K, CRI 80)
L95 55,000 hrs (Ta 25 °C)
L70 225,000 hrs (Ta 25 °C)
-4 °F to 104 °F (DA1, DA2, DA3, PDA1, PDA2, SDALI1, SDALI2, DALI1, DALI2, DALIT8, LT, DMX/RDM, PH and PPH control options), 14 °F to 104 °F (NO control option), 32 °F to 104 °F (NO3, ESP control options and EBB and EBI options)
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Replacement optics include an optional frosted lens. Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Die-cast Trim
Optic assembly includes optional frosted lens. 23°, 38° and 55° optics are included with 800lm and 1000lm luminaires.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Suction Cup
NIO-TLSUCTION
Assist removing trimless downlight from finished ceiling after installation.
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
Accessory
Die-cast Trim
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
Black
TRIMLESS MUD RING
4" Iolite trimless has no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
FLANGE ACCESSORY
4" Iolite trimless can be converted into flanged trim. Flange accessory allows trim to be used with remodel and new construction housings. Accessory does not require mud ring or professional drywall installation.
Mud Ring
NIO-TLMR-4RA Round Mud Ring
Mounts trimless reflector with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-48, NHIOICDCP-48 new construction housings and NIO-4RTLNDC.
1. Refer to website product configurator for all exceptions.
2 Refer to website for EZ Ship configurations.
3. Refer to website for ENERGY STAR certified product configurations.
4. Not available for 700 lumens. Not available for 1000 lumens when combined with 80 color rendering option.
5. Not available for XN and VN optics.
6. Not available for DTW, DTWP, DWH, DWW or DWWP color options.
7. Not available for ENERGY STAR certification.
8. For ENERGY STAR certification, not available with RM or NC installation types when combined with 90 color rendering option.
9. Available for M, MFR, W, WFR, VW and VWFR optics only.
10. Not available with PC, IC, IC/AT or RMR installation types.
11. Available for CRI 80 only.
12. Compatible with all control options except for DALIT8.
13. Available for 1000 and 1300 lumens when combined with 90 color rendering option and MFR, W, WFR, VW or VWFR optics only.
14. MFR, WFR and VWFR faceted reflector optics are recommended for optimal performance.
15. Compatible with DA1, SDALI1, SDALI2, DMX/RDM and LT control options only.
16. Available for 1300 lumens when combined with 80 color rendering option and MFR, W, WFR, VW or VWFR optics only.
17. Compatible with LT, DMX/RDM and DALIT8 control options only.
18. Available for 700 lumens when combined with 80 or 90 color rendering options and 27K, 30K, 35K or 40K color temperature options only.
Dimming
Phase 1% Dimming PHB Pro Phase Dimming ERP PHB Series ESP Lutron® Hi-lume Premier 0.1% EcoSystem® PEQ0 Soft-on/Fade-to-Black
SDALI1
Standard DALI Dimming 1% Linear
SDALI2
Standard DALI Dimming 1% Logarithmic
DALI1
Pro DALI Dimming 0.1% Linear
DALI2
Pro DALI Dimming 0.1% Logarithmic
DALIT8
DALI-2 Dimming Type 8 (Multi-Channel Capability)
DMX/RDM
DMX/RDM (Configurable to 1, 2, or 3 Channel Control viaRDMintheField) LT Lumentalk Dimming
19. Available up to 1300 lumens when combined with 80 or 90 color rendering options and 27K, 30K, 35K or 40K color temperature options only.
20. Available up to 1300 lumens when combined with 80, 90 or 95 color rendering options only.
21. Available up to 2000 lumens when combined with 80 color rendering option and up to 1300 lumens when combined with 80, 90 or 95 color rendering options only.
22. Available up to 3000 lumens when combined with 80 color rendering option and up to 2000 lumens when combined with 80, 90 or 95 color rendering options only.
23. Control options vary according to color temperature, color rendering, optics and installation type combination. Refer to website product configurator for details.
24. Manufacturer's choice driver. Order code may change to NO1.
25. Not available with 347V.
26. Not available for 3000 lumens.
27. Manufacturer's choice driver. Order code may change to DAMC1 or DAMC2.
28. Not available for XN and VN optics.
29. Driver cuts off power to the fixture when the control signal drops below 0.5V.
30. Manufacturer's choice driver. Order code may change to PH1 or PH2.
31. Available for 120V voltage option only.
32. Manufacturer's choice driver. Order code is subject to change.
33. Not available for 700 lumens.
34. Not available for M, MFR, W, WFR, VW and VWFR optics when combined with 1000 lumens.
BLANK
TYPE F1A SPEC
How to Order
6. Not available for DTW, DTWP, DWH, DWW or DWWP color options.
7. Not available for ENERGY STAR certification.
25. Not available with 347V.
36. Not available for 3000 lumens.
43. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels when combined with RM or NC installation types or PC, IC and IC/AT installation types when combined with 90 color rendering option.
44. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels when combined with RM or NC installation types.
45. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels.
46. Coming soon, consult factory for details.
47. Available with DB and DR Bezels only.
48. Longer lead times can be expected for custom RAL color finishes.
49. Refer to Cylinder specification sheet and brochure for color options.
50. Not applicable to DR bezel option.
51. Cannot be combined with square ceiling cutout.
52. Cannot be combined with round ceiling cutout.
53. Available for 700 lumens when combined with XN optic and up to 1300 lumens when combined with VN, NS and N optics.
Available up to 2000 lumens when combined with NFR optic and up to 3000 lumens when combined with M, MFR, W, WFR, VW and VWFR optics. Refer to optic option notes for color rendering limitations.
54. Available for 700 lumens when combined with XN optic and up to 1300 lumens when combined with VN, NS, N and NFR optics. Available up to 2000 lumens when combined 80 color rendering option and M, MFR, W, WFR, VW and VWFR optics. Refer to optic option notes for color rendering limitations.
55. Not available for DWH, DWW or DWWP color options.
56. Remote distance is a maximum of 75 ft. For longer remote distances, please contact Lumenpulse Application Engineering Team for application validation.
57. Ceiling springs are field changeable, consult factory and installation instructions for details.
58. IP54 rating only if installation is interior covered recessed ceiling-mounted or exterior canopy-mounted.
59. DR bezel is recommended for outdoor canopy installations.
60. A CL, SL or PD must be specified to maintain an IP54 rating. A second accessory may be specified.
61. For ENERGY STAR certification, not available with RM or NC installation types when combined with 90 color rendering option combined and 2000 lumens.
62. Available for RM and NC installation types only.
63. Emergency battery backup options are field installed and not presided by Lumenpulse. Refer to related installation instructions for details.
64. Emergency battery backup options require ceiling access for test button use. The battery will operate for 90 minutes minimum and maintain a minimum of 1 fc from a 7 ft 2 in height as per UL 924. For indoor use only in dry or damp locations.
65. Maximum two accessories per fixture.
66. Not available for DTW and DTWP color options.
67. Available for XN, VN and NS optics only.
68. Can be combined with PD accessory only.
69. Recommended to be combined with HL or XLVR accessory only.
70. Recommended for XN, VN, NS, N and NFR optics when combined with 2200K, 2700K, 3000K, 3500K, 4000K color temperature options. Nominal 10° x 40° distribution when used with the NS optic. Recommended for MFR optic when combined with DTW, DTWP, DWH, DWW or DWWP color options only.
71. For optimal performance, it is not recommended to mix with other accessories.
72. Recommended for XN, VN, NS, N and NFR optics when combined with 2200K, 2700K, 3000K, 3500K, 4000K color temperature options only. Nominal 10° x 60° distribution when used with the NS optic. Recommended for MFR optic when combined with DTW, DTWP, DWH, DWW or DWWP color options only.
BLANK
TYPE F1B SPEC
The Lumencore Recessed Nano Downlight is a highperformance LED downlight for ceiling applications. Available in an array of trims and finishes, outputs, optics, color renderings, accessories, and a WET IP54 option, these luminaires are here to outperform. The Lumencore Recessed Nano Downlight possesses a previously unseen lifespan, is quick to install, and can be used with a number of different control options.
Certifications
Features
Output (Nominal Lumens) L07: 700 lm, L10:
Options
Warranty
Electrical and Control
Wattage Range
Physical
Trim
Ceiling Thickness
EBB: Emergency Battery Backup with Hanger Bar (Bodine BSL17C-C2)
EBI: Emergency Battery Backup with Hanger Bar (Iota ILBCP07-A TBTS)
WET: IP54 rating suitable for wet locations. For IP55 Shower Rated "Dead Front" applications see Lumencore Nano Shower Rated specification sheet
5-year limited warranty
8.5W to 30W (wattage will vary based on voltage, output, color temperature, color rendering, optic, control and installation type, refer to Power Consumption table for details)
RD: Round, SR: Square Trim with Round Hole, TLR: Trimless Round, SQ: Square, TLS: Trimless Square
1: 0.04 in to 1 in Ceiling Thickness
2: 1.05 in to 2 in Ceiling Thickness
NIO-4RTLNDC
4" Iolite Round Trimless Downlight
PRODUCT DESCRIPTION
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes stainless steel friction clips to mount securely to trimless mud ring. Mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Source: 14W to 28W LED 800lm to 2500lm Color Temperature
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2. A mud ring (NIO-TLMR-4R) or flange accessory (NIO-4RTFA) is required per trimless.
LABELS AND LISTINGS
cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
= Black BZ = Bronze HZ = Haze MPW = Matte Powder White WW = White
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
= 1000lm / 14W /HL =
(varies by
Example: NIO-4RTLNDC50XWW / NIO-TLMR-4RA = 4" Iolite Round Trimless Reflector, 5000K, White finish, 800lm / 4" Round Trimless Mud Ring
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
Description
NIO-TLMR-4RA = 4" Round Trimless Mud Ring
NIO-4RTFA = 4" Flange Accessory
TYPE F1B SPEC Specification Sheet MIAMI STARLITE
Weight
Ceiling Space Requirements (Length x Width x Height)
3 lbs with RM installation type, 4.2 lbs with NC installation type, 7.2 lbs with PC, IC, IC/AT and RMR installation types
(Weights are approximate based on the heaviest fixture configuration)
Please consult factory if exact fixture weight is needed
Up to 15 in x 8 in x 12 in with RM installation type, Up to 15 in x 9 in x 12 in with NC installation type
Up to 18 in x 15 in x 9 in with PC/IC/ICAT/RMR installation types
(Dimensions will vary by output and color rendering, refer to Ceiling Requirements table for details.)
Performance
Maximum Delivered Output
Maximum Delivered Intensity
Lumen Maintenance
Environmental
Operating Temperature (Ceiling Cavity Ambient Temperature)
Up to 2,868 lm (Very Wide Faceted Reflector optic 80°, 4000K, CRI 80)
Up to 31,473 cd (Extra Narrow Spot optic 5°, 4000K, CRI 80)
L95 55,000 hrs (Ta 25 °C)
L70 225,000 hrs (Ta 25 °C)
-4 °F to 104 °F (DA1, DA2, DA3, PDA1, PDA2, SDALI1, SDALI2, DALI1, DALI2, DALIT8, LT, DMX/RDM, PH and PPH control options), 14 °F to 104 °F (NO control option), 32 °F to 104 °F (NO3, ESP control options and EBB and EBI options)
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Replacement optics include an optional frosted lens. Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Die-cast Trim
Optic assembly includes optional frosted lens. 23°, 38° and 55° optics are included with 800lm and 1000lm luminaires.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Suction Cup
NIO-TLSUCTION
Assist removing trimless downlight from finished ceiling after installation.
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
Accessory
Die-cast Trim
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
Black

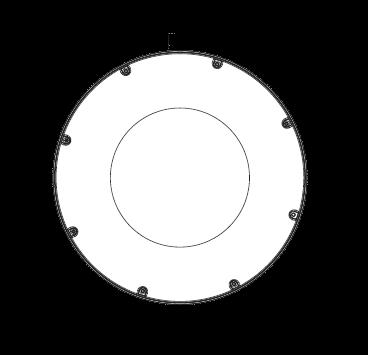

TRIMLESS MUD RING
4" Iolite trimless has no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
FLANGE ACCESSORY
4" Iolite trimless can be converted into flanged trim. Flange accessory allows trim to be used with remodel and new construction housings. Accessory does not require mud ring or professional drywall installation.
Mud Ring
NIO-TLMR-4RA Round Mud Ring
Mounts trimless reflector with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-48, NHIOICDCP-48 new construction housings and NIO-4RTLNDC.
1. Refer to website product configurator for all exceptions.
2 Refer to website for EZ Ship configurations.
3. Refer to website for ENERGY STAR certified product configurations.
4. Not available for 700 lumens. Not available for 1000 lumens when combined with 80 color rendering option.
5. Not available for XN and VN optics.
6. Not available for DTW, DTWP, DWH, DWW or DWWP color options.
7. Not available for ENERGY STAR certification.
8. For ENERGY STAR certification, not available with RM or NC installation types when combined with 90 color rendering option.
9. Available for M, MFR, W, WFR, VW and VWFR optics only.
10. Not available with PC, IC, IC/AT or RMR installation types.
11. Available for CRI 80 only.
12. Compatible with all control options except for DALIT8.
13. Available for 1000 and 1300 lumens when combined with 90 color rendering option and MFR, W, WFR, VW or VWFR optics only.
14. MFR, WFR and VWFR faceted reflector optics are recommended for optimal performance.
15. Compatible with DA1, SDALI1, SDALI2, DMX/RDM and LT control options only.
16. Available for 1300 lumens when combined with 80 color rendering option and MFR, W, WFR, VW or VWFR optics only.
17. Compatible with LT, DMX/RDM and DALIT8 control options only.
18. Available for 700 lumens when combined with 80 or 90 color rendering options and 27K, 30K, 35K or 40K color temperature options only.
Dimming
Phase 1% Dimming PHB Pro Phase Dimming ERP PHB Series ESP Lutron® Hi-lume Premier 0.1% EcoSystem® PEQ0 Soft-on/Fade-to-Black
SDALI1
Standard DALI Dimming 1% Linear
SDALI2
Standard DALI Dimming 1% Logarithmic
DALI1
Pro DALI Dimming 0.1% Linear
DALI2
Pro DALI Dimming 0.1% Logarithmic
DALIT8
DALI-2 Dimming Type 8 (Multi-Channel Capability)
DMX/RDM
DMX/RDM (Configurable to 1, 2, or 3 Channel Control viaRDMintheField) LT Lumentalk Dimming
19. Available up to 1300 lumens when combined with 80 or 90 color rendering options and 27K, 30K, 35K or 40K color temperature options only.
20. Available up to 1300 lumens when combined with 80, 90 or 95 color rendering options only.
21. Available up to 2000 lumens when combined with 80 color rendering option and up to 1300 lumens when combined with 80, 90 or 95 color rendering options only.
22. Available up to 3000 lumens when combined with 80 color rendering option and up to 2000 lumens when combined with 80, 90 or 95 color rendering options only.
23. Control options vary according to color temperature, color rendering, optics and installation type combination. Refer to website product configurator for details.
24. Manufacturer's choice driver. Order code may change to NO1.
25. Not available with 347V.
26. Not available for 3000 lumens.
27. Manufacturer's choice driver. Order code may change to DAMC1 or DAMC2.
28. Not available for XN and VN optics.
29. Driver cuts off power to the fixture when the control signal drops below 0.5V.
30. Manufacturer's choice driver. Order code may change to PH1 or PH2.
31. Available for 120V voltage option only.
32. Manufacturer's choice driver. Order code is subject to change.
33. Not available for 700 lumens.
34. Not available for M, MFR, W, WFR, VW and VWFR optics when combined with 1000 lumens.
BLANK
TYPE F1B SPEC
Specification Sheet
How to Order
S142)
6 Not available for DTW, DTWP, DWH, DWW or DWWP color options.
7 Not available for ENERGY STAR certification.
25. Not available with 347V.
36. Not available for 3000 lumens.
43. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels when combined with RM or NC installation types or PC, IC and IC/AT installation types when combined with 90 color rendering option.
44. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels when combined with RM or NC installation types.
45. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels.
46. Coming soon, consult factory for details.
47. Available with DB and DR Bezels only.
48. Longer lead times can be expected for custom RAL color finishes.
49. Refer to Cylinder specification sheet and brochure for color options.
50. Not applicable to DR bezel option.
51. Cannot be combined with square ceiling cutout.
52. Cannot be combined with round ceiling cutout.
53. Available for 700 lumens when combined with XN optic and up to 1300 lumens when combined with VN, NS and N optics. Available up to 2000 lumens when combined with NFR optic and up to 3000 lumens when combined with M, MFR, W, WFR, VW and VWFR optics. Refer to optic option notes for color rendering limitations.
54. Available for 700 lumens when combined with XN optic and up to 1300 lumens when combined with VN, NS, N and NFR optics. Available up to 2000 lumens when combined 80 color rendering option and M, MFR, W, WFR, VW and VWFR optics. Refer to optic option notes for color rendering limitations.
55. Not available for DWH, DWW or DWWP color options.
56. Remote distance is a maximum of 75 ft. For longer remote distances, please contact Lumenpulse Application Engineering Team for application validation.
57 Ceiling springs are field changeable, consult factory and installation instructions for details.
58 IP54 rating only if installation is interior covered recessed ceiling-mounted or exterior canopy-mounted.
59. DR bezel is recommended for outdoor canopy installations.
60. A CL, SL or PD must be specified to maintain an IP54 rating. A second accessory may be specified.
61. For ENERGY STAR certification, not available with RM or NC installation types when combined with 90 color rendering option combined and 2000 lumens.
62. Available for RM and NC installation types only.
63. Emergency battery backup options are field installed and not presided by Lumenpulse. Refer to related installation instructions for details.
64. Emergency battery backup options require ceiling access for test button use. The battery will operate for 90 minutes minimum and maintain a minimum of 1 fc from a 7 ft 2 in height as per UL 924. For indoor use only in dry or damp locations.
65. Maximum two accessories per fixture.
66. Not available for DTW and DTWP color options.
67. Available for XN, VN and NS optics only.
68. Can be combined with PD accessory only.
69. Recommended to be combined with HL or XLVR accessory only.
70. Recommended for XN, VN, NS, N and NFR optics when combined with 2200K, 2700K, 3000K, 3500K, 4000K color temperature options. Nominal 10° x 40° distribution when used with the NS optic. Recommended for MFR optic when combined with DTW, DTWP, DWH, DWW or DWWP color options only.
71. For optimal performance, it is not recommended to mix with other accessories.
72. Recommended for XN, VN, NS, N and NFR optics when combined with 2200K, 2700K, 3000K, 3500K, 4000K color temperature options only. Nominal 10° x 60° distribution when used with the NS optic. Recommended for MFR optic when combined with DTW, DTWP, DWH, DWW or DWWP color options only.
BLANK
TYPE F1C SPEC
The Lumencore Recessed Nano Downlight is a highperformance LED downlight for ceiling applications. Available in an array of trims and finishes, outputs, optics, color renderings, accessories, and a WET IP54 option, these luminaires are here to outperform. The Lumencore Recessed Nano Downlight possesses a previously unseen lifespan, is quick to install, and can be used with a number of different control options.
Certifications
Features
Output (Nominal Lumens) L07: 700 lm, L10:
Options
Warranty
Electrical and Control
Wattage Range
Physical
Trim
Ceiling Thickness
EBB: Emergency Battery Backup with Hanger Bar (Bodine BSL17C-C2)
EBI: Emergency Battery Backup with Hanger Bar (Iota ILBCP07-A TBTS)
WET: IP54 rating suitable for wet locations. For IP55 Shower Rated "Dead Front" applications see Lumencore Nano Shower Rated specification sheet
5-year limited warranty
8.5W to 30W (wattage will vary based on voltage, output, color temperature, color rendering, optic, control and installation type, refer to Power Consumption table for details)
RD: Round, SR: Square Trim with Round Hole, TLR: Trimless Round, SQ: Square, TLS: Trimless Square
1: 0.04 in to 1 in Ceiling Thickness
2: 1.05 in to 2 in Ceiling Thickness
MIAMI STARLITE TYPE
NIO-4RTLNDC
4" Iolite Round Trimless Downlight
PRODUCT DESCRIPTION
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes stainless steel friction clips to mount securely to trimless mud ring. Mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Source: 14W to 28W LED 800lm to 2500lm Color Temperature
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2. A mud ring (NIO-TLMR-4R) or flange accessory (NIO-4RTFA) is required per trimless.
LABELS AND LISTINGS
cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
= Black BZ = Bronze HZ = Haze MPW = Matte Powder White WW = White
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
= 1000lm / 14W /HL =
(varies by
Example: NIO-4RTLNDC50XWW / NIO-TLMR-4RA = 4" Iolite Round Trimless Reflector, 5000K, White finish, 800lm / 4" Round Trimless Mud Ring
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
Description
NIO-TLMR-4RA = 4" Round Trimless Mud Ring
NIO-4RTFA = 4" Flange Accessory
TYPE F1C SPEC Specification Sheet MIAMI STARLITE
Weight
Ceiling Space Requirements (Length x Width x Height)
3 lbs with RM installation type, 4.2 lbs with NC installation type, 7.2 lbs with PC, IC, IC/AT and RMR installation types
(Weights are approximate based on the heaviest fixture configuration)
Please consult factory if exact fixture weight is needed
Up to 15 in x 8 in x 12 in with RM installation type, Up to 15 in x 9 in x 12 in with NC installation type
Up to 18 in x 15 in x 9 in with PC/IC/ICAT/RMR installation types
(Dimensions will vary by output and color rendering, refer to Ceiling Requirements table for details.)
Performance
Maximum Delivered Output
Maximum Delivered Intensity
Lumen Maintenance
Environmental
Operating Temperature (Ceiling Cavity Ambient Temperature)
Up to 2,868 lm (Very Wide Faceted Reflector optic 80°, 4000K, CRI 80)
Up to 31,473 cd (Extra Narrow Spot optic 5°, 4000K, CRI 80)
L95 55,000 hrs (Ta 25 °C)
L70 225,000 hrs (Ta 25 °C)
-4 °F to 104 °F (DA1, DA2, DA3, PDA1, PDA2, SDALI1, SDALI2, DALI1, DALI2, DALIT8, LT, DMX/RDM, PH and PPH control options), 14 °F to 104 °F (NO control option), 32 °F to 104 °F (NO3, ESP control options and EBB and EBI options)
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Replacement optics include an optional frosted lens. Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Die-cast Trim
Optic assembly includes optional frosted lens. 23°, 38° and 55° optics are included with 800lm and 1000lm luminaires.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Suction Cup
NIO-TLSUCTION
Assist removing trimless downlight from finished ceiling after installation.
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
Accessory
Die-cast Trim
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
Black
TRIMLESS MUD RING
4" Iolite trimless has no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
FLANGE ACCESSORY
4" Iolite trimless can be converted into flanged trim. Flange accessory allows trim to be used with remodel and new construction housings. Accessory does not require mud ring or professional drywall installation.
Mud Ring
NIO-TLMR-4RA Round Mud Ring
Mounts trimless reflector with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-48, NHIOICDCP-48 new construction housings and NIO-4RTLNDC.
1. Refer to website product configurator for all exceptions.
2 Refer to website for EZ Ship configurations.
3. Refer to website for ENERGY STAR certified product configurations.
4. Not available for 700 lumens. Not available for 1000 lumens when combined with 80 color rendering option.
5. Not available for XN and VN optics.
6. Not available for DTW, DTWP, DWH, DWW or DWWP color options.
7. Not available for ENERGY STAR certification.
8. For ENERGY STAR certification, not available with RM or NC installation types when combined with 90 color rendering option.
9. Available for M, MFR, W, WFR, VW and VWFR optics only.
10. Not available with PC, IC, IC/AT or RMR installation types.
11. Available for CRI 80 only.
12. Compatible with all control options except for DALIT8.
13. Available for 1000 and 1300 lumens when combined with 90 color rendering option and MFR, W, WFR, VW or VWFR optics only.
14. MFR, WFR and VWFR faceted reflector optics are recommended for optimal performance.
15. Compatible with DA1, SDALI1, SDALI2, DMX/RDM and LT control options only.
16. Available for 1300 lumens when combined with 80 color rendering option and MFR, W, WFR, VW or VWFR optics only.
17. Compatible with LT, DMX/RDM and DALIT8 control options only.
18. Available for 700 lumens when combined with 80 or 90 color rendering options and 27K, 30K, 35K or 40K color temperature options only.
Dimming
Phase 1% Dimming PHB Pro Phase Dimming ERP PHB Series ESP Lutron® Hi-lume Premier 0.1% EcoSystem® PEQ0 Soft-on/Fade-to-Black
SDALI1
Standard DALI Dimming 1% Linear
SDALI2
Standard DALI Dimming 1% Logarithmic
DALI1
Pro DALI Dimming 0.1% Linear
DALI2
Pro DALI Dimming 0.1% Logarithmic
DALIT8
DALI-2 Dimming Type 8 (Multi-Channel Capability)
DMX/RDM
DMX/RDM (Configurable to 1, 2, or 3 Channel Control viaRDMintheField) LT Lumentalk Dimming
19. Available up to 1300 lumens when combined with 80 or 90 color rendering options and 27K, 30K, 35K or 40K color temperature options only.
20. Available up to 1300 lumens when combined with 80, 90 or 95 color rendering options only.
21. Available up to 2000 lumens when combined with 80 color rendering option and up to 1300 lumens when combined with 80, 90 or 95 color rendering options only.
22. Available up to 3000 lumens when combined with 80 color rendering option and up to 2000 lumens when combined with 80, 90 or 95 color rendering options only.
23. Control options vary according to color temperature, color rendering, optics and installation type combination. Refer to website product configurator for details.
24. Manufacturer's choice driver. Order code may change to NO1.
25. Not available with 347V.
26. Not available for 3000 lumens.
27. Manufacturer's choice driver. Order code may change to DAMC1 or DAMC2.
28. Not available for XN and VN optics.
29. Driver cuts off power to the fixture when the control signal drops below 0.5V.
30. Manufacturer's choice driver. Order code may change to PH1 or PH2.
31. Available for 120V voltage option only.
32. Manufacturer's choice driver. Order code is subject to change.
33. Not available for 700 lumens.
34. Not available for M, MFR, W, WFR, VW and VWFR optics when combined with 1000 lumens.
BLANK
TYPE F1C SPEC
Specification Sheet
How to Order
S142)
6 Not available for DTW, DTWP, DWH, DWW or DWWP color options.
7 Not available for ENERGY STAR certification.
25. Not available with 347V.
36. Not available for 3000 lumens.
43. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels when combined with RM or NC installation types or PC, IC and IC/AT installation types when combined with 90 color rendering option.
44. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels when combined with RM or NC installation types.
45. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels.
46. Coming soon, consult factory for details.
47. Available with DB and DR Bezels only.
48. Longer lead times can be expected for custom RAL color finishes.
49. Refer to Cylinder specification sheet and brochure for color options.
50. Not applicable to DR bezel option.
51. Cannot be combined with square ceiling cutout.
52. Cannot be combined with round ceiling cutout.
53. Available for 700 lumens when combined with XN optic and up to 1300 lumens when combined with VN, NS and N optics. Available up to 2000 lumens when combined with NFR optic and up to 3000 lumens when combined with M, MFR, W, WFR, VW and VWFR optics. Refer to optic option notes for color rendering limitations.
54. Available for 700 lumens when combined with XN optic and up to 1300 lumens when combined with VN, NS, N and NFR optics. Available up to 2000 lumens when combined 80 color rendering option and M, MFR, W, WFR, VW and VWFR optics. Refer to optic option notes for color rendering limitations.
55. Not available for DWH, DWW or DWWP color options.
56. Remote distance is a maximum of 75 ft. For longer remote distances, please contact Lumenpulse Application Engineering Team for application validation.
57 Ceiling springs are field changeable, consult factory and installation instructions for details.
58 IP54 rating only if installation is interior covered recessed ceiling-mounted or exterior canopy-mounted.
59. DR bezel is recommended for outdoor canopy installations.
60. A CL, SL or PD must be specified to maintain an IP54 rating. A second accessory may be specified.
61. For ENERGY STAR certification, not available with RM or NC installation types when combined with 90 color rendering option combined and 2000 lumens.
62. Available for RM and NC installation types only.
63. Emergency battery backup options are field installed and not presided by Lumenpulse. Refer to related installation instructions for details.
64. Emergency battery backup options require ceiling access for test button use. The battery will operate for 90 minutes minimum and maintain a minimum of 1 fc from a 7 ft 2 in height as per UL 924. For indoor use only in dry or damp locations.
65. Maximum two accessories per fixture.
66. Not available for DTW and DTWP color options.
67. Available for XN, VN and NS optics only.
68. Can be combined with PD accessory only.
69. Recommended to be combined with HL or XLVR accessory only.
70. Recommended for XN, VN, NS, N and NFR optics when combined with 2200K, 2700K, 3000K, 3500K, 4000K color temperature options. Nominal 10° x 40° distribution when used with the NS optic. Recommended for MFR optic when combined with DTW, DTWP, DWH, DWW or DWWP color options only.
71. For optimal performance, it is not recommended to mix with other accessories.
72. Recommended for XN, VN, NS, N and NFR optics when combined with 2200K, 2700K, 3000K, 3500K, 4000K color temperature options only. Nominal 10° x 60° distribution when used with the NS optic. Recommended for MFR optic when combined with DTW, DTWP, DWH, DWW or DWWP color options only.
BLANK
The Lumencore Recessed Nano Downlight is a highperformance LED downlight for ceiling applications. Available in an array of trims and finishes, outputs, optics, color renderings, accessories, and a WET IP54 option, these luminaires are here to outperform. The Lumencore Recessed Nano Downlight possesses a previously unseen lifespan, is quick to install, and can be used with a number of different control options.
Certifications
Features
Output (Nominal Lumens) L07: 700 lm,
Options
Warranty
Electrical and Control
Wattage Range
Physical
Trim
Ceiling Thickness
EBB: Emergency Battery Backup with Hanger Bar (Bodine BSL17C-C2)
EBI: Emergency Battery Backup with Hanger Bar (Iota ILBCP07-A TBTS)
WET: IP54 rating suitable for wet locations. For IP55 Shower Rated "Dead Front" applications see Lumencore Nano Shower Rated specification sheet
5-year limited warranty
8.5W to 30W (wattage will vary based on voltage, output, color temperature, color rendering, optic, control and installation type, refer to Power Consumption table for details)
RD: Round, SR: Square Trim with Round Hole, TLR: Trimless Round, SQ: Square, TLS: Trimless Square
1: 0.04 in to 1 in Ceiling Thickness
2: 1.05 in to 2 in Ceiling Thickness
NIO-4RTLNDC
4" Iolite Round Trimless Downlight
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes stainless steel friction clips to mount securely to trimless mud ring. Mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2. A mud ring (NIO-TLMR-4R) or flange accessory (NIO-4RTFA) is required per trimless.
LABELS AND LISTINGS
cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
Example: NIO-4RTLNDC50XWW / NIO-TLMR-4RA = 4" Iolite Round Trimless Reflector, 5000K, White finish, 800lm / 4" Round Trimless Mud Ring
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
Description
NIO-TLMR-4RA = 4" Round Trimless Mud Ring
NIO-4RTFA = 4" Flange Accessory
Weight
Ceiling Space Requirements (Length x Width x Height)
3 lbs with RM installation type, 4.2 lbs with NC installation type, 7.2 lbs with PC, IC, IC/AT and RMR installation types
(Weights are approximate based on the heaviest fixture configuration)
Please consult factory if exact fixture weight is needed
Up to 15 in x 8 in x 12 in with RM installation type, Up to 15 in x 9 in x 12 in with NC installation type
Up to 18 in x 15 in x 9 in with PC/IC/ICAT/RMR installation types
(Dimensions will vary by output and color rendering, refer to Ceiling Requirements table for details.)
Performance
Maximum Delivered Output
Maximum Delivered Intensity
Lumen Maintenance
Environmental
Operating Temperature (Ceiling Cavity
Ambient Temperature)
Up to 2,868 lm (Very Wide Faceted Reflector optic 80°, 4000K, CRI 80)
Up to 31,473 cd (Extra Narrow Spot optic 5°, 4000K, CRI 80)
L95 55,000 hrs (Ta 25 °C)
L70 225,000 hrs (Ta 25 °C)
-4 °F to 104 °F (DA1, DA2, DA3, PDA1, PDA2, SDALI1, SDALI2, DALI1, DALI2, DALIT8, LT, DMX/RDM, PH and PPH control options), 14 °F to 104 °F (NO control option), 32 °F to 104 °F (NO3, ESP control options and EBB and EBI options)
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Replacement optics include an optional frosted lens. Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Die-cast Trim
Optic assembly includes optional frosted lens. 23°, 38° and 55° optics are included with 800lm and 1000lm luminaires.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Suction Cup
NIO-TLSUCTION
Assist removing trimless downlight from finished ceiling after installation.
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
Accessory
Die-cast Trim
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
Black
TRIMLESS MUD RING
4" Iolite trimless has no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
FLANGE ACCESSORY
4" Iolite trimless can be converted into flanged trim. Flange accessory allows trim to be used with remodel and new construction housings. Accessory does not require mud ring or professional drywall installation.
Mud Ring
NIO-TLMR-4RA Round Mud Ring
Mounts trimless reflector with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-48, NHIOICDCP-48 new construction housings and NIO-4RTLNDC.
1. Refer to website product configurator for all exceptions.
2 Refer to website for EZ Ship configurations.
3. Refer to website for ENERGY STAR certified product configurations.
4. Not available for 700 lumens. Not available for 1000 lumens when combined with 80 color rendering option.
5. Not available for XN and VN optics.
6. Not available for DTW, DTWP, DWH, DWW or DWWP color options.
7. Not available for ENERGY STAR certification.
8. For ENERGY STAR certification, not available with RM or NC installation types when combined with 90 color rendering option.
9. Available for M, MFR, W, WFR, VW and VWFR optics only.
10. Not available with PC, IC, IC/AT or RMR installation types.
11. Available for CRI 80 only.
12. Compatible with all control options except for DALIT8.
13. Available for 1000 and 1300 lumens when combined with 90 color rendering option and MFR, W, WFR, VW or VWFR optics only.
14. MFR, WFR and VWFR faceted reflector optics are recommended for optimal performance.
15. Compatible with DA1, SDALI1, SDALI2, DMX/RDM and LT control options only.
16. Available for 1300 lumens when combined with 80 color rendering option and MFR, W, WFR, VW or VWFR optics only.
17. Compatible with LT, DMX/RDM and DALIT8 control options only.
18. Available for 700 lumens when combined with 80 or 90 color rendering options and 27K, 30K, 35K or 40K color temperature options only.
PHB Pro Phase Dimming ERP PHB Series ESP Lutron® Hi-lume Premier 0.1% EcoSystem® PEQ0 Soft-on/Fade-to-Black
SDALI1
Standard DALI Dimming 1% Linear
SDALI2
Standard DALI Dimming 1% Logarithmic
DALI1
Pro DALI Dimming 0.1% Linear
DALI2
Pro DALI Dimming 0.1% Logarithmic
DALIT8
DALI-2 Dimming Type 8 (Multi-Channel Capability)
DMX/RDM
DMX/RDM (Configurable to 1, 2, or 3 Channel Control viaRDMintheField) LT Lumentalk Dimming
19. Available up to 1300 lumens when combined with 80 or 90 color rendering options and 27K, 30K, 35K or 40K color temperature options only.
20. Available up to 1300 lumens when combined with 80, 90 or 95 color rendering options only.
21. Available up to 2000 lumens when combined with 80 color rendering option and up to 1300 lumens when combined with 80, 90 or 95 color rendering options only.
22. Available up to 3000 lumens when combined with 80 color rendering option and up to 2000 lumens when combined with 80, 90 or 95 color rendering options only.
23. Control options vary according to color temperature, color rendering, optics and installation type combination. Refer to website product configurator for details.
24. Manufacturer's choice driver. Order code may change to NO1.
25. Not available with 347V.
26. Not available for 3000 lumens.
27. Manufacturer's choice driver. Order code may change to DAMC1 or DAMC2.
28. Not available for XN and VN optics.
29. Driver cuts off power to the fixture when the control signal drops below 0.5V.
30. Manufacturer's choice driver. Order code may change to PH1 or PH2.
31. Available for 120V voltage option only.
32. Manufacturer's choice driver. Order code is subject to change.
33. Not available for 700 lumens.
34. Not available for M, MFR, W, WFR, VW and VWFR optics when combined with 1000 lumens.
BLANK
How to Order
6. Not available for DTW, DTWP, DWH, DWW or DWWP color options.
7. Not available for ENERGY STAR certification.
25. Not available with 347V.
36. Not available for 3000 lumens.
43. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels when combined with RM or NC installation types or PC, IC and IC/AT installation types when combined with 90 color rendering option.
44. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels when combined with RM or NC installation types.
45. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels.
46. Coming soon, consult factory for details.
47. Available with DB and DR Bezels only.
48. Longer lead times can be expected for custom RAL color finishes.
49. Refer to Cylinder specification sheet and brochure for color options.
50. Not applicable to DR bezel option.
51. Cannot be combined with square ceiling cutout.
52. Cannot be combined with round ceiling cutout.
53. Available for 700 lumens when combined with XN optic and up to 1300 lumens when combined with VN, NS and N optics.
Available up to 2000 lumens when combined with NFR optic and up to 3000 lumens when combined with M, MFR, W, WFR, VW and VWFR optics. Refer to optic option notes for color rendering limitations.
54. Available for 700 lumens when combined with XN optic and up to 1300 lumens when combined with VN, NS, N and NFR optics. Available up to 2000 lumens when combined 80 color rendering option and M, MFR, W, WFR, VW and VWFR optics. Refer to optic option notes for color rendering limitations.
55. Not available for DWH, DWW or DWWP color options.
56. Remote distance is a maximum of 75 ft. For longer remote distances, please contact Lumenpulse Application Engineering Team for application validation.
57. Ceiling springs are field changeable, consult factory and installation instructions for details.
58. IP54 rating only if installation is interior covered recessed ceiling-mounted or exterior canopy-mounted.
59. DR bezel is recommended for outdoor canopy installations.
60. A CL, SL or PD must be specified to maintain an IP54 rating. A second accessory may be specified.
61. For ENERGY STAR certification, not available with RM or NC installation types when combined with 90 color rendering option combined and 2000 lumens.
62. Available for RM and NC installation types only.
63. Emergency battery backup options are field installed and not presided by Lumenpulse. Refer to related installation instructions for details.
64. Emergency battery backup options require ceiling access for test button use. The battery will operate for 90 minutes minimum and maintain a minimum of 1 fc from a 7 ft 2 in height as per UL 924. For indoor use only in dry or damp locations.
65. Maximum two accessories per fixture.
66. Not available for DTW and DTWP color options.
67. Available for XN, VN and NS optics only.
68. Can be combined with PD accessory only.
69. Recommended to be combined with HL or XLVR accessory only.
70. Recommended for XN, VN, NS, N and NFR optics when combined with 2200K, 2700K, 3000K, 3500K, 4000K color temperature options. Nominal 10° x 40° distribution when used with the NS optic. Recommended for MFR optic when combined with DTW, DTWP, DWH, DWW or DWWP color options only.
71. For optimal performance, it is not recommended to mix with other accessories.
72. Recommended for XN, VN, NS, N and NFR optics when combined with 2200K, 2700K, 3000K, 3500K, 4000K color temperature options only. Nominal 10° x 60° distribution when used with the NS optic. Recommended for MFR optic when combined with DTW, DTWP, DWH, DWW or DWWP color options only.
BLANK
The Lumencore Recessed Nano Downlight is a highperformance LED downlight for ceiling applications. Available in an array of trims and finishes, outputs, optics, color renderings, accessories, and a WET IP54 option, these luminaires are here to outperform. The Lumencore Recessed Nano Downlight possesses a previously unseen lifespan, is quick to install, and can be used with a number of different control options.
Certifications
Features
Output (Nominal Lumens) L07: 700 lm,
Options
Warranty
Electrical and Control
Wattage Range
Physical
Trim
Ceiling Thickness
EBB: Emergency Battery Backup with Hanger Bar (Bodine BSL17C-C2)
EBI: Emergency Battery Backup with Hanger Bar (Iota ILBCP07-A TBTS)
WET: IP54 rating suitable for wet locations. For IP55 Shower Rated "Dead Front" applications see Lumencore Nano Shower Rated specification sheet
5-year limited warranty
8.5W to 30W (wattage will vary based on voltage, output, color temperature, color rendering, optic, control and installation type, refer to Power Consumption table for details)
RD: Round, SR: Square Trim with Round Hole, TLR: Trimless Round, SQ: Square, TLS: Trimless Square
1: 0.04 in to 1 in Ceiling Thickness
2: 1.05 in to 2 in Ceiling Thickness
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Ceiling Space Requirements (Length x Width x Height)
3 lbs with RM installation type, 4.2 lbs with NC installation type, 7.2 lbs with PC, IC, IC/AT and RMR installation types
(Weights are approximate based on the heaviest fixture configuration)
Please consult factory if exact fixture weight is needed
Up to 15 in x 8 in x 12 in with RM installation type, Up to 15 in x 9 in x 12 in with NC installation type
Up to 18 in x 15 in x 9 in with PC/IC/ICAT/RMR installation types
(Dimensions will vary by output and color rendering, refer to Ceiling Requirements table for details.)
Performance
Maximum Delivered Output
Maximum Delivered Intensity
Lumen Maintenance
Environmental
Operating Temperature (Ceiling Cavity
Ambient Temperature)
Up to 2,868 lm (Very Wide Faceted Reflector optic 80°, 4000K, CRI 80)
Up to 31,473 cd (Extra Narrow Spot optic 5°, 4000K, CRI 80)
L95 55,000 hrs (Ta 25 °C)
L70 225,000 hrs (Ta 25 °C)
-4 °F to 104 °F (DA1, DA2, DA3, PDA1, PDA2, SDALI1, SDALI2, DALI1, DALI2, DALIT8, LT, DMX/RDM, PH and PPH control options), 14 °F to 104 °F (NO control option), 32 °F to 104 °F (NO3, ESP control options and EBB and EBI options)
2" Iolite Accessories
2" Iolite Round Reflector with Round Aperture
FIELD CHANGEABLE OPTICS
Type Project Catalog No.
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available. Note: Frosted optics and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trims. Dimensions: 7-7/8" diameter 1/2" thick
1. Refer to website product configurator for all exceptions.
2 Refer to website for EZ Ship configurations.
3. Refer to website for ENERGY STAR certified product configurations.
4. Not available for 700 lumens. Not available for 1000 lumens when combined with 80 color rendering option.
5. Not available for XN and VN optics.
6. Not available for DTW, DTWP, DWH, DWW or DWWP color options.
7. Not available for ENERGY STAR certification.
8. For ENERGY STAR certification, not available with RM or NC installation types when combined with 90 color rendering option.
9. Available for M, MFR, W, WFR, VW and VWFR optics only.
10. Not available with PC, IC, IC/AT or RMR installation types.
11. Available for CRI 80 only.
12. Compatible with all control options except for DALIT8.
13. Available for 1000 and 1300 lumens when combined with 90 color rendering option and MFR, W, WFR, VW or VWFR optics only.
14. MFR, WFR and VWFR faceted reflector optics are recommended for optimal performance.
15. Compatible with DA1, SDALI1, SDALI2, DMX/RDM and LT control options only.
16. Available for 1300 lumens when combined with 80 color rendering option and MFR, W, WFR, VW or VWFR optics only.
17. Compatible with LT, DMX/RDM and DALIT8 control options only.
18. Available for 700 lumens when combined with 80 or 90 color rendering options and 27K, 30K, 35K or 40K color temperature options only.
PHB Pro Phase Dimming ERP PHB Series ESP Lutron® Hi-lume Premier 0.1% EcoSystem® PEQ0 Soft-on/Fade-to-Black
SDALI1
Standard DALI Dimming 1% Linear
SDALI2
Standard DALI Dimming 1% Logarithmic
DALI1
Pro DALI Dimming 0.1% Linear
DALI2
Pro DALI Dimming 0.1% Logarithmic
DALIT8
DALI-2 Dimming Type 8 (Multi-Channel Capability)
DMX/RDM
DMX/RDM (Configurable to 1, 2, or 3 Channel Control viaRDMintheField) LT Lumentalk Dimming
19. Available up to 1300 lumens when combined with 80 or 90 color rendering options and 27K, 30K, 35K or 40K color temperature options only.
20. Available up to 1300 lumens when combined with 80, 90 or 95 color rendering options only.
21. Available up to 2000 lumens when combined with 80 color rendering option and up to 1300 lumens when combined with 80, 90 or 95 color rendering options only.
22. Available up to 3000 lumens when combined with 80 color rendering option and up to 2000 lumens when combined with 80, 90 or 95 color rendering options only.
23. Control options vary according to color temperature, color rendering, optics and installation type combination. Refer to website product configurator for details.
24. Manufacturer's choice driver. Order code may change to NO1.
25. Not available with 347V.
26. Not available for 3000 lumens.
27. Manufacturer's choice driver. Order code may change to DAMC1 or DAMC2.
28. Not available for XN and VN optics.
29. Driver cuts off power to the fixture when the control signal drops below 0.5V.
30. Manufacturer's choice driver. Order code may change to PH1 or PH2.
31. Available for 120V voltage option only.
32. Manufacturer's choice driver. Order code is subject to change.
33. Not available for 700 lumens.
34. Not available for M, MFR, W, WFR, VW and VWFR optics when combined with 1000 lumens.
BLANK
How to Order
6 Not available for DTW, DTWP, DWH, DWW or DWWP color options.
7 Not available for ENERGY STAR certification.
25. Not available with 347V.
36. Not available for 3000 lumens.
43. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels when combined with RM or NC installation types or PC, IC and IC/AT installation types when combined with 90 color rendering option.
44. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels when combined with RM or NC installation types.
45. For ENERGY STAR certification, not available with MB, DB and DR decorative bezels.
46. Coming soon, consult factory for details.
47. Available with DB and DR Bezels only.
48. Longer lead times can be expected for custom RAL color finishes.
49. Refer to Cylinder specification sheet and brochure for color options.
50. Not applicable to DR bezel option.
51. Cannot be combined with square ceiling cutout.
52. Cannot be combined with round ceiling cutout.
53. Available for 700 lumens when combined with XN optic and up to 1300 lumens when combined with VN, NS and N optics.
Available up to 2000 lumens when combined with NFR optic and up to 3000 lumens when combined with M, MFR, W, WFR, VW and VWFR optics. Refer to optic option notes for color rendering limitations.
54. Available for 700 lumens when combined with XN optic and up to 1300 lumens when combined with VN, NS, N and NFR optics. Available up to 2000 lumens when combined 80 color rendering option and M, MFR, W, WFR, VW and VWFR optics. Refer to optic option notes for color rendering limitations.
55. Not available for DWH, DWW or DWWP color options.
56. Remote distance is a maximum of 75 ft. For longer remote distances, please contact Lumenpulse Application Engineering Team for application validation.
57 Ceiling springs are field changeable, consult factory and installation instructions for details.
58 IP54 rating only if installation is interior covered recessed ceiling-mounted or exterior canopy-mounted.
59. DR bezel is recommended for outdoor canopy installations.
60. A CL, SL or PD must be specified to maintain an IP54 rating. A second accessory may be specified.
61. For ENERGY STAR certification, not available with RM or NC installation types when combined with 90 color rendering option combined and 2000 lumens.
62. Available for RM and NC installation types only.
63. Emergency battery backup options are field installed and not presided by Lumenpulse. Refer to related installation instructions for details.
64. Emergency battery backup options require ceiling access for test button use. The battery will operate for 90 minutes minimum and maintain a minimum of 1 fc from a 7 ft 2 in height as per UL 924. For indoor use only in dry or damp locations.
65. Maximum two accessories per fixture.
66. Not available for DTW and DTWP color options.
67. Available for XN, VN and NS optics only.
68. Can be combined with PD accessory only.
69. Recommended to be combined with HL or XLVR accessory only.
70. Recommended for XN, VN, NS, N and NFR optics when combined with 2200K, 2700K, 3000K, 3500K, 4000K color temperature options. Nominal 10° x 40° distribution when used with the NS optic. Recommended for MFR optic when combined with DTW, DTWP, DWH, DWW or DWWP color options only.
71. For optimal performance, it is not recommended to mix with other accessories.
72. Recommended for XN, VN, NS, N and NFR optics when combined with 2200K, 2700K, 3000K, 3500K, 4000K color temperature options only. Nominal 10° x 60° distribution when used with the NS optic. Recommended for MFR optic when combined with DTW, DTWP, DWH, DWW or DWWP color options only.
BLANK

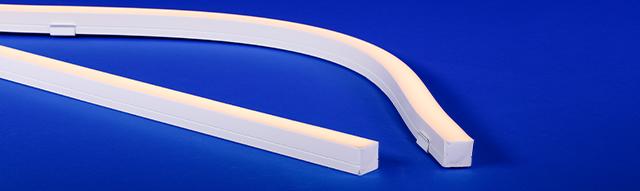

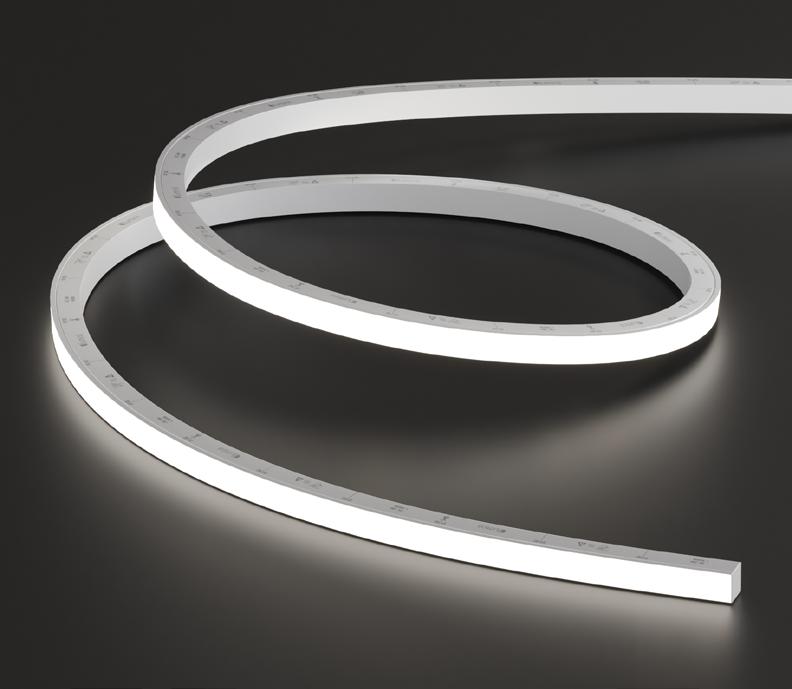

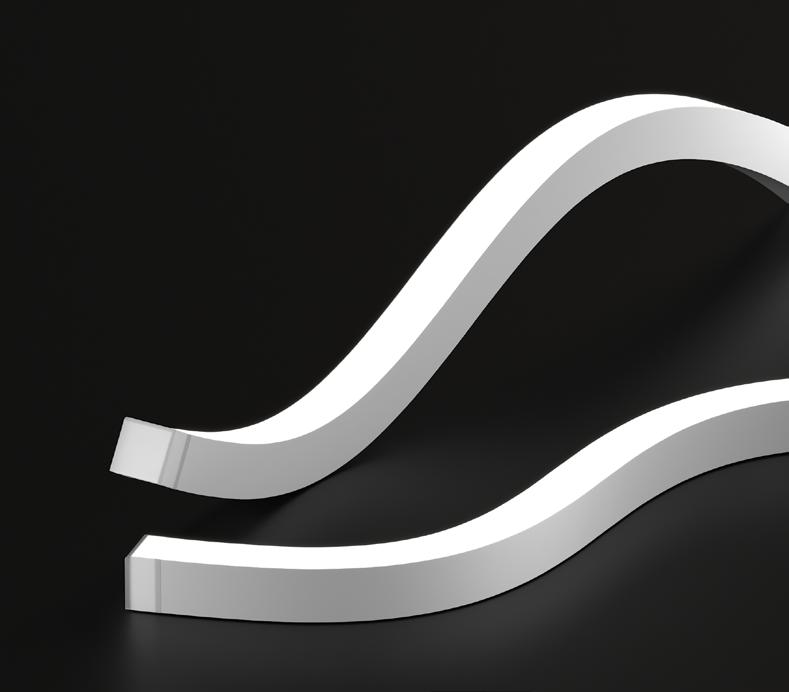

Kurba Max Horizontal and Vertical Field Bendable 24V System
Features
Kurba Max is a dot free direct view, highly versatile, energy efficient and flexible LED strip suitable for outdoor wet locations capable of horizontal/side bends and vertical/top bends with a 8” bending radius. The silicone material offers excellent heat, weather, UV, and solvent resistance and has a special coating to repel dust and dirt accumulation.
Applications
Indoor/Outdoor dry & wet location
Materials
Silicone for red list approved, as well as heat, weather, UV, and solvent resistance
Dimming
Dimable down to 1%. Dot Free even illumination. Also available with Black Lens

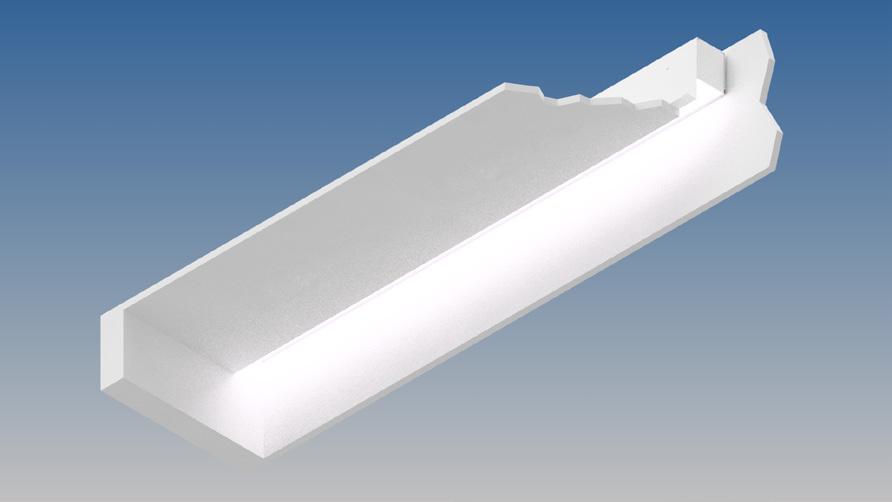

Applications Cove and Indirect General Illumination
Voltage Control 120V AC/ 240V AC 60Hz ELV
Warranty 5 Years
FIXTURE RUN LENGTHS
Max Run Length
ACCESSORIES
Leader Cable 3 Pin 10ft (3m)
Jumper Cable 3 Pin 1ft (0.3m)
Jumper Cable 3 Pin 4ft (1m)
Terminator 3 Pin

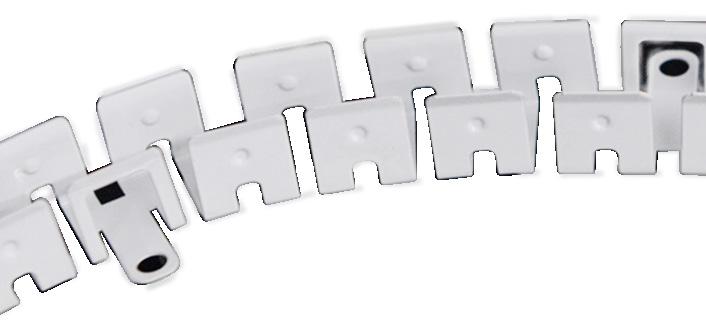

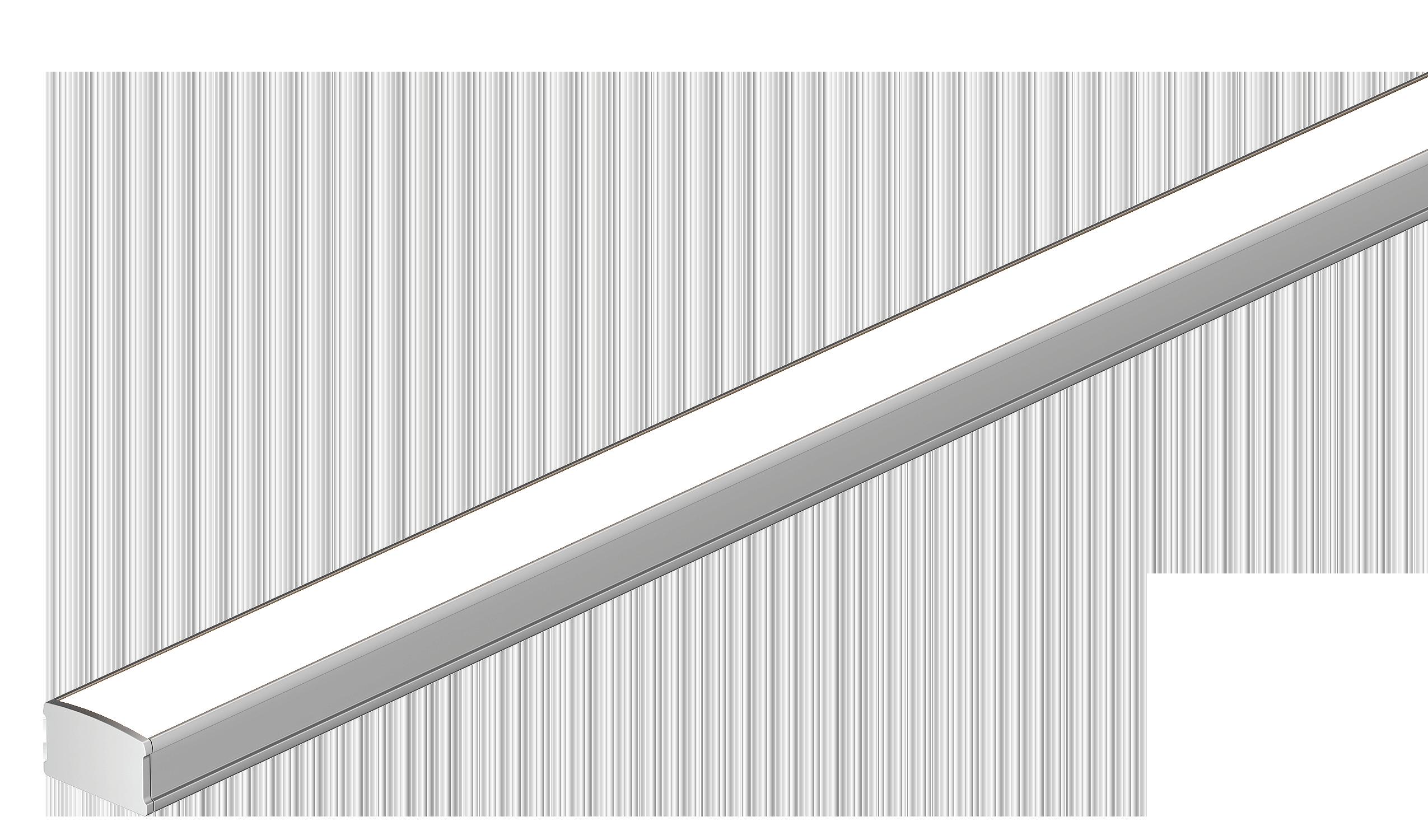

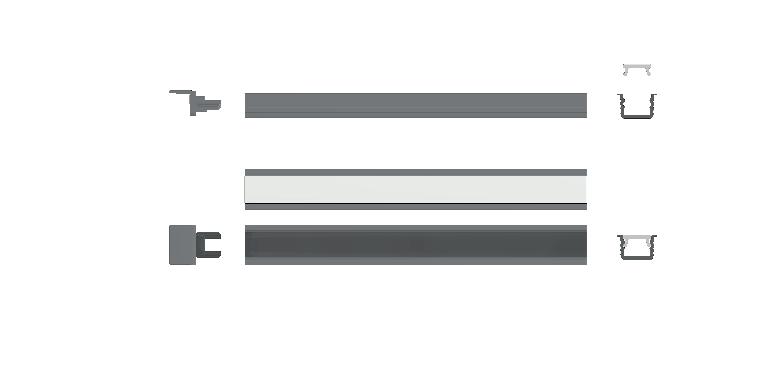

Mounting Track
STANDARDS & CERTIFICATIONS
Tested to UL & CSA by Intertek For Use in USA & CANADA.
BLANK
Kurba Max Horizontal and Vertical Field Bendable 24V System
Features
Kurba Max is a dot free direct view, highly versatile, energy efficient and flexible LED strip suitable for outdoor wet locations capable of horizontal/side bends and vertical/top bends with a 8” bending radius. The silicone material offers excellent heat, weather, UV, and solvent resistance and has a special coating to repel dust and dirt accumulation.
Applications
Indoor/Outdoor dry & wet location
Materials
Silicone for red list approved, as well as heat, weather, UV, and solvent resistance
Dimming
Dimable down to 1%. Dot Free even illumination. Also available with Black Lens
Applications Cove and Indirect General Illumination
Voltage Control 120V AC/ 240V AC 60Hz ELV
Warranty 5 Years
FIXTURE RUN LENGTHS
Max Run Length
ACCESSORIES
Leader Cable 3 Pin 10ft (3m)
Jumper Cable 3 Pin 1ft (0.3m)
Jumper Cable 3 Pin 4ft (1m)
Terminator 3 Pin
Mounting Track
STANDARDS & CERTIFICATIONS
Tested to UL & CSA by Intertek For Use in USA & CANADA.
BLANK
Project Name
Photometric Summary (17 W/ft)
Based on 4000K, 4ft [1218mm] 1. Photometric performance is measured in compliance with IESNA LM-79-08.
8x8, 10x10, 10x30, 10x60, 10x90, 30x30, 30x60, 30x90, 60x60, 90x90, 30x10, 60x10, 60x30, 90x10, W and CAS optics tested with CL lens. NAS and WW optics tested with HFR lens.
Description
Features
Length (Nominal)
Color and Color Temperature
Vibration Rating
Fixed Mounting Options
Continuously Adjustable Mounting Options

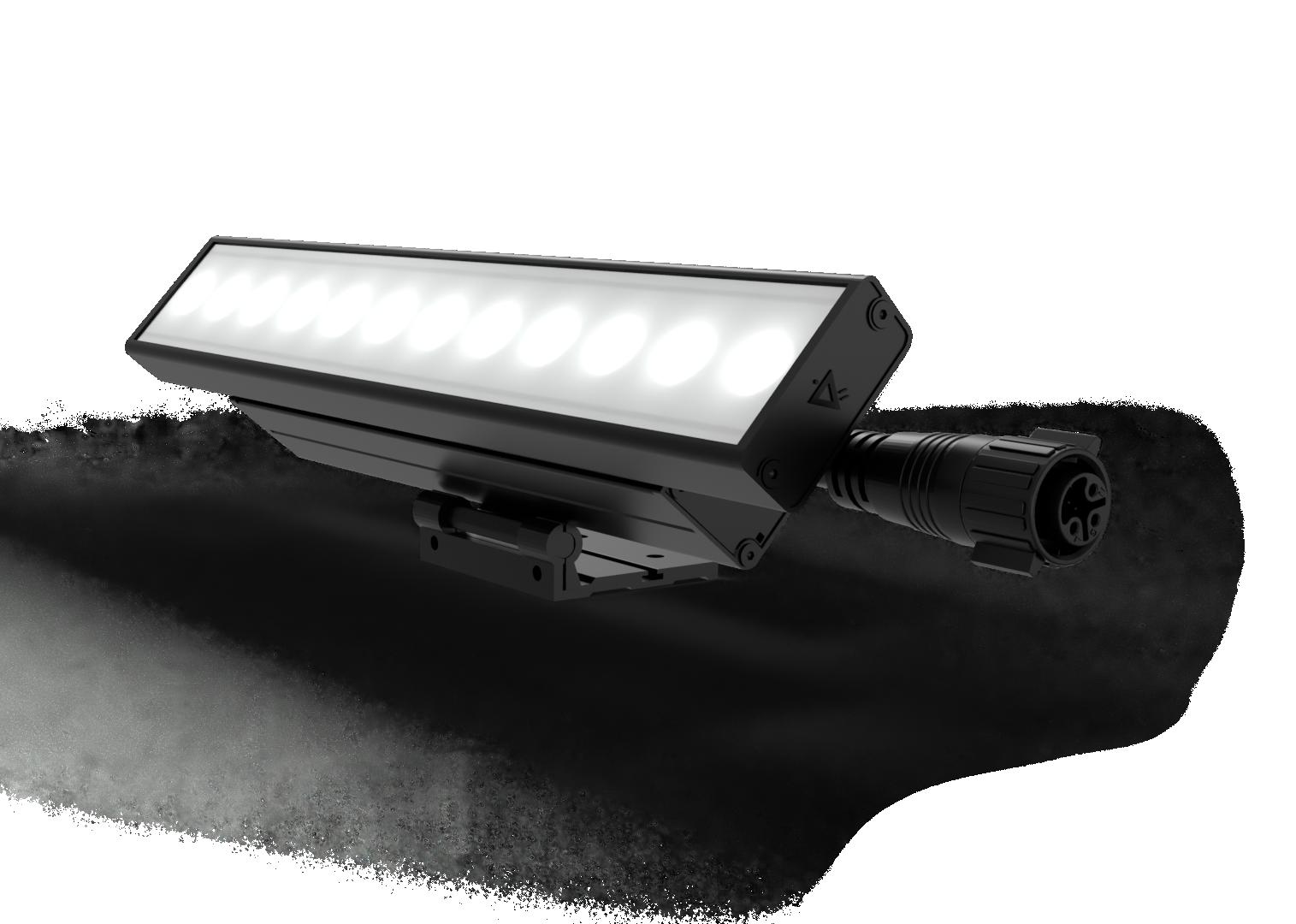

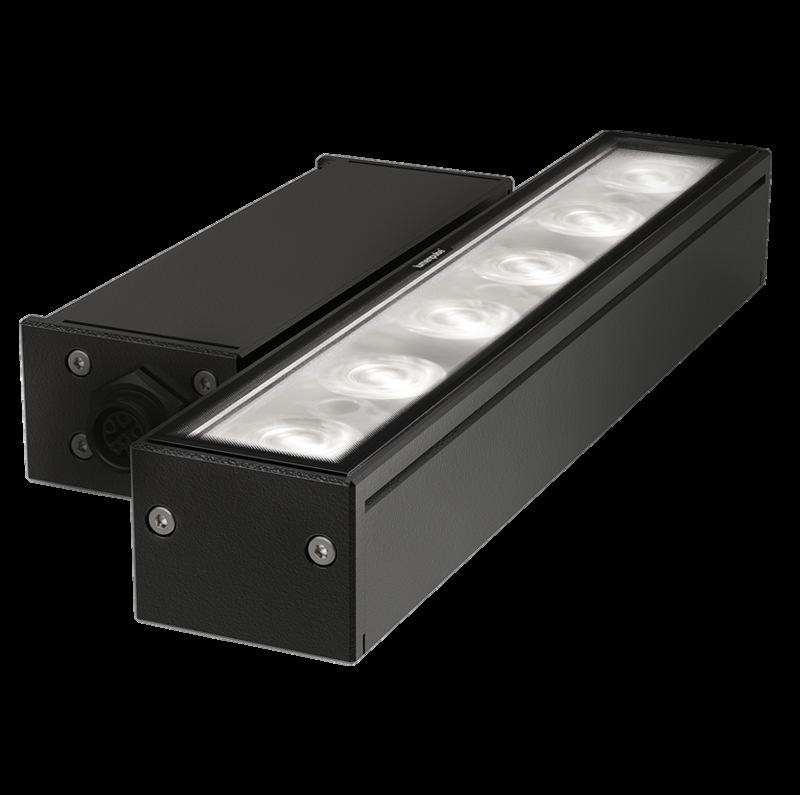

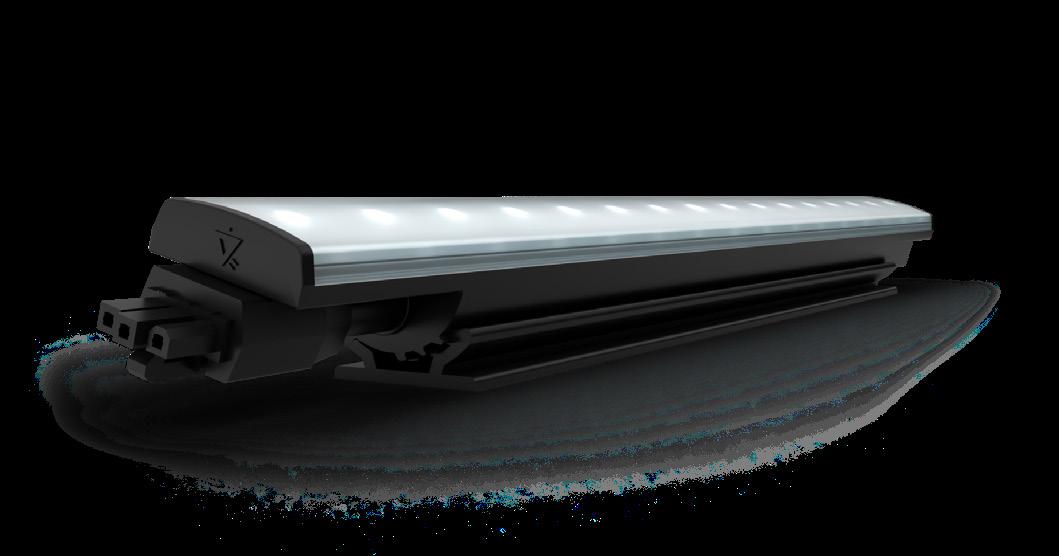

The Lumenfacade Pure Continuous Horizontal is the purest expression of Lumenpulse's form, quality, and performance. Designed from the inside out to be a cutting-edge expression of Lumenpulse quality, the Lumenfacade Pure possesses simplified control options, integrated accessories, and cohesive mounting options. Rethink everything you’ve thought about white light; think Lumenpulse.
WMCH6: Wall Mounting Horizontal Continuously Adjustable, 6 in to Optical Center (180˚ Pivot Limit)
WMCH18: Wall Mounting Horizontal Continuously Adjustable, 18 in to Optical Center (180˚ Pivot Limit)
WMCH3: Wall Mounting Horizontal Continuously Adjustable, 3.5 in to Optical Center (120˚ Pivot Limit)
WMCH12: Wall Mounting Horizontal Continuously Adjustable, 12 in to Optical Center (180˚ Pivot Limit)
WMCH24: Wall Mounting Horizontal Continuously Adjustable, 24 in to Optical Center (180˚ Pivot Limit)
PROJECT: TYPE: QUANTITY: CATALOG/ PART NUMBER:
1’ (305MM), 4’ (1220MM)
CCT 18K, 22K, 27K, 3K, 35K, 4K, 5K, 65K, CUSTOM
DMX RGBDMX, RGBW, RGBA, WW + CUSTOM, DYNAMIC WHITE
Static
CRI
DYNAMIC WHITE RED, GREEN, BLUE, AMBER, CUSTOM >80, >90
Optics
FIXTURE RUN LENGTHS
ELV, 0-10V, DMX, DALI, DIM TO WARM
3°, 9°,15°, 25°, 60°, 10 x 30°, 10 x 60°, 15 x 30°, 30 x 60°
Operating 30°C~50°C (-22°F ~ 122°F)
Power Factor
≥ 0.9
SDCM 3 STEP MACADAM ELLIPSE

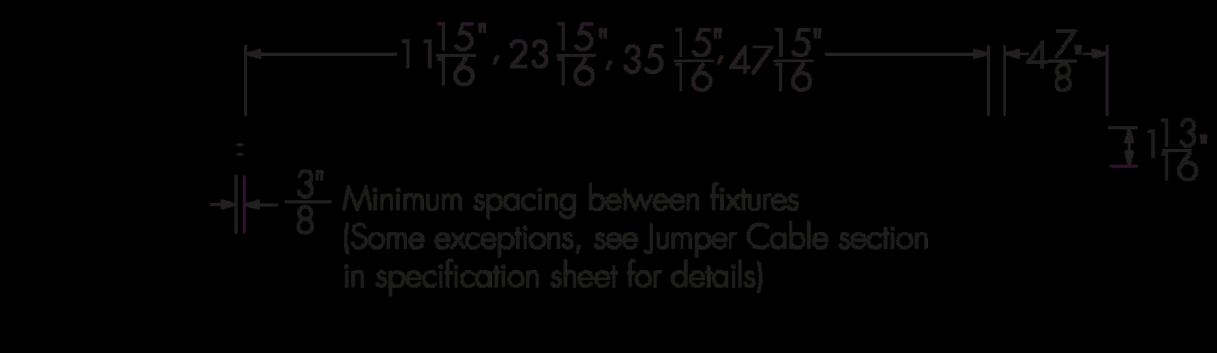

Dimensions
L: 1ft (305mm), 4ft (1220mm)
W: 1 19/20” (49.6mm) H: 2 1/8” (54.5mm)
Applications WALL GRAZER, WALL WASHER
Voltage
Control 100-277V AC 50Hz/60Hz
Waterproof Rate Wet Location, IP66
STANDARDS & CERTIFICATIONS
Tested to UL & CSA by Intertek For Use in USA & CANADA. 1 19/20” (49.6MM) 2 3/11” (57.6MM)
DIM TO WARM + DMX, DYNAMIC WHITE
How to Order
PROJECT: TYPE: QUANTITY: CATALOG/ PART NUMBER:
5PIN, 0-10V, DMX, DALI
Leader Cable 5 Pin 10ft (3m)
Leader Cable 5 Pin 30ft (9m)
Jumper Cable 5 Pin 1ft (0.3m)
Jumper Cable 5 Pin 4ft (1.2m)
Jumper Cable 5 Pin 6ft (1.82m)
Jumper Cable 5 Pin 10ft (3m)
Jumper Cable 5 Pin 30ft (4.5m)
MOUNTING
FIXED/ FLAT BRACKET
ROTARY BRACKET
LOUVER
Symmetric
Asymmetric
Honeycomb
END CAP
End Cap 5 Pin
Power to first fixture of run
Power to first fixture of run
Connection between fixtures
Connection between fixtures
Connection between fixtures
Connection between fixtures
Connection between fixtures
Secure fixture in place
Rotates securely in place
Evenly distributes light in all directions
Directs light unevenly, focusing illumination in a specific direction
Reduces glare, controls light spread, and minimizes stray light
Must be fixed to last fixture for safety
How to Order
17.
18. Applicable to fixtures with LV, LVAS and VS accessories specified.
19. Consult factory for pole mounting accessories.
20. Available for FXH mounting option when combined with VRBO vibration rating. All other mounting options may have installation limitations, and a review is needed for approval. Consult factory.
21. Specify only if a bridge or overpass application is required as per ANSI 136.31 2018.
FXH Fixed Mounting Horizontal (0˚ Pivot Limit)
Slim Adjustable Mounting Horizontal Continuously Adjustable (110˚ Pivot Limit) WMCH3 Wall Mounting Horizontal Continuously Adjustable, 3.5 in to Optical Center (120˚ Pivot Limit)
WMiH3
Wall Mounting Horizontal Incrementally Adjustable by 6˚, 3.5 in to Optical Center (120˚ Pivot Limit)
WMCH6
Wall Mounting Horizontal Continuously Adjustable, 6 in to Optical Center (180˚ Pivot Limit)
WMiH6
Wall Mounting Horizontal Incrementally Adjustable by 6˚, 6 in to Optical Center (180˚ Pivot Limit)
WMCH12
Wall Mounting Horizontal Continuously Adjustable, 12 in to Optical Center (180˚ Pivot Limit)
WMiH12
Wall Mounting Horizontal Incrementally Adjustable by 6˚, 12 in to Optical Center (180˚ Pivot Limit)
WMCH18
Wall Mounting Horizontal Continuously Adjustable, 18 in to Optical Center (180˚ Pivot Limit)
WMiH18
Wall Mounting Horizontal Incrementally Adjustable by 6˚, 18 in to Optical Center (180˚ Pivot Limit)
WMCH24
Wall Mounting Horizontal Continuously Adjustable, 24 in to Optical Center (180˚ Pivot Limit)
WMiH24
Wall Mounting Horizontal Incrementally Adjustable by 6˚, 24 in to Optical Center (180˚ Pivot Limit)
ORDER CODE

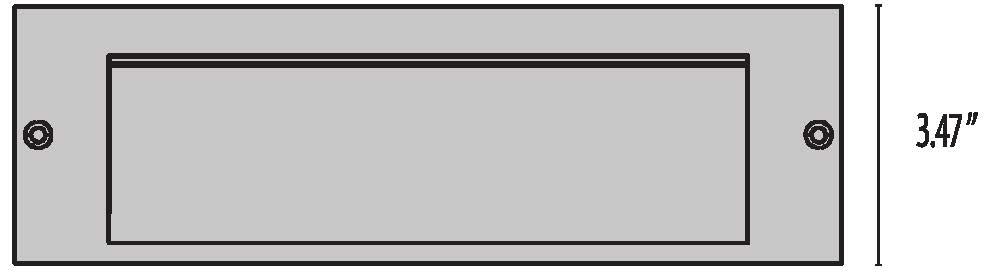

Kendo L Recessed - Static White
0.36" 0.44" Chrome Polished Gold Silver Anodized Finish Options Base Powder Coat Premium (see page 3 for additional information)
Technical Information
2200K 0.70 969510189
2400K 0.72 989710191
2700K 0.74 979610191
3000K 1.00 979510497
3500K 1.02 979410597 4100K 1.07 97909997 1.21"
Ordering Code
0.73 92919742
0.81 93969662
0.94 92909958
92899957
92899960
92869471
LTR-P Professional Series
4.5W, 24VDC LED Tape
Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 20’
• Includes Sure-Tite connectors
SPECIFICATIONS
•4.5 watts per foot
•90+ CRI
•-4°F to 122°F
• For proper
BLANK
LTR-P Professional Series ®
4.5W, 24VDC LED Tape
Specification Sheet
Kelvin temperature (color) ±100K. 16’-4” and 100’ reel includes 48” lead affixed to tape. 16’-4” reel includes (3) ESTW-60 Sure-Tite connectors. 100’ reel includes (10) ESTW-60 Sure-Tite connectors
COMPATIBLE CONTROLLERS
SWD-40W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 40W, 12VDC
SWD-60W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 12VDC
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
CM-RF-UNV-5CH Universal 1-5 Channel Control Module
LineDrive Electronic Dimmable MINI Power Supply, 12VDC/24VDC
LTP Cord and Plug Power Supply, 12VDC/24VDC 25W,
PSD Electronic Dimmable Power Supply, 12VDC/24VDC 15W, 24W, 60W, 90W
NOTE: Please see our website for updated power supply specifications and information.
BLANK
LTR-P Professional Series ®
4.5W, 24VDC LED Tape Specification Sheet

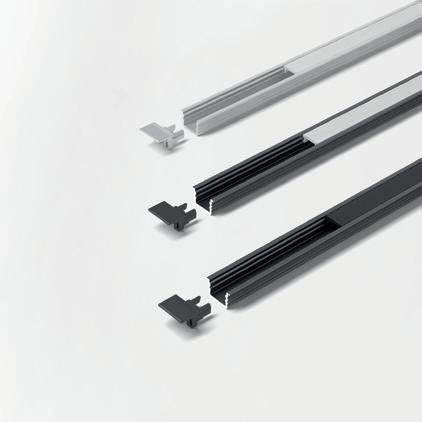

LED-CHL
LED-CHL-6
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL N/A
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole N/A
LED-CHL-MC (2) Additional mounting clips for LED-CHL
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'
Bosca - Static White
Finish Options (see page 2 for additional information)
Silver Anodized
*Max Ambient Temperature to maintain L70 of 50k+ hours. Exceeding Max Ambient Temperature may result in decreased life/output. Consult Technical Support for specific inquiries.
Color Quality (72)
Efficacy (HE48/HE64)
1.02
Code

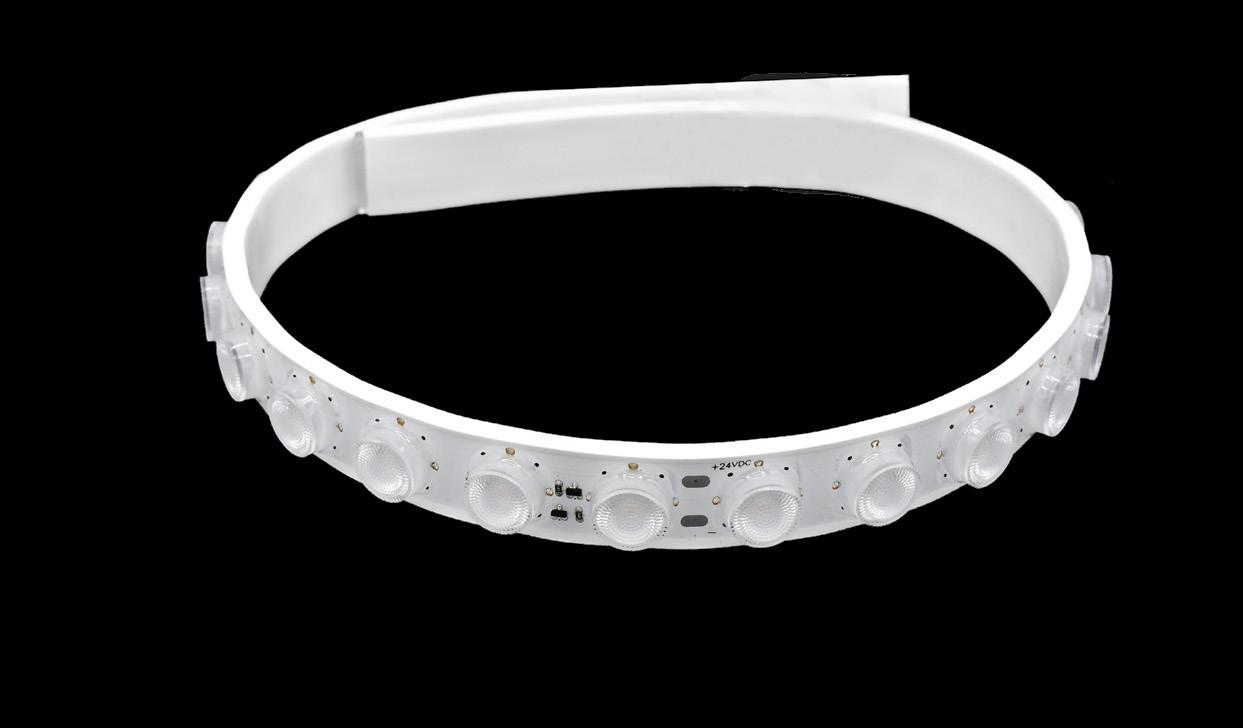

VorteXLED Specification Series ®
5.8W, 24VDC WALL GRAZING
LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6” increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• 30° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens
SPECIFICATIONS
ELECTRICAL
•24VDC
•5.8
•90+ CRI
CERTIFICATION
•UL listed for US and Canada
•Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
•IP65
WARRANTY
•5-year warranty when paired with GM power supply OPTICS
Note: Includes 48” leads. Factory sealed. *Reel Length: XX = per foot
CONTROLLERS
VTX-TTC6 6in tape to tape connector
VTX-TTC12 12in tape to tape connector
VTX-TTC24 24in tape to tape connector
VTX-PCHW8 8ft. hardwired power feed
VTX-EC Tape end cap
Note: For compatible channels, see next page. Accessories included in factory assembled components.
SHWD Smart 2.4 WiFi Dimmer, 120V, White (Use LD-ED driver)
SwitchLD SWD series All in one power supply and wall dimmer
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
CM-RF-UNV-5CH Universal 1-5 Channel Control Module
RPT-UNV-5CH
Universal 1-5 Channel Repeater Amplifier
This product is compatible with 24V LD-MD, LD-ED and PSD series drivers.
Bosca - Static White Linear Illumination System

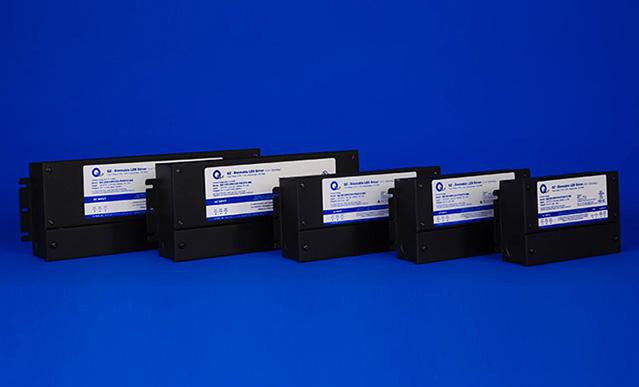

Power Supplies
See Power Supply instructions and spec sheet for wiring information. For a complete list of compatible dimmers, see Compatible Dimming Chart on the Resources page.
Universal Power Supply 1% 120VAC - 277VAC
PDCU-W- IP66 Wet Series 96 3X96 -
96 W 3X96 W
0-10V dims down to 1%, MLV/ELV/TRIAC dims down to 1%.
For a complete list of compatible dimmers, see Compatible Dimming Chart on the Resources page.
0-10V Dimming Power Supplies 0.1% 120VAC - 277VAC
PS010V- 0-10V Power Supply dims down to 0.1% 96 3X9696 Watt 3 X 96 Watt 24- 24 VDC LIN LOGLinear Logarithmic
Note: Use minimum of 2 clips or brackets per 4ft of channel.
DIMENSION
CUTTABLE EVERY 6” (7 LEDS)
Bosca - Static White
Finish Options (see page 2 for additional information)
Silver Anodized
*Max Ambient Temperature to maintain L70 of 50k+ hours. Exceeding Max Ambient Temperature may result in decreased life/output. Consult Technical Support for specific inquiries.
Color Quality (72)
Efficacy (HE48/HE64)
1.00
1.02
Code
VorteXLED Specification Series ®
5.8W, 24VDC WALL GRAZING
LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6” increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• 30° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens
SPECIFICATIONS
ELECTRICAL
•24VDC
•5.8
•90+ CRI
CERTIFICATION
•UL listed for US and Canada
•Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
•IP65
WARRANTY
•5-year warranty when paired with GM power supply OPTICS
Note: Includes 48” leads. Factory sealed. *Reel Length: XX = per foot
CONTROLLERS
VTX-TTC6 6in tape to tape connector
VTX-TTC12 12in tape to tape connector
VTX-TTC24 24in tape to tape connector
VTX-PCHW8 8ft. hardwired power feed
VTX-EC Tape end cap
Note: For compatible channels, see next page. Accessories included in factory assembled components.
SHWD Smart 2.4 WiFi Dimmer, 120V, White (Use LD-ED driver)
SwitchLD SWD series All in one power supply and wall dimmer
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
CM-RF-UNV-5CH Universal 1-5 Channel Control Module
RPT-UNV-5CH
Universal 1-5 Channel Repeater Amplifier
This product is compatible with 24V LD-MD, LD-ED and PSD series drivers.
Bosca - Static White Linear Illumination System
Power Supplies
See Power Supply instructions and spec sheet for wiring information. For a complete list of compatible dimmers, see Compatible Dimming Chart on the Resources page.
Universal Power Supply 1% 120VAC - 277VAC
PDCU-W- IP66 Wet Series 96 3X96 -
96 W 3X96 W
0-10V dims down to 1%, MLV/ELV/TRIAC dims down to 1%.
For a complete list of compatible dimmers, see Compatible Dimming Chart on the Resources page.
0-10V Dimming Power Supplies 0.1% 120VAC - 277VAC
PS010V- 0-10V Power Supply dims down to 0.1% 96 3X9696 Watt 3 X 96 Watt 24- 24 VDC LIN LOGLinear Logarithmic
Note: Use minimum of 2 clips or brackets per 4ft of channel.
DIMENSION
CUTTABLE EVERY 6” (7 LEDS)
Bosca - Static White
Finish Options (see page 2 for additional information)
Silver Anodized
*Max Ambient Temperature to maintain L70 of 50k+ hours. Exceeding Max Ambient Temperature may result in decreased life/output. Consult Technical Support for specific inquiries.
Color Quality (72)
Efficacy (HE48/HE64)
1.00
1.02
Code
VorteXLED Specification Series ®
5.8W, 24VDC WALL GRAZING
LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6” increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• 30° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens
SPECIFICATIONS
ELECTRICAL
•24VDC
•5.8
•90+ CRI
CERTIFICATION
•UL listed for US and Canada
•Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
•IP65
WARRANTY
•5-year warranty when paired with GM power supply OPTICS
Note: Includes 48” leads. Factory sealed. *Reel Length: XX = per foot
CONTROLLERS
VTX-TTC6 6in tape to tape connector
VTX-TTC12 12in tape to tape connector
VTX-TTC24 24in tape to tape connector
VTX-PCHW8 8ft. hardwired power feed
VTX-EC Tape end cap
Note: For compatible channels, see next page. Accessories included in factory assembled components.
SHWD Smart 2.4 WiFi Dimmer, 120V, White (Use LD-ED driver)
SwitchLD SWD series All in one power supply and wall dimmer
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
CM-RF-UNV-5CH Universal 1-5 Channel Control Module
RPT-UNV-5CH
Universal 1-5 Channel Repeater Amplifier
This product is compatible with 24V LD-MD, LD-ED and PSD series drivers.
Bosca - Static White Linear Illumination System
Power Supplies
See Power Supply instructions and spec sheet for wiring information. For a complete list of compatible dimmers, see Compatible Dimming Chart on the Resources page.
Universal Power Supply 1% 120VAC - 277VAC
PDCU-W- IP66 Wet Series 96 3X96 -
96 W 3X96 W
0-10V dims down to 1%, MLV/ELV/TRIAC dims down to 1%.
For a complete list of compatible dimmers, see Compatible Dimming Chart on the Resources page.
0-10V Dimming Power Supplies 0.1% 120VAC - 277VAC
PS010V- 0-10V Power Supply dims down to 0.1% 96 3X9696 Watt 3 X 96 Watt 24- 24 VDC LIN LOGLinear Logarithmic
Note: Use minimum of 2 clips or brackets per 4ft of channel.
DIMENSION
CUTTABLE EVERY 6” (7 LEDS)
DIMENSIONAL DATA
FEATURES
Seem 2 LED perimeter provides a glowing transition between ceiling and wall with flush, 1" regress, 2.5" regress or 4.0" regress lenses.
Adjustable housing option provides flexiblity with +/- 3 inch adjustability for wall-to-wall illumination.
Grazer optic provides even vertical illumination and adds drama to a space by highlighting textured walls and architectural details. Asymmetric Room Fill optic provides superior efficacy and uniformity to light rooms and corridors from the perimeter.
Connected Solutions: Integrates with wired and wireless building lighting control systems.
PoE compatible: Integrates with Power over Ethernet lighting systems via standard, low-voltage wires.
DISTRIBUTIONS
Flush Lens
2.5" Regress Grazer
Grüv® 2.5” Perimeter Cove
Recessed Linear LED
PROJECT:
Features
Designed to provide high-performance, visually comfortable, high efficient comfortable perimeter ambient lighting with a 2.5” aperture for commercial and office environments. Featuring a 2.5” regress and a choice of ceiling interface options, Gruv 2.5 Cove is an effective and aesthetically pleasing way of lighting space perimeters.
TYPE:
GRUV2.5-IS-xxx-COVE
Product Overview
Type: Recessed Linear, Direct
Wattage: 5W/ft, 10W/ft (other wattages available see p2)
Color Temp: 2700K, 3000K, 3500K, 4000K; Tunable White (2700K-5700K)
Wall-to-wall dimensions required for pattern configurations. ICR - 90º Inside Corner Right OCL - 90º Outside Corner Left
PAT-10ft 6in-ICR-20ft-ICR-10ft 6in
SPECIFICATIONS
LED System
ORDERING
Luminaire Series FSM2PR
Seem 2 LED Perimeter FSM2PR
Housing Type
Adjustable Lit Housing
(Allows for +/- 3” adjustment to overall run length. 3’ minimum luminaire length.) ALH Fixed Housing
(not recommended for wall to wall installations) FXH
Shielding
Flush Lens
(Not available with Unlit Sliding Sleeves - SSB) FL0 1.0” Regress FL1
Housing
6” 15’ 3” 18 PAT-15ft 3in-OCL-18ft-ICR-20ft 6in
Adjustable Lit Housing allows for +/- 3" of adjustment
Proprietary linear LED module incorporates premium LEDs on a robust platform to achieve excellent thermal management. LEDs are placed to promote a uniform appearance. Available in 2700K, 3000K, 3500K or 4000K with CRI>80 or CRI>90, 3 SDCM. 3500K and 4000K with CRI>90 have a cyanosis observation index (COI) of 3.3 or less. LED modules and drivers are replaceable from below.
Construction
One piece extruded aluminum housing. 20 Ga. steel end caps, bulkheads, sliding sleeve and regress leg. 4' unit weight: 17 lbs.
Optic
Reflectors fabricated of 22 Ga. steel finished in High Reflectance White powder coat. Extruded acrylic lens .07" thick with satin finish, up to 8' continuous.
Electrical
Luminaires are pre-wired with factory installed branch circuit wiring and over-molded quick connects. Standard 120-277V constant current driver includes 0-10V analog dimming. Power factor > .9. PoE compatible: Integrates with Power over Ethernet lighting systems via standard, low-voltage wires. PoE runs require an independent PoE node and power feed for each luminaire section.
Emergency Battery
Output - 10 watts for 90 minutes. Maximum mounting height: 17.9ft. Emergency Circuit with Connected Solutions (DLM1, LMFS1, LMFSD, NLT1, CLM1, NXE1, WLXP) shipped standard with leads to connect UL924 compliant device, by others.
Labels
UL and cUL Listed. Suitable for Dry or Damp Locations, indoor use only.
Finish
Polyester powder coat applied over a multi-stage pre–treatment.
Lumen Maintenance
Reported: L70 at >61,000 hours
Calculated: L70 at 270,000 hours L90 at >61,000 hours L90 at 73,000 hours (Derived from EPA TM-21 calculator. Based on typical conditions, consult factory for additional data.)
Reliability
At Focal Point, our products are designed to stand the test of time. Each luminaire is engineered using superior components, manufactured with the utmost care and rigorously tested. Contact us for reliability data.
Warranty
LED system rated for operation in ambient environments up to 25°C. 5-year limited warranty.
4' PERFORMANCE CHART
See page 3.
Focal Point LLC reserves the right to change specifications for product improvement without notification.
EMC-PF2 emergency circuit requires power feed located in last fixture section (for other locations consult factory)
PF2 extra power feed for additional circuiting
FC section at the end of the row designed to be field cuttable up to 6” to provide on-site fixture length flexibility
EMB emergency battery pack (not available for lengths under 4')
† The "A" refers to the sequential revision in a year and "XX" refers to the year of update. Updates coincide with improved performance while not changing the overall fixture aesthetic and are reflected in the published performance data. Please contact your Amerlux representative for explanations of changes.
1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.
2 Not available with IND (individual) configuration.
Focus™ Wall Wash
DIMENSIONAL DATA
FEATURES
Low profile LED wall wash provides a glowing transition between wall and ceiling and shadow-free illumination.
Housing creates 6" architectural slot with extruded splay to conceal light source from view.
Infinite lengths with the ability for pattern creation with 90° inside and outside corners.
Ease of installation and maintenance with rough-in housing and separate snap and lock LED light module.
Integrated sliding sleeve extends to meet precise dimensions of a finished space with +/- 2" adjustment.
Preferred Light: Lighting for better color rendition and human preference.
PERFORMANCE
Delivered Lumens:2700lm
Total System Watts: 28W
PRODUCT
Lumen Output: 1500-5700lm
Wattage: 15-63W
LPW: 88-100
SDCM: 3
6' Luminaire, 450 Lumens per foot
Grüv® 2.5” Perimeter Cove
Recessed Linear LED
PROJECT:
Features
Designed to provide high-performance, visually comfortable, high efficient comfortable perimeter ambient lighting with a 2.5” aperture for commercial and office environments. Featuring a 2.5” regress and a choice of ceiling interface options, Gruv 2.5 Cove is an effective and aesthetically pleasing way of lighting space perimeters.
TYPE:
GRUV2.5-IS-xxx-COVE
Product Overview
Type: Recessed Linear, Direct
Wattage: 5W/ft, 10W/ft (other wattages available see p2)
Color Temp: 2700K, 3000K, 3500K, 4000K; Tunable White (2700K-5700K)
Proprietary linear LED module incorporates premium LEDs on a robust platform to achieve excellent thermal management. Module is available in 2700K, 3000K, 3500K or 4000K with CRI > 80 or CRI>90. LED module and driver are replaceable from below.
Construction
One-piece, 22Ga. steel rough-in housing powder coated in matte satin white. Housing includes extruded splay in a matte satin white finish and steel alignment bracket. Light engine module constructed with 22Ga. steel and finished in matte satin white. Light engine must be installed after rough-in housing installation. Inside/outside corners and sliding sleeve fabricated with 22Ga. steel and include extruded aluminum splay.
Optic
Semi-specular aluminum optical reflector with .020" thick diffuser lens.
Electrical
Light engine module includes driver and wiring harness. Single power drop can power up to 40' or more in a single run. Galvanized feed box with access plate provided for every start of run luminaire and installed in the field. Emergency circuit feed locations are field located by positioning of feed box. Standard 120-277V driver includes 0-10V analog dimming. Power factor > .9.
Labels
UL and cUL listed. Suitable for Dry or Damp Locations, indoor use only. Suitable for wood ceiling applications.
Emergency Battery
Bodine BSL-310LP. Emergency output for 90 minutes. Maximum mounting height: 12ft.
Finish
Polyester powder coat applied over a multi-stage pre–treatment.
(Derived from EPA TM-21 calculator. Based on typical conditions, consult factory for additional data.)
Reliability
At Focal Point, our products are designed to stand the test of time. Each luminaire is engineered using superior components, manufactured with the utmost care and rigorously tested. Contact us for reliability data.
Warranty
LED system rated for operation in ambient environments up to 25°C. 5 year limited warranty.
6' PERFORMANCE CHART
ORDERING
Luminaire Series FWSL
Focus Wall WashFWSL
Shielding FL
Frosted LensFL
Lumen Output
250 Lumens per foot250LF
450 Lumens per foot450LF
650 Lumens per foot650LF
800 Lumens per foot800LF (Not available with DALI)
950 Lumens per foot950LF (Not available with Lutron or DALI drivers)
Color Temperature
2700K, 80+ CRI or 90+ CRI27K or 927K
3000K, 80+ CRI or 90+ CRI 30K or 930K
3500K, 80+ CRI or 90+ CRI 35K or 935K
4000K, 80+ CRI or 90+ CRI 40K or 940K
3500K, Preferred LightP35K (6" increments only)
Circuits 1C Single Circuit1C
Voltage 120/277 UNVUNV 347 Volt347 (650LF & LD1 driver only)
EMC-PF2 emergency circuit requires power feed located in last fixture section (for other locations consult factory)
PF2 extra power feed for additional circuiting
FC section at the end of the row designed to be field cuttable up to 6” to provide on-site fixture length flexibility
EMB emergency battery pack (not available for lengths under 4')
† The "A" refers to the sequential revision in a year and "XX" refers to the year of update. Updates coincide with improved performance while not changing the overall fixture aesthetic and are reflected in the published performance data. Please contact your Amerlux representative for explanations of changes.
1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.
2 Not available with IND (individual) configuration.
Certifications
The Lumencore Recessed Nano Pinhole is a high-performance LED downlight for ceiling applications. Available in an array of trims and finishes, outputs, optics, color renderings, and accessories, these luminaires are here to outperform. The Lumencore Recessed Nano Pinhole possesses a previously unseen lifespan, is quick to install, and can be used with a number of different control options. Description
Physical
Cutout
Trim
Ceiling Thickness
Weight
Ceiling Space Requirements (Length x Width x Height)
R: Round, S: Square
PR: Pinhole Round, PS: Pinhole Square, PSR: Pinhole Square Trim with Round Hole
1: 0.04 in to 1 in Ceiling Thickness 2: 1.05 in to 2 in Ceiling Thickness
3 lbs with RM installation type, 4.2 lbs with NC installation type, 7.2 lbs with PC, IC, IC/AT and RMR installation types
(Weights are approximate based on the heaviest fixture configuration)
Please consult factory if exact fixture weight is needed
Up to 15 in x 8 in x 8 in with RM installation type, Up to 15 in x 10 in x 8 in with NC installation type
Up to 18 in x 15 in x 9 in with PC/IC/ICAT/RMR installation types
(Dimensions will vary by output and color rendering, refer to Ceiling Requirements table for details.)
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Fixed pinhole focuses the beam spread through small opening. Also available in adjustable pinhole (NIOB-2RPHA).
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (22° spot, 33° narrow flood and 44° flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C ambient temperature
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28
ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
2" Iolite Round Pinhole - Dedicated Housing Required Color Temperature Finish Lumens / Wattage
NIOB-2RPH50X = 5000K * NIOB-2RPHCDX = Comfort
NIOB-2RPH27 X = 2700K
NIOB-2RPH30X = 3000K
NIOB-2RPH35 X = 3500K
NIOB-2RPH40X = 4000K
NIOB-2RPH50X = 5000K
NIOB-2RPHCDX = Comfort Dim †
= Black / Black
= Black / Matte Powder White
= Haze / Matte Powder White MPW = Matte Powder White (blank) = 800lm / 14W
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-28 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-215 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum / 1500lm / 20W
NHIOICD-220 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum / 2000lm / 24W
NHIOICD-225 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum / 2500lm / 28W
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite BB Black Pinhole Black Flange BMPW Black Pinhole Matte Powder White Flange
Example: NIOB-2RPH50XBB = 2" Iolite Round Pinhole, 5000K, Black Pinhole / Black Flange, 800lm / 14W
EBB: Emergency Battery Backup with Hanger Bar (Bodine BSL17C-C2)
EBI: Emergency Battery Backup with Hanger Bar (Iota ILBCP07-A TBTS)
5-year limited warranty
8.5W to 30W (wattage will vary based on voltage, output, color temperature, color rendering, optic, control and installation type, refer to Power Consumption table for details)
Up to 1,766 lm (Medium Faceted Reflector optic 40°, 4000K, CRI 80)
Up to 31,473 cd (Extra Narrow Spot optic 5°, 4000K, CRI 80)
L95 55,000 hrs (Ta 25 °C)
L70 225,000 hrs (Ta 25 °C)
-4 °F to 104 °F (DA1, DA2, DA3, PDA1, PDA2, SDALI1, SDALI2, DALI1, DALI2, DALIT8, LT, DMX/RDM, PH and PPH control options), 14 °F to 104 °F (NO control option), 32 °F to 104 °F (NO3, ESP control options and EBB and EBI options)
2" Iolite Accessories
2" Iolite Round Pinhole
FIELD CHANGEABLE OPTICS
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available. Note: Frosted optics and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required..
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite downlights can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Mounts trim flush to ceiling with reflector flange visible. Mud ring attaches to drywall. Requires and only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trims. Dimensions: 7-7/8" diameter 1/2" thick LED Module Optic Die-cast Trim
Standard 0-10V Dimming 1% Linear (347V) PDA1 Pro 0-10V Dimming 0.1% Linear PDA2 Pro 0-10V Dimming 0.1% Logarithmic PH Phase Dimming PPH Phase 1% Dimming PHB Pro Phase Dimming ERP PHB Series ESP Lutron® Hi-lume Premier 0.1% EcoSystem® PEQ0 Soft-on/Fade-to-Black
SDALI1
Standard DALI Dimming 1% Linear
SDALI2
Standard DALI Dimming 1% Logarithmic
DALI1
Pro DALI Dimming 0.1% Linear
DALI2 Pro DALI Dimming 0.1% Logarithmic
DALIT8
DALI-2 Dimming Type 8 (Multi-Channel Capability)
DMX/RDM
DMX/RDM (Configurable to 1, 2, or 3 Channel Control via RDM in the Field) LT Lumentalk Dimming Notes:
1. Refer to website product configurator for all exceptions.
2 Not available for 700 lumens. Not available for 1000 lumens when combined with 80 color rendering option.
3. Not available for XN and VN optics.
4. Not available for DTW, DTWP, DWH, DWW or DWWP color options.
5. Available for M, MFR, W, WFR, VW and VWFR optics only.
6. Not available with PC, IC, IC/AT or RMR installation types.
7. Available for CRI 80 only.
8. Compatible with all control options except for DALIT8.
9. Available for 1000 and 1300 lumens when combined with 90 color rendering option and MFR, W, WFR, VW or VWFR optics only.
10. MFR, WFR and VWFR faceted reflector optics are recommended for optimal performance.
11. Compatible with DA1, SDALI1, SDALI2, DMX/RDM and LT control options only.
12. Available for 1300 lumens when combined with 80 color rendering option and MFR, W, WFR, VW or VWFR optics only.
13. Compatible with LT, DMX/RDM and DALIT8 control options only.
14. Available for 700 lumens when combined with 80 or 90 color rendering options and 27K, 30K, 35K or 40K color temperature options only.
15. Available up to 1300 lumens when combined with 80 or 90 color rendering options and 27K, 30K, 35K or 40K color temperature options only.
16. Available up to 1300 lumens when combined with 80, 90 or 95 color rendering options only.
17. Available up to 2000 lumens when combined with 80 color rendering option and up to 1300 lumens when combined with 80, 90 or 95 color rendering options only.
18. Available up to 3000 lumens when combined with 80 color rendering option and up to 2000 lumens when combined with 80, 90 or 95 color rendering options only.
19. Beam angle will be affected by the Pinhole bezel. Consult factory for details.
20. Control options vary according to color temperature, color rendering, optics and installation type combination. Refer to website product configurator for details.
21. Manufacturer's choice driver. Order code may change to NO1.
22. Not available with 347V.
23. Not available for 3000 lumens.
24. Manufacturer's choice driver. Order code may change to DAMC1 or DAMC2.
25. Not available for XN and VN optics.
26. Driver cuts off power to the fixture when the control signal drops below 0.5V.
27. Manufacturer's choice driver. Order code may change to PH1 or PH2.
28. Available for 120V voltage option only.
29. Manufacturer's choice driver. Order code is subject to change.
30. Not available for 700 lumens.
31. Not available for M, MFR, W, WFR, VW and VWFR optics when combined with 1000 lumens.
32. One EcoSystem® address per fixture. Lutron® EcoSystem® Enabled dimming not available for 1300 lumens combined with VN optic. Available for static white color temperatures only.
33. Not available for 3000 lumens.
34. Available for DWH, DWW and DWWP color options only. DALI-2 Type 8 controller required.
BLANK
How to Order
(Plenum
(Plenum Rated in Accordance to
2043 & CAN/ULCS142)
Plenum Non-Insulated
4. Not available for DTW, DTWP, DWH, DWW or DWWP color options.
22. Not available with 347V.
33. Not available for 3000 lumens.
40. Cannot be combined with square ceiling cutout.
41. Cannot be combined with round ceiling cutout.
42. Longer lead times can be expected for custom RAL color finishes.
43. Refer to Cylinder specification sheet and brochure for color options.
44. Available for 700 lumens when combined with XN optic and up to 1300 lumens when combined with VN, NS and N optics. Available up to 2000 lumens when combined with NFR optic and up to 3000 lumens when combined with M, MFR, W, WFR, VW and VWFR optics. Refer to optic option notes for color rendering limitations.
45. Available for 700 lumens when combined with XN optic and up to 1300 lumens when combined with VN, NS, N and NFR optics.
Available up to 2000 lumens when combined 80 color rendering option and M, MFR, W, WFR, VW and VWFR optics. Refer to optic option notes for color rendering limitations.
46. Not available for DWH, DWW or DWWP color options.
47. Remote distance is a maximum of 75 ft. For longer remote distances, please contact Lumenpulse Application Engineering Team for application validation.
48. Ceiling springs are field changeable, consult factory and installation instructions for details.
49. Available for RM and NC installation types only.
50. Emergency battery backup options require ceiling access for test button use. The battery will operate for 90 minutes minimum and maintain a minimum of 1 fc from a
51. Emergency battery backup options are field installed and not presided by Lumenpulse. Refer to related installation instructions for details.
52. Maximum two accessories per fixture.
53. Not available for DTW and DTWP color options.
54. Available for XN, VN and NS optics only.
55. Can be combined with PD accessory only.
56. Recommended to be combined with HL or XLVR accessory only.
57. Recommended for XN, VN, NS, N and NFR optics when combined with 2200K, 2700K, 3000K, 3500K, 4000K color temperature options. Nominal 10° x 40° distribution when used with the NS optic. Recommended for MFR optic when combined with DTW, DTWP, DWH, DWW or DWWP color options only.
58. For optimal performance, it is not recommended to mix with other accessories.
59. Recommended for XN, VN, NS, N and NFR optics when combined with 2200K, 2700K, 3000K, 3500K, 4000K color temperature options only. Nominal 10° x 60° distribution when used with the NS optic. Recommended for MFR optic when combined with DTW, DTWP, DWH, DWW or DWWP color options only.
BLANK

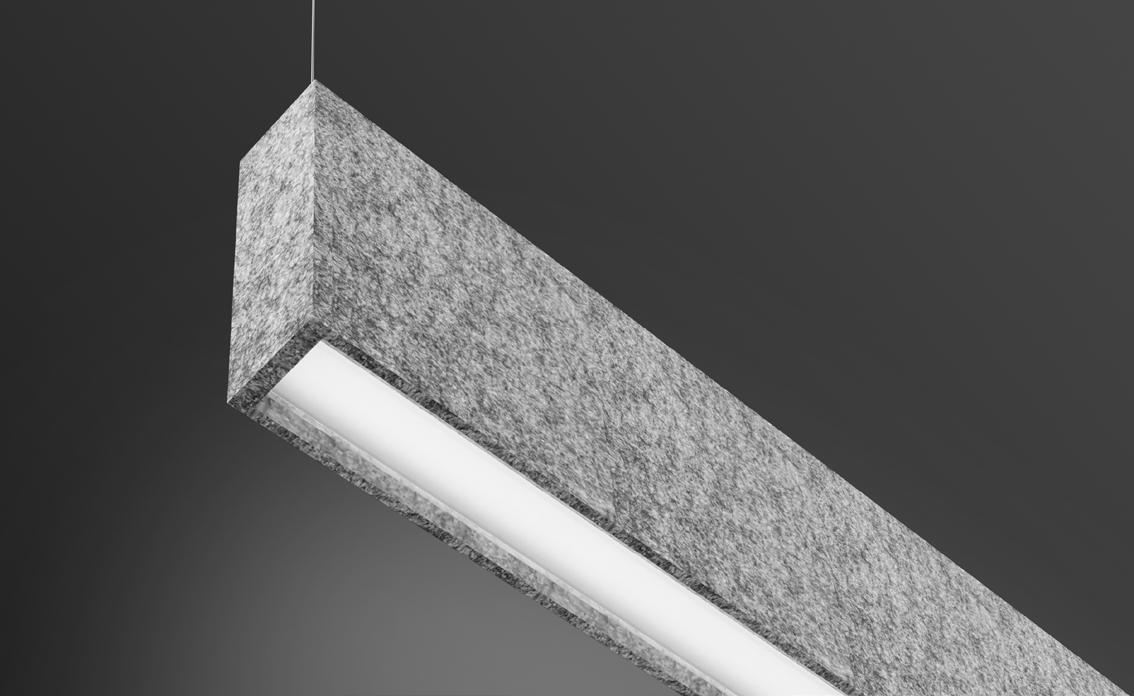

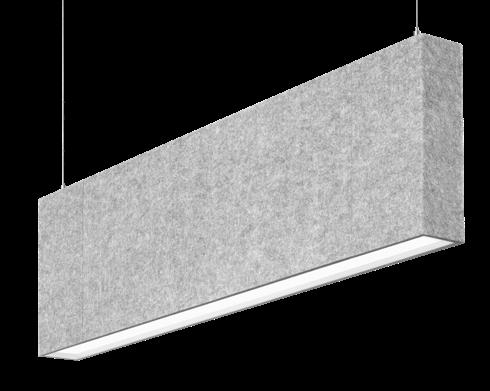

Seem® 2 Acoustic
LED DIRECT
DIMENSIONAL DATA
FEATURES
2.5" aperture sound absorbing linear direct LED luminaire..
Available in 3' to 208' lengths in 1" increments with 8", 12" or 16" nominal housing heights in straight lengths or patterns with 90˚ corners.
Frosted acrylic lens provides uninterrupted illumination, without pixels or shadows.
LED position and lens material optimized to provide the perfect blend of high performance and visual comfort.
AirCore® Technology: patented, eco-friendly technology that maximizes sound absorption and reduces ecological impact.
Pair with Seem 2 Acoustic unlit baffle, AirCore Blade®, or TruBlade® to create a coordinated look in interior spaces.
Available with The Naturals, a series of finishes that exude biophilic beauty.
ACOUSTIC PERFORMANCE
AirCore Blade companion
Seem 2 Acoustic Unlit companion
Rectangle pattern Left and right corner pattern
90˚ corner detail
The Naturals collection -Chestnut shown
2’ [609 mm]
3’ [914 mm]
4’ [1219 mm]
5’ [1524 mm]
6’ [1828 mm]
7’ [2133 mm]
AP1 Series
Acoustic Luminaire Frosted Lens
Nulite's AP1 Regolo acoustic system combines high performance LED lighting with sound absorbing PET felt to dampen noise within a space while also introducing color and texture to the ceiling plane.
ORDERING INFORMATION / Example: AP1-8H-D-FF-O-05-05-L30-UNV-D-11-PW-T1W048.
3’
* Dimensions represent fixture body length, add 1" for overall fixture dimension that includes both end caps
PATTERN DETAILS
SPECIFICATIONS
Acoustic Material
Content Housing material is 100% polyester containing up to 50% of recycled plastic bottles (PET felt) and is moisture resistant.
See page 3 for color offering. Acoustic material colors are subject to change without notice. For the most current color options, please visit focalpointlights.com/acousticsolutions. Lead times may vary depending on color.
Cleaning and Care Remove dust and debris with a clean, soft, lint-free cloth or vacuum
PET Thickness 9mm
Surface Burning Characteristcs
ASTM E84 Class A / CAN ULC S102 Flame Spread: 0, Smoke Development Index: 300
Acoustic Performance
Acoustic testing is performed on all Focal Point acoustic products and varies based on installation and configuration. ASTM C423 test reports can be downloaded from focalpointlights.com. Contact acoustic.solutions@focalpointlights.com for technical questions.
Sabins Sabins is a unit of sound absorption. It measures how well one square foot of material absorbs sound. Focal Point has averaged the Sabins per unit at four specific frequency bands representing the human speech range (250, 500, 1000, 2000 Hz) to determine the Sabins per product.
Proprietary linear LED module incorporates premium LEDs on a robust platform to achieve excellent thermal management. LEDs are placed to promote a uniform appearance. Available in 2700K, 3000K, 3500K or 4000K with both 80 and 90 CRI options. LED drivers are replaceable from above. Color accuracy <3 SDCM.
Weight- 12" height, 4' length = 18.6lbs
Optic
Reflectors fabricated of 22 Ga. steel finished in Matte White powder coat. Extruded acrylic lens .05" thick with frosted finish, up to 8' continuous. 0.02" thick clear acrylic dust cover.
Mounting
Minimum mounting height 7.5" from the ceiling.
Electrical
Luminaires are pre–wired with factory installed branch circuit wiring and over-molded quick connects. Standard 120-277V constant current driver includes 0-10V analog dimming. Power factor > .9. Power cord white as standard.
Canopy
Polyester powder coat applied over a multi-stage pre–treatment. Canopy white as standard.
Emergency Battery
Emergency output - 10 watts for 90 minutes. Maximum mounting height: 16.83 ft
See EM/EC Guide (page 5) for default locations and ordering details.
Labels
UL and cUL listed. Suitable for Dry Locations, indoor use only.
Lumen Maintenance
Reported: L70 at >61,000 hours
L90 at >61,000 hours
Calculated: L70 at 470,000 hours
L90 at 115,000 hours
Derived from EPA TM-21 calculator. Based on typical conditions, consult factory for additional data.
Reliability
At Focal Point, our products are designed to stand the test of time. Each luminaire is engineered using superior components, manufactured with the utmost care and rigorously tested. Contact us for reliability data.
Warranty
LED system rated for operation in ambient environments up to 25°C and when mounted no less than 7.5" from the ceiling. 5-year limited warranty.
4' PERFORMANCE CHART
See page 4
Focal Point LLC reserves the right to change specifications for product improvement without notification.
(Mounting hang kits ship with order. Power cable is 18” longer than suspension length. Consult factory for longer power cable lengths) 24" Cable Suspension J24__ 48" Cable Suspension J48__ 96" Cable Suspension J96__ 120" Cable Suspension J120__
(Specify canopy color White (WH), Black (BK) or Titanium Silver (TS). Example: J24WH.)
(Consult factory for sloped ceiling applications)
Surface Mounted
(30" power cable standard. Consult factory for longer power cable lengths.)
Direct/Flush to Grid DTG
Direct/Flush to Strut DTS
Factory Options
(See Ordering Guide on page 5 for ordering details for DC, EC, EM & ECD.) Black Cord BKCD
Daylight Circuit _DC
Emergency Circuit _EC
Emergency Battery Pack† _EM
Emergency Control Device† _ECD †(4' minimum length.)
Acoustic Panel Color
See page 3 for color offering
Luminaire Length ft in
(Leave blank for patterns. Luminaires are are 3/4" longer than specified and cannot be cut to length or joined in the field.) Specify length in 1" increments from 3' to 208' _ft _in
(16' maximum for DTG, consult factory for alternate lengths.)
Pattern Options
(Patterns available with LD1 and
BLANK
NO SPEC
Grüv® 2.5” Perimeter Cove
Recessed Linear LED
PROJECT:
Features
Designed to provide high-performance, visually comfortable, high efficient comfortable perimeter ambient lighting with a 2.5” aperture for commercial and office environments. Featuring a 2.5” regress and a choice of ceiling interface options, Gruv 2.5 Cove is an effective and aesthetically pleasing way of lighting space perimeters.
TYPE:
GRUV2.5-IS-xxx-COVE
Product Overview
Type: Recessed Linear, Direct
Wattage: 5W/ft, 10W/ft (other wattages available see p2)
Color Temp: 2700K, 3000K, 3500K, 4000K; Tunable White (2700K-5700K)
EMC-PF2 emergency circuit requires power feed located in last fixture section (for other locations consult factory)
PF2 extra power feed for additional circuiting
FC section at the end of the row designed to be field cuttable up to 6” to provide on-site fixture length flexibility
EMB emergency battery pack (not available for lengths under 4')
† The "A" refers to the sequential revision in a year and "XX" refers to the year of update. Updates coincide with improved performance while not changing the overall fixture aesthetic and are reflected in the published performance data. Please contact your Amerlux representative for explanations of changes.
1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.
2 Not available with IND (individual) configuration.
Basics Strip BA42
Contractor Grade Linear LED - 24 VDC
Technical information
Features
BA42 series is a Contractor Grade, efficient, field configurable and durable LED strip light. It is suitable for use in coves, under cabinets, in shelves, millwork, and virtually anywhere a linear light is required.
Mounting
BA strip is equipped with 3M™ adhesive transfer tape.
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”
• Includes Sure-Tite connectors
SPECIFICATIONS
• For proper thermal management, we recommend to mount this product in a channel
NOTE: Please see our website for updated power supply specifications and information.
DIMENSION
(5M reel)
(8mm)

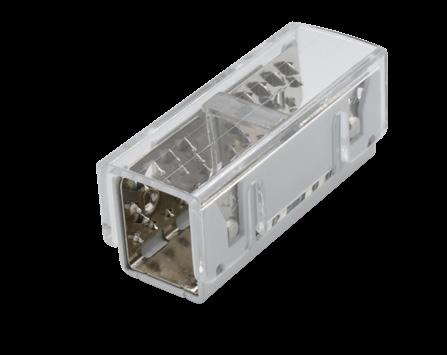

Cuttable every 2” (51mm) EST SERIES CONNECTORS
(1mm)
BLANK
LTR-P Professional Series ®
5.8W, 24VDC LED Tape Specification Sheet
LED-CHL
LED-CHL-6
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL N/A
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole N/A
LED-CHL-MC (2) Additional mounting clips for LED-CHL
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'
Basics Strip BA42
Contractor Grade Linear LED - 24 VDC
Technical information
Features
BA42 series is a Contractor Grade, efficient, field configurable and durable LED strip light. It is suitable for use in coves, under cabinets, in shelves, millwork, and virtually anywhere a linear light is required.
Mounting
BA strip is equipped with 3M™ adhesive transfer tape.
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”
• Includes Sure-Tite connectors
SPECIFICATIONS
• For proper thermal management, we recommend to mount this product in a channel
NOTE: Please see our website for updated power supply specifications and information.
DIMENSION
(5M reel)
(30M reel)
(8mm)
Cuttable every 2” (51mm) EST SERIES CONNECTORS
(1mm)
BLANK
LTR-P Professional Series ®
5.8W, 24VDC LED Tape Specification Sheet
LED-CHL
LED-CHL-6
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL N/A
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole N/A
LED-CHL-MC (2) Additional mounting clips for LED-CHL
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'

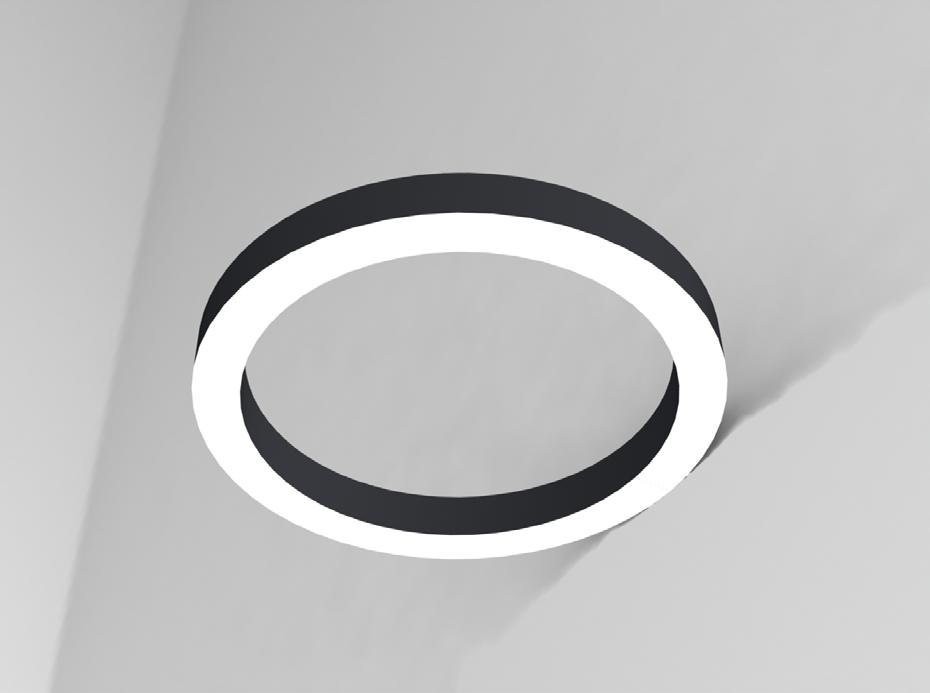

ZENLITE® ARC1
Curved LED Lighting System for New Construction
DESCRIPTION
ZENLITE® Arc1 is a curved LED Lighting System for 5/8” Drywall Walls/Ceilings that can be specified to any curvature. This fixture can be combined with Arc1 Pendant and Surface to create one continuous seamless light. ZENLITE® Arc1, along with the rest of the ZENLITE® series, allows for complete freedom of light design.
Note: Leave blank for straight run, input 360o for full circle. Use multiple sheets for combination of runs. Radii below 15” are considered specialty and may incur additional lead time.
LTR-P Professional Series
4.5W, 24VDC LED Tape
Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 20’
• Includes Sure-Tite connectors
SPECIFICATIONS
•4.5 watts per foot
•90+ CRI
•-4°F to 122°F
• For proper
BLANK
LTR-P Professional Series ®
4.5W, 24VDC LED Tape
Specification Sheet
Kelvin temperature (color) ±100K. 16’-4” and 100’ reel includes 48” lead affixed to tape. 16’-4” reel includes (3) ESTW-60 Sure-Tite connectors. 100’ reel includes (10) ESTW-60 Sure-Tite connectors
COMPATIBLE CONTROLLERS
SWD-40W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 40W, 12VDC
SWD-60W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 12VDC
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
CM-RF-UNV-5CH Universal 1-5 Channel Control Module
LineDrive Electronic Dimmable MINI Power Supply, 12VDC/24VDC
LTP Cord and Plug Power Supply, 12VDC/24VDC 25W,
PSD Electronic Dimmable Power Supply, 12VDC/24VDC 15W, 24W, 60W, 90W
NOTE: Please see our website for updated power supply specifications and information.
BLANK
LR43270
LED/CNLS/VFLEX/8/PC/KIT
RECESSED - PLASTER IN FLEXIBLE
CHANNEL SILICONE COVER
BUNDLE COMPONENTS (INCLUDED) ALSO AVAILABLE (*SOLD SEPARATELY)
END CAP SILICONE COVER 25FT SILICONE COVER ROLL LR43276 - LED/CNLS/VFLEX/CVR/SPC25ft
SPECIFICATIONS
LENGTH: MATERIAL: END CAP MATERIAL: COVER: FINISH: FIELD CUTTABLE: LOCATION:
POWER RATE: TAPE WIDTH: VERTICAL (UP/DOWN): HORIZONTAL (SIDE/SIDE):
LIGHT COMPATIBILITY:
LR44100
LR44120
LR44200
LR44300
LR44400
LR44500
LR44600
LR44101
LR44121
LR44201
LR44301
LR44401
LR44501
LR44601
LR44102
LR44122
LR44202
LR44302
LR44402
LR44602
LR44103
LR44503
LR44603
LR44104
LR44124
LR44304
LR44604
PRODUCT FEATURES
- Ultra Slim Profile
- Single Diode Provides Single Crisp Image
- Linkable Units (Link up to 7 units together)
- White, Silver, and Black Trim Finishes Available
- Side Exit Leads
- Millwork, Recessed or Surface Mount
- Dim using FDC-L10
SPECIFICATION
SPECIFICATION GUIDE
FLX Spot DVS
PRODUCT SPECIFICATIONS
Power Input 24VDC Constant Voltage Feelux or Class 2 Drivers
Color Rendering Index Ra>90
Available CCTs 2700K, 3000K, 3500K, 4000K
Energy Efficiency LED 100 lm/W, Luminaire 100lm/W
Operating Tempaerature Ranges 0-45℃ (32-113℉)
Dim with Feelux InterfacePWM/0-10V/DALI/DMX512/WIRELESS
Material Aluminum
Beam Angle 25 °, 45 °, 60 °
Lamp Life 50,000hr / 70%
Warranty 5 year
Product is approved for Closet / Storage space installation per NEC410.16 (A) (3) and NEC410.16 (C)(5) per NRTL certifiaction
MIAMI STARLITE
NMP2-LED
Source: 3.5W
PRODUCT DESCRIPTION
Josh, a slim light disk LED system for accent, under cabinet, in-cabinet, niche, and jewelry cases, and other appplications with limited space. These low-profile fixtures can be spaced together to provide excellent and even illumination on all surfaces. The Josh pucks does not produce a diode image and can be recessed or surface mounted. Combined with ultra low-profile housing, Josh offers unique features and a great ease of installation. LED technology eliminates forward heat from the fixture, also no UV or infrared rays to harm artwork, retail displays or heat sensitive foods. The luminaire produces more light than a traditional 20 watt xenon or halogen puck while consuming only 3.5 watts each puck.
FEATURES
24V Low Voltage System
300lm / 3.5W
2700K, 3000K, 3500K or 4000K @ 90+ CRI
Well suited for very small spaces 0.6" deep with 2.72" diameter
Recessed or surface mount
Easy installation
Dimmable with power supply
12", 24", 38" and 48" extension cables accessory available.
No flicker delay or warm up like compact fluorescent products
No UV light or infrared wavelengths
5-Year Limited Warranty
· Each puck comes with a 72" wire and connector
ELECTRICAL
Input Voltage: 24VDC
Lumens / Wattage: 300lm / 3.5W
Color Temperature: 2700K, 3000K, 3500K, 4000K
Color Rendering Index: 90+ CRI
Operating Temp.: 20˚C to 50˚C
Cord Length: 72" wire and connector
Maximum # of Units Per Interconnect: Six luminaires can be connected to interconnect (NMPA-6P-24). Each luminaire must connect to interconnect, cannot daisy chain.
Life Expectancy: 50,000 hours
Dimming: Specified by driver
Cabinet Installation: Up to three puck lights may be
72W max., no power fail memory, touch on/off and hold to dim.
Direct Plug-In LED Driver
NATL-524W 24V 24W
NATL-545W 24V 45W
Input Voltage: 120V Cable Length: 6’
Class II Hardwire LED Driver MLV Dimming
NMT-48/24C2D1 48W
Input Voltage: 120V
Dimming: Magnetic Low Voltage
Includes: 10’ Power Line Connector
Wire Clip, Plastic - 10pk
NATL-404W J-Clip
NATL-405W Over the Wire
NATL-406W Square Clip
Class II Hardwire LED Driver with Regulator, MLV Dimming
NMTD-60/24D 24V 60W
NMTD-96/24D 24V 96W
Input Voltage: 120-277V
Dimming: Magnetic Low Voltage
Regulator: Integral regulator for constant current and voltage
Includes: 10’ Power Line Connector
Kurba Small Vertical Flexible LED strip 24 VDC
Model KBS LEDs/ft 43 Light
Section Start/End Power Feed Options
Features
Kurba Small Vertical is a direct view, small profile, energy efficient and flexible LED strip suitable for wet locations capable of vertical/top bends up to 2" radius. Built with robust factory made power feeds or joiners, Kurba Small Vertical mounts to a specifically designed aluminum extruded channel.
Applications Outdoor wet location
Operating Voltage 24VDC
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Average Life 50,000 hours
Constraints
Dimming
Low voltage dimmer and class 2 dimming power supply required
Approvals
Class 2 wet listed, IP65
Warranty 3 years
Ordering Code
Illuminated surface shown in gray
Illuminated surface shown in gray Bend Direction Bend LED in these positions only to avoid damage Prohibited Bends Twisting or bending LED in these positions will cause damage
Note: for horizontal bends refer to Luminii KBM series Do not make sharp bends near the endcap
Power Feed Locations
SideFlex
Flexible Neon LED Tape
Specification Sheet
PRODUCT OVERVIEW
A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables horizontal bending that conforms tape around curvilinear surfaces.
FEATURES
•Multiple power feed options
•Tape encased in UV stable silicone (UV protected)
•Wireless control with LUXcontrol App and controller
•2700K, 3000K, 4000K / Amber, Blue, Green or Red
•120° viewing angle
•Maximum run: 32'-8"
•Cuttable and joinable in two inch increments
•Each run requires an end cap (sold separately)
•No tools required for capping and joining
•Mounting clips included (recommend use one per foot)
SPECIFICATIONS
ELECTRICAL CERTIFICATION
•24VDC
•3W per foot
•UL
•IP65
PHOTOMETRIC WARRANTY
•90+ CRI
•5 years when paired
AMBIENT OPERATING TEMP with GM power supply
•-13°F - 131°F
ORDERING INFORMATION
White
NV24S-3W-27K-16 16'-4" 215lm 2700K
NV24S-3W-27K-32 32'-8" 215lm 2700K
NV24S-3W-30K-16 16'-4" 230lm 3000K
NV24S-3W-30K-32 32'-8" 230lm 3000K
NV24S-3W-40K-16 16'-4" 215lm 4000K
NV24S-3W-40K-32 32'-8" 215lm 4000K
Colors
NV24S-3W-AM-16 16'-4" N/A Amber
NV24S-3W-AM-32 32'-8" N/A Amber
NV24S-3W-BL-16 16'-4" N/A Blue
NV24S-3W-BL-32 32'-8" N/A Blue
NV24S-3W-GR-16 16'-4" N/A Green
NV24S-3W-GR-32 32'-8" N/A Green
NV24S-3W-RD-16 16'-4" N/A Red
NV24S-3W-RD-32 32'-8" N/A Red
Max Run: 32'-8"
Kelvin temperature (color) ±100K.
NOTE: Every reel includes (1) NV24S-PF-EF (tape-to-power feed with 48" of lead). 16' reel includes (16) NV24S-MC-A mounting clips and screws. 32' reel comes with (32) NV24S-MC-A mounting clips and screws.
Amber 3000K Blue Green Red
SideFlex Cutaway
Kurba Small Vertical Flexible LED strip 24 VDC
Mounting Accessories & Optional Connectors
MB-KBS-F-ST Mounting Bracket with Grip
Aluminum mounting bracket providing grip. For use with light strip mounted to the ceiling. 1 recommended every 8 in.
MC-NFS-KBS-F-78 Mounting Channel with Grip, 78"
Aluminum mounting channel providing girp. For use with light strip mounted to the ceiling.
The above connectors, channels, mounting clips and caps are for the exclusive use of NeoVision24 SideFlex Neon Tape and are ordered separately.
Splice Connector
NV24S-SP
NV24S-EC
Bottom Feed
NV24S-PF-BF8
Tape Configuration Example
Aluminum Channel
NV24S-CHL-A4
NV24S-CHL-A6
2-1/2" Minimum Bend Radius
NV24S-CHL-A4
NV24S-CHL-A6
NOTE: Each run requires an end cap (sold separately)
NV24S-FLEX-CHL
NV24S-EC
NV24S-PF-EF8 End Cap
NV24S-SP
Mounting Clips
NV24S-MC-A
Tape-to-Tape Connector
NV24S-TTC12 |
NV24S-TTC6
NV24S-TTC24
Flexible Mounting Channel
NV24S-FLEX-CHL
NV24S-PF-EF8
NV24S-EC
NV24S-MC-A
NV24S-FLEX-CHL
NV24S-PF-BF8
NV24S-TTC6
NV24S-TTC12
NV24S-TTC24
NV24S-CHL-A4
NV24S-CHL-A6
Kurba Small Vertical Flexible LED strip 24 VDC
Power Supplies
See Power Supply instructions and spec sheet for wiring information. For a complete list of compatible dimmers, see Compatible Dimming Chart on the Resources page.
Universal Power Supply 1% 120VAC - 277VAC MODEL POWER OUTPUT
PDCU -D - IP20 Dry Series 30 60 96 3X96-30 W 60 W 96 W 3X96 W 24- 24 VDC
PDCU-W- IP66 Wet Series 96 3X9696 W 3X96 W
0-10V dims down to 1%, MLV/ELV/TRIAC dims down to 1%.
For a complete list of compatible dimmers, see Compatible Dimming Chart on the Resources page.
0-10V Dimming Power Supplies 0.1% 120VAC -
PS010V-3X96
2.60"4.95"
MLV, & ELV Compatible Dimmers
(IP20)
BLANK
Project Name
Type Catalog / Part Number
Colors
and Color Temperatures
Certifications
Description
Features
Mounting Options
Light Direction
Length
Direct Lighting Output (Nominal Lumens)
Warranty
Performance
Maximum Delivered Output
Maximum Delivered Intensity
Lumen Maintenance
UGR
Physical
Weight
Housing Material
Environmental
Environment
The Lumencore Cylinder Nano Pendant is a high-performance LED luminaire that is ideal for commercial, residential or hospitality applications and delivers up to 2000 lumens from a 2.75 in diameter. The Lumencore Cylinder Nano Pendant comes in a number of finishes, or can be color-specified to fit your taste. Its accessories, beam angles, trims, and optics are easily and quickly changeable in the field.
Electrical cable mounting (flat canopy or deep canopy)
Stem mounting (flat canopy or deep canopy)
Track mounting (2 Circuit TEK track only)
Direct lighting
13 in, 18 in, 23 in
700lm, 1000lm, 1300lm, 2000lm
5-year limited warranty
Up to 2,074 lm (wide faceted optic 60°, 4000K, CRI 80)
Up to 29,582 cd (extra narrow spot optic 5°, 4000K, CRI 80)
L95 55,000 hrs
L70 225,000 hrs
< 19 (not applicable to WW and DAS distributions)
Up to 4.75 lbs
Aluminum
Damp location (interior applications only)
Front view
Bottom view

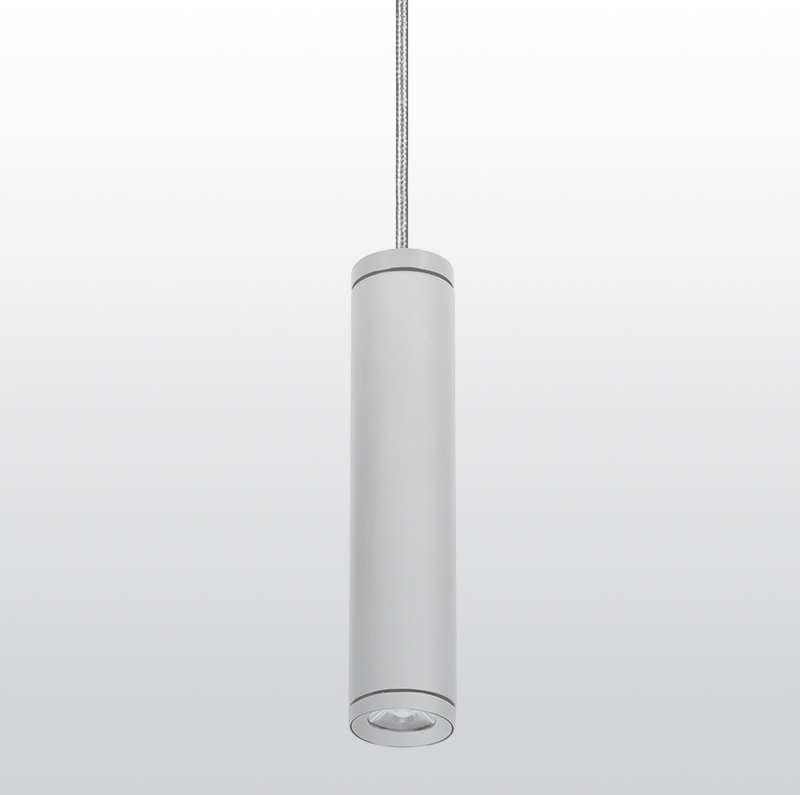

Rook® 250 2.5” Round Pendant, Direct Only
PROJECT:
Features
TYPE:
The Rook 250 pendant is the ultimate, all-in-one cylinder lighting fixture, with integral drivers that allow for quick and easy installation and the ability to control direct and indirect lighting separately. Measuring 9” in height, the Rook 250 offers single-point suspension, surface and single-circuit track mounting options and maximizes a 2.5” aperture with several performance outputs and finishes to stir and grab attention.
Lutron Hi-lume® EcoSystem Premier 0.1% dim with soft-on& fade-toblack, 120V/277VAC (consult factory for availability)
Product Overview Certifications
Data is based on 3000K-83 120V IES files available on website.
How to Order
CA50BK
Cable Pendant Black (50 in, Field Adjustable)
CA100BK Electrical Cable Pendant Black (100 in, Field Adjustable)
CA250BK
Cable Pendant Black (250 in, Field Adjustable)
CA50WH
Cable Pendant White (50 in, Field Adjustable)
CA100WH
Cable Pendant
(100 in, Field Adjustable)
CA250WH
Pendant
(250 in, Field Adjustable)
ACC50BK
Pendant Track Mount Aircraft Cable Black (50 in, Field Adjustable)
ACC100BK
Pendant Track Mount Aircraft Cable Black (100 in, Field Adjustable)
ACC250BK
Pendant Track Mount Aircraft Cable Black (250 in, Field Adjustable)
ACC50WH Pendant Track Mount Aircraft Cable White (50 in, Field Adjustable)
ACC100WH
Pendant Track Mount Aircraft Cable White (100 in, Field Adjustable)
ACC250WH
Pendant Track Mount Aircraft
White (250 in, Field Adjustable)
Rook® 250 2.5” Round Pendant, Direct Only
Ordering Information
RK250RD
RK250RD round direct, integral driver
6 6W (643 lm)
8 8W (845 lm)
10 10W (1028 lm)
MW matte white
MB matte black
SLV matte silver
12 12W (1212 lm) _____ custom RAL finish
14 14W (1395 lm)
16 16W (1561 lm)
18 18W (1671 lm)
20 20W (1836 lm) 4
Junction Box
C canopy, 120V-277V
CDC conduit canopy, 120V-277V
RC reduced canopy, 120V-277V
Track (for use with LE/TE driver only)
Cord (nominal overall length, field adjustable) MW matte
C4 cord, 4’
C8 cord, 8’
Stem (junction box mounting only, nominal overall length, stems can be field cuttable)
TN1 Global GES/H-style, single circuit, 120V RS4 rigid stem, 4’
TEK Global TEK, 2 circuit/2 neutral, 120V RS8 rigid stem, 8’
TN3 Global XTS, 3 circuit, 120V SS4* swivel stem, 4’
TN2 Global HTEK, 2 circuit/2 neutral, 277V
SS8* swivel stem, 8’
CT J-style, single and dual circuit, 120V * C or RC mounting only
LOL L-style, single circuit, 120V
Surface (junction box mounting only)
SM surface mount
HILUME-P-ECO Lutron Hi-lume® EcoSystem Premier 0. 1% dim with soft-on and fade-to-black, 120V/277VAC (consult factory for availability)
MB matte black
SLV matte silver
HEX hexcell louver
Decorative
GDC† 1/2” glow lens, direct, clear
GDF† 1/2” glow lens, direct, frosted † Consult factory for custom length and/or for availability.
How to Order
CR80 CRI 80+
CR90 CRI 90+
CR95 CRI 95+
RCR80 Radiant CRI 80+
RCR95 Radiant CRI 95+
DTW Dim to Warm (2700K to 2200K)
DTWP Dim to Warm Plus (3500K to 1800K)
DWH Dynamic White (2700K to 6500K)
DWW Dynamic Warm White (2200K to 3000K)
DWWP Dynamic Warm White Plus (2200K to 3500K)
0-10V Dimming 1% Linear
0-10V Dimming 1% Linear Curve
0-10V Dimming 1% Logarithmic Curve PDA1 Professional 0-10V Dimming 0.1% Linear Curve
PDA2 Professional 0-10V Dimming 0.1% Logarithmic Curve
SDALI1 Standard DALI Dimming 1% Linear Curve
SDALI2 Standard DALI Dimming 1% Logarithmic Curve DALI1
DALIT8
DALI-2 T8 Enabled Dimming 1%
Lumentalk Enabled Dimming DMX/RDM
9. Longer lead times can be expected for custom RAL color finishes.
17. Available for CR80 only.
18. Not available for XN and VN optics.
19. Available for 2200K, 2700K, 3000K, 3500K, 4000K and DWH, DWW or DWWP color options only.
20. Radiant CRI options available for 3000K only.
21. Available for 700 lumens when combined with CR80 or CR90 color rendering options only.
22. Available for 700 and 1000 lumens when combined with CR80 or CR90 color rendering options only.
23. Available up to 1300 lumens.
24. Optical accessories are not available for WW or DAS optics.
25. The color of the true asymmetric wallwash baffle matches the fixture bezel.
26. The color of the double asymmetric baffle is metallic gray.
27. Control options vary according to color temperature, color rendering and optics combination. Refer to website product configurator for details.
28. Manufacturer's choice driver. Order code may change to NO1.
29. Available up to 1300 lumens (CR80, RCR80, CR90, CR95 or RCR95) for NS, N, WW and DAS optics. Available up to 2000 lumens (CR80, RCR80, CR90, CR95 or RCR95) for M, MFR, W and WFR optics.
30. Not available for DTW, DTWP, DWH, DWW or DWWP color options.
31. Manufacturer's choice driver. Order code may change to PH1 or PH2.
32. Available for 120V voltage option only.
33. Manufacturer's choice driver. Order code is subject to change.
34. Manufacturer's choice driver. Order code may change to DAMC1 or DAMC2.
35. Not available for XN and VN optics.
36. Available up to 2000 lumens when combined with CR80 color rendering option. Available up to 1300 lumens when combined with CR90 or CR95 color rendering options.
37. Driver cuts off power to the fixture when the control signal drops below 0.5V.
38. Not available for DWH, DWW or DWWP color options.
39. Available for DTW and DTWP color options only, when combined with 1000 lumens.
40. Consult factory for other DALI control options for static color temperatures.
41. Available for DWH, DWW and DWWP color options only. DALI-2 Type 8 controller required.
42. Consult factory for DALIT8 control option.
43. Available up to 1300 lumens (CR80, RCR80, CR90, CR95 or RCR95).
44. A Lumentranslator 2 (LTL2) and LumenID (LID) must be specified for Lumentalk applications. Consult Lumentranslator 2 and Lumentalk pages and specification sheets for details.
45. A Control Box (CBX-DS or CBX-ST) and lumenID (LID) must be specified.
46. Accessories specified in the fixture code are factory installed but can also be changed in the field. Refer to installation instructions for details. To order accessories separately, refer to the Optical Accessories section of the specification sheet.
BLANK
2" LED Low Profile Slot LED
LED Linear Recessed Low Profile Slot Flush Snap-in Lens
Job Name
Fixture Type
Low profile flush lens slot utilizing high performance LED boards, snap-in lenses and full reflectors. Use in ceilings where low profile is required. Available with plaster, flange or grid trim options for new construction and flange or flangeless trims for retrofit installations.
Features
- Star fire's proprietary EvenGlow™ system provides uniform illumination from end-to-end without lamp imaging, bright spots or shadows at any length
- Fixt ures fabricated to any length without custom engineering
- Exce ptional lumen per watt efficiency
- High e fficiency, low cost, Tunable Wht. and Dim-to-Warm options
- RGB & RG BW (3000K & 3500K) option
- High p erformance snap-in lenses; flush diffusion, asymmetric, flush batwing, or drop with illuminated end caps, plus white or specular louver options
Fixture Specifications
- Hou sing/Trim: Heavy-duty extruded aluminum
- Finish: White (std), custom available
- Weig ht: Approx. 3.2 lbs. per linear foot
- UL L isted, (indoor non-condensing) & CCEA Approved
LED Specifications/Photometry: Page 2
Electrical
- Power consumption: Per specification based on LED configuration
- Input Voltage: 120-277V universal driver
- Ambient operating range: -4 °F to +100 °F
- Inte gral electronic drivers
- Inte gral wiring bus between fixture sections
- RGB & RG BW Power Supply and DMX Decoder are external
- Dimming: 0-10V 1% standard, contact factory for options
- Easy A ccess wiring compartment – all connections can be made without disassembling the fixture. 7/8" knockouts provided for top or end.
Ceiling Cutout: Refer to Page 3
Options (Consult factory)
- 6ft ar mored whip, may be factory installed
- Occupancy sensor, daylight control module
- EM bat tery pack in 4ft segments. Delivers 1000+ total lumens for 90 mins (depending upon configuration). Specify location. (Not for use with RGBs)
- HVAC, fire sprinkler, surveillance or public address systems integration
VL2-LO
Carisma® 2”
Recessed Linear
PROJECT:
Features
TYPE:
Carisma® Recessed is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma®’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . Wide range of ceiling trim options accommodate most ceiling types.
The Carisma® Recessed offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma® can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounted options, providing designers with the versatility to light up a space with their Carisma®.
Product Overview
Type: Direct distributrion with Recessed Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
CRI: 80+ typ. or 90+ typ.
Dimming (wired): 0-10V, 1% dim (standard) Lutron LDE1 Hi-lume® 1% Soft-On/Fade-to-Black DALI, 1% dim
Code compliant for use in fire-rated assemblies up to a maximum of 2-hours
STC/IIC Sound Rated
Chicago Plenum
RoHS Compliant
DarkSky Approved 1
Module and Trim
UL Listed for Wet Location/IP66
Configurations Available 2
NSF Listed 3
1
2
3 White and Black Finish Only
Project:
GIMBAL HIGH OUTPUT LED DOWNLIGHT 3.5"
Single CCT and 5 CCT selectable
The LED Gimbal high output downlight combines a sleek design with a small aperture without any compromise to the light output. Choose between single color temperature
3 000-2 200, 3 000 and 4 000 K or integrated 2 700/3 000/3 500/4 000/5 000 K selectable temperature. This series is perfect for both residential and commercial applications. This downlight is also available in bulk packs of 10 units, perfect for contractor projects!
FEATURES AND SPECIFICATIONS
• Construction
Physical Characteristics
Trim finish white, black and brushed nickel
Die cast aluminum housing
Available in 3.5" round and square
24° tilt
40° beam angle
Clear polycarbonate
CC T selectable switch is discretely placed on the back of the LED module
Includes an FT6 rated cable with DC 2.1 connector between driver and fixture that is approved for use in plenums and suspended ceilings
Mounting
LED module with LED driver easily installs with included quick connect wire
Torsion spring mounting clips
Cutting hole 3 1/2" (9.0 cm) to 4 1/4" (10.8 cm) for the round version
Can cover a retrofit application cutting hole
Cutting hole 3 1/2" (9.0 cm) for the square version
Available in both 3 000-2 200, 3 000 and 4 000 K single color temperature, or 2 700/3 000/3 500/4 000/5 000 K
selectable color temperature
90+ CRI
120 V
120-277 V only available with bulk pack option
Estimated lifespan of 50 000 hours to L70 Phase cut (ELV / Triac) dimming standard 0-10 V dimming standard only available with bulk pack option
Operating temperature: -30 °C to 45 °C (-22 °F to 113 °F)
• Compliances
cETLus listed for wet locations
Meets requirements of ICES-005 issue 5 class B for use in residential applications IC rated for direct contact with insulation Airtight as per ASTM E283 standard
PRODUCT
Warm Dim (3000K−1800K)
M SERIES TRIM
Wide Flood (60 ° )
Tunable White (4000K−1800K) 7 LS Linear Spread (40°x 20°)
(6500K−2700K)
M4TRS Standard WH White [Blank] None
M4TRH Hyperbolic 10 BK Black
M4TRP Pinhole 3,10 BZ Bronze
M4TRL Wall Wash/Sloped Ceiling 11 CW Clear Diffuse, White Flange
Open, Frosted 5,12,13
Closed, Frosted 5,12,13
Decorative: Closed, Clear, Frosted Side 5,12,13 CC Custom Color (RAL Colors)
Decorative: Closed, Clear, Frosted Inside 5,12,13
Flangeless 14,16 DF Dead Front 12,15 IP Marine Grade/IP66 17 (Coming Soon)
M4XRMUD Flangeless Mud Plate (Required for Flangeless Trim drywall installation)
M4KRTEMPLATE Router Template (Recommended for wood installation)
M4CREXT Extension Collar 1(for ceiling install up to 3")
1 Only available in Standard rating
2 Not available in DALI-2 dimming
3 Only available for 750 lm or 1000 lm
4 Not available for Flangeless applications
5 DarkSky approved only applicable to configurations with CCT
Options 3000K or less and not compatible with Decorative trims
6 Only available in 1000 lm
7 Only available in 1000 lm, DALI-2 dimming
8 Not available in Warm Dim CCT or Tunable White
9 Only available in 1000 lm Tunable White or Warm Dim and 1250 lm static CCT
10 Only available in White, Black or Custom Color finish
11 Recommended with General Ambient beam spread for general wallwashing and Spot beam spread for Sloped Ceiling; Not available in Bronze finish
12 Only available in Standard style, White finish
13 Only available with General Ambient beam spread
14 Not available for Decorative option, Concrete Construction or Remodel housing; Not available in Clear Diffuse finish
15 Only available for 750 lm
16 Mudplate is required for all Flangeless trims except for wood ceiling applications
17 Only available in Black or White Finish; Only Compatible with New Construction housing in Standard Rating
This table shows dimmers that have been tested and have demonstrated proper operation under normal conditions. Each installation being unique, various factors such as load, common neutrals or other electrical products on the circuit can, in certain instances, cause variance in system performance. Read and comply to the dimmer installation instructions. Consult dimming system manufacturer for additional support in operation. Some dimmers may require more than one product for stable operation. Stanpro recommends to use dimmers designed to work with LED products. Older dimmers designed for incandescent products may cause erratic operation.
DIMENSIONS AND WEIGHTS
Data is based upon tests performed in a controlled environment. Actual performance can vary depending on operating conditions. All products are subject to change or may be discontinued any time without notice. Please contact your Stanpro customer service representative to confirm inventory levels at time of order.
F4NC 4" New Construction Fire Rated Shallow Junction Box
• Thinnest-in-class S Series delivers the pure, smooth light a nd the elegant look of a high-end recessed downlight
• Features multiple ratings to meet the demands of a wide range of situations
• The 4" Round and Square lights match the appearance of re cessed lights
LIGHT OUTPUT & DISTRIBUTION
Module Downlight
Lumens (Power)
750 lm (9.0W), 1000 lm (12.0W)
Color Quality
90+ CRI, <3-step SDCM
Color Temperature
Optics
General
POWER & CONTROLS
Input Voltage
120V only (TRIAC/ELV), 120/277V (0-10V)
Dimming
TRIAC/ELV (5%), 0-10V (1%)
Emergency Lighting
Optional Emergency LED Driver with integrated Test Switch for lighting up to 90 minutes in event of power failure
RATINGS & CERTIFICATIONS
Housing
IC (Insulation Contact) Rated
ASTM E283 Certified Air Tight
STC/IIC Sound Rated
RoHS Compliant Code compliant for use in fire-rated assemblies up to a maximum of 2-hours
Module
UL Listed for Wet Location
UL Closet Rating Compliant (750 lm only)
Additional Options
Non-Conductive Dead Front
Warranty
5 year limited warranty; 50,000 hours
MIAMI STARLITE TYPE UF2
ELO LED Surface Mount Luminaire with Selectable Lumens & CCT
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 5/8" surface mounted luminaire with two tunable switches; Selectable Lumens allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance. Luminaires are available in 4", 6" or 8" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Selectable Lumen switch changes output from 700lm to 1550lm
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120-277VAC input; 0-10V dimming
Available in three sizes (4", 6" or 8")
cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with two switches (Selectable Lumens & CCT).
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Color Temperature: Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
Color Rendering Index: 90+ CRI
Operating Temperature: -25°C to 40°C
Lifetime: >50,000 hours (L70)
Dimming: 0-10V
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
LABELS AND LISTINGS
· cETLus Listed for Wet Locations
FCC certified
5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022 Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1)
Source: 7W to 16W LED 700lm to 1550lm Example: NELOSW-8RTWMPWLE4 = 8" ELO LED Surface Mount Luminaire with Selectable Lumens & CCT, Matte Powder White finish
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
LED Surface Mount Luminaire with Selectable Lumens & CCT
/ Finish
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Includes Sure-Tite connectors
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
SPECIFICATIONS
CERTIFICATION
•ETL (12V) / UL (24V)
•Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
•Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space
WARRANTY
•5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
LED Tape Specification Checklist:
BLANK
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
RECOMMENDED DRIVERS
LD-XD-UNV LineDrive Electronic Multi-Dimmable Power Supply, 12VDC or 24VDC 20W, 40W, 60W, 96W, 180W, 200W, 300W
LD-E-UNV LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 200W, 300W
LD-MD-UNV LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 150W, 200W, 300W View Spec Sheet
LD-EDM LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC 60W
LTP Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
PSD Electronic Dimmable Power Supply, 12VDC or 24VDC 15W, 24W, 60W, 90W
DIMENSION
16’-4” (5M reel) 100’ (30M reel)
(8mm)
.039” (1mm) Cuttable every 2” (51mm)
CONNECTORS
BLANK
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
LED-CHL
LED-CHL-6
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL N/A
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole. N/A
LED-CHL-MC (2) Additional mounting clips for LED-CHL
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'
10104-04
AERO TWO LIGHTVANITY
BLACK
in Black by Livex Ligh ng from the Aero collec on
Factory Stock: 3740
ADD TO WISHLIST
Add a dash of character and radiance to your home with this vanity sconce. This two-light xture from the Aero Collec on features a black nish with two sa n opal white glass cylinder shades on either side. The clean lines of the back plate complement the cylindrical glass shades crea ng a minimal, sleek, urban look that works well in most decors. This xture adds upscale charm and contemporary aesthe cs to your home.
Width: 18.00"
Height:4.25"
Extension: 4.00"
Bulb Type: B10
Bulb Base: Candelabra
Bulb Quan ty: 2
Wa age: 60.00
Measurements
Canopy: 4.25`` Dia X 0.75`` Depth Height: 4.25 Width Diameter: 18.00
Bulbs
Bulb Base: Candelabra
Bulb Type: B10
Maximum Wa age: 60.00
Number Of Bulbs: 2
Addi onal Info
Bulbs Included: No Country Of Origin: China
Dimmable: No Extension: 4.00
Manufacturer Finish: Black Material: Steel
Safety Ra ng: Damp SKU: 5141781
UPC: 847284076587
1
10104-04
AERO TWO LIGHTVANITY
BLACK
in Black by Livex Ligh ng from the Aero collec on
Factory Stock: 3740
ADD TO WISHLIST
Add a dash of character and radiance to your home with this vanity sconce. This two-light xture from the Aero Collec on features a black nish with two sa n opal white glass cylinder shades on either side. The clean lines of the back plate complement the cylindrical glass shades crea ng a minimal, sleek, urban look that works well in most decors. This xture adds upscale charm and contemporary aesthe cs to your home.
Width: 18.00"
Height:4.25"
Extension: 4.00"
Bulb Type: B10
Bulb Base: Candelabra
Bulb Quan ty: 2
Wa age: 60.00
Measurements
Canopy: 4.25`` Dia X 0.75`` Depth Height: 4.25
Width Diameter: 18.00
Bulbs
Bulb Base: Candelabra
Bulb Type: B10
Maximum Wa age: 60.00
Number Of Bulbs: 2
Addi onal Info
Bulbs Included: No Country Of Origin: China
Dimmable: No Extension: 4.00
Manufacturer Finish: Black Material: Steel
Safety Ra ng: Damp SKU: 5141781
UPC: 847284076587
1
ProjectName:
Part Number:
VERSA FILAMENT SERIES
FEATURES
Type:
Date:
Suitable to replace 25W, 40W, 60W and 75W incandescent
High CRI and R values (R9 50, R13 95) deliver richer reds and natural skin tones
Full glass construction
Provides an excellent option for energy savings in any fixtures
320° omnidirectional beam angle
Suitable for use in totally enclosed fixtures
Suitable for use in wet locations
Wider fixture operating temperature: -13°F to 113°F (-25°C to 45°C) **
Rated Lifetime (L70): 25,000hrs for Candle series, 15,000hrs for A19 series
3 year limited warranty ***
9FA19DIM/927/RC
9FA19DIM/930
9FA19DIM/940
9FA19DIM/950
10FA19DIM/930
10FA19DIM/940
2FB11DIM/927
2FB11DIM/927/E26
3.3FB11DIM/927/RC
3.3FB11DIM/927/FR/RC
3.3FB11DIM/820/A
3.3FBA11DIM/820/FT/A/RC
5.5FB11DIM/927/RC
5.5FB11DIM/927/E26/RC
Please visit www.greencreative.com for Limited Warranty terms.
Smooth dimming with most forward and reverse phase controls *
Available in 2700K, 3000K, 4000K and 5000K color temperatures
• 8" round area light for lighting smaller spaces including bathrooms, closets and kitchens
• 18" x 4" rectangular area light perfect for narrow applications such as corridors or kitchen islands
• Extends just 0.6" below the ceiling plane to minimize visual profile
• Features multiple ratings to meet the demands of a wide range of situations
LIGHT OUTPUT & DISTRIBUTION
Module Downlight
Lumens (Power)
1500 lm (17.0W)
Color Quality
90+ CRI, <3-step SDCM
Color Temperature
2700K 3000K
POWER & CONTROLS
Input Voltage
RATINGS & CERTIFICATIONS
Housing
IC (Insulation Contact) Rated
ASTM E283 Certified Air Tight
STC/IIC Sound Rated
RoHS Compliant Code compliant for use in fire-rated assemblies up to a maximum of 2-hours
Module
UL Listed for Wet Location
Warranty
5 year limited warranty; 50,000 hours
120V only (TRIAC/ELV), 120/277V (0-10V)
Dimming
TRIAC/ELV (5%), 0-10V (1%)
Emergency Lighting
Optional Emergency LED Driver with integrated Test Switch for lighting up to 90 minutes in event of power failure 3500K
MIAMI STARLITE TYPE UF6
ELO LED Surface Mount Luminaire with Selectable Lumens & CCT
Source: 7W to 16W LED 700lm to 1550lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 5/8" surface mounted luminaire with two tunable switches; Selectable Lumens allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance. Luminaires are available in 4", 6" or 8" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Selectable Lumen switch changes output from 700lm to 1550lm
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120-277VAC input; 0-10V dimming
Available in three sizes (4", 6" or 8")
cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver with two switches (Selectable Lumens & CCT).
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Color Temperature: Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
Color Rendering Index: 90+ CRI
Operating Temperature: -25°C to 40°C
Lifetime: >50,000 hours (L70)
Dimming: 0-10V
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
LABELS AND LISTINGS
· cETLus Listed for Wet Locations
FCC certified
5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022 Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1)
LED Surface Mount Luminaire with Selectable Lumens & CCT
/ Finish
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
NELOSW-8RTWMPWLE4 = 8" ELO LED Surface Mount Luminaire with Selectable Lumens & CCT, Matte Powder White finish
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com

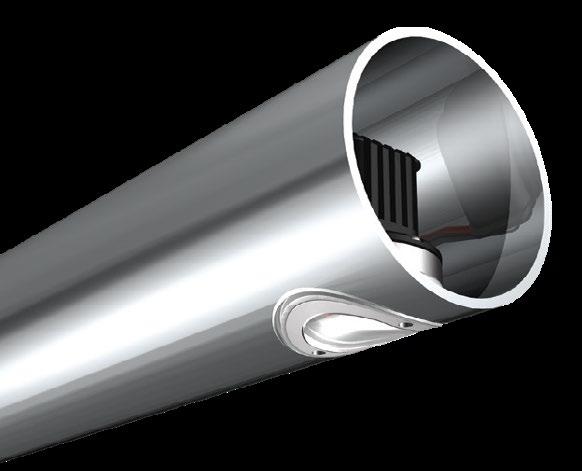

Nebula Bollard luminaire head consists of one source.
NEBULA BOLLARD CONFIGURATION # LUMINAIRE HEAD DOWN LIGHT
NEBULA BOLLARD - ST
NEBULA BOLLARD - PR
NEBULA BOLLARD - RGBW
NEBULA BOLLARD LUMINAIRE HEAD DOWN LIGHT ST
Narrow spot
35° Medium narrow spot
NEBULA BOLLARD - A
NEBULA BOLLARD - SNOOT
NEBULA BOLLARD - REFRACTOR SCREEN
DateRev.0109/2022
Transparent flat glass
flat glass
NEBULA BOLLARD - FINISH
UJE-10555
Jet 47 Square Single Head Bollard
Construction
Aluminum Less than 0.1% copper content – Marine Grade 6060 extruded & LM6 Aluminum High Pressure die casting provides excellent mechanical strength , clean detailed product lines and excellent heat dissipation.
Pre paint
8 step degrease and phosphate process that includes deoxidizing and etching as well as a zinc and nickel phosphate process before product painting.
Memory Retentive -Silicon Gasket
Provided with special injection molded “fit for purpose” long life high temperature memory retentive silicon gaskets. Maintains the gaskets exact profile and seal over years of use and compression.
Thermal management
LM6 Aluminum is used for its excellent mechanical strength and thermal dissipation properties in low and high ambient temperatures. The superior thermal heat sink design by Ligman used in conjunction with the driver, controls thermals below critical temperature range to ensure maximum luminous flux output, as well as providing long LED service life and ensuring less than 10% lumen depreciation at 50,000 hours.
Surge Suppression
Standard 10kv surge suppressor provided with all fixtures.
BUG Rating
B1 - U0 - G0 [VW/W30/W40]
B2 - U0 - G0 [M/W30/W40, N/W30/W40, W/W30/W40]
Finishing
Rectangular form bollard family. High performance, high output and numerous options ensure Jet can be configured for any application.
The Jet’s square shape integrated with square column provides downlight distribution with optimal visual comfort through great glare control fulfilling dark sky criteria. Long service life and vandal resistance are the further characteristics of this compact bollard. Developed for lighting driveways, pathways and squares.
Color temperature 2700K, 3000K, 3500K and 4000K, LED CRI >80 and life time 50,000 Hours.
Custom bollard heights are available, please specify.Custom wattages can be provided to suit customer and Title 24 requirements. (Specify total watts per fixture)
All Ligman products go through an extensive finishing process that includes fettling to improve paint adherence.
Paint UV Stabilized 4.9Mil thick powder coat paint and baked at 200 Deg C. This process ensures that Ligman products can withstand harsh environments. Rated for use in natatoriums.
Inspired by Nature Finishes
The Inspired by nature Finishing is a unique system of decorative powder coating. Our metal decoration process can easily transform the appearance of metal or aluminum product into a wood grain finish.
This patented technology enables the simulation of wood grain, and even marble or granite finish through the use of decorative powder coating.
The wood grain finish is so realistic that it’s almost undistinguish
To meet International Dark Sky criteria, 3000k or warmer LEDs must be selected.
BLANK
Project location: Fixture type:
Project name:
Model code #:

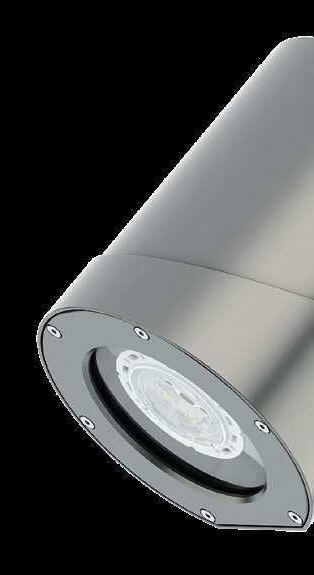

NEBULA BOLLARD (4")
Nebula Bollard luminaire head consists of one source.
NEBULA BOLLARD CONFIGURATION # LUMINAIRE HEAD DOWN LIGHT
NEBULA BOLLARD - ST
NEBULA BOLLARD - PR
NEBULA BOLLARD - RGBW
NEBULA BOLLARD LUMINAIRE HEAD DOWN LIGHT ST
Narrow spot
Medium narrow spot
NEBULA BOLLARD - A
NEBULA BOLLARD - SNOOT
NEBULA BOLLARD - REFRACTOR SCREEN
DateRev.0109/2022
Transparent flat glass
flat glass
NEBULA BOLLARD - FINISH
UJE-10555
Jet 47 Square Single Head Bollard
Construction
Aluminum Less than 0.1% copper content – Marine Grade 6060 extruded & LM6 Aluminum High Pressure die casting provides excellent mechanical strength , clean detailed product lines and excellent heat dissipation.
Pre paint
8 step degrease and phosphate process that includes deoxidizing and etching as well as a zinc and nickel phosphate process before product painting.
Memory Retentive -Silicon Gasket
Provided with special injection molded “fit for purpose” long life high temperature memory retentive silicon gaskets. Maintains the gaskets exact profile and seal over years of use and compression.
Thermal management
LM6 Aluminum is used for its excellent mechanical strength and thermal dissipation properties in low and high ambient temperatures. The superior thermal heat sink design by Ligman used in conjunction with the driver, controls thermals below critical temperature range to ensure maximum luminous flux output, as well as providing long LED service life and ensuring less than 10% lumen depreciation at 50,000 hours.
Surge Suppression
Standard 10kv surge suppressor provided with all fixtures.
BUG Rating
B1 - U0 - G0 [VW/W30/W40]
B2 - U0 - G0 [M/W30/W40, N/W30/W40, W/W30/W40]
Finishing
Rectangular form bollard family. High performance, high output and numerous options ensure Jet can be configured for any application.
The Jet’s square shape integrated with square column provides downlight distribution with optimal visual comfort through great glare control fulfilling dark sky criteria. Long service life and vandal resistance are the further characteristics of this compact bollard. Developed for lighting driveways, pathways and squares.
Color temperature 2700K, 3000K, 3500K and 4000K, LED CRI >80 and life time 50,000 Hours.
Custom bollard heights are available, please specify.Custom wattages can be provided to suit customer and Title 24 requirements. (Specify total watts per fixture)
All Ligman products go through an extensive finishing process that includes fettling to improve paint adherence.
Paint UV Stabilized 4.9Mil thick powder coat paint and baked at 200 Deg C. This process ensures that Ligman products can withstand harsh environments. Rated for use in natatoriums.
Inspired by Nature Finishes
The Inspired by nature Finishing is a unique system of decorative powder coating. Our metal decoration process can easily transform the appearance of metal or aluminum product into a wood grain finish.
This patented technology enables the simulation of wood grain, and even marble or granite finish through the use of decorative powder coating.
The wood grain finish is so realistic that it’s almost undistinguish
To meet International Dark Sky criteria, 3000k or warmer LEDs must be selected.
BLANK

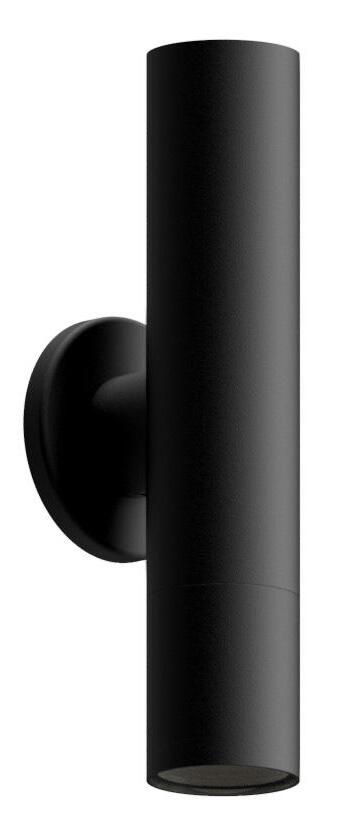

1" Wall Mount Cylinder, Direct or Indirect
Features
The FINCH family of cylinders with a 1” aperture, features exceptional output, flexibility, and a broad range of configurations to provide discreet quality illumination while integrating into the architecture. It is available in a fixed downlight, adjustable (with 50° tilt), wall mount and even exterior ground mount options. Whether installed on ceilings, walls/mullions or the ground, the FINCH family blends seamlessly into its surroundings.
The FINCH wall mount cylinder, 6" in length, offers up to 1000 lm output and has a choice of beveled front door options for additional shielding for the direct portion and a flush lens for the indirect portion, to prevent dust accumulation.
Product Overview
Type: Wall Mount, Direct or Indirect
Wattage: 6W, 8W, 10W
Color Temp: 2700K, 3000K, 3500K, 4000K
CRI: 80+ & 90+ typ.
Dimming: 0-10V, DALI, TRIAC/ELV, Lutron
Performance Data
Data is based on flood optics, 120V, 3000K, 80+ IES files available on website
Electrical Data
1" Surface Mount Adjustable with Remote Driver
PROJECT: TYPE:
Features
The FINCH family of cylinders with a 1” aperture, features exceptional output, flexibility, and a broad range of configurations to provide discreet quality illumination while integrating into the architecture. It is available in a fixed downlight, adjustable (with 50° tilt) , wall mount and even exterior ground mount options. Whether installed on ceilings, walls/mullions or the ground, the FINCH family blends seamlessly into its surroundings.
The FINCH surface adjustable cylinder is available in lengths from 3” to 18,” over a 1000 lm output and has a choice of beveled front door options for additional shielding. Maximum 50° tilt & 360° rotation for aiming flexibility. Use alone or in a composition to create a unique design.
Product Overview
Type: Surface Mount, Adjustable
Wattage: 6W, 8W, 10W, 12W
Color Temp: 2400K, 2700K, 3000K, 3500K, 4000K CRI: 80+ or 90+ typ.
Dimming: 0-10V, DALI, TRIAC/ELV, Hi-lume®
Certifications
Fixture Summary
Performance Data
Data is based on flood optic, standard bevel, 3000K, 80+ 120V IES file available on website. Consult ordering information and data for other wattages & beam spreads.
Electrical Data
Electronic constant current LED driver.
1" Wall Mount Cylinder, Direct or Indirect
To Order, please specify both the light fixture and transformer. Fixture Example: FIN9-SMF-48V.12.309.WF.BT.GLD.DB.RC.0-10V.SOL Transformer Example: TR-48V100W
1" Wall Mount Direct or Indirect (with 48V Constant Voltage Integral Driver) Ordering Information Amerlux offers 100W 48V DC constant current transformers with enclosure.
FIN6-WD-48V 6" wall mount, direct 6 6W (643 lm) 27 2700K, 80+ SP spot 15° WT white texture 8 8W
For enclosure drawings & wiring schematics, see pages 6-8. Amerlux offers a mounting plate (MP) for each remote driver with accessories for mounting in enclosure by others, or a single remote box for one driver (RBX), or a single remote box that can fit two drivers (RBX2). Electrical Contractor (EC) is responsible for adherence to all local codes.
1 Model 2 Wattage 3 Drivers/Controls 4 Driver Enclosure
Discrete, seamless point source LED fixture for use in all codecompliant handrail, especially curving ramps and helical stairs as well as long runs on bridges and pedestrian paths. Asymmetric optic allows mounting at rail nadir, eliminating uncomfortable glare issues. Typical spacing between LEDpods on stairs is 24”, and on level runs is 48”.
HOUSING
Aluminum body has a fine 25-micron finish and is then hard-coat anodized, thus preventing galvanic corrosion. Silicone gasket seals the installation from water ingress and provides added means of electrical isolation to minimize potential for galvanic reaction.
MOUNTING
Patented attachment method offers unparalleled security and ease of mounting. Requires only a simple drilled hole in railing material. All conductors remain internal to railing to provide secure and safe wiring. IK10 Impact rating ensures vandal resistance.
• Tube Size: Ø 1.5” - 1.75”, Max. wall .2” Other sizes available upon request.
• Cut Out: 25mm
-Must use a 25mm annular cutter [NOT a 1” cutter].
ELECTRICAL/LED DRIVER
Input Voltage: 24 VDC
• Driver: Must use class 2 driver
-Primary Driver: 110 - 277 VAC UL Listed Constant Voltage
-Secondary Driver: 350 - 700mA Constant Current (provided with fixture)
• Control: 0-10V, DALI, DMX
- DMX control for dimming only, not for individually addressed LEDpod
• Enclosure: Minimum NEMA2 for indoor, NEMA 3R for outdoor
Discrete, seamless point source LED fixture for use in all codecompliant handrail, especially curving ramps and helical stairs as well as long runs on bridges and pedestrian paths. Asymmetric optic allows mounting at rail nadir, eliminating uncomfortable glare issues. Typical spacing between LEDpods on stairs is 24”, and on level runs is 48”.
HOUSING
Aluminum body has a fine 25-micron finish and is then hard-coat anodized, thus preventing galvanic corrosion. Silicone gasket seals the installation from water ingress and provides added means of electrical isolation to minimize potential for galvanic reaction.
MOUNTING
Patented attachment method offers unparalleled security and ease of mounting. Requires only a simple drilled hole in railing material. All conductors remain internal to railing to provide secure and safe wiring. IK10 Impact rating ensures vandal resistance.
• Tube Size: Ø 1.5” - 1.75”, Max. wall .2” Other sizes available upon request.
• Cut Out: 25mm
-Must use a 25mm annular cutter [NOT a 1” cutter].
ELECTRICAL/LED DRIVER
Input Voltage: 24 VDC
• Driver: Must use class 2 driver
-Primary Driver: 110 - 277 VAC UL Listed Constant Voltage
-Secondary Driver: 350 - 700mA Constant Current (provided with fixture)
• Control: 0-10V, DALI, DMX
- DMX control for dimming only, not for individually addressed LEDpod
• Enclosure: Minimum NEMA2 for indoor, NEMA 3R for outdoor
Discrete, seamless point source LED fixture for use in all codecompliant handrail, especially curving ramps and helical stairs as well as long runs on bridges and pedestrian paths. Asymmetric optic allows mounting at rail nadir, eliminating uncomfortable glare issues. Typical spacing between LEDpods on stairs is 24”, and on level runs is 48”.
HOUSING
Aluminum body has a fine 25-micron finish and is then hard-coat anodized, thus preventing galvanic corrosion. Silicone gasket seals the installation from water ingress and provides added means of electrical isolation to minimize potential for galvanic reaction.
MOUNTING
Patented attachment method offers unparalleled security and ease of mounting. Requires only a simple drilled hole in railing material. All conductors remain internal to railing to provide secure and safe wiring. IK10 Impact rating ensures vandal resistance.
• Tube Size: Ø 1.5” - 1.75”, Max. wall .2” Other sizes available upon request.
• Cut Out: 25mm
-Must use a 25mm annular cutter [NOT a 1” cutter].
ELECTRICAL/LED DRIVER
Input Voltage: 24 VDC
• Driver: Must use class 2 driver
-Primary Driver: 110 - 277 VAC UL Listed Constant Voltage
-Secondary Driver: 350 - 700mA Constant Current (provided with fixture)
• Control: 0-10V, DALI, DMX
- DMX control for dimming only, not for individually addressed LEDpod
• Enclosure: Minimum NEMA2 for indoor, NEMA 3R for outdoor
Discrete, seamless point source LED fixture for use in all codecompliant handrail, especially curving ramps and helical stairs as well as long runs on bridges and pedestrian paths. Asymmetric optic allows mounting at rail nadir, eliminating uncomfortable glare issues. Typical spacing between LEDpods on stairs is 24”, and on level runs is 48”.
HOUSING
Aluminum body has a fine 25-micron finish and is then hard-coat anodized, thus preventing galvanic corrosion. Silicone gasket seals the installation from water ingress and provides added means of electrical isolation to minimize potential for galvanic reaction.
MOUNTING
Patented attachment method offers unparalleled security and ease of mounting. Requires only a simple drilled hole in railing material. All conductors remain internal to railing to provide secure and safe wiring. IK10 Impact rating ensures vandal resistance.
• Tube Size: Ø 1.5” - 1.75”, Max. wall .2” Other sizes available upon request.
• Cut Out: 25mm
-Must use a 25mm annular cutter [NOT a 1” cutter].
ELECTRICAL/LED DRIVER
Input Voltage: 24 VDC
• Driver: Must use class 2 driver
-Primary Driver: 110 - 277 VAC UL Listed Constant Voltage
-Secondary Driver: 350 - 700mA Constant Current (provided with fixture)
• Control: 0-10V, DALI, DMX
- DMX control for dimming only, not for individually addressed LEDpod
• Enclosure: Minimum NEMA2 for indoor, NEMA 3R for outdoor
• Our most versatile round, directional 12V LED modern accent light for architectural outdoor and landscape lighting environments.
• 5W, 7W, 10W integrated HK LED delivering 500 to 900 lumens. 2200-4000K CCT, including specialty Amber and RGB options.
Wet Location Listed, IP67 Standard.
• Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
• 240º vertical and 360º horizontal adjustment via locking swivel stem design.
FEATURES SPECIFICATIONS
Modular components, field changeable LED optical beams, and lenses.
Available with adjustable Angled, Long, and Shor t Glare Shields and ground, surface, and canopy mounting options.
Every fixture tested end of line for water tightness and light quality.
Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Materials
Machined from solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 for details).
Voltage
12V AC/DC. Requires remote step down transformer.
Wattage 5, 7 or 10W HK LED delivers 500 to 900 lumens.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGB options available. Consult factory for specialty LED specification details.
Dimming
MLV or ELV Phase Control dimming.
Optics
Narrow (20º), Medium (33º), Wide (44º), and Extra Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 for details).
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Finned Low Voltage Accent: ZXL16-0R1FA-ABL
Type:
Model:
BODACIOUS Integrated LED Uplight
SPECIFICATIONS
VOLTAGE:
12V AC/DC
HOUSING:
Cast brass with removable 3” shroud. Optional 6” shroud available.
Threaded with 1/2” NPT. May be mounted into threaded hubs in junction boxes or mounting accessories. Heavy-duty composite stake included.
WIRING:
Pre-wired with a five-foot pigtail of 18/2 cable.
WARRANTY: 10-year warranty
Opt. 6” extended shroud 3W & 6W #490260
DIMENSIONS:
Opt. 6” extended shroud 8W, 12W & 16W #490261
SPECIFICATION SHEET
The Bodacious uplight features an integrated LED source available in 3, 8, 6,12 or 16 watts. 2700K, 3000K and 5000K options. 30-, 45-, 65- and 100-degree beam spreads.
TYPE X4 SPEC MIAMI STARLITE
Readymade eligible configurations ship in 2 to 4 weeks
1 Consult factory for specialty finish quoting and lead times
2 For Specialty AM (Amber LED) and RG (RGB LED), select SPW (Specialty) for Wattage. Consult factory for LED technical details before Specification or Order. MOUNTING (Most common listed, see Page 4 for additional options)
ACCESSORIES
GROUND MOUNT
GSA A/B Glare Shield Angled
GSL A/B Glare Shield Long
GSS A/B Glare Shield Short
CGSA C Glare Shield Angled
CGSL C Glare Shield Long
CGSS C Glare Shield Short LVR Hexcel Louver
Linear Spread Lens
Solite Soft Focus
Dichroic Filter
ADDITIONAL ACCESSORIES (Not installed at time of order) GLARE SHIELD ACCESSORIES
OPTIC ACCESSORIES
LVR-16 Hexcel Louver
OSL-16 Overall Spread Lens
LSL-16 Linear Spread Lens
SOL-16 Solite Soft Focus
DCF-16 Dichroic Filter
OPK-16 Optic Kit - Narrow, Medium, Wide , Extra Wide
OUTDOOR MAGNETIC TRANSFORMERS (120V input/12VAC Output)
TRANSFORMERS (Go to Accessories for detailed specification)
MS Heavy-duty slotted mounting stake (incl.) 490034
EX Excalibur Post Stake 490037
TR Trident HD 3-Prong Stake 490036
PM Pier Mount 490057
TSM Tapered Surface Mount 490048
EM Round Electrical Mounting Plate 490043
RMP Rectangular Electrical Mounting Plate 490044
BLANK

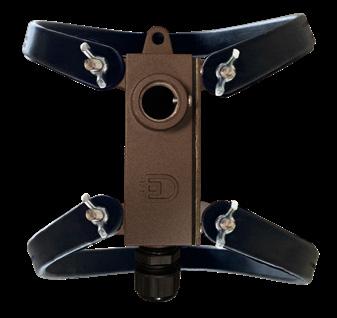

ANCHORAGE J-Box Tree Mounting Kit
SPECIFICATIONS
USE:
The J Box is an enclosure for the wiring connections. It protects them from physical damage and from accidental contact with live wires and terminals.
The strain-relief cord grip holds wire tightly in place and helps protects against wire connections from coming loose. Provide a means for securely and safely mounting the light fixture(s), while the straps allows for a way to safely secure your light fixtures without harming the tree.
Please check your local laws before purchasing this product ORDERING CODES:
ZXL16
(includes former ZXL16 & ZXL16-NF models)
ACCENT & LANDSCAPE | ZX16 Series | 2.25"
5 - 10W (500 - 900lm) | 12V | HK LED, RGB, Amber
• Our most versatile round, directional 12V LED modern accent light for architectural outdoor and landscape lighting environments.
• 5W, 7W, 10W integrated HK LED delivering 500 to 900 lumens. 2200-4000K CCT, including specialty Amber and RGB options.
Wet Location Listed, IP67 Standard.
• Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
• 240º vertical and 360º horizontal adjustment via locking swivel stem design.
FEATURES SPECIFICATIONS
Modular components, field changeable LED optical beams, and lenses.
Available with adjustable Angled, Long, and Shor t Glare Shields and ground, surface, and canopy mounting options.
Every fixture tested end of line for water tightness and light quality.
Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Materials
Machined from solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 for details).
Voltage
12V AC/DC. Requires remote step down transformer.
Wattage 5, 7 or 10W HK LED delivers 500 to 900 lumens.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGB options available. Consult factory for specialty LED specification details.
Dimming
MLV or ELV Phase Control dimming.
Optics
Narrow (20º), Medium (33º), Wide (44º), and Extra Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 for details).
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Finned Low Voltage Accent: ZXL16-0R1FA-ABL
Type:
Model:
BODACIOUS Integrated LED Uplight
SPECIFICATIONS
VOLTAGE:
12V AC/DC
HOUSING:
Cast brass with removable 3” shroud. Optional 6” shroud available.
Threaded with 1/2” NPT. May be mounted into threaded hubs in junction boxes or mounting accessories. Heavy-duty composite stake included.
WIRING:
Pre-wired with a five-foot pigtail of 18/2 cable.
WARRANTY: 10-year warranty
Opt. 6” extended shroud 3W & 6W #490260
DIMENSIONS:
Opt. 6” extended shroud 8W, 12W & 16W #490261
SPECIFICATION SHEET
The Bodacious uplight features an integrated LED source available in 3, 8, 6,12 or 16 watts. 2700K, 3000K and 5000K options. 30-, 45-, 65- and 100-degree beam spreads.
TYPE X4A SPEC MIAMI STARLITE
Readymade eligible configurations ship in 2 to 4 weeks
1 Consult factory for specialty finish quoting and lead times
2 For Specialty AM (Amber LED) and RG (RGB LED), select SPW (Specialty) for Wattage. Consult factory for LED technical details before Specification or Order. MOUNTING (Most common listed, see Page 4 for additional options)
ACCESSORIES
GROUND MOUNT
GSA A/B Glare Shield Angled
GSL A/B Glare Shield Long
GSS A/B Glare Shield Short
CGSA C Glare Shield Angled
CGSL C Glare Shield Long
CGSS C Glare Shield Short LVR Hexcel Louver
Linear Spread Lens
Solite Soft Focus
Dichroic Filter
ADDITIONAL ACCESSORIES (Not installed at time of order) GLARE SHIELD ACCESSORIES
MS Heavy-duty slotted mounting stake (incl.) 490034
EX Excalibur Post Stake 490037
TR Trident HD 3-Prong Stake 490036
PM Pier Mount 490057
TSM Tapered Surface Mount 490048
EM Round Electrical Mounting Plate 490043
RMP Rectangular Electrical Mounting Plate 490044
ZXL16
(includes former ZXL16 & ZXL16-NF models)
ACCENT & LANDSCAPE | ZX16 Series | 2.25"
5 - 10W (500 - 900lm) | 12V | HK LED, RGB, Amber
• Our most versatile round, directional 12V LED modern accent light for architectural outdoor and landscape lighting environments.
• 5W, 7W, 10W integrated HK LED delivering 500 to 900 lumens. 2200-4000K CCT, including specialty Amber and RGB options.
Wet Location Listed, IP67 Standard.
• Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
• 240º vertical and 360º horizontal adjustment via locking swivel stem design.
FEATURES SPECIFICATIONS
Modular components, field changeable LED optical beams, and lenses.
Available with adjustable Angled, Long, and Shor t Glare Shields and ground, surface, and canopy mounting options.
Every fixture tested end of line for water tightness and light quality.
Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Materials
Machined from solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 for details).
Voltage
12V AC/DC. Requires remote step down transformer.
Wattage 5, 7 or 10W HK LED delivers 500 to 900 lumens.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGB options available. Consult factory for specialty LED specification details.
Dimming
MLV or ELV Phase Control dimming.
Optics
Narrow (20º), Medium (33º), Wide (44º), and Extra Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 for details).
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Finned Low Voltage Accent: ZXL16-0R1FA-ABL
Type:
Model:
BODACIOUS Integrated LED Uplight
SPECIFICATIONS
VOLTAGE:
12V AC/DC
HOUSING:
Cast brass with removable 3” shroud. Optional 6” shroud available.
Threaded with 1/2” NPT. May be mounted into threaded hubs in junction boxes or mounting accessories. Heavy-duty composite stake included.
WIRING:
Pre-wired with a five-foot pigtail of 18/2 cable.
WARRANTY: 10-year warranty
Opt. 6” extended shroud 3W & 6W #490260
DIMENSIONS:
Opt. 6” extended shroud 8W, 12W & 16W #490261
SPECIFICATION SHEET
The Bodacious uplight features an integrated LED source available in 3, 8, 6,12 or 16 watts. 2700K, 3000K and 5000K options. 30-, 45-, 65- and 100-degree beam spreads.
TYPE X4B SPEC MIAMI STARLITE
Readymade eligible configurations ship in 2 to 4 weeks
1 Consult factory for specialty finish quoting and lead times
2 For Specialty AM (Amber LED) and RG (RGB LED), select SPW (Specialty) for Wattage. Consult factory for LED technical details before Specification or Order. MOUNTING (Most common listed, see Page 4 for additional options)
Power ful round, directional 120V - 277V LED modern accent light for commercial environments.
21W, 28W integrated HK LED delivering 2000-2700 lumens.
Wet Location Listed, IP67 Standard.
• Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
180º vertical and 360º horizontal adjustment via locking swivel stem design.
• Modular components, field changeable LED optical beams, and lenses.
• Available with adjustable Angled, Long, and Shor t Glare Shields and ground, surface, and canopy mounting options.
• Every fixture tested end of line for water tightness and light quality.
• Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 for details).
Voltage
120V - 277V AC
Wattage
21 or 28W HK delivering 2000 to 2700 lumens.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGBW options available. Consult factory for specialty LED specification details.
Driver/Dimming
Onboard, Integrated LED Driver, Phase Control @120V, 0V-10V @120V-277V
DALI or DMX control available, consult factory for details.
Optics
Narrow (16o), Medium (26o), Wide (40o), and Extra Wide (60o) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices. (See page 4 for details).
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
GR AN D ACCENT 120V
PRO DU C T D ESCRIPTIO N
lights
FE ATURE S
• Adjustable and lockable beam angle
• Integral dimmer
• IP66 rated, Protected against high-pressure water jets
• Includes a detachable shroud
• Solid diecast brass or corrosion resistant aluminum
• F
•
• Maintains constant lumen output against voltage drop
• UL 1598 Listed
• Not suitable to use with external dimmers
Fixture Type:
Catalog Number:
Project:
Location:
5212-_______
Example:
SPECIFI CATION S
Input:
Power:
Brightness:
Beam Angle: CRI:
Rated Life: 110V - 120VAC 13W to 31W. 70lm/W (Use VA value for sizing the transformer and calculate voltage drop.)
780lm - 2150lm 15° to 60° 85+ 45,000 hours
2 For Specialty
(Amber LED) and RG (RGBW LED), select SPW (Specialty) for Wattage. Consult factory for LED technical details before Specification or Order.
INSTALLED ACCESSORIES
GSA A/B Glare Shield Angled GSL A/B Glare Shield Long GSS A/B Glare Shield Short
Power ful round, directional 120V - 277V LED modern accent light for commercial environments.
21W, 28W integrated HK LED delivering 2000-2700 lumens.
Wet Location Listed, IP67 Standard.
• Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
180º vertical and 360º horizontal adjustment via locking swivel stem design.
• Modular components, field changeable LED optical beams, and lenses.
• Available with adjustable Angled, Long, and Shor t Glare Shields and ground, surface, and canopy mounting options.
• Every fixture tested end of line for water tightness and light quality.
• Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 for details).
Voltage
120V - 277V AC
Wattage
21 or 28W HK delivering 2000 to 2700 lumens.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGBW options available. Consult factory for specialty LED specification details.
Driver/Dimming
Onboard, Integrated LED Driver, Phase Control @120V, 0V-10V @120V-277V
DALI or DMX control available, consult factory for details.
Optics
Narrow (16o), Medium (26o), Wide (40o), and Extra Wide (60o) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices. (See page 4 for details).
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
GR AN D ACCENT 120V
PRO DU C T D ESCRIPTIO N
lights
FE ATURE S
• Adjustable and lockable beam angle
• Integral dimmer
• IP66 rated, Protected against high-pressure water jets
• Includes a detachable shroud
• Solid diecast brass or corrosion resistant aluminum
• F
•
• Maintains constant lumen output against voltage drop
• UL 1598 Listed
• Not suitable to use with external dimmers
Fixture Type:
Catalog Number:
Project:
Location:
5212-_______
Example:
SPECIFI CATION S
Input:
Power:
Brightness:
Beam Angle: CRI:
Rated Life: 110V - 120VAC 13W to 31W. 70lm/W (Use VA value for sizing the transformer and calculate voltage drop.)
780lm - 2150lm 15° to 60° 85+ 45,000 hours
2 For Specialty
(Amber
and
(RGBW LED), select SPW (Specialty) for Wattage. Consult factory for LED technical details before Specification or Order.
INSTALLED ACCESSORIES
GSA A/B Glare Shield Angled GSL A/B Glare Shield Long GSS A/B Glare Shield Short

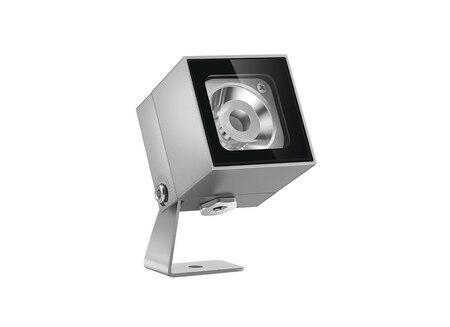

Silicone applied robotically to casting, plasma treated for increased adhesion
High temperature silicone gasket
Mechanically captive stainless steel fasteners
Galvanized zinc-plated mounting bracket
Pure anodized aluminum reflector
NRTL listed to North American Standards, suitable for wet locations
Protection class IP 65
Weight: 8.4 lbs.
Electrical
Operating voltage 120-277V AC
Minimum start temperature -30° C
LED module wattage 14.9 W
System wattage 17.4 W
Controllability 0-10V dimmable
Color rendering index Ra > 80
Luminaire lumens 1363 lm
LED service life (L70) 60000 hrs
LED color temperature
4000K (K4)
3500K (K35)
3000K (K3)
2700K (K27)
BEGA can supply you with suitable LED replacement modules for up to 20 years after the purchase of LED luminaires - see website for details
Finish
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL, custom, and premium colors provided in polyester powder and/or liquid paint.

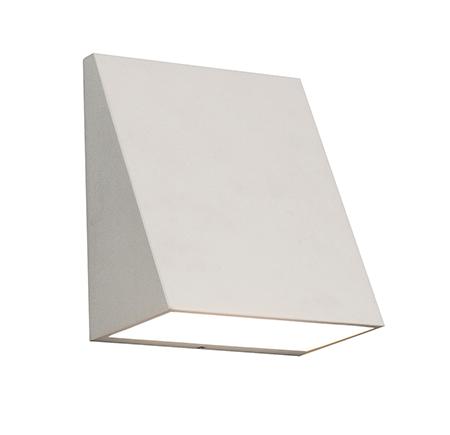

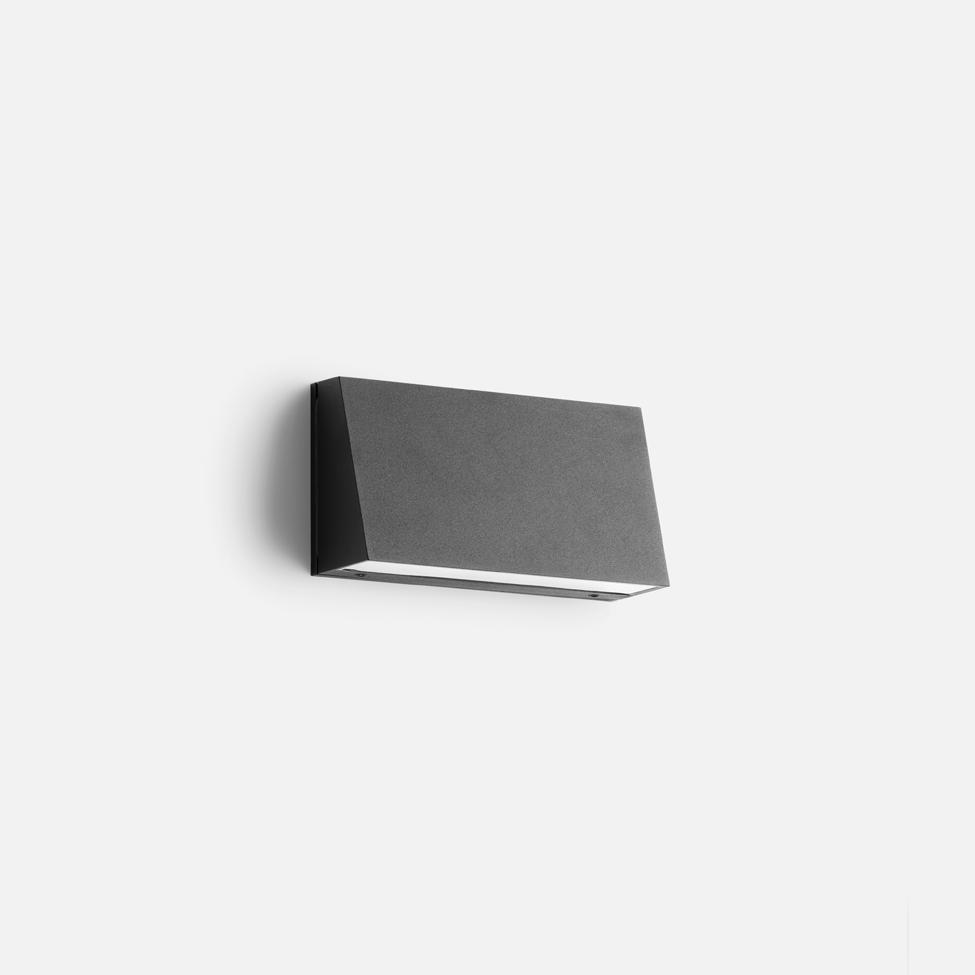

Simplistic design. Down light with wall wash effect. Ideal use in entrances or anywhere general outdoor lighting is needed. Provides lighting in residential, commercial and hospitality applications. Meets ADA requirements. Fixture mounts to standard junction box (not included).
Construction
Fabricated aluminum construction. Standard mounting holes and hardware are included. Power supply connections must be made inside a junction box (not included).
Finish
All metal parts are powder coated in White or Black.
Limited warranty: This fixture is free from defects in materials and workmanship for a period of 5 years from date-of-purchase.
Specifications and dimensions subject to change without notice.
Ordering Information:
Project location: Fixture type:
Project name:
Model code #:
NEBULA BOLLARD (4")
Nebula Bollard luminaire head consists of one source.
NEBULA BOLLARD CONFIGURATION # LUMINAIRE HEAD DOWN LIGHT
NEBULA BOLLARD - ST
NEBULA BOLLARD - PR
NEBULA BOLLARD - RGBW
NEBULA BOLLARD LUMINAIRE HEAD DOWN LIGHT ST
Narrow spot
Medium narrow spot
NEBULA BOLLARD - A
NEBULA BOLLARD - SNOOT
NEBULA BOLLARD - REFRACTOR SCREEN
DateRev.0109/2022
Transparent flat glass
flat glass
NEBULA BOLLARD - FINISH
UJE-20001
Jet 49 Single Head Post Top
10.04” Square
7.09” Centers
LIGHTING USA
Construction
Aluminum
Less than 0.1% copper content – Marine Grade 6060 extruded & LM6 Aluminum High Pressure die casting provides excellent mechanical strength , clean detailed product lines and excellent heat dissipation.
Pre paint
8 step degrease and phosphate process that includes deoxidizing and etching as well as a zinc and nickel phosphate process before product painting.
Memory Retentive -Silicon Gasket
Provided with special injection molded “fit for purpose” long life high temperature memory retentive silicon gaskets. Maintains the gaskets exact profile and seal over years of use and compression.
Thermal management
LM6 Aluminum is used for its excellent mechanical strength and thermal dissipation properties in low and high ambient temperatures. The superior thermal heat sink design by Ligman used in conjunction with the driver, controls thermals below critical temperature range to ensure maximum luminous flux output, as well as providing long LED service life and ensuring less than 10% lumen depreciation at 50,000 hours.
Surge Suppression
Standard 10kv surge suppressor provided with all fixtures.
BUG Rating
B3 - U0 - G0
Finishing
All Ligman products go through an extensive finishing process that includes fettling to improve paint adherence.
Paint UV Stabilized 4.9Mil thick powder coat paint and baked at 200 Deg C. This process ensures that Ligman products can withstand harsh environments. Rated for use in natatoriums.
Inspired by Nature Finishes
0.87"x1.97"
Mounting Detail
The Inspired by nature Finishing is a unique system of decorative powder coating. Our metal decoration process can easily transform the appearance of metal or aluminum product into a wood grain finish.
This patented technology enables the simulation of wood grain, and even marble or granite finish through the use of decorative powder coating.
The wood grain finish is so realistic that it’s almost undistinguishable from real wood, even from a close visual inspection. The system of coating permeates the entire thickness of the coat and as a result, the coating cannot be removed by normal rubbing, chipping, or scratching.
The Coating Process
After pre-treatment the prepared parts are powder coated with a specially formulated polyurethane powder. This powder provides protection against wear, abrasion, impact and corrosion and acts as the relief base color for the finalized metal decoration.
The component is then wrapped with a sheet of non-porous film with the selected decoration pattern printed on it using special high temperature inks.
This printed film transfer is vacuum-sealed to the surface for a complete thermo print and then transferred into a customized oven. The oven transforms the ink into different forms within the paint layer before it becomes solid. Finally, the film is removed, and a vivid timber look on aluminum remains.
Wood grain coating can create beautiful wood-looking products of any sort. There are over 300 combinations of designs currently in use. Wood grains can be made with different colors, designs, etc.
Our powder coatings are certified for indoor and outdoor applications and are backed by a comprehensive warranty. These coatings rise to the highest conceivable standard of performance excellence and design innovation.
Added Benefits
• Resistance to salt-acid room, accelerated aging
• Boiling water, lime and condensed water resistant
Provided Hardware is Marine grade 316 Stainless steel.
Anti Seize Screw Holes
Tapped holes are infused with a special anti seize compound designed to prevent seizure of threaded connections, due to electrolysis from heat, corrosive atmospheres and moisture.
Crystal Clear Low Iron Glass Lens
Provided with tempered, impact resistant crystal clear low iron glass ensuring no green glass tinge.
Optics & LED
Precise optic design provides exceptional light control and precise distribution of light.
LED CRI > 80
Lumen - Maintenance Life
L80 /B10 at 50,000 hours (This means that at least 90% of the LED still achieve 80% of their original flux)
Rectangular form post top downlight. High performance, high output and numerous options ensure Jet can be configured for any application.
A square post top lantern with excellent downward symmetrical light distribution. Developed to complement the Jet wall light, bollard, floodlight and column projector. Symmetrical optics suitable for most applications and dark sky compliant. Designed for lighting of entrances, footpaths and car parks. The luminaire has an integral driver and is available in the following color temperatures; 2700K, 3000K, 3500K and 4000K.
Integral control gear. High purity aluminum reflector with the clear diffuser option.This product is available with field interchangeable narrow, medium, wide and very wide optics.
Ligman now offers this product with a Type II, III and IV distribution, please see the Tango post top fixture UTA-20731 & UTA-20732. The exceptional optical design of the Tango provides streetlight and area type distributions from this small scale pole top light luminaire.
To meet International Dark Sky criteria, 3000k or warmer LEDs must be selected.
BLANK
Project location:
Project name:
Model code #:
NEBULA BOLLARD (4")
Nebula Bollard luminaire head consists of two sources. Each source can be independently configured. The overview below lists available options.
NEBULA BOLLARD CONFIGURATION # LUMINAIRE HEAD DOWN LIGHT
NEBULA BOLLARD - ST
DateRev.0109/2022
NEBULA BOLLARD - PR
NEBULA BOLLARD - RGBW
Narrow spot
Medium narrow spot
NEBULA BOLLARD - A
NEBULA BOLLARD
LUMINAIRE HEAD DOWN LIGHT ST
Aperture lens
Transparent flat glass
Prismatic flat glass
NEBULA BOLLARD - SNOOT
snoot 30° snoot 45°
NEBULA BOLLARD - REFRACTOR SCREEN
Linear Diffusion
NEBULA BOLLARD - FINISH
Neri grey Silver anodizing Pure white Gold anodizing White aluminum Bronze anodizing Grey aluminum Brown anodizing Jet black Black anodizing Moss green Powder coating Anodizing
UJE-20002
Jet 50 Double Head Post Top
10.04” Square
7.09” Centers
0.87"x1.97"
Mounting Detail
Construction
Aluminum Less than 0.1% copper content – Marine Grade 6060 extruded & LM6 Aluminum High Pressure die casting provides excellent mechanical strength , clean detailed product lines and excellent heat dissipation.
Pre paint
8 step degrease and phosphate process that includes deoxidizing and etching as well as a zinc and nickel phosphate process before product painting.
Memory Retentive -Silicon Gasket
Provided with special injection molded “fit for purpose” long life high temperature memory retentive silicon gaskets. Maintains the gaskets exact profile and seal over years of use and compression.
Thermal management
LM6 Aluminum is used for its excellent mechanical strength and thermal dissipation properties in low and high ambient temperatures. The superior thermal heat sink design by Ligman used in conjunction with the driver, controls thermals below critical temperature range to ensure maximum luminous flux output, as well as providing long LED service life and ensuring less than 10% lumen depreciation at 50,000 hours.
Surge Suppression
Standard 10kv surge suppressor provided with all fixtures.
BUG Rating
B3 - U0 - G0
Finishing
All Ligman products go through an extensive finishing process that includes fettling to improve paint adherence.
Paint UV Stabilized 4.9Mil thick powder coat paint and baked at 200 Deg C. This process ensures that Ligman products can withstand harsh environments. Rated for use in natatoriums.
Inspired by Nature Finishes
The Inspired by nature Finishing is a unique system of decorative powder coating. Our metal decoration process can easily transform the appearance of metal or aluminum product into a wood grain finish.
This patented technology enables the simulation of wood grain, and even marble or granite finish through the use of decorative powder coating.
The wood grain finish is so realistic that it’s almost undistinguishable from real wood, even from a close visual inspection. The system of coating permeates the entire thickness of the coat and as a result, the coating cannot be removed by normal rubbing, chipping, or scratching.
The Coating Process
After pre-treatment the prepared parts are powder coated with a specially formulated polyurethane powder. This powder provides protection against wear, abrasion, impact and corrosion and acts as the relief base color for the finalized metal decoration.
The component is then wrapped with a sheet of non-porous film with the selected decoration pattern printed on it using special high temperature inks.
This printed film transfer is vacuum-sealed to the surface for a complete thermo print and then transferred into a customized oven. The oven transforms the ink into different forms within the paint layer before it becomes solid. Finally, the film is removed, and a vivid timber look on aluminum remains.
Wood grain coating can create beautiful wood-looking products of any sort. There are over 300 combinations of designs currently in use. Wood grains can be made with different colors, designs, etc.
Our powder coatings are certified for indoor and outdoor applications and are backed by a comprehensive warranty. These coatings rise to the highest conceivable standard of performance excellence and design innovation.
Added Benefits
• Resistance to salt-acid room, accelerated aging
• Boiling water, lime and condensed water resistant
Provided Hardware is Marine grade 316 Stainless steel.
Anti Seize Screw Holes
Tapped holes are infused with a special anti seize compound designed to prevent seizure of threaded connections, due to electrolysis from heat, corrosive atmospheres and moisture.
Crystal Clear Low Iron Glass Lens
Provided with tempered, impact resistant crystal clear low iron glass ensuring no green glass tinge.
Optics & LED
Precise optic design provides exceptional light control and precise distribution of light.
LED CRI > 80
Lumen - Maintenance Life
L80 /B10 at 50,000 hours (This means that at least 90% of the LED still achieve 80% of their original flux)
LIGHTING USA
Rectangular form post top downlight. High performance, high output and numerous options ensure Jet can be configured for any application.
A square post top lantern with excellent downward symmetrical light distribution. Developed to complement the Jet wall light, bollard, floodlight and column projector. Symmetrical optics suitable for most applications and dark sky compliant. Designed for lighting of entrances, footpaths and car parks. The luminaire has an integral driver and is available in the following color temperatures; 2700K, 3000K, 3500K and 4000K.
Integral control gear. High purity aluminum reflector with the clear diffuser option.This product is available with field interchangeable narrow, medium, wide and very wide optics.
Ligman now offers this product with a Type II, III and IV distribution, please see the Tango post top fixture UTA-20731 & UTA-20732. The exceptional optical design of the Tango provides streetlight and area type distributions from this small scale pole top light luminaire.
To meet International Dark Sky criteria, 3000k or warmer LEDs must be selected.
BLANK

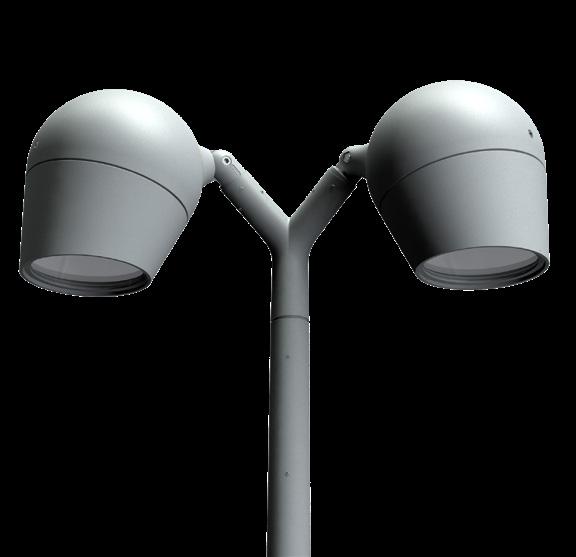

Olivio Grande LED Candelabra Pole Top
Relating to the prevention, reduction and limitation of light nuisance: product configuration to be defined according to the nature of the project.
www.ragni-lighting.com
BLANK
Photometric distributions
Ordering Information
Bezel BZ2 Step Light
Performance
A recessed, wall-mounted luminaire that provides a powerful and versatile solution for low mounting heights. The unique floor-graze optic reduces the required height of architectural elements to house and install the luminaire. The luminaire’s performance wall optic offers best-in-class uniformity and high output to satisfy difficult municipal codes for egress and way-finding. Short and long shroud faceplate designs to maximize performance in any application. The slim, unobtrusive low-profile design offers minimalist aesthetics to accommodate other elements inside the wall.
1 Static white lumen output values are based on 10 W luminaire with a white finish.
75º, Field (90%): 130º
Beam Angles Beam (50%):
INSERT+2
Recessed wallsteplightseries. Fixtures consistof:
-, Multi-steppowder-coatpainting process, optimized against UVraysandcorrosion.
-, Copper-free precision die-cast aluminumhousing and ring/faceplate.
-, Stainlesssteelrecessedrough-inkit to beordered separately.
-, 5-yearwarranty.
-, Marine Grade finish.
• Suitable for Natatorium applications.
-, Consult factoryfor any Buy American Act (BAA) or Build America Buy America Act (BABAA) requirements.
FINISHES
• AN-96/Iron gray/Textured
0 GR-94/Aluminum metallic/Textured
0 WH-87/White/Textured
• BK-81/Black/Textured
• RB-10/Iron rust/Textured
Bezel BZ2 Step Light
Order Guide - lnsert+2
Ordercodeexample
IN+2 I_________________________
TexturedBlack 4000k Build America Buy WH America Act
TexturedWhite SK compliant 5000k (not available for cc CustomColor AMB all options) StaticAmber Turtle Friendly (590nm) RED StaticRed BLU StaticBlue GRN StaticGreen RGBW* RGBW Seebelowfor control details
TOKISTAR Exhibitor
SPECIFICATION SHEET

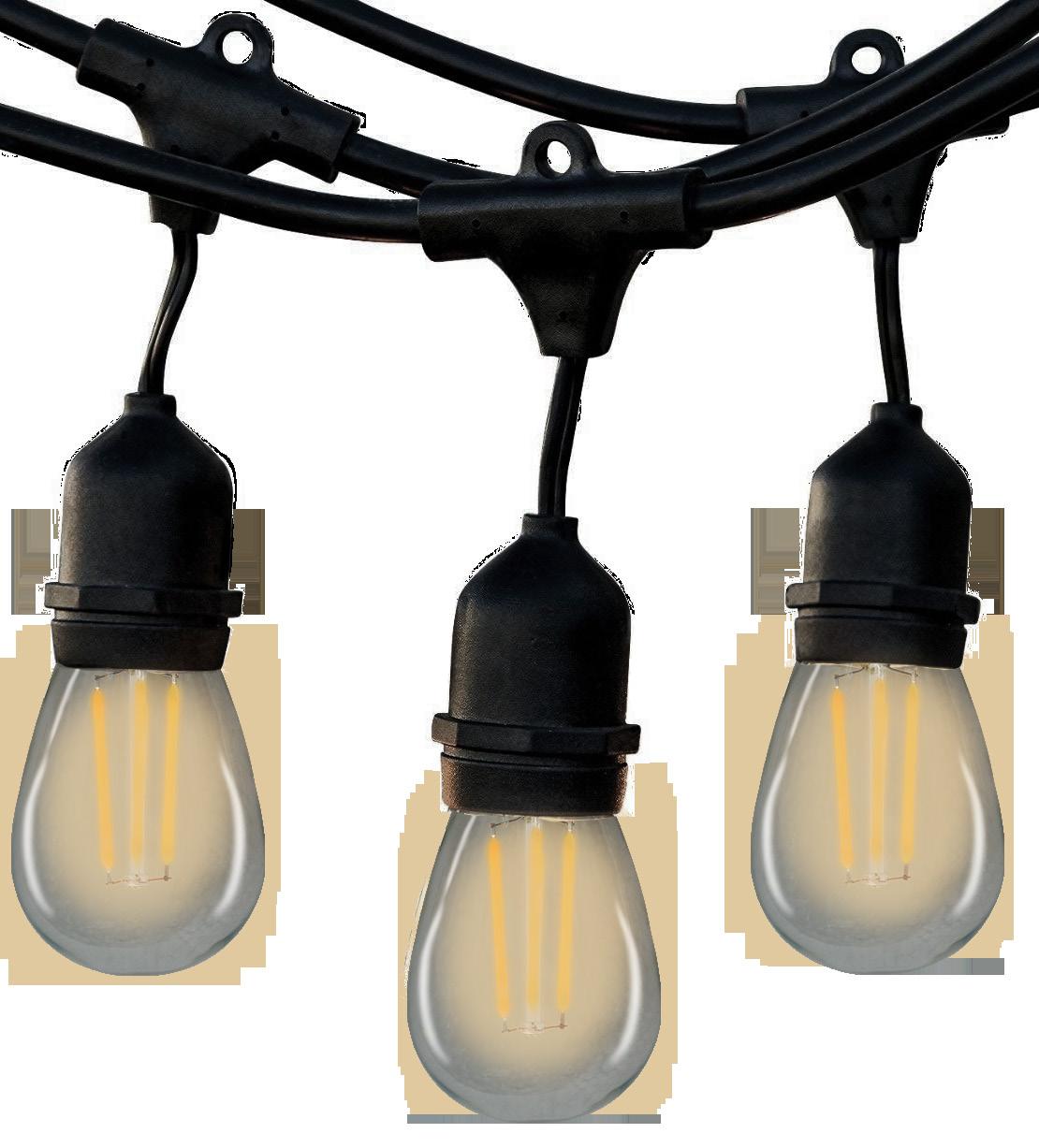

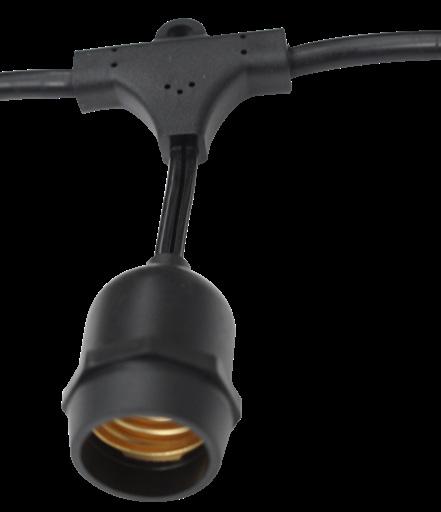

BISTRO STRING LIGHTS WITH HANGING SOCKETS
SPECIFICATIONS
MAXIMUM AMPS: 10 AMPS
VOLTAGE: 12V
WIRING: UL 14AWG black. Male and female plug for additional strings.
SOCKETS: E26 (medium) base brass sockets at 24-inch (610 mm) spacing.
LENGTH: 300 feet (91.44 m). Custom lengths are available.
AGENCY LISTINGS: ETL listed at 50’ and 100’ lengths only. IP44.
WARRANTY: Five years.
Lamps not included must be ordered separately. Please see chart on page 2.
DIMENSIONS:
Type:
Model: _____________________________
Commecial-grade Bistro Boss string lights with suspended sockets are excellent for hospitality and indoor/ outdoor patio applications.
How to Specify
When specifying an Exhibitor Lighting System, take into consideration: Socket Spacing, LED Style and Globe Selection.
The Basic System
The Exhibitor Series consists of sockets permanently sealed to flexible cable. All components are rated for wet location use.
EXC Series
EXC Series incorporates Exhibitor Series into a 2" x 2" satin aluminum profile for use in all environments. Custom finishes are available upon request. Fixtures can be wired for single circuit or chasing effects.
SPECIFICATION SHEET Page 2 BISTRO STRING LIGHTS WITH HANGING SOCKETS
FILAMENT LAMP SPECIFICATIONS
LAMP TYPE:
12V (9-15VAC) ST14 lamp with 5-year warranty.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K.
FIXTURE ORDERING INFORMATION
To order a fixture, select the appropriate choice from each column as in the following example:
EXAMPLE: 490956
Model
490924
NO SPEC
SPECIFICATION SHEET

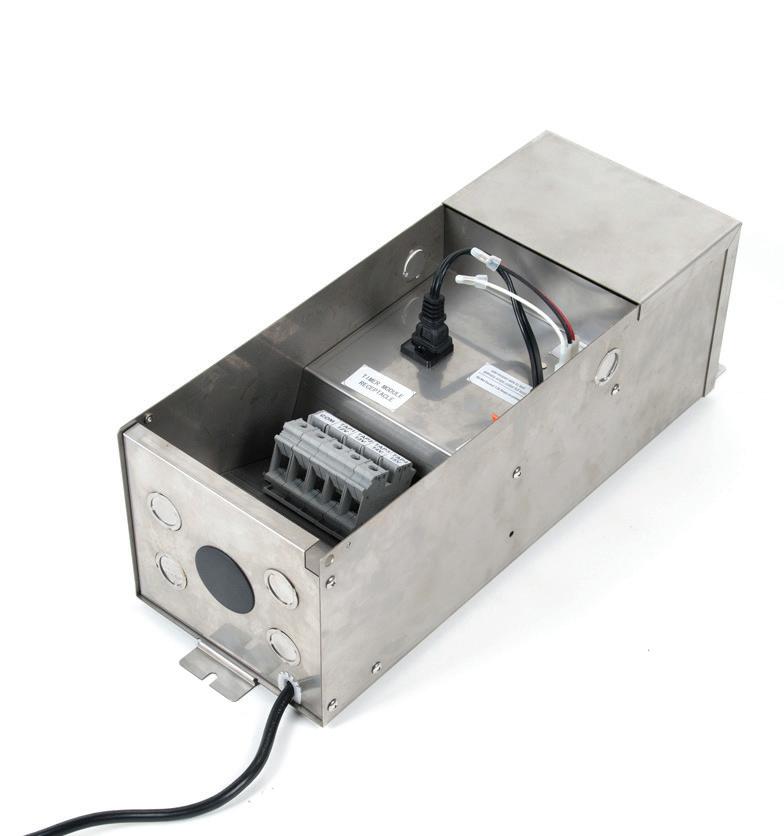

300W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490542
SPECIFICATIONS
OUTPUT:
300W, 25A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT:
120V, 60Hz, 2.5A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 25A breaker, heavy-duty grounded 5-foot power cord. Suitable for interior or exteriror use.
AGENCY LISTINGS: ETL approved. Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490542-DT200LT
DIMENSIONS:
Type:
Model: _____________________________
If this unit is being mounted within 25 feet of a panel box with primary breakers, it is recommended to have a designated circuit with a high in-rush current, magnetic load type breaker which is compatible with the existing brand of panel.
Q-CAP KURV STATIC WHITE
P1
Through
(Input/Output) - End Feed
P2 Pass Through 2 (Input/Output) - Bottom Feed
P3 Pass Through 3 (Input/Output) - Left Side Feed
P4 Pass Through 4 (Input/Output) - Right Side Feed
P5 Pass Through 5 (Input/Output) - Seamless Feed
P6 Pass Through 6 (Input/Output) - Seamless Feed
NeoVision24 SideFlex
Flexible Neon LED Tape Specification Sheet
PRODUCT OVERVIEW
A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables horizontal bending that conforms tape around curvilinear surfaces.
FEATURES
•Multiple power feed options
• Tape encased in UV stable silicone (UV protected)
•Wireless control with LUXcontrol App and controller
•2700K, 3000K, 4000K / Amber, Blue, Green or Red
•120° viewing angle
• Maximum run: 32'-8"
•Cuttable and joinable in two inch increments
• Each run requires an end cap (sold separately)
•No tools required for capping and joining
•Mounting clips included (recommend use one per foot)
SPECIFICATIONS
ELECTRICAL CERTIFICATION
•24VDC •UL
•3W per foot
•IP65
PHOTOMETRIC WARRANTY
•90+ CRI
•5 years when paired
AMBIENT OPERATING TEMP with GM power supply
•-13°F - 131°F
ORDERING INFORMATION
White
NV24S-3W-27K-16 16'-4" 215lm 2700K
NV24S-3W-27K-32 32'-8" 215lm 2700K
NV24S-3W-30K-16 16'-4" 230lm 3000K
NV24S-3W-30K-32 32'-8" 230lm 3000K
NV24S-3W-40K-16 16'-4" 215lm 4000K
NV24S-3W-40K-32 32'-8" 215lm 4000K
Colors
NV24S-3W-AM-16 16'-4" N/A Amber
NV24S-3W-AM-32 32'-8" N/A Amber
NV24S-3W-BL-16 16'-4" N/A Blue
NV24S-3W-BL-32 32'-8" N/A Blue
NV24S-3W-GR-16 16'-4" N/A Green
NV24S-3W-GR-32 32'-8" N/A Green
NV24S-3W-RD-16 16'-4" N/A Red
NV24S-3W-RD-32 32'-8" N/A Red
Max Run: 32'-8"
Kelvin temperature (color) ±100K.
NOTE: Every reel includes (1) NV24S-PF-EF (tape-to-power feed with 48" of lead). 16' reel includes (16) NV24S-MC-A mounting clips and screws. 32' reel comes with (32) NV24S-MC-A mounting clips and screws.
Amber 3000K Blue Green Red .67" .47"
SideFlex Cutaway
QZ-PH/0-10V
24V DC Power Supply - 30W-288W
Sample Part Number: QZ-60W-UNV-24V-PH/010-BK
Versatile Class 2 LED driver controlled with phase (forward or reverse) or 0-10V dimming down to 0.1% Pulse Width Modulation (PWM) output provides smooth flicker-free dimming 24VDC constant voltage output Available in various wattage options: 30W, 60W, 96W, 192W, and 288W Housing is listed for indoor or outdoor use
PH/010 Phase or 0-10V dimming WH White (Standard) BK Black Powder Coat Finish
COMPATIBLE LEDS
STATIC WHITE
SW24/1.5-4.0
SW24/5.0, SW-HE, SW-HE+
SD-SW24/1.0-4.0
SD-SW24/6.0 SW-IA SW-XT
OTHER
DW-HE Tunable Applications
DW-HE Warm Dim Applications WD SC RGB RGBW, RGBW-HE
PRODUCT INFORMATION
Vertical or horizontal surface mount Constant voltage output
PH/010 Dimming:
Wide operating temperature range: -40 F to +140 F UL, cUL listed Type HL rated Compliant to FCC Part 15B 5 year warranty 1 2 3 4 5 6
SHEETS
Q-SHEETS SW
Q-SHEETS DW Tunable Applications
Q-SHEETS DW Warm Dim Applications
Q-SHEETS RGB Q-SHEETS RGBW
MICRO 5
MICRO 5-SW
MICRO 5-DW Tunable Applications
MICRO 5-DW Warm Dim Applications
MICRO 5-RGB
- Phase dimming: works with forward phase / leading edge, MLV and Reverse phase / trailing edge, ELV, TRIAC dimmers
Follows recommended practices of IEEE standard P1789 to mitigate flicker-induced health risks
Suitable for dry, damp and wet locations
Suitable for indoor & outdoor use
Primary voltage - universal (110-277V)
NeoVision24 SideFlex
Flexible Neon LED Tape Specification Sheet
CONNECTORS AND ACCESSORIES
Product
NV24S-PF-EF8
NV24S-PF-BF8
NV24S-SP
NV24S-CHL-A4
NV24S-CHL-A6
Tape-to-Power Flexible End Feed, 8 ft.
Tape-to-Power Flexible Bottom Feed, 8 ft.
Tape-to-Tape Splice Connector
Aluminum Channel, 4 ft.
Aluminum Channel, 6 ft.
Aluminum Mounting Clips (set of 20)
Product
NV24S-TTC6
NV24S-TTC12
NV24S-TTC24
Tape-to-Tape Flexible Connector, 6"
Tape-to-Tape Flexible Connector, 12"
Tape-to-Tape Flexible Connector, 24"
NV24S-FLEX-CHL Flexible Mounting Channel, 39.5"
NV24S-EC End Cap
NV24-CT Tape Cutting Tool
The above connectors, channels, mounting clips and caps are for the exclusive use of NeoVision24 SideFlex Neon Tape and are ordered separately.
End Feed
NV24S-PF-EF8
Splice Connector
NV24S-SP
Bottom Feed
NV24S-PF-BF8
Tape Configuration Example
Aluminum Channel
NV24S-CHL-A4
NV24S-CHL-A6
2-1/2" Minimum Bend Radius
NV24S-CHL-A4
NV24S-CHL-A6
NOTE: Each run requires an end cap (sold separately)
NV24S-EC
End Cap
NV24S-EC
NV24S-FLEX-CHL
NV24S-SP
Mounting Clips NV24S-MC-A
Tape-to-Tape Connector
NV24S-TTC12 |
NV24S-TTC6
NV24S-TTC24
Flexible Mounting Channel
NV24S-FLEX-CHL
NV24S-PF-EF8
NV24S-EC
NV24S-MC-A
NV24S-FLEX-CHL
NV24S-PF-BF8
NV24S-TTC6
NV24S-TTC12
NV24S-TTC24
NV24S-CHL-A4
NV24S-CHL-A6
BLANK
Flexible Neon LED Tape Specification Sheet
WIRING DIAGRAM
Single Color Smart Controller
Repeater Wiring
Single color connection -One channel
CYLINDER 1 SURFACE MOUNT
Our best-selling cylinders keep getting better. Adjustable, fixed, and wallwash are all offered in a broad range of sizes, with lumens from 500 to almost 5000lm, standard 90˚ tilt, and more than a dozen finish options. Now, there’s a fixture for anywhere you need to illuminate anything.
ORDERING INFORMATION
10°* (<16)
only)
15° (<16)
20° (<10)
STANDARD MEDIA
4 Soft Focus Lens (SFL)* *(Required for 10° optic)
(<10)
(<16)
Wallwash*
& AW fixture)
ALTERNATE MEDIA
0 No Lens* *(Not available for Wet Location)
20° (<10)
(<10)
(<10)
(<10)
2 Honey Comb Louver (HCL)* *(Not available for Wet Location)
60° (<16)
for WW & AW fixture)
3 Clear Glass Lens (CGL)
5 Frosted Glass Lens (FGL)
6 Frosted Soft Focus Lens (FSFL)
7 Frosted Linear Spread Lens (FLSL)
15° (<16)
20° (<10)
25° (<10)
40° (<10)
60° (<16)
C Clear Glass Film w/ Honeycomb Louver
Wallwash*
for
& AW fixture)
S Soft Focus Film w/ Honeycomb Louver
W Wallwash Lens*
*(Required for WW and AW fixture)
INTEGRAL UCA 0-10V Analog 120-277V, LIN 1CE 120V Electronic Forward/Reverse
*(Includes Node. Extended lead time, consult factory. UASR/UCSR includes shunt.)
TUNABLE WHITE REMOTE (0.1%, 120-277V)
UDD eldoLED, DUALdrive DALI-2 DT6, LOG
UDG eldoLED, DUALdrive 0-10V, LOG
UDN eldoLED, DUALdrive 0-10V, LIN
ROUGH-IN
JBMP 4” Sq or 4/0
Junction Box
Mounting Plate
FINISH OUT
CMJB * 1/2” and 3/4” Conduit Ceiling Mount Junction Box*
*(Available in powdercoat finishes. Alumina finish fixtures ship with Black powdercoat CMJB. Dry/ Damp rated.)
SMK3 3/0 Surface Mount Kit*
SMK4 4/0 Surface Mount Kit*
*(Available in powdercoat finishes. Dry/Damp rated.)
DELIVERED LUMEN OUTPUTS AND T24 COMPLIANCE REFLECT 3000K PAIRED WITH
OPTIC AND SOFT FOCUSLENS.
*SEE PAGE 4 FOR UGR VALUES
UAD1/ Athena Control, UADR EldoLED, DUALdrive*
UCD1/ Casambi Control, UCDR EldoLED, DUALdrive*
*(Includes Node. Extended lead time, consult factory. UADR/UCDR includes shunt.)
PART NUMBER NOTES
• CY1X ships as e.g.,CY1XAD1WHWH80S17A304041CE3
• Remote driver ships as e.g., PS-RMT-80S17A-1RE3
• Mounting part numbers listed on page 6
luciferlighting.com [DATE OF REV: 05072025]
1" Surface Mount Adjustable with 48V Integral Driver
PROJECT: TYPE:
Features
The FINCH family of cylinders with a 1” aperture, features exceptional output, flexibility, and a broad range of configurations to provide discreet quality illumination while integrating into the architecture. It is available in a fixed downlight, adjustable (with 50° tilt) , wall mount and even exterior ground mount options. Whether installed on ceilings, walls/mullions or the ground, the FINCH family blends seamlessly into its surroundings.
The FINCH surface adjustable cylinder is available in lengths from 6” to 18,” over a 1000 lm output and has a choice of beveled front door options for additional shielding. Maximum 50° tilt & 360° rotation for aiming flexibility. Use alone or in a composition to create a unique design.
Product Overview
Type: Surface Mount, Adjustable
Wattage: 6W, 8W, 10W, 12W, 15W, 17W, 20W
Color Temp: 2400K, 2700K, 3000K, 3500K, 4000K CRI: 80+ or 90+ typ.
Dimming: 0-10V, DALI
Certifications
Fixture Summary
Performance Data
Data is based on flood optic, standard bevel, 3000K, 80+ 120V IES file available on website. Consult ordering information and data for other wattages & beam spreads.
Electrical Data
Electronic constant current LED driver.
BLANK
1" Surface Mount Adjustable with 48V Integral Driver
PROJECT:
STEP 1: 1” Surface Mount (with 48V Constant Voltage Integral Driver) Ordering Information
1 Model 2 Wattage 3 Color Temp and CRI 4 Beam Spread 5 Body Finish
For custom RAL finish, consult factory. Omit from nomenclature when ordering GLOW door style.
9 Drivers/Controls 10 Options/Accessories
0-10V 0-10V dimming, 1% dim SOL solite beam softening lens
DALI DALI dimming, 1% dim HEX hexcell louver LS linear spread lens
STEP 2: Transformer Ordering Information (to power integral driver)
Amerlux offers 100W 48V DC constant current transformers with enclosure. 1
TR-48V100W
1 Model
TR-48V100W 100W, 48V transformer with enclosure, 120/277V input
For enclosure drawing & driver wiring schematics, see pages 6-7.
Periskop 1.8" Optics
General: The Periskop outdoor family of flood lights represents a versatile landscaping solution for trees, bushes, sculptures, as well as building facades. Periskop is available in multiple sizes and optics (including a Narrow Spot beam for dramatic effects), with multiple installation solutions available and a selection of accessories to control and shape the beam to your desire.
Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum. White RAL9003 / Black RAL9005 / Gray RAL9006 / Green 6031 / Dark Brown (Weathering Steel-like finish).
Glass: Extra-clear Tempered glass.
Bracket: Anodized Aluminum Bracket, Black Painted. Bracket pivots -95°/+20° on the vertical plane (no horizontal plane adjustment).
Mounting details: Fixture can be installed straight into concrete or onto different surfaces by using one of the several mounting accessories available within the family.
Dimensions/Weight: 1.8" (0.44 lbs)
Driver: Remote, 120-277V Dimmable 0-10V. Optional: Lutron Athena Wireless Node RF (AWNRF), can be added to control up to 5x drivers together (Consult Factory).
Wattage: 6W (1.8")
Cable: Fixture comes with 3.28' of power cable and it's equipped with TCS safety system to shield circuits from moisture.
IP rating: IP66 for protection against dust and water jets from any angle.
IK rating: IK 05 (1.8")
ETL Certification: ETL, wet location
Optics: Fixed: Available in Spot – Flood – Wide Flood. Narrow w/Integrated Snoot: Available in Narrow Spot.
Color temperatures: 2700K – 3000K – 4000K.
CRI: 80+
Lumen Maintenance: L70 projections tested at Tj 65° C and Ta 25°.
Warranty: 5-year Limited Warranty on fixtures. 1-year Limited Warranty on Remote Drivers.
410 381 1497 inter-lux.com answers@inter-lux.com Inter-lux reserves the right to make technical changes without notice.
⊕ Hover to zoom. Click to Expand
Helios Mini 10W
Item ID: CB-SL1245
Speci cations Add to Quote
Technical
LED Chip: Cree 1 Chip
Wattage: 10W
Color / CCT (K): 2700K, 3000K, 3500K, 4000K, 5000K, 5700K
General: The Periskop outdoor family of flood lights represents a versatile landscaping solution for trees, bushes, sculptures, as well as building facades. Periskop is available in multiple sizes and optics (including a Narrow Spot beam for dramatic effects), with multiple installation solutions available and a selection of accessories to control and shape the beam to your desire.
Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum. White RAL9003 / Black RAL9005 / Gray RAL9006 / Green 6031 / Dark Brown (Weathering Steel-like finish).
Glass: Extra-clear Tempered glass.
Bracket: Anodized Aluminum Bracket, Black Painted. Bracket pivots -95°/+20° on the vertical plane (no horizontal plane adjustment).
Mounting details: Fixture can be installed straight into concrete or onto different surfaces by using one of the several mounting accessories available within the family.
Dimensions/Weight: 1.8" (0.44 lbs)
Driver: Remote, 120-277V Dimmable 0-10V. Optional: Lutron Athena Wireless Node RF (AWNRF), can be added to control up to 5x drivers together (Consult Factory).
Wattage: 6W (1.8")
Cable: Fixture comes with 3.28' of power cable and it's equipped with TCS safety system to shield circuits from moisture.
IP rating: IP66 for protection against dust and water jets from any angle.
IK rating: IK 05 (1.8")
ETL Certification: ETL, wet location
Optics: Fixed: Available in Spot – Flood – Wide Flood. Narrow w/Integrated Snoot: Available in Narrow Spot.
Color temperatures: 2700K – 3000K – 4000K.
CRI: 80+
Lumen Maintenance: L70 projections tested at Tj 65° C and Ta 25°.
Warranty: 5-year Limited Warranty on fixtures. 1-year Limited Warranty on Remote Drivers.
410 381 1497 inter-lux.com answers@inter-lux.com Inter-lux reserves the right to make technical changes without notice.
⊕ Hover to zoom. Click to Expand
Helios Mini 10W
Item ID: CB-SL1245
Speci cations Add to Quote
Technical
LED Chip: Cree 1 Chip
Wattage: 10W
Color / CCT (K): 2700K, 3000K, 3500K, 4000K, 5000K, 5700K
General: Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range.
The standard Suelo R provides maximum output and a selection of accessories to control the emission based on application needs. The Suelo PRO version has a more recessed optical chamber instead, to guarantee the best glare control without the need of any louver.
Lastly, Suelo is also available with a Dual Optic (Double, allowing to aim light at two different areas from one fixture) and in a Telescopic version, with an adjustable aluminum tube that elevates the fixture off the ground, to prevent growing vegetation from blocking the light.
CC version: (1.2", 2.5", 3.6") Remote 120-277V Constant Current driver 0-10V dimmable down to 0.1%. Less susceptible to voltage drop (up to 200' wiring distance); Fixtures need to be wired in series.
(2W CC)
CV version: (2.5", 3.6") Remote 120-277V Constant Voltage 24VDC. Driver options in 0-10V (typical dim level 10%, dry location) or Non-dim (wet location). Possibility to use higher wattage drivers and feed multiple fixtures with fewer wiring runs; fixtures need to be wired in parallel.
Cable: Fixture comes with 3.28' of power cable and built-in Aquastop® (anti-wicking) system
IP rating: IP67 for temporary submersion up to 3.3' of depth for up to a maximum of 1 hr.
IK rating: IK 05 (1.2") – IK 09 (2.5") – IK 10 (3.6")
ETL Certification: ETL, wet location
Optics: Fixed. Available in Hyper Spot – Ultra Spot – Narrow Spot – Spot – Narrow Flood –Flood – Wide Flood – Elliptical. Some variants can also mount Honeycomb louvers. Color temperatures: 2700K – 3000K – 4000K.
CRI: 80+
Lumen Maintenance: L70 projections tested at Tj 65° C and Ta 25°.
Warranty: 5-year Limited Warranty on fixtures. 1-year Limited Warranty on Remote Drivers.
410 381 1497 inter-lux.com answers@inter-lux.com
Inter-lux reserves the right to make technical changes without notice.

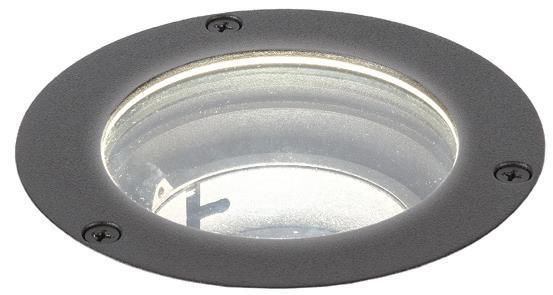

3" ING R OUN D 12V
PRO DU C T D ESCRIPTIO N
Landscape Wall Wash luminaire
FE ATURE S
• Tiltable and adjustable beam angle
• Integral dimmer
• IP67 rated, protected from temporary immersion under water
• Drive over up to 4500lbs
• Solid diecast brass or corrosion resistant aluminum
• Available concrete pour kit
• • Maintains constant lumen output against voltage drop
• UL 1838 Listed
• MLV dimmable with remote MLV dimmers
OR DE RIN G NU M BE R
5031 3" Inground 12V
5031-_______
Example:
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFI CATION S
Input:
Power:
Brightness:
Beam Angle: CRI:
Rated Life: 9 - 15VAC (Transformer is required) 2W to 12W / 2VA - 17VA (Use VA value for sizing the transformer and calculate voltage drop.)
70 lm to 505 lm 15° to 60° 85 55,000 hours
IEC safety Standard Walk overDrive over Resistance to static load testYes (1125lbs)Yes (4496lbs)
Resistance to torque and shear loads test N/A Yes
Module Replacement
2700K M5031LE-27BZ
3000K M5031LE-30BZ
BLANK
PRO DU C T D ESCRIPTIO N
Magnetic transformer for Landscape Lighting products.
FE ATURE S
• IP65 Rated
• Taps for 12V, 13V, 14V and 15V
• Knock outs for power and photosenser connections
• 3-prong outlet for timer
• Outdoor rated stainless steel transformer contains an outdoor rated 3-prong plug for power
• 6' lead wire
• UL 1838 Listed
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFI CATION S Input: Output:
NEBULA L (6")
Nebula Large luminaire head consists of two sources. Each source can be independently configured. The overview below lists available options.
Project location: Fixture type:
Project name:
Model code #: Date Rev.03 01/2024
NEBULA L CONFIGURATION #
LUMINAIRE HEAD DOWN LIGHT
NEBULA L LUMINAIRE HEAD DOWN LIGHT
NEBULA L - EMPTY
NEBULA L - ST
NEBULA L - PR
Very narrow spot
20° Narrow spot
35° Medium narrow spot
4,500 70° Medium wide flood 6,000
NEBULA L - RGBW
25° Narrow spot
35° Medium narrow spot
NEBULA L - A
NEBULA L - SNOOT
NEBULA L - REFRACTOR SCREEN
NEBULA L - FINISH
Powder coating Neri grey Pure white White aluminum Grey aluminum Jet black
Moss green 15° Very narrow spot
SPECIFICATIONS
CONSTRUCTION: Extruded 2.25" square aluminum or brass.
LIGHT SOURCE OPTIONS: 12v, 3w, 160 lumen, 50,000 hour OMNI-3 LED (-LED3); 12v, 4w, 300lm, 50,000 hour LED Panel (-LEDP)
SOCKET (LED3): Single Contact bayonet, brass nickel plated (Ba15s); LEDP model is hardwired, no socket.
LED PANEL OPTION: Optional cool white 5200K 320 lumen (-LEDP52)
LED LIFETIME RATING: 50,000 Hours
LED EXTERNAL DRIVER*: 120v input, 12v output, 6w 350mA*
WIRING: Black 3 foot 18/2 zip cord from base of fixture
MOUNTING: None, 1/2"NPS male nipple on bottom.
FINISH: Aluminum - Black texture polyester powder coat. Optional finishes available Brass - Unfinished brass. Optional finishes available
*EXTERNAL DRIVER: 120v and 120-277v LED Driver is external and must be installed in waterproof junction box or FA-26 mounting post
ORDERING INFORMATION
Application
As individual luminaires with low mounting height, they can be used for marking danger areas or in rows for illuminating corridors and passageways. With high mounting heights they can be used as wall luminaires next to doors or for lighting small wall areas.
NRTL listed to North American Standards, suitable for wet locations Protection class IP 64
Weight: 1.5 lbs.
Electrical
Operating voltage
120-277V AC
Minimum start temperature -30° C
LED module wattage 4.2 W
System wattage 5.8 W
Controllability 0-10V dimmable
Color rendering index Ra > 90
Luminaire lumens 362 lm
LED service life (L70) 60000 hrs
LED color temperature
4000K (K4)
3500K (K35)
3000K (K3)
2700K (K27)
BEGA can supply you with suitable LED replacement modules for up to 20 years after the purchase of LED luminaires - see website for details
Finish
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL, custom, and premium colors provided in polyester powder and/or liquid paint.
Less than 0.1% copper content – Marine Grade 6060 extruded & LM6 Aluminum High Pressure die casting provides excellent mechanical strength , clean detailed product lines and excellent heat dissipation.
Pre paint
8 step degrease and phosphate process that includes deoxidizing and etching as well as a zinc and nickel phosphate process before product painting.
Memory Retentive -Silicon Gasket
Provided with special injection molded “fit for purpose” long life high temperature memory retentive silicon gaskets. Maintains the gaskets exact profile and seal over years of use and compression.
Thermal management
LM6 Aluminum is used for its excellent mechanical strength and thermal dissipation properties in low and high ambient temperatures. The superior thermal heat sink design by Ligman used in conjunction with the driver, controls thermals below critical temperature range to ensure maximum luminous flux output, as well as providing long LED service life and ensuring less than 10% lumen depreciation at 50,000 hours.
BUG Rating B0 - U3 - G1
Surge Suppression
Standard 10kv surge suppressor provided with all fixtures.
Finishing
All Ligman products go through an extensive finishing process that includes fettling to improve paint adherence.
Paint UV Stabilized 4.9Mil thick powder coat paint and baked at 200 Deg C. This process ensures that Ligman products can withstand harsh environments. Rated for use in natatoriums.
Inspired by Nature Finishes
The Inspired by nature Finishing is a unique system of decorative powder coating. Our metal decoration process can easily transform the appearance of metal or aluminum product into a wood grain finish.
This patented technology enables the simulation of wood grain, and even marble or granite finish through the use of decorative powder coating.
The wood grain finish is so realistic that it’s almost undistinguishable from real wood, even from a close visual inspection. The system of coating permeates the entire thickness of the coat and as a result, the coating cannot be removed by normal rubbing, chipping, or scratching.
The Coating Process
After pre-treatment the prepared parts are powder coated with a specially formulated polyurethane powder. This powder provides protection against wear, abrasion, impact and corrosion and acts as the relief base color for the finalized metal decoration.
The component is then wrapped with a sheet of non-porous film with the selected decoration pattern printed on it using special high temperature inks.
This printed film transfer is vacuum-sealed to the surface for a complete thermo print and then transferred into a customized oven. The oven transforms the ink into different forms within the paint layer before it becomes solid. Finally, the film is removed, and a vivid timber look on aluminum remains.
Wood grain coating can create beautiful wood-looking products of any sort. There are over 300 combinations of designs currently in use. Wood grains can be made with different colors, designs, etc.
Our powder coatings are certified for indoor and outdoor applications and are backed by a comprehensive warranty. These coatings rise to the highest conceivable standard of performance excellence and design innovation.
Added Benefits
• Resistance to salt-acid room, accelerated aging
• Boiling water, lime and condensed water resistant
Hardware Provided Hardware is Marine grade 316 Stainless steel.
Anti Seize Screw Holes
Tapped holes are infused with a special anti seize compound designed to prevent seizure of threaded connections, due to electrolysis from heat, corrosive atmospheres and moisture.
High Impact Acrylic Lens
Manufactured with Ultra High Impact, Naturally UV Stabilized Injection Molded Acrylic. Optics & LED Precise
Rectangular time-honoured wall recessed accent range. Efficient, flexible and tough family in the classic brick-light proportions.
A range of vandal resistant rectangular wall recessed luminaires. Suitable for indoor or outdoor applications in residential, shopping and pedestrian areas as a decorative guide light. Available in a variety of frame and LED light source options, including turtle friendly amber LED.
The Legend 1 and 2 is available with powdercoated aluminum or stainless steel frames. This luminaire is provided with a powdercoated high pressure die-cast aluminum back box and can be pre shipped to the jobsite for concrete pour or masonry applications.
As an option, this luminaire can be provided with a special wall clamp bracket that provides a clamping option when installing in drywall or wood panel walls.
Available in amber and white 2700K, 3000K, 3500K and 4000K. Consult factory for additional colors. The Legend steplight range can be provided with colored lenses to provide a decorative architectural touch to the building, please see options.
All Ligman fixtures can be manufactured using a special pre-treatment and coating process that ensures the fixture can be installed in natatoriums as well as environments with high concentrations of chlorine or salt and still maintain the 5 year warranty. For this natatorium rated process please specify NAT in options. fixture can be installed in natatoriums as well as environments with high concentrations of chlorine or salt and still maintain the 5 year warranty. For this natatorium rated process please specify NAT in options.
Legend 1 Recessed
Aluminum Casting
Less than 0.1% copper content – Marine Grade 6060 extruded & LM6 Aluminum High Pressure die casting provides excellent mechanical strength , clean detailed product lines and excellent heat dissipation.
Pre paint
8 step degrease and phosphate process that includes deoxidizing and etching as well as a zinc and nickel phosphate process before product painting.
Memory Retentive -Silicon Gasket
Provided with special injection molded “fit for purpose” long life high temperature memory retentive silicon gaskets. Maintains the gaskets exact profile and seal over years of use and compression.
Thermal management
LM6 Aluminum is used for its excellent mechanical strength and thermal dissipation properties in low and high ambient temperatures. The superior thermal heat sink design by Ligman used in conjunction with the driver, controls thermals below critical temperature range to ensure maximum luminous flux output, as well as providing long LED service life and ensuring less than 10% lumen depreciation at 50,000 hours.
BUG Rating B0 - U3 - G1
Surge Suppression
Standard 10kv surge suppressor provided with all fixtures.
Finishing
All Ligman products go through an extensive finishing process that includes fettling to improve paint adherence.
Paint UV Stabilized 4.9Mil thick powder coat paint and baked at 200 Deg C. This process ensures that Ligman products can withstand harsh environments. Rated for use in natatoriums.
Inspired by Nature Finishes
The Inspired by nature Finishing is a unique system of decorative powder coating. Our metal decoration process can easily transform the appearance of metal or aluminum product into a wood grain finish.
This patented technology enables the simulation of wood grain, and even marble or granite finish through the use of decorative powder coating.
The wood grain finish is so realistic that it’s almost undistinguishable from real wood, even from a close visual inspection. The system of coating permeates the entire thickness of the coat and as a result, the coating cannot be removed by normal rubbing, chipping, or scratching.
The Coating Process
After pre-treatment the prepared parts are powder coated with a specially formulated polyurethane powder. This powder provides protection against wear, abrasion, impact and corrosion and acts as the relief base color for the finalized metal decoration.
The component is then wrapped with a sheet of non-porous film with the selected decoration pattern printed on it using special high temperature inks.
This printed film transfer is vacuum-sealed to the surface for a complete thermo print and then transferred into a customized oven. The oven transforms the ink into different forms within the paint layer before it becomes solid. Finally, the film is removed, and a vivid timber look on aluminum remains.
Wood grain coating can create beautiful wood-looking products of any sort. There are over 300 combinations of designs currently in use. Wood grains can be made with different colors, designs, etc.
Our powder coatings are certified for indoor and outdoor applications and are backed by a comprehensive warranty. These coatings rise to the highest conceivable standard of performance excellence and design innovation.
Added Benefits
• Resistance to salt-acid room, accelerated aging
• Boiling water, lime and condensed water resistant
Hardware Provided Hardware is Marine grade 316 Stainless steel.
Anti Seize Screw Holes
Tapped holes are infused with a special anti seize compound designed to prevent seizure of threaded connections, due to electrolysis from heat, corrosive atmospheres and moisture.
High Impact Acrylic Lens
Manufactured with Ultra High Impact, Naturally UV Stabilized Injection Molded Acrylic. Optics & LED Precise
Rectangular time-honoured wall recessed accent range. Efficient, flexible and tough family in the classic brick-light proportions.
A range of vandal resistant rectangular wall recessed luminaires. Suitable for indoor or outdoor applications in residential, shopping and pedestrian areas as a decorative guide light. Available in a variety of frame and LED light source options, including turtle friendly amber LED.
The Legend 1 and 2 is available with powdercoated aluminum or stainless steel frames. This luminaire is provided with a powdercoated high pressure die-cast aluminum back box and can be pre shipped to the jobsite for concrete pour or masonry applications.
As an option, this luminaire can be provided with a special wall clamp bracket that provides a clamping option when installing in drywall or wood panel walls.
Available in amber and white 2700K, 3000K, 3500K and 4000K. Consult factory for additional colors. The Legend steplight range can be provided with colored lenses to provide a decorative architectural touch to the building, please see options.
All Ligman fixtures can be manufactured using a special pre-treatment and coating process that ensures the fixture can be installed in natatoriums as well as environments with high concentrations of chlorine or salt and still maintain the 5 year warranty. For this natatorium rated process please specify NAT in options. fixture can be installed in natatoriums as well as environments with high concentrations of chlorine or salt and still maintain the 5 year warranty. For this natatorium rated process please specify NAT in options.
BLANK
FEATURES & SPECIFICATIONS
INTENDED USE — Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T5 and T8 lengths. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, cove and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Compact-design channel and cover are formed from code-gauge cold-rolled steel. Easy to install row aligner included for continuous row mounting.
Finish: Paint options include high-gloss, baked white enamel (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). After fabrication, five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Standard diffuse snap on/snap off lens eliminates pixels, improves uniformity and minimizes glare. L/LENS option available.
ELECTRICAL — L70>60,000hours. Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 2.) Electronic LED driver is rated for 75 input watts maximum (see Operational Data on page 4 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide nominal 80 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,000 lumens per foot. In 86°F (30°C) ambient environments. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION — Tool-less channel cover for easy installation.
Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Three-point aligner locks in place for easy continuous row mounting. LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -40°F (-40°C) and 86°F (30°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
48" and 96" Lengths
L/Lens
Lensed
ZL1N LED Striplight
A+ Capable options indicated by this color background.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
ZL1N LED striplight L24 24" ‡ (blank) Less reflector SMR Symmetric
1,500 lumens
2,500 lumens
3,500 lumens
Accessories: Order as separate catalog number.
HC36 M12 Hanger chain, 36" (1 pair)
E7W 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E7W 2) 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E10W 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E10W (2) 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E15WLCP Power Sentry® PS1555LCP, 15 watt emergency battery, Certified in CA Title 20 MAEDBS (LINK )‡
OUTEND Cord set to exit endplate of fixture
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless ‡
NLTAIR2
RLSXR10 nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights) (LINK )
NLTAIR2
RLSXR10EM nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights),UL 924 Emergency Operation, via power interrupt detection (not available with battery pack) (LINK ) ‡
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
ZLANGBKT Luma-tilt™ angle bracket for shelf or ledge mounting only
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
INTENDED USE — Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T5 and T8 lengths. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, cove and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Compact-design channel and cover are formed from code-gauge cold-rolled steel. Easy to install row aligner included for continuous row mounting.
Finish: Paint options include high-gloss, baked white enamel (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). After fabrication, five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Standard diffuse snap on/snap off lens eliminates pixels, improves uniformity and minimizes glare. L/LENS option available.
ELECTRICAL — L70>60,000hours. Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 2.) Electronic LED driver is rated for 75 input watts maximum (see Operational Data on page 4 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide nominal 80 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,000 lumens per foot. In 86°F (30°C) ambient environments. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION — Tool-less channel cover for easy installation.
Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Three-point aligner locks in place for easy continuous row mounting. LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -40°F (-40°C) and 86°F (30°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
48" and 96" Lengths
L/Lens
Lensed
ZL1N LED Striplight
A+ Capable options indicated by this color background.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
ZL1N LED striplight L24 24" ‡ (blank) Less reflector SMR Symmetric
1,500 lumens
2,500 lumens
3,500 lumens
Accessories: Order as separate catalog number.
HC36 M12 Hanger chain, 36" (1 pair)
E7W 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E7W 2) 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E10W 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E10W (2) 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E15WLCP Power Sentry® PS1555LCP, 15 watt emergency battery, Certified in CA Title 20 MAEDBS (LINK )‡
OUTEND Cord set to exit endplate of fixture
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless ‡
NLTAIR2
RLSXR10 nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights) (LINK )
NLTAIR2
RLSXR10EM nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights),UL 924 Emergency Operation, via power interrupt detection (not available with battery pack) (LINK ) ‡
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
ZLANGBKT Luma-tilt™ angle bracket for shelf or ledge mounting only
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
INTENDED USE — Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T5 and T8 lengths. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, cove and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Compact-design channel and cover are formed from code-gauge cold-rolled steel. Easy to install row aligner included for continuous row mounting.
Finish: Paint options include high-gloss, baked white enamel (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). After fabrication, five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Standard diffuse snap on/snap off lens eliminates pixels, improves uniformity and minimizes glare. L/LENS option available.
ELECTRICAL — L70>60,000hours. Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 2.) Electronic LED driver is rated for 75 input watts maximum (see Operational Data on page 4 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide nominal 80 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,000 lumens per foot. In 86°F (30°C) ambient environments. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION — Tool-less channel cover for easy installation.
Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Three-point aligner locks in place for easy continuous row mounting. LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -40°F (-40°C) and 86°F (30°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
48" and 96" Lengths
L/Lens
Lensed
ZL1N LED Striplight
A+ Capable options indicated by this color background.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
ZL1N LED striplight L24 24" ‡ (blank) Less reflector SMR Symmetric
1,500 lumens
2,500 lumens
3,500 lumens
Accessories: Order as separate catalog number.
HC36 M12 Hanger chain, 36" (1 pair)
E7W 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E7W 2) 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E10W 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E10W (2) 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E15WLCP Power Sentry® PS1555LCP, 15 watt emergency battery, Certified in CA Title 20 MAEDBS (LINK )‡
OUTEND Cord set to exit endplate of fixture
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless ‡
NLTAIR2
RLSXR10 nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights) (LINK )
NLTAIR2
RLSXR10EM nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights),UL 924 Emergency Operation, via power interrupt detection (not available with battery pack) (LINK ) ‡
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
ZLANGBKT Luma-tilt™ angle bracket for shelf or ledge mounting only
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
INTENDED USE — Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T5 and T8 lengths. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, cove and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Compact-design channel and cover are formed from code-gauge cold-rolled steel. Easy to install row aligner included for continuous row mounting.
Finish: Paint options include high-gloss, baked white enamel (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). After fabrication, five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Standard diffuse snap on/snap off lens eliminates pixels, improves uniformity and minimizes glare. L/LENS option available.
ELECTRICAL — L70>60,000hours. Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 2.) Electronic LED driver is rated for 75 input watts maximum (see Operational Data on page 4 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide nominal 80 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,000 lumens per foot. In 86°F (30°C) ambient environments. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION — Tool-less channel cover for easy installation.
Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Three-point aligner locks in place for easy continuous row mounting. LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -40°F (-40°C) and 86°F (30°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
48" and 96" Lengths
L/Lens
Lensed

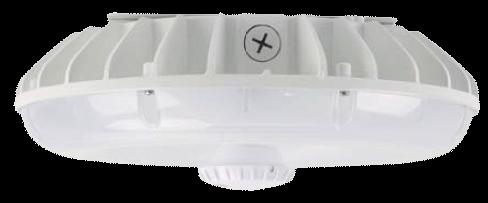

Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
• Wattage selectable 35/45/55W
• Color Selectable 35/40/50K
• Optional battery backup
Ideal Applications
• Commercial settings
• Stairways
• Bi-level dimming microwave motion sensor
• Surface or pendant mounting
• Industrial settings
• Warehouses
ZL1N LED Striplight
A+ Capable options indicated by this color background.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
ZL1N LED striplight L24 24" ‡ (blank) Less reflector SMR Symmetric
1,500 lumens
2,500 lumens
3,500 lumens
Accessories: Order as separate catalog number.
HC36 M12 Hanger chain, 36" (1 pair)
E7W 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E7W 2) 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E10W 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E10W (2) 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E15WLCP Power Sentry® PS1555LCP, 15 watt emergency battery, Certified in CA Title 20 MAEDBS (LINK )‡
OUTEND Cord set to exit endplate of fixture
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless ‡
NLTAIR2
RLSXR10 nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights) (LINK )
NLTAIR2
RLSXR10EM nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights),UL 924 Emergency Operation, via power interrupt detection (not available with battery pack) (LINK ) ‡
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
ZLANGBKT Luma-tilt™ angle bracket for shelf or ledge mounting only
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
•Sharkward bi-level dimming microwave motion sensor included
•Long 50,000 hour rated life
•Bi-level dimming microwave motion sensor included standard, battery backup optional
Catalog Ordering Matrix
Field Installed Accessories:
YTGHANGER - 10’ adjustable cable hang kit
Listings
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
FEATURES & SPECIFICATIONS
INTENDED USE — Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T5 and T8 lengths. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, cove and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Compact-design channel and cover are formed from code-gauge cold-rolled steel. Easy to install row aligner included for continuous row mounting.
Finish: Paint options include high-gloss, baked white enamel (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). After fabrication, five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Standard diffuse snap on/snap off lens eliminates pixels, improves uniformity and minimizes glare. L/LENS option available.
ELECTRICAL — L70>60,000hours. Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 2.) Electronic LED driver is rated for 75 input watts maximum (see Operational Data on page 4 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide nominal 80 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,000 lumens per foot. In 86°F (30°C) ambient environments. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION — Tool-less channel cover for easy installation.
Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Three-point aligner locks in place for easy continuous row mounting. LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -40°F (-40°C) and 86°F (30°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
48" and 96" Lengths
L/Lens
Lensed
Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
• Wattage selectable 35/45/55W
• Color Selectable 35/40/50K
• Optional battery backup
Ideal Applications
• Commercial settings
• Stairways
• Bi-level dimming microwave motion sensor
• Surface or pendant mounting
• Industrial settings
• Warehouses
ZL1N LED Striplight
A+ Capable options indicated by this color background.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
ZL1N LED striplight L24 24" ‡ (blank) Less reflector SMR Symmetric
1,500 lumens
2,500 lumens
3,500 lumens
Accessories: Order as separate catalog number.
HC36 M12 Hanger chain, 36" (1 pair)
E7W 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E7W 2) 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E10W 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E10W (2) 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E15WLCP Power Sentry® PS1555LCP, 15 watt emergency battery, Certified in CA Title 20 MAEDBS (LINK )‡
OUTEND Cord set to exit endplate of fixture
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless ‡
NLTAIR2
RLSXR10 nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights) (LINK )
NLTAIR2
RLSXR10EM nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights),UL 924 Emergency Operation, via power interrupt detection (not available with battery pack) (LINK ) ‡
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
ZLANGBKT Luma-tilt™ angle bracket for shelf or ledge mounting only
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
•Sharkward bi-level dimming microwave motion sensor included
•Long 50,000 hour rated life
•Bi-level dimming microwave motion sensor included standard, battery backup optional
Catalog Ordering Matrix
Field Installed Accessories:
YTGHANGER - 10’ adjustable cable hang kit
Listings
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
FEATURES & SPECIFICATIONS
INTENDED USE — Ideal for damp/wet locations such as outdoor venues, canopies and locker rooms. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Certain airborne contaminants can diminish integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components
Luminaire Surge Protection Level: Designed to withstand up to 2.5kV/0.75kA per ANSI C82.77-5-2015. For applications requiring higher level of protection additional surge protection must be provided.
INSTALLATION
- Surface (wall, ceiling) using standard brackets (301 stainless steel) includes bail for chain hanging
- Suspended (chain, cable) using standard brackets (301 stainless steel) LISTINGS
- CSA Certified to UL & C-UL Standards for wet location
- IP65, IP66 rated per IEC60529
- NSF Splash zone rated
- FCC Title 47, Part 15 Subpart B compliant
- 2.5kV/0.75kA Surge Rated per ANSI C82-77-5-2015
- IK10 rated
- CSA Ambient Listings on Page 3
- Lumen Maintenance Listed on Page 3
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® or XPoint™ Wireless control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus.
*See ordering tree for details
CSVT Vapor Tight LED Strip Light
Looking for Contractor Select readily available configurations? Click here to visit Contractor Select™ spec
ORDERING INFORMATION
A+ Capable options indicated by this color background.
Lead times will vary depending on options selected. Consult with your sales representative.
/ 4000LM / 5000LM
8,000 lumens ‡
10,000 lumens ‡ 12000LM 12,000 lumens ‡
Switchable lumens, 6000LM, 8000LM, and 10000LM
Options
STSL Stainless steel latches
IE7WCP Emergency battery pack, 7W, CA Title 20 Noncompliant ‡
IE7WCPHE Emergency battery pack, 7W, Certified in CA Title 20 MAEDBS ‡ WLFEND2 Wet location fitting (fittings out both ends) ‡
Individual Controls ‡
SBOR10 360° integral low mount motion sensor (standard on/off operation)
SBOR10 D 3V360° integral low mount motion sensor with dimming (low trim set at 30%)
SBOR10 P 360° integral low mount motion sensor with photocell
nLight Wireless Controls ‡ NLTAIR2 RSBOR10 nLight (wireless) gen 2 low mount occupancy & daylight sensor
35K, 40K, 50K Not available with ALO lumen packages.
3000LM, 4000LM, 5000LM, 6000LM, 8000LM, 10000LM, 12000LM Not available with SWW3.
CSVT STSL LATCH Requires two for L96 IE7WCP, IE7WCPHE Not available with 347V.
Individual Controls Not available with WLFEND2 option.
Accessories: Order as separate catalog number.
CSVT STSL LATCHStainless steel latch kit (Set of 10) ‡
36" stainless steel chain (QTY of 2) Series
nLight Wireless Controls Not available with WLFEND2 option. WLFEND2 Not available with cord set or sensor options.
CSVTRMBA Angle mount bracket (QTY of 2) (316 stainless steel)
CSVTRMBU Rigid mount U-bolt bracket (QTY of 2) (316 stainless steel)
CSVTRMBK Rigid mount bracket (QTY of 2) (316 stainless steel)
CSVTSMB Replacement standard mounting brackets (QTY of 2) (301 stainless steel)
How to Estimate Delivered Lumens in Emergency Mode
Use the formula below to estimate the delivered lumens in emergency mode
Delivered Lumens = 1.25 x P x LPW
P = Output power of emergency driver. P = 10W for IE10WCPHE
LPW = Lumen per watt rating of the luminaire. This information is available on the ABL luminaire spec sheet. The LPW rating is also available at Designlight Consortium
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K - 140
3500K - 135
4000K - 136
5000K - 137
FEATURES & SPECIFICATIONS
INTENDED USE — Ideal for damp/wet locations such as outdoor venues, canopies and locker rooms. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Certain airborne contaminants can diminish integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components
Luminaire Surge Protection Level: Designed to withstand up to 2.5kV/0.75kA per ANSI C82.77-5-2015. For applications requiring higher level of protection additional surge protection must be provided.
INSTALLATION
- Surface (wall, ceiling) using standard brackets (301 stainless steel) includes bail for chain hanging
- Suspended (chain, cable) using standard brackets (301 stainless steel) LISTINGS
- CSA Certified to UL & C-UL Standards for wet location
- IP65, IP66 rated per IEC60529
- NSF Splash zone rated
- FCC Title 47, Part 15 Subpart B compliant
- 2.5kV/0.75kA Surge Rated per ANSI C82-77-5-2015
- IK10 rated
- CSA Ambient Listings on Page 3
- Lumen Maintenance Listed on Page 3
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® or XPoint™ Wireless control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus.
*See ordering tree for details
CSVT Vapor Tight LED Strip Light
Looking for Contractor Select readily available configurations? Click here to visit Contractor Select™ spec
ORDERING INFORMATION
A+ Capable options indicated by this color background.
Lead times will vary depending on options selected. Consult with your sales representative.
Options
STSL Stainless steel latches
8,000 lumens ‡
10,000 lumens ‡ 12000LM 12,000 lumens ‡
Switchable lumens, 6000LM, 8000LM, and 10000LM
IE7WCP Emergency battery pack, 7W, CA Title 20 Noncompliant ‡
IE7WCPHE Emergency battery pack, 7W, Certified in CA Title 20 MAEDBS ‡ WLFEND2 Wet location fitting (fittings out both ends) ‡
Individual Controls ‡
SBOR10 360° integral low mount motion sensor (standard on/off operation)
SBOR10 D 3V360° integral low mount motion sensor with dimming (low trim set at 30%)
SBOR10 P 360° integral low mount motion sensor with photocell
nLight Wireless Controls ‡ NLTAIR2 RSBOR10 nLight (wireless) gen 2 low mount occupancy & daylight sensor
35K, 40K, 50K Not available with ALO lumen packages.
3000LM, 4000LM, 5000LM, 6000LM, 8000LM, 10000LM, 12000LM Not available with SWW3.
CSVT STSL LATCH Requires two for L96 IE7WCP, IE7WCPHE Not available with 347V.
Individual Controls Not available with WLFEND2 option.
nLight Wireless Controls Not available with WLFEND2 option. WLFEND2 Not available with cord set or sensor options.
Accessories: Order as separate catalog number.
CSVT STSL LATCHStainless steel latch kit (Set of 10) ‡
CSVTRMBA Angle mount bracket (QTY of 2) (316 stainless steel)
CSVTRMBU Rigid mount U-bolt bracket (QTY of 2) (316 stainless steel)
CSVTRMBK Rigid mount bracket (QTY of 2) (316 stainless steel)
CSVTSMB Replacement standard mounting brackets (QTY of 2) (301 stainless steel)
36" stainless steel chain (QTY of 2)
How to Estimate Delivered Lumens in Emergency Mode
Use the formula below to estimate the delivered lumens in emergency mode
Delivered Lumens = 1.25 x P x LPW
P = Output power of emergency driver. P = 10W for IE10WCPHE
LPW = Lumen per watt rating of the luminaire. This information is available on the ABL luminaire spec sheet. The LPW rating is also available at Designlight Consortium
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K - 140
3500K - 135
4000K - 136
5000K - 137
FEATURES & SPECIFICATIONS
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottomhinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment.
Two combination 1/2"-3/4" and four 1/2" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional. LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
A+ CAPABLE LUMINAIRE — This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands’ specifications for chromatic consistency – including color rendering, color fidelity and color temperature tolerance around standard CIE chromaticity coordinates. To learn more about A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equeal to or less than 60deg per CIE 117-1996
Discomfort Galre in Interior Lighting. UGR FAQs
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LUMEN MAINTENANCE — 70% lumen maintenance at 60,000 hours.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated. Drivers are ROHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN4 STATIC WHITE
DISTRIBUTIONS
Notes
Tested in accordance with IESNA LM-79-08
Tested to current IES and NEMA standards under stabilized laboratory conditions
Based on LDN4 AR LSS 35K 80CRI
NC3-41 / NC3-46 / NC3-48
4" Sapphire III LED Reflectors
Source: 13W to 46W 900lm to 4500lm
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
Signify ® Fortimo COB LED technology
Specifiable beam spreads 4" deep cone reflectors, wall wash and deco glass · 2700K, 3000K, 3500K and 4000K @ 90+ CRI 5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC3-48 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Delivered Lumens 900lm1500lm2500lm3500lm4500lm
Wattage 13W max.18W max.26W max.38W max.46W max.
Color Temperature 2700K, 3000K, 3500K or 4000K
Color Rendering Index 90+ CRI
Beam Spread 38° Spot, 53° Narrow Flood or 64° Flood
Compatible Frame-In
NCH3-4L1 NCHR3-4L1
NCH3-4L2 NCHR3-4L2
NCH3-4L3 NCHR3-4L3
Lifetime 50,000 hours @ L70
NCH3-4L4 NCHR3-4L4
NCH3-4L5 NCHR3-4L5
Decorative Glass: NC3-48 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-4SPH-FC 4" Tempered Frosted Glass with Clear Center
NTG-4SPH-HC 4" Tempered Clear Glass with Frosted Center and 3-1/8” Open Center
LABELS AND LISTINGS
cUL us Listed for Wet Locations when used with compatible frame-in 5-Year Limited Warranty
ENE RGY STAR certified RoHS Compliant
FCC Compliant
4" Sapphire III LED Reflectors - Dedicated Frame-In Required
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ10, EZ1). ER controls fixtures on emergency circuit.
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
Options
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__ RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified 90CRI High CRI (90+)
SF ‡ Single fuse
Option value
Lumen Packages
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect *See ordering tree for details
(Maximum order quantity for design select lead times is 160.)
‡ Option Value Ordering Restrictions
Restriction
Overall height varies based on lumen package, refer to dimensional charts on page 4 WR, BR Not available with finish (LSS, LD, LS) TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. Not available with TCPC or FCPC TRW, TRBL Available with clear (AR) trim color only TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details. Not available with TRAL or FRAL
347 Not available with emergency options
All Emergency 12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER Not available with MVOLT. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed.
SF Must specify 120 or 277 volt N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ10 and EZ1 drivers. NPP16D, NPP16DER, NPPS80EZ, NPS80EZERSpecify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. NLTAIR2, NLTAIRER2, NLATAIREM2Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. Not recommended for metal ceiling installations. NLTAIR2 When combined with EZ1 or EZ10 drivers, can be used as a normal power
JOT Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
HAO Fixture height is 5-11/16" for all lumen packages with HAO.
CP Must specify voltage for 3000lm. Not available with emergency battery pack option. E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/JOT. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch.
BLANK
FEATURES & SPECIFICATIONS
INTENDED USE — Typical applications include corridors, lobbies, conference rooms and private offices.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottomhinged access covers and spring latches. Reflectors are retained by torsion springs.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment.
Two combination 1/2"-3/4" and four 1/2" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing.
Passive cooling thermal management for 25°C standard; high ambient (40°C) option available. Light engine and drivers are accessible from above or below ceiling.
Max ceiling thickness 1-1/2".
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum. 90 CRI optional. LED light source concealed with diffusing optical lens.
General illumination lighting with 1.0 S/MH and 55° cutoff to source and source image.
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes. Also available in white and black painted reflectors.
A+ CAPABLE LUMINAIRE — This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands’ specifications for chromatic consistency – including color rendering, color fidelity and color temperature tolerance around standard CIE chromaticity coordinates. To learn more about A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equeal to or less than 60deg per CIE 117-1996
Discomfort Galre in Interior Lighting. UGR FAQs
ELECTRICAL — Multi-volt (120-277V, 50/60Hz) 0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level available.
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled.
LUMEN MAINTENANCE — 70% lumen maintenance at 60,000 hours.
LISTINGS — Certified to US and Canadian safety standards. Wet location standard (covered ceiling). IP55 rated. Drivers are ROHS compliant
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN4 STATIC WHITE
DISTRIBUTIONS
Notes
Tested in accordance with IESNA LM-79-08
Tested to current IES and NEMA standards under stabilized laboratory conditions
Based on LDN4 AR LSS 35K 80CRI
NC3-41 / NC3-46 / NC3-48
4" Sapphire III LED Reflectors
Source: 13W to 46W 900lm to 4500lm
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
Signify ® Fortimo COB LED technology
Specifiable beam spreads 4" deep cone reflectors, wall wash and deco glass · 2700K, 3000K, 3500K and 4000K @ 90+ CRI 5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC3-48 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Delivered Lumens 900lm1500lm2500lm3500lm4500lm
Wattage 13W max.18W max.26W max.38W max.46W max.
Color Temperature 2700K, 3000K, 3500K or 4000K
Color Rendering Index 90+ CRI
Beam Spread 38° Spot, 53° Narrow Flood or 64° Flood
Compatible Frame-In
NCH3-4L1 NCHR3-4L1
NCH3-4L2 NCHR3-4L2
NCH3-4L3 NCHR3-4L3
Lifetime 50,000 hours @ L70
NCH3-4L4 NCHR3-4L4
NCH3-4L5 NCHR3-4L5
Decorative Glass: NC3-48 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-4SPH-FC 4" Tempered Frosted Glass with Clear Center
NTG-4SPH-HC 4" Tempered Clear Glass with Frosted Center and 3-1/8” Open Center
LABELS AND LISTINGS
cULus Listed for Wet Locations when used with compatible frame-in 5-Year Limited Warranty
ENERGY STAR certified
RoHS Compliant
FC C Compliant
4" Sapphire III LED Reflectors - Dedicated Frame-In Required
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ10, EZ1). ER controls fixtures on emergency circuit.
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
Options
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__ RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified 90CRI High CRI (90+)
SF ‡ Single fuse
Option value
Lumen Packages
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect *See ordering tree for details
(Maximum order quantity for design select lead times is 160.)
‡ Option Value Ordering Restrictions
Restriction
Overall height varies based on lumen package, refer to dimensional charts on page 4 WR, BR Not available with finish (LSS, LD, LS) TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. Not available with TCPC or FCPC TRW, TRBL Available with clear (AR) trim color only TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details. Not available with TRAL or FRAL
347 Not available with emergency options
All Emergency 12.5" of plenum depth or top access required for battery pack maintenance. NPP16D, NPP16DER Not available with MVOLT. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed.
SF Must specify 120 or 277 volt N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ10 and EZ1 drivers. NPP16D, NPP16DER, NPPS80EZ, NPS80EZERSpecify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. NLTAIR2, NLTAIRER2, NLATAIREM2Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. Not recommended for metal ceiling installations. NLTAIR2 When combined with EZ1 or EZ10 drivers, can be used as a normal power
JOT Must specify D10 or D1 driver. Not available with nLight options. Not available with CP. Not recommended for metal ceiling installation. Not for use with emergency backup power systems other than battery packs.
HAO Fixture height is 5-11/16" for all lumen packages with HAO.
CP Must specify voltage for 3000lm. Not available with emergency battery pack option. E10WRSTAR Not available with wet location, EC1, EC6, QDS, CP, 347V, NPS80EZ ER, NLTAIRER2, NLTAIREM2, ALO3 & ALO4 w/DALI, OR 2000-4500 lumens w/JOT. Top access installation or 17.5" plenum clearance required for roomside installation. Not available with integral test switch.
BLANK
VCPG LED Parking Garage
Specifications
A+ Capable options indicated by this color background.
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E7WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (7W, -20°C min)5,6,7
E10WH Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (10W, 0°C, min)5,6,7
E18WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (18W, -20°C, min)5,6,7
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Shipped separately YK Yoke/trunnion mount2
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights (provides NPS signal)
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights (provides NPS signal)
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 8-15' mounting heights
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 15'-30' mounting heights
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
(blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units)
U Unit packs only
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
A+ Capable options indicated by this color background.
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E7WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (7W, -20°C min)5,6,7
E10WH Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (10W, 0°C, min)5,6,7
E18WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (18W, -20°C, min)5,6,7
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Shipped separately YK Yoke/trunnion mount2
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights (provides NPS signal)
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights (provides NPS signal)
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 8-15' mounting heights
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 15'-30' mounting heights
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
(blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units)
U Unit packs only
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
A+ Capable options indicated by this color background.
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E7WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (7W, -20°C min)5,6,7
E10WH Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (10W, 0°C, min)5,6,7
E18WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (18W, -20°C, min)5,6,7
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Shipped separately YK Yoke/trunnion mount2
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights (provides NPS signal)
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights (provides NPS signal)
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 8-15' mounting heights
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 15'-30' mounting heights
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
(blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units)
U Unit packs only
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/8 0/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
FEATURES & SPECIFICATIONS
INTENDED USE — A general purpose and energy-efficient surface-mounted or suspended LED fixture, suitable for wet, damp and/or cold locations. For vapor-tight demanding environments where moisture or dust is a concern and where relatively low fixture mounting heights and wide fixture spacing are common. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Typical applications include industrial facilities, parking garages, retail malls, multi-purpose rooms, garden centers, and food processing. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for AcrylicPolycarbonate Compatibility table for suitable use.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION — One-piece 5VA fiberglass housing with integral perimeter channel utilizing continuous poured-in-place NEMA 4X gasket. Approved for through wiring. Captive polymeric latches are standard. Stainless steel latches (#316) available as an option for food processing or more demanding applications. Power connection is easily accomplished through pre-drilled holes.
OPTICS — Injection molded, acrylic lens (.080" thick) provides high impact-resistance comparable to 100% DR. A UV stabilized polycarbonate diffuser is available (.080" thick) in clear or frosted for additional impact strength where vandal protection is desired.
Expected service life of 60,000 hours at 80% lumen maintenance (L80); predicted life of more than 100,000 hours.
ELECTRICAL — Utilizes high-efficiency LEDs mounted to core circuit boards. High-efficiency drivers operate 120-277 (MVOLT) and 347-480 (HVOLT) offered with 0-10 volt dimming, dims to 10%. Standard Luminaire Surge Protection Level: 6kV/3kA Surge Rated per ANSI C82.77-5-2015.
INSTALLATION — A pair of stainless steel surface mount brackets (SMB) are included (unless another mounting option is chosen) allowing for surface (ceiling) or suspension mount applications using included bail with aircraft cable or chain. Optional pair of dual pendant mount brackets (DPMB) are available for surface (ceiling) or suspension mount applications using either 3/8" threaded rod or included bail with aircraft cable or chain. Optional pair of angle mounting brackets (ANGBKT) for horizontal wall mount applications.
LISTINGS — CSA Certified to UL and C-UL Standards. Suitable for wet location. IP65, IP66, IP67 and IP69K (optional) rated. NSF Splash Zone 2 and Non-Food Zone rated. NEMA Type 4X rated. Sensors maintain IP65 and IP66 only. See chart on page 5 for Ambient Temperatures.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
FEM LED Low-Profile Enclosed and Gasketed
12,000 lumens
15,000 lumens
Options
Emergency:
BE6WCP 6W internal cold battery, illuminated test switch, cold rated -20°C min, wet location, Certified in CA Title 20 MAEDBS ‡
E10WMCP 10W internal constant power battery, self-diagnostic test switch, 5°C min, wet location, Certified in CA Title 20 MAEDBS ‡
ETS Emergency lighting control device for UL924 operation when using auxiliary generator or central inverter ‡
247OP 24/7 Operation with emergency battery and 3 conductor cord or plug ‡
WLFPMP4X Wet location fitting for pendant mounting, NEMA Type 4X rated ‡
WLFEND4X Wet location one end, NEMA Type 4X fittings ‡
WLFEND24X Wet Location both-ends, NEMA Type 4X fittings ‡
Other Options:
AO Adjustable output dimming ‡
DL Damp Location ‡
DRYLBL Dry Location ‡
IP69K IP69K rating, includes vent plugs ‡
SPD Surge protection device, additional 10kV/6kA
STSL Stainless steel latches
TRS Tamper Resistant Torx® T10 screws
BAA Buy America(n) Act and/or Build America Buy America Qualified
Cordsets:
CNP16WWL Cord, no plug, 16 gauge, 3 conductors, white, wet locations, 6 feet, other lengths available ‡
CNP164CWWL Cord, no plug, 16 gauge, 4 conductors for use with EM battery, white, wet locations, 6 feet, other lengths available ‡
CNP165CWWL Cord, no plug, 16 gauge, 5 conductors for use with ER controls or ETS device with 2 power sources, white, wet locations, 6 feet, other lengths available ‡
CNP165CDWWL Cord, no plug, 16 gauge, 5 conductors for 0-10V dimming, white, wet locations, 6 feet, other lengths available ‡
CPTL16W Cord with NEMA twist lock 15 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL16WWL Cord with NEMA twist lock 15 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPTL20A16W Cord with NEMA twist lock 20 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL20A16WWL Cord with NEMA twist lock 20 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPSB16W Cord with NEMA straight blade 15 amp plug, white, damp location, 6 feet, other lengths available
CMCMBH16YWL Cord with Brad Mini Change® male connector, nonmetallic coupling nut, 3 pole, 16 gauge, yellow, wet location, 6 feet, other lengths available ‡
MCRMBH16WL Receptacle with Brad Mini Change® male connector, stainless steel coupling nut, 3 pole, 16 gauge leads, wet location ‡
See chart for additional cordset options
Reloc®:
OCS Reloc® One Pass® circuit selector system drop, 18 gauge, 3 conductors, 6 feet, other lengths available ‡
OCS4C Reloc® One Pass® circuit selector system drop, 18 gauge, 4 conductors, for use with EM battery, 6 feet, other lengths available ‡
See chart for additional Reloc® options
Sensor Switch Embedded Controls:
SBOR10 360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off occupancy, Sensor/ control mounted external to the luminaire via a KO ‡
SBOR10 D 3V360° Low Mount Sensor, (8-15' mounting heights, more options available), high/low/off occupancy dimming, Sensor/control mounted external to the luminaire via a KO ‡
SBOR10 P360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off photocell, Sensor/ control mounted external to the luminaire via a KO ‡
See chart for additional control options
nLight Embedded Controls:
NLTAIR2 Embedded wireless controls by nLight ‡
NLTAIREM2 Embedded wireless controls by nLight with UL924 listed emergency operation ‡
NLTAIRER2 Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads ‡
NLTAIR2 APIRKO Embedded wireless controls by nLight, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
NLTAIREM2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/ control mounted external to the luminaire via a KO ‡
NLTAIRER2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
See chart for additional control options
NOTE: ‡ indicates option chosen has ordering restrictions. Please reference ordering restrictions chart, page 3. Options are sorted alphanumerically.
Design Select options indicated by this color background.
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
FEATURES & SPECIFICATIONS
INTENDED USE — A general purpose and energy-efficient surface-mounted or suspended LED fixture, suitable for wet, damp and/or cold locations. For vapor-tight demanding environments where moisture or dust is a concern and where relatively low fixture mounting heights and wide fixture spacing are common. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Typical applications include industrial facilities, parking garages, retail malls, multi-purpose rooms, garden centers, and food processing. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for AcrylicPolycarbonate Compatibility table for suitable use.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION — One-piece 5VA fiberglass housing with integral perimeter channel utilizing continuous poured-in-place NEMA 4X gasket. Approved for through wiring. Captive polymeric latches are standard. Stainless steel latches (#316) available as an option for food processing or more demanding applications. Power connection is easily accomplished through pre-drilled holes.
OPTICS — Injection molded, acrylic lens (.080" thick) provides high impact-resistance comparable to 100% DR. A UV stabilized polycarbonate diffuser is available (.080" thick) in clear or frosted for additional impact strength where vandal protection is desired.
Expected service life of 60,000 hours at 80% lumen maintenance (L80); predicted life of more than 100,000 hours.
ELECTRICAL — Utilizes high-efficiency LEDs mounted to core circuit boards. High-efficiency drivers operate 120-277 (MVOLT) and 347-480 (HVOLT) offered with 0-10 volt dimming, dims to 10%. Standard Luminaire Surge Protection Level: 6kV/3kA Surge Rated per ANSI C82.77-5-2015.
INSTALLATION — A pair of stainless steel surface mount brackets (SMB) are included (unless another mounting option is chosen) allowing for surface (ceiling) or suspension mount applications using included bail with aircraft cable or chain. Optional pair of dual pendant mount brackets (DPMB) are available for surface (ceiling) or suspension mount applications using either 3/8" threaded rod or included bail with aircraft cable or chain. Optional pair of angle mounting brackets (ANGBKT) for horizontal wall mount applications.
LISTINGS — CSA Certified to UL and C-UL Standards. Suitable for wet location. IP65, IP66, IP67 and IP69K (optional) rated. NSF Splash Zone 2 and Non-Food Zone rated. NEMA Type 4X rated. Sensors maintain IP65 and IP66 only. See chart on page 5 for Ambient Temperatures.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/3 0/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
FEM LED Low-Profile Enclosed and Gasketed
6,000 lumens
8,000 lumens
10,000 lumens
12,000 lumens
15,000 lumens
Options
Emergency:
BE6WCP 6W internal cold battery, illuminated test switch, cold rated -20°C min, wet location, Certified in CA Title 20 MAEDBS ‡
E10WMCP 10W internal constant power battery, self-diagnostic test switch, 5°C min, wet location, Certified in CA Title 20 MAEDBS ‡
ETS Emergency lighting control device for UL924 operation when using auxiliary generator or central inverter ‡
247OP 24/7 Operation with emergency battery and 3 conductor cord or plug ‡
WLFPMP4X Wet location fitting for pendant mounting, NEMA Type 4X rated ‡
WLFEND4X Wet location one end, NEMA Type 4X fittings ‡
WLFEND24X Wet Location both-ends, NEMA Type 4X fittings ‡
Other Options:
AO Adjustable output dimming ‡
DL Damp Location ‡
DRYLBL Dry Location ‡
IP69K IP69K rating, includes vent plugs ‡
SPD Surge protection device, additional 10kV/6kA
STSL Stainless steel latches
TRS Tamper Resistant Torx® T10 screws
BAA Buy America(n) Act and/or Build America Buy America Qualified
Cordsets:
CNP16WWL Cord, no plug, 16 gauge, 3 conductors, white, wet locations, 6 feet, other lengths available ‡
CNP164CWWL Cord, no plug, 16 gauge, 4 conductors for use with EM battery, white, wet locations, 6 feet, other lengths available ‡
CNP165CWWL Cord, no plug, 16 gauge, 5 conductors for use with ER controls or ETS device with 2 power sources, white, wet locations, 6 feet, other lengths available ‡
CNP165CDWWL Cord, no plug, 16 gauge, 5 conductors for 0-10V dimming, white, wet locations, 6 feet, other lengths available ‡
CPTL16W Cord with NEMA twist lock 15 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL16WWL Cord with NEMA twist lock 15 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPTL20A16W Cord with NEMA twist lock 20 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL20A16WWL Cord with NEMA twist lock 20 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPSB16W Cord with NEMA straight blade 15 amp plug, white, damp location, 6 feet, other lengths available
CMCMBH16YWL Cord with Brad Mini Change® male connector, nonmetallic coupling nut, 3 pole, 16 gauge, yellow, wet location, 6 feet, other lengths available ‡
MCRMBH16WL Receptacle with Brad Mini Change® male connector, stainless steel coupling nut, 3 pole, 16 gauge leads, wet location ‡
See chart for additional cordset options
Reloc®:
OCS Reloc® One Pass® circuit selector system drop, 18 gauge, 3 conductors, 6 feet, other lengths available ‡
OCS4C Reloc® One Pass® circuit selector system drop, 18 gauge, 4 conductors, for use with EM battery, 6 feet, other lengths available ‡
See chart for additional Reloc® options
Sensor Switch Embedded Controls:
SBOR10 360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off occupancy, Sensor/ control mounted external to the luminaire via a KO ‡
SBOR10 D 3V360° Low Mount Sensor, (8-15' mounting heights, more options available), high/low/off occupancy dimming, Sensor/control mounted external to the luminaire via a KO ‡
SBOR10 P360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off photocell, Sensor/ control mounted external to the luminaire via a KO ‡
See chart for additional control options
nLight Embedded Controls:
NLTAIR2 Embedded wireless controls by nLight ‡
NLTAIREM2 Embedded wireless controls by nLight with UL924 listed emergency operation ‡
NLTAIRER2 Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads ‡
NLTAIR2 APIRKO Embedded wireless controls by nLight, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
NLTAIREM2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/ control mounted external to the luminaire via a KO ‡
NLTAIRER2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
See chart for additional control options
NOTE: ‡ indicates option chosen has ordering restrictions. Please reference ordering restrictions chart, page 3. Options are sorted alphanumerically.
Design Select options indicated by this color background.
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
NO SPEC
NX-810-LED / NX-811-LED / NX-812-LED
Surface Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Extruded aluminum housing and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Face is constructed with 0.40 clear acrylic with rounded and finished edge for attractive appearance. Face contains red or green 6” high and 3/4” thick lettering inside face to comply with NFPA requirements. Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic. Face can be adjusted in the field from 0º to 90º for wall, ceiling or sloped applications.
MOUNTING
Mounting hardware consist of 0.06 steel universal junction box bracket, 7/8” profile 0.11 die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knocouts once mounting configuration is selected.
ELECTRICAL
Voltage: Dual 120V/277V (0.038A / 0.017A)
LED Wattage: 3 Watts normal / 5 Watts emergency operation
Emergency Circuit (NX-811-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-812-LED): Replaceable Ni-Cad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
UL Listed
State & Municipal
5-Year Limited Warranty
Certified to the energy efficiency standards of California Title 20
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
UL 924 Listed for Wet Locations · NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
L-810 LED Night Vision Compatible Steady-Burning Red Obstruction Light
Compliance and Applications
• ETL Certified L-810: FAA AC 150/5345-43J; EB-67D
• IP67 Certified
• Certified FCC 47 CFR, Part 15:2020, §15.107 and §15.109, Class A
Compliant to:
• ICAO Annex 14, Low Intensity Obstacle Light, Type B
• DGAC of Mexico
• MIL-C-7989
Our Night Vision Compatible, omni-directional, red, steady-burning, LED obstruction light is designed for marking tall structures such as buildings, towers, masts, cranes, meteorological towers, chimneys and other hazards to aircraft. This energy-saving LED light is a direct replacement for incandescent fixtures, providing years of reliable and maintenance-free operation. Available in single, double, and retrofit configurations; optional solar drive package
What Does NVG Friendly Mean?
Both the FAA and Transport Canada have issued safety alerts warning that common LED obstruction lights pose a hazard to pilots using Night Vision Goggles (NVGs). This is due to the fact that NVGs typically use filters to block cockpit lighting from saturating the imaging system. This has the unintended effect of making LED obstruction lights invisible to pilots.
In response, we have incorporated NVG Friendly technology into our fixture (IR 860 nm peak intensity), giving pilots using night vision goggles unmatched visibility of airfield perimeters, buildings, and towers. The L810LEDNV light is the first LED L-810 available to ensure that your structure is visible to all pilots, making it the first true LED replacement for incandescent obstruction lights.
Why Our L810LEDNV is Better
• Direct replacement for existing incandescent light
• Lasts up to 10 times longer than an incandescent light
• Uses 96% less power than an incandescent light
• Night Vision Goggle & NVIS Compatible
• No regular maintenance
• Available in single and dual configurations with bottom or side conduit outlets
• Can be operated in steady-burning or flashing mode (controller not supplied)
Marine Treated Option:
• Recommended for harsh, high-salt coastal and marine environments.
• Protects fixture finish from salt damage and prevents corrosion.
• 3-Step Powder Coat: 1) Primer, 2) Epoxy powder base coat and glossy polyester gray (RAL 7030) powder finish coat, 3) Oven curing.
• Photocell option for automatic activation at night
• Wind Loading: Effective Projected Area of the L-810 with single mounting base is 23.125 square-inches
Night Vision Compatible Obstruction Light
Optional Low Surface Mount
Single L-810 LED Night Vision Compatible Obstruction Light
Shown with Riser, Frangible Coupling and Floor Flange
Optional 2" Pole Mount
BLANK
Spare Parts
FL-810LEDNV-AC 100-277 VAC LED NV
Replacement Light Head
FL-810LEDNV-DC 12-48 VDC LED NV
Replacement Light Head
Alarm Line Option:
For AC and DC model fixtures, the blue wire (18AWG) is defined as the Alarm Line. When the red LED fails, the fixture’s input voltage for the fixture will be present at this wire. For AC and DC model fixtures, during normal operation (LED ON), it will have 0 VAC and 0 VDC respectively at the blue wire; in case of LED failure (turning off), it will energize the blue wire to the fixture’s input voltage, 100-277 VAC for AC models and 12-48 VDC for DC model fixtures.
L-810 LED Ordering Codes
Shipping Information:
Single: 3.2 lb. (1.45 kg); 10" x 10" x 10" Carton
Double: 7 lb. (3.17 kg); 15" x 15" x 10" Carton
2" Pole Mount3
1 1-1/2" Frangible Coupling (FL-FC1.5) UNF threads are not compatible with NPT threaded junction boxes. 2 For single option only. 3 2-3/8" O.D. tenon adjustable for 2.25"-2.75" poles. 4 CAUTION! For AC model fixtures, the Alarm Line (blue wire) will be energized to a high AC voltage (fixture’s input voltage 120-277VAC) during a failure of the LED.
Obstruction Lighting Controls
Lighting controls are designed for use when multiple obstruction light fixtures are to be controlled with common electronics. The electronic control module comes in a cast iron device box with threaded hubs on both top and bottom. Replacement modules (controls without device box) are also available upon request.
Photocells
• Model 81020: 105-305VAC, 1000W photocell. FAA style photocells activate at 35 ft-cd and turn off at 52 ft-cd. Instant ON photocell has 3-5 second time delay that prevents activation and de-activation from momentary light conditions. Does not come with device box, includes 1/2" threaded male fitting.
• Model 81021: 120/240VAC, 4800W photocell. Meets FAA/FCC requirements for obstruction lighting. Energized at 35 ft-cd and de-energized at 60 ft-cd. Time delay eliminates contact chatter. Contains dual 20A load contacts. Front plastic housing mounts to cast aluminum junction box (included).
• Model 81022: Hazardous Location Photocontrol Unit. Outdoor lighting control for exterior lighting in hazardous locations: explosion proof, dust-ignition proof, and weatherproof. Nominal Voltage 50/60 Hz: 120/208/240/277VAC. Voltage Range: 105-305. Housing: sand cast copper-free aluminum - epoxy powder coated.
Photocell Ordering Codes
Part
FL-81020
FL-81021
FL-81021-2
FL-81022
Photocell only (105-305VAC, 1000W max)
Photocell with aluminum box (120VAC, 4800W max)
Photocell with aluminum box (240VAC, 4800W max)
Hazardous Location Photocontrol Unit (120/208/240/277VAC)
