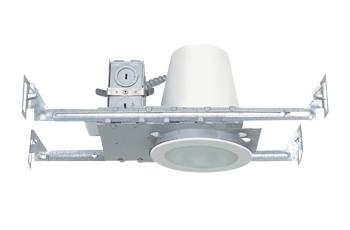

LH99ICA-LLF-GU24 - LH99ICA-LLF-GU24 NEW CONSTRUCTION HOUSING 4" LED GU24
SPECIFICATION LED
Application:Application:Application:Application: General purpose housing specially designed for use with Liton's LRELD4 Series Retrofit-able GU24 LED Trims.
Housing:Housing:Housing:Housing: Pre-wired housing adjusts up to a 1-1/2”ceiling thickness. Integral thermal protector to guard against improper lamping and installation. Trim is secured with torsion wing springs/standard coil springs or serrated clips.
Mounting:Mounting:Mounting:Mounting: Housing suitable for new construction installations only, supplied with (2) 24" adjustable hanger bars with 90 degrees repositioning ability. Hanger bars equipped with nail-less install 3/4" serrated barbed studs and with captive nails, for faster and easier secure mounting in wood joists. Set-screws lock into position and prevent shifting after installation. Earthquake structural cable compatible for drop panel ceiling or any other mounting that requires direct support from structural ceilings.
Socket:Socket:Socket:Socket: Specialty Energy Efficient GU24 socket with high temperature leads. Socket mounts directly on trim, then trim is installed into housing.
Junction Box Junction Junction Box :16 gauge pre-wired galvanized steel Junction Box, 32 cubic-inch for a maximum of (8) #12 AWG wires. Furnished with (7) 3/4" and (4) Romex knock-outs. Strain clamps to install or remove covers for easy access and ground wire. Equipped with safety standard fitting for flex-conduit.
Insulation Contact: Insulation Contact: IC rated housing rated for direct contact with loosefill blown and rolled insulation.
Airflow:Airflow:Airflow:Airflow: Airtight option is designed to restrict air flow from room into plenums in compliance to the WSEC - Washington State Energy Code, (Less than 2.0 CFM -Cubic Feet per Minute). Complies to Title24 air flow requirements (Air-tight).
Safety Labels: Safety UL/CUL listed for through-branch wiring (8) No.12 AWG 90°C and suitable for damp locations. NYC approved: Calendar #41937.
Insulation Contact: Insulation Contact: Energy Efficient LED housing comes standard with IC rating for direct contact with loosefill blown and rolled insulation.
Caution:Caution:Caution:Caution: Use of any 3rd party lamp source in this unit is subject to the lamp/module manufacturer’s own limitations. In no way does LITON make any claims to compatibility in regards to form, fit, usage and case temperature conditions with other manufacturer's products. Users are responsible for confirming compatibility under all aforementioned conditions before using this product.
Caution:Caution:Caution:Caution: LITON recommends use of surge protectors on the power entering LED Housings. Surge damage is not covered by warranty.

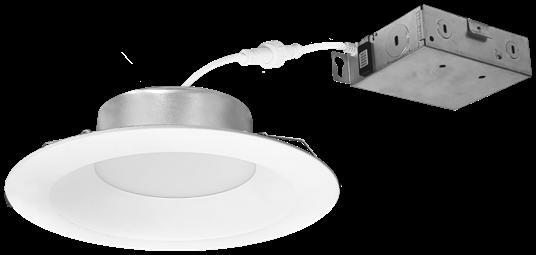

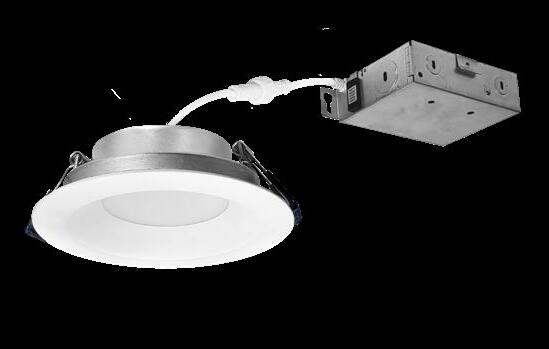

Can-less LED recessed downlights are designed for easy installation into new construction or remodel applications. Each downlight includes a Selectable CCT switch located on the junction box. The deep reflector provides excellent glare control, quality of light, and efficiency.
FEATURES

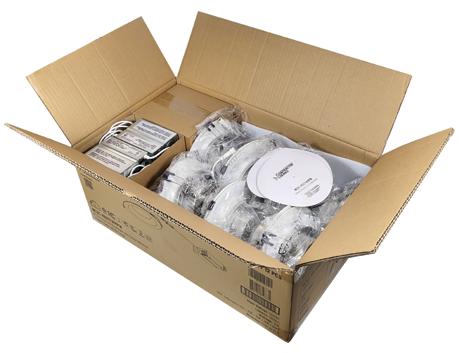

Packaged in case quantities of 12
Five color temperatures in each fixture
(2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes pre-wired junction box
Quick installation and cost savings
IC Air-Tight rated
cETLus Listed for Wet Locations
5-year limited warranty
SPECIFICATION
Construction: Dead front (non-metallic) luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2" and two 3/8" knockouts and snap on cover.
Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6" and Junction box wire length: 10"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/16". New construction frameins are available, see accessories.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac or ELV
Click Here or check complete dimmer list at www. NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NEFLINTW-EW-4: 4' Quick Connect Linkable Cable
NEFLINTW-EW-20 : 20' Quick Connect Linkable Cable
NEPK-20LEDUNV: Emergency Driver w/Remote Test Switch
NF-R246 : Universal New Construction Frame-In for 4" only
NFC-R430 : New Construction Frame-In with Collar for 4"
NFC-R55: New Construction Frame-In with Collar for 6"
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Wet locations
Certified to the high efficacy requirements of California

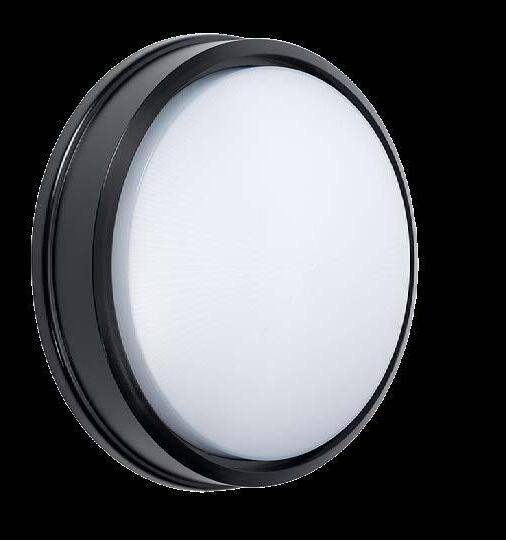

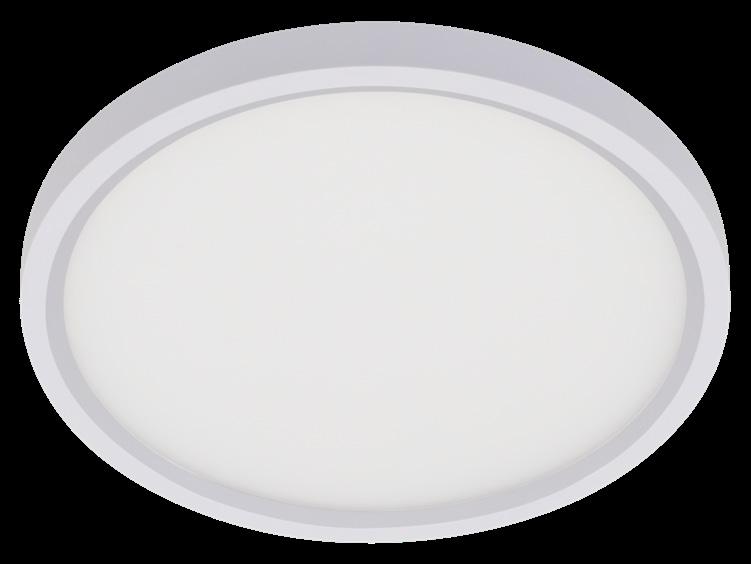

RDL series LED Disk Light provides versatile lighting on standard line voltage, yet produces the high energy savings you desire from LED fixtures. The RDL series allows for easy upgrade to your downlighting from the traditional recessed cans to a more modern looking, energy efficient solution. This Disk Light can be mounted on to a junction box or retrofitted into an existing recessed can with the optional hardware mounting adapter (not included).
Application:Application:Application:Application: General purpose housing specially designed for use with Liton's LRELD4 Series Retrofit-able GU24 LED Trims.
Housing:Housing:Housing:Housing: Pre-wired housing adjusts up to a 1-1/2”ceiling thickness. Integral thermal protector to guard against improper lamping and installation. Trim is secured with torsion wing springs/standard coil springs or serrated clips.
Mounting:Mounting:Mounting:Mounting: Housing suitable for new construction installations only, supplied with (2) 24" adjustable hanger bars with 90 degrees repositioning ability. Hanger bars equipped with nail-less install 3/4" serrated barbed studs and with captive nails, for faster and easier secure mounting in wood joists. Set-screws lock into position and prevent shifting after installation. Earthquake structural cable compatible for drop panel ceiling or any other mounting that requires direct support from structural ceilings.
Socket:Socket:Socket:Socket: Specialty Energy Efficient GU24 socket with high temperature leads. Socket mounts directly on trim, then trim is installed into housing.
Junction Box Junction Junction Box :16 gauge pre-wired galvanized steel Junction Box, 32 cubic-inch for a maximum of (8) #12 AWG wires. Furnished with (7) 3/4" and (4) Romex knock-outs. Strain clamps to install or remove covers for easy access and ground wire. Equipped with safety standard fitting for flex-conduit.
Insulation Contact: Insulation Contact: IC rated housing rated for direct contact with loosefill blown and rolled insulation.
Airflow:Airflow:Airflow:Airflow: Airtight option is designed to restrict air flow from room into plenums in compliance to the WSEC - Washington State Energy Code, (Less than 2.0 CFM -Cubic Feet per Minute). Complies to Title24 air flow requirements (Air-tight).
Safety Labels: Safety UL/CUL listed for through-branch wiring (8) No.12 AWG 90°C and suitable for damp locations. NYC approved: Calendar #41937.
Insulation Contact: Insulation Contact: Energy Efficient LED housing comes standard with IC rating for direct contact with loosefill blown and rolled insulation.
Caution:Caution:Caution:Caution: Use of any 3rd party lamp source in this unit is subject to the lamp/module manufacturer’s own limitations. In no way does LITON make any claims to compatibility in regards to form, fit, usage and case temperature conditions with other manufacturer's products. Users are responsible for confirming compatibility under all aforementioned conditions before using this product.
Caution:Caution:Caution:Caution: LITON recommends use of surge protectors on the power entering LED Housings. Surge damage is not covered by warranty.

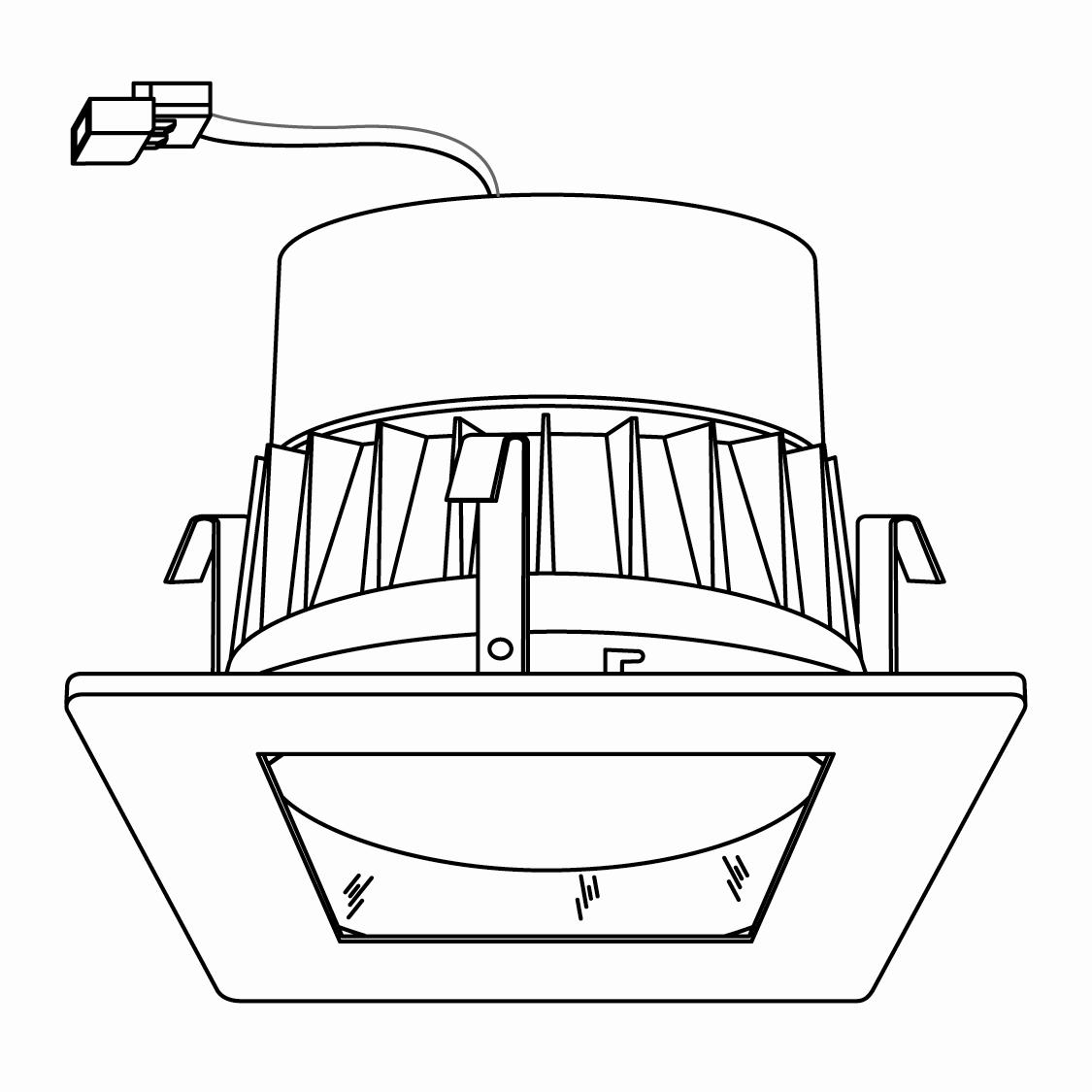

LRELD400LRELD400LRELD400LRELD400 4" ECONOMY LED ECONOMY LENSED RETROFIT RETROFIT (DIMMABLE)(DIMMABLE)(DIMMABLE)(DIMMABLE)
Can-less LED recessed downlights are designed for easy installation into new construction or remodel applications. Each downlight includes a Selectable CCT switch located on the junction box. The deep reflector provides excellent glare control, quality of light, and efficiency.
FEATURES
Packaged in case quantities of 12
Five color temperatures in each fixture
(2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes pre-wired junction box
Quick installation and cost savings
IC Air-Tight rated
cETLus Listed for Wet Locations
5-year limited warranty
SPECIFICATION
Construction: Dead front (non-metallic) luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2" and two 3/8" knockouts and snap on cover.
Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6" and Junction box wire length: 10"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/16". New construction frameins are available, see accessories.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac or ELV
Click Here or check complete dimmer list at www. NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NEFLINTW-EW-4: 4' Quick Connect Linkable Cable
NEFLINTW-EW-20 : 20' Quick Connect Linkable Cable
NEPK-20LEDUNV: Emergency Driver w/Remote Test Switch
NF-R246 : Universal New Construction Frame-In for 4" only
NFC-R430 : New Construction Frame-In with Collar for 4"
NFC-R55: New Construction Frame-In with Collar for 6"
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Wet locations
Certified to the high efficacy requirements of California

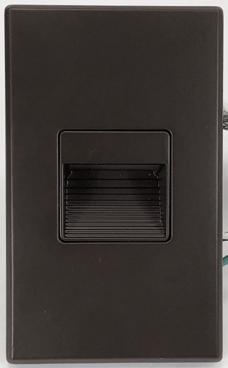

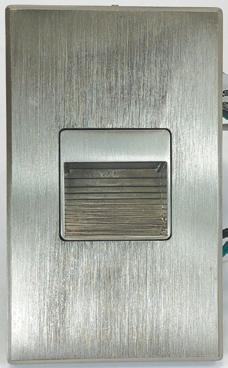

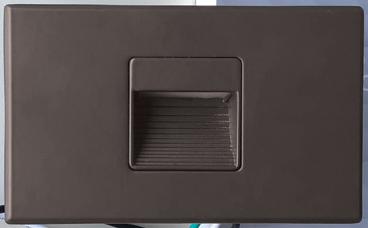

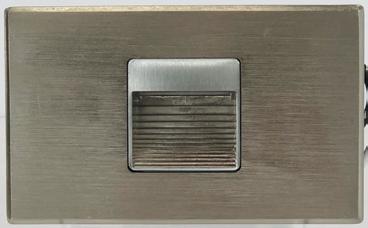

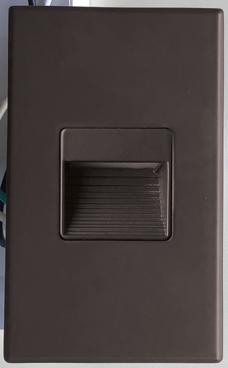

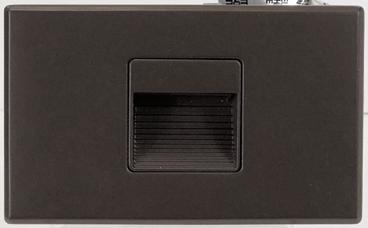

Ari LED Step Light with Interchangeable Face Plate
Source: 2.5W LED 47lm
PRODUCT DESCRIPTION
Long lasting, energy efficient LED step lights provide illumination for safety around steps, balcony areas, or walkways. Efficient LED light sources are low maintenance and savings over 80% in running costs when compared to 10W incandescent step lights.
FEATURES
Screwless face plate
· cETLus listed for Wet Location
Save over 80% when compared to 10W incandescent step lights
Integrated, embedded non-dimmable driver
No harmful ultra violet light, infrared wavelengths, or light leak
Heavy duty, low profile aesthetic face plate
SPECIFICATION
Construction: Sturdy 0.09" die-cast aluminum face plate and housing.
Mounting: Easily installs in a standard single gang switch box with minimum inner compartment size of 2" x 3.8" x 1.8" (width x length x depth). Mounts either horizontally or vertically in the single gang box (pre-installed in horizontal position).
Face Plate: Powder coated or brushed nickel die-cast aluminum. Interchangeable face plate allows for step light to be mounted horizontally or vertically. Face plate is available in black, brushed nickel, bronze, deep bronze or white finishes.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 47lm / 2.5W
Driver: Integrated, embedded non-dimmable driver
Wiring: 18AWG, rated 105ºC 600V
Color Temperature: 3000K or 4000K
Color Rendering Index: 90+ CRI
Dimming: Non-Dimmable
LISTINGS AND WARRANTY
cETLus Listed for Wet Location
5-Year Limited Warranty
Ari LED Step Light with Interchangeable Face Plate
Example: NSW-720/30W = Ari LED Step Light with Interchangebale Face Plate, 3000K / 90 CRI, White
Type
Project
Catalog No.
Notes

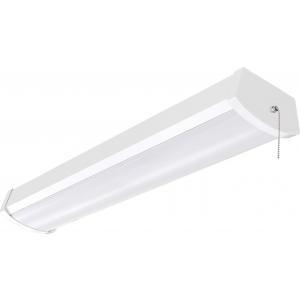

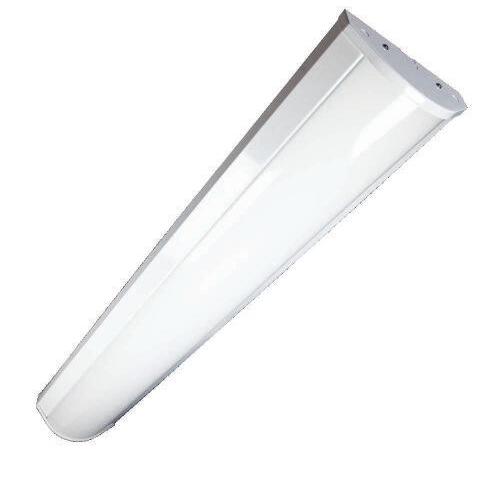

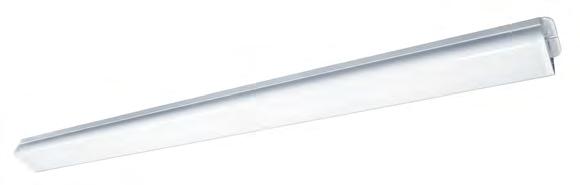

SW SERIES | Surface Wrap LED Linear Series
MOUNTING DIMMING FINISH LISTINGS
1. Approximate lumen output based on 3000K performance; see photometric test results for additional information WATTAGE LUMEN OUTPUT1 COLOR TEMPERATURE CRI
WARRANTY SYSTEM RATING
/ 3500K / 4000K
(80min)
Surface Mount
Non-Dimming
Matte White with Opaque White High Impact Acrylic Lens
ETL Certified for use in the U.S. and Canada
Must be installed in accordance to all product specific installation instructions and appropriate National
Electrical Codes
Suitable for use in closets when installed in accordance with NFPA ® 70, NEC ® Section 410.16
Five (5) year replacement after date of purchase
50,000 Hours @ 70% Lumen Maintenance
Example Order: SW230KMV P
ORDERING INFORMATION Length SW2 - 2 Ft/24 In
- 4 Ft/48 In
End View
Top View Bottom View
Project Name
Notes
Location Prepared By [www] 07-18-2025 00:19:23
Smart Product Info
IOT Enabled
ENERGY STAR No
DLC Approved No
California Status Lawful for sale in California
Title 20 / 24 Status Lawful for sale
California Prop 65 Lead
RoHS Compliant Yes
NEC Compliance Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
FCC Compliant Yes
SDS Sheet LED_Fixture
Additional Information
NO SPEC
PROJECT:
DESCRIPTION
DATE:
FEATURES
LOCATION:
WEATHER RESISTANT POWDER COATING:
DAYLIGHT SENSOR:
FINISHES: DIMMABLE:
5-YEAR WARRANTY: LIGHT SOURCE:
SPECIFICATIONS
COLOR TEMPERATURE (K):
WATTAGE (W):
VOLTAGE (V):
CRI:
DIMMING:
FINISHES:
PRODUCT DIMENSION: D: L: W: H:
RATED LIFE (Y):
CONSTRUCTION:
MOUNTING:
CERTIFICATIONS
TECHNICAL DRAWING
NOTES: Lock Rotor current: 0.235A / 120V,60Hz

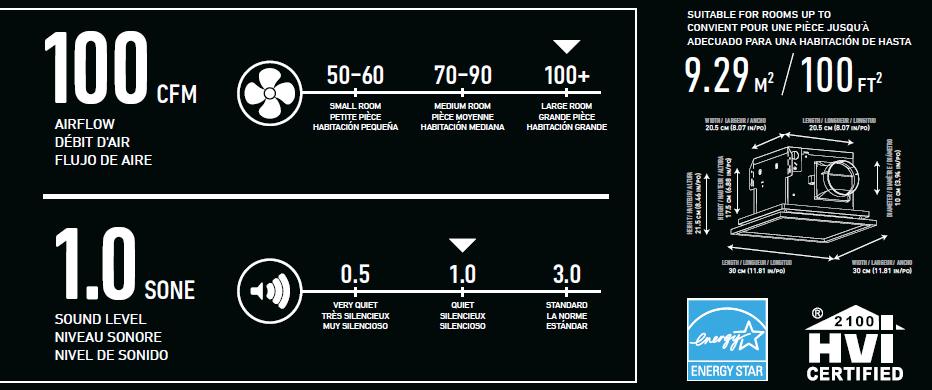

100 CFM, 1.0 SONE, Energy Star, HVI Certified 2100
reserves the right to modify its products from time to time as part of our continuous improvement program.
Model & Size CRI Kelvins Watts LED Lumens Delivered
STAMP
Artika
NO SPEC

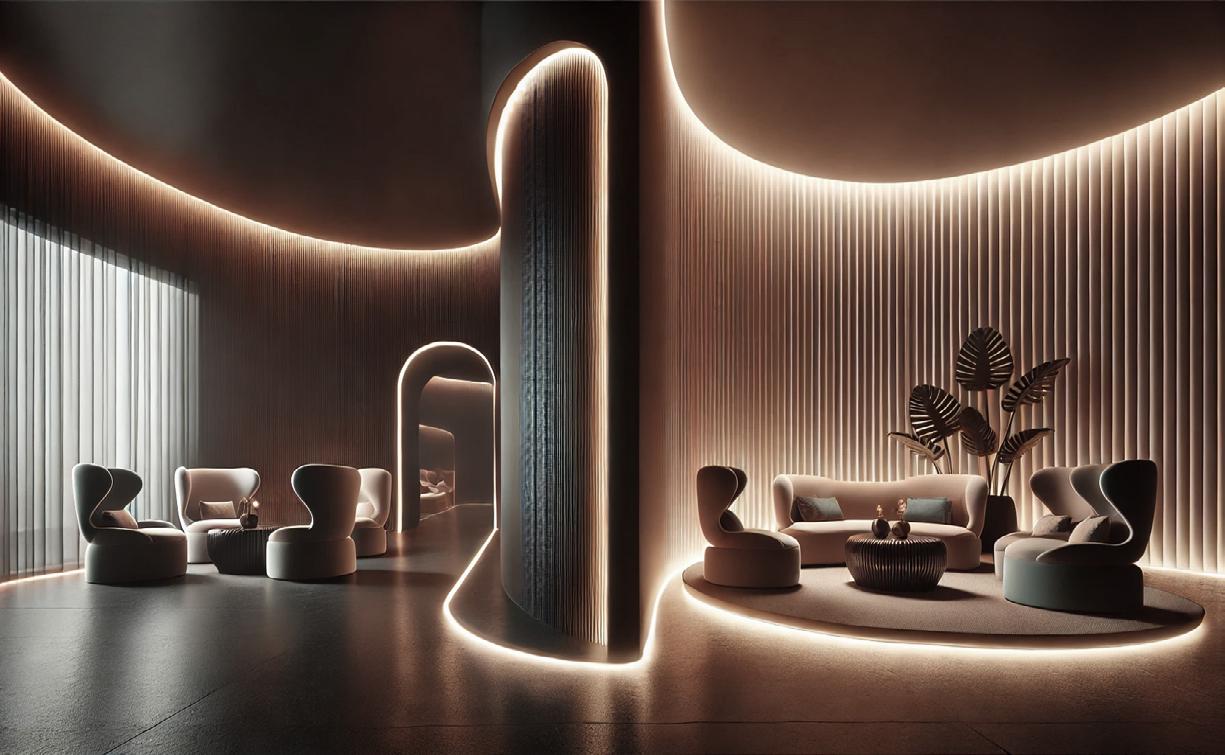

WHEN A SMOOTH LINE OF LIGHT ELEVATES DESIGN FREEDOM…
ADVANCED SOFT-WHITE LED TECHNOLOGY
Introducing the Linear Light-emitting Surface (LLES) technology behind NEAT™. Unlike common COB (chip-on-board) strips displaying uneven yellow/blue tinges, LLES features a white/clear silicone optical element that produces continuous, diffuse all-white light. As a result, the NEAT™ lighting platform is a versatile, streamlined, high efficacy soft white luminous building material that fits in well practically anywhere. With its clean appearance, 1/4" cut and uniquely appealing white-light signature, NEAT™ delivers new lighting opportunities for lighting designers and architects, including new levels of customized integration and surface installation into structures.
PRODUCT FEATURES
• Patent-pending technology
• Sof t, uniform, continuous all-white light
• LLES (Linear Light-emitting surface) remains white at all times, blends in with surroundings when light is turned off
• Diffuse effect produced by exclusive white/clear silicone optical element and precision-binned LEDs
• Can be dimmed to 0.1% (dimming below 50% may result in slight pixelation)

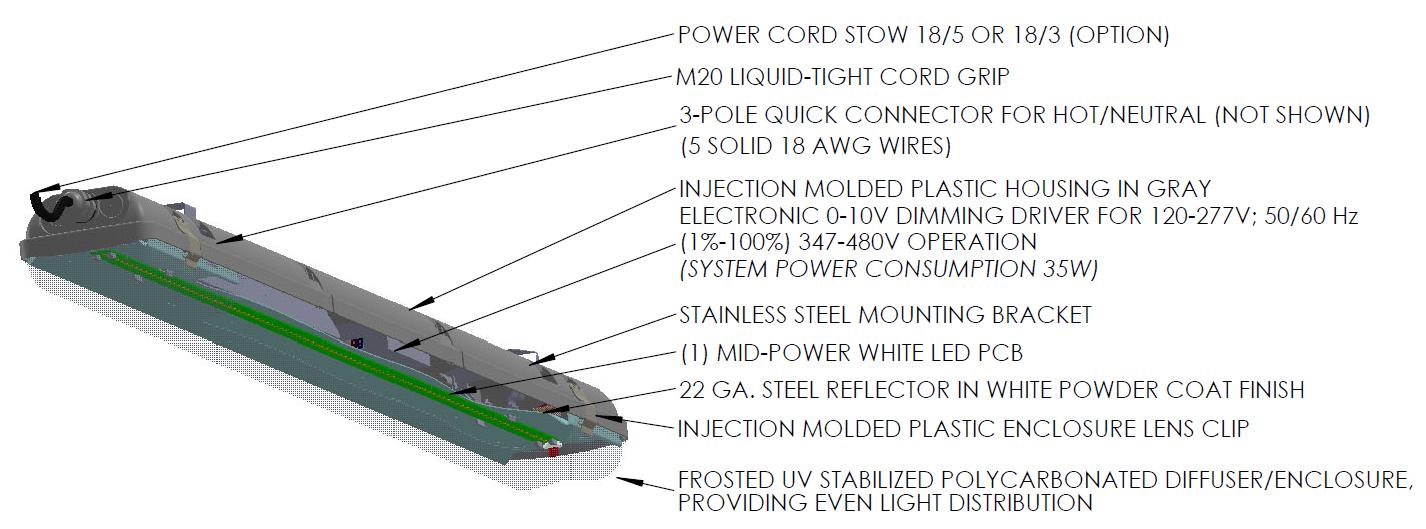

DIFFUSER: Frosted UV stabilized polycarbonate diffuser, providing even light distribution.
LUMENS: 2FT
LO: 3876 to 4635 lm
MO: 5176 to 6172 lm
HO: 6464 to 7716 lm
4FT
VLO: 4375 to 5208 lm
LO: 5555 to 6627 lm
MO: 6944 to 8284 lm
HO: 8318 to 9946 lm
VHO: 9714 to 11,589 lm
OPERATING TEMP: HT (AC Only) -40°F to 104°F (-40°C to 40°C) SA (AC & Emergency) 32°F to 104°F (0°C to 40°C)
POWER FACTOR: Power Factor > 0.95
TOTAL HARMONIC DISTORTION (THD): < 20%
WEIGHT: 4FT: 10 lbs. / 4.5 kg

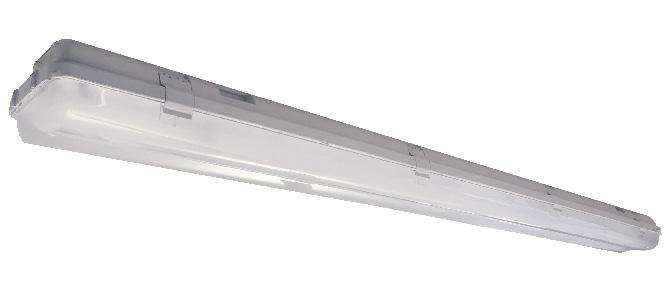

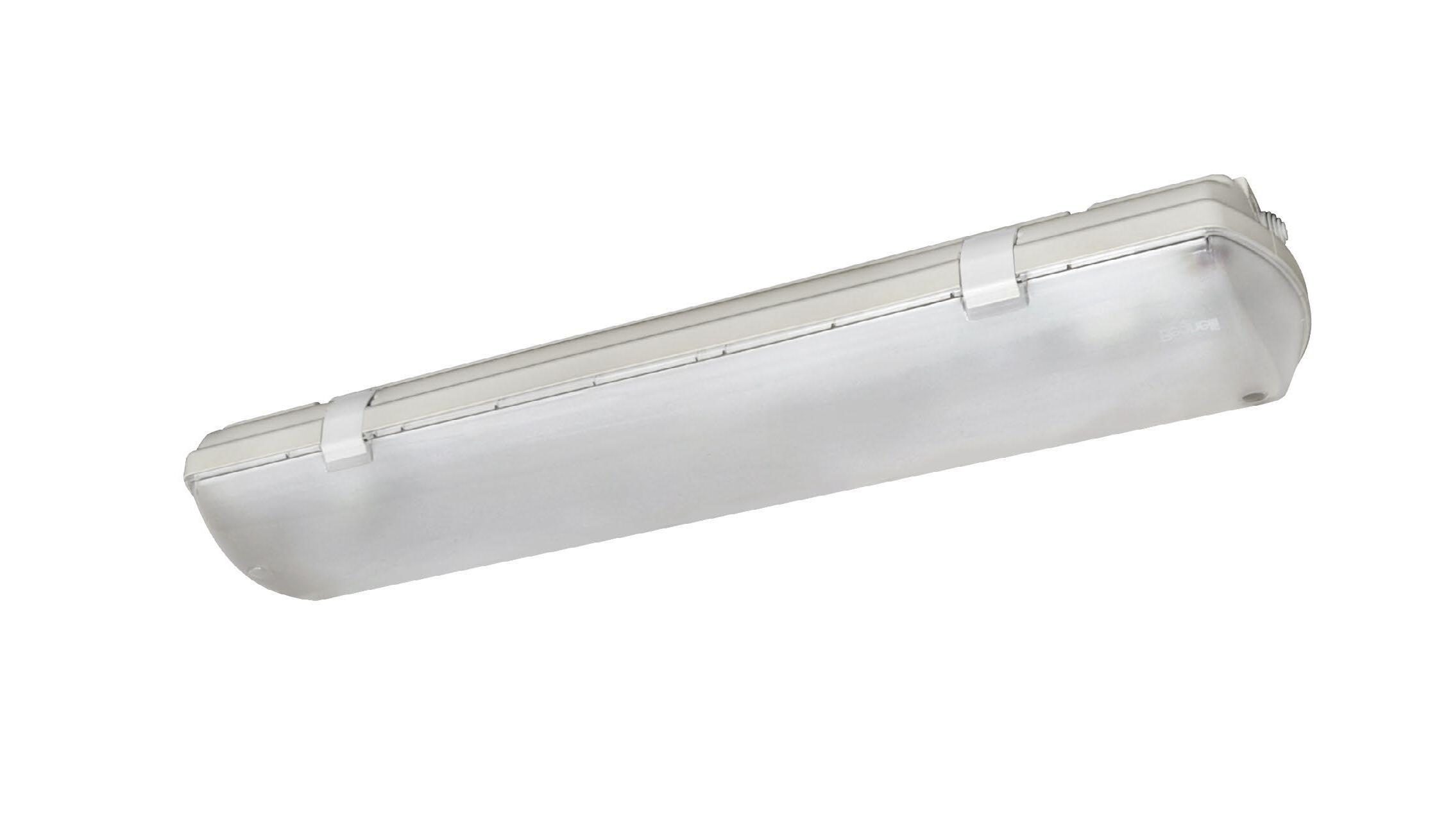

APPLICATION: The BS100LED is ideal for various applications including retail, industrial, parking garages, carpot, parking structures, warehouses, breezeways, canopies, schools, and much more. It can be installed both indoor and outdoor.
CONFIGURATIONS
(aviation cable)
(chain hang kit)
8 (black housing)
8 (white housing)
DPK4 (double pendant kit) CRD9 (blk, 18AWG, 3-conductor cord)
DIFFUSER: Frosted UV stabilized polycarbonate diffuser, providing even light distribution.
LUMENS: 2FT
LO: 3876 to 4635 lm
MO: 5176 to 6172 lm
HO: 6464 to 7716 lm
4FT
VLO: 4375 to 5208 lm
LO: 5555 to 6627 lm
MO: 6944 to 8284 lm
HO: 8318 to 9946 lm
VHO: 9714 to 11,589 lm
OPERATING TEMP: HT (AC Only) -40°F to 104°F (-40°C to 40°C) SA (AC & Emergency) 32°F to 104°F (0°C to 40°C)
POWER FACTOR: Power Factor > 0.95
TOTAL HARMONIC DISTORTION (THD): < 20%
WEIGHT: 4FT: 10 lbs. / 4.5 kg
APPLICATION: The BS100LED is ideal for various applications including retail, industrial, parking garages, carpot, parking structures, warehouses, breezeways, canopies, schools, and much more. It can be installed both indoor and outdoor.
CONFIGURATIONS
(aviation cable)
(chain hang kit)
8 (black housing)
8 (white housing)
DPK4 (double pendant kit) CRD9 (blk, 18AWG, 3-conductor cord)
NOTE 5: JM option - the unit is no longer wet location, but damp location.
NOTE 6: Magnetic mounts must be installed to steel beam measuring minimum 3/16” (4.7mm) thick.
NOTE 7: QMB must be used with standard SM & JM.
TECHNICAL INFORMATION
FP (fuse protection - 3A)
IOS13 (internal occupancy sensor)
SVLDPK4 (swivel double pendant kit) NODL11 (integrated node - LOGICA)
11 (internal occ. sensor - LOGICA)
TM4 (trunion mount)
NOTE 8: Contact factory. MOQ required.
NOTE 9: Specify length for CRD.
NOTE 10: Select CRMB 9, SBOR or PSP-221B family.
RLYL (wireless relay and sensor)
SP (surge protection - 10KA)
SS (stainless steel clips) TPS (tamper proof stainless steel screws)
NOTE 11: Logica (Beghelli wireless and powerless control solutions). Contact factory for more details.
NOTE 12: Includes latches and grommets installed at the factory. Can be combined with the JM option.
NOTE 13: FSP-221. Requires HHR-FSIR (hand held remote)
NOTE: Surface mount is standard
Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
DIFFUSER: Frosted UV stabilized polycarbonate diffuser, providing even light distribution.
LUMENS: 2FT
LO: 3876 to 4635 lm
MO: 5176 to 6172 lm
HO: 6464 to 7716 lm
4FT
VLO: 4375 to 5208 lm
LO: 5555 to 6627 lm
MO: 6944 to 8284 lm
HO: 8318 to 9946 lm
VHO: 9714 to 11,589 lm
OPERATING TEMP: HT (AC Only) -40°F to 104°F (-40°C to 40°C) SA (AC & Emergency) 32°F to 104°F (0°C to 40°C)
POWER FACTOR: Power Factor > 0.95
TOTAL HARMONIC DISTORTION (THD): < 20%
WEIGHT: 4FT: 10 lbs. / 4.5 kg
APPLICATION: The BS100LED is ideal for various applications including retail, industrial, parking garages, carpot, parking structures, warehouses, breezeways, canopies, schools, and much more. It can be installed both indoor and outdoor.
CONFIGURATIONS
(aviation cable)
(chain hang kit)
8 (black housing)
8 (white housing)
DPK4 (double pendant kit) CRD9 (blk, 18AWG, 3-conductor cord)
NOTE 5: JM option - the unit is no longer wet location, but damp location.
NOTE 6: Magnetic mounts must be installed to steel beam measuring minimum 3/16” (4.7mm) thick.
NOTE 7: QMB must be used with standard SM & JM.
TECHNICAL INFORMATION
FP (fuse protection - 3A)
IOS13 (internal occupancy sensor)
SVLDPK4 (swivel double pendant kit) NODL11 (integrated node - LOGICA)
11 (internal occ. sensor - LOGICA)
TM4 (trunion mount)
NOTE 8: Contact factory. MOQ required.
NOTE 9: Specify length for CRD.
NOTE 10: Select CRMB 9, SBOR or PSP-221B family.
RLYL (wireless relay and sensor)
SP (surge protection - 10KA)
SS (stainless steel clips) TPS (tamper proof stainless steel screws)
NOTE 11: Logica (Beghelli wireless and powerless control solutions). Contact factory for more details.
NOTE 12: Includes latches and grommets installed at the factory. Can be combined with the JM option.
NOTE 13: FSP-221. Requires HHR-FSIR (hand held remote)
NOTE: Surface mount is standard
Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
DIFFUSER: The frosted UV stabilized polycarbonate diffuser eliminates glare and provides even light distribution.
LUMENS: LO: 4744 - 5041 lm HO: 7594 - 7919 lm
OPERATING TEMP: HT (AC Only) -4°F to 104°F (-20°C to 40°C) SA (AC & Emergency) 32°F to 104°F (0°C to 40°C)
POWER FACTOR: >0.95
TOTAL HARMONICS DISTORTION (THD): <20%
WEIGHT: 9 lbs / 4.08 kg
BS101LED-ECO 4 (ft) HT (AC only) LO2
APPLICATION: The ILLUMINA® BS101LED-ECO provides ideal illumination for canopies, warehouses, schools, breezeways and service corridors. It can be installed both indoor & outdoor.
NOTE 5: JM option - the unit is no longer wet location, but damp location.
TECHNICAL INFORMATION
CH4 (chain hang kit)
7 (white housing)
DPK4 (double pendant kit) D (dali)
JM5 (junction mount)
PM (pivot mount)
QMB6 (quick mount bracket)
SPK4 (single pendant kit)
SVLDPK4 (swivel double pendant kit)
SVLSPK4 (swivel single pendant kit)
TM4 (trunion mount)
NOTE 6: QMB must be used with JM.
NOTE 7: Contact factory.
NOTE 8: Specify length for CRD.
NOTE 9: Select CRMB 9 or SBOR family.
EOS9 (external occupancy sensor)
FA10 (fully assembled)
FP (fuse protection - 3A)
SP (surge protection - 10KA)
SS (stainless steel clips)
TPS (tamper proof stainless steel screws)
NOTE 10: Includes latches and grommets installed at the factory. Can be combined with the JM option.
NOTE: Surface mount is standard.
CRD8 (blk, 18AWG, 3-conductor cord)

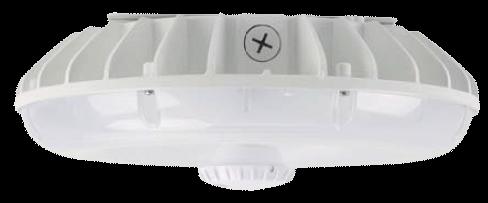

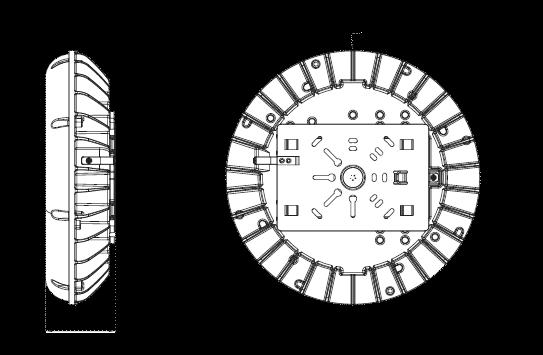

LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog #
Project
Type
Prepared by
APPLICATION
Comments
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
Type: Project:
ILLUMINA®
BS100LED
The ILLUMINA® BS100LED is corrosion, flame and vandal resistant.
DIFFUSER: Frosted UV stabilized polycarbonate diffuser, providing even light distribution.
LUMENS: 2FT
LO: 3876 to 4635 lm
MO: 5176 to 6172 lm
HO: 6464 to 7716 lm
4FT
VLO: 4375 to 5208 lm
LO: 5555 to 6627 lm
MO: 6944 to 8284 lm
HO: 8318 to 9946 lm
VHO: 9714 to 11,589 lm
OPERATING TEMP: HT (AC Only) -40°F to 104°F (-40°C to 40°C) SA (AC & Emergency) 32°F to 104°F (0°C to 40°C)
POWER FACTOR: Power Factor > 0.95
TOTAL HARMONIC DISTORTION (THD): < 20%
WEIGHT: 4FT: 10 lbs. / 4.5 kg
APPLICATION: The BS100LED is ideal for various applications including retail, industrial, parking garages, carpot, parking structures, warehouses, breezeways, canopies, schools, and much more. It can be installed both indoor and outdoor.
CONFIGURATIONS
(aviation cable)
(chain hang kit)
8 (black housing)
8 (white housing)
DPK4 (double pendant kit) CRD9 (blk, 18AWG, 3-conductor cord)
DIFFUSER: The frosted UV stabilized polycarbonate diffuser eliminates glare and provides even light distribution.
LUMENS: LO: 4744 - 5041 lm HO: 7594 - 7919 lm
OPERATING TEMP: HT (AC Only) -4°F to 104°F (-20°C to 40°C)
SA (AC & Emergency) 32°F to 104°F (0°C to 40°C)
POWER FACTOR: >0.95
TOTAL HARMONICS DISTORTION (THD): <20%
WEIGHT: 9 lbs / 4.08 kg
BS101LED-ECO 4 (ft) HT (AC only) LO2
APPLICATION: The ILLUMINA® BS101LED-ECO provides ideal illumination for canopies, warehouses, schools, breezeways and service corridors. It can be installed both indoor & outdoor.
CONFIGURATIONS
(3000K)
(aviation cable) BLK7 (black housing) SA1 (AC & EM) HO
NOTE 5: JM option - the unit is no longer wet location, but damp location.
TECHNICAL INFORMATION
(4000K) 347-480V CH4 (chain hang kit) WHT7 (white housing)
WT50 (5000K)
DPK4 (double pendant kit) D (dali)
JM5 (junction mount)
PM (pivot mount)
QMB6 (quick mount bracket)
SPK4 (single pendant kit)
SVLDPK4 (swivel double pendant kit)
SVLSPK4 (swivel single pendant kit)
TM4 (trunion mount)
NOTE 6: QMB must be used with JM.
NOTE 7: Contact factory.
NOTE 8: Specify length for CRD.
NOTE 9: Select CRMB 9 or SBOR family.
EOS9 (external occupancy sensor)
FA10 (fully assembled)
FP (fuse protection - 3A)
SP (surge protection - 10KA)
SS (stainless steel clips)
TPS (tamper proof stainless steel screws)
NOTE 10: Includes latches and grommets installed at the factory. Can be combined with the JM option.
NOTE: Surface mount is standard.
CRD8 (blk, 18AWG, 3-conductor cord)
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog #
Project
Type
Prepared by
APPLICATION
Comments
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/8 0/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
BLANK
ELECTRICAL
120-347Vac and 277-480Vac Power Factor >90%
THD <20%
2.5kV surge suppression
0-10V dimmable
UL Wet rated
Auxiliary 12V output WARRANTY
Trusted Warranty Program
CERTIFICATIONS
for EMBB models
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available
OL2

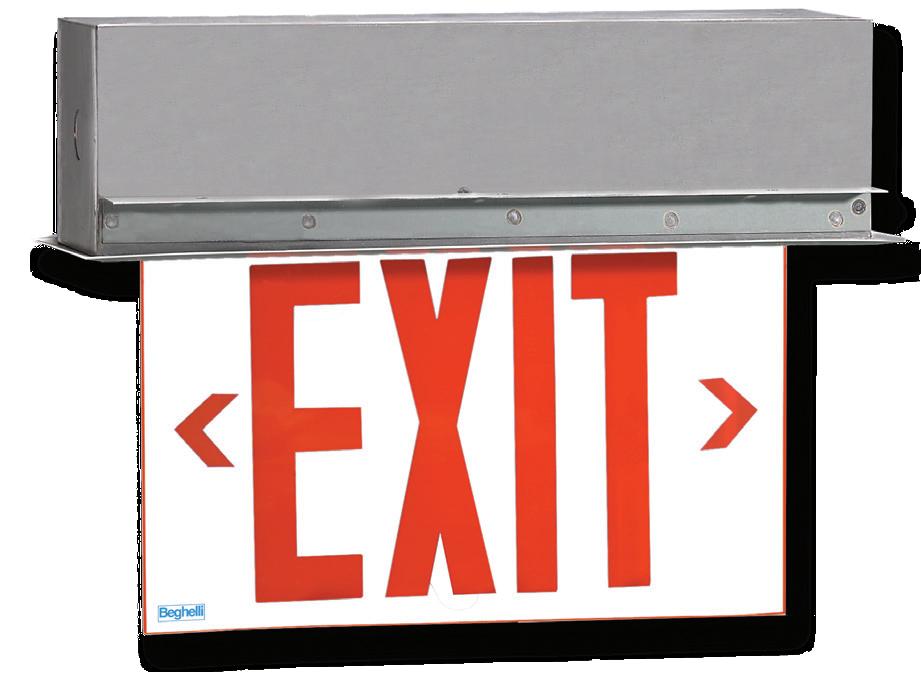

SURFACE/RECESSED EDGE-LIT EXIT SIGN
Job/Location:
Contractor:
Prepared By:
Job Type:
Date:
specifications: internal
AC only and Self-Powered models come standard configured with high output, high efficiency LED’s. 120/277V input. Nickel-cadmium batteries provide a minimum 90 minutes of emergency duration. Optional 120 minute duration battery is available. Solid state charger & transfer. Fuse protection is standard.
specifications: external
The OL2 is constructed from durable 20 gauge steel. The OL2 surface mount housing, recessed backbox and trim plate are all constructed from durable 20 gauge steel. The high clarity acrylic face plate is available in both single face or double face versions, with a clear, white, mirrored background (please specify). Field adjustable chevrons are standard. White, baked powder coat finish is standard on all versions. Available in custom colors (please specify). External LED monitor light and test switch are standard on self-powered versions.
ordering logic
OL2 HT (AC only)LR (red)1 (single)C 1 (clear)CR (ceilling recess)AT (autotest - for SA model only) SA (self-powered)LG (green)2 (double)W (white) WR (wall recess) BA (brushed aluminum) M (mirror)CS (ceilling surface)CC (custom color) WS (wall surface)FAI 2 )ecafretni mrala erif( ES (end surface) IF (inverted face)
SW (special wording- specify)
PK 3 4 (pendant kit- specify length)
2CK (dual-circuit)
120SA (120 minute emergency)
NOTE 1: “C (clear)” panel color is only available in single face.
NOTE 2: Specify type- open/closed dry contact.
NOTE 3: Minimum 6” in length.
NOTE 4: For AC only.
EXAMPLE: OL2-SA-LR1-CCR
DESCRIPTION: self-powered, red LED, single face, clear panel, ceiling recess

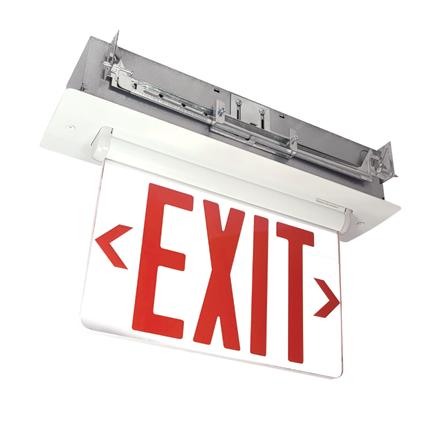

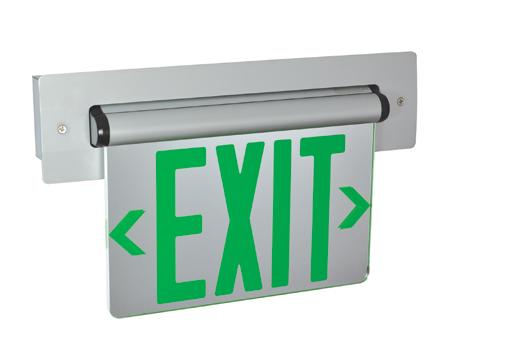

NX-813-LED / NX-814-LED / NX-815-LED
Recessed Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS UL Listed
State & Municipal
5-Year Limited Warranty
Certified to the energy efficiency standards of California Title 20
The VA4 comes standard configured with high output LEDs, 120/277V input, available in red or green. AC only and Self powered versions are available. Nickel-cadmium batteries provide a minimum 90 minutes of emergency duration. Electronic cut-off circuit prevents over discharge.
specifications: external
The VA4 is constructed from durable corrosion and flame resistant thermoplastic. The VA4 comes standard with a mounting canopy, two (2)stencils, one (1) backplate, removable chevrons and all mounting hardware. The VA4 comes standard finished in white; optional black finish is available. A damp location rating is standard on all VA4 products. An external LED status indicator and test switch is standard on all self-powered models.
ordering logic
NOTE 1: Shield guard must be ordered as a seperate line item #276100035. NOTE 2: 3/8” IP with white finish. For other lengths, contact factory.
EXAMPLE: VA4-R-HT-B
DESCRIPTION: Red LED, AC only, black housing

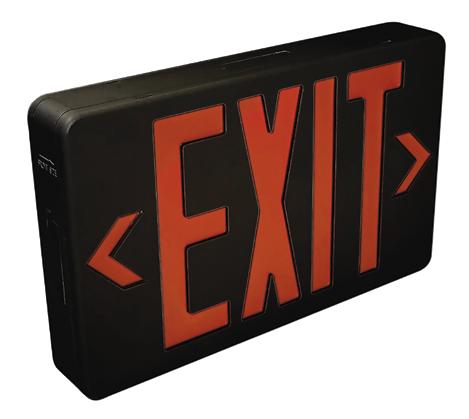

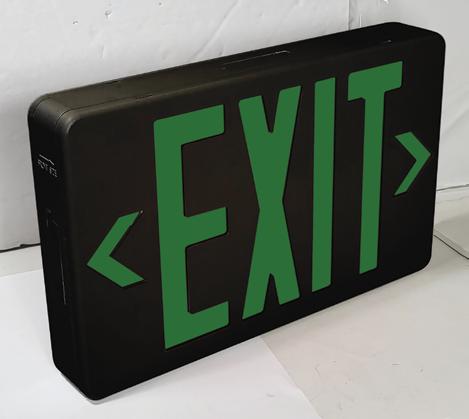

NX-603D-LED Thermoplastic Dual Color (Red/Green) LED Exit Sign with Battery Backup
PRODUCT DESCRIPTION
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
• 11-13/16" Width X 7-1/4" Height X 1-13/16" Depth
• Injection-molded thermoplastic housing
• Black or White housing finish
FACE
• 6" high text with color diffusion
• Both double and a blank face are included
• Snap-in direction indicators
MOUNTING
• Wall, side, or ceiling
• Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES

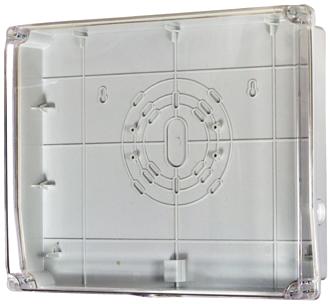

NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
UL 924
Rated for Damp Locations (Wet Location when used with NEG-60)
5-Year Limited Warranty
NFPA
Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
The VA4 comes standard configured with high output LEDs, 120/277V input, available in red or green. AC only and Self powered versions are available. Nickel-cadmium batteries provide a minimum 90 minutes of emergency duration. Electronic cut-off circuit prevents over discharge.
specifications: external
The VA4 is constructed from durable corrosion and flame resistant thermoplastic. The VA4 comes standard with a mounting canopy, two (2)stencils, one (1) backplate, removable chevrons and all mounting hardware. The VA4 comes standard finished in white; optional black finish is available. A damp location rating is standard on all VA4 products. An external LED status indicator and test switch is standard on all self-powered models.
ordering logic
NOTE 1: Shield guard must be ordered as a seperate line item #276100035. NOTE 2: 3/8” IP with white finish. For other lengths, contact factory.
EXAMPLE: VA4-R-HT-B
DESCRIPTION: Red LED, AC only, black housing

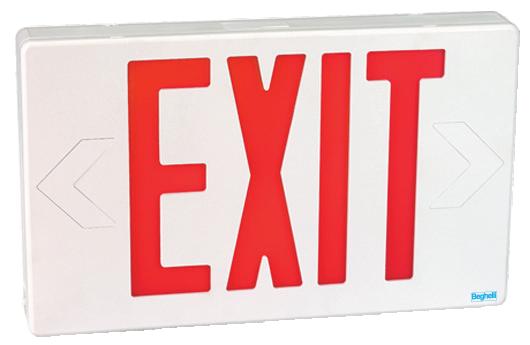

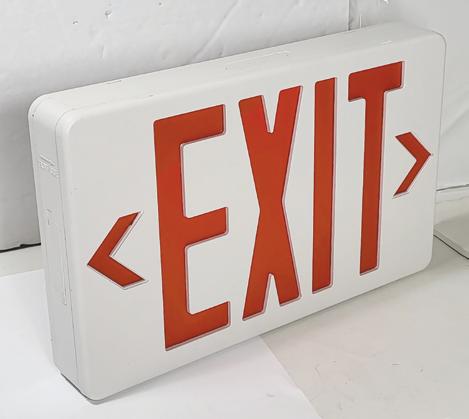

NX-617-LED
Source:
PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
UL 924 Listed for Wet Locations · NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com

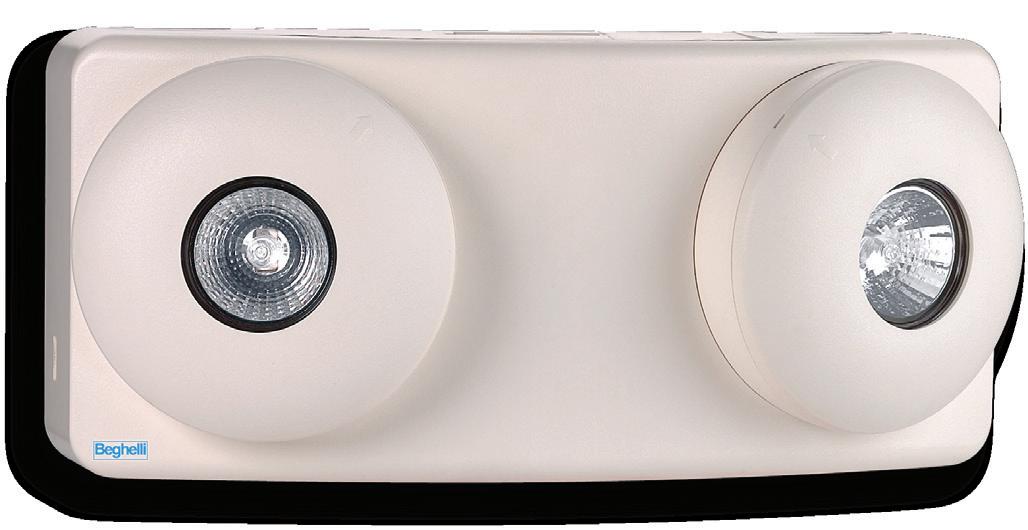

The BBY is configured with 120/277V input with solid state charging circuitry. Standard features include low voltage disconnect, AC lockout and brownout protection.
specifications: external
The BBY is constructed from high quality corrosion and UL-940V-0 flame resistant thermoplastic. White finish is standard. The semirecessed MR16 emergency lighting heads are positioned in a gimbal style assembly. Universal mounting bracket for wall or ceiling installations. External test switch and monitor LED are standard.
emergency heads
Two (2) 5.4W MR16 lamps are standard. Gimbal design allows for precise adjustment of the heads.
specifications: electrical
BATTERY: The BBY is supplied with a sealed, maintenance-free, valve regulated 6V 4.5Ah lead calcium battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is twenty-four (24) hours. The maximum working temperature is 45°C. The minimum working temperature is 10°C.
ordering logic
EXAMPLE: BBY-25MR
DESCRIPTION: emergency only, 6V 5.4W MR16, white housing
specifications: mechanical
The BBY features a gimbal design allowing precise adjustment of the lamps. An innovative snap together design and white injection molded thermoplastic housing make it durable and easy to install.
warranty
The BBY comes with a 3-year factory warranty. Lamps are not covered under the warranty. Deliberate damage, misuse, improper installation effectively cancel the warranty.

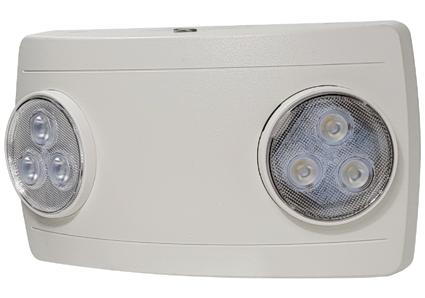

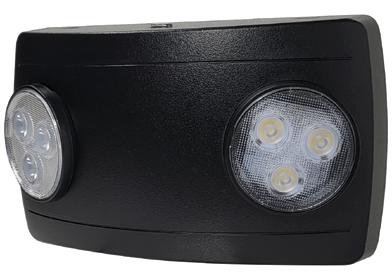

NE-612LED
Compact Dual Head LED Emergency Light with Optional Remote Capability
Source: (2) 0.9W or 1W LED (2)90lm to 150lm
PRODUCT DESCRIPTION
Luminaire provides 90 minutes of light from two adjustable heads for illuminating paths of egress upon failure of normal power. Emergency unit is available in higher lumen output and remote capability.
FEATURES
Compact housing with (2) adjustable LEDs Lightweight snap together design
Self-diagnostic and self-testing option available Ceiling or wall mounted
Universal 120/277VAC input
Remote capability
SPECIFICATION
Construction: Injection-molded thermoplastic ABS housing. Plastic enclosure with 5VA flame retardant. Quick connector design for easy installation. Two fully adjustable glare-free round heads for emergency lighting.
Mounting: Plastic enclosure includes a top and side knockout for conduit application. Suitable for wall mounting or ceiling mounting. Waterproof vandal resistant enclosure available, must specify NEG-602.
Operation: Luminaire will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time per battery.
ELECTRICAL
Input Voltage: 120/277VAC 60Hz
Lumens / Wattage:
NE-612LED: (2) 110lm / 0.9W
NE-612LEDRC: (2) 90lm / 0.9W
NE-612LEDHORC: (2) 150lm / 1W
Color Temperature: 5700K
Operating Temperature: 10˚C to 40˚C ambient temperature (-25°C to 50°C when used with NEG-602)
Batteries: NiMH 3.6V 2W maintenance-free
Remote Option: Luminaire is capable of including an additional 3.6V / 4W battery. Additional battery is used to power an additional remote emergency light. Upon power failure, each additional battery requires an additional 24 hours to recharge.
LABELS AND LISTINGS
· cULus Listed for Damp Locations (Wet Location Listed when used with NEG-602)
Meets or exceeds all requirements in NFPA 70, NFPA 101 life safety code 3-Year Limited Warranty
Notes
PRODUCT IMAGES & DIMENSIONS
NFPA 101 requires 1.0 foot-candle average and 0.1 foot-candle minimum with a 40:1 maximum/minimum ratio. Below is a recommended mounting height and spacing on surface with reflectance at 80% ceiling, 50% walls, and 20% floor.
Compact Dual Head LED Emergency Light
Description
NE-612LEDB = (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, Black Finish
NE-612LEDW = (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, White Finish
NE-612LEDRCB = (2) 0.9W / 90lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish
NE-612LEDRCW =
Optional Accessory

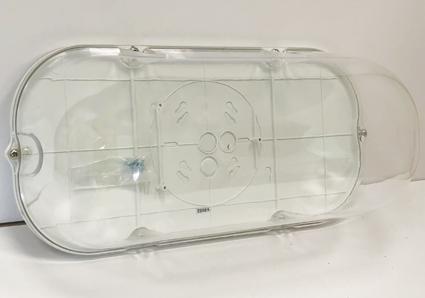

= Waterproof Vandal Resistant Enclosure
= Replacement Battery for
= Replacement Batteries for
with Remote (RC)
/ 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish
NE-612LEDHORCW = (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
Example: NE-612LEDHORCW = Compact Dual Head LED Emergency Light with (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White finish
LyteCaster LED Downlights are ideal general purpose downlighting solution, providing comfortable, quality light. Available in new construction and remodeler frame with interchangeable light engine that is offered in two lumen packages. The downlight is wet location listed and comes in 3 standard option. Complete unit = Housing + Downlight or Adjustable Light Engine + Trim (order each separately)
Project:
Location:
Cat.No:
Type:
Qty:

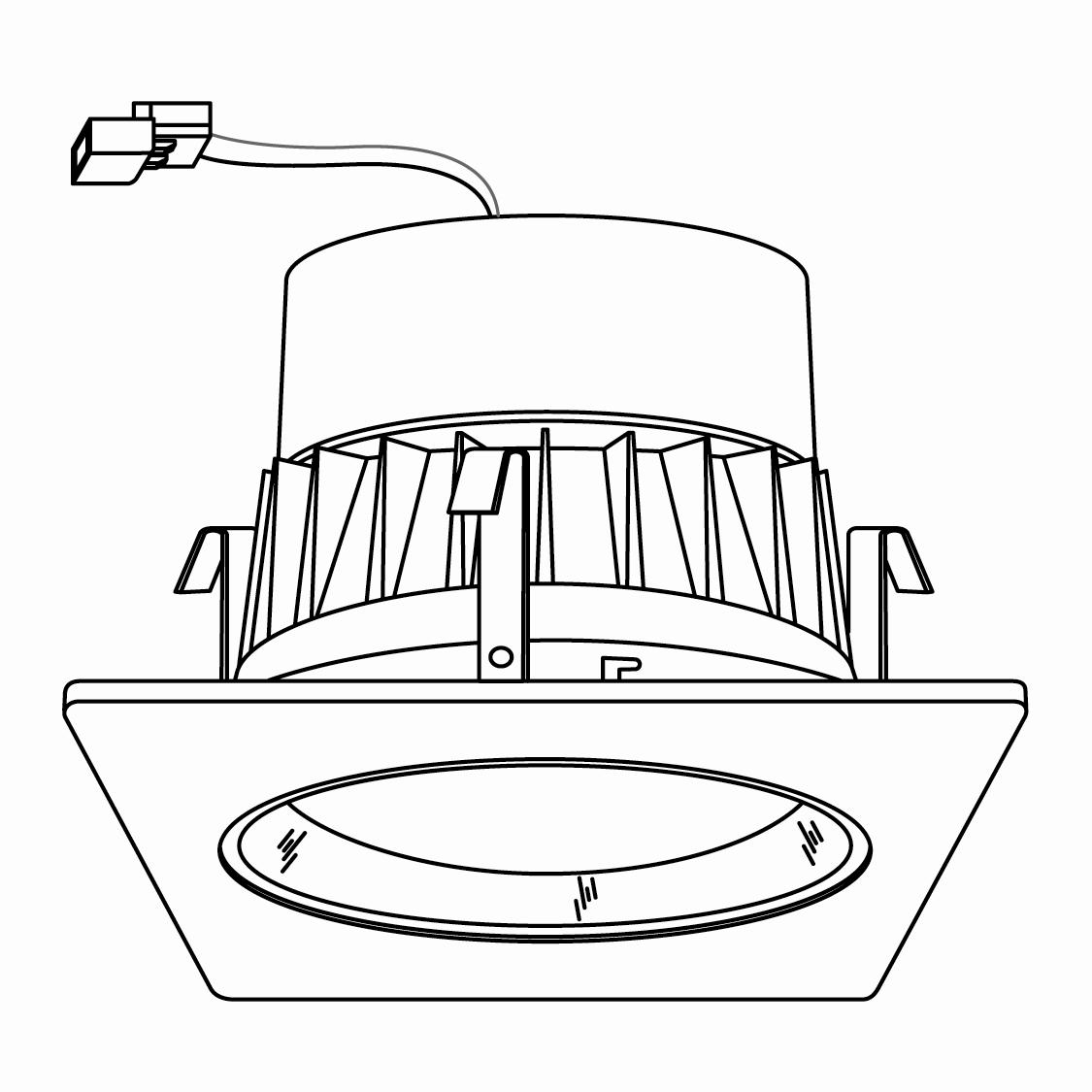

LyteCaster 4" downlight (for round and square configurations)
LyteCaster 4" round downlight (compatible with square trims)
L4RA Lytecaster 4" round adjustable (trim is integrated)
950 90 CRI / 5000K W White Reflector / White Flange (integral to light engine for adjustable, do not specify Trim seperately)
DD Open Downlight / Clear Diffuse / White Flange
DW Open Downlight / White Finish / White Flange BW Baffle Downlight / White Finish / White Flange

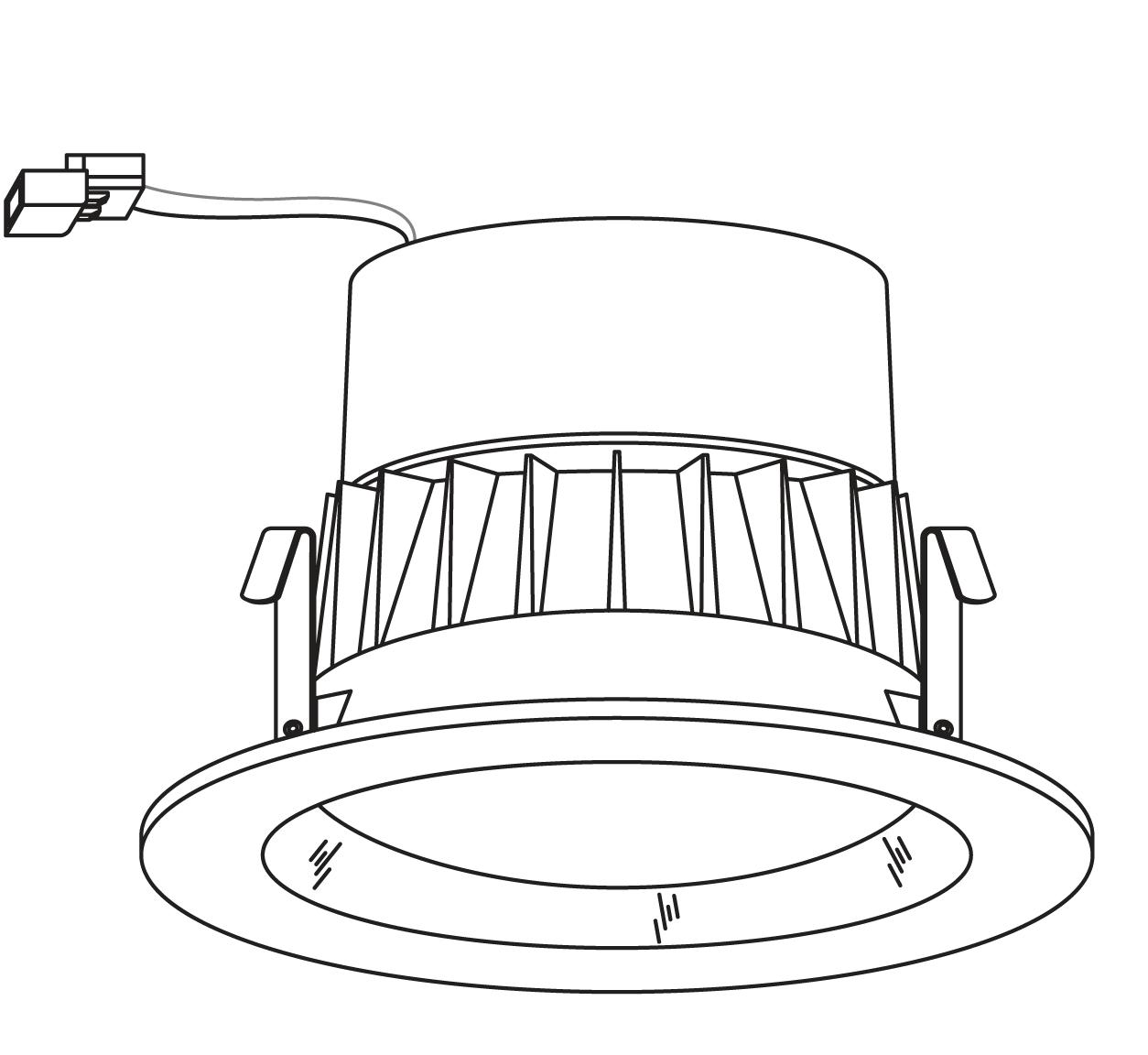

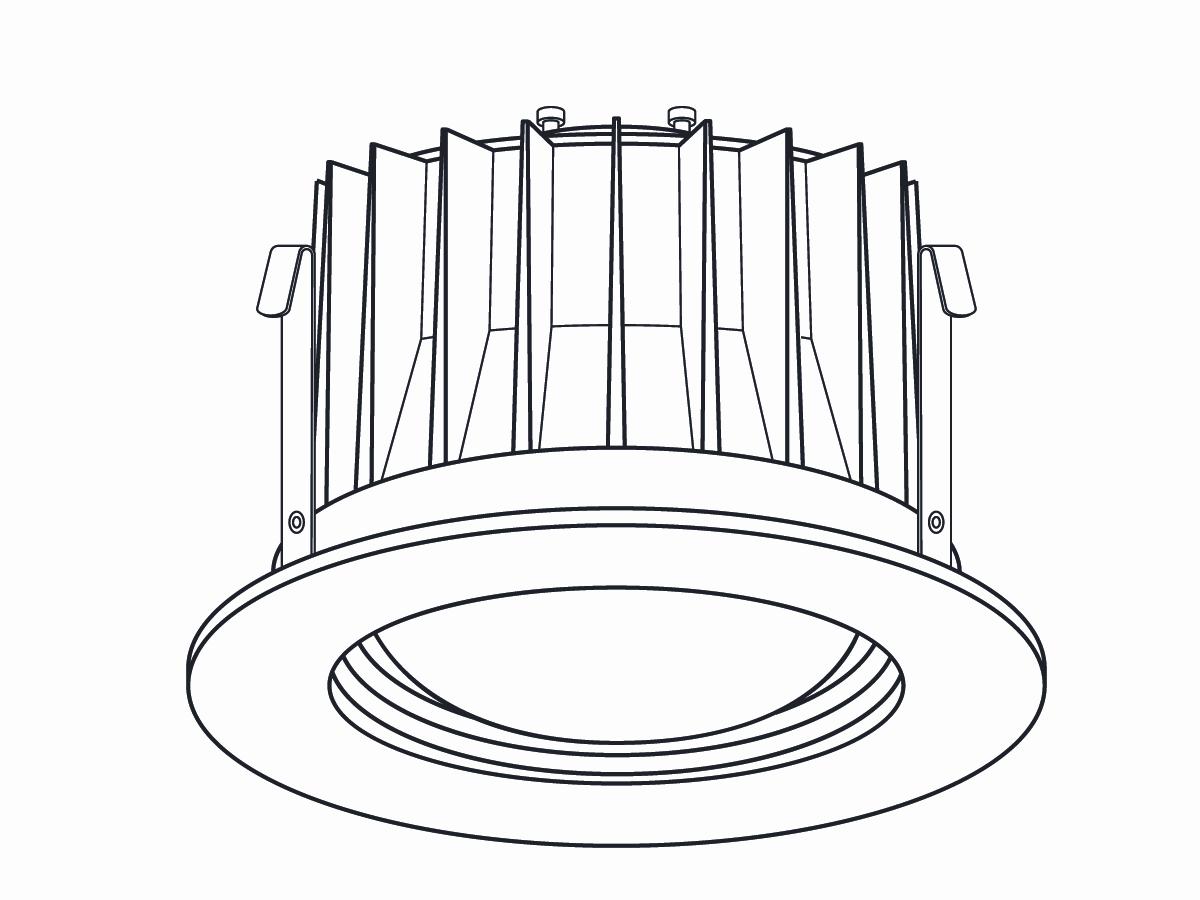

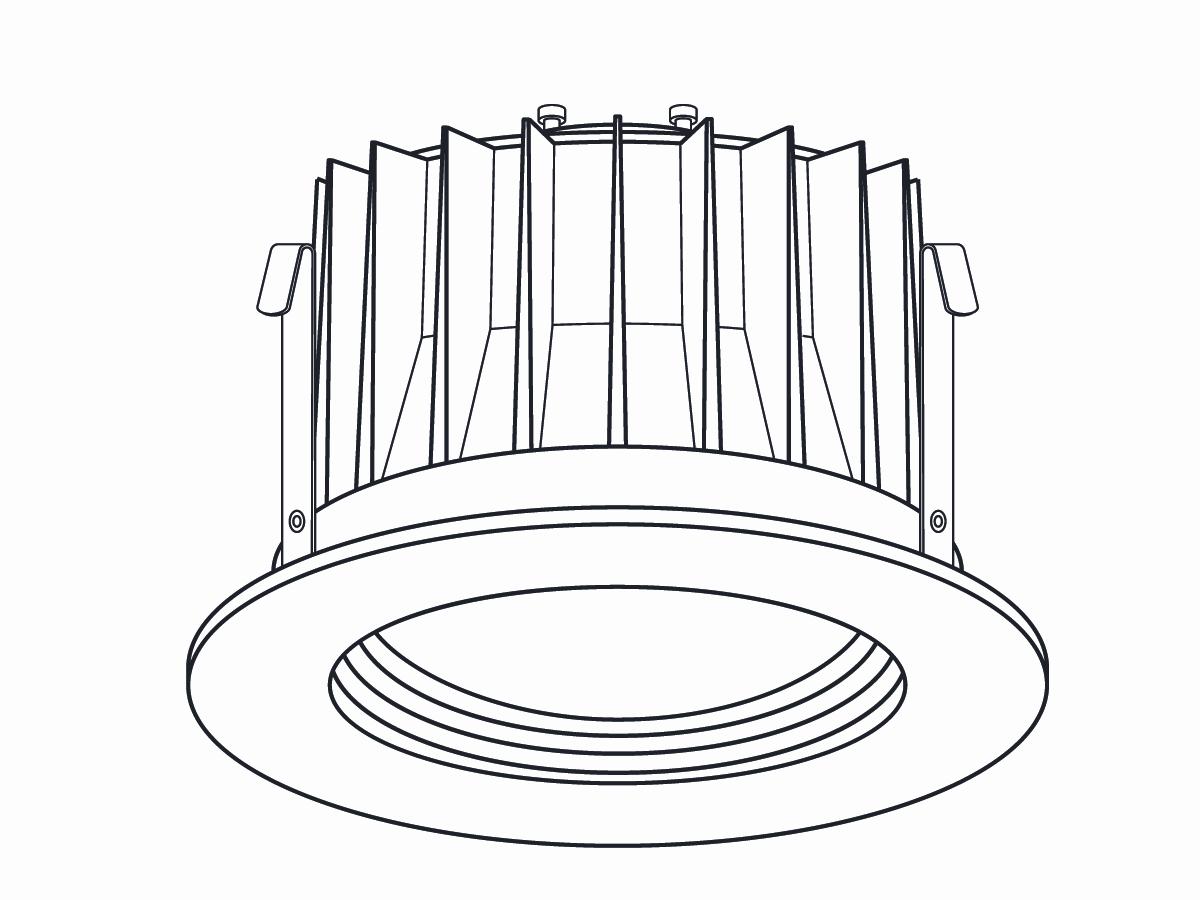

NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm
SS4G4DR / IC430
* System Wattage includes driver and LED Module consumption. | ** Delivered lumen output will vary depending on CCT selection.
LED MODULE
■ Powered by OSRAM high performance LED engine
■ 50,0 00 hours at 70% lumen maintenance
■ 80 CRI a t 2700K, 3000K, 3500K, 4000K
ELECTRICAL SYSTEM
■ Univ ersal voltage 120-277V when specified with Osram 0-10V 1% or Intellect options only
■ eldo LED, Lutron and DMX Dimming must specify voltage
■ Phas e dimming available in 120V only
■ 347V a vailable with Osram 0-10V 1% Dimming only
■ Power factor >.9, 50/60Hz
EMERGENCY BACKUP
External battery operates LED load of up to 7W at a minimum of 800 lumens for 90 minutes (EM7). Available with remote or integral test switch, must specify.
OPTICAL SYSTEM
Specification grade reflector with 1.2mm thickness. Architectural, discrete polished self flange standard. Optional painted white flange is available. Meets RP-1 requirements with controlled light distribution at a 55° cut off.
DIMMING
■ 0-10 V Dimming 1%
■ Forw ard/Reverse Phase Dimming 1% (120V only)
■ Eldo LED 0-10V 0.1% or 1%
■ Lutron® LDE1 Hi-Lume 1% EcoSystem LED driver with Soft-on, Fade-to-Black dimming technology
■ Lutron® LDE5 5-Series EcoSystem LED driver
■ DMX512 RDM 0.1%
INTELLECT ™
■ Listed on the DesignLights Consortium (DL C) Qualified Product List (QPL) for Networked Lighting Control systems
■ Integr ated control system provides occupancy and light level detection, and controls the load directly by the power control module Integrated intelligent fixture controls
■ Only h ot and neutral power required at all devices, no need for control wires
■ 12’ ceiling height maximum
■ 24” cable provided for connection between sensor and power control module
■ Keyp ad Room controller must be specified separately
Heavy duty galvanized steel frame with a large access junction box. ETL listed for through wiring. LED light engine and driver are accessible from above or below ceiling.
INSTALLATION
The luminaire is type Non-IC. Insulation must be kept at a minimum of 3” away from fixture. Universal mounting brackets included. Compatible with C-channel, flat bar, wood joist bar hanger and EMT. Bar hangers must be ordered separately. C-channel is recommended for T-bar ceilings. Maximum ceiling thickness is 1 1/4”.
END-OF-LIFE INDICATOR
Optional end-of-life indicator helps the end user to receive a signal from the fixture indicating that it has reached its programmed life-time. After the LED driver reaches the programmed life-time, whenever it is turned ON, it stays at ‘Dim’ level (10%) for 10 minutes and then reaches its appropriate level.
LISTING/WARRANTY
■ ETL listed to US and Canadian standards for damp locations.
I200 I400 (7W Emergency Backup w/ Remote Test Switch IOTA part #ILB-CP07-A ) (7W Emergency Unit w/ Integral Test Switch IOTA part #ILB-CP07-R) (End-of-Life Indicator at 50,000 hours) (C-Channel Bar Hangers) (Flat Bar Hangers) (Wood Joist Bar Hangers)
Reflector Part Number (Example: IC430HZ-SF)
Reflector Reflector Finish Trim
(Clear) (Haze) (White)

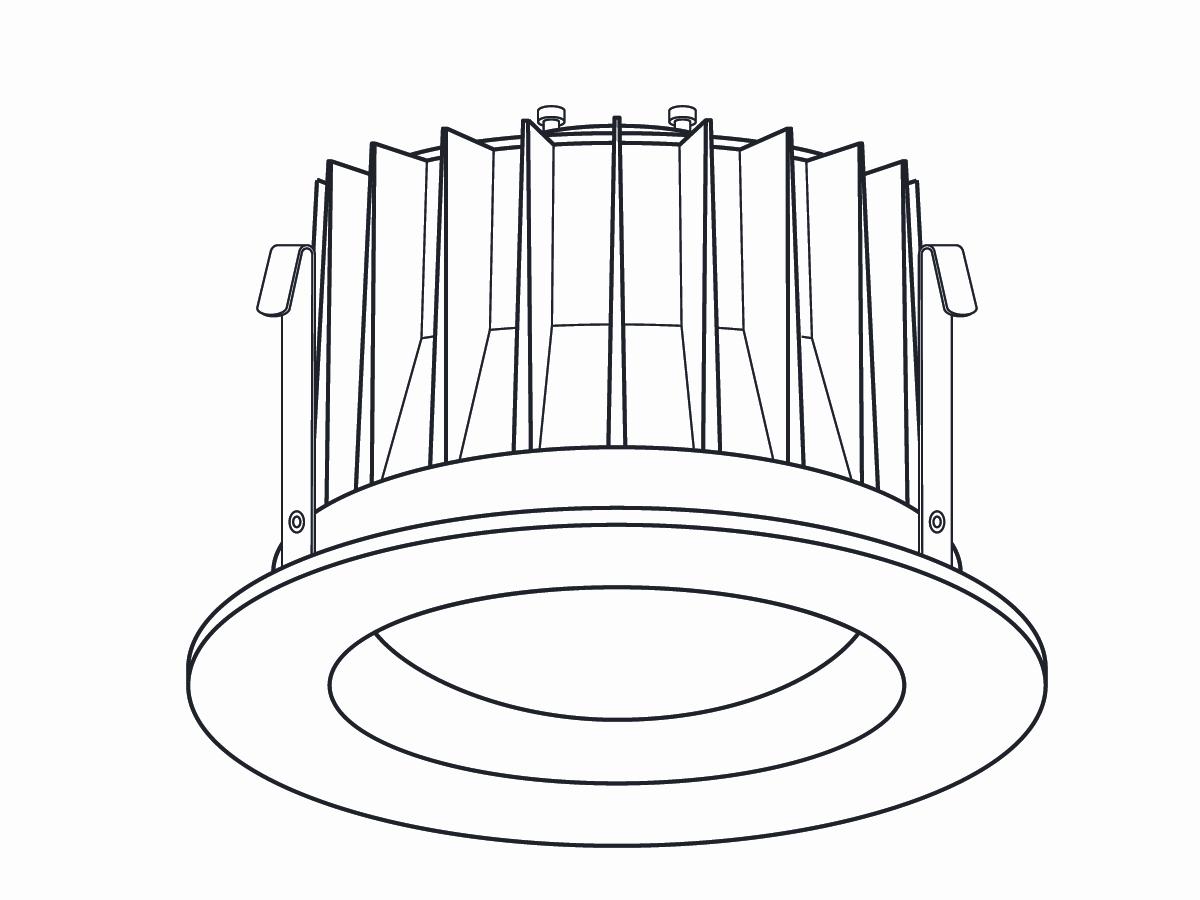

NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail: nora@noralighting.com
Compatible Housings
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm
SPECIFICATIONS
Description
ANYX ARV13
Trim
Lens
The Anyx ARV13 LED fixtures build on the highly successful Anyx line. The Anyx ARV13 series features a durable, color-impregnated polycarbonate housing supported by a marine grade, die cast aluminum base plate to provide a lighting fixture that will survive in the harshest environments. The Anyx 13 series has been installed successfully in large scale projects such as dorm rooms, behavioral health facilities, transportation stations and public schools.
One piece injection molded UV stabilized polycarbonate mechanically interlocked to base plate and sealed against moisture and contaminants with two high temperature silicone O-rings. Color is molded through entire part for scratch resistant finish. Locked in place with one concealed tamper resistant set screw.
One piece injection molded prismatic polycarbonate with minimum 0.130" wall thickness. Secured to base plate by trim and sealed with two high temperature silicone O-rings.
Reflector Heavy gauge formed aluminum primed and finished with electrostatically applied power coat.
Base Plate Pressure die cast marine grade aluminum. Chemically primed and finished with electrostatically applied polyester powder coat.
Gaskets
Closed cell die cut neoprene gasket provided between fixture mounting plate and mounting surface. High temperature silicone O-ring between the trim and lens, between the lens and base plate, and between the mounting plate and base plate.
Drivers Dimming to 1%, 10% or Programable Lumen Output driver options. Non-Dimming Driver is also available.
LED
UL Listing
2700K, 3000K, 3500K, 4000K, or 5000K and 82 CRI. L 70 projected life of over 130,000 hours at 50ºC.
U.L., C.UL. Wet Location Listing standard. IP66 standard in compliance with IEC 60598, certain exclusions may apply. Please refer to Ordering Information for details.
Government BAA – Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act Procurement as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
Warranty Lifetime warranty against vandalism. Luminaire LED will repair or replace any fixture damaged due to vandalism for the lifetime of the installation.
10-year warranty on LED boards against operational defects. Tested in accordance with LM-80. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed.
Note Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
DIR LED BULK HEAD LIGHT
PRODUCT DESCRIPTION
The DIR LED Bulkhead fixture has die-casting aluminum body and opal polycarbonate lens. A range of lumen options available from 1500 to 3500 lumens. Designed to endure extreme environmental conditions and physical abuse.
F EATURES
• Five CCTs are in one
• Wattage selectable
• Photocontrol is available
• Guards are available in Open, Cross, Eyelid and Grid
• IP65 for wet location
SPECIFICATION
ELECTRICAL SYSTEM
• Input voltage: 120-277V,50/60Hz
•THD≤20%
• Power Factor: >0.9
• Working Temperature: -40-104˚F (-40-40˚C)
0-10V dimming driver
L70 -100,000 Hours
-40-104˚F (-40-40˚C)
•cUL listed
•Suitable for wet locations
•RoHs compliant
Open Guard
Eyelid Guard
Cross Guard
Grid Guard
ANYX ARV13
ORDERING INFORMATION
Low
contained, 90 minute emergency battery pack. 0°C (32°F) to 55°C (131°F). 800 lumens EMB125R 3,4 Remote inverter that will
marine grade aluminum back box. Provided with (3) 1/2 “ i.p.t. holes for conduit entry with threaded plugs
mounting plate details for back box dimensions.
excluded, Wet Listed Standard
(Consult Factory)
AMBNLRRing of Avago PLCC-4 Amber Series measured at 593nm, wired in parallel-series. Requires separately controlled circuit REDNLRRing of Avago PLCC-4 RED Series measured at 621nm, wired in parallel-series. Requires serarately controlled circuit
3,4 Remote inverter that will operate a 375W maximum load for 90 minutes. 20°C (68°F) to 30°C (86°F)
Requires SHCAB.
8. OCCFA and OCC not available with Nightlight options AMBNLR or REDNLR. 9. Not available with YRV Trim. Accessories: Order as separate catalog number
Screwdriver Bit Initial shipment includes one (1) TXSD per fixture.
Notice:
*30W is default setting.
*4000K is default setting.
*Photocontrol can be set ON and OFF by the DIP switch on the fixture. Photocontrol default setting is OFF.
*Black finish is standard. Custom color is available at an additional cost.
PHOTOMETRY
All published luminaire photo metric testing performed to IESNA LM-79-08 standards by a NVLAP certified laboratory.
Decorative architectural die-cast outdoor luminaire includes a heater pack for cold weather applications. Luminaire includes a photosensor that will turn the 1250lm general light on after dawn and off in the morning. During a power loss, an internal battery will turn the luminaire on at 400lm for 90 minutes.
FEATURES
• Universal 120/277VAC input
• Outdoor luminaire with general and emergency lighting
• Test switch and LED indicator
• Self-diagnostic and self-testing unit
• Three color temperatures in each fixture (3000K / 4000K / 5000K)
• Available in three finishes with UV coating: white, black, or bronze
• IP65 rated
• General illumination can be controlled with a photosensor or wall switch
CONSTRUCTION
Architectural, low profile decorative design with die-cast aluminum housing. Enclosure is IP65 rated and suitable for outdoor applications, and includes a UV Resistant polycarbonate lens.
Color Temperature: Selectable CCT (3000K/4000K/5000K)
Operating Temperature: -30°C to 50°C ambient temperature Battery: LiFePO4 6.4V 1.5A maintenance-free
OPERATION
Luminaire has dual operations; general and emergency lighting. General lighting can be achieved with photosensor that will turn on the luminaire with absence of light, or with wall switch. Emergency lighting will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time.
LABELS AND LISTINGS
• 3 year / 35,000 hour limited warranty
• cULus Listed for Wet Locations
• IP65 Rated
NFPA 101 requires 1.0 foot-candle average and 0.1 foot-candle minimum with a 40:1 maximum/minimum ratio. Below is a recommended mounting height and spacing on surface with reflectance at 80% ceiling, 50% walls, and 20% floor.
Type Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS

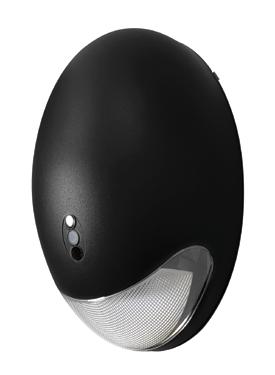

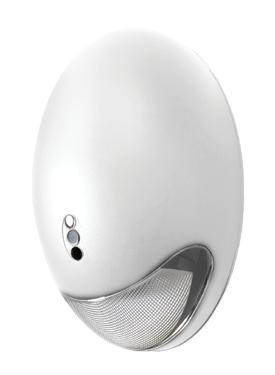

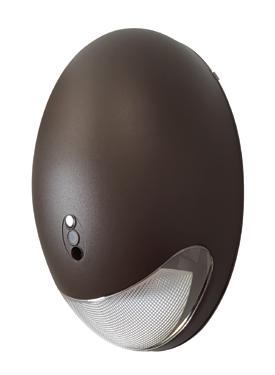

Outdoor LED Emergency Light with Photosensor
Description NE-921LEDBCC = Black Finish NE-921LEDBZCC = Bronze Finish
NE-921LEDWCC = White Finish
Example: NE-921LEDWCC = Outdoor LED Emergency Light with Photosensor, White finish
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
■ FINISH – Highly reflective non-glare matte white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
■ ELECTRICAL – High-quality mid-power LED boards. L70 > 72,000 hours per IES TM-21. L80 > 102,000 hours with HE option. 50/60 Hz constant current driver.
■ MOUNTING – NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Surface mount and drywall kit accessories available, shipped separately, see options.
■ LISTINGS –
■ cCSAus certified as luminaire suitable for dry or damp locations.
■ IC-rated for direct contact with insulation.
■ IP5X rated.
■ ISO 5-9 rated.
■ City of Chicago Environmental Air approved when specified with CP option.
■ DesignLights Consortium qualified product. Not all versions of this product may be DLC qualified, see the DLC Qualified Products List at www.designlights.org/QPL
■ Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american
■ WARRANTY – 5-year limited warranty, see hew.com/warranty
3-7/8″
23-13/16″ 2x2 | 2x4 Shown
CATALOG #:
TYPE : PROJECT:
[3]
See page 2 for EMERGENCY BATTERY OPTIONS. See page 3 for FLEXIBLE WHIP OPTIONS.
AVI-LVFA-CS2-PIR Avi-on wireless fixture control with PIR motion and daylight sensor [9]
AWNR Lutron Athena wireless node integral fixture control, RF only [10] AWNS Lutron Athena wireless node integral fixture control, RF with daylight and occupancy sensing [11]
DRIVER VOLTAGE
See page 7 for ADDITIONAL DRIVER OPTIONS.
DIM Driver with external 0-10V dimming wires
DRV Driver without external dimming wires
DA Driver with 12V auxiliary power, without external dimming wires [12]
DSR Sensor-ready driver without external dimming wires (D4i DALI-2) [13]
QUICKSHIP
1x4
LT-14-L47/835-AF-QS-DIM-UNV
LT-14-L47/840-AF-QS-DIM-UNV
347V [14]
2x2
LT-22-L39/835-AF-QS-DIM-UNV
LT-22-L39/840-AF-QS-DIM-UNV
NOTES
1 Lumens based on 80 CRI/3500K CCT. Actual performance may vary +/-5%. See page 2 for FIXTURE PERFORMANCE DATA. Additional lumen packages available, see Options.
2 Air return through side slots. Not available with surface mount or CP option. Not qualified for IP5X, ISO 5-9, or IC ratings.
3 See page 4 for SURFACE MOUNT KIT DETAILS. See page 3 for DRYWALL KIT (DFK) OPTIONS.
4 See page 5 for AVI-ON BLUETOOTH WIRELESS CONTROL DETAILS. See page 4 for SENSOR & NODE PLACEMENT DETAILS.
5 4 per fixture. Optional for 1″ grid installations. Required for 9/16″ grid mounting; LT is compatible with Williams earthquake clips only.
2x4
LT-24-L40/835-AF-QS-DIM-UNV
LT-24-L40/840-AF-QS-DIM-UNV
LT-24-L64/835-AF-QS-DIM-UNV
LT-24-L64/840-AF-QS-DIM-UNV
6 Specify in increments of 100 nominal lumens. Option must be specified with next higher lumen package.
7 Not available with 90 CRI or 1x4 L28 lumen package. See page 2 for FIXTURE PERFORMANCE DATA.
8 DA Driver only.
9 DA Driver only.
10 DA and DSR Drivers only.
11 DA and DSR Drivers only.
12 Avi-on, Lutron Athena, and ZLSO5 Controls only.
13 Lutron Vive and Athena Controls only.
14 Not available with EM batteries, DA, or DSR drivers.
1X4’, 2X2’, 2X4’
LED LAY IN BACKLIT FLAT PANEL - 5CCT & WATTAGE SELECTABLE
WATTAGE SELECTABLE 3 OPTIONS 1X4’ 20W30W40W
COLOR SELECTABLE
BATTERY BACKUP
*OPTION AVAILABLE
EMERGENCY OPTION ALSO AVAILABLE 2X4’ 30W40W50W
LR24290+EM
LR24293+EM
LR24295+EM
BLANK
LED2X2BPNL/3WO/5CCT/D
LED2X2BPNL/3WO/5CCT/D+EM
LED2X4BPNL/3WO/5CCT/D
LED2X4BPNL/3WO/5CCT/D+EM
LED1X4BPNL/3WO/5CCT/D
LED1X4BPNL/3WO/5CCT/D+EM
BLANK
BLANK
LED2X4TROF/CB/5WO/5CCT/D
LED2X4TROF/CB/5WO/5CCT/D+EM
PHOTOMETRIC
3000K/3500K//4000K/5000K/6000K
3000K/3500K//4000K/5000K/6000K
3000K/3500K//4000K/5000K/6000K
3000K/3500K//4000K/5000K/6000K
2X2
LT

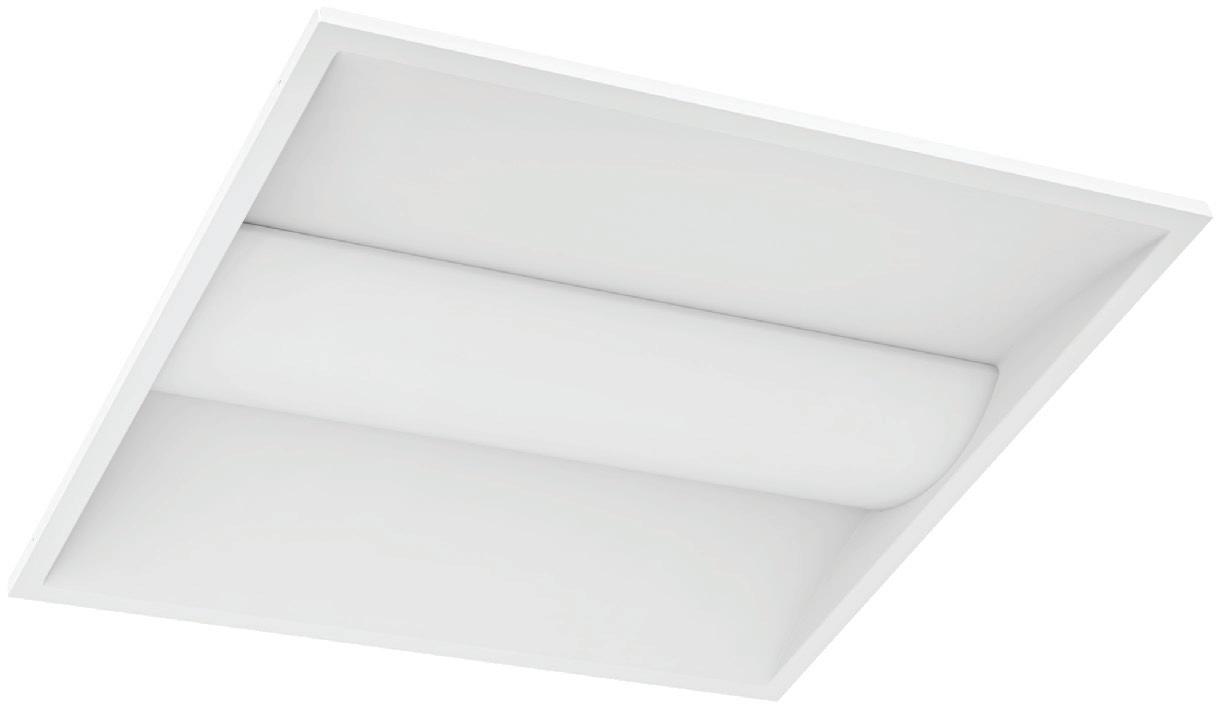

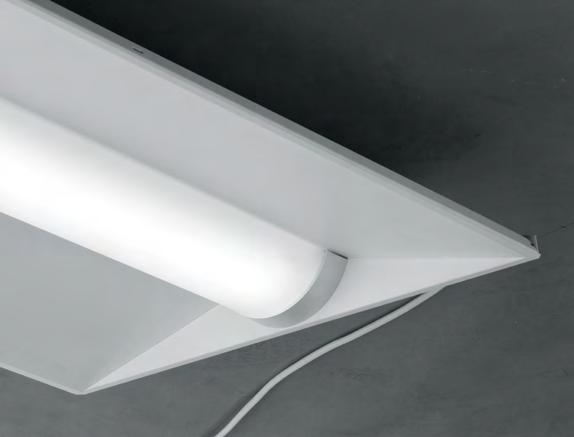

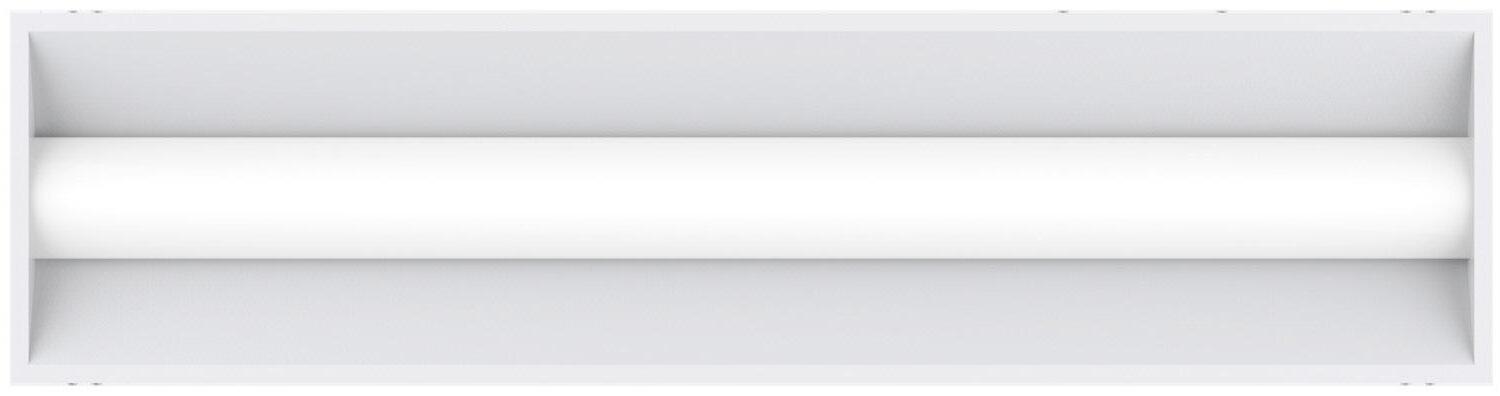

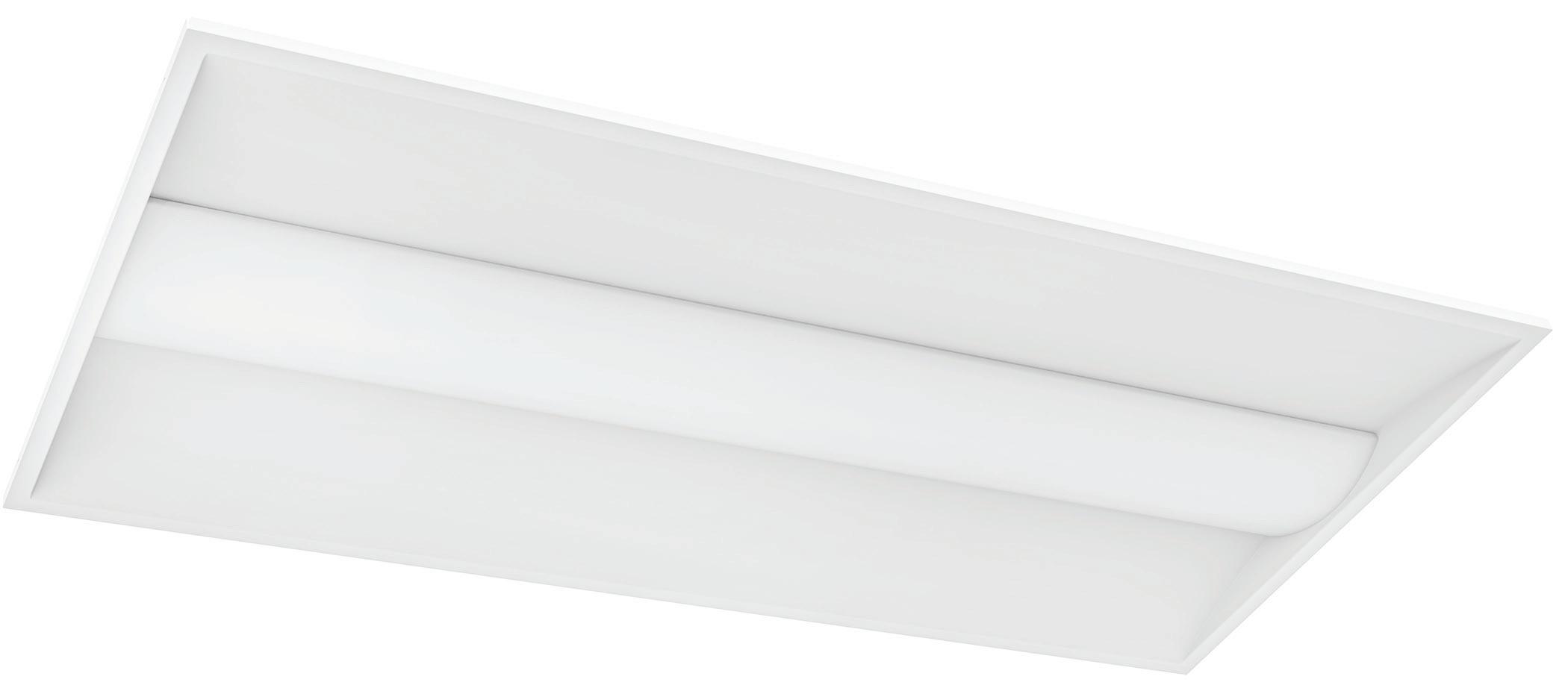

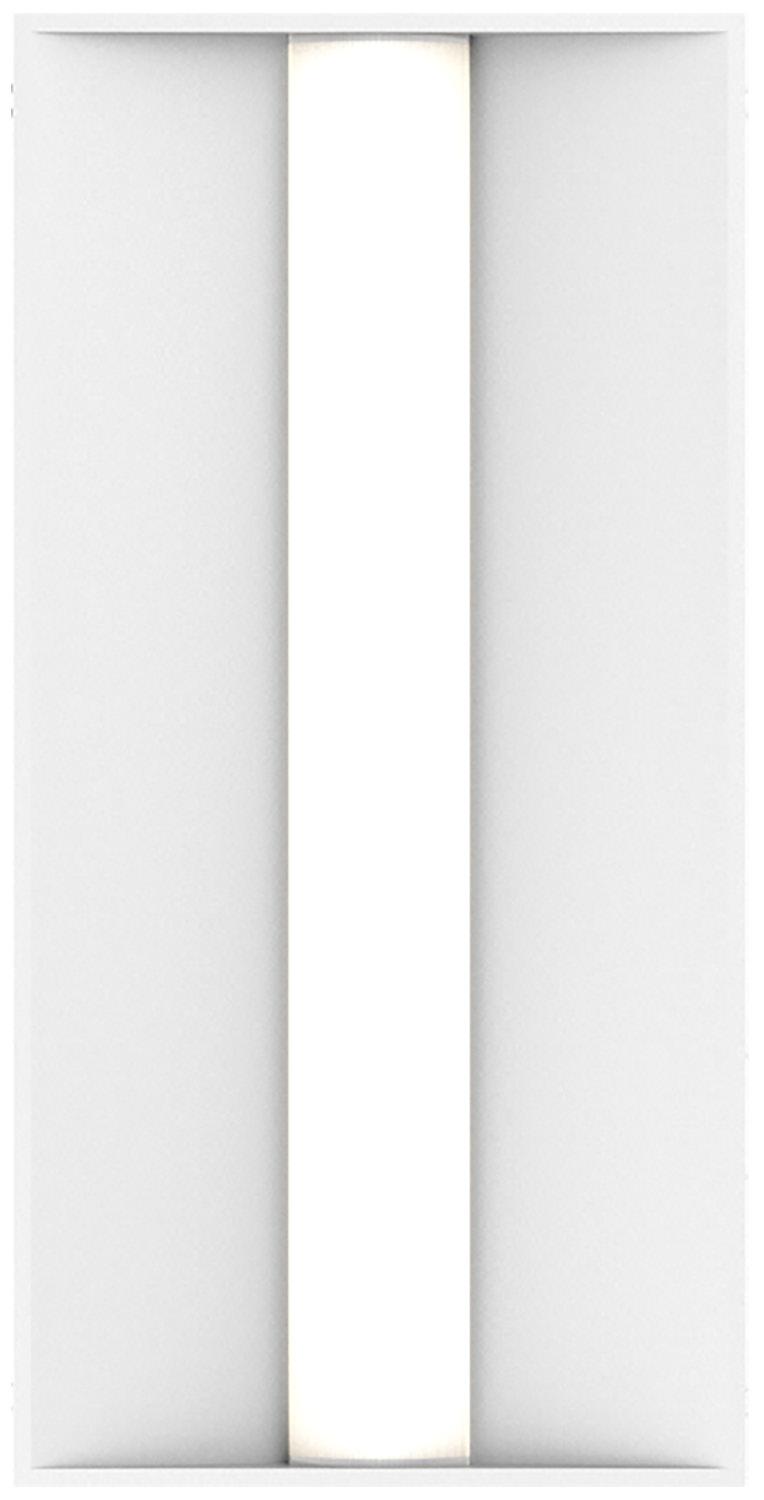

LED Troffer
FEATURES
■ Low-profile depth for shallow plenum applications
■ Diffuse lens provides smooth illumination for visual comfort
■ Air return capability reduces number of unsightly ceiling vents for a cleaner appearance
■ Surface mount kit preserves continuity
■ HE option delivers superior efficacies up to 176 lm/W
■ Rated for direct contact with insulation
■ ISO 5-9 and IP5X rated for cleanroom applications
■ FINISH – Highly reflective non-glare matte white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
■ ELECTRICAL – High-quality mid-power LED boards. L70 > 72,000 hours per IES TM-21. L80 > 102,000 hours with HE option. 50/60 Hz constant current driver.
■ MOUNTING – NEMA Type “G” 15/16″ or 1″ grid standard. For NEMA Type “NFG” and “SG” 9/16″ grid installations, specify EQCLIPS option. Surface mount and drywall kit accessories available, shipped separately, see options.
■ LISTINGS –
■ cCSAus certified as luminaire suitable for dry or damp locations.
■ IC-rated for direct contact with insulation.
■ IP5X rated.
■ ISO 5-9 rated.
■ City of Chicago Environmental Air approved when specified with CP option.
■ DesignLights Consortium qualified product. Not all versions of this product may be DLC qualified, see the DLC Qualified Products List at www.designlights.org/QPL
■ Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american
■ WARRANTY – 5-year limited warranty, see hew.com/warranty
3-7/8″
23-13/16″ 2x2 | 2x4 Shown
CATALOG #:
TYPE : PROJECT:
[3]
See page 2 for EMERGENCY BATTERY OPTIONS. See page 3 for FLEXIBLE WHIP OPTIONS.
AVI-LVFA-CS2-PIR Avi-on wireless fixture control with PIR motion and daylight sensor [9]
AWNR Lutron Athena wireless node integral fixture control, RF only [10] AWNS Lutron Athena wireless node integral fixture control, RF with daylight and occupancy sensing [11]
DRIVER VOLTAGE
See page 7 for ADDITIONAL DRIVER OPTIONS.
DIM Driver with external 0-10V dimming wires
DRV Driver without external dimming wires
DA Driver with 12V auxiliary power, without external dimming wires [12]
DSR Sensor-ready driver without external dimming wires (D4i DALI-2) [13]
QUICKSHIP
1x4
LT-14-L47/835-AF-QS-DIM-UNV
LT-14-L47/840-AF-QS-DIM-UNV
347V [14]
2x2
LT-22-L39/835-AF-QS-DIM-UNV
LT-22-L39/840-AF-QS-DIM-UNV
NOTES
1 Lumens based on 80 CRI/3500K CCT. Actual performance may vary +/-5%. See page 2 for FIXTURE PERFORMANCE DATA. Additional lumen packages available, see Options.
2 Air return through side slots. Not available with surface mount or CP option. Not qualified for IP5X, ISO 5-9, or IC ratings.
3 See page 4 for SURFACE MOUNT KIT DETAILS. See page 3 for DRYWALL KIT (DFK) OPTIONS.
4 See page 5 for AVI-ON BLUETOOTH WIRELESS CONTROL DETAILS. See page 4 for SENSOR & NODE PLACEMENT DETAILS.
5 4 per fixture. Optional for 1″ grid installations. Required for 9/16″ grid mounting; LT is compatible with Williams earthquake clips only.
2x4
LT-24-L40/835-AF-QS-DIM-UNV
LT-24-L40/840-AF-QS-DIM-UNV
LT-24-L64/835-AF-QS-DIM-UNV
LT-24-L64/840-AF-QS-DIM-UNV
6 Specify in increments of 100 nominal lumens. Option must be specified with next higher lumen package.
7 Not available with 90 CRI or 1x4 L28 lumen package. See page 2 for FIXTURE PERFORMANCE DATA.
8 DA Driver only.
9 DA Driver only.
10 DA and DSR Drivers only.
11 DA and DSR Drivers only.
12 Avi-on, Lutron Athena, and ZLSO5 Controls only.
13 Lutron Vive and Athena Controls only.
14 Not available with EM batteries, DA, or DSR drivers.
1X4’, 2X2’, 2X4’
LED LAY IN BACKLIT FLAT PANEL - 5CCT & WATTAGE SELECTABLE
Frosted UV stabilized polycarbonate diffuser, eliminates glare and provides even distribution.
REFLECTOR:
Flat, steel reflector system finished in durable white powder coat. The reflector system holds all electrical components.
ELECTRICAL:
Available in 3500K or 5000K colour temperatures. High efficiency driver operates 100V through 277V or 347V, 50-60HZ. L70 up to 60,000 hours.
EM (AC & EMERGENCY):
Remote emergency backup provides a minimum 90 minutes emergency operation. Initial lumen output during emergency operation is 2354.
AC POWER CONNECTION: 3-wire, solid type 18awg, pre-stripped. Leads for quick in-field connection and hot load disconnect feature.
MOUNTING:
Surface mount configuration is standard with integrated stainless steel mounting brackets. Additional mounting systems are available: including aviation cable, pendants, chain, magnetic, pivot and direct to junction box configurations. Suspension height is to be specified when ordering any suspension mount units: AC. Junction mount (JM) configuration allows for direct mount to recessed junction box.
WEIGHT: 5 lbs. / 2.27 kg.
OPERATING TEMPERATURE:
HT: -40˚C to 40˚C
EM: 0˚C to 40˚C
DIMMING:
0 - 10V dimming is standard (1-100%). Compatible with most dimming systems, contact factory for more information.
SANITATION LISTED:
Equivalent to the NSF standard No.2. The BS100LED-2FT is suitable for use in food equipment environments.
WARRANTY:
5 year LED warranty, see website for full warranty details.
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project
Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
BLANK
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING
NO SPEC
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail: nora@noralighting.com

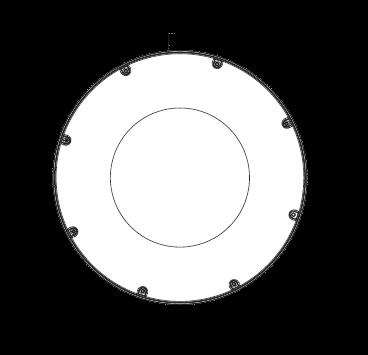

PRODUCT IMAGES & DIMENSIONS
NIO-4RNDC
Compatible Housings
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm
NO SPEC
KOLTER TYPE TRIMLESS DOWNLIGHT ALT
NIO-4RTLNDC
4" Iolite Round Trimless Downlight
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes stainless steel friction clips to mount securely to trimless mud ring. Mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2. A mud ring (NIO-TLMR-4R) or flange accessory (NIO-4RTFA) is required per trimless.
LABELS AND LISTINGS
cULus Listed for Wet Locations ENERGY STAR certified 5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
Example: NIO-4RTLNDC50XWW / NIO-TLMR-4RA = 4" Iolite Round Trimless Reflector, 5000K, White finish, 800lm / 4" Round Trimless Mud Ring
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm / 14W
NHIOICD-415 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum / 1500lm / 20W
NHIOICD-420 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum / 2000lm / 24W
NHIOICD-425 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum / 2500lm / 28W
Description
NIO-TLMR-4RA = 4" Round Trimless Mud Ring
NIO-4RTFA = 4" Flange Accessory
NO SPEC
KOLTER TYPE ADJUSTABLE DOWNLITE
NIO-4RD
4" Iolite Round Deep Adjustable Reflector
Source: 14W to 24W LED 800lm to 2000lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Die-cast adjustable reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
· 800lm, 1000lm, 1500lm or 2000lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2000lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48
ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Notes
PRODUCT IMAGES & DIMENSIONS
NIOB-2RC Round Adjustable Cone Regressed Reflector Adjustability: New Construction: 30° (800-1000lm) / 25° (1500-2500lm) Remodel: 15° (800-1000lm) 3-5/8" Color Temperature Finish Lumens / Wattage
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm
NO SPEC
Carisma® 2”
Recessed Linear
PROJECT:
Features
TYPE:
Carisma® Recessed is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma®’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . Wide range of ceiling trim options accommodate most ceiling types.
The Carisma® Recessed offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma® can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounted options, providing designers with the versatility to light up a space with their Carisma®.
Product Overview
Type: Direct distributrion with Recessed Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
CRI: 80+ typ. or 90+ typ.
Dimming (wired): 0-10V, 1% dim (standard) Lutron LDE1 Hi-lume® 1% Soft-On/Fade-to-Black DALI, 1% dim
Data is based on 4’ fixture, 3500K-80 120V IES files available on website.
Electrical Data
Electronic multi-volt (120-277VAC), constant current LED driver.
Standard Patterns
Certifications
† DLC pending
Runs
Individual Runs: 2’ - 8’ (specify in 1’ increments)
Continuous Runs: > 8’ (specify to the nearest foot).
Custom: Made to measure lengths available (specify to nearest 1/8” of field dimensions). Requires approval drawings. Added cost & lead time.
BLANK
Carisma® 2”
Recessed Linear
gypsum board trimless mud-in
CAR2-R-FLG gypsum board exposed flange ASY
5 Finish 6 Voltage 7 Length HW high reflectance matte white 120/277 Length A Length B Length C - all patterns - all patterns - PU - IND - PR (2 lengths of 2) - PZ - CON - CUS x x
8 Configuration 9 Drivers/Controls
IND1 individual fixture, 2’ to 8’ in 1’ increments Wired
CON continuous run > than 8’, specify to nearest foot 0-10V 1% electronic dimming , multi-volt 120-277VAC constant current driver (standard)
CUS custom made to measure lengths (specify to nearest 1/8” of field dimensions)
HILUME-H-ECO Lutron LDE1 Hi-lume® 1% dim Soft-On/Fade-to-Black
DALI DALI dimming 120-277VAC, 1% dim
Standard Patterns (see pg 6 for details) Wireless
PLL L left, (2) straights + (1) 90° corner, leg right
PLR L right, (2) straights + (1) 90° corner, leg left
PU U shape, (3) straight lengths + (2) 90° corners
BN-BT-OCC-WH-SR BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, D4i/DALI-2
BN-BT-OCC-WH-010 BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, 0-10V
EMC-PF2 emergency circuit requires power feed located in last fixture section (for other locations consult factory)
PF2 Extra power feed for additional circuiting
EMB emergency battery pack (not available for lengths under 4')
1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.
2 Not available with IND (individual) configuration.
NO SPEC
WHEN A SMOOTH LINE OF LIGHT ELEVATES DESIGN FREEDOM…
ADVANCED SOFT-WHITE LED TECHNOLOGY
Introducing the Linear Light-emitting Surface (LLES) technology behind NEAT™. Unlike common COB (chip-on-board) strips displaying uneven yellow/blue tinges, LLES features a white/clear silicone optical element that produces continuous, diffuse all-white light. As a result, the NEAT™ lighting platform is a versatile, streamlined, high efficacy soft white luminous building material that fits in well practically anywhere. With its clean appearance, 1/4" cut and uniquely appealing white-light signature, NEAT™ delivers new lighting opportunities for lighting designers and architects, including new levels of customized integration and surface installation into structures.
PRODUCT FEATURES
• Patent-pending technology
• Soft, uniform, continuous all-white light
• LLE S (Linear Light-emitting surface) remains white at all times, blends in with surroundings when light is turned off
• Diffuse effec t produced by exclusive white/clear silicone optical element and precision-binned LEDs
• C an be dimmed to 0.1% (dimming below 50% may result in slight pixelation)

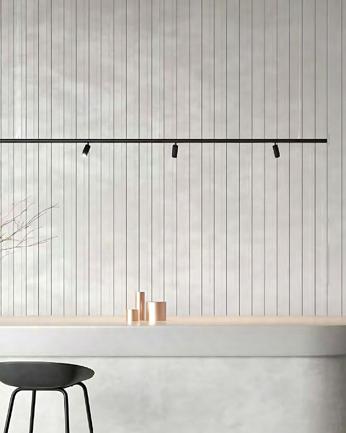

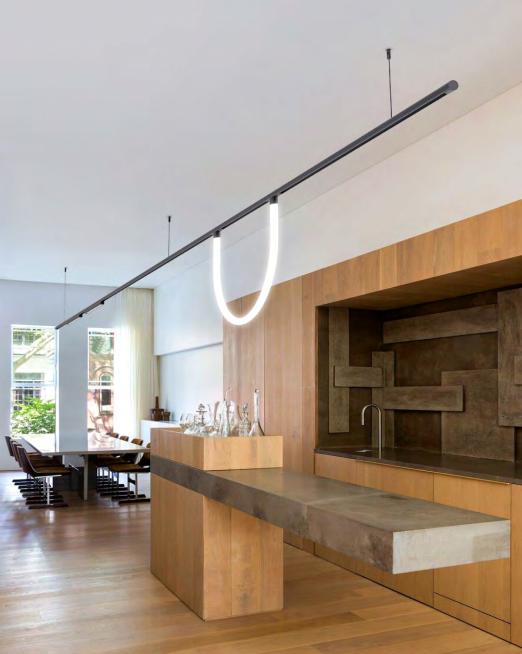

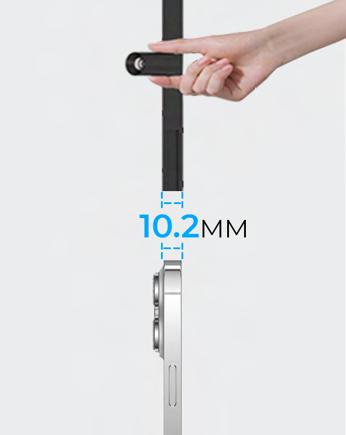

JTLS-MT11 Micro Track is a low-voltage track system with an ultra-thin 10.2mmandultra-slim19mmdesign.Itiscompa blewith48Vand24V.
Thanks to the 4-wire design, the modules are dimmable and can be precisely controlled. The system provides spotlight modules, linear modules and decora ve modules. It can be widely used in residen als, hotels,exhibi ons,etc.
TRACKS TYPES

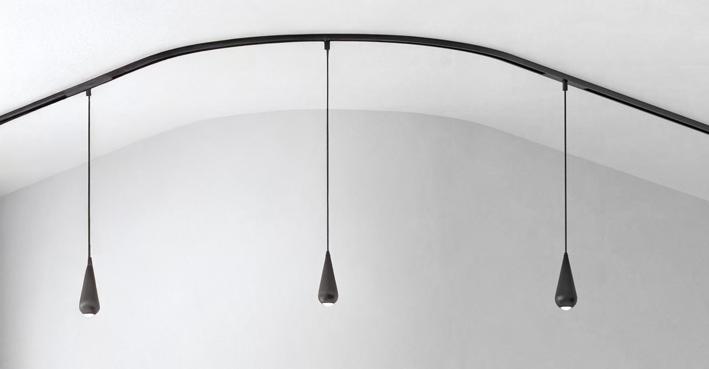

CURVED
LINKS FOR PAGES:
VARIETY OF DESIGNS
BLANK

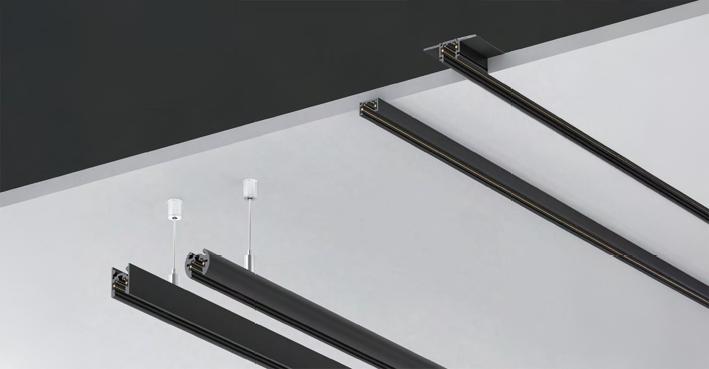

STRAIGHT TRACKS
JTLS-MT11-SX0
Material: AL6063-T5
JTLS-MT11-RX0
Installation method: Trimless Recessed
JTLS-MT11-HX0
JTLS-MT11 SERIES MICRO TRACKS
JTLS-MS111090
AL6063-T5 Material: AL6063-T5
JTLS-MT11-SRX0
Material: AL6063-T5 Material: AL6063-T5 Profile color: Black
Rated current: 10A Rated current: 10A Max Load: 480W
TRACK SECTION ORDERING GUIDE
JTLS-M11-S-1MT-BK-6
JTLS-MT11-MS111090-2MT-BK-7
ORDERING INFORMATION / EXAMPLE: (Straight Track) / (Curved track)
Quotations: quotes@jademar.com To place an order: orders@jademar.com Tel: (305) 640.0465 ǀ Fax: (305) 640.0468 WWW.JADEMAR.COM
