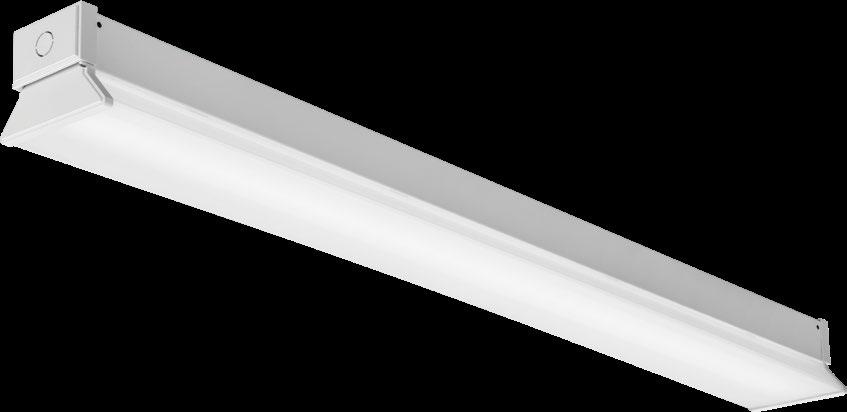

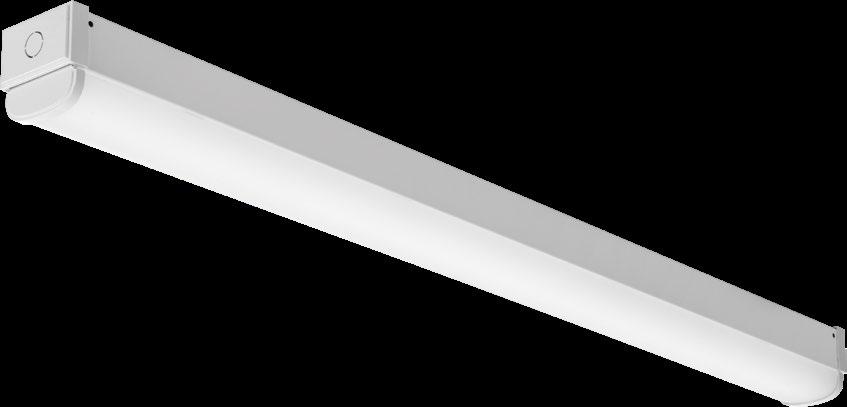

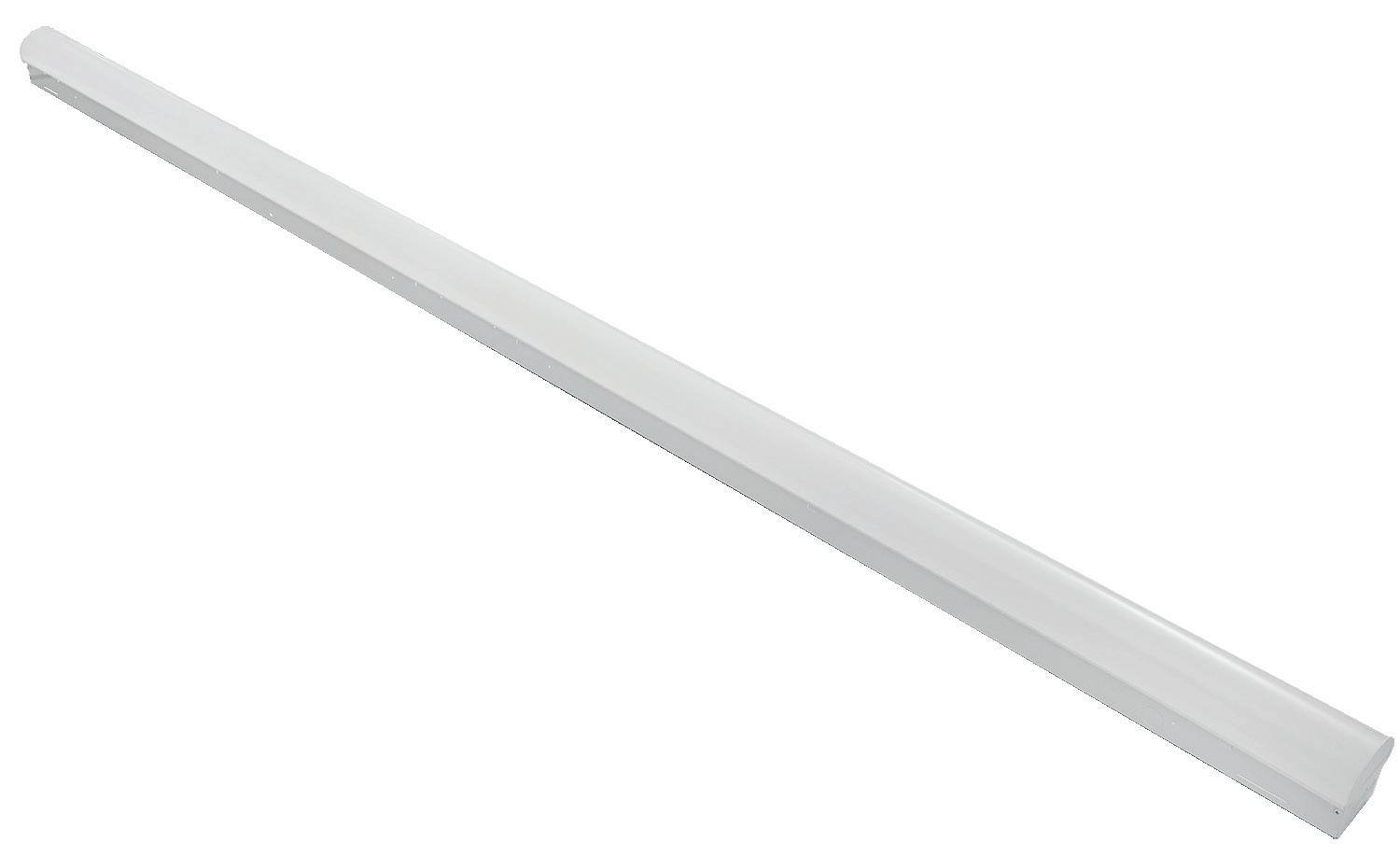

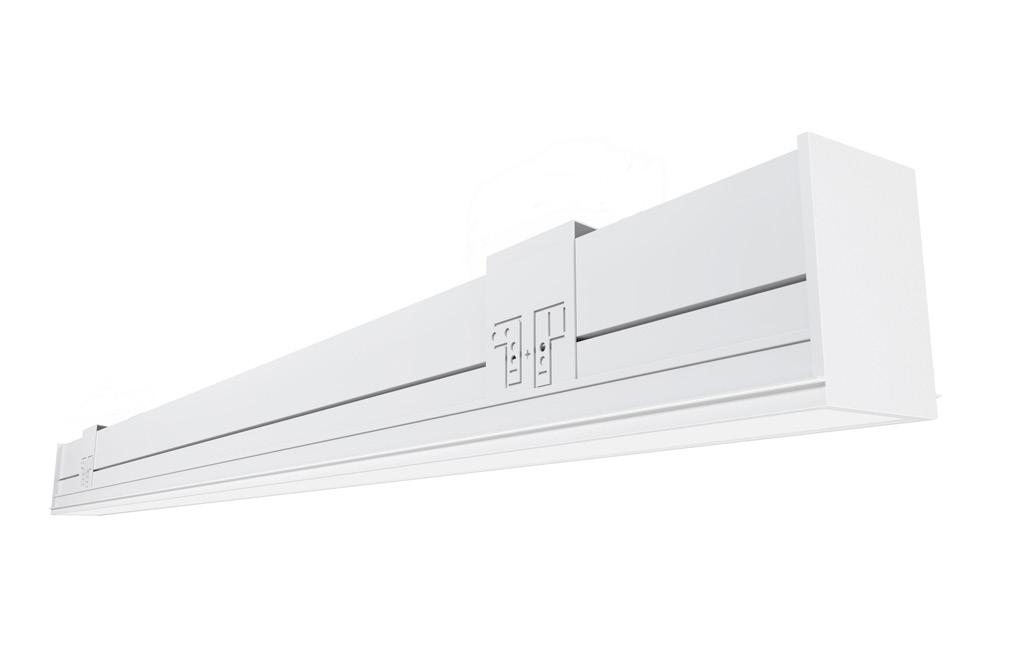

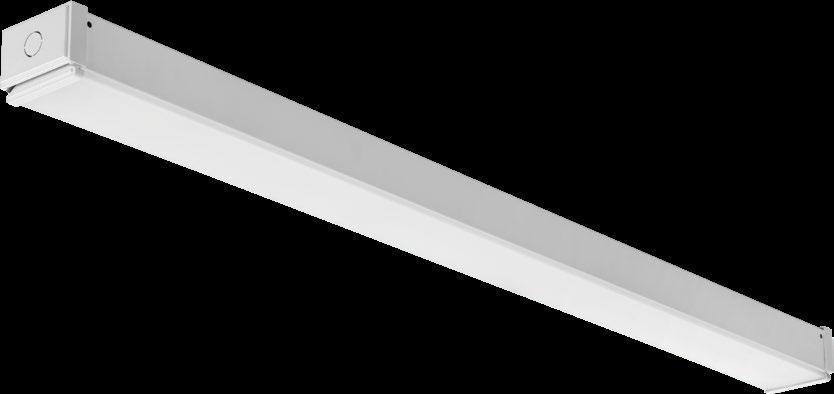

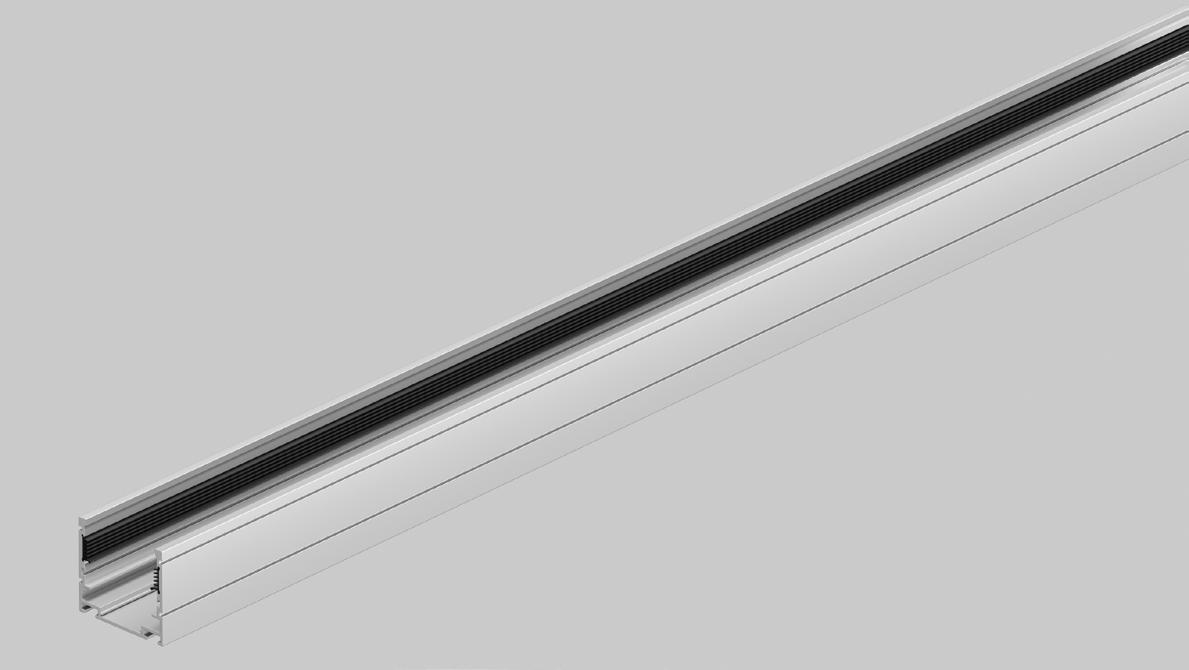

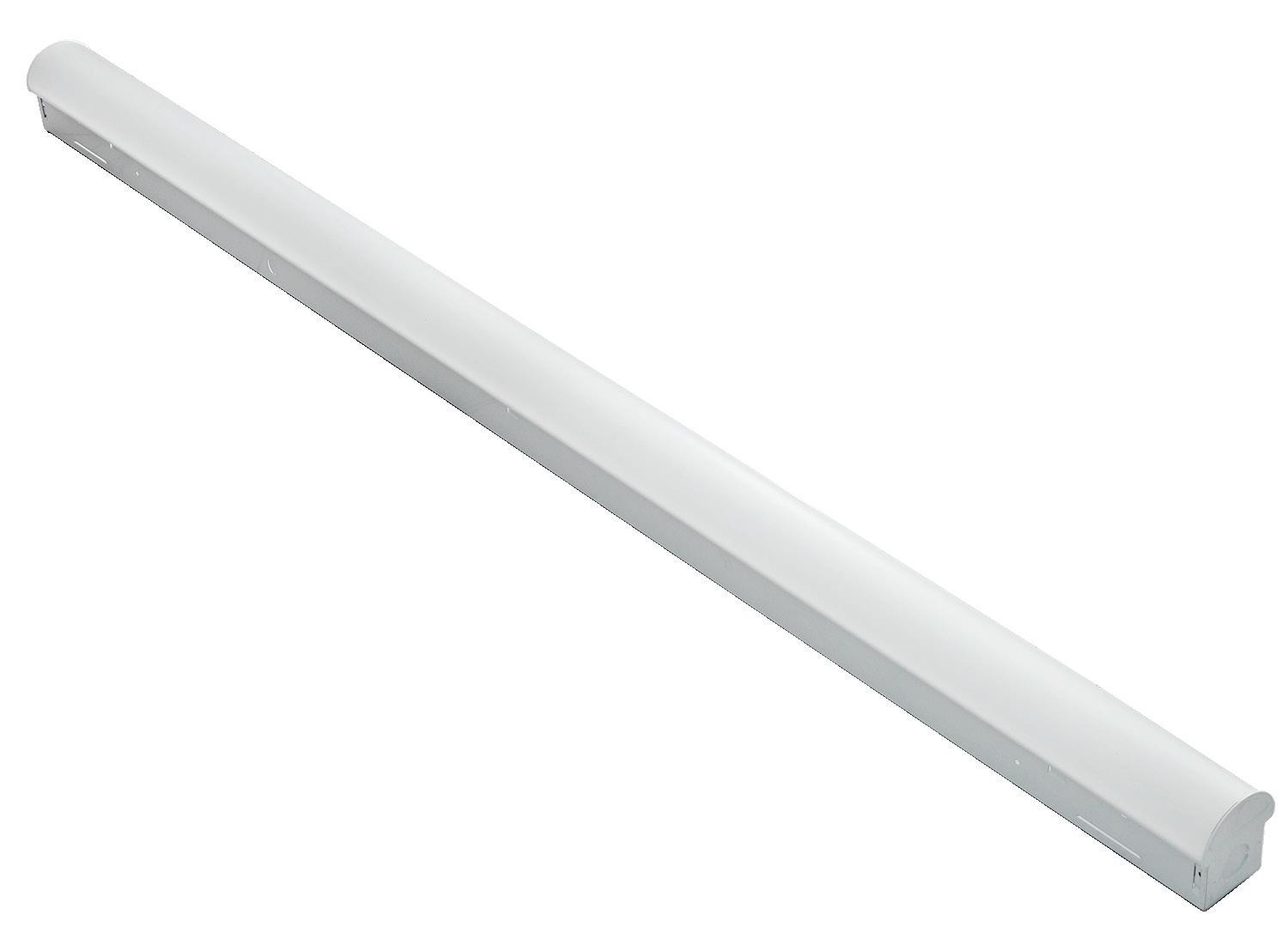

INTENDED USE — The CLX is a linear lighting solution that is available in multiple lengths, lumen packages and distributions. Designed for versatility, the CLX can address virtually any indoor lighting need. The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand-alone fixture. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Channel and cover are formed from code-gauge cold-rolled steel. Housing and lens endcaps are injection molded plastic to provide a more architectural look and feel. The endcaps come standard with a 7/8" knock out for continuous mounting but can be ordered without.
Finish: Paint options include high-gloss, baked white polyester (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). Five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.

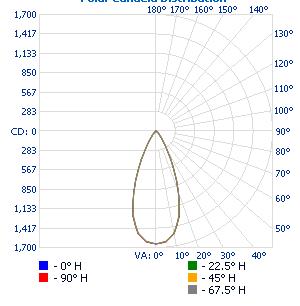

OPTICS — Offered with acrylic lens and less lens configurations. Provides a choice of optical distributions including, wide, narrow, and aisle.
Models with wide diffuse lens provide up to 12% uplight. Please check the IES file for specific uplight value.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 7.) Electronic LED driver is multi-volt input and 0-10V dimming standard (see Operational Data on page 6 for actual wattage consumption). This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided. Color Variation within 3-step MacAdam ellipse (3SDCM).
L70>100,000 hours at 25˚C.
LEDs provide nominal 80 CRI or 90 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,500 lumens per foot.
INSTALLATION — Fixture may be ceiling or wall mounted (with or without THCLX hanger or angle mounted with CLXANGBRT), pendant or stem mounted with appropriate mounting options.
WARNING — Removing the lens and opening the fixture during installation exposes the LEDs, putting them at risk for damage.
If you plan to surface mount the fixture, we recommend using the THCLX. This eliminates the need to open the fixture.
If you plan to continuous row mount, we recommend using the PLR wiring harness option. This eliminates the need to open the fixture.
Damage to the LEDs caused during installation will not be covered under the warranty.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -4°F (-20°C) and 104°F (40°C). Optional High Ambient (HA) ranging to 122°F(50°C) available on certain lumen packages (See ambient temperature chart for additional information).
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
BUY AMERICAN ACT— Product with the BAA option is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Stock configurations are offered for shorter lead times:
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products.
All configurations of this luminaire are calibrated and tested to meet the Acuity Brands' specifications for chromatic consistency – including color rendering, color fidelity, and color temperature tolerance around standard CIE chromaticity coordinates.
To learn more about Acuity A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
design select
SEF RDL MVOLT GZ10 40K 80CRI WH 00191723525878 CLX
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
Flat Diffuse Lens
Round Diffuse Lens
Wide Diffuse Lens

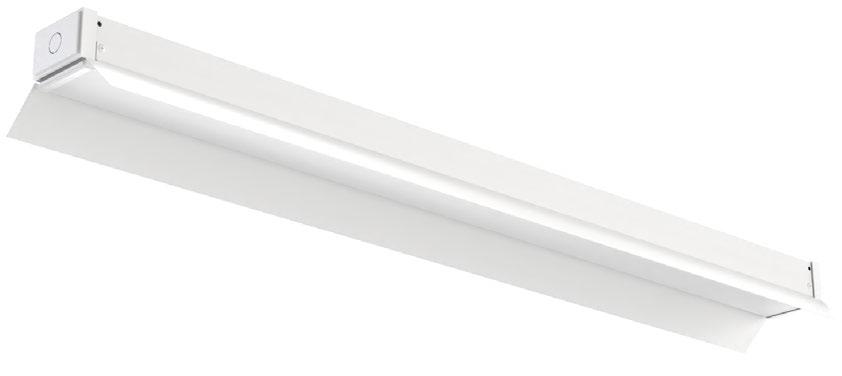

CLX with Reflector
(Blank) General ND Narrow ‡ WD Wide ‡ AD2 Aisle, 24° off center ‡
lumens 6000LM 6,000 lumens
lumens
14,000 lumens
18,000 lumens 20000LM 20,000 lumens
PS1050 Emergency battery pack, 10W, CA Title 20 Noncompliant ‡
E10WLCP Emergency battery pack, 10W Linear Constant Power, Certified in CA Title 20 MAEDBS ‡
BGTD Generator transfer device, not available with PS1050 ‡
OCS 5', 18/3 Reloc selectable One Pass cable (fixture will bear dry location label) ‡
HA High ambient, for use in ambient temperatures up to 50°C ‡
EPNKO Decorative endplate, no knock out ‡
OUTCTR Wiring leads pulled through back center of fixture ‡
OUTEND Wiring leads pulled through end of fixture ‡
Cord Sets: ‡
CS1W 6' Staight blade plug, 120V ‡
CS3W NEMA twist-lock plug, 120V ‡
CS7W Staight blade plug, 277V ‡
CS11W NEMA twist-lock plug, 277V ‡
CS25W NEMA twist-lock plug, 347V ‡
CS97W NEMA twist-lock plug, 480V ‡
CS93W 600V SEOOW white cord, no plug (no voltage required)
CS6WG16STOWD5D 6' white cord, 16/5, no plug, includes low voltage dimming wires (no voltage required) ‡
PLR__ Plug-in wiring, see page 14 for ordering information
PLR1G Plug-in wiring, single circuit, Ground
PLR1LVG Plug-in wiring, single circuit, low-voltage dimming, Ground ‡
RRL__ RELOC®-ready luminaire. See page 14 for ordering information
SPD Surge protection device, provides up to 6kV protection ‡
BAA Buy America(n) Act Compliant
nLight® Wireless:
NLTAIR2 RES7 nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7EM nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RES7PDT nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7PDTEM nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RIO No sensor control ‡
NLTAIR2 RIOEM No sensor, Control Input function only and UL924 Emergency operation, via power interrupt detection ‡
nLight® Wired: N100 nLight® without lumen management
N100EMG nLight® without lumen management For use with generator supply EM power ‡ NES7 nLight® nES 7 PIR integral occupancy sensor ‡
NESPDT7 nLight® nES PDT 7 dual technology integral occupancy control ‡
NES7ADCX nLight® nES 7 ADCX PIR integral occupancy sensor with automatic dimming photocell ‡
NESPDT7ADCX nLight® nES PDT 7 dual technology integral occupancy sensor with automatic dimming photocell ‡
Individual controls: ‡
MSD7 PIR integral occupancy sensor
MSDPDT7 PDT 7 dual technology integral occupancy control
MSD7ADC PIR integral occupancy sensor with automatic dimming control photocell
MSDPDT7ADC PDT integral occupancy sensor with automatic dimming control photocell
black
Smoke gray with white lens end
SKGYB Smoke gray with black lens end
Accessories and footnotes on next page
WH White
GALVW Galvanized with white lens end
caps
GALVB Galvanized with black lens end caps MBMatte
Design Select options indicated by this color background.
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K - 140
3500K - 135
4000K - 136
5000K - 137
,~ LITHONIA LIGHTING ®
FEATURES & SPECIFICATIONS
INTENDED USE — The CLX is a linear lighting solution that is available in multiple lengths, lumen packages and distributions. Designed for versatility, the CLX can address virtually any indoor lighting need. The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand-alone fixture. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Channel and cover are formed from code-gauge cold-rolled steel. Housing and lens endcaps are injection molded plastic to provide a more architectural look and feel. The endcaps come standard with a 7/8" knock out for continuous mounting but can be ordered without.
Finish: Paint options include high-gloss, baked white polyester (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). Five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Offered with acrylic lens and less lens configurations. Provides a choice of optical distributions including, wide, narrow, and aisle.
Models with wide diffuse lens provide up to 12% uplight. Please check the IES file for specific uplight value.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 7.) Electronic LED driver is multi-volt input and 0-10V dimming standard (see Operational Data on page 6 for actual wattage consumption). This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided. Color Variation within 3-step MacAdam ellipse (3SDCM).
L70>100,000 hours at 25˚C.
LEDs provide nominal 80 CRI or 90 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,500 lumens per foot.
INSTALLATION — Fixture may be ceiling or wall mounted (with or without THCLX hanger or angle mounted with CLXANGBRT), pendant or stem mounted with appropriate mounting options.
WARNING — Removing the lens and opening the fixture during installation exposes the LEDs, putting them at risk for damage.
If you plan to surface mount the fixture, we recommend using the THCLX. This eliminates the need to open the fixture.
If you plan to continuous row mount, we recommend using the PLR wiring harness option. This eliminates the need to open the fixture.
Damage to the LEDs caused during installation will not be covered under the warranty.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -4°F (-20°C) and 104°F (40°C). Optional High Ambient (HA) ranging to 122°F(50°C) available on certain lumen packages (See ambient temperature chart for additional information).
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
BUY AMERICAN ACT— Product with the BAA option is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Stock configurations are offered for shorter lead times:
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products.
All configurations of this luminaire are calibrated and tested to meet the Acuity Brands' specifications for chromatic consistency – including color rendering, color fidelity, and color temperature tolerance around standard CIE chromaticity coordinates.
To learn more about Acuity A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
design select
SEF RDL MVOLT GZ10 40K 80CRI WH 00191723525878 CLX
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
Flat Diffuse Lens
Round Diffuse Lens
Wide Diffuse Lens
CLX with Reflector
(Blank) General ND Narrow ‡ WD Wide ‡ AD2 Aisle, 24° off center ‡
lumens 6000LM 6,000 lumens
lumens
14,000 lumens
18,000 lumens 20000LM 20,000 lumens
PS1050 Emergency battery pack, 10W, CA Title 20 Noncompliant ‡
E10WLCP Emergency battery pack, 10W Linear Constant Power, Certified in CA Title 20 MAEDBS ‡
BGTD Generator transfer device, not available with PS1050 ‡
OCS 5', 18/3 Reloc selectable One Pass cable (fixture will bear dry location label) ‡
HA High ambient, for use in ambient temperatures up to 50°C ‡
EPNKO Decorative endplate, no knock out ‡
OUTCTR Wiring leads pulled through back center of fixture ‡
OUTEND Wiring leads pulled through end of fixture ‡
Cord Sets: ‡
CS1W 6' Staight blade plug, 120V ‡
CS3W NEMA twist-lock plug, 120V ‡
CS7W Staight blade plug, 277V ‡
CS11W NEMA twist-lock plug, 277V ‡
CS25W NEMA twist-lock plug, 347V ‡
CS97W NEMA twist-lock plug, 480V ‡
CS93W 600V SEOOW white cord, no plug (no voltage required)
CS6WG16STOWD5D 6' white cord, 16/5, no plug, includes low voltage dimming wires (no voltage required) ‡
PLR__ Plug-in wiring, see page 14 for ordering information
PLR1G Plug-in wiring, single circuit, Ground
PLR1LVG Plug-in wiring, single circuit, low-voltage dimming, Ground ‡
RRL__ RELOC®-ready luminaire. See page 14 for ordering information
SPD Surge protection device, provides up to 6kV protection ‡
BAA Buy America(n) Act Compliant
nLight® Wireless:
NLTAIR2 RES7 nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7EM nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RES7PDT nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7PDTEM nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RIO No sensor control ‡
NLTAIR2 RIOEM No sensor, Control Input function only and UL924 Emergency operation, via power interrupt detection ‡
nLight® Wired: N100 nLight® without lumen management
N100EMG nLight® without lumen management For use with generator supply EM power ‡
NES7 nLight® nES 7 PIR integral occupancy sensor ‡
NESPDT7 nLight® nES PDT 7 dual technology integral occupancy control ‡
NES7ADCX nLight® nES 7 ADCX PIR integral occupancy sensor with automatic dimming photocell ‡
NESPDT7ADCX nLight® nES PDT 7 dual technology integral occupancy sensor with automatic dimming photocell ‡
Individual controls: ‡
MSD7 PIR integral occupancy sensor
MSDPDT7 PDT 7 dual technology integral occupancy control
MSD7ADC PIR integral occupancy sensor with automatic dimming control photocell
MSDPDT7ADC PDT integral occupancy sensor with automatic dimming control photocell
Smoke gray with
with
Design Select options indicated by this color background.
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K - 140
3500K - 135
4000K - 136
5000K - 137
SPECIFICATIONS
Compliant

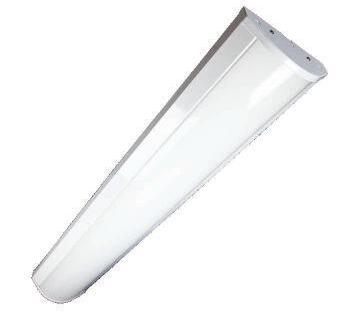

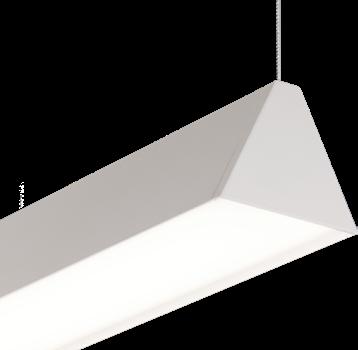

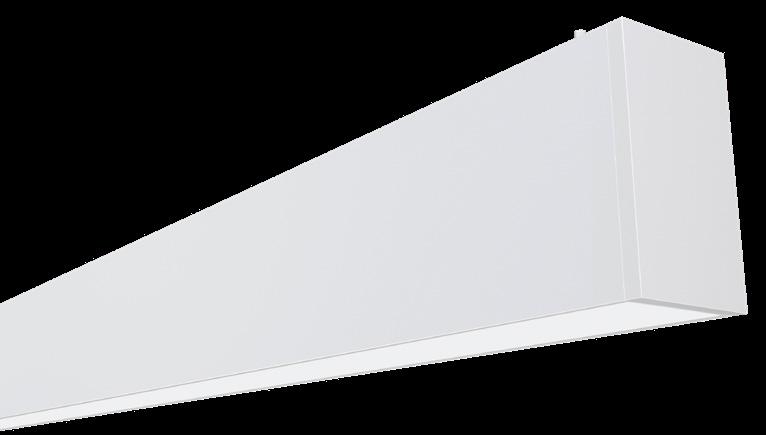

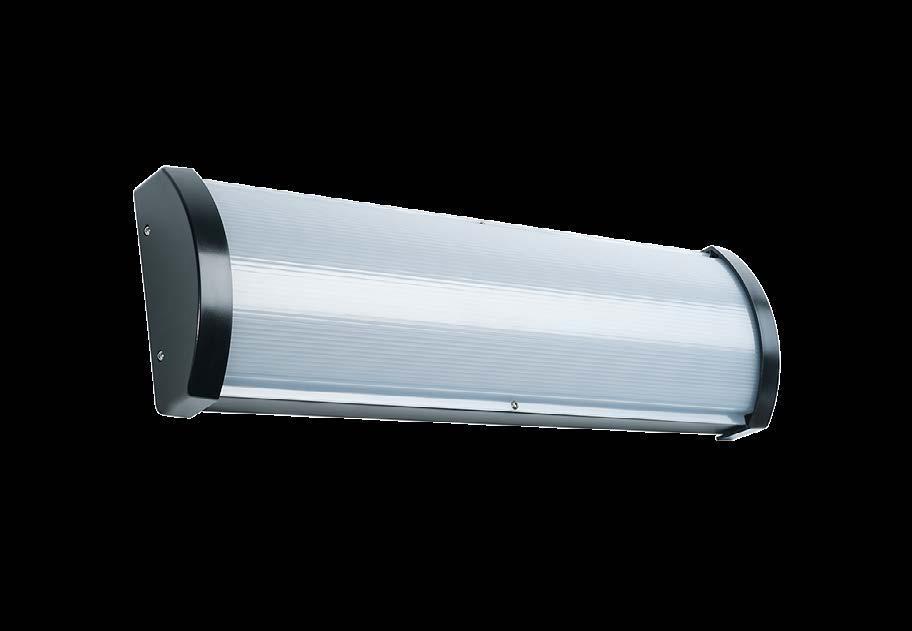

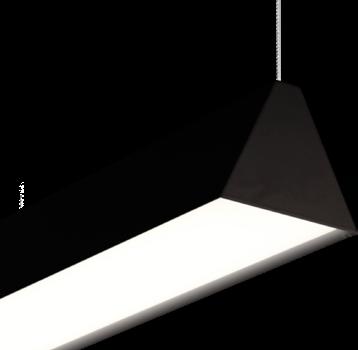

Description The Vertex CLF11 series combines sophisticated optical performance with an economical durable, steel construction that is typically used in applications where durability and price are both equally considered. Successful applications have included public schools, airports, industrial facilities and public rest areas. The Vertex CLF11 series is also available with energy saving occupancy sensors and can be continuous row mounted as needed.
Housing Die formed 18 gauge cold rolled zinc coated steel. Aluminum housing is also available. Finished with electrostatically applied polyester powder coat.
Lens
Extruded UV stabilized polycarbonate with integral prisms. Maximum wall thickness 0.160". Secured to housing with injection molded end caps and 2 captive stainless steel TORX® head screws.
End Caps Injection molded UV stabilized polycarbonate with minimum wall thickness 0.140". Secured to housing with 2 captive stainless steel TORX® head screws per side. Provisions for surface conduit entry.
Drivers Dimming to 1%, 10% or Programmable Lumen Output driver options. Non-Dimming Driver is also available.
LED Samsung LM561B+ series @ 2700K, 3000K, 3500K, 4000K, or 5000K and 82 CRI wired in parallel-series. L 70 projected life of over 130,000 hours at 50ºC.
Government BAA – Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act Procurement as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
UL Listing
U.L., C.UL. Damp Location Listing standard.
Warranty Lifetime warranty, Luminaire LED incorporated will repair or replace any fixture damaged due to vandalism for the lifetime of the installation.
10-year warranty on LED boards against operational defects. Tested in accordance with LM-80.
Note Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.

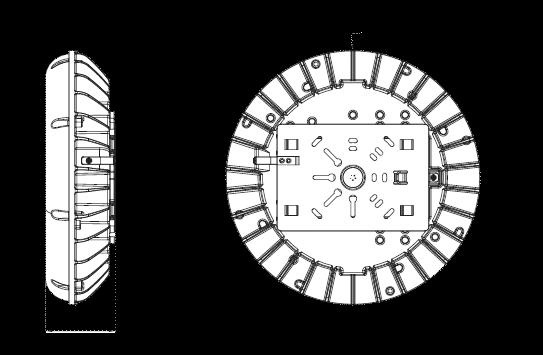

DIMENSIONAL DATA

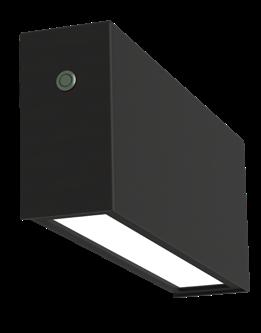

Select Series Stair Lighter
Product Specifications

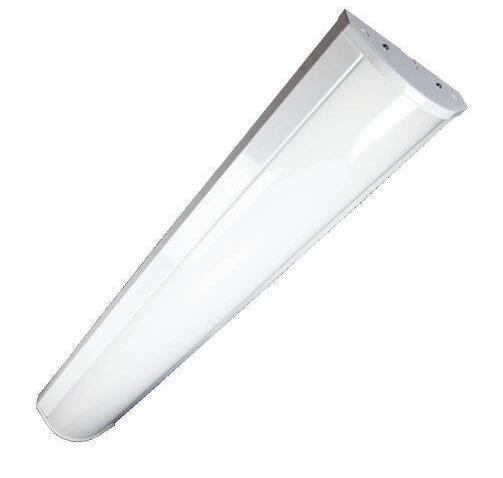

TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
• Wattage selectable 35/45/55W

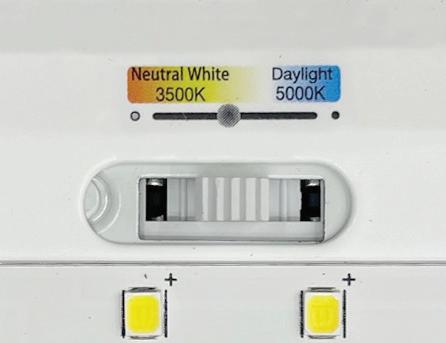

• Color Selectable 35/40/50K
• Optional battery backup
Ideal Applications
• Commercial settings

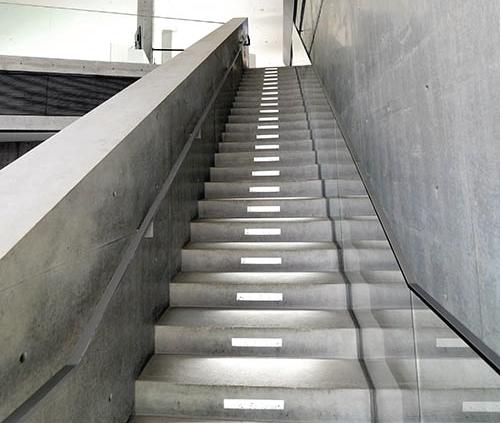

• Stairways
• Bi-level dimming microwave motion sensor
• Surface or pendant mounting
• Industrial settings
• Warehouses
ORDERING INFORMATION
*Required
OPTIONS
EMB310T20 2,4 Self contained, 90 minute emergency battery pack. 0°C (32°F) to 55°C (131°F). Meets CA Title 20 standards. 1200 lumens
EMB722 4,5 Self contained, 90 minute emergency battery pack for 25W operation only. 0°C (32°F) to 60°C (140°F). 2600 lumens
PRDDriver programmed to specific lumen output, Consult Factory
5. Not available in 1FT or 2FT
6. Not available with MVOLT
7. Not available with Lumens over 1900 LM or Wattage or 25W
8. Not available with MVOLT or 347
9. When 1FT used with 347V, occupancy sensors cannot be used
RALTBD for pricing only. Replace with applicable RAL call out when ready to order. See the RAL BROCHURE for available options
(113°F).
EMB125R 6 Stand-alone inverter that will operate a maximum 125W load for 90 min. 20°C (68°F) to 30°C (86°F)
EMB250R 6 Remote inverter that will operate a 250W maximum load for 90 min. 20°C (68°F) to 30°C (86°F)
EMB375R 6 Stand-alone inverter that will operate a 375W maximum load for 90 min. 20°C (68°F) to 30°C (86°F)
OCCMicrowave occupancy sensor mounted behind the lens. On/Off operation only.
OCC50 2,11 Microwave occupancy sensor. 50% of LED’s constantly on and 50% sensored on/off.
OCCBTBluetooth connected microwave occupancy sensor mounted behind the lens. All LED board sensored to dim to 50%, 40%, 30%, 20%, or 10%, field selectable low levels.
OCCFAMicrowave occupancy sensor mounted behind the lens. All LED board sensored to dim to 50%, 30%, 20%, or 10%, field selectable low levels. Factory standard preset of 50% dimming level and 20 minute time out
Accessories: Order as separate catalog number. TXSDTORX® Screwdriver Bit
Initial shipment includes one (1) TXSD per fixture
•Sharkward bi-level dimming microwave motion sensor included
•Long 50,000 hour rated life
•Bi-level dimming microwave motion sensor included standard, battery backup optional
Catalog Ordering Matrix
Field Installed Accessories:
YTGHANGER - 10’ adjustable cable hang kit
Listings
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.

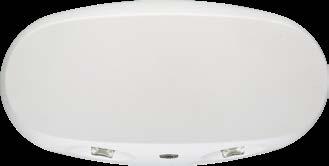

FEATURES & SPECIFICATIONS
INTENDED USE — Provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet and exceed code required emergency lighting. Ideal for applications requiring attractive LED unit equipment with quick installation and unparalleled performance for lower mounting heights. C ertain airborne contaminants can diminish the integrity of acrylic and/or polyc arbona te. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses
CONSTRUCTION — The housing is a standard white (black optional) thermoplastic with a compact and low-profile contemporary design. It is 5VA flame rated, impact-resistant, scratch-resistant and corrosion proof. The UV-stable resin resists discoloration from natural and man-made light sources. There is a low-profile, integrated and back-lit test switch with an easily visible multi-color LED status indicator. The back-plate contains a universal j-box mounting pattern to facilitate ease of installation on a wide variety of j-boxes and the front housing allows tool-less access for ease of maintenance.
ELM2LF: Fixed lamp head arrangement for ease of installation and maximum path of egress aiming coverage with no aiming required for wall mount applications.
ELM2L: Unique track and swivel arrangement permits full range of direc tion for lamp head adjustment.
OPTICS — Both the ELM2L and ELM2LF feature two, high performance LEDs with acrylic lens’ rated at 1.2 watts each and delivering a total of 220 lumens in a linear pattern (LP220L). The typical life of an LED is 10 years. The LED light sources typically never need to be replaced under normal conditions for normal off applications.
CCT: 5000K.
ELECTRICAL — Orderable in multiple voltages (see ordering tree for specific voltages).
Current-limiting charger maximizes battery life and minimizes energy consumption and provides low operating costs.
Small battery chargers Certified in the CA Title 20 Appliance Efficiency Database.
Regulated charge voltage maintains constant-charge voltage over a wide range of line voltages.
Prevents over/undercharging that shortens battery life and reduces capacity. Filtered charger input minimizes charge voltage ripple and extends battery life.
BATTERY: Sealed, maintenance-free nickel-cadmium or Lithium Iron Phosphate.
Lithium Iron Phosphate battery powers both on board LEDs and up to 2.4W additional LED remote lamp heads simultaneously or offers extended run-time up to 3 hours.
Automatic 24-hour recharge after a 90-minute discharge.
Advanced electrical design provides constant light output throughout the entire discharge period. Brownout protection is automatically switched to emergency mode when supply voltage drops below approximately 80 percent nominal of 120, 220, 277 or 347. Other input voltages may vary.
AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge.
SELF-DIAGNOSTICS and REMOTE TEST (SDRT and AELR option):
Self-Diagnostics: Continuously monitors AC functionality. Test switch and remote tester (RTKIT accessory) provide manual activation of 30-second diagnostic testing for on-demand visual inspec tion. Standard derangement monitoring will indicate disconnected battery, charger failure and displays green flashing indicator light while in emergency mode. Single multi-chromatic LED indicator to display two-state charging, test activation and three-state self-diagnostics.
Self-diagnostic testing: Five minutes every 30 days and 90 minutes annually. Diagnostic evaluation of lamps, AC to DC transfer, battery charging and condition of microprocessor. Automatic test is easily postponed for eight hours by activating manual test switch or use of remote tester (RTKIT accessory).
AELR option: STAR (Self-testing Automated Reporting) radio transmits monthly and annual test results and diagnostics information for automated reporting requirements. For more information visit AcuityBrands.com/STAR INSTALLATION — Wall moun t and c eiling mount standard for ELM2L. Wall mount only for ELM2LF. Blind-mate connector ensures easy installation and safe maintenance. 7/8" entrance provision at top of unit for standard 1/2" conduit entry. Tool-less removal of front cover from back-plate for ease of installation and maintenance.
LISTINGS — UL damp location list ed standar d and wet location listed when used with the WPVS accessory, all at 50-104°F (10-40°C). Meets or exceeds all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), NOM (Norma Oficial Mexicana), California Energy Commission Title 20 section 1605.3 (W) (4), FCC Title 47, Part 15, Subpart B and OSHA. List and labeled to comply with Canadian Standards C22.2 No. 141-10. GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Small Battery Chargers Certified in the CA Title 20 Appliance Efficiency Database.
MOUNTING AND SPECIFICATIONS
All dimensions are inches (centimeters) unless otherwise indicated.
ELM2L Specifications
Length: 9.72 (24.69)
Depth: 3.10 (7.87)
Height: 4.68 (11.88)
Weight: 1.31lbs (0.59kg)
ELM2LF Specifications
Length: 9.22 (23.42)
Depth: 3.10 (7.87)
Height: 4.68 (11.88)
Weight: 1.25lbs (0.57kg)
marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit

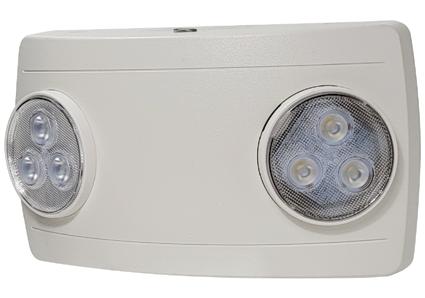

NE-612LED

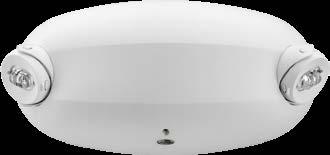

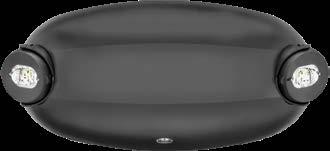

Compact Dual Head LED Emergency Light with Optional Remote Capability
Source: (2) 0.9W or 1W LED (2)90lm to 150lm
PRODUCT DESCRIPTION
Luminaire provides 90 minutes of light from two adjustable heads for illuminating paths of egress upon failure of normal power. Emergency unit is available in higher lumen output and remote capability.
FEATURES
Compact housing with (2) adjustable LEDs Lightweight snap together design
Self-diagnostic and self-testing option available Ceiling or wall mounted
Universal 120/277VAC input
Remote capability
SPECIFICATION
Construction: Injection-molded thermoplastic ABS housing. Plastic enclosure with 5VA flame retardant. Quick connector design for easy installation. Two fully adjustable glare-free round heads for emergency lighting.
Mounting: Plastic enclosure includes a top and side knockout for conduit application. Suitable for wall mounting or ceiling mounting. Waterproof vandal resistant enclosure available, must specify NEG-602.
Operation: Luminaire will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time per battery.
ELECTRICAL
Input Voltage: 120/277VAC 60Hz
Lumens / Wattage:
NE-612LED: (2) 110lm / 0.9W
NE-612LEDRC: (2) 90lm / 0.9W
NE-612LEDHORC: (2) 150lm / 1W
Color Temperature: 5700K
Operating Temperature: 10˚C to 40˚C ambient temperature (-25°C to 50°C when used with NEG-602) Batteries: NiMH 3.6V 2W maintenance-free
Remote Option: Luminaire is capable of including an additional 3.6V / 4W battery. Additional battery is used to power an additional remote emergency light. Upon power failure, each additional battery requires an additional 24 hours to recharge.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Location Listed when used with NEG-602)
Meets or exceeds all requirements in NFPA 70, NFPA 101 life safety code 3-Year Limited Warranty
Type
Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
101 requires 1.0 foot-candle average and 0.1 foot-candle minimum with a 40:1 maximum/minimum ratio. Below is a recommended mounting height and spacing on surface with reflectance at 80% ceiling, 50% walls, and 20% floor.
Compact Dual Head LED Emergency Light
= (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, White Finish
NE-612LEDRCB = (2) 0.9W / 90lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish
NE-612LEDRCW = (2)

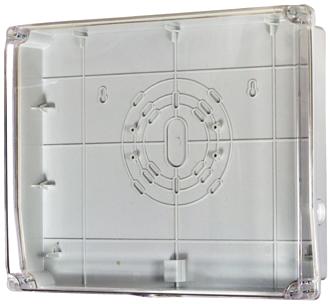

Accessory
= Waterproof Vandal Resistant Enclosure
with Remote (RC)
2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish
NE-612LEDHORCW = (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
Example: NE-612LEDHORCW = Compact Dual Head LED Emergency Light with (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing,
ORDERING INFORMATION For shortest lead times, configure product using bolded
ELM2L Aimable optics
ELM2LF Fixed optics (blank) LP220L 220 lumen, 2.4 watt, linear pattern, two lamps (blank) White B Black (blank) 120/277 VAC/60Hz 120/347120/347 VAC/60Hz SVOLT 220-240/50-60 Hz UVOLT 120 - 347 VAC, 50/60hz (blank) Nicad (blank) None SDRT Self Diagnostics, Remote Test 2 (blank) None WPVS Wet protective vandal shield 3 BAA Buy America(n) Act and/or Build America Buy America Qualified
Notes
1 ELM2L and ELM2LF with Nicad battery type not available with remote capacity.
2 SDRT only available with UVOLT.
3 WPVS breaks out and ships separately and color will match (ex: WPVS SML B). Must be ordered when using for wet location applications. Decreases delivered lumens up to 20%. See spec sheet WPVS for more information.
LITHIUM IRON PHOSPHATE BATTERY MODELS
ORDERING INFORMATION For shortest lead times, configure product using bolded options.
Notes
1 Extended run-time or remote capacity is standard. New ELMRE and ELMRW style remotes are compatible with both SDRT and non-SDRT versions (see page 3).
2 SDRT option required. AELR transmits monthly and annual test results and diagnostics information for automated reporting requirements. Only available with LTP battery type.
3 WPVS breaks out and ships separately and color will match (ex: WPVS SML B). Must be ordered when using for wet location applications. Decreases delivered lumens up to 20%. See
Other Accessories: Order as separate catalog number.

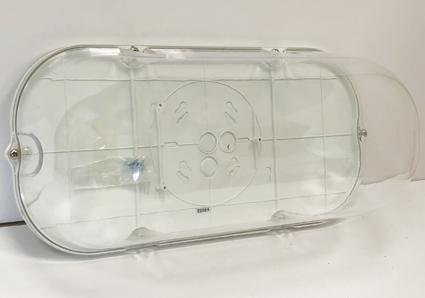

WPVS SML WWet protective vandal shield (must be used for wet location applications)
WPVS SML BWet protective vandal shield, black (must be used for wet location applications)
ELA WG1 Wireguard, 15" W x 13-1/2" H x 6" D (see spec sheet ELA-WG)
RTKIT Remote test kit, up to 40' away (includes goggles, laser and battery)
• ETL Certified L-810: FAA AC 150/5345-43J; EB-67D
• IP67 Certified
• Certified FCC 47 CFR, Part 15:2020, §15.107 and §15.109, Class A
Compliant to:
• ICAO Annex 14, Low Intensity Obstacle Light, Type B
• DGAC of Mexico
• MIL-C-7989

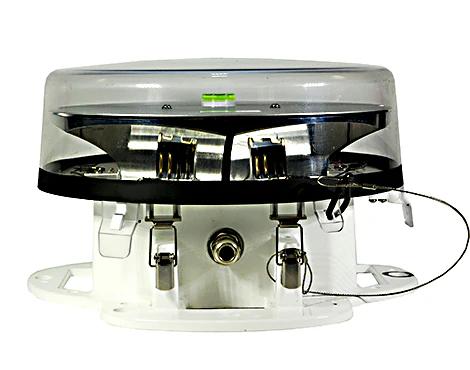

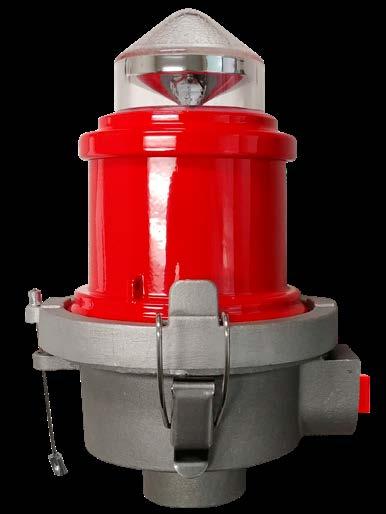

Our Night Vision Compatible, omni-directional, red, steady-burning, LED obstruction light is designed for marking tall structures such as buildings, towers, masts, cranes, meteorological towers, chimneys and other hazards to aircraft. This energy-saving LED light is a direct replacement for incandescent fixtures, providing years of reliable and maintenance-free operation. Available in single, double, and retrofit configurations; optional solar drive package.
What Does NVG Friendly Mean?
Both the FAA and Transport Canada have issued safety alerts warning that common LED obstruction lights pose a hazard to pilots using Night Vision Goggles (NVGs). This is due to the fact that NVGs typically use filters to block cockpit lighting from saturating the imaging system. This has the unintended effect of making LED obstruction lights invisible to pilots.
In response, we have incorporated NVG Friendly technology into our fixture (IR 860 nm peak intensity), giving pilots using night vision goggles unmatched visibility of airfield perimeters, buildings, and towers. The L810LEDNV light is the first LED L-810 available to ensure that your structure is visible to all pilots, making it the first true LED replacement for incandescent obstruction lights.
Why Our L810LEDNV is Better
• Direct replacement for existing incandescent light
• Lasts up to 10 times longer than an incandescent light
• Uses 96% less power than an incandescent light
• Night Vision Goggle & NVIS Compatible
• No regular maintenance
• Available in single and dual configurations with bottom or side conduit outlets
• Can be operated in steady-burning or flashing mode (controller not supplied)
Marine Treated Option:
• Recommended for harsh, high-salt coastal and marine environments.
• Protects fixture finish from salt damage and prevents corrosion.
• 3-Step Powder Coat: 1) Primer, 2) Epoxy powder base coat and glossy polyester gray (RAL 7030) powder finish coat, 3) Oven curing.
• Photocell option for automatic activation at night
• Wind Loading: Effective Projected Area of the L-810 with single mounting base is 23.125 square-inches
Night Vision Compatible Obstruction Light
Optional Low Surface Mount
Single L-810 LED Night Vision Compatible Obstruction Light

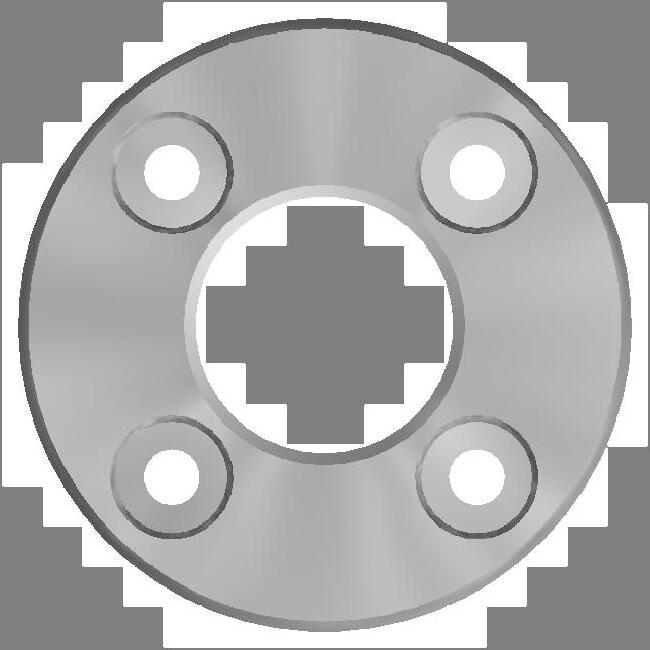

Shown with Riser, Frangible Coupling and Floor Flange
Optional 2" Pole Mount
lntertek
BLANK
Spare Parts
FL-810LEDNV-AC 100-277 VAC LED NV
Replacement Light Head
FL-810LEDNV-DC 12-48 VDC LED NV
Replacement Light Head
Alarm Line Option:
For AC and DC model fixtures, the blue wire (18AWG) is defined as the Alarm Line. When the red LED fails, the fixture’s input voltage for the fixture will be present at this wire. For AC and DC model fixtures, during normal operation (LED ON), it will have 0 VAC and 0 VDC respectively at the blue wire; in case of LED failure (turning off), it will energize the blue wire to the fixture’s input voltage, 100-277 VAC for AC models and 12-48 VDC for DC model fixtures.
L-810 LED Ordering Codes
Shipping Information:

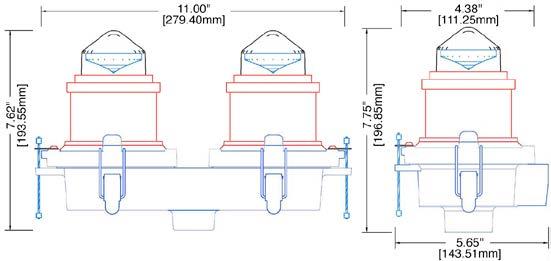

Single: 3.2 lb. (1.45 kg); 10" x 10" x 10" Carton
Double: 7 lb. (3.17 kg); 15" x 15" x 10" Carton
2" Pole Mount3
1 1-1/2" Frangible Coupling (FL-FC1.5) UNF threads are not compatible with NPT threaded junction boxes. 2 For single option only. 3 2-3/8" O.D. tenon adjustable for 2.25"-2.75" poles. 4 CAUTION! For AC model fixtures, the Alarm Line (blue wire) will be energized to a high AC voltage (fixture’s input voltage 120-277VAC) during a failure of the LED.
Obstruction Lighting Controls
Lighting controls are designed for use when multiple obstruction light fixtures are to be controlled with common electronics. The electronic control module comes in a cast iron device box with threaded hubs on both top and bottom. Replacement modules (controls without device box) are also available upon request.
Photocells
• Model 81020: 105-305VAC, 1000W photocell. FAA style photocells activate at 35 ft-cd and turn off at 52 ft-cd. Instant ON photocell has 3-5 second time delay that prevents activation and de-activation from momentary light conditions. Does not come with device box, includes 1/2" threaded male fitting.
• Model 81021: 120/240VAC, 4800W photocell. Meets FAA/FCC requirements for obstruction lighting. Energized at 35 ft-cd and de-energized at 60 ft-cd. Time delay eliminates contact chatter. Contains dual 20A load contacts. Front plastic housing mounts to cast aluminum junction box (included).
• Model 81022: Hazardous Location Photocontrol Unit. Outdoor lighting control for exterior lighting in hazardous locations: explosion proof, dust-ignition proof, and weatherproof. Nominal Voltage 50/60 Hz: 120/208/240/277VAC. Voltage Range: 105-305. Housing: sand cast copper-free aluminum - epoxy powder coated.
Photocell Ordering Codes
Part
FL-81020
FL-81021
FL-81021-2
FL-81022
Photocell only (105-305VAC, 1000W max)
Photocell with aluminum box (120VAC, 4800W max)
Photocell with aluminum box (240VAC, 4800W max)
Hazardous Location Photocontrol Unit (120/208/240/277VAC)
Model 81020
Model 81021
Model 81022
Black
White
Green
100-277 VAC
Alarm Line: Blue
Alarm Line: Blue
Wire Color Guide

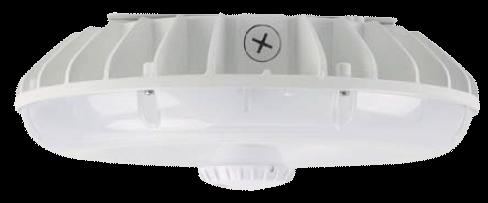

VCPG LED Parking Garage
Specifications
A+ Capable options indicated by this color background.
Ordering Information
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E7WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (7W, -20°C min)5,6,7
E10WH Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (10W, 0°C, min)5,6,7
E18WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (18W, -20°C, min)5,6,7
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Shipped separately YK Yoke/trunnion mount2
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights (provides NPS signal)
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights (provides NPS signal)
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 8-15' mounting heights
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 15'-30' mounting heights
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
(blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units) U Unit packs only
Hit the Tab key or mouse over the page to see all interactive elements.
VersaLED Lighting
Versatile Lighting Solutions
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
A+ Capable options indicated by this color background.
Ordering Information
Shipped installed
UPL1 Up-Light: 500 lumens 3
UPL2 Up-Light: 700 lumens 4
E7WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (7W, -20°C min)5,6,7
E10WH Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (10W, 0°C, min)5,6,7
E18WC Emergency battery backup, AC Activate, Certified in CA Title 20 MAEDBS (18W, -20°C, min)5,6,7
HA High ambient (50°C, only P1-P4)
SF Single fuse (120V, 277V, 347V)
DF Double fuse (208V, 240V, 480V)
SPD10KV 10KV Surge Pack
LDS36 36in (3ft) lead length
LDS72 72in (6ft) lead length
LDS108 108in (9ft) lead length
DMG External 0-10V leads (no controls)8
TP Tamper proof screws
CCE Coastal Construction
Shipped Separately
WG Wire Guard
BDS Bird Shroud 9
HS House Side Shield
BSW Bird Spikes
Introduction
The all new VCPG LED (Visually Comfortable Parking Garage) luminaire is designed to bring glare control, optical performance and energy savings into one package. The recessed lens design of VCPG LED minimizes high angle glare, while its precision molded acrylic lens eliminates LED pixilation and delivers the required minimums, verticals and uniformity. The dedicated up-light module option reduces the contrast between the luminaire and the ceiling creating a more visually comfortable environment.
The VCPG LED delivers up to 87% in energy savings when replacing 175W metal halide luminaires. With over 100,000 hour life expectancy (12+ years of 24/7 continuous operation), the VCPG LED luminaire provides significant maintenance savings over traditional luminaires.
Shipped separately YK Yoke/trunnion mount2
Standalone Sensors/Controls1
PIR Motion/ambient sensor for 8-15' mounting heights
PIRH Motion/ambient sensor for 15-30' mounting heights
PIR3FC3V Motion/ambient sensor for 8-15’ mounting heights, pre programmed to 3fc and 35% light output
PIRH3FC3V Motion/ambient sensor for 15-30’ mounting heights, pre programmed to 3fc and 35% light output
Networked Sensors/Controls1
NLTAIR2 PIR nLIGHT AIR Wireless enabled motion/ambient sensor for 8-15' mounting heights (provides NPS signal)
NLTAIR2 PIRH nLIGHT AIR Wireless enabled motion/ambient sensor for 15'-30' mounting heights (provides NPS signal)
NLTAIREM2 PIR nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 8-15' mounting heights
NLTAIREM2 PIRH nLIGHT AIR Wireless enabled, UL924 Listed motion/ambient sensor for 15'-30' mounting heights
DWHXD White
DNAXD Natural aluminum
DDBXD Dark bronze
DBLXD Black
(blank) Job Pack/Units (ships as job pack of 18pcs per; balance in units) U Unit packs only
Hit the Tab key or mouse over the page to see all interactive elements.
VersaLED Lighting
Versatile Lighting Solutions
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
The Exitronix S900 Series LED Edge-lit Exit features a pivoting design for simple installation in any application, including surface and recessed wall, ceiling and sloped ceilings. Includes surface mounting canopy as well as hardware for recessed mounting applications, making this the most versatile edge-lit sign available. The S900 includes both single- and double-face configurations for easy ordering and stocking.
FEATURES & BENEFITS
• Suitable for installation in existing drywall applications
• Includes both single- and double-face panel configurations
• Includes surface mounting canopy as well as bracket for recessed mounting applications
• UL 924 Listed 90 minute emergency run time, 24 hour recharge time
• Field-selectable directional chevrons
• UL Listed for Damp Locations
• California Energy Commission (CEC) compliant
SPECIFICATIONS
Illumination: Long-life, high-intensity, red or green LEDs
Construction: Extruded aluminum housing with high-grade, acrylic panel
Input: 120/277VAC Dual Primary, 60Hz
Battery: Maintenance-free NiCad battery
Operating Temp: 0°C to 40°C (32°F to 104°F)
Run Time: UL Listed 90 minute emergency run time, 24 hour recharge time
Mounting: Ceiling and end surface mounting or recessed
Finish: Brushed aluminum, black or white
Certfications: UL Listed for Damp Locations, meets or exceeds CEC, NEC and NFPA 101
Warranty: Any component that fails due to a manufacturing defect is guaranteed for five years with a separate five year prorated warranty on the battery. The warranty does not cover physical damage, abuse or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information.
S900UM2 = Universal WB = With Battery R = Red BL = Black WH = White
Accessories5 (Field Installed)
ER1-Kit = 1' Pendant Mount Kit
ER2-Kit = 2' Pendant Mount Kit
S900U-SGC-FP = Green Single Clear Panel for S900U only
Notes
1 Includes one single-face clear and one double-face mirrored panel in selected colors
2 Includes one single-face mirror and one double-face mirror panel
3 SR includes kits for surface & recessed mounting
4 Not available on LB configurations
5 Order as separate line item
S900U-SGM-FP = Green Single Mirror Panel for S900U only
S900U-DGM-FP = Green Double Mirror Panel for S900U only
S900U-SRC-FP = Red Single Clear Panel for S900U only
S900U-SRM-FP = Red Single Mirror Panel for S900U only
S900U-DRM-FP = Red Double Mirror Panel for S900U only
S900-PENDANT-ADAPTER = Pendant Adapter
MANHATTAN TYPE X1
Type Project

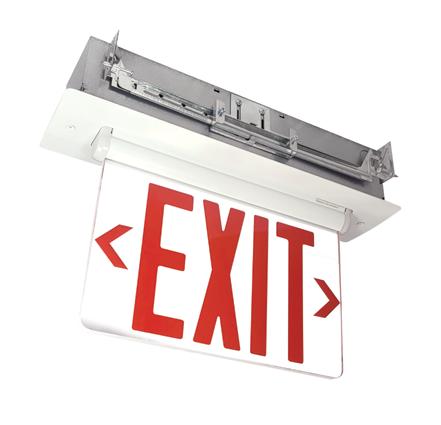

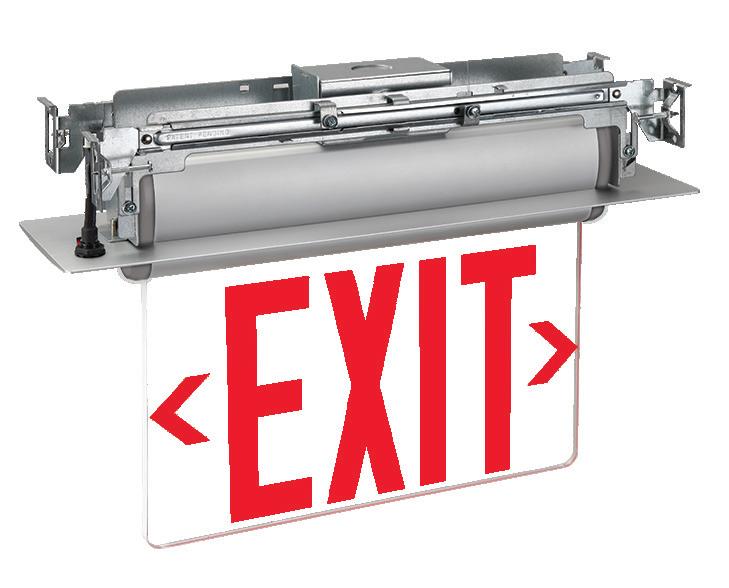

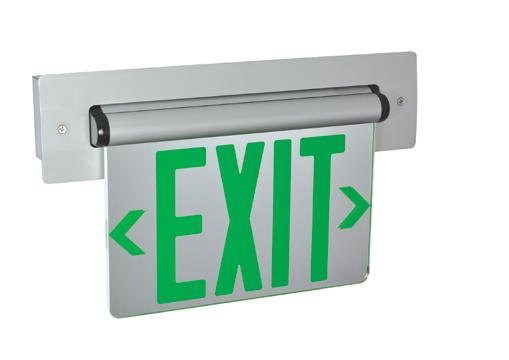

Recessed Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS UL
5-Year Limited Warranty
Certified to the energy efficiency standards of California Title 20

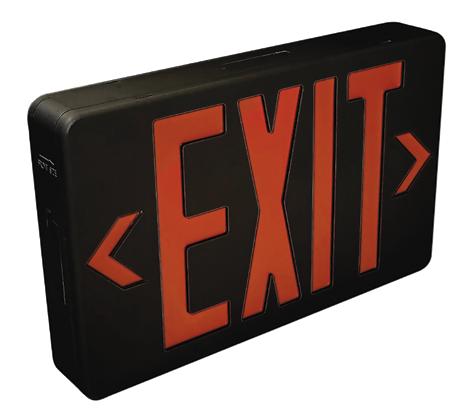

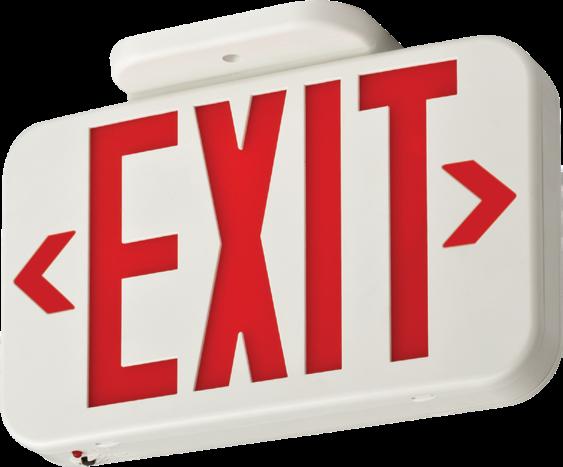

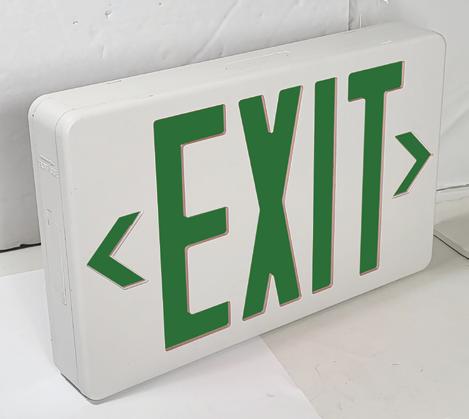

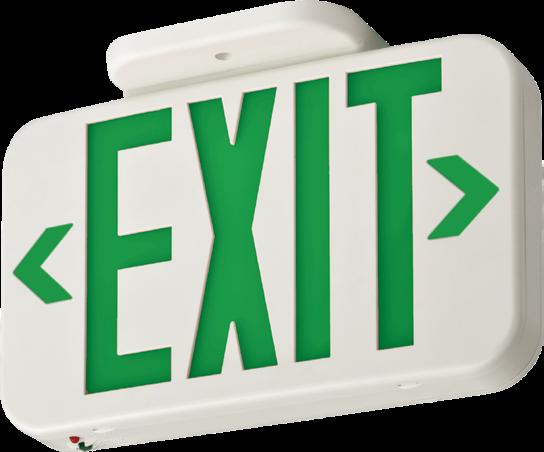

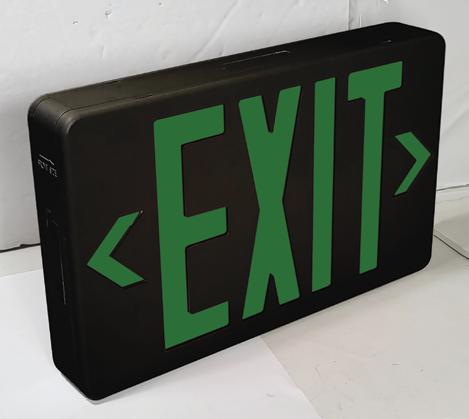

The Lithonia Lighting Basics™ EXRG Exit Sign is suitable for emergency signage applications such as stairways and hallways. This fully assembled single-face exit with extra faceplate is available in red and green letters. It's low profile makes it ideal for safely illuminated the path of egress in small spaces and can be wall or ceiling mounted. The emergency power provides 90 minutes of illumination in the event of a power loss.
FEATURES:
¡ Internal toggle switch for red or green letter color selection
¡ Test switch and status indicator for low maintenance (EL emergency models only)
¡ UL indoor damp location 50° to 104°F (10°C to 40°C) listed standard
¡ For use with Dual voltage 120/277VAC
¡ Internal switch for color selection
PRODUCT DESCRIPTION
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
• 11-13/16" Width X 7-1/4" Height X 1-13/16" Depth
• Injection-molded thermoplastic housing
• Black or White housing finish
FACE
• 6" high text with color diffusion
• Both double and a blank face are included
• Snap-in direction indicators
MOUNTING
• Wall, side, or ceiling
• Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES
NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
UL 924
Rated for Damp Locations (Wet Location when used with NEG-60) 5-Year Limited Warranty
· NFPA
Certified to the energy efficiency standards of California Title 20
INTENDED USE — Ideal for wet location areas requiring exit signs for AC only or battery back-up power that are subject to saturation with non-mechanically delivered water.
CONSTRUCTION — White, compact, contemporary design. Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof. Universal directional Chevron inserts are easily removed and reinserted. UL94V-0 flame rating. UV-stable resin resists discoloration from natural and man-made light sources. Rugged, heavy-duty, polycarbonate clear housing lens. Housing also available in black or gray. Letters 6” high with 3/4” stroke, with 100 ft. viewing distance rating, based upon UL924 standards.
OPTICS — Low energy consumption — fewer than 5 watts. The typical life of the exit LED lamp is 10 years, based on continuous operation.
ELECTRICAL — Dual voltage input capacity (120/277V).
Battery: (EL Option) – Sealed, maintenance free nickel-cadmium battery delivers 90 minutes rated capacity. Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection.
Self-diagnostic testing (SD Option Only) for 30 seconds every 30 days, 30 minutes every 180 days and a 90-minute annual test. Diagnostic evaluation of LED light source, charging and battery condition.
INSTALLATION — Universal (top, end or back mount), canopy included. Junction box hole pattern for 4” octagon mounting. Flexible conduit entry.
LISTINGS — UL listed. Wet location listed. Standard cold temperature rating -4°F to 122°F (-20°C to 50°C). Meets UL 924, NFPA 101 (current Life Safety Code) and NFPA 70-NEC
WARRANTY — 5-year limited warranty. (Battery is prorated.) Complete warranty terms located at www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Length: 12-1/2 (31.8)
Depth: 2-1/2 (6.4)
Height: 8-1/8 (20.6)
Weight: 4.1 lbs (1.9 kg)
All dimensions are inches (centimeters) unless otherwise indicated.
Source: 2.2W
PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery 120/277VAC input
· 6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
UL 924 Listed for Wet Locations
· NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
INTENDED USE — A general purpose and energy-efficient surface-mounted or suspended LED fixture, suitable for wet, damp and/or cold locations. For vapor-tight demanding environments where moisture or dust is a concern and where relatively low fixture mounting heights and wide fixture spacing are common. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Typical applications include industrial facilities, parking garages, retail malls, multi-purpose rooms, garden centers, and food processing. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for AcrylicPolycarbonate Compatibility table for suitable use.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.
CONSTRUCTION — One-piece 5VA fiberglass housing with integral perimeter channel utilizing continuous poured-in-place NEMA 4X gasket. Approved for through wiring. Captive polymeric latches are standard. Stainless steel latches (316SS) available as an option for food processing or more demanding applications. Power connection is easily accomplished through pre-drilled holes.
OPTICS — Injection molded, acrylic lens (.080" thick) provides high impact-resistance comparable to 100% DR. A UV stabilized polycarbonate diffuser is available (.080" thick) in clear or frosted for additional impact strength where vandal protection is desired.
Expected service life of 60,000 hours at 80% lumen maintenance (L80); predicted life of more than 100,000 hours.
ELECTRICAL — Utilizes high-efficiency LEDs mounted to core circuit boards. High-efficiency drivers operate 120-277 (MVOLT) and 347-480 (HVOLT) offered with 0-10 volt dimming, dims to 10%. Standard Luminaire Surge Protection Level: 6kV/3kA Surge Rated per ANSI C82.77-5-2015.
INSTALLATION — A pair of stainless steel (316SS) surface mount brackets (SMB) are included (unless another mounting option is chosen) allowing for surface (ceiling) or suspension mount applications using included bail with aircraft cable or chain. Optional pair of dual pendant mount brackets (DPMB) (316SS) are available for surface (ceiling) or suspension mount applications using either 3/8" threaded rod or included bail with aircraft cable or chain. Optional pair of angle mounting brackets (ANGBKT) (316SS) for horizontal wall mount applications.
LISTINGS — CSA Certified to UL and C-UL Standards. Suitable for wet location. IP65, IP66, IP67 and IP69K (optional) rated. NSF Splash Zone 2 and Non-Food Zone rated. NEMA Type 4X rated. Sensors maintain IP65 and IP66 only. See chart on page 5 for Ambient Temperatures.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
design select
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details

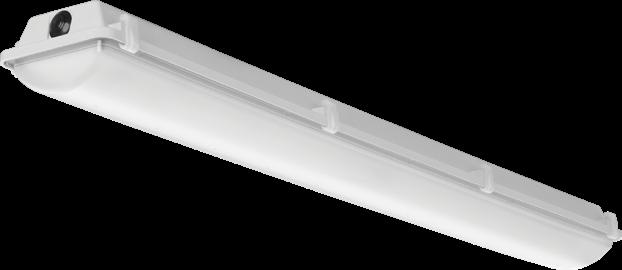

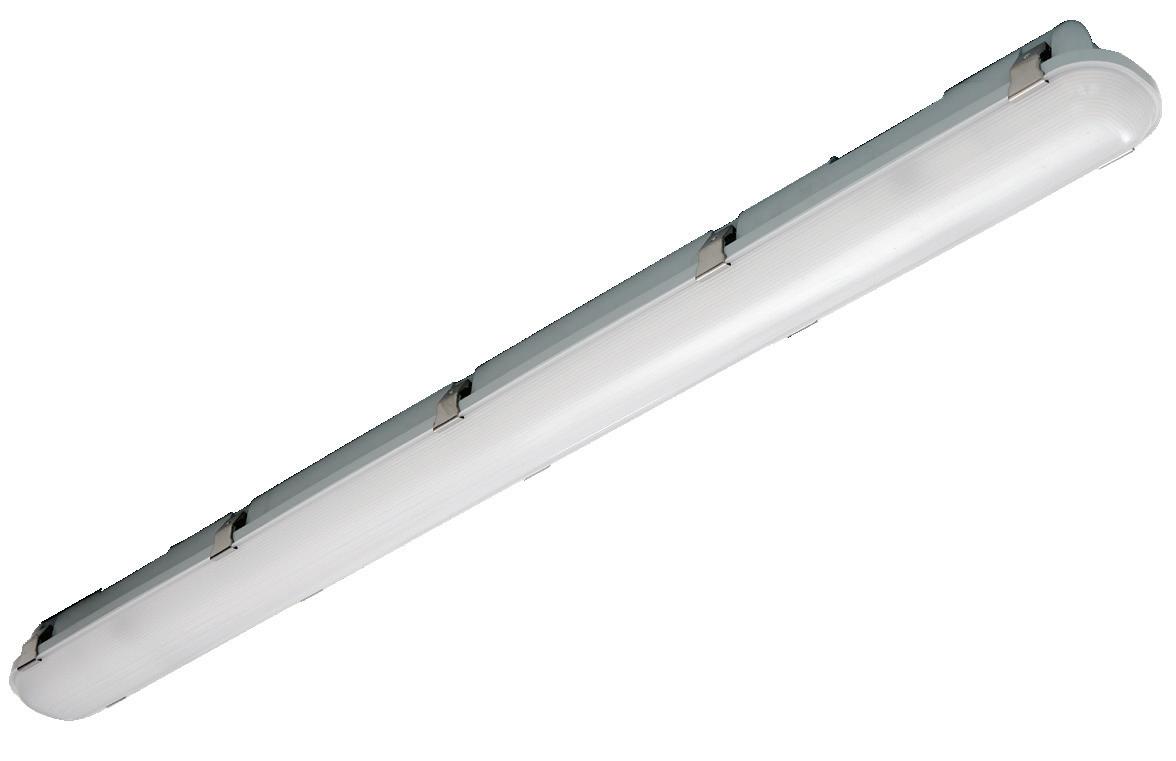

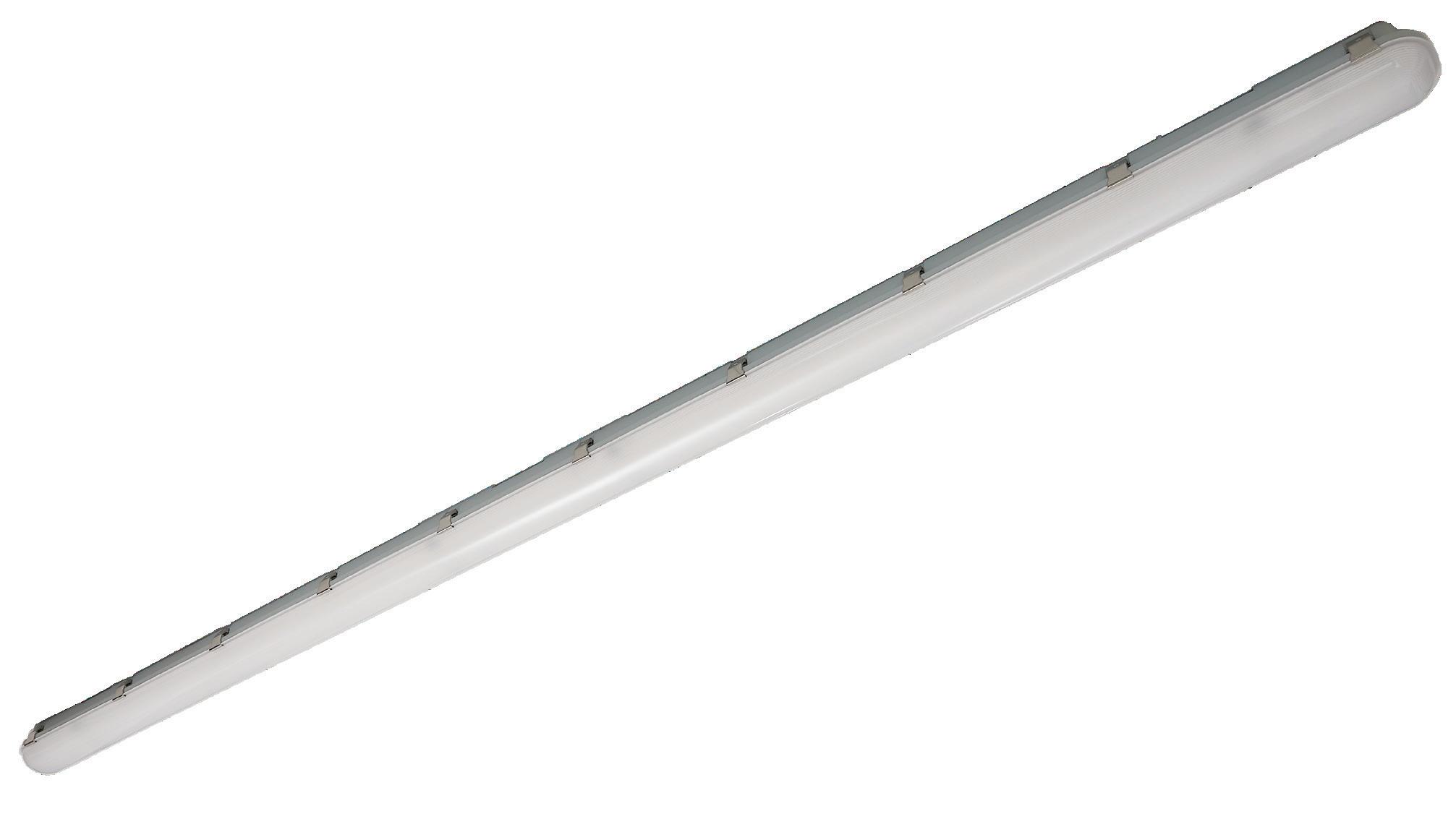

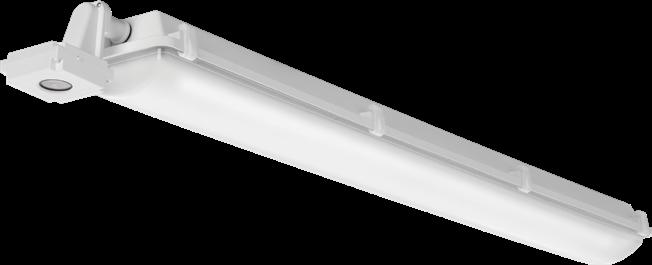

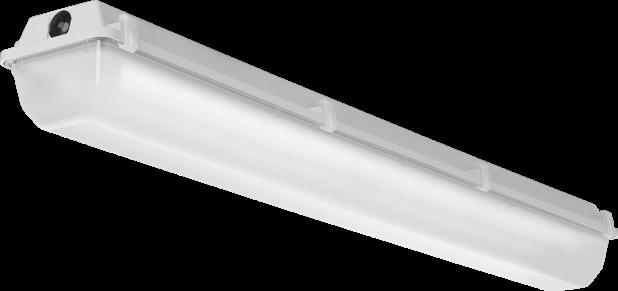

FEM LED Low-Profile Enclosed and Gasketed
4,000 lumens
6,000 lumens
8,000 lumens
10,000 lumens
12,000 lumens L96 96" ‡ 9000LM 9,000 lumens
12,000 lumens
15,000 lumens
Options
Emergency:
BE6WCP 6W internal cold battery, illuminated test switch, cold rated -20°C min, wet location, Certified in CA Title 20 MAEDBS ‡
E10WMCP 10W internal constant power battery, self-diagnostic test switch, 5°C min, wet location, Certified in CA Title 20 MAEDBS ‡
ETS Emergency lighting control device for UL924 operation when using auxiliary generator or central inverter ‡
247OP 24/7 Operation with emergency battery and 3 conductor cord or plug ‡
Mounting:
ANGBKT Angle bracket shipped with fixture (316SS) ‡
WLFPMP4X Wet location fitting for pendant mounting, NEMA Type 4X rated ‡
WLFEND4X Wet location one end, NEMA Type 4X fittings ‡
WLFEND24X Wet Location both-ends, NEMA Type 4X fittings ‡
Other Options:
AO Adjustable output dimming ‡
DL Damp Location ‡
DRYLBL Dry Location ‡
IP69K IP69K rating, includes vent plugs ‡
SPD Surge protection device, additional 10kV/6kA
STSL Stainless steel latches (316SS)
TRS Tamper Resistant Torx® T10 screws (18-8SS)
BAA Buy America(n) Act and/or Build America Buy America Qualified
Cordsets:
CNP16WWL Cord, no plug, 16 gauge, 3 conductors, white, wet locations, 6 feet, other lengths available ‡
CNP164CWWL Cord, no plug, 16 gauge, 4 conductors for use with EM battery, white, wet locations, 6 feet, other lengths available ‡
CNP165CWWL Cord, no plug, 16 gauge, 5 conductors for use with ER controls or ETS device with 2 power sources, white, wet locations, 6 feet, other lengths available ‡
CNP165CDWWL Cord, no plug, 16 gauge, 5 conductors for 0-10V dimming, white, wet locations, 6 feet, other lengths available ‡
CPTL16W Cord with NEMA twist lock 15 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL16WWL Cord with NEMA twist lock 15 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPTL20A16W Cord with NEMA twist lock 20 amp plug, 16 gauge, white, damp location, 6 feet, other lengths available
CPTL20A16WWL Cord with NEMA twist lock 20 amp plug, 16 gauge, white, wet location, 6 feet, other lengths available
CPSB16W Cord with NEMA straight blade 15 amp plug, white, damp location, 6 feet, other lengths available
CMCMBH16YWL Cord with Brad Mini Change® male connector, nonmetallic coupling nut, 3 pole, 16 gauge, yellow, wet location, 6 feet, other lengths available ‡
MCRMBH16WL Receptacle with Brad Mini Change® male connector, stainless steel coupling nut, 3 pole, 16 gauge leads, wet location ‡
See chart for additional cordset options
Reloc®:

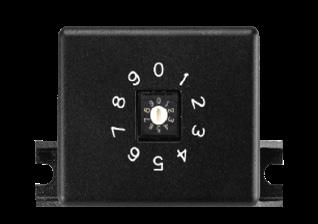

OCS Reloc® One Pass® circuit selector system drop, 18 gauge, 3 conductors, 6 feet, other lengths available ‡
OCS4C Reloc® One Pass® circuit selector system drop, 18 gauge, 4 conductors, for use with EM battery, 6 feet, other lengths available ‡
See chart for additional Reloc® options
Sensor Switch Embedded Controls:
SBOR10 360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off occupancy, Sensor/ control mounted external to the luminaire via a KO ‡
SBOR10 D 3V360° Low Mount Sensor, (8-15' mounting heights, more options available), high/low/off occupancy dimming, Sensor/control mounted external to the luminaire via a KO ‡
SBOR10 P360° Low Mount Sensor, (8-15' mounting heights, more options available), on/off photocell, Sensor/ control mounted external to the luminaire via a KO ‡
See chart for additional control options
nLight Embedded Controls:
NLTAIR2 Embedded wireless controls by nLight ‡
NLTAIREM2 Embedded wireless controls by nLight with UL924 listed emergency operation ‡
NLTAIRER2 Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads ‡
NLTAIR2 APIRKO Embedded wireless controls by nLight, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
NLTAIREM2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/ control mounted external to the luminaire via a KO ‡
NLTAIRER2 APIRKO Embedded wireless controls by nLight with UL924 listed emergency operation via power sense leads, Passive Infrared Occ sensor with auto-dimming photocell, Sensor/control mounted external to the luminaire via a KO ‡
See chart for additional control options
NOTE: ‡ indicates option chosen has ordering restrictions. Please reference ordering restrictions chart, page 3. Options are sorted alphanumerically.
See Accessories and ordering restrictions on next page.
Design Select options indicated by this color background.
Fully adjustable pendant features split rattan hand-wrapped and intricately placed over a sculptured pole rattan and hardwood frame in a white-wash finish. Pendant comes with an antique brass finished metal canopy hanging kit and includes 1 x 18" rod, 2 x 12" rods, 1 x 6 and 1 x 3" rod for customizable hanging heights. Professional installation recommended.
SKU: 2211-79
PRICING SUBJECT TO CHANGE 08/03/2025 10:51 AM

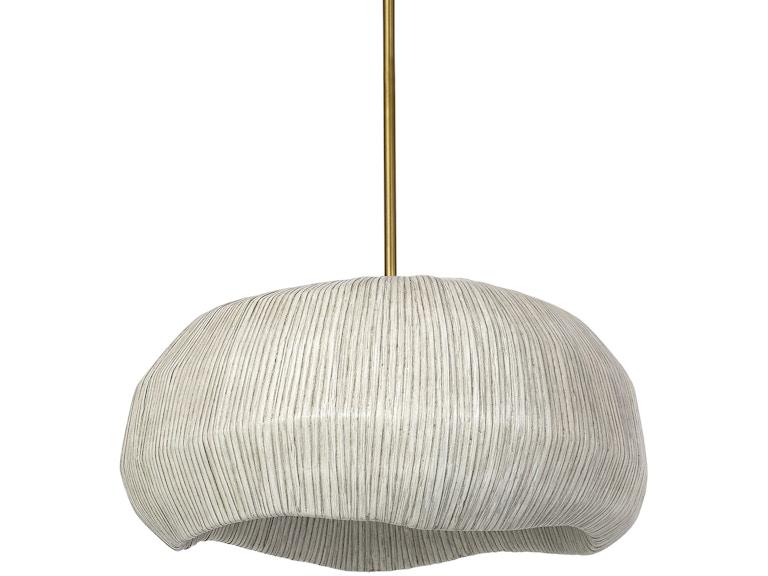

RAVENNA PENDANT LARGE, WHITEWASH
Fully adjustable pendant features split rattan hand-wrapped and intricately placed over a sculptured pole rattan and hardwood frame in a white-wash finish. Pendant comes with an antique brass finished metal canopy hanging kit and includes 1 x 18" rod, 2 x 12" rods, 1 x 6 and 1 x 3" rod for customizable hanging heights. Professional installation recommended.
SKU: 2211-79
PRICING SUBJECT TO CHANGE 08/03/2025 10:51 AM

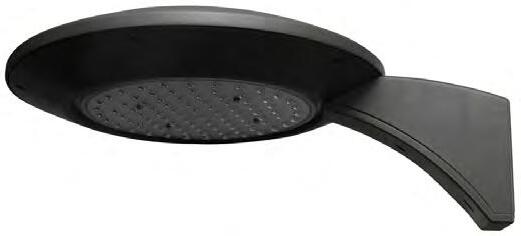

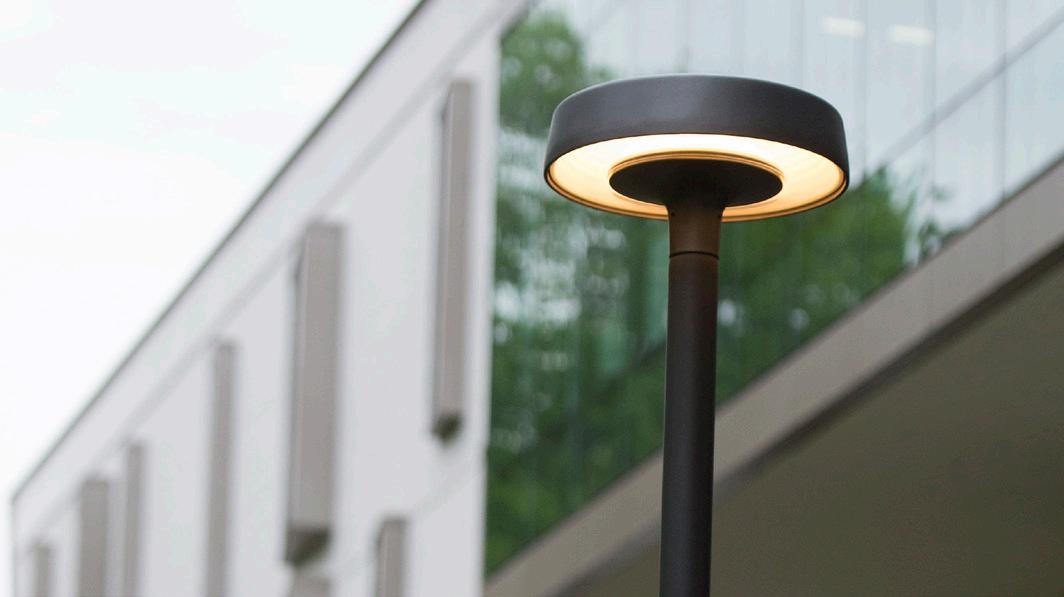

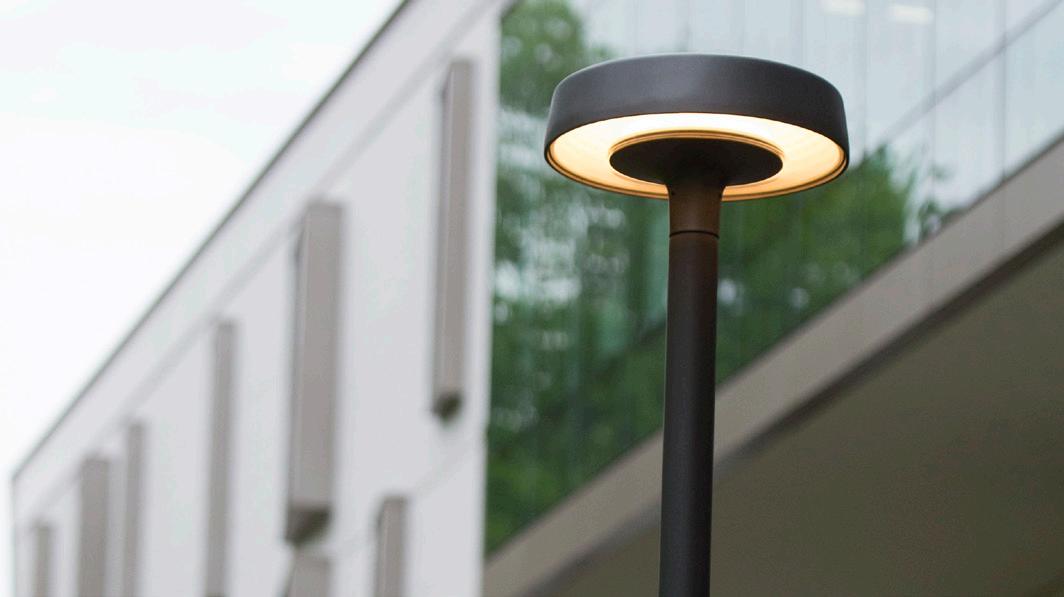

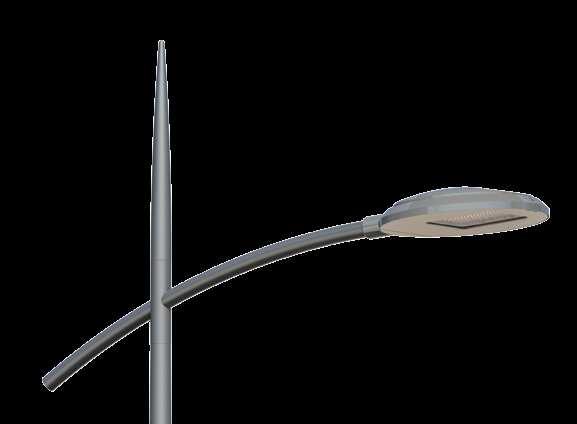

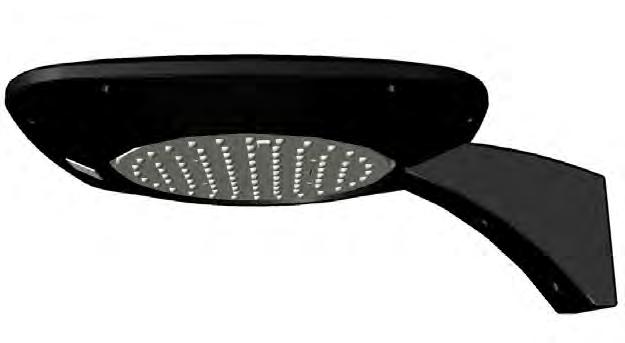

LEO
Specification Sheet | LE300
Housing & Materials
Cast Aluminum construction. Factory sealed and replaceable light engine cartridge with UV stable, impact modified clear or diffused acrylic lens. All hardware is magni-coated for optimum corrosion and ‘antiseize’ protection. Assembly is IP66 rated.
Electrical
Surge protected 120V - 277V 50/60Hz electronic driver located internal to luminaire arm, 0-10V dimmable. Optional pole mounted ANSI C136.41 twist lock receptacle and GFCI outlet (with ‘in-use’ cover) are available.
Light Engine
Leo features a replaceable LED cartridge with die-cast aluminum heatsink, high power LEDs on a RoHS compliant circuit board with secondary optics in Roadway distribution types. All configurations are available in 3000K, 3500K, and 4000K. >80CRI across all available color temperatures. Luminaires meet or exceed TM21 L70: >60,000 hrs.
Clean lines and the understated design of Leo fits a variety of site designs and architectural styles. Its 19”-diameter housing strikes an aesthetic balance for varying pole heights and spacing. Light engine options scale from 2,700lm to 8,100lm, with a selection of distribution types. Single or multiple luminaires can be mounted at different heights and orientations on a single pole, addressing needs of the environment whether pedestrian, vehicular or both.
LEO is Buy America Compliant and International Dark-Sky Approved.
Warranty
Luminaires are warranted for six years.
Certification
UL Listed for Wet Location, CE, International Dark Sky Approved, RoHS Compliant
Designed by John Rizzi
Click here for patent information related to this product.
Distributions

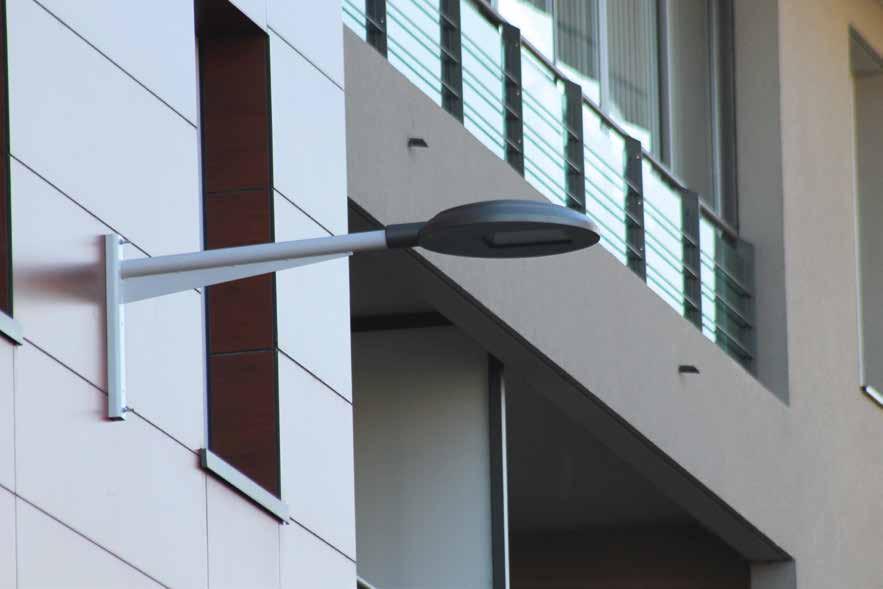

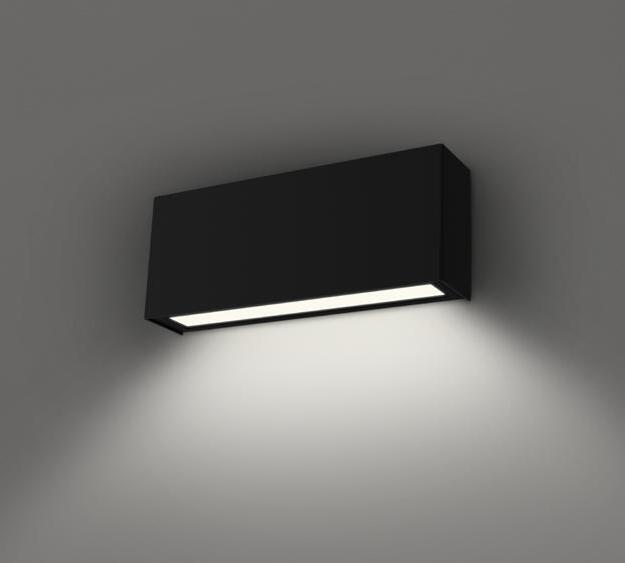

SLIM
•
•
Materials: Luminaire Injectedcastaluminium
Topmountedversion’sconnector
Protection
Temperedglass
ELECTRICAL CHARACTERISTICS LIGHTING DISTRIBUTIONS
• Power current up to 700 mA
TECHNICAL CHARACTERISTICS TypeI
• Electrical class: I & II (PCB available only for Type II)
• Optional surge protector or over/under voltage protection systems
• Driver integrated into the luminaire
• Optional lighting management systems
TypeII
TypeIII
TypeIV
TypeV
LEO
Specification Sheet | LE300
Specification
Luminaire #1
Luminaire #2 If applicable
Pole and Bracket
May include arms, base covers, GFCI, NEMA7 socket, etc.
Luminaire and Clamp
LE330 (30 LED) LE350 (50 LED)
( Type II )
( Type III )
( Type IV )
(Low Output)
( High Output )
( Frosted )
Example: LE330– T3 – LO – CLR - 30K – UV1 - 5A - MS1 - BLK
( 3000K )
( 3500K )
( 4000K )
4A ( Single Luminaire, 4” pole clamp )
4B ( Back to back luminaires, 4” pole clamp )
5A ( Single Luminaire, 5” pole clamp )
6A ( Single Luminaire, 6” pole clamp )
6B ( Back to back luminaires, 6” pole clamp )
NMS (No Motion Sensor)
MS1 (With Motion Sensor)
See powdercoat color options on the Material / Colors Sheet.
SLIM
LEO
Specification Sheet | LE300

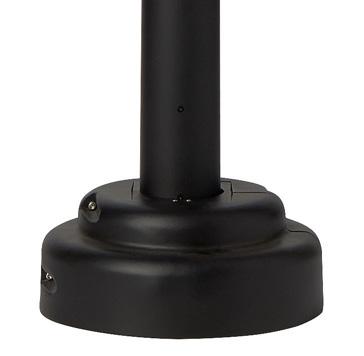

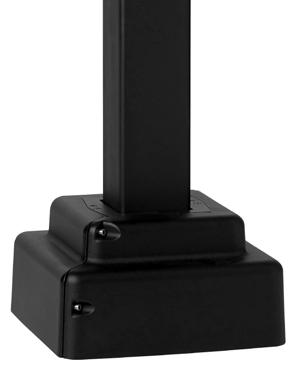

Pole and Bracket
Example: LE-16-A-TW1-BC-BLK
*Staggered configurations only available with 20’ and 25’ lens height options

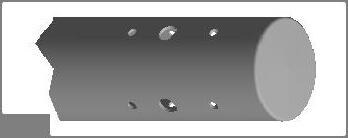

Pole Modifications
Modifications listed are the most common changes/additions requested. If your requirements aren't shown here, select 'other' and write in the modification needed. Please provide as much detail as possible to streamline the quoting process. All modifications to standard products will require evaluation and quoting approved by Landscape Forms prior to order placement.
Cast Aluminum construction. Factory sealed and replaceable light engine cartridge with UV stable, impact modified clear or diffused acrylic lens. All hardware is magni-coated for optimum corrosion and ‘antiseize’ protection. Assembly is IP66 rated.
Electrical
Surge protected 120V - 277V 50/60Hz electronic driver located internal to luminaire arm, 0-10V dimmable. Optional pole mounted ANSI C136.41 twist lock receptacle and GFCI outlet (with ‘in-use’ cover) are available.
Light Engine
Leo features a replaceable LED cartridge with die-cast aluminum heatsink, high power LEDs on a RoHS compliant circuit board with secondary optics in Roadway distribution types. All configurations are available in 3000K, 3500K, and 4000K. >80CRI across all available color temperatures. Luminaires meet or exceed TM21 L70: >60,000 hrs.
Clean lines and the understated design of Leo fits a variety of site designs and architectural styles. Its 19”-diameter housing strikes an aesthetic balance for varying pole heights and spacing. Light engine options scale from 2,700lm to 8,100lm, with a selection of distribution types. Single or multiple luminaires can be mounted at different heights and orientations on a single pole, addressing needs of the environment whether pedestrian, vehicular or both.
LEO is Buy America Compliant and International Dark-Sky Approved.
Warranty
Luminaires are warranted for six years.
Certification
UL Listed for Wet Location, CE, International Dark Sky Approved, RoHS Compliant
Designed by John Rizzi
Click here for patent information related to this product.
Distributions
SLIM
•
•
Materials: Luminaire Injectedcastaluminium
Topmountedversion’sconnector
Protection
Temperedglass
ELECTRICAL CHARACTERISTICS LIGHTING DISTRIBUTIONS
• Power current up to 700 mA
TECHNICAL CHARACTERISTICS TypeI
• Electrical class: I & II (PCB available only for Type II)
• Optional surge protector or over/under voltage protection systems
• Driver integrated into the luminaire
• Optional lighting management systems
TypeII
TypeIII
TypeIV
TypeV
LEO
Specification Sheet | LE300
Specification
Luminaire #1
Luminaire #2 If applicable
Pole and Bracket
May include arms, base covers, GFCI, NEMA7 socket, etc.
Luminaire and Clamp
LE330 (30 LED) LE350 (50 LED)
( Type II )
( Type III )
( Type IV )
( Clear )
(Low Output)
( High Output )
( Frosted )
Example: LE330– T3 – LO – CLR - 30K – UV1 - 5A - MS1 - BLK
( 3000K )
( 3500K )
( 4000K )
(120-277V, 50/60hz)
4A ( Single Luminaire, 4” pole clamp )
4B ( Back to back luminaires, 4” pole clamp )
5A ( Single Luminaire, 5” pole clamp )
6A ( Single Luminaire, 6” pole clamp )
6B ( Back to back luminaires, 6” pole clamp )
NMS (No Motion Sensor)
MS1 (With Motion Sensor)
See powdercoat color options on the Material / Colors Sheet.
SLIM
LEO
Specification Sheet | LE300
Pole and Bracket
Example: LE-16-A-TW1-BC-BLK
*Staggered configurations only available with 20’ and 25’ lens height options
Pole Modifications
Modifications listed are the most common changes/additions requested. If your requirements aren't shown here, select 'other' and write in the modification needed. Please provide as much detail as possible to streamline the quoting process. All modifications to standard products will require evaluation and quoting approved by Landscape Forms prior to order placement.
Cast Aluminum construction. Factory sealed and replaceable light engine cartridge with UV stable, impact modified clear or diffused acrylic lens. All hardware is magni-coated for optimum corrosion and ‘antiseize’ protection. Assembly is IP66 rated.
Electrical
Surge protected 120V - 277V 50/60Hz electronic driver located internal to luminaire arm, 0-10V dimmable. Optional pole mounted ANSI C136.41 twist lock receptacle and GFCI outlet (with ‘in-use’ cover) are available.
Light Engine
Leo features a replaceable LED cartridge with die-cast aluminum heatsink, high power LEDs on a RoHS compliant circuit board with secondary optics in Roadway distribution types. All configurations are available in 3000K, 3500K, and 4000K. >80CRI across all available color temperatures. Luminaires meet or exceed TM21 L70: >60,000 hrs.
Clean lines and the understated design of Leo fits a variety of site designs and architectural styles. Its 19”-diameter housing strikes an aesthetic balance for varying pole heights and spacing. Light engine options scale from 2,700lm to 8,100lm, with a selection of distribution types. Single or multiple luminaires can be mounted at different heights and orientations on a single pole, addressing needs of the environment whether pedestrian, vehicular or both.
LEO is Buy America Compliant and International Dark-Sky Approved.
Warranty
Luminaires are warranted for six years.
Certification
UL Listed for Wet Location, CE, International Dark Sky Approved, RoHS Compliant
Designed by John Rizzi
Click here for patent information related to this product.
Distributions
•
•
•
Materials:
Topmountedversion’sconnector
TECHNICAL CHARACTERISTICS TypeI
ELECTRICAL CHARACTERISTICS LIGHTING DISTRIBUTIONS
• Electrical class: I & II (PCB available only for Type II)
• Nominal voltage: 110-2
• Driver integrated into the luminaire
• Optional lighting management systems
TypeII
TypeIII
TypeIV
TypeV
LEO
Specification Sheet | LE300
Specification
Luminaire #1
Luminaire #2 If applicable
Pole and Bracket
May include arms, base covers, GFCI, NEMA7 socket, etc.
Luminaire and Clamp
LE330 (30 LED)
LE350 (50 LED)
( Type II ) T3 ( Type III ) T4 ( Type IV ) LO (Low Output) HO ( High Output ) CLR ( Clear )
( Frosted )
Example: LE330– T3 – LO – CLR - 30K – UV1 - 5A - MS1 - BLK
( 3000K )
( 3500K )
( 4000K )
(120-277V, 50/60hz)
4A ( Single Luminaire, 4” pole clamp )
4B ( Back to back luminaires, 4” pole clamp )
5A ( Single Luminaire, 5” pole clamp )
6A ( Single Luminaire, 6” pole clamp )
6B ( Back to back luminaires, 6” pole clamp )
NMS (No Motion Sensor)
MS1 (With Motion Sensor)
See powdercoat color options on the Material / Colors Sheet.
SLIM
WS-W57014-BK/AB For custom requests please contact customs@modernforms.com
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLEFINISHES:

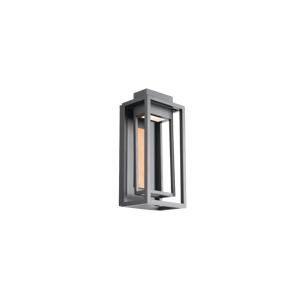

Dorne

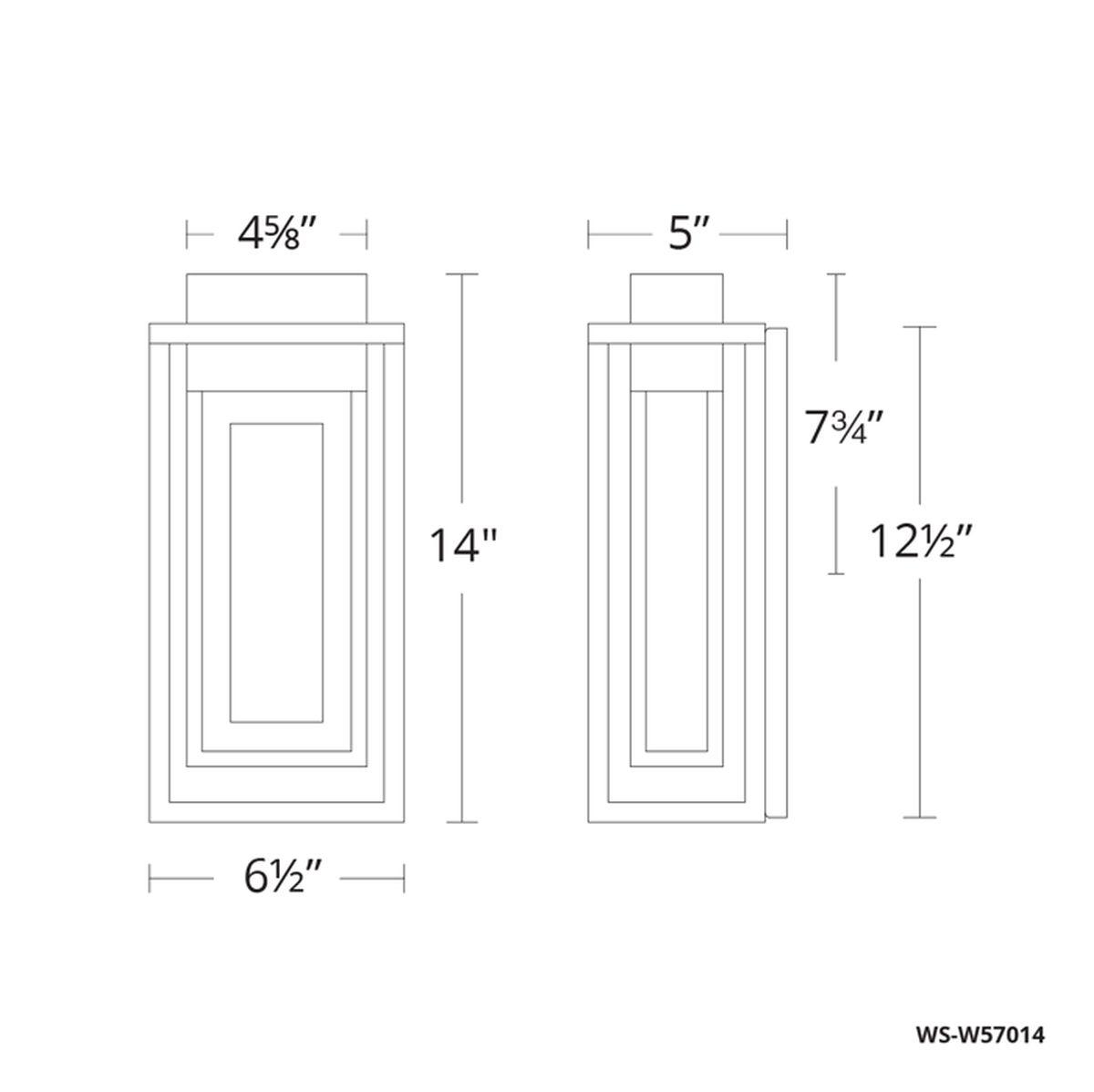

WS-W57014
PRODUCTDESCRIPTION
Beautiful ambient light warms over the antiqued brass finished feature to indirectly illuminate entryways subtly for a soft and comforting glow. This durable indoor/outdoor wall sconceoffers advanced LED technology discreetly hidden in its robust housing.
FEATURES
• ACLED driverless technology
• Contrasting aged brass finish and textured black
WS-W57014-BK/AB For custom requests please contact customs@modernforms.com
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLEFINISHES:
Dorne
WS-W57014
PRODUCTDESCRIPTION
Beautiful ambient light warms over the antiqued brass finished feature to indirectly illuminate entryways subtly for a soft and comforting glow. This durable indoor/outdoor wall sconceoffers advanced LED technology discreetly hidden in its robust housing.
FEATURES
• ACLED driverless technology
• Contrasting aged brass finish and textured black
A UV stable, impact modified diffused acrylic lens seals to the cast aluminum round luminaire housing. Luminaire mounts via a cast aluminum hub bolted directly to the top of cast aluminum pole. The luminaire’s cast lid is secured with three socket head set screws. All hardware is magni-coated.
Electrical
Internally mounted surge protected 120V through 277V 50/60Hz electronic driver. -40°C start temperature., leading edge and trailing edge phase-cut dimmable. Motive path light ships prewired.
Light Engine
Cast aluminum light cartridge features high powered LEDs mounted to a RoHS compliant circuit board delivering indirect lighting in conjunction with semi-specular aluminum reflector. Motive Path Light can be configured with a Type IV or Type V distribution. The replaceable cartridge provides ease of installation and serviceability. Available in 2700K, 3000K, 3500K, and 4000K. >80 CRI across all available color temperatures.
Distributions
Warranty
LED lighting products are warranted for six years.

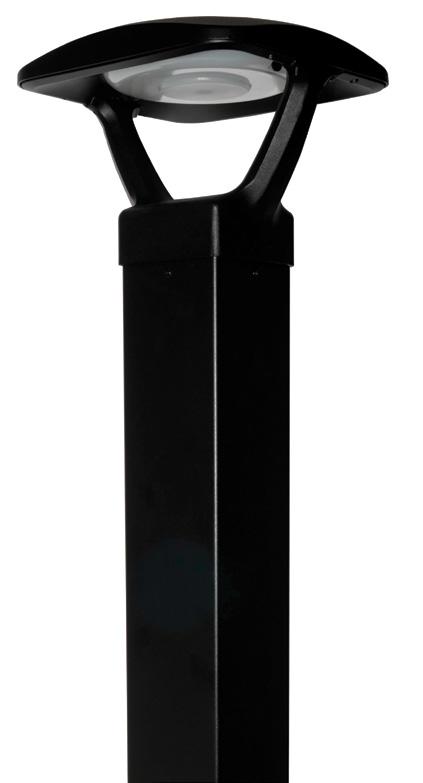

Motive is a sophisticated family of lights that blurs the line between indoor and outdoor lighting to create out-of-the-ordinary settings. Designed by Justin Champaign, Motive celebrates the beauty of illumination and its interaction with architecture, objects, and space. The luminaires’ neutral sculptural form address an array of applications for buildings and grounds, pathways, social spaces, and high-profile areas such as art installations and entrances.
Certification
UL Listed for Wet Location, CE, International Dark Sky Approved, Buy America Compliant, RoHS Compliant
Designe d by Justin Champaign
Click here for patent information related to this product.
Weight: 16 lbs
TM21 L70(10k): 60,000 hrs
Protection Class: IP66

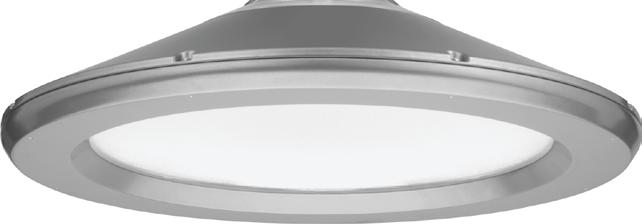

Architectural Luminaires AEROFORM
AJ100-T4-40F
AJ100-T5-40F
Maximum Candela=450.4
Located at Horizontal Angle=0, Vertical Angle=50
Luminaire
Notes:
Maximum Candela=247.5 Located at Horizontal Angle=0, Vertical Angle=50
Pole Mount Full Cutoff

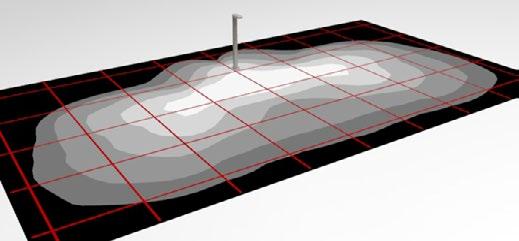

IES ROADWAY DISTRIBUTIONS
3K, 4K, 5K CCT
Type IIType IIIType IVType V
ECAFS30Q
ECAFR30Q

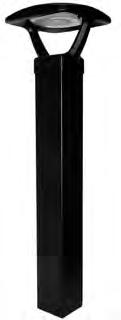

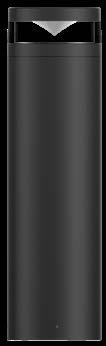

Complementary Wall, Wall Sconce, & Bollard
ECAFR20Q 17w, 2150 Lumens
ECAFRWS20Q 17w, 2170 Lumens
ECAFS20Q 17w, 2150 Lumens
ECAFSWS20Q 17w, 2170 Lumens
ECAFRB20Q 17w, 2100 Lumens
ECAFSB20Q 17w, 2100 Lumens
Specifications:
Housing: Die cast copper-free aluminum, no recycled content, automated silicone gaskets
Listing: CSA UL1598 Wet Location, IP66
Hardware: Nickel-Plated Stainless Steel hardware
Wattage: LED 37w-140w
LED Arrays: 100% pure aluminum circuit boards with conformal coating
Optics: IES Roadway Types I, II, III, IV and V
Driver: 120-277V, 50/60Hz or 347-480V, 50/60Hz; less than 20% THD and PF>0.90. Standard internal surge protection 6kV. 0-10V
A UV stable, impact modified diffused acrylic lens seals to the cast aluminum round luminaire housing. Luminaire mounts to a tenon on the top of pole and is secured with three stainless steel set screws. Top cover is secured by three magni-coated cap screws on top of the luminaire.
Electrical
Internally mounted surge protected 120V through 277V 50/60Hz electronic driver, 0-10V dimming. -40°C start temperature. Available with optional ANSI C136.41 twist lock receptacle Motive area light ships prewired.
Light Engine
Cast aluminum light cartridge with high powered LEDs mounted to a RoHS compliant circuit board delivers indirect lighting in conjunction with the spun aluminum reflector (not available on Lambertian). Replaceable cartridge provides ease of installation and serviceability. Available in 2700K, 3000K, 3500K, and 4000K. >80 CRI across all available color temperatures.
Distributions
Warranty
LED lighting products are warranted for six years.
Certification
UL Listed for Wet Location, CE, International Dark Sky Approved, Buy America Compliant, RoHS Compliant
Motive is a sophisticated family of lights that blurs the line between indoor and outdoor lighting to create out-of-the-ordinary settings. Designed by Justin Champaign, Motive celebrates the beauty of illumination and its interaction with architecture, objects, and space. The luminaires’ neutral sculptural form address an array of applications for buildings and grounds, pathways, social spaces, and high-profile areas such as art installations and entrances.
Designed by Justin Champaign
Click here for patent information related to this product.
Weight: 27 lbs (luminaire only)
EPA: 0.69 ft²
TM21 L70(10k): 60,000 hrs Protection Class: IP66

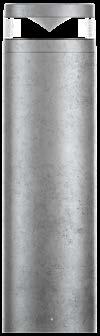

Aeroform Round & Square
Light Columns
and Features:
The Eco-Revolution ECAFRBT20Q & ECAFSBT20Q ThermaLED 12-foot Aeroform Light Columns provide contemporary pedestrian lighting. These fixtures are ideal for retail centers, schools and universities, public transit and airports, park walkways, plazas, office buildings, and medical facilities.
Housing:
Extruded 12-foot Aluminum Housing with Die Cast Mounting Base, Sand Cast Twin Arm Head, and Sealed Driver Compartment. Includes ECPBR1 or ECPBS1 Decorative Clamshell Base Cover with Stainless Steel Hardware.
Listing & Ratings: ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment.
Finish: Textured Architectural Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens: SoftLED LumaLens Opal UV-Stabilized Polycarbonate VandalResistant Lens to Seal LED Array.

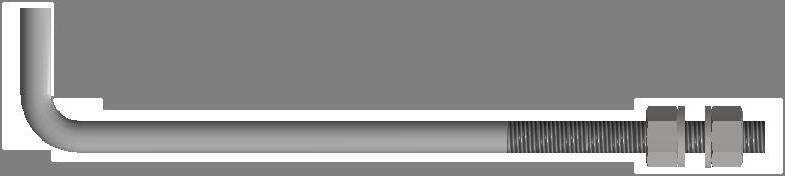

Mounting Options: Mounts with Four M18 x 15" Anchor Bolts, Included.
ThermaLED LED: Aluminum Boards
Wattage:
Warranty: 5-Year Warranty for -40°C to +50°C Environment. Specifications
Electronic Driver, 120-277V, 50/60Hz or 347V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Motive Area Light
Spec Sheet | AJ500
Example: AJ500 – T4 – 40F – 27K – UV1 – P2 – TW1 – Powdercoat * Type 4 and type 5 available with a diffused lens only; lambertian available with a clear lens only. ** For Dark Sky certification, 3000k or warmer must be selected. Luminaire
AJ500 ( Motive Area Light )
( Type IV, 400mA ) 27K ( 2700K )
( Type IV, 600mA ) 30K ( 3000K )
T5-80F ( Type V, 800mA ) 35K ( 3500K )
T5-120F ( Type V, 1200mA ) 40K ( 4000K )
LB-80F ( Lambertian, 800mA )
Example: AJ550-12-01
Accessories & Replacement Parts:
, ELCO Lig1hting1

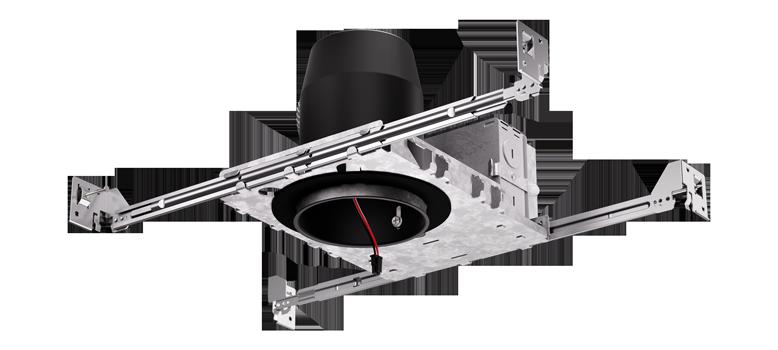

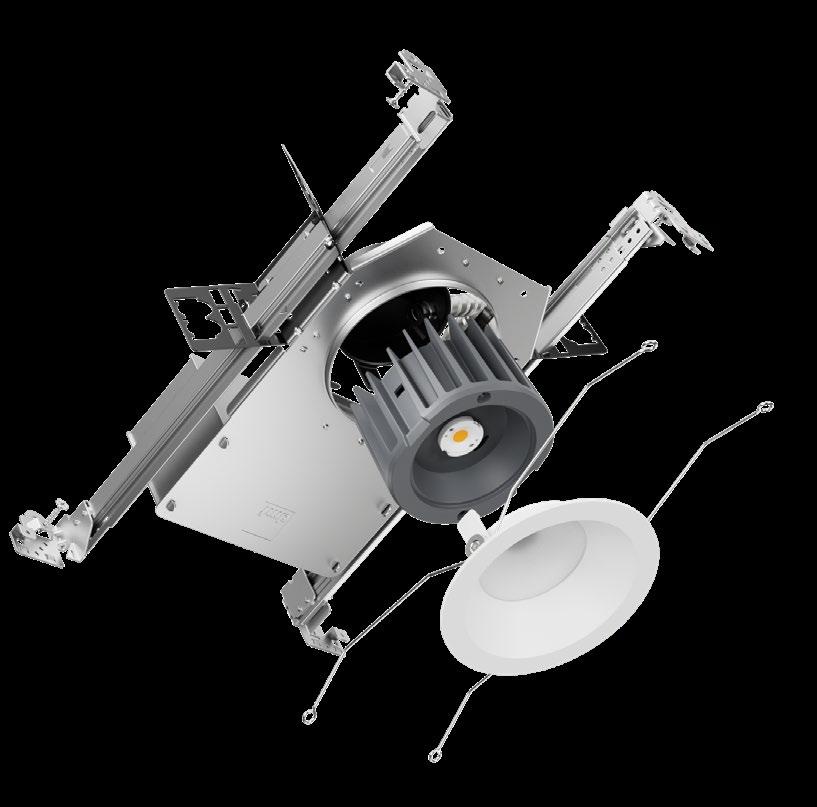

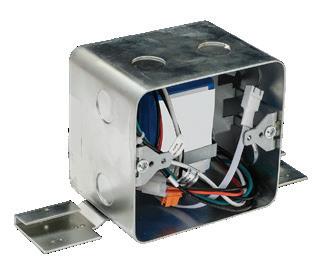

3" IC Airtight New Construction Housing for Architectural Koto LED
Engine
Features
IC Airtight for direct contact with insulation. Koto Architectural Housing: 120/277V 0-10V/Triac/ELV or 120V Triac/ELV with optional Emergency Battery Backup.
Must be used with Architectural Koto LED Light Engines (ELK19, ELK21, or ELK24 Series). Lumen output based on module
Lamp: Designed for use with ELCO Architectural Koto LED Light Engines (ELK19, ELK21, or ELK24 Series).
Construction: Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions. Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Airtight housing with gasket to restrict air ow in accordance with ASTM E-283 air-tight requirements.
Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars can easilty be nailed to joists. Maximum hole cutout is 3 5/8". Suitable for t-grid and drop ceiling applications. See installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts. Pry-out knockout slots. 4 Romex pryouts with strain relief.
Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling ange allows for single-person installation while aligning the housings with the joists.
Electrical: Input Voltage: 120V or 120/277V. Dimmability: Triac/ELV or 0-10V/Triac/ELV
Listings: cUL Listed for Damp Location. cUL Listed for Wet Location with select trims. cUL Listed for Feed Through. cUL Listed for Direct Contact with Insulation and Combustible Material. Airtight per ASTM E-283. Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 5 years.

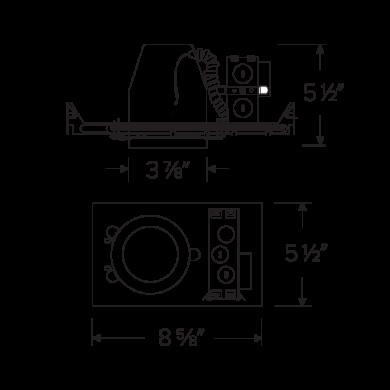

Dimensions
Product Numbers
E3LK65ICA
E3LK66ICAD
E3LK65ICA-EM1

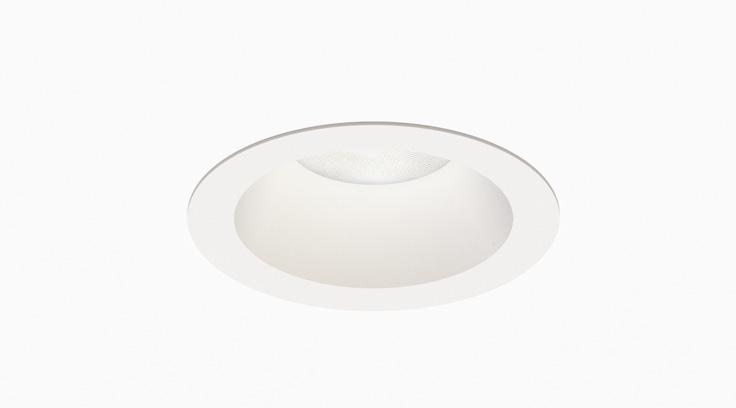

NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022

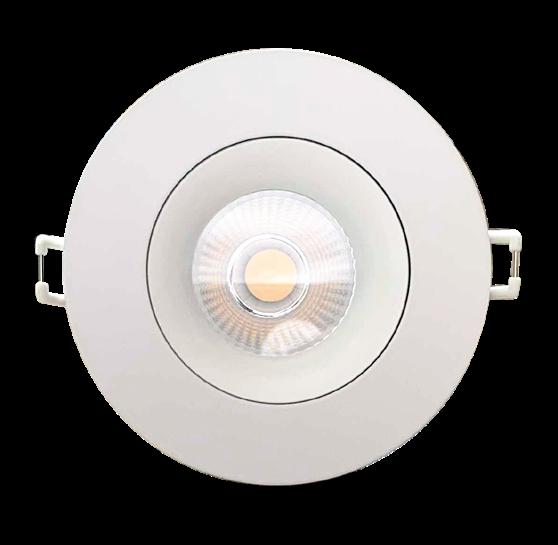

Fini shes: (W, BB , BZ , B, C , H) ,,I Sq Adjustable Gimbal
ELK3329
Fini shes: (W, BB , BZ, B, C , H)
Adjustable Pinhole
ELK3627
Finishe s: (8, BB , BZ)
Sq Adjustable Baffle
ELK3393
Fini shes: (W)
ELCO Lighting
ACCESSORIES
Lens
EP731C 18" Le ns
EP732C 25" Lens
EP733C 38" Lens
EP734C 60" Le ns 'EP732C, EP733C, EP734C Included
Secondary Optics
L45 H ex Louver
L46 Lin ear Le ns L47 Spread Louver
L49 Frosted Lens
LSO Color Sh ifter /
Reflectors
EP735C 15"
EP736C 25"
EP737C 38"
EP738C 60"'\
Adjustable Baffle
ELK3693
Fini shes: (W)
Sq Adjustable Pinhole
ELK3327
Fini shes: (8 , BB , BZ) *Fin ishes: W - Al l White, BB - Al l Black. BZ - All Bronze 8 - Bl ack Reflector w/W hite Ri ng. C - Chrome Re fl ector w/W hit e Ring, H - H aze Re fl ector w/W hite Ring
BLANK
UCI-30131
Cinati Type I, II, III & IV Surface
TECHNOLOGY
Aluminum Less than 0.1% copper content – Marine Grade 6060 extruded & LM6 Aluminum High Pressure die casting provides excellent mechanical strength , clean detailed product lines and excellent heat dissipation.
Pre paint
8 step degrease and phosphate process that includes deoxidizing and etching as well as a zinc and nickel phosphate process before product painting.
Memory Retentive -Silicon Gasket
Provided with special injection molded “fit for purpose” long life high temperature memory retentive silicon gaskets. Maintains the gaskets exact profile and seal over years of use and compression.
Thermal management
LM6 Aluminum is used for its excellent mechanical strength and thermal dissipation properties in low and high ambient temperatures. The superior thermal heat sink design by Ligman used in conjunction with the driver, controls thermals below critical temperature range to ensure maximum luminous flux output, as well as providing long LED service life and ensuring less than 10% lumen depreciation at 50,000 hours.
Surge Suppression
Standard 10kv surge suppressor provided with all fixtures.
BUG Rating B2 - U0 - G0
Finishing
All Ligman products go through an extensive finishing process that includes fettling to improve paint adherence.
Paint UV Stabilized 4.9Mil thick powder coat paint and baked at 200 Deg C. This process ensures that Ligman products can withstand harsh environments. Rated for use in natatoriums.
Inspired by Nature Finishes
The Inspired by nature Finishing is a unique system of decorative powder coating. Our metal decoration process can easily transform the appearance of metal or aluminum product into a wood grain finish.
This patented technology enables the simulation of wood grain, and even marble or granite finish through the use of decorative powder coating.
The wood grain finish is so realistic that it’s almost undistinguishable from real wood, even from a close visual inspection. The system of coating permeates the entire thickness of the coat and as a result, the coating cannot be removed by normal rubbing, chipping, or scratching.
The Coating Process
After pre-treatment the prepared parts are powder coated with a specially formulated polyurethane powder. This powder provides protection against wear, abrasion, impact and corrosion and acts as the relief base color for the finalized metal decoration.
The component is then wrapped with a sheet of non-porous film with the selected decoration pattern printed on it using special high temperature inks.
A cone shaped wall wash luminaire. Suitable for outdoor up, or down light applications. This luminaire is provided with precision optics and high powered LEDs, to provide narrow, medium, wide and very wide distributions. The vandal resistant tempered glass is available in clear or lightly frosted versions.
This product is suitable for commercial, as well as residential applications and with the selection of optics available can provide an excellent lighting solution. Integral electronic driver. Fixture is mounted over a 3” octagonal junction box.
To meet International Dark Sky criteria, 3000k or warmer LEDs must be selected and luminaire fix mounted (+/- 15˚ allowable to permit leveling).
Additional Options (Consult Factory For Pricing)
Ligman’s micro Variable Optical System provides the ability to interchange, mix & rotate optics to provide specific light distributions for optimized spacing and uniformity.
This printed film transfer is vacuum-sealed to the surface for a complete thermo print and then transferred into a customized oven. The oven transforms the ink into different forms within the paint layer before it becomes solid. Finally, the film is removed, and a vivid timber look on aluminum remains.
Wood grain coating can create beautiful wood-looking products of any sort. There are over 300 combinations of designs currently in use. Wood grains can be made with different colors, designs, etc.
Our powder coatings are certified for indoor and outdoor applications and are backed by a comprehensive warranty. These coatings rise to the highest conceivable standard of performance excellence and design innovation.
Added Benefits
• Resistance to salt-acid room, accelerated aging
• Boiling water, lime and condensed water resistant
The variable optic system allows for the designer to create hybrid distributions for precise lighting requirements.
Provided Hardware is Marine grade 316 Stainless steel.
Anti Seize Screw Holes
Tapped holes are infused with a special anti seize compound designed to prevent seizure of threaded connections, due to electrolysis from heat, corrosive atmospheres and moisture.
Crystal Clear Low Iron Glass Lens
Provided with tempered, impact resistant crystal clear low iron glass ensuring no green glass tinge.
Optics & LED
Precise optic design provides exceptional light control and precise distribution of light.
LED CRI > 80
Lumen - Maintenance Life
L80 /B10 at 50,000 hours (This means that at least 90% of the LED still achieve 80% of their original flux)

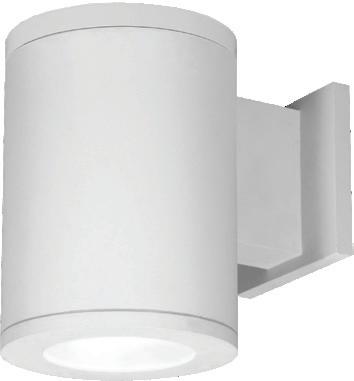

TUBE ARCHITECTURAL DS-WS05
LED Wall Mounts
PRODUCT DESCRIPTION
The latest energy efficient LED technology in an appealing cylindrical profile delivers accent and wall wash lighting. Comes in various light distribution and beam angle options.
FEATURES
• High performance exterior rated LED wall mount light
• Fixture can install upside down to alter light distribution
• Solid aluminum construction
• 5 year warranty
DS-WS0517 5” 17W
Example: DS-WS05-F930A-WT
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Input:
Dimming:
Light Source:
Finish:
Standards:
Operating Temp:
Reference Output 1
Universal voltage 120V - 277VAC, 50/60Hz
Electronic low voltage (ELV) : 100% - 5%
0-10V: 100% - 1%
High output 3 Step Mac Adam Ellipse COB
Rated life of 60,000 hours at L70
Electrostatically powder coated, white, black, bronze and graphite IP65 rated, ETL & cETL wet location listed, Energy Star® 2.2 rated Title 24 JA8-2016 Compliant -13°F to 122°F (-25°C to 50°C)
1Reference output shows 25W output. Multiply by 0.7 to determine output for 17W combinations.
BLANK
Professional recessed fixed fixture for indoor and outdoor settings
Applications: pavings, accent lighting of facades, trees

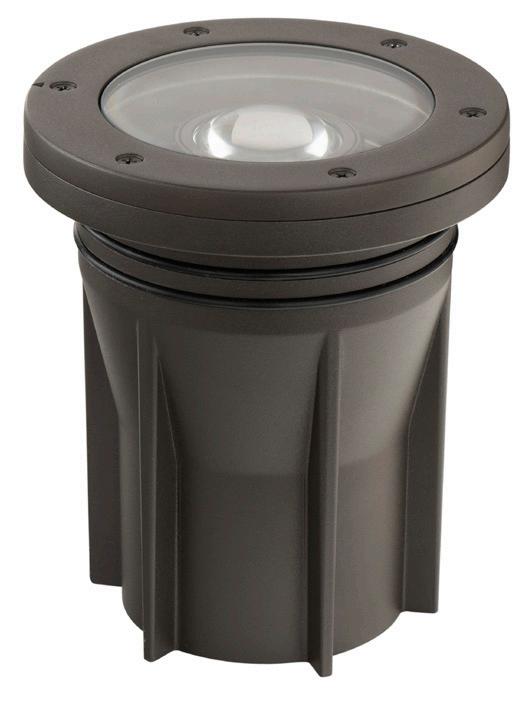

Landscape high output In-ground luminaire with dynamic beam changing and integral on-board dimming.
FEATURES
• Tiltable and adjustable beam angle
• Integral dimmer
• IP67 rated, protected from temporary immersion under water
• Drive over up to 4500lbs
• Solid diecast brass or corrosion resistant aluminum
• Available concrete pour kit
• 6’ lead wire and direct burial gel filled wire nuts included
• Maintains constant lumen output against voltage drop
• UL 1598 Listed
ORDERING NUMBER
Inground
5034-30____
Example: 5034-30BBR
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Input:
IEC safety Standard Walk over Drive over Resistance to static load test Yes (1125lbs) Yes (4496lbs) Resistance to torque and shear loads test N/A Yes
GRAND INGROUND 120V
Rock Guard
Protects the fixture face
5830-GRD-BZ Bronze on Aluminum
5830-GRD-BBR Bronze on Brass
Concrete Pour Kit
For installation in concrete Five 2” NPt threaded holes, PC
5830-PIP-PVC
Shown with temporary dense foam cap
TECHNICAL DRAWINGS
CSF.0107.0 draining recessing box
Note: height adjustable recessing box by simple handsaw cutting
ACC.0203.0
satin stainless steel round frame for driveover version
ACC.0215.0
satin stainless steel square frame for walkover version
BLANK

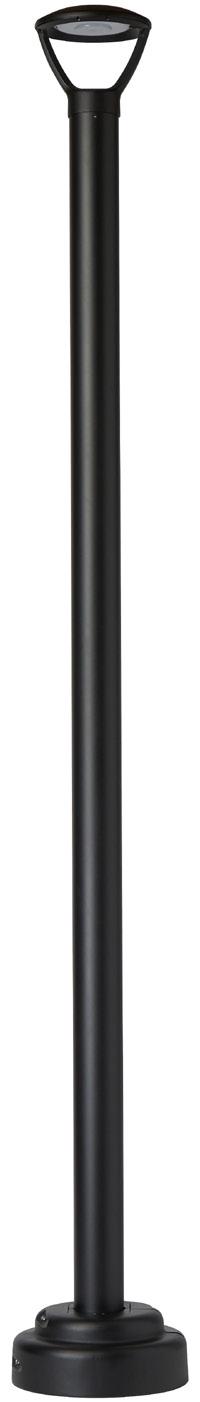

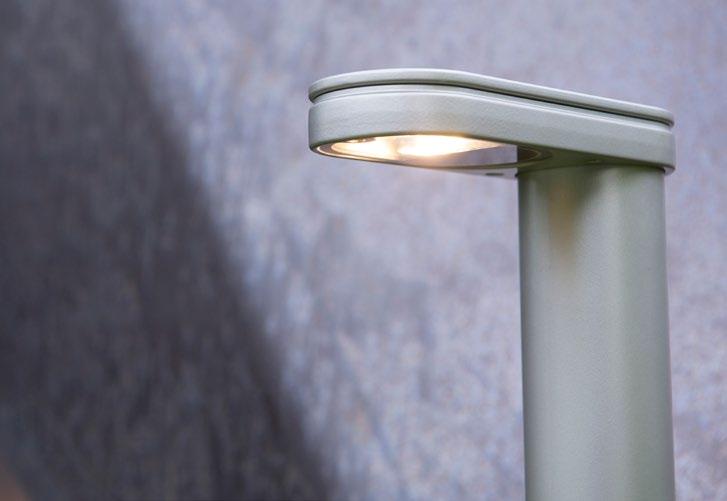

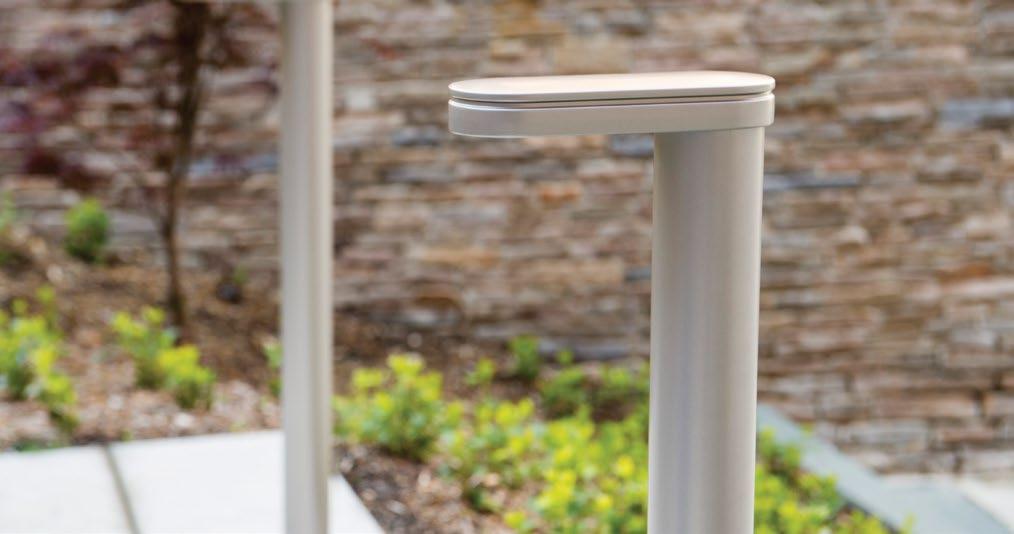

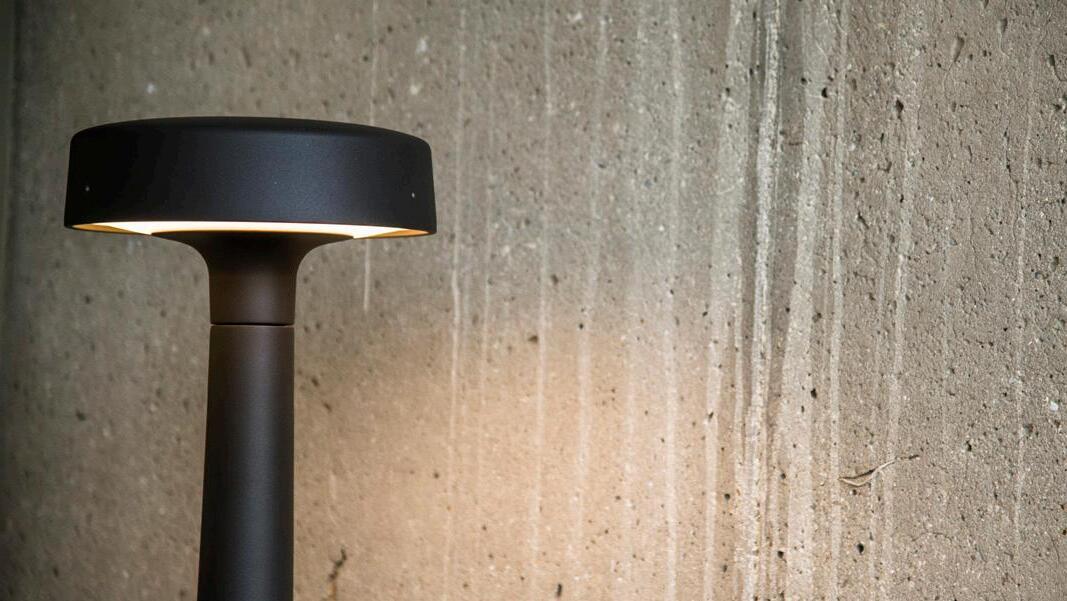

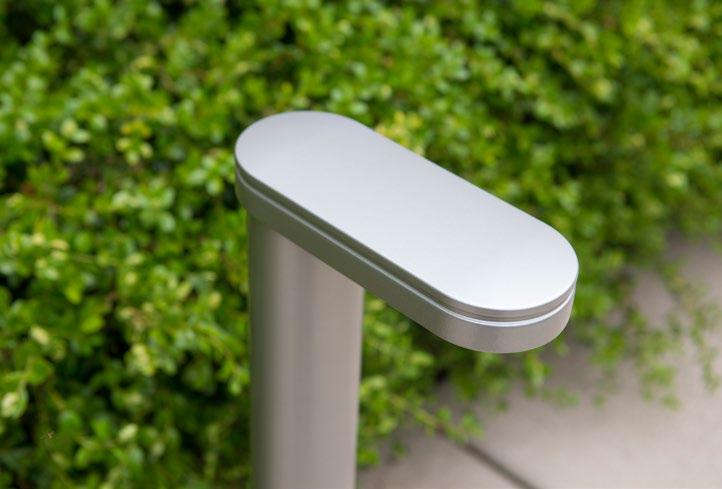

Torres Path Light
Product Data Sheet
General Description
•Cast aluminum LED cartridge with round steel pole
•Stainless steel base plate and cover plate
•Surface mounted or embedded mounting option
•Embedded mounted option includes below-grade stainless stee l socket
•Zero up-light, International Dark-Sky approved
•UL Listed, suitable for wet locations
Electrical
Surge protected 100V-277V 50/60 Hz, Class 2 driver. LED cartridge with weatherproof quick disconnect provides ease of installation and serviceability. Torres path light ships prewired

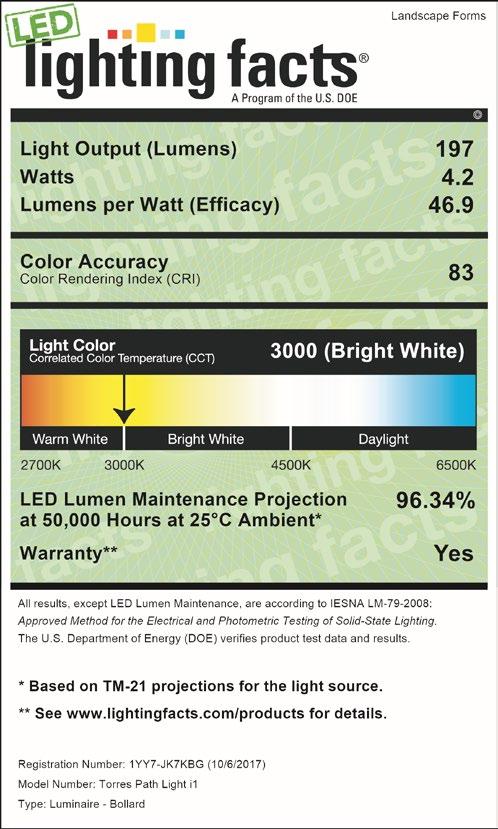

Torres Path Light i1
Type 3 Distribution
CCT: 2700K, 3000K, 3500K, 4000K
Drive Current: 500mA
Optic: LEDiL
Lens: Clear injection molded acrylic
Power Supply: 100V-277V
LED Driver: 7W
BUG Rating: B1 U0 G1
IP Rating: IP66 for LED Cartridge Weight: 16 lbs
Torres lights are a beautiful complement to urban landscapes and traditional and contemporary architecture, improving, but not altering, the composition. Advanced LED and optic design provide directed warm white light with superior visibility to extend the safe use of outdoor spaces. Torres lights are cast aluminum and offered in a full color palette finished with Landscape Forms proprietary Pangard II® HAPS, VOC, and lead-free polyester powdercoat.
Torres Path Light i1

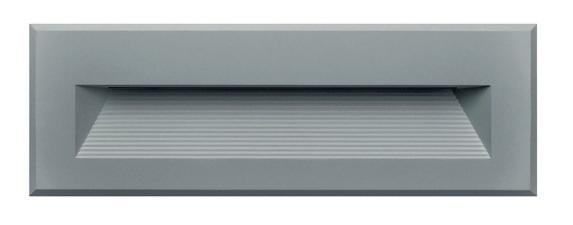

Unique lighting system for wall recessed lighting in exterior applications. The system consists of a series of concrete forming boxes designed to create a cavity in the wall during the concrete forming process. The resulting void in the wall houses the LED light module, which is concealed from view. Designed for low mounting heights with downward asymmetric light distribution. Low luminance with light source regressed inside the luminaire and shielded from all viewing angles
Luminaire characteristic:
Power input: 3W to 24W
Lumens: up to 635lm (for 3000K, 80CRI)
Luminaire efficacy: Up to 26lm/W
Source: WHITE LED module (LM-80 tested)
3000K : 80CRI, 4000K : 80CRI.
Lumen maintenance: 70% of initial lumens at 50 000 hours (L70) (LM79 tested).
Optic: Downward Asymmetric
Material:
Mounting:
Electrical:
Body: Extruded aluminum
Diffuser: Silicone
Recessed housing: Aluminum
Wall recessed cast in concrete. Supplied with a two part housing installation kit, anchor screws, bolts, locking system and adhesive template to ensure perfect alignment when installing. Connections to be done inside the back box.
See remote power supply options on page 6
Finish: Concrete
Weight: 4.1 lbs (1,85 kg) to 16.4 lbs (7,44 kg)
Warranty: 5 year limited warranty
Rating: IP65, IK06
Certification: cULus listed for Wet location
- R0 Last update: January 24, 2018
Torres Path Light
Product Data Sheet
Finish
Pangard II®, offered exclusively by Landscape Forms, is a 19 step program of cleaning, priming, and powdercoating that resists rusting, chipping, peeling and fading to produce the finest metal finish available for site furniture and outdoor lighting. In addition, Pangard II® contains no heavy metals and is free of Hazardous Air Pollutants.
To Order
Specify: Product, Lamp, Drive Current, Color Temperature, Input Voltage, Mounting Option, and Powdercoat Color.
Product Modifications
Don't see what you are looking for? Our goal is to partner with you as the designer to manufacture solutions needed for the space you are creating. We offer the option to modify our standard product to meet certain design specifications or needs. Contact your local Landscape Forms representative to learn more about these offerings.
Warranty
LED lighting products are warranted for six years.
Other
UL Listed, RoHS Compliant, Dark-Sky Approved
Torres is designed by Rodrigo Torres
Click here for patent information related to this product
*Not required for every installation. Suggested for large installation. Each fixture is supplied with adhesive paper jig.
SC8033 - Drilling jig for S.GHO-L10
SC8035 - Drilling jig for S.GHO-L17
SC8037 - Drilling jig for S.GHO-L32
SC8039 - Drilling jig for S.GHO-L62
BLANK
MANHATTAN
4445-0024-072-UNV-D10
4448-0024-150-UNV-D10
4548-0024-036-UNV-ND
4551-0024-080-120-LTE
4546-0024-200-2C-UNV-ND
* Wattage requirement for one (1) fixture (Remote fixture only). ** Calculated for 16AWG cable. Contact factory for longer remote distance.
WIRING DIAGRAM
Fixture Type:
Catalog Number:
Project:

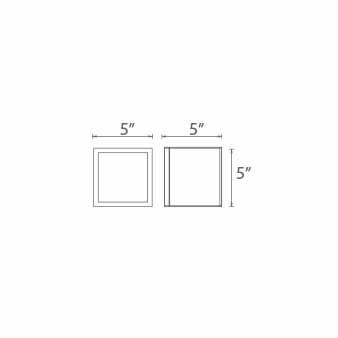

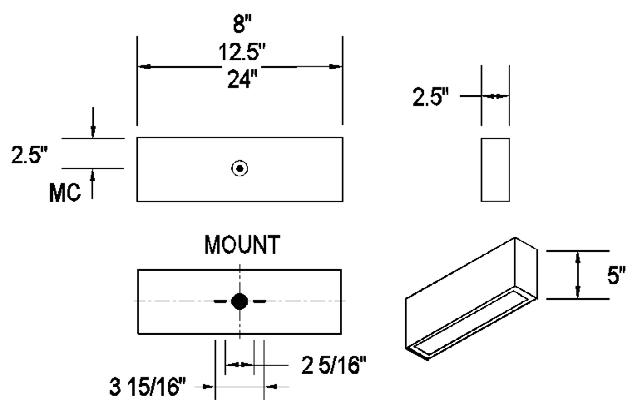

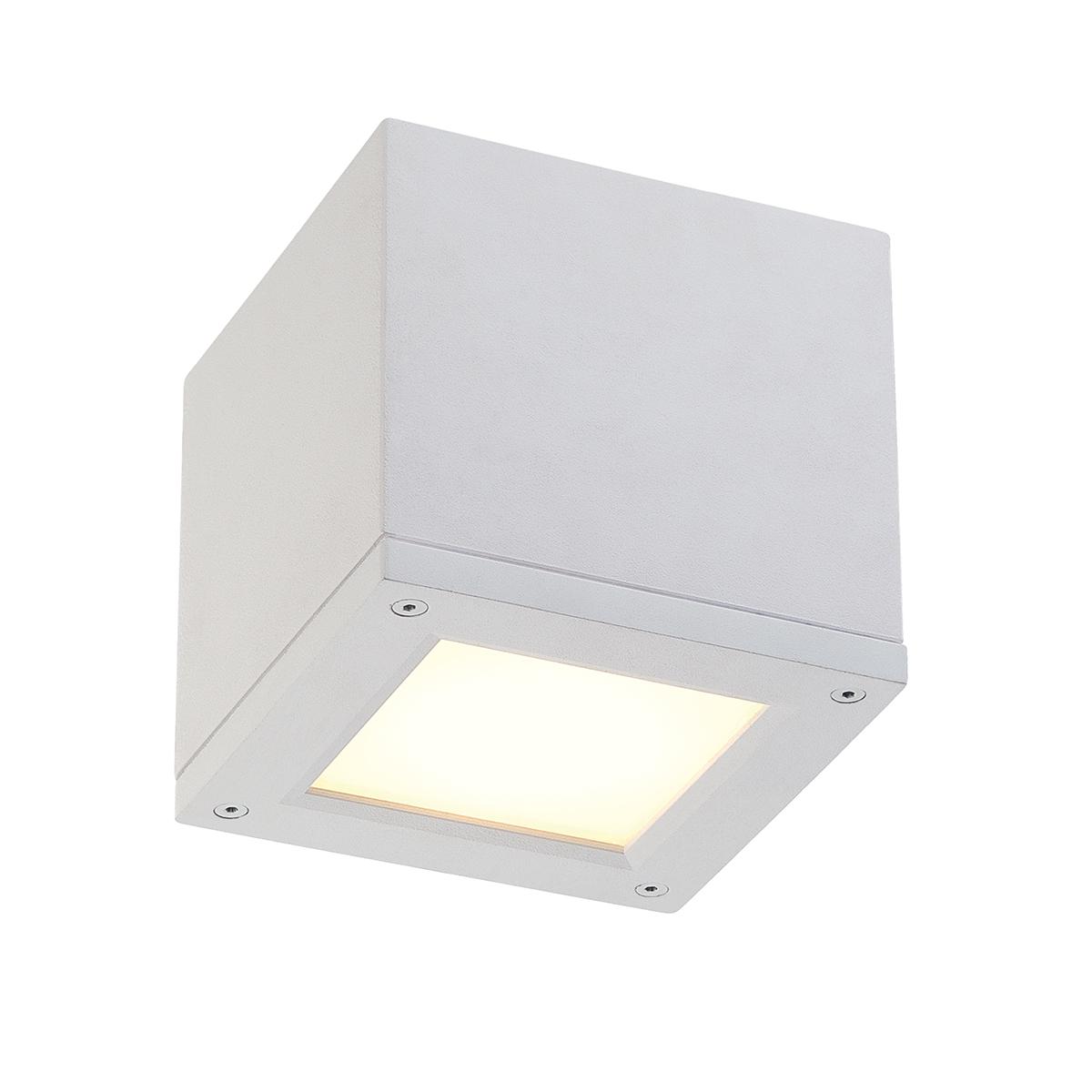

Rubix
5" & 10" Ceiling Mount 3000K
Location: Model
Example: FM-W2505-AL
DESCRIPTION
This versatile Rubix model is available for both wall and ceiling mounting. Diecast aluminum constructed with etched glass for durability in exterior environments, Rubix delivers a substantial lumen output with a minimalist design.
FEATURES
• Title 24 may not be available for all finishes, check for availability •Driver concealed within the fixture
• 5 year warranty
SPECIFICATIONS
Construction Die-cast Aluminum
Power: 16W, 30W, 31W
Input: 120-277V,50/60Hz
Dimming: ELV: 100-10% , 0-10V: 100-5%
Light Source: Integrated LED
Rated Life: 70,000 Hours
Mounting: Mounts directly to junction box, Can be mounted on ceiling or wall in all orientations

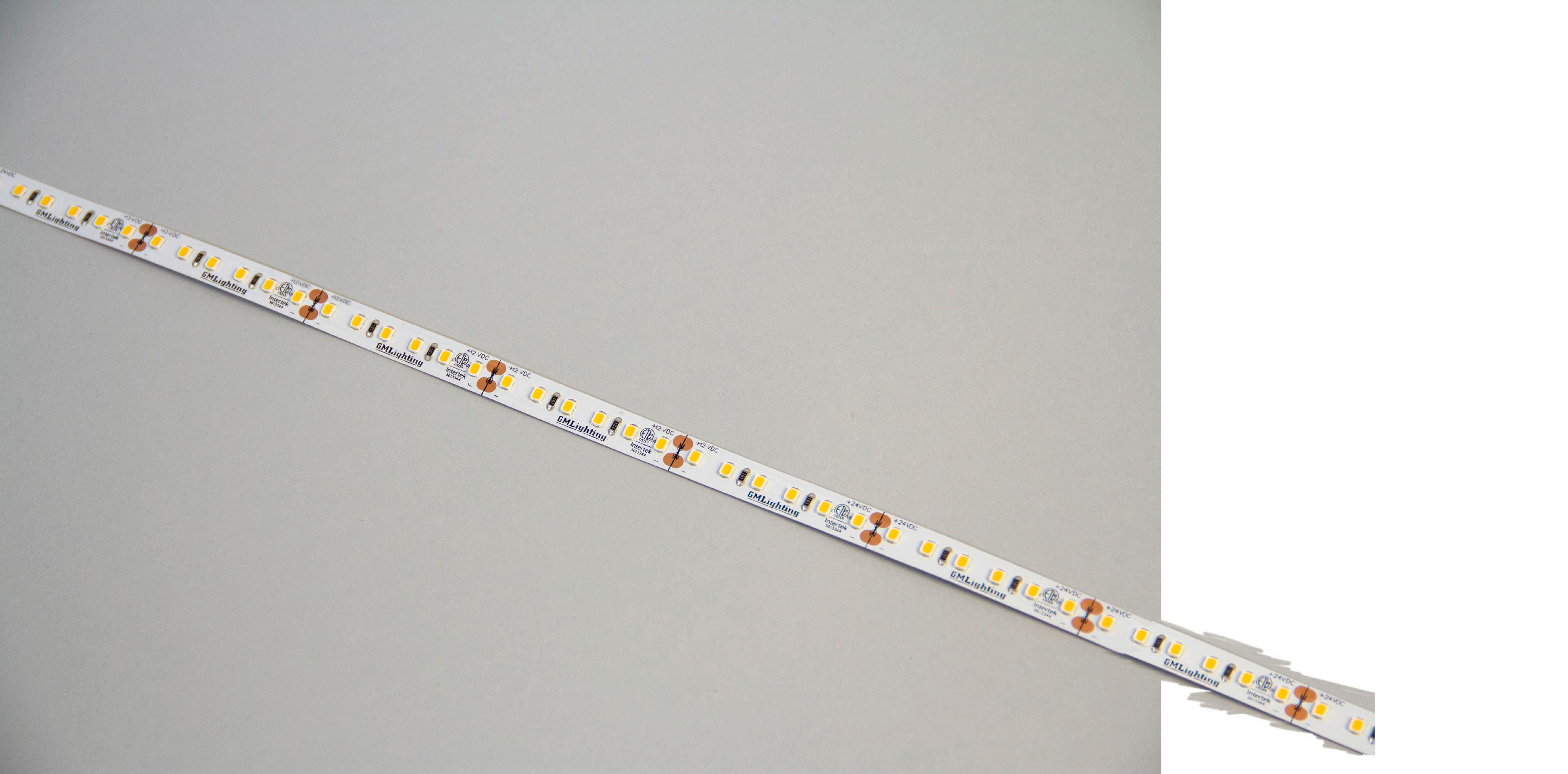

GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Includes Sure-Tite connectors
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
SPECIFICATIONS
CERTIFICATION
•ETL (12V) / UL (24V)
•Title 24 compliant when used with used with specific drivers. Consult factory.
• Class 2
•Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space
WARRANTY
•5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
BLANK

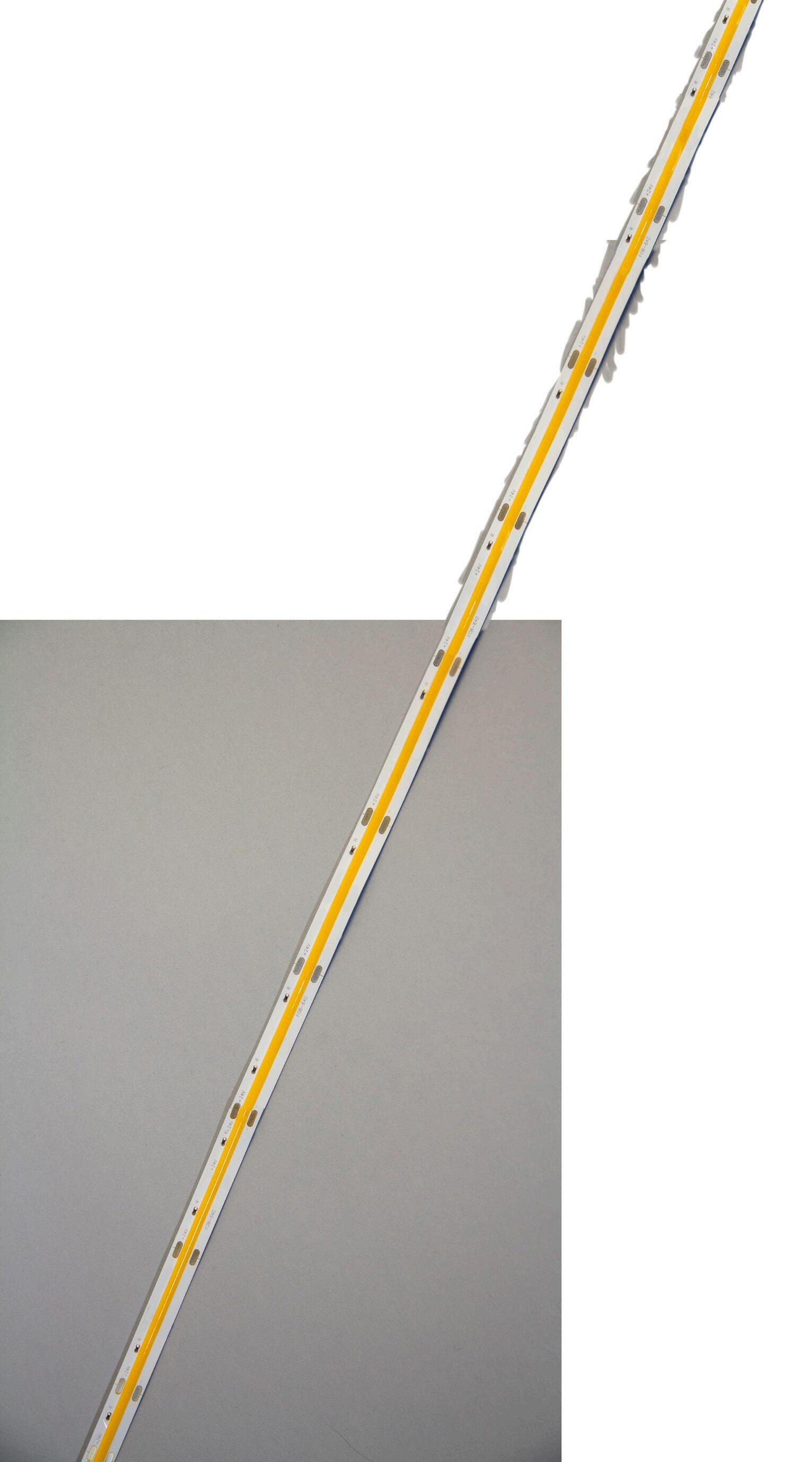

LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
RECOMMENDED DRIVERS
LD-XD-UNV LineDrive Electronic Multi-Dimmable Power Supply, 12VDC or 24VDC 20W, 40W, 60W, 96W, 180W, 200W, 300W
LD-E-UNV LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 200W, 300W
LD-MD-UNV LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 150W, 200W, 300W View Spec Sheet
LD-EDM LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC 60W
LTP Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
PSD Electronic Dimmable Power Supply, 12VDC or 24VDC 15W, 24W, 60W, 90W
DIMENSION
16’-4” (5M reel) 100’ (30M reel)
(8mm)
.039” (1mm) Cuttable every 2” (51mm)

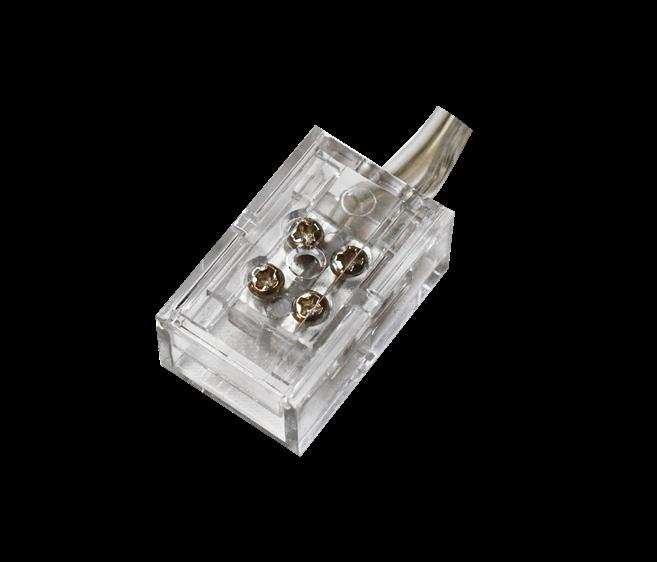

CONNECTORS
BLANK
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
LED-CHL
LED-CHL-6
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL N/A
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole N/A
LED-CHL-MC (2) Additional mounting clips for LED-CHL
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'

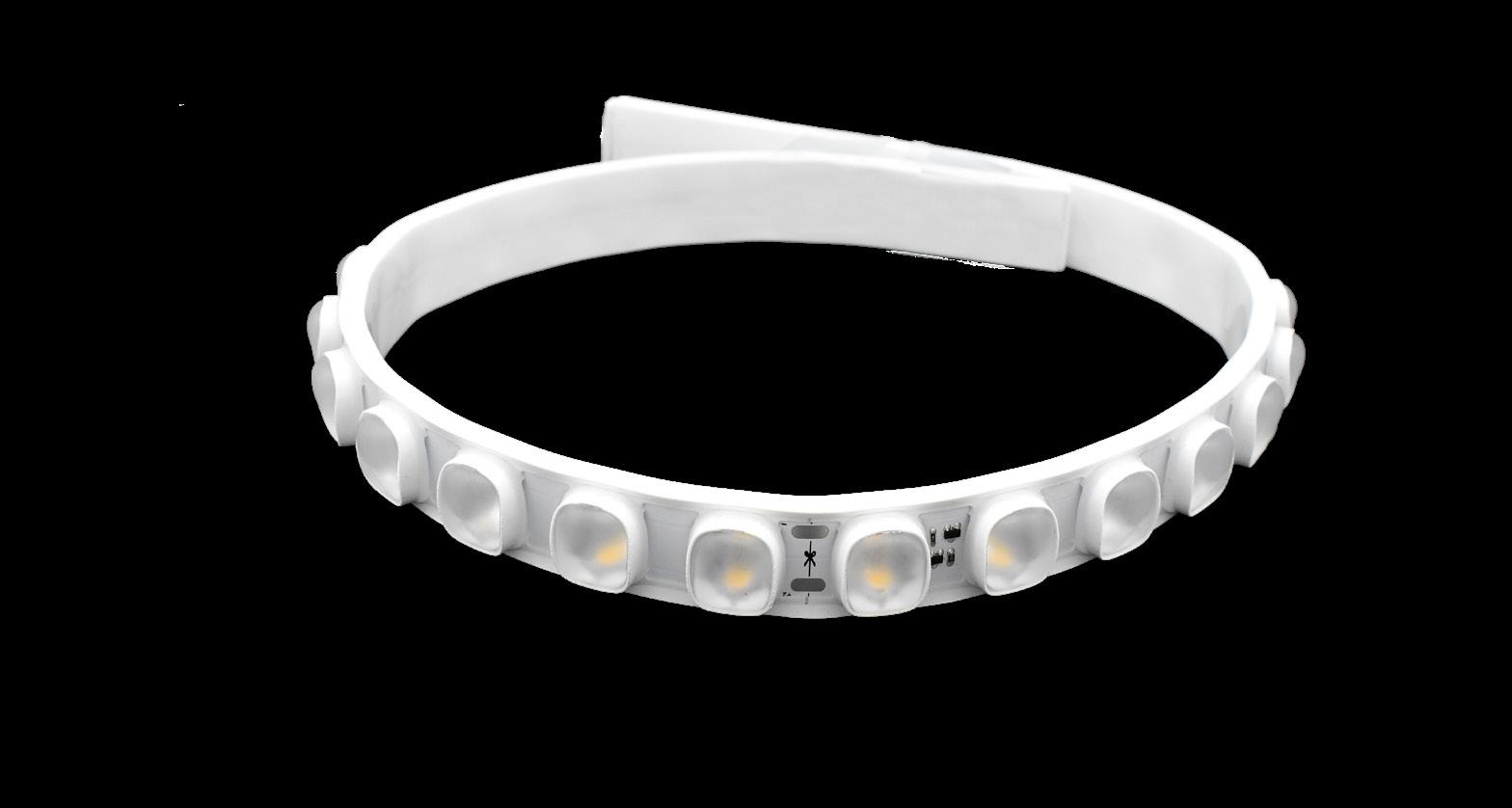

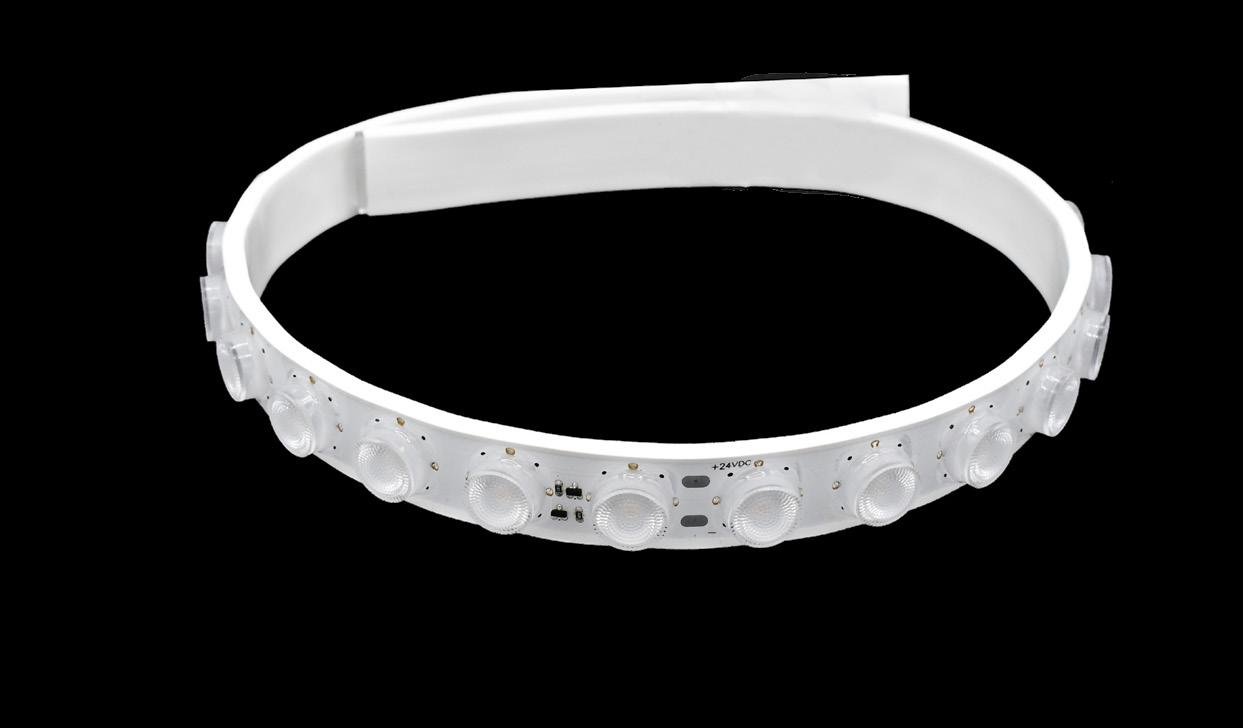

TYPE E13 SPEC

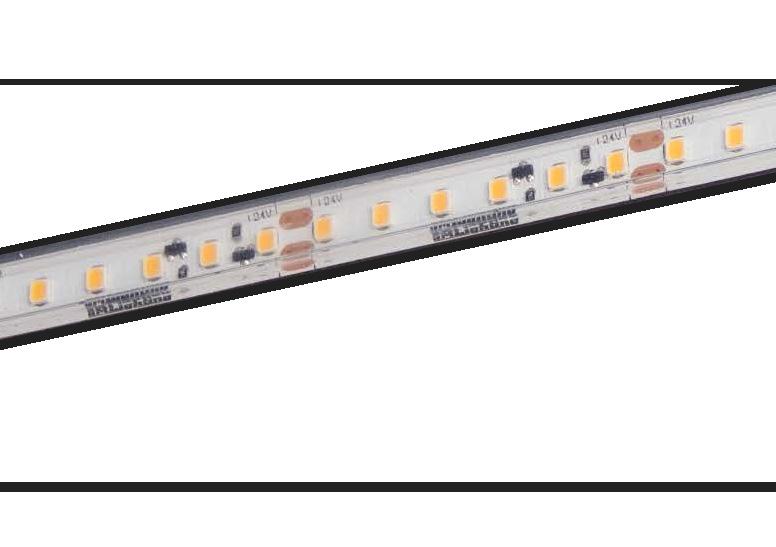

LTR-P Professional Series
Wet Location, 24VDC 1.5W / 3.0W / 5.8W
LED Tape Specification Sheet

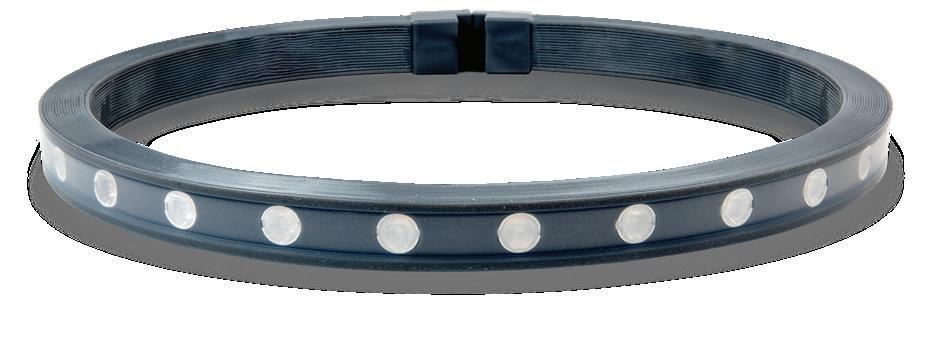

PRODUCT OVERVIEW
GM’s Professional Outdoor Series Flexible LED Tape combines style and technology with reliability for wet location. Designed for professional installations that demand a high level of quality, the LTR-P Series boasts a wide array of key features and is available in 16’-4” (5M), 98’-6” (30M) reels or custom cuts. Do not submerge in water.
FEATURES
• 24VDC
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K as well as Amber, Red, Green, Blue color temps
• Remote control with GM’s LUXcontrol™ App and controllers (requires NEMA box - by others)
• LM80 / IP65
• 120 LEDs per meter
• Cuttable every 2”
• Wet location
• Optical clear UV protected silicone sheath
• Premium diodes
• 120° viewing angle
• Dimmable
• Maximum run on a given lead is 60’ (1.5W), 32’-8” (3.0W), 16’-4” (5.8W) SPECIFICATIONS
ELECTRICAL
•24V
•1.5W, 3W and 5.8 watts per foot
•90+ CRI
•-4°F to 122°F
CERTIFICATION
•UL
•May comply with Title 24 with select power supplies
• Class 2
• 5-year warranty when paired with GM power supply OPTICS
• For proper thermal management, we recommend to mount this product in a channel
ORDERING INFORMATION
•Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5), excluding colors -AM, -BL, -RD, -GR and LTR-P-WP-24V-1.5W
WARRANTY
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
LTR-P Professional Series
3W, 12VDC and 24VDC
LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Includes Sure-Tite connectors
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
SPECIFICATIONS
CERTIFICATION
•ETL (12V) / UL (24V)
•Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
•Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space
WARRANTY
•5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
LED Tape Specification Checklist:
COMPATIBLE CONTROLLERS
Model
Description
SHWC LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, see page 8
SHWD LUXcontrol Smart 2.4 GHz WiFi Dimmer, Standard 12V/24V Low Voltage, see page 8
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC see page 10
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC see page 10
Note: For wet location applications, use NEMA box (by others)
RECOMMENDED DRIVERS
LD-ED-UNV LineDrive Electronic Dimmable Power Supply, 12VDC or 24VDC 20W, 40W, 60W, 96W, 150W, 200W, 300W View Spec Sheet
LD-E-UNV LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 200W, 300W View Spec Sheet
LD-MD-UNV LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 150W, 200W, 300W
LD-EDM LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC 60W
LD-ED010 LineDrive Electronic Dimmable 0-10V Power Supply, 12VDC or 24VDC 60W, 96W
LTP Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
PSD Electronic Dimmable Power Supply, 12VDC or 24VDC 15W, 24W, 60W, 90W
Please see our website for updated power supply specifications and information.
DIMENSION
16’-4” (5M reel) .32” (8mm)
.2” (5mm) Cuttable every 2” (51mm) Dimensions measured from edge of adapters
TTC-3 (3”), TTC-6 (6”) TTC-12 (12”), TTC-24 (24”)
.5” (13mm)
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
RECOMMENDED DRIVERS
LD-XD-UNV LineDrive Electronic Multi-Dimmable Power Supply, 12VDC or 24VDC 20W, 40W, 60W, 96W, 180W, 200W, 300W
LD-E-UNV LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 200W, 300W
LD-MD-UNV LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 150W, 200W, 300W View Spec Sheet
LD-EDM LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC 60W
LTP Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
PSD Electronic Dimmable Power Supply, 12VDC or 24VDC 15W, 24W, 60W, 90W
DIMENSION
16’-4” (5M reel) 100’ (30M reel)
(8mm)
.039” (1mm) Cuttable every 2” (51mm)
CONNECTORS
TYPE E13 SPEC MANHATTAN
EXTRA DEEP
Catalog
LED-CHL-XD
LED-CHL-XD-8
Extra deep format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 4’
Extra deep format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 8’
LED-CHL-XD-AMC (2) Adjustable mounting brackets for LED-CHL-XD N/A
LED-CHL-XD-EC (2) End caps for LED-CHL-XD. One solid, one with hole. N/A
LED-CHL-XD-MC (2) Mounting clips and screws for LED-CHL-XD N/A
EXTRA DEEP FLANGED
LED-CHL-XD-F
LED-CHL-XD-F-8
Extra deep format extruded channel with flange. Includes snap-on frosted lens with mounting clips and screws. 4’
Extra deep format extruded channel with flange. Includes snap-on frosted lens with mounting clips and screws. 8’
LED-CHL-XD-F-DC (2) Drywall mounting brackets for LED-CHL-XD-F N/A
LED-CHL-XD-F-EC (2) End caps for LED-CHL-XD-F. One solid, one with hole.
45º LARGE ANGLE MOUNT
LED-CHL-45-1200
Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-45-1200-EC (2) End caps for LED-CHL-45 - one solid, one with hole N/A
LED-CHL-45-1200-MC (2) Additional mounting clips for LED-CHL-45-1200 N/A
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
LED-CHL
LED-CHL-6
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL N/A
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole N/A
LED-CHL-MC (2) Additional mounting clips for LED-CHL
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'
TYPE E14 SPEC MANHATTAN

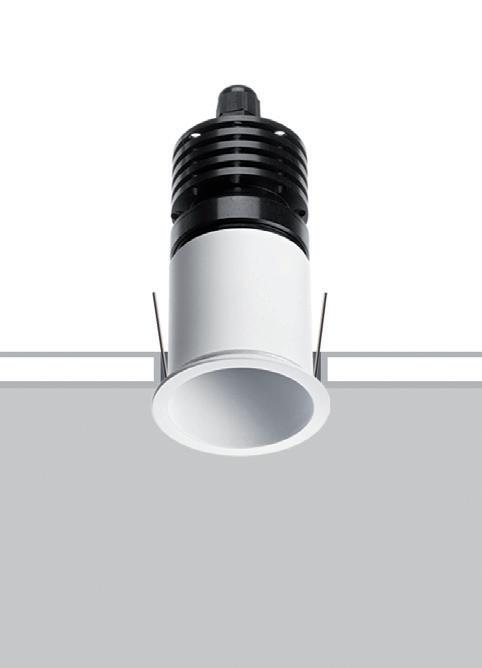

VENUS
Recessed optic IP rated downlight
design Roberto Mantovani
IP67, 24VDC downlights with the highest manufacturing quality, extremely compact and high light output. The recessed optic offers utmost visual comfort. Fully anodized aluminium body, with front in AISI 316L stainless steel or in anodized, powder-coated aluminium. Extra-clear tempered glass, ATEX cable gland, neoprene cable. Can be equipped with an anti-glare filter for maximum visual comfort.
Incassi IP67 di altissima qualità costruttiva alimentati a 24VDC, con dimensioni estremamente contenute ed elevati flussi luminosi. L’ottica arretrata garantisce un alto comfort visivo. Corpo in alluminio anodizzato a spessore, con frontale in acciaio INOX AISI316L o in alluminio anodizzato e verniciato a polveri. Vetro extrachiaro temprato, pressacavo ATEX, cavo in neoprene. Equipaggiabili con filtro antiabbagliamento per il massimo comfort visivo.
Encastrables IP67 de très haute qualité constructive alimentés à 24VDC, avec des dimensions extrêmement contenues et flux lumineux élevés. L’optique en retrait garantit un confort visuel élevé. Corps en aluminium anodisé à épaisseur, avec frontal en acier INOX AISI316L ou en aluminium anodisé et peint en poudre. Verre extra-clair trempé, presse-étoupe ATEX, câble en néoprène. Peuvent être équipés avec filtre anti-éblouissement pour le meilleur confort visuel.
Photometric diagrams
50mm
Einbauleuchten IP67 von sehr hochwertiger Konstruktion, die mit 24VDC versorgt werden, mit extrem kleinen Größen und hohen Lichtströmen. Die Rückenoptik garantiert einen hohen Sehkomfort. Körper aus dickem anodisiertem Aluminium, mit Front aus AISI316L Edelstahl oder anodisiertem und pulverbeschichtetem Aluminium. Gehärtetes, extra-klares Glas, ATEX Kabelverschraubung, Neoprenkabel. Kann mit einem Blendschutzfilter für maximalen Sehkomfort ausgestattet werden.
IP67 made in Italy
Empotrados IP67 de altísima calidad constructiva, alimentados con 24VDC, con tamaño sumamente reducido y elevados flujos luminosos. La óptica retrocedida garantiza un alto confort visual. Cuerpo de aluminio anodizado a ras, con frontal de acero inoxidable AISI316L o de aluminio anodizado y barnizado en polvo. Vidrio ultraclaro templado, prensacables ATEX, cable de neopreno. Se pueden equipar con filtro antideslumbramiento para obtener el máximo confort visual.
LVN101
Low luminance louver
Note: The filter must be ordered together with the lighting fixture.
Note: Dimming module AL7035 to be used in combination with a 24VDC
NIO-1RNG
1" Iolite NTF Round Reflector
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite NTF downlights can be specified for use with Iolite new construction housings. Straight reflector with sharp edge optimize s visual cut-off.
FEATURES
600lm / 9W or 10W
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-16LE3 ICAT New Construction, 120V; Triac/ELV 600lm / 9W
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V 600lm / 10W
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV 600lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 600lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Type
Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
1" Iolite NTF Round Reflector - Dedicated New Construction Required
NIO-1RNG35 X = 3500K
NIO-1RNG40X = 4000K
NIO-1RNG50X = 5000K NIO-1RNGCDX = Comfort Dim (3000K-1900K)†
IP67, 24VDC downlights with the highest manufacturing quality, extremely compact and high light output. The recessed optic offers utmost visual comfort. Fully anodized aluminium body, with front in AISI 316L stainless steel or in anodized, powder-coated aluminium. Extra-clear tempered glass, ATEX cable gland, neoprene cable. Can be equipped with an anti-glare filter for maximum visual comfort.
Incassi IP67 di altissima qualità costruttiva alimentati a 24VDC, con dimensioni estremamente contenute ed elevati flussi luminosi. L’ottica arretrata garantisce un alto comfort visivo. Corpo in alluminio anodizzato a spessore, con frontale in acciaio INOX AISI316L o in alluminio anodizzato e verniciato a polveri. Vetro extrachiaro temprato, pressacavo ATEX, cavo in neoprene. Equipaggiabili con filtro antiabbagliamento per il massimo comfort visivo.
Encastrables IP67 de très haute qualité constructive alimentés à 24VDC, avec des dimensions extrêmement contenues et flux lumineux élevés. L’optique en retrait garantit un confort visuel élevé. Corps en aluminium anodisé à épaisseur, avec frontal en acier INOX AISI316L ou en aluminium anodisé et peint en poudre. Verre extra-clair trempé, presse-étoupe ATEX, câble en néoprène. Peuvent être équipés avec filtre anti-éblouissement pour le meilleur confort visuel.
Photometric diagrams
50mm
Einbauleuchten IP67 von sehr hochwertiger Konstruktion, die mit 24VDC versorgt werden, mit extrem kleinen Größen und hohen Lichtströmen. Die Rückenoptik garantiert einen hohen Sehkomfort. Körper aus dickem anodisiertem Aluminium, mit Front aus AISI316L Edelstahl oder anodisiertem und pulverbeschichtetem Aluminium. Gehärtetes, extra-klares Glas, ATEX Kabelverschraubung, Neoprenkabel. Kann mit einem Blendschutzfilter für maximalen Sehkomfort ausgestattet werden.
IP67 made in Italy
Empotrados IP67 de altísima calidad constructiva, alimentados con 24VDC, con tamaño sumamente reducido y elevados flujos luminosos. La óptica retrocedida garantiza un alto confort visual. Cuerpo de aluminio anodizado a ras, con frontal de acero inoxidable AISI316L o de aluminio anodizado y barnizado en polvo. Vidrio ultraclaro templado, prensacables ATEX, cable de neopreno. Se pueden equipar con filtro antideslumbramiento para obtener el máximo confort visual.
LVN101
Low luminance louver
Note: The filter must be ordered together with the lighting fixture.
Note: Dimming module AL7035 to be used in combination with a 24VDC
NIO-1RNG
1" Iolite NTF Round Reflector
Source: 9W or 10W LED 600lm
PRODUCT DESCRIPTION
1" Iolite NTF downlights can be specified for use with Iolite new construction housings. Straight reflector with sharp edge optimize s visual cut-off.
FEATURES
600lm / 9W or 10W
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
Field Changeable Optics: Three field changeable optics (spot, narrow flood and flood) are included with each LED module.
ELECTRICAL
Lumens / Wattage: 600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-16LE3 ICAT New Construction, 120V; Triac/ELV 600lm / 9W
NHIOICD-16LE4 ICAT New Construction, 120-277V; Triac/ELV/0-10V 600lm / 10W
NHIOICDCP-16LE3 Chicago Plenum, 120V; Triac/ELV 600lm / 9W
NHIOICDCP-16LE4 Chicago Plenum, 120-277V; Triac/ELV/0-10V 600lm / 10W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Type
Project
Catalog No.
Notes
PRODUCT IMAGES & DIMENSIONS
1" Iolite NTF Round Reflector - Dedicated New Construction Required
NIO-1RNG35 X = 3500K
NIO-1RNG40X = 4000K
NIO-1RNG50X = 5000K NIO-1RNGCDX = Comfort Dim (3000K-1900K)†
The Keller range of wall-mounted fixtures, equipped with 24VDC COB LEDs with high luminous performances, combines minimal geometry with a high level of mechanical and optical quality. Made of anodised aluminium, they are suitable for installation in particularly aggressive environments.
La gamma di apparecchi a parete Keller, equipaggiati con COB LED alimentati a 24VDC dalle alte prestazioni luminose, combina una geometria minimale ad una qualità meccanica ed ottica di alto livello. Realizzati in alluminio anodizzato, sono idonei all’installazione in ambienti particolarmente aggressivi.
La gamme d’appareils muraux Keller, équipés avec COB LEB alimentés à 24VDC aux prestations lumineuses élevées, combine une géométrie minimaliste à une qualité mécanique et optique de haut niveau. Réalisés en aluminium anodisé, ils sont adaptés pour l’installation dans des milieux particulièrement agressifs.
Die Geräte des Sortiments Keller sind mit 24VDC COB-LEDs mit hoher Lichtleistung ausgestattet und eine minimale Geometrie ist mit guter mechanischer und optischer Qualität kombiniert. Hergestellt aus eloxiertem Aluminium, eignen sie sich für den Einbau in besonders aggressiven Umgebungen.
La gama de aparatos de pared Keller, equipados con COB LED alimentados con 24VDC de altos rendimientos luminosos, combina una geometría minimalista con una alta calidad mecánica y óptica. Realizados en aluminio anodizado, son adecuados para la instalación en ambientes especialmente agresivos.
2-Step MacAdam
Note: The filter must be ordered together with the lighting fixture.
4
on/off
AL2124 (1) IP20
AL2012 (1..3) IP20
AL2031 (1..10) IP20
AL2040 (1..21) IP20
AL9222 (1..5) IP67
AL9231 (1..10) IP67
AL9240 (1..21) IP67
dimmable
AL5012 (1..3) IP20 DALI 2 PUSH 0/1..10V
AL5241 (3..14) IP20 DALI 2 PUSH
AL8012 (1..3) IP67 DALI
dimming module
AL7035 IP20
Note: Dimming module AL7035 to be used in combination with a 24VDC power supply.
Note: Made-to-measure cable available on request.
MANHATTAN
Mod
6" Outdoor Wall Sconce 3000K
Model & SizeColor
6"
Example: WS-W65607-WT
For custom requests please contact customs@waclighting.com
FEATURES
• Weather resistant powder coat finish
•Low profile with effective path illumination
• Light engine is factory sealed for maximum protection from the elements
Construction Aluminum hardware with glass diffuser
Fixture Type:
Catalog Number:
Project:
Location:
FINISHES:
Black Bronze Graphite White
LINE DRAWING
KELLER S
Wall mounted luminaires
design Roberto Mantovani
The Keller range of wall-mounted fixtures, equipped with 24VDC COB LEDs with high luminous performances, combines minimal geometry with a high level of mechanical and optical quality. Made of anodised aluminium, they are suitable for installation in particularly aggressive environments.
La gamma di apparecchi a parete Keller, equipaggiati con COB LED alimentati a 24VDC dalle alte prestazioni luminose, combina una geometria minimale ad una qualità meccanica ed ottica di alto livello. Realizzati in alluminio anodizzato, sono idonei all’installazione in ambienti particolarmente aggressivi.
La gamme d’appareils muraux Keller, équipés avec COB LEB alimentés à 24VDC aux prestations lumineuses élevées, combine une géométrie minimaliste à une qualité mécanique et optique de haut niveau. Réalisés en aluminium anodisé, ils sont adaptés pour l’installation dans des milieux particulièrement agressifs.
Die Geräte des Sortiments Keller sind mit 24VDC COB-LEDs mit hoher Lichtleistung ausgestattet und eine minimale Geometrie ist mit guter mechanischer und optischer Qualität kombiniert. Hergestellt aus eloxiertem Aluminium, eignen sie sich für den Einbau in besonders aggressiven Umgebungen.
La gama de aparatos de pared Keller, equipados con COB LED alimentados con 24VDC de altos rendimientos luminosos, combina una geometría minimalista con una alta calidad mecánica y óptica. Realizados en aluminio anodizado, son adecuados para la instalación en ambientes especialmente agresivos.
2-Step MacAdam
Note: The filter must be ordered together with the lighting fixture.
on/off
AL2124 (1) IP20
AL2012 (1..3) IP20
AL2031 (1..10) IP20
AL2040 (1..21) IP20
AL9222 (1..5) IP67
AL9231 (1..10) IP67
AL9240 (1..21) IP67
dimmable
AL5012 (1..3) IP20 DALI 2 PUSH 0/1..10V
AL5241 (3..14) IP20 DALI 2 PUSH
AL8012 (1..3) IP67 DALI
dimming module
AL7035 IP20
Note: Dimming module AL7035 to be used in combination with a 24VDC power supply.
Note: Made-to-measure cable available on request.
MANHATTAN
Mod
6" Outdoor Wall Sconce 3000K
Model & SizeColor
6"
Example: WS-W65607-WT For custom requests please contact customs@waclighting.com
FEATURES
• Weather resistant powder coat finish
• Low profile with effective path illumination
• Light engine is factory sealed for maximum protection from the elements
FCSL2041 13" exterior die-cast aluminum step light with heavy walled die-cast faceplate, for masonry or drywall construction. IP68 rated for damp, dry or wet locations.
Marine grade, corrosion resistant, heavy walled, high pressure, die-cast aluminum with snap-in Screwless faceplate standard. Optional captive recessed stainless steel tamper resistant screws (TRS option). Back Box is high strength, black Polycarbonate with UV protection (UL 746C rated f1) and flame rated (UL94 5VA).
White glass lens
Concrete pour, masonry, solid composite, special construction, and drywall construction mounting kit included. Hanger bar mounting optional.
Optical / driver unit is IP68 rated dry, damp or wet locations. All seals are injection molded silicone.
Available in Black, Bronze, Graphite Grey, Silver, White and Custom Colors. Die cast aluminum faceplate. Six stage chemical iron phosphate conversion pre-treatment. Polyester powder coat finish, 18 µm minimum thickness, 5,000 hour salt spray test (ASTM B117) compliant with Florida, AAMA 2604 specification.
color 2700K, 3000K, 3500K, 4000K, 5000K, Amber, Red, Blue lumen maintenance L70 > 70,000 hours
color consistency 3 SDCM, 85 CRI (White Light) operating temperature -13°F to 104°F (-30°C to 40°C) warranty 5-Year limited warranty
ELECTRICAL
input voltage Universal 120 - 277 VAC
power supply Integral, electronic high-power factor > 94% @ 120V, THD of ≤ 20% standards cETLus
3 Luminaire must be mounted into FC Lighting supplied Back Box shipped with or separate of luminaire.
* Cannot be ordered with LBB option. To purchase with separate backbox (shipped in advance of luminaire), please purchase
A2000-BB-ETL Back Box Kit - Complete Back Box shipped with mounting kit, shipped in advance of luminaire.
A2000-BB-ETL-HB Back Box Kit w/ Hanger Bar - Includes (#A2000-BB-ETL) Complete Back Box shipped with mounting kit and Hanger Bar (HB), shipped in advance of luminaire
PRODUCT DIMENSIONS
MOUNTING
HOUSING (Injection Molded Plastic) 6-32 Threaded Inserts for Mounting Brackets (Included with Back Box) Hanger Bar Thru Knockout Horizontal & Vertical
BLANK
BRICK-OD OUTDOOR
The BRICK-OD (outdoor) is a minimal, clean and contemporary exterior sconce with exceptional versatility: Three ADA compliant sizes (8”, 12” and 24” ), single direction LED distribution, and three finishes to choose from. Perfect for exterior facades, entryways, columns, and breezeways. Since this is a wet-listed unit, it can also be used in healthcare applications requiring durable luminaires which can be wiped down. Available with integral battery backup.
FINISHES
7075 LED
7075-12” in Textured Black (TB)
7075-24” in Textured Black (TB)

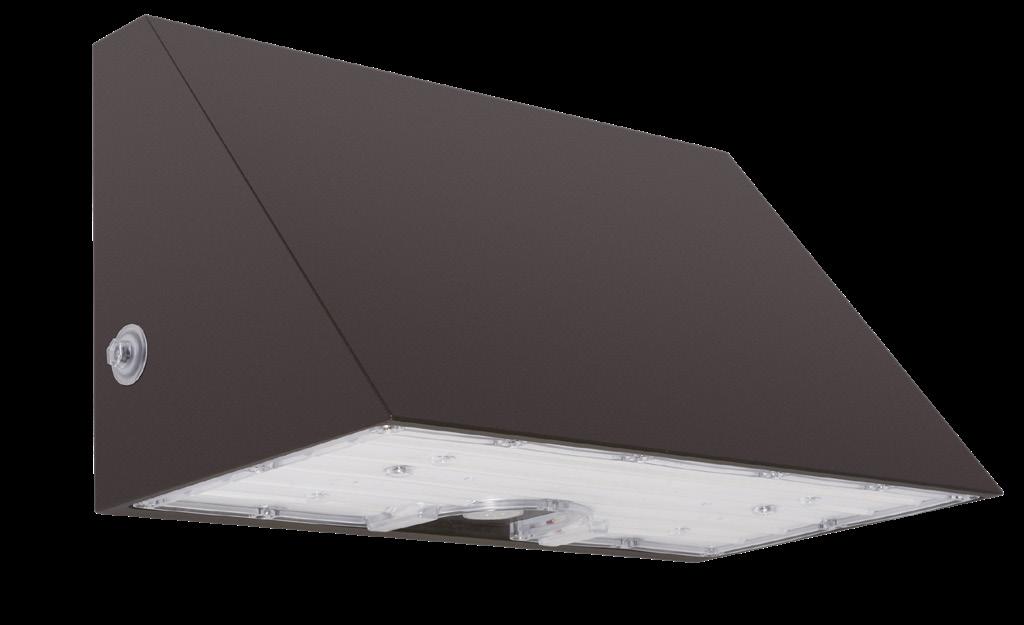

PEAK
Color Changeable Full Cut-off Wall Pack
MODEL NO.
KEY FEATURES
•Modern rectilinear design
•Multiple distributions option available for different applications
*Delivered lumen may vary, refer to photometric for full performance data
DIMENSIONS
PROJECT/DATE
BRICK-OD OUTDOOR
FOR INDOOR, REFER TO MODEL #: 1575
STANDARD SPECIFICATIONS
OUTER FRAME & MOUNT PLATE
Formed and welded aluminum. Countersunk fasteners located on top of fixture. No exposed hardware on sides or bottom of fixture. Closed cell foam gasket on rear mount plate.
DTR4 Triac (Line Voltage) Dimming (120V) (Cannot be combined with BBI/BBC)
FCL7 French Canadian Label
PO1 Photo Control (120V)
5. COLOR TEMPERATURE
PO2 Photo Control (208, 240, 277V)
T249 Title 24 JA8 Compliant (H16 & H32 only)
*DarkSky approved when ordered with 3000K or warmer CCT.
Universal Footnotes (only applies if superscript is shown in Options section): (0) 90R - All LEDs/CCTs are being transitioned to 90 CRI standard over 2025. Inquire for this model’s availability. 1) BAC/BAB www.brownlee.com/resources/usa. (2) BBI/BBC cannot combine with ECW or EXT (3) BLD - integral microwave motion sensor (step-dim). Cannot combine with DTR. (4) DTR - cannot combine with BLD (5) ECW - cannot combine with BBI BBC or DTR. (7) FCL - cannot combine with BAC. (8) OCC - integral microwave motion sensor (ON/OFF). (9) T24 - includes JA8 labeling and 90 CRI LEDs (10) PCH/PC4 - cannot combine with BLD or OCC.
Add’l Notes: *BBI/BBC - BBI minimum operating temp: 10C/50F unless otherwise stated. BBC minimum operating temp: -20C/-4F. **BLD - integral microwave motion sensor with step-dim control. 1: Motion is detected, illuminate to 100%. 2: Motion no longer detected, dim to set level. 3: Remain in continuous dimmed state or turn off after set period. Config. via onboard dip switches.
Specifications subject to change without notice.
www.brownlee.com
12” in Textured Black (TB)
PEAK
Color Changeable Full Cut-off Wall Pack
(7100lm, 45W) 110LC (11000lm, 70W)
120W)**
- (120-277V)
(277V-480V)**
AOD (Adjustable Output Device)
Spitzer’s AOD allows us to customize the Wattage and Lumen output to match your exact needs. Talk to your Sales Rep today.
(General)* C0 - (ON & Off with 0-10V
C1 - (ON & Off with 0-10V driver & integrated photocell)
- (Bi-level Motion Sensor)*
- (Bi-level PIR Sensor)*
Custom lumens with AOD (please complete the selection when ordering)
Primary NXT BeveLED Mini - P3RD-NXT 3" Round Downlight
usailighting.com/primarynxt
Primary NXT provides consistent, high quality white light in an economical architectural solution.
FEATURES
• A complete range of color temperature options in 80+ and 90+ CRI
• Dim to Warm LED choices
• Downlight, adjustable and wallwash configurations
• Dry/damp/wet location rated for bathrooms and showers
• Dimmable to 1%
• High LED performance with budget-conscious features
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
3000K-2000K, 90+ CRI S Solite Glass (provided standard) WH White BL Black Integral Dimming Driver Housings NCEC Economical new construction tray NCIC Insulation-contact rated, airtight
New Construction (for use with EM10C battery only) Universal Voltage 120V-277V UNV-D22 ERP Trimode (0-10V and Phase 2-wire), 1% 120V Only 120V-D21 Phase Dimming Driver, 1%
Pair of butterfly brackets for vertical adjustment of Primary NXT housings
PFBK-CB27
Pair of butterfly brackets for vertical adjustment of Primary NXT housings with 27" Channel Bar
PFBK-CB32
Pair of butterfly brackets for vertical adjustment of Primary NXT housings with 32" Channel Bar
PFBK-CB52
Pair of butterfly brackets for vertical adjustment of Primary NXT housings with 52" Channel Bar
None
SPAK Spackle frame accessory
IMPORTANT NOTES
UL2043 rated for use in air handling plenums. Rated for use in steam rooms and saunas, up to 15W maximum.
● Housing ships with integral nailer bars provided standard. These mounting accessories are required for grid ceiling applications. Specify PFBK accessory for butterfly brackets
● which allow for in-place housing height adjustment. To install with channel bars, specify a PFBK-CB kit
Dry/damp/wet location rated for bathrooms and showers
● Integral emergency battery is CEC Title 20 Compliant. Test switch is dry/damp location rated only, and requires above ceiling access for service.
● Downlight trims ship with 50° wide beam reflector installed; field replaceable 30° medium beam optic included with trim for field changes.
NHIOICD-215 / NHIOICD-220 / NHIOICD-225
NHIOICDCP-215 / NHIOICDCP-220 / NHIOICDCP-225
2" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-2 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Access above ceiling required. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) 5-Year Limited Warranty
· RoHS compliant FCC compliant Patent #D824567S
Meets or exceeds ASTM-283 Air-Tight requirements
New Construction Housing - Compatible with NIOB-2 & NIO-2 trims
Housing Type / Lumens / Wattage Driver / Dimming
NHIOICD-215 = IC Air-Tight, 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum, 1500lm / 20W
NHIOICD-220 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum, 2000lm / 24W
NHIOICD-225 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
DAL = 120-277V input; DALI 1% dimming
Optional Emergency
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
Example: NHIOICD-220LE4 = 2" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V input; Triac / ELV / 0-10V dimming
Primary NXT BeveLED Mini - P3RD-NXT 3" Round Downlight
usailighting.com/primarynxt
Primary NXT provides consistent, high quality white light in an economical architectural solution.
FEATURES
• A complete range of color temperature options in 80+ and 90+ CRI
• Dim to Warm LED choices
• Downlight, adjustable and wallwash configurations
• Dry/damp/wet location rated for bathrooms and showers
• Dimmable to 1%
• High LED performance with budget-conscious features
• CEC Title 20 Compliant EM battery option
PRIMARY NXT PERFORMANCE
CRI: 80+ 90+ 80+ 90+ 90+
Source Lumens: 1075 900 1575 1325 1100
Delivered Lumens: 650 550 950 800 750
Lumens Per Watt: 74 62 68 57 51
CORRELATED COLOR
for Lumen Output:
08/03/2025
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
3000K-2000K, 90+ CRI S Solite Glass (provided standard) WH White BL Black Integral Dimming Driver Housings NCEC Economical new construction tray NCIC Insulation-contact rated, airtight
New Construction (for use with EM10C battery only)
Voltage 120V-277V UNV-D22 ERP Trimode (0-10V and Phase 2-wire), 1% 120V Only 120V-D21 Phase Dimming Driver, 1%
Pair of butterfly brackets for vertical adjustment of Primary NXT housings
PFBK-CB27
Pair of butterfly brackets for vertical adjustment of Primary NXT housings with 27" Channel Bar
PFBK-CB32
Pair of butterfly brackets for vertical adjustment of Primary NXT housings with 32" Channel Bar
PFBK-CB52
Pair of butterfly brackets for vertical adjustment of Primary NXT housings with 52" Channel Bar
None
SPAK Spackle frame accessory
UL2043 rated for use in air handling plenums. Rated for use in steam rooms and saunas, up to 15W maximum.
● Housing ships with integral nailer bars provided standard. These mounting accessories are required for grid ceiling applications. Specify PFBK accessory for butterfly brackets
● which allow for in-place housing height adjustment. To install with channel bars, specify a PFBK-CB kit
Dry/damp/wet location rated for bathrooms and showers
● Integral emergency battery is CEC Title 20 Compliant. Test switch is dry/damp location rated only, and requires above ceiling access for service.
● Downlight trims ship with 50° wide beam reflector installed; field replaceable 30° medium beam optic included with trim for field changes.
NHIOICD-215 / NHIOICD-220 / NHIOICD-225
NHIOICDCP-215 / NHIOICDCP-220 / NHIOICDCP-225
2" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-2 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Access above ceiling required. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) 5-Year Limited Warranty
· RoHS compliant FCC compliant Patent #D824567S
Meets or exceeds ASTM-283 Air-Tight requirements
New Construction Housing - Compatible with NIOB-2 & NIO-2 trims
Housing Type / Lumens / Wattage Driver / Dimming
NHIOICD-215 = IC Air-Tight, 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum, 1500lm / 20W
NHIOICD-220 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum, 2000lm / 24W
NHIOICD-225 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
DAL = 120-277V input; DALI 1% dimming
Optional Emergency
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
Example: NHIOICD-220LE4 = 2" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V input; Triac / ELV / 0-10V dimming
Quick Shipping Streamlined options mean most configurations can ship in 2 days
Brightness Switch Option Accommodate varying lumen output needs with the flip of a switch, or choose a fixed output option
Universal Installation Features pre-installed bar hangers with butterfly brackets to accommodate a range of mounting methods
Embedded Drivers Allow for touch safe, plug & play installation and serviceability all from below the ceiling
LIGHT OUTPUT & DISTRIBUTION
Module Downlight
Lumens (Power)

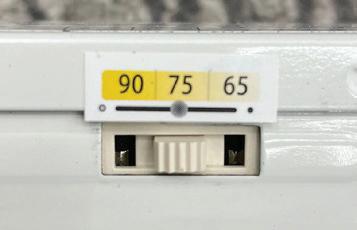

Integrated Brightness Switch
1000 lm (13.6W), 1500 lm (17W), 2000 lm (24.5W)
POWER & CONTROLS
Input Voltage 120/277 V
Dimming 0-10V (5%)
TRIMS Shape
Color Quality
Aperture 4", 6"
Round
80+ CRI, 3-step SDCM
Color Temperature
Beam Spread
Finish
White, Semi-Specular with White Flange
5 year limited warranty; 50,000 hours
Emergency Optional Remote Inverter or Emergency LED Driver for lighting up to 90 minutes in event of power failure
RATINGS & CERTIFICATIONS
Housing
RoHS Compliant
Non-Conductive Dead Front General Ambient (90˚+)
Module & Trims
UL Listed for Wet Location (Under Covered Ceilings)
NSF Listed (White Finish Only)
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail:
PRODUCT IMAGES & DIMENSIONS
NIO-4RNDC
Compatible Housings
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm
PRODUCT BUILDER
- EMBEDDED 0-10V DRIVER
NHIOICD-415
/ NHIOICD-420 / NHIOICD-425
NHIOICDCP-415 / NHIOICDCP-420 / NHIOICDCP-425
4" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box allowing below ceiling access. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3’ cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim)
Quick Shipping Streamlined options mean most configurations can ship in 2 days
Brightness Switch Option Accommodate varying lumen output needs with the flip of a switch, or choose a fixed output option
Universal Installation Features pre-installed bar hangers with butterfly brackets to accommodate a range of mounting methods
Embedded Drivers Allow for touch safe, plug & play installation and serviceability all from below the ceiling
LIGHT OUTPUT & DISTRIBUTION
Module Downlight
Lumens (Power)
Integrated Brightness Switch
1000 lm (13.6W), 1500 lm (17W), 2000 lm (24.5W)
POWER & CONTROLS
Input Voltage 120/277 V
Dimming 0-10V (5%)
TRIMS Shape
Color Quality
Aperture 4", 6"
Round
80+ CRI, 3-step SDCM
Color Temperature
Beam Spread
Finish
White, Semi-Specular with White Flange
5 year limited warranty; 50,000 hours
Emergency Optional Remote Inverter or Emergency LED Driver for lighting up to 90 minutes in event of power failure
RATINGS & CERTIFICATIONS
Housing
RoHS Compliant
Non-Conductive Dead Front General Ambient (90˚+)
Module & Trims
UL Listed for Wet Location (Under Covered Ceilings)
NSF Listed (White Finish Only)
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail:
PRODUCT IMAGES & DIMENSIONS
NIO-4RNDC
Compatible Housings
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm
PRODUCT BUILDER
- EMBEDDED 0-10V DRIVER
NHIOICD-415
/ NHIOICD-420 / NHIOICD-425
NHIOICDCP-415 / NHIOICDCP-420 / NHIOICDCP-425
4" Iolite IC Air-Tight High Lumen New Construction Housing
Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box allowing below ceiling access. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3’ cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim)
120VAC operation for higher power and brightness from one linear run. Flexible linear “neon” tape is designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables side-to-side bending for curvilinear lines. NeoVision120 tapes provide long, continuous runs up to 163 feet.
FEATURES
•120VAC operation (no driver required)
•Wet location - IP65
• Multiple power feed options: End Feed
Left or Right Side Feed
•Tape encased in UV resistant silicone
•Triac/ELV dimmable
•White and color LED options
•120° viewing angle
• Maximum run: 163’ - made to order in 12” increments
SPECIFICATIONS
ELECTRICAL PHOTOMETRIC
•Input: 120VAC 60Hz
•White: 2700K, 3000K
•3.4W per foot (colors) or 4000K at 90+ CRI
•4.3W per foot (white) WARRANTY
•PF>0.9 •3 years
ENVIRONMENTAL CERTIFICATION
•Outdoor & wet location rated •ETLus
•UV resistant UL1598 (Hardwire)
• Ambient operating temp: UL2388 (Plug-in) -4°F to +113°F (-20°C to +45°C) •IP65
ORDERING INFORMATION
1.Select Tape
2.Pick Feed
3.Pick Mounting Options
4.Pick Control Options
All NeoVision120 tape configurations must be specified at time of order. Parts are made to order and sealed by GM LIghting at the factory only.
Project Name Type
Catalog # Date
3000K
Amber Green
Blue Red

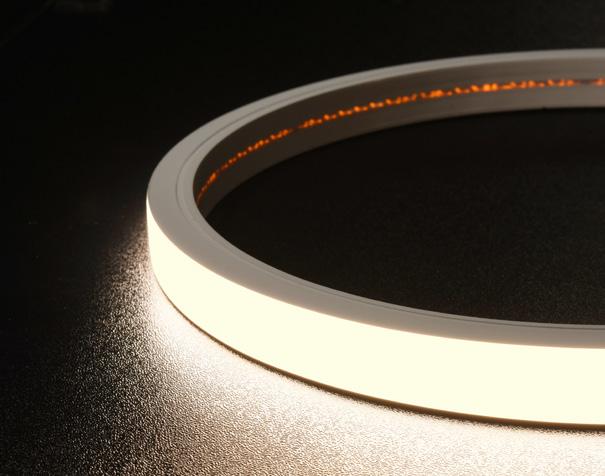

NeoVision120 TopFlex
120VAC Neon LED Tape Specification Sheet
PRODUCT OVERVIEW
120VAC operation for higher power and brightness.
Flexible linear “neon” tape is designed for applications that require ultra-rich light and color saturation that is characteristic of neon. TopFlex enables lighting along straight or inward/outward curved surfaces.
NeoVision120 tapes provide long, continuous runs up to 163 feet.
FEATURES
•120VAC operation (no driver required)
•Wet location - IP65
• Multiple power feed options:
End Feed
Bottom Feed
•Tape encased in UV resistant silicone
•Triac/ELV dimmable
•White and color LED options
•120° viewing angle
• Maximum run: 163’ - made to order in 12” increments
SPECIFICATIONS
ELECTRICAL PHOTOMETRIC
•Input: 120VAC 60Hz
•White: 2700K, 3000K
•3.4W per foot (colors) or 4000K at 90+ CRI
•4.3W per foot (white) WARRANTY
•PF>0.9 •3 years
ENVIRONMENTAL CERTIFICATION
•Outdoor & wet location rated •ETLus
•UV resistant UL1598 (Hardwire)
• Ambient operating temp: UL2388 (Plug-in)
-4°F to +113°F (-20°C to +45°C) •IP65
ORDERING INFORMATION
1.Select Tape
2.Pick Feed
3.Pick Mounting Options
4.Pick Control Options
All NeoVision120 tape configurations must be specified at time of order. Parts are made to order and sealed by GM LIghting at the factory only.
3000K
Amber Green
Blue Red
NeoVision120 SideFlex 120VAC Neon LED Tape
Specification Sheet
1.Select Tape
ACCESSORIES
2.Pick Feed
NV120S-HW-8-EF Hardwire End Feed w/Filter & 8A Fuse
NV120S-HW-8-SFL Hardwire Side Feed Left w/Filter & 8A Fuse
NV120S-HW-8-SFR Hardwire Side Feed Right w/Filter & 8A Fuse
NV120S-PC-8-EF Plug-in End Feed w/Filter & 8A Fuse
NV120S-PC-8-SFL Plug-in Side Feed Left w/Filter & 8A Fuse
NV120S-PC-8-SFR Plug-in Side Feed Right w/Filter & 8A Fuse
All cords are 8ft long
Left Feed for
NV120S-HW-8-SFL
NV120S-HW-PC-8-SFL
All NeoVision 120 tape configurations will be cut and sealed by GM Lighting to your specifications. No field modifications allowed.
*Included with every tape section
3.Pick Mounting Options
NV120S-MC-FC Front Clip, 20 Clips/40 Screws
NV120S-MC-A Back Mounting Clip, 20 Clips/20 Screws
NV120S-CHL-A4 4 ft Channel with 4 Screws
NV120S-CHL-A6 6 ft Channel with 8 Screws
NV120S-FLEX-CHL-10 SideFlex 10 ft Channel with 22 Screws
Right Feed for NV120S-HW-8-SFR
NV120S-HW-PC-8-SFR
(End Cap)
MANHATTAN
NeoVision120 TopFlex
120VAC Neon LED Tape Specification Sheet
1.Select Tape
All NeoVision 120 tape configurations will be cut and sealed by GM Lighting to your specifications. No field modifications allowed.
ACCESSORIES
2.Pick Feed 3.Pick Mounting Options
NV120T-HW-8-EF Hardwire End Feed w/Filter & 8A Fuse
NV120T-MC-A Back Mounting Clip, 20 Clips/20 Screws
NV120T-CHL-A4 4 ft Channel with 4 Screws
NV120T-CHL-A6 6 ft Channel with 8 Screws
NV120T-FLEX-CHL-10 SideFlex 10 ft Channel with 22 Screws
Bottom Feed for NV120T-HW-8-BF
NV120T-HW-PC-8-BF *NV120T (End Cap)
VorteXLED Specification Series ®
5.8W, 24VDC ASYMMETRIC
LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6 inches increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• Asymmetric distribution, 45° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens SPECIFICATIONS
ELECTRICAL
•24VDC
•5.8 watts per foot
OPTICS
•90+ CRI
•Class 2 •IP65
WARRANTY
•5-year warranty when paired with GM power supply
ORDERING INFORMATION Example: VTX-A-24V-5.8W-27K-16
Note: Includes 48” leads. Factory sealed.
ACCESSORIES
VTX-TTC24 24in tape to tape connector
VTX-PCHW8 8ft. hardwired power feed
VTX-PCHW8-AF 8ft. hardwired power feed - alternate feed
VTX-EC Tape end cap
Note: For compatible channels, see next page.
Accessories included in factory assembled components. See selecting feed direction in this document to choose power feed.
VorteXLED Specification Series ®
5.8W, 24VDC ASYMMETRIC
LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6 inches increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• Asymmetric distribution, 45° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens SPECIFICATIONS
ELECTRICAL
•24VDC
•5.8 watts per foot
OPTICS
•90+ CRI
•Class 2 •IP65
WARRANTY
•5-year warranty when paired with GM power supply
ORDERING INFORMATION Example: VTX-A-24V-5.8W-27K-16
Note: Includes 48” leads. Factory sealed.
ACCESSORIES
VTX-PCHW8 8ft. hardwired power feed
VTX-PCHW8-AF 8ft. hardwired power feed - alternate feed
VTX-EC Tape end cap
Note: For compatible channels, see next page.
Accessories included in factory assembled components. See selecting feed direction in this document to choose power feed.
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail:
PRODUCT IMAGES & DIMENSIONS
NIO-4RNDC
Compatible Housings
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
3000K-2000K, 90+ CRI S Solite Glass (provided standard) WH White BL Black Integral Dimming Driver Housings NCEC Economical new construction tray NCIC Insulation-contact rated, airtight
New Construction (for use with EM10C battery only) Universal Voltage 120V-277V UNV-D22 ERP Trimode (0-10V and Phase 2-wire), 1% 120V Only 120V-D21 Phase Dimming Driver, 1%
Pair of butterfly brackets for vertical adjustment of Primary NXT housings
PFBK-CB27
Pair of butterfly brackets for vertical adjustment of Primary NXT housings with 27" Channel Bar
PFBK-CB32
Pair of butterfly brackets for vertical adjustment of Primary NXT housings with 32" Channel Bar
PFBK-CB52
Pair of butterfly brackets for vertical adjustment of Primary NXT housings with 52" Channel Bar
None
SPAK Spackle frame accessory
IMPORTANT NOTES
UL2043 rated for use in air handling plenums. Rated for use in steam rooms and saunas, up to 15W maximum.
● Housing ships with integral nailer bars provided standard. These mounting accessories are required for grid ceiling applications. Specify PFBK accessory for butterfly brackets
● which allow for in-place housing height adjustment. To install with channel bars, specify a PFBK-CB kit
Dry/damp/wet location rated for bathrooms and showers
● Integral emergency battery is CEC Title 20 Compliant. Test switch is dry/damp location rated only, and requires above ceiling access for service.
● Downlight trims ship with 50° wide beam reflector installed; field replaceable 30° medium beam optic included with trim for field changes.
NHIOICD-415
/ NHIOICD-420 / NHIOICD-425
NHIOICDCP-415 / NHIOICDCP-420 / NHIOICDCP-425
4" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box allowing below ceiling access. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3’ cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim)
Primary NXT BeveLED Mini - P3RD-NXT 3" Round Downlight
usailighting.com/primarynxt
Primary NXT provides consistent, high quality white light in an economical architectural solution.
FEATURES
• A complete range of color temperature options in 80+ and 90+ CRI
• Dim to Warm LED choices
• Downlight, adjustable and wallwash configurations
• Dry/damp/wet location rated for bathrooms and showers
• Dimmable to 1%
• High LED performance with budget-conscious features
• CEC Title 20 Compliant EM battery option
PRIMARY NXT PERFORMANCE
CRI: 80+ 90+ 80+ 90+ 90+
Source Lumens: 1075 900 1575 1325 1100
Delivered Lumens: 650 550 950 800 750
Lumens Per Watt: 74 62 68 57 51
CORRELATED COLOR
for Lumen Output:
08/03/2025
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail:
PRODUCT IMAGES & DIMENSIONS
NIO-4RNDC
Compatible Housings
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
3000K-2000K, 90+ CRI S Solite Glass (provided standard) WH White BL Black Integral Dimming Driver Housings NCEC Economical new construction tray NCIC Insulation-contact rated, airtight
New Construction (for use with EM10C battery only) Universal Voltage 120V-277V UNV-D22 ERP Trimode (0-10V and Phase 2-wire), 1% 120V Only 120V-D21 Phase Dimming Driver, 1%
Pair of butterfly brackets for vertical adjustment of Primary NXT housings
PFBK-CB27
Pair of butterfly brackets for vertical adjustment of Primary NXT housings with 27" Channel Bar
PFBK-CB32
Pair of butterfly brackets for vertical adjustment of Primary NXT housings with 32" Channel Bar
PFBK-CB52
Pair of butterfly brackets for vertical adjustment of Primary NXT housings with 52" Channel Bar
None
SPAK Spackle frame accessory
IMPORTANT NOTES
UL2043 rated for use in air handling plenums. Rated for use in steam rooms and saunas, up to 15W maximum.
● Housing ships with integral nailer bars provided standard. These mounting accessories are required for grid ceiling applications. Specify PFBK accessory for butterfly brackets
● which allow for in-place housing height adjustment. To install with channel bars, specify a PFBK-CB kit
Dry/damp/wet location rated for bathrooms and showers
● Integral emergency battery is CEC Title 20 Compliant. Test switch is dry/damp location rated only, and requires above ceiling access for service.
● Downlight trims ship with 50° wide beam reflector installed; field replaceable 30° medium beam optic included with trim for field changes.
NHIOICD-415
/ NHIOICD-420 / NHIOICD-425
NHIOICDCP-415 / NHIOICDCP-420 / NHIOICDCP-425
4" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box allowing below ceiling access. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3’ cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim)
Kurba Grazer 3DTM Static White Field Bendable 24V System
Features
Kurba Grazer 3DTM is a wall grazing, energy efficient and flexible LED strip suitable for wet locations capable of vertical/top bends down to 8” radius and Horizontal/side bends up down 16” radius . The silicone material offers excellent heat, weather, UV, and solvent resistance and has a special coating to repel dust and dirt accumulationn.
Applications
Outdoor wet location
Operating Voltage
24VDC
Operating Temperature
-40˚F to 131˚F (-40˚C to 55˚C)
Average Life (L70)
50,000 hours
Finish Options
Technical Information
Note:
Lengths
Constraints
Dimming
100% - 1% Dimming with compatible power supply
Approvals
Class 2 wet listed, IP67
Warranty 3 years
PROJECT: TYPE: QUANTITY:
CRI
Optical Distribution
18K, 22K, 27K, 3K, 35K, 4K, 65K, 27K+65K RGB, RGBW, RGBDMX, DIM TO WARM
Aluminum mounting channel providing grip. For use with light strip mounted to the ceiling.
NOTE: HB - Horizontal Bending Only
LVSP-WET
Splice box: wet rated, low voltage, gray LVSP-WET
Aluminum mounting bracket providing grip. For use with light strip mounted to the ceiling.
NOTE: VB - Vertical Bending Only
LVSP-WET-CM
Connector for splice box, low voltage for cable management, gray LVSP-WET-CM 1.30" 0.87"
MANHATTAN
Kurba Grazer 3DTM Static White Field Bendable 24V System
Features
Kurba Grazer 3DTM is a wall grazing, energy efficient and flexible LED strip suitable for wet locations capable of vertical/top bends down to 8” radius and Horizontal/side bends up down 16” radius . The silicone material offers excellent heat, weather, UV, and solvent resistance and has a special coating to repel dust and dirt accumulationn.
Applications
Outdoor wet location
Operating Voltage
24VDC
Operating Temperature
-40˚F to 131˚F (-40˚C to 55˚C)
Average Life (L70)
50,000 hours
Finish Options
Technical Information
Note:
Lengths
Constraints
Dimming
100% - 1% Dimming with compatible power supply
Approvals
Class 2 wet listed, IP67
Warranty 3 years
PROJECT: TYPE: QUANTITY:
CRI
Optical Distribution
18K, 22K, 27K, 3K, 35K, 4K, 65K, 27K+65K RGB, RGBW, RGBDMX, DIM TO WARM
Aluminum mounting channel providing grip. For use with light strip mounted to the ceiling.
NOTE: HB - Horizontal Bending Only
LVSP-WET
Splice box: wet rated, low voltage, gray LVSP-WET
Aluminum mounting bracket providing grip. For use with light strip mounted to the ceiling.
NOTE: VB - Vertical Bending Only
LVSP-WET-CM
Connector for splice box, low voltage for cable management, gray LVSP-WET-CM 1.30" 0.87"
MANHATTAN
TYPE F8 SPEC
LTR-S Specification Series
1.5W / 3W COB (Chip On Board)
LED Tape Specification Sheet
PRODUCT OVERVIEW
The newest technology in flexible LED tape is the COB (Chip On Board). Tightly spaced diodes are encapsulated into a single phosphor strip that provides a seamless linear light display with no LED pixelation. Available in 2700K, 3000K, 3500K and 4000K.
FEATURES
• 24VDC
• 2700K, 3000K, 3500K and 4000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 156 LEDs per foot
• Cuttable every 2”
• 180° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 32’-8”
• Includes Sure-Tite connectors
SPECIFICATIONS
ELECTRICAL
•24V
•1.5 / 3 watts per foot
OPTICS
•95+ CRI
Project Name Type
Catalog
CERTIFICATION
•UL
•Title 24 compliant when used with specific drivers. Consult factory.
•Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space.
WARRANTY
•5-year warranty when paired with GM power supply.
LTR-S Specification Series
1.5W
/
3W COB (Chip On Board) LED Tape Specification Sheet
PRODUCT OVERVIEW
The newest technology in flexible LED tape is the COB (Chip On Board). Tightly spaced diodes are encapsulated into a single phosphor strip that provides a seamless linear light display with no LED pixelation. Available in 2700K, 3000K, 3500K and 4000K.
FEATURES
• 24VDC
• 2700K, 3000K, 3500K and 4000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 156 LEDs per foot
• Cuttable every 2”
• 180° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 32’-8”
• Includes Sure-Tite connectors
SPECIFICATIONS
ELECTRICAL
•24V
•1.5 / 3 watts per foot
CERTIFICATION
•95+ CRI •UL
Project
•Title 24 compliant when used with specific drivers. Consult factory.
•Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space.
•5-year warranty when paired with GM power supply. OPTICS
WARRANTY
LTR-S Specification Series ®
1.5W / 3W COB (Chip On Board) LED Tape Specification Sheet
LTR-S Specification Series ®
1.5W / 3W COB (Chip On Board) LED Tape Specification Sheet
COMPATIBLE CHANNELS- FIT CONNECTORS ON PG. 1
45º ANGLE MOUNT
Catalog
LED-CHL-45 Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-45-EC (2) End caps for LED-CHL-45 - one solid, one with hole
LED-CHL-45-MC (2) Mounting clips and screws for LED-CHL-45
45º LARGE ANGLE MOUNT
LED-CHL-45-1200
Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-45-1200-EC (2) End caps for LED-CHL-45 - one solid, one with hole
LED-CHL-45-1200-MC (2)
LED-CHL-W Wide format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-W-6 Wide format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 6’
LED-CHL-W-AMC (2) Adjustable mounting brackets for LED-CHL-W
LED-CHL-W-EC (2) End caps for LED-CHL-W - one solid, one with hole.
(2) Additional mounting clips for LED-CHL-W
MUD IN - STANDARD
LED-CHL-MI-ST6 Standard extruded aluminum mud-in channel. Includes snap-on frosted lens.
LED-CHL-MI-ST-EC (2) End caps for LED-CHL-MI-ST6 one solid, one with hole.
STANDARD STRAIGHT
LED-CHL2-4-CA Silver channel, white lens (2) mounting clips, (2) screws
LED-CHL2-4-WH White channel, white lens (2) mounting clips, (2) screws
LED-CHL2-4-BK Black channel, white lens (2) mounting clips, (2) screws
LED-CHL2-6-WH White channel, whilte lens, (4) mounting clips, (4) screws
LED-CHL2-6-BK Black channel, whilte lens, (4) mounting clips, (4) screws
LED-CHL2 LENS-4-BK Lens in black for LED-CHL2-4
LED-CHL2 LENS-6-BK Lens in black for LED-CHL2-6
LED-CHL2-ECG (2) End caps for LED-CHL2-CA: light gray, one solid, one with hole
LED-CHL2-ECW (2) End caps for LED-CHL2-WH: white, one solid, one with hole
LED-CHL2-ECB (2) End caps for LED-CHL2-BK: black, one solid, one with hole N/A
LED-CHL2-MC (2) Mounting clips and (2) screws N/A
LED-CHL2-AMC (2) Adjustable mounting clips and (2) screws
LTR-S Specification Series ®
1.5W / 3W COB (Chip On Board)
LED Tape Specification Sheet
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole
LED-CHL-MC (2) Additional mounting clips for LED-CHL
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'

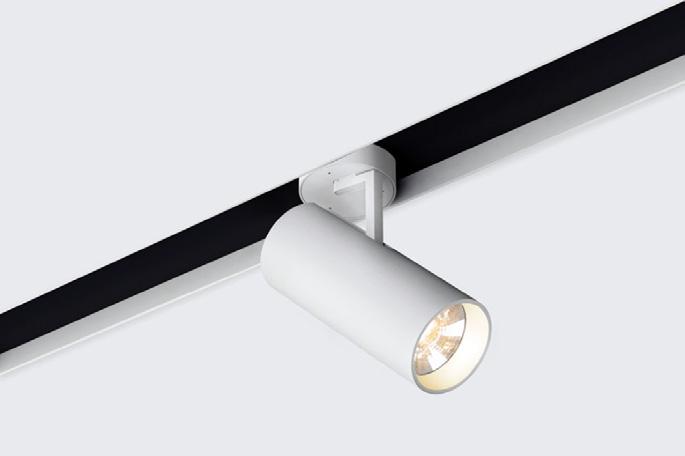

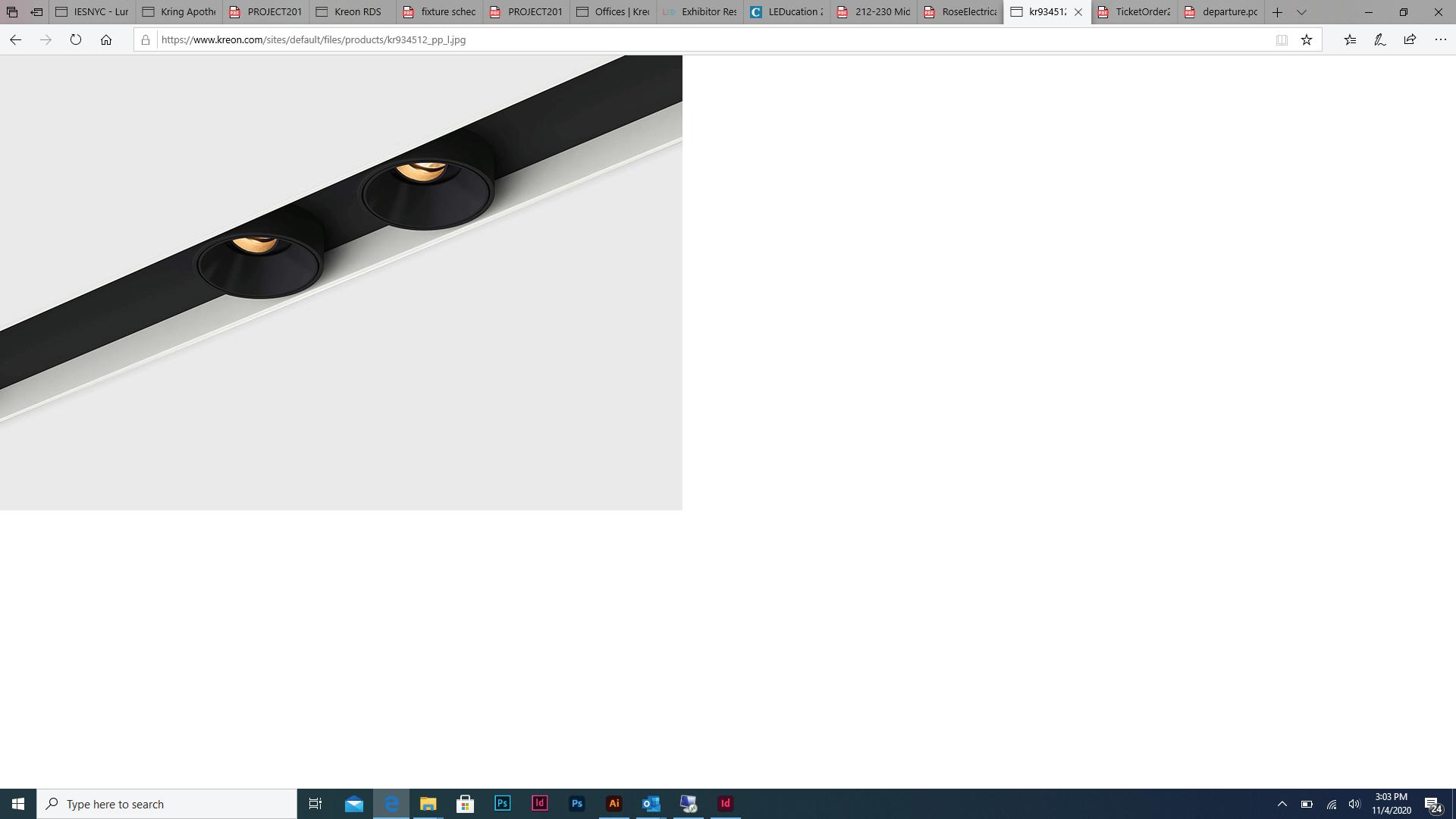

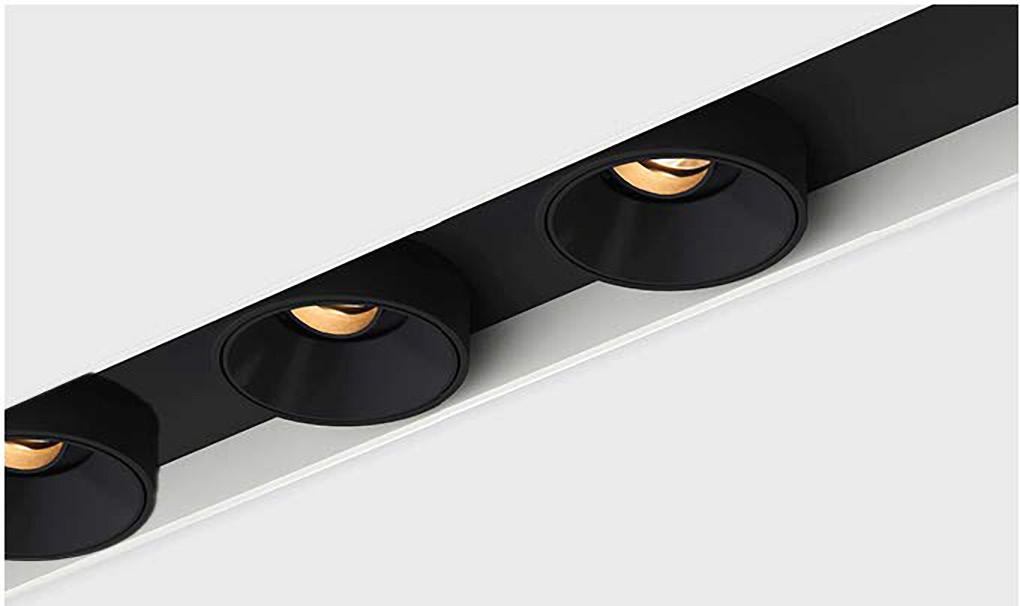

cana 80
the Cana 80 linear system offers the designer incredible flexibility to combine single, double, round, square, mono-point, or continuously lit linear segments in virtually any configuration imaginable within an architecturally detailed regressed channel system. Cana systems are made to order for each project. to customize each run, please use the configuration sequence below. Configurations can be remodeled in the field without removing the recessed channel, but may require additional components from Kreon. the Cana 80 series are made to measure to suit many architectural needs. each run will consist of a linear aluminum profile/channel, and different types of lighting elements. to place an order, please follow these steps to specify each unique run or type. First choose the channel details (length, finish color, mounting condition, etc), then select details for each lighting element you want to specify. transfer individual codes to section at bottom for final specification. Lighting configuration determined via shop drawings
Date: Customer:
project:
type: Qty:
Order codes:
kreon cana 80 system channel length (in.) channel finish channel faceplate finish¹ fixture finish¹ mounting option ceiling type dimming CANA80 CANA 102mm ~4” outer Channel length in inches. Use three numbers, for example, 92 inches would be 092. (Consult factory for increments smaller than 1”)
Dimming (1%);
(0%);
Ordering example:
+ (see page 2)
1 Consult factory for custom RAL finish color options.
2 CeC & JA8 compliant.
2 System available with 90 degree o
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Lighting element Ordering example: KUCANA-80-hOL1-BL-30-90-Sp-DL-3
*See page 9/consult factory
1 Options only available for CRI90
2 Maximum (1) accessory per fixture
NHIOICD-215 / NHIOICD-220 / NHIOICD-225
NHIOICDCP-215 / NHIOICDCP-220 / NHIOICDCP-225
2" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-2 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Access above ceiling required. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) 5-Year Limited Warranty
· RoHS compliant FCC compliant Patent #D824567S
Meets or exceeds ASTM-283 Air-Tight requirements
New Construction Housing - Compatible with NIOB-2 & NIO-2 trims
Housing Type / Lumens / Wattage Driver / Dimming
NHIOICD-215 = IC Air-Tight, 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum, 1500lm / 20W
NHIOICD-220 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum, 2000lm / 24W
NHIOICD-225 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
DAL = 120-277V input; DALI 1% dimming
Optional Emergency
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
Example: NHIOICD-220LE4 = 2" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V input; Triac / ELV / 0-10V dimming
the Cana 80 linear system offers the designer incredible flexibility to combine single, double, round, square, mono-point, or continuously lit linear segments in virtually any configuration imaginable within an architecturally detailed regressed channel system. Cana systems are made to order for each project. to customize each run, please use the configuration sequence below. Configurations can be remodeled in the field without removing the recessed channel, but may require additional components from Kreon. the Cana 80 series are made to measure to suit many architectural needs. each run will consist of a linear aluminum profile/channel, and different types of lighting elements. to place an order, please follow these steps to specify each unique run or type. First choose the channel details (length, finish color, mounting condition, etc), then select details for each lighting element you want to specify. transfer individual codes to section at bottom for final specification. Lighting configuration determined via shop drawings
dimming CANA80 CANA 102mm ~4” outer Channel length in inches. Use three numbers, for example, 92 inches would be 092. (Consult factory for increments smaller than 1”)
example:
1 Consult factory for custom RAL finish color options.
2 CeC & JA8 compliant.
2 System available with 90 degree o
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Lighting element Ordering example: KUCANA-80-hOL1-BL-30-90-Sp-DL-3
*See page 9/consult factory
1 Options only available for CRI90
2 Maximum (1) accessory per fixture
NHIOICD-215 / NHIOICD-220 / NHIOICD-225
NHIOICDCP-215 / NHIOICDCP-220 / NHIOICDCP-225
2" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-2 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Access above ceiling required. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) 5-Year Limited Warranty
· RoHS compliant FCC compliant Patent #D824567S
Meets or exceeds ASTM-283 Air-Tight requirements
New Construction Housing - Compatible with NIOB-2 & NIO-2 trims
Housing Type / Lumens / Wattage Driver / Dimming
NHIOICD-215 = IC Air-Tight, 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum, 1500lm / 20W
NHIOICD-220 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum, 2000lm / 24W
NHIOICD-225 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
DAL = 120-277V input; DALI 1% dimming
Optional Emergency
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
Example: NHIOICD-220LE4 = 2" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V input; Triac / ELV / 0-10V dimming
the Cana 80 linear system offers the designer incredible flexibility to combine single, double, round, square, mono-point, or continuously lit linear segments in virtually any configuration imaginable within an architecturally detailed regressed channel system. Cana systems are made to order for each project. to customize each run, please use the configuration sequence below. Configurations can be remodeled in the field without removing the recessed channel, but may require additional components from Kreon. the Cana 80 series are made to measure to suit many architectural needs. each run will consist of a linear aluminum profile/channel, and different types of lighting elements. to place an order, please follow these steps to specify each unique run or type. First choose the channel details (length, finish color, mounting condition, etc), then select details for each lighting element you want to specify. transfer individual codes to section at bottom for final specification. Lighting configuration determined via shop drawings
Date: Customer:
project:
type: Qty:
Order codes:
kreon cana 80 system channel length (in.) channel finish channel faceplate finish¹ fixture finish¹ mounting option ceiling type dimming CANA80 CANA 102mm ~4” outer Channel length in inches. Use three numbers, for example, 92 inches would be 092. (Consult factory for increments smaller than 1”)
Dimming (1%);
(0%);
Ordering example:
+ (see page 2)
1 Consult factory for custom RAL finish color options.
2 CeC & JA8 compliant.
2 System available with 90 degree o
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Lighting element Ordering example: KUCANA-80-hOL1-BL-30-90-Sp-DL-3
*See page 9/consult factory
1 Options only available for CRI90
2 Maximum (1) accessory per fixture
NHIOICD-215 / NHIOICD-220 / NHIOICD-225
NHIOICDCP-215 / NHIOICDCP-220 / NHIOICDCP-225
2" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-2 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Access above ceiling required. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) 5-Year Limited Warranty
· RoHS compliant FCC compliant Patent #D824567S
Meets or exceeds ASTM-283 Air-Tight requirements
New Construction Housing - Compatible with NIOB-2 & NIO-2 trims
Housing Type / Lumens / Wattage Driver / Dimming
NHIOICD-215 = IC Air-Tight, 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum, 1500lm / 20W
NHIOICD-220 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum, 2000lm / 24W
NHIOICD-225 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
DAL = 120-277V input; DALI 1% dimming
Optional Emergency
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
Example: NHIOICD-220LE4 = 2" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V input; Triac / ELV / 0-10V dimming
the Cana 80 linear system offers the designer incredible flexibility to combine single, double, round, square, mono-point, or continuously lit linear segments in virtually any configuration imaginable within an architecturally detailed regressed channel system. Cana systems are made to order for each project. to customize each run, please use the configuration sequence below. Configurations can be remodeled in the field without removing the recessed channel, but may require additional components from Kreon. the Cana 80 series are made to measure to suit many architectural needs. each run will consist of a linear aluminum profile/channel, and different types of lighting elements. to place an order, please follow these steps to specify each unique run or type. First choose the channel details (length, finish color, mounting condition, etc), then select details for each lighting element you want to specify. transfer individual codes to section at bottom for final specification. Lighting configuration determined via shop drawings
Date: Customer:
project:
type: Qty:
Order codes:
kreon cana 80 system channel length (in.) channel finish channel faceplate finish¹ fixture finish¹ mounting option ceiling type dimming CANA80 CANA 102mm ~4” outer Channel length in inches. Use three numbers, for example, 92 inches would be 092. (Consult factory for increments smaller than 1”)
Dimming (1%);
(0%);
Ordering example:
+ (see page 2)
1 Consult factory for custom RAL finish color options.
2 CeC & JA8 compliant.
2 System available with 90 degree o
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Lighting element Ordering example: KUCANA-80-hOL1-BL-30-90-Sp-DL-3
*See page 9/consult factory
1 Options only available for CRI90
2 Maximum (1) accessory per fixture
NHIOICD-215 / NHIOICD-220 / NHIOICD-225
NHIOICDCP-215 / NHIOICDCP-220 / NHIOICDCP-225
2" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-2 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Access above ceiling required. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) 5-Year Limited Warranty
· RoHS compliant FCC compliant Patent #D824567S
Meets or exceeds ASTM-283 Air-Tight requirements
New Construction Housing - Compatible with NIOB-2 & NIO-2 trims
Housing Type / Lumens / Wattage Driver / Dimming
NHIOICD-215 = IC Air-Tight, 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum, 1500lm / 20W
NHIOICD-220 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum, 2000lm / 24W
NHIOICD-225 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
DAL = 120-277V input; DALI 1% dimming
Optional Emergency
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
Example: NHIOICD-220LE4 = 2" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V input; Triac / ELV / 0-10V dimming
the Cana 80 linear system offers the designer incredible flexibility to combine single, double, round, square, mono-point, or continuously lit linear segments in virtually any configuration imaginable within an architecturally detailed regressed channel system. Cana systems are made to order for each project. to customize each run, please use the configuration sequence below. Configurations can be remodeled in the field without removing the recessed channel, but may require additional components from Kreon. the Cana 80 series are made to measure to suit many architectural needs. each run will consist of a linear aluminum profile/channel, and different types of lighting elements. to place an order, please follow these steps to specify each unique run or type. First choose the channel details (length, finish color, mounting condition, etc), then select details for each lighting element you want to specify. transfer individual codes to section at bottom for final specification. Lighting configuration determined via shop drawings
Date: Customer:
project:
type: Qty:
Order codes:
kreon cana 80 system channel length (in.) channel finish channel faceplate finish¹ fixture finish¹ mounting option ceiling type dimming CANA80 CANA 102mm ~4” outer Channel length in inches. Use three numbers, for example, 92 inches would be 092. (Consult factory for increments smaller than 1”)
Dimming (1%);
Ordering example:
+ (see page 2)
1 Consult factory for custom RAL finish color options.
2 CeC & JA8 compliant.
2 System available with 90 degree o
MANHATTAN
Carisma® 2”
Recessed Linear
PROJECT:
Features
TYPE:
Carisma® Recessed is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma®’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . Wide range of ceiling trim options accommodate most ceiling types.
The Carisma® Recessed offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma® can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounted options, providing designers with the versatility to light up a space with their Carisma®.
Product Overview
Type: Direct distributrion with Recessed Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
CRI: 80+ typ. or 90+ typ.
Dimming (wired): 0-10V, 1% dim (standard) Lutron LDE1 Hi-lume® 1% Soft-On/Fade-to-Black DALI, 1% dim
BN-BT-OCC-WH-SR BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, D4i/DALI-2
BN-BT-OCC-WH-010 BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, 0-10V
EMC-PF2 emergency circuit requires power feed located in last fixture section (for other locations consult factory)
PF2 Extra power feed for additional circuiting
EMB emergency battery pack (not available for lengths under 4')
1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.
2 Not available with IND (individual) configuration.
cana 80
the Cana 80 linear system offers the designer incredible flexibility to combine single, double, round, square, mono-point, or continuously lit linear segments in virtually any configuration imaginable within an architecturally detailed regressed channel system. Cana systems are made to order for each project. to customize each run, please use the configuration sequence below. Configurations can be remodeled in the field without removing the recessed channel, but may require additional components from Kreon. the Cana 80 series are made to measure to suit many architectural needs. each run will consist of a linear aluminum profile/channel, and different types of lighting elements. to place an order, please follow these steps to specify each unique run or type. First choose the channel details (length, finish color, mounting condition, etc), then select details for each lighting element you want to specify. transfer individual codes to section at bottom for final specification. Lighting configuration determined via shop drawings
Date: Customer:
project:
type: Qty:
Order codes:
kreon cana 80 system channel length (in.) channel finish channel faceplate finish¹ fixture finish¹ mounting option ceiling type dimming CANA80 CANA 102mm ~4” outer Channel length in inches. Use three numbers, for example, 92 inches would be 092. (Consult factory for increments smaller than 1”)
Dimming (1%);
Ordering example:
+ (see page 2)
1 Consult factory for custom RAL finish color options.
2 CeC & JA8 compliant.
2 System available with 90 degree o
Carisma® 2”
Recessed Linear
PROJECT:
Features
TYPE:
Carisma® Recessed is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma®’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . Wide range of ceiling trim options accommodate most ceiling types.
The Carisma® Recessed offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma® can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounted options, providing designers with the versatility to light up a space with their Carisma®.
Product Overview
Type: Direct distributrion with Recessed Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
CRI: 80+ typ. or 90+ typ.
Dimming (wired): 0-10V, 1% dim (standard) Lutron LDE1 Hi-lume® 1% Soft-On/Fade-to-Black DALI, 1% dim
BN-BT-OCC-WH-SR BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, D4i/DALI-2
BN-BT-OCC-WH-010 BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, 0-10V
EMC-PF2 emergency circuit requires power feed located in last fixture section (for other locations consult factory)
PF2 Extra power feed for additional circuiting
EMB emergency battery pack (not available for lengths under 4')
1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.
2 Not available with IND (individual) configuration.
cana 80
the Cana 80 linear system offers the designer incredible flexibility to combine single, double, round, square, mono-point, or continuously lit linear segments in virtually any configuration imaginable within an architecturally detailed regressed channel system. Cana systems are made to order for each project. to customize each run, please use the configuration sequence below. Configurations can be remodeled in the field without removing the recessed channel, but may require additional components from Kreon. the Cana 80 series are made to measure to suit many architectural needs. each run will consist of a linear aluminum profile/channel, and different types of lighting elements. to place an order, please follow these steps to specify each unique run or type. First choose the channel details (length, finish color, mounting condition, etc), then select details for each lighting element you want to specify. transfer individual codes to section at bottom for final specification. Lighting configuration determined via shop drawings
Date: Customer:
project:
type: Qty:
Order codes:
kreon cana 80 system channel length (in.) channel finish channel faceplate finish¹ fixture finish¹ mounting option ceiling type dimming CANA80 CANA 102mm ~4” outer Channel length in inches. Use three numbers, for example, 92 inches would be 092. (Consult factory for increments smaller than 1”)
Dimming (1%);
Ordering example:
+ (see page 2)
1 Consult factory for custom RAL finish color options.
2 CeC & JA8 compliant.
2 System available with 90 degree o
Carisma® 2”
Recessed Linear
PROJECT:
Features
TYPE:
Carisma® Recessed is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma®’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . Wide range of ceiling trim options accommodate most ceiling types.
The Carisma® Recessed offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma® can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounted options, providing designers with the versatility to light up a space with their Carisma®.
Product Overview
Type: Direct distributrion with Recessed Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
CRI: 80+ typ. or 90+ typ.
Dimming (wired): 0-10V, 1% dim (standard) Lutron LDE1 Hi-lume® 1% Soft-On/Fade-to-Black DALI, 1% dim
BN-BT-OCC-WH-SR BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, D4i/DALI-2
BN-BT-OCC-WH-010 BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, 0-10V
EMC-PF2 emergency circuit requires power feed located in last fixture section (for other locations consult factory)
PF2 Extra power feed for additional circuiting
EMB emergency battery pack (not available for lengths under 4')
1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.
2 Not available with IND (individual) configuration.
2
Project:
Type:
DESCRIPTION
Visual interest and versatility come together in Arro, our family of pendants easily recognizable by their triangular prism form. Despite its compact 2” base and height, Arro 2 is big with offerings including Direct distribution, continuous-run capacity with maximum 8’ segments, three stylish forms (rectangle, square, and triangle), and both X and Y spokes.
Carisma® 2”
Linear Direct
PROJECT:
Features
TYPE:
Carisma® Pendant is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma®’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . A tailored end cap design and Amerlux’s trusted catch-andlatch mechanism prevents all light leakage.
The Carisma® Pendant offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma® can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounting options, providing designers with the versatility to light up a space with their Carisma®.
Product Overview
Type: Direct distributrion with Pendant, Surface or Wall Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
BN-BT-OCC-WH-SR BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, D4i/DALI-2
BN-BT-OCC-WH-010 BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, 0-10V
1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.
2 Not available with IND (individual) configuration.
CAVA T 2x2 LED RECESSED
DESCRIPTION
Cava T provides a pleasant canopy of gentle luminescence that brightens everyday work spaces as well as special areas. Cava T is available in 1x4 and 2x2 modules for a variety of ceiling conditions.
PROJECT:
TYPE:
NOTES:
Cava T is an ideal vehicle for ChromaWerx color tuning in education, office, and healthcare applications where modular recessed luminaires are used.
Less than 0.1% copper content – Marine Grade 6060 extruded & LM6 Aluminum High Pressure die casting provides excellent mechanical strength , clean detailed product lines and excellent heat dissipation.
Pre paint
8 step degrease and phosphate process that includes deoxidizing and etching as well as a zinc and nickel phosphate process before product painting.
Memory Retentive -Silicon Gasket
Provided with special injection molded “fit for purpose” long life high temperature memory retentive silicon gaskets. Maintains the gaskets exact profile and seal over years of use and compression.
Thermal management
LM6 Aluminum is used for its excellent mechanical strength and thermal dissipation properties in low and high ambient temperatures. The superior thermal heat sink design by Ligman used in conjunction with the driver, controls thermals below critical temperature range to ensure maximum luminous flux output, as well as providing long LED service life and ensuring less than 10% lumen depreciation at 50,000 hours.
Surge Suppression
Standard 10kv surge suppressor provided with all fixtures.
BUG Rating B0 - U3 - G1
Finishing
All Ligman products go through an extensive finishing process that includes fettling to improve paint adherence.
Paint UV Stabilized 4.9Mil thick powder coat paint and baked at 200 Deg C. This process ensures that Ligman products can withstand harsh environments. Rated for use in natatoriums.
Inspired by Nature Finishes
The Inspired by nature Finishing is a unique system of decorative powder coating. Our metal decoration process can easily transform the appearance of metal or aluminum product into a wood grain finish.
This patented technology enables the simulation of wood grain, and even marble or granite finish through the use of decorative powder coating.
The wood grain finish is so realistic that it’s almost undistinguishable from real wood, even from a close visual inspection. The system of coating permeates the entire thickness of the coat and as a result, the coating cannot be removed by normal rubbing, chipping, or scratching.
The Coating Process
Mounting Detail
After pre-treatment the prepared parts are powder coated with a specially formulated polyurethane powder. This powder provides protection against wear, abrasion, impact and corrosion and acts as the relief base color for the finalized metal decoration.
The component is then wrapped with a sheet of non-porous film with the selected decoration pattern printed on it using special high temperature inks.
This printed film transfer is vacuum-sealed to the surface for a complete thermo print and then transferred into a customized oven. The oven transforms the ink into different forms within the paint layer before it becomes solid. Finally, the film is removed, and a vivid timber look on aluminum remains.
Wood grain coating can create beautiful wood-looking products of any sort. There are over 300 combinations of designs currently in use. Wood grains can be made with different colors, designs, etc.
Our powder coatings are certified for indoor and outdoor applications and are backed by a comprehensive warranty. These coatings rise to the highest conceivable standard of performance excellence and design innovation.
Added Benefits
• Resistance to salt-acid room, accelerated aging
• Boiling water, lime and condensed water resistant
Provided Hardware is Marine grade 316 Stainless steel.
Anti Seize Screw Holes
Tapped holes are infused with a special anti seize compound designed to prevent seizure of threaded connections, due to electrolysis from heat, corrosive atmospheres and moisture.
High Impact Acrylic Lens
Manufactured with Ultra High Impact, Naturally UV Stabilized Extruded Acrylic.
Optics & LED
Precise optic design provides exceptional light control and precise distribution of light. LED CRI > 80
Lumen - Maintenance Life
L80 /B10 at 50,000 hours (This means that at least 90% of the LED still achieve 80% of their original flux)
Wide-distribution bollard fixture.
Clean and effortlessly simple design bollard family with perfectly controlled wide-reaching light throw.
The innovative reflector technology of the Lightwave bollard guarantees a high degree of efficiency and optimal visual comfort. Lightwave has been developed to have excellent controlled downward light providing wide spacing ratios. The Lightwave is available in a straight or tapered shape design with two different heights.
The Lightwave Bollard comes standard with a unique waterproof internal driver housing compartment that is situated at the top of the pole to stop water and dust from entering the electrical components. This fixture is supplied completely wired with powercord and waterproof gland from the driver enclosure to the base of the bollard ensuring quick trouble-free installation. Custom bollard heights are available, please specify. Color temperature 2700K, 3000K, 3500K and 4000K. Custom wattages can be provided to suit customer and Title 24 requirements. (Specify total watts per fixture)
All Ligman fixtures can be manufactured using a special pre-treatment and coating process that ensures the fixture can be installed in natatoriums as well as environments with high concentrations of chlorine or salt and still maintain the 5 year warranty. For this natatorium rated process please specify NAT in options.
Additional Options (Consult Factory For Pricing)
10” Bollard Height
BLANK
NAT - Natatorium Rated
HGT - Custom Bollard Height [Specify HGT=XX”]
DIM - 0-10v Dimming
10 - 10” Bollard Height AMB - Turtle Friendly Amber LED A91591 - Lockable In Use GFCI Receptacle Outlet Box
CAVA T 2x2 LED RECESSED
DESCRIPTION
Cava T provides a pleasant canopy of gentle luminescence that brightens everyday work spaces as well as special areas. Cava T is available in 1x4 and 2x2 modules for a variety of ceiling conditions.
PROJECT:
TYPE:
NOTES:
Cava T is an ideal vehicle for ChromaWerx color tuning in education, office, and healthcare applications where modular recessed luminaires are used.
Less than 0.1% copper content – Marine Grade 6060 extruded & LM6 Aluminum High Pressure die casting provides excellent mechanical strength , clean detailed product lines and excellent heat dissipation.
Pre paint
8 step degrease and phosphate process that includes deoxidizing and etching as well as a zinc and nickel phosphate process before product painting.
Memory Retentive -Silicon Gasket
Provided with special injection molded “fit for purpose” long life high temperature memory retentive silicon gaskets. Maintains the gaskets exact profile and seal over years of use and compression.
Thermal management
LM6 Aluminum is used for its excellent mechanical strength and thermal dissipation properties in low and high ambient temperatures. The superior thermal heat sink design by Ligman used in conjunction with the driver, controls thermals below critical temperature range to ensure maximum luminous flux output, as well as providing long LED service life and ensuring less than 10% lumen depreciation at 50,000 hours.
Surge Suppression
Standard 10kv surge suppressor provided with all fixtures.
BUG Rating B0 - U3 - G1
Finishing
All Ligman products go through an extensive finishing process that includes fettling to improve paint adherence.
Paint UV Stabilized 4.9Mil thick powder coat paint and baked at 200 Deg C. This process ensures that Ligman products can withstand harsh environments. Rated for use in natatoriums.
Inspired by Nature Finishes
The Inspired by nature Finishing is a unique system of decorative powder coating. Our metal decoration process can easily transform the appearance of metal or aluminum product into a wood grain finish.
This patented technology enables the simulation of wood grain, and even marble or granite finish through the use of decorative powder coating.
The wood grain finish is so realistic that it’s almost undistinguishable from real wood, even from a close visual inspection. The system of coating permeates the entire thickness of the coat and as a result, the coating cannot be removed by normal rubbing, chipping, or scratching.
The Coating Process
Mounting Detail
After pre-treatment the prepared parts are powder coated with a specially formulated polyurethane powder. This powder provides protection against wear, abrasion, impact and corrosion and acts as the relief base color for the finalized metal decoration.
The component is then wrapped with a sheet of non-porous film with the selected decoration pattern printed on it using special high temperature inks.
This printed film transfer is vacuum-sealed to the surface for a complete thermo print and then transferred into a customized oven. The oven transforms the ink into different forms within the paint layer before it becomes solid. Finally, the film is removed, and a vivid timber look on aluminum remains.
Wood grain coating can create beautiful wood-looking products of any sort. There are over 300 combinations of designs currently in use. Wood grains can be made with different colors, designs, etc.
Our powder coatings are certified for indoor and outdoor applications and are backed by a comprehensive warranty. These coatings rise to the highest conceivable standard of performance excellence and design innovation.
Added Benefits
• Resistance to salt-acid room, accelerated aging
• Boiling water, lime and condensed water resistant
Provided Hardware is Marine grade 316 Stainless steel.
Anti Seize Screw Holes
Tapped holes are infused with a special anti seize compound designed to prevent seizure of threaded connections, due to electrolysis from heat, corrosive atmospheres and moisture.
High Impact Acrylic Lens
Manufactured with Ultra High Impact, Naturally UV Stabilized Extruded Acrylic.
Optics & LED
Precise optic design provides exceptional light control and precise distribution of light. LED CRI > 80
Lumen - Maintenance Life
L80 /B10 at 50,000 hours (This means that at least 90% of the LED still achieve 80% of their original flux)
Wide-distribution bollard fixture.
Clean and effortlessly simple design bollard family with perfectly controlled wide-reaching light throw.
The innovative reflector technology of the Lightwave bollard guarantees a high degree of efficiency and optimal visual comfort. Lightwave has been developed to have excellent controlled downward light providing wide spacing ratios. The Lightwave is available in a straight or tapered shape design with two different heights.
The Lightwave Bollard comes standard with a unique waterproof internal driver housing compartment that is situated at the top of the pole to stop water and dust from entering the electrical components. This fixture is supplied completely wired with powercord and waterproof gland from the driver enclosure to the base of the bollard ensuring quick trouble-free installation. Custom bollard heights are available, please specify. Color temperature 2700K, 3000K, 3500K and 4000K. Custom wattages can be provided to suit customer and Title 24 requirements. (Specify total watts per fixture)
All Ligman fixtures can be manufactured using a special pre-treatment and coating process that ensures the fixture can be installed in natatoriums as well as environments with high concentrations of chlorine or salt and still maintain the 5 year warranty. For this natatorium rated process please specify NAT in options.
Additional Options (Consult Factory For Pricing)
10” Bollard Height
BLANK
NAT - Natatorium Rated
HGT - Custom Bollard Height [Specify HGT=XX”]
DIM - 0-10v Dimming
10 - 10” Bollard Height AMB - Turtle Friendly Amber LED A91591 - Lockable In Use GFCI Receptacle Outlet Box

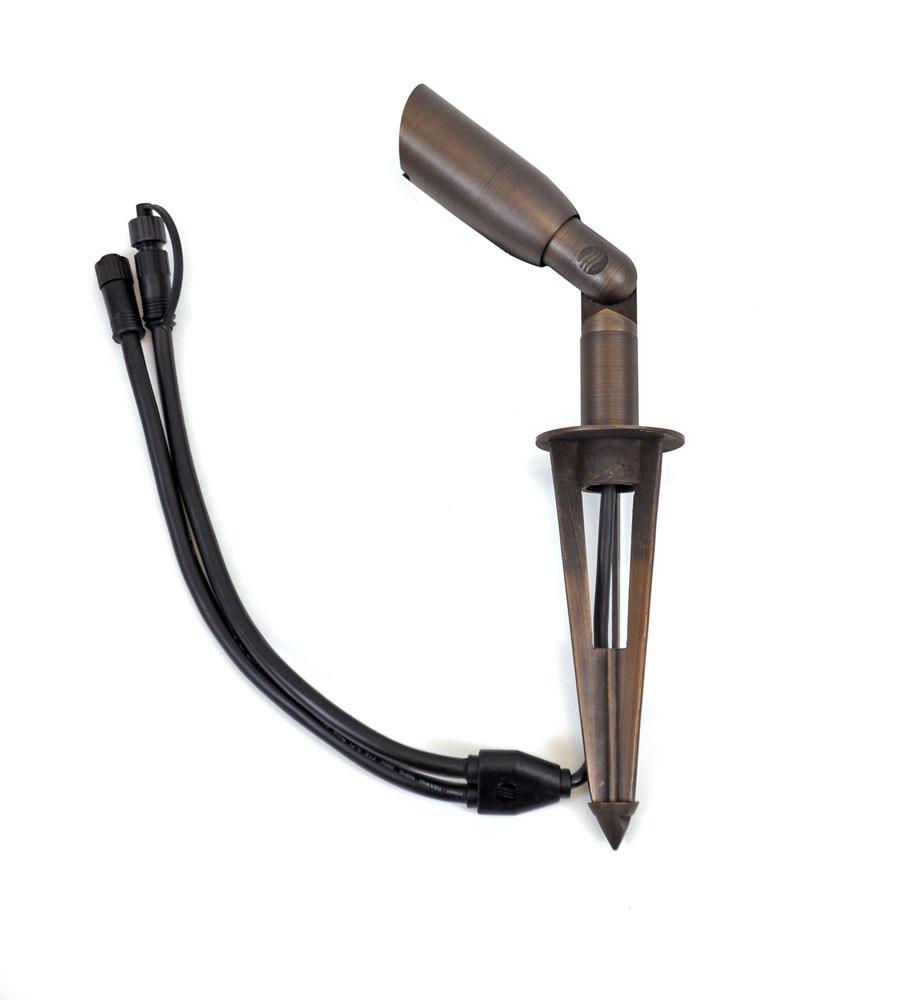

MR11 BULLET LIGHT FLEX SERIES
The MR11 Bullet Light is the ultimate bullet for uplighting. Our Flex Bullet allows you to ‘Grow With the Garden’ by changing riser height at any time; just remove the 2” riser and add a longer one. Please remember to order the appropriate Coastal Mini-Connector (CMC) cable to compensate for the increased riser height.
MR11 BULLET SPECIFICATIONS
Size (H x W): 7in x 1.75in
Weight: 2.0 lbs
Construction: Solid Brass
Voltage: 7-18VAC/7-24VDC
Finish: Vintage Brass
Riser: 2”
Shroud: 360° Rotational with O-Ring
Lamp: MR11 LED
Wattage: Maximum 4W G3 LED Lamp
Lens: Clear Flat Borosilicate Glass
Mounting: 8” Removable Tip Stake
Fixture Connector: CMC Male Direct Connector
Wiring: Removable 6” CMC-CC Y-Cable (included)
Warranty: Brass Parts (Lifetime*) Y-Cable (5 Years)
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS:
Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.

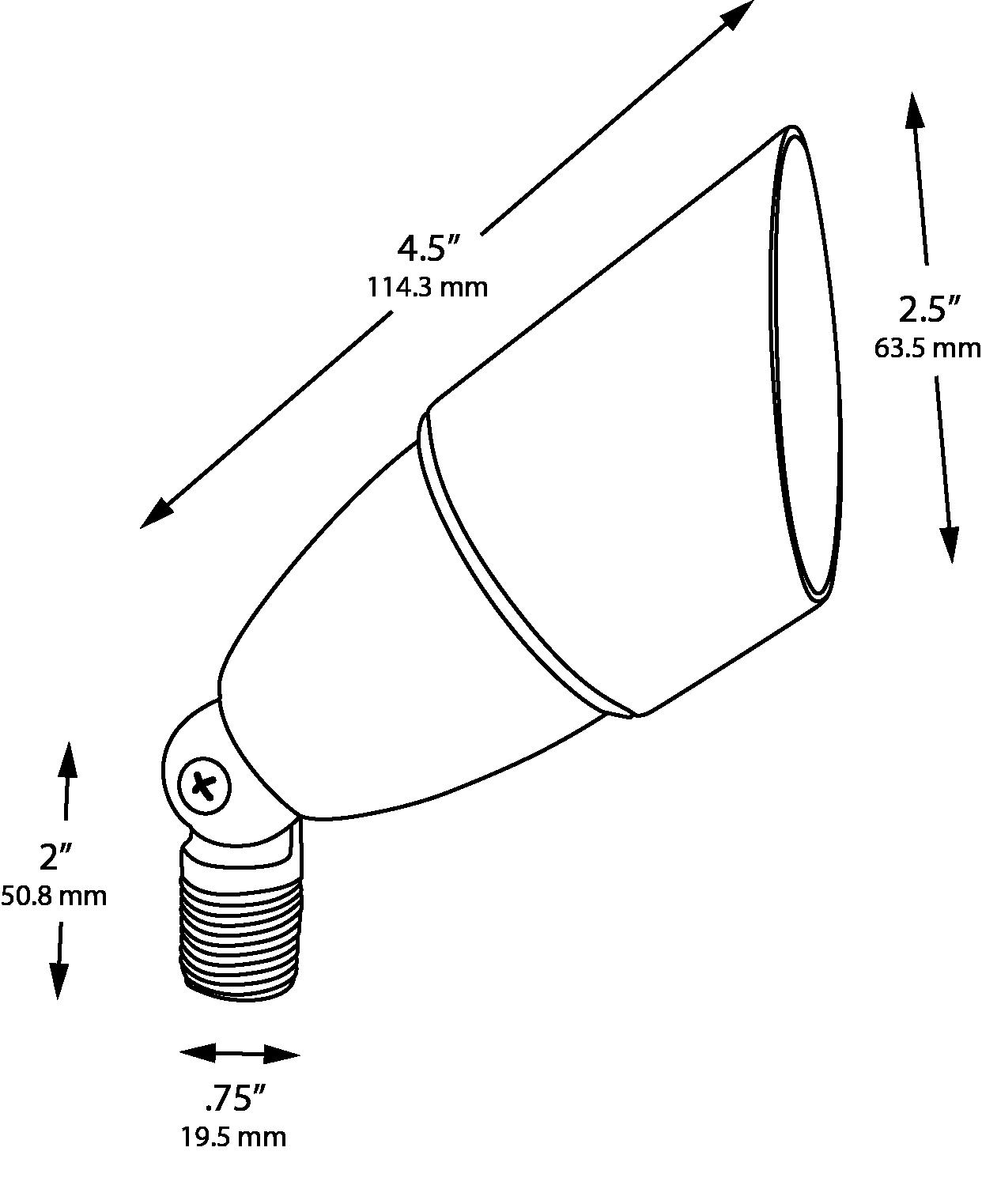

DIMENSIONS:
SPECIFICATION SHEET
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
4W
(incl.) 490034
M3 Trident Heavy-Duty 3-Prong Stake 490036
PM Round pier mount 490057
MR Round tapered 3-hole surface mount 490048
MP PVC/Brass post stake 490037
GM Brass gutter mount 490047
BLANK
SPECIFICATION SHEET
MR16 5 W LED Lamps
SPECIFICATIONS
BASE: GU5.3 bi-pin base
VOLTAGE: 9-17V AC/DC
WATTAGE: 5W
CRI: 80+
WARRANTY: Three years
486753
LED-BB-MR16-5W-2700K-15°
486754
LED-BB-MR16-5W-2700K-25°
486755 LED-BB-MR16-5W-2700K-40°
486756 LED-BB-MR16-5W-2700K-60°
486757 LED-BB-MR16-5W-2700K-120°
486758 LED-BB-MR16-5W-3000K-15°
486759
LED-BB-MR16-5W-3000K-25°
486760 LED-BB-MR16-5W-3000K-40°
486761 LED-BB-MR16-5W-3000K-60°
486762 LED-BB-MR16-5W-3000K-120°
DIMENSIONS:
Type:
The 9-17-volt MR16 5-watt LED lamp is fully dimmable and utilizes Epistar chip technology. Warrantied for 3 years, it will last in most applications for more than 50,000 hours.
BLANK
MANHATTAN
Type:
Model:

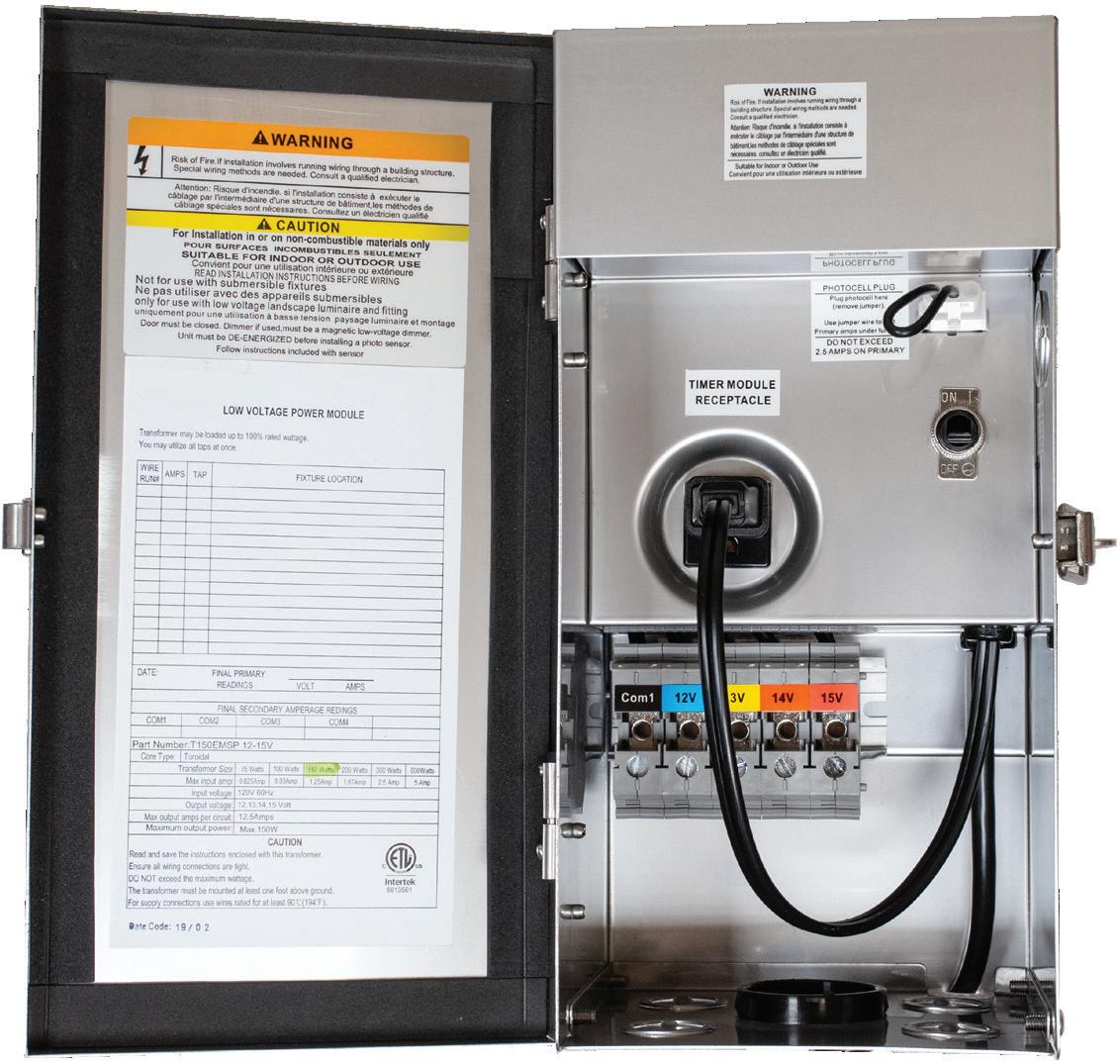

150W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490541
SPECIFICATIONS
OUTPUT:
150W, 12.5A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT: 120V, 60HZ, 1.25A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 12.5A breaker, heavy-duty grounded 5-foot power cord. suitable for interior or exterior use.
AGENCY LISTINGS: ETL approved (5013561). Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
ORDERING INFORMATION:
To order a transformer with an option, select the appropiate choices from each column as in the following example: EXPAMPLE: 490541-DT200LT
SPECIFICATION SHEET
DIMENSIONS:
TYPE U1 SPEC MANHATTAN
NIOB-2RC
2" Iolite Round Adjustable Cone Reflector
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
PRODUCT IMAGES & DIMENSIONS
NIOB-2RC Round Adjustable Cone Regressed Reflector Adjustability: New Construction: 30° (800-1000lm) / 25° (1500-2500lm) Remodel: 15° (800-1000lm) 3-5/8" Color Temperature Finish Lumens / Wattage
NIOB-2RC50X = 5000K *
NIOB-2RC27 X = 2700K
NIOB-2RC30X = 3000K
NIOB-2RC35 X = 3500K
NIOB-2RC40X = 4000K
NIOB-2RC50X = 5000K
Source: 14W to 28W LED 800lm to 2500lm Example: NIOB-2RC50XWW = 2" Iolite
NIOB-2RCCDX = Comfort Dim † BB =
NIOB-2RCCDX = Comfort Dim † /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing)
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm & /HL only,
66820ACC/MPLATE/3.625IN/HANG.BARS/STDMounting plate with hanger bars 669641 LPDL/ACC/6FT/EXTCABLE/FT6/STD6’ FT6 Extension cord
1 Up to 10 FT6 extension cords can be connected together.
TYPE U1 SPEC MANHATTAN
NHIOICD-28 / NHIOICDCP-28
2" Iolite IC Air-Tight New Construction Housing
Source: 12W or 13W LED 800lm or 1000lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-2 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Access above ceiling required. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant FCC compliant Patent #D824567S
Meets or exceeds ASTM-283 Air-Tight requirements
ELECTRICAL 28LE3 28LE4 28LUPEQ 28DAL
Input Voltage 120V 120-277V 120/277V 120-277V
Input Power 13W 12W 13W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V Lutron EcoSystem DALI 2
Operating Temperature 40°C max.
2" Iolite IC Air-Tight New Construction Housing - Compatible with NIOB-2, NIO-2 & NIOP-2
= IC
=Chicago Plenum
LE3 = 120V input; Triac / ELV dimming
LE4 = 120-277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (Consult factory)
DAL = 120-277V input; DALI 1% dimming /EM2 = Integrated Emergency w/ Remote Test Switch /PEM = Pre-Wired for Remote E mergency (not compatible with NHIOICDCP)
Example: NHIOICD-28LE3 = 2" Iolite IC Air-Tight New Construction Housing, 120V input; Triac / ELV dimming
NIO-2EXTC2 = Ceiling Extension Collar up to 2" NIO-2WCC2 =
DIMENSIONS
PHOTOMETRIC DATA1
1 Complete IES files available on our website.
Qty Description
I accept the specifications of the luminaire configuration mentioned above. Name: Company: Signature: Date:
Data is based upon tests performed in a controlled environment. Actual
NIOB-2RC
2" Iolite Round Adjustable Cone Reflector
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Notes
PRODUCT IMAGES & DIMENSIONS
NIOB-2RC Round Adjustable Cone Regressed Reflector Adjustability: New Construction: 30° (800-1000lm) / 25° (1500-2500lm) Remodel: 15° (800-1000lm) 3-5/8" Color Temperature Finish Lumens / Wattage
NIOB-2RC50X = 5000K *
NIOB-2RC27 X = 2700K
NIOB-2RC30X = 3000K
NIOB-2RC35 X = 3500K
NIOB-2RC40X = 4000K
NIOB-2RC50X = 5000K
Source: 14W to 28W LED 800lm to 2500lm Example: NIOB-2RC50XWW =
NIOB-2RCCDX = Comfort Dim † BB =
NIOB-2RCCDX = Comfort Dim † /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing)
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm & /HL only,
66820ACC/MPLATE/3.625IN/HANG.BARS/STDMounting plate with hanger bars 669641 LPDL/ACC/6FT/EXTCABLE/FT6/STD6’ FT6 Extension cord
1 Up to 10 FT6 extension cords can be connected together.
Type:
Date:
TYPE U1E SPEC MANHATTAN
NHIOICD-28 / NHIOICDCP-28
2" Iolite IC Air-Tight New Construction Housing
Source: 12W or 13W LED 800lm or 1000lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-2 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Access above ceiling required. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant FCC compliant Patent #D824567S
Meets or exceeds ASTM-283 Air-Tight requirements
ELECTRICAL 28LE3 28LE4 28LUPEQ 28DAL
Input Voltage 120V 120-277V 120/277V 120-277V
Input Power 13W 12W 13W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V Lutron EcoSystem DALI 2
Operating Temperature 40°C max.
2" Iolite IC Air-Tight New Construction Housing - Compatible with NIOB-2, NIO-2 & NIOP-2
= IC
=Chicago Plenum
LE3 = 120V input; Triac / ELV dimming
LE4 = 120-277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (Consult factory)
DAL = 120-277V input; DALI 1% dimming /EM2 = Integrated Emergency w/ Remote Test Switch /PEM = Pre-Wired for Remote E mergency (not compatible with NHIOICDCP)
Example: NHIOICD-28LE3 = 2" Iolite IC Air-Tight New Construction Housing, 120V input; Triac / ELV dimming
NIO-2EXTC2 = Ceiling Extension Collar up to 2" NIO-2WCC2 =
DIMENSIONS
PHOTOMETRIC DATA1
1 Complete IES files available on our website.
Qty Description
I accept the specifications of the luminaire configuration mentioned above. Name: Company: Signature: Date:
Data is based upon tests performed in a controlled environment. Actual
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
66820ACC/MPLATE/3.625IN/HANG.BARS/STDMounting plate with hanger bars 669641 LPDL/ACC/6FT/EXTCABLE/FT6/STD6’ FT6 Extension cord
1 Up to 10 FT6 extension cords can be connected together.
TYPE U2 SPEC MANHATTAN
NHIOICD-28 / NHIOICDCP-28
2" Iolite IC Air-Tight New Construction Housing
Source: 12W or 13W LED 800lm or 1000lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum shallow housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-2 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Access above ceiling required. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim)
5-Year Limited Warranty
RoHS compliant FCC compliant Patent #D824567S
Meets or exceeds ASTM-283 Air-Tight requirements
ELECTRICAL 28LE3 28LE4 28LUPEQ 28DAL
Input Voltage 120V 120-277V 120/277V 120-277V
Input Power 13W 12W 13W
Power Factor ≥0.90
Dimming Triac / ELVTriac / ELV / 0-10V Lutron EcoSystem DALI 2
Operating Temperature 40°C max.
2" Iolite IC Air-Tight New Construction Housing - Compatible with NIOB-2, NIO-2 & NIOP-2
LE3 = 120V input; Triac / ELV dimming
=Chicago Plenum
LE4 = 120-277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (Consult factory)
DAL = 120-277V input; DALI 1% dimming
/EM2 = Integrated Emergency w/ Remote Test Switch /PEM = Pre-Wired for Remote Em ergency (not compatible with NHIOICDCP)
Example: NHIOICD-28LE3 = 2" Iolite IC Air-Tight New Construction Housing, 120V input; Triac / ELV dimming

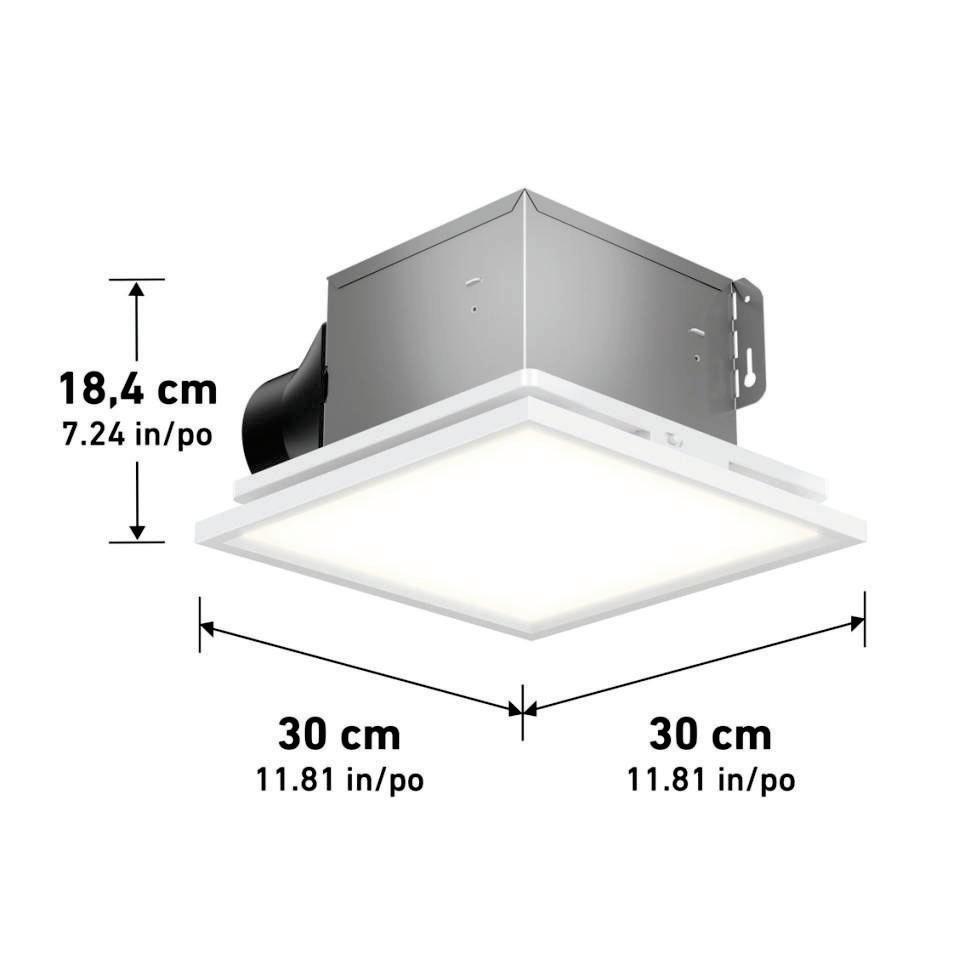

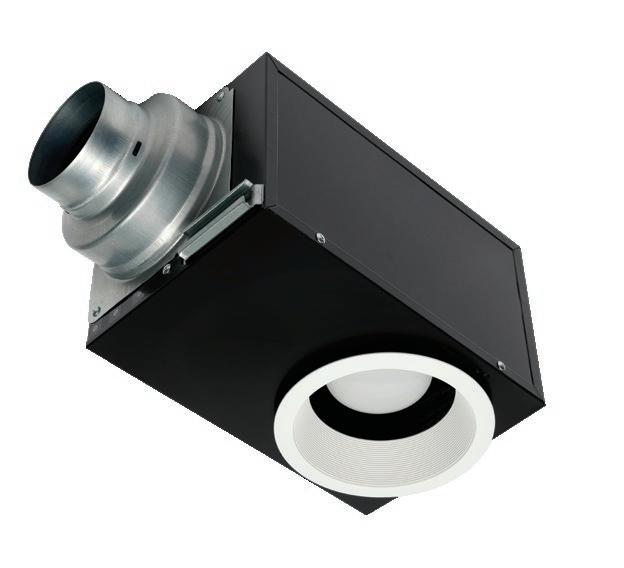

The Design Solution for Fan/LED Light Combinations
FV-08VRE2
FV-08VRE2
BLANK
NO SPEC
VorteXLED Specification Series ®
5.8W, 24VDC WALL GRAZING
LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6” increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• 30° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens
SPECIFICATIONS
ELECTRICAL
•24VDC
•90+
Note: Includes 48” leads. Factory sealed.
CERTIFICATION
•UL listed for US and Canada
•Title 24 compliant when used with used with specific drivers. Consult factory
•Class 2
•IP65
WARRANTY
•5-year warranty when paired with GM power supply
VTX-TTC6 6in tape to tape connector
VTX-TTC12 12in tape to tape connector
VTX-TTC24 24in tape to tape connector
VTX-PCHW8 8ft. hardwired power feed
VTX-EC Tape end cap
Note: For compatible channels, see next page. Accessories included in factory assembled components.
CONTROLLERS
Length: XX = per foot
WiFi Controller, Single Color, 24V Low
1-Channel / 2-Wire (Use LD-E driver)
2.4 WiFi Dimmer, 120V, White (Use LD-ED driver)
SwitchLD SWD series All in one power supply and wall dimmer
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
CM-RF-UNV-5CH Universal 1-5 Channel Control Module
Sleek, ultra-low profile energy efficient LED surface mount downlights available in 11" and 13" sizes. Provides general illumination in residential and commercial applications including multi-family and hospitality. Ideal for use in corridors, living spaces, closets, hallways, pantries, stairways, outdoor covered areas with Emergency Option and much more. With the newly added selectable CCT switch, the JSF gives the ultimate in flexibility for both the distributor as well as the end user.
Applications
• Suitable for wet locations (indoor/outdoor covered ceilings): perfect for closets, showers, bathrooms, outdoor soffits, and covered ceiling applications.
• Residential and Light Commercial applications including multi-family and hospitality
• Ideal for use in corridors, foyers, living spaces, closets, hallways, pantries, stairways and much more
• Installs directly into industry standard junction boxes
• Suitable for use within closet storage spaces when installed per NEC requirements. Junction box sizes vary - Verify compatibility with fixture prior to installation
Led Color Temperature Switchable White (2700K, 3000K, 3500K, 4000K, 5000K) Default set at 3000K CRI 90+
Voltage Dedicated 120V and MVOLT (120V-277V)
Dimming Phase Dimming down to 10%. 0-10V and phase dimming available.
Specifications
(2.9) All dimensions are in Inches (centimeters unless otherwise indicated.
RDL
LED Round Low Profile Flush
RDL series LED Disk Light provides versatile lighting on standard line voltage, yet produces the high energy savings you desire from LED fixtures. The RDL series allows for easy upgrade to your downlighting from the traditional recessed cans to a more modern looking, energy efficient solution. This Disk Light can be mounted on to a junction box or retrofitted into an existing recessed can with the optional hardware mounting adapter (not included).
Must be ordered on a separate line. For Emergency Battery related questions contact us at techsupport@iotaengineering.com
EM option. LPW = Lumen per watt rating of the luminaire. LPW information available in Performance Data section.
CONSTRUCTION
Injection molded trim with diffusion lens for optimal visual comfort while providing exceptional light output. Edge Lit technology and lens design and materials provide uniform appearance without pixelation.
ELECTRICAL
Equipped standard with 120V, 10-100% dimming driver.
QUALIFICATIONS
All luminaires are built to UL 1598 and 2108 standards, and bear appropriate ETL labels. Wet location labeling is standard. Emergency equipped fixtures labeled UL924. Suitable for installation within the closet storage space (closet storage space is defined in NEC 410.8 & 410.16). Adheres to LM70, LM80 and TM21 industry standards. Title 24 qualified. Dedicated 120V Models are FCC Title 47 CFR, Part 15, Class B for residential and commercial applications.
INSTALLATION
Designed for mounting on 3” or 4” electrical J-Box.
WARRANTY
2-year Limited Warranty. See warranty documentation for more info.
