Standards: IP66, UL & cUL Listed for wet locations, Title 24 JA8-2016 Compliant
SPECIFICATIONS
base code 67054

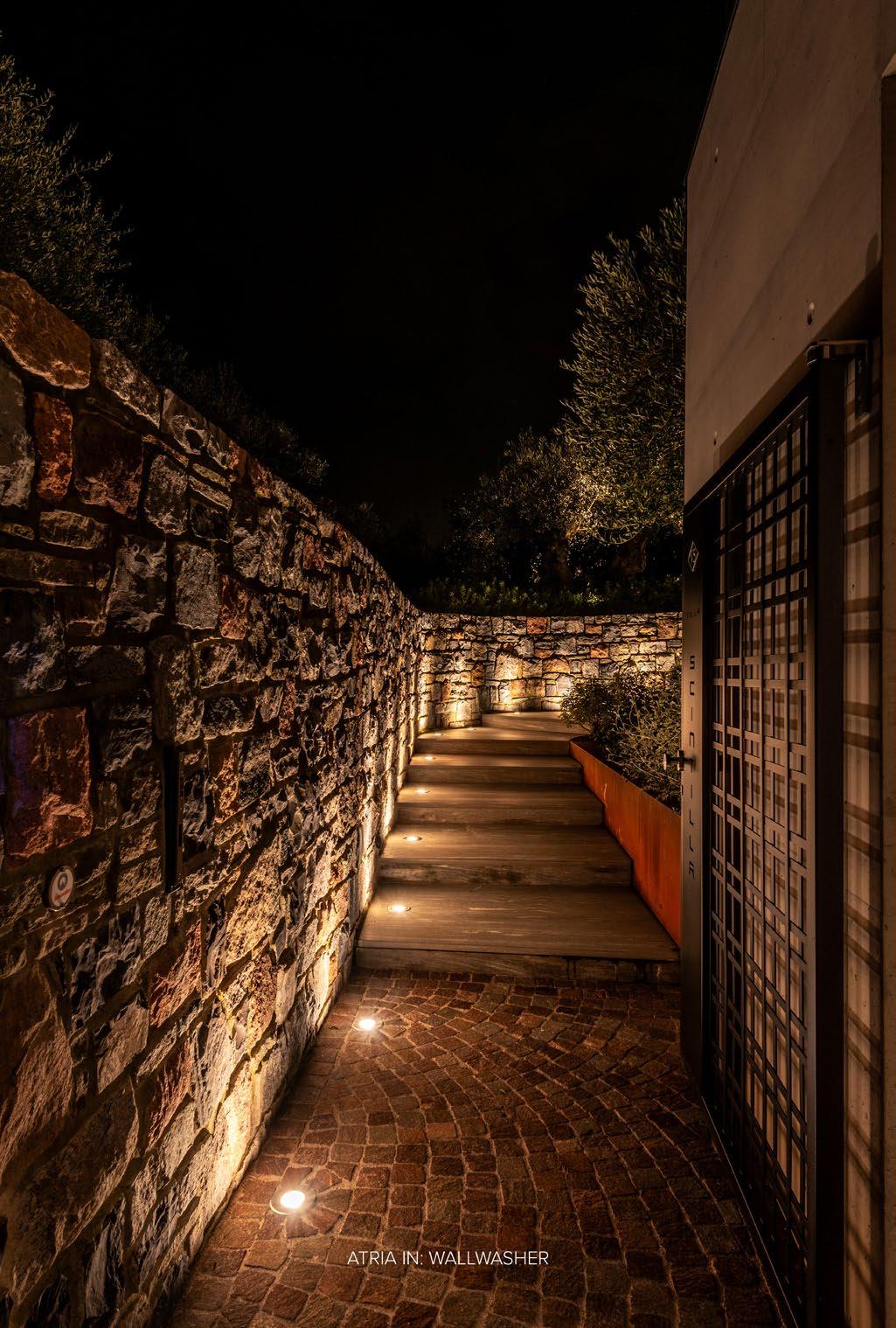

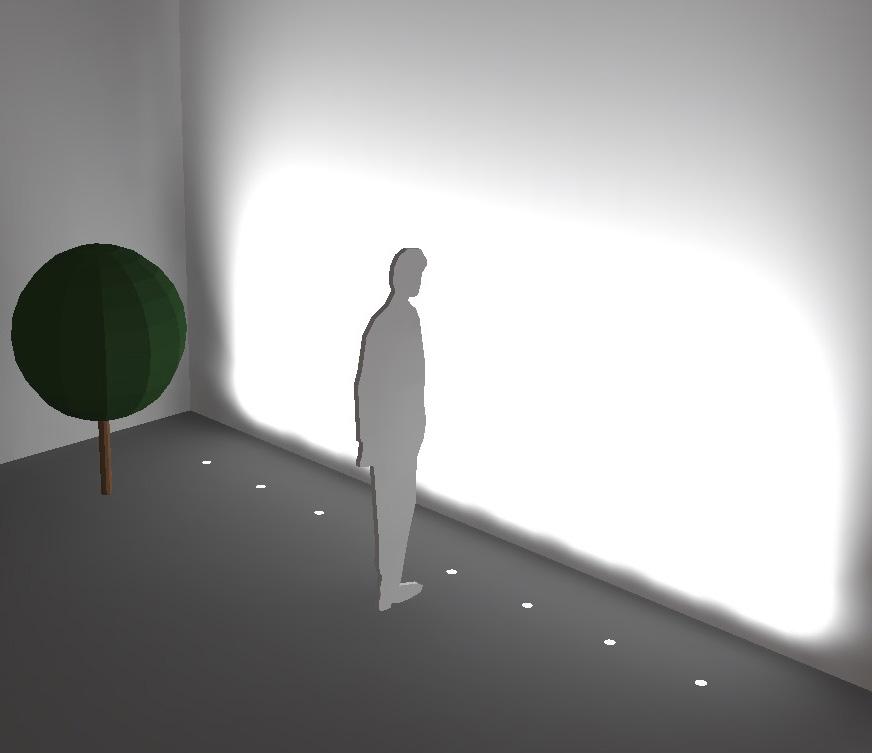

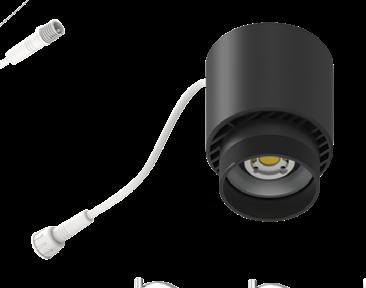

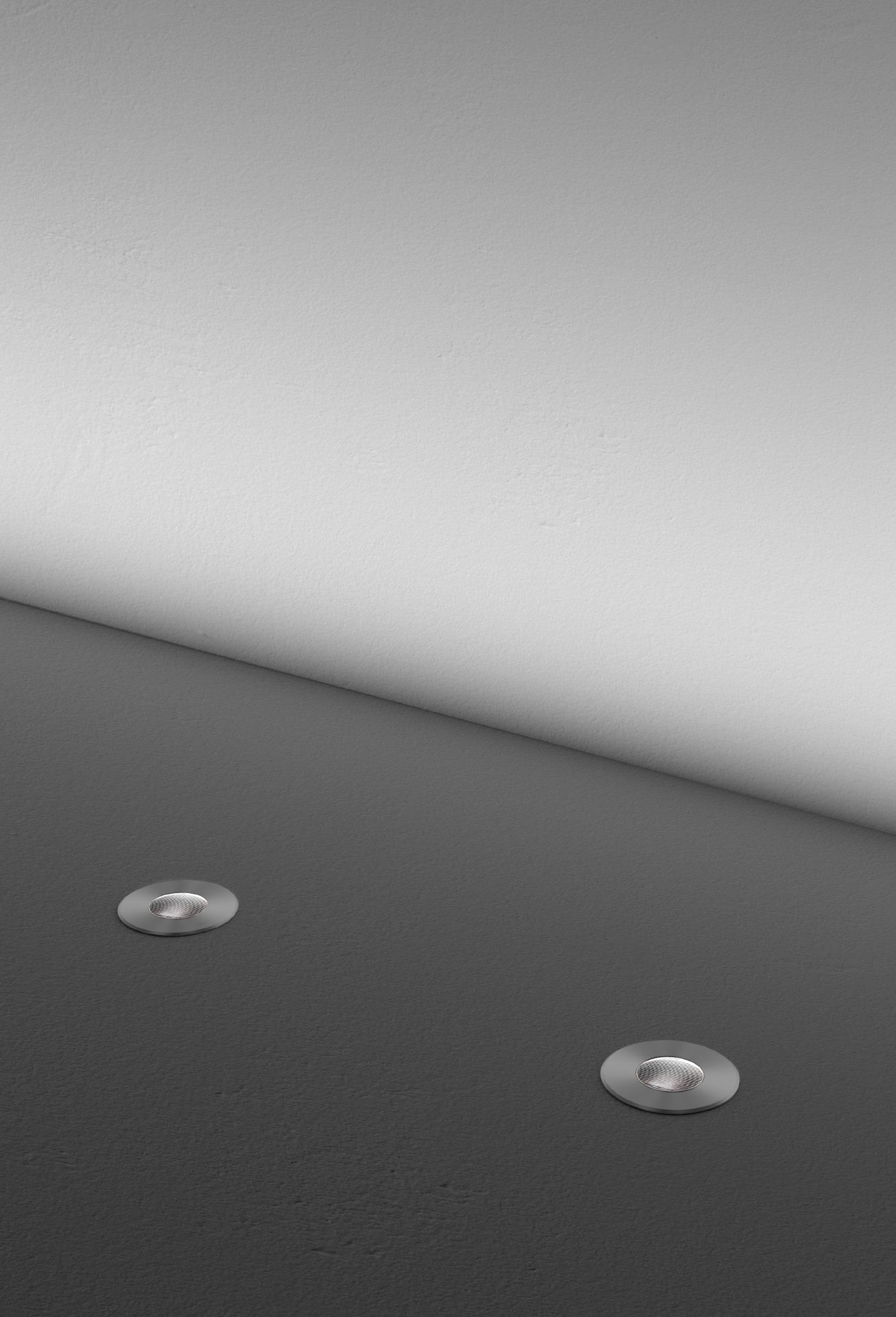

typology Wallwasher uplight with a drive over load of 3,5 tonnes / 7000 lbs
mounting Using housing box to be separately ordered as accessory
diameter Flush faceplate: 100 mm / 3.94”. Protruding faceplate: 115 mm / 4.53”
height 93 mm / 3.66”
required depth Depending on housing box

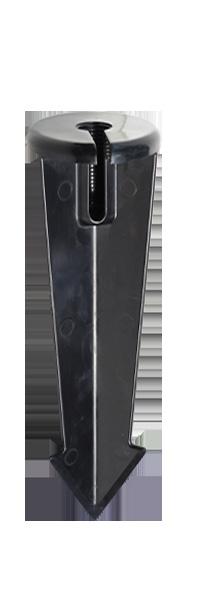

first fit requirement Yes, separate housing box: code 69477 or 69478 for millimetre exact height adjustment from 0 to 50 mm/ from 0” to 1.97”
floor cut out Depending on housing box
construction Fixture: turning and milling aluminum. Faceplate in stainless steel AISI 316L. Stainless steel A2 screws. Protective tempered glass complete with silicone gasket. Reflector: polycarbonate. Housing box in PVC
finishes Fixture anodized and faceplate in brushed stainless steel AISI 316L. Glass surface
ingress protection IP67. Built-in protection from water infiltration and moisture
lamp type Power LED. Remote power supply not included
lamp wattage 8W at 48V DC. North America 5W at 24V DC
lamp lumens 5W: 500lm - 8W: 800lm
delivered lumens 5W: 370lm - 8W: 650lm
lumen maintenance 50.000h L90

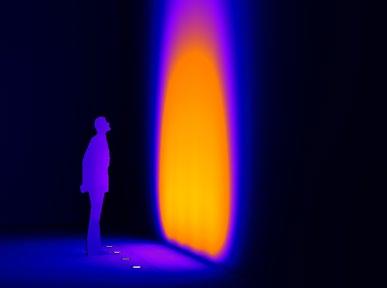

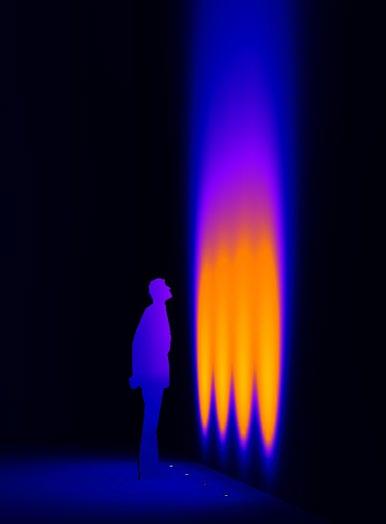

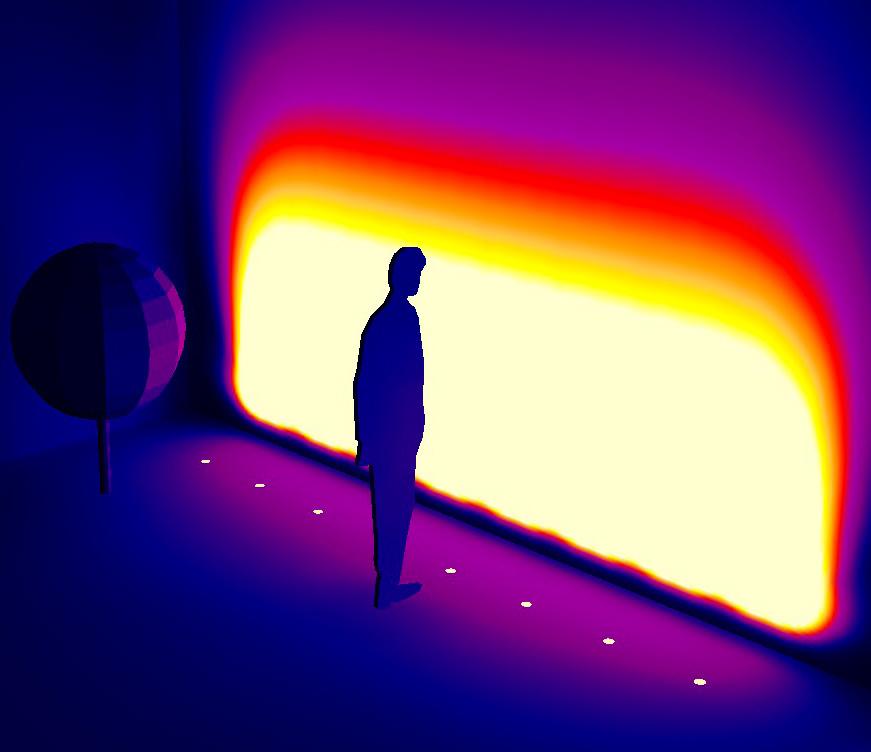

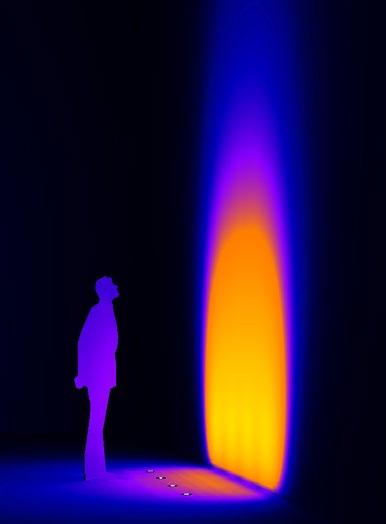

beam Asymmetric reflector by Bartenbach®: 5° - 75° towards wall kelvin 2700K CRI93 and 3000K CRI93 / 3 step MacAdam ellipse
special features 48V DC: built-in unpolarized electronic system. 24V DC: built-in reverse polarity protection. Hot plug and electronic control of the operating temperature that guarantees that the fixture will last with ambient temperature up to 60° C / 140° F. Designed with asymmetric reflector to produce homogeneous light distribution on the wall and no glare. The wallwash begins directly over the floor
Dimming options depend on power supply and additional control units to be separately ordered as accessories standards CE, UL approval pending

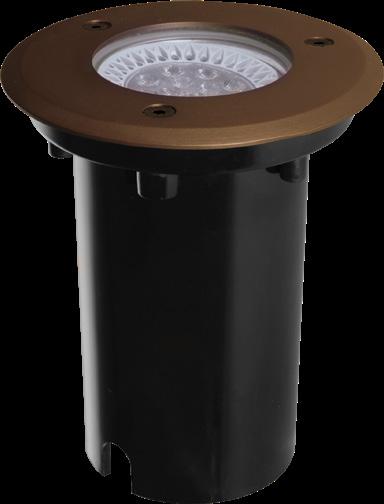

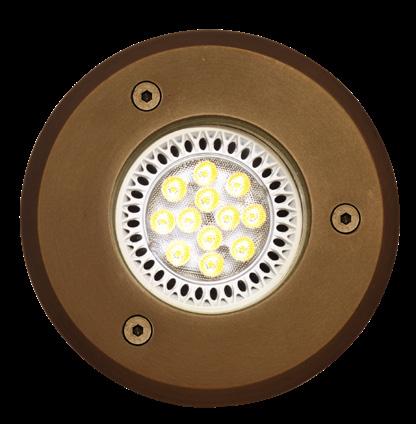

3" ING R OUN D 12V
PRO DU C T D ESCRIPTIO N

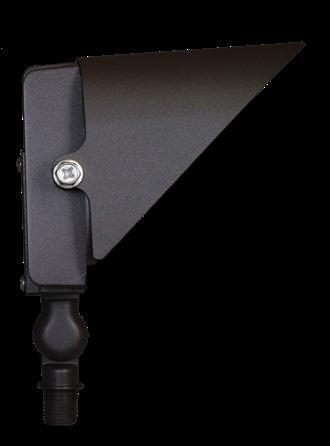

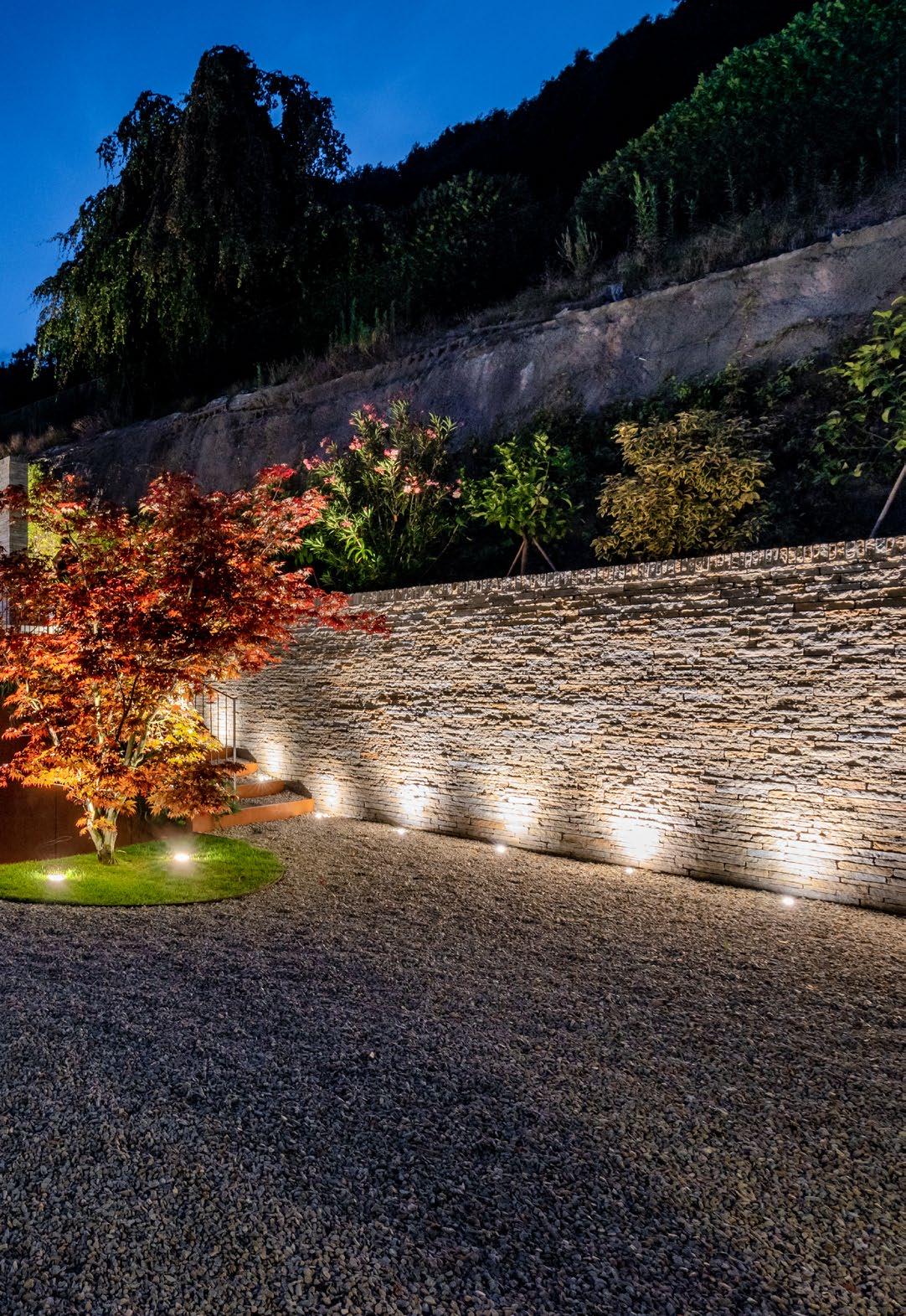

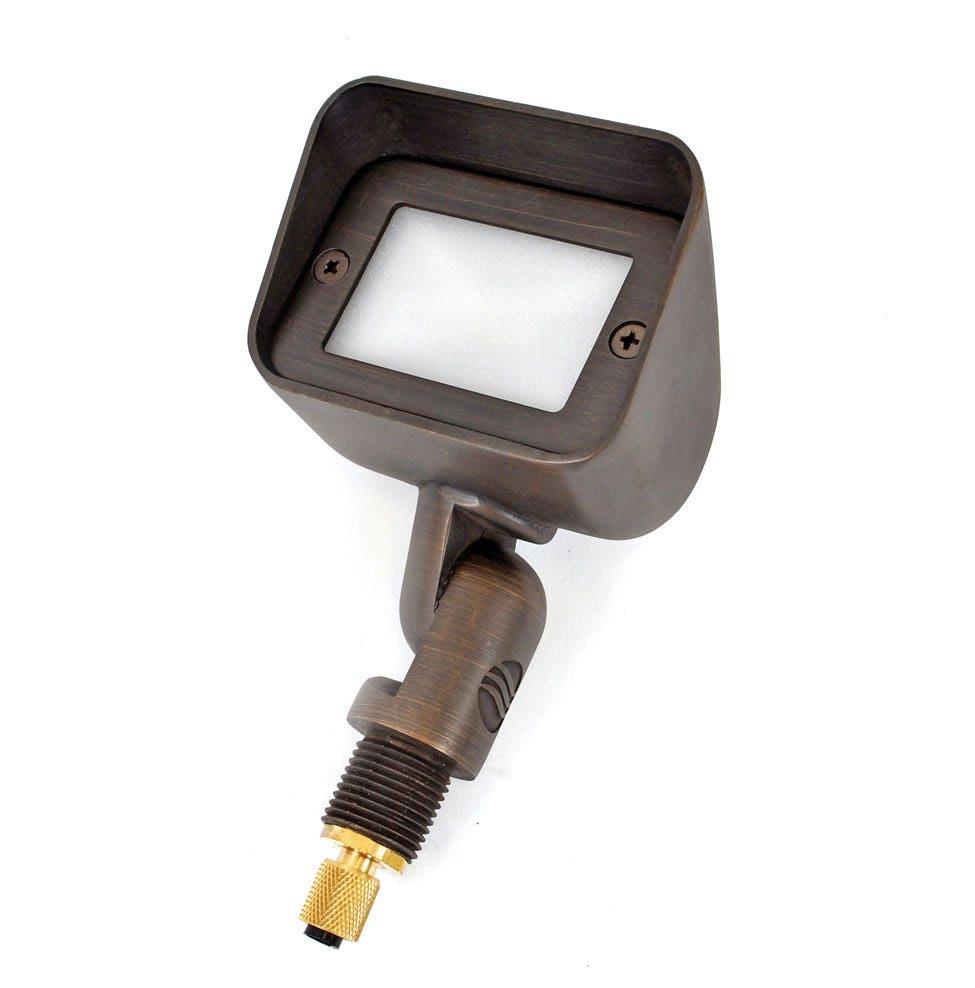

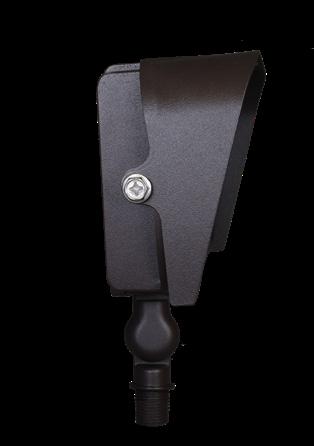

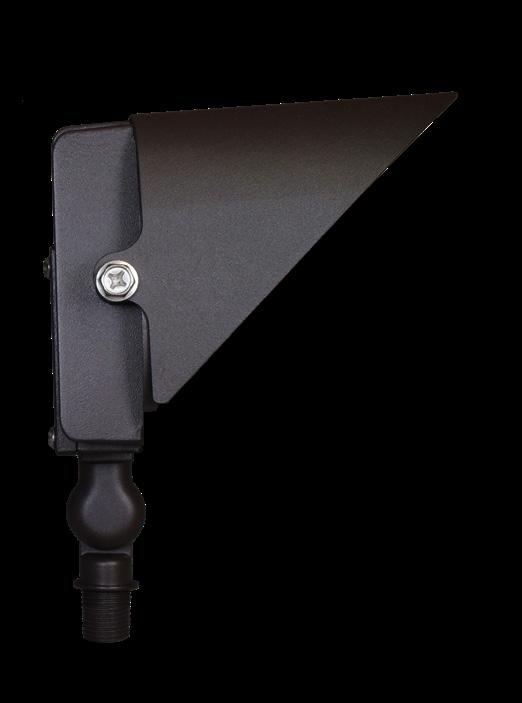

Landscape Wall Wash luminaire
FE ATURE S
• Tiltable and adjustable beam angle
• Integral dimmer
• IP67 rated, protected from temporary immersion under water
• Drive over up to 4500lbs
• Solid diecast brass or corrosion resistant aluminum
• Available concrete pour kit
• • Maintains constant lumen output against voltage drop
• UL 1838 Listed
• MLV dimmable with remote MLV dimmers
OR DE RIN G NU M BE R

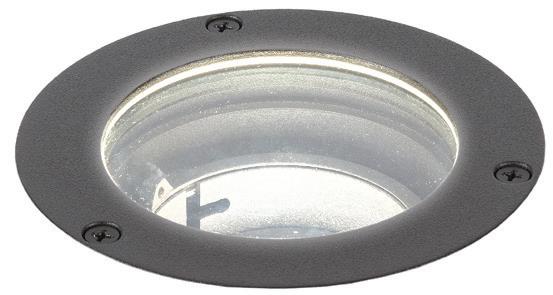

5031 3" Inground
5031-_______
Example:
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFI CATION S
Input:
Power:
Brightness:
Beam Angle: CRI:

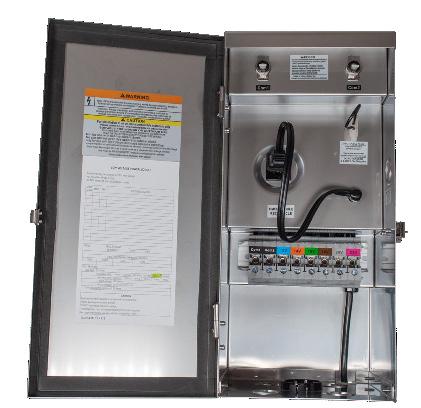

Rated Life: 9 - 15VAC (Transformer is required) 2W to 12W / 2VA - 17VA (Use VA value for sizing the transformer and calculate voltage drop.)
70 lm to 505 lm 15° to 60° 85 55,000 hours
IEC safety Standard Walk overDrive over Resistance to static load testYes (1125lbs)Yes (4496lbs)
Resistance to torque and shear loads test N/A Yes
Module Replacement
2700K M5031LE-27BZ
3000K M5031LE-30BZ
MEROPE 100 WW
BLANK
SCALA
STAIRWELL LED
SCALA is DesignLights Consortium® qualified for stairwells and passageways and is designed to meet all stairwell lighting requirements while providing an energy saving solution.
DIFFUSER: Frosted UV stabilized polycarbonate diffuser, providing even light distribution
SMART TECHNOLOGY: The SCALA incorporates bi-level dimming controlled by a passive infrared sensor to provide safe and dependable illumination during occupied times while adjusting levels down when unoccupied.
LUMENS:
LO: 3876 up to 4635 lm
MO: 5176 up to 6172 lm
HO: 6466 up to 7716 lm
HARMONIC DISTORTION (THD)
OPERATING TEMP: HT (AC Only) -40°F to 104°F (-40°C to 40°C) SA (AC & Emergency) 32°F to 104°F (0°C to 40°C)
WEIGHT: 5 lbs. / 2.27 kg
APPLICATION: The SCALA is a perfect solution for stairwells and other low-occupancy areas such as storage facilities, restrooms, corridors, laundry rooms, and maintenance areas.

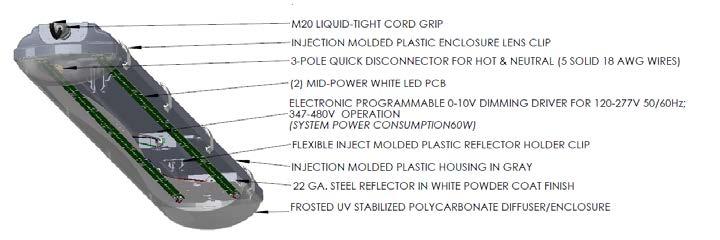

FROSTED UV STABILIZED POLYCARBONATED DIFFUSER/ENCLOSURE, PROVIDING EVEN LIGHT DISTRIBUTION INTERNAL WIRELESS 360° PIR SENSOR
(AC only)

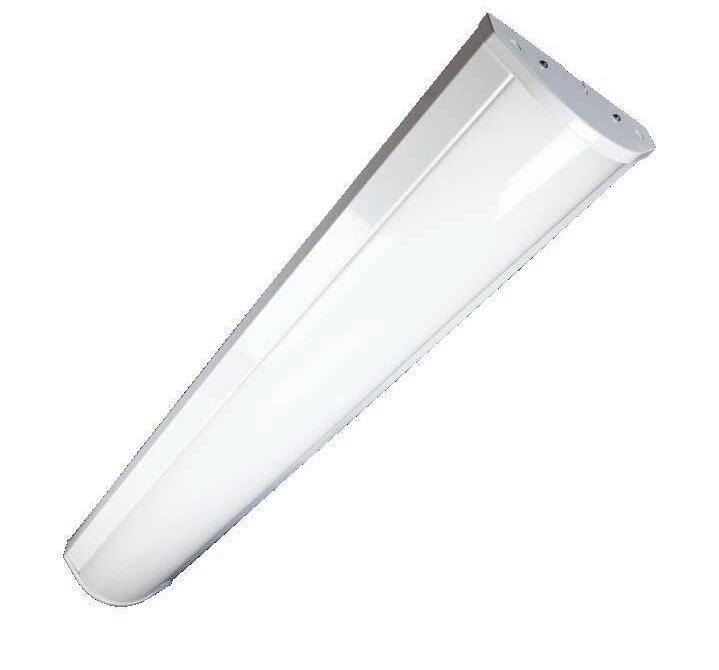

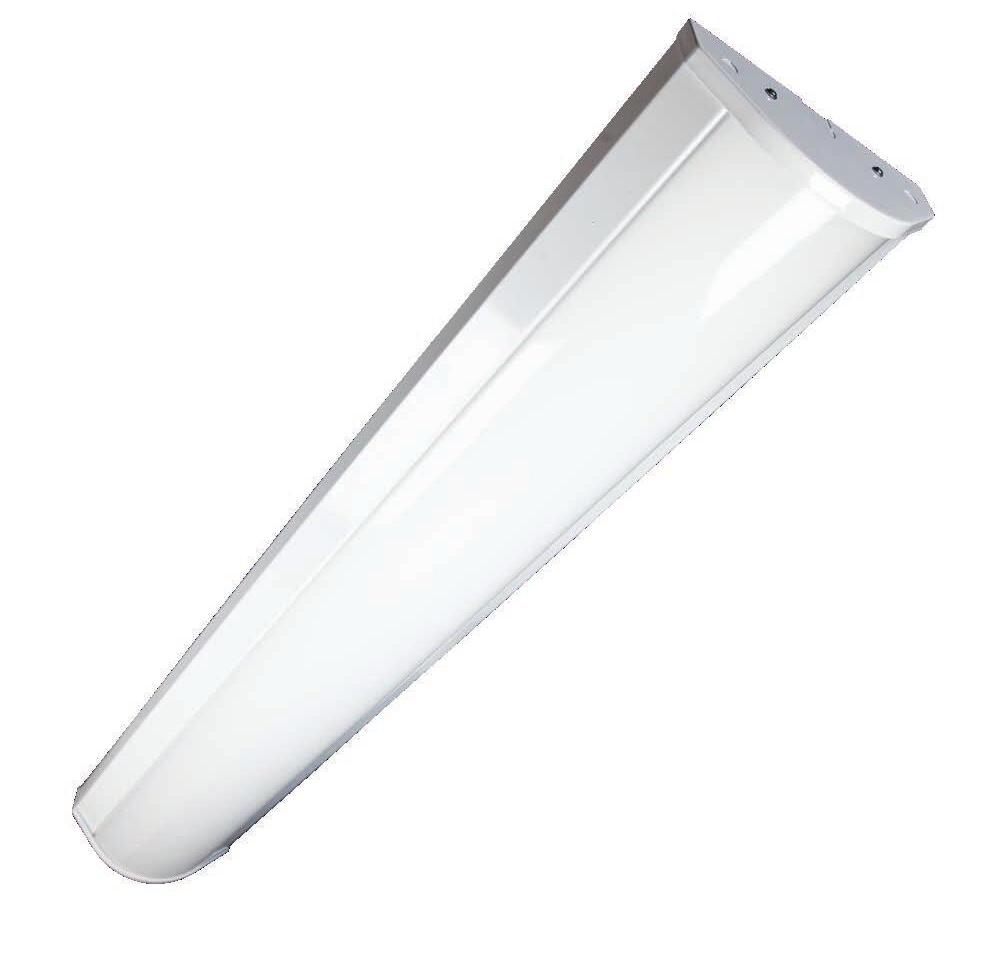

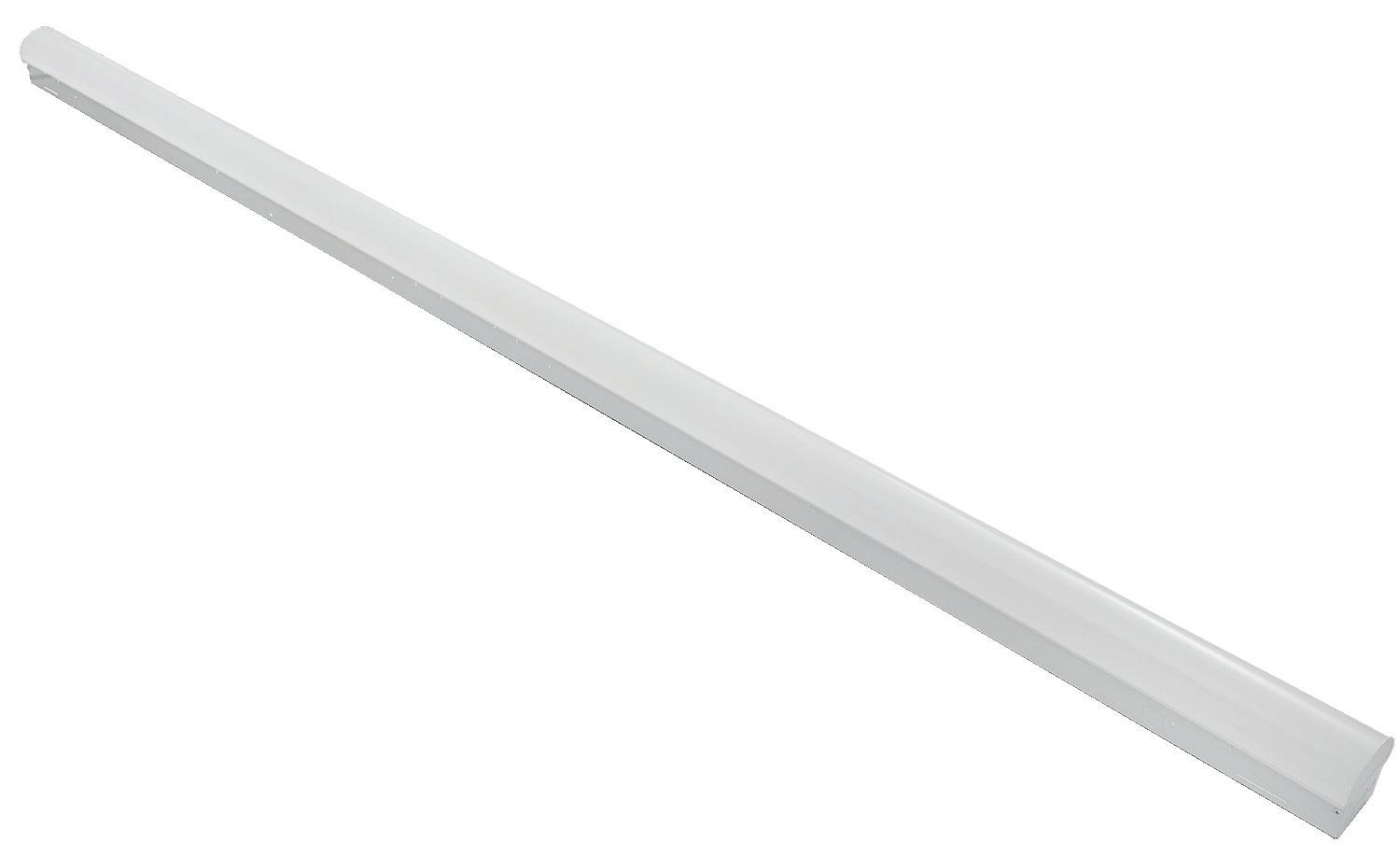

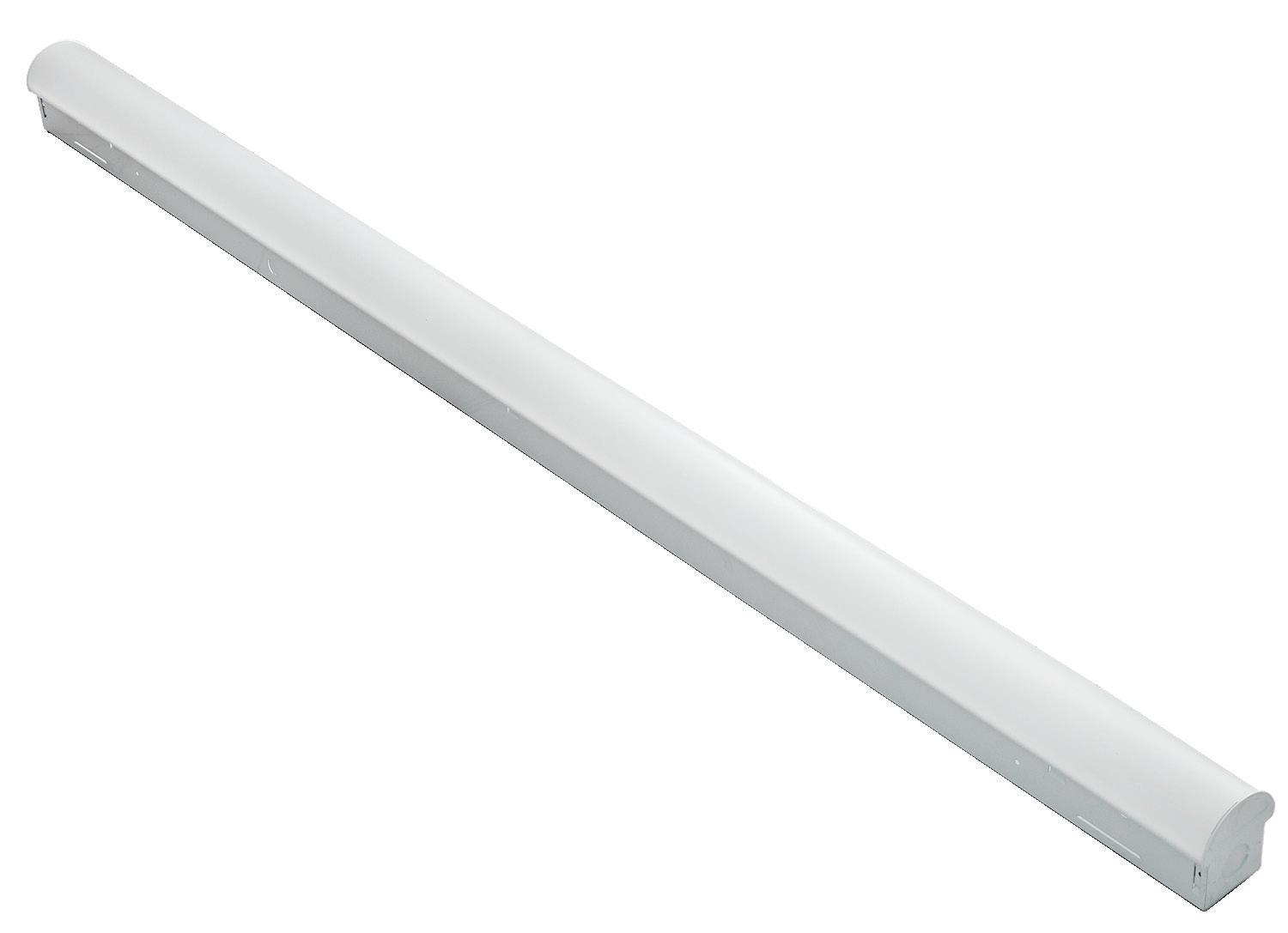

Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
• Wattage selectable 35/45/55W
• Color Selectable 35/40/50K
• Optional battery backup
Ideal Applications
• Commercial settings
• Stair ways
• Bi-l evel dimming microwave motion sensor
• Surface or pendant mounting
• Industrial settings
• Warehouses
DIMENSIONS

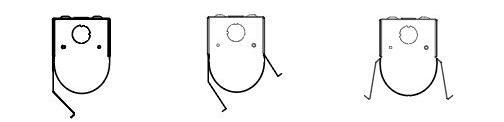

MOUNTING OPTIONS

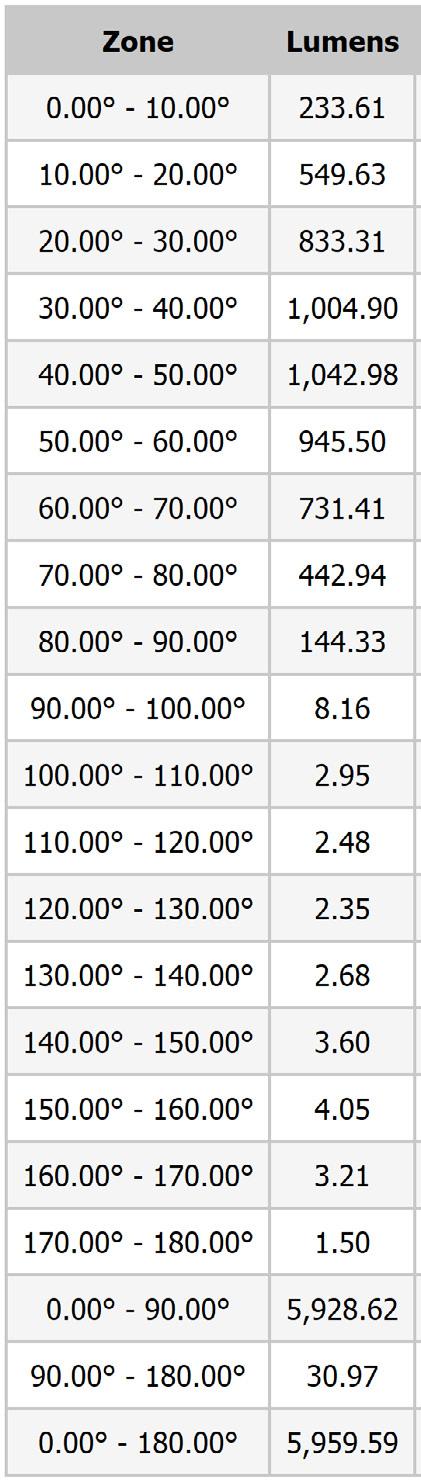

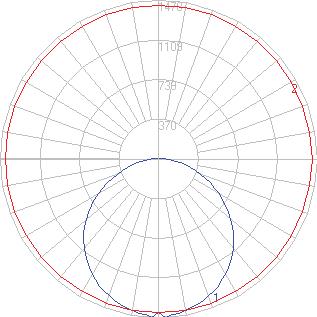

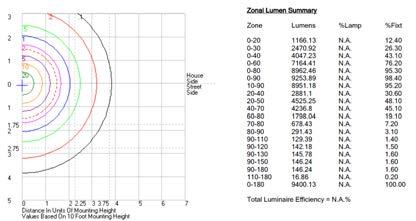

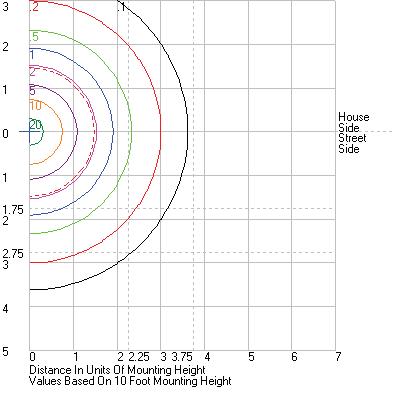

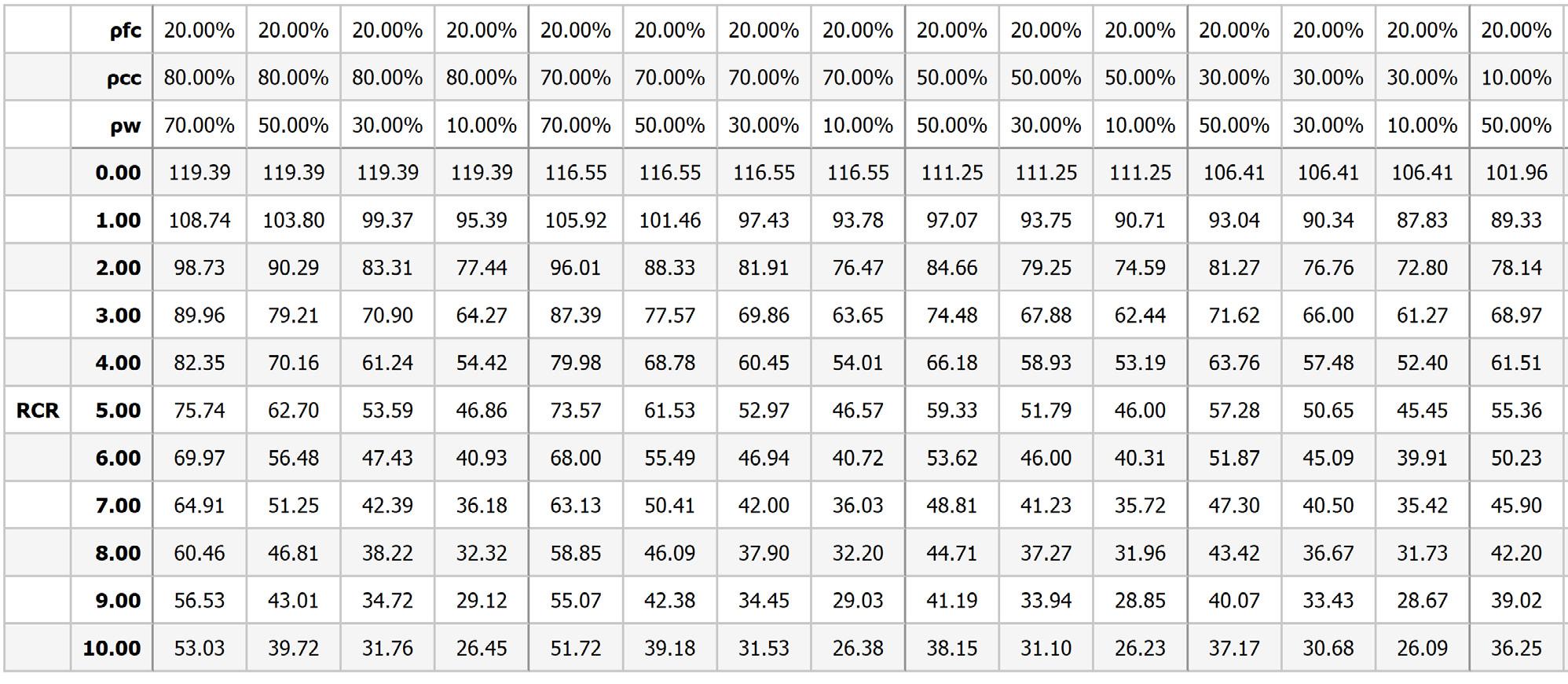

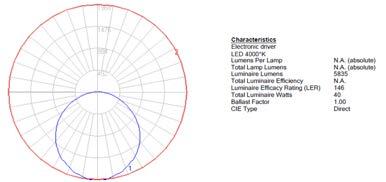

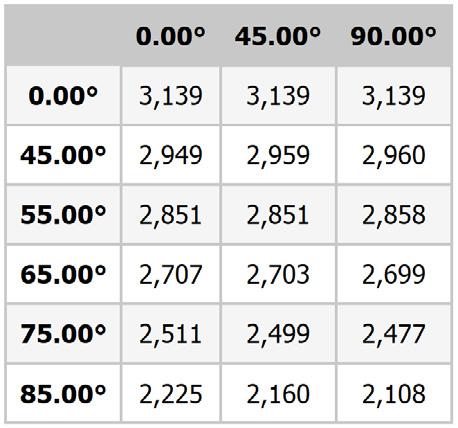

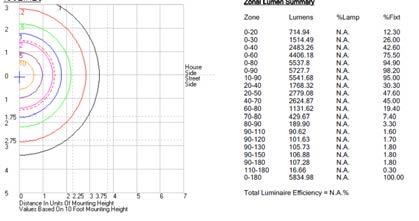

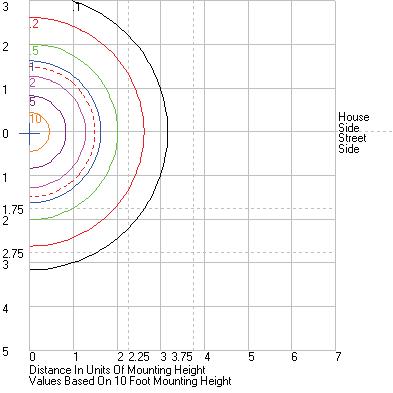

PHOTOMETRICS
(Aviation Cable) (Chain Hang Kit) (Pivot Mount) (Junction BoxMount) (Magnet Mount) (Double Pendant Kit)
DIFFUSER: Frosted UV stabilized polycarbonate diffuser, for even light distribution and color stabilization.
LUMEN:
FT
LO: 30W @ 3876 to 4635 lm
MO: 40W @ 5176 to 6172 lm
HO*: 50W @ 6464 to 7716 lm * 3000K qualifies for DLC std
FT
VLO: 30W @ 4375 to 5208 lm
LO: 40W @ 5555 to 6627 lm
MO: 50W @ 6944 to 8284 lm
HO: 60W @ 8318 to 9946 lm
VHO: 70W 9714 to 11,589 lm
OPERATING TEMP: HT (AC Only) -40°F to 104°F (-40°C to 40°C) SA (AC & Emergency) 32°F to 104°F (0°C to 40°C)
POWER FACTOR: Power Factor > 0.95
TOTAL HARMONIC DISTORTION (THD): < 20%
WEIGHT: 2 FT: 5 lbs (2.3 kg) / 4FT: 10 lbs (4.5 kg)
ORDERING INFORMATION
1PKxWBS0211,12 (single pendant kit, 2' fixture, white, x=length)
1PKxWBS0411,12 (single pendant kit, 4' fixture, white, x=length)
1SPKxWBS0211,12 (swivel single pendant kit, 2' fixture, white, x=length)
1SPKxWBS0411,12 (swivel single pendant kit, 4' fixture, white, x=length)
APPLICATION: The BS100LED is ideal for various commercial applications including retail, industrial, parking garages, carpot, parking structures, warehouses, breezeways, canopies, schools, and much more. It can be installed both indoor and outdoor.
NOTE 8: OS is std Beghelli sensor (Magnum OSM1, CRMB9, OSFSP221, SBOR and other sensors also available)
NOTE 9: Beghelli offers wireless and powerless control solutions, contact factory for more details
NOTE 3: JM: direct j-box mount maintains fixture IP66 rating
NOTE 4: Contact factory for lead time
NOTE 5: Specify length for CRD, specify 3 or 5-conductor
NOTE 6: Includes latches, grommets, etc. installed at the factory for quick installation
NOTE 7: IS is std Beghelli sensor; FSP221, Magnum ISM1 and other sensors also available
TECHNICAL INFORMATION
NOTE 10: FSP221 and OSFSP221 require HHRFSIR handheld remote accessory
NOTE 11: Standard pendant lengths "x" = 12 (12"), 24 (24") and 48 (48")
NOTE 12: Consult factory for non-standard lengths
NOTE 13: Magnetic mounts must be installed to steel beam measuring minimum 3/16” thick
NOTE 14: Quick Mount bracket requires JM mount; FA option recommended for maximum labor savings
NOTE: Red or green LED is available for horticultural applications
HYATT CENTRIC
SYLVANIA Luminaires

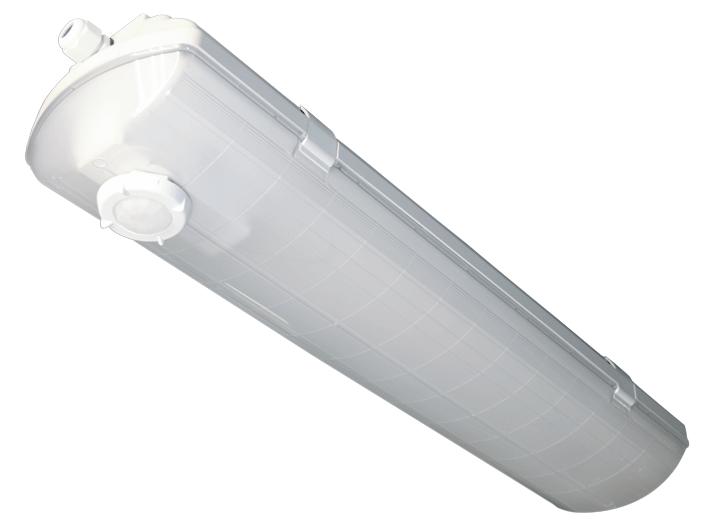

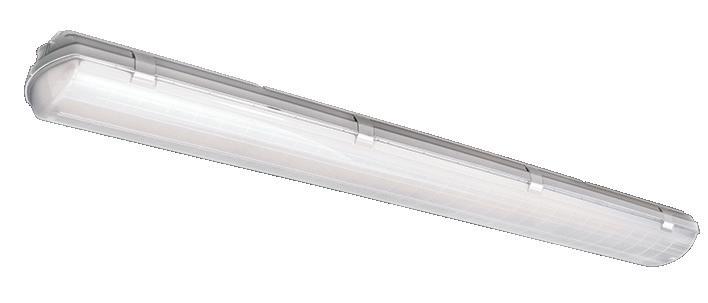

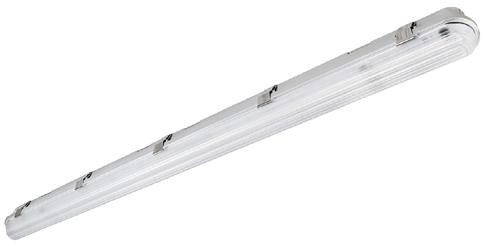

UltraLED™ Dual Selectable Vapor Tight 3A
Application
Ideal in new construction and retrofit applications, the UltraLED Dual Selectable Vapor Tight 3A is offered in three sizes that all feature both lumen and CCT selectability. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
Benefits and Features
IP66 rated polycarbonate body and lens and a broad temperature range ensure a durable product
— Stainless steel lens clips
DLC 5.1 listing maximizes energy savings and rebate opportunities
Optional integrated motion/daylight sensor and emergency battery back-up offer further potential energy savings

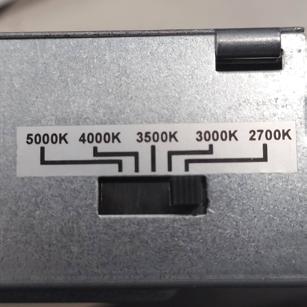

— Dual selectability facilitated by the switches located inside the luminaire allows for customizable light
— Offered in three wattage selectable sizes
–2ft: 15, 20, or 25W selectable
–4ft: 30, 40, or 50W selectable
–8ft: 70, 80, or 90W selectable
3500K, 4000K, and 5000K selectable color temperature
— Up to 144 LPW
— CRI >80
Energy savings up to 59%
Electrical
120-347Vac
— Power Factor >90%
— THD <20%
2.5kV surge suppression
0-10V dimmable
UL Wet rated Auxiliary 12V output
Rated Life
100,000 hours (L70)
Warranty 5-year
— NLB Trusted Warranty Program
Wattage Comparison
Operating Temperature
— -40°F to 122°F (-40°C to 50°C) for 2' and 4' models (chain mount)
— -40°F to 104°F (-40°C to 40°C) for 2', 4', and 8' models (surface mount)
— -40°F to 113°F (-40°C to 45°C) for 8' models (chain mount)
— -31°F (-35°C) minimum ambient for motion sensor models
32°F (0°C) minimum ambient for EMBB models
Certifications and Listings
Installation Fixture can be surface mounted or suspended. Stainless steel mounting brackets and V-hooks are included
ILLUMINA® BS100LED

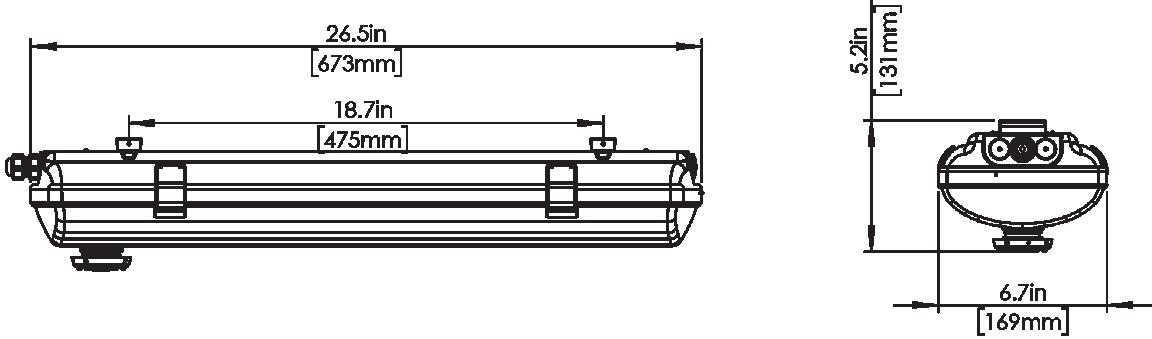

DIMENSIONS

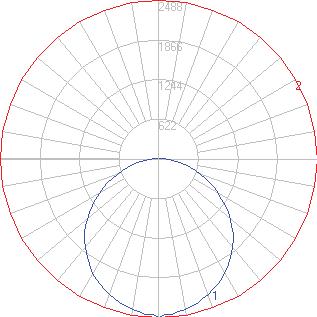

PHOTOMETRICS
HYATT CENTRIC TYPE MP1 ALT
Catalog # Type Project Comments Prepared by
Ordering Guide
VAPOR = Vapor Tight luminaire
Generation 3AS025 = wattage selectable 15, 20, or 25W S050 = wattage selectable 30, 40, or 50W S090 = wattage selectable 70, 80 or 90W
Ordering Information
62492
To Order
Photometric Information
ILLUMINA®
BS100LED
The ILLUMINA® BS100LED is corrosion, flame and vandal resistant.
DIFFUSER: Frosted UV stabilized polycarbonate diffuser, for even light distribution and color stabilization.
LUMEN:
FT
LO: 30W @ 3876 to 4635 lm
MO: 40W @ 5176 to 6172 lm
HO*: 50W @ 6464 to 7716 lm * 3000K qualifies for DLC std
FT
VLO: 30W @ 4375 to 5208 lm
LO: 40W @ 5555 to 6627 lm
MO: 50W @ 6944 to 8284 lm
HO: 60W @ 8318 to 9946 lm
VHO: 70W 9714 to 11,589 lm
OPERATING TEMP: HT (AC Only) -40°F to 104°F (-40°C to 40°C) SA (AC & Emergency) 32°F to 104°F (0°C to 40°C)
POWER FACTOR: Power Factor > 0.95
TOTAL HARMONIC DISTORTION (THD): < 20%
WEIGHT: 2 FT: 5 lbs (2.3 kg) / 4FT: 10 lbs (4.5 kg)
ORDERING INFORMATION
1PKxWBS0211,12 (single pendant kit, 2' fixture, white, x=length)
1PKxWBS0411,12 (single pendant kit, 4' fixture, white, x=length)
1SPKxWBS0211,12 (swivel single pendant kit, 2' fixture, white, x=length)
1SPKxWBS0411,12 (swivel single pendant kit, 4' fixture, white, x=length)
APPLICATION: The BS100LED is ideal for various commercial applications including retail, industrial, parking garages, carpot, parking structures, warehouses, breezeways, canopies, schools, and much more. It can be installed both indoor and outdoor.
NOTE 8: OS is std Beghelli sensor (Magnum OSM1, CRMB9, OSFSP221, SBOR and other sensors also available)
NOTE 9: Beghelli offers wireless and powerless control solutions, contact factory for more details
NOTE 3: JM: direct j-box mount maintains fixture IP66 rating
NOTE 4: Contact factory for lead time
NOTE 5: Specify length for CRD, specify 3 or 5-conductor
NOTE 6: Includes latches, grommets, etc. installed at the factory for quick installation
NOTE 7: IS is std Beghelli sensor; FSP221, Magnum ISM1 and other sensors also available
TECHNICAL INFORMATION
NOTE 10: FSP221 and OSFSP221 require HHRFSIR handheld remote accessory
NOTE 11: Standard pendant lengths "x" = 12 (12"), 24 (24") and 48 (48")
NOTE 12: Consult factory for non-standard lengths
NOTE 13: Magnetic mounts must be installed to steel beam measuring minimum 3/16” thick
NOTE 14: Quick Mount bracket requires JM mount; FA option recommended for maximum labor savings
NOTE: Red or green LED is available for horticultural applications
HYATT CENTRIC TYPE
SYLVANIA Luminaires
UltraLED™ Dual Selectable Vapor Tight 3A
Application
Ideal in new construction and retrofit applications, the UltraLED Dual Selectable Vapor Tight 3A is offered in three sizes that all feature both lumen and CCT selectability. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
Benefits and Features
IP66 rated polycarbonate body and lens and a broad temperature range ensure a durable product
— Stainless steel lens clips
DLC 5.1 listing maximizes energy savings and rebate opportunities
Optional integrated motion/daylight sensor and emergency battery back-up offer further potential energy savings
— Dual selectability facilitated by the switches located inside the luminaire allows for customizable light
— Offered in three wattage selectable sizes
–2ft: 15, 20, or 25W selectable
–4ft: 30, 40, or 50W selectable
–8ft: 70, 80, or 90W selectable
3500K, 4000K, and 5000K selectable color temperature
— Up to 144 LPW
— CRI >80
Energy savings up to 59%
Electrical
120-347Vac
— Power Factor >90%
— THD <20%
2.5kV surge suppression
0-10V dimmable
UL Wet rated Auxiliary 12V output
Rated Life
100,000 hours (L70)
Warranty 5-year
— NLB Trusted Warranty Program
Wattage Comparison
Operating Temperature
— -40°F to 122°F (-40°C to 50°C) for 2' and 4' models (chain mount)
— -40°F to 104°F (-40°C to 40°C) for 2', 4', and 8' models (surface mount)
— -40°F to 113°F (-40°C to 45°C) for 8' models (chain mount)
— -31°F (-35°C) minimum ambient for motion sensor models
32°F (0°C) minimum ambient for EMBB models
Certifications and Listings
Installation Fixture can be surface mounted or suspended. Stainless steel mounting brackets and V-hooks are included
ILLUMINA® BS100LED
DIMENSIONS
PHOTOMETRICS
HYATT CENTRIC TYPE
Catalog # Type Project Comments Prepared by
Ordering Guide
VAPOR = Vapor Tight luminaire
= Generation 3AS025 = wattage selectable 15, 20, or 25W S050 = wattage selectable 30, 40, or 50W S090 = wattage selectable 70, 80 or 90W
Ordering Information
62492
To Order
Information

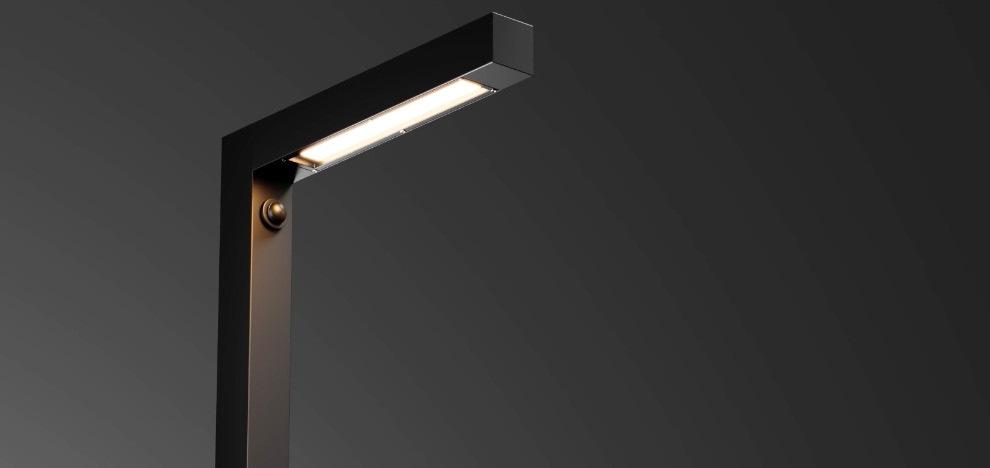

Lineal Wide LED Luminaire
FIXTURE TYPE:
PROJECT NAME:
SPECIFICATIONS:
CONSTRUCTION: Seamless aluminum housing comprised of 6005AT61 extrusion and 6061-T6 end plates. Gasketed aluminum electrical access cover attached with captive stainless steel hardware and safety cable.
ELECTRICAL: Integral Class P, 120-277V or 347-480V, dimmable constant current driver. Luminaire is pre-wired with watertight 5 conductor 18 gauge SJEOOW whip. 10kA surge suppression is standard with optional external 20kA surge suppression. Operating temperature of -40°C to 50°C.
OPTICAL SYSTEM: LED boards have solderless connections for field upgradability. Available in CCT of 2700, 3000, 3500, and 4000K, >90 CRI. Optics are UV resistant molded PMMA in Type II and IV distributions. Consult factory for additional lumen output, CCT, and optical distribution options.
CONTROLS: Dimming through 0-10V input is standard. Available with integral motion sensor with photocell providing on/off and full light to dim control. Also available with wireless smart city control. See SmartCity control documentation for more information.
FINISHES: All exterior aluminum parts are polyester powder coat painted to meet AAMA 2604 standards. See Structura's finish options for available colors. Care and Maintenance
LISTINGS & RATINGS: Luminaire CSA listed according to CSA C22.2 No. 250.0-18/UL Standard 1598. Suitable for wet locations. LM-80 test reported L70 > 90,000 hours and calculated L70 > 110,000 hours. Bug rating: B1-U0-G1. IP65 rated.
WARRANTY: 5-year warranty on LED and drivers.
C US

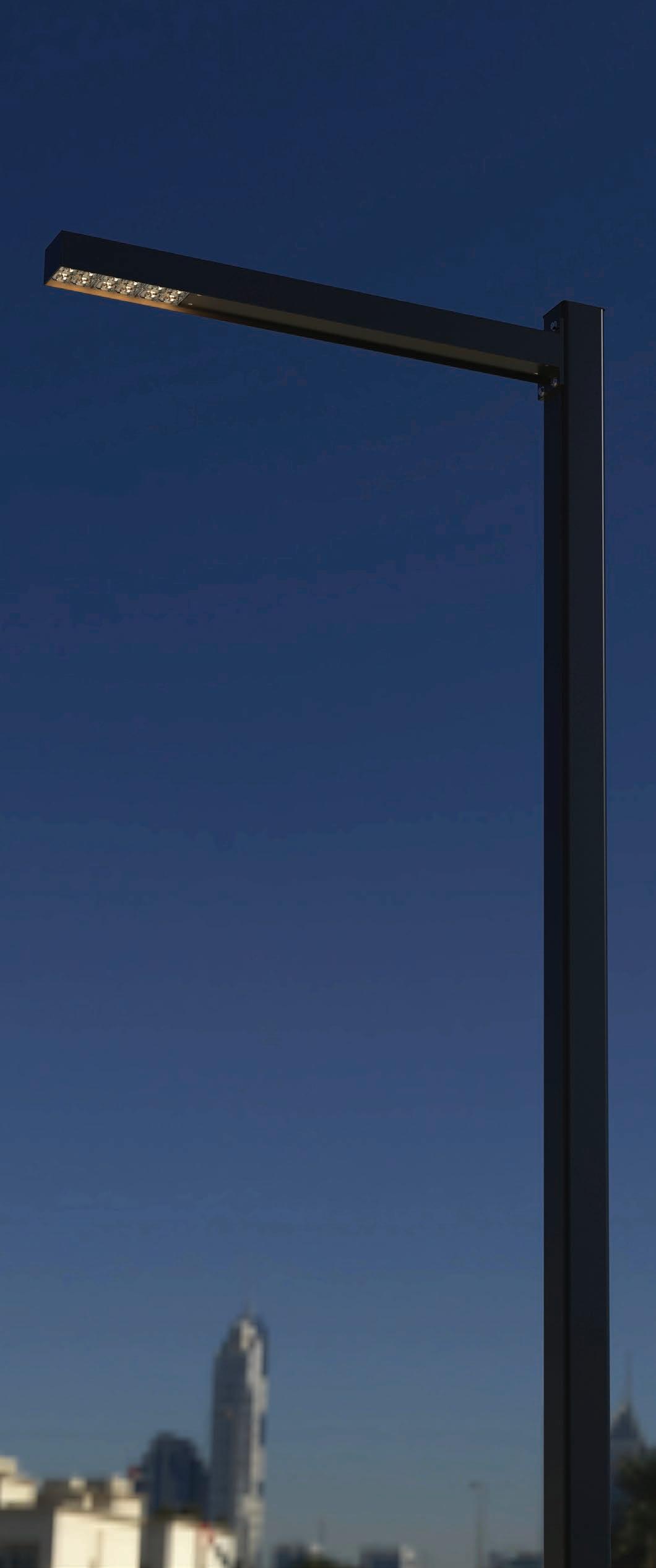

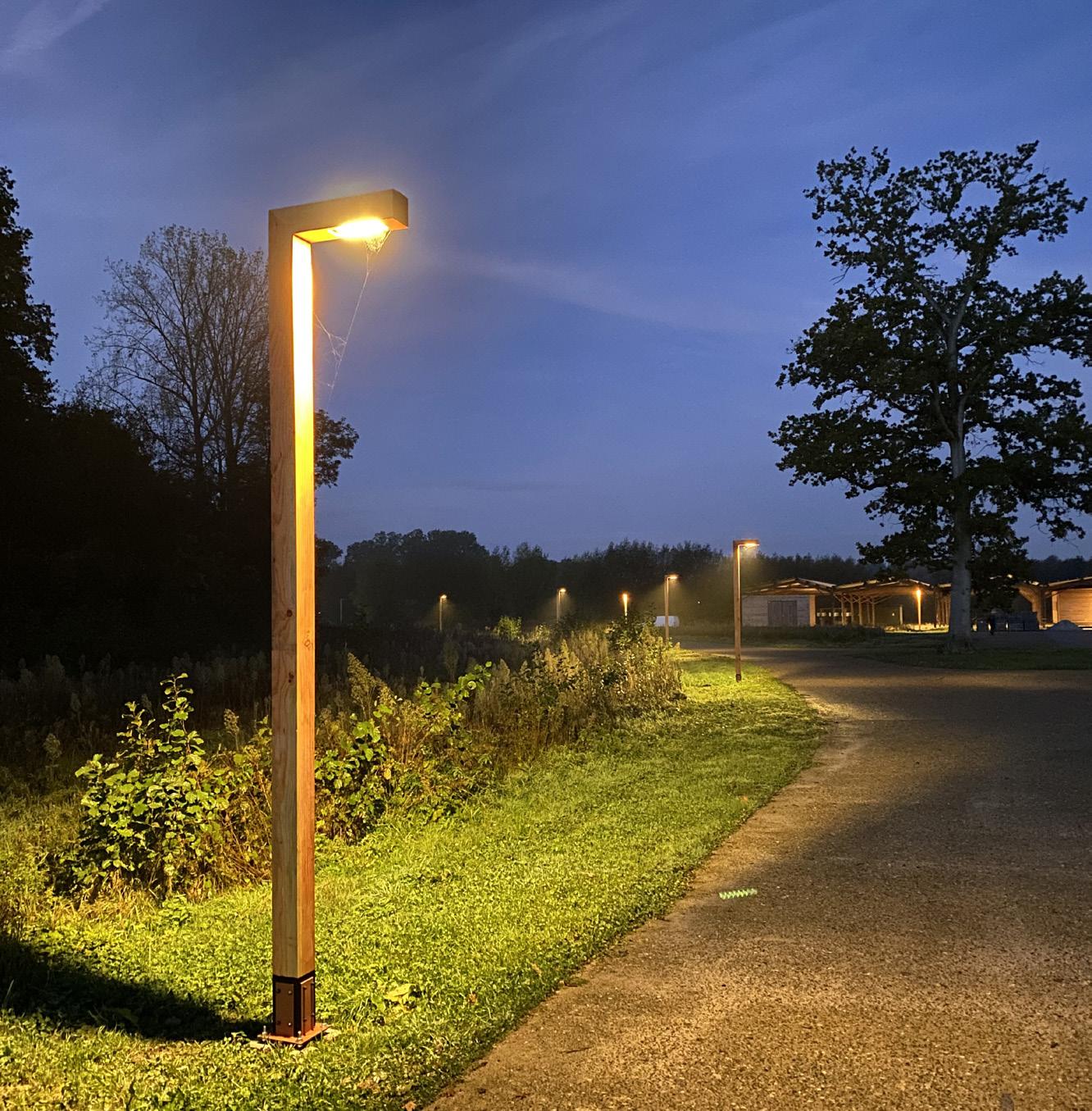

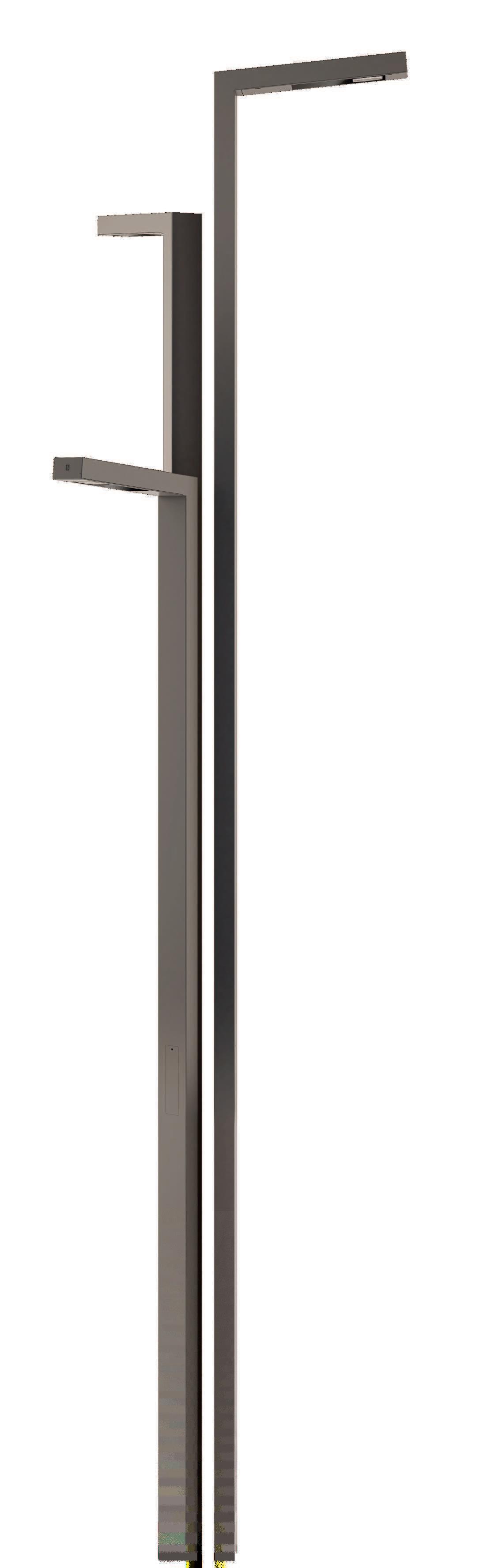

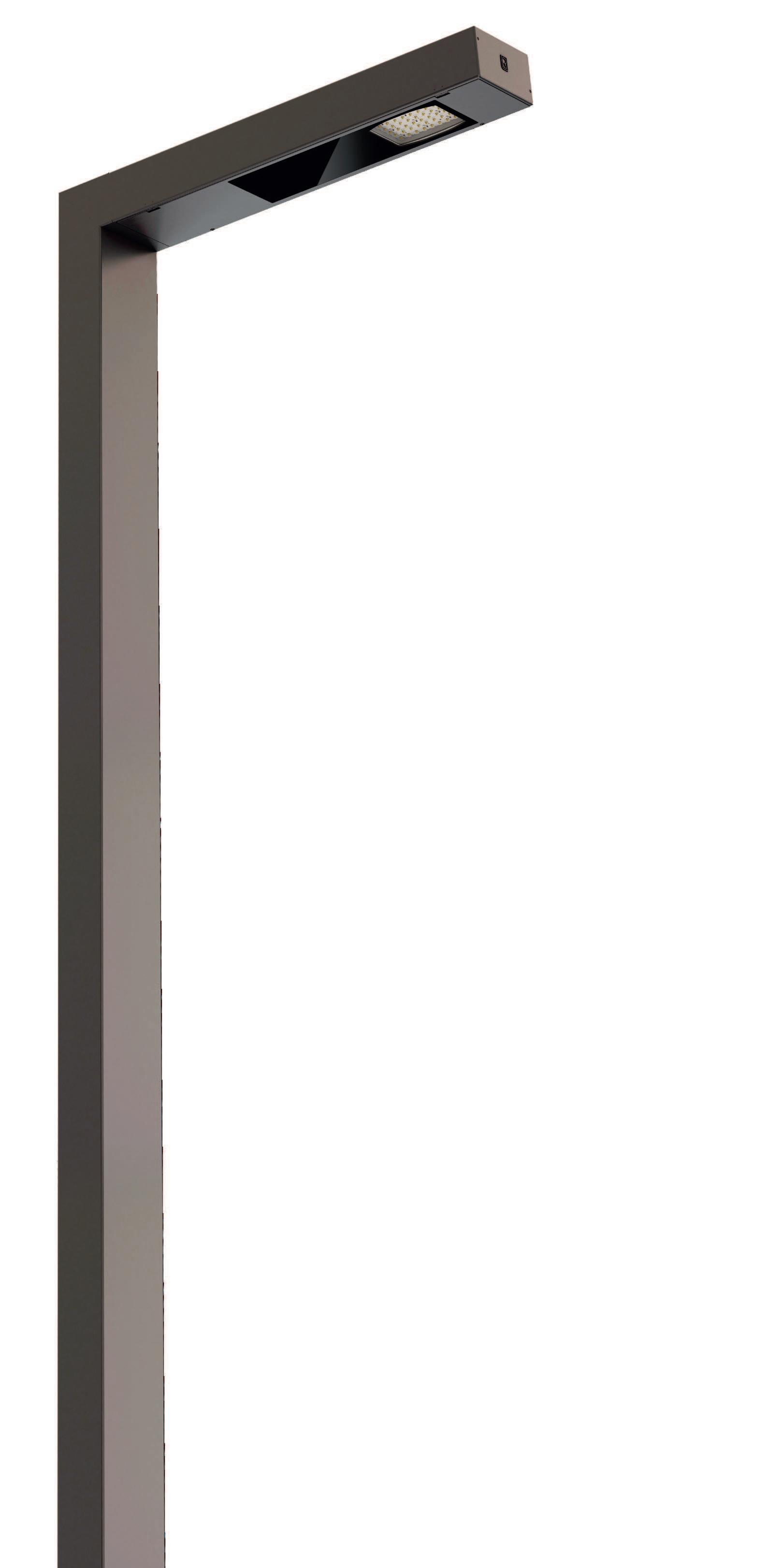

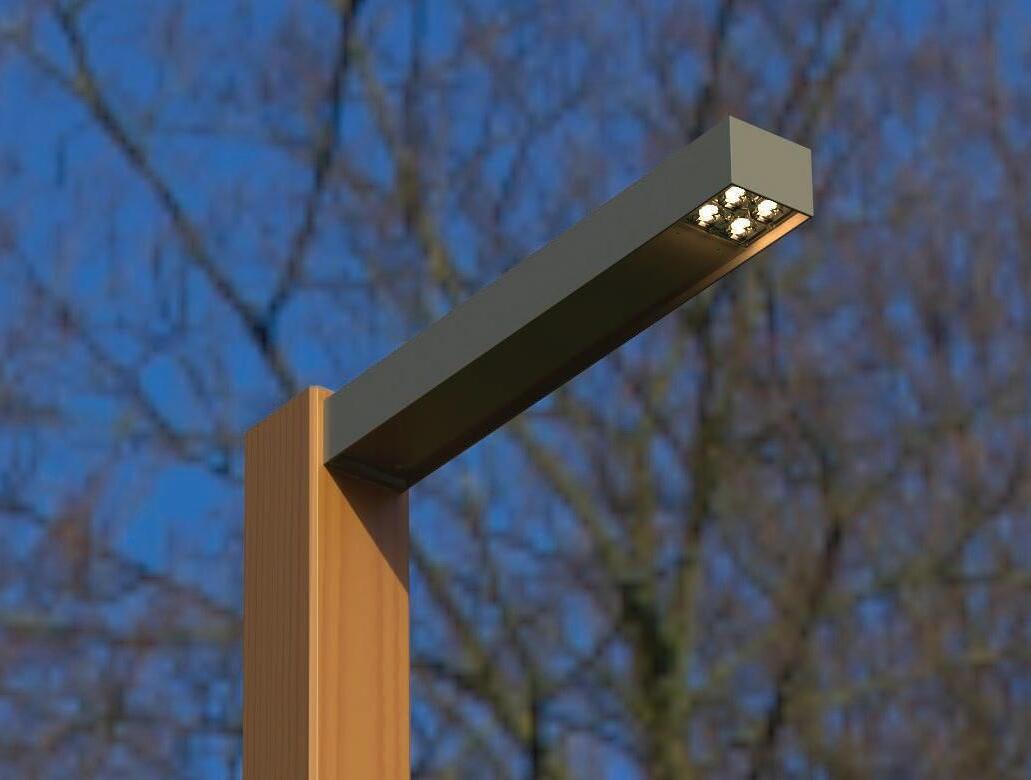

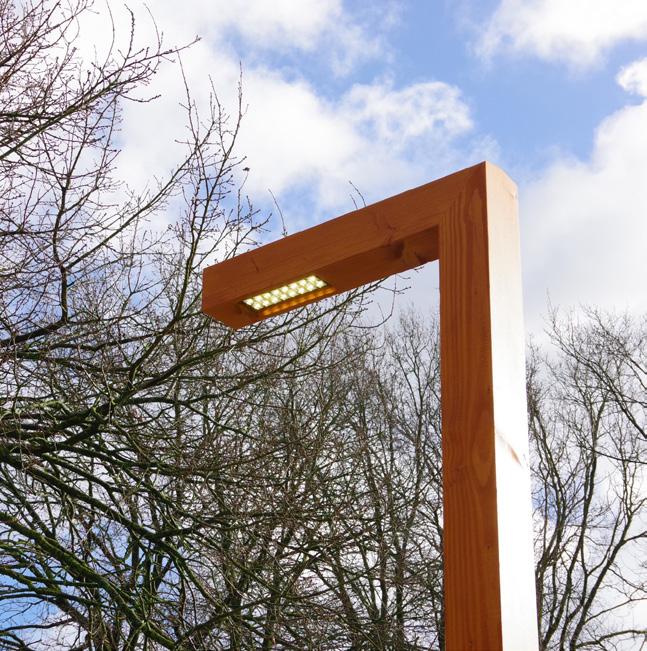

Lineal Wide M3300 mounted on Structura Kila pole.

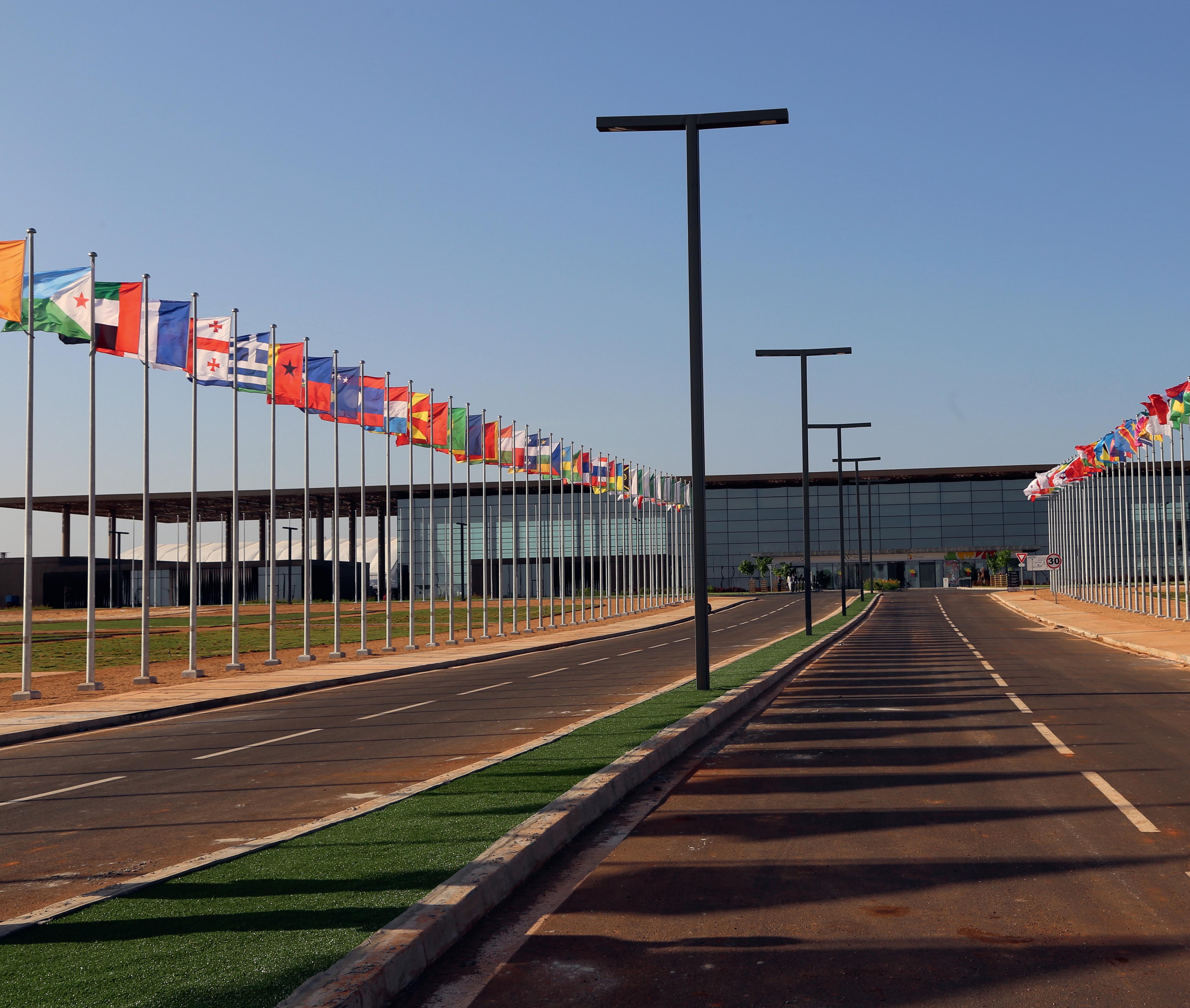

Lineal Wide M1100 mounted on Structura Spar pole.
www.ragni-group.com
The Domitienne Range presents a sophisticated lighting solution with a streamlined rectangular pole and luminaire system, o ered in heights from 13 to 26 feet. The Flex model enhances adaptability with an adjustable tilt from 0° to 30°, enabling precise control of light distribution. Each luminaire accommodates one or two modular heads with configurations of up to 96 LEDs, delivering luminous output from 1,000 to 20,600 lumens. Available in single or dual configurations, the Domitienne is ideally suited for both roadway and pedestrian lighting applications.
Hinged Door. Holds 1 or 2 LED Modules with up to 96 LEDs. Fixed or Flex Version with Articulating Hinge.
TYPE X1 SPEC HYATT CENTRIC
PART ONE: Luminaire
Complete the following ordering information first to determine your luminaire selection. Then, continue to Part Two to make your pole selection.

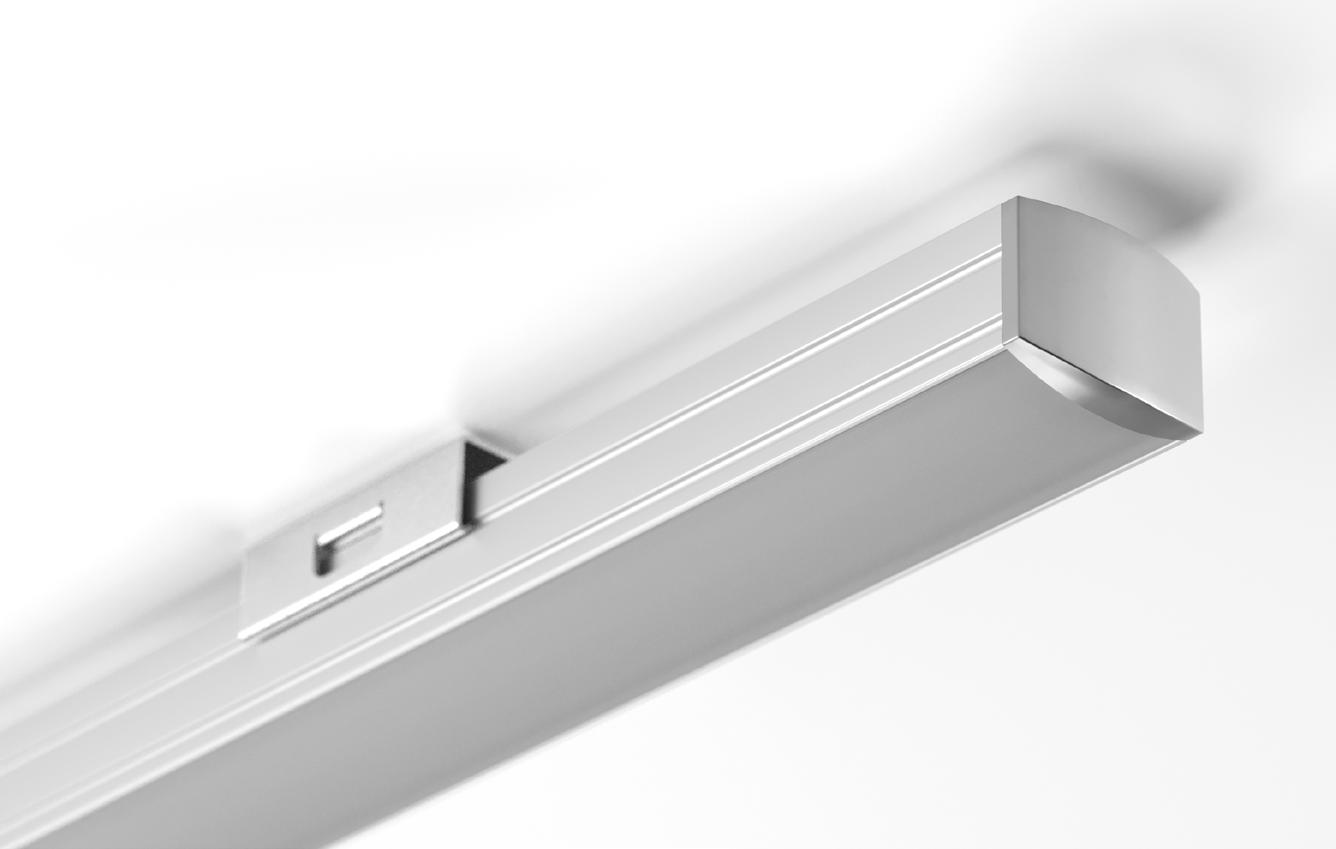

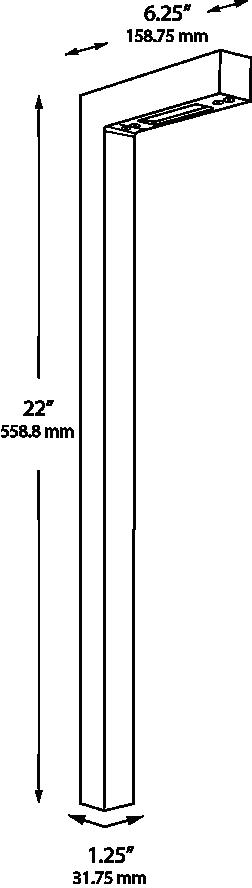

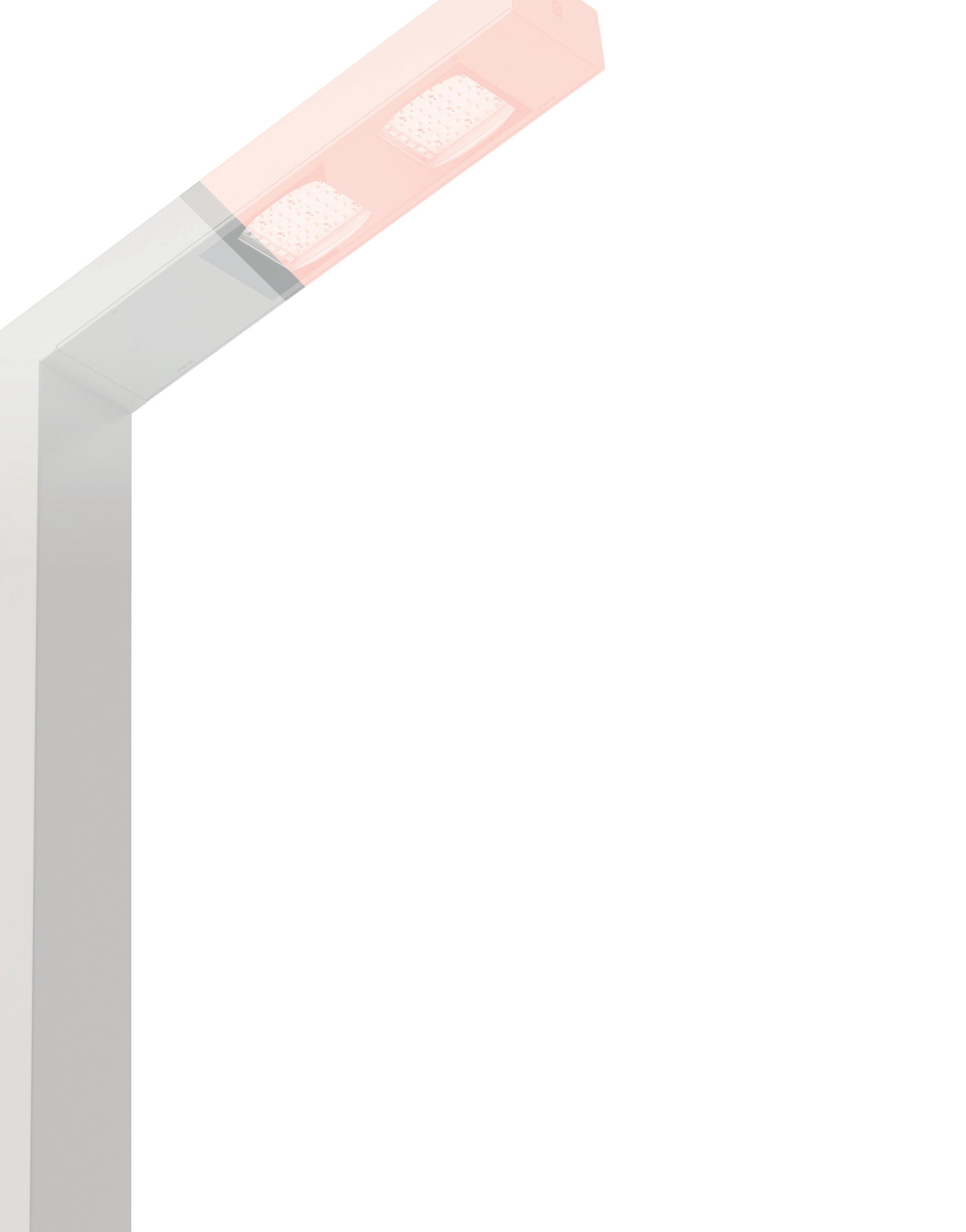

Lineal Wide LED Luminaire
FIXTURE TYPE:
PROJECT NAME:
SPECIFICATIONS:
CONSTRUCTION: Seamless aluminum housing comprised of 6005AT61 extrusion and 6061-T6 end plates. Gasketed aluminum electrical access cover attached with captive stainless steel hardware and safety cable.
ELECTRICAL: Integral Class P, 120-277V or 347-480V, dimmable constant current driver. Luminaire is pre-wired with watertight 5 conductor 18 gauge SJEOOW whip. 10kA surge suppression is standard with optional external 20kA surge suppression. Operating temperature of -40°C to 50°C.
OPTICAL SYSTEM: LED boards have solderless connections for field upgradability. Available in CCT of 2700, 3000, 3500, and 4000K, >90 CRI. Optics are UV resistant molded PMMA in Type II and IV distributions. Consult factory for additional lumen output, CCT, and optical distribution options.
CONTROLS: Dimming through 0-10V input is standard. Available with integral motion sensor with photocell providing on/off and full light to dim control. Also available with wireless smart city control. See SmartCity control documentation for more information.
FINISHES: All exterior aluminum parts are polyester powder coat painted to meet AAMA 2604 standards. See Structura's finish options for available colors. Care and Maintenance
LISTINGS & RATINGS: Luminaire CSA listed according to CSA C22.2 No. 250.0-18/UL Standard 1598. Suitable for wet locations. LM-80 test reported L70 > 90,000 hours and calculated L70 > 110,000 hours. Bug rating: B1-U0-G1. IP65 rated.
WARRANTY: 5-year warranty on LED and drivers.
C US
Lineal Wide M3300 mounted on Structura Kila pole.
Lineal Wide M1100 mounted on Structura Spar pole.
www.ragni-group.com
The Domitienne Range presents a sophisticated lighting solution with a streamlined rectangular pole and luminaire system, o ered in heights from 13 to 26 feet. The Flex model enhances adaptability with an adjustable tilt from 0° to 30°, enabling precise control of light distribution. Each luminaire accommodates one or two modular heads with configurations of up to 96 LEDs, delivering luminous output from 1,000 to 20 600 lumens. Available in single or dual configurations, the Domitienne is ideally suited for both roadway and pedestrian lighting applications.
Hinged Door. Holds 1 or 2 LED Modules with up to 96 LEDs. Fixed or Flex Version with Articulating Hinge.
TYPE X2 SPEC HYATT CENTRIC
PART ONE: Luminaire
Complete the following ordering information first to determine your luminaire selection. Then, continue to Part Two to make your pole selection.

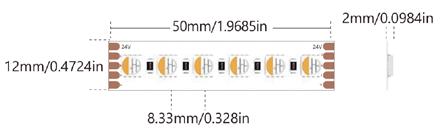

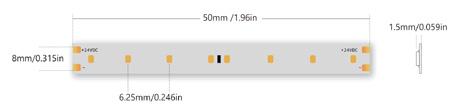

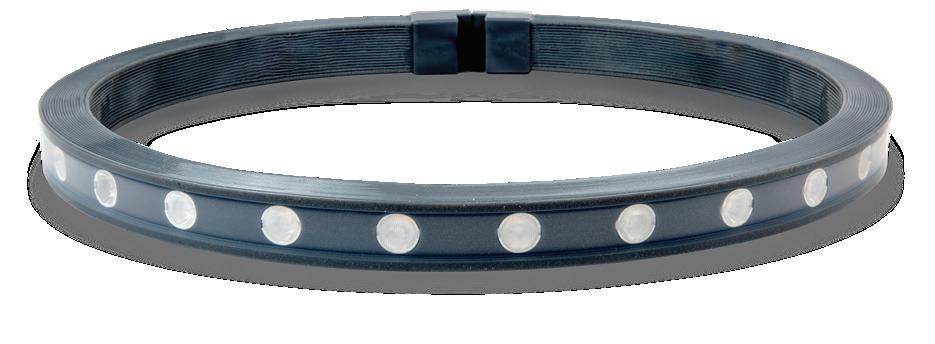

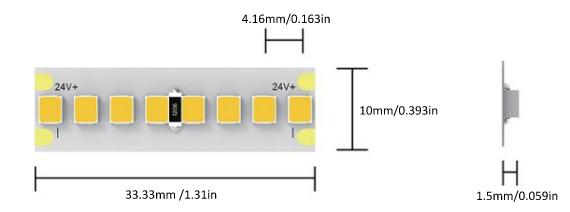

LINEAR LIGHT LINE

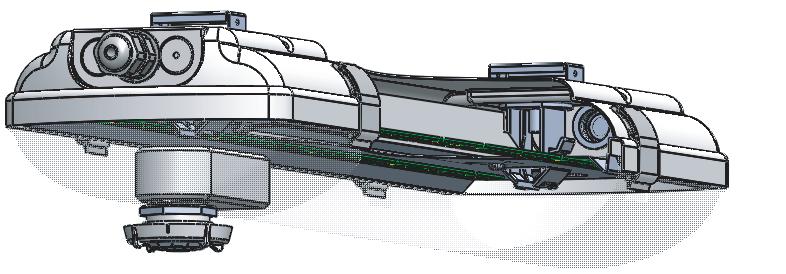

LUXYLED EVO COBRA
HYATT CENTRIC
PROJECT:
TYPE:
QUANTITY:
CRI
Optical Distribution
18K, 22K, 27K, 3K, 35K, 4K, 65K, 27K+65K RGB, RGBW, RGBDMX, DIM TO WARM

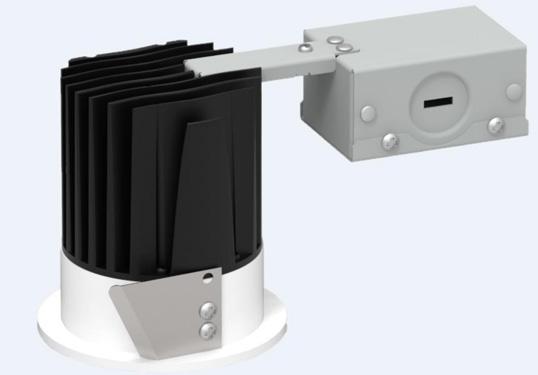

Theia LED luminaires are commercial grade downlights designed for easy installation into new construction or remodel applications. Luminaires include a selectable color temperature switch located on the junction box of each luminaire with a quick connect that allows for easy disconnect and mounting in the ceiling.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes junction box with class 2 driver Quick installation and cost savings IC Air-Tight rated cETLus Listed for Wet Locations 5-year limited warranty
SPECIFICATION
Construction: Aluminum luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2 " knockouts, two keyhole slots and snap on cover. Maximum of 6 No. 12 AWG or Maximum of 8 No. 14 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 7- 1/2 " and Junction box wire length: 10- 1/2 "]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8 " to 5/8 ". New construction frame-in or plate are available (ordered separately), not required.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
ELECTRICAL
Voltage: 120VAC (blank) or 120-277VAC (LE4), must specify
Lumens / Wattage: Up to 950lm / 10W
Color Temperature: Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
Color Rendering Index: 90+ CRI
Beam Spread: 94° Wide Flood
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac/ELV (blank) or 0-10V (LE4), must specify
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NF-R246 : Universal New Construction Frame-In
NFC-R430 : New Construction Frame-In with Collar
NFP-R413: New Construction Plate
NEPK-20LEDUNV: Emergency LED Driver with Remote Test Switch
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Wet location
Certified to the high efficacy requirements of California Title 24 JA8-2022
5-Year Limited Warranty
FCC Compliant

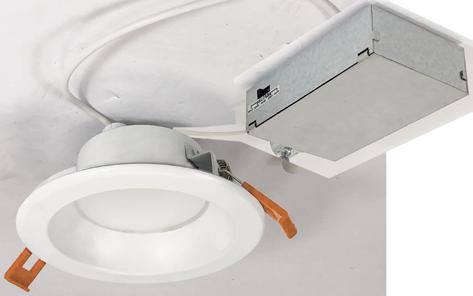

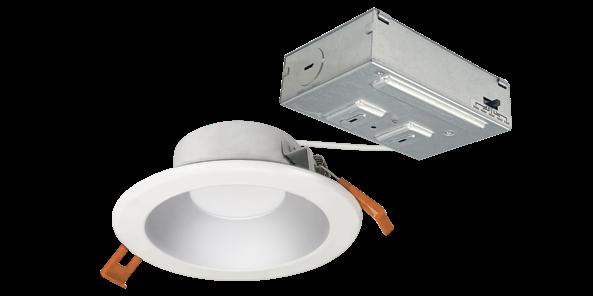

4" Theia LED Downlight with Selectable CCT
Finish
NLTH-41TW-HZMPW = Haze Reflector / Matte Powder White Flange
Five position sliding switch 27K / 30K / 35K / 40K / 50K
NLTH-41TW-HZMPW Haze Reflector / Matte Powder White Flange
NLTH-41TW-MPW Matte Powder White Reflector / Matte Powder White Flange
PRODUCT IMAGES AND DIMENSIONS Cut out: 4.25"
Optional Accessories
Description
NF-R246 = Universal New Construction Frame-In
NFC-R430 = New Construction Frame-In with Collar
NFP-R413 = New Construction Plate
NEPK-20LEDUNV = Emergency Battery w/Remote Test Switch
HYATT CENTRIC TYPE A ALT
NLTH-41TW-MPW

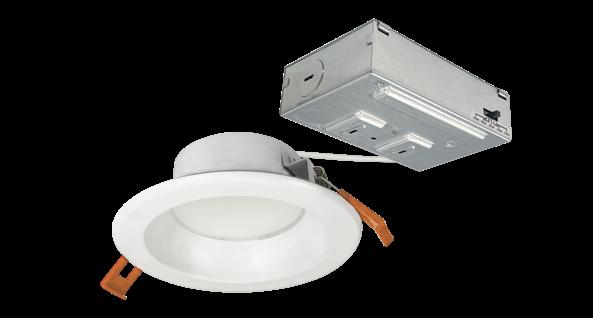

4" Theia LED Downlight with Selectable CCT
Source: 10W Up to 950lm
PRODUCT DESCRIPTION
Theia LED luminaires are commercial grade downlights designed for easy installation into new construction or remodel applications. Tunable white luminaires include an integral color temperature switch located on the junction box of each luminaire with a quick connect that allows for easy disconnect and mounting in the ceiling.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
· No housing required and includes junction box with class 2 driver Quick installation and cost savings IC Air-Tight rated cETLus Listed for Wet Locations 5-year limited warranty
SPECIFICATION
Construction: Aluminum luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2" knockouts, two keyhole slots and snap on cover. Maximum of 6 No. 12 AWG or Maximum of 8 No. 14 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 7-1/2" and Junction box wire length: 10-1/2"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/8". New construction frame-in or plate are available (ordered separately), not required.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
ELECTRICAL
Voltage: 120VAC (blank) or 120-277VAC (LE4), must specify
Lumens / Wattage: Up to 950lm / 10W
Color Temperature: Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
Color Rendering Index: 90+ CRI
Beam Spread: 94° Wide Flood
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac/ELV (blank) or 0-10V (LE4), must specify
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NF-R246 : Universal New Construction Frame-In
NFP-R413: New Construction Plate
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Battery operates luminaire at 20W for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Wet location
ENERGY STAR certified
Certified to the high efficacy requirements of California Title 24 JA8-2022
NEPK-20LEDUNV = 20W Emergency Battery w/Remote Test Switch
TYPE A SPEC HYATT CENTRIC
New Construction Frame-In with Collar
NFC-R430
New construction frame-in with collar can be used to assist installing can-less recessed downlighting.

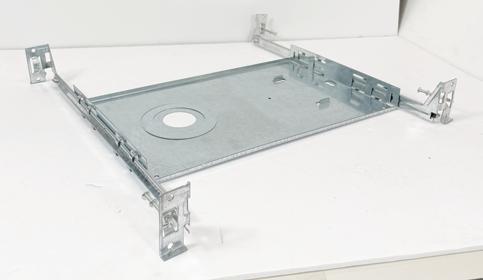

Universal New Construction Frame-In
NF-R246
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.

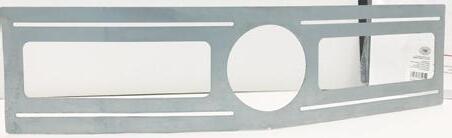

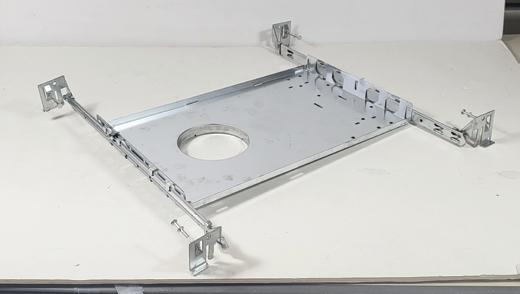

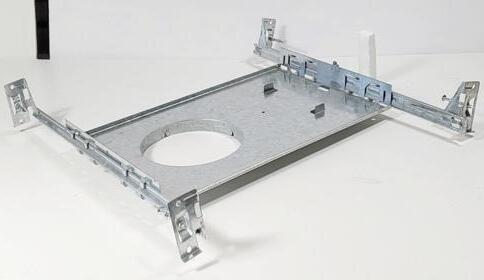

New Construction Plate
NFP-R413
New construction plate can be used to assist installing canless recessed downlighting.

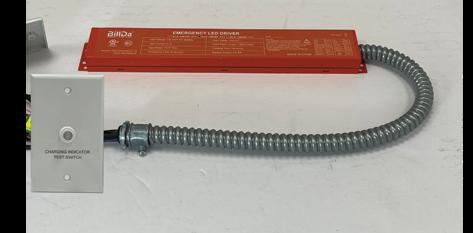

Emergency Battery with Remote Test Switch
NEPK-20LEDUNV
120-277V Emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to for full charge.
HYATT CENTRIC
Universal New Construction Frame-In
Universal
NO SPEC
HYATT CENTRIC TYPE A2 ALT
NLTH-41TW-MPW
4" Theia LED Downlight with Selectable CCT
Source: 10W Up to 950lm
PRODUCT DESCRIPTION
Theia LED luminaires are commercial grade downlights designed for easy installation into new construction or remodel applications. Tunable white luminaires include an integral color temperature switch located on the junction box of each luminaire with a quick connect that allows for easy disconnect and mounting in the ceiling.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
· No housing required and includes junction box with class 2 driver Quick installation and cost savings IC Air-Tight rated cETLus Listed for Wet Locations 5-year limited warranty
SPECIFICATION
Construction: Aluminum luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2" knockouts, two keyhole slots and snap on cover. Maximum of 6 No. 12 AWG or Maximum of 8 No. 14 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 7-1/2" and Junction box wire length: 10-1/2"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/8". New construction frame-in or plate are available (ordered separately), not required.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
ELECTRICAL
Voltage: 120VAC (blank) or 120-277VAC (LE4), must specify
Lumens / Wattage: Up to 950lm / 10W
Color Temperature: Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
Color Rendering Index: 90+ CRI
Beam Spread: 94° Wide Flood
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac/ELV (blank) or 0-10V (LE4), must specify
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NF-R246 : Universal New Construction Frame-In
NFP-R413: New Construction Plate
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Battery operates luminaire at 20W for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Wet location
ENERGY STAR certified
Certified to the high efficacy requirements of California Title 24 JA8-2022
Designed with symmetrical and asymmetrical reflectors, delivers glare free homogeneous light. UGR<10 (30°), UGR<19 (50°), UGR<25 (70°).
The asymmetrical reflector offers longitudinal cut-off and delivers homogeneous light from the upper edge of the wall to the floor with no visible dark zones dimming options Push button, potentiometer, 0-10V, DALI, DMX, KNX.
Dimming options depend on power supply and additional control units to be separately ordered as accessories standards CE, UL approval pending
HYATT CENTRIC TYPE E ALT

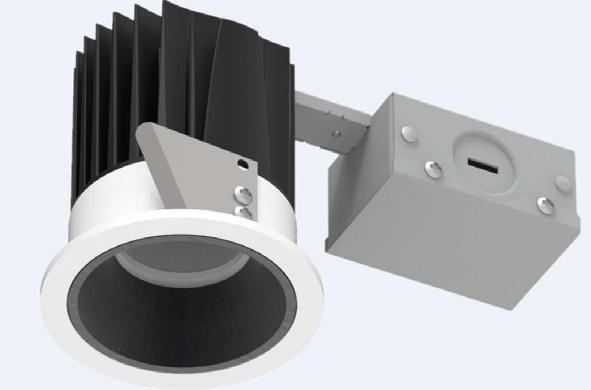

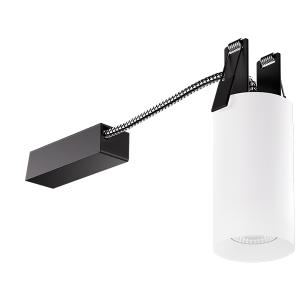

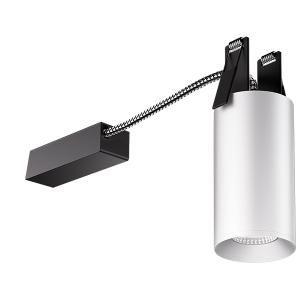

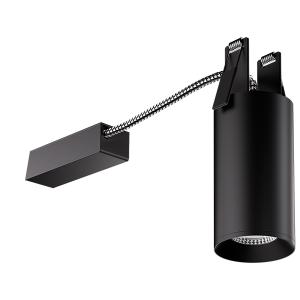

NIOC-2RNB

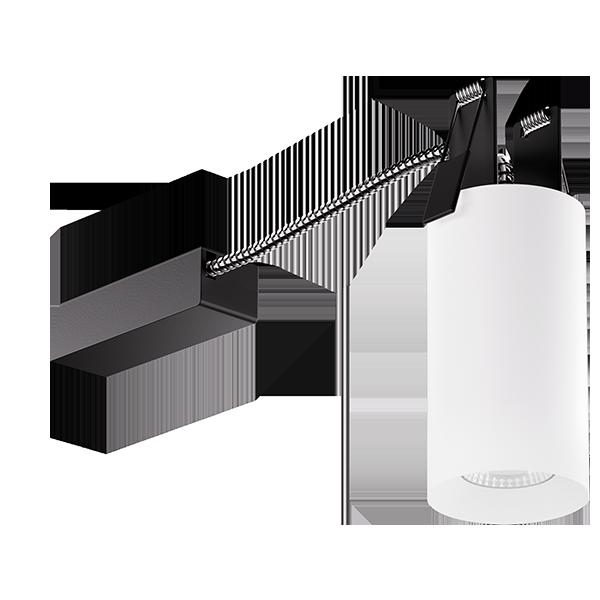

2" Iolite Can-less Round Bullnose
Source: 12W LED 1275lm
PRODUCT DESCRIPTION
2" Iolite can-less downlights can be installed in new construction or remodel applications. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
No housing required - IC Air-Tight rated Easy installation for remodel or new construction applications Variety of trim accessories to configure desired appearance Quick disconnect allows for extended lengths Dedicated CCT or Comfort Dim (warm dim) Flood optic, narrow flood and spot optics (included) 5-Year limited warranty cULus Listed for Wet Locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.

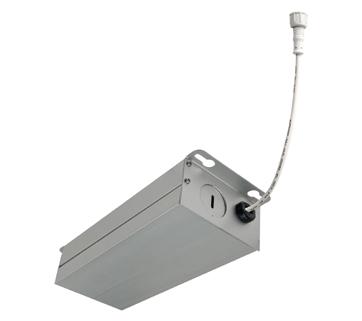

Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.
OPTICS
Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: 1275lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0°-30°C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 950lm only Dimming: Triac or ELV
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Delivered lumens will vary depending on CCT, optic and finish

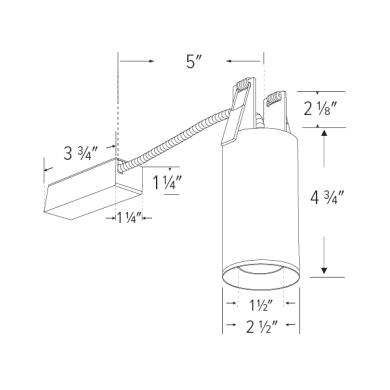

PRODUCT IMAGES & DIMENSIONS
Item Number
NIOC-2RNBWW = White Trim 2" Iolite Can-less Round Bullnose Trim
NIOC-2RNBMPW = Matte Powder White Trim
Three field changeable optics included Cut out: 3-1/8"
Color Temperature
NIOC-24LED927 X = 2700K
NIOC-24LED930X = 3000K
NIOC-24LED935 X = 3500K
NIOC-24LED940X = 4000K
Driver Box
NJCB-12 = 12W / 120VAC input / Triac or ELV dimming 2" & 4" Iolite Can-less LED Module
NIOC-24LED9CDX = Comfort Dim (3100K~2000K)
Wattage
Example: NIOC-2RNBMPW / NIOC-24LED930X / NJCB-12 = 2" Iolite Can-less Bullnose Trim, Matte Powder White finish, 3000K LED Module, 12W Driver Box with 120VAC input; Triac or ELV dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
HYATT CENTRIC TYPE E
Iolite Can-less Accessories

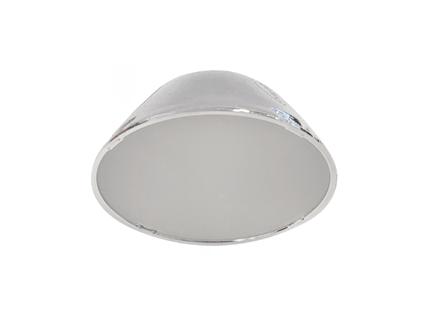

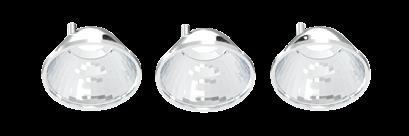

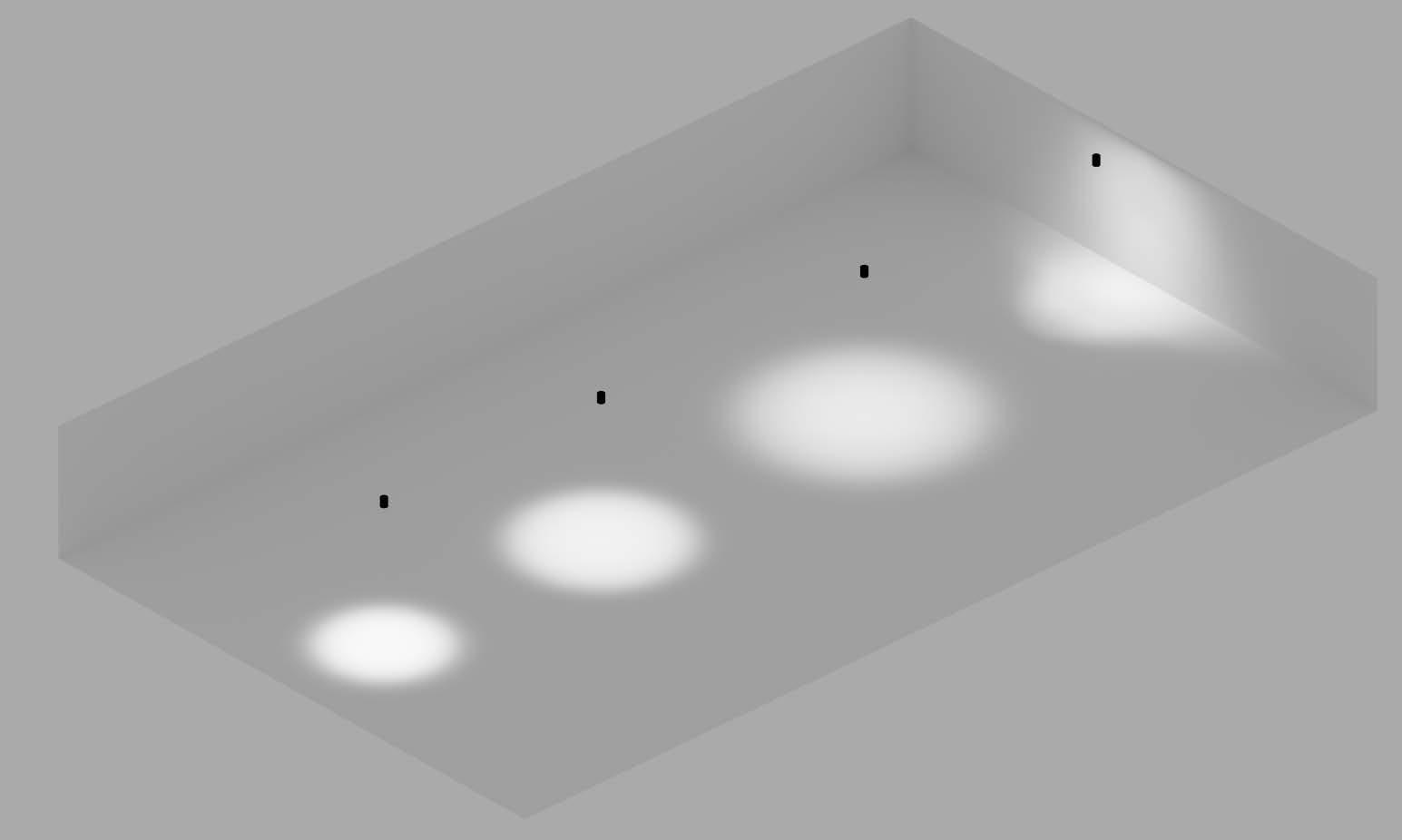

FIELD CHANGEABLE OPTICS

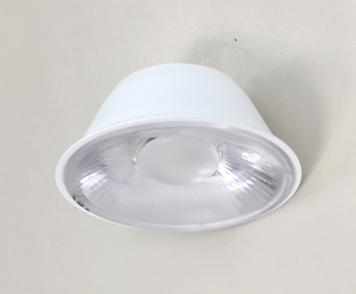

Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Frosted Optics
NIO-REFL38FR 60° Optic NIO-REFL60FR 73° Optic

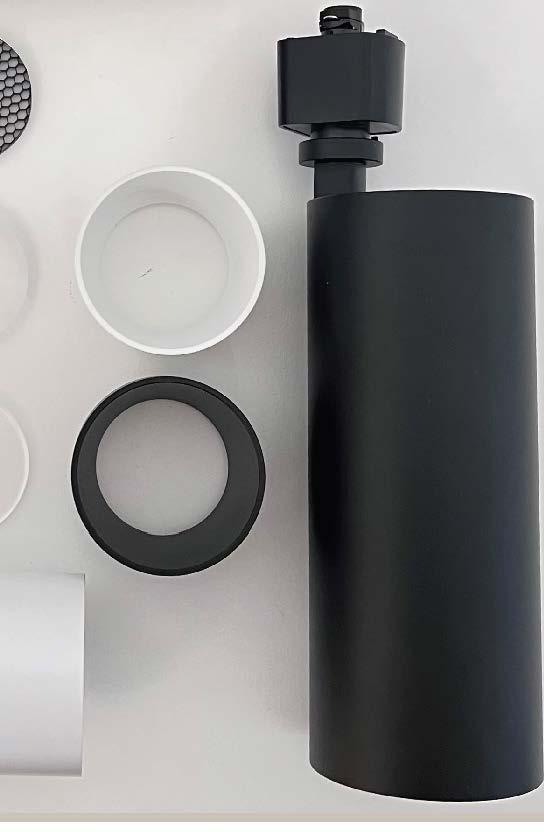

TRIM ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.

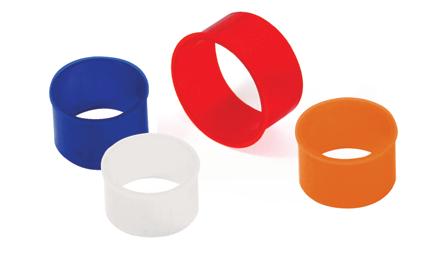

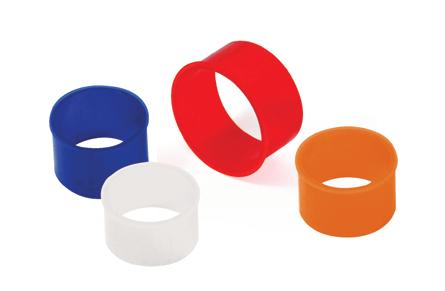

Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color: AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Premium TIR Optics
NIO-REFLTIR15
MOUNTING ACCESSORIES
Opaque Collar Snoot
Optic NIO-REFLTIR25
Optic
TIR optics are not compatible with hex cell louver accessory.
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
Iolite canless luminaires are ready to be installed out of the box. Additional mounting accessories can be used to assist during installation or extend length between driver box and luminaire.

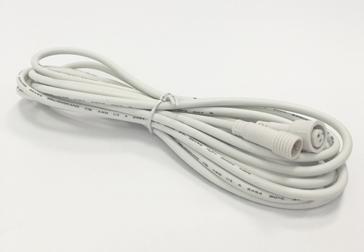

Quick Connect Extension Cables
Use to extend the length between luminaire and driver box. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
New Construction Frame-In NF-R124
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.
Designed with symmetrical and asymmetrical reflectors, delivers glare free homogeneous light. UGR<10 (30°), UGR<19 (50°), UGR<25 (70°).
The asymmetrical reflector offers longitudinal cut-off and delivers homogeneous light from the upper edge of the wall to the floor with no visible dark zones dimming options Push button, potentiometer, 0-10V, DALI, DMX, KNX.
Dimming options depend on power supply and additional control units to be separately ordered as accessories standards CE, UL approval pending
HYATT CENTRIC TYPE ES ALT
NIOC-2RNB
2" Iolite Can-less Round Bullnose
Source: 12W LED 1275lm
PRODUCT DESCRIPTION
2" Iolite can-less downlights can be installed in new construction or remodel applications. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
No housing required - IC Air-Tight rated Easy installation for remodel or new construction applications Variety of trim accessories to configure desired appearance Quick disconnect allows for extended lengths Dedicated CCT or Comfort Dim (warm dim) Flood optic, narrow flood and spot optics (included) 5-Year limited warranty cULus Listed for Wet Locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.
OPTICS
Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: 1275lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0°-30°C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 950lm only Dimming: Triac or ELV
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Delivered lumens will vary depending on CCT, optic and finish
PRODUCT IMAGES & DIMENSIONS
Item Number
NIOC-2RNBWW = White Trim 2" Iolite Can-less Round Bullnose Trim
NIOC-2RNBMPW = Matte Powder White Trim
Three field changeable optics included Cut out: 3-1/8"
Color Temperature
NIOC-24LED927 X = 2700K
NIOC-24LED930X = 3000K
NIOC-24LED935 X = 3500K
NIOC-24LED940X = 4000K
Driver Box
NJCB-12 = 12W / 120VAC input / Triac or ELV dimming 2" & 4" Iolite Can-less LED Module
NIOC-24LED9CDX = Comfort Dim (3100K~2000K)
Wattage
Example: NIOC-2RNBMPW / NIOC-24LED930X / NJCB-12 = 2" Iolite Can-less Bullnose Trim, Matte Powder White finish, 3000K LED Module, 12W Driver Box with 120VAC input; Triac or ELV dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
HYATT CENTRIC TYPE ES
Iolite Can-less Accessories
FIELD CHANGEABLE OPTICS
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Frosted Optics
NIO-REFL38FR 60° Optic NIO-REFL60FR 73° Optic
TRIM ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color: AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Premium TIR Optics
NIO-REFLTIR15
MOUNTING ACCESSORIES
Opaque Collar Snoot
Optic NIO-REFLTIR25
Optic
TIR optics are not compatible with hex cell louver accessory.
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
Iolite canless luminaires are ready to be installed out of the box. Additional mounting accessories can be used to assist during installation or extend length between driver box and luminaire.
Quick Connect Extension Cables
Use to extend the length between luminaire and driver box. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
New Construction Frame-In NF-R124
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.
Designed with symmetrical and asymmetrical reflectors, delivers glare free homogeneous light. UGR<10 (30°), UGR<19 (50°), UGR<25 (70°).
The asymmetrical reflector offers longitudinal cut-off and delivers homogeneous light from the upper edge of the wall to the floor with no visible dark zones dimming options Push button, potentiometer, 0-10V, DALI, DMX, KNX.
Dimming options depend on power supply and additional control units to be separately ordered as accessories standards CE, UL approval pending
HYATT CENTRIC TYPE

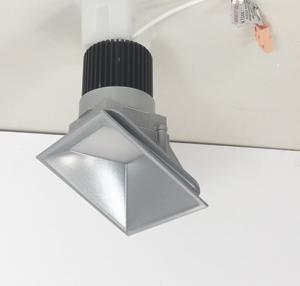

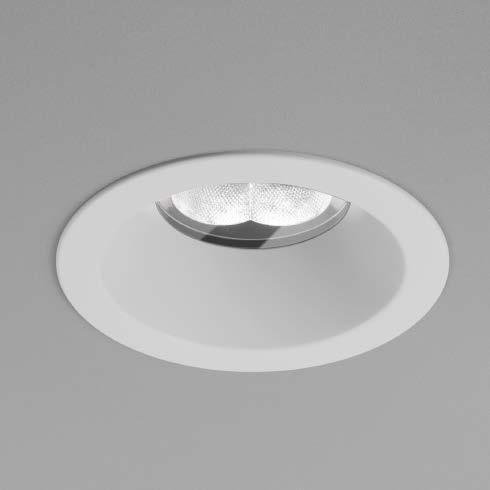

NIOB-2RC

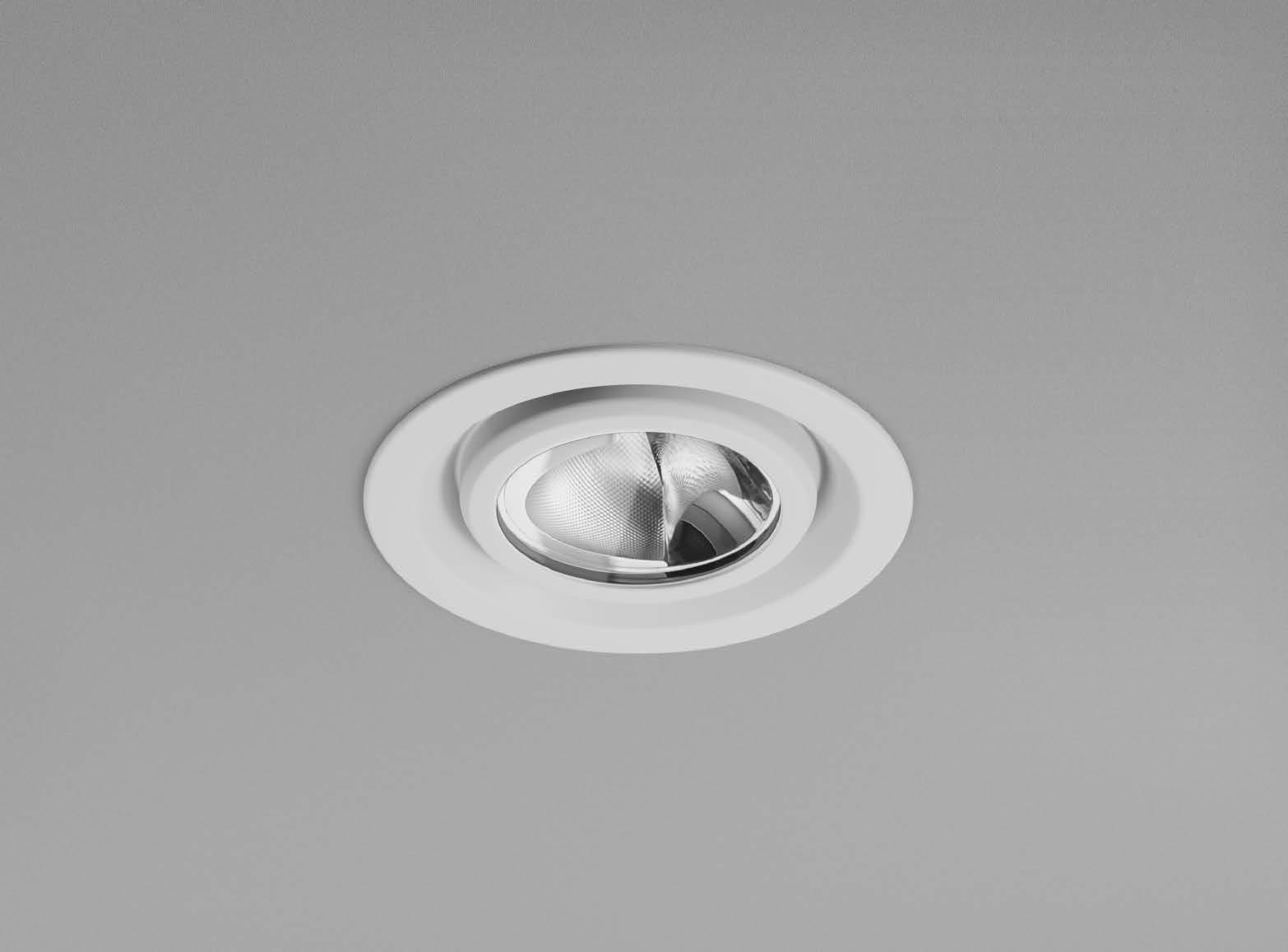

2" Iolite Round Adjustable Cone Reflector
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm
BLANK

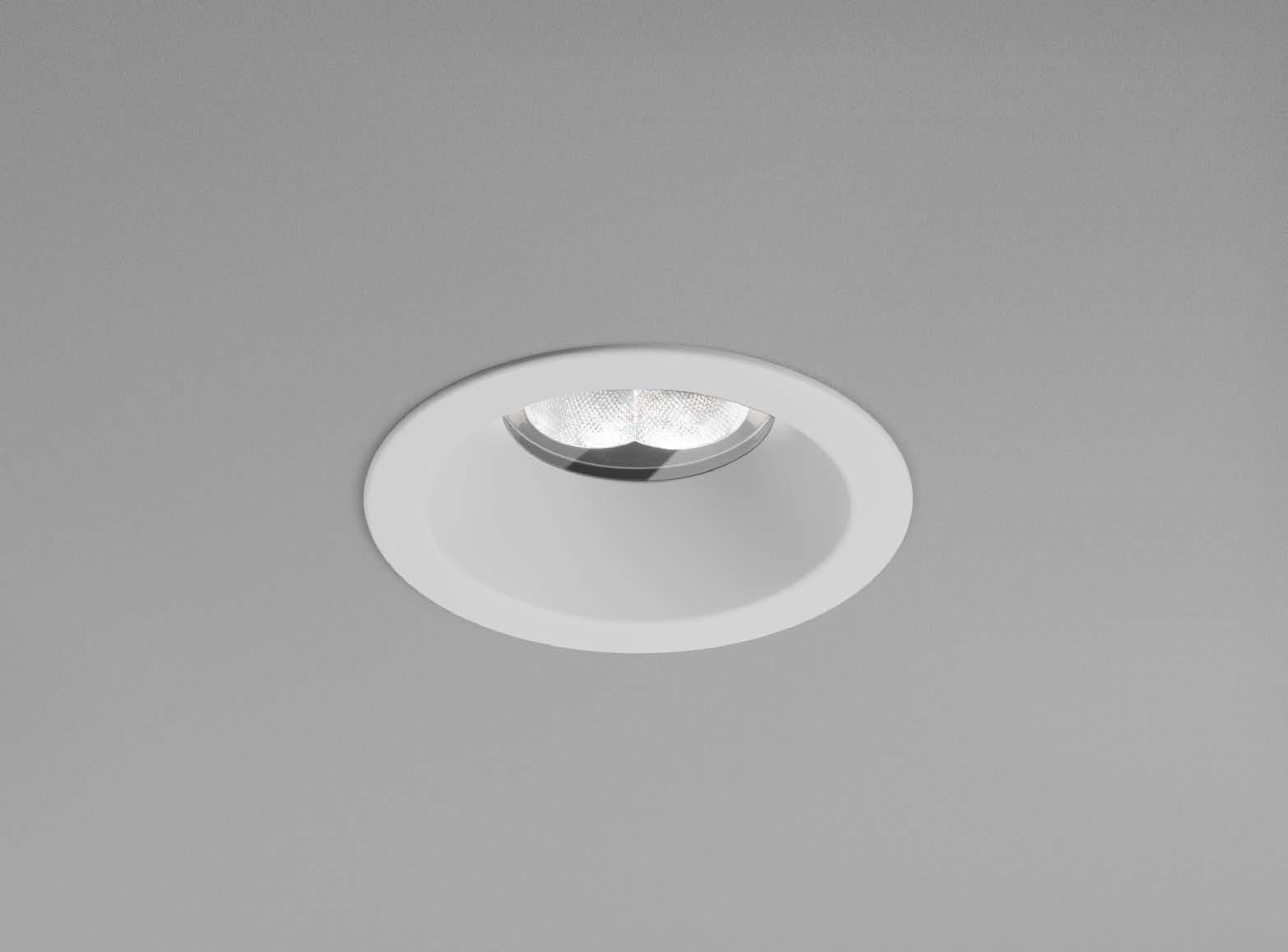

VANILLA 120V DOWNLIGHT (MOQ)
120V DOWNLIGHT
PERFORMANCE
Project Name: Type:
Product Code: Date:
The Vanilla 120V Downlight is the perfect solution for projects that require budget friendly downlight solutions. The fixed downlight features 3000K, CRI>90 with white trim and a tinted specular reflector which gives the fixture a quiet appearance along any ceiling plane. The fixture also features a 3.5 inch diameter trim which goes well with any modern interior aesthetic. The fixture is 120v/line voltage so no driver is required. Canless recessed lighting that is mounted via Bracket.
Minimum Order Quantity.
HYATT CENTRIC TYPE E2 ALT
NIOC-2RNDC
2" Iolite Can-less Round Downlight
Source: 12W LED 1000lm
PRODUCT DESCRIPTION
2" Iolite can-less downlights can be installed in new construction or remodel applications. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
No housing required - IC Air-Tight rated Easy installation for remodel or new construction applications Variety of trim accessories to configure desired appearance Quick disconnect allows for extended lengths Dedicated CCT or Comfort Dim (warm dim) Flood optic, narrow flood and spot optics (included) 5-Year limited warranty cULus Listed for Wet Locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.
OPTICS
Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: 1000lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0°-30°C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 750lm only Dimming: Triac or ELV
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Delivered lumens will vary depending on CCT, optic and finish
Item Number
NIOC-2RNDCHW
NIOC-24LED927 X = 2700K
NIOC-24LED930X = 3000K
NIOC-24LED935 X = 3500K
NIOC-24LED940X = 4000K
NIOC-24LED9CDX = Comfort Dim (3100K~2000K)
BLANK
HYATT CENTRIC TYPE E2 ALT
Iolite Can-less Accessories
2" Iolite Can-less Round Downlight
Type Project Catalog No.
Notes
FIELD CHANGEABLE OPTICS
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Frosted Optics
Premium TIR Optics
NIO-REFLTIR15
TIR optics are not compatible with hex cell louver accessory.
TRIM ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
MOUNTING ACCESSORIES
Iolite canless luminaires are ready to be installed out of the box. Additional mounting accessories can be used to assist during installation or extend length between driver box and luminaire.
Quick Connect Extension Cables
Use to extend the length between luminaire and driver box. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
New Construction Frame-In NF-R124
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.
Designed with symmetrical and asymmetrical reflectors, delivers glare free homogeneous light. UGR<10 (30°), UGR<19 (50°), UGR<25 (70°).
The asymmetrical reflector offers longitudinal cut-off and delivers homogeneous light from the upper edge of the wall to the floor with no visible dark zones dimming options Push button, potentiometer, 0-10V, DALI, DMX, KNX.
Dimming options depend on power supply and additional control units to be separately ordered as accessories standards CE, UL approval pending
HYATT CENTRIC TYPE E4
NIOC-2RNDC
2" Iolite Can-less Round Downlight
Source: 12W LED 1000lm
PRODUCT DESCRIPTION
2" Iolite can-less downlights can be installed in new construction or remodel applications. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
No housing required - IC Air-Tight rated Easy installation for remodel or new construction applications Variety of trim accessories to configure desired appearance Quick disconnect allows for extended lengths Dedicated CCT or Comfort Dim (warm dim) Flood optic, narrow flood and spot optics (included) 5-Year limited warranty cULus Listed for Wet Locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.
OPTICS
Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: 1000lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0°-30°C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 750lm only Dimming: Triac or ELV
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Delivered lumens will vary depending on CCT, optic and finish
Item Number
NIOC-2RNDCHW
NIOC-24LED927 X = 2700K
NIOC-24LED930X = 3000K
NIOC-24LED935 X = 3500K
NIOC-24LED940X = 4000K
NIOC-24LED9CDX = Comfort Dim (3100K~2000K)
HYATT CENTRIC TYPE E4
Iolite Can-less Accessories
2" Iolite Can-less Round Downlight
Type Project Catalog No.
Notes
FIELD CHANGEABLE OPTICS
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Frosted Optics
Premium TIR Optics
NIO-REFLTIR15
TIR optics are not compatible with hex cell louver accessory.
TRIM ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
MOUNTING ACCESSORIES
Iolite canless luminaires are ready to be installed out of the box. Additional mounting accessories can be used to assist during installation or extend length between driver box and luminaire.
Quick Connect Extension Cables
Use to extend the length between luminaire and driver box. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
New Construction Frame-In NF-R124
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.
Designed with symmetrical and asymmetrical reflectors, delivers glare free homogeneous light. UGR<10 (30°), UGR<19 (50°), UGR<25 (70°).
The asymmetrical reflector offers longitudinal cut-off and delivers homogeneous light from the upper edge of the wall to the floor with no visible dark zones dimming options Push button, potentiometer, 0-10V, DALI, DMX, KNX.
Dimming options depend on power supply and additional control units to be separately ordered as accessories standards CE, UL approval pending
HYATT CENTRIC TYPE E4S
NIOC-2RNDC
2" Iolite Can-less Round Downlight
Source: 12W LED 1000lm
PRODUCT DESCRIPTION
2" Iolite can-less downlights can be installed in new construction or remodel applications. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
No housing required - IC Air-Tight rated Easy installation for remodel or new construction applications Variety of trim accessories to configure desired appearance Quick disconnect allows for extended lengths Dedicated CCT or Comfort Dim (warm dim) Flood optic, narrow flood and spot optics (included) 5-Year limited warranty cULus Listed for Wet Locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.
OPTICS
Each module includes field changeable optics (spot, narrow flood and flood - preinstalled).
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: 1000lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0°-30°C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 750lm only Dimming: Triac or ELV
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Delivered lumens will vary depending on CCT, optic and finish
Item Number
NIOC-2RNDCHW
NIOC-24LED927 X = 2700K
NIOC-24LED930X = 3000K
NIOC-24LED935 X = 3500K
NIOC-24LED940X = 4000K
NIOC-24LED9CDX = Comfort Dim (3100K~2000K)
HYATT CENTRIC TYPE E4S ALT
Iolite Can-less Accessories
2" Iolite Can-less Round Downlight
Type Project Catalog No.
Notes
FIELD CHANGEABLE OPTICS
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Frosted Optics
Premium TIR Optics
NIO-REFLTIR15
TIR optics are not compatible with hex cell louver accessory.
TRIM ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.

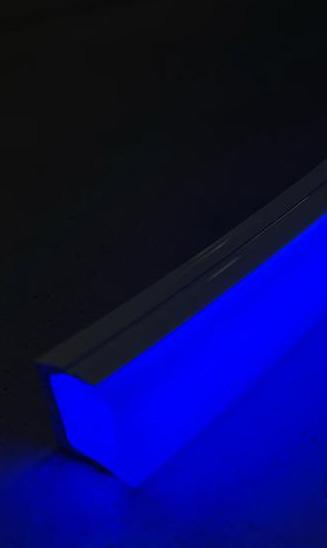

Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
MOUNTING ACCESSORIES
Iolite canless luminaires are ready to be installed out of the box. Additional mounting accessories can be used to assist during installation or extend length between driver box and luminaire.
Quick Connect Extension Cables
Use to extend the length between luminaire and driver box. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
New Construction Frame-In NF-R124
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.
New construction frame-in can be used to assist installing can-less recessed downlighting.
Hex Cell Louver
NIO-HC Black

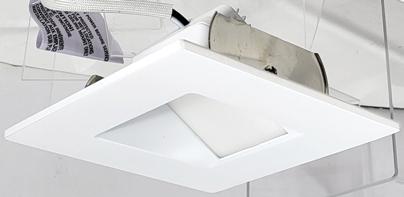

TYPE E5 SPEC HYATT CENTRIC
VANILLA 120V DOWNLIGHT
120V DOWNLIGHT
PERFORMANCE
Project Name: Type:
Product Code: Date:
The Vanilla 120V Downlight is the perfect solution for projects that require budget friendly downlight solutions. The fixed downlight features 3000K, CRI>90 with white trim and a tinted specular reflector which gives the fixture a quiet appearance along any ceiling plane. The fixture also features a 3.5 inch diameter trim which goes well with any modern interior aesthetic. The fixture is 120v/line voltage so no driver is required. Canless recessed lighting that is mounted via Bracket.
RATING: IC RATED (NO HOUSING NEEDED)
3000K
HYATT CENTRIC TYPE E5
NMIO Series

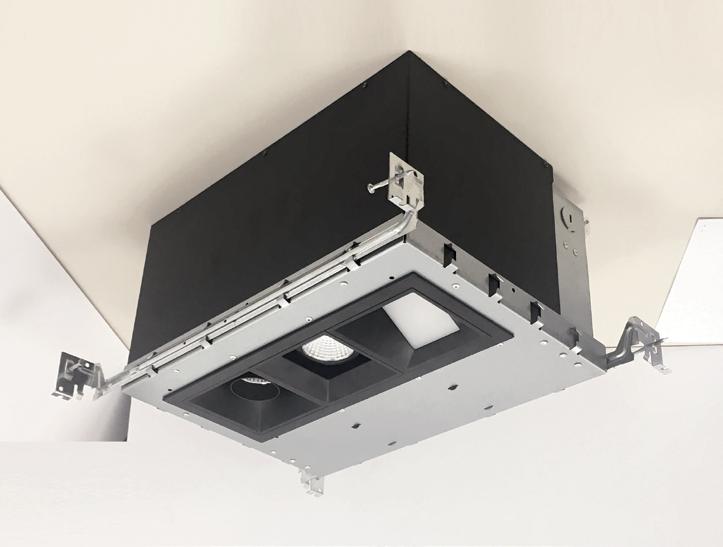

Iolite Multiple Lighting System (MLS)
Source: 12W LED per head 1000lm per head PRODUCT IMAGES AND DIMENSIONS
PRODUCT DESCRIPTION
Endless possibilities with Iolite multiple’s functionality and architectural aesthetics. Iolite multiple recessed family consist of one to three independently adjustable heads, variety of beam distributions and multiple reflector options. Iolite multiple series is a perfect solution for most retail, hospitality and commercial applications.
FEATURES
Trimless of Flanged appearance
One to three head configurations
Three optics included with each trim type (Premium TIR optics available) Customizable reflector options
Housing includes individual drivers for each module Comfort Dim (warm dim) also available in 800lm only Triac, ELV or 0-10V dimming
SPECIFICATION
Housing: 0.0475" Galvanized steel housing with quick connects from each driver for ease of installation. Housing accepts standard ceiling thickness up to 1-1/2" may vary depending on ceiling type (up to 1" ceiling thickness when used with NMIO-W).
Clearance: “IC ” Insulated ceiling housings are direct contact rated; no minimum clearance is required. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 7/8" to 25" adjustable bar hangers with captive nails are included with the housing. Bar hangers are parallel to junction box, but can be repositioned 90˚ perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 40 cubic inch 0.0475" thick galvanized steel, with six 1/2 " knockouts. Leads are #18AWG wire. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box (max. of 4 with wall wash trims).
Trimless: Mud plate mounts inside Iolite Multiple Housing and screws into drywall to be flush. A professional drywall finisher floats the ceiling to blend in the mud plate, sands and paints. The trims are then inserted into the mud plate and the results are a spectacular, minimalist appearance with no flange.
ELECTRICAL
Voltage: 120/277V
Lumens / Wattage:
1000lm / 12W per head (Comfort Dim is 800lm per head) (Delivered lumens will vary depending on reflector, CCT, beam spread and finish)
Color Temperature:
2700K, 3000K, 3500K, 4000K or 5000K
Color Rendering Index: 90+CRI
Optics (included): 25° Spot, 38° Narrow Flood, 60° Flood Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Triac, ELV or 0-10V
Click Here or c heck complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab.
Optics: Each reflector includes field changeable optics (spot, narrow flood and flood - preinstalled). Premium 22° and 26° TIR optics are also available. (Note: TIR optics are not compatible with Comfort Dim)
TRIMS
Fixed Downlight: Fixed downlight delivers over 1300lm in four finishes; Black (B), Black interior / Matte Powder White (BMPW - Note: adjustable and wall wash reflectors mixed with BMPW will be MPW), Haze (HZ) or Matte Powder White (MPW).
Adjustable Snoot: Rotates 359° horizontally and pivots 20° while delivering over 1100 lumens.
Adjustable Gimbal: Rotates 359° horizontally and pivots 38° while delivering over 1300 lumens.
Wall Wash: Fixed wall wash reflector aims LED modules at optimal angle for maximum light distribution along wall surfaces.
Blank Plate: Blank plate is used in conjuction with two or three head configurations where a blank head is needed.
LABELS AND LISTINGS
cULus Listed for Damp Location 5-Year Limited Warranty Certified to the high efficacy requirements of California Title 24 JA8-2022
(Flanged)
(Trimless)
(Flanged) 3-5/8" (Trimless) Ceiling Cut-Out 1-Head: 3.95" x 3.95" 2-Head: 7-1/2" x 3.95" 3-Head: 11" x 3.95"
(Flanged) 10-3/4" (Trimless)
= Flanged
= Trimless
= Two Heads
= Three Heads
= Black
= Matte Powder White
= No Flange (Trimless)
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
CDX = Comfort Dim
= 1000lm / 12W per head (800lm w/Comfort Dim) -B = Black -BMPW* = Black / Matte Powder White (Fixed downlight only) -HZ = Haze
*
-MPW = Matte Powder White
Wall Wash B, HZ, MPW Adjustable
TYPE F SPEC HYATT CENTRIC

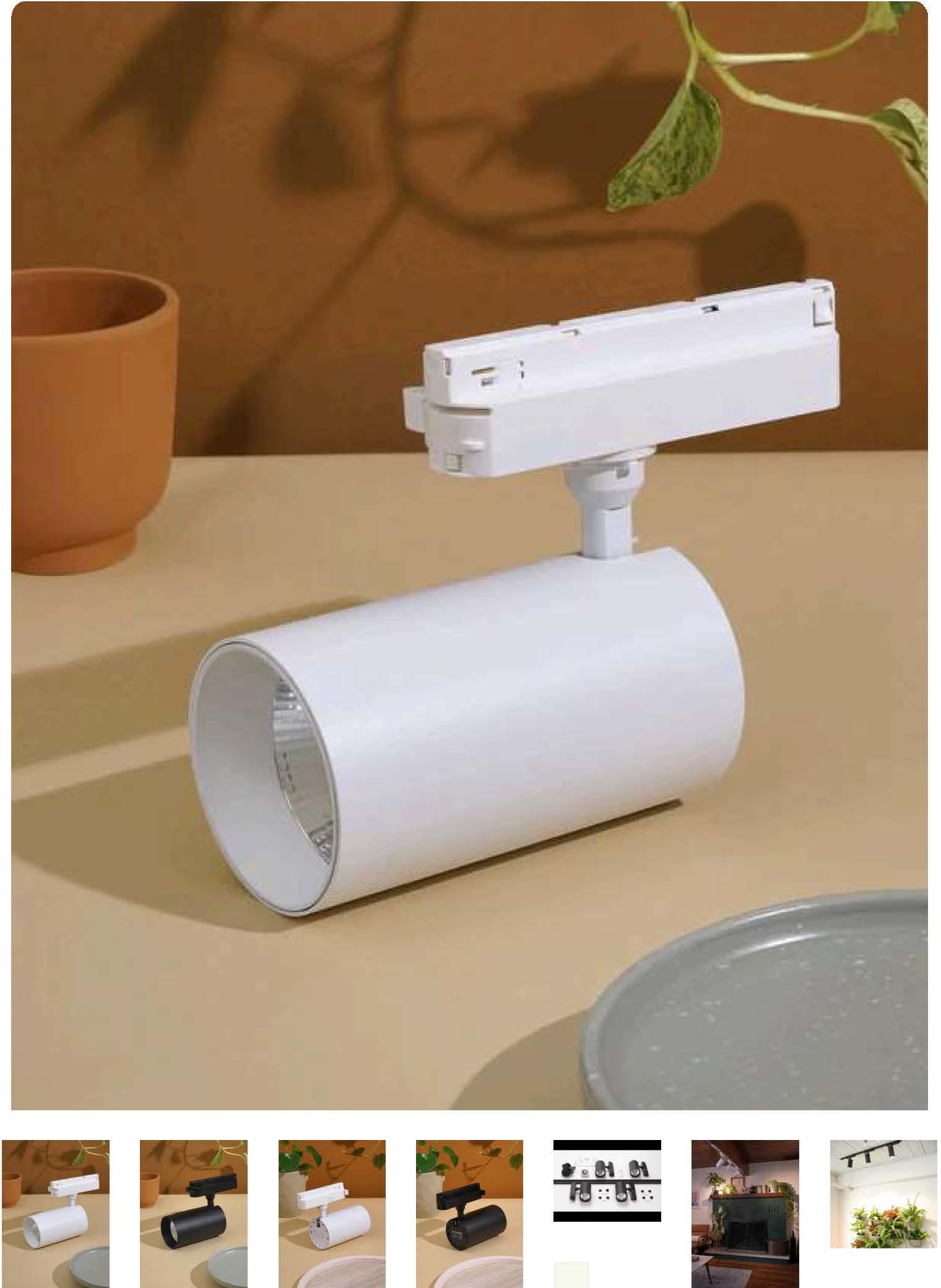

TRACK CYLINDER

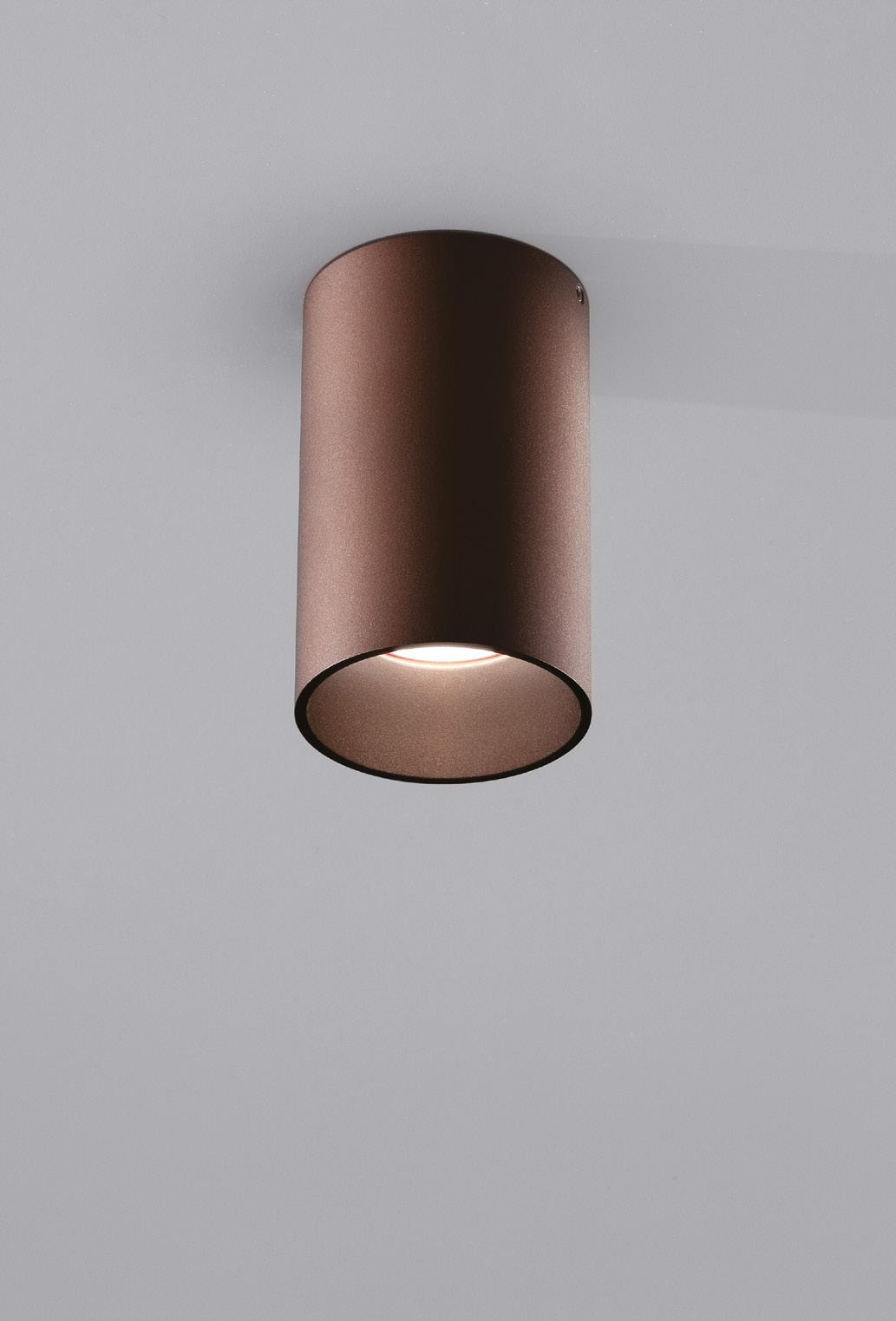

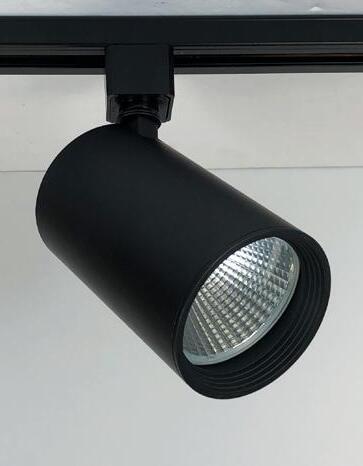

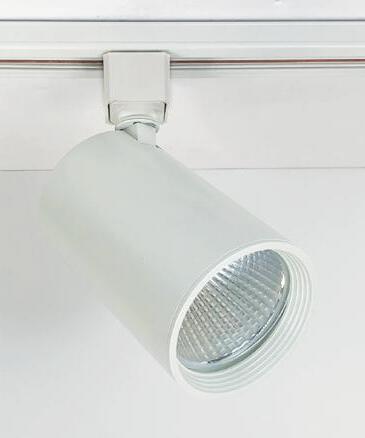

Track Cylinder
Project Name:
Product Code: Type: Date:
The Vanilla track cylinder features a cleanaluminum body and simple design. The track cylinder has deep LED shielding ideal for high visual comfort. This helps to control glare and maintain a quiet appearance in any space or setting its installed. The fixture comes standard in black or white finishes. The Vanilla track cylinder features optimal adjustability, tiltable pass 90° and can be rotated 360. The Vanilla track cylinder has three size options small, medium and large. Compatible with stucchi track standard. Optics are field swappable between the spot (15°), narrow flood (24°) and flood (36°) optics provided. It also features a clean beam edge suitable for lighting retail and hospitality applications.
PERFORMANCE
PERFORMANCE PERFORMANCE
LIGHT: LED M odule
SOURCE: LED
SDCM: 2 STEP
DRIVER SPECIFICATIONS

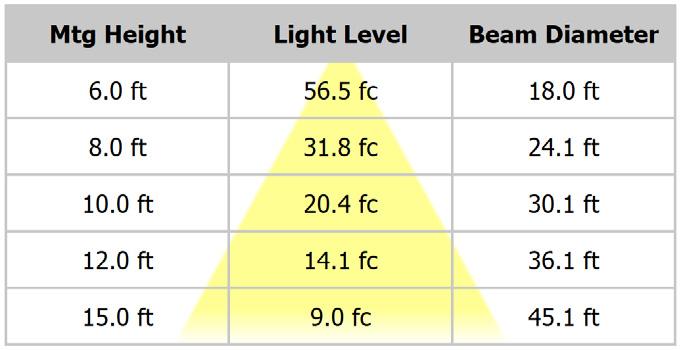

BEAM SPREAD

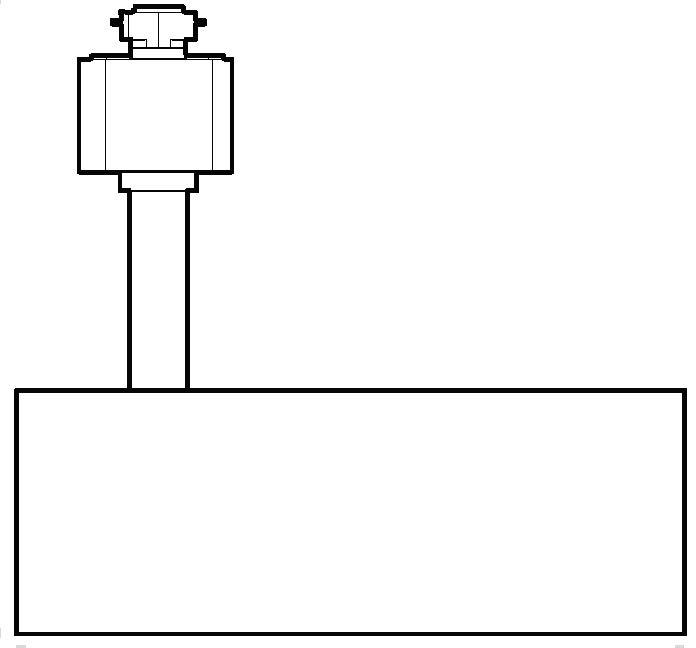

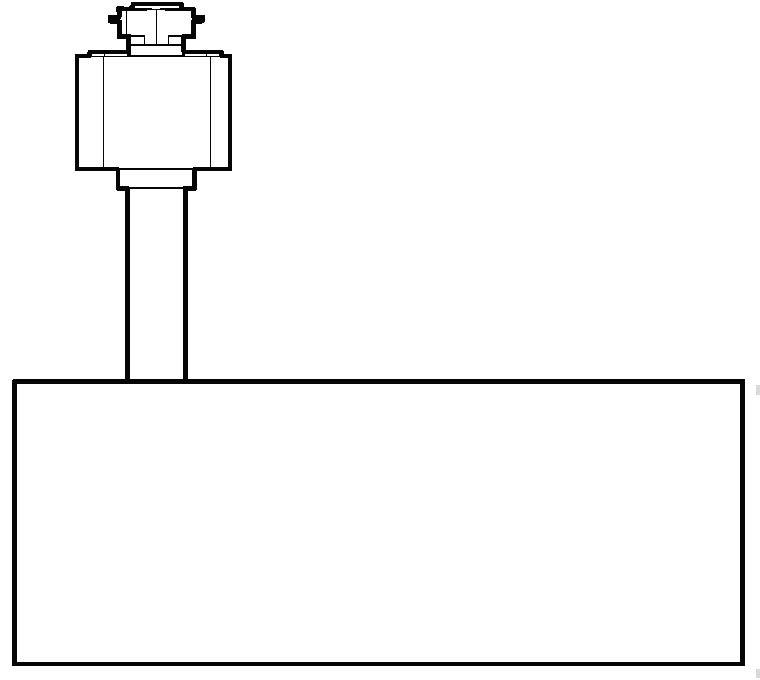

DIMENSIONS
LIGHT CREATING SPACE Updated 12/17/24
DIMMING: Phase Dimming Protocol
RANGE
TRACK SPECIFICATIONS ONE CIRCUIT TRACK 120V
HYATT CENTRIC TYPE
NTE-856
Jason PS LED Track Head - Selectable CCT
Source: 20W LED Up to 1450lm
PRODUCT DESCRIPTION
Jason PS LED Track heads include a Selectable CCT switch, allowing the end user to change the color temperature. Luminaires can be specified in three beam spreads and deliver up to 1450 lumens. Constructed of extruded and machined aluminum, the heatsink and integrated driver housing provide a sleek and modern look, designed to quietly compliment any space.
FEATURES
Deliver up to 1450 lumens
Selectable CCT (3000K / 3500K / 4000K)
Available in spot, narrow flood or flood beam spread Integral dimmable driver
Die-cast aluminum construction with deep set COB optics Lens holder accommodates one accessory
CONSTRUCTION
Housing: Die-cast aluminum construction dissipates heat for longer life.
Adjustability: 359° horizontal and 90° vertical adjustment
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: Up to 1450lm / 20W
Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Note: CCT switch is preset to 3000K
Color Rendering Index: 90+ CRI
Beam Spread: 28° Spot, 39° Narrow Flood or 56° Flood
Dimming: Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
One / Two Circuit Conversion: Positive contact (opposite neutral and ground contacts) is preset to “down” position at factory, but may be raised to the higher position to install onto the second circuit of Nora Lighting NT-2300 series two-circuit track.
LABELS AND LISTINGS
cULus Listed for dry locations
· 5-Year Limited Warranty
FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Jason PS LED Track Head - Selectable CCT Beam Spread Finish Adapter Style
NTE-856L1S = 28° Spot
NTE-856L1M = 39° Narrow Flood
NTE-856L1F = 56° Flood
=
Example: NTE-856L1M9334W = Jason PS LED Track Head - Selectable CCT, 1450lm / 20W, Narrow Flood, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
Delivered lumens will vary depending on beam spread and finish

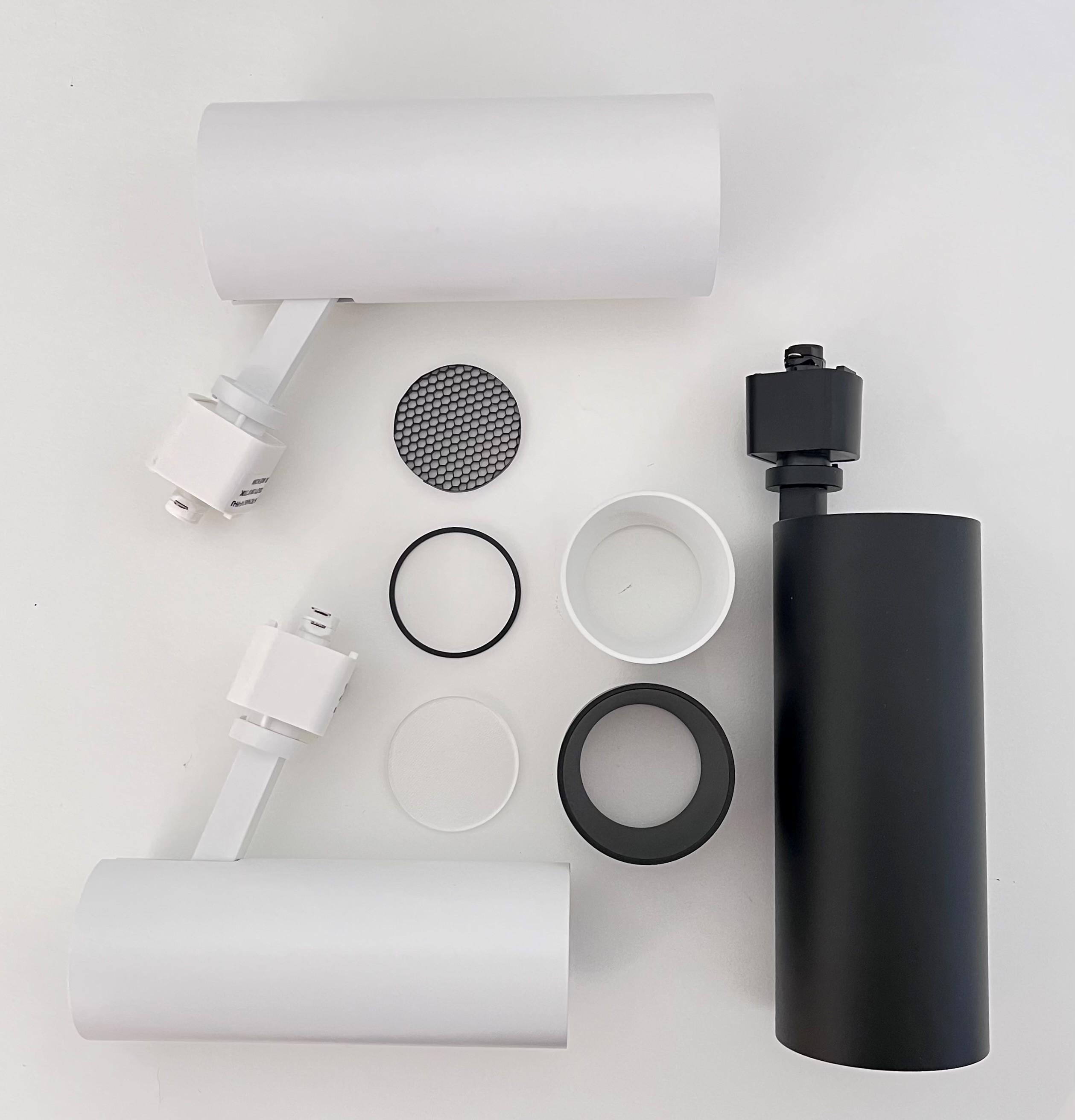

Optional Accessories
Description
NTE-855BDB = Barndoor, Black
NTE-855BDW = Barndoor, White
NTE-855SN = Snoot, Black
NTE-855SNWW = Directional Shield, Black
NTE-855HC = Honeycomb Louver
NTE-855CG = Clear Glass
TYPE F SPEC HYATT CENTRIC
LIGHT CREATING SPACE
ORDER INFORMATION
Order Code
ACCESSORIES DIAGRAM
HYATT CENTRIC
NTE-855HC
Adds a honeycomb louver accessory to
NTE-855SNWW
Directional shield provides 45º cutoff.
NTE-855FG
Replaces the clear glass included with Jason track head.
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com e-mail: nora@noralighting.com
Type Project Catalog No. Notes
NTE-855BDB Black NTE-855BDW White
Adds an adjustable barn door accessory to Jason track head.
NTE-855SN
Adds a black snoot which reduces glare and spill light.
Honeycomb Louver
Jason track head.
Frosted Glass

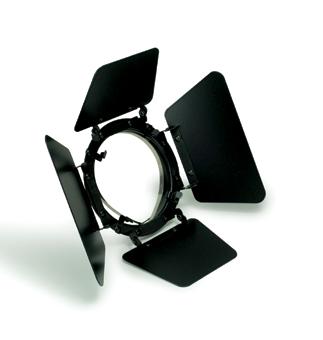

Barndoor
Black Snoot
Black Directional Shield
TYPE F1 SPEC HYATT CENTRIC
TRACK CYLINDER

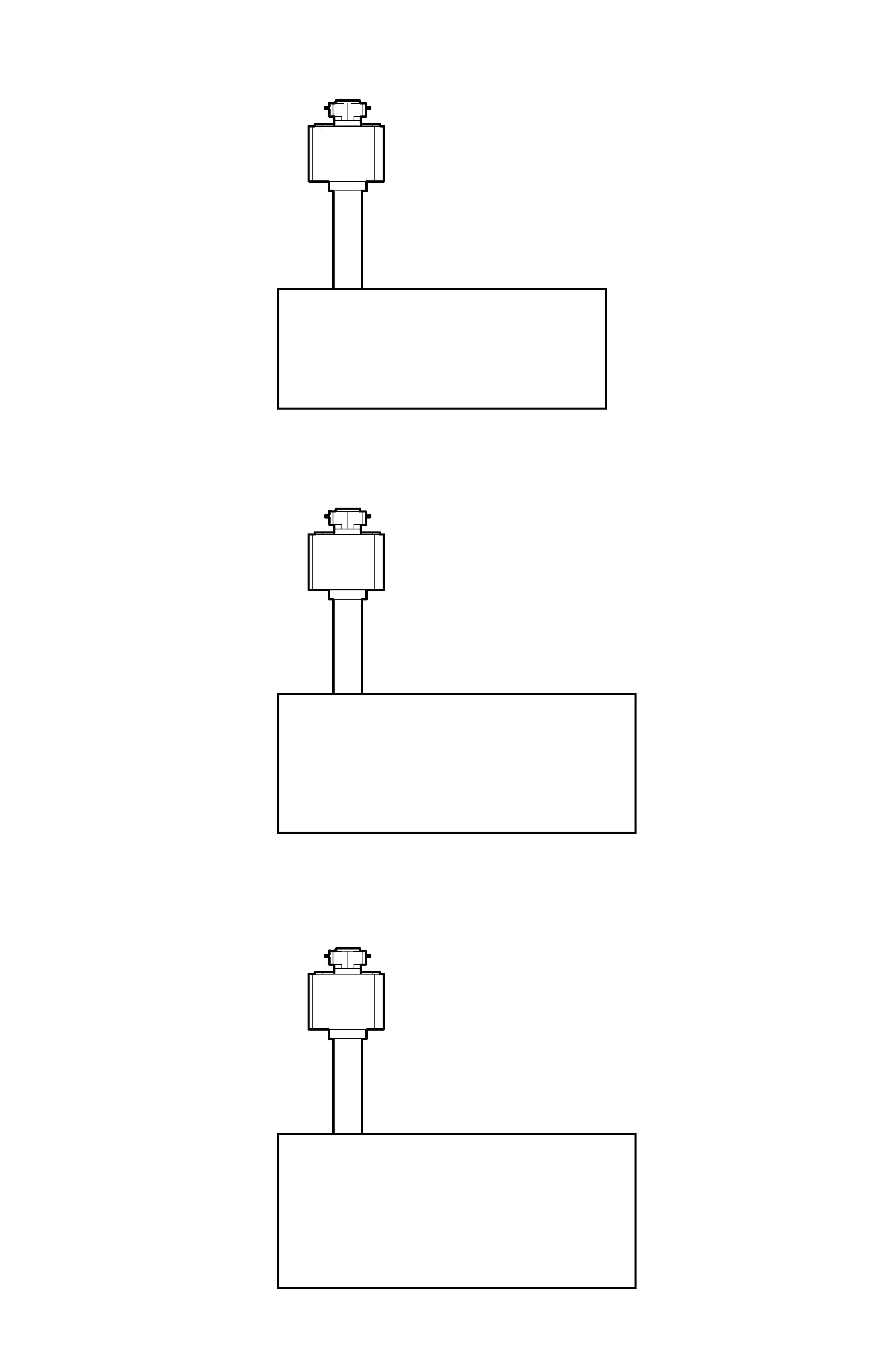

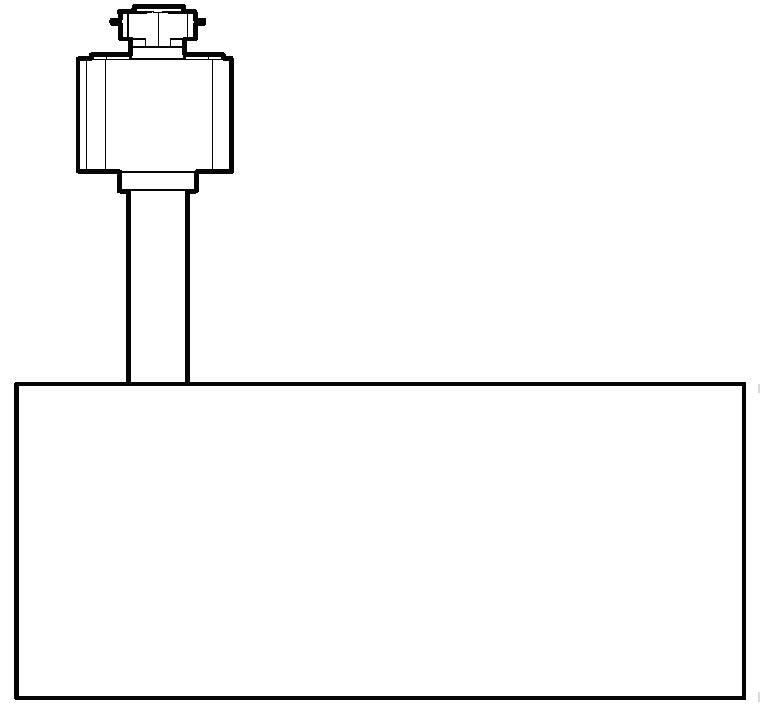

Track Cylinder
Project Name:
Product Code: Type: Date:
The Vanilla track cylinder features a cleanaluminum body and simple design. The track cylinder has deep LED shielding ideal for high visual comfort. This helps to control glare and maintain a quiet appearance in any space or setting its installed. The fixture comes standard in black or white finishes. The Vanilla track cylinder features optimal adjustability, tiltable pass 90° and can be rotated 360. The Vanilla track cylinder has three size options small, medium and large. Compatible with stucchi track standard. Optics are field swappable between the spot (15°), narrow flood (24°) and flood (36°) optics provided. It also features a clean beam edge suitable for lighting retail and hospitality applications.
PERFORMANCE
PERFORMANCE PERFORMANCE
LIGHT: LED M odule
SOURCE: LED
SDCM: 2 STEP
DRIVER SPECIFICATIONS
BEAM SPREAD
DIMENSIONS
LIGHT CREATING SPACE Updated 12/17/24
DIMMING: Phase Dimming Protocol
RANGE
TRACK SPECIFICATIONS ONE CIRCUIT TRACK 120V
HYATT CENTRIC TYPE
NTE-856
Jason PS LED Track Head - Selectable CCT
Source: 20W LED Up to 1450lm
PRODUCT DESCRIPTION
Jason PS LED Track heads include a Selectable CCT switch, allowing the end user to change the color temperature. Luminaires can be specified in three beam spreads and deliver up to 1450 lumens. Constructed of extruded and machined aluminum, the heatsink and integrated driver housing provide a sleek and modern look, designed to quietly compliment any space.
FEATURES
Deliver up to 1450 lumens
Selectable CCT (3000K / 3500K / 4000K)
Available in spot, narrow flood or flood beam spread Integral dimmable driver
Die-cast aluminum construction with deep set COB optics Lens holder accommodates one accessory
CONSTRUCTION
Housing: Die-cast aluminum construction dissipates heat for longer life.
Adjustability: 359° horizontal and 90° vertical adjustment
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: Up to 1450lm / 20W
Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Note: CCT switch is preset to 3000K
Color Rendering Index: 90+ CRI
Beam Spread: 28° Spot, 39° Narrow Flood or 56° Flood
Dimming: Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
One / Two Circuit Conversion: Positive contact (opposite neutral and ground contacts) is preset to “down” position at factory, but may be raised to the higher position to install onto the second circuit of Nora Lighting NT-2300 series two-circuit track.
LABELS AND LISTINGS
cULus Listed for dry locations
· 5-Year Limited Warranty
FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Jason PS LED Track Head - Selectable CCT Beam Spread Finish Adapter Style
NTE-856L1S = 28° Spot
NTE-856L1M = 39° Narrow Flood
NTE-856L1F = 56° Flood
=
Example: NTE-856L1M9334W = Jason PS LED Track Head - Selectable CCT, 1450lm / 20W, Narrow Flood, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com

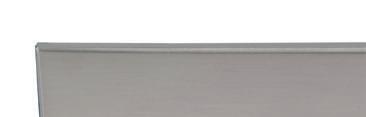

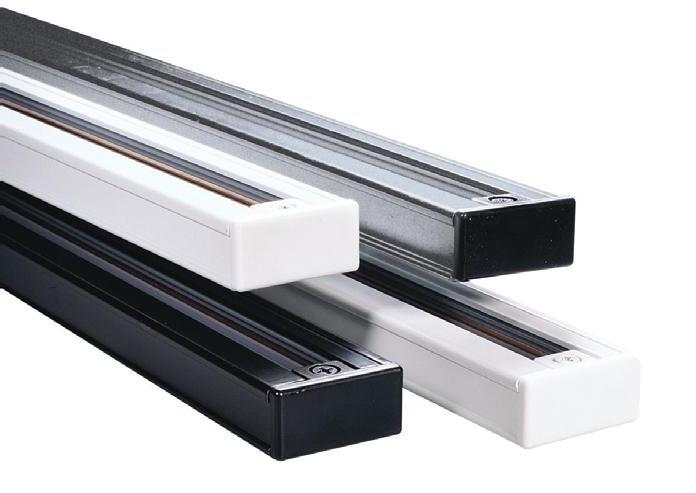

Low profile, extruded aluminum track with 20-Amp rated flat, solid integral conductors. Variety of connectors and accessory parts available.
NOTE: Nora Track is not approved for use with remote transformers. Low voltage fixtures require a transformer for each fixture, can be purchased as a separate item or a fixture with transformer included.
SPECIFICATION

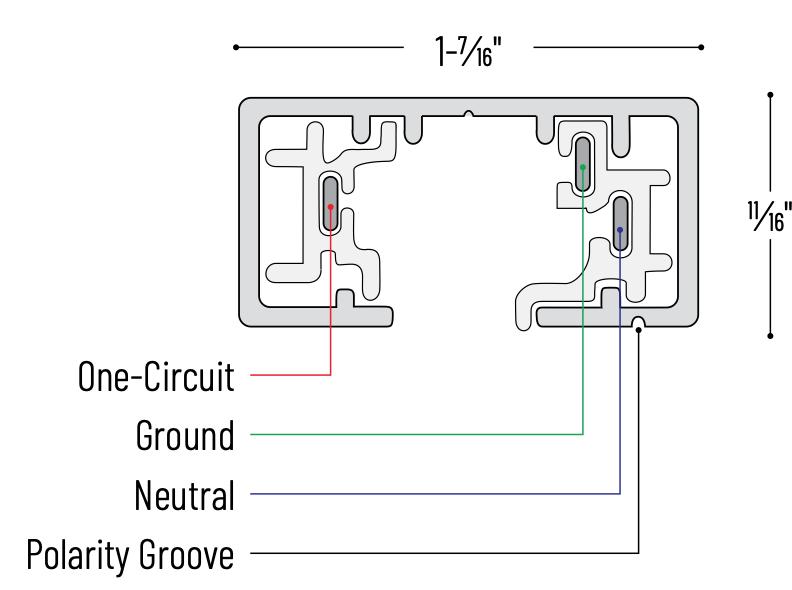

Extrusion: Aluminum construction with 0.045 PVC insulators holding 12-gauge flat conductor wiring. Polarity groove is located on face of track to indicate location of grounding conductor.
Polarity Groove: Each track section includes a groove on the surface of the extrusion. This groove must be continous throughout the track run. Track heads also have a polarity groove, which must coincide with the track’s polarity groove.
Mounting: The track may be surface, stem, or cable mounted. All lengths of track can be field cut. Surface mounting hardware included with each track section.
Compatibility: Nora track system is compatible with Halo, Catalina, Hampton Bay, Halo-Edison, or any other brand configured to Halo 3-wire track configuration.
NOTE: Wands and monopoint canopies are generally not compatible with other manufacturers.
ELECTRICAL
Input Voltage: 120V
Wattage: 2400W each circuit
Dimming: Nora track may be dimmed with any approved incandescent, magnetic low voltage, or electronic low voltage controls, depending on the track fixtures being used. If using two dimming switches on NT-2300 two-circuit track, only apply a single phase neutral to the shared common wire on the track rail. Do not attempt to use 3-way or multi-phase neutral if dimming.
LISTING
cULus Listed for Dry Locations

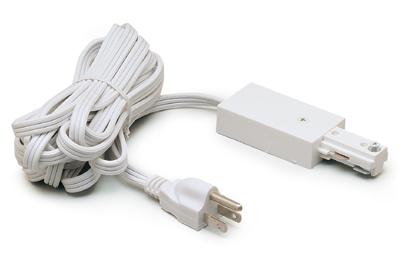

One-Circuit Track System
Track Length / Finish
NT-301B = 2' Track, Black (actual length: 24-1/4")

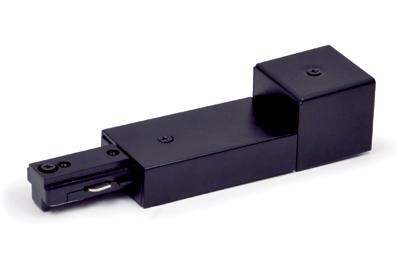

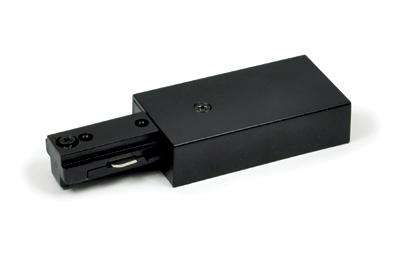

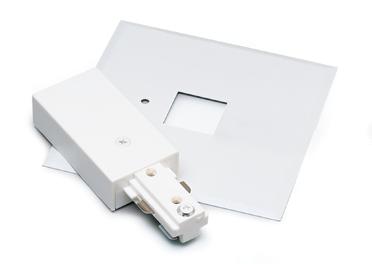

To start a run. Adds 2-3/4" to length. Left hand polarity available for daisy chain applications (NT-2316/L).

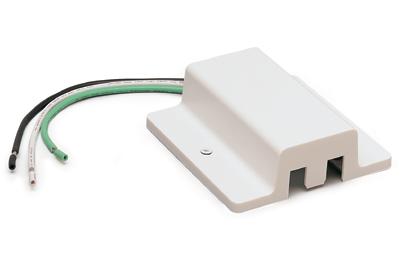

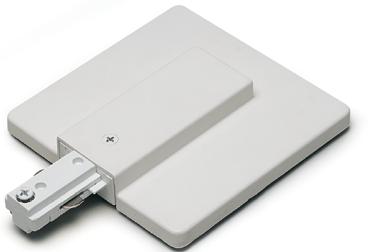

Accepts standard 1/2" conduit fitting. Use the surface conduit feed trade-size conduit fitting. Left hand polarity available for daisy chain applications (NT-328/L).
= One-Circuit
= Two-Circuit
NT-313 = One-Circuit
= Two-Circuit

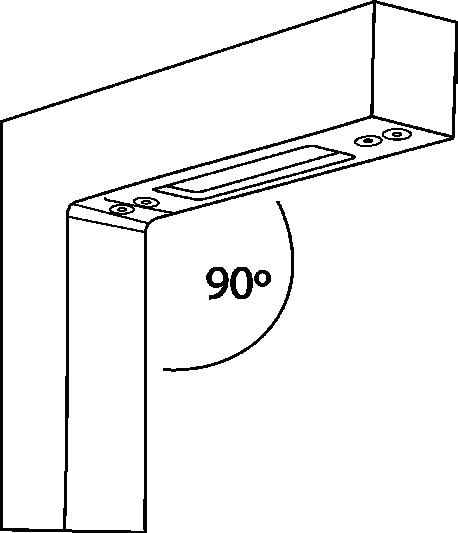

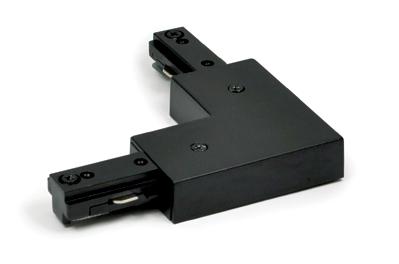

Connects two track sections at 90°. Field adjustable for right or left hand polarity. Cover included to change to I-Connector.
NT-311 = One-Circuit
NT-2311 = Two-Circuit B = Black
NT-307 = One-Circuit
= Silver
= White
Live end to start a run. Mounting hardware included.
Live End Feed with Canopy Circuit
NT-352 = One-Circuit
NT-2352 = Two-Circuit
B = Black S = Silver W = White
Live end to start a run. Mounting hardware included.

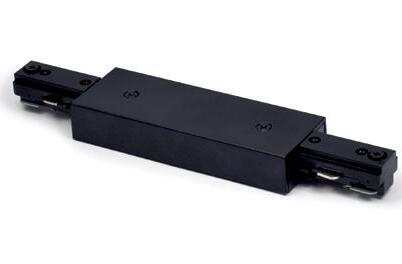

Straight Connector Circuit Finish
NT-310 = One-Circuit
NT-2310 = Two-Circuit B = Black S = Silver W = White
Joins two track sections end to end. Cannot be used as a power feed. Adds 1/8" to length.

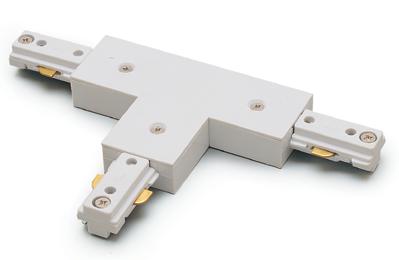

T-Connector Circuit Finish
NT-314 = One-Circuit
NT-2314* = Two-Circuit
B = Black S = Silver W = White
Connects three track sections in a T configuration. Can be used as a powder feed.
* Note: All two-circuit track connectors are supplied as right polarity, for left polarity add “/L” suffix
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com | e-mail: nora@noralighting.com
NT-2307 = Two-Circuit B = Black S = Silver W = White
Connects track to existing outlet box anywhere along the track. Mounting hardware included

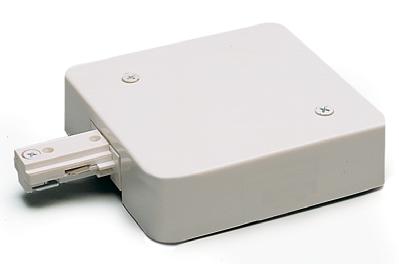

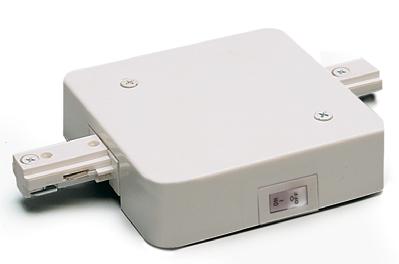

Current Limiting Feed with Circuit Breaker Circuit Finish Breaker
NT-348 = One-Circuit End Feed
NT-358 = One-Circuit In-Line Feed
NT-2348 = Two-Circuit End Feed
NT-2358 = Two-Circuit In-Line Feed

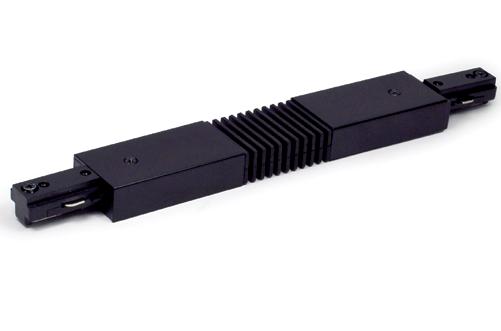

Flexible Connector Circuit Finish
NT-309 = One-Circuit
= Black
= Silver W = White
Connecting two tracks at any angle up to 90°. Can be used as a power feed.

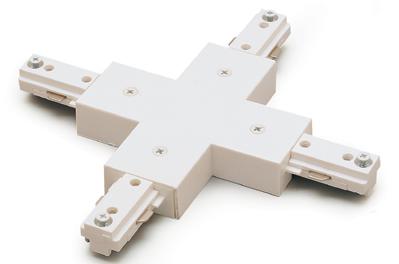

X-Connector Circuit Finish
NT-315 = One-Circuit
= Two-Circuit
Connects four track sections in a cross configuration. Can be used as a powder feed. Adds 4" to length.
= Two-Circuit
= One-Circuit
= Two-Circuit

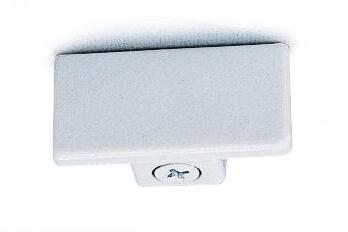

To end a run. Two are included with
HYATT CENTRIC TYPE F
NTE-856
Jason PS LED Track Head - Selectable CCT
Source: 20W LED Up to 1450lm
PRODUCT DESCRIPTION
Jason PS LED Track heads include a Selectable CCT switch, allowing the end user to change the color temperature. Luminaires can be specified in three beam spreads and deliver up to 1450 lumens. Constructed of extruded and machined aluminum, the heatsink and integrated driver housing provide a sleek and modern look, designed to quietly compliment any space.
FEATURES
Deliver up to 1450 lumens
Selectable CCT (3000K / 3500K / 4000K)
Available in spot, narrow flood or flood beam spread Integral dimmable driver
Die-cast aluminum construction with deep set COB optics Lens holder accommodates one accessory
CONSTRUCTION
Housing: Die-cast aluminum construction dissipates heat for longer life.
Adjustability: 359° horizontal and 90° vertical adjustment
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: Up to 1450lm / 20W
Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Note: CCT switch is preset to 3000K
Color Rendering Index: 90+ CRI
Beam Spread: 28° Spot, 39° Narrow Flood or 56° Flood
Dimming: Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
One / Two Circuit Conversion: Positive contact (opposite neutral and ground contacts) is preset to “down” position at factory, but may be raised to the higher position to install onto the second circuit of Nora Lighting NT-2300 series two-circuit track.
LABELS AND LISTINGS
cULus Listed for dry locations
· 5-Year Limited Warranty
FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Jason PS LED Track Head - Selectable CCT Beam Spread Finish Adapter Style
NTE-856L1S = 28° Spot
NTE-856L1M = 39° Narrow Flood
NTE-856L1F = 56° Flood
=
Example: NTE-856L1M9334W = Jason PS LED Track Head - Selectable CCT, 1450lm / 20W, Narrow Flood, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
Delivered lumens will vary depending on beam spread and finish
Optional Accessories
Description
NTE-855BDB = Barndoor, Black
NTE-855BDW = Barndoor, White
NTE-855SN = Snoot, Black
NTE-855SNWW = Directional Shield, Black
NTE-855HC = Honeycomb Louver
NTE-855CG = Clear Glass
TYPE ME1 SPEC HYATT CENTRIC
VEX-WP Series
The VEX-WP is an exceptional blend of style and economy for any outdoor application. A fully-gasketed lens and housing enable the VEX-WP to perform well in Wet Location installations.
FEATURES AND BENEFITS
• Ideal for Wet Location applications in extreme conditions
• UL 924 Listed for cold locations ranging from -20°C to 50°C (-4°F to 122°F)
• California Energy Commission (CEC) Title 20 Compliant
SPECIFICATIONS
Illumination:Constant, uniform illumination by long-life, high intensity, red or green LEDs
Housing: Rugged, corrosion-resistant, injection-molded UL 94 5VA flame retardant, high-temperature thermoplastic housing with impact-resistant polycarbonate shield
Input: 120/277VAC Dual primary, 60Hz input
Battery: Maintenance-free NiCad battery
Run Time: UL listed 90 minute emergency run time, 24 hour recharge time
Electrical: Low voltage disconnect eliminates deep discharge, brownout, short circuit and overload protection
Legend: Fully-illuminated 6” characters with 3/4” stroke, field selectable directional chevrons included for all configurations
Mounting: Ceiling, wall or end mount
Finishes: Black, Gray or White
Options: Guardian Self-test/Self-diagnostics (G2)
Certfications: UL Listed for Wet Locations, California Energy Commission (CEC) Title 20 Compliant
Warranty: Any component that fails due to a manufacturing defect is guaranteed for five years with a separate five year prorated warranty on the battery. The warranty does not cover physical damage, abuse or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information. (Terms and Conditions Apply)
ORDERING INFORMATION Example: VEX-WP-1-WB-WH-G2
Series Style Power Source
GVEX-WP = Green1 = Single-face
LB = AC Only
VEX-WP = Red 2 = Double-face WB = With Battery
Notes
1 Not available with LB, 2CI1 or 2CI7 option
2 Order as separate line item
Specifications are subject to change without notice. Installation must be performed in accordance with Barron Lighting Group installation instructions.
Finish Options (Factory Installed)
BL = BlackG21 = Self-test/Self-diagnostics
GR = Gray
2CI1= 120V 2 Circuit InputWH = White Accessories2 (Field Installed)
2CI7 = 277V 2 Circuit Input
VEX-WP-TRH = Tamper-Resistant Hardware
See Specialty Signage specification for custom/alternate legends
HYATT CENTRIC
Source: 2.2W
PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
UL 924 Listed for Wet Locations · NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com

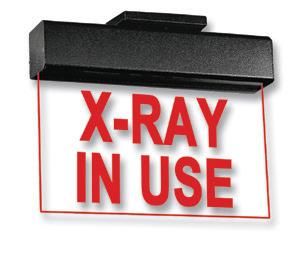

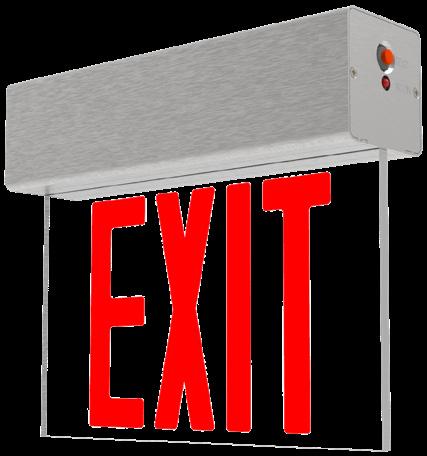

The 900EX Series exit features an architectural, slim design to fit into any environment. Attractive and functional, the 900EX Series is completely self-contained and utilizes reliable, energy-efficient LED illumination.
FEATURES AND BENEFITS
• Attractive specification-grade aluminum design
• Ceiling recessed, wall recessed, surface ceiling, end or wall mount
• Field-selectable directional chevrons included for all configurations
• Custom legends available
• Assembled in the USA with global components (with USA option)
SPECIFICATIONS
Illumination: Constant, uniform illumination by long-life, high-intensity green or red LEDs
Housing: Specification-grade aluminum design
Input: 120/277VAC Dual primary, 60Hz input
Battery: Maintenance-free NiCad batteries
Run Time: UL 924 Listed 90 minute emergency run time, 24 hour recharge
Mounting: Ceiling recessed, wall recessed, surface ceiling, end or wall mount
Finishes: Black, Brushed Aluminum or White
Options: G2 - Guardian Self-test/Self-diagnostics IV - Inverted Mount EXIT Panel USA - Assembled in USA with Global Components
Operating Temp: 10°C to 40°C (50°F to 104°F)
Certfications: UL 924 Listed for Damp Locations and meets or exceeds the following: NEC requirements and NFPA 101
Warranty: Any component that fails due to a manufacturing defect is guaranteed for 25 years with a separate five year prorated warranty on the battery. The warranty does not cover physical damage, abuse or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information. (Terms and Conditions apply)
ORDERING INFORMATION Example: 902EX-U-WB-RM-BA-G2
903EX1 = Double-face
Notes
1 Double-face available with white or mirror panel only
2 Single-face, clear panels only (RC or GC), not a UL Listed option
3 2CI not available with G2 option
4 Available with NiCad only (select WB power source)
5 Not available with WR mounting, IV is not a UL Listed option
6 Order as separate line item, surface mount only
Specifications are subject to change without notice.
Installation must be performed in accordance with Barron Lighting Group installation instructions.
= Red Letters/Clear Panel
= Red Letters/Mirror Panel
= Red Letters/White Panel
Note: See Specialty Signage specification for custom/alternate legends
900EX Series LED Edge-Lit Exit
Sign
Custom legends available
= Assembled in USA
(Field Installed)
HYATT CENTRIC TYPE
NX-813-LED / NX-814-LED / NX-815-LED
Recessed Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS UL Listed
State & Municipal
5-Year Limited Warranty
Certified to the energy efficiency standards of California Title 20
LED luminaire for recessed, surface or suspended installation with optional surface mount box and v-hooks, consult factory.
Featuring a low profile with high performance, using the most advanced LED technology by delivering up to 130lm/W without glare.
Ideal for commercial environments.
CONSTRUCTION
SHIELDING
Aluminum extrusion, incorporating light thermal management with passive cooling. Impressive uniformity of light distribution with a high transmittance factor. Diffuser in frosted, opal PMMA.
ORDERING INFORMATION
DATE:
FINISH
High gloss white polyester baked powder coat enamel.
CERTIFICATION
Approved to UL1598 and CSA C22.2 No. 250 standards** Suitable for damp locations.
ELECTRICAL
1X4’, 2X2’, 2X4’
LED LAY IN BACKLIT FLAT PANEL - 5CCT & WATTAGE SELECTABLE
WATTAGE SELECTABLE 3 OPTIONS 1X4’ 20W30W40W
COLOR SELECTABLE
BATTERY BACKUP
*OPTION AVAILABLE
EMERGENCY OPTION ALSO AVAILABLE 2X4’ 30W40W50W
LR24290+EM
LR24293+EM
LR24295+EM
DIMENSIONS
14G4.00’1.00’0.40”1.90”43.25”11.00”
22G2.00’2.00’0.50”1.75”19.00”22.75”
24G 4.00’2.00’0.50”2.00”37.00”22.75”
ANATOMY
MOUNTING BOX Surface or Suspended
HIGH PERFOMANCE LENS
Diffuser in frosted, opal PMMA
LED LIGHT ENGINE
Mounted on internal high reflectance white painted reflector
DIE-FORMED STEEL HOUSING
High gloss white polyester baked powder coat enamel
LED LAY IN BACKLIT FLAT PANEL - 5CCT & WATTAGE SELECTABLE
WATTAGE SELECTABLE 3 OPTIONS 1X4’ 20W30W40W
COLOR SELECTABLE
BATTERY BACKUP
*OPTION AVAILABLE
EMERGENCY OPTION ALSO AVAILABLE 2X4’ 30W40W50W
LR24290+EM
LR24293+EM
LR24295+EM
CAT NO: PNLS-24G-45W-30K
INDOOR CU TABLE
0°-180° 90°-270°
ZONAL LUMEN SUMMARY CONE OF LIGHT
AVERAGE LUMINAIRE LUMINANCE (CD/M2) 2019-07-16
LED2X2BPNL/3WO/5CCT/D
LED2X2BPNL/3WO/5CCT/D+EM
LED2X4BPNL/3WO/5CCT/D
LED2X4BPNL/3WO/5CCT/D+EM
LED1X4BPNL/3WO/5CCT/D
LED1X4BPNL/3WO/5CCT/D+EM
TYPE MF3 SPEC HYATT CENTRIC
LCOM
LED - Commercial Strip Luminaire
Project:
Notes: Catalogue #:
Product Description
Commercial-grade, LED strip luminaire. For use with indoor applications where low-cost, but industrial-grade ruggedness is required.
Applications
Coves, Enclosed parking garages, Retail Shelving, Industrial Racks, Utility Areas
Features
• Shallow design
• Surface or suspension mountable
• Available in lengths 24 to 96 inches
• 80+ CRI
• Standard low voltage dimming (0-10v)
Featured Options
• Emergency lighting battery pack
• Speedy hangers
• Aircraft cable set
• Reflectors
• Wireguard
• Lens
Optical System
Standard units are supplied without lens. Optional lenses are available; frosted extruded microgrooved round lens.
Mounting
Mounting holes are provided. This product can be surface or suspension mounted.
Construction
Precision-formed steel housing assembly. Standard downlight aperture is rectangular opening (see options for oval aperture).
Finish
White, pre-painted housing.
Electrical
Long life LEDs coupled with high efficiency drivers provide quality illumination. Rated to deliver L80 performance > 50,000 hours.
Warranty
5 year limited warranty. For complete warranty, click here:
Approvals
• Approved to CSA and UL standards.
• Tested in accordance to IESNA LM-79.
• Suitable for damp locations.
• DesignLights Consortium® Qualified.
All configurations may not be DLC qualified. Check www.designlights.org/QPL for qualified configurations.
P77
TYPE MF3 SPEC HYATT CENTRIC
Driver Options B15 Bi-Level Step Dimming (50/100) ( Not Available in 24-inch length & 347V) B39 * Emergency Lighting Battery Pack - LED ( Not Available in 24-inch length and consult factory for 347V)
Finish Options F01 Black Satin F14 Silver Reflective
Wireless Controls Options To view the controls guide Click Here
* If fixture is to be switched a 2 circuit cord, V32 is advised ** Lens options are not interchangeable, must be factory installed. For pendant mounted applications only. Not for use in surface mount Not to be used with step dimming (B15)
Other options may be available, consult factory. Specifications and data subject to change without notice.
HYATT CENTRIC
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LR25185+EM
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LR25185+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+MS
LR25185+EM+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
TYPE MF3 SPEC
Mounted Accessories (Ordered Separately)
KIT00001 Chain Set (2) 4ft w/ S-hooks.M10
KIT00002 Speedy Hangers (2).M23
KIT00003 Stem & Canopy Set 3/8”IP (2) 4ft.M26
KIT00043 Aircraft Cable & Canopy Set (2) 4ft.M48 (Cord not included with the kit)
KIT00044 Stem & Canopy Set Sloped Ceilings (2) 3ft.M29
KIT00045 Stem & Canopy Set Sloped Ceilings (2) 4ft.M29
KIT00046 Stem & Canopy Set Sloped Ceilings (2) 6ft.M29
KIT00047 Stem & Canopy Set 3/8”IP (2) 2ft.M26
KIT00048 Stem & Canopy Set 3/8”IP (2) 1ft.M26
KIT00050 Stem & Canopy Set 3/8”IP (2) 3ft.M26
KIT00053 Stem & Canopy Set 3/8”IP (2) 6ft.M26

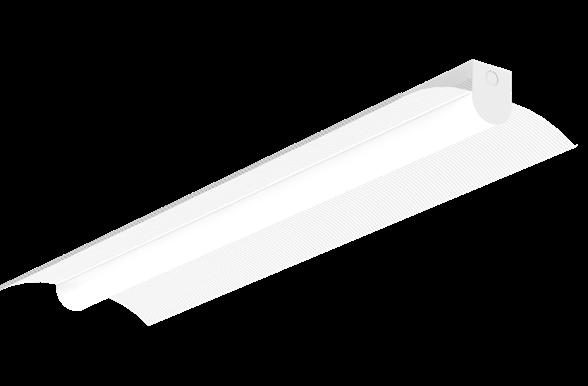

Decorative Reflector Kits* (Ordered Separartely)

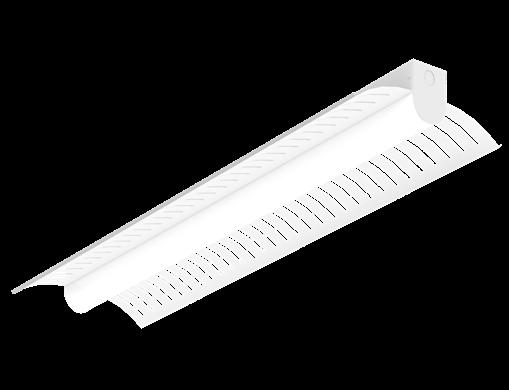

Slotted LCOM Reflector Kit
Slotted LCOM Reflector Kit
KIT00271
LR25187
LR25187+EM+MS DESCRIPTION
LED96/LINEAR/3CCT/3WO/UNV/D/HO
PHOTOMETRIC
LR25187+EM
LED96/LINEAR/3CCT/3WO/UNV/D/HO+EM
LR25187+MS
LED96/LINEAR/3CCT/3WO/UNV/D/HO+MS
LED96/LINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 9035
4000K - 9100
5000K - 9165
3500K - 10200
4000K - 10275
5000K - 10350
3500K - 11970
4000K - 12060
5000K - 12150
3500K - 9035
4000K - 9100
5000K - 9165
3500K - 10200
4000K - 10275
5000K - 10350
3500K - 11970
4000K - 12060
5000K - 12150
3500K - 9035
4000K - 9100
5000K - 9165
3500K - 10200
4000K - 10275
5000K - 10350
3500K - 11970
4000K - 12060
5000K - 12150
3500K - 9035
4000K - 9100
5000K - 9165
3500K - 10200
4000K - 10275
5000K - 10350
3500K - 11970
4000K - 12060
5000K - 12150
S-QRO64I
S-QRO64I
S-QRO64I
S-QRO64I
ANGELO
DATE: PROJECT: FIRM: CATALOG NO: COMMENTS:
PL2014 from Lumux is an elegant, architectural light column that excels at defining spaces, both during the day and at night.
Ideal for illuminating plazas, paths, and roadways, PL2014 is a powerful outdoor LED solution, with broad, mid, and narrow distribution patterns. PL2014 o ers a distinctively modern, minimalist design constructed from heavy-duty aluminum extrusion, providing durability that meets the highest standards. Part of the Lumux lighting collection that includes BL350 bollards, this luminaire is o ered in single (PL2014) or twin (PL2014-2) versions, up to 20' in height.
Content of specification sheet subject to change
SPECIFICATIONS
• IP rating: IP54
• Voltage: 230 volt
• Power per LED module: 18 Watt
• Lumen output per LED module:
2,200K = 1.376 lm
3,000K = 2.413 lm
4,000K = 2.527 lm
amber = 809 lm
• Beam angle: 150x70 degrees
• LED module lifespan: >100.000 H (L90,B10)
• Light data: LDT. / IES. Files available at www.timberlab-solutions.com or in the Dialux library: https://silver.dialux.com/ timberlab
• BUG classification: B0, U0, G0
• CE marked
• Packaging:
Pallet dimensions (L x W x H): 4500 x 800 x 1500 mm allet
Units per pallet: 15
Pallet weight (KG): 1200
OPTIONS
• Wood type: Douglas (only on base support), oak, rustic chestnut, or Accoya
• Certification: FSC or PEFC
• Light color: 2.200K, 2.700K, 4.000K, 3.100K/amber or amber (593nm)
• Connection: Available with or without cable (1m 3x 1.5mm²). Standard 32mm hole in the fixture for easy passage of your ground cable
• Optics: standard / narrow / medium / wide
• Frosted lens
• DALI Control
• Mast hatch with triangular lock / with fuse box
• Powder coating of pole holders
• Dynamic motion sensor
• Variations: At Timberlab, every fixture is carefully custom-made. In addition to the standard options, we are happy to help create variations tailored to your application. Feel free to reach out to our project advisors for inquiries via www. timberlab-solutions.com.
DATE:
PROJECT:
FIRM:
CATALOG NO: COMMENTS:

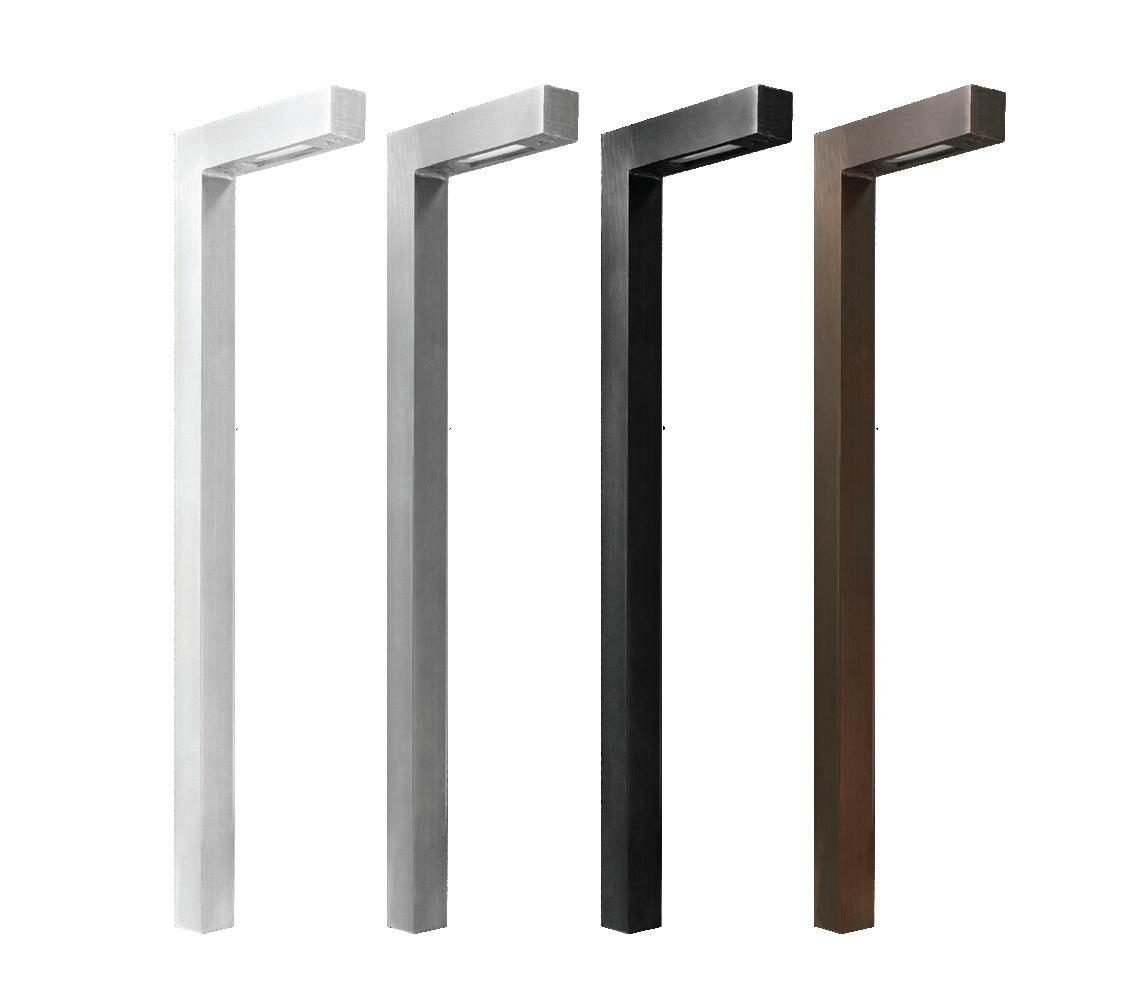

LIGHT COLUMN PL2014
PL2014 is a tall, modern single-armed plaza, path and driveway light, perfect for area lighting, with specifable height and light distribution.
Ordering Guide
1Consult factory for additional options
2Consult factory for additional pricing
Performance Specifications
Flux 8,500 lm (PL2014-T2 4000K) LER 104 lm/W
Power 82W 120-277v input voltage
Starting temp. rated to -20˚F Photocell & Sensor options
Gasket: Closed-cell silicone foam gasket seals out moisture, dust, and insects, for weather-tight operation. IP65 and ETL listed for wet locations.
Mounting: Secures with galvanized anchor bolts to contractor installed concrete footing.
Installation: Please refer to installation instructions.
Finish: Zinc polyester powder coat finish in black, white, silver, bronze, or any custom RAL color. Consult factory for marine grade or anti-microbial finish.
Light Engine: Constant Current driver powering high quality LEDs, with integrated 0-10v dimming.
Integral Battery Pack: Optional 10W IBP integral emergency battery pack provides 1,000 lumens with a 90 minute battery life.
Content of specification sheet subject to change
TYPE B SPEC HYATT CENTRIC
VANILLA 2016H PROFILE
2016H PROFILE
Project Name: Type:
Product Code: Date:

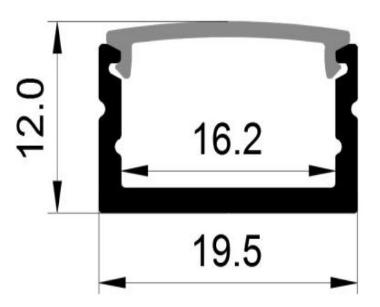

The Vanilla 2016H Profile is a angular 19.5mm x 12mm (0.76” x 0.47”) channel that facilitates our 6mm (0.24”), 8mm (0.31”), 10mm (0.4”) and 12mm (0.47”) LED tape. The LED tape is Eco design certified and due to this opereates for longer with better energy efficiency. The profile and tape come together to create a modern and sleek look for any interior application. IP20
PROFILE PERFORMANCE KEY DIMENSIONS
MATERIAL:
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• Motion sensor re ady for static white and warm dim options

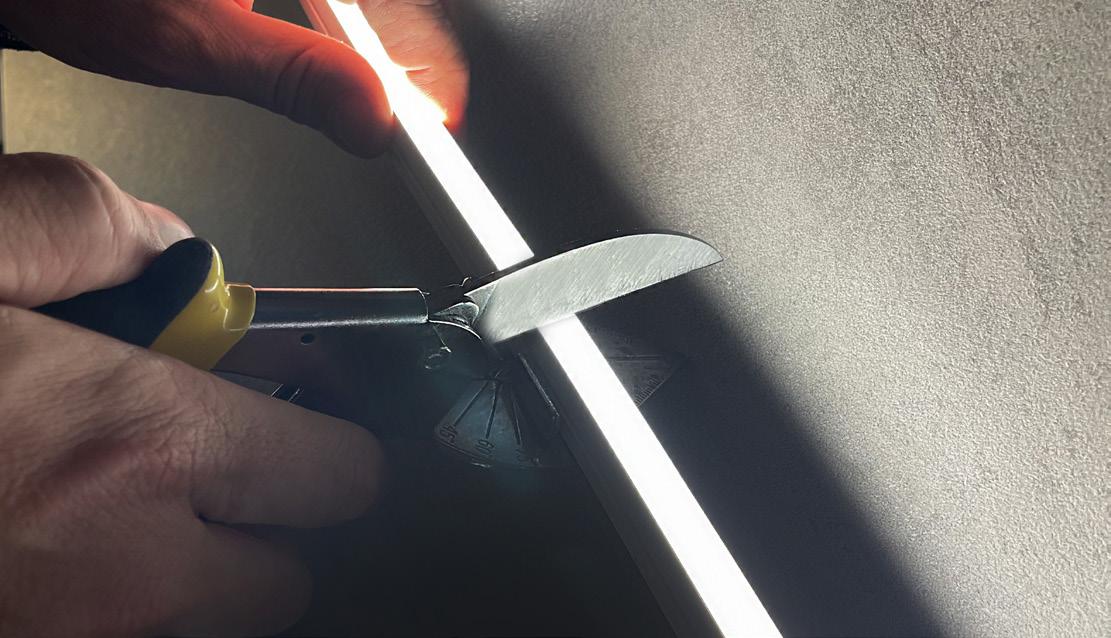

• Reces s into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainless steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lense s to meet task at hand
• Aluminum constr uction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
USEFUL LINKS
BLANK
1 PROFILE & FINISH
CA1200 - Anodized aluminum finish
CA1201 - Anodized black finish
CA1202- White
CA120X - Custom color provide RAL #
2 MOUNTING
MCF - Flat surface bracket
MC3 - 45° Corner bracket
MC8 - Swivel 180°
M3M - Double face mounting tape
MNO - No mounting
3 OPTICS
4 LUMEN PACKAGE
LP100 - 1.5 W/ft - 131 lm/ft
LP200 - 2.9 W/ft - 226 lm/ft
LP300 - 4.4 W/ft - 313 lm/ft
DRS - Prime lens
DBS - Black lens
DSS - Silens
DNO - No lens
LP450 - 5.8 W/ft - 477 lm/ft
LP750* - 7.0 W/ft - 590 lm/ft PRECISE
LE150 - 1.3 W/ft - 180 lm/ft
LE300 - 3.0 W/ft - 360 lm/ft
LE600 - 5.2 W/ft - 690 lm/f PEAK †
LK150 - 1.0 W/ft - 128 lm/ft
LK300 - 2.0 W/ft - 260 lm/ft
LK450 - 3.0 W/ft - 390 lm/ft
LK600 - 4.5 W/ft - 585 lm/ft
LK750 - 6.0 W/ft - 780 lm/ft
LK900 - 7.5 W/ft - 973 lm/ft NEAT
7 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
FC3 - DC plug, 3ft wire
FC6 - DC plug, 6ft wire
FC9 - DC plug, 9ft wire
FCX - DC plug, custom length wire
8 INPUT / OUTPUT
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WSL - Simple lead-in, side feed 1
WSR - Simple lead-in, side feed 2
WPE - Pass-through, end feed
WPB - Pass-through, back feed
WPL - Pass-through, side 1
WPR - Pass-through, side 2
9 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
LT300 - 3.0 W/ft - 305 lm/ft 5 CCT
K24 - 2400K (not available for LE150)
K27 - 2700K
K30 - 3000K
K35 - 3500K (not available for LE150)
K40 - 4000K (not available for LE150)
K50* - 5000K (LP750 only)
AID - Indoor dry locations
AIW - Indoor wet locations For wet location applications, LED strip will be put inside a waterproof silicone sheath. † AIW option is not available for this selection
*Includes end caps, excludes flanges (when applicable). length no flange flange
11 DRIVER TYPE / SENSOR
PND - Non-dimmable
P010 - 0-10V dimming
PPH - Phase (ELV / MLV) dimming
P5i1 - 5-in-1 (Phase / 0-10V) dimming
PDAL - DALI compatible driver
PDMX - DMX driver
PNO - No driver
MOTION SENSORS
PND-SI05 - 30 sec., embedded
PND-SE05 - 30 sec., external
PND-SI4 - 4 min., embedded
PND-SE4 - 4 min., external
PND-SIP - proximity motion sensor
All motion sensors can only be used with non-dimmable power supplies
- 72W / 24V
- For indoor dry applications
CGAP - Apsis
CGLA - Latus
CGNI - Nidus
CGSU - Sulcus
TYPE B1 SPEC HYATT CENTRIC
VANILLA 2016H PROFILE
2016H PROFILE
Project Name: Type:
Product Code: Date:
The Vanilla 2016H Profile is a angular 19.5mm x 12mm (0.76” x 0.47”) channel that facilitates our 6mm (0.24”), 8mm (0.31”), 10mm (0.4”) and 12mm (0.47”) LED tape. The LED tape is Eco design certified and due to this opereates for longer with better energy efficiency. The profile and tape come together to create a modern and sleek look for any interior application. IP20
PROFILE PERFORMANCE KEY DIMENSIONS
MATERIAL:
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• Motion sensor re ady for static white and warm dim options
• Reces s into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainless steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lense s to meet task at hand
• Aluminum constr uction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
USEFUL LINKS
BLANK
1 PROFILE & FINISH
CA1200 - Anodized aluminum finish
CA1201 - Anodized black finish
CA1202- White
CA120X - Custom color provide RAL #
2 MOUNTING
MCF - Flat surface bracket
MC3 - 45° Corner bracket
MC8 - Swivel 180°
M3M - Double face mounting tape
MNO - No mounting
3 OPTICS
DCS - Clear lens
DOS - Opal lens
DRS - Prime lens
DBS - Black lens
DSS - Silens
DNO - No lens
4 LUMEN PACKAGE
LP100 - 1.5 W/ft - 131 lm/ft
LP200 - 2.9 W/ft - 226 lm/ft
LP300 - 4.4 W/ft - 313 lm/ft
LP450 - 5.8 W/ft - 477 lm/ft
LP750* - 7.0 W/ft - 590 lm/ft PRECISE
LE150 - 1.3 W/ft - 180 lm/ft
LE300 - 3.0 W/ft - 360 lm/ft
LE600 - 5.2 W/ft - 690 lm/f PEAK †
LK150 - 1.0 W/ft - 128 lm/ft
LK300 - 2.0 W/ft - 260 lm/ft
LK450 - 3.0 W/ft - 390 lm/ft
LK600 - 4.5 W/ft - 585 lm/ft
LK750 - 6.0 W/ft - 780 lm/ft
LK900 - 7.5 W/ft - 973 lm/ft NEAT
7 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
FC3 - DC plug, 3ft wire
FC6 - DC plug, 6ft wire
FC9 - DC plug, 9ft wire
FCX - DC plug, custom length wire
8 INPUT / OUTPUT
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WSL - Simple lead-in, side feed 1
WSR - Simple lead-in, side feed 2
WPE - Pass-through, end feed
WPB - Pass-through, back feed
WPL - Pass-through, side 1
WPR - Pass-through, side 2
9 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
LT300 - 3.0 W/ft - 305 lm/ft 5 CCT
K24 - 2400K (not available for LE150)
K27 - 2700K
K30 - 3000K
K35 - 3500K (not available for LE150)
K40 - 4000K (not available for LE150)
K50* - 5000K (LP750 only)
AID - Indoor dry locations
AIW - Indoor wet locations For wet location applications, LED strip will be put inside a waterproof silicone sheath. † AIW option is not available for this selection
*Includes end caps, excludes flanges (when applicable). length no flange flange

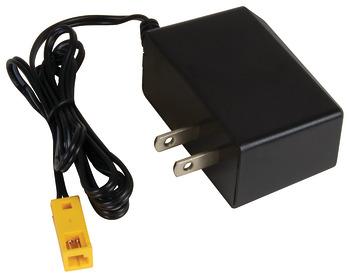

11 DRIVER TYPE / SENSOR
PND - Non-dimmable
P010 - 0-10V dimming
PPH - Phase (ELV / MLV) dimming
P5i1 - 5-in-1 (Phase / 0-10V) dimming
PDAL - DALI compatible driver
PDMX - DMX driver
PNO - No driver
MOTION SENSORS
PND-SI05 - 30 sec., embedded
PND-SE05 - 30 sec., external
PND-SI4 - 4 min., embedded
PND-SE4 - 4 min., external
PND-SIP - proximity motion sensor
All motion sensors can only be used with non-dimmable power supplies
- 72W / 24V
- For indoor dry applications
CGAP - Apsis
CGLA - Latus
CGNI - Nidus
CGSU - Sulcus
TYPE B1E SPEC HYATT CENTRIC
VANILLA 2016H PROFILE

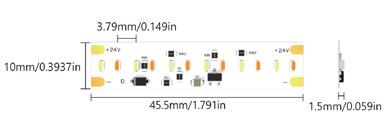

2016H PROFILE
Project Name: Type:
Product Code: Date:
The Vanilla 2016H Profile is a angular 19.5mm x 12mm (0.76” x 0.47”) channel that facilitates our 6mm (0.24”), 8mm (0.31”), 10mm (0.4”) and 12mm (0.47”) LED tape. The LED tape is Eco design certified and due to this opereates for longer with better energy efficiency. The profile and tape come together to create a modern and sleek look for any interior application. IP20
PROFILE PERFORMANCE KEY DIMENSIONS
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• Motion sensor re ady for static white and warm dim options
• Reces s into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainless steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lense s to meet task at hand
• Aluminum constr uction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
USEFUL LINKS
BLANK
1 PROFILE & FINISH
CA1200 - Anodized aluminum finish
CA1201 - Anodized black finish
CA1202- White
CA120X - Custom color provide RAL #
2 MOUNTING
MCF - Flat surface bracket
MC3 - 45° Corner bracket
MC8 - Swivel 180°
M3M - Double face mounting tape
MNO - No mounting
3 OPTICS
4 LUMEN PACKAGE
LP100 - 1.5 W/ft - 131 lm/ft
LP200 - 2.9 W/ft - 226 lm/ft
LP300 - 4.4 W/ft - 313 lm/ft
DRS - Prime lens
DBS - Black lens
DSS - Silens
DNO - No lens
LP450 - 5.8 W/ft - 477 lm/ft
LP750* - 7.0 W/ft - 590 lm/ft PRECISE
LE150 - 1.3 W/ft - 180 lm/ft
LE300 - 3.0 W/ft - 360 lm/ft
LE600 - 5.2 W/ft - 690 lm/f PEAK †
LK150 - 1.0 W/ft - 128 lm/ft
LK300 - 2.0 W/ft - 260 lm/ft
LK450 - 3.0 W/ft - 390 lm/ft
LK600 - 4.5 W/ft - 585 lm/ft
LK750 - 6.0 W/ft - 780 lm/ft
LK900 - 7.5 W/ft - 973 lm/ft NEAT
7 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
FC3 - DC plug, 3ft wire
FC6 - DC plug, 6ft wire
FC9 - DC plug, 9ft wire
FCX - DC plug, custom length wire
8 INPUT / OUTPUT
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WSL - Simple lead-in, side feed 1
WSR - Simple lead-in, side feed 2
WPE - Pass-through, end feed
WPB - Pass-through, back feed
WPL - Pass-through, side 1
WPR - Pass-through, side 2
9 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
LT300 - 3.0 W/ft - 305 lm/ft 5 CCT
K24 - 2400K (not available for LE150)
K27 - 2700K
K30 - 3000K
K35 - 3500K (not available for LE150)
K40 - 4000K (not available for LE150)
K50* - 5000K (LP750 only)
AID - Indoor dry locations
AIW - Indoor wet locations For wet location applications, LED strip will be put inside a waterproof silicone sheath. † AIW option is not available for this selection
*Includes end caps, excludes flanges (when applicable). length no flange flange
11 DRIVER TYPE / SENSOR
PND - Non-dimmable
P010 - 0-10V dimming
PPH - Phase (ELV / MLV) dimming
P5i1 - 5-in-1 (Phase / 0-10V) dimming
PDAL - DALI compatible driver
PDMX - DMX driver
PNO - No driver
MOTION SENSORS
PND-SI05 - 30 sec., embedded
PND-SE05 - 30 sec., external
PND-SI4 - 4 min., embedded
PND-SE4 - 4 min., external
PND-SIP - proximity motion sensor
All motion sensors can only be used with non-dimmable power supplies
- 72W / 24V
- For indoor dry applications
CGAP - Apsis
CGLA - Latus
CGNI - Nidus
CGSU - Sulcus
LUXYLED EVO13 & EVO13HE
LINEAR LIGHT
ZERO MODULE TECHNOLOGY
CUT IT WHEREVER YOU WANT (WHITE VERSION ONLY)
13HE VERSION HIGH EFFICACY
High lumen ouput with > 1000lm/m @14W/m delivered
ONE SIZE, MANY OPTIONS
WHITE/CCT/RGB/RGBW IN THE SAME SIZE
NeoVision120 SideFlex
120VAC Neon LED Tape
Specification Sheet
PRODUCT OVERVIEW
120VAC operation for higher power and brightness from one linear run. Flexible linear “neon” tape is designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables side-to-side bending for curvilinear lines. NeoVision120 tapes provide long, continuous runs up to 163 feet.
FEATURES
•120VAC operation (no driver required)
•Wet location - IP65
• Multiple power feed options: End Feed
Left or Right Side Feed
•Tape encased in UV resistant silicone
•Triac/ELV dimmable
•White and color LED options
•120° viewing angle
• Maximum run: 163’ - made to order in 12” increments
SPECIFICATIONS
ELECTRICAL PHOTOMETRIC
•Input: 120VAC 60Hz
•White: 2700K, 3000K
•3.4W per foot (colors) or 4000K at 90+ CRI
•4.3W per foot (white) WARRANTY
•PF>0.9 •3 years
ENVIRONMENTAL CERTIFICATION
•Outdoor & wet location rated •ETLus
•UV resistant UL1598 (Hardwire)
• Ambient operating temp: UL2388 (Plug-in) -4°F to +113°F (-20°C to +45°C) •IP65
ORDERING INFORMATION
1.Select Tape
2.Pick Feed
3.Pick Mounting Options
4.Pick Control Options
All NeoVision120 tape configurations must be specified at time of order. Parts are made to order and sealed by GM LIghting at the factory only.
Project Name Type
Catalog # Date
3000K
Amber Green
Blue Red
LUXYLED EVO13
PART NUMBER BUILDER
DIMMING PROTOCOLS
HYATT CENTRIC TYPE B2 ALT
NeoVision120 SideFlex 120VAC Neon LED Tape
Specification Sheet
1.Select Tape
ACCESSORIES
2.Pick Feed
NV120S-HW-8-EF Hardwire End Feed w/Filter & 8A Fuse
NV120S-HW-8-SFL Hardwire Side Feed Left w/Filter & 8A Fuse
NV120S-HW-8-SFR Hardwire Side Feed Right w/Filter & 8A Fuse
NV120S-PC-8-EF Plug-in End Feed w/Filter & 8A Fuse
NV120S-PC-8-SFL Plug-in Side Feed Left w/Filter & 8A Fuse
NV120S-PC-8-SFR Plug-in Side Feed Right w/Filter & 8A Fuse
All cords are 8ft long
Left Feed for
NV120S-HW-8-SFL
NV120S-HW-PC-8-SFL
All NeoVision 120 tape configurations will be cut and sealed by GM Lighting to your specifications. No field modifications allowed.
*Included with every tape section
3.Pick Mounting Options
NV120S-MC-FC Front Clip, 20 Clips/40 Screws
NV120S-MC-A Back Mounting Clip, 20 Clips/20 Screws
NV120S-CHL-A4 4 ft Channel with 4 Screws
NV120S-CHL-A6 6 ft Channel with 8 Screws
NV120S-FLEX-CHL-10 SideFlex 10 ft Channel with 22 Screws
Right Feed for NV120S-HW-8-SFR
NV120S-HW-PC-8-SFR
(End Cap)
LUXYLED EVO13 & EVO13HE
LINEAR LIGHT
ZERO MODULE TECHNOLOGY
CUT IT WHEREVER YOU WANT (WHITE VERSION ONLY)
13HE VERSION HIGH EFFICACY Lumen
High lumen ouput with > 1000lm/m @14W/m delivered
ONE SIZE, MANY OPTIONS
WHITE/CCT/RGB/RGBW IN THE SAME SIZE
HYATT CENTRIC
NeoVision120 SideFlex
120VAC Neon LED Tape
Specification Sheet
PRODUCT OVERVIEW
120VAC operation for higher power and brightness from one linear run. Flexible linear “neon” tape is designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables side-to-side bending for curvilinear lines. NeoVision120 tapes provide long, continuous runs up to 163 feet.
FEATURES
•120VAC operation (no driver required)
•Wet location - IP65
• Multiple power feed options: End Feed
Left or Right Side Feed
•Tape encased in UV resistant silicone
•Triac/ELV dimmable
•White and color LED options
•120° viewing angle
• Maximum run: 163’ - made to order in 12” increments
SPECIFICATIONS
ELECTRICAL PHOTOMETRIC
•Input: 120VAC 60Hz
•White: 2700K, 3000K
•3.4W per foot (colors) or 4000K at 90+ CRI
•4.3W per foot (white) WARRANTY
•PF>0.9 •3 years
ENVIRONMENTAL CERTIFICATION
•Outdoor & wet location rated •ETLus
•UV resistant UL1598 (Hardwire)
• Ambient operating temp: UL2388 (Plug-in) -4°F to +113°F (-20°C to +45°C) •IP65
ORDERING INFORMATION
1.Select Tape
2.Pick Feed
3.Pick Mounting Options
4.Pick Control Options
All NeoVision120 tape configurations must be specified at time of order. Parts are made to order and sealed by GM LIghting at the factory only.
Project Name Type
Catalog # Date
3000K
Amber Green
Blue Red
LUXYLED EVO13
PART NUMBER BUILDER
DIMMING PROTOCOLS
HYATT CENTRIC
NeoVision120 SideFlex 120VAC Neon LED Tape
Specification Sheet
1.Select Tape
ACCESSORIES
2.Pick Feed
NV120S-HW-8-EF Hardwire End Feed w/Filter & 8A Fuse
NV120S-HW-8-SFL Hardwire Side Feed Left w/Filter & 8A Fuse
NV120S-HW-8-SFR Hardwire Side Feed Right w/Filter & 8A Fuse
NV120S-PC-8-EF Plug-in End Feed w/Filter & 8A Fuse
NV120S-PC-8-SFL Plug-in Side Feed Left w/Filter & 8A Fuse
NV120S-PC-8-SFR Plug-in Side Feed Right w/Filter & 8A Fuse
All cords are 8ft long
Left Feed for
NV120S-HW-8-SFL
NV120S-HW-PC-8-SFL
All NeoVision 120 tape configurations will be cut and sealed by GM Lighting to your specifications. No field modifications allowed.
*Included with every tape section
3.Pick Mounting Options
NV120S-MC-FC Front Clip, 20 Clips/40 Screws
NV120S-MC-A Back Mounting Clip, 20 Clips/20 Screws
NV120S-CHL-A4 4 ft Channel with 4 Screws
NV120S-CHL-A6 6 ft Channel with 8 Screws
NV120S-FLEX-CHL-10 SideFlex 10 ft Channel with 22 Screws
Right Feed for NV120S-HW-8-SFR
NV120S-HW-PC-8-SFR
(End Cap)
OKKIO 55 CL / OKKIO 55 AD
SPECIFICATIONS
base code 67108 OKKIO 55 CL (IP44) - 67107 OKKIO 55 CL (IP54) - 67145 OKKIO 55 AD (IP30)
typology Ceiling mounting luminaire. Adjustable light distribution for OKKIO 55 AD
mounting To ceiling using mounting plate
diameter 54 mm / 2.1”
height 87 mm / 3.4”
construction Fixture: turning and milling aluminum. Lens: PMMA. Protective glass or PMMA complete with silicone gasket finishes Powder coated
ingress protection OKKIO 55 CL: IP44 / IP54. North America dry or damp location. OKKIO 55 AD: IP30. North America dry location
lamp type LED array on printed circuit board. Remote power supply not included lamp wattage OKKIO 55 CL: 6W at 48V DC and 500 mA. North America 24V DC and 500mA. OKKIO 55 AD: 6W at 48V DC. North America 24V DC
690911-10V, 20W / max 2 99-264V50-60Hz IP20 L120xW52XH22
69080DALI, 20W max 2 220-240V50-60Hz IP20 L120xW52xH22
69206DALI, 24W / max 3 99-264V50-60Hz IP67 L122xW54xH26
HYATT CENTRIC TYPE
LED Technology: Extremely accurate Color Rendering Index of 95+. Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integrated heat sink. Instant On to Full Brightness technology. No LED pixelation.
Sunset: Sunset color temperature is our dim-to-warm LED technology that allows the color temperature to become warmer as the product is dimmed. Our SUNSET items start at 3000K and go as low as 1800K when dimmed. For Sunset dim technology be sure to order an item with "Sunset" in the Color Temperature (CCT) attribute. HUMAN CENTRIC start at 4000K and go as low as 2200K when dimmed.
Dimmability: Works with 120V Triac and ELV type dimmers. Dims down to 5%. For full list of dimmers, refer to the Dimmer Compatibility List. Industry-leading dimming that dims smoothly with no hot spots or ickering.
Listings: cUL Listed for Damp Locations. RoHS Compliant. Meets Energy Star & California Title 24 JA8-2019 standards.
Warranty: ELCO Products are built to last with a 5-year Limited Warranty.
Product Number Builder Example: E25DW-0727
Sylo Direct Mount E25 Style
Direct Mount Finish W All White
All Black S Silver
3000K
3500K
4000K SD Sunset (-09 and -11 only) 5,
1 Available as 120V, Triac/ELV only
2 Available with 2400K, 2700K and 3000K Color Temperature Only
3 Available with CT5 color temperature only
4 120/277V, 0-10V/Triac/ELV
5 Available in -09, -11, & -13 lumen outputs
6 Sunset, Dim to Warm technology, automatically transitions from 3000K to 1800K when dimmed
7 Available as 120V, Triac/ELV only
8 Available with 1150 lumen (-11) outputs only
9 Human Centric, Dim to Warm technology, automatically transitions from 4000K to 2200K when dimmed
10 Available with -08 and -10 lumen outputs only
11 Includes 25° and 60° lens in the box
12 Available with 350 and 750 lumen, 2700K and 3000K options only
13 90° Frosted Re ector
BLANK

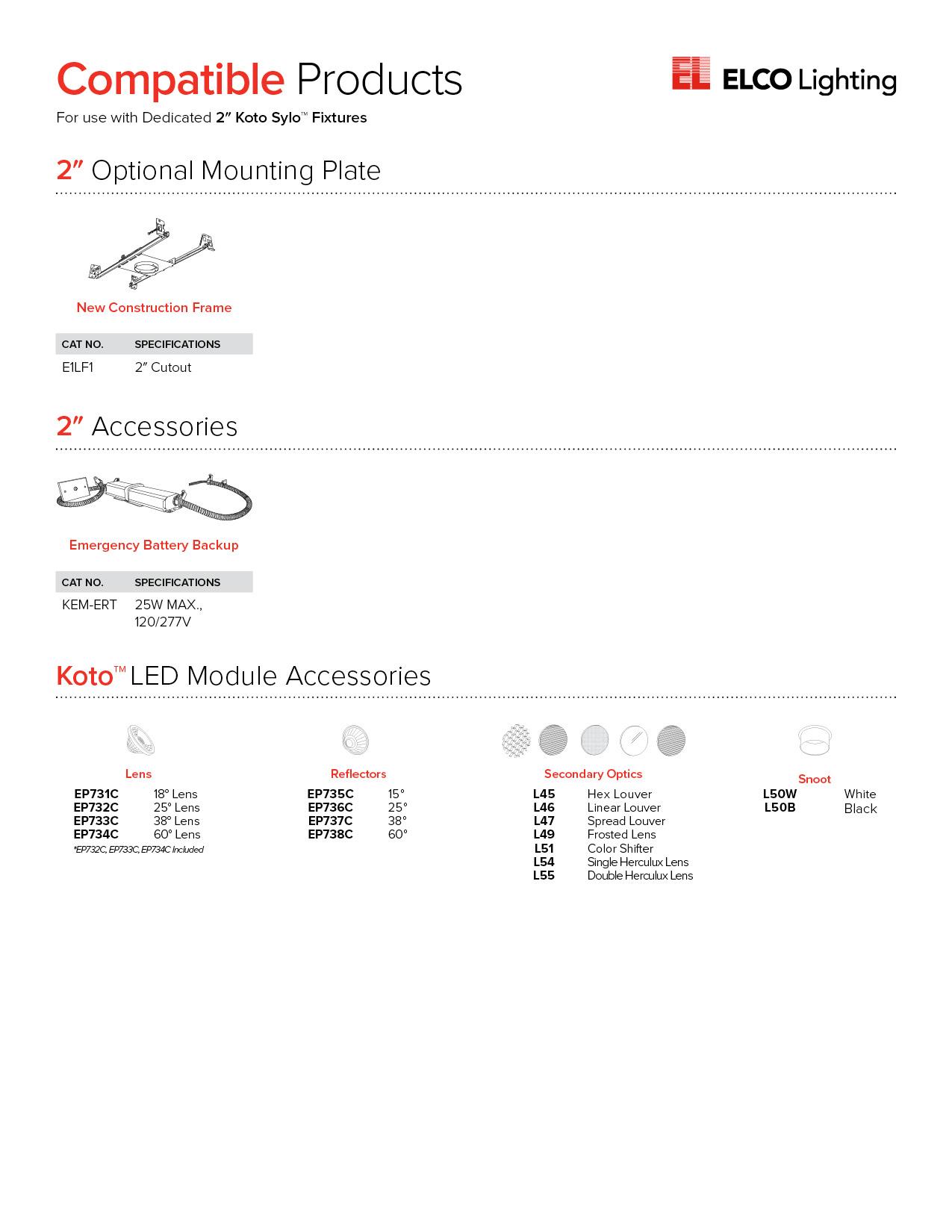

Compatible Products
2" Optional Mounting Plate
2" Accessories
Kato ™LED Module Accessories
ATRIA IN
SPECIFICATIONS
base code 66087
typology Walkover uplight with optics on a 10° tilt for low glare or wallwasher
mounting Using o-ring (included) and housing box to be separately ordered as accessory
diameter 59 mm / 2.3”
height 64 mm / 2.5”
required depth 130 mm / 5.1”
first fit requirement Yes, separate housing box for concrete (code 69302 or code 69393)
floor cut out Depending on housing box
construction Turning and milling aluminum or stainless steel AISI 304. Lens 20° and 30°: PMMA. Wallwasher reflector: polycarbonate.
Protective glass in PMMA complete with silicone gasket. ABS (code 69393) or PVC (code 69302) housing box
special features 48V DC: unpolarized electronic system. 24V DC: reverse polarity protection.
Thermal Sensor - Safe wiring - Two wires dimming - Water stop technology.
Wallwasher: designed with an asymmetrical reflector offers longitudinal cut-off and delivers glare free homogeneous light from the lower edge of the wall with no visible dark zones.
Because light is precisely focused towards the wall, the luminaire is compliant with the rules against light pollution
One ceramic GU5.3 bi-pin socket with stainless steel retaining springs, accepts MR16 lamps with G4 or GY6.35 bases.
LENS:
Flat tempered glass.
LAMP TYPE:
12V MR16. LED recommended. Halogen 30W maximum or 7W LED maximum.
MOUNTING:
Installs in-grade.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
SPECIFICATION SHEET
Driver-over rated at 4,400 lbs.
SPECIFICATION SHEET Page 2
CHELSEA Well Light Fixture
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 120°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490062-MR16-4W-25-2700K
ATRIA IN
Power supply 24V DC, DALI (1) WALLWASHER ONLY
SPECIFICATION SHEET

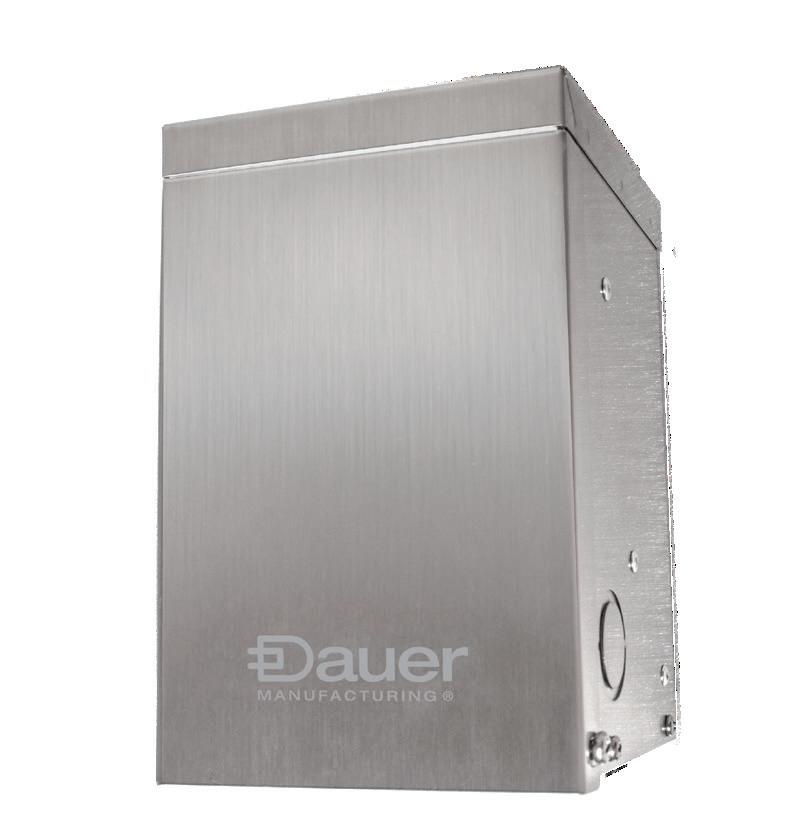

75W INTEGRAL TIMER TRANSFORMER
ORDERING CODE: 490549
SPECIFICATIONS
OUTPUT:
75W, 6.25A. Connectors for 12V and 15V. One common tap.
INPUT:
120V, 60Hz, 0.625A
HOUSING:
Stainless steel housing and removable front panel. Pre-punched bottom and side panels.
FEATURES:
Breaker, analog timer, heavy-duty grounded 5-foot power cord. Photocell plug. Suitable for interior or exterior use.
AGENCY LISTINGS:
ETL approved (5013561). Conforms to ANSI/UL-1838.
WARRANTY:
Three years.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490549-ppc6
DIMENSIONS:
Type:
Model:

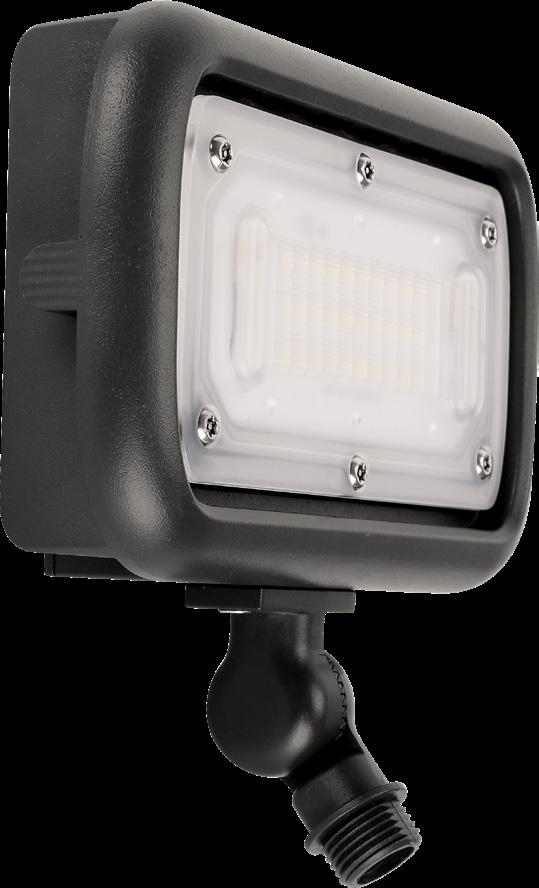

WASH LIGHT
2700K-Vintage (CMC)
The Wash Light is unparalleled in light output and uniformity. It is available in both low power and high power models, allowing you to illuminate small shrubberies or the side of a large building with a single compact fixture. The LED module has been custom designed to utilize CREE COB technology and custom optics to achieve a perfectly uniform light pattern. The whole fixture is used as a heat sink for the LED to ensure it continues lighting for years to come. These lights are available in both 2700K and 3000K.
Threaded with 1/2” NPT. Heavy-duty composite stake included. May be mounted into threaded hubs in junction boxes or mounting accessories
WIRING:
Pre-wired five-foot 18/2 SPT1 lead.
WARRANTY: Ten Years.
DIMENSIONS:
Type:
With optional 2” shroud.
With optional 4” shroud.
Model: _____________________________ 4W,
Ideal for applications such as landscape lighting, moon lighting, architectural wall washing and sign lighting. 150˚ (7H x 7V) beam. Optional shroud available.
ORDERING INFORMATION
LED LAMP SPECIFICATIONS
LAMP TYPE: Integrated LED.
OPTICS:
Integral optics providing available beam spreads 150˚ (7H x 7V) beam.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K, 3000K, 4000K or 5000K.
FIXTURE ORDERING INFORMATION
To order a fixture, select the appropriate choice from each column as in the following example:
EXAMPLE: 490684-MS
Description
4W-2700K12V
SPECIFICATION SHEET Page 2
Composite stake (incl.) 490034
ATM Aluminum Tapered Surface Mount - 490187
AGM Aluminum Gutter Mount490188
AR6 Aluminum 6-In Riser - 490181
AR12 Aluminum 12-In Gutter Mount - 490182
AR24 Aluminum 24-In Gutter Mount - 490183
BLANK
SPECIFICATION SHEET

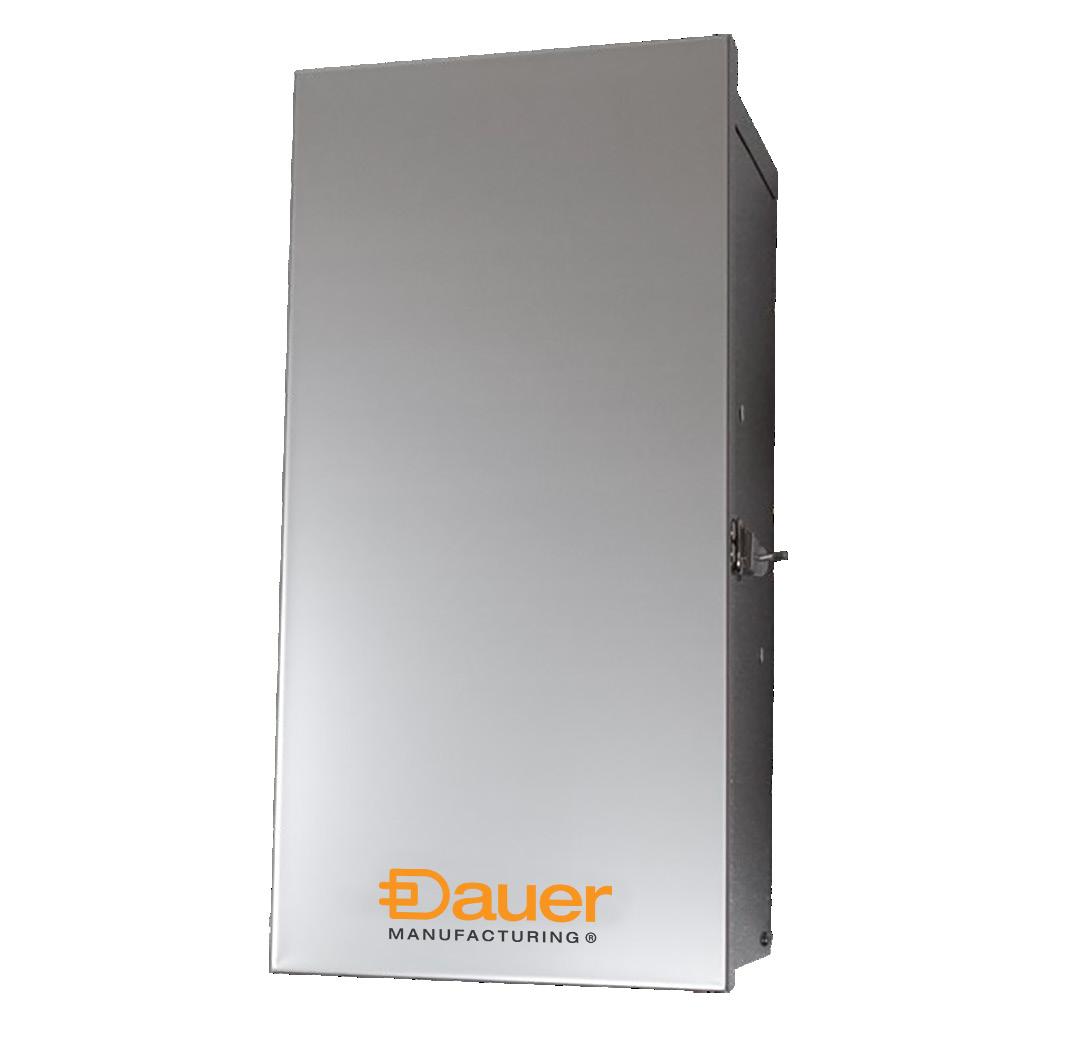

600W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490543
SPECIFICATIONS
OUTPUT:
600W, 25A per circuit (2). Taps for 12V, 14V, 16V, 18V, 20V, 22V. Two common taps.
INPUT:
120V, 60Hz, 5A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 2 25A breakers, heavy-duty grounded 5-foot power cord.
Suitable for interior or exterior use.
AGENCY LISTINGS:
ETL listed. Conforms to ANSI/UL 2101.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490543-DT200LT
Type:
Model: _____________________________
If this unit is being mounted within 25 feet of a panel box with primary breakers, it is recommended to have a designated circuit with a high in-rush current, magnetic load type breaker which is compatible with the existing brand of panel.

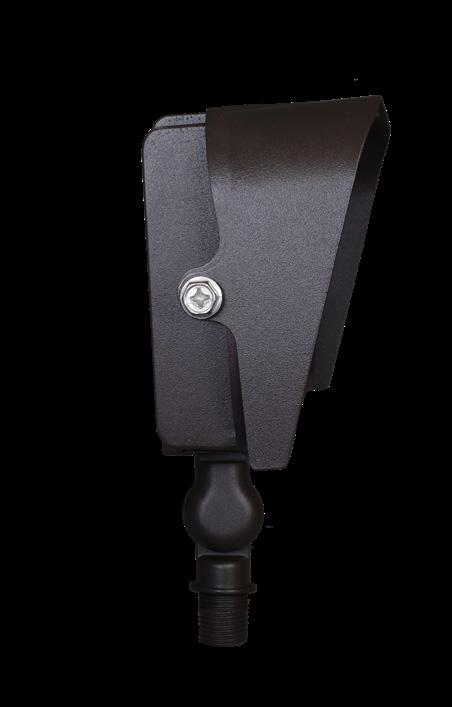

WASH LIGHT
2700K-Vintage (CMC)
The Wash Light is unparalleled in light output and uniformity. It is available in both low power and high power models, allowing you to illuminate small shrubberies or the side of a large building with a single compact fixture. The LED module has been custom designed to utilize CREE COB technology and custom optics to achieve a perfectly uniform light pattern. The whole fixture is used as a heat sink for the LED to ensure it continues lighting for years to come. These lights are available in both 2700K and 3000K.
Threaded with 1/2” NPT. Heavy-duty composite stake included. May be mounted into threaded hubs in junction boxes or mounting accessories
WIRING:
Pre-wired five-foot 18/2 SPT1 lead.
WARRANTY: Ten Years.
DIMENSIONS:
Type:
With optional 2” shroud.
With optional 4” shroud.
Model: _____________________________ 4W,
Ideal for applications such as landscape lighting, moon lighting, architectural wall washing and sign lighting. 150˚ (7H x 7V) beam. Optional shroud available.
ORDERING INFORMATION
LED LAMP SPECIFICATIONS
LAMP TYPE: Integrated LED.
OPTICS:
Integral optics providing available beam spreads 150˚ (7H x 7V) beam.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K, 3000K, 4000K or 5000K.
FIXTURE ORDERING INFORMATION
To order a fixture, select the appropriate choice from each column as in the following example:
EXAMPLE: 490684-MS
Description
4W-2700K12V
SPECIFICATION SHEET Page 2
Composite stake (incl.) 490034
ATM Aluminum Tapered Surface Mount - 490187
AGM Aluminum Gutter Mount490188
AR6 Aluminum 6-In Riser - 490181
AR12 Aluminum 12-In Gutter Mount - 490182
AR24 Aluminum 24-In Gutter Mount - 490183
BLANK

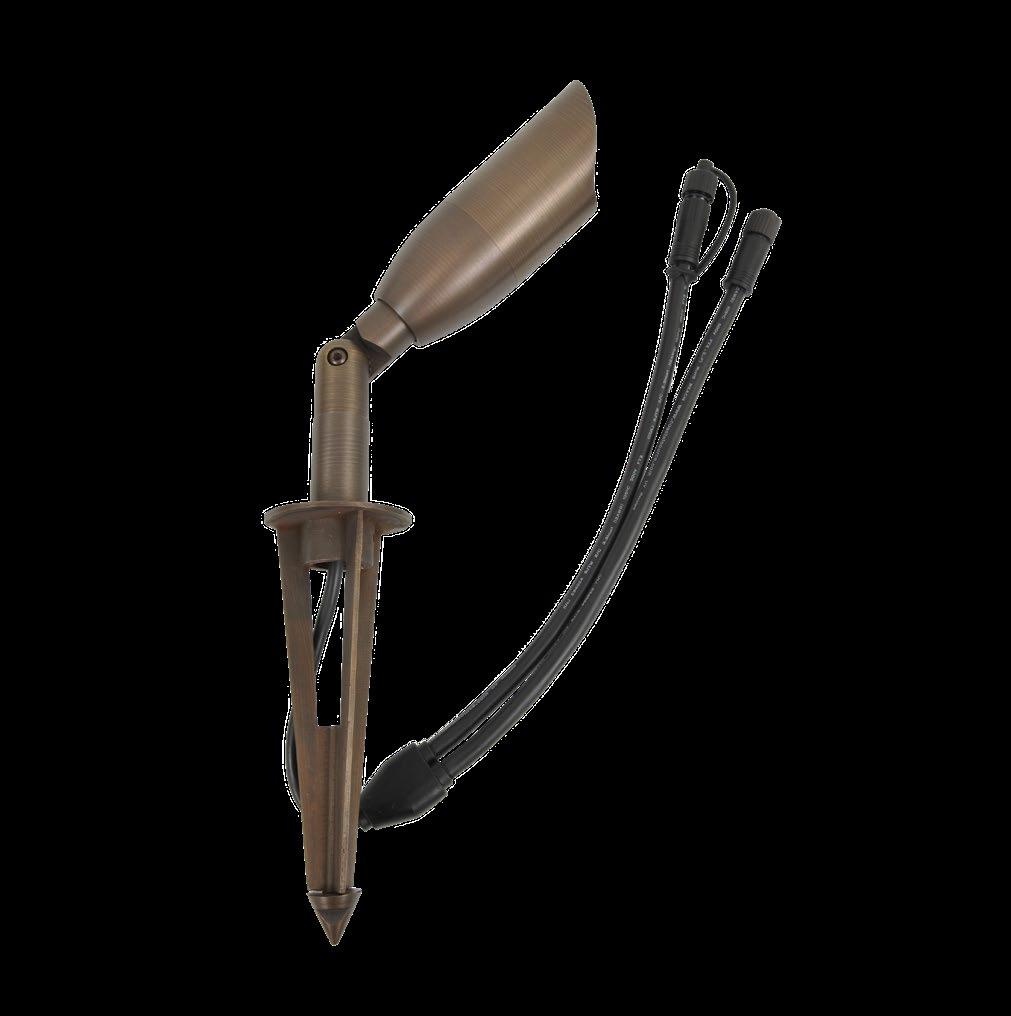

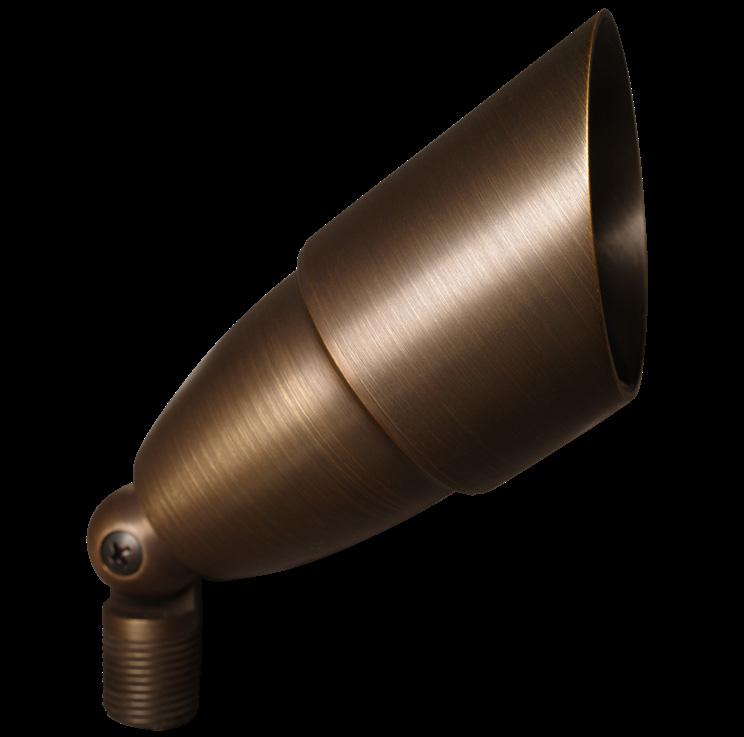

MR16 BULLET LIGHT FLEX SERIES
The MR16 Bullet Light is the ultimate bullet for uplighting. Our FLEX Bullet allows you to ‘Grow With the Garden’ by changing riser height at any time; just remove the 2” riser and add a longer one. Please remember to order the appropriate Coastal Mini-Connector (CMC) cable to compensate for the increased riser height.
MR16 BULLET SPECIFICATIONS
Size (H x W): 11.38” x 2.38” (Ø) above ground
Weight: 4.0 lbs
Construction: Solid Brass
Voltage: 7-18VAC/7-24VDC
Finish: Vintage Brass
Riser: 2”
Shroud: 360° Rotational with O-Ring Lamp: MR16 LED
Wattage: Maximum 9W G3 LED Lamp
Lens: Clear Flat Borosilicate Glass
Mounting: 8” Removable Tip Stake
Fixture Connector: CMC Male Direct Connector
Wiring: Removable 6” CMC-CC Y-Cable (included)
*Visit CoastalSource.com/warranty for warranty details.
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS:
Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.

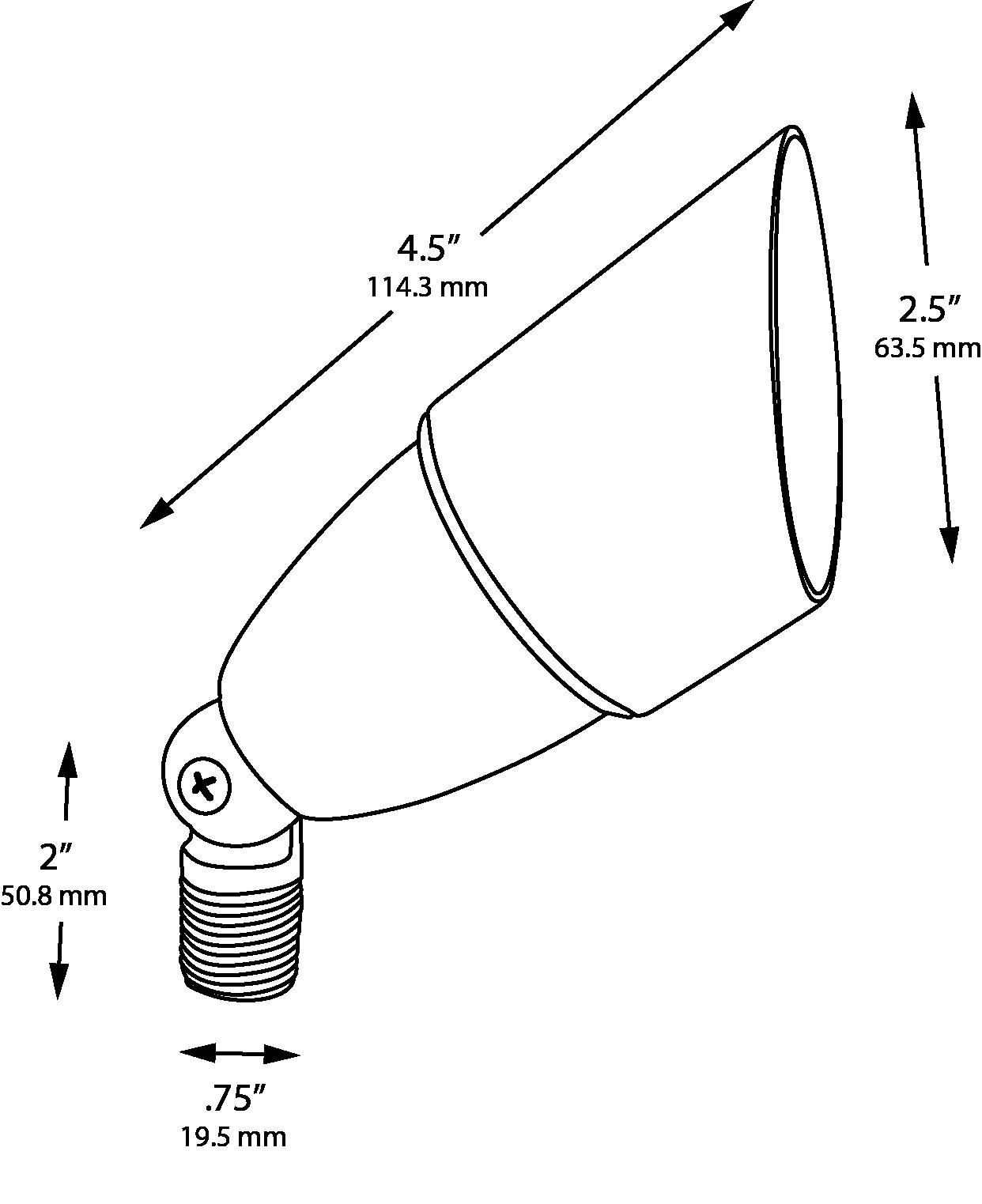

DIMENSIONS:
Type:
Model:

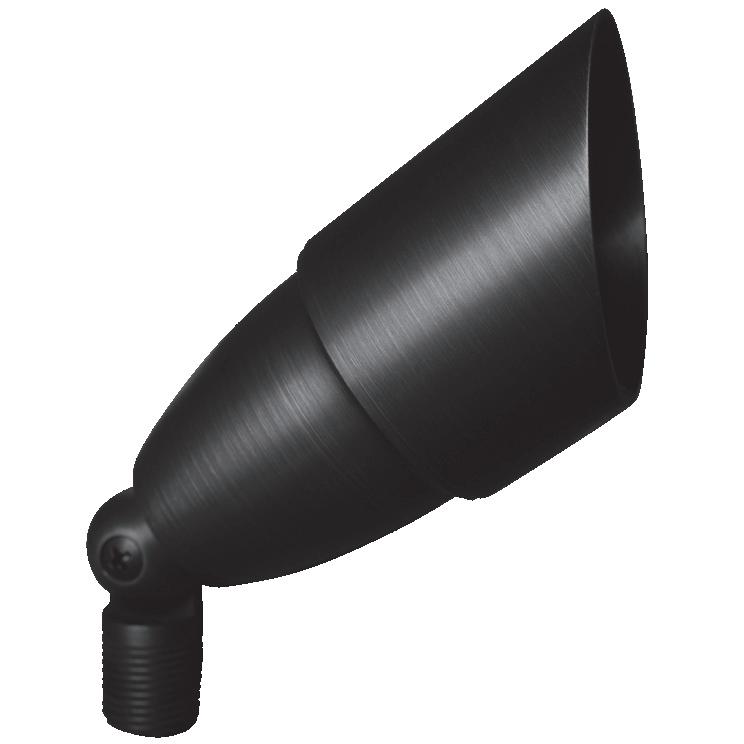

The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
ORDERING INFORMATION
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture

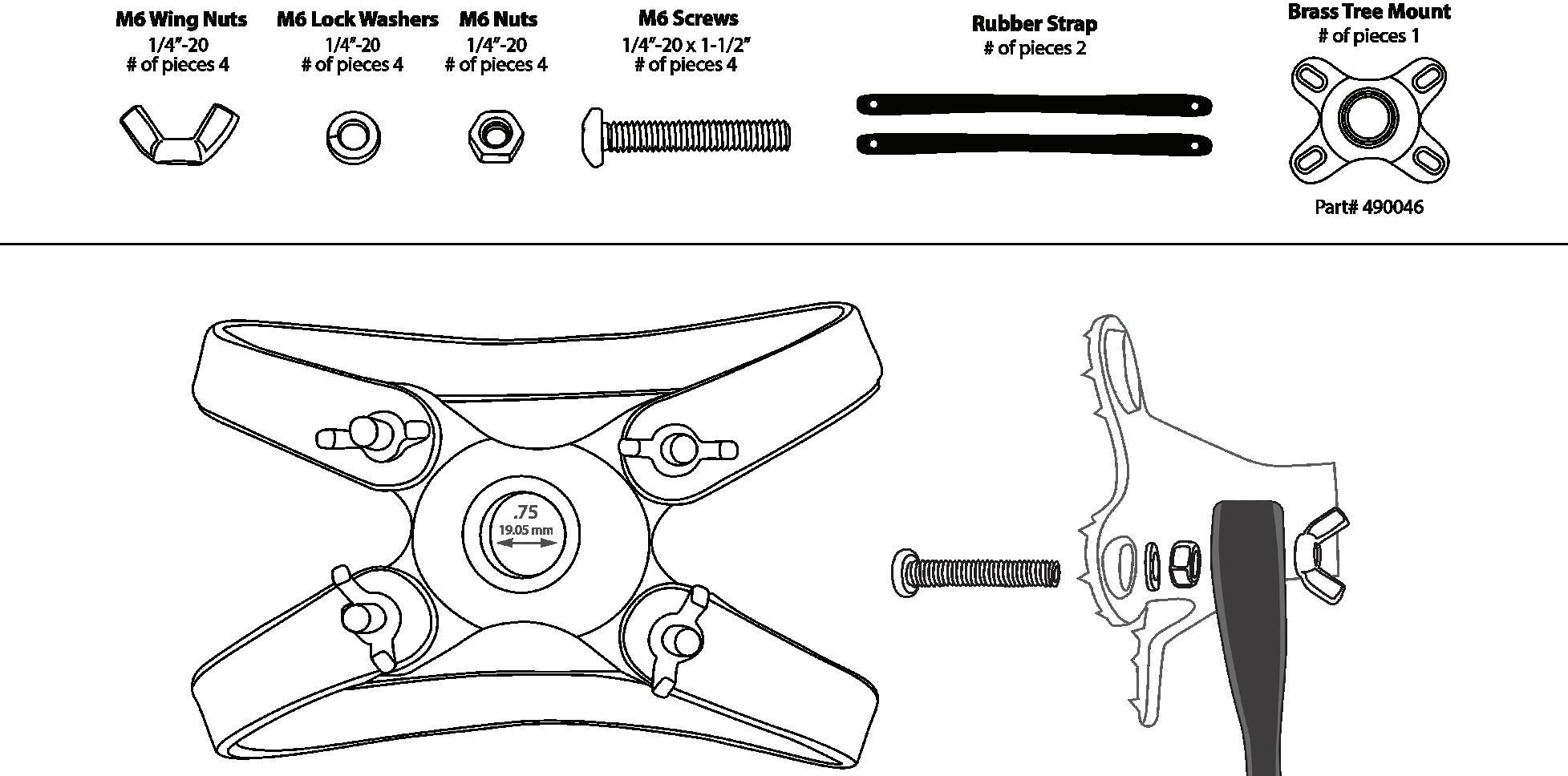

FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
600W, 25A per circuit (2). Taps for 12V, 14V, 16V, 18V, 20V, 22V. Two common taps.
INPUT:
120V, 60Hz, 5A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 2 25A breakers, heavy-duty grounded 5-foot power cord.
Suitable for interior or exterior use.
AGENCY LISTINGS:
ETL listed. Conforms to ANSI/UL 2101.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490543-DT200LT
Type:
Model: _____________________________
If this unit is being mounted within 25 feet of a panel box with primary breakers, it is recommended to have a designated circuit with a high in-rush current, magnetic load type breaker which is compatible with the existing brand of panel.
MR16 BULLET LIGHT FLEX SERIES
The MR16 Bullet Light is the ultimate bullet for uplighting. Our FLEX Bullet allows you to ‘Grow With the Garden’ by changing riser height at any time; just remove the 2” riser and add a longer one. Please remember to order the appropriate Coastal Mini-Connector (CMC) cable to compensate for the increased riser height.
MR16 BULLET SPECIFICATIONS
Size (H x W): 11.38” x 2.38” (Ø) above ground
Weight: 4.0 lbs
Construction: Solid Brass
Voltage: 7-18VAC/7-24VDC
Finish: Vintage Brass
Riser: 2”
Shroud: 360° Rotational with O-Ring Lamp: MR16 LED
Wattage: Maximum 9W G3 LED Lamp
Lens: Clear Flat Borosilicate Glass
Mounting: 8” Removable Tip Stake
Fixture Connector: CMC Male Direct Connector
Wiring: Removable 6” CMC-CC Y-Cable (included)
*Visit CoastalSource.com/warranty for warranty details.
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS:
Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
ORDERING INFORMATION
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
600W, 25A per circuit (2). Taps for 12V, 14V, 16V, 18V, 20V, 22V. Two common taps.
INPUT:
120V, 60Hz, 5A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 2 25A breakers, heavy-duty grounded 5-foot power cord.
Suitable for interior or exterior use.
AGENCY LISTINGS:
ETL listed. Conforms to ANSI/UL 2101.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490543-DT200LT
Type:
Model: _____________________________
If this unit is being mounted within 25 feet of a panel box with primary breakers, it is recommended to have a designated circuit with a high in-rush current, magnetic load type breaker which is compatible with the existing brand of panel.
MR16 BULLET LIGHT FLEX SERIES
The MR16 Bullet Light is the ultimate bullet for uplighting. Our FLEX Bullet allows you to ‘Grow With the Garden’ by changing riser height at any time; just remove the 2” riser and add a longer one. Please remember to order the appropriate Coastal Mini-Connector (CMC) cable to compensate for the increased riser height.
MR16 BULLET SPECIFICATIONS
Size (H x W): 11.38” x 2.38” (Ø) above ground
Weight: 4.0 lbs
Construction: Solid Brass
Voltage: 7-18VAC/7-24VDC
Finish: Vintage Brass
Riser: 2”
Shroud: 360° Rotational with O-Ring Lamp: MR16 LED
Wattage: Maximum 9W G3 LED Lamp
Lens: Clear Flat Borosilicate Glass
Mounting: 8” Removable Tip Stake
Fixture Connector: CMC Male Direct Connector
Wiring: Removable 6” CMC-CC Y-Cable (included)
*Visit CoastalSource.com/warranty for warranty details.
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS:
Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
ORDERING INFORMATION
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
Provide a means for securely and safely mounting the light fixture(s), while the straps allows for a way to safely secure your light fixtures without harming the tree.

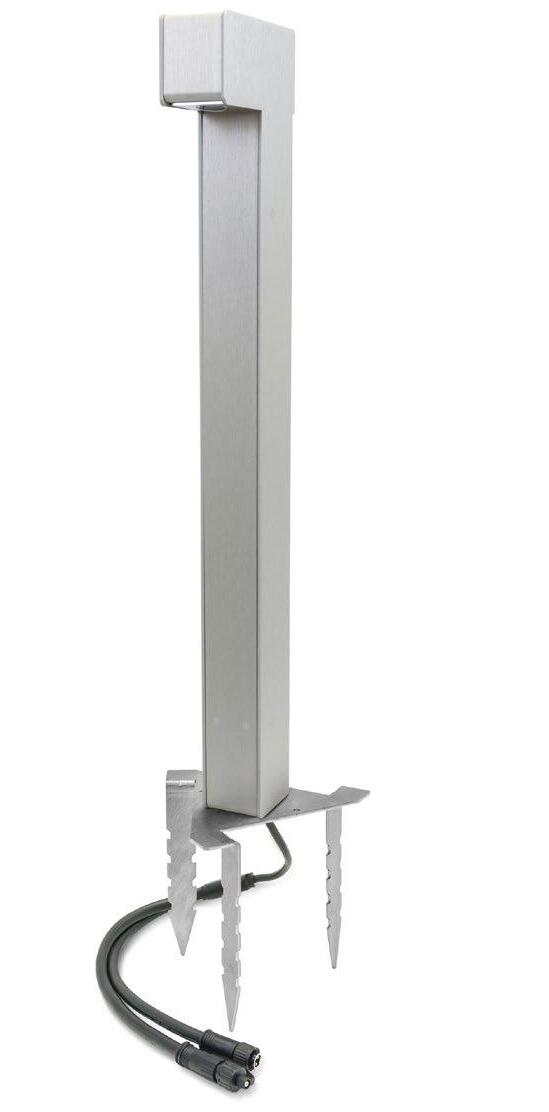

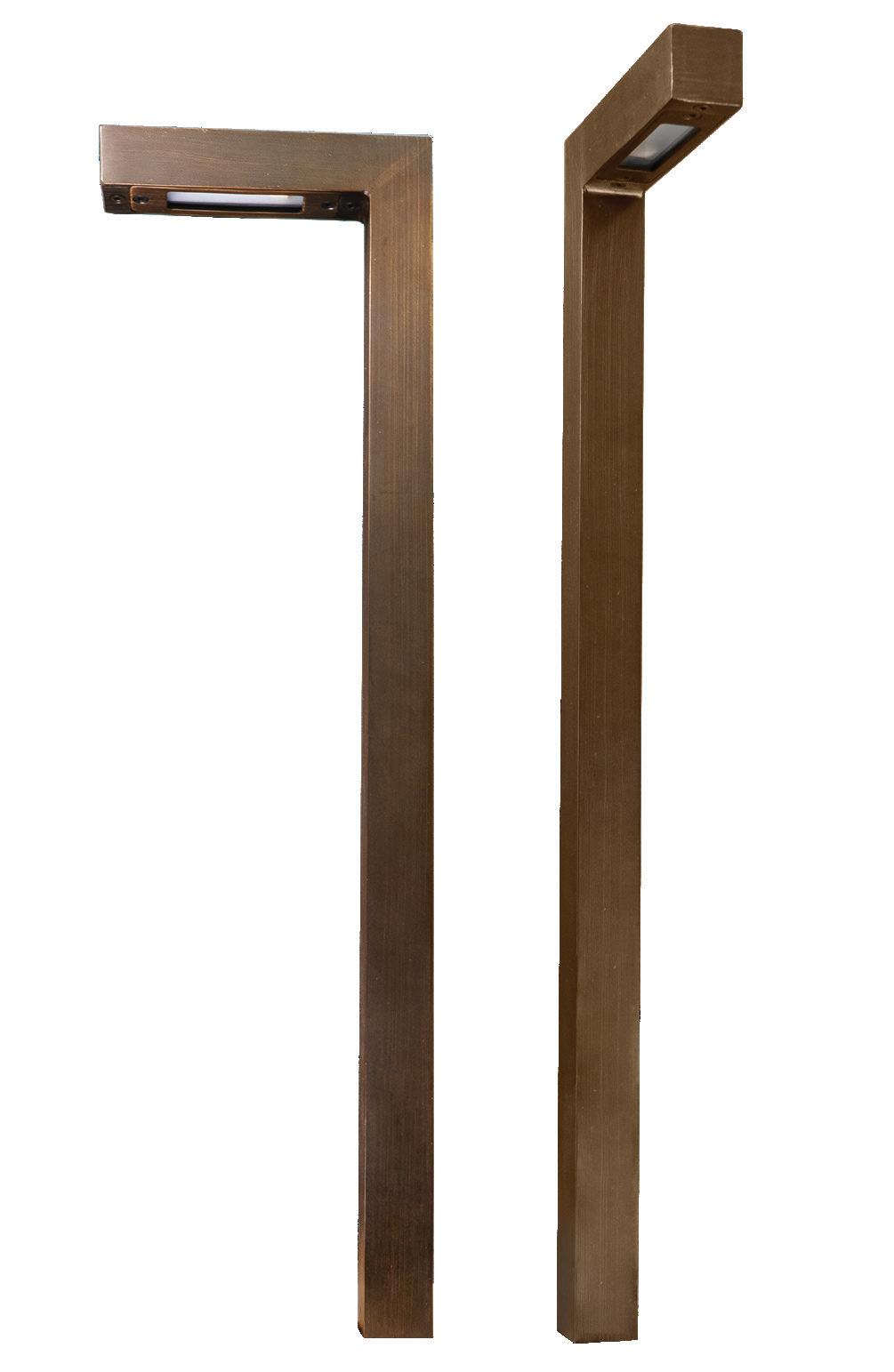

The Match L Path Light is part of our contemporary styled high performance lighting fixture line with simple, clean, and elegant lines without the typical compromises to functionality, performance flexibility, and serviceability. The Coastal Source Match Contemporary fixtures consist of three fixtures styles, but can be assembled and reconfigured into many different fixtures with many applications.
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 489871-22-2700K-MS
490036 PM Round pier mount 490057
MR Round tapered 3-hole surface mount 490048
MP PVC/Brass post stake 490037
BLANK
SPECIFICATION SHEET
600W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490543
SPECIFICATIONS
OUTPUT:
600W, 25A per circuit (2). Taps for 12V, 14V, 16V, 18V, 20V, 22V. Two common taps.
INPUT:
120V, 60Hz, 5A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 2 25A breakers, heavy-duty grounded 5-foot power cord.
Suitable for interior or exterior use.
AGENCY LISTINGS:
ETL listed. Conforms to ANSI/UL 2101.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490543-DT200LT
Type:
Model: _____________________________
If this unit is being mounted within 25 feet of a panel box with primary breakers, it is recommended to have a designated circuit with a high in-rush current, magnetic load type breaker which is compatible with the existing brand of panel.
LUMINAIRES
FIREFLY
SPECIFICATIONS
base code 672
typology Garden luminaire with omnidirectional light distribution
mounting On ground with stem. Cable length 2000 mm / 78.7”
height 1140 mm / 44.9” - 1440 mm / 56.7” - 1740 mm / 68.5”- 2040 mm / 80.3”
diameter Fixture: 20 mm / 0.8”. Stem: 6 mm / 0.2”
construction Fixture: turning and milling aluminium. Diffuser in PMMA complete with silicone gasket. Flexible stem in composite carbon fiberglass
finishes Powder coated
ingress protection IP66. North America wet location
lamp type LED on printed circuit board. Remote power supply not included
Standards: IP66, UL & cUL Listed for wet locations, Title 24 JA8-2016 Compliant
TYPE A GR SPEC HYATT CENTRIC
NLTH-41TW
4" Theia LED Downlight with Selectable CCT
Source: 10W Up to 950lm
PRODUCT DESCRIPTION
Theia LED luminaires are commercial grade downlights designed for easy installation into new construction or remodel applications. Luminaires include a selectable color temperature switch located on the junction box of each luminaire with a quick connect that allows for easy disconnect and mounting in the ceiling.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes junction box with class 2 driver Quick installation and cost savings IC Air-Tight rated cETLus Listed for Wet Locations 5-year limited warranty
SPECIFICATION
Construction: Aluminum luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2 " knockouts, two keyhole slots and snap on cover. Maximum of 6 No. 12 AWG or Maximum of 8 No. 14 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 7- 1/2 " and Junction box wire length: 10- 1/2 "]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8 " to 5/8 ". New construction frame-in or plate are available (ordered separately), not required.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
ELECTRICAL
Voltage: 120VAC (blank) or 120-277VAC (LE4), must specify
Lumens / Wattage: Up to 950lm / 10W
Color Temperature: Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
Color Rendering Index: 90+ CRI
Beam Spread: 94° Wide Flood
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac/ELV (blank) or 0-10V (LE4), must specify
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NF-R246 : Universal New Construction Frame-In
NFC-R430 : New Construction Frame-In with Collar
NFP-R413: New Construction Plate
NEPK-20LEDUNV: Emergency LED Driver with Remote Test Switch
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Wet location
Certified to the high efficacy requirements of California Title 24 JA8-2022
5-Year Limited Warranty
FCC Compliant
4" Theia LED Downlight with Selectable CCT
Finish
NLTH-41TW-HZMPW = Haze Reflector / Matte Powder White Flange
Five position sliding switch 27K / 30K / 35K / 40K / 50K
NLTH-41TW-HZMPW Haze Reflector / Matte Powder White Flange
NLTH-41TW-MPW Matte Powder White Reflector / Matte Powder White Flange
PRODUCT IMAGES AND DIMENSIONS Cut out: 4.25"
Optional Accessories
Description
NF-R246 = Universal New Construction Frame-In
NFC-R430 = New Construction Frame-In with Collar
NFP-R413 = New Construction Plate
NEPK-20LEDUNV = Emergency Battery w/Remote Test Switch
HYATT CENTRIC TYPE A GR ALT
NLTH-41TW-MPW
4" Theia LED Downlight with Selectable CCT
Source: 10W Up to 950lm
PRODUCT DESCRIPTION
Theia LED luminaires are commercial grade downlights designed for easy installation into new construction or remodel applications. Tunable white luminaires include an integral color temperature switch located on the junction box of each luminaire with a quick connect that allows for easy disconnect and mounting in the ceiling.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
· No housing required and includes junction box with class 2 driver Quick installation and cost savings IC Air-Tight rated cETLus Listed for Wet Locations 5-year limited warranty
SPECIFICATION
Construction: Aluminum luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2" knockouts, two keyhole slots and snap on cover. Maximum of 6 No. 12 AWG or Maximum of 8 No. 14 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 7-1/2" and Junction box wire length: 10-1/2"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/8". New construction frame-in or plate are available (ordered separately), not required.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
ELECTRICAL
Voltage: 120VAC (blank) or 120-277VAC (LE4), must specify
Lumens / Wattage: Up to 950lm / 10W
Color Temperature: Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
Color Rendering Index: 90+ CRI
Beam Spread: 94° Wide Flood
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac/ELV (blank) or 0-10V (LE4), must specify
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NF-R246 : Universal New Construction Frame-In
NFP-R413: New Construction Plate
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Battery operates luminaire at 20W for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Wet location
ENERGY STAR certified
Certified to the high efficacy requirements of California Title 24 JA8-2022
NEPK-20LEDUNV = 20W Emergency Battery w/Remote Test Switch
TYPE A GR SPEC HYATT CENTRIC
New Construction Frame-In with Collar
NFC-R430
New construction frame-in with collar can be used to assist installing can-less recessed downlighting.
Universal New Construction Frame-In
NF-R246
Universal new construction frame-in can be used to assist installing can-less recessed downlighting.
New Construction Plate
NFP-R413
New construction plate can be used to assist installing canless recessed downlighting.
Emergency Battery with Remote Test Switch
NEPK-20LEDUNV
120-277V Emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to for full charge.
HYATT CENTRIC
Universal New Construction Frame-In
Universal
TYPE A1 SPEC HYATT CENTRIC
4" AC Onyx Wall Wash LED Retrofit
Source: 11W LED 800lm
PRODUCT DESCRIPTION
4" AC Onyx wall wash LED retrofit downlights requires no driver and allow for a sleek design. Square trims are also compatible for use with most 4" recessed housings. Die-cast aluminum construction provides clean sharp edges.
FEATURES:
Delivering up to 800 lumens
Five color temperatures in each fixtur e (2700K / 3000K / 3500K / 4000K / 5000K)
Dimmable AC LED
Includes medium base socket adapter for easy retrofitting in 4" recessed housings
Quick connector is compatible with dedicated LED housings
5-year limited warranty
· cULus classified for indoor wet locations
SPECIFICATION
Reflector: One piece, die-cast aluminum construction dissipates heat and extends life. Unitized Thermal Management, UTM, provides exceptional cool operation.
Mounting: Two steel, spring mounting blades allow for easy and secure mounting in most 4" housings.
Optics: Nora specified and designed precision-molded lens for optimal lumen output and even distribution. The white polymer lens diffuser evenly distributes the light.
Retrofit: Onyx retrofit series includes medium base screwsocket adapter (NRA-211SM) for retrofitting into existing medium base downlight housings. GU24 socket adapter is available for use with GU24 housings, must specify NRA212SM.
NHRIC-427LMRAT* Shallow IC Air-Tight Dedicated LED
NSR-404QAT Air-Tight Line Voltage
NSRIC-404QAT IC Air-Tight Line Voltage
* Nora LED Dedicated housings are listed for use only with Nora LED Retrofits.
LABELS AND LISTINGS
cULus classified for indoor Wet Locations
5-Year Limited Warranty Meets ASTM-E283 Air-Tight requirements FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Example: NOXAC-4RWTWWW = 4" AC Onyx Round Wall Wash LED Retrofit, Selectable CCT (2700K / 3000K / 3500K / 4000K / 5000K), White Finish
Selectable CCT
021325P1 Type
HYATT CENTRIC TYPE
Source: 11W LED
PRODUCT DESCRIPTION
4" AC Onyx wall wash LED retrofit downlights requires no driver and allow for a sleek design. Square trims are also compatible for use with most 4" recessed housings. Die-cast aluminum construction provides clean sharp edges.
FEATURES:
Delivering up to 800 lumens
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
Dimm able AC LED
Includes medium base socket adapter for easy retrofitting in 4" recessed housings
Quick connector is compatible with dedicated LED housings
5-year limited warranty
· cULus classified for indoor wet locations
SPECIFICATION
Reflector: One piece, die-cast aluminum construction dissipates heat and extends life. Unitized Thermal Management, UTM, provides exceptional cool operation.
Mounting: Two steel, spring mounting blades allow for easy and secure mounting in most 4" housings.
Optics: Nora specified and designed precision-molded lens for optimal lumen output and even distribution. The white polymer lens diffuser evenly distributes the light.
Retrofit: Onyx retrofit series includes medium base screwsocket adapter (NRA-211SM) for retrofitting into existing medium base downlight housings. GU24 socket adapter is available for use with GU24 housings, must specify NRA212SM.
NHRIC-427LMRAT* Shallow IC Air-Tight Dedicated LED
NSR-404QAT Air-Tight Line Voltage
NSRIC-404QAT IC Air-Tight Line Voltage
* Nora LED Dedicated housings are listed for use only with Nora LED Retrofits.
LABELS AND LISTINGS
cULus classified for indoor Wet Locations 5-Year Limited Warranty Meets ASTM-E283 Air-Tight requirements FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
Theia LED luminaires are commercial grade downlights designed for easy installation into new construction or remodel applications. Tunable white luminaires include an integral color temperature switch located on the junction box of each luminaire with a quick connect that allows for easy disconnect and mounting in the ceiling.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
· No housing required and includes junction box with class 2 driver Quick installation and cost savings IC Air-Tight rated cETLus Listed for Wet Locations 5-year limited warranty
SPECIFICATION
Construction: Aluminum luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2" knockouts, two keyhole slots and snap on cover. Maximum of 6 No. 12 AWG or Maximum of 8 No. 14 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 7-1/2" and Junction box wire length: 10-1/2"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/8". New construction frame-in or plate are available (ordered separately), not required.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
ELECTRICAL
Voltage: 120VAC (blank) or 120-277VAC (LE4), must specify
Lumens / Wattage: Up to 950lm / 10W
Color Temperature: Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
Color Rendering Index: 90+ CRI
Beam Spread: 94° Wide Flood
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac/ELV (blank) or 0-10V (LE4), must specify
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NF-R246 : Universal New Construction Frame-In
NFP-R413: New Construction Plate
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Battery operates luminaire at 20W for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Wet location
ENERGY STAR certified
Certified to the high efficacy requirements of California Title 24 JA8-2022
NEPK-20LEDUNV = 20W Emergency Battery w/Remote Test Switch
BLANK
HYATT CENTRIC
Universal New Construction Frame-In
Universal
New
TYPE B1 GR SPEC HYATT CENTRIC
VANILLA 2016H PROFILE
2016H PROFILE
Project Name: Type:
Product Code: Date:
The Vanilla 2016H Profile is a angular 19.5mm x 12mm (0.76” x 0.47”) channel that facilitates our 6mm (0.24”), 8mm (0.31”), 10mm (0.4”) and 12mm (0.47”) LED tape. The LED tape is Eco design certified and due to this opereates for longer with better energy efficiency. The profile and tape come together to create a modern and sleek look for any interior application. IP20
PROFILE PERFORMANCE KEY DIMENSIONS
MATERIAL:
HYATT CENTRIC
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• Motion sensor read y for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainless steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lenses to meet task at hand
• Aluminum construc tion for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
USEFUL LINKS
BLANK
HYATT CENTRIC
1 PROFILE & FINISH
CA1200 - Anodized aluminum finish
CA1201 - Anodized black finish
CA1202- White
CA120X - Custom color provide RAL #
2 MOUNTING
MCF - Flat surface bracket
MC3 - 45° Corner bracket
MC8 - Swivel 180°
M3M - Double face mounting tape
MNO - No mounting
3 OPTICS
4 LUMEN PACKAGE
LP100 - 1.5 W/ft - 131 lm/ft
LP200 - 2.9 W/ft - 226 lm/ft
LP300 - 4.4 W/ft - 313 lm/ft
DRS - Prime lens
DBS - Black lens
DSS - Silens
DNO - No lens
LP450 - 5.8 W/ft - 477 lm/ft
LP750* - 7.0 W/ft - 590 lm/ft PRECISE
LE150 - 1.3 W/ft - 180 lm/ft
LE300 - 3.0 W/ft - 360 lm/ft
LE600 - 5.2 W/ft - 690 lm/f PEAK †
LK150 - 1.0 W/ft - 128 lm/ft
LK300 - 2.0 W/ft - 260 lm/ft
LK450 - 3.0 W/ft - 390 lm/ft
LK600 - 4.5 W/ft - 585 lm/ft
LK750 - 6.0 W/ft - 780 lm/ft
LK900 - 7.5 W/ft - 973 lm/ft NEAT
7 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
FC3 - DC plug, 3ft wire
FC6 - DC plug, 6ft wire
FC9 - DC plug, 9ft wire
FCX - DC plug, custom length wire
8 INPUT / OUTPUT
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WSL - Simple lead-in, side feed 1
WSR - Simple lead-in, side feed 2
WPE - Pass-through, end feed
WPB - Pass-through, back feed
WPL - Pass-through, side 1
WPR - Pass-through, side 2
9 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
LT300 - 3.0 W/ft - 305 lm/ft 5 CCT
K24 - 2400K (not available for LE150)
K27 - 2700K
K30 - 3000K
K35 - 3500K (not available for LE150)
K40 - 4000K (not available for LE150)
K50* - 5000K (LP750 only)
AID - Indoor dry locations
AIW - Indoor wet locations For wet location applications, LED strip will be put inside a waterproof silicone sheath. † AIW option is not available for this selection
*Includes end caps, excludes flanges (when applicable). length no flange flange
11 DRIVER TYPE / SENSOR
PND - Non-dimmable
P010 - 0-10V dimming
PPH - Phase (ELV / MLV) dimming
P5i1 - 5-in-1 (Phase / 0-10V) dimming
PDAL - DALI compatible driver
PDMX - DMX driver
PNO - No driver
MOTION SENSORS
PND-SI05 - 30 sec., embedded
PND-SE05 - 30 sec., external
PND-SI4 - 4 min., embedded
PND-SE4 - 4 min., external
PND-SIP - proximity motion sensor
All motion sensors can only be used with non-dimmable power supplies
- 72W / 24V
- For indoor dry applications
CGAP - Apsis
CGLA - Latus
CGNI - Nidus
CGSU - Sulcus
Item details
View on hafele.com
Toe Kick Light, Sensor-Controlled, Häfele Lighting LED 2028, 12 V
Monochrome, drill hole Ø: 40 mm (1 9/16"), matte black Item no. 833.73.111
$ 20.00 Per Piece (Piece) Suggested Retail Price
Clearance - When it's gone, it's gone!
Orientation light for living space and projects
Motion detector is active when ambient light is less than 15 lx
High-quality stainless steel cover
Trim Color/Finish Black, matte
lm/W
Drill hole Ø 1 9/16"
Dimmable no
Area of application Safety lighting in plinths of bathroom and bedroom furniture
Diffuser color/finish opal white
Dim. (Ø x H)
Date :12-Aug-2025
Item details
View on hafele.com
Toe Kick Light, Sensor-Controlled, Häfele Lighting LED 2028, 12 V
Monochrome, drill hole Ø: 40 mm (1 9/16"), matte black Item no. 833.73.111
$ 20.00 Per Piece (Piece) Suggested Retail Price
Clearance - When it's gone, it's gone!
Orientation light for living space and projects
Motion detector is active when ambient light is less than 15 lx
High-quality stainless steel cover
Trim Color/Finish Black, matte
Housing color/finish black
lm/W
Drill hole Ø 1 9/16"
Dimmable no
Area of application Safety lighting in plinths of bathroom and bedroom furniture
Diffuser color/finish opal white
Dim. (Ø x H)
Date :12-Aug-2025
Energy efficiency class
Installation
Mounting location
Installation reference
Cable length
Mounting in drilled hole
Drill hole
When using the 6-way distributor with switching function or Häfele Connect Mesh, please always connect this light with integrated switch to the 7th output port (continuous current) of the 6-way distributor.
2,000.00 mm
Version Motion detector active from ambient light of 15 lx
Degree of protection
Order reference
IP20
Please order Loox3 to Loox5 adapter (833.95.753) separately. One is required per light.
Supplied with
1 light with pre-attached 2 m (78 3/4") lead
Mounting materials
Energy efficiency
For bulbs with a luminous flux of less than 60 lumens, regulation (EU) 2019/2015 does not provide an energy efficiency classification. Additional information
Date :12-Aug-2025
HYATT CENTRIC
Energy efficiency class
Installation
Mounting location
Installation reference
Cable length
Mounting in drilled hole
Drill hole
When using the 6-way distributor with switching function or Häfele Connect Mesh, please always connect this light with integrated switch to the 7th output port (continuous current) of the 6-way distributor.
2,000.00 mm
Version Motion detector active from ambient light of 15 lx
Degree of protection
Order reference
IP20
Please order Loox3 to Loox5 adapter (833.95.753) separately. One is required per light.
Supplied with
1 light with pre-attached 2 m (78 3/4") lead
Mounting materials
Energy efficiency
For bulbs with a luminous flux of less than 60 lumens, regulation (EU) 2019/2015 does not provide an energy efficiency classification. Additional information
Date :12-Aug-2025
TYPE C SPEC HYATT CENTRIC
Wall Plug Driver, Häfele Lighting Compatible; 12V
Item details
Input voltage: 100-240 VAC
Output voltage: 12 VDC
Output current 1.00 A
Supplied with 1 wall plug driver with 1 m (39 3/8") cable with Loox socket
Technical data attributes
Information on the ecodesign regulation (EU) No. 2019/1782 (external power supplies) Cat. No. 833.02.759 833.02.769
Outpu t power 12 W 18 W
Dispo sal note
Do not dispose of the device in residential waste. Please note the country-specific regulations. Do not dispose of the device in residential waste. Please note the country-specific regulations. View on
Date :19-Aug-2025
HYATT CENTRIC
Item details
Wall Plug Driver, Häfele Lighting Compatible; 12V
Input voltage: 100-240 VAC
Output voltage: 12 VDC
Output voltage
Output current 1.00 A
Supplied with 1 wall plug driver with 1 m (39 3/8") cable with Loox socket
Technical data attributes
Information on the ecodesign regulation (EU) No. 2019/1782 (external power supplies)
Dispo
Date :19-Aug-2025
View on hafele.com

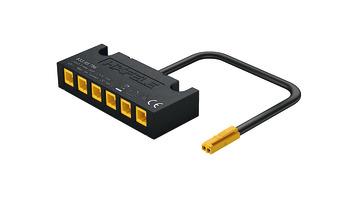

6-Way Distributor, Häfele Lighting, with Integrated Lead Cable, 12 V
60 W, 2 3/4" x 1 3/16" x 9/16"
Item no. 833.95.786
$ 14.00 Per Piece (Piece) Suggested Retail Price
Item details
The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. be connected to the driver. Observe maximum wattage!
Low voltage plug Loox5 2-pin 12 V
Input ports
Connections
Alternative output ports
1 x plug, Loox5 2-pin 12 V box to box
6 x sockets, Loox5 2-pin 12 V
1 x socket, Loox5 2-pin 12 V box to box
Power rating 60.00 W
Voltage 12.00 V
Color system monochrome or MW 2-wire-Technology
Version Without switching function
Material Plastic
Color/finish Black
Dim. (L x W x H)
70 x 30 x 14 mm
Cable length 80.00 mm
Supplied with 1 Distributor with lead
Date :19-Aug-2025
View on hafele.com
6-Way Distributor, Häfele Lighting, with Integrated Lead Cable, 12 V
60 W, 2 3/4" x 1 3/16" x 9/16"
Item no. 833.95.786
$ 14.00 Per Piece (Piece) Suggested Retail Price
Item details
The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. be connected to the driver. Observe maximum wattage!
