LineDRIVE Power Supply
24VDC Electronic Dimmable
Multi-Output Drivers Specification Sheet
PRODUCT OVERVIEW
Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.
FEATURES
• Output: Class 2, 24VDC, constant voltage
• Multi-output drivers have 2 or 3 output channels for powering several Class 2 loads from one unit
•Input: 120V / 277V
•Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming
•Minimum dimming: 1%
•Stable operation, flicker-free dimming
•Compatible with typical phase dimmers and 0-10V controls
• Integrated wiring compartments with separate line voltage and low voltage sections
• Line voltage compartment meets NEC code, up to (3) 12 AWG conductors
•Over-current, over-voltage and over-temperature protection
Driver Cut Sheets:
24VDC Universal Phase Dimming In/Outdoor
Universal Phase Dimming Indoor
0-10V Dimming Indoor/Outdoor
Voltage Drop Calculator:
DR-24VDC-OUT
BLANK
P roject Name:
MODA Contact:
S KU:
E -Mail:
Type: Quantity:
Notes:
PHYSICAL
Dimensions
L: 12 1/2in (318mm)
L: 47 3/8in (1204mm)
Weight 12in: 1.3lbs (0.6kg) 48in: 4.9lbs (2.22kg)
W: 2 13/16in (71mm)
H: 2 9/16in (65mm)
Applications Graze, Accent, & Indirect General Illumination
Construction Pure Aluminum Body, Polycarbonate Mounting
Bracket and Polycarbonate Optical Lens
Ingress Protection Wet Location IP66
Thermal Management Moda Aluminum Heat Sink
Fixture Connections Integral Male & Female Connectors
Operating Temperature -40ºF ~ 122ºF (-40ºC ~ 50ºC)
Storage Temperature -40ºF ~ 176ºF (-40ºC ~ 80ºC)
Humidity 0-95% Non Condensing
SPECIFICATIONS
LO 250 - 3521002 - 140662 - 8862 - 87
SO 339 - 4941368 - 197568 - 9972 - 104
SO+ 890 - 9513261 - 335889 - 9481 - 84
HO 1140 - 1407 4264 - 5163 114 - 141 106 - 129
HO+ 1085 - 12404300 - 4960108 - 124108 - 124
POWER CONSUMPTION
PO#:
OUTPUT
Colors 2200K*, 2700K, 3000K, 3500K, 4000K
Beam Angle 6°, 10°, 25°, 40°, 10°x40°, 30°x60°, Forward Throw Asymmetric, or 30ºx100º optic options
CRI 94-98
SDCM 2-Step MacAdam Ellipse
Color Bin Tolerance Single Bin
Lumen Maintenance 90,000 Hours L70 @ 25ºC 70,000 Hours L70 @ 50ºC
Testing Data Light Data LM-79-08 & LM-80-08
*2200K not available for SO+ or HO.
ELECTRICAL
Input Voltage 100-277V AC 50Hz/60Hz
Control Electronic Low Voltage Reverse Phase Trailing Edge
Power Factor ≥ 0.98
STANDARDS & CERTIFICATIONS
Certification
Tested to UL & CSA by Intertek For Use in USA & CANADA. Exceeds ANSI C78.377-2015, CE, CCC, C-Tick, RoHS, & WEEE Compliant.
Class 1
Warranty 3 Year Limited Warranty
BLANK
BEAM ANGLE
BLANK
A - FIXTURE & LOCATION
MGE Moda Graze Exterior
B - LIGHT OUTPUT
LO Low Output
SO Standard Output
SO+ Standard Output Plus
HO High Output
HO+ High Output Plus
C - SERIES NUMBER
S1 Series 1
D - PRODUCT FINISH S Silver
ACCESSORIES
DESCRIPTION
Leader Cable US 3 Pin 25FTPower to first fixture of run
Leader Cable US 3 Pin 50FTPower to first fixture of run
Jumper Cable US 3 Pin 1FT Connection between fixtures
Jumper Cable US 3 Pin 4FT Connection between fixtures
Terminator 3 Pin Must be fixed to last fixture for safety
Exterior Bracket Lock Holds fixture in place for vertical installation
CONTROLS
DESCRIPTION
E - FIXTURE & LOCATION
*Not available for SO+ and HO
*Available only in SO+ and HO
**Available only in LO, SO and HO+
ORDERING SKU
MLCE-US-3PIN-B-25FT
MLCE-US-3PIN-B-50FT
MJCE-US-3PIN-B-1FT
MJCE-US-3PIN-B-4FT
MTE-3PIN-B
MCGE-BL-G
PART NUMBER
MODA Bridge 1 2.0 US Allows user to convert a 0-10V dimming signal into an ELV dimming signal. North American Model MODA-BRIDGE-1-S2-S
ORDERING SKU
BLANK

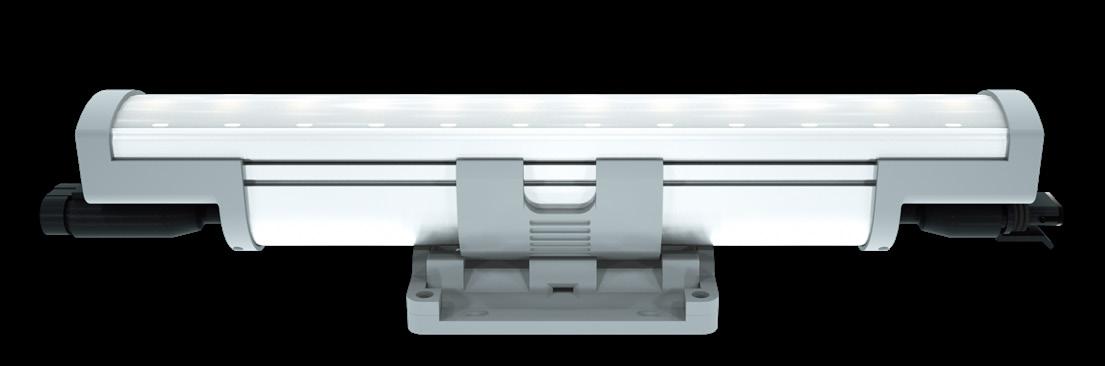

LINEAR ONE ® EXTERIOR
RELATED COMPONENTS
Cable and connectors
Feed cables and end cap (required)
Link cables (optional)
LNFC10
10’ Feed Cable
Multi-pin connector to bare wire AC + 0-10V
LNFC50
50’ Feed Cable
Multi-pin connector to bare wire AC + 0-10V
Mounting accessories
Tracks
LNMT1
1’ mounting track
Aluminum profile, screws not included
LNMT4
4’ mounting track
Aluminum profile, screws not included
Flat brackets
LNFMB
Flat Mounting Bracket
2 pcs required per fixture, factory fitted option
LNLC0
6” Link Cable
Multi-pin connector to multi-pin connector, use for curved runs
LNLC1
1’ Link Cable
Multi-pin connector to multi-pin connector
LNLC5
5’ Link Cable
Multi-pin connector to multi-pin connector
LNLC10
10’ Link Cable
Multi-pin connector to multi-pin connector
Extender bars
LNEB0.5
6” extender bar
Aluminum body, mounting screws included
LNEB1
1’ extender bar
Aluminum body, mounting screws included
LNEB2
2’ extender bar
Aluminum body, mounting screws included
LNEB3
3’ extender bar
Aluminum body, mounting screws included
Project Name:
MODA Contact:
SKU:
E-Mail:
Type: Quantity:
Notes:
PHYSICAL
Dimensions
L: 12 1/2in (318mm)
L: 47 3/8in (1204mm)
Weight 12in: 1.3lbs (0.6kg) 48in: 4.9lbs (2.22kg)
W: 2 13/16in (71mm)
H: 2 9/16in (65mm)
Applications Graze, Accent, & Indirect General Illumination
Construction Pure Aluminum Body, Polycarbonate Mounting
Bracket and Polycarbonate Optical Lens
Ingress Protection Wet Location IP66
Thermal Management Moda Aluminum Heat Sink
Fixture Connections Integral Male & Female Connectors
Operating Temperature -40ºF ~ 122ºF (-40ºC ~ 50ºC)
Storage Temperature -40ºF ~ 176ºF (-40ºC ~ 80ºC)
Humidity 0-95% Non Condensing
SPECIFICATIONS
LO 250 - 3521002 - 140662 - 8862 - 87
SO 339 - 4941368 - 197568 - 9972 - 104
SO+ 890 - 9513261 - 335889 - 9481 - 84
HO 1140 - 1407 4264 - 5163 114 - 141 106 - 129
HO+ 1085 - 12404300 - 4960108 - 124108 - 124
POWER CONSUMPTION
PO#:
OUTPUT
Colors 2200K*, 2700K, 3000K, 3500K, 4000K
Beam Angle 6°, 10°, 25°, 40°, 10°x40°, 30°x60°, Forward Throw Asymmetric, or 30ºx100º optic options
CRI 94-98
SDCM 2-Step MacAdam Ellipse
Color Bin Tolerance Single Bin
Lumen Maintenance 90,000 Hours L70 @ 25ºC 70,000 Hours L70 @ 50ºC
Testing Data Light Data LM-79-08 & LM-80-08
*2200K not available for SO+ or HO.
ELECTRICAL
Input Voltage 100-277V AC 50Hz/60Hz
Control Electronic Low Voltage Reverse Phase Trailing Edge
Power Factor ≥ 0.98
MAX CONTINUOUS RUN
STANDARDS & CERTIFICATIONS
Cer tification
Tested to UL & CSA by Intertek For Use in USA & CANADA. Exceeds ANSI C78.377-2015, CE, CCC, C-Tick, RoHS, & WEEE Compliant.
Class 1 Warranty 3 Year Limited Warranty
BLANK
BEAM ANGLE
BLANK
A - FIXTURE & LOCATION
MGE Moda Graze Exterior
B - LIGHT OUTPUT
LO Low Output
SO Standard Output
SO+ Standard Output Plus
HO High Output
HO+ High Output Plus
C - SERIES NUMBER
S1 Series 1
D - PRODUCT FINISH S Silver
ACCESSORIES
DESCRIPTION
Leader Cable US 3 Pin 25FTPower to first fixture of run
Leader Cable US 3 Pin 50FTPower to first fixture of run
Jumper Cable US 3 Pin 1FT Connection between fixtures
Jumper Cable US 3 Pin 4FT Connection between fixtures
Terminator 3 Pin Must be fixed to last fixture for safety
Exterior Bracket Lock Holds fixture in place for vertical installation
CONTROLS
DESCRIPTION
E - FIXTURE & LOCATION
*Not available for SO+ and HO
*Available only in SO+ and HO
**Available only in LO, SO and HO+
ORDERING SKU
MLCE-US-3PIN-B-25FT
MLCE-US-3PIN-B-50FT
MJCE-US-3PIN-B-1FT
MJCE-US-3PIN-B-4FT
MTE-3PIN-B
MCGE-BL-G
PART NUMBER
MODA Bridge 1 2.0 US Allows user to convert a 0-10V dimming signal into an ELV dimming signal. North American Model MODA-BRIDGE-1-S2-S
ORDERING SKU
BLANK

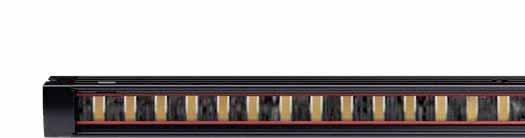

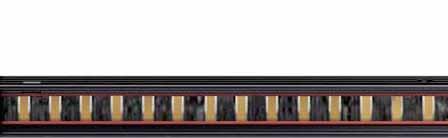

Gen3 is an architectural-grade, wet-location LED luminaire engineered for the illumination & highlighting of walls & surfaces
FEATURES ELECTRICAL SPECIFICATIONS
• Gen3 design allows for any combination of 1, 2, 3 and 4Ft LED modules to be installed for up to 10Ft from a single power feed.
• 1% low-level flicker free dimming.
• Active Thermal Management monitors LED module case temperature and discreetly dims LED module upon signs of possible overheat.
• SmartDriver technology integrated in every LED module, maintaining continuous output regardless of voltage drop, temperature or voltage fluctuations.
• Actively managed ANSI Sub-Binning to ensure accurate and consistent color matching for each LED module.
PHYSICAL
• Mil-Spec Anodized Aluminum Housing/UV Resistant Acrylic Lens.
• Weight: 12”: 0.7 lb, 18”: 0.9 lb, 24”: 1.5 lbs, 36”: 2.1 lbs, 48’’: 2.9 lbs.
• Protection Rating: IP66
• Warranty: 3 Years
PERFORMANCE
EFFICACY: 80lms/W, 7W/Ft
0 Deg. Plane 90 Deg. Plane POLAR PLOT
Input Voltage 20-30VDC, 24V nom. Use with E05PW 75W
Input Power 3W/Ft - 7W/Ft
Max. Load 10Ft @ 7W/Ft and 25Ft @ 3W/Ft
Max. Wire Distance 50 Ft from Last Light to Power Box using 16 AWG
Temperature Startup /Operating: -20°C to +40°C
Relative Humidity: 0-95% (non-condensing)
Dimming 1% via 0 - 10 VDC
Life
60,000 hours to L70
30° Beam Angle
Beam Angle
Beam Angle
EXAMPLE: V3-N-7W-35K-S-6-B-VLA-14-BB-D1
SPECIFICATION CODE BUILDER
- 5700K
i2Systems will use specification code and dimensional information below to generate a full BOM that includes all parts needed for a complete installation. To order replacement parts refer to page 2 and 3 for a full list of components part codes.
+Contact factory
Project Name:
MODA Contact:
SKU:
E-Mail:
Type: Quantity:
Notes:
PHYSICAL
Dimensions
Weight
L: 12 1/2in (318mm)
L: 47 3/8in (1204mm)
12in: 1.3lbs (0.6kg)
48in: 4.9lbs (2.22kg)
W: 2 13/16in (71mm) H: 2 9/16in (65mm)
Applications Cove, Accent, & Indirect General Illumination
Construction Pure Aluminum Body, Polycarbonate Mounting
Bracket and Polycarbonate Optical Lens
Ingress Protection Wet Location IP66
Thermal Management Moda Aluminum Heat Sink
Fixture Connections Integral Male & Female Connectors
Operating Temperature -40ºF ~ 122ºF (-40ºC ~ 50ºC)
Storage Temperature -40ºF ~ 176ºF (-40ºC ~ 80ºC)
Humidity 0-95% Non Condensing
SPECIFICATIONS
PO#:
OUTPUT
Colors 2200K*, 2700K, 3000K, 3500K, 4000K
Beam Angle 120º CRI 94-97
SDCM 2-Step MacAdam Ellipse
Color Bin Tolerance Single Bin
Lumen Maintenance 90,000 Hours L70 @ 25ºC 70,000 Hours L70 @ 50ºC
Testing Data Light Data LM-79-08 & LM-80-08
Dimming Range 100%-0% flicker-free
*2200K not available for SO+ or HO.
ELECTRICAL
Input Voltage 100-277V AC 50Hz/60Hz
Control Electronic Low Voltage Reverse Phase Trailing Edge
Power Factor ≥ 0.98
MAX CONTINUOUS RUN
POWER CONSUMPTION
STANDARDS & CERTIFICATIONS
Certification
Tested to UL & CSA by Intertek For Use in USA & CANADA. Exceeds ANSI C78.377-2015, CE, CCC, C-Tick, RoHS, & WEEE Compliant. Meets ASHRAE standards.
Class 1 Warranty 3 Year Limited Warranty
LED MODULE DIMENSIONS
Availablein5lengths“A”forindoorandoutdoorapplications:
LED MODULE PART CODES
OUTDOORLength 12.42’’, 18.42’’, 24.42’’, 36.42’’ & 48.42’’
DIMMING CONTROL POWER BOXES
LightLink ___LL-205-10V 75W Power Box*: E05PW75W *Powersupto10FtofGen3 Indoor Dimming Cable: 685-01561-100 Outdoor Dimming Cable: 685-02026-100
OPTICAL ACCESSORY
Baffle: 810-50956-XX

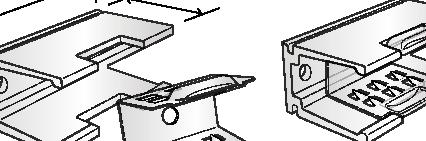

BRACKETS
Adjustable ___VLA-5
Gen3 is an architectural-grade, wet-location LED luminaire engineered for the illumination & highlighting of walls & surfaces
BRACKETS
Adjustable ___VLA-14
Fixed ___VLA-15
Adjustable Extension Mounting Clip ___VLAX2-6 ___VLAX2-12
SPECIFICATION
FIXTURE
Moda Cove Exterior Low Output Silver ELV Dimming 2200K HCRI 1FT
Moda Cove Exterior Low Output Silver ELV Dimming 2700K HCRI 1FT
Moda Cove Exterior Low Output Silver ELV Dimming 3000K HCRI 1FT
Moda Cove Exterior Low Output Silver ELV Dimming 3500K HCRI 1FT
Moda Cove Exterior Low Output Silver ELV Dimming 4000K HCRI 1FT
Moda Cove Exterior Standard Output Silver ELV Dimming 2200K HCRI 1FT
Moda Cove Exterior Standard Output Silver ELV Dimming 2700K HCRI 1FT
Moda Cove Exterior Standard Output Silver ELV Dimming 3000K HCRI 1FT
Moda Cove Exterior Standard Output Silver ELV Dimming 3500K HCRI 1FT
Moda Cove Exterior Standard Output Silver ELV Dimming 4000K HCRI 1FT
Moda Cove Exterior Standard Output Plus Silver ELV Dimming 2700K HCRI 1FT
Moda Cove Exterior Standard Output Plus Silver ELV Dimming 3000K HCRI 1FT
Moda Cove Exterior Standard Output Plus Silver ELV Dimming 3500K HCRI 1FT
Moda Cove Exterior Standard Output Plus Silver ELV Dimming 4000K HCRI 1FT
Moda Cove Exterior High Output Silver ELV Dimming 2700K HCRI 1FT
Moda Cove Exterior High Output Silver ELV Dimming 3000K HCRI 1FT
Moda Cove Exterior High Output Silver ELV Dimming 3500K HCRI 1FT
Moda Cove Exterior High Output Silver ELV Dimming 4000K HCRI 1FT
Moda Cove Exterior High Output Plus Silver ELV Dimming 2200K HCRI 1FT
Moda Cove Exterior High Output Plus Silver ELV Dimming 2700K HCRI 1FT
Moda Cove Exterior High Output Plus Silver ELV Dimming 3000K HCRI 1FT
Moda Cove Exterior High Output Plus Silver ELV Dimming 3500K HCRI 1FT
Moda Cove Exterior High Output Plus Silver ELV Dimming 4000K HCRI 1FT
Moda Cove Exterior Low Output Silver ELV Dimming 2200K HCRI 4FT
Moda Cove Exterior Low Output Silver ELV Dimming 2700K HCRI 4FT
Moda Cove Exterior Low Output Silver ELV Dimming 3000K HCRI 4FT
Moda Cove Exterior Low Output Silver ELV Dimming 3500K HCRI 4FT
Moda Cove Exterior Low Output Silver ELV Dimming 4000K HCRI 4FT
Moda Cove Exterior Standard Output Silver ELV Dimming 2200K HCRI 4FT
Moda Cove Exterior Standard Output Silver ELV Dimming 2700K HCRI 4FT
Moda Cove Exterior Standard Output Silver ELV Dimming 3000K HCRI 4FT
Moda Cove Exterior Standard Output Silver ELV Dimming 3500K HCRI 4FT
Moda Cove Exterior Standard Output Silver ELV Dimming 4000K HCRI 4FT
Moda Cove Exterior Standard Output Plus Silver ELV Dimming 2700K HCRI 4FT
Moda Cove Exterior Standard Output Plus Silver ELV Dimming 3000K HCRI 4FT
Moda Cove Exterior Standard Output Plus Silver ELV Dimming 3500K HCRI 4FT
Moda Cove Exterior Standard Output Plus Silver ELV Dimming 4000K HCRI 4FT
ORDERING SKU
MCE-LO-S1-S-22H-1
MCE-LO-S1-S-27H-1
MCE-LO-S1-S-3H-1
MCE-LO-S1-S-35H-1
MCE-LO-S1-S-4H-1
MCE-SO-S1-S-22H-1
MCE-SO-S1-S-27H-1
MCE-SO-S1-S-3H-1
MCE-SO-S1-S-35H-1
MCE-SO-S1-S-4H-1
MCE-SOP-S1-S-27H-1
MCE-SOP-S1-S-3H-1
MCE-SOP-S1-S-35H-1
MCE-SOP-S1-S-4H-1
MCE-HO-S1-S-27H-1
MCE-HO-S1-S-3H-1
MCE-HO-S1-S-35H-1
MCE-HO-S1-S-4H-1
MCE-HOP-S1-S-22H-1
MCE-HOP-S1-S-27H-1
MCE-HOP-S1-S-3H-1
MCE-HOP-S1-S-35H-1
MCE-HOP-S1-S-4H-1
MCE-LO-S1-S-22H-4
MCE-LO-S1-S-27H-4
MCE-LO-S1-S-3H-4
MCE-LO-S1-S-35H-4
MCE-LO-S1-S-4H-4
MCE-SO-S1-S-22H-4
MCE-SO-S1-S-27H-4
MCE-SO-S1-S-3H-4
MCE-SO-S1-S-35H-4
MCE-SO-S1-S-4H-4
MCE-SOP-S1-S-27H-4
MCE-SOP-S1-S-3H-4
MCE-SOP-S1-S-35H-4
MCE-SOP-S1-S-4H-4
BLANK
SPECIFICATION
Moda Cove Exterior High Output Silver ELV Dimming 2700K HCRI 4FT
Moda Cove Exterior High Output Silver ELV Dimming 3000K HCRI 4FT
Moda Cove Exterior High Output Silver ELV Dimming 3500K HCRI 4FT
Moda Cove Exterior High Output Silver ELV Dimming 4000K HCRI 4FT
Moda Cove Exterior High Output Plus Silver ELV Dimming 2200K HCRI 4FT
Moda Cove Exterior High Output Plus Silver ELV Dimming 2700K HCRI 4FT
Moda Cove Exterior High Output Plus Silver ELV Dimming 3000K HCRI 4FT
Moda Cove Exterior High Output Plus Silver ELV Dimming 3500K HCRI 4FT
Moda Cove Exterior High Output Plus Silver ELV Dimming 4000K HCRI 4FT
ACCESSORIES
DESCRIPTION
Leader Cable US 3 Pin 25FT Power to first fixture of run
Leader Cable US 3 Pin 50FT Power to first fixture of run
Jumper Cable US 3 Pin 1FT Connection between fixtures
Jumper Cable US 3 Pin 4FT Connection between fixtures
Terminator 3 Pin Must be fixed to last fixture for safety
Exterior Bracket Lock Holds fixture in place for vertical installation
CONTROLS
MODA Bridge 1 2.0 US
DESCRIPTION
Allows user to convert a 0-10V dimming signal into an ELV dimming signal. North American Model
PART NUMBER
ORDERING
MCE-HO-S1-S-27H-4
MCE-HO-S1-S-3H-4
MCE-HO-S1-S-35H-4
MCE-HO-S1-S-4H-4
MCE-HOP-S1-S-22H-4
MCE-HOP-S1-S-27H-4
MCE-HOP-S1-S-3H-4
MCE-HOP-S1-S-35H-4
MCE-HOP-S1-S-4H-4
ORDERING SKU
MLCE-US-3PIN-B-25FT
MLCE-US-3PIN-B-50FT
MJCE-US-3PIN-B-1FT
MJCE-US-3PIN-B-4FT
MTE-3PIN-B
MCGE-BL-G
MODA-BRIDGE-1-S2-S
ORDERING SKU
250-0000
